1
Welcome to FreeSpeak
Enjoy safe and secure mobile communications. With FreeSpeak, talk
anywhere. Work, play, exercise, even drive.
Experience complete freedom—everywhere!
English .............. 1
Francais ............17
Deutsch ............18
Italiano .............19
Nederlands.......20
Expanol ............21
Danish..............22
Finnish .............23
Swedisch ..........24
Safety summary here
2
Safety Information

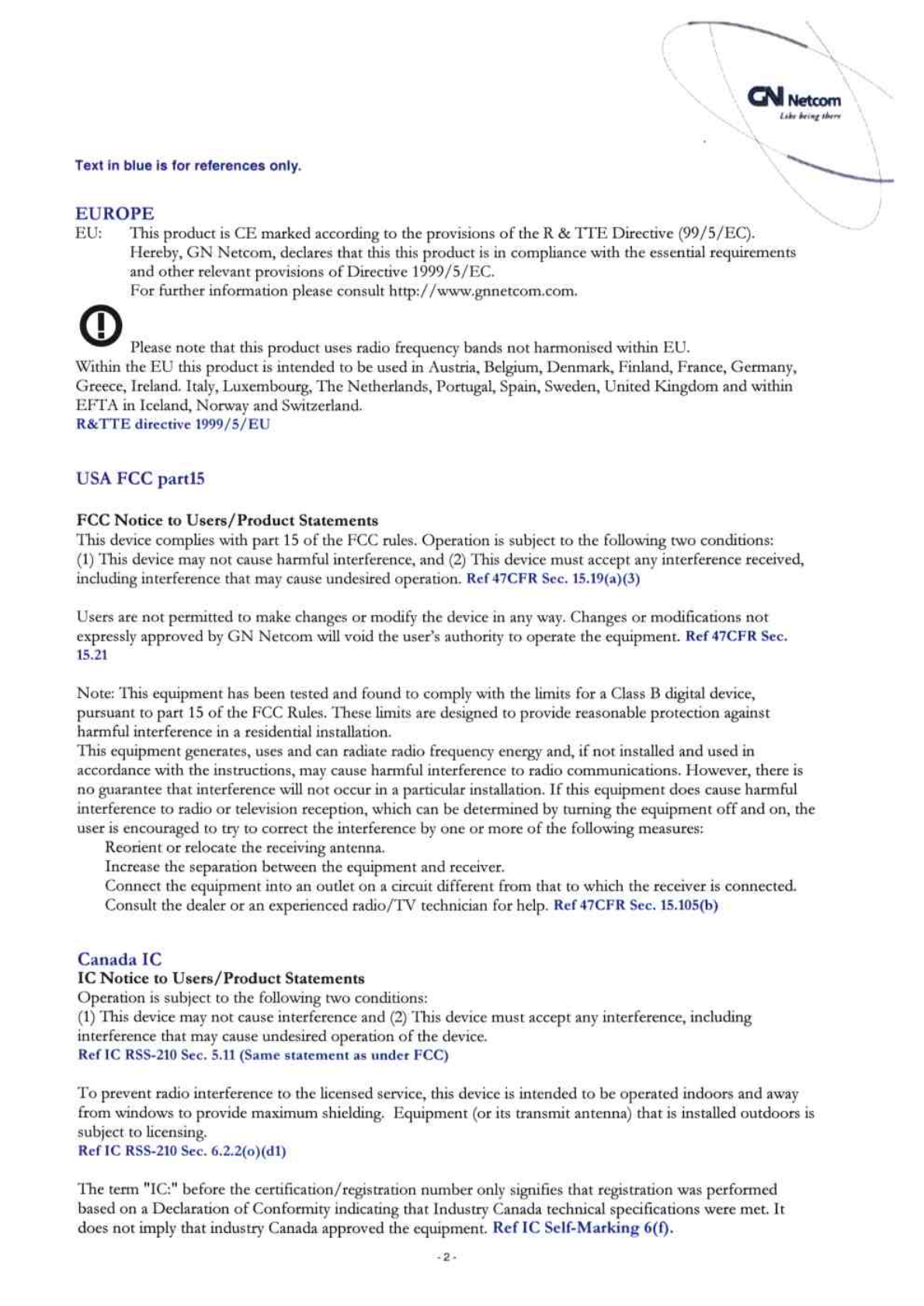

uFCC Notice
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
u This device may not cause harmful interference.
v This device must accept any interference received,
including interference that may cause undesired operation.
Table of Contents
Welcome to FreeSpeak ...................................................2
FCC Notice ....................................................................2
Safety Information.........................................................2
What’s in this Package? .................................................4
What is FreeSpeak? .......................................................5
FreeSpeak Features and Specifications ..........................6
Using FreeSpeak with a Mobile Phone ...........................7
Using FreeSpeak with non-Bluetooth Phones .............12
Keeping FreeSpeak Operational ..................................13
Storing FreeSpeak ........................................................14
If You Need Help .........................................................15
3
q
What’s in this Package?
Your product package includes everything you need to start using
FreeSpeak right away. Inside, you’ll find the following items:

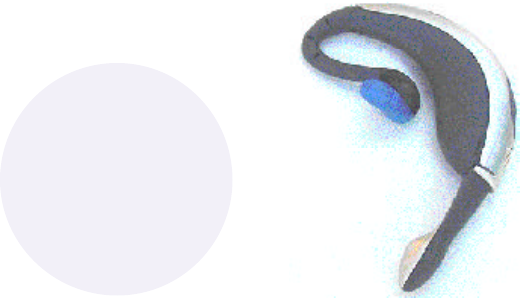

• One JABRA FreeSpeak headset with custom ear gels for your ears
• One adapter unit that is also a charger and holder
• Cable to connect the adapter unit to non-Bluetooth phones
• The FreeSpeak User Guide
4
FreeSpeak is a Bluetooth− enabled headset for your mobile phone. It
fits over your left or right ear and connects to your phone without a
cable. The physical connection from FreeSpeak to your phone is radio
waves.
Bluetooth technology enables wireless connections. Devices interconnect
using radio waves. Bluetooth devices operate in the 2.4 GHz spectrum—
the same spectrum at which the microwave in your home operates.
Stay in touch. Listen and talk on the phone using FreeSpeak wherever
you are. While:
• Driving, rest the phone on the passenger seat and keep your focus on
driving.
• Working, keep the phone out of the way. Leave it in your briefcase or
desk draw.
• Exercising, place the phone someplace nearby while sweating it out.
What is FreeSpeak?
5
FreeSpeak Features
Max. distance from phone ............30 ft.
Weight...................................... .8 oz or 23g
Battery (Lithium polymer):
Talk time ..................................3 hours
Standby ................................. 96 hours
Charge time ................... 1 to 2 hours
Operationing environment .....................
6
uSpecifications
Using FreeSpeak with a Mobile Phone
Fast Start
To get started right away, perform these steps:
1Charge the headset.
2Pair FreeSpeak to the phone.
3Place FreeSpeak over your left or right ear.
4Adjust speaker volume.
5Make the call.
7
FreeSpeak works with all Bluetooth-enabled phones. For the latest
information regarding supported phones, access the Jabra web site at
www.jabra.com.
If you don’t have a Bluetooth-enabled phone, you can still use
FreeSpeak. You will need to connect the adapter unit to the mobile
phone before using the headset. For details, see Using FreeSpeak with
non-Bluetooth Phones.
y
8
Charging the Battery
The first time you use FreeSpeak, you need to charge the battery. A full
charge takes up to two hours. After you charge the battery, pair the
headset with the phone, and then engage in conversations.
To charge the battery
1Place the headset in the adapter unit.
2Connect the adapter unit to your AC
connector.
3Plug the AC connector to the wall.
Adapter unit also functions
as a charger and holder
Note: The built-in lifetime battery is not
replaceable. If you experience
problems with the battery, return
FreeSpeak to the place of purchase.
Pairing the headset with the mobile phone enables the phone to identify
the headset as a device with which to communicate wirelessly. You need
to individually pair the headset with all mobile phones you plan to use.
Use the headset with one phone at a time. The pairing code assigned to
your phone is fixed at 0000. The combination of unique idenfication
assigned to the phone, along with the pairing code, secures your phone
conversations.
9
Pairing FreeSpeak with a Mobile Phone
To pair the headset
1Make sure the phone is ON/OFF?
2Press and hold WHAT BUTTON ON THE PHONE? for
10 seconds.
3Observe the following action on the headset’s LED:
• The LED will glow steadily and then flash Off and then On.
4On the mobile phone, DO WHAT?
Would be nice to
show a picture of
the the GUI here
10
Wearing FreeSpeak
FreeSpeak fits on either ear. Simply rotate the ear gel to fit into your left
or right ear.
To wear the headset
1Hold the headset in your right
or left hand.
2Place it over and behind the ear as
shown in the illustration.
3Make any fine adjustments.
Wear FreeSpeak on the
left or right ear
Rotate the ear gel to fit the
way you want
Note: You can change the ear gel by removing and
replacing it with the new gel. Your package
includes three ear gels. The notch on the ear gel
and on the ear piece indicates proper alignment.
11
Use your mobile phone as usual. If your phone supports voice-
activated dialing and voice recognition, FreeSpeak initiates calls when
you speak into the microphone.
Making the Call
To make calls using the headset
1Speak the information into the headset’s microphone.
2Engage in conversations as usual.
To end a call
1Use your phone’s features for ending a call.
2DO THEY TURN OFF FREESPEAK?
Using FreeSpeak with Non-Bluetooth Phones
Use FreeSpeak with non-Bluetooth mobile phones. Your FreeSpeak
package includes an additional adapter to fit your phone—allowing it to
become Bluetooth-aware.
Once you connect the special adapter to your
phone, and then connect the phone to the headset’s
adapter unit, you are ready to use the headset as
described earlier.
Connects to special
adapter for your phone
To use the headset with non-Bluetooth phones
1Connect the cable from the FreeSpeak adapter
unit to the special adapter for your phone.
2Connect the special adapter to your phone.
3Use the headset as usual.
12
Keeping FreeSpeak Operational
FreeSpeak is very easy to use and even easier to maintain. There’s very
little you need to do to keep the headset maintenance free. All
components are built according to best practices, and no component is
user-replaceable.
To keep the headset working consistently, follow these general
guidelines:
1Keep the headset away from water. If you need to clean it, use a
clean, damp cloth.
2Turn the headset off when not in use to preserve the battery’s life.
3Charge the battery after each long periods of use.
4Handle the headset with care. Although it is designed for durability,
exercise care in handling.
5ANYTHING ELSE?
13
Storing FreeSpeak
The adapter unit also functions as charger and holder. When you are not
using the headset, place it in the adapter unit. For details
on charging, see Charging the Battery.
To store the headset
1Place the headset in the adapter unit.
2Slide it into place until it locks.
Note: The adapter unit comes with a clip
that allows it to be worn on a belt or
waistband.
Adapter unit
14
If You Need Help
Help for your product is available when you need it. Use any of the
following support systems when you need help or require additional
information:
Sales: Phone:
Hours of operation:
Customer Support: Phone:
Hours of operation:
Web Site: www.jabra.com
General Information: Phone:
Hours of operation:
