GOLD FINGERS TECHNOLOGY BTS22C Bluetooth Speaker User Manual BTS22Instructions

GOLD FINGERS TECHNOLOGY CO.,LTD Bluetooth Speaker BTS22Instructions

User Manual

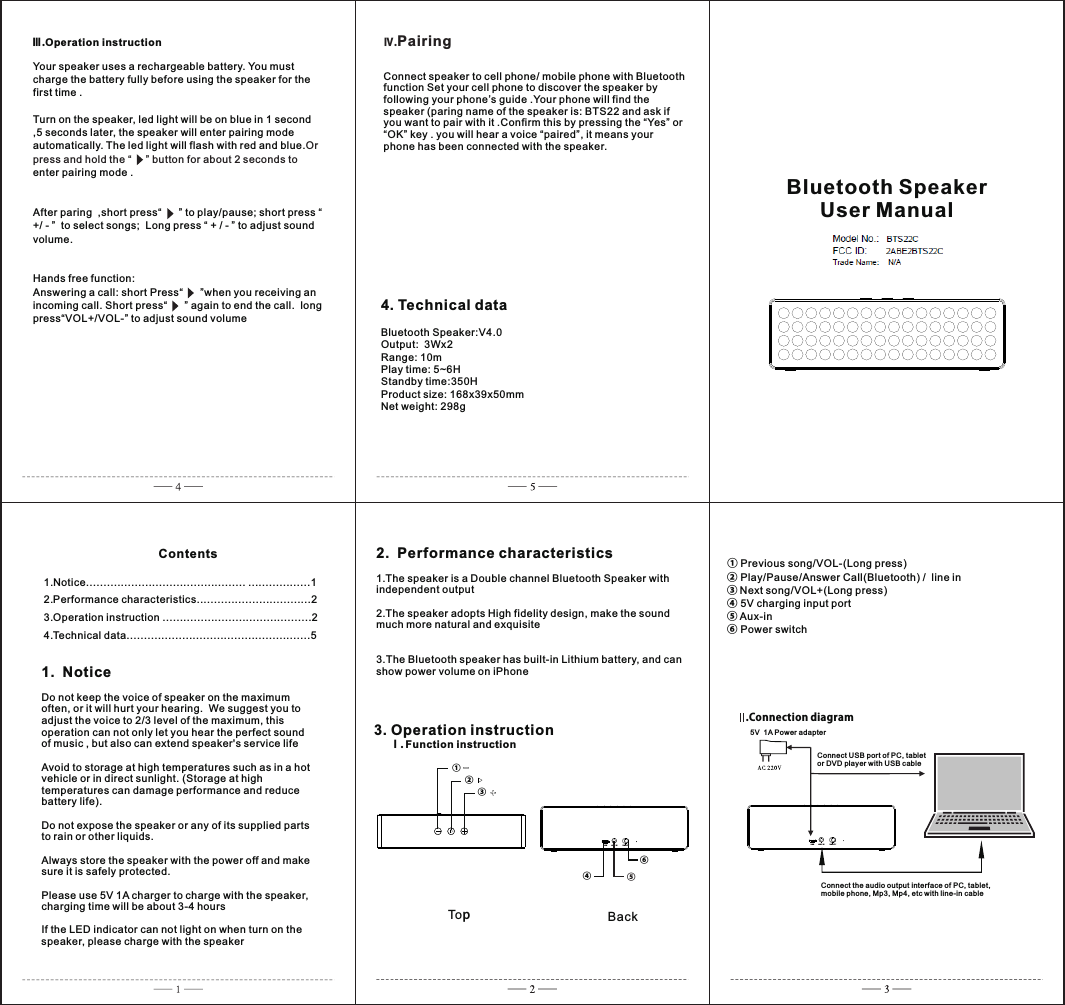

1.Notice.............................................. ..................12.Performance characteristics.................................23.Operation instruction ...........................................24.Technical data.....................................................5 Contents1. NoticeDo not keep the voice of speaker on the maximum often, or it will hurt your hearing. We suggest you to adjust the voice to 2/3 level of the maximum, this operation can not only let you hear the perfect sound of music , but also can extend speaker's service lifeAvoid to storage at high temperatures such as in a hot vehicle or in direct sunlight. (Storage at high temperatures can damage performance and reduce battery life).Do not expose the speaker or any of its supplied parts to rain or other liquids.Always store the speaker with the power off and make sure it is safely protected.Please use 5V 1A charger to charge with the speaker, charging time will be about 3-4 hoursIf the LED indicator can not light on when turn on the speaker, please charge with the speaker2. Performance characteristics1.The speaker is a Double channel Bluetooth Speaker with independent output 2.The speaker adopts High fidelity design, make the sound much more natural and exquisite3.The Bluetooth speaker has built-in Lithium battery, and can show power volume on iPhone 3. Operation instruction Ⅰ. Function instruction ① Previous song/VOL-(Long press) ② Play/Pause/Answer Call(Bluetooth) / line in③ Next song/VOL+(Long press) ④ 5V charging input port ⑤ Aux-in ⑥ Power switch Ⅲ.Operation instructionConnect speaker to cell phone/ mobile phone with Bluetooth function Set your cell phone to discover the speaker by following your phone’s guide .Your phone will find the speaker (paring name of the speaker is: BTS22 and ask if you want to pair with it .Confirm this by pressing the “Yes” or “OK” key . you will hear a voice “paired”, it means your phone has been connected with the speaker.4. Technical dataBluetooth Speaker:V4.0 Output: 3Wx2Range: 10mPlay time: 5~6HStandby time:350H Product size: 168x39x50mm Net weight: 298gⅣ.PairingYour speaker uses a rechargeable battery. You must charge the battery fully before using the speaker for the first time .Turn on the speaker, led light will be on blue in 1 second ,5 seconds later, the speaker will enter pairing mode automatically. The led light will flash with red and blue.enter pairing mode .After paring ,short press“ ” to play/pause; short press “ +/ - ” to select songs; Long press “ + / - ” to adjust sound volume.Hands free function: Answering a call: short Press“ ”when you receiving an incoming call. Short press“ ” again to end the call. long press“VOL+/VOL-” to adjust sound volumeOr press and hold the “ ” button for about 2 seconds to BTS22Bluetooth SpeakerUser Manual5V 1A Powe r ada pterConne ct US B port of PC, tabl et or DVD pl aye r with USB ca ble Conne ct th e audio out put i nterface of PC , tablet, mobil e phone, Mp3, Mp 4, et c with line-in c able.Connection diagramTopBack①②③ ④⑤ ⑥

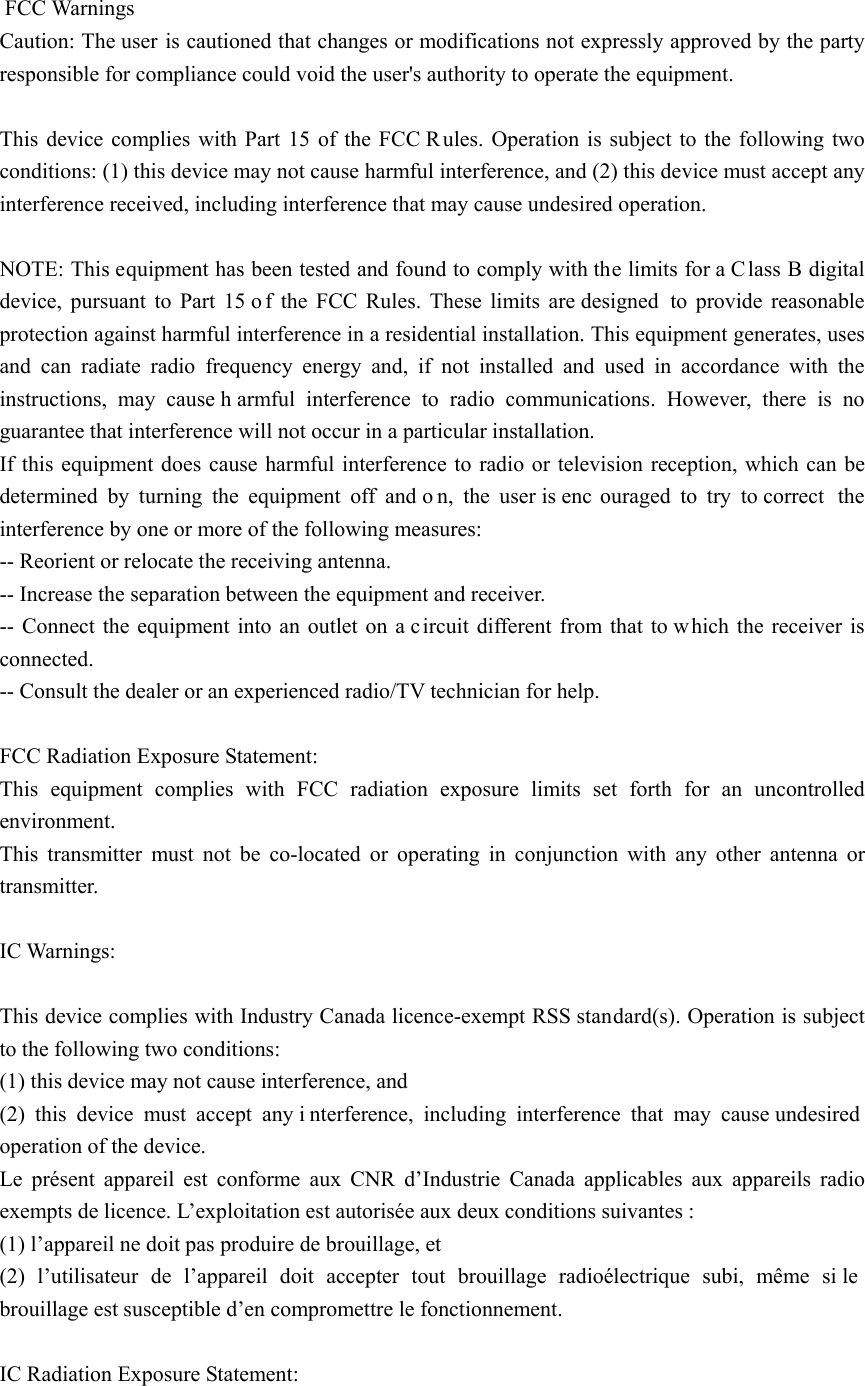

FCC Warnings Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a C lass B digital device, pursuant to Part 15 o f the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause h armful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and o n, the user is enc ouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to w hich the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IC Warnings: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any i nterference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Radiation Exposure Statement:

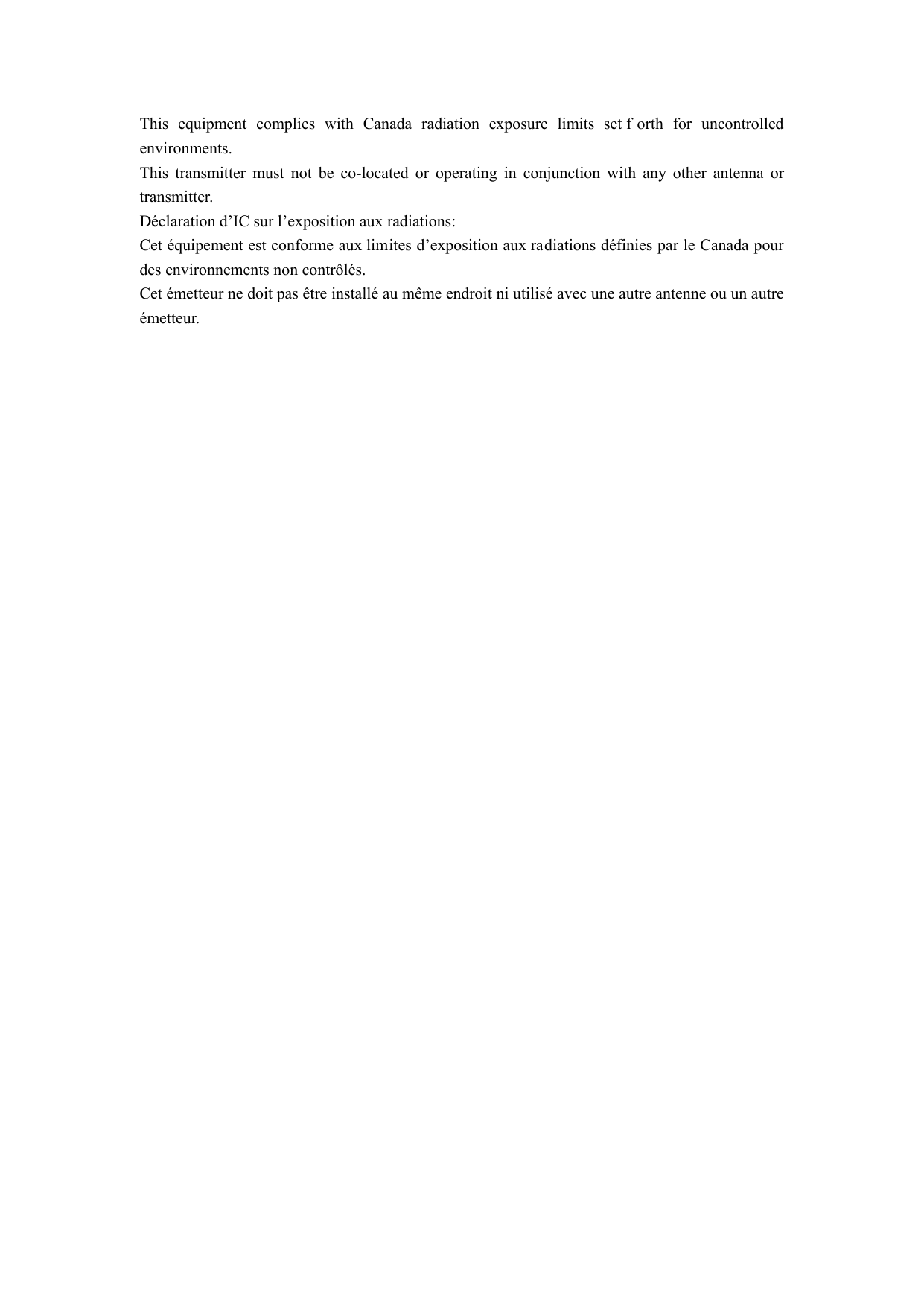

This equipment complies with Canada radiation exposure limits set f orth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.
