Installation and Owner's Manual MOBILE AUDIO SYSTEM JWM60A

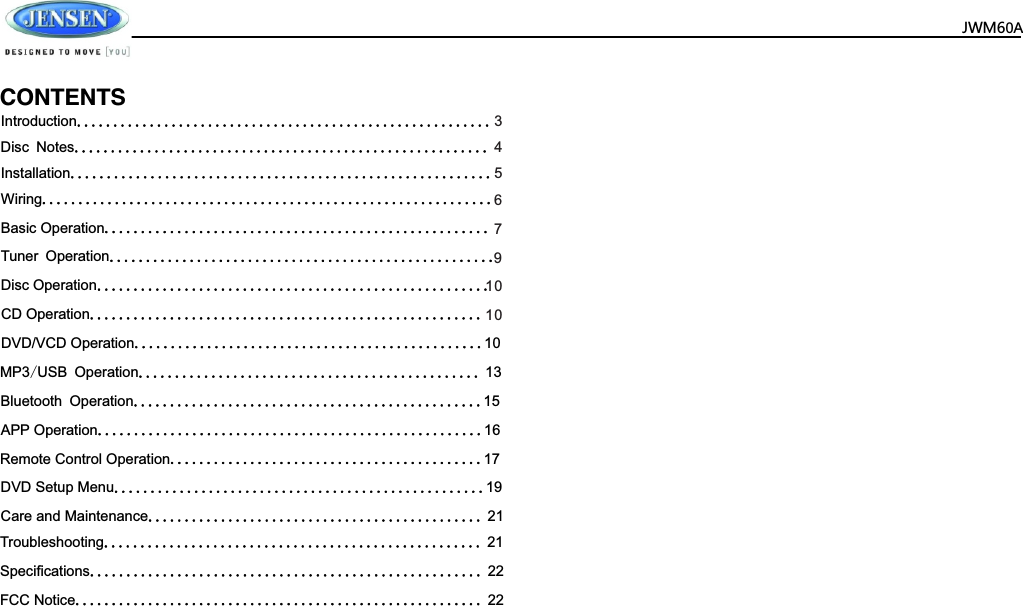

JWM60A CD Operation......................................................DVD/VCD Operation 10................................................Bluetooth Operation 15................................................DVD Setup Menu 19...................................................APP Operation 16.....................................................Care and Maintenance 21.............................................. MP3/USB Operation 13...............................................Remote Control Operation 17...........................................Troubleshooting 21....................................................Specifications 22......................................................FCC Notice 22........................................................ Introduction.........................................................Disc Notes......................................................... 43Installation..........................................................5Wiring..............................................................6Basic Operation..................................................... 7Tuner Operation.....................................................9Disc Operation......................................................1010CONTENTS
JWM60A INTRODUCTIONThank You!FeaturesPacking List Precautions Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen receiver for maximum enjoyment.ŸDigital AM/FM Tuner/30 Preset stations (12 AM/18 FM)ŸBluetooth Ready with A2DP/AVRCP Streaming AudioŸAPP ReadyŸElectronic Bass, Treble, Balance and Fader ControlsŸSkip Protected Disc MechanismŸDVD/CD-R/RW and MP3 CompatibleŸTime/Alarm ClockŸLCD Backlight ControlŸ1/8" Front Auxiliary Audio/Video InputŸRear Audio RCA Inputs/OutputsŸUSB Playback of MP3/WMA FilesŸ3 Zone / 8 Speaker OutputŸWireless Remote Control IncludedŸUse the Proper Power Supply.This product is designed to operate with a 12 volt DC, negative ground battery system(the standard system in a North American vehicle).ŸProtect the Disc Mechanism.Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.ŸUse Authorized Service Centers.Do not attempt to disassemble or adjust this precision product; contact a professional for assistance.ŸAvoid Moisture.To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.ŸAvoid Cleaning Products.The front of this unit should only be cleaned with a slightly damp cloth. Do not use cleansers.ŸUse Recommended Accessories.TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.Features of Jensen JWM60A mobile audio system include:CAUTION: This mobile DVD player is a Class I laser product that uses a visible/invisiblelaser beam which could cause hazardous radiation exposure if improperly directed. Be sure to operate the mobile DVD player as instructed. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open covers and do not attempt to repair the unit yourself.Refer servicing to qualified personnel.JWM60A20-PIN Speaker WireRemote ControlAUX AUDIO/VIDEO CABLE3

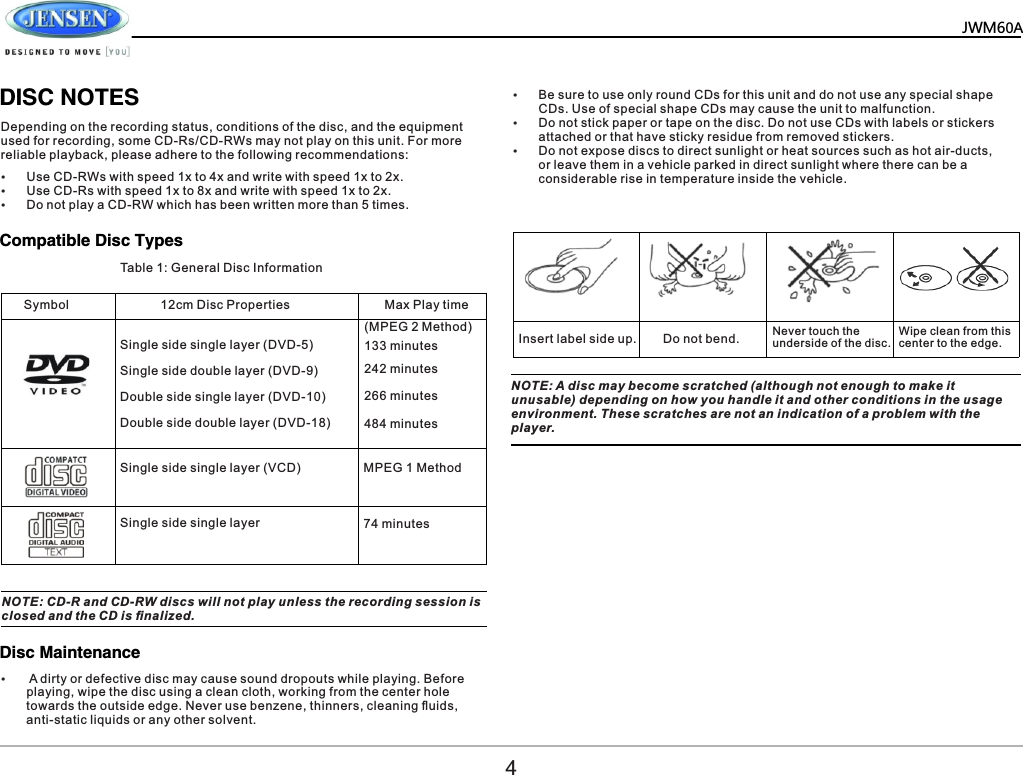

JWM60A DISC NOTESDepending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to the following recommendations:ŸUse CD-RWs with speed 1x to 4x and write with speed 1x to 2x.ŸUse CD-Rs with speed 1x to 8x and write with speed 1x to 2x.ŸDo not play a CD-RW which has been written more than 5 times.Compatible Disc TypesDisc MaintenanceTable 1: General Disc InformationSymbol 12cm Disc Properties Max Play timeSingle side single layer (DVD-5)Single side double layer (DVD-9)Double side single layer (DVD-10)Double side double layer (DVD-18)(MPEG 2 Method)133 minutes242 minutes266 minutes484 minutesSingle side single layer (VCD)Single side single layerMPEG 1 Method74 minutesNOTE: CD-R and CD-RW discs will not play unless the recording session is closed and the CD is finalized.Ÿ A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe the disc using a clean cloth, working from the center hole towards the outside edge. Never use benzene, thinners, cleaning fluids, anti-static liquids or any other solvent.ŸBe sure to use only round CDs for this unit and do not use any special shape CDs. Use of special shape CDs may cause the unit to malfunction.ŸDo not stick paper or tape on the disc. Do not use CDs with labels or stickers attached or that have sticky residue from removed stickers.ŸDo not expose discs to direct sunlight or heat sources such as hot air-ducts, or leave them in a vehicle parked in direct sunlight where there can be a considerable rise in temperature inside the vehicle.Insert label side up. Do not bend. Never touch the underside of the disc.Wipe clean from this center to the edge.NOTE: A disc may become scratched (although not enough to make it unusable) depending on how you handle it and other conditions in the usage environment. These scratches are not an indication of a problem with the player.4

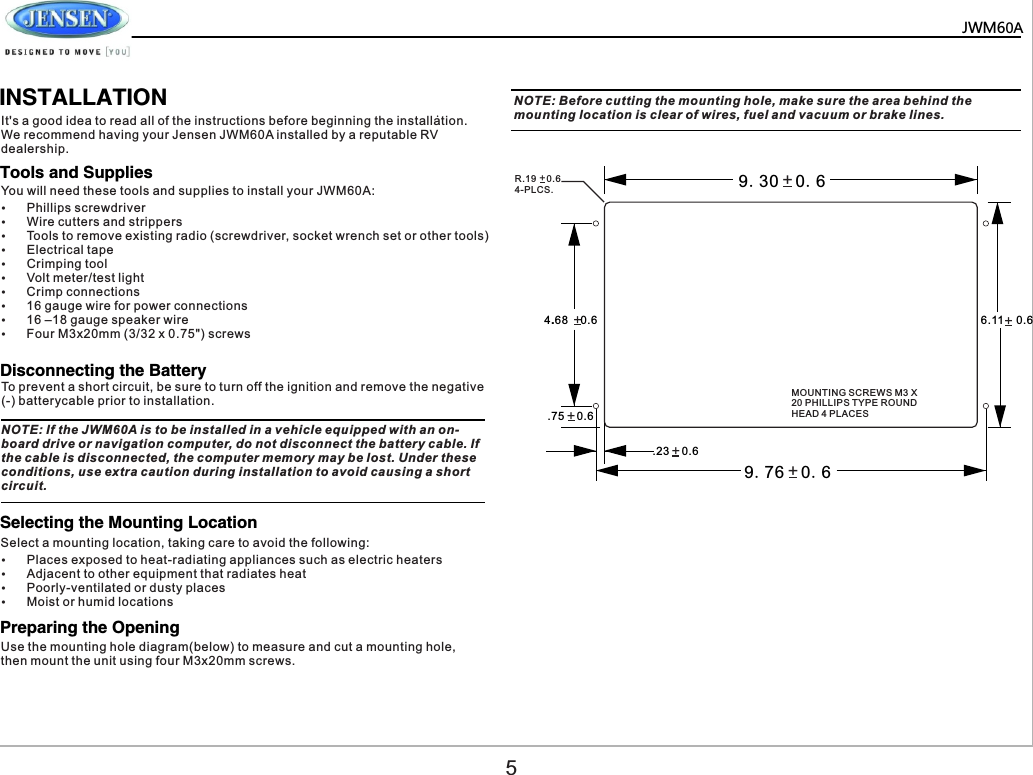

JWM60A . INSTALLATIONIt's a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen JWM60A installed by a reputable RV dealership.NOTE: If the JWM60A is to be installed in a vehicle equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during installation to avoid causing a short circuit.NOTE: Before cutting the mounting hole, make sure the area behind the mounting location is clear of wires, fuel and vacuum or brake lines.You will need these tools and supplies to install your JWM60A:Select a mounting location, taking care to avoid the following:To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) batterycable prior to installation.ŸPhillips screwdriverŸWire cutters and strippersŸTools to remove existing radio (screwdriver, socket wrench set or other tools)ŸElectrical tapeŸCrimping toolŸVolt meter/test lightŸCrimp connectionsŸ16 gauge wire for power connectionsŸ16 –18 gauge speaker wireŸFour M3x20mm (3/32 x 0.75") screwsŸPlaces exposed to heat-radiating appliances such as electric heatersŸAdjacent to other equipment that radiates heatŸPoorly-ventilated or dusty placesŸMoist or humid locationsTools and SuppliesDisconnecting the BatterySelecting the Mounting LocationPreparing the Opening9.30 0.69.76 0.6+++++++6.11 0.64.68 0.6.75 0.6.23 0.6MOUNTING SCREWS M3 X 20 PHILLIPS TYPE ROUND HEAD 4 PLACESR.19 0.64-PLCS.5Use the mounting hole diagram(below) to measure and cut a mounting hole, then mount the unit using four M3x20mm screws.

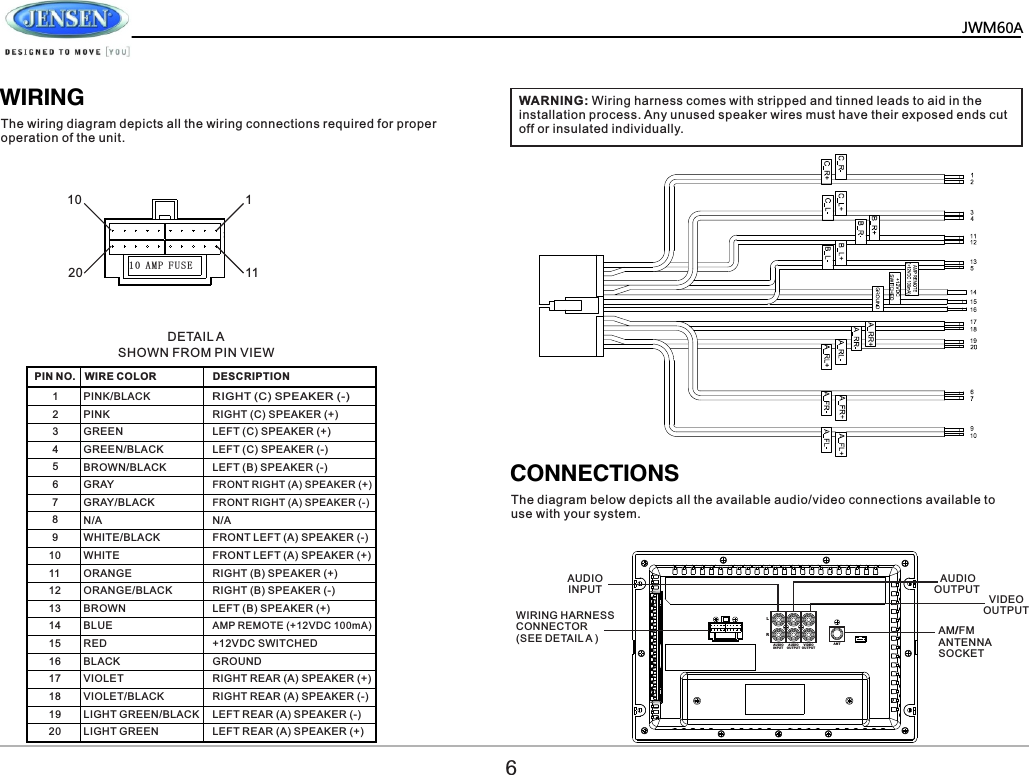

JWM60A WIRINGCONNECTIONSThe wiring diagram depicts all the wiring connections required for proper operation of the unit.The diagram below depicts all the available audio/video connections available to use with your system.1101120DETAIL APIN NO. WIRE COLOR DESCRIPTION 1 PINK/BLACK RIGHT (C) SPEAKER (-) PINK RIGHT (C) SPEAKER (+) GREEN LEFT (C) SPEAKER (+) GREEN/BLACK LEFT (C) SPEAKER (-)BROWN/BLACK LEFT (B) SPEAKER (-)GRAY FRONT RIGHT (A) SPEAKER (+)GRAY/BLACK FRONT RIGHT (A) SPEAKER (-)N/A N/AWHITE/BLACK FRONT LEFT (A) SPEAKER (-)WHITE FRONT LEFT (A) SPEAKER (+)ORANGE RIGHT (B) SPEAKER (+)ORANGE/BLACK RIGHT (B) SPEAKER (-)BROWN LEFT (B) SPEAKER (+)BLUE AMP REMOTE (+12VDC 100mA)RED +12VDC SWITCHEDBLACK GROUNDVIOLET RIGHT REAR (A) SPEAKER (+)VIOLET/BLACK RIGHT REAR (A) SPEAKER (-)LIGHT GREEN/BLACK LEFT REAR (A) SPEAKER (-)LIGHT GREEN LEFT REAR (A) SPEAKER (+)2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SHOWN FROM PIN VIEWWARNING: Wiring harness comes with stripped and tinned leads to aid in the installation process. Any unused speaker wires must have their exposed ends cut off or insulated individually.L R ANT AUDI OINPU T AUDI OOUTP UT VIDE OOUTP UT 10 A M P F U SEWIRING HARNESS CONNECTOR(SEE DETAIL A )6AUDIO INPUT AUDIO OUTPUT VIDEO OUTPUTAM/FMANTENNA SOCKET
JWM60A BASIC OPERATION123468910111213151617 18192021222324 2526272829303132333435363738391457PowerVolume ControlAudio Menu SettingAudio AdjustmentSystem Menu SettingSetting the BluetoothResetLoudnessMuteLiquid Crystal Display (LCD)Press the POWER button (3) to turn the unit on or enter standby mode.The unit will resume at the last mode (Tuner, Aux, etc.) after turn on. Rotate the VOL encoder knob control (13) clockwise to increase or counter-clockwise to decrease the volume output.The maximum volume setting is “40”. While adjusting the volume, the LCD displays numerical representation of the level.Press the AUDIO button (31) to step through the following audio adjustment options.Rotate the VOL/ENTER encoder knob control (13) to adjust the selected audio feature.This function will time out after six seconds of inactivity and the unit will resume normal operation.The following items can be adjusted:ŸBeep On/Off: Turn the audible beep On/Off (heard when functions /buttons are selected).Note: Beep tone off will not affect the audible tone of the alarm clock.ŸLCD Brightness : Adjust the brightness of the LCD backlight from “BRI 0” (off) to “BRI 9” (Brightest)ŸRegion (USA/Europe): Set frequency spacing for various regions.ŸBluetooth (On/Off): Choose “Bluetooth On” or “Bluetooth Off”.ŸBluetooth Device (Locked/Unlocked, Disconnect/Connect, Delete): view, lock and delete from a list of previously paired mobile device models.ŸBluetooth Pair: Press “ENTER” knob to automatically pair a device.ŸPRESET Volume (PVOL): Select an automatic turn on volume.ŸBAS: Adjust the Bass level from “-7” to “+7”ŸTRE: Adjust the treble from “-7” to “+7”.ŸBAL: Adjust the speaker output balance between “L7” (left) and “R7” (right). “BAL 0” indicates an equal balance between the left and right speakers.ŸFAD: Adjust the speaker fade between “R7” (rear) and “F7” (front). “FAD 0” indicates and equal balance between the rear and front speakers.1.Press the SETTING button (29) to enter the system menu. 2.Press SETTING button or press the |<< or >>| ( 6,35) to choose the following system menu list: 3.Once the desired menu item appears on the display, adjust that option by rotating the volume encoder knob clockwise or counter-clockwise within 6 seconds.4.Press the ENTER knob button to confirm your selection and exit system menu. The unit will automatically exit the audio menu after 6 seconds of inactivity.Press the LOUD button (32) to toggle the loudness function on/off.Press the MUTE button (34) to silence the audio output in tuner, CD, DVD, BT, USB or auxiliary input mode. Press again to restore the previous volume level.The liquid crystal display (LCD) panel (1) displays the frequency, time and activated functions.Press the BRIGHT UP button to increase the LCD brightness and press the BRIGHT DOWN button to decrease the LCD brightness from “LEVEL 0(off)” to “LEVEL 9” (brightest).NOTE: When subjected to cold temperatures for an extended period of time, LCD panels will take longer to illuminate and the display visibility may slightly decrease. Optimal LCD operation will return to normal when the temperature increases to a normal range.7Press ENTER knob button to reset the JWM60A to factory default set up values.

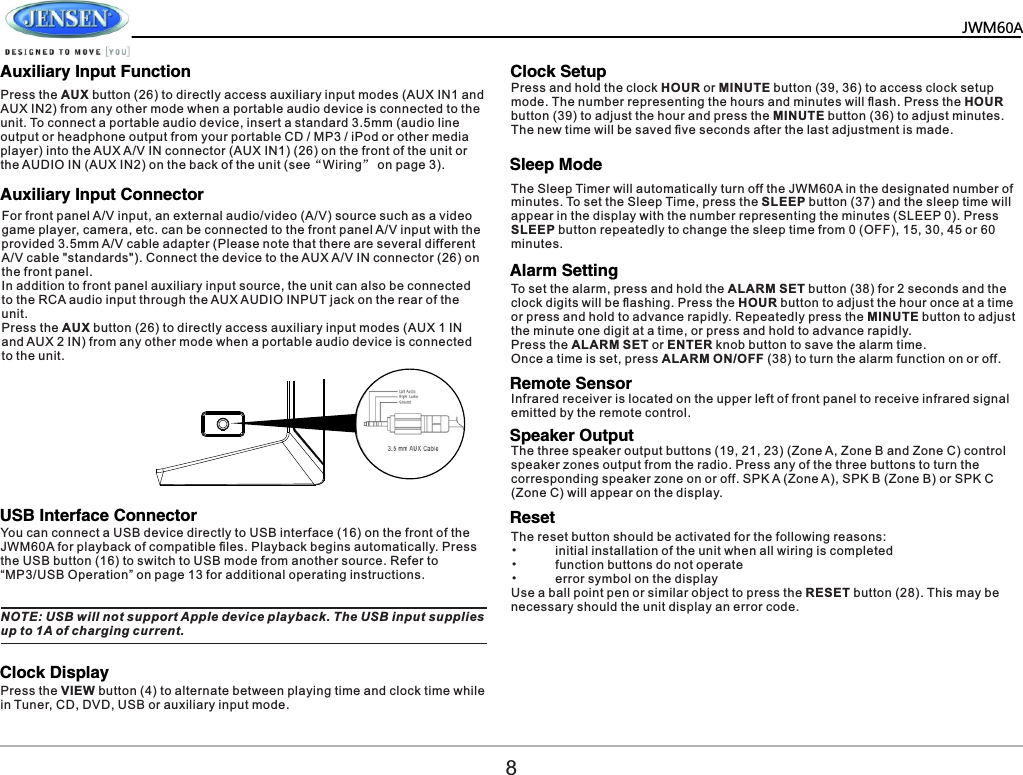

JWM60A Auxiliary Input FunctionAuxiliary Input ConnectorUSB Interface ConnectorClock DisplayClock SetupSleep ModeAlarm SettingRemote SensorSpeaker OutputReset Press the AUX button (26) to directly access auxiliary input modes (AUX IN1 and AUX IN2) from any other mode when a portable audio device is connected to the unit. To connect a portable audio device, insert a standard 3.5mm (audio line output or headphone output from your portable CD / MP3 / iPod or other media player) into the AUX A/V IN connector (AUX IN1) (26) on the front of the unit or the AUDIO IN (AUX IN2) on the back of the unit (see“Wiring” on page 3).For front panel A/V input, an external audio/video (A/V) source such as a video game player, camera, etc. can be connected to the front panel A/V input with the provided 3.5mm A/V cable adapter (Please note that there are several different A/V cable "standards"). Connect the device to the AUX A/V IN connector (26) on the front panel.In addition to front panel auxiliary input source, the unit can also be connected to the RCA audio input through the AUX AUDIO INPUT jack on the rear of the unit.Press the AUX button (26) to directly access auxiliary input modes (AUX 1 IN and AUX 2 IN) from any other mode when a portable audio device is connected to the unit. You can connect a USB device directly to USB interface (16) on the front of the JWM60A for playback of compatible files. Playback begins automatically. Press the USB button ( ) to switch to USB mode from another source. Refer to 16“MP3/USB Operation” on page 13 for additional operating instructions. Press the VIEW button (4) to alternate between playing time and clock time while in Tuner, CD, DVD, USB or auxiliary input mode.NOTE: USB will not support Apple device playback. The USB input supplies up to 1A of charging current. Press and hold the clock HOUR or MINUTE button (39, 36) to access clock setup mode. The number representing the hours and minutes will flash. Press the HOUR button (39) to adjust the hour and press the MINUTE button (36) to adjust minutes. The new time will be saved five seconds after the last adjustment is made.The Sleep Timer will automatically turn off the JWM60A in the designated number of minutes. To set the Sleep Time, press the SLEEP button (37) and the sleep time will appear in the display with the number representing the minutes (SLEEP 0). Press SLEEP button repeatedly to change the sleep time from 0 (OFF), 15, 30, 45 or 60 minutes. To set the alarm, press and hold the ALARM SET button (38) for 2 seconds and the clock digits will be flashing. Press the HOUR button to adjust the hour once at a time or press and hold to advance rapidly. Repeatedly press the MINUTE button to adjust the minute one digit at a time, or press and hold to advance rapidly. Press the ALARM SET or ENTER knob button to save the alarm time. Once a time is set, press ALARM ON/OFF (38) to turn the alarm function on or off.Infrared receiver is located on the upper left of front panel to receive infrared signal emitted by the remote control.The three speaker output buttons (19, 21, 23) (Zone A, Zone B and Zone C) control speaker zones output from the radio. Press any of the three buttons to turn the corresponding speaker zone on or off. SPK A (Zone A), SPK B (Zone B) or SPK C (Zone C) will appear on the display.The reset button should be activated for the following reasons:• initial installation of the unit when all wiring is completed• function buttons do not operate• error symbol on the displayUse a ball point pen or similar object to press the RESET button (28). This may be necessary should the unit display an error code.8

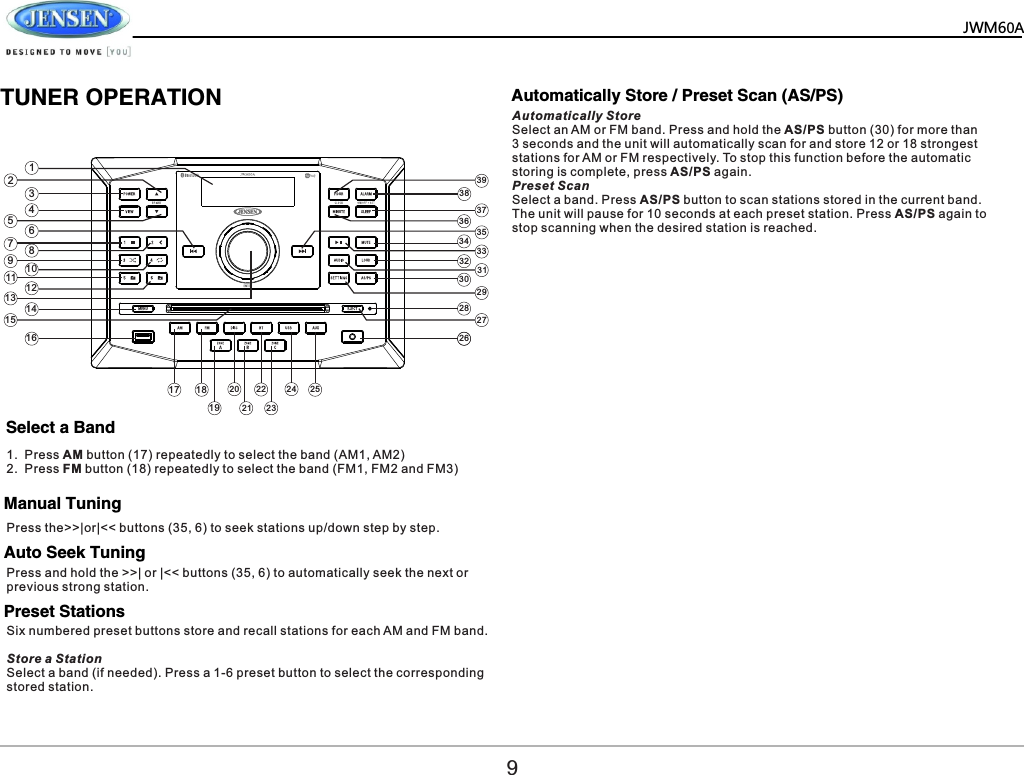

JWM60A TUNER OPERATIONSelect a BandAutomatically Store / Preset Scan (AS/PS)Manual TuningAuto Seek TuningPreset Stations1. Press AM button (17) repeatedly to select the band (AM1, AM2)2. Press FM button (18) repeatedly to select the band (FM1, FM2 and FM3)Press the>>|or|<< buttons (35, 6) to seek stations up/down step by step.Press and hold the >>| or |<< buttons (35, 6) to automatically seek the next or previous strong station.Six numbered preset buttons store and recall stations for each AM and FM band.Store a StationSelect a band (if needed). Press a 1-6 preset button to select the corresponding stored station.Automatically StoreSelect an AM or FM band. Press and hold the AS/PS button (30) for more than3 seconds and the unit will automatically scan for and store 12 or 18 strongest stations for AM or FM respectively. To stop this function before the automatic storing is complete, press AS/PS again.Preset ScanSelect a band. Press AS/PS button to scan stations stored in the current band.The unit will pause for 10 seconds at each preset station. Press AS/PS again to stop scanning when the desired station is reached.9123468910111213151617 18192021222324 2526272829303132333435363738391457
ALA RMLOU DTUN E+TUN E-VOLVOLPRO G LANG RPT T ITLESOUR CE ZOO MANG LEAUD GOTOMEN UASPS /91 2 3456710+ 10/ 08ENT ER6134522778910 2 8242523222120191817161514131211 26 JWM60A DISC OPERATIONCD OPERATIONInserting a CDTrack SelectFast Forward/ReverseRepeat (RPT)Random Shuffle (RDM)Programmed PlaybackEjecting a CDPausing PlaybackStop PlaybackInserting a CD label-side up into the disc slot (15) and the disc will begin to play automatically.Press the EJECT button (27) to stop CD play and eject the CD.Press the uII button (33) to suspend or resume disc play.Press the 1/■ button (7) to suspend disc play, and “PRE STOP” will appear in the display.Press the uII button (33) to resume disc play from the last position. Press 1/ ■ button twice and “STOP” will appear on the display.Press the >>| or |<< button (35, 6) to advance to the previous or next track on the CD. The selected track number will appear on the display. Press and hold the >>| or |<< button for more than three seconds to fast forward or fast reverse through the disc. CD play starts when the play/pause button is pressed.Press and hold the >>| or |<< button (35, 6) or press the >> or << buttons on the remote control (14) once for FORWARD X 2. Press and hold additional times for FORWARD X 4, X 8, X 20 or PLAY. Press the uII button on the control panel (33) or remote control (17) to end fast forward or reverse and resume normal playback.Press the 4/ button (10) during disc play to access the repeat function. Press again to continuously repeat the selected track (RPT ONE). Press a third time to repeat all tracks (RPT ALL). Press once more time to stop repeat function (RPT OFF).Press the 3/ button (9) during disc play to play all tracks on a CD in random, shuffled order (RDM ON). Press 3/ again to stop random play (RDM OFF).1. Press the PROG button (7) on the remote control to access the programmed playback screen.2. Use the or cursor buttons (15) on the remote control to access the fields on the “PROG” screen.3. Use the number buttons on the remote control to enter a track number in each field.4. Press the u/|| button (17) on the remote control or highlight “PLAY” on screen and then press the ENTER button (5) to begin playback in the numbered order indicated to delete the list, highlight “CLEAR” and then press ENTER. Press PROG to exit the programmed playback screen.10123468910111213151617 18192021222324 2526272829303132333435363738391457

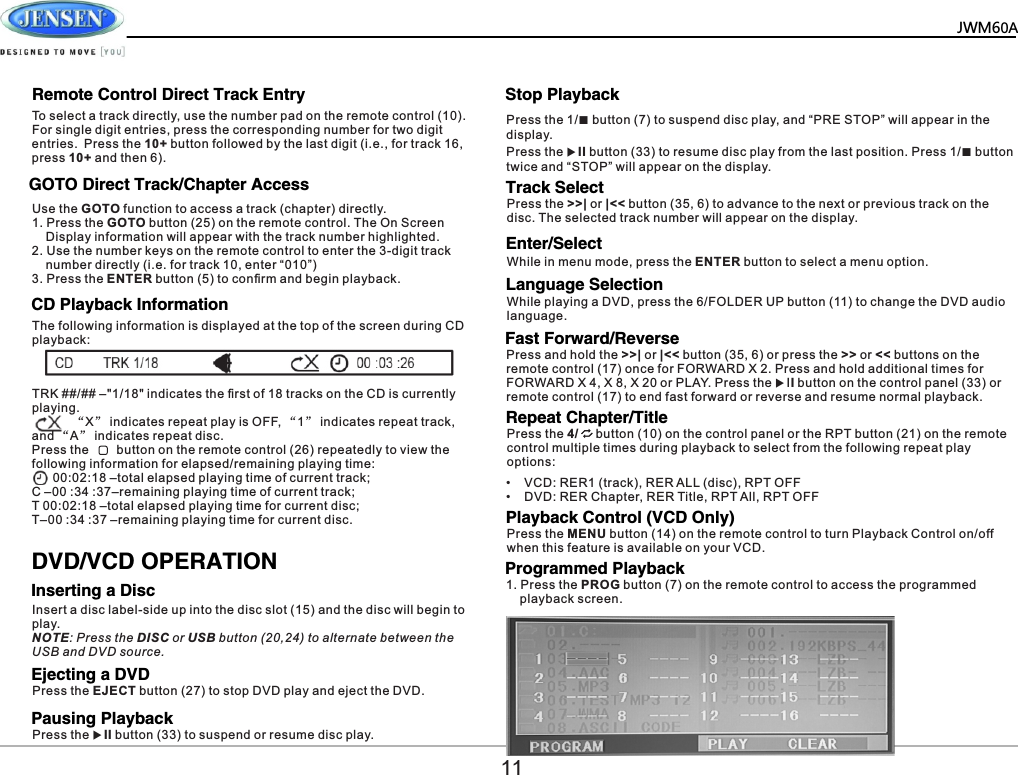

JWM60A GOTO Direct Track/Chapter AccessCD Playback InformationInserting a DiscEjecting a DVDPausing PlaybackStop PlaybackTrack SelectLanguage SelectionUse the GOTO function to access a track (chapter) directly.1. Press the GOTO button (25) on the remote control. The On Screen Display information will appear with the track number highlighted.2. Use the number keys on the remote control to enter the 3-digit track number directly (i.e. for track 10, enter “010”)3. Press the ENTER button (5) to confirm and begin playback.The following information is displayed at the top of the screen during CD playback:To select a track directly, use the number pad on the remote control (10). For single digit entries, press the corresponding number for two digit entries. Press the 10+ button followed by the last digit (i.e., for track 16, press 10+ and then 6).TRK ##/## –"1/18" indicates the first of 18 tracks on the CD is currently playing. “X” indicates repeat play is OFF, “1” indicates repeat track, and “A” indicates repeat disc.Press the button on the remote control (26) repeatedly to view the following information for elapsed/remaining playing time: 00:02:18 –total elapsed playing time of current track; C –00 :34 :37–remaining playing time of current track;T 00:02:18 –total elapsed playing time for current disc;T–00 :34 :37 –remaining playing time for current disc.DVD/VCD OPERATIONPress the EJECT button (27) to stop DVD play and eject the DVD.Insert a disc label-side up into the disc slot (15) and the disc will begin to play.NOTE: Press the DISC or USB button (20,24) to alternate between the USB and DVD source.Press the uII button (33) to suspend or resume disc play.Press the >>| or |<< button (35, 6) to advance to the next or previous track on the disc. The selected track number will appear on the display.While playing a DVD, press the 6/FOLDER UP button (11) to change the DVD audio language.Remote Control Direct Track Entry Press the 1/■ button (7) to suspend disc play, and “PRE STOP” will appear in the display.Press the uII button (33) to resume disc play from the last position. Press 1/■ button twice and “STOP” will appear on the display.11Enter/SelectWhile in menu mode, press the ENTER button to select a menu option.Fast Forward/ReversePress and hold the >>| or |<< button (35, 6) or press the >> or << buttons on the remote control (17) once for FORWARD X 2. Press and hold additional times for FORWARD X 4, X 8, X 20 or PLAY. Press the uII button on the control panel (33) or remote control (17) to end fast forward or reverse and resume normal playback.Repeat Chapter/TitlePress the 4/ button (10) on the control panel or the RPT button (21) on the remote control multiple times during playback to select from the following repeat play options:• VCD: RER1 (track), RER ALL (disc), RPT OFF• DVD: RER Chapter, RER Title, RPT All, RPT OFFPlayback Control (VCD Only)Press the MENU button (14) on the remote control to turn Playback Control on/off when this feature is available on your VCD.Programmed Playback1. Press the PROG button (7) on the remote control to access the programmed playback screen.

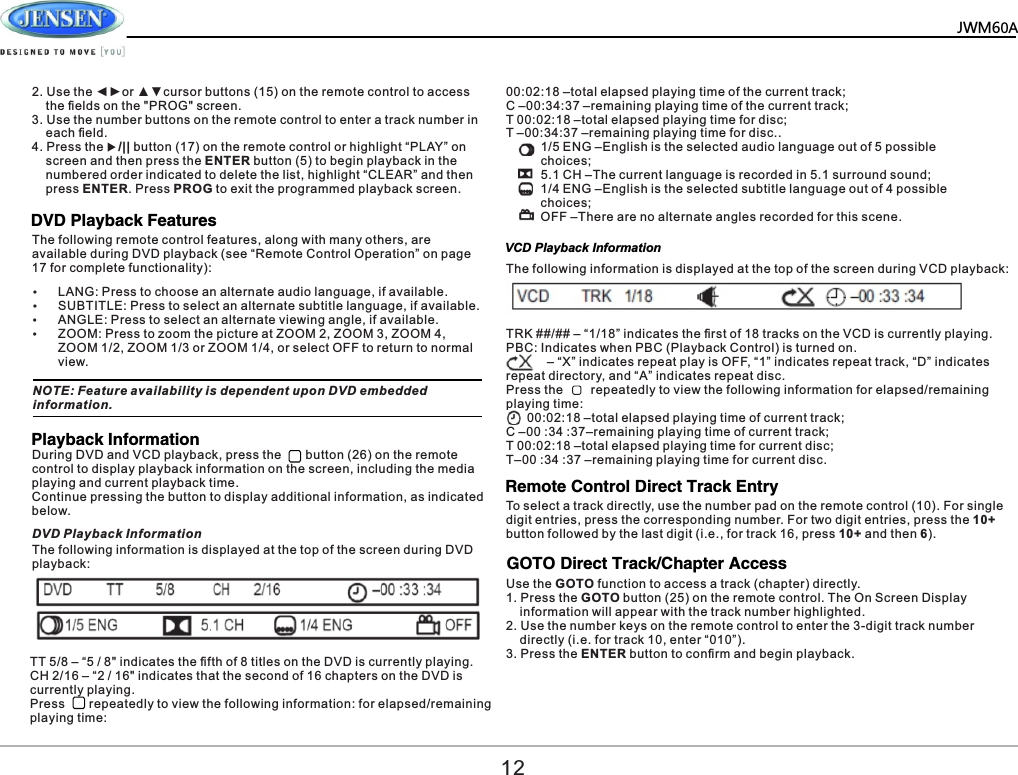

JWM60A122. Use the ◄►or ▲▼cursor buttons (15) on the remote control to access the fields on the "PROG" screen.3. Use the number buttons on the remote control to enter a track number in each field.4. Press the u/|| button (17) on the remote control or highlight “PLAY” on screen and then press the ENTER button (5) to begin playback in the numbered order indicated to delete the list, highlight “CLEAR” and then press ENTER. Press PROG to exit the programmed playback screen.The following remote control features, along with many others, are available during DVD playback (see “Remote Control Operation” on page 17 for complete functionality):DVD Playback FeaturesŸLANG: Press to choose an alternate audio language, if available.ŸSUBTITLE: Press to select an alternate subtitle language, if available.ŸANGLE: Press to select an alternate viewing angle, if available.ŸZOOM: Press to zoom the picture at ZOOM 2, ZOOM 3, ZOOM 4, ZOOM 1/2, ZOOM 1/3 or ZOOM 1/4, or select OFF to return to normal view.NOTE: Feature availability is dependent upon DVD embedded information.Playback InformationVCD Playback InformationDuring DVD and VCD playback, press the button (26) on the remote control to display playback information on the screen, including the media playing and current playback time.Continue pressing the button to display additional information, as indicated below.The following information is displayed at the top of the screen during DVD playback:DVD Playback InformationTT 5/8 – “5 / 8" indicates the fifth of 8 titles on the DVD is currently playing.CH 2/16 – “2 / 16" indicates that the second of 16 chapters on the DVD is currently playing.Press repeatedly to view the following information: for elapsed/remaining playing time:00:02:18 –total elapsed playing time of the current track;C –00:34:37 –remaining playing time of the current track;T 00:02:18 –total elapsed playing time for disc;T –00:34:37 –remaining playing time for disc.. 1/5 ENG –English is the selected audio language out of 5 possible choices; 5.1 CH –The current language is recorded in 5.1 surround sound; 1/4 ENG –English is the selected subtitle language out of 4 possible choices; OFF –There are no alternate angles recorded for this scene.The following information is displayed at the top of the screen during VCD playback:TRK ##/## – “1/18” indicates the first of 18 tracks on the VCD is currently playing.PBC: Indicates when PBC (Playback Control) is turned on. – “X” indicates repeat play is OFF, “1” indicates repeat track, “D” indicates repeat directory, and “A” indicates repeat disc.Press the repeatedly to view the following information for elapsed/remaining playing time: 00:02:18 –total elapsed playing time of current track; C –00 :34 :37–remaining playing time of current track;T 00:02:18 –total elapsed playing time for current disc;T–00 :34 :37 –remaining playing time for current disc.Remote Control Direct Track EntryTo select a track directly, use the number pad on the remote control (10). For single digit entries, press the corresponding number. For two digit entries, press the 10+ button followed by the last digit (i.e., for track 16, press 10+ and then 6).GOTO Direct Track/Chapter AccessUse the GOTO function to access a track (chapter) directly.1. Press the GOTO button (25) on the remote control. The On Screen Display information will appear with the track number highlighted.2. Use the number keys on the remote control to enter the 3-digit track number directly (i.e. for track 10, enter “010”).3. Press the ENTER button to confirm and begin playback.

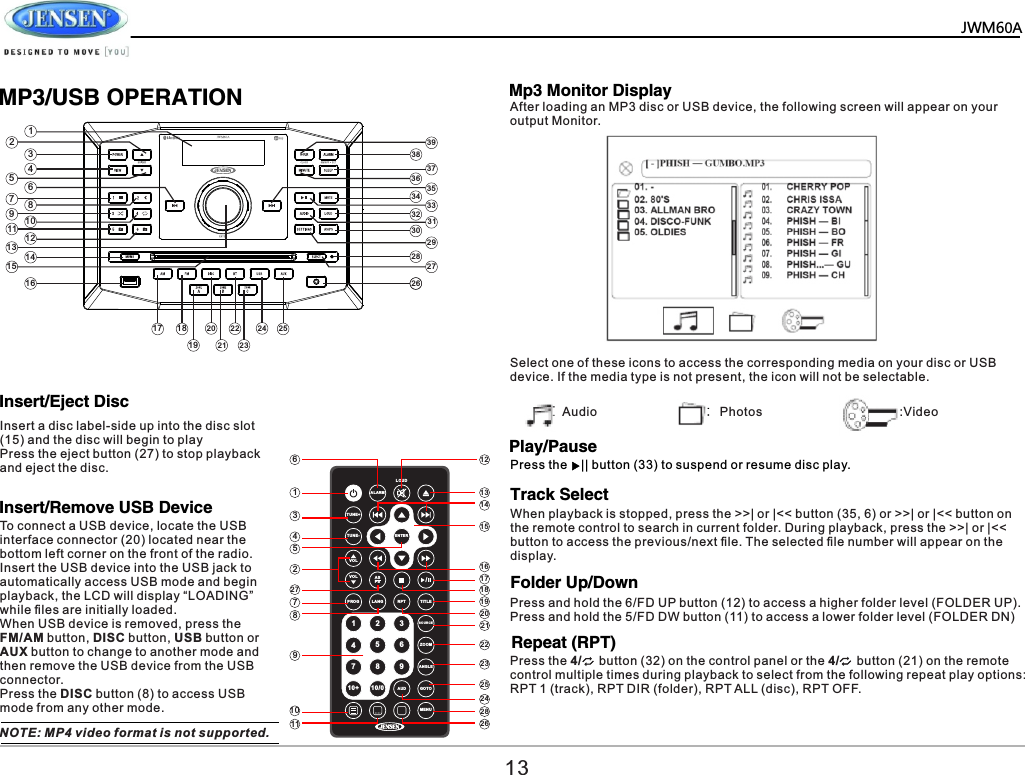

JWM60A MP3/USB OPERATIONInsert/Remove USB DevicePlay/PauseTrack SelectFolder Up/DownMp3 Monitor DisplayTo connect a USB device, locate the USB interface connector (20) located near the bottom left corner on the front of the radio. Insert the USB device into the USB jack to automatically access USB mode and begin playback, the LCD will display “LOADING” while files are initially loaded. When USB device is removed, press the FM/AM button, DISC button, USB button or AUX button to change to another mode and then remove the USB device from the USB connector.Press the DISC button (8) to access USB mode from any other mode.NOTE: MP4 video format is not supported.After loading an MP3 disc or USB device, the following screen will appear on your output Monitor.Select one of these icons to access the corresponding media on your disc or USB device. If the media type is not present, the icon will not be selectable.Audio Photos :VideoPress the || button (33) to suspend or resume disc play.When playback is stopped, press the >>| or |<< button (35, 6) or >>| or |<< button on the remote control to search in current folder. During playback, press the >>| or |<< button to access the previous/next file. The selected file number will appear on the display.Press and hold the 6/FD UP button (12) to access a higher folder level (FOLDER UP).Press and hold the 5/FD DW button (11) to access a lower folder level (FOLDER DN)ALA RMLOU DTUN E+TUN E-VOLVOLPRO G LANG RPT TI TLESOUR CE ZOO MANG LEAUD G OTOMEN UASPS /91 2 3456710+ 10/08ENT ER6134522778910 2 8242523222120191817161514131211 2613123468910111213151617 18192021222324 2526272829303132333435363738391457Insert/Eject DiscInsert a disc label-side up into the disc slot (15) and the disc will begin to playPress the eject button (27) to stop playback and eject the disc.Repeat (RPT)Press the 4/ button (32) on the control panel or the 4/ button (21) on the remote control multiple times during playback to select from the following repeat play options: RPT 1 (track), RPT DIR (folder), RPT ALL (disc), RPT OFF.

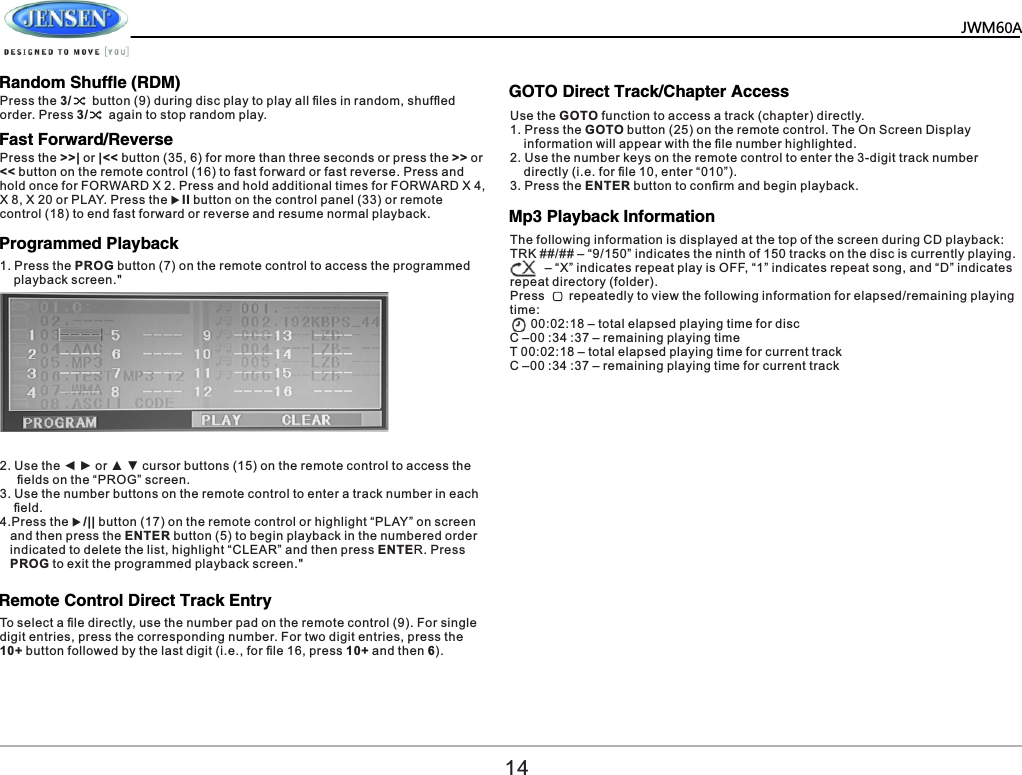

JWM60A Random Shuffle (RDM)Fast Forward/Reverse Programmed Playback Remote Control Direct Track Entry GOTO Direct Track/Chapter Access Press the 3/ button (9) during disc play to play all files in random, shuffled order. Press 3/ again to stop random play.Press the >>| or |<< button (35, 6) for more than three seconds or press the >> or << button on the remote control (16) to fast forward or fast reverse. Press and hold once for FORWARD X 2. Press and hold additional times for FORWARD X 4, X 8, X 20 or PLAY. Press the uII button on the control panel (33) or remote control (18) to end fast forward or reverse and resume normal playback.2. Use the ◄ ► or ▲ ▼ cursor buttons (15) on the remote control to access the fields on the “PROG” screen. 3. Use the number buttons on the remote control to enter a track number in each field. 4.Press the u/|| button (17) on the remote control or highlight “PLAY” on screen and then press the ENTER button (5) to begin playback in the numbered order indicated to delete the list, highlight “CLEAR” and then press ENTER. Press PROG to exit the programmed playback screen." To select a file directly, use the number pad on the remote control (9). For single digit entries, press the corresponding number. For two digit entries, press the 10+ button followed by the last digit (i.e., for file 16, press 10+ and then 6).Use the GOTO function to access a track (chapter) directly.1. Press the GOTO button (25) on the remote control. The On Screen Display information will appear with the file number highlighted.2. Use the number keys on the remote control to enter the 3-digit track number directly (i.e. for file 10, enter “010”).3. Press the ENTER button to confirm and begin playback.141. Press the PROG button (7) on the remote control to access the programmed playback screen." Mp3 Playback Information The following information is displayed at the top of the screen during CD playback:TRK ##/## – “9/150” indicates the ninth of 150 tracks on the disc is currently playing. – “X” indicates repeat play is OFF, “1” indicates repeat song, and “D” indicates repeat directory (folder).Press repeatedly to view the following information for elapsed/remaining playing time: 00:02:18 – total elapsed playing time for discC –00 :34 :37 – remaining playing timeT 00:02:18 – total elapsed playing time for current trackC –00 :34 :37 – remaining playing time for current track

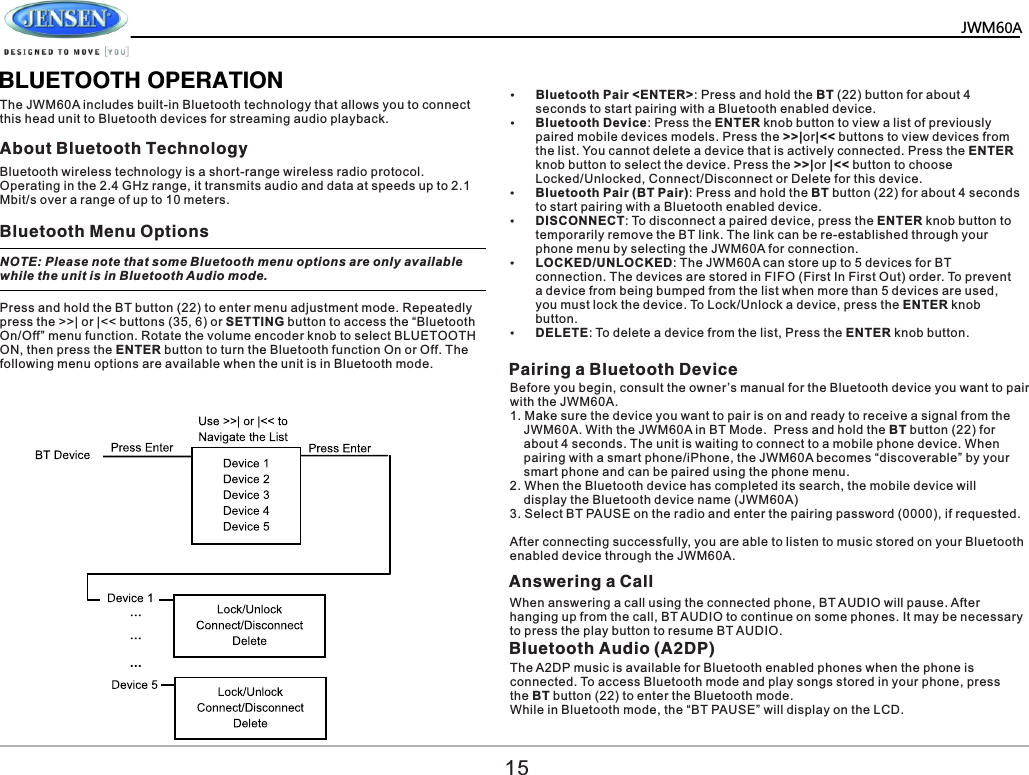

JWM60A BLUETOOTH OPERATIONThe JWM60A includes built-in Bluetooth technology that allows you to connect this head unit to Bluetooth devices for streaming audio playback. About Bluetooth TechnologyBluetooth Menu OptionsPairing a Bluetooth DeviceBluetooth wireless technology is a short-range wireless radio protocol. Operating in the 2.4 GHz range, it transmits audio and data at speeds up to 2.1 Mbit/s over a range of up to 10 meters. NOTE: Please note that some Bluetooth menu options are only available while the unit is in Bluetooth Audio mode. Press and hold the BT button (22) to enter menu adjustment mode. Repeatedly press the >>| or |<< buttons (35, 6) or SETTING button to access the “Bluetooth On/Off” menu function. Rotate the volume encoder knob to select BLUETOOTH ON, then press the ENTER button to turn the Bluetooth function On or Off. The following menu options are available when the unit is in Bluetooth mode.ŸBluetooth Pair <ENTER>: Press and hold the BT (22) button for about 4 seconds to start pairing with a Bluetooth enabled device.ŸBluetooth Device: Press the ENTER knob button to view a list of previously paired mobile devices models. Press the >>|or|<< buttons to view devices from the list. You cannot delete a device that is actively connected. Press the ENTER knob button to select the device. Press the >>|or |<< button to choose Locked/Unlocked, Connect/Disconnect or Delete for this device.ŸBluetooth Pair (BT Pair): Press and hold the BT button (22) for about 4 seconds to start pairing with a Bluetooth enabled device.ŸDISCONNECT: To disconnect a paired device, press the ENTER knob button to temporarily remove the BT link. The link can be re-established through your phone menu by selecting the JWM60A for connection.ŸLOCKED/UNLOCKED: The JWM60A can store up to 5 devices for BT connection. The devices are stored in FIFO (First In First Out) order. To prevent a device from being bumped from the list when more than 5 devices are used, you must lock the device. To Lock/Unlock a device, press the ENTER knob button.ŸDELETE: To delete a device from the list, Press the ENTER knob button.Before you begin, consult the owner ’s manual for the Bluetooth device you want to pair with the JWM60A. 1. Make sure the device you want to pair is on and ready to receive a signal from the JWM60A. With the JWM60A in BT Mode. Press and hold the BT button (22) for about 4 seconds. The unit is waiting to connect to a mobile phone device. When pairing with a smart phone/iPhone, the JWM60A becomes “discoverable” by your smart phone and can be paired using the phone menu.2. When the Bluetooth device has completed its search, the mobile device will display the Bluetooth device name (JWM60A)3. Select BT PAUSE on the radio and enter the pairing password (0000), if requested.After connecting successfully, you are able to listen to music stored on your Bluetooth enabled device through the JWM60A.15Answering a CallWhen answering a call using the connected phone, BT AUDIO will pause. After hanging up from the call, BT AUDIO to continue on some phones. It may be necessary to press the play button to resume BT AUDIO.Bluetooth Audio (A2DP) The A2DP music is available for Bluetooth enabled phones when the phone is connected. To access Bluetooth mode and play songs stored in your phone, press the BT button (22) to enter the Bluetooth mode. While in Bluetooth mode, the “BT PAUSE” will display on the LCD.
JWM60A Pausing Playback During playback, press the ▶II button (33) to pause the Bluetooth audio playback. “BT PAUSE” will appear on the LCD. Press ▶II button again to resume playback.If you change to another mode, the mobile device audio will pause. Press the BT button (22) to return to Bluetooth mode and resume mobile phone audio playback.NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the device is disconnected inadvertently, the unit will automatically search for the matching BT mobile phone when the power is restored.APP OPERATIONJENSEN® Specialty Controller is the ultimate wireless remote control for your JENSEN stereo system. Store away your old remotes and enjoy the convenience of all the primary functions of your JENSEN stereo right from your phone or tablet by transforming your mobile device into a functional stereo remote control! Features Connecting and using jControl app This app controls all of the primary functions of your stereo features including:ŸPower on/off ŸVolume and mute ŸCD/DVD player ŸAM/FM radio tuner: access station, recall, store presets, switch songs ŸBluetooth® streaming audio ŸFile structure visibility, track selection, track audible scan up and down via USB ŸAuxiliary audio input control –auxiliary analog 1 & 2, auxiliary digital coaxial, auxiliary digital optical ŸSpeaker selection A, B and/or C ŸAudio menu controls- bass, treble, balance, fader, equalizer, volume and speaker selection settings ŸClock with sleep time and alarm ŸVisual display feedback so you can see artist title and album on your mobile screen After downloading and installing jControl app on your device, pair your device to the JWM60A as stated above for Bluetooth pairing. When jControl is installed on Android operating system, close the app before Bluetooth pairing, otherwise there may be errors on Bluetooth connection. 16Selecting TracksDuring playback, press the >>| or |<< button (35, 6) to play the previous or next track.

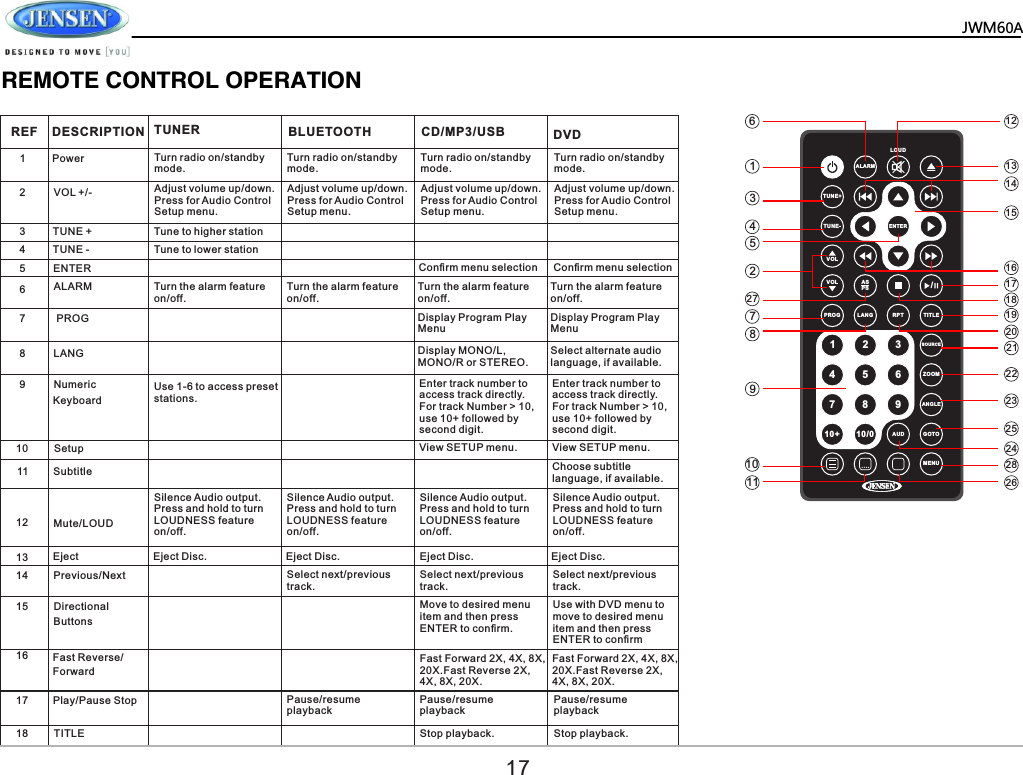

JWM60A REMOTE CONTROL OPERATIONREF DESCRIPTION TUNER BLUETOOTH CD/MP3/USB DVD 123456789101112131415161718Power VOL +/- ENTER ALARM LANG Numeric Keyboard Subtitle Mute/LOUDPrevious/Next Eject Disc. Eject Disc. Eject Disc. Eject Disc. Directional Buttons Fast Reverse/ Forward Play/Pause Stop TITLETurn radio on/standby mode. Turn radio on/standby mode. Turn radio on/standby mode. Turn radio on/standby mode. Adjust volume up/down. Press for Audio Control Setup menu.Adjust volume up/down. Press for Audio Control Setup menu.Adjust volume up/down. Press for Audio Control Setup menu.Adjust volume up/down. Press for Audio Control Setup menu.TUNE + TUNE -Setup Eject PROG Tune to higher stationTune to lower stationTurn the alarm feature on/off.Turn the alarm feature on/off.Turn the alarm feature on/off.Display Program Play MenuDisplay MONO/L, MONO/R or STEREO.Select alternate audio language, if available.Display Program Play MenuTurn the alarm feature on/off.Confirm menu selection Confirm menu selectionUse 1-6 to access preset stations. Silence Audio output. Press and hold to turn LOUDNESS feature on/off. Silence Audio output. Press and hold to turn LOUDNESS feature on/off. Select next/previous track.Select next/previous track.Move to desired menu item and then press ENTER to confirm. Fast Forward 2X, 4X, 8X, 20X.Fast Reverse 2X, 4X, 8X, 20X.Pause/resume playbackPause/resume playbackStop playback. Stop playback.Pause/resume playbackFast Forward 2X, 4X, 8X, 20X.Fast Reverse 2X, 4X, 8X, 20X.Use with DVD menu to move to desired menu item and then press ENTER to confirm Select next/previous track.Silence Audio output. Press and hold to turn LOUDNESS feature on/off. Silence Audio output. Press and hold to turn LOUDNESS feature on/off. View SETUP menu. View SETUP menu.Choose subtitle language, if available.Enter track number to access track directly. For track Number > 10, use 10+ followed by second digit.Enter track number to access track directly. For track Number > 10, use 10+ followed by second digit.ALARMLOUDTUNE+TUNE-VOLVOLPROG LA NG RPT TITLESOU RCE ZOOMANGLEAUD GOTOMENUASPS /91 2 3456710+ 10/08ENTER6134522778910 28242523222120191817161514131211 2617

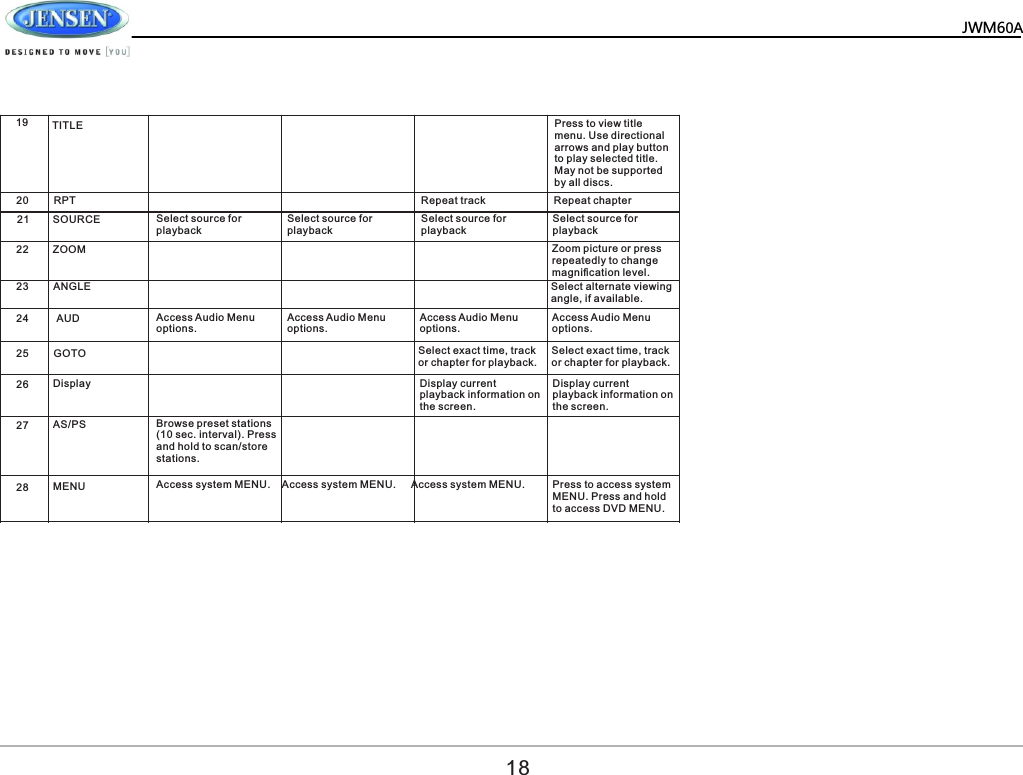

JWM60A 19202122232425262728TITLE RPT ANGLEGOTODisplayAS/PSMENUPress to view title menu. Use directional arrows and play button to play selected title. May not be supported by all discs.Repeat track Repeat chapterSOURCEZOOMAUD Select source for playbackAccess Audio Menu options.Browse preset stations (10 sec. interval). Press and hold to scan/store stations. Access system MENU. Access system MENU. Access system MENU.Access Audio Menu options.Access Audio Menu options.Access Audio Menu options.Select source for playbackSelect source for playbackSelect source for playbackSelect exact time, track or chapter for playback. Select exact time, track or chapter for playback. Select alternate viewing angle, if available.Zoom picture or press repeatedly to change magnification level.Display current playback information on the screen. Display current playback information on the screen. Press to access system MENU. Press and hold to access DVD MENU. 18

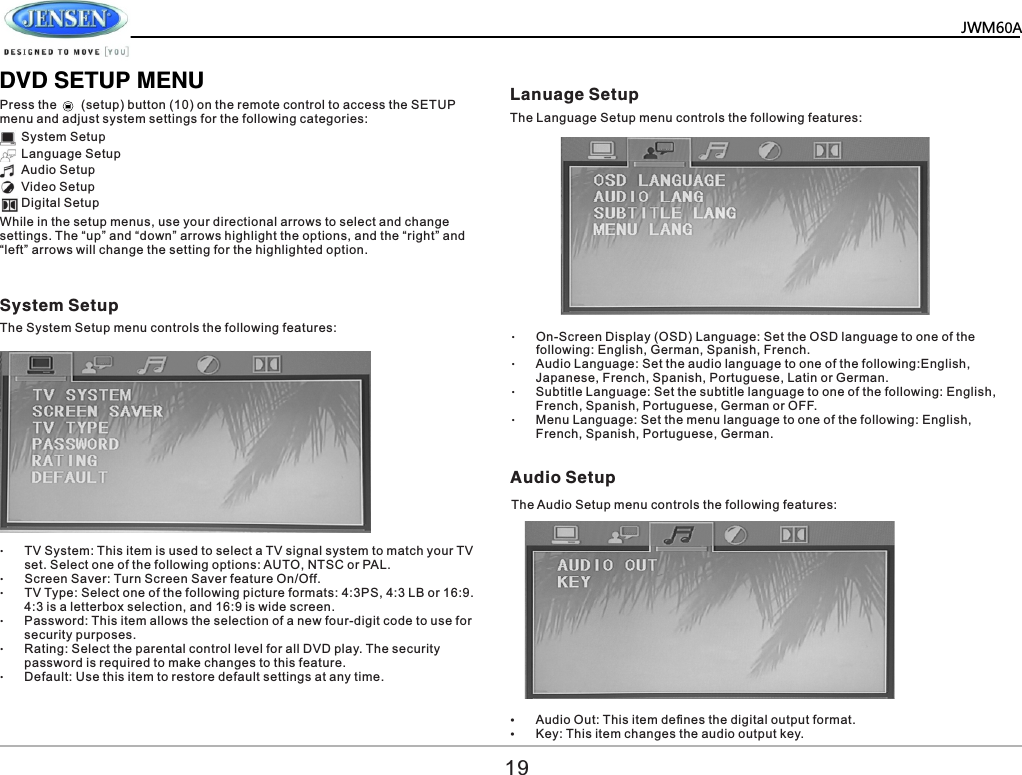

JWM60A DVD SETUP MENUPress the (setup) button (10) on the remote control to access the SETUP menu and adjust system settings for the following categories: System Setup Language Setup Audio Setup Video Setup Digital Setup –TV System: This item is used to select a TV signal system to match your TV set. Select one of the following options: AUTO, NTSC or PAL. –Screen Saver: Turn Screen Saver feature On/Off. –TV Type: Select one of the following picture formats: 4:3PS, 4:3 LB or 16:9. 4:3 is a letterbox selection, and 16:9 is wide screen. –Password: This item allows the selection of a new four-digit code to use for security purposes. –Rating: Select the parental control level for all DVD play. The security password is required to make changes to this feature. –Default: Use this item to restore default settings at any time. –On-Screen Display (OSD) Language: Set the OSD language to one of the following: English, German, Spanish, French. –Audio Language: Set the audio language to one of the following:English, Japanese, French, Spanish, Portuguese, Latin or German. –Subtitle Language: Set the subtitle language to one of the following: English, French, Spanish, Portuguese, German or OFF. –Menu Language: Set the menu language to one of the following: English, French, Spanish, Portuguese, German. While in the setup menus, use your directional arrows to select and change settings. The “up” and “down” arrows highlight the options, and the “right” and “left” arrows will change the setting for the highlighted option. System Setup Lanuage Setup Audio Setup The System Setup menu controls the following features:The Audio Setup menu controls the following features: ŸAudio Out: This item defines the digital output format. ŸKey: This item changes the audio output key. The Language Setup menu controls the following features:19

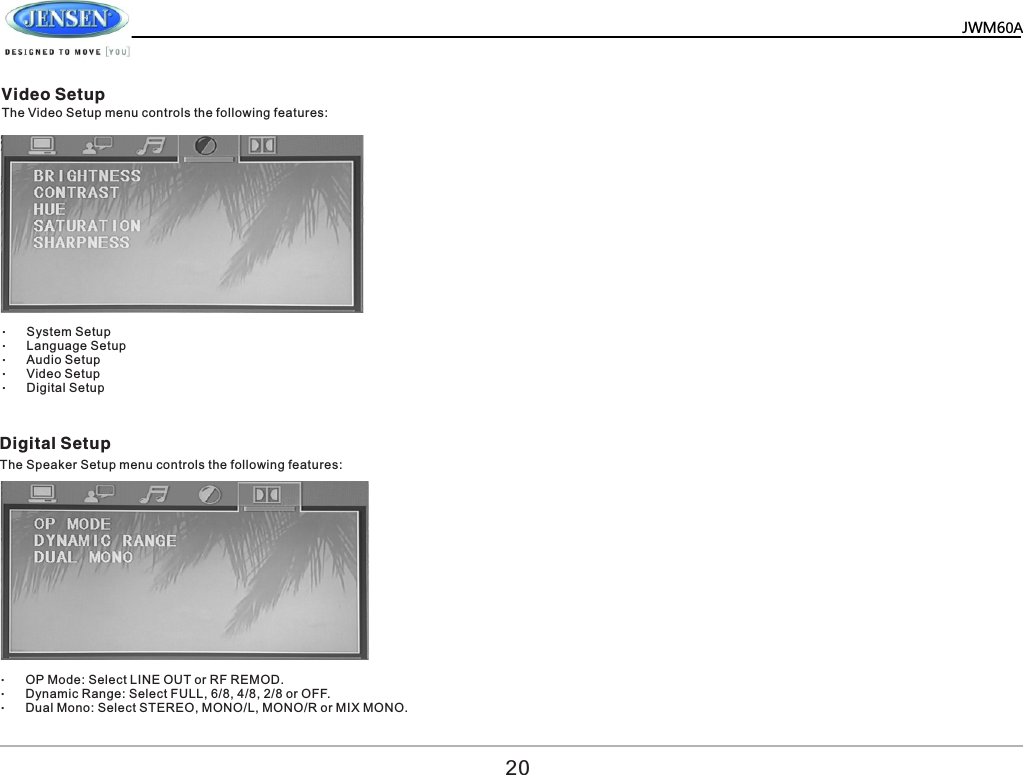

JWM60A Video Setup Digital Setup The Video Setup menu controls the following features: The Speaker Setup menu controls the following features: –System Setup –Language Setup –Audio Setup –Video Setup –Digital Setup –OP Mode: Select LINE OUT or RF REMOD. –Dynamic Range: Select FULL, 6/8, 4/8, 2/8 or OFF. –Dual Mono: Select STEREO, MONO/L, MONO/R or MIX MONO. 20

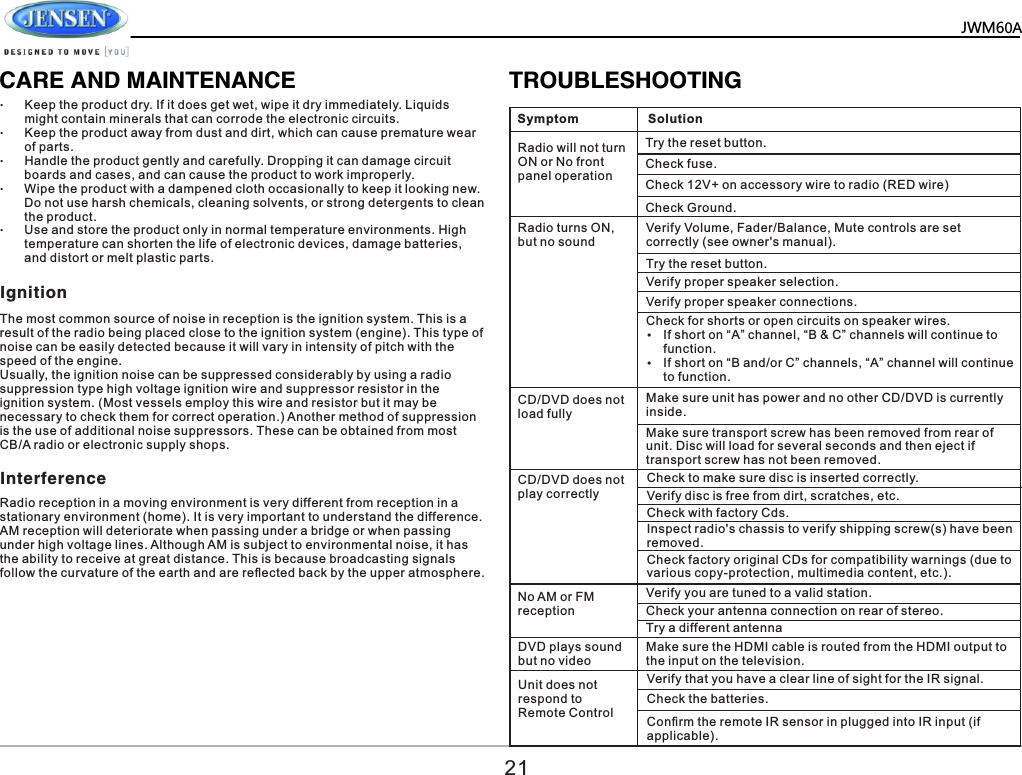

JWM60A CARE AND MAINTENANCE TROUBLESHOOTING–Keep the product dry. If it does get wet, wipe it dry immediately. Liquids might contain minerals that can corrode the electronic circuits. –Keep the product away from dust and dirt, which can cause premature wear of parts. –Handle the product gently and carefully. Dropping it can damage circuit boards and cases, and can cause the product to work improperly. –Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the product. –Use and store the product only in normal temperature environments. High temperature can shorten the life of electronic devices, damage batteries, and distort or melt plastic parts. Ignition Interference The most common source of noise in reception is the ignition system. This is a result of the radio being placed close to the ignition system (engine). This type of noise can be easily detected because it will vary in intensity of pitch with the speed of the engine. Usually, the ignition noise can be suppressed considerably by using a radio suppression type high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ this wire and resistor but it may be necessary to check them for correct operation.) Another method of suppression is the use of additional noise suppressors. These can be obtained from most CB/A radio or electronic supply shops. Radio reception in a moving environment is very different from reception in a stationary environment (home). It is very important to understand the difference. AM reception will deteriorate when passing under a bridge or when passing under high voltage lines. Although AM is subject to environmental noise, it has the ability to receive at great distance. This is because broadcasting signals follow the curvature of the earth and are reflected back by the upper atmosphere. Symptom SolutionRadio will not turn ON or No front panel operation Radio turns ON, but no sound CD/DVD does not load fullyCD/DVD does not play correctlyNo AM or FM receptionDVD plays sound but no video Unit does not respond to Remote ControlTry the reset button. Check fuse.Check 12V+ on accessory wire to radio (RED wire)Check Ground. Verify Volume, Fader/Balance, Mute controls are set correctly (see owner's manual). Try the reset button. Verify proper speaker selection. Verify proper speaker connections. Check for shorts or open circuits on speaker wires.ŸIf short on “A” channel, “B & C” channels will continue to function. ŸIf short on “B and/or C” channels, “A” channel will continue to function. Make sure transport screw has been removed from rear of unit. Disc will load for several seconds and then eject if transport screw has not been removed.Make sure unit has power and no other CD/DVD is currently inside.Check to make sure disc is inserted correctly. Verify disc is free from dirt, scratches, etc. Check with factory Cds. Inspect radio's chassis to verify shipping screw(s) have been removed. Check factory original CDs for compatibility warnings (due to various copy-protection, multimedia content, etc.). Verify you are tuned to a valid station. Check your antenna connection on rear of stereo.Try a different antenna Make sure the HDMI cable is routed from the HDMI output to the input on the television. Verify that you have a clear line of sight for the IR signal. Check the batteries. Confirm the remote IR sensor in plugged into IR input (if applicable). 21

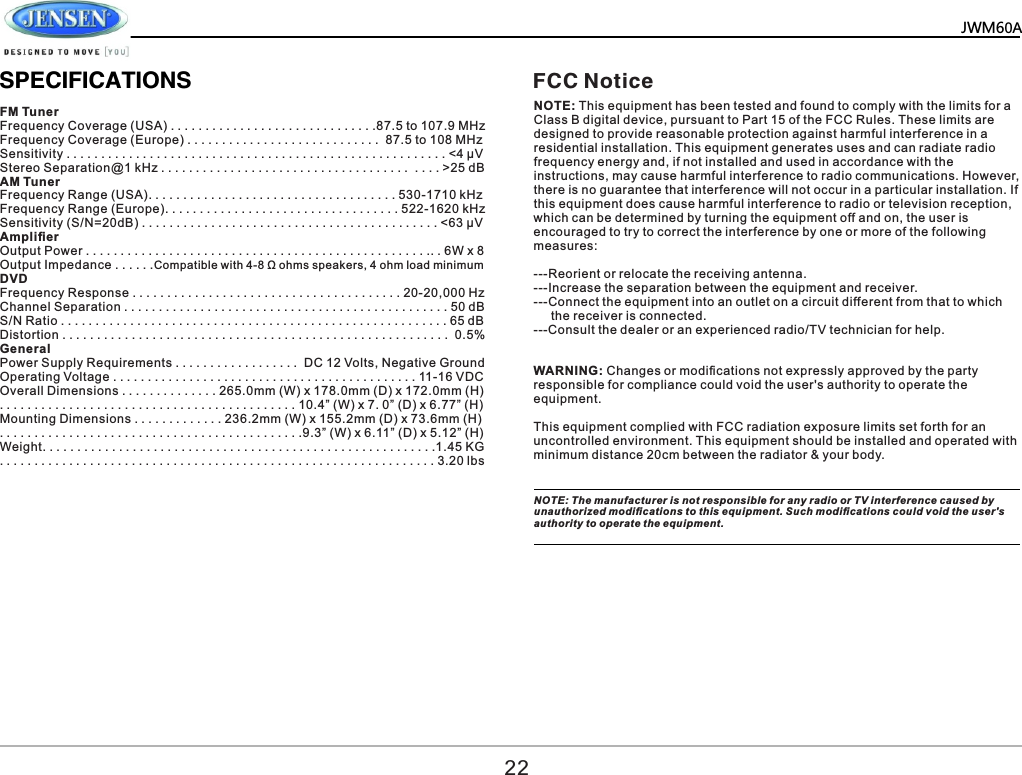

JWM60A SPECIFICATIONSFM Tuner Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87.5 to 107.9 MHz Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <4 μV Stereo Separation@1 kHz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB AM Tuner Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <63 μV Amplifier Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 6W x 8 Output Impedance . . . . . .Compatible with 4-8 Ω ohms speakers, 4 ohm load minimum DVD Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-20,000 Hz Channel Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 dB S/N Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 dB Distortion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5% General Power Supply Requirements . . . . . . . . . . . . . . . . . . DC 12 Volts, Negative Ground Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-16 VDC Overall Dimensions . . . . . . . . . . . . . . 265.0mm (W) x 178.0mm (D) x 172.0mm (H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4” (W) x 7. 0” (D) x 6.77” (H) Mounting Dimensions . . . . . . . . . . . . . 236.2mm (W) x 155.2mm (D) x 73.6mm (H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.3” (W) x 6.11” (D) x 5.12” (H) Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.45 KG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20 lbs 22FCC NoticeNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna.---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.---Consult the dealer or an experienced radio/TV technician for help.WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complied with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
