GOSAFE G-G6S-3S GPS Tracker User Manual G6S V1 6
Gosafe Company Limited GPS Tracker G6S V1 6
GOSAFE >
User Manual
G6S User Manual
2
G6S
G6SG6S
G6S
User Manual
User ManualUser Manual
User Manual
V1.
V1.V1.
V1.6
66
6
Copyright © 2013 Gosafe
ATTENTION!
Do not disassemble the device. Do not touch before unplugging the power supply if the device is
damaged, the power supply cables are not isolated or the isolation is damaged.
All wireless data transferring devices produce interference that may affect other devices which are
placed nearby.
The device may be connected only by qualified individuals.
G6S User Manual
3
The device must be firmly fastened in the predefined location.
The device is susceptible to water and humidity.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment. This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
INSTRUCTIONS OF SAFETY
This chapter contains information on how to operate “G6S” safely.
BY following these requirements and recommendations you will avoid dangerous situations. You
G6S User Manual
4
must read these instructions carefully and follow the strictly before operating the device!
The device uses a 8V-32V DC power supply. The nominal voltage is 12V DC. It is advised to
transport the device in an impact-proof package.
Before usage, the device should be placed so that its LED indicators are visible, which show what
status of operation the device is in.
When connecting the connection cables to the vehicle, the appropriate jumpers of the power supply
of the vehicle should be disconnected.
Before dismounting the device from the vehicle, the connection must be disconnected.
LEGAL NOTICE
Copyright © 2013 Gosafe
All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this
document in any form without the prior written permission of Gosafe is prohibited.
1-Wire is a registered trademark of Dallas Semiconductor.
Other products and company names mentioned herein may be trademarks or trade names of their
respective owners.
INTRODUCTION
The G6S Feature Rich Powerful GPS Tracker is the latest solution for track and trace applications and
extreme level fleet management.
G6S User Manual
5
G6S is designed for service providers, integrators, and enterprise customers to enhance mobile
resources and improve their dispatch system; the G6S is a dependable quad-band GSM/GPRS tracking
device, delivering the key features fulfilling the most demanding applications: fleet management,
insurance telemetric, dispatch, vehicle location and recovery, and more.
With accurate GPS location performance, a robust programmable rules engine, 2-axis accelerometer for
measuring driver behavior and vehicle impacts, geo-fencing, messaging and much more, the G6S is
designed for powerful solution deployment. The G6S also includes optional routing and optimization
with Garmin® FMI (Fleet Management Interface) - a key part of today’s fleet management.
The G6S is powered by over-the-air device management and maintenance system, (Programming,
Updates, and Logistics System). FOTA (Firmware update over the air), GSM Jamming detection and 156
hardware based geo-fences makes this the perfect choice for superior safety and security of your
vehicle.
G6S User Manual
6
Contents
ATTENTION! ........................................................................ 2
INSTRUCTIONS OF SAFETY .................................................. 3
LEGAL NOTICE ..................................................................... 4
INTRODUCTION .................................................................. 4
1. Packing List ..................................................................... 7
2. Specifications .................................................................. 9
3. Overview ....................................................................... 10
4. Installation .................................................................... 13
5. I/O Connector ............................................................... 16
6. LED Indicator Behavior ................................................. 17
7. User Command ............................................................. 18
8. Message Explanation .................................................... 22
Appendix ........................................................................... 28
Optional accessory ........................................................ 28
G6S User Manual
7
1. Packing List
￭Standard
The G6S box is packaged with all the components that is necessary for operation, it contains:
⃞G6S device x1
⃞2*8/2*5 PIN I/O connector cable x1
To connect with external
power supply and optional
To the back panel I/O
connector of device
G6S User Manual
8
accessory
NOTE: SIM card which for GSM/GPRS connectivity is not supplied in the package, please consult your
local SIM provider for further information.
￭Optional accessory
Name Purpose
USB cable To configure device via configuration tool on computer
External GPS antenna It helps to fix GPS faster
Microphone It enables device for voice monitoring features
*Speaker It enables device for voice conversation
*iButton For driver ID verification via 1WIRE link
*DS18B20 Temperature sensor via 1WIRE link
Immobilizer It enables the device to kill/restore engine
Panic button Device reports or calls when this button being pressed
*DB9 cable Communicate with computer via RS232 serial link
*GARMIN cable Communicate with GARMIN PND
Magic tape It helps to attach device firmly
Fuse Protecting device from electrical surge
Backup battery Rechargeable, Li-Po 3.7V, 250mAh
NOTE: * indicates only for G6S
Please refer chapter Appendix for further details and installation guide for optional accessory
G6S User Manual
9
2. Specifications
Physical
Dimension 80(L)x51.5(W)x26(H)mm
Weight ~75g (With battery)
Environment Operating temperature
-40℃~+80℃ (without backup battery)
-10℃~+50℃ (with backup battery)
I/O connector
ACC input 1 channel
Digital input 2 channels
Analog/Digital *2 channels
Digital output 3 channels
*1WIRE Maxim Integrated
*RS232 serial link RxD & TxD
Microphone 1 channel
*Speaker SPK+ & SPK-
USB Mini USB 2.0
CPU ARM STM32F103 UcOS
LED indicator 3 LED indicators GSM & GPS & POWER
Power supply
External DC 8 to 32V
Backup battery Type Rechargeable, Li-Po 3.7V, 250mAh
Power consumption Standby: 70mA@12V, Working: 100mA@12V
GSM/GPRS
Antenna Built-In
Model Cinterion BGS2-W
G6S User Manual
10
850/1900MHz
Class 12
TCP/IP over PPP
SIM card 1.8V & 3.3V
GPS
Internal antenna 25*25 with amplifier
External antenna GPS Active Antenna
Model uBlox NEO 6M
Channel 50 Parallel Channels
Accuracy Autonomous<2.5M
Sensitivity -162dBm
Sensor
Vibration sensor N/A
Accelerate sensor Built-In, 2-axis
Flash storage 16Mbits Built-In, Maximum to save 8,000 GPS positions
NOTE: * indicates only for G6S
3. Overview
3.1. Device Capabilities
FOTA, Firmware Upgrade Over The Air
Flexible Programming Rules
Garmin® FMI
1-Wire® Interface
G6S User Manual
11
GSM Jamming Detection
Quad Band GSM Modem
HDOP For Precise Location
Multiple Data Upload Modes
2-Axis Accelerometer Sensor
156 Hardware Based Geo-Fence/Point of interest
Over Speed Management
Multiple Inputs & Outputs
Configurable Inputs & Outputs
Internal Backup Battery
G6S User Manual
12

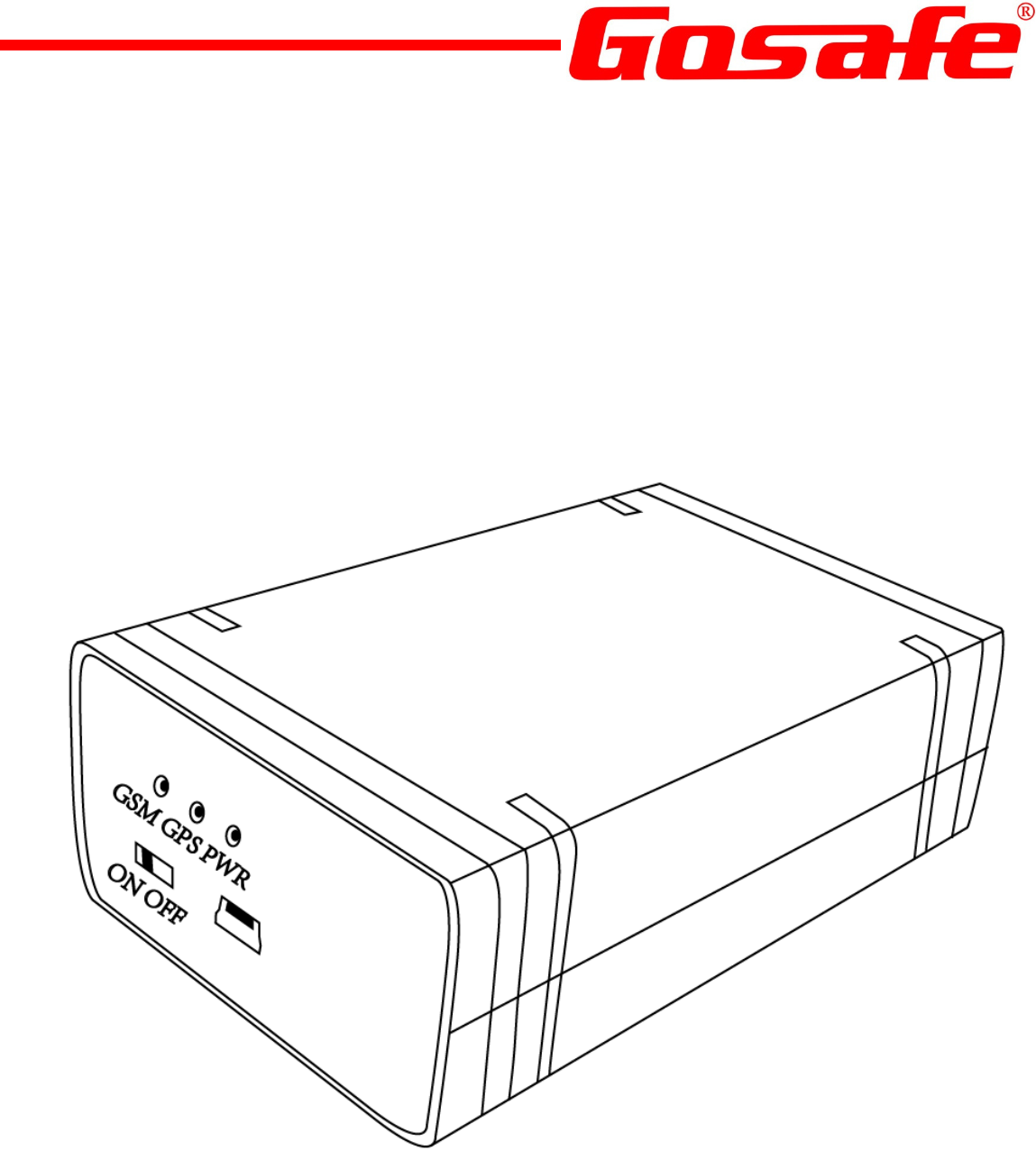

3.2. Mechanical construction
￭Front
panel view
￭Rear panel view
Battery p
ower
supply
switcher
USB cable port
LED indicator
This side towards to the sky
G6S User Manual
13
4. Installation
4.1. Remove the cover
2*8/2*5
PIN
I/O connector
GPS external antenna connector
1, On the back panel of the device, there is
a small slot at the top of it.
2, Utilize a screw driver or sticker, insert it
Cover remove slot
G6S User Manual
14
4.2. Insert the SIM card
4.3. Install direction
￭G6S has accident & harsh detection features that based on built-in 2-axis sensor. Its accuracy will be
affected by install direction of device, please find the sticker on housing of device for recommended
direction.
1, Flip up cover of SIM holder, facing metal
side of SIM card to the PCB board as step1.
2, Insert SIM card to cover then flip it
down, pull the cover at the direction as
step2 to lock up SIM card firmly.
G6S User Manual
15
1, By default you need to point side “0” to the
engine, which is the direction of vehicle heading.
2, If you prefer other side pointing to engine,
please send command to change the default
setting of installation direction.
E.g.:
Side “1” is pointing to engine,
Command to send:
1234,BDS
1234,BDS1234,BDS
1234,BDS;1
;1;1
;1
Note: 1234 is the default user password to send
command, and default is 1234,BDS;0 , and please
set phone number as User number before sending
this command.
G6S User Manual
16

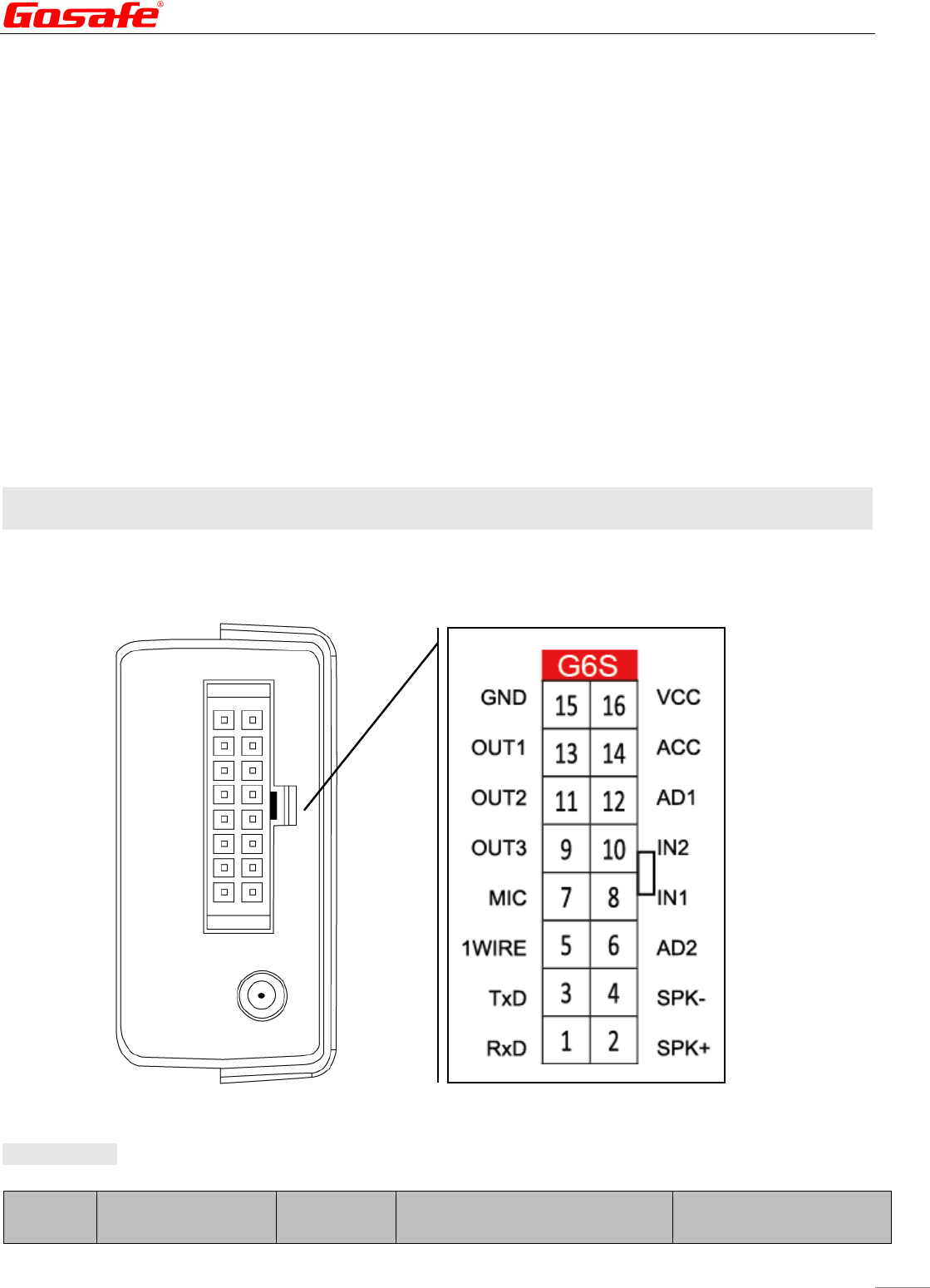

5. I/O Connector
￭On the rear panel of device
PIN definition
PIN definitionPIN definition
PIN definition
PIN#
PIN#PIN#
PIN#
Color
ColorColor
Color
Name
NameName
Name
Definition
DefinitionDefinition
Definition
Remark/Default
Remark/DefaultRemark/Default
Remark/Default
G6S User Manual
17
NOTE: * indicates only for G6S
6. LED Indicator Behavior
■GSM LED: G
GSM LED: GGSM LED: G
GSM LED: Green
reenreen
reen
Server socket connected: Flash once quickly every 3 seconds
GSM network registered: Flash twice quickly in a row every 3 seconds
1 *
**
*Green/White
Green/WhiteGreen/White
Green/White
RxD Receive serial link data RS232
2 *
**
*Purple
PurplePurple
Purple
SPK+ Positive (+) of speaker
3 *
**
*White/Black
White/BlackWhite/Black
White/Black
TxD Transmit serial link data RS232
4 *
**
*Orange
OrangeOrange
Orange/White
/White/White
/White
SPK- Negative (-) of speaker
5 *
**
*Yellow/Black
Yellow/BlackYellow/Black
Yellow/Black
1WIRE 1WIRE link
6 *
**
*Blue/White
Blue/WhiteBlue/White
Blue/White
AD2/IN4 Analog/Digital input channel High level active (>19V)
7 Grey
GreyGrey
Grey
MIC Microphone
8 Orange
OrangeOrange
Orange
IN1 Digital input channel 1 Low level active
9 Brown
BrownBrown
Brown
OUT3 Digital output channel 3
10 Red/Black
Red/BlackRed/Black
Red/Black
IN2 Digital input channel 2 Low level active
11 Yellow
YellowYellow
Yellow
OUT2 Digital output channel 2
12 Green
GreenGreen
Green
AD1/IN3 Analog/Digital input channel High level active (>6V)
13 Blue
BlueBlue
Blue
OUT1 Digital output channel 1
14 White
WhiteWhite
White
ACC ACC/Ignition signal input High level active
15 Black
BlackBlack
Black
GND Negative (-)
16 Red
RedRed
Red
VCC Positive (+) 8V-32V DC
G6S User Manual
18
GSM network unregistered: Flash 3 times quickly in a row every 3 seconds
SIM card error: Flash 4 times quickly in a row every 3 seconds
Serial link communication error: Flash 5 times quickly in a row every 3 seconds
GSM module OFF: Never flash
■GPS
GPSGPS
GPS
LED:
LED: LED:
LED: Y
YY
Yellow
ellowellow
ellow
GPS fixed: Flash once quickly every 3 seconds
GPS unfixed: Flash twice quickly in a row every 3 seconds
GPS communication error: Flash 3 times quickly in a row every 3 seconds
GSM module OFF: Never flash
■Power
PowerPower
Power
LED:
LED: LED:
LED: Red
RedRed
Red
Using external power supply: Flash once quickly every 3 seconds
Using backup battery: Flash twice quickly in a row every 3 seconds
Backup battery low voltage: Flash 3 times quickly in a row every 3 seconds
Under iButton mode: Glowing constantly
Set successfully: Flash once every 1 second
7. User Command
￭Set User Phone Number
There are 2 users phone supported by G6S, they have the same authorization.
G6S User Manual
19
User1’s command words are
UNO
UNOUNO
UNO0
00
0, UPW
, UPW, UPW
, UPW0
00
0, USP
, USP, USP
, USP0
00
0.
User2’s command words are
UNO1, UPW1, USP1
UNO1, UPW1, USP1UNO1, UPW1, USP1
UNO1, UPW1, USP1.
Below will take user1 as example:
To set your cell phone number as User1 to control and receive messages from device, please send
UNO
UNOUNO
UNO
command to the device, e.g.:
1234,UNO
1234,UNO1234,UNO
1234,UNO0
00
0;+8613912345678
;+8613912345678;+8613912345678
;+8613912345678
Or
1234,UNO
1234,UNO1234,UNO
1234,UNO0
00
0;13912345678
;13912345678;13912345678
;13912345678
Explanations:
1234
12341234
1234: Default password.
UNO
UNOUNO
UNO0
00
0: Command control word for setting user number.
+8613912345678
+8613912345678+8613912345678
+8613912345678: Phone number with country code.
13912345678
1391234567813912345678
13912345678: Phone number without country code.
Device is supposed to reply a confirmation SMS to you, if the device does not accept the command,
it also reply a message with content: Command err
Command errCommand err
Command err.
￭Modify User Password
Factory default password 1234
12341234
1234
Changing the factory password at the first usage is highly suggested.
New password should be 4 digits that from number “0-9”.
To modify password, send
UPW
UPWUPW
UPW
command from your USER phone number, e.g.:
1234,
1234,1234,
1234,UPW
UPWUPW
UPW0
00
0;5678
;5678;5678
;5678
Explanations:
G6S User Manual
20
1234
12341234
1234: Factory Password
UPW0
UPW0UPW0
UPW0: Command control word for setting new password
5678
56785678
5678: New Password
￭Set position report interval to user phone
Device is able to report its current position periodically according to the setting, default is every 30
minutes. To change it please send
USP
USPUSP
USP
command, e.g.:
1234,USP
1234,USP1234,USP
1234,USP0
00
0;
;;
;0;
0;0;
0;30S;G;
30S;G;30S;G;
30S;G;W
WW
W
Explanations:
1234
12341234
1234: User password
USP
USPUSP
USP0
00
0: Command control word
0
00
0: Interval Mode, related with dynamic report condition
0: Mode0
1: Mode1
30S
30S30S
30S: Report interval
S: Second, range from 30 to 900.
M: Minute, range from 15 to 59.
H: Hour, range from 1 to 240.
G
GG
G: Working mode
O: Disable periodically report to USER.
G6S User Manual
21
G: GPS location information as first priority, if it is invalid, will be replaced by LBS information.
S: Using LBS information only.
L: Device will voice call USER periodically for voice monitoring purpose.
W
WW
W: Location information type
T: Text for current location, showing GPS coordinate.
W: Google map hyper link for current location.
G6S User Manual
22
8. Message Explanation
￭Periodical SMS report
Below are the different kinds of message will be received by user periodically according to the setting of
command
USP
USPUSP
USP
, example on G6S.
“W” mode
1. GPS is fixed
Content of message
Explanation
G6S V1.00
LTM 2013-06-06 14:17:12
http://maps.google.com/maps?q...
GSM -52dBm
EXT_PWR=12.08V
BAT=3.86V
#30
Device name/Firmware version
Date/Time
Google map hyper link
GSM network signal strength
External power voltage
Built-in battery voltage
Consumed messages
G6S User Manual
23
There are 2 kinds of map hyper link available, static and dynamic, it depends on the setting of
command USP, e.g.:
Static link:
http://maps.google.com/staticmap?zoom=14&size=300x300&markers =%n(,%e&sensor=false
Dynamic link:
URL0;http://maps.google.com/maps?q=%n(,%e&t=m&z=16
2. GPS is not fixed
Map hyper link will be LBS (URL1) instead of GPS (URL0)
Content of message
Explanation
G6S V1.00
LTM 2013-06-06 14:17:12
http://maps.google.com/maps?q...
GSM -52dBm
EXT_PWR=12.08V
BAT=3.86V
#30
Device name/Firmware version
Date/Time
Google map hyper link
GSM network signal strength
External power voltage
Built-in battery voltage
Consumed messages
G6S User Manual
24
“T” mode
1. GPS is fixed
Content of message
Explanation
G6S V1.00
LTM 2013-06-06 09:41:22
GPS 1.55/0.50/3/4
N23.164302
E113.428456
SPD:0km/h 0
GSM -52dBm
EXT_PWR=12.13V
BAT=3.96V
#27
Device name/Firmware version
Date/Time
HDOP/ALTITUDE in meter/Fixed satellite number/Time of first fixed
N means north/S means south
E means east/W means west
Speed/Heading
GSM signal strength
External power voltage
Built-in battery voltage
Consumed messages
2. GPS is not fixed, using LBS instead
Content of message
Explanation
G6S User Manual
25
G6S V1.00
LTM 2013-02-28 23:51:09
MCC/MNC/LAC/CID/RSSI
460/0/2503/962C/-53dBm
460/0/2731/40F4/-60dBm
460/0/2703/4050/-70dBm
GSM -58dB
EXT_PWR=5.13V
BAT=4.17V
#20
Device name/Firmware version
Date/Time
Base station information type
Main station, MNC/MNC/Local area code/Station ID/Signal strength
Neighbor station 1
Neighbor station 2
GSM network signal strength
External power voltage
Built-in battery voltage
Consumed messages
￭Event SMS report
If an assigned event is triggered, device will send notify SMS to user according to the setting.
“W” mode
1. GPS is fixed
Content of message
Explanation
G6S V1.00
LTM 2013-06-06 14:17:12
http://maps.google.com/maps?q...
ETD:6/ACC ON
GSM -52dBm
EXT_PWR=12.08V
Device name/Firmware version
Date/Time
Google map hyper link
Event ID/User defined event name/Data
GSM network signal strength
External power voltage
G6S User Manual
26
BAT=3.86V
#301
Built-in battery voltage
Consumed messages
3. GPS is not fixed
Map hyper link will be LBS (URL1) instead of GPS
Content of message
Explanation
G6S V1.00
LTM 2013-06-06 14:17:12
http://maps.google.com/maps?q...
ETD:6/ACC ON
GSM -52dBm
EXT_PWR=12.08V
BAT=3.86V
#301
Device name/Firmware version
Date/Time
Google map hyper link
Event ID/User defined event name/Data
GSM network signal strength
External power voltage
Built-in battery voltage
Consumed messages
“T” mode
1, GPS is fixed
Content of message
Explanation
G6S User Manual
27
G6S V1.00
LTM 2013-02-28 23:51:09
GPS 1.55/0.50/3/4
N23.164302
E113.428456
SPD:0km/h 0
ETD:6/ACC ON
GSM -52dBm
EXT_PWR
=12.13V
BAT=3.96V
#28
Device name/Firmware version
Date/Time
HDOP/ALTITUDE in meter/Fixed satellite number/Time of first fixed
N means north/S means south
E means east/W means west
Speed/Heading
Event ID/User defined event name/Data
GSM network signal strength
External power voltage
Built-in battery voltage
Consumed messages
2. GPS is not fixed, using LBS instead
Content of message
Explanation
G6S V1.00
LTM 2013-02-28 23:51:09
MCC/MNC/LAC/CID/RSSI
460/0/2503/962C/-53dBm
460/0/2731/40F4/-60dBm
460/0/2703/4050/-70dBm
ETD:6/ACC ON
GSM -52dBm
Device name/Firmware version
Date/Time
Base station information type
Main station, MNC/MNC/Local area code/Station ID/Signal strength
Neighbor station 1
Neighbor station 2
Event ID/User defined event name/Data
GSM network signal strength
G6S User Manual
28
EXT_PWR
=12.13V
BAT=3.96V
#28
External power voltage
Built-in battery voltage
Consumed messages
Appendix
Optional accessory
￭USB cable
To the computer that
runs configuration tool
To the front panel
of device
￭GPS external antenna
Item Parameter
Antenna Center Frequency 1575.42±1MHz
Band Width CF±5MHz
Polarization RHCP
Gain 5dBic（Zenith）
V.S.W.R ＜1.5
G6S User Manual
29
Impendence 50Ω
Axial Ratio 3dB（max）
Dimension 25*25*300cm
LNA Gain 28±2dB
Noise Figure ＜1.5
Filter Insertion Loss ＜3dB
Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage 2.2~5V DC
Current Consumption 5~15mA
V.S.W.R ＜2.0
Mechanical Cable RG174---3M
Connector SMA
Redone Material ABS
Mounting Method Magnet
Environmental
Operating Temperature -40℃~+85℃
Relative Humidity Up to 95%
Ingress Protection IP65~IP67
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
Expose this terminal
under the sky
To the rear panel of device,
GPS antenna connector
G6S User Manual
30
￭Microphone
Item Parameter
Length 3 meters
Material Al-Si
Output impedance 2.2Kohm
Sensitivity -30db to 60db
Frequency 50HZ to1600HZ
Channel Stereo
PIN15
PIN7
Black wire: To PIN15
Red wire: To PIN7
This accessory is necessary
for voice related
functionalities.
￭Speaker
Item Parameter
Length 3 meters
Impedance 16ohm
Sensitivity 96db/W
Frequency 50HZ to1600HZ
Signal to noise ratio 75db
G6S User Manual
31
Power consumption 1W
PIN16
PIN15
PIN4
PIN2
Red: To PIN16
Black: To PIN15
White: To PIN4
Blue: To PIN2
This accessory is
necessary for voice
related functionalities.
￭1-Wire
PIN15
PIN5
White wire: To PIN15
Red wire: To PIN5
Driver ID application
PIN15
PIN5
1 & 3: To PIN15
2: To PIN5
￭Panic button
G6S User Manual
32
PIN8/10
PIN15
Black/White wire: To PIN8/10
Black wire: To PIN15
Press button to send
SOS message/call
from G6S
￭Fuse
This accessory protects the device when illegal power supply has been connected.
PIN16
Red wire: PIN16
To external
power supply
￭RS232 to DB9
PIN1
PIN3
PIN15
Green wire: To PIN1
Yellow wire: To PIN3
Black wire: To PIN15
To Female DB9
interface
￭RS232 to GARMIN interface
G6S User Manual
33
PIN16
PIN15
PIN3
PIN1
Power cable:
Black: To PIN15
Red: To PIN16
Data cable:
Brown: To PIN15
White: To PIN3
Yellow: To PIN1
To GARMIN PND
￭Immobilizer
Immobilizer is an electronic security device fitted to an automobile that prevents the engine from
running, it can be control by digital output channel from G6S
PIN9/11/13
85: To +12V/24V
86: To PIN9/11/13
87a & 30: Between ignition wire
G6S User Manual
34
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in accordance with instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation if this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
G6S User Manual
35
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
RF Exposure Information
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.
In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human
proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
