GRAUPNER BLWM 2.4GHz WiFi module User Manual Yokomo BL WM USER MANUAL

GRAUPNER CO., LTD. 2.4GHz WiFi module Yokomo BL WM USER MANUAL

15_BL-WM UserMan

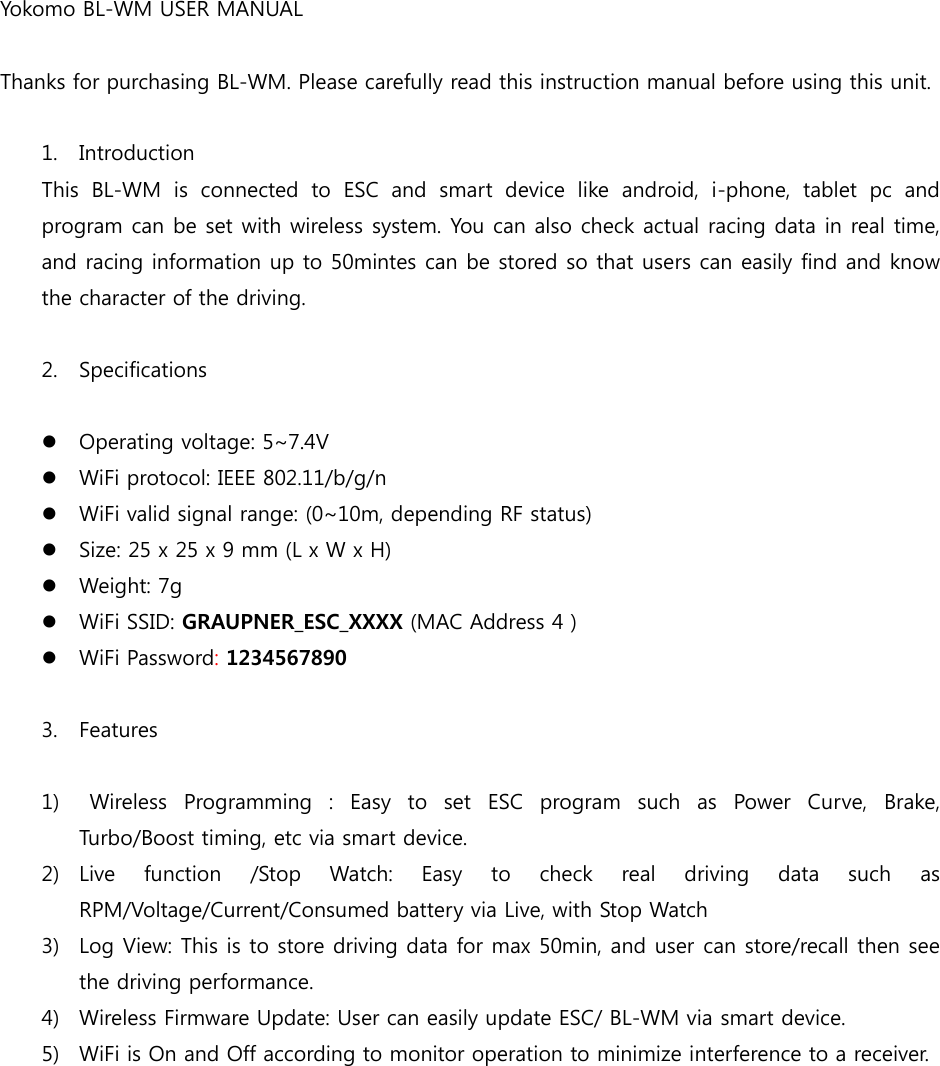

Yokomo BL-WM USER MANUAL  Thanks for purchasing BL-WM. Please carefully read this instruction manual before using this unit.  1. Introduction This  BL-WM  is  connected  to  ESC  and  smart  device  like  android,  i-phone,  tablet  pc  and program can be set with wireless system. You can also check actual racing data in real time, and racing information up to 50mintes can be stored so that users can easily find and know the character of the driving.  2. Specifications    z Operating voltage: 5~7.4V z WiFi protocol: IEEE 802.11/b/g/n z WiFi valid signal range: (0~10m, depending RF status) z Size: 25 x 25 x 9 mm (L x W x H) z Weight: 7g z WiFi SSID: GRAUPNER_ESC_XXXX (MAC Address 4 ) z WiFi Password: 1234567890  3. Features    1)  Wireless Programming : Easy to set ESC program such as Power Curve,  Brake, Turbo/Boost timing, etc via smart device. 2) Live function /Stop Watch: Easy to check real driving data such as RPM/Voltage/Current/Consumed battery via Live, with Stop Watch 3) Log View: This is to store driving data for max 50min, and user can store/recall then see the driving performance. 4) Wireless Firmware Update: User can easily update ESC/ BL-WM via smart device.   5) WiFi is On and Off according to monitor operation to minimize interference to a receiver.
4. User Guide   1) How to connect BL-WM (Connecting the BL-WM) a) Download BL-WM Link app then install ( please refer to our homepage ) b) Like  figure  below,  the  signal  of  connection  location  for  BL-WM  and  ESC  setting should be connected with 3 pins white band of WiFi.  Note:  If Graupner transmitter would be used, clear SUMD V2 at CH2  setting  then use.    <Connection between BL-WM and ESC>      c) Connect the ESC to Power then switches on the ESC. Once WiFi works, the Yellow LED on the BL-WM should flash. Then, refer to “BL-WM – Setup item”  Note:  To  minimize the  impact  of  WiFi to  a  receiver,  WiFi module should be placed far from an antenna on a receiver.    2)   BL-WM setting (BL-WM – Setup)    <  BL-WM Link application and , connected WiFi ID> Note : GRUAPNER_ESC_XXXX is individual WiFi module ID, and it can vary depending

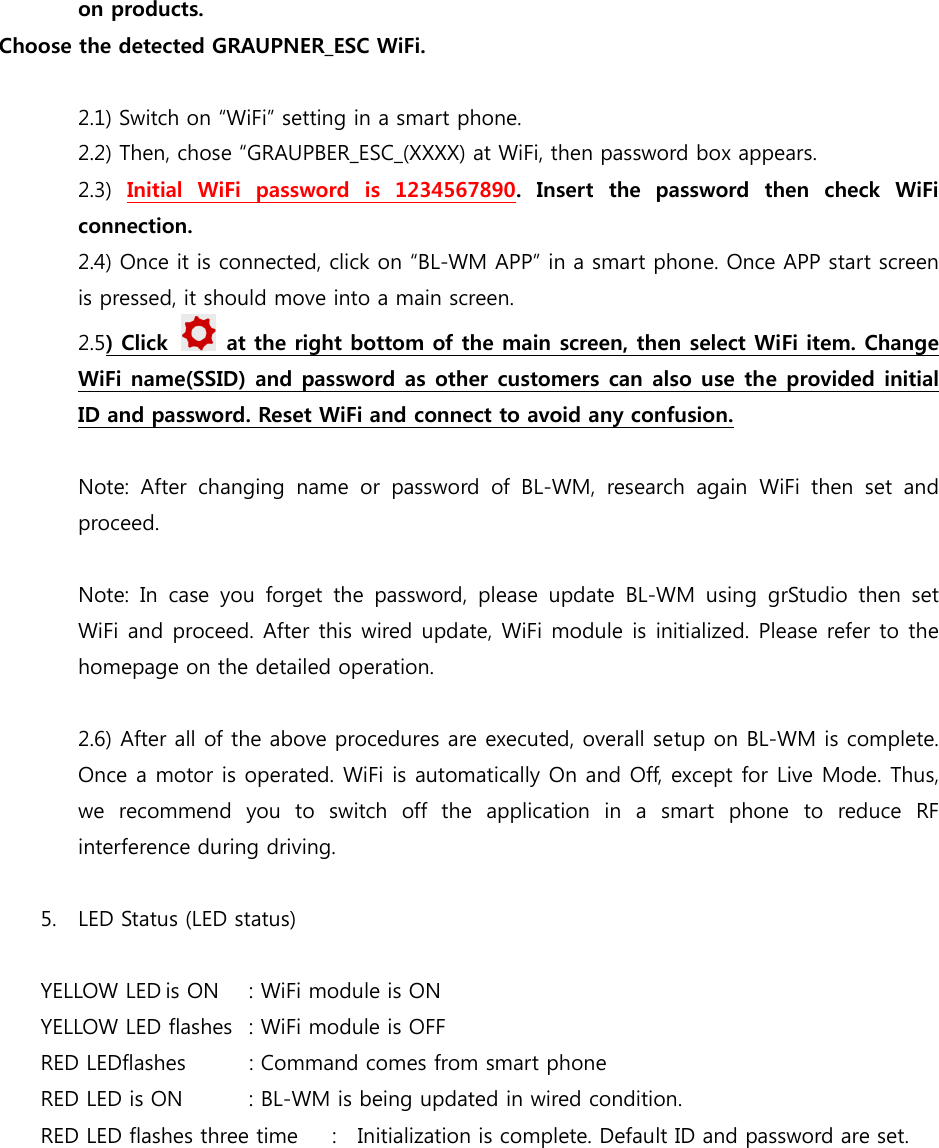

on products.   Choose the detected GRAUPNER_ESC WiFi.  2.1) Switch on “WiFi” setting in a smart phone. 2.2) Then, chose “GRAUPBER_ESC_(XXXX) at WiFi, then password box appears. 2.3)  Initial  WiFi  password  is  1234567890. Insert the password then check WiFi connection. 2.4) Once it is connected, click on “BL-WM APP” in a smart phone. Once APP start screen is pressed, it should move into a main screen.  2.5) Click    at the right bottom of the main screen, then select WiFi item. Change WiFi name(SSID) and password as other customers can also use the provided initial ID and password. Reset WiFi and connect to avoid any confusion.  Note:  After  changing  name  or  password  of  BL-WM,  research  again  WiFi  then  set  and proceed.  Note: In case you forget the password, please update BL-WM using  grStudio  then  set WiFi and proceed. After this wired update, WiFi module is initialized. Please refer to the homepage on the detailed operation.    2.6) After all of the above procedures are executed, overall setup on BL-WM is complete. Once a motor is operated. WiFi is automatically On and Off, except for Live Mode. Thus, we recommend you to switch off the application in a smart phone to reduce RF interference during driving.  5. LED Status (LED status)  YELLOW LED is ON  : WiFi module is ON YELLOW LED flashes  : WiFi module is OFF RED LEDflashes  : Command comes from smart phone RED LED is ON  : BL-WM is being updated in wired condition. RED LED flashes three time  :    Initialization is complete. Default ID and password are set.

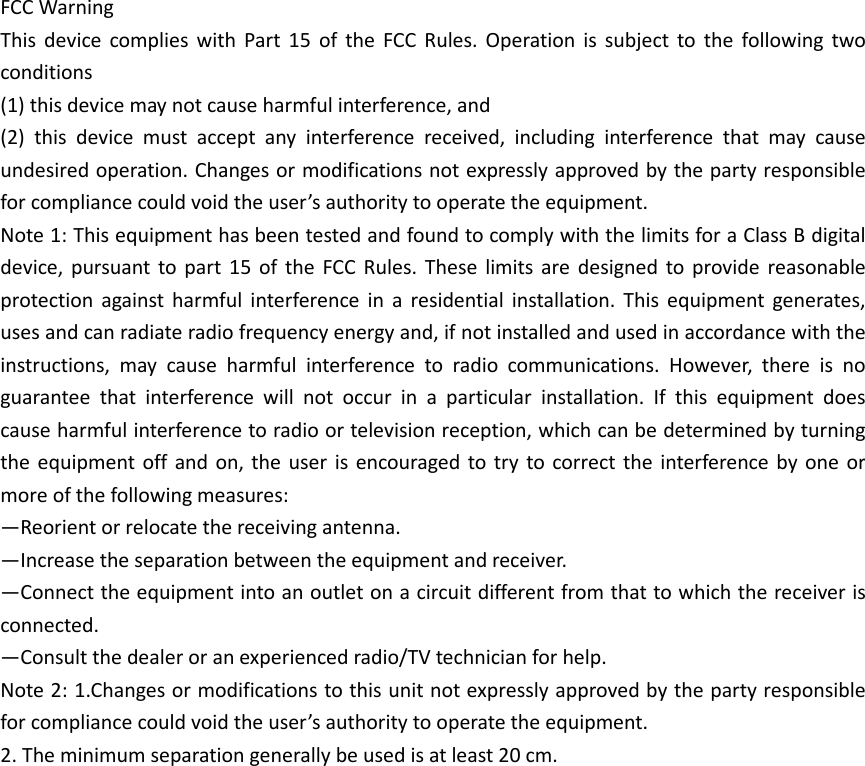

FCC Warning   This  device  complies  with  Part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two conditions   (1) this device may not cause harmful interference, and   (2)  this  device  must  accept  any  interference  received,  including  interference  that  may  cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.   Note 1: This equipment has been tested and found to comply with the limits for a Class B digital device,  pursuant  to  part  15 of  the  FCC Rules.  These  limits  are  designed  to  provide reasonable protection  against  harmful  interference  in  a  residential  installation.  This  equipment  generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,  may  cause  harmful  interference  to  radio  communications.  However,  there  is  no guarantee  that  interference  will  not  occur  in  a  particular  installation.  If  this  equipment  does cause harmful interference to radio or television reception, which can be determined by turning the equipment off  and  on,  the user  is  encouraged  to try  to  correct the  interference  by  one  or more of the following measures:   —Reorient or relocate the receiving antenna.   —Increase the separation between the equipment and receiver.   —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   —Consult the dealer or an experienced radio/TV technician for help.   Note 2: 1.Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. The minimum separation generally be used is at least 20 cm.
