CoverCell25K/100K700

Technician's Operational Manual

& Installation Guide

Ve r. 1 . 0

Version 1.0  September 2010

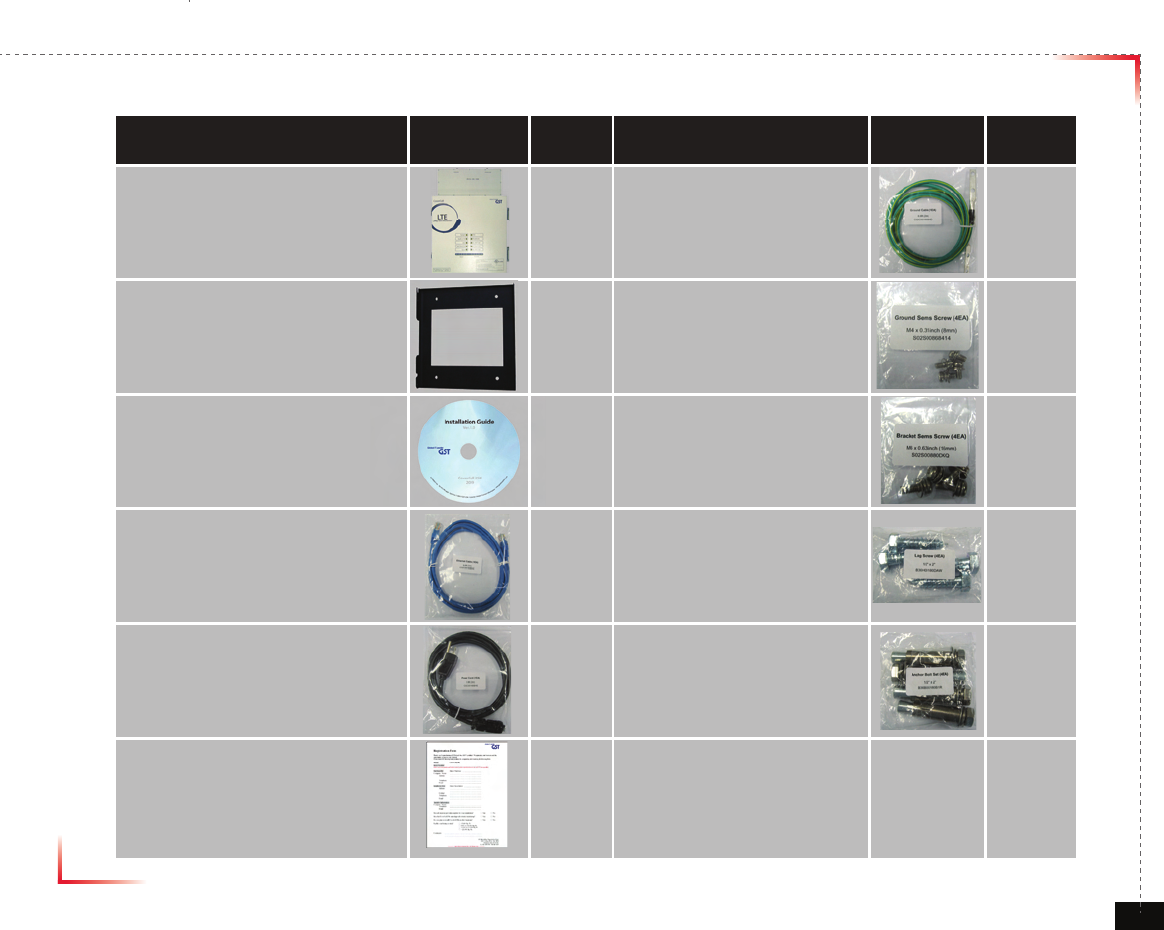

Contents of Box(A)

Contents Picture Quantity Contents Picture Quantity

Repeater 1EA Ground Cable

6.6ft (2m) 1EA

Mounting Bracket 1EA Ground Sems Screw

M4 x 8mm 4EA

Installation Guide CD 1EA Bracket Sems Screw

M6 x 16mm 4EA

Ethernet Cable

6.6ft (2m) 1EA Lag Screw

1/2" x 2" 4EA

Power Cord

6.6ft (2m) 1EA Anchor Bolt Set

1/2" x 2" 4EA

Registration Form 1EA

Version 1.0  September 2010

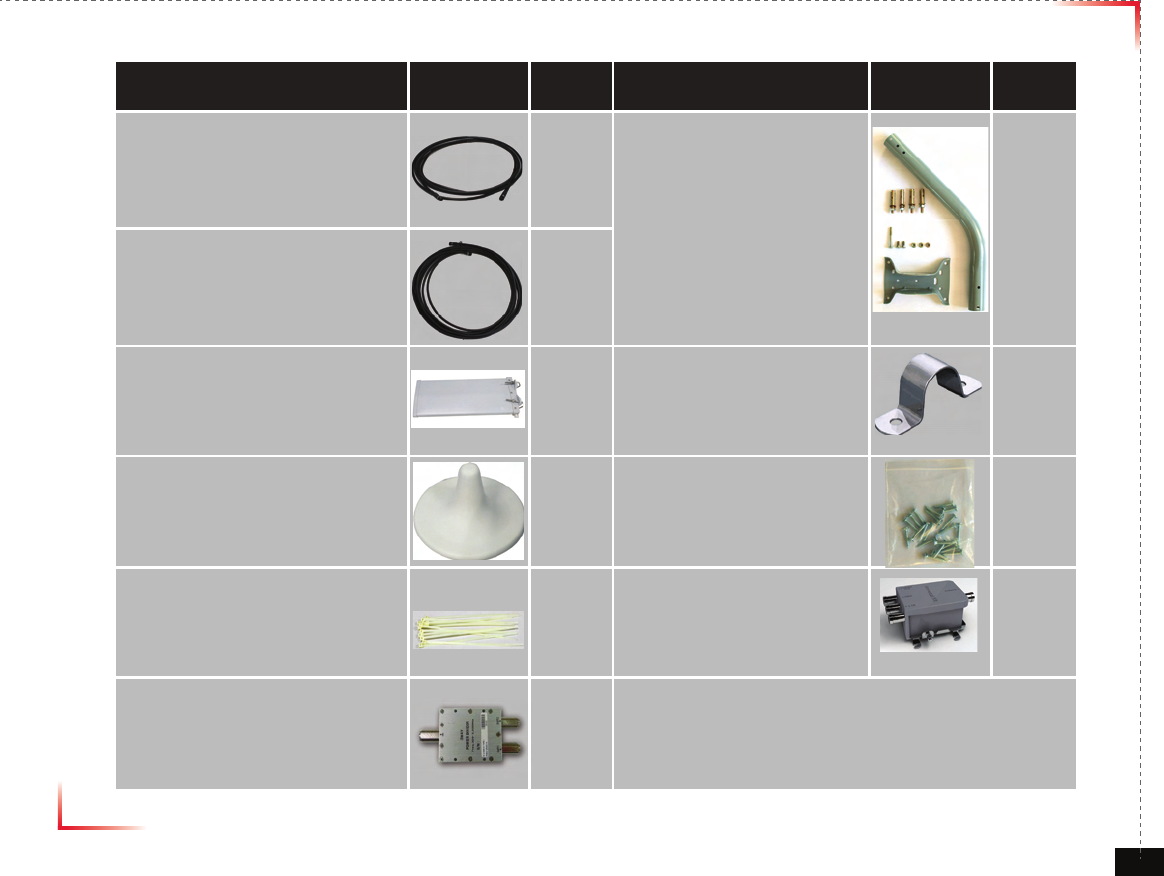

Contents of Box(B)_Option

Contents Picture Quantity Contents Picture Quantity

RF Cable

33ft(10m) 1EA

ANT Pole Set 1Set

RF Cable

66ft(20m) 1EA

Donor ANT 1EA Cable Clamp 12EA

Coverage ANT 1EA (+)FH Tapping Screw for Clamp

Ø4 x 25mm 24EA

Cable Tie 12EA Universal Filter Kit 1EA

Wide Band 2way Splitter

(300MHz - 2.5GHz) 1EA

Version 1.0  September 2010

The images for the User Interface in this publication may vary from the repeater’s depending on its

S/W Version.

Copyright

Printed in Republic of Korea

Revision History

Date Version Changes

09/2010 1.0 Original

Certication

UL/FCC: This equipment complies with UL and FCC

Version 1.0  September 2010

Warnings and Hazards

WARNING! ELECTRIC SHOCK

Opening the BDA (bi-directional amplier) could result in electric shock and may cause severe injury.

WARNING! EXPOSURE TO RF

Working with the repeater while in operation, may expose the technician to RF electromagnetic elds

that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety

to learn more about the effects of exposure to RF electromagnetic elds.

WARNING! DAMAGE TO EQUIPMENT

Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater.

RF EXPOSURE & ANTENNA PLACEMENT

Actual separation distance is determined upon gain of antenna used.

Please maintain a minimum safe distance of at least 8 inch while operating near the donor and the server antennas.

Also, the donor antenna needs to be mounted outdoors on a permanent structure.

WARRANTY

Unauthorized opening or tampering the BDA will void all warranties.

One-year Warranty will start when the ownership of CoverCell25K/100K700 is transferring.

CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLE TO POWER SOURCE.

CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING.

CAUTION: RISK OF EXPLOSION IF BATTERY ON CONTROLLER BOARD IS REPLACED WITH AN INCORRECT TYPE.

CAUTION: DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

!

Version 1.0  September 2010

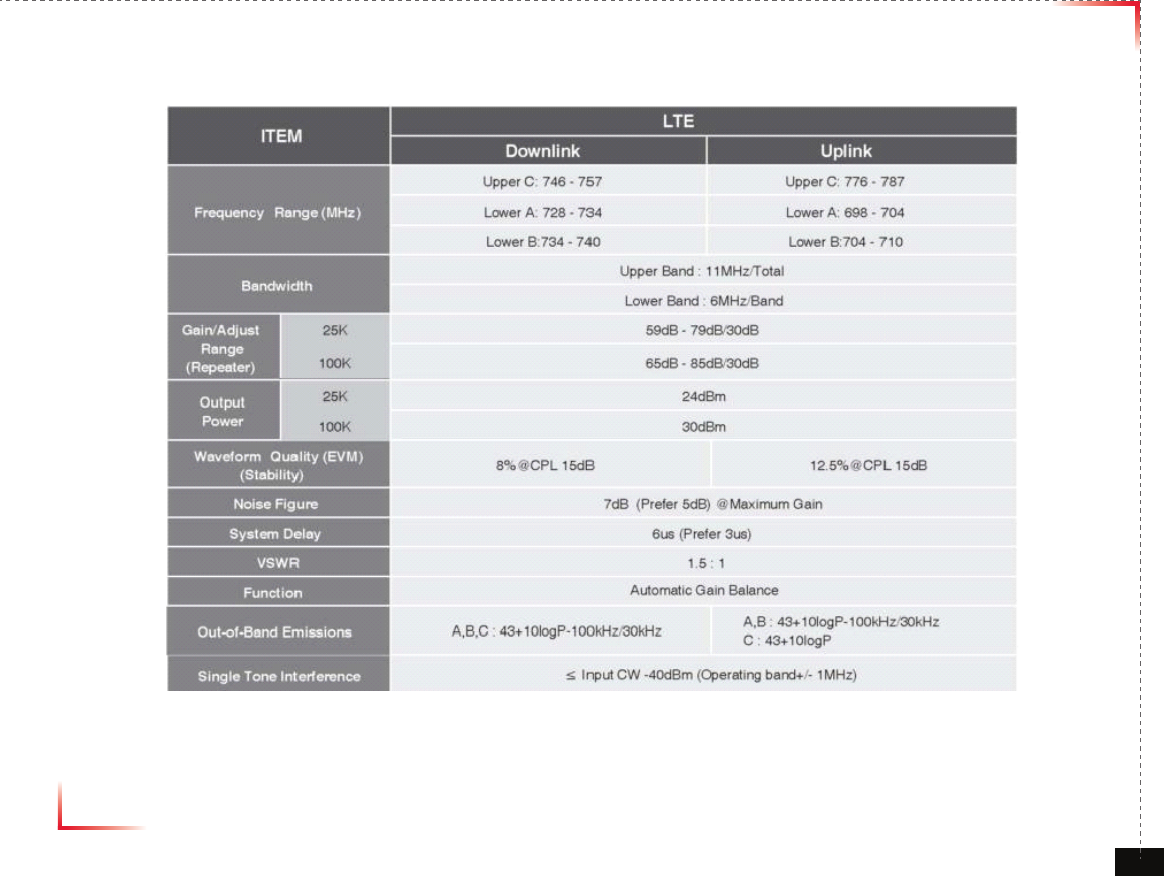

System Specication

Version 1.0  September 2010

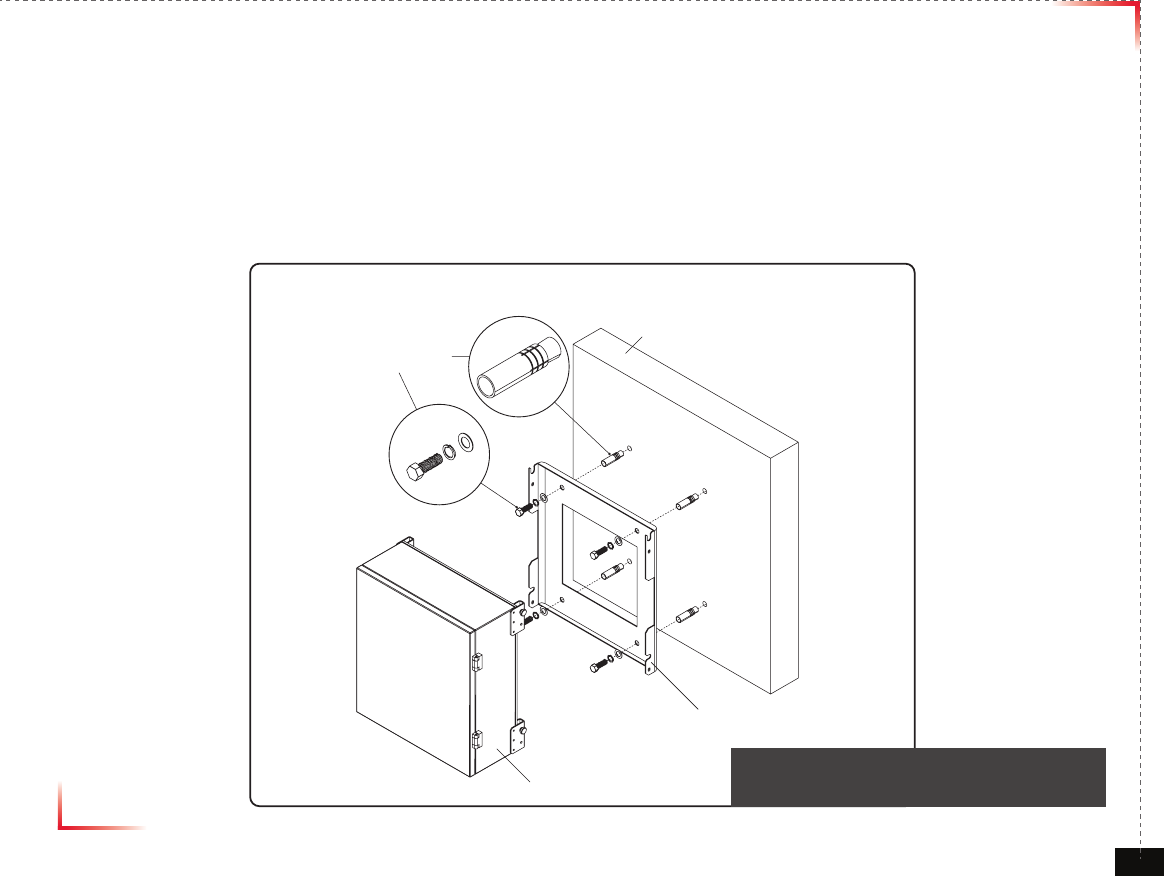

Mounting Repeater

Masonry Wall

1. Using a pencil, mark the location of each of the mounting bracket's four mounting holes on the wall.

2. Drill holes in the wall at the locations marked in step 1.

3. Set the anchors in the wall using a hammer.

4. Locate the four mounting bolts and place a lock washer and at washer on each bolt.

5. Place the mounting bracket over the four holes with anchors, making sure that the washers are on the

repeater side of the mounting bracket. Tighten bolts until secure.

Anchor Bolt Set

1/2" x 2"

RF Repeater

Masonry Wall

Mounting Bracket

<Figure 1> Mounting the Repeater

on a Masonry Wall

Version 1.0  September 2010

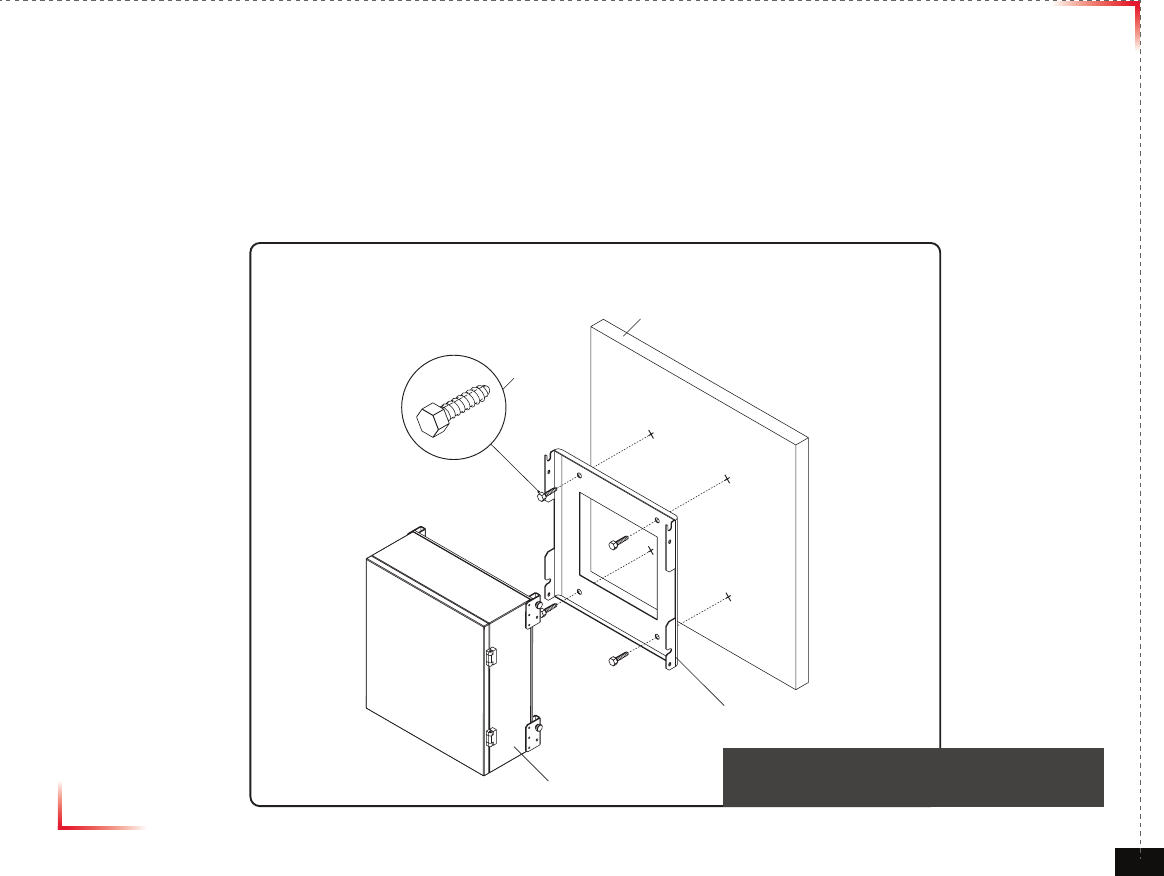

Mounting Repeater

Wood-Framed Wall

1. It is recommended to rst attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs

in the wall.

2. Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood.

3. Place the mounting bracket over the four lag screws heads.

4. Thread a lag screw at the positions marked in step 2.

<Figure 2> Mounting the Repeater

on a Wood-Framed Wall

Lag Screw

1/2" x 2"

RF Repeater

Wood-Framed Wall

Mounting Bracket

Version 1.0  September 2010

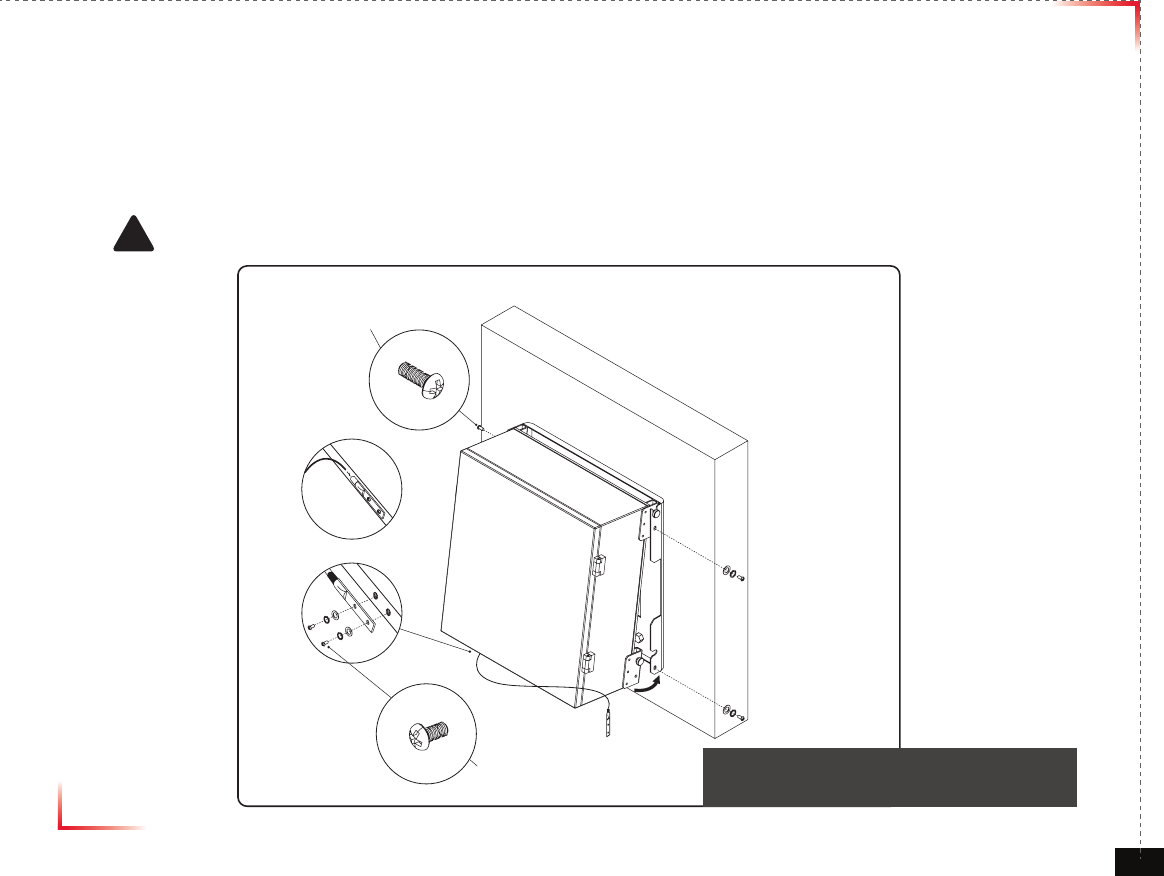

Bracket Sems Screw

M6 x 16 mm

Ground Sems Screw

M4 x 8 mm

Ground lug detail drawing

To approved ground source

!

<Figure 3> Hanging and Grounding

the Repeater

Hanging and Grounding

1. Hang the Repeater from the mounting bracket.

2. Locate the four Bracket Sems Screws with installed washers. Tighten bolts until secure.

3. Locate the ground lug on the underside(or side) of the repeater.

4. Crimp the ground cable to the ground lug.

5. Route the free end of the ground cable to an approved(per local code or practice) ground source.

CAUTION

Ground cable must be properly grounded to provide both EMI and voltage surge protection for the repeater.

Version 1.0  September 2010

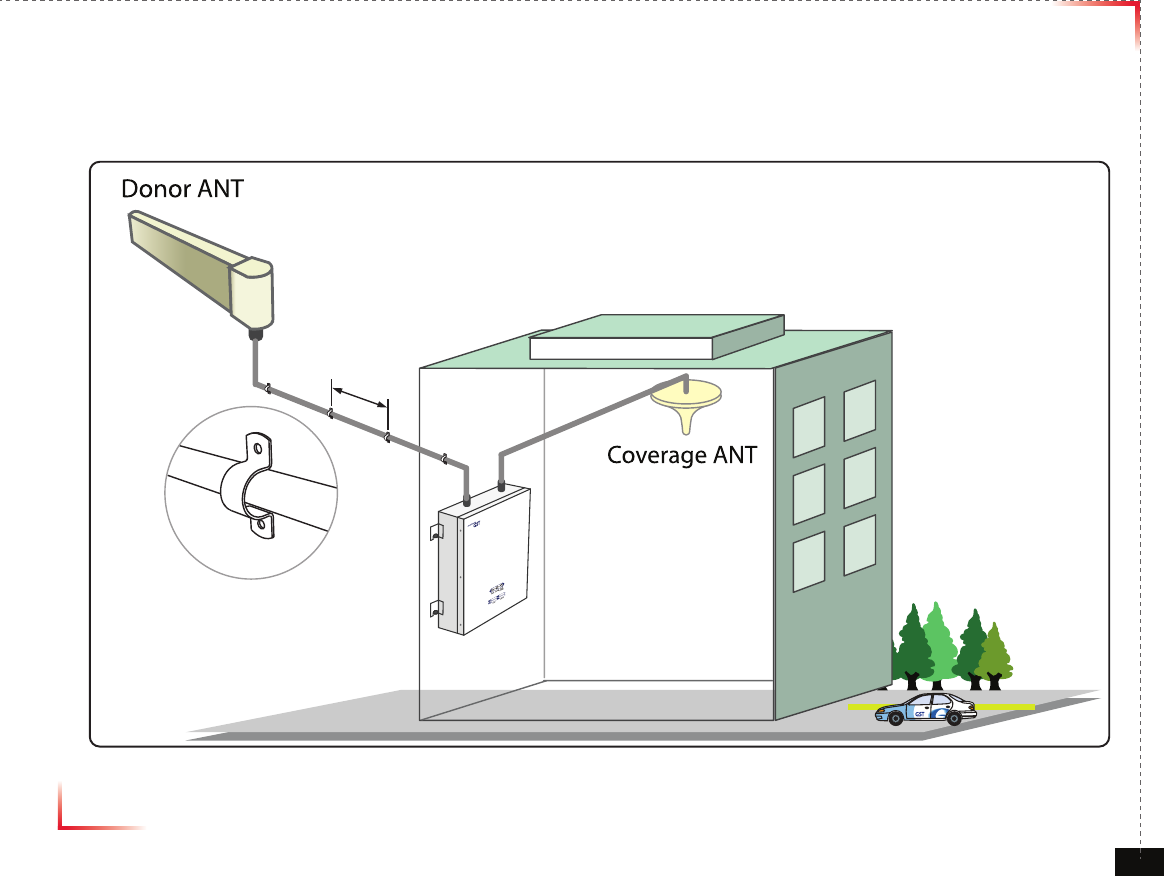

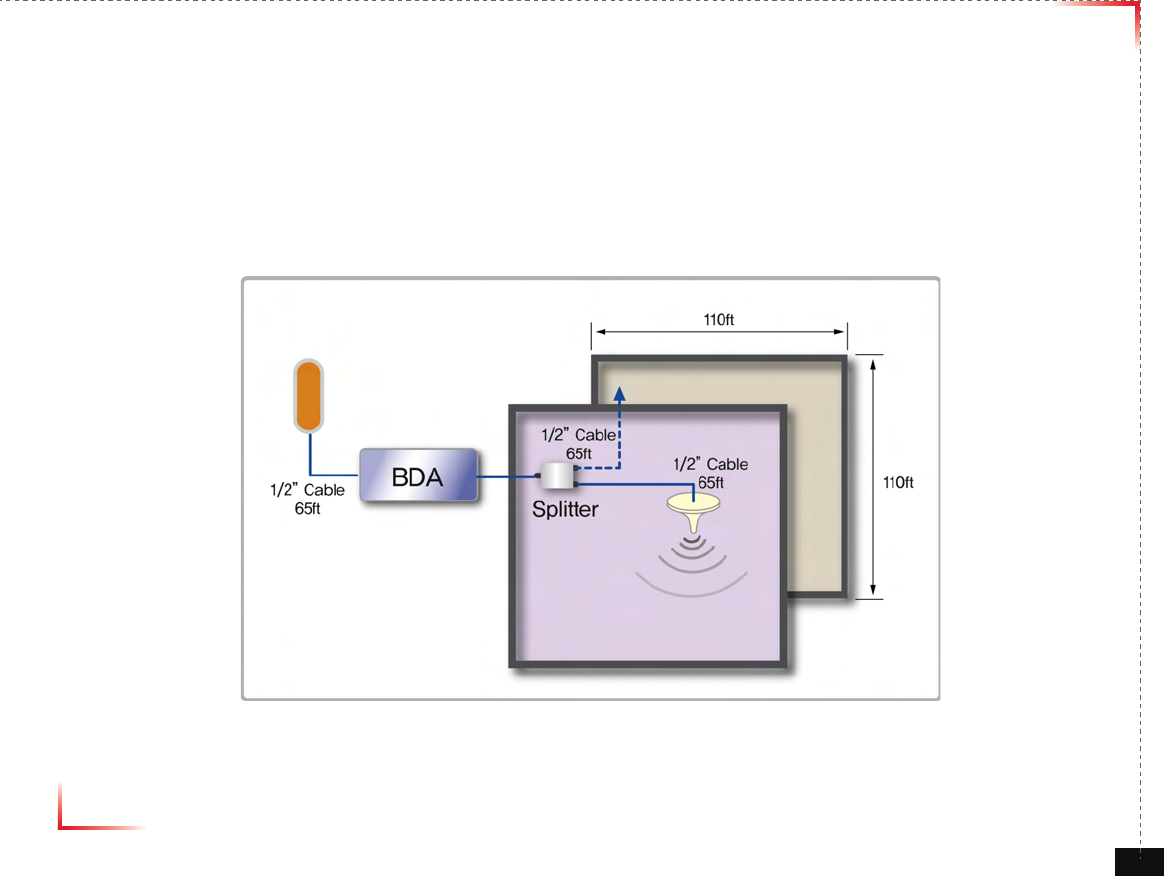

Mounting Coverage & Donor ANT

10ft

Version 1.0  September 2010

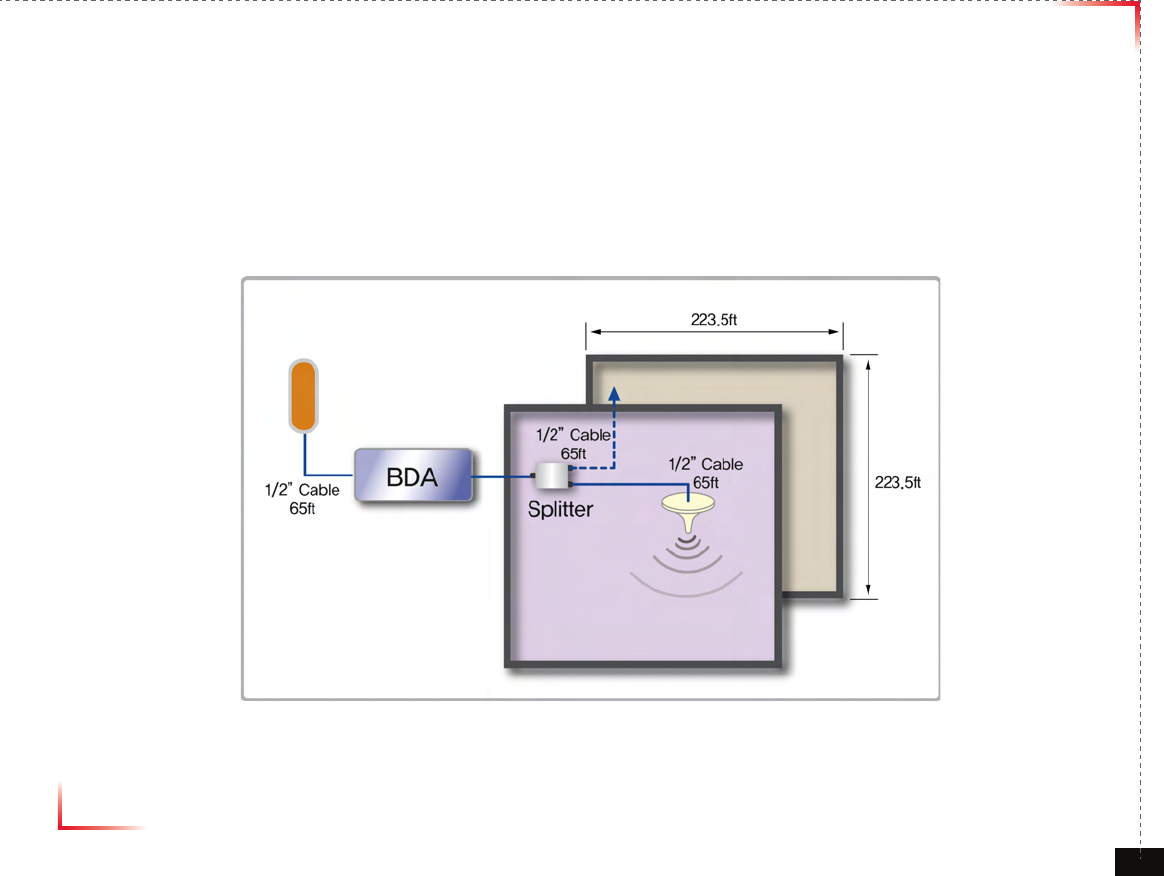

Coverage

• Common Condition

1. System Output Power -> LTE : 0dBm/FA @ pilot

2. Mobile Input Power : -90dBm/FA @ pilot

3. Donor Antenna Gain -> LTE : 8dBi

4. Coverage Antenna -> Common : 2dBi

• SUBURBAN

5. LTE : 1 channel -> 9dBm/total @ EIRP

Path Loss = 32.44+20Log[Frequency]+20Log[Distance(km)]+Indoor Loss

Version 1.0  September 2010

Coverage

• Common Condition

1. System Output Power -> LTE : 6dBm/FA @ pilot

2. Mobile Input Power : -90dBm/FA @ pilot

3. Donor Antenna Gain -> LTE : 8dBi

4. Coverage Antenna -> Common : 2dBi

• SUBURBAN

5. LTE : 1 channel -> 15dBm/total @ EIRP

Path Loss = 32.44+20Log[Frequency]+20Log[Distance(km)]+Indoor Loss

Version 1.0  September 2010

Mounting Donor & Coverage ANT

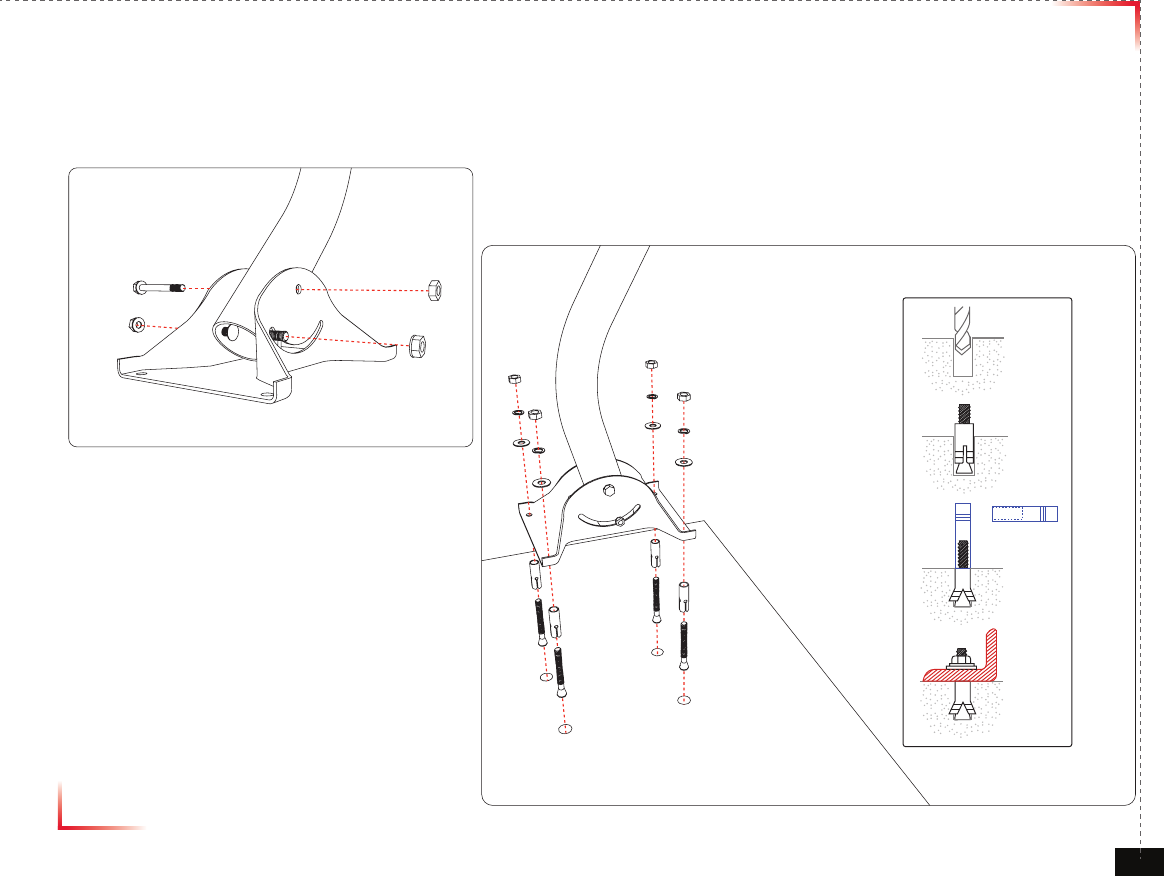

Mounting Donor ANT Pole

①

②

③

④

Version 1.0  September 2010

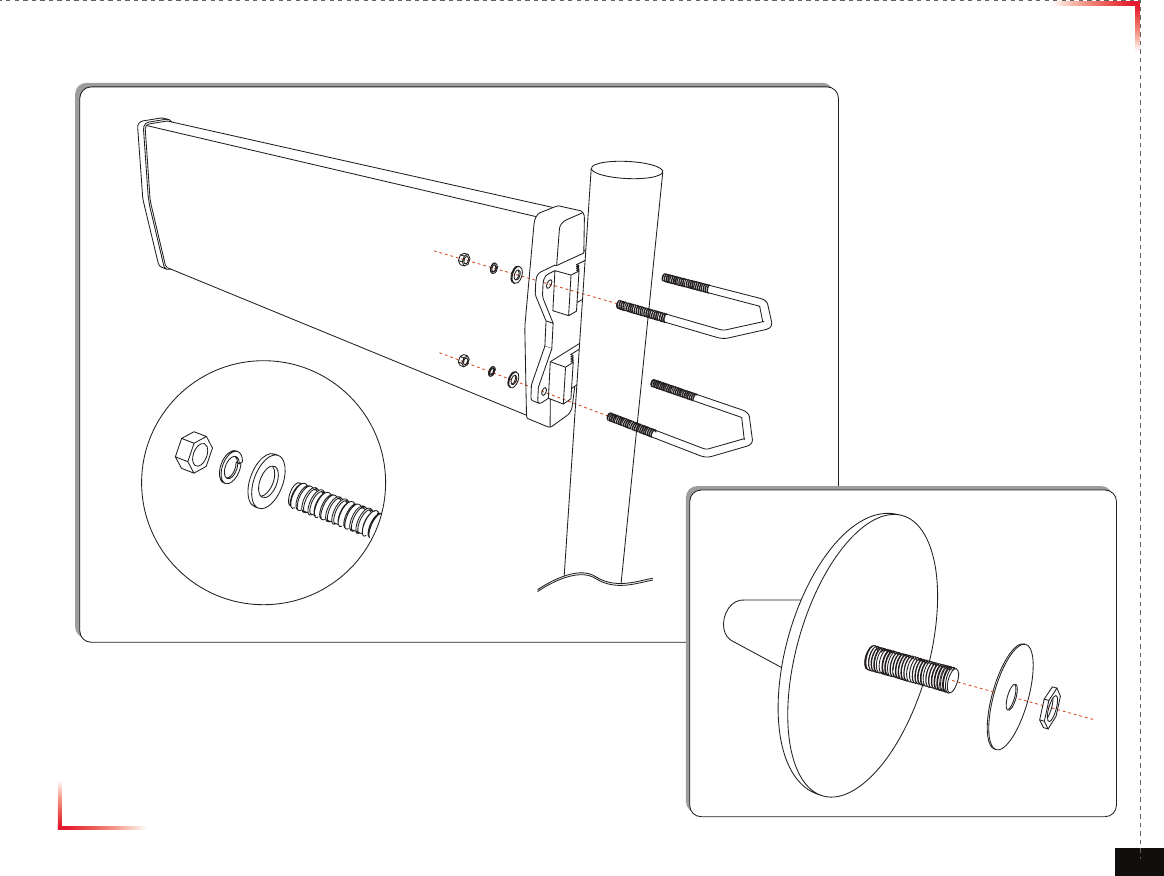

Mounting Donor & Coverage ANT

Version 1.0  September 2010

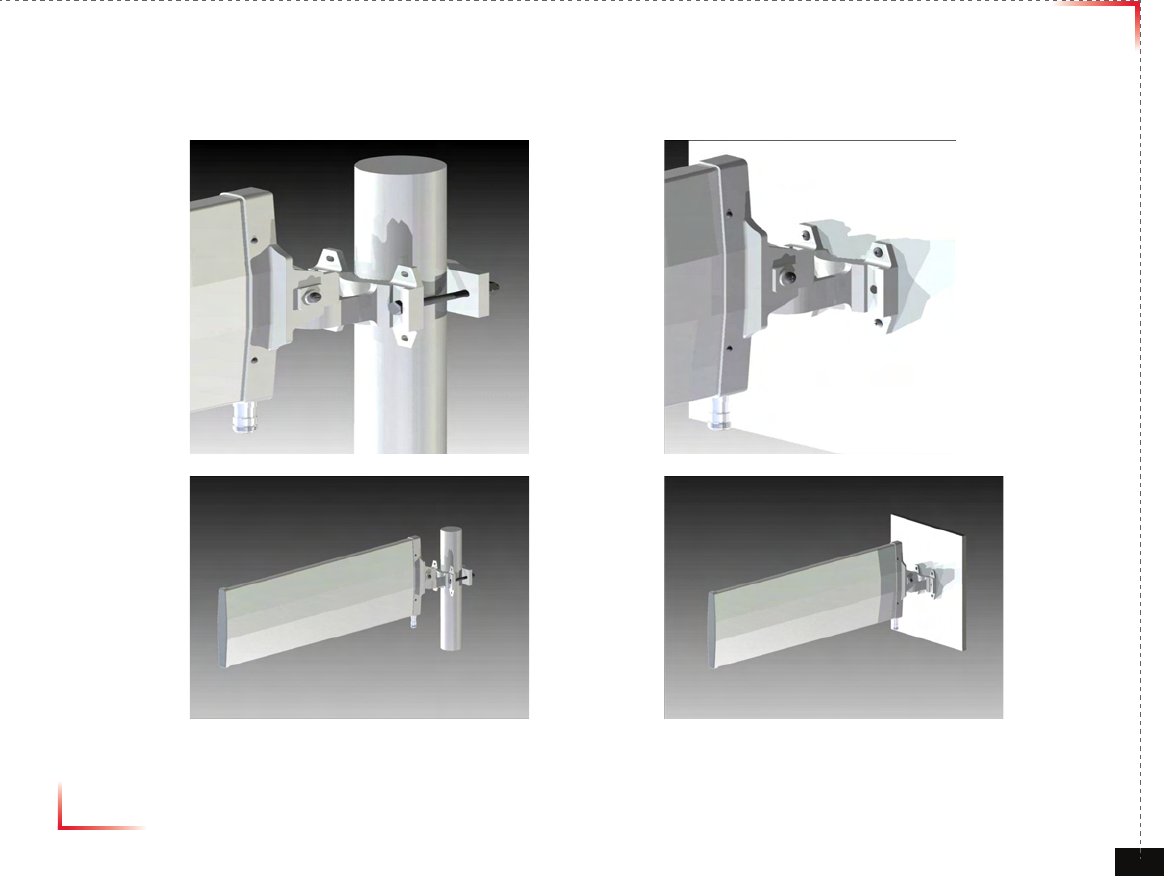

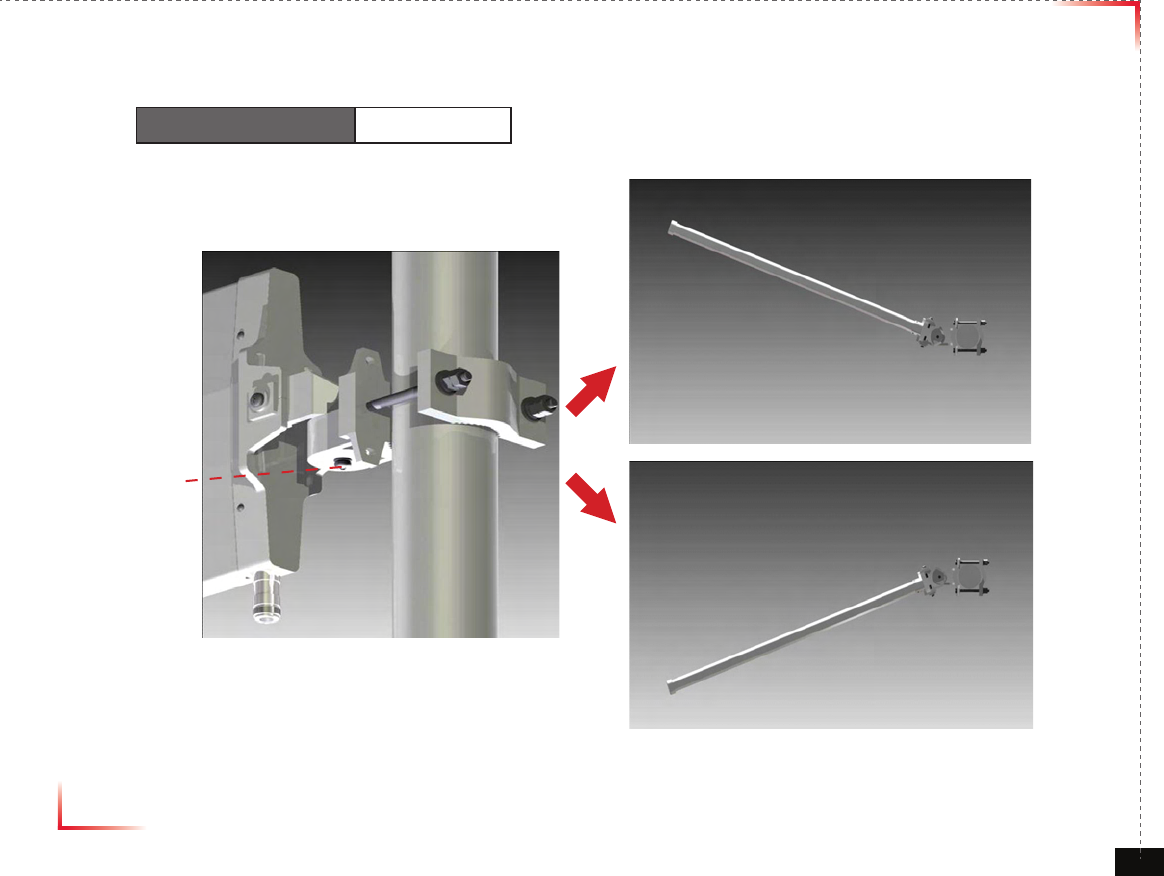

Mounting Type

Version 1.0  September 2010

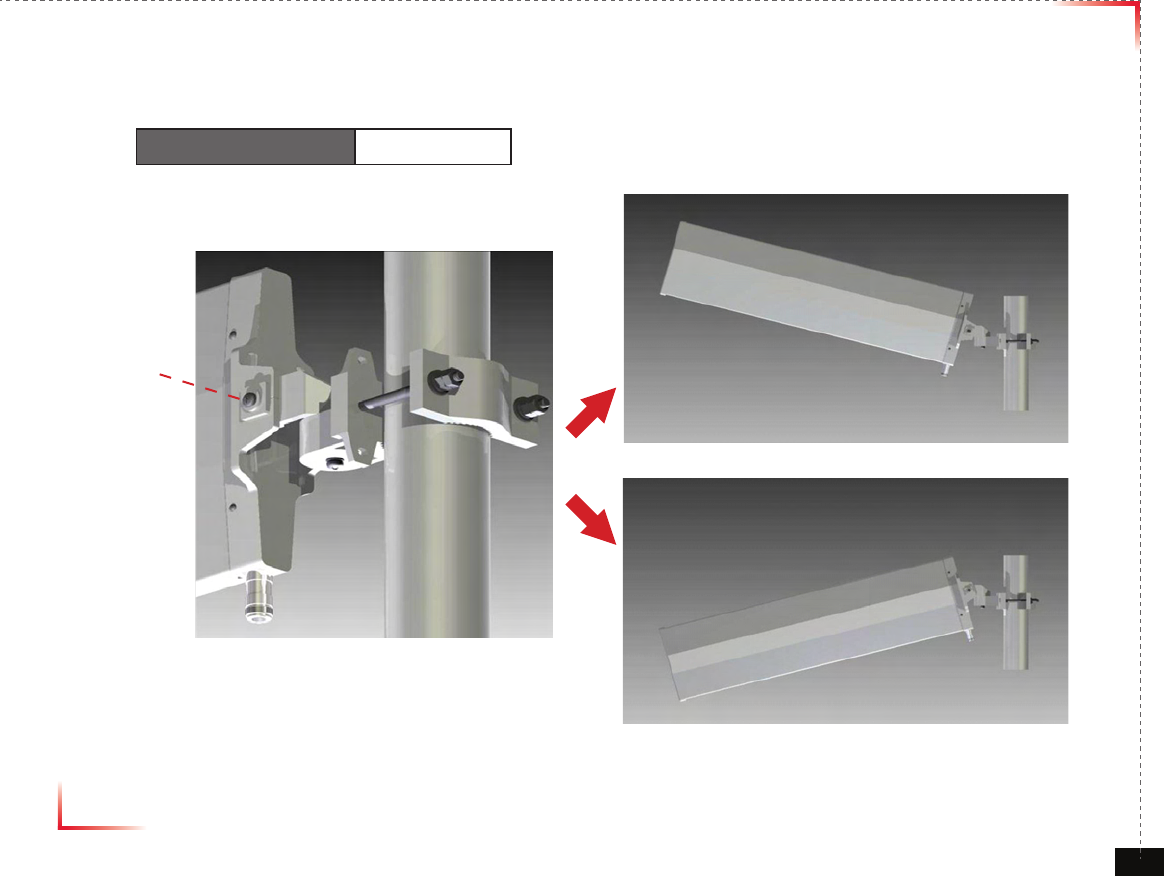

Vertical Tilt

Vertical Beam Width 35 Deg

Bolt

Version 1.0  September 2010

Horizontal Tilt

Horizontal Beam Width 90 Deg

Bolt

Version 1.0  September 2010

Mounting Coverage & Donor ANT

Item Remark

Donor ANT

(1) Setting the direction of Donor Antenna

(2) A donor antenna needs to be located in a place which maintains maximum receiving signal

levels and attains highest Ec/lo values from BTS.

(3) It is recommended that the antenna needs to be protected by placing it under the protection

angle from a lightening rod.

(4) A donor antenna needs to be away from high pressure and high frequency facilities.

When installing a donor antenna, it needs open spaces at least more than 180 degree.

(5) To get enough isolation between a donor antenna and a coverage antenna, those antennas

needs to be away from each other.

Coverage ANT

(1) Choosing an efcient emitting place – It is recommended that the antenna should not be

blocked by objects.

(2) For signal quality, the cable length needs to be as short as possible.

(3) The antenna needs to be away from other radio frequency radiating objects such as other

antennas, and CCTV equipment.

Warning: In order to avoid the possibility of exceeding the FCC radio frequency exposure limits,

human proximity to the antenna should not be less than 40cm during normal operation.

The gain of the antenna is 8 dBi.

Version 1.0  September 2010

Position Antenna

• Customer specications should be followed for positioning the antennas properly.

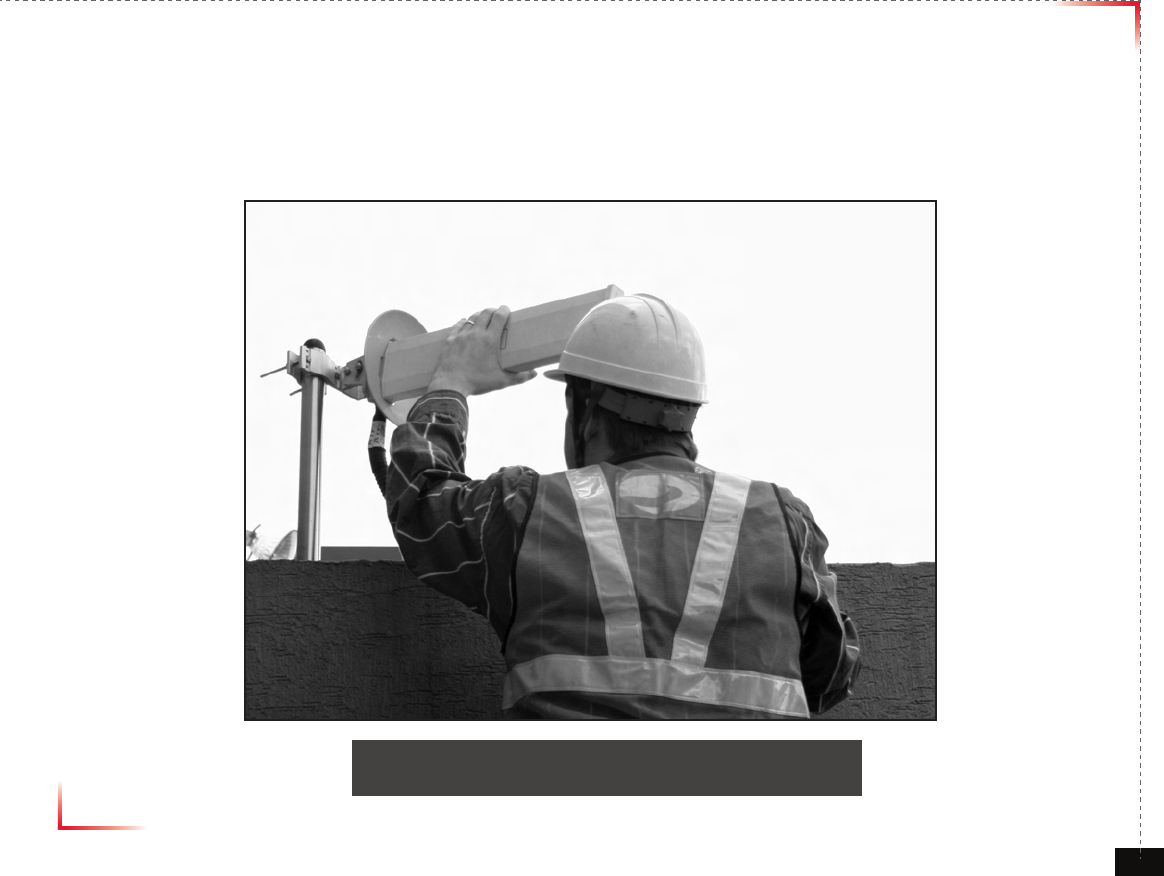

<Figure 4> An installer is directing Donor Antenna to

nearby BTS to receive strong input signal.

Version 1.0  September 2010

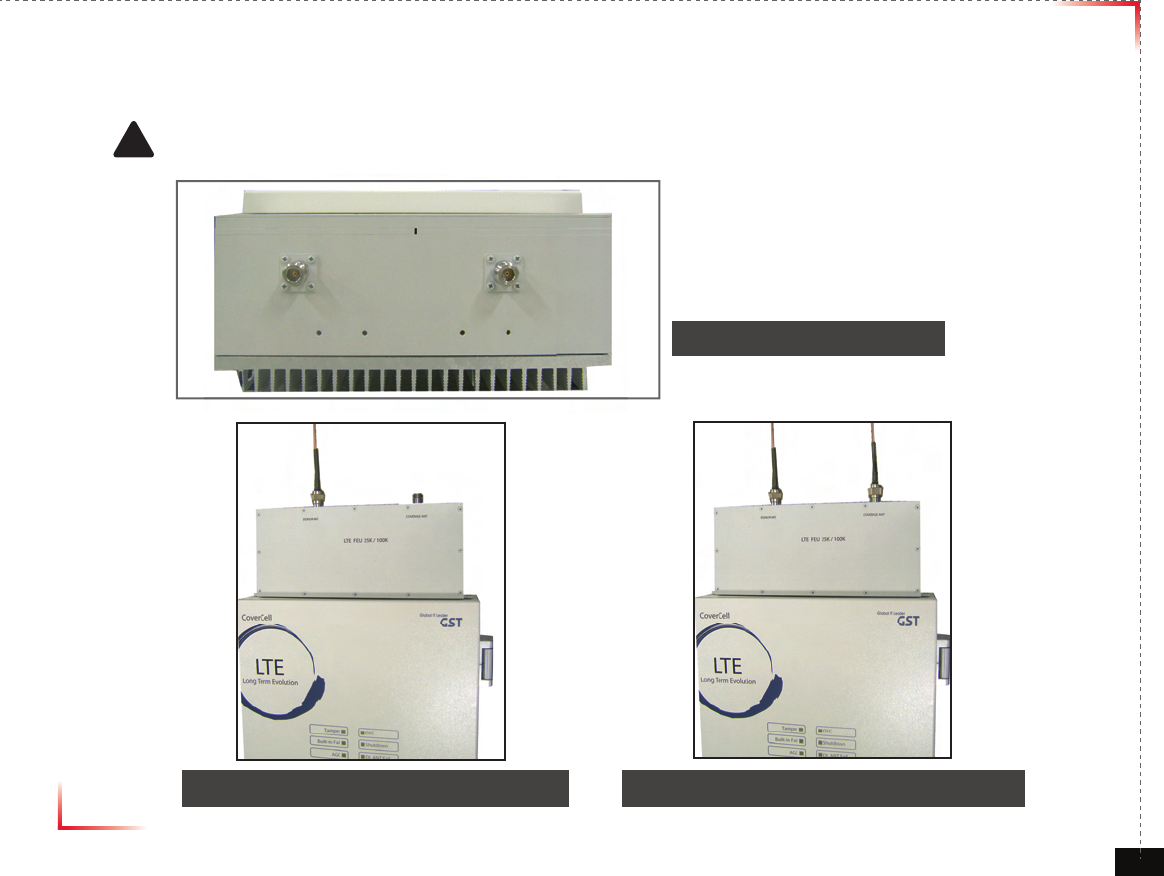

Cable Connections

• Connect Donor and Coverage Antenna

! CAUTION

Do not connect or disconnect cable from ANT port when power is ON

<Figure 5> ANT Ports

<Figure 6> DONOR ANT Port Connection <Figure 7> Covergare ANT Port Connection

Version 1.0  September 2010

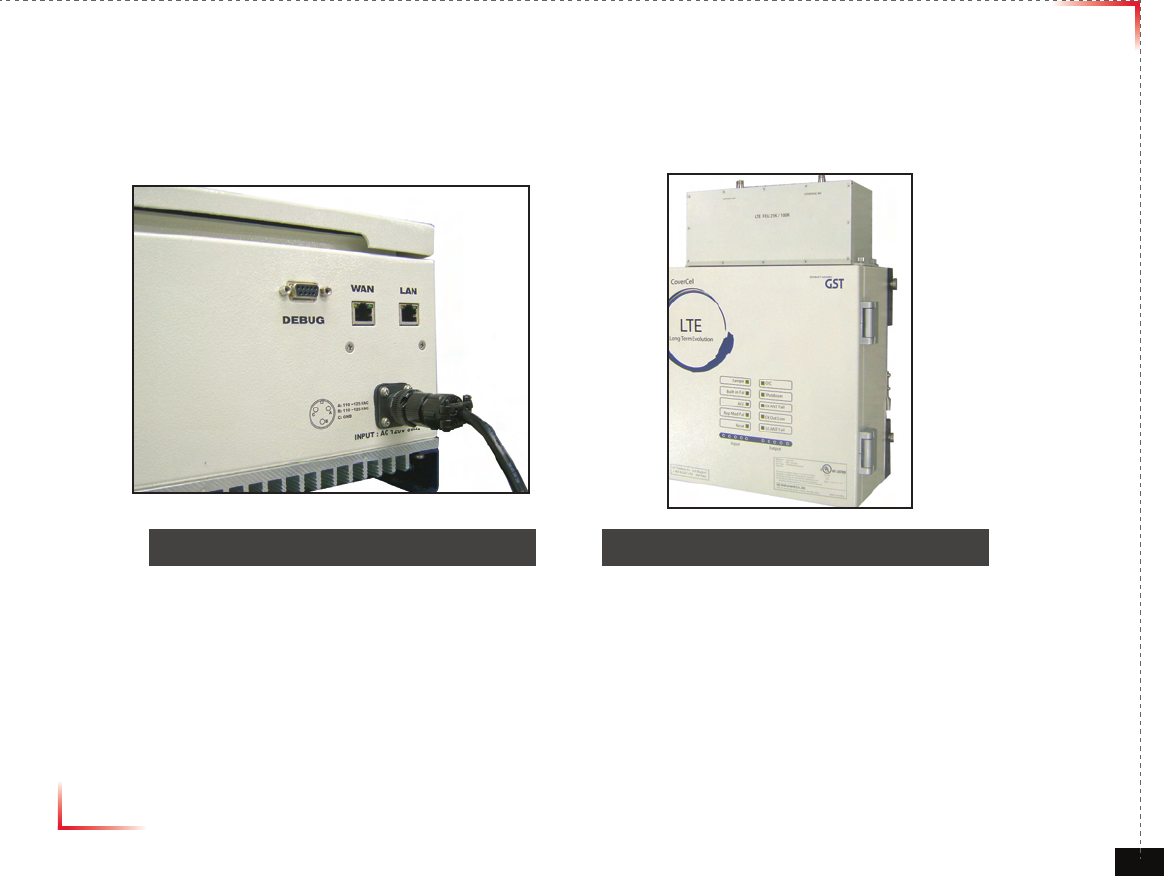

Connecting Power Cable and LED Light Veri cation

• Connect Power Cable

• When turning on the repeater, AGS (Auto Gain Setup) is automatically activated, which shows LED indicators are

turned on one by one.

• After all the LEDs are on, AGS is complete.

• Please verify that all the LEDs are indicating proper input and output levels.

<Figure 9> AC Power Port Connection <Figure 10> Veriﬁ cation of LED Lights

Version 1.0  September 2010

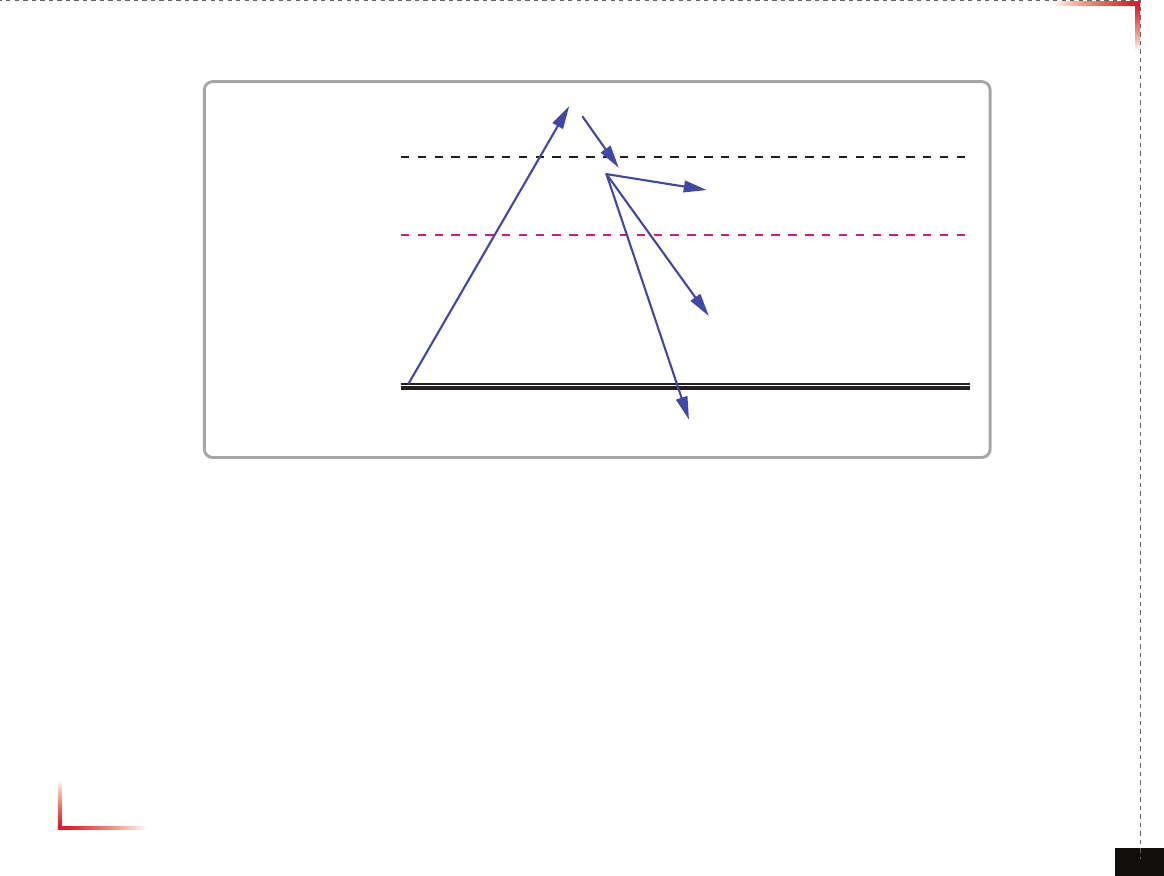

AGS Algorithm description

Oscillation can be reduced in case that 3dB Attenuation is increased in an excess of Isolation Gap

ATT status value : 0~2.5dB (Shutdown on , DL/UL PAM on, DL Always OSC on)

3dB~30dB (ALC on ,shutdown on , DL/UL PAM on, DL Always OSC on)

Over 30dB (uplink OSC Alarm , DL/UL PAM off )

References

1. Isolation Check in initial set up or Reset

2. Monitoring Oscillation comparing to minimum/maximum Noise Floor level

3. When Oscillation occurred, repeater attempts to stabilize Isolation through Gain control function

4. Shutdown repeater when Oscillation still occurs in Minimum Gain

5. Automatic Recovery Algorithm conversion after Shutdown status

Isolation Gap

ATT: 3dB

Max ATT (30dB)

Shutdown on ,DL/UL PAM on

DL Always OSC on

3dB Attenuation will be increased in an access of Isolation Gap

ALC on , shutdown on ,DL/UL PAM on

DL Always OSC on

Uplink OSC Alarm

DL/UL PAM OFF

isolation Gap value Comparison of

isolation Gap value status and reduced

by ATT 3dB

Version 1.0  September 2010

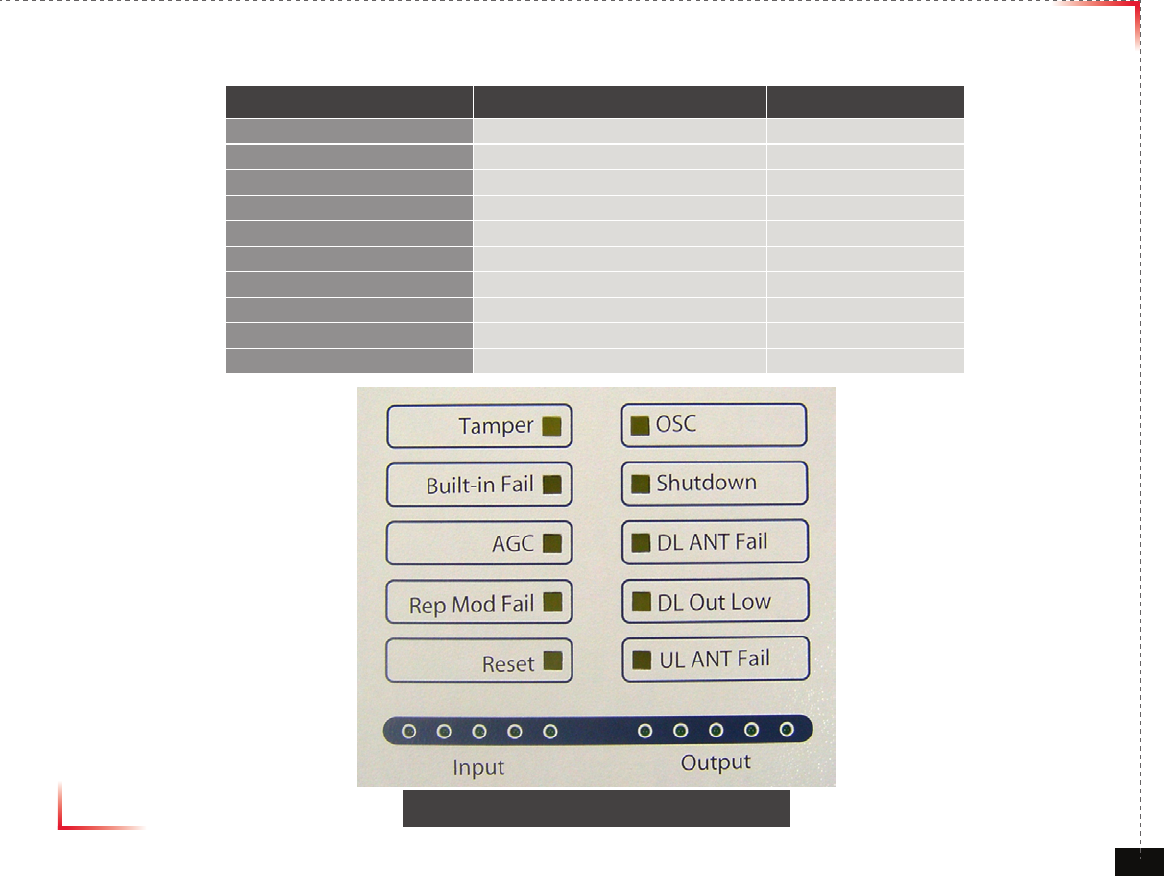

LED Indicators

LED Status Remark Application Status

Tamper Tamper Enable

Built- in t Fail Built-in test fail Enable

AGC AGC Active Enable

Rep Mod Fail Replaceable module fail Enable

Reset Reset engaged Enable

OSC OSC detected Enable

Shutdown Shutdown Enable

DL ANT Fail Donor ANT circuit fail Enable

DL Out Low Donor Power too low Enable

UL ANT Fail Coverage ANT circuit fail Enable

<Figure 11> Front LED Display

Version 1.0  September 2010

Input /Output Power Signal

• Please note the number of LED bars indicates the RSSI signal strength level at the Donor & Coverage ANT port.

The tables below indicate the levels.

< Input > < Output >

Less than -75dBm LED 1bar

-74.5dBm ~ -70dBm LED 2 bars

-69.5dBm ~ -65dBm LED 3 bars

-64.5dBm ~ -60dBm LED 4 bars

More than -59.5dBm LED 5 bars

Less than +4.5dBm LED 1bar

+5dBm ~ +9.5dBm LED 2 bars

+10dBm ~ +14.5dBm LED 3 bars

+15dBm ~ +19.5dBm LED 4 bars

More than +20dBm LED 5 bars

Version 1.0  September 2010

Web UI

• Before connecting to repeater, disable wireless networking functions and remove wireless broadband card.

• Connect Ethernet Crossover cable from repeater LAN port to laptop.

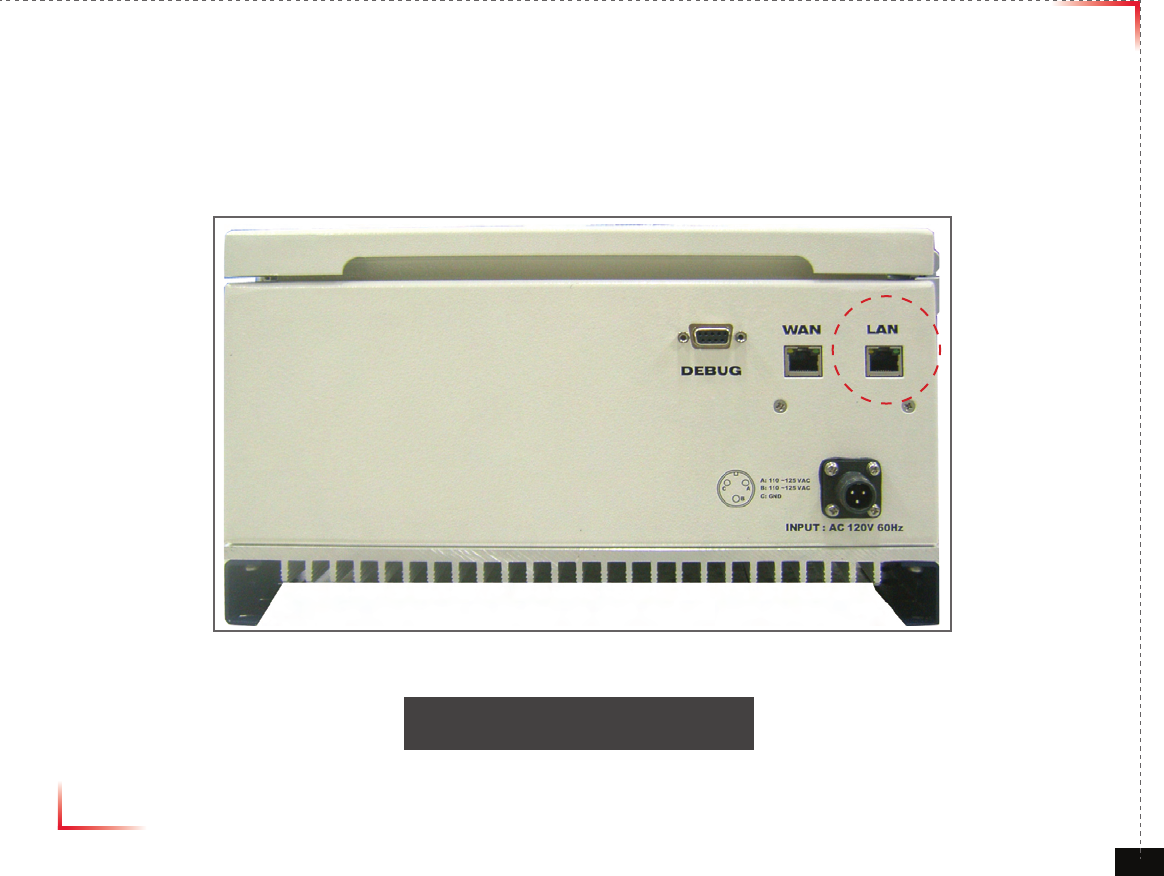

<Figure 12> WAN Port Display

Version 1.0  September 2010

Connecting to Web UI

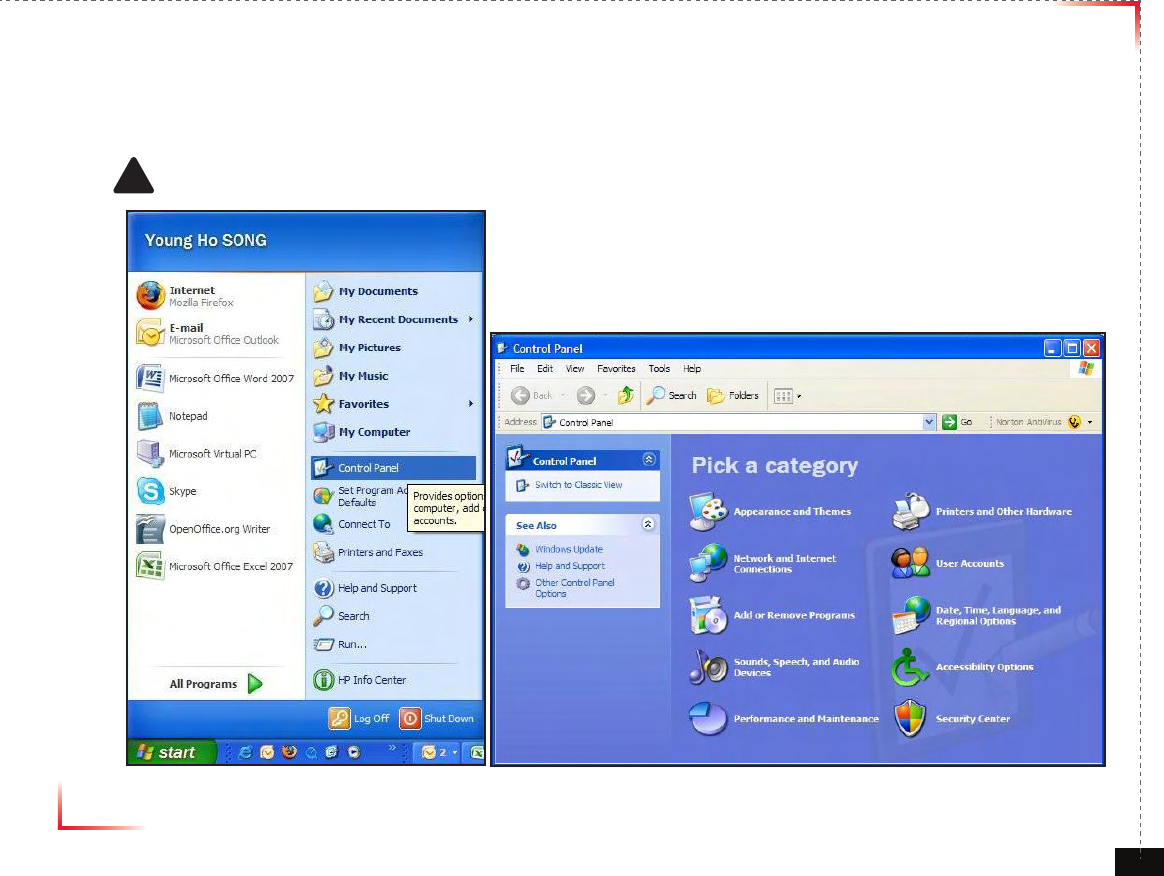

1. Start-> Control Panel-> Network and Internet Connections

! CAUTION

Disable wireless connections and remove wireless broadband card.

Version 1.0  September 2010

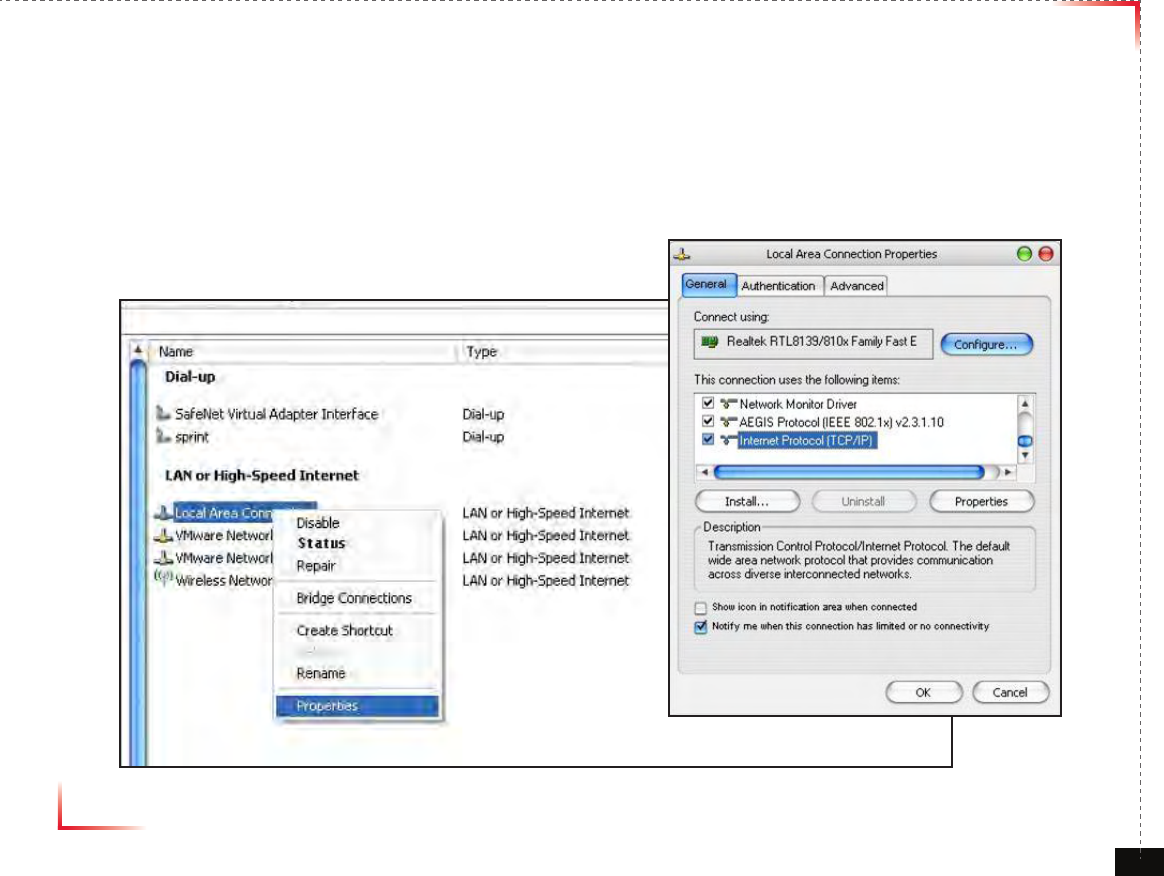

Connecting to Web UI

2. Right click Local Area Connections and choose Properties

- If your laptop is displaying multiple LAN’s, verify which one is used for repeater connection.

3. Click Internet Protocol (TCP/IP) on General Tab and click Properties

Version 1.0  September 2010

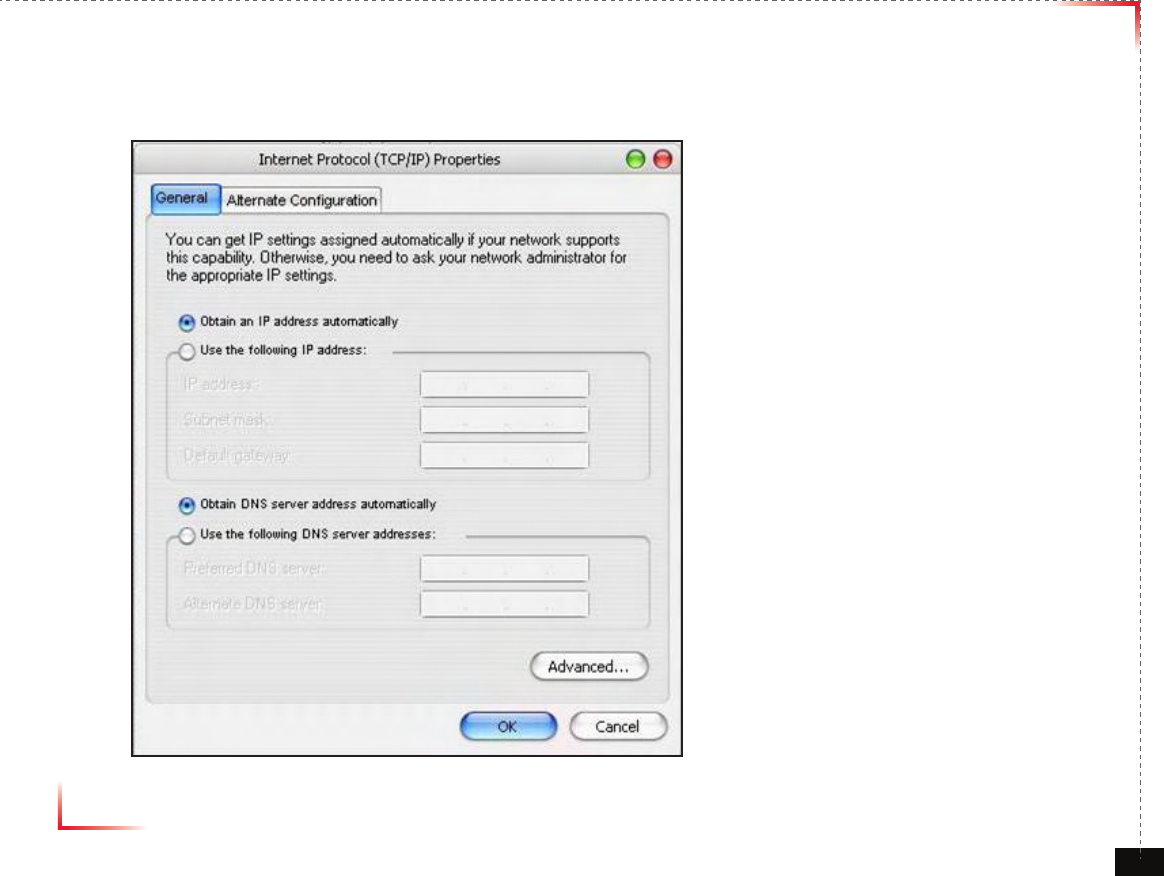

On General Tab

4. Choose “Obtain IP address automatically”

5. Choose “Obtain DNS server address

automatically”

6 . Click “OK” to close Properties

7. Click “OK” to close Properties

Version 1.0  September 2010

Connecting to Web UI

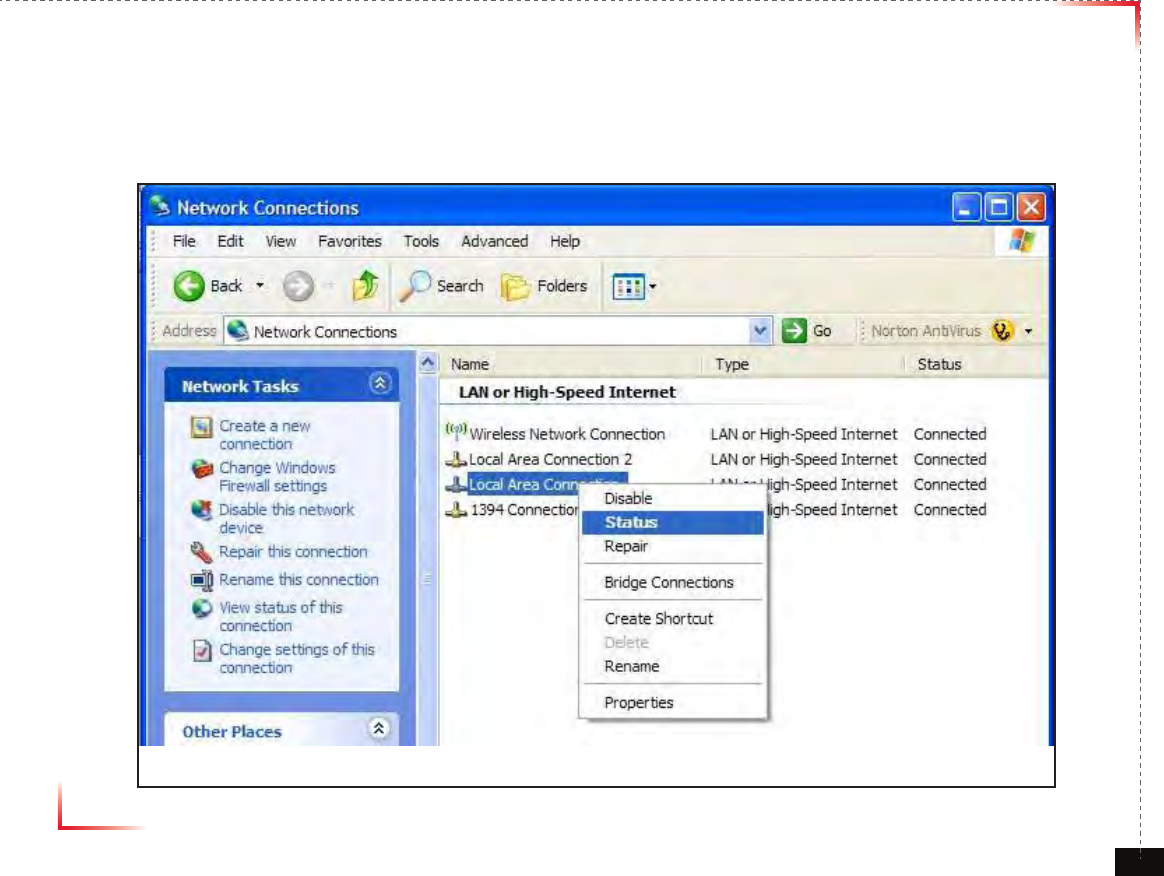

8. Right click Local Area Connections and choose Status

Version 1.0  September 2010

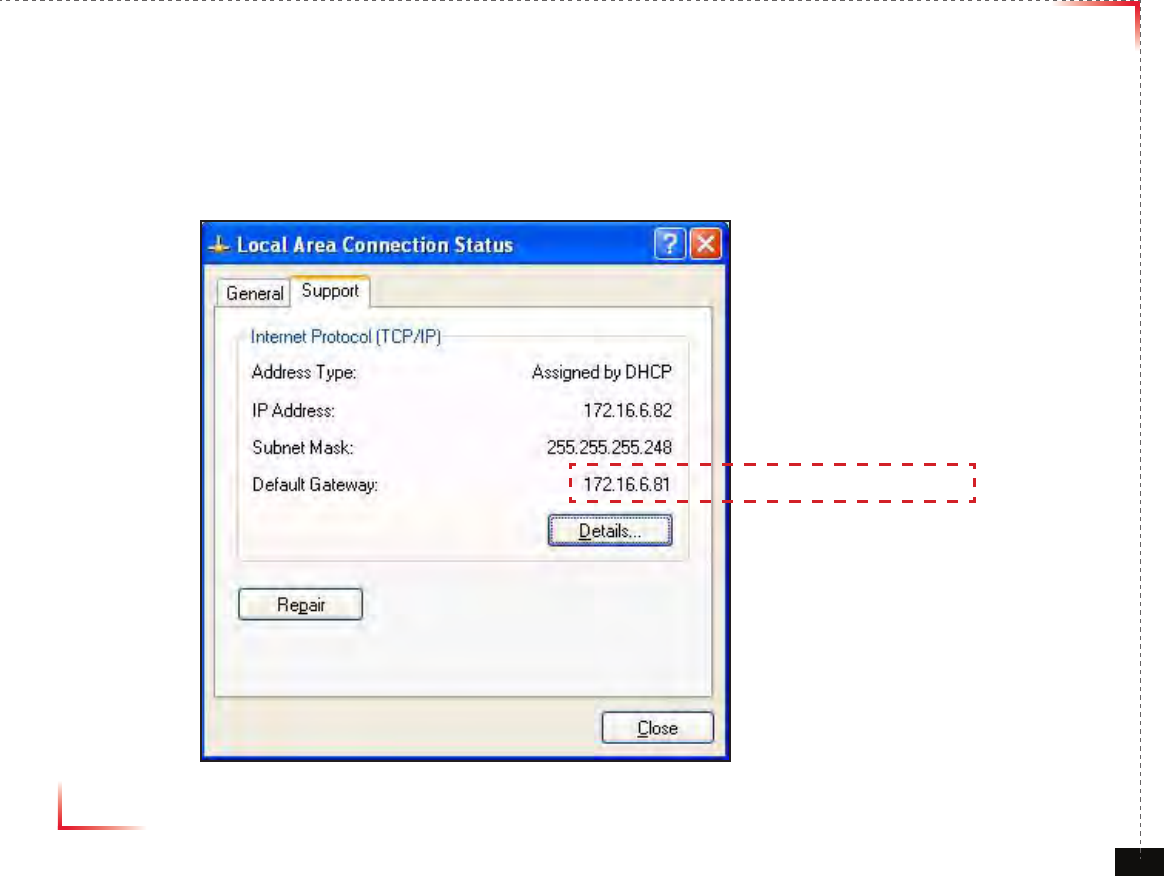

Verify Assigned IP Address

9. Click on “Support” tab.

10. Verify assigned Default Gateway at local connection. (If IP address is not assigned, please click repair.)

11. Close all windows when nished.

Repeater's IP Adress

Version 1.0  September 2010

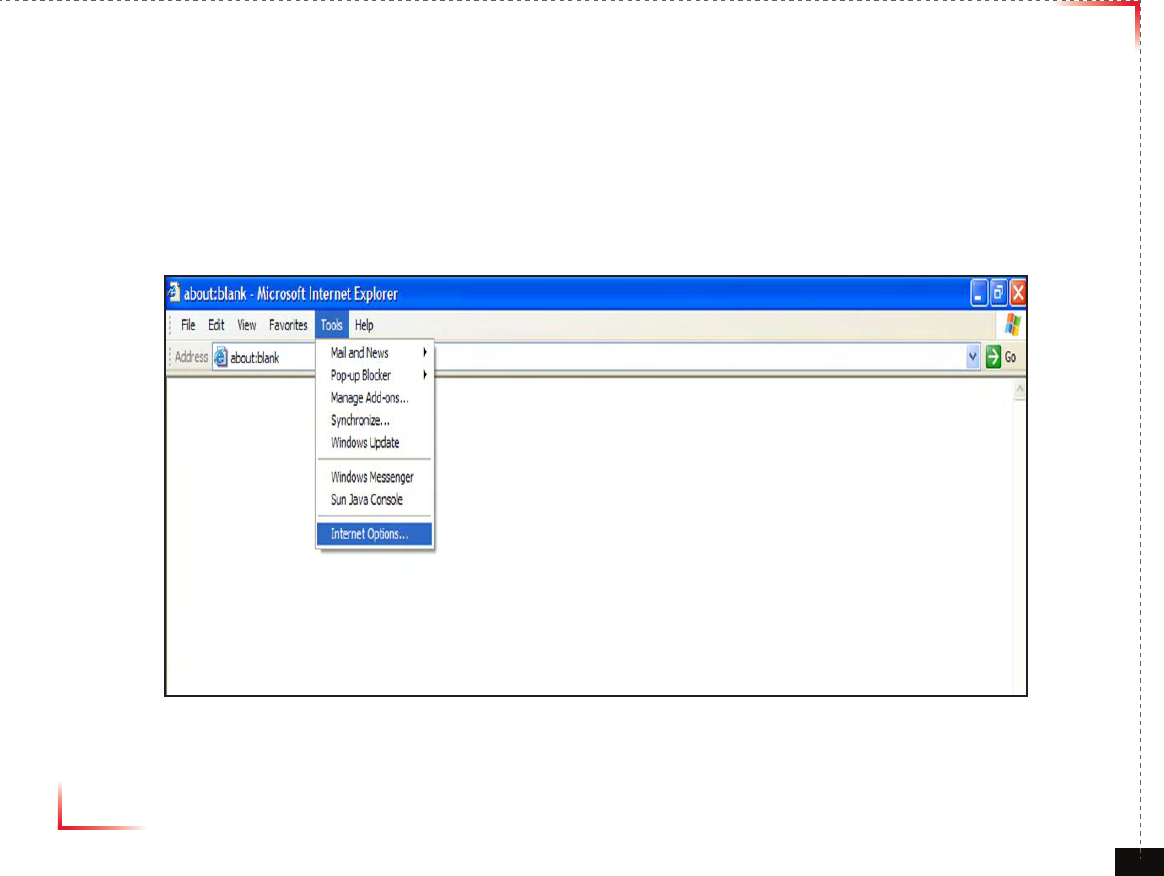

Internet Explorer Option Settings

• Proceed step by step as indicated in the following slides to delete all temporary internet les and records.

1. Open Internet Explorer -> Tools -> Internet Options

Version 1.0  September 2010

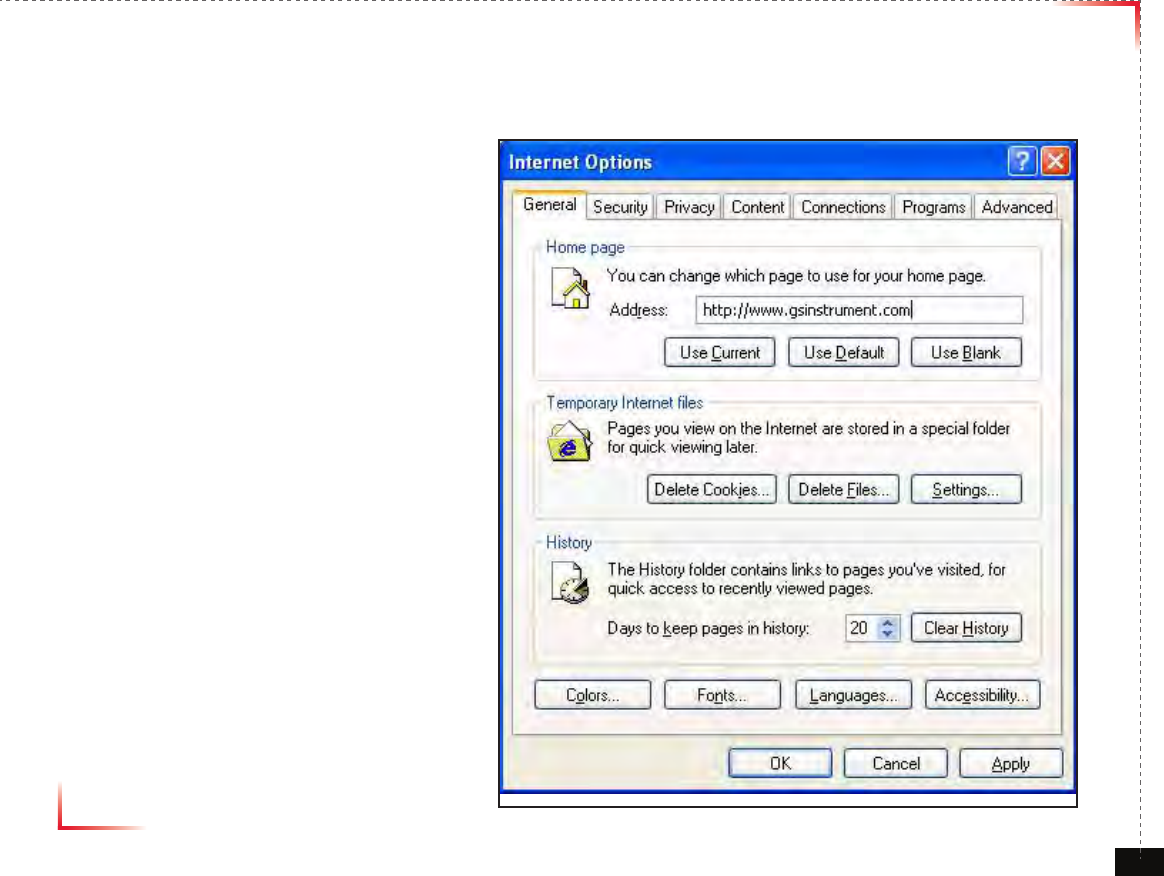

Browser History Options

On the “General“ tab, in the “Temporary Internet les” section:

2. Click "Delete Cookies...“

3. Click "Delete Files...“

4. Click “Apply”

5. Click “OK”

Version 1.0  September 2010

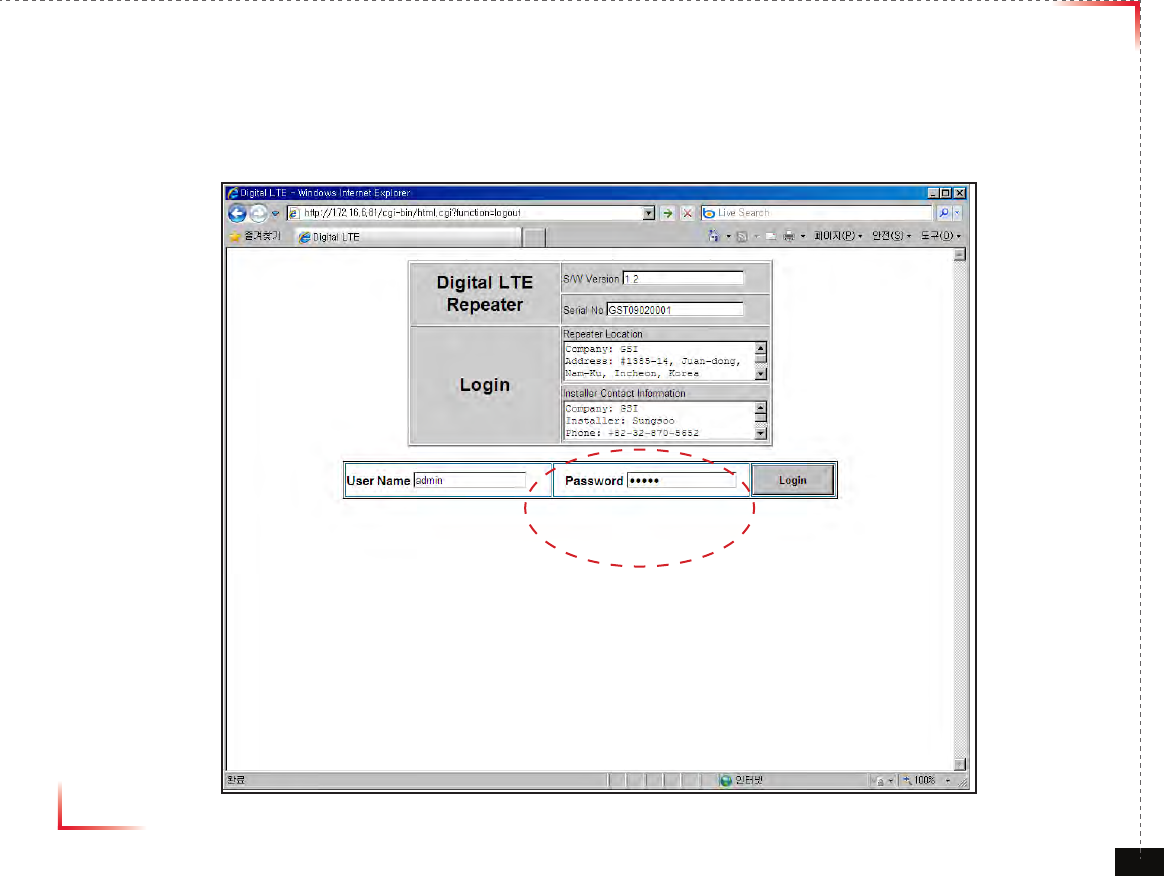

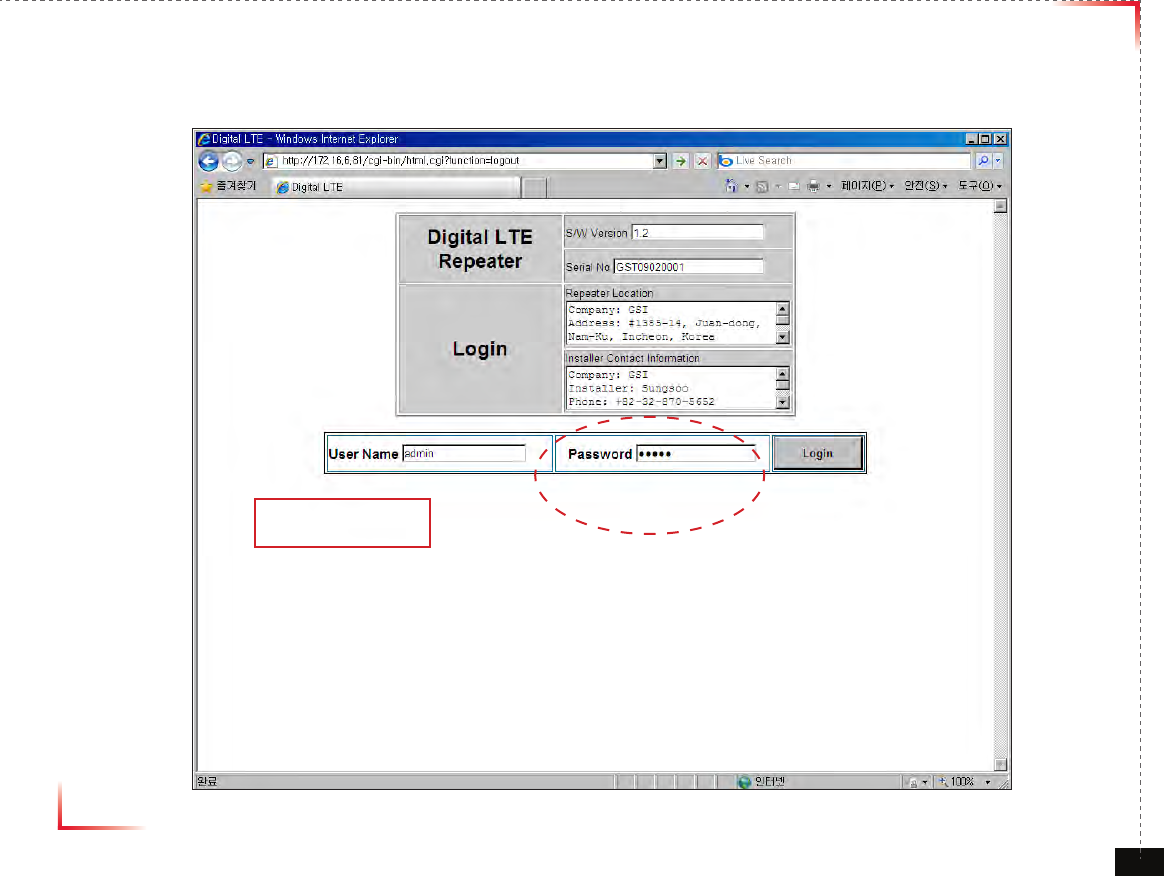

Login Screen

Enter Default Gateway’s IP address into address bar as previously described, you

will be redirected to Login. Default User Name is ‘admin’, and default Password is

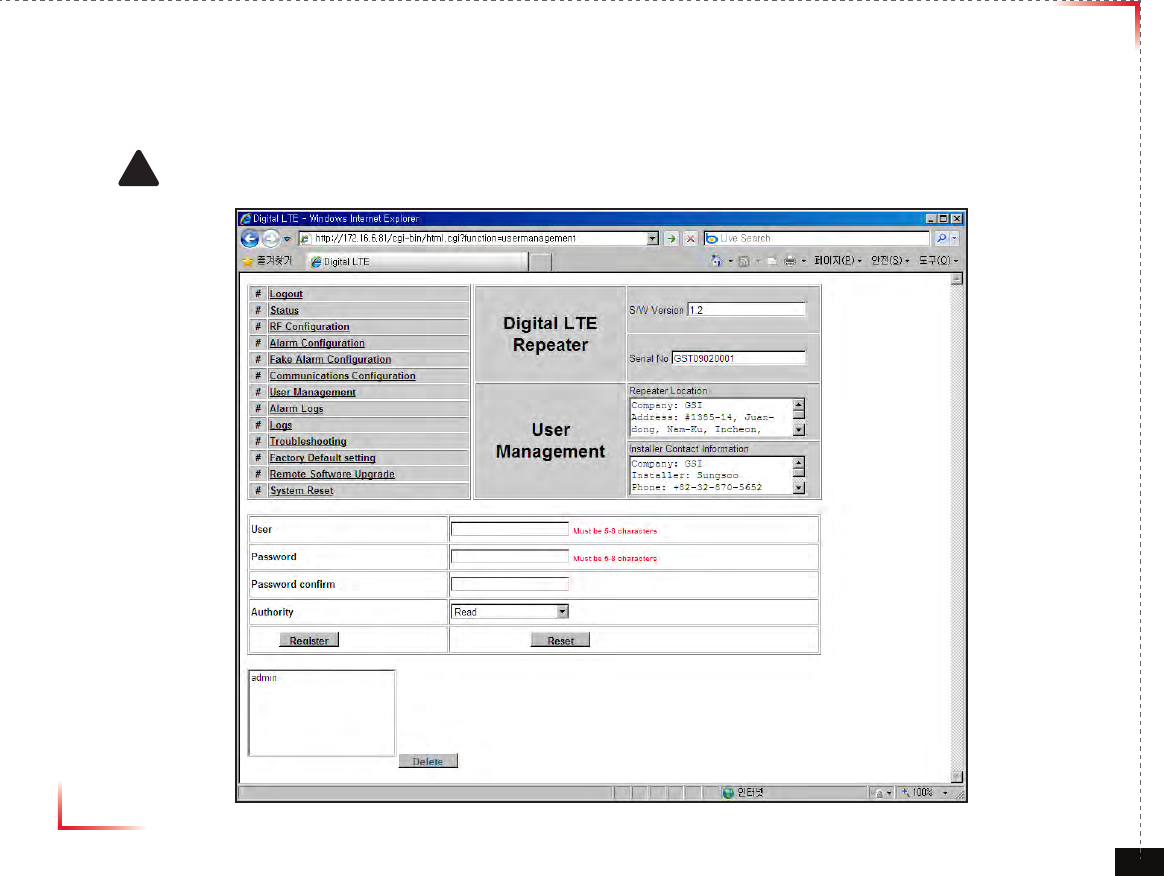

‘admin’. You may need to change password as described in the User Management

section.

172.16.6.81

admin

Version 1.0  September 2010

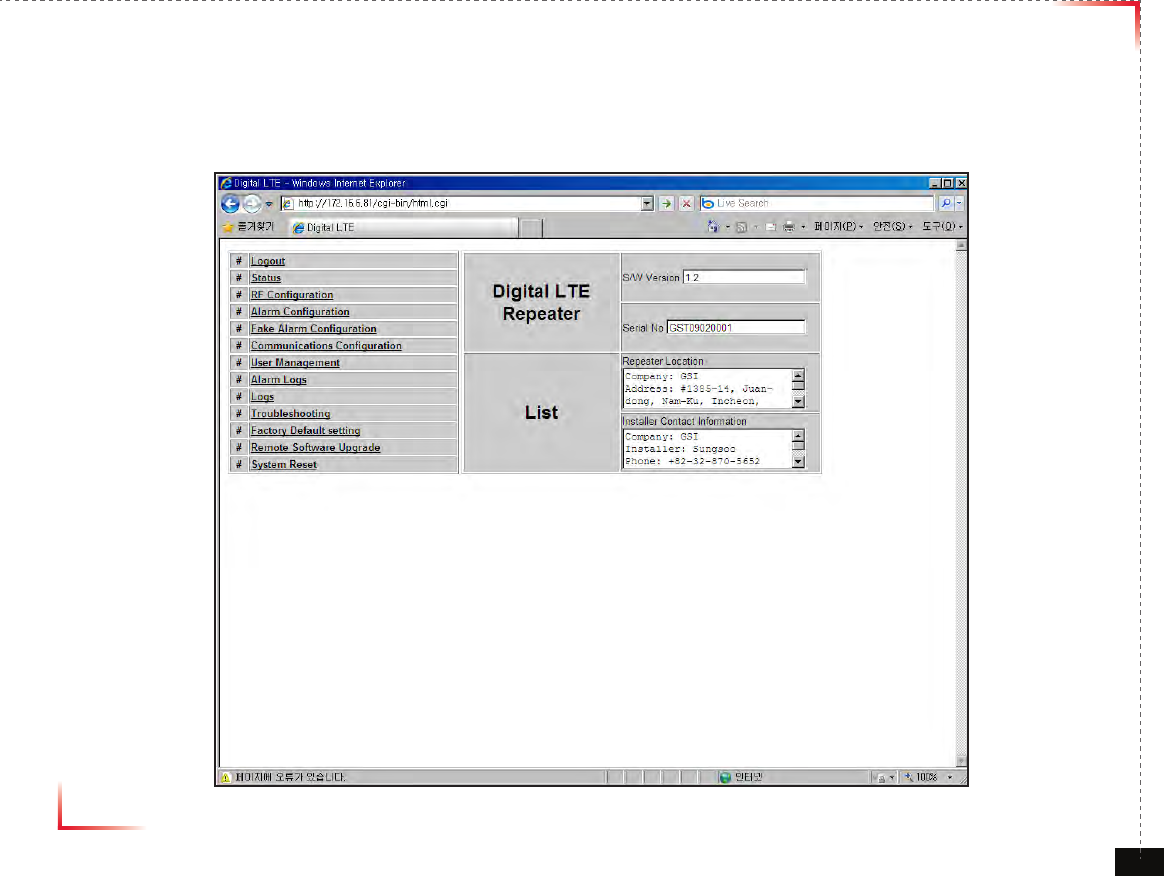

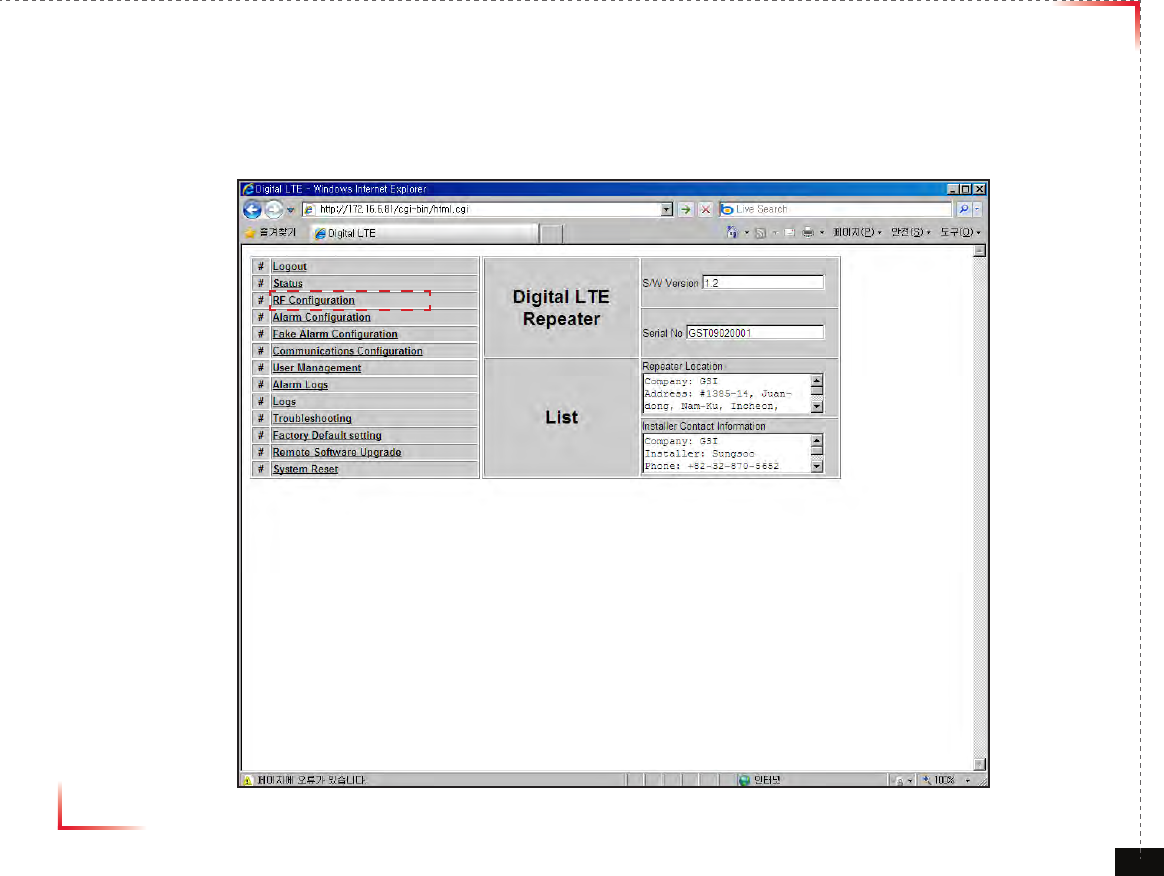

List Menu

• After you log in, you can see various menu page links related to the equipment.

Version 1.0  September 2010

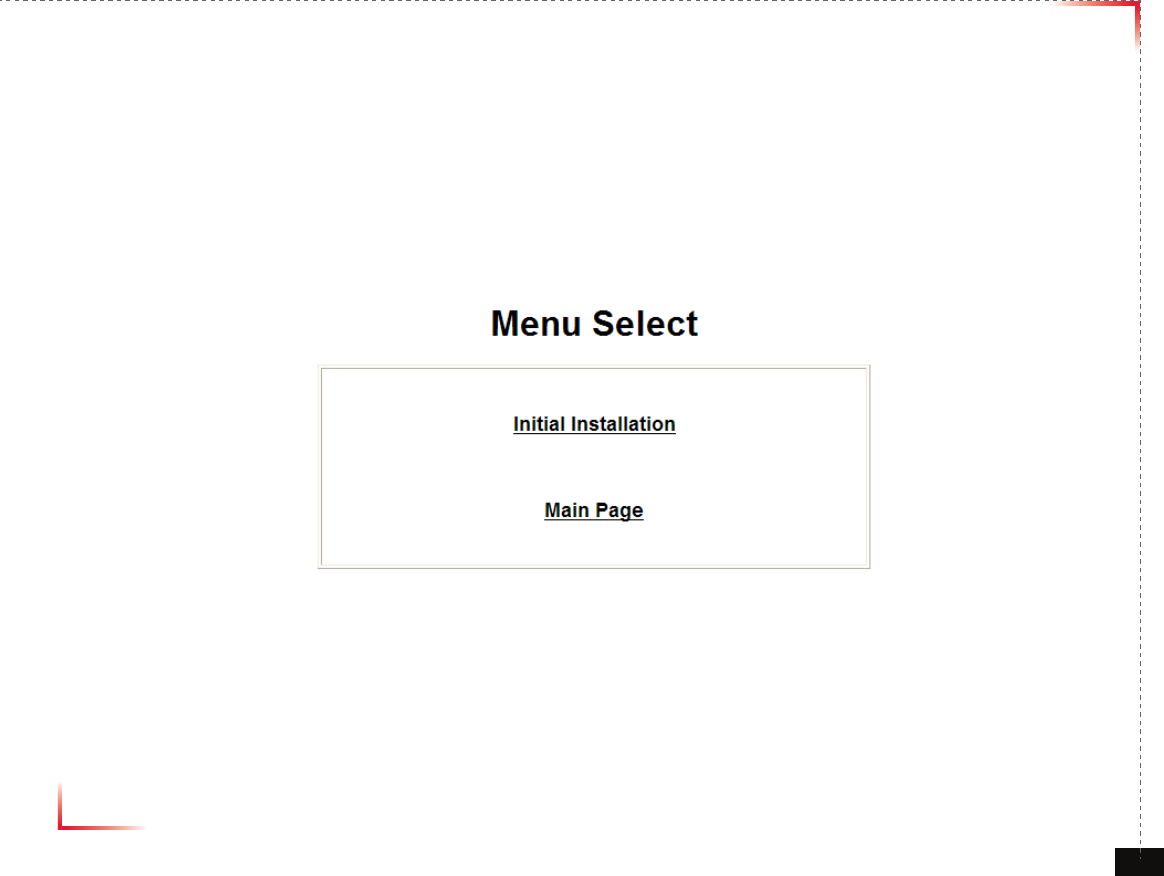

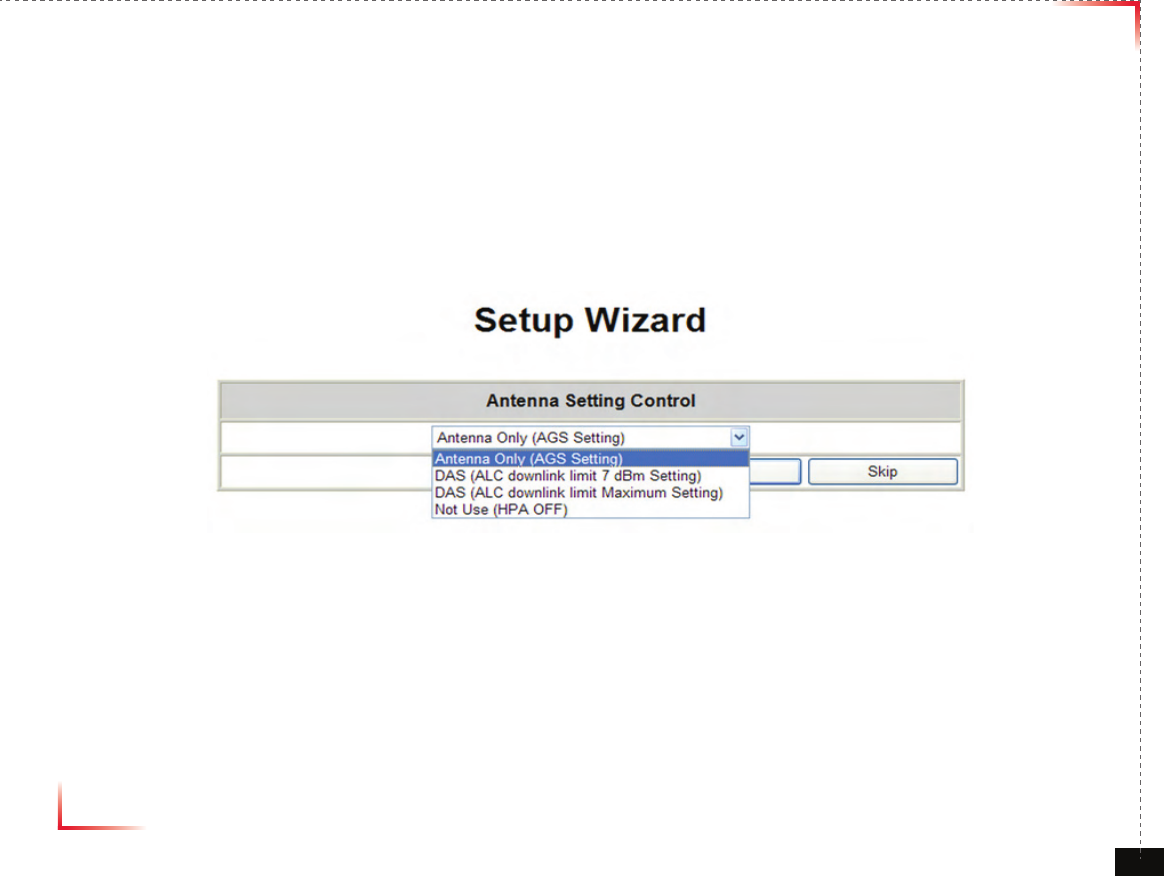

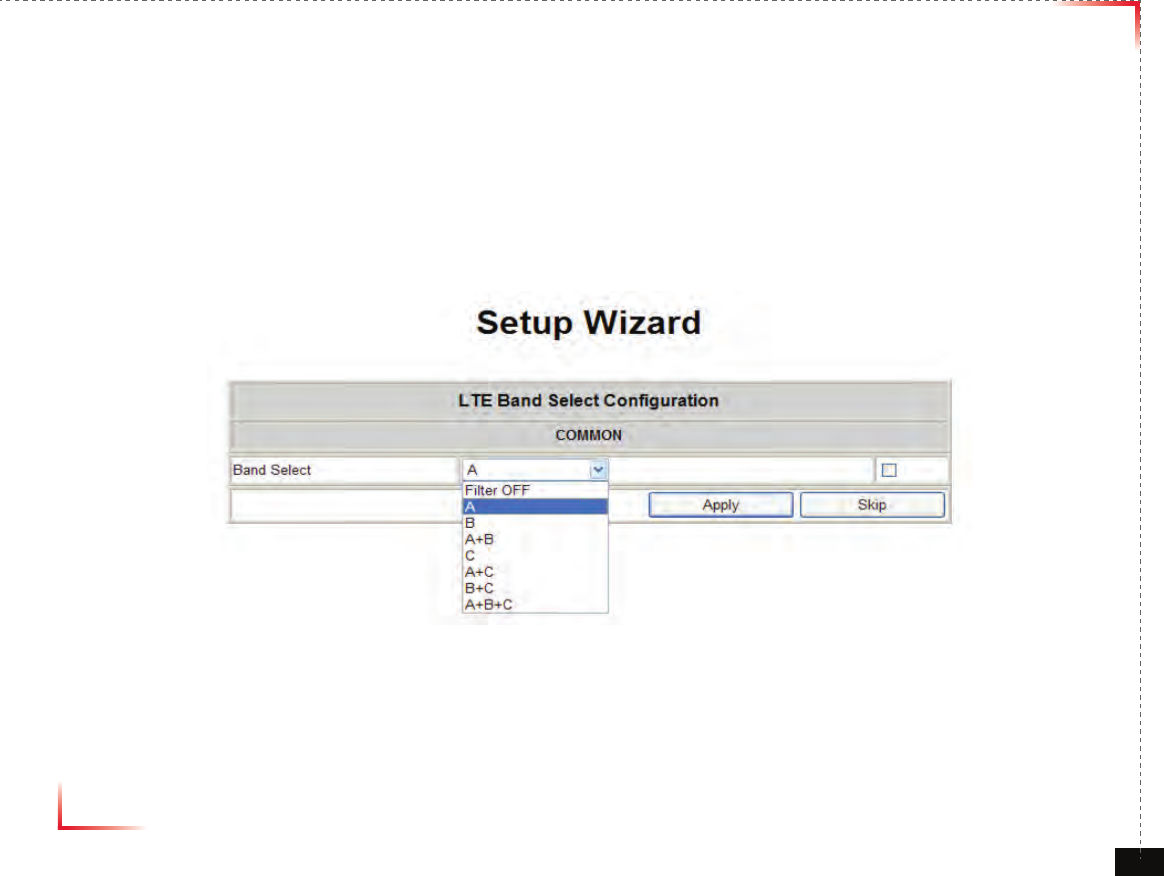

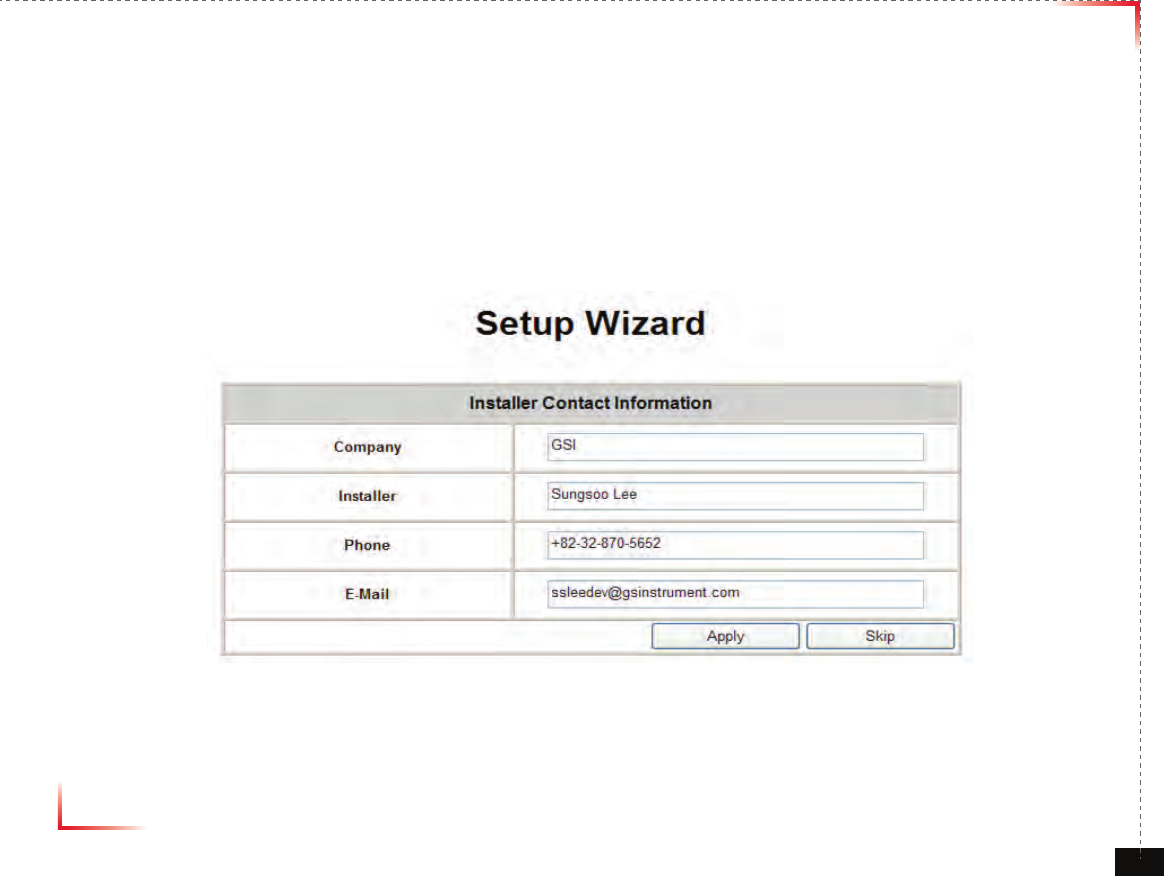

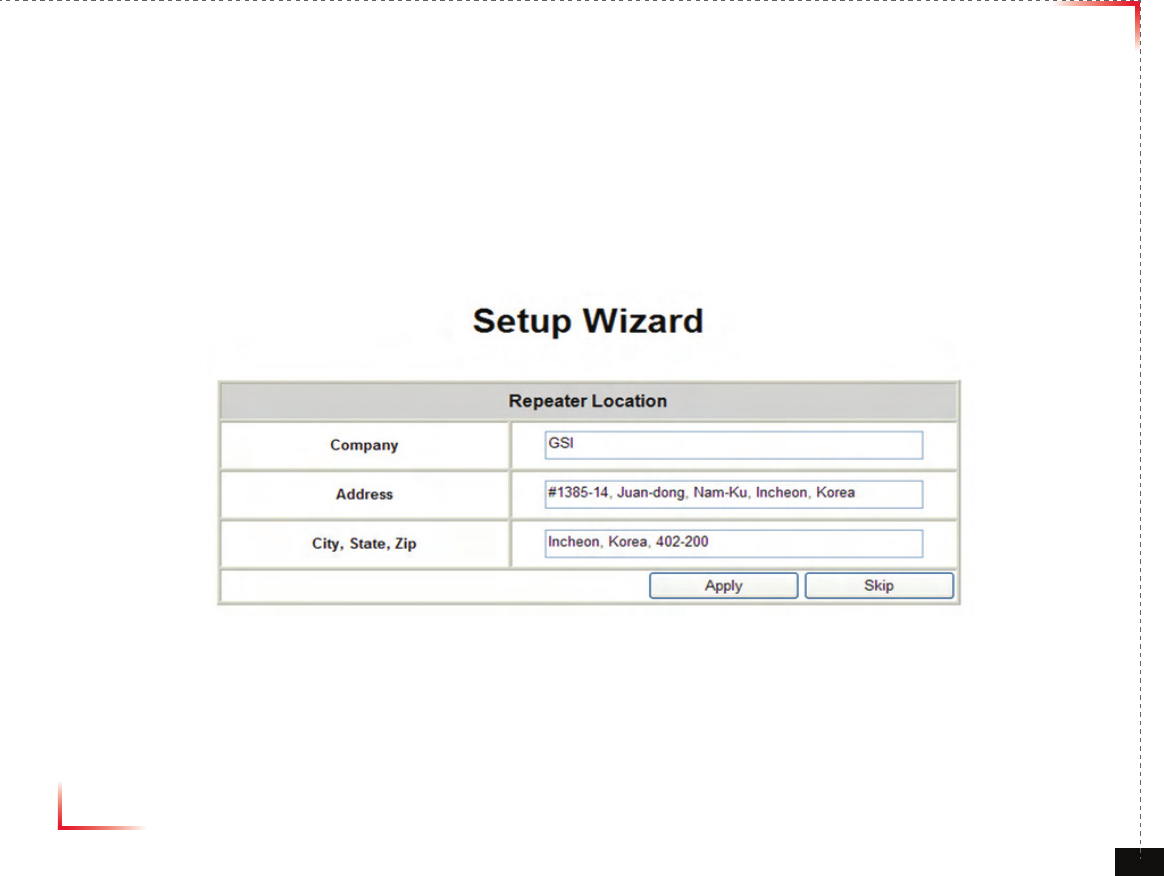

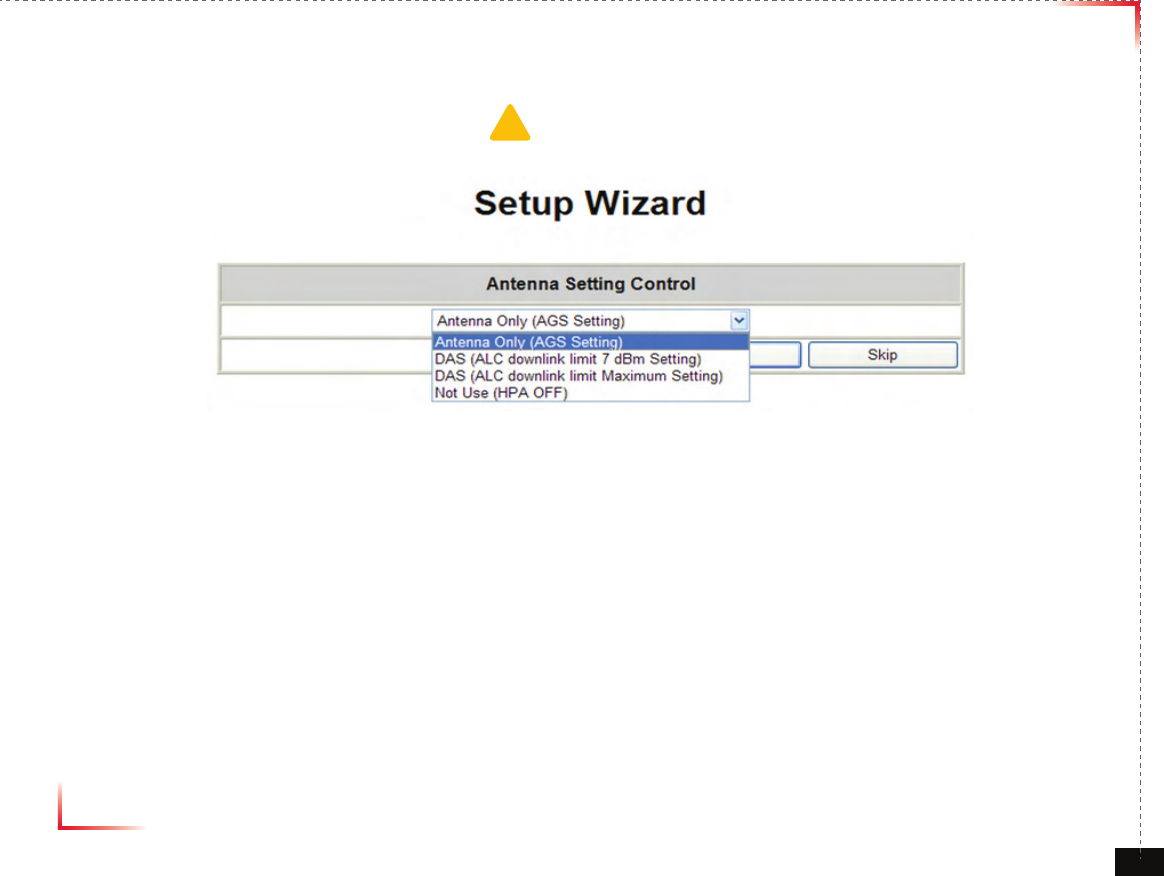

Setup Wizard

• Menu Select Page after logging

• Click “ Initial Installation” for Setup Wizard phase

• Waiting Time: Real-time

Version 1.0  September 2010

Setup Wizard

• Repeater Location setting

• Click “Apply” for updating

• Click “Skip” without any renewal

• Waiting Time: Real-time

Version 1.0  September 2010

Setup Wizard

• Installer Contact Information setting

• Click “Apply” for updating

• Click “Skip” without any modi cation

• Waiting Time: Real-time

Version 1.0  September 2010

Setup Wizard

• LTE Band Select Configuration setting

• Click “Apply” for updating

• Click “Skip” without any modification

• Waiting Time: Real-time

Version 1.0  September 2010

Setup Wizard

• Antenna Setting Control setting

• Click “Apply” for updating

• Click “Skip” without any modification

• Waiting Time: Real-time

Version 1.0  September 2010

Setup Wizard

• Waiting (Operating) Time:

- Typical: 3mins

- Maximum: 5mins

1. Antenna only (AGS setting) is for Auto Gain Setting to optimize this repeater for  eld conditions

a. Every limit level (AGC, Down/Uplink ALC) is normal (example : Standard output power)

b. Auto Gain Setting will run

2. DAS (ALC downlink Limit 7dBm Setting) option is used for connecting this repeater to DAS equipment (LGC DAS,

Mobile Access DAS etc), and following condition should be controlled.

a. AGC turn Off

b. ALC turn On

c. Gain Balance turn Off

d. ALC downlink limit value set +7dBm

e. ALC uplink limit value set normal output power (example : Standard output power)

f. Shut down turn On

g. HPA turn On, If HPA turn off

h. delay alarm reporting time set 5 min

3. DAS (ALC downlink Limit Maximum Setting) option is used for connecting Passive DAS equipment, and 7dB downlink

limit value is set as normal output power level

(Example: Standard output power)

!CAUTION

Please make Path On when you run Setup Wizard if Path Off set

Version 1.0  September 2010

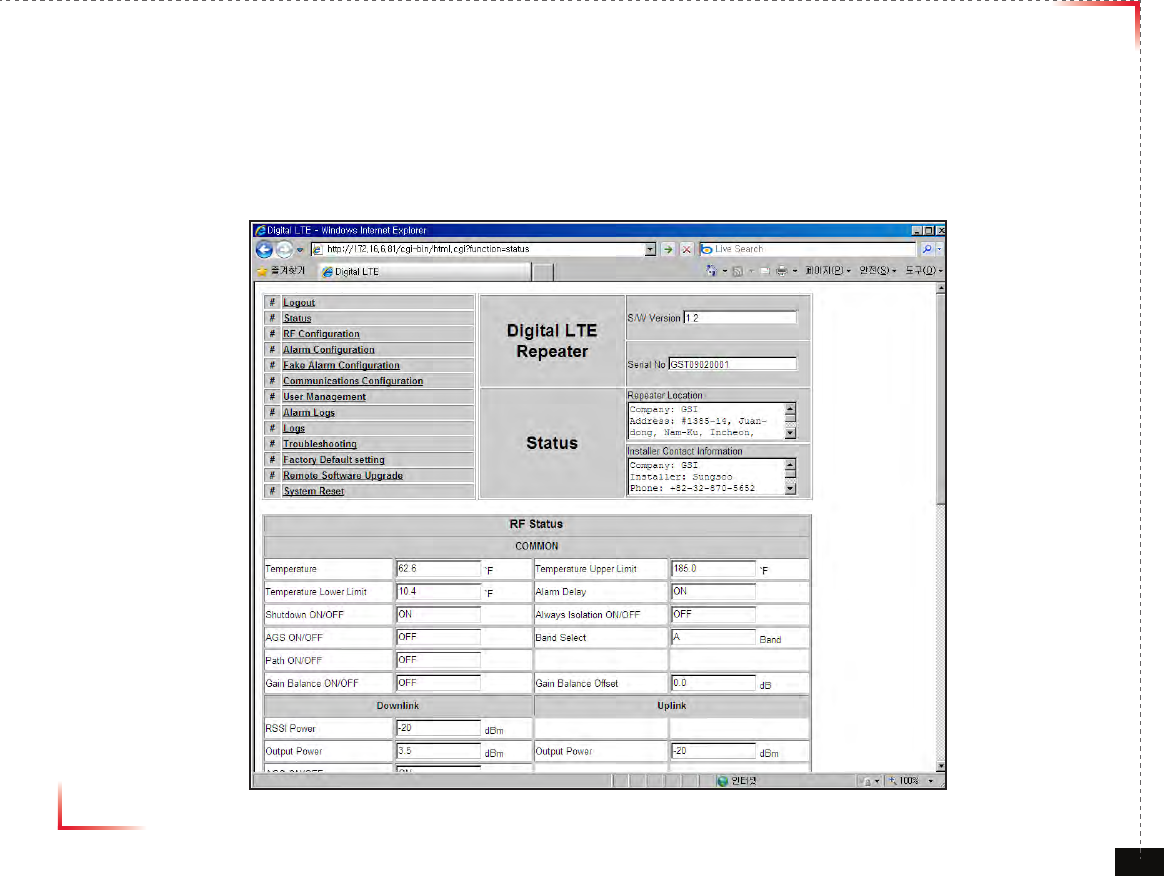

Status Page

• Default D/L and U/L are set at minimum Gain.

• The default values in various fields will differ with different models of CoverCell25K/100K700 Repeaters.

• In order to view other pages, you can click the desired menu on the top-left corner of all pages.

• Changes can be made on the Status Page. This page is for checking the repeater’s conditions and settings.

Version 1.0  September 2010

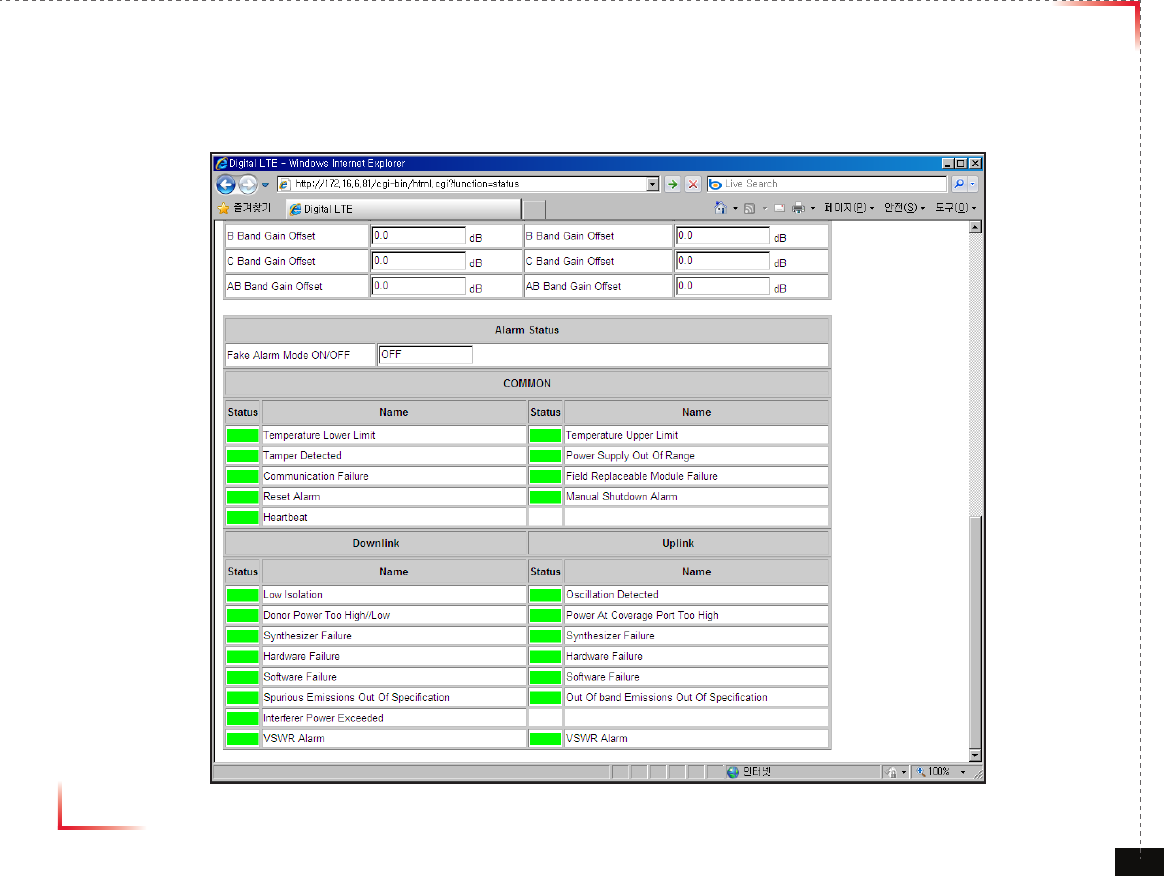

Status Page

• When an alarm goes off, the color of Status turns red.

Version 1.0  September 2010

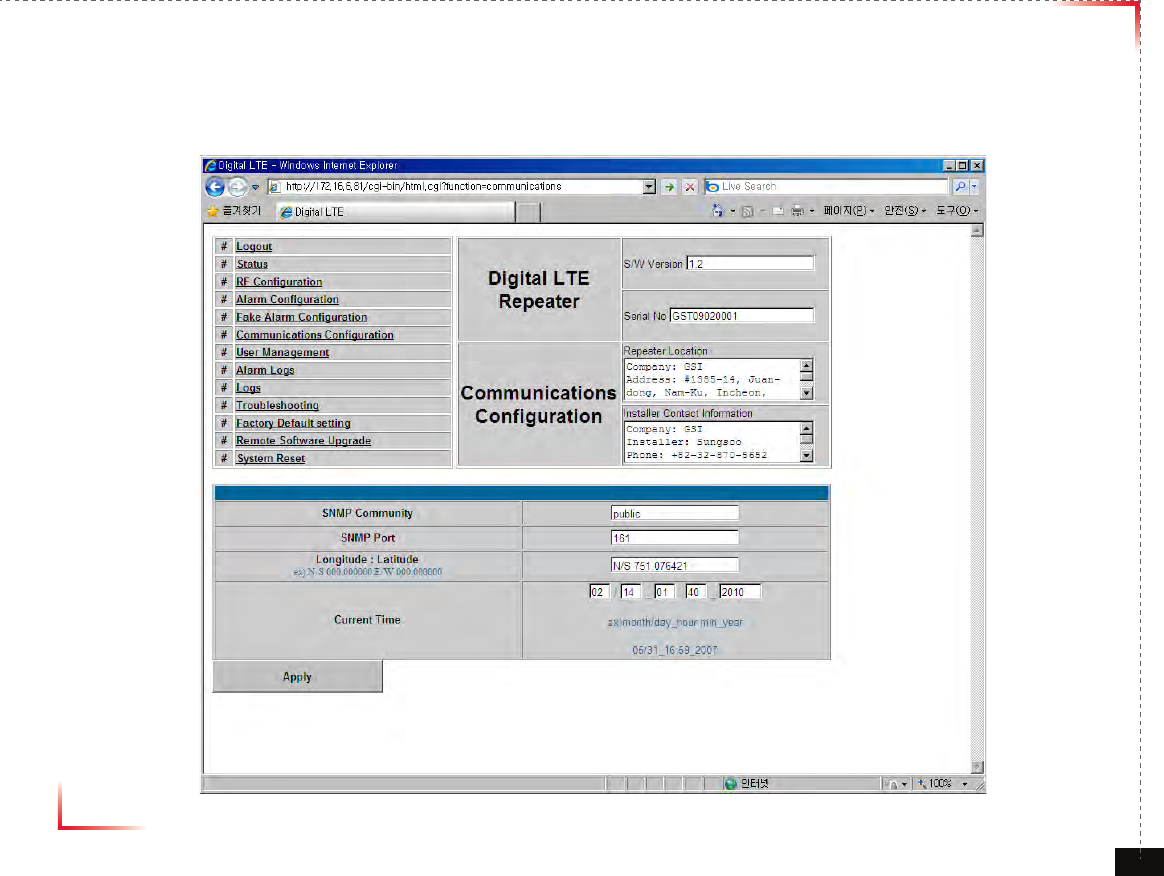

Communications Conguration

• Click on the Communications Conguration link.

Version 1.0  September 2010

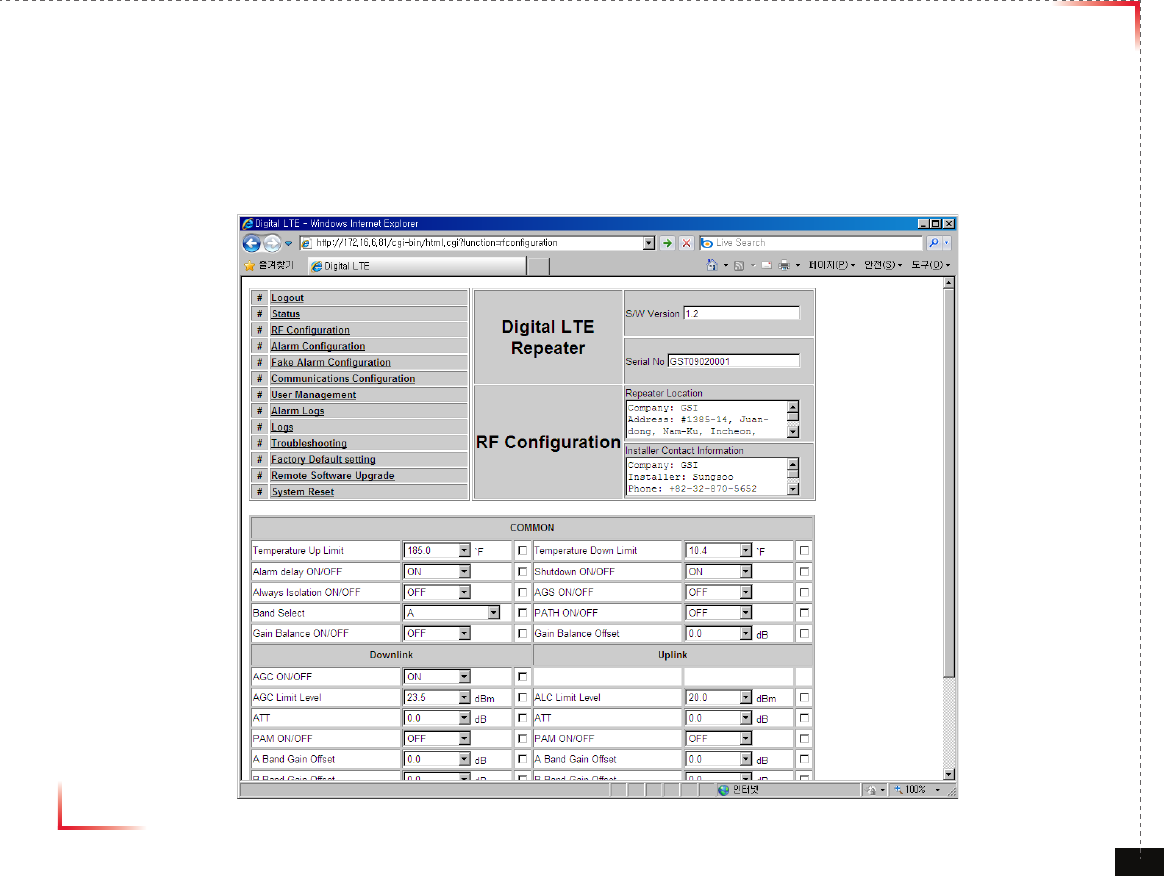

RF Conguration

• Click the RF Configuration link.

• This menu is where installer will actually configure the Repeater.

• You can change various RF values of the equipment on this page.

Version 1.0  September 2010

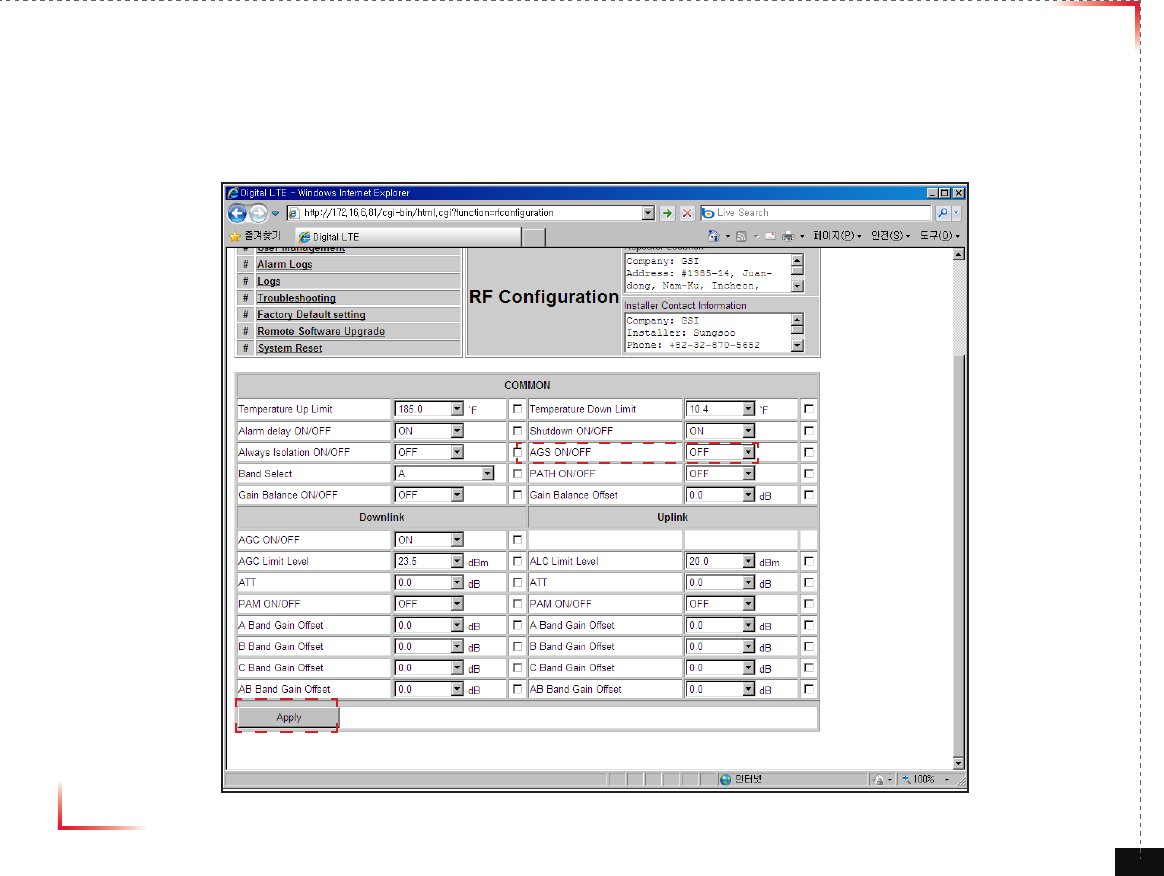

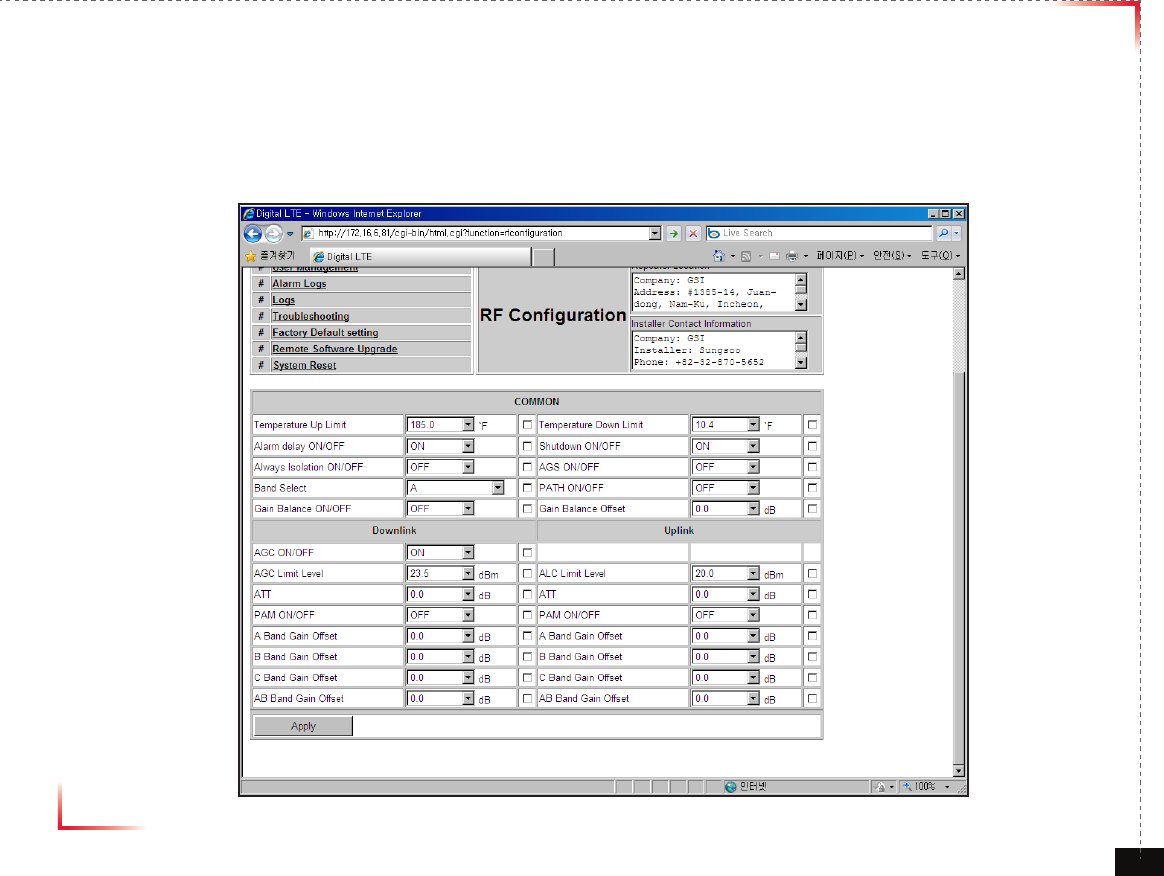

RF Conguration

•

In case that screen resolution is 1024 x 768, you may need to use scroll bars to view all.

•

Changes will not take effect until you click “Apply” button.

•

The default values in various fields will differ with different models of

CoverCell25K/100K700

Repeaters.

Version 1.0  September 2010

Bandwidth and Frequency Selection

1.

Login as admin as above.

admin

Version 1.0  September 2010

Bandwidth and Frequency Selection

2.

Click RF configuration

Version 1.0  September 2010

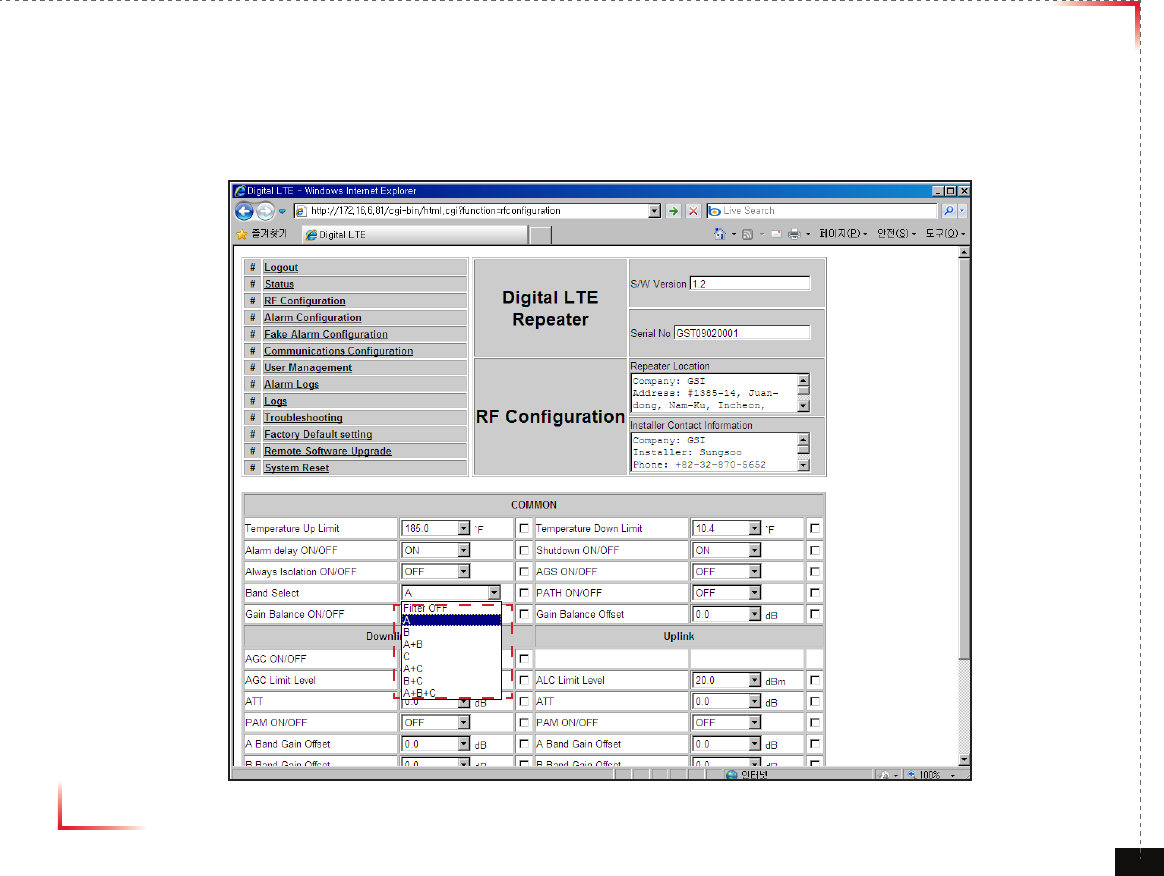

Bandwidth and Frequency Selection

3.

Choose Bandwidth and select bandwidth users want.

Depending on the bandwidth, the frequency will be set accordingly

Version 1.0  September 2010

Bandwidth and Frequency Selection

6.

Click Apply if all the setting is done.

Please set AGS “ON”, CoverCell25K/100K700 will remember the status of AGS and perform AGS on rebooting.

Version 1.0  September 2010

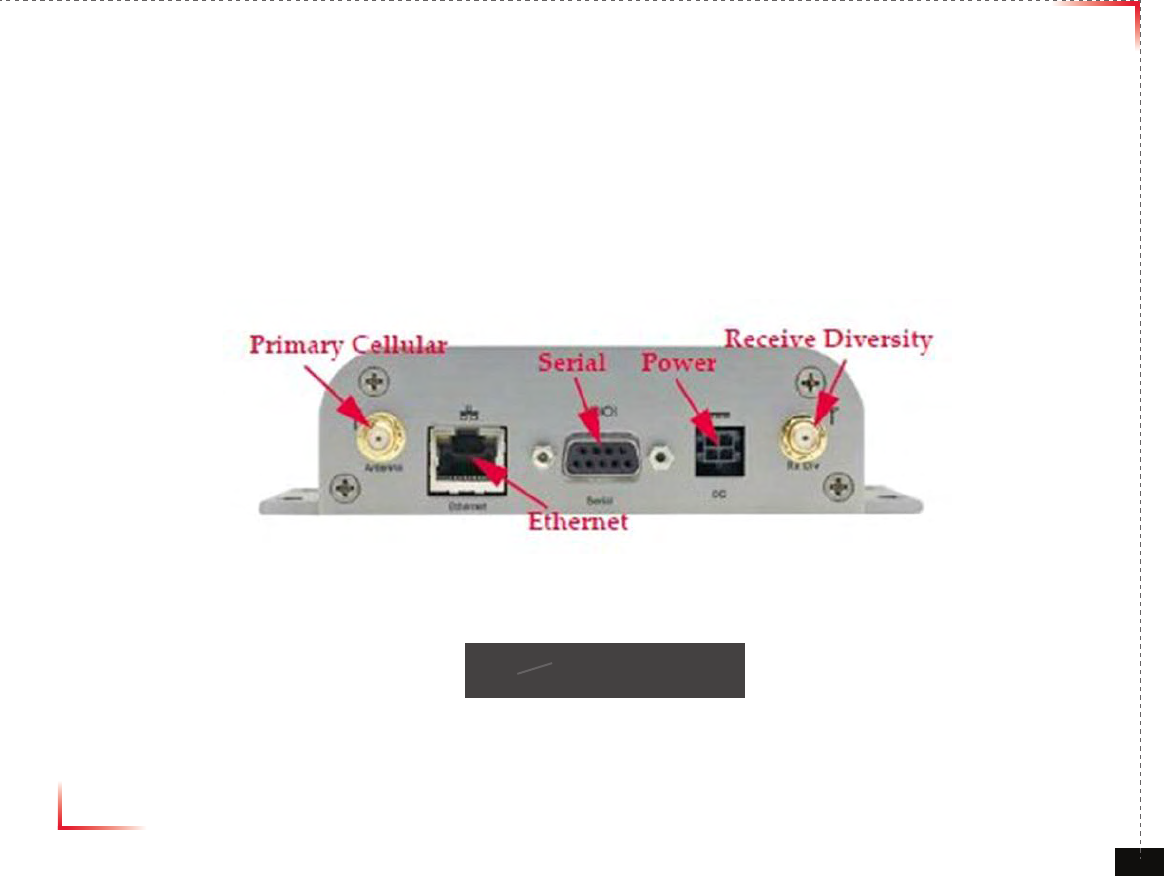

RavenX Setting

•

RavenX is not supplied with Repeater and can be purchased separately from Kentrox.

•

An antenna or antenna cable should be connected to “Primary Celluar” port in Figure 13.

•

One end of an ethernet cable should be connected to “Ethernet” in Figure 1, the other end should be connected to WAN

port in CoverCell25K/100K700.

•

Power should be connected to “Power” in Figure 1. Power supply is provided with RavenX.

•

RavenX will work with CoverCell25K/100K700 with its default setting.

•

RavenX will work with CoverCell25K/100K700 with its default setting.

<Figure 13> RavenX Setting

Version 1.0  September 2010

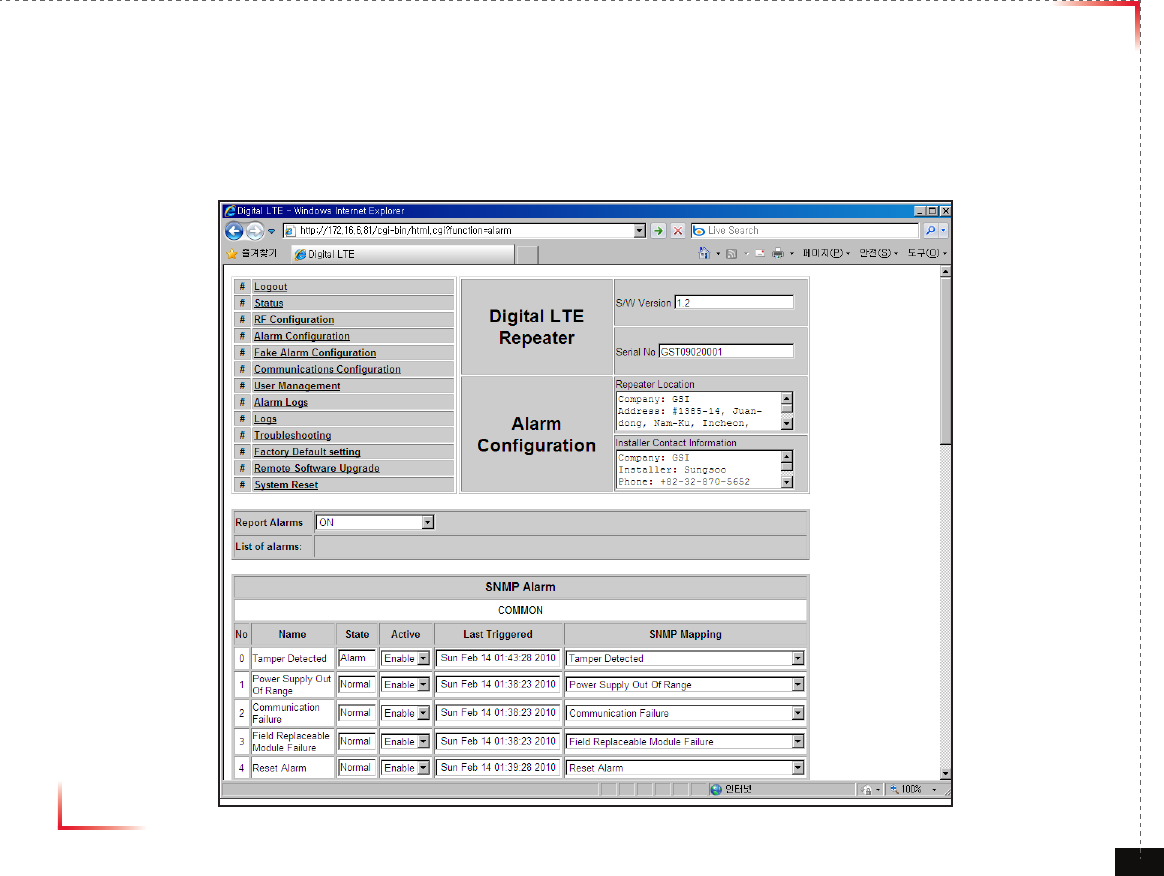

Alarm Conguration

•

Click Alarm Configuration link.

•

In case that Report Alarms is OFF, all alarms will be disabled. In case that Report Alarm is ON,

you can enable and disable individual alarms.

Version 1.0  September 2010

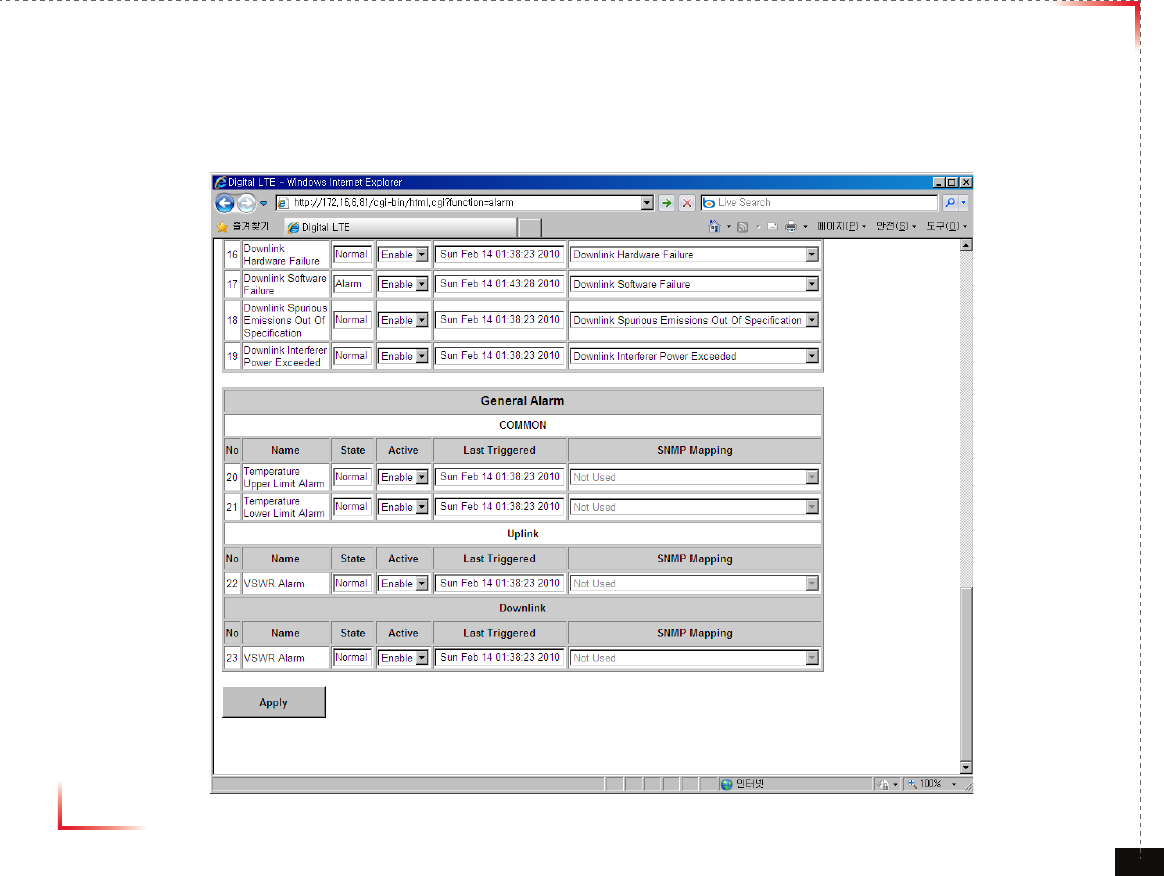

Alarm Conguration

•

In case that screen resolution is 1024 x 768, you may need to use scroll bars to view all.

Changes will not be made effective until you click “Apply” button.

Version 1.0  September 2010

Alarm List

Category Alarm

General

Tamper

Power Supply out of range

Communication

Field replaceble module Fail

Reset alarm

Manual shutdown alarm

Heart beat

Uplink

OSC detect

Power at CVG port too high

Synthesizer Fail

Hardware Fail

Software Fail

Out of Band emission

Downlink

Donor power too high/low

Low isolation

Synthesizer Fail

Hardware Fail

Software Fail

Spurious emission

Interferer power exceed

Version 1.0  September 2010

User Management

•

Click on the User Management link.

•

On this page you can create and delete users, change passwords, and assign authorities to individual users.

•

Read/Write Authority means that the user can change various values.

•

Super User is very similar to an Administrator account.

! CAUTION

DO NOT DELETE 'admin'

Version 1.0  September 2010

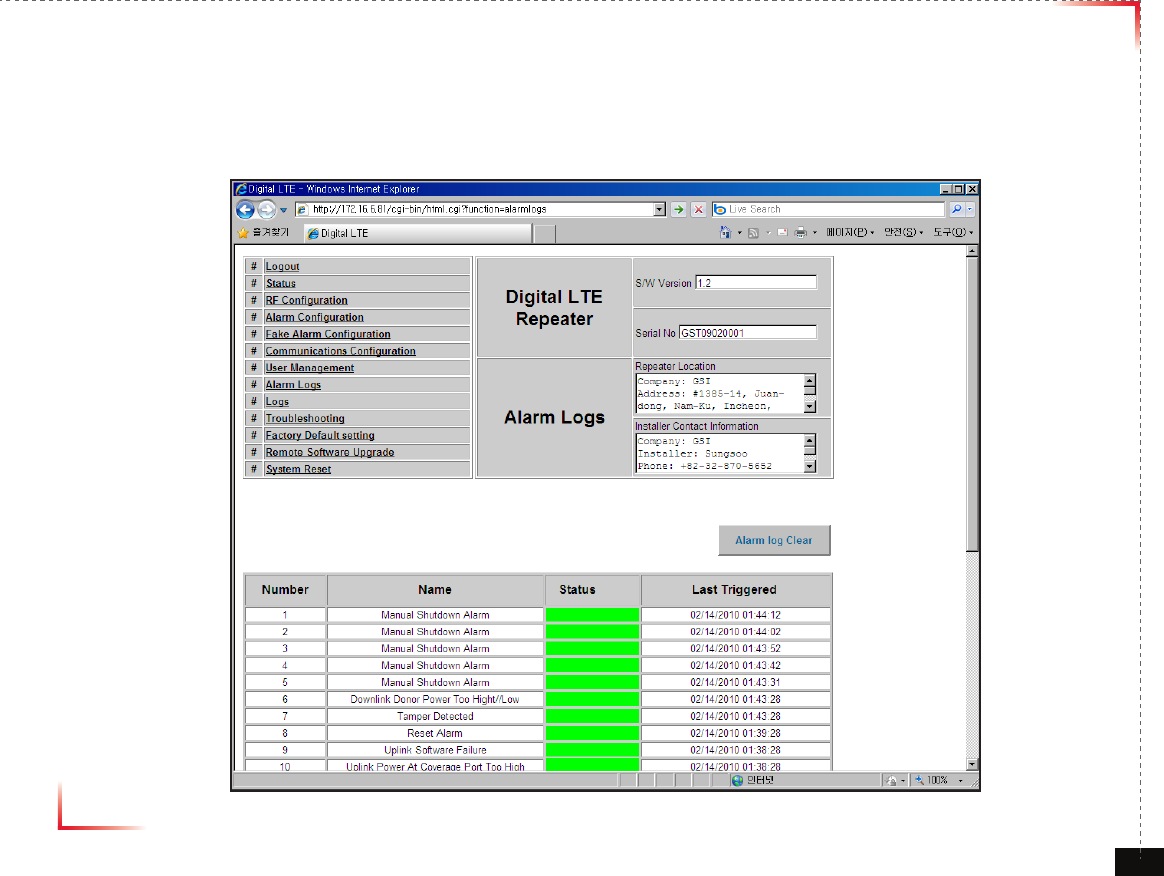

Alarm Logs

• Click on the Alarm Logs link.

• You can see Alarm Logs regarding Web UI operation. Alarm Logs will maintain a history of up to 30 operations.

Version 1.0  September 2010

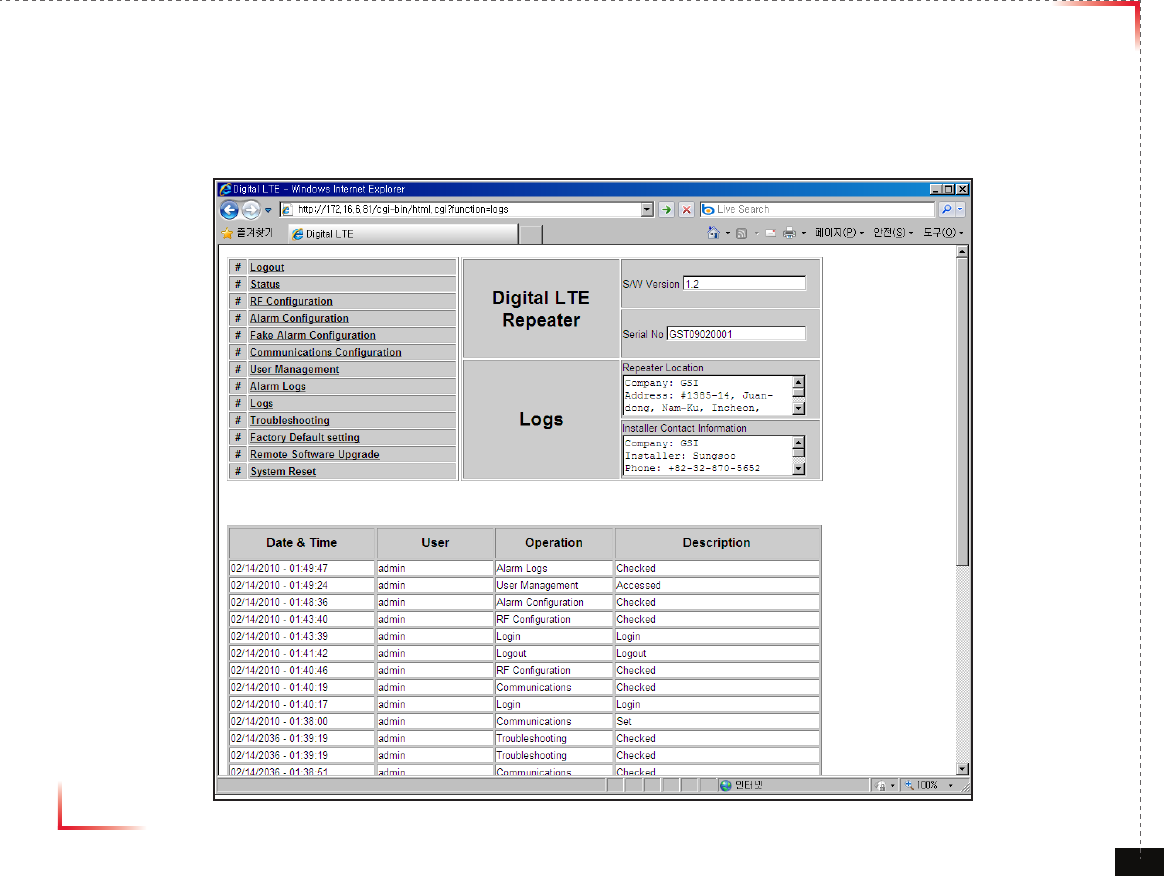

Logs

• Click on the Alarm Logs link.

• You can see Alarm Logs regarding Web UI operation. Logs will maintain a history of up to 30 operations.

Version 1.0  September 2010

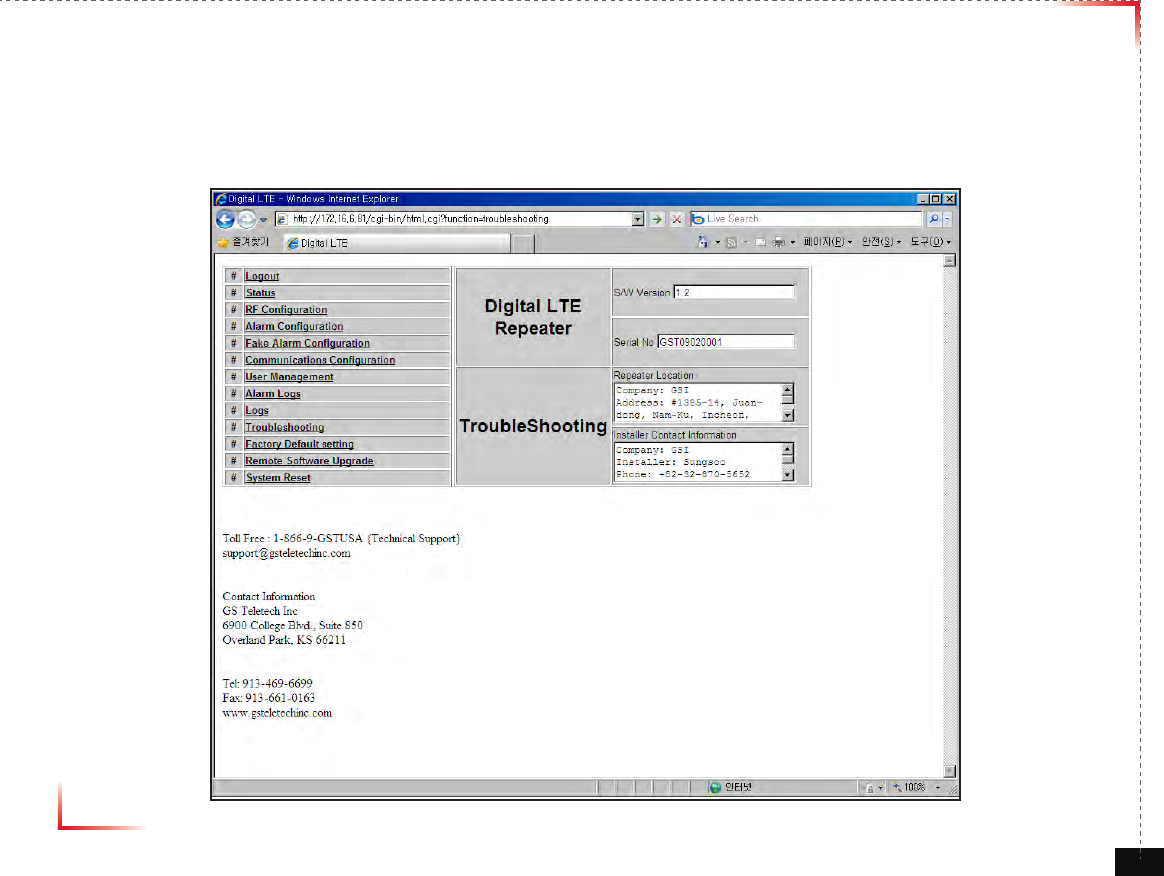

Troubleshooting Guide

• Click on the Troubleshooting link.

• You can refer to this page for a general troubleshooting guide.

• In case that screen resolution is 1024 x 768, you may need to use scroll bars to view all.

Version 1.0  September 2010

Troubleshooting

• Please click “Main Page” on Menu Select Page after logging.

Version 1.0  September 2010

Troubleshooting

• “Troubleshooting” Click

Version 1.0  September 2010

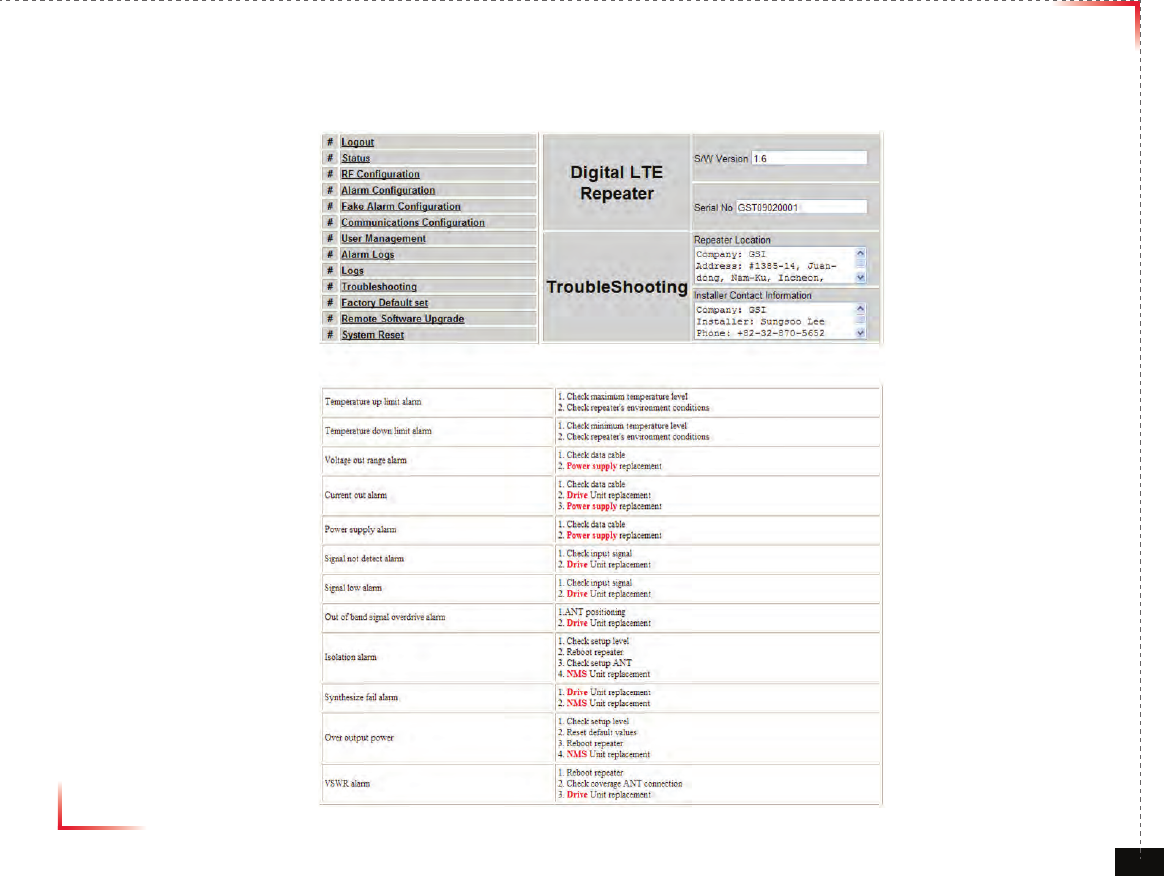

Troubleshooting

• Temperature up limit alarm

- Check maximum temperature level

- Check repeater’s environment conditions

• Temperature down limit alarm

- Check minimum temperature level

- Check repeater’s environment conditions

• Voltage out range alarm

- Check data cable

- Power supply replacement

• Current out alarm

- Check data cable

- Drive Unit replacement

- Power supply replacement

• Power supply alarm

- Check data cable

- Power supply replacement

• Signal not detect alarm

- Check input signal

- Drive Unit replacement

• Signal low alarm

- Check input signal

- Drive Unit replacement

Version 1.0  September 2010

Troubleshooting

• Out of band signal overdrive alarm

- ANT positioning

- Drive Unit replacement

• Isolation alarm

- Check setup level

- Reboot repeater

- Check setup ANT

- NMS Unit replacement

• Synthesize fail alarm

- Drive Unit replacement

- NMS Unit replacement

• Over output power

- Check setup level

- Reset default values

- Reboot repeater

- NMS Unit replacement

• VSWR alarm

- Reboot repeater

- Check coverage ANT connection

- Drive Unit replacement

Version 1.0  September 2010

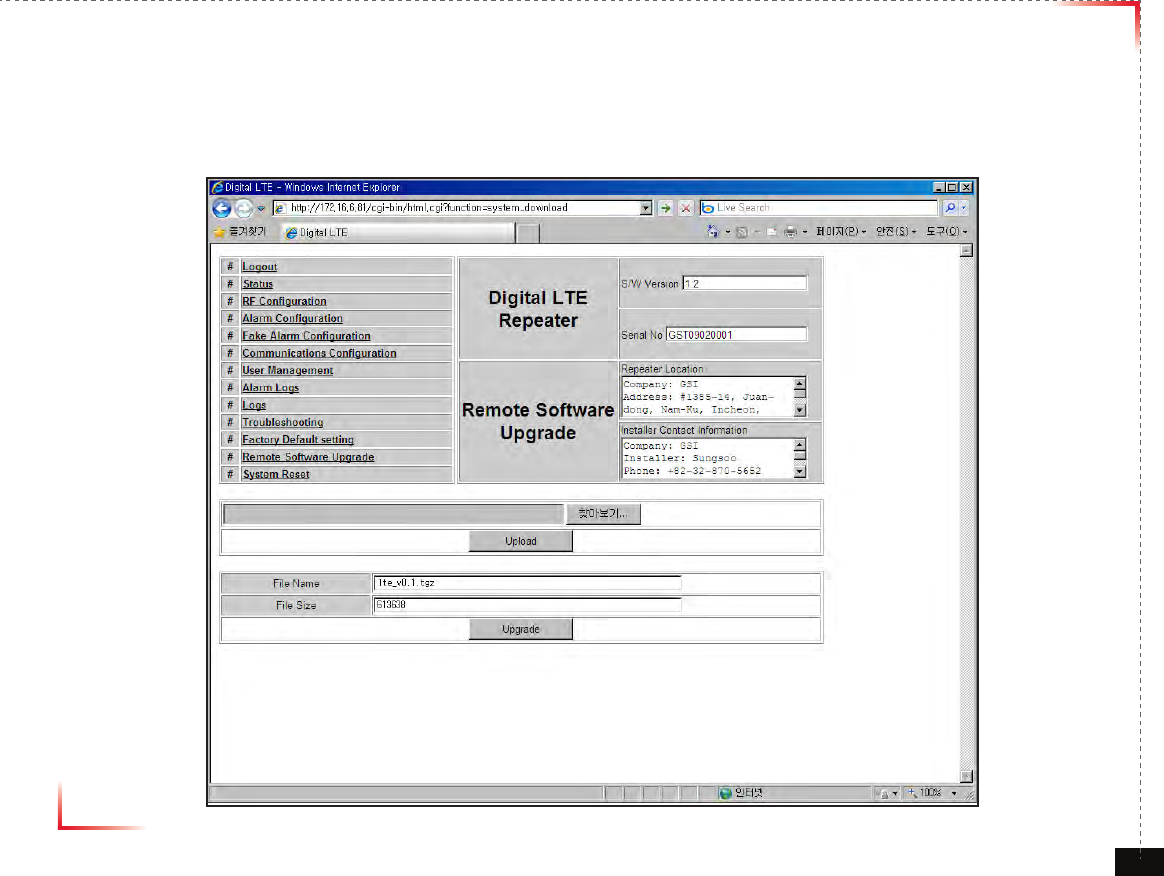

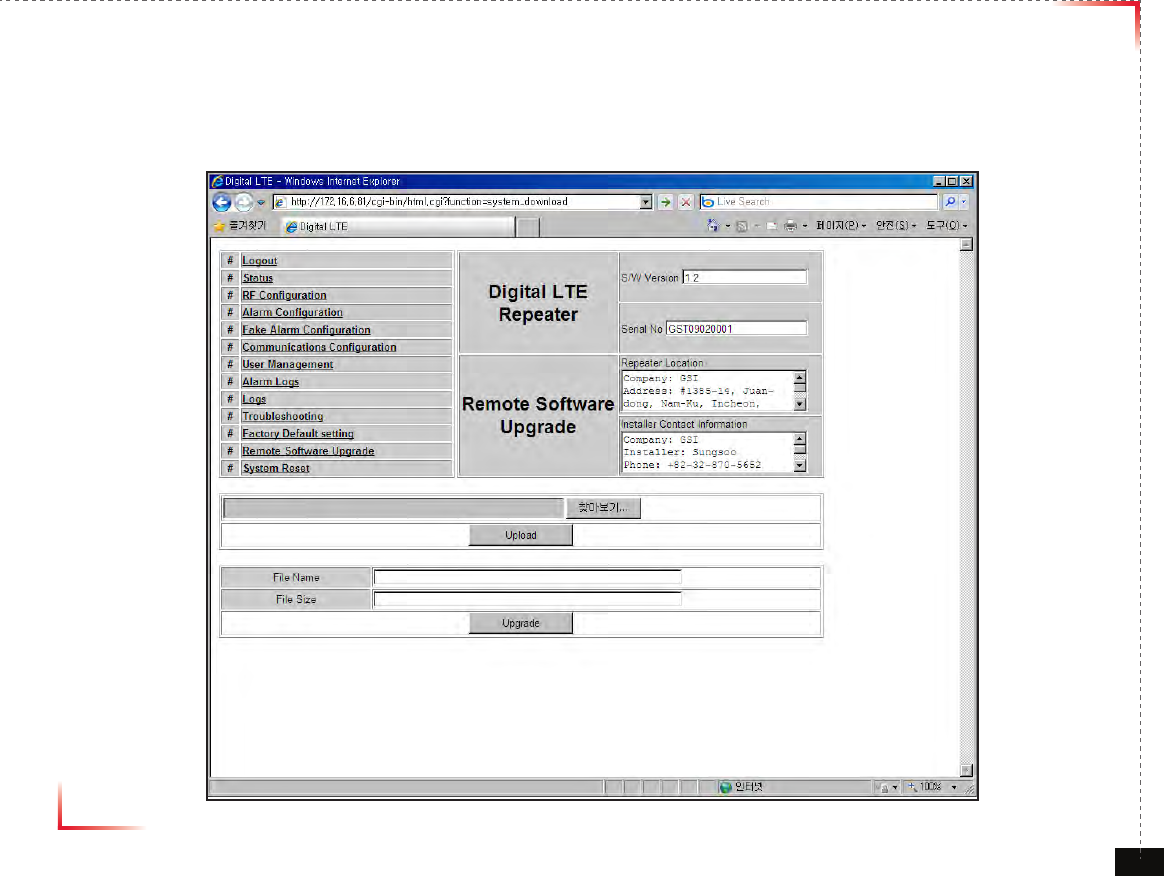

Software Upgrade

• Click on the Remote Software Upgrade link.

• In case that software upgrade is needed, you should use this page.

• Click Browse button to select the file to upgrade from the laptop.

Version 1.0  September 2010

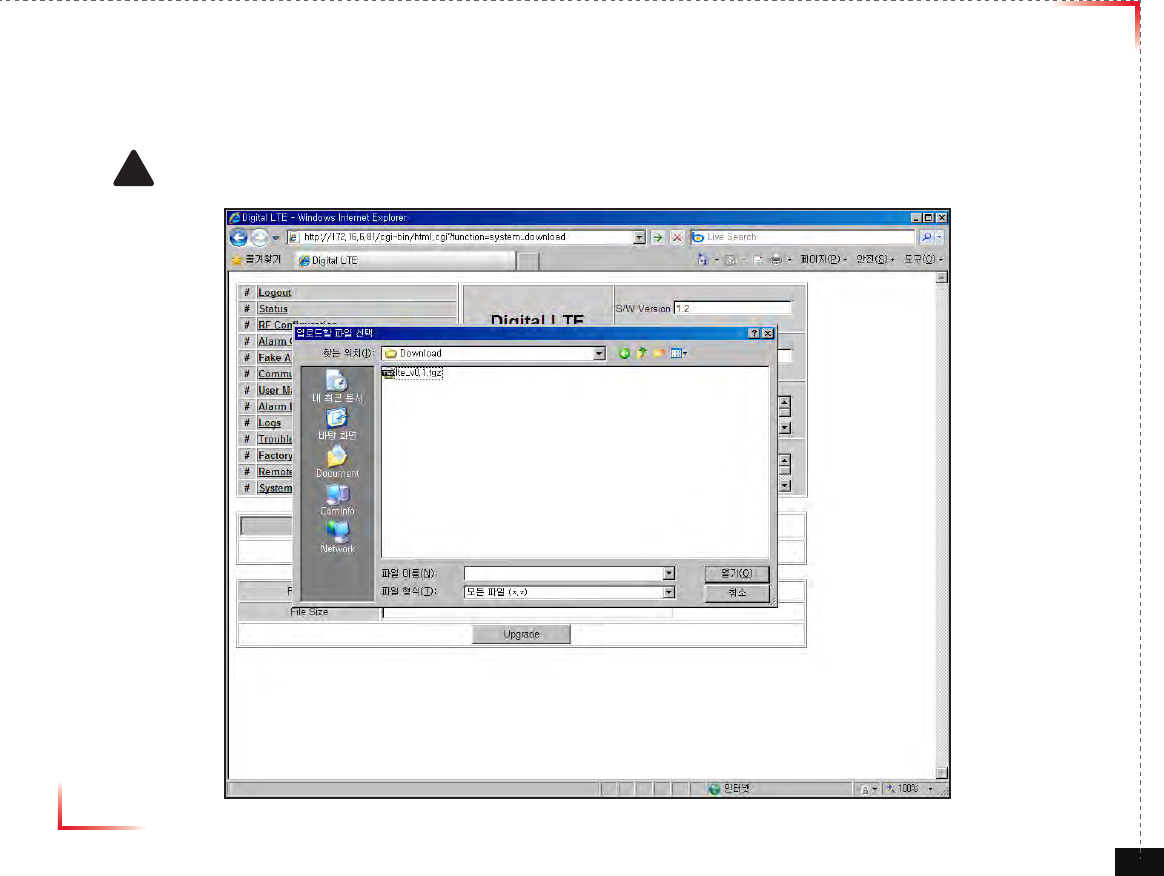

Software Upgrade

• Choose the le to upgrade provided by GST.

After you choose the le, you should click “upload” to send the le from your laptop to the repeater.

! CAUTION

Be careful not to unplug the crossover Ethernet cable during software upgrade.

Version 1.0  September 2010

Software Upgrade

• After uploading is finished, verify that the File Name and the File Size is correct, click “Upgrade” button.

Installer should wait about 2 minutes for upgrade to initialize.

• User may then be prompted to log back into the Repeater.

Version 1.0  September 2010

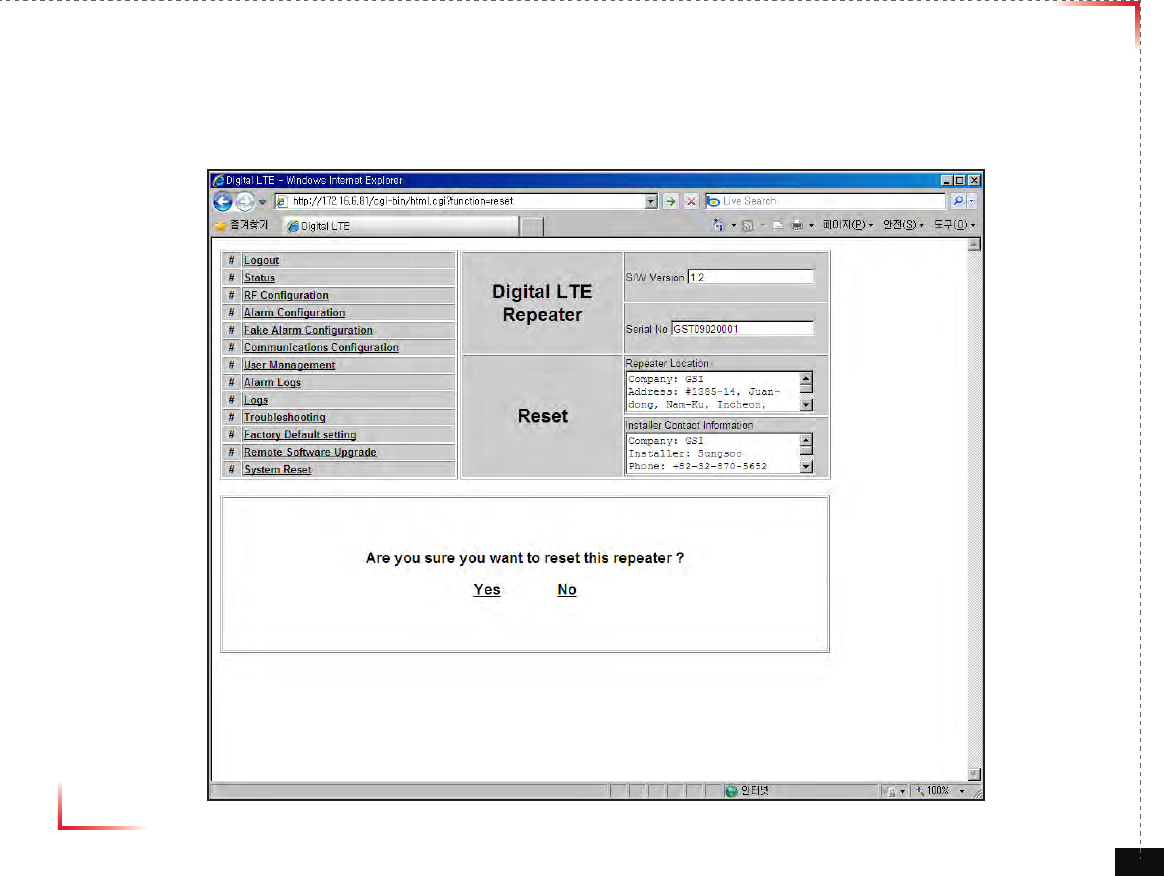

System Reset

• A software reset is a “soft reboot” of the repeater.

To reset the software, click on ‘Software Reset’ and then click ‘Yes’ to reset the software.

• Resetting the software is a good way to clear current alarms.

Version 1.0  September 2010

GST Technical Support

Phone:

Toll Free: 1-866-9-GST-USA

Phone: 913-469-6699

Write:

GS Teletech Inc.

6900 College Boulevard, Suite 850

Overland Park, KS 66211, USA

Product Information and Technical Assistance:

www.gsteletechinc.com

support@gsteletechinc.com

Specifications and features of this installation guide are subject to change without notice or obligation.

Version 1.0  September 2010

Warning: Exposure to Radio Frequency Radiation The radiated output power

of this device is far below the FCC radio frequency exposure limits.

Nevertheless, the device should be used in such a manner that the potential

for human contact during normal operation is minimized. In order to avoid

the possibility of exceeding the FCC radio frequency exposure limits, human

proximity to the antenna should not be less than 40cm during normal

operation. The gain of the antenna is 8 dBi. The antenna(s) used for this

transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

GS Instech CC100K700 Cover4G100K User Manual

GS Instruments Co., Ltd. Cover4G100K

User manual

Navigation menu

Namespaces

Views

Navigation
