GUANGZHOU NOVO SUN SHADING TECHNIQUE MD30964 transmitter User Manual 1
GUANGZHOU NOVO SUN SHADING TECHNIQUE CO., LTD. transmitter 1
UserManual.wiki
>
GUANGZHOU NOVO SUN SHADING TECHNIQUE
>
MD30964 User Manual
User Manual
Navigation menu
Upload a User Manual
Namespaces
Wiki Guide
HTML
PDF
Info
Views
User Manual
Discussion / Help
Navigation

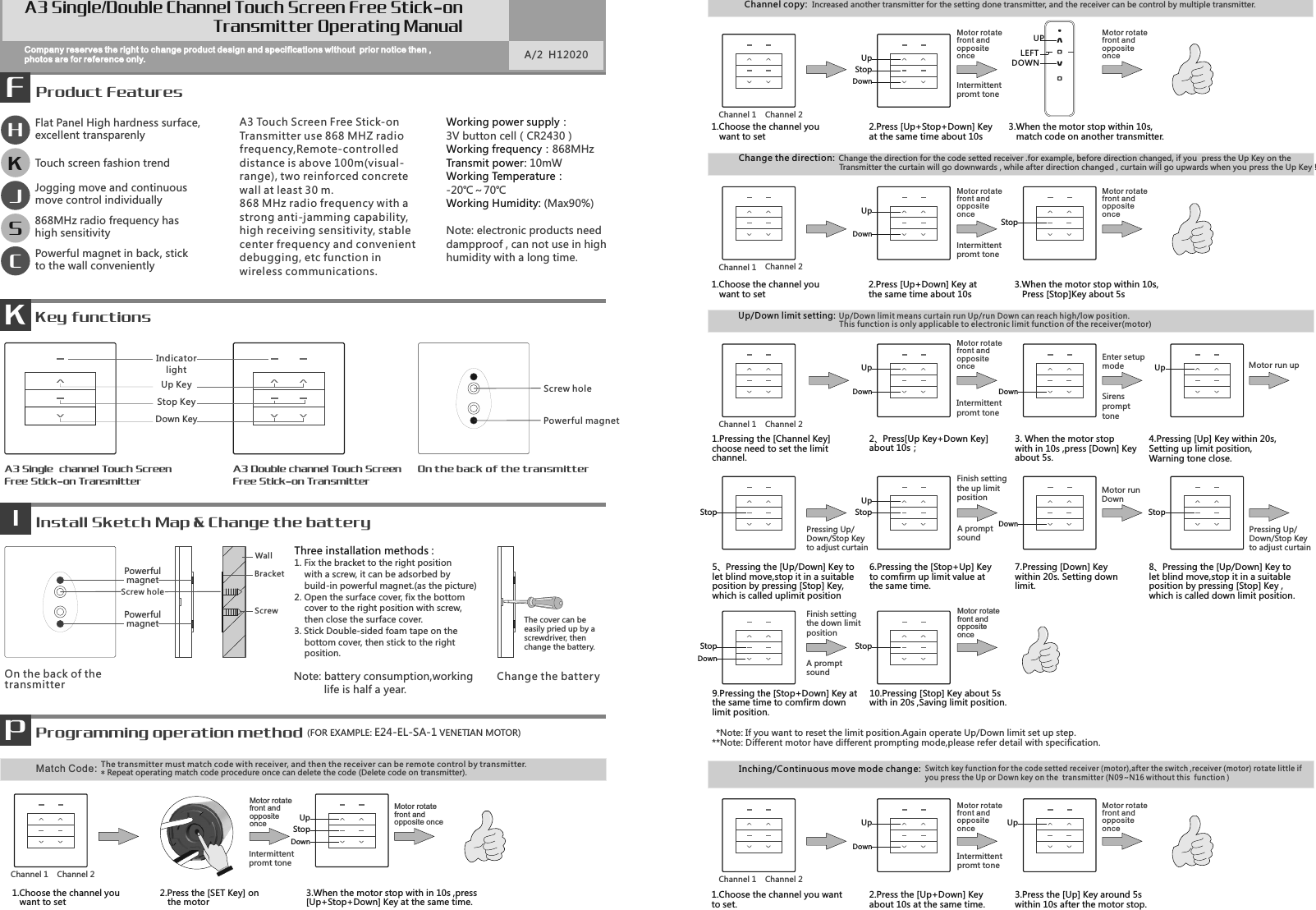

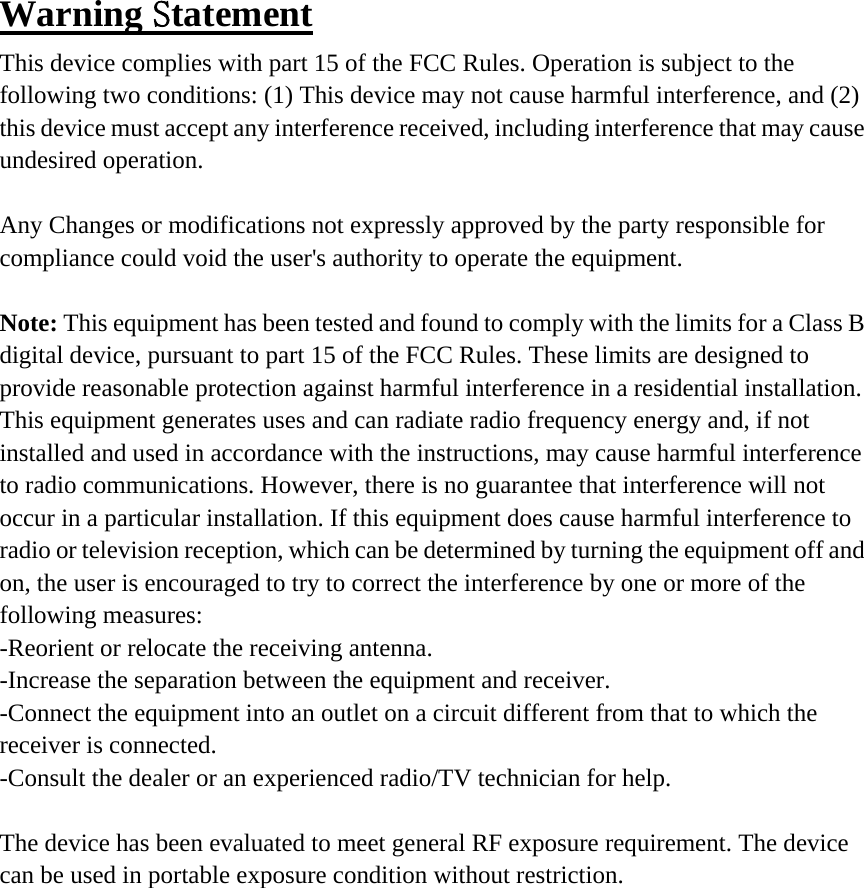

![*Note: If you want to reset the limit position.Again operate Up/Down limit set up step.**Note: Different motor have different prompting mode,please refer detail with specification.Switch key function for the code setted receiver (motor),after the switch ,receiver (motor) rotate little if you press the Up or Down key on the transmitter (N09~N16 without this function ) Inching/Continuous move mode change:Up/Down limit setting: This function is only applicable to electronic limit function of the receiver(motor)Up/Down limit means curtain run Up/run Down can reach high/low position.Match Code: The transmitter must match code with receiver, and then the receiver can be remote control by transmitter. Product FeaturesFCompany reserves the right to change product design and specifications without prior notice then ,photos are for reference only. A/2 H12020A3 Touch Screen Free Stick-onTransmitter use 868 MHZ radiofrequency,Remote-controlled distance is above 100m(visual-range), two reinforced concretewall at least 30 m.868 MHz radio frequency with astrong anti-jamming capability,high receiving sensitivity, stablecenter frequency and convenientdebugging, etc function inwireless communications.KKey functionsEnter setupmodeSirensprompttoneMotor rotate front and opposite onceIntermittentpromt tone A promptsoundMotor rotate front and opposite onceMotor runDownA promptsoundPressing Up/Down/Stop Key to adjust curtain Finish settingthe up limitposition Finish settingthe down limitpositionMotor run up Motor rotate front and opposite onceIntermittentpromt tone A3 Single channel Touch Screen Free Stick-on TransmitterA3 Double channel Touch ScreenFree Stick-on TransmitterPowerful magnetOn the back of the transmitter发Install Sketch Map & Change the batteryIPowerfulmagnet BracketScrewWallScrew holeScrew holeOn the back of thetransmitterThe cover can be easily pried up by a screwdriver, then change the battery.Three installation methods :1. Fix the bracket to the right position with a screw, it can be adsorbed by build-in powerful magnet.(as the picture)2. Open the surface cover, fix the bottom cover to the right position with screw, then close the surface cover.3. Stick Double-sided foam tape on the bottom cover, then stick to the right position.Change the batter yPressing Up/Down/Stop Key to adjust curtain Working power supply：3V button cell（CR2430）868MHzWorking frequency：10mWTransmit power: Working Temperature：-20℃～70℃ (Max90%)Working Humidity: Note: electronic products needdampproof , can not use in high humidity with a long time.HSK868MHz radio frequency has high sensitivityFlat Panel High hardness surface, excellent transparenlyTouch screen fashion trendJJogging move and continuous move control individuallyCPowerful magnet in back, stick to the wall convenientlyPProgramming operation method (FOR EXAMPLE: E24-EL-SA-1 VENETIAN MOTOR)Motor rotate front and opposite onceIntermittentpromt tone Motor rotate front and oppositeonce1. Choose the channel you want to set2. Press the [SET Key] on the motor3. When the motor stop with in 10s ,press[Up+Stop+Down] Key at the same time.Motor rotate front and opposite onceDOWNUPLEFT1. Choose the channel you want to set2. Press [Up+Stop+Down] Keyat the same time about 10s3. When the motor stop within 10s, match code on another transmitter.Motor rotate front and opposite onceIntermittentpromt tone Motor rotate front and opposite once2. Press [Up+Down] Key at the same time about 10s3. When the motor stop within 10s, Press [Stop]Key about 5s1. Choose the channel you want to setChange the direction:Change the direction for the code setted receiver .for example, before direction changed, if you press the Up Key on the Transmitter the curtain will go downwards , while after direction changed , curtain will go upwards when you press the Up Key !Channel copy: Increased another transmitter for the setting done transmitter, and the receiver can be control by multiple transmitter.Motor rotate front and opposite onceIntermittentpromt tone Motor rotate front and opposite once9.Pressing the [Stop+Down] Key atthe same time to comfirm downlimit position. 10.Pressing [Stop] Key about 5swith in 20s ,Saving limit position.2、Press ][Up Key+Down Keyabout 10s；3. When the motor stopwith in 10s ,press [Down] Keyabout 5s.4.Pressing [Up] Key within 20s, Setting up limit position,Warning tone close.1.Pressing the [Channel Key] choose need to set the limitchannel.7.Pressing [Down] Keywithin 20s. Setting downlimit.6.Pressing the [Stop+Up] Keyto comfirm up limit value atthe same time.5、Pressing the [Up/Down] Key tolet blind move,stop it in a suitableposition by pressing [Stop] Key,which is called uplimit position8、Pressing the [Up/Down] Key tolet blind move,stop it in a suitableposition by pressing [Stop] Key ,which is called down limit position.1. Choose the channel you wantto set.2. Press the [Up+Down] Keyabout 10s at the same time.3. Press the [Up] Key around 5s within 10s after the motor stop.PowerfulmagnetA3 Single/Double Channel Touch Screen Free Stick-onTransmitter Operating ManualUp KeyDown KeyIndicatorlightStop KeyChannel 2Channel 1DownUpStopDownUpStopDownUpDownUpDownStopUpStopUpStopDownDownStopChannel 2Channel 1Channel 2Channel 1Channel 2Channel 1Channel 2Channel 1DownUp UpStopStop* Repeat operating match code procedure once can delete the code (Delete code on transmitter).Note: battery consumption,working life is half a year.](https://usermanual.wiki/GUANGZHOU-NOVO-SUN-SHADING-TECHNIQUE/MD30964/User-Guide-3625623-Page-1.png)
