GUANGZHOU TAIJI ELECTRONIC O2NAILS-V11P Mobile Nail Printer User Manual
GUANGZHOU TAIJI ELECTRONIC CO.,LTD Mobile Nail Printer Users Manual
Users Manual
User Manual
Please read this User Manual carefully
before using this printer and keep it properly for future reference.
Mobile Nail Printer V11
Product Introduction
Mobile Nail Printer V11
Features
Controlled by Phone APP
Massive Designs Available for Download
Design Personal Patterns by Yourself Classify Common-Used Patterns Optionally
Printing Counter
Classifications for Quick Search
A Nail Art Equipment that Prints Any Pattern, Any Color and Any Design
on the Natural Nail and Artificial Nail.
Print Patterns by One Click
Please refer to the SSID name of this
Nail Printer : (O2Nails-XXXXXXX) Initial password ： 88888888

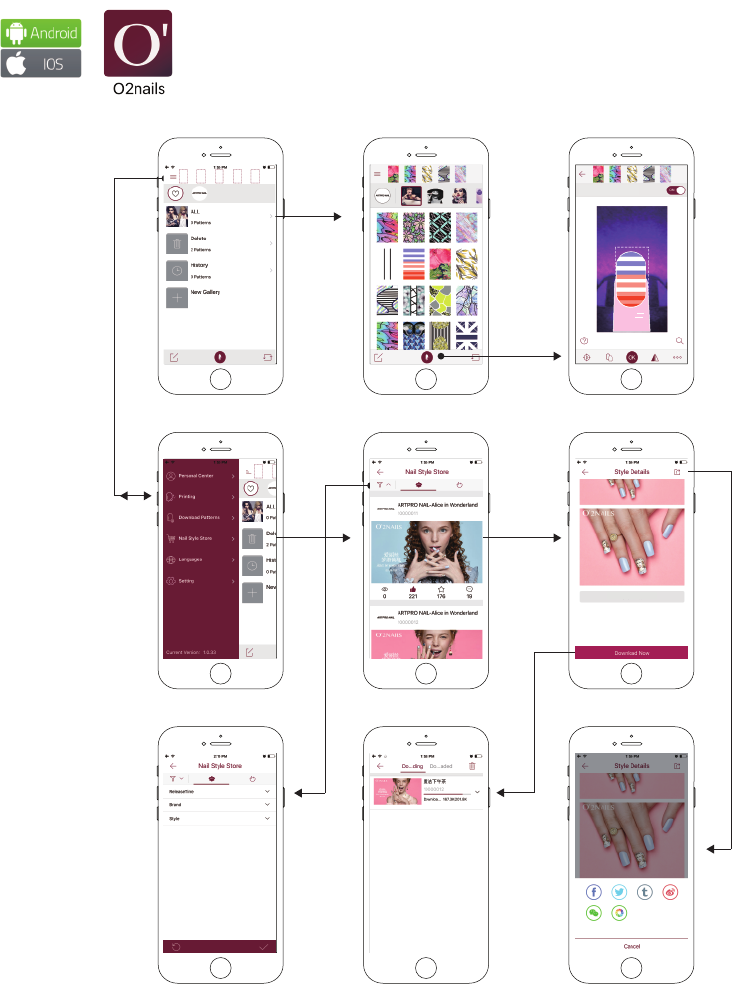

A Powerful APP for Fashionable Nail Art
APP for Android/IOS
Download Notes
The downloading contents that match with the
styles include-
1)Patterns that can be printed by nail printer
2)Consumable items descriptions and purchase
directions for nail styles
3)Tutorials about the process of making nail styles
Use smart phone (Android or IOS system) as wireless application of Mobile Nail Printer V11；
Download the APP from official website WWW.O2NAILS.COM；
Sign in on mobile phone and enjoy more functional service.
Printing Control
APP Client Application
Pre-selected
Patterns
Hide Pattern
Online Help
Auto-positioning
Input Pattern Number
to Select the Pattern
Mirror Image/Rotation
Viewing Window of
Printing Position
Connect Nail Printer Hotspot
Starting Printing
Detachable Panel
Nail Holder
Power Indicator Light
Power Switch
Reset
USB Port
DC Power Port
Front View Back View
Power Adaptor X1 Ink Cartridge X1 Single Nail Tip Holder X1
Product Introduction
Quick Installation Guide
√
Open the Panel
①Ink Cartridge
②Ink Cartridge Holder
1.Unpack the Ink Cartridge
Correct Placement
Unpack the ink cartridge
and remove the protective
seal. Please place it
correctly and do not touch
the nozzle.
Quick Installation Guide

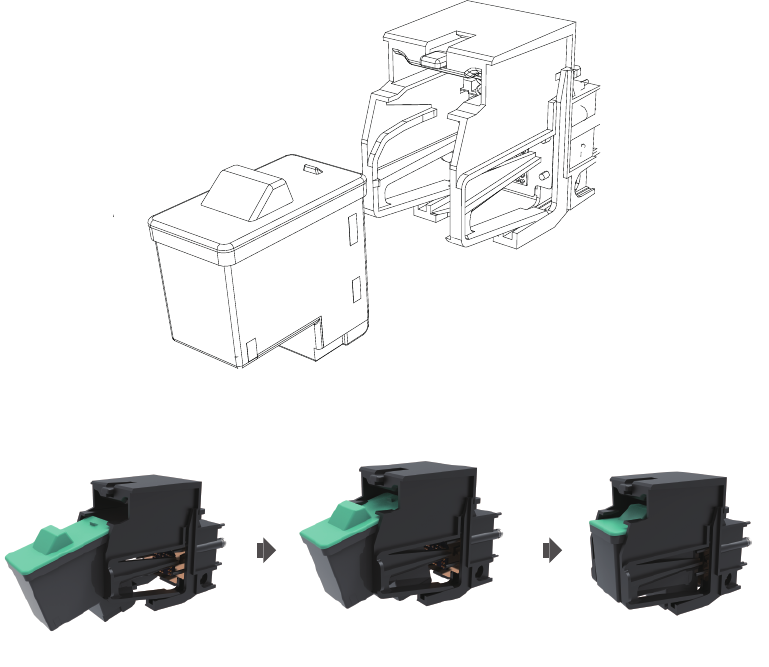

2.Install Ink Cartridge
Find the cartridge holder and move the cartridge close to the cartridge holder, making the cartridge top
surface touches the holder reference surface, then levelly push it into the holder and you’ll hear the click
sound. Please ensure it is installed tightly.
Quick Installation Guide
Power Switch
Power Adaptor
AC Power Plug
DC Power Port
DC Power Plug
Attentions
If the printer needs to be transported for a long
distance, please use original package to pack it,
avoiding any damage by shaking.
Do not use it without installing the panel.
Do not use it in high temperature, humid, or
corrosive places.
Avoiding Children using it.
3.Connect Power
Connect power by the AC
power plug on the power
adaptor.
4.Power Switch
Click the power switch to turn
on the printer and the
indicator light will on.
Long press the power switch
for a few seconds to turn off
device.
Trademark：O2NAILS
Product Name：Mobile Nail Printer V11
Model：MNP V11
Power Supply：DC24V/1A
Power Rating：24W
Machine Dimension：175x168x175（mm）
Net Weight：1.6KG
External power supply unit
Shenzhen Simsukian Electronics Technology Co.,Ltd.
SK03T1-240100W2
Input: 100-240 V~,50/60Hz,0.6A max Output: 24Vdc 1.0A
Operating Temperature: 0-40℃
For PLUGGABLE EQUIPMENT,the socket-outlet shall be
installed near the equipment and shall be easily accessible.
Dear Customer，
Thanks for your focus and support of our products as well as your selection
and purchase of our products. In case of any problem during the use of our
products, please contact our distributor or manufacturer for help.
Service Warranty:
Model:
Serial Number:
Agent:Purchasing Date:
1. Your O2NAILS equipment is guaranteed against any manufacturing defects for one full year from the date of purchase.
2. If any damage happens to the equipment during the warranty period , identification by our appointed technician should
be carried out to provide whether it is caused by normal use. If it is, you can get free maintenance or have some spare parts
changed.
3. Following claims are not covered:
(1) Damages caused by change or maintenance done by non-appointed personnel or organization.
(2) Damages caused by misuse, hostile destroying or force majeure.
(3) Damages caused by wrong power supply, violent shake, falling off.
(4) Damage of accessories and sales promotion articles.
(5) Not having this card or altering it privately.
Warranty Card
In order to supply you better after-sale service, please log in WWW.O2NAILS.COM to learn more.
FCC
Caution: The user is cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
a.For PLUGGABLE EQUIPMENT, the socket-outlet shall be installe d near the equipment
and shall be easily accessible.
b.Only use the attachments/accessories specified by manufacturer.
External power supply unit, Manufacturer: ShenZhen Simsukian Electronics Technology
Co.,Ltd.; Model name: SK03T1-240100W2; Rating, Input: 100-240V~, 50/60Hz, 0.6A max;
Output: 24V , 1A.
All information and data listed on this manuel are for reference only,
the final explanation right belongs to this company.
GUANGZHOU TAIJI ELECTRONIC CO., LTD. (Manufacturer)
E1, 25/F, Everbright Bank Building, No. 689 Tianhe North Road, Guangzhou, China
Hotline ：(+8620) -38732006 / +86-400-098191
E-Mail:SALES@CYBERNAIL.COM
WWW.O2NAILS.COM
2018-03
