Microwave Oven Owner’s Manual
MODEL˖P70B20APII-D8
1. READ these instructions carefully before installing and operating the
oven.
Keep them for further reference.
2. Record in the space below the “SERIAL NO.” found on the nameplate on
your oven and retain this information for future reference.
SERIAL NO.:
3. Please save sales receipt for warranty.
1
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door-open since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
a) Door (bent),
b) Hinges and latches (broken or loosened),
c) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY ............................................................................................................................................1
IMPORTANT SAFETY INSTRUCTIONS......................................................................................2
GROUNDING INSTRUCTIONS .....................................................................................................4
UTENSILS GUIDE............................................................................................................................5
COOKING TECHNIQUES...............................................................................................................6
BEFORE YOU CALL FOR SERVICE ...........................................................................................7
SPECIFICATIONS ............................................................................................................................7
PART NAMES ...................................................................................................................................7
CONTROL PANEL ...........................................................................................................................8
OPERATION INSTRUCTIONS.......................................................................................................9
Setting the clock ..........................................................................................................................9
Setting the oven timer..................................................................................................................9
Setting a cooking program...........................................................................................................9
Speed defrost .............................................................................................................................10
Cook by weight..........................................................................................................................10
Defrost by weight ...................................................................................................................... 11
Setting child lock ....................................................................................................................... 11
QUICK COOK SETTINGS ............................................................................................................ 11
POPCORN.................................................................................................................................12
BAKED POTATO......................................................................................................................12
PIZZA........................................................................................................................................12
BEVERAGE..............................................................................................................................12
FROZEN DINNER....................................................................................................................12
REHEAT....................................................................................................................................12
CLEANING AND CARE ................................................................................................................13
2
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic
safety precautions should be followed,
including the following:
WARNING - To reduce the risk of burns,
electric shock, fire, and injury to persons or
exposure to excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Read and follow the specific
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY" on page 1.
3. This appliance must be grounded.
Connect only to properly grounded outlet.
See "GROUNDING INSTRUCTIONS” on
page 4.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers -for example, closed
glass jars- are able to explode and
should not be heated in this oven.
6. Use this appliance only for its intended
use as described in this manual. Do not
use corrosive chemicals or vapors in this
appliance. This type of oven is
specifically designed to heat, cook, or dry
food. It is not designed for industrial or
laboratory use.
7. As with any appliance, close supervision
is necessary when used by children.
8. To reduce the risk of fire in the oven
cavity:
Do not overcook food. Carefully attend
appliance when paper, plastic, or other
combustible materials are placed inside
the oven to facilitate cooking.
Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
If materials inside the oven should ignite,
keep oven door closed, turn oven off,
and disconnect the power cord or shut
off power at the fuse or circuit breaker
panel.
Do not use the cavity for storage
purposes. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
9. Liquids, such as water, coffee, or tea can
be overheated beyond the boiling point
without appearing to be boiling due to
surface tension of the liquid. Visible
bubbling or boiling when the container is
removed from the microwave oven is not
always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR
OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury
to person:
Do not overheat the liquid.
Stir the liquid both before and halfway
through heating it.
3
Do not use straight-sided containers
with narrow necks.
After heating, allow the container to
stand in the microwave oven for a short
time before removing the container.
Use extreme care when inserting a
spoon or other utensil into the container.
10. Do not heat oil or fat for deep-frying. It is
difficult to control the temperature of oil in
microwave oven.
11. Pierce foods with heavy skins such as
potatoes, whole squash, apples and
chestnuts before cooking.
12. The contents of feeding bottles and baby
jars should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
13. Cooking utensils may become hot
because of heat transferred from the
heated food. Potholders may be needed
to handle the utensil.
14. Do not cover or block any openings on
the appliance.
15. Do not store or use this appliance
outdoors. Do not use this product near
water, for example, near a kitchen sink, in
a wet basement, near a swimming pool,
or similar locations.
16. Do not operate this appliance if it has a
damaged cord or a plug, if it is not
working properly or if it has been
damaged or dropped.
17. Do not immerse cord or plug in water.
Keep cord away from heated surface. Do
not let cord hang over edge of table or
counter.
18. Use only thermometers, which are
specifically designed for use in
microwave ovens.
19. Do not operate any heating or cooking
appliance beneath this appliance.
20. Be certain the glass tray and roller rings
are in place when you operate the oven
21. This appliance should be serviced only by
qualified service personnel contact
nearest authorized service facility for
examination, repair, or adjustment.
22. When cleaning surfaces of door and oven
that comes together on closing the door,
use only mild, nonabrasive soaps, or
detergents applied with a sponge or soft
cloth.
Save These Instructions
4
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the
event of an electrical short circuit, grounding
reduces risk of electric shock by providing an
escape wire for the electric current. The
appliance is equipped with a cord having a
grounding wire with a grounding plug. The
plug must be plugged into an outlet that is
properly installed and grounded.
WARNING: Improper use of the grounding
plug can result in a risk of electric shock.
Consult a qualified electrician or serviceman
if the grounding instructions are not
completely understood, or if doubt exists as
to whether the appliance is properly
grounded, and either:
1) If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot
receptacle that will accept the plug on the
appliance. The marked rating of the
extension cord shall be equal to or greater
than the electrical rating of the appliance, or 2)
Do not use an extension cord. If the power
supply cord is too short, have a qualified
electrician or a serviceman install an outlet
near the appliance.
Electrical Requirements
The electrical requirements are a 120 volt 60
Hz, AC only, 15 amp. It is recommended that
a separate circuit serving only the oven be
provided. The oven is equipped with a
3-prong grounding plug. It must be plugged
into a wall receptacle that is properly installed
and grounded.
Power Supply Cord
1. A short power supply cord is provided to
reduce the risks resulting from becoming
entangled in or tripping over a longer
cord.
2. Longer cord sets or extension cords are
available and may be used if care is
exercised in their use.
3. If long cord or extension cord is used˖
a) The marked electrical rating of the
cord set or extension cord should
be at least as great as the electrical
rating of the appliance.
b) The extension cord must be a
grounding-type 3-wire cord, and
The longer cord should be arranged
so that it will not drape over the
counter top or table top where it can
be pulled on by children or tripped
over unintentionally.
Notes:
1. If you have any questions about the
grounding or electrical instructions,
consult a qualified electrician or service
person.
2. Neither LodgingStar nor the dealer can
accept any liability for damage to the
oven or personal injury resulting from
failure to observe the electrical
connection procedures.
Radio or TV Interference
Should there be any interference caused by
the microwave oven to your radio or TV,
5
check that the microwave oven is on a
different circuit, relocated the radio or TV as
far away from the oven as feasible or check
position and signal of receiving antenna.
UTENSILS GUIDE
This section lists which utensils can be used
in the microwave, which ones have limited
use for short periods, and which ones should
not be used in the microwave.
Recommended
gMicrowave browning dish ü Use to brown
the exterior of small items such as steaks,
chops, or pancakes. Follow the directions
provided with your browning dish.
gMicrowaveable plastic wrap ü Use to
retain steam. Leave a small opening for
some steam to escape and avoid placing it
directly on the food.
gPaper towels and napkins ü Use for
short-term heating and covering; These
absorb excess moisture and prevent
spattering. Do not use recycled paper
towels, which may contain metal and
could ignite.
gGlass and glass-ceramic bowls and dishes
ü Use for heating or cooking.
gPaper plates and cups ü Use for
short-term heating at low temperatures. Do
not use recycled paper, which may
contain metal and could ignite.
gWax paper ü Use as a cover to prevent
spattering.
gThermometers ü Use only those labeled
“Microwave Safe” and follow all directions.
Check the food in several places.
Conventional thermometers may be used
on microwave food once the food has been
removed from the oven.
Limited Use
g
Aluminum foil ü Use narrow strips of foil to
prevent overcooking of exposed areas.
Using too much foil can damage your oven,
so be careful.
gCeramic, porcelain, and stoneware ü Use
these if they are labeled “Microwave Safe”.
If they are not labeled, test them to make
sure they can be used safely.
gPlastic ü Use only if labeled “Microwave
Safe”. Other plastics can melt.
gStraw, wicker, and wood ü Use only for
short-term heating, such as warming
dinner rolls for a few seconds. Baskets and
bowls may be flammable.
Not Recommended
gGlass jars and bottles ü Regular glass is
too thin to be used in a microwave. It can
shatter and cause damage and injury.
gPaper bags ü These are a fire hazard,
except for popcorn bags that are designed
for microwave use.
gStyrofoam plates and cups ü These can
melt and leave an unhealthy residue on
food.
gPlastic storage and food containers ü
Containers such as margarine tubs can
6
melt in the microwave.
gMetal utensils ü These can damage your
oven. Remove all metal before cooking.
Note: Should you wish to check if a dish is
safe for microwaving, place the empty
dish in the oven and microwave on
HIGH for 30 seconds. A dish which
becomes very hot should not be used.
COOKING TECHNIQUES
Your microwave makes cooking easier than conventional cooking, provided you keep these
considerations in mind:
Stirring
Stir foods such as casseroles and vegetables
while cooking to distribute heat evenly. Food
at the outside of the dish absorbs more
energy and heats more quickly, so stir from
the outside to the center. The oven will turn
off when you open the door to stir your food.
Arrangement
Arrange unevenly shaped foods, such as
chicken pieces or chops, with the thicker,
meatier parts toward the outside of the
turntable where they receive more
microwave energy. To prevent overcooking,
place delicate areas, such as asparagus tips,
toward the center of the turntable.
Shielding
Shield food with narrow strips of aluminum
foil to prevent overcooking. Areas that need
shielding include poultry wing-tips, the ends
of poultry legs, and corners of square baking
dishes. Use only small amounts of aluminum
foil. Larger amounts can damage your oven.
Turning
Turn foods over midway through cooking to
expose all parts to microwave energy. This is
especially important with large foods such as
roasts.
Standing
Foods cooked in the microwave build up
internal heat and continue to cook for a few
minutes after heating stops. Let foods stand
to complete cooking, especially foods such
as cakes and whole vegetables. Roasts need
this time to complete cooking in the center
without overcooking the outer areas. All
liquids, such as soup or hot chocolate, should
be shaken or stirred when cooking is
complete. Let liquids stand a moment before
serving. When heating baby food, stir well at
removal and test the temperature before
serving.
Adding moisture
Microwave energy is attracted to water
molecules. Food that is uneven in moisture
content should be covered or allowed to
stand so that the heat disperses evenly. Add
a small amount of water to dry food to help it
cook.
7
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
A) Check to ensure that the oven is plugged
in securely. If it is not, remove the plug
from the outlet, wait 10 seconds and plug
it in again securely.
B) Check for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be
operating properly, test the outlet with
another appliance.
C) Check to ensure that the control panel is
programmed correctly and the timer is set.
D) Check to ensure that the door is securely
closed engaging the door safety lock
system. Otherwise, the microwave energy
will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
SPECIFICATIONS
Power Consumption: 120V~60Hz, 1050W
Output 700W
Operation Frequency 2450MHz
Outside Dimensions (H×W×D) 10 5/16 ×17 13/16×13 3/16 inches.
Oven Cavity Dimensions (H×W×D): 7 13/16×12 3/8×11 9/16 inches.
Oven Capacity 0.7 cu.ft.
Net Weight Approx. 23.1 lbs.

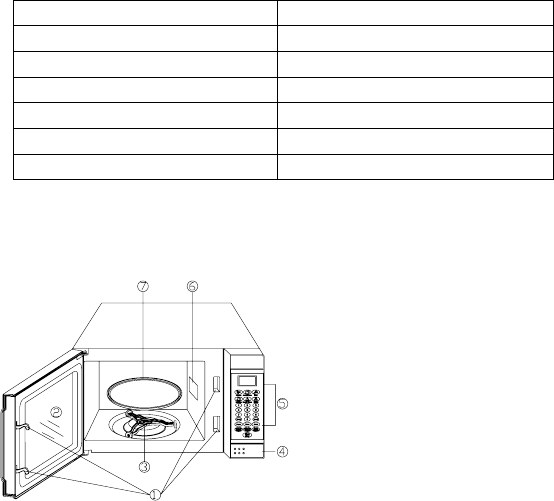

PART NAMES
ķ Door Safety Lock System
ĸ Oven Window
Ĺ Turntable Roller
ĺ Door Release Button
Ļ Control Panel
ļ Wave Guide
(Please do not remove the mica
plate covering the wave guide)
ĽGlass Tray
8

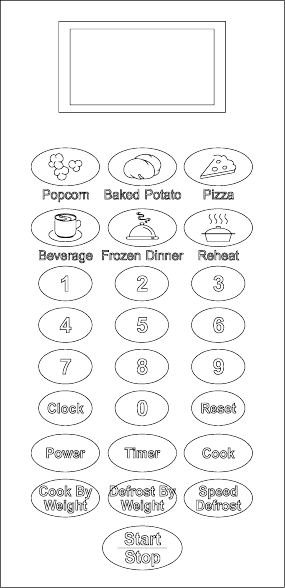

CONTROL PANEL
zDISPLAY
Cooking time, power, indicators and present time
are displayed.
zQUICK COOK BUTTONS
Use to cook popular foods instantly.
zNUMBER PADS (0-9)
Touch to set times or weights.
zPOWER
Use to set power level. To check power level
during cooking, touch POWER pad.
zTIMER
Touch to set timing function.
zCOOK
Use for multi-stage cooking. It enables cooking at
multiple power and time settings automatically.
zCOOK BY WEIGHT
Programmed cooking based on the weight of the
foods to be cooked.
zDEFROST BY WEIGHT
Programmed defrosting based on the weight of the
foods to be defrosted.
zSPEED DEFROST
Quick defrost function that alternates defrost and
stand times to quickly and effectively defrost
foods.
zCLOCK
Use to set the time of day or recall the time of day.
zRESET
Use to clears all previous settings.
zSTART/STOP
Touch to start or stop cooking.
9
OPERATION INSTRUCTIONS
SIGNALS DURING OVEN SETTINGS
ONE SIGNAL: Oven accepts the entry.
TWO SIGNALS: Oven does not accept the entry, check and try again.
AUTO REMINDER:
After total time elapsed, the system will sound beeps with END in display. And the beeps will
continue to sound every two minutes automatically until the door is opened or any pad is
touched.
SETTING THE CLOCK
1. Touch CLOCK pad.
2. Use the number pads to enter the
correct time.
3. Touch CLOCK pad again.
NOTE:
gThis is a 12-hour cycle clock. When the
oven is first plugged in or when power
resumes after a power interruption, the
display will show ENTER CLOCK TIME. If
you prefer not to have the clock displayed,
touch RESET.
SETTING THE OVEN TIMER
1. Touch TIMER.
2. Enter the amount of time by touching the
number pads.
3. Touch START/STOP.
NOTE:
gThe maximum time you can enter is 99
minutes and 99 seconds.
gTime countdown can be seen in display for
5 seconds before clock or cooking time is
returned to display.
gTouch TIMER and then touch RESET to
cancel TIMER during timing process.
SETTING MICROWAVE COOKING
1. Use the number pads to set a cooking
time. You can set a cooking time from
one second to 99 minutes and 99
seconds.
2. If you want to set a power level other
than 100% power, touch POWER, then
use the number pads to enter the power
level.
Number pad Cooking power
1,0 100%(100)
9 90%(90)
8 80%(80)
7 70%(70)
6 60%(60)
5 50%(50)
4 40%(40)
3 30%(30)
2 20%(20)
1 10%(10)
0 0%(0)
3. Touch START/STOP to start cooking.
MULTI-STAGE COOKING
You can set at most 3 stages cooking
programs, which combined with speed
defrost program and microwave cooking
10
program.
Suppose you want to set following programs:
Speed defrost
Microwave cooking
Microwave cooking
Steps˖
1. Touch speed defrost pad.
2. Touch number pads to enter desired
defrost time.
3. Touch COOK pad once.
4. Touch number pads to enter desired
cooking time.
5. Touch POWER pad .
6. Use the number pads to enter the power
level.
7. Touch COOK pad once.
8. Touch number pads to enter desired
cooking time.
9. Touch POWER pad .
10. Use the number pads to enter the power
level.
11. Touch START/STOP pad to confirm.
Note: Defrost cooking just can be set in the
first stage.
SPEED DEFROST
1. Touch SPEED DEFROST pad.
2. Enter desired defrosting time by
touching correct number pads (The
maximum time you can enter is 99
minutes and 99 seconds).
3. Touch START/STOP.
NOTE:
gDuring defrosting program, the system will
pause and sound beeps to remind user to
turn food over, and then press START/STOP
to resume the defrosting.
gAfter setting SPEED DEFROST, oven can
be programmed to automatically switch to
one or two-stage cooking.
gFor speed defrost and one stage cooking,
follow steps above. Before touching
START/STOP, touch COOK, enter time and
power level and then touch START/STOP.
gFor speed defrost and two stage cooking,
follow steps above. Before touching
START/STOP, touch COOK, enter two-stage
cooking program.
COOK BY WEIGHT
1. Touch COOK BY WEIGHT.
2. Enter the one digit code by touching the
correct number (1~3) pad.
3. Enter weight.
4. Touch START/STOP.
Cook By Weight Code Description
CODE TYPE MAX WEIGHT
1 Beef 5 lb. 16 oz.
2 Mutton 5 lb. 16 oz.
3 Pork 5 lb. 4 oz.
Note:
gWeight must be in pounds and ounces.
gOunce weights less than 10 must be
preceded by a 0. If label gives weight in
pounds only, change the fraction of a pound
to ounces using the following chart.
Converting Fractions of a Pound to
Ounces
Fractions of a
pound Ounces
Less than .03 0
.03 to .09 1
11
.10 to .15 2
.16 to .21 3
.22 to .27 4
.28 to .34 5
.35 to .40 6
.41 to .46 7
.47 to .53 8
.54 to 59 9
.60 to .65 10
.66 to .71 11
.72 to .78 12
.79 to .84 13
.85 to .90 14
.91 to .97 15
above .97 go to next
even
gDuring cooking, the system will pause
automatically and sound to remind users to
turn meat over, after that touch START/STOP
to resume cooking.
DEFROST BY WEIGHT
1. Touch DEFROST BY WEIGHT pad.
2. Enter weight.
3. Touch START/STOP pad.
NOTE:
gWeight must be in pounds and ounces.
Ounce weights less than 10 must be
preceded by a 0. If label gives weight in
pounds only, change the fraction of a pound
to ounces using the chart given above.
gThe maximum weight you can enter is 5 lb.
16 oz.
gDuring defrosting program, the system will
pause and sound beeps to remind user to
turn food over, and then press START/STOP
to resume the defrosting.
SETTING CHILD LOCK
The child lock prevents unsupervised
operation by children.
To set: In standby mode, press and hold
RESET for 3 seconds. LOCK is indicated on
the display.
To cancel: Press and hold RESET for 3
seconds. LOCK indication disappears.
QUICK COOK SETTINGS
The QUICK COOK settings allow you to cook
or reheat food automatically without entering
power level or time.
For smaller portions, simply touch the
applicable pad and START/STOP. For larger
portions, press the pad twice.
FROZEN DINNER, BAKED POTATO and
BEVERAGE allow you to cook multiple
amounts of the same food. Simply touch pad
once, and ENTER AMT appears in the
display. Enter the amount of servings and
start.
12
POPCORN
For POPCORN (3.5 oz. per entries):
1. Touch POPCORN.
2. Touch START/STOP.
NOTE:
gIf you want to set the cooking time, you can
press POPCORN twice, and then use the
number pads to enter the cooking time, at
last, press START/STOP pad to confirm, the
longest cooking time you can set is 99
minutes and 99 seconds.
BAKED POTATO
For potatoes (4 to 6 oz. per entries):
1. Touch BAKED POTATO once.
2. Enter weight of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP.
For the large potatoes (8 to 10 oz. per
entries):
1. Touch BAKED POTATO twice.
2. Enter weight of potatoes by touching
number pads from 1 to 4.
3. Touch START/STOP.
PIZZA
Reheating a slice of pizza:
1. Touch PIZZA once.
2. Touch START/STOP.
Heating a whole frozen pizza:
1. Touch PIZZA twice.
2. Touch START/STOP.
BEVERAGE
For cups (5 to 7 oz. per share):
1. Touch BEVERAGE once.
2. Enter number of cups by touching
number pads from 1 to 4.
3. Touch START/STOP.
For the larger coffee mugs (9 to 11 oz.
per share):
1. Touch BEVERAGE twice.
2. Enter number of mugs by touching
number pads from 1 to 4.
3. Touch START/STOP.
FROZEN DINNER
For one or two small (7-9 oz. per share)
frozen dinners:
1. Touch FROZEN DINNER once.
2. For 1 entree, touch the number pad “1”.
For 2 entrees, touch the number pad “2”.
3. Touch START/STOP pad.
Microwaving one or two larger (10-12 oz.
per share) frozen dinner:
1. Touch FROZEN DINNER twice.
2. For 1 entree, touch the number pad “1”.
For 2 entrees, touch the number pad “2”.
3. Touch START/STOP.
REHEAT
1. Touch REHEAT pad.
2. Touch START/STOP.
NOTE:
This setting lets you reheat a dinner plate of
chilled leftovers with good results.
13
CLEANING AND CARE
1. When cleaning surfaces of door and
oven that comes together on closing the
door, use only mild, nonabrasive soups,
or detergents applied with a sponge or
soft cloth.
2. Turn off the oven and remove the power
plug from the wall socket before
cleaning.
3. Keep the inside of the oven clean.
When food splatters or spilled liquids
adhere to oven walls, wipe with a damp
cloth. Mild detergent may be used if the
oven gets very dirty. Avoid the use of
spray and other harsh cleaners as they
may stain, streak or dull the door
surface.
4. The outside surfaces should be cleaned
with a damp cloth. To prevent damage
to the operating parts inside the oven,
water should not be allowed to seep into
the ventilation openings.
5. Wipe the window on both sides with a
damp cloth to remove any spills or
spatters.
6. Do not allow the control panel to
become wet. Clean with a soft, damp
cloth. When cleaning the control panel,
leave oven door open to prevent oven
from accidentally turning on.
7. If steam accumulates inside or around
the outside of the oven door, wipe with a
soft cloth. This may occur when the
microwave oven is operated under high
humidity conditions, this is normal.
7. It is occasionally necessary to remove
the glass tray for cleaning. Wash the
tray in warm sudsy water or in a
dishwasher.
8. The turntable roller and oven floor
should be cleaned regularly to avoid
excessive noise. Simply wipe the
bottom surface of the oven with mild
detergent. The roller ring may be
washed in mild sudsy water or
dishwasher. When removing the roller
ring from cavity floor for cleaning, be
sure to replace in the proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep bowl,
microwave for 5 minutes. Wipe
thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace
the oven light, please consult a dealer to
have it replaced.
11. Please do not dispose this appliance
into the domestic rubbish bin, it should
be disposed to the particular disposal
center provided by the municipalities.
