Galcon Bakarimricultural Cooperative Society XCIW Irrigation Controller XCI-WiFi User Manual

Galcon Bakarim Agricultural Cooperative Society Ltd Irrigation Controller XCI-WiFi

User Manual

Cyber-Rain XCI WiFiInstallation and Quick Start GuideRevision 1.0 - October 2015

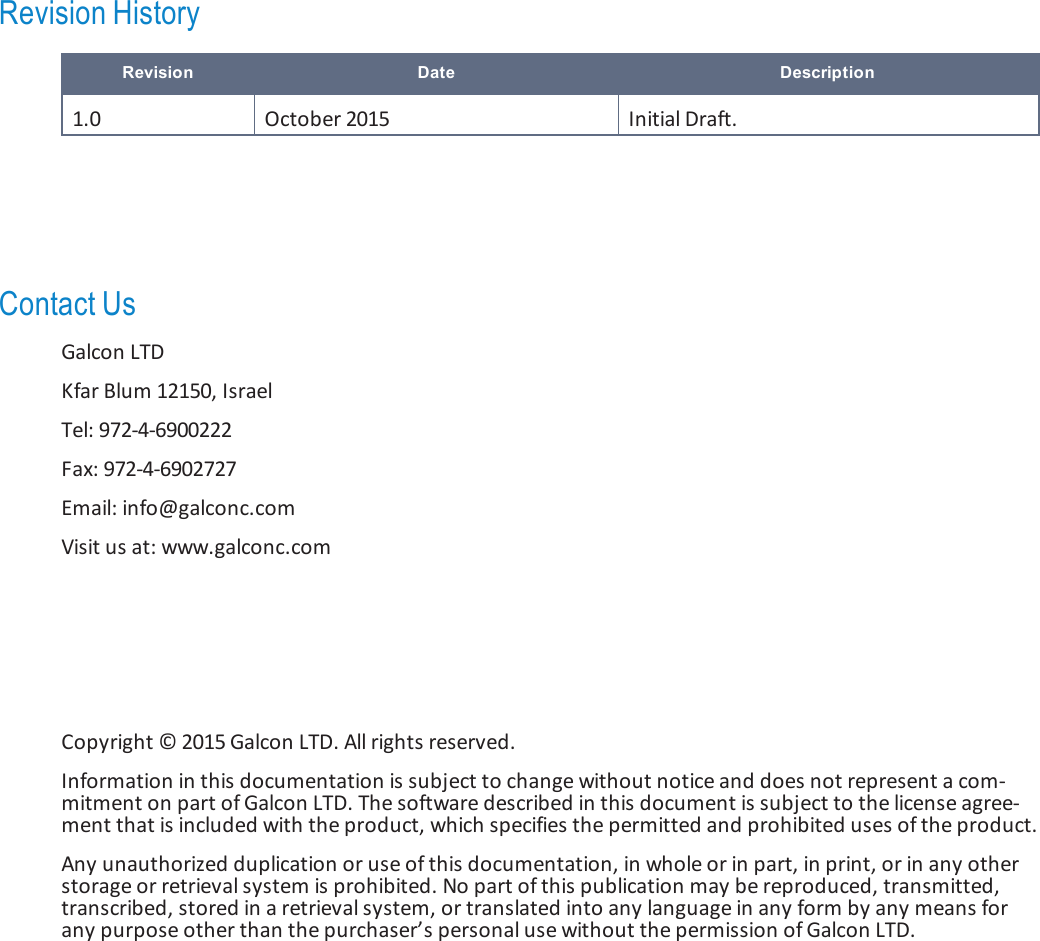

Revision HistoryRevision Date Description1.0 October 2015 Initial Draft.Contact UsGalcon LTDKfar Blum 12150, IsraelTel: 972-4-6900222Fax: 972-4-6902727Email: info@galconc.comVisit us at: www.galconc.comCopyright © 2015 Galcon LTD. All rights reserved.Information in this documentation is subject to change without notice and does not represent a com-mitment on part of Galcon LTD. The software described in this document is subject to the license agree-ment that is included with the product, which specifies the permitted and prohibited uses of the product.Any unauthorized duplication or use of this documentation, in whole or in part, in print, or in any otherstorage or retrieval system is prohibited. No part of this publication may be reproduced, transmitted,transcribed, stored in a retrieval system, or translated into any language in any form by any means forany purpose other than the purchaser’s personal use without the permission of Galcon LTD.

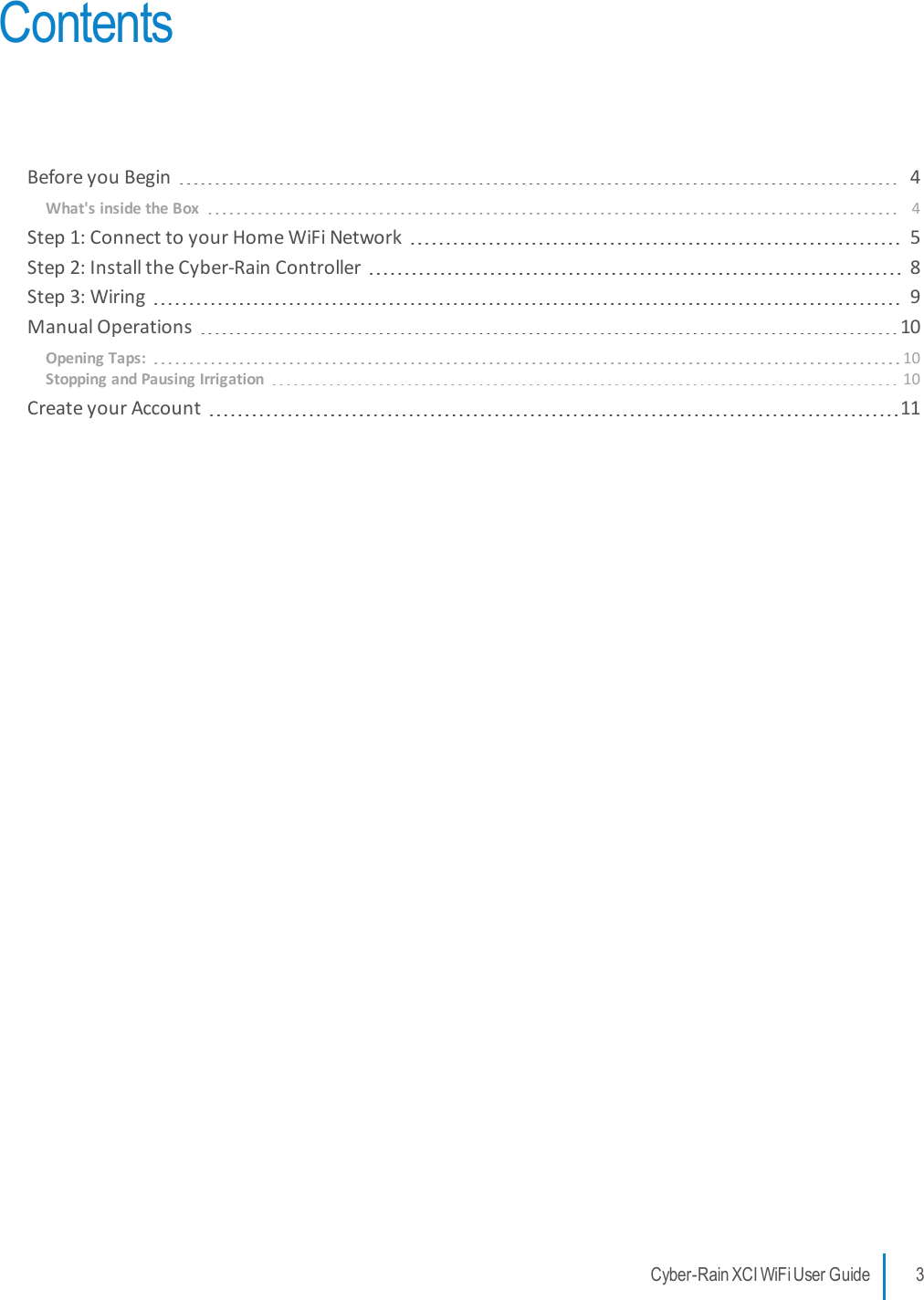

ContentsBefore you Begin 4What's inside the Box 4Step 1: Connect to your Home WiFi Network 5Step 2: Install the Cyber-Rain Controller 8Step 3: Wiring 9Manual Operations 10Opening Taps: 10Stopping and Pausing Irrigation 10Create your Account 11Cyber-Rain XCI WiFi User Guide 3
Before you BeginThe Cyber-Rain XCI WiFi uses WiFi and must be installed at close proximity to a WiFi signal.The Cyber-Rain XCI WiFi is designed to be installed indoors. If you install it outdoors, make sure to pro-tect the unit using a water tight cover.What's inside the BoxController Power Supply Quick Start Guide (this guide)4 Cyber-Rain XCI WiFi User GuideBefore you Begin

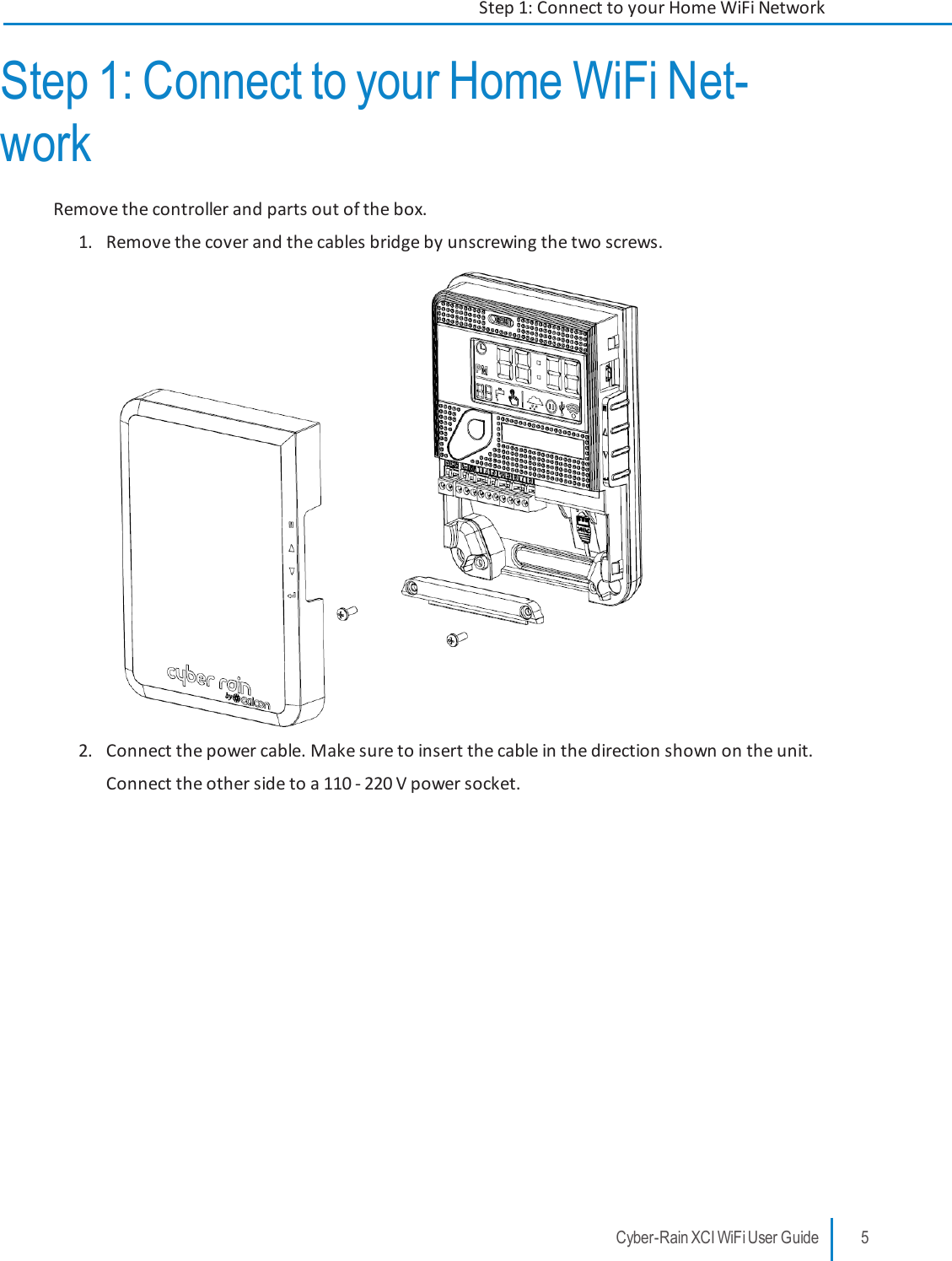

Step 1: Connect to your Home WiFi Net-workRemove the controller and parts out of the box.1. Remove the cover and the cables bridge by unscrewing the two screws.2. Connect the power cable. Make sure to insert the cable in the direction shown on the unit.Connect the other side to a 110 - 220 V power socket.Cyber-Rain XCI WiFi User Guide 5Step 1: Connect to your Home WiFi Network

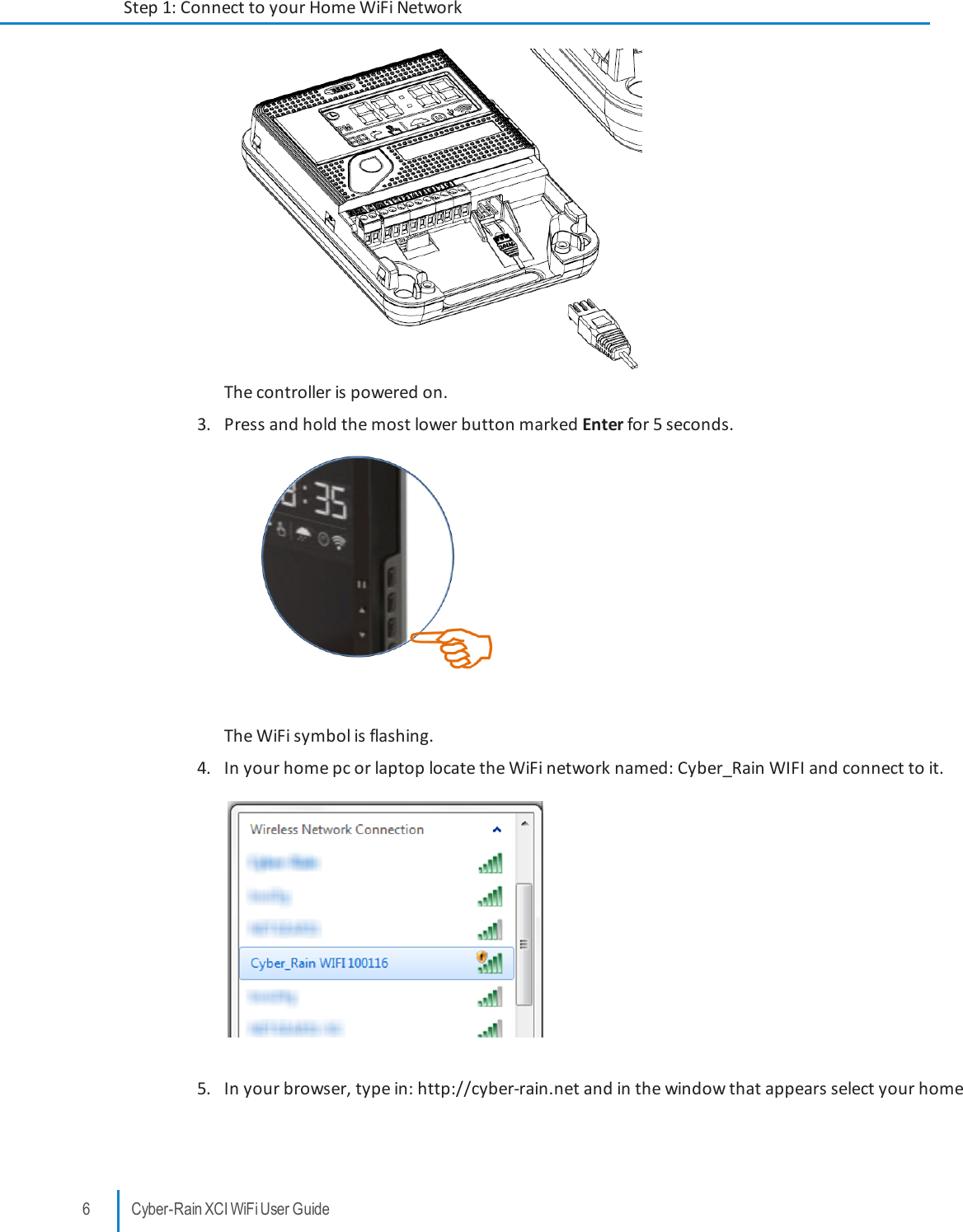

The controller is powered on.3. Press and hold the most lower button marked Enter for 5 seconds.The WiFi symbol is flashing.4. In your home pc or laptop locate the WiFi network named: Cyber_Rain WIFI and connect to it.5. In your browser, type in: http://cyber-rain.net and in the window that appears select your home6 Cyber-Rain XCI WiFi User GuideStep 1: Connect to your Home WiFi Network

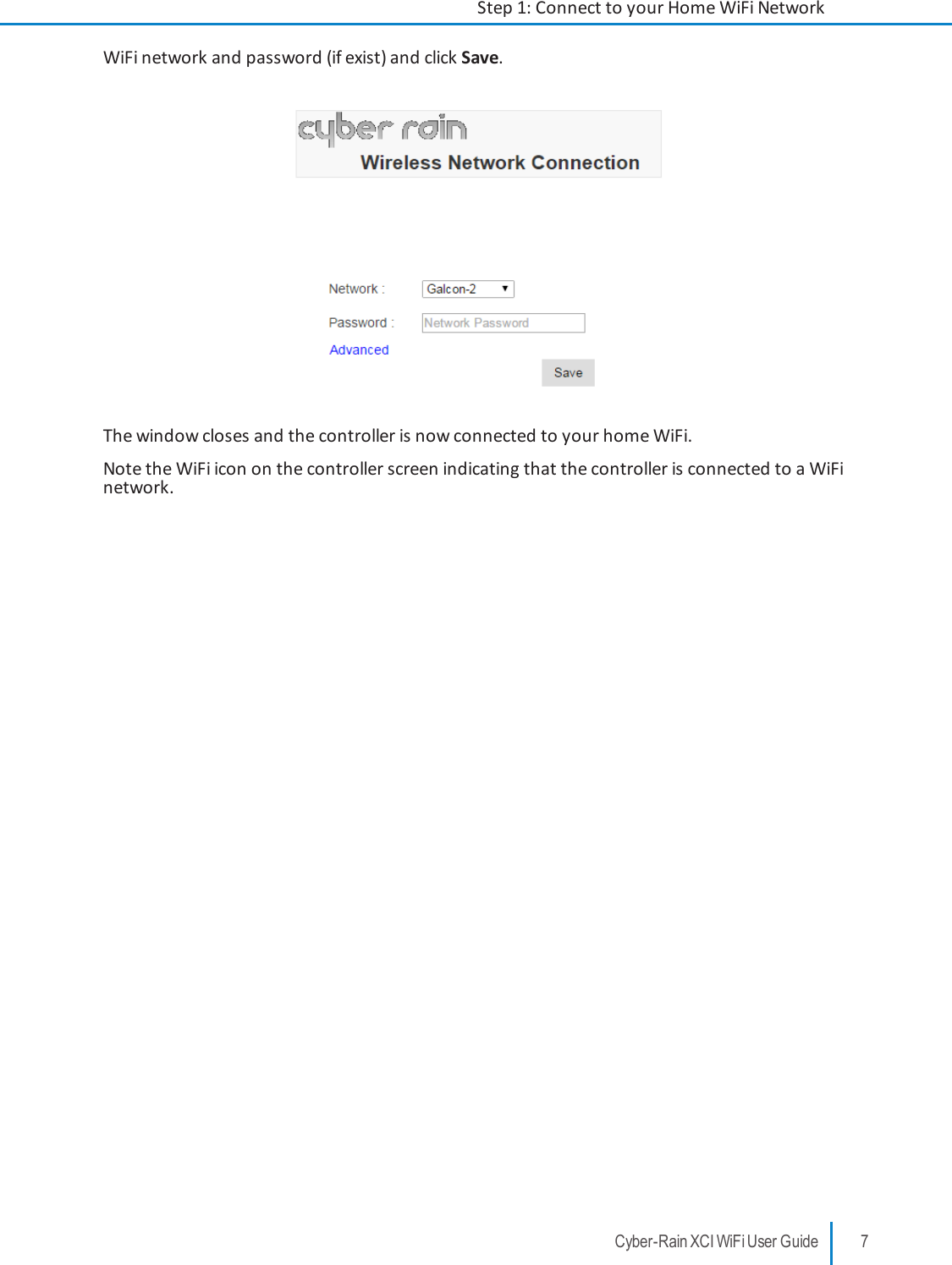

WiFi network and password (if exist) and click Save.The window closes and the controller is now connected to your home WiFi.Note the WiFi icon on the controller screen indicating that the controller is connected to a WiFinetwork.Cyber-Rain XCI WiFi User Guide 7Step 1: Connect to your Home WiFi Network

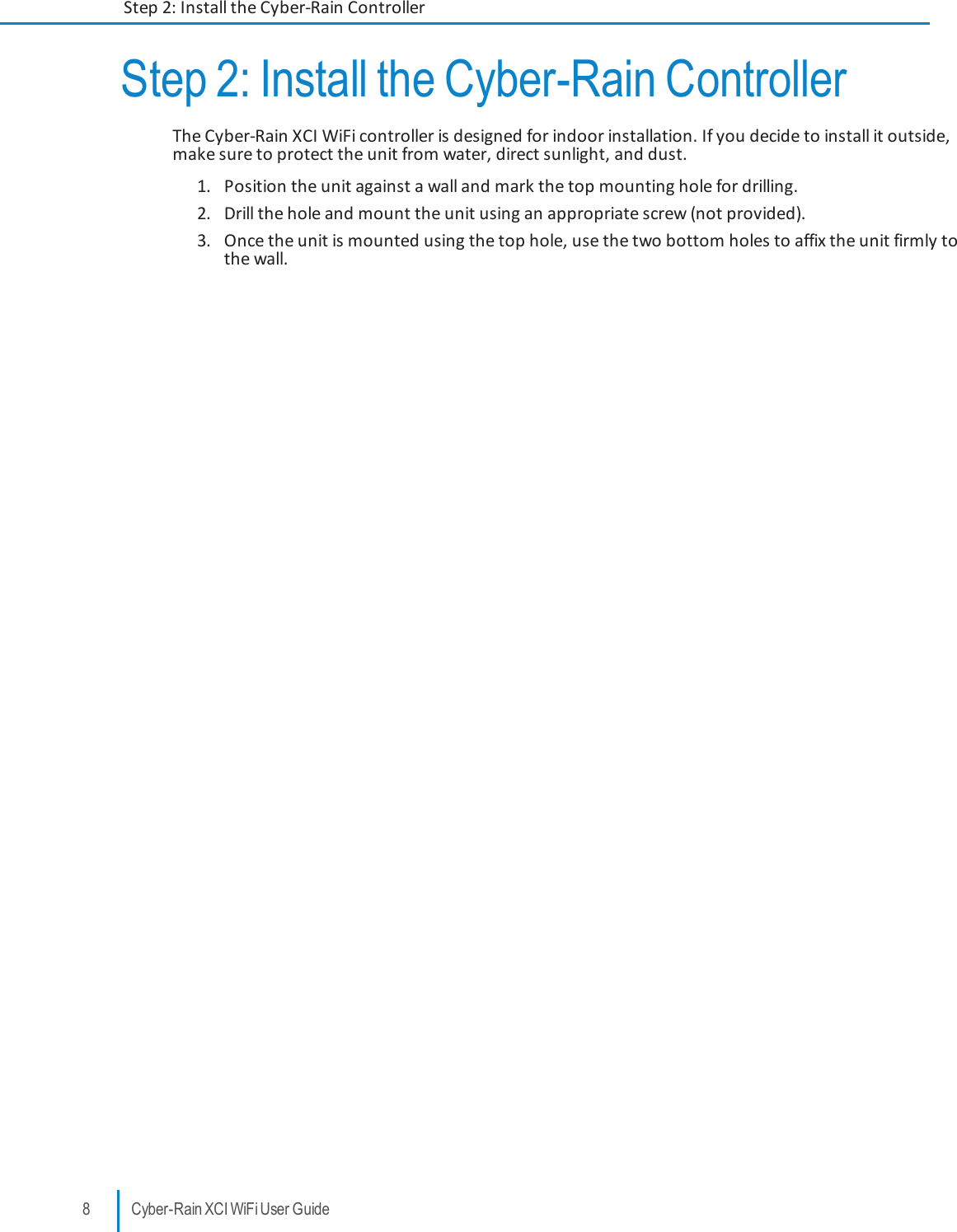

Step 2: Install the Cyber-Rain ControllerThe Cyber-Rain XCI WiFi controller is designed for indoor installation. If you decide to install it outside,make sure to protect the unit from water, direct sunlight, and dust.1. Position the unit against a wall and mark the top mounting hole for drilling.2. Drill the hole and mount the unit using an appropriate screw (not provided).3. Once the unit is mounted using the top hole, use the two bottom holes to affix the unit firmly tothe wall.8 Cyber-Rain XCI WiFi User GuideStep 2: Install the Cyber-Rain Controller

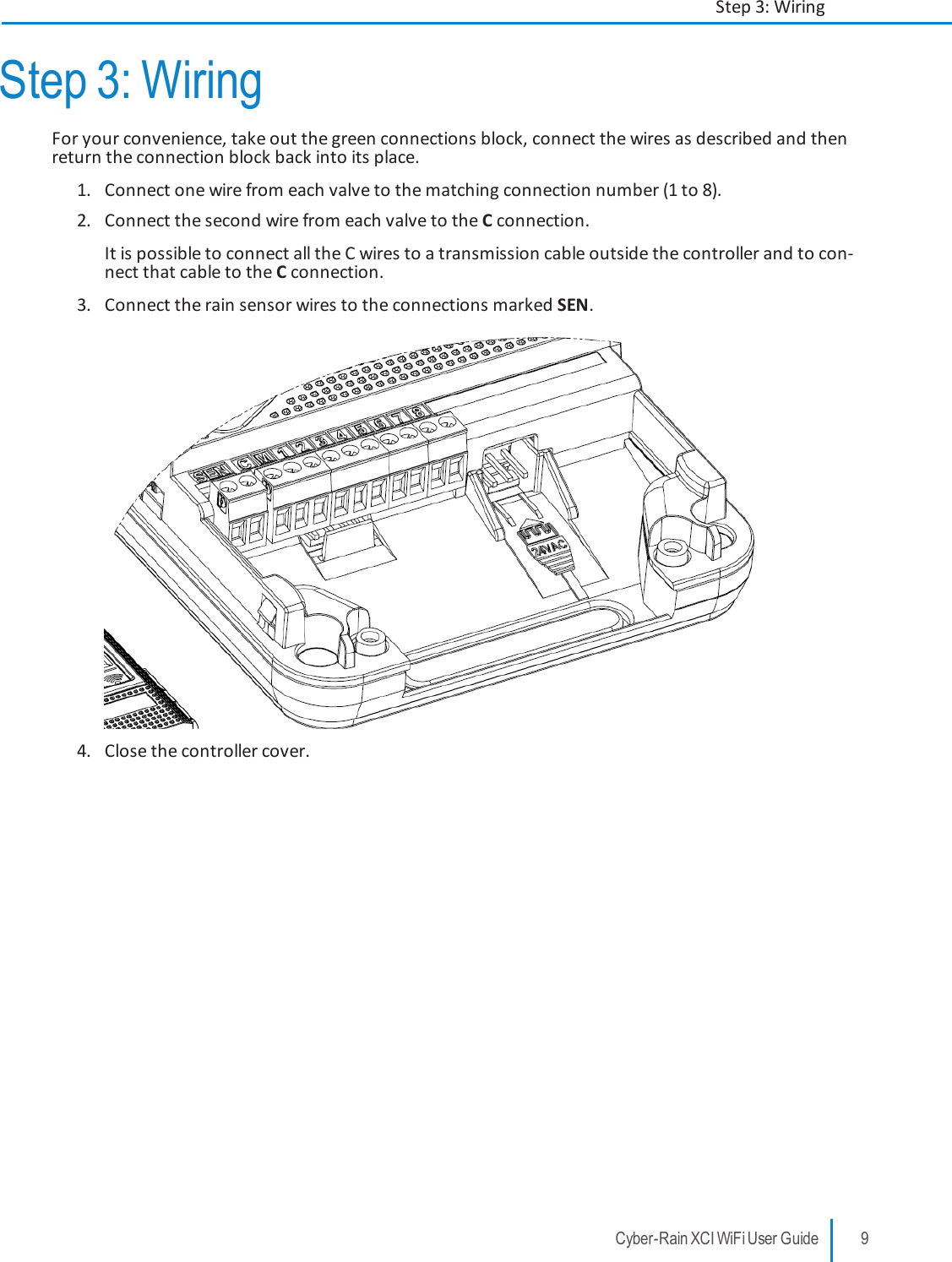

Step 3: WiringFor your convenience, take out the green connections block, connect the wires as described and thenreturn the connection block back into its place.1. Connect one wire from each valve to the matching connection number (1 to 8).2. Connect the second wire from each valve to the Cconnection.It is possible to connect all the C wires to a transmission cable outside the controller and to con-nect that cable to the Cconnection.3. Connect the rain sensor wires to the connections marked SEN.4. Close the controller cover.Cyber-Rain XCI WiFi User Guide 9Step 3: Wiring

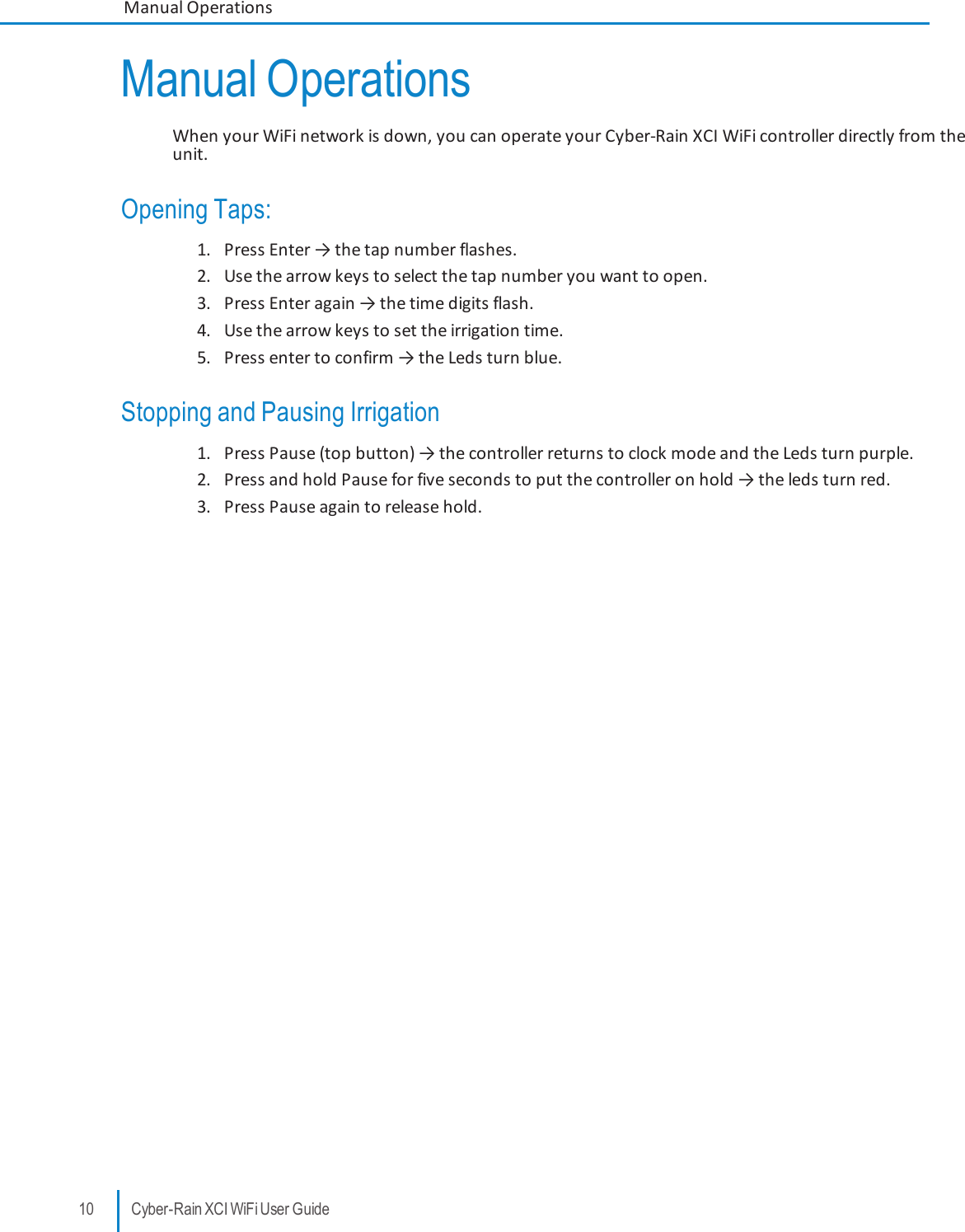

Manual OperationsWhen your WiFi network is down, you can operate your Cyber-Rain XCI WiFi controller directly from theunit.Opening Taps:1. Press Enter → the tap number flashes.2. Use the arrow keys to select the tap number you want to open.3. Press Enter again → the time digits flash.4. Use the arrow keys to set the irrigation time.5. Press enter to confirm → the Leds turn blue.Stopping and Pausing Irrigation1. Press Pause (top button) → the controller returns to clock mode and the Leds turn purple.2. Press and hold Pause for five seconds to put the controller on hold → the leds turn red.3. Press Pause againto release hold.10 Cyber-Rain XCI WiFi User GuideManual Operations

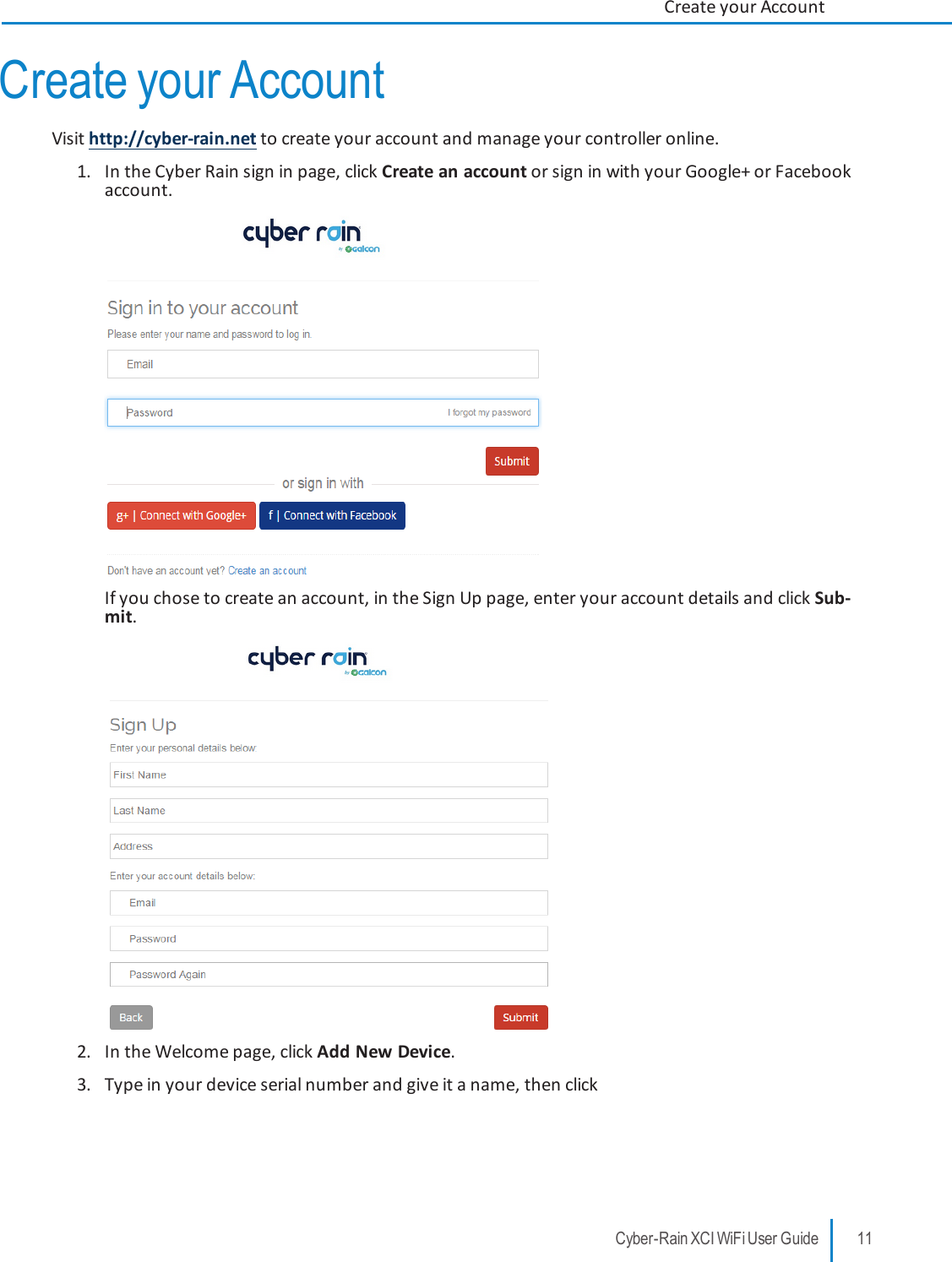

Create your AccountVisit http://cyber-rain.net to create your account and manage your controller online.1. In the Cyber Rain sign in page, click Create an account or sign in with your Google+ or Facebookaccount.If you chose to create an account, in the Sign Up page, enter your account details and click Sub-mit.2. In the Welcome page, click Add New Device.3. Type in your device serial number and give it a name, then clickCyber-Rain XCI WiFi User Guide 11Create your Account

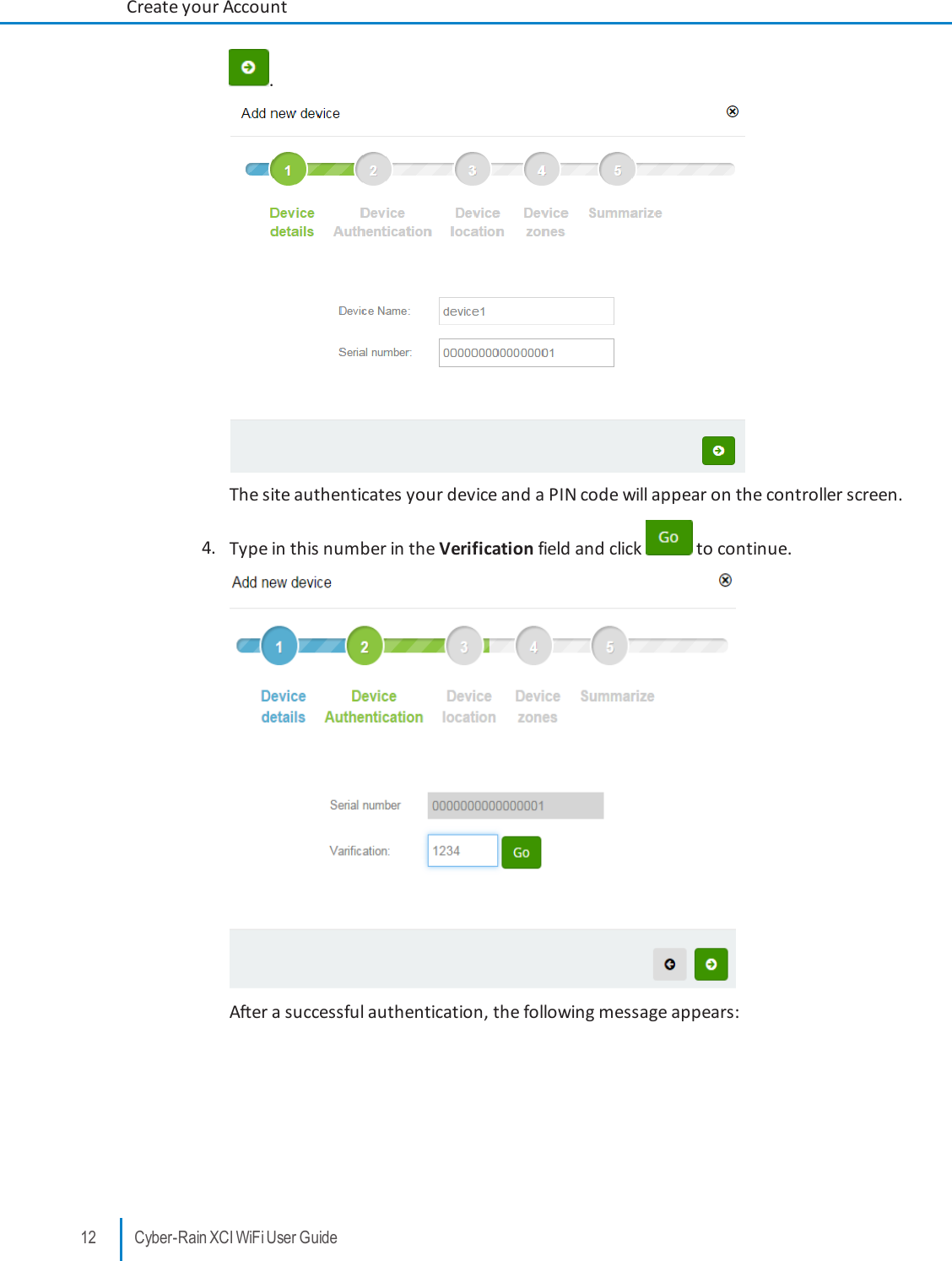

.The site authenticates your device and a PINcode will appear on the controller screen.4. Type in this number in the Verification field and click to continue.After a successful authentication, the following message appears:12 Cyber-Rain XCI WiFi User GuideCreate your Account

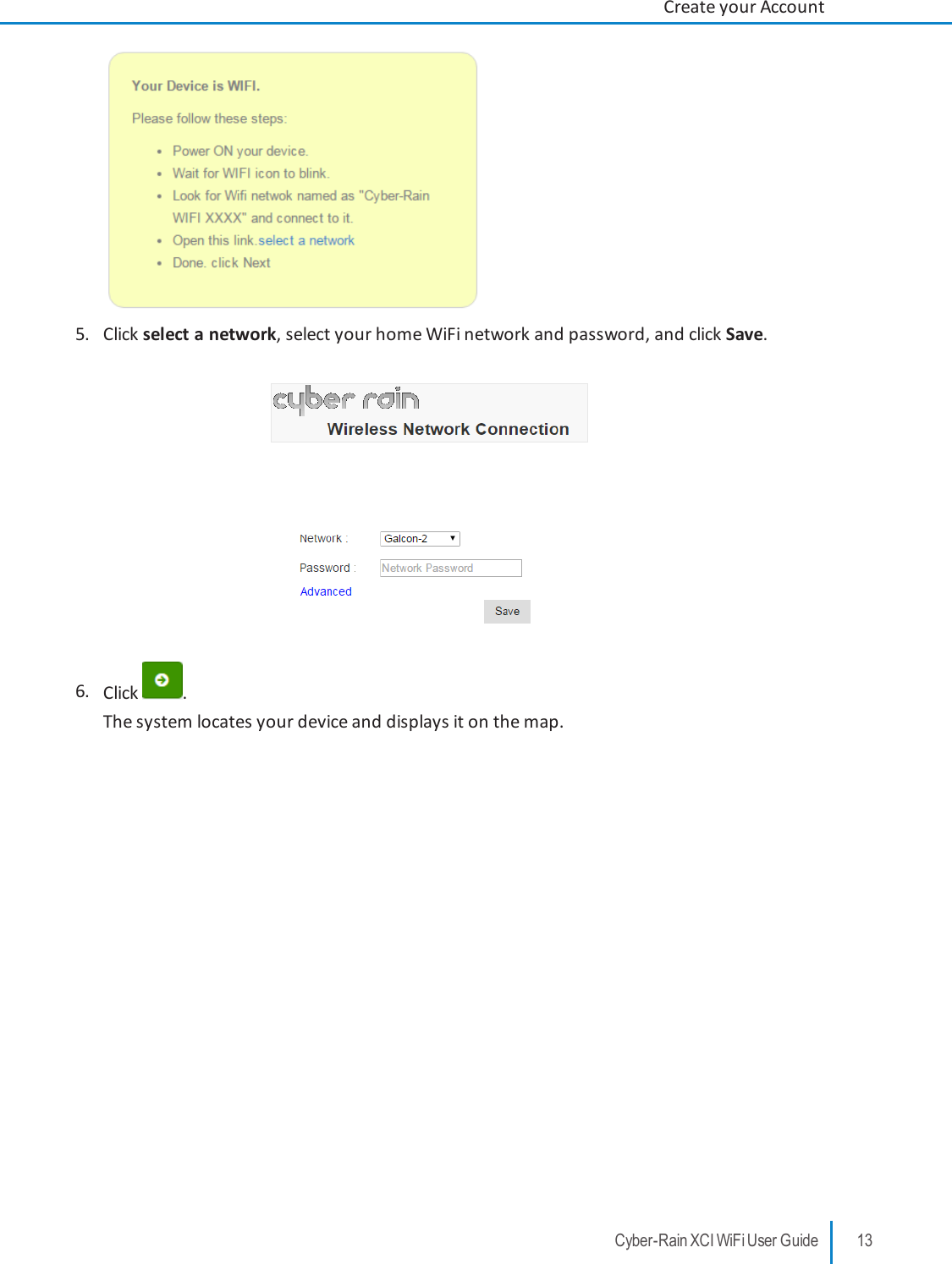

5. Click select a network, select your home WiFi network and password, and click Save.6. Click .The system locates your device and displays it on the map.Cyber-Rain XCI WiFi User Guide 13Create your Account

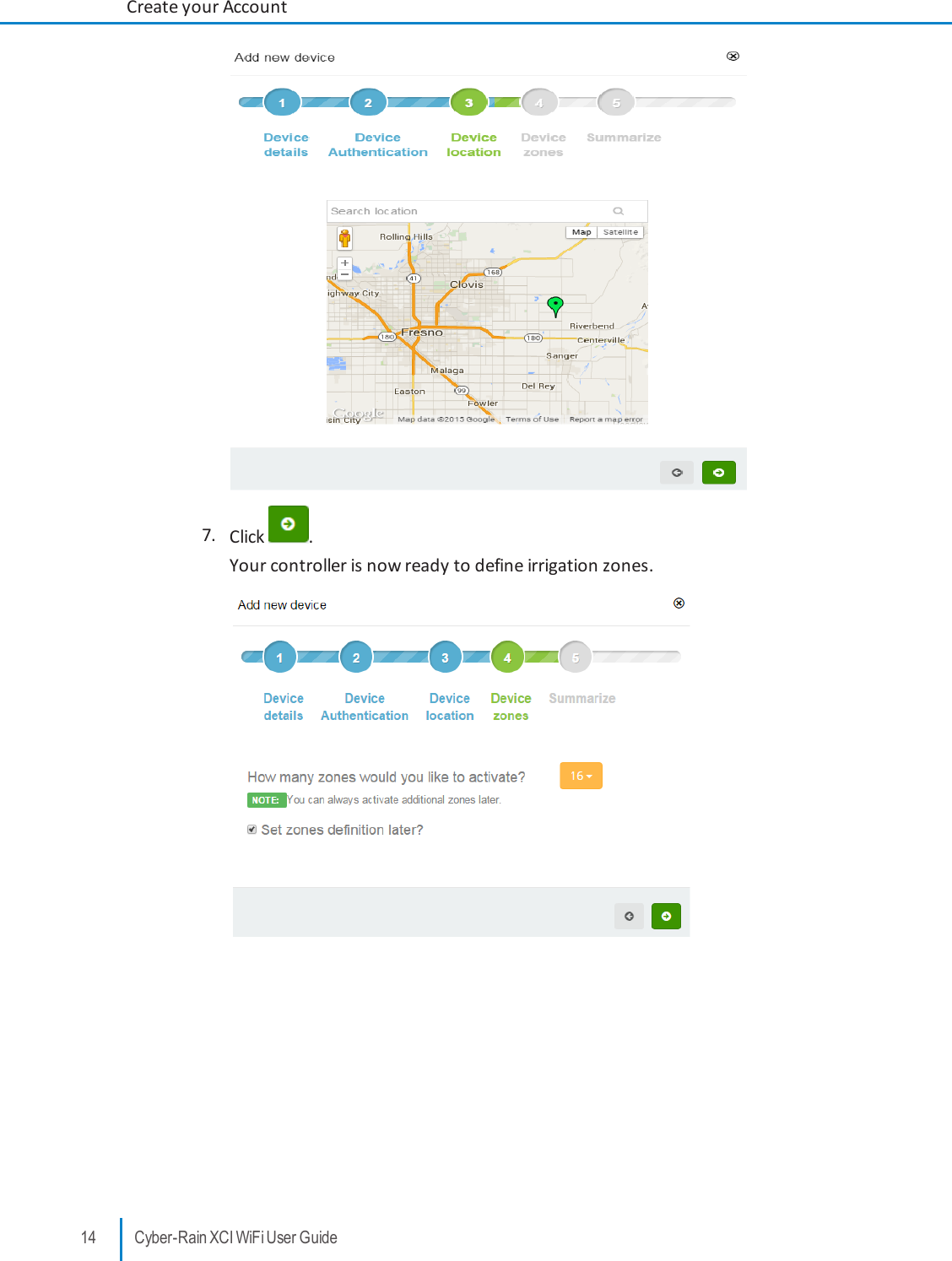

7. Click .Your controller is now ready to define irrigation zones.14 Cyber-Rain XCI WiFi User GuideCreate your Account

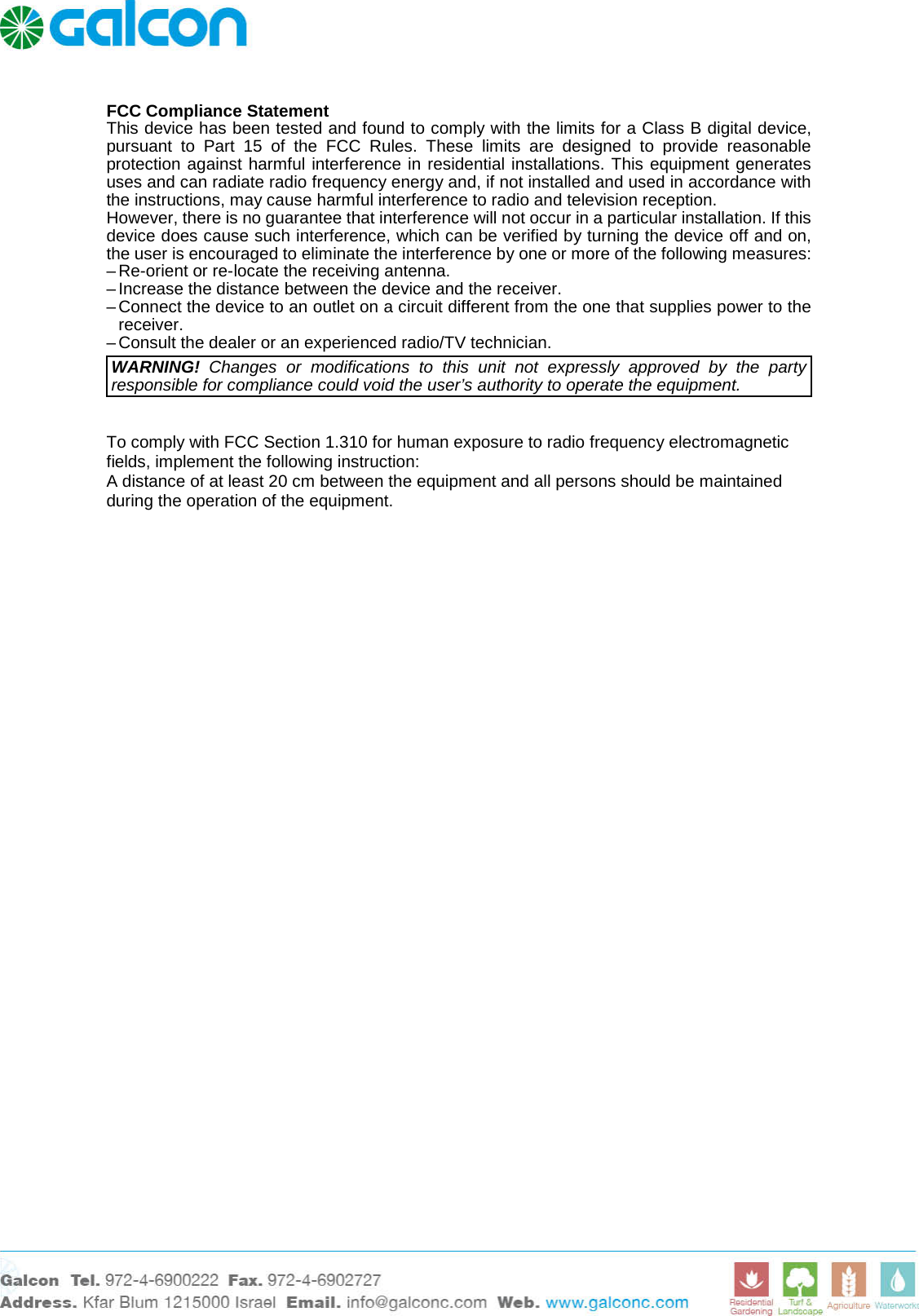

FCC Compliance Statement This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference by one or more of the following measures: – Re-orient or re-locate the receiving antenna. – Increase the distance between the device and the receiver. – Connect the device to an outlet on a circuit different from the one that supplies power to the receiver. – Consult the dealer or an experienced radio/TV technician. WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. To comply with FCC Section 1.310 for human exposure to radio frequency electromagnetic fields, implement the following instruction: A distance of at least 20 cm between the equipment and all persons should be maintained during the operation of the equipment.
