Gallagher Group C19753X Prox Reader Mifare (Teardrop) User Manual Prox Mifare Series Teardrop
Gallagher Group Ltd Prox Reader Mifare (Teardrop) Prox Mifare Series Teardrop
Users Manual
Installation Note
Part number 3E1100 R3 1
September 2004
CAUTION
This equipment contains components that can be damaged by
electrostatic discharge. Ensure both you and the equipment are
earthed before beginning any servicing.
3E1100 R1
April 2004
Before you Begin
Unpack the Prox Mifare Series (Teardrop) reader and check the shipment
contains the following items:
• 1 x Prox Mifare Series (Teardrop) reader base
• 1 x Prox Mifare Series (Teardrop) reader facia
• 1 x printed circuit board (PCB) assembly
• 2 x self tapper pan head fixing screws
• 1 x cable assembly
Power Supply Requirements
Power for the Prox Mifare Series (Teardrop) reader is usually taken from the
incoming supply of the device to which it is connected. That is, from the:
• Cardax FT Reader I/O Interface
• Cardax FT Controller 3000
• Cardax FT Universal Reader Interface (Cardax FT URI)
• Cardax Commander Universal Reader Interface (Cardax Commander URI).
The supply at the reader should be 13.6 V DC ± 15%. The current draw is
180 mA per reader. This is in addition to the requirements of any other device
(for example, the URI) powered from the same supply.
Prox Mifare Series (Teardrop)
2 Part number 3E1100 R3
September 2004
Prox Mifare Series (Teardrop) readers require a good quality linear power
source. If you do not use the recommended power supply, it may affect the
performance of the reader.
Note: Switch mode power supplies are not recommended as they may reduce
the read range of the Prox Mifare Series (Teardrop) reader.
Cabling
The Prox Mifare Series (Teardrop) reader uses the Cardax IV communications
system. This means it can be connected to the following Cardax equipment:
• Cardax FT Reader I/O Interface
• Cardax FT Controller 3000
• Cardax FT URI
• Cardax Commander URI
Use 4 core, 0.2 mm2 (AWG 24) cabling with a maximum, nominal capacitance
of 120 pf/m. The maximum external diameter of the cable must not exceed 5
mm (1/5 inch).
With this type of cable, the maximum distance between the Prox Mifare Series
(Teardrop) reader and the device to which it connects is 200 m (650 ft).
Note: You need a special cable terminating tool to connect the building cabling
to the Prox Mifare Series (Teardrop) reader. The tool has a head (Part
No. C861145) and handle (Part No. C861115). You also need a special
tool (Part No. C41611 ) to open the Prox Mifare Series (Teardrop)
reader if necessary.
Mounting Distance Between Proximity Readers
The distance between any 2 proximity readers must be greater than 200mm in
all directions.
Part number 3E1100 R3 3
September 2004
Please note that 200mm in all directions includes the distance through walls.
Wall
Proximity
Reader
Proximity
Reader
Less than
200mm
thick
Mounting
Note: The Prox Mifare Series (Teardrop) reader has been designed to metric
specifications. Therefore any imperial measurements provided are
approximate only.
The Prox Mifare Series (Teardrop) reader is designed to be mounted on any
solid flat surface, however metal surfaces can result in a reduced read range.
Note: The grommet through which the cables feed into the base of the Prox
Mifare Series (Teardrop) reader helps to keep the unit waterproof.

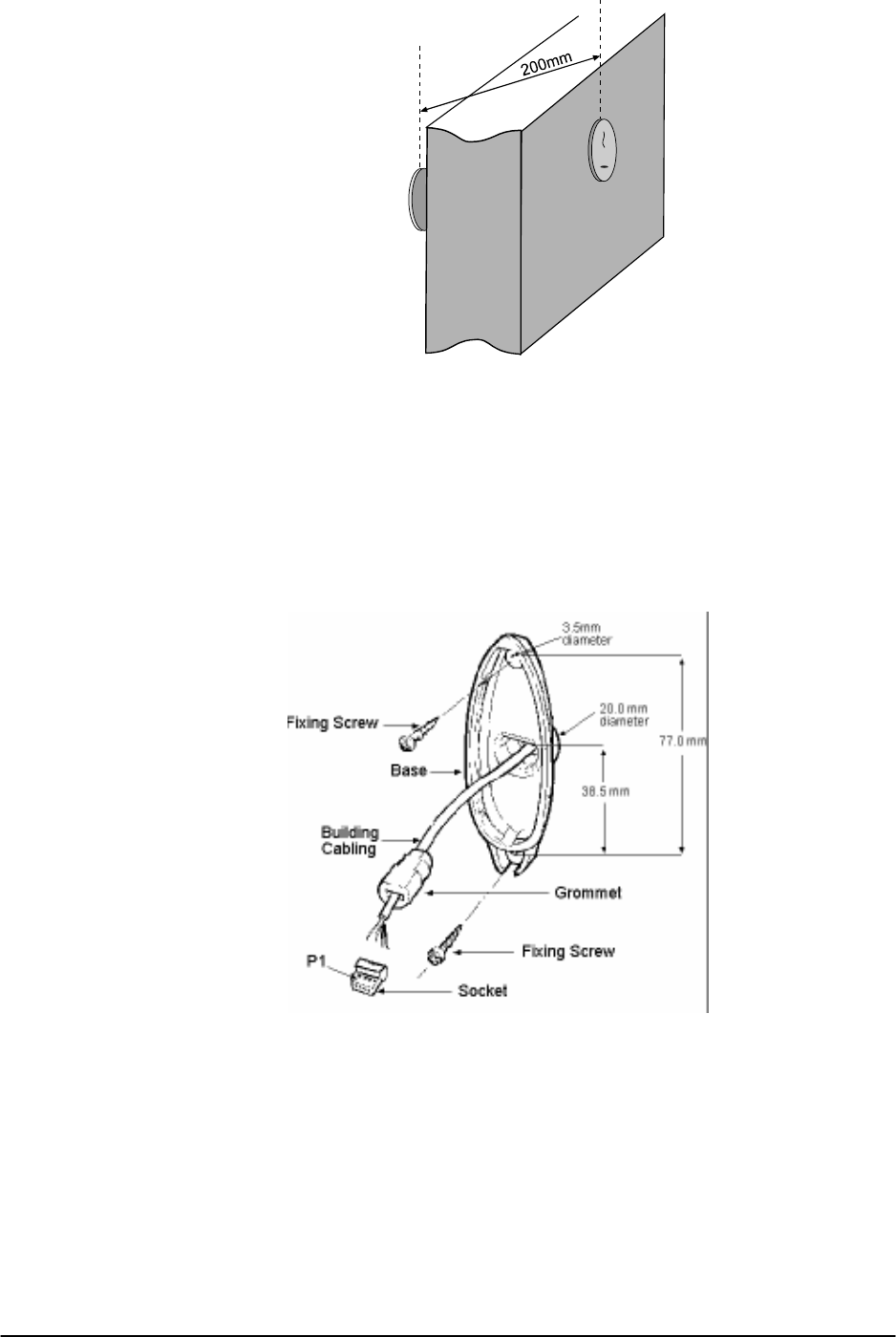

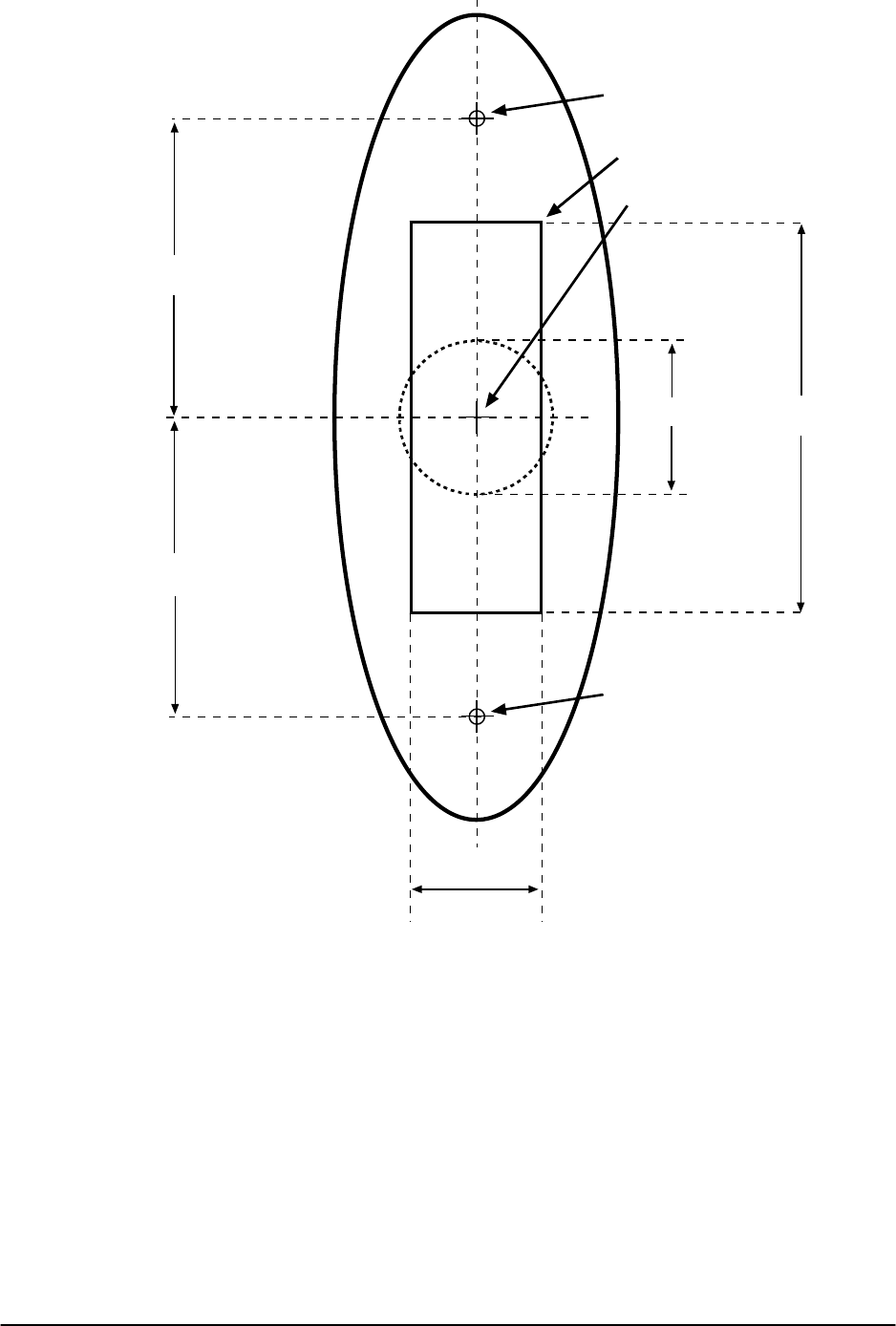

Using the mounting dimensions on the back of this Installation Note as a guide,
drill a 20 mm (3/4 inch) diameter hole for the base extrusion through or into the
mounting surface to a minimum depth of 40 mm (11/2 in).
Drill two pilot holes for the fixing screws.
Run the building cabling through the base and grommet.
4 Part number 3E1100 R3
September 2004
Fit the base to the 20 mm (3/4 inch) hole and secure it to the mounting surface
using the two fixing screws provided. Note that using other types of screws
could interfere with the electronics.
Note: It is very important that the base of the reader is flush with and tight
against the mounting surface. If you are mounting the Prox Mifare
Series (Teardrop) reader on a rough surface you should make the surface
as smooth as possible under the reader and up to 25mm (1 in) around the
reader. This is to enable easy removal at a later date is required.
Push the socket back into the grommet.
Push the grommet and socket back into the Prox Mifare Series (Teardrop)
reader base.
Check the tape covering the antenna wire solder joints is in position. Install the
PCB assembly into the base, ensuring the connector on the back of the PCB
assembly fits into the socket in the base. The PCB assembly should click into
place.
Fit the facia onto the base by clipping the small lip, inside the facia, over the
top edge of the base and holding the top, press the bottom of the facia down
until it clicks onto the bottom of the base.
Removing the Facia

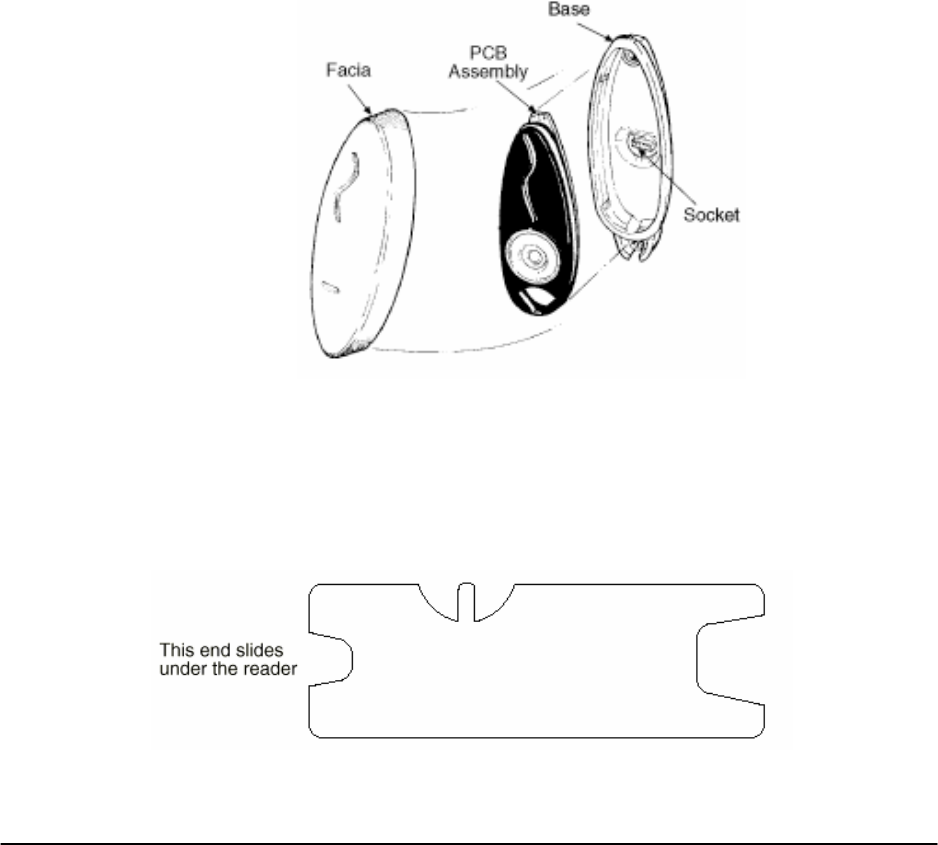

To remove the facia from the Prox Mifare Series (Teardrop) reader base you
need the plastic de-latching tool (Part No. 41611) shown below. The end of the
tool is used for removing the facia.
De-latching tool
Part number 3E1100 R3 5
September 2004
1. Slide the de-latching tool firmly under the bottom of the Prox Mifare Series
(Teardrop) reader.
2. Hold the top of the Prox Mifare Series (Teardrop) reader with your fingers
and squeeze the de-latching tool up, towards the top of the reader with your
thumb.
3. Lift the facia away from the base.
If the base is not flush to the wall, or the screws have become loose you
may need to pack the space between the de-latching tool and the wall. A
thin piece of cardboard is usually all that is necessary, (i.e. a business card
folded in two).

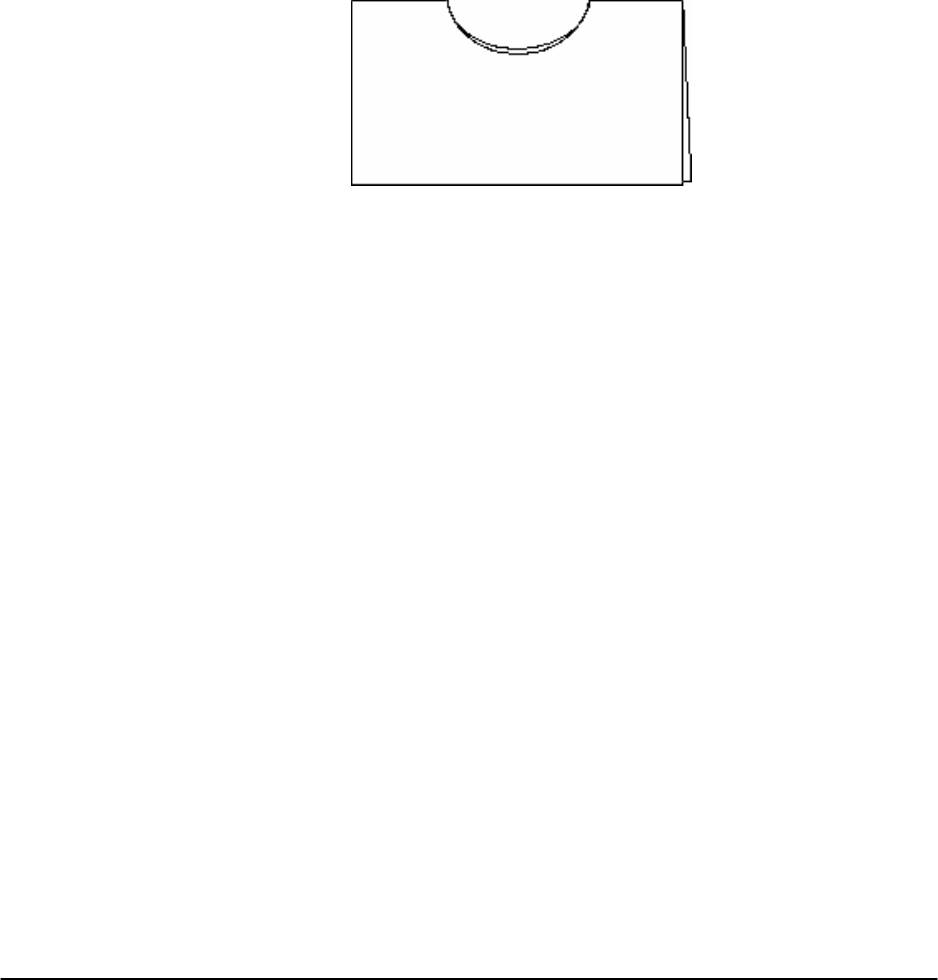

4. Cut a notch in the folded edge of the card similar in shape to the notch in
the de-latching tool as shown below.
5. Slide the card under the bottom of the facia and then use the de-latching
tool with the card as packing.
Connections
The Prox Mifare Series (Teardrop) reader connects to one of the following:
• Cardax FT Reader I/O Interface
• Cardax FT Controller 3000
• Cardax FT URI
• Cardax Commander URI
Use the cable terminating tool to connect the cables to the socket as described
in the following sections.
Pin number 4 of the Prox Mifare Series (Teardrop) reader connector feeds into
the cable terminating tool first.
6 Part number 3E1100 R3
September 2004
Connecting to the Cardax FT Reader I/O Interface
The Cardax FT Reader I/O Interface has connections for up to sixteen Prox
Mifare Series (Teardrop) reader or other Cardax IV readers.
The Prox Mifare Series (Teardrop) reader connects to either plug PA or plug
PB in Groups 1 to 8.

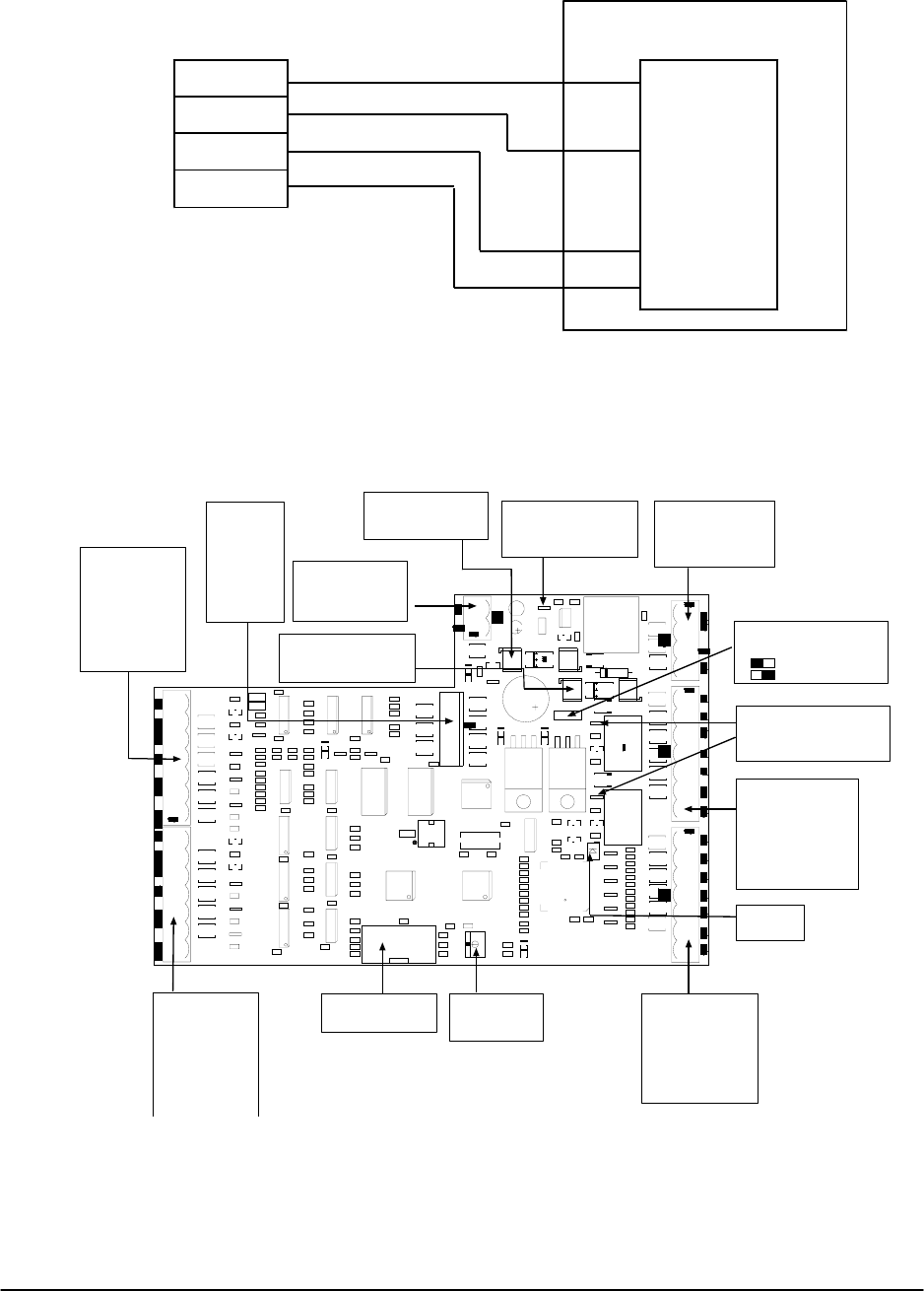

Make the connections from the Prox Mifare Series (Teardrop) reader to the
Reader I/O interface as shown:
Prox Plus Mifare Readers
Reader I/O Interface
4
3
2
1Red
White
Blue
Black
Reader A
(PA)
IN
OUT
Power
(PD)
+V
0
Group (x8)
4
3
2
1Red
White
Blue
Black
Reader B
(PB)
IN
OUT
For the location of the plugs on the Reader I/O Interface, refer to the

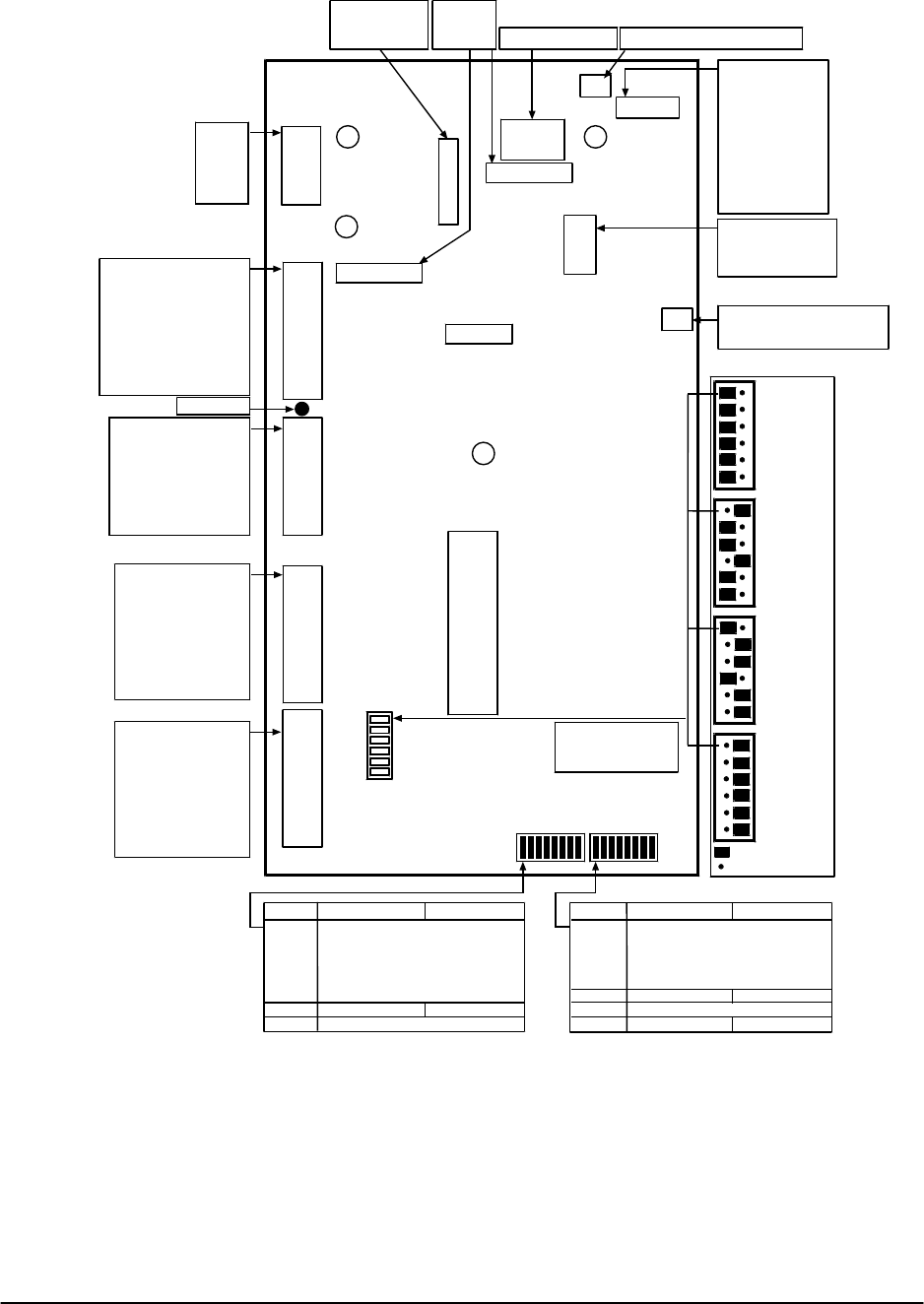

component layout diagram:
Part number 3E1100 R3 7
September 2004
Connecting to the Cardax FT Controller 3000
The Cardax FT Controller 3000 interfaces the following types of reader into
the Cardax FT Command Centre system:
• Cardax IV readers, including Prox Mifare Series (Teardrop) readers
• Wiegand readers
Each Cardax FT Controller 3000 can interface up to eight Prox Mifare Series
(Teardrop) readers into the Cardax FT Command Centre system.
The ports to which the Prox Mifare Series (Teardrop) reader can connect are
set up as four distinct groups (numbered 1 to 4). Each group provides
connection for two Prox Mifare Series (Teardrop) readers or other Cardax IV
readers. Refer to the following diagram for the location of the ports on the
Cardax FT Controller 3000.
P4
P3
P1
P2
P4
PF4
PF3
PF2
PE4
PE3
PE2
PF1 PE1
DETECTOR
LED
RS485
PA4
PA3
PA2
PA1
PA4
POWER
OUT
PA3
POWER
OUT
PA2
POWER
OUT
PA1
POWE R
OUT
PB4
PB3
PB2
PB1
PC4
PC3
PC2
PC1
PD4
PD3
PD2
PD1
PC1
PC2
PC3
PC4PD4
PD3
PD2
PD1
PA1 to PA4
Power Out
pin 1 = power out
pin 2 = 0 V
Group 4
Group 3
Group 2
Group 1
PB1 to PB4
2 x Cardax IV Readers
per connector
Reader 1 = pins 1 & 3
Reader 2 = pins 2 & 4
Pin 1 = Reader 1 transmit
Pin 2 = Reader 2 transmit
Pin 3 = Reader 1 receive
Pin 4 = Reader 2 receive
J1 to J4
RS485
terminating resistors
PC1 to PC4
Inputs
pin 1 = Input 1
pin 2 = Ground
pin 3 = Input 2
8 Part number 3E1100 R3
September 2004
Make the connections from the Prox Mifare Series (Teardrop) reader to the
Cardax FT Controller 3000 as shown:
Cardax FT Controller 3000
PA
Group (x4)
PB1 and PA1... to... PB4 and PA4
4 3 2 1 2 1
PB
Prox Plus Mifare
Reader 1
Prox Plus Mifare
Reader 2
Note:
Within each group, you cannot mix Cardax IV readers with Wiegand Readers.
This is because connecting one Wiegand reader requires all four pins on plug
PB. For example, if you connect a Prox Mifare Series (Teardrop) reader to Port
1 of Group 1, Port 2 of Group 1 can only connect to another Cardax IV reader.
The terminating resistors (J1 for Group 1, J2 for Group 2, etc.) must NOT be
fitted for those groups to which Prox Mifare Series (Teardrop) readers are
connected.
Part number 3E1100 R3 9
September 2004
Connecting to the Cardax FT URI
Connect the cables to the socket as shown:
Prox Plus Mifare Connector
4
3
2
1
GND
OUTPUTS
OUTPUTS
DET
COMMS
COMMS
5/12V
Plug P1 or P2
Cardax FT Universal Reader Interface
Red
White
Blue
Black
Connect the Prox Mifare Series (Teardrop) reader connector to either the P1 or
P2 plug on the Cardax FT URI. Refer to the Cardax FT URI component layout
diagram, next, for the location of the plugs.
Q31
D18
U19
T1
R7
R50
R55
R52
R51
R53
R54
JP2
D13
D23
D24
D1
D2
D3
D4
D6
D5
D11
D10
D25
D20
D19
D17
D15
Q7
Q2
D12
D16
D14
Q30
Q29
9
210
1
P8
JP1
SW1
E
Q26
Q27
COMM
NC NO
COIL
RLY2
COMM
NC NO
COIL
D28
D27
D26
R80
R79
R95
R96
R81
R94
D21
Q28
D22
Q41
(c)1999 PEC(New Zealand) Ltd
REV[A][B][C]
22825V2 Assy 22826
5V 12V
P4
Balanced Inputs
pin 1 = Input1
pin 2 = Input 2
pin 3 = Input 3
pin 4 = Input 4
pin 5 = Input 5
pin 6 = Input 6
pin 7 = Ground
P7
Relay Outputs
pin 1 = R1 Normally closed
pin 2 = R1 Normally open
pin 3 = R1 Common
pin 4 = R2 Normally closed
pin 5 = R2 Normally open
pin 6 = R2 Common
pin 7 = Ground
P5
Power & Comms
pins 1 & 2 = RS485
pin 3 = 13.6 V ± 15%
pin 4 = 0V
SW1
Unit address
Set unit number
P8
Diagnostic port
P6
13.6 V ± 15%out
pin 1 = 13.6 V ± 15%
pin 2 = Ground 3A fused
P3
Keypad
pin 1 = Row1
pin 2 = Row 2
pin 3 = Row 3
pin 4 = Row 4
pin 5 = Column1
pin 6 = Column2
pin 7 = Column3
pin 8 = Ground
P2
Non-CardaxFT
Reader 2
pin 1 = 5/12 V power
pin 2 = DataA
pin 3 = DataB
pin 4 = Card detect
pin 5 = LED output
pin 6 = Beeper output
pin 7 = Ground
P1
Non-CardaxFT
Reader 1
pin 1 = 5/12 V power
pin 2 = DataA
pin 3 = DataB
pin 4 = Card detect
pin 5 = LED output
pin 6 = Beeper output
pin 7 = Ground
F1
13.6 V Input Fuse
Rating = 500mA
F2
13.6 V Output Fuse
Rating = 3A
D17 and D21
Relay state indicators
LED on = Energised
LED off = De-energised
D18
Run LED
D10
Comms LED
flashing = communicating with
FT Controller
JP1
Reader Voltage select
= 5V (200mA total)
= 12V (1A total)
P1
P2
10 Part number 3E1100 R3
September 2004
Connecting to the Cardax Commander URI

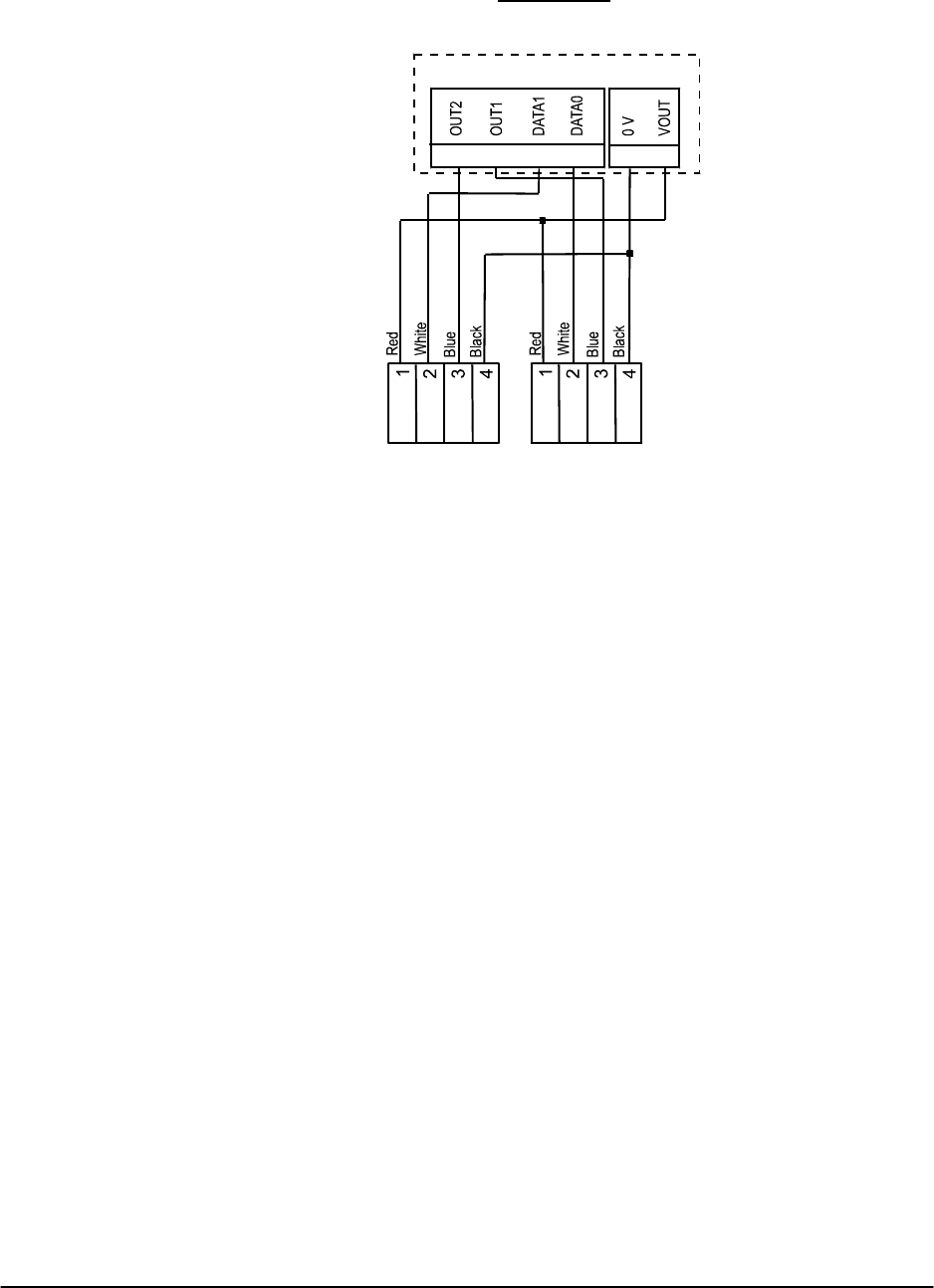

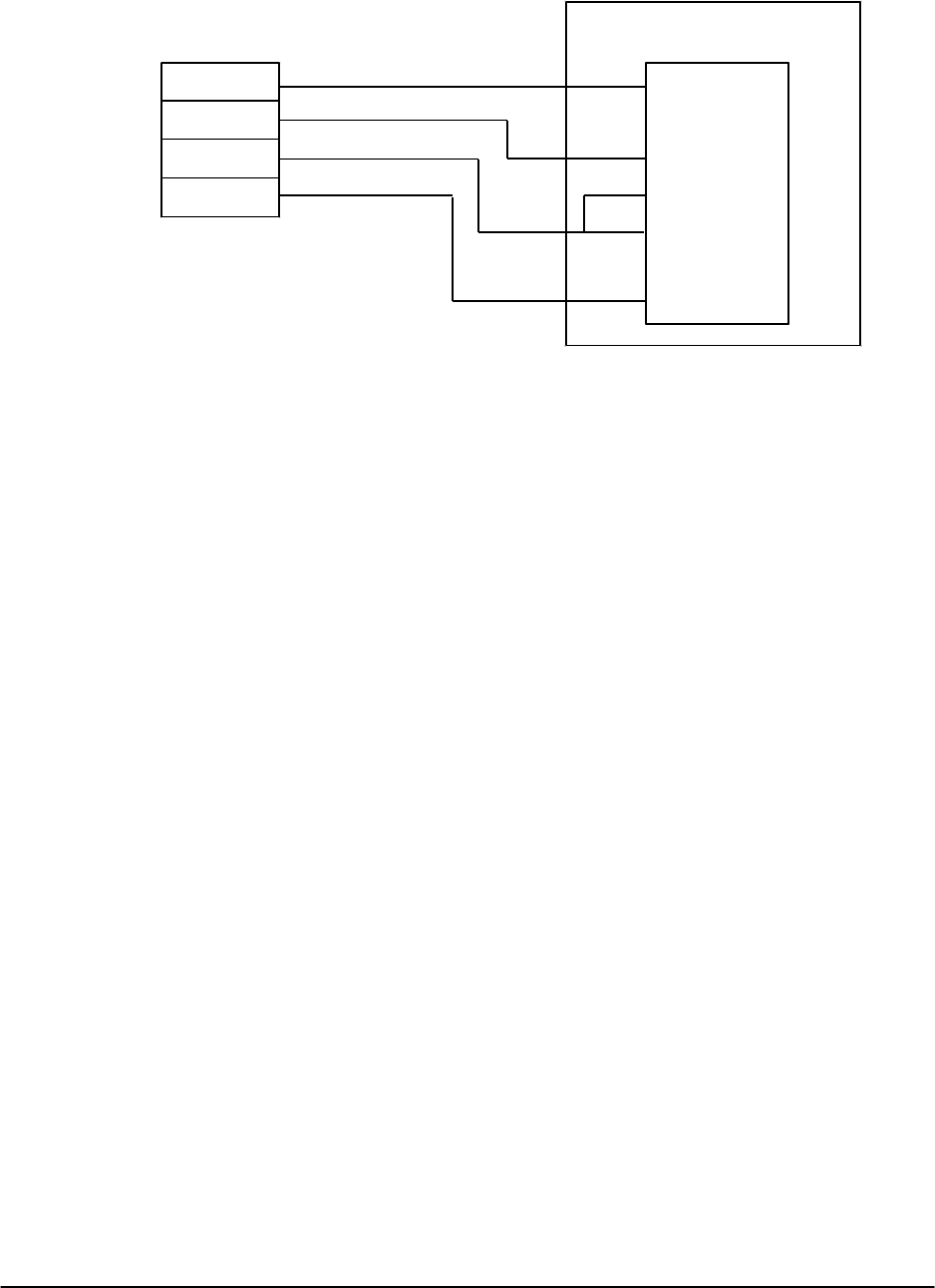

Connect the cables to the socket as shown in the following diagram.
Prox Plus Mifare Connector
4
3
2
1
1
2
3
4
5
6
7
GND
BPR
LED
DET
1-CK
0-DT
5/12V
Plug P4 (Exit) or P5 (Entry)
Universal Reader Interface
Red
White
Blue
Black
Note:
Refer to Cardax Commander URI Components, for the location of the Cardax
Commander URI components.
Part number 3E1100 R3 11
September 2004
Initialisation
Initialising with the Cardax FT Reader I/O Interface
Refer to the Cardax FT Reader I/O Interface Installation Note (Part number
3E1016) for initialisation instructions.
Initialisation of the Cardax FT Reader I/O Interface does not require prior
connection to the Prox Mifare Series (Teardrop) reader. The Prox Mifare Series
(Teardrop) reader will be operational as soon as it is:
• connected to a Cardax FT Reader I/O Interface, and
• configured as a Cardax IV reader within the Cardax FT Command Centre
system.
Initialising with the Cardax FT Controller 3000
Refer to the Cardax FT Controller 3000 Installation Note (Part number
3E1089) for initialisation instructions.
Initialisation of the Cardax FT Controller 3000 does not require prior
connection to the Prox Mifare Series (Teardrop) reader. The Prox Mifare Series
(Teardrop) reader will be operational as soon as it is:
• connected to a Cardax FT Controller 3000, and
• configured as a Cardax IV reader within the Cardax FT Command Centre
system.
Initialising with the Cardax FT URI
Refer to the Cardax FT Universal Reader Interface Installation Note (Part
number 3C4518) for initialisation instructions.
Initialisation of the Cardax FT URI does not require prior connection to the
Prox Mifare Series (Teardrop) reader. The Prox Mifare Series (Teardrop)
reader will be operational as soon as it is:
• connected to a Cardax FT URI, and
• configured as a Cardax IV reader within the Cardax FT Command Centre
system.
Initialising with the Cardax Commander URI
Type of Door Lock
Depending on the type of lock fitted to the door that the reader is controlling,
you will need to initialise the URI with the door either closed or open.
If you initialise the URI with the door held open, it sets the door to unlock and
remains unlocked until the door is fully closed again. If you initialise the URI
with the door closed it sets the door to unlock and resets to lock as soon as the
door is opened.
12 Part number 3E1100 R3
September 2004
Note:
If you are installing the Prox Mifare Series (Teardrop) reader to control a
turnstile you should consult the turnstile manufacturer for details of the locking
mechanism used.
Push-Button Exit
If the door has a push button exit, ensure the URI Exit terminal has the push-
button fitted and correctly terminated with a 10 k resistor before you power
on.
Check Software Version
You should check the URI software version to ensure it is correct for your
installation. The software version number is written on the label of the EPROM
mounted at the bottom right of the URI processor board.
URI software versions that are compatible with the Prox Mifare Series
(Teardrop) reader are shown below:
Software Reader Type
vW3.61 to vW3.67 or vW6.xx
series *
One door Cardax Prox or Swipe Readers
vW7.xx TC series URI Special Options
vW4.74 to vW4.81 or vW9.xx
series *
Two door Cardax Prox or Swipe Readers
Note: * These software versions will have one of the following suffixes:
GT = 2 wire modem connection
G = 4 wire modem connection
// = direct connection via comms lines ie. no modem
Part number 3E1100 R3 13
September 2004
Cardax Commander URI Components
Please refer to the diagram below for the location of the Cardax Commander
URI components.
Ground
COM B
COM A
Power
P1
P2
P3
P4
P5
Ground
Normally Open
Relay Common
Normally Closed
Door Unlock
Door Open
Push-Button Exit
Ground
Input 1
Input 2
Input 3/*Unlock
Input 4/*Open
Input 5/*Exit
* Applies to 2-Door
URI only
Ground
Beeper
LED
Card Detect
Clock/Data 1
Data/Data 0
5 or 12 V Out
P8
D10
D8
P7
Jumpers
DSW1
D44
DSW2
Comms In
Comms Out
Diagnostics/
Processing
Comms
& Power
Door 1 Inputs
&
Output Relay
Auxiliary
and/or
Door 2 Inputs
Door 1 Exit
Reader OR
Door 2 Entry
Reader
Door 1 Entry
Reader
Door 1
Keypad
1Top Row
2Row 2
3Row 3
4Bottom Row
5Left Column
6Middle Column
7Right Column
8Not Used
1Normally Open
2Relay Common
3Normally Closed
Cardax
Prox (125,
Mifare or
TIRIS)/
Cardax
Swipe
12 V
ON
OFF
ON
OFF
Switch On Off
11
22
3 4 Unit
4 8 Address
516
632
7 Initialise Normal
8* *see note below
Switch On Off
1
2 Card Format
3
4
5
6* Validated Exit* Normal*
7* *see note below
8 Keypad No Keypad
* Depends on Software Version.
Tamper
Cardax III
5 V
Wiegand
5 V
Wiegand
12 V
Jumper Connected
No Jumper
D45
5 V DC
Lithium Battery Jumper
Lithium Battery
Fuses
(Relay
Contacts)
J1
J2 OFF Confirmed Entry
ON No Confirmed Entry
EPROM
F1 F2
F3
PLD
GND
N.O.
COM
N.C.
UNLK
OPEN
EXIT
GND
AUX1
AUX2
AUX3
AUX4
AUX5
GND
BPR
LED
DET
1-CK
0-DT
5/12V
Ground
Beeper
LED
Card Detect
Clock/Data 1
Data/Data 0
5 or 12 V Out
GND
BPR
LED
DET
1-CK
0-DT
5/12V
Earth Wire
Fuse
(Reader Power
Supply)
Aux. Relay
or Door 2
Relay
14 Part number 3E1100 R3
September 2004
Setting the Jumpers
Tamper the URI by opening the door of the cabinet. This releases the tamper
switch.
The URI has a set of six jumpers grouped into two sets of three. One group is
labelled ENTRY and the other is labelled EXIT.
ENTRY jumpers set the voltage and card type of the reader connected to plug
P5. EXIT jumpers set the voltage and card type of the reader connected to plug
P4.
Set the Entry and Exit jumpers for the Prox Mifare Series (Teardrop) reader as
shown below:

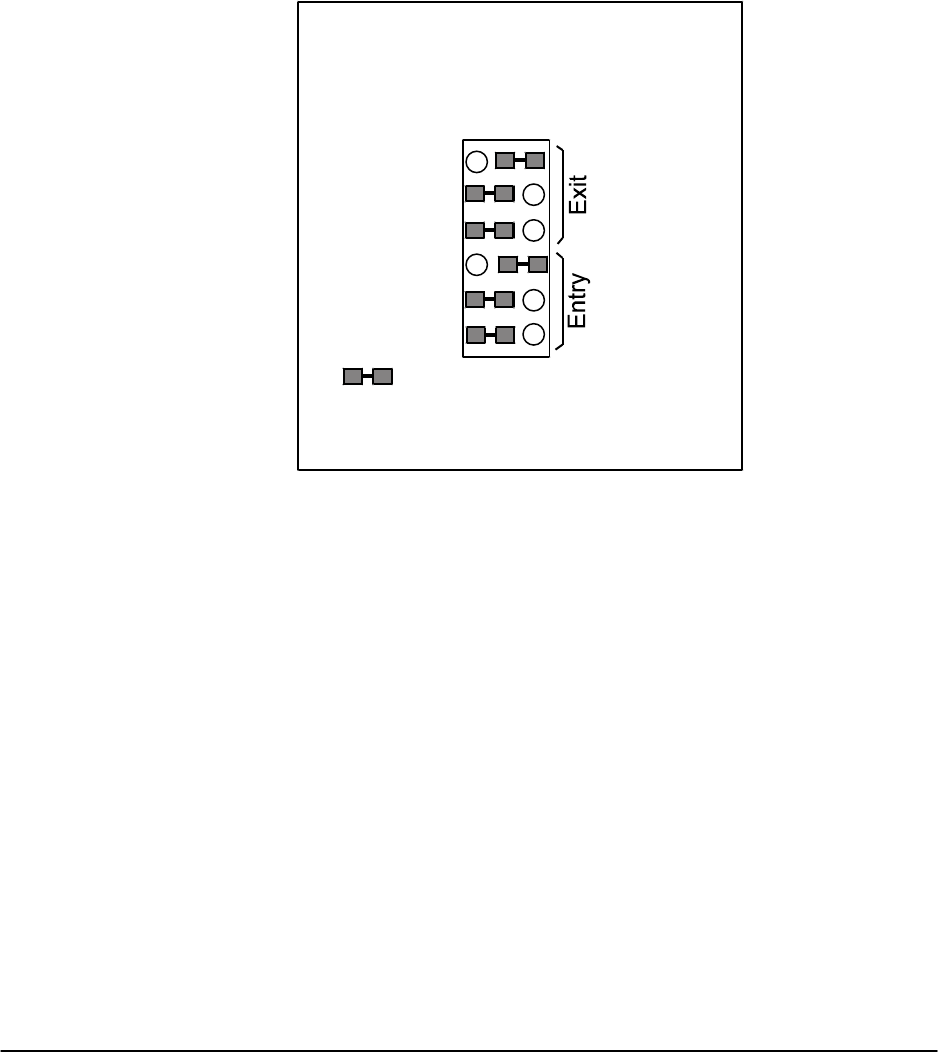

Entry and Exit Jumper Settings
Cardax
12 V
1
2
3
4
5
6
= jumper in place
Pins 3 and 6 = voltage supplied to reader
Pins 1,2 4 and 5 = reader type
Confirmed Entry
Connector J2 on the URI controls the Confirmed Entry function. If you
initialise the URI with no jumper fitted on J2 the Confirmed Entry function
will be ON. To switch the Confirmed Entry function OFF, you must initialise
the URI with a mini-jumper fitted across both pins of connector J2.
Connecting the Reader
Connect the Prox Mifare Series (Teardrop) reader to the URI Entry Plug P5.
Note:
If you are using two entry readers (2 door software) you must connect the
second entry reader to URI Plug P4 to initialise the URI. Ensure Entry and Exit
jumpers are set to the same configuration.
If you are only using an Exit reader you must connect the reader to the Entry
Plug P5 to initialise the URI. After you have initialised the URI you should
connect the Exit reader to URI Exit Plug P4.
Part number 3E1100 R3 15
September 2004
Setting the Dip Switches
Set DIPSW1 as follows:
Switches On Off
1
2
3
4
5
6
7
8
1
2
4
8
16
32
Unit
Addresses
Initialise Normal
2 door software
= keypad on door 2
1 door software
= liftcar reader
2 door software
= no keypad on door 2
1 door software
= door reader
Set DIPSW2 as follows, where 0 = OFF and 1 = ON:
URI Software vW6.xx
and
vW9.xx
vW3.61 to vW3.67
and
vW4.74 to vW4.81
Reader
DIPSW2
12345678
DIPSW2
12345678
Prox Mifare Series (Teardrop) reader
only, no authorised exit
00000000 00011000
Prox Mifare Series (Teardrop) reader
only, with authorised exit
00000100 00011100
Prox Mifare Series (Teardrop) reader
with external keypad and no
authorised exit.
00000011 10011011
Prox Mifare Series (Teardrop) reader
with external keypad and authorised
exit.
00000111 10011111
For further details on software versions refer to Check Software Version
earlier in this Installation Note.
16 Part number 3E1100 R3
September 2004
Initialise Process
!
CAUTION
Do not fit the lithium battery jumper (J1) before powering
up the URI. If the jumper is fitted you must remove it and
wait 10 seconds.
Power up the URI.
The yellow LED (D45) should be permanently ON. This indicates that 5 V is
present on the board.
The green LED (D44) should flash twice, pause, then flash twice again. This is
a continuous sequence while the URI is unitialised and indicates it is
processing.
The red LED (D8) should flash if polls are received from the Commander.
Note:
A URI can be initialised without being connected to a Commander.
Set DIPSW1:7 to ON.
Present aSmart Card to the Prox Mifare Series (Teardrop) reader.
Note:
You must present the card within 30 seconds of setting DIPSW1:7 to ON. If
you are initialising with two readers connected to the URI, you should present
the card to the reader on URI plug P5.
Set DIPSW1:7 to OFF
The green LED (D44) will begin flashing continuously.
The other red LED (D10) will flash each time the URI replies to a poll from the
Commander.
Replace the lithium battery jumper J1.
Restore the tamper by closing the door of the URI cabinet.
Part number 3E1100 R3 17
September 2004
Approvals and Standards
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications not expressly approved by Gallagher Group
Ltd could void the user's authority to operate the equipment.
ACN: 002132943
18 Part number 3E1100 R3
September 2004
Mounting Dimensions
17 mm
39 mm
39 mm
51 mm
20 mm
Pilot hole
Pilot hole
20 mm hole
Slot
