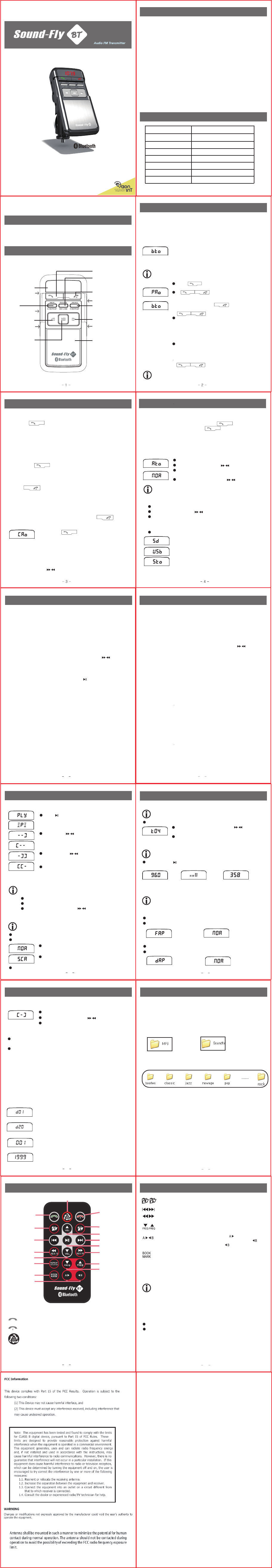

User manual
<Notice for using portable hard disk>
When you use portable hard disk, you must connect extra power with
‘cigarette liter jack to USB’ cable. We do not take the responsibility
of any problem caused by not connecting extra power.
4. Set the volume with the volume setting function of Sound-Fly Auto.
Getting Started -With Mobile phone
User Manual
* Please read this manual carefully before using
* Caution
:This product can be used only for 12V cigarette lighter socket power.
Package Content
Description & Functions
Getting Started -With Mobile phone
Main unit / stereo cable / External Microphone /
additional fuse / user manual
Application description
Getting Started -With Mobile phone
Operation-1 Operation-2
Safty precautions
1. This product should be used only for 12V cigarette lighter socket power.
2. Do not start your car being put a SoundFly BT into the cigarette lighter socket
because the fuse could be burnt out.
3. Operate the device while the car is stopped to avoid the car accident.
4. Do not expose it to direct sunshine.
5. Avoid using the device in strong magnetic field.
6. Do not subject the device to severe impact or dropping from high position.
7. Keep the device away from any liquids.
8. We are not responsible for the damages caused by misusing and repairing
the device or battery replacement.
9. Pause SoundFly BT when you stop the car or disconnect portable hard disk
to avoid damage to SoundFly BT or hard disk.
Specifications
Product Dimension
Weight of the product
Frequency range
Input power
Modulation
USB Rated output power
94 * 47 * 65mm
65g
88.1 ~ 107.9MHz
12V
Conformity with CEOutput power
FM(F3E)
5V 200mA
Operation-3 Tips for convenient use of Sound-Fly BT
910
Remote control-1
11 12
Remote control-2
BT
Make a call /
Take a call
Music source select
End a call
Refuse a call
Power on/off
SD card slot
Menu /
File Repeat
Forward
USB Port
Cover
Display
Audio in
Memory/
Directory(Folder)
Repeat
Earphone
connector
Rewind
Microphone
connector
Play/Pause
Place the SoundFly BT into the 12V cigarette lighter socket. Adjust the
device, that it can be operated comfortably. The display appears
immediately. The equipment is ready for use.
The SoundFly BT checks, if it was already a link with a mobile phone and
tries to establish a connection.
Then it checks whether a device is attached to the USB port
or SD card is in the card slot and starts to playback the music.
[Getting started]
[Disconnect with a mobile phone]
Press the button for about 2 seconds to disconnect a mobile
phone. The display show “bto”. Also you can control Bluetooth mobile
phone to disconnect SoundFly BT.
[Take a call]
During an incoming call the music playback is paused. The display shows
“Ino” and the phone number of the incoming call. The display of the car
radio shows REC CALL and then the number of the incoming call using
RDS function.
Press briefly button to take a call. During the incoming call the
display shows “Ino”. If the call is finished the device starts playback at the
position where it was paused.
[Playback]
Press button for playback or pause
Press briefly buttons, to select the next or
previous track.
Press and hold button to select the next or
previous folder.
/
After the playback is started, the display shows the
remaining playback time or the frequency depending on
the display mode.
/
[Volume]
This function is available, if an audio device is connected to USB port
or SD card is in the slot.
Press the MENU/F.REPEAT button briefly twice.
The display shows a bar with the current volume setting.
Adjust the required volume with buttons.
/
[RDS display mode]
This function is available, if an audio device is connected to the USB
port or a SD card is in the slot.
Press the MENU/F.REPEAT button briefly 3 times.
Select RDS display mode:
The display of the car radio shows 8 characters during
the user selected time.
The RDS information scrolls through the display every
second.
Press the MENU/F.REPEAT button briefly twice.
[RDS Interval]
This function is available, if an audio device is connected to the USB
port or a SD card is in the slot.
Press the MENU/F.REPEAT button briefly 4 times.
[Storing frequencies]
Press briefly MEM SD-USB button. The display shows [-].
Select a memory (1-7) with buttons.
Press MENU/F.REPEAT button once again.
/
[Select memory]
Press repeatedly MEM SD-USB button until the desired frequency appears
in the display.
With every keystroke on MEM SD-USB button, the next memory is selected.
[Adjust audio input level (Audio in)]
In order to have the best signal quality, it is necessary to adjust the volume
of the connected audio device. Follow the below guideline.:
Start playback of the audio device. Adjust the volume to a low level.
Now increase the level until the noise disapears. Keep the level in mind.
Increase the level until a distortion is heard in the radio. Keep also this level
in mind. Now adjust the volume level to the middle of these 2 values, which
you have determined.
[Folders and Files]
The device can manage up to 1999 files and numbers
automatically as 001 -1999. You can create folders in the
main directory to manage files easier. The folders will be
played in the same order as they are copied onto the memory
device. SoundFly BT finds up to 20 folders. These folders are
shown briefly in the display as d1-d20. If no folder is found
the tracks are played in order.
Source select(USB, SD, A2DP mode)
Take a call,
Change audio pass route
Move to
previous folder
Move to
previous track
Rewind
Repeat
Bookmarking
Volume up
A-B repeat
End a call,
Refuse a call,
End A2DP
Move to next folder
Volume down
Move to next track
Play / Pause
Fast forward
Frequency up
Frequency down
Please use the remote control after having removed the protection sticker.
Answer the phone, make a call, redialing,
Change audio pass route
End a call, Refuse a call, Stop MP3 playback from mobile phone
Press the button and choose the mode between mobile phone,
SD card & USB mode.
Press REPEAT button, the song you are listening to is played
repeatedly. Press repeat button again to folder repeat.
Press repeat button again stop the repeat function.
REPEAT
[Setup SoundFly BT]
The quality of the reception in the car can be different. It can be
necessary to test different places in the car to get the best result.
The best reception is obtained in the car if SoundFly BT operates with
the enclosed cigarette lighter adaptor.
You can use this feature in case the playing time is long such as
lecture file & language file. Before you shut the device off, Press
BOOKMARK button to store the point of time. When you turn the
device on again, the device plays from the point you memorized.
Press the buttons to move to previous(next) folder, first song of the
folder is played.
Press the buttons to move to previous(next) song.
Press the buttons fast forward or rewind 2x, 5x, 10x.
Press the buttons to adjust the frequency in 0.1MHz intervals.
Hold the buttons longer than 2seconds, the frequency is adjusted
in 1 MHz intervals.
Selective replay of a part of a track. Press button to mark the
starting point. The playback of the song continues. Press to
mark the ending point. To cancel, press once again.
Place SoundFly BT nearby the radio or the antena.
[Select FM frequency]
Select a frequency that is not being used for broadcasting purposes.
Turn SoundFly BT on and find the frequency adjusted in the FM radio.
Connect the MusicFly to the audio unit.
Turn on the audio unit and start playback
Bluetooth Standard v2.0 (Class II) with A2DP
[Refuse a call]
Press to refuse a call when incoming call.
[Pairing]
Refer to specific instruction supplied with your phone for details on
pairing Bluetooth devices.
Press button for 2 seconds to enter pairing
mode. The display shows “PAo” and .
If buttons are blinking, SoundFly BT is
1. trying to link to the last connected mobile phone or
2. in the pairing mode.
In case of no.1., press button to stop
connecting last mobile phone then blinking of
buttons are off.
Control your mobile phone to search for new Bluetooth
devices. You will see SounFly BT in your mobile phone.
Entry SoundFly BT in your mobile phone, If the phone
requests for a passwords, enter “0000”. Herewith paring
is successfully finished. You can see “bto” on the display
once the paring is done.
Depending on the types of mobile phone, the mobile
phone can ask service menu to make the connection.
In this case you can select “Stereo hedset & Handsfree”
or all device supported.
After all these process is done, you can see
buttons are illuminated.
Now you should plug the microphone delivered with the product into
suitable place of the device. From now on all telephone calls are
led to SoundFly BT.
[Make a call]
Dial the desired telephone number at your mobile phone. The display of the
SoundFly BT shows “bto”. The microphone should have been connected.
During the call, the display shows “CAo” then the display shows “Ino” when
a call connect a receiver. To end the call press briefly button.
[Select Audio pass route]
You can speak by handsfree even if you make a call using mobile phone.
You can select this function as below.
1. Click MENU/F.REPEAT button six times.
2. Select option with buttons to be shown “Aud” or “Nor” on display.
3. Press MENU/F.REPEAT button once again.
/
[Redial]
Press briefly button to redial the recently dialed
tehephone number. The display shows “CAo”.
[Change Audio pass route during talking over the phone]
You can change audio pass route pressing button while you are
talking over the phone. If you press button while you are talking
over mobile phone, audio pass will be changed into handsfree, the opposite
case is also supported.
[Additional Bluetooth Settings]
Automatic Connection with a mible phone
Press 5 times briefly MENU/F.REPEAT button.
Select “Ato” or “NOR” with button.
/
“Ato”: SoundFly BT tries to link to the last connected
device.
Select “Ato” or “NOR” with the button.
/
If the menu for the settings is active, then a LED below the
MENU/F.REPEAT button appears.
[Setup frequency]
Press the MENU/F.REPEAT button.
Adjust the frequency with button.
/
Press the MENU/F.REPEAT button once again.
[Source select]
MP3 from mobile phone
Press repeately PHONE/SD-USB button.
SD card
USB host connector
Adjust the display interval time with buttons
(2-6seconds)
Press the MENU/F.REPEAT button once again.
/
[Display mode]
This function is available, if an audio device is connected to the USB
port or a SD card is in the slot.
Press and hold button during playback for 2 seconds to switch the
display mode.
Frequency Audio level Remaining
playback time
[Repeat]
This function is available, if an audio device is connected to the USB
port or a SD card is in the slot.
SoundFly BT has a repeat function. If the repeat function is on, the tracks are
played repeatedly.
Press the MENU/F.REPEAT button during playback for 2 seconds.
The display shows in order.
Repeat the current track Normal
Press the MEM/D.REPEAT button during playback for 2 seconds.
The display shows in order
Repeat the current folder Normal
Getting Started -With Portable audio device
1. Automatically power is on once you put Sound-Fly BT into the car cigarette
liter socket.
※You can also power on & off pressing the power button for about 2 seconds.
If no audio signal is detected for 1 hour, power is automatically off.
2. Turn on the radio and find a frequency that is not being used for broadcasting.
Match the frequency of Sound-fly SD to your radio using button.
3. Connect portable audio device(MP3P, CDP, PMP, PDA, navigation or
mobile phone etc.) to Sound-Fly BT with included stereo cable.
4. Turn on the audio device and press the play( ) button.
5. Set the volume to a reasonable level to get the best signal quality.
※Set the volume of audio device to medium level and control the delicate
volume using radio volume to get the quality sound.
Sound-Fly BT lets you listen to your portable audio devices such as
MP3 player, CD player, portable DVD player, or mobile phone
through any FM radio speaker.
/
Getting Started -With Memory devices
Sound-Fly BT lets you listen to sound files like MP3, WMA in memory devices
such as USB storage, SD card through any FM radio speaker.
1. Automatically power is on once you put Sound-Fly BT into the car cigarette
liter socket.
※You can also power on & off pressing the power button for about 2 seconds.
If no audio signal is detected for 1 hour, power is automatically off.
56
/
3. Plug USB storage or SD card into Sound-Fly BT,
※USB port is placed at the bottom & SD slot is placed on the right side of
Sound-Fly BT.
Music files(MP3 & WMA file) stored in the memory devices are automatically
played. Sound-Fly BT Supports only MP3 and WMA file, the other types of
files and the files locked by DRM are not played. (format type: FAT32)
* Using USB storage
- Recognize up to 32GByte, 1999files.
- Support directory loading up to 5-level depth, Max 20 directories.
* Using SD, MMC card
- Recognize up to 16GByte(SDHC), 1999files.
- Support directory loading up to 5-level depth, Max 20 directories.
* Using another type of memory devoces (CF memory stick)
- You need to connect special proper USB converter.
* Using portable hard disk
- When you use portable hard disk, you need to divide the disk into
under 32Gbyte and format it with FAT32. Sound-fly recognizes only
the first drive under 32Gbyte so you need to store the files in the first drive.
2. Turn on the radio and find a frequency that is not being used for broadcasting.
Match the frequency of Sound-fly SD to your radio using button.
78
[The way to lessen noise]
1. Do not expose it to direct sunshine.
2. Do not put Sound-fly near a magnet or the devices which makes strong
electric power.
3. Select the frequency that is not being used for broadcasting.
[Directory shift] -Search Defined Folder & Play
- Sound-fly BT has the feature that plays the music files only in defined folder.
and moves to the other directories.
- It lets you put the files in order and use conveniently.
1. Make the folder, named MP3 or Soundfly.
2. Make the subfolders belonging main folders.
It’s better if you store about 20 files in one subfolder to find the files easily.
3. You can search the files you want fast and easily with directory shift feature
even if you stored numerous files.
