DGebrauchsanweisung

Turbotrimmer

GB Operating Instructions

Turbotrimmer

FMode d’emploi

Turbofil

NL Gebruiksaanwijzing

Turbotrimmer

SBruksanvisning

Turbotrimmer

IIstruzioni per l’uso

Turbotrimmer

EManual de instrucciones

Turbotrimmer

PInstruções de utilização

Turbotrimmer

DK Brugsanvisning

Turbotrimmer

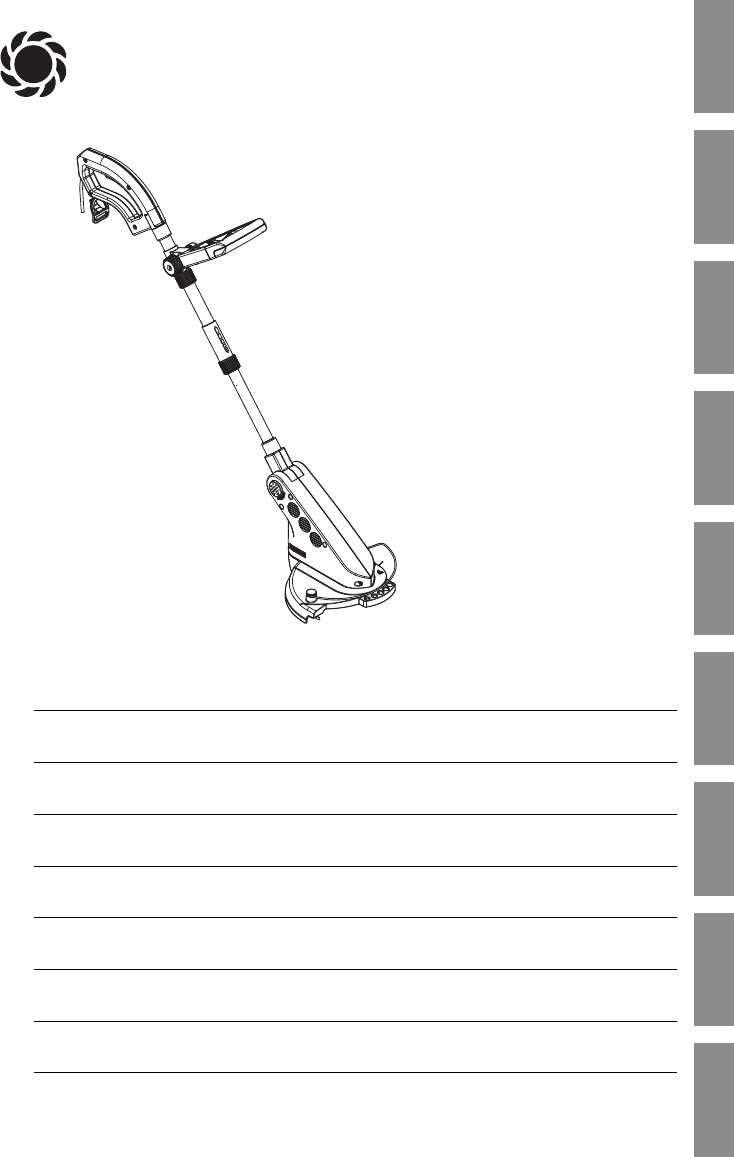

powerCut Art. 2404

GARDENA®

Proper use

Please note

GARDENA Turbotrimmer powerCut

Welcome to the Garden of GARDENA...

Please read these operating instructions carefully and observe

the notes given. Use these operating instructions to familiarise

yourself with the Turbotrimmer, its proper use and the notes on

safety.

For safety reasons, children under the age of 16 or people who

are not familiar with these operating instructions should not use

this Turbotrimmer.

vPlease keep these operating instructions in a safe place.

1. Where to Use Your GARDENA Turbotrimmer . . . . . . . . . . . . . . . . . 9

2. For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

4. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5. Trouble-Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

8. Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

9. Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1. Where to Use Your GARDENA Turbotrimmer

The GARDENA Turbotrimmer is designed for trimming and cut-

ting areas of grass and lawns in private house and hobby gardens.

The Turbotrimmer must not be used in public facilities, parks,

sports grounds, next to roads or in agriculture or forestry.

For safety reasons, the GARDENA Turbotrimmer must not

be used for hedge trimming or for shredding for compost-

ing.

Contents

2. For Your Safety

vPlease read the notes on safety on the Turbotrimmer.

Caution!

VAlways read the oper-

ating instructions

before using your

Turbotrimmer.

Danger!

Risk of electric shock!

VKeep your Turbotrimmer

away from water and

rain!

Danger! Risk of injury

to other people!

VKeep other people out of the area where

you are working.

Danger! Tool does not

stop immediately when

turned off!

VKeep your hands and

feet out of the area where you are working

until the cutting filament is stationary!

Danger!

Risk of injury to eyes!

VAlways wear eye pro-

tection!

Filament feed (Tip mechanism

for automatic filament feed):

Risk of injury!

Connecting the Turbotrimmer:

Setting the Turbotrimmer

to the working position:

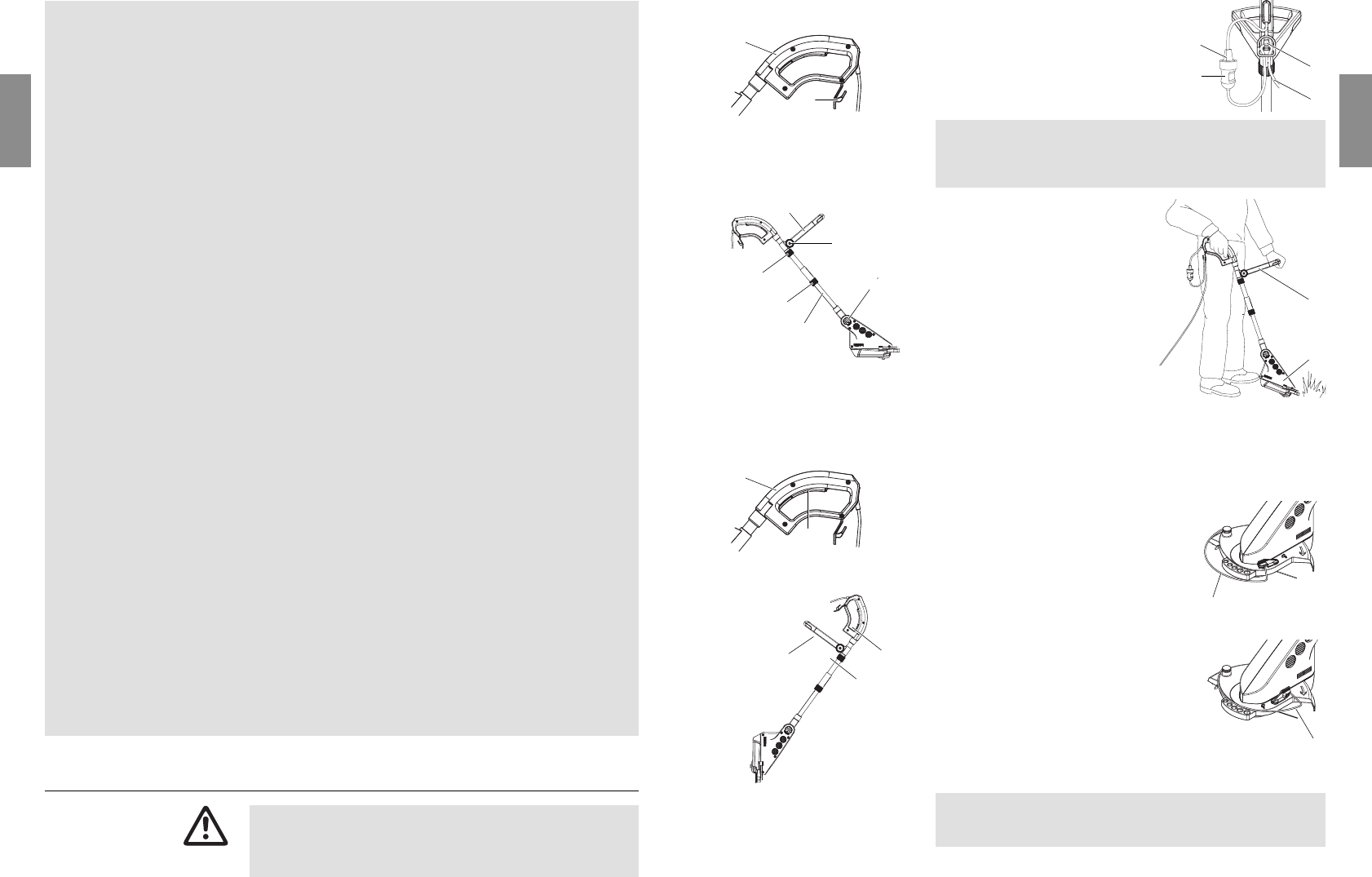

1. Push the extension cable 1into

the cable lock 2on the handle 3.

2. Plug the plug 4of the Turbo-

trimmer into the socket 5of the

extension cable.

Working position:

Position the additional handle 6so that the cutting head 7is

tilted slightly forward when you hold the Turbotrimmer in the

working position.

1. Unscrew the tightening nut 8,

move the additional handle 6

to the correct position and tighten

the nut 8by hand.

2. Unscrew the adjusting nut 9,

set the additional handle 6to

the correct angle and tighten

the adjusting nut 9by hand.

3. Unscrew the tightening nut 0,

adjust the handle Ato the

correct length and tighten the

nut 0by hand.

4. Press and hold down the adjusting

button B, set the cutting head 7

to the correct angle, then release the adjusting button B.

1. Press the start button Con the handle 3.

The Turbotrimmer starts.

2. Release the start button Con the handle 3.

The Turbotrimmer switches off.

1. For vertical cutting, loosen the tighten-

ing nut 8, turn the additional handle 6

180° and then tighten the nut 8again

by hand.

2. Swivel the plant guard Dbackwards to

the park position until it clicks into place.

3. Lift the Turbotrimmer by the handle 3

and additional handle 6and turn to the

cutting position.

4. When trimming between paving stones,

hold the Turbotrimmer so that the cutting

filament moves slightly above the paved

ground.

The filament is lengthened automatically when the motor is

running using a tip mechanism. A clean cut is only achieved

with the maximum filament length.

Check your Turbotrimmer before each use

vAlways visually inspect your Turbotrimmer

before each use.

vCheck that the ventilation slots are not

obstructed in any way.

Do not use your Turbotrimmer if the safety

devices (push button, safety cover) and/or

the filament cassette are damaged or

worn.

vNever bypass the safety devices.

vInspect the area to be cut before you begin

work. Remove any foreign objects (such

as stones). Look out for foreign objects

(such as stones) while you are working.

vIf you should come across an obstacle

while cutting, turn off the Turbotrimmer.

Remove the object and check the Turbo-

trimmer for any damage. If necessary

have your Turbotrimmer repaired.

Use / responsibility

The Turbotrimmer can cause serious injuries.

vUse the Turbotrimmer only for the purpose

specified in these operating instructions.

You are responsible for the safety in the area

where you are working.

vEnsure that there are no other people

(especially children) or animals within or

near the area where you are working.

vNever use the Turbotrimmer if the safety

devices are damaged or defective.

Unplug the mains plug after use and check

your Turbotrimmer, especially the filament

cassette, regularly for damage. Have your

Turbotrimmer repaired and/or replace the

filament cassette if necessary.

vAlways wear an eye shield or safety

goggles!

vWear sturdy shoes and long trousers to

protect your legs. Keep your fingers and

feet away from the cutting filament –

above all when starting work.

vAlways ensure that you have a secure

foothold whilst working.

vKeep the extension cable away from the

area you are cutting.

Take extra care when walking backwards.

You may stumble!

vOnly work in the daylight or when visibility

is good.

Interrupting work

Never leave the Turbotrimmer unattended

where you are working.

vIf you stop work, unplug the mains plug

and store your Turbotrimmer in a safe

place.

vIf you stop work in order to move to

another part of the garden, always switch

off the Turbotrimmer, wait until the tool

stops and then unplug the mains plug.

Familiarise yourself with the surroundings

vFamiliarise yourself with the surroundings

and look out for possible dangers which

you may not hear due to machine noise.

vNever use the Turbotrimmer when it is

raining or in damp, wet areas.

vDo not operate your Turbotrimmer directly

next to swimming pools or garden ponds.

Electrical safety

Check the power cord regularly for damage

and signs of wear and tear.

Do not use your Turbotrimmer if the power

cord is damaged.

vIf the mains cord or extension cable is

damaged while you are working, unplug

the mains plug immediately.

Do not touch the cable until the mains plug

is switched off.

The socket of the extension cable you are

using must be waterproof.

vOnly use permitted extension cables.

vAsk your electrician.

For all portable units that are operated out-

doors we recommend using a fault circuit

breaker.

In Switzerland the use of a residual-current

device is obligatory.

Starting your Turbotrimmer:

Trimming along lawn edges

and in awkward places:

Cutting

position

Park

position D

3. Operation

Risk of injury if the Turbotrimmer does not switch off when

you release the start button.

VNever bypass the safety devices (by binding the start

button to the handle, for example).

Replacing the filament

cassette:

Risk of injury!

Pulling the filament

out of the filament cassette:

5. Trouble-Shooting

Risk of injury from the cutting filament!

VAlways unplug the mains plug of the Turbotrimmer be-

fore troubleshooting.

If a filament is drawn into the filament cassette you can pull it out

again as described below.

1. Unplug the mains plug.

2. Remove the filament cassette as described under 4. Mainte-

nance

“Replacing the filament cassette” .

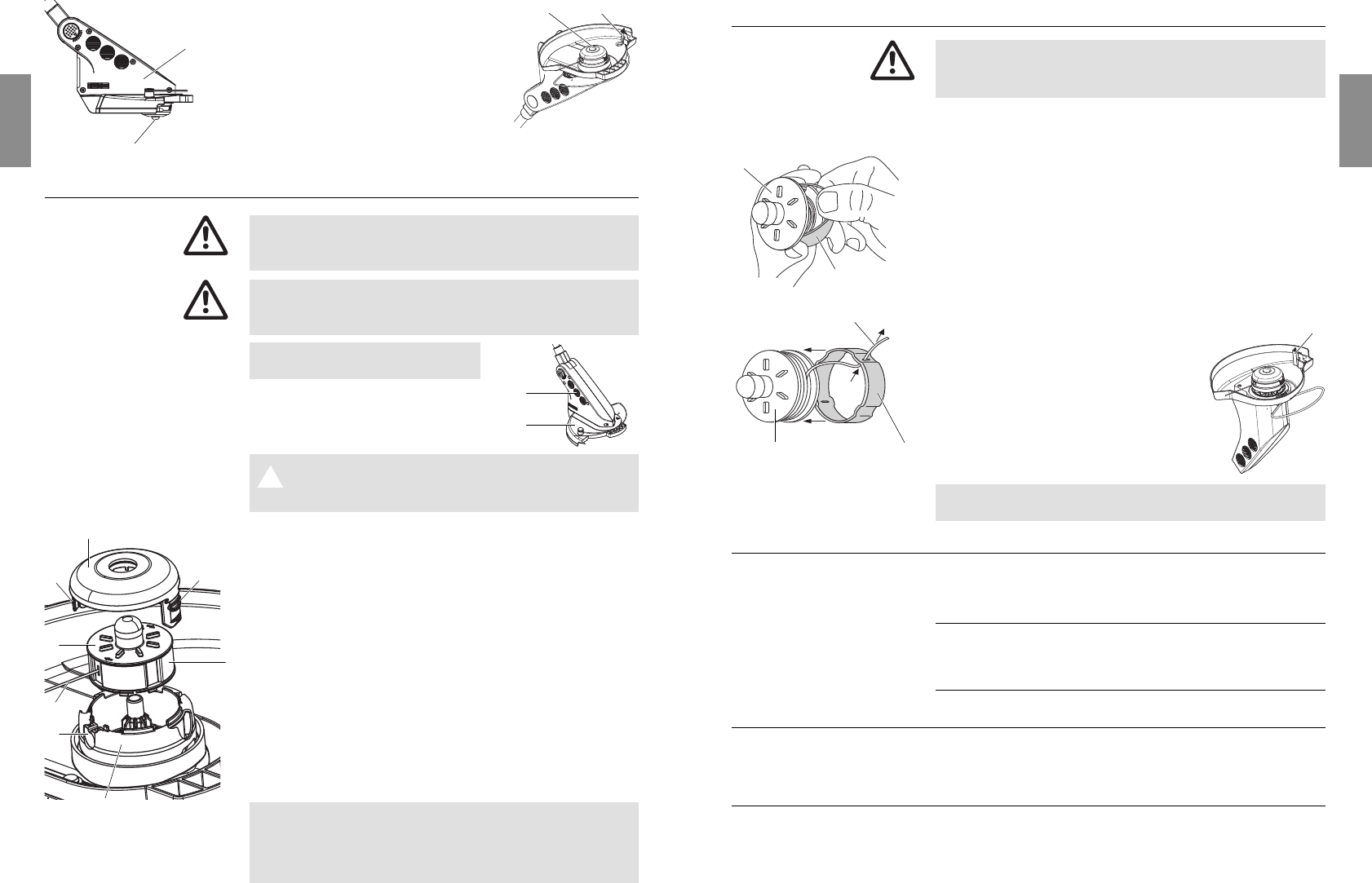

3. Press together the plastic ring Lon the filament cassette E

between your thumb and forefinger.

4. Draw the plastic ring Lwith the thumb of the other hand over

the side part of the filament cassette E(use a screwdriver

if necessary).

You can now access the filament that was drawn into the fila-

ment cassette.

5. Unwind the filament Kapproximately 10 cm and thread

it through the eye of the plastic ring L. If ne-

cessary, loosen the filament beforehand

using a screwdriver. The filament K

may stand out max. 2 cm over the

knife F.

6. Pull the plastic ring Lback over the

filament cassette E.

7. Reinstall the filament cassette as described

under 4. Mainte-nance

“Replacing the

filament cassette”.

Only GARDENA Service Centres and authorised specialist

GARDENA dealers may carry out repairs.

Fault Possible cause Remedy

The Turbotrimmer Filament worn or too short. vLengthen the filament –

no longer cuts. see 3. Operation

“Filament

feed (Tip mechanism for

automatic filament feed

)”.

Filament cassette empty. vReplace the filament cassette

– see 4. Maintenance

“Replacing the filament

cassette”

Filament drawn into the vPull the filament out of the

cassette or stuck together. filament cassette (see above).

If you have any other problems please contact the GARDENA Customer Service.

6. Storage

The Turbotrimmer must be stored out of the reach of children.

vStore your Turbotrimmer in a dry place where it is protected

from frost.

Risk of injury!

Cleaning the cover

and ventilation slots:

1. Leave the motor running.

2. Hold the cutting head 7parallel to the

ground and tap the filament cassette E

of the Turbotrimmer on the ground

several times in succession (approx.

3 times) (avoid applying sustained

pressure to the Turbotrimmer).

The filament is lengthened automatically.

Listen for the audible switching action.

The filament limiter Fadjusts the filament to the correct length.

4. Maintenance

There is a risk of injury from the cutting filament!

VAlways unplug the mains plug of the Turbotrimmer be-

fore carrying out maintenance work!

Risk of injury and risk of damage to property!

VNever clean the Turbotrimmer under running water or

with a water jet (in particular a high pressure water jet).

The ventilation slots must always

be free of dirt.

vRemove any grass and dirt from

the cover Gand ventilation slots H

after each use.

Risk of injury!

AVNever use metallic cutting elements or replacement

parts and accessories not provided by GARDENA.

Only use original GARDENA Filament Cassettes.You can

order Replacement Filament Cassettes from your GARDENA

dealer or directly from the GARDENA Customer Service.

•Filament Cassette for Turbotrimmer powerCut: Art. No. 5367-20

1. Unplug the mains plug.

2. Turn over the Turbotrimmer and rest it on the rubber buffer

of the handle.

3. Release the cassette cover Iby pressing both locking clips J

and remove the cover.

4. Remove the filament cassette E.

5. Remove any dirt.

6. Pull approximately 5 cm of the filament Kout of the new

filament cassette Ethrough the hole in the plastic ring L.

7. Insert the filament cassette Ein the filament cassette holder M

so that the filament Kis inside the metal case N.

8. Fit the cassette cover Ion the filament cassette holder Mso

that you hear both locking clips Jclick into place.

When replacing the cover, ensure that the filament is inside the

metal case and is not trapped.

vIf the cassette cover Icannot be touched down, turn the

filament cassette Eto and fro, until the filament cassette E

is completely in the filament cassette holder M.

Recommended storage:

We recommend that you hang your Turbotrimmer from the cable

lock. Hanging storage helps avoid unnecessary stress on the

cutting head.

7. Accessories

GARDENA Additional wheels Support the Trimmer from Art. No. 2410-20

for powerCut below for effortless trimming.

8. Technical Data

powerCut (Art. 2404)

Motor power consumption 500 W

Mains voltage /

mains frequency 230 V / 50-60 Hz

Filament thickness 2 mm

Cutting width 270 mm

Filament supply 4.0 m

Filament feed Tip mechanism

Weight 2.8 kg

Rpm of filament cassette 9,600 rpm

Work area related emission

characteristic value LpA1) 85 dB (A)

Noise level LWA2) 95 dB (A)

Hand / arm vibration avhw1) < 2.5 m/s2

Measuring method according to 1) EN 786 2) directive 2000/14/EC

9. Service

GARDENA guarantees this product for 2 years (from date of

purchase). This guarantee covers all serious defects of the unit

that can be proved to be material or manufacturing faults. Under

warranty we will either replace the unit or repair it free of charge

if the following conditions apply:

•The unit must have been handled properly and in keeping with

the requirements of the operating instructions.

•Neither the purchaser or a non-authorised third party have

attempted to repair the unit.

The filament cassette and cassette cover are wearing parts and

are therefore not covered by the warranty.

This manufacturer’s guarantee does not affect the user’s existing

warranty claims against the dealer/seller.

If a fault occurs with your Turbotrimmer, please return the faulty

unit together with a copy of the receipt and a description of

the fault, with postage paid to one of the GARDENA Service

Centres listed on the back of these operating instructions.

Warranty

6362

DEU-Konformitätserklärung

MMaasscchhiinneennVVeerroorrddnnuunngg ((99.. GGSSGGVVOO)) // EEMMVVGG // NNiieeddeerrsspp.. RRLL

Der Unterzeichnete GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, bestätigt, dass das nachfolgend bezeichnete Gerät in der von

uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten

EU-Richtlinien, EU-Sicherheitsstandards und produktspezifischen Standards

erfüllt. Bei einer nicht mit uns abgestimmten Änderung des Gerätes verliert

diese Erklärung ihre Gültigkeit.

GEU Certificate of Conformity

The undersigned GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, hereby certifies that, when leaving our factory, the unit indicated

below is in accordance with the harmonised EU guidelines, EU standards of

safety and product specific standards. This certificate becomes void if the unit

is modified without our approval.

FCertificat de conformité aux directives européennes

Le constructeur, soussigné : GARDENA International GmbH, Hans-Lorenser-

Str. 40, D-89079 Ulm, déclare qu’à la sortie de ses usines le matériel neuf

désigné ci-dessous était conforme aux prescriptions des directives europé-

ennes énoncées ci-après et conforme aux règles de sécurité et autres règles

qui lui sont applicables dans le cadre de l’Union européenne. Toute modifica-

tion portée sur ce produit sans l’accord express de GARDENA supprime la

validité de ce certificat.

NEU-overeenstemmingsverklaring

Ondergetekende GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, bevestigt, dat het volgende genoemde apparaat in de door ons

in de handel gebrachte uitvoering voldoet aan de eis van, en in overeenstem-

ming is met de EU-richtlijnen, de EU-veiligheidsstandaard en de voor het pro-

duct specifieke standaard. Bij een niet met ons afgestemde verandering aan

het apparaat verliest deze verklaring haar geldigheid.

SEU Tillverkarintyg

Undertecknad firma GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, intygar härmed att nedan nämnda produkter överensstämmer

med EU:s direktiv, EU:s säkerhetsstandard och produktspecifikation. Detta

intyg upphör att gälla om produkten ändras utan vårt tillstånd.

IDichiarazione di conformità alle norme UE

La sottoscritta GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, certifica che il prodotto qui di seguito indicato, nei modelli da noi

commercializzati, è conforme alle direttive armonizzate UE nonché agli stan-

dard di sicurezza e agli standard specifici di prodotto. Qualunque modifica

apportata al prodotto senza nostra specifica autorizzazione invalida la presente

dichiarazione.

EDeclaración de conformidad de la UE

El que subscribe GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm, declara que la presente mercancía, objeto de la presente de-

claración, cumple con todas las normas de la UE, en lo que a normas técni-

cas, de homologación y de seguridad se refiere. En caso de realizar cualquier

modificación en la presente mercancía sin nuestra previa autorización, esta

declaración pierde su validez.

PCertificado de conformidade da UE

Os abaixo mencionados GARDENA International GmbH, Hans-Lorenser-

Str. 40, D-89079 Ulm, por este meio certificam que ao sair da fábrica o apa-

relho abaixo mencionado está de acordo com as directrizes harmonizadas da

UE, padrões de segurança e de produtos específicos. Este certificado ficará

nulo se a unidade for modificada sem a nossa aprovação.

KEU Overensstemmelse certificat

Undertegnede GARDENA International GmbH, Hans-Lorenser-Str. 40,

D-89079 Ulm bekræfter hermed, at enheder listet herunder, ved afsendelse

fra fabrikken, er i overensstemmelse med harmoniserede EU retningslinier,

EU sikkerhedsstandarder og produktspecifikationsstandarder. Dette certifikat

træder ud af kraft hvis enhederne er ændret uden vor godkendelse.

Bezeichnung des Gerätes: Turbotrimmer

Description of the unit: Turbotrimmer

Désignation du matériel : Turbofil

Omschrijving van het apparaat: Turbotrimmer

Produktbeskrivning: Turbotrimmer

Descrizione del prodotto: Turbotrimmer

Descripción de la mercancía: Turbotrimmer

Descrição do aparelho: Turbotrimmer

Beskrivelse af enhederne: Turbotrimmer

Typ: Art.-Nr.:

Ty pe : A r t. N o. :

Type : Référence :

Typ: Art. nr.:

Typ : powerCut Art.nr. : 2404

Modello: Art. :

Tipo: Art. Nº:

Type: Varenr. :

EU-Richtlinien: 98/37/EC

EU directives:

Directives européennes : 89/336/EC

EU-richtlijnen:

EU direktiv: 73/23/EC

Direttive UE:

Normativa UE: 93/68/EC

Directrizes da UE:

EU Retningslinier: 2000/14/EC

Schall-Leistungspegel: gemessen / garantiert

Noise level: measured / guaranteed

Puissance acoustique : mesurée / garantie

Geluidsniveau: gemeten / gegarandeerd

Ljudnivå: uppmätt / garanterad

Livello rumorosità: testato / garantito

Nivel sonoro: medido / garantizado

Nível de ruido: medido / garantido

Lydtryksniveau: afmålt / garanti

95 dB (A) / 96 dB (A)

Anbringungsjahr der CE-Kennzeichnung:

Year of CE marking:

Date d’apposition du marquage CE :

Installatiejaar van de CE-aanduiding:

CE-Märkningsår : 2002

Anno di rilascio della certificazione CE:

Colocación del distintivo CE:

Ano de marcação pela CE:

CE-Mærkningsår :

Thomas Heinl

Ulm, den 09.07.2002 Technische Leitung

Ulm, 09.07.2002 Technical Dept. Manager

Fait à Ulm, le 09.07.2002 Direction technique

Ulm, 09-07-2002 Hoofd technische dienst

Ulm, 2002.07.09. Technical Director

Ulm, 09.07.2002 Direzione Tecnica

Ulm, 09.07.2002 Dirección Técnica

Ulm, 09.07.2002 Director Técnico

Ulm, 09.07.2002 Teknisk direktør

Produkthaftung

Wir weisen ausdrücklich darauf hin, dass wir nach dem Produkthaftungs-

gesetz nicht für durch unsere Geräte hervorgerufene Schäden einzu-

stehen haben, sofern diese durch unsachgemäße Reparatur verursacht

oder bei einem Teileaustausch nicht unsere Original GARDENA Teile oder

von uns freigegebene Teile verwendet werden und die Reparatur nicht

vom GARDENA Service oder dem autorisierten Fachmann durchgeführt

wird. Entsprechendes gilt für Ergänzungsteile und Zubehör.

Product Liability

We expressly point out that, in accordance with the product liability law,

we are not liable for any damage caused by our units if it is due to im-

proper repair or if parts exchanged are not original GARDENA parts

or parts approved by us, and, if the repairs were not carried out by a

GARDENA Service Centre or an authorised specialist. The same applies

to spare parts and accessories.

Responsabilité

Nous vous signalons expressément que GARDENA n’est pas respon-

sable des dommages causés par ses appareils, dans la mesure où ces

dommages seraient causés suite à une réparation non conforme, dans la

mesure où, lors d’un échange de pièces, les pièces d’origine GARDENA

n’auraient pas été utilisées, ou si la réparation n’a pas été effectuée par

le Service Après-Vente GARDENA ou l’un des Centres SAV agréés

GARDENA. Ceci est également valable pour tout ajout de pièces et d’ac-

cessoires autres que ceux préconisés par GARDENA.

Productaansprakelijkheid

Wij wijzen er nadrukkelijk op, dat wij op grond van de wet aansprakelijk-

heid voor producten niet aansprakelijk zijn voor schade ontstaan door onze

apparaten, indien deze door onvakkundige reparatie veroorzaakt zijn, of er

bij het uitwisselen van onderdelen geen gebruik gemaakt werd van onze

originele GARDENA onderdelen of door ons vrijgegeven onderdelen en de

reparatie niet door de GARDENA technische dienst of de bevoegde vak-

man uitgevoerd werd. Ditzelfde geldt voor extra-onderdelen en accessoires.

Produktansvar

Tillverkaren är inte ansvarig för skada som orsakats av produkten om

skadan beror på att produkten har reparerats felaktigt eller om, vid repa-

ration eller utbyte, andra än Original GARDENA reservdelar har använts.

Samma sak gäller för kompletteringsdelar och tillbehör.

Responsabilità

Si rende espressamente noto che, conformemente alla legislazione sulla

del prodotto

responsabilità del prodotto, non si risponde di danni causati da nostri arti-

coli se originati da riparazioni eseguite non correttamente o da sostituzioni

di parti effettuate con materiale non originale GARDENA o comunque da

noi non approvato e, in ogni caso, qualora l’intervento non venga eseguito

da un centro assistenza GARDENA o da personale specializzato autoriz-

zato. Lo stesso vale per le parti complementari e gli accessori.

Responsabilidad

Advertimos que conforme a la ley de responsabilidad de productos no nos

de productos

responsabilizamos de daños causados por nuestros aparatos, siempre

y cuando dichos daños hayan sido originados por arreglos o reparaciones

indebidas, por recambios con piezas que no sean piezas originales

GARDENA o bien piezas autorizadas por nosotros, así como en aquellos

casos en que la reparación no haya sido efectuada por un Servicio Téc-

nico GARDENA o por un técnico autorizado. Lo mismo es aplicable para

las piezas complementarias y accesorios.

Responsabilidade

Queremos salientar que segundo a lei da responsabilidade do fabricante,

sobre o produto

nós não nos responsabilizaremos por danos causados pelo nosso equipa-

mento, quando estes ocorram em decorrência de reparações inadequadas

ou da substituição de peças por peças não originais da GARDENA, ou pe-

ças não autorizadas. A responsabilidade tornar-se-à nula também depois

de reparações realizadas por oficinas não autorizadas pela GARDENA.

Esta restrição valerá também para peças adicionais e acessórios.

Produktansvar

Vi gør udtrykkeligt opmærksom på at i henhold til produktansvarsloven

er vi ikke ansvarlige for skader forårsaget af vores udstyr, hvis det skyldes

uautoriserede reparationer eller hvis dele er skiftet ud og der ikke er an-

vendt originale GARDENA dele eller dele godkendt af os, eller hvis repara-

tionerne ikke er udført af GARDENA-service eller en autoriseret fagmand.

Det samme gælder for ekstra udstyr og tilbehør.

Turbotrimmer powerCut

Art. 2404

Bild Nr.

Picture No.

31/33-35

42- 46

Bezeichnung

Turbotrimmer powerCut

Art.-Nr. 2404

Netzkabel, vollst.

Knickschutztülle

Schalter

Spiralkabel

Griff, links

Griff, rechts

Kabelzugentlastung

Taste

Zargenpuffer

Blechschraube 4,2 x19-C-H

Spannmutter

Zusatzgriff, gross

Blechschraube 4,2 x19-C-H

Flachrundschraube M8 x70

Kappe

Stellteil

Klemmutter

Teleskopstiel, kpl.

Gelenk, links

Gelenk, rechts

Druckfeder

Rastknopf

Elektromotor

Traverse

Kombischraube M4 x12

Lüfter

Zahnriemenscheibe

Sicherungsring

Zahnriemen

Sicherungsring 8 x 0,8

Kugellager

Spulenhalter, kpl.

Hülse

Druckfeder

Hülse für Schneidkopf

Spule, kpl. (Art. 5367-20)

Deckel, rot

Gummilager

Gehäuse, links

Gehäuse, rechts

Blechschraube 4,2 x38

Abdeckung, kpl.

Messer

Description

Turbotrimmer powerCut

Art.-Nr. 2404

Mains lead, cpl.

Bending safety socket

Switch

Helix cable

Handle, left

Handle, right

Cable pull relief

Button

Border buffer

Sheet metal screw 4,2 x19-C-H

Clamping nut

Extension handle, big

Sheet metal screw 4,2 x19-C-H

Truss-head screw M8 x70

Cap

Operating element

Lock nut

Telescope handle, cpl.

Joint, left

Joint, right

Pressure spring

Rest button

Electric motor

Cross arm

Screw M4 x12

Ventilator

Tooth lock washer

Locking ring

Toothed belt

Locking ring 8 x 0,8

Ball bearing

Reel holder, cpl.

Bush

Pressure spring

Bush

Reel, cpl. (Art. 5367-20)

Cover, red

Rubber bearing

Case, left

Case, right

Sheet metal screw 4,2 x38

Covering, cpl.

Blade

Ersatzteil-Nr.

Spare Part No.

2390-00.074.00

2300-00.600.21

2402-00.600.52

2402-00.600.16

2402-00.600.21

2402-00.600.31

2402-00.600.26

2390-00.070.16

2546-00.600.28

2404-00.610.16

2404-00.610.01

410-00.000.38

2404-00.610.21

2404-00.600.88

2404-00.610.11

2404-00.600.16

2404-00.600.21

2179-00.600.65

2404-00.600.26

2404-00.600.76

2404-00.600.86

2404-00.600.66

2404-00.600.77

2404-00.600.87

2404-00.600.78

4062-00.630.11

2548-00.612.05

2404-00.788.00

4062-00.650.11

2555-00.600.73

2402-00.600.57

2404-00.640.00

2402-00.600.41

2404-00.600.98

2404-00.600.01

2404-00.700.06

1182-00.600.02

2404-00.710.00

2555-00.600.23

Achtung! Die mit #gekennzeichneten Ersatzteile dürfen ausschliesslich von einer Elektrofach-

kraft nach Vorgabe des Herstellers unter Berücksichtigung der gesetzlichen Vorschriften

ersetzt werden.

Attention! Those with #of marked spare parts may be replaced exclusively from an electrical

specialist to default of the manufacturer with consideration of the laws.

Deutschland

GARDENA International GmbH

Service Center

Hans-Lorenser-Str. 40

89079 Ulm

Produktfragen: (07 31) 490-123

Reparaturen: (07 31) 490-290

Argentina

Argensem S.A.

Calle Colonia Japonesa s/n

(1625) Loma Verde - Buenos Aires

Australia

NYLEX Consumer Division

76-88 Mills Road

P.O. Box 722

Braeside 3195

Melbourne, Victoria

Austria

GARDENA Österreich Ges. m.b.H.

Stettnerweg 11-15

2100 Korneuburg

Belgium

MARKT (Belgium) NV/SA

Sterrebeekstraat 163

1930 Zaventem

Brazil

RGS Comercial Ltda

Av. Marginal do Rio Pinheiros, 5200

Edificio Montreal - Bloco e - Terreo

05693-000 - Sao Paulo - SP

Bulgaria / България

ДЕНЕКС ООД

Бул. ”Г.М.Димитров” 16 ет.4

София 1797

Canada

GARDENA Canada Ltd.

100 Summerlea Road

Brampton, Ontario

Canada L6T 4X3

Chile

Antonio Martinic Y CIA. LTDA.

Gilberto Fuenzalida 185 Loc.

Las Condes - Santiago de Chile

Costa Rica

Compania Exim

Euroiberoamericana S.A.

Av. 12 bis Calle 16 y 18,

Bodegas Keith y Ramirez

San José

Cyprus

FARMOKIPIKI LTD

P.O. Box 7098

74, Digeni Akrita Ave.

1641 Nicosia

Czech Republic

GARDENA spol. s.r.o.

Шнpskб 20a, и.p. 1153

62700 Brno

Denmark

GARDENA Danmark A/S

Naverland 8

2600 Glostrup

Finland

Habitec Oy

Martinkyläntie 52

01720 Vantaa

France

GARDENA France

Service Après-Vente

BP 50080

95948 ROISSY CDG Cedex

Great Britain

GARDENA UK Ltd.

27-28 Brenkley Way

Blezard Business Park

Seaton Burn

Newcastle upon Tyne NE13 6DS

Greece

Agrokip G. Psomadopoulos & Co.

33 A, Ifestou str. – 194 00

Industrial Area Koropi

Athens

Hungary

GARDENA Magyarország Kft.

Késmárk utca 22

1158 Budapest

Iceland

Heimilistaeki hf

Saetun 8

P.O. Box 5340

125 Reykjavik

Republic of Ireland

Michael McLoughlin & Sons

Hardware Limited

Long Mile Road

Dublin 12

Italy

GARDENA Italia S.p.A.

Via Donizetti 22

20020 Lainate (Mi)

Japan

KAKUDAI Mfg. Co. Ltd.

1-4-4, Itachibori Nishi-ku

Osaka 550

Luxembourg

Magasins Jules Neuberg

Grand Rue 30

Case Postale No. 12

Luxembourg 2010

Netherlands

GARDENA Nederland B.V.

Postbus 50176

1305 AD ALMERE

Neth. Antilles

Jonka Enterprises N.V.

Sta. Rosa Weg 196

P.O. Box 8200

Curaçao

New Zealand

NYLEX New Zealand Limited

Private Bag 94001

South Auckland Mail Centre

10 Offenhauser Drive

East Tamaki, Manukau

Norway

GARDENA Norge A/S

Postboks 214

2013 Skjetten

Poland

GARDENA Polska Sp. z o.o.

Szymanów 9 d

05-532 Baniocha

Portugal

GARDENA Portugal, Lda.

Recta da Granja do Marquês

Edif. GARDENA

Algueirão

2725-596 Mem Martins

Russia / Россия

АО АМИДА ТТЦ

ул. Моcфилмовcкая 66

117330 Моcква

Singapore

Hy - Ray Enterprises

Block 1002 Toa Payoh

Industrial Park

#07-1433 /1435 /1451

Singapore 319074

Slowenia / Croatia

Silk d.o.o. Trgovina

Brodišče 15

1236 Trzin

South Africa

GARDENA South Africa (Pty.) Ltd.

P.O. Box 11534

Vorna Valley 1686

Spain

GARDENA IBÉRICA S.L.U.

C/ Basauri, nº 6

La Florida

28023 Madrid

Sweden

GARDENA Norden AB

Box 9003

20039 Malmö

Switzerland

GARDENA AG

Bitziberg 1

8184 Bachenbülach

Ukraine / Украина

АОЗТ АЛЬЦЕСТ

ул. Гайдара 50

г. Киев 01033

Turkey

GARDENA /Dost Diþ Ticaret

Mümessillik A.Þ.

Yeþilbaðlar Mah. Baþkent

Cad. No. 26

Pendik - Ýstanbul

USA

GARDENA

3085 Shawnee Drive

Winchester, VA 22604

2404-20.960.04 /0031

D-89070 Ulm

http://www.gardena.com

Gardena Lawn Mower Users Manual 2404 20.960.04_01.12.2003

!! Gardena-19 Gardena Lawn Mower Manuals - Lawn Mower Manuals – The Best Lawn Mower Manuals Collection

Lawn Mower to the manual edf88f06-0c9b-4f47-99cf-9a197bc21d55

Navigation menu

Versions of this User Manual:

Views

Navigation
