D52Q ANT Module
Part of the D52 Module Series from Dynastream Innovations
ANT® Operation (using the latest s212 or s332 SoftDevice)
79 selectable RF channels (2402 to 2480 MHz)
(preliminary)
Flexible network topologies: peer-to-peer, star, tree,
high node count, mesh and more
Broadcast, acknowledged, and burst data
communication modes
Built-in device search and pairing
Built-in interference handling and radio coexistence
management with application radio disable requests
and application flash write/erase requests
Enhanced ANT features:
o Supports up to 15 logical channels each with
configurable channel periods (5.2ms - 2s)
o Advanced burst data transfer modes (up to
60kbps)
o Optional channel encryption mode (aes-128)
o Supports up to 8 public, private and/or managed
networks
o Advanced power management features to
optimize application power consumption including
Event Filtering and Selective Data Updates
o Asynchronous transmit channel
o Fast channel initiation
ANT/Bluetooth® Smart operation (when loaded with the
latest s3XX soft-device)
ANT operation functions as S212
Bluetooth 4.2 compliant low energy single-mode
protocol stack suitable for Bluetooth Smart products
o Concurrent Central, Observer, Peripheral, and
Broadcaster roles with up to:
Multiple connections as a central
One connection as a peripheral
Observer
Broadcaster
o Link layer
o L2CAP, ATT, and SM protocols
o GATT and GAP APIs
o GATT Client and Server
[future: module picture]
Module Hardware
20 x 20 x 2.7mm module using the nRF52832 chip from
Nordic Semiconductor in two SKUs:
o D52QD2M4IA – Module
o D52QD2M4IA-A – Module + accelerometer
o Layout compatible with N5 M4, AP2, C7
o Additional LGA pads for extended nRF52 features
Integrated printed antenna
On-board 32.768 kHz and 32 MHz crystal clocks
Supply Voltage range:
o 1.7V to 3.6V
o 1.71V to 3.6V when using accelerometer
Internal DC/DC converter supported
Operating temperature: Industrial (-40°C to +85°C)
29 GPIOs
o 23 GPIOs for accelerometer SKU
Programmable output per channel from -20dBm up to
4dBm
Excellent receiver sensitivity
o –92.5dBm ANT mode
o –96.5dBm BLE mode
1dBm resolution RSSI
Total 512kB flash, 64kB RAM
SPI, I2C and UART interface
ARM SWD interface
Available onboard ST LIS2DH accelerometer
o 3-axis MEMS accelerometer
o 2 programmable interrupt pins
Radio regulatory approval for major markets
(engineering samples are provided pre-certification)
BLUETOOTH SIG qualification
RoHS compliant
D00001675 D52Q ANT Module OEM/Integrators Installation Manual / Data sheet Rev 0.4
Page 2 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
1 Table of Contents
D52Q ANT Module ................................................................................................................................................................. 1
2 Table of Figures ............................................................................................................................................................ 4
3 List of Tables ................................................................................................................................................................. 4
4 Notices and Restricted use Information .................................................................................................................... 5
4.1 Preliminary Data Sheet ................................................................................................................................. 5
4.2 Notices and restricted use:............................................................................................................................ 5
4.3 Warranty Information ................................................................................................................................... 5
4.4 SoftDevice Licensing and Use ........................................................................................................................ 6
4.5 Regulatory Compliance Information (TBD) ..................................................................................................... 6
5 D52 ANT SoC Module Family Overview ...................................................................................................................... 7
6 D52Q ANT SoC Module Overview ............................................................................................................................... 7
6.1 Nomenclature ............................................................................................................................................... 8
6.2 Production Tracking Code ............................................................................................................................. 8
6.3 Models ......................................................................................................................................................... 8
6.4 D52 ANT SoC Module Starter Kits and Components ........................................................................................ 8
7 Product Overview ......................................................................................................................................................... 9
7.1 Block Diagrams ............................................................................................................................................ 9
7.2 Pin-outs ..................................................................................................................................................... 10
7.3 (Optional) Accelerometer Specification ........................................................................................................ 12
7.4 Preloaded Software .................................................................................................................................... 12
7.5 D52 Module Programming ........................................................................................................................... 13
7.5.1 Programming via SWD interface .................................................................................................... 13
7.5.2 Initializing the SoftDevice ............................................................................................................. 14
7.5.3 Configuring the dc/dc converter .................................................................................................... 14
7.6 Design considerations ................................................................................................................................. 14
7.6.1 M4 (D52Q) module mounting ....................................................................................................... 14
7.6.2 M6 module mounting ................................................................................................................... 14
7.7 Assembly Considerations ............................................................................................................................. 14
7.7.1 Moisture Control ........................................................................................................................... 14
7.7.2 Solder Stencil Design of D52Q (M4) Module................................................................................... 14
7.7.3 Cleaning Process .......................................................................................................................... 14
8 Regulatory Approvals and Compliance ................................................................................................................... 14
8.1 United States ............................................................................................................................................. 15
8.2 Canada ...................................................................................................................................................... 15
8.3 European Economic Area ............................................................................................................................ 16
8.4 Australia and New Zealand .......................................................................................................................... 16
8.5 Japan ......................................................................................................................................................... 16
8.6 BLUETOOTH Qualification ........................................................................................................................... 16
9 Electrical Specifications ............................................................................................................................................ 16
Page 3 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
9.1 Absolute Maximum Ratings ......................................................................................................................... 16
9.2 Recommended Operating Conditions ........................................................................................................... 16
9.3 Radio Operation Specifications and Antenna Characteristics.......................................................................... 16
9.4 Electrical Specifications ............................................................................................................................... 17

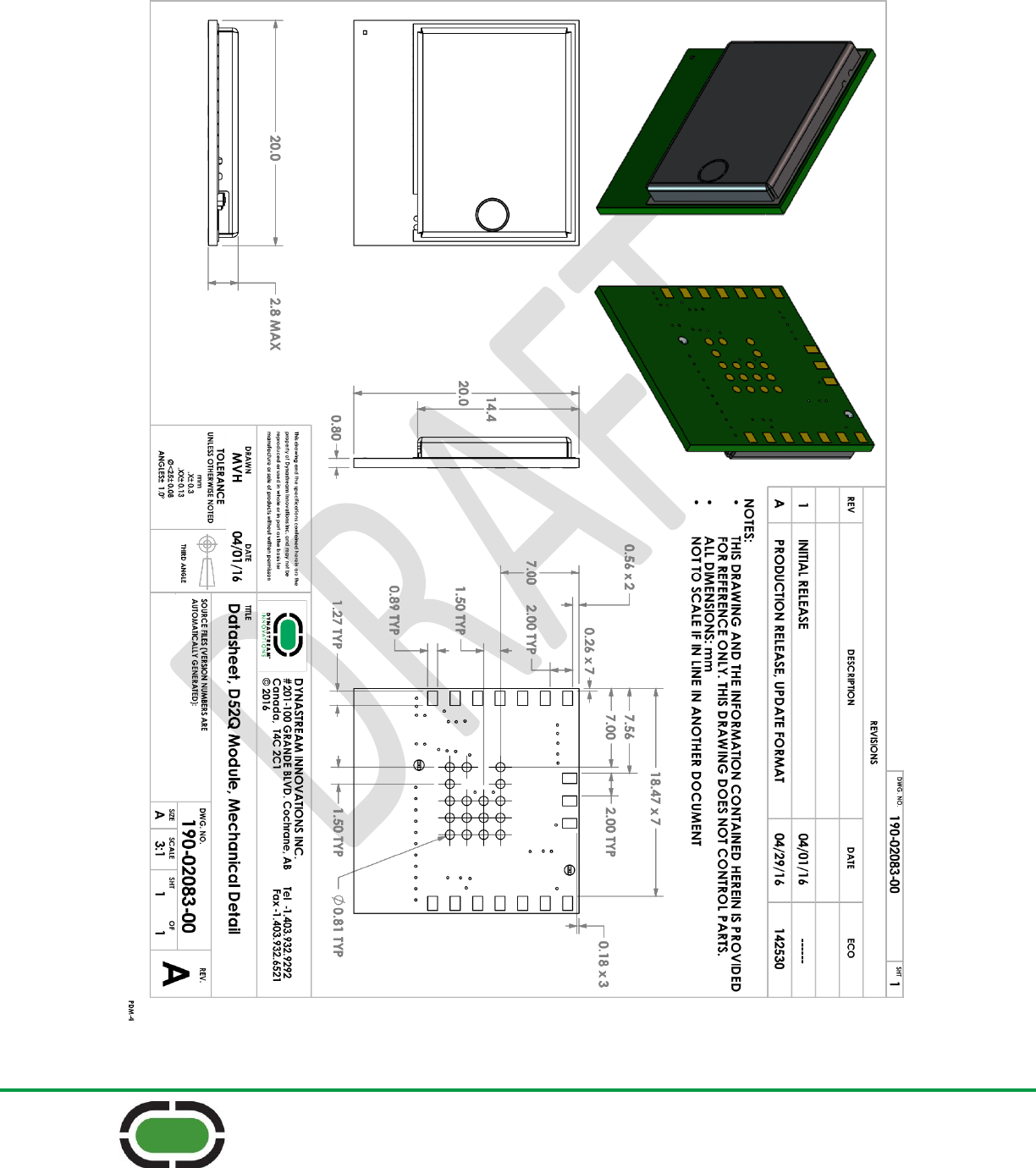

10 Mechanical Drawings ................................................................................................................................................ 18
11 Support ...................................................................................................................................................................... 19
11.1 ANT Forum ............................................................................................................................................ 19
11.2 Technical References ............................................................................................................................. 19
11.3 ANT Developer’s Zone ............................................................................................................................ 19
11.4 ANT and ANT+ Social Media................................................................................................................... 19
12 Appendix A – Using the ANT Network Processor Configuration ........................................................................... 20
13 Appendix C – D52Q Module Pre-Loaded Software Versions ................................................................................. 20
Page 4 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
2 Table of Figures
Figure 1: D52Q Module Nomenclature ......................................................................................................... 8
Figure 2: D52QD2M4IA-A (with accelerometer) Module Block Diagram ......................................................... 9
Figure 3: D52QD2M4IA Module Block Diagram ............................................................................................ 9
Figure 4: D52Q M4 Bottom View ............................................................................................................... 10
Figure 5: D52Q M6 - Top View .................................................................................................................. 10

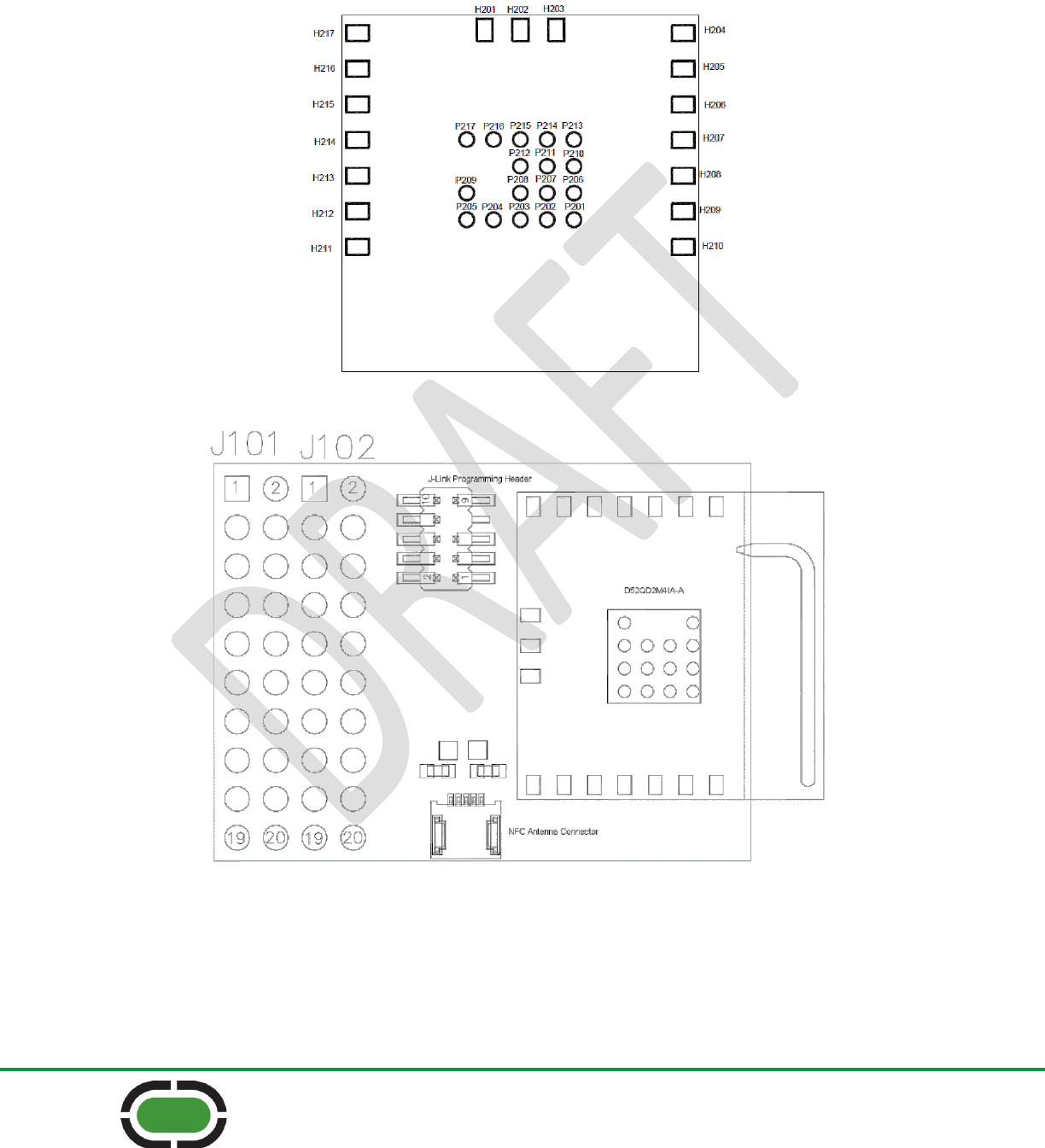

Figure 6: D52Q M6 - Bottom View............................................................................................................. 11

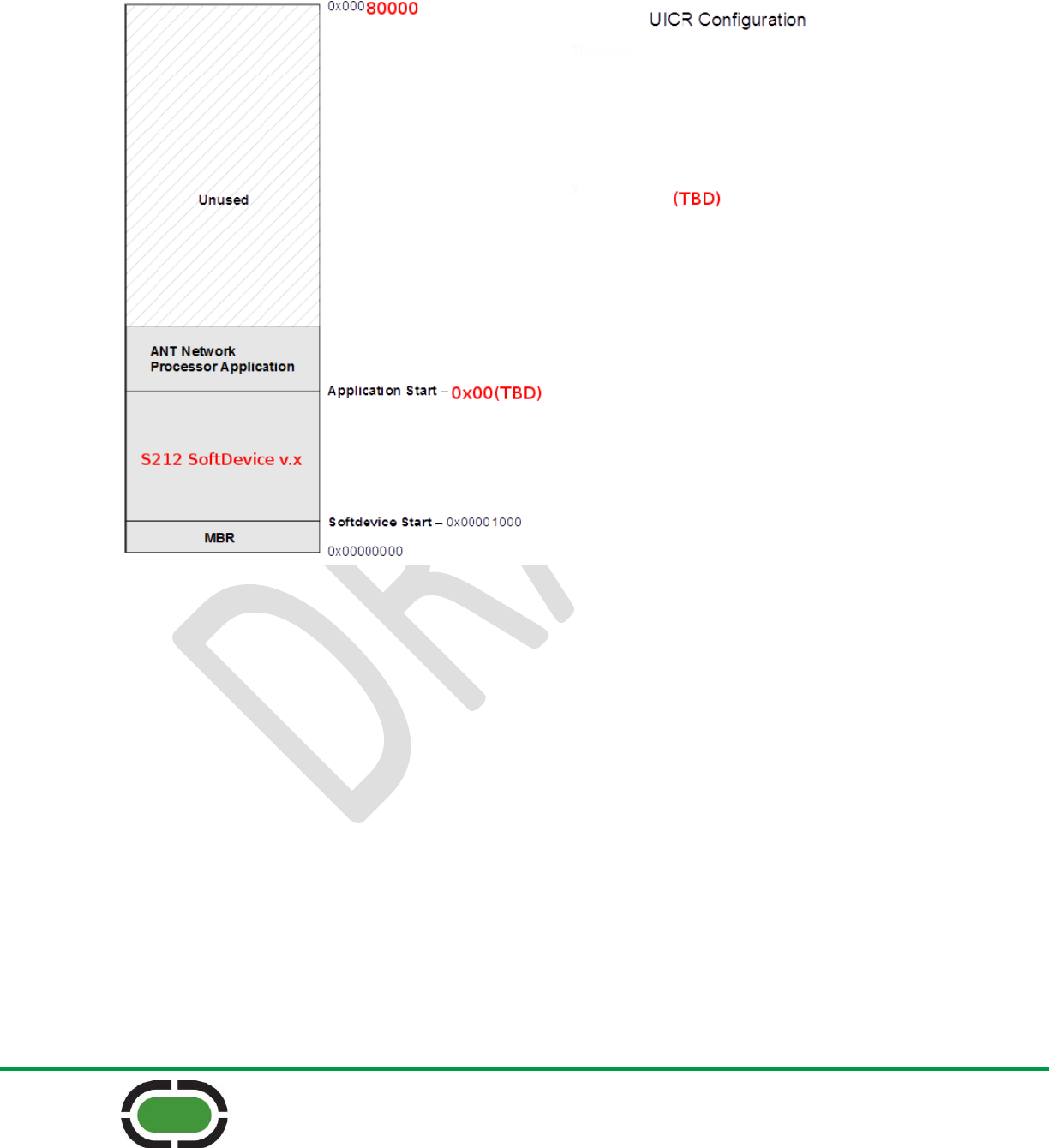

Figure 7 - Memory Map of D52Q Preloaded Software ................................................................................. 13

Figure 8: D52Q Mechanical Drawing ........................................................................................................ 18
3 List of Tables
Table 1: D52 ANT SoC Module Series Model List .......................................................................................... 8
Table 2: D52 ANT SoC Module Starter Kit .................................................................................................... 8
Table 3 - D52 Module Series Pin-Out ......................................................................................................... 12
Table 4: Accelerometer Pin Assignment ..................................................................................................... 12
Table 5: Absolute Maximum Ratings ......................................................................................................... 16
Table 6: Recommended Operating Conditions ........................................................................................... 16
Table 7: D52 Module Antenna Gain ........................................................................................................... 16
Table 8: Current Consumption of Radio Operation ..................................................................................... 16
Table 9: D52Q Preloaded Software Versions .............................................................................................. 20
Page 5 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
4 Notices and Restricted use Information
4.1 Preliminary Data Sheet
Please note that this is a preliminary data sheet; information in this data sheet is subject to change before the final product
is available.
4.2 Notices and restricted use:
Information contained in this document is provided only for your ("Customer" or “you”)
convenience and may be superseded by updates. It is your responsibility to ensure that your
application meets with your specifications.
Dynastream Innovations Inc. ("DYNASTREAM") makes no representations or warranties of any kind
whether express or implied, written or oral, statutory or otherwise, related to the information,
including but not limited to its condition, quality, performance, merchantability or fitness for
purpose. DYNASTREAM disclaims all liability arising from this information and its use.
DYNASTREAM does not assume any responsibility for the use of the described ANT module (“the
Module(s)”). Dynastream makes no representation with respect to the adequacy of the module in
low-power wireless data communications applications or systems. Any Products using the Module
must be designed so that a loss of communications due to radio interference or otherwise will not
endanger either people or property, and will not cause the loss of valuable data. DYNASTREAM
assumes no liability for the performance of products which are designed or created using the
Modules.
The Modules are not designed, intended, or authorized for use as components in systems intended
for surgical implant into the body, or other applications intended to support or sustain life, or for
any other application in which the failure of the Module could create a situation where personal
injury or death may occur. If you use the Modules for such unintended and unauthorized
applications, you do so at your own risk and you shall indemnify and hold DYNASTREAM and its
officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs,
damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim
of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that DYNASTREAM was negligent regarding the design or manufacture of the Product.
DYNASTREAM believes the information contained herein is correct and accurate at the time of its
release. However, the information contained in this document is subject to change without notice
and should not be construed as a commitment by DYNASTREAM unless such commitment is
expressly given in a covering document.
4.3 Warranty Information
This product is warranted to be free from defects in materials or workmanship for 1 year from the date
of purchase of the end customer. Within this period, Dynastream Innovations Inc. (Dynastream) will, at
its sole option, replace any products that fail in normal use. Such replacement will be made at no charge
to distributors or companies who purchase this product directly from Dynastream, provided the
distributor or company shall be responsible for any transportation cost. This warranty does not apply to:
(i) cosmetic damage, such as scratches, nicks and dents; (ii) damage caused by accident, abuse, misuse,
water, flood, fire, or other acts of nature or external causes; (iii) damage caused by service performed by
anyone who is not an authorized service provider of Dynastream; (iv) damage to a product that has
Page 6 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
been modified or altered without the written permission of Dynastream. In addition, Dynastream
reserves the right to refuse warranty claims against products or services that are obtained and/or used
in contravention of the laws of any country.
Replaced products have 1 year warranty as stipulated in this term.
THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES EXPRESS, IMPLIED, OR STATUTORY, INCLUDING ANY LIABILITY ARISING UNDER ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, STATUTORY OR
OTHERWISE.
IN NO EVENT SHALL DYNASTREAM BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT OR FROM DEFECTS IN THE PRODUCT.
Dynastream retains the exclusive right to replace (with a new or newly-overhauled replacement
product) the device or software or offer a full refund of the purchase price at its sole discretion. SUCH
REMEDY SHALL BE THE SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, the distributor or company shall contact Dynastream for shipping
instructions and a return material authorization (RMA) tracking number. Securely pack the device and a
copy of the original sales receipt, which is required as the proof of purchase for warranty claims. Write
the tracking number clearly on the outside of the package. Send the device, freight charges prepaid, to
Dynastream.
©2016 Dynastream Innovations Inc. All Rights Reserved.
4.4 SoftDevice Licensing and Use
(Final terms TBD) D52 modules are preloaded with the ANT S212 SoftDevice and Network Processor
application.
(Final terms TBD) Licensing and distribution information for custom applications using the S212 and
S332 SoftDevices built by and available from Dynastream is available on the Dynastream website.
Refer to the following information:
o https://www.thisisant.com/developer/components/nrf52832/
4.5 Regulatory Compliance Information (TBD)
The D52 family of modules carry regulatory pre-approvals for many major global markets. Please
contact Dynastream Innovations, Inc., if you have any questions about the countries that have approved
use of the D52 modules.
Page 7 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
5 D52 ANT SoC Module Family Overview
The D52 ANT SoC Module series is built with the nRF52832 chip from Nordic Semiconductor. The family
is comprised of modules available in layouts standard to Dynastream Innovations: both M4 (outlined in
this data sheet) and smaller sized M8 modules will be available. The module family leverages the S132,
S212 and S332 SoftDevices from Nordic Semiconductor and Dynastream Innovations for ANT and
Bluetooth Smart applications.
6 D52Q ANT SoC Module Overview
Using the QFN (6x6mm) package of Nordic Semiconductor’s nRF52832 chip, the D52Q ANT SoC module
series offers support for both ANT® and Bluetooth® Smart and enables both protocols to run
concurrently, depending on the loaded protocol stack.
The D52QD2M4IA module is a 20x20x2.8mm turnkey system hardware solution including antenna,
onboard 32.768 kHz and 32 MHz crystals, DC/DC converter and 29 GPIOs with 8 analogue inputs. A
module variant that includes an optional on-board accelerometer (D52QD2M4IA-A) is also available.
The D52 modules are pre-programmed with the following software components:
S212 SoftDevice developed by and available from ANT Wireless (scalable ANT protocol stack with 15
channel support)
ANT network processor application
SoftDevices are protocol stack solutions for the nRF52 SoCs. There are multiple SoftDevice choices
available from the Dynastream and Nordic Semiconductor websites. The ANT network processor
application provides the standard ANT serial interface front-end that is connectable to an external
application controller.
The D52Q module’s pre-programmed image can be easily replaced via the onboard SWD interface pins
using off-the-shelf ARM programming tools.
The D52 module series, if loaded with the ANT and/or Bluetooth low energy stack will be (preliminary)
certified to comply with radio regulation or standards covering major markets include North America,
Europe, Australia, New Zealand and Japan. The D52 ANT SoC module series will also be (preliminary)
qualified by the BLUETOOTH SIG.
The perimeter of the D52QD2M4IA(-A) has AP2, C7 and N5 M4 compatible pin layouts appear, and a
new LGA matrix has been added to the base of the module extending further capabilities of the
nRF52832 chip (e.g., NFC, more I/O). For more information about module layout, please refer to Figure
4: D52Q M4 Bottom View, later in this document.
Dynastream Innovations also makes starter kits supporting the D52Q available.
Page 8 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
6.1 Nomenclature
Figure 1: D52Q Module Nomenclature
6.2 Production Tracking Code
Included in final data sheet.
6.3 Models
Part no
Size
(mm)
Chip
RAM
Size
Sw preload
Accessories
SoftDevice
ANT-NP
D52QD2M4IA
20x20
nRF52832
64k
v.
TBD
v.
TBD
-
D52QD2M4IA-
A
nRF52832
64k
LIS2DH
accelerometer
Table 1: D52 ANT SoC Module Series Model List
6.4 D52 ANT SoC Module Starter Kits and Components
The kit contents are described in Table 2, with a ready to run demo application pre-loaded on the
modules out-of-box.
D52 Starter Kit
Part No: TBD
Part No.
Description
Quantity
D52QD2M6IA-A
M4 module on carrier board with 20-pin
Molex connector, NFC antenna through-hole,
SWD programming header, additional
headers for i/o pins
2
ANTBAT2
Battery board with a Molex socket, a reset
button and a five-position dip switch
1
ANTIO1
I/O board with a Molex connector, a Molex
socket, 4 LEDs and 4 buttons
1
ANTUIF1
USB interface board with a Molex socket
1
Segger J-Link Lite Programmer
1
Table 2: D52 ANT SoC Module Starter Kit
Page 9 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
7 Product Overview
7.1 Block Diagrams
Figure 2: D52QD2M4IA-A (with accelerometer) Module Block Diagram
Figure 3: D52QD2M4IA Module Block Diagram
Page 11 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
Figure 6: D52Q M6 - Bottom View
D52Q M4
Pin
D52Q M6
LIS2DH Pin
(D52Q
D2M4IA-A
Only)
nRF52832
Pin Name
Description
Molex
Connector
Dev
Board
Pin
H201
8
J102.19
SWDIO
Serial Wire Debug I/O for debug and programming
H202
10
J101.06
P021/RESET
System Reset pin
H203
1
J101.01
VCC
Power Supply Pin
H204
19
J101.02,
08, 20
VSS
Ground
H205
6
J101.07
SWDCLK
Serial Wire Debug clock input for debug and programming
H206
17
J101.09
P006
General Purpose I/O
H207
15
J101.10
P007
General Purpose I/O
H208
-
J102.01
P002/AIN0
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
H209
11
J101.17
P008
General Purpose I/O
H210
7
J101.19
P011
General Purpose I/O
H211
4
J101.04,
15
P017
General Purpose I/O
H212
3
J101.03,
11
P016
General Purpose I/O
H213
5
J101.18
P015
General Purpose I/O
H214
9
J101.20
P014
General Purpose I/O
H215
-
-
P013
General Purpose I/O
H216
-
J102.15
P031/AIN7
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
H217
2
J101.05
P012
General Purpose I/O
P201
-
-
NFC2/P010
NFC antenna connection / General Purpose I/O
P202
-
J102.04
P019
General Purpose I/O
P203
-
J102.06
P020
General Purpose I/O
P204
-
J102.08
P022
General Purpose I/O
P205
-
J102.10
P023
General Purpose I/O
P206
-
-
NFC1/P009
NFC antenna connection / General Purpose I/O
P207
-
J102.07
P005/AIN3
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
Page 12 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
D52Q M4
Pin
D52Q M6
LIS2DH Pin
(D52Q
D2M4IA-A
Only)
nRF52832
Pin Name
Description
Molex
Connector
Dev
Board
Pin
P208
-
J102.02
P018
General Purpose I/O
P209
-
J102.12
P024
General Purpose I/O
P210
-
J102.05
P004/AIN2
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
P211
-
J102.03
P003/AIN1
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
P212
-
J102.16
INT2
P026
General Purpose I/O
P213
-
J102.11
SDA/SDI/SDO
P029/AIN5
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
P214
-
J102.13
SCL/SPC
P030/AIN6
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
P215
-
J102.09
SDO/SA0
P028/AIN4
General Purpose I/O / Analog SAADC/COMP/LPCOMP
input
P216
-
J102.18
CS
P027
General Purpose I/O
P217
-
J102.14
INT1
P025
General Purpose I/O
Table 3 - D52 Module Series Pin-Out
7.3 (Optional) Accelerometer Specification
The D52Q module family supports an accelerometer accessory on the D52QD2M4IA-A. The
accelerometer is the LIS2DH by STMicroelectronics. To make use of the accelerometer, the following
pins are consumed:
D52QD2M4IA-A Pin
nRF52832 Pin
LISD2H Pin
P212
P026
INT2
P213
P029/AIN5
SDA/SDI/SDO
P214
P030/AIN6
SCL/SPC
P215
P028/AIN4
SDO/SA0
P216
P027
CS
P217
P025
INT1
Table 4: Accelerometer Pin Assignment
SPI or I2C can be used to communicate with the accelerometer. To use I2C, pull-up resistors will need to
be added to the appropriate pads.
For more information about D52Q pin assignments, refer to Table 3 - D52 Module Series Pin-Out.
For more information about this component including data sheet and errata, please refer to the
STMicroelectronics website:
http://www.st.com/web/en/catalog/sense_power/FM89/SC444/PF252928.
7.4 Preloaded Software
The D52Q module is preloaded with the S212 SoftDevice and the ANT Network Processor (NP) code as
illustrated below. Depending on the module revision, the preloaded code versions vary. Please refer to
Appendix C for further details.
S212 SoftDevice developed by and available from Dynastream – [nRF52832 S212 SoftDevice full
specification will be available for product release]
Page 13 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
ANT Network Processor Application – Refer to Appendix A – Using the ANT Network Processor
Configuration
Figure 7 - Memory Map of D52Q Preloaded Software
7.5 D52 Module Programming
The D52 ANT SoC module series supports the following programming method:
Standard Serial Wire Debug (SWD) interface
The two software components (the SoftDevice and the application code) must be version compatible to
operate properly. Because each individual component can be reprogrammed, it is not safe to always
assume the default factory image on a module by reading the module revision mark and referring to the
history of preloaded images as summarized in Appendix C – D52Q Module Pre-Loaded Software
Versions. When versions of the software components are unclear, to ensure proper operation after
reprogramming, it is recommended that the module undergoes a full erasure (e.g. using the erase-all
option in nrfjprog.exe/nRFgo Studio) and all desired software components be explicitly programmed
onto the module.
7.5.1
Programming via SWD interface
The D52 ANT SoC Module series supports the Serial Wire Debug (SWD) interface, SWDCLK and SWDIO
(refer to Table 3 - D52 Module Series Pin-Out). Programming and debugging of the module only require
Page 14 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
common available tools, such as the Keil software development environment and the Segger J-Link
programmer.
Please refer to “N5 Starter Kit User Manual” from Dynastream Innovations for reference software setup
and use with ANT using the Keil software and a J-Link programmer. (Note: this documentation reference
will be updated in the final datasheet revision.)
7.5.2
Initializing the SoftDevice
The D52 module comes with a 20ppm onboard 32 kHz crystal. When initializing the SoftDevice, it is
important to set the crystal accuracy to be 20ppm. This clock source is selected when enabling the
SoftDevice via the sd_softdevice_enable command.
7.5.3
Configuring the dc/dc converter
The D52 module can make use of the DC/DC Converter on nRF52832 chips. This can improve power
consumption under certain conditions.
7.6 Design considerations
RF performance is always affected by the environment. Good design makes a product less susceptible to
adverse conditions. The recommendations in this section are guidelines only; you should thoroughly test
your products in the intended use case environments and make necessary modifications and trade-offs.
For design assistance purposes, a STEP model package and Altium library will be available for product
release.
7.6.1
M4 (D52Q) module mounting
Guidance and diagrams will be provided for final product release.
7.6.2
M6 module mounting
The mating socket is Molex 52991-0208.
7.7 Assembly Considerations
7.7.1
Moisture Control
The module is rated at level 3 (MSL3) as defined by IPC/JEDEC J-STD-020.
To ensure good solderability of the PCB pads, it is highly recommended to always have the modules
intended for reflow well sealed when in storage.
7.7.2
Solder Stencil Design of D52Q (M4) Module
Stencil diagrams will be available for module variants for final product release.
7.7.3
Cleaning Process
The module is made using no-clean solder paste. No-clean process is recommended.
8 Regulatory Approvals and Compliance
Note: This information is pending certification. Final compliance details will be available following
certification for final release.
Page 15 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
The D52Q ANT SoC module series, when loaded with ANT and/or BLUETOOTH low energy stack, has
received regulatory approvals in the United States (FCC) and Canada (IC), and has been verified to
conform to the appropriate regulations in Europe, Australia and New Zealand, and Japan; other regions
TBD. The module series has been qualified by BLUETOOTH SIG. Such approvals and qualification allow
the user to place the module inside a finished product and, in most cases, not require regulatory testing
for an intentional radiator, provided no changes or modifications are made to the module circuitry. This
does not preclude the possibility that some other form of authorization or testing may be required for
the finished product. Changes or modifications could void the user’s authority to operate the
equipment. The end user must comply with all of the instructions provided by the Grantee, which
indicate installation and/or operating conditions necessary for compliance.
8.1 United States
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
A host product manufacturer is responsible for ensuring compliance with the module(s) installed and fully operational. For
example, if a host product was previously authorized as an unintentional radiator under the Declaration of Conformity
procedure without containing a certified transmitter module, then a module is added, the host manufacturer is responsible
for ensuring that the host continues to be compliant with the Part 15 subpart B unintentional radiator requirements after the
module is installed and operational. Because this may depend on the details of how the module is integrated within the
host, the module grantee (the party responsible for the module grant) shall provide guidance to the host manufacturer for
ensuring compliance with the Part 15 Subpart B requirements.
This module is limited to OEM installation ONLY. The OEM Integrator is responsible for ensuring that the end-user has no
manual instructions to remove or install the module. Changes or modifications not expressly approved by Dynastream could
void the user's authority to operate the equipment.
If (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not
have straightforward commonly used methods for access to remove the module so that the FCC ID of the module is visible;
then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC ID: O6R3067” or
“Contains FCC ID: O6R3067” must be used. The host OEM user manual must also contain clear instructions on how end
users can find and/or access the module and the FCC ID.
8.2 Canada
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Page 16 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
8.3 European Economic Area
8.4 Australia and New Zealand
8.5 Japan
8.6 BLUETOOTH Qualification
9 Electrical Specifications
9.1 Absolute Maximum Ratings
parameter
Test conditions
min
max
Unit
Supply Voltage (VCC)
-0.3
3.9
V
Voltage on any
digital pin
-0.3
VCC+0.3
V
Storage temperature
range
-40
85
°C
ESD
ESD is TBD for final release
kV
V
Table 5: Absolute Maximum Ratings
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the
device. These are stress ratings only and functional operation of the device at these or any other
conditions beyond those indicated under Recommended Operating Conditions are not implied.
Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
9.2 Recommended Operating Conditions
Parameter
Min
Max
Unit
Operating ambient temperature range, TA
-40
+85
°C
Operating supply voltage
1.71 with accelerometer;
1.7 without
3.6
V
Table 6: Recommended Operating Conditions
9.3 Radio Operation Specifications and Antenna Characteristics
nRF52832 Output Setting (dBm)
Peak Antenna Gain (dBi)
EIRP (dBm)
0
1
1
+4
1
5
Table 7: D52 Module Antenna Gain
Current Consumption of Radio Operation (Transmitter):
nRF52832 Output
Setting (dBm)
Typical Peak Radio
Current (mA)*
0 (DCDC, 3V)
5.3
0
11.6
+4 (DCDC, 3V)
7.5
+4
16.6
Table 8: Current Consumption of Radio Operation
* For additional information regarding radio current please refer to the nRF52832 product
specification from Nordic Semiconductor
Page 17 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
To understand and properly use the radiation pattern for your design, please refer to the application
note: Interpreting RF Radiation Patterns.
Radiation pattern will be confirmed at final release.
9.4 Electrical Specifications
Please refer to the nRF52832 Product Specification by Nordic Semiconductor.
Page 18 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
10 Mechanical Drawings
Figure 8: D52Q Mechanical Drawing
Page 19 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
11 Support
The D52Q ANT SoC module series uses nRF52832 from Nordic Semiconductor. You can seek technical
support from Nordic Semiconductor, www.nordicsemi.com. Application support can be sought from
Dynastream Innovations, www.thisisant.com.
11.1 ANT Forum
Customers are encouraged to participate in the ANT forum moderated by the application engineering
team of Dynastream Innovations for any engineering discussions. Joining the ANT forum is free and
open at http://www.thisisant.com/forum.
11.2 Technical References
Documents
A list of reference documents will be available for final product release.
Software
A list of software resources will be available for final product release.
Design models
Design model resources will be available for final product release.
The above documents and software are available at www.dynastream.com, www.thisisant.com and/or
www.nordicsemi.com. User registration or supplier product code may be required.
11.3 ANT Developer’s Zone
ANT development software tools, application notes, reference designs and other public resources are
found in the ANT Developer’s Zone at http://www.thisisant.com/developer.
To begin development with the ANT+ interoperability, please become an ANT+ Adopter or ANT+ Alliance
member to obtain the access to the ANT+ Adopter Zone. ANT+ documents and design tools contained in
the ANT+ Adopter zone include the ANT+ Device Profiles, ANT-FS specification, ANT software (PC/Mac)
libraries with source code, simulator tools (SimulANT+), ObservANT, embedded reference designs with
source code, and more.
11.4 ANT and ANT+ Social Media
Further information, resources and news about ANT can be found in social media:
YouTube: http://www.youtube.com/user/ANTAlliance
Twitter: http://twitter.com/ANTPlus
Facebook: https://www.facebook.com/thisisant
LinkedIn: http://www.linkedin.com/groups?gid=1379137
Page 20 of 20 D52Q ANT Module Datasheet, Rev 0.4
dynastream.com thisisant.com
12 Appendix A – Using the ANT Network Processor Configuration
Full documentation will be available for the final product. Preliminary documentation of this feature is
available as a separate document. For more information, please contact Dynastream Innovations.
13 Appendix C – D52Q Module Pre-Loaded Software Versions
Software version information will be available for the final product.
Software Component
Version
S212 ANT SoftDevice built by and
available from Dynastream
TBD
ANT Network Processor Application
TBD
Table 9: D52Q Preloaded Software Versions
