USERS MANUAL
owner’s manual
530
2-way radio & personal navigator
®
PRELIMINARY
Rino520_530_prelim.indd 1 1/25/2005 5:00:18 PM
© Copyright 2005 Garmin Ltd. or its subsidiaries
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated,
downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants
permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy
of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this
copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make
changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site
(www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products.
Garmin®, AutoLocate®, Personal Navigator®, MapSource®, TracBack®, BlueChart®, and Rino® are registered trademarks of Garmin Ltd. or its
subsidiaries and may not be used without the express permission of Garmin.
June 2005 Part Number 190-00NNN-00 Rev. A Printed in Taiwan
Garmin International, Inc.
1200 East 151st Street
Olathe, Kansas 66062, U.S.A.
Tel. 913/397.8200 or 800/800.1020
Fax 913/397.8282
Garmin (Europe) Ltd.
Unit 5, The Quadrangle
Abbey Park Industrial Estate
Romsey, SO51 9DL, U.K.
Tel. 44/0870.8501241
Fax 44/0870.8501251
Garmin Corporation
No. 68, Jangshu 2nd Road
Shijr, Taipei County, Taiwan
Tel. 886/2.2642.9199
Fax 886/2.2642.9099
Rino520_530_prelim.indd 2 1/25/2005 5:00:18 PM
Rino® 530 Owner’s Manual i
PRELIMINARY
INTRODUCTION
Thank you for choosing the Garmin® Rino® 530 (Radio
Integrated with Navigation for the Outdoors). To get the
most from your new Rino 530, read through the Quick
Start Guide first, then this Owner’s Manual to understand
all of the operating features.
The Quick Start Guide describes the process of
navigating the Main Pages and the Option Menus, along
with some basic unit operations to familiarize you with
your new Rino 530 right out of the box. Read the Quick
Start Guide first.
This manual is organized into the following sections:
The Introduction section provides FCC, safety, warranty,
and product registration information, as well as the Table
of Contents.
The Getting Started section provides basic information
about the Rino 530.
The Unit Operation section provides information on
each of the six Main Pages, listed in the same order as
viewed on the unit. The section for each Page provides
an overview that discusses the page, how it functions,
and step-by-step instructions for using the page and its
features. It also includes an overview of some additional
features and step-by-step instructions for using the
features.
The Appendix includes additional information about the
Rino 530
The Index provides keywords and the pages on which
they appear.
INTRODUCTION
Rino520_530_prelim.indd 1 1/25/2005 5:00:19 PM
ii Rino® 530 Owner’s Manual
PRELIMINARY
INTRODUCTION > TABLE OF CONTENTS
Introduction .............................................................i
Getting to Know Your Rino 530 ............................1

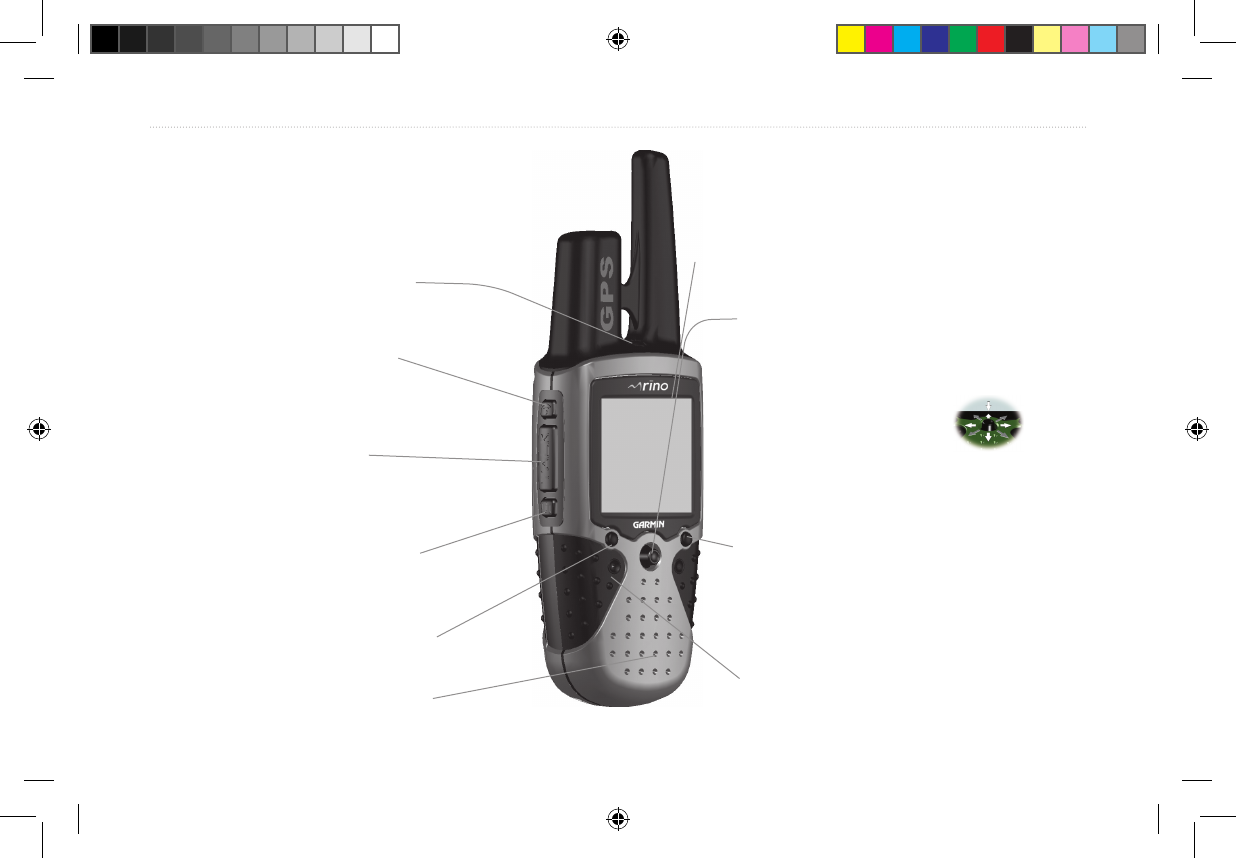

Front of the Rino 530 ...............................................2

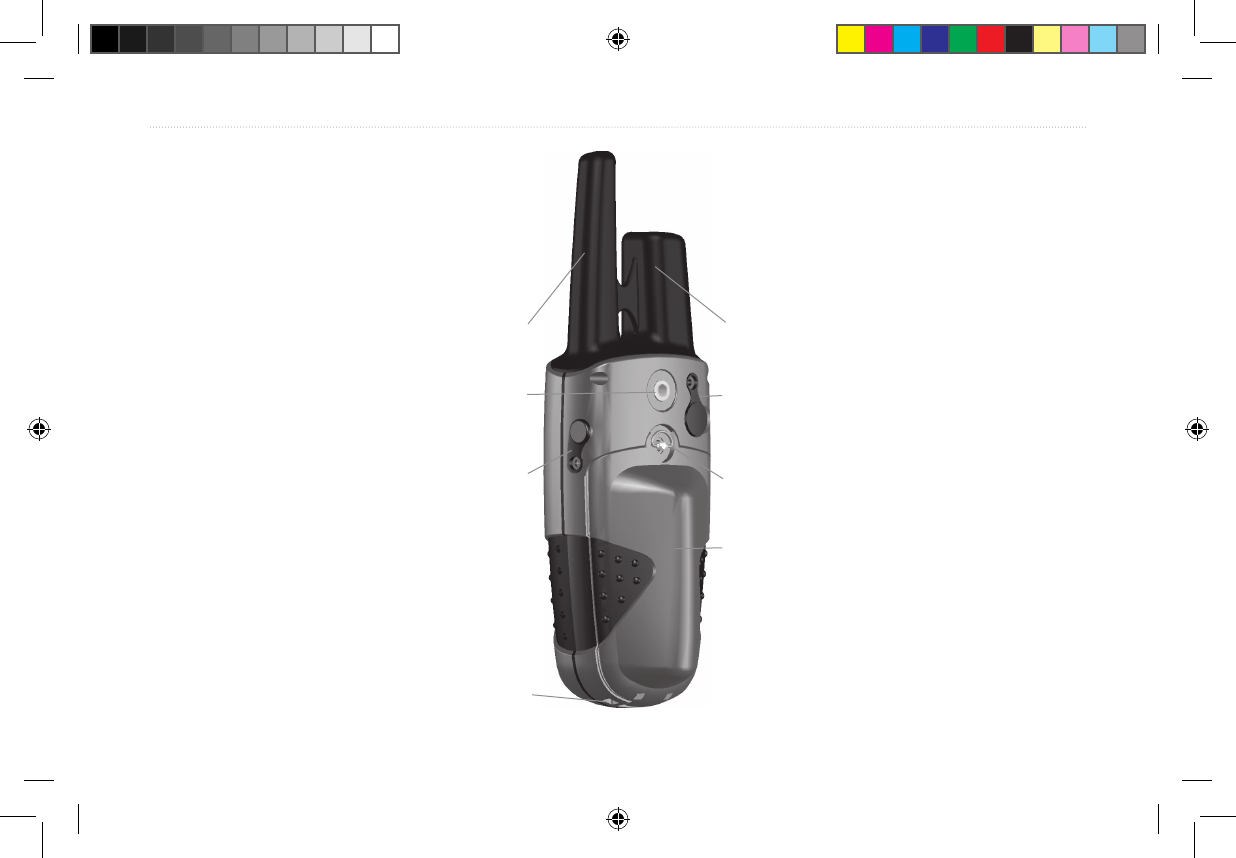

Back of the Rino 530 ................................................ 3

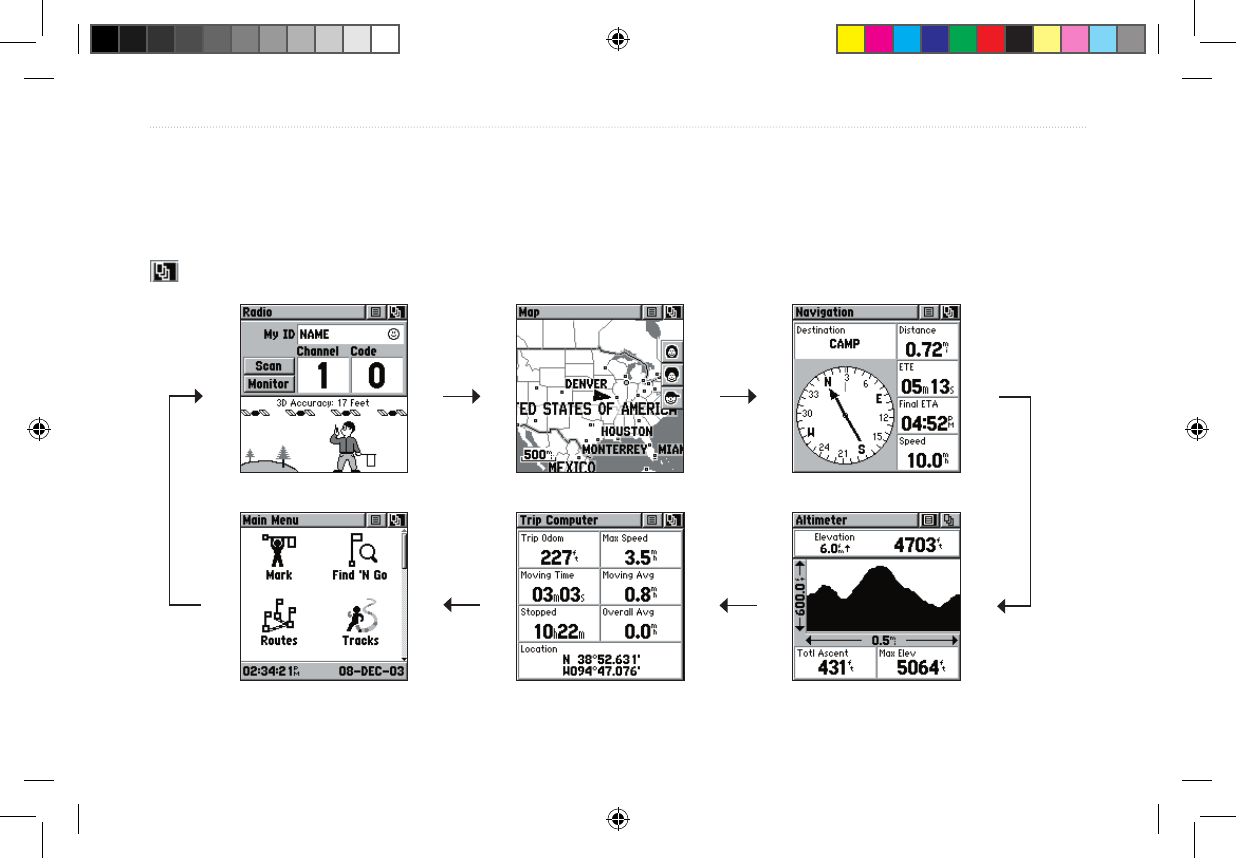

Main Display Pages .................................................. 4
Operating the Rino 530 ............................................ 5
Status Bar Overview ................................................6
Unit Operation ........................................................7

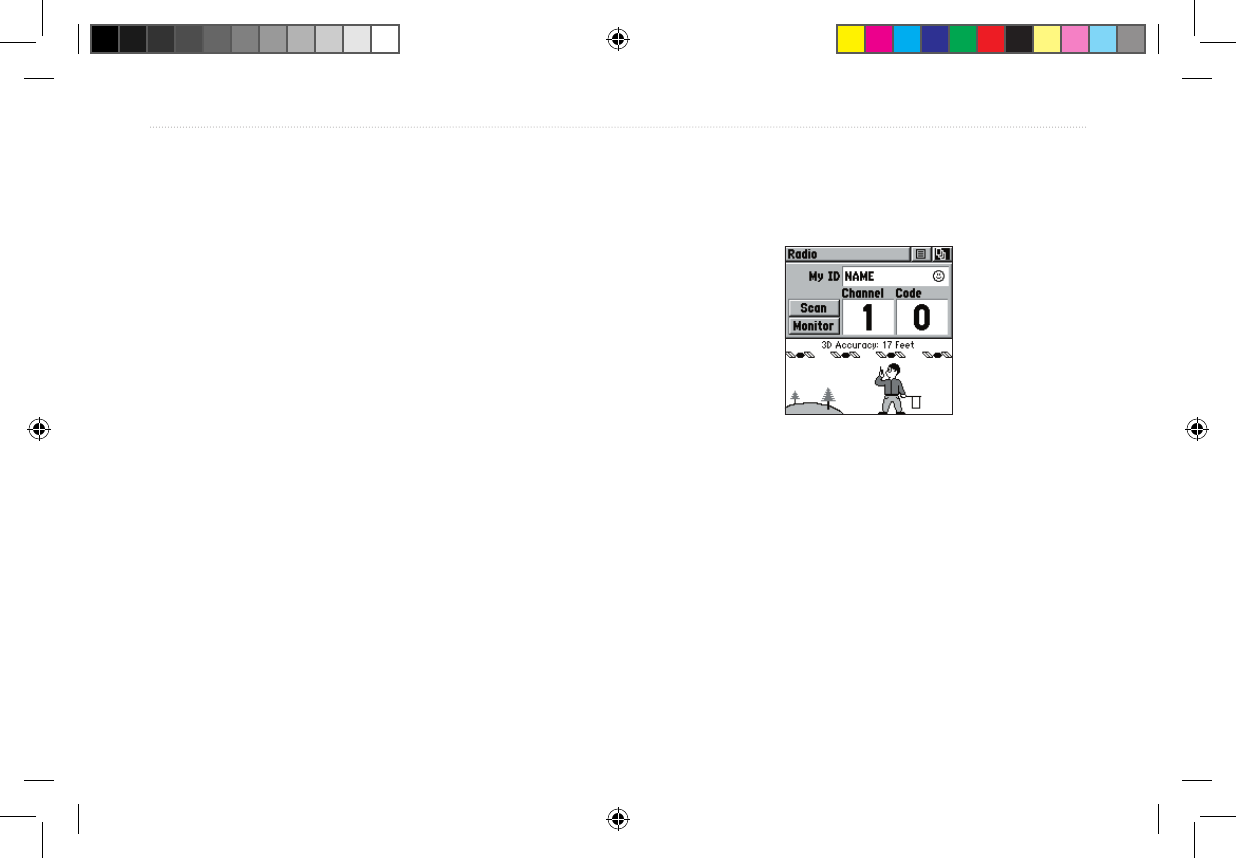

Radio Page ................................................................ 7
Initializing the Rino 530 ................................................ 7

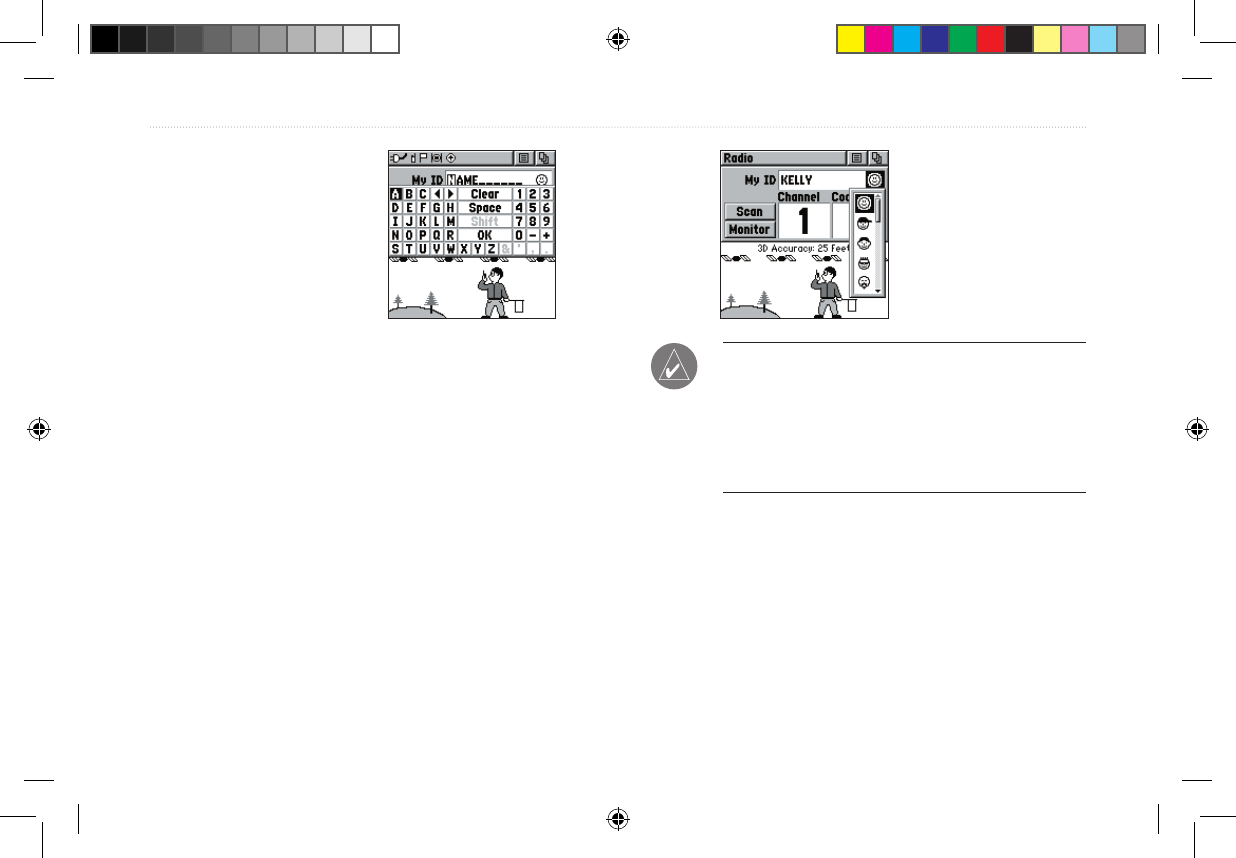

Using My ID and Symbol Fields ................................... 8

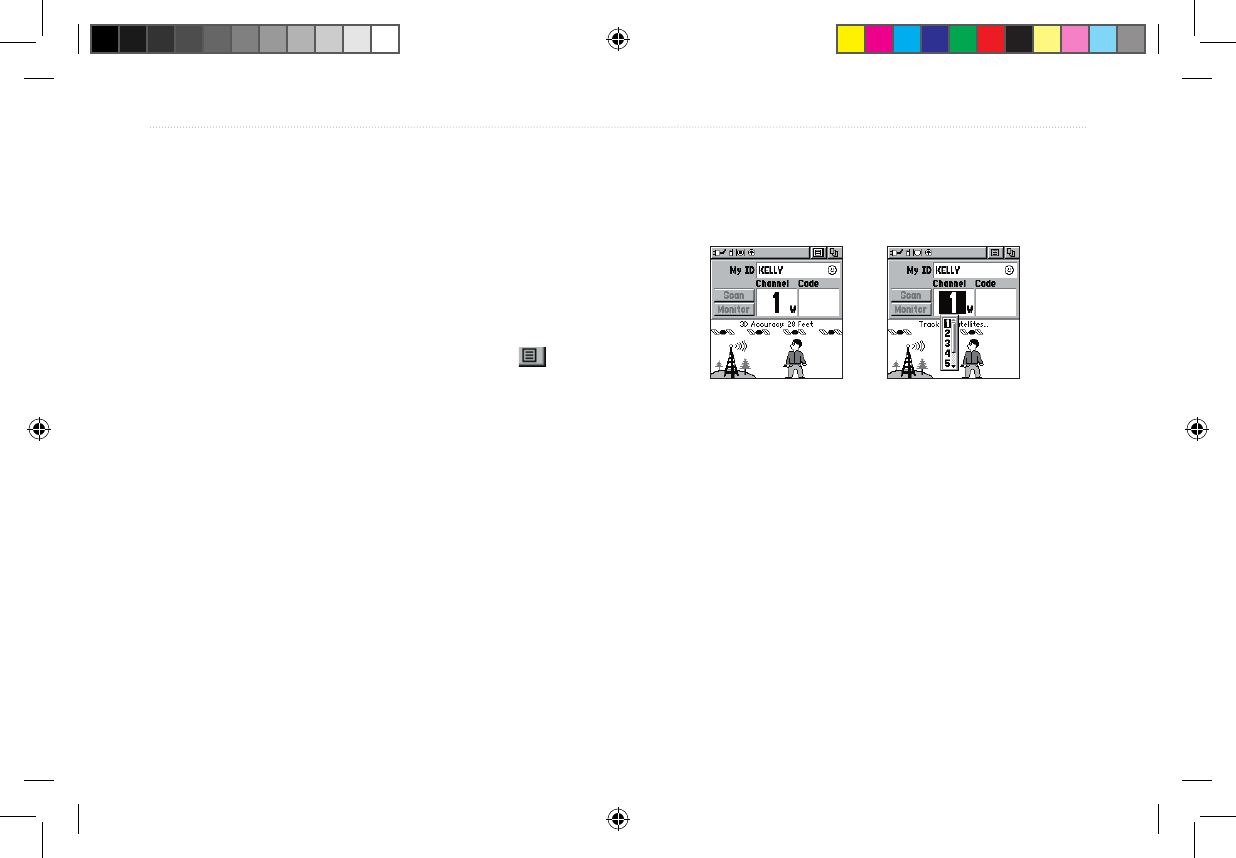

Setting the Channel and Squelch Code ........................ 10
Scanning and Monitoring ............................................ 12

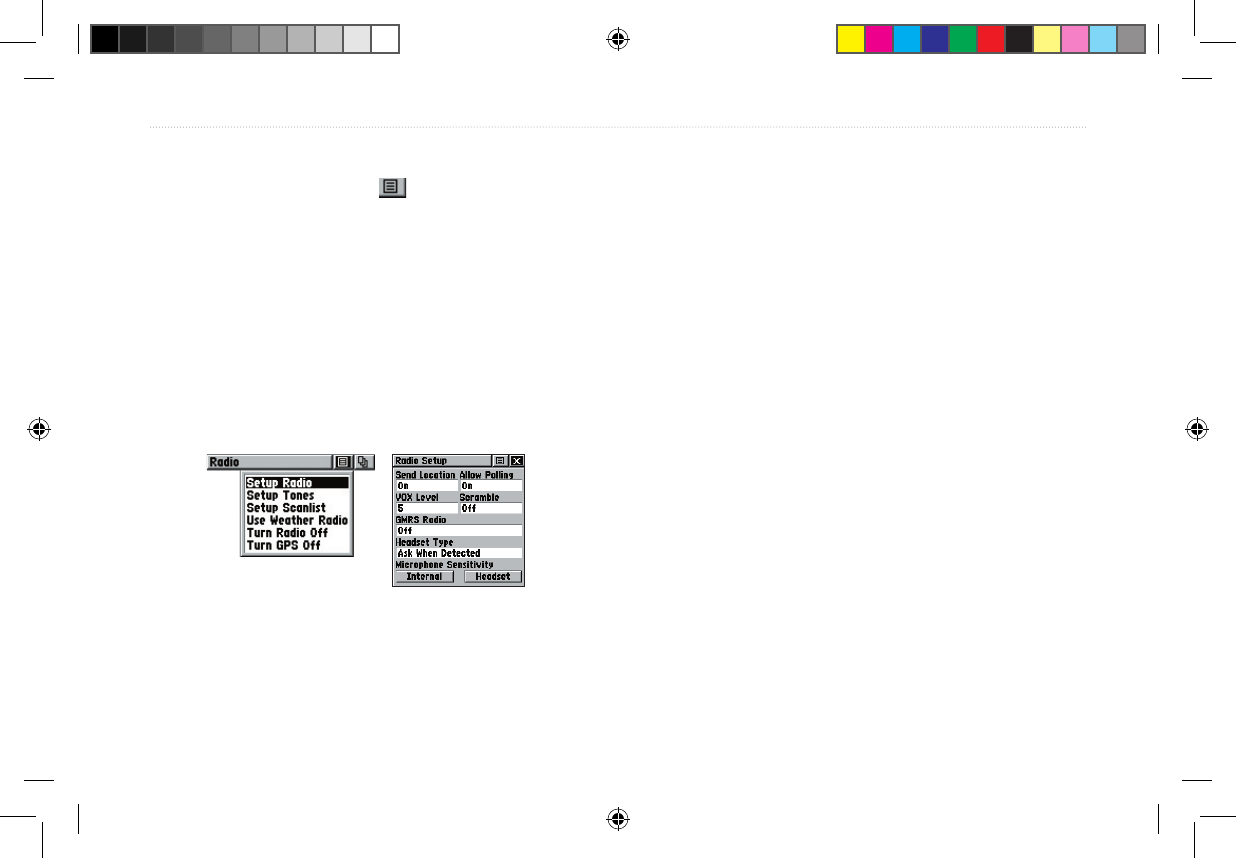

Radio Page Option Menu ............................................ 14
Setup Radio ............................................................ 14
Setup Tones ............................................................ 16
Setup Scanlist ......................................................... 16
Use Weather Radio ................................................. 17
Turn Radio/GPS On/Off ........................................ 18
Informational Picture ................................................... 18
GPS Status ............................................................. 18
Radio Transmission Status .................................... 18
Mark Waypoint’s Indicators ........................................ 19
Using the Rino 530 Radio Features ...................... 20
Peer-to-Peer Positioning .............................................. 20
New Contact Page Overview ....................................... 20
Sending a Location ...................................................... 23
Map Page .................................................................24
Map Page Options ....................................................... 26
Using the Pan Map Option .......................................... 27
Programming the Data Fields ...................................... 28
Setting up the Map ....................................................... 29
Measuring Distance ..................................................... 31

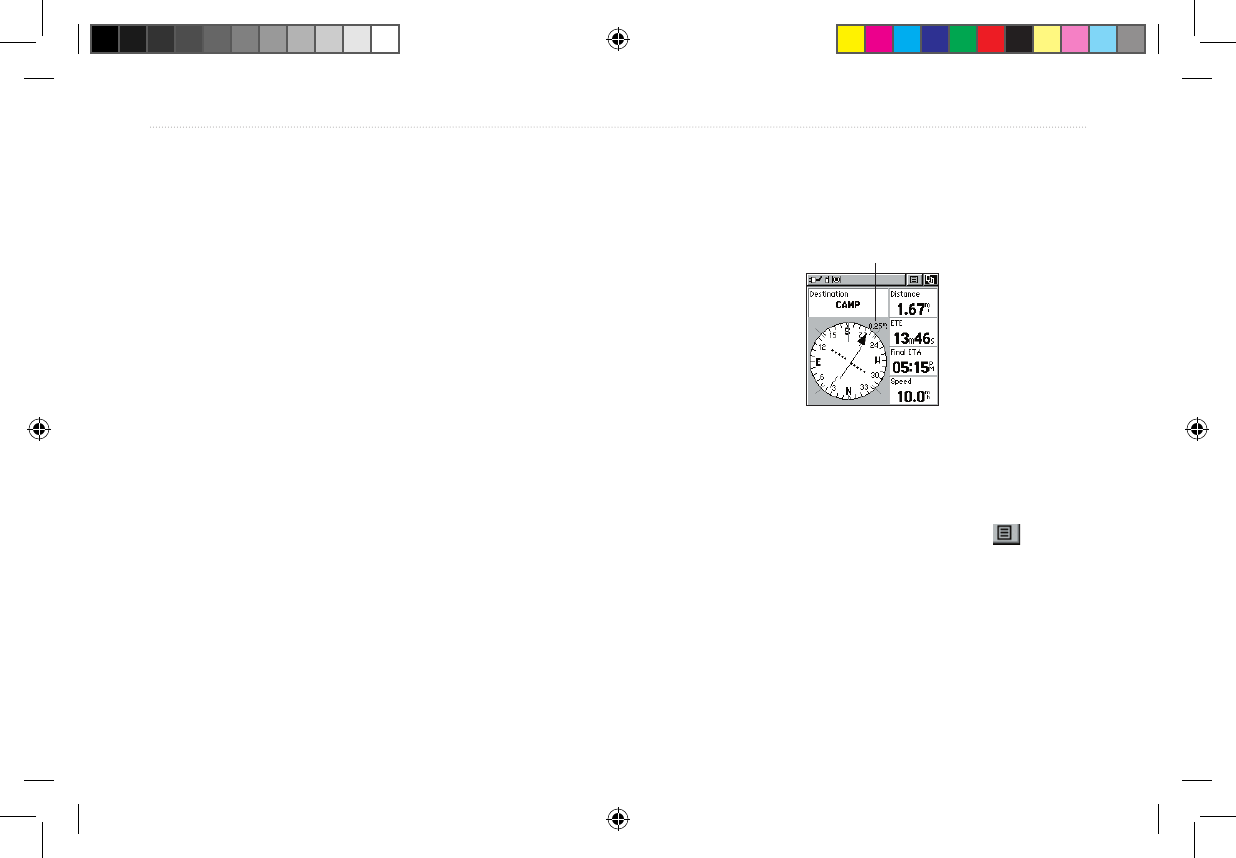

Navigation Page .....................................................32
Using the Navigation Page .......................................... 32
Navigation Page Options ............................................. 34
Using Sight ‘N Go ....................................................... 35

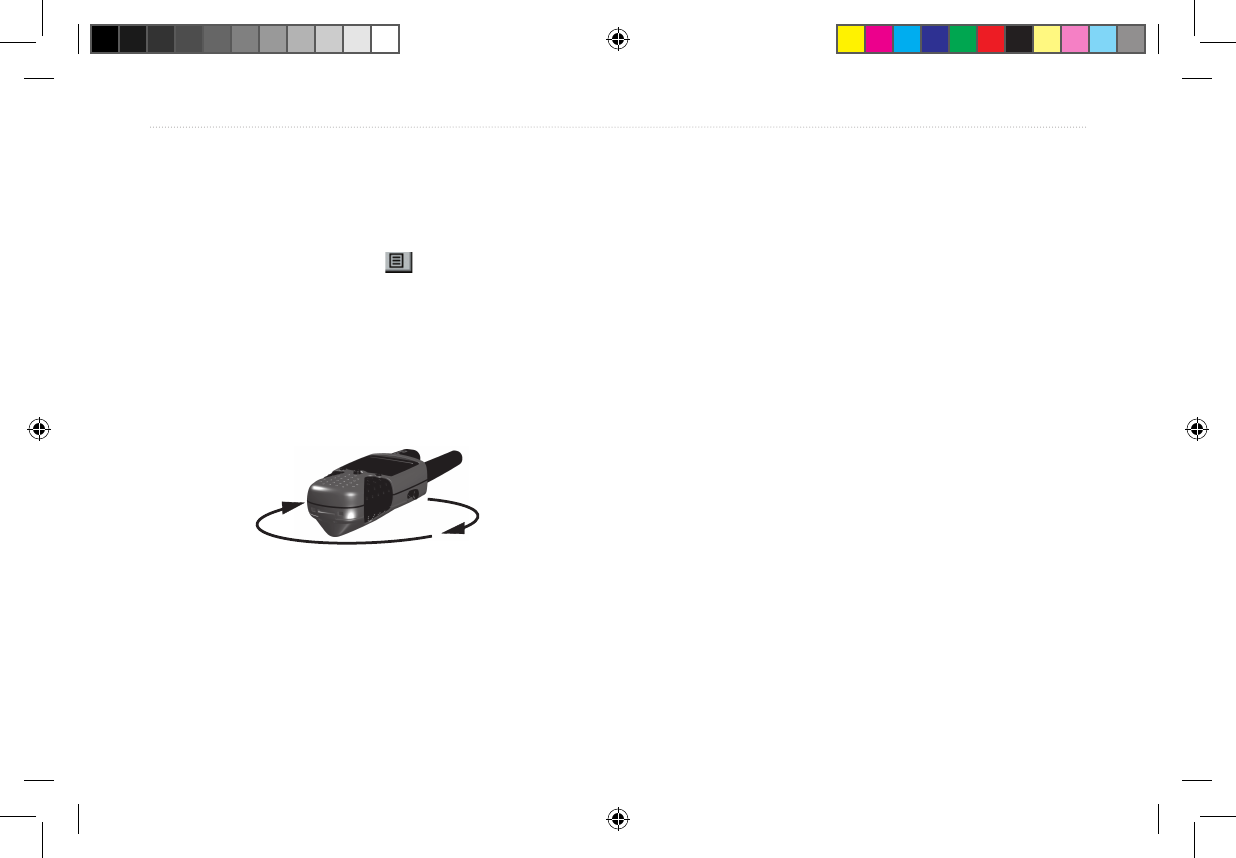

Calibrating the Compass .............................................. 35
Altimeter Page ........................................................ 37
Altimeter Page Options ............................................... 38

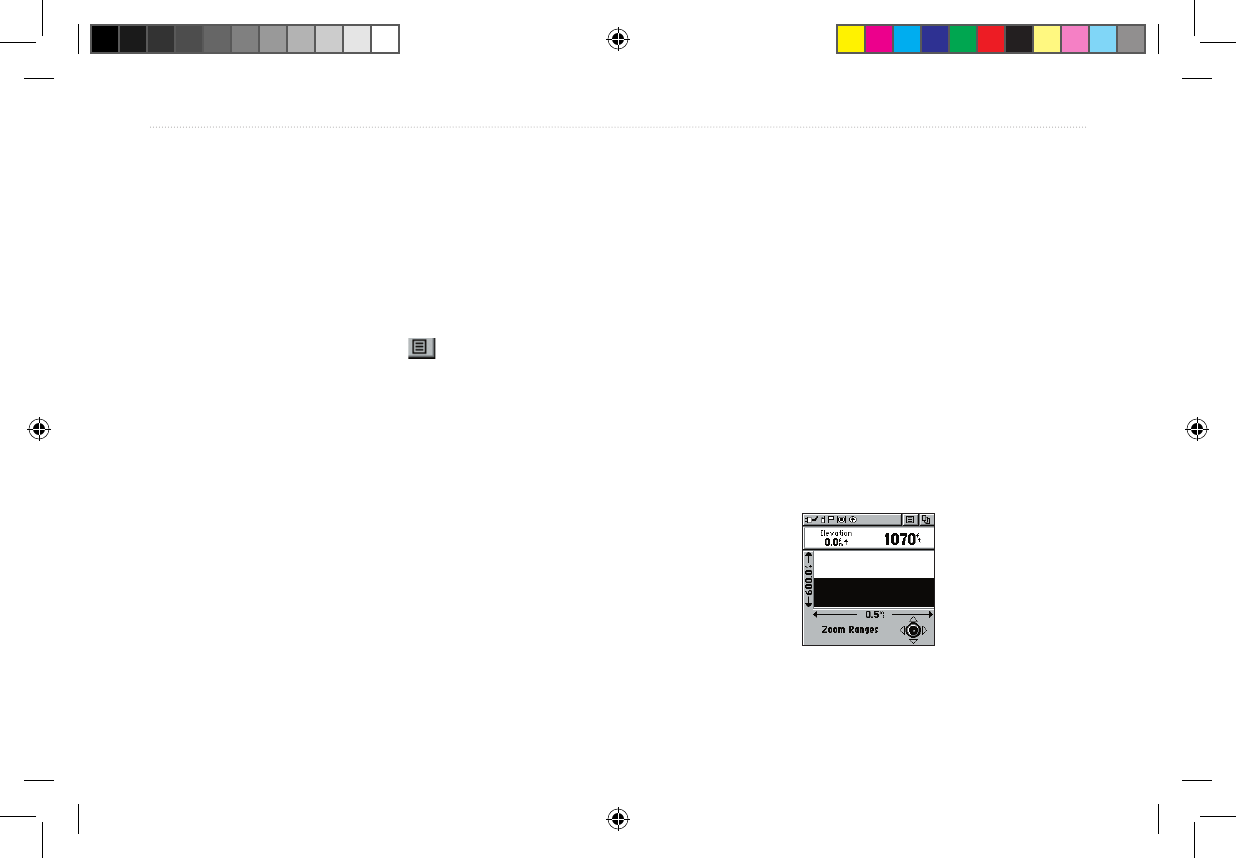

Viewing Pressure/Elevation Plots ................................ 39
Adjusting the Zoom Ranges ........................................ 39
Viewing Points ............................................................. 40
Resetting Data .............................................................. 40
Calibrating the Altimeter ............................................. 41
Rino520_530_prelim.indd 2 1/25/2005 5:00:19 PM
Rino® 530 Owner’s Manual iii
PRELIMINARY
INTRODUCTION > TABLE OF CONTENTS
Programming Data Fields ............................................ 41

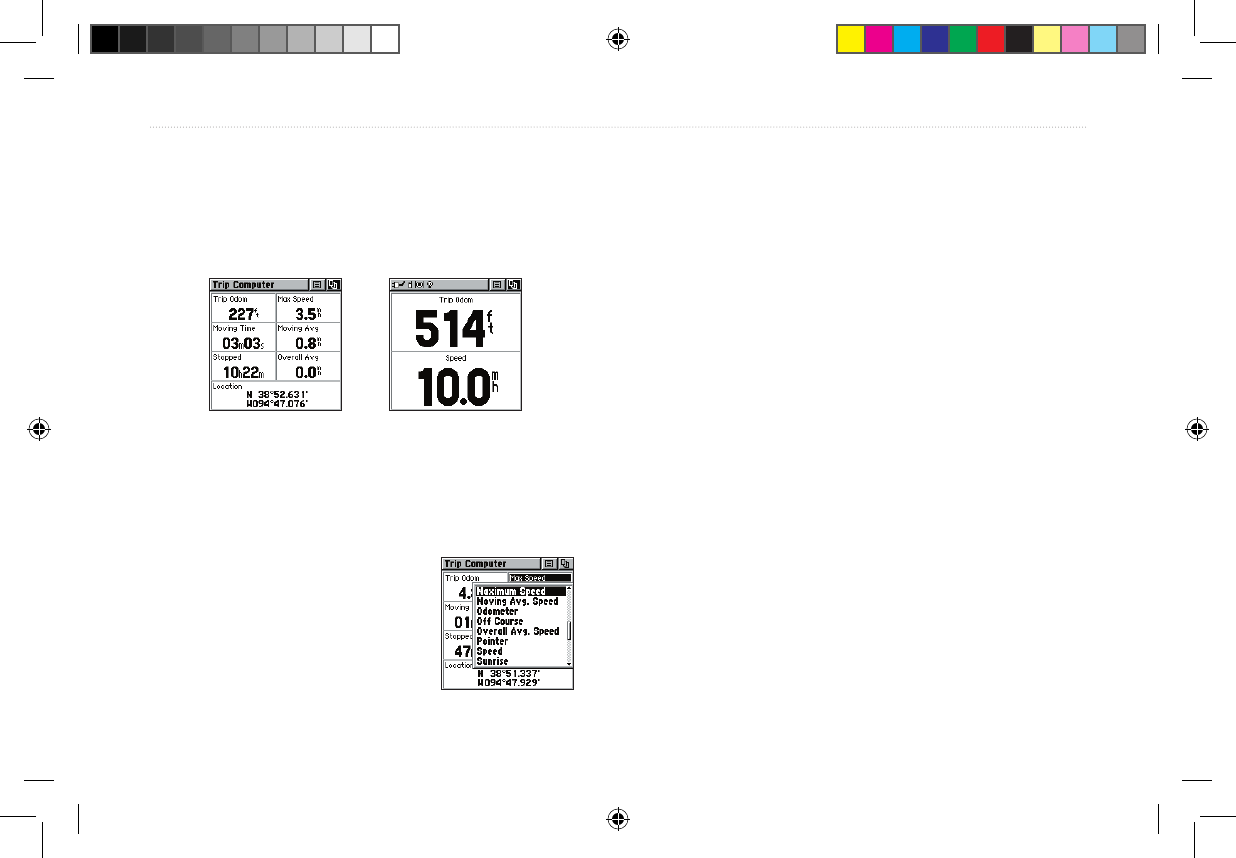

Trip Computer Page ............................................... 42
Trip Computer Page Options ....................................... 42
Main Menu Page ..................................................... 43
Using the Main Menu .................................................. 43

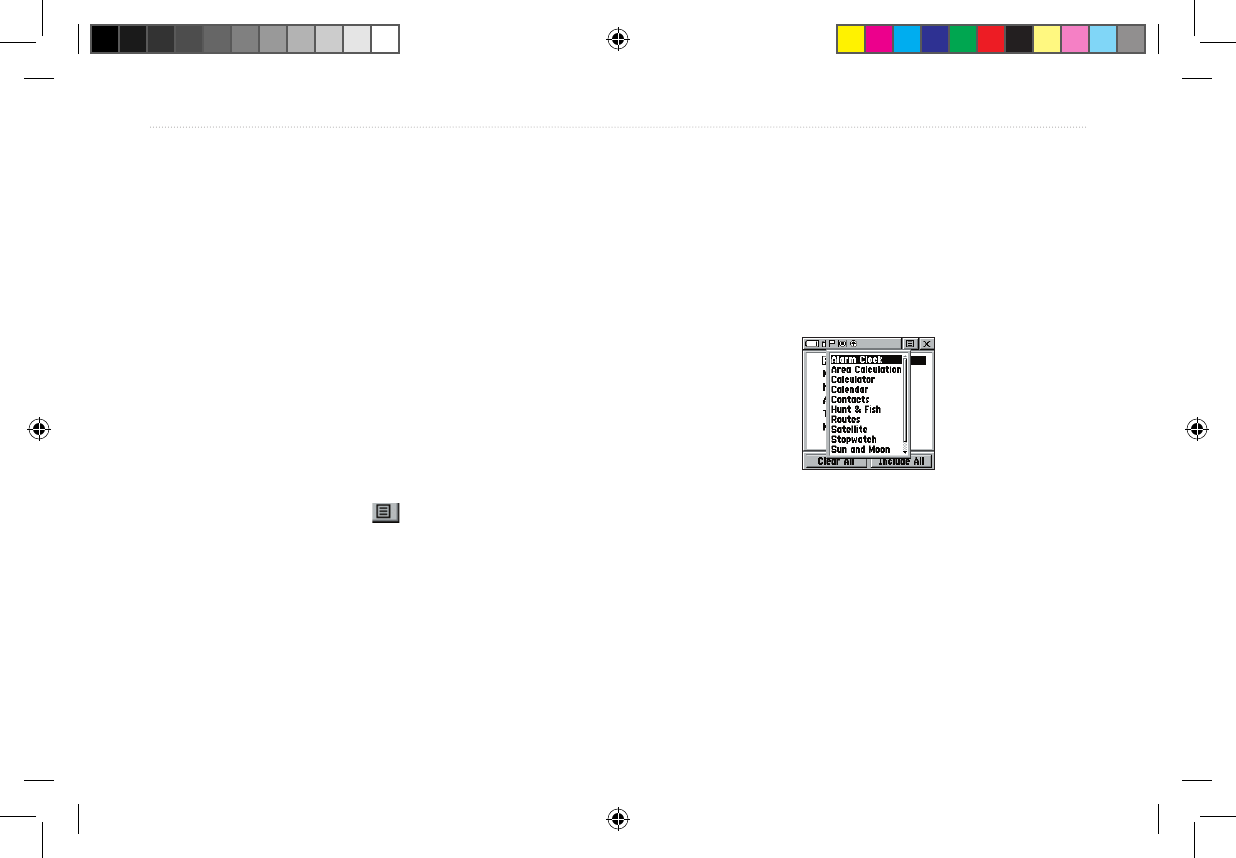

Main Menu Options ..................................................... 45
Shortcuts Menu ...................................................... 46
Waypoints ...............................................................47

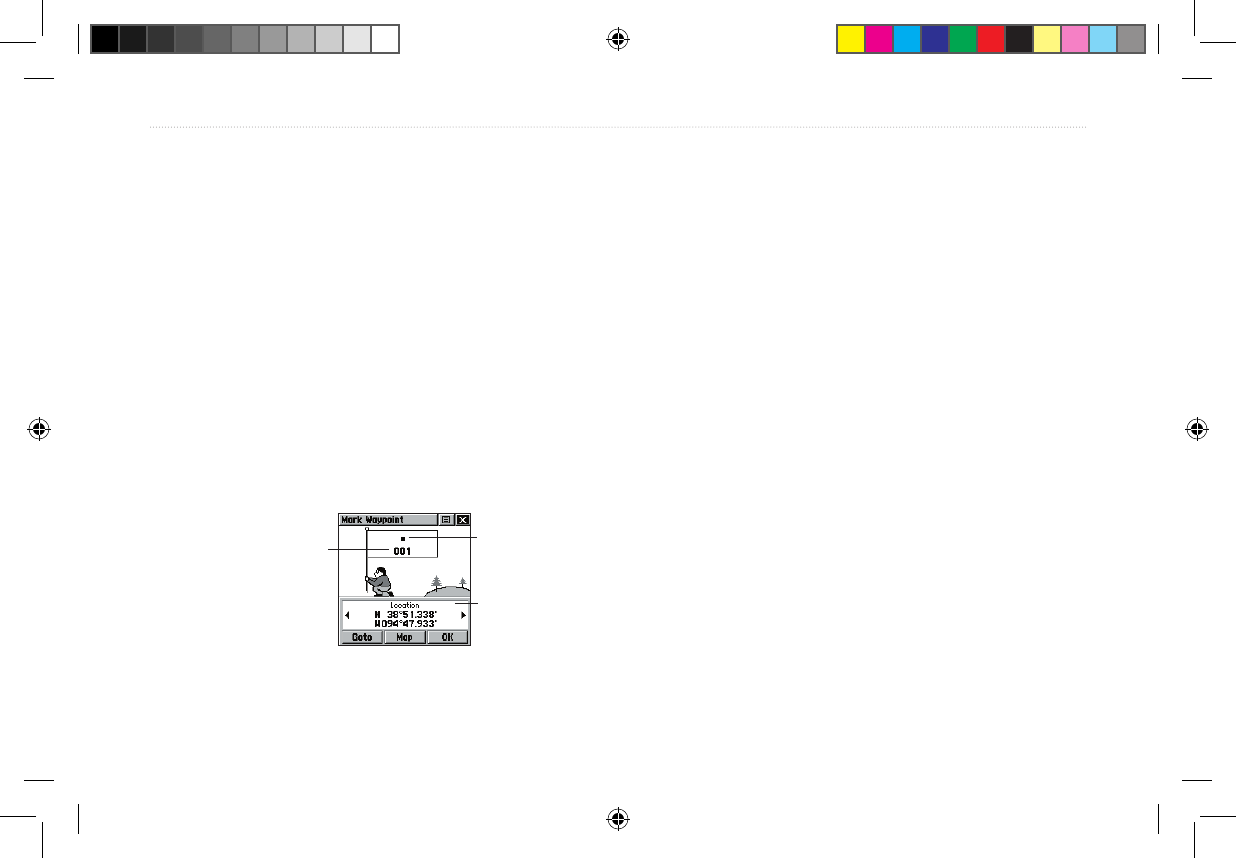

Mark Waypoint Page ................................................... 47
Creating Waypoints ..................................................... 48

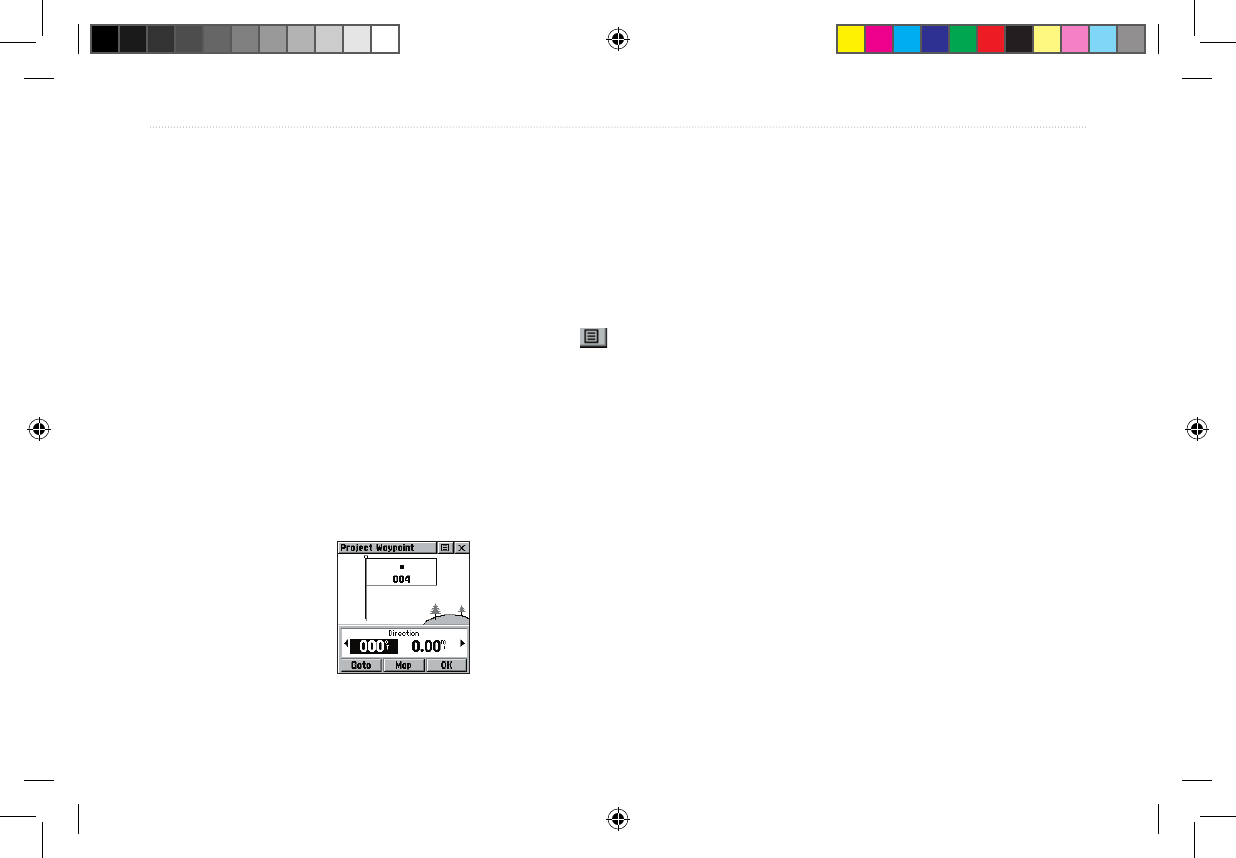

Projecting a Waypoint .................................................. 49

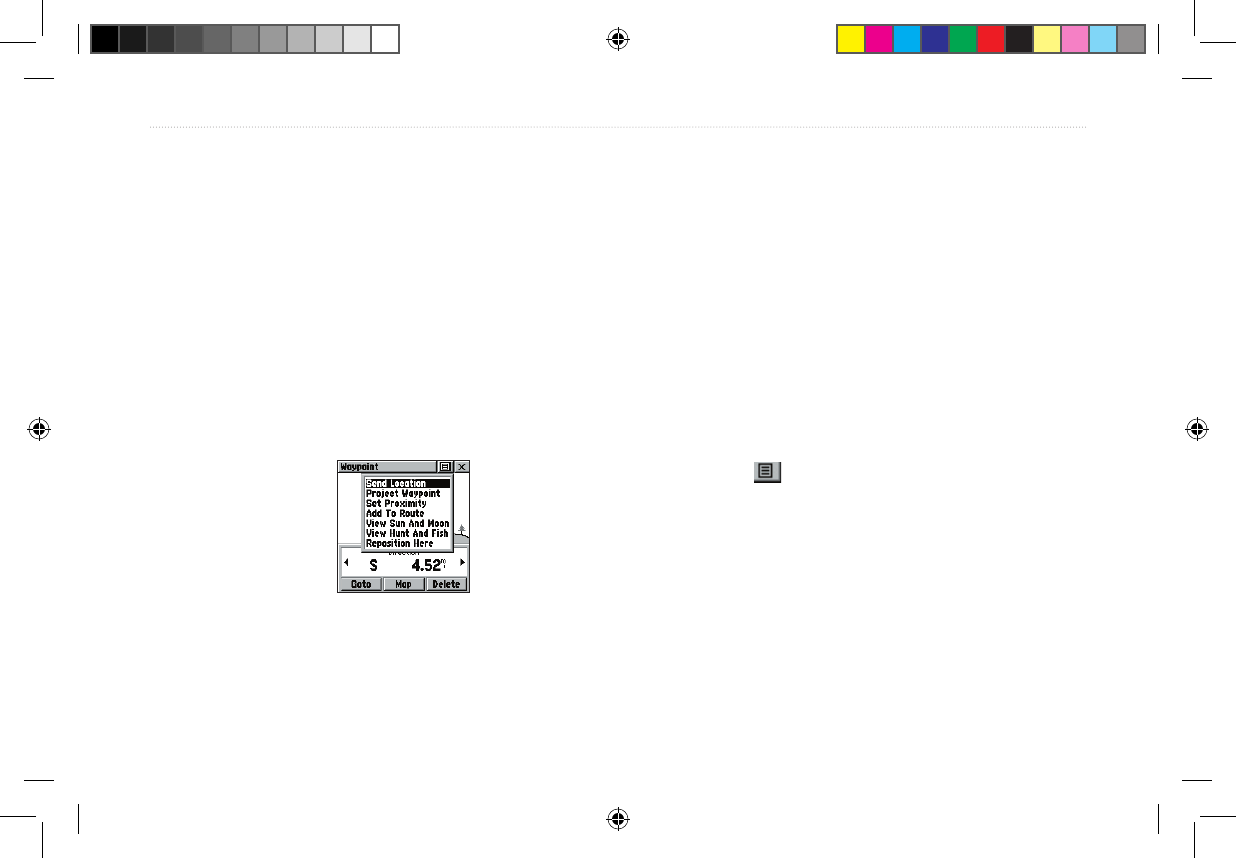

Editing a Waypoint ...................................................... 49

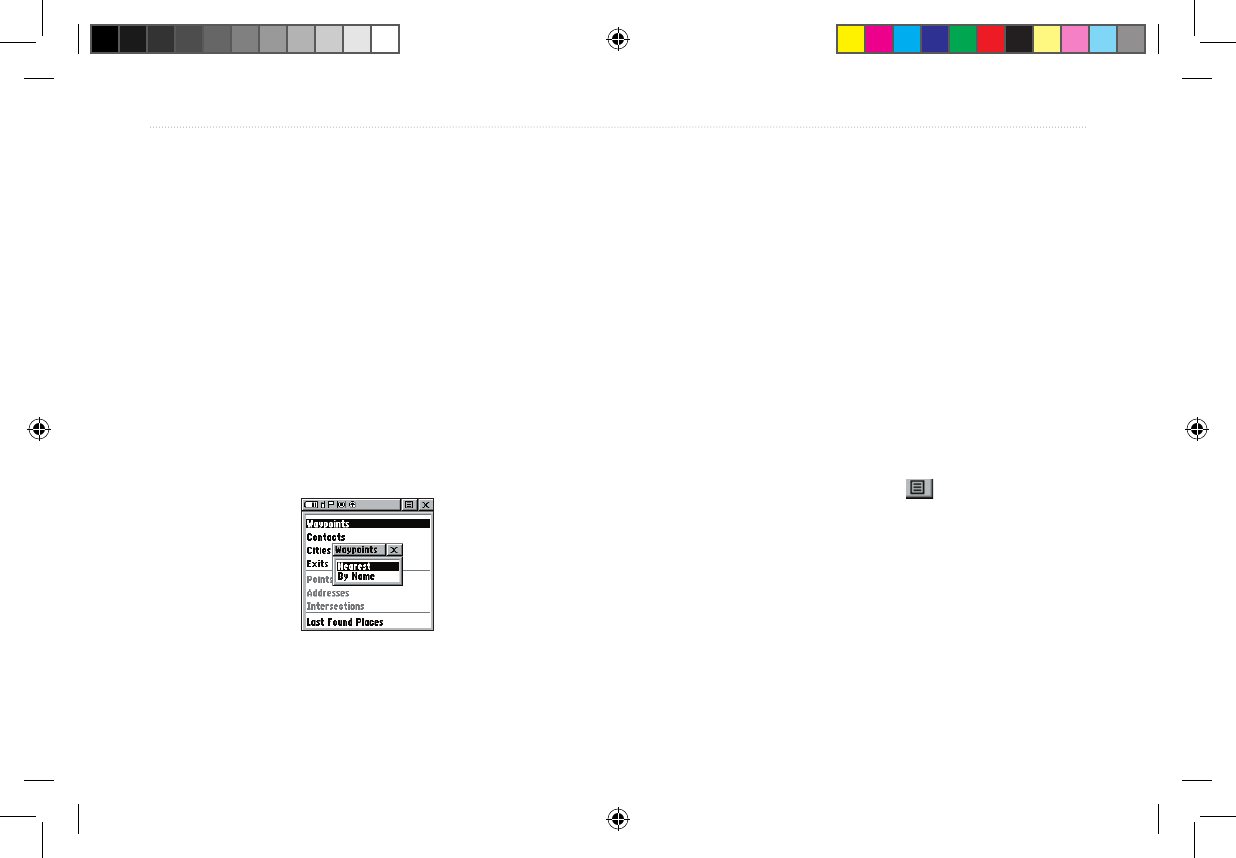

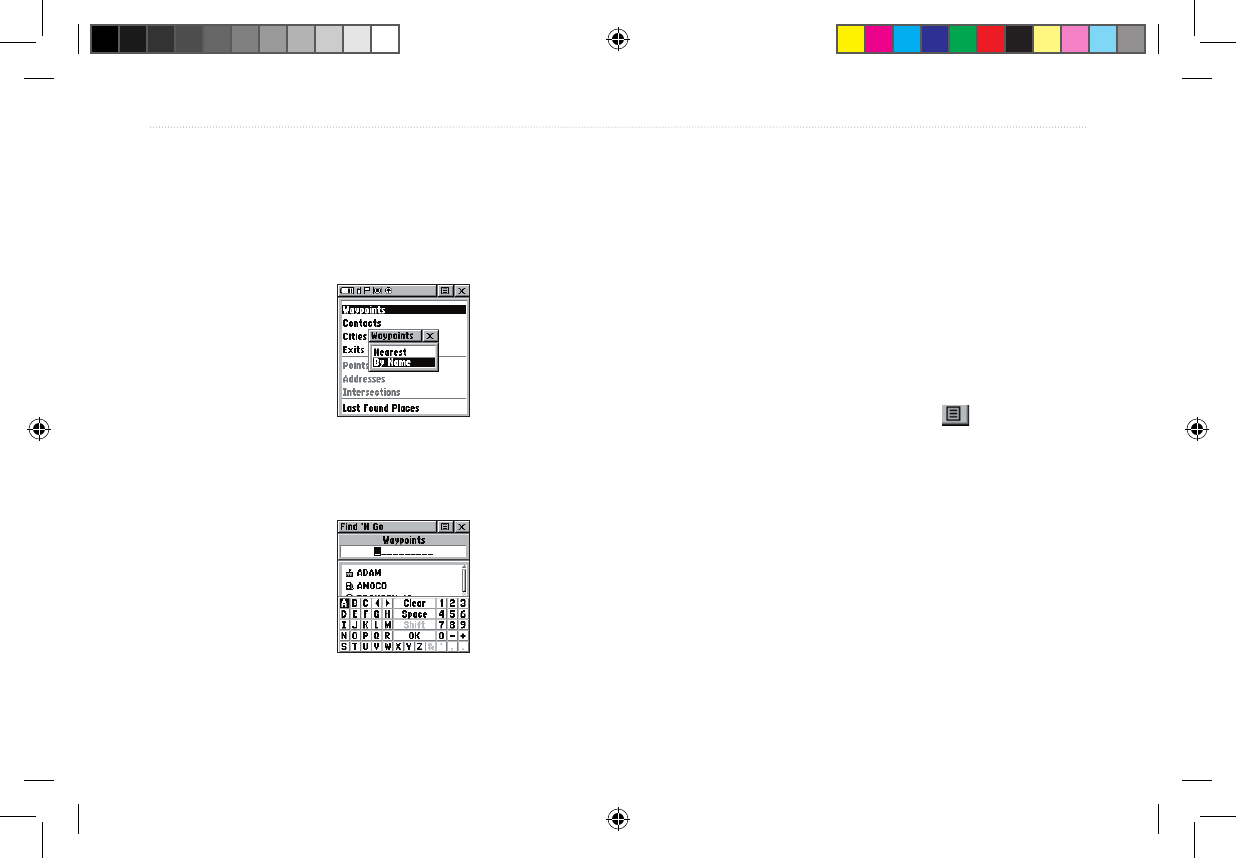

Find ‘N Go ............................................................... 51
Finding a Waypoint ...................................................... 52
Finding a Contact ......................................................... 54
Finding a City .............................................................. 55
Finding an Exit ............................................................ 56
Finding a Point of Interest ........................................... 57
Finding an Address or Intersection .............................. 59

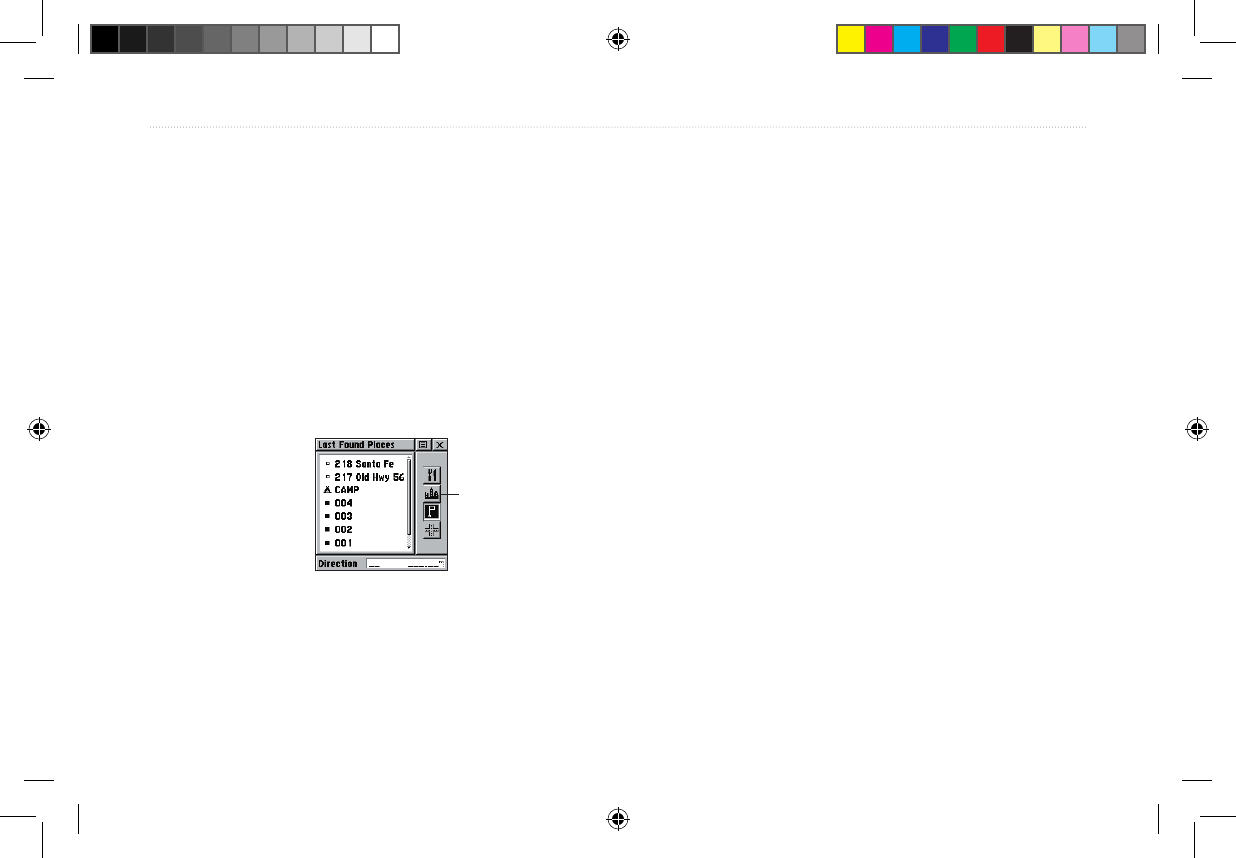

Finding a Last Found Place ......................................... 61
Weather Radio ........................................................ 62
Sending a Note ....................................................... 63
Using a Goto ........................................................... 64
Routes Page ............................................................65
Creating and Using a Route ......................................... 65
Editing a Route ............................................................ 66
Adding or Editing from the Route Map Page .............. 69
Navigating a Route ...................................................... 70
Stopping Navigation .................................................... 71
Data Fields for the Route Page .................................... 71
Tracks Page ............................................................ 72
Using the TracBack Feature ........................................ 73
Setting up the Track Log ............................................. 74
Proximity Page .......................................................75
Satellite Page .......................................................... 76
Sky View Graphic ........................................................ 76
WAAS .......................................................................... 77
Satellite Strength .......................................................... 77
Satellite Page Options .................................................. 78
Setup Pages ............................................................ 80
Time Setup Page .......................................................... 80
Units Setup Page .......................................................... 81
LORAN TD Format ............................................... 82
Display Setup Page ...................................................... 83
Heading Setup Page ..................................................... 84
Interface Setup Page .................................................... 85
Rino520_530_prelim.indd 3 1/25/2005 5:00:20 PM
iv Rino® 530 Owner’s Manual
PRELIMINARY
INTRODUCTION > TABLE OF CONTENTS
System Setup Page ....................................................... 87
Calendar .................................................................. 88

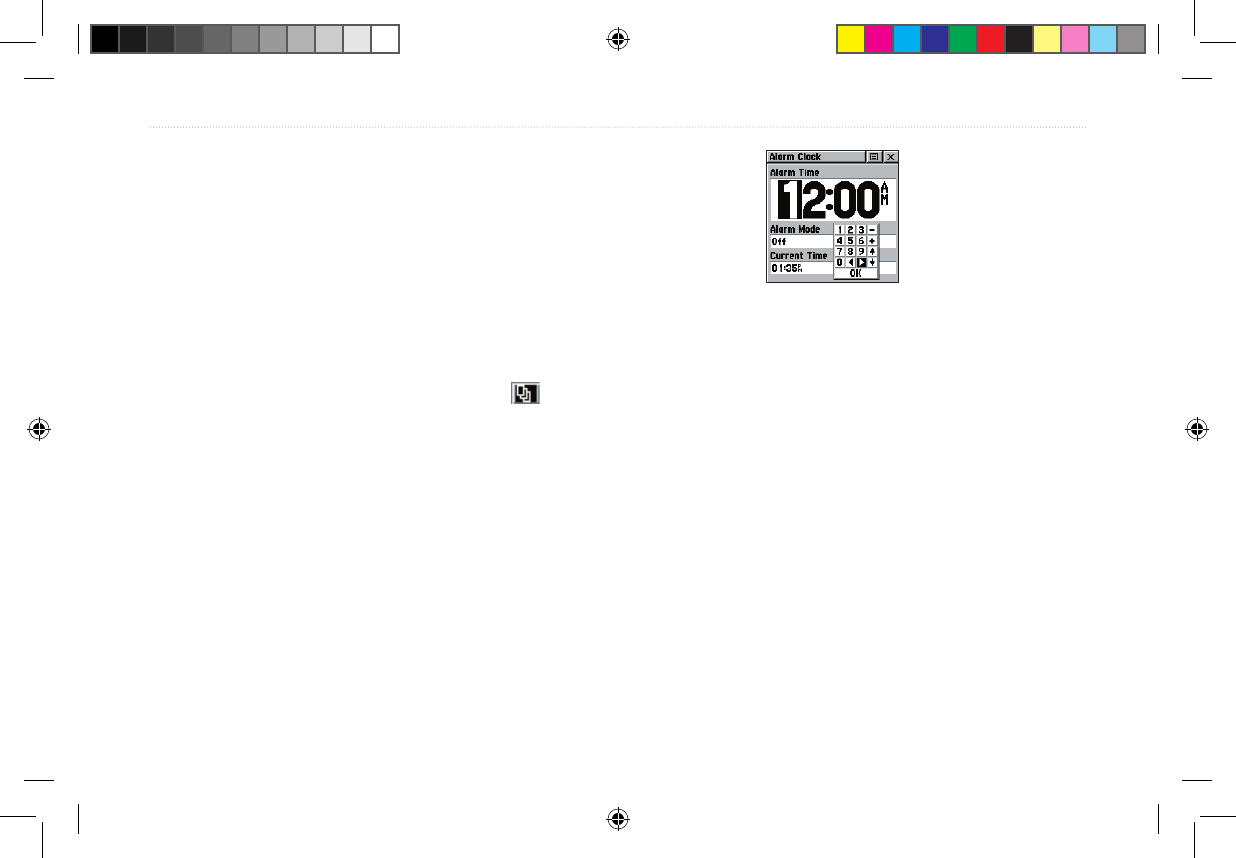

Alarm Clock ............................................................90
Calculator ................................................................ 91

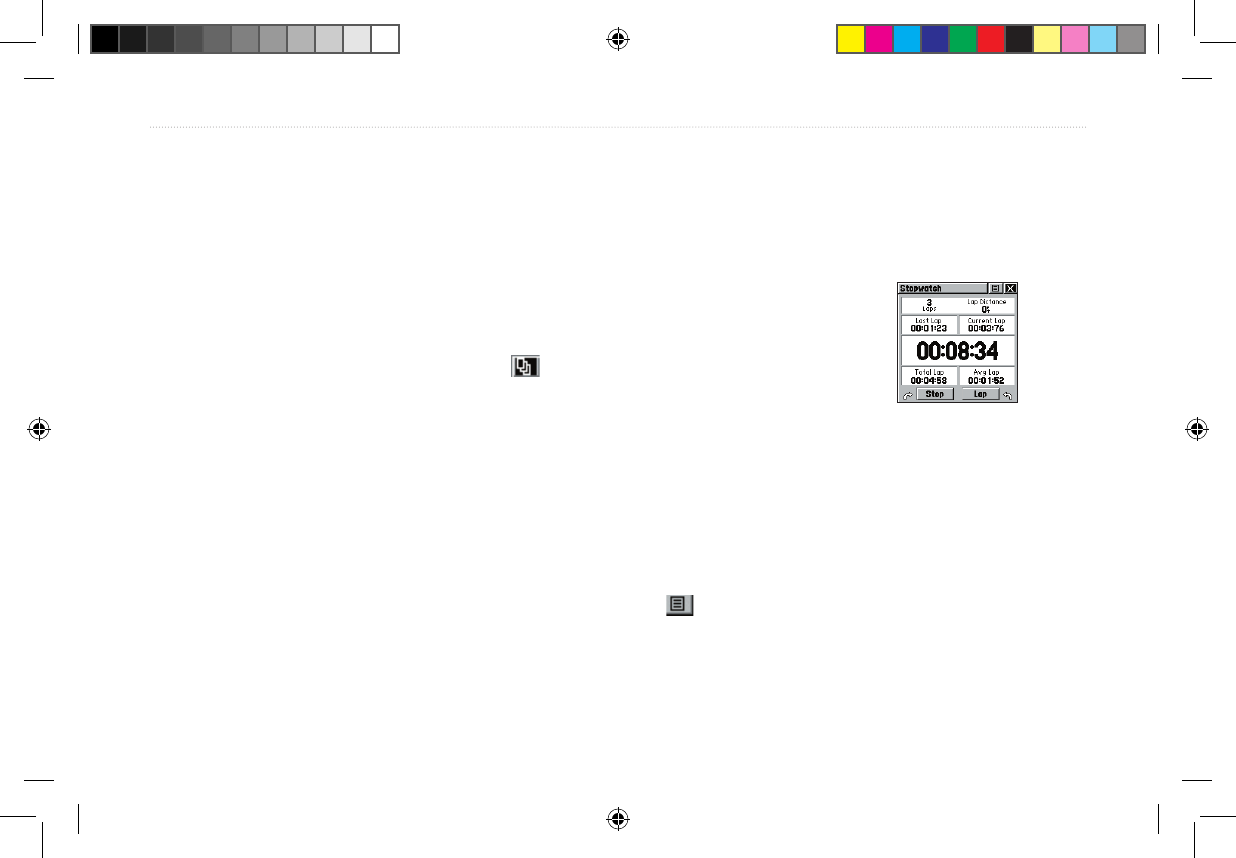

Stopwatch ............................................................... 92
Stopwatch Lap Options ............................................... 92
Sun & Moon ............................................................93

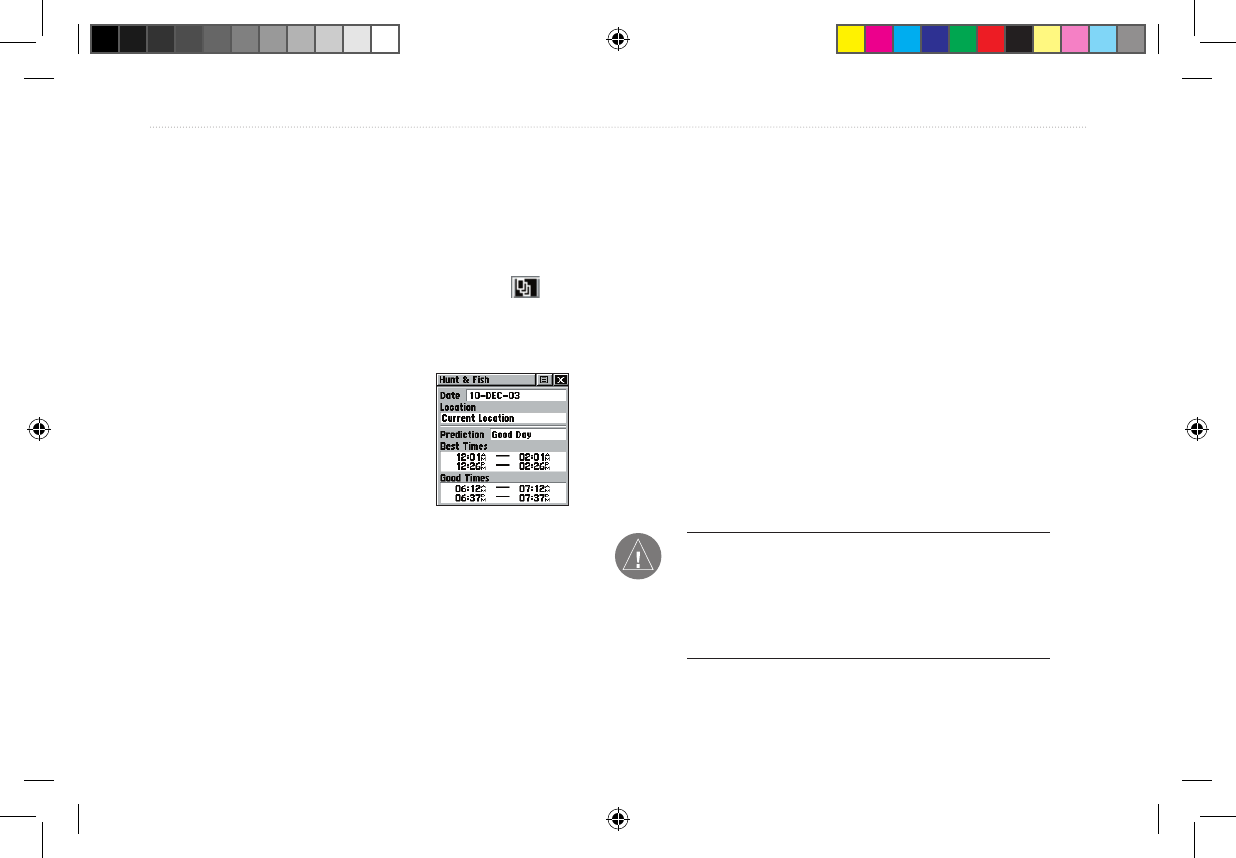

Hunt & Fish ............................................................. 94
Area Calculator ....................................................... 95

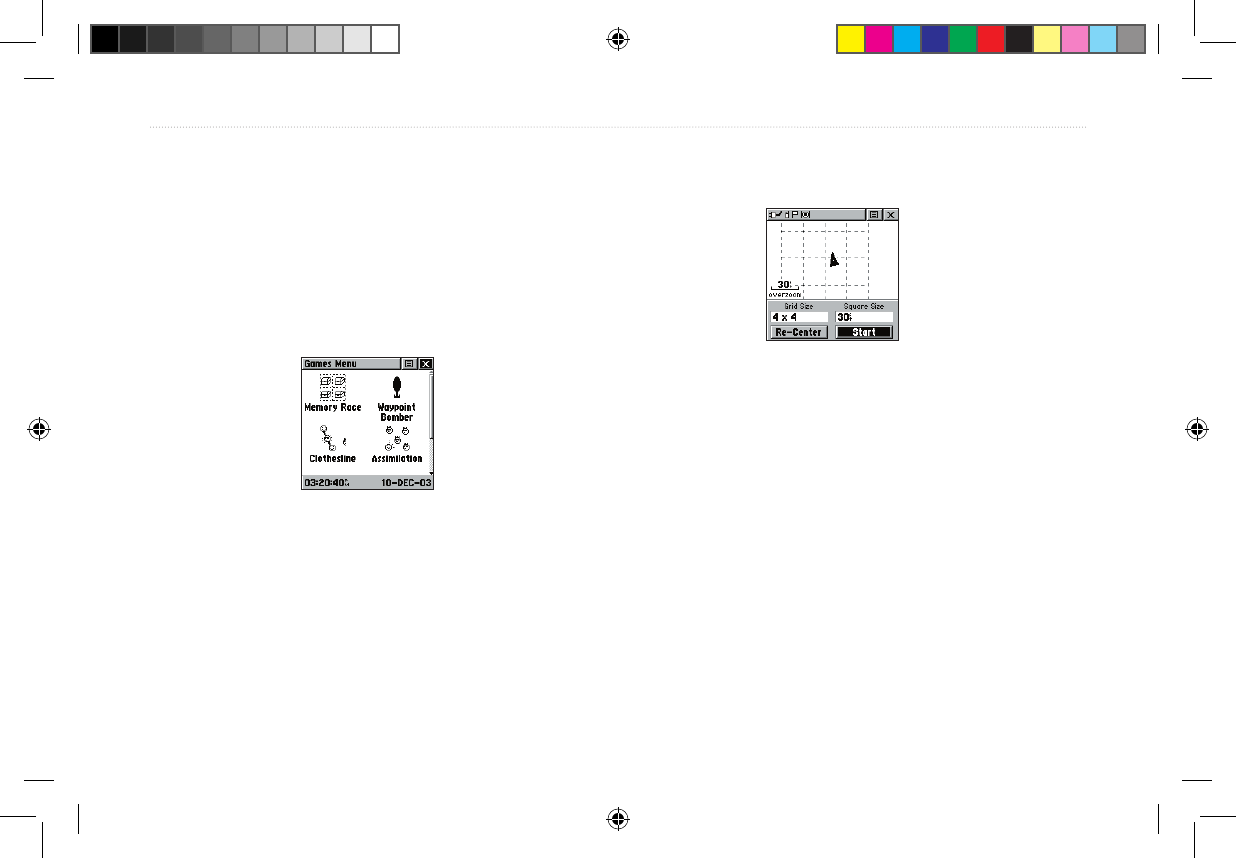

Games .....................................................................96
Memory Race .............................................................. 96
Waypoint Bomber ........................................................ 97
Clothesline ................................................................... 98
Assimilation ................................................................. 98
Beast Hunt ................................................................... 98
Appendix ..............................................................99
What is FRS? .......................................................... 99
FRS Features ................................................................ 99
FRS Limitations ......................................................... 100
GMRS ........................................................................ 100
Specifications ....................................................... 101
Physical ...................................................................... 101
Performance ............................................................... 101
Radio .......................................................................... 102
Power ......................................................................... 102
Accessories .......................................................... 103
Transferring MapSource Data ............................. 104
GPS Troubleshooting Guide ...............................106
Radio Troubleshooting Guide ............................. 107
FRS Frequency Chart ................................................ 108
Weather Radio Frequency Chart ................................ 108
GMRS Frequency Chart ............................................ 109
Data Field Definitions ........................................... 110
Interface Information ............................................ 112
FCC Compliance Information .............................. 113
FCC Licensing Information ................................. 114
Limited Warranty .................................................. 115
Software License Agreement .............................. 117
Product Registration .................................................. 117
Contact Garmin .......................................................... 117
Warnings and Cautions ....................................... 118
Index ...................................................................121
Rino520_530_prelim.indd 4 1/25/2005 5:00:20 PM
Rino® 530 Owner’s Manual 1
PRELIMINARY
GETTING STARTED > GETTING TO KNOW YOUR RINO 530
GETTING TO KNOW YOUR RINO 530
The Rino 530 (Radio Integrated with Navigation for
the Outdoors) is a 7.6 ounce, 12 channel GPS-enabled
handheld device. It has integrated radio functionality to
provide two-way communications for up to two miles
using 14 FRS (Family Radio Service) channels. The Rino
530 also provides 8 high-performance GMRS (General
Mobile Radio Service) channels and 8 GMRS repeater
channels (U.S. versions only) for up to five miles.
GMRS repeater channels are not approved for use by the
Canadian government, so they are disabled on Rino 530
units sold in Canada.
The Rino 530 has three user-selectable power levels: 0.5
W, 2.0 W, and 5.0 W. Keep in mind that FRS channels
only transmit at 0.5 W, even if you select a higher power
level. The Rino 530 also has a rechargeable lithium-ion
battery pack with charger. If you wish, you can purchase
an optional alkaline battery pack (however, transmit
power is limited to 2.0 W when using this pack).
The unit contains built-in cartography of a North
American basemap that includes Interstate and State
Highways and Exit Information. Using MapSource®,
Garmin’s map data software (not included), the Rino 530
can display up to 24 MB of a variety of different map
information. We currently offer several mapping options
that are compatible with the Rino 530 including our
MetroGuide, Topo, Fishing Hot Spots, and BlueChart®
data. Check your local dealer or the Garmin Web site
(www.garmin.com) for a complete listing of MapSource
products.
Garmin designed your Rino 530 with you, the user, in
mind. The Rino 530 is waterproof to IPX7 standards and
is rugged enough to endure the most trying use. Garmin’s
friendly user interface allows you to start navigating with
your new GPS in no time. Your Rino 530 can provide one
more critical benefit: peace of mind. With your Rino 530
you know where you are, where you’ve been, and where
you’re going. And since you’ll always know the way back
home, you can concentrate on what you set out to do;
explore the great outdoors.
Rino520_530_prelim.indd 1 1/25/2005 5:00:20 PM
2 Rino® 530 Owner’s Manual
PRELIMINARY
GETTING STARTED > FRONT OF THE RINO 530
Front of the Rino 530
Power button:
• Press and hold to turn the unit On/Off
• Press to adjust contrast and backlighting
Call button:
• Press to send out Call Tone
• Sends position when released
(if enabled)
Talk button:
• Press and hold to talk
• Sends position when released
(if enabled)
LCD Display
Page/Quit button:
• Press to cycle through main pages
• Used to quit or escape menu items
Volume (V) button:
• Press to open volume control window
Microphone:
• Hold unit 3-4 inches away when talking
Zoom/Map (Z) button:
• From the Map Page, press to open Zoom
control window
• From any other page, press to display Map
Page and press again to open Zoom control
Speaker
Thumb Stick
• Press In to enter highlighted options and to
confi rm messages
• Move Up, Down, Right or Left to move
through lists, highlight fi elds, on-
screen buttons, icons, enter data,
or move the map panning arrow
• Press In and hold to display
Shortcuts Menu.
Rino520_530_prelim.indd 2 1/25/2005 5:00:25 PM
Rino® 530 Owner’s Manual 3
PRELIMINARY
GETTING STARTED > BACK OF THE RINO 530
Back of the Rino 530
2-way FRS/GMRS Antenna
Headset Connector with
Weather cap
External Power And
Data Connector with
Weather cap
GPS Antenna
Battery Compartment Cover
Belt Clip Connector Mount
Battery Compartment D-Ring
Mount Alignment Notches
Rino520_530_prelim.indd 3 1/25/2005 5:00:26 PM
4 Rino® 530 Owner’s Manual
PRELIMINARY
GETTING STARTED > MAIN DISPLAY PAGES
Main Display Pages
All of the information you need to operate the Rino 530 can be found on six default main pages (or display screens).
Simply press and release the Page button to cycle through the Radio Page, Map Page, Navigation Page, Altimeter Page,
Trip Computer, and Main Menu Page. You can also access the Main Pages by pressing the on-screen Main Page button
. Customize the Main Page sequence through the Main Menu (see page 45).
Main Menu
Radio Page Map Page
Trip Computer
Navigation Page
Altimeter Page
Rino520_530_prelim.indd 4 1/25/2005 5:00:27 PM
Rino® 530 Owner’s Manual 5
PRELIMINARY
GETTING STARTED > OPERATING THE RINO 530
Operating the Rino 530
For best results, you should initialize the GPS receiver
in your Rino 530 unit before you use it the first time. See
page 7 for instructions on initializing the unit. For most
accurate results, the compass and altimeter should also
be calibrated. Refer to the “Calibrating the Compass”
and “Calibrating the Altimeter” sections for complete
information.
The Rino 530 is programmed to provide “pop-up”
messages concerning operational characteristics and
conditions. Press the Thumb Stick In to acknowledge a
message and return to the current feature.
To use the Thumb Stick:
• Press In to enter highlighted options and to
confirm messages
• Move Up, Down, Right or Left to move through
lists, highlight fields, on-screen buttons, icons,
enter data, or move the map panning arrow
• Press In and hold to display Shortcuts Menu.
To use the page Option Menu:
1. Highlight the Option Menu on-screen button
at the top of the display screen and then press the
Thumb Stick In to open the menu.
2. Highlight the desired menu option and press the
Thumb Stick In to activate the option.
3. To close without making a selection, move the
Thumb Stick to the Right.
To lock/unlock the buttons:
1. Press and hold the Thumb Stick In to access the
Shortcuts Menu. Highlight Enable Keylock and
press the Thumb Stick In. The Talk button is now
locked.
2. To unlock, press and hold the Page button until
“Keylock Disabled” is displayed (about 5 seconds).
Rino520_530_prelim.indd 5 1/25/2005 5:00:28 PM
6 Rino® 530 Owner’s Manual
PRELIMINARY
GETTING STARTED > STATUS BAR OVERVIEW
Status Bar Overview
The Status Bar at the top of the screen displays on all
the available Main Pages. As you move around any of
the Main Pages, the current page’s title briefly displays
(3 seconds) and then is replaced by the Status Bar. The
current settings and operational icons on the Status Bar
are displayed as you operate the unit.
The available icons are:
Battery Full (Each bar represents 1/4 charge)
Battery 1/2 charge
Battery Empty
Using External Power
Receiving Radio signal
Transmitting Radio signal
Backlight On
Radio On
Peer-To-Peer On/Location Ready to Send
Keylock On
Alarm Clock On
GPS On, Position Ready
GPS On, Position Not Ready
Compass On (Press and hold the Zoom key to
turn the compass on/off)
Weather Alert On
Rino520_530_prelim.indd 6 1/25/2005 5:00:28 PM
Rino® 530 Owner’s Manual 7
PRELIMINARY
UNIT OPERATION > RADIO PAGE
UNIT OPERATION
Radio Page
The Radio Page is the first of the default Main Pages.
This page provides the user interface for FRS (Family
Radio Service) and GMRS (General Mobile Radio
Service) radio operations. Garmin Rino units work
with 3rd party FRS/GMRS radios, provided the other
radios use standard FRS/GMRS frequencies. To take full
advantage of the Rino features, communicate with other
Rino users.
The Radio Page also provides access to the Weather
Radio, which provides a constant update of current
weather conditions. The Weather Alert feature further
enhances the Weather Radio by automatically notifying
you of any weather alerts, even when the Weather Radio
is not is use and the FRS/GMRS radio is in use! These
features are helpful while outdoors or planning a road
trip.
Also use this page to control and setup the radio, view
current settings and see informational graphics of the
unit’s operation.

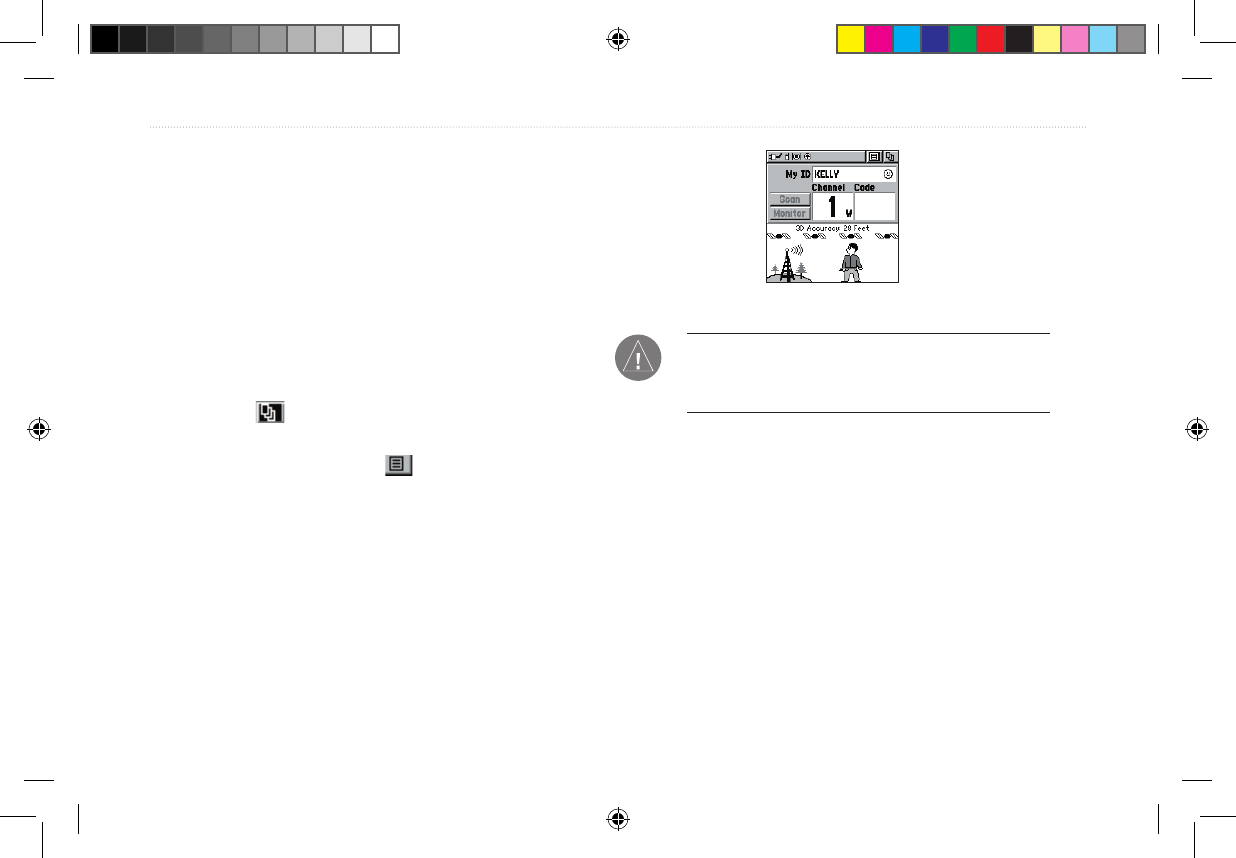

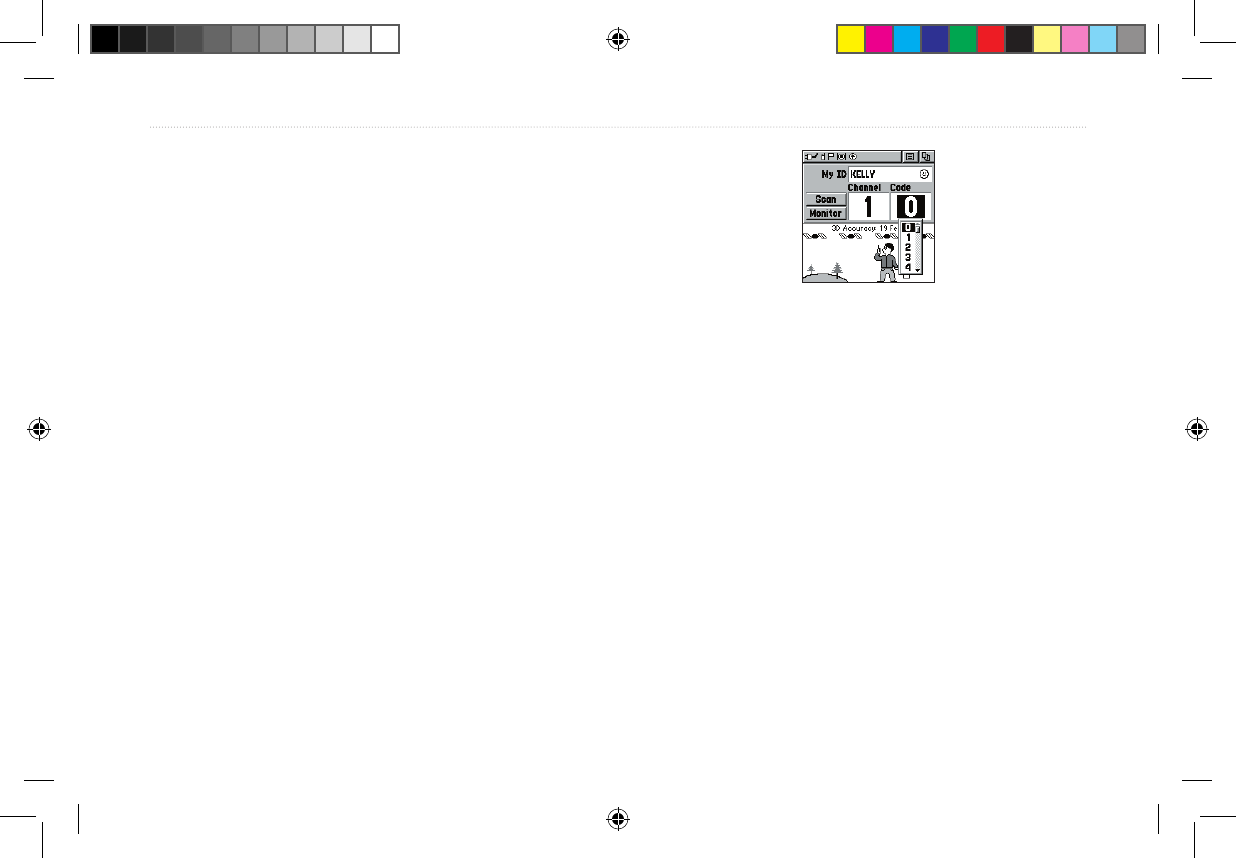

Radio Page
Initializing the Rino 530
To take full advantage of all of the Rino 530 features,
the GPS receiver must be initialized. The initialization
process allows the Rino 530 to receive and store satellite
information and begin using the satellites for navigation.
Initialization is automatic, should only take a few
minutes, and only needs to be done the first time the unit
is used.
Rino520_530_prelim.indd 7 1/25/2005 5:00:28 PM
8 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
To initialize the unit:
1. Take the Rino 530 outside where it has an
unobstructed view of the sky and turn it on.
2. The unit begins to search for satellite signals.
“Tracking Satellites” is displayed while the unit is
initializing.
3. Initialization should take no more than five
minutes. When the GPS is initialized and ready
for navigation, the message “3D Accuracy” is
displayed on the Radio Page.

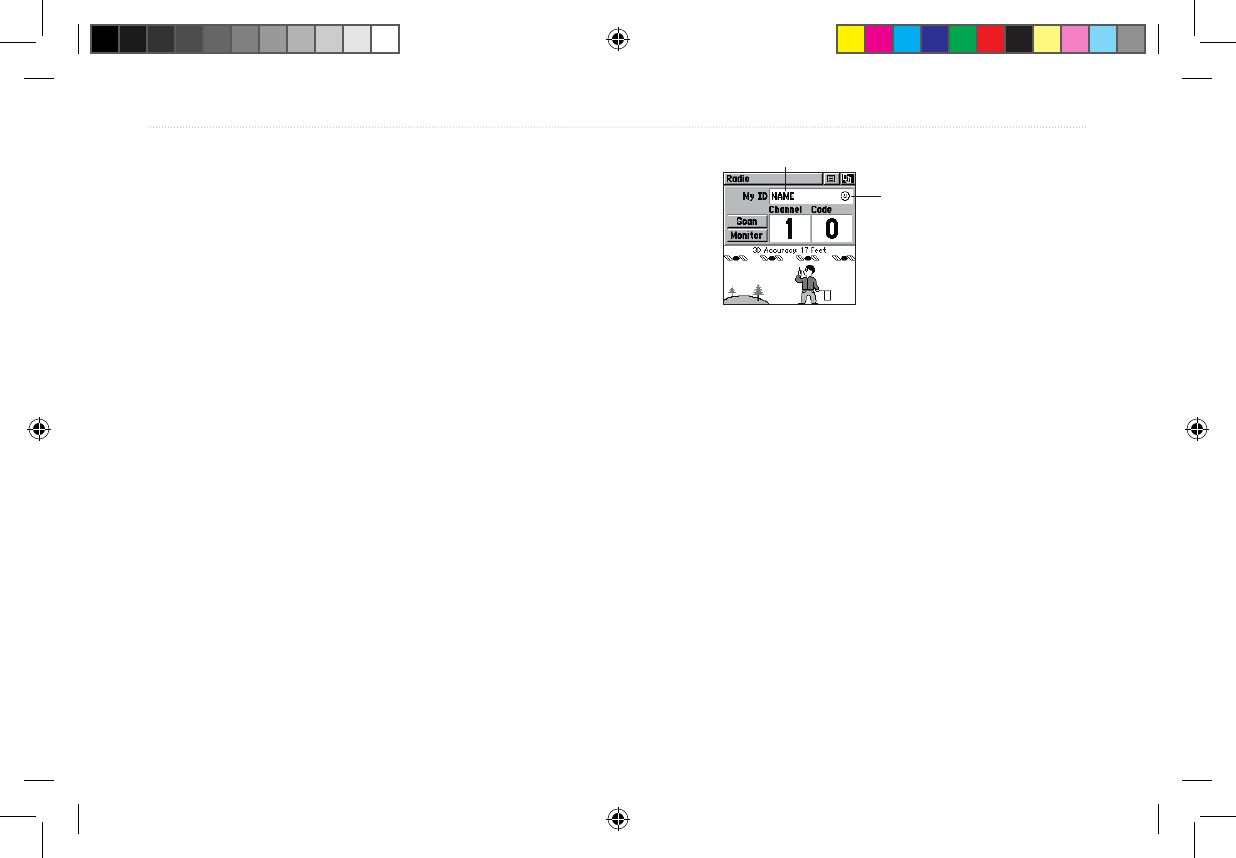

Using My ID and Symbol Fields
The My ID field allows you to enter a name and symbol
that appears on other Rino units as you communicate
with them. You may enter a name using a combination
of up to 10 letters, numbers, or spaces. The Symbol field
allows you to choose a face icon from a list to further
personalize your ID.
My ID Field
Symbol
To enter a name:
1. Using the Thumb Stick, highlight the My ID field.
Press the Thumb Stick In to activate the field and
display the keyboard.
2. Move the Thumb Stick Up, Down, Left, or Right
to highlight the Clear field, then press the Thumb
Stick In to clear the default Name ID.
3. To enter a new ID, use the Thumb Stick to move
the cursor to the desired character (letter, number,
or a space). Press the Thumb Stick In to select
that highlighted character. Choose Back to delete
the character to the left of the cursor. You may
enter up to 10 characters for your ID.
Rino520_530_prelim.indd 8 1/25/2005 5:00:29 PM
Rino® 530 Owner’s Manual 9
PRELIMINARYUNIT OPERATION > RADIO PAGE

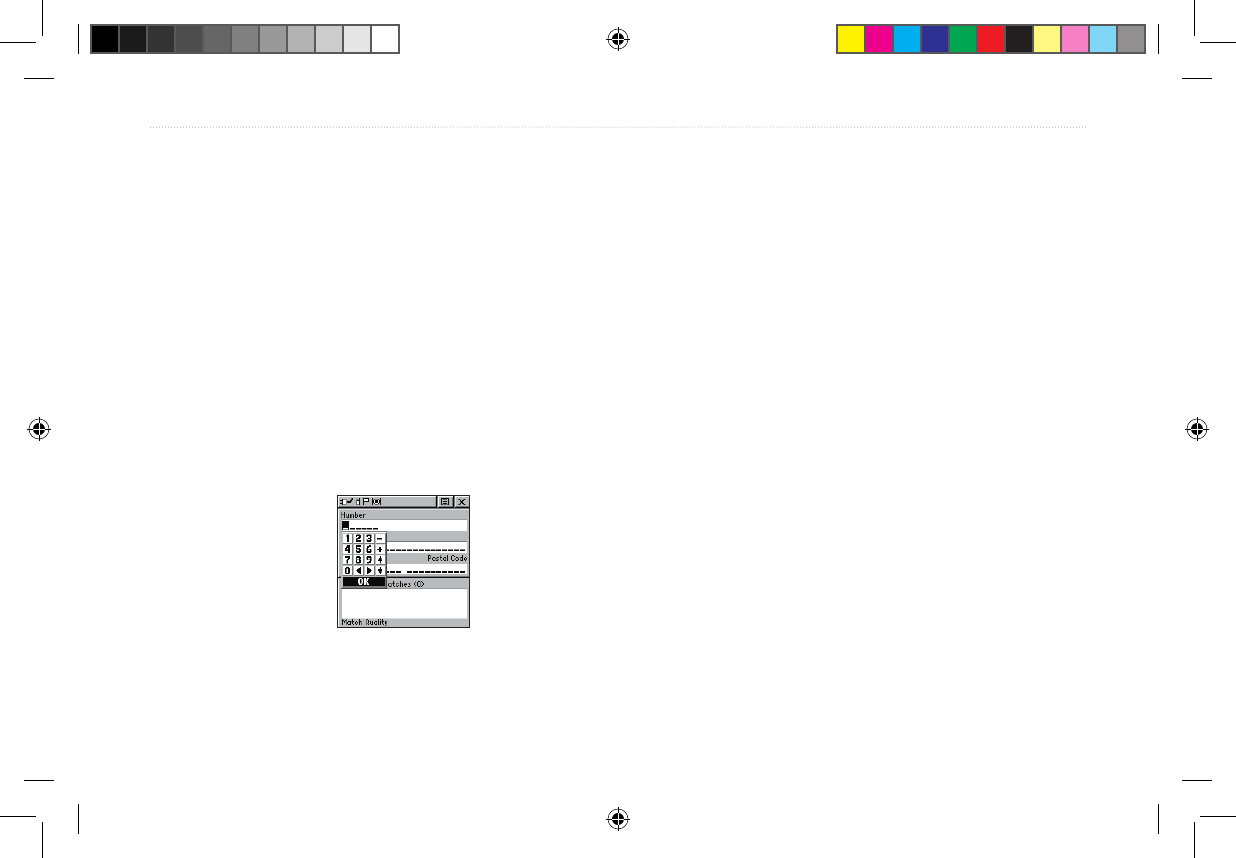

Entering a name
with the on-screen
keyboard
4. When you have entered your new ID, use the
Thumb Stick to highlight OK and then press the
Thumb Stick In.
To change the user symbol:
1. Using the Thumb Stick, highlight the face symbol
to the right of the My ID field. Press the Thumb
Stick In to show a list of available face icons.
2. Move the Thumb Stick Up or Down to scroll
through the selections. Because not all the
selections can fit in the window, a slider bar on the
right side indicates your current position in the list.
Changing the
user symbol
TIP: Hold the Thumb Stick Up or Down to scroll
through the list more quickly. Once you reach the end
of the list, you can wrap back to the top or bottom by
releasing the Thumb Stick then pressing in the same
direction again. This same method may also be used
on other selection windows.
3. Once you have highlighted the desired icon, press
the Thumb Stick In.
Rino520_530_prelim.indd 9 1/25/2005 5:00:29 PM
10 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
Setting the Channel and Squelch Code
The Rino 530 has a total of 22 channels (not including
GMRS repeater channels) and 38 squelch codes to select
from using the Channel and Code fields. Channels 1–7
and 15-22 GMRS channels, 8-14 are FRS channels, and
15R–22R are for GMRS repeater channels (repeater
channels are available U.S. units only and are disabled
by default). To communicate with other Rino and
FRS/GMRS users, you must be on the same channel
and squelch code. Garmin Rino units work with 3rd
party FRS/GMRS radios, provided the other radios
use standard FRS/GMRS frequencies. A chart of Rino
frequencies may be found in the “Appendix.”
Squelch codes allow you to hear calls from only specific
persons. Thirty-eight (38) Squelch Codes (called
Continuous Tone Coded Squelch System or CTCSS)
allow your Rino 530 to ignore unwanted calls from other
persons using the same channel. Simply select the same
squelch code (number) as selected by the other person(s)
with which you will communicate.
Select from FRS 1–14, GMRS 15–22
(with GMRS enabled), and 15R–22R
GMRS repeater channels (with GMRS
and Repeater Channels enabled).
NOTE: Squelch codes do not cause your conversa-
tion to be private. They only allow you to filter out
other users on the same channel, so you only hear
the radios you want to hear. Squelch Codes are not a
scrambling system!
Rino520_530_prelim.indd 10 1/25/2005 5:00:30 PM
Rino® 530 Owner’s Manual 11
PRELIMINARYUNIT OPERATION > RADIO PAGE
Setting the squelch code to 0 (squelch code off) allows
you to hear all activity on the selected channel, but
you must be set to the same squelch code as the other
person(s) to transmit back. See the “Appendix” for a table
listing all of the 38 Squelch Codes and their frequencies.
As you change the main channels, the Rino 530
remembers the last channel/squelch code combination
that you were using. For example, you may set the unit
channel to 5 and squelch code to 21, then change the
main channel to 8 and squelch code to 2. If you change
the channel back to 5, the squelch code changes back to
its previous setting of 21. See the “Appendix” for more
information on FRS/GMRS and its operational aspects.
Choose from 38 squelch codes. Setting
the unit to zero will allow you to hear all
transmissions on that channel, but you must
be on the same squelch code to radio back.
To change the Channel and/or Squelch Code:
1. Using the Thumb Stick, highlight the Channel or
Code field and then press the Thumb Stick In to
show a list of available channels/squelch codes.
2. Move the Thumb Stick Up or Down to scroll
through the selections. Because not all the items
fit in the window, a slider bar on the right side
indicates your current position in the list.
3. Once you have highlighted the desired selection,
press the Thumb Stick In.
Rino520_530_prelim.indd 11 1/25/2005 5:00:30 PM
12 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
Scanning and Monitoring
The Scan option allows you to scan through the available
channels for voice activity. As the unit scans and
receives a signal (or if you transmit), it stops on that
channel/squelch code for a few seconds, then continues
scanning. When the Rino 530 is scanning and it receives
an incoming signal, the Rino 530 automatically decodes
the Squelch Code used by the incoming signal. The Rino
530 then uses that Squelch Code when it transmits back
to that unit.
You may use the Set Scanlist option to pick which
channels/squelch codes to scan. Scanning through the
all the channels can take time: Selecting only specific
channels/squelch codes decreases the scan time and
helps prevent the chances of missing a transmission.
The Scanlist also has Option Menu choices to
Scan Current Codes or Scan All Codes. Choosing Scan
Current Codes scans only the Channel and Squelch Code
combination in memory.
The Monitor option lets you listen to a single channel
for any activity, including static and weak voice signals.
The Rino series automatically squelches a frequency
to filter out unwanted noise. Using the Monitor option
temporarily turns off the automatic squelch, allowing you
to hear the open channel. If you see a broken transmission
symbol (see page 18), there is activity on your selected
channel, but the incoming signal does not match the
Squelch Code your unit is using. You may choose to
monitor a channel if you wish to hear all the activity on a
channel.
To scan or monitor a channel(s):
1. Using the Thumb Stick, highlight the Scan or
Monitor button and then press the Thumb Stick
In. Scan starts searching through the available
channels. Monitor opens the channel to listen to
any radio transmissions on that channel.
2. To stop using either option, highlight the button
with the Thumb Stick and press In.
Rino520_530_prelim.indd 12 1/25/2005 5:00:30 PM
Rino® 530 Owner’s Manual 13
PRELIMINARYUNIT OPERATION > RADIO PAGE
The Code field is blank
when the unit is scanning or
monitoring channels.
To setup a Scanlist:
1. Using the Thumb Stick, highlight the Option Menu
on-screen button and press In. Highlight
Setup Scanlist and press the Thumb Stick In.
2. To add/remove a channel from the list, highlight
the channel and press the Thumb Stick In to
add/remove the check mark in front of the name.
Only channels that are checked will be scanned.
3. To select all channels or clear all channels,
highlight either the Select All or Clear All buttons
and press the Thumb Stick In.
4. To Scan Current Codes, highlight the Option
Menu and press the Thumb Stick In. Choose
the desired setting and press the Thumb Stick In.
Scanlist Page
The Radio Page Option Menu provides the following:
Setup Radio, Setup Tones, Setup Scanlist, Use Weather
Radio/Use FRS/GMRS Radio, Turn Radio Off/On,
Turn GPS Off/On, and Enable Weather Alert. Refer to
the following pages for explanations of each item in the
Radio Page Option Menu.
Rino520_530_prelim.indd 13 1/25/2005 5:00:31 PM
14 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
Radio Page Option Menu
The Radio Page Option Menu allows you to
customize aspects of your Rino 530, such as setting up
the radio, programming call and ring tones, and setting up
a scanlist.
Setup Radio
The Setup Radio option displays the Radio Setup Page.
This page determines how the radio functions and enables
you to adjust the radio operation to your needs. The
following options are available:
Radio Page
Option Menu Setup Radio Page
Send Location—Enables/disables the peer-to-peer
positioning feature. See the “Peer-to-Peer” section for
more on this feature.
Allow Polling—Enables/disables your Rino 530’s ability
to respond to a poll from another Rino.
VOX Level—Controls the sensitivity level of any
Voice Operated Transmission (VOX) accessory.
VOX accessories allow you to use the unit hands-
free. A lower VOX setting is recommended for quiet
environments while a higher VOX setting should be
used in noisy environments. Setting the VOX level to 5
is recommended for most environments, but it may be
necessary to adjust the level to achieve the desired voice
trigger level. You will hear yourself talking in the headset
when transmitting successfully using VOX.
Scramble—Adds a level of security to your
conversations. When On, the voice transmission sounds
garbled to other non-scrambled Rino units, as well as
other 3rd party radios.
Rino520_530_prelim.indd 14 1/25/2005 5:00:33 PM
Rino® 530 Owner’s Manual 15
PRELIMINARYUNIT OPERATION > RADIO PAGE
NOTE: When Scramble is set to On, in order for
peer-to-peer and Send Location features to work, the
receiving radio must have Scramble enabled also.
GMRS Radio—Use this option to turn On/Off GMRS
channels 15–22. When you turn GMRS channels off,
channels 15–22 will be disabled and channels 1–7 will
become FRS channels (GMRS interstitial). Remember,
you must obtain a license to operate GMRS channels in
the U.S. See the “FCC Licensing Information” section
and the “Appendix” for more information on using
GMRS channels.
Repeater Channel—Use this option to turn On/Off
GMRS repeater channels 15R–22R. This option is only
available when GMRS is enabled. GMRS repeater
channels are not available in Rino units sold in Canada.
Headset Type—Allows you to choose which accessory
headset or microphone you are using with the unit, or
have the unit automatically detect the type. If you use
more than one type of headset or microphone, you need
to set the unit to Ask When Detected before changing
accessories.
NOTE: If the headset has a PTT (Push to Talk)
button, it must be pressed for the unit to detect the
headset.
Microphone Sensitivity—Allows you to set the
sensitivity of the internal microphone and the sensitivity
of a headset microphone.
Rino520_530_prelim.indd 15 1/25/2005 5:00:33 PM
16 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
Setup Tones
Call Tone—When the Call button is pressed, an attention
tone is transmitted. This option allows you to choose one
of ten tones.
Roger Tone—When the Talk button is released, a tone
is sent to signify the end of the transmission. This option
allows you to choose one of four tones, or set the tone to
Off.
Ring Tone—When an incoming transmission is received,
an attention tone will sound. This option allows you to
choose one of ten tones or set the tone to Off. The Ring
tone will not sound again until there has been 45 seconds
of radio inactivity.
Vibrate—Choose from On or Off to have the unit
vibrate when an incoming transmission is received. Once
received, the unit will not vibrate again until there has
been 45 seconds of radio inactivity.
On/Off Tone—Enable or disable the tone the unit makes
when it is turned on and off.
Message Tone—Choose from On or Off to have the unit
emit a tone when a message or note is received.
Setup Tones Page
Setup Scanlist
Refer to “Scanning and Monitoring” for complete
information about this feature and the options in
this page.
Setup Scanlist Page
Rino520_530_prelim.indd 16 1/25/2005 5:00:33 PM
Rino® 530 Owner’s Manual 17
PRELIMINARYUNIT OPERATION > RADIO PAGE
Use Weather Radio
The Weather Radio provides a constant update of the
weather conditions, which is helpful while outdoors or
planning a road trip. The Weather Alert further enhances
the Weather Radio by automatically broadcasting any
weather alerts if you are not actively transmitting or
receiving on the radio.
Select the Radio Page Option Menu button . Press
the Thumb Stick In when Use Weather Radio is
highlighted to turn on the weather radio. You can also
access the Weather Radio through the Shortcuts Menu.
When the Weather Radio is on, a tower emitting signals is
shown in the informational picture on the Radio Page, as
shown to the right. The FRS/GMRS radio cannot be used
when the Weather Radio is on. Also, you cannot scan or
monitor FRS/GMRS channels when the Weather Radio is
in use. The audio is unmuted when the Weather Radio is
on so that you can listen to weather broadcasts.
Change the Weather Radio channel in the same manner as
changing the FRS/GMRS radio channel. There are seven
Weather Radio channels (1 through 7) available.
Radio Page with
Weather Radio On
Changing the Weather
Radio Channel
When the Weather Radio is on, Enable Weather
Alert is added at the bottom of the Option Menu. Press
the Thumb Stick In when Enable Weather Alert is
highlighted to turn the feature on. You can then turn the
Weather Radio off and continue normal FRS/GMRS radio
operations.
Rino520_530_prelim.indd 17 1/25/2005 5:00:34 PM
18 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > RADIO PAGE
When a Weather Alert tone is detected, the Rino 530
automatically turns on the Weather Radio and broadcasts
the Weather Alert if you are not actively transmitting or
receiving on the radio. The volume changes to 3/4 the
maximum when a Weather Alert is broadcast. Select
Disable Weather Alert to turn off this feature.
To turn the weather radio off, press the Thumb Stick
In when Use FRS/GMRS Radio is highlighted. This
switches the Rino 530 back over to the FRS/GMRS radio
operation.
Turn Radio/GPS On/Off
Press the Thumb Stick In on either of these two options
to toggle them from on to off. For example, to turn GPS
Off, press the Thumb Stick In when Turn GPS Off is
highlighted.
Informational Picture
The Informational Picture on the bottom half of the Radio
Page features Garmin’s Mr. Mark Waypoint showing
current GPS and radio status, and radio actions. As you
operate the unit, the graphics change depending on what
actions you are taking and the unit settings.
GPS Status
Four satellites are shown on at the top of the picture along
with descriptive text to indicate GPS reception status.
As the unit collects satellite information, the satellite
symbols flash alternately until all four are steady to
indicate a 3D position fix. The more satellites that are
steady, the better your position fix.
Radio Transmission Status
As radio signals come in, signal wave symbols display to
the left of Mark Waypoint. Fragmented (or broken) signal
symbols are shown to indicate activity on that channel.
Audio remains muted because the incoming signal does
not match the squelch code your unit is set to.
Rino520_530_prelim.indd 18 1/25/2005 5:00:34 PM
Rino® 530 Owner’s Manual 19
PRELIMINARYUNIT OPERATION > RADIO PAGE
Mark Waypoint’s Indicators
The Mark Waypoint figure displays several different icons, depending on what you are doing. See the following
illustrations for more information.
GPS On; FRS/GMRS Radio Off;
GPS operation only
GPS and FRS/GMRS Radio On;
Ready to transmit Position
GPS and Weather Radio On
(FRS/GMRS Radio Off)
GPS and FRS/GMRS Radio On;
Ready to transmit Position;
Transmitting on FRS
GPS and FRS/GMRS Radio On;
Position not ready;
Transmitting on GMRS
GPS and FRS/GMRS Radio On;
Ready to transmit Position;
Receiving transmission
GPS and FRS/GMRS Radio On;
Ready to transmit Position;
Activity on channel.
GPS and FRS/GMRS Radio On;
Position transmitted
GPS and FRS/GMRS Radio On;
Ready to transmit Position;
Position received from other
Rino user
GPS Off; FRS/GMRS Radio On;
Position sending not available
Rino520_530_prelim.indd 19 1/25/2005 5:00:36 PM
20 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > USING THE RINO 530 RADIO FEATURES
Using the Rino 530 Radio Features
Your Rino 530 unit provides many features to enhance
your radio experience, such as transmitting your location
or any location and receiving contact information. This
section reviews some of the advanced radio features.
Refer to the “Features” section for information on all of
the features of the Rino 530.
Peer-to-Peer Positioning
The Rino 530’s most unique feature is being able to send
its location to another Rino, which is called Peer-to-
Peer positioning. With peer-to-peer positioning enabled
(see the “Setup Radio” section) and a GPS position,
whenever you press and release either the Call button or
the Talk button, the Rino 530 automatically sends out its
location. This information is available to all other Rino
users that are monitoring the same channel and squelch
code. This feature allows you to track the movement
of other Rino users and even navigate to their location.
Locations may only be sent once every 30 seconds due to
FCC restrictions. Your Rino 530 can respond to polling
requests from other units more frequently.
To transmit your location to other Rino users:
1. Enable Send Location (see the “Setup Radio”
section).
2. Press and release either the Talk or Call button.
A flag on the top Status Bar or in Mark’s hand
indicates the unit is ready to transmit its position.
New Contact Page Overview
The first time that a signal is received from another Rino
user, a New Contact page is displayed. From the New
Contact page you can show their location on your Map,
Goto their location, or add them to your contact list
(select OK). Press Page to ignore this contact.
New
Contact Page
Name and
Symbol
Contact
Information Field
Rino520_530_prelim.indd 20 1/25/2005 5:00:37 PM
Rino® 530 Owner’s Manual 21
PRELIMINARY
UNIT OPERATION > USING THE RINO 530 RADIO FEATURES
The Rino 530 can manage up to 50 contacts at any time.
Each time you receive a signal from a contact, your map
is updated showing their new position. A Track Log
of their movement is created and shown on your map
(see the “Track Logs” section). After a contact has been
established, a “<contact name> Updated” message briefly
appears at the bottom of your display each time the
contact updates.
All contacts are listed on a Contact List Page and also
displayed in the Contact Bar on the Map Page (see the
“Map Page” section). Contacts behave like waypoints
and count towards the 500 maximum waypoint total.
If the contact did not have a GPS location on the last
transmission, a ? mark appears below the flag. To
view the contact details (such as Direction, Elevation,
Timestamp, Location, and Notes that have up to 30
characters), highlight the details field and press Left or
Right on the Thumb Stick to change to the next data
field.
Press Left or Right on the Thumb
Stick to view different contact data.
To accept a new contact:
1. When a new contact is received, the New Contact
page automatically appears.
2. Highlight OK and press the Thumb Stick In. If you
do not select OK, the contact is not saved.
Rino520_530_prelim.indd 21 1/25/2005 5:00:37 PM
22 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > USING THE RINO 530 RADIO FEATURES
To review a contact and contact details:
1. From the Map Page, highlight the desired contact
on the Contact Bar and press the Thumb Stick In.
As you highlight the contacts on the Contact Bar,
the Map page centers the map on that contact and
display its name, direction and distance near the
top of the screen.
Or
1. Press the Thumb Stick In and hold it until the
Shortcuts Menu is displayed. Highlight Find ‘N Go
and press the Thumb Stick In.
2. Highlight Contacts and press the Thumb
Stick In.
3. From the Contacts List, select the desired contact
and press the Thumb Stick In.
To change contact details:
1. The Elevation, Position and Note fields may be
manually edited. Select the desired field and press
the Thumb Stick In.
2. For Notes, highlight Edit and press In to start
entering data, up to 30 characters. For other
fields, highlight the field and press the Thumb
Stick In to start changing the data.
3. Highlight OK and press In when done.
To view a contact on the Map Page:
1. From the Contact Review Page, highlight Map and
press the Thumb Stick In.
2. Press the Page button when done to return to the
Contact Review Page.
Rino520_530_prelim.indd 22 1/25/2005 5:00:37 PM
Rino® 530 Owner’s Manual 23
PRELIMINARY
UNIT OPERATION > USING THE RINO 530 RADIO FEATURES
Sending a Location
Another feature is the ability to send a specific location
to other Rino users. This comes in handy when you are
trying to round-up the group or you just want to meet at
a specific location. You may send any point found from
the Find ‘N Go menu. If the unit needs to wait until 30
seconds have elapsed since the last position transmission,
a “Waiting to send location...” message appears until the
unit is able to transmit. If a location is sent more than
once, a number is automatically added to the end of the
name (for example: CAMP, CAMP 1, CAMP 2, etc.).
To send a location, highlight the
Option Menu from the Waypoint
Review Page and press In.
To send a location:
1. Press the Thumb Stick In and hold it until the
Shortcuts Menu is displayed.
2. Highlight Find ‘N’ Go and press the Thumb
Stick In.
3. Highlight the desired category and press the
Thumb Stick In. ( For the Contacts List, select the
desired contact and press the Thumb Stick In.)
4. Depending on which category you select, highlight
the desired item and press the Thumb Stick In to
display the Information page for that item.
5. From the Information Page, highlight the Option
Menu in the upper right and press the Thumb
Stick In.
6. Highlight Send Location and press In again.
The unit now sends the point to the other Rino
users on your channel/squelch code. If using the
Scramble feature, receiving radios must also have
Scramble enabled.
Rino520_530_prelim.indd 23 1/25/2005 5:00:38 PM
24 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > MAP PAGE
Map Page

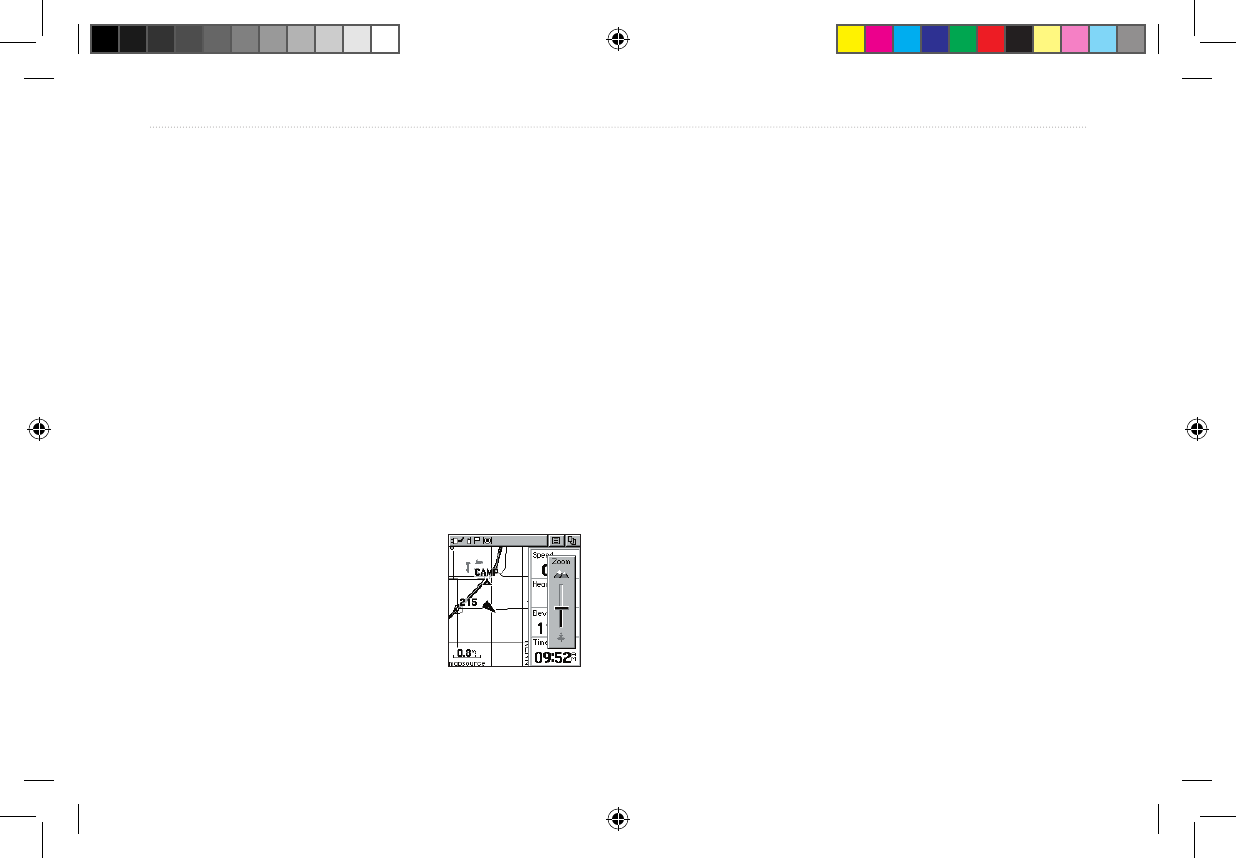

The Map Page displays your present position and
direction of movement using a triangular Position Icon
that is centered on the map. As you travel the map display
leaves a “trail” (track log) of your movements.
The map displays geographic details such as rivers, lakes,
highways, and towns. The map can display a higher level
of detail than the basemap provided with the unit (i.e.
residential streets, parks, etc.), if Garmin MapSource
data has been downloaded to the unit using a CD-ROM
mapping program. When using MapSource data, the word
“mapsource” displays below the map scale whenever you
zoom in to view map details.
On the right side of the Map Page, you can choose to
show either the Contact Bar, Data Fields, or only the
Map. As you highlight the contacts on the Contact
Bar, the Map page centers the map on that contact and
displays its name, direction, and distance.
In many instances the map displays an Accuracy Circle
surrounding the Position Icon. The Rino 530 uses both
map resolution and GPS accuracy in defining your
location to a point within the circle. The smaller the
circle, the more accurate your location.
When using the Pan Map feature, a small outline arrow
(Map Pointer) can be moved about the page to
highlight and identify map items or to scroll the map to
view areas not shown on the display screen.
Four optional Data fields on the right side of the page
can be programmed to provide a variety of travel and
navigation information.
Accuracy Circle
Status Bar
Option Menu and Main
Page Menu Buttons
Position Icon
Map Scale Contact Bar
Rino520_530_prelim.indd 24 1/25/2005 5:00:39 PM
Rino® 530 Owner’s Manual 25
PRELIMINARYUNIT OPERATION > MAP PAGE
To view a Contact from the Map Page:
1. Highlight the Contact icon using the Thumb
Stick. As you highlight the contacts on the
Contact Bar, the Map page centers the map on
that contact and displays its name, direction, and
distance near the top of the screen.
2. Press the Thumb Stick In to view the details of
the Contact.
3. Press the Thumb Stick to the Left or Right to re-
center the map on your current position.
The scale can be changed from 20 feet to 500 miles. A
lower zoom scale displays less area but more map detail,
while a higher zoom scale shows you a larger area with
less map detail. The Thumb Stick and Z (Zoom) button
on the front right of the unit
allow you to zoom in and
out on the map. Press the Z
(Zoom) button from any page
(other than the Map Page) to
open the Map Page.
To change scales on the Map Page:
1. Press the Z (Zoom) button to open the Zoom
window.
2. Use the Thumb Stick and Z (Zoom) button to
change the map scale in order to show more map
area with less detail or less map area with more
detail.
Press and hold Up or Down on the Thumb Stick
to zoom the map scale rapidly. Press the Thumb
Stick In or to any direction to close the Zoom
window.
The map scale in the lower left hand side of the display is
shown in units of measurement selected in the Units field
of the Unit Setup Page (accessed through the Main Menu
Setup Page). If you zoom in so far that the resolution of
the map data is exceeded and the appearance of the map
is no longer accurate, the word, “overzoom” displays just
below the map scale.
Press Up to Zoom Out;
press Down to Zoom In
Rino520_530_prelim.indd 25 1/25/2005 5:00:40 PM
26 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > MAP PAGE

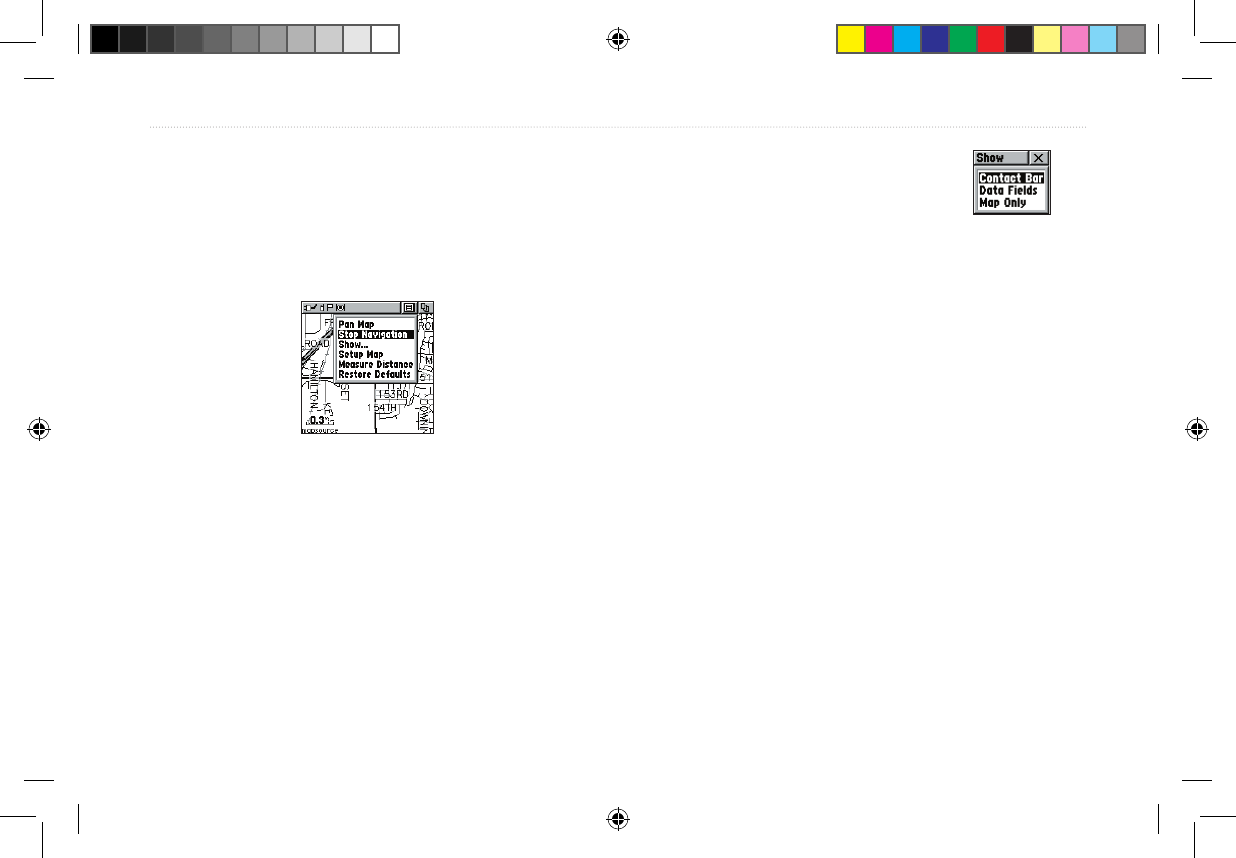

Map Page Options
Map Page options allow a variety of operating and
custom features for your Rino 530. The Map Page options
are: Highlight an option then press the Thumb Stick In
to select.
Map Page Option Menu
Pan Map—Allows you to move the Panning Arrow (Map
Pointer) about on the map. Refer to the “Using the Pan
Map Option” section for complete instructions.
Stop Navigation—Quits navigation of a Goto, Route
or Track in progress. When you are not navigating to a
destination, the Stop Navigation option is “grayed out”
and is non-functional.
Show...—Allows you to choose to show
either the Contact Bar, four programmable
Data Fields or show the Map Only. Choosing
either Contact Bar or Data Fields reduces the
map area.
Setup Map—Displays the Setup Map Pages, which
allow you to tailor the map to your requirements such
as changing text size, map orientation, and map detail.
Refer to the “Setting up the Map” section for complete
instructions.
Measure Distance—Displays the distance from one
point on the map to another.
Restore Defaults—Returns the Map Page to the original
factory settings (defaults).
Rino520_530_prelim.indd 26 1/25/2005 5:00:41 PM
Rino® 530 Owner’s Manual 27
PRELIMINARYUNIT OPERATION > MAP PAGE

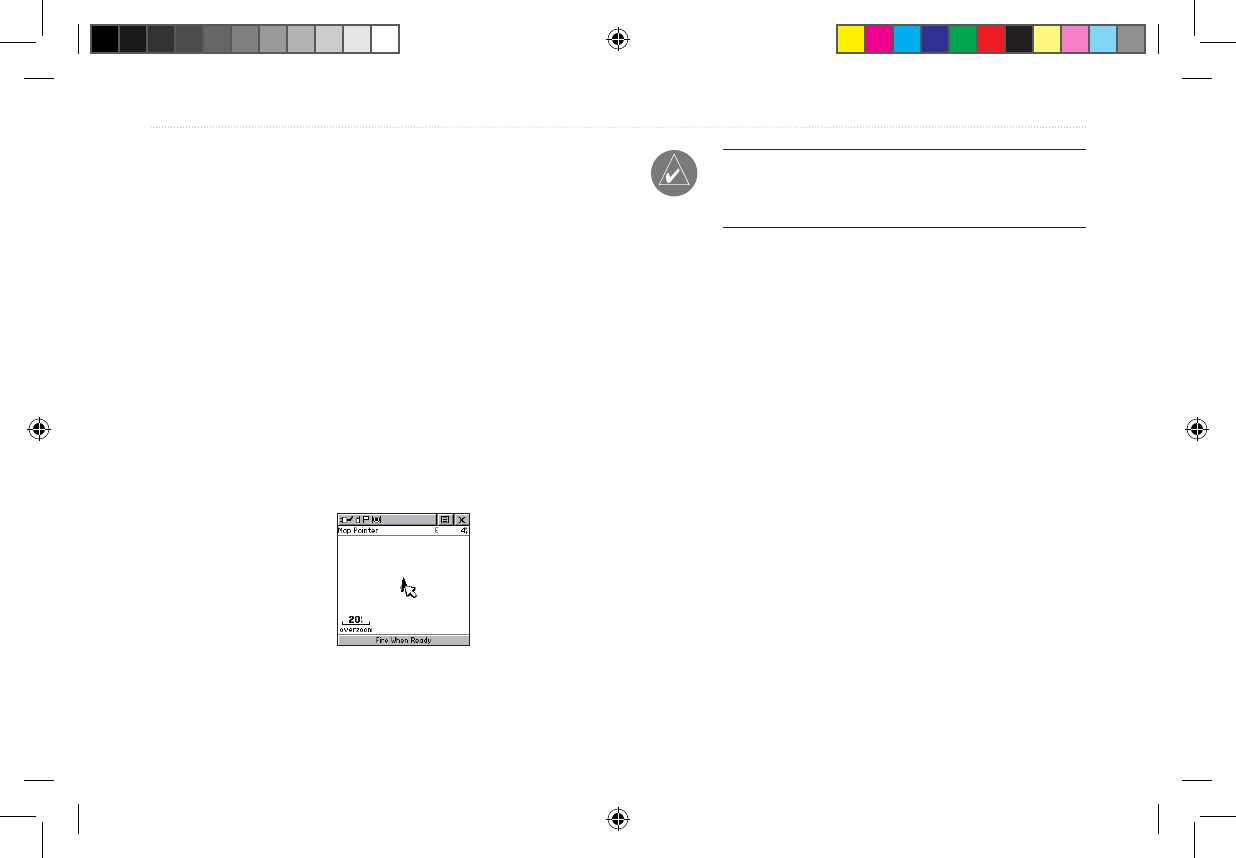

Using the Pan Map Option
The Map Page pan function allows you to display an
arrow used to point at and identify items on the map,
and to move the map in order to view areas beyond the
current viewing area on the display.
The map panning function is activated from the Option
Menu on the Map Page. Use the Thumb Stick to
move the panning arrow (also referred to as the map
pointer) in the desired direction. If the arrow moves to
the edge of the map display, the map also moves to reveal
more area and a busy hourglass appears by the cursor
while the data is drawn on the screen.
Whenever you place the panning arrow on a map item,
the name of that item is highlighted. This feature applies
to waypoints, roads, lakes, rivers; nearly everything that
is displayed.
Press the Thumb Stick In to mark the arrow location or
display the map item information page. The Option Menu
allows you to: send the location of that item, project
a waypoint from it, save it as a waypoint, set a proximity
circle around it, add it to a route, or view the Sun &
Moon phase or view Hunt & Fish information from it.
On-screen buttons at the bottom of the page allow you to
Goto the map item, display it on the map or to select OK
and return to the Map Page. Press the Page button to stop
panning the map.
To find an item near the map pointer:
1. When using the panning arrow, press and hold the
Thumb Stick In to display the Shortcuts Menu.
2. Select Find ‘N Go to display items. Select the
category you wish to search (waypoints, contacts,
etc.), then select Near Map Pointer from the pop-
up list. The Rino 530 then searches for the items
nearest the location of the map pointer instead of
your actual location.
Map Page with
Panning Arrow
Rino520_530_prelim.indd 27 1/25/2005 5:00:41 PM
28 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > MAP PAGE
Programming the Data Fields
Select Show... Data Fields to view four optional
Data Fields on the right side of the screen that can be
programmed to provide a variety of travel and navigation
information. A list of the choices is shown to the right.
Not all data types are available on every page.
To program a data field:
1. Use the Thumb Stick to highlight the data field
and then press In to display the list of data
options.
2. Highlight the desired option and then press the
Thumb Stick In to change the data field type.

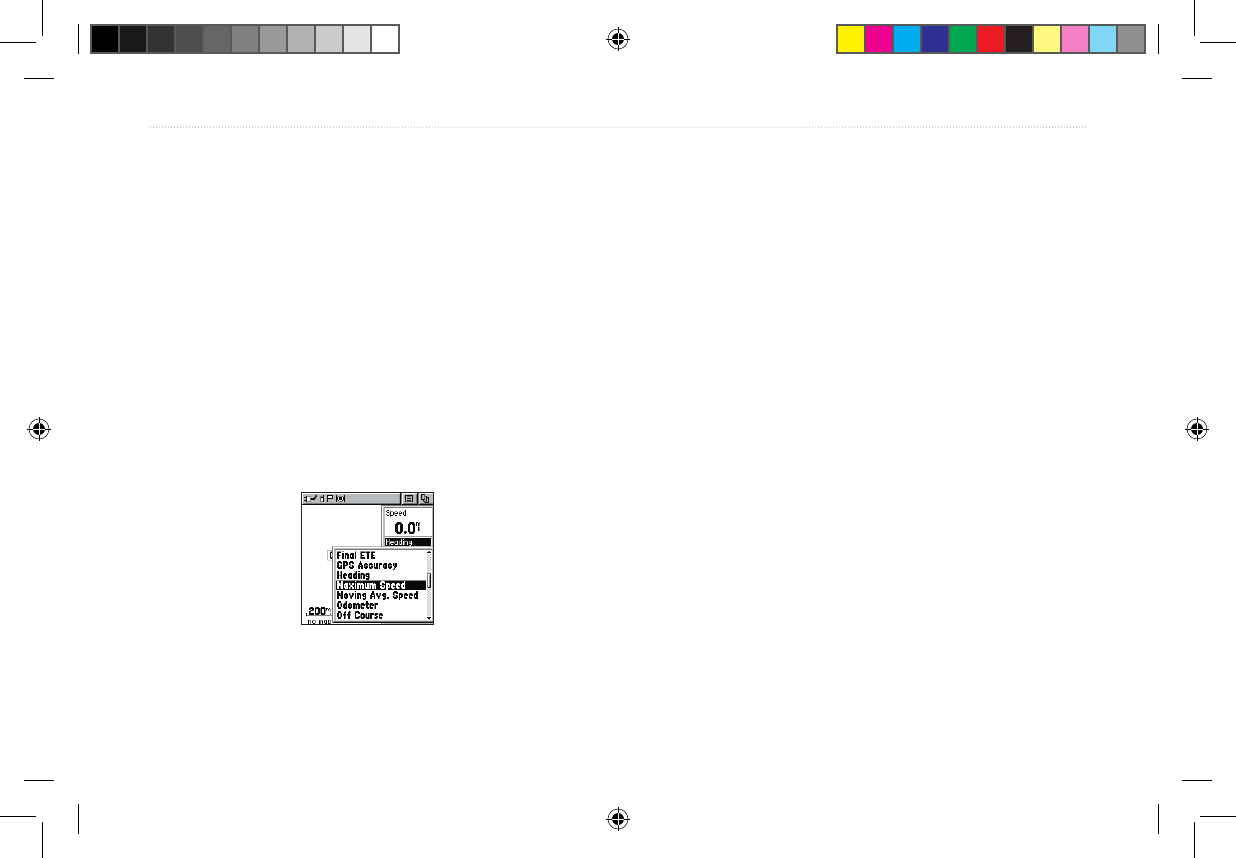

Changing Data Fields
Data Field Options
Thee data field options apply to the Map Page data fields
and the Trip Computer data fields. For definitions of
these all data fields used in the Rino 530, refer to the
“Appendix.”
Bearing Course Current Destination
Current Distance Current ETA Current ETE
Elevation Final Destination Final Distance
Final ETA Final ETE GPS Accuracy
Heading Max Speed Moving Avg. Speed
Odometer Off Course Overall Avg. Speed
Pointer Speed Sunrise
Sunset Time of Day To Course
Trip Odometer Trip Time—Movg. Trip Time—Stopped
Trip Time—Total Turn Velocity Made Good
Vertical Speed Trip Computer Only Location (lat/lon)
Location (selected)
Rino520_530_prelim.indd 28 1/25/2005 5:00:42 PM
Rino® 530 Owner’s Manual 29
PRELIMINARYUNIT OPERATION > MAP PAGE
Setting up the Map
The Setup Map option displays the five Map Setup Pages,
each accessed by an on-screen button.
General Setup
Sub-Page Buttons
Lines Setup
Points Setup
Text Setup
Map Data Setup
Setup Items
Options
To use Map Setup options:
1. Select Setup Map from the Option Menu and
then press the Thumb Stick In to display the Map
Setup Page.
2. Press Up or Down on the Thumb Stick to
highlight the desired sub-page button, which
displays the options list for that sub-page to the
left.
3. Press Left, then Up or Down on the Thumb Stick
to highlight an item on the list. Press Right to
return to the sub-page buttons.
5. Use the Thumb Stick to highlight the desired
option and then press it In to activate.
6. Press the Page button or the on-screen X button
to return to the Map Page.
Rino520_530_prelim.indd 29 1/25/2005 5:00:42 PM
30 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > MAP PAGE
General Setup
Orientation—Track Up or North Up; fixes the top of
the map display to the current track heading or to a north
heading.
Auto Zoom—On or Off; automatically scales the map to
display both your current location and the next point to
which you are navigating.
Detail—Most, More, Normal, Less, or Least; controls
how much map detail you see. This setting only applies
to a map feature set to Auto. Those features which have
a specified scale or are turned Off are unaffected by this
setting.
Lock on Road—On or Off; available only if MapSource
Data is loaded; when On the triangle icon locks to the
road that you are traveling.
Display Mode—Land or Water.
Tracks Setup
Saved Tracks and Track Log—Scale options; Off, Auto,
or 20 ft–500 miles, sets the maximum scale at which the
feature should appear on the screen. Some types of data
display only at certain zoom scales.
Goto Line—Bearing or Course.
Track Points—Select the number of track points per
track. Up to 10,000 active Track Points allowed
Map Features Setup
Points of Interest, Waypoints, Street Label, and Land
Cover—Off, Auto, or 20 ft–500 miles, sets the maximum
scale at which that feature should appear on the screen.
Some types of data display only at certain zoom scales.
Rino520_530_prelim.indd 30 1/25/2005 5:00:42 PM
Rino® 530 Owner’s Manual 31
PRELIMINARYUNIT OPERATION > MAP PAGE

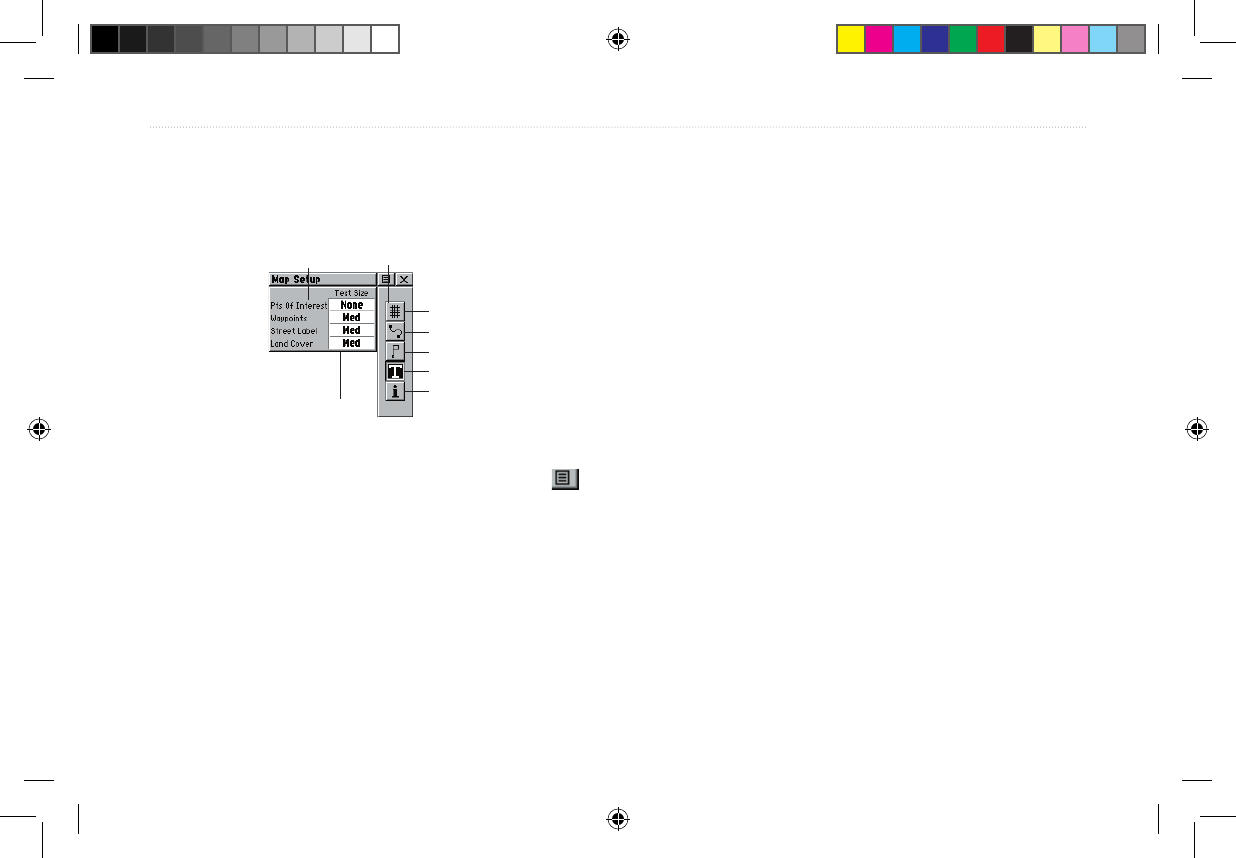

Text Setup
Points of Interest, Waypoints, Street Label, and Land
Cover—None, Small, Medium, or Large; control the
screen size of the name.
Map Data Setup
Show—Check box; check mark determines if map data is
used or not. Option Menu allows you to choose to show
all, show none, or show specific MapSource Data. See
also the “Appendix.”

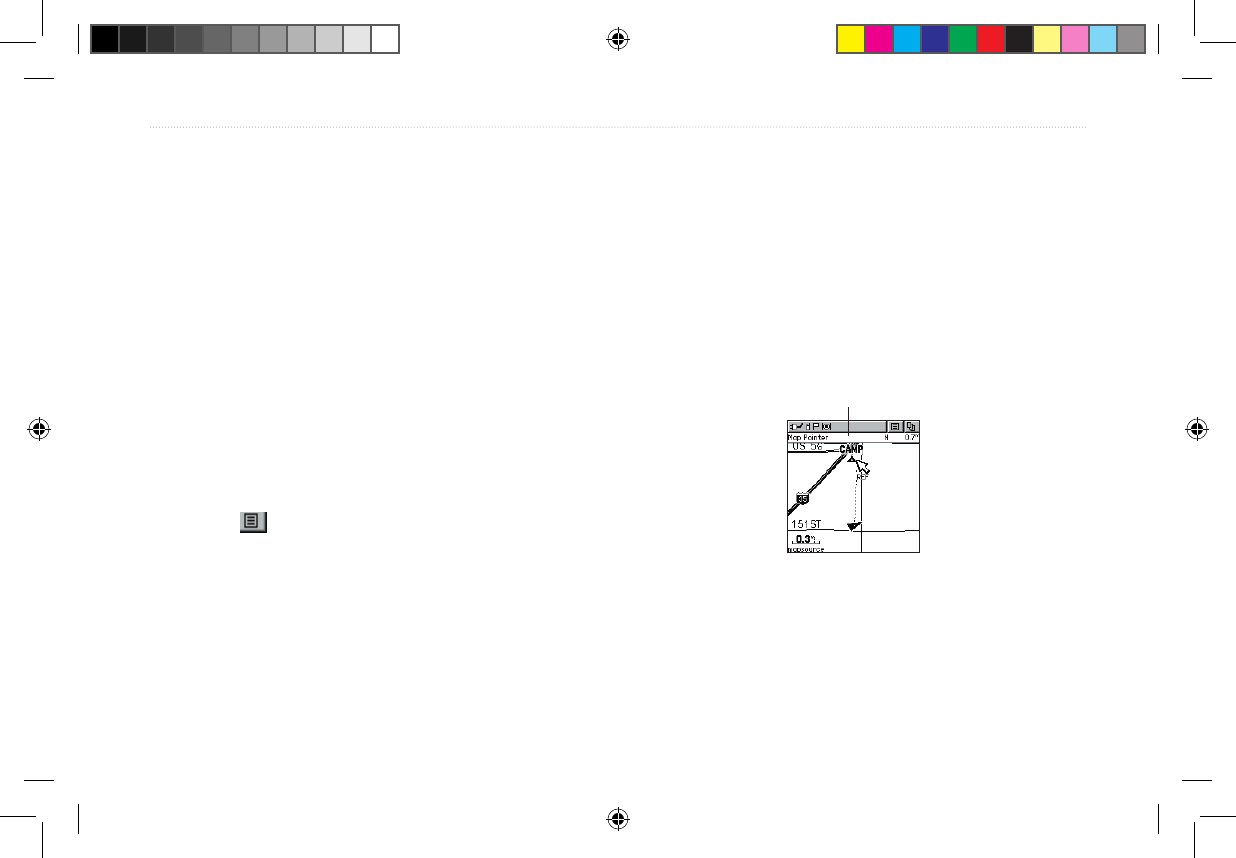

Measuring Distance
To use the Measure Distance option:
1. Select Measure Distance from the Option Menu
and then press the Thumb Stick In to display
the Panning Arrow. Ref displays under the arrow.
2. Use the Thumb Stick to move about on the Map
Page until you reach the point to which you want
to measure. A new Map Pointer field displays
showing the location of the pointer and the
direction and distance from where you began the
measuring.
3. To begin measuring from a different point, press
the Thumb Stick In at the desired location.
4. To stop measuring, press the Page button.
Measuring distance
Map Pointer Field
Rino520_530_prelim.indd 31 1/25/2005 5:00:43 PM
32 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > NAVIGATION PAGE
Navigation Page
The Navigation Page provides active guidance with a
rotating compass ring that shows your course (track)
while you are moving and a bearing pointer to indicate
the current direction to your destination (bearing) relative
to the course.
The Data Field at the top of the page, by default shows
you the name of your destination. All five Data Fields can
be programmed to display a variety of navigation data.
The list of data field choices may be found on page 28
and definitions may be found in the “Appendix.”
The Compass Ring functions as a magnetic compass
when you are stationary. When you are moving, the
heading is controlled by the GPS receiver (based upon
settings customized in the Heading Setup Page).
Times to
Destination
Straight Line
Distance to
Destination
Selectable
Data Fields
Bearing
Pointer
Compass Ring
Destination Name
(Waypoint)
NOTE: The Compass should be calibrated for the
greatest accuracy. Refer to page 36 for information
on calibrating the compass.
Using the Navigation Page
The two main components of the Navigation page are the
Bearing Pointer and Compass Ring. The Bearing Pointer
always points directly to the destination, no matter what
your current location might be. The Compass Ring
displays your heading.
Rino520_530_prelim.indd 32 1/25/2005 5:00:44 PM
Rino® 530 Owner’s Manual 33
PRELIMINARY
UNIT OPERATION > NAVIGATION PAGE
While you are navigating a route, the pointer indicates the
direction (a bent arrow) of the turn to the next point in the
route as well as the direction to the current point when
you get within 15 seconds Estimated Time of Arrival of
the current point.
For example, if the arrow is pointing straight up, you
are going directly to your destination. If it points any
direction other than up, turn and move towards the
direction the arrow is pointing until it points up, and
then continue in that direction. If you are using the
Course Pointer option instead and you drift away from
the original line of travel to your destination, the Course
Deviation Indicator (CDI) provides graphic indication of
drift (right or left) and displays the distance off course.
When you are not on an active Goto, Track, or Route (in
other words, not traveling to a recorded destination), the
window at the top of the page is blank when Destination
is selected. The Compass Ring displays your heading
while you are moving, but the data fields to the right of
the page will not display any destination related data,
such as Estimated Time of Arrival.
Navigation Page with Course
Pointer and Course Deviation
Indicator (CDI) Scale active.
CDI Scale
To stop navigating:
1. Highlight the on-screen Option Menu button
at the top of the Navigation or Map Page and
press the Thumb Stick.
2. Select Stop Navigation, then press the Thumb
Stick.
Rino520_530_prelim.indd 33 1/25/2005 5:00:44 PM
34 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > NAVIGATION PAGE
Navigation Page Options
Sight ‘N Go—Use the Sight ‘N Go feature to locate a
landmark visually and then lock in a magnetic heading
to it.
Stop Navigation—Cancels navigation (“Grayed out” or
disabled unless you are navigating on a Goto, Track, or
Route.)
Bearing Pointer/Course Pointer—Toggles between
Bearing (always directed at destination) and Course
(distinctive with dots across center of compass, shows
amount of correction needed to be back on course.)
Show Data Fields/Big Compass—Toggles to display
data fields on the right side of the display or removing the
data fields and showing a larger compass.
Calibrate Compass—Calibrates the electronic compass.
Follow the on-screen instructions.
Restore Defaults—Returns options and data field choices
to factory designations.
Navigation Page Option Menu
To change data fields:
1. Use the Thumb Stick to highlight the desired data
field and then press it In to display the list of data
options.
2. Select the desired option from the list and press
the Thumb Stick In. The list of data field choices
may be found on page 28 and definitions may be
found in the “Appendix.”
Rino520_530_prelim.indd 34 1/25/2005 5:00:44 PM
Rino® 530 Owner’s Manual 35
PRELIMINARY
UNIT OPERATION > NAVIGATION PAGE
Using Sight ‘N Go
To use Sight ‘N Go to navigate:
1. Use the Page button to access the Navigation
Page and then use the Thumb Stick to access
the Option Menu .
2. Use the Thumb Stick to highlight Sight ‘N Go
and press In. Note that the compass ring with
pointer is in-line with the two sighting marks on
the case.
3. Hold the Rino 530 at eye level and line up the two
sighting marks on the case with the distant object.
Press the Thumb Stick to Lock Direction.
4. To navigate to your destination, select Set Course
and press the Thumb Stick. Begin traveling to
your destination using the pointer as a guide.
To view your destination as a waypoint, select
Project Waypoint and press the Thumb Stick. To
re-sight the destination, press the Thumb Stick In
when Re-Sight is highlighted.
Rino 530 held level
for Sight ‘N Go
Sighting Marks
Calibrating the Compass
The Electronic Compass must be calibrated outdoors
when you first use the Rino 530 and after new batteries
have been installed. The accuracy of the Electronic
Compass is adversely affected if the unit is not held level
or is held near items that generate magnetic fields, such as
cars, large belt buckles, etc.
Rino520_530_prelim.indd 35 1/25/2005 5:00:45 PM
36 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > NAVIGATION PAGE
To calibrate the Electronic Compass:
1. Use the Page button to access the Navigation
Page.
2. Use the Thumb Stick to highlight the Option
Menu on-screen button and press In.
3. Highlight the Calibrate Compass option and
press the Thumb Stick In.
4. Press the Thumb Stick to activate the Start
button and then follow on-screen directions for
holding and turning the unit. Hold the unit level
when calibrating the compass.
Calibrating the compass: Hold the unit level and
face up. Turn the unit around as shown above.
The unit displays a “Just Right,” “Too Fast,” or
“Too Slow” message for you to adjust your turning
speed as needed.
The “Calibration Successful” message displays
when finished. If a “Calibration Failed” message
displays, repeat the process.
When you manually turn the Compass Off, it stays off
until you manually turn it On again. Sometimes, however,
when you turn the Compass On, the Rino 530 overrides
the Compass and uses the GPS receiver to track your
heading. The criteria for switching between the Compass
and the GPS is customized on the Heading Setup Page
(see section “Heading Setup Page”).
To turn the compass on and off:
• Press and hold the Zoom (Z) button. A message
appears on the screen indicating that the compass
has been turned on or off.

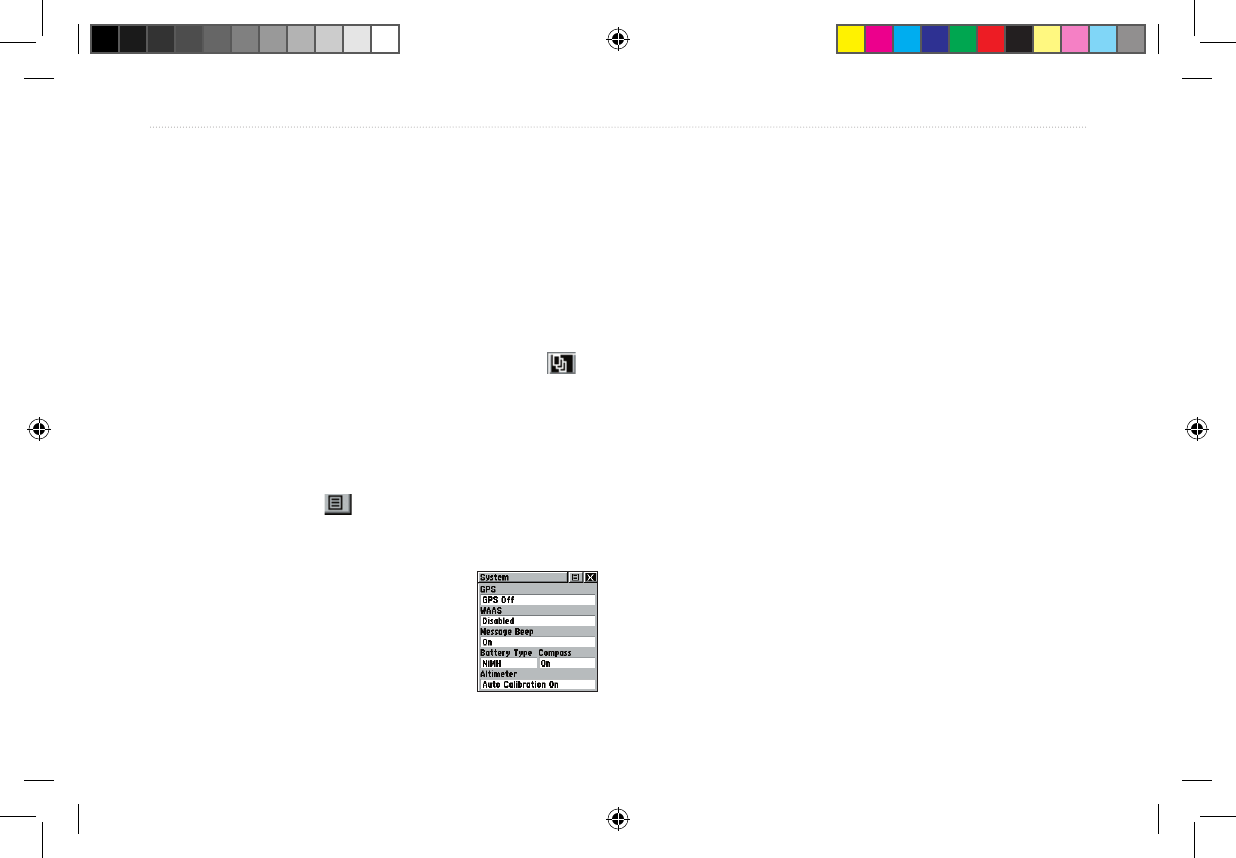

• Press the Page button to access the Main Menu.
Select Setup and then System. Turn the compass
on and off through the System Setup Page (see
section “System Setup Page”).
Rino520_530_prelim.indd 36 1/25/2005 5:00:46 PM
Rino® 530 Owner’s Manual 37
PRELIMINARY
UNIT OPERATION > ALTIMETER PAGE
Altimeter Page
The Altimeter Page provides the current elevation, rate
of ascent/descent, a profile of elevation changes over
distance or time, or a profile of pressure changes over
time. The Altimeter Page’s Option Menu allows you
to select from a variety of display options such as plotting
over time, plotting over distance, displaying the zoom
ranges of measurement, viewing elevation or pressure
points, and resetting data displays. Two user selectable
data fields allow you to display a variety of current and
recorded pressure and elevation related data.
NOTE: The Altimeter should be calibrated for the
greatest accuracy. Refer to page 41 for information
on calibrating the Altimeter.
Status Window is located at the top of the page and
displays the current elevation and your current rate of
ascent or descent when moving. It can also display the
ambient pressure.
Profile Field is located in the center of the page and can
be configured to display either elevation or ambient
pressure plots as selected from the Altimeter Page Option
Menu .
Data Fields at the bottom of the page are user selectable
and display a variety of recorded or current data.
Data Fields
Status Window
Profile Field
Rino520_530_prelim.indd 37 1/25/2005 5:00:46 PM
38 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ALTIMETER PAGE
Altimeter Page Options
The Altimeter Page Option Menu allows you to select
the type of information and how it is to be displayed.
Altimeter Page Options include:
Plot Over Time/Distance—Plots the changes in
elevation or pressure over a length of time or over a
distance. When Plot Over Distance is selected, Plot over
Time is displayed in the Option Menu (and vice versa).
View Pressure/Elevation Plot—Displays a record of
changes in barometric pressure or elevation for a set
period of time.
Zoom Ranges—Sets the zoom range for elevation,
distance, or time.
View Points—Shows the elevation, time of day, and date
a specific point was created
Reset…—Clears recorded data from the page to begin
recording new data.
Calibrate Altimeter—Increases the accuracy of the
altimeter. You must know your elevation or pressure to
calibrate the altimeter.
Restore Defaults—Returns the Altimeter Page to the
original factory settings (defaults).

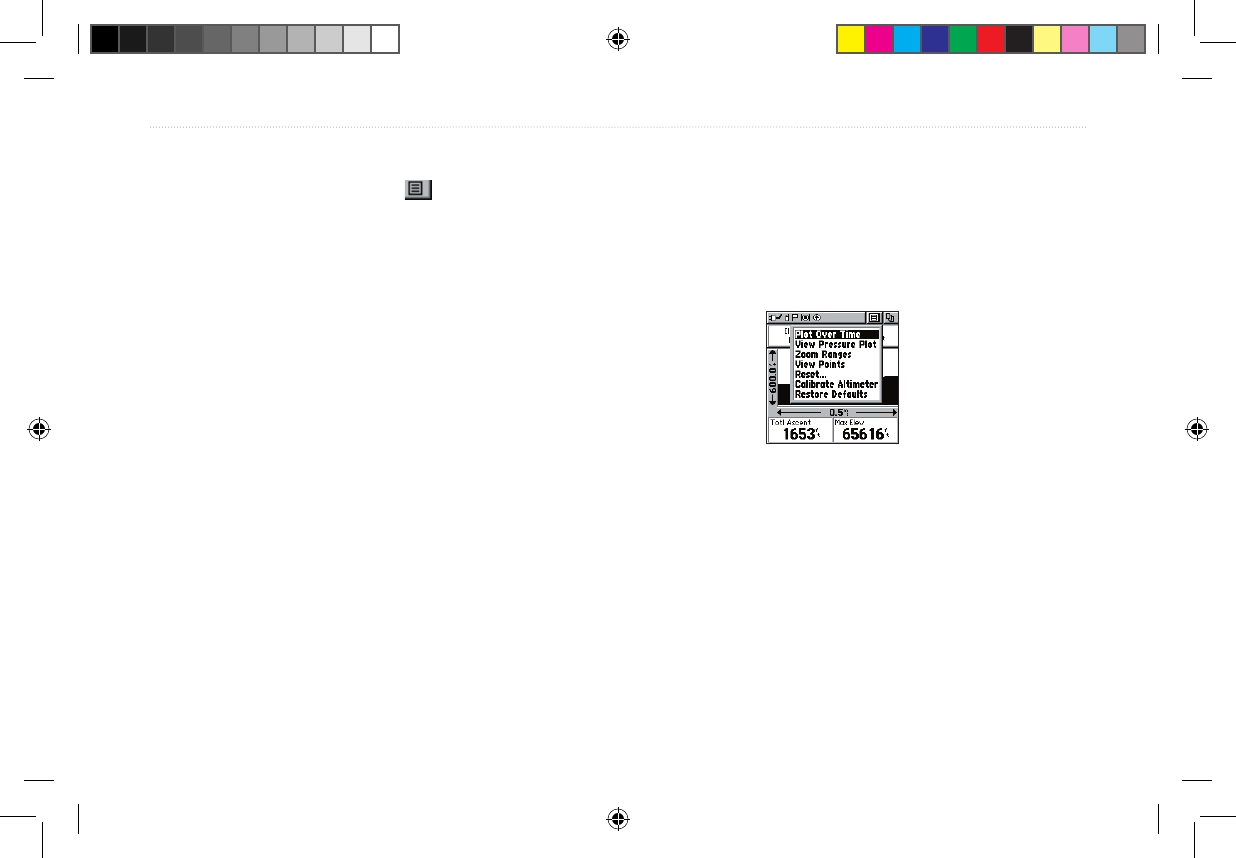

Altimeter Page Option Menu
Rino520_530_prelim.indd 38 1/25/2005 5:00:47 PM
Rino® 530 Owner’s Manual 39
PRELIMINARY
UNIT OPERATION > ALTIMETER PAGE
Viewing Pressure/Elevation Plots
When selecting the View Elevation Plot option, you
can plot a profile of elevation changes that occur as you
navigate over a set distance or period of time. When
you select View Pressure Plot, you can view a record of
changes in barometric pressure for a set period of time.
When one option is active the other displays on the
Altimeter Page Option Menu .
To view elevation or pressure plots:
1. Use the Thumb Stick to highlight the desired
option from the Option Menu and then press In to
display the plot.
2. Adjust time and distance measurement as desired
using the Elevation Plot Zoom Ranges feature
explained below.
3. To clear the plot and start a new one, you must
clear the Track Log.
Adjusting the Zoom Ranges
You can set the Zoom Ranges for elevation, distance, or
time when you display the View Elevation Plot. You may
change the ranges for the vertical distance and the time.
Ranges for View Pressure Plot are fixed at 6.8 millibars
and 12 hours.
To adjust zoom ranges:
1. Select the type of plot you want to display and use
the Thumb Stick to highlight Zoom Ranges from
the Option Menu.
2. Press the Thumb Stick In to display the Zoom
Ranges Page.
3. Move the Thumb Stick Up or Down to adjust the
vertical distance and Left or Right to adjust either
the time or distance. Press In to return to the Plot
Page.
Zoom Range selection
Rino520_530_prelim.indd 39 1/25/2005 5:00:47 PM
40 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ALTIMETER PAGE
Viewing Points
The View Points option allows you to scroll through the
stored elevation profile and to view a single point along
the profile. When the pointer is stopped at a location
along the profile, the display shows the elevation, time of
day and date the point was created.

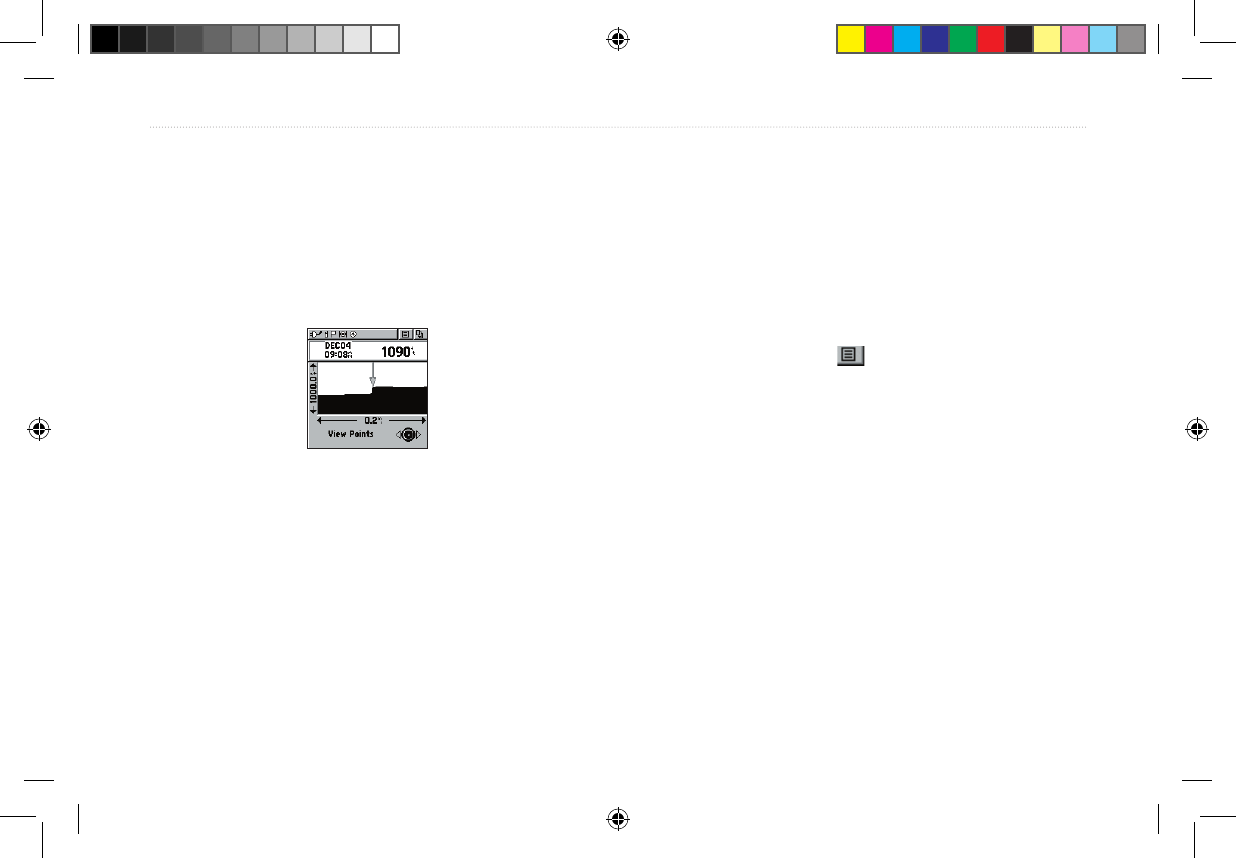

View Points Option Page
To use the View Points option:
1. Use the Thumb Stick to access the Option Menu.
2. Highlight the View Points option and press the
Thumb Stick In to display the View Points Page.
3. Move the Thumb Stick Right or Left to scroll the
profile past the pointer in the center of the page.
As the profile moves past the pointer, the status
window at the top of page changes to display the
date, time, and altitude for the point beneath the
pointer.
Resetting Data
You can reset the elevation data and the maximum
elevation data by selecting the Reset option from the
Altimeter Page Option Menu .
To reset the elevation data and max elevation
fields:
1. Use the Thumb Stick to highlight the Reset
option from the page Option Menu and press the
Thumb Stick In to display the Reset page.
2. Use the Thumb Stick to highlight the reset
options on the page and then press the Thumb
Stick In to place a check mark in the box next to a
selected item.
3. Move to the Apply button and press the Thumb
Stick In to reset the data fields.
Rino520_530_prelim.indd 40 1/25/2005 5:00:48 PM
Rino® 530 Owner’s Manual 41
PRELIMINARY
UNIT OPERATION > ALTIMETER PAGE
Calibrating the Altimeter
Because the Rino 530 relies on the Barometric pressure
to determine the elevation and the pressure at any given
elevation can fluctuate, you can calibrate the altimeter
to increase its accuracy. You must know the elevation or
pressure at your current location, information you can
obtain from a map or other reliable source.
To manually calibrate the altimeter:
1. Use the Thumb Stick to access the Option Menu.
2. Highlight the Calibrate Altimeter option and press
the Thumb Stick to display the Calibration Page.
3. At the message asking “Do You Know The Correct
Elevation?” highlight the on-screen Yes button and
press the Thumb Stick In to enter your elevation.
When finished, highlight OK and press it In to
return to the Altimeter Page.
Or At the message asking “Do You Know The Correct
Pressure?” highlight the on-screen Yes button and
press the Thumb Stick In to enter your elevation.
When finished, highlight OK and press it In to
return to the Altimeter Page.
Programming Data Fields
The two user-selectable data fields support this page and
can be programmed to display the data options listed to
the right.
To program a data field:
1. Use the Thumb Stick to highlight the desired data
field and then press it In to open the data field
option pop-up window.
2. Use the Thumb Stick to move Up or Down the
menu to highlight a desired data option and then
press In to place it in the data field.
Rino520_530_prelim.indd 41 1/25/2005 5:00:48 PM
42 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > TRIP COMPUTER PAGE
Trip Computer Page
The Trip Computer Page by default displays up to
seven different types of navigation data. Choosing Big
Numbers will display 2 large data fields.
Trip Computer Page,
Small Numbers
Trip Computer Page,
Big Numbers
Each data field is selectable and can contain one of many
data information options. The default settings for these
fields are shown in the illustration. The list of data field
choices may be found on page 28
and definitions may be found in
the “Appendix.” When the data
field title is selected, press the
Thumb Stick In to select a new
data field choice.
By selecting the information options that you prefer
and arranging them in a desired order on the page, you
can customize the Trip Computer Page to meet your
navigation needs.
Trip Computer Page Options
The Option Menu allows you to reset the Trip Computer
data when you are ready to start a new trip, choose
between Big or Small Numbers, and Restore Defaults.
Reset—Clears recorded data from the page to begin
recording new data.
Big/Small Numbers—Changes the display from seven
small data fields to two large data fields.
Restore Defaults—Returns the Trip Computer Page to
the original factory settings (defaults).
Selecting a data field
Rino520_530_prelim.indd 42 1/25/2005 5:00:49 PM
Rino® 530 Owner’s Manual 43
PRELIMINARY
UNIT OPERATION > MAIN MENU PAGE
Main Menu Page
The Main Menu provides access to additional Rino
530 feature pages. The pages listed below provide
enhancements to Rino 530 operation. Press the Page
button repeatedly to cycle to the Main Menu or select it
from the Main Page Menu at the top of each main page.
Main Menu Page
Using the Main Menu
The Main Menu allows access to many features and
pages in the Rino 530. Please refer to the “Features”
section for a complete description of the items accessed
through the Main Menu.
Mark Waypoint Page—Allows you to mark and store
a waypoint for your current location or a map pointer
location.
Find ‘N Go Menu—Allows you to locate and Goto
Waypoints, Favorite Locations, Cities, Interstate Exits,
Points of Interest, Addresses, and Intersections. (Some
require MapSource data.)

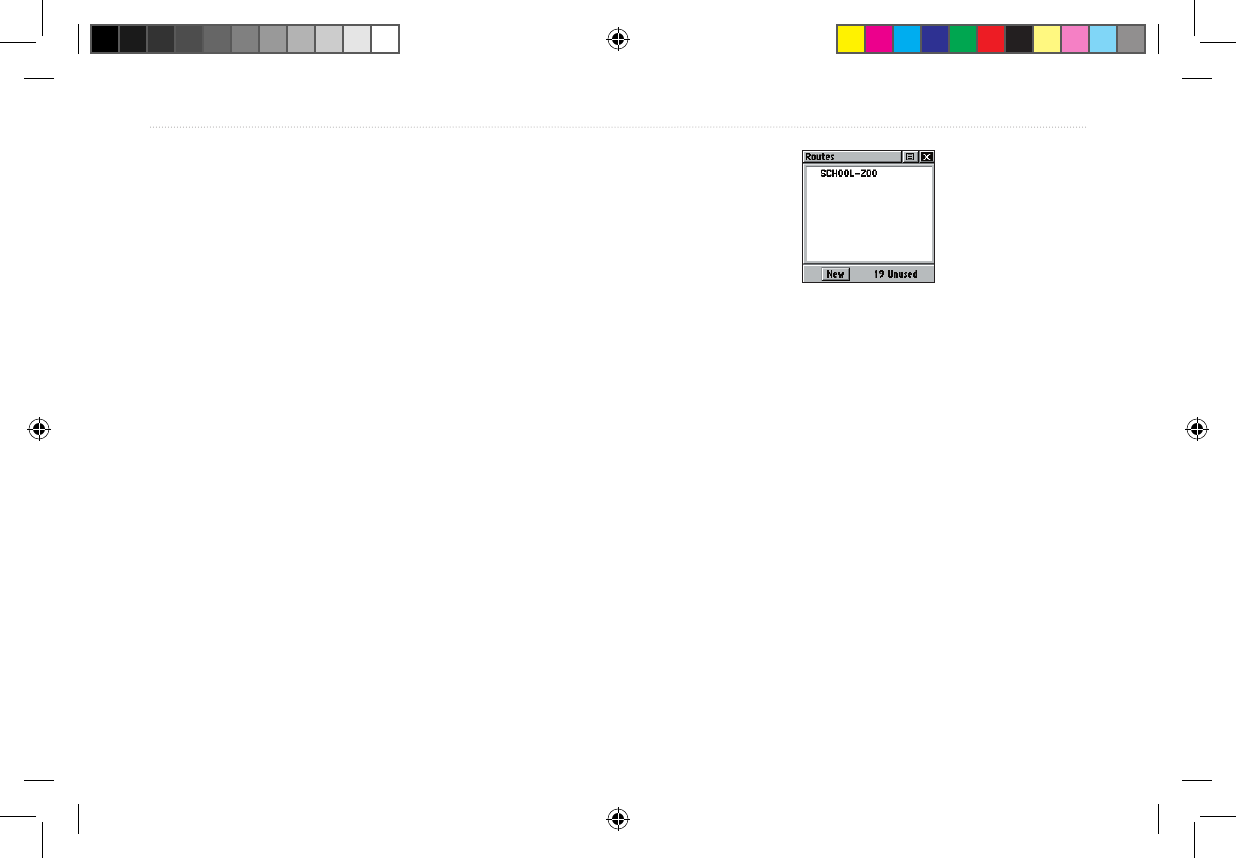

Routes Page—Allows you to create and store routes for
repeated use.
Tracks Page—Provides access to the track log, saved
tracks, and contact tracks.
Proximity Page—Allows you to set a proximity alert
distance around contacts or waypoints.

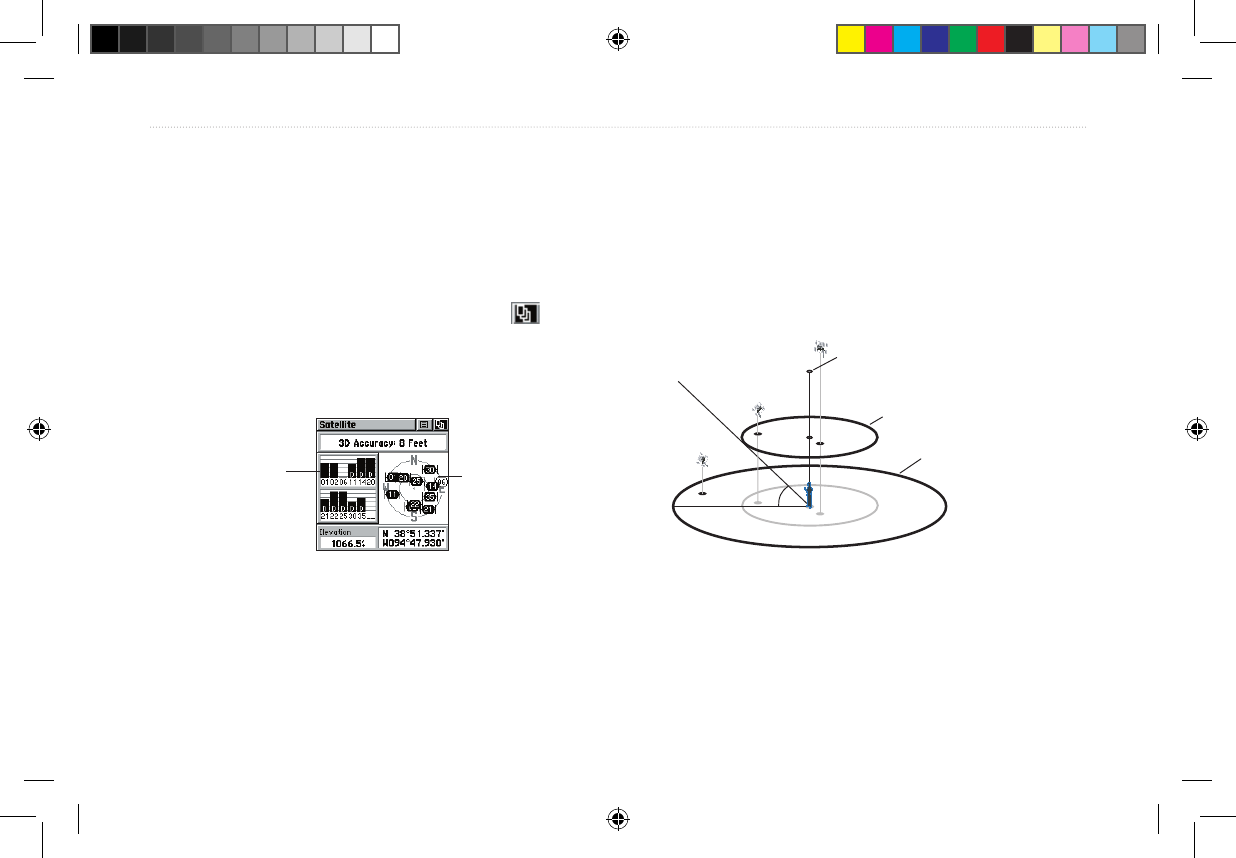

Satellite Page—Provides a picture of the satellite signal
tracking and tells you when the unit is ready to navigate.
Rino520_530_prelim.indd 43 1/25/2005 5:00:50 PM
44 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > MAIN MENU PAGE

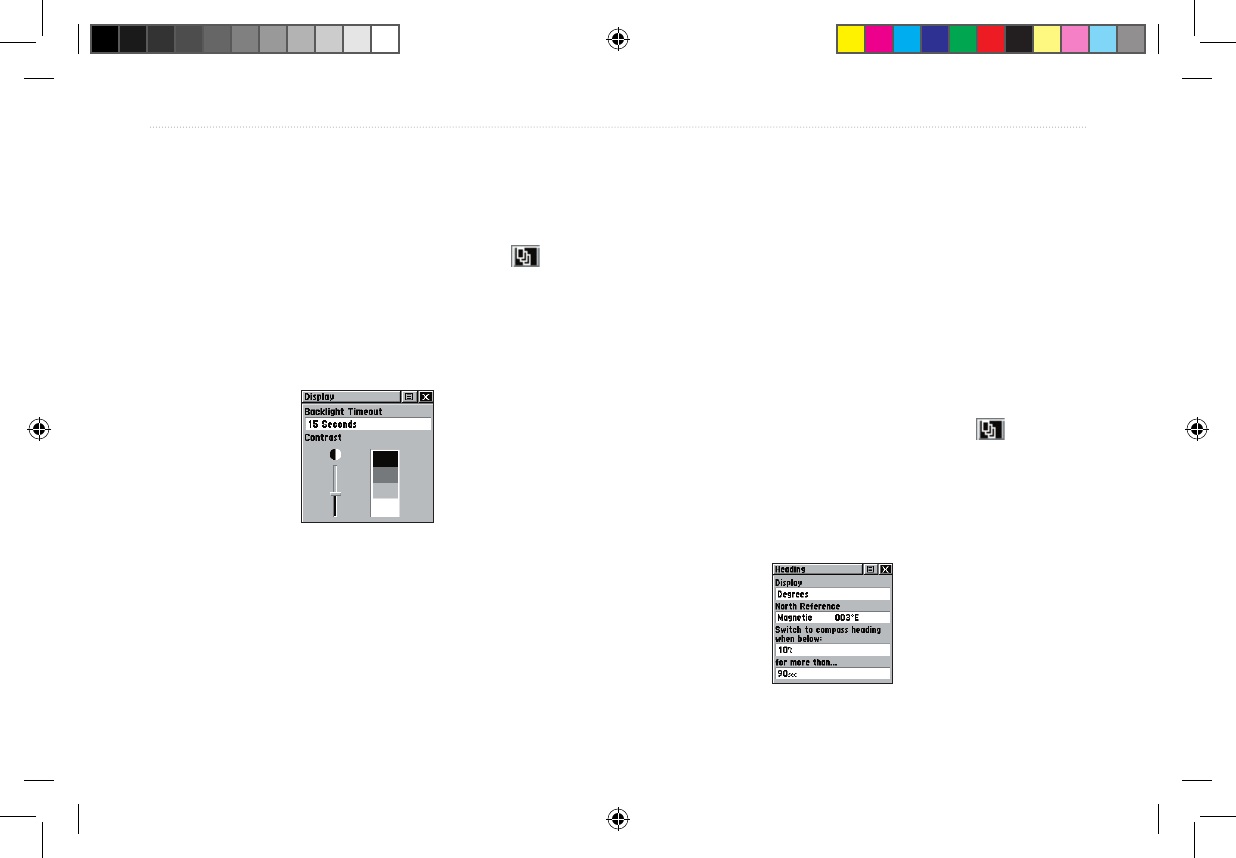

Setup Page—Allows tailoring of items such as time
format, units of measure, display backlighting timeout
and contrast adjustment, heading selection, interface
setups, and system software information.

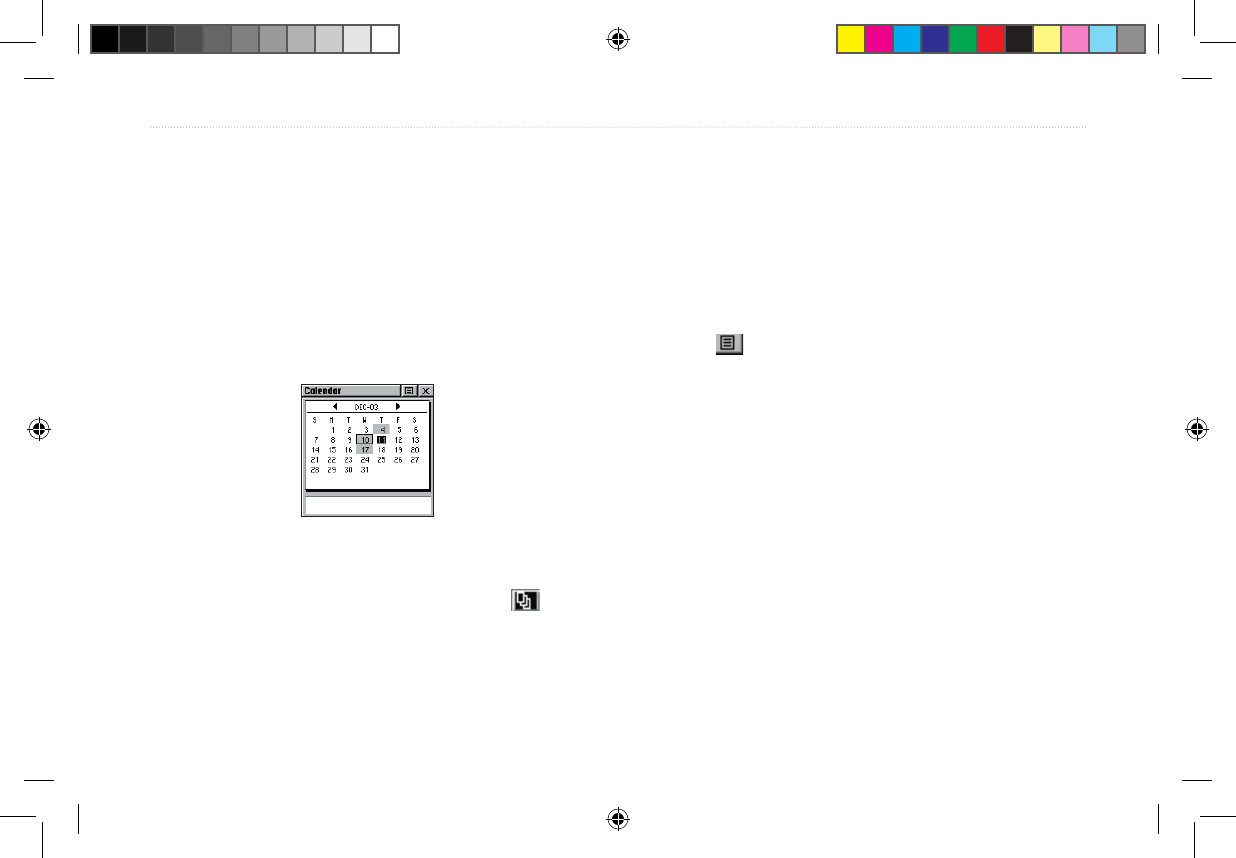

Calendar Page—Provides you with a monthly calendar
with programmable reference notes.
Alarm Clock—Provides a settable 24-hour alarm clock.
Calculator—Provides a calculator feature available in
two forms: Standard or Scientific.
Stopwatch Page—Allows you to use the unit as a
stopwatch, including a lap timer.

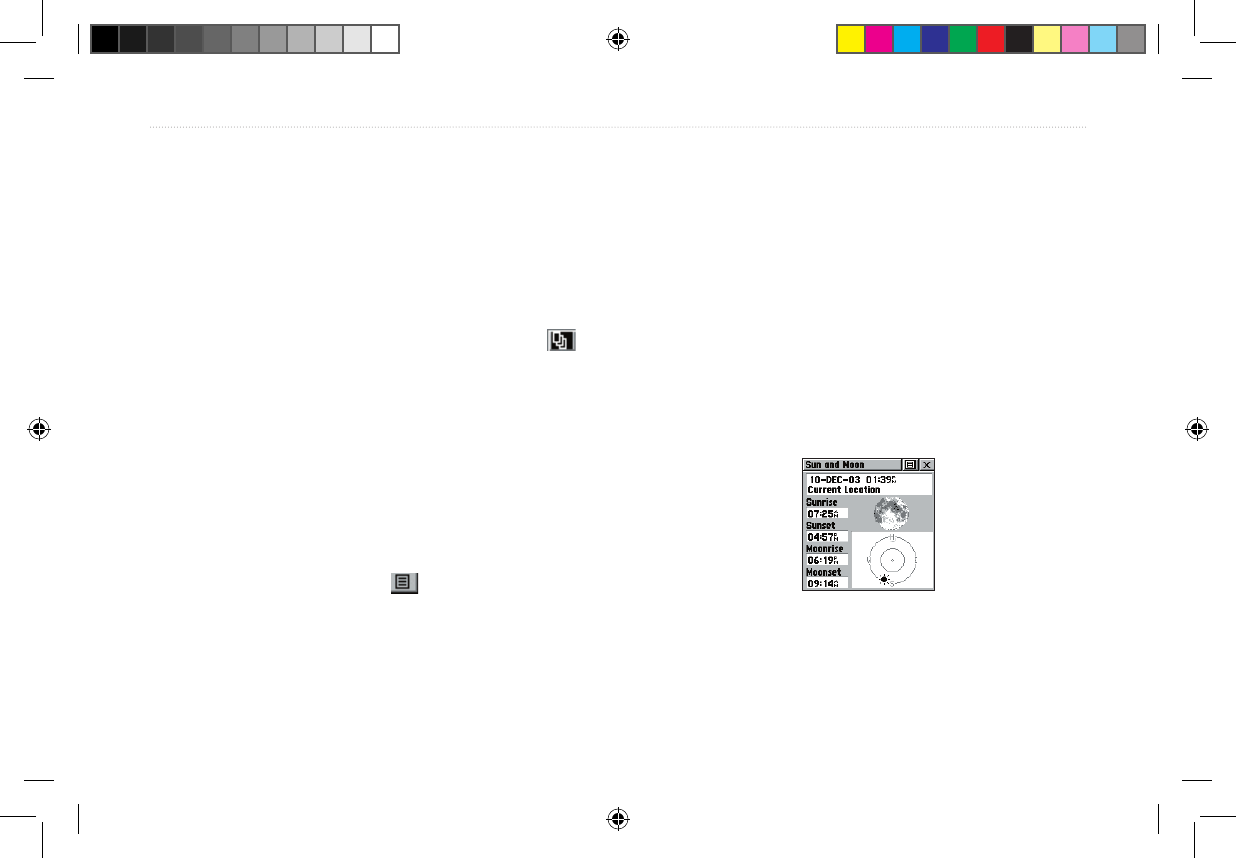

Sun & Moon Page—Shows a graphic display of both
the Sun & Moon locations at various times, dates, and
locations.
Hunt & Fish Page—Provides you with a listing of best
times for hunting and fishing for a chosen location.
Area Calculation Page—Use this function to calculate
area as you move around.
Games Page—Games are provided as an entertainment
feature.
Many of the items in the Main Menu Page are discussed
in-depth in the “Features” section. Refer to the specific
section for more information.
Rino520_530_prelim.indd 44 1/25/2005 5:00:50 PM
Rino® 530 Owner’s Manual 45
PRELIMINARY
UNIT OPERATION > MAIN MENU PAGE
Main Menu Options
Through the Main Menu you can establish the sequence
of pages.
Page Sequence Setup
You may add, remove, or reorder any of the Main Pages,
plus additional pages. The default Main pages are Radio,
Map, Navigation, Altimeter, Trip Computer, and Main
Menu. The Main Menu cannot be removed from the page
sequence. If a page is added to the Main Page Sequence,
it does not appear in the Main Menu.
To move, insert or remove a Main Page:
1. From the Main Menu, highlight the Option Menu
on-screen button and press the Thumb Stick
In. Highlight Page Sequence Setup and press In.
2. To move a page in the page sequence, highlight
the page and press In. Select Move then move
the Menu item Up or Down using the Thumb
Stick. When the desired position is displayed and
press the Thumb Stick In.
3. To insert a new page, highlight the page you wish
to insert it before and press In. Select Insert, then
choose a page from the list and press the Thumb
Stick In.
To remove a page in the order, highlight the page
and press In. Select Remove and press the
Thumb Stick In.

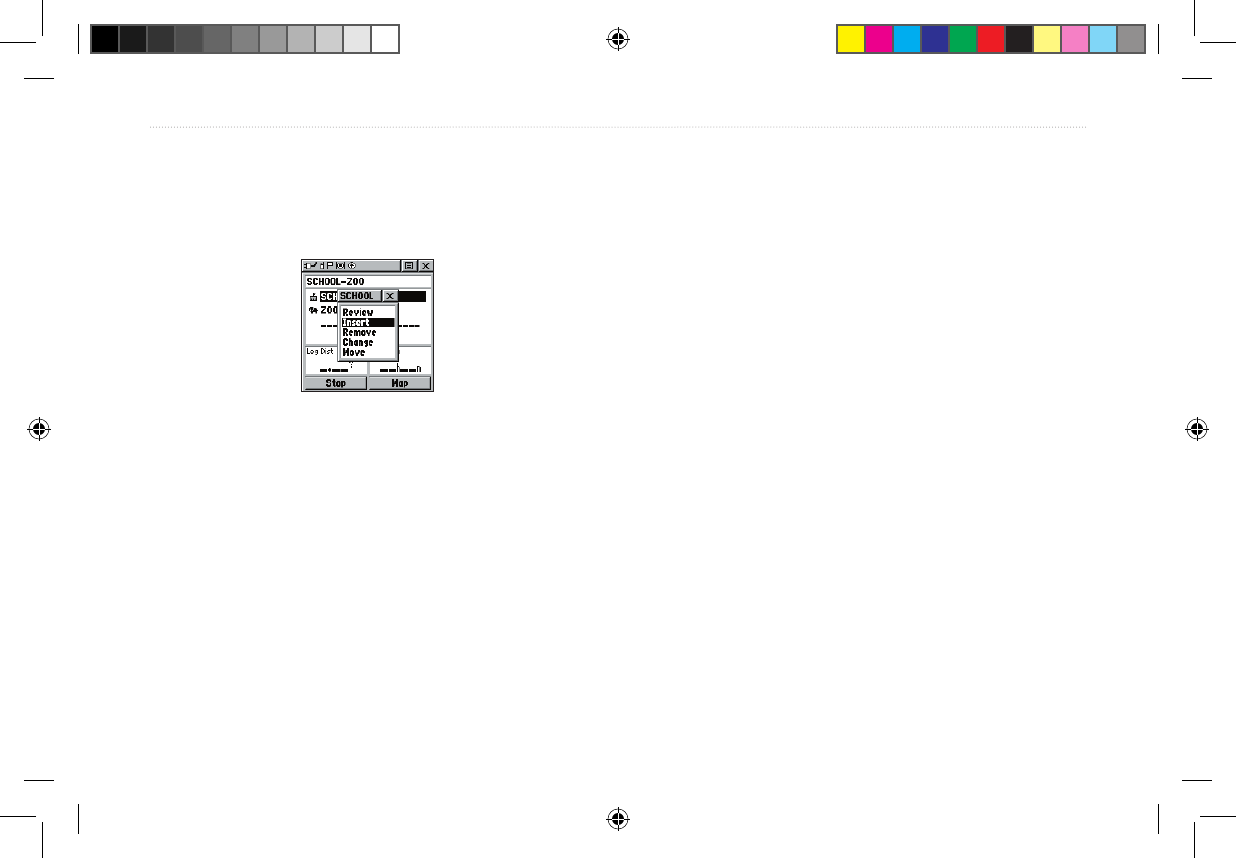

Inserting a new page in
the Page Sequence
Rino520_530_prelim.indd 45 1/25/2005 5:00:50 PM
46 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SHORTCUTS MENU
Shortcuts Menu
The Shortcuts Menu is accessed by pressing the Thumb
Stick In until the menu pops up on the middle of the
display. The Shortcuts Menu can be accessed from most
pages.
Shortcuts Menu
Mark Waypoint—Marks your current location as a
waypoint. Opens the Mark Waypoint page that allows you
to customize the waypoint information as well as Goto or
show on the Map.
Find ‘N Go—Opens the Find ‘N Go Page. From the Find
‘N Go page, you can find waypoints, contacts, cities, and
exits. You may also find Points of Interest, addresses, and
intersections if a MapSource product is loaded into the
Rino 530.
Weather Radio—Toggles between the Weather Radio
and the FRS/GMRS Radio.
Send Note—Sends a note to other Rino 530 users.
Enable Keylock—Enables keylock so buttons are not
inadvertently pushed. Press and hold the Page button to
unlock the buttons.
Rino520_530_prelim.indd 46 1/25/2005 5:00:51 PM
Rino® 530 Owner’s Manual 47
PRELIMINARYUNIT OPERATION > WAYPOINTS
Waypoints
There are numerous ways to create, edit, and use
waypoints. Using the Mark Waypoint Page and the Find
‘N Go Menu are two common pages for creating and
editing waypoint. You can also create a waypoint using
the Map Page. The Rino 530 holds up to 500 waypoints.
Mark Waypoint Page
The Mark Waypoint Page allows you to mark and record
your current location as a waypoint and appears with
a graphic name block (man with a flag) that displays
the assigned number for that waypoint and a waypoint
symbol.
Mark Waypoint Page
Symbol
Waypoint
Name
Waypoint
Details
To mark your current location and open the
Mark Waypoint Page:
1. Press and hold the Thumb Stick In until the
Shortcuts Menu opens.
2. Highlight Mark Waypoint and press the Thumb
Stick In. The Mark Waypoint Page opens. You
can also access this page by highlighting Mark
on the Main Menu Page and pressing the Thumb
Stick In.
3. To save the waypoint, highlight OK and press the
Thumb Stick In. If you do not want to save it as a
new waypoint, press the Page button to cancel.
To change Mark Waypoint Page Options:
• To change the name of the waypoint, use the
Thumb Stick to highlight the waypoint name field.
• To assign an identifying symbol to a waypoint, use
the Thumb Stick to highlight the symbol block just
above the waypoint name.
• To view the waypoint details, highlight the details
field and press Left or Right on the Thumb Stick
to change to the next data field.
Rino520_530_prelim.indd 47 1/25/2005 5:00:51 PM
48 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > WAYPOINTS
Creating Waypoints
To create a waypoint for a map feature:
1. With the Pan Map feature active, move the
panning arrow (map pointer) to the map item you
want and highlight it.
2. Press In and release the Thumb Stick to display
the item information page.
3. With the Information Page displayed, highlight the
Option Menu button at the top of the page
and then press the Thumb Stick to open the
menu.
4. Highlight Save As Waypoint and press the
Thumb Stick to save the item as a waypoint.
Saving a map feature as a waypoint
To create a waypoint using the panning
arrow:
1. With the Pan Map feature active, move the
panning arrow (map pointer) on the map to the
location you want to mark, then press the Thumb
Stick.
2. The Mark Waypoint Page displays, automatically
assigning a number to the waypoint.
To create a waypoint by manually entering its
coordinates (lat/lon):
1. Press In and hold the Thumb Stick to access the
Shortcuts Menu. Highlight Mark Waypoint and
press In. You can also use the Find ‘N Go to view
a previous waypoint.
2. Highlight the details field and press Left or Right
on the Thumb Stick to change to the Location
field. Press In and enter the new coordinates
using the on-screen numerical keyboard. Highlight
and press OK when finished.
3. You may also change the waypoint name and/or
symbol or add notes.
Rino520_530_prelim.indd 48 1/25/2005 5:00:51 PM
Rino® 530 Owner’s Manual 49
PRELIMINARYUNIT OPERATION > WAYPOINTS
Projecting a Waypoint
Projecting a waypoint from any map item (another
waypoint, etc.) allows you to establish a new waypoint on
a bearing and distance projected from that map item.
To project a waypoint:
1. Select a map item from the Find ‘N Go Menu.
2. Highlight the Option Menu on-screen button
at the top of the Information Page and press the
Thumb Stick In to display the options. Highlight
Project Waypoint and press In.
3. Highlight either the bearing or distance field, then
press the Thumb Stick In to display the numerical
keyboard. Enter the new bearing or distance, then
highlight OK and press In to finish.
Project Waypoint Page
Editing a Waypoint
A waypoint or contact can be edited to add notes or
change the map symbol, name, coordinates, or elevation.
You can also delete a waypoint or contact.
To edit a waypoint:
1. Use the Find ‘N Go Menu to display the waypoint/
contact or highlight it on the Map Page and press
the Thumb Stick In.
2. To make changes to the waypoint map symbol,
name, location coordinates, elevation fields and
notes, highlight the desired field and press the
Thumb Stick In to display the keyboard. (For
Notes, highlight Edit and press In to start entering
data, up to 30 characters.) Select OK and press
the Thumb Stick In to finish.
3. Highlight the OK button the press the Thumb
Stick to save the changes.
Rino520_530_prelim.indd 49 1/25/2005 5:00:52 PM
50 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > WAYPOINTS
To delete a waypoint or contact:
1. Use the Find ‘N Go feature to display the point.
2. Highlight the Delete button and then press the
Thumb Stick In. Confirm the deletion.
Deleting a waypoint
To move a waypoint by dragging it:
1. Use the Find ‘N Go Menu to display the Waypoint
Page for the waypoint you want to move.
2. Highlight and press the Map on-screen button to
display the waypoint on the map.
3. With the waypoint highlighted by the panning
arrow, press In and release the Thumb Stick. The
word “Move” displays beneath the panning arrow.
4. Use the panning arrow to drag the waypoint to the
new location and then press the Thumb Stick In
to place it.
Press the Page button before pressing the Thumb
Stick to cancel moving the waypoint and return to
the Main Pages.
To save Map or Find ‘N Go items as
waypoints:
1. Access the Information Page for the desired item
(highlighted from the map or selected from the
Find ‘N Go Menu).
2. Open the Option Menu at the top of the page,
select Save As Waypoint.
3. Press the Thumb Stick In to save the item to the
Waypoints List.
4. Highlight Save As Waypoint and press the
Thumb Stick In.
Rino520_530_prelim.indd 50 1/25/2005 5:00:52 PM
Rino® 530 Owner’s Manual 51
PRELIMINARYUNIT OPERATION > FIND 'N GO
Find ‘N Go
The Find ‘N Go Menu allows you to find stored locations
(waypoints) and map items (cities, exits, etc.). They can
be found by name or by those nearest to your current
location. If you are using certain MapSource data, the
list of find locations is expanded to include categories for
Points of Interest, Street Addresses, and Intersections.
If you would like to use an option that is grayed out
(disabled), you need to load map detail using MapSource.
To access the Find ‘N Go Menu:
1. Press and hold the Thumb Stick In to access the
Shortcuts Menu.
2. Highlight Find ‘N Go and press In.
Or
1. Press the Page button or the on-screen Main
Page Menu button to display the Main Menu.
2. Highlight the Find ‘N Go icon and press the
Thumb Stick In.
Find ‘N Go Menu
Categories are listed in two different ways: By Name and
Nearest. The By Name list contains every item in the map
database for the selected category, while the Nearest list
contains only those items that are near to your Current
Location or the Map Pointer.
These pages are structured with a set of sub-menus and
location information pages that guide you through the
process of finding locations.
Rino520_530_prelim.indd 51 1/25/2005 5:00:53 PM
52 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > FIND 'N GO
Finding a Waypoint
Waypoints that you have created and stored in the Rino
530 can be found by selecting the Waypoint option from
the Find ‘N Go Menu. You can find a waypoint from the
list of waypoints using the By Name or Nearest options as
explained on the previous page. When selected from the
list, the waypoint displays on the Waypoint Information
Page.
The Waypoint Information Page displays the waypoint
name or number, a map symbol, the location in lat/lon,
elevation, distance, bearing, and three on-screen buttons
for Goto, Map, and OK functions.
Nearest Waypoints selected
in Find N’ Go Menu
To find a waypoint by nearest:
1. Use the Thumb Stick to select Waypoint from the
Find ‘N Go Menu. Press the Thumb Stick In to
select Nearest from the pop-up menu. Press the
Thumb Stick In to display the Waypoints List.
2. Use the Thumb Stick to select the desired
waypoint from the list and then press the Thumb
Stick In to display the Information Page for that
waypoint.
3. With the Information Page displayed, select Goto
to create a direct line of travel to the waypoint.
Select Map to view the waypoint location on the
map or select Delete to delete the waypoint.
4. Press the Option Menu button to access
additional features. You can select: Send Location
(to other Rino users), Project Waypoint, Set
Proximity (alarm), Add to Route, View Sun & Moon
(reports for that waypoint), View Hunt & Fish
(reports for that waypoint), or Reposition Here.
Rino520_530_prelim.indd 52 1/25/2005 5:00:53 PM
Rino® 530 Owner’s Manual 53
PRELIMINARYUNIT OPERATION > FIND 'N GO
To find a waypoint by name:
1. Use the Thumb Stick to select Waypoint from the
Find ‘N Go Menu. Press the Thumb Stick In to
select By Name from the pop-up menu. Press the
Thumb Stick In to display the Waypoints List.
Find ‘N Go Menu
2. Use the Thumb Stick to enter the name of the
waypoint that you would like to find.
Entering a waypoint
name to find By Name
3. Select OK when you are finished entering the
name. The waypoint list opens with the name
closest to the name you entered on the top.
4. Select the desired waypoint from the list and
then press the Thumb Stick In to display the
Information Page for that waypoint.
5. With the Information Page displayed, select Goto
to create a direct line of travel to the waypoint.
Select Map to view the waypoint location on the
map or select Delete to delete the waypoint.
6. Press the Option Menu button to access
additional features. You can select: Send Location
(to other Rino users), Project Waypoint, Set
Proximity (alarm), Add to Route, View Sun & Moon
(reports for that waypoint), View Hunt & Fish
(reports for that waypoint), or Reposition Here.
Rino520_530_prelim.indd 53 1/25/2005 5:00:54 PM
54 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > FIND 'N GO
Finding a Contact
Contacts that you have received in the Rino 530 can be
found by selecting the ‘Contacts’ option from the Find ‘N
Go Menu.
Contact List
To find a contact:
1. From the Find ‘N Go Menu, highlight Contacts
and press the Thumb Stick In.
2. From the Contacts List, select the desired contact
and press the Thumb Stick In.
3. With the Contact Information Page displayed,
select Goto to create a direct line of travel to the
contact. Select Map to view the contact’s location
on the map or select Delete to delete the contact.
If the contact did not have a GPS location on the
last transmission, a question (?) mark appears
below the flag. To view the contact details,
highlight the details field and press Left or Right
on the Thumb Stick to change to the next data
field.
Contact Information Page
4. Press the Option Menu button to access
additional features. You can select: Poll location,
Send Location (to other Rino users), View Track,
Project Waypoint, Save as a waypoint, or Set
Proximity (alarm).
Rino520_530_prelim.indd 54 1/25/2005 5:00:54 PM
Rino® 530 Owner’s Manual 55
PRELIMINARYUNIT OPERATION > FIND 'N GO
Finding a City
Cities can be found by selecting the Cities option of
the Find ‘N Go Menu, selecting the city from the list
of Nearest or By Name, and then displaying the City
Information Page.
The City Information for the selected city displays,
including the city name, the size by population, and
distance from your location. You can view it on the map,
or create a Goto direct route to the city from your current
location or from a location defined by the Panning Arrow
(Map Pointer). You can also save the city as a waypoint
or add it to an existing route.
To find a city:
1. Use the Thumb Stick to select the Cities option,
then press it In to display the find Nearest or find
By Name prompt. Selecting By Name displays
the keyboard as an alternative scrolling through
the list of nearest cities. If you are currently
panning the map, the option Near Map Pointer
appears in place of the Nearest option.
2. If using find By Name, begin spelling the name
of the city by using the keyboard. When you have
entered enough characters to define the name,
a match list displays. If you are using find By
Nearest or Near Map Pointer scroll through the
list to find the city you want. Use the Thumb Stick
to select the desired city from the list and then
press it In to display the Information Page for that
city.
3. With the Information Page displayed, you can
select Goto, Map, or OK options.
4. Press the Option Menu button to access
additional features. You can select: Send Location
(to other Rino users), Project Waypoint, Save as
a Waypoint, Set Proximity
(alarm), Add to Route,
View Sun & Moon (reports
for that waypoint), or View
Hunt & Fish (reports for
that waypoint).
Find Nearest Cities List
Rino520_530_prelim.indd 55 1/25/2005 5:00:55 PM
56 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > FIND 'N GO
Finding an Exit
You can use the Find Exit option to locate a nearby exit
on an interstate highway. Exits are listed only by Nearest.
Exit information pages provide a variety of information
about services near each exit, such as rest stops, lodging,
restaurants, and service stations. Some services such
as service stations on this page can be selected and
a separate information page displays with specific
information concerning what types of fuel, mechanical,
and food services are available.
To find an exit:
1. Use the Thumb Stick to highlight Exits and then
press it In to display the Exit List.
2. Highlight and select an exit type by pressing the
Thumb Stick In.
3. A list of exits nearest to you displays. The title box
indicates the interstate highway that is served
by the exits. Two fields at the bottom of the page
indicate distance and bearing to the exit. Scroll
through the list to highlight the desired exit.
4. Press the Thumb Stick In to display the
Information Page for that exit. This page contains
the exit description with a list of available services
near that exit along with the distance and bearing
fields.
5. Use the Thumb Stick to move to the list of
services and highlight a selection from the list.
6. Press the Thumb Stick In to display the
Information Page for the selected service.
The Exit Services Information Page displays the
name of the service, its direction from the exit, and
a list of the services available, each marked by a
check.
At the bottom of these Information Pages are on-
screen buttons for Goto, Map, and OK.
7. Press the Option Menu button to access
additional features. You can select: Send Location
(to other Rino users), Project Waypoint, Save as
a Waypoint, Set Proximity (alarm), Add to Route,
View Sun & Moon (reports for that waypoint), or
View Hunt & Fish (reports for that waypoint).
Rino520_530_prelim.indd 56 1/25/2005 5:00:55 PM
Rino® 530 Owner’s Manual 57
PRELIMINARYUNIT OPERATION > FIND 'N GO
Finding a Point of Interest
You can use the Find Points of Interest option to locate
a nearby restaurant, lodging, landmark, public building,
park, etc. However, you must have transferred a
MapSource MetroGuide map to the unit map database.
Otherwise, this option, plus Address and Intersection
options, are grayed out and are not functional. Here is a
list of Point of Interest categories:
• Food & Drink • Services
• Lodging • Transportation
• Attractions • Emergency & Govt.
• Entertainment • Manmade Places
• Shopping
In many instances, these categories are subdivided into
types, such as in the instance of Food & Drink. When you
select Food & Drink from the list of categories, you are
then presented with a list of types that includes All Types
and cuisine options such as American, Asian, Barbecue,
Chinese, and many more.

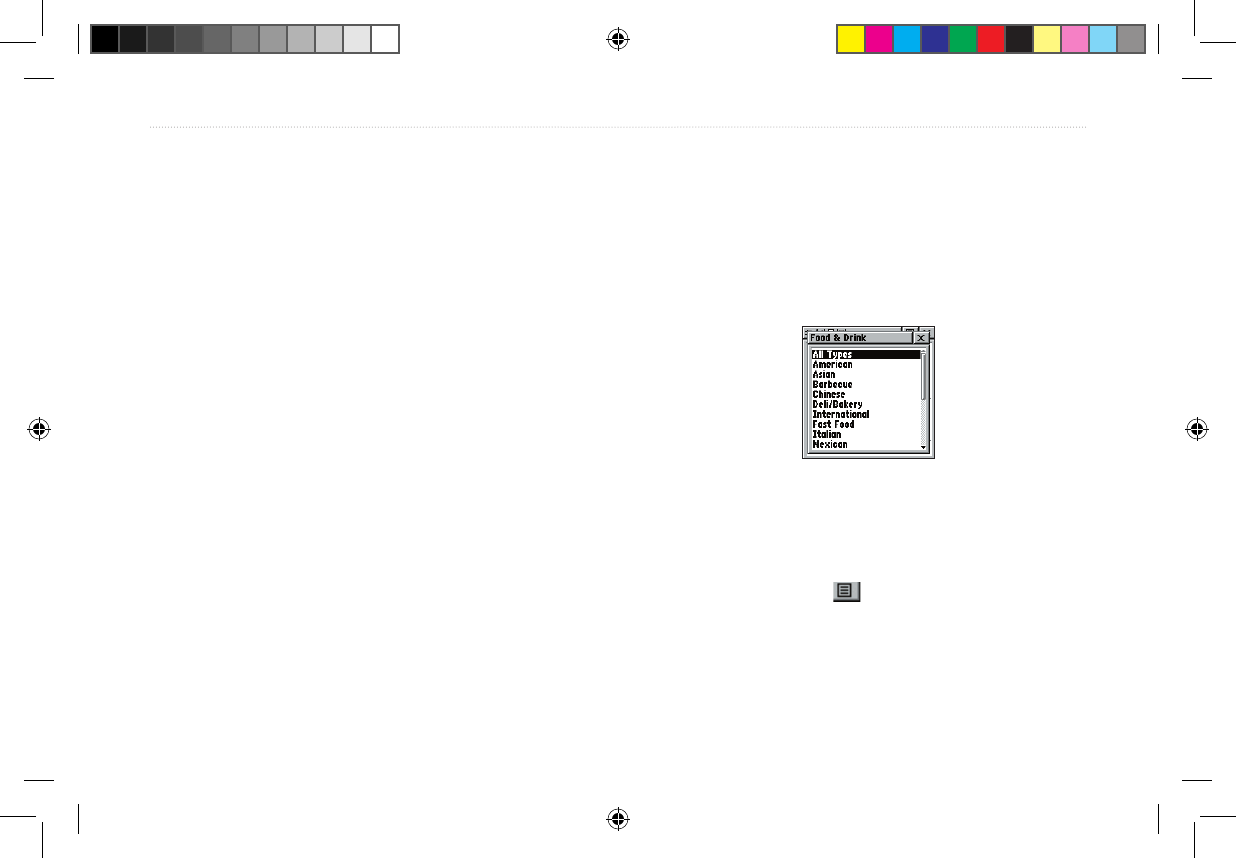

Food & Drink types
Once you have selected an item, you can display the
Information Page for that item. You can then use the on-
screen buttons to Goto or view the location on the Map;
or use the Option Menu for more choices.
Rino520_530_prelim.indd 57 1/25/2005 5:00:56 PM
58 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > FIND 'N GO
To find a point of interest:
1. Use the Thumb Stick to highlight Points of
Interest and then press it In to display the Points
of Interest Categories List.
2. Use the Thumb Stick to select the desired
category and then press it In to display the Types
List.
3. Use the Thumb Stick to select the desired type
and then press it In to display the list for that type.
4. Use the Option Menu at the top of page to
select from either By Name or Nearest options.
Selecting By Name displays a keyboard allowing
you to enter the characters of the name you want.
A list of matches displays when enough characters
are entered.
5. Use the Thumb Stick to highlight your selection
from the list and then press it In to display the
Information Page for that item.
Nearest Food & Drink
6. Use the on-screen buttons to Goto or view on the
Map, or use the page Option Menu.
7. Press the Option Menu button to access
additional features. You can select: Send Location
(to other Rino users), Project Waypoint, Save as
a Waypoint, Set Proximity (alarm), Add to Route,
View Sun & Moon (reports for that waypoint), or
View Hunt & Fish (reports for that waypoint).
Rino520_530_prelim.indd 58 1/25/2005 5:00:56 PM
Rino® 530 Owner’s Manual 59
PRELIMINARYUNIT OPERATION > FIND 'N GO
Finding an Address or Intersection
You can enter a street number, choose a street name
from a list and find an address within the area of map
data coverage or enter two street names and locate the
intersection. To use these options, however, you must be
using a MapSource product that provides this type of map
data.
To locate an address:
1. Use the Thumb Stick to highlight Address and
press it In to display the Find Address page.
2. Highlight the Number field and use the keyboard
for entering numbers.
Entering an Address
3. Move to the Street field using the Thumb Stick.
4. Press the Thumb Stick In to display the Select
Street Name list. Find the street by using the
keyboard to enter characters until a list appears.
5. With the desired street highlighted, press the
Thumb Stick In to place the street name on the
Find Address page. Repeat this process for city
and postal codes, if desired. A window at the
bottom of the page displays a list of matches and
the quality of each match. You may also use the
Option Menu to Clear City, Clear Postal Code or
Clear All.
6. Use the on-screen buttons at the bottom of the
page to Goto, view the item on the Map, OK to
close, or use the Option Menu for other choices.
Rino520_530_prelim.indd 59 1/25/2005 5:00:57 PM
60 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > FIND 'N GO
To locate an intersection:
1. Display the Find ‘N Go Menu and use the Thumb
Stick to highlight the Intersection category and
press it In to display the Find Intersection page.
2. Highlight the first Street field and then press the
Thumb Stick In to display the Street list.
3. Enter the name of the street in the name field at
the top of the list using the keyboard data entry
method discussed in the Quick Start Guide. Once
you have spelled enough of the street name, a
list of matches displays, often with several streets
on the list. Press the Thumb Stick In to move
the highlight to the street list and then scroll up
or down until you find the street name you want.
Press it In to place the name in the field.
Finding an Intersection
4. Highlight the best match and then press the
Thumb Stick In to display the Information Page
for the intersection. Use the on-screen buttons at
the bottom of the page to Goto, view the item on
the Map, OK to close, or use the Option Menu for
other choices.
Rino520_530_prelim.indd 60 1/25/2005 5:00:57 PM
Rino® 530 Owner’s Manual 61
PRELIMINARYUNIT OPERATION > FIND 'N GO
Finding a Last Found Place
You can use the Recently Found Places option to locate
Points of Interest, Cities, Waypoints or Contacts and
Intersections and other locations you have recently
retrieved. The process for finding recent points from the
Find ‘N Go list is the same as finding a regular waypoint.
To find a Last Found Place:
1. Use the Thumb Stick to select the Last Found
Places option from the Find ‘N Go List and then
press it In.
Last Found Places Page
Sub-page
buttons
2. Press Up or Down on the Thumb Stick to
highlight the desired sub-page button, which
will display the options list for that sub-page
(Points of Interest, Cities, Waypoints/Contacts or
Intersections) to the left.
3. Press Left then Up or Down on the Thumb Stick
to highlight an item on the list and press the
Thumb Stick In to display the Information Page
for that item. Press Right to return to the sub-page
buttons.
4. With the Information Page displayed, you can
select Goto to create a direct line of travel to the
item. Select Map to view the waypoint location or
select OK. For Waypoints and Contacts, you may
also choose to Delete to permanently remove that
item.
5. Use the page Option Menu to send the location of
that point, project a new waypoint from its location,
set a proximity circle, add the item to an existing
route, or view sun/moon or hunt/fish position data
for this time and date.
Rino520_530_prelim.indd 61 1/25/2005 5:00:58 PM
62 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > WEATHER RADIO
Weather Radio
The Weather Radio can be turned on and off through the
Shortcuts Menu or the Option Menu in the Radio Page.
You may also enable Weather Alerts from the Radio
Page. Refer to the “Radio Page” section for complete
information about the Weather Radio and Weather Alert.
To turn the Weather Radio on and off:
1. Open the Radio Page by pressing the Page
button or using the on-screen Main Page Menu
button .
2. Use the Thumb Stick to highlight the Option
Menu on-screen button and then press the
Thumb Stick In to display the menu.
3. When Use Weather Radio is highlighted, press
the Thumb Stick In to turn on the Weather Radio.
You can select Enable Weather Radio after the
Weather Radio is on.
4. To turn the Weather Radio off, press the Thumb
Stick In when Use FRS/GMRS Radio is
highlighted. This will switch the Rino 530 back
over to the FRS/GMRS radio.
Radio Page with Weather Radio on
NOTE: You can also turn on and off the Weather
Radio through the Shorcuts Menu. Press and hold
the Thumb Stick In to open the Shortcuts Menu.
When the Weather Radio is on, Enable Weather Alert is
added at the bottom of the option menu. Press the Thumb
Stick In when Enable Weather Alert is highlighted to
turn the feature on. You can then turn the Weather Radio
off and continue normal FRS/GMRS radio operations.
When a Weather Alert is detected, the Rino 530 will
break into any FRS/GMRS transmission to automatically
turn on the Weather Radio and broadcast that alert. Select
Disable Weather Alert to turn off that feature.
Rino520_530_prelim.indd 62 1/25/2005 5:00:58 PM
Rino® 530 Owner’s Manual 63
PRELIMINARY
UNIT OPERATION > SENDING A NOTE
Sending a Note
You may send a note to other Rino 530 users. When you
send a note, it appears along the bottom of the display on
every Rino 530 user who is using the same Channel and
Squelch Code that you are using. The Send Note feature
is great when you are trying to get the group to meet at a
certain location or tell everyone in the group something in
a silent manner.
To send a saved note:
1. Press the Thumb Stick In until the Shortcuts
Menu appears.
2. Select Send Note and press
the Thumb Stick In to open
the Send Note Page.
3. Select a note from the Saved
Notes list and press the
Thumb Stick In.
4. The selected note appears in the Edit Note field.
Press the Thumb Stick In to edit the Saved Note.
Refer to the Quick Start Guide for information on
entering data using the on-screen keyboard.
When you are done editing the note, push the
Thumb Stick In when OK is highlighted on the
keyboard.
5. Select Send to send the note to all users. Select
Save to save the note. Select Clear to delete the
note.
To send a new note:
1. Press the Thumb Stick In until the Shortcuts
Menu appears in the middle of the screen.
2. Select Send Note and press the Thumb Stick In
to open the Send Note Page.
3. The Edit Note field is highlighted when the page
opens. Press the Thumb Stick In to create a note.
When you are done editing the note, push the
Thumb Stick In when OK is highlighted on the
keyboard.
4. Select Send to send the note to all users. Select
Save to save the note. Select Clear to delete the
note.
Send Note Page
Rino520_530_prelim.indd 63 1/25/2005 5:00:59 PM
64 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > USING A GOTO
Using a Goto
The Goto function allows you to create a direct route to
a destination, (waypoint, city, or point of interest). Once
you have accessed the Information Page for an item,
use the Goto button at the bottom of the page to initiate
travel, using the Map and Navigation Pages for guidance.
To activate a Goto:
1. Use the Find ‘N Go Menu to access the
Information Page for any desired destination and
use the Thumb Stick to highlight the Goto button.
2. Press the Thumb Stick In to start navigation.
3. Observe the Navigation Page, it displays the
name of your destination, the distance from your
current location, and a Bearing Pointer indicating
the direction you should travel. The time required
to reach your destination displays when you
begin to travel and establish a predictable rate
of movement. The Data Fields to the right of the
page display information relative to your travel.
4. Use the Page button or Main Page Menu
to access the Map Page and observe your
movements and a dark line indicating the direct
path from your current location to your destination.
5. Use the Bearing Pointer on the Navigation Page
to maintain travel in the right direction and observe
distance and time information to monitor your
progress.
When you are close to your destination, an “Arriving
at Destination” message appears. If you move past the
destination the Bearing Pointer reverses and the distance
increases.
To stop navigation, select the on-screen Option Menu
button at the top of the Navigation or Map Page.
Select Stop Navigation, then press the Thumb Stick In.
Viewing a Goto on the Map Page
Rino520_530_prelim.indd 64 1/25/2005 5:00:59 PM
Rino® 530 Owner’s Manual 65
PRELIMINARYUNIT OPERATION > ROUTES PAGE
Routes Page
Route navigation allows you to create a sequence of
intermediate waypoints that leads you to your final
destination. The Rino 530 stores 20 routes, each with up
to 50 waypoints. A route can be created and modified
from the Route Page, and waypoints can be added to a
route from the Find ‘N Go Menu. More complex routes
can be created using a PC and MapSource mapping
programs and then transferred to the unit’s memory.
Creating and Using a Route
To create a route:
1. Access the Routes page from the Main Menu. The
page has a New button, a list of routes, and the
number of unused routes.
2. Use the Thumb Stick to highlight the New button
and press it In to display the Route Setup Page.
Routes List Page
3. With an empty row (dashed) in the route list
highlighted, press the Thumb Stick In to display
the Find ‘N Go Menu.
4. Select a route waypoint from one of the Find ‘N
Go Menu categories and display the Information
Page for the selected waypoint, city, exit, point of
interest, etc. Highlight the on-screen Use button
and press the Thumb Stick In to place it on the
Routes List.
5. To add more waypoints to the route, repeat the
process in Steps 3 and 4. The route is named for
the first and last waypoints on the route.
You can add waypoints to the end of an existing route at
any time by using the Find ‘N Go Menu.
Rino520_530_prelim.indd 65 1/25/2005 5:00:59 PM
66 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ROUTES PAGE
To add a Find ‘N Go Menu item to a route:
1. Select an item from the Find ‘N Go Menu and
display its Information Page. If a contact is used
in a route, the route changes as the contact’s
position is updated, or it may be saved as a
Waypoint to serve as a stationary point.
2. Select the page Option Menu and select Add To
Route to display the Routes List.
3. Highlight and select the route desired and then
press the Thumb Stick In. A “Waypoint Added
Successfully” message displays.
Editing a Route
To remove all waypoints:
1. From the Route Page, select the on-screen
Option Menu button and press the Thumb
Stick In to access the Option Menu.
2. Highlight the Remove All option and then press
the Thumb Stick In to remove all waypoints from
the list. When you see the prompt “Do you really
want to remove all waypoints from the route?”,
select Yes.

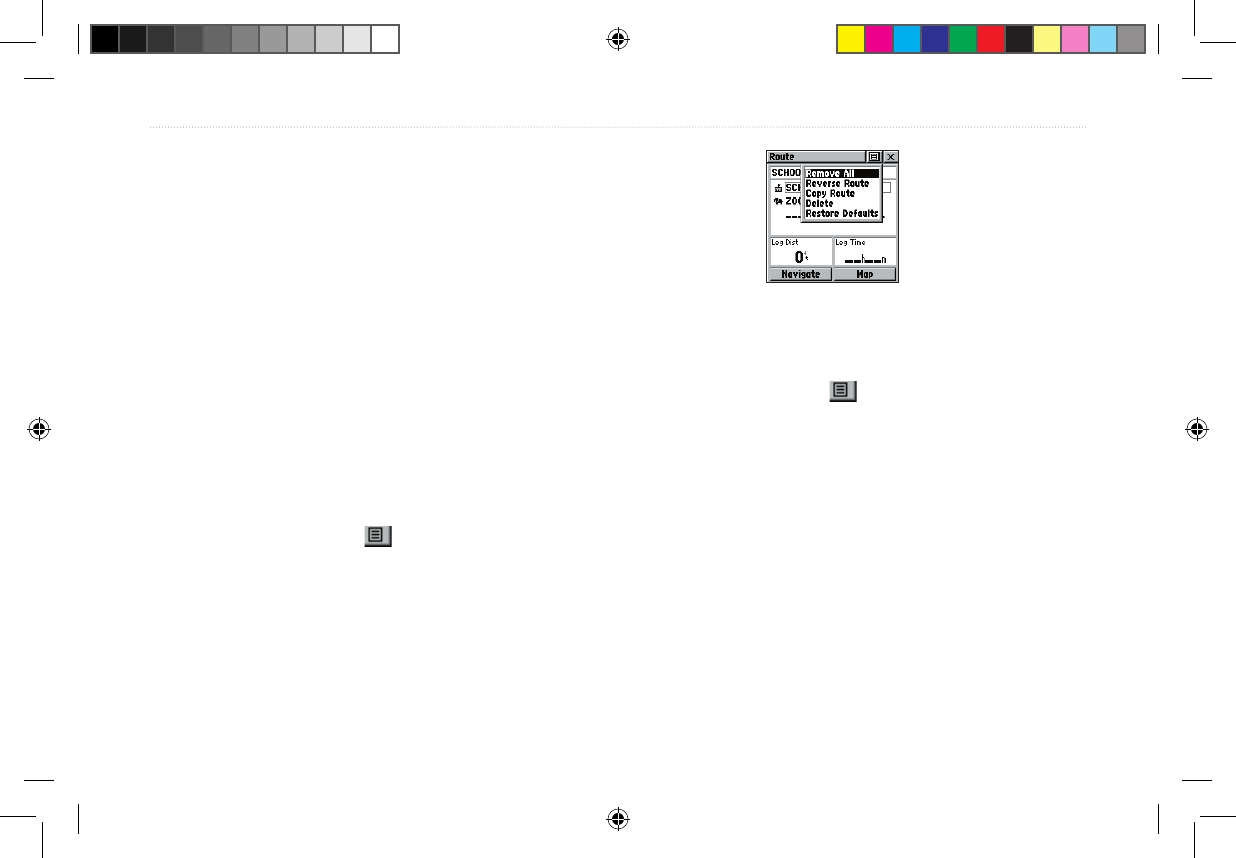

Route Options
To reverse the route:
1. From the Route Page, select the on-screen page
Option Menu button and press the Thumb
Stick In to access the Option Menu.
2. Highlight the Reverse Route option and then
press the Thumb Stick In to reverse the order of
waypoints in the list. To change the route back to
the original order, repeat this process.
Rino520_530_prelim.indd 66 1/25/2005 5:01:00 PM
Rino® 530 Owner’s Manual 67
PRELIMINARYUNIT OPERATION > ROUTES PAGE
To copy the route:
1. From the Route Page, select the on-screen page
Option Menu button and press the Thumb
Stick In to access the Option Menu.
2. Highlight the Copy Route option and then press
the Thumb Stick In to copy. The copied route
displays on the Routes Page and is named the
same but followed by the numeral 1 (one). You
may then rename and/or modify the copied route.
To delete the route:
1. From the Route Page, select the on-screen page
Option Menu button and press the Thumb
Stick In to access the Option Menu.
2. Select Delete and then press the Thumb Stick In.
When you see the prompt “Do you really want to
delete route?”, select Yes.
To restore default settings for the route:
1. From the Route Page, select the on-screen page
Option Menu button and press the Thumb
Stick In to access the Option Menu.
2. Select Restore Defaults and then press the
Thumb Stick In to restore factory settings.
To review a route point:
1. Select the point from the Route Points List and
press the Thumb Stick In to access the Option
Menu for the waypoint.
2. Highlight Review and then press the Thumb
Stick In to display the Information Page.
3. Highlight the on-screen OK button and then press
the Thumb Stick In to return to the Route List.
To insert a new point on the route list:
1. Select the row where you want the new point
inserted before. Press the Thumb Stick In.
2. Highlight Insert and press the Thumb Stick In
to display the Find ‘N Go Menu and select a new
waypoint, city, exit, point of interest, etc.
Rino520_530_prelim.indd 67 1/25/2005 5:01:00 PM
68 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ROUTES PAGE
3. With the new point highlighted, press the Thumb
Stick In to display the Information Page for the
new point and then select the on-screen OK
button to add it the route.
Route point review options
To remove a point from the route list:
1. Select the point that you want to remove from the
Route Waypoints List and press the Thumb Stick
In.
2. Highlight Remove and press the Thumb Stick In
to remove the waypoint from the list.
To change a route point:
1. Select the waypoint that you want to change from
the Route Waypoints List and press the Thumb
Stick In.
2. Highlight Change and press the Thumb Stick In
to display the Find ‘N Go Menu or create a new
waypoint and add it to the points list.
3. Select a new waypoint, access its Information
Page and press the on-screen Use button to
replace the old route waypoint.
To move a route point:
1. Select the point from the Route Points List and
press the Thumb Stick In.
2. Highlight the Move option and press the Thumb
Stick In to select the waypoint.
3. Use the Thumb Stick to move the point up or
down in the list. Press the Thumb Stick In to
leave the waypoint in the new list order.
Rino520_530_prelim.indd 68 1/25/2005 5:01:00 PM
Rino® 530 Owner’s Manual 69
PRELIMINARYUNIT OPERATION > ROUTES PAGE
Adding or Editing from the Route Map
Page
You can use the panning arrow with the Route Map Page
displayed to add or edit route waypoints.
To add a point at either end of a route:
1. Select the Route from the Routes List. Press the
Thumb Stick In to display the Route Page.
2. Highlight the on-screen Map button at the bottom
of the page and press the Thumb Stick In to
display the Route Map Page.
3. Use the Thumb Stick to move the panning arrow
to either end of the displayed route until the end
point is highlighted. Then press the Thumb Stick
In and select Add Turns. This option appears only
when highlighting the end point of a route.
4. Move the panning arrow to a map item or
location where you would like to extend the route
and press the Thumb Stick In to display the
Information Page for the new point.
5. Press the on-screen Use button to return to the
map page and then press the Thumb Stick In
again to place the new waypoint.
To add a route point within a route:
1. Follow steps 1 and 2 in the previous instructions.
2. Use the Thumb Stick to move the panning arrow
to a route line. When the arrow touches the line,
the line becomes thin. Press the Thumb Stick In
to display the word ADD next to the line.
3. Drag the line to a map item or other location
where you want to establish a new waypoint and
then press the Thumb Stick In to place the new
waypoint. A waypoint information page displays.
Press the on-screen OK button to save the new
waypoint, then press it again after returning to the
Route Map.
Rino520_530_prelim.indd 69 1/25/2005 5:01:01 PM
70 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ROUTES PAGE
To review or remove a route point:
1. Select the Route from the Routes List. Press the
Thumb Stick In to display the Route Page.
2. Use the Thumb Stick to highlight the desired
route and press In to display the Route Page.
3. Use the Thumb Stick to move the map panning
arrow to the point you want to review and press In.
Select Review or Remove and press In again to
either display the Information Page or remove it
from the route.
Select Next and press In again to view the next
waypoint.
Navigating a Route
A Route can be navigated using the Map Page or
the Navigation Page. The Map Page displays your
movement, the route line, and waypoints on the route.
The Navigation Page shows compass direction and a
bearing pointer.
To navigate a route:
1. Select a route from the Routes List and then press
the Thumb Stick In.
2. Highlight the on-screen Navigate button at the
bottom of the page and then press the Thumb
Stick In to begin navigating the route. The screen
changes to the Navigation Page.
3. Move to the Map Page to view the route and your
current location.
4. Begin moving, watching directional information on
the Navigation Page or your progress on the Map
Page.
Route Navigation
Rino520_530_prelim.indd 70 1/25/2005 5:01:01 PM
Rino® 530 Owner’s Manual 71
PRELIMINARYUNIT OPERATION > ROUTES PAGE
Stopping Navigation
To stop navigation, highlight the Stop Navigation option
on either the Navigation or Map page’s Option Menu or
select the Stop button on the Route Page.
Data Fields for the Route Page
When navigating a Route, the data displayed in the data
fields on the Route Page may be customized to provide
useful navigation information.
To select data field options:
1. Use the Thumb Stick to highlight a data field on
the Route Page and then press In to display the
data field options.
2. Use the Thumb Stick to highlight the desired
option and press In to select that option for the
selected data field.
Changing the Route Data Fields
Data field Options for Route Page
• Distance to Point
• ETA To Point
• ETE To Point
• Leg Course
• Leg Distance
• Leg Time
• Pointer
• Sunrise At Point
• Sunset At Point
Rino520_530_prelim.indd 71 1/25/2005 5:01:01 PM
72 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > TRACKS PAGE
Tracks Page
The Rino 530 draws an electronic bread crumb trail on
the Map Page as you travel along. This bread crumb trail
is the Track Log. The Track Log contains information
about points along its path, including time, and position.
The Rino 530 uses this information to allow you to
navigate using the saved track. You may also save tracks
from other Rino users as they communicate with you.
To open the Tracks page:
1. Access the Menu Page by using the on-screen
menu button or the Page button.
2. Select the Tracks icon and press the Thumb
Stick In. The Tracks page opens.
Tracks Page
To save and use a Track:
1. Access the Tracks page from the Main Menu.
Press the on-screen Off button In to pause track
logging. When track logging is active the On
button appears to be recessed.
2. Highlight the Save on-screen button and then
press the Thumb Stick In to display the track log
Save Back Through list.
3. Use the Thumb Stick to select the time and date
that you would like to save the track through.
4. Press the Thumb Stick In to save the track log
and display the Track Page. The Track Page
shows the track name (which can be renamed
using the keyboard for data entry), the total
distance of the track, track area (if available), a
Show on Map option, and on-screen buttons for
Map, OK, and Tracback.
Rino520_530_prelim.indd 72 1/25/2005 5:01:02 PM
Rino® 530 Owner’s Manual 73
PRELIMINARYUNIT OPERATION > TRACKS PAGE
Using the TracBack Feature
The TracBack feature allows you to return along a
traveled path (or another Rino user’s path) without
marking any waypoints. When you are ready to return
to where you started, the Rino 530 takes you back by
following the Track Log that you left behind. You can
save a total of 20 tracks in the unit memory. The Track
Log starts recording as soon as the unit gets a satellite
location fix and the Track Log feature is turned on. When
you no longer need a Track Log you can press the on-
screen Clear button to remove it.
If you want to keep a record of a certain track log or use
the TracBack feature, it is recommended that you clear
the Track Log before you start traveling. The percentage
of memory used by the current track log is displayed in
a window at the top of the page. After the Track Log is
Cleared, it displays zero percent.
When the display reaches 100%, the most recent track
points start to overwrite the least recent if the default
setting Wrap When Full remains selected on the track
log setup. To avoid losing track points you want, save the
Track Log when it approaches the 99% mark. The active
track log stores up to 10,000 points.
The Saved Track Page displays the track and it can also
be displayed on the Main Map Page as you navigate. You
may save up to 20 tracks with 250 points per track in the
unit. Saved Contact tracks count towards this total. Tracks
are marked BEGIN and END.
Rino520_530_prelim.indd 73 1/25/2005 5:01:02 PM
74 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > TRACKS PAGE
To use the TracBack feature:
1. Highlight the Tracback button on the Tracks page
and press the Thumb Stick In. The Tracback
Menu options (To Beginning and To End) are
displayed.
2. Highlight the desired option and press the Thumb
Stick In to enable.
3. Use the Map Page or the Navigation Page to
navigate the Track.
Setting up the Track Log
You can set the track recording interval to Distance,
Time, or Automatic. You can set the Track display
resolution to High, Medium, Low, and Lowest. You can
also use the Option Menu to delete all saved tracks.
To use Track Log Setup options:
1. Highlight the Tracks Page Option Menu button
at the top of the page and press the Thumb
Stick In to display the menu.
2. Highlight the Tracks Log Setup option and then
press the Thumb Stick In.
You can check the Wrap When Full option by
highlighting it and then pressing the Thumb Stick
In. You can highlight the Record Method and
Interval fields and press the Thumb Stick In to
display their options. Interval options change to
accommodate the Record Method choices.
Rino520_530_prelim.indd 74 1/25/2005 5:01:03 PM
Rino® 530 Owner’s Manual 75
PRELIMINARY
UNIT OPERATION > PROXIMITY PAGE
Proximity Page
The Proximity Page lets you define an alarm circle around
a stored waypoint/contact position, and can be used to
help you avoid dangerous areas or to alert you when you
have strayed too far away from other Rino users. Up
to ten waypoints may be listed, with a maximum alarm
radius of 99.99 nautical or statute miles or kilometers.
If entering a proximity alarm circle, a “Near Proximity
Point <name>” message appears. If leaving a proximity
alarm circle, a “Leaving Proximity Point <name>”
message appears.
To access the Proximity Page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select
Proximity.
To add a proximity point:
1. Use the Thumb Stick to highlight an empty space
on the Proximity list and press the Thumb Stick In
to display the Find ‘N Go screen.
Highlight an item from the list and press the
Thumb Stick In to open the item.
2. From the Review Page, select Use. Press In again
to begin entry of the proximity radius. Use the
Thumb Stick to enter a distance and press In.
To clear one or all proximity point(s) from the
list:
1. To clear a single alarm, use the Thumb Stick to
highlight the proximity point to clear and press In.
Choose Remove and press In.
2. To clear all proximity waypoints, highlight the
Option Menu and press In. Choose Remove
All and press the Thumb Stick In.
To turn proximity alarms on or off:
Use the Thumb Stick to highlight Proximity
Alarms and press In to place a check mark.
Rino520_530_prelim.indd 75 1/25/2005 5:01:03 PM
76 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SATELLITE PAGE
Satellite Page
The Satellite Page provides a picture of satellite signal
tracking, tells you when the unit is ready for navigation,
and shows your location coordinates.
To access the Satellite Page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select
Satellite.
Satellite Page
Skyview
Graphic
Signal
Strength Bars
Sky View Graphic
The Sky View graphic represents a view looking up at
the sky from your current location showing satellites
and their assigned numbers. The outer ring represents
the horizon around you. The inner ring represents a
view above you at a 45° angle from vertical. The center
represents directly overhead. Signal Strength Bars for
each satellite are shown to the left of the Sky View.
Satellites and their signals appear as hollow shapes until
a signal is received and then they appear darkened in. The
stronger the signal, the taller the signal bar.
45°
90°
Outer ring -
the horizon
Inner ring- 45°
above the horizon
Center dot - 90°
above the horizon
Rino520_530_prelim.indd 76 1/25/2005 5:01:04 PM
Rino® 530 Owner’s Manual 77
PRELIMINARY
UNIT OPERATION > SATELLITE PAGE
WAAS
The Wide Area Augmentation System (WAAS) capability
produces a more accurate position fix. When enabled
(GPS set to Normal and WAAS set to Enabled through
the System Setup Page, also the interface must be set to
something other than RTCM mode), this feature searches
for WAAS satellites near your location and then receives
data for correcting differentials in the GPS satellite
signals. WAAS satellite numbers begin at number 33
or above and are displayed on the Satellite Page. When
differential correction data has been received for GPS
satellites (numbers 32 or below), a D displays in the
signal bar beneath the skyview. It is helpful to orient the
unit antenna toward the WAAS satellite shown in the
skyview. To learn more about the WAAS System, refer to
the Federal Aviation Administration Web site (http://gps.
faa.gov/).
Because the Rino 530 relies on satellite signals to provide
you with navigational guidance, the unit’s view of the sky
determines how fast you achieve navigational status. GPS
signals do not travel through heavy objects or people: For
best results, keep the unit in clear view of the sky.
Satellite Page using WAAS
Satellite Strength
At least three satellite signals are needed to determine
your location, otherwise the unit displays a “Poor
Satellite Reception” message with four options:
Use with GPS Off—Select this option if you want GPS
off.
Rino520_530_prelim.indd 77 1/25/2005 5:01:05 PM
78 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SATELLITE PAGE
New Location—Select this option if you have moved
more than 600 hundred miles (from where you last used
the unit).
Restart Search—Select this option if today is not (date
provided).
Continue Acquiring—Select this option if no other
option applies. The unit will attempt to gather GPS
signals.

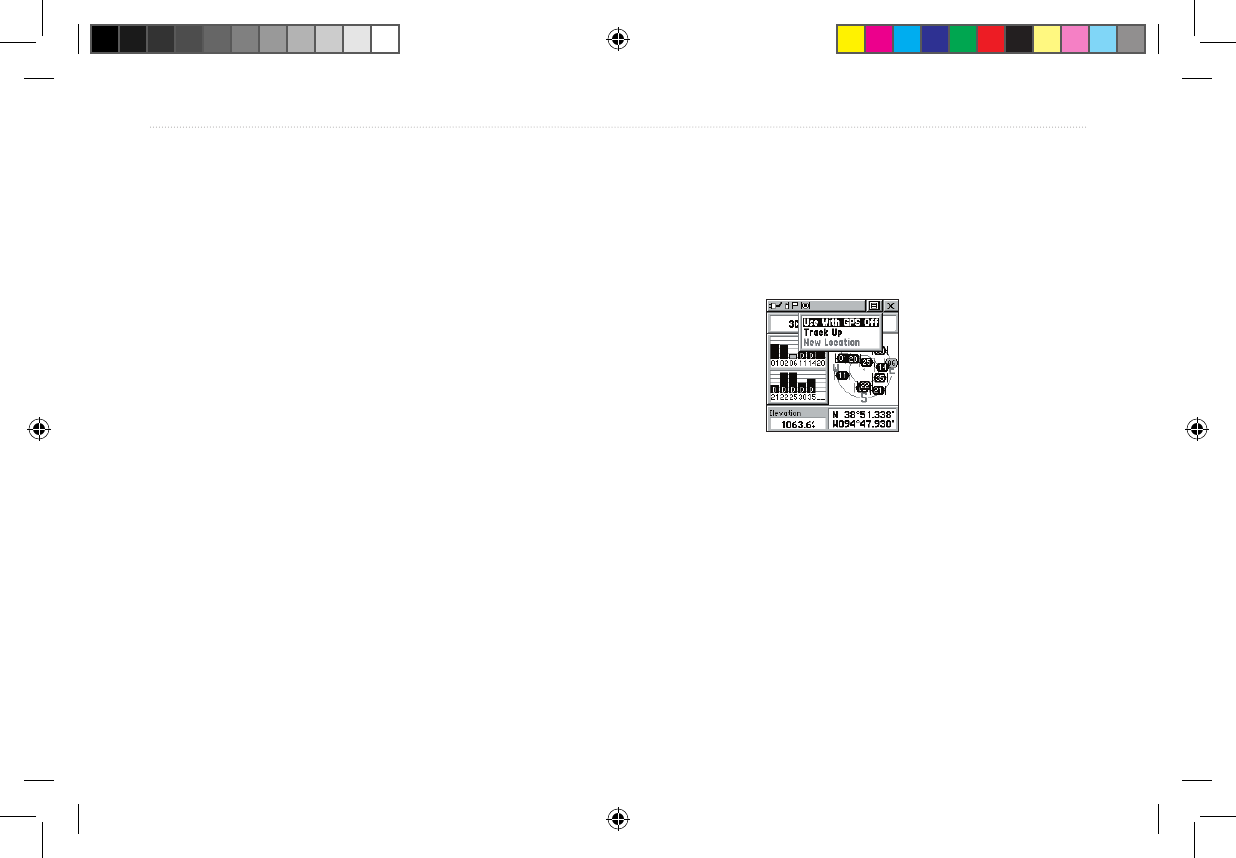

Satellite Page Options
Use With GPS Off—Use this option when you are
indoors, your view of the sky is obstructed, or you want
to save battery power. You can enter data, create routes,
etc., but cannot navigate in this mode.
Track Up/North Up—You can orient the satellite
skyview by selecting ‘Track Up’ (your direction of travel)
or ‘North Up’ (the satellite skyview oriented to the north).
New Location—If you are more than 600 miles (from
where you last used the unit), select the New Location
and then the Use Map options to approximate your
location. This gives the unit reference information and
speeds satellite acquisition.
Satellite Page Option Menu
Rino520_530_prelim.indd 78 1/25/2005 5:01:05 PM
Rino® 530 Owner’s Manual 79
PRELIMINARY
UNIT OPERATION > SATELLITE PAGE
To select the Use With GPS Off option:
1. Use the Thumb Stick to highlight the Option
Menu button at the top of the page and then
press it In.
2. Use the Thumb Stick to highlight the Use With
GPS Off option and then press it In.
The Rino 530 stops tracking satellites and should
not be used for navigation. However, the next
time you turn the unit on, it returns to Normal GPS
operation.
To select Track Up or North Up:
1. Use the Thumb Stick to highlight the Option
Menu button at the top of the page and then
press it In to display the Option Menu.
2. Highlight either the Track Up or North Up option
(depending on which is currently in use), and
press the Thumb Stick In to activate.
To enter a new location:
1. Use the Thumb Stick to highlight the Option
Menu button at the top of the page and then
press it In.
2. Highlight New Location and press the Thumb
Stick In to display choices of Auto or Use Map.
If you choose Automatic the Rino 530 determines
your new location automatically.
If you choose Use Map a map page displays with
instructions stating, “Point to your approximate
location and press ENTER”. Use the Thumb Stick
to move the map pointer to your location on the
map and press the Thumb Stick In.
Rino520_530_prelim.indd 79 1/25/2005 5:01:06 PM
80 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SETUP PAGES
Setup Pages
The Setup Pages allow you to customize the Rino 530 to
your personal preferences. You can choose time settings,
units of measure, display backlighting and contrast
settings, heading measurement, interface options and
system operating mode.
By highlighting the icons on the Setup Menu and then
pressing the Thumb Stick In, you can display the Setup
Page for each of the menu items.
To access the Setup Menu
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
There are then several more icons to choose from
in the Setup Menu.
Time Setup Page
You can set the time to match your location or for a
projected location anywhere in the world.
To access the Time Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the Time icon to open the Time Setup
page.

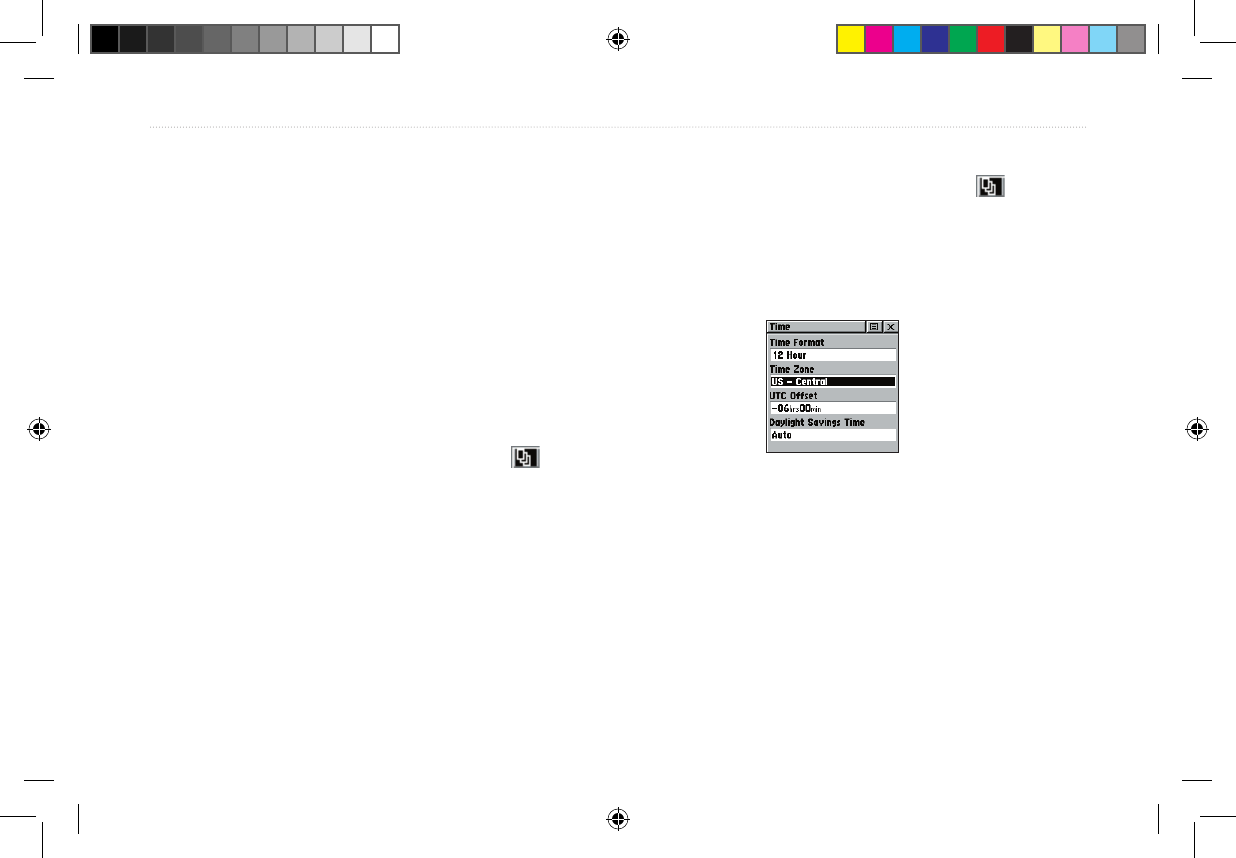

Time Setup Page
Time Format—Allows you to choose from 12-hour (like
a standard clock with 12-hour AM and PM cycles) or 24-
hour time format ( a 24- hour cycle, also called Military
Time).
Rino520_530_prelim.indd 80 1/25/2005 5:01:06 PM
Rino® 530 Owner’s Manual 81
PRELIMINARYUNIT OPERATION > SETUP PAGES
Time Zone—Can be set to one of the eight US Time
Zones, or 24 International Time Zones (nearest city or
geographical region). Select Other so you can enter the
UTC Time Offset.
Daylight Savings Time—Can be turned On or Off or set
to Automatic.
To set the time:
1. Use the Page button to access the Main Menu.
2. Use the Thumb Stick to highlight the Setup Icon.
Press the Thumb Stick In to display the Setup
Menu.
3. Use the Thumb Stick to highlight the Time Icon.
Press the Thumb Stick In to display the Time
Page.
4. Use the Thumb Stick to highlight the Time Zone
field. Press the Thumb Stick In to display the time
zone list.
5. Highlight a time zone from the list and then press
the Thumb Stick In.
6. If you choose Other, you must enter a UTC offset
value.
7. The correct time displays at the bottom of the
page.
Units Setup Page
The Units features are best used by individuals with a
working knowledge of map grids and datums. To learn
more about these subjects, visit the National Imagery and
Mapping Agency at http://www.nima.mil or inquire at
your local library.
To access the Units Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the Units icon to
open the Units Setup page.
Units Setup Page
Rino520_530_prelim.indd 81 1/25/2005 5:01:07 PM
82 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SETUP PAGES
Position Format—Allows you to choose from different
grid formats. The default position format, ‘hddd°mm.
mmm’ displays the latitude and longitude in degrees
and minutes and is most commonly used. The following
additional formats are available:
hddd.ddddd°—latitude/longitude in decimal degrees;
hddd°mm.mmm’—latitude/longitude in decimal
numbers; hddd°mm’ss.s”—latitude/longitude in degrees,
minutes, seconds; British Grid; Dutch Grid; EOV
Hungarian Grid; Finnish Grid; German Grid; Icelandic
Grid; India Zones; Irish Grids; Loran TD; Maidenhead;
MGRS; New Zealand; QNG Grid; RT90; South
African Grid; Swedish Grid; Swiss Grid; Taiwan Grid;
US National Grid; UTM/UpS - Universal Transverse
Mercator / Universal Polar Stereographic grids; W
Malayan RSO; and User UTM Grid.
LORAN TD Format
When creating new waypoints using LORAN TD
coordinates, you must set the correct LORAN chain
number and secondary stations in the Setup TD field
before storing the waypoint. After the waypoint is stored
in unit memory, it always references the LORAN chain
number and secondary stations currently selected in the
Setup TD field. If you enter a different LORAN chain
number, change the secondary stations, or offsets in the
Setup TD field, the active waypoint information reflects
those changes. Because the unit does not rely on the
LORAN signal for navigation, it can reference a different
GRI chain and/or secondary stations and still navigate to
the location stored in memory.
To adjust the Loran TD settings, select Loran TD as the
Position Format to open the Loran TD setup window. To
change the settings of any fields, highlight the field, press
the Thumb Stick In. When done, highlight Save and
press In.
For more information on Loran TDs, you may download
Garmin’s Loran TD Position Format Handbook from
the Garmin web site at http://www.garmin.com/support/
userManual.jsp.
Rino520_530_prelim.indd 82 1/25/2005 5:01:07 PM
Rino® 530 Owner’s Manual 83
PRELIMINARYUNIT OPERATION > SETUP PAGES
Map Datum—Offers a selection of nearly all map
datums in common use. Every map is based on a map
datum (a reference model of the earth’s shape) and is
usually listed in the title block of the map. If you are
comparing GPS coordinates to a paper map, chart, or
other reference, the map datum in this field must match
the horizontal map datum used to generate the map or
other reference. The default datum is WGS-84 (World
Geodetic Survey 1984) and should only be changed when
using maps or charts specifying a different datum. If a
map does specify a datum, use the options list to find
datums applicable to the region of the map, selecting the
one that provides the best positioning at a known point.
If necessary, you also may choose the User datum for
custom designed grids.
NOTE: The User datum is based on a WGS-84-Lo-
cal datum and is an advanced feature for unlisted
or custom datums. To learn more, check your local
library or the Internet for educational materials on
datums and coordinate systems.
Distance/Speed—Choose from three units of measure to
display your rate of travel.
Elevation/Vertical Speed—Choose from two units of
measure to record your elevation and vertical speed.
Pressure—Choose from millibars or Inches to measure
the pressure.
Display Setup Page
You can adjust the amount of time that the backlighting
feature stays on and adjust the screen contrast.
Backlighting Timeout—Choose from Stays On or
delays of 15 seconds, 30 seconds, one minute, or two
minutes before timing out.
Rino520_530_prelim.indd 83 1/25/2005 5:01:07 PM
84 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SETUP PAGES
Contrast Adjustment—Can be adjusted from light to
dark using the slider adjacent to the contrast bar.
To access the Display Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the Display icon to open the Display Setup
page.
Display Setup Page
To set the backlighting timeout:
1. Highlight the Backlight Timeout field and then
press the Thumb Stick In.
2. Highlight the desired option and then press the
Thumb Stick In.
To adjust the contrast:
1. Highlight the contrast slider and then press the
Thumb Stick In.
2. Move the Thumb Stick up or down to move the
slider to set the contrast.
Heading Setup Page
You can select the type of heading displays, the types of
North References, or enter the magnetic variation.
To access the Heading Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the Heading icon to open the Heading
Setup page.
Heading Setup Page
Rino520_530_prelim.indd 84 1/25/2005 5:01:08 PM
Rino® 530 Owner’s Manual 85
PRELIMINARYUNIT OPERATION > SETUP PAGES
Display—Allows you to choose from Cardinal Letters,
Degrees or Mils.
North Reference—You can choose from True, Magnetic,
Grid or User options. If ‘User’ is chosen, you must
correct for the Magnetic Variation. The Electronic or
GPS compass uses the North Reference setting to create
a bearing.
Switch to Compass Heading when Below–Enter the
desired speed for the Rino 530 to switch from using GPS
to using the compass for guidance.
For more than…—Enter a time limit to switch to the
compass. When you travel at the speed entered above for
the time entered here, the Rino 530 switches from GPS to
the compass.
To select either option:
1. Highlight the field and then press the Thumb
Stick In to display the options.
2. Highlight the option and press the Thumb Stick In
to activate.
Interface Setup Page
The Interface Settings Page allows you to choose from
different input/output serial data formats. This feature
is used when connecting to external NMEA devices, a
DGPS beacon receiver, a personal computer, etc. See the
Appendix for using the Rino 530 with MapSource.
To access the Interface Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the Interface icon to open the Interface
Setup page.
Interface Setup Page
Rino520_530_prelim.indd 85 1/25/2005 5:01:09 PM
86 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > SETUP PAGES
The available interface formats are:
Garmin—The proprietary format used to exchange
waypoint, track, and map data with a PC. Use this setting
for transferring data when using a MapSource product.
Garmin DGPS—Allows DGPS input using a Garmin
beacon receiver and a standard RTCM SC-104 and DGPS
tuning.
NMEA In/NMEA Out—Supports the output of standard
NMEA 0183 version 3.0 data. Use this for real-time
plotting with MapSource or 3rd party programs.
Text Out—Allows ASCII text output of location and
velocity information without input capabilities.
RTCM IN—Allows DGPS input using a standard RTCM
SC-104 format without output capabilities.
RTCM In/NMEA Out—Allows DGPS input using a
standard RTCM SC-104 format and supports the output
of standard NMEA 0183 version 3.0 data.
RTCM In/Text Out—Allows DGPS input using a
standard RTCM SC-104 format and simple ASCII text
output of location and velocity information.
None—Provides no interfacing capabilities.
If Garmin DGPS or RTCM In/NMEA Out format
is selected, additional fields are provided to control
a Garmin differential beacon receiver (e.g. GBR 23)
directly from your unit. Tuning is automatic with Scan
or you can enter the beacon frequency and bit rate when
you select User from the Beacon list to manually tune the
receiver. Refer to the beacon receiver instructions.
To select a serial data format:
1. Highlight the Serial Data Format field and then
press the Thumb Stick In.
2. Highlight an option and
then press the Thumb
Stick In to activate it.
Interface Setup Page
Rino520_530_prelim.indd 86 1/25/2005 5:01:09 PM
Rino® 530 Owner’s Manual 87
PRELIMINARYUNIT OPERATION > SETUP PAGES
System Setup Page
The System Setup Page allows you to change GPS
operation modes, use the WAAS capabilities, turn
the Message Beep and compass on or off, and set the
altimeter calibration settings to automatic or manual. See
the “Appendix” for WAAS capability information.
To access the System Setup page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Setup.
3. Select the System icon to open the System Setup
page.
The Option Menu allows you restore defaults or
display the current version of unit operating software and
the Unit I.D. Number. Software updates and instructions
for downloading are available
from the Garmin Web site
(www.garmin.com).
Choose one of the four GPS options other than Normal
to significantly save battery power. The Battery Saver
mode reduces the rate of satellite signal position updating
and the GPS Off option stops satellite signal reception
altogether. The Demo Mode simulates navigation.
System Setup Page
Rino520_530_prelim.indd 87 1/25/2005 5:01:09 PM
88 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > CALENDAR
Calendar
This feature provides you with a monthly calendar with
programmable reference notes. You can display one
monthly calendar at a time and add reference notes using
the data entry keypad. Days that are shaded have notes
added. You can create reference notes for multiple months
and for months in years yet to come. You can record 100
notes with up to 18 characters each.
Calendar Page
To access the Calendar:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select
Calendar.
To change the month and year:
Highlight the left or right arrows on either side
of the date and press the Thumb Stick In. The
left arrow shows past months/years and the right
arrow shows future months/years.
To use the current month and year
Choose Set To Current Date from the Option
Menu .
To create a reference note for a selected date:
1. Use the Thumb Stick to highlight the day of the
month and then press In to display the pop-up
Menu (containing New Note, View Sun & Moon,
and View Hunt & Fish).
2. Highlight and select New Note to begin entering
text from the keyboard.
Rino520_530_prelim.indd 88 1/25/2005 5:01:10 PM
Rino® 530 Owner’s Manual 89
PRELIMINARY UNIT OPERATION > CALENDAR
To edit or delete a note:
1. To edit or delete a note previously created,
highlight the date and press the Thumb Stick In.
2. Select Edit Note, or Delete Note, from the pop-up
menu. To complete the deletion of the note, press
the Thumb Stick In when Yes is highlighted in the
pop-up window.
3. To edit the note, change the desired characters
using the keyboard as shown in the image to the
right. Press OK when you are finished editing the
note.
Editing a note
To delete notes by week:
1. Choose Delete Notes... from the Option Menu
.
2. From the Older Than... window, choose the
desired option and press the Thumb Stick In.
To view information for a date:
1. In the calendar, select the desired date using the
Thumb Stick.
2. Review the note in the note window below the
calendar.
3. Press the Thumb Stick In to display the pop-up
menu.
4. Select View Sun & Moon to view the Sun & Moon
Page for that date. Select View Hunt & Fish to
view the Hunt & Fish Page for that date.
Rino520_530_prelim.indd 89 1/25/2005 5:01:10 PM
90 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > ALARM CLOCK
Alarm Clock
This feature provides an alarm for the system clock. Enter
a time in the time field and turn the alarm on and off from
the control field menu. Remember to enter alarm times
in the same time format (UTC or local) you are using for
your system. The unit must be on for the alarm clock to
work.
To access the Alarm Clock:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select Alarm
Clock.
To set an alarm clock time:
1. Use the Thumb Stick to highlight the time field
and then press In to display the keyboard.
2. Use the Thumb Stick to enter the desired time,
choose OK and press In.
Alarm Clock Page
To turn the alarm clock on/off:
1. Use the Thumb Stick to highlight the Alarm
Mode field and then press In to display the
options.
2. Choose On or Off and press the Thumb Stick In.
When the alarm sounds, a brief tone is heard (unless
Message Beep is Off under System Setup) and “Alarm
Clock” appears on the screen. Press the Thumb Stick In
to acknowledge the alarm.
Rino520_530_prelim.indd 90 1/25/2005 5:01:11 PM
Rino® 530 Owner’s Manual 91
PRELIMINARYUNIT OPERATION > CALCULATOR
Calculator
This feature provides you with all the basic functions of
both of standard or scientific calculator. You can perform
most calculations identified by the function symbols
along the sides of the keypad and can save the results
temporarily in the memory. The memory is cleared either
manually or when you turn off the Rino 530.
To access the Calculator:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select
Calculator.
Calculator Page
To change calculator options:
1. Highlight the page Option Menu and press
the Thumb Stick In to display the Scientific/
Standard and Radian/Degrees options.
2. Highlight the option you want to change and then
press the Thumb Stick In.
3. Use the Thumb Stick to move about the
calculator, enter numbers, and perform
calculations.
Rino520_530_prelim.indd 91 1/25/2005 5:01:11 PM
92 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > STOPWATCH
Stopwatch
This feature allows you to use the unit as a stopwatch,
including using it as a lap timer. You may also have the
unit record the lap time based on distance. For example,
if you set the lap distance to one mile, the unit records the
time it takes you to travel one mile.
To access the Stopwatch:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select the
Stopwatch icon.
To use the Stopwatch:
1. Use the Thumb Stick to highlight the Start field
and then press In. You may also press the V
(Volume) button to start the stopwatch.
2. Use the Thumb Stick to highlight the Stop field
and then press In. You may also press the V
(Volume) button to stop the stopwatch.
3. To mark a lap, use the Thumb Stick to highlight
the Lap field and then press In, with the stopwatch
running. You may also press the Z (Zoom) button
to capture the lap time.
4. Reset the stopwatch when the timer is stopped.
Use the Thumb Stick
to highlight the Reset
field and then press In.
You may also press the
Z (Zoom) button to reset
the times.
Stopwatch Lap Options
You can set the stopwatch to Lap by Distance so that
each time a certain distance has been travelled, the
stopwatch automatically marks a lap. You can enter a
specific lap distance by selecting Set Lap Distance. To
return to manually marking each lap, open the Option
Menu and select the Lap by Button Press option.
Stopwatch Page
Rino520_530_prelim.indd 92 1/25/2005 5:01:12 PM
Rino® 530 Owner’s Manual 93
PRELIMINARYUNIT OPERATION > SUN & MOON
Sun & Moon
This feature provides you with a graphic display of both
sun and moon positioning for a certain date, time and
location with times for sunrise, sunset, moonrise, and
moonset.
To access the Sun & Moon Page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select the Sun
& Moon icon.
To set the date and time:
1. For the Date and Current Time, highlight each
field, then press the Thumb Stick In to begin data
entry of individual characters.
2. To display the current date and time, highlight the
page Option Menu and press the Thumb
Stick In to display Use Current Time and then
press the Thumb Stick In.
To set the location:
1. Highlight the Location field and then press
the Thumb Stick to display the New Location
options list.
2. Highlight the option desired and then press In
on the Thumb Stick to activate. If you choose
Current Location the field values displayed on
the page displays your location. If you choose Use
Map, a map page displays. Use the map pointer to
identify the desired location and then press In on
the Thumb Stick. If you choose Use Find ‘N Go
Menu follow instructions in the Find ‘N Go section.
Sun & Moon Page
Rino520_530_prelim.indd 93 1/25/2005 5:01:12 PM
94 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > HUNT & FISH
Hunt & Fish
This feature provides you with a listing of best times for
hunting and fishing for a chosen location and date.
To access the Hunt & Fish Page:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select the Hunt
& Fish icon.
To set the date:
1. Highlight the date field
and then press In on the
Thumb Stick to begin
data entry of individual
characters.
2. To display the current date, highlight the page
Option Menu and press the Thumb Stick In to
display the Use Current Date option and then
press the Thumb Stick In.
To set the location:
1. Highlight the Location field and then press
In on the Thumb Stick to display the New
Location options list.
2. Highlight the option desired and then press In
on the Thumb Stick to activate. If you choose
Current Location the field values displayed
on the page reflect the times at your current
location.
3. If you choose Use Map, a map page displays.
Use the map pointer to identify the desired
location and then press In on the Thumb
Stick. If you choose Use Find ‘N Go Menu
follow instructions for using the Find ‘N Go
Menu.
NOTE: The times displayed are the recognized best
and good times for hunting and fishing. Be certain
that they are not in conflict with state and local game
laws, which may vary from location to location. It is
your responsibility to know and abide by these laws.
Hunt & Fish Page
Rino520_530_prelim.indd 94 1/25/2005 5:01:13 PM
Rino® 530 Owner’s Manual 95
PRELIMINARY
UNIT OPERATION > AREA CALCULATOR
Area Calculator
This feature provides you an area calculation as you
move about a location or view a saved track. The area
calculation displays in acres, hectares, and square feet,
square yards, square meters, square kilometers, and
square miles.
To access the Area Calculator:
1. Press the Page button or the Menu icon to
open the Main Menu.
2. In the Main Menu, scroll down and select the Area
Calculator icon.
To calculate the area:
1. Be sure the Rino 530 has a GPS fix.
2. Press Start when you are ready to begin.
2. Begin walking or traveling the perimeter (edge) of
the area you want to measure.
3. Use the Thumb Stick to stop the calculation when
you have traveled the desired distance.
4. Use the Thumb Stick to store the area as a saved
track.
Area Calculation Page
To review the area of a saved track:
1. On the Tracks page, highlight a Saved Track.
2. Press the Thumb Stick In to see a map with the
area shown in a data field at the bottom.
Rino520_530_prelim.indd 95 1/25/2005 5:01:13 PM
96 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > GAMES
Games
The Games Page includes Memory Race, Waypoint
Bomber, Clothesline, Assimilation and Beast Hunt.
Highlight the appropriate icon and then press the Thumb
Stick In to play the desired game. Brief instructions are
displayed when you start each game. All players must be
on the same channel/squelch code to play.
Games Menu
Memory Race
Be the first to clear the board by matching all of the two
symbols sets together. Each symbol is in a square (you
can adjust the size) that you need to walk or travel to.
Once your position appears in a square, highlight Open at
the bottom of the screen and press the Thumb Stick In.
Play by yourself or race against others. Press Page to quit
at any time.
Memory Race
To adjust the Grid Size or Square Size:
1. Highlight the Grid Size or Square Size field and
press In on the Thumb Stick.
2. Choose the desired size and press In.
3. Highlight Start and press In to begin the game.
Rino520_530_prelim.indd 96 1/25/2005 5:01:14 PM
Rino® 530 Owner’s Manual 97
PRELIMINARY UNIT OPERATION > GAMES
Waypoint Bomber
In this game, it is good to stay on the move! Two or
more players attempt to “bomb” each other. Move your
cursor around on the map page using your Thumb Stick.
When you think an opponent is close to your cursor,
drop a bomb. The receiving radio shows an “Incoming”
message. If the receiving radio is within the blast circle
(about 45 feet), it displays a message that you have been
hit. You must wait 30 seconds between shots to reload.
Either have a timed game with the winner being the one
with the least amount of hits on their radio, or play until
someone gets a specified number of hits (that person
loses).
Waypoint Bomber
HINT: Mark stationary objects such as trees and
poles, and drop a bomb when an opposing player is
near that object! Adjust the rules to your liking!
• To fire at the cursor location, press the Thumb
Stick In.
• To fire at your current location, press the Talk
button.
• Press Call to view the scoreboard at any time.
• Press Page to quit the game at any time.
Rino520_530_prelim.indd 97 1/25/2005 5:01:15 PM
98 Rino® 530 Owner’s Manual
PRELIMINARY
UNIT OPERATION > GAMES
Clothesline
Team members select the same user symbol and then
attempt to “hit” or “clothesline” other players by pressing
the Talk button when an opposing team member is
between them. You may also mark a point and assign it a
symbol to be used as a stationary team member. Wait 30
seconds between attempts. Press Call to view the score
and Page to quit the game.
Assimilation
Think of this as a high-tech game of tag. Team members
select the same user symbol and then attempt to
assimilate others into their team by getting within 30 feet
of them and pressing the Talk button. Press Call to show
the score and Page to quit the game. You can set a time
limit so the largest team wins, or play until the other team
is completely assimilated. Set your own rules and enjoy!
Beast Hunt
The objective is to find and kill the beast with an arrow
before it incinerates you or you fall into one of several
pits while navigating a maze of platforms. You can be
transported by slides that curve or move diagonally.
When you think you know where the beast is press the
Thumb Stick In to initiate aiming when you are in an
adjacent spot. With the Thumb Stick, point the arrow
in the direction where you think the beast is and press
the Thumb Stick In to fire. When you lose a game, the
layout of hazards, slides, warning platforms, and the
location of the beast is shown. A scoreboard keeps track
of your wins and losses. Press Page anytime during the
game for further instructions, to turn the sound On/Off, or
to quit.
Beast Hunt
Rino520_530_prelim.indd 98 1/25/2005 5:01:15 PM
Rino® 530 Owner’s Manual 99
PRELIMINARY
APPENDIX > WHAT IS FRS?
What is FRS?
FRS, or Family Radio Service, is a UHF radio frequency
band allocated by the FCC for general public use. The
operating frequency ranges from 462.5625 to 467.7125
MHz, with a maximum transmitting power of one half
watt. FRS radios are small and lightweight, making them
ideally suited for outdoor activities. FRS radios typically
feature a half watt of transmit power. You can expect
your FRS radio to offer reliable operation at a one-mile
range. If the area between you and another FRS operator
is free of obstructions, operation up to two miles can be
achieved. FRS radios broadcast on one of 14 channels,
each with a specific frequency within the FRS band.
The use of FRS radios does not require a license. FRS
was intended for use by families and small groups as an
inexpensive means of two-way voice communication.
FRS is intended for use throughout the United States, its
territories and possessions. It may also be used in Canada.
FRS is not approved outside of these areas and
may interfere with local government communication
frequencies (fire, police, etc.).
FRS Features
More sophisticated FRS radios also include call
functions, squelch codes, channel scan features, and voice
scramble capabilities. Call functions allow you to push
a Call button on the radio to alert other radios set on the
same channel. This feature generates a call tone and is
handy in a noisy environment where the tone is easier to
initially identify than plain speech.
Squelch codes allow you to selectively block out other
FRS users that are not part of your group. They will still
be talking with others in their own group, but you will not
hear them on your radio. They may or may not hear you
and members of your group on their own radios. Squelch
codes act as a filter, blocking your FRS radio from
hearing other unwanted FRS users. Remember though,
these are public-use frequencies and everyone has a right
to talk or listen in.
Rino520_530_prelim.indd 99 1/25/2005 5:01:15 PM
100 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > WHAT IS FRS?
Channel scan allows your FRS radio to scan all FRS
frequencies for signals. After scanning briefly to see what
channels other users are on, simply set your FRS radios to
an unused channel and enjoy less interference. For greater
privacy, some FRS radios have a voice scramble feature.
This feature causes your message to sound garbled to
other FRS users that are not part of your group. However,
it does not guarantee your conversations will be 100
percent private and secure. Other casual FRS users will
not hear your messages, but users with similar radios or
more technically-oriented users can still monitor your
conversations.
FRS Limitations
If you are operating in an urban environment or in
varying terrain, some features (such as canyons or
mountains) act as obstructions limiting the maximum
reception range of your FRS radio. The UHF FRS
frequencies are “line of sight”, meaning that the signals
do not follow the surface of the earth, but instead radiate
in a straight line from the transmitting antenna. If there
is an obstruction between the transmitting FRS radio and
the receiving FRS radio, the signal will not be received.
Smaller obstructions, such as trees, cars and even crowds
of people cause some loss of signal, resulting in reduced
maximum range.
GMRS
The use of a GMRS (General Mobile Radio Service)
radio requires an FCC license. No license is required in
Canada to operate on GMRS channels. The operating
frequency of GMRS ranges from 462.550 to 462.725
MHz. GMRS radios can use repeater channels (15R–22R)
and repeater towers to extend the range of the operation.
A repeater tower simultaneously receives GMRS signals
on a 467 MHz frequency and then rebroadcasts the
signal on a 462 MHz frequency. Refer to the “Frequency
Charts” for a complete list of each channel’s frequency.
GMRS repeater channels are not approved for use by the
Canadian government, so they are disabled on Rino 530
units sold in Canada.
Rino520_530_prelim.indd 100 1/25/2005 5:01:15 PM
Rino® 530 Owner’s Manual 101
PRELIMINARY APPENDIX > SPECIFICATIONS
Specifications
Physical
Case: Fully-gasketed, high-impact plastic alloy,
waterproof to IPX7 standards (waterproof to
one meter for 30 minutes)
Size: 4.5” H x 2.3” W x 1.6” D; 7” H with antenna
(11.4 x 5.8 x 4.1; 17.8 cm)
Weight: Approx. 7.6 ounces (236 g) with batteries
Temperature Range:
-4° to 158° F (-20° to 70° C) (operating range)
Display: 1.4” H x 1.4” W (3.6 cm x 3.6 cm)
60 x 160 pixels, high-contrast LCD
Performance
GPS Receiver:
WAAS Enabled, Differential-ready,
12 parallel channel
Acquisition time:
Approx. 15 seconds (warm start)
Approx. 45 seconds (EZinit/cold start)
Approx. 5 minutes (First Time/AutoLocate®)
Update Rate: 1/second, continuous
GPS Accuracy: <15 meters (49 ft) RMS, 95% typical1
DGPS (USGC) Accuracy: 3–5 meters (10–16 ft), 95%
typical with DGPS corrections2
DGPS (WAAS) Accuracy: <3 meters (10 ft), 95%
typical with DGPS corrections2
Velocity Accuracy: 0.05 meter/sec steady state
Dynamics: Performs to specifications to 6 g’s
Interfaces: NMEA 0183, RTCM 104 (for DGPS
corrections) and RS-232 for PC
interface
Antenna: Quad-helix
Rino520_530_prelim.indd 101 1/25/2005 5:01:16 PM
102 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > SPECIFICATIONS
Radio
Channels: 1–14 FRS,
15–22 GMRS (requires FCC license in the U.S.)
1–7 Weather Radio channels
Squelch Codes: 1–38
Range: Up to 2 miles on FRS; up to 5 miles on GMRS
Radio Output Power:
FRS 0.5 W; GMRS 2.0 W or 5.0 W
Alkaline battery pack, 2.0 W
Power
Input: Rechargeable 2–cell lithium-ion battery pack
Battery Life:
GPS only: up to 41 hours;
FRS only: up to 20 hours;
FRS, GPS, and sensors: up to 14 hours3
Specifications are subject to change without notice.
1Subject to accuracy degradation to 100m 2DRMS under the U.S.
DoD-imposed Selective Availability program.
2With optional Garmin Differential Beacon Receiver Input (such as
Garmin GBR 23).
35, 5, 90 Duty Cycle - 5% receive with audio unmuted, 5%
transmit and 90% standby (receive with audio muted)
Rino520_530_prelim.indd 102 1/25/2005 5:01:16 PM
Rino® 530 Owner’s Manual 103
PRELIMINARY APPENDIX > ACCESSORIES
Accessories
To obtain accessories, see your local dealer or visit the
Garmin web site at www.garmin.com.
12-volt Adapter Cable—Provides unit power from an
automobile cigarette lighter.
2.5 to 3.5 mm Jack Adapter—Allows you to use 3rd
party headsets with your Rino unit.
Alkaline Battery Pack—can replace the included
lithium-ion battery pack.
Bash Guard Kit—Helps protect the Rino’s edges against
hard shocks. Includes 2 bash guards, quick-release neck
lanyard, and belt clip.
Carrying Case—Protects the Rino and permits use while
in the case.
Earbud with PTT (Push To Talk) Mic—Earbud and a
clip-on mic with PTT button.
Flexible Ear Receiver—Comfortable earpiece for better
hearing ability of your Rino.
Headset with VOX Boom Mic—Hands-free at its best!
Utilize the Rino’s VOX (Voice Operated Transmission)
feature with this headset and voice activated boom mic.
Instructional Video—For getting accustomed to your
Rino basic operations quickly.
MapSource Map Data CD-ROMs—An excellent
tool for creating waypoints and routes on your PC and
downloading them to your Rino.
PC Data Cable and 12-volt Adapter—Allows transfer
of waypoints and routes from a PC to the Rino and
provides unit power from an automobile cigarette lighter.
Rail/Handlebar Mount—Allows you to mount your
Rino on most rails or handlebars.
Suction Cup Mount—Allows you to mount your Rino
on most smooth surfaces or windshields.
Rino520_530_prelim.indd 103 1/25/2005 5:01:16 PM
104 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > TRANSFERRING MAPSOURCE DATA
Transferring MapSource Data
If you have purchased a Garmin MapSource CD-ROM
mapping program you may want to transfer detailed map
data before beginning use, to provide your unit with
maximum Find features and mapping capability. The
Rino 530 accepts up to 24 MB of map data from most
MapSource products. It is not possible to transfer 3rd
party maps into Garmin products.
You cannot view multiple types of MapSource data in the
same location at the same time (one replaces the other if
there is an overlap). When you leave a MetroGuide area
for example and enter the area of a topographic map, the
display changes to contour lines. The same is true when
moving from a topo map to a MetroGuide map. The
BlueChart maps are at the top of the hierarchy and will
replace any other map information. Here is the list of the
hierarchy for your reference:
1. BlueChart
2. MetroGuide
3. Fishing Hot Spots
4. Points of Interest
5. U.S. Waterways & Lights
6. U.S. Topo
7. Roads and Recreation
8. WorldMap
Map data transfer requires the use of a PC, a Garmin
MapSource CD-ROM, and the PC Interface Cable with
RS-232 serial port connector supplied with this unit.
Follow detailed instructions for data transfer in the
MapSource User’s Manual.
Rino520_530_prelim.indd 104 1/25/2005 5:01:16 PM
Rino® 530 Owner’s Manual 105
PRELIMINARY
APPENDIX > TRANSFERRING MAPSOURCE DATA
To setup for data transfer:
1. Remove the Power/Data Port cover on the back of
the unit by lifting up on the protective cover on the
back of the unit.
2. Connect the serial port connection on the cable to
the PC serial port.
3. Connect the remaining cable connector to the
back of the Rino 530 by orienting the slot on the
connector with indexing bar on the back of the
unit. Then, slide the connector in place. Be sure
that the cable is pushed all the way into the back
of the unit.
4. Turn on the Rino 530 and follow instructions for
map data transfer provided in the MapSource
User’s Manual. See also the Interface Setup Page
section for unit interface settings.
Rino520_530_prelim.indd 105 1/25/2005 5:01:16 PM
106 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > GPS TROUBLESHOOTING GUIDE
GPS Troubleshooting Guide
Symptom Probable Cause Remedy
Unit does not turn on. Batteries are exhausted. Replace batteries.
Unit does not turn on, even with new batteries. Batteries may be installed backwards. Reinstall batteries.
You are pressing and releasing the Power button. You must press and hold the Power button for 2 seconds.
The unit turns on, then turns off. Batteries may be nearly exhausted. Replace batteries.
It takes more than ten minutes to get a location fix The unit’s view of satellites is obstructed. Move to a locatin with a clear view of the sky.
Cannot access a WAAS system satellite after 2 to 5
minutes.
Your view of the satellite is obstructed or you are
located too far from satellites currently in service for the
Americas
Move to a location with a clear view and point the unit
antenna in the direction of the satellite.
System GPS operation is set to something other than
Normal and/or interface setting is set for RTCM.
Set system GPS to Normal and interface to other than
RTCM. Or simply turn off WAAS.
Cannot obtain a differential position from WAAS You have not collected enough information from the
WAAS satellite.
Wait 10–20 minutes for the initial collection, then 1–2
minutes afterwards.
Cannot access Point of Interest, Street, or Intersection
Find Lists.
MetroGuide map data is not activated. Access the Map Setup Map option and activate the check
box.
Cannot view a track being laid down on the map
page when traveling.
The Track Log feature is turned off. Access the Tracks Page, highlight the On button and press
the Thumb Stick In.
Cannot see the panning arrow on the Map Page
easily.
There is too much map clutter or the scale is such that
map features are too densely displayed.
Use the Map Page Setup Page to reduce map clutter or
change the map scale.
Cannot exit a menu or page by moving the Thumb
Stick to the Left.
Some menus and pages have an “X” (Exit) on-screen
button in the upper right corner.
Highlight the on-screen button and then press the Thumb
Stick In.
Rino520_530_prelim.indd 106 1/25/2005 5:01:17 PM
Rino® 530 Owner’s Manual 107
PRELIMINARY
APPENDIX > RADIO TROUBLESHOOTING GUIDE
Radio Troubleshooting Guide
Symbol Probable Cause Remedy
Radio not transmitting Talk key may not be fully depressed Press and hold Talk key until done talking.
FRS/GMRS Radio feature may not be on. Turn radio on.
Messages not being received by others. Incorrect channel/Squelch Code setting Make sure other radios are on the same channel and Squelch Code.
Out of range or obstructions. Decrease distance between radios.
Limited talk range. Natural or man-made obstructions can decrease
range.
Decrease distance between radios or obtain a better line of sight
between radios.
You can hear others, but they cannot hear
you, or you see an incoming transmission, but
nothing is heard.
You are on the same channel, but a different
Squelch Code.
If you are using Squelch Code zero (0), you will hear all transmissions
on that channel. Use the same Squelch Code (1-38) as the other party or
use Scan to find what Squelch Code they are on.
Message garbled. Scramble option is enabled. Both radios need to have this feature set the same.
Too many unwanted conversations being heard. Too many users on channel or Squelch Code is set
to zero.
Switch to a different channel and/or Squelch Code other than zero
(1–38).
Interference or static. Radios too far apart or too close. Obstructions in
radio line of sight.
Keep radios at least 3 feet apart. Obtain a better line of sight between
radios.
Interference from other electronics. Shut off other devices or move to a different area.
Cannot transmit location. Could be one of a few things: Your view of the
satellite is obstructed and a GPS fix is not available.
Send Location is off. 30 seconds have not elapsed
since last location transmission. GPS is set to off.
Move to a location with a clear view of the sky. Enable Send Location.
Wait 30 seconds between location transmission. Enable GPS.
None of the keys except Talk will work. Keylock is enabled. Hold Page for 5 seconds to release keylock.
Rino520_530_prelim.indd 107 1/25/2005 5:01:17 PM
108 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > FREQUENCY CHARTS
FRS Frequency Chart
Channel # Transmit Frequency (MHz) Receive Frequency (MHz) Channel Description
1 462.5625 462.5625 FRS 1, GMRS Interstitial 1
2 462.5875 462.5875 FRS 2, GMRS Interstitial 2
3 462.6125 462.6125 FRS 3, GMRS Interstitial 3
4 462.6375 462.6375 FRS 4, GMRS Interstitial 4
5 462.6625 462.6625 FRS 5, GMRS Interstitial 5
6 462.6875 462.6875 FRS 6, GMRS Interstitial 6
7 462.7125 462.7125 FRS 7, GMRS Interstitial 7
8 467.5625 467.5625 FRS 8
9 467.5875 467.5875 FRS 9
10 467.6125 467.6125 FRS 10
11 467.6375 467.6375 FRS 11
12 467.6625 467.6625 FRS 12
13 467.6875 467.6875 FRS 13
14 467.7125 467.7125 FRS 14
Weather Radio Frequency Chart
Channel # Transmit Frequency (MHz) Receive Frequency (MHz) Channel Description
WX 1 N/A 162.550 NOAA 1 (Weather Radio)
WX 2 N/A 162.400 NOAA 2 (Weather Radio)
WX 3 N/A 162.475 NOAA 3 (Weather Radio)
WX 4 N/A 162.425 NOAA 4 (Weather Radio)
WX 5 N/A 162.450 NOAA 5 (Weather Radio)
WX 6 N/A 162.500 NOAA 6 (Weather Radio)
WX 7 N/A 162.525 NOAA 7 (Weather Radio)
NOTE: If you plan to purchase
FRS radios from third party
manufacturers be aware that
there are CTCSS differences in
some radios. Some of the tones
on one radio may not be avail-
able on other radios. Charts
showing the different Squelch
Codes and manufacturers can
be located on the Internet.
NOTE: For use in countries
outside of the U.S. or Canada,
please check with that govern-
ment for any restrictions on
FRS or GMRS use.
Rino520_530_prelim.indd 108 1/25/2005 5:01:18 PM
Rino® 530 Owner’s Manual 109
PRELIMINARYAPPENDIX > FREQUENCY CHARTS
GMRS Frequency Chart
Channel # Transmit Frequency (MHz) Receive Frequency (MHz) Channel Description
15 462.5500 462.5500 GMRS Primary 1
16 462.5750 462.5750 GMRS Primary 2
17 462.6000 462.6000 GMRS Primary 3
18 462.6250 462.6250 GMRS Primary 4
19 462.6500 462.6500 GMRS Primary 5
20 462.6750 462.6750 GMRS Primary 6
21 462.7000 462.7000 GMRS Primary 7
22 462.7250 462.7250 GMRS Primary 8
15R 467.5500 462.5500 GMRS Repeater 1
16R 467.5750 462.5750 GMRS Repeater 2
17R 467.6000 462.6000 GMRS Repeater 3
18R 467.6250 462.6250 GMRS Repeater 4
19R 467.6500 462.6500 GMRS Repeater 5
20R 467.6750 462.6750 GMRS Repeater 6
21R 467.7000 462.7000 GMRS Repeater 7
22R 467.7250 462.7250 GMRS Repeater 8
Rino520_530_prelim.indd 109 1/25/2005 5:01:18 PM
110 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > DATA FIELD DEFINITIONS
Data Field Definitions
The following data field options are available on the Map,
Navigation, Altimeter, and Trip Computer Pages.
Ambient Pressure—The uncalibrated current pressure. (Altimeter
Page Only.)
Average Ascent—The average vertical distance of ascents.
(Altimeter Page Only.)
Average Descent—The average vertical distance of descents.
(Altimeter Page Only.)
Barometer—The Calibrated current pressure. (Altimeter Page
Only.)
Bearing—The direction from your current location to a
destination.
Course—The direction from your starting location to a
destination.
Current Destination—The next waypoint on your route.
Current Distance—The remaining distance to your next
waypoint.
Current ETA—The estimated time of day you will arrive at your
next waypoint.
Current ETE—The estimated time needed to arrive at the next
waypoint on your route.
Elevation—The altitude (height) above or below sea level.
Final Destination—The last waypoint on your route.
Final Distance—The remaining distance to your final destination.
Final ETA—The estimated time of day you will reach your final
destination.
Final ETE—The estimated time needed to reach your final
destination.
GPS Accuracy—The estimated accuracy of the GPS signal.
Heading—Your moving direction.
Location (lat/lon)—Your current GPS position. (Trip Computer
Page Only.)
Location (selected)—The lat/lon of point defined on map. (Trip
Computer Page Only.)
Maximum Ascent—The maximum ascent rate in feet per minute.
(Altimeter Page Only.)
Maximum Descent—The maximum descent rate in feet per
minute. (Altimeter Page Only.)
Rino520_530_prelim.indd 110 1/25/2005 5:01:19 PM
Rino® 530 Owner’s Manual 111
PRELIMINARY
APPENDIX > DATA FIELD DEFINITIONS
Maximum Elevation—The highest elevation reached. (Altimeter
Page Only.)
Maximum Speed—The maximum speed the unit has moved.
Minimum Elevation—The lowest elevation reached. (Altimeter
Page Only.)
Moving Avg. Speed—Average speed of the unit while moving.
Odometer—A running tally of distance travelled, based upon the
distance between second-by-second position readings.
Off Course—The distance left or right you are from the original
course (path of travel).
Overall Avg. Speed—Your average speed.
Pointer—Indicates the direction to the next destination.
Speed—Display rate of travel in miles per hour, kilometers per
hour, or nautical miles per hour.
Sunrise—The time at which the sun rises on this day.
Sunset—The time at which the sun sets on this day.
Time of Day—The time for the selected time zone.
To Course—The compass direction you must go in order to get
back to the original course.
Trip Odometer—A running tally of distance travelled since last
reset.
Trip Time–Moving—A running tally of movement time elapsed
since last reset.
Trip Time–Stopped—A running tally of stopped time elapsed
since last reset.
Trip Time–Total—A running tally of all time since last reset.
Total Ascent—The total distance ascended. (Altimeter Page Only.)
Total Descent—The total distance descended. (Altimeter Page
Only.)
Turn—The angle difference (in degrees) between the bearing to
your destination and your current line of travel. L means turn Left.
R means turn Right.
Velocity Made Good—The speed at which you are closing on a
destination along a desired course.
Vertical Speed—Your rate of altitude gain/loss over time.
Rino520_530_prelim.indd 111 1/25/2005 5:01:19 PM
112 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > INTERFACE INFORMATION
Interface Information
Interface formats are selected in the Setup Interface
Page. See also the “MapSource Setup” section of this
Appendix for information on using the Rino 530 with
MapSource. The input/output lines on your Rino 530 unit
are RS-232 compatible, allowing easy interface to a wide
range of external devices, including PC’s, differential
beacon receivers, marine autopilots, and /or a second GPS
receiver.
The NMEA 0183 version 3.0 interface format is
supported by the Rino 530 and enables the unit to drive
up to three NMEA devices.
NMEA 0183 Version 3.0 Approved Sentences:
GPGGA, GPGLL, GPGSA, GPGSV, GPRMB, GPRMC,
GPRTE, GPVTG, GPWPL, GPBOD
GARMIN Proprietary Sentences:
PGRME (estimated error), PGRMM (datum string),
PGRMZ (altitude), PSLIB (beacon receiver control)
DGPS (Differential GPS) corrections are accepted in
RTCM-SC-104 version 2.0 format through the ‘Data
IN’ line. The Garmin GBR 21 and GBR 23 are the
recommended beacon receivers for use with the Rino
530. Other beacon receivers with the correct RTCM
format may be used, but may not correctly display status
or allow tuning control from the GPS unit.
The Rino 530 may be hard-wired to a serial connector
using a Data Only Cable. Refer to the wiring diagram and
the Rino 530 unit data connection illustrated below.
The PC Interface Cable provided with this unit allows
you to connect your Rino 530 to a PC-compatible
computer’s serial port.
Rino520_530_prelim.indd 112 1/25/2005 5:01:20 PM
Rino® 530 Owner’s Manual 113
PRELIMINARY
APPENDIX > FCC COMPLIANCE INFORMATION
FCC Compliance Information
The Rino 530 complies with Part 15 of the FCC
regulations and with Canadian RSS-210 and ICES-003
for Class B digital devices. Operation of this device is
subject to the following conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference
that may cause undesired operation.
This equipment generates, uses, and can radiate radio
frequency energy and may cause harmful interference
to radio communications if not installed and used in
accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet that is on a
different circuit than the receiver’s circuit.
• Consult the dealer or an experienced radio/TV
technician for help.
The Rino 530 does not contain any user-serviceable parts.
Repairs should only be made by an authorized Garmin
service center. Unauthorized repairs or modifications
could result in permanent damage to the equipment and
void your warranty and your authority to operate this
device.
Rino520_530_prelim.indd 113 1/25/2005 5:01:20 PM
114 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > FCC LICENSING INFORMATION
FCC Licensing Information
The Rino 530 two-way radio operates on General Mobile
Radio Service (GMRS) frequencies regulated by the
Federal Communications Commission (FCC) in the
United States. Operation on the GMRS frequencies is
subject to additional rules as specified in 47 CFR Part 95.
In order to transmit on GMRS frequencies, you are
required to obtain a license from the FCC. An individual
18 years of age or older, who is not a representative of
a foreign government, is eligible to apply for a GMRS
license. To apply for a GMRS license, you will need FCC
Form 605 (605 Main Form and Schedule F) and FCC
Form 159. You can download the application forms from
the FCC web site at http://www.fcc.gov/Forms/. You
can also request them through the FCC forms hotline at
1-800-418-FORM (1-800-418-3676). You can file Form
605 online at http://wireless.fcc.gov/uls/. A filing fee,
which may change from time to time, is associated with
this application.
For information on fees, see the FCC fee information
web page at http://wireless.fcc.gov/feesforms/index.html.
General information may be found at http://wireless.fcc.
gov/services/personal/generalmobile/.
For questions concerning the license application, contact
the FCC at 1-888-Call-FCC (1-888-225-5322)
No license is required to operate on GMRS channels
in Canada. However, GMRS repeater channels are not
approved for use by the Canadian government.
For use in countries outside of the U.S. and Canada,
please check with that government for any restrictions of
FRS or GMRS use.
Rino520_530_prelim.indd 114 1/25/2005 5:01:20 PM
Rino® 530 Owner’s Manual 115
PRELIMINARYAPPENDIX > LIMITED WARRANTY
Limited Warranty
This Garmin product is warranted to be free from defects
in materials or workmanship for one year from the date
of purchase. Within this period, Garmin will at its sole
option repair or replace any components that fail in
normal use. Such repairs or replacement will be made at
no charge to the customer for parts or labor, provided that
the customer shall be responsible for any transportation
cost. This warranty does not cover failures due to abuse,
misuse, accident or unauthorized alteration or repairs.
THE WARRANTIES AND REMEDIES CONTAINED
HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED OR
STATUTORY, INCLUDING ANY LIABILITY ARISING
UNDER ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE,
STATUTORY OR OTHERWISE. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH
MAY VARY FROM STATE TO STATE.
IN NO EVENT SHALL GARMIN BE LIABLE
FOR ANY INCIDENTAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, WHETHER
RESULTING FROM THE USE, MISUSE, OR
INABILITY TO USE THIS PRODUCT OR FROM
DEFECTS IN THE PRODUCT. Some states do not allow
the exclusion of incidental or consequential damages, so
the above limitations may not apply to you.
Garmin retains the exclusive right to repair or replace
the unit or software or offer a full refund of the purchase
price at its sole discretion. SUCH REMEDY SHALL BE
YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY
BREACH OF WARRANTY.
To obtain warranty service, contact your local Garmin
authorized dealer or call Garmin Product Support for
shipping instructions and an RMA tracking number.
The unit should be securely packed with the tracking
number clearly written on the outside of the package. The
unit should then be sent, freight charges prepaid, to any
Garmin warranty service station. A copy of the original
Rino520_530_prelim.indd 115 1/25/2005 5:01:20 PM
116 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > LIMITED WARRANTY
sales receipt is required as the proof of purchase for
warranty repairs.
Garmin International, Inc.
1200 E 151st Street, Olathe, Kansas 66062 U.S.A.
Tel. 913/397.8200
Fax. 913/397.8282
Garmin (Europe) Ltd.
Unit 5, The Quadrangle, Abbey Park Industrial Estate,
Romsey, SO51 9DL U.K.
Tel. 44/0870.8501241
Fax 44/0870.8501251
Online Auction Purchases: Products sold through online
auctions are not eligible for rebates or other special
offers from Garmin. Online auction confirmations are not
accepted for warranty verification. To obtain warranty
service, an original or copy of the sales receipt from
the original retailer is required. Garmin will not replace
missing components from any package purchased through
an online auction.
International Purchases: A separate warranty is
provided by international distributors for units purchased
outside the United States. This warranty is provided
by the local in-country distributor and this distributor
provides local service for your unit. Distributor
warranties are only valid in the area of intended
distribution. Units purchased in the United States or
Canada must be returned to the Garmin service center
in the United Kingdom, the United States, Canada, or
Taiwan for service.
The Garmin Rino 530 has no user-serviceable parts.
Should you ever encounter a problem with your unit,
please take it to an authorized Garmin dealer for repairs.
The Rino 530 is fastened shut with screws. Any attempt
to open the case to change or modify the unit in any way
will void your warranty and may result in permanent
damage to the equipment.
Rino520_530_prelim.indd 116 1/25/2005 5:01:21 PM
Rino® 530 Owner’s Manual 117
PRELIMINARY
APPENDIX > SOFTWARE LICENSE AGREEMENT
Software License Agreement
BY USING THE RINO 530, YOU AGREE TO BE BOUND
BY THE TERMS AND CONDITIONS OF THE FOLLOWING
SOFTWARE LICENSE AGREEMENT. PLEASE READ THIS
AGREEMENT CAREFULLY.
Garmin grants you a limited license to use the software embedded
in this device (the “Software”) in binary executable form in the
normal operation of the product. Title, ownership rights, and
intellectual property rights in and to the Software remain in
Garmin.
You acknowledge that the Software is the property of Garmin and
is protected under the United States of America copyright laws
and international copyright treaties. You further acknowledge
that the structure, organization, and code of the Software are
valuable trade secrets of Garmin and that the Software in source
code form remains a valuable trade secret of Garmin. You agree
not to decompile, disassemble, modify, reverse assemble, reverse
engineer, or reduce to human readable form the Software or any
part thereof or create any derivative works based on the Software.
You agree not to export or re-export the Software to any country
in violation of the export control laws of the United States of
America.
Product Registration
Help us better support you by completing our online registration
today! Have the serial number of your Rino 530 handy and connect
to our Web site (http://www.garmin.com). Look for the Product
Registration link on our Home page.
Use this area to record the serial number (8-digit number located in
the battery compartment) in case your Rino 530 is lost, stolen, or
needs service. Be sure to keep your original sales receipt in a safe
place or attach a photocopy inside the manual.
Serial Number: ___ ___ ___ ___ ___ ___ ___ ___
Contact Garmin
If you should encounter any difficulty while using your Rino
530, or if you have any questions, in the U.S.A. contact Garmin
Product Support by phone: 913/397.8200 or 800/800.1020,
Monday–Friday, 8 AM–5 PM Central Time; or by e-mail at
sales@garmin.com. In Europe, contact Garmin (Europe) Ltd. at
44/0870.8501241.
Rino520_530_prelim.indd 117 1/25/2005 5:01:21 PM
118 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > WARNINGS AND CAUTIONS
Warnings and Cautions
The GPS system is operated by the United States government,
which is solely responsible for its accuracy and maintenance. The
system is subject to changes which could affect the accuracy and
performance of all GPS equipment. Although the Garmin Rino 530
is a precision electronic NAVigation AID (NAVAID), any NAVAID
can be misused or misinterpreted and, therefore, become unsafe.
The electronic chart is an aid to navigation and is designed to
facilitate the use of authorized government charts, not replace
them. Only official government charts and notices to mariners
contain all information needed for safe navigation—and, as
always, the user is responsible for their prudent use.
Use the Rino 530 at your own risk. To reduce the risk of unsafe
operation, carefully review and understand all aspects of
this Owner’s Manual. When in actual use, carefully compare
indications from the Rino 530 to all available navigation sources,
including the information from other NAVAIDs, visual sightings,
charts, etc. For safety, always resolve any discrepancies before
continuing navigation.
WARNING: The Rino 530 contains a lithium-ion rechargeable
battery pack. The battery used in this device may present a risk of
fire or chemical burn if mistreated. Do not recharge out of the unit,
disassemble, heat above 140°F (60°C), or incinerate.
WARNING: If the original battery must be removed for
replacement, dispose of the used battery properly. Contact your
local waste disposal department for information on proper disposal
of lithium-ion batteries. Keep used batteries away from children.
Do not disassemble or dispose of batteries in fire.
MAP DATA INFORMATION: One of the goals of Garmin
is to provide customers with the most complete and accurate
cartography that is available to us at a reasonable cost. We use a
combination of governmental and private data sources, which we
identify (as required) in product literature and copyright messages
displayed to the consumer. Virtually all data sources contain
inaccurate or incomplete data to some degree. This is particularly
true outside the United States, where complete and accurate digital
data is either not available or prohibitively expensive.
CAUTION: IT IS THE USER’S RESPONSIBILITY TO
USE THIS PRODUCT PRUDENTLY. THIS PRODUCT IS
INTENDED TO BE USED ONLY AS A NAVIGATIONAL AID
AND MUST NOT BE USED FOR ANY PURPOSE REQUIRING
PRECISE MEASUREMENT OF DIRECTION, DISTANCE,
LOCATION, OR TOPOGRAPHY.
Rino520_530_prelim.indd 118 1/25/2005 5:01:21 PM
Rino® 530 Owner’s Manual 119
PRELIMINARY
APPENDIX > WARNINGS AND CAUTIONS
IMPORTANT: READ THIS INFORMATION BEFORE
USING YOUR RINO:
Exposure to Radio Frequency Signals—Your wireless handheld
radio is a low power radio transmitter and receiver. When it is
on, it receives and also sends out radio frequency (RF) signals.
In August 1996, The Federal Communications Commissions
(FCC) adopted RF exposure guidelines with safety levels for
handheld wireless radios. Those guidelines are consistent with
safety standards previously set by both U.S. and international
standards bodies: American National Standards Institute (ANSI)
IEEE. C95.1-1992; National Council on Radiation Protection
and Measurements (NCRP) Report 86; International Commission
on Non-Ionizing Radiation Protection (ICNIRP) 1996. Those
standards were based on comprehensive and periodic evaluations
of the relevant scientific literature. For example, over 130
scientists, engineers, and physicians from universities, government
health agencies, and industry reviewed the available body of
research to develop the ANSI Standard (C95.1). The design of your
radio complies with the FCC guidelines (and those standards).
For body-worn and face-held operation, this radio demonstrates
compliance and meets the FCC RF exposure guidelines for
uncontrolled exposure (general population) when used with
approved accessories supplied with or designed for this product.
Use of other accesssories may not ensure compliance with FCC RF
exposure guidelines.
Antenna Care—Use only the supplied antenna. Unauthorized
antennas, modifications, or attachments could damage the radio
and may violate FCC regulations. Do not use any radio that has
a damaged antenna, because if it comes into contact with your
skin, a minor burn can result.
Electronic Devices—Most modern electronic equipment is
shielded from RF signals. However, certain equipment may not be
shielded against the RF signals from your wireless radio.
Pacemakers—The Health Industry Manufacturers Association
recommends that a minimum separation of six inches (6”) be
maintained between a handheld wireless radio and a pacemaker
to avoid potential interference with the pacemaker. These
recommendations are consistent with the independent research by
and recommendations of Wireless Technology Research. Persons
with pacemakers should ALWAYS keep the radio more than six
inches from their pacemaker when the radio is turned on, should
not carry the radio in a breast pocket, should use the ear opposite
Rino520_530_prelim.indd 119 1/25/2005 5:01:21 PM
120 Rino® 530 Owner’s Manual
PRELIMINARY
APPENDIX > WARNINGS AND CAUTIONS
the pacemaker to minimize the potential for interference, and
should turn the radio off immediately if you have any reason to
suspect that interference is taking place.
Hearing Aids—Some digital wireless radios may interfere with
some hearing aids. In the event of such interference, you may want
to consult your hearing aid manufacturer to discuss alternatives.
Other Medical Devices—If you use any other personal medical
device, consult the manufacturer of your device to determine if it is
adequately shielded from external RF energy. Your physician may
be able to assist you in obtaining this information.
Turn your radio OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health
care facilities may be using equipment that could be sensitive to
external RF energy.
Vehicles—RF signals may affect improperly installed or
inadequately shielded electronic systems in motor vehicles. Check
with the manufacturer or its representative regarding your vehicle.
You should also consult the manufacturer of any equipment that
has been added to your vehicle.
Posted Facilities—Turn your radio OFF in any facility where
posted notices so require.
Commercial Aircraft—Many commercial airlines prohibit the use
of FRS radios on board. Switch OFF your radio before boarding an
aircraft or check the airline rules.
Blasting Areas—To avoid interfering with blasting operations,
turn your radio OFF when in a “blasting area” or in areas posted:
“Turn off two-way radio.” Obey all signs and instructions.
Potentially Explosive Atmospheres—Turn your radio OFF
and do not remove your battery when you are in any area with a
potentially explosive atmosphere. Obey all signs and instructions.
Sparks from your battery in such areas could cause an explosion or
fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not
always clearly marked. They include fueling areas such as gasoline
stations, below deck on boats, fuel or chemical transfer or storage
facilities; vehicles using liquefied petroleum gas (such as propane
or butane); areas where the air contains chemicals or particles,
such as grain, dust, or metal powders; and any other area where
you would normally be advised to turn off your vehicle engine.
Rino520_530_prelim.indd 120 1/25/2005 5:01:22 PM
Rino® 530 Owner’s Manual 121
PRELIMINARY
INDEX
A
Accessories 103
Accuracy 101
Acquisition time 101
Address 59
Add to Route 52, 53, 55,
56, 58
Alarm 75, 90
Alarm Clock 90
Altimeter Page 37
Altitude 37
Arriving at Destination 64
Arrow 27
Ascent 37, 110
Auto Zoom 30
B
Barometric Pressure 38,
39, 41
Basemap 1
Battery icon 6
Battery Life 102
Battery Type, Changing 87
Bearing 32
Bearing Pointer 32, 34, 64
BlueChart 104
Bread Crumb Trail 72
Broken Signals 18
Buttons Locked 46
C
Calendar 88
Calibrate
Altimeter 41
Compass 34, 36
Call 99
Call Tone 16
CDI 33
Channel 10
City 55
Compass 87
Calibrate 35
Contact 20, 54
Course Deviation Indica-
tor 33
Course Pointer 33, 34
CTCSS 10, 108
Current location 47
D
Data Fields 28, 34, 40,
41, 71
Definitions 110
For Route Page 71
Data Transfer 105
Defaults 4, 26, 34, 38, 42,
67, 87
Delete Waypoint 50
Descent 37, 110
DGPS 112
Display Mode 30
E
Editing
Routes 66
Waypoints 49
Electronic Compass 36
Elevation 37, 38, 39
Cchanges 39
Changes 37
Plot 39
Exit 56
F
Family Radio Service 1, 99
FCC 99
License 100
Finding
Address 59
By name 51, 52
City 55
Contact 54
Exit 56
Intersection 59, 60
Point of Interest 57
Find ‘N Go 50, 51, 64, 66
FRS 1, 7, 10, 99, 108
G
Games 96
Garmin sentences 112
General Mobile Radio
Service 1
GMRS 1, 7, 10, 15, 99
Goto 52, 53, 54, 55, 56, 64
GPS
On/Off 18, 77
Status 18
GRI chain 82
H
Headset 15
Hunt & Fish 52, 53, 55, 56,
58, 94
Rino520_530_prelim.indd 121 1/25/2005 5:01:22 PM
122 Rino® 530 Owner’s Manual
PRELIMINARY
INDEX
I
Informational Picture 18
Initialize 8
Interface formats 112
Intersection 59, 60
K
Keylock 5, 46
L
Lap 92
Last Found Place 61
License Agreement 117
Line of sight 100
Lock
Buttons/Keys 5, 46
Direction 35
on Road 30
LORAN TD Format 82
M
Main Display Pages 4
Main Menu 45
MapSource 1, 24, 59, 65,
86
Setup 104
Map Data 31, 59, 104
Map Detail 30
Map Page 24
Options 26
Pan Map 26
Restore Defaults 26
Setup Map 26, 29
Map Pointer 27
Mark Waypoint 47
Measure Distance 26, 31
Message Tone 16, 63, 87
Microphone 15
Monitor Channels 12
Mr. Mark Waypoint 18
My ID 8
N
Name 8
Navigate 33, 70
Navigation Page 32
Options 34
Restore Defaults 34
Near Map Pointer 55
New Contact 20
New Location 78, 79
NMEA 0183 112
North Heading 30
North Up 30, 78, 79
Note 63, 88
O
Operating the Rino 5
Options Menu 5
Orientation 30
P
Page Sequence Setup 45
Pan Map 26, 27
PC 104, 112
PC Interface Cable 104
Peer-to-Peer 14, 20
PIT 15
Points of Interest 57, 58,
104
Poll location 54
Pressure 39
Changes 37
Plot 38, 39
View Plot 39
Project Waypoint 35, 49,
52, 53, 54, 55, 56,
58
Proximity alarms 75
R
Radio 17
Radio Page 7
Informational Picture 18
Setup Radio 14
Weather Radio 17
Re-Sight 35
Recently Found Places 61
Reference note 88
Restore Defaults 26, 38, 42
Reverse Route 66
Review Route 67
Ring Tone 16
Roger Tone 16
Routes 65
Copy 67
Create 65
Data Fields 71
Delete 67
Edit 66
Navigate 70
Remove waypoints 66
Restore defaults 67
Reverse 66
Review 67
Rino520_530_prelim.indd 122 1/25/2005 5:01:23 PM
Rino® 530 Owner’s Manual 123
PRELIMINARY INDEX
S
Satellite Page 24, 76
GPS Off 77
New Location 78
North Up 78
Options 78
Track Up 78
Scanlist 12, 13, 16
Scan Channels 12, 100
Scan Codes 12
Scramble 14, 100
Setup
Map 26, 29
Page 80
Radio 14
Scanlist 16
TD field 82
Time Page 80
Tones 16
Shortcut Menu 5, 46
Show Data Fields 34
Sight ‘N Go 34, 35
Signal Strength 76
Sky View 76
Specifications 101
Squelch codes 10, 99
Status Bar 6
Status Bar Icons 6
Stop Navigation 26, 34
Sun & Moon 52, 53, 55,
56, 58
Symbol 8, 9
T
Text Setup 31
Thumb Stick 2, 5
Time Page 80
Tones 16, 90
Call 16
Ring 16
Roger 16
Setup 16
Topo map 104
TracBack 73
Track
Log 72
Page 72
Points 30
Setup 30
Track Up 30, 78, 79
Transmit Location 20, 23
Trip Computer Page 42
Two-way Radio 1, 99, 114
U
UHF 99
Units Page 81
Unlock Buttons 5, 46
V
Vibrate 16
Voice Operated Transmis-
sion 14
Voice Scramble 100
VOX 14
W
WAAS 77, 87
Waterproof 1, 101
Waypoint 47, 48
Create 47, 48
Delete 50
Edit 49
Move 50
Project 49
Weather Alert 17, 62
Weather Radio 17, 62
Radio Page 62
Shortcut Menu Access 62
Z
Zoom 25, 30
Ranges 38, 39
Altimeter Page 38
Rino520_530_prelim.indd 123 1/25/2005 5:01:24 PM
Rino520_530_prelim.indd 124 1/25/2005 5:01:24 PM
Rino520_530_prelim.indd 125 1/25/2005 5:01:24 PM
For the latest free software updates (excluding map data) throughout the life of your
Garmin products, visit the Garmin web site at www.garmin.com.
© Copyright 2005 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151st Street, Olathe, Kansas 66062, U.S.A.
Garmin (Europe) Ltd.
Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K.
Garmin Corporation
No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan
www.garmin.com
Part Number 190-00NNN-00 Rev. A
Rino520_530_prelim.indd 126 1/25/2005 5:01:25 PM
