Garmin 02082 LOW POWER TRANSMITTER (2400-2483.5 MHz) User Manual

Garmin International Inc LOW POWER TRANSMITTER (2400-2483.5 MHz)

Contents

User Manual 1

Introduction
WARNING
See the Important Safety and Product
Information guide in the product box for
product warnings and other important
information.
Always consult your physician before you
begin or modify any exercise program.
Getting Started
When using your device the first time, you
should complete these tasks to set up the
device and learn about the basic features.
1Install your device using the standard
mount (page 3) or the out-front
mount (page 4).
2Turn on the device (page 4).
3Locate satellites (page 6).
4Go for a ride (page 7).
5Charge the device (page 2).
6Register the device (page 14).
7Upload your ride to Garmin Connect™
(page 7).
8Get the owner's manual (page 15).
Charging the Device
NOTICE
To prevent corrosion, thoroughly dry the
mini-USB port, the weather cap, and the
surrounding area before charging or
connecting to a computer.
The device is powered by a built-in
lithium-ion battery that you can charge
using a standard wall outlet or a USB port
on your computer.
NOTE: The device will not charge when
outside the temperature range of 32° to
113°F (0° to 45°C).

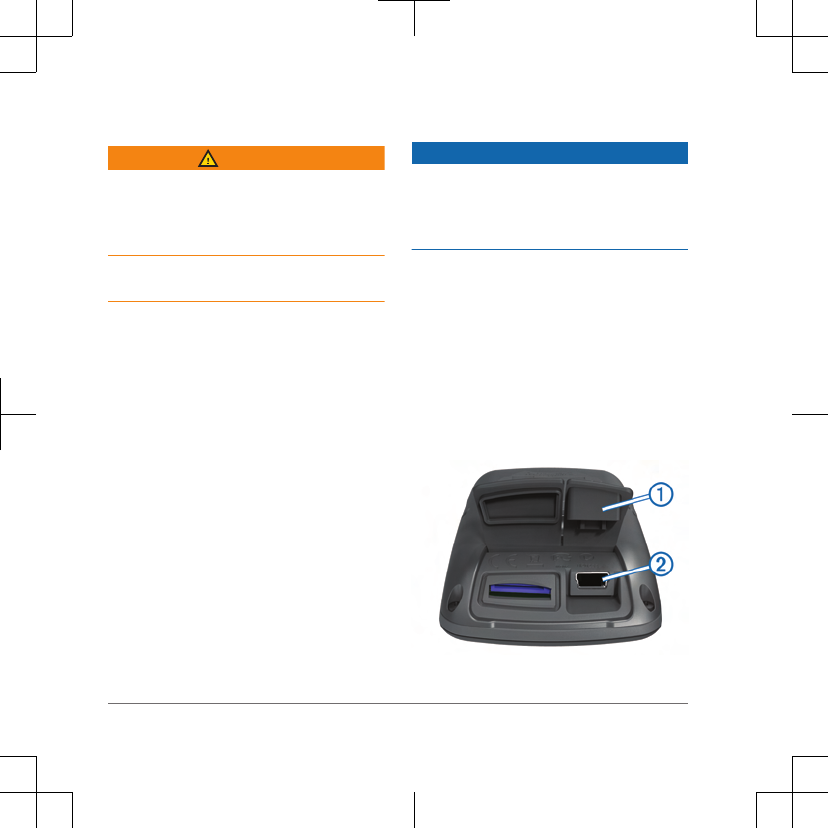

1Pull up the weather cap À from the
mini-USB port Á.
2
2Plug the small end of the USB cable
into the mini-USB port.
3Plug the USB end of the cable into the
AC adapter or a computer USB port.
4Plug the AC adapter into a standard
wall outlet.
When you connect the device to a
power source, the device turns on.
5Charge the device completely.
A fully charged battery can run for up to
15 hours before it must be recharged.
Installing the Standard Mount
For the best GPS reception, position the
bike mount so the front of the Edge is
oriented toward the sky. You can install
the bike mount on the stem or the
handlebars.
1Select a secure location to mount the
Edge where it does not interfere with
the safe operation of your bike.
2Place the rubber disk À on the back
of the bike mount.
The rubber tabs align with the back of
the bike mount so it stays in place.
3Place the bike mount on the bike
stem.
4Attach the bike mount securely using
the two bands Á.
5Align the tabs on the back of the Edge
with the bike mount notches Â.
6Press down slightly and turn the Edge
clockwise until it locks into place.
3

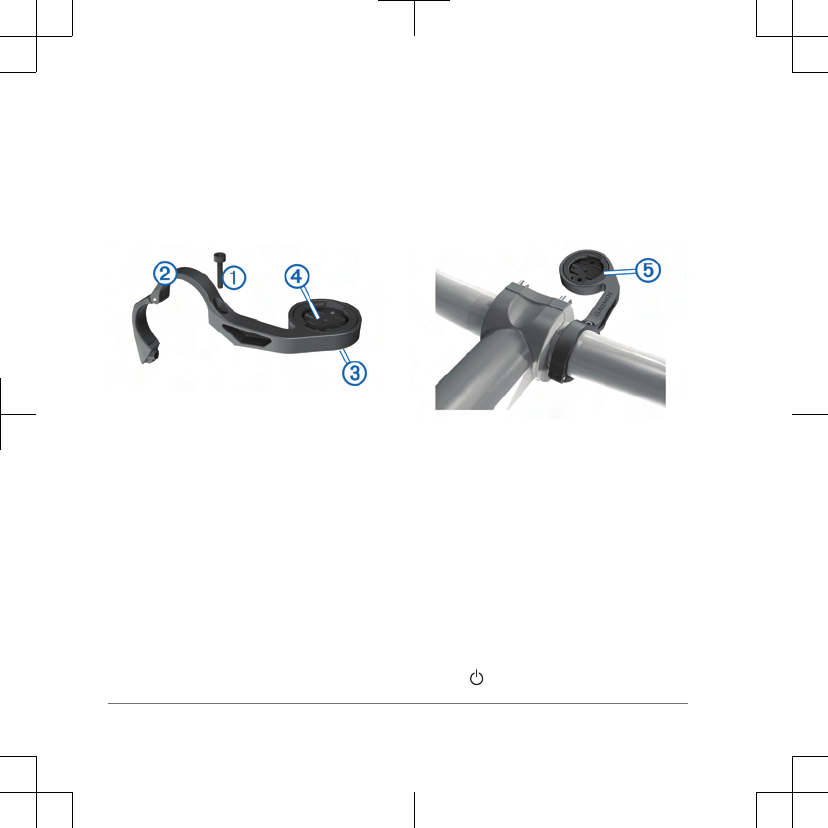

Installing the Out-Front Mount
1Select a secure location to mount the
Edge where it does not interfere with
the safe operation of your bike.
2Use the hex key to remove the screw
À from the handlebar connector Á.
3If you want to change the orientation
of the mount, remove the two screws
on the back side of the mount Â,
rotate the connector Ã, and replace
the screws.
4If the handlebar diameter is 26 mm,
place the rubber pad around the
handlebar.
5Place the handlebar connector around
the rubber pad or handlebar (31.8 mm
diameter).
6Replace the screw.
NOTE: Garmin® recommends a
torque specification of 7 lbf-in. (0.8 N-
m). Check the tightness of the screw
periodically.
7Align the tabs on the back of the Edge
with the bike mount notches Ä.
8Press down slightly and turn the Edge
clockwise until it locks into place.
Releasing the Edge
1Turn the Edge clockwise to unlock the
device.
2Lift the Edge off the mount.
Turning On the Device
The first time you turn on the device, you
are prompted to configure system settings
and profiles (page 13).
1Hold .
4
2Follow the on-screen instructions.
3If your device included a heart rate
monitor and a GSC™ 10, activate the
ANT+™ sensors during configuration.
For more information about ANT+
sensors, see page 10.

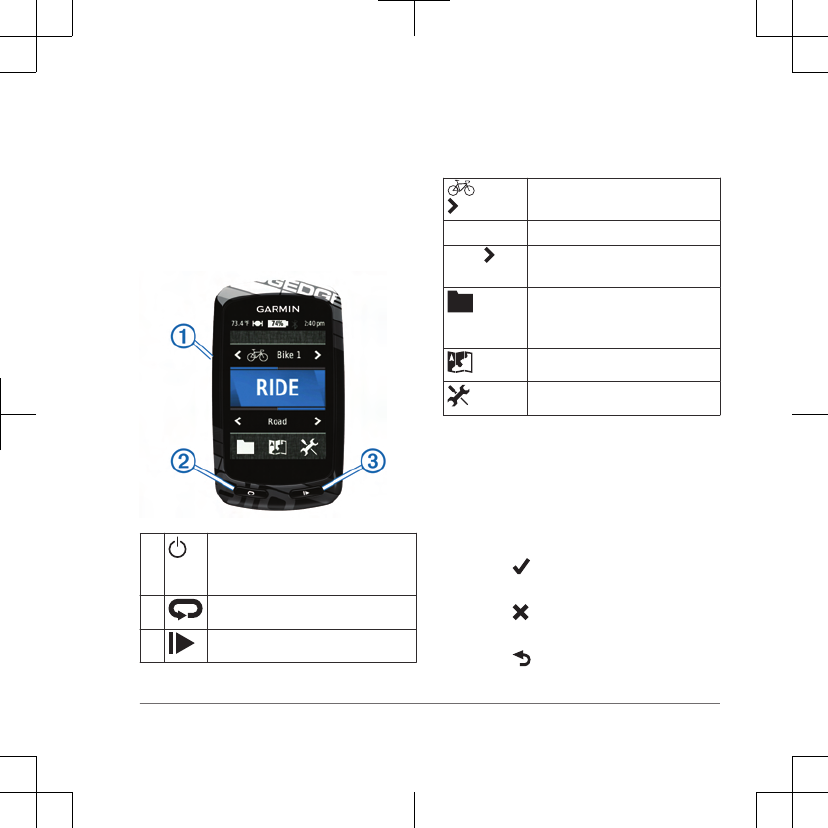

Keys
ÀSelect to turn the backlight on and
off.
Hold to turn the device on and off.
ÁSelect to mark a new lap.
ÂSelect to start and stop the timer.
Home Screen Overview
The home screen gives you quick access
to all the features of the Edge.
Bike 1 Select to change your bike
profile.
RIDE Select to go for a ride.
Road Select to change your activity
profile.
Select to manage your history,
courses, workouts, and
personal records.
Select to view the map.
Select to view the setup menu.
Using the Touchscreen
• When the timer is running, tap the
screen to view the timer overlay.
The timer overlay allows you to use
the settings and search features
during a ride.
•Select to save your changes and
close the page.
• Select to close the page and return
to the previous page.
• Select to return to the previous
page.
5
• Select to return to the home
screen.
• Select and to scroll.
• Select to view the connections
page.
• Select to search for a location.
• Select to search near a location.
• Select to search by name.
• Select to delete an item.

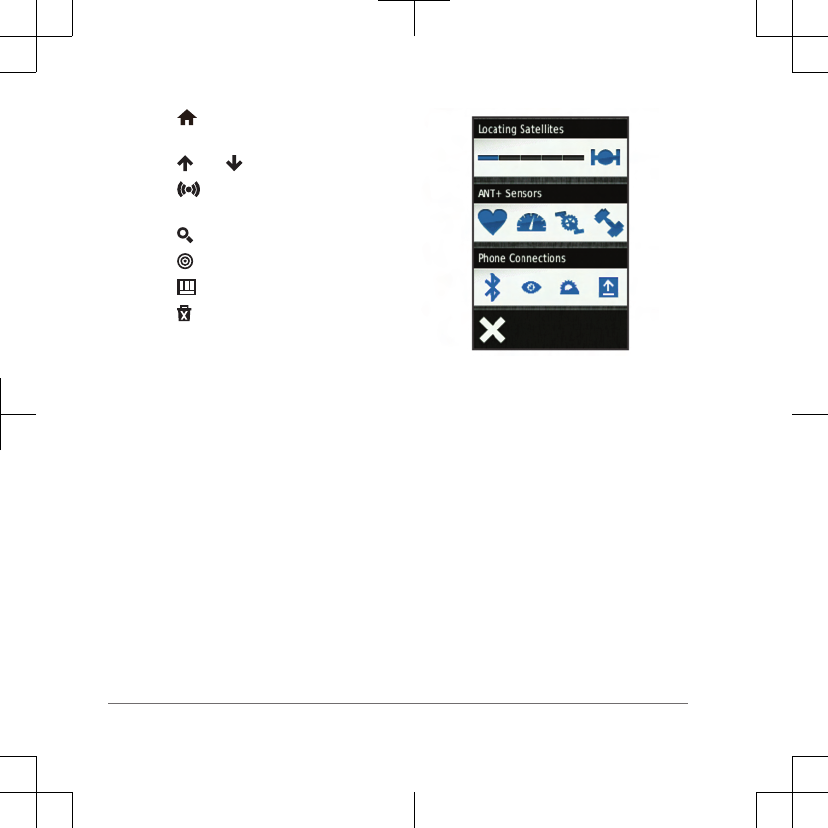

Viewing the Connections Page
The connections page displays the status
of the satellite signals, ANT+ sensors, and
your smartphone.
From the home screen, select the
status bar at the top of the page.
The connections page appears. A
flashing icon means the device is
searching. You can select any icon to
change the settings.
Acquiring Satellite Signals
Before you can use the GPS tracking and
navigation features, you must acquire
satellite signals.
The device may need a clear view of the
sky to acquire satellite signals. The time
and date are set automatically based on
the GPS position.
1Go outdoors to an open area.
6
The front of the device should be
oriented toward the sky.
2From the home screen, select RIDE.
3Wait while the device locates
satellites.
It may take 30–60 seconds to locate
satellite signals.
TIP: Do not begin moving until the
timer page appears (page 7).
Going for a Ride
Before you can record speed and
distance, you must locate satellite signals
(page 6) or pair your device with an
optional ANT+ sensor.
NOTE: History is recorded only while the
timer is running.

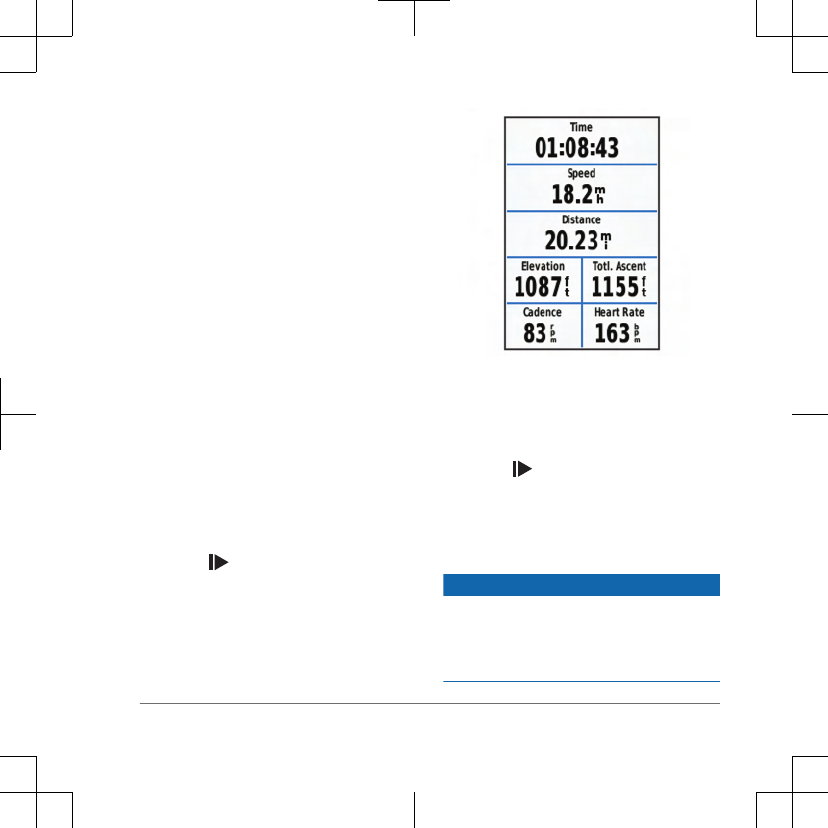

1From the home screen, select RIDE.
2Wait while the device locates
satellites.
3Select to start the timer.
4Swipe the screen for additional data
pages.
5If necessary, tap the screen to view
the timer overlay.
6Select to stop the timer.
7Select Save.
Sending Your Ride to Garmin
Connect
NOTICE
To prevent corrosion, thoroughly dry the
mini-USB port, the weather cap, and the
surrounding area before charging or
connecting to a computer.
7

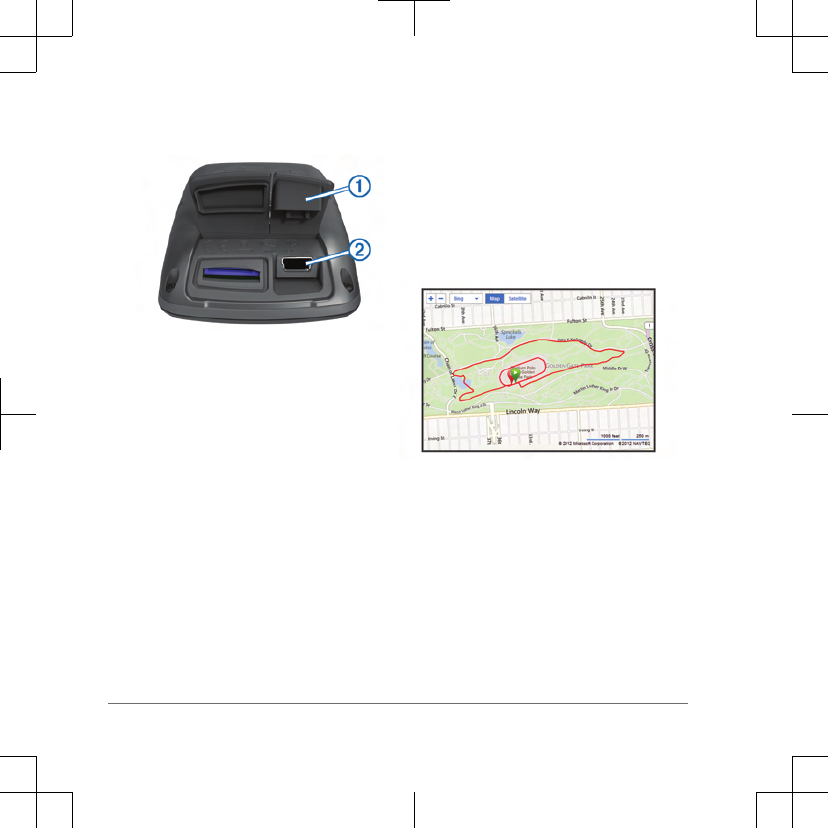

1Pull up the weather cap À from the
mini-USB port Á.
2Plug the small end of the USB cable
into the mini-USB port.
3Plug the large end of the USB cable
into a computer USB port.
4Go to www.garminconnect.com.
5Select Getting Started.
6Follow the on-screen instructions.
Garmin Connect
Garmin Connect gives you a simple way
to store and track your activities, analyze
your data, and share with others. To sign
up for a free account, go to
www.garminconnect.com.
Store your activities: After you complete
and save an activity with your device,
you can upload that activity to Garmin
Connect and keep it as long as you
want.
Analyze your data: You can view more
detailed information about your
activity, including an overhead map
view, pace and speed charts, and
customizable reports.
Share your activities: You can email
your activities to others, or post links
to your activities on your favorite
social networking sites.
Connected Features
The Edge has several connected features
for your compatible Bluetooth®-enabled
smartphone. For more information about
how to use your Edge, go to
www.garmin.com/intosports/apps.
8
NOTE: Your Edge must be connected to
your Bluetooth-enabled smartphone to
take advantage of these features.
LiveTrack: Allows friends and family to
follow your races and training
activities in real time. You can invite
followers using email or social media,
allowing them to view your live data
on a Garmin Connect tracking page.
Activity upload toGarmin Connect:
Automatically sends your activity to
Garmin Connect as soon as you finish
recording the activity.
Course and workout downloads
fromGarmin Connect: Allows you to
search for activities on Garmin
Connect using your smartphone and
send them to your device so that you
can repeat them as a course or
workout.
Social media interactions: Allows you to
automatically post an update to your
favorite social media website when
you upload an activity to Garmin
Connect.
Weather updates: Sends real-time
weather conditions and alerts to your
device.
Following a Course From the Web
Before you can download a course from
Garmin Connect, you must have a Garmin
Connect account (page 8).
1Connect the device to your computer.
2Go to www.garminconnect.com.
3Create a new course or select an
existing course.
4Select Send to Device.
5Disconnect the device, and turn it on.
6Select > Courses.
7Select the course.
8Select RIDE.
Locations
You can record and store locations in the
device.
Saving Your Location
You can save your present location, such
as your home or parking spot.
9
From the home screen, select >
System > GPS > Mark Location >
.
History
History includes time, distance, calories,
speed, lap data, elevation, and optional
ANT+ sensor information.
NOTE: History is not recorded while the
timer is stopped or paused.
When the device memory is full, a
message appears. The device does not
automatically delete or overwrite your
history. Upload your history to Garmin
Connect periodically to keep track of all
your ride data.
Viewing Your Ride
1From the home screen, select >
Rides.
2Select Last Ride or All Rides.
3Select an option.
Deleting History
1From the home screen, select >
Delete.
2Select an option:
• Select All Rides to delete all
saved activities from the history.
• Select Old Rides to delete
activities recorded more than one
month ago.
• Select All Totals to reset all
distance and time totals.
NOTE: This does not delete any
saved activities.
• Select All Courses to delete all
courses you have saved or
transferred to the device.
• Select All Workouts to delete all
workouts you have saved or
transferred to the device.
• Select All Personal Records to
delete all personal records saved
to the device.
NOTE: This does not delete any
saved activities.
3Select .

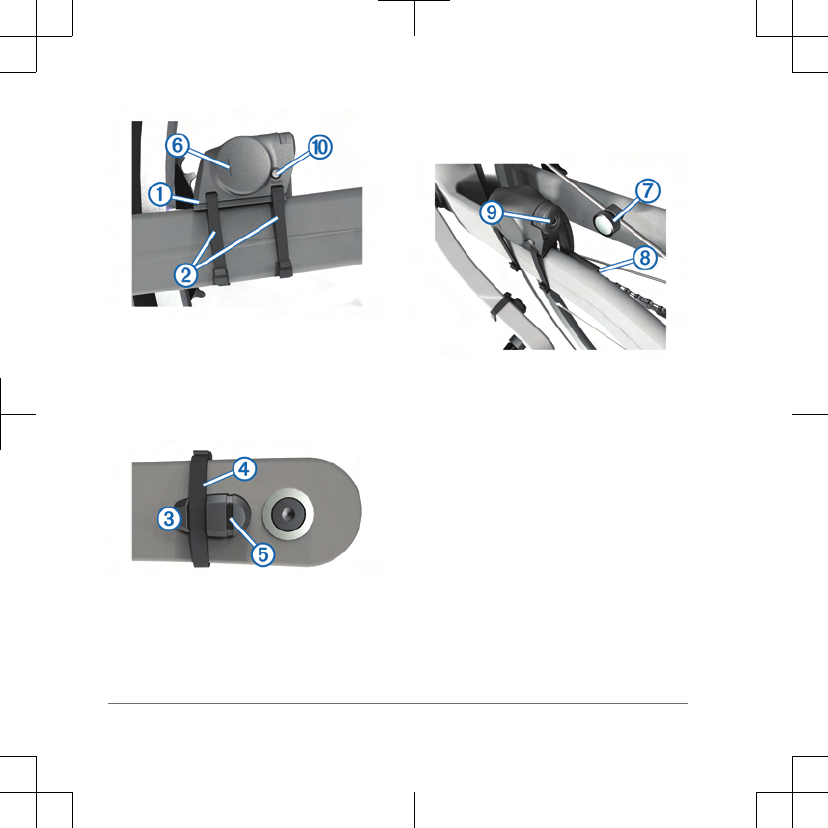

ANT+ Sensors
Your device can be used with wireless
ANT+ sensors. For more information
about compatibility and purchasing
10
optional sensors, go to
http://buy.garmin.com.
Putting On the Heart Rate Monitor
NOTE: If you do not have a heart rate
monitor, you can skip this task.
You should wear the heart rate monitor
directly on your skin, just below your
breastplate. It should be snug enough to
stay in place during your activity.

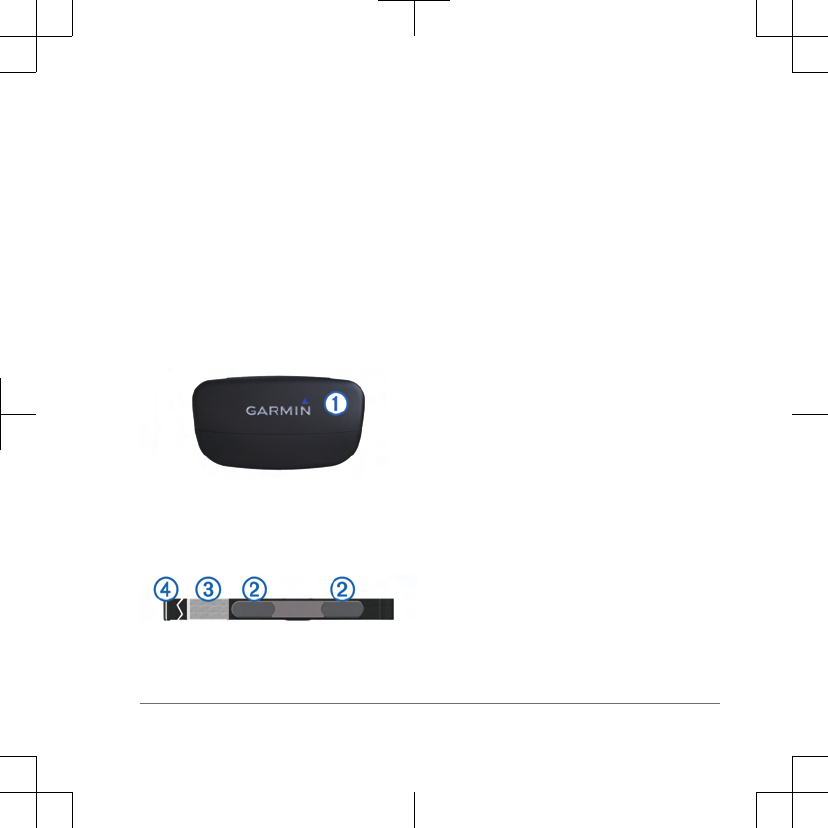

1Snap the heart rate monitor module À
onto the strap.
2Wet both electrodes Á on the back of
the strap to create a strong connection
between your chest and the
transmitter.
3If the heart rate monitor has a contact
patch Â, wet the contact patch.
4Wrap the strap around your chest, and
connect the strap hook à to the loop.
The Garmin logo should be right-side
up.
5Bring the device within range (3 m) of
the heart rate monitor.
After you put on the heart rate monitor, it
is on standby and ready to send data.
TIP: If the heart rate data is erratic or
does not appear, you may have to tighten
the strap on your chest or warm up for 5–
10 minutes.
Installing the GSC 10
NOTE: If you do not have a GSC 10, you
can skip this task.
Both magnets must be aligned with their
respective indication lines for the Edge to
receive data.
1Place the GSC 10 on the rear chain
stay (on the side opposite the drive
train).
2If necessary, place the flat rubber pad
À or the triangle-shaped rubber pad
between the GSC 10 and the chain
stay for stability.
11
3Loosely attach the GSC 10 using two
cable ties Á.
4Attach the pedal magnet  to the
crank arm using the adhesive mount
and a cable tie Ã.
The pedal magnet must be within 5
mm of the GSC 10. The indication line
Ä on the pedal magnet must line up
with the indication line Å on the GSC
10.
5Unscrew the spoke magnet Æ from
the plastic piece.
6Place the spoke in the groove of the
plastic piece, and tighten it slightly.
The spoke magnet can face away
from the GSC 10 if there is not
enough room between the sensor arm
and the spoke. The spoke magnet
must line up with the indication line Ç
on the sensor arm.
7Loosen the screw È on the sensor
arm.
8Move the sensor arm to within 5 mm
of the spoke magnet.
You can also tilt the GSC 10 closer to
either magnet to improve alignment.
12
9Select Reset É on the GSC 10.
The LED turns red, then green.
10 Pedal to test the sensor alignment.
The red LED blinks each time the
pedal magnet passes the sensor. The
green LED blinks each time the spoke
magnet passes the sensor arm.
NOTE: The LED blinks for the first 60
passes after a reset. Select Reset
again if you require additional passes.
11 When everything is aligned and
working correctly, tighten the cable
ties, the sensor arm, and the spoke
magnet.
Garmin recommends that the torque is
1.9 to 2.4 lbf-in. (0.21 to 0.27 N-m) to
ensure a water tight seal on the GSC
10 sensor arm.
Training with Power Meters
• Go to www.garmin.com/intosports for
a list of third-party ANT+ sensors that
are compatible with your device.
• For more information, see your
owner's manual.
Customizing the Device
Profiles
The Edge has several ways for you to
customize the device including profiles.
Profiles are a collection of settings that
optimize your device based on how you
are using it. For example, you can create
different settings and views for training
and mountain biking.
When you are using a profile and you
change settings such as data fields or
units of measurement, the changes are
saved automatically as part of the profile.
Bike Profiles: You can create bike
profiles for each bike you own. The
bike profile includes optional ANT+
sensors, bike weight, wheel size,
odometer value, and crank length.
Activity Profiles: You can create activity
profiles for each type of biking. For
example, you can have a profile for
training, racing, and mountain biking.
The activity profile includes
customized data pages, alerts,
training zones (such as heart rate and
speed), training settings (such as
13
Auto Pause and Auto Lap), and
navigation settings.
User Profile: You can update your
gender, age, weight, height, and
lifetime athlete settings. The device
uses this information to calculate
accurate ride data.
Customizing the Data Pages
You can customize data pages for each
activity profile (page 13).
1From the home screen, select >
Activity Profiles.
2Select a profile.
3Select Training Pages.
4Select a data page.
5If necessary, enable the data page.
6Select the number of data fields you
want to see on the page.
7Select .
8Select a data field to change it.
9Select .
Troubleshooting
Registering Your Device
Help us better support you by completing
our online registration today.
• Go to http://my.garmin.com.
• Keep the original sales receipt, or a
photocopy, in a safe place.
Resetting the Device
If the device stops responding, you may
need to reset it. This does not erase any
of your data or settings.
1Hold for 10 seconds.
2Hold for one second to turn on the
device.
Clearing User Data
You can restore all of the device settings
to the factory default values.
NOTE: This deletes all user-entered
information, but it does not delete your
history.
1Turn off the device.
2Place your finger on the top left corner
of the touchscreen.
14
3While holding your finger on the
touchscreen, turn on the device.
4Select .
Locking the Touchscreen
You can lock the screen to prevent
inadvertent screen touches.
1Select .
2Select .
Unlocking the Touchscreen
1Select .
2Select .
Getting More Information
You can find more information about this
product on the Garmin website.
• Go to www.garmin.com/intosports.
• Go to www.garmin.com
/learningcenter.
• Go to http://buy.garmin.com, or
contact your Garmin dealer for
information about optional accessories
and replacement parts.
Getting the Owner's Manual
You can get the latest owner's manual
from the web.
1Go to www.garmin.com/support.
2Select Manuals.
3Follow the on-screen instructions to
select your product.
Getting the Owner's Manual from the
Device
1Connect the device to your computer
using the USB cable.
2Open the Garmin drive or volume.
3Open the Garmin > Documents
folder or volume.
4Double-click START HERE.html.
15
www.garmin.com/support
913-397-8200
1-800-800-1020
0808 2380000
+44 870 850 1242 1-866-429-9296 43 (0) 3133 3181 0
00 32 2 672 52 54 00 45 4810 5050 00 358 9 6937 9758 00 331 55 69 33 99
0180 5 / 42 76 46 - 880 00 39 02 3669 9699 0800-0233937 815 69 555
00800 4412 454
+44 2380 662 915 00 35 1214 447 460 00 34 902 007 097 00 46 7744 52020
Garmin International, Inc.
1200 East 151st Street
Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park
Southampton, Hampshire, SO40 9LR UK
Garmin Corporation
No. 68, Zhangshu 2nd Road, Xizhi Dist.
New Taipei City, 221, Taiwan (R.O.C.)
Edge®, Garmin®, and the Garmin logo are trademarks of Garmin
Ltd. or its subsidiaries, registered in the USA and other countries.
These trademarks may not be used without the express
permission of Garmin. ANT+™, Garmin Connect™, and GSC™
are trademarks of Garmin Ltd. or its subsidiaries. These
trademarks may not be used without the express permission of
Garmin.
The Bluetooth® word mark and logos are owned by the Bluetooth
SIG, Inc. and any use of such marks by Garmin is under license.
Other trademarks and trade names are those of their respective
owners.
TRA
REGISTERED No:
ER0093823/12
DEALER No:
0015955/08
© 2012 Garmin Ltd. or its subsidiaries

Navigation menu
