User Manual

TITLE

SIZE PARTNO: REV:

SCALE Sheet Of

10.0"

6.5"13.0"

Trimmeddimensions Trimmedandbounddimensions

Binding Cover

Two-pageLayout

Dimensionsanddrawingsforreferenceonly.Drawingsarenottoscale.

CoverCover

SPECIFICATION

CONTROL

DRAWING

Revisions

Rev. Date Description ECO No.

A 2/25/13 ProductionRelease ––––

Specications

1.Description Productdocumentation,GPSMAP500/700echoMAP50/70SeriesOwner'sManual(EN-US)

2.Size Trimmed:Width=13.0"Height=10.0".Finished,Folded:Width=6.5",Height=10.0".

3.Tolerance ±0.0787"(±2mm)

4.Pagination 40pages

5.Material Cover:200-lbcoatedivoryboard.Text:100-lbmatte-nishoffset.ApprovedEquivalentsAllowed

6.Finish Cover:WaterproofMatte.Text:Matte.ApprovedEquivalentsAllowed.

7.Color 4-colorprocess.

8.Bindery Saddle-stitched.ApprovedEquivalentsAllowed.

9.Folds N/A

10.ElectronicArtwork ShallconformtoGarminArchive190-01556-00_0A.zip

11.Languages English

12.Notes ThispartshallcomplywithGarminBanned&RestrictedSubstances(GPN001-00211-00).

CONFIDENTIAL

ThisdrawingandthespecicationscontainedhereinarethepropertyofGarminLtd.or

itssubsidiariesandmaynotbereproducedorusedinwholeorinpartasthebasisfor

manufactureorsaleofproductswithoutwrittenpermission.

GarminLtd.oritssubsidiaries

C/OGarminInternational,Inc.

1200E.151stStreet

Olathe,Kansas66062U.S.A.

Initials Date

GPSMAP 500/700 echoMAP 50/70 Series Owner's Manual (EN-US)

DrawnBy: KEG 2/25/13

A190-01556-00 ACheckedBy:

ProjectManager:

N/A

ApprovedBy: 1 41

Files

The following les have been archived under the above ARCHIVE FILENAME.

File Name File Contents

190-01556-00_0A.pdf PortableDocumentFormat,manualandspecicationsheetforprinting

190-01556-00_0A_Spec.indd InDesignCS4,Documentspecicationsheet

GPS_echoMAP_5_7_OM_EN.pdf PortableDocumentFormat,manualforonlinepostingandCD-ROM

GPSMAP® 500/700 Series and

echoMAP™ 50/70 Series

Owner’s Manual

March 2013 190-01556-00_0A Printed in Taiwan

the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of

such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin®, the Garmin logo, BlueChart®, g2 Vision®, GPSMAP®, and MapSource® are trademarks of Garmin Ltd. or its subsidiaries, registered in the

USA and other countries. echoMAP™, GXM™, and HomePort™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used

without the express permission of Garmin.

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. iOS® is a registered

trademark of Cisco Systems, Inc. used under license by Apple Inc. microSD™ is a trademark of SD-3C, LLC. NMEA®, NMEA 2000®, and the NMEA

2000 logo are registered trademarks of the National Marine Electronics Association. SiriusXM™ is a registered trademark of SiriusXM Radio Inc. All other

trademarks and copyrights are the property of their respective owners. Other trademarks and trade names are those of their respective owners.

Table of Contents

Introduction................................................................ 1

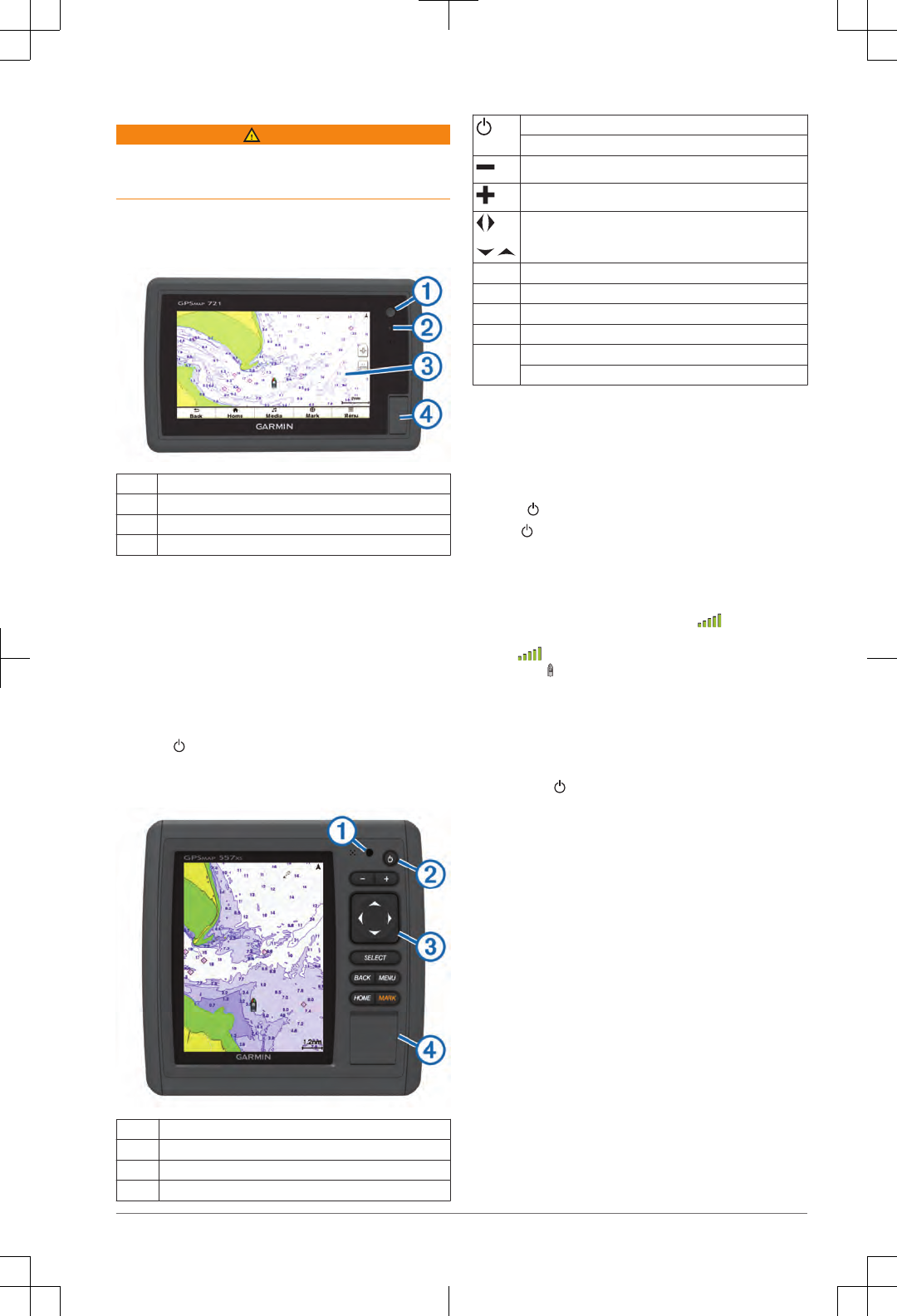

Device Views ........................................................................ 1

echoMAP 70 Series and GPSMAP 700 Series............... 1

Using the Touchscreen.............................................. 1

echoMAP 50 Series and GPSMAP 500 Series............... 1

Device Keys............................................................... 1

Tips and Shortcuts................................................................. 1

GPS Satellite Signals............................................................ 1

Adjusting the Backlight.......................................................... 1

Adjusting the Color Mode...................................................... 1

Customizing the Home Screen.............................................. 1

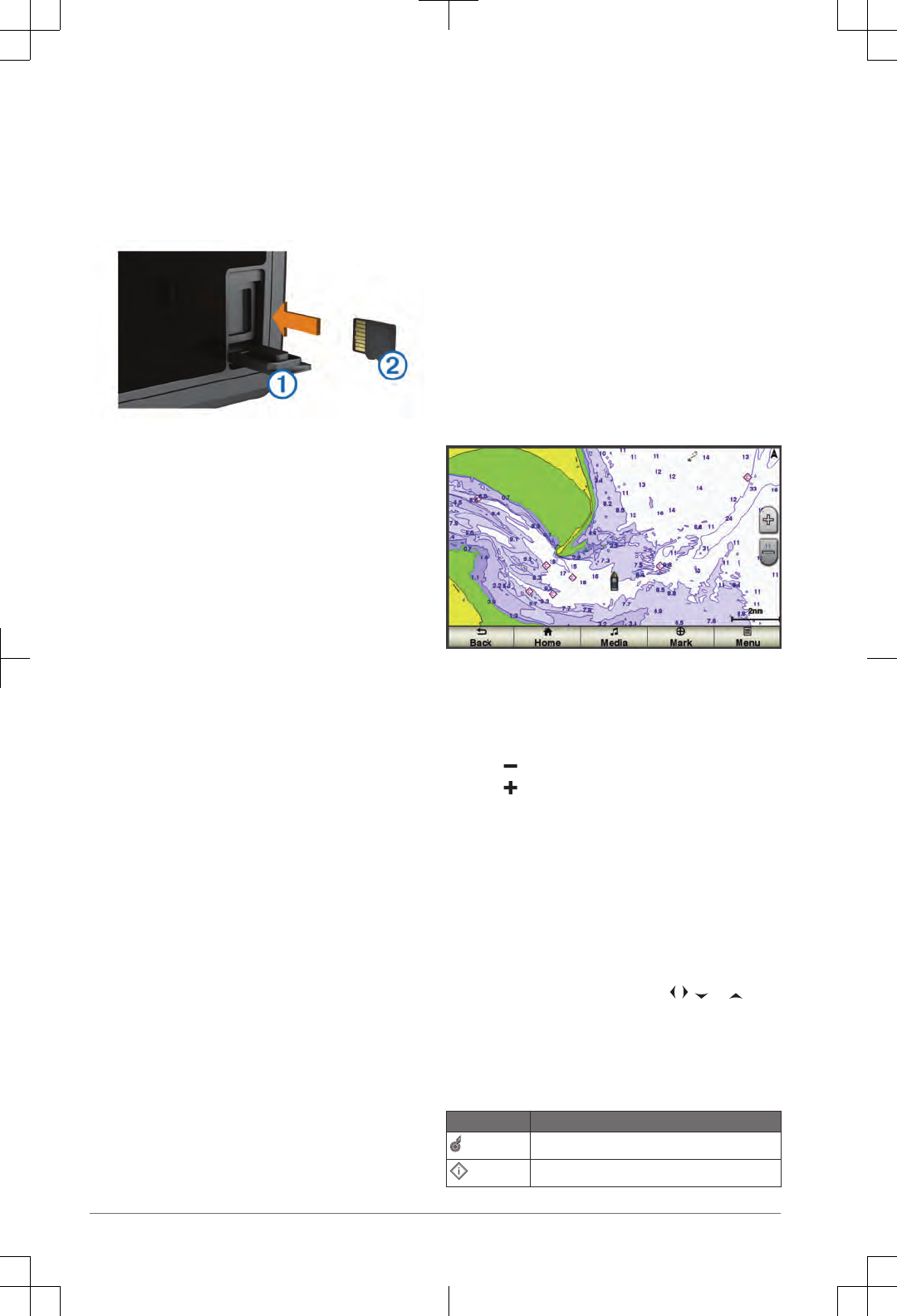

Inserting Memory Cards........................................................ 2

Charts and 3D Chart Views....................................... 2

Navigation Chart and Offshore Fishing Chart........................ 2

Zooming In and Out of the Chart..................................... 2

Panning the Chart............................................................ 2

Selecting an Item on the Map Using the Device Keys..... 2

Chart Symbols................................................................. 2

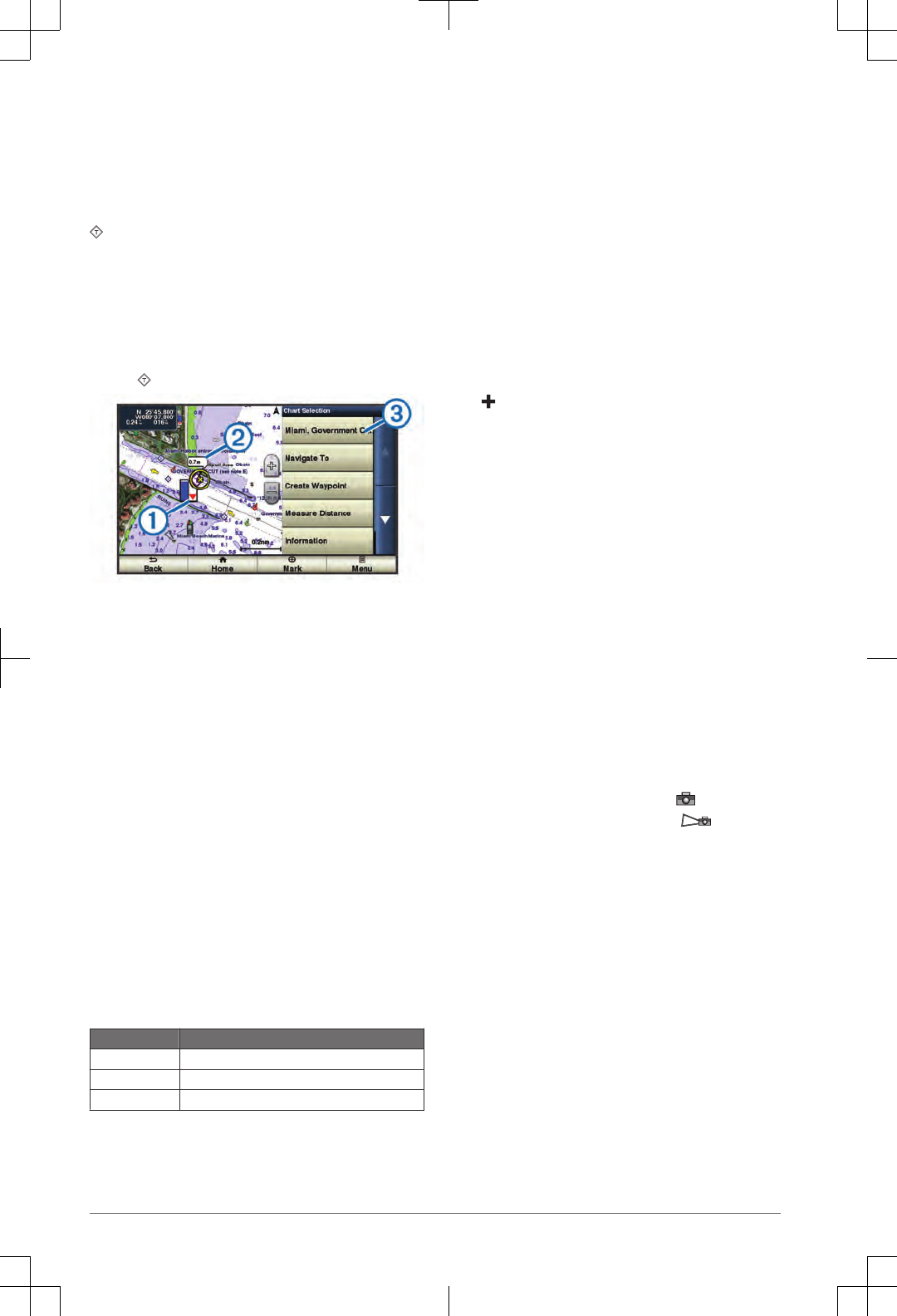

Navigating to a Point on the Chart................................... 3

Viewing Location and Object Information on a Chart...... 3

Viewing Details about Navaids........................................ 3

Premium Charts............................................................... 3

Viewing Tide Station Information............................... 4

Showing Satellite Imagery on the Navigation Chart... 4

Viewing Aerial Photos of Landmarks......................... 4

Automatic Identification System............................................ 4

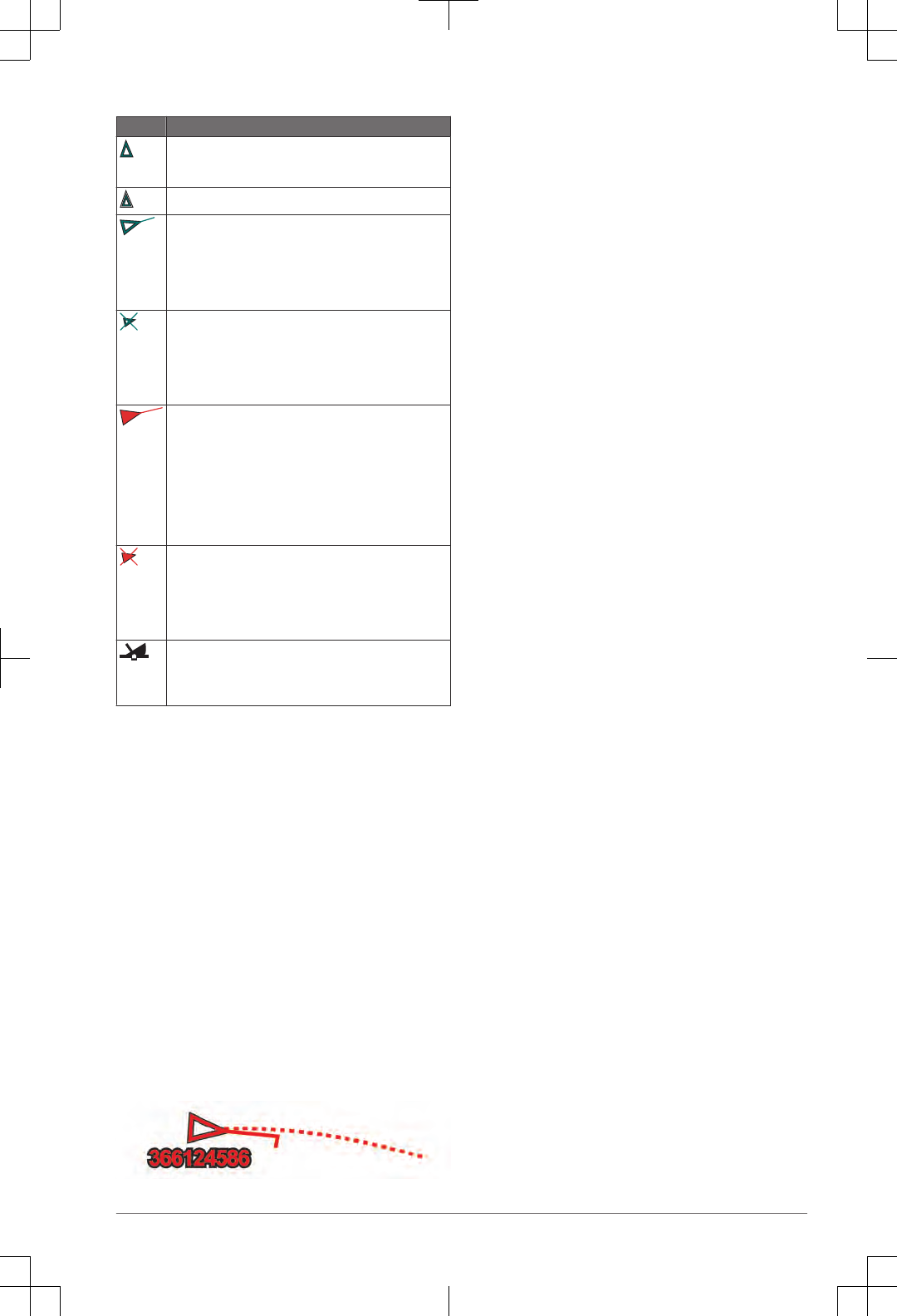

AIS Targeting Symbols.................................................... 5

Heading and Projected Course of Activated AIS

Targets ............................................................................. 5

Showing AIS Vessels on a Chart or 3D Chart View........ 5

Activating a Target for an AIS Vessel.............................. 5

Viewing Information about a Targeted AIS Vessel.... 5

Deactivating a Target for an AIS Vessel.................... 5

Viewing a List of AIS Threats........................................... 5

Setting the Safe-Zone Collision Alarm............................. 5

AIS Distress Signals........................................................ 6

Navigating to a Distress Signal Transmission............ 6

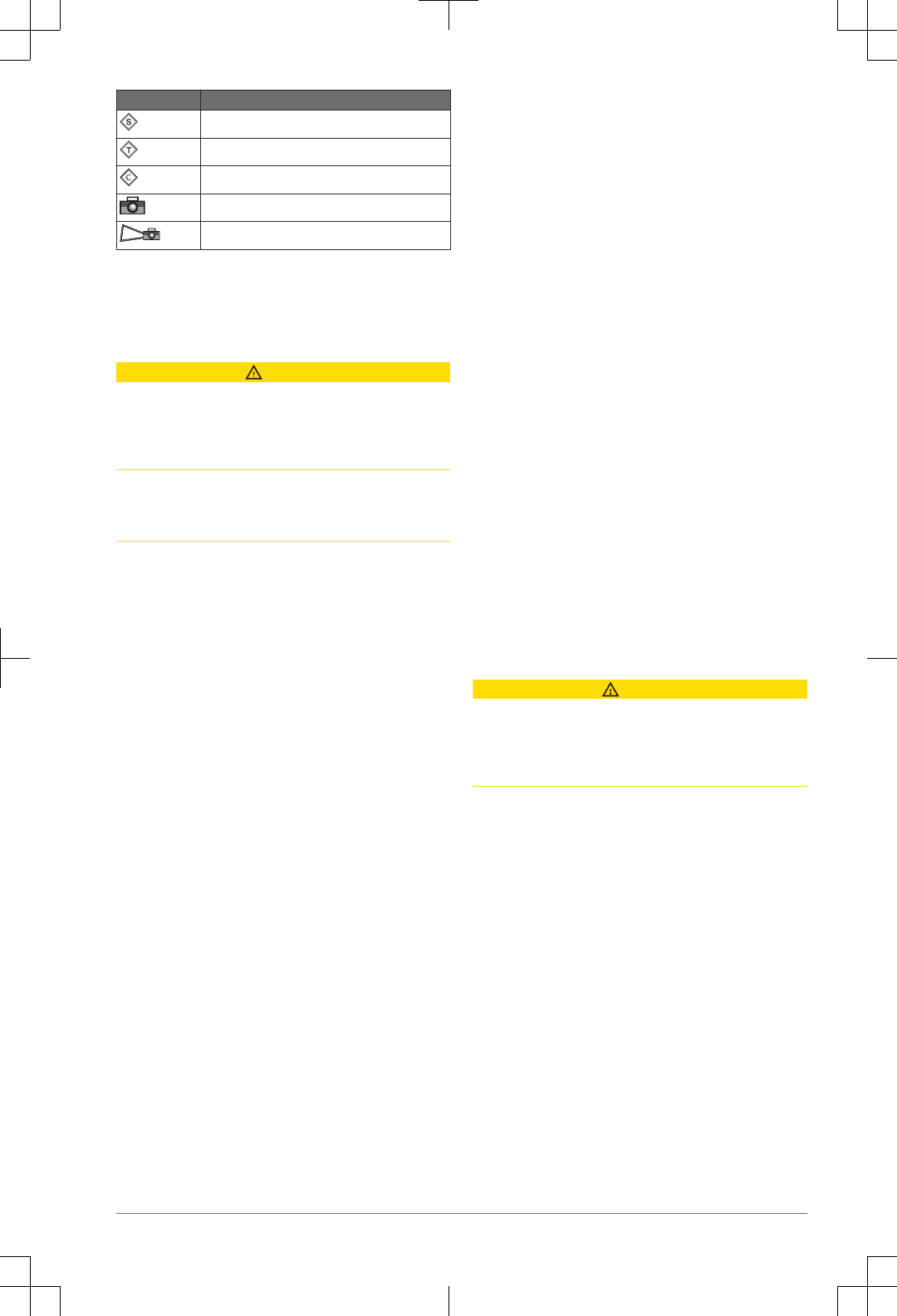

AIS Distress Signal Device Targeting Symbols......... 6

Enabling AIS Transmission Test Alerts...................... 6

Turning Off AIS Reception............................................... 6

Chart and 3D Chart View Settings......................................... 6

Navigation and Fishing Chart Setup................................ 6

Waypoints and Tracks Settings on the Charts and Chart

Views............................................................................... 6

Overlay Numbers Settings............................................... 7

Editing the Data Fields............................................... 7

Showing a Navigation Inset............................................. 7

Chart Appearance Settings.............................................. 7

Other Vessels Settings on the Charts and Chart Views.. 7

AIS Display Settings.................................................. 7

Fish Eye 3D Settings....................................................... 8

Navigation with a Chartplotter.................................. 8

Basic Navigation Questions................................................... 8

Destinations........................................................................... 8

Searching for a Destination by Name.............................. 8

Selecting a Destination Using the Navigation Chart........ 8

Searching for a Destination Using Nav Info..................... 8

Searching for a Marine Services Destination................... 8

Courses................................................................................. 8

Setting and Following a Direct Course Using Go To....... 9

Setting and Following a Course Using Auto Guidance.... 9

Autopilot Navigation......................................................... 9

Stopping Navigation.............................................................. 9

Waypoints.............................................................................. 9

Marking Your Present Location as a Waypoint................ 9

Creating a Waypoint at a Different Location.................... 9

Marking and Navigating to an MOB Location.................. 9

Viewing a List of all Waypoints........................................ 9

Editing a Saved Waypoint................................................ 9

Moving a Saved Waypoint............................................... 9

Browsing for and Navigating to a Saved Waypoint.......... 9

Deleting a Waypoint or an MOB.................................... 10

Deleting All Waypoints................................................... 10

Routes................................................................................. 10

Creating and Navigating a Route From Your Present

Location......................................................................... 10

Creating and Saving a Route......................................... 10

Viewing a List of Routes................................................ 10

Editing a Saved Route................................................... 10

Browsing for and Navigating a Saved Route................. 10

Browsing for and Navigating Parallel to a Saved Route 10

Deleting a Saved Route................................................. 11

Deleting All Saved Routes............................................. 11

Tracks.................................................................................. 11

Showing Tracks............................................................. 11

Setting the Color of the Active Track............................. 11

Saving the Active Track................................................. 11

Viewing a List of Saved Tracks...................................... 11

Editing a Saved Track.................................................... 11

Saving a Track as a Route............................................ 11

Browsing for and Navigating a Recorded Track............ 11

Deleting a Saved Track................................................. 11

Deleting All Saved Tracks.............................................. 11

Retracing the Active Track............................................. 11

Clearing the Active Track............................................... 11

Managing the Track Log Memory During Recording..... 11

Configuring the Recording Interval of the Track Log..... 12

Deleting All Saved Waypoints, Routes, and Tracks............ 12

Combinations........................................................... 12

Selecting a Combination...................................................... 12

Customizing the Combinations Screen............................... 12

Gauges and Almanac Information..........................12

Viewing the Compass.......................................................... 12

Viewing Trip Gauges........................................................... 12

Resetting Trip Gauges................................................... 12

Viewing Engine and Fuel Gauges....................................... 12

Customizing Engine Gauge and Fuel Gauge Limits...... 12

Enabling Status Alarms for Engine Gauges.................. 12

Enabling Some Engine Gauge Status Alarms............... 13

Selecting the Number of Engines Shown in Gauges..... 13

Customizing the Engines Shown in Gauges.................. 13

Configuring the Fuel Gauges Display............................ 13

Setting the Fuel Capacity of the Vessel......................... 13

Synchronizing the Fuel Data with the Actual Vessel

Fuel................................................................................ 13

Setting the Fuel Alarm................................................... 13

Viewing the Wind Gauges................................................... 13

Configuring the Speed Source....................................... 13

Configuring the Heading Source of the Wind Gauge..... 13

Selecting the Range of the Close-Hauled Wind Gauge. 13

Table of Contents i

Viewing the Environment Gauges....................................... 13

Configuring the Alignment of the Wind Gauge.............. 13

Configuring the Heading Source of the Environment

Gauge............................................................................ 14

Setting the Barometer Reference Time......................... 14

Tide, Current, and Celestial Information.............................. 14

Tide Station Information................................................. 14

Current Station Information............................................ 14

Celestial Information...................................................... 14

Viewing Tide Station, Current Station, or Celestial

Information for a Different Date..................................... 14

Viewing Information for a Different Tide or Current

Station ............................................................................ 14

Viewing Almanac Information from the Navigation

Chart.............................................................................. 14

Sonar......................................................................... 14

Full-Screen Sonar View....................................................... 14

Split-Zoom Sonar View........................................................ 14

Split-Frequency Sonar View................................................ 14

Pausing the Sonar Display.................................................. 15

Creating a Waypoint on the Sonar Screen.......................... 15

Adjusting the Gain on the Sonar Screen............................. 15

Adjusting the Range of the Depth Scale.............................. 15

Setting the Zoom Level on the Sonar Screen...................... 15

Selecting Frequencies......................................................... 15

Turning On the A-Scope...................................................... 15

Sonar Setup ........................................................................ 15

Sonar Settings............................................................... 15

Sonar Appearance Settings........................................... 15

Advanced Sonar Settings.............................................. 15

Sonar Alarm Settings..................................................... 15

Recording the Sonar Display............................................... 16

Stopping the Sonar Recording....................................... 16

Depth and Water Temperature Graphs............................... 16

Setting the Depth and Water Temperature Graph Range

and Time Scales............................................................ 16

Radar......................................................................... 16

Radar Display Modes.......................................................... 16

Transmitting Radar Signals................................................. 16

Adjusting the Zoom Scale on the Radar Screen................. 16

Tips for Selecting a Radar Zoom Scale......................... 16

Sentry Mode........................................................................ 17

Enabling Timed Transmit............................................... 17

Setting the Standby and Transmit Times....................... 17

Enabling a Guard Zone.................................................. 17

Defining a Circular Guard Zone..................................... 17

Defining a Partial Guard Zone....................................... 17

Marking a Waypoint on the Radar Screen..................... 17

Viewing a List of AIS Threats......................................... 17

Showing AIS Vessels on the Radar Screen.................. 17

VRM and EBL...................................................................... 17

Showing the VRM and the EBL..................................... 18

Adjusting the VRM and the EBL.................................... 18

Measuring the Range and Bearing to a Target Object.. 18

Radar Overlay..................................................................... 18

Radar Overlay and Chart Data Alignment..................... 18

Showing the Radar Overlay........................................... 18

Stopping the Transmission of Radar Signals...................... 18

Optimizing the Radar Display.............................................. 18

Range of Radar Signals................................................. 18

Radar Gain and Clutter.................................................. 18

Automatically Adjusting Gain on the Radar Screen. 18

Manually Adjusting Gain on the Radar Screen........ 18

Minimizing Nearby Large-Object Interference......... 19

Minimizing Side-Lobe Interference on the Radar

Screen......................................................................19

Adjusting Sea Clutter on the Radar Screen............. 19

Adjusting Rain Clutter on the Radar Screen............ 19

Reducing Cross Talk Clutter on the Radar Screen.. 19

Radar Display Settings.................................................. 19

Radar Appearance Settings........................................... 19

Front-of-Boat Offset....................................................... 20

Measuring the Potential Front-of-Boat Offset.......... 20

Setting the Front-of-Boat Offset............................... 20

Digital Selective Calling.......................................... 20

Networked Chartplotter and VHF Radio Functionality......... 20

Turning On DSC.................................................................. 20

DSC List.............................................................................. 20

Viewing the DSC List..................................................... 20

Adding a DSC Contact................................................... 20

Incoming Distress Calls....................................................... 20

Navigating to a Vessel in Distress................................. 20

Man-Overboard Distress Calls Initiated from a VHF

Radio............................................................................. 20

Man-Overboard Distress Calls Initiated from the

Chartplotter.................................................................... 20

Position Tracking................................................................. 20

Viewing a Position Report.............................................. 21

Navigating to a Tracked Vessel..................................... 21

Creating a Waypoint at the Position of a Tracked

Vessel............................................................................ 21

Editing Information in a Position Report........................ 21

Deleting a Position-Report Call...................................... 21

Viewing Vessel Trails on the Chart................................ 21

Individual Routine Calls....................................................... 21

Selecting a DSC Channel.............................................. 21

Making an Individual Routine Call................................. 21

Making an Individual Routine Call to an AIS Target...... 21

Viewing Video.......................................................... 21

Configuring the Video Appearance...................................... 21

SiriusXM™................................................................ 22

SiriusXM Equipment and Subscription Requirements......... 22

Weather Data Broadcasts................................................... 22

Viewing Precipitation Information........................................ 22

Precipitation Views........................................................ 22

Storm Cell and Lightning Information.................................. 22

Hurricane Information.......................................................... 22

Weather Warnings and Weather Bulletins........................... 22

Forecast Information............................................................ 23

Viewing Forecast Information for Another Time Period. 23

Viewing a Marine Forecast or an Offshore Forecast..... 23

Weather Fronts and Pressure Centers.......................... 23

City Forecasts................................................................ 23

Viewing Sea Conditions....................................................... 23

Surface Winds............................................................... 23

Wave Height, Wave Period, and Wave Direction.......... 23

Viewing Forecast Sea Conditions Information for Another

Time Period................................................................... 24

Viewing Fishing Information................................................ 24

Surface Pressure and Water Temperature Data........... 24

Forecasting Fish Locations............................................ 24

Visibility Information............................................................. 24

ii Table of Contents

Viewing Forecast Visibility Information for Another Time

Period............................................................................ 24

Viewing Buoy Reports......................................................... 24

Viewing Local Weather Information near a Buoy........... 24

Creating a Waypoint on a Weather Chart............................ 24

Weather Overlay.................................................................. 24

Turning On the Weather Overlay on a Chart................. 24

Weather Overlay Settings on the Navigation Chart....... 24

Weather Overlay Settings on the Fishing Chart............ 25

Viewing Weather Subscription Information.......................... 25

SiriusXM Radio.................................................................... 25

Customizing the Channel Guide.................................... 25

Saving a SiriusXM Channel to the Presets List............. 25

Adjusting SiriusXM Satellite Radio Volume................... 25

Device Configuration............................................... 25

Turning On the Chartplotter Automatically.......................... 25

System Settings................................................................... 25

GPS Settings................................................................. 25

Viewing the Event Log................................................... 25

Viewing System Software Information........................... 25

My Vessel Settings.............................................................. 25

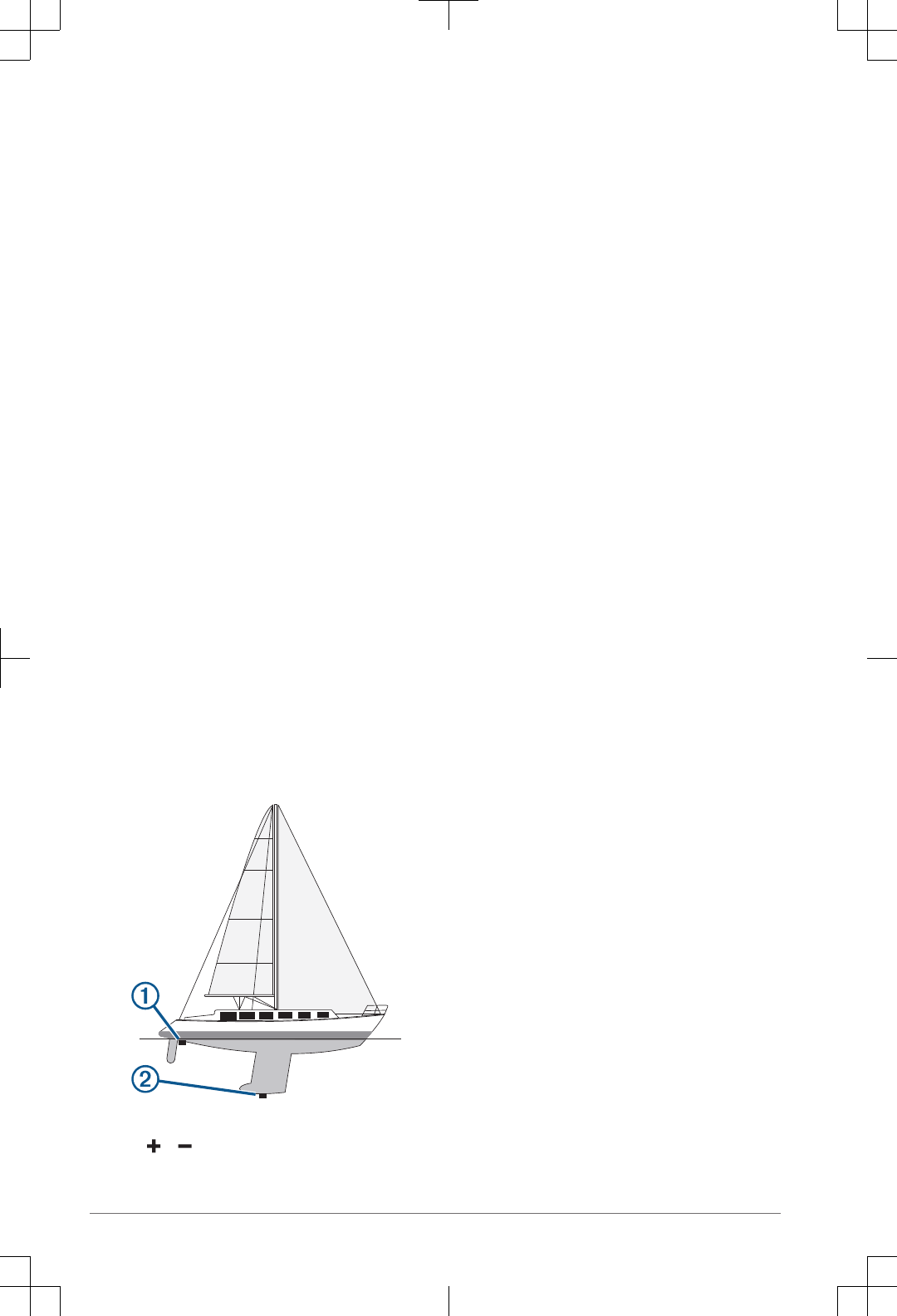

Setting the Keel Offset................................................... 26

Calibrating a Water Speed Device................................. 26

Setting the Water Temperature Offset........................... 26

Communications Settings.................................................... 26

NMEA 2000 and NMEA 0183........................................ 27

NMEA 0183..............................................................27

NMEA 2000..............................................................27

Communication with Wireless Devices ......................... 27

Connecting a Bluetooth Wireless Device................. 27

Disconnecting a Bluetooth Wireless Device............ 27

Setting Up the Wireless Network............................. 27

Connecting a Wireless Device to the Chartplotter... 27

Setting Alarms..................................................................... 27

Navigation Alarms.......................................................... 27

System Alarms............................................................... 27

Setting the Fuel Alarm................................................... 27

Setting Weather Alarms................................................. 28

Units Settings...................................................................... 28

Navigation Settings.............................................................. 28

Auto Guidance Line Configurations............................... 28

Adjusting the Distance from Shore.......................... 28

Other Vessel Settings.......................................................... 29

Viewing System Software Information................................. 29

Restoring the Original Chartplotter Factory Settings........... 29

Chartplotter Data Management...............................29

Copying Waypoints, Routes, and Tracks to a Chartplotter.. 29

Copying Data from a Memory Card..................................... 29

Copying Waypoints, Routes, and Tracks to a Memory

Card..................................................................................... 29

Copying Waypoints, Routes, and Tracks to or from all

Chartplotters on a NMEA 2000 Network............................. 29

Copying Built-In Maps to a Memory Card............................ 30

Backing Up Data to a Computer.......................................... 30

Restoring Backup Data to a Chartplotter............................. 30

Saving System Information to a Memory Card.................... 30

Appendix.................................................................. 30

Registering Your Device...................................................... 30

Calibrating the Touchscreen................................................ 30

Updating the Device Software............................................. 30

Screenshots ......................................................................... 30

Capturing Screenshots.................................................. 30

Copying Screenshots to a Computer............................. 30

NMEA 0183 Information...................................................... 30

NMEA 2000 PGN Information............................................. 31

Index......................................................................... 32

Table of Contents iii

Introduction

WARNING

See the Important Safety and Product Information guide in

the product box for product warnings and other important

information.

Device Views

echoMAP 70 Series and GPSMAP 700 Series

ÀPower key

ÁAutomatic backlight sensor

ÂTouchscreen

ÃmicroSD™ memory card slot

Using the Touchscreen

•Tap the screen to select an item.

• Drag or swipe your finger across the screen to pan or

scroll.

• Pinch two fingers together to zoom out.

• Spread two fingers apart to zoom in.

Locking the Touchscreen

You can lock the touchscreen to prevent inadvertent screen

touches.

1Select .

2Select Lock Touchscreen.

echoMAP 50 Series and GPSMAP 500 Series

ÀAutomatic backlight sensor

ÁPower key

ÂDevice keys

ÃmicroSD memory card slot

Device Keys

Turns on and off the device when held.

Adjusts the backlight and color mode.

Zooms out of a chart or view.

Zooms in to a chart or view.

Scrolls, highlights options, and moves the cursor.

Select Acknowledges messages and selects options.

Back Returns to the previous screen.

Mark Saves the present location as a waypoint.

Home Returns to the Home screen.

Menu Opens a menu of options for the page, when applicable.

Closes a menu, when applicable.

Tips and Shortcuts

• Select Home from any screen to return to the Home

screen.

• Select Menu from any main screen to access additional

settings about that screen.

• Press to adjust the backlight and lock the touchscreen.

•Hold to turn the chartplotter on or off.

GPS Satellite Signals

When you turn on the chartplotter, the GPS receiver must

collect satellite data and establish the current location. When

the chartplotter acquires satellite signals, appears at the

top of the Home screen. When the chartplotter loses satellite

signals, disappears and a flashing question mark

appears over on the chart.

For more information about GPS, go to www.garmin.com

/aboutGPS.

Adjusting the Backlight

1Select Settings > System > Display > Backlight.

TIP: Press from any screen to access the backlight

settings.

2Select an option:

•Adjust the backlight level.

• Select Enable Auto Backlight or Auto.

Adjusting the Color Mode

1Select Settings > System > Display > Color Mode.

2Select an option.

Customizing the Home Screen

You can add items to and rearrange items on the Home

screen.

1From the Home screen, select Menu.

2Select an option:

• To rearrange an item, select Rearrange, select the

item to move, and select the new location for it.

• To add an item to the Home screen, select Add, and

select the new item to add.

• To remove an item you have added to the Home

screen, select Remove, and select the item to

remove.

Introduction 1

Inserting Memory Cards

You can use optional memory cards in the chartplotter. Map

cards allow you to view high-resolution satellite imagery and

aerial reference photos of ports, harbors, marinas, and other

points of interest. You can use blank memory cards to

transfer data such as waypoints, routes, and tracks to

another compatible Garmin chartplotter or a computer.

1Open the access door À on the front of the chartplotter.

2Insert the memory card Á with the label facing to the

right.

3Press the card in until it clicks.

4Close the door.

Charts and 3D Chart Views

The chartplotters have a basic imagery map. The charts and

3D chart views listed below are available on the chartplotter.

The charts and views that are available depend on the map

data and accessories used.

You can access the charts and chart views by selecting

Charts.

Navigation Chart: Shows navigation data available on your

pre-loaded maps and from supplemental maps, if

available. The data includes buoys, lights, cables, depth

soundings, marinas, and tide stations in an overhead

view.

Perspective 3D: Provides a view from above and behind the

boat (according to your course) and provides a visual

navigation aid. This view is helpful when navigating tricky

shoals, reefs, bridges, or channels, and is beneficial when

trying to identify entry and exit routes in unfamiliar

harbors or anchorages.

Mariner’s Eye 3D: Shows a detailed, three-dimensional view

from above and behind the boat (according to your

course) and provides a visual navigation aid. This view is

helpful when navigating tricky shoals, reefs, bridges, or

channels, and when trying to identify entry and exit routes

in unfamiliar harbors or anchorages.

NOTE: Mariner's Eye 3D and Fish Eye 3D chart views

are available with premium charts, in some areas.

Fish Eye 3D: Provides an underwater view that visually

represents the sea floor according to the chart

information. When a sonar transducer is connected,

suspended targets (such as fish) are indicated by red,

green, and yellow spheres. Red indicates the largest

targets and green indicates the smallest.

NOTE: Mariner's Eye 3D and Fish Eye 3D chart views

are available with premium charts, in some areas.

Fishing Chart: Provides a detailed view of the bottom

contours and depth soundings on the chart. This chart

removes navigational data from the chart, provides

detailed bathymetric data, and enhances bottom contours

for depth recognition. This chart is best for offshore deep-

sea fishing.

NOTE: The offshore Fishing chart is available with

premium charts, in some areas.

Radar Overlay: Superimposes radar information on the

Navigation chart or the Fishing chart, when the

chartplotter is connected to a radar. This feature is not

available with all models.

Navigation Chart and Offshore Fishing

Chart

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

The Navigation and Fishing charts allows you to plan your

course, view map information, and follow a route. The Fishing

chart is for offshore fishing.

To open the Navigation chart, select Charts > Navigation

Chart.

To open the Fishing chart, select Charts > Fishing Chart.

Zooming In and Out of the Chart

The zoom level is indicated by the scale number at the

bottom of the chart. The bar under the scale number

represents that distance on the chart.

•Select to zoom out.

•Select to zoom in.

Panning the Chart

You can move the chart to view an area other than your

present location.

1From the chart, drag the navigation screen or use the

arrow keys.

2Select Stop Panning or Back to stop panning and return

the screen to your present location.

Selecting an Item on the Map Using the Device

Keys

1From a chart or 3D chart view, select , , , or to

move the cursor.

2Select Select.

Chart Symbols

This table contains some of the common symbols you might

see on the detailed charts.

Icon Description

Buoy

Information

2 Charts and 3D Chart Views

Icon Description

Marine services

Tide station

Current station

Overhead photo available

Perspective photo available

Other features common to most charts include depth contour

lines (with deep water represented in white), intertidal zones,

spot soundings (as depicted on the original paper chart),

navigational aids and symbols, obstructions, and cable areas.

Navigating to a Point on the Chart

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

When using Go To, a direct course and a corrected course

may pass over land or shallow water. Use visual sightings,

and steer to avoid land, shallow water, and other dangerous

objects.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

NOTE: Auto Guidance is available with premium charts, in

some areas.

1From the Navigation chart or Fishing chart, select a

location.

2If necessary, select Select.

3Select Navigate To.

4Select an option:

• To navigate directly to the location, select Go To.

• To create a route to the location, including turns,

select Route To.

• To use Auto Guidance, select Guide To.

5Review the course indicated by the magenta line.

NOTE: When using Auto Guidance, a gray segment

within any part of the magenta line indicates that Auto

Guidance cannot calculate part of the Auto Guidance line.

This is due to the settings for minimum safe water depth

and minimum safe obstacle height.

6Follow the magenta line, steering to avoid land, shallow

water, and other obstacles.

Viewing Location and Object Information on a

Chart

You can view information about a location or an object on the

Navigation chart or the Fishing chart.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

1From the Navigation chart or Fishing chart, select a

location or object.

A list of options appears along the right side of the chart.

The options that appear vary based on the location or

object you selected.

2Select an option:

• To view details of objects in the vicinity of the cursor,

select Review.

NOTE: Review does not appear if the cursor is not

near an object. If the cursor is near only one object,

the name of the object appears.

• To navigate to the selected location, select Navigate

To.

• To mark a waypoint at the cursor location, select

Create Waypoint.

• To view the distance and bearing of the object from

your current location, select Measure Distance.

The distance and bearing appear on the screen.

Select Set Reference to measure from a location

other than your current location.

• To view tide, current, celestial, chart notes, or local

services information near the cursor, select

Information.

Viewing Details about Navaids

From the Navigation chart, Fishing chart, Perspective 3D

chart view, or Mariner’s Eye 3D chart view, you can view

details about various types of navigation aids, including

beacons, lights, and obstructions.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

NOTE: Mariner's Eye 3D and Fish Eye 3D chart views are

available with premium charts, in some areas.

1From a chart or 3D chart view, select a navaid.

2If necessary, select Review.

3Select the name of the navaid.

Premium Charts

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

Optional premium charts, such as BlueChart® g2 Vision®,

allow you to get the most out of your chartplotter. In addition

to detailed marine charting, premium charts may contain

these features, which are available in some areas.

Mariner’s Eye 3D: Provides a view from above and behind

the boat for a three-dimensional navigation aid.

Fish Eye 3D: Provides an underwater, three-dimensional

view that visually represents the sea floor according to

the information on the chart.

Fishing Charts: Shows the chart with enhanced bottom

contours and without navigational data. This chart works

well for offshore deep-sea fishing.

High Resolution Satellite Imagery: Provides high-resolution

satellite images for a realistic view of the land and water

on the Navigation chart (page 4).

Aerial Photos: Shows marinas and other navigationally

significant aerial photos to help you visualize your

surroundings (page 4).

Detailed Roads and POI data: Shows detailed road and

point of interest (POI) data, which includes highly detailed

coastal roads and POIs such as restaurants, lodging,

local attractions.

Charts and 3D Chart Views 3

Auto Guidance: Uses specified safe depth, safe height, and

chart data to determine the best course to your

destination. Auto Guidance is available when you

navigate to a destination using Guide To.

Viewing Tide Station Information

NOTE: Tide station icons are available with premium charts,

in some areas.

on the chart indicates a tide station. You can view a

detailed graph for a tide station to help predict the tide level

at different times or on different days.

NOTE: This feature is available with premium charts, in some

areas.

1From the Navigation chart or Fishing chart, select a tide

station.

Tide direction À and tide level information Á appear

near .

2Select an option to view additional station information:

•Select the button with the station name Â.

• If more than one item is in the vicinity, select Review,

and select the button with the station name.

Animated Tide and Current Indicators

NOTE: This feature is available with premium charts, in some

areas.

You can view indicators for animated tide station and current

direction on the Navigation chart or the Fishing chart. You

must also enable animated icons in the chart settings

(page 4).

An indicator for a tide station appears on the chart as a

vertical bar graph with an arrow. A red arrow pointing

downward indicates a falling tide, and a blue arrow pointing

upward indicates a rising tide. When you move the cursor

over the tide station indicator, the height of the tide at the

station appears above the station indicator.

Current direction indicators appear as arrows on the chart.

The direction of each arrow indicates the direction of the

current at a specific location on the chart. The color of the

current arrow indicates the range of speed for the current at

that location. When you move the cursor over the current

direction indicator, the specific current speed at the location

appears above the direction indicator.

Color Current Speed Range

Yellow 0 to 1 knot

Orange 1 to 2 knots

Red 2 or more knots

Showing and Configuring Tides and Currents

NOTE: This feature is available with premium charts, in some

areas.

You can show static or animated tide and current station

indicators on the Navigation chart or Fishing chart.

1From the Navigation or Fishing chart, select Menu >

Chart Setup > Tides & Currents.

2Select an option:

•To show current station indicators and tide station

indicators on the chart, select On.

• To show animated tide station indicators and

animated current direction indicators on the chart,

select Animated.

Showing Satellite Imagery on the Navigation Chart

NOTE: This feature is available with premium charts, in some

areas.

You can overlay high-resolution satellite images on the land

or on both land and sea portions of the Navigation chart.

NOTE: When enabled, high-resolution satellite images are

present only at lower zoom levels. If you cannot see high-

resolution images in your optional chart region, you can

select to zoom in. You also can set the detail level higher

by changing the map zoom detail.

1Select Charts > Navigation Chart > Menu > Navigation

Chart Setup > Photos.

2Select an option:

• Select Land Only to show standard chart information

on the water, with photos overlaying the land.

• Select Photo Map Blend to show photos on both the

water and the land at a specified opacity. Use the

slider bar to adjust the photo opacity. The higher you

set the percentage, the more the satellite photos

cover both land and water.

Viewing Aerial Photos of Landmarks

Before you can view aerial photos on the Navigation chart,

you must turn on the Photo setting in the chart setup.

NOTE: This feature is available with premium charts, in some

areas.

You can use aerial photographs of landmarks, marinas, and

harbors to help orient yourself to your surroundings or to

acquaint yourself with a marina or a harbor prior to arrival.

1From the Navigation chart, select a camera icon:

• To view an overhead photo, select .

• To view a perspective photo, select . The photo

was taken from the location of the camera, pointed in

the direction of the cone.

2Select Review > Aerial Photo.

Automatic Identification System

The Automatic Identification System (AIS) enables you to

identify and track other vessels, and alerts you to area traffic.

When connected to an external AIS device, the chartplotter

can show some AIS information about other vessels that are

within range, that are equipped with a transponder, and that

are actively transmitting AIS information. The information

reported for each vessel includes the Maritime Mobile

Service Identity (MMSI), location, GPS speed, GPS heading,

time that has elapsed since the last position of the vessel

was reported, nearest approach, and time to the nearest

approach.

4 Charts and 3D Chart Views

AIS Targeting Symbols

Symbol Description

AIS vessel. The vessel is reporting AIS information. The

direction in which the triangle is pointing indicates the

direction in which the AIS vessel is moving.

Target is selected.

Target is activated. The target appears larger on the

chart. A green line attached to the target indicates the

heading of the target. The MMSI, speed, and direction of

the vessel appear beneath the target, if the details setting

has been set to Show. If the AIS transmission from the

vessel is lost, a message banner appears.

Target is lost. A green X indicates that the AIS

transmission from the vessel is lost, and the chartplotter

displays a message banner asking whether the vessel

should continue to be tracked. If you discontinue vessel

tracking, the lost target symbol disappears from the chart

or the 3D chart view.

Dangerous target in range. The target flashes while an

alarm sounds and a message banner appears. After the

alarm has been acknowledged, a solid red triangle with a

red line attached to it indicates the location and the

heading of the target. If the safe-zone collision alarm has

been set to Off, the target flashes, but the audible alarm

does not sound and the alarm banner does not appear. If

the AIS transmission from the vessel is lost, a message

banner appears.

Dangerous target is lost. A red X indicates that the AIS

transmission from the vessel is lost, and the chartplotter

displays a message banner asking whether the vessel

should continue to be tracked. If you discontinue vessel

tracking, the lost dangerous target symbol disappears

from the chart or the 3D chart view.

The location of this symbol indicates the closest point of

approach to a dangerous target, and the numbers near

the symbol indicate the time to the closest point of

approach to that target.

Heading and Projected Course of Activated AIS

Targets

When heading and course over ground information are

provided by an activated AIS target, the heading of the target

appears on a chart as a solid line attached to the AIS target

symbol. A heading line does not appear on a 3D chart view.

The projected course of an activated AIS target appears as a

dashed line on a chart or a 3D chart view. The length of the

projected course line is based on the value of the projected

heading setting. If an activated AIS target is not transmitting

speed information, or if the vessel is not moving, a projected

course line does not appear. Changes in the speed, course

over ground, or rate of turn information transmitted by the

vessel can impact the calculation of the projected course line.

When course over ground, heading, and rate of turn

information are provided by an activated AIS target, the

projected course of the target is calculated based on the

course over ground and the rate of turn information. The

direction in which the target is turning, which is also based on

the rate of turn information, is indicated by the direction of the

barb at the end of the heading line. The length of the barb

does not change.

When course over ground and heading information are

provided by an activated AIS target, but rate of turn

information is not provided, the projected course of the target

is calculated based on the course over ground information.

Showing AIS Vessels on a Chart or 3D Chart View

Before you can use AIS, you must connect the chartplotter to

an external AIS device and receive active transponder

signals from other vessels.

You can configure how other vessels appear on a chart or on

a 3D chart view. The display range configured for one chart

or one 3D chart view are applied only to that chart or to that

3D chart view. The details, projected heading, and trails

settings configured for one chart or one 3D chart view are

applied to all charts and to all 3D chart views.

1From a chart or 3D chart view, select Menu > Other

Vessels > AIS Display Setup.

2Select an option:

• To indicate the distance from your location in which

AIS vessels appear, select Display Range, and

select a distance.

• To show details about AIS-activated vessels, select

Details > Show.

• To set the projected heading time for AIS-activated

vessels, select Projected Heading, and enter the

time.

• To show the tracks of AIS vessels, select Trails, and

select the length of the track that appears using a

trail.

Activating a Target for an AIS Vessel

1From a chart or a 3D chart view, select an AIS vessel.

2Select AIS Vessel > Activate Target.

Viewing Information about a Targeted AIS Vessel

You can view the AIS signal status, MMSI, GPS speed, GPS

heading, and other information that is reported about a

targeted AIS vessel.

1From a chart or a 3D chart view, select an AIS vessel.

2Select AIS Vessel.

Deactivating a Target for an AIS Vessel

1From a chart or a 3D chart view, select an AIS vessel.

2Select AIS Vessel > Deactivate.

Viewing a List of AIS Threats

From a chart or 3D chart view, select Menu > Other

Vessels > AIS List.

Setting the Safe-Zone Collision Alarm

Before you can set a safe-zone collision alarm, you must

have a compatible chartplotter connected to an AIS device.

The safe-zone collision alarm is used only with AIS. The safe

zone is used for collision avoidance, and can be customized.

1Select Settings > Alarms > AIS > AIS Alarm > On.

A message banner appears and an alarm sounds when

an AIS-activated vessel enters the safe-zone area around

your boat. The object is also labeled as dangerous on the

screen. When the alarm is off, the message banner and

audible alarm are disabled, but the object is still labeled

as dangerous on the screen.

2Select Range.

3Select a distance for the safe-zone radius around your

vessel.

Charts and 3D Chart Views 5

4Select Time To.

5Select a time at which the alarm will sound if a target is

determined to intersect the safe zone.

For example, to be notified of a pending intersection 10

minutes before it will likely occur, set Time To to 10, and

the alarm will sound 10 minutes before the vessel

intersects the safe zone.

AIS Distress Signals

Self-contained AIS distress signal devices transmit

emergency position reports when activated. The chartplotter

can receive signals from Search and Rescue Transmitters

(SART), Emergency Position Indicating Radio Beacons

(EPIRB), and other man overboard signals. Distress signal

transmissions are different than standard AIS transmissions,

so they appear differently on the chartplotter. Instead of

tracking a distress signal transmission for collision avoidance,

you track a distress signal transmission to locate and assist a

vessel or person.

Navigating to a Distress Signal Transmission

When you receive a distress signal transmission, a distress

signal alarm appears.

Select Review > Go To to begin navigation to the

transmission.

AIS Distress Signal Device Targeting Symbols

Symbol Description

AIS distress signal device transmission. Select to see

more information about the transmission and begin

navigation.

Transmission lost.

Transmission test. Appears when a vessel initiates a test

of their distress signal device, and does not represent a

true emergency.

Transmission test lost.

Enabling AIS Transmission Test Alerts

To avoid a large number of test alerts and symbols in

crowded areas such as marinas, you can select to receive or

ignore AIS test messages. To test an AIS emergency device,

you must enable the chartplotter to receive test alerts.

1Select Settings > Alarms > AIS.

2Select an option:

• To receive or ignore Emergency Position Indicating

Radio Beacon (EPRIB) test signals, select AIS-EPIRB

Test.

• To receive or ignore Man Overboard (MOB) test

signals, select AIS-MOB Test.

• To receive or ignore Search and Rescue Transponder

(SART) test signals, select AIS-SART Test.

Turning Off AIS Reception

AIS signal reception is turned on by default.

Select Settings > Other Vessels > AIS > Off.

All AIS functionality on all charts and 3D chart views is

disabled. This includes AIS vessel targeting and tracking,

collision alarms that result from AIS vessel targeting and

tracking, and the display of information about AIS

vessels.

Chart and 3D Chart View Settings

NOTE: Not all settings apply to all charts and 3D chart views.

Some options require premium maps or connected

accessories, such as radar.

These settings apply to the charts and 3D chart views, except

the Radar overlay and Fish Eye 3D (page 8).

From a chart or 3D chart view, select Menu.

Waypoints & Tracks: See page 6.

Other Vessels: See page 7.

Surface Radar: Shows surface radar details on the

Perspective 3D or Mariner's Eye 3D chart views.

Weather Radar: Shows weather radar imaging on the

Perspective 3D or Mariner's Eye 3D chart views.

Navaids: Shows navigational aids on the Fishing chart.

Chart Setup: See page 6.

Overlay Numbers: See page 7. This might appear in the

Chart Setup menu.

Chart Appearance: See page 7. This might appear in the

Chart Setup menu.

Navigation and Fishing Chart Setup

NOTE: Not all settings apply to all charts and 3D chart views.

Some settings require external accessories or applicable

premium charts.

From the Navigation chart or Fishing chart, select Menu >

Chart Setup.

Photos: Shows camera icons in some areas when using

some premium charts. This enables you to view aerial

photos of landmarks (page 4).

Tides & Currents: Shows current station indicators and tide

station indicators on the chart (page 4).

Service Points: Shows locations where marine maintenance

and repair services may be obtained.

Roses: Shows a compass rose around your boat, indicating

compass direction oriented to the heading of the boat. A

true wind direction or apparent wind direction indicator

appears if the chartplotter is connected to a compatible

marine wind sensor.

Weather: Sets which weather items are shown on the chart,

if the chartplotter is connected to a compatible weather

receiver with an active subscription.

Lake Level: Allows you to enter the present level of the lake.

Overlay Numbers: See page 7.

Chart Appearance: See page 7.

Waypoints and Tracks Settings on the Charts and

Chart Views

From a chart, select Menu > Waypoints & Tracks.

Tracks: Shows tracks on the chart or 3D chart view.

Waypoints: Shows the Waypoints list (page 9).

New Waypoint: Creates a new waypoint.

Waypoint Display: Sets how to display waypoints on the

chart or 3D chart view.

Active Tracks: Shows the active track options menu.

Saved Tracks: Shows the list of saved tracks (page 11).

Tracks Display: Sets which tracks to display on the chart or

3D chart view based on track color.

6 Charts and 3D Chart Views

Overlay Numbers Settings

From a chart, 3D chart view, the Radar screen, or a

Combinations screen, select Menu > Overlay Numbers.

Edit Layout: Sets the layout of the data overlay, or data

fields. You can select the data to be shown within each

data field.

Navigation Inset: Shows the navigation inset when the

vessel is navigating to a destination.

Navigation Inset Setup: Allows you to configure the

navigation inset to show Route Leg Details, and to

control when the inset appears before a turn or

destination.

Compass Tape: Shows the compass tape data bar when the

vessel is navigating to a destination.

Editing the Data Fields

You can change the data shown in the overlay numbers

displayed on the charts, 3D chart views, Combination

screens, Sonar screens, and Radar screens.

1From a screen that supports overlay numbers, select

Menu > Overlay Numbers > Edit Layout.

2If necessary, select Chart Setup.

3Select Overlay Numbers > Edit Layout.

4Select a layout.

5Select a data field.

6Select the type of data shown in the field.

Available data options vary based on the chartplotter and

network configuration.

Showing a Navigation Inset

You can control whether a navigation inset appears on some

chart views. The navigation inset is shown only when the

boat is navigating to a destination.

1From a chart or 3D chart view, select Menu.

2If necessary, select Chart Setup.

3Select Overlay Numbers > Navigation Inset > Auto.

4Select Navigation Inset Setup.

5Complete an action:

•To show waypoint velocity made good (VMG) when

navigating a route with more than one leg, select

Route Leg Details > On.

• To show next-turn data based on distance, select

Next Turn > Distance.

• To show next-turn data based on time, select Next

Turn > Time.

• To indicate how the destination data appears, select

Destination, and select an option.

Chart Appearance Settings

You can adjust the appearance of the different chart views.

Each setting is specific for the type of chart view that you are

in.

NOTE: Not all settings apply to all charts and 3D chart views

and chartplotter models. Some options require premium

maps or connected accessories, such as radar.

From a chart or 3D chart view, select Menu > Chart Setup >

Chart Appearance.

Orientation: Sets the perspective of the map.

Detail: Adjusts the amount of detail shown on the map, at

different zoom levels, for the chart.

Heading Line: Shows and adjusts the heading line, which is

a line drawn on the map from the bow of the boat in the

direction of travel, and the data source for the heading

line.

World Map: Uses either a basic world map or a shaded relief

map on the chart. These differences are visible only when

zoomed out too far to see the detailed charts.

Spot Depths: Turns on spot soundings and sets a

dangerous depth. Spot depths that are equal to or more

shallow than the dangerous depth will be indicated by red

text.

Safety Shading: Sets the appearance of depth shading.

Depth Range Shading: Sets the appearance of depth range

shading.

Symbols: Shows and configures the appearance of various

symbols on the chart, such as the vessel icon, navaid

symbols, land POIs, and light sectors.

Style: Sets how the chart appears over 3D terrain.

Hazard Colors: Shows shallow water and land with a color

scale. Blue indicates deep water, yellow is shallow water,

and red is very shallow water.

Safe Depth: Sets the appearance of a safe depth for

Mariner’s Eye 3D.

NOTE: This setting affects only the appearance of hazard

colors in Mariner’s Eye 3D. It does not affect the safe

water depth Auto Guidance setting or the sonar shallow

water alarm setting.

Range Rings: Shows and configures the appearance of

range rings, which help you to visualize distances in

some chart views.

Lane Width: Specifies the width of the navigation lane, which

is the magenta line in some chart views that indicates the

course to your destination.

Other Vessels Settings on the Charts and Chart

Views

NOTE: These options require connected accessories, such

as an AIS receiver or VHF radio.

From a chart or 3D chart view, select Menu > Other

Vessels.

AIS List: Shows the AIS list (page 5).

DSC List: Shows the DSC list (page 20).

AIS Display Setup: See page 7.

DSC Trails: Shows the tracks of DSC vessels, and selects

the length of the track that appears using a trail.

AIS Alarm: Sets the safe-zone collision alarm (page 5).

AIS Display Settings

NOTE: AIS requires the use of an external AIS device and

active transponder signals from other vessels.

From a chart or 3D chart view, select Menu > Other Vessels

> AIS Display Setup.

AIS Display Range: Indicates the distance from your

location within which AIS vessels appear.

Details: Shows details about AIS-activated vessels.

Projected Heading: Sets the projected heading time for AIS-

activated vessels.

Trails: Shows the tracks of AIS vessels, and select the length

of the track that appears using a trail.

Charts and 3D Chart Views 7

Fish Eye 3D Settings

NOTE: This feature is available with premium charts, in some

areas.

From the Fish Eye 3D chart view, select Menu.

View: Sets the perspective of the 3D chart view.

Tracks: Shows tracks.

Sonar Cone: Shows a cone that indicates the area covered

by the transducer.

Fish Symbols: Shows suspended targets.

Navigation with a Chartplotter

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

To navigate, you must choose a destination, set a course or

create a route, and follow the course or route. You can follow

the course or the route on the Navigation chart, Fishing chart,

Perspective 3D chart view, or Mariner’s Eye 3D chart view.

NOTE: Auto Guidance is available with premium charts, in

some areas.

NOTE: Mariner's Eye 3D and Fish Eye 3D chart views are

available with premium charts, in some areas.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

Basic Navigation Questions

Question Answer

How do I make the chartplotter

point me in the direction in which I

want to go (bearing)?

Navigate using Go To. See

page 9.

How do I make the device guide me

along a straight line (minimizing

cross track) to a location using the

shortest distance from the present

location?

Build a single-leg route and

navigate it using Route To.

See page 10.

How do I make the device guide me

to a location while avoiding charted

obstacles?

Build a multi-leg route and

navigate it using Route To.

See page 10.

How do I make the device steer my

automatic pilot?

Navigate using Route To. See

page 10.

Can the device create a path for

me?

If you have premium maps

that support Auto Guidance

and are in an area covered by

Auto Guidance, navigate

using Auto Guidance. See

page 9.

How do I change the Auto

Guidance settings for my boat?

See page 28.

Destinations

You can select destinations using various charts and 3D

chart views or using the lists.

Searching for a Destination by Name

You can search for saved waypoints, saved routes, saved

tracks, and marine services destinations by name.

1Select Nav Info > Search by Name.

2Enter at least a portion of the name of your destination.

3If necessary, select Done.

The 50 nearest destinations that contain your search

criteria appear.

4Select the location.

Selecting a Destination Using the Navigation Chart

From the Navigation chart, select a destination.

Searching for a Destination Using Nav Info

1Select Nav Info.

•To view a list of preloaded locations and previously

marked locations, select Waypoints.

• To view a list of previously saved routes, select

Routes.

• To view a list of recorded tracks, select Tracks.

• To view a list of marinas and other offshore points of

interest, select Offshore Services.

• To view a list of marinas and other inland points of

interest, select Inland Services.

• To search for a destination by name, select Search

by Name.

2Select a destination.

Searching for a Marine Services Destination

NOTE: This feature is available with premium charts, in some

areas.

The chartplotter contains information for thousands of

destinations offering marine services.

1Select Nav Info.

2Select Offshore Services or Inland Services.

3If necessary, select the marine service category.

The chartplotter shows a list of the nearest locations and

the distance and bearing to each.

4Select a destination.

You can select or to view additional information or to

show the location on a chart.

Courses

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

When using Go To, a direct course and a corrected course

may pass over land or shallow water. Use visual sightings,

and steer to avoid land, shallow water, and other dangerous

objects.

NOTE: Auto Guidance is available with premium charts, in

some areas.

You can set and follow a course to a destination using one of

three methods: Go To, Route To, or Guide To.

Go To: Takes you directly to the destination.

Route To: Creates a route from your location to a

destination, allowing you to add turns along the way.

Guide To: Create a path to a destination using Auto

Guidance.

8 Navigation with a Chartplotter

Setting and Following a Direct Course Using Go To

CAUTION

When using Go To, a direct course and a corrected course

may pass over land or shallow water. Use visual sightings,

and steer to avoid land, shallow water, and other dangerous

objects.

You can set and follow a direct course from your current

location to a selected destination.

1Select a destination (page 8).

2Select Navigate To > Go To.

A magenta line appears. In the center of the magenta line

is a thinner purple line that represents the corrected

course from your current location to the destination. The

corrected course is dynamic, and it moves with your boat

when you are off course.

3Follow the magenta line, steering to avoid land, shallow

water, and other obstacles.

4If you are off course, follow the purple line (corrected

course) to go to your destination, or steer back to the

magenta line (direct course).

Setting and Following a Course Using Auto

Guidance

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

NOTE: Auto Guidance is available with premium charts, in

some areas.

1Select a destination (page 8).

2Select Navigate To > Guide To.

3Review the course indicated by the magenta Auto

Guidance line.

4Follow the magenta line, steering to avoid land, shallow

water, and other obstacles.

NOTE: When using Auto Guidance, a gray segment

within any part of the magenta line indicates that Auto

Guidance cannot calculate part of the Auto Guidance line.

This is due to the settings for minimum safe water depth

and minimum safe obstacle height.

Autopilot Navigation

When you start navigation (Go To, Route To, or Guide To), if

you are connected through a NMEA 2000® network to a

compatible Garmin® autopilot, you are prompted to engage

the autopilot.

Stopping Navigation

From the Navigation chart or Fishing chart, select Menu >

Stop Navigation.

Waypoints

Waypoints are locations you record and store in the device.

Marking Your Present Location as a Waypoint

From any screen, select Mark.

Creating a Waypoint at a Different Location

1Select Nav Info > Waypoints > Create Waypoint.

2Select an option:

•To create the waypoint by entering position

coordinates, select Enter Coordinates, and enter the

coordinates.

• To create the waypoint using a chart, select Use

Chart, select the location, and select Move

Waypoint.

Marking and Navigating to an MOB Location

When you mark a waypoint, you can designate it as a man

overboard (MOB) location.

Select an option:

• From any screen, select Mark > Man Overboard >

Yes.

• From the Home screen, select Man Overboard >

Yes.

An international MOB symbol marks the active MOB point

and the chartplotter sets a direct course back to the marked

location.

Viewing a List of all Waypoints

Select Nav Info > Waypoints.

Editing a Saved Waypoint

1Select Nav Info > Waypoints.

2Select a waypoint.

3Select Edit Waypoint.

4Select an option:

• To add a name, select Name, and enter a name.

• To change the symbol, select Symbol.

• To change the depth, select Depth.

• To change the water temperature, select Water

Temp..

• To change the comment, select Comment.

• To move the position of the waypoint, select Position.

Moving a Saved Waypoint

1Select Nav Info > Waypoints.

2Select a waypoint.

3Select Edit Waypoint > Position.

4Indicate a new location for the waypoint:

• To move the waypoint while viewing a chart, select

Use Chart, select a new location on the chart, and

select Move Waypoint.

• To move the waypoint using coordinates, select Enter

Coordinates, and enter the new coordinates.

Browsing for and Navigating to a Saved Waypoint

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

When using Go To, a direct course and a corrected course

may pass over land or shallow water. Use visual sightings,

and steer to avoid land, shallow water, and other dangerous

objects.

Navigation with a Chartplotter 9

NOTE: Auto Guidance is available with premium charts, in

some areas.

You must create a waypoint before you can navigate to a

waypoint.

1Select Nav Info > Waypoints.

2Select a waypoint.

3Select Navigate To.

4Select an option:

• To navigate directly to the location, select Go To.

• To create a route to the location, including turns,

select Route To.

• To use Auto Guidance, select Guide To.

5Review the course indicated by the magenta line.

NOTE: When using Auto Guidance, a gray segment

within any part of the magenta line indicates that Auto

Guidance cannot calculate part of the Auto Guidance line.

This is due to the settings for minimum safe water depth

and minimum safe obstacle height.

6Follow the magenta line, steering to avoid land, shallow

water, and other obstacles.

Deleting a Waypoint or an MOB

1Select Nav Info > Waypoints.

2Select a waypoint or an MOB.

3Select Delete.

Deleting All Waypoints

Select Nav Info > Manage Data > Clear User Data >

Waypoints > All.

Routes

Creating and Navigating a Route From Your

Present Location

You can create and immediately navigate a route on the

Navigation chart or the Fishing chart. This procedure does

not save the route or the waypoint data.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

1From the Navigation chart or Fishing chart, select a

destination.

2Select Navigate To > Route To.

3Select the location of the last turn before the destination.

4Select Add Turn.

5If necessary, repeat step 3 and 4 to add additional turns,

working backward from the destination to the present

location of your vessel.

The last turn you add should be the first turn you make,

starting from your present location. It should be the turn

closest to your vessel.

6If necessary, select Menu.

7Select Navigate Route.

8Review the course indicated by the magenta line.

9Follow the magenta line, steering to avoid land, shallow

water, and other obstacles.

Creating and Saving a Route

This procedure saves the route and all the waypoints in it.

The starting point can be your present location or another

location.

1Select Nav Info > Routes > New Route > Use Chart.

2Select the starting location of the route.

3Select Add Turn.

4Select the location of the next turn on the chart.

5Select Add Turn.

The chartplotter marks the location of the turn with a

waypoint.

6If necessary, repeat steps 4 and 5 to add more turns.

7Select the final destination.

Viewing a List of Routes

Select Nav Info > Routes.

Editing a Saved Route

You can change the name of a route, or change the turns the

route contains.

1Select Nav Info > Routes.

2Select a route.

3Select Edit Route.

4Select an option:

•To change the name, select Name, and enter the

name.

• To select a waypoint from the turn list, select Edit

Turns > Use Turn List, and select a waypoint from

the list.

Browsing for and Navigating a Saved Route

Before you can browse a list of routes and navigate to one of

them, you must create and save at least one route.

1Select Nav Info > Routes.

2Select a route.

3Select Navigate To.

4Select an option:

• To navigate the route from the starting point used

when the route was created, select Forward

• To navigate the route from the destination point used

when the route was created, select Backward.

A magenta line appears. In the center of the magenta line

is a thinner purple line that represents the corrected

course from your present location to the destination. The

corrected course is dynamic, and it moves with your boat

when you are off course.

5Review the course indicated by the magenta line.

6Follow the magenta line along each leg in the route,

steering to avoid land, shallow water, and other

obstacles.

7If you are off course, follow the purple line (corrected

course) to go to your destination, or steer back to the

magenta line (direct course).

Browsing for and Navigating Parallel to a Saved

Route

Before you can browse a list of routes and navigate to one of

them, you must create and save at least one route.

1Select Nav Info > Routes.

2Select a route.

3Select Navigate To.

4Select Offset to navigate parallel to the route, offset from

it by a specific distance.

10 Navigation with a Chartplotter

5Indicate how to navigate the route:

•To navigate the route from the starting point used

when the route was created, to the left of the original

route, select Forward – Port.

• To navigate the route from the starting point used

when the route was created, to the right of the original

route, select Forward – Starboard.

• To navigate the route from the destination point used

when the route was created, to the left of the original

route, select Backward – Port.

• To navigate the route from the destination point used

when the route was created, to the right of the original

route, select Backward – Starboard.

6If necessary, select Done.

A magenta line appears. In the center of the magenta line

is a thinner purple line that represents the corrected

course from your present location to the destination. The

corrected course is dynamic, and it moves with your boat

when you are off course.

7Review the course indicated by the magenta line.

8Follow the magenta line along each leg in the route,

steering to avoid land, shallow water, and other

obstacles.

9If you are off course, follow the purple line (corrected

course) to go to your destination, or steer back to the

magenta line (direct course).

Deleting a Saved Route

1Select Nav Info > Routes.

2Select a route.

3Select Delete.

Deleting All Saved Routes

Select Nav Info > Clear User Data > Routes.

Tracks

A track is a recording of the path of your boat. The track

currently being recorded is called the active track, and it can

be saved. You can show tracks in each chart or 3D chart

view.

Showing Tracks

From any chart or a 3D chart view, select Menu >

Waypoints & Tracks > Tracks > On.

A trailing line on the chart indicates your track.

Setting the Color of the Active Track

1Select Nav Info > Tracks > Active Track Options >

Track Color.

2Select a track color.

Saving the Active Track

The track currently being recorded is called the active track.

1Select Nav Info > Tracks > Save Active Track.

2Select an option:

• Select the time the active track began.

• Select Entire Log.

3Select Save.

Viewing a List of Saved Tracks

Select Nav Info > Tracks > Saved Tracks.

Editing a Saved Track

1Select Nav Info > Tracks > Saved Tracks.

2Select a track.

3Select Edit Track.

4Select an option:

• Select Name, and enter the new name.

• Select Track Color, and select a color.

Saving a Track as a Route

1Select Nav Info > Tracks > Saved Tracks.

2Select a track.

3Select Edit Track > Save Route.

Browsing for and Navigating a Recorded Track

Before you can browse a list of tracks and navigate to them,

you must record and save at least one track (page 11).

1Select Nav Info > Tracks.

2Select a track.

3Select Follow Track.

4Select an option:

• To navigate the track from the starting point used

when the track was created, select Forward.

• To navigate the track from the destination point used

when the track was created, select Backward.

5Review the course indicated by the colored line.

6Follow the line along each leg in the route, steering to

avoid land, shallow water, and other obstacles.

Deleting a Saved Track

1Select Nav Info > Tracks > Saved Tracks.

2Select a track.

3Select Delete.

Deleting All Saved Tracks

Select Nav Info > Manage Data > Clear User Data >

Saved Tracks.

Retracing the Active Track

The track currently being recorded is called the active track.

1Select Nav Info > Tracks > Follow Active Track.

2Select an option:

• Select the time the active track began.

• Select Entire Log.

3Review the course indicated by the colored line.

4Follow the colored line, steering to avoid land, shallow

water, and other obstacles.

Clearing the Active Track

Select Nav Info > Tracks > Clear Active Track.

The track memory is cleared, and the active track

continues to be recorded.

Managing the Track Log Memory During Recording

1Select Nav Info > Tracks > Active Track Options.

2Select Record Mode.

3Select an option:

• To record a track log until the track memory is full,

select Fill.

Navigation with a Chartplotter 11

• To continuously record a track log, replacing the

oldest track data with new data, select Wrap.

Configuring the Recording Interval of the Track

Log

You can indicate the frequency at which the track plot is

recorded. Recording more frequent plots is more accurate

but fills the track log faster. The resolution interval is

recommended for the most efficient use of memory.

1Select Nav Info > Tracks > Active Track Options >

Record Interval > Interval.

2Select an option:

• To record the track based on a distance between

points, select Distance > Change, and enter the

distance.

• To record the track based on a time interval, select

Time > Change, and enter the time interval.

• To record the track plot based on a variance from

your course, select Resolution > Change, and enter

the maximum error allowed from the true course

before recording a track point.

Deleting All Saved Waypoints, Routes, and

Tracks

Select Nav Info > Manage Data > Clear User Data > All

> OK.

Combinations

The Combination screen shows a combination of different

screens at the same time. The number of options available

on the Combination screen depends on the optional devices

you have connected to your chartplotter and whether you are

using premium maps.

Selecting a Combination

1Select Combinations.

2Select a combination.

Customizing the Combinations Screen

1Select Combinations.

2Select a combination.

3Select Menu.

4Select an option:

• To change the name, select Name, and enter a new

name.

• To customize the data shown on the screen, select

Overlay Numbers (page 7).

Gauges and Almanac Information

Gauges provide various information about the trip, engine,

environment, and wind, and are available on all chartplotter

models. Numbers, Compass, and Trip gauges are available

on all chartplotters. Wind and Environment gauges require

valid wind data from the NMEA® 0183 or NMEA 2000

network. Engine gauges require a connection to the NMEA

2000 network, so they are not available on all chartplotter

models.

The chartplotters also provide almanac information about

tides, currents, and the sun and moon, such as rise and set

times.

Viewing the Compass

You can view information about your bearing, heading, and

route using the compass.

Select Gauges > Compass.

Viewing Trip Gauges

Trip gauges show information for odometer, speed, time, and

fuel for your present trip.

Select Gauges > Trip.

Resetting Trip Gauges

1Select Gauges > Trip > Menu.

2Select an option:

• To set all the readings for the present trip to zero,

select Reset Trip.

• To set the maximum speed reading to zero, select

Reset Maximum Speed.

• To set the odometer reading to zero, select Reset

Odometer.

• To set all the readings to zero, select Reset All.

Viewing Engine and Fuel Gauges

Before you can view engine and fuel gauges, you must be

connected to a NMEA 2000 network capable of sensing

engine and fuel data. See the installation instructions for

details.

Select Gauges > Engine.

Customizing Engine Gauge and Fuel Gauge Limits

You can configure the upper and lower limits and the range

of desired standard operation of a gauge. When a value

exceeds the range of standard operation, the gauge

becomes red.

NOTE: Not all options are available for all gauges.

1Select Gauges > Engine > Menu > Gauge Setup > Set

Gauge Limits.

2Select a gauge.

3Select Gauge Limits > Custom > Edit Limits.

4Select an option:

• To set the minimum value of the standard operating

range, select Rated Min..

• To set the maximum value of the standard operating

range, select Rated Max..

• To set the lower limit of the gauge lower than the

rated minimum, select Scale Min..

• To set the upper limit of the gauge higher than the

rated maximum, select Scale Max..

5Select the limit value.

6Repeat steps 4 and 5 to set additional gauge limits.

Enabling Status Alarms for Engine Gauges

You can enable the chartplotter to display engine status

alarms.

Select Gauges > Engine > Menu > Gauge Setup >

Status Alarms > On.

12 Combinations

When an engine alarms occurs, a gauge status alarm

message appears and the gauge may become red

depending on the type of alarm.

Enabling Some Engine Gauge Status Alarms

1Select Gauges > Engine > Menu > Gauge Setup >

Status Alarms > Custom.

2Select one or more engine gauge alarms to turn on or off.

Selecting the Number of Engines Shown in Gauges

You can show information for up to four engines.

1Select Gauges > Engine > Menu > Gauge Setup >

Engine Selection > Number of Engines.

2Select an option:

• Select the number of engines.

• Select Auto Configure to automatically detect the

number of engines.

Customizing the Engines Shown in Gauges

Before you can customize how the engines are shown in the

gauges, you must manually select the number of engines

(page 13).

1Select Gauges > Engine > Menu > Gauge Setup >

Engine Selection > Edit Engines.

2Select First Engine.

3Select the engine to display in the first gauge.

4Repeat steps 2 and 3 for the remaining engine bars.

Configuring the Fuel Gauges Display

Before you can configure and display the fuel levels, a

compatible fuel flow sensor or tank level sensors must be

connected to the NMEA 2000 network.

You can display the total amount of fuel on-board either as a

numeric display that shows the total fuel or as a graphic

display that shows the level in each fuel tank.

1Select Gauges > Engine > Menu > Gauge Setup > Fuel

Display.

2Select an option:

• To display a numeric value for the total fuel level in all

tanks, select Use Total Fuel Onboard.

• To display a graphical representation of the amount of

fuel in each tank, select Use Fuel Tank Levels.

Setting the Fuel Capacity of the Vessel

1Select Settings > My Vessel > Fuel Capacity.

2Enter the combined total capacity of the fuel tanks.

Synchronizing the Fuel Data with the Actual Vessel

Fuel

You can synchronize the fuel levels in the chartplotter with

the actual fuel in the vessel when you add fuel to your vessel.

1Select Gauges > Engine > Menu.

2Select an option:

• After you have filled up all the fuel tanks on the

vessel, select Fill Up All Tanks. The fuel level is

reset to maximum capacity.

• After you have added less than a full tank of fuel,

select Add Fuel to Boat, and enter the amount

added.

• To specify the total fuel in the vessel tanks, select Set

Total Fuel Onboard, and enter the total amount of

fuel in the tanks.

Setting the Fuel Alarm

Before you can set a fuel level alarm, a compatible fuel flow

sensor must be connected to the NMEA 2000 network.

You can set an alarm to sound when the total amount of

remaining onboard fuel reaches the level you specify.

1Select Settings > Alarms > Fuel > Fuel Alarm > On.

2Enter the remaining amount of fuel that triggers the alarm.

Viewing the Wind Gauges

Before you can view wind information, you must have a wind

sensor connected to the chartplotter.

Select Gauges > Wind.

Configuring the Speed Source

You can specify whether the vessel speed data displayed on

the gauge and used for wind calculations is based on water

speed or GPS speed.

1Select Gauges > Wind > Menu > Speed Display.

2Select an option:

• To calculate the vessel speed based on data from the

water-speed sensor, select Water Speed.

• To calculate the vessel speed based on GPS data,

select GPS Speed.

Configuring the Heading Source of the Wind Gauge

You can specify the source of the heading displayed on the

wind gauge. Magnetic heading is the heading data received

from a heading sensor, and GPS heading is calculated by

your chartplotter GPS (course over ground).

1Select Gauges > Wind > Menu > Heading Source.

2Select GPS Hdg or Magnetic.

Selecting the Range of the Close-Hauled Wind

Gauge

You can specify the range of the close-hauled wind gauge for

both the upwind scale and the downwind scale.

1Select Gauges > Wind > Menu.

2Select an option:

• To set the maximum and minimum values that appear

when the upwind close-hauled wind gauge appears,

select Change Upwind Scale, and set the angles.

• To set the maximum and minimum values that appear

when the downwind close-hauled wind gauge

appears, select Change Downwind Scale, and set

the angles.

Viewing the Environment Gauges

Select Gauges > Environment.

Configuring the Alignment of the Wind Gauge

You can specify the alignment of the wind gauge on the

environment gauges.

1Select Gauges > Environment > Menu > Alignment.

2Select an option:

• To set the top of the wind gauge to a North heading,

select North Up.

• To rotate the gauge so the direction in which you are

moving is at the top, select Head Up.

Gauges and Almanac Information 13

Configuring the Heading Source of the

Environment Gauge

You can specify the source of the heading displayed on the

environment gauge. Magnetic heading is the heading data

received from a heading sensor, and GPS heading is

calculated by your chartplotter GPS (course over ground).

1Select Gauges > Environment > Menu > Heading

Source.

2Select GPS Hdg or Magnetic.

Setting the Barometer Reference Time

You can specify the reference time used to calculate the

barometer trend. The trend is indicated in the barometer field.

1Select Gauges > Environment > Menu > Pressure

Reference Time.

2Select an option.

Tide, Current, and Celestial Information

Tide Station Information

You can view information about a tide station for a specific

date and time, including the tide height, and when the next

high and low tides will occur. By default, the chartplotter

shows tide information for the most recently viewed tide

station and for the present date and time.

Select Nav Info > Tides & Currents > Tides.

Current Station Information

NOTE: Current station information is available with certain

detailed maps.

You can view information about a current station for a

specific date and time, including the current speed and level

of the current. By default, the chartplotter shows current

information for the most recently viewed current station and

for the present date and time.

Select Nav Info > Tides & Currents > Currents.

Celestial Information

You can view information about sunrise, sunset, moonrise,

moonset, moon phase, and the approximate sky view

location of the sun and moon. The center of the screen

represents the sky overhead, and the outermost rings

represent the horizon. By default, the chartplotter shows

celestial information for the present date and time.

Select Nav Info > Tides & Currents > Celestial.

Viewing Tide Station, Current Station, or Celestial

Information for a Different Date

1Select Nav Info > Tides & Currents.

2Select Tides, Currents, or Celestial.

3Select an option.

•To view information for a different date, select

Change Date > Manual, and enter a date.

• To view information for today, select Change Date >

Current.

• If available, to view information for the day after the

date shown, select Next Day.

• If available, to view information for the day before the

date shown, select Previous Day.

Viewing Information for a Different Tide or Current

Station

1Select Nav Info > Tides & Currents.

2Select Tides or Currents.

3Select Nearby Stations.

4Select a station.

Viewing Almanac Information from the Navigation

Chart

1Select Charts > Navigation Chart.

2Select an area on the map.

3Select Information.

4Select Tides, Currents, or Celestial.

Sonar

When properly connected to an optional Garmin sounder

module and a transducer, your compatible chartplotter can be

used as a fishfinder. There are three different sonar views to

help you view the fish in the area: a full-screen view, a split-

zoom view, and a split frequency view.

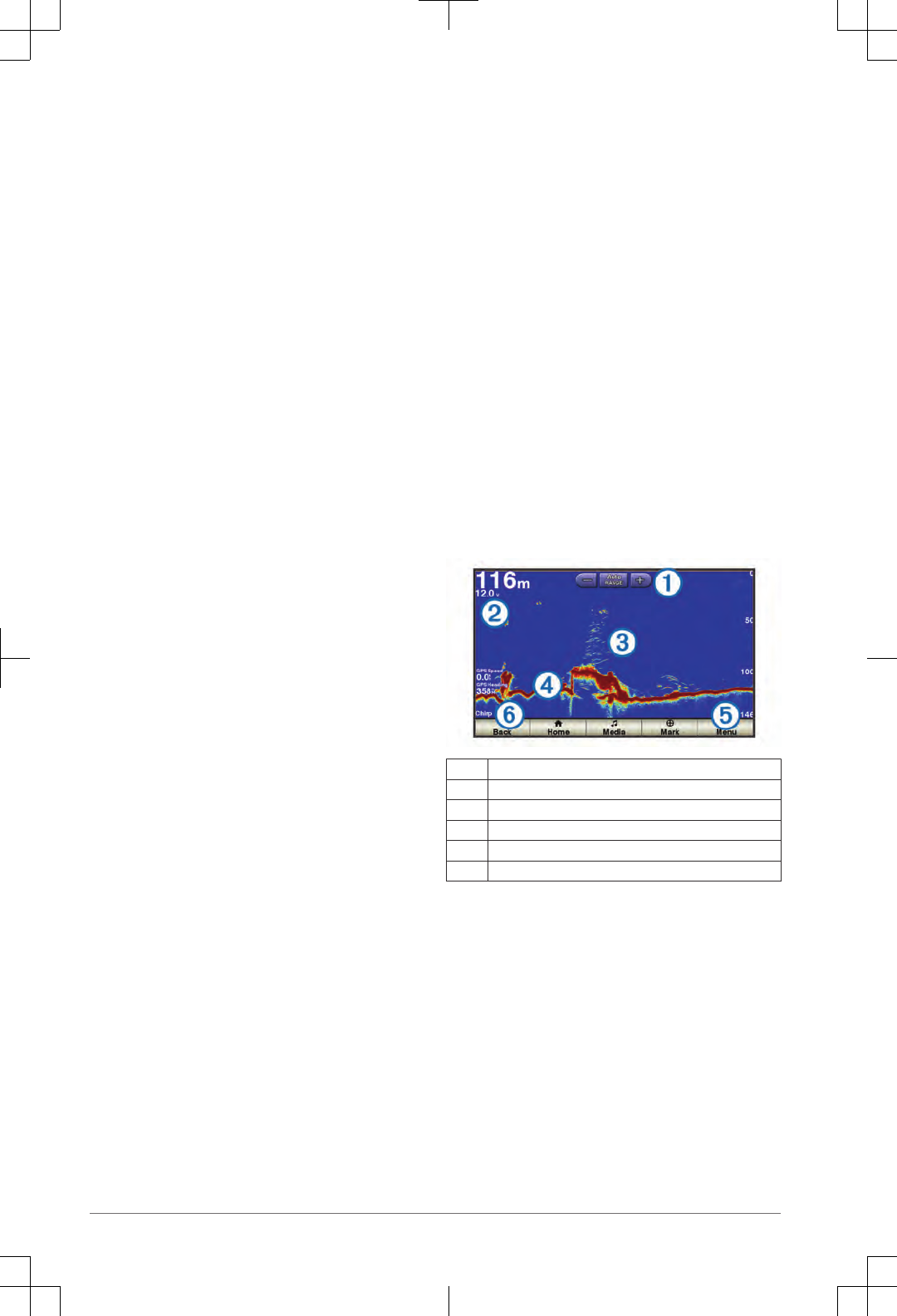

Full-Screen Sonar View

The full-screen sonar view shows a large image of the sonar

readings from a transducer. The range scale along the right

side of the screen shows the depth of detected objects as the

screen scrolls from the right to the left.

Select Sonar > Full Screen.

ÀRange adjustment controls

ÁPosition information

ÂSuspended targets or fish

ÃBottom of the body of water

ÄRange or depth of the water

ÅTransducer frequency

Split-Zoom Sonar View

The split-zoom sonar view shows a full-view graph of sonar

readings, and a magnified portion of that graph, on the same

screen.

Select Sonar > Split Zoom.

Split-Frequency Sonar View

In the split-frequency sonar view, one side of the screen

shows a full-view graph of high frequency sonar data, and the

other side of the screen shows a full-view graph of lower

frequency sonar data.

NOTE: The split-frequency sonar view requires the use of a

dual-frequency transducer.

Select Sonar > Split Frequency.

14 Sonar

Pausing the Sonar Display

From a Sonar view, select Menu > Pause Sonar.

Creating a Waypoint on the Sonar Screen

1From a Sonar view, select Menu > Pause Sonar.

2Select the location of the waypoint.

3Select Mark or New Waypoint.

Adjusting the Gain on the Sonar Screen

You can control the sensitivity of the sonar receiver. To see

more detail, increase the gain. If the screen is cluttered,

decrease the gain.

1From a Sonar view, select Menu > Gain.

2Select an option:

• To increase or decrease the gain manually, select Up

or Down.

• To allow the chartplotter to adjust the gain

automatically, select an automatic option.

Adjusting the Range of the Depth Scale

You can adjust the range of the depth scale that appears on

the right side of the screen.

1From a Sonar view, select Menu > Range.

2Select an option:

• To allow the chartplotter to adjust the depth scale

automatically, select Auto.

• To increase or decrease the range of the depth scale

manually, select Up or Down.

TIP: From the sonar screen, you can select or

to manually adjust the range of the depth scale.

Setting the Zoom Level on the Sonar

Screen

1From a Sonar view, select Menu > Zoom.

2Select an option:

• To zoom in on the sonar data from the bottom depth,

select Bottom Lock.

• To set the depth range of the magnified area

manually, select Set Zoom, select View Up or View

Down to set the depth range of the magnified area,

and select Zoom In or Zoom Out to increase or

decrease the magnification of the magnified area.

• To set the depth and zoom automatically, select Set

Zoom > Auto.

Selecting Frequencies

You can indicate which frequencies appear on the sonar

screen when using a dual frequency transducer.

1From a Sonar view, select Menu > Frequency.

2Select an option:

• To sweep each pulse through a range of frequencies

to deliver shallow-water-like target separation at

extremely deep depths and at low frequencies, select

Chirp. This is useful mainly for very deep, offshore

waters and when targeting some species of fish.

• To show data from a 200 kHz sonar signal, select 200

kHz. This is useful mainly for more-shallow, inland

waters.

• To show data from an 77 kHz sonar signal, select 77

kHz. This is useful mainly for deeper waters and to

see better fish arches in shallow water..

• To select a specific frequency, select Add, and enter

the frequency.

Turning On the A-Scope

The a-scope is a vertical flasher along the right side of the

full-screen sonar view. This feature expands the most

recently received sonar data so that it is easier to see. It can

also be helpful for detecting fish that are close to the bottom.

From a Sonar view, select Menu > Sonar Setup >

Appearance > A-Scope.

Sonar Setup

Sonar Settings

From a Sonar view, select Menu > Sonar Setup.

Depth Line: Shows a quick-reference depth line.

Scroll Speed: Sets the rate at which the sonar scrolls from

right to left.

On-screen Control: Sets the control on the sonar screen to

control the gain or range. This is available for

touchscreen devices.

Appearance: See page 15.

Overlay Numbers: See page 7.

Advanced: See page 15.

Sonar Appearance Settings

From a Sonar view, select Menu > Sonar Setup >

Appearance.

Color Scheme: Sets the color scheme.

Whiteline: Highlights the strongest signal from the bottom to

help define the hardness or softness of the signal.

A-Scope: Displays a vertical flasher along the right side of

the screen that shows instantaneously the range to

targets along a scale.

Pic. Advance: Allows the sonar picture to advance faster by

drawing more than one column of data on the screen for

each column of sounder data received. This is especially

helpful when you are using the sounder in deep water,

because the sonar signal takes longer to travel to the

water bottom and back to the transducer.

The 1/1 setting draws one column of information on the

screen per sounder return. The 2/1 setting draws two

columns of information on the screen per sounder return,

and so on for the 4/1 and 8/1 settings.

Fish Symbols: Sets how the sonar interprets suspended

targets.

Advanced Sonar Settings

From a Sonar view, select Menu > Sonar Setup >

Advanced.

Interference: Adjusts the sensitivity to reduce the effects of

interference from nearby sources of noise.

Surface Noise: Hides surface noise to help reduce clutter.

Color Gain: Adjusts the color of sonar returns.

Sonar Alarm Settings

NOTE: Some settings require external accessories.

Select Settings > Alarms > Sonar.

Sonar 15

Shallow Water: Sets an alarm to sound when the depth is

less than the specified value.

Deep Water: Sets an alarm to sound when the depth is

greater than the specified value.

Water Temp.: Sets an alarm to sound when the transducer

reports a temperature that is 2°F (1.1°C) above or below

the specified temperature.

Recording the Sonar Display

NOTE: Not all models support sonar recording.

1Insert a memory card into the card slot.

2From a Sonar view, select Menu > Record Sonar.

Stopping the Sonar Recording

Before you can stop recording the sonar, you must begin

recording it (page 16).

From a sonar view, select Menu > Stop Recording.

Depth and Water Temperature Graphs

If you are using a depth-capable transducer, or are receiving

water depth information over NMEA 0183 or NMEA 2000,

you can view a graphic log of depth readings over time. If you

are using a temperature-capable transducer, or are receiving

water temperature information over NMEA 0183 or NMEA

2000, you can view a graphic log of temperature readings

over time.

The graphs scroll to the left as information is received.

Select Sonar > Data Graphs.

Setting the Depth and Water Temperature Graph

Range and Time Scales

You can indicate the amount of time and the range of depth

that appear in the depth and water temperature graphs.

1Select Sonar > Data Graphs > Menu.

2Select Depth Graph Settings or Temperature Graph

Settings.

3Select an option:

• To set a time-elapsed scale, select Duration. The

default setting is 10 minutes. Increasing the time-

elapsed scale allows you to view variations over a

longer period of time. Decreasing the time-elapsed

scale allows you to view more detail over a shorter

period of time.

• To set the depth-range or temperature-range scale,

select Scale. Increasing the scale allows you to view

more variation in readings. Decreasing the scale

allows you to view more detail in the variation.

Radar

WARNING

The marine radar transmits microwave energy that has the

potential to be harmful to humans and animals. Before

beginning radar transmission, verify that the area around the

radar is clear. The radar transmits a beam approximately 12°

above and below a line extending horizontally from the center

of the radar. Avoid looking directly at the radar, because the

eyes are the most susceptible parts of the body.

NOTE: Not all models support radar.

When you connect your compatible chartplotter to an optional

Garmin marine radar, such as a GMR™ 1206 xHD or a GMR

24 HD, you can view more information about your

surroundings.

The GMR transmits a narrow beam of microwave energy as it

rotates to a 360° pattern. When the transmitted energy

contacts a target, some of that energy is reflected back to the

radar.

Radar Display Modes

NOTE: Not all modes are available with all radar devices and

all chartplotters.

Select Radar, and select a mode.

Cruising Mode: Shows a full-screen image of the gathered

radar information.

Harbor Mode: Intended for use in inland waters, this mode

works best with short-range signals (2 nm or less).

Offshore Mode: Intended for use in open waters, this mode

works best with long-range signals.

Sentry Mode: Allows you to put the radar into timed-transmit

mode, in which you can configure a radar transmit and

standby cycle to conserve power. You can also enable a

guard zone in this mode, which identifies a safe zone

around your boat. If you switch from Sentry mode to

another mode, the radar switches to full-time transmission

and disables all guard zones.

Radar Overlay Mode: Shows a full-screen image of the

gathered radar information on top of the Navigation chart.

The Radar overlay displays data based on the most-

recently used radar mode.

Transmitting Radar Signals

NOTE: As a safety feature, the radar enters standby mode

after it warms up. This gives you an opportunity to verify the

area around the radar is clear before beginning radar

transmission.

1With the chartplotter off, connect your radar as described

in the radar installation instructions.

2Turn on the chartplotter.

The radar warms up and a countdown alerts you when

the radar is ready.

3Select Radar.

4Select a radar mode.

A countdown message appears while the radar is starting

up.

5Select Menu > Transmit Radar.

Adjusting the Zoom Scale on the Radar

Screen

The radar zoom scale, also called the radar signal range,

represents the distance from your position (the center) to the

outermost ring.

From a Radar screen, select or .

Each ring represents an even division of the zoom scale.

For example, if the zoom scale is set at 3 miles, each ring

represents 1 mile from the center out.

Tips for Selecting a Radar Zoom Scale

The radar zoom scale, or radar signal range, indicates the

length of the pulsed signal transmitted and received by the

16 Radar

radar. As the range increases, the radar transmits longer

pulses in order to reach distant targets. Closer targets,

especially rain and waves, also reflect the longer pulses,

which can add noise to the Radar screen. Viewing

information about longer-range targets can also decrease the

amount of space available on the Radar screen for viewing

information about shorter-range targets.

• Determine what information you need to see on the

Radar screen.

For example, do you need information about nearby

weather conditions or targets and traffic, or are you more

concerned about distant weather conditions?

• Assess the environmental conditions where the radar is

being used.

Especially in inclement weather, longer-range radar

signals can increase the clutter on the Radar screen and

make it more difficult to view information about shorter-

range targets. In rain, shorter-range radar signals can

enable you to view information about nearby objects more

effectively, if the rain clutter setting is configured

optimally.

• Select the shortest effective range, given your reason for

using radar and the present environmental conditions.

Sentry Mode

Sentry mode allows you to put the radar into timed-transmit

mode, in which you can configure a radar transmit and

standby cycle to conserve power. You can also enable a

guard zone in this mode, which identifies a safe zone around

your boat and sounds an alarm when a radar object enters

the zone. Sentry mode works with all Garmin GMR model

radars.

Enabling Timed Transmit

Select Radar > Sentry > Menu > Sentry Setup > Timed

Xmit > On.

Setting the Standby and Transmit Times

Before you can set the standby and transmit times, you must

enable timed transmit (page 17).

To help conserve power, you can indicate the radar standby

time and the transmit time to implement periodic radar signal

transmissions at set intervals.

1Select Radar > Sentry > Menu > Sentry Setup.

2Select Stdby Time.

3Enter the time interval between radar signal

transmissions.

4Select Xmit Time.

5Enter the duration of each radar signal transmission.

Enabling a Guard Zone

Select Radar > Sentry > Menu > Sentry Setup > Enable

Guard Zone.

Defining a Circular Guard Zone

Before you can define the boundaries of the guard zone, you

must enable a guard zone (page 17).

You can define a circular guard zone that completely

encompasses your boat.

1Select Radar > Sentry > Menu > Sentry Setup > Adjust

Guard Zone > Move Radar Guard Zone > Circle.

2Select the location of the outer guard zone circle.

3Select the location of the inner guard zone circle to define

the width of the guard zone.

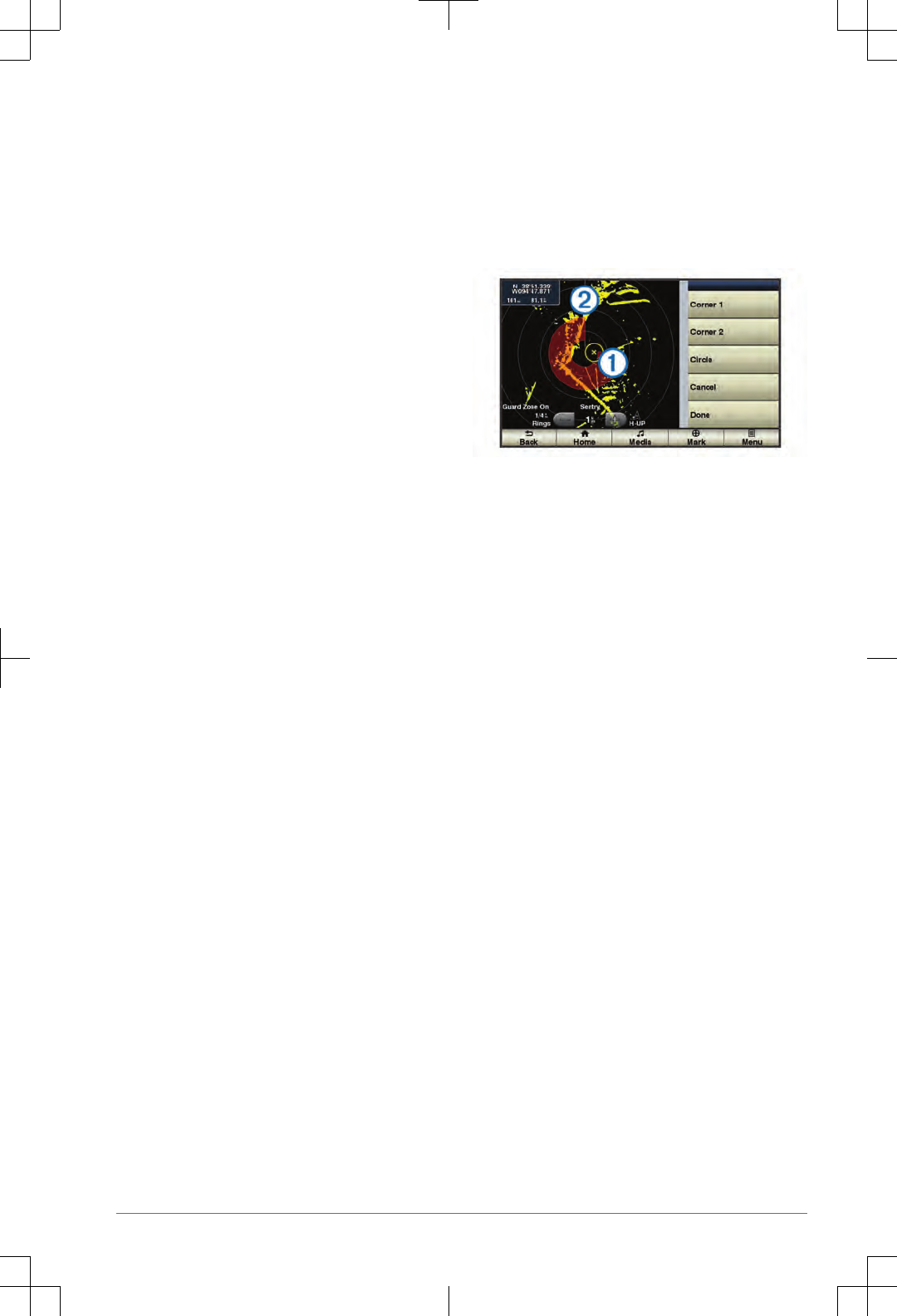

Defining a Partial Guard Zone

You can define the boundaries of a guard zone that does not

completely encompass your boat.

1Select Radar > Sentry > Menu > Sentry Setup > Adjust

Guard Zone > Move Radar Guard Zone > Corner 1.

2Touch and drag the location of the outer guard-zone

corner À.

3Select Corner 2.

4Touch the location of the inner guard-zone corner Á to

define the width of the guard zone.

Marking a Waypoint on the Radar Screen

1From a Radar screen or the Radar overlay, select a

location.

2Select Create Waypoint.

Viewing a List of AIS Threats

From any Radar screen or the Radar overlay, you can view

and customize the appearance of a list of AIS threats.

From a Radar screen or the Radar overlay, select Menu

> Other Vessels > AIS List.

Showing AIS Vessels on the Radar Screen

AIS requires the use of an external AIS device and active

transponder signals from other vessels.

You can configure how other vessels appear on the Radar

screen. If any setting (except the AIS display range) is

configured for one radar mode, the setting is applied to every

other radar mode. The details and projected heading settings

configured for one radar mode are applied to every other

radar mode and to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Other Vessels > AIS Display Setup.

2Select an option:

•To indicate the distance from your location within

which AIS vessels appear, select AIS Display Range,

and select a distance.

• To show details about AIS-activated vessels, select

Details > Show.

• To set the projected heading time for AIS-activated

vessels, select Projected Heading, and enter the

time.

• To show the tracks of AIS vessels, select Trails, and

select the length of the track that appears.

VRM and EBL

The variable range marker (VRM) and the electronic bearing

line (EBL) measure the distance and bearing from your boat

Radar 17

to a target object. On the Radar screen, the VRM appears as

a circle that is centered on the present location of your boat,

and the EBL appears as a line that begins at the present

location of your boat and intersects the VRM. The point of

intersection is the target of the VRM and the EBL.

Showing the VRM and the EBL

The VRM and the EBL configured for one mode are applied

to all other radar modes.

From a Radar screen, select Menu > Show VRM/EBL.

Adjusting the VRM and the EBL

Before you can adjust the VRM and the EBL, you must show

them on the Radar screen (page 18).

You can adjust the diameter of the VRM and the angle of the

EBL, which moves the intersection point of the VRM and the

EBL. The VRM and the EBL configured for one mode are

applied to all other radar modes.

1From a Radar screen, select a new location for the

intersection point of the VRM and the EBL.

2Select Drop VRM/EBL.

3Select Stop Pointing.

Measuring the Range and Bearing to a Target

Object

Before you can adjust the VRM and the EBL, you must show

them on the Radar screen (page 18).

1From a Radar screen, select the target location.

2Select Measure Distance.

The range and the bearing to the target location appear in

the upper-left corner of the screen.

Radar Overlay

When you connect your chartplotter to an optional Garmin

marine radar, you can use the Radar overlay to overlay radar

information on the Navigation chart or on the Fishing chart.

The Radar overlay superimposes radar information on the

Navigation chart or the Fishing chart. Data appears on the

Radar overlay based on the most recently used radar mode

(such as Harbor, Offshore, or Sentry), and all settings

configurations applied to the Radar overlay are also applied

to the last-used radar mode. For example, if you use Harbor

mode and then you switch to the Radar overlay, the Radar

overlay would show Harbor mode radar data. If you changed

the gain setting using the Radar overlay menu, the gain

setting for Harbor mode would change automatically.

Radar Overlay and Chart Data Alignment

When using the Radar overlay, the chartplotter aligns radar

data with chart data based on the boat heading, which is

based by default on data from a magnetic heading sensor

connected using a NMEA 0183 or NMEA 2000 network. If a

heading sensor is not available, the boat heading is based on

GPS tracking data.

GPS tracking data indicates the direction in which the boat is

moving, not the direction in which the boat is pointing. If the

boat is drifting backward or sideways due to a current or

wind, the Radar overlay may not perfectly align with the chart

data. This situation should be avoided by using boat-heading

data from an electronic compass.

If the boat heading is based on data from a magnetic heading

sensor or an automatic pilot, the heading data could be

compromised due to incorrect setup, mechanical malfunction,

magnetic interference, or other factors. If the heading data is

compromised, the Radar overlay may not align perfectly with

the chart data.

Showing the Radar Overlay

The Radar overlay displays data based on the most recently

used radar mode.

Select Radar > Radar Overlay.

The radar picture appears in orange and overlays the

Navigation chart.

Stopping the Transmission of Radar

Signals

From the Radar screen, select Menu > Radar to

Standby.

Optimizing the Radar Display

You can adjust the radar display settings for reduced clutter

and increased accuracy.

NOTE: You can optimize the radar display for each radar

mode.

1Select a radar range (page 18).

2Restore the default value of the gain setting (page 18).

3Adjust the gain setting manually (page 18).

Range of Radar Signals

The range of the radar signal indicates the length of the

pulsed signal transmitted and received by the radar. As the

range increases, the radar transmits longer pulses in order to

reach distant targets. Closer targets, especially rain and

waves, also reflect the longer pulses, which can add noise to

the Radar screen. Viewing information about longer-range

targets can also decrease the amount of space available on

the Radar screen for viewing information about shorter-range

targets.

Radar Gain and Clutter

Automatically Adjusting Gain on the Radar Screen

Auto is the default value for the gain setting. The automatic

gain setting for each Radar mode is optimized for that mode,

and may differ from the automatic gain setting used for

another mode.

NOTE: Depending upon the radar in use, the gain setting

configured for use in one radar mode may or may not be

applied to other radar modes or to the Radar overlay.

From a Radar screen or the Radar overlay, select Menu

> Gain > Auto.

The chartplotter sets the gain automatically once, based

on average conditions, the range of the radar signal, and

the selected radar mode. The chartplotter does not

readjust the gain automatically in response to changing

conditions.

Manually Adjusting Gain on the Radar Screen

For optimal radar performance that accounts for actual

conditions, you can manually adjust the gain.

NOTE: Depending upon the radar in use, the gain setting

configured for use in one radar mode may or may not be

applied to other radar modes or to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Gain.

2Select Up to raise the gain, until light speckles appear

across the Radar screen.

18 Radar

Data on the Radar screen is refreshed every few

seconds. As a result, the effects of manually adjusting the

gain may not appear instantly. Adjust the gain slowly.

3Select Down to lower the gain until the speckles

disappear.

4If boats, land, or other targets are within range, select

Down to lower the gain until the targets begin to blink.

5Select Up to raise the gain until the boats, land, or other

targets appear steadily lit on the Radar screen.

6Minimize the appearance of nearby large objects, if

necessary.

7Minimize the appearance of side-lobe echoes, if

necessary.

Minimizing Nearby Large-Object Interference

Nearby targets of significant size, such as jetty walls, can

cause a very bright image of the target to appear on the

Radar screen. This image can obscure smaller targets

located near it.

NOTE: Depending upon the radar in use, the gain setting

configured for use in one radar mode may or may not be

applied to other radar modes or to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Gain.

2Select Down to lower the gain until the smaller targets

are clearly visible on the Radar screen.

Reducing the gain to eliminate nearby large-object

interference may cause smaller or distant targets to blink

or disappear from the Radar screen.

Minimizing Side-Lobe Interference on the Radar Screen

Side-lobe interference may appear to streak outward from a

target in a semi-circular pattern. Side-lobe effects can be

avoided by reducing the gain or reducing the radar range.

NOTE: Depending upon the radar in use, the gain setting

configured for use in one radar mode may or may not be

applied to other radar modes or to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Gain.

2Select Down to lower the gain until the semi-circular,

streaked pattern disappears from the Radar screen.

Reducing the gain to eliminate side-lobe interference may

cause smaller or distant targets to blink or disappear from

the Radar screen.

Adjusting Sea Clutter on the Radar Screen

You can adjust the appearance of clutter caused by choppy

sea conditions. The sea clutter setting affects the appearance

of nearby clutter and targets more than it affects the

appearance of distant clutter and targets. A higher sea clutter

setting reduces the appearance of clutter caused by nearby

waves, but it can also reduce or eliminate the appearance of

nearby targets.

NOTE: Depending upon the radar in use, the sea clutter

setting configured for use in one radar mode may or may not

be applied to other radar modes or to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Noise Rejection > Sea Clutter > Presets.

2Select a setting that reflects the present sea conditions.

3Select Menu > Noise Rejection > Sea Clutter.

4Select Up or Down to adjust the appearance of sea

clutter until other targets are clearly visible on the Radar

screen.

Clutter caused by sea conditions may still be visible.

Adjusting Rain Clutter on the Radar Screen

You can adjust the appearance of clutter caused by rain.

Reducing the radar range also can minimize rain clutter

(page 16).

The rain clutter setting effects the appearance of nearby rain

clutter and targets more than it effects the appearance of

distant rain clutter and targets. A higher rain clutter setting

reduces the appearance of clutter caused by nearby rain, but

it can also reduce or eliminate the appearance of nearby

targets.

NOTE: Depending upon the radar in use, the rain clutter

settings configured for use in one radar mode may or may

not be applied to other radar modes or to the Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Noise Rejection > Rain Clutter.

2Select Up or Down to decrease or increase the

appearance of nearby rain clutter until other targets are

clearly visible on the Radar screen.

Clutter caused by rain may still be visible.

Reducing Cross Talk Clutter on the Radar Screen

You can reduce the appearance of clutter caused by

interference from another nearby radar source, when the

Cross Talk Reject setting is on.

NOTE: Depending upon the radar in use, the crosstalk

setting configured for use in one radar mode may or may not

be applied to other radar modes or to the Radar overlay.

From a Radar screen or the Radar overlay, select Menu

> Noise Rejection > Cross Talk Reject.

Radar Display Settings

From any Radar screen or the Radar overlay, select Menu >

Radar Setup.

Orientation: Sets the perspective of the radar display. The

orientation setting applies to every radar mode. This

setting does not apply to the Radar overlay.

Appearance: Sets the color scheme, look-ahead speed, and

navigation appearance.

Front of Boat: Compensates for the physical location of the

radar scanner on a boat, if the radar scanner does not

align with the bow-stern axis.

Radar Appearance Settings

From a Radar screen, select Menu > Radar Setup >

Appearance.

NOTE: These settings do not apply to the Radar overlay.

Color Scheme: Sets the color scheme.

Look-Ahead Speed: Shifts your present location toward the

bottom of the screen automatically as your speed

increases. Enter your top speed for the best results.

Heading Line: Shows an extension from the bow of the boat

in the direction of travel on the radar screen.

Rings: Shows the range rings that help you to visualize

distances on the radar screen.

Nav. Lines: Shows the navigation lines that indicate the

course you have set using Route To, Guide To, or Go To.

Waypoints: Shows waypoints on the radar screen.

Radar 19

Front-of-Boat Offset

The front-of-boat offset compensates for the physical location

of the radar scanner on a boat, if the radar scanner does not

align with the bow-stern axis.

Measuring the Potential Front-of-Boat Offset

The front-of-boat offset compensates for the physical location

of the radar scanner on a boat, if the radar scanner does not

align with the bow-stern axis.

1Using a magnetic compass, take an optical bearing of a

stationary target located within viewable range.

2Measure the target bearing on the radar.

3If the bearing deviation is more than +/- 1°, set the front-

of-boat offset.

Setting the Front-of-Boat Offset

Before you can set the front-of-boat offset, you must measure

the potential front-of-boat offset.

The front-of-boat offset setting configured for use in one

radar mode is applied to every other radar mode and to the

Radar overlay.

1From a Radar screen or the Radar overlay, select Menu

> Radar Setup > Front of Boat.

2Select Up or Down to adjust the offset.

Digital Selective Calling

Networked Chartplotter and VHF Radio

Functionality

If you have a NMEA 0183 VHF radio or a NMEA 2000 VHF

radio connected to your chartplotter, these features are

enabled.

• The chartplotter can transfer your GPS position to your

radio. If your radio is capable, GPS position information is

transmitted with DSC calls.

• The chartplotter can receive digital selective calling (DSC)

distress and position information from the radio.

• The chartplotter can track the positions of vessels

sending position reports.

If you have a Garmin NMEA 2000 VHF radio connected to

your chartplotter, these features are also enabled.

• The chartplotter allows you to quickly set up and send

individual routine call details to your Garmin VHF radio.

• When you initiate a man-overboard distress call from your

radio, the chartplotter shows the man-overboard screen

and prompts you to navigate to the man-overboard point.

• When you initiate a man-overboard distress call from your

chartplotter, the radio shows the Distress Call page to

initiate a man-overboard distress call.

Turning On DSC

Select Settings > Other Vessels > DSC.

DSC List

The DSC list is a log of the most recent DSC calls and other

DSC contacts you have entered. The DSC list can contain up

to 100 entries. The DSC list shows the most recent call from

a boat. If a second call is received from the same boat, it

replaces the first call in the call list.

Viewing the DSC List

Before you can view the DSC list, the chartplotter must be

connected to a VHF radio that supports DSC.

Select Nav Info > Other Vessels > DSC List.

Adding a DSC Contact

You can add a vessel to your DSC list. You can make calls to

a DSC contact from the chartplotter.

1Select Nav Info > Other Vessels > DSC List > Add

Contact.

2Enter the Maritime Mobile Service Identity (MMSI) of the

vessel.

3Enter the name of the vessel.

Incoming Distress Calls

If your Garmin chartplotter and VHF radio are connected

using NMEA 0183 or NMEA 2000, your chartplotter alerts

you when your VHF radio receives a DSC distress call. If

position information was sent with the distress call, that

information is also available and recorded with the call.

designates a distress call in the DSC list and marks the

position of the vessel on the Navigation chart at the time of

the DSC distress call.

Navigating to a Vessel in Distress

designates a distress call in the DSC list and marks the

position of a vessel on the Navigation chart at the time of the

DSC distress call.

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select Navigate To.

4Select Go To or Route To.

Man-Overboard Distress Calls Initiated from a VHF

Radio

When your chartplotter is connected to a Garmin NMEA 2000

compatible radio, and you initiate a man-overboard DSC

distress call from your radio, your Garmin chartplotter shows

the man-overboard screen and prompts you to navigate to

the man-overboard point. If you have a Garmin autopilot

system connected to the network, your chartplotter prompts

you to start a Williamson’s turn to the man-overboard point.

If you cancel the man-overboard distress call on the radio,

the chartplotter screen prompting you to activate navigation

to the man-overboard location disappears.

Man-Overboard Distress Calls Initiated from the

Chartplotter

When your chartplotter is connected to a Garmin NMEA 2000

compatible radio and you activate navigation to a man-

overboard location, the radio shows the Distress Call page so

you can quickly initiate a man-overboard distress call.

For information on placing distress calls from your radio, see

the VHF radio owner’s manual. For information about

marking an MOB, see page 9.

Position Tracking

When you connect your Garmin chartplotter to a VHF radio

using NMEA 0183, you can track vessels that send position

reports. This feature is also available with NMEA 2000, when

the vessel sends the correct PGN data (PGN 129808; DSC

Call Information).

20 Digital Selective Calling

Every position report call received is logged in the DSC list

(page 20).

Viewing a Position Report

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select an option:

• To switch to position report details, select .

• To switch to a Navigation chart marking the location,

select .

Navigating to a Tracked Vessel

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select Navigate To.

4Select Go To or Route To.

Creating a Waypoint at the Position of a Tracked

Vessel

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select Create Waypoint.

Editing Information in a Position Report

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select Edit.

• To enter the name of the vessel, select Name.

• To select a new symbol, select Symbol.

• To enter a comment, select Comment.

• To show a trail line for the vessel if your radio is

tracking the position of the vessel, select Trail >

Show.

• To select a color for the trail line, select Trail Line.

Deleting a Position-Report Call

1Select Nav Info > Other Vessels > DSC List.

2Select a position-report call.

3Select Edit > Clear Report.

Viewing Vessel Trails on the Chart

You can view trails for all tracked vessels on some chart

views. By default, a black line indicates the path of the

vessel, a black dot indicates each previously reported

position of a tracked vessel, and a blue flag indicates the last

reported position of the vessel.

1From a chart or 3D chart view, select Menu > Other

Vessels > DSC Trails.

2Select the number of hours to show tracked vessels on

the chart.

For example, if you select 4 Hours, all trail points that are

less than four hours old appear for all tracked vessels.

Individual Routine Calls

When you connect your Garmin chartplotter to a Garmin VHF

radio over the NMEA 2000 or the NMEA 0183 network, you

can use the chartplotter interface to set up an individual

routine call.

When setting up an individual routine call from your

chartplotter, you can select the DSC channel on which you

want to communicate. The radio transmits this request with

your call.

Selecting a DSC Channel

NOTE: The selection of a DSC channel is limited to those

channels that are available in all frequency bands. The

default channel is 72. If you select a different channel, the

chartplotter uses that channel for subsequent calls until you

call using another channel.

1Select Nav Info > Other Vessels > DSC List.

2Select a vessel or a station to call.

3Select Call with Radio > Channel.

Making an Individual Routine Call

NOTE: When initiating a call from the chartplotter, if the radio

does not have an MMSI number programmed, the radio will

not receive call information.

1Select Nav Info > Other Vessels > DSC List.

2Select a vessel or a station to call.

3Select Call with Radio.

4If necessary, select Channel, and select a new channel.

5Select Send.

The chartplotter sends information about the call to the

radio.

6On your Garmin VHF radio, select Call.

Making an Individual Routine Call to an AIS Target

1From a chart or 3D chart view, select an AIS target.

2Select AIS Vessel > Call with Radio.

3If necessary, select Channel, and select a new channel.

4Select Send.

The chartplotter sends information about the call to the

radio.

5On your Garmin VHF radio, select Call.

Viewing Video

Before you can view video, you must connect a compatible

chartplotter to an analog video source.

NOTE: This feature is not available with all models.

Select Video.

Configuring the Video Appearance

1Select Video > Menu.

2Select an option:

• To show the video using a stretched aspect ratio,

select Aspect > Stretch. The video cannot be

stretched beyond the dimensions provided by the

connected video device, and it may not fill the entire

screen.

• To show the video using a standard aspect ratio,

select Aspect > Standard.

• To adjust the brightness, select Brightness, and

select Up, Down, or Auto.

• To adjust the color saturation, select Saturation, and

select Up, Down, or Auto.

• To adjust the contrast, select Contrast, and select

Up, Down, or Auto.

Viewing Video 21

• To allow the chartplotter to automatically select the

source format, select Standard > Auto.

SiriusXM™

WARNING

The weather information provided through this product is

subject to service interruptions and may contain errors,

inaccuracies, or outdated information, and consequently

should not be relied upon exclusively. Always use common

sense while driving or navigating, and check alternate

weather information sources prior to making safety-related

decisions. You acknowledge and agree that you shall be

solely responsible for use of the weather information and all

decisions taken with respect to driving or navigating in

weather. Garmin will not be responsible for any

consequences of using the weather data.

NOTE: SiriusXM data is not available in all regions.

A Garmin SiriusXM satellite weather receiver and antenna

receives XM WX Satellite Weather data and shows it on

various Garmin devices, including the Navigation chart on a

compatible chartplotter. The weather data for each feature

comes from reputable weather data centers such as the

National Weather Service and the Hydrometeorological

Prediction Center. For more information, go to

www.xmwxweather.com.

SiriusXM Equipment and Subscription

Requirements

To use XM WX satellite weather, you must have a compatible

satellite weather receiver. To use SiriusXM satellite radio,

you must have a compatible satellite radio receiver. Go to

www.garmin.com for more information. You must also have a

valid subscription to receive satellite weather and radio. For

more information, refer to the instructions for your satellite

weather and radio equipment.

Weather Data Broadcasts

XM WX Satellite Weather data is broadcast at five-minute

intervals. When the Garmin receiver is turned on, or when a

different weather feature is selected, the receiver must

receive new data before it can be shown. You might

experience a delay before weather data or a different feature

appears on the chart.

NOTE: Any weather feature can change in appearance if the

source that provides the information changes.

Viewing Precipitation Information

Precipitation ranging from very light rain and snow, up to

strong thunderstorms, is indicated in varying shades and

colors. Precipitation is shown either independently or with

other weather information.

Select Weather > Precipitation.

The time stamp in the upper-left corner of the screen

indicates the elapsed time since the weather data

provider last updated the information.

Precipitation Views

Select Weather > Precipitation > Menu.

Radar Loop: Shows precipitation information as an image of

the latest update or as an animated loop of the latest

updates. The time stamp indicates the elapsed time since

the service provider generated the weather radar frame

currently displayed on the screen.

Cloud Cover: Shows cloud cover data.

Satellite IR: Shows infrared satellite data, which displays

clouds based on cloud-top temperatures. Deeper shades

of gray represent colder clouds often found with cirrus or

thunderstorm clouds. Lighter shades or a lack of shading

indicate warmer clouds usually associated with stratus or

fog.

Waypoints: Shows waypoints.

Legend: Shows the weather legend.

Storm Cell and Lightning Information

Storm cell icons on the weather Precipitation chart

indicate both the present position of a storm and the

projected path of that storm in the immediate future.

Red cones appear with a storm cell icon, and the widest part

of each cone points in the direction of the projected path of

the storm cell. The red lines in each cone indicate where the

storm will most likely be in the near future. Each line

represents 15 minutes.

Lightning strikes are represented by . Lightning appears on

the weather Precipitation chart if strikes were detected within

the last seven minutes. The ground-based lightning detection

network detects cloud-to-ground lightning only.

Hurricane Information

The weather Precipitation chart can show the present

position of a hurricane , a tropical storm, or a tropical

depression. A red line stemming from a hurricane icon

indicates the projected path of the hurricane. Darkened dots

on the red line indicate the projected locations through which

the hurricane will pass, as received from the weather data

provider.

Weather Warnings and Weather Bulletins

When a marine weather warning, weather watch, weather

advisory, weather bulletin, or other weather statement is

issued, shading indicates the area to which the information

applies. The aqua lines on the chart indicate the boundaries

of marine forecasts, coastal forecasts, and offshore

forecasts. Weather bulletins may consist of either weather

watches or weather advisories.

To view information about the warning or bulletin, select the

shaded area.

Color Marine Weather

Group

Weather Subcategories

Light

Blue

Flash Flood

Dark

Blue

Flood Areal Flood, Coastal Flood, Debris

Flow, Flood, High Water Level,

Hydrological, Lakeshore Flood, Storm

Surge

Yellow Marine/Wind Brisk Wind, Extreme Wind, Freezing

Spray, Gale, Hazardous Seas, High

Surf, High Wind, Hurricane Force

Wind, Lake Wind, Les Suêtes Wind,

Low Water, Marine Weather, Rip

Tide, Small Craft, Small Craft

Hazardous Seas, Small Craft Rough

Bar, Small Craft Winds, Special

Marine, Squall, Storm, Strong Wind,

Tsunami, Waterspout, Wind,

Wreckhouse Winds

22 SiriusXM™

Color Marine Weather

Group

Weather Subcategories

Pink Miscellaneous Air Quality, Air Stagnation, Ashfall,

Blowing Dust, Excessive Heat, Fire

Weather, Heat, High Heat and

Humidity, Humidex, Humidex and

Health, Rainfall, Special Weather,

Weather

Orange Severe Storm

Red Tornado

Purple Tropical Hurricane, Inland Hurricane, Inland

Tropical Storm, Tropical Storm,

Typhoon

Dark

Gray

Visibility Dense Fog, Dense Smoke, Dust

Storm, Smog

White Winter Arctic Outflow, Avalanche, Blizzard,

Blowing Snow, Cold Wave, Extreme

Cold, Flash Freeze, Freeze, Freezing

Drizzle, Freezing Fog, Freezing Rain,

Frost, Hard Freeze, Heavy Freezing

Spray, Heavy Snow, Ice Storm, Lake

Effect Blowing Snow, Lake Effect

Snow, Sleet, Snow, Snow and

Blowing Snow, Snow Squall,

Snowfall, Wind Chill, Winter Storm,

Winter Weather

Forecast Information

The Forecast chart shows city forecasts, marine forecasts,

warnings, hurricane warnings, METARS, county warnings,

weather fronts and pressure centers, surface pressure, and

WX buoys.

Viewing Forecast Information for Another Time

Period

1Select Weather > Forecast.

2Select an option:

•To view the weather forecast for the next 12 hours,

select Next Forecast or , and to view forecasts up to

48 hours, in 12-hour increments, select Next

Forecast or again.

• To view the weather forecast for the previous 12

hours, select Previous Forecast or , and to view

previous forecasts, up to 48 hours ago, in 12-hour

increments, select Previous Forecast or again.

Viewing a Marine Forecast or an Offshore Forecast

1Select Weather > Forecast.

2Pan the chart to an offshore location.

The Marine Forecast or Offshore Forecast options appear

when forecast information is available.

3Select Marine Forecast or Offshore Forecast.

Weather Fronts and Pressure Centers

Weather fronts appear as lines that indicate the leading edge

of an air mass.

Front Symbol Description

Cold front

Warm front

Stationary front

Front Symbol Description

Occluded front

Trough

Pressure-center symbols often appear near weather fronts.

Pressure-

Center

Symbol

Description

Indicates a low-pressure center, which is a region of

relatively lower pressure. Moving away from a low-

pressure center results in increased pressure.

Winds flow counterclockwise around low-pressure

centers in the northern hemisphere.

Indicates a high-pressure center, which is a region

of relatively higher pressure. Moving away from a

high-pressure center results in decreased pressure.

Winds flow clockwise around high-pressure centers

in the northern hemisphere.

City Forecasts

City forecasts appear as weather symbols. The forecast is

viewed in 12-hour increments.

Symbol Weather Symbol Weather

Partly cloudy Fair (sunny, hot, clear)

Cloudy Rain (drizzle, sleet,

showers)

Windy Foggy

Thunderstorms Snow (snow showers,

flurries, blizzard, blowing

snow, sleet, freezing rain,

freezing drizzle)

Smoke (dusty, hazy)

Viewing Sea Conditions

The Sea Conditions chart shows information about surface

conditions, including winds, wave height, wave period, and

wave direction.

Select Weather > Sea Conditions.

Surface Winds

Surface wind vectors appear on the Sea Conditions chart

using wind barbs that indicate the direction from which the

wind is blowing. A wind barb is a circle with a tail. The line or

flag attached to the tail of the wind barb indicates the wind

speed. A short line represents 5 knots, a long line represents

10 knots, and triangle represents 50 knots.

Wind Barb Wind Speed Wind Barb Wind Speed

Calm 20 knots

5 knots 50 knots

10 knots 65 knots

15 knots

Wave Height, Wave Period, and Wave Direction

Wave heights for an area appear as variations in color.

Different colors indicate different wave heights, as shown in

the legend.

The wave period indicates the time (in seconds) between

successive waves. Wave period lines indicate areas that

have the same wave period.

SiriusXM™ 23

Wave directions appear on the chart using red arrows. The

direction of each arrow pointer indicates the direction in

which a wave is moving.

Viewing Forecast Sea Conditions Information for

Another Time Period

1Select Weather > Sea Conditions.

2Select an option:

• To view forecasted sea conditions for the next 12

hours, select Next Forecast or , and to view

forecasts up to 48 hours, in 12-hour increments,

select Next Forecast or again.

• To view the forecasted sea conditions for the previous

12 hours, select Previous Forecast or , and to view

previous forecasts, up to 48 hours ago, in 12-hour

increments, select Previous Forecast or again.

Viewing Fishing Information

The weather Fishing chart shows present water temperature,

present surface pressure conditions, and fishing forecasts.

Select Weather > Fishing.

Surface Pressure and Water Temperature Data

Surface-pressure information appears as pressure isobars

and pressure centers. Isobars connect points of equal

pressure. Pressure readings can help to determine weather

and wind conditions. High-pressure areas are generally

associated with fair weather. Low-pressure areas are

generally associated with clouds and the chance of

precipitation. Isobars packed closely together show a strong

pressure gradient. Strong pressure gradients are associated

with areas of stronger winds.

Pressure units are shown in millibars (mb), inches of Mercury

(inHg), or hectopascals (hPa).

Colored shading indicates the surface temperature of the

water, as shown in the legend in the corner of the display.

Forecasting Fish Locations

You can show areas that contain optimal weather conditions

for specific species of fish.

1Select Weather > Fishing > Menu > Fish Species.

2Select a species of fish.

3Select On.

4Repeat steps 2 and 3 to show areas with optimal weather

conditions for additional species of fish.

Shaded areas indicate optimal fishing areas. If you have

selected more than one species of fish, you can select a

shaded area to view the fish species that are included in

the shaded area.

Visibility Information

Visibility is the forecast maximum horizontal distance that can

be seen at the surface, as shown in the legend on the left of

the screen. Variations in the visibility shading show the

forecast change in surface visibility.

Select Weather > Visibility.

Viewing Forecast Visibility Information for Another

Time Period

1Select Weather > Visibility.

2Select an option:

• To view the visibility forecast for the next 12 hours,

select Next Forecast or , and to view forecasts up to

48 hours, in 12-hour increments, select Next

Forecast or again.

• To view the visibility forecast for the previous 12

hours, select Previous Forecast or , and to view

previous forecasts, up to 48 hours ago, in 12-hour

increments, select Previous Forecast or again.

Viewing Buoy Reports

Report readings are taken from buoys and coastal

observation stations. These readings are used to determine

air temperature, dew point, water temperature, tide, wave

height and period, wind direction and speed, visibility, and

barometric pressure.

1From a weather chart, select .

2Select Review > Buoy.

Review does not appear if the cursor is not near an

object. If the cursor is near only one object, the name of

the buoy appears.

Viewing Local Weather Information near a Buoy

You can select an area near a buoy to view forecast

information.

1From a weather chart, select a location on the chart.

2Select Local Weather.

3Select an option:

• To view present weather conditions from a local

weather service, select Current Cond..

• To view a local weather forecast, select Forecast.

• To view surface wind and barometric pressure

information, select Sea Surface.

• To view wind and wave information, select Marine

Bulletin.

Creating a Waypoint on a Weather Chart

1From a weather chart, select a location.

2Select Create Waypoint.

Weather Overlay

The weather overlay superimposes weather and weather-

related information on the Navigation chart, the Fishing chart,

and the Perspective 3D chart view. The Navigation chart and

the Fishing chart can show WX radar, height of cloud tops,

lightning, WX buoys, county warnings, and hurricane

warnings. The Perspective 3D chart view can show WX

radar.

Weather overlay settings configured for use on one chart are

not applied to another chart. The weather overlay settings for

each chart must be configured separately.

NOTE: The offshore Fishing chart is available with premium

charts, in some areas.

Turning On the Weather Overlay on a Chart

From the Navigation chart or Fishing chart, select Menu >

Chart Setup > Weather > Weather > On.

Weather Overlay Settings on the Navigation Chart

You must turn on the weather overlay (page 24) before you

can change the settings of the weather overlay on the

Navigation chart.

24 SiriusXM™

From the Navigation chart, select Menu > Weather.

WX RADAR: Shows WX radar.

Cloud Cover: Shows cloud cover data.

Satellite IR: Shows infrared satellite data, which displays

clouds based on cloud-top temperatures. Deeper shades

of gray represent colder clouds often found with cirrus or

thunderstorm clouds. Lighter shades or a lack of shading

indicate warmer clouds usually associated with stratus or

fog.

Visibility: Shows visibility data.

WX Buoys: Shows buoys.

Legend: Shows the weather legend.

Weather Overlay Settings on the Fishing Chart

You must turn on the weather overlay (page 24) before you

can change the settings of the weather overlay on the Fishing

chart.

From the Fishing chart, select Menu > Weather.

WX RADAR: Shows WX radar.

Sea Temperature: Shows sea temperature data.

WX Buoys: Shows buoys.

Legend: Shows the weather legend.

Viewing Weather Subscription Information

You can view information about the weather services you

have subscribed to and how many minutes have passed

since the data for each service was updated.

Select Weather > Weather Subscription.

SiriusXM Radio

When you have a Garmin SiriusXM receiver connected to the

chartplotter, you may have access to SiriusXM satellite radio,

depending on your subscription.

Customizing the Channel Guide

SiriusXM radio channels are grouped in categories. You can

select the category of channels that appear in the channel

guide.

1Select Media > Menu > Category.

2Select a category.

Saving a SiriusXM Channel to the Presets List

You can save your favorite channels to the presets list.

1Select Media.

2Select the channel you want to save as a preset.

3Select Menu > Presets > Add Current Channel.

Adjusting SiriusXM Satellite Radio Volume

1Select Media > Menu.

2Select or .

Device Configuration

Turning On the Chartplotter Automatically

You can set the chartplotter to turn on automatically when the

power is applied. Otherwise, you must turn on the chartplotter

by pressing .

Select Settings > System > Auto Power.

NOTE: When Auto Power is On, and the chartplotter is

turned off using , and power is removed and reapplied

within less than two minutes, you may need to press to

restart the chartplotter.

System Settings

Select Settings > System.

Display: Adjusts the backlight brightness and color scheme.

Beeper: Turns on and off the tone that sounds for alarms and

selections.

Auto Power: Turns the device on automatically when power

is applied (page 25).

Keyboard Layout: Sets the arrangement of the keyboard to

an alphabetical or computer keyboard layout.

Language: Sets the on-screen text language.

Speed Sources: Selects the source of the speed data used

to calculate true wind speed or fuel economy. Water

speed is the speed reading from a water-speed sensor,

and GPS speed is calculated from your GPS position.

System Information: Provides information about the devices

on the network and the software version.

Simulator: Turns the simulator on or off and allows you to

set the time, date, speed, and simulated location.

GPS: Provides information about the GPS satellite settings

and fix (page 25).

GPS Settings

Select Settings > System > GPS.

Skyview: Shows the relative position of GPS satellites in the

sky.

GLONASS: Turns on or off GLONASS usage (Russia

satellite system). When the system is used in situations

with poor sky visibility, this configuration can be used in

combination with GPS to provide more accurate position

information.

WAAS/EGNOS: Turns on or off WAAS (in North America) or

EGNOS (in Europe), which can provide more-accurate

GPS position information. When using WAAS or EGNOS,

the device may take longer to acquire satellites.

Speed Filter: Averages the speed of your vessel over a short

period of time for smoother speed values.

Initialize Position: Initializes the GPS receiver and begins

collecting new almanac data from the satellites.

Viewing the Event Log

The event log shows a list of system events.

Select Settings > System > System Information >

Event Log.

Viewing System Software Information

You can view the software version, the basemap version, any

supplemental map information (if applicable), the software

version for an optional Garmin radar (if applicable), and the

unit ID number. You may need this information to update the

system software or to purchase additional map data

information.

Select Settings > System > System Information >

Software Information.

My Vessel Settings

NOTE: Some settings and options require additional charts

or hardware.

Device Configuration 25

Select Settings > My Vessel.

Keel Offset: Offsets the surface reading for the depth of a

keel, making it possible to measure depth from the

bottom of the keel instead of from the transducer location

(page 26).

Temperature Offset: Compensates for the water

temperature reading from a NMEA 0183 water-

temperature sensor or a temperature-capable transducer

(page 26).

Calibrate Water Speed: Calibrates the speed-sensing

transducer or sensor (page 26).

Fuel Capacity: Sets the combined fuel capacity of all the fuel

tanks on your vessel (page 13).

Fill Up All Tanks: Sets the tank levels to full (page 13).

Add Fuel to Boat: Allows you to enter the quantity of fuel

you added to your tank, when you did not entirely fill up

the tank (page 13).

Set Total Fuel Onboard: Sets the combined amount of fuel

in all the fuel tanks on your vessel (page 13).

Set Gauge Limits: Sets the upper and lower limits of various

gauges (page 12).

Setting the Keel Offset

You can enter a keel offset to compensate the surface

reading for the depth of a keel, making it possible to measure

depth from the bottom of the keel instead of from the

transducer location. Enter a positive number to offset for a

keel. You can enter a negative number to compensate for a

large vessel that may draw several feet of water.

1Complete an action, based on the location of the

transducer:

• If the transducer is installed at the water line À,

measure the distance from the transducer location to

the keel of the boat. Enter this value in step 3 and 4

as a positive number.

• If the transducer is installed at the bottom of the keel

Á, measure the distance from the transducer to the

water line. Enter this value in step 3 and 4 as a

negative number.

2Select Settings > My Vessel > Keel Offset.

3Select or based on the location of the transducer.

4Enter the distance measured in step 1.

Calibrating a Water Speed Device

If you have a speed-sensing transducer connected to the

chartplotter, you can calibrate that speed-sensing device to

improve the accuracy of water-speed data displayed by the

chartplotter.

1Select Settings > My Vessel > Calibrate Water Speed.

2Follow the on-screen instructions.

If the boat is not moving fast enough or the speed sensor

is not registering a speed, a message appears.

3Select OK, and safely increase the boat speed.

4If the message appears again, stop the boat, and ensure

the speed-sensor wheel is not stuck.

5If the wheel turns freely, check the cable connections.

6If you continue to get the message, contact Garmin

product support.

Setting the Water Temperature Offset

Before you can set the water temperature offset, you must

have a NMEA 0183 water-temperature sensor or a

temperature-capable transducer to measure water

temperature.

The temperature offset compensates for the temperature

reading from a temperature sensor.

1Measure the water temperature using the temperature

sensor or temperature-capable transducer that is

connected to the chartplotter.

2Measure the water temperature using a different

temperature sensor or a thermometer that is known to be

accurate.

3Subtract the water temperature measured in step 1 from

the water temperature measured in step 2.

This is the temperature offset. Enter this value in step 5

as a positive number if the sensor connected to the

chartplotter measures the water temperature as being

colder than it actually is. Enter this value in step 5 as a

negative number if the sensor connected to the

chartplotter measures the water temperature as being

warmer than it actually is.

4Select Settings > My Vessel > Temperature Offset.

5Enter the temperature offset calculated in step 3.

Communications Settings

NOTE: Some settings and options require additional charts

or hardware.

Select Settings > Communications.

Serial Port 1: Sets the input/output format for port 1 to use

when connecting the chartplotter to external NMEA

devices, computers, or other Garmin devices.

Serial Port 2: Sets the input/output format for port 2 to use

when connecting the chartplotter to external NMEA

devices, computers, or other Garmin devices.

NMEA 0183 Setup: Sets the NMEA 0183 sentences the

chartplotter transmits, how many digits to the right of the

decimal point are transmitted in a NMEA output, and how

waypoints are identified (page 27).

NMEA 2000 Setup: Allows you to view and label the devices

on the NMEA 2000 network (page 27).

Wireless Devices: Allows you set up wireless devices

(page 27).

26 Device Configuration

NMEA 2000 and NMEA 0183

GPSMAP 500 series and GPSMAP 700 series chartplotters

can accept data from both NMEA 0183 devices and certain

NMEA 2000 devices connected to an existing NMEA 2000

network on your boat.

echoMAP 50 series and echoMAP 70 series chartplotters can

accept data from NMEA 0183 compliant devices.

NMEA 0183

The chartplotters support the NMEA 0183 standard, which is

used to connect various NMEA 0183 devices, such as VHF

radios, NMEA instruments, autopilots, wind sensors, and

heading sensors.

To connect the chartplotter to optional NMEA 0183 devices,

see the chartplotter installation instructions.

The approved NMEA 0183 sentences for the chartplotter are

GPAPB, GPBOD, GPBWC, GPGGA, GPGLL, GPGSA,

GPGSV, GPRMB, GPRMC, GPRTE, GPVTG, GPWPL,

GPXTE, and Garmin proprietary sentences PGRME,

PGRMM, and PGRMZ.

This chartplotter also includes support for the WPL sentence,

DSC, and sonar NMEA 0183 input with support for the DPT

(depth) or DBT, MTW (water temperature), and VHW (water

temperature, speed, and heading) sentences.

NMEA 0183 Settings

Select Settings > Communications > NMEA 0183 Setup.

Route: Enables NMEA 0183 output sentences for routes.

System: Enables NMEA 0183 output sentences for system

information.

Garmin: Enables NMEA 0183 output sentences for Garmin

proprietary sentences.

Sounder: Enables NMEA 0183 output sentences for the

sounder (if applicable).

Posn Precision: Adjusts the number of digits to the right of

the decimal point for transmission of NMEA output.

Waypoint IDs: Sets the device to transmit waypoint names

or numbers via NMEA 0183 while navigating. Using

numbers may resolve compatibility issues with older

NMEA 0183 autopilots.

Defaults: Restores the NMEA 0183 settings to the original

factory defaults.

NMEA 2000

GPSMAP 500 and 700 series chartplotters are NMEA 2000

certified and can receive data from a NMEA 2000 network

installed on the boat to show specific information, such as

depth, speed, water temperature, wind speed and direction,

and engine data.

You can also name your engines and tanks so that you can

better identify their location on the boat.

To connect a GPSMAP chartplotter to an existing NMEA

2000 network and to see a list of supported NMEA 2000 PGN

numbers, see the chartplotter installation instructions.

Viewing a List of NMEA 2000 Network Devices

You can view the devices connected to the NMEA 2000

network.

Select Settings > Communications > NMEA 2000

Setup > Device List.

Communication with Wireless Devices

The chartplotters can create a wireless network to which you

can connect wireless devices. Also, some models can

connect to Bluetooth® wireless devices using the AVRCP

profile.

Connecting a Bluetooth Wireless Device

You can wirelessly connect the chartplotter to a Bluetooth

device.

1Place the Bluetooth device within 33 ft. (10 m) of the

chartplotter.

2Select Settings > Communications > Wireless Devices

> Bluetooth Devices > Bluetooth.

3Follow the on-screen directions.

Disconnecting a Bluetooth Wireless Device

1Select Settings > Communications > Wireless Devices

> Bluetooth Devices > Device List.

2Select a device.

3Select Forget Device.

Setting Up the Wireless Network

The first time you access the Wireless Network settings, you

are prompted to set up the network.

1Select Settings > Communications > Wireless Devices

> Wireless Network > On.

2Enter a name for this wireless network.

3Enter a password.

You will need this password to access the wireless

network from a wireless device.

Connecting a Wireless Device to the Chartplotter

Before you can connect a wireless device to the chartplotter

wireless network, you must configure the chartplotter wireless

network (page 27).

You can connect a wireless device to the chartplotter to

share data. For example, you can connect an iOS® device to

the chartplotter to share BlueChart Mobile data.

1From the iOS device, select Settings > Wi-Fi.

2Select the wireless network name you entered for the

chartplotter network (page 27).

3Enter the password you entered when you set up the

chartplotter as a wireless network.

Setting Alarms

Navigation Alarms

Select Settings > Alarms > Navigation.

Arrival: Sets an alarm to sound when you are within a

specified distance or time from a turn or a destination.

Anchor Drag: Sets an alarm to sound when you exceed a

specified drift distance while anchored.

Off Course: Sets an alarm to sound when you are off course

by a specified distance.

System Alarms

Alarm Clock: Sets an alarm clock.

Device Voltage: Sets an alarm to sound when the battery

reaches a specified low voltage.

GPS Accuracy: Sets an alarm to sound when the GPS

location accuracy falls outside the user-defined value.

Setting the Fuel Alarm

Before you can set a fuel level alarm, a compatible fuel flow

sensor must be connected to the NMEA 2000 network.

Device Configuration 27

You can set an alarm to sound when the total amount of

remaining onboard fuel reaches the level you specify.

1Select Settings > Alarms > Fuel > Fuel Alarm > On.

2Enter the remaining amount of fuel that triggers the alarm.

Setting Weather Alarms

Before you can set weather alarms, you must have a

compatible chartplotter connected to a weather device, such

as a GXM™ device, and have a valid weather subscription.

1Select Settings > Alarms > Weather.

2Turn on alarms for specific weather events.

Units Settings

Select Settings > Units.

System Units: Sets the unit format for the device.

Heading: Sets the direction references used in calculating

heading information. Auto Mag Var (automatic magnetic

variation) sets the magnetic declination for your location

automatically. True sets true north as the heading

reference. Grid sets grid north as the heading reference

(000º). User Mag Var allows you to enter the magnetic

variation value manually.

Position Format: Sets the position format in which a given

location reading appears. Do not change this setting

unless you are using a map or chart that specifies a

different position format.

Map Datum: Sets the coordinate system on which the map is

structured. Do not change this setting unless you are

using a map or chart that specifies a different map datum.

Pressure Reference Time: Sets the reference time used to

calculate the barometer trend. The trend is indicated in

the barometer field.

Time Format: Sets a 12-hour, 24-hour, or UTC time format.

Time Zone: Sets the time zone, or allows automatic selection

based on GPS location.

Navigation Settings

NOTE: Some settings and options require additional charts

or hardware.

Select Settings > Navigation.

Route Labels: Sets the type of labels shown with route turns

on the map.

Auto Guidance: Sets the measurements for the Safe Depth,

Safe Height, and Shoreline Distance, when you are

using some premium maps.

Turn Transition Activation: Sets the turn transition to be

calculated based on time or distance.

Turn Transition Time: Sets how many minutes before the

turn that you transition to it as the next leg, when Time is

selected for the Turn Transition Activation. You can

raise this value to help improve the accuracy of the

autopilot when navigating a route or an Auto Guidance

line with many frequent turns or at higher speeds. For

straighter routes or slower speeds, lowering this value

can improve autopilot accuracy.

Turn Transition Distance: Sets how far before the turn that

you transition to it as the next leg, when Distance is

selected for the Turn Transition Activation. You can

raise this value to help improve the accuracy of the

autopilot when navigating a route or an Auto Guidance

line with many frequent turns or at higher speeds. For

straighter routes or slower speeds, lowering this value

can improve autopilot accuracy.

Route Start: Selects a starting point for route navigation.

Auto Guidance Line Configurations

CAUTION

The Safe Depth and Safe Height settings influence how the

chartplotter calculates an Auto Guidance line. If an area has

an unknown water depth or an unknown obstacle height, the

Auto Guidance line is not calculated in that area. If an area at

the beginning or the end of an Auto Guidance line is

shallower than the safe water depth or lower than the safe

obstacle height, the Auto Guidance line is not calculated in

that area. On the chart, the course through those areas

appears as a gray line. When your boat enters one of those

areas, a warning message appears.

NOTE: Auto Guidance is available with premium charts, in

some areas.

You can set the parameters the chartplotter uses when

calculating an Auto Guidance line.

Safe Depth: Sets the minimum depth (chart depth datum) the

chartplotter uses when calculating an Auto Guidance line.

Safe Height: Sets the minimum height (chart height datum)

of a bridge that your boat can safely travel under.

Shoreline Distance: Sets how close to the shore you want

the Auto Guidance line to be placed. The Auto Guidance

line may move if you change this setting while navigating.

The available values for this setting are relative, not

absolute. To ensure that the Auto Guidance line is placed

the appropriate distance from shore, you can assess the

placement of the Auto Guidance line using one or more

familiar destinations that require navigation through a

narrow waterway (page 28).

Adjusting the Distance from Shore

CAUTION

The Auto Guidance feature is based on electronic chart

information. That data does not ensure obstacle and bottom

clearance. Carefully compare the course to all visual

sightings, and avoid any land, shallow water, or other

obstacles that may be in your path.

NOTE: Auto Guidance is available with premium charts, in

some areas.

The Shoreline Distance setting indicates how close to the

shore you want the Auto Guidance line to be placed. The

Auto Guidance line may move if you change this setting while

navigating. The available values for the Shoreline Distance

setting are relative, not absolute. To ensure the Auto

Guidance line is placed the appropriate distance from shore,

you can assess the placement of the Auto Guidance line

using one or more familiar destinations that require

navigation through a narrow waterway.

1Dock your vessel or drop the anchor.

2Select Settings > Navigation > Auto Guidance >

Shoreline Distance > Normal.

3Select a destination that you have navigated to

previously.

4Select Navigate To > Guide To.

5Review the placement of the Auto Guidance line, and

determine whether the line safely avoids known obstacles

and the turns enable efficient travel.

28 Device Configuration

6Select an option:

•If the placement of the Auto Guidance line is

satisfactory, select Menu > Stop Navigation, and

proceed to step 10.

• If the Auto Guidance line is too close to known

obstacles, select Settings > Navigation > Auto

Guidance > Shoreline Distance > Far.

• If the turns in the Auto Guidance line are too wide,

select Settings > Navigation > Auto Guidance >

Shoreline Distance > Near.

7If you selected Near or Far in step 6, review the

placement of the Auto Guidance line, and determine

whether the line safely avoids known obstacles and the

turns enable efficient travel.

Auto Guidance maintains a wide clearance from

obstacles in open water, even if you set the Shoreline

Distance setting to Near or Nearest. As a result, the

chartplotter may not reposition the Auto Guidance line,

unless the destination selected requires navigation

through a narrow waterway.

8Select an option:

• If the placement of the Auto Guidance line is

satisfactory, select Menu > Stop Navigation, and

proceed to step 10.

• If the Auto Guidance line is too close to known

obstacles, select Settings > Navigation > Auto

Guidance > Shoreline Distance > Farthest.

• If the turns in the Auto Guidance line are too wide,

select Settings > Navigation > Auto Guidance >

Shoreline Distance > Nearest.

9If you selected Nearest or Farthest in step 8, review the

placement of the Auto Guidance line, and determine

whether the line safely avoids known obstacles and the

turns enable efficient travel.

Auto Guidance maintains a wide clearance from

obstacles in open water, even if you set the Shoreline

Distance setting to Near or Nearest. As a result, the

chartplotter may not reposition the Auto Guidance line,

unless the destination selected requires navigation

through a narrow waterway.

10 Repeat steps 3 through 9 at least once more, using a

different destination each time, until you are familiar with

the functionality of the Shoreline Distance setting.

Other Vessel Settings

When your compatible chartplotter is connected to an AIS

device or VHF radio, you can set up how other vessels are

displayed on the chartplotter.

Select Settings > Other Vessels.

AIS: Enables and disables AIS signal reception.

DSC: Enables and disables digital selective calling (DSC).

AIS Alarm: Sets the collision alarm (page 5 and page 6).

Viewing System Software Information

You can view the software version, the basemap version, any

supplemental map information (if applicable), the software

version for an optional Garmin radar (if applicable), and the

unit ID number. You may need this information to update the

system software or to purchase additional map data

information.

Select Settings > System > System Information >

Software Information.

Restoring the Original Chartplotter Factory

Settings

NOTE: This will delete all settings information you have

entered.

Select Settings > System > System Information >

Factory Settings.

Chartplotter Data Management

Copying Waypoints, Routes, and Tracks to

a Chartplotter

Before you can copy data to the chartplotter, you must have

the latest version of MapSource® or HomePort™ software

programs loaded on your computer and a memory card

installed in the chartplotter.

Select an option:

• Copy the data from HomePort to the prepared

memory card.

For more information, see the HomePort help file.

• Copy the data from MapSource to the prepared

memory card.

For more information, see the MapSource help file.

Copying Data from a Memory Card

1Insert a memory card into a card slot.

2Select Nav Info > Manage Data > Data Transfer > Card.

3Select an option:

• To transfer data from the memory card to the

chartplotter and combine it with existing user data,

select Merge From Card.

• To transfer data from the memory card to the

chartplotter and overwrite existing user data, select

Replace From Card.

4Select the file name.

Copying Waypoints, Routes, and Tracks to

a Memory Card

1Insert a memory card into the card slot.

2Select Nav Info > Manage Data > Data Transfer > Card

> Save to Card.

3Select an option:

• To create a new file, select Add New File, and enter

a name.

• To add the information to an existing file, select the

file from the list.

The file name is saved with a .adm extension.

Copying Waypoints, Routes, and Tracks to

or from all Chartplotters on a NMEA 2000

Network

You can transfer information for waypoints, routes, and tracks

from one chartplotter connected to a NMEA 2000 network to

every other chartplotter connected to the network. The

Chartplotter Data Management 29

transfer may take a long time, depending on the number of

waypoints being transferred.

1Select Nav Info > Manage Data > Data Transfer >

NMEA 2000.

2Select an option:

• To transfer data from the chartplotter to the other

chartplotters connected to the network, select Clone

User Data. Existing data is overwritten on those

chartplotters.

• To transfer data between all the chartplotters

connected to the network, select Merge User Data.

Unique data is combined with existing data on every

chartplotter.

Copying Built-In Maps to a Memory Card

You can copy maps from the chartplotter to a memory card

for use with HomePort.

1Insert a memory card into the card slot.

2Select Nav Info > Manage Data > Data Transfer > Card.

3To copy the maps loaded onto your chartplotter to the

memory card, select Copy Built-In Map.

Backing Up Data to a Computer

1Insert a memory card into the card slot.

2Select Nav Info > Manage Data > Data Transfer > Card

> Save to Card.

3Select a file name from the list, or select Add New File.

4Select Save to Card.

The file name saves with a .adm extension.

5Remove the memory card and insert it into a card reader

attached to a computer.

6Open the Garmin\UserData folder on the memory card.

7Copy the backup file on the card and paste it to any

location on the computer.

Restoring Backup Data to a Chartplotter

1Insert a memory card into a card reader that is attached

to the computer.

2Copy a backup file from the computer to the memory

card, into a folder named Garmin\UserData.

3Insert a memory card into the card slot.

4Select Nav Info > Manage Data > Data Transfer > Card

> Replace From Card.

Saving System Information to a Memory

Card

You can save system information to a memory card as a

troubleshooting tool. A product support representative may

ask you to use this information to retrieve data about the

network.

1Insert a memory card into the card slot.

2Select Settings > System > System Information >

Garmin Devices > Save to Card.

3Remove the memory card.

Appendix

Registering Your Device

Help us better support you by completing our online

registration today.

•Go to http://my.garmin.com.

• Keep the original sales receipt, or a photocopy, in a safe

place.

Calibrating the Touchscreen

You can calibrate the screen if the screen is not properly

responding to the touches. The chartplotter touchscreen does

not normally require calibration.

1Select Settings > System > Display > Calibrate

Touchscreen.

2Follow the on-screen instructions.

Updating the Device Software

The device may contain a software-update memory card. If

so, follow the instructions provided with the card.

If a software update memory card is not included, go to

www.garmin.com to make sure your device software is up-to-

date.

1If necessary, load the software update onto the memory

card from your computer by following the instructions on

www.garmin.com.

2Turn on the chartplotter.

3Insert the memory card into the card slot.

4Follow the on-screen instructions.

Screenshots

You can capture a screenshot of any screen shown on your

chartplotter as a bitmap (.bmp) file. You can transfer the

screenshot to your computer.

Capturing Screenshots

1Insert a memory card into the card slot.

2Select Settings > System > Display > Screenshot

Capture > On.

3Go to a screen you want to capture.

4Hold Home for at least six seconds.

Copying Screenshots to a Computer

1Remove the memory card from the chartplotter, and

insert it into a card reader that is attached to a computer.

2From Windows® Explorer, open the Garmin\scrn folder

on the memory card.

3Copy a .bmp file from the card and paste it to any location

on the computer.

NMEA 0183 Information

Type Sentence Description

Transmit GPAPB APB: Heading or track

controller (autopilot) sentence

"B"

GPBOD BOD: Bearing (origin to

destination)

GPBWC BWC: Bearing and distance to

waypoint

30 Appendix

Type Sentence Description

GPGGA GGA: Global positioning

system fix data

GPGLL GLL: Geographic position

(latitude and longitude)

GPGSA GSA: GNSS DOP and active

satellites

GPGSV GSV: GNSS satellites in view

GPRMB RMB: Recommended minimum

navigation information

GPRMC RMC: Recommended minimum

specific GNSS data

GPRTE RTE: Routes

GPVTG VTG: Course over ground and

ground speed

GPWPL WPL: Waypoint location

GPXTE XTE: Cross track error

PGRME E: Estimated error

PGRMM M: Map datum

PGRMZ Z: Altitude

SDDBT DBT: Depth below transducer

SDDPT DPT: Depth

SDMTW MTW: Water temperature

SDVHW VHW: Water speed and

heading

Receive DPT Depth

DBT Depth below transducer

MTW Water temperature

VHW Water speed and heading

WPL Waypoint location

DSC Digital selective calling

information

DSE Expanded digital selective

calling

HDG Heading, deviation, and

variation

HDM Heading, magnetic

MWD Wind direction and speed

MDA Meteorological composite

MWV Wind speed and angle

VDM AIS VHF data-link message

You can purchase complete information about National Marine

Electronics Association (NMEA) format and sentences from: NMEA,

Seven Riggs Avenue, Severna Park, MD 21146 USA

(www.nmea.org)

NMEA 2000 PGN Information

Type PGN Description

Transmit and

receive

059392 ISO acknowledgment

059904 ISO request

060928 ISO address claim

126208 NMEA: Command, request, and

acknowledge group function

126464 Transmit and receive PGN list group

function

126996 Product information

127250 Vessel heading

128259 Speed: Water referenced

Type PGN Description

128267 Water depth

130306 Wind data

130312 Temperature

Transmit 127258 Magnetic Variance

129025 Position: Rapid update

129026 COG and SOG: Rapid update

129029 GNSS position data

129283 Cross track error

129284 Navigation data

129285 Navigation route and waypoint info

129539 GNSS DOPs

129540 GNSS satellites in view

Receive 127245 Rudder

127250 Vessel heading

127488 Engine parameters: Rapid update

127489 Engine parameters: Dynamic

127493 Transmission parameters: Dynamic

127498 Engine parameters: Static

127505 Fluid level

129038 AIS class A position report

129039 AIS class B position report

129040 AIS class B extended position report

129794 AIS class A static and voyage related

data

129798 AIS SAR aircraft position report

129799 Radio frequency, mode, and power

129802 AIS safety-related broadcast

message

129808 DSC call information

130310 Environmental parameters

130311 Environmental parameters (obsolete)

130313 Humidity

130314 Actual pressure

130576 Small craft status

This data applies only to NMEA 2000-compatible products.

Appendix 31

Index

aerial photos 4

AIS 4, 6, 7

alarm 5

distress signal device 6

radar 17

SART 6

targeting 5, 6

threats 5, 17

turning on 29

vessels 5

alarms 27

anchor drag 27

arrival 27

collision 5

deep water 15

engine 12

gauges 13

navigation 27

off course 27

shallow water 15

sonar 15

water temperature 15

weather 28

anchor drag alarm 27

animated currents, tides 4

arrival alarm 27

Auto Guidance 9, 28

line 28

shoreline distance 28

autopilot 9

backlight 1

buoy reports 24

celestial information 14

charts 2, 4, 6

appearance 7

details 3

heading line 7

navigation 3, 4

orientation 7

panning 2

symbols 2

clock 27

alarm 27

collision alarm 5

color mode 1

combinations 12

customizing 12

selecting 12

compass 12

compass roses 6

compass tape data bar 7

courses 8

current stations 14

indicators 4

data

backup 30

copying 29

data fields 7

data management 29

deleting, all user data 12

depth log 16

destinations

navigation chart 8

selecting 8

device

keys 1, 2

registration 30

digital selective calling 20, 21

channels 21

contacts 20

individual routine call 21

turning on 20, 29

distress call 20

distress signal device 6

DSC. See digital selective calling

EBL 17

adjusting 18

measuring 18

showing 18

EGNOS 25

engine gauges 12, 13

configuring 13

status alarms 12

environment gauges 14

environmental gauges 13, 14

EPIRB 6

event log 25

factory settings 29

Fish Eye 3D

sonar cone 8

suspended targets 8

tracks 8

fishing chart 2, 24

panning 2

setup 6

fuel alarm 13, 27

fuel capacity 13, 25

fuel gauges 12, 13

configuring 13

status alarm 13, 27

synchronizing with actual fuel 13, 25

fuel onboard 25

gauges

engine 12, 13

engines 13

environment 14

environmental data 13, 14

fuel 12, 13

limits 12

status alarms 12, 13

trip 12

wind 13

GLONASS 25

Go To 9

GPS

EGNOS 25

GLONASS 25

signals 1

WAAS 25

GPS accuracy 27

hazard colors 7

home screen, customizing 1

keel offset 25, 26

keys 1

power 1

lane width 7

language 25

locking, screen 1

man overboard 9

marine services 8

mark location 9

memory card 29, 30

detailed maps 30

installing 2

slot 1

MOB, device 6

music player 22, 25

navaids 3

navigation alarms 27

navigation chart 2, 4, 8, 24

aerial photos 6

marine service points 8

panning 2

radar overlay 18

setup 6

vessel trails 7, 21

navigation inset 7

NMEA 0183 20, 26, 27, 30

NMEA 2000 20, 26, 27, 31

off course alarm 27

offset, front of boat 20

other vessels

AIS 7

trails 7

overlay numbers 7

Perspective 3D 24

photos, aerial 4

position report 21

position tracking 20

power key 1, 25

premium charts 3, 4

aerial photos 4

Fish Eye 3D 8

tide and current indicators 4

product registration 30

radar 16

AIS 17

clutter 19

color scheme 19

field of view 19

front-of-boat offset 20

gain 18

optimizing display 18, 19

overlay screen 18

range 18

range rings 19

sentry mode 17

timed transmit 17

transmitting 16

waypoints 17, 19

zoom scale 16

radar overlay 18

radio, SiriusXM 25

range rings 7

registering the device 30

routes

copying 29

creating 10

deleting 11

editing 10

navigating 10

navigating parallel to 10

viewing list of 10

waypoints 29

32 Index

safe depth 28

safe height 28

safe zone collision alarm 5

SART 6

satellite imagery 4

satellite signals, acquiring 1

screen

brightness 1

locking 1

screenshots 30

capturing 30

sentry mode 17

guard zone 17

timed transmit 17

settings 25, 26, 28

radar display 19

system information 25, 29

shoreline distance 28

SiriusXM 22

SiriusXM Satellite Radio 25

software, updating 30

sonar 14

a-scope 15

alarms 15

appearance 15

bottom lock 15

cone 8

depth 15

depth line 15

depth scale 15

frequencies 15

gain 15

interference 15

noise 15

overlay numbers 15

recording 16

scroll speed 15

suspended targets 15

waypoint 15

whiteline 15

zoom 15

SOS 9

suspended targets 8
