Garnet Systems Co GTM-56KM6 56Kbps Modem Board User Manual
Garnet Systems Co Ltd 56Kbps Modem Board
user manual
User’s Guide
For GTM-56KM6 Faxmodem
NOTICE
Information furnished by Garnet Systems Coporation is believed to
be accurate and reliable. However, no responsibility is assumed by
Garnet Systems Corporation for its use, nor any infringement of
patents or other rights of third parties which may result from its use.
No license is granted by implication or otherwise under any patent
rights of Garnet Systems Corporation other than for circuitry
embodied in Garnet Systems products. Garnet Systems reserves
the right to change circuitry at any time without notice. This
document is subject to change without notice.
MNP is a resistered trademark of Microcom Inc.
Windows is a resistered trademark of Microsoft Corporation.
K56flex is a trademark of Rockwell International and Lucent
Technologies.
Garnet Systems Co.,Ltd.
GTM-56KM6 User's Guide INTRODUCTION
Garnet systems
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
GTM-56KM6 User's Guide INTRODUCTION
Garnet systems
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Warning: You are cautioned that any change or
modifications to the equipment not expressly approved by
the party responsible for compliance could void your
authority to operate such equipment.
NOTE: This unit was tested with shielded cables on the
peripheral devices. Shielded cables must be used with the
unit to insure compliance.
GTM-56KM6 User's Guide INTRODUCTION
Garnet systems
Table of Contents
1. INTRODUCTION. ……………………………..………………………3
2. INSTALLATION………………………………………………….…….5
2.1 INSTALLINGT THE MODEM…………………………………5
2.2 PLUG AND PLAY FUNCTION……………………………….7
2.3 DRIVER INSTALLATION IN WINDOWS 95/98/98SE……..7
2.4 HOW TO VERIFY MODEM INSTALLATION………………10
2.5 REMOVAL OF THE MODEM DRIVER……………………..12
3. MODEM COMMAND AND S-RESISTER…………………………..13
3.1 AT COMMAND…………………………………………………13
3.2 S-REGISTER………………..……………………………….…15
GTM-56KM6 User's Guide INTRODUCTION
Garnet systems
3
1. INTRODUCTION
The Garnet Systems GTM-56KM6 Host Software Processed
V.90/K56flex Modem Device Family supports high speed analog data,
high speed fax operation over the PSTN world-wide and is offered in
several device models.
Modem data pump and controller functions, traditionally enabled using
dedicated hardware, are processed in a Pentium MMX-compatible
CPU using host-signal processing modem software which is included in
the SoftK56 modem. Refer to the Product Release Notice for the feature
set available.
In ITU-T V.90/K56flex data mode, the modem can receive data at speeds
up to 56 kbps from a digitally connected V.90 or
K56flex-compatible central site modem. A V.90/K56flex modem takes
advantage of the PSTN which is primarily digital except
for the client modem to central office local loop and are ideal for
applications such as remote access to an Internet Service
Provider (ISP), on-line service, or corporate site. In this mode, the
modem can transmit data at speeds up to V.34 rates.
In V.34 data mode, the modem operates at line speeds up to 33.6 kbps.
When applicable, error correction (V.42/MNP 2-4)
and data compression (V.42 bis/MNP 5) maximize data transfer integrity
and boost average data throughput. Non-error-correcting mode is also
supported.
Fax Group 3 send and receive rates are supported up to 14.4 kbps, with
T.30 protocol.
GTM-56KM6 User's Guide FEATURES
Garnet systems
4
FEATURES
•Data modem
- ITU-T V.90, K56flex, V.34 (33.6 kbps), V.32 bis, V.32, V.22 bis, V.22,
V.23, and V.21; Bell 212A and 103
- V.42 LAPM and MNP 2-4 error correction
- V.42 bis and MNP 5 data compression
- V.25 ter (Annex A) and EIA/TIA 602 command set
•Fax modem
- V.17, V.29, V.27 ter, and V.21 ch 2
- EIA/TIA 578 Class 1 and T.31 Class 1.0 commands
•System compatibilities
- Windows 95, Windows 95 OSR2, Windows 98, Windows NT 4.0,
Windows 2000 operating systems
- Microsoft's PC 98 Design Initiative compliant
- Unimodem/V compliant
•32-bit PCI Local Bus interface
- Conforms to the PCI Local Bus Specification, Production Version,
Revision 2.1
- PCI Bus Mastering interface to the LVC
- 33 MHz PCI clock support
•Supports PCI Bus Power Management
- ACPI Power Management Registers
- PME# and APM support
GTM-56KM6 User's Guide INSTALLING THE
MODEM
Garnet systems
5
2. INSTALLATION
2.1 Installing the Modem
Please follow instructions as follows in order to install modem.
- Turn off your computer and all attached peripheral devices (printer,
monitor, etc.) and unplug them from the electrical outlet.
CAUTION: To avoid risk of electric shock, make sure your computer and
all peripheral devices are turned off and unplugged.
- Remove the cover of your computer. For specific instructions on this
procedure, consult your system's user's guide.
- Select one of the PCI expansion bus slots. Remove and save the screw
on the slot cover. You will need it to secure the modem in place.
- Hold the modem upright by the metal edge, and carefully slide it into the
expansion slot. Gently apply pressure to the upper metal edge only,
making sure it snaps into place.
- When the modem is firmly in an expansion slot, fasten the modem into
place with the screw that fits into the top notch of the metal bracket.
- Carefully replace the computer cover in accordance with the
instructions in your system's user's guide.

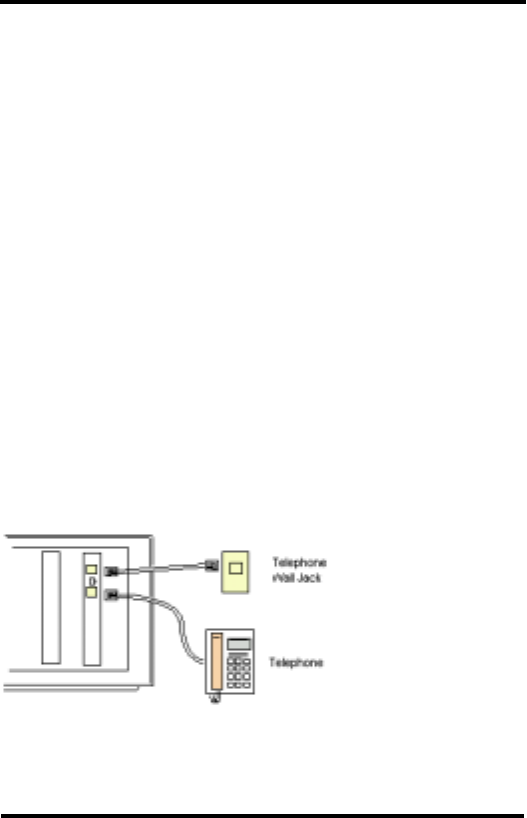

- There are two modular telephone jacks on the panel of the
modem which connect the modem to a telephone line and
to a telephone handset. Because of possible safety
hazards due to the ring voltage from the telephone jack,
make the cable connections between the modem and the
telephone line in the following order.
a. Plug one end of your modular telephone cord into the
modem’s jack marked .
b. The cord will snap into place when the connection is made.
c. After the cord has been connected to the modem, plug the
other end of the cord into the wall jack.
GTM-56KM6 User's Guide INSTALLING THE
MODEM
Garnet systems
6
d. If you want to use a telephone on the same line, plug the cord
from the telephone into the modem's jack, marked as .
- Plug in the power cables for the computer and all peripherals.
- Turn ON your computer and verify everything has been reconnected
properly.
- Install modem driver provided and test your modem according to the
following section.
WARNING
THIS CARD MUST BE USED WITH THE PC SCREW DOWN LID.
TELECOMMUNICATIONS NETWORK VOLTAGES EXIST INSIDE THE
PC AND TELECOMMUNICATIONS LINE CONNECTION SHALL BE
REMOVED BEFORE OPENING THE PC.
UNIT SHALL BE CONNECTED TO TELECOMMUNICATION
NETWORK THROUGH A LINE CORD APPROVED BY THE
NECESSARY AUTHORITIES FOR THE COUNTRY.
GTM-56KM6 User's Guide DRIVER INSTALLATION WIN9X
Garnet systems
7
2.2 Plug and Play Function
PnP(Plug and Play) Function is designed to easily install modem by a user
not to pay any additional care about difficult network compositions such as
jumper setting. The PC and installed cards automatically co-work its way to
provide and allocate necessary resources for appropriate networking once
the card is plugged into the main board of the computer and the power is
on.
2.3 Driver Installation in Windows 95/98/98se
•
••
• Perform the following to install the GTM-56KM6 Modem card in
your IBM PC or compatible computer.
1. Turn on y our computer after putting the c ard int o t he PCI s lot.

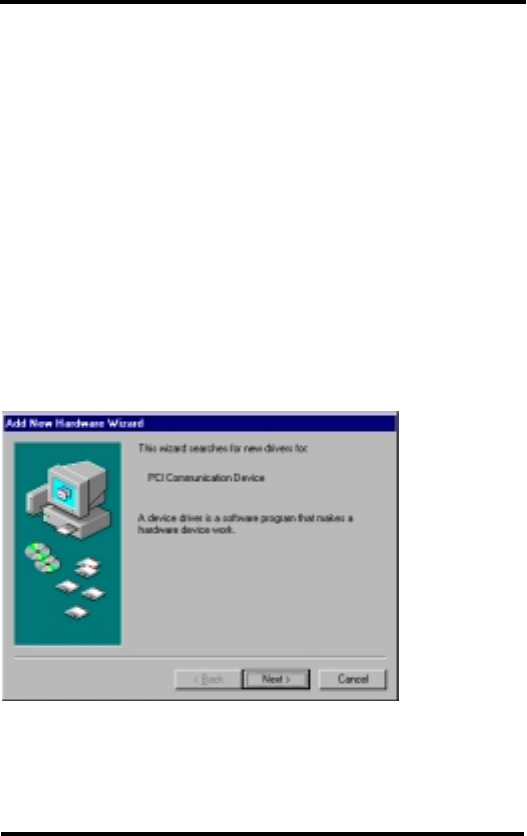

2. The following picture comes out, put the CD-ROM provided on the CD-ROM
Drive and click
<Next>
in the following picture.
GTM-56KM6 User's Guide DRIVER INSTALLATION WIN9X
Garnet systems
8

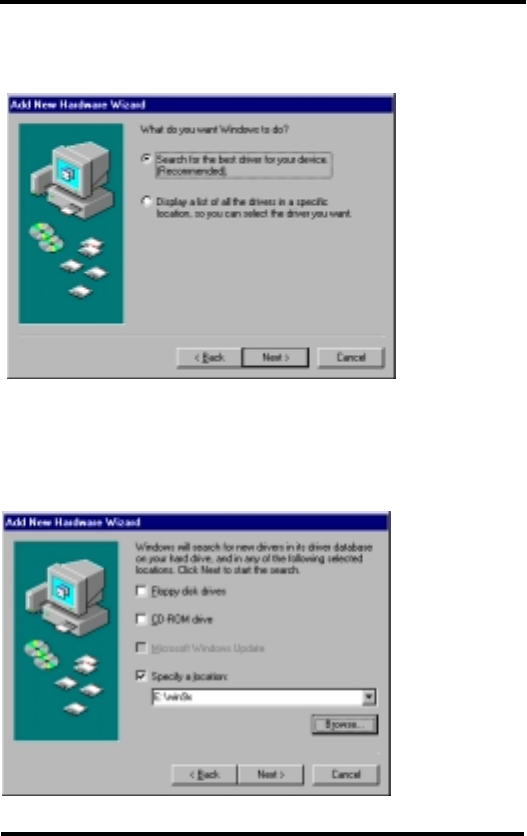

3. Select <Search for the – > and click <Next> in the following picture.
4. Select
<Specify a location>
, direct the path of the CD-ROM inserted and click
<Next>
in the following picture
.
GTM-56KM6 User's Guide DRIVER INSTALLATION WIN9X
Garnet systems
9
GTM-56KM6 User's Guide DRIVER INSTALLATION WIN9X
Garnet systems
10

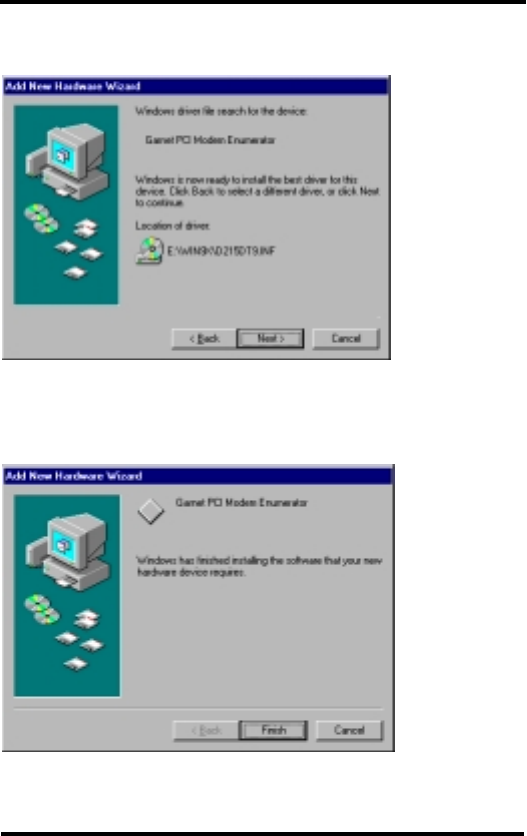

5. Click <Next> in the following picture.
6. Click <Finish> to finish the driver installation.
GTM-56KM6 User's Guide HOW TO VERIFY MODEM
-
Garnet systems
11
2.4 How to verify the modem is successfully installed

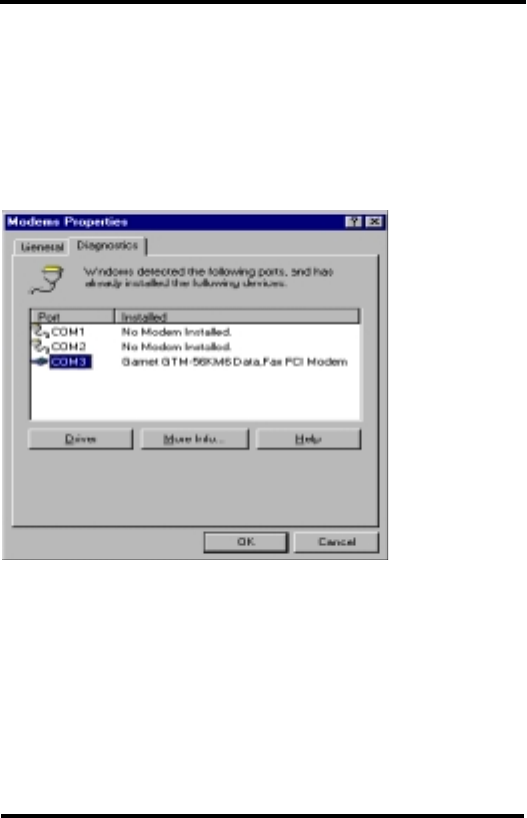

1. You will see the following picture at the last step by clicking the
buttons-
<My computer>
<Control panel>
<Modem>
<Diagnosis>.
At this picture, select the COM Port to which Garnet GTM-56KM6 is set
and click <More information> button.
GTM-56KM6 User's Guide HOW TO VERIFY MODEM
-
Garnet systems
12

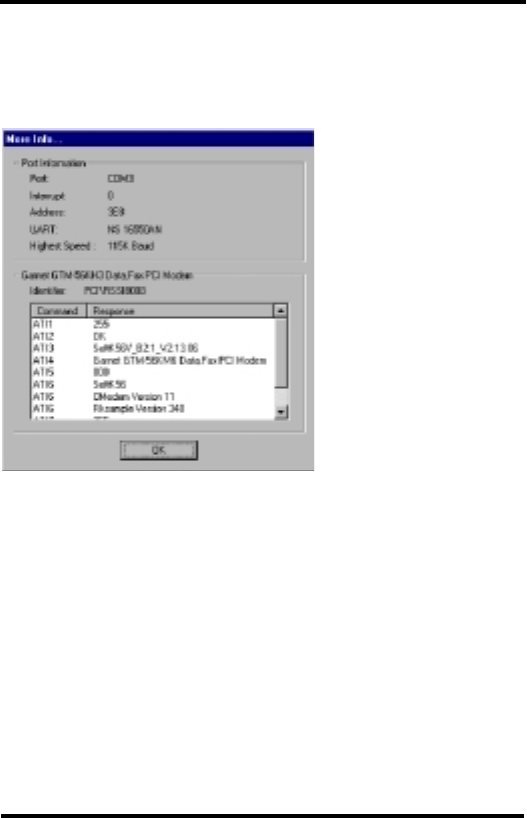

2. The following picture showing the appropriate response to each ATI
command verifies that the modem is successfully installed and in
normal operating condition. Click <OK> to finish.
GTM-56KM6 User's Guide REMOVAL OF THE MODEM
DRIVER
Garnet systems
13
2.5 Removal of the Modem driver

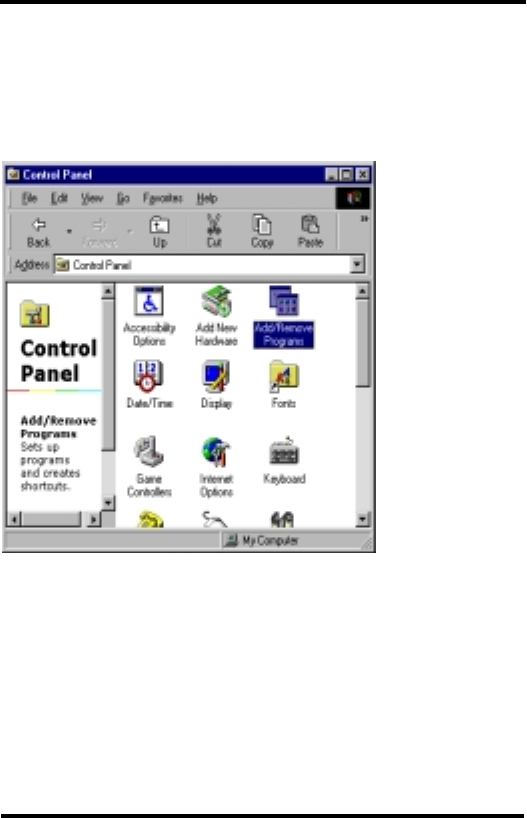

1. Click the buttons in sequence - <My computer>
<Control
panel>
<Add/Remove>
<Install/Uninstall>.
GTM-56KM6 User's Guide AT COMMAND AND S-REGISTER
Garnet systems
14

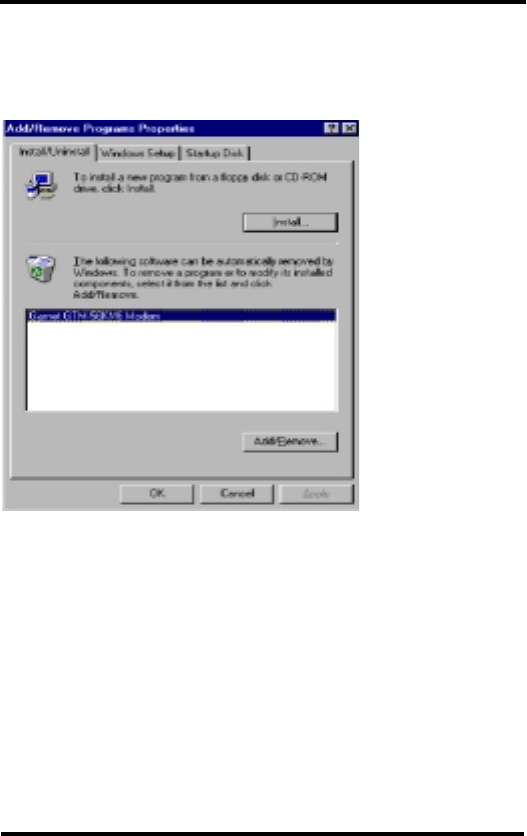

2. Select <Garnet GTM-56KM6 Modem> and click <Add/Remove>
button in the following picture to remove the modem driver.
3. MODEM COMMAND AND S-REGISTER
*** indicates the factory default setting.
3.1 AT Command
A/ Repeat the execution of the previous command
lin
e
A Answer promptly
*** B0 Operate in ITU-T V.21, V.22 Standard
Dn Dial “n" ( n = Calling phone no.)
*** T Select Tone Dialing
GTM-56KM6 User's Guide AT COMMAND AND S-REGISTER
Garnet systems
15
P Select Pulse Dialing
Sn Dial automatically stored phone no.
W Waiting for the tone
,Delay in calling
L Re-call last phone no.
E0 Do not echo previous command line
*** E1 Echo previous command line
H0 On-Hook
H1 Off-Hook
L0 Lower-level Speaker sound
L1 Low-level Speaker sound
*** L2 Mid-level Speaker sound
L3 High-level Speaker sound
M0 Stop speaker operation
*** M1 Operate speaker until carrier is detected after
dialing during connection
M2 Operate speaker always on
M3 Operate speaker after dialing last digit
O0 Changed to on-line status
O1 Changed to on-line status through retrain
Sr=n Select register value (r=Register No., n=value
to be stored)
*** &K1 Automatically enable or disable data
compression
*** &N0 Select transmission speed by remote modem
GTM-56KM6 User's Guide AT COMMAND AND S-REGISTER
Garnet systems
16
&Zn=S Save phone no. in the location n of
NVRAM(n=0 - 3)
&Zn? Display phone no. in the location n
&ZL? Display the last executed phone no.
3.2 S-Register
The modem is structured to control and manage its operations employing S-
register. Followings are frequently-used functions.
S-
Resister Range Unit Contents
S0 0 - 255 Rings Number of Rings to Automatic
Answer
S1 0 - 255 Rings Ring Counter
S2 0 -255 ASCII Escape Character
S3 0 -127 ASCII Line Termination Character
S4 0 - 127 ASCII Command Line Editing
Character
S5 0 -255 ASCII Command Line Editing
Character
S6 2 -255 S Wait Time for Dial Tone
S7 1 -255 S Wait Time for Carrier
S8 0 -255 S Pause Time for Dial Delay Modifier
GTM-56KM6 User's Guide AT COMMAND AND S-REGISTER
Garnet systems
17
S10 1 -255 0.1S Carrier Loss Disconnect Time
S11 50 -255 0.001S DTMF Tone Duration
