GE Digital Energy

Power Quality

Installation Guide

Digital Energy™

SNMP / WEB ADAPTER

P/N 1018959 3-ph SNMP/Web plug-in adapter

P/N 1019070 1-ph SNMP/Web plug-in adapter

P/N 23954 SP SNMP/Web plug-in adapter

P/N 1019071 1-ph SNMP/Web external adapter

GE Consumer & Industrial SA

General Electric Company

CH – 6595 Riazzino (Locarno)

Switzerland

T +41 (0)91 / 850 51 51

F +41 (0)91 / 850 51 44

www.gedigitalenergy.com

GE imagination at work

Model:

3-ph SNMP/Web plug-in adapter

1-ph SNMP/Web plug-in adapter

SP SNMP/Web plug-in adapter

1-ph SNMP/Web external adapter

Date of issue: 13.05.2008

File name: ISG_CNT_SNM_BAS_CRD_V012

Revision: 1.2

Identification No.

P/N 1018959

P/N 1019070

P/N 23954

P/N 1019071

Up-dating

Revision Concerns Date

1.0 First Issue 20.12.2007

1.1 First RELEASED Issued 15.02.2008

1.2 Updated for the 3-ph and SP SNMP/Web plug-in adapters 13.05.2008

The information contained in this publication is intended solely for the purposes indicated.

The present publication and any other documentation supplied with the UPS system is not to be

reproduced, either in part or in its entirety, without the prior written consent of GE.

The illustrations and plans describing the equipment are intended as general reference only and are

not necessarily complete in every detail.

The content of this publication may be subject to modification without prior notice.

Dear Customer,

We thank you for selecting our products

and are pleased to count you amongst

our very valued customers at GE.

We trust that the use of the SNMP/Web

adapters for our

Uninterruptible Power

Supply systems, developed and produced

to the highest standards of quality, will

give you complete satisfaction.

Please read carefully the

Installation

Manual, which contains all the necessary

information about the installation of the

adapters.

Thank you for choosing GE !

Distributed by:

Your service contact:

GE Digital Energy

General Electric Company

CH – 6595 Riazzino (Locarno)

Switzerland

Modifications reserved Page 3/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

Table of contents Page

1 SAFETY RULES ................................................................................................................................................. 5

1.1 WARNINGS AND CAUTIONS.............................................................................................................................................................6

1.2 EMC COMPATIBILITY ............................................................................................................................................................................8

2 INTRODUCTION .............................................................................................................................................. 9

2.1 CHECKING PACKAGE CONTENTS...................................................................................................................................................9

2.2 OVERVIEW ............................................................................................................................................................................................. 10

2.3 FEATURES .............................................................................................................................................................................................. 12

2.4 ARCHITECTURE.................................................................................................................................................................................... 12

2.5 ADDITIONAL DOCUMENTS............................................................................................................................................................. 13

3 INSTALLATION .............................................................................................................................................. 14

3.1 3-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1018959) ......................................................................................................... 14

3.1.1 Setting the logical address.................................................................................................................................................................. 14

3.1.2 Installing the SNMP Card in option slot.......................................................................................................................................... 15

3.1.3 Connecting the card............................................................................................................................................................................... 16

3.2 1-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1019070) ......................................................................................................... 16

3.3 SP SNMP/WEB PLUG-IN ADAPTER (P/N 1019070)............................................................................................................... 17

3.4 1-PH SNMP/WEB EXTERNAL ADAPTER (P/N 1019071)...................................................................................................... 17

3.5 INTERFACES.......................................................................................................................................................................................... 18

4 CONFIGURATION .......................................................................................................................................... 19

4.1 CONFIGURATION METHODS.......................................................................................................................................................... 19

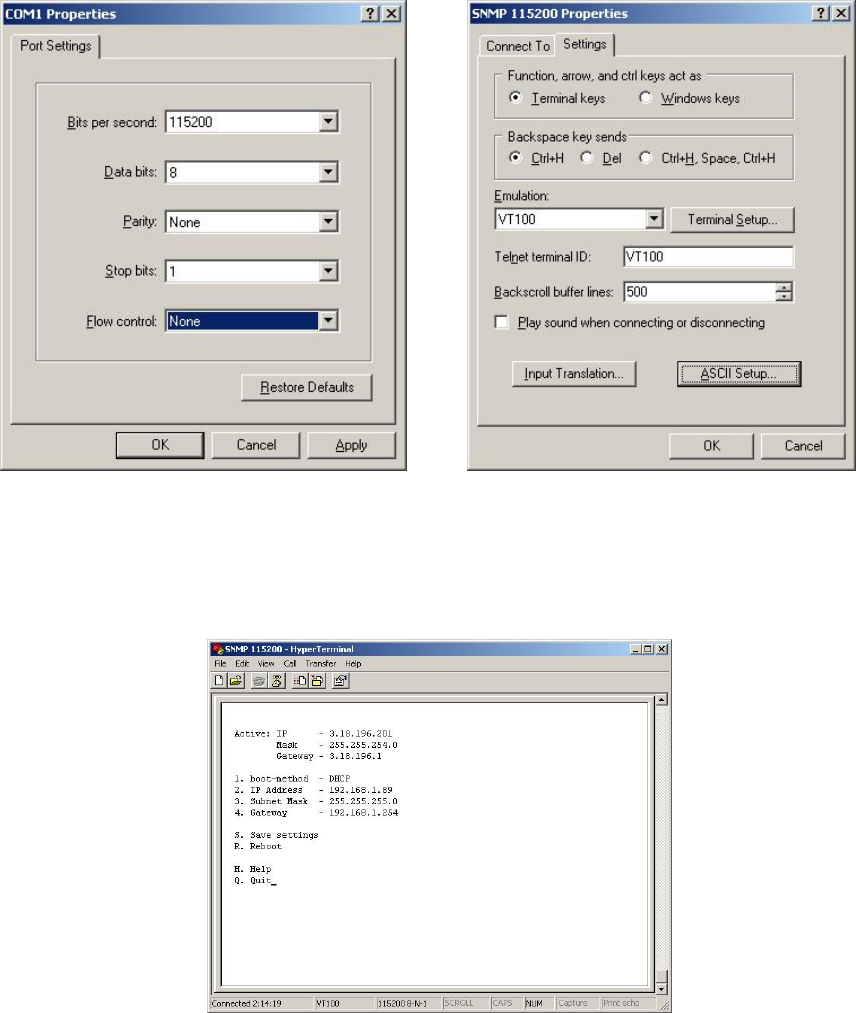

4.1.1 Configuration via serial connection................................................................................................................................................. 19

4.1.2 ........................................................................................................................................................... 20 Configuration via the network

4.2 ................................................................................................................................................................. 21 NETWORK PARAMETERS

4.2.1 Default configuration............................................................................................................................................................................. 21

4.2.2 Reboot........................................................................................................................................................................................................... 21

4.3 ................................................................................................................................................................. 21 FURTHER INFORMATION

5 ........................................................................................................................................................... 22 ACCESS

5.1 .................................................................................................................................................................................. 22 WEB INTERFACE

5.2 ......................................................................................................................................................................... 22 TROUBLESHOOTING

5.3 ................................................................................................................................................................. 22 FURTHER INFORMATION

6 ................................................................................................................................... 23 CUSTOMER SUPPORT

6.1 ......................................................................................................................................................................... 23 FIRST LINE SUPPORT

6.2 ............................................................................................................................................................................................... 23 INTERNET

6.3 ..................................................................................................................................................................................... 23 WWW SERVER

7 ................................................................................................................................................... 24 APPENDIX A

Modifications reserved Page 4/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

1 SAFETY RULES

With this document, GE gives to the user all the necessary information about the correct installation of

the SNMP/Web adapters.

Please read carefully this Installation Manual before installing or operating the adapters.

We recommend that this manual be kept next to the UPS for future references.

If any problems are encountered with the procedures contained in this manual, please contact the

nearest Service Centre before you proceed.

For more information on the UPS system, please refer to the applicable Installation and User Manual.

All maintenance and service work should be performed by qualified service personnel only.

The KNOWLEDGE of (and FULL compliance to) the safety instructions and

the warning contained in this manual are

THE ONLY CONDITION

to avoid any dangerous situations during installation, operation,

maintenance work, and to preserve the maximum reliability of the UPS

system.

NOTE !

While every care has been taken to ensure the completeness

and accuracy of this manual, GE assumes no responsibility or

liability for any losses or damages resulting from the use of

the information contained in this document.

Refuses any responsibility in case of non-observance,

unauthorised alterations or improper use of the

delivered equipment.

Modifications reserved Page 5/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

1.1 WARNINGS AND CAUTIONS

GENERAL

• Always strictly observe the “UPS Safety Rules”

• Check carefully the integrity of the equipment.

In case you note some visible damage, do not install the equipment but contact the nearest Service

Centre.

• WARNING: RISK OF ELECTRICAL SHOCK.

Do not remove any UPS covers; there are no user serviceable parts inside.

• After switching off, it takes up to 5 minutes for the DC capacitors to discharge because a lethally

high voltage remains at the terminals of the electrolytic capacitors.

• All maintenance and service work should be performed by qualified service personnel.

• The outlet-bars may be electrically live, even when the UPS is disconnected from the mains.

STORAGE

• Store the SNMP/Web adapters in a dry location; storage temperature must be within -25°C to 55°C

(-13°F to 131°F).

HANDLING

• The SNMP/Web adapters are ESD sensitive devices. When handling the adapters, only touch the

front panel / external cover and use suitable ESD protection (e.g. wrist straps).

• The SNMP/Web adapters contain a removable, lithium coin-cell battery.

Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

INSTALLATION

• Switching OFF the unit does not isolate the UPS from the mains.

• Do not install the equipment in an excessively humid environment or near water.

• Avoid spilling liquids on or dropping any foreign object onto the equipment.

• The equipment should be placed in a sufficiently ventilated area; the ambient temperature should

not exceed 35°C (95°F).

BATTERY

• The SNMP/Web adapters contain a removable, lithium coin-cell battery. The battery has been

selected in order to power to the relevant devices for over 10 years, therefore battery replacement

should not be necessary and it is not recommended. In any case, replace only with batteries of the

same type, and properly dispose or recycle used batteries.

• Never dispose of battery in a fire: they may explode.

• Do not try to open or mutilate battery: their contents may be toxic.

• Never short-circuit the battery.

Modifications reserved Page 6/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

ENVIRONMENT

• Please take care of packaging material: either save it for later use or recycle/dispose in compliance

with local and other applicable regulations.

• The SNMP/Web adapters contain a removable, Lithium coin-cell battery. Dispose of used batteries

in compliance with local and other applicable regulations.

WARNING !

The UPS contains hazardous voltages.

Observe carefully the safety instructions to prevent risk of

electrical shock.

CAUTION !

The SNMP/Web adapter contains a lithium coin-cell

battery.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN

INCORRECT TYPE

DISPOSE OF USED BATTERIES ACCORDING TO THE

INSTRUCTIONS

Perchlorate Material - special handling may apply

See www.dtsc.ca.gov/hazardouswaste/perchlorate

Modifications reserved Page 7/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

1.2 EMC COMPATIBILITY

1-ph SNMP/Web plug-in adapter (P/N 1019070)

1-ph SNMP/Web external adapter (P/N 1019071)

This device has been tested for compliance with the following standards:

• EN 61000-6-2

• EN 61000-6-3

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected

• Consult the dealer or an experienced radio/TV technician for help

3-ph SNMP/Web plug-in adapter (P/N 1018959)

SP SNMP/Web plug-in adapter (P/N 23954)

These devices have been tested for compliance with the following standards:

• EN 61000-6-2

• EN 61000-6-4

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Modifications reserved Page 8/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

2 INTRODUCTION

2.1 CHECKING PACKAGE CONTENTS

The SNMP/Web adapters are delivered in different kits according to the model.

3-ph SNMP/Web plug-in adapter (P/N 1018959)

• 3-ph SNMP/Web plug-in adapter, with pre-installed standard front panel

• A front panel designed for LP33 Series UPSs

• Square plates for older SitePro UPSs

• Mounting screws

• Installation manual

• Third Party License ReadMe

• CD-ROM

Plates for old

SitePro UPS

(ref Appendix A)

Front panel for

LP33 Series

UPSs

1-ph SNMP/Web plug-in adapter (P/N 1019070) SP SNMP/Web plug-in adapter (P/N 23954)

• 1-ph SNMP/Web plug-in adapter

• Installation manual

• Third Party License ReadMe

• CD-ROM

SP SNMP/Web plug-in adapter (P/N 23954)

• SP SNMP/Web plug-in adapter

• Installation manual

• Third Party License ReadMe

• CD-ROM

1-ph SNMP/Web external adapter (P/N 1019071)

• 1-ph SNMP/Web external adapter

• AC adapter

• Serial communication cable

• Installation Manual

Modifications reserved Page 9/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

• Third Party License ReadMe

• CD-ROM

AC ada

ter

Serial cable

2.2 OVERVIEW

3-ph SNMP/Web plug-in adapter (P/N 1018959)

LP 33 Series UPS SitePro / SG Series UPS

Reset

RS-232

UTP 10/100 Active

LAN

UPS

Reset

RS-232

UTP 10/100 Active

LAN

UPS

Reset

RS-232

UTP 10/100 Active

LAN

UPS

Reset

RS-232

UTP 10/100 Active

LAN

UPS

1 2 3 4

• 1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX

• 2 – LEDs Ref. specific section

• 3 – RS-232 port Local console connection (115200-N-8-1)

• 4 – Reset button HW reset

1-ph SNMP/Web plug-in adapter (P/N 1019070)

Reset

RS-232

UTP 10/100 Active

LAN

Contact

interface

UPS

Reset

RS-232

UTP 10/100 Active

LAN

Contact

interface

UPS

Front

Panel –

User

Interface

View

3 2

Modifications reserved Page 10/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

• 1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX

• 2 – LEDs Ref. specific section

• 3 – RS-232 port Local console connection (115200-N-8-1)

• 4 – Reset button HW reset

• 5 – RJ11 Connector Contact interface, open-collector output

SP SNMP/Web plug-in adapter (P/N 23954)

• 1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX

• 2 – LEDs Ref. specific section

• 3 – RS-232 port Local console connection (115200-N-8-1)

• 4 – Reset button HW reset

1-ph SNMP/Web external adapter (P/N 1019071)

• 1 – RJ45 Connector Ethernet connection, 10Base-T or 100Base-TX

• 2 – LEDs Ref. specific section

• 3 – RS-232 port Local console connection (115200-N-8-1)

• 4 – Reset button HW reset

• 6 – Power-in AC adapter connection

• 7 – UPS port RS-232 connection to the UPS

Net link

Fault

ctive

reset

Front

View

1 6 7

Rear

View

Reset

RS-232

UTP 10/100 Active

LAN

UPS

Reset

RS-232

UTP 10/100 Active

LAN

UPS

Front

Panel –

User

Interface

View

1 3

2 4

Modifications reserved Page 11/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

LEDs

The various front panel LEDs have the following meaning:

• LAN / Netlink

Status Meaning

Off No LAN connection detected

LAN connection established, no communication

LAN connection established, receive or transmit active

Blink

• UPS / Fail

Status Meaning

OK / No Fault

Off

No UPS Connection

• Active

Status Meaning

Fault of device

Off

Device OK / No fault

Blink

2.3 FEATURES

Each SNMP/Web adapter provides the following features:

• 10/100 Mpbs connection speed

• Use of DHCP / BOOTP or manual configuration for the TCP/IP network settings

• SNMP Agent

• Web server

• Console interface

• UPS status / alarms / readings, event logging over different interfaces

• Digital outputs (open-collector outputs for relay drive) – 1-ph plug-in version only

• SNMP Traps and E-mail notification upon UPS event

• Advanced security features

2.4 ARCHITECTURE

ARCHITECTURE DIAGRAM

UPS Windows Linux UNIX

Ethernet

Local console

NOTE:

only required for

configuration

UTP

1:1 RS232

10/100 Mbit/s

Contact i/f

(1-ph plug-in version only)

Modifications reserved Page 12/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

2.5 ADDITIONAL DOCUMENTS

The SNMP/Web adapter is provided with a CD-ROM containing the following documentation:

• Installation Manual

• Operating Manual

• SNMP Management Information Base (MIB)

• Release notes and other instructions, as applicable

Modifications reserved Page 13/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

3 INSTALLATION

NOTE !

Strictly observe the ‘UPS Safety Rules’.

Read carefully the UPS ‘Operating Manual & Installation

Guide’ before installing or operating the equipment.

If any problems are encountered with the installation

procedure here described, please contact the nearest

Service Centre before proceeding.

3.1 3-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1018959)

NOTE ! SitePro customers only

SitePro units produced before 2003 require an additional

protective ground connection – refer to APPENDIX A.

3.1.1 Setting the logical address

The logical address is configured through dip-switch SW1 in the following way:

Logical Address Dip 1 Dip 2

SNMP Card 0 (1) 84 (54h) ON ON

SNMP Card 1 85 (55h) ON OFF

SNMP Card 2 86 (56h) OFF ON

SNMP Card 3 87 (57h) OFF OFF

(1) Default setup

Dip-switch SW1

NOTE: The logical address is a critical setting when more than one SNMP Card is installed in the same

UPS system.

Modifications reserved Page 14/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

Modifications reserved Page 15/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

3.1.2 Installing the SNMP Card in option slot

IMPORTANT: Switch off the UPS, and wait approx. 2 minutes or switch the UPS to the manual bypass.

In the latter case, please ensure that the mains input is reliable during this period.

All cables must be disconnected from the card during the installation.

Install procedure for LANPRO 33 / LP 33 Series

LP33_30_UPS without protections_01

F1F3

1. Remove the plate that covers the Option slot by cutting the edges which are holding the plate.

Take care the plate does not fall inside the UPS!

2. Slide carefully the SNMP adapter into the Options slot.

3. Fix the front plate of the SNMP adapter to the UPS, using the screw included in the SNMP/Web

adapter kit.

Install procedure for SitePro S6

Q1 Q4

1. Change the front plate with the smaller one delivered with the Kit.

2. Insert the SNMP adapter in the options slot.

3. Fix the front plate of the SNMP adapter to the connectivity box, using the screw included in the

SNMP/Web adapter kit.

SNMP

Connectivity box

SP_150-200_S6_customer interface_01

J11

SNMP

PROTECTION

PLATE

Option slot (see

description below

for procedure)

Customer interface

Install procedure for SG Series

SGT5000_050-080_UPS_GE_03

OFF

1. Change the front plate with the smaller one delivered with the Kit.

2. Insert the SNMP adapter in the options slot.

3. Fix the front plate of the SNMP adapter to the connectivity box, using the screw included in the

SNMP/Web adapter kit.

3.1.3 Connecting the card

Refer to the architecture detailed in Section 2.4.

Now, the UPS may be switched on (or back to normal mode from manual bypass).

3.2 1-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1019070)

• Switch off the UPS, and wait approx. 2 minutes or switch the UPS to the manual bypass. In the

latter case, please ensure that the mains input is reliable during this period.

• Install the SNMP/WEB Interface card in the RS232 option slot. For more details about the slot please

read the UPS user manual.

Connectivity box

CNT_Customer Interface_01

Adv. SNMP Card

Protection

Plate

Modifications reserved Page 16/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

• Make all necessary connections (see architecture diagram in section 2.4).

Contact i/f

• Switch on the UPS or go back to normal mode from bypass.

3.3 SP SNMP/WEB PLUG-IN ADAPTER (P/N 1019070)

• Switch off the UPS, and wait approx. 2 minutes or switch the UPS to the manual bypass. In the

latter case, please ensure that the mains input is reliable during this period.

• Install the SNMP/WEB Interface card in the option slot. For more details about the slot please read

the UPS user manual.

• Make all necessary connections (see architecture diagram in section 2.4).

• Switch on the UPS or go back to normal mode from bypass.

3.4 1-PH SNMP/WEB EXTERNAL ADAPTER (P/N 1019071)

• Connect the network cable to the box

• Connect the UPS to the SNMP/WEB Interface box (Sub-D connector “UPS”) using the cable provided

with the UPS (VIC/23 or IMV-I or 1:1 straight cable) for intelligent communication.

Note: when using the Contact Interface communication on GE Digital Energy™ UPS, a VIC-25 or

IMV-C cable kit is required.

Modifications reserved Page 17/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

• Connect the power to the box (left-most connector in the picture above). Make sure that the

SNMP/WEB Interface box is powered by the UPS output!

• The UPS / Fail LED will switch OFF once the connection to the UPS is established.

If the LED remains continuously on, check the UPS connection and related cabling.

3.5 INTERFACES

UTP 10/100 – RJ45 port

Connection to an Ethernet 10/100 Mbits/s networks, using an UTP cable.

RS-232 – DB9 port

Serial communication, connection to a local console.

Use a straigth (1:1) serial cable for connection to a PC.

RD 2

Connector pin-out as follows:

Pin # Function

2 TD – Transmit Data

3 RD – Receive Data

5 GND

Contact interface – RJ11 port (1-ph plug-in version only)

Plug-in contact interface port.

Connector pin-out as follows:

Pin # Function

1 Mains failure

2 General alarm *

3 Battery low

4 On bypass

5 N.C.

6 GND

(*) Active if the output voltage of the UPS is no longer guaranteed due to other circumstances than

already indicated by pin 1-3-4.

CAUTION !

The DB9 and RJ11 port share the same GND signal.

Exercise caution when both interfaces are used at the

same time, particularly when connecting these interfaces

to non-floating ground systems.

Modifications reserved Page 18/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

4 CONFIGURATION

4.1 CONFIGURATION METHODS

The SNMP/Web plug-in adapters can be configured using different interfaces.

4.1.1 Configuration via serial connection

• Connect the SNMP adapter to a computer using a standard 1:1 serial communication cable.

• Run a terminal simulator (e.g. HyperTerminal on a PC running Windows)

• Configure the terminal simulator as follows:

115,200bps, 8 data bits, 1 stop bit, parity none, flow control none

Terminal emulation VT-100

• Establish the connection and press <enter>

• The default username (login) and password are ge and ge

• A command-line configuration interface is entered. Type menu to enter the quick network

configuration menu:

Modifications reserved Page 19/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

NOTE: Although the console interface provides a full set of commands, access using the serial

connection is only needed for initial configuration when no DHCP server is available, or the IP-address is

unknown. The quick network configuration menu provides a simple interface for basic network

configuration. For all other settings the user-friendly web interface is recommended.

NOTE: Save the settings !

Apart from some network parameters, most setting are immediately active. However, the adapter will

revert to the last saved settings at reboot. Therefore, in order to permanently modify the SNMP/Web

adapter setting, remember to save the configuration after every change. This can be done:

• Pressing S on the quick configuration menu

• Entering nvsave at the command interface prompt

4.1.2 Configuration via the network

TELNET

• Launch a telnet client (e.g. on a PC running Windows, select Run from the Start menu and type

telnet <IP>)

• The default username (login) and password are ge and ge

• A command-line configuration interface is entered

WEB BROWSER

• Launch a web browser

• Enter the URL of the SNMP/Web adapter: http://<IP>/

• The default username and password are ge and ge

• Navigate the pages using the menu bar

NOTE: Save the settings !

Apart from some network parameters, most setting are immediately active. However, the adapter will

revert to the last saved settings at reboot. Therefore, in order to permanently modify the SNMP/Web

adapter setting, remember to save the configuration after every change.

Modifications reserved Page 20/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

4.2 NETWORK PARAMETERS

The SNMP/Web adapter connects to the network using the following parameters:

• IP address identifies the adapter on the network.

• Subnet mask defines a range of addresses within the organisation.

• Gateway the node used for connection to addresses outside the subnet.

The adapter can be configured to obtain these settings automatically using DHCP or BOOTP protocols,

or to use static addresses (manual configuration).

4.2.1 Default configuration

The SNMP/Web adapter comes with a pre-configured MAC address, with the following format:

00:12:93:Fx:xx:xx 00:12:93 identifies the manufacturer.

x:xx:xx is a unique code for every adapter.

The MAC address is written on a label sticker on the SNMP/Web adapter.

The factory default configuration for the SNMP/Web adapter is using DHCP. Assign the IP address to the

adapter MAC address in your DHCP server. Then reboot the adapter in order to have it retrieve the IP

address. The adapter is now accessible and configurable over the network.

4.2.2 Reboot

Every time the network settings are changed, these become effective only after a reboot. The adapter

can be rebooted:

• Manually, pressing the reset button on the front of the adapter

• Using the console interface (either serial connection or telnet) by injecting the reboot command

• Using a web browser, selecting ‘Reboot’ in the menu

4.3 FURTHER INFORMATION

For more information, and in order to make full use of all advanced functionalities provided by the

SNMP/Web adapter, refer to the Operating Manual available on the CD-ROM

Modifications reserved Page 21/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

5 ACCESS

5.1 WEB INTERFACE

After the installation and configuration of the SNMP/Web adapter, the connection can be tested with a

web browser.

• Launch the browser

• Enter the URL of the SNMP/Web adapter: http://<IP>/ (e.g. http://192.168.24.14/)

• When prompted, enter username and password (by default, these are set to ge and ge)

• The SNMP/Web adapter home page will be shown

5.2 TROUBLESHOOTING

If no answer is received from the adapter, verify the adapter installation, cabling and network

configuration. Check the Ethernet connection to the adapter by launching a ping command from a

workstation in the same subnet.

E.g. in a Windows system:

• Select Run from the Start menu

• Enter ping <IP> (e.g. ping 192.168.24.14)

• Verify that the SNMP Card adapter is correctly replying

5.3 FURTHER INFORMATION

For more information, and in order to make full use of all advanced functionalities provided by the

SNMP/Web adapter, refer to the Operating Manual available on the CD-ROM

Modifications reserved Page 22/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

6 CUSTOMER SUPPORT

6.1 FIRST LINE SUPPORT

Please contact your local GE distributor for problems with the installation of the product or its use.

6.2 INTERNET

On-line support available on request (Internet access required).

6.3 WWW SERVER

We have a WWW server running at

www.gedigitalenergy.com

With your favourite web browser you can access the latest information from GE, and download updates

and manuals for this product.

Modifications reserved Page 23/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

7 APPENDIX A

SitePro EARTH CONNECTION

In order to guarantee correct functional behaviour, the SNMP/Web plug-in adapter must be connected

to protective earth (UPS chassis). On SitePro UPSs manufactured before 2003 the square plates

(delivered with the 3-ph adapter kit) must be mounted – refer to the pictures below for the installation

details.

Note: Should the UPS be already equipped with the plates, please ignore this step.

Square plates

Square plates mounting position

Square plate mounting – detail Plug-in adapter earth connection

Modifications reserved Page 24/24

ISG_CNT_SNM_BAS_CRD_1GB_V012.doc Installation Guide SNMP/Web Adapter

Ge Appliances Digital Energy 1018959 Users Manual Signature 4000

1018959 to the manual b241a0f3-0aaa-4ef2-b322-72fb1d31303c

Navigation menu

Versions of this User Manual:

Views

Navigation
