Introduction
Designed to meet NEMA specifications, GE’s complete line
of DC motor offerings are available to meet all of your DC
motor needs. The Kinamatic™ and CD6000 series of motors
featured in this publication are a result of many years of
research and development. Quality components and
craftsmanship are designed to provide years of dependable
motor performance.
Frames
Rugged magnetic ring frame construction of Kinamatic
motors and heavy duty fabricated CD6000 frames designed
for optimum motor performance.
Bearings
Antifriction bearings permit mounting of standard CD320AT
and below frame sizes at any angle and CD365AT-CD5010AY
frames mounted vertical shaft down. For easy maintenance,
CD6000 have antifriction bearings and removable bearing
cartridges and caps.
Insulation
Kinamatic and CD6000 series DC motors have Class F
insulation containing a number of components rated Class
H, unless otherwise specified.
The insulation system employs many proprietary materials
and processes developed specifically for this line of machines.
The system was chosen to provide long life at rated loads and
also to withstand the effects of mechanical shock, vibration,
and the contamination of many severe environments. The
Class F insulation system has been proven by laboratory tests
and by many years of successful operation.
TIG Welding
Low maintenance, trouble free commutator riser joints are
provided by TIG (Tungsten Inert Gas) welding commutator
risers to the armature coil.
This strong copper-to-copper connection eliminates the use
of material with low melting temperatures and greatly
increases the motor’s ability to withstand overloads.
Other benefits of TIG welding include excellent mechanical
strength and overload capacity, no tin or lead contaminants,
and no throwing of solder.
Motor Finish
Our standard motor or generator paint is a machine tool
ANSI #49 grey, heavy duty acrylic enamel over a water based
primer. Polyurethane paint is available for waterproof motors.

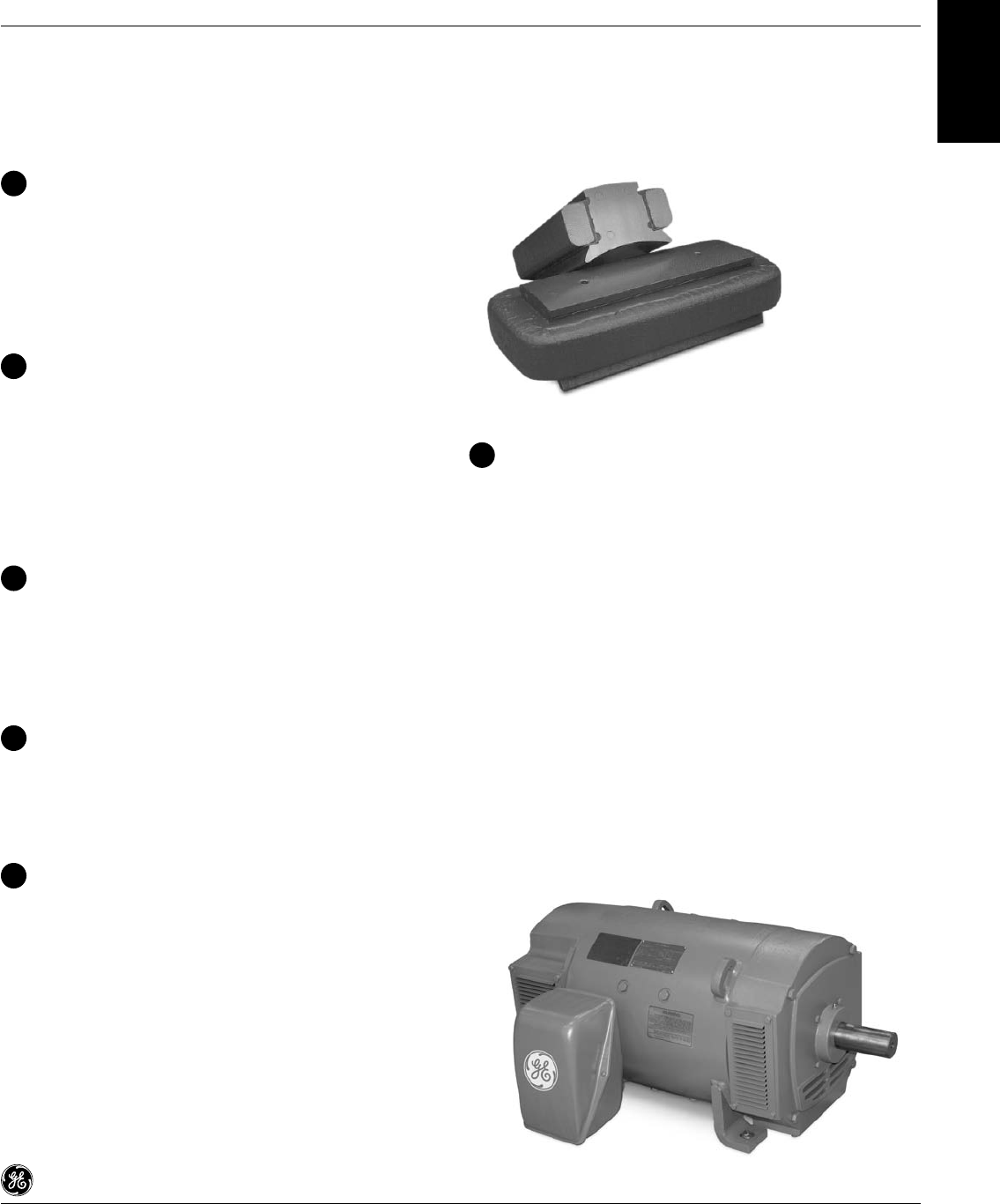

TREC® Field Coils

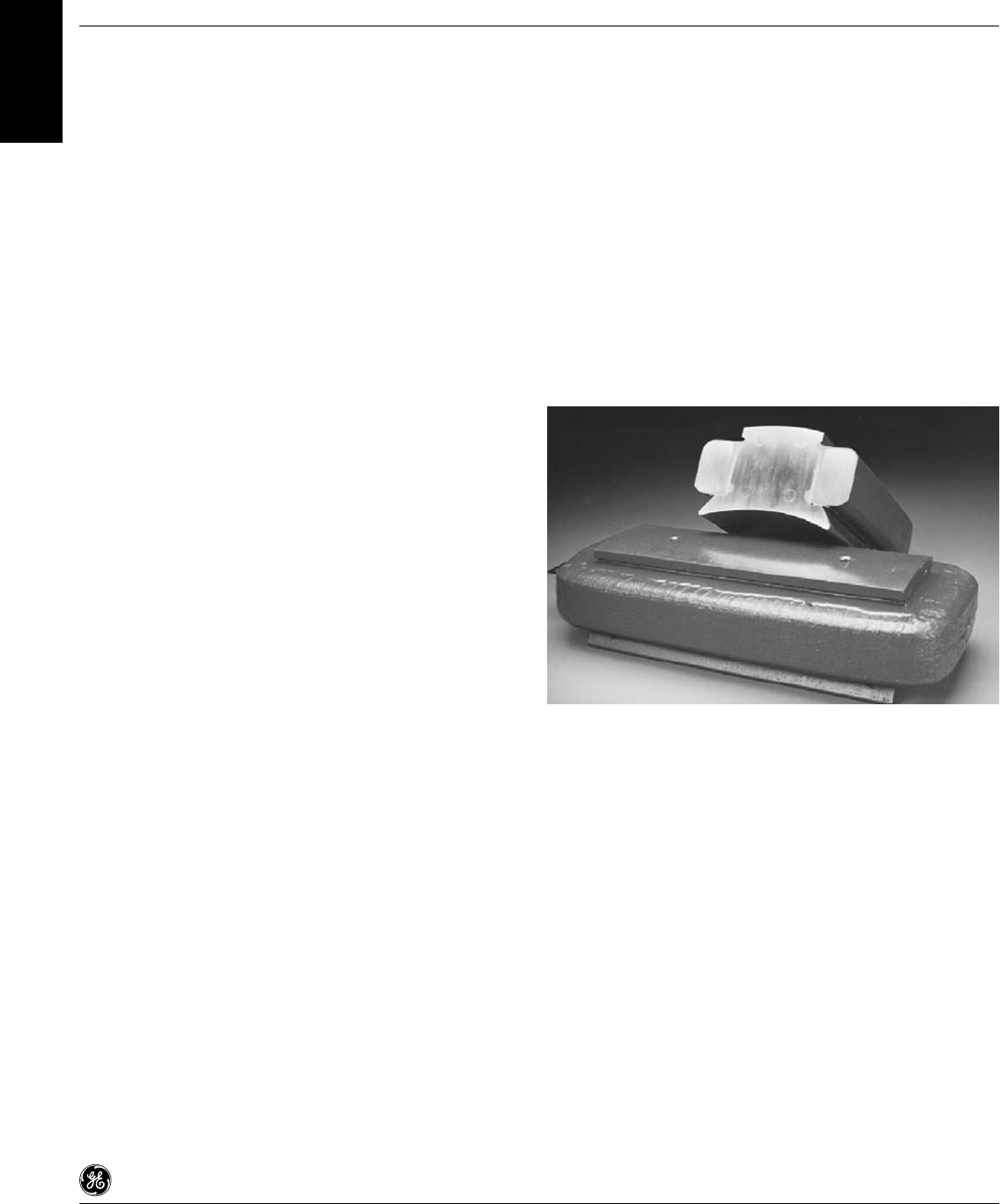

Tape Reinforced Encapsulated Construction (TREC®) of all
main field coils and commutating field coils is a process
which strengthens, seals, and bonds the coil to the pole to
form a single unit that is highly resistant to contamination,
vibration, impact, and wear.
The TREC coil is engineered to be elastic enough to with-
stand expansion and contraction due to temperature
differences. The TREC coil is standard on frames CD365AT-
CD5010AY and CD6000-CD6900.
Armature Treatment
Radiant Heat Process (RHP) All armatures in frames
CD180AT-CD500AT are treated with a solventless polyester
varnish, Radiant Heat Process. Armatures, in horizontal
position, are rotated under radiant electric heaters. After
preheating, the armatures are dipped and rotated under
heaters to cure the varnish. This process locks the resin in
place, filling the voids.
Vacuum Pressure Impregnation (VPI) All armatures in
frames CD6000-CD6999 are given a vacuum pressure
impregnation (VPI) treatment with high temperature varnish.
Armatures are placed into a vacuum vessel that pulls air
from the armature. Resin is then allowed into the vessel, and
pressure is applied. The pressure pushes the resin into the
voids. The armature is then drained and baked. Two VPI
cycles ensure an even varnish coating and an excellent heat
transfer path while eliminating all air pockets.
(TREC® coils shown above)
® Registered Trademark of General Electric Company
1.3
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Enclosures
Below is a listing of the enclosures offered by GE as defined by the National Electrical Manufacturer’s Association (NEMA). In
addition, the International Electrotechnical Commission (IEC).
Enclosure codes are shown for reference. This is a guide only. Refer to GE for special applications or labeling requirements.
NEMA Enclosures IEC Enclosures
Dripproof (DP) Protection Cooling
DPFG Dripproof fully guarded, self-ventilated IP-22 IC-01
DPFG-SV Dripproof fully guarded, separately ventilated IP-22 IC-17
DPFG-BV Dripproof fully guarded, blower ventilated IP-22 IC-06
ESV Enclosed separately ventilated, air ducted in and out IP-44 IC-37
SPFG Splashproof fully guarded, self-ventilated IP-23 IC-01
SPFG-SV Splashproof fully guarded, separately ventilated IP-23 IC-17
SPFG-BV Splashproof fully guarded, blower ventilated IP-23 IC-06
Totally Enclosed (TE) Protection Cooling
TENV Totally enclosed nonventilated IP-44 IC-410
TEFC Totally enclosed fan cooled IP-44 IC-411
TEAO Totally enclosed air-over-frame IP-44 IC-416
TEAAC Totally enclosed air-to-air cooled IP-44 IC-666
TEWAC Totally enclosed water-to-air cooled IP-44 IC-86W
TENV-WP Totally enclosed nonventilated, waterproof IP-45/55** IC-410
TEFC-WP Totally enclosed fan cooled, waterproof IP-45/55** IC-411
TEAO-WP Totally enclosed air-over-frame, waterproof IP-45/55** IC-416
Explosionproof (XP) Protection Cooling
TENV-XP Totally enclosed nonventilated, explosionproof * *
TEFC-XP Totally enclosed fan cooled, explosionproof * *
TEAO-XP Totally enclosed air-over-frame, explosionproof * *
* not defined
** IP-45: Drain Holes Open
IP-55: Drain Plugs Installed (special maintenance required)
1.4 www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Enclosures

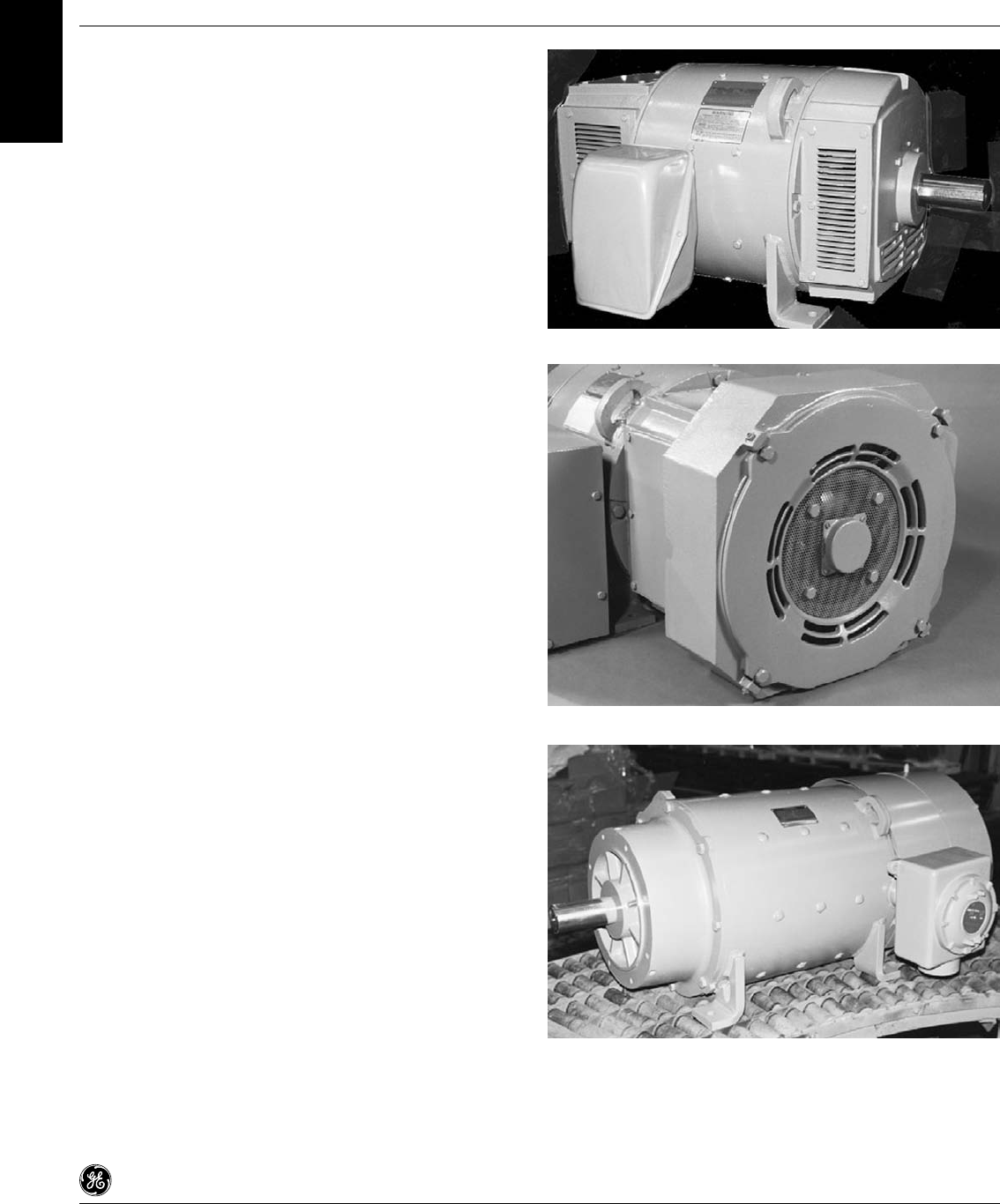

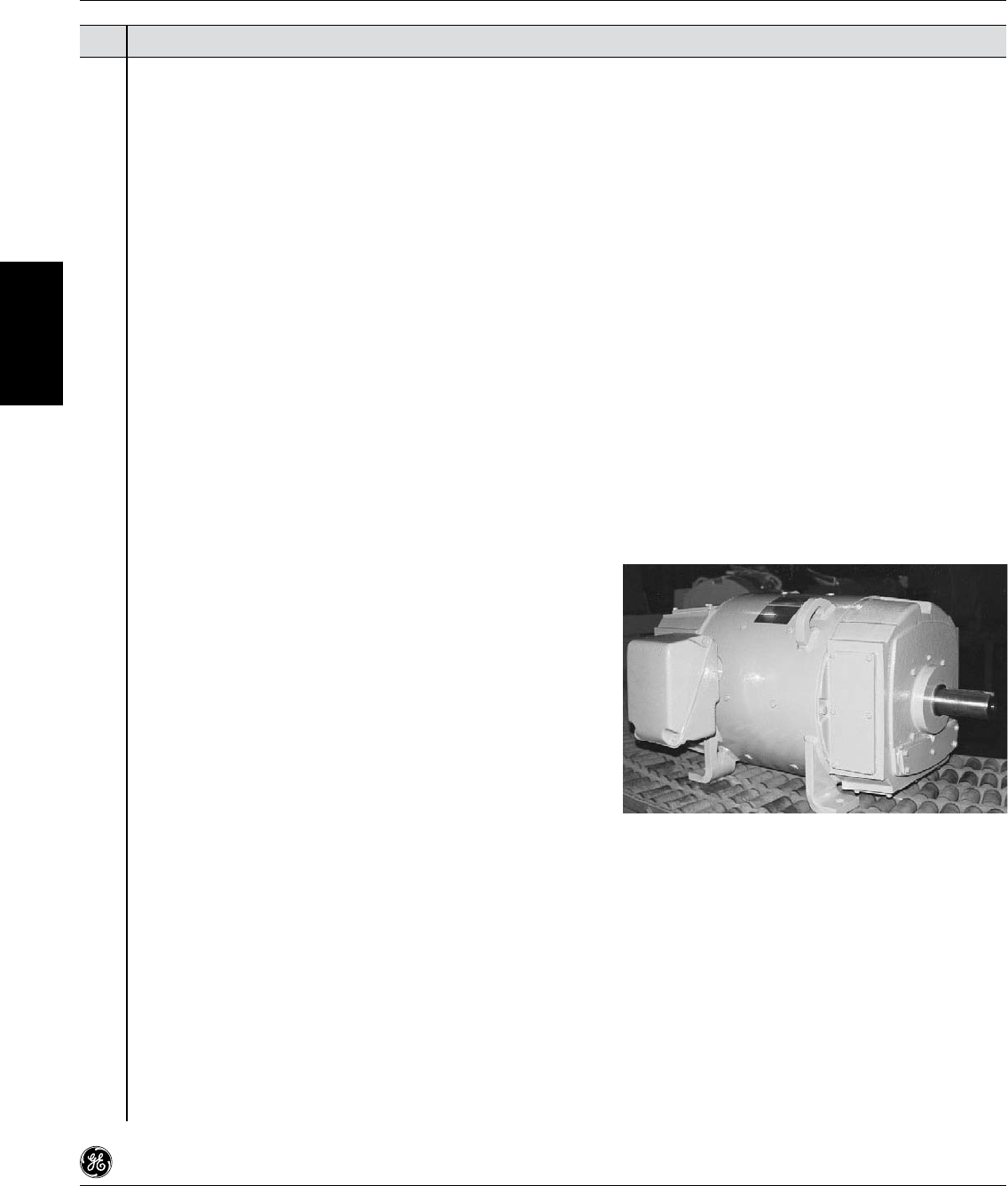

Dripproof, Fully Guarded
The standard Dripproof, Fully Guarded (DPFG) machine
allows successful motor operation when drops of liquids or
solid particles strike or enter the enclosure at any angle
from 0º to 15º downward from the vertical. Openings are
protected to prevent entrance of objects larger than 3/4”
in diameter.
Air openings are provided for easy conversion to splashproof
enclosure or for convenient connection of ducting for
separate ventilation.
CD180AT frame DPFG motors mounted sidewall and
vertical shaft end up will not be DPFG in that position,
but will be open fully guarded (OFG). Dripproof Fully Guarded Self-Ventilated (DPFG)

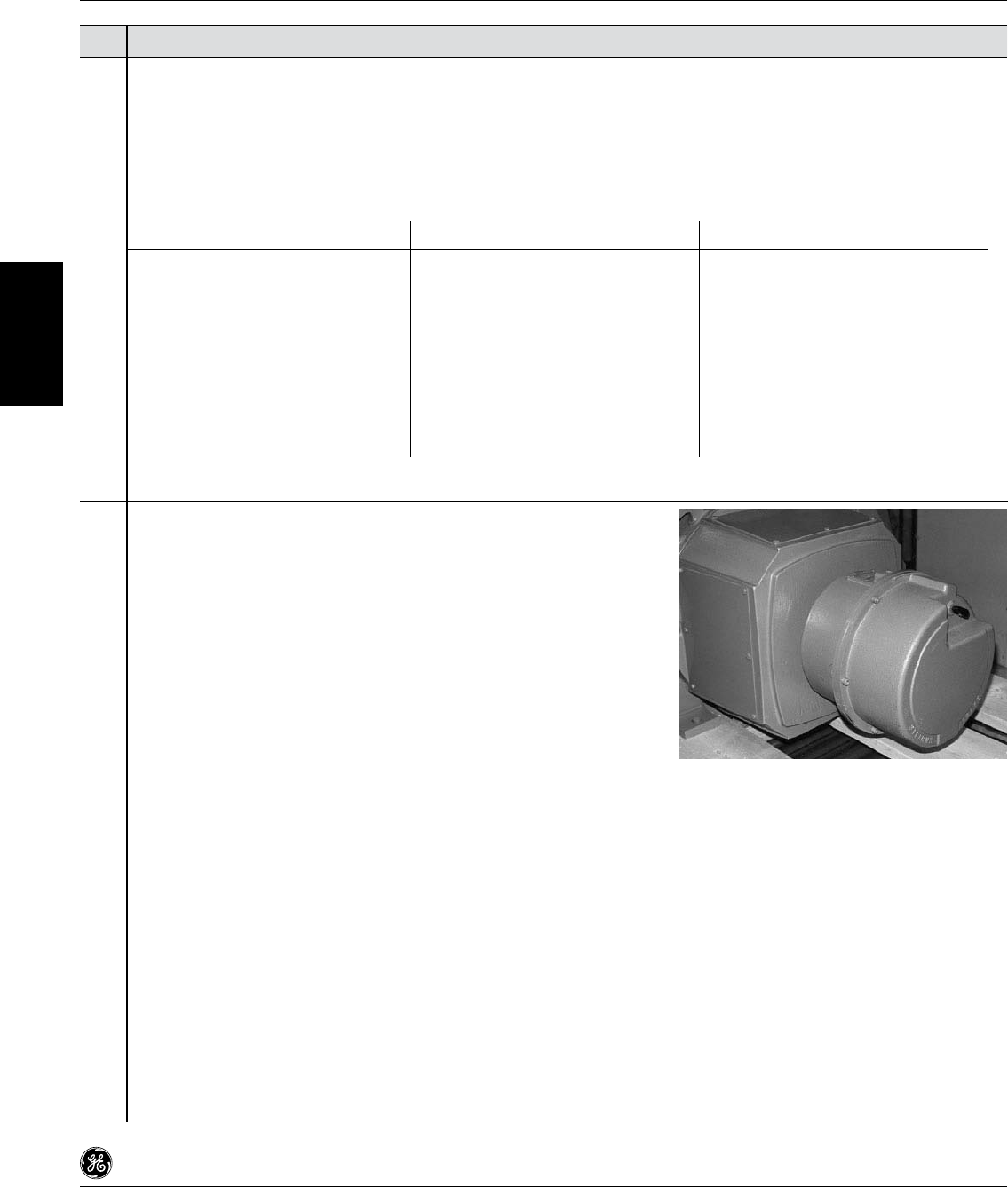

Totally Enclosed Fan Cooled (TEFC)
Totally Enclosed Fan Cooled Explosionproof (TEFC-XP)
Totally Enclosed
The standard Totally Enclosed Nonventilated (TENV) or
Totally Enclosed Fan Cooled (TEFC) motor provides effective
protection against adverse environmental conditions.
Among these conditions are dust, shavings, or other foreign
materials which are not classified as hazardous gas or dust
conditions. These machines are enclosed to prevent the
free exchange of air between the inside and outside of the
motor frame, but are not air-tight.
Explosionproof
The standard Explosionproof (XP) motor is a totally enclosed
machine with a housing constructed to contain any explo-
sion within the motor caused by the hazardous atmosphere
entering the enclosure and being ignited. An explosionproof
motor prevents the equipment from triggering a general fire
or explosion.
1.5
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing Stock Motor
Pricing
General
Information

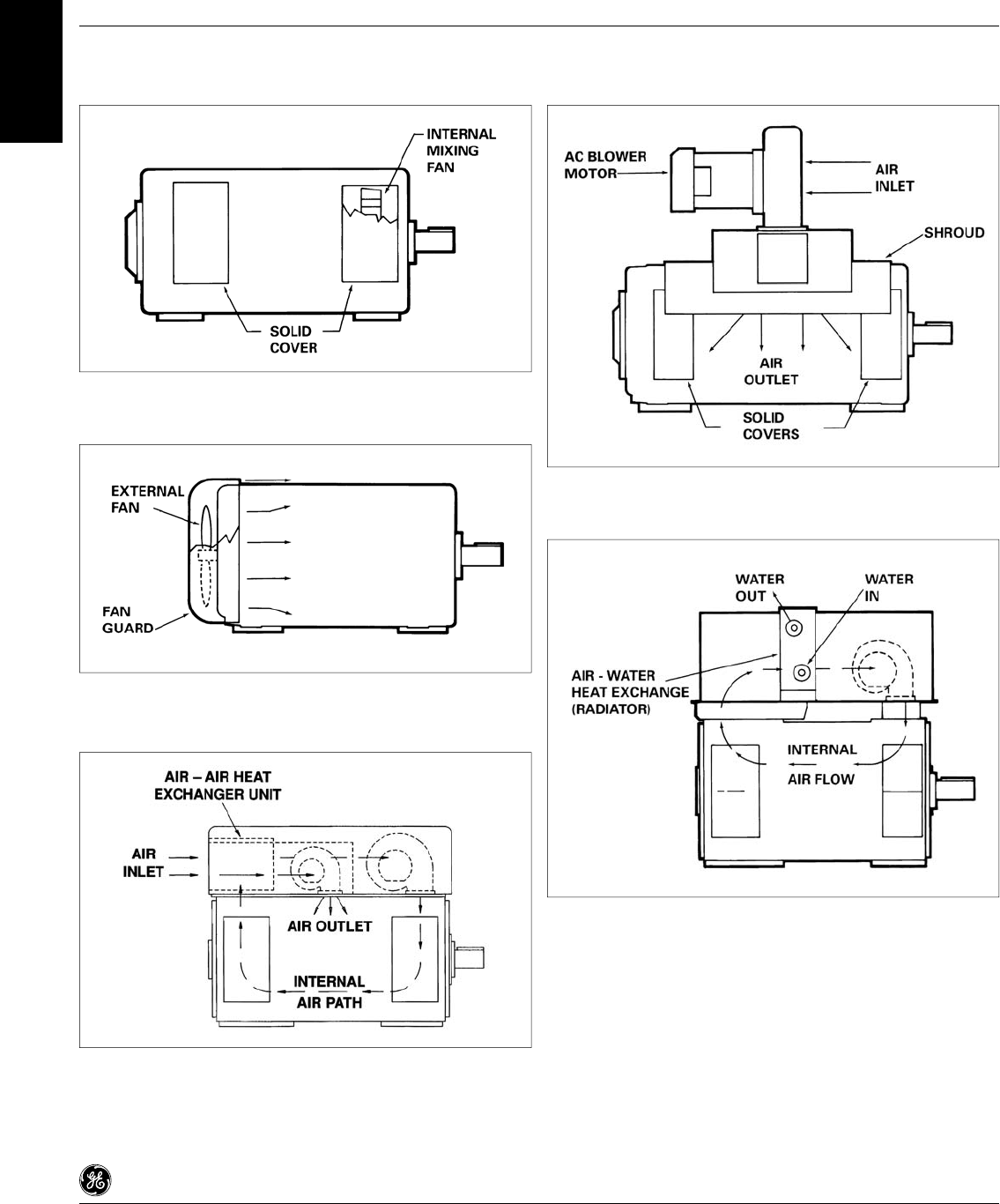

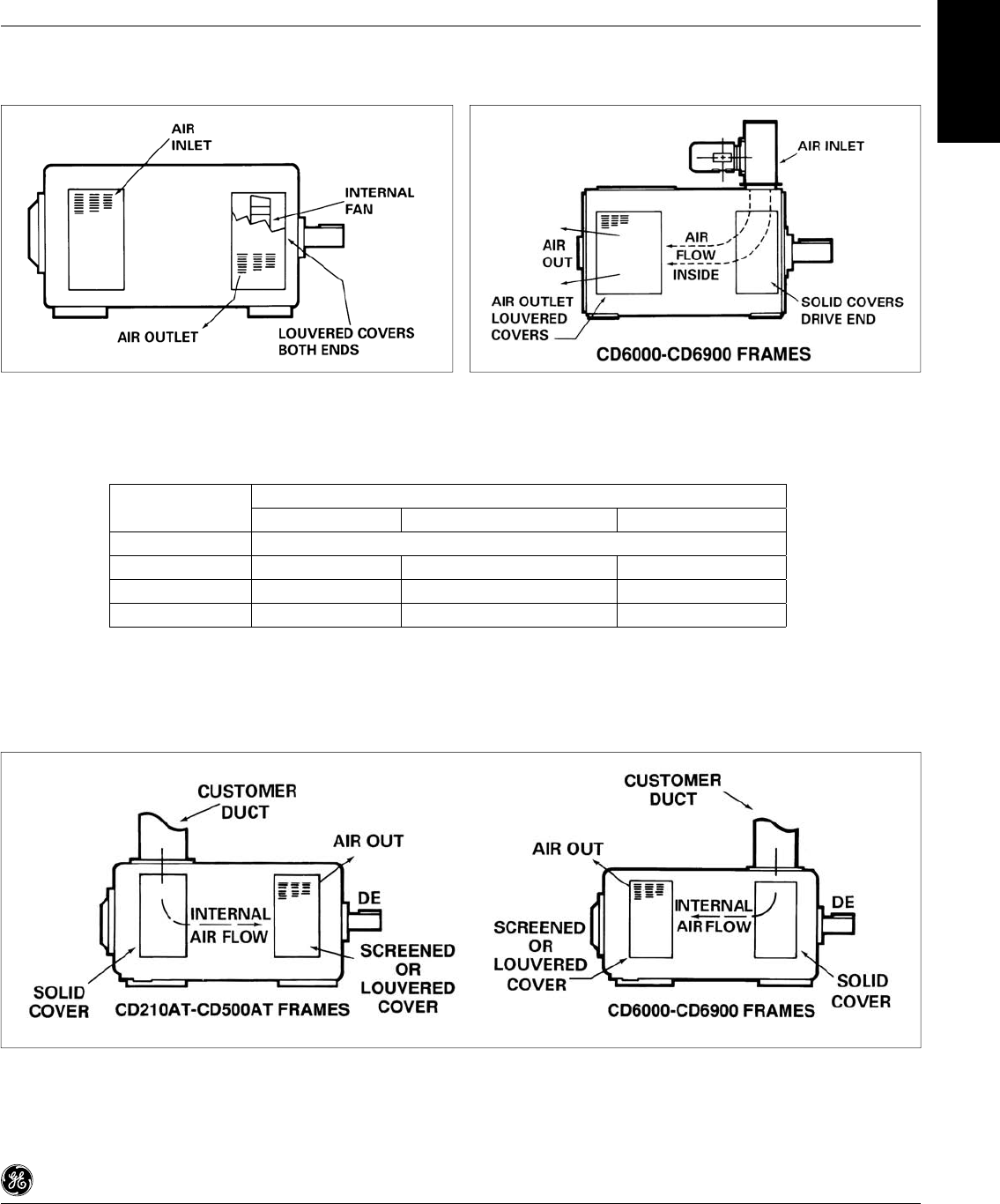

Air Flow Schematics
CD180AT-CD6900 Frames
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Dripproof Fully Guarded, Self-Ventilated (DPFG) Dripproof Fully Guarded*, Blower Ventilated (DPFG-BV)
(CD218AT-CD5010AY frames have blower mounted on commutator end.)
*Could also be Splashproof Fully Guarded.
Dripproof Fully Guarded, Separately Ventilated (DPFG-SV)
Blower positions and optional blower locations based on the position of the conduit box.
Frame Size
180AT 210AT to 5010AY CD6000 to CD6900
CB Location Blower Locations Available
Top F1 CE-F1, F2 DE-F1, F2
F1 N/A CE-F2, top DE-F2, top
F2 N/A CE-F1, top DE-F1, top
NOTE: CE = comm end, DE = drive end

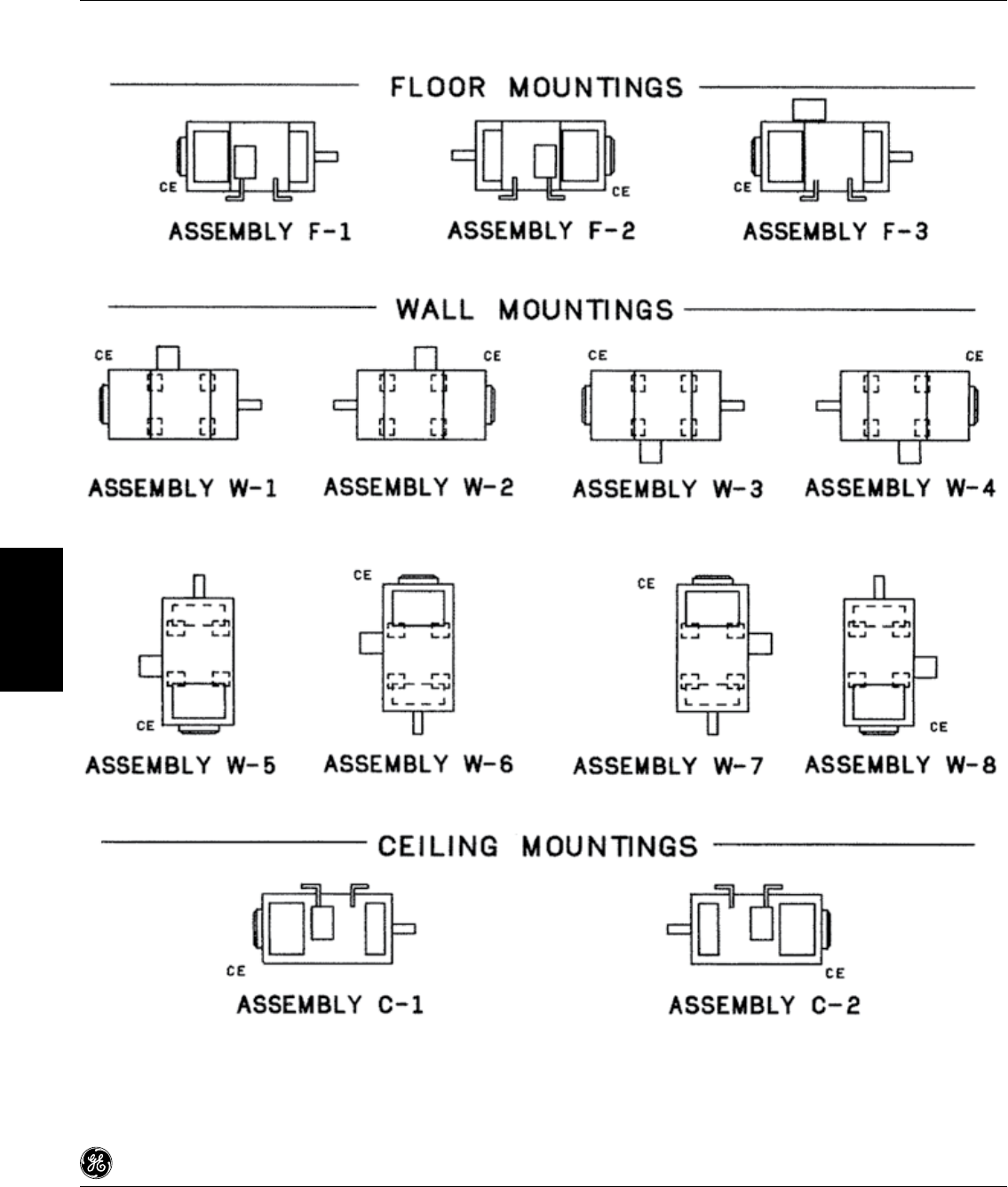

F1 = right side when viewed from the motor comm end, feet down
F2 = left side when viewed from the motor comm end, feet down
1.6
Air Flow Schematics
CD180AT-CD6900 Frames
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Totally Enclosed Nonventilated (TENV) Totally Enclosed Air-Over-Frame (TEAO)
Totally Enclosed Fan Cooled (TEFC)
Totally Enclosed Air-to-Air Cooled (TEAAC)
Totally Enclosed Water-to-Air Cooled (TEWAC)
Dwg. No. LO.MISC. 118R00
1.7
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Replacement Motors
Direct Replacement
A GE DC motor with a model number which has the
format, 5CDNNNLLNNNLNNN, 5CDNNNLLLNNLNNN or
5BYNNNLLNNNLNNN (where N=number and L=letter) will be
replaced with an exact electrical/mechanical replacement of
the original motor. The new motor will be supplied with the
up-to-date versions of the accessories.
Non-Direct Replacement
To replace a motor which has different mounting dimensions
than the Kinamatic motors shown in this publication (e.g., a
motor made by a different manufacturer or an older GE
motor), three options exist. When replacing a motor made by
a different manufacturer, all of the information listed on the
SAM-QC form (pages XX and XX) is required for quoting and
manufacturing. When replacing an older GE motor, the
model and serial number of the original motor are required
for quoting and manufacturing a replacement.
1. Standard Replacement
The new motor will be our standard offering (Kinamatic
motor shown in this publication) which duplicated the older
motor’s basic rating (horsepower, armature volts, field volts,
and field winding type). The new motor will not duplicate the
older motor’s winding characteristics (e.g., resistance,
inductance, amperage, or regulation). The new motor will not
duplicate the older motor’s drive end shaft dimensions or
frame dimensions. The new motor will not duplicate the older
motor’s armature inertia, overall frame height, or overall
frame length. Standard Class F rise, 1.0 service factor, and
NEMA standard overloads (as defined in the Accessories and
Modifications section, page XX item XX) will apply unless
otherwise specified. The new motor will be supplied with
up-to-date versions of the accessories of the older motor.
Pricing: Use standard pricing given in this publication.
2. Mechanically Interchangeable Replacement
(Up-to-date replacement)
This option is available if, and only if, the shaft height of the
older motor is reasonably higher (varies with motor size, but
typically greater than 1 inch is sufficient) than the shaft
height of the Kinamatic motor at the same rating. The new
motor will be our standard offering (Kinamatic motor shown
in this publication) which duplicates the older motor’s basic
rating (horsepower, armature volts, field volts, and field
winding type). By special machining the drive end shaft,
the new motor will duplicate the older motor’s mounting
dimensions. (C & FC dimensions may vary from original).
The new motor will not duplicate the older motor’s winding
characteristics (e.g., resistance, inductance, amperage, or
regulation). The new motor will not duplicate the older
motor’s armature inertia, overall frame height, or overall
frame length. Standard Class F rise, 1.0 service factor, and
NEMA standard overloads (as defined in the Accessories and
Modifications section, page XX, item XX) will apply unless
otherwise specified. The new motor will be supplied with the
up-to-date versions of the accessories of the older motor.
Pricing: Use standard pricing given in this publication, plus
add for special shaft dimensions (page XX, item XX) and a
transition base (page XX, item XX).
3. Dimensional Duplicate (Obsolete duplicate)
This option applies only to older GE motors and is only
required when a mechanically interchangeable replacement
motor is not applicable (e.g., shaft height difference does not
allow for a transition base, or motor is coupled at both ends
and a dimensional duplicate of the frame is required). the
new motor will duplicate the older motor’s basic rating
(horsepower, armature volts, field volts, and field winding
type). The new motor will duplicate critical dimensions of the
older motor’s frame and shaft(s). the new motor will be
updated with current electrical features, will not necessarily
duplicate the older motor’s winding characteristics (e.g.,
resistance, inductance, amperage, or regulation). Standard
Class F rise, 1.0 service factor, and NEMA standard overloads
(as defined on page XX, item XX) will not apply unless
otherwise specified. The new motor will be supplied with the
up-to-date versions of the accessories of the older motor.
Pricing: Refer to GE for producibility and pricing.
GE suggests that all non-direct motor replacement orders
be Print and Motor Data Approval Required. GE is not
responsible for mechanical or electrical replacement
problems encountered in the field.
1.8 www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information

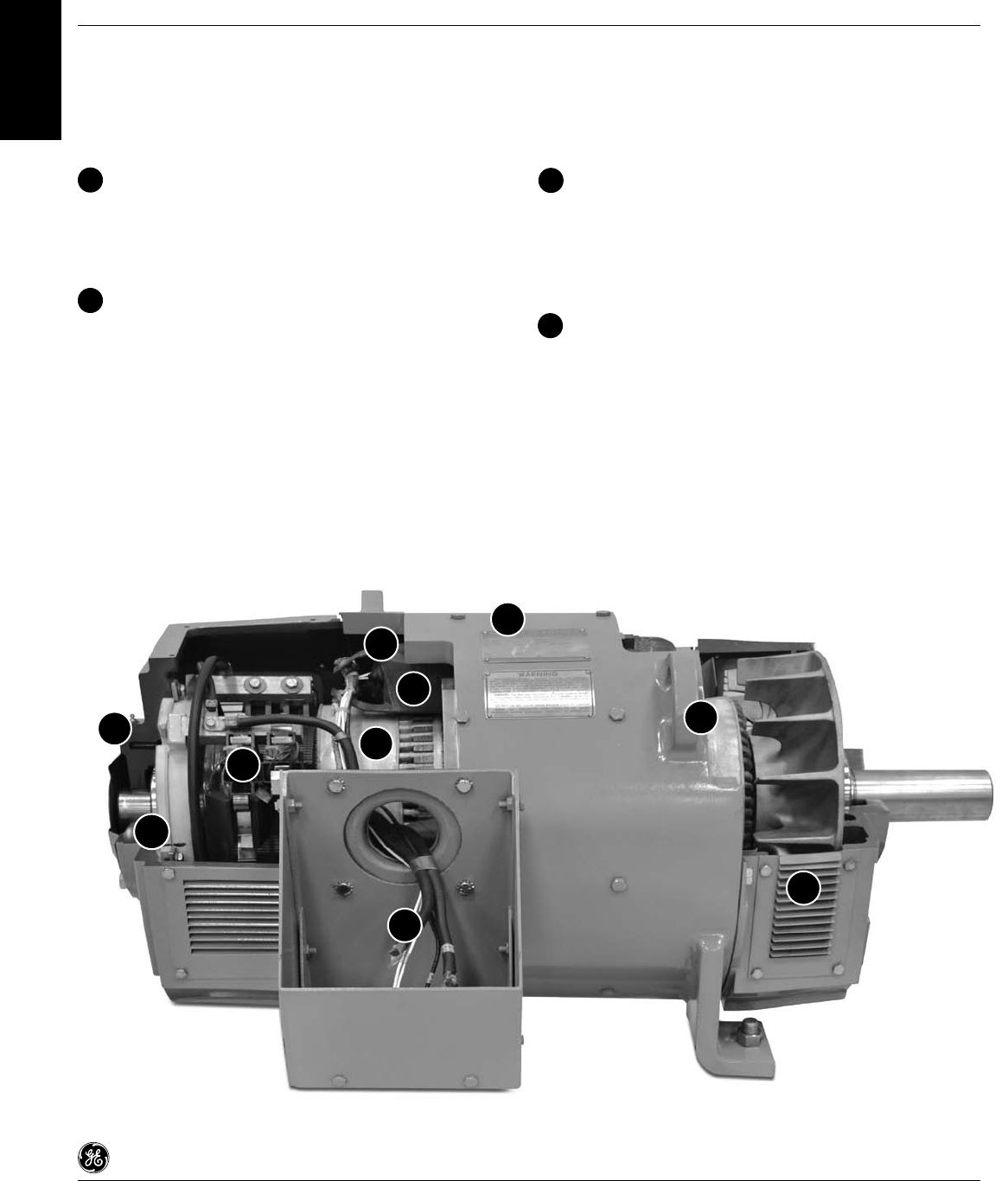

Motor Cutaway
Kinamatic
Quality, Reliability and Serviceability
NEMA Enclosures
• Dripproof,TotallyEnclosed,Explosionproof
• Allenclosuresarecustomizabletofitspecific
application requirements
Frames
• Roundsteelframes
• Boredtoprovidepreciseseatingofmainand
commutating poles
• Precisionrabbetsformountingofbearingbrackets
A
B
Bearings
• DoubleshieldedbearingsonframesCD180AT-CD2110AT
• OpenballbearingsonframesCD258AT-CD5010AY
• Regreasablefeatureswitheasyaccessalemitefittingsto
extend bearing life
Armature
• RadiantHeatProcess(RHP)onCD180AT-CD5010AY
frames
• Dipandbakeprocesscuresthevarnish,preventingvoids
and protecting against moisture and contaminates
• Controlledglassbandingstabilizesarmaturetowithstand
frequent starts, stops, and reversals
• CommutatorrisersTIGweldedtoarmaturecoils-
Eliminates hazards of tin or lead contaminates
D
C
B
D
I
J
G
A
H
F
E
C
1.9
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Motor Cutaway
Kinamatic
Coils
• RandomWoundCoils
- Frames CD180AT - CD329AT
- Wrapped with Mylar* composite and fiberglass tapes
- Dip and bake process allows varnish to penetrate
the windings
• TREC*(TapeReinforcedEncapsulatedConstruction)Coils
- Frames CD360AT - CD5010AY
- Tightly seals coil to the pole, resisting outside
contamination, vibration, impact and wear
- Excellent heat transfer extends motor life
- Engineered to withstand thermal expansion
and contraction
Brush Rigging
• Fieldprovendesignthatrequiresnoadjustment
• Heavycastbrushholderswithquickreleasebrushsprings
provide for easy maintenance
• Constantpressurespringsstabilizebrushcontactto
ensure proper commutation and improve brush wear
Conduit Box
• Easilyaccessible
• Oversizedfabricatedsteelbox
• Rubbergasketedmountingandclamshell
• Bronzegroundinglug
• Rotatable360°andF2mountingcapabilitiesmakefield
adaptation easy in any application
Insulation
• ClassFsystemwithClassHcomponents
• Withstandseffectsofmechanicalshock,vibration
and contamination
• Longlifeatratedloads

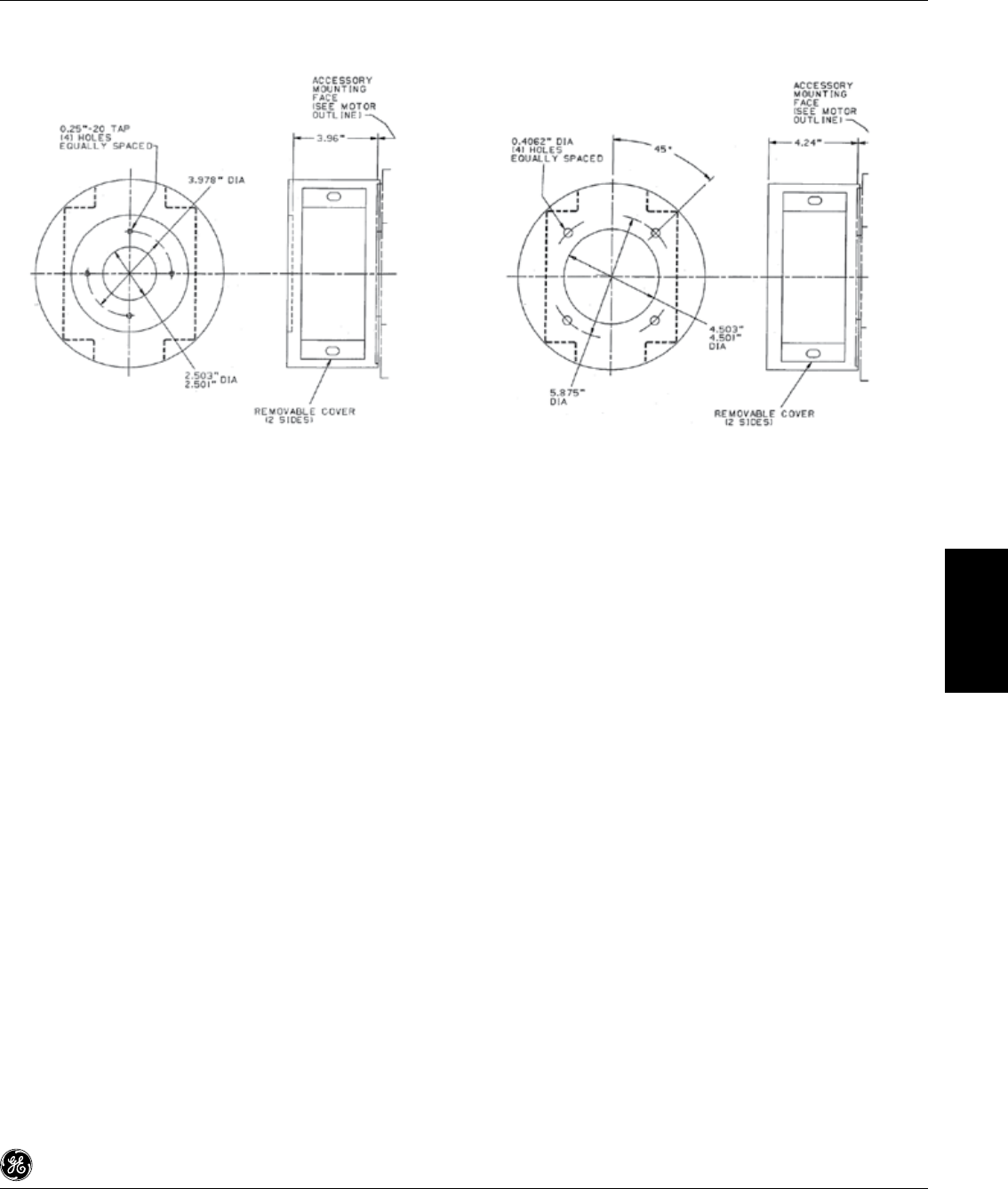

Accessory Mounting Face
• CommutatorendC-face
• Shaftsuitablefortachometerandspeedlimitswitch
• Drilledandtappedmountingholes
Lifting Lugs
• WeldedintoframeonCD210AT-CD5010AYframes
• CastinendbellonCD180ATframe
• Liftingsystemissaferthanasingleeyeboltliftingsystem
J
E
H
I
G
F
* Trademark of General Electric Company.
Mylar® is a registered trademark of DuPont Tejin Films.
1.10 www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
The following form is designed to provide guidance through the minimum requirements needed to quote a DC Kinamatic or
CD6000 frame motor. To ensure GE meets your specific needs, each quote must include the following information:
A. Customer Identification Information
B. Basic Motor Description
C. Additional Modifications
Customer Identification Information
Section A – Identification information includes key customer details that will help establish a customer profile. This section
also includes the following information that, although not necessary, may be extremely helpful in distinguishing special
motor needs.
a. Model Number
b. Serial Number
Basic Motor Description
Section B – Basic Motor Description includes each of the following items and are essential in providing the correct motor
specifications to meet the needs of customer applications. These DC motor offerings can be reviewed for both the
Kinamatic and CD6000 frame motors in the “Standard Features” section on page ___ at the beginning of the motor
pricing tab.
1. Horsepower*
2. Base Speed*
3. Top Speed
4. Armature Voltage*
5. Field Voltage *
6. Type of Field*
7. Enclosure*
8. Orientation*
9. Mounting
10. Duty Cycle
11. Direction of Rotation
12. Temperature Rise
13. Ambient
14. Altitude
15. Service Factor
16. Conduit Box Location
* Information REQUIRED to provide a quote
Additional Modifications
Section C – Additional Selections include all accessories featured in the “Accessories and Modification” section beginning on
page 3.1.
SAM-QC Form
Specify a Motor Quickly and Correctly Basic Requirement
Instructions
1.11
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
SAM-QC Form Minimum Data
Check Sheet
Check features that apply, and specify descriptions as needed
SECTION A – Customer Identification Information
Customer:
Project Name:
Tracking Number:
Date:
Due Date:
Quote Number:
a. Model Number:
b. Serial Number:
SECTION B – Basic Motor Description
1. Horsepower*:
2. Base Speed*:
3. Top Speed*:
4. Armature Voltage*:
p 180 p 240 p 500 p 600 p 750
p Volts
5. Field Voltage*:
p 100/200 p 120/240 p 150/300
p Volts
6. Type of Field*:
p Shunt Wound (Standard) p Stabilized Shunt
p Series p Compound
7. Enclosure*:
p DPFG – Dripproof Fully Guarded
p DPFG-BV – Dripproof Fully Guarded Blower Ventilated
p DPFG-SV – Dripproof Fully Guarded Self-Ventilated
p TENV – Totally Enclosed Nonventilated
p TEFC – Totally Enclosed Fan Cooled
p TEWAC – Totally Enclosed Water-to-Air Cooled
p TEAAC – Totally Enclosed Air-to-Air Cooled
p TEAO – Totally Enclosed Air-Over-Frame
p TENV-XP – Totally Enclosed Nonventilated, Explosionproof
p TEFC-XP – Totally Enclosed Fan Cooled, Explosionproof
8. Orientation*:
p Horizontal (Standard) p Vertical
p Shaft Up p Shaft Down
9. Mounting:
p C-Face Footed p C-Face Footless
p D-Flange p P-Base
10. Duty Cycle:
p Continuous (Standard)
p Other (Please specify: e.g 30 min, 60 min)
11. Direction of Rotation:
p Reversing (Standard) p Clockwise p Counter Clockwise
12. Temperature Rise:
p Class F p Class B
13. Ambient:
p 40ºC (Standard) p Other
14. Altitude:
p 3300 Ft (Standard) p Other
15. Service Factor:
p 1.0 (Standard) p Other
16. Conduit Box:
Location:
p Other
F1-RHS from CE (Standard)
SECTION C – Additional Modifications
Modifications can be found on page 3.1 in section 3 of this catalog. Refer to
GE with any additional specializations.
List all additional modifications/accessories below, with details regarding
dimensions, size, requirements and etc.:
* Information REQUIRED to provide a quote
1.12 www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Pump Motors
CD180AT through CD6900 Frames
DC Motors with armature voltages from 105-130 Volts in
most cases are used in pump applications. These are special
motors built to pump manufacturer specifications. Because
of the low armature voltage these motors have special
electrical designs and in many cases frame sizes are larger
than standard. If a model number is not available, a request
for motors in this voltage range must be accompanied by
the following information.
Pump motors operated from DC potential busses or
batteries will show significant speed variations from
nominal when the motor is cold and when the applied
voltage varies below nominal.
Where Used:
Customer:
Horsepower: Base Speed:
Enclosure: p DPFG p TENV p TEFC
p Explosionproof p Waterproof
Duty: p Cont. p 60 Min. p 30 Min.
Power Supply: p Battery p Constant Voltage
Armature Voltage: Volts
Field Voltage: Volts
If Battery Supply: Anticipated Voltage Swing From
Nominal +/– What %?
Minimum Cold Running Speed and Voltage RPM Voltage
Field Winding: p Shunt p Compound p Stab Shunt
Typically Motor RPM will be lower than nameplate speed
(approximately 10-15%) when cold and increase to name-
plate RPM as main field reaches operating temperature.
To reduce the cold to hot speed variations, the shunt fields
should be energized at 50 to 70% of rated voltage to
stabilize. However, for ‘emergency’ pump motor applications,
where field pre-heating may not be feasible, the pump
capacity must be sized to the cold start RPM.
Also at lower than nominal voltage the motor will run
slower than nameplate RPM, while conversely the motor
will run higher than nameplate RPM when voltage is higher
than nominal.
DESCRIPTION – Pump Motors
PUMP FORM
Max.AmbientTemp. °C
Altitude Feet (Standard is 3300 feet)
Temperature Rise:
p Class F p Class B
Service Factor: p 1.0 p 1.15
Rotation: p CW p CCW p Reversing
Space Heater: Heater Voltage
p 120V p 240V p Other
Thermostat: p N.C. p N.O. p None
Conduit Box: p Standard p Oversize p Waterproof
Conduit Box Location: (as viewed from comm end of motor)
p Right Side p Left Side p Top
Mounting: p Vertical Shaft Up Mounting Flange p C-Face
p Vertical Shaft Down (If required) p D-Flange
p Horizontal p P-Base
Drawings must be supplied for P-Base
2.1
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Motor Pricing
Index
Page
Kinamatic™ Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
CD6000 Standard Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
180 Volt Motors, Self-Ventilated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4
180 Volt Motors, Totally Enclosed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
240 and 500 Volt Motors, Self-Ventilated, 1 HP-7.5 HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6
240 and 500 Volt Motors, Separately Ventilated, 1 HP-7.5 HP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.7
240 and 500 Volt Motors, Self- and Separately Ventilated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.8
500 Volt Motors, Separately Ventilated. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
600 Volt Motors, Separately Ventilated. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.12
600 and 700 Volt Motors, Separately Ventilated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.13
Totally Enclosed Nonventilated Motors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.14
Totally Enclosed Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15
Totally Enclosed Motors, Unit Cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16
Totally Enclosed Nonventilated, 30 Minute Motors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21
Totally Enclosed Nonventilated, 60 Minute Motors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.22
Explosionproof and Dust-Ignitionproof Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.23
Papermill Duty Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.26
Papermill Duty, Totally Enclosed Nonventilated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.26
Papermill Duty, Splashproof Separately Ventilated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.27
Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.29
2.2 www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
HP Range 1-500
Base Speed 300-3500 RPM
Armature Voltage 240V, 500V
Field Voltage 300/150V, 240/120V
Accessory Mounting 8.5" accessory mounting rabbet with accessory shaft extension
Agency Approvals CSA
Altitude 3300 ft
Ambient 40°C
Balance/Vibration Measured at top speed: Peak-to-Peak Amplitude 0.0015"
Bearing Caps Cast iron CD258AT-CD5010AY both DE and CE
Bearing Type Anti-friction ball, CDL182AT-CD2010AT: double shielded, CD258AT-CD5010AY: open
Coils
CD180AT-CD329AT random wound- dip and baked
CD360AT-CD5010AY TREC® Coils
Conduit Box Fabricated steel, 360° rotatable, gasketed, oversized
Current Overload Occasionally repeated loads of 150% of base speed full load current
Endbells CD182AT-CD500AT: cast iron, CD5010AY: CE - cast iron, DE - fabricated steel
Frame Material Rolled Steel
Frame Size CD182AT-CD5010AY
Grease Lithium soap base
Ground Bronze bolt in conduit box
Insulation Class Class F
Insulation System Armature Treatment: Radiant Heat Process (RHP)
Lifting Means Two (2) welded lifting lugs
Mounting F1, modifiable to F2
Nameplate Stainless Steel
Paint ANSI #49 grey, heavy duty industrial enamel
Relubrication CDL182AT-CD2110AT: pre-lubricated, CD258AT-CD5010AY: zerk grease fittings
Service Factor 1.0
Temperature Rise Class F @ rated load and rated base speed
Tests Routine Test: Report available upon request with purchase order
Warranty 24 months from date of installation or 30 months from date of manufacture; whichever occurs first

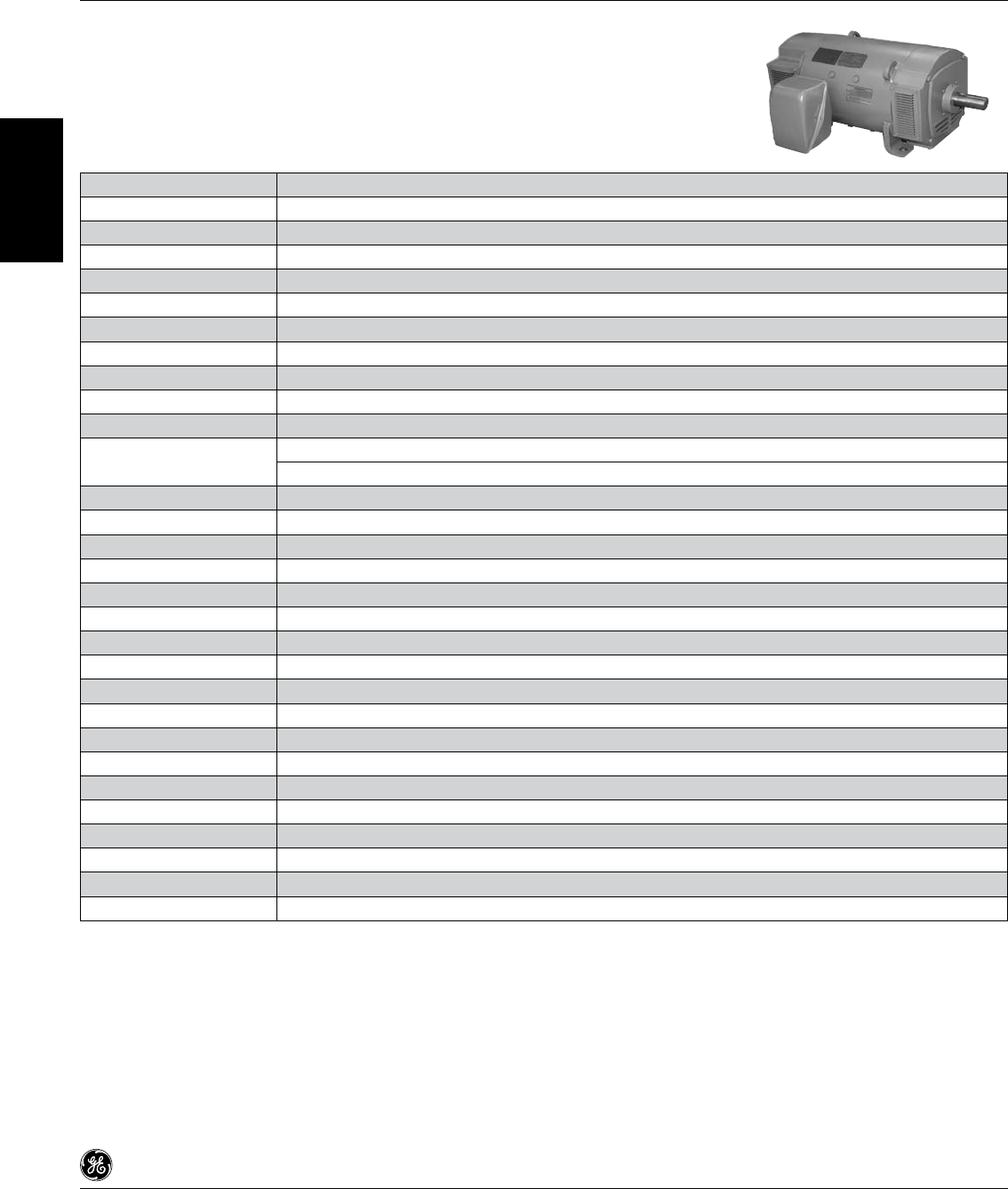

Direct Current Motors
Kinamatic™
Standard Features
2.3
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information

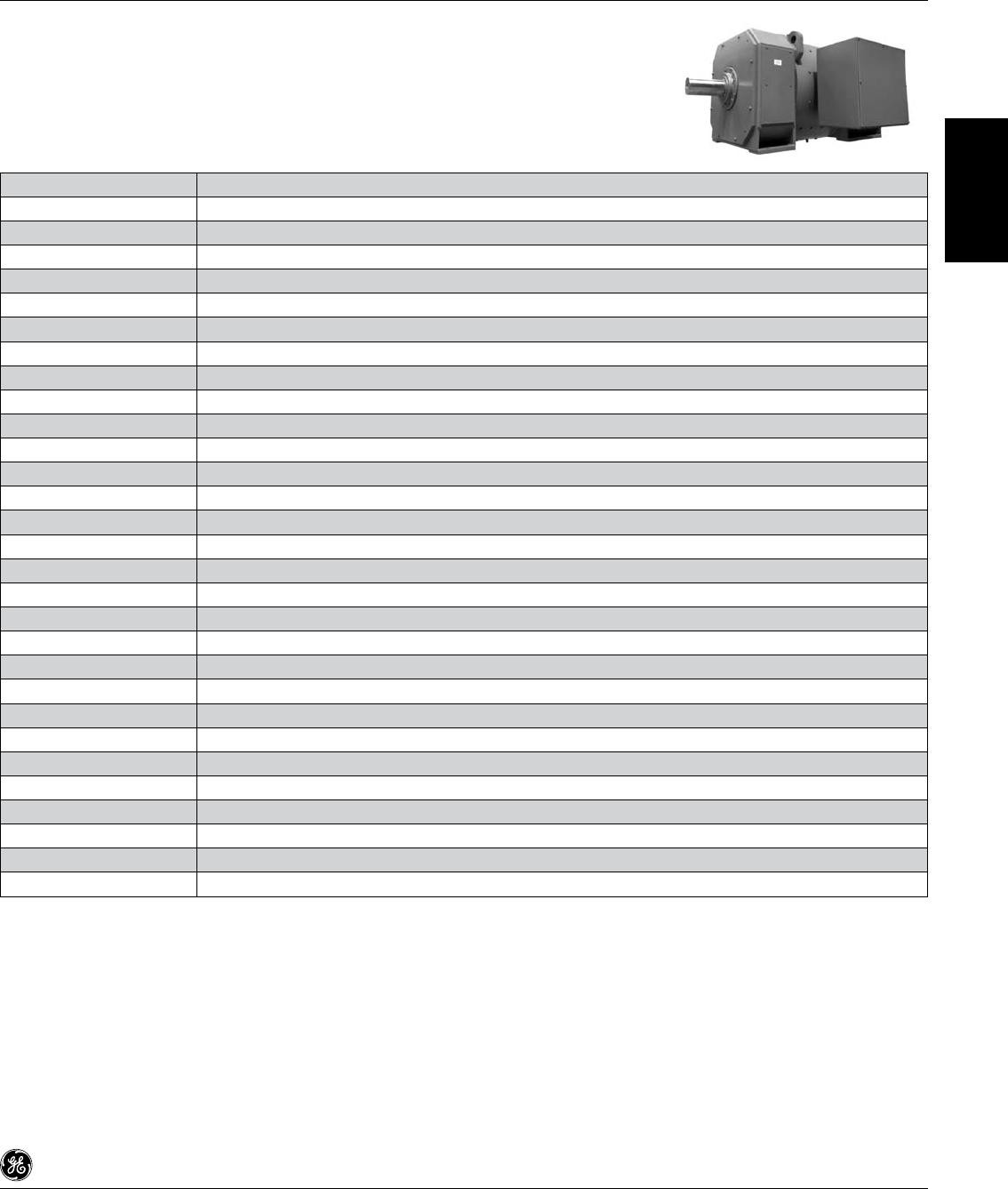

HP Range 500-3000
Base Speed 300-1750 RPM
Armature Voltage 500V, 600V
Field Voltage 300/150V
Accessory Mounting 8.5" accessory mounting rabbet with accessory shaft extension
Agency Approvals CSA
Altitude 3300 ft
Ambient 40°C
Balance/Vibration Measured at top speed: Peak to Peak Amplitude .0020"
Bearing Caps Cast iron - both DE and CE
Bearing Type Anti-friction ball bearings, open
Coils TREC® Coils
Conduit Box Large fabricated sheet metal construction with fixed buss-bar termination
Current Overload Occasionally repeated loads of 150% of base speed full load current
Endbells Fabricated Steel
Frame Material Fabricated Steel
Frame Size CD6000-CD6900
Grease Lithium soap base
Ground External mounting provision
Insulation Class Class F
Insulation System Armature treatment: VPI (vacuum pressure impregnation)
Lifting Means Four (4) welded lifting lugs
Mounting F1 modifiable to F2
Nameplate Stainless Steel
Paint ANSI #49 Grey heavy duty industrial enamel
Relubrication Zerk grease fittings
Service Factor 1.0
Temperature Rise Class F @ rated load and rated base speed
Tests Routine Test: Report available upon request with purchase order
Warranty 12 months of operation / 18 months from date of manufacture; whichever occurs first
Direct Current Motors
CD6000
Standard Features
2.4
Self-Ventilated
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information

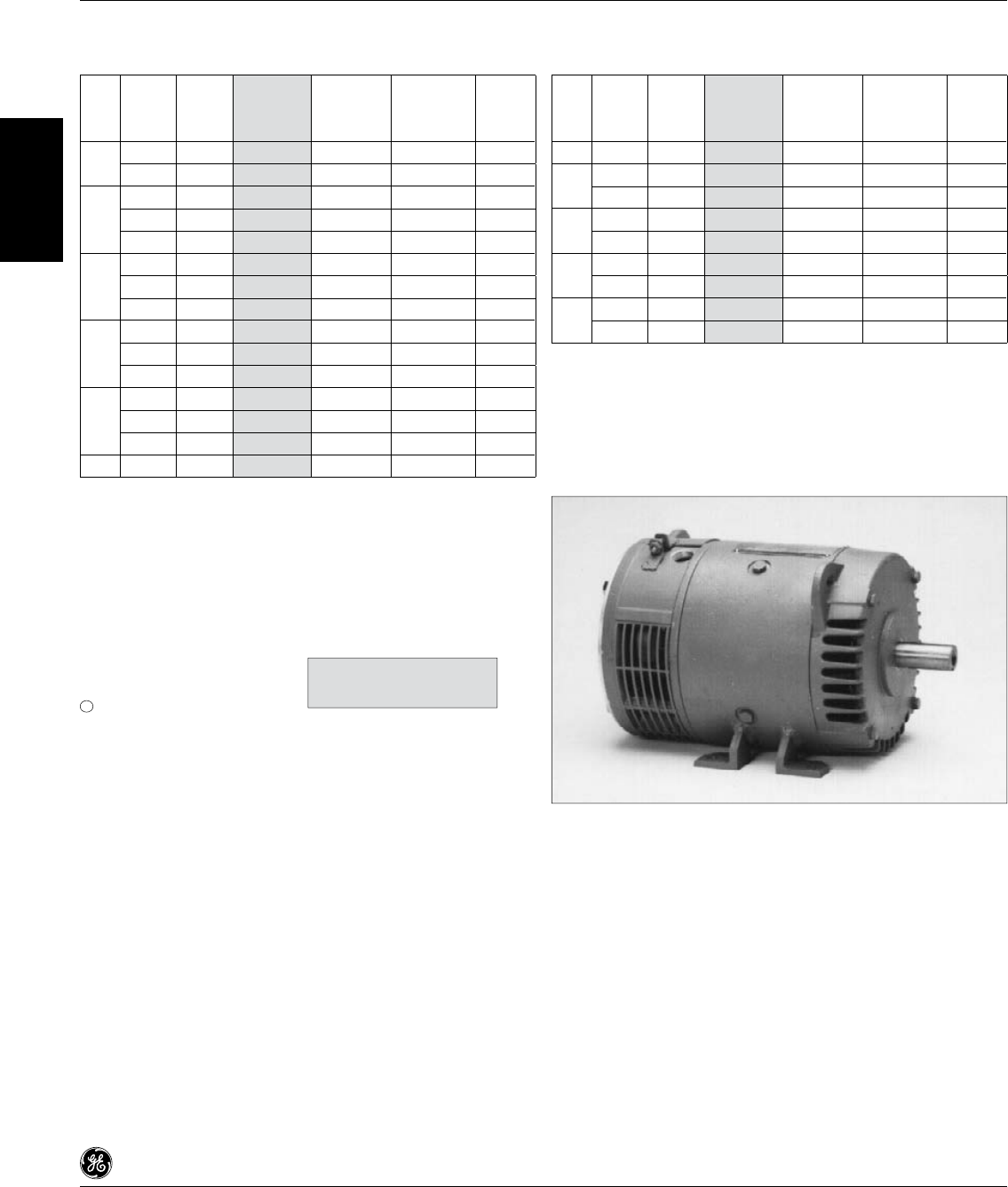

Dripproof Fully Guarded Motors
Class F Insulation
Type K Power Supply
For Continuous Operation in 40°C Ambient
PRICES - 180 Volts
Suitable for constant torque to 60% of base speed
PRICES - 180 Volts
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A Enclosure Frame Dim. Pg.
11750 2050 $4884 DP L182AT
1150 1380 $5472 DP L182AT
1.5
2500 2750 $4798 DP L182AT
1750 2050 $5108 DP L182AT
1150 1380 $5874 DP 186AT
2
2500 2750 $4890 DP L182AT
1750 2050 $5330 DP L182AT
1150 1380 $6342 DP 186AT
3
2500 2750 $4540 DP L182AT
1750 2050 $5166 DP 186AT
1150 1380 $6766 DP L186AT
5
2500 2750 $5146 DP 186AT
1750 2050 $5360 DP L182AT
1150 1380 $7778 DP 218AT
7.5 1750 2050 $8580 DP 219AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A Enclosure Frame Dim. Pg.
11750 2050 $4886 DP L182AT
1.5 2500 2750 $4798 DP L182AT
1750 2050 $4934 DP 186AT
22500 2750 $5134 DP 186AT
1750 2050 $4934 DP 186AT
32500 2750 $5134 DP 186AT
1750 2050 $5374 DP L186AT
52500 2750 $5420 DP 189AT
1750 2050 $8580 DP 219AT
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
NV- Totally Enclosed Nonventilated
FC- Totally Enclosed Fan Cooled
DP- Dripproof Fully Guarded (Self-Ventilated).
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
Stocked with 4.5” rabbet.
Stocked with 8.5” rabbet.
Stocked with 4.5” and 8.5” rabbet.
10
Refer to GE for frame.

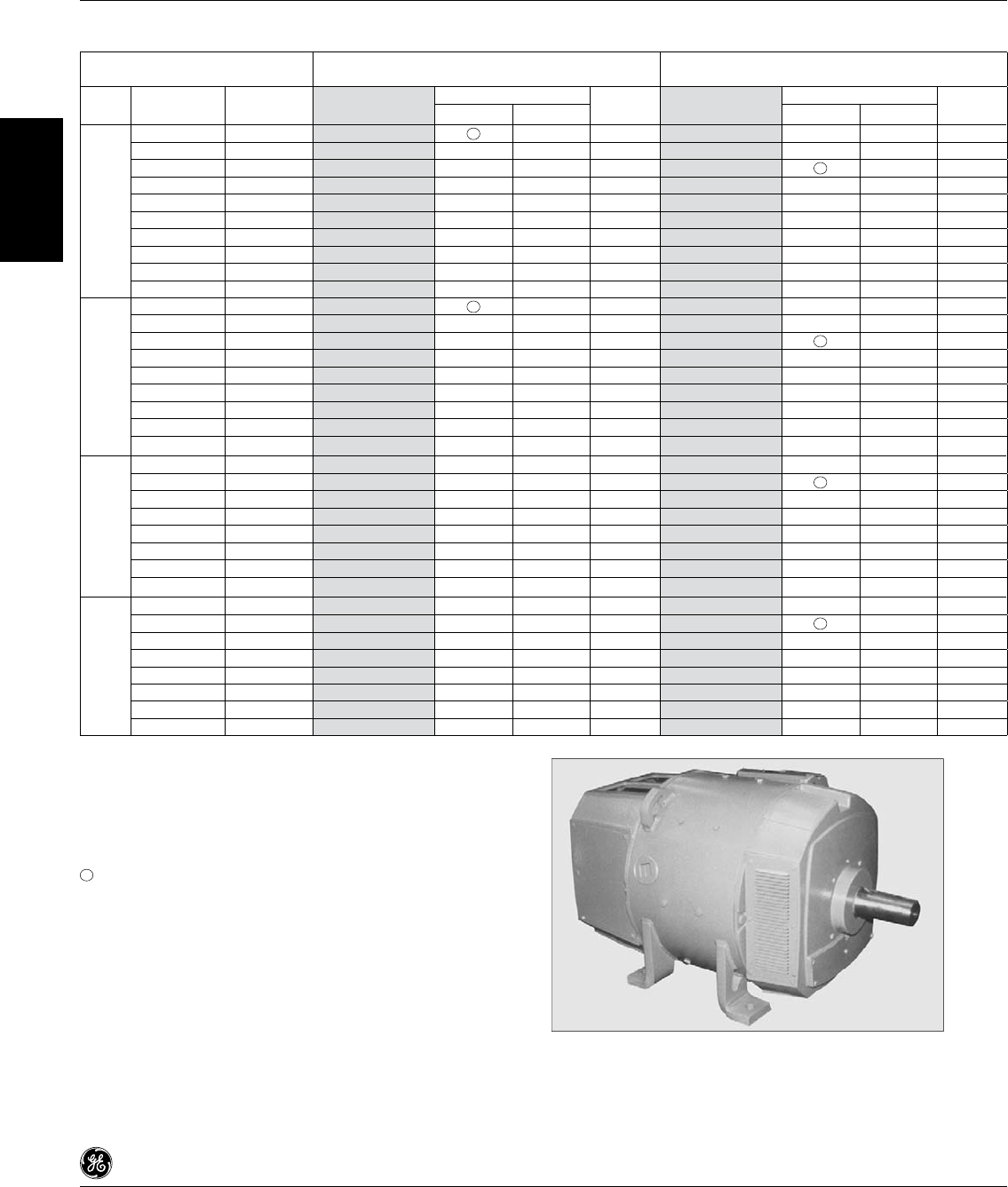

Dripproof Fully Guarded Self-Ventilated (DPFG)
(Frame CDL182AT shown above.)
C-FACE MODIFICATION NOT
INCLUDED IN BASIC LIST PRICE.
2.5
Totally Enclosed
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Totally Enclosed Motors
Class F Insulation
Type K Power Supply
For Continuous Operation in 40°C Ambient
PRICES - 180 Volts
Suitable for constant torque to 60% of base speed
PRICES - 180 Volts
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A Enclosure Frame Dim. Pg.
31150 1380 $6990 FC 189AT
52500 2750 $6110 FC 189AT
1750 2050 $7108 FC 189AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A Enclosure Frame Dim. Pg.
11750 2050 $4816 NV L182AT
1150 1380 $5150 NV 186AT
1.5
2500 2750 $4886 NV 186AT
1750 2050 $5086 NV 186AT
1150 1380 $6046 NV L186AT
2
2500 2750 $4984 NV 186AT
1750 2050 $5232 NV L186AT
1150 1380 $5418 NV 189AT
3
2500 2750 $5646 NV L186AT
1750 2050 $5506 NV 189AT
1150 1380 $5128 NV 2110AT
52500 2750 $7812 NV 2110AT
1750 2050 $10182 NV 2110AT
7.5 3500 3500 $11284 NV 258AT
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
NV- Totally Enclosed Nonventilated
FC- Totally Enclosed Fan Cooled
DP- Dripproof Fully Guarded (Self-Ventilated).
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
Stocked with 8.5” rabbet.
Stocked with 4.5” and 8.5” rabbet.
10
Refer to GE for frame.
For explosionproof motors, refer to page ??.
C-FACE MODIFICATION NOT
INCLUDED IN BASIC LIST PRICE.
2.6

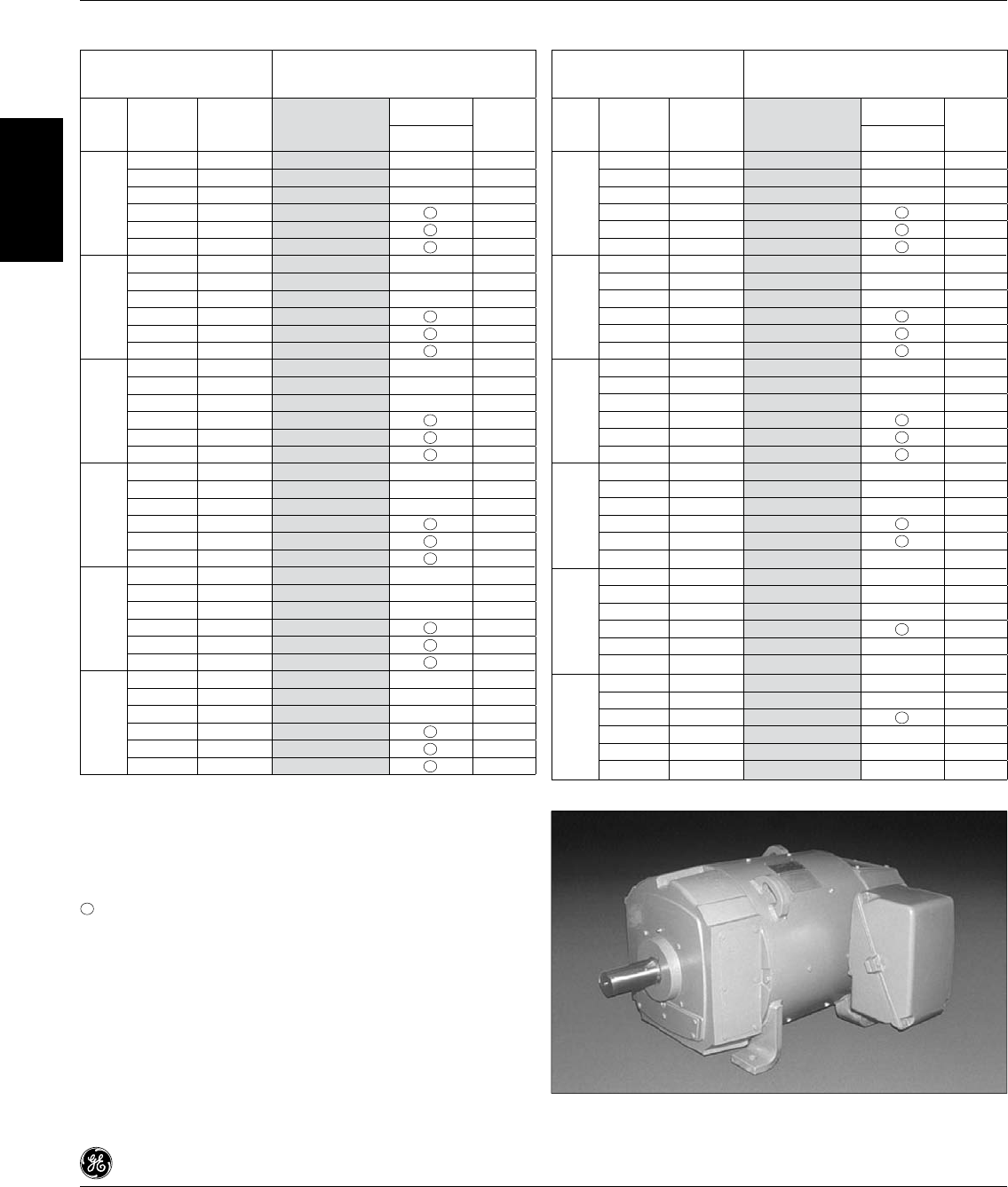

Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Self-Ventilated
240 Volt Armature - 150/300V or 120/240V Field
Suitable for constant torque to 60% of base speed
500 Volt Armature - 150/300V or 120/240V Field
Suitable for constant torque to 60% of base speed
HP
Base
Speed RPM
Rated T op
Speed RPM
Basic List Price*
GO-2A Frame Dim. Pg.
1
1750 2300 $2198 L182AT
1150 2000 $2476 L182AT
850 1750 $3202 186AT
1.5
3500 3500 $1972 L182AT
2500 3000 $2222 L182AT
1750 2300 $2468 L182AT
1150 2000 $2882 186AT
850 1700 $4300 186AT
2
3500 3500 $2170 L182AT
2500 3000 $2414 L182AT
1750 2300 $3290 L182AT •
1500 2100 $3066 10
1150 2000 $3346 186AT
850 1700 $4848 L186AT
3
3500 3500 $2466 L182AT
2500 3000 $2788 L182AT
1750 2300 $3938 186AT •
1500 2100 $4126 10
1150 2000 $4740 L186AT
850 1700 $5778 218AT
650 1600 $6820 2110AT
500 1500 $8224 259AT
400 1200 $10632 287AT
300 900 $12578 327AT
5
3500 3500 $3214 186AT
2500 3000 $3772 186AT
1750 2300 $4914 L186AT •
1500 2100 $5300 10
1150 2000 $6064 218AT
850 1700 $7264 2110AT
650 1600 $8746 259AT
500 1500 $11444 288AT
400 1200 $13826 327AT
300 900 $20212 365AT
7.5
3500 3500 $4336 186AT
2500 3000 $5032 L186AT
1750 2300 $5994 218AT •
1500 2100 $6464
10
1150 2000 $7318 258AT
850 1700 $8682 259AT
650 1600 $11550 288AT
500 1500 $13810 327AT
400 1200 $16926 365AT
300 900 $20212 368AT
HP
Base
Speed RPM
Rated T op
Speed RPM
Basic List Price*
GO-2A Frame Dim. Pg.
1
1750 2300 $2972 L182AT
1150 2000 $3250 L182AT
850 1750 $3656 186AT
1.5
3500 3500 $1972 L182AT
2500 3000 $2222 L182AT
1750 2300 $3242 L182AT
1150 2000 $3580 186AT
850 1700 $5022 186AT
2
3500 3500 $2170 L182AT
2500 3000 $3188 L182AT
1750 2300 $3500 L182AT
1500 2100 $3066
10
1150 2000 $3580 186AT
850 1700 $5308 L186AT
3
3500 3500 $2466 L182AT
2500 3000 $3538 L182AT
1750 2300 $3938 186AT •
1500 2100 $4126
10
1150 2000 $5200 L186AT
850 1700 $5778 218AT
650 1600 $6820 2110AT
500 1500 $8224 259AT
400 1200 $10632 287AT
300 900 $12578 327AT
5
3500 3500 $3214 186AT
2500 3000 $3772 186AT
1750 2300 $4914 L186AT •
1500 2100 $5300
10
1150 2000 $6064 218AT
850 1700 $7264 2110AT
650 1600 $8746 259AT
500 1500 $11444 288AT
400 1200 $13826 327AT
300 900 $20212 365AT
7.5
3500 3500 $4336 186AT
2500 3000 $5032 L186AT
1750 2300 $5994 218AT •
1500 2100 $6464 10
1150 2000 $7318 258AT
850 1700 $8682 259AT
650 1600 $11550 288AT
500 1500 $13810 327AT
400 1200 $16926 365AT
300 900 $20212 368AT
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
2.7
Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Separately Ventilated
240 Volt Armature - 150/300V or 120/240V Field
Suitable for constant torque to 5% of base speed
500 Volt Armature - 150/300V or 120/240V Field
Suitable for constant torque to 5% of base speed
HP
Base
Speed RPM
Rated T op
Speed RPM
Basic List Price*
GO-2A Frame Dim. Pg.
1
1750 2300 $2198 L182AT
1150 2000 $2476 L182AT
850 1750 $3202 186AT
1.5
3500 3500 $1972 L182AT
2500 3000 $2222 L182AT
1750 2300 $2468 L182AT
1150 2000 $2882 186AT
850 1700 10 10
2
2500 3000 $2414 L182AT
1750 2300 $2726 L182AT
1150 2000 $3346 186AT
850 1700 $4848 L186AT
3
3500 3500 $2466 L182AT
2500 3000 $2788 L182AT
1750 2300 $3304 186AT
1150 2000 $4740 L186AT
850 1700 $5778 218AT
650 1600 $6820 2110AT
500 1500 $8224 259AT
400 1200 $9666 287AT
300 900 $11436 327AT
5
3500 3500 $3214 186AT
2500 3000 $3772 186AT
1750 2300 $4914 L186AT
1500 2100 $5300
10
1150 2000 $6064 218AT
850 1700 $7264 2110AT
650 1600 $8746 259AT
500 1500 $10404 288AT
400 1200 $12570 327AT
300 900 $14686 328AT
7.5
3500 3500 $4336 186AT
2500 3000 $5032 L186AT
1750 2300 $5994 189AT
1500 2100 $6464 10
1150 2000 $7318 2110AT
850 1700 $8682 259AT
650 1600 $10500 288AT
500 1500 $12556 327AT
400 1200 $15388 328AT
300 900 $18376 329AT
HP
Base
Speed RPM
Rated T op
Speed RPM
Basic List Price*
GO-2A Frame Dim. Pg.
1
1750 2300 $2972 186AT
1150 2000
10
10
850 1750 10 10
1.5
3500 3500
10
10
2500 3000 10 10
1750 2300 $3242 186AT
1150 2000 $3580 10
850 1700 10 10
2
2500 3000 $3188 186AT
1750 2300 $3500 186AT
1500 2100 $3066 L186AT
1150 2000 $3580 L186AT
850 1700 $4848
10
3
3500 3500 $2466 10
2500 3000 $3538 186AT
1750 2300 $3938 186AT
1500 2100 $4126 L186AT
1150 2000 $4740 L186AT
850 1700 $5778 218AT
650 1600 $6820 10
500 1500 $8224
10
400 1200 $9666
10
300 900 $11436 10
5
3500 3500 $3214
10
2500 3000 $3772 L186AT
1750 2300 $4914 L186AT
1500 2100 $5300 218AT
1150 2000 $6064 219AT
850 1700 $7264 2110AT
650 1600 $8746
10
500 1500 $10404
10
400 1200 $12570 10
300 900 $14686 10
7.5
3500 3500 $4336
10
2500 3000 $5032 10
1750 2300 $5994 218AT
1500 2100 $6464 219AT
1150 2000 $7318 2110
850 1700 $8682 259AT
650 1600 $10500 288AT
500 1500 $12556 327AT
400 1200 $15388 328AT
300 900 $18376 368AT
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
2.8
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Self-Ventilated and
Separately Ventilated
Self Ventilated [DPFG]
Suitable for constant torque to 60% of base speed
Separately Ventilated [DPFG-SV]
Suitable for constant torque to 5% of base speed
HP
Base
Speed RPM
Rated Top
Speed RPM
Basic List Price*
GO-2A 240V 500V Dim. Pg.
Basic List Price*
GO-2A 240V 500V Dim. Pg.
10
3500 3500 $5652 218AT
10
$5652 218AT 218AT
2500 3000 $5788 218AT 218AT $5788 218AT 218AT
1750 2300 $6874 219AT • 219AT • $6874 219AT 219AT
1500 2100 $7442 10 258AT $7442 10 258AT
1150 2000 $8358 258AT 258AT $8358 258AT 258AT
850 1700 $10988 287AT 287AT $9990 287AT 287AT
650 1600 $13514 327AT 327AT $12286 327AT 327AT
500 1500 $16004 365AT 365AT $14550 328AT 328AT
400 1200 $19706 366AT 366AT $17916 329AT 329AT
300 900 $24742 368AT 407AT $21516 366AT 368AT
250 750 $24166 366AT 368AT
15
3500 3500 $6894 218AT 218AT $6894 218AT 218AT
2500 3000 $7020 219AT 219AT $7020 219AT 219AT
1750 2300 $8332 258AT • 258AT • $8332 258AT 258AT
1500 2100 $9078 10 259AT $9078 10 259AT
1150 2000 $11272 288AT 288AT $10248 288AT 288AT
850 1700 $13442 327AT 327AT $12220 327AT 327AT
650 1600 $16708 365AT 365AT $15190 327AT 327AT
500 1500 $20928 368AT 368AT $18198 328AT 329AT
400 1200 $25324 407AT 407AT $21952 366AT 365AT
300 900 $31092 409AT 409AT $27036 366AT 366AT
250 750 $30546 368AT 409AT
20
3500 3500 $8178 219AT 219AT $8178 219AT 219AT
2500 3000 $8088 258AT 258AT $8088 258AT 258AT
1750 2300 $9600 259AT • 259AT • $9600 259AT 259AT
1500 2100 $10454 10 287AT
1150 2000 $13098 327AT 327AT• $11908 327AT 327AT •
850 1700 $16068 365AT 365AT $14608 328AT 328AT
650 1600 $19898 366AT 366AT $18090 328AT 328AT
500 1500 $24734 368AT 407AT $21508 329AT 329AT
400 1200 $30074 407AT 407AT $26152 366AT 366AT
300 900 $37828 504AT 508AT $31642 407AT 407AT
250 750 $36496 407AT
10
25
3500 3500 $9114 258AT 258AT $9114 258AT 258AT
2500 3000 $8974 258AT 259AT $8974 258AT 259AT
1750 2300 $11926 287AT • 287AT • $10842 287AT 287AT
1500 2100 $11660
10
288AT
1150 2000 $15074 328AT 328AT $13704 328AT 328AT•
850 1700 $18340 365AT 366AT $16674 328AT 328AT
650 1600 $23832 368AT 368AT $20724 329AT 329AT
500 1500 $28350 407AT 409AT $24652 366AT 368AT
400 1200 $34374 409AT 409AT $29890 368AT 368AT
300 900 $40936 504AT 508AT $35596 409AT 409AT
250 750 $41896 409AT 10
30
3500 3500 $10420 287AT 259AT $10420 287AT 259AT
2500 3000 $9864 287AT 259AT $9864 287AT 259AT
1750 2300 $13158 288AT • 288AT • $11962 288AT 288AT •
1500 2100 $13012 10 327AT
1150 2000 $16678 365AT 365AT $15162 328AT 328AT
850 1700 $20390 366AT 366AT $18538 329AT 329AT
650 1600 $26238 407AT 407AT $22816 366AT 366AT
500 1500 $31454 407AT 409AT $27352 368AT 407AT
400 1200 $37860 504AT 506AT $32922 407AT 407AT
300 900 $46276 506AT 508AT $40240 409AT 409AT
250 750 $50400 409AT
10
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
PRICES - 240 and 500 Volts
Frame Frame
2.9
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information

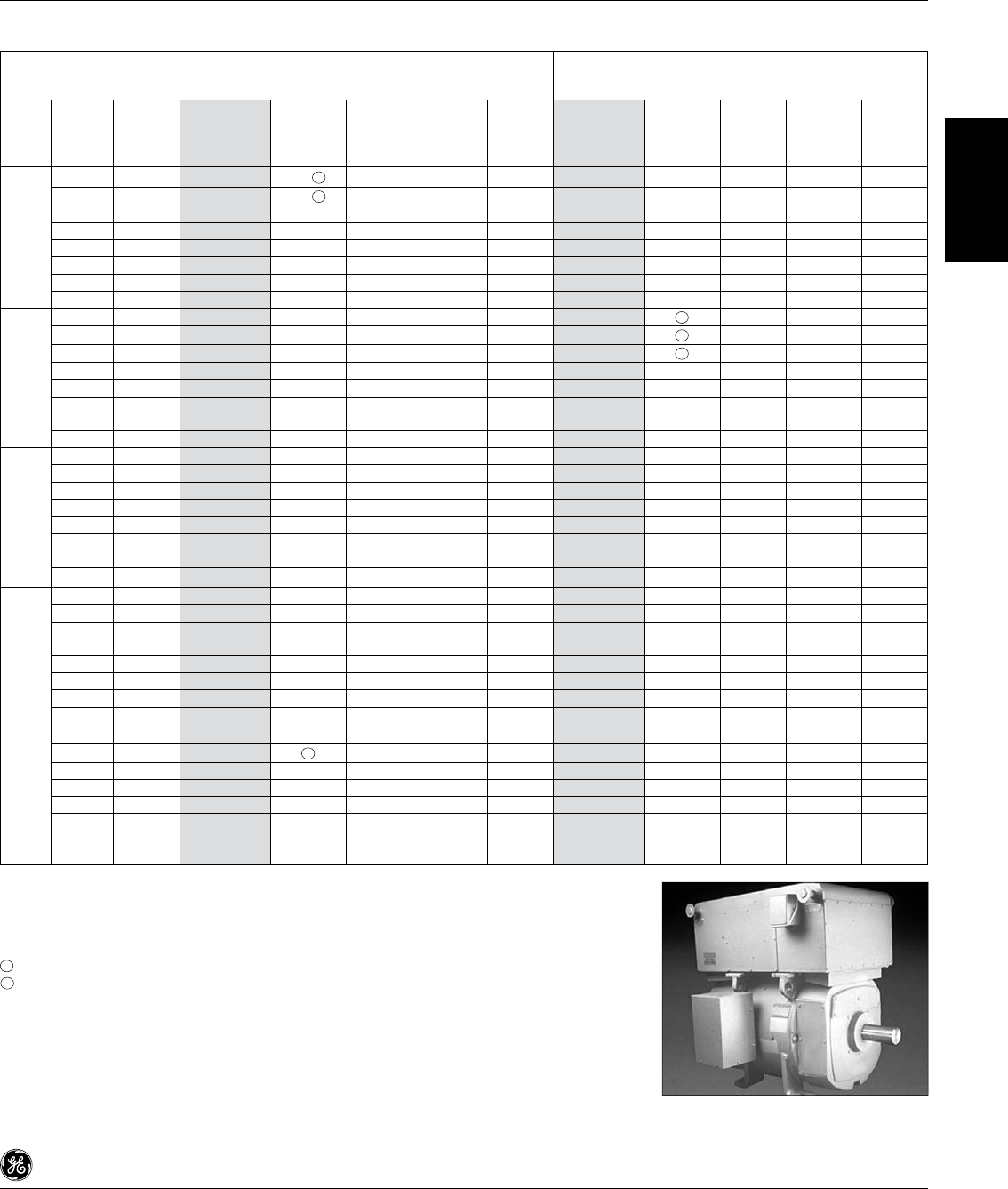

Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Self-Ventilated and
Separately Ventilated
Self Ventilated [DPFG]
Suitable for constant torque to 60% of base speed
Separately Ventilated [DPFG-SV]
Suitable for constant torque to 5% of base speed
HP
Base
Speed RPM
Rated Top
Speed RPM
Basic List Price*
GO-2A 240V 500V Dim. Pg.
Basic List Price*
GO-2A 240V 500V Dim. Pg.
40
3500 3500 $12004 287AT
10
$12004
10
10
2500 3000 $12678 287AT 288AT $11526 287AT 288AT
1750 2100 $15534 328AT 328AT • $14122 328AT 327AT •
1500 2000 $15598 327AT 328AT
1150 2000 $20774 366AT 366AT • $18064 328AT 328AT •
850 1700 $25386 368AT 368AT • $22074 366AT 366AT
650 1600 $31050 409AT 407AT $27000 368AT 368AT
500 1500 $37474 504AT 504AT $32586 409AT 407AT
400 1200 $44662 506AT 506AT $38836 407AT 409AT
300 900 $54908 508AT 508AT $47746 506AT 409AT
250 750 $56926 506AT
10
50
3500 3500 $15300 10 10
2500 2700 $15088 327AT 288AT $13716 327AT 288AT
1750 2100 $17788 365AT 328AT • $16170 328AT 328AT •
1500 2000 $17952 328AT 329AT
1150 2000 $23970 368AT 368AT • $20844 329AT 366AT •
850 1700 $29468 407AT 407AT $25624 368AT 368AT
650 1600 $35708 504AT 409AT $31050 407AT 407AT
500 1500 $42944 506AT 506AT $37342 409AT 504AT
400 1200 $51306 508AT 508AT $44614 506AT 409AT
300 900 $54420 506AT 508AT
250 750 $65250 508AT 508AT
60
3500 3500 $20406 10 10 $18550 10 10
2500 2700 $17608 365AT 328AT $16008 365AT 328AT
1750 2100 $20406 366AT • 366AT • $18550 366AT L328AT •
1500 2000 $20138 366AT
1150 2000 $27434 407AT 368AT • $23856 368AT 368AT •
850 1700 $33490 L409AT 407AT $29122 368AT 368AT
650 1600 $40210 504AT 504AT $34966 409AT 407AT
500 1500 $48652 506AT 506AT $42306 409AT 504AT
400 1200 $57536 508AT 508AT $50032 506AT 506AT
300 900 $60778 508AT 506AT
250 750 $71460 508AT 508AT
75
3500 3500 $24538
10
$22308
10
10
2500 2700 $22450 10 365AT $20410 365AT 329AT
1750 2100 $24028 366AT • 366AT • $21844 366AT 329AT•
1500 2000 $23176 366AT
1150 2000 $32310 L407AT 407AT $28096 368AT 368AT•
850 1700 $38482 504AT 504AT $33462 407AT 407AT
350 1600 $46966 506AT 506AT $40840 409AT 504AT
500 1500 $56104 508AT 508AT $48786 506AT 506AT
400 1200 $57480 506AT 506AT
300 900 $71586 508AT 508AT
250 750 $79800 5010AY
10
100
2500 2700 $30222 10 366AT $27474 366AT 366AT
1750 2000 $30222 368AT 368AT • $27474 368AT 368AT •
1500 2000 $29050
10
368AT
1150 2000 $39558 L409AT 409AT $34398 L407AT 407AT •
850 1700 $46420 504AT 506AT $40366 L409AT 409AT
650 1600 $56282 508AT 508AT $48940 506AT 506AT
500 1500 $58032 506AT 508AT
400 1200 $70398 508AT 5010AY
300 900 $84600 5010AY 5010AY
250 750 $93630 5010AY 6062
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
PRICES - 240 and 500 Volts
Frame Frame
2.10
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Self-Ventilated and
Separately Ventilated
Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Self Ventilated [DPFG]
Suitable for constant torque to 60% of base speed
Separately Ventilated [DPFG-SV]
Suitable for constant torque to 5% of base speed
HP
Base
Speed RPM
Rated Top
Speed RPM
Basic List Price*
GO-2A 240V 500V Dim. Pg.
Basic List Price*
GO-2A 240V 500V Dim. Pg.
125
2500 2700 $35848 10 368AT $32590 L407AT 368AT
1750 2000 $35848 L407AT 407AT • $32590 L407AT 368AT •
1500 2000 $34960
10
407AT
1150 2000 $46420 504AT 506AT $40366 L409AT 409AT •
850 1700 $54400 506AT 508AT $47304 504AT 506AT
650 1600 $56364 506AT 506AT
500 1500 $69264 508AT 508AT
400 1200 $80700 5010AY 5010AY
300 900 $95632 5010AY 5010AY
250 750 $106624 6160 6062
150
2500 2700 $43192
10
407AT $37558 L407AT 407AT
1750 2000 $43192 L409AT 409AT $37558 L407AT 407AT
1500 2000 $40672 10 409AT
1150 2000 $53424 506AT 506AT $46456 L409AT 409AT
850 1700 $61590 508AT 508AT $53556 506AT 506AT
650 1600 $63466 506AT 506AT
500 1500 $78234 5010AY 508AT
400 1200 $88812 5010AY 5010AY
300 900 $106624 6062 6062
200
1750 2000 $54866 504AT 504AT $47710 L409AT L409AT
1500 1900 $51640
10
L409AT
1150 1800 $66198 L508AT 508AT $57564 506AT 506AT
850 1700 $65652 508AT 506AT
650 1600 $77992 5010AY 508AT
500 1500 $92718 6058 6062
400 1200 $106782 6058 6157
300 900 $126330 6160 6164
250
1750 1900 $67534 L506AT 506AT $58726 L504AT 504AT
1500 1800 $62148 10 506AT
1150 1700 $69190 L508AT 506AT
850 1600 $78130 6052 5010AY
650 1600 $88426 6058 5010AY
500 1500 $110914 6062 6062
400 1200 $124290 6160 6169
300 900 $145464 6164 6259
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
Dripproof Fully Guarded Separately-Ventilated (DPFG-SV)
(Frame CD506AT shown above.)
PRICES - 240 and 500 Volts
Frame Frame
2.11
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Separately Ventilated
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A
Frame
500V Dim. Pg.
300
1750 1900 $70470 506AT •
1500 1800 $74906 506AT
1150 1600 $81204 508AT •
850 1500 $91126 5010AY •
650 1500 $100846 6062
500 1300 $121416 6160
400 1200 $139644 6169
300 900 $163024 6262
400
1750 1900 $98010 508AT •
1500 1800 $104280 5010AY
1150 1500 $107730 5010AY •
850 1500 $117450 6062
650 1400 $126090 6160
500 1200 $141840 6259
400 1000 $166372 6262
300 750 $200410 6266
500
1750 1900 $131130 5010AY •
1500 1700 $134786 6055
1150 1500 $138040 6058
850 1400 $146814 6160
650 1200 $153288 6164
500 1000 $166686 6262
400 1000 $200544 6266
300 750 $228456 6271
600
1750 1900 $181576 6063
1500 1700 $188510 6063
1150 1500 $201664 6066
850 1300 $203616 6173
650 1200 $222928 6268
500 1000 $248968 6275
400 1000 $266634 6280
300 750 $290842 6881
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A
Frame
500V Dim. Pg.
700
1750 1800 $206786 6165
1500 1700 $216564
10
1150 1300 $224164 6168
850 1200 $226248 6173
650 1000 $251260 6270
500 1000 $273780 6275
400 1000 $291438 6881
300 750 $326238 6887
800
1750 1750 $242216 10
1150 1250 $247248 6173
850 1000 $249630 6270
650 1000 $275346 6275
500 1000 $296988 6280
400 1000 $317656 6881
300 750 $355582 6887
900
1150 1250 $276126 6268
850 1000 $278298 6270
650 1000 $298690 6275
500 1000 $318642 6779
400 1000 $339120 6887
300 750 $379612 6985
1000
1150 1250 $299808 6268
850 1000 $301686 6270
650 1000 $320878 6774
500 1000 $342954 6881
400 1000 $363186 6887
300 750 $406548 6985
250 710 $462600 6991
1250
1150 1150 $358344 6776
850 1000 $360222 6778
650 1000 $379944 6785
500 1000 $399922 6896
400 900 $423514 6996
300 750 $474082
10
PRICES - 500 Volts
2.12
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Separately Ventilated
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A
Frame
600V Dim. Pg.
25
1750 1750 $10842 287AT
1150 1150 $13704 327AT
850 850 $16674 328AT
650 650 $20724
10
500 500 $24652
10
400 400 $29890 10
30
1750 1750 $11962 288AT
1150 1150 $15162 328AT
850 850 $18538 329AT
650 650 $22816 10
500 500 $27352 10
400 400 $32922
10
40
1750 1750 $14122 327AT
1150 1150 $18064 329AT
850 850 $22074 368AT
650 650 $27000
10
500 500 $32586
10
400 400 $38836 10
50
1750 1750 $16170 328AT
1150 1150 $20844 329AT
850 850 $25624 368AT
650 650 $31050 10
500 500 $37342
10
400 400 $44614
10
60
1750 1750 $18550 L328AT
1150 1150 $23856 368AT
850 850 $29122 407AT
650 650 $34966
10
500 500 $42306 10
400 400 $50032 10
75
1750 1750 $21844 329AT
1150 1150 $28096 368AT
850 850 $33462 409AT
650 650 $40840 10
500 500 $48786
10
400 400 $57480
10
PRICES - 600V
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A
Frame
600V Dim. Pg.
100
1750 1750 $27474 368AT
1150 1150 $34398 407AT
850 850 $40366 409AT
650 650 $48940
10
500 500 $58032 10
400 400 $70398 10
125
1750 1750 $32590 407AT
1150 1150 $40366 409AT
850 850 $47304 506AT
650 650 $56364 10
500 500 $69264
10
400 400 $80700
10
150
1750 1750 $37558 409AT
1150 1150 $46456 409AT
850 850 $53556 506AT
650 650 $63466
10
500 500 $78234 10
400 400 $88812 10
200
1750 1750 $47710 409AT
1150 1150 $57564 506AT
850 850 $65652 508AT
650 650 $77992 10
500 500 $92718
10
400 400 $106782 6062
250
1750 1750 $58726 504AT
1150 1150 $69190 508AT
850 850 $78130 5010AY
650 650 $88426 10
500 500 $110914 6062
400 400 $124290 6160
300
1750 1750 $70470 506AT
1150 1150 $81204 5010AY
850 850 $91126 10
650 650 $100846 6062
500 500 $121416 6160
400 400 $139644 6164
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
Dripproof Fully Guarded Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
2.13
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Separately Ventilated

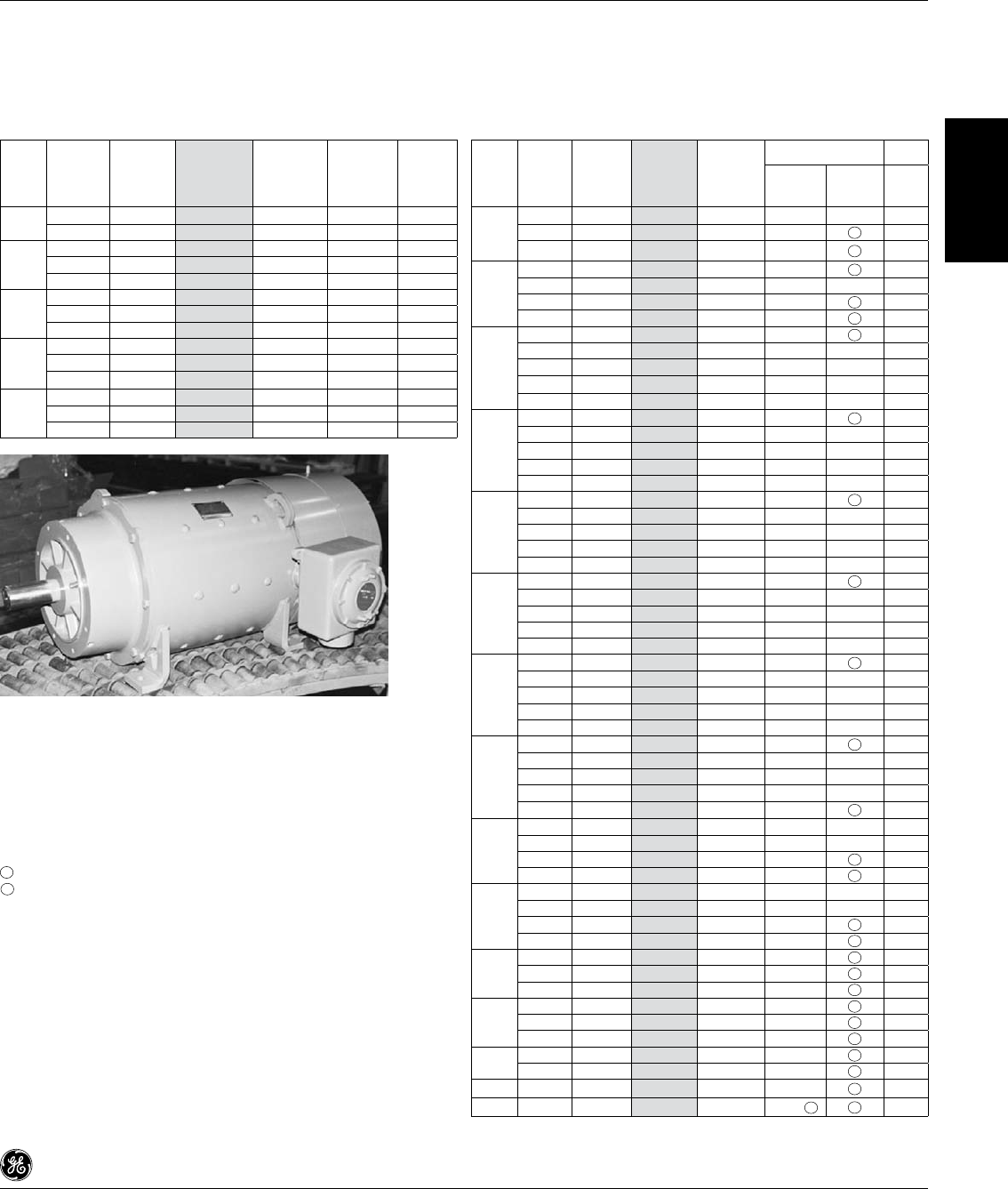

PRICES - 600V (Type C Power Supply)
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 600V
Dim.
Pg.
400
1750 1750 $98010 508AT
1150 1150 $107730 5010AY
850 850 $117450 6062
650 650 $126090 6160
500 500 $141840 6164
400 400 $166372 6169
500
1750 1750 $131130 6055
1150 1150 $138040 6058
850 850 $146814 6160
650 650 $153288 6164
500 500 $166686 6262
400 400 $200544 6266
600
1750 1750 $181576 6058
1150 1150 $201664 6062
850 850 $203616 6164
650 650 $222928 6169
500 500 $248968 6266
400 400 $266634 6271
700
1150 1150 $224164 6173
850 850 $226248 6268
650 650 $251260 6270
500 500 $273780 6275
400 400 $291438 6280
800
1150 1150 $247248 6268
850 850 $249630 6270
650 650 $275346 6275
500 500 $296988 6280
400 400 $317656 6881
900
1150 1150 $276126 6268
850 850 $278298 6270
650 650 $298690 6275
500 500 $318642 6881
400 400 $339120 6887
1000
1150 1150 $299808 6268
850 850 $301686 6270
650 650 $320878 6275
500 500 $342954 6881
400 400 $363186 6887
1250
850 850 $360222 6774
650 650 $379944 6779
500 500 $399922 6887
400 400 $423514 6985
1500
1150 1150 $413182 6876
850 850 $413182 6881
650 650 $436060 6887
500 500 $459172 6996
400 400 $486262 6999
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 600V
Dim.
Pg.
1750
850 850 $465400 6890
650 650 $490894 6996
500 500 $516912 6999
2000
850 850 $582880 6896
650 650 $620200 6996
500 500 $670020 6999
2250 850 850 $634466 6896
650 650 $675090 6999
2500 850 850 $684470 6990
3000 850 850 $780486 6996
Dripproof Fully Guarded Motors
Class F Insulation
For Continuous Operation in 40°C Ambient
Frame
Separately Ventilated [DPFG-SV]
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 700V
Dim.
Pg.
1500
1150 1150 $413182 6873
850 1000 $413182 6876
650 900 $436060 6881
500 850 $459172 6981
450 810 $472718 6985
400 770 $486262 6985
350 720 $527278 6991
1750
850 960 $465400 6881
650 900 $490894 6990
500 800 $516912 6996
450 760 $641588 6999
400 720 $675292 6999
2000
850 900 $582880 6896
650 840 $620200 6996
500 750 $670020 6999
2250
850 850 $634466 6896
650 795 $675090 6996
500 710 $729320 6999
2500 850 850 $684470 6996
650 750 $728294 6999
3000 850 850 $780486 6996
PRICES - 700V (3 Phase, 6 Controlled Pulse Power Supply)
Frame
Frame
PRICES - 600V (Type C Power Supply)
2.14

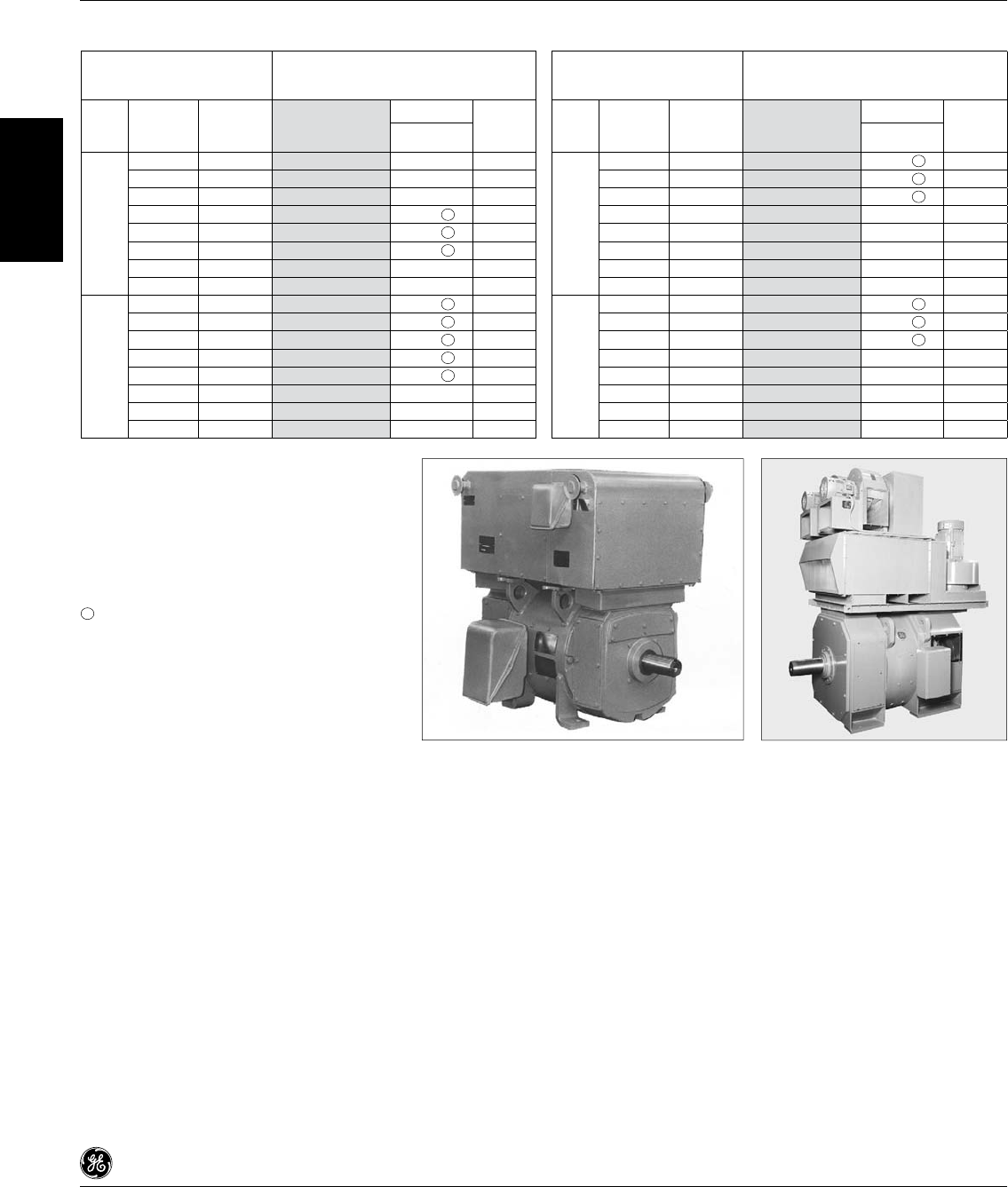

Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Nonventilated
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Nonventilated
PRICES - 240 and 500 Volts
TENV
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
1
1750 2300 $3836 L182AT • 186AT
1150 2000 $4132 L182AT • 10
850 1750 $3958 186AT 10
650 1600 $6822 218AT 10
500 1500 $7930 219AT 10
400 1200 $9096 219AT
10
300 900 $9978 219AT
10
1.5
3500 3500 $3006 L182AT 10
2500 3000 $3088 L182AT 10
1750 2300 $3394 186AT 186AT
1150 2000 $4472 L186AT
10
850 1700 $6360 189AT 10
650 1600 $7732 219AT 10
500 1500 $8928 258AT
10
400 1200 $10458 258AT
10
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
TENV
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
2
3500 3500 $3358 186AT 186AT
2500 3000 $3710 186AT 186AT
1750 2300 $4076 L186AT L186AT
1150 2000 $5446 189AT 189AT •
850 1700 $7008 219AT 219AT
650 1600 $8334 2110AT 2110AT
500 1500 $9978 258AT 258AT
400 1200 $11670 259AT 259AT
300 900 $14478 327AT 327AT
3
3500 3850 $4074 L186AT L186AT
2500 3000 $4520 L186AT L186AT
1750 2300 $5308 L186AT L186AT
1150 2000 $7360 219AT 219AT
850 1700 $8350 2110AT 2110AT
650 1600 $9856 259AT 259AT
500 1500 $11890 288AT
10
400 1200 $14982 288AT 10
300 900 $17718 328AT 10
Frame Frame
2.15
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Nonventilated, Fan Cooled,
Air-Over-Frame
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
TENV
Suitable for constant torque to
5% of base speed
TEFC
Suitable for constant torque to
60% of base speed
TEAO
Suitable for constant torque to
40% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
5
3500 3500 $6110 219AT
10
$6341 186AT
10
2500 3000 $7108 219AT 219AT $7027 L186AT L186AT
1750 2300 $8664 2110AT 2110AT • $8174 189AT • 189AT •
1500 2100 $9175 10 218AT
1150 2000 $10504 258AT 258AT $10079
10
850 1700 $13552 287AT 287AT $12080 259AT 259AT $13858 259AT 259AT
650 1600 $16120 288AT 10 $15585 288AT 10 $17270 288AT 10
500 1500 $19104 327AT 10 $18538 10 $19838 327AT 10
400 1200 $21970 365AT
10
$22822 365AT 366AT
300 900 $26165
10
$26470 368AT 409AT
7.5
3500 3500 $8452 2110AT 10 $8298 L186AT 10
2500 3000 $8664 2110AT 2110AT $9720 189AT 189AT
1750 2300 $10582 259AT 259AT • $9964 2110AT • 2110AT •
1500 2100 $11056 10 258AT
1150 2000 $13452 288AT 288AT $12169 259AT 259AT $13936 259AT 259AT
850 1700 $16270 327AT
10
$15470 288AT 288AT $17170 288AT 288AT
650 1600 $19456 365AT
10
$18711 328AT 328AT $19988 328AT 328AT
500 1500 $22374 365AT 366AT $23174 365AT 365AT
400 1200 $27418 368AT 10 $27560 368AT 368AT
300 900 $32745 407AT
10
$32594 407AT 409AT
10
3500 3500 $10854 219AT
10
2500 3000 $11144 2110AT 2110AT
1750 2300 $12958 327AT 327AT $11403 259AT • 259AT • $13290 259AT 259AT
1500 2100 $13119
10
287AT
1150 2000 $15480 328AT 10 $14902 288AT 288AT $16312 288AT 288AT
850 1700 $19042 366AT 366AT $17802 327AT 327AT $19198 327AT 327AT
650 1600 $22546
10
368AT $21898 365AT 365AT $22760 365AT 365AT
500 1500 $25928 368AT $26264 368AT 368AT
400 1200 $31761 407AT $31738 407AT 407AT
15
3500 3500 $13156 258AT
10
$14794
10
10
2500 3000 $13496 259AT 259AT $15090 10 10
1750 2300 $14982 328AT 328AT $14849 288AT • 288AT • $16266 288AT 288AT
1500 2100 $16733 288AT
1150 2000 $18936 368AT 366AT $18264 328AT 328AT $19600 328AT 328AT
850 1700 $24496 407AT 368AT $21776 365AT 365AT $22654 365AT 365AT
650 1600 $29340 407AT 407AT $28170 368AT 368AT $28616 368AT 358AT
500 1500 $33741 407AT 407AT $33406 407AT 407AT
400 1200 $40696 409AT 409AT $39508 409AT 409AT
20
3500 3500 $16256 287AT 10 $17854 10 10
2500 3000 $16675 288AT 288AT $18218
10
10
1750 2300 $18450 366AT 366AT $17110 327AT • 327AT $18596 327AT 327AT
1500 2100 $19884 10 327AT
1150 2000 $23544 10 368AT $21218 366AT 366AT $22168 366AT 366AT
850 1700 $27076 368AT 368AT $27262 358AT 368AT
650 1600 $33534 407AT 407AT $33280 407AT 407AT
500 1500 $39868 409AT 409AT $38788 409AT 409AT
PRICES - 240 and 500 Volts
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
Frame Frame Frame

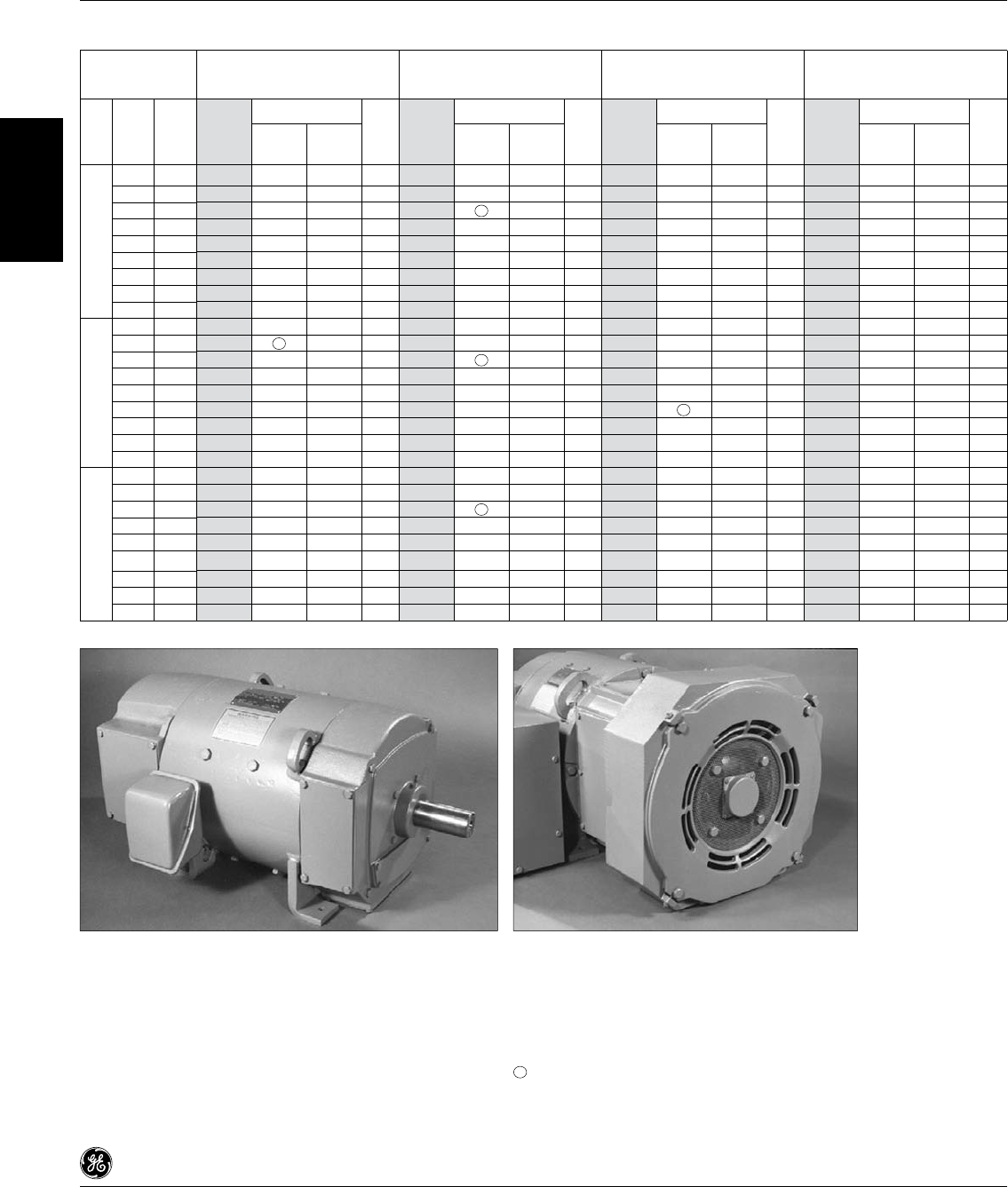

2.16
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Nonventilated, Fan Cooled,
Air-Over-Frame, Unit Cooled
TENV
Suitable for constant torque to
5% of base speed
TEFC
Suitable for constant torque to
60% of base speed
TEAO
Suitable for constant torque to
40% of base speed
TEAAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic List
Price*
GO-2A 240V 500V
Dim.
Pg.
Basic List
Price*
GO-2A 240V 500V
Dim.
Pg.
Basic List
Price*
GO-2A 240V 500V
Dim.
Pg.
Basic List
Price*
GO-2A 240V 500V
Dim.
Pg.
25
2500 3000 $18837 327AT 327AT $20098 327AT 327AT
1750 2300 $22150 368AT 368AT $20097 328AT • 328AT $21194 328AT 328AT
1500 2100 $21813
10
328AT
1150 2000 $26880 409AT 407AT $25473 368AT 368AT $25868 368AT 368AT
850 1700 $30912 407AT 407AT $31000 407AT 407AT
650 1600 $38426 409AT 409AT $37534 409AT 409AT
500 1500 $50438 368AT 368AT
400 1200 $57560 407AT 407AT
300 900 $68454 409AT 409AT
30
2500 3000 $18082 365AT 365AT $21800 365AT 365AT
1750 2300 $29066
10
409AT $19378 366AT • 366AT $23096 366AT 366AT
1500 2100 $22054
10
365AT
1150 2000 $24442 407AT 368AT $28562 407AT 368AT
850 1700 $29878 409AT 409AT $33998 409AT 409AT
650 1600 $40900
10
409AT $41346 368AT 368AT
500 1500 $55858 368AT 407AT
400 1200 $63746 409AT 409AT
300 900 $75674 409AT 508AT
40
2500 3000 $25530 366AT 366AT $25918 366AT 366AT
1750 2300 $28212 368AT 368AT $28652 368AT 368AT
1500 2100 $30139
10
366AT
1150 2000 $33490 407AT 407AT $33242 407AT 407AT
850 1700 $40924 409AT 409AT $39706 409AT 409AT
650 1600 $45700 504AT 504AT $49848 368AT 368AT
500 1500 $65624 409AT 409AT
400 1200 $74890 409AT 506AT
300 900 $88646 506AT 508AT
PRICES - 240 and 500 Volts
* Basic list price applies to frames listed. It does not include pricing for
modifications or accessories. Refer to Modifications section for appropriate
list price addition(s).
• Standard rating
Totally Enclosed Nonventilated (TENV)
(Frame CD328AT shown above.)
Totally Enclosed Fan Cooled (TEFC)
(Frame CD366AT shown above.)
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suit-
able for belt drive or direct coupling (within limits given in Application
Section). Frames CD6200, CD6700, CD6800, and CD6900 are suitable for
direct drive only.
10
Refer to GE for frame.
Frame Frame Frame Frame
2.17
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Fan Cooled, Air-Over-Frame,
Unit Cooled
TEFC
Suitable for constant torque to
60% of base speed
TEAO
Suitable for constant torque to
40% of base speed
TEAAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
Basic
List Price*
GO-2A 240V 500V
Dim.
Pg.
50
1750 2100 $34031 409AT 409AT • $33712 409AT 409AT $34210 366AT
1500 2000 $34456 10 10
1150 2000 $38638 L409AT 409AT $37718 L409AT 409AT
850 1700 $43070 504AT 405AT $44336 368AT 368AT
650 1600 $51150 506AT 506AT $57630 409AT 4007AT
500 1500 $74358 409AT 504AT
400 1200 $84858 506AT 506AT
300 900 $100222 506AT 508AT
60
1750 2100 $37051 409AT 409AT • $36338 L409AT 409AT $37680 366AT
1500 2000 $38440 10 409AT
1150 2000 $41336 504AT 504AT $40936 368AT 368AT
850 1700 $47964 506AT 506AT $50740 407AT 407AT
650 1600 $56736 508AT 508AT $64880 504AT 409AT
500 1500 $82352 504AT 504AT
400 1200 $93980 506AT 506AT
300 900 $106758 508AT 508AT
75
1750 2100 $41283 409AT 409AT $40018 L409AT 409AT $42412 366AT
1500 2000 $43948 10 409AT
1150 2000 $45700 504AT 504AT $49046 L407AT 407AT
850 1700 $54432
10
506AT $59850 L409AT 409AT
650 1600 $75008 504AT 504AT
500 1500 $93312 506AT 506AT
400 1200 $106448 508AT 508AT
300 900 $125260 6052 6058
100
1750 2000 $45880 506AT 506AT $49454 L407AT 407AT
1500 2000 $55728 407AT
1150 2000 $55830 10 508AT $61916 L407AT 407AT
850 1700 $62810 10 10 $74050 504AT 409AT
650 1600 $90424 506AT 506AT
500 1500 $109624 508AT 508AT
400 1200 $125104 6055 5010AY
300 900 $146734 6058 6058
PRICES - 240 and 500 Volts
* Basic list price applies to frames listed. It does not include pricing for modifications or
accessories. Refer to Modifications section for appropriate list price addition(s).
• Standard rating
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.

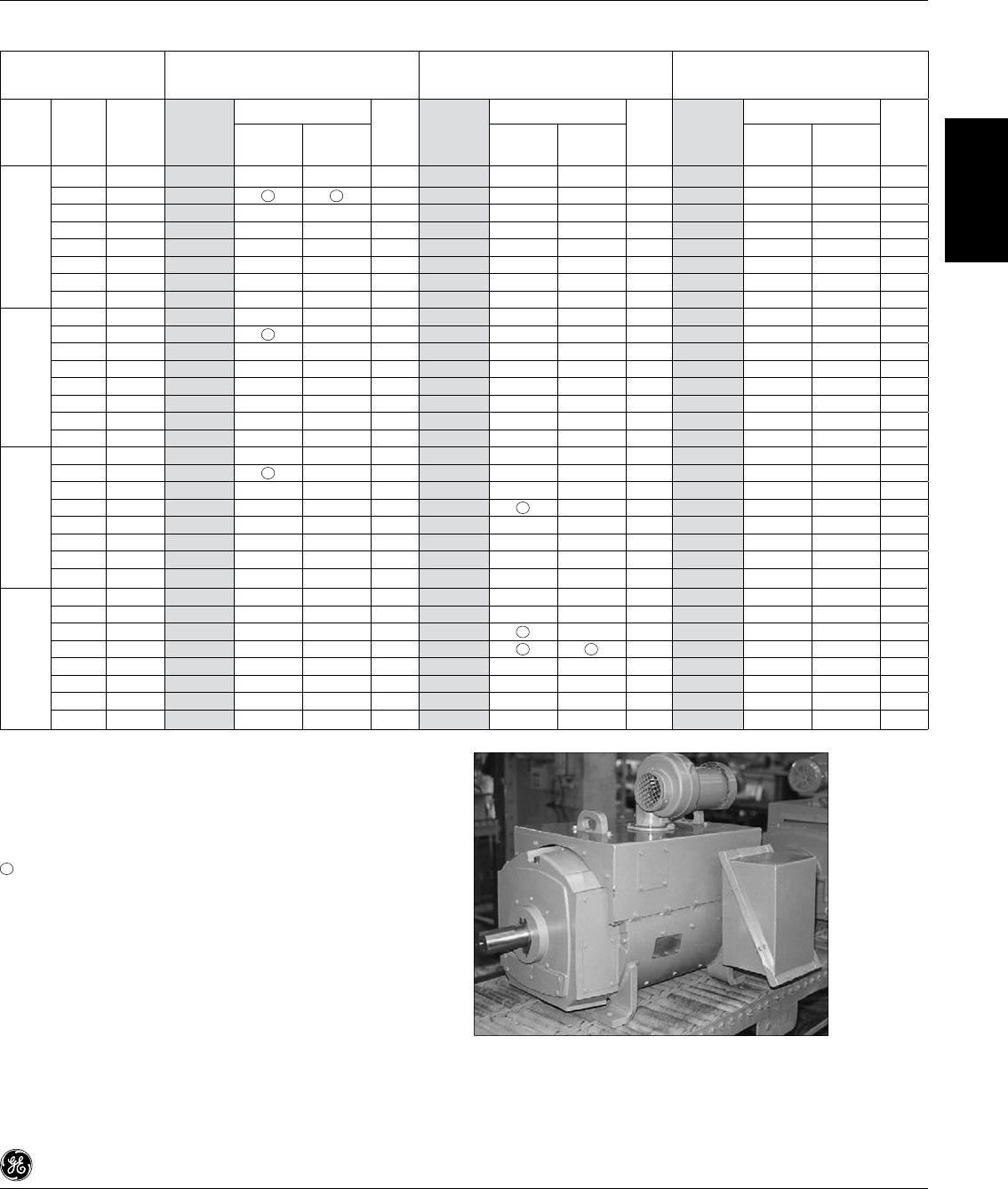

Totally Enclosed Air-Over-Frame (TEAO)
(Frame CDL506AT shown above.)
Frame Frame Frame
2.18
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Unit Cooled
PRICES - 500 Volts
* Basic list price applies to frames listed. It does not
include pricing for modifications or accessories. Refer to
Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies,
see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000,
and CD6100 is suitable for belt drive or direct coupling
(within limits given in Application Section). Frames CD6200,
CD6700, CD6800, and CD6900 are suitable for direct
drive only.
21 Totally enclosed Air-to-Air cooled machine provided in “B”
size cooler.

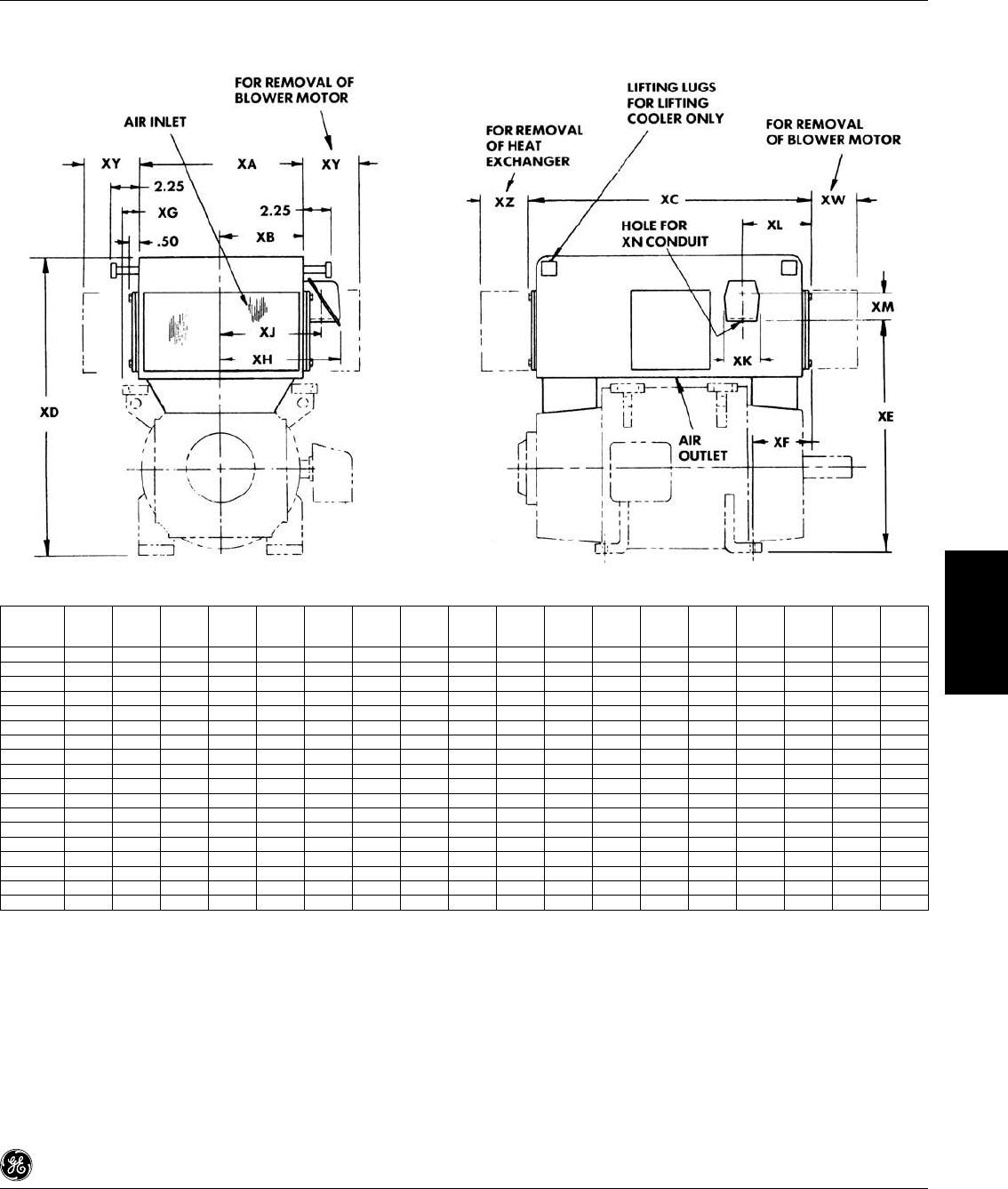

Totally Enclosed Air-To-Air Cooled (TEAAC)
(Frame CD506AT shown above.)
Totally Enclosed Air-To-Air Cooled
(Frame CD6774 shown above.)
TEAAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A 500V Dim. Pg.
125
1750 2000 $58594 407AT
1500 2000 $66322 409AT
1150 2000 $74182 504AT
850 1700 $87346 506AT 21
650 1600 $104546 506AT
21
500 1500 $124216 508AT
21
400 1200 $141756 5010AY
300 900 $165894 6058
150
1750 2000 $67302 504AT
21
1500 2000 $76458 504AT
21
1150 2000 $85988 504AT 21
850 1700 $99962 508AT 21
650 1600 $117698 508AT 21
500 1500 $137568 5010AY
400 1200 $156994 6058
300 900 $183392 6062
TEAAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated T op
Speed
RPM
Basic
List Price*
GO-2A 500V Dim. Pg.
200
1750 2000 $83750 504AT 21
1500 2000 $95692 506AT 21
1150 2000 $108552 506AT 21
850 1700 $123676 508AT
650 1600 $141900 5010AY
500 1500 $161614 6062
400 1200 $184436 6157
300 900 $214830 6164
250
1750 2000 $106394 506AT
21
1500 2000 $118590 508AT
21
1150 2000 $130058 508AT 21
850 1700 $145882 5010AY
650 1600 $164048 5010AY
500 1500 $183126 6062
400 1200 $208986 6169
300 900 $242882 6259
Frame Frame
2.19
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Unit Cooled
PRICES - 500 and 700 Volts
Totally Enclosed Air-To-Air Cooled
(Frame CD6160 shown above.)
TEAAC
Suitable for constant torque to
5% of base speed
TEWAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim. Pg.
Frame
Dim. Pg.
Basic
List Price*
GO-2A
Frame
Dim. Pg.
Frame
Dim. Pg.500V 700V 500V 700V
300
1750 1900 $129550 506 21
1500 1800 $140758 508 21
1150 1600 $150754 5010AY
850 1500 $166954 5010AY $136864
650 1600 $184690 6062 $149210 6062
500 1300 $202812 6160 $171898 6160
400 1200 $231450 6169 $206726 6169
300 900 $268502 6262 $232074 6262
400
1750 1900 $176754 5010AY $144764
10
1500 1800 $184466 5010AY $150668
10
1150 1500 $190314 5010AY $156216
10
850 1500 $206562 6062 $172282 6062
650 1400 $222664 6160 $183022 6160
500 1200 $238264 6259 $200786 6259
400 1000 $271908 6262 $240776 6262
300 750 $314530 6266 $269522 6266
500
1750 1900 $224922 6055 $183394 6055
1500 1700 $227516 6058 $186662 6058
1150 1500 $228018 6058 6062 $189686 6058 6062
850 1400 $243648 6160 6164 $205952 6160 6164
650 1200 $257420 6164 6169 $214442 6164 6169
500 1000 $269978 6262 6262 $226500 6262 6262
400 1000 $308100 6266 6266 $271004 6266 6266
300 750 $355602 6271 6271 $302682 6271 6271
600
1750 1900 $280788 6063 $239134 6063
1500 1700 $283900 6063 $245142 6063
1150 1500 $287014 6063 6160 $251152 6066 6062
850 1300 $305424 6173 6169 $264882 6173 6169
650 1200 $334392 6268 6262 $281404 6268 6262
500 1000 $373452 6275 6266 $308170 6275 6266
400 1000 $406224 6280 6271 $333292 6280 6271
300 750 $440312 6881 6887 $363532 6881 6887
700
1750 1800 $313748 6165 $269272 6165
1500 1600 $316736
10
$274764 6165
1150 1300 $319718 6268 6160 $280632 6168 6160
850 1200 $338134 6268 6259 $295064 6173 6259
650 1000 $367928 6270 6262 $313468 6270 6262
500 1000 $407750 6280 6266 $342226 6275 6266
400 1000 $442850 6881 6779 $368418 6881 6779
300 750 $480010 6887 6887 $402464 6887 6887
* Basic list price applies to frames listed. It does not include pricing for modifications or accessories. Refer to Modifications
section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable for belt drive or direct coupling (within
limits given in Application Section). Frames CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
21
Totally enclosed Air-to-Air cooled machine provided in “B” size cooler.
2.20
Totally Enclosed Motors
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Unit Cooled
PRICES - 500 and 700 Volts
TEAAC
Suitable for constant torque to
5% of base speed
TEWAC
Suitable for constant torque to
5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim. Pg.
Frame
Dim. Pg.
Basic
List Price*
GO-2A
Frame
Dim. Pg.
Frame
Dim. Pg.500V 700V 500V 700V
800
1150 1250 $351042 6268 6268 $308954 6268 6268
850 1200 $369286 6270 6270 $323974 6270 6270
650 1000 $399686 6275 6275 $344182 6275 6275
500 1000 $439998 6779 6280 $374756 6779 6280
400 1000 $477234 6881 6881 $401824 6881 6881
300 750 $517280 6887 6887 $439544 6887 6887
900
1150 1250 $381212 6268 6268 $336296 6268 6268
850 1000 $399138 6270 6270 $351816 6270 6270
650 1000 $429964 6774 6275 $373762 6774 6275
500 1000 $470552 6779 6779 $406004 6779 6779
400 1000 $509772 6887 6881 $433794 6887 6881
300 750 $552550 6985 6985 $475076 6985 6985
1000
1150 1250 $410390 6270 6268 $362800 6270 6268
850 1000 $427882 6275 6275 $378744 6275 6275
650 1000 $458988 6774 6779 $402370 6774 6779
500 1000 $499676 6881 6881 $436160 6881 6881
400 1000 $540756 6887 6887 $464544 6887 6887
300 750 $586132 6985 6985 $509288 6985 6985
1250
1150 1150 $479772 6776 $426032 6776
850 1000 $495774 6778 6977 $442776 6778 6977
650 1000 $527092 6785 6977 $470394 6785 6977
500 1000 $567450 6896 6981 $507628 6896 6981
400 1000 $612732 6996 6985 $537054 6996 6985
1500
850 900 $559170 6881 $503050 6881
650 900 $590172 6887 $534428 6887
500 850 $629594
10
$574630
10
400 770 $678598 10 $604624 10
1750
850 900 $619054 6881 $560368 6881
650 900 $649360 6990 $595322 6990
500 800 $687416 6996 $638134 6996
2000
850 900 $757744 6896 $699456 6896
650 840 $806260 6996 $744240 6996
500 750 $871026 6999 $804024 6999
2250
850 850 $818998 6896 $759568 6896
650 795 $867340 6996 $808202 6996
500 710 $931512 6999 $871070 6999
850 850 $877976 6996 $817706 6996
650 750 $925890 6999 $870062 6999
3000 850 850 $990246 6999 $929018 6999

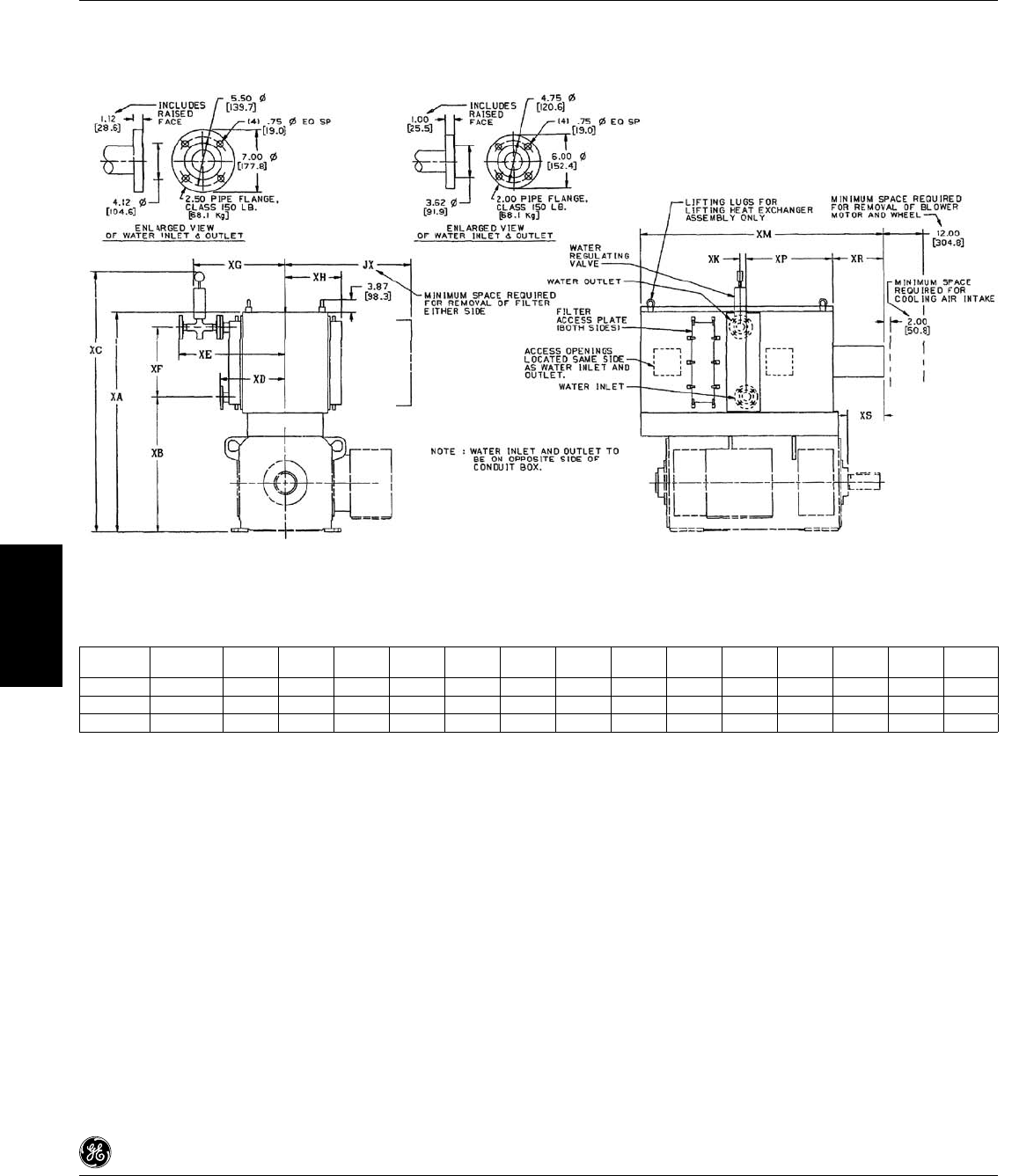

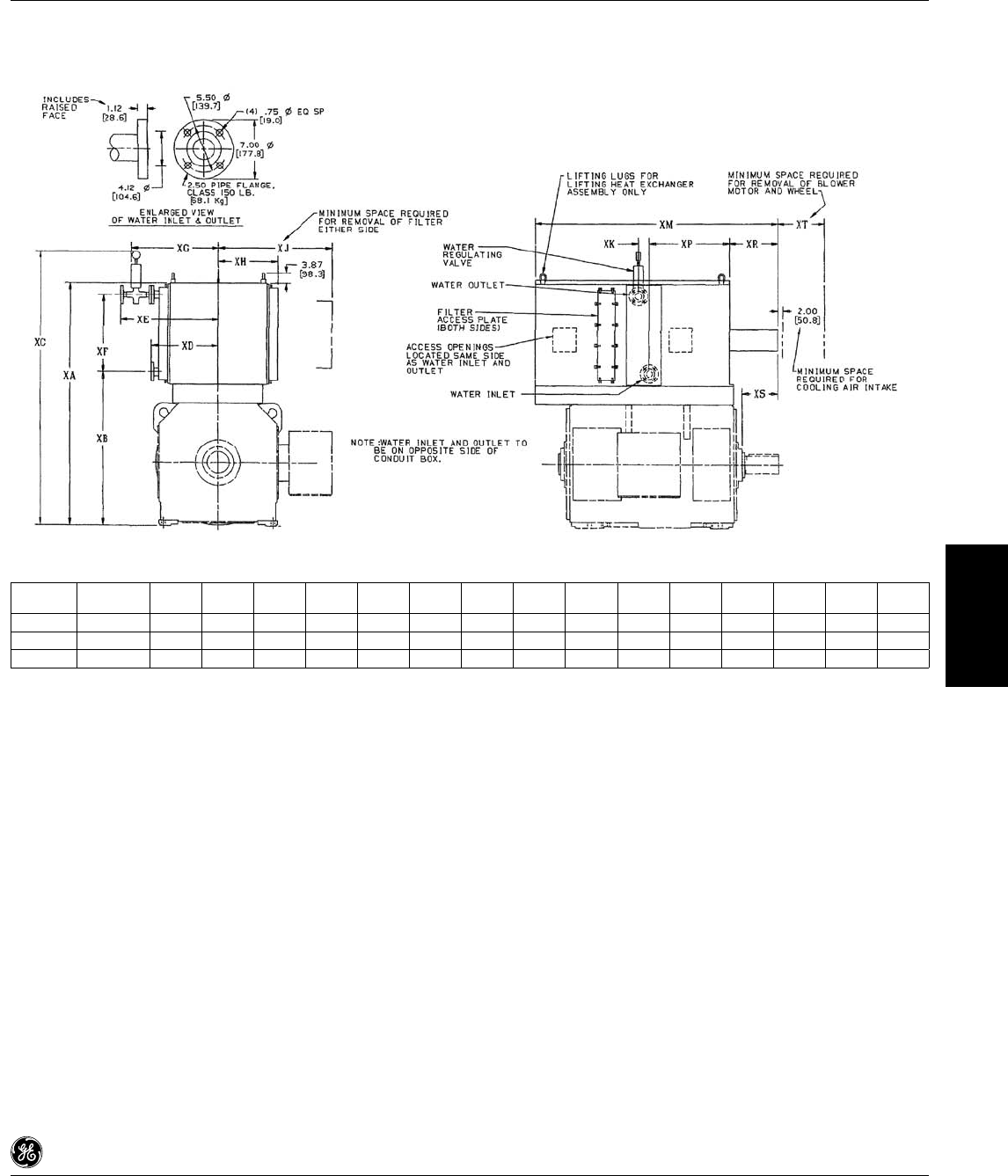

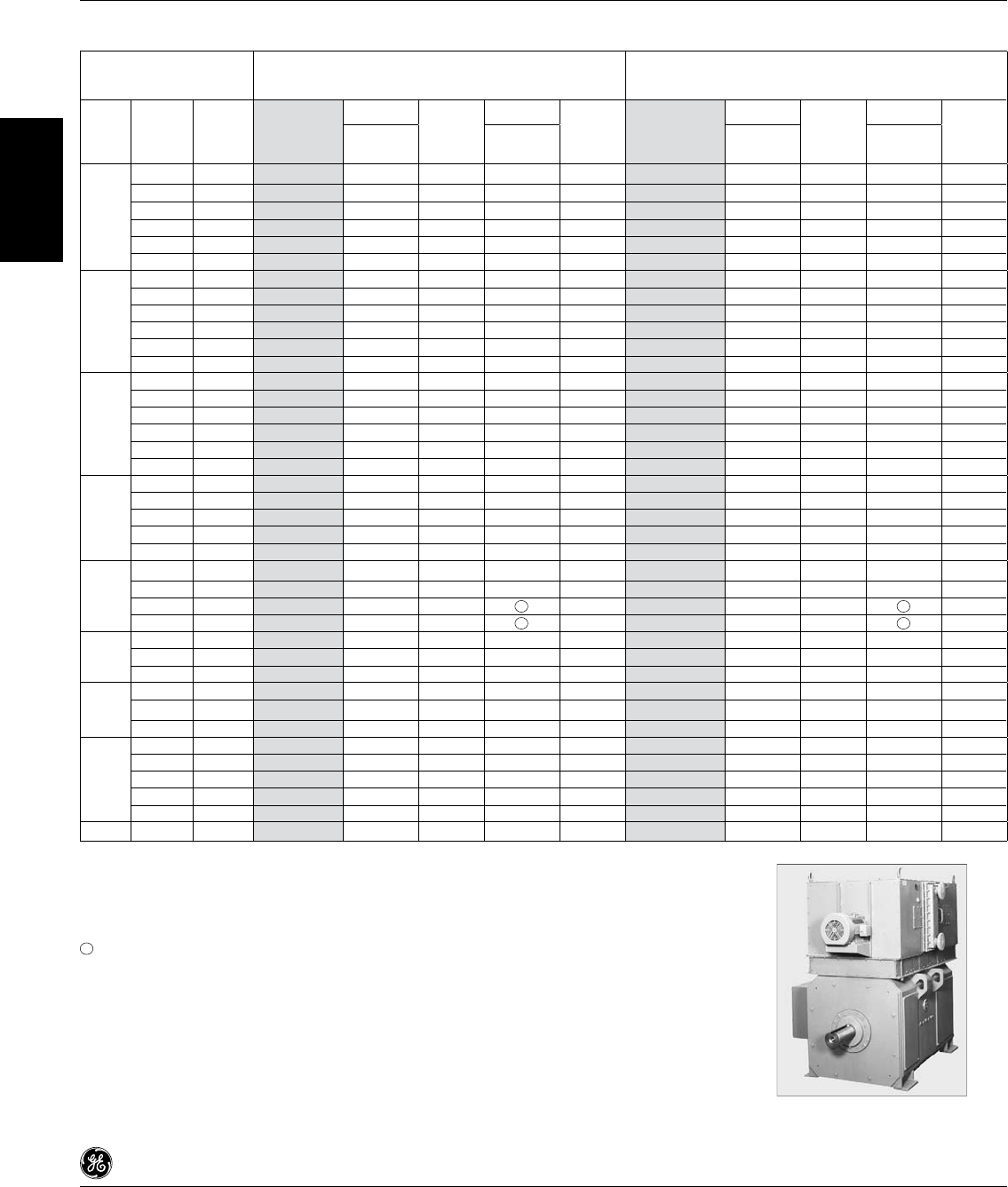

Totally Enclosed Water-To-Air Cooled
(Frame CD6160 shown above.)
* Basic list price applies to frames listed. It does not include pricing for modifications or accessories. Refer to Modifications section
for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable for belt drive or direct coupling (within limits
given in Application Section). Frames CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
2.21
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Totally Enclosed 30 Minute Rating Motors14
Class F Insulation
Type C Power Supply
For Operation in 40°C Ambient
Nonventilated
* Basic list price applies to frames listed. It does not include pricing for modifications
or accessories. Refer to Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
14
The NEMA definition for short time rated motors is as follows “All short time ratings
are based upon a corresponding short time load test, which shall commence only
when the windings and other parts of the machine are within 5°C of the ambient
temperature at the time of starting the test.” This means that field voltage should
be removed when the motor is not operating.
These short time rated motors have 150% occasionally repeated overload capability
at all speeds within the standard speed range. To add for wider than standard speed
range, use rated HP and the tables in page__ item __ (frame size may be different
from standard).
PRICES - 240 and 500 Volts
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim.
Pg.240V 500V
1
1750 2300 $2198 L182AT
10
1150 2000 $2476 L182AT 10
850 1700 $3202 186AT 10
1.5
1750 2300 $2468 L182AT 10
1150 2000 $2882 L182AT
10
850 1700 $4300 186AT 10
2
1750 2300 $2726 L182AT 10
1150 2000 $3346 L186AT
850 1700 $4848 189AT
10
3
1750 2300 $3304 186AT 10
1150 2000 $4740 189AT 10
850 1700 $5778 219AT
10
650 1600 $6820 2110AT
10
5
1750 2300 $4914 L186AT 10
1150 2000 $6064 219AT 10
850 1700 $7264 2110AT
10
650 1600 $8746 259AT 10
7.5
1750 2300 $5994 2110AT 2110AT
1150 2000 $7318 258AT 258AT
850 1700 $8682 259AT 10
650 1600 $10500 288AT 10
10
1750 2300 $6874 2110AT 2110AT
1150 2000 $8358 259AT 259AT
850 1700 $9990 288AT 288AT
650 1600 $12286 328AT 328AT
15
1750 2300 $8332 259AT 259AT
1150 2000 $10248 288AT 288AT
850 1700 $12220 327AT 327AT
650 1600 $15190 365AT 365AT
20
1750 2300 $9600 288AT 288AT
1150 2000 $11908 328AT 328AT
850 1700 $14608 365AT 365AT
650 1600 $18090 365AT 365AT
25
1750 2300 $10842 327AT 327AT
1150 2000 $13704 365AT 365AT
850 1700 $16674 365AT 365AT
650 1600 $20724 366AT 366AT
30
1750 2300 $11962 328AT 328AT
1150 2000 $15162 365AT 365AT
850 1700 $18538 366AT 366AT
650 1600 $22816 368AT 368AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim.
Pg.240V 500V
40
1750 2100 $14122 365AT 365AT
1150 2000 $18064 366AT 365AT
850 1700 $22074 366AT 366AT
650 1600 $27000 407AT 368AT
50
1750 2100 $16170 365AT 365AT
1150 2000 $20844 366AT 366AT
850 1700 $25624 368AT 368AT
650 1600 $31050 407AT 407AT
60
1750 2100 $18550 366AT 366AT
1150 2000 $23856 368AT 368AT
850 1700 $29122 407AT 407AT
650 1600 $34966 409AT 409AT
75
1750 2100 $21844 366AT 366AT
1150 2000 $28096 407AT 407AT
850 1700 $33462 L409AT 409AT
650 1600 $40840 504AT 409AT
100
1750 2000 $27474 368AT 368AT
1150 2000 $34398 L407AT 407AT
850 1700 $40366 504AT 409AT
650 1600 $48940 506AT 506AT
125
1750 2000 $32590 L407AT 407AT
1150 2000 $40366 L409AT 409AT
850 1700 $47304 506AT 506AT
650 1600 $56364 508AT 508AT
150
1750 2000 $37558 L409AT 409AT
1150 2000 $46456 504AT 506AT
850 1700 $53556 506AT 508AT
650 1600 $63466 508AT 508AT
200
1750 2000 $47710 504AT 504AT
1150 1800 $57564 506AT 506AT
850 1700 $65652 508AT 508AT
250 1750 1900 $58726 L506AT 506AT
1150 1700 $69190 L508AT 508AT
300 1750 1900 $70470 L506AT 506AT
1150 1600 $81204 L508AT 508AT
400 1750 1900 $98010
10
508AT
2.22
Nonventilated
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Totally Enclosed 60 Minute Rating Motors14
Class F Insulation
Type C Power Supply
For Operation in 40°C Ambient
* Basic list price applies to frames listed. It does not include pricing for modifications
or accessories. Refer to Modifications section for appropriate list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
14 The NEMA definition for short time rated motors is as follows “All short time ratings
are based upon a corresponding short time load test, which shall commence only
when the windings and other parts of the machine are within 5°C of the ambient
temperature at the time of starting the test.” This means that field voltage should
be removed when the motor is not operating.
These short time rated motors have 150% occasionally repeated overload capability
at all speeds within the standard speed range. To add for wider than standard speed
range, use rated HP and the tables in page__ item __ (frame size may be different
from standard).
a 365AT page ___; 328AT page ___.
PRICES - 240 and 500 Volts
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim. Pg.240V 500V
1
1750 2300 $2268 L182AT
10
1150 2000 $2686 L182AT 10
850 1700 $3166 186AT 10
650 1600 $5456 L186
10
1.5
1750 2300 $2714 L182AT
10
1150 2000 $3576 L182AT 10
850 1700 $5088 186AT 10
650 1600 $6186 218AT
10
2
1750 2300 $3260 L182AT
10
1150 2000 $4356 L186AT 10
850 1700 $5606 189AT 10
650 1600 $6650 219AT
10
3
1750 2300 $4246 186AT
10
1150 2000 $5888 189AT 10
850 1700 $6680 219AT 10
650 1600 $7884 2110AT
10
5
1750 2300 $5686 189AT 10
1150 2000 $7010 258AT
10
850 1700 $8402 259AT 259AT
650 1600 $10840 259AT 259AT
7.5
1750 2300 $6930 2110AT 2110AT
1150 2000 $8464 258AT 259AT
850 1700 $10760 288AT 288AT
650 1600 $13016 328AT 328AT
10
1750 2300 $7948 258AT 2110AT
1150 2000 $10364 259AT 259AT
850 1700 $12384 288AT 327AT
650 1600 $15232 328AT 328AT
15
1750 2300 $10328 288AT 288AT
1150 2000 $12704 328AT 328AT
850 1700 $15148 365AT 366AT
650 1600 $19596 365AT 365AT
20
1750 2300 $11902 327AT 327AT
1150 2000 $14760 365AT 365AT
850 1700 $18834 365AT 366AT
650 1600 $23328 366AT 366AT
25
1750 2300 $13980 328AT 328AT
1150 2000 $17720 365AT 365AT
850 1700 $21504 366AT 366AT
650 1600 $26730 368AT 368AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2A
Frame
Dim. Pg.240V 500V
30
1750 2300 $15502 365AT 328AT
a
1150 2000 $19552 366AT 365AT
850 1700 $23902 366AT 366AT
650 1600 $29424 407AT 368AT
40
1750 2100 $19624 366AT 365AT
1150 2000 $23296 366AT 366AT
850 1700 $28468 368AT 368AT
650 1600 $33264 407AT 407AT
50
1750 2100 $23672 366AT 366AT
1150 2000 $26878 368AT 368AT
850 1700 $31160 407AT 407AT
650 1600 $37256 409AT 409AT
60
1750 2100 $25774 368AT 366AT
1150 2000 $29772 407AT 407AT
850 1700 $34712 504AT 409AT
650 1600 $41728 504AT 409AT
75
1750 2100 $28718 368AT 368AT
1150 2000 $33264 L407AT 407AT
850 1700 $39886 504AT 504AT
650 1600 $47728 506AT 506AT
100
1750 2000 $33408 L407AT 407AT
1150 2000 $41004 409AT 409AT
850 1700 $46588 506AT 506AT
650 1600 $56376 508AT 508AT
125
1750 2000 $37544 L409AT 409AT
1150 2000 $46588 504AT 506AT
850 1700 $54388 506AT 508AT
650 1600 $64928 508AT 508AT
150
1750 2000 $43270 L506AT 504AT
1150 2000 $53392 506AT 506AT
850 1700 $61736 508AT 508AT
200 1750 2000 $54856 L508AT 508AT
1150 1800 $66448 L508AT 508AT
Explosionproof and
Dust-Ignitionproof Motors
Class F Insulation
For Continuous Operation in 40°C Ambient
2.23
Nonventilated a nd
Fan Cooled
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
* Basic List price applies to frames listed. It does not include pricing for modifications
or accessories. Refer to Modification section for appropriate list price addition(s).
For Suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL188AT-CD409AT is suitable for belt drive or direct
coupling (within limits given in Application Section.)
TENV-Totally Enclosed Nonventilated
TEFC- Totally Enclosed Fan Cooled
10
Refer to GE for frame.
15
UL Operating Temperature Code T4-135 C.
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List Price*
GO-2X
Enclosure
Frame
Dim. Pg.
11750 2050 $8082 TENV 188AT
1150 1380 $8457 TENV 188AT
1.5
2500 2750 $8568 TENV 188AT
1750 2050 $8790 TENV 189AT
1150 1380 $9609 TENV 189AT
2
2500 2750 $9162 TENV 189AT
1750 2050 $9927 TENV 189AT
1150 1380 $11085 TEFC 189AT
3
2500 2750 $10674 TEFC 189AT
1750 2050 $11916 TEFC 189AT
1150 1380 $16776 TENV 2110AT
5
2500 2750 $14061 TENV 2110AT
1750 2050 $17058 TENV 2110AT
1150 1380 $19719 TEFC 2110AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
Basic
List
Price*
GO-2X
Enclosure
Frame
240V 500V
Dim.
Pg.
1
1750 2300 $8082 TENV 188AT 188AT
1150 2000 $8457 TENV 188AT
10
850 1700 $10635 TENV 188AT 10
1.5
2500 3000 $8568 TENV 188AT
10
1750 2300 $8790 TENV 189AT 189AT
1150 2000 $9609 TENV 189AT 10
850 1700 $14310 TENV 2110AT 10
2
3500 3850 $8316 TENV 188AT 10
2500 3000 $9162 TENV 189AT 189AT
1750 2300 $9927 TENV 189AT 189AT
1150 2000 $11085 TEFC 189AT 189AT
850 1700 $15768 TENV 2110AT 2110AT
3
3500 3850 $9393 TENV 189AT 10
2500 3000 $10674 TEFC 189AT 189AT
1750 2300 $11916 TEFC 189AT 189AT
1150 2000 $16776 TENV 2110AT 2110AT
850 1700 $18789 TENV 2110AT 2110AT
5
3500 3850 $12057 TENV 2110AT 10
2500 3000 $14061 TENV 2110AT 2110AT
1750 2300 $17058 TENV 2110AT 2110AT
1150 2000 $19719 TEFC 2110AT 2110AT
850 1700 $23634 TEFC 288AT 288AT
7. 5
3500 3500 $16452 TEFC 2110AT 10
2500 3000 $18732 TEFC 2110AT 2110AT
1750 2300 $19491 TEFC 2110AT 2110AT
1150 2000 $23811 TEFC 288AT 288AT
850 1700 $30267 TEFC 288AT 288AT
10
3500 3500 $19821 TEFC 2110AT
10
2500 3000 $20868 TEFC 2110AT 2110AT
1750 2300 $21399 TEFC 288AT 288AT
1150 2000 $27684 TEFC 288AT 288AT
850 1700 $31158 TEFC 328AT 328AT
15
3500 3500 $25740 TEFC 288AT
10
2500 3000 $25173 TEFC 288AT 288AT
1750 2300 $27618 TEFC 288AT 288AT
1150 2000 $33300 TEFC 328AT 328AT
850 1700 $39765 TEFC 407AT 10
20
2500 3000 $31101 TEFC 288AT 288AT
1750 2300 $31794 TEFC 328AT 328AT
1150 2000 $38745 TEFC 407AT 10
850 1700 $49443 TEFC 407AT 10
25
2500 3000 $35133 TEFC 288AT 288AT
1750 2300 $35691 TEFC 328AT 328AT
1150 2000 $46512 TEFC 407AT 10
850 1700 $56448 TEFC 407AT 10
30
1750 2300 $40695 TEFC 407AT 10
1150 2000 $51327 TEFC 407AT
10
850 1700 $62745 TEFC 409AT
10
40
1750 2100 $51516 TEFC 407AT
10
1150 2000 $61155 TEFC 407AT 10
850 1700 $74730 TEFC 409AT 10
50 1750 2100 $62145 TEFC 409AT 10
1150 2000 $70557 TEFC 409AT 10
60 1750 2100 $67659 TEFC 409AT 10
75 1750 2100 $75387 TEFC 409AT
15
10
UL File #29056
CSA File #056228
Class I Group D
Class II Group E, F, G - See Page XX
PRICES - 180 Volts (Type K Power Supply)PRICES - 240 and 500 Volts (Type C Power Supply)
Totally Enclosed Fan Cooled Explosionproof (TEFC-XP)
(Frame CD409AT shown above.)
2.24
Nonventilated a nd
Fan Cooled
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Explosionproof and
Dust-Ignitionproof Motors
Class F Insulation
For Continuous Operation in -25°C to 40°C Ambient
All listed explosionproof motors meet UL operating temperature code T4A-120°C, except 75 HP, 1750 TEFC, CD409AT frame
which is UL operating temperature code T4-135°C. For 120 volt motor, see page XX, Item XX, special armature voltage.
See page XX for standard explosionproof outlines. A thermostat with a normally closed contact is included as standard.
For Class II, Groups E, F, and G (Division 1 & 2), UL listed motors in frames CD180AT-CD409AT, add $675 GO-2X. For TEAO
explosionproof, add $6612 GO-2X (CD407AT and CD409AT frames only).
For CSA approval on explosionproof motors, add as follows:
Frame GO-2X Frame GO-2X
CD180AT $669 CD320AT $1338
CD210AT $936 CD400AT $1524
CD280AT $1071
ACCESSORIES: Explosionproof motors are available only
with the accessories listed below. An accessory mounting
face is available. Contact GE for suitability and availability of
accessory mounting options.
Brakes
Explosionproof brake. Refer to GE.
NOTE: These are not available with a thru shaft.
Breather Drains
Drain holes are normally selected to provide drainage of
moisture that might collect at the lowest point of the motor.
Explosionproof enclosures, as standard, do not have drain
holes. The breather drain is approved for this enclosure
when properly maintained after installation. Add $510
GO-2X per drain.
Precision Balance
Not available on explosionproof motors.
Shaft Extensions
Oversize shaft extensions are not available on
explosionproof motors.
Space Heaters
For heaters installed and leads brought out through
the motor conduit box, add $546 GO-2X.
NOTE: Special conduit box and nameplates are required on
CSA approved motors.

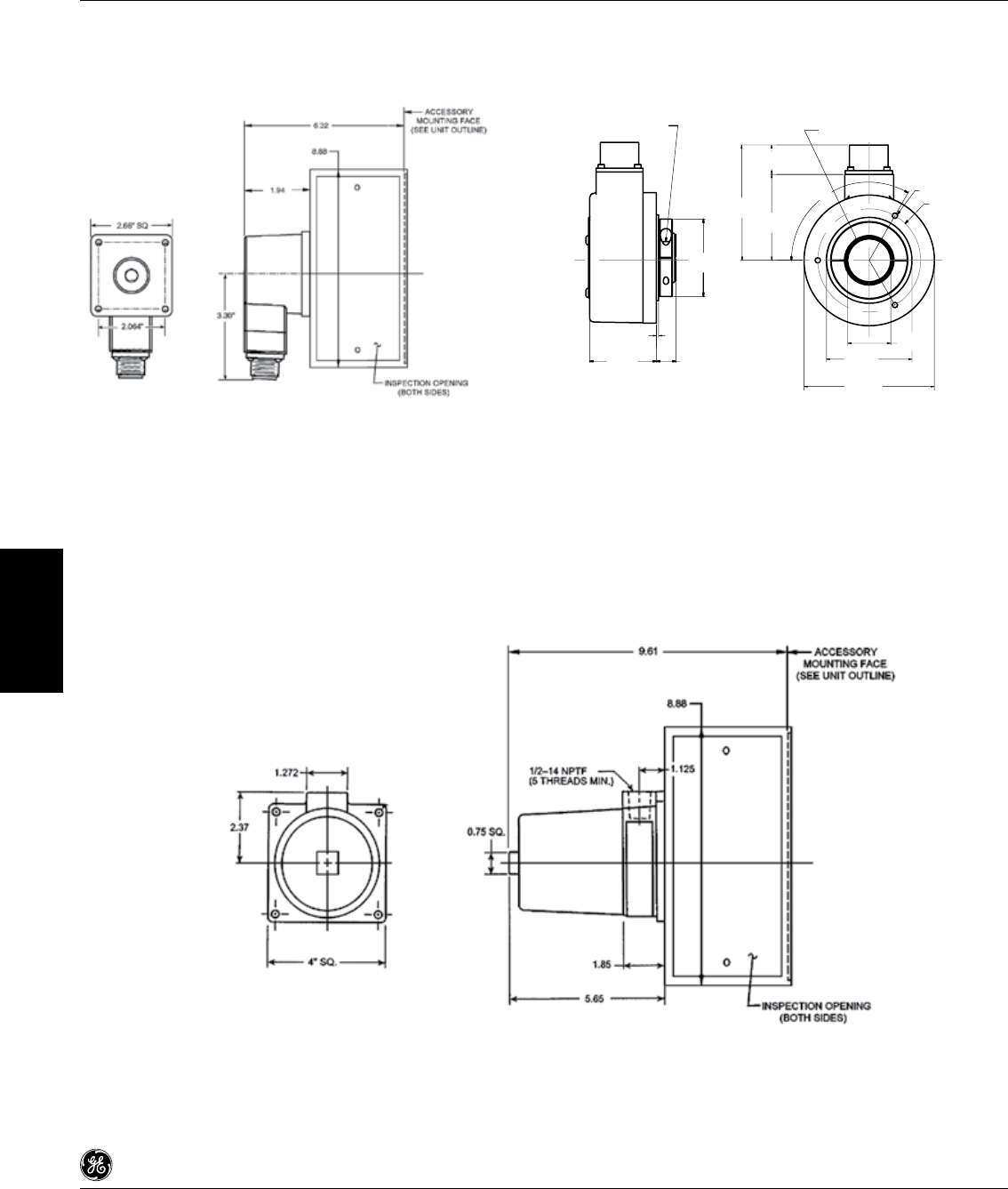

Tachometers
For explosionproof (Class 1, Group D, Class II, Groups E, F,
and G) motor-mounted tachometer, add as follows:
GE will not mount non-explosionproof tachometers on
explosionproof motors.
GO-2X
BC42 (50V/1000RPM) or (100V/1000RPM) $10400
Dynapar X25 (5VDC to 15 VDC Max) (240, 512, 600, 1024, 1200, 2048 PPR)
Only suitable for installation in Class 1, Group D environments $4080
For other options, refer to GE.
Mounting kit only for BC tach for explosionproof motor (included as
part of tachometer price). Kit includes adapter, coupling, stub shaft,
and mounting bracket for BC tachometers. Mounting kit is assembled
to motor
$1806
For mounting only of customer-supplied explosionproof tachometer.
This includes coupling, stub shaft, mounting bracket, and assembly of
tachometer.
$3269
Other accessories are available. Accessories and modifica-
tions may be added only when they do not affect the
explosionproof features of the motor. All accessories must
meet or exceed environment class and group requirements
as defined by the National Electrical Code and Underwriters’
Laboratories. Refer to GE.
Note: A double shaft extension is not available on explosion-
proof BC tachometers.
The motors described in this section have been listed by
Underwriters’ Laboratories for application in hazardous
locations of the classes and groups referred to.
Explosionproof and
Dust-Ignitionproof Motors
Class F Insulation
For Continuous Operation in 40°C Ambient
2.25
Type CD
Shunt Wound
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Purged/Totally Enclosed Separately
Ventilated for Hazardous Locations
Class I
Section 501-8 of the National Electrical Code permits the use of enclosed separately ventilated motors with air ducted-in, air
ducted-out ventilation in Class I, Division 1 or 2 locations when installation and operation conform to certain requirements.
Motors must be air-purged with a source of clean air and have the control arranged to prevent energization of the machine,
until ventilation has been established and the enclosure has been purged with at least 10 volumes of air. Protective devices
such as a thermostat must be utilized on the motor to detect any increase in temperature of the motor beyond the design
limits, and the control must be arranged to automatically de-energize the equipment. Motor leads must be sealed at the
frame exit (see Section 501-5 of the National Electrical Code). Auxiliary equipment such as a conduit box, tachometer, and
other auxiliary devices mounted on the motor must be of the explosionproof type for Division 1 locations. Sealed leads and
standard conduit box may be used for Division 2 locations.
Class II
Section 502-8 of the National Electrical Code permits the use of enclosed separately ventilated motors with air ducted-in,
air ducted-out ventilation for use in Class II, Division 1 and 2 locations, provided that the maximum surface temperatures
shall not exceed 120°C, (248°F). Auxiliary equipment such as a conduit box, tachometer, and other auxiliary devices mounted
on the motor must be of the explosionproof type for Division 1 locations. Sealed leads and standard conduit box may be
used for Division 2 locations.
Separate ventilation in hazardous locations is not available in CD180AT.
SUMMARY OF MOTOR REQUIREMENTS FOR SEPARATELY VENTILATED MOTORS IN HAZARDOUS LOCATION
MOTOR LEADS CONDUIT BOX TACHOMETERS SPACE HEATERS AUXILIARY DEVICES
CLASS I
DIVISION 1 SEALED XP XP LOW TEMP XP
DIVISION 2 SEALED STANDARD XP LOW TEMP XP
CLASS II
DIVISION 1 SEALED XP XP LOW TEMP XP
DIVISION 2 SEALED STANDARD XP LOW TEMP XP
XP=Explosionproof rated for hazardous location where motor is used
WARNING: Enclosed separately ventilated motors supplied for use in a hazardous location do not have an
Underwriters’ listing and are not explosionproof. Articles 501-8 and 502-8 of the National Electrical Code
governing the installation of motors in Class I and Class II locations assign approval of the installation to “the
authority having jurisdiction” (see Article 100 - Definitions of the NEC). Therefore, it is the responsibility of the
customer to be familiar with the NEC and the local jurisdictional requirements, and to determine that the motor
selection (including possibly permissible alternative ventilation systems or accessories) is “acceptable to the
authority having jurisdiction.”
2.26 www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information

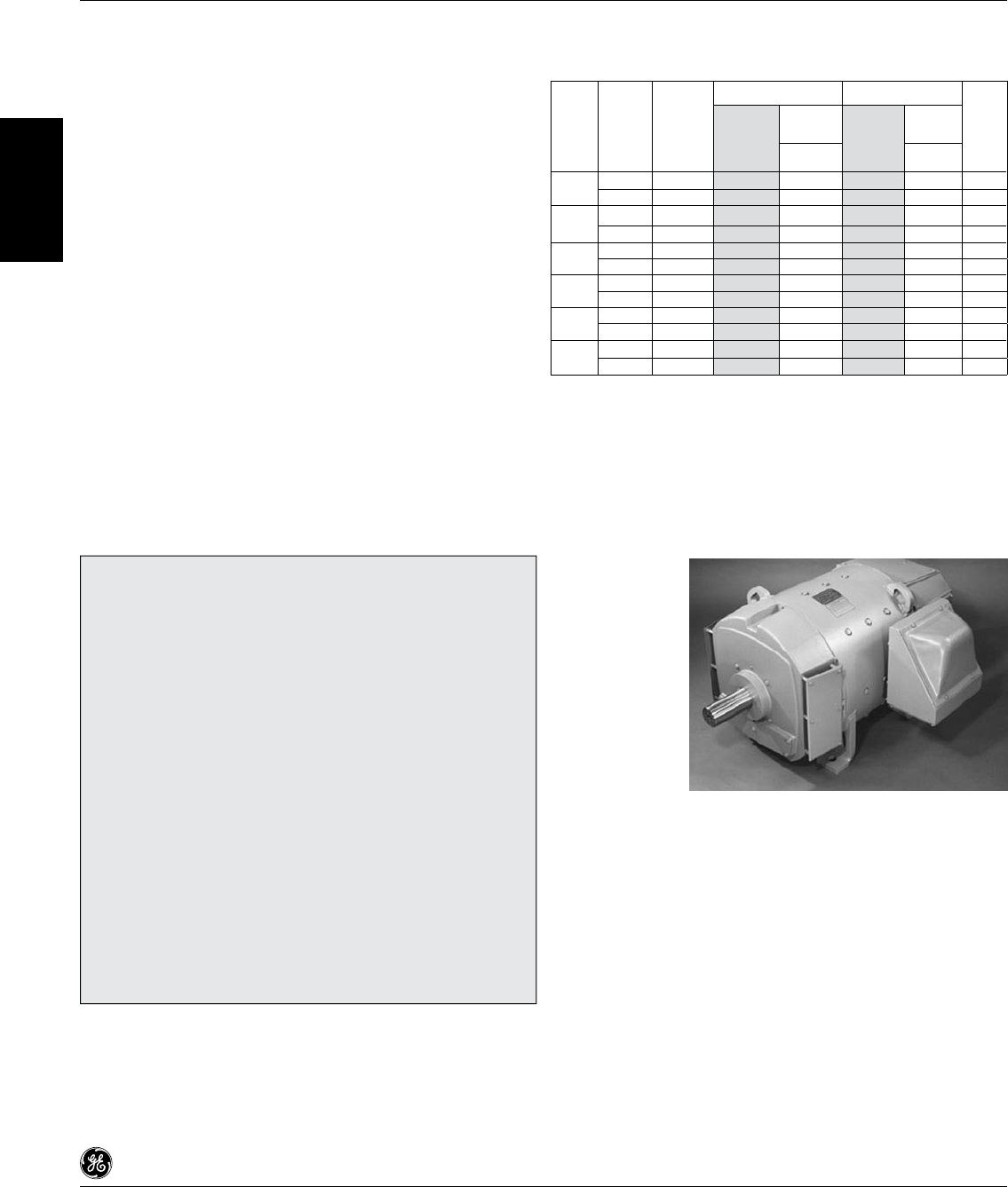

Papermill Duty
Class F Insulation
For Continuous Operation in 40°C Ambient
GE produces DC motors designed specifically for papermill
applications. These ratings are available in Splashproof Fully
Guarded Separately Ventilated (SPFG-SV) or Totally Enclosed
Nonventilated (TENV) enclosures. The pricing includes
standard papermill features listed below. Other modifications
may be specified. Refer to the Accessories and Modifications
section for price adders.
Frames are listed for Class F temperature rise and Class B
temperature rise. Class F rise motors are rated at 1.0 Service
Factor (SF) and 150% occasional overload. Class B rise
motors are rated at 1.0 SF and 200% occasional overload,
Class F rise at 1.15 SF and 150% occasional overload. Class F
or Class B rise must be specified at the time of order. Other
combinations available and must be specified at the time
of order.
All frames listed include 40°C ambient, continuous duty,
and 240/120V or 300/150V shunt field. Voltage must be
specified at the time of order. Ratings up to and including
1250 HP are 500V armature. Ratings 1500 HP and above
are 700V armature.
Refer to GE for backstand or unwind applications.
Standard papermill features include:
Transparent cover (Lexan® or equivalent) located on
the conduit box side of the motor.
Cast iron endshields on frames CD210AT-CD508AT
• Shaft grounding brush
One normally opened and one normally
closed thermostat
• Drive end labyrinth seal
• Oversize conduit box
Waterproof conduit box on frames
CD218AT-CD5010AY
• Special brushes
Splashproof Fully Guarded Separately Ventilated
(SPFG-SV) or Totally Enclosed Nonventilated
(TENV) enclosure
Air entry in drive end on separately
ventilated machine
Splashproof Fully
Guarded Self
Ventilated (SPFG-SV)
(Frame CD328AT
shown at right.)
PRICES - 500 Volts (Type C Power Supply)
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise B Rise
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
500V 500V
21750 2300 $7170 218AT $8186 218AT
1150 2000 $8540 218AT $9900 219AT
31750 2300 $8402 218AT $9726 218AT
1150 2000 $10454 219AT $12486 258AT
51750 2300 $11758 2110AT $13922 2110AT
1150 2000 $14062 258AT $16688 259AT
7.5 1750 2300 $14140 259AT $16786 259AT
1150 2000 $17010 288AT $20374 327AT
10 1750 2300 $16516 327AT $19756 327AT
1150 2000 $19038 328AT $22908 328AT
15 1750 2300 $19440 328AT $23410 328AT
1150 2000 $23292 366AT $28026 368AT
* Basic list price applies to frames listed. Refer to Modification section for appropriate
list price addition(s).
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section). Frames
CD6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
® Registered trademark of General Electric Company.
Totally Enclosed Nonventilated
2.27
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Splashproof Fully Guarded
Separately Ventilated
Papermill Duty
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
PRICES - 500 Volts
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise, 150% O.L.
Dim.
Pg.
B Rise, 200% O.L.
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
500V 500V
7.5
1750 2300 $9724 218AT $11220 218AT
1150 2000 $11048 2110AT $13066 258AT
850 1700 $12604 259AT $14774 10
650 1600 $14868 288AT $17492 288AT
500 1500 $16924 327AT $20060 327AT
400 1200 $20554 328AT $24398 328AT
300 900 $23542 368AT $28134 368AT
10
1750 2300 $10604 219AT $12320 2110AT
1150 2000 $12280 258AT $14366
10
850 1700 $14358 287AT $16854 327AT
650 1600 $16654 327AT $19724 328AT
500 1500 $18918 328AT $23352 365AT
400 1200 $23082 329AT $27558 329AT
300 900 $26682 368AT $32058 368AT
250 750 $29332 368AT $35372 10
15
1750 2300 $12254 258AT $14336 259AT
1150 2000 $14616 288AT $17176 288AT
850 1700 $16588 327AT $19642 327AT
650 1600 $20356 327AT $24152 328AT
500 1500 $23364 329AT $27910 329AT
400 1200 $27118 365AT $32604 10
300 900 $32202 366AT $38958 407AT
250 750 $35712 409AT $43346
10
20
1750 2300 $13522 259AT $15922 259AT
1150 2000 $16276 327AT $19250 327AT
850 1700 $18976 328AT $22626 328AT
650 1600 $23256 328AT $27778 328AT
500 1500 $26674 329AT $32048 329AT
400 1200 $31318 366AT $37854 407AT
300 900 $36808 407AT $44718 409AT
250 750 $41662
10
$50784
10
25
1750 2300 $15210 287AT $17920 288AT
1150 2000 $18072 328AT $21496 328AT
850 1700 $21840 328AT $26006 328AT
650 1600 $25890 329AT $31070 10
500 1500 $29818 368AT $35980 407AT
400 1200 $35056 368AT $42528 407AT
300 900 $40762 409AT $49658
10
250 750 $47062 10 $57534 10
30
1750 2300 $16330 288AT $19320 288AT
1150 2000 $19530 328AT $23320 328AT
850 1700 $23704 329AT $28336 329AT
650 1600 $27982 366AT $33684 368AT
500 1500 $32518 407AT $39354 407AT
400 1200 $38088 407AT $46318 10
300 900 $45406 10 $55466 10
250 750 $55566 327AT $68166
10
40
1750 2100 $18490 327AT $22020 327AT
1150 2000 $23230 328AT $27744 329AT
850 1700 $27240 366AT $32756 368AT
650 1600 $32166 368AT $38916 407AT
500 1500 $37752 407AT $45896 504AT
400 1200 $44002 409AT $53708 506AT
300 900 $52912 409AT $64846 508AT
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise, 150% O.L.
Dim.
Pg.
B Rise, 200% O.L.
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
500V 500V
50
1750 2100 $20538 328AT $24580 328AT
1150 2000 $26010 329AT $31220 368AT
850 1700 $30790 368AT $37194 407AT
650 1600 $36216 368AT $43978 504AT
500 1500 $42508 504AT $51842 504AT
400 1200 $49780 409AT $60932 506AT
300 900 $59586 508AT $73190 508AT
60
1750 2100 $23736 L328AT $28352 329AT
1150 2000 $29022 368AT $34984 368AT
850 1700 $34288 368AT $41568 407AT
650 1600 $40132 407AT $48872 504AT
500 1500 $47472 504AT $58046
10
400 1200 $55198 506AT $67704 508AT
300 900 $65944 506AT $81136
10
250 750 $77300 508AT $96294 10
75
1750 2100 $27010 329AT $32470 368AT
1150 2000 $33262 368AT $40248 368AT
850 1700 $38628 407AT $46992 409AT
650 1600 $46006 504AT $56216 504AT
500 1500 $53952 506AT $66146 508AT
400 1200 $62646 506AT $77016 5010AY
300 900 $77426 508AT $95320 10
250 750 $86770
10
$106720
10
100
1750 2000 $32640 368AT $39506 368AT
1150 2000 $39564 407AT $48160 409AT
850 1700 $45532 409AT $55622 409AT
650 1600 $54106 506AT $66340 506AT
500 1500 $63198 508AT $77704 508AT
400 1200 $76238 5010AY $93834 5010AY
300 900 $90440 5010AY $112720 6058
250 750 $100600 6062 $124006 6062
125
1750 2000 $37756 368AT $45902 407AT
1150 2000 $45532 409AT $55622 409AT
850 1700 $52470 506AT $64294 506AT
650 1600 $61530 506AT $75620 506AT
500 1500 $75104 508AT $92418 508AT
400 1200 $86540 5010AY $106714 5010AY
300 900 $101472 6062 $125378 5010AY
250 750 $113594 407AT $140248
10
150
1750 2000 $42724 407AT $52110 L409AT
1150 2000 $51622 409AT $63234 506AT
850 1700 $58722 506AT $72108 506AT
650 1600 $69306 506AT $85170 508AT
500
a
$84074 508AT $103630 5010AY
400 b$94652 5010AY $116854 5010AY
300 c$113594 6062 $140248 6062
250 500 $126640 10 $156556 10
* Basic list price applies to frames listed. Prices include standard papermill features listed
on page XX. Refer to Modification section for other accessories and modifications.
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section Frames CD
6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10
Refer to GE for frame.
a Top speed; Class F rise=1500, Class B rise=1000
b Top speed; Class F rise=1200, Class B rise=1000
c Top speed; Class F rise=900, Class B rise=800
2.28
Splashproof Fully Guarded
Separately Ventilated
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
Papermill Duty
Class F Insulation
Type C Power Supply
For Continuous Operation in 40°C Ambient
PRICES - 500 Volts
Suitable for constant torque to 5% of base speed
PRICES - 700 Volts
(3 Phase, 6 Controlled Pulse Power Supply)
Suitable for constant torque to 5% of base speed
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise, 150% O.L.
Dim.
Pg.
B Rise, 200% O.L.
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
500V 500V
200
1750 2000 $52876 L409AT $124802 L409AT
1150 1800 $62730 506AT $77120 506AT
850 1700 $71492 506AT $87904 5010AY
650 1300 $83832 508AT $104458 6058
500 1500 $99688 6062 $122864 6062
400 1200 $113752 6165 $140446 6169
300 d$133300 6164 $164882 6169
250 750 $150340 504AT $186182
10
250
1750 1900 $63892 504AT $78572 506AT
1150 1700 $69030 506AT $92326 508AT
850 1600 $83970 5010AY $109502 5010AY
650 1600 $94266 5010AY $117500 6062
500 1500 $117884 6062 $145610 6062
400 1200 $131260 6169 $162332 6169
300 900 $152434 6259 $188798 6262
250 750 $171910
10
$213144
10
300
1150 1600 $87044 508AT $107344 5010AY
850 1500 $96966 5010AY $119746 5010AY
650 1500 $107816 6062 $133026 6062
500 1300 $128386 6160 $158738 6160
400 1200 $146614 6169 $181524 6169
300 900 $169994 6262 $210748 6262
250 750 $191980 $238232
400
1150 1500 $113570 5010AY $141632 6058
850 1500 $124420 6062 $153782 6160
650 1400 $133060 6160 $164582 6164
500 1200 $148810 6259 $184270 6262
400 1000 $173342 6262 $214934 6266
300 750 $207380 6266 $257482 6271
250 710 $228790 $284244
500
1150 1500 $145010 6058 $179520 6157
850 1400 $153784 6160 $190486 6160
650 1200 $160258 6164 $198578 6164
500 1000 $173656 6262 $215326 6262
400 1000 $207514 6266 $257648 6275
300 750 $235682 6271 $292794 6779
250 710 $263426 $327476
600
1150 1500 $208634 6066 $238882 6168
850 1300 $210586 6173 $241126 6268
650 1200 $229898 6268 $263336 6270
500 1000 $255938 6275 $293282 6275
400 1000 $273604 6280 $313596 6779
300 750 $298068 6881 $341694 6881
250 710 $334526 $383620
700
1150 1300 $231134 6168 $264758 6268
850 1200 $233218 6173 $267154 6270
650 1000 $258230 6270 $295918 6275
500 1000 $280750 6275 $322072 6779
400 1000 $298664 6881 $342376 6881
300 750 $333464 6887 $382396 6887
250 710 $374726
10
$429850
10
* Basic list price applies to frames listed. Prices include standard papermill features listed
on page XX. Refer to Modification section for other accessories and modifications.
For suitability of operation with rectified power supplies, see page xx.
Standard shaft for frames CDL182AT-CD5010AY, CD6000, and CD6100 is suitable
for belt drive or direct coupling (within limits given in Application Section Frames CD
6200, CD6700, CD6800, and CD6900 are suitable for direct drive only.
10 Refer to GE for frame.
d Top Speed; Class F=900, Class B=600
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise, 150% O.L.
Dim.
Pg.
B Rise, 200% O.L.
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
500V 500V
800
1150 1250 $254218 6173 $291560 6268
850 1000 $256600 6270 $294298 6270
650 1000 $282316 6275 $323872 6275
500 1000 $304214 6280 $348760 6779
400 1000 $324882 6881 $372528 6887
300 750 $362808 6887 $416144 6985
250 710 $406226
10
$466076
10
900
1150 1250 $283096 6268 $324770 6268
850 1000 $285268 6270 $327266 6270
650 1000 $305916 6275 $350718 6774
500 1000 $325874 6779 $373664 6779
400 1000 $346346 6887 $397214 6887
300 750 $386838 6985 $443778 6985
250 710 $439002
10
$503666
10
1000
1150 1250 $307034 6268 $352004 6776
850 1000 $308656 6270 $354164 6778
650 1000 $328104 6774 $376232 6785
500 1000 $350180 6881 $401620 6896
400 1000 $370412 6887 $424888 6996
300 750 $414450 6985 $475430 6999
250 710 $470502 6991 $539892 10
1250
1150 1150 $365570 6776 $419320
10
850 1000 $367448 6778 $421480 6890
650 1000 $387170 6785 $444160 6896
500 1000 $407148 6896 $467136 6996
400 900 $431396 6996 $494940 6999
300 750 $481984
10
$553096
10
NOTE: Motors rated 1000HP and above may need external reactance (supplied by
customer) included in the circuit to limit ripple current when powered by rectified power
supplies (see page XX).
HP
Base
Speed
RPM
Rated
Top
Speed
RPM
F Rise, 150% O.L.
Dim.
Pg.
B Rise, 200% O.L.
Dim.
Pg.
Basic
List
Price*
GO-2A
Frame
Basic
List
Price*
GO-2A
Frame
700V 700V
1500
850 1000 $421084 6876 $483060 6986
650 900 $443962 6881 $509370 6990
500 850 $467074 6996 $535948 6999
450 810 $480620 6999 $551524
10
400 770 $494164 6999 $567102 6999
350 720 $535180 6991 $614268
10
1750
850 960 $473302 6881 $543112
10
650 900 $498796 6990 $572428 6996
500 800 $524814 6996 $602348 6999
450 760 $649850 6999 $746140
10
2000
850 900 $590782 6896 $678214 6896
650 840 $628102 6996 $721132 6996
500 750 $677922 6999 $778424 6999
PRICES - 500 Volts
Suitable for constant torque to 5% of base speed
Power Supplies
2.29
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Motor Operation from Rectified Power Supplies
Motors are suitable for operation with MG sets or with the
rectified power supplies described below:
a. Single-phase, full wave, 60 cycle
(Power Supply Identification K)
Only motors rated 7.5 HP or less, 180 Volts, are suitable for
this type of power supply. These ratings do not require an
external reactor. For AC supplies other than 230 volts, 60
cycle, refer to GE.
b. Three-phase modified, 60 cycle
(Power Supply Identification D)
This power supply has three controlled rectifiers and three
uncontrolled rectifiers plus a free-wheeling rectifier. It
produces the three pulses per cycle. Motors rated 250 HP
or less in frames CD5010AY and below may be used on
this type of power supply. No external reactors are
required for motors in frames CD5010AY and below,
although improved operation at low speeds may be
obtained on frames CD365AT-CD5010AY using a reactor.
The 240 volt motors are based on 230 volt, three-phase,
60 cycle AC voltage applied to the rectifier bridge, while
the 500 volt motors are based on 460 volt, three-phase,
60-cycle AC voltage applied to the rectifier bridge.
c. Three-phase, full wave 60 cycle
(Power Supply Identification C)
This power supply has six controlled rectifiers and produces
six pulses per cycle. The 240 volt motors are based on 230
volt, three-phase, 60-cycle AC voltage applied to the rectifier
bridge, while the 500 volt motors are based on 460 volt,
three-phase, 60-cycle AC voltage applied to the rectifier
bridge. Motors in AC voltage CD6000-CD6900 are suitable
only for operations from six-controlled, 3 leg power supplies.
d. Three-phase, full wave other than 60-cycle, 240 volt DC
(230 volt AC) or 500 volt DC (460 volt AC)
Power supplies of this type require identification
as follows:
M/N F-V-H-L where:
M = a digit indicating total pulses per cycle.
N = a digit indicating controlled pulses per cycle.
F = free wheeling (this letter appears only if free
wheeling is used).
V = three digits indicating nominal line-to-line AC voltage
to the rectifier.
H = two digits indicating input frequency in hertz
L = one, two, or three digits indicating the series induc-
tance in millihenries (may be zero) to be added
externally to the motor armature circuit.
If input frequency is 60 hertz and no series inductance is
added externally to the motor armature circuit, these
quantities need not be indicated and shall be permitted to be
omitted from the identification of the power supply. However,
if one of these qualities is indicated, then both shall appear
to avoid confusion (NEMA MG1-2009, part 10.61.2).
For other types of power supplies, refer to GE.
Standard shunt field voltages are as shown under field voltage
modification. (Refer to the Modifications Section Item XX)
Reactors
All DC motor ratings in CD6000-CD6900 frames operating
on twelve pulse, three phase rectified power supplies and
all ratings in CD6000-CD6200 frames operating on less
than twelve pulse rectified power supplies do not require
external inductance.
DC motor ratings in CD6700-CD6900 frames operating on less
than twelve pulse rectified power supplies may require external
inductance to limit the armature circuit current ripple to assure
acceptable commutation and long brush, commutator and
bearing life. Armature current ripple is determined by power
supply type, ration of DC to AC line voltage, and total circuit
inductance. For DC motors in CD6700-CD6900 frames rated at
the following horsepower and speed combinations or for any
rating in CD6700-CD6900 frames having an armature circuit
inductance of 0.2mH and less, GE recommends a 0.5mH
external reactor. GE experience indicates that this is especially
true of applications where the motor is operated at rated load
and speed or higher for extended periods.
Horsepower Base Speed (RPM)
1000-1250 850 and above
1500 650 and above
1750-3000 500 and above
DC Current Design %AC RMS Amps of DC Amps
1000 TR-15902 25
1500 TR-15903 25
2000 TR-14711 25
2500 TR-15904 12.5
3000 TR-15905 12.5
3500 TR-15906 12.5
When external reactance is used, it should be installed in
series with the A1 leads of the motor.
The reactor should be sized to have the following:
Continuous and overload DC rating equal to the motor rating.
AC RMS current rating equal to 25% of motor DC rated current
for large variance between AC supply and rectified DC voltage.
Frequency rating equal to 360 Hz
Enclosure equal to NEMA 1 or as suitable for environment.
Following is one source for the reactors described above:
Transformer Engineering Corporation
2550 Brookpark Road, Cleveland, Ohio 44134
Ph. (216) 741-5282
2.30
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing Motor Pricing
General
Information
www.gemotors.com 800-541-7191 GEP387L 09/11 Prices and data subject to change without notice.
Motor Pricing
Notes
3.1
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
Accessories and Modifications
CD180AT through CD6900
Index
Item Description Page
1 Accessory Mounting . . . . . . . . . . . . . 3.2
2 Air Pressure Switch . . . . . . . . . . . . . . 3.2
3 Altitude . . . . . . . . . . . . . . . . . . . . . 3.2
4 Ambient Temperature . . . . . . . . . . . . 3.2
5 Balance, Mechanical . . . . . . . . . . . . . 3.2
6 Bases . . . . . . . . . . . . . . . . . . . . . . 3.3
7 Bearings . . . . . . . . . . . . . . . . . . . . 3.4
8 Brakes. . . . . . . . . . . . . . . . . . . . . . 3.4
9Canadian Standards
Association (CSA) . . . . . . . . . . . . . . . 3.8
10 European Standards, CE Marks . . . . . . 3.8
11 Conduit Boxes. . . . . . . . . . . . . . . . . 3.9
12 Covers. . . . . . . . . . . . . . . . . . . . . . 3.10
13 Crane Motors . . . . . . . . . . . . . . . . . 3.11
14 Customer-Supplied Material . . . . . . . . 3.11
15 Drains. . . . . . . . . . . . . . . . . . . . . . 3.12
16 Enclosures . . . . . . . . . . . . . . . . . . . 3.13
17 Endshields . . . . . . . . . . . . . . . . . . . 3.15
18 Export Boxing . . . . . . . . . . . . . . . . . 3.17
19 Grease and Fittings . . . . . . . . . . . . . 3.17
Item Description Page
20 Overload-Maximum Load. . . . . . . . . . 3.17
21 Pump Motors . . . . . . . . . . . . . . . . . 3.18
22 Seals, Drive End Shaft . . . . . . . . . . . . 3.18
23 Severe Mechanical Duty . . . . . . . . . . 3.18
24 Shaft Extensions . . . . . . . . . . . . . . . 3.19
25 Shaft Grounding Brush . . . . . . . . . . . 3.20
26 Space Heaters. . . . . . . . . . . . . . . . . 3.20
27 Speed Limit Device . . . . . . . . . . . . . . 3.21
28 Speed Range Greater than
Standard by Field Control . . . . . . . . . . 3.22
29 Tachometer Generator Equipment . . . . 3.24
30 Terminal Board in Conduit Box. . . . . . . 3.28
31 Tests and Curves . . . . . . . . . . . . . . . 3.29
32 Temperature Detectors . . . . . . . . . . . 3.30
33 Vertical Mounting . . . . . . . . . . . . . . . 3.30
34 Voltages . . . . . . . . . . . . . . . . . . . . 3.31
35 Warranty Extension . . . . . . . . . . . . . 3.31
36 Windings, Stabilized Shunt, Compound
or Series . . . . . . . . . . . . . . . . . . . . 3.32
37 Mod Shop Pricing . . . . . . . . . . . . . . . 3.34

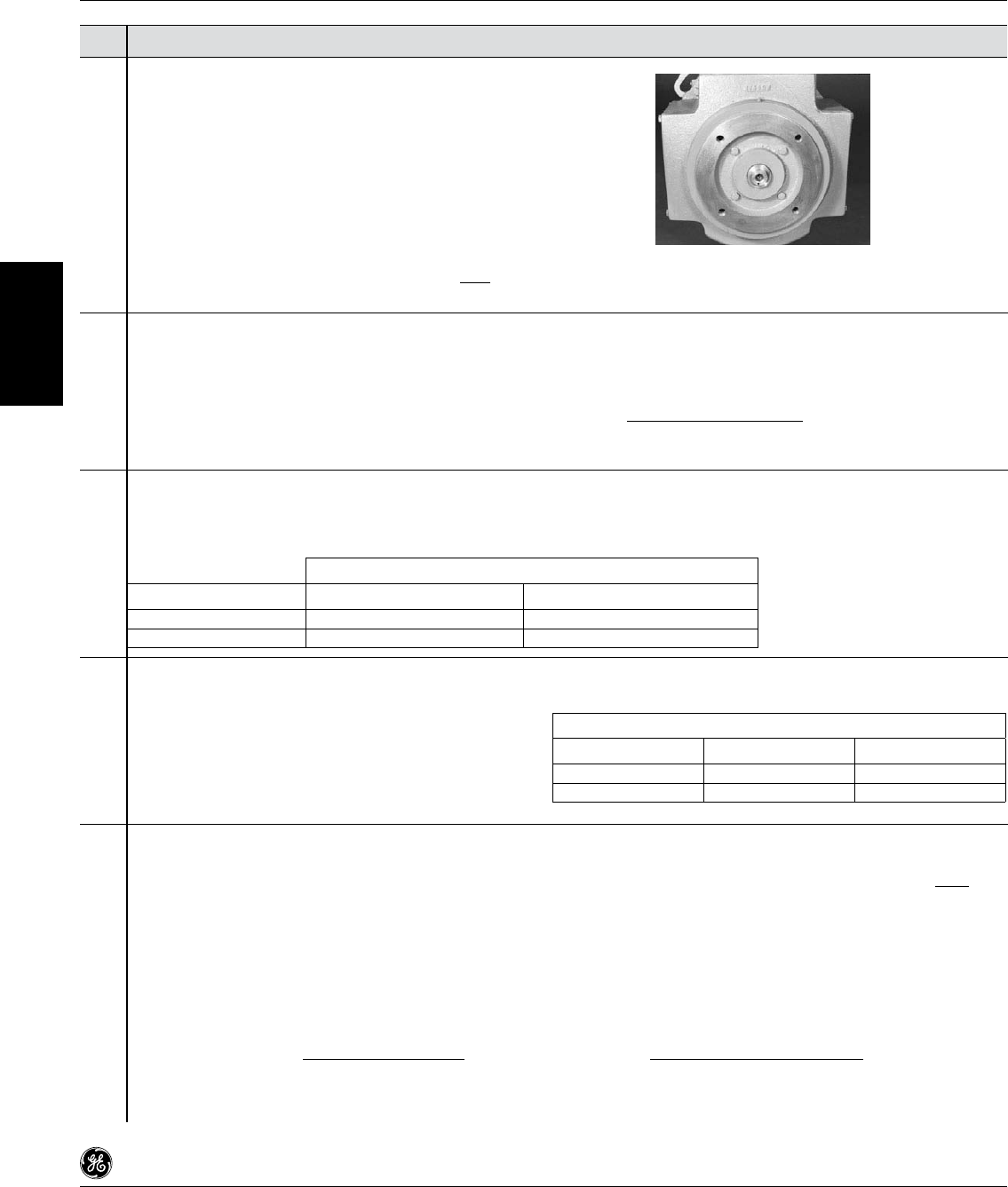

3.2
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION

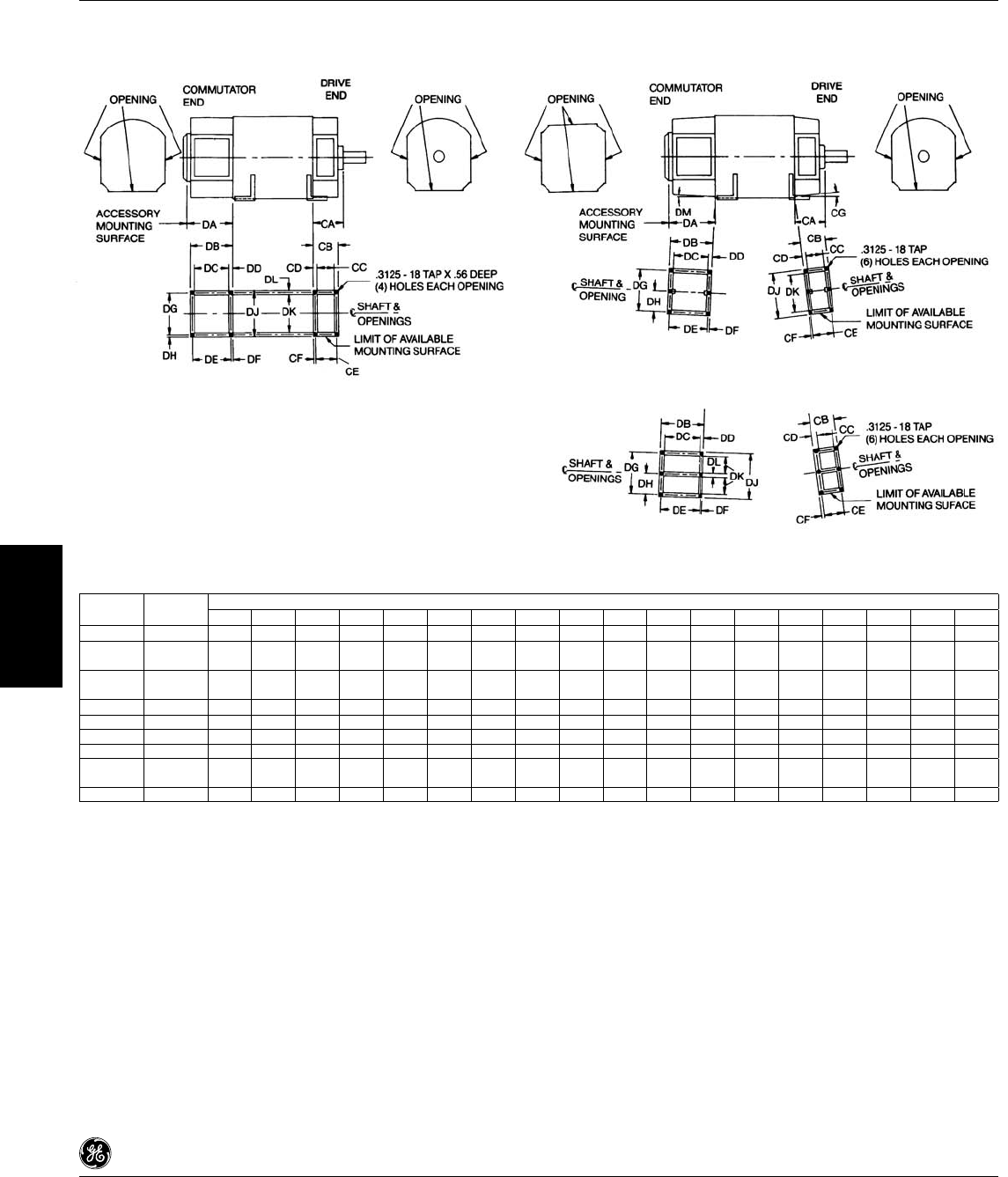

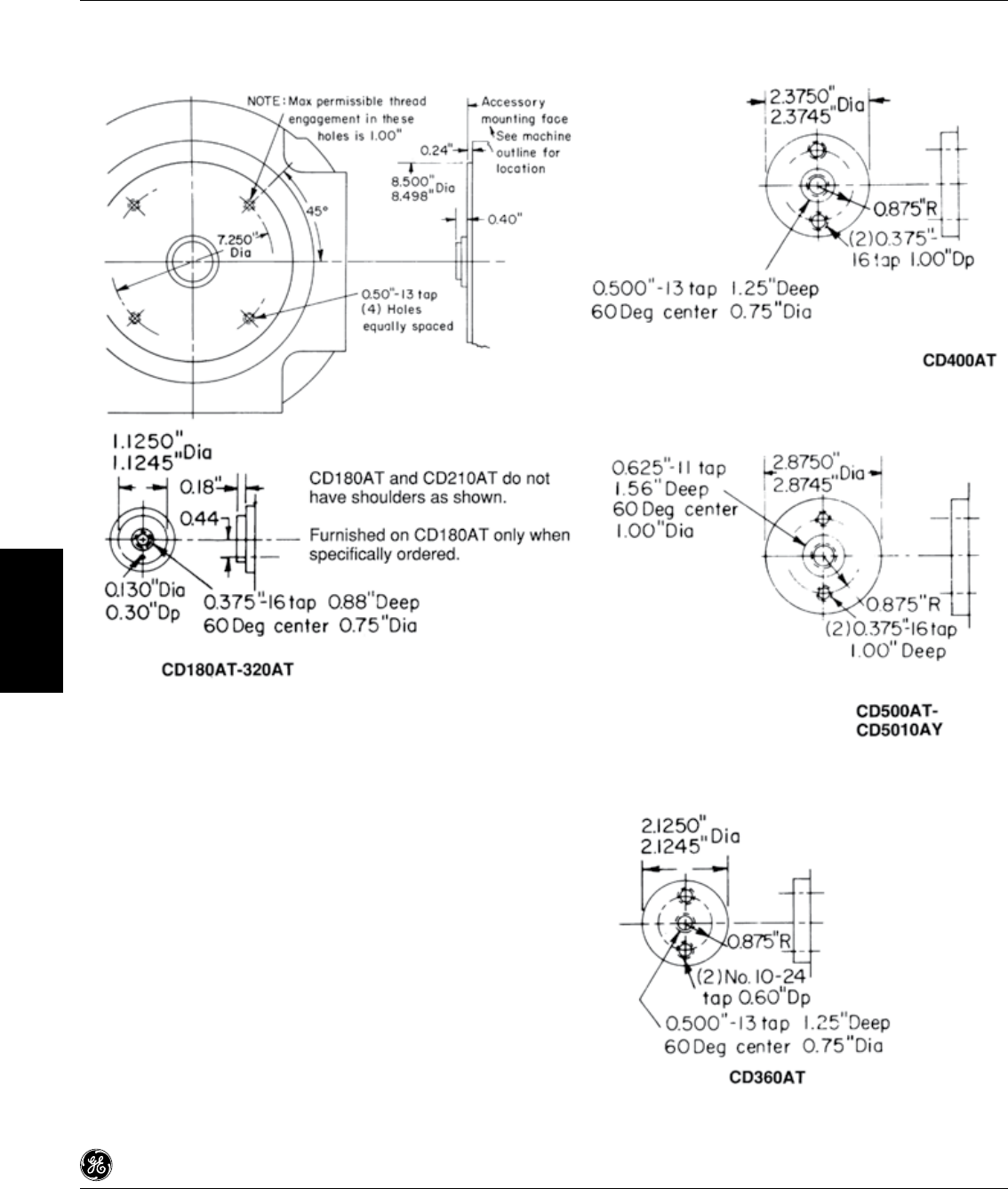

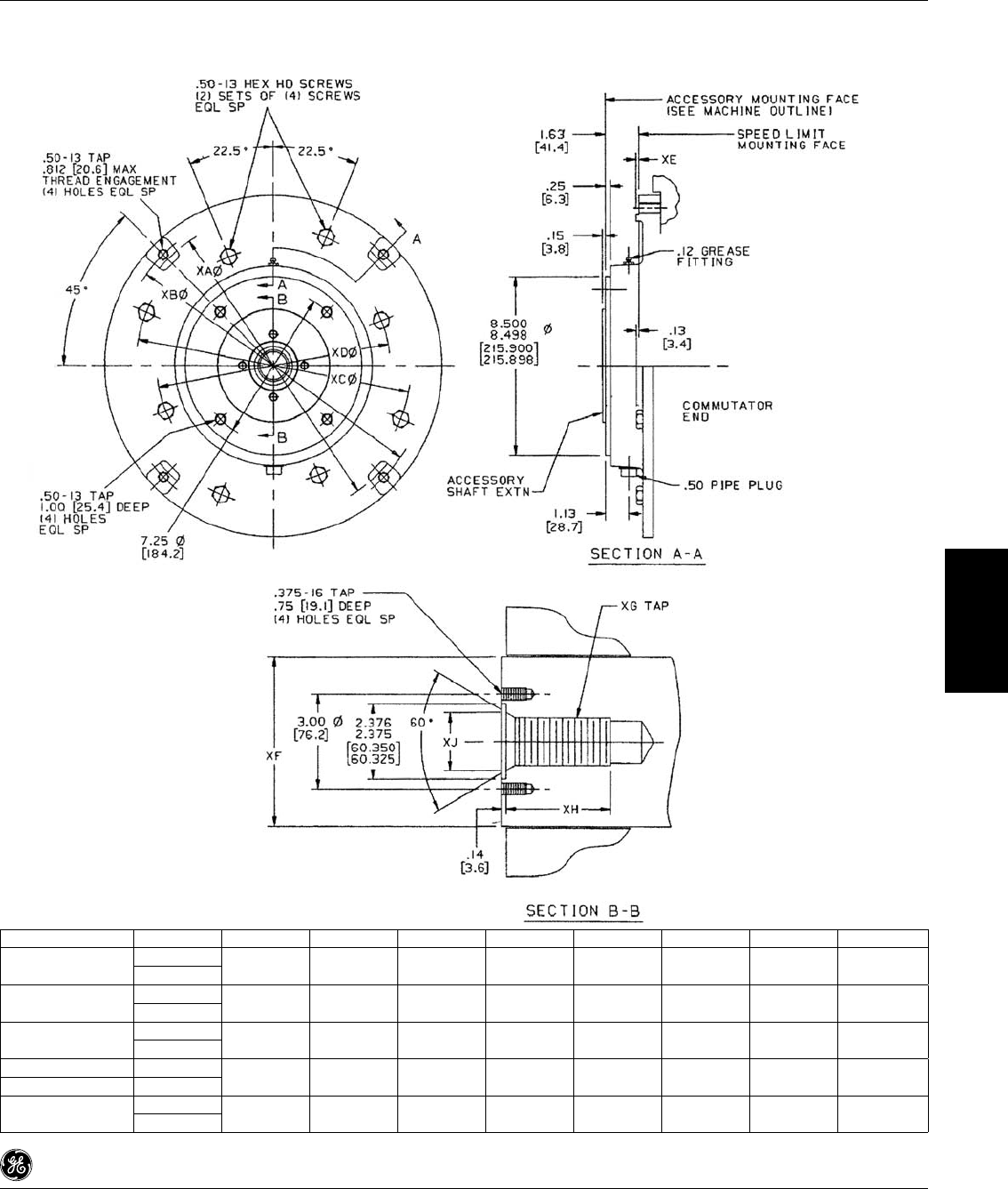

1 ACCESSORY MOUNTING
The accessory mounting face is standard on all CD180AT-
CD6900 frames, permitting the ease of adding a variety of
accessories, including tachometers and speed limit switches.
When accessories are not specified, the accessory mounting
face and shaft extension are protected by a solidly attached
cover that can be removed easily. (Outlines on pages ___ and
___)
On TEFC CD180AT and CD210AT frames and all explosion-
proof frames, accessory mounting face is not available.
2AIR PRESSURE SWITCH
Differential air pressure switch (1-form-C contact, 10amp, 120V,
60 Hz) Used to indicate positive pressure into the motor from an
external source. CAUTION: Switch must be mounted vertical.
List Price Addition
Blower Ventilated/Separately Ventilated Motor $2782
Totally Enclosed Air-To-Air Cooled (Internal air circuit only) $3650
3 ALTITUDE
Motors and generators are suitable for operation at altitudes from sea level to 3,300 feet above sea level. For other
conditions, refer to GE or frame sizes.
List Price Additions
Altitude Frames CD5010AY Frames CD6000 and Above
3,301-8,800 Ft. Add 15% Add 10%
8,801-15,000 Ft. Add 22% Add 15%
4 AMBIENT TEMPERATURE
Standard motor is suitable for operation in an ambient
temperature of 0°C to 40°C. For ambient temperature
greater than 40°C, see List Price adder at right:
Refer to GE for frame size.
Refer to GE for applications in an ambient
temperature higher than 65°C or lower than 0°C.
5BALANCE, MECHANICAL
Vibration measurements are made on motor bearing housings as described in NEMA Standard 1.12.06. Amplitude is
expressed as inches peak-to-peak. Vibration limits for standard and precision balance are for the motor only
without any mounted accessory.
The same limits can generally be met with motor-mounted blowers, PY, and AN tachometers.
Motors with a BC tachometer or a motor-mounted brake will have peak-to-peak amplitudes of 2 times the value
shown below.
Where vertical mounting is required, it should be specified on the order. (For special run out, refer to GE.)
NEMA Standard Vibration Limits
Maximum NP Rated RPM Peak-to-Peak Amplitude (inches)
3000-4000 0.0010
1500-2999 0.0015
1000-1499 0.0020
0-999 0.0025
List Price Additions
Ambient 500 HP and Less 600 HP and above
41°C-60°C Add 20% Add 10%
61°C-65°C Add 25% Contact GE

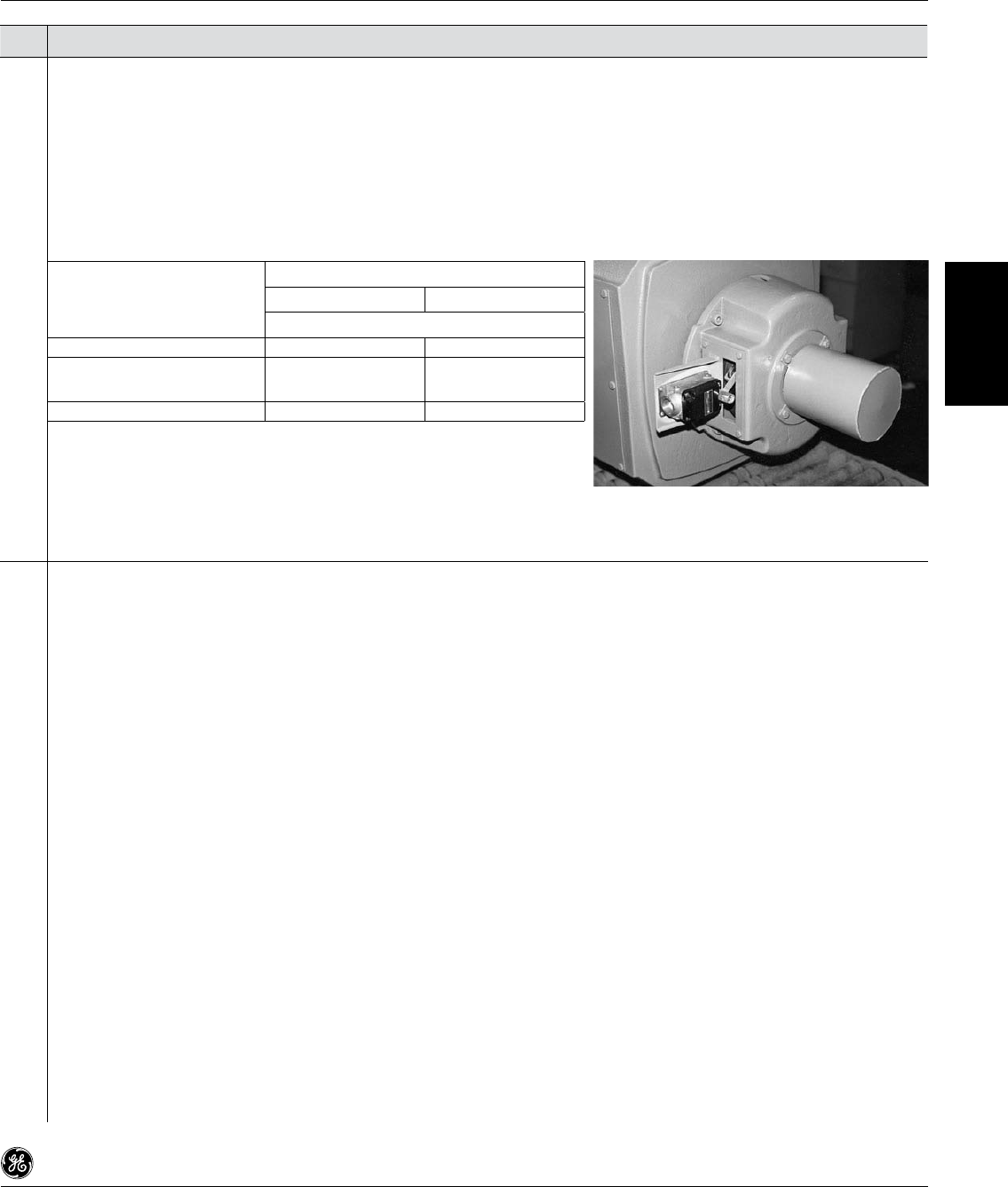

Accessory Mounting—Standard motor frames CDL182AT-
CD5010AY are constructed to allow the addition of
tachometers or speed limit switches.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.3
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
5
Cont’d
Improved balance vibration limits (applies to listed ratings only). For other speed ranges, refer to GE. Precision
balance is not available on CD180AT, CD6000-CD6900 frames, nor explosionproof motors.
Frame Size CD210AT-CD280AT CD320AT-CD360AT CD407AT-CD5010AY
Precision balance
limits at top speed
PEAK-TO-PEAK AMPLITUDE (INCHES)
0.0002 0.0003 0.0004
MOTORS LIST PRICE
Description Up to
$2500
$2501 to
$3592
$3593 to
$5578
$5579 to
$9748
$9749 to
$13218
$13219 to
$23922
$23923 to
$42136
$42137 to
$61750
$61751 to
$98628
$98629
and up
List Price Addition
Precision Balance Not Available $1338 $1582 $2094 $2688 $3210 $4564 $5490 Not Available
6 BASES For P-Base see Endshields, Page 3.15.

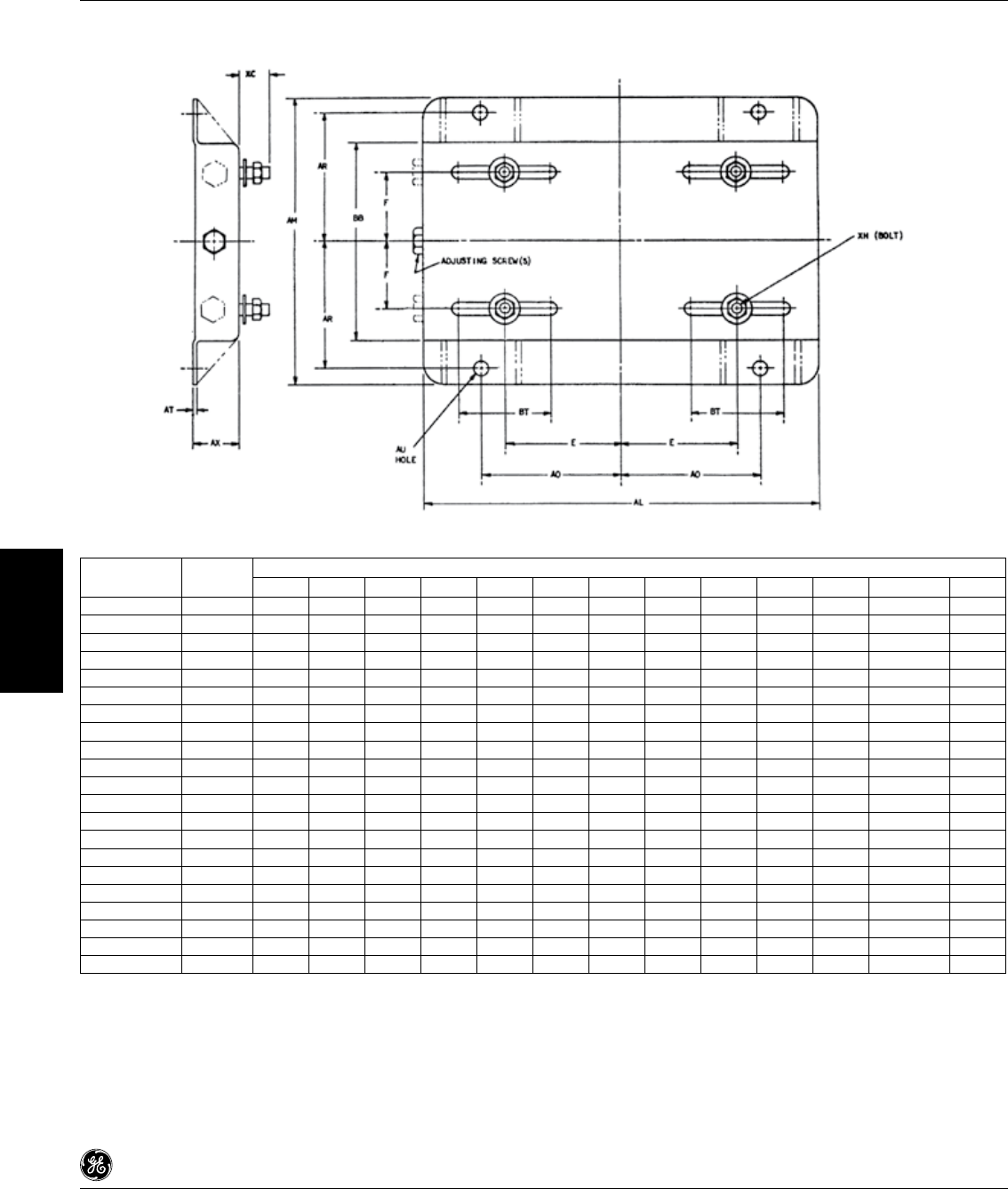

6a Standard Sliding Base
Sliding bases are suggested as a convenient means for adjusting belt tension or may be used as mounting plates.
(For horizontal mounting only — not available for ceiling or sidewall mounting.)
(Not available on CD6700 through CD6900 frames)
6b Transition Base
Transition bases may be used to match the mounting dimensions of another motor which has a larger “D”
dimension. (A drawing must be provided at the time of order.) This option is available if, and only if, the shaft
height of the older motor is reasonably higher (varies with motor size, but typically greater than 1 inch is sufficient)
than the shaft height of the Kinamatic™ motor at the same rating. For horizontal floor mounting only. Refer to
Replacement Motors/Mechanically interchangeable section on page 10 for additional details. A special shaft
extension may be required.

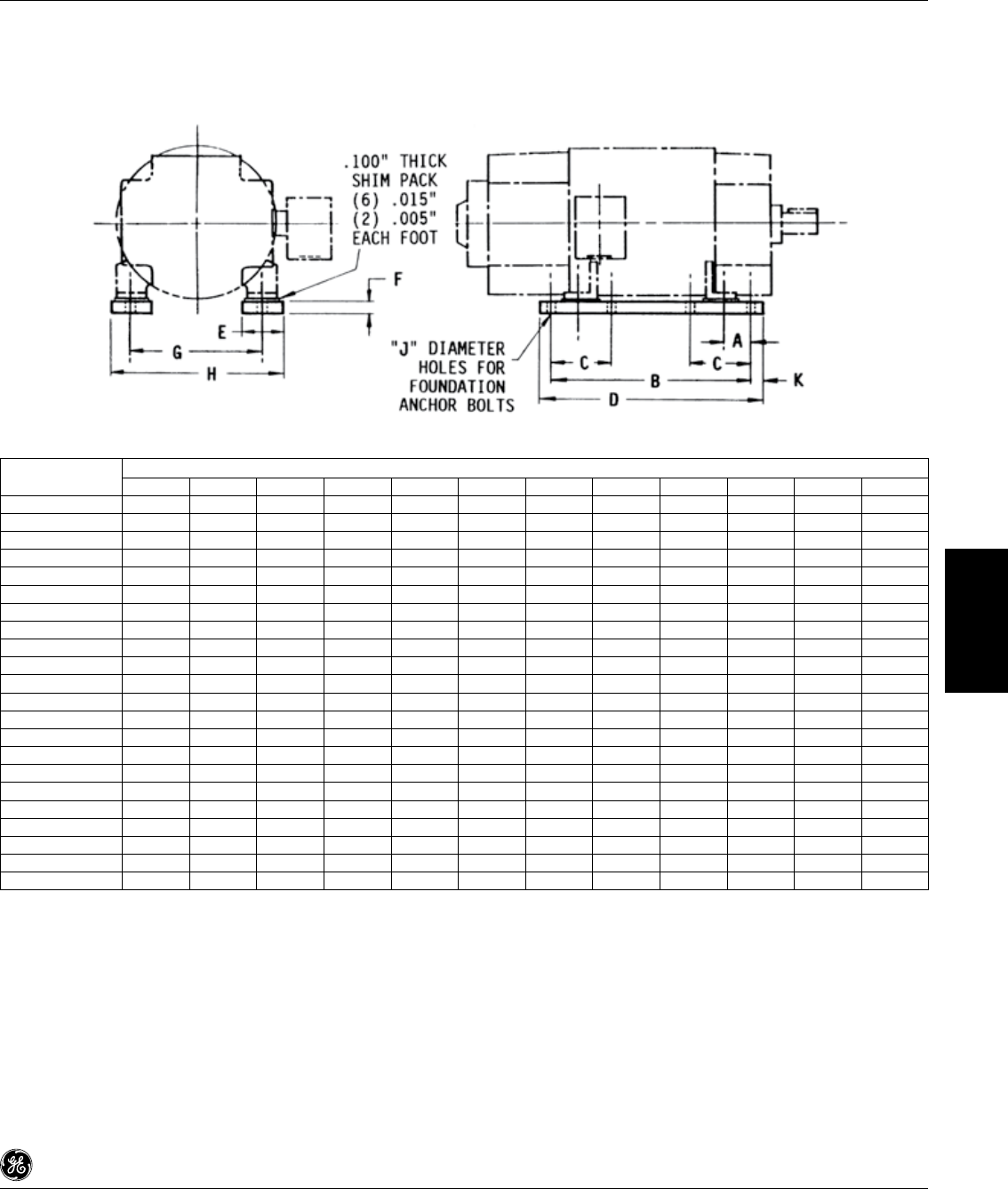

6c Sole Plate
Sole plates are two (2) flat steel plates to be mounted in concrete by the customer to provide a mounting surface for
the motor. Refer to pages ___-___ for outlines.
MOTOR LIST PRICE
Description
Up to
$2500
$2501
to
$3592
$3593
to
$5578
$5579
to
$9748
$9749
to
$13218
$13219
to
$23922
$23923
to
$42136
$42137
to
$61750
$61751
to
$98628
$98629
to
$157704
$157704
to
$252288
$252289
to
$403650
$403651
and
up
a. Standard Sliding Base $316 $316 $316 $540 $630 $1216 $1600 $2160 $2860 $3844 $6154 Contact GE
b. Transition Base $700 $810 $944 $1260 $1700 $2300 $3100 $4160 $5560 $7440 $10022 $13724 $18070
c. Sole Plate $630 $630 $630 $870 $1110 $1530 $2090 $2760 $3750 $5026 $6760 $9150 $12300
3.4
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
7 BEARINGS (Belted Drive)
Standard shaft for frames CD180AT-CD6100 are suitable for either belt drive or direct coupling within the limits
given in the application section on page XX (was page 179). Frames CD6200-CD6900 are suitable for direct drive
only. Where the maximum radial load at the end of the shaft exceeds the standard limits, oversize ball bearings and
roller bearings are available as listed below. Maximum radial loads and speeds for these modifications are given on
pages ____
OVERSIZE BALL BEARING ON DE* STANDARD SIZE ROLLER BEARING ON DE OVERSIZE ROLLER BEARING ON DE*
CD218-CD2110 Add $366 CD287AT, CD288AT Add $1044 CD287AT, CD288AT Add $1210
CD258-CD288 $468 CD327AT, CD328AT, CD329AT $1044 CD327AT, CD328AT, CD329AT $1210
CD327-CD328 $574 CD365AT-CD508AT $1732 CD365AT-CD5010AY $2498
CD365-CDL407 $680 CD6000 (Top spd. 1750 RPM) $3334 Not available on frames
CD180AT, CD210AT, CD258AT,
CD259AT, CD6000-CD6900
CD409-CDL409 $766 CD6100 (Top spd. 1500RPM) $3860
CD504-CDL508 $892 Not Available on frames
CD180AT, CD210AT, CD258AT,
CD259AT, CD5010AY, CD6200,
CD6700, CD6800, CD6900
* When an oversize bearing on DE is specified, a standard DE shaft extension will be furnished. However, if also required an oversize DE shaft is available at no
additional price.
8 BRAKES — Refer to GE for application of brakes rated above 100%
of rated motor torque.
Order must specify AC/DC voltage and frequency, torque rating
(Lb. Ft.), enclosure, and orientation with respect to the motor.
Customer is responsible for specifying brake torque rating.
GE does not recommend the use of brakes on TEFC Kinamatic
motors. When brakes are required, GE recommends TEAO
enclosures.

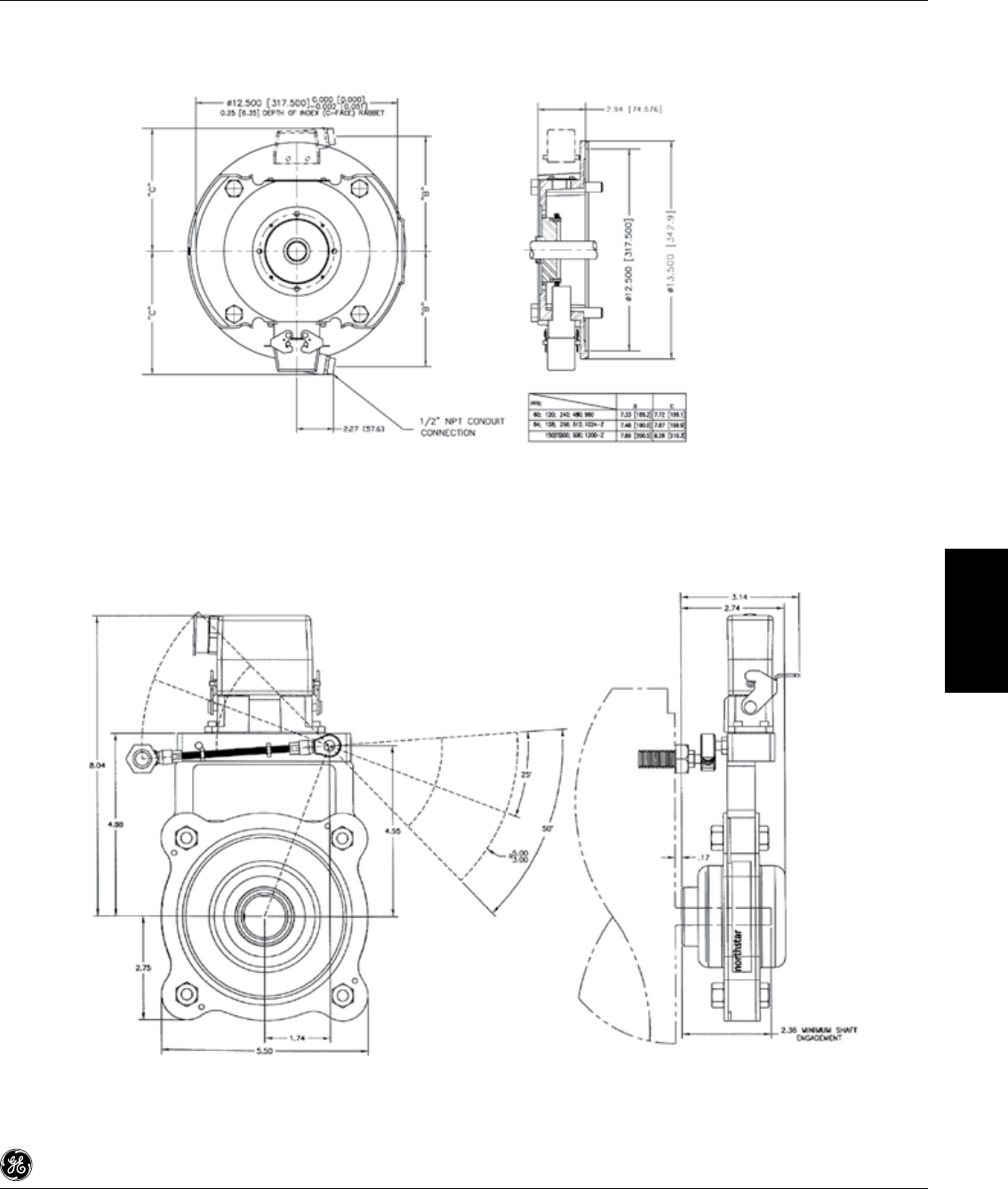

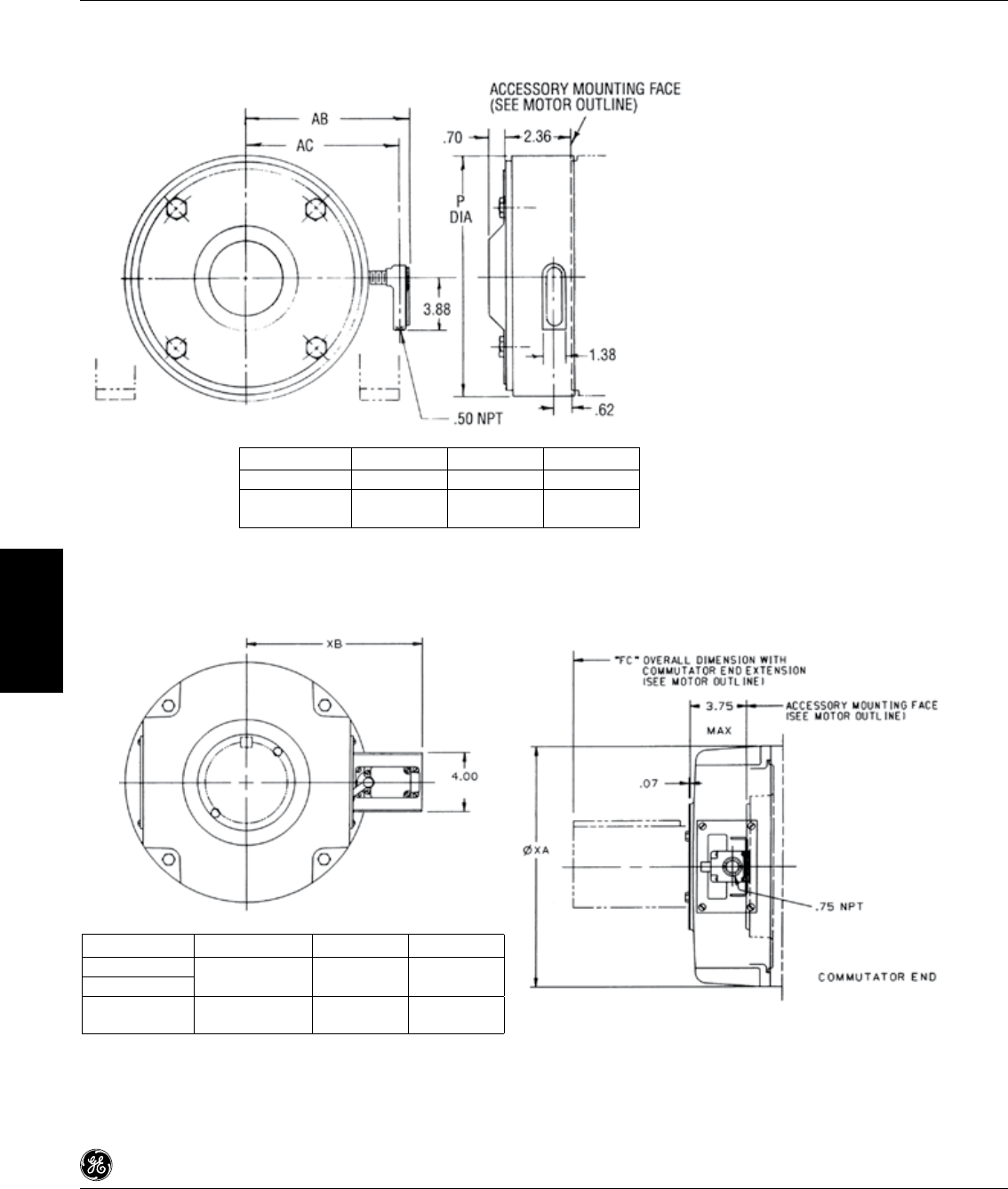

8a BRAKES, DISC TYPE
These brakes are applicable for holding service within rating
limitations shown in the table on the next page. Where brakes are
required for stopping duty, the heat-dissipating capacity may be the
determining factor in the brake selection. In such cases, refer to GE.
Brakes are continuously rated and are nonadjustable spring set and
electrically released. For brakes of a specific manufacturer, nonlisted
capacity, or adjustable or electrically set brakes, refer to GE. For frames
CD6000-CD6900, use floor-mounted brakes.
AC brakes are recommended on disc brake applications wherever possible, especially for those applications where
high cycling duty may occur (e.g., on hoist or screw-down applications). Use a brake of standard enclosure with
dripproof fully guarded or splashproof fully guarded motors, and on TENV and TEAO motors for applications in
ambients containing chips and/or non-abrasive, non-conducting, and non-explosive dusts and coolants.
Disc type brakes — Disc type brakes are commonly
used on ratings 250 HP and below. The brakes are
continuously rated and can be mounted on CD180AT-
CD5010AY frames.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.5
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
8a
Cont’d
Standard brake features include:
•  Class B Insulation  •  Standard AC brake coils are rated as follows:
•  Spring Set, electrically released
•  Manual release with automatic reset
•  Standard or dust tight waterproof enclosure
•  CSA certification
•  115 or 230 Volt DC coils
•  Horizontal mounting  Note: Single voltage coils are supplied on brakes rated 750 lb. ft. and above.
Voltage must be specified at time of order.
WARNING:
Brake performance and features must be carefully matched to the requirements of the application. Consideration
must be given to torque requirements, especially where an overhauling condition exists, as well as thermal
capacity, ambient temperature, atmospheric explosion hazards, type of enclosure, power supply characteristics,
and other unusual conditions.
Improper selection or installation of a brake and/or lack of maintenance may cause brake failure, which can result
in damage to property and/or injury to personnel.
If injury to personnel could be caused by brake failure, proper safeguards must be provided to ensure safety of
personnel.
Lb. Ft.
Maximum
Horizontal
Speed
(RPM)
Motor Mounted Brake
AC Coil DC Coil
Standard Enclosure Dust Tight/Waterproof Standard Enclosure Dust Tight/Waterproof
NEMA 2 NEMA 4 NEMA 2 NEMA 4
IP23 IP54 IP23 IP54
1.5 3600 $1184 $1882 $1815 $2554
3 3600 $1248 $1980 $1903 $2808
6 4000 $1248 $2058 $2017 $2827
10 4000 $1248 $2058 $2017 $2827
15 4000 $1316 $2125 $2085 $2894
25 4000 $1417 $2226 $2186 $2995
35 4000 $1619 $2429 $2388 $3198
50 4000 $2024 $2833 $2793 $3602
75 4000 $2833 $3643 $3602 $4412
105 4000 $3778 $4587 $4547 $5356
125 3600 $8703 $10052 $10814 $12163
175 3600 $9040 $10389 $11151 $12501
230 3600 $9715 $11064 $11826 $13175
330 3600 $10524 $11873 $12636 $13985
440 3600 $11738 $13088 $13850 $15199
500 1800 $18889 $20913 $22431 $24455
750 1800 $20913 $22937 $24455 $26479
1000 1800 $22937 $24961 $26479 $28503
Motor Torque (Lb. Ft.) = HP x 5252
Motor base speed (RPM)
Customer is responsible for specifying brake torque rating.
Nominal Suitable Range
60Hz 460 440-480
230 220-240
50Hz 380 360-400
190 180-200
3.6
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
8a
Cont’d
OPTIONS: (Prices below in addition to brake price on previous page)
BRAKES WITH ACCESSORY MOUNTING
When mounting a second accessory (such as a 56 C-face tachometer or a speed limit device) on DPFG, TENV, TEAO,
TEAAC or TEWAC motors, a brake with accessory mounting is required. Add as follows: (Exceptions are noted below)
Brake Torque Lb. Ft. List Price Addition
10-105 $3976
125-440 $4446
500-1000 $4800
Note: Only “AN” style tachometers or a speed limit switch can be mounted with a brake on CD180AT frames. Brake
with accessory mounting is not required because the brake is mounted on the tach or speed switch.
Note: When mounting a brake (up to and including 330 lb. ft.) with a Northstar or Avtron Type AN-DG tach a
standard brake can be used. The brake is mounted on the tach.
Note: AN-DG tachs will not be mounted outboard a brake.
VERTICAL MOUNTING
For a brake mounted above the motor on DPFG or TENV motors, add as follows:
Brake Torque Lb. Ft. List Price Addition
1.5-6 $458
10-105 $640
125-1000 $1132
BRAKE SPACE HEATER BRAKE RELEASE INTERLOCK SWITCH
A brake space heater should be specified whenever a
heater is required on the motor. For brake space
heater, add as follows:
Add as follows:
Brake Torque Lb. Ft. List Price Addition Brake Torque Lb. Ft. List Price Addition
1.5-105 $320 1.5-105 $708
125-1000 $480 125-440 $842
500-1000 $1560
8b EXPLOSIONPROOF BRAKES
Refer to GE
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.7
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
8c DISC BRAKES — CRANE APPLICATIONS
Brakes used on the gantry or trolley function on dockside, portal, or queue cranes require special brakes.
Order must specify crane duty and whether trolley or gantry. The features listed below are included on crane
duty brakes.
Standard Crane Duty Brake Features include:
•  Splined hubs (Zinc plated) and discs
•  Stainless steel self-adjusting assembly
•  Full mechanical release with side mounted release lever.  Note: Release is not self-resetting
•  Stainless steel hardware
•  Space heaters
•  Brake interlock switch
•  Dust tight, waterproof enclosure
•  56" lead lengths
When specifying vertical or horizontal, add as follows:
Lb. Ft.
Motor Mounted Brake
AC Coil
Dust Tight/Waterproof
List Price Addition
Vertical Horizontal
Trolley Gantry
50 $5751 $5238 $5238
75 $6561 $6048 $6048
105 $7545 $6992 $6992
125 $13538 $12762 $17022*
175 $13875 $13099 $17359*
230 $14651 $13774 $18034*
330 $15460* $14583* $18843*
440 $16945* $15798* $20058*
* Includes fabricated commutator endshield.
Lb. Ft. Torque = HP x 5252
Motor base speed (RPM)
Viton Gasket: To replace standard neoprene gasket.
Proximity Switch: To replace standard brake interlock switch (microswitch).
Breather Drain: To replace standard drain plug.
Terminal Board:To replace 56" lead lengths.
List Price Addition
Brake Rating Viton Gasket Proximity Switch Breather Drain Terminal Board
105 Ft. Lb. and Smaller $138 $1855 $552 $180
125 Ft. Lb. and Larger $220 $3767 $614 $180
3.8
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
9 CANADIAN STANDARDS ASSOCIATION (CSA) APPROVAL
For CSA approval, no price addition except for TEAAC, TEWAC enclosures in a CD5010AY frame, add $500 NET.
For explosionproof motors adder, refer to page 2.24.
Note: CSA approval must be specified at time of order.
10 CE MARK, EUROPEAN STANDARDS
This modification provides for a motor that meets the standards requirements of the Low Voltage Directive 73/23/
EEC and relevant sections of the Machinery Directive 98/37/EC and EMC Directive 89/336/EEC. These motors will be
CE marked on the nameplate in accordance with the marking requirements of the Low Voltage Directive.
Motor Enclosure
FRAME SIZE
CD210AT-
CD320AT CD360AT CD400AT-
CD500AT CD6000-CD6200 CD6700-CD6900
List Price Addition
SPFG*, SPFG-SV*, TENV, TEFC $2000 $2100 $2900 $3200 $3700
SPFG-BV*, TEWAC, TEAO $3154 • $3254 • $4054 • $5310 $5310
TEAAC $4408 $5208 $6400 $9530
* The price addition for CE mark does not include the splashproof enclosure modification. See splashproof enclosure price additions on page __.
• TEWAC not available on CD210AT-CD400AT frame motors.
CE mark pricing includes:
•  Terminal board in conduit box
•  Ground lug in conduit box
•  Ground lug and tapped holes in foot (only on motors rated 100kw and higher)
•  Special nameplates
•  50 Hz marked blower motor(s) on blower ventilated, TEAO, TEAAC, TEWAC
•  Declaration of Conformity, Declaration of Incorporation 
•  Instruction book in either Spanish, French, German, Italian or English
Note: All CE marked motors must be reviewed with Engineering to make sure CE temperature rise limits are met. If
the standard motor does not meet CE mark temperature rise limits (on armature and comm field), the price
addition for Class B temperature rise must be used in addition to the above CE mark price additions.
Note: CD180AT and Explosionproof ratings are not available for CE marking.
Note: DPFG, DPFG-BV, and DPFG-SV motor enclosures are not available for CE marking.
Note: CE approved accessories must be used.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.9
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
11 CONDUIT BOXES, SPECIAL
Note: F1 - The conduit box is located on the right-hand side (as viewed from the commutator end).
F2 - The conduit box is located on the left-hand side (as viewed from the commutator end).
On CD180AT frames, other than explosionproof, the conduit box is built into the endshield and is available in the
F1 location only. On all other frames, a standard conduit box is used. CD6000-CD6900 frames, as standard, provide
a conduit box with fixed terminations for armature, field, and internal accessory leads. Special conduit boxes are as
follows:
11a AUXILIARY CONDUIT BOX OR CONDULET
Allows accessory leads to be brought into a separate conduit box of condulet. When this feature is specified, the
auxiliary conduit box or condulet will always be supplied on the side of the motor which is opposite to the main
conduit box location.
Note: The purchaser must specify which accessory leads are to be brought to the auxiliary conduit box or condulet.
Accessories external to the motor are not wired to the auxiliary box or condulet.
11b CAST IRON CONDUIT BOX
Not available on all frames.
11c EXPLOSIONPROOF CONDUIT BOX AND SEALED LEADS ON SEPARATELY VENTILATED MOTORS
(Not available on frames CD180AT)
For use only on enclosed separately ventilated motors with air ducted-in and air ducted-out ventilation.
Section 501-8 and 502-8 of the National Electrical Code permits the use of enclosed separately ventilated
motors with air ducted-in and air ducted-out ventilation in certain locations, when installation and operation
conform to certain requirements. It is the responsibility of the user to obtain approval from the local authorities
for such installation.
For additional information, see page __.
The addition of this modification does not provide a U.L. listed explosionproof motor.
A thermostat is required when an explosionproof conduit box is supplied with a separately ventilated motor. Acces-
sories such as tachometers or brakes mounted on the motor must be of the explosionproof type. See
page 24, Item 28 for BC tachs. Refer to GE for explosionproof brakes.
11d OVERSIZE CONDUIT BOX
Supplied at no additional price on frames CD218AT-CD5010AY upon request. Price addition is required for oversize
conduit box on frames CD6000-CD6900.
11e TOP MOUNTED CONDUIT BOX
On frames CD218AT-CD5010AY, top mounted conduit boxes are not available with a TEAAC or TEWAC enclosure.
Refer to GE for top mounted conduit boxes on blower ventilated CD218AT-CD5010AY frames. Top mounted
explosionproof box not available on CD210AT-CD320AT.
3.10
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
11f WATERPROOF CONDUIT BOX
For use on splashproof or better enclosure. For use where motors are required to exclude water applied from a hose
and for outdoor application. Included in the price addition for waterproof motor enclosure. Not available on frames
CD6000-CD6900. The standard conduit box used on frames CD6000-CD6900 is gasketed and “water-resistant.”
SPECIAL CONDUIT BOX
MOTOR FRAME SIZE
CD210AT-
CD320AT
CD360AT-
CD400AT
CD504AT-
CD508AT CD5010AY CD6000-
CD6200
CD6700-
CD6900
List Price Addition
a. Auxiliary conduit box or condulet:
Conduit box for accessory leads $754 $1508 $1508 $1508 $3954 $4780
Condulet for accessory leads $376 $754 $754 $754 Not Available
b. Cast iron conduit box $225 Refer to GE Refer to GE Refer to GE
c. Explosionproof conduit box with motor
leads sealed at the frame exit $2116 $6658 $8256 $12044 $51784 $51784
Standard conduit box with motor leads
sealed a the frame exit $1875 $1238 $1238 $1806 $7766 $7766
d. Oversize conduit box 0 0 0 0 $1730 $1730
e. Top mounted conduit box $838* $2106* $2106* $2106* $4606* $9414*
f. Waterproof conduit box $450 $900 $900 $900 Not Available
* Not available in all enclosures. Refer to Item 11e.
12 COVER, TRANSPARENT
A single transparent cover is used in place of the metal cover on a brush opening at the commutator end. On
frames CD218AT-CD5010AY, the standard transparent cover is Lucite® or equivalent. On frames CD6000-CD6900,
the standard transparent cover is Lexan® or equivalent. Lexan® is available on frames CD218AT-CD5010AY.
See below for pricing per motor.
DESCRIPTION
MOTOR LIST PRICE
Up to
$2500
$2501 to
3592
$3593 to
$5578
$5579 to
$9748
$9749 to
$13218
$13219
to
$23922
$23923
to
$42136
$42137
to
$61750
$61751
to
$98628
$98629
to
$157704
$157704
to
$252288
$252289
to
$403650
$403651
and up
List Price Addition
a. Lucite® or equivalent (Not available
on all CD180AT
frames or
CD210AT TEFC
frames.)
$270 $270 $406 $406 $406 $406 $540 Not Available
b. Lexan® or equivalent $540 $540 $812 $812 $812 $812 $1080 $1080 $1080 $1080 $1352
Lucite® is a registered trademark of DuPont Company.
Lexan® is a registered trademark of General Electric Company.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.11
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
13 CRANE MOTORS
GE builds DC motors designed specifically for dockside and floating crane applications. Motors in these applications
are main hoists, boom hoists, trolleys, and gantries.
Note: CD180AT frames or AN-DC tachs are not used in crane motor applications. Similarly, TEFC enclosures are not
suitable for crane applications (use TEAO), TEAAC and TEWAC waterproof enclosures are not available.
CRANE MOTORS
MOTOR FRAME SIZE
CD210AT-
CD250AT CD280AT CD320AT CD360AT-
CD400AT
CD504AT-
CD5010AY
CD6000-
CD6200
List Price Addition
a. Indoor main hoist/boom hoist Not Applicable $2592 $2592 $6382
b. Outdoor trolley/gantry $3806 $4492 $4492 $5208 $5792 Not Available
c. D-flange $964 $1054 $3466** $5322** $6824**
** Price includes special bracket.
Indoor main hoist/boom hoist features include: Outdoor trolley/gantry features include:
•  Crane duty paint •  Waterproof features
•  Space heater •  Crane duty paint
•  Normally closed thermostat •  Space heater
•  Special conduit box adapter •  Normally closed thermostat
•  Special conduit box adapter
Note: For crane duty brakes, see page 3.7, Item 8c.
For voltages other than those listed above, refer to page 3.32 Item 34.
3.12
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
14 CUSTOMER-SUPPLIED MATERIAL
No testing is performed and no warranty is provided for customer-supplied material.
All customer-supplied material must be sent to the following.
Frame Size Monterrey
CD180AT-CD5010AY L&M/GE Industrial Motors
605 NAFTA Blvd
CD6000-CD6900 Milo Distribution Center
Laredo, Texas 78045
Attn: Customer Service
14a BRAKE WHEEL
Customer-supplied DS brake wheels must be completely machined and dynamically balanced prior to receipt at the
factory. The factory cannot rebalance the motor after assembly of customer-supplied brake wheel.
Add $3192 list per motor. This price addition is for mounting a brake wheel on the commutator end shaft
extension only. Contact GE for mounting any other brake components or assemblies to the motor.
Note: Refer to GE for application of brakes rated above 100% of rated motor torque.
Mounting/installation instructions, outline dimensions, and parts list must be received at the time of order. Brake
wheel must be received at the factory a minimum of 3 weeks prior to customer promise ship date. Brake wheel
mounting on frames CD182AT-CD5010AY requires a commutator end shaft extension adder. Refer to page 3.19,
Item 24. No adder required for Comm End Shaft Extension on CD6000-CD6900 frames.
14b COUPLINGS (Customer to supply installation instructions for coupling to GE)
For mounting a coupling (which must be completely machined and balanced prior to receipt at the factory), WITH
finish bore and keyseat, add $3192 list per motor. The factory cannot rebalance the motor after assembly of
customer-supplied coupling. Finish bored and key seated coupling and outline drawings must be received at the
factory a minimum of 3 weeks prior to customer promise ship date.
For mounting a coupling (which must be balanced prior to receipt at the factory), WITHOUT finish bore and keyseat,
add $6932 list per motor. Unfinished coupling and outline drawings must be received at the factory a minimum
of 4 weeks prior to customer ship date.
14c TACHOMETER GENERATOR EQUIPMENT
Customer-supplied tachometers will not be tested. Drawings, installation instructions and parts list of customer-
supplied tachometers must be received at the factory a minimum of 3 weeks prior to customer ship date.
For pricing, refer to page 3.24, Item 29.
14d PAINT
Due to hazardous waste disposal regulations and VOC emissions requirements, GE will not accept orders using
customer-supplied paint. For special paint requirements needed to meet application and commercial needs,
contact GE.
15 DRAINS
Drain holes are normally selected to provide drainage of moisture that might collect at the lowest point of the
motor. Not available on CD180AT Frames. When drain holes are required, placement for horizontal and vertical
mount are as follows: Horizontal Mount (1) at each end, vertical CD210AT-CD320AT: (3) at lowest point, CD360AT
and above: (1) at lowest point.
15a TAPPED HOLE, add $430 list per motor. No adder required for Waterproof enclosures. (STD 1 at each end)
15b TAPPED HOLE WITH SOLID PLUG, add $430 list per motor. No adder required for Waterproof enclosures.
15c AUTOMATIC DRAIN BREATHER, add $510 list per motor.
Available on totally enclosed CD210AT-CD5010AY frames only. Not available on CD6000 frames.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.13
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION

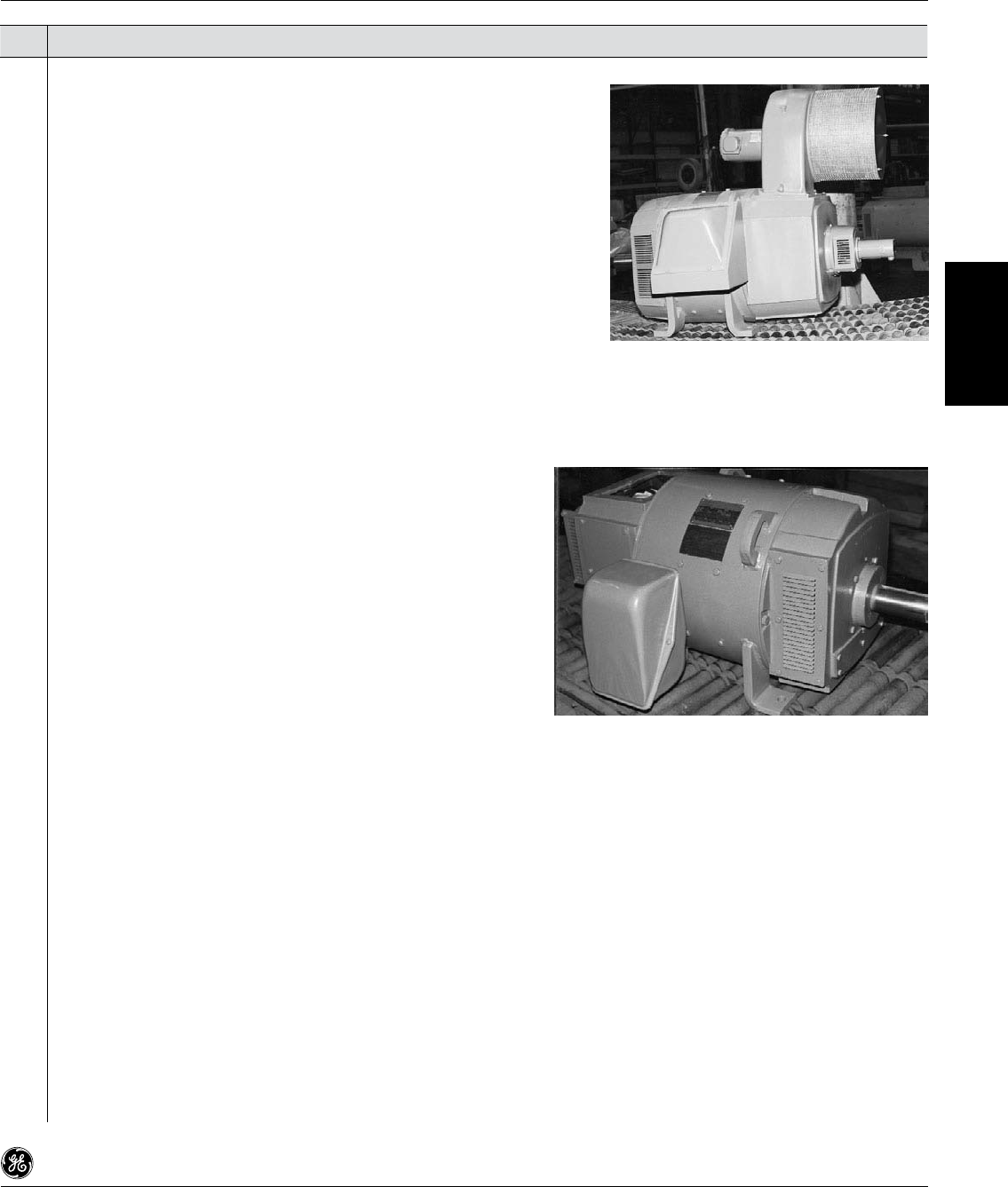

16 ENCLOSURES

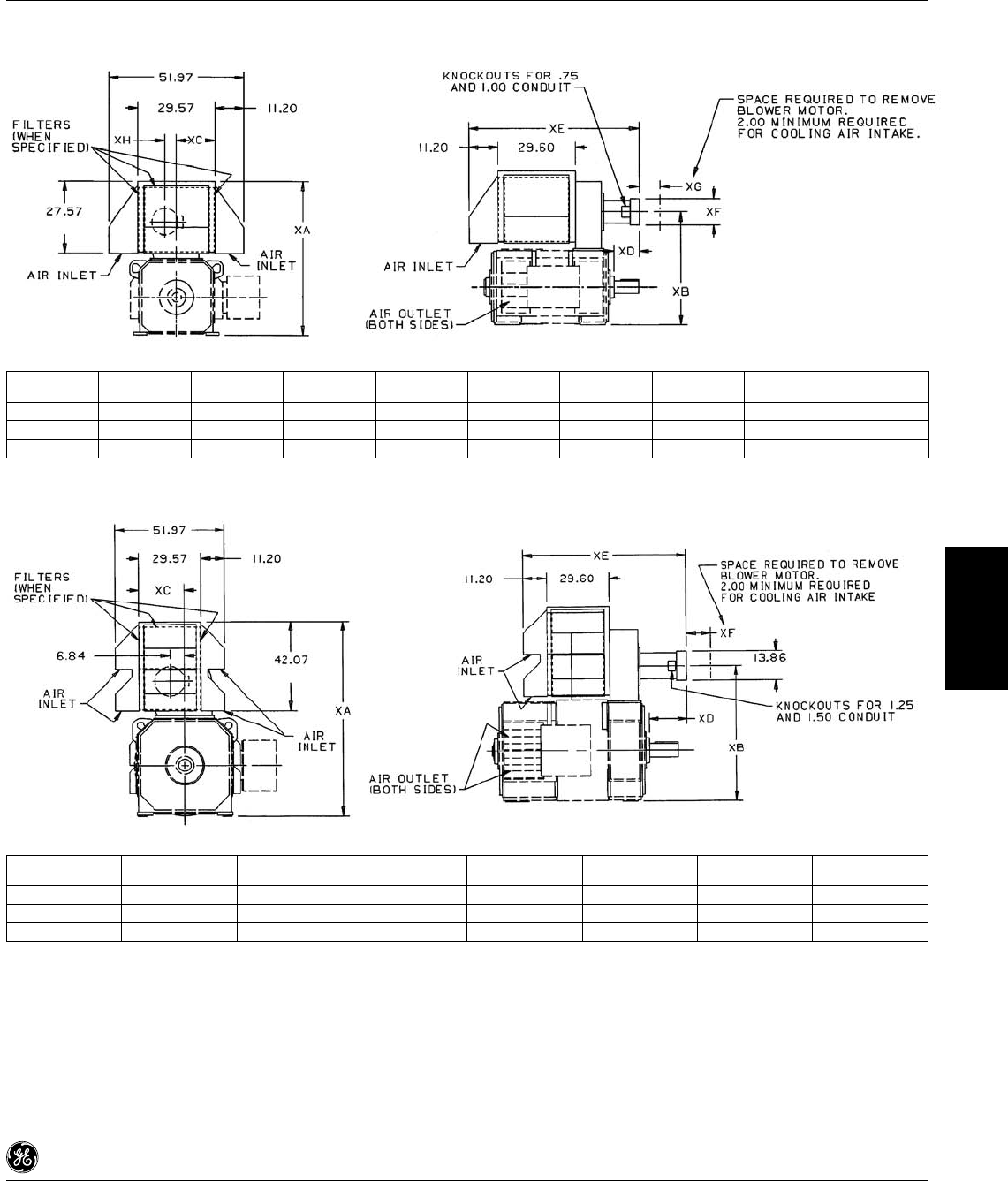

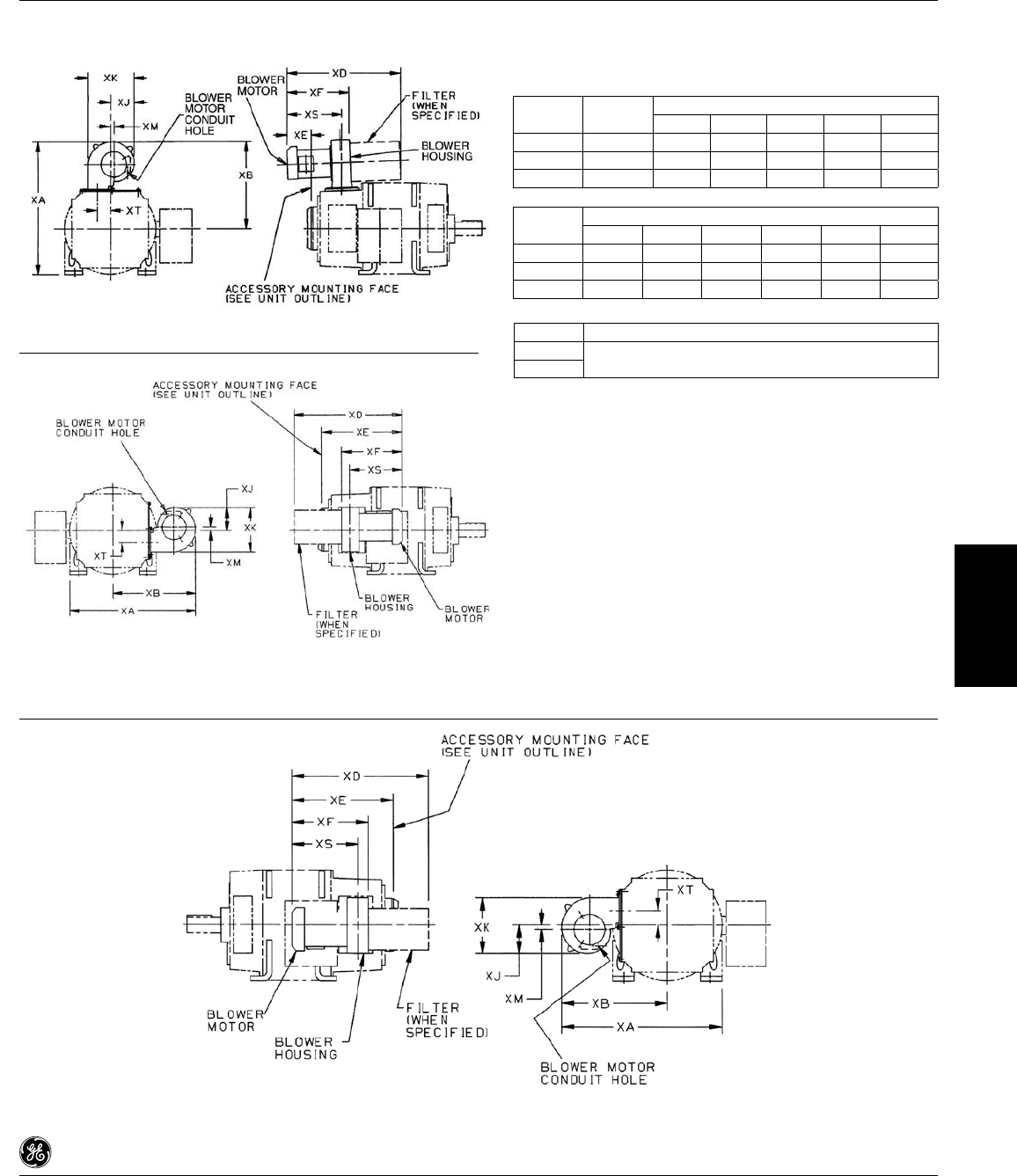

16a BLOWER VENTILATED, FULLY GUARDED (DPFG-BV)
For use on fully guarded motors where the application requires
extended periods of low-speed operation by armature voltage control
at full load torque. The amount of ventilating air is independent of
motor speed, allowing constant torque operation with safe operating
temperatures down to five percent rated speed with most power
supplies. See application section page XX (was page 177) for motor
heating limitations.
The standard blower motor is 230/460 Volt AC, 60 hertz and is
suitable for (but not nameplated for) 220-240/440-480 Volt AC,
60 hertz. Refer to GE for 50 hertz blowers and special blower
motor voltages.
Filters are optional for applications requiring protection against
particles in the air. For fine particles such as cast iron dust, a
blower and filter is not recommended. For these conditions,
totally enclosed construction or separate ventilation should be
considered. Blower filters on frames CD5010AY and below are
washable. Filters for frames CD6000-CD6900 are disposable.
For use of splashproof fully guarded on blower ventilated
motors, see page 3.14, Item 16d.
16b SEPARATELY VENTILATED, FULLY GUARDED OR TOTALLY
ENCLOSED SEPARATELY VENTILATED (DPFG-SV) OR (TESV)
For applications where a contaminated atmosphere is
encountered, ventilating air is piped into the motor or
generator from an external source to the commutator end on
frames CDL182AT-CD5010AY and to the drive end on CD6000-
CD6900 frames. Openings have drilled and tapped holes for
convenient duct connection. Price does not include blower, pipe
or duct. See page ___ for separate ventilating air requirements.
Separately ventilated motors with recommended air supply are
suitable for constant torque operation with allowable operating
temperatures down to five percent base speed with most
power supplies. See application section page XX (was page
177) for motor heating limitations.
On separately ventilated, fully guarded motors, air is expelled into the surrounding environment through air
exhaust openings which are fully guarded.
For use of splashproof on separately ventilated, fully guarded motors, see page 3.14, Item 16c.
On totally enclosed separately ventilated motors, the ventilating air is ducted in and out of the motor and solid
covers are placed on all other air openings. The motor is then inherently splashproof, and the addition of the
splashproof modification to a totally enclosed separately ventilated motor is not necessary.
Note: CD180AT motors must have an 8 1/2" C-Face. Totally enclosed separately ventilated CD180AT frames in
hazardous locations are not available.
Dripproof Fully Guarded Blower Ventilated
(DPFG-BV) (Shown above with filter)
Dripproof Fully Guarded, Separately-Ventilated (DPFG-SV)
(Frame CD366AT shown above with air inlet on top of motor
commutator end. Other air inlet locations available.)
3.14
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
16c SPLASHPROOF FULLY GUARDED (SPFG) (FOR SEPARATELY VENTILATED OR SELF-VENTILATED FULLY
GUARDED MOTORS)
Provides for bolted-on splash covers to meet NEMA Standard MG-1-2009, Part 1.25.2. The covers are constructed to
prevent liquids and solid particles from entering in a straight line at any angle not greater than 60° from the vertical.
This does not apply to motors operated in a vertical position. For these applications, refer to GE.
For CD180AT frames, splashproof fully guarded, separately ventilated is only available when horizontally
mounted.
16d SPLASHPROOF FULLY GUARDED (FOR BLOWER VENTILATED, FULLY GUARDED MOTORS)
For splashproof fully guarded, blower ventilated, list price additions for Modifications a. and d. must both be
added.
Provides for bolted-on splash covers to meet NEMA Standard MG-1-2009, Part 1.25.2. The covers are constructed to
prevent liquids and solid particles from entering in a straight line at any angle not greater than 60° from the vertical.

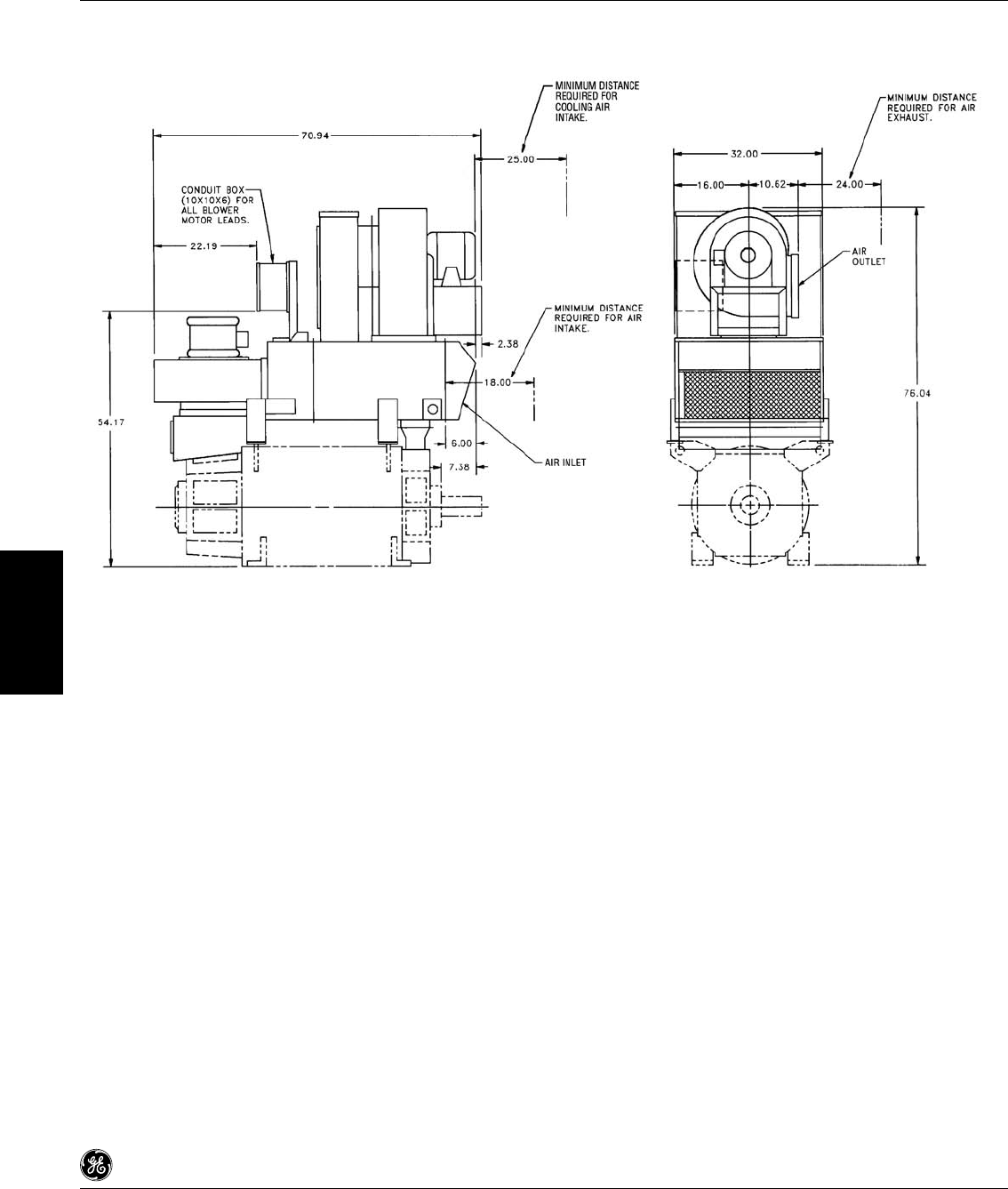

In addition, on CD6000-CD6900 frames with a splashproof fully guarded, blower ventilated enclosures, splashproof
hoods are required to cover the blower air inlets. See page ___ for outline dimensions of frames CD6000-CD6900
with a splashproof, fully guarded blower ventilated enclosure.
This does not apply to motors operated in a vertical position. For these applications, refer to GE.
For CD180AT frames, splashproof fully guarded, blower ventilated is only available when horizontally mounted.
16e WATERPROOF (WP)
For use where motors are required to exclude water applied from a hose and for outdoor application. (Do not
use where ice may form on fan of TEFC motors or generators.) Waterproof features are not available in TEAAC
or TEWAC.
Standard waterproof features for frames CDL182AT-CD5010AY
(TEFC, TENV, and TEAO) include:
•  Spot faced surfaces on frame under the pole bolts
•  Washers under pole bolts
•  Drain holes at low point of machine
•  Polyurethane paint
•   Special neoprene-gasketed, heavy handhold covers with 
machined surfaces on cover and bearing bracket
•   Waterproof conduit box with tapped conduit entrance hole 
and machined mating surfaces (Not on CD180AT. On
CD180AT frames the conduit box is built into the endshield.)
•   Sealed frame fits and special treatment of all mating 
surfaces
•   Lip type rubbing seals on both outboard bearings 
(where applicable)
•  Corrosion-resistant hardware
Space heaters are recommended for all waterproof motors.
Totally Enclosed Nonventilated Waterproof (TENV-WP)
(Frame CD407ATY shown above)
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.15
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
16f DUSTPROOF (DP) Applies to frames CDL182AT-CD5010AY with TEFC and TENV enclosures only.
For applications requiring protection against fine abrasive dust such as taconite. Price addition includes:
•  Metal labyrinth seal on drive end
•  Gasketed handhole covers
•  A sealed dust cap on the commutator end of TENV motors
•   A labyrinth seal on the commutator end of TEFC motors. For cement mill applications or for TEAAC or TEWAC
motors, refer to GE.
16g TROPICAL PROTECTION
The standard Kinamatic motor is suitable for operation in tropical climates, where fungus and high humidity are
present, without price addition. Space heaters are recommended for motors to be used in environments where high
humidity is present. (See page 3.20, Item 26 for space heaters.)
ENCLOSURE
MOTOR LIST PRICE
Up to
$2500
$2501 to
$3592
$3593 to
$5578
$5579 to
$9748
$9749 to
$13218
$13219
to
$23922
$23923
to
$42136
$42137
to
$61750
$61751
to
$98628
$98629
to
$157704
$157704
to
$252288
$252289
to
$403650
$403651
and up
List Price Addition
a. Blower Ventilated
Motor-mounted blower with
filter: 230/460 V or 575V,
3Ph, 60 Hz
$1472 $1472 $1472 $2274 $2576 $2866 $3158 $3706 $4778 $13578 $16848 $28904 $28904
Motor-mounted blower
without filter: 230/460V
or 575V, 3Ph, 60 Hz
$1032 $1032 $1032 $1814 $1814 $2318 $2318 $3014 $4306 $7090 $8214 $12516 $12516
For 190/380V, 50 Hz Blower
Motors, add to blower
assembly (a) above
$208 $208 $208 $364 $364 $464 $464 $604 $862 $1418 $1644 $2504 $2504
b. Separately ventilated, fully
guarded or enclosed
separately ventilated
For CDL182AT-CD5010AY and CD6000-CD6900 frames, NO PRICE ADDITION
c. Splashproof, fully guarded
(for use with self of
separately ventilated, fully
guarded machines)
$204 $204 $420 $636 $810 $810 $810 $810 $1216 $1216 $1216 $1216 $1620
d. Splashproof, fully guarded
(for use with blower
ventilated fully guarded
machines) Modification Item
a. must also be added for
splashproof, fully guarded,
blower ventilated
$204 $312 $420 $636 $810 $810 $810 $810 $1216 $4086 $4086 $6762 $7368
e. Waterproof $1502 $1502 $1658 $2050 $2520 $3100 $3810 $4710 $5780 Not Available
f. Dustproof (taconite dusts) $304 $340 $486 $756 $988 $620 $1570 $1700 $1970 Not Available
Note: Items e. and f. apply to totally enclosed motors. Items b. and c. apply to splashproof fully guarded, separately ventilated motors. Items a.
and d. apply to splashproof fully guarded, blower ventilated motors.
3.16
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION

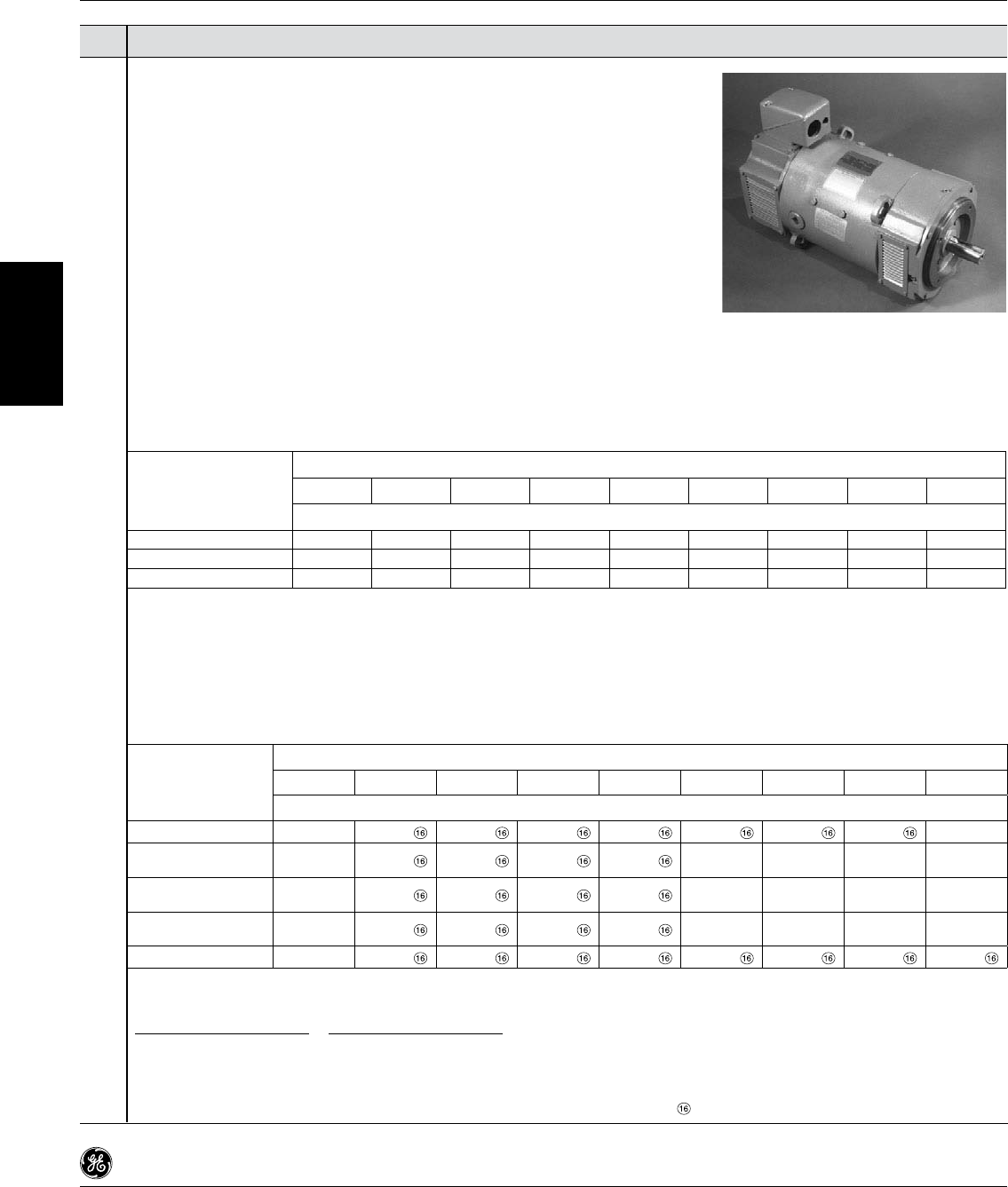

17 ENDSHIELDS
Standard NEMA Type C-Face and Type D-Flange dimensions are shown on
the dimensions pages. Refer to GE for CD6000-CD6900 frames. Where oil
will be above the bottom of the horizontal shaft, including splashing or
spraying, a special shaft seal is required. (Refer to page 3.18, Item 22 for
shaft seal.)
17a Type C-Face Endshields are available on frames CD320AT and below.
NEMA does not specify C-Face dimensions for CD365AT-CD5010AY frames.
The desired C-Face dimensions must be approved by GE and specified with
the order.
17b Type D-Flange Endshields are available on frames CD5010AY and below.
Available on frame 5010AY if supported by feet.
17c P-Base Adapters — NEMA does not specify P-Base dimensions for DC motors. The desired P-Base dimensions must
be approved by GE and specified with the order. The factory will use an adapter on a D-Flange (price included in
P-Base adder) to achieve desired dimensions. Apply adder from page 3.31, Item 33 for vertical mounting. If special
drive end shaft dimensions are required, see page 3.19, Item 24 for adder.
SPECIAL ENDSHIELDS
MOTOR FRAME SIZE
CD180AT CD210AT CD250AT CD280AT CD320AT CD360AT CD400AT CD500AT CD5010AY
List Price Addition
a. Type C-Face $172$502 $652 $846 $1100 ‡‡‡‡
b. Type D-Flange $216 $964 $1060 $1706 $1282 $5356 $6644 $7308‡‡ $7308‡‡
c. P-Base Adapter $648 $1928 $2312 $2774 $3328 $6652 $8636 $9500 $9500
For CD180AT frames, please specify 4.5" or 8.5" C-Face.
Contact GE
‡‡On CD5010AY frames, motor must also be supported by feet.
The following chart details the standard endshield material used on Kinamatic motors. Non-standard Kinamatic
motors manufactured for special applications may not use standard endshield material. Refer to GE for non-
standard motors.
ENDSHIELD
MOTOR FRAME SIZE
CD180AT CD210AT CD250AT CD280AT CD320AT CD360AT CD400AT CD500AT CD5010AY
STANDARD ENDSHIELD MATERIAL
a. Standard Drive End Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Ductile Iron
b. C-Face Drive End Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Fabricated
Steel Not Available Not Available Not Available
c. D-Flange Drive End Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Fabricated
Steel
Fabricated
Steel
Fabricated
Steel
Fabricated
Steel
d. P-Base Drive End Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Fabricated
Steel
Fabricated
Steel
Fabricated
Steel
Fabricated
Steel
e. Commutator End Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
Price addition for fabricated steel (per endshield) is as follows:
Motor Frame Size List Price Addition
CD210AT-CD320AT $2412
Fabricated steel is available.
CD360AT $3600
CD400AT $4268
CD5010AY $4826
NEMA Type C-Face Endshield
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.17
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
18 EXPORT BOXING
The price for export boxing is a NET PRICE adder applied to the total price of the motor after adjusting for all
modifications. Export boxing must be specified at the time of order.
Export Boxing
FRAME SIZE
CD182-
CD2110
CD250-
CD320
CD365-
CD409
CD504-
CD5010
CD6000-
CD6100 CD6200 CD6700 CD6800 CD6900
Net Price $400 $600 $800 $1000 $1400 $2000 $2500 $3000 $3700
19 GREASE AND FITTINGS
19a GREASE
The following greases are available:
Standard (Alvania® #2) or equivalent. Suitable for 15°F (-10°C) to 212°F (100°C) ambient temperature.
No price addition.
Low Temperature (Shell Aeroshell® #7) or equivalent. Suitable for -60°F (-51°C) to 200°F (93°C) ambient temperature.
Add $172 list per motor.
High Temperature (Mobil Polyrex EM®) or equivalent. Suitable for -20°F (-28°C) to 350°F (176°C) ambient
temperature.
Add $172 list per motor.
19b FITTINGS
Grease fittings — Not necessary on frames CDL182AT-CD2110AT because prelubricated and shielded bearings are
standard. On CD258AT-CD5010AY and CD6000-CD6900 frames, zerk grease fittings are standard. When grease
fittings are required, open ball bearings and bearing caps are included. (Not available on CD180 frames.)
No price addition.
For re-greaseable bearings with standard alemite grease fittings on CD218AT-CD2110AT, add $516 list per motor.
For special grease fittings, button head, pin head or other than standard, add $172 list per motor.
Pressure Relief Valve add $172 list per motor.
20 CURRENT OVERLOAD — MAXIMUM LOAD AT BASE SPEED
In accordance with NEMA standards, continuous rated industrial DC motors rated 3/4 HP/RPM and less shall
be capable of occasionally repeated loads of 150% of the base speed full load current at all speeds within the
standard speed ranges listed on pages __-__. Although NEMA does not specify frequently repeated load
capability, DC motors in these ratings are capable of 140%. For motors larger than 3/4 HP/RPM, the following
load capability applies:
Percent Base Speed Occasionally Repeated Loads Frequently Repeated Loads
100% 150% 140%
200% 150% 130%
300% or greater 140% 125%
For occasionally repeated load capability of 200% with a frequency repeated load capability of 175% on motors
rated 3/4 HP/RPM and less with standard speed ranges listed on pages __-__ and on motors rated larger than
3/4 HP/RPM at base speed only, add 10% and refer to GE for effect on frame size.
Occasionally repeated loads are defined as one-minute duration or less and are not considered as part of the
regular duty cycle. Occasionally repeated loads are considered as commutation limits rather than heating limits.
Frequently repeated loads are defined as one-minute duration or less repeated such that the RMS current does not
exceed rated current over any five-minute period.
3.18
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
21 PUMP MOTORS
DC Motors with armature voltages from 105-130 Volts in most cases are used in pump applications. These are
special motors built to pump manufacturer specifications. Because of the low armature voltage these motors
have special electrical designs and in many cases frame sizes are larger than standard. If a model number is not
available, a request for motors in this voltage range must be accompanied by the following information.
Pump motors operated from DC potential busses or batteries will show significant speed variations from nominal
when the motor is cold and when the applied voltage varies below nominal.
Typically Motor RPM will be lower than nameplate speed (approx. 10-15%) when cold and increase to nameplate
RPM as main field reaches operating temperature. To reduce the cold to hot speed variations, the shunt fields
should be energized at 50-70% of rated voltage to stabilize. However, for ‘emergency’ pump motor applications,
where field pre-heating may not be feasible, the pump capacity must be sized to the cold start RPM.
Also, at lower than nominal voltage the motor will run slower than nameplate RPM, while conversely the motor will
run higher than nameplate RPM when voltage is higher than nominal.
For Pump Motor quotations, contact GE.
22 SEALS, DRIVE END SHAFT (horizontal or vertical with shaft up or down)
GE offers the following shaft seals: Lip type rubbing seals (which provide protection against oil mist or splash),
labyrinth seals (which provide protection against fine abrasive dust), and Inpro® seals (which provide protection
from liquids, solids, steam, and slurries of all types). Price addition (per seal) is as follows:
Note: For availability and pricing of commutator end shaft seals, refer to GE.
Motor Frame Size Lip Seal Labyrinth Seal Inpro® Seal
CD180AT-CD210AT $298 $298 Not Available
CD250AT-CD320AT $420 $490 $2442
CD360AT-CD5010AY $596 $838 $3736
CD6000-CD6200 Not Available $1138 $6900
CD6700-CD6900 Not Available $1394 $8912
Inpro® is a registered trademark of Inpro/Seal Inc., Rock Island, Illinois
23 SEVERE MECHANICAL “A
Severe mechanical duty “A” features are used on applications where motors are subject to severe torsional loads
(severe transients, rapid reversals), where additional strength of components is required to resist high
electromagnetic forces.
Severe mechanical duty “A” features include:
•  Solid or pinned, laminated commutating poles
•   High-strength (grade 8) bolts on both main poles and commutating poles; A black oxide finish on these bolts 
prevents the possibility of hydrogen embrittlement.
•  The magnet frame is spotfaced for firm seating of these high strength bolts. 
•  Cables are securely anchored with extra lead tying.
•   Bolted connections at commutating coils and series coils are insulated to prevent chafing of leads that come in 
contact with those connections.
•  A cable clamp is used in the conduit box.
•  A molded insert is located in the lead exit hole to protect leads from threads and other sharp corners.
•   For CD360AT, CD400AT, CD504AT-CD508AT, high-strength armature banding and epoxy RHP armature varnish 
is used.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.19
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
23
Cont’d
List Price Addition
Motor Frame Size Duty “A”
CDL182AT-CD189AT Not Available
CD218AT-CD2110AT $892
CD258AT-CD259AT $1136
CD287AT-CD288AT $1403
CD327AT-CD328AT* $1631
CD329AT Not Available
CD365AT-CD368AT $2123
CD407AT-CD409AT $2645
CD504AT-CD508AT $4439
CD5010AY Not Available
CD6000-CD6900 Refer to GE
* Subject to engineering approval
24 SHAFT EXTENSIONS
24a Standard Single Shaft Extension. Dimensions will be as shown on dimension prints.
24b Standard Double Shaft Extension. Dimensions will be as shown on dimension prints.
24c Standard Oversize Single Drive End Shaft Extension. Standard shaft extension of the next larger frame diameter
for CD210AT-CD360AT. Oversize shafts are not available on Explosionproof Motors. See table in Item 24d for
CD400AT and CD500AT frames. On CD5010AY frame, the standard drive end shaft is oversize (4.125 in. dia.), no
price addition. For overhung loads, refer to GE. Where standard oversize shaft is used, oversize bearing will also be
used (already included in price adder). Use prices listed below.
24d Standard Oversize Double Shaft Extension. Standard double shaft extension of the next larger frame diameter for
CD210AT-CD360AT. Oversize shafts are not available on Explosionproof Motors. For overhung loads, refer to GE.
Oversize shafts for CD400AT-CD500AT are as follows:
Frame OVERSIZE SHAFT DIAMETER (inches)
Commutator End Drive End
CD400AT 2.625 2.875
CD504AT-CD508AT 3.25 3.75
CD5010AY No additional oversize shaft available.
See dimension prints for standard shaft.
Note: With oversize shafts, the shaft length may be longer and the overall machine length may be longer. Refer to
GE for exact dimensions.
24e Shaft Extension, Special. Special straight extensions on drive end or commutator end or both. The desired
dimension must be specified when ordered. The special diameter must not exceed the oversize diameter where an
oversize shaft is available.
On CD6000 frame the special shaft diameter must not exceed the standard shaft diameter.
If required, pricing for oversize bearing must also be added.
CAUTION:
Belted drives using smaller than standard diameter shafts and/or longer than standard shafts must be referred to
GE with complete belt drive data.
3.20
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
24e
Cont’d
MOTOR LIST PRICE
SHAFT EXTENSION
Up to
$2500
$2501 to
$3592
$3593 to
$5578
$5579 to
$9748
$9749 to
$13218
$13219
to
$23922
$23923
to
$42136
$42137
to
$61750
$61751
to
$98628
$98629
to
$157704
$157704
to
$252288
$252289
to
$403650
$403651
and up
List Price Addition
a. Standard Single
Shaft Extension
Furnished as standard on all motors and generators.
No price addition for larger frame size generators where double shaft is standard.
b. Standard Double
Shaft Extension $70 $82 $96 $150 $244 $352 $420 $594 $676 On CD6000-CD6900,
no adder required
c. Standard
Oversize Single
Drive End Shaft
Extension
Not available on
CD180AT frames. $366 $468 $574 $680 $766 $892 Not available on
CD6000-CD6900 frames.
d. Standard
Oversize Double
Shaft Extension
Not available on
CD180AT frames. $732 $936 $1148 $1360 $1532 $1782 Not available on
CD6000-CD6900 frames.
e. Shaft Extension,
Special $488 $488 $488 $488 $680 $788 $972 $1272 $1784 $2520 $2520 $5040 $5040
25 SHAFT GROUNDING BRUSH
A shaft grounding brush is recommended to minimize possible bearing failures caused by shaft voltages. It is
mounted externally on the drive end of CD218AT-CD5010AY frames (which reduces usable drive end shaft length
by approximately 1 inch) and is mounted internally on the drive end of CD6000-CD6900 frames.
Note: The shaft grounding brush and labyrinth seal are furnished as standard with papermill features.
Motor Frame Size List Price Addition
CD180AT Not Available N/A on C-face, D-flange or P-base motors. Use TACH options. Price addition
includes labyrinth seal on CD218AT-CD5010AY frames. See page 3.18, Item 22
for labyrinth seal on CD6000-CD6900 frames.
CD210AT $1448
CD250AT-CD320AT $1676
CD360AT-CD5010AY $2024
CD6000-CD6900 $1186
26 SPACE HEATERS
Note: Furnished as standard with crane duty feature
Space heaters are installed inside the machine with leads brought out through the standard conduit box. Single
phase AC and DC ratings available are 120, 240, and 480 Volts on frames CD180AT-CD6900. Refer to GE for higher
voltage.
Motor Frame Size Wattage List Price Addition
CD180AT-CD210AT 30 $582
CD250AT-CD320AT 75 $582
CD365AT-CD5010AY 180 $582
CD6000-CD6100 500 $1658
CD6200-CD6900 1000 $1658
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.21
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION

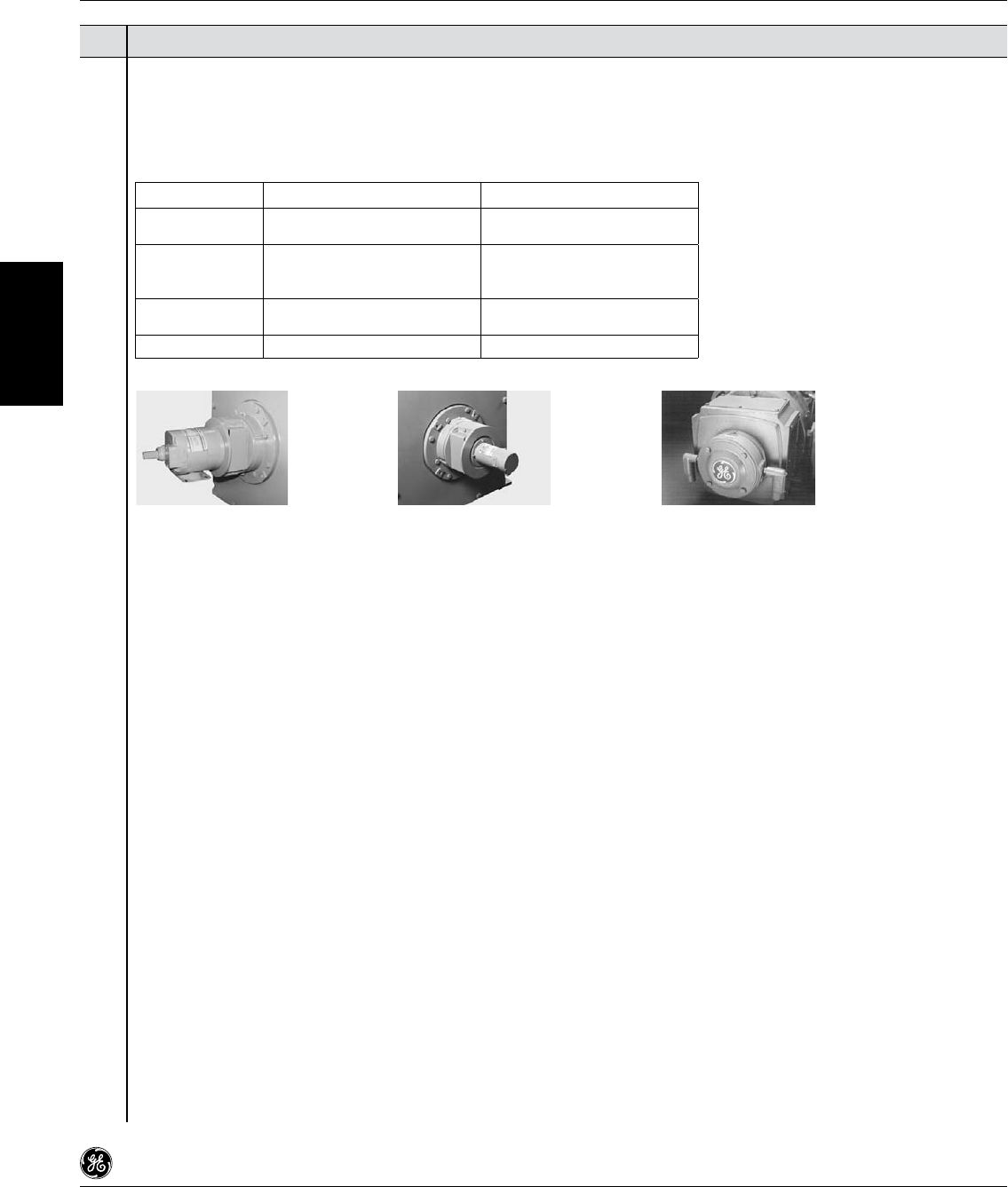

27 SPEED LIMIT DEVICE
Provides for addition of calibrated speed limit device (non-adjustable on frames CD508AT and below and adjustable
on frames CD5010AY and above) for motor over speed protection when connected in proper circuit. The device is
flange mounted on the commutator end of the motor. Contact will be normally closed on frames CD508AT and
below. On frames CD5010AY and above, both normally open and normally closed contacts are provided. The device
will be set at the factory to operate at 13-17% above the top rated speed. For special limiting speed, refer to GE.
Note: Non-adjustable speed limit devices are not recommended for crane duty use. If adjustable speed limit
switch is required on frames CDL182AT-CD508AT, refer to GE.
SPEED LIMIT DEVICE
MOTOR FRAME SIZE
CD182AT-CD508AT CD5010AY-CD6900
List Price Addition
a. Speed limit device (mounted) $2534 $5982
b. Speed limit device (mounted)
with double shaft extension Refer to GE $5982
c. Euclid speed switch $7646 $8480
Speed Limit Devices are available on all frames with
a single or double shaft extension. (Frame CD5010AY
shown above with double shaft extension.)
3.22
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
28 SPEED RANGE GREATER THAN STANDARD BY FIELD CONTROL*
Provides for increased speed range by field control with constant horsepower output. For top speeds not listed, use
the price of the next higher top speed listed. The frame size may be different from standard. On single phase
power supply, refer to GE. The overloads to these speeds are defined in page 3.17, Item 20.
All Voltages, Continuous or Short Time Rated Dripproof Fully Guarded and Totally Enclosed
Base
Speed
RPM
Rated
Top
Speed
RPM
HORSEPOWER
3 and
Below 5 7.5 10 15 20 25 30 40 50 60 75 100 125 150 200 250
PERCENTAGE ADDITION TO LIST PRICE OF BASIC MOTOR
2500 3500 10 10 10 10 10 10 10 10 10 15 20
1750
2500 10 10 10 10 10 10 10 10 10 10 10 10 10 15 15 15 15
2900 10 10 10 10 10 10 10 10 10 15 15 15 15 20 20 20
3000 10 10 10 10 10 10 10 10 10 15 15 15 15 20 20
3500 15 15 15 15 15 15 15 15 20 20 20 20
1500
1900 0 000000000000001010
2300 10 10 10 10 10 10 10 10 10 10 10 10 10 15 15 15 15
2600 10 10 10 10 10 10 10 10 15 15 15 15 15 20 20 20
2900 10 10 10 10 10 15 15 15 15 15 20 20 20
3100 15 15 15 15 15 15 15 15 20 20 20 20
3200 15 15 15 15 15 20 20 20 25 25 25 25
3400 15 20 20 20 20 20 20 20
1150
2000 0 000000000000001010
2300 10 10 10 10 10 10 10 10 10 10 10 10 15 15 15 20 20
2550 10 10 15 15 15 15 15 15 15 15 20 20 20 20 20 20 20
2900 10 10 15 15 15 15 15 15 15 15 20 20 20 20
3450 15 20 20 20 20 20 20 25 25 25 25 25
850
2000 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 15 15
2200 10 10 10 10 15 15 15 15 15 15 15 15 15 15 15 15 15
2550 10 10 10 10 15 15 15 15 15 15 15 20 20 20 20 20
3400 15 15 15 15 15 20 20 20 25 25 25
650
2000 10 10 10 10 10 10 10 10 10 10 10 10 10 15 15 15 15
2200 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
2550 15 15 15 15 15 15 15 15 20 20 20 20 20 20 20 20
2600 15 15 15 15 15 15 15 15 20
500
2000 10 10 10 10 10 10 10 10 10 10 10 10 15 15 15 15 20
2200 15 15 15 15 15 15 15 15 15 15 15 15 15 15 20 20 20
2500 15 15 15 15 15 15 15 15 15 15 15 15 15 20
400
1600 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 15 15
1900 10 10 15 15 15 15 15 15 15 15 15 15 15 15 15 20 20
2200 15 15 20 20 20 20 20 20 20 20 20 20 20 20 20 25
2400 20 20 20 20 20 20 20 20 20 20 20 20
300
1200 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10
1500 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15
1800 15 15 15 15 15 15 15 15 20 20 20 20 20 20 20 20 20
250
800
Refer to Factory
222222 2
900 222222 2
1000 444444 4
1100 666666 6
1200 888888 8
1250 10 10 10 10 10 10 10
1300 12.5 12.5 12.5 12.5 12.5 12.5 12.5
1350 15 15 15 15 15 15 15
1400 17.5 17.5 17.5 17.5 17.5 17.5 17.5
1500 20 20 20 20 20 20 20
* Contact GE for design verification (affected by ambient, overload, Class B rise, etc.)
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.23
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
28a SPEED RANGE GREATER THAN STANDARD BY FIELD CONTROL
Provides for increased speed range by field control with constant horsepower output. For top speeds not listed, use
the price of the next higher top speed listed. The frame size may be different from standard. On single-phase
power supply, refer to GE. The overloads to these speeds are defined in page 3.17, Item 20.
All Voltages, Continuous or Short Time Rated Dripproof Fully Guarded and Totally Enclosed
Base Speed
RPM
Rated
Top Speed
RPM
HORSEPOWER
Base Speed
RPM
Rated
Top Speed
RPM
HORSEPOWER
300 400 500 300 400 500
PERCENTAGE
ADDITION TO LIST PRICE
OF BASIC MOTOR
PERCENTAGE
ADDITION TO LIST PRICE
OF BASIC MOTOR
1750
1900 0 0 0
400
1000 0 0 0
2000 10 10 10 1100 0 4 4
2200 10 10 10 1200 0 4 6
1500
1800 0 0 6 1300 6 6 8
1900 10 10 10 1400 10 10 12.5
2000 15 15 15 1500 12.5 12.5 15
2100 15 15 15 1600 15 15 17.5
2200 15 1700 15 17.5 20
2300 20 1800 17.5 20 22.5
1150
1500 0 0 0 1900 20
1600 0 4 4
300
750 0 0 0
1700 6 6 6 900 0 4 4
1800 8 8 8 1000 4 4 4
1900 12.5 12.5 12.5 1100 6 6 8
2000 15 15 15 1200 10 10 12.5
2100 17.5 17.5 17.5 1300 12.5 12.5 17.5
2200 17.5 17.5 17.5 1400 12.5 17.5 20
2300 20 1500 17.5 20 22.5
850
1500 0 0 4 1600 20
1600 4 6 8 1700 22.5
1700 8 8 10 1800 22.5
1800 10 10 12.5
250
710 0 0 0
1900 12.5 12.5 15 750 0 1 1
2000 15 15 17.5 800 2 2 2
2100 17.5 17.5 20 900 2 2 4
2200 17.5 20 1000 4 6 8
650
1400 0 0 4 1100 6 10 12.5
1500 0 4 6 1200 10 15 17.5
1600 4 6 10 1250 12.5 17.5 17.5
1700 10 10 12.5 1300 15 17.5 17.5
1800 10 12.5 1350 17.5 20 20
1900 12.5 15 1400 17.5 20 22.5
2000 15 1500 20 22.5 25
2100 17.5
500
1000 0 0 0
1100 0 0 4
1200 0 0 4
1300 0 4 6
1400 4 6 8
1500 6 10 12.5
1600 12.5 12.5 15
1700 15 15 17.5
1800 15 17.5 20
1900 17.5
2000 20
3.24
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
29 TACHOMETER GENERATOR EQUIPMENT
SPEED RANGES
The following tachometer generator operating speeds are available with listed items:
Type Tachometer Output Operating Range
BC42 50 Volts/1000 RPM
100 Volts/1000 RPM
100-5000 RPM
100-2750 RPM
BC46
50 Volts/1000 RPM
100 Volts/1000 RPM
200 Volts/1000 RPM
100-5000 RPM
100-3600 RPM
100-1800 RPM
Form Y 50 Volts/1000 RPM
100 Volts/1000 RPM
100-5000 RPM
100-2500 RPM
AN-AC 90 Volts/1000 RPM 100-5000 RPM
BC tachometers produce DC output
to provide high accuracy speed
regulation or speed indication.
PY tachometers provide a medium
accuracy DC output for use with a
regulated drive or for speed
indication.
AN Series tachometers provide a compact construction
with thru-shaft capabilities. The AN Series tachometers
can be furnished with either AC or digital output signal
for speed regulation or speed indication. (Type AN-DG
tachometer shown above.)
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.25
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
29
Cont’d
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS
MOTOR FRAME SIZE
CDL182AT-CD5010AY CD6000-CD6900
List Price Addition
TYPE BC OUTLINE PAGE ___
A DC tachometer for high accuracy speed-indicating and/or speed-regulating applications.
The tachometer generator is flange mounted, rabbeted to the commutator endshield, and
is coupled with an antibacklash coupling to the motor shaft extension. The BC tachometer
generators will have a footed frame and commutator end extension covered by a thimble.
This allows belt driving a second tachometer mounted on the BC feet and simplifies customer
tachometer standardization. Any other arrangement should be referred to GE.
Note: A double shaft extension is not available on severe duty or explosion proof BC
tachometers.

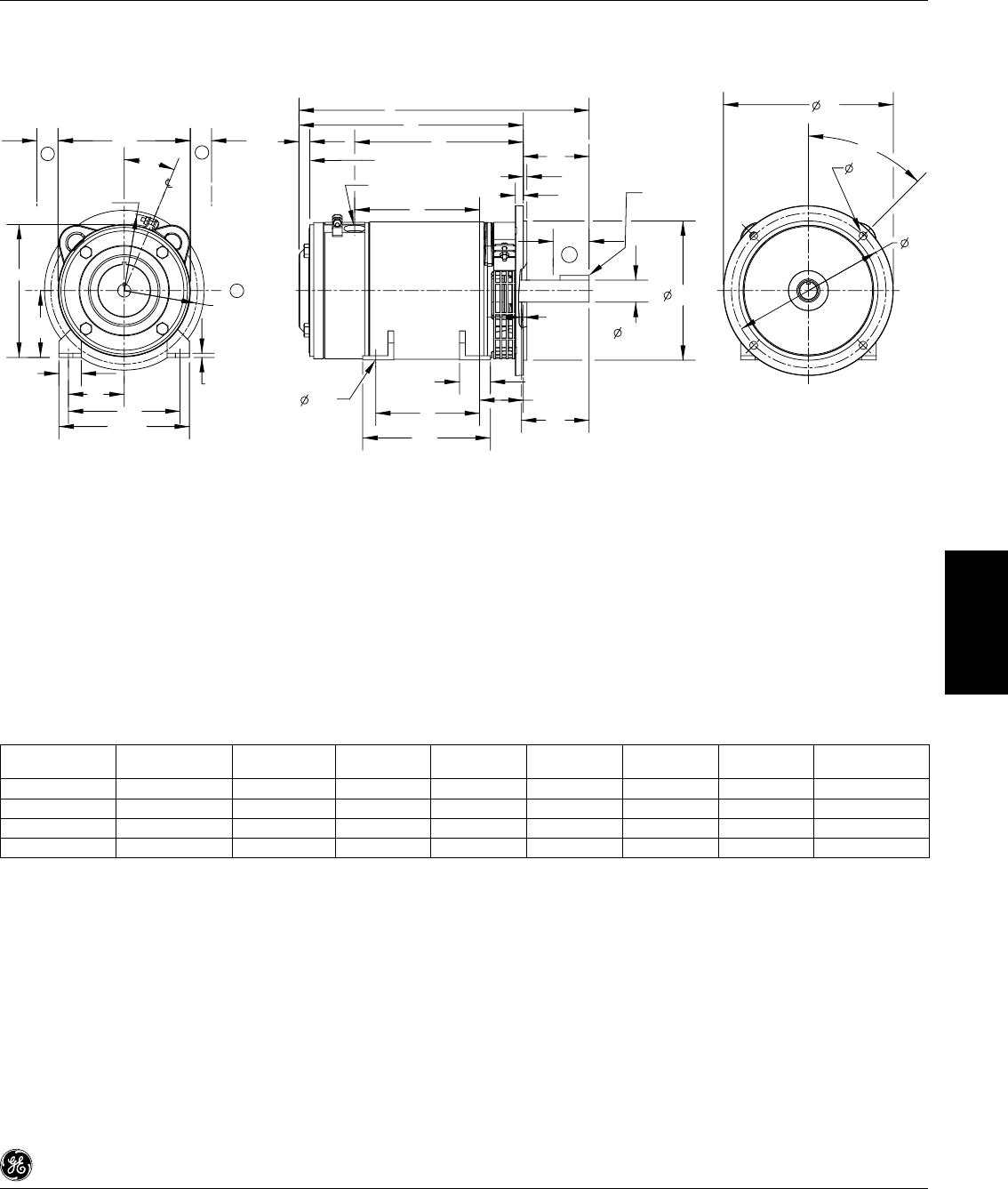

Type BC
BC42, 50 or 100 Volts/1000 RPM $7440 $8333
BC46, 50, 100 or 200 Volts/1000 RPM $10008 $11209
Type BC, Waterproof or Dustproof
BC42, 100 Volts/1000 RPM $8194 $9117
BC46, 100 Volts/1000 RPM $10728 $11562
Type BC, Explosionproof
(Class I, Group D, Class II, Groups E, F, G)
BC42, 50 or 100 Volts/1000 RPM $10400 $11645

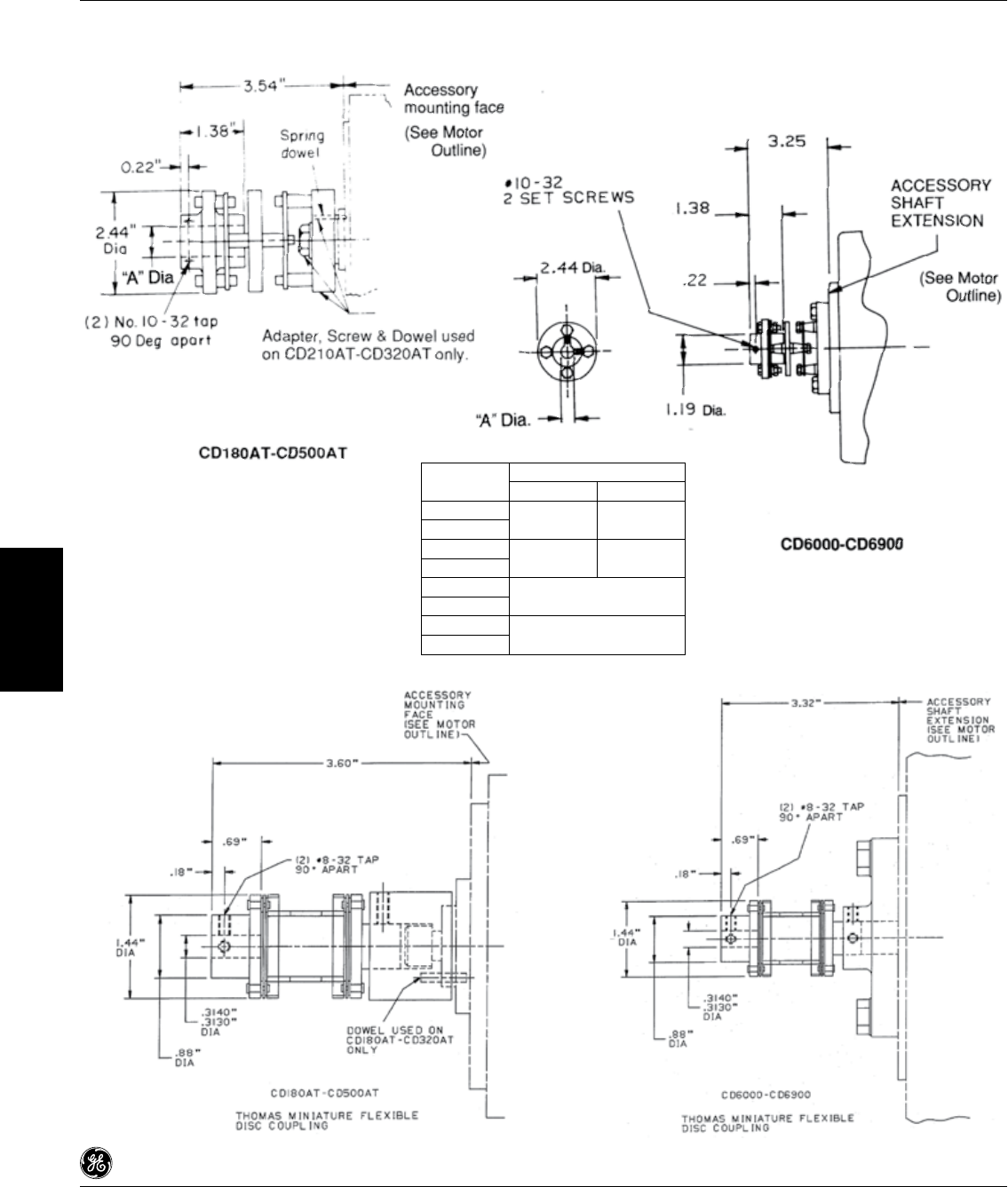

Mounting kit is assembled to motor and is only for flange mounted BC
tachometer. (This includes coupling, stub shaft, and mounting bracket for BC tach.)
For explosionproof tachometer to be mounted on explosionproof motor,
refer to page ___.
$1666
$2500

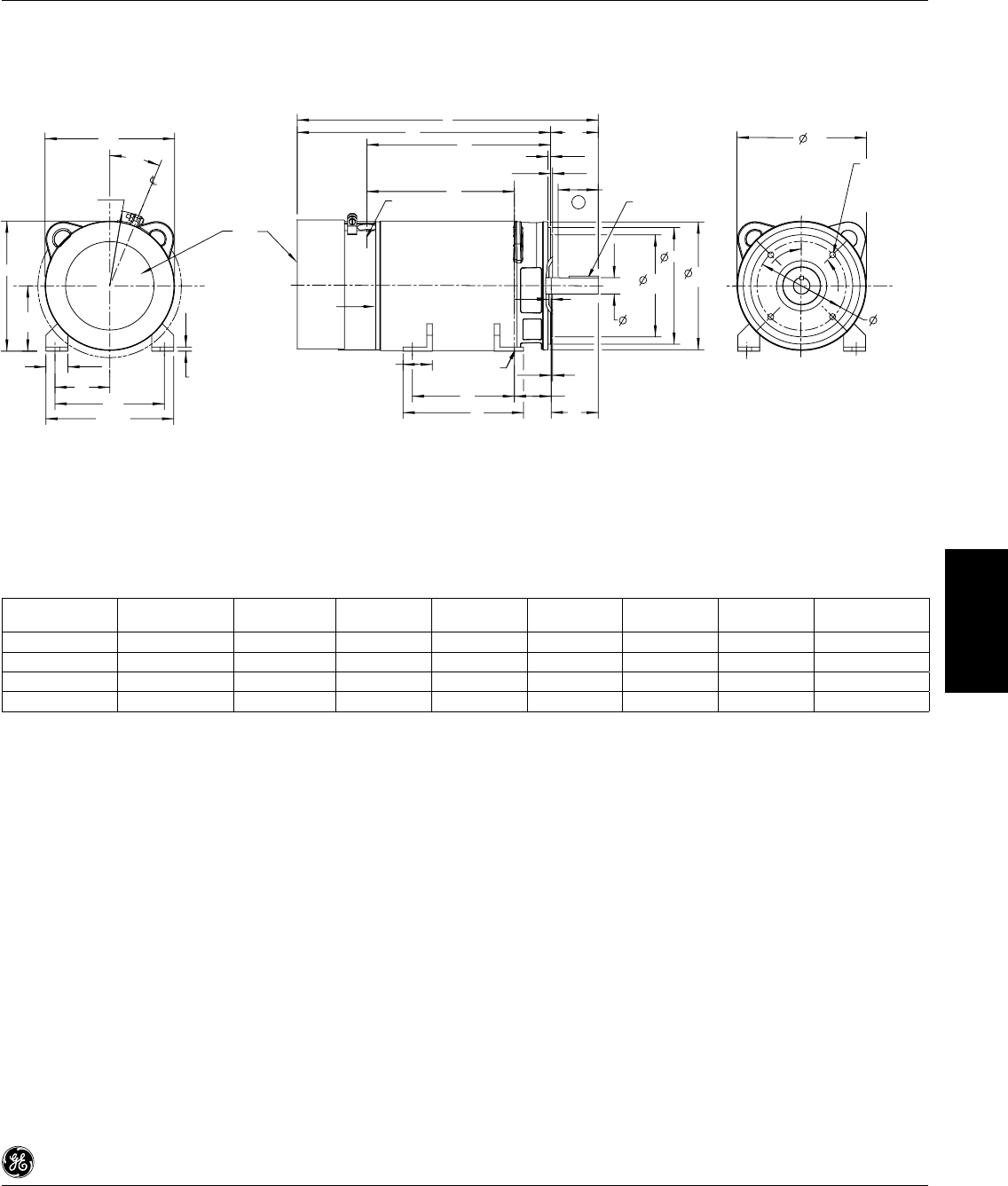

FORM Y, DC OUTLINE PAGE ___
A DC tachometer for medium accuracy speed-indicating and/or speed-regulating
applications. The tachometer generator is flange mounted and rabbeted to the
commutator endshield, and is coupled with an antibacklash coupling to the motor shaft
extension. (Not available as waterproof.)
5PY59JY, 50 or 100 Volts/1000 RPM (max speed 2500 RPM) $4925 $5516
Mounting kit is assembled to motor and is only for flange mounted PY
tachometer. (This includes coupling, stub shaft, and mounting bracket for Form Y.) $1666 $2500
TYPE AN-AC OUTLINE PAGE ___
An AC tachometer for medium accuracy speed-indicating or for use with some speed-
regulating systems. The tachometer generator is flange mounted and rabbeted to the
commutator endshield. (Not available for separate mounting or belt connection.)
45/90 Volts/1000 RPM
(For frames CD180AT-CD6200 only, including CD180AT and CD210AT
TEFC enclosures.)
$1784 $4222
CD180AT and CD210AT TEFC motors suitable only for AN tachometer mounting on commutator end.
Not available on CD6700-CD6900.
3.26
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
29
Cont’d
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS MOTOR FRAME SIZE
CD180AT-CD5010AY CD6000
MODEL NUMBER AND DESCRIPTION List Price Addition Environmental Rating
Avtron AV85 THIN-LINE II™ OUTLINE PAGE ___ Heavy Duty
Industrial Applications
with frequent exposure to
temperatures variations
and contamination.
Paper, metals processing, plastics,
textiles, food, petrochemical,
machine tool, marine duty,
material handling
(Replaces M85)
Style tachometer/encoder. Mounts on 8.8" accessory flange. No 
bearings, couplings, or adapters. Magnetoresistive (MR) sensors,
Wide-Gap technology, full wiring protection and LED diagnostics.
240, 600, 1024, 1200 pulses/revolution, single output $3285 $5805
240, 600, 1024, 1200 pulses/revolution, dual output $5468 $7988
2000, 2048, 4096, 5000 pulses/revolution, single output $3641 $6156
2000, 2048, 4096, 5000 pulses/revolution, dual output $6174 $8690

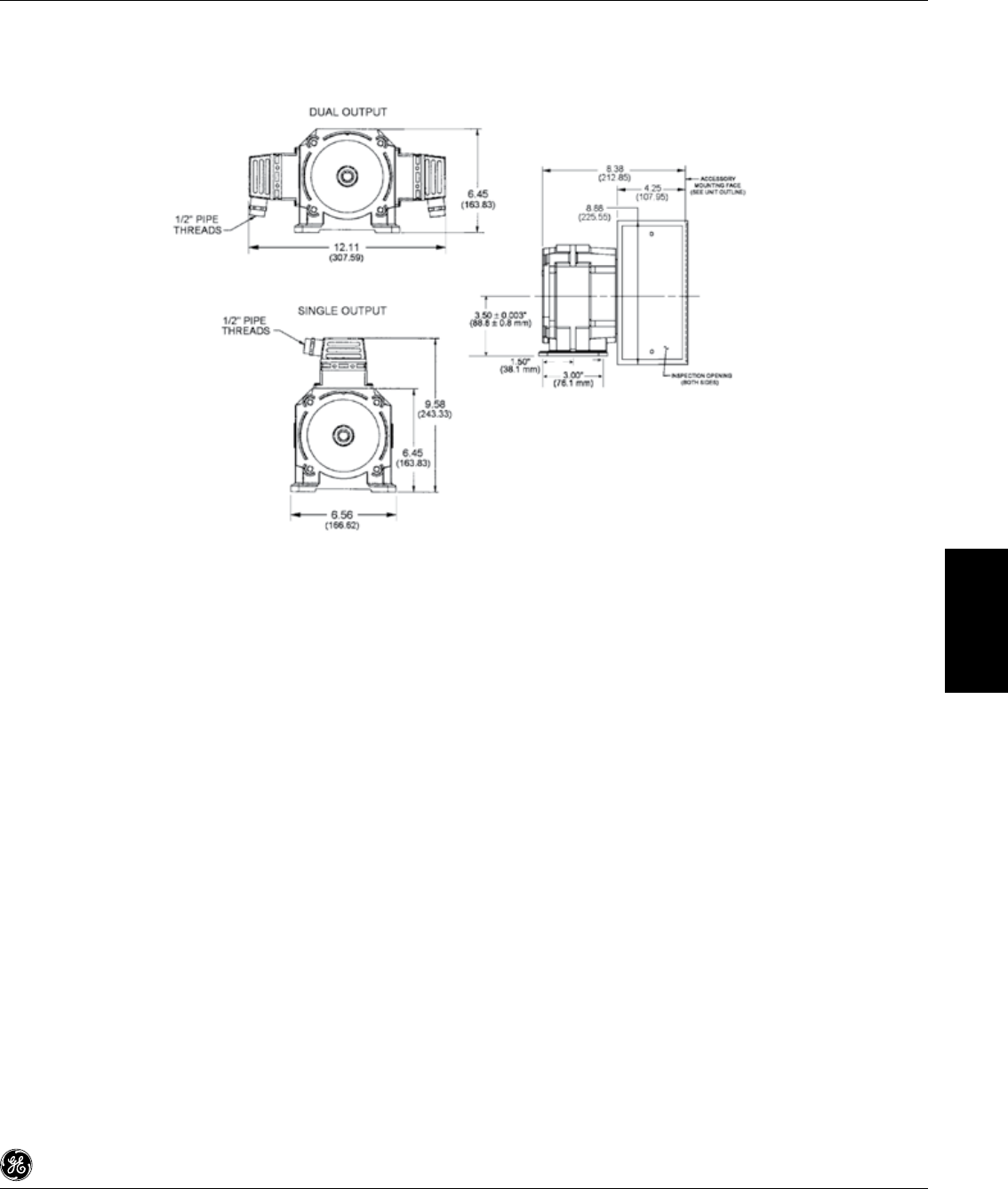

Avtron AV485 SMART Tach II™ OUTLINE PAGE ___ Severe Duty
Industrial Applications
with constant exposure to
temperature variations and
contamination, and increased
physical demands occur.
Paper, primary metals, petro-
chemical, mining, dockside cranes,
marine duty, wash down; 
Ideal for MD style motors.
(Replaces M3 and M4 solid-shaft, M385, M485, M785)
Style tachometer/encoder. NEMA 56C motor face mount (like BC).
MR sensors, full wiring protection and LED diagnostics, removable
sensors.
240, 600, 1024, 1200 pulses/revolution, single output $5945 $5945
240, 600, 1024, 1200 pulses/revolution, dual output $8721 $8721
2000, 2048, 4096, 5000 pulses/revolution, single output $6080 $6080
2000, 2048, 4096, 5000 pulses/revolution, dual output $9000 $9000

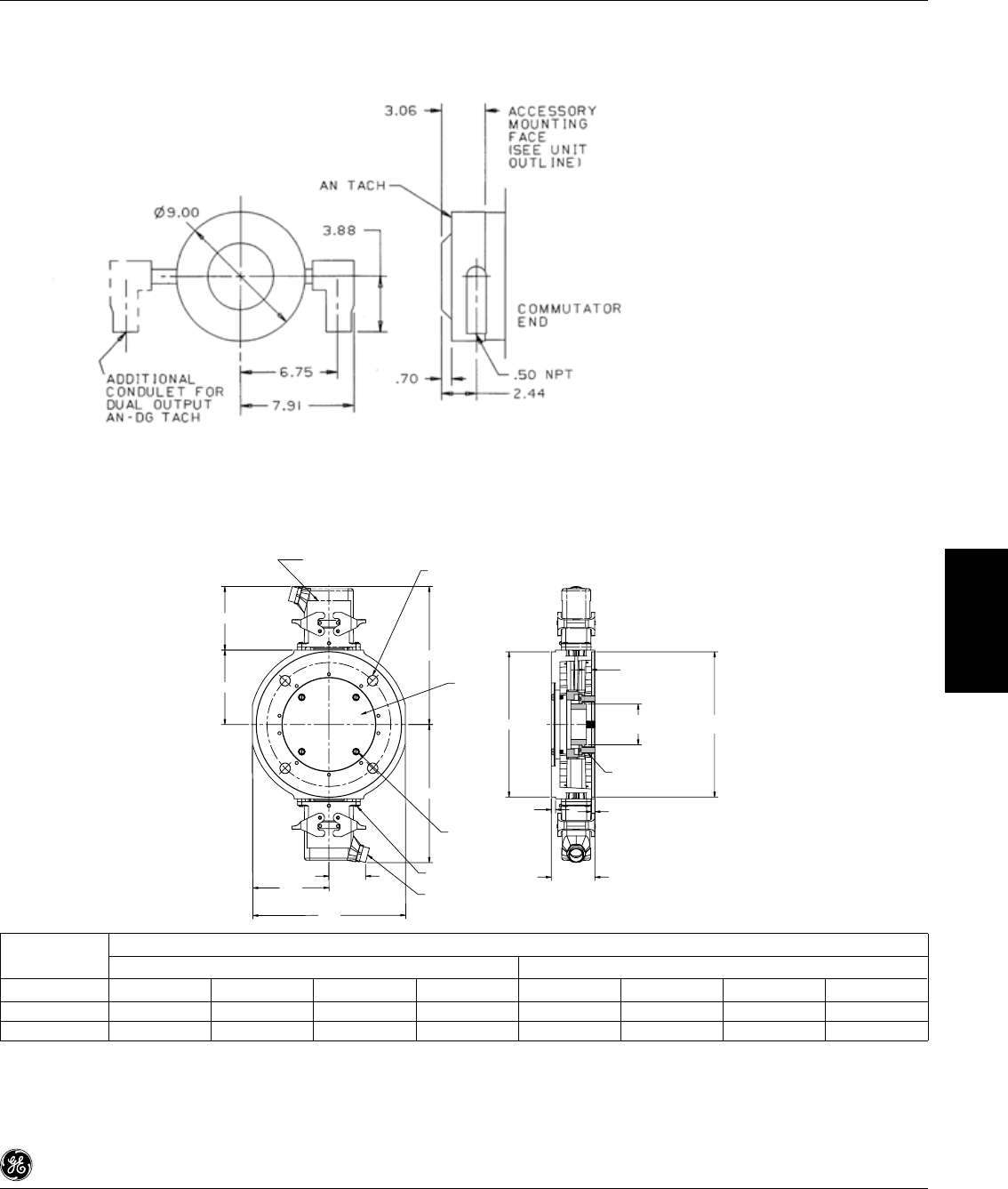

TYPE AN-DG OUTLINE PAGE ___
Heavy Duty
Industrial Applications
with frequent exposure to
temperatures variations
and contamination.
Paper, metals processing, plastics,
textiles, food, petrochemical,
machine tool, marine duty,
material handling.

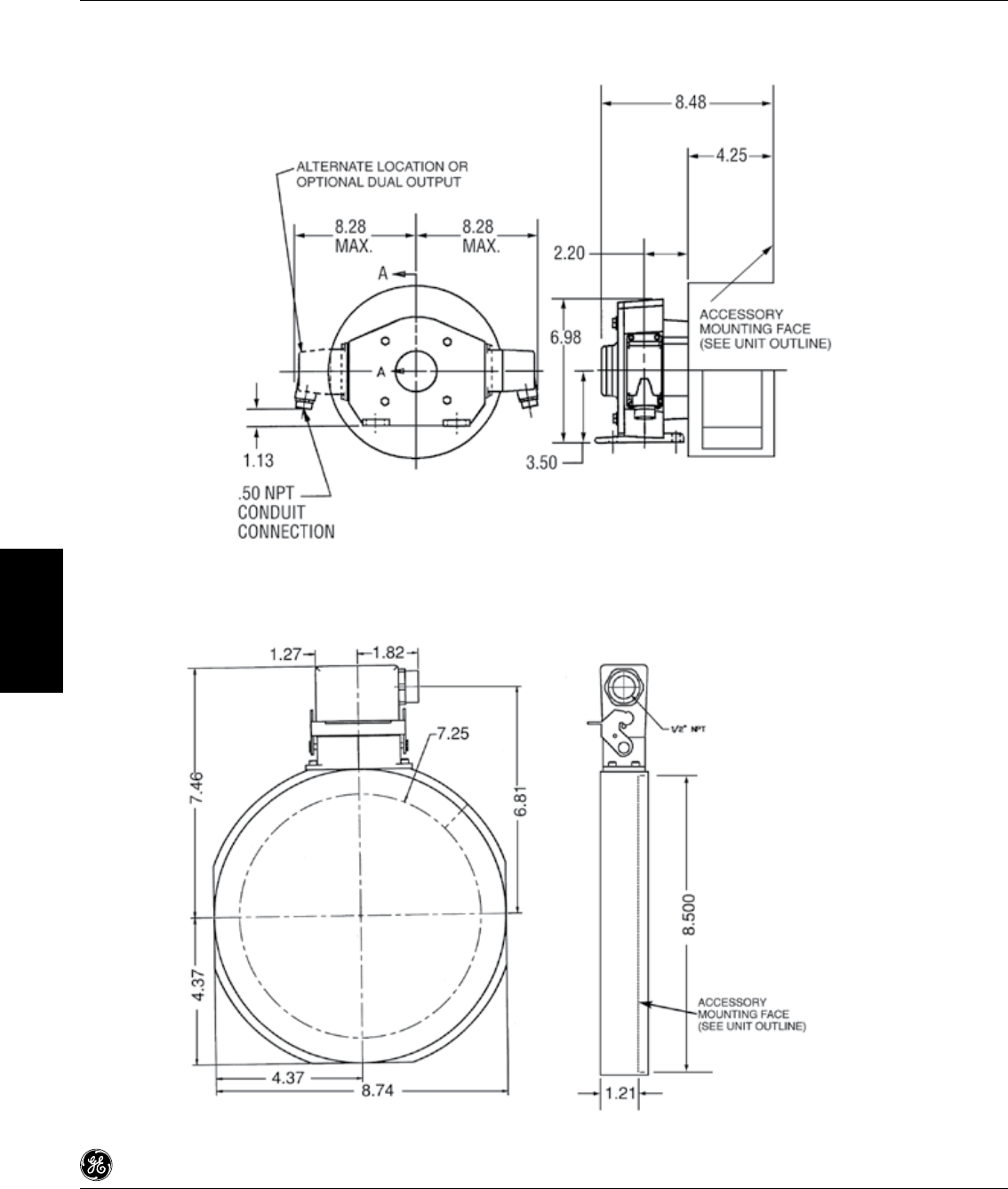

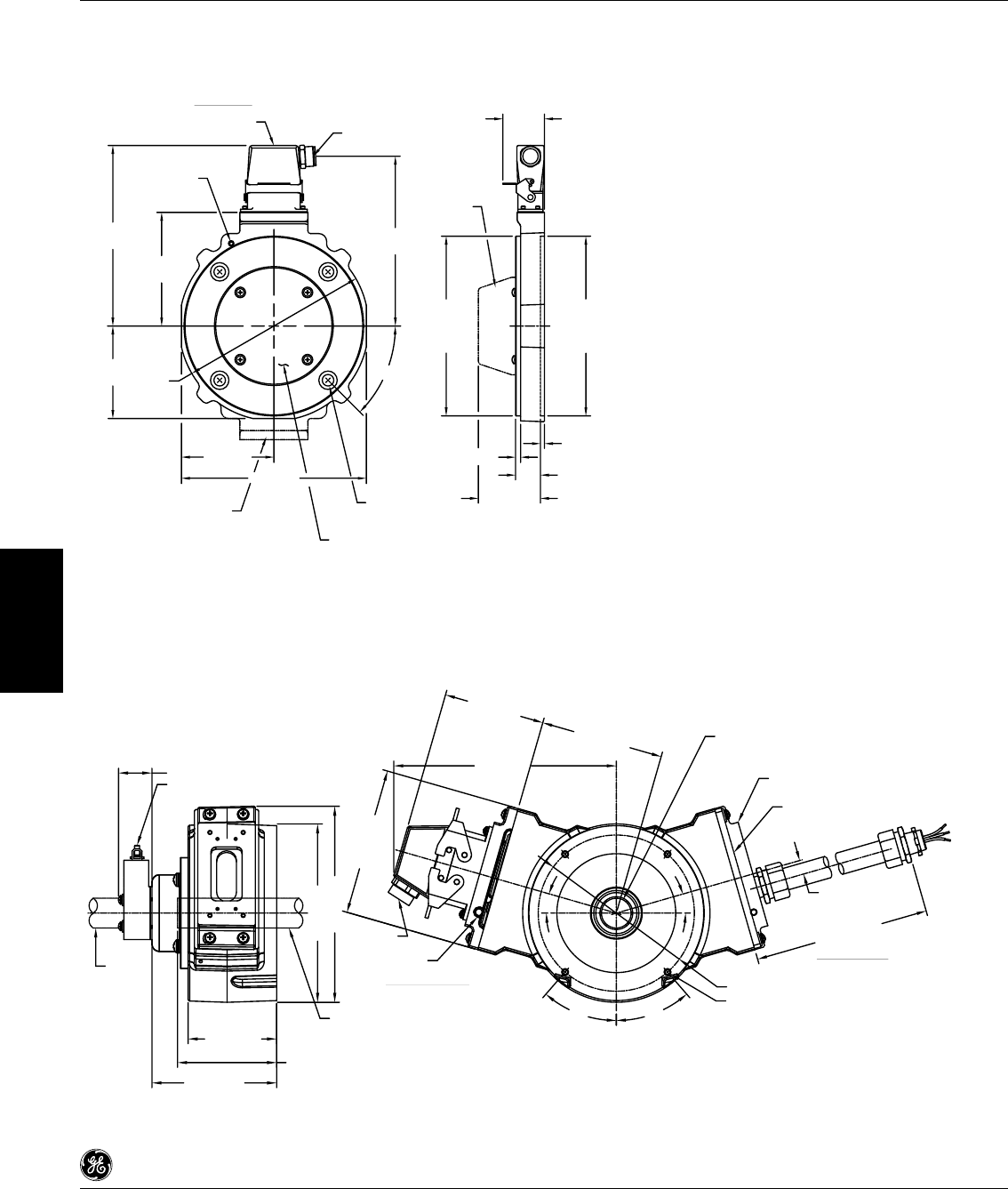

Avtron AV850 SMART Tach II™
(Replaces AN-DG, M193B, M285)
Mounts on 8.5" accessory flange. No bearings, couplings or 
adapters. MR sensors, Wide-Gap technology, full wiring protection
and LED diagnostics. Removable sensors. Shaft grounding brush
option or permits thru-shafts up to 4.5"
240, 600, 1024, 1200 pulses/revolution, single output $4824 $6480
240, 600, 1024, 1200 pulses/revolution, dual output $7034 $8690
2000, 2048, 4096, 5000 pulses/revolution, single output $4959 $6620
2000, 2048, 4096, 5000 pulses/revolution, dual output $7308 $8969
Add shaft grounding brush to AV850 $878 $2534

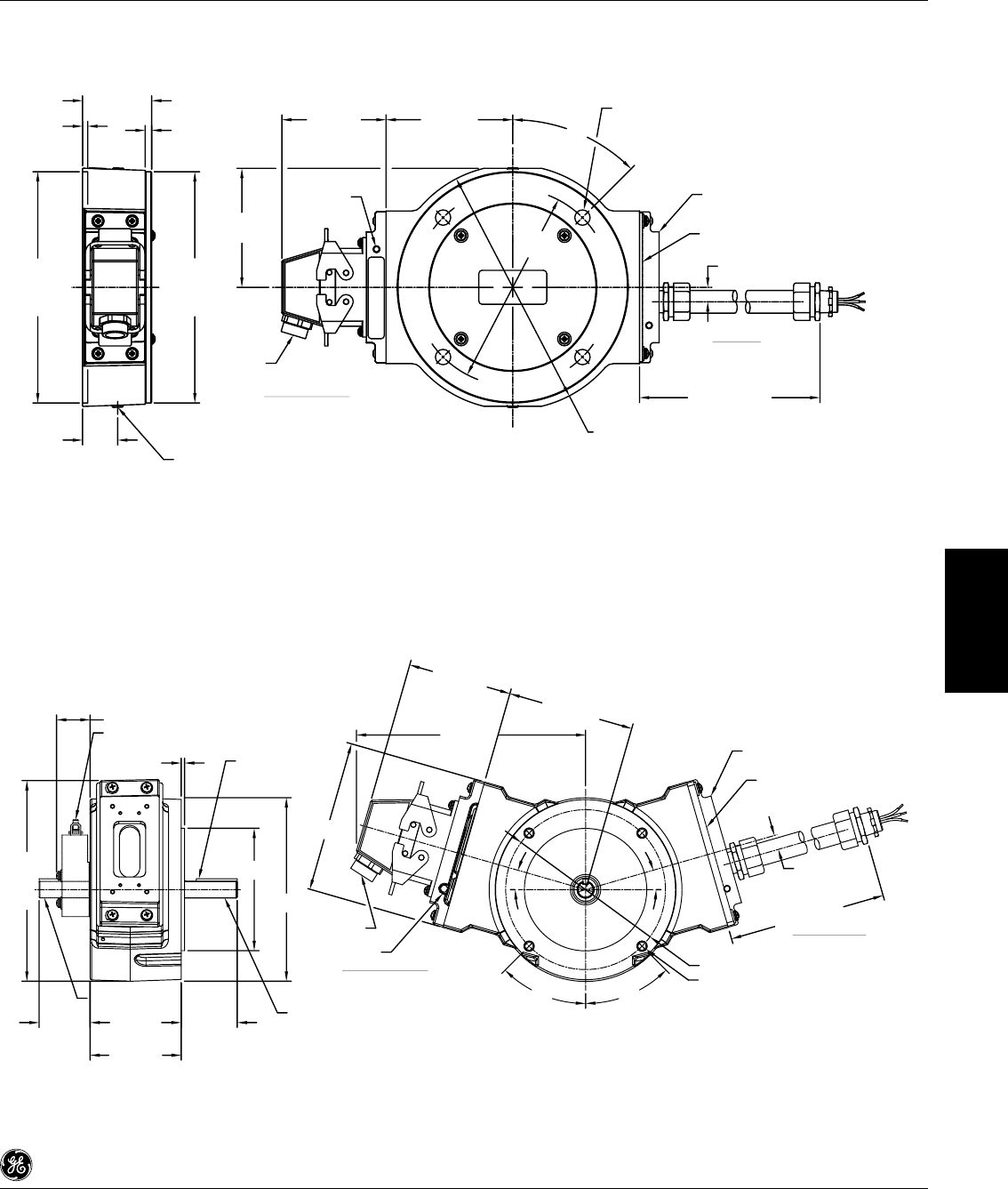

Avtron AV685 SMART Tach II™ OUTLINE PAGE ___ Severe Duty
Industrial Applications
with constant exposure to
temperature variations and
contamination and increased
physical demands occur.
Paper, primary metals, petro-
chemical, mining, dockside cranes,
marine duty, wash down.
Ideal for MD style motors.
(Replaces M685)
Mounts on stub shaft (tethered). MR sensors, full wiring protection
and LED diagnostics, removable sensors.
240, 600, 1024, 1200 pulses/revolution, single output $6881 $6881
240, 600, 1024, 1200 pulses/revolution, dual output $9338 $9338
2000, 2048, 4096, 5000 pulses/revolution, single output $7187 $7187
2000, 2048, 4096, 5000 pulses/revolution, dual output $9950 $9950
Add shaft grounding brush to AV685 $1319 $1319
Notes:
Avtron AV850 SMART Tach II™ can not be mounted on CD250AT-CD320AT frames with a TEFC enclosure. Use a TENV or TEAO enclosure.
Avtron AV850, AV485 can not be mounted on CD180AT and CD210AT TEFC motors. Use a TENV enclosure.
Integral end of shaft grounding brush, add $2232 list to the above prices. Not available on tachs with thru shafts.
(ppr) pulses per revolution, required at time of order
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.27
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
29
Cont’d
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS MOTOR FRAME SIZE
CD180AT-CD5010AY CD6000
MODEL NUMBER AND DESCRIPTION List Price Addition Environmental Rating
Northstar RIM Tach™ RT8 OUTLINE PAGE ___
Mill Duty
Industrial Applications with
temperatures between -40ºC
and +80ºC, chemical resistance
include salt spray, most solvents,
mild acids and bases.
Paper, metal finishing, plastics,
textiles, converting, machine
tools, material handling.
(Replaces RIM 8500)
Mounts on 8.5" accessory flange. No bearings, couplings, or 
adapters needed. Magnetoresistive sensors, ductile iron enclosure,
polymer rotor and industrial connector. For through shaft or end
of shaft mountings, the RIMTach RT8 can fit up to a 4.5" diameter 
shaft. Features replaceable sensor modules.
240, 512, 600, 1024, 1200 pulses/revolution, single output $4229 $4829
240, 512, 600, 1024, 1200 pulses/revolution, dual output $5227 $5899
Northstar RIM Tach™ 6200 OUTLINE PAGE ___
Foot mount or accessory bracket 56 C-face mount (mounts same
as BC style tachs). Magnetoresistive sensors, ductile iron enclosure,
polymer rotor, industrial connector, extra severe duty bearings for
long life. The RIM Tach 6200 is a close coupled design. Features
replaceable sensor modules.
240, 512, 600 pulses/revolution, single output $4219 $4852
240, 512, 600 pulses/revolution, dual output $5218 $6001
1024, 1200 pulses/revolution, single output $4944 $5686
1024, 1200 pulses/revolution, dual output $5942 $6834
2048 pulses/revolution, single output $5251 $6039
2048 pulses/revolution, dual output $6250 $7188
Northstar RIM Tach™ 1250 OUTLINE PAGE ___
Mill Duty
Industrial Applications with
temperatures between -40ºC
and +80ºC, chemical resistance
include salt spray, most solvents,
mild acids and bases.
Paper, metal finishing, plastics,
textiles, converting, machine
tools, material handling.
Mounts on 12.5" accessory flange. No bearings, couplings, or 
adapters needed. Magnetoresistive sensors, ductile iron enclosure,
polymer rotor and industrial connector. For a through shaft or end
of shaft mountings the RIM Tach 1250 can fit up to a 8.0" diameter 
shaft. Features replaceable sensor modules. Used on CD6000’s.
240, 512, 600, 1024, 1200 pulses/revolution, single output N/A $5554
240, 512, 600, 1024, 1200 pulses/revolution, dual output N/A $6557
2048 pulses/revolution, single output N/A $9994
2048 pulses/revolution, dual output N/A $10992
Notes:
Northstar RIM Tach™ RT8 can not be mounted on CD180AT-CD320AT frames with a TEFC enclosure. Use a TENV or TEAO enclosure.
The Northstar RIM 1250, 6200 and SLIM Tach™ SL85 and HS56 all have sealed electronics to prevent contaminant intrusion.
Shaft grounding brush, add $2232 list to the above prices.
All items listed above are CE approved.
(ppr) pulses per revolution, required at time of order
3.28
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
29
Cont’d
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS MOTOR FRAME SIZE
CD180AT-CD5010AY CD6000
MODEL NUMBER AND DESCRIPTION List Price Addition Environmental Rating
Northstar SLIM Tach™ SL85 (formerly LakeShore) OUTLINE PAGE ___
Heavy Industrial
Industrial Applications with
temperatures between -40°C and
+80°C, chemical resistance include
salt spray, most solvents, mild
acids and bases.
SL85 can be used in a Mill Duty
environment.
Mounts on 8.5" accessory flange. No bearings, couplings, or 
adapters needed. Magnetoresistive sensors, ductile iron enclosure,
polymer rotor and industrial connector. For through shaft or end of
shaft mountings, the SLIM Tach SL85 can fit up to a 3.75" diameter 
shaft. Approx. half the thickness of the RIM 8500. The SL85 does not
have replaceable sensor modules. Through shaft models are also
available for shafts ranging from .5" through 3.75" in diameter.
64, 128, 256, 512, 1024 pulses/revolution, single output $2362 N/A
64, 128, 256, 512, 1024 pulses/revolution, dual output $4061 N/A
2048 pulses/revolution, single output $2530 N/A
Northstar SLIM Tach™ HS56 (formerly LakeShore) OUTLINE PAGE ___
Industrial Duty
Industrial Applications with
temperatures between
-20°C and +80°C, chemical
resistance include salt spray,
most solvents, mild acids
and bases.
Hollow shaft design allows for mounting when an accessory flange
is not available. Mounts on a standard shaft extension or stub shaft.
Magnetoresistive sensors, polymer rotor and industrial connector.
SLIM Tach HS56 can fit up to a 1.125" diameter shaft.
64, 128, 256, 512, 1024 pulses/revolution, single output $2606 $2867
64, 128, 256, 512, 1024 pulses/revolution, dual output $3821 $4203
2048 pulses/revolution, single output $2770 $3048
2048 pulses/revolution, dual output $4152 $4567
Notes:
Northstar RIM Tach™ RT8 can not be mounted on CD180AT-CD320AT frames with a TEFC enclosure. Use a TENV or TEAO enclosure.
The Northstar RIM 1250, 6200 and SLIM Tach™ SL85 and HS56 all have sealed electronics to prevent contaminant intrusion.
Shaft grounding brush, add $2232 list to the above prices.
All items listed above are CE approved.
(ppr) pulses per revolution, required at time of order
Dynapar HA625 Encoder OUTLINE PAGE ___
Heavy Industrial
Industrial Applications with
temperatures between
40°C and +80°C.
Flange mounted Tach, 5-26 VDC input, push-pull and differential
line driver, 5-26 VDC, single output, NEMA 4/IP66 sealed enclosure,
side mount MS style connector (10 pin mating connector included)
over voltage protection, output short circuit protection, and reverse
voltage protection, 85°C operating temperature, CE labeled.
240, 512, 600, 1024, 1200, 2048 pulses/revolution $1392 $1532
Dynapar H56 Rotopulser OUTLINE PAGE ___
Heavy Mill Duty
Industrial Applications with
temperatures between -40°C and
+80°C NEMA 4/IP66 enclosure.
Suitable for severe duty in paper,
steel and lumber mills.
(Replaces the 62P)
56C face mounted tach (mounts same as BC series tachs). Heavy
mill duty enclosure, 5-26 VDC input, push-pull and differential line
driver, 5-26 VDC, single output, pluggable screw terminals
(Industrial connectors) mating connector(s) included.
240, 512, 600, 1024, 1200, 2048 pulses/revolution, single output $3536 $3890
240, 512, 600, 1024, 1200, 2048 pulses/revolution, dual output $3951 $4346
Notes:
The HA625, H56 and X25 require a Tach mounting kit. (Tach mounting kit consists of Tach adapter, coupling and stub shaft). The H56 can also be foot mounted.
The HA625, H56 and X25 can not be mounted on CD180-CD210 TEFC motors. Use TENV enclosure.
(ppr) pulses per revolution, required at time of order
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.29
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
29
Cont’d
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS MOTOR FRAME SIZE
CD180AT-CD5010AY CD6000
MODEL NUMBER AND DESCRIPTION List Price Addition Environmental Rating
Dynapar HS35R Sealed Hollow Shaft OUTLINE PAGE ___
Industrial
Industrial Applications with
temperatures between
-40°C and +70°C
Hollow shaft encoder is designed for easy installation onto the
motor, the unit sealed as well as equipped with an unbreakable disk
that meets the demands of the most severe shake and vibration,
the unit is electrically and thermally isolated, shaft seals at both
ends, dust cover included. 5-26 VDC input, push-pull and differential
line driver, 5-26 VDC output.
240, 512, 600, 1024, 1200, 2048 pulses/revolution, single output $1200 $1325
Dynapar X25 Explosionproof OUTLINE PAGE ___
Explosionproof
Industrial Applications with
temperatures between
0°C and +70°C
Flange mounted tach, UL listed for Class 1, Division 1 & 2, Groups
C, D, E, F, G locations, 5-26 VDC input, push-pull and differential line
driver, 5-26 VDC output, single output 1/2-14 NPTF conduit entry.
Heavy industrial enclosure.
240, 512, 600, 1024, 1200, 2048 pulses/revolution $3360 $3864
Notes:
The HA625, H56 and X25 require a Tach mounting kit. (Tach mounting kit consists of Tach adapter, coupling and stub shaft). The H56 can also be foot mounted.
The HA625, H56 and X25 can not be mounted on CD180-CD210 TEFC motors. Use TENV enclosure.
(ppr) pulses per revolution, required at time of order
CUSTOMER SUPPLIED TACHOMETERS
Customer-supplied tachometers will not be tested. Drawings and parts list of customer-supplied tachometers must
be received at the time of order. Both the tachometer and shipping papers must be tagged with the GE order and
item number. Refer to customer-supplied material section (page 3.12, Item 14) for additional information.
MOTOR MOUNTED, DIRECT CONNECTED TACHOMETERS
MOTOR FRAME SIZE
CD180AT-CD5010AY CD6000
List Price Addition
For mounting only of a customer-supplied Type C-Face tachometer. (This includes coupling,
stub shaft, mounting bracket, and assembly of tachometer.) $3024 $3858
For mounting kit only for customer-mounted Type C-Face tachometer. (This includes coupling, stub
shaft, and mounting bracket.) Mounting kit is assembled to the motor. $1666 $2500
30 TERMINAL BOARD IN CONDUIT BOX
Generally, all power, field and other internal accessory terminals will be located on a terminal board in the conduit
box. On some higher current machines, the field and other internal accessory terminals will be located on a terminal
board, but the power leads will be fixed and supported separately (all within the conduit box).
On machines rated 2,000 amps or more, the field and other internal accessory terminals will be located on a
terminal board and the power leads will be fixed and supported separately as standard (all within the conduit box.)
Motor Frame Size Shunt Wound Stabilized Shunt or Compound Wound
CD218AT-CD5010AY $1200 $1500
CD6000-CD6900 No Price Addition Not Available
Note: Not available for explosionproof motors.
3.30
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
31 TESTS AND CURVES
AVAILABLE FOR CD180-CD5010 FRAME AND CD6000 FRAME MOTORS
Routine Test Motor Generator Complete Test Motor Generator
Neutral Check YES YES Neutral Check YES YES
Winding Resistance YES YES Full Load Heat Run YES YES
High Potential YES YES Winding Resistance YES YES
Commutation Check YES YES High Potential YES YES
Voltage Regulation NO YES Commutation Adjustment YES YES
Vibration Test YES YES Saturation Curve NO YES
Saturation Curve NO YES Voltage Regulation NO YES
No Load Speed YES NO Running Full Load YES YES
Running Full Load YES YES Speed Regulation (base speed
and top weak field speed) YES NO
CHARGES
Tests Net Price Addition
A. Certified Test Report - Electrically duplicate machine previously tested $300 net per motor
B. Unwitnessed Routine Test - 5 copies of certified test reports $300 net per motor
C. Witnessed Routine Tests - 5 copies of certified test reports $1800 net per motor; Add 2 weeks lead time
D. Unwitnessed Complete Test - 5 copies of certified test reports $4250 net per motor; Add 2 weeks lead time
E. Witnessed Complete Test - 5 copies of certified test reports $5500 net per motor; Add 3 weeks lead time
Curves Net Price Addition
A. Speed and Torque vs Load Current Curve $300 net
B. HP and Efficiency vs Load Current Curve $300 net
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.31
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
32 TEMPERATURE DETECTORS
A bimetallic temperature-sensing device is mounted on the commutating coil. The device is available with normally
open or normally closed contactors. Specify whether normally open or normally closed contacts are required. (Included
as standard on TEUC motors). Thermostats are typically normally closed and the opening temperature is between
120°C to 150°C. Thermostats with special temperature rating are non-standard. Refer to GE when required.
Thermostat ratings for DPFG and
TE motors (standard on TEAAC, TEWAC
and explosionproof motors)
Maximum Current Ratings (Normally open or normally closed contacts)
Load 125V AC 250V AC 600V AC 30V DC
Resistive 5 Amps 2.5 Amps 1 Amp 5 Amps
Inductive* 3 Amps 1.5 Amps 0.5 Amp
(Do not use above 600V AC)
1.5 Amps
(Do not use above 30V DC)
* Suitable for pilot duty only (relay coils)
For the following types of temperature detectors mounted in the locations indicated, see below for pricing.
Price does not include electronic sensor module.
TEMPERATURE DETECTORS
LOCATION
Bearing Commutator Field or Shunt Field
List Price Addition
a. Thermostats Not Available $310
b. Thermistors (PTC Type) Not Available $450
c. Resistance Temperature Detectors (RTD)
Copper - 10 Ohm $2266 $900
Platinum - 100 Ohm $4532 $1800
Nickel - 120 Ohm $2266 $900
d. Thermocouples (Type J) $2266 Not Available
33 VERTICAL MOUNTING (FOOTED)
The following applies to vertically-operated foot- or flange-mounted, standard ball bearing, motors where no
external thrust is reflected back to the motor shaft. Refer to GE for external thrust limitations. For vertical brake
applications, refer to Modification Item 8a. Note: For crane motors, refer to page 3.11, Item 13.
All dripproof and splashproof motors which are mounted vertically require non-standard covers (the louvers are
rotated to provide protection in the vertical position). Totally enclosed motors require no modifications to the covers.
Frames CD180AT-CD320AT do not require internal modification for vertical mounting. Thus, a standard motor in
these frame sizes is suitable for vertical mounting.
Frames CD360AT-CD6900 require internal modification for vertical mounting. Thus, a standard motor in these frame
sizes is not suitable for vertical mounting. The CD365AT-CD5010AY frames require shaft seals for vertical mounting
with the shaft down. The CD365AT-CD5010AY frames mounted shaft up require additional modifications to the
bearings and shaft. Refer to GE for applications involving vertical mounting of CD6000-CD6900 frames.
Enclosure CD180AT-CD320AT CD365AT-CD5010AY CD6000-CD6900
Vertical Shaft Down DP Add 2% Add 2% + $596
Refer to GE
TE No Price Addition* Add 2% + $596*
Vertical Shaft Up DP Add 2% Add 2% + $1050
TE No Price Addition Add 2% + $1050
Notes:
DP Dripproof
TE Totally Enclosed
* If TEFC waterproof, contact GE
For CD180AT, will not meet NEMA definition for DPFG, the motor is considered “fully guarded”. (Refer to page 3.16, Item 17 for C-Face and D-Flange pricing.)
3.32
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
34 VOLTAGES
34a Armature, Non-Standard
Provides for special armature voltages, with same speed range and operating characteristics as standard ratings.
Frames may be different than standard.
VOLTAGES, ARMATURE (NON-STANDARD) List Price Addition Note: For voltages not
listed in the table, refer
to GE with application
requirements, including
type of power supply,
speed range by field
control, and armature-
voltage control.
Voltage HP Base Speed RPM
120 1-3 1150-3500 No price addition
105-130 Contact GE
550 1-250
300-2000
ALL
ALL
No price addition
Add 3%
600 7 1/2-4500 ALL No price addition
700 500-1000
1250-4500
300-1150
ALL
Add 6%
No price addition
750 300-1000
1250-4500
ALL
ALL
Add 6%
Add 3%
34b Field, Standard
The following field voltages are standard. Voltages listed are nominal values. For more exact values, refer to GE.
Standard Armature Voltages
Standard Field Voltages
(Frames CD5010AY and Below)
Standard Field Voltages
(CD6000-CD6900 frames)
180 100, 200
240, 500, 700 120, 150, 240, 300 120, 150, 200, 240, 300
34c Field, Non-Standard
Non-standard field voltages can be obtained by using the standard fields and adding a series resistance. For
non-standard field voltages and pricing, refer to GE.
35 WARRANTY EXTENSION
The standard warranty for Kinamatic motors is 24 months from title transfer to third party, and 30 months from
shipment by seller, whichever occurs first. The CD6000 standard warranty is 12 months from title transfer to 3rd
party, and 18 months from shipment by seller, whichever occurs first. Extended warranties are available as follows:
35a Kinamatic Warranty Extension
From Title Transfer to 3rd Person From Shipment by Seller List Price Addition
36 months 42 months Add 3% of Motor NET Price
35b CD6000 Series Warranty Extension
From Title Transfer to 3rd Person From Shipment by Seller List Price Addition
24 months 30 months Add 3% of Motor NET Price
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.33
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION

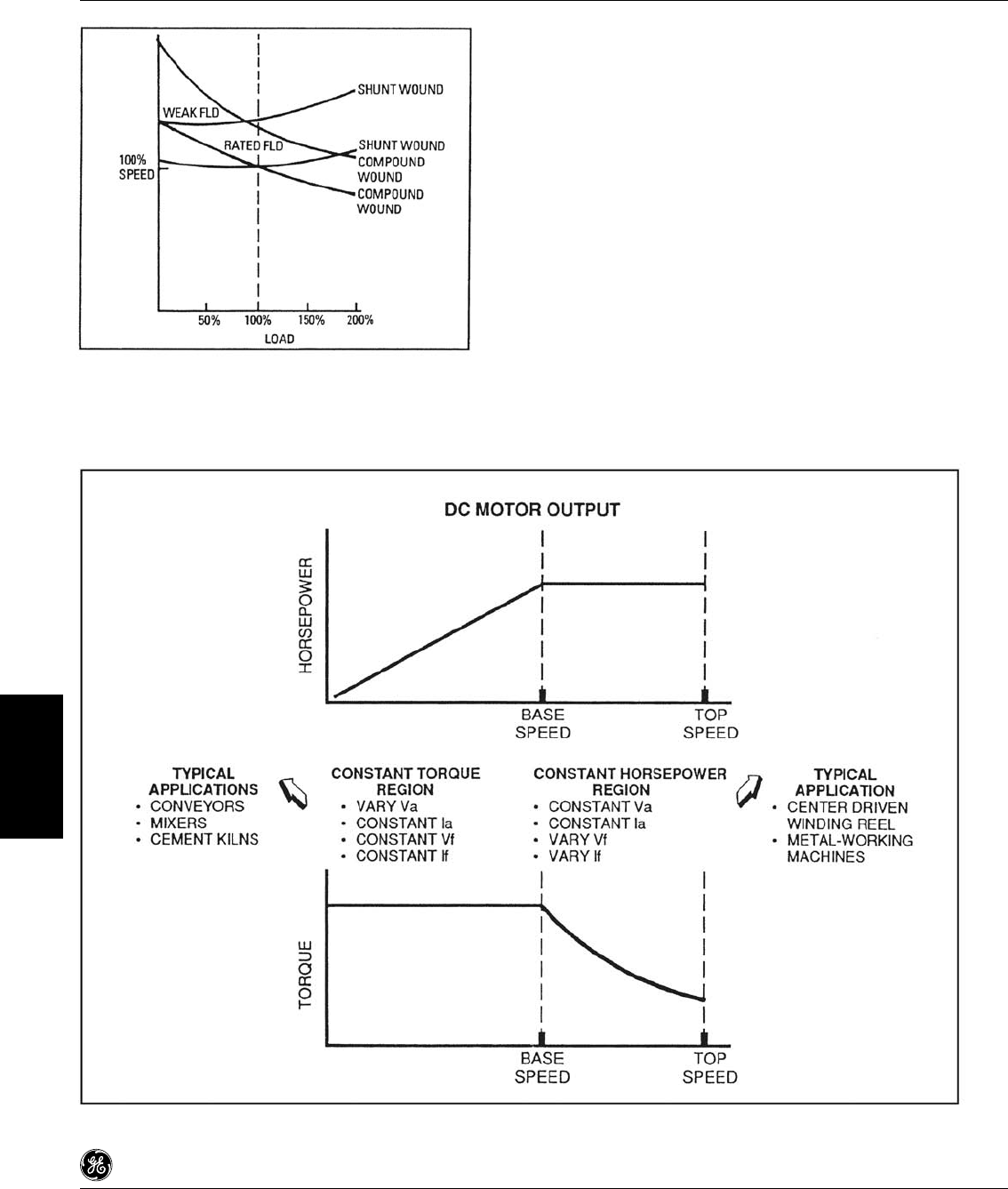

36 WINDINGS, STABILIZED SHUNT, COMPOUND OR SERIES
Stabilized shunt, compound, or series windings are not available on frames CD329AT, CD6700, CD6800 and
CD6900. These frames are only available with shunt wound fields. Also not available on some CD328AT frames.
Refer to GE for all design verification.
Standard motors are shunt wound. Where speed regulation greater than that provided by shunt wound is required,
a compound or stabilized shunt wound motor may be specified.
Standard compound wound motors will have approximately 15-25% speed regulation at rated speed. For other
degrees of compounding, refer to GE.
CAUTION:
Compound wound motors are generally not suited to applications requiring speed control by field weakening.
In no case should the field be weakened more than enough to obtain 125% of rated speed. When use with
field weakening is intended, the order must specify the speed range. The nameplate will show maximum
allowable speed.
WARNING:
Series motor excitation is entirely dependent on load. The application of series motors should be avoided
where the load may drop below 25% rated torque or where the load is not solidly coupled, since the motor
may overspeed. Standard base speeds of series wound motors are different than shunt wound motors. Refer
to GE for exact speeds.
MOTOR LIST PRICE
DESCRIPTION
Up to
$2500
$2501
to
$3592
$3593
to
$5578
$5579
to
$9748
$9749
to
$13218
$13219
to
$23922
$23923
to
$42136
$42137
to
$61750
$61751
to
$98628
$98629
to
$157704
$157704
to
$252288
$252289
to
$403650
$403651
and up
List Price Addition
For Stabilized Shunt,
Compound or
Series Windings*
$244 $244 $330 $424 $516 $690 $892 $1540 $2430 $4860 $9720 $19440 Not
Available
* For frames where this is not available, see above.
3.34
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
ITEM DESCRIPTION
37 MOD SHOP PRICING
Modification
FRAME SIZE
CD180AT CD210AT-
CD280AT CD320AT CD360AT CD400AT CD500AT-
CD5010AY
Mod Shop Fee $250 $320 $650 $720 $1200 $1600
Standard C-Face Endshield (Specify 4.5" or 8/5" for CD180AT) $200 $725 $1200 $3000 N.A. N.A.
Conduit Box:
Condulet Off Main Conduit Box (for accessory leads) $605 $605 $605 $825 $825 $825
Waterproof $495 $495 $495 $990 $990 $990
Covers:
Transparent* (Lucite® or equivalent) $300 $300 $450 $450 $450 $450
Transparent* (Lexan® or equivalent) $600 $600 $900 $900 $900 $900
Auxiliary or Customer Nameplate $60 $60 $60 $60 $60 $60
Enclosure Conversions:

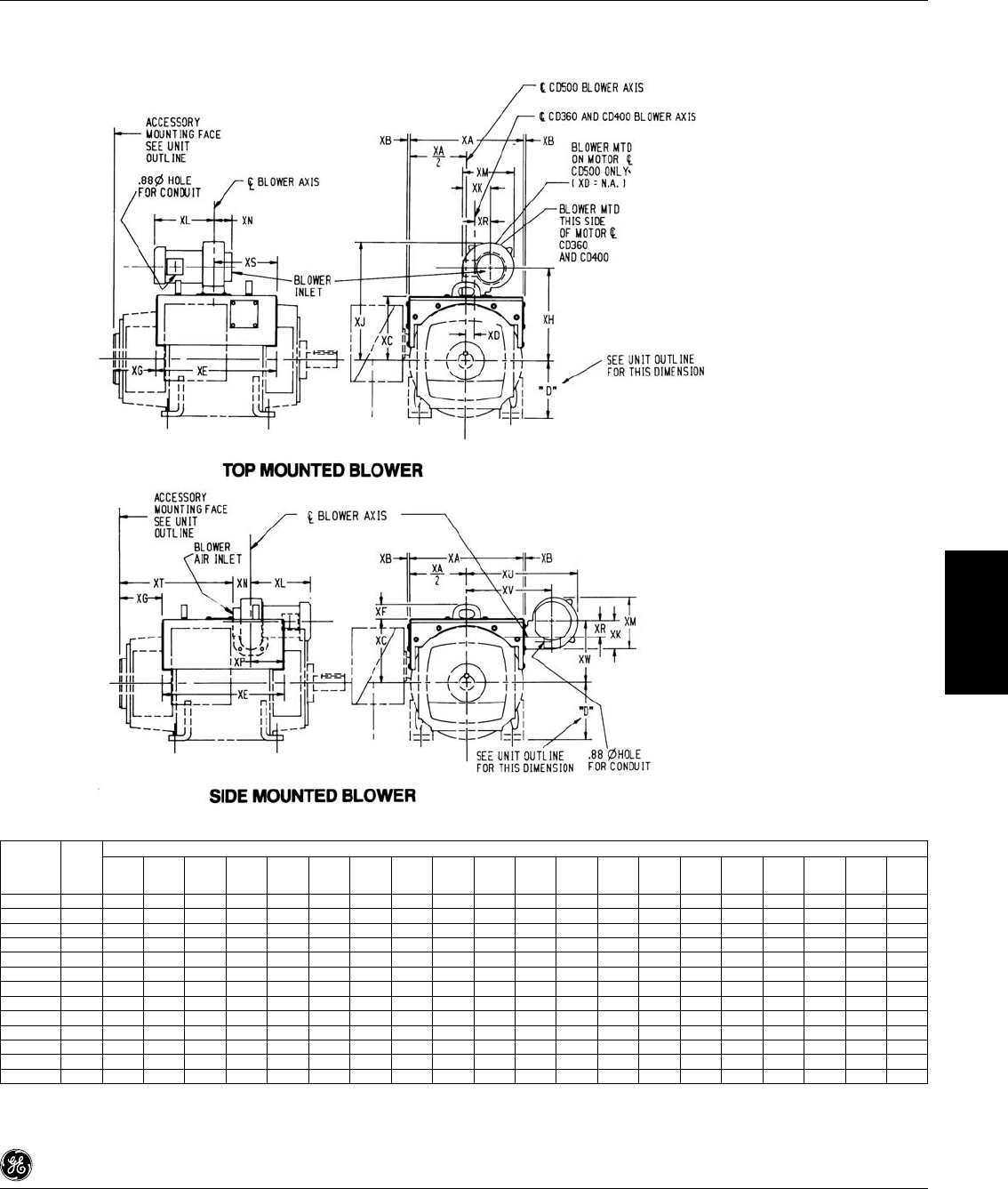

DPFG-BV (Blower, with filter, mounted on comm end only)
- 230/460 Volt, 60Hz $1600 $2850 $3150 $3500 $4100 $5250
DPFG (Self-Ventilated - Motor must have internal fan, Contact GE) $300 $300 $600 $600 $600 $1200
DPFG-SV (Separately Ventilated on comm end only) $300 $300 $600 $600 $600 $1200
SPFG Splashproof Fully Guarded (add for Blower as required) $300 $300 $600 $600 $600 $1200
Sliding Base (Horizontal mounting only) $300 $450 $600 $1100 $2000 $2600
Transition Base (Horizontal mounting only) $450 $900 $1200 $2200 $4000 $5200
Space Heater (120V AC Standard - Inquire for optional voltages) $640 $640 $640 $640 $640 $640
Tachometers (Analog)
Type AN-AC 45 or 90V/1000 RPM $1975 $1975 $1975 $1975 $1975 $1975
Form Y (PY), DC 50 or 100V/1000 RPM (max speed 2500 RPM) $5400 $5400 $5400 $5400 $5400 $5400
Type BC
- BC42, 50 or 100V/1000 RPM $8175 $8175 $8175 $8175 $8175 $8175
- BC46, 50, 100, or 200V/1000 RPM $11000 $11000 $11000 $11000 $11000 $11000
Type BC Waterproof or Dustproof
- BC42, 100V/1000 RPM $9025 $9025 $9025 $9025 $9025 $9025
- BC46, 100V/1000 RPM $11800 $11800 $11800 $11800 $11800 $11800
Tachometers (Digital)
Avtron AV850 SMART-Tach II™ (Type AN-DG) (HD)
- 240, 600, 1024, or 1200 ppr, single output $5300 $5300 $5300 $5300 $5300 $5300
- 240, 600, 1024, or 1200 ppr, dual output $7750 $7750 $7750 $7750 $7750 $7750
Northstar RIM Tach™ RT8A
- 240, 512, 600, 1024, or 1200 ppr, single output $4650 $4650 $4650 $4650 $4650 $4650
- 240, 512, 600, 1024, or 1200 ppr, dual output $5750 $5750 $5750 $5750 $5750 $5750
Tachometer Mounting Only
Form Y (PY) Mounting Kit Only Assembled to Motor
- Includes Coupling, Stub Shaft, Mounting Bracket for PY $1850 $1850 $1850 $1850 $1850 $1850
Type C-Face Tachometer Mounting Kit Only Assembled to Motor
- Includes Coupling, Stub Shaft, Mounting Bracket $1850 $1850 $1850 $1850 $1850 $1850
Mounting Customer-supplied C-Face tachometer
- Includes Coupling, Stub Shaft, Mounting Bracket $3325 $3325 $3325 $3325 $3325 $3325
Vertical (Frame will be supplied with feet)
* Not Available on all CD180AT frames or CD210AT TEFC Frames
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications
Motor Pricing General
Information
3.35
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
ITEM DESCRIPTION
37
Cont’d
Pricing Example
D450 5CD184TA094B070 Motor List $18,098
Mod Shop Fee $650
Lexan Covers $900
120V Space Heater $640
Mod Motor List $21,050
GO-2A Multiplier x 0.5
Mod Motor Net $10,525
Additional Information:
1. MOTOR – List price from GE Standard Products Catalog or Elitenet
2. MOD SHOP FEE – List price per the appropriate frame size from the top row of this price list
3. MODIFICATION LIST PRICE – Add price(s) for all modifications from the price list
4. GE MULTIPLIER SYMBOL – Use your appropriate multiplier based on multiplier symbol for stock motor
5. MULTIPLIER TIMES TOTAL LIST = NET PRICE
If you have any questions, or require a modification that is not listed, please contact your GE Sales
Representative or call 800-541-7191.
Pricing subject to change without notice. Verify pricing and lead time with your GE Sales Representative at
time of order.
3.36
Accessories and Modifications
CD180AT through CD6900
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other
Application
Information
Outline
Dimensions
Accessories &
Modifications
Accessories &
Modifications Motor Pricing
General
Information
Notes
4.1
www.gemotors.com 800-541-7191 GEP387M 09/11 Prices and data subject to change without notice.
Terms Other Application
Information
Outline
Dimensions
Accessories &
Modifications
Modifications
Pricing
Motor Pricing General
Information
Outline Dimensions
Index
Frame Size Outline Page
L182AT to 189AT. . . . . DPFG, TENV . . . . . . . . 4.2
L182ACY to 189ACY . . DPFG, TENV . . . . . . . . 4.3
L182ATC to 189ATC. . . DPFG, TENV . . . . . . . . 4.4
L182ATD to 189ATD . . DPFG, TENV . . . . . . . . 4.5
L182AT to 189AT. . . . . TEFC . . . . . . . . . . . . . 4.6
L182ACY to 189ACY . . TEFC . . . . . . . . . . . . . 4.7
L182ATC to 189ATC. . . TEFC . . . . . . . . . . . . . 4.8
L182ATD to 189ATD . . TEFC . . . . . . . . . . . . . 4.9
218AT to 329AT . . . . . DPFG, TENV . . . . . . . . 4.10
218ATC to 329ATC . . . DPFG, TENV . . . . . . . . 4.11
218ATD to 329ATD . . . DPFG, TENV . . . . . . . . 4.12
218AT to 2110AT . . . . TEFC . . . . . . . . . . . . . 4.13
258AT to 328AT . . . . . TEFC . . . . . . . . . . . . . 4.14
365AT to 5010AY . . . . DPFG, TENV . . . . . . . . 4.15
365ATD to L508ATD . . DPFG, TENV . . . . . . . . 4.16
365AT to 5010AY . . . . Conduit Box . . . . . . . . 4.17
365AT to L409AT . . . . TEFC . . . . . . . . . . . . . 4.18
188AT to 409AT . . . . . Explosionproof . . . . . . 4.19
188ATC to 189ATC . . . Explosionproof . . . . . . 4.20
366AT to L508AT . . . . TEAAC. . . . . . . . . . . . 4.21
5010AY . . . . . . . . . . TEAAC. . . . . . . . . . . . 4.22
327AT to L508AT . . . . TEAO . . . . . . . . . . . . 4.23
210AT to 5010AY . . . . Air Openings. . . . . . . . 4.24
180AT to 280AT . . . . . Blower Ventilated. . . . . 4.25
320AT . . . . . . . . . . . Blower Ventilated. . . . . 4.26
360AT to 400AT . . . . . Blower Ventilated. . . . . 4.27
500AT . . . . . . . . . . . Blower Ventilated. . . . . 4.28
6050 to 6066 . . . . . . DPFG-SV, ESV . . . . . . . 4.29
6154 to 6177 . . . . . . DPFG-SV, ESV . . . . . . . 4.30
6259 to 6280 . . . . . . DPFG-SV, ESV . . . . . . . 4.31
6766 to 6785 . . . . . . DPFG-SV, ESV . . . . . . . 4.32
6873 to 6896 . . . . . . DPFG-SV, ESV . . . . . . . 4.33
6977 to 6999 . . . . . . DPFG-SV, ESV . . . . . . . 4.34
6000 to 6900 . . . . . .
Blower Ventilated, . . . .
No Filter
4.35
6000 to 6900 . . . . . .
Blower Ventilated, . . . .
With Filter
4.36
6000 to 6900 . . . . . .
Splashproof, . . . . . . . .
Blower Ventilated
4.37
6000 to 6200 . . . . . . TEAAC. . . . . . . . . . . . 4.38
6700 to 6900 . . . . . . TEAAC. . . . . . . . . . . . 4.39
Frame Size Outline Page
6000 to 6200 . . . . . . TEWAC . . . . . . . . . . . 4.40
6700 to 6900 . . . . . . TEWAC . . . . . . . . . . . 4.41
6050 to 6066 . . . . . . Air Openings . . . . . . . . 4.42
6154 to 6177 . . . . . . Air Openings . . . . . . . . 4.43
6259 to 6280 . . . . . . Air Openings . . . . . . . . 4.44
6766 to 6785 . . . . . . Air Openings . . . . . . . . 4.45
6873 to 6896 . . . . . . Air Openings . . . . . . . . 4.46
6977 to 6999 . . . . . . Air Openings . . . . . . . . 4.47
180AT to 5010AY . . . . Accessory Mountings . . 4.48
6000 to 6900 . . . . . . Accessory Mountings . . 4.49
180AT to 500AT . . . . . Accessory Couplings. . . 4.50
and 6000 to 6900
180AT to 500AT . . . . . Accessory Adapters . . . 4.51
and 6000 to 6900
180AT to 6900 . . . . . . Speed Limit Device . . . . 4.52
180AT to 6900 . . . . . . Avtron Tachometer. . . . 4.53
180AT to 6900 . . . . . . Avtron Tachometer. . . . 4.54
180AT to 6900 . . . . . . Type AN Tachometer . . 4.55
CD180AT to CD6900 . . Northstar Tachometer. . 4.56
CD180 to CD6900. . . . Northstar Tachometer. . 4.57
CD180 to CD6900. . . . Dynapar Encoder. . . . . 4.58
180AT to 6900 . . . . . . Dynapar Rotopulse. . . . 4.59
180AT to 6900 . . . . . . eXcellon
®
Type BC . . . . 4.60
Tachometer
180A
