Data Sheet
December 200
4
Rev
1.4
Bluetooth 1.2 USB module
(
B
M
-
GP
-
CS
-
0
8
)
Introduction
The Bluetooth Class 2 Module (model number
BM-GP-CS-08) is a small module with 10-way
connector that provides a complete 2.4GHz
Bluetooth system. This ready-to-use Class2
Bluetooth module provides a fully compliant
Bluetooth system V1.2 for data and audio
communications.
This module also provides the coexistence
solution that is critical for Notebook
implementation. The coexistence solution
includes AFH, and WCS (Wireless
Coexistence Solution). Activity Signaling is an
option.
www.usi.com.tw
Feature
l Fully Qualified Bluetooth v1.2 system
l Enhanced Data Rate(EDR) compliant
with v0.9 of specification for both
2Mbps & 3Mbps modulation modes
l Scatternet Support
l With small size suitable for compact
system integration. Low power
consumption, extend the battery life.
l 2.402 – 2.4835 GHz frequency band.
l Support for 802.11b/g Coexistence
including Intel WCS (Wireless
Coexistence System).
l Integrated Printed Antenna
l Easy for integration into mobile and
handheld device with flexible system
configuration and antenna design.
l
On board 8 Mbits flash memory for
firmware upgrade
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
1

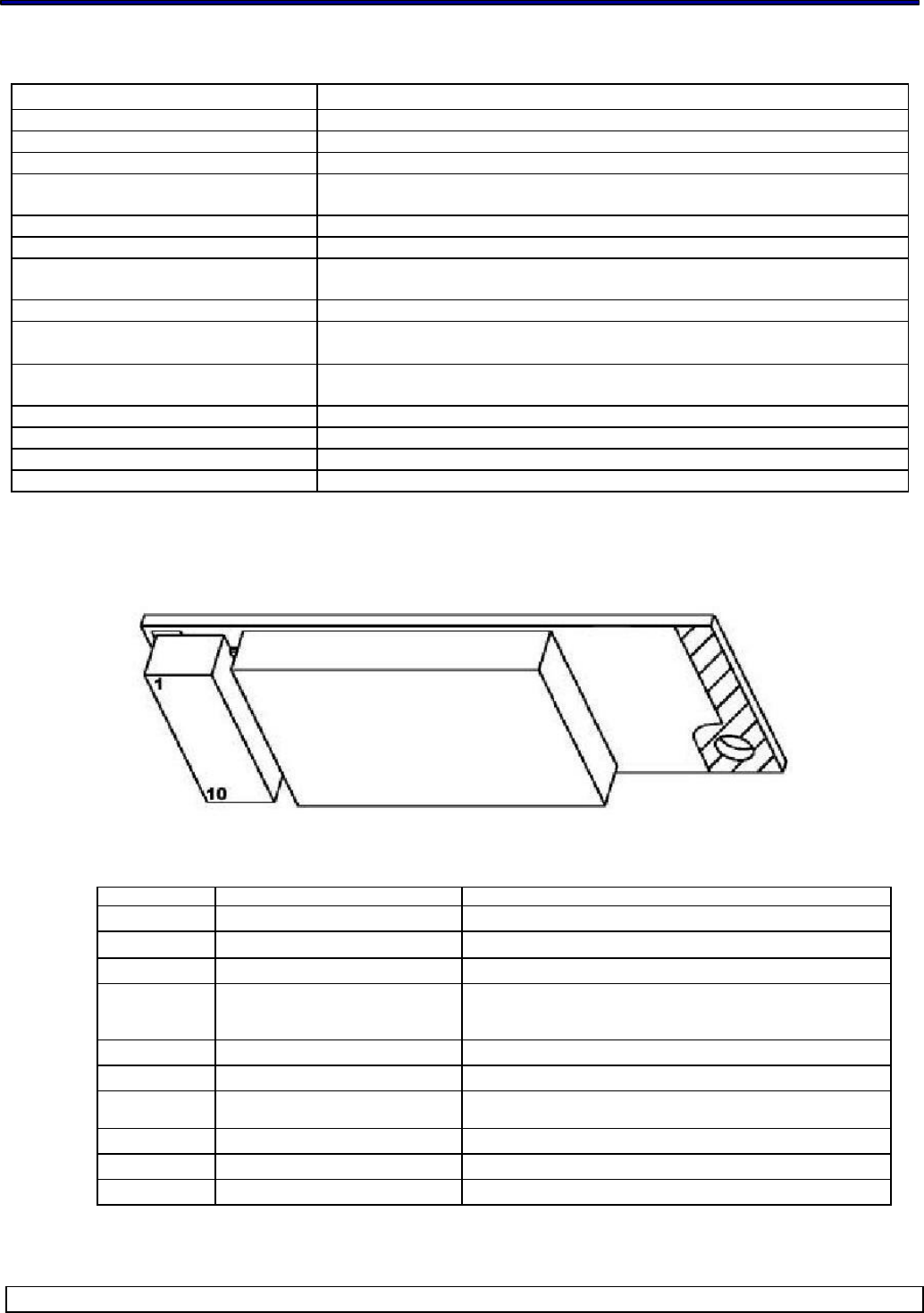

General Description
Features Description
Standards Fully compliant with BluetoothTM 1.2 Standard
Frequency Band 2.402GHz ~ 2.4835GHz
Sensitivity -82 dBm
Output Power 4 dBm max with power control (Maximum Power measurement is from
chip set)
Integrated Antenna Peak Gain @ 2.45GHz: 0.5dBi
Coverage 10m ~20m (Varies depending on operating environment)
Temperature Operating temperature: 0 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Operating Voltage 3.3V DC +/- 10%
Power Consumption Peak RF current during TX burst: 65 mA
Peak RF current during RX burst: 47 mA
Data Rate Asynchronous:723.2kbps/57.6kbps
Synchronous:433.9kbps/433.9kbps
Interface JST SM10B-SRSS-TB connector
Dimensions Length: 36.0 mm, Width: 13.8 mm, Height: 3.8 mm
Weight 2.0 grams +/- 15%
Operating systems Windows 98SE/ME/2000/XP
Electrical Connector Pinout
Figure 1: Connector pin assignment
Pin Number
Pin Name Description
1 GND Ground
2 USB_D+ USB D+
3 USB_D- USB D-
4 RSVD Reserved for BT_Active output to 802.11b for Co-
Existence.
This is optional if you need Activity Signalling
scheme.
5 BT_Priority / Ch_Clk (PIO4) BT Priority and Channel Clock for WCS.
6 HW_RADIO_DIS# (Optional) Disable radio transmissions when low
7 Ch_Data (PIO6) Channel Data for WCS (Standard). Or, WLAN_
Active input
from 802.11b for Activity Signalling which is optional.
8 +3.3V 3.3V power input
9 LED LED indicator for radio activity
10 GND Ground
Table 2: Connector pin assignment
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
2

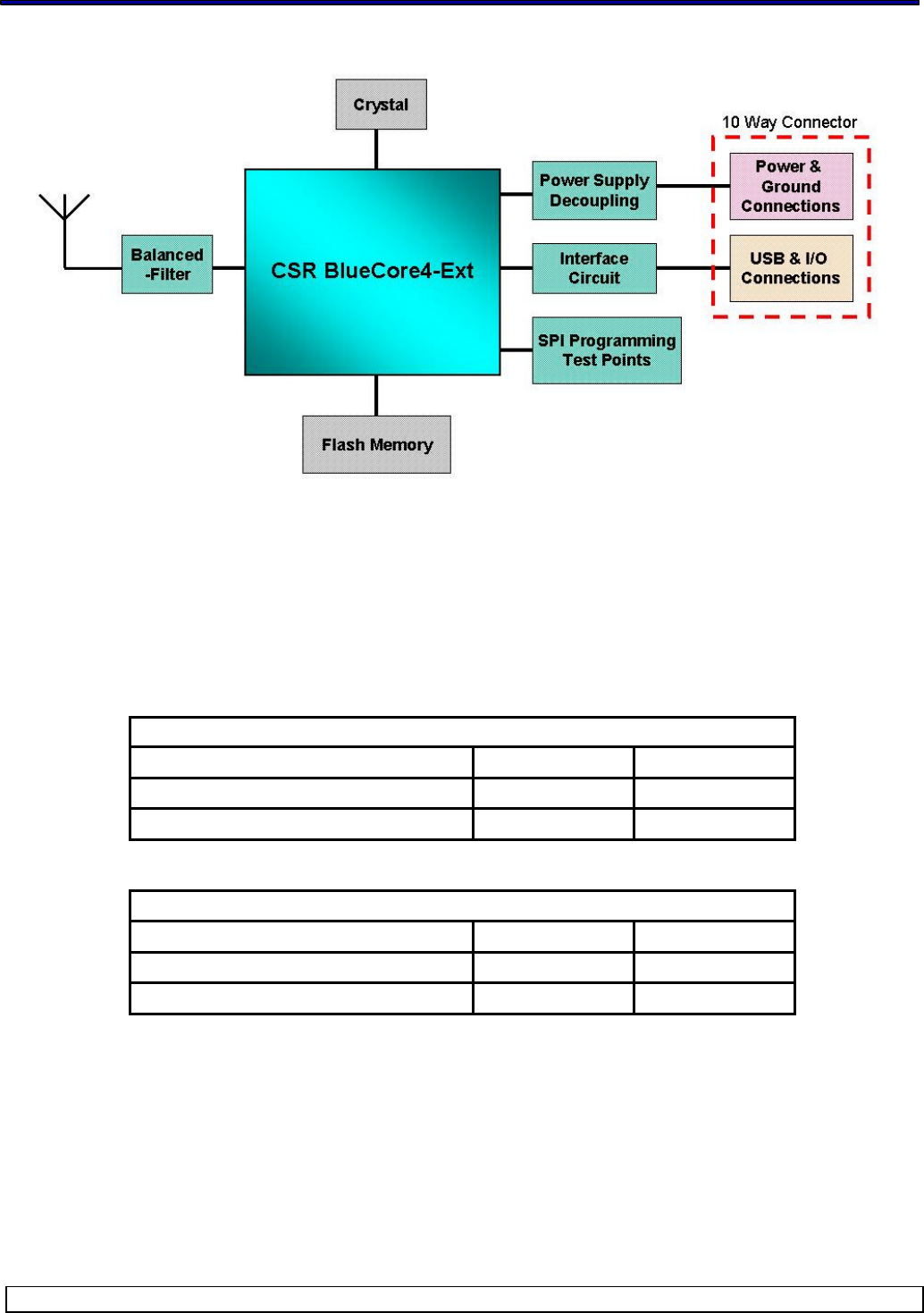

Block Diagram
Figure 2: Module Block Diagram
Electrical Characteristics
Absolute Maximum Ratings
Rating Min Max
Storage Temperature -40 °C +85 °C
Supply Voltage: VDD -0.40V +3.60V
Recommended Operating Conditions
Operating Condition Min Max
Operating Temperature Range* 0 °C +70 °C
Supply Voltage: VDD +3.0V +3.60V
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
3
Input/Output Terminal Characteristics
Digital Terminals Min Typ Max Unit
Input Voltage
VIL input logic level low (VDD=3.0V) -0.4 +0.8 V
VIH input logic level high 0.7VDD
- VDD+0.4 V
Output Voltage
VOL output logic level low, (lO
= 4.0mA),
VDD=3.0V - - 0.2 V
VOH output logic level high, (lO = -
4.0mA),
VDD=3.0V VDD-0.2
- - V
USB Terminals Min Typ Max Unit
Input threshold
VIL input logic level low - - 0.3VDD V
VIH input logic level high 0.7VDD
- - V
Input leakage current
VSS < VIN< VDD -1 1 5 µA
CI Input capacitance 2.5 - 10 pF
Output levels to correctly terminated USB
Cable
VOL output logic level low 0 - 0.2 V
VOH output logic level high 2.8 - VDD V
Average Current Consumption
VDD=3.3V Temperature = 20°C
Mode Typ Unit
ACL data transfer 1Mbps USB (Slave) 50 mA
ACL data transfer 1Mbps USB (Master) 58 mA
Standby Mode (Connected to host, no RF activity) 10 mA
Deep Sleep 380 uA
Peak Current Consumption
VDD=3.3V Temperature = 20°C
Mode Typ Unit
Peak RF current during TX burst (+4 dBm , CW mode) 55.0 mA
Peak RF current during TX burst (0 dBm , CW mode) 52.0 mA
Peak RF current during RX burst (-82 dBm) 44.0 mA
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
4
Radio Characteristics
Radio Characteristics, VDD = 3.3V Temperature = +20°C
Receiver Frequency
(GHz) Min Typ Max Bluetooth
Specification Unit
2.402 - -82 -78 dBm
2.441 - -84 -80 dBm
Sensitivity at 0.1% BER
2.480 - -84 -80
≤−70
dBm
2.402 0 - - dBm
2.441 0 - - dBm
Maximum received signal at 0.1% BER
2.480 0 - -
≥-20
dBm
Transmitter Frequency
(GHz) Min Typ Max Bluetooth
Specification Unit
2.402 -3 4 - dBm
2.441 -3 4 - dBm
RF transmit power
2.480 -3 4 -
-6 ?to +4(4)
dBm
2.402 - 10 35 kHz
2.441 - 10 35 kHz
Initial carrier frequency tolerance
2.480 - 10 35
75
kHz
RF power control range 25 35 - ≥16 dB
20dB bandwidth for modulated carrier
- 820 1000 ≤1000 kHz
Drift ( five slot packet) - ±15 ±25 ±25 kHz
Drift Rate - ±250 ±400 ±400 Hz/µs
Frequency
(GHz) Min Typ Max Bluetooth
Specification Unit
2.402 140 165 175 kHz
2.441 140 165 175 kHz
?f1avg “Maximum Modulation”
2.480 140 165 175
140≤f1avg≤175
kHz
2.402 115 140 - kHz
2.441 115 140 - kHz
?f2max “Minimum Modulation”
2.480 115 140 -
≥115
kHz
Notes:
Results shown are referenced to input of the RF Balanced-Filter.
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
5
Radio Characteristics, C/I and Adjacent Channel Power
VDD = 3.3V Temperature = +20°C Frequency = 2441 MHz
Receiver Min Typ Max Bluetooth
Specification Unit
C/I co-channel - 9 11 ≤11 dB
Adjacent channel selectivity C/I F=F0+1MHz - -4 0 ≤0 dB
Adjacent channel selectivity C/I F=F0-1MHz - -4 0 ≤0 dB
Adjacent channel selectivity C/I F=F0+2MHz - -35 -30 ≤-30 dB
Adjacent channel selectivity C/I F=F0-2MHz - -21 -20 ≤-20 dB
Adjacent channel selectivity C/I F=F0+3MHz - -45 -40 ≤-40 dB
Adjacent channel selectivity C/I F=FImage - -18 -9 ≤-9 dB
Adjacent channel selectivity C/I F=F0-4MHz - -25 -20 ≤-20 dB
Transmitter Min Typ Max Bluetooth
Specification Unit
Adjacent channel transmit power F=F0±2MHz - -35 -20 ≤-20 dBm
Adjacent channel transmit power F=F0±3MHz - -45 -40 ≤-40 dBm
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
6

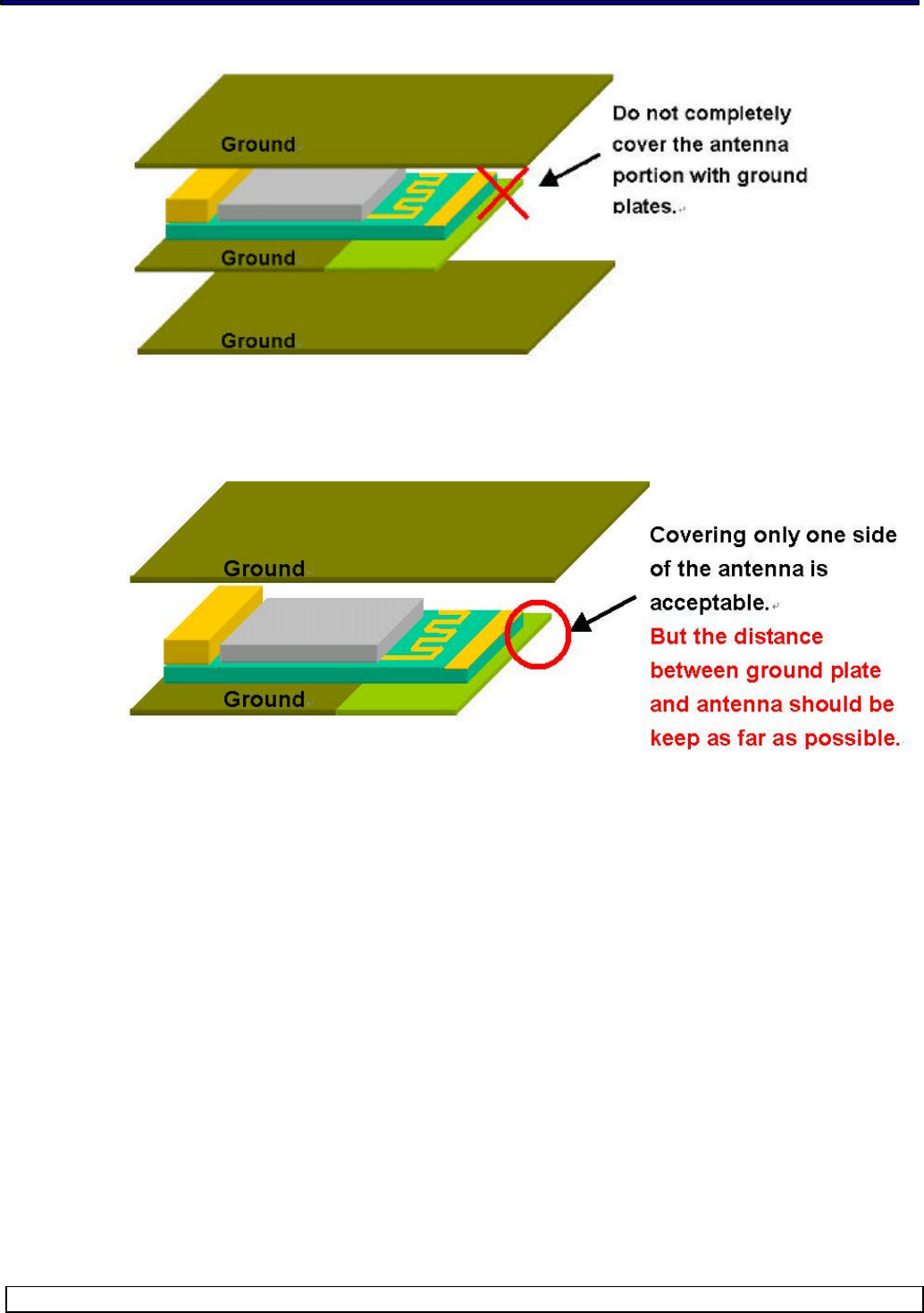

Mounting Guide for Antenna Radiation
In order to achieve longest communication range, please keep the area surrounding antenna free of grounding
or metal housing.
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
7
Impedance Matching of Antenna
BM-GP-CS-08 utilizes a meander line printed antenna for radiate communication.
Application environments, such as notebooks, PDAs, headsets or other handheld devices,
both have plastic housings, different motherboards and other mechanism structures. These
factors will cause the deviation of antenna resonant frequency. Therefore, impedance
matching of antenna should be optimized for various applications to achieve longest
communication range. Please consult USI for further information.
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
8

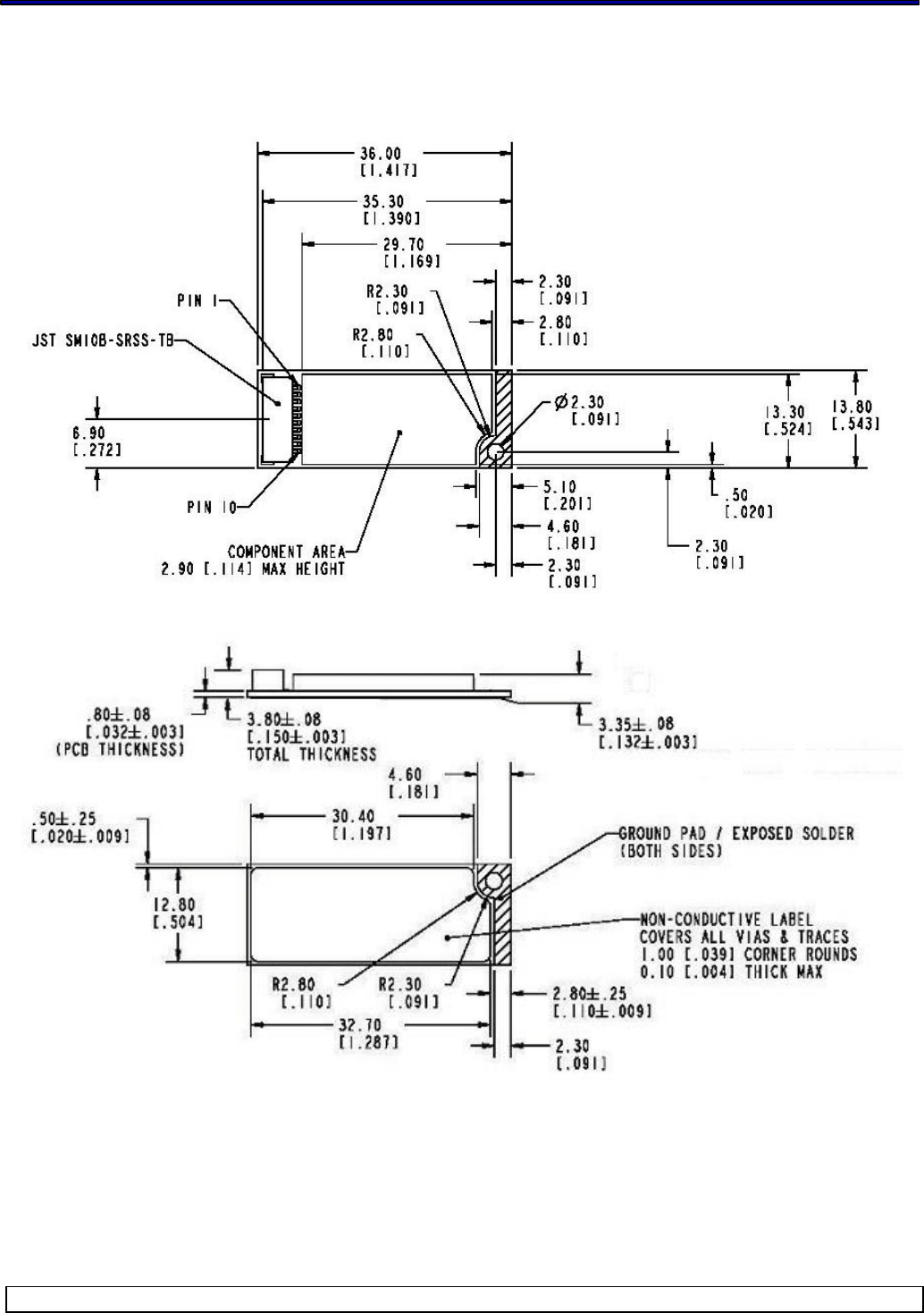

Mechanical Drawing
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
9

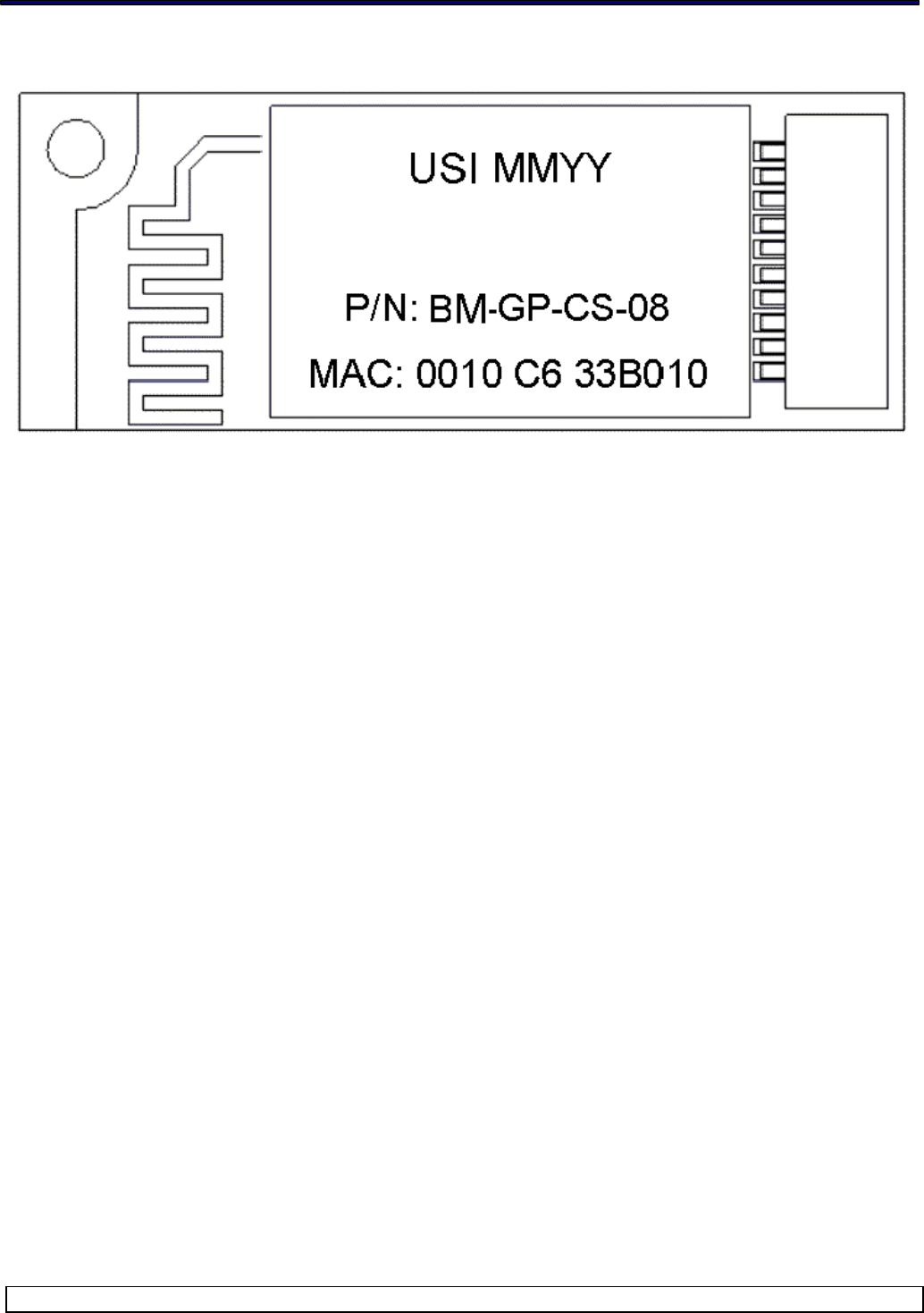

Laser Marking
Legend:
1. USI MMYY: MMYY is the date code. MM stands for month while YY stands for the last 2
digits of the year.
2. P/N: BM-GP-CS-08 is the the standard USI model number. This part number can be
customize to your specific part number.
3. MAC: MAC address.
Bluetooth USB Module (BM-GP-CS-08)
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
10

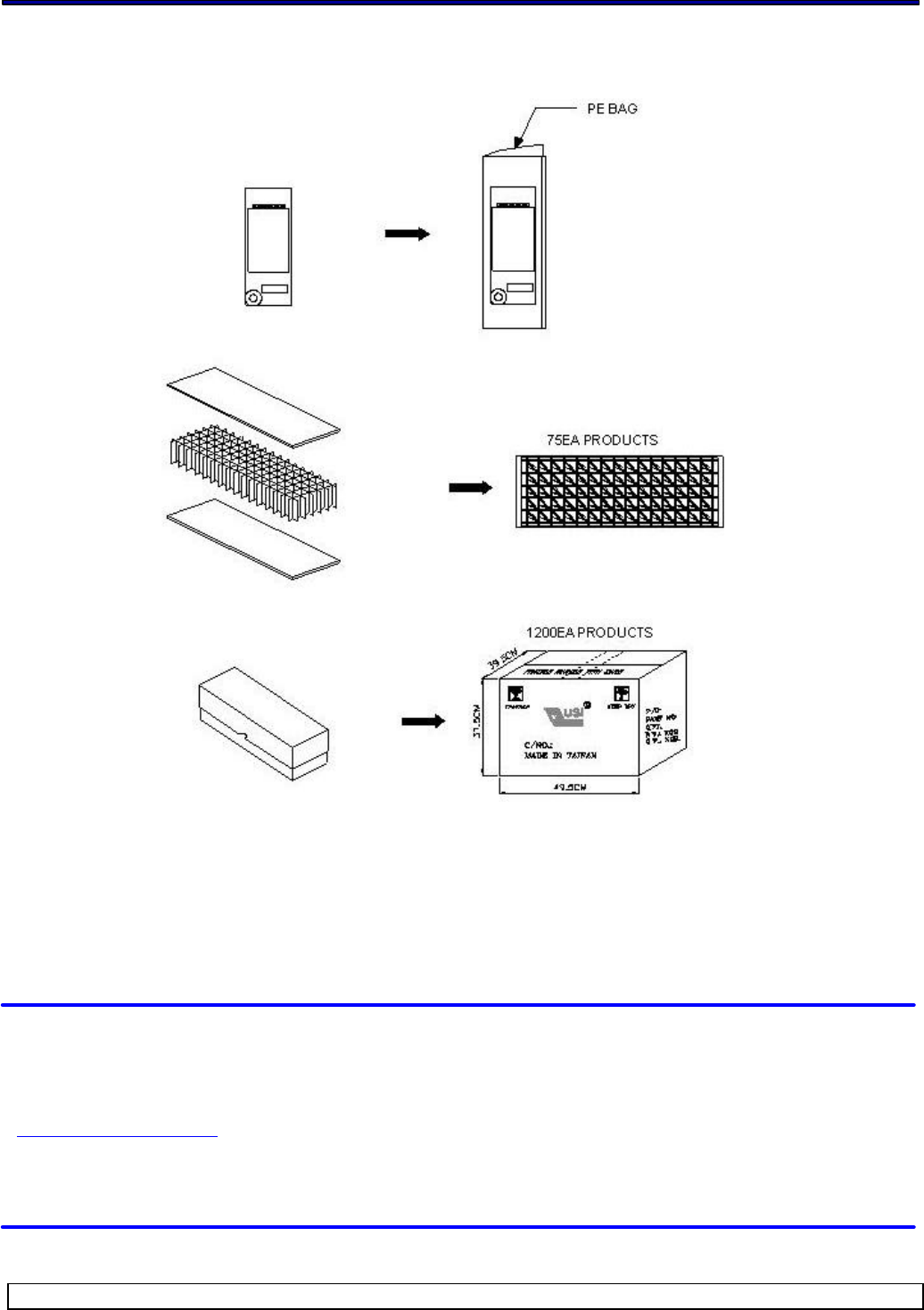

Packaging
