GemTek Technology WLTFSM13643 LTE B43 Cat 6 Single-Mode Indoor CPE User Manual
Gemtek Technology Co., Ltd. LTE B43 Cat 6 Single-Mode Indoor CPE
User Manual
1

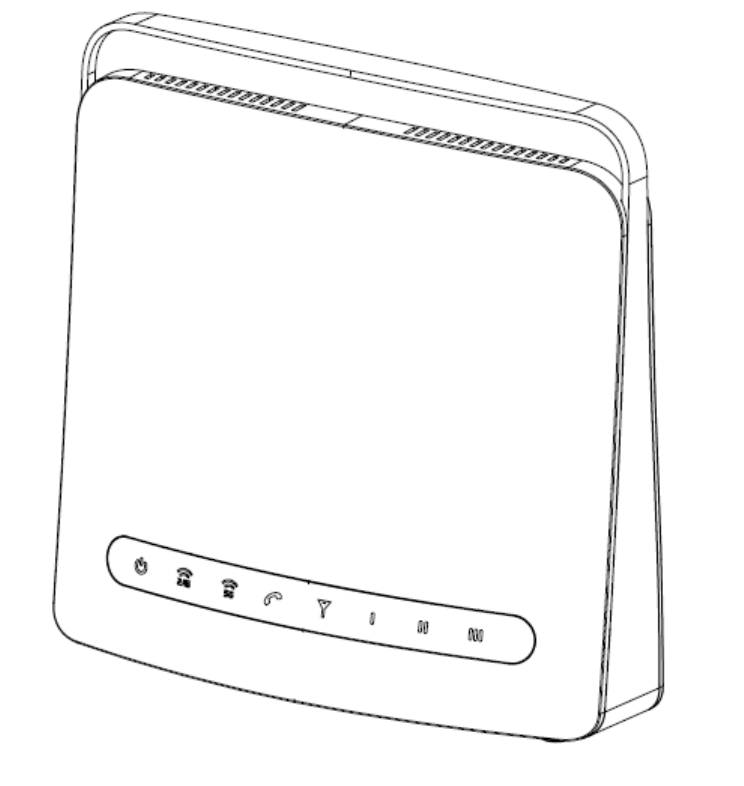

WLTFSM-136ACN
Quick installation Guide
2

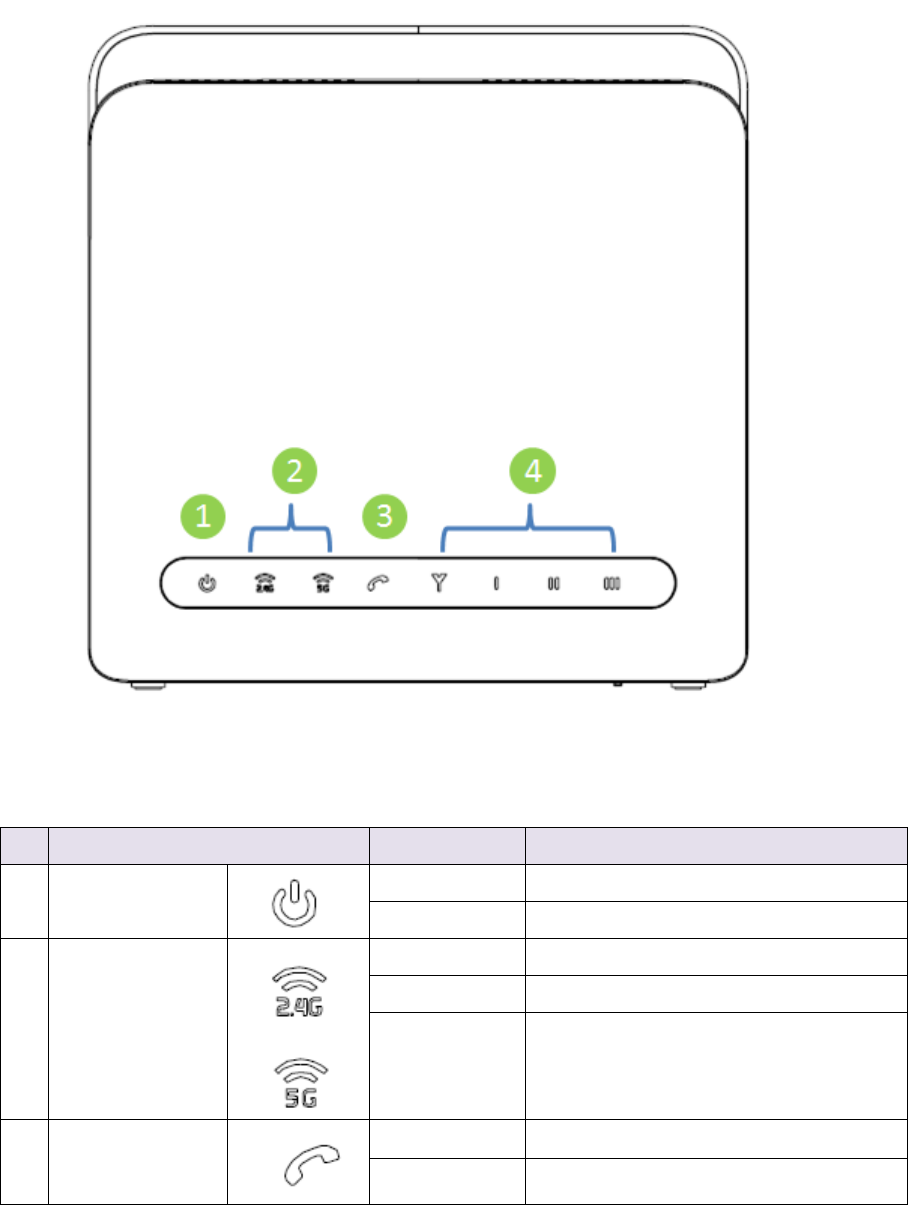

LED Indicators
LED Indication
Status
Description
1
Power
ON
Power ON
OFF
Power OFF
2
WiFi status
ON
Wi-Fi ON
OFF
Wi-Fi OFF
Flashing
Transmitting data
3
VoIP Status
ON
VoIP ON
OFF
VoIP OFF
3
4

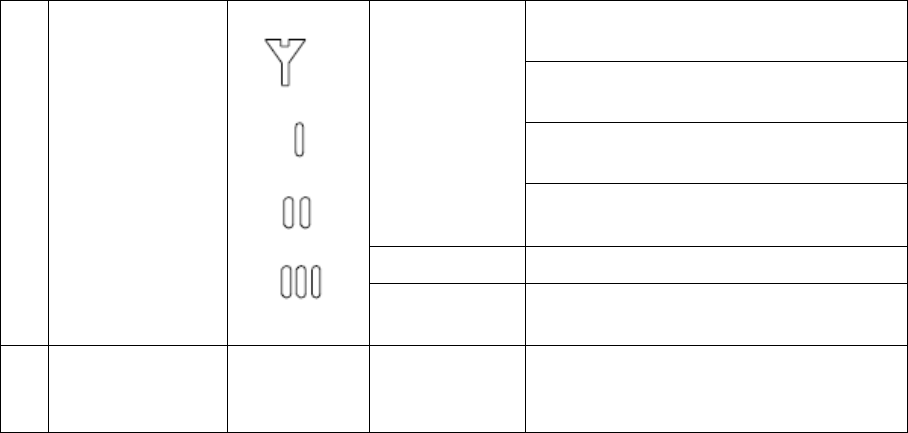

Signal
Strength
ON
Display signal strength
1 LED: 5dB < CINR < 10dB
2 LED: 10dB < CINR < 18dB
3 LED: 18dB < SINR
OFF
SINR < 5dB
Flashing
Scanning Base Station
5
Firmware
Upgrade
All LED
Flashing
4

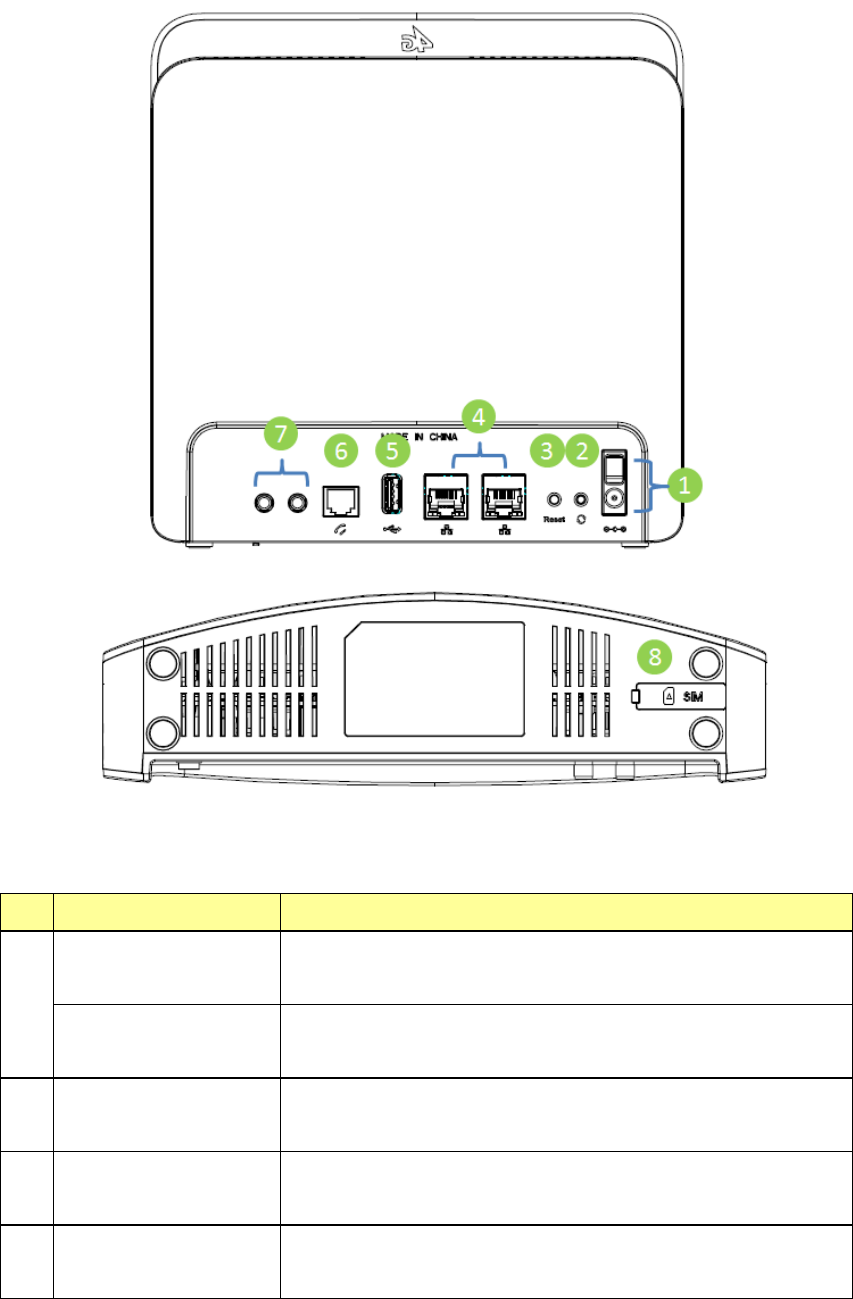

Connectors
Connector
Description
1
Power
(DC-12V Port)
The power port is where you connect the
enclosed power adapter.
Power On/Off
Switch
The on/off switch support to turn off device
2
WPS
Holds down the button for 5 seconds to WPS
enable
3
Reset
Holds down the button for 5-seconds to
factory defaults.
4
LAN – RJ -45
The LAN port allows you to connect Modem to
your PC or Hub using a Cat.5/6 Ethernet
5
network cable.
5
USB Type A Host
Support USB 2.0 Host
6
Voice– RJ-11
The voice port allows you to connect your
Phone to this Modem
7
Antenna
Connector
Support external Antenna with SMA
Connectors
8
USIM Slot
Support 2FF size ; 1.8V/3.3V USIM for LTE
Mode
6
Installation
Please follow the steps below to install the device:
Step1: Connect the device LAN port to your PC with a RJ-45 Ethernet
cable that is supplied.
Step2: Insert SIM card into the device with right direction.
Step3: Insert the power cord into the LTE Indoor CPE's DC-12V
power jack; and insert the plug into power outlet.
Step4: Switch ON the power. The device will start the booting
process. After a few seconds, the LED lights will start blinking.
7
Easy Setup
Please follow the steps below to configure your device through the
web interface:
Step1: Open the Web browser (Internet Explorer) and enter the
default IP address of the IDU CPE : http://192.168.15.1
Step2: Enter username/password to access the web management
interface.
http://192.168.15.1
Username : administrator
Password : administrator
The page displays in your browser after login; you can simply
configure the device settings.
8
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/519/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE
Directive 1999/519/EC:
EN 301 908-1 V7.1.1
EN 301 908-13 V6.2.1
EN 300 328 V1.9.1
EN 301 893 V1.8.1
EN 62311:2008
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 301 489-24 V1.5.1
EN 60950-1：2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications
and/or network services.
0560
Česky
[Czech]
[Jmé no výrobce] tímto prohlašuje, že tento [typ zařízení] je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede [fabrikantens navn] erklæ rer herved, at fø lgende udstyr
[udstyrets typebetegnelse] overholder de væ sentlige krav og øvrige relevante
krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklä rt [Name des Herstellers], dass sich das Gerä t [Gerä tetyp] in
Ü bereinstimmung mit den grundlegenden Anforderungen und den übrigen
einschlä gigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Kä esolevaga kinnitab [tootja nimi = name of manufacturer] seadme [seadme
tüü p = type of equipment] vastavust direktiivi 1999/5/EÜ põ hinõ uetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sä tetele.
English
Hereby, [name of manufacturer], declares that this [type of equipment] is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
9
Español
[Spanish]
Por medio de la presente [nombre del fabricante] declara que el [clase de
equipo] cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment]
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente [nom du fabricant] déclare que l'appareil [type d'appareil] est
conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE.
Italiano
[Italian]
Con la presente [nome del costruttore] dichiara che questo [tipo di
apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti
stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo [name of manufacturer / izgatavotāja nosaukums] deklarē, ka [type of
equipment / iekārtas tips] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo [manufacturer name] deklaruoja, kad šis [equipment type] atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart [naam van de fabrikant] dat het toestel [type van toestel] in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [isem tal-manifattur], jiddikjara li dan [il-mudel tal-prodott]
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, [gyá rtó neve] nyilatkozom, hogy a [... típus] megfelel a vonatkozó
alapvetõ kö vetelmé nyeknek é s az 1999/5/EC irá nyelv egyé b elõ írá sainak.
Polski
[Polish]
Niniejszym [nazwa producenta] oświadcza, że [nazwa wyrobu] jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese
]
[Nome do fabricante] declara que este [tipo de equipamento] está conforme
com os requisitos essenciais e outras disposiç õ es da Directiva 1999/5/CE.
Slovensko
[Slovenian]
[Ime proizvajalca] izjavlja, da je ta [tip opreme] v skladu z bistvenimi zahtevami
in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
[Meno výrobcu] týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky
a všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Valmistaja = manufacturer] vakuuttaa tä ten että [type of equipment = laitteen
10
[Finnish]
tyyppimerkintä ] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
11
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Country Code selection feature to be disabled for products marketed to the
US/CANADA
Operation of this device is restricted to indoor use only.
