Owner'sManual

Automatic StandbyGenerator

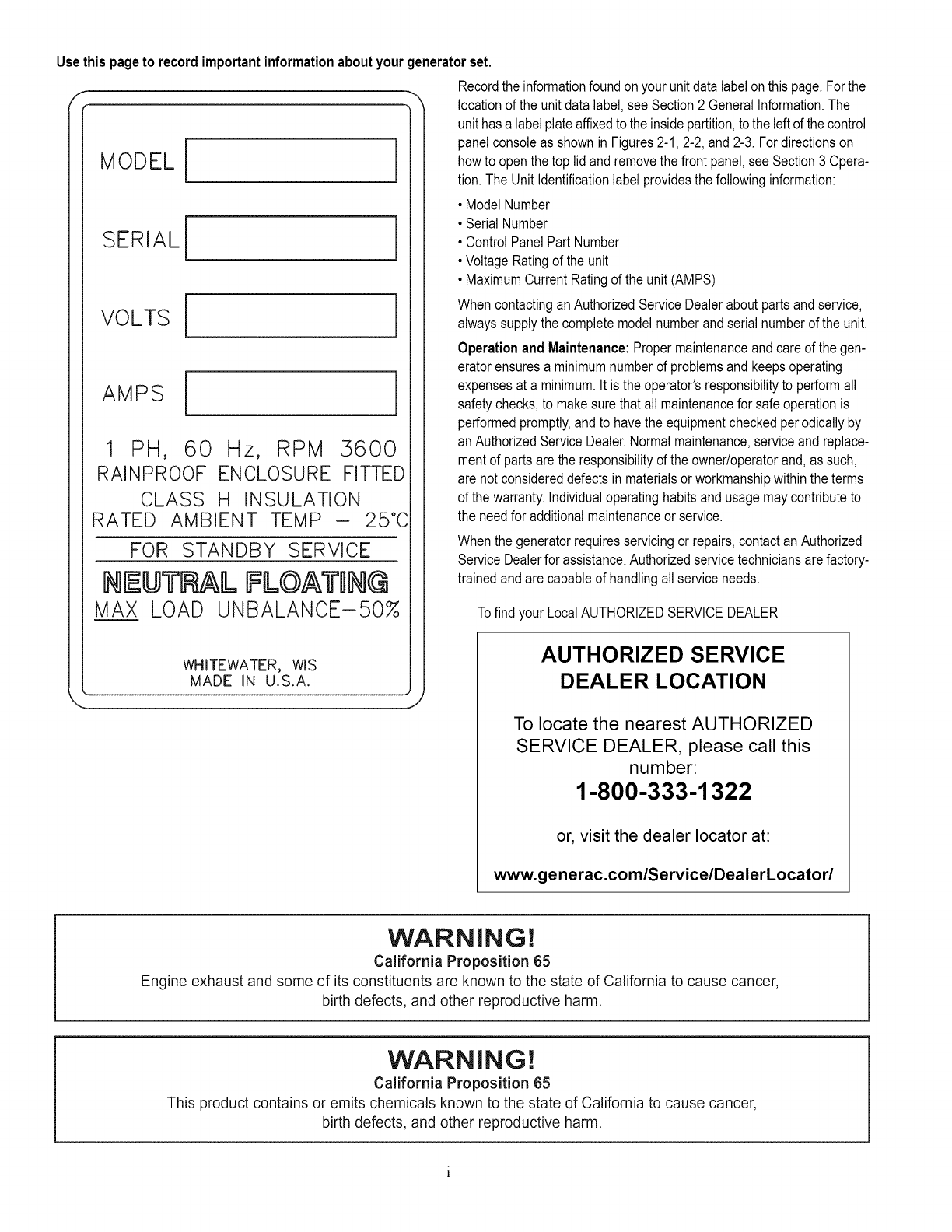

Usethispageto recordimportantinformationaboutyourgeneratorset.

,._ Recordthe informationfoundonyourunitdatalabelonthispage.Forthe

MODEL[

SERIAL[

VOLTS[

AMPS i

1 PH, 60 Hz, RPM 5600

RAINPROOF ENCLOSURE FITTED

CLASS H INSULATION

RATED AMBIENT TEMP - 25°C

FOR STANDBY SERVICE

NEUTRAL FL©AWIN@

MAX LOAD UNBALANCE-50%

location of the unit data label, see Section 2 General information. The

unit has a label plate affixed to the inside partition, to the left of the control

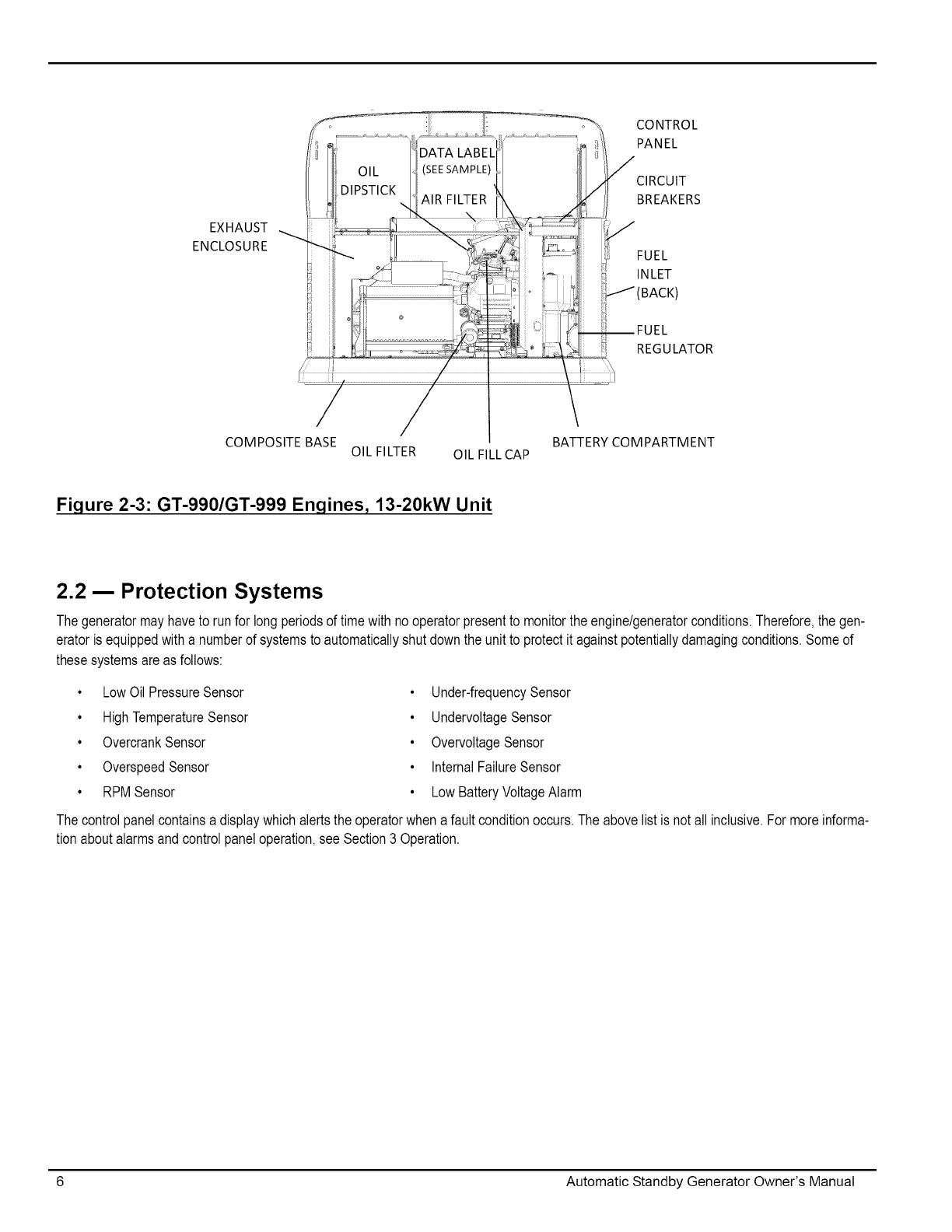

panel console as shown in Figures 2-1, 2-2, and 2-3. For directions on

how to open the top lid and remove the front panel, see Section 3 Opera-

tion. The Unit Identification label provides the following information:

• Model Number

• Serial Number

• Control Panel Part Number

• Voltage Rating of the unit

• Maximum Current Rating of the unit (AMPS)

When contacting an Authorized Service Dealer about parts and service,

always supply the complete model number and serial number of the unit.

Operation and Maintenance: Proper maintenance and care of the gen-

erator ensures a minimum number of problems and keeps operating

expenses at a minimum. It is the operator's responsibility to perform all

safety checks, to make sure that all maintenance for safe operation is

performed promptly, and to have the equipment checked periodically by

an Authorized Service Dealer. Normal maintenance, service and replace-

ment of parts are the responsibility of the owner/operator and, as such,

are not considered defects in materials or workmanship within the terms

of the warranty, individual operating habits and usage may contribute to

the need for additional maintenance or service.

When the generator requires servicing or repairs, contact an Authorized

Service Dealer for assistance. Authorized service technicians are factory-

trained and are capable of handling all service needs.

To find your Local AUTHORIZED SERVICE DEALER

WHITEWATER, WIS

MADE IN U.S.A.

AUTHORIZED SERVICE

DEALER LOCATION

To locate the nearest AUTHORIZED

SERVICE DEALER, please call this

number:

1-800-333-1322

or, visit the dealer Iocator at:

www.generac.comlServicelDealerLocatorl

WARNING!

California Proposition 65

Engine exhaust and some of its constituents are known to the state of California to cause cancer,

birth defects, and other reproductive harm.

WARNING!

California Proposition 65

This product contains or emits chemicals known to the state of California to cause cancer,

birth defects, and other reproductive harm.

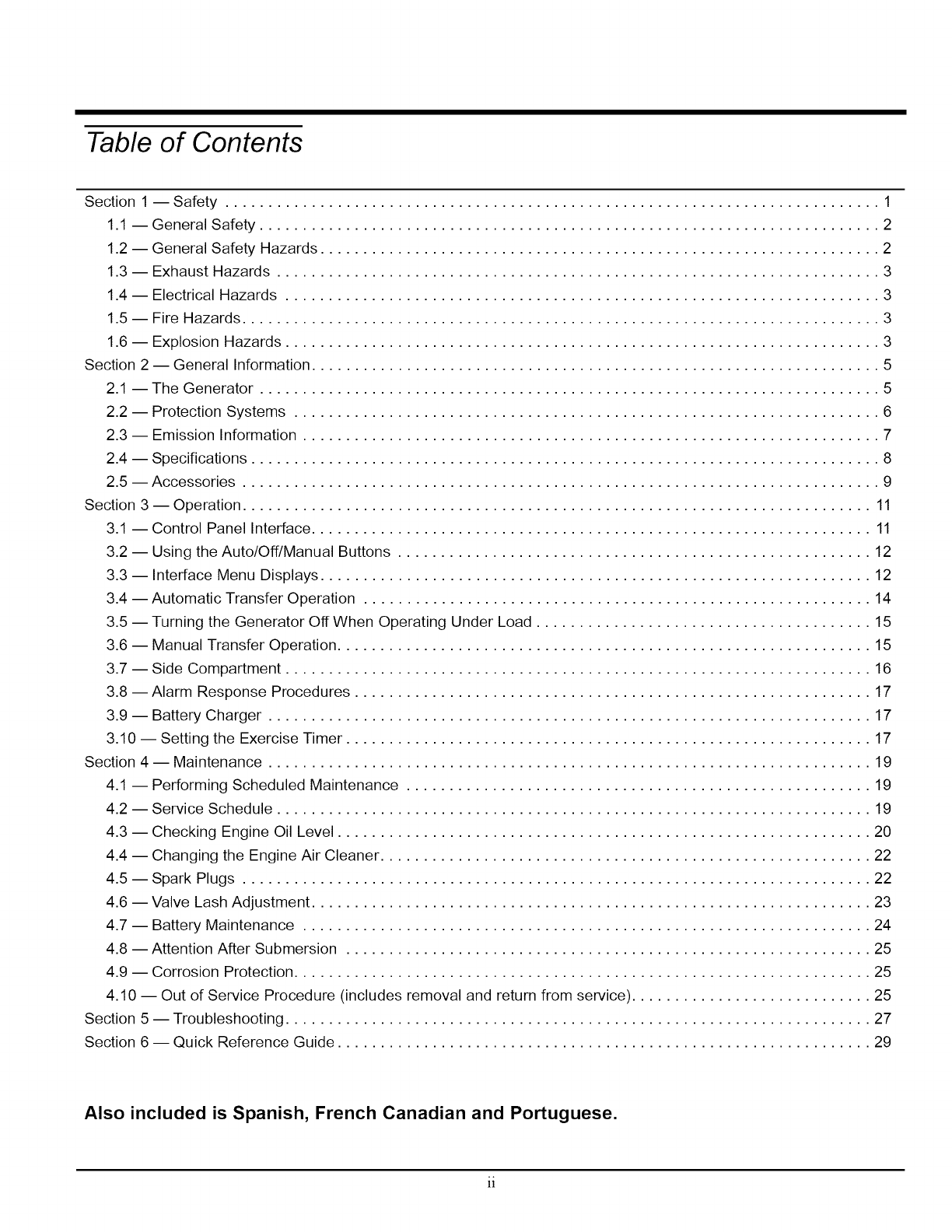

Table of Contents

Section 1 --Safety ............................................................................ 1

1.1 -- General Safety ........................................................................ 2

1.2 -- General Safety Hazards ................................................................. 2

1.3 -- Exhaust Hazards ...................................................................... 3

1.4 -- Electrical Hazards ..................................................................... 3

1.5 -- Fire Hazards .......................................................................... 3

1.6 -- Explosion Hazards ..................................................................... 3

Section 2- General Information .................................................................. 5

2.1 -- The Generator ........................................................................ 5

2.2 -- Protection Systems .................................................................... 6

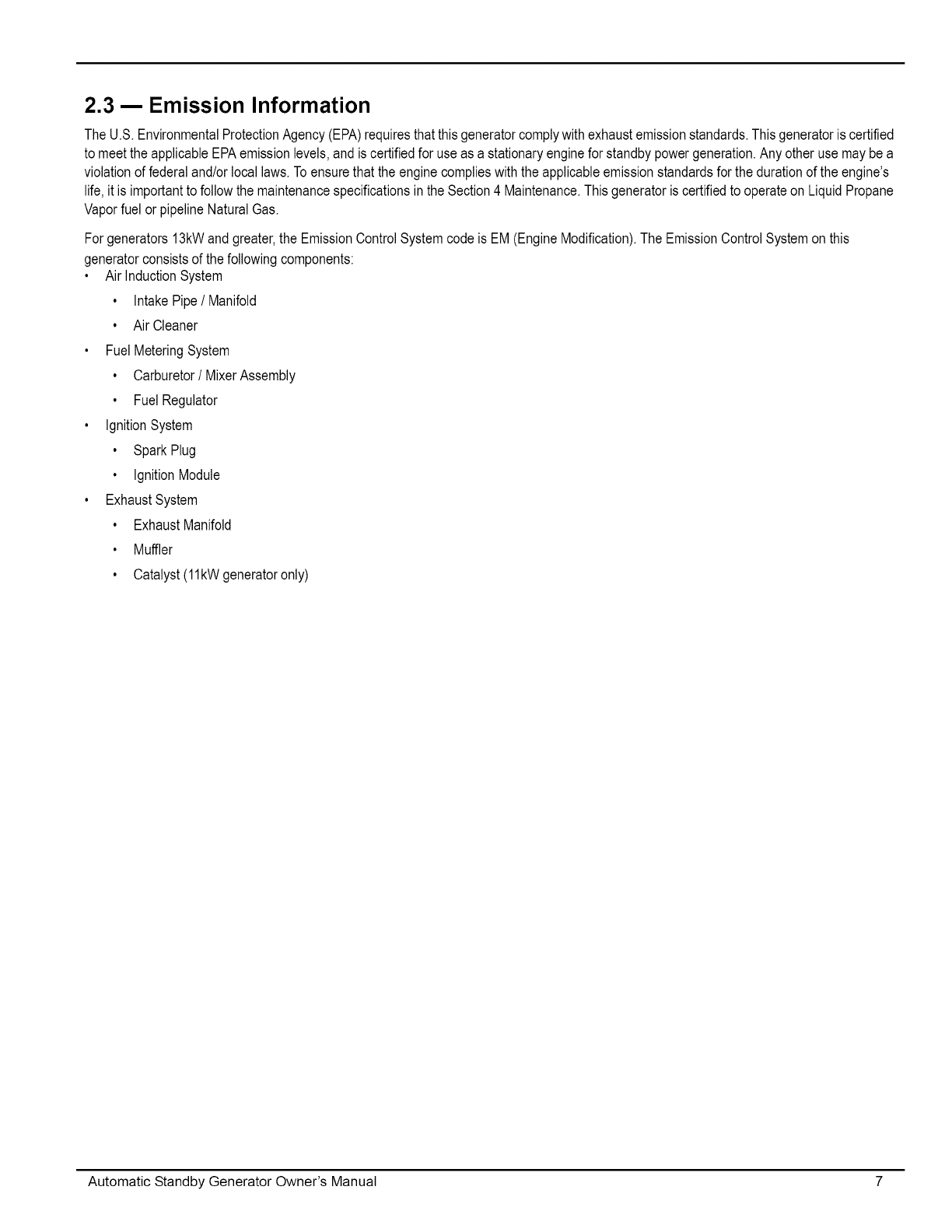

2.3 -- Emission Information ................................................................... 7

2.4 -- Specifications ......................................................................... 8

2.5 -- Accessories .......................................................................... 9

Section 3 -- Operation ......................................................................... 11

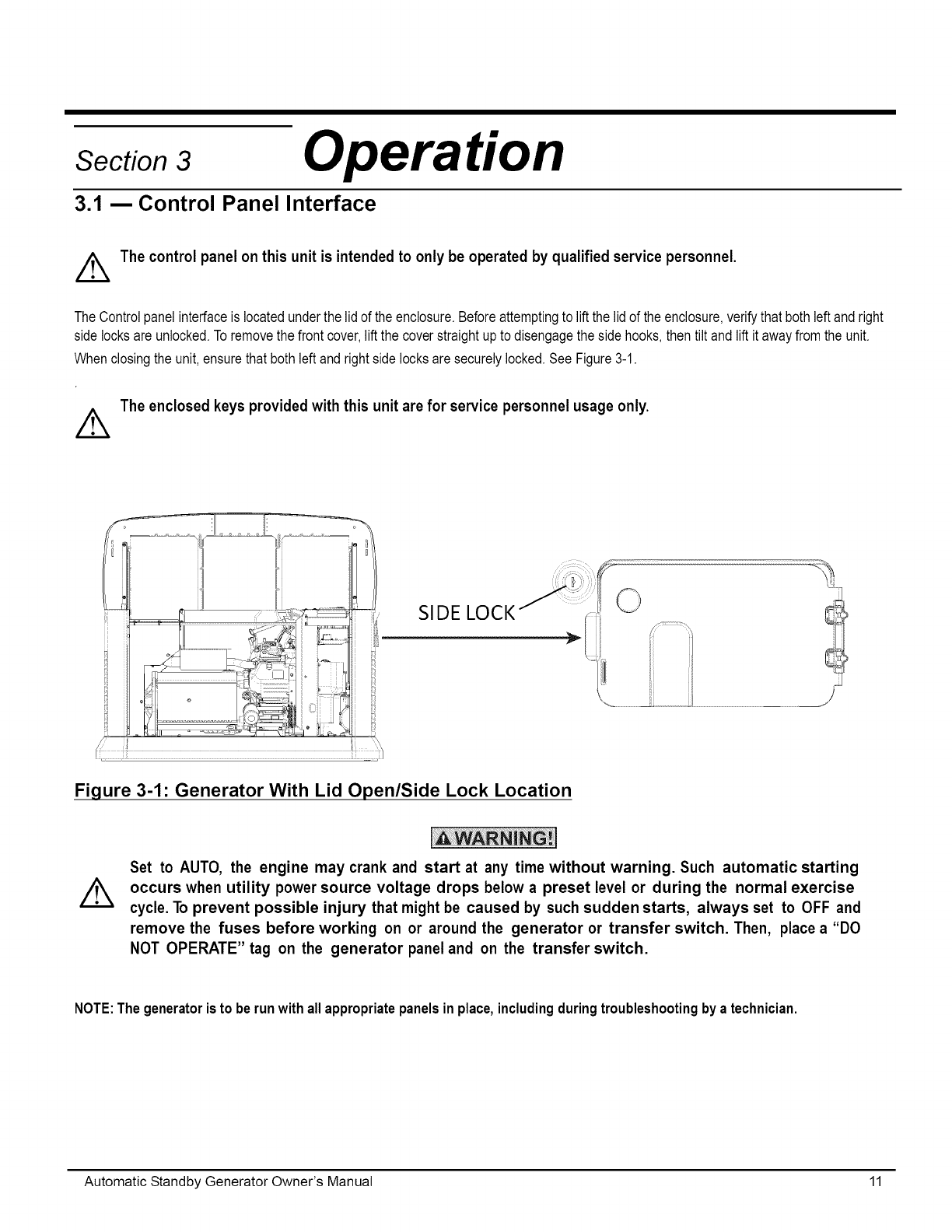

3.1 --Control Panel Interface ................................................................. 11

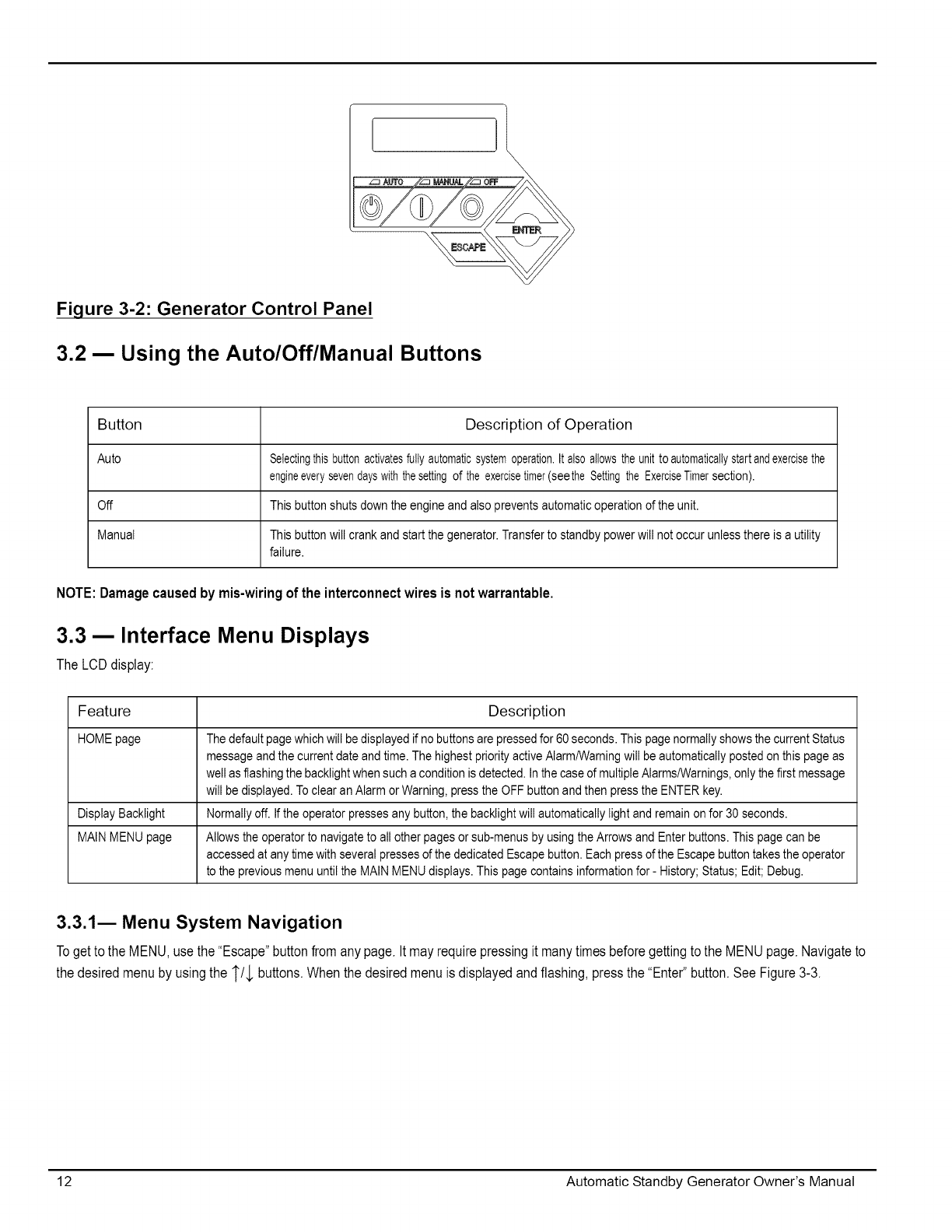

3.2 -- Using the Auto/Off/Manual Buttons ....................................................... 12

3.3 -- Interface Menu Displays ................................................................ 12

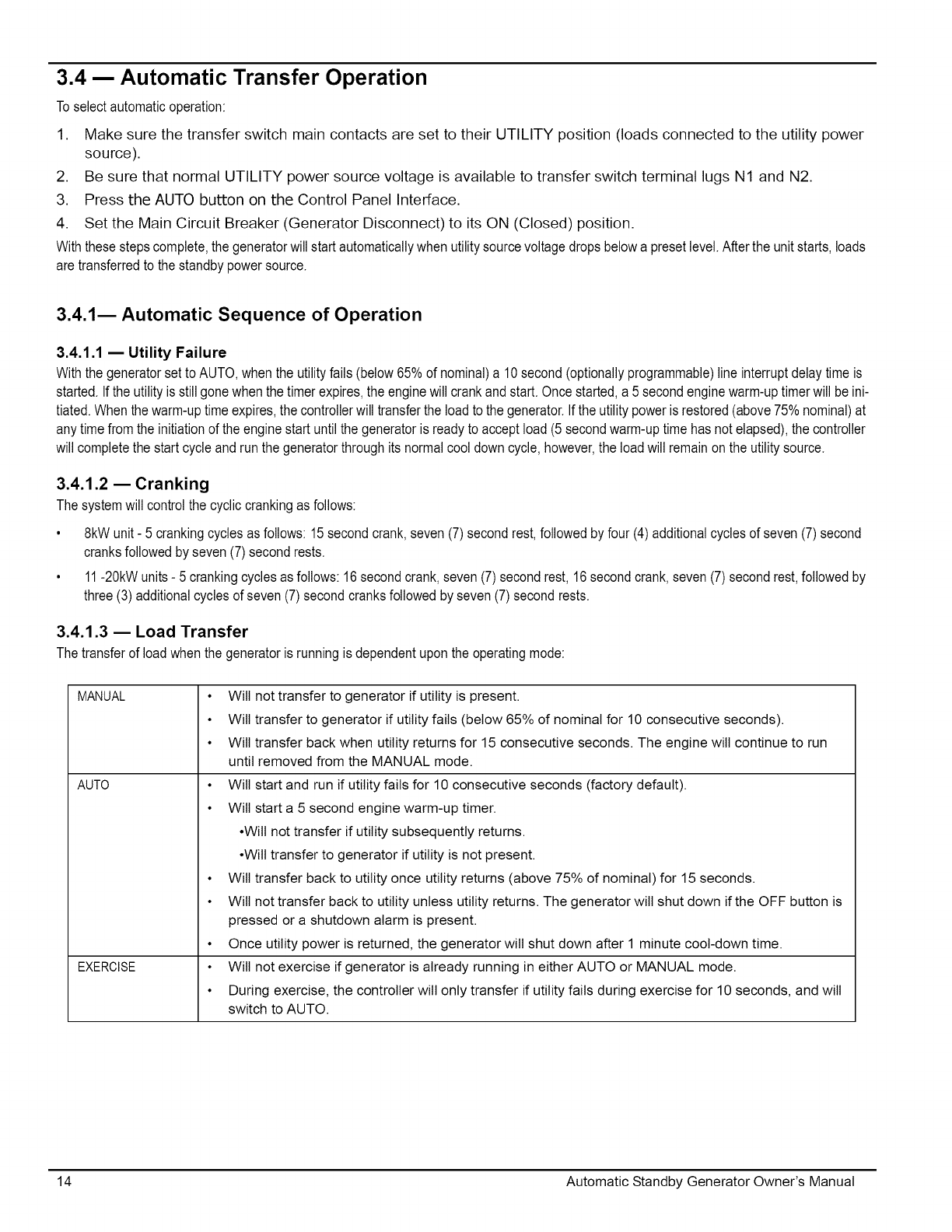

3.4 -- Automatic Transfer Operation ........................................................... 14

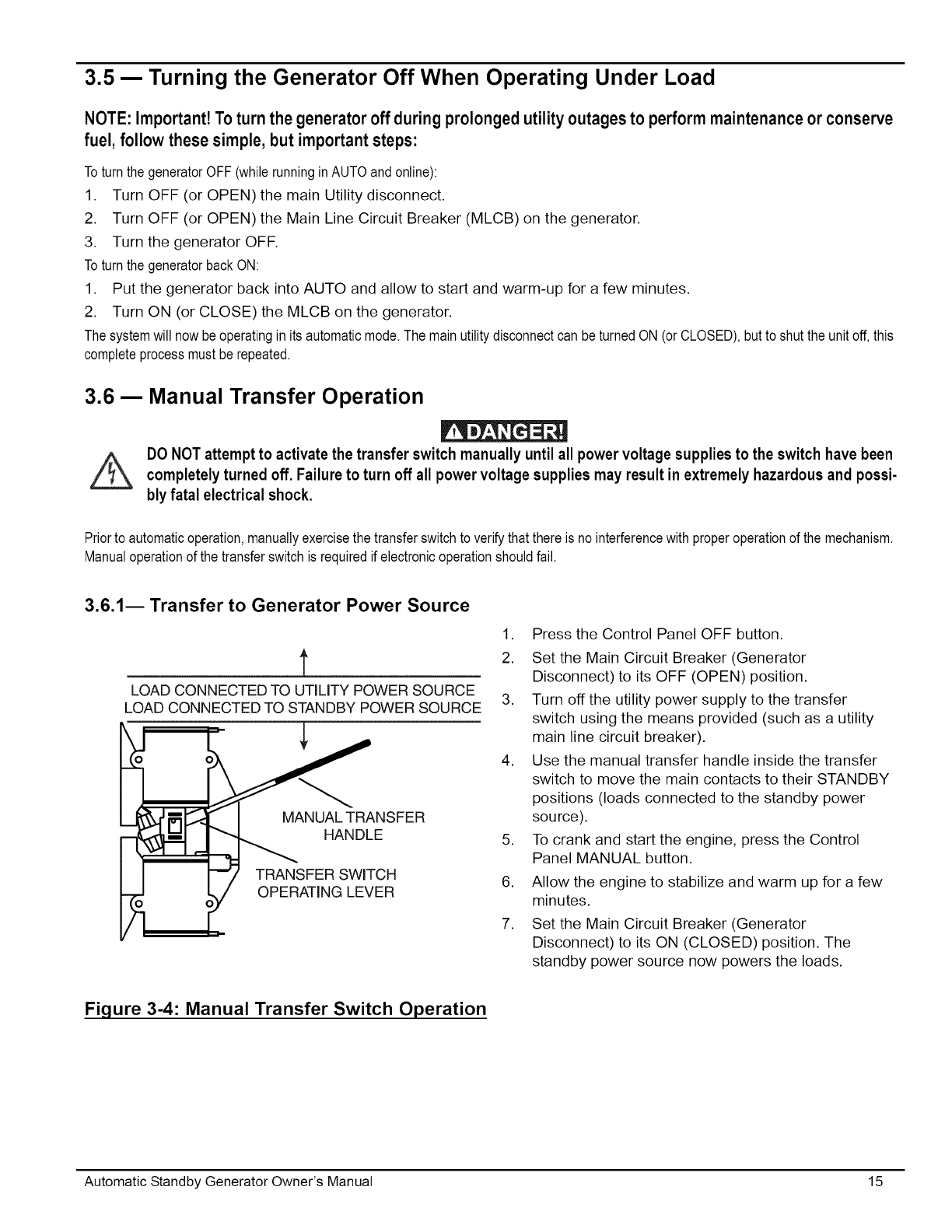

3.5- Turning the Generator Off When Operating Under Load ....................................... 15

3.6 -- Manual Transfer Operation .............................................................. 15

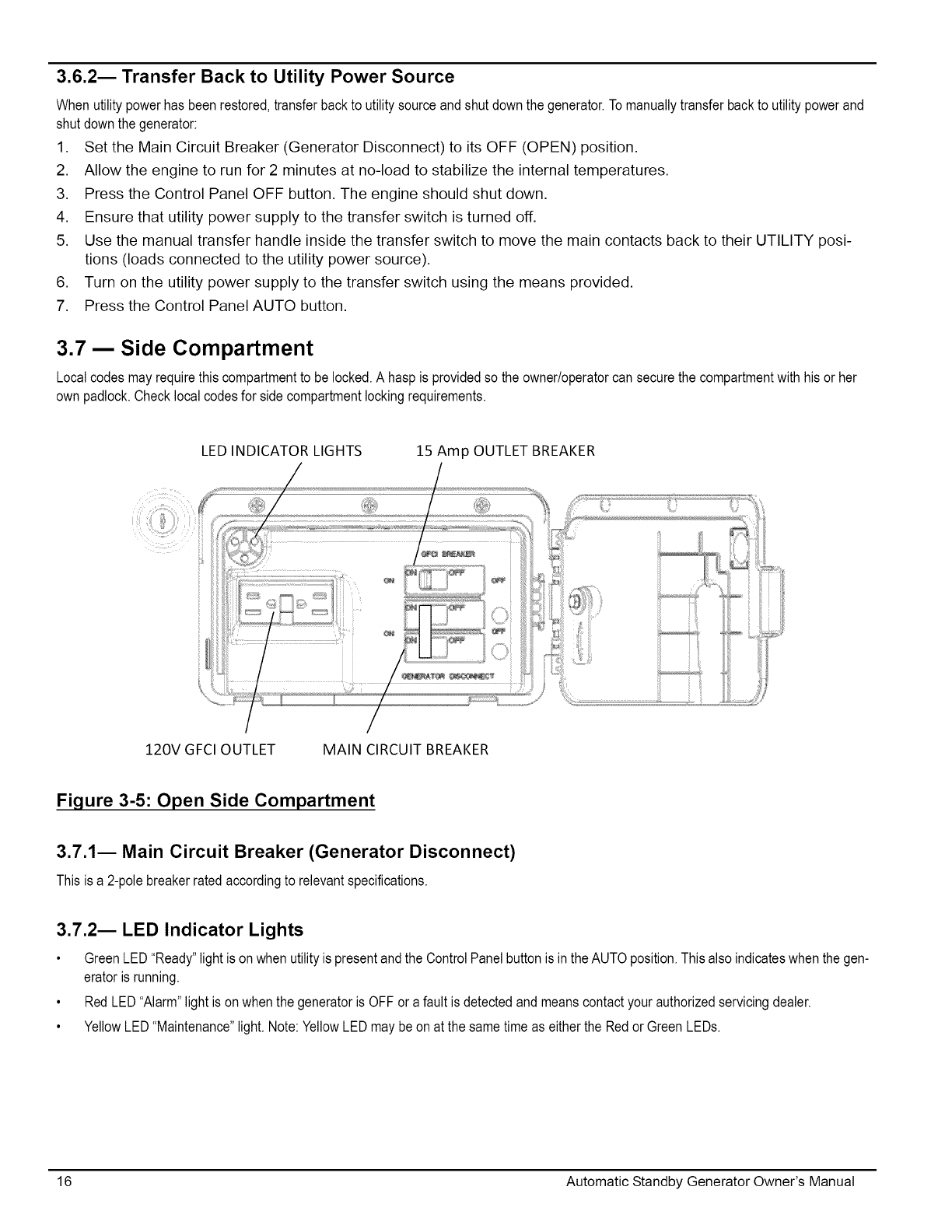

3.7 -- Side Compartment .................................................................... 16

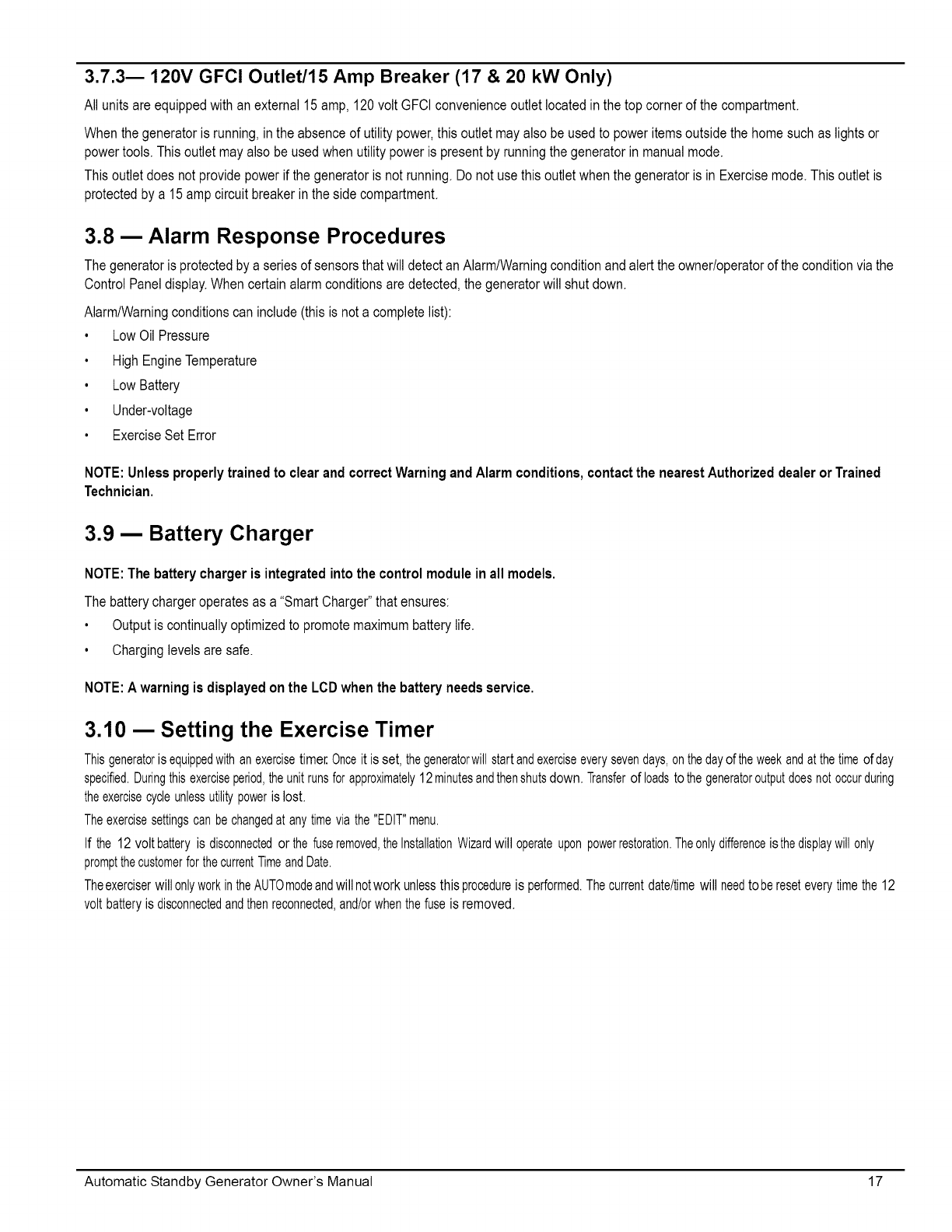

3.8- Alarm Response Procedures ............................................................ 17

3.9 -- Battery Charger ...................................................................... 17

3.10 -- Setting the Exercise Timer ............................................................. 17

Section 4 -- Maintenance ...................................................................... 19

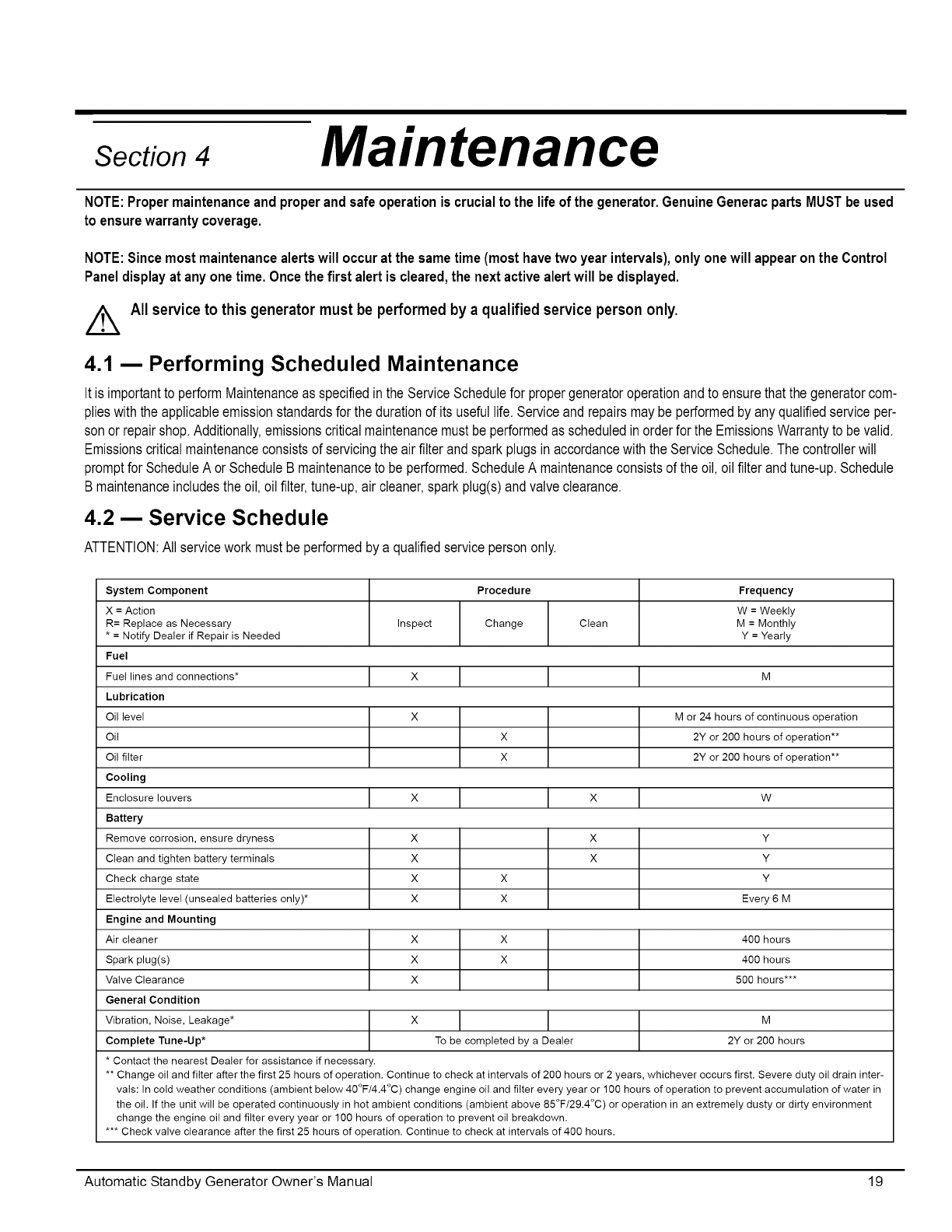

4.1 -- Performing Scheduled Maintenance ...................................................... 19

4.2 -- Service Schedule ..................................................................... 19

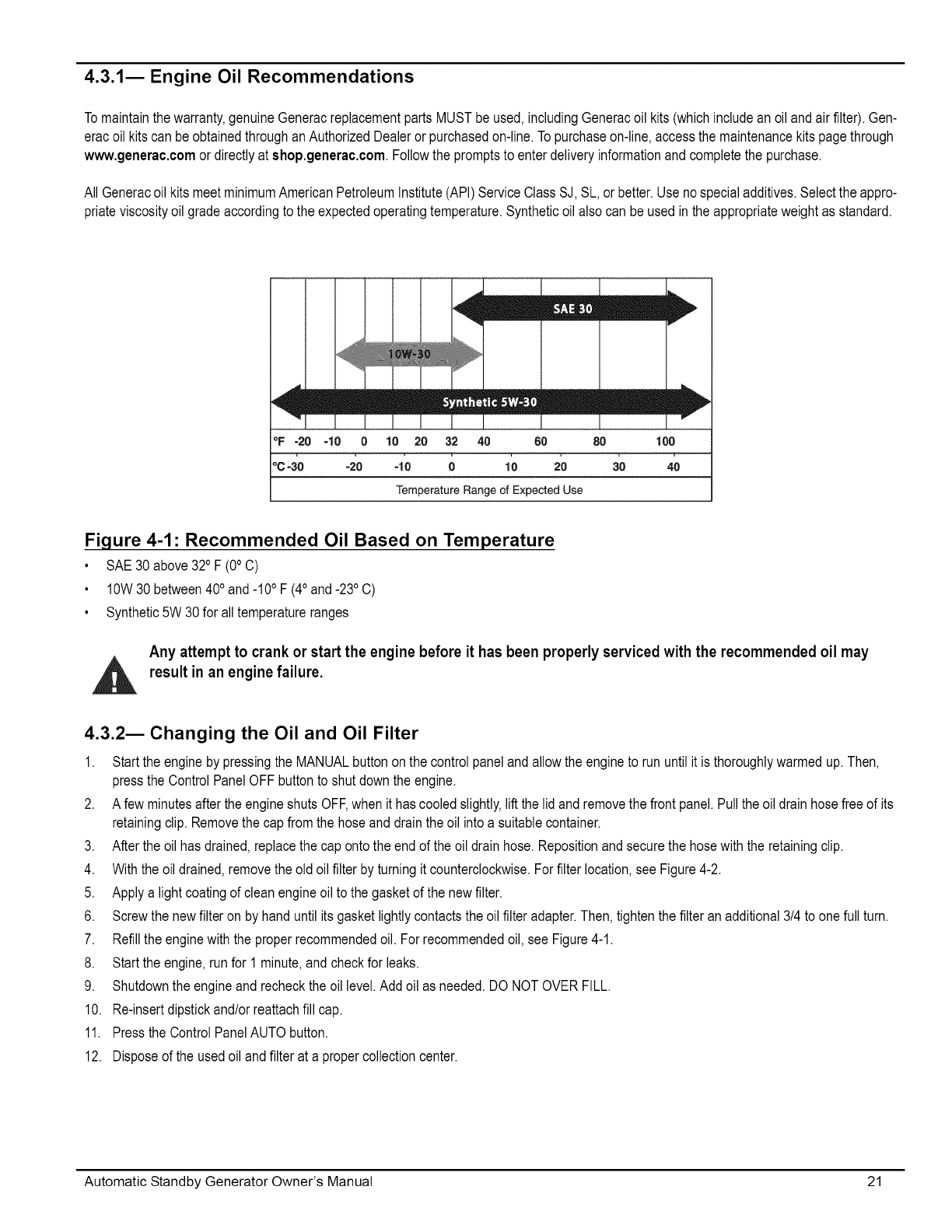

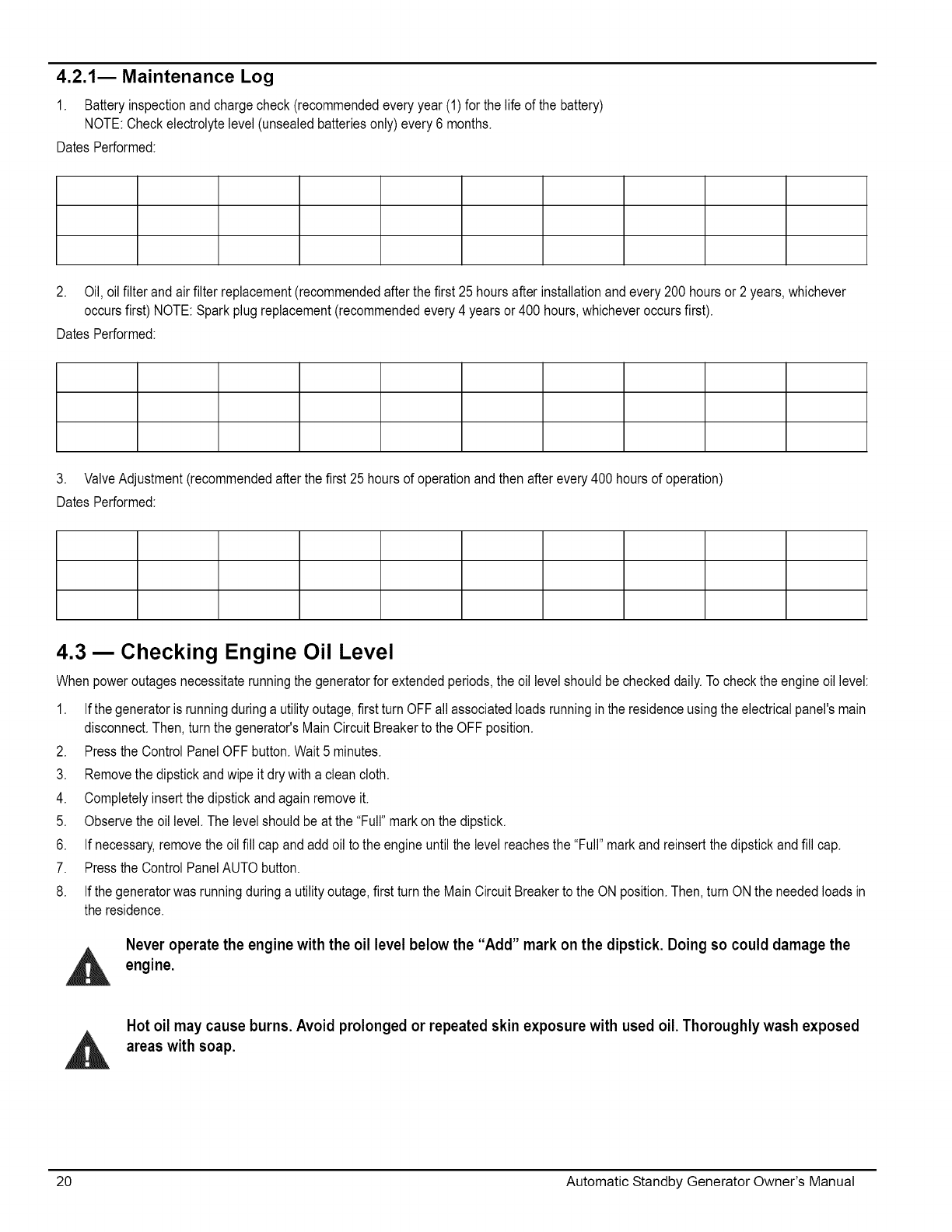

4.3 -- Checking Engine Oil Level .............................................................. 20

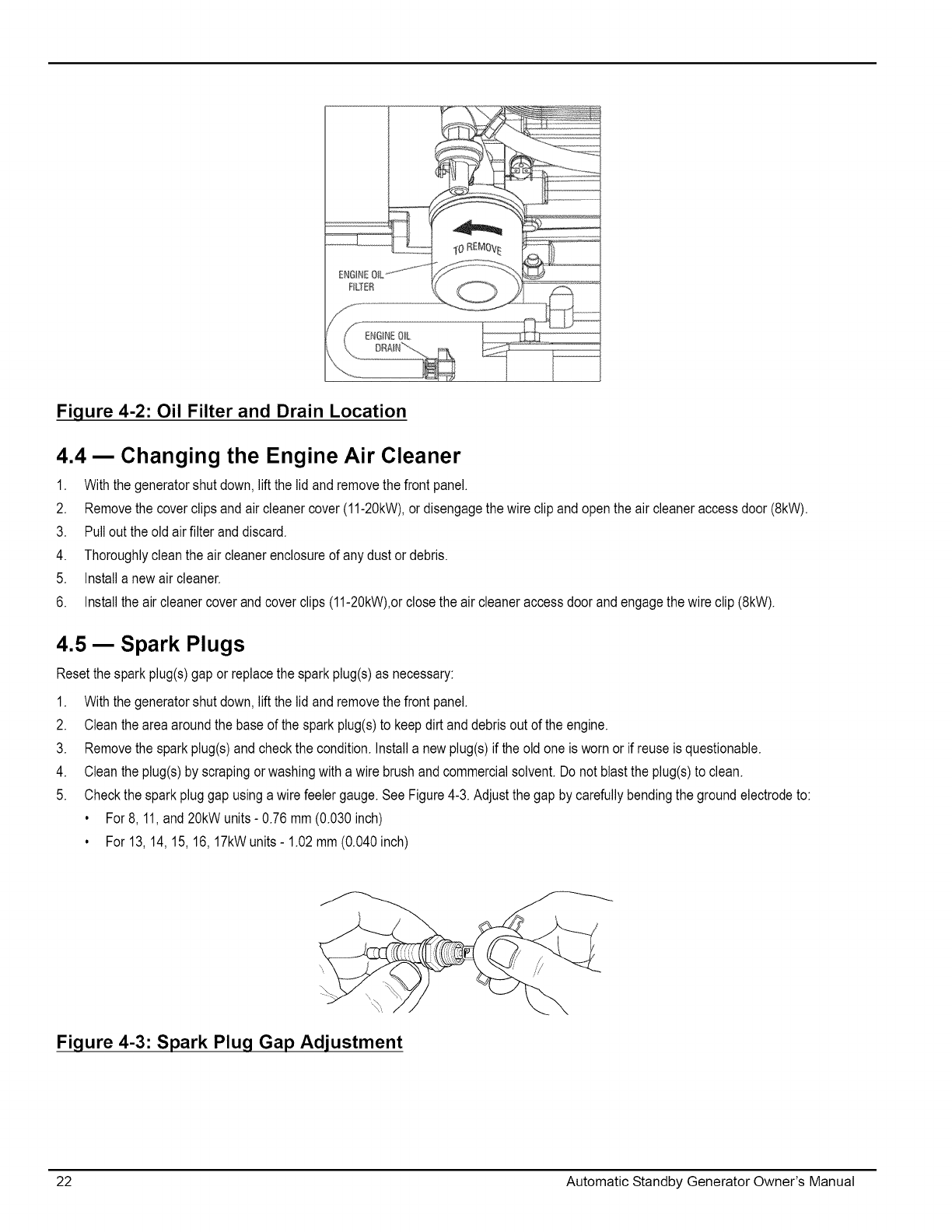

4.4 -- Changing the Engine Air Cleaner ......................................................... 22

4.5 -- Spark Plugs ......................................................................... 22

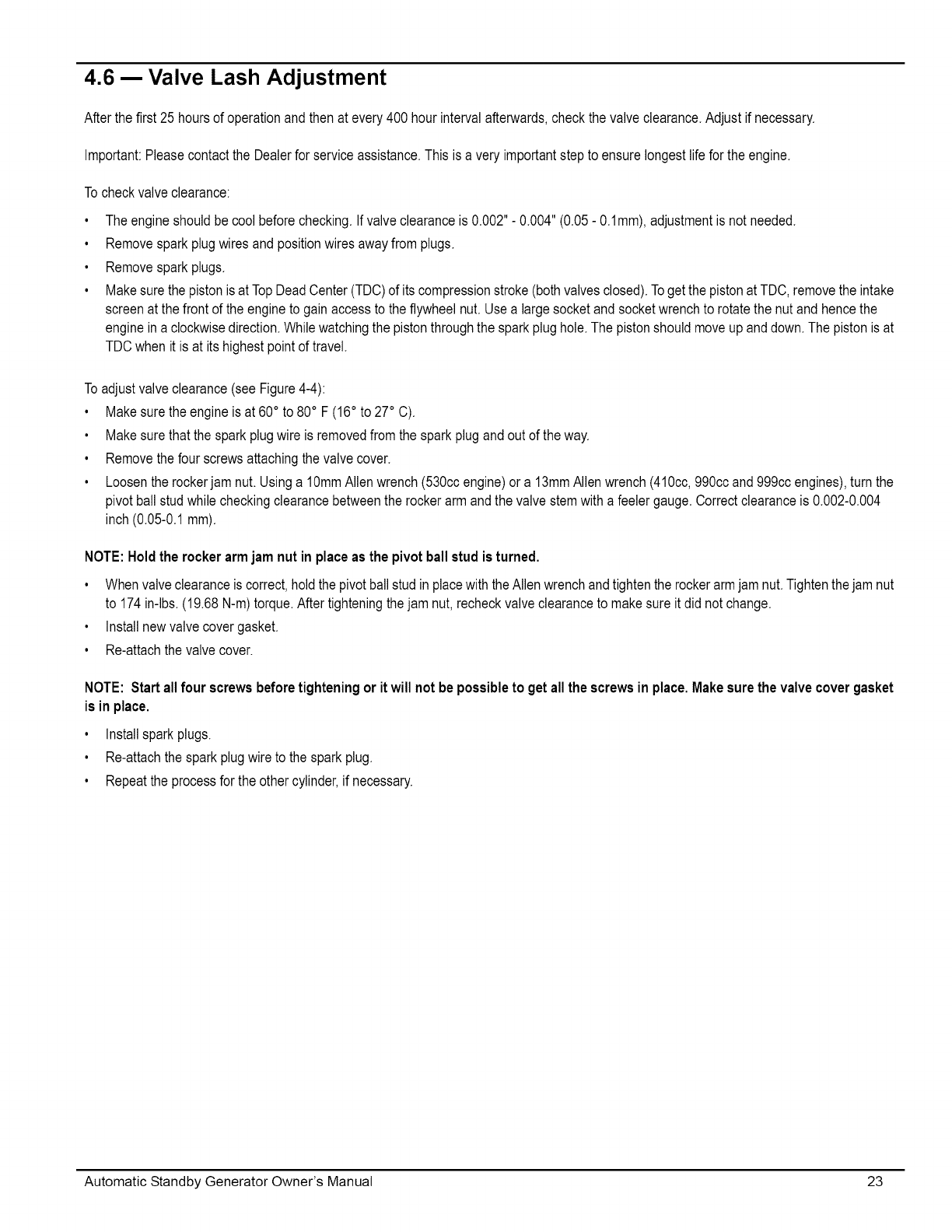

4.6 -- Valve Lash Adjustment ................................................................. 23

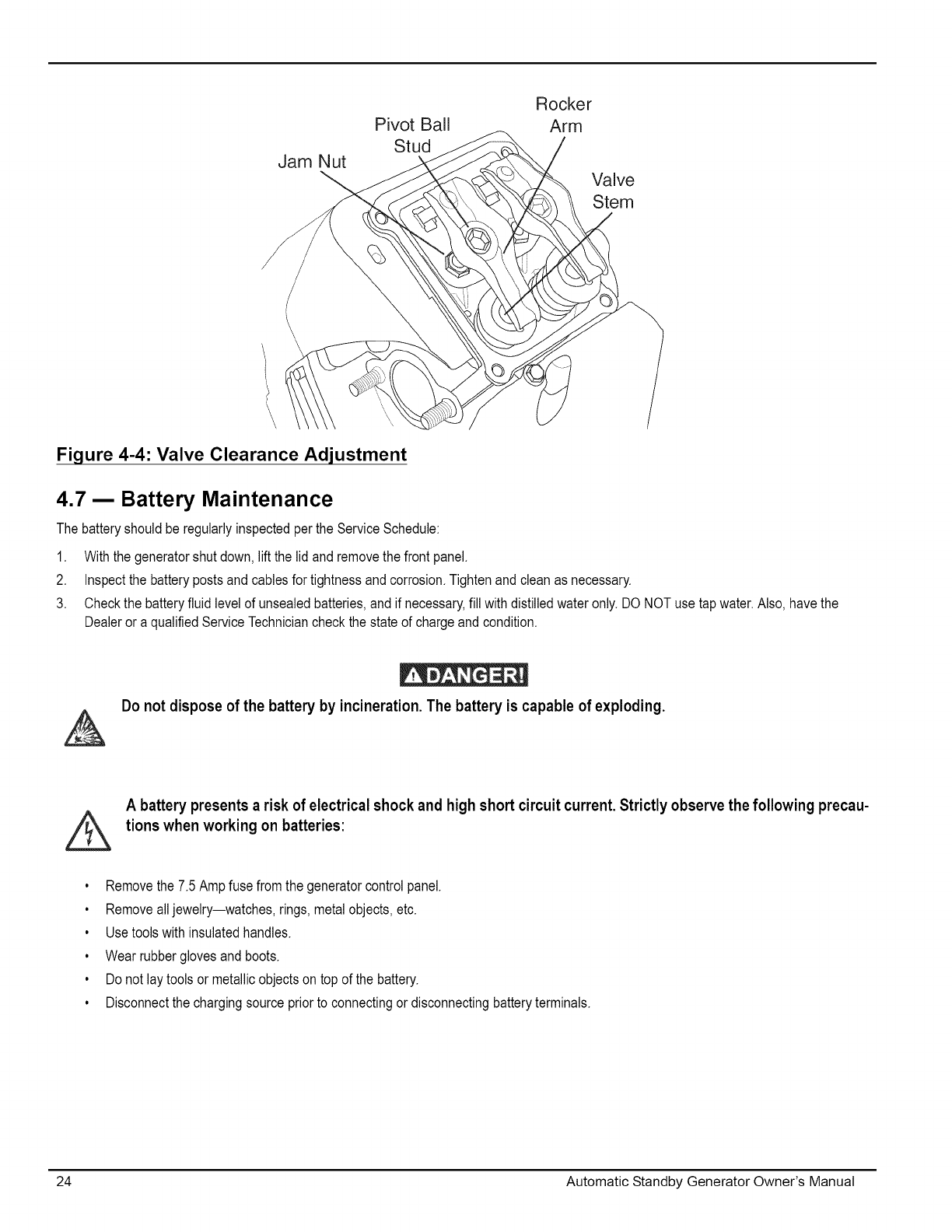

4.7 -- Battery Maintenance .................................................................. 24

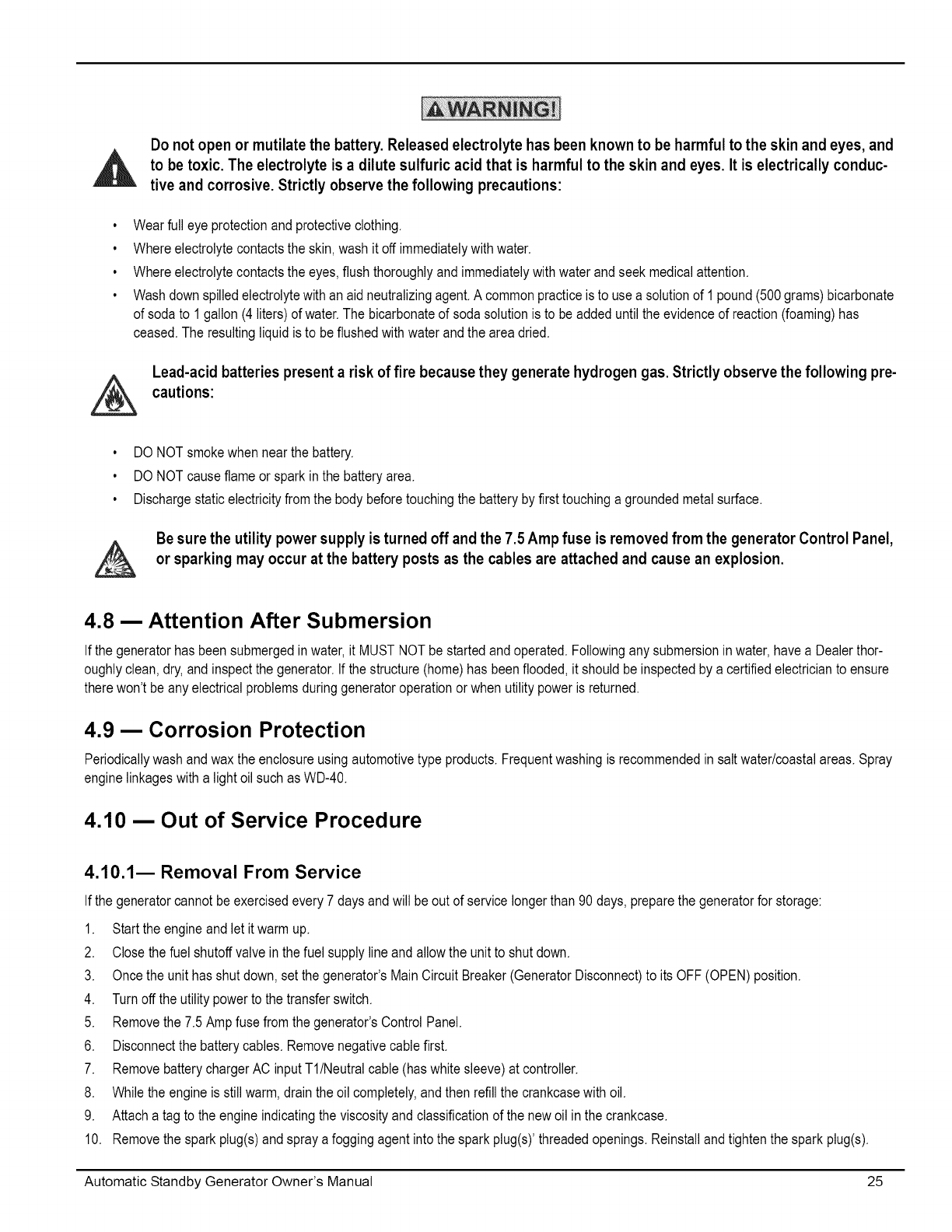

4.8 -- Attention After Submersion ............................................................. 25

4.9- Corrosion Protection ................................................................... 25

4.10 -- Out of Service Procedure (includes removal and return from service) ............................ 25

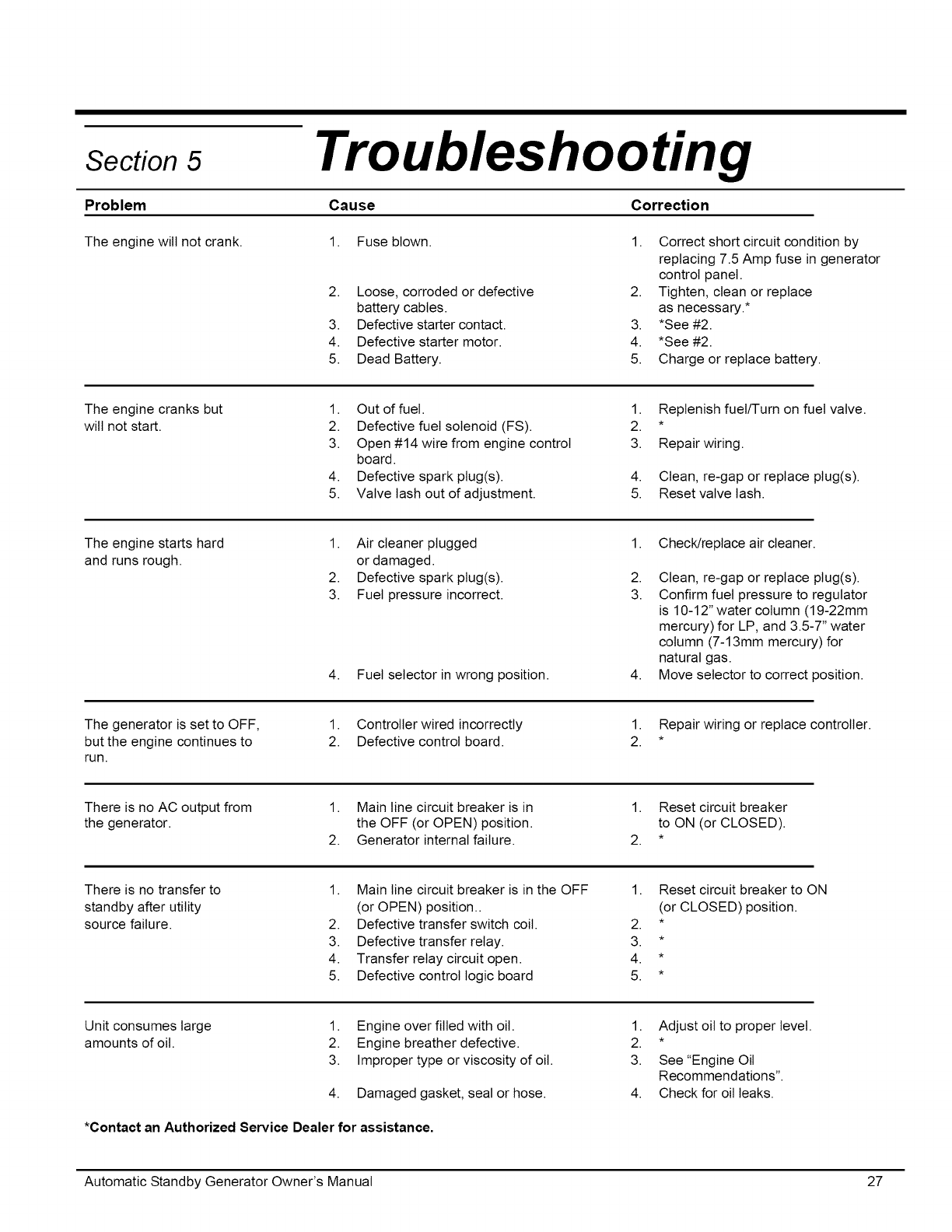

Section 5- Troubleshooting .................................................................... 27

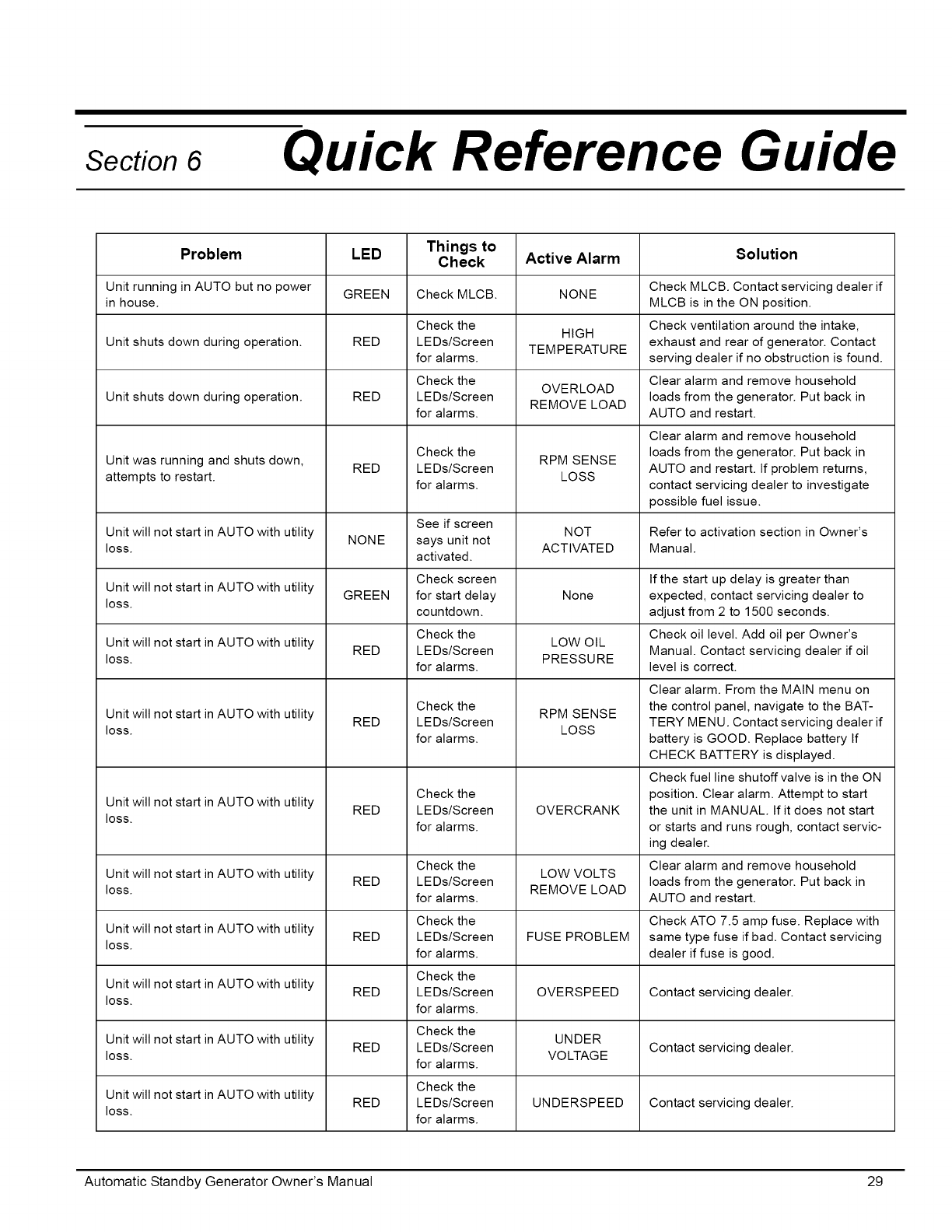

Section 6 -- Quick Reference Guide .............................................................. 29

Also included is Spanish, French Canadian and Portuguese.

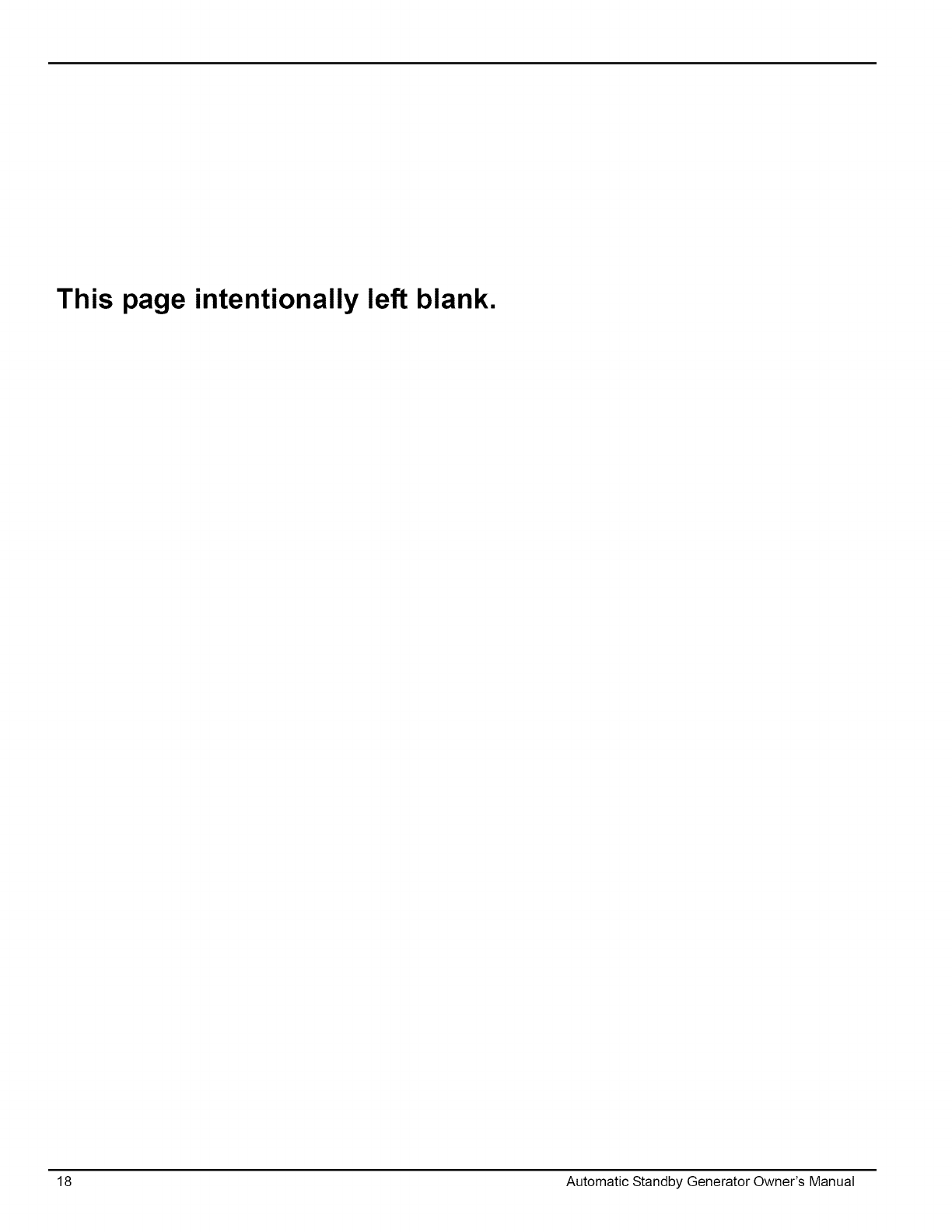

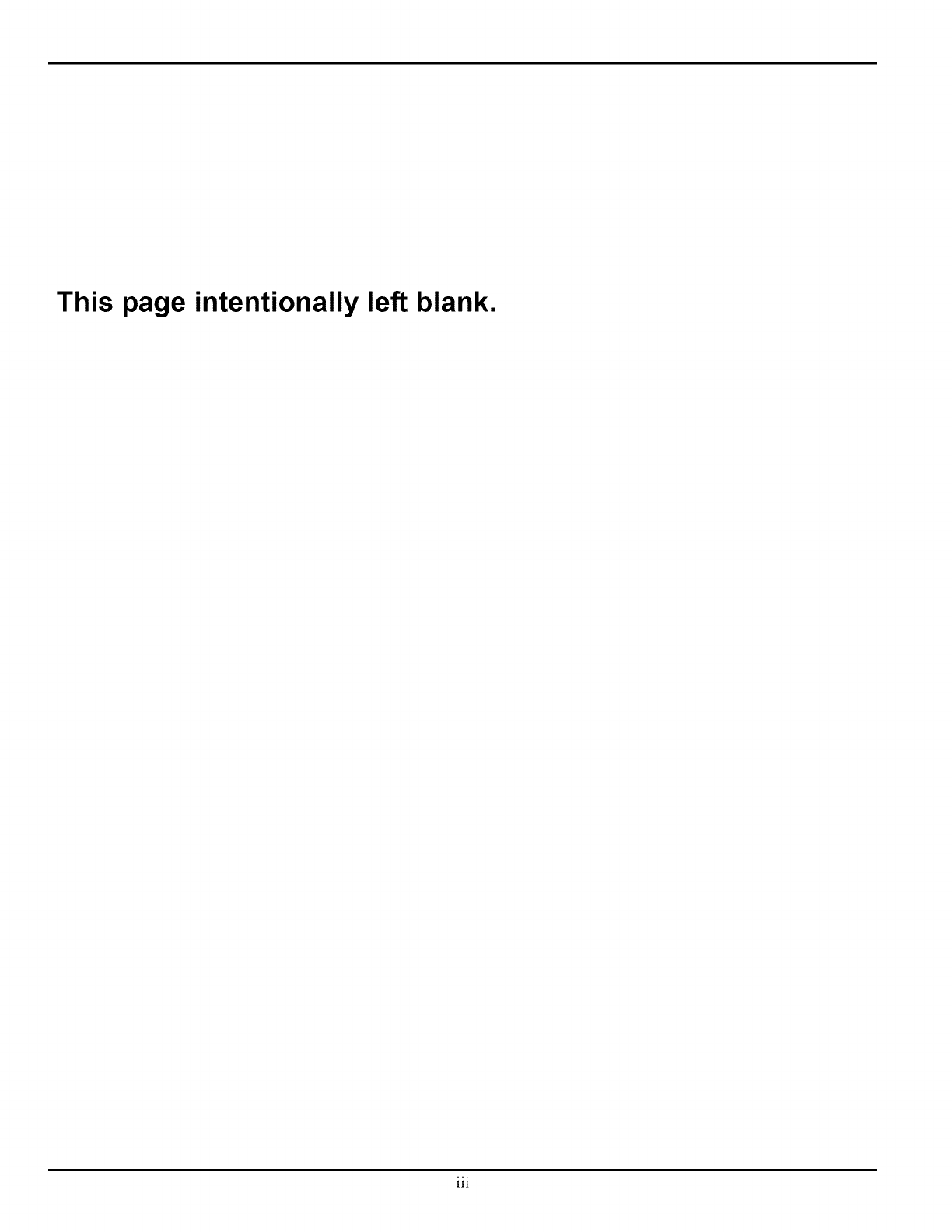

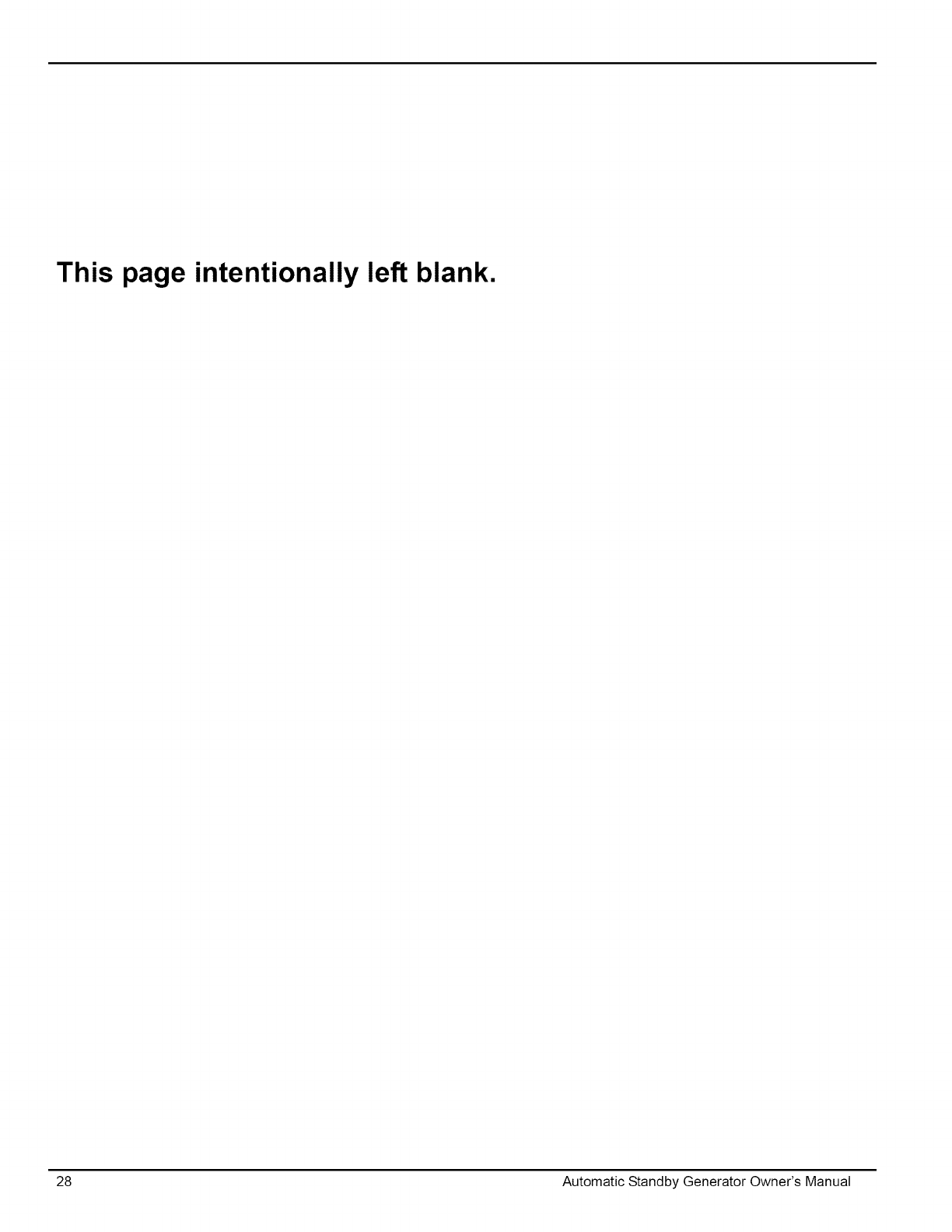

This page intentionally left blank.

iii

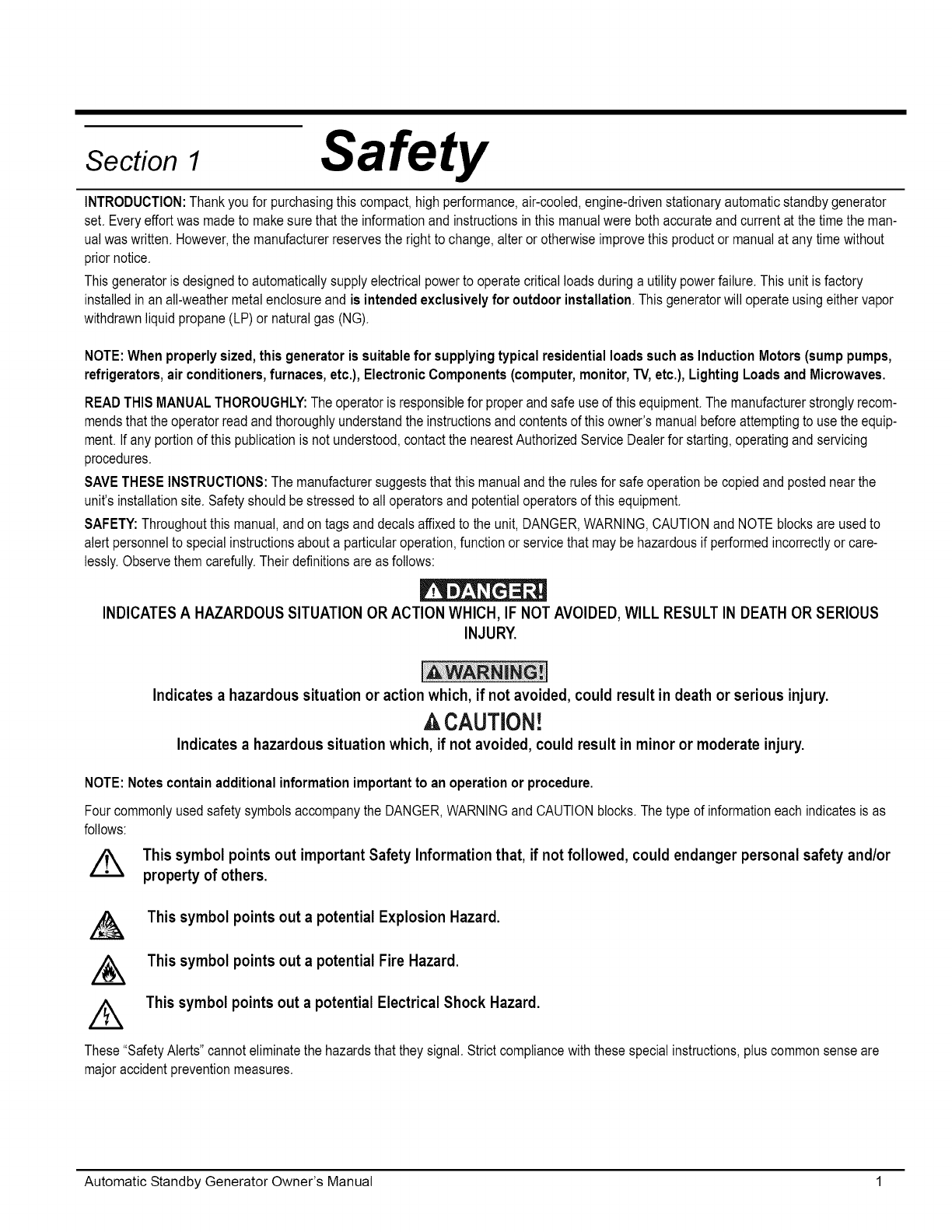

Section 1 Safety

INTRODUCTION: Thank you for purchasing this compact, high performance, air-cooled, engine-driven stationary automatic standby generator

set. Every effort was made to make sure that the information and instructions in this manual were both accurate and current at the time the man-

ual was written. However, the manufacturer reserves the right to change, alter or otherwise improve this product or manual at any time without

prior notice.

This generator is designed to automatically supply electrical power to operate critical loads during a utility power failure. This unit is factory

installed in an all-weather metal enclosure and is intended exclusively for outdoor installation. This generator will operate using either vapor

withdrawn liquid propane (LP) or natural gas (NG).

NOTE:When properlysized,thisgeneratoris suitablefor supplyingtypicalresidentialloads suchas Induction Motors(sump pumps,

refrigerators,air conditioners,furnaces, etc.),ElectronicComponents(computer,monitor,TV,etc.),LightingLoadsandMicrowaves.

READ THIS MANUAL THOROUGHLY: The operator is responsible for proper and safe use of this equipment. The manufacturer strongly recom-

mends that the operator read and thoroughly understand the instructions and contents of this owner's manual before attempting to use the equip-

ment. If any portion of this publication is not understood, contact the nearest Authorized Service Dealer for starting, operating and servicing

procedures.

SAVE THESE INSTRUCTIONS: The manufacturer suggests that this manual and the rules for safe operation be copied and posted near the

unit's installation site. Safety should be stressed to all operators and potential operators of this equipment.

SAFETY: Throughout this manual, and on tags and decals affixed to the unit, DANGER, WARNING, CAUTION and NOTE blocks are used to

alert personnel to special instructions about a particular operation, function or service that may be hazardous if performed incorrectly or care-

lessly. Observe them carefully. Their definitions are as follows:

INDICATESA HAZARDOUS SITUATION OR ACTION WHICH, IF NOTAVOIDED, WILL RESULT IN DEATH OR SERIOUS

INJURY.

Indicates a hazardous situation or action which, if not avoided, could result in death or serious injury.

CAUTION!

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

NOTE:Notescontainadditionalinformation important to an operationor procedure.

Fourcommonlyusedsafetysymbolsaccompanythe DANGER,WARNINGandCAUTIONblocks.Thetypeof informationeachindicatesis as

follows:

Z_ This symbol points out important Safety Information that, if not followed, could endanger personal safety and/or

property of others.

A

/&

A

This symbol points out a potential Explosion Hazard.

This symbol points out a potential Fire Hazard.

This symbol points out a potential Electrical Shock Hazard.

These "Safety Alerts" cannot eliminate the hazards that they signal. Strict compliance with these special instructions, plus common sense are

major accident prevention measures.

Automatic Standby Generator Owner's Manual 1

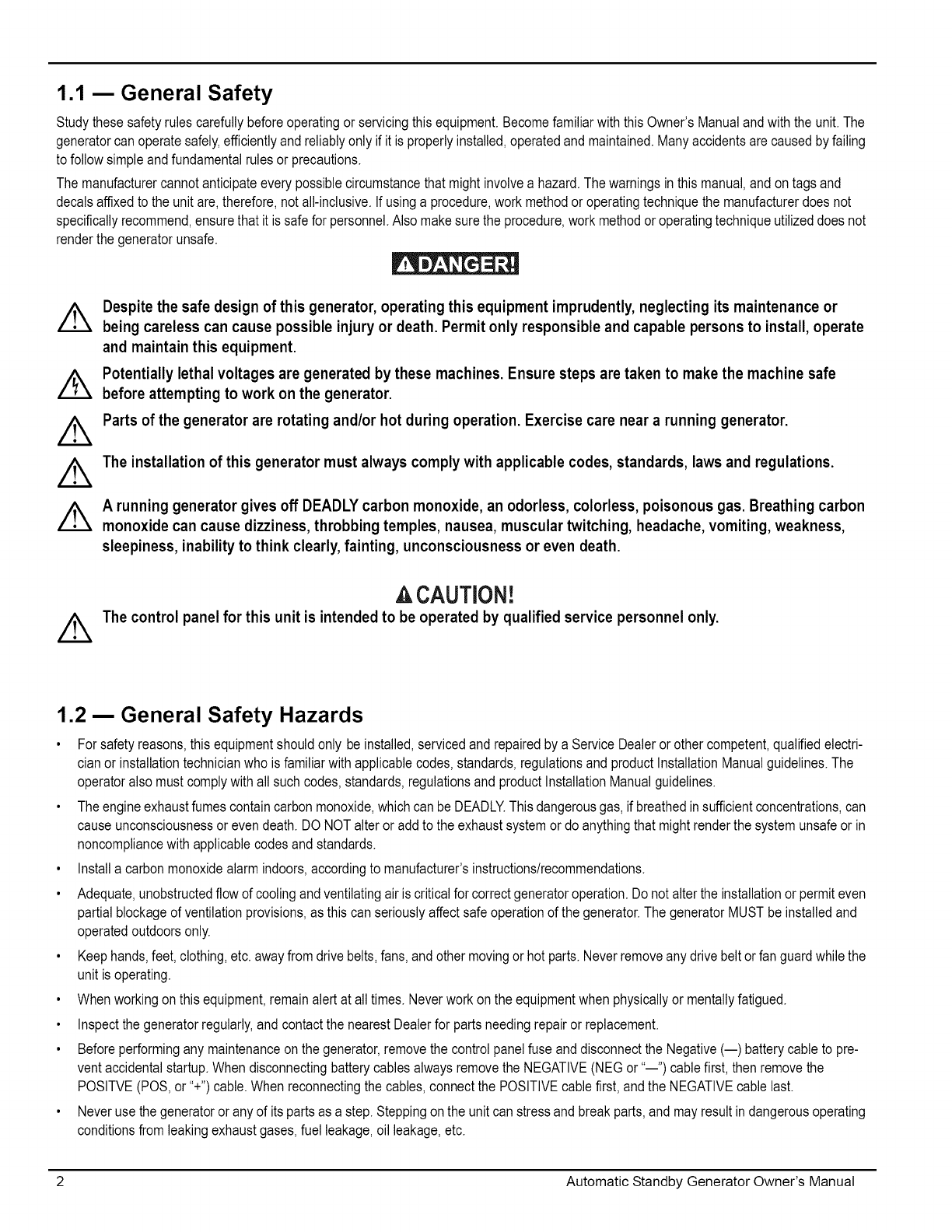

1.1 mGeneral Safety

Study these safety rules carefully before operating or servicing this equipment. Become familiar with this Owner's Manual and with the unit. The

generator can operate safely, efficiently and reliably only if it is properly installed, operated and maintained. Many accidents are caused by failing

to follow simple and fundamental rules or precautions.

The manufacturer cannot anticipate every possible circumstance that might involve a hazard. The warnings in this manual, and on tags and

decals affixed to the unit are, therefore, not all-inclusive, if using a procedure, work method or operating technique the manufacturer does not

specifically recommend, ensure that it is safe for personnel. Also make sure the procedure, work method or operating technique utilized does not

render the generator unsafe.

Despite the safe design of this generator, operating this equipment imprudently, neglecting its maintenance or

being careless can cause possible injury or death. Permit only responsible and capable persons to install, operate

and maintain this equipment.

Potentially lethal voltages are generated by these machines. Ensure steps are taken to make the machine safe

before attempting to work on the generator.

Parts of the generator are rotating and/or hot during operation. Exercise care near a running generator.

The installation of this generator must always comply with applicable codes, standards, laws and regulations.

Arunning generator gives off DEADLY carbon monoxide, an odorless, colorless, poisonous gas. Breathing carbon

monoxide can cause dizziness, throbbing temples, nausea, muscular twitching, headache, vomiting, weakness,

sleepiness, inability to think clearly, fainting, unconsciousness or even death.

A CAUTION!

The control panel for this unit is intended to be operated by qualified service personnel only.

1.2 mGeneral Safety Hazards

• For safety reasons, this equipment should only be installed, serviced and repaired by a Service Dealer or other competent, qualified electri-

cian or installation technician who is familiar with applicable codes, standards, regulations and product Installation Manual guidelines. The

operator also must comply with all such codes, standards, regulations and product installation Manual guidelines.

• The engine exhaust fumes contain carbon monoxide, which can be DEADLY.This dangerous gas, if breathed in sufficient concentrations, can

cause unconsciousness or even death. DO NOT alter or add to the exhaust system or do anything that might render the system unsafe or in

noncompliance with applicable codes and standards.

• Install a carbon monoxide alarm indoors, according to manufacturer's instructions/recommendations.

• Adequate, unobstructed flow of cooling and ventilating air is critical for correct generator operation. Do not alter the installation or permit even

partial blockage of ventilation provisions, as this can seriously affect safe operation of the generator. The generator MUST be installed and

operated outdoors only.

• Keep hands, feet, clothing, etc. away from drive belts, fans, and other moving or hot parts. Never remove any drive belt or fan guard while the

unit is operating.

• When working on this equipment, remain alert at all times. Never work on the equipment when physically or mentally fatigued.

• Inspect the generator regularly, and contact the nearest Dealer for parts needing repair or replacement.

• Before performing any maintenance on the generator, remove the control panel fuse and disconnect the Negative (--) battery cable to pre-

vent accidental startup. When disconnecting battery cables always remove the NEGATIVE (NEG or "--") cable first, then remove the

POSITVE (POS, or "+") cable. When reconnecting the cables, connect the POSITIVE cable first, and the NEGATIVE cable last.

• Never use the generator or any of its parts as a step. Stepping on the unit can stress and break parts, and may result in dangerous operating

conditions from leaking exhaust gases, fuel leakage, oil leakage, etc.

2 Automatic Standby Generator Owner's Manual

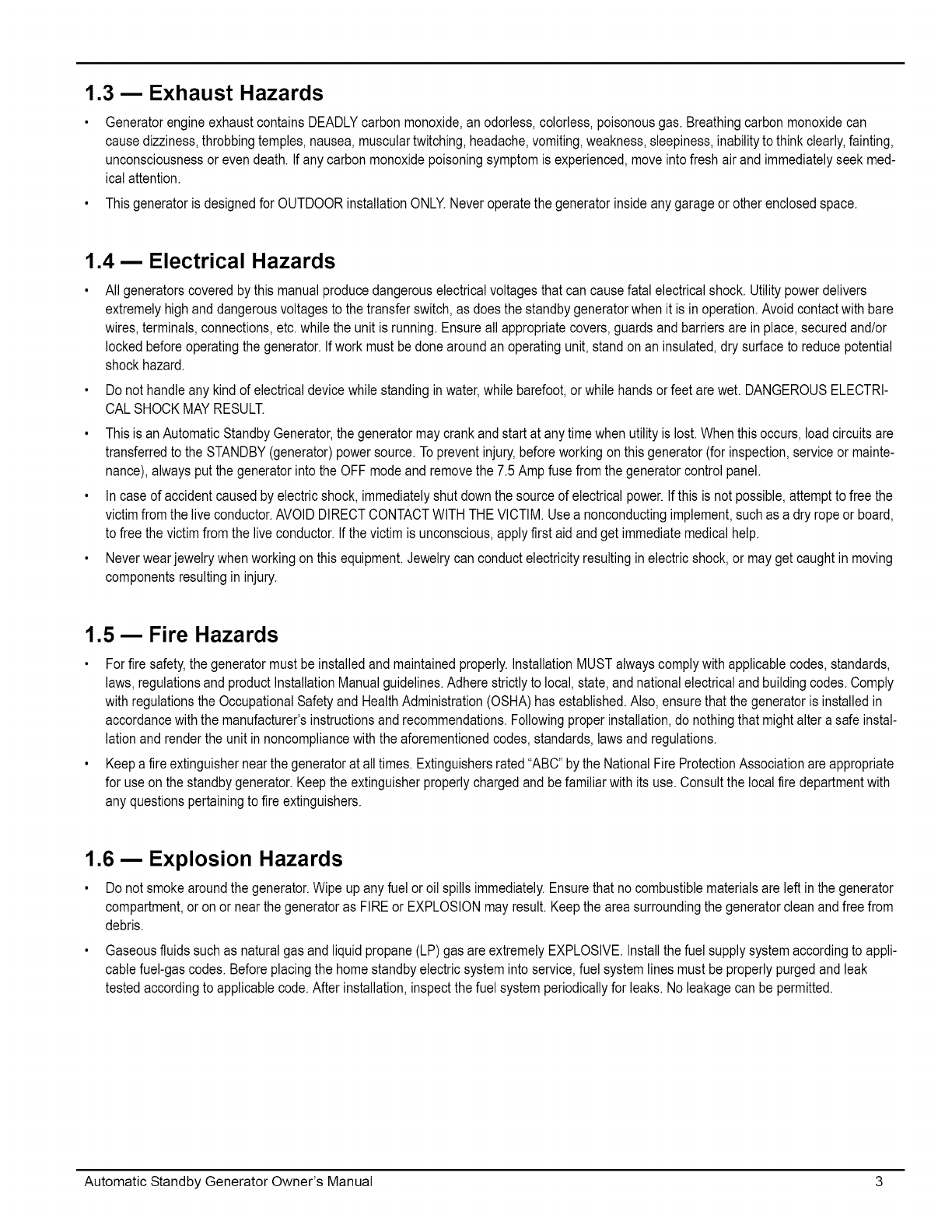

1.3 mExhaust Hazards

Generator engine exhaust contains DEADLY carbon monoxide, an odorless, colorless, poisonous gas. Breathing carbon monoxide can

cause dizziness, throbbing temples, nausea, muscular twitching, headache, vomiting, weakness, sleepiness, inability to think clearly, fainting,

unconsciousness or even death. If any carbon monoxide poisoning symptom is experienced, move into fresh air and immediately seek med-

ical attention.

This generator is designed for OUTDOOR installation ONLY.Never operate the generator inside any garage or other enclosed space.

1.4 mElectrical Hazards

All generators covered by this manual produce dangerous electrical voltages that can cause fatal electrical shock. Utility power delivers

extremely high and dangerous voltages to the transfer switch, as does the standby generator when it is in operation. Avoid contact with bare

wires, terminals, connections, etc. while the unit is running. Ensure all appropriate covers, guards and barriers are in place, secured and/or

locked before operating the generator. If work must be done around an operating unit, stand on an insulated, dry surface to reduce potential

shock hazard.

Donot handleany kindof electricaldevicewhilestandinginwater,while barefoot,orwhile handsorfeet arewet. DANGEROUSELECTRI-

CALSHOCKMAYRESULT.

• This is an Automatic Standby Generator, the generator may crank and start at any time when utility is lost. When this occurs, load circuits are

transferred to the STANDBY (generator) power source. To prevent injury, before working on this generator (for inspection, service or mainte-

nance), always put the generator into the OFF mode and remove the 7.5 Amp fuse from the generator control panel.

• In case of accident caused by electric shock, immediately shut down the source of electrical power, if this is not possible, attempt to free the

victim from the live conductor. AVOID DIRECT CONTACT WITH THE VICTIM. Use a nonconducting implement, such as a dry rope or board,

to free the victim from the live conductor, if the victim is unconscious, apply first aid and get immediate medical help.

• Never wear jewelry when working on this equipment. Jewelry can conduct electricity resulting in electric shock, or may get caught in moving

components resulting in injury.

1.5 Fire Hazards

• For fire safety, the generator must be installed and maintained properly, installation MUST always comply with applicable codes, standards,

laws, regulations and product installation Manual guidelines. Adhere strictly to local, state, and national electrical and building codes. Comply

with regulations the Occupational Safety and Health Administration (OSHA) has established. Also, ensure that the generator is installed in

accordance with the manufacturer's instructions and recommendations. Following proper installation, do nothing that might alter a safe instal-

lation and render the unit in noncompliance with the aforementioned codes, standards, laws and regulations.

• Keep a fire extinguisher near the generator at all times. Extinguishers rated "ABC" by the National Fire Protection Association are appropriate

for use on the standby generator. Keep the extinguisher properly charged and befamiliar with its use. Consult the local fire department with

any questions pertaining to fire extinguishers.

1.6 Explosion Hazards

• Do not smoke around the generator. Wipe up any fuel or oil spills immediately. Ensure that no combustible materials are left in the generator

compartment, or on or near the generator as FIRE or EXPLOSION may result. Keep the area surrounding the generator clean and free from

debris.

• Gaseous fluids such as natural gas and liquid propane (LP) gas are extremely EXPLOSIVE. install the fuel supply system according to appli-

cable fuel-gas codes. Before placing the home standby electric system into service, fuel system lines must be properly purged and leak

tested according to applicable code. After installation, inspect the fuel system periodically for leaks. No leakage can be permitted.

Automatic Standby Generator Owner's Manual 3

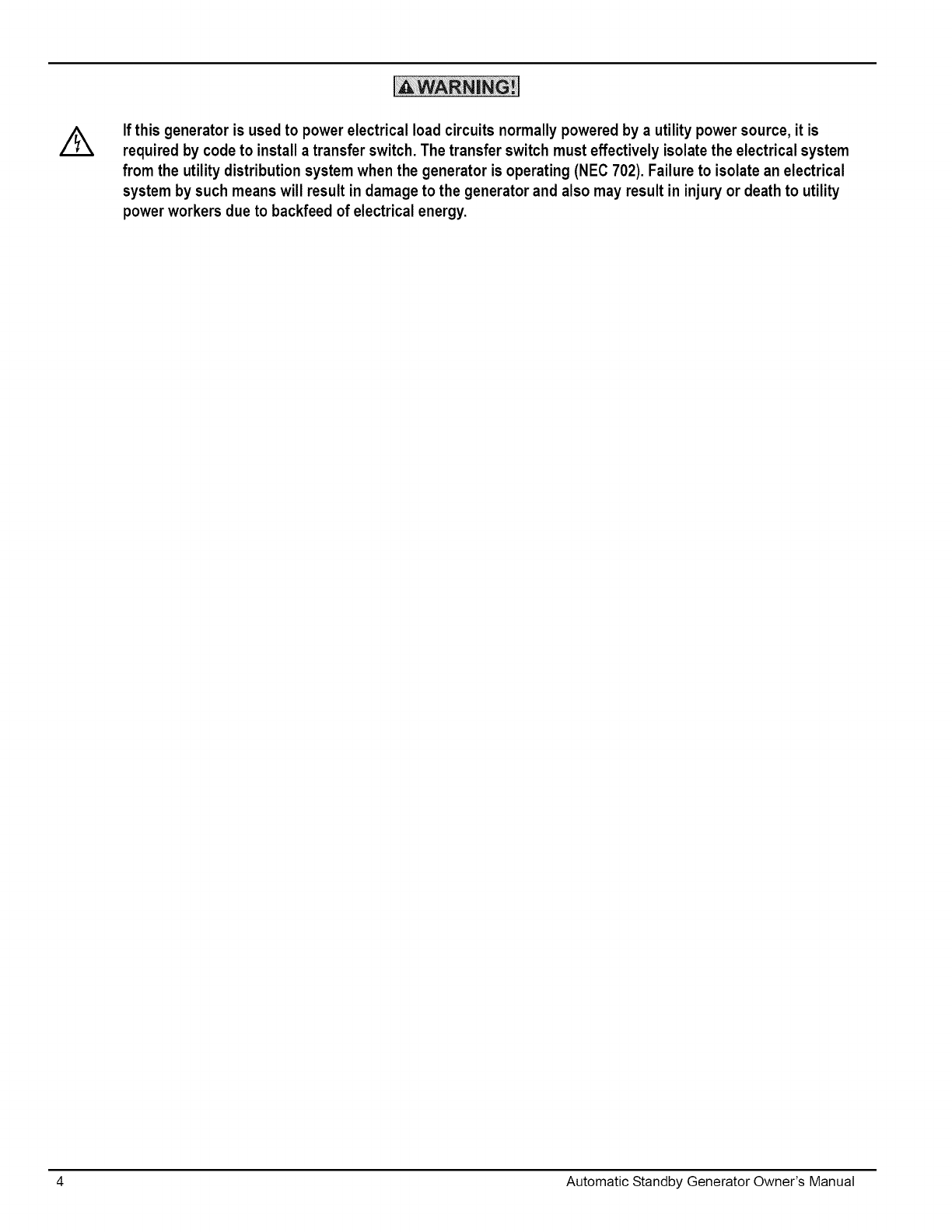

If this generator is used to power electrical load circuits normally powered by a utility power source, it is

required by code to install a transfer switch. The transfer switch must effectively isolate the electrical system

from the utility distribution system when the generator is operating (NEC 702). Failure to isolate an electrical

system by such means will result in damage to the generator and also may result in injury or death to utility

power workers due to backfeed of electrical energy.

4 Automatic Standby Generator Owner's Manual

Section 2 General Information

2.1 mThe Generator

EXHAUST

ENCLOSURE

OIL

DIPSTICK\

COMPOSITE BASE OIL FILTER

Figure 2-1" GH-410 Enqine 8kW Unit

OIL FILLCAP

CONTROL

PANEL

CIRCU IT

BREAKERS

AIR FILTER

FUEL INLET

(BACK)

FUEL

REGULATOR

BATTERYCOMPARTMENT

EXHAUST

ENCLOSURE

CONTROL

PANEL

/

CIRCUIT

BREAKERS

/

FUEL

INLET

(BACK)

FUEL

REG ULATO R

:

COMPOSITE BASE OIL FILTER OIL FILL CAP BATTERYCOM PARTM ENT

Figure 2-2:GH-530 Enqine 11kW Unit

Automatic Standby Generator Owner's Manual 5

EXHAUST

ENCLOSURE

COMPOSITE BASE OIL FILTER OIL FILL CAP

CONTROL

PANEL

/CIRCUIT

BREAKERS

Y

FUEL

INLET

/(BACK)

REGULATOR

\

BATTERYCOM PARTMENT

Figure 2-3:GT-990/GT-999 Enqines, 13-20kW Unit

2.2 mProtection Systems

The generator may have to run for long periods of time with no operator present to monitor the engine/generator conditions. Therefore, the gen-

erator is equipped with a number of systems to automatically shut down the unit to protect it against potentially damaging conditions. Some of

these systems are as follows:

• LowOil PressureSensor

• HighTemperatureSensor

• OvercrankSensor

• OverspeedSensor

• RPMSensor

• Under-frequency Sensor

• Undervoltage Sensor

• Overvoltage Sensor

• Internal Failure Sensor

• Low Battery Voltage Alarm

The control panel contains a display which alerts the operator when a fault condition occurs. The above list is not all inclusive. For more informa-

tion about alarms and control panel operation, see Section 3 Operation.

6 Automatic Standby Generator Owner's Manual

2.3 mEmission Information

The U.S. Environmental Protection Agency (EPA) requires that this generator comply with exhaust emission standards. This generator is certified

to meet the applicable EPA emission levels, and iscertified for use as a stationary engine for standby power generation. Any other use may be a

violation of federal and/or local laws. To ensure that the engine complies with the applicable emission standards for the duration of the engine's

life, it is important to follow the maintenance specifications in the Section 4 Maintenance. This generator is certified to operate on Liquid Propane

Vapor fuel or pipeline Natural Gas.

For generators 13kW and greater, the Emission Control System code is EM (Engine Modification). The Emission Control System on this

generator consists of the following components:

• Airlnduction System

• Intake Pipe/Manifold

• Air Cleaner

• Fuel Metering System

• Carburetor/MixerAssembly

• Fuel Regulator

• Ignition System

• Spark Plug

• Ignition Module

• Exhaust System

• Exhaust Manifold

• Muffler

• Catalyst (ll kW generator only)

Automatic Standby Generator Owner's Manual 7

2.4 -- Specifications

2.4.1 -- Generator

Model 8kW 11kW 13kW 14kW 15kW 16kW 17kW 20kW

RatedVoltage 240

RatedMaximumLoad

Current(Amps)at240 33.3 45.8 54.2 58.3 62.5 66.6 70.8 83.3

Volts (LP)*

MainCircuitBreaker 35Amp 50Amp 55 Amp 60 Amp 60 Amp 65 Amp 65 Amp 100Amp

Phase 1

RatedAC Frequency 60 Hz

BatteryRequirement Group26R, 12 Voltsand 525 CCA Minimum(GeneracPart No. 0H3421S

Weight (unitonly in 360/163.3 407/184.6 435/197.3 435/197.3 471/213.6 471/213.6 Steel- 451/204.6

Ibs./kilos) 471/213.6

Aluminum-

437/198.2

Enclosure Steel/

Steel Steel Steel Steel Steel Steel Aluminum

Aluminum

NormalOperating Thisunit is testedin accordanceto UL 2200standardswith an operatingtemperatureof -200F (-29o C) to 122oF (500C). For areaswhere tem-

Range peraturesfall below32° F (0° C)a coldweatherkit is highlyrecommended.Whenoperatedabove770F (250C)there maybe adecreasein engine

power.Pleasereferencethe enginespecificationssection.

These generatorsareratedin accordancewith UL 2200,Safety Standardfor StationaryEngine GeneratorAssemblies,andCSA-C22.2No.100-04

Standardfor Motorsand Generators.

* NaturalGasratingswill dependon specificfuel Btu/joulescontent.Typicalderatesarebetween10-20%off the LP gasrating.

** Circuitsto be movedmustbe protectedby samesizebreaker.For example,a 15 ampcircuitin the main panelmust be a 15 ampcircuitin the transferswitch.

2.4.2 -- Engine

Model 8kW 11kW 13/14/15/16/17kW 20kW

Type of Engine GH-410 GT-530 GT-990 GT-999

Number of Cylinders 1 2 2 2

Displacement 410cc 530cc 992cc 999cc

Cylinder Block Aluminum w/Cast Iron Sleeve

Recommended Spark Plug RC14YC BPR6HS RC14YC RC12YC

Spark Plug Gap 0.76mm (0.030") 0.76mm (0.030") 1.02mm (0.040") 0.76mm (0.030")

Starter 12 VDC

Oil Capacity Including Filter Approx. 1.5 Qts./1.4L Approx. 1.7 Qts./1.6L Approx. 1.9 Qts/1.8L Approx. 1.9 Qts/1.8L

Recommended Oil Filter Part #070185E

Recommended Air Filter Part #0E9371A Part #0E9371A Part #0J8478 Part #0J8478

Engine power is subject to and limited by such factors as fuel Btu/joules content, ambient temperature and altitude. Engine power decreases about 3.5

percent for each 1,000 feet (304.8 meters) above sea level, and also will decrease about 1 percent for each 6° C (10° F) above 15° C (60oF) ambient tem-

perature.

The specification sheet for your generator was included in the documentation provided with the unit at the time of purchase. For additional

copies, consult your local Authorized Service Dealer for your specific generator model.

8 Automatic Standby Generator Owner's Manual

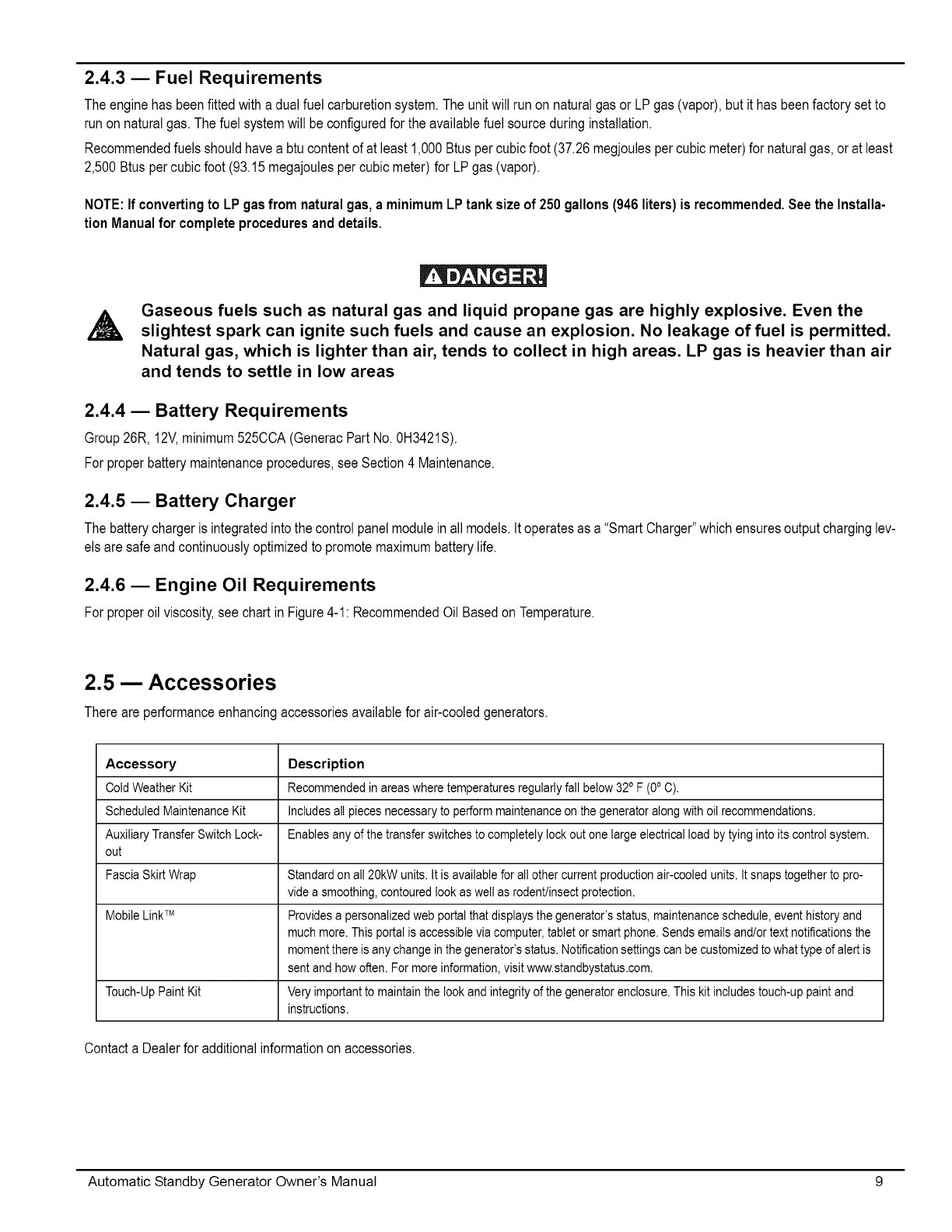

2.4.3 mFuel Requirements

The engine has been fitted with a dual fuel carburetion system. The unit will run on natural gas or LP gas (vapor), but it has been factory set to

run on natural gas. The fuel system will be configured for the available fuel source during installation.

Recommended fuels should have a btu content of at least 1,000 Btus per cubic foot (37.26 megjoules per cubic meter) for natural gas, or at least

2,500 Btus per cubic foot (93.15 megajoules per cubic meter) for LP gas (vapor).

NOTE:If convertingto LPgasfrom naturalgas,a minimumLPtank sizeof 250gallons(946liters) is recommended.Seethe Installa-

tionManualfor completeproceduresanddetails.

Gaseous fuels such as natural gas and liquid propane gas are highly explosive. Even the

slightest spark can ignite such fuels and cause an explosion. No leakage of fuel is permitted.

Natural gas, which is lighter than air, tends to collect in high areas. LP gas is heavier than air

and tends to settle in low areas

2.4.4 mBattery Requirements

Group 26R, 12V, minimum 525CCA (Generac Part No. 0H3421S).

For proper battery maintenance procedures, see Section 4 Maintenance.

2.4.5 -- Battery Charger

The battery charger is integrated into the control panel module in all models. It operates as a "Smart Charger" which ensures output charging lev-

els are safe and continuously optimized to promote maximum battery life.

2.4.6 _Engine Oil Requirements

For proper oil viscosity, see chart in Figure 4-1: Recommended Oil Based on Temperature.

2.5 mAccessories

There are performance enhancing accessories available for air-cooled generators.

Accessory Description

Cold Weather Kit Recommended in areas where temperatures regularly fall below 320 F (0° C).

Scheduled Maintenance Kit Includes all pieces necessary to perform maintenance on the generator along with oil recommendations.

Auxiliary Transfer Switch Lock- Enables any of the transfer switches to completely lock out one large electrical load by tying into its control system.

out

Fascia Skirt Wrap Standard on all 20kW units. It is available for all other current production air-cooled units. It snaps together to pro-

vide a smoothing, contoured look as well as rodent/insect protection.

Mobile Link TM Provides a personalized web portal that displays the generator's status, maintenance schedule, event history and

much more. This portal is accessible via computer, tablet or smart phone. Sends emails and/or text notifications the

moment there is any change in the generator's status. Notification settings can be customized to what type of alert is

sent and how often. For more information, visit www.standbystatus.com.

Touch-Up Paint Kit Very important to maintain the look and integrity of the generator enclosure. This kit includes touch-up paint and

instructions.

Contact a Dealer for additional information on accessories.

Automatic Standby Generator Owner's Manual 9

This page intentionally left blank.

10 Automatic Standby Generator Owner's Manual

Section 3

3.1 -- Control Panel

Operation

Interface

//_ The control panel on this unit is intended to only be operated by qualified service personnel.

The Control panel interface is located under the lid of the enclosure. Before attempting to lift the lid of the enclosure, verify that both left and right

side locks are unlocked. To remove the front cover, lift the cover straight up to disengage the side hooks, then tilt and lift it away from the unit.

When closing the unit, ensure that both left and right side locks are securely locked. See Figure 3-1.

The enclosed keys provided with this unit are for service personnel usage only.

SIDE LOCK

Figure 3-1" Generator With Lid Open/Side Lock Location

Set to AUTO, the engine may crank and start at any time without warning. Such automatic starting

occurs when utility power source voltage drops below a preset level or during the normal exercise

cycle. To prevent possible injury that might be caused by such sudden starts, always set to OFF and

remove the fuses before working on or around the generator or transfer switch. Then, place a "DO

NOT OPERATE" tag on the generator panel and on the transfer switch.

NOTE:Thegeneratoris to be runwithallappropriatepanelsin place,includingduringtroubleshootingby a technician.

Automatic Standby Generator Owner's Manual 11

!

I/7 AUTO ///7 MANUALf_ OFF _./_\

Figure 3-2: Generator Control Panel

3.2 mUsing the Auto/Off/Manual Buttons

Button Description of Operation

Auto Selectingthisbuttonactivatesfullyautomaticsystemoperation.Italsoallowstheunitto automaticallystartandexercisethe

engineeverysevendayswiththesettingof theexercisetimer(seetheSettingtheExerciseTimersection).

Off Thisbuttonshuts downtheengineand alsopreventsautomaticoperationof the unit.

Manual Thisbuttonwill crankandstartthe generator.Transferto standbypowerwill notoccurunlessthere isa utility

failure.

NOTE:Damagecausedby mis-wiringof the interconnectwiresis notwarrantable.

3.3 mInterface Menu Displays

The LCD display:

Feature Description

HOME page The default page which will be displayed if no buttons are pressed for 60 seconds. This page normally shows the current Status

message and the current date and time. The highest priority active Alarm/Warning will be automatically posted on this page as

well as flashing the backlight when such a condition is detected. In the case of multiple Alarms/Warnings, only the first message

will be displayed. To clear an Alarm or Warning, press the OFF button and then press the ENTER key.

Display Backlight Normally off. If the operator presses any button, the backlight will automatically light and remain on for 30 seconds.

MAIN MENU page Allows the operator to navigate to all other pages or sub-menus by using the Arrows and Enter buttons. This page can be

accessed at any time with several presses of the dedicated Escape button. Each press of the Escape button takes the operator

to the previous menu until the MAIN MENU displays. This page contains information for- History; Status; Edit; Debug.

3.3.1m Menu System Navigation

To get to the MENU, use the "Escape" button from any page. It may require pressing it many times before getting to the MENU page. Navigate to

the desired menu by using the q'/,J, buttons. When the desired menu is displayed and flashing, press the "Enter" button. See Figure 3-3.

12 Automatic Standby Generator Owner's Manual

"11

r--

r--

2013 EVOLUTION/SYNC2.0 HSB MENU MAP

Running Manual

Runnk_g-Utilfiy Lost

Running-Remote Start

Running-2 Wire Start

Running - Exercise

Switched Off

Stopped - Auto

Stopped - Alarm

Battery Condition

"Good" 'Inspect Battery" or "Check Battery"

_ENTE_

-1 thru 50 + -Run Log +

ESC ..-I1_

-1 thru 50 + -Alarm Log +

Warning Message(s)

"Low Battery"

"Exercise Set Error"

"FIRMWARE ERROR-9"

"Fuel Pressure"

"Battery Problem"

"Charger Warning"

"Charger Missing AC"

"Overload Warnk_"

"Overload Cooldown"

"SEEPROM ABUSE"

"USB Warning"

"Download Failure"

/

.... Language_Language_Language_Language

÷ English ÷ + English -+ Espanol -+ Francais -

- ESC

Fuel Selection Fuel Selection

ESC

÷ NGorLP÷ + NGorLP-

Switched to "OFF" Current Date/Time

Hours o0f _H_tection

ESC 02/14/13 07:40

__ ---_Ar_ ....

ENTE""""""_ _ _ Access Requires Password

HLanguage /

+ Po_uguese -

z:a _ /F._ MANU.II./,:::aOR =xuP ARROW = +

DOWN ARROW =-

Run Hours (H)

00 /

ENTER ESC-+ EXAMPLE:

Inspect Battery 200 RnHr or 12/27/13

and

Next Maintenance 200 RnHr or 12/27/13

I

Alarm Message(s)

"High Engine Temp."

"Low Oil Pressure"

"Overcrank"

"Overspeed"

"RPM Sense Loss"

"Underspeed"

"Internal Fault"

"FIRMWARE ERRQR-T'

"WIRING ERROR"

"Over Voltage"

"Under Vokage"

"Ovedoad Remove Load"

"Low Volts Remove Load"

"Stepper Over Current"

"Fuse Problem"

0198170GST-D 05/22/13

Page 1 of 4

I i,,c l,,Cl = l,,c l,,c l,,c ....

ESC _| ÷Current2/12/13Date/Time12:22÷ ENTER _ Sefect_ Hour14+(0-23) Select_ Mino +(0-59) Select Month_2 + (1-12) Select_ Date13+(1-31 ) Select_ Year13 +(0-99)

;t t tE tE t /....

ESC _| Exercise Time Quiet Test Mode ? Select Hour (0-23) Select Min (o-5g) Select Day÷ 14:00Wednesday ÷ - YESorNO + - 14 + - 0 + - Wednesday +

Select "Yes" then Press "Enter" to continue or Press

_ f Quiet Test Mode only

on certain models "ESCAPE" to escape out of updating.

Possible Message(s) Durh_g update process the Blue "Manuar rlight fiashesr then

_ _ _... the Green "Auto" light flashes. Seq does this twice.......

FM]lware Update Firmware Update Corrupted Fife "Current:V XXXX .... Are You Sure?" When update is complete the unit returns to Install Wizard

• 1_ ESC Invalid File

÷ Press Enter ÷ ÷ Insert USB ÷ File Not Found "USB: V XXXX .... -Yes or No +" menu.

Unsupported Device When the controller powers up the very first screen displays

the version number for a few secot_ds.

When update is complete remove Thumb Ddve, then follow

the Install Wizard Menu.

3.4 mAutomatic Transfer Operation

To select automatic operation:

1. Make sure the transfer switch main contacts are set to their UTILITY position (loads connected to the utility power

source).

2. Be sure that normal UTILITY power source voltage is available to transfer switch terminal lugs N1 and N2.

3. Press the AUTO button on the Control Panel Interface.

4. Set the Main Circuit Breaker (Generator Disconnect) to its ON (Closed) position.

With these steps complete, the generator will start automatically when utility source voltage drops below a preset level.After the unit starts, loads

are transferred to the standby power source.

3.4.1m Automatic Sequence of Operation

3.4.1.1 mUtility Failure

With the generator set to AUTO, when the utility fails (below 65% of nominal) a 10 second (optionally programmable) line interrupt delay time is

started. If the utility isstill gone when the timer expires, the engine will crank and start. Once started, a 5 second engine warm-up timer will be ini-

tiated. When the warm-up time expires, the controller will transfer the load to the generator. If the utility power is restored (above 75% nominal) at

any time from the initiation of the engine start until the generator is ready to accept load (5 second warm-up time has not elapsed), the controller

will complete the start cycle and run the generator through its normal cool down cycle, however, the load will remain on the utility source.

3.4.1.2 m Cranking

The system will control the cyclic cranking as follows:

8kW unit- 5 cranking cycles as follows: 15 second crank, seven (7) second rest, followed by four (4) additional cycles of seven (7) second

cranks followed by seven (7) second rests.

11-20kW units - 5 cranking cycles as follows: 16second crank, seven (7) second rest, 16 second crank, seven (7) second rest, followed by

three (3) additional cycles of seven (7) second cranks followed by seven (7) second rests.

3.4.1.3 _Load Transfer

Thetransferof loadwhenthe generatoris runningis dependentupontheoperatingmode:

MANUAL

AUTO

EXERCISE

• Will not transfer to generator if utility is present

• Wilt transfer to generator if utility fails (below 65% of nominal for 10 consecutive seconds)

• Wilt transfer back when utility returns for 15 consecutive seconds The engine will continue to run

until removed from the MANUAL mode

• Will start and run if utility fails for 10 consecutive seconds (factory default)

• Will start a 5 second engine warm-up timer

•Wilt not transfer if utility subsequently returns

•Wilt transfer to generator if utility is not present

• Will transfer back to utility once utility returns (above 75% of nominal) for 15 seconds

• Will not transfer back to utility unless utility returns The generator will shut down if the OFF button is

pressed or a shutdown alarm is present

• Once utility power is returned, the generator will shut down after 1 minute cool-down time

• Wilt not exercise if generator is already running in either AUTO or MANUAL mode

• During exercise, the controller will only transfer if utility fails during exercise for 10 seconds, and will

switch to AUTO

14 Automatic Standby Generator Owner's Manual

3.5 mTurning the Generator Off When Operating Under Load

NOTE: Important!Toturn the generator off during prolongedutility outagesto performmaintenanceor conserve

fuel, follow these simple, but importantsteps:

Toturnthe generatorOFF(whilerunninginAUTOandonline):

1. Turn OFF (or OPEN) the main Utility disconnect.

2. Turn OFF (or OPEN) the Main Line Circuit Breaker (MLCB) on the generator.

3. Turn the generator OFF.

Toturnthe generatorbackON:

1. Put the generator back into AUTO and allow to start and warm-up for a few minutes.

2. Turn ON (or CLOSE) the MLCB on the generator.

Thesystemwill now beoperatingin itsautomaticmode.The mainutilitydisconnectcanbeturnedON (orCLOSED),butto shutthe unitoff, this

completeprocessmust berepeated.

3.6 mManual Transfer Operation

DO NOT attempt to activate the transfer switch manually until all power voltage supplies to the switch have been

completely turned off. Failure to turn off all power voltage supplies may result in extremely hazardous and possi-

bly fatal electrical shock.

Prior to automatic operation, manually exercise the transfer switch to verify that there is no interference with proper operation of the mechanism.

Manual operation of the transfer switch is required if electronic operation should fail.

3.6.1m Transfer to Generator Power Source

LOAD CONNECTED TO UTILITY POWER SOURCE

LOAD CONNECTED TO STANDBY POWER SOURCE

MANUAL TRANSFER

HANDLE

TRANSFER SWITCH

OPERATING LEVER

,

2.

,

,

,

6.

7.

Press the Control Panel OFF button.

Set the Main Circuit Breaker (Generator

Disconnect) to its OFF (OPEN) position.

Turn off the utility power supply to the transfer

switch using the means provided (such as a utility

main line circuit breaker).

Use the manual transfer handle inside the transfer

switch to move the main contacts to their STANDBY

positions (loads connected to the standby power

sou roe).

To crank and start the engine, press the Control

Panel MANUAL button.

Allow the engine to stabilize and warm up for a few

minutes.

Set the Main Circuit Breaker (Generator

Disconnect) to its ON (CLOSED) position. The

standby power source now powers the loads.

Figure 3-4: Manual Transfer Switch Operation

Automatic Standby Generator Owner's Manual 15

3.6.2-- Transfer Back to Utility Power Source

When utility power has been restored, transfer back to utility source and shut down the generator. To manually transfer back to utility power and

shut down the generator:

1. Set the Main Circuit Breaker (Generator Disconnect) to its OFF (OPEN) position.

2. Allow the engine to run for 2 minutes at no-load to stabilize the internal temperatures.

3. Press the Control Panel OFF button. The engine should shut down.

4. Ensure that utility power supply to the transfer switch is turned off.

5. Use the manual transfer handle inside the transfer switch to move the main contacts back to their UTILITY posi-

tions (loads connected to the utility power source).

6. Turn on the utility power supply to the transfer switch using the means provided.

7. Press the Control Panel AUTO button.

3.7 -- Side Compartment

Local codes may require this compartment to be locked. A hasp is provided so the owner/operator can secure the compartment with his or her

own padlock. Check local codes for side compartment locking requirements.

LEDINDICATOR LIGHTS 15 Amp OUTLET BREAKER

120V GFCI OUTLET MAIN CIRCUIT BREAKER

Figure 3-5: Open Side Compartment

3.7.1-- Main Circuit Breaker (Generator Disconnect)

This is a 2-pole breaker rated according to relevant specifications.

3.7.2-- LED Indicator Lights

• Green LED "Ready" light is on when utility is present and the Control Panel button is in the AUTO position. This also indicates when the gen-

erator is running.

• Red LED "Alarm" light is on when the generator is OFF or a fault is detected and means contact your authorized servicing dealer.

• Yellow LED "Maintenance" light. Note: Yellow LED may be on at the same time as either the Red or Green LEDs.

16 Automatic Standby Generator Owner's Manual

3.7.3m 120V GFCI Outlet/15 Amp Breaker (17 & 20 kW Only)

All units are equipped with an external 15 amp, 120 volt GFCI convenience outlet located in the top corner of the compartment.

When the generator is running, in the absence of utility power, this outlet may also be used to power items outside the home such as lights or

power tools. This outlet may also be used when utility power is present by running the generator in manual mode.

This outlet does not provide power if the generator is not running. Do not use this outlet when the generator is in Exercise mode. This outlet is

protected by a 15amp circuit breaker in the side compartment.

3.8 mAlarm Response Procedures

The generator is protected by a series of sensors that will detect an Alarm/Warning condition and alert the owner/operator of the condition via the

Control Panel display. When certain alarm conditions are detected, the generator will shut down.

Alarm/Warning conditions can include (this is not a complete list):

• Low Oil Pressure

• High Engine Temperature

• Low Battery

• Under-voltage

• Exercise Set Error

NOTE:Unless properlytrained to clearandcorrectWarning andAlarmconditions,contactthe nearestAuthorizeddealerorTrained

Technician.

3.9 mBattery Charger

NOTE: The battery charger is integrated into the control module in all models.

The battery charger operates as a "Smart Charger" that ensures:

• Output is continually optimized to promote maximum battery life.

• Charging levels are safe.

NOTE:A warningisdisplayedonthe LCDwhenthe batteryneedsservice.

3.10 Setting the Exercise Timer

Thisgeneratoris equippedwith anexercisetimer. Onceit is set, the generatorwillstartandexerciseeverysevendays,onthedayof theweekandat thetimeof day

specified.Duringthis exerciseperiod,theunitrunsfor approximately12minutesandthenshutsdown. Transferof loadsto thegeneratoroutputdoesnotoccurduring

theexercisecycleunlessutilitypoweris lost.

Theexercisesettingscanbechangedat anytime via the"EDIT"menu.

If the 12 volt batteryis disconnectedor the fuseremoved,theInstallationWizardwill operateuponpowerrestoration.Theonlydifferenceisthedisplaywillonly

promptthecustomerfor thecurrentTimeandDate.

Theexerciserwill onlyworkintheAUTOmodeandwill notwork unlessthis procedureis performed.The currentdatettimewill needto be resetevery timethe 12

volt batteryis disconnectedandthenreconnected,and/orwhenthefuse is removed.

Automatic Standby Generator Owner's Manual 17

This page intentionally left blank.

18 Automatic Standby Generator Owner's Manual

Section 4 Maintenance

NOTE:Propermaintenanceand properandsafeoperationis crucialto the lifeof thegenerator.GenuineGeneracpartsMUSTbe used

to ensurewarrantycoverage.

NOTE:Sincemostmaintenancealertswill occuratthe sametime (mosthavetwoyear intervals),onlyonewill appearon theControl

Paneldisplayat anyonetime.Oncethe first alertis cleared,the nextactivealertwill be displayed.

/_AII service to this generator must be performed by a qualified service person only.

4.1 mPerforming Scheduled Maintenance

It is important to perform Maintenance as specified in the Service Schedule for proper generator operation and to ensure that the generator com-

plies with the applicable emission standards for the duration of its useful life. Service and repairs may be performed by any qualified service per-

son or repair shop. Additionally, emissions critical maintenance must be performed as scheduled in order for the Emissions Warranty to be valid.

Emissions critical maintenance consists of servicing the air filter and spark plugs in accordance with the Service Schedule. The controller will

prompt for Schedule A or Schedule B maintenance to be performed. Schedule A maintenance consists of the oil, oil filter and tune-up. Schedule

B maintenance includes the oil, oil filter, tune-up, air cleaner, spark plug(s) and valve clearance.

4.2 m Service Schedule

ATTENTION: All service work must be performed by a qualified service person only.

System Component Procedure Frequency

X = Action W = Weekly

R= Replace as Necessary Inspect Change Clean M = Monthly

* = Notify Dealer if Repair is Needed Y = Yearly

Fuel

Fuel,nesandconnect,ons* 1 X 1 l 1 M

Lubrication

Oil level X M or 24 hours of continuous operation

Oil X 2Y or 200 hours of operation**

Oil filter X 2Y or 200 hours of operation**

Cooling

Enclesureleuvers 1 x 1 lx 1 w

Battery

Remove corrosion, ensure dryness

Clean and tighten battery terminals

Check charge state

Electrolyte level (unsealed batteries only)*

Engine and Mounting

Air cleaner

Spark plug(s)

Valve Clearance

General Condition

Vibration, Noise, Leakage*

Complete Tune-Up*

* Contact the nearest Dealer for assistance if necessary.

X X Y

X X Y

X X Y

X X Every 6 M

X X 400 hours

X X 400 hours

X 500 hours***

x 1 l M

To be completed by a Dealer 2Y or 200 hours

** Change oil and filter after the first 25 hours of operation. Continue to check at intervals of 200 hours or 2 years, whichever occurs first. Severe duty oil drain inter-

vals: In cold weather conditions (ambient below 40°F/4.4°C) change engine oil and filter every year or 100 hours of operation to prevent accumulation of water in

the oil. If the unit will be operated continuously in hot ambient conditions (ambient above 85°F/29.4°C) or operation in an extremely dusty or dirty environment

change the engine oil and filter every year or 100 hours of operation to prevent oil breakdown.

*** Check valve clearance after the first 25 hours of operation. Continue to check at intervals of 400 hours.

Automatic Standby Generator Owner's Manual 19

4.2.1m Maintenance Log

1. Battery inspection and charge check (recommended every year (1) for the life of the battery)

NOTE: Check electrolyte level (unsealed batteries only) every 6 months.

Dates Performed:

2. Oil, oil filter and air filter replacement (recommended after the first 25 hours after installation and every 200 hours or 2 years, whichever

occurs first) NOTE: Spark plug replacement (recommended every 4 years or 400 hours, whichever occurs first).

Dates Performed:

3. Valve Adjustment (recommended after the first 25 hours of operation and then after every 400 hours of operation)

Dates Performed:

4.3 mChecking Engine Oil Level

When power outages necessitate running the generator for extended periods, the oil level should be checked daily. To check the engine oil level:

1. If the generator is running during a utility outage, first turn OFF all associated loads running in the residence using the electrical panel's main

disconnect. Then, turn the generator's Main Circuit Breaker to the OFF position.

2. Press the Control Panel OFF button. Wait 5 minutes.

3. Remove the dipstick and wipe it dry with a clean cloth.

4. Completely insert the dipstick and again remove it.

5. Observe the oil level. The level should be at the "Full" mark on the dipstick.

6. If necessary, remove the oil fill cap and add oil to the engine until the level reaches the "Full" mark and reinsert the dipstick and fill cap.

7. Press the Control Panel AUTO button.

8. If the generator was running during a utility outage, first turn the Main Circuit Breaker to the ON position. Then, turn ON the needed loads in

the residence.

Never operate the engine with the oil level below the "Add" mark on the dipstick. Doing so could damage the

engine.

Hot oil may cause burns. Avoid prolonged or repeated skin exposure with used oil. Thoroughly wash exposed

areas with soap.

20 Automatic Standby Generator Owner's Manual

4.3.1m Engine Oil Recommendations

To maintain the warranty, genuine Generac replacement parts MUST be used, including Generac oil kits (which include an oil and air filter). Gen-

erac oil kits can be obtained through an Authorized Dealer or purchased on-line. To purchase on-line, access the maintenance kits page through

www.generac.com or directly at shop.generac.com Follow the prompts to enter delivery information and complete the purchase.

All Generac oil kits meet minimum American Petroleum institute (API) Service Class SJ, SL, or better. Use no special additives. Select the appro-

priate viscosity oil grade according to the expected operating temperature. Synthetic oil also can be used in the appropriate weight as standard.

100

40

Figure 4-1: Recommended Oil Based on Temperature

• SAE 30 above 320 F(0 °C)

• 10W 30 between 400and -100 F (40and -230 C)

• Synthetic 5W 30 for all temperature ranges

Any attempt to crank or start the engine before it has been properly serviced with the recommended oil may

result in an engine failure.

4.3.2m Changing the Oil and Oil Filter

1. Start the engine by pressing the MANUAL button on the control panel and allow the engine to run until it is thoroughly warmed up. Then,

press the Control Panel OFF button to shut down the engine.

2. A few minutes after the engine shuts OFF,when it has cooled slightly, lift the lid and remove the front panel. Pull the oil drain hose free of its

retaining clip. Remove the cap from the hose and drain the oil into a suitable container.

3. After the oil has drained, replace the cap onto the end of the oil drain hose. Reposition and secure the hose with the retaining clip.

4. With the oil drained, remove the old oil filter by turning it counterclockwise. For filter location, see Figure 4-2.

5. Apply a light coating of clean engine oil to the gasket of the new filter.

6. Screw the new filter on by hand until its gasket lightly contacts the oil filter adapter. Then, tighten the filter an additional 3/4 to one full turn.

7. Refill the engine with the proper recommended oil. For recommended oil, see Figure 4-1.

8. Start the engine, run for 1 minute, and check for leaks.

9. Shutdown the engine and recheck the oil level. Add oil as needed. DO NOT OVER FILL.

10. Re-insert dipstick and/or reattach fill cap.

11. Press the Control Panel AUTO button.

12. Dispose of the used oil and filter at a proper collection center.

Automatic Standby Generator Owner's Manual 21

Figure 4-2: Oil Filter and Drain Location

4.4 m Changing the Engine Air Cleaner

1. With the generator shut down, lift the lid and remove the front panel.

2. Remove the cover clips and air cleaner cover (11-20kW), or disengage the wire clip and open the air cleaner access door (8kW).

3. Pull out the old air filter and discard.

4. Thoroughly clean the air cleaner enclosure of any dust or debris.

5. Install a new air cleaner.

6. Install the air cleaner cover and cover clips (11-20kW),or close the air cleaner access door and engage the wire clip (8kW).

4.5 m Spark Plugs

Reset the spark plug(s) gap or replace the spark plug(s) as necessary:

1. With the generator shut down, lift the lid and remove the front panel.

2. Clean the area around the base of the spark plug(s) to keep dirt and debris out of the engine.

3. Remove the spark plug(s) and check the condition. Install a new plug(s) if the old one is worn or if reuse is questionable.

4. Clean the plug(s) by scraping or washing with a wire brush and commercial solvent. Do not blast the plug(s) to clean.

5. Check the spark plug gap using a wire feeler gauge. See Figure 4-3. Adjust the gap by carefully bending the ground electrode to:

• For 8, 11,and 20kW units - 0.76 mm (0.030 inch)

• For 13, 14, 15, 16, 17kW units - 1.02 mm (0.040 inch)

Figure 4-3: Spark Plug Gap Adjustment

22 Automatic Standby Generator Owner's Manual

4.6 mValve Lash Adjustment

After the first 25 hours of operation and then at every 400 hour interval afterwards, check the valve clearance. Adjust if necessary.

Important: Please contact the Dealer for service assistance. This is a very important step to ensure longest life for the engine.

To check valve clearance:

• The engine should be cool before checking. If valve clearance is 0.002" - 0.004" (0.05 - 0.1mm), adjustment is not needed.

• Remove spark plug wires and position wires away from plugs.

• Remove spark plugs.

• Make sure the piston is at TopDead Center (TDC) of its compression stroke (both valves closed). Toget the piston at TDC, remove the intake

screen at the front of the engine to gain access to the flywheel nut. Use a large socket and socket wrench to rotate the nut and hence the

engine in a clockwise direction. While watching the piston through the spark plug hole. The piston should move up and down. The piston is at

TDC when it is at its highest point of travel.

To adjust valve clearance (see Figure 4-4):

• Make sure the engine is at 60° to 80° F (16° to 27° C).

• Make sure that the spark plug wire is removed from the spark plug and out of the way.

• Remove the four screws attaching the valve cover.

• Loosen the rocker jam nut. Using a 10ram Allen wrench (530cc engine) or a 13ram Allen wrench (410cc, 990cc and 999cc engines), turn the

pivot ball stud while checking clearance between the rocker arm and the valve stem with a feeler gauge. Correct clearance is 0.002-0.004

inch (0.05-0.1 mm).

NOTE: Hold the rocker arm jam nut in place as the pivot ball stud is turned.

• When valve clearance iscorrect, hold the pivot ball stud in place with the Allen wrench and tighten the rocker arm jam nut. Tighten the jam nut

to 174 in-lbs. (19.68 N-m) torque. After tightening the jam nut, recheck valve clearance to make sure it did not change.

• Install new valve cover gasket.

• Re-attach the valve cover.

NOTE: Start all four screws before tightening or it will not be possible to get all the screws in place. Make sure the valve cover gasket

is in place.

• Install spark plugs.

• Re-attach the spark plug wire to the spark plug.

• Repeat the process for the other cylinder, if necessary.

Automatic Standby Generator Owner's Manual 23

Jam Nut

Pivot Ball

Stud

Rocker

Arm

Valve

Stem

Figure 4-4: Valve Clearance Adjustment

4.7 mBattery Maintenance

The battery should be regularly inspected per the Service Schedule:

1. With the generator shut down, lift the lid and remove the front panel.

2. Inspect the battery posts and cables for tightness and corrosion. Tighten and clean as necessary.

3. Check the battery fluid level of unsealed batteries, and if necessary, fill with distilled water only. DO NOT use tap water. Also, have the

Dealer or a qualified Service Technician check the state of charge and condition.

Do not dispose of the battery by incineration. The battery is capable of exploding.

A battery presents a risk of electrical shock and high short circuit current. Strictly observe the following precau-

Z_ tions when working on batteries:

Remove the 7.5 Amp fuse from the generator control panel.

Remove all jewelry--watches, rings, metal objects, etc.

Use tools with insulated handles.

Wear rubber gloves and boots.

Do not lay tools or metallic objects on top of the battery.

Disconnect the charging source prior to connecting or disconnecting battery terminals.

24 Automatic Standby Generator Owner's Manual

Do not open or mutilate the battery.Released electrolyte has been known to be harmful to the skin and eyes, and

to be toxic. The electrolyte is a dilute sulfuric acid that is harmful to the skin and eyes. It is electrically conduc-

tive and corrosive. Strictly observe the following precautions:

• Wear full eye protection and protective clothing.

• Where electrolyte contacts the skin, wash it off immediately with water.

• Where electrolyte contacts the eyes, flush thoroughly and immediately with water and seek medical attention.

• Wash down spilled electrolyte with an aid neutralizing agent. A common practice is to use a solution of 1 pound (500 grams) bicarbonate

of soda to 1 gallon (4 liters) of water. The bicarbonate of soda solution is to be added until the evidence of reaction (foaming) has

ceased. The resulting liquid is to be flushed with water and the area dried.

Lead-acid batteries present a risk of fire because they generate hydrogen gas. Strictly observe the following pre-

_cautions:

• DO NOT smoke when near the battery.

• DO NOT cause flame or spark in the battery area.

• Discharge static electricity from the body before touching the battery by first touching a grounded metal surface.

Be sure the utility power supply is turned off and the 7.5 Amp fuse is removed from the generator Control Panel,

_, or sparking may occur battery posts as are cause an explosion.

at the the cables attached and

4.8 mAttention After Submersion

If the generator has been submerged in water, it MUST NOT be started and operated. Following any submersion in water, have a Dealer thor-

oughly clean, dry, and inspect the generator. If the structure (home) has been flooded, it should be inspected by a certified electrician to ensure

there won't be any electrical problems during generator operation or when utility power is returned.

4.9 mCorrosion Protection

Periodically wash and wax the enclosure using automotive type products. Frequent washing is recommended in salt water/coastal areas. Spray

engine linkages with a light oil such as WD-40.

4.10 Out of Service Procedure

4.10.1m Removal From Service

If the generator cannot be exercised every 7 days and will be out of service longer than 90 days, prepare the generator for storage:

1. Start the engine and let it warm up.

2. Close the fuel shutoff valve in the fuel supply line and allow the unit to shut down.

3. Once the unit has shut down, set the generator's Main Circuit Breaker (Generator Disconnect) to its OFF (OPEN) position.

4. Turn off the utility power to the transfer switch.

5. Remove the 7.5 Amp fuse from the generator's Control Panel.

6. Disconnect the battery cables. Remove negative cable first.

7. Remove battery charger AC input Tl/Neutral cable (has white sleeve) at controller.

8. While the engine is still warm, drain the oil completely, and then refill the crankcase with oil.

9. Attach a tag to the engine indicating the viscosity and classification of the new oil in the crankcase.

10. Remove the spark plug(s) and spray a fogging agent into the spark plug(s)' threaded openings. Reinstall and tighten the spark plug(s).

Automatic Standby Generator Owner's Manual 25

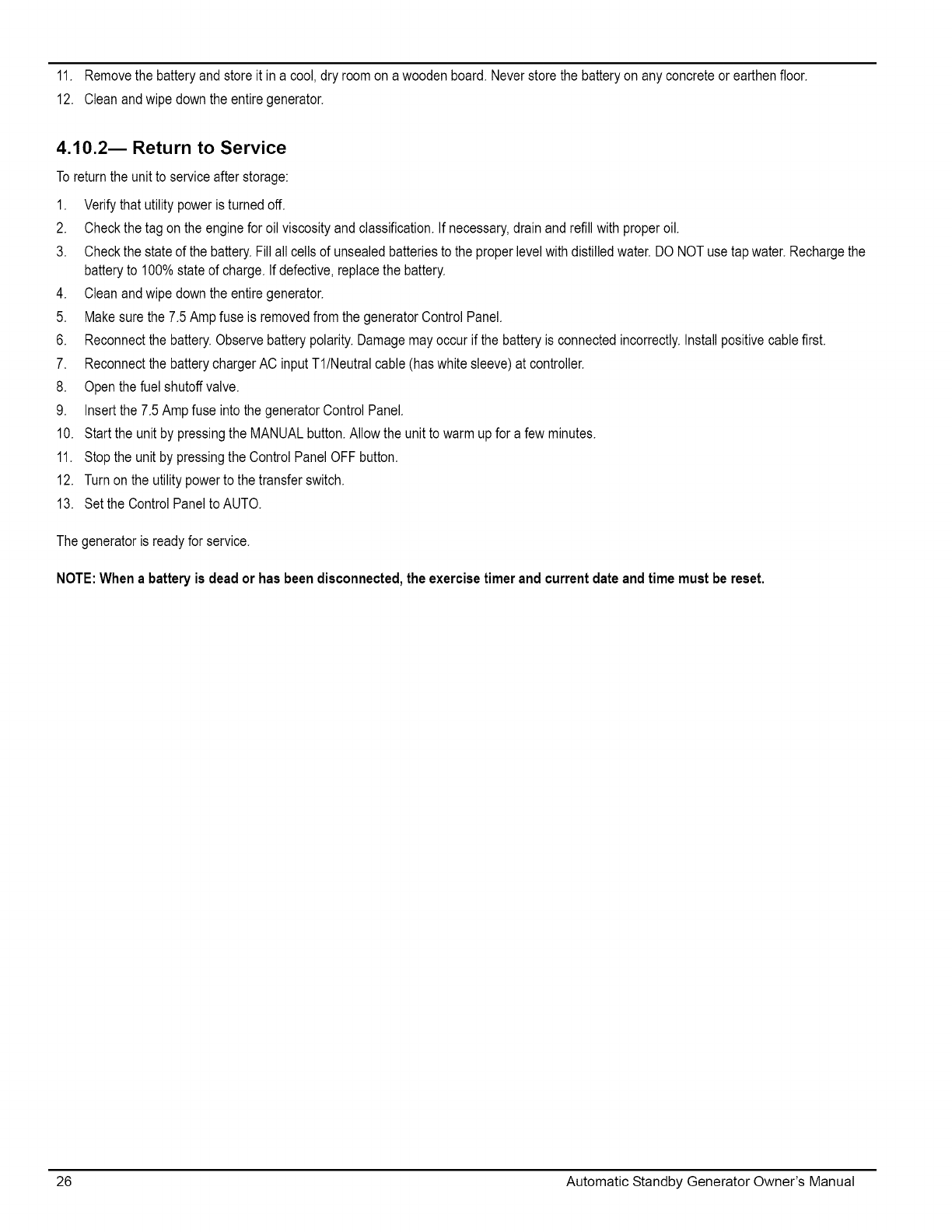

11.Removethebatteryandstoreitinacool,dryroomonawoodenboard.Neverstorethebatteryonanyconcreteorearthenfloor.

12.Cleanandwipedowntheentiregenerator.

4.10.2m Return to Service

To return the unit to service after storage:

1. Verify that utility power is turned off.

2. Check the tag on the engine for oil viscosity and classification. If necessary, drain and refill with proper oil.

3. Check the state of the battery. Fill all cells of unsealed batteries to the proper level with distilled water. DO NOT use tap water. Recharge the

battery to 100% state of charge, if defective, replace the battery.

4. Clean and wipe down the entire generator.

5. Make sure the 7.5 Amp fuse is removed from the generator Control Panel.

6. Reconnect the battery. Observe battery polarity. Damage may occur if the battery is connected incorrectly. Install positive cable first.

7. Reconnect the battery charger AC input T1/Neutral cable (has white sleeve) at controller.

8. Open the fuel shutoff valve.

9. Insert the 7.5 Amp fuse into the generator Control Panel.

10. Start the unit by pressing the MANUAL button. Allow the unit to warm up for a few minutes.

11. Stop the unit by pressing the Control Panel OFF button.

12. Turn on the utility power to the transfer switch.

13. Set the Control Panel to AUTO.

The generator is ready for service.

NOTE:When a batteryis deador hasbeendisconnected,theexercisetimerandcurrentdateand time mustbe reset.

26 Automatic Standby Generator Owner's Manual

Section 5

Problem

Troubleshooting

Cause Correction

The engine will not crank. 1. Fuse blown.

2. Loose, corroded or defective

battery cables.

3. Defective starter contact.

4. Defective starter motor.

5. Dead Battery.

1. Correct short circuit condition by

replacing 7.5 Amp fuse in generator

control panel.

2. Tighten, clean or replace

as necessary.*

3. *See #2.

4. *See #2.

5. Charge or replace battery.

The engine cranks but

will not start.

1. Out of fuel.

2. Defective fuel solenoid (FS).

3. Open #14 wire from engine control

board.

4. Defective spark plug(s).

5. Valve lash out of adjustment.

1. Replenish fuel/Turn on fuel valve.

2. *

3. Repair wiring.

4. Clean, re-gap or replace plug(s).

5. Reset valve lash.

The engine starts hard

and runs rough.

1. Air cleaner plugged

or damaged.

2. Defective spark plug(s).

3. Fuel pressure incorrect.

4. Fuel selector in wrong position.

1,

2.

3.

4,

Check/replace air cleaner.

Clean, re-gap or replace plug(s).

Confirm fuel pressure to regulator

is 10-12" water column (19-22mm

mercury) for LP, and 3.5-7" water

column (7-13mm mercury) for

natural gas.

Move selector to correct position.

The generator is set to OFF,

but the engine continues to

run.

1. Controller wired incorrectly

2. Defective control board.

1. Repair wiring or replace controller.

2. *

There is no AC output from

the generator.

1. Main line circuit breaker is in

the OFF (or OPEN) position.

2. Generator internal failure.

1. Reset circuit breaker

to ON (or CLOSED).

2. *

There is no transfer to

standby after utility

source failure.

1. Main line circuit breaker is in the OFF

(or OPEN) position..

2. Defective transfer switch coil.

3. Defective transfer relay.

4. Transfer relay circuit open.

5. Defective control logic board

1. Reset circuit breaker to ON

(or CLOSED) position.

2. *

3. *

4. *

5. *

Unit consumes large

amounts of oil.

1. Engine over filled with oil.

2. Engine breather defective.

3. Improper type or viscosity of oil.

4. Damaged gasket, seal or hose.

*Contact an Authorized Service Dealer for assistance.

1. Adjust oil to proper level.

2. *

3. See "Engine Oil

Recommendations".

4. Check for oil leaks.

Automatic Standby Generator Owner's Manual 27

This page intentionally left blank.

28 Automatic Standby Generator Owner's Manual

Section 6 Quick Reference Guide

Problem LED Things to

Check Active Alarm Solution

Unit running in AUTO but no power GREEN Check MLCB. NONE Check MLCB. Contact servicing dealer if

in house. MLCB is in the ON position.

Check the Check ventilation around the intake,

HIGH

Unit shuts down during operation. RED LEDs/Screen TEMPERATURE exhaust and rear of generator. Contact

for alarms, serving dealer if no obstruction is found.

Check the Clear alarm and remove household

OVERLOAD

Unit shuts down during operation. RED LEDs/Screen REMOVE LOAD loads from the generator. Put back in

for alarms. AUTO and restart.

Unit was running and shuts down,

attempts to restart. RED

Check the

L E Ds/Screen

for alarms.

RPM SENSE

LOSS

Clear alarm and remove household

loads from the generator. Put back in

AUTO and restart, tf problem returns,

contact servicing dealer to investigate

possible fuel issue.

See if screen NOT Refer to activation section in Owner's

Unit will not start in AUTO with utility NONE says unit not ACTIVATED Manual.

loss. activated.

Check screen If the start up delay is greater than

Unit will not start in AUTO with utility GREEN for start delay None expected, contact servicing dealer to

loss. countdown, adjust from 2 to 1500 seconds.

Check the LOW OIL Check oil level. Add oil per Owner's

Unit will not start in AUTO with utility RED LEDs/Screen Manual. Contact servicing dealer if oil

loss. for alarms. PRESSURE level is correct.

RED

Unit will not start in AUTO with utility

loss.

Check the

L E Ds/Screen

for alarms.

Check the

L E Ds/Screen

for alarms.

Unit will not start in AUTO with utility

loss.

RPM SENSE

LOSS

OVERCRANKRED

Clear alarm. From the MAIN menu on

the control panel, navigate to the BAT-

TERY MENU. Contact servicing dealer if

battery is GOOD. Replace battery If

CHECK BATTERY is displayed.

Check fuel line shutoff valve is in the ON

position. Clear alarm. Attempt to start

the unit in MANUAL. If it does not start

or starts and runs rough, contact servic-

ing dealer.

Clear alarm and remove household

loads from the generator. Put back in

AUTO and restart.

Check the

Unit will not start in AUTO with utility RED LEDs/Screen LOW VOLTS

loss. for alarms. REMOVE LOAD

Check the Check ATO 7.5 amp fuse. Replace with

Unit will not start in AUTO with utility RED LEDs/Screen FUSE PROBLEM same type fuse if bad. Contact servicing

loss. for alarms, dealer if fuse is good.

Check the

Unit will not start in AUTO with utility RED LEDs/Screen OVERSPEED Contact servicing dealer.

loss. for alarms.

Check the

UNDER Contact servicing dealer.

Unit will not start in AUTO with utility RED LEDs/Screen VOLTAGE

loss. for alarms.

Check the

Unit will not start in AUTO with utility RED LEDs/Screen UNDERSPEED Contact servicing dealer.

loss. for alarms.

Automatic Standby Generator Owner's Manual 29

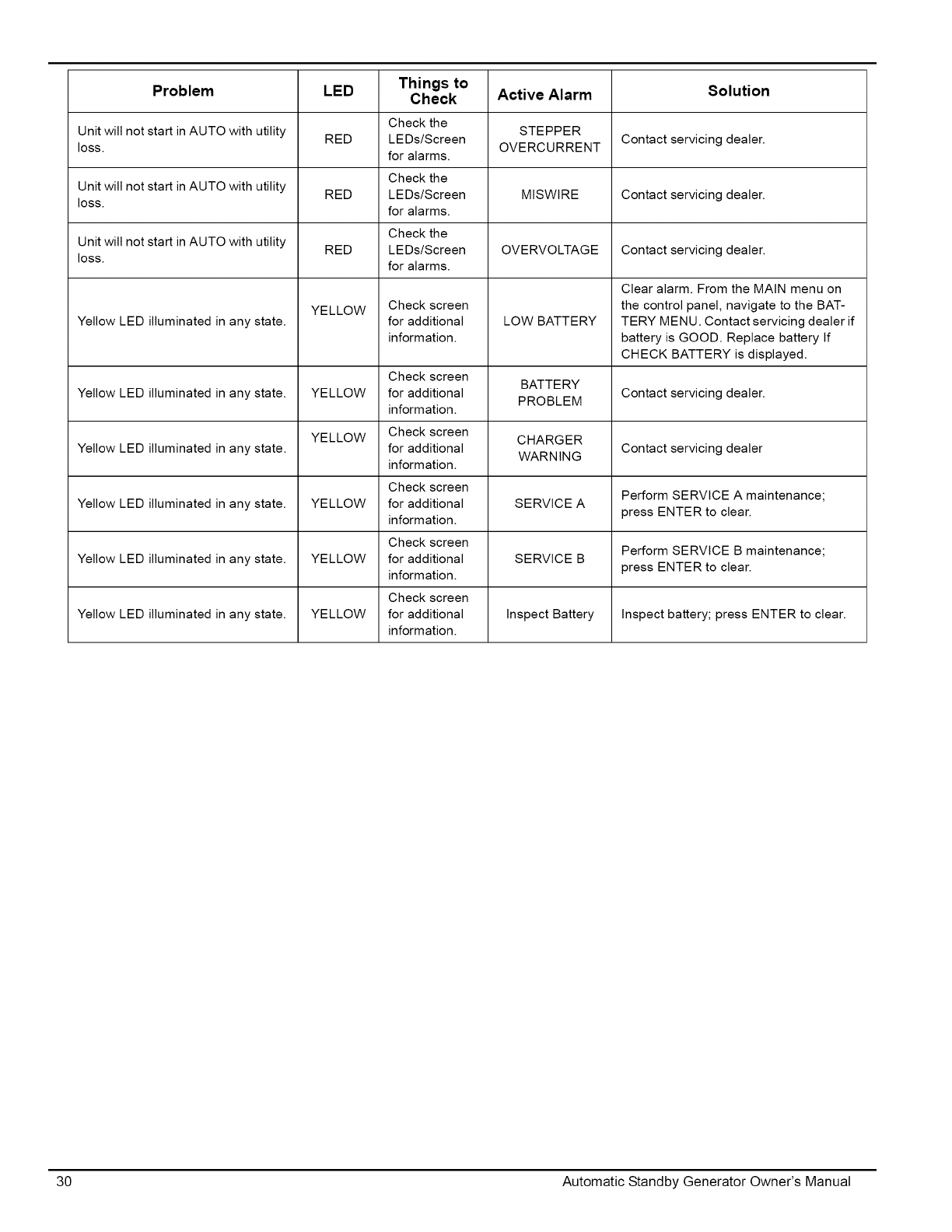

Problem LED Things to

Check Active Alarm Solution

Check the

STEPPER Contact servicing dealer.

Unit will not start in AUTO with utility RED LEDs/Screen OVERCURRENT

loss. for alarms.

Check the

Unit will not start in AUTO with utility RED LEDs/Screen MISWIRE Contact servicing dealer.

loss. for alarms.

Check the

Unit will not start in AUTO with utility RED LEDs/Screen OVERVOLTAGE Contact servicing dealer.

loss. for alarms.

Yellow LED illuminated in any state. YELLOW Check screen

for additional

information.

LOW BATTERY

Clear alarm. From the MAIN menu on

the control panel, navigate to the BAT-

TERY MENU. Contact servicing dealer if

battery is GOOD. Replace battery If

CHECK BATTERY is displayed.

Check screen BATTERY

Yellow LED illuminated in any state. YELLOW for additional PROBLEM Contact servicing dealer.

information.

YELLOW Check screen CHARGER

Yellow LED illuminated in any state, for additional WARNING Contact servicing dealer

information.

Check screen Perform SERVICE A maintenance;

Yellow LED illuminated in any state. YELLOW for additional SERVICE A

information, press ENTER to clear.

Check screen Perform SERVICE B maintenance;

Yellow LED illuminated in any state. YELLOW for additional SERVICE B

information, press ENTER to clear.

Check screen

Yellow LED illuminated in any state. YELLOW for additional Inspect Battery Inspect battery; press ENTER to clear.

information.

30 Automatic Standby Generator Owner's Manual

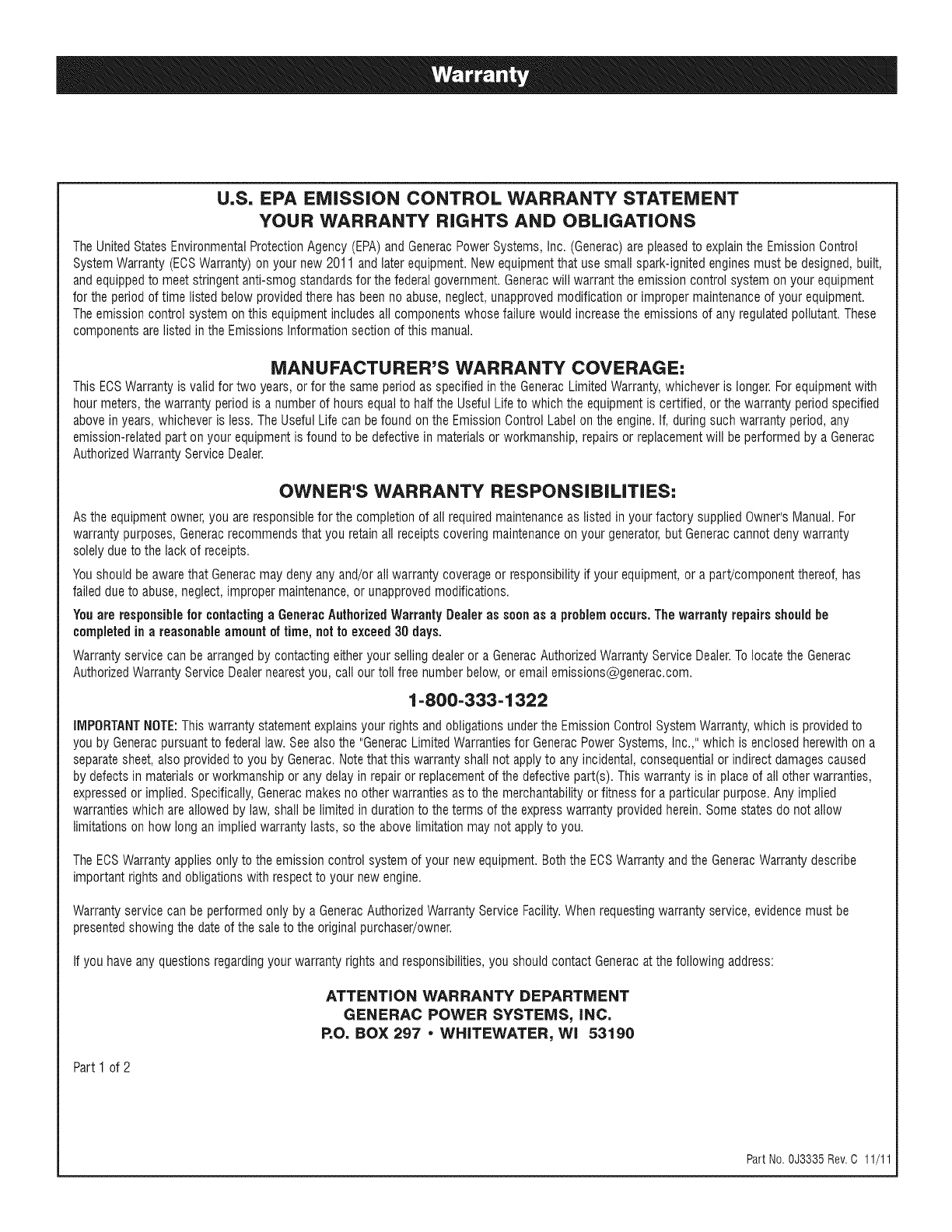

U,S, EPA EMiSSiON CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLiGATiONS

The UnitedStatesEnvironmentalProtectionAgency (EPA)and GeneracPower Systems,Inc. (Generac)are pleasedto explainthe EmissionControl

System Warranty (ECSWarranty)on your new 2011 and later equipment.New equipmentthat use small spark-ignited enginesmust be designed,built,

and equippedto meet stringent anti-smogstandardsfor the federal government.Generacwill warrant the emission control system onyour equipment

for the period of time listed below providedthere has beenno abuse,neglect,unapprovedmodificationor improper maintenanceof your equipment.

The emission control system onthis equipmentincludes all components whose failure would increasethe emissions of anyregulatedpollutant. These

components are listed in the Emissions Information section of this manual.

MANUFACTURER'S WARRANTY COVERAGE:

This ECSWarranty is valid for two years, or for the same periodas specified in the GeneracLimited Warranty,whicheveris longer.Forequipmentwith

hour meters,the warranty period is a number of hours equalto halfthe Useful Life to which the equipmentis certified, or the warranty period specified

abovein years,whichever is less. TheUseful Life can be found on the Emission Control Labelon the engine.If, during such warranty period, any

emission-relatedpart on your equipmentis found to be defectivein materials or workmanship, repairs or replacementwill be performed by a Generac

AuthorizedWarranty ServiceDealer.

OWNER'S WARRANTY RESPONSiBiLiTiES:

As the equipmentowner,you are responsiblefor the completion of all requiredmaintenanceas listed in your factory supplied Owner'sManual. For

warranty purposes,Generacrecommendsthat you retainall receiptscovering maintenanceon your generator,but Generaccannot denywarranty

solely due to the lack of receipts.

You should be awarethat Generacmay deny anyand/or all warranty coverageor responsibility if your equipment,or a part!component thereof, has

failed due to abuse,neglect, improper maintenance,or unapprovedmodifications.

Youare responsible for contactingaGeoeracAuthorizedWarranty Dealer as soonasaproblemoccurs.The warranty repairsshouldbe

completed in a reasonable amount of time, not to exceed30 days.

Warrantyservice can be arrangedby contacting either your selling dealeror a GeneracAuthorizedWarranty Service Dealer.Tolocate the Generac

AuthorizedWarranty ServiceDealernearestyou, call our toll free number below,or email emissions@generac.com.

1-800-333-1322

IMPORTANTNOTE:This warranty statementexplainsyour rights and obligations underthe Emission Control System Warranty,which is provided to

you by Generacpursuantto federal law. Seealsothe "GeneracLimited Warrantiesfor GeneracPowerSystems, Inc.,"which is enclosed herewithon a

separatesheet,also providedto you by Generac.Notethat this warranty shall not applyto any incidental,consequentialor indirect damagescaused

by defects in materials or workmanship or any delayin repair or replacementof the defectivepart(s). This warranty is in place of all other warranties,

expressedor implied. Specifically,Generacmakes no other warrantiesas to the merchantabilityor fitness for a particular purpose. Anyimplied

warrantieswhich are allowedby law, shall be limited in durationto the terms of the expresswarranty provided herein.Some statesdo not allow

limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

TheECSWarranty appliesonly to the emission control system of your newequipment. Both the ECSWarrantyand the GeneracWarranty describe

important rights and obligationswith respectto your new engine.

Warrantyservice can be performed only by a GeneracAuthorizedWarrantyService Facility.Whenrequestingwarranty service, evidencemust be

presentedshowing the date of the saleto the original purchaser/owner.

If you have any questionsregarding your warranty rights and responsibilities, you should contact Generacat the following address:

ATTENTION WARRANTY DEPARTMENT

GENERAC POWER SYSTEMS, INC.

P.O. BOX 297 oWHITEWATER, Wi 53190

Part I of 2

Part No. 0J3335 Rev.C 11/11

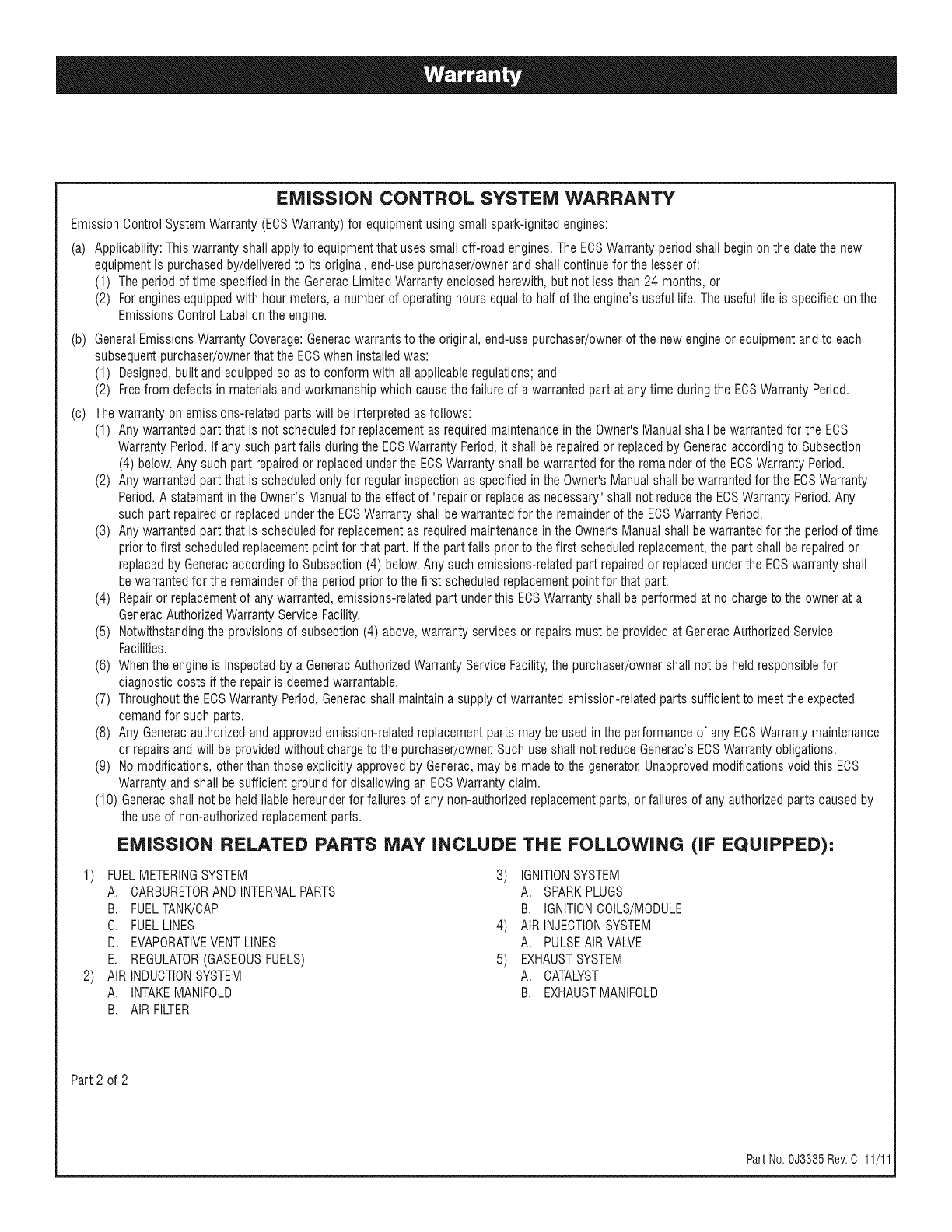

EMiSSiON CONTROL SYSTEM WARRANTY

EmissionControl System Warranty (ECSWarranty)for equipmentusing small spark-ignited engines:

(a) Applicability: This warranty shall applyto equipmentthat uses small off-road engines.The ECSWarranty period shall begin onthe datethe new

equipmentis purchasedby/deliveredto its original,end-use purchaser/owner andshall continuefor the lesser of:

(1) The period of time specified in the GeneracLimitedWarranty enclosedherewith, but not less than 24 months, or

(2) For enginesequippedwith hour meters,a numberof operating hours equalto half of the engine's useful life. The useful life is specified on the

Emissions Control Label onthe engine.

(b) GeneralEmissions WarrantyCoverage:Generacwarrantsto the original, end-usepurchaser/ownerof the new engineor equipmentand to each

subsequentpurchaser/ownerthat the ECSwhen installedwas:

(1) Designed,built and equippedso asto conform with all applicableregulations;and

(2) Freefrom defectsin materialsand workmanship which causethe failure of a warranted part at any time duringthe ECSWarranty Period.

(c) The warranty on emissions-relatedparts will be interpretedas follows:

(1) Any warranted part that is not scheduledfor replacementas requiredmaintenancein the Owner'sManual shall be warranted for the ECS

WarrantyPeriod. If any such part fails duringthe ECSWarranty Period,it shall berepairedor replacedby Generacaccordingto Subsection

(4) below.Any such part repairedor replacedunderthe ECSWarranty shall be warrantedfor the remainderof the ECSWarrantyPeriod.

(2) Any warranted part that is scheduledonly for regular inspectionas specified in the Owner'sManualshall bewarrantedfor the EOSWarranty

Period.A statementin the Owner's Manualto the effect of "repairor replaceas necessary" shall not reducethe ECSWarranty Period.Any

such part repairedor replacedunder the ECSWarrantyshall be warrantedfor the remainderof the ECSWarrantyPeriod.

(3) Any warranted part that is scheduledfor replacementas requiredmaintenancein the Owner'sManualshall be warranted for the periodof time

prior to first scheduledreplacementpoint for that part. If the part fails prior to the first scheduledreplacement,the part shall be repairedor

replaced by Generacaccording to Subsection (4) below. Any such emissions-relatedpart repairedor replacedunderthe ECSwarranty shall

bewarranted for the remainderof the periodprior to the first scheduledreplacementpoint for that part.

(4) Repairor replacementof any warranted, emissions-relatedpart underthis ECSWarranty shall be performed at no chargeto the owner at a

GeneracAuthorizedWarranty Service Facility.

(5) Notwithstandingthe provisions of subsection (4) above,warranty services or repairsmust be providedat GeneracAuthorizedService

Facilities.

(6) Whenthe engineis inspectedby a GeneracAuthorizedWarrantyService Facility,the purchaser/owner shall not be heldresponsible for

diagnostic costs if the repair is deemedwarrantable.

(7) Throughoutthe ECSWarranty Period,Generacshall maintaina supply of warranted emission-relatedparts sufficient to meetthe expected

demandfor such parts.

(8) Any Generacauthorizedand approvedemission-relatedreplacementparts may be used in the performance of any ECSWarrantymaintenance

or repairs and will be providedwithout chargeto the purchaser/owner.Such use shall not reduce Generac'sEOSWarrantyobligations.

(9) No modifications, otherthan those explicitly approvedby Generac,may be madeto the generator.Unapprovedmodifications void this ECS

Warrantyand shall besufficient groundfor disallowing anEOSWarranty claim.

(10) Generacshall not be held liable hereunderfor failures of any non-authorizedreplacementparts, or failures of any authorizedparts caused by

the use of non-authorizedreplacementparts.

EMiSSiON RELATED PARTS MAY iNCLUDE THE FOLLOWING (iF EQUIPPED):

1) FUELMETERINGSYSTEM 3) IGNITIONSYSTEM

A. CARBURETORAND INTERNALPARTS A. SPARKPLUGS

B. FUELTANK!CAP B. IGNITIONCOILS/MODULE

C. FUELLINES 4) AIR INJECTIONSYSTEM

D. EVAPORATIVEVENTLINES A. PULSEAIR VALVE

E. REGULATOR(GASEOUSFUELS) 5) EXHAUSTSYSTEM

2) AIR INDUCTIONSYSTEM A. CATALYST

A. INTAKEMANIFOLD B. EXHAUSTMANIFOLD

B. AIR FILTER

Part 2 of 2

Part No. 0J3335 Rev.C 11/11

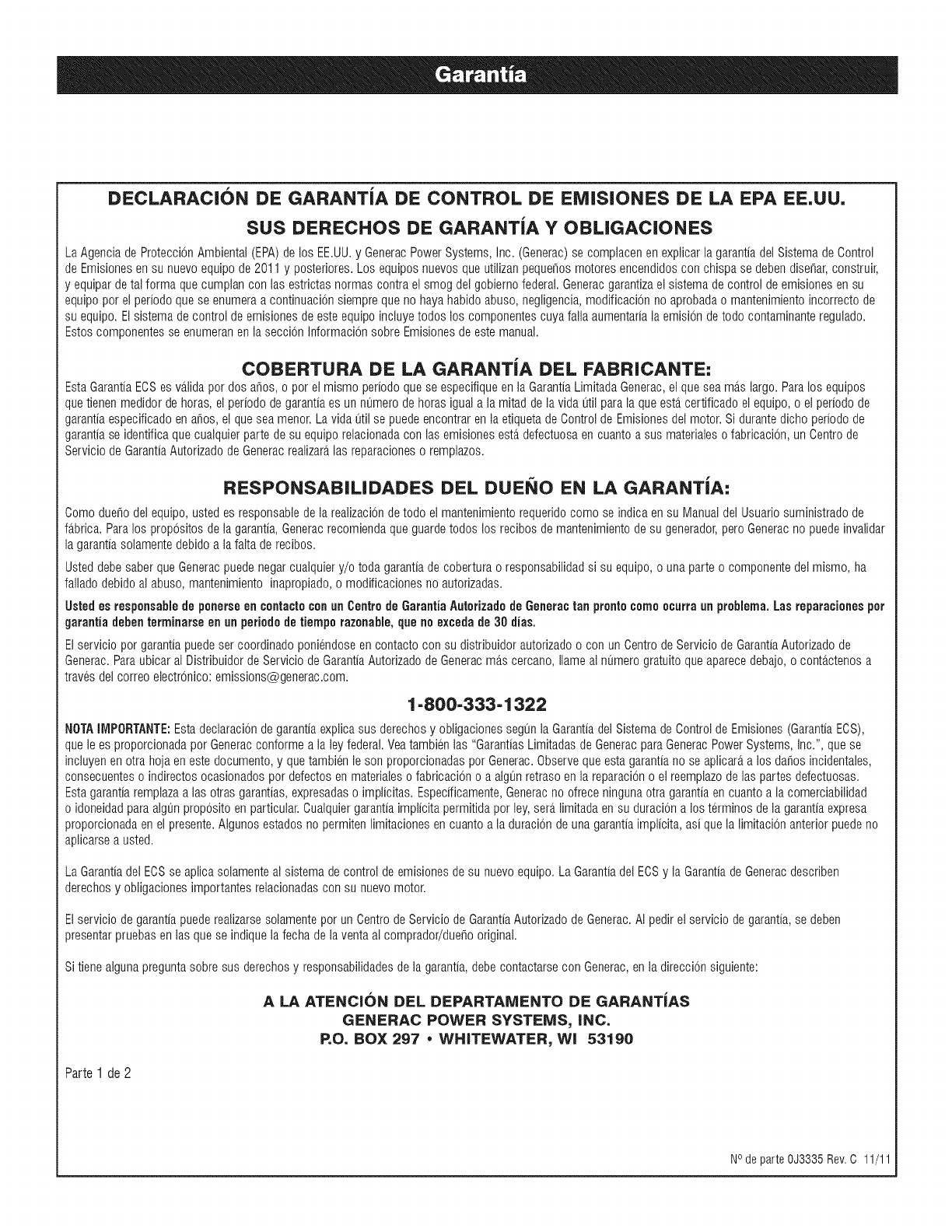

DECLARACION DE GARANTiA DE CONTROL DE EMISIONES DE LA EPA EE,UU,

SUS DERECHOS DE GARANTiA Y OBLIGACIONES

LaAgenciade ProteccionAmbientai(EPA)de los EE.UU.y GeneracPowerSystems,Inc. (Generac)se complacenenexplicarla garantiadelSistemadeControl

deEmisionesensu nuevoequipode2011 y posteriores.Losequiposnuevosqueutilizanpequei_osmotoresencendidoscon chispase debendise_ar,construir,

y equipardetai forma quecumplancon lasestrictasnormascontrael smog del gobiernofederal.Generacgarantizaelsistemadecontroldeemisionesen su

equipoporel periodoquese enumeraa continuacionsiemprequeno hayahabidoabuso,negligencia,modificacionnoaprobadao mantenimientoincorrectode

su equipo.Elsistemadecontrolde emisionesde esteequipoincluyetodos los componentescuyafaila aumentariala emisiondetodo contaminanteregulado.

Estoscomponentesse enumeranenla seccionInformacionsobreEmisionesde estemanual.

COBERTURA DE LA GARANTiA DEL FABRICANTE:

EstaGarantiaECSesva.lidapor dos a_os,o por el mismo periodoquese especifiqueenla GarantiaLimitadaGenerac,elqueseama.slargo.Paralos equipos

quetienenmedidordehoras,elperiododegarantiaes unnumerodehorasiguala la mitad delavida util parala queesta.certificadoel equipo,o el periodode

garantiaespecificadoen a_os,elquesea menor.Lavida util se puedeencontraren laetiquetade Controlde Emisionesdel motor.Sidurantedichoperiodode

garantiaseidentificaque cuaiquierpartede su equiporelacionadaconlas emisionesesta.defectuosaen cuantoa sus materiaieso fabricacion,un Centrode

ServiciodeGarantiaAutorizadodeGeneracrealizara,lasreparacioneso remplazos.

RESPONSABILIDADES DEL DUEi_iO EN LA GARANTiA:

Comodue[3odel equipo,ustedes responsabledelareaiizaciondetodo elmantenimientorequeridocomo se indicaensu ManualdelUsuariosuministradode

fa.brica.Paralos propositosdela garantia,Generacrecomiendaqueguardetodos los recibosdemantenimientode su generador,peroGeneracno puedeinvaiidar

lagarantiasolamentedebidoa lafaita de recibos.

UsteddebesaberqueGeneracpuedenegarcuaiquiery/o todagarantiade coberturao responsabilidadsi su equipo,o unaparteo componentedel mismo,ha

failadodebidoai abuso,mantenimientoinapropiado,o modificacionesno autorizadas.

Ustedesresponsablede ponerseen contactoconunCentrede GarantiaAutorizadodeGeneractanprontocomeocurra unproblema.Lasreparacionesper

garantiadebenterminarseen un periodode tiemporazonable,que no excedade 30 dias.

Elserviciopor garantiapuedesercoordinadoponiendoseencontactoconsu distribuidorautorizadoo conun Centrode ServiciodeGarantiaAutorizadode

Generac.Paraubicar aiDistribuidordeServiciode GarantiaAutorizadode Generacm_tscercano,flameai numerogratuitoqueaparecedebajo,o cont_tctenosa

travesdel correoelectr6nico:emissions@generac.com.

1-800-333-1322

NOTAllVIPORTANTE:Estadeclaraciondegarantiaexplicasus derechosy obligacionessegunla Garantiadel SistemadeControldeEmisiones(GarantiaECS),

quelees proporcionadapor Generacconformea laleyfederal.Veatambienlas "GarantiasLimitadasdeGeneracparaGeneracPowerSystems,Inc.",que se

incluyenen otrahojaenestedocumento,y quetambienle sonproporcionadaspor Generac.Observequeestagarantianose aplicar_ta los da_osincidentaies,

consecuenteso indirectosocasionadospor defectosenmateriaieso fabricaciono a algunretrasoenla reparaciono el reemplazodelas partesdefectuosas.

Estagarantiaremplazaalas otrasgarantias,expresadaso implicitas.Especificamente,Generacno ofreceningunaotragarantiaencuantoa la comerciabilidad

oidoneidadpara algunprop0sitoen particular.Cuaiquiergarantiaimplicitapermitidapor ley,sera.limitadaen su duraciona losterminos de la garantiaexpresa

proporcionadaen elpresente.Algunosestadosnopermitenlimitacionesencuantoa laduraciondeunagarantiaimplicita,asi quela limitacionanteriorpuedeno

aplicarsea usted.

La Garantiadel ECSse aplicasolamenteai sistemade controlde emisionesde su nuevoequipo.La Garantiadel ECSy laGarantiade Generacdescriben

derechosy obligacionesimportantesrelacionadascon su nuevomotor.

Elserviciodegarantiapuedereaiizarsesolamentepor unCentrode ServiciodeGarantiaAutorizadode Generac.AI pedirel serviciode garantia,se deben

presentarpruebasen lasquese indiquelafechade la ventaaicomprador/due[_ooriginal.

Sitieneaigunapreguntasobresus derechosy responsabilidadesde la garantia,debecontactarseconGenerac,enla direccionsiguiente:

A LA ATENCI()N DEL DEPARTAMENTO DE GARANTJAS

GENERAC POWER SYSTEMS, INC.

P.O. BOX 297 •WHITEWATER, W| 53190

Parte1 de 2

NOde parte 0J3335 Rev.C 11/11

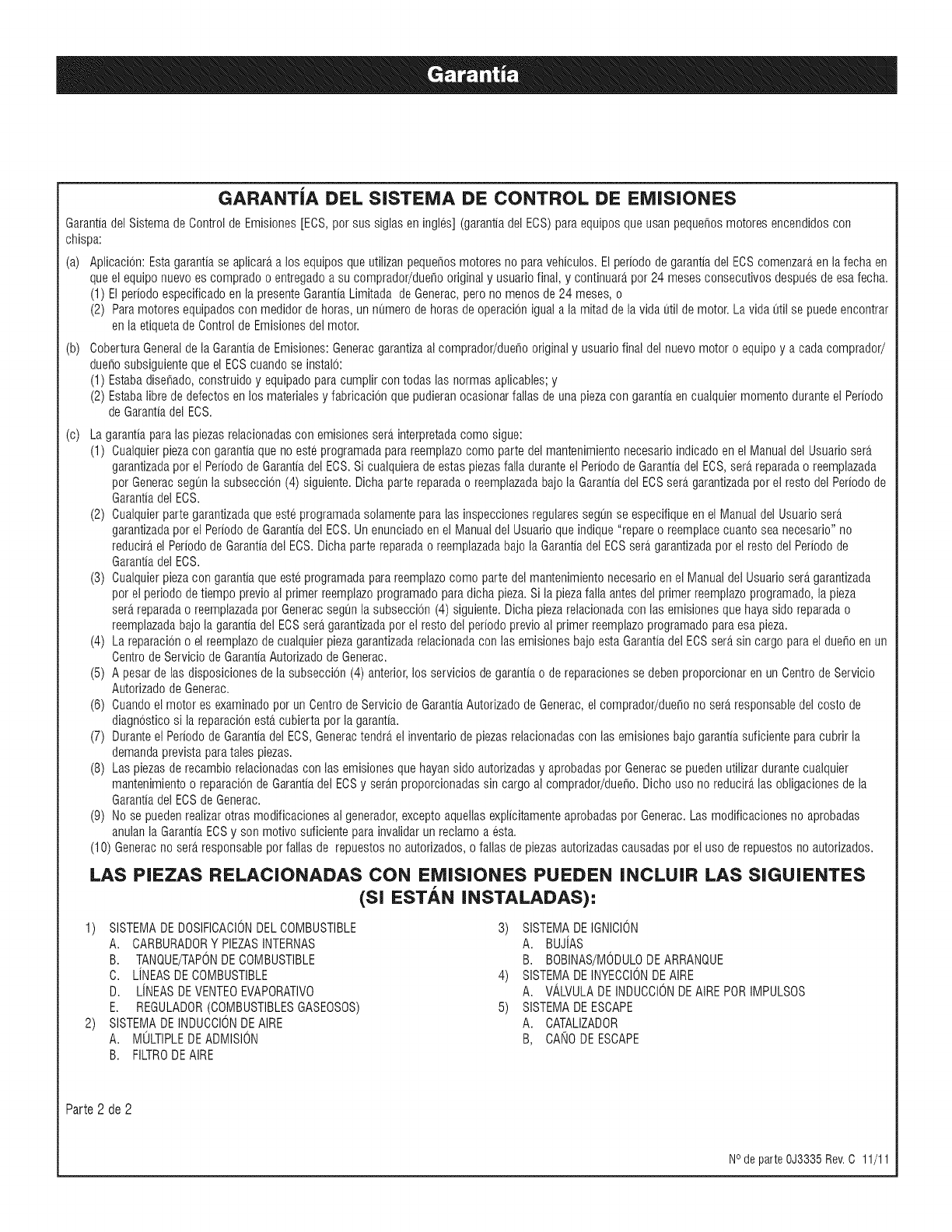

GARANTiA DEL SISTEMA DE CONTROL DE EMISIONES

Garantiadel SistemadeControldeEmJsiones[ECS,por sus sJglasen ingles](garantJadel ECS)paraequiposqueusanpeque_osmotoresencendJdoscon

chJspa:

(a) AplicacJ6n:Estagarantiase aplJcar_ta los equiposqueutJlJzanpequefiosmotoresnoparavehiculos.Elperiodode garantiadelECScomenzar_tenlafecha en

queelequiponuevoes compradoo entregadoa su comprador/due_ooriginaly usuariofinal, y continuar_tpor 24 mesesconsecutivosdespuesde esafecha.

(1) ElperJodoespecifJcadoenla presenteGarantiaLimJtadadeGenerac,peronomenosde 24 meses,o

(2) Paramotoresequipadoscon medidordehoras,un numerode horasdeoperacioniguaia lamJtaddelavida util demotor.Lavidautil se puedeencontrar

en la etiquetade Controlde EmJsJonesdel motor.

(b) CoberturaGeneralde la Garantiade EmisJones:Generacgarantizaai comprador/due[_ooriginaly usuariofinal del nuevomotoro equipoy a cadacomprador/

due_osubsJguientequeel ECScuandose instaio:

(1) EstabadJse_ado,construJdoy equipadoparacumplJrcontodas las normas@Babies;y

(2) Estabalibrede defectosenlosmateriaiesyfabricacionquepudieranocasionarfailasde unapiezacon garantiaencuaiquJermomentoduranteel Periodo

deGarantJadel ECS.

(c) Lagarantiaparalas piezasrelacJonadascon emJsionessera.interpretadacomo sigue:

(1) Cualquierpiezacon garantiaqueno esteprogramadaparareemplazocomo partedel mantenimientonecesarioin@ado enelManualdel Usuariosera.

garantizadapor el Periodode Garantiadel ECS.Si cuaiquierade estaspiezasfaila duranteelPeriodode Garantiadel ECS,sera.reparadao reemplazada

por Generacsegunla subseccion(4) siguiente.Dichapartereparadao reemplazadabajola Garantiadel ECSsera.garantizadaporel resto del Periodode

Garantiadel ECS.

(2) Cualquierpartegarantizadaque esteprogramadasolamenteparalasinspeccionesregularessegunse especifiqueen elManualdel Usuariosera.

garantizadapor el Periodode Garantiadel ECS.Unenunciadoen el Manualdel Usuarioqueindique"repareo reemplacecuanto seanecesario"no

reducira,el Periodode Garantiadel ECS.Dichaparte reparadao reemplazadabajolaGarantiadel ECSsera.garantizadapor el restodel Periodode

Garantiadel ECS.

(3) Cualquierpiezacon garantiaqueesteprogramadaparareemplazocomo partedel mantenimientonecesarioenelManualdel Usuariosera.garantizada

por elperiododetiempoprevioal primerreemplazoprogramadoparadichapieza.Sila piezafaila antesdel primerreemplazoprogramado,la pieza

sera.reparadao reemplazadapor Generacsegunla subseccion(4) siguiente.Dichapiezarelacionadacon las emisionesquehayasido reparadao

reemplazadabajola garantiadel ECSsera.garantizadapor elresto del periodoprevioal primerreemplazoprogramadopara esapieza.

(4) Lareparaciono elreemplazodecualquierpiezagarantizadarelacionadaconlas emisionesbajoestaGarantiadel ECSsera.sin cargoparaeldue_oen un

CentrodeServiciode GarantiaAutorizadodeGenerac.

(5) A pesardelas disposicionesdela subseccion(4)anterior,los serviciosdegarantiao dereparacionesse debenproporcionarenun CentrodeServicio

Autorizadode Generac.

(6) Cuandoel motores examinadopor un CentrodeServiciode GarantiaAutorizadodeGenerac,elcomprador/due_ono sera.responsabledelcostode

diagnosticosi la reparacionesta.cubiertapor lagarantia.

(7) Duranteel Periodode Garantiadel ECS,Generactendra,el inventariode piezasrelacionadascon lasemisionesbajogarantiasuficienteparacubrirla

demandaprevistaparatales piezas.

(8) Las piezasde recambiorelacionadascon las emisionesquehayansido autorizadasy aprobadaspor Generacse puedenutilizardurantecualquier

mantenimientoo reparaciondeGarantiadel ECSy sera.nproporcionadassin cargoai comprador/due_o.Dichouso noreducira,las obligacionesde la

Garantiadel ECSde Generac.

(9) Nose puedenrealizarotras modificacionesal generador,exceptoaquellasexplicitamenteaprobadaspor Generac.Las modificacionesno aprobadas

anulanla GarantiaECSy son motivo suficienteparainvaiidarun reclamoa esta.

(10) Generacnosera.responsableporfallas de repuestosno autorizados,o fallas de piezasautorizadascausadaspor el usode repuestosno autorizados.

LAS PIEZAS RELACIONADAS CON EiVlISIONES PUEDEN INCLU|R LAS SIGUIENTES

(SI ESTAN INSTALADAS):

1) SISTEMADEDOSIFICACIONDELCOMBUSTIBLE 3) SISTEMADEIGNICION

A. CARBURADORYPLEASINTERNAS A. BUJJAS

B. TANQUE/TAPONDECOMBUSTIBLE B. BOBINAS/MOBULODEARRANQUE

C. LJNEASDECOMBUSTIBLE 4) SISTEMADEINYECCIONDEAIRE

B. LJNEASDEVENTEOEVAPORATIVO A. VALVULADEINDUCCIONBEAIREPORIMPULSOS

E. REGULADOR(COMBUSTIBLESGASEOSOS) 5) SISTEMADEESCAPE

2) SISTEMADEINDUCCIONDEAIRE A. CATALIZADOR

A. MULTIPLEDEADMISION B, CANODEESCAPE

B. FILTRODEAIRE

Parte2 de 2

NOde parte 0J3335 Rev.C 11/11

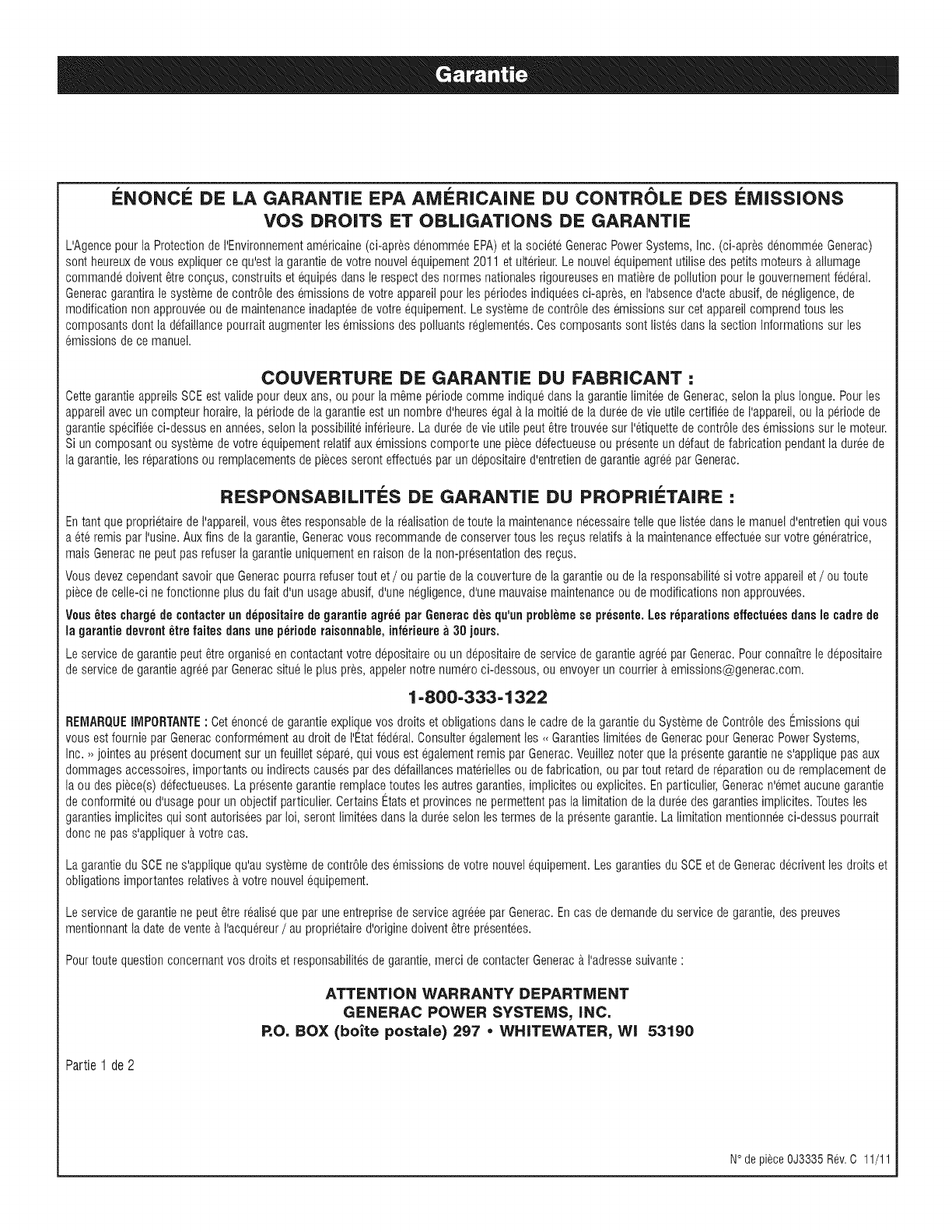

ENONCI_ DE LA GABANTIE EPA AiViERICAINE DU CONTBOLE DES EMISSIONS

VOS DBOITS ET OBLiGATiONS DE GARANTIE

L'Agencepourla Protectionde I'EnvJronnementamedcaine(ci-apresdenomm6eEPA)et la societ6GeneracPowerSystems,Inc. (ci-apresdenomm6eGenerac)

sontheureuxde vous explJquerce qu'estla garantiedevotrenouvelequipement2011 et ulterieur.Le nouvelequipementutJlisedes petitsmoteurs_tailumage

commandedoJvent_trecongus,construJtset equip6sdansle respectdesnormesnationaiesrigoureusesenmatieredepollutionpour legouvernementfed6rai.

Generacgarantiralesystemedecontr61edes emissionsde votreappareilpour lesperiodesindiqueesci-apres,enI'absenced'acteabusif,denegligence,de

modificationnonapprouveeou de maintenanceinadapteedevotre equipement.Le systemede contrOledes emissionssur cet appareilcomprendtousles

composantsdont la ddaillancepourraitaugmenterlesemissionsdespolluantsreglement6s.Cescomposantssontlistesdansla sectionInformationssur les

emissionsdece manuel.

COUVEBTURE DE GARANTIE DU FABRICANT :

CettegarantieappreilsSCEest vaiidepourdeuxans, ou pourla m_meperiodecommeindiquedanslagarantielimitee deGenerac,selonla plus Iongue.Pourles

appareilavecun compteurhoraire,la periodedela garantieest un nombred'heuresegai_tla moitiedela dureedevie utilecertifieedeI'appareil,ou la periodede

garantiespecifi6ecJ-dessusenannees,selonla possibiliteinfedeure.Ladureedevieutile peut_tretrouveesurI'etiquettedecontr61edesemissionssur le moteur.

Si uncomposantou systemede votreequipementrelatifauxemissionscomporteunepieceddectueuseoupresenteun ddaut defabricationpendantla dureede

la garantie,lesr@arationsouremplacementsdepiecesseronteffectuesparun d@ositaired'entretiende garantieagre6par Generac.

RESPONSABILITi'==S DE GARANTIE DU PBOPBIETAIRE :

Entant queproprietairedeI'appareil,vous_tesresponsabledela realisationdetoute la maintenancenecessairetellequelistee dansle manueld'entretienqui vous

a et6remispar I'usJne.Aux fins dela garantJe,Generacvousrecommandede conservertous lesregusrelatifs_tla maintenanceeffectueesurvotre gen6ratrice,

maisGeneracnepeutpasrefuserla garantJeuniquementen raisondela non-presentationdesregus.

Vousdevezcependantsavoirque Generacpourrarefusertout et /ou partiede lacouverturede lagarantieou dela responsabilitesJvotre appareilet /outoute

piecede celle-cJne fonctionneplus du fait d'un usageabusif,d'unenegligence,d'unemauvaisemaintenanceou demodificationsnon approuvees.

Veus_tes chargede centacterundepasitaire degarantieagre6 parGeneracdes qu'unpreblernese presente.Lesrepara|ienseffectueesdans le cadrede

la garantie devrant_tre faites dansuneperi0deraisonnable,inferieurea 30jours,

Leservicedegarantiepeut_treorganiseen contactantvotre d@osJtaireou un d@osJtairede servicede garantieagreeparGenerac.Pourconnaitrele d@ositaire

de servicedegarantieagreepar Generacsituele plus pres,appelernotrenumeroci-dessous,ou envoyerun courriera.emissions@generac.com.

1-800-333-1322

REMARQUEIMPORTANTE: Getenoncede garantieexplJquevos droits et obligationsdansle cadrede la garantieduSystemede Contr61edes f_missionsqui

vousestfourniepar Generacconformementaudroit de I'Etatfederal.Consulteregaiementles_ Garantieslimiteesde GeneracpourGeneracPowerSystems,

Inc. >_jointesau presentdocumentsur un feuillets@are,qui vous est egaiementremis parGenerac.Veuilleznoterque lapresentegarantiene s'applJquepas aux

dommagesaccessoires,importantsouindirectscausespardesddaillancesmateriellesou defabrication,ou partout retardder@arationou de remplacementde

la oudespiece(s)ddectueuses.Lapresentegarantieremplacetoutesles autresgaranties,implJcitesou explicites.Enparticulier,Generacn'emetaucunegarantie

deconformiteou d'usagepourunobjectifparticulier.Certainsl_tatset provincesnepermettentpasla limitationde la dureedesgarantiesimplJcites.Toutesles

garantiesimplJcitesqui sontautoriseesparIoi, serontlimiteesdansladureeselonlestermes de lapresentegarantie.La limitationmentionneeci-dessuspourrait

doncne pass'appliquer_tvotre cas.

La garantiedu SCEnes'applJquequ'ausystemede contr61edes emissionsdevotre nouvelequipement.Les garantiesdu SCEet de Generacdecriventles droitset

obligationsimportantesrelatives_tvotrenouvelequipement.

Leservicedegarantiene peut6trereaiisequeparuneentreprisede serviceagreeepar Generac.Encas dedemandedu servicedegarantie,despreuves

mentionnantla datedeventea.I'acquereur/auproprietaired'originedoivent6trepresentees.

Pourtoute questionconcernantvos droitset responsabilitesde garantie,merci de contacterGeneraca.I'adressesuivante:

ATTENTION WARRANTY DEPARTMENT

GENERAC POWER SYSTEMS, INC.

Re. BOX (boite pasta|e) 297 •WHITEWATER, Wi 53190

Pattie 1 de 2

N° de piece 0J3335 Rev.C 11/11

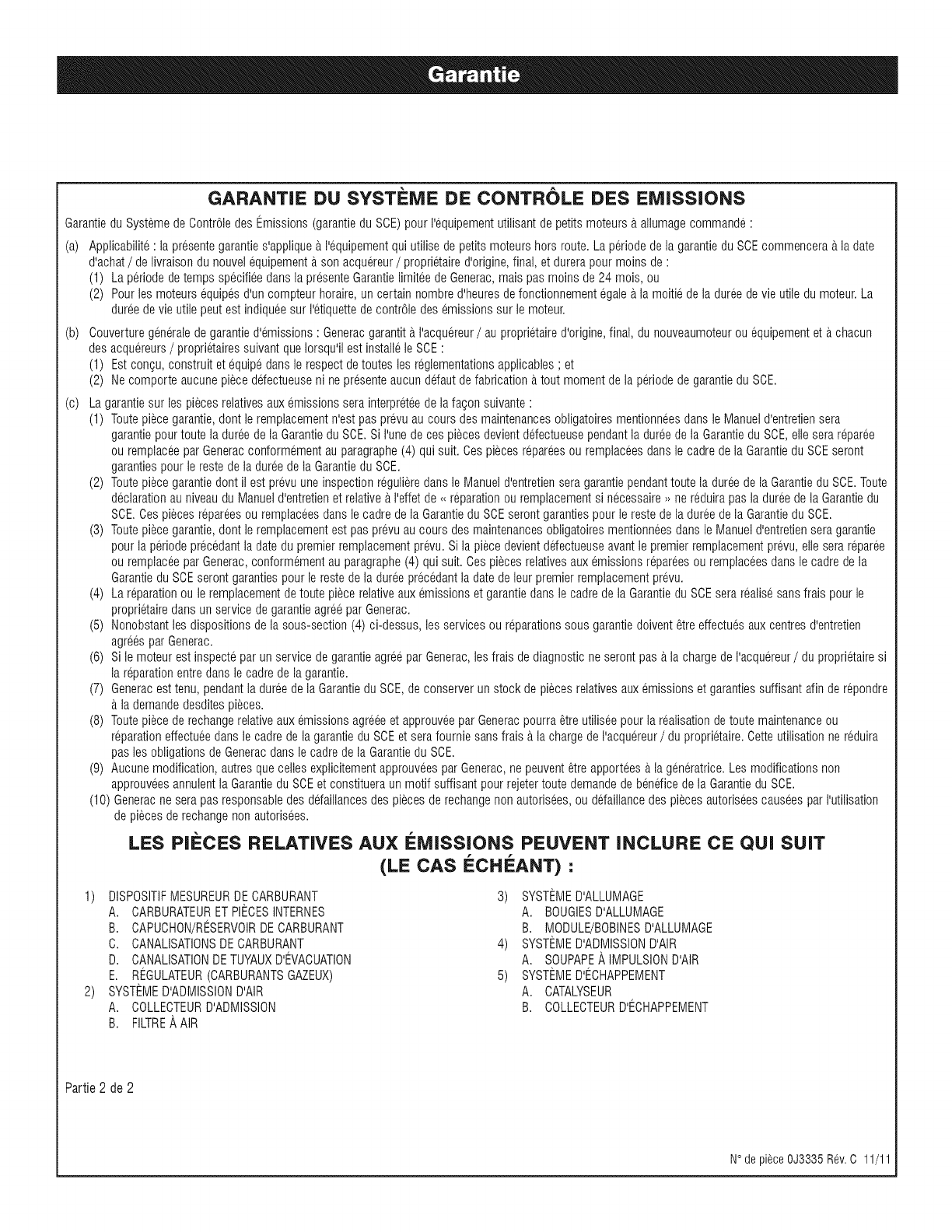

GARANTIE DU SYSTEME DE CONTROLE DES EMiSSiONS

Garantiedu SystemedeOontr61edesEmissions(garantieduSOE)pourI'equipementutflisantdepetitsmoteursa.allumagecommande:

(a) Applicabilite:la presentegarantJes'appliquea.I'equipementqui utilisedepetitsmoteurshors route.Laperiodedela garantieduSCEcommenceraa.la date

d'achat/delivraisondu nouvelequipementa.sonacquereur/proprietaired'origine,final, et durerapourmoins de :

(1) Laperiodedetemps specifi6edansla presenteGarantielimiteedeGenerac,mais pas moinsde 24 moJs,ou

(2) Pourlesmoteursequip6sd'un compteurhoraire,uncertainnombred'heuresde fonctionnementegalea.la moitiedela dureede vieutile dumoteur.La

dureede vieutile peutest indiqueesur I'etiquettede contr01edesemissionssurle moteur.

(b) Couverturegen6raledegarantied'emissions: Generacgarantita.I'acquereur/auproprietaired'origine,final, du nouveaumoteurou equipementeta.chacun

desacquereurs/proprietairessuivantqueIorsqull est installele SCE:

(1) Estcongu,construitet equip6dansle respectde touteslesr%lementationsapplicables;et

(2) NecomporteaucunepieceddectueusenJnepresenteaucunddaut defabricationa.tout momentde la periodedegarantieduSCE.

(c) La garantiesur lespiecesrelativesaux emissionsserainterpret6ede la fagonsuivante:

(1) Toutepiecegarantie,dont le remplacementn'estpasprwu au coursdes maintenancesobligatoiresmentionneesdansle Manueld'entretiensera

garantiepourtoute ladureedelaGarantieduSCE.SiI'unedecespiecesdevientddectueusependantla dureedela GarantJedu SCE,erieserar@aree

ou remplaceeparGeneracconformementau paragraphe(4) qui suit. Cespiecesr@areesou remplaceesdansle cadrede la Garantiedu SCEseront

garantiespourle restedela dureedela GarantJeduSCE.

(2) Toutepiecegarantiedont il est prwu uneinspectionr%ulieredansle Manueld'entretienseragarantiependanttoute la dureede la Garantiedu SCE.Toute

declarationau niveaudu Manueld'entretienet relativea.I'effetde,_r@arationouremplacementsi necessaire_ nereduirapasla dureede la Garantiedu

SCE.Cespiecesr@areesou remplaceesdansle cadredela GarantieduSCEserontgarantiespourle restedela dureedela Garantiedu SCE.

(3) ToutepiecegarantJe,dontle remplacementest pasprwu aucours desmaintenancesobligatoiresmentionneesdansle Manueld'entretienseragarantie

pourla periodeprec6dantla datedu premierremplacementprwu. Sila piecedevientddectueuseavantle premierremplacementprevu,erieserar@aree

ou remplaceeparGenerac,conformementau paragraphe(4) qui suit. Oespiecesrelativesauxemissionsr@areesou remplaceesdansle cadredela

Garantiedu SCEserontgarantJespourlerestede ladureeprec6dantla datedeleurpremierremplacementprwu.

(4) Lar@arationoule remplacementdetoute piecerelativeauxemissionset garantiedansle cadredela Garantiedu SCEserarealis6sansfrais pour le

proprietairedansun servicedegarantieagre6par Generac.

(5) Nonobstantlesdispositionsdela sous-section(4) ci-dessus,les servicesou r@arationssousgarantiedoiventetreeffectuesauxcentresd'entretien

agreespar Generac.

(6) Si le moteurest inspectepar unservicedegarantieagreeparGenerac,lesfrais dediagnosticneserontpasa.la chargede I'acquereur/duproprietairesi

la r@arationentredansle cadrede la garantJe.

(7) Generacest tenu, pendantladureede laGarantieduSCE,deconserverun stockde piecesrelativesauxemissionset garantiessuffisantafin der@ondre

a.lademandedesditespieces.

(8) Toutepiecede rechangerelativeauxemissionsagreeeet approuveepar Generacpourraetre utiliseepour la realisationde toutemaintenanceou

r@arationeffectueedanslecadrede lagarantiedu SCEet serafournJesansfraisa.lachargede I'acquereur/duproprietaire.Cetteutilisationnereduira

pasles obligationsde Generacdartsle cadredela GarantJeduSCE.

(9) Aucunemodification,autresquecellesexplicJtementapprouveespar Generac,ne peuventetreapporteesa.la generatrice.Lesmodificationsnon

approuveesannulentlaGarantiedu SCEet constitueraun motif suffJsantpourrejetertoutedemandede bendice de la Garantiedu SCE.

(10) Generacneserapasresponsabledesddaillancesdes piecesderechangenon autorisees,ou ddaillancedespiecesautoriseescauseespar I'utilisation

depiecesde rechangenonautorisees.

LES PIECES RELATIVES AUX EMISSIONS PEUVENT INCLURE CE QUI SUiT

(LE CAS ECHI_ANT) :

1) DISPOSITIFMESUREURDECARBURANT 3) SYSTI_MED'ALLUMAGE

A. CARBURATEURETPIt_CESINTERNES A. BOUGIESD'ALLUMAGE

B. CAPUCHON/Rt_SERVOIRDECARBURANT B. MODULE/BOBINESD'ALLUMAGE

C. CANALISATIONSDECARBURANT 4) SYSTEMED'ADMISSIOND'AIR

D. CANALISATIONDETUYAUXD'EVACUATION A. SOUPAPEA IMPULSIOND'AIR

E. Rt_GULATEUR(CARBURANTSGAZEUX) 5) SYSTI_MED't_CHAPPEMENT

2) SYSTI_MED'ADMISSIOND'AIR A. CATALYSEUR

A. COLLECTEURD'ADMISSION B. COLLECTEURD'I_CHAPPEMENT

B. FILTREA AIR

Partie2 de2

N° de piece 0J3335 Rev.C 11/11

Part No. 0J9943 Rev. F 01/30/2013 Printed in USA

© Generac Power Systems, Inc. All rights reserved

Specifications are subject to change without notice.

No reproduction allowed in any form without prior written

consent from Generac Power Systems, Inc.

GENERAC

Generac Power Systems, Inc.

S45 W29290 Hwy. 59

Waukesha, Wl 53189

1-888-GENERAC (1-888-436-3722)

generac.com
