GD6000 Manual
General Dynamics Itronix | 72-0137-001
GD6000 User Guide
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Table of Contents Table of Contents
Notices and Compliance .......................................5
Copyright Notice ..................................................5
Disclaimer ............................................................. 5
Trademark and Patent Notice ............................ 5
Compliance Statements ..................................... 5
Warnings and Cautions ...................................... 7
Safety Information .............................................. 7
Getting Started..........................................................8
Where to Look For Information ......................... 8
About Windows XP............................................................. 8
About Windows Vista ......................................................... 8
Standard Parts ..................................................................... 8
Standard Features ............................................................... 8
Optional Features ................................................................ 8
Optional Parts and Accessories ......................................... 8
The First Time. . . ................................................. 9
Begin Using the Computer ................................................. 9
Turning off Your Computer ................................................. 9
Safety .................................................................... 9
Tips for New Owners ........................................ 10

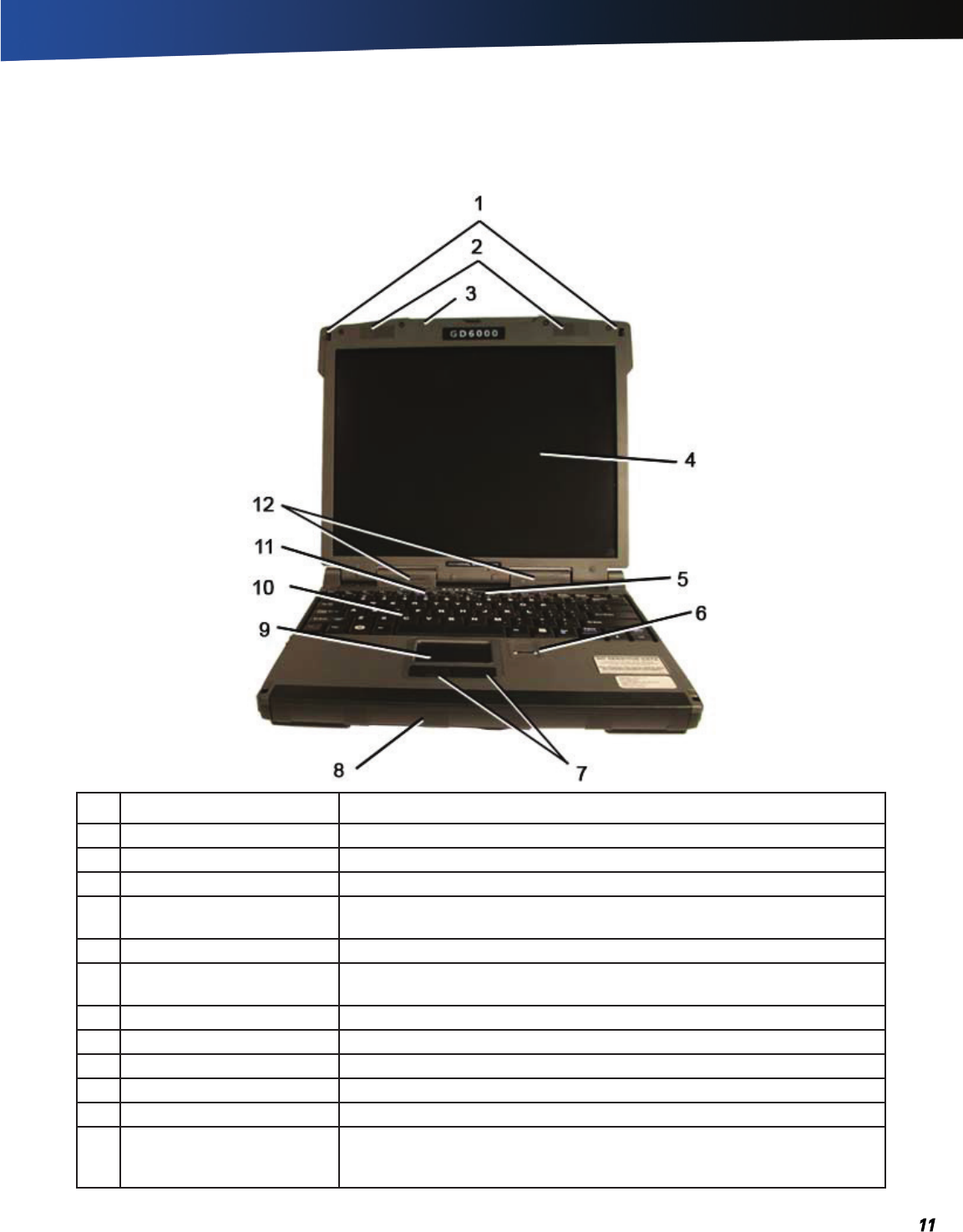

Front View .......................................................... 11
Getting Familiar With Your Computer ..............11

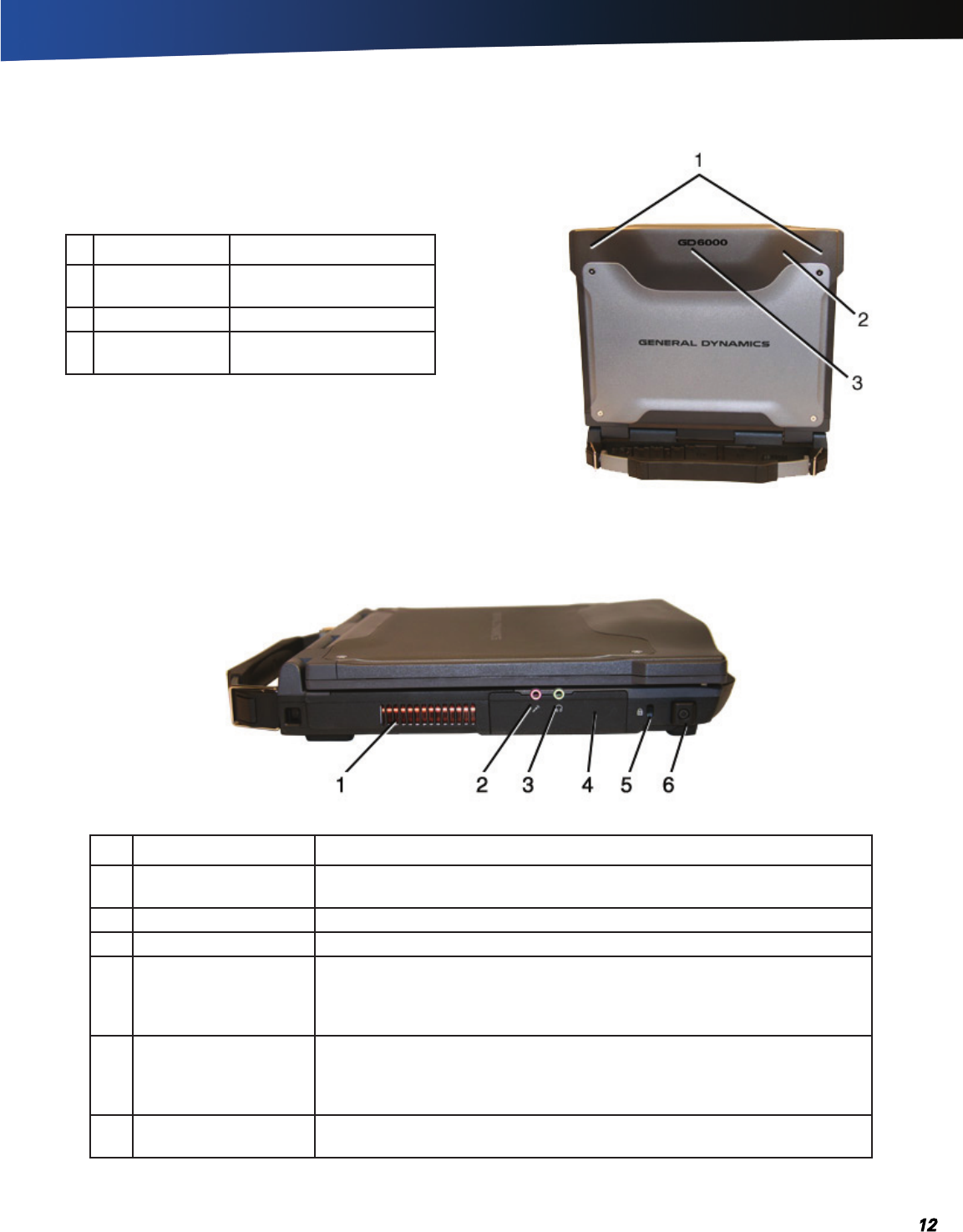

Top View ............................................................. 12
Left Side View .................................................... 12

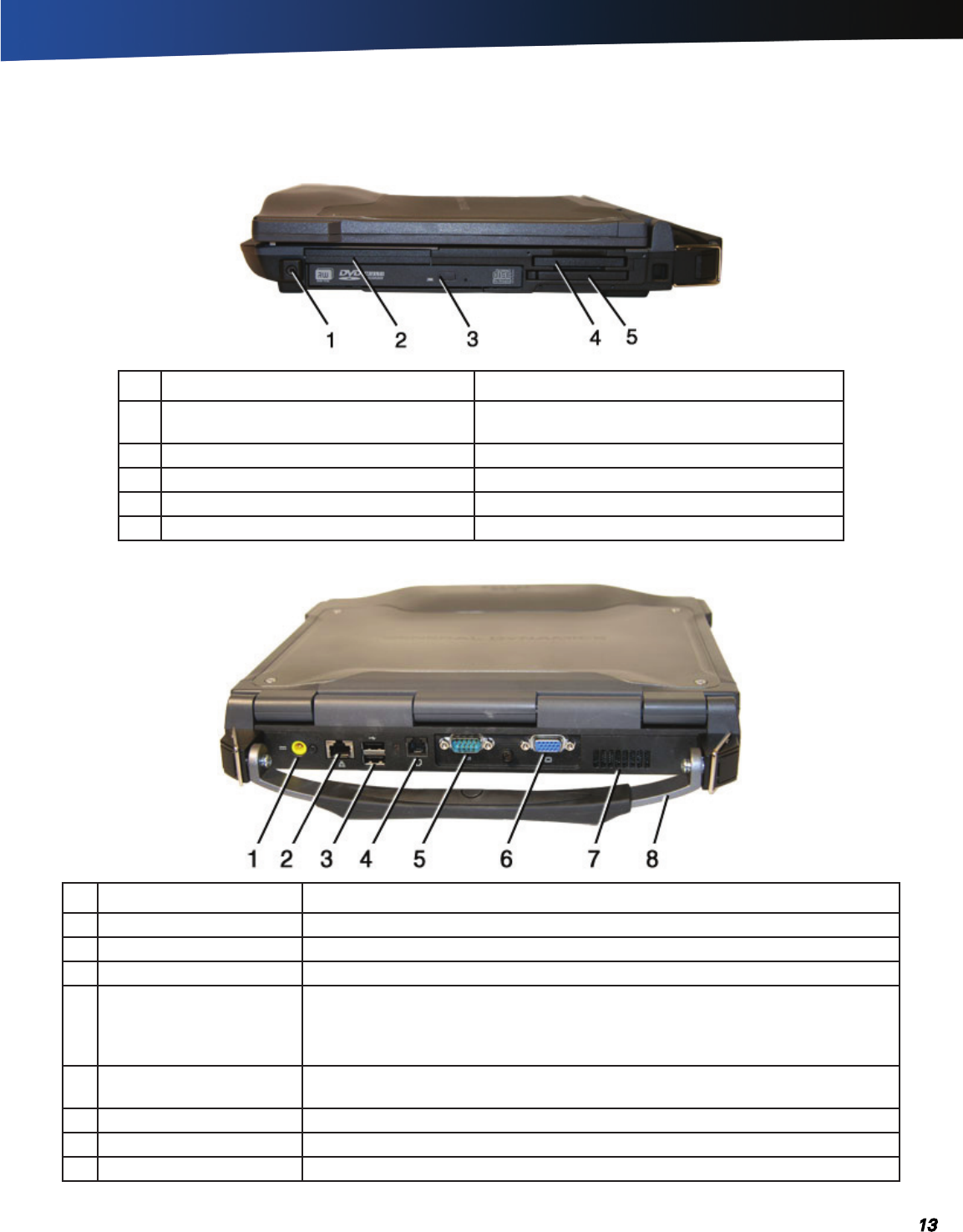

Right Side View .................................................. 13
Back Edge View ................................................. 13

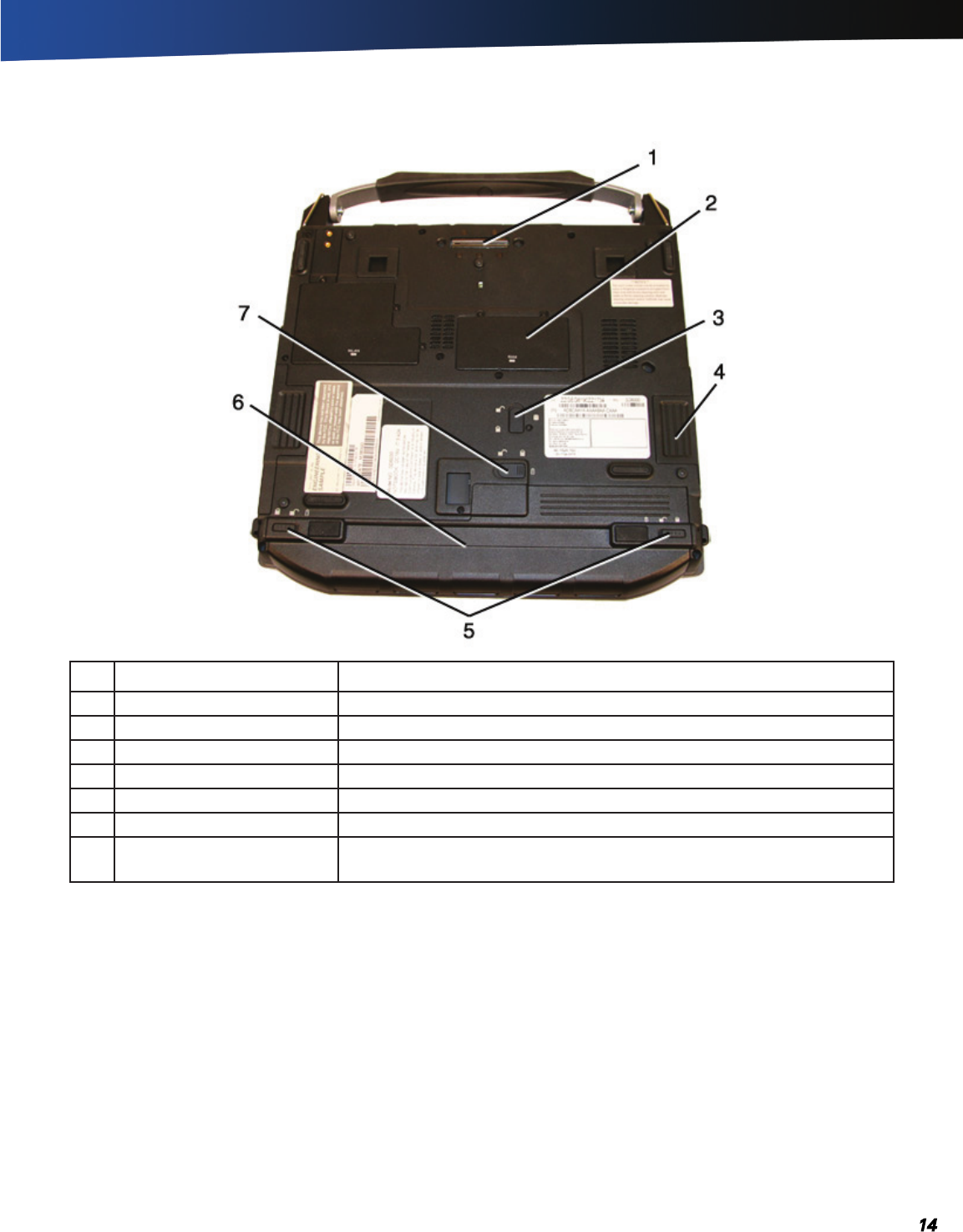

Bottom View ...................................................... 14

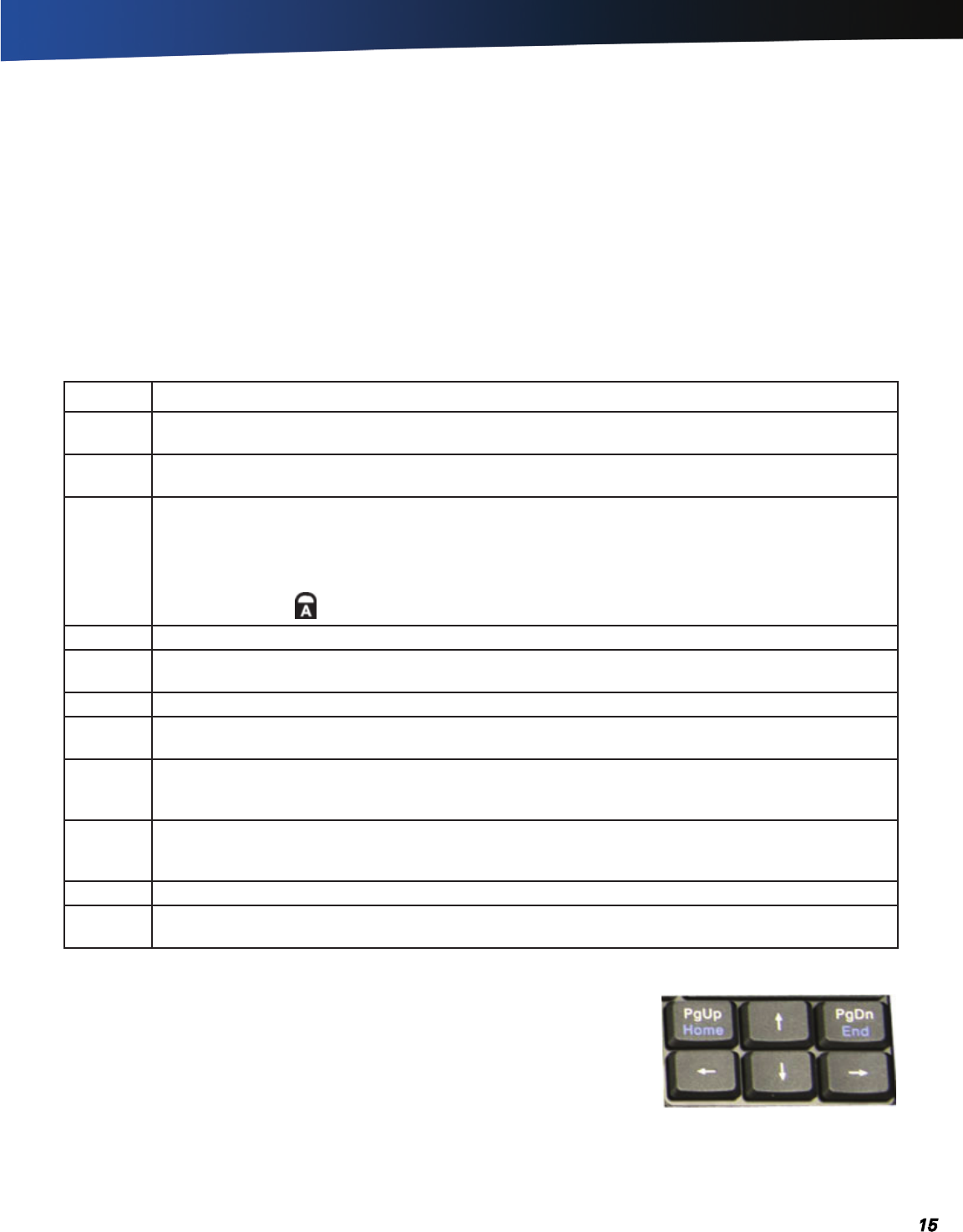

Keyboard Basics ................................................ 15
Primary Keys ...................................................... 15
Arrow Keys ........................................................................ 15
Keyboard ergonomics ...................................... 15

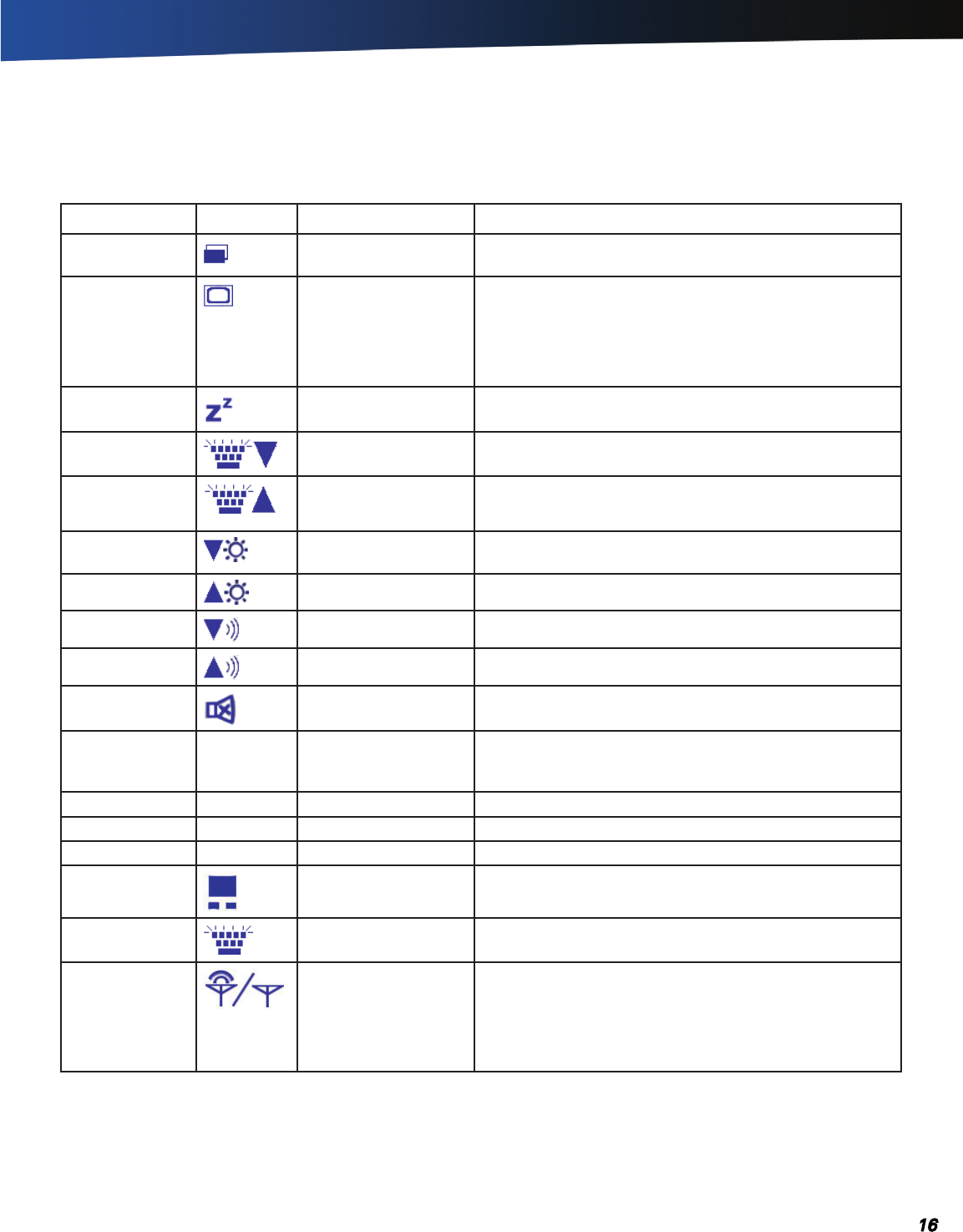

Function Keys and Key Combinations .............................. 16

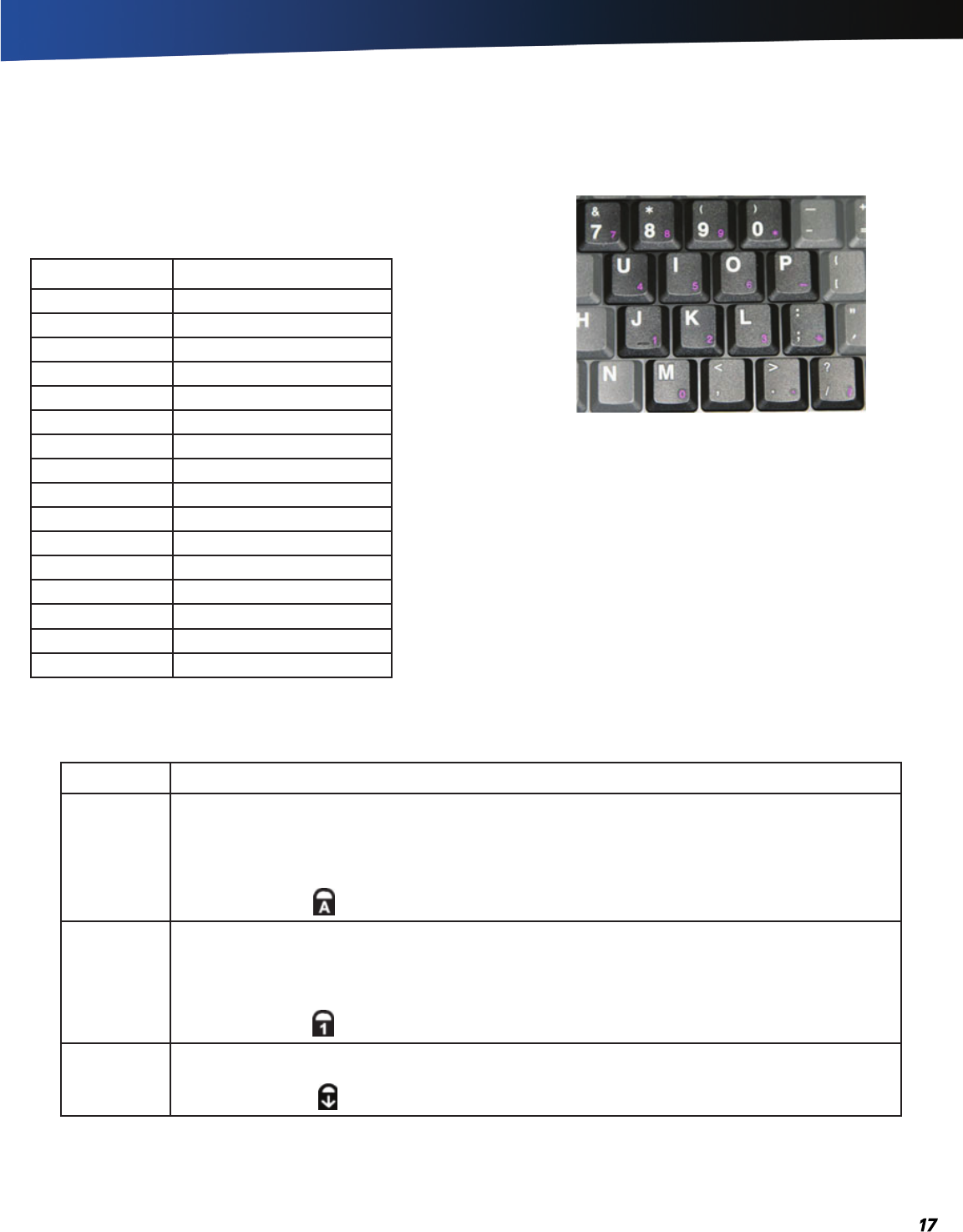

Numeric Keypad .................................................................17
Lock Keys ...........................................................................17
Windows Keys .................................................................. 18
Application Launch Button................................................ 18
Keyboard Task Lights ........................................................ 18

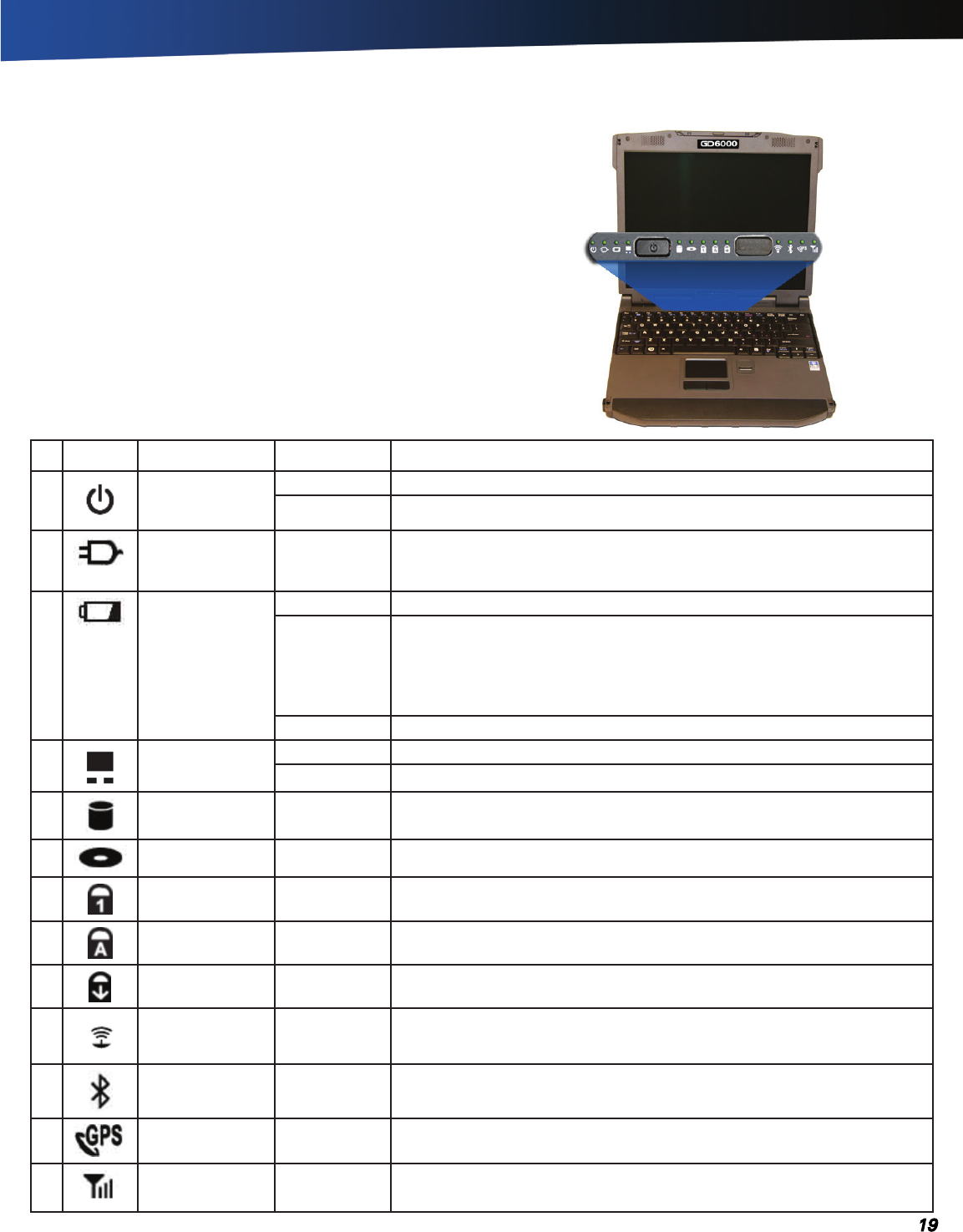

LED Status Indicators ........................................ 19

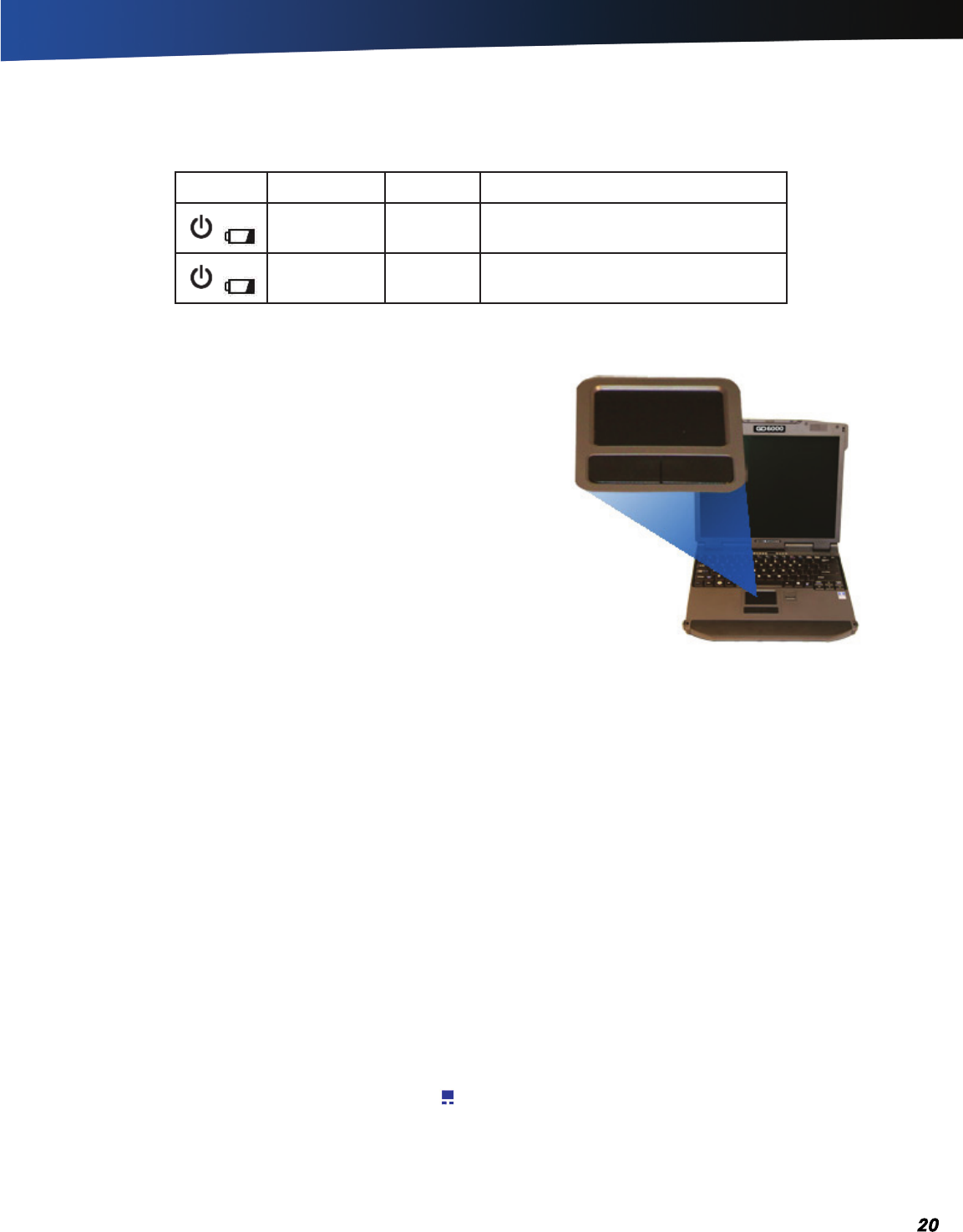

Touchpad ............................................................20
How to Use the Touchpad ................................................ 20
Adjusting the Touchpad Settings ..................................... 20
Touchpad Precautions ....................................................... 20
Touchpad Buttons ............................................................. 20
Display ................................................................ 21
Calibrating the (optional) Touch Screen ............................ 21
Adjusting Display Brightness ............................................ 21
Adjusting Display Resolution ............................................ 21
Auto Dim Feature .............................................................. 22
Simultaneous Display ....................................................... 22

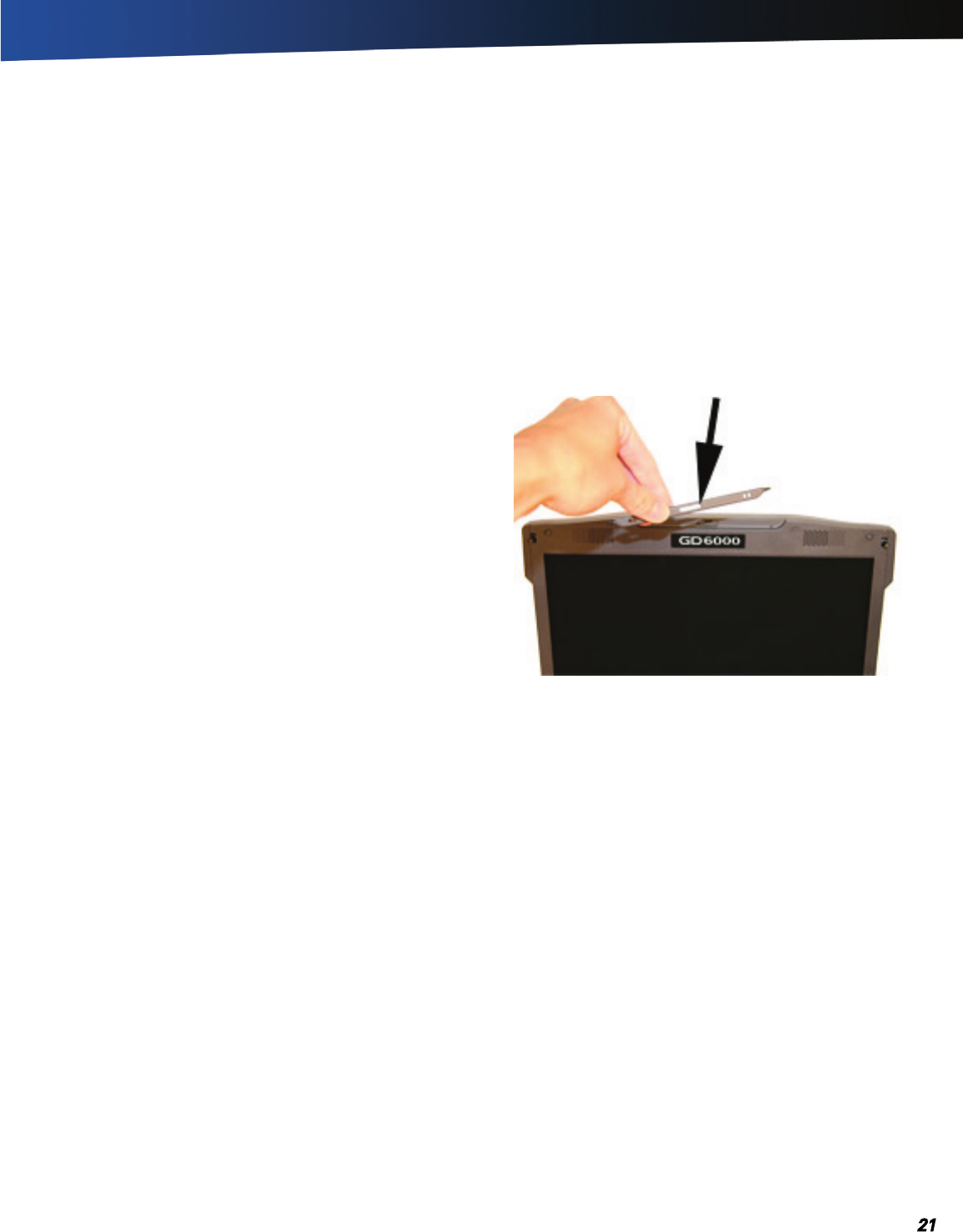

Opening and Closing the Display ..................................... 22
Lid Switch .......................................................................... 22
Cursor Visibility .................................................................. 22
Memory ..............................................................23
Audio ...................................................................23

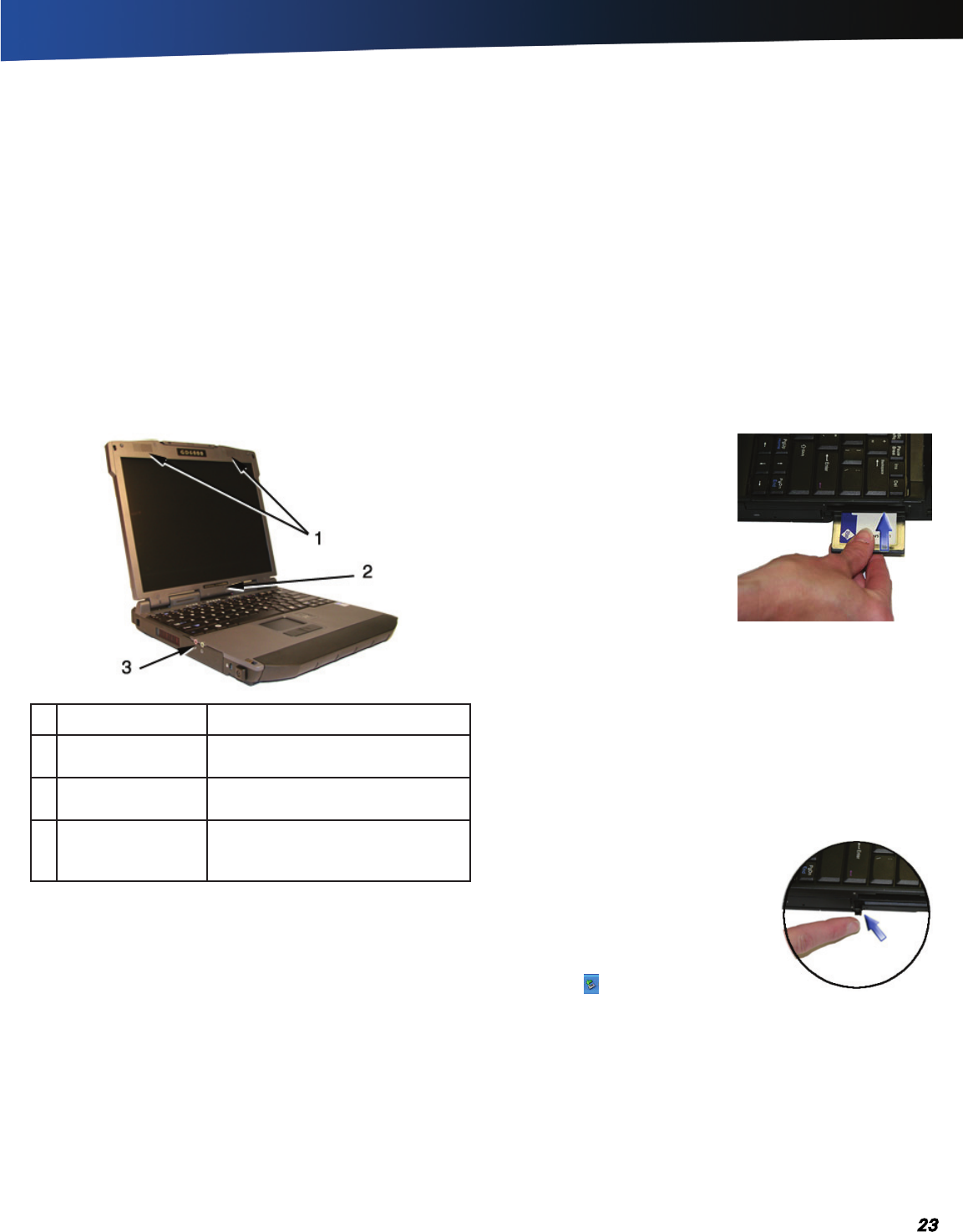

The PC Card Slot ................................................23
Inserting a Card ................................................................. 23
Ejecting a Card .................................................................. 23

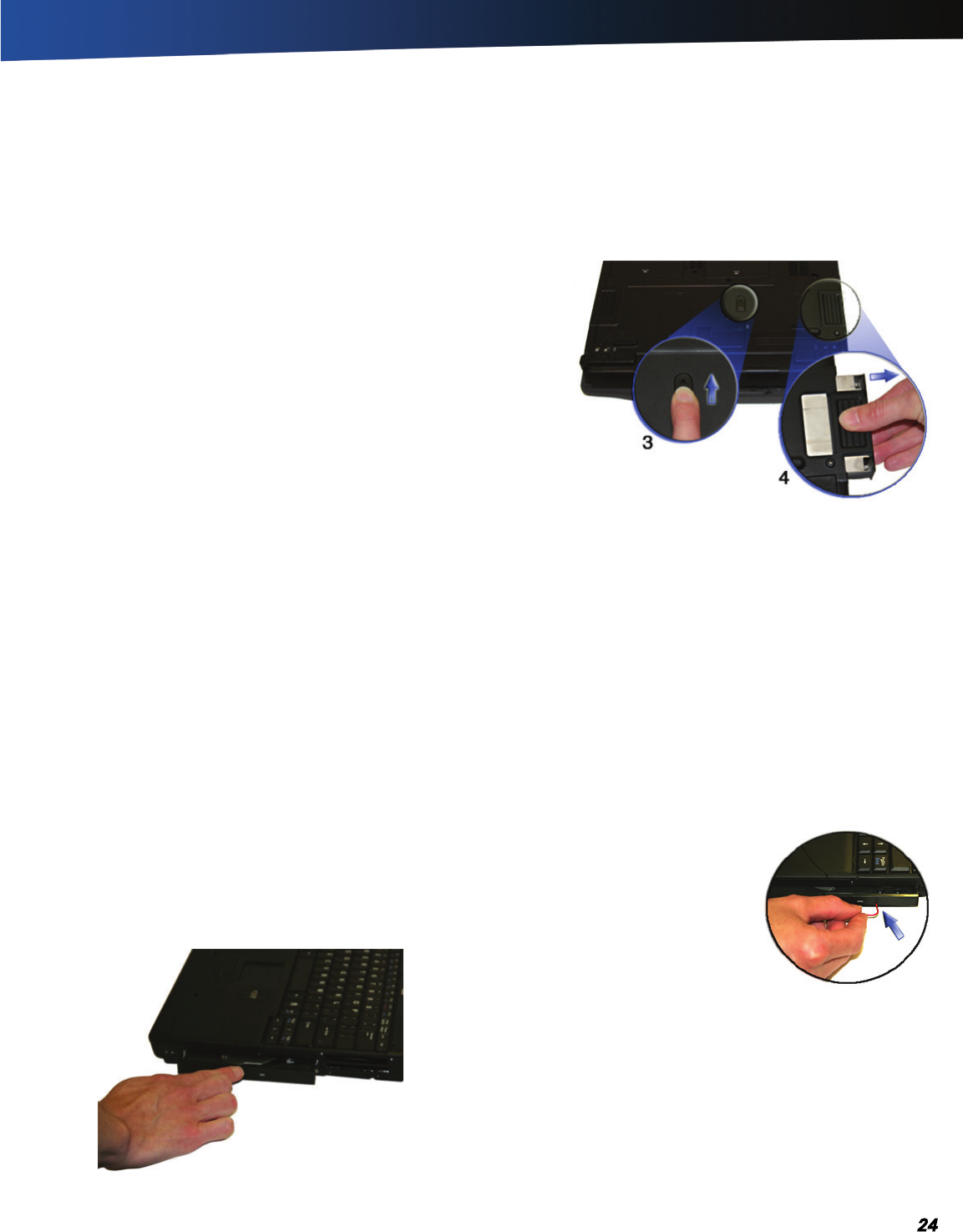

The Hard Disk Drive .......................................... 24
Removing the Hard Disk Drive ......................................... 24
The Optical Disk Drive (option) ........................ 24
Inserting a Disk ................................................................. 24
Removing a DVD or CD .................................................... 24
Smart Card or EXPRESS Card Slot (option) ..25
To insert a card .................................................................. 25
To remove a card ............................................................... 25
Computer Security ............................................25
Security Slot ...................................................................... 25
Passwords ......................................................................... 25
Fingerprint Scanner (Option) ............................................. 25
Fingerprint Scanner Software ........................................... 25
Stealth Mode ..................................................................... 25
Smart Card Reader (Option) ............................................. 25
Trusted Platform Module (TPM) ....................................... 25
ENERGY STAR® ................................................26
Ports and Connectors ....................................... 26
Making Connections .............................................27

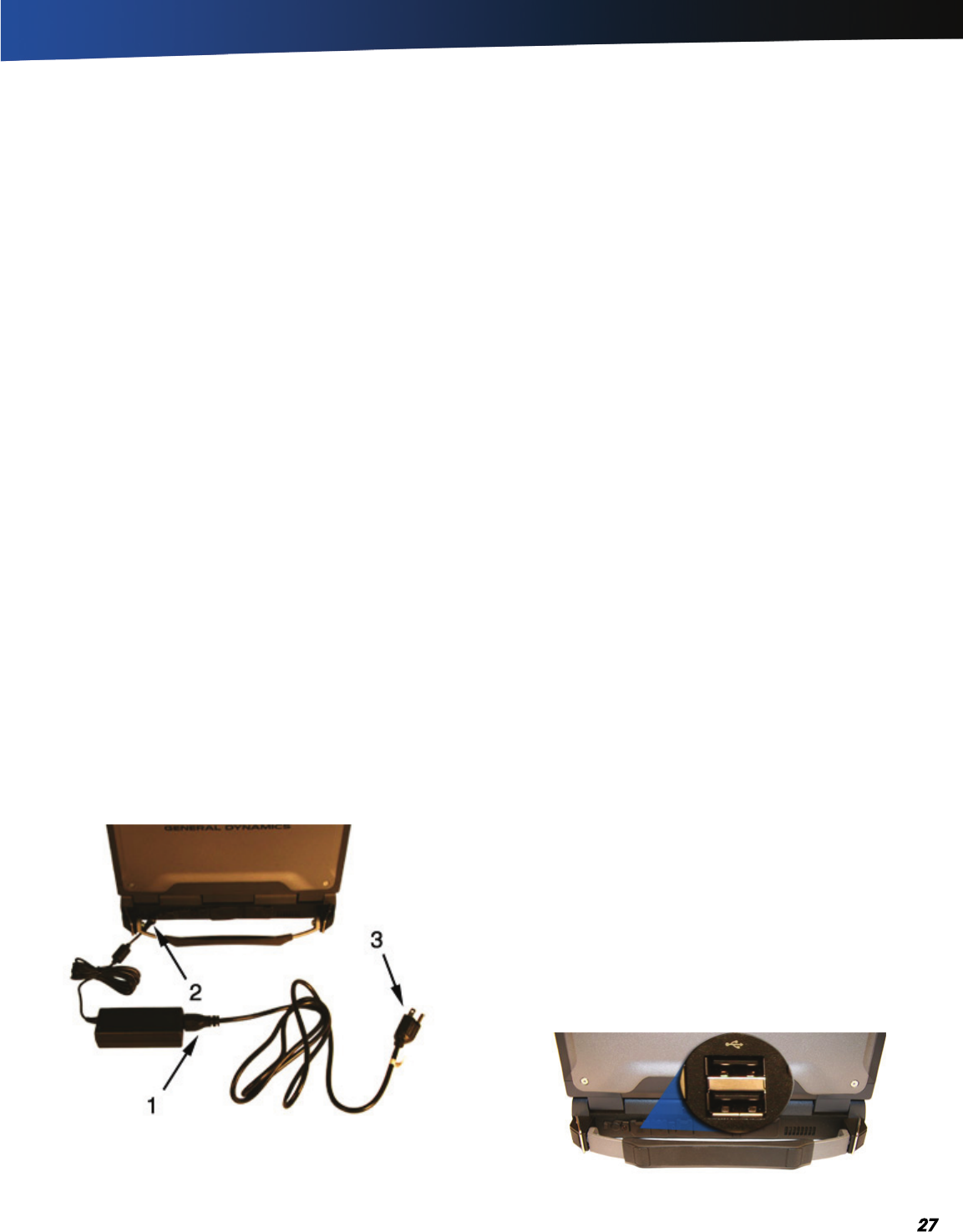

Attaching Power ................................................ 27
Using the AC Adapter ....................................................... 27
Using the Vehicle Adapter (optional) ................................ 27
Attaching USB Devices .....................................27
External keyboard or pointing device................................ 27

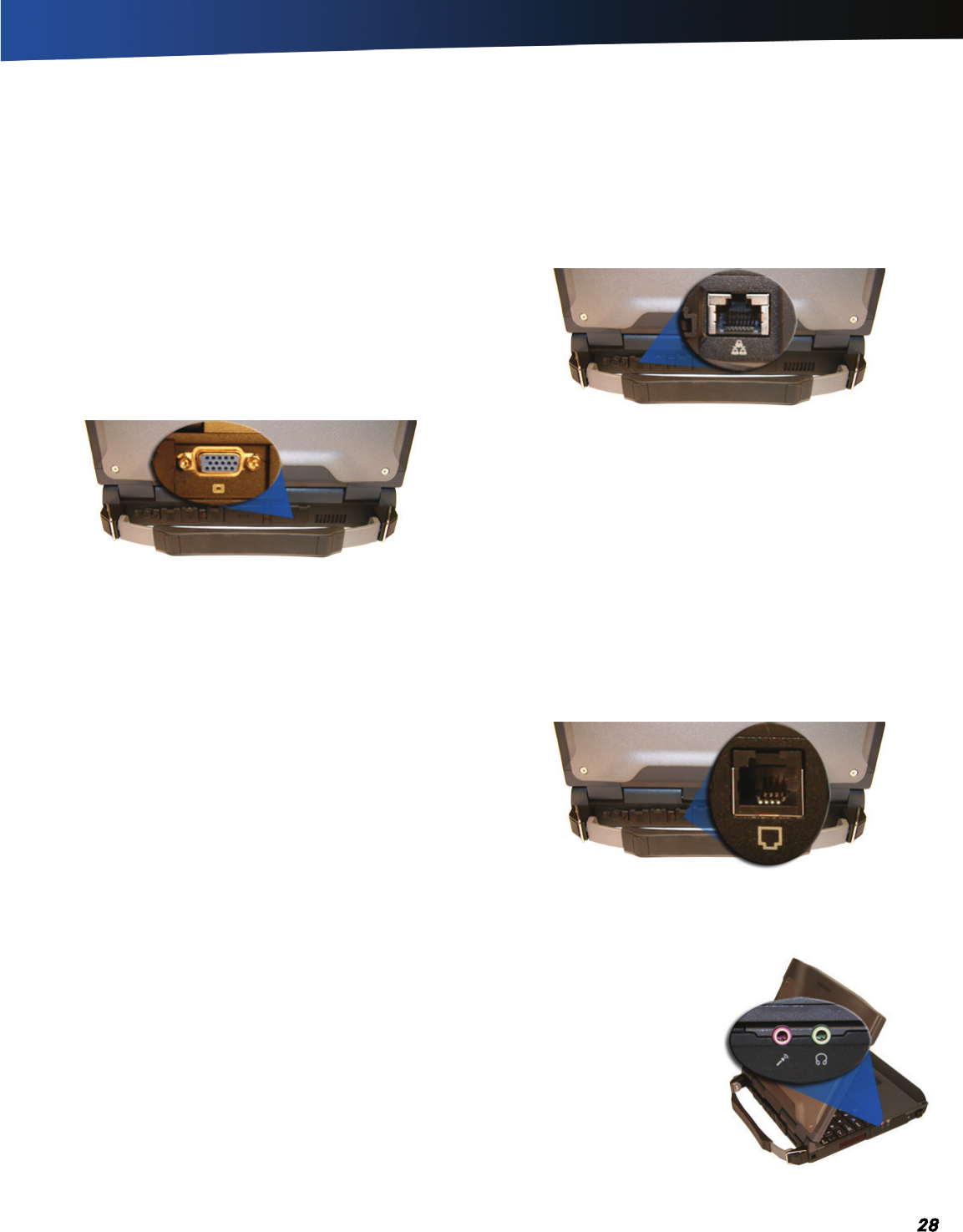

Attaching an External Monitor or Video Device 28
Using Simultaneous Display ............................................. 28
Using Extended Display .................................................... 28
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Table of Contents Table of Contents
Ethernet (LAN) ...................................................28
Fax/data Modem................................................28
Attaching Audio Devices .................................. 28
Wireless Communication ....................................29
WLAN ..................................................................29
About WLAN ..................................................................... 29
CRMA Express WWAN (option) ......................29
HSDPA .............................................................................. 29
EDGE/GPRS/GSM Network ............................................. 29
UMTS/GPRS/GSM Network ............................................ 29
EVDO Rev. A ..................................................................... 29
EV-DO/1xEV-DO/CDMA Network .................................... 29
GPS (option) .......................................................30
Bluetooth® (option) ...........................................30

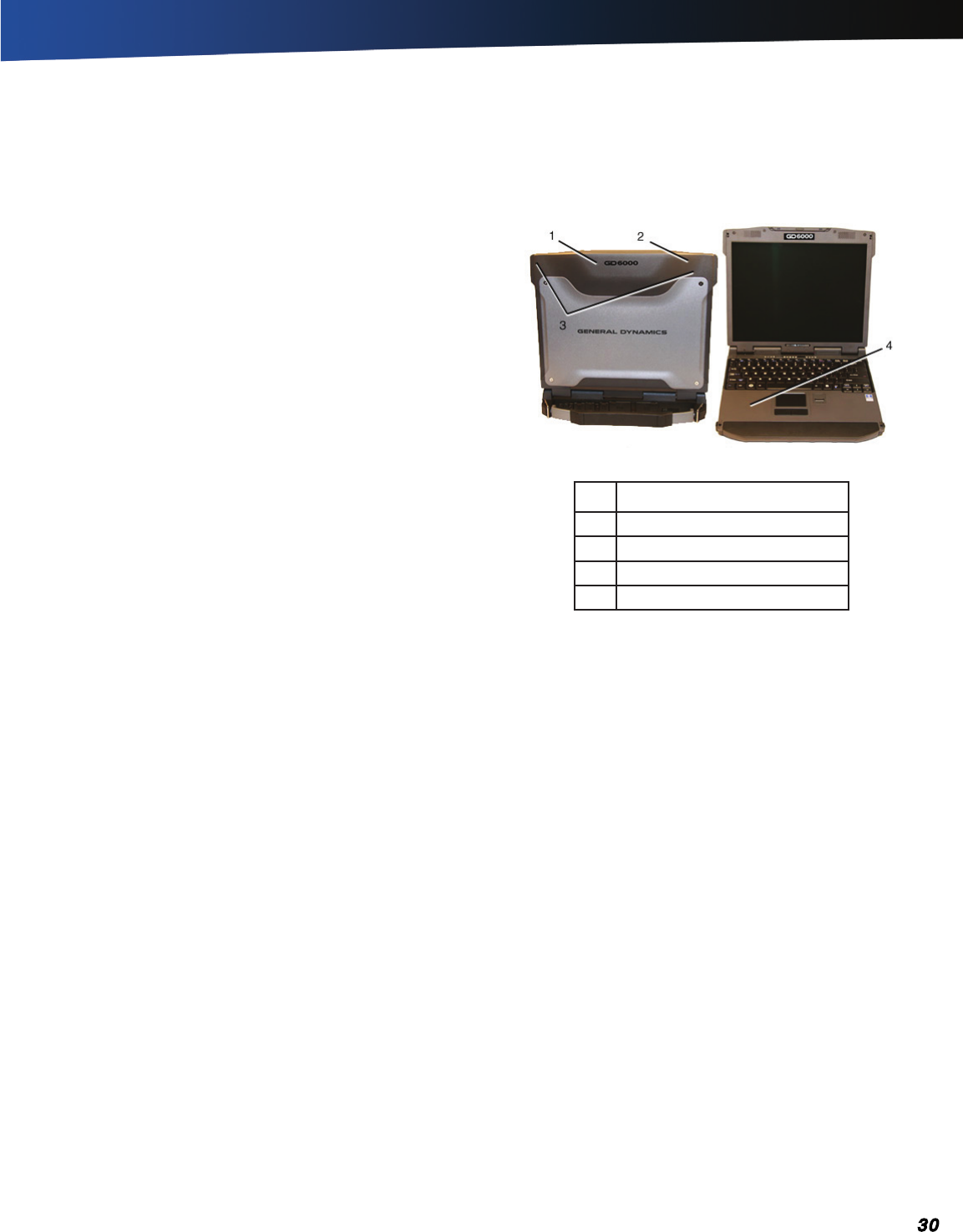

Antennas .............................................................30
Improving Radio Coverage .............................. 31
In any Location .................................................................. 31
On the Street ..................................................................... 31
Inside a Building ................................................................ 31
Electromagnetic Interference (EMI) ................................. 31
Operating with Battery Power ...........................32
Battery pack .......................................................32
Using a battery pack for the first time .............................. 32
Battery and Temperature .................................................. 32

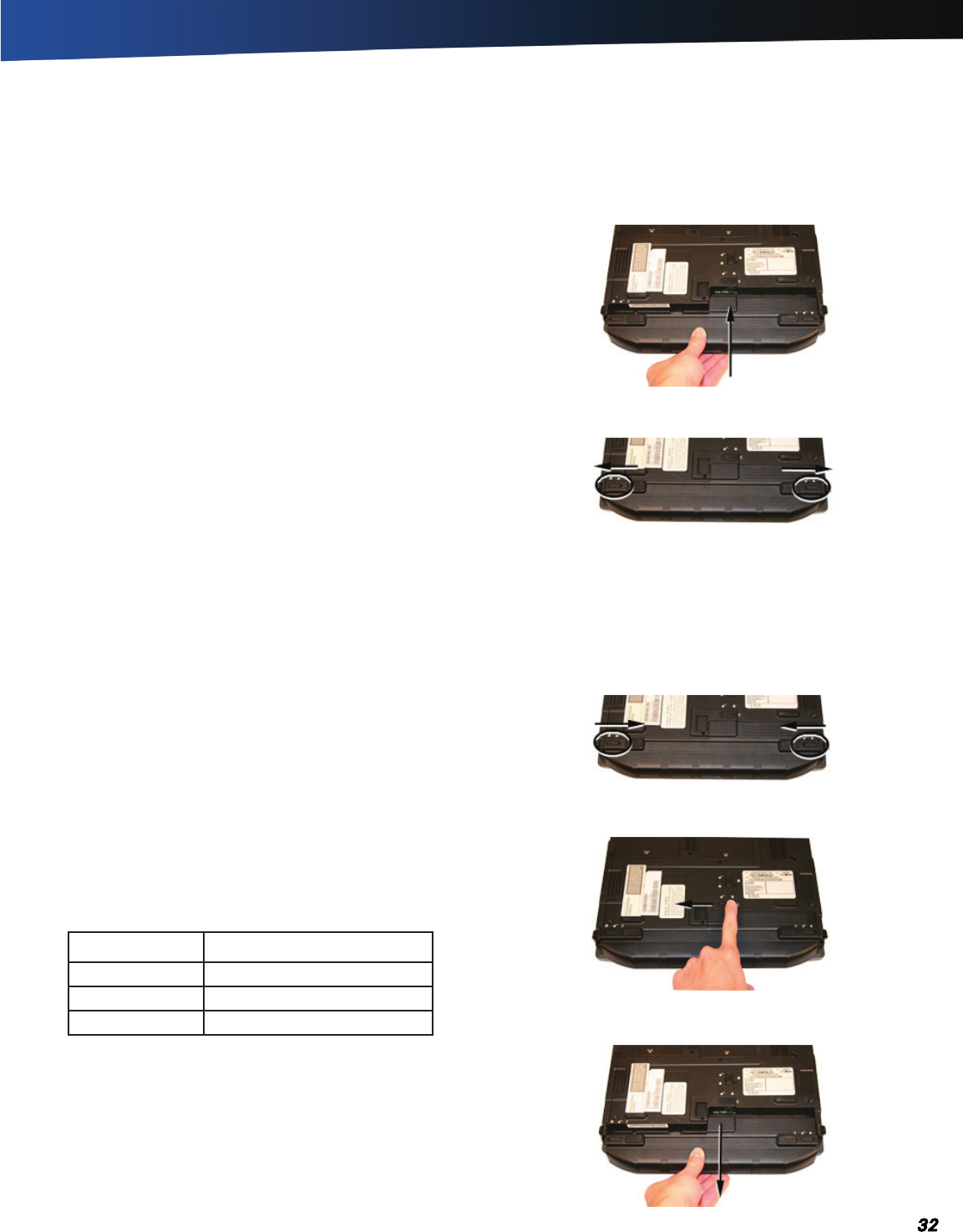

To install a battery pack ..................................................... 32
Battery Calibration ............................................33
Windows XP Battery Calibration ...................................... 33
Windows Vista Battery Calibration ................................... 33
Battery Charging ...............................................33
When to Replace the Battery ........................................... 33
Heat Considerations .......................................................... 34
Monitoring Battery Power ................................34
Low Battery Alarms .......................................................... 34
Managing Power................................................34
Low-Power States ............................................................ 34
Entering Low-Power States .............................................. 34
Battery Tips ........................................................35
Tip 1. Avoid excessive heat and cold................................ 35
Tip 2. Prevent wasted power ............................................ 35
Tip 3. Calibrate your battery .............................................. 35
Tip 4. Get a good charge .................................................. 35
Tip 5. Prevent data loss ..................................................... 36
Tip 6. Clean terminals .......................................................36
Tip 7. Storing batteries ...................................................... 36
Customizing Your BIOS Settings........................37

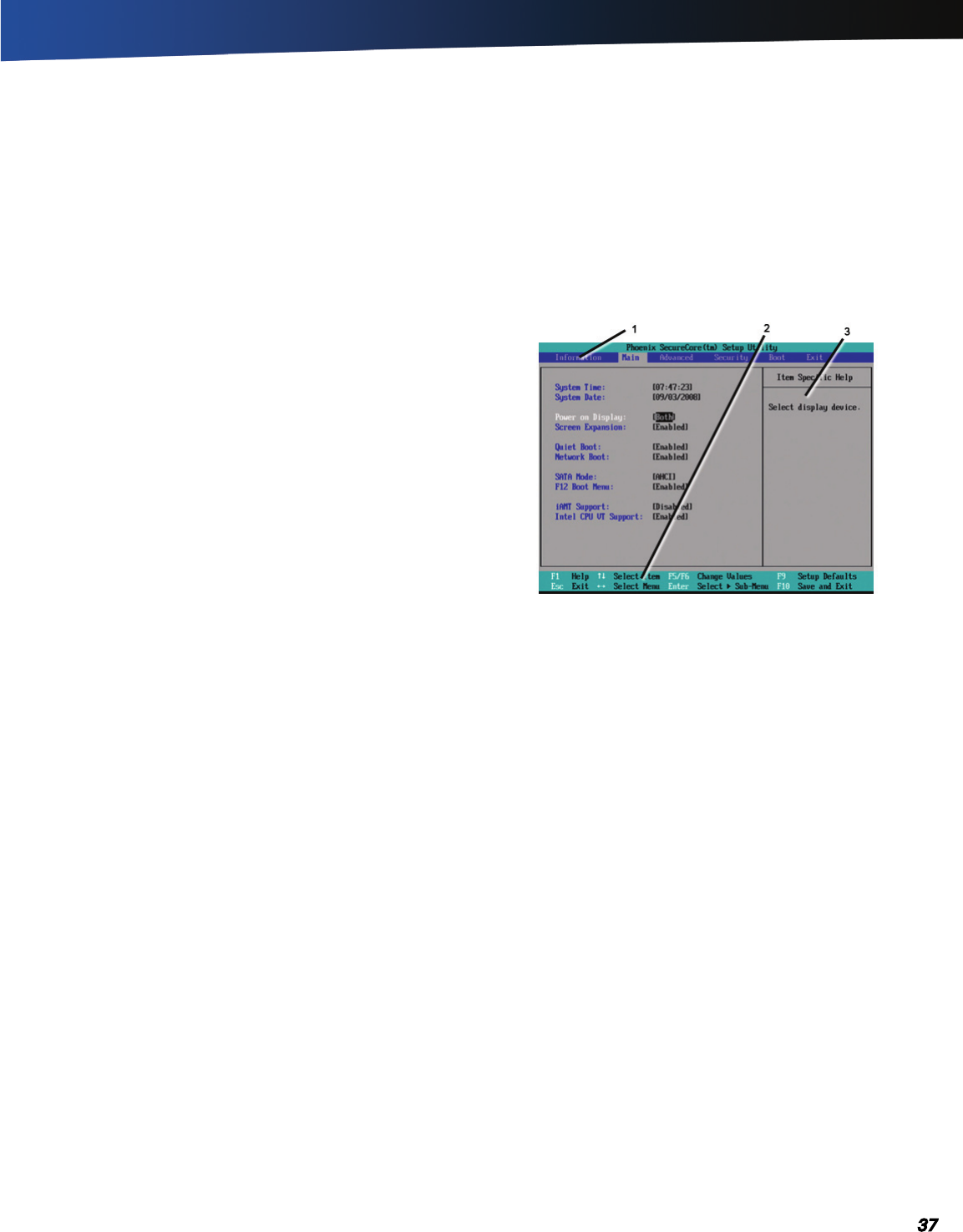

Using the Setup Utility ......................................37
Starting the Setup Utility ................................................... 37
The Menu Bar ................................................................. 37
Viewing or Changing Field Settings ................................. 37
The Field Help Window .................................................... 37

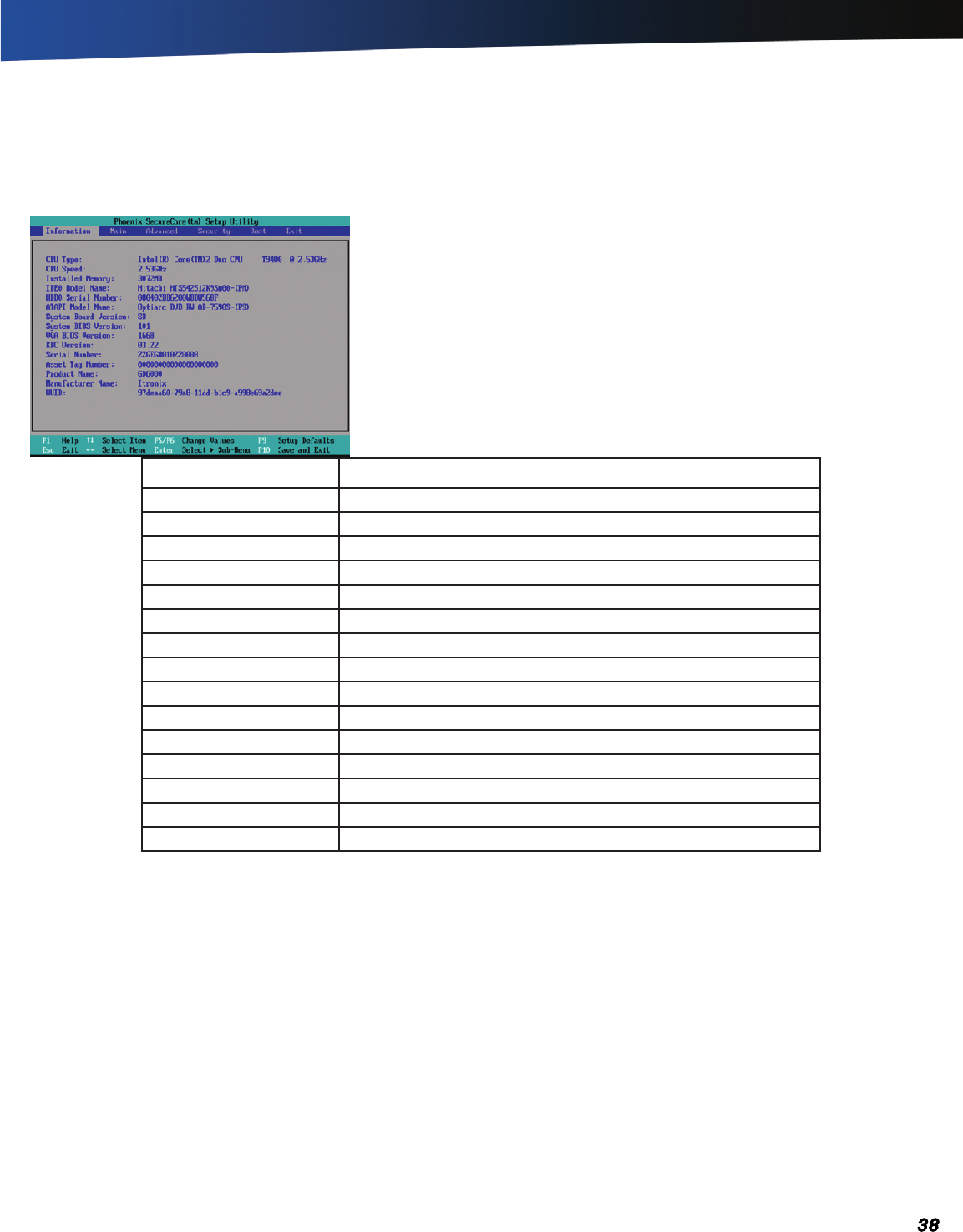

The Information Menu ......................................38

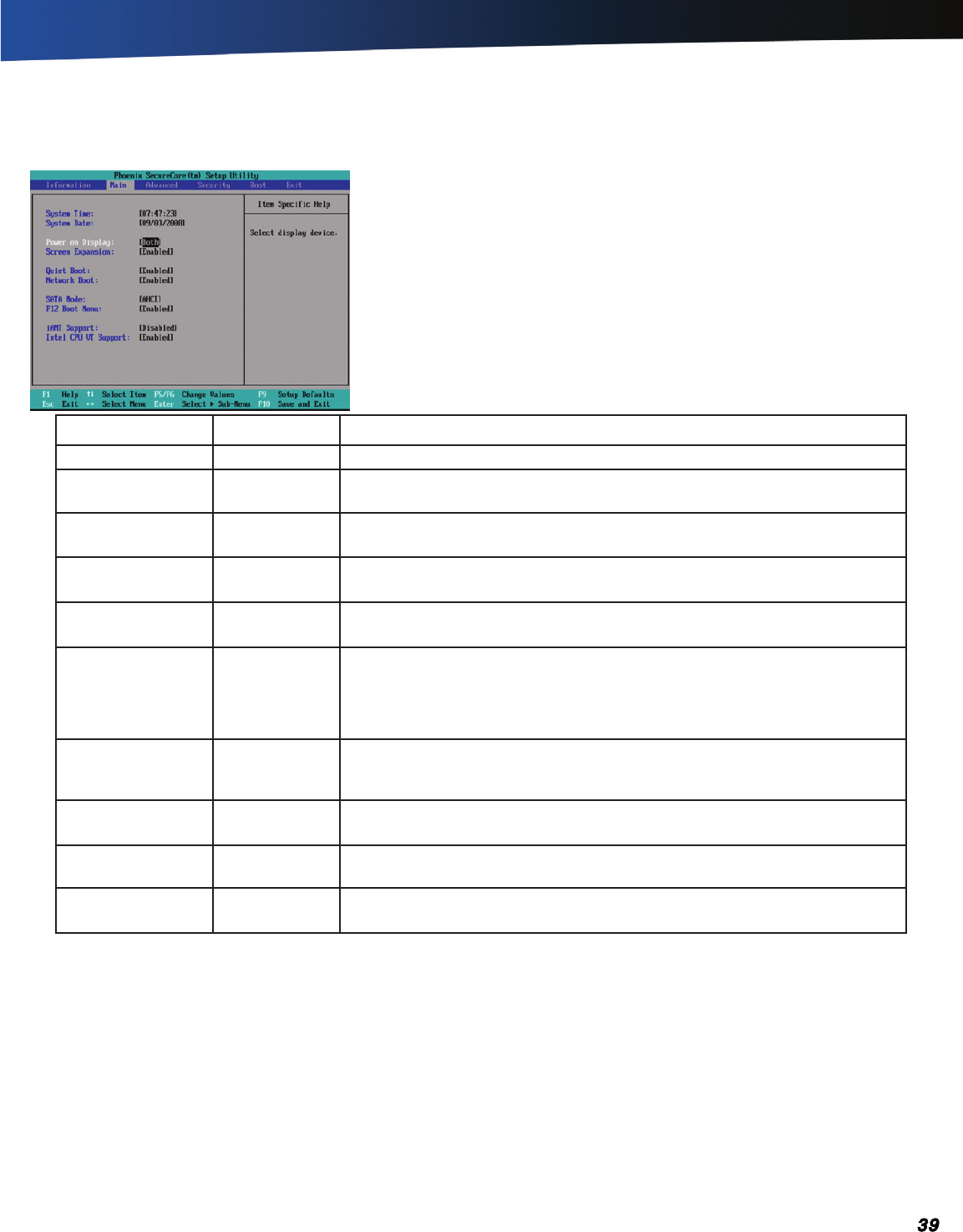

The Main Menu ..................................................39

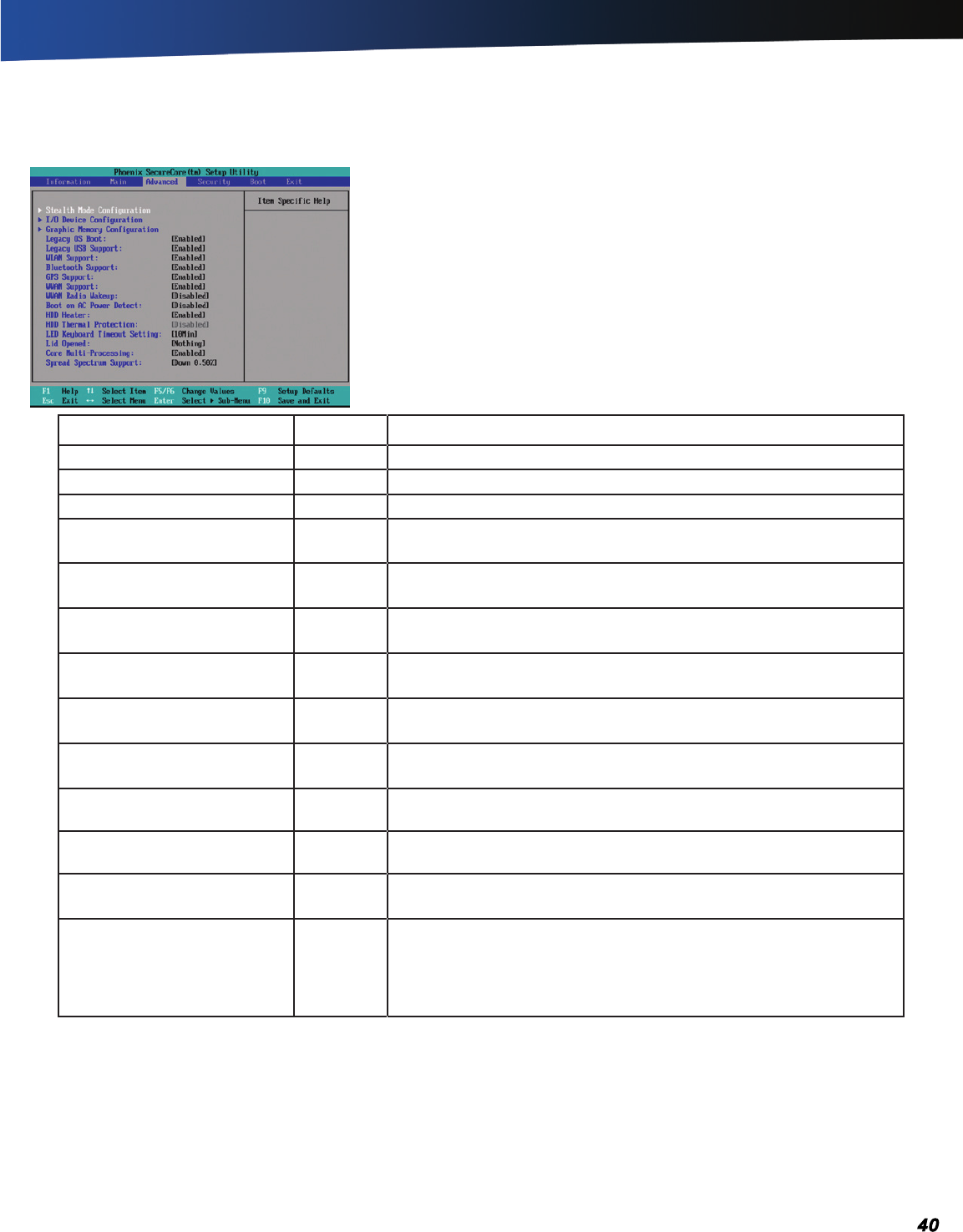

The Advanced Menu .........................................40

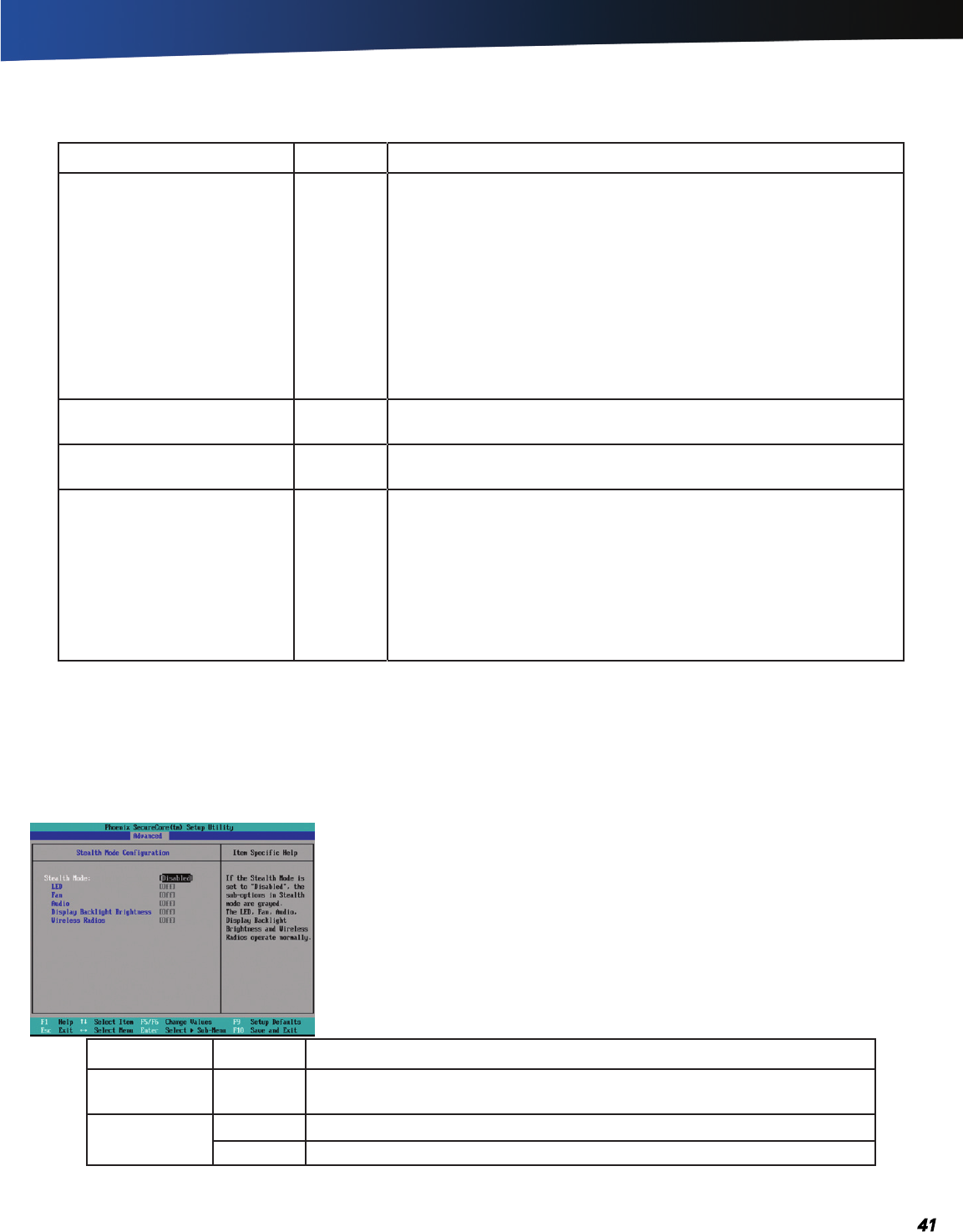

Stealth Mode Configuration .............................................. 41

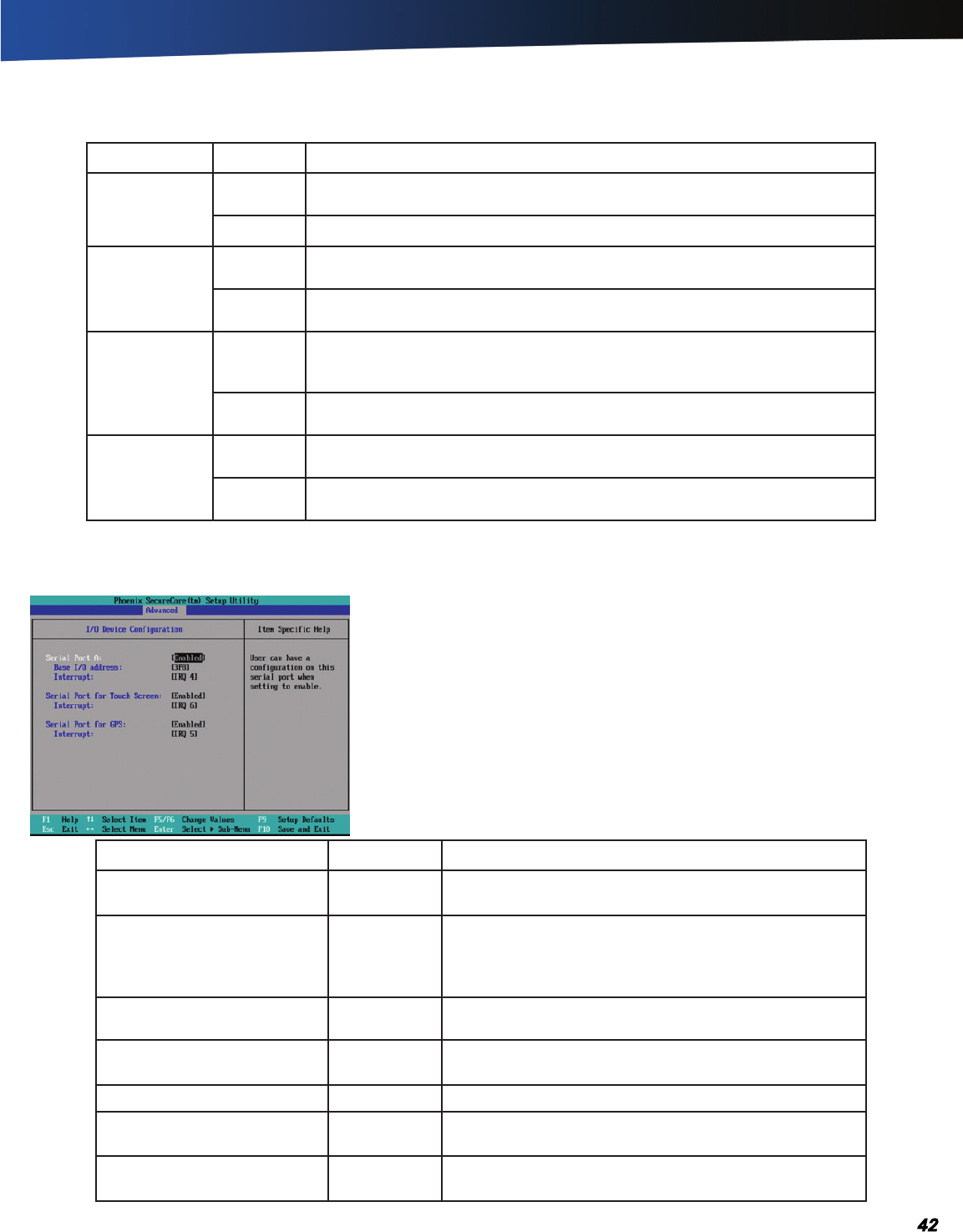

I/O Device Configuration .................................................. 42

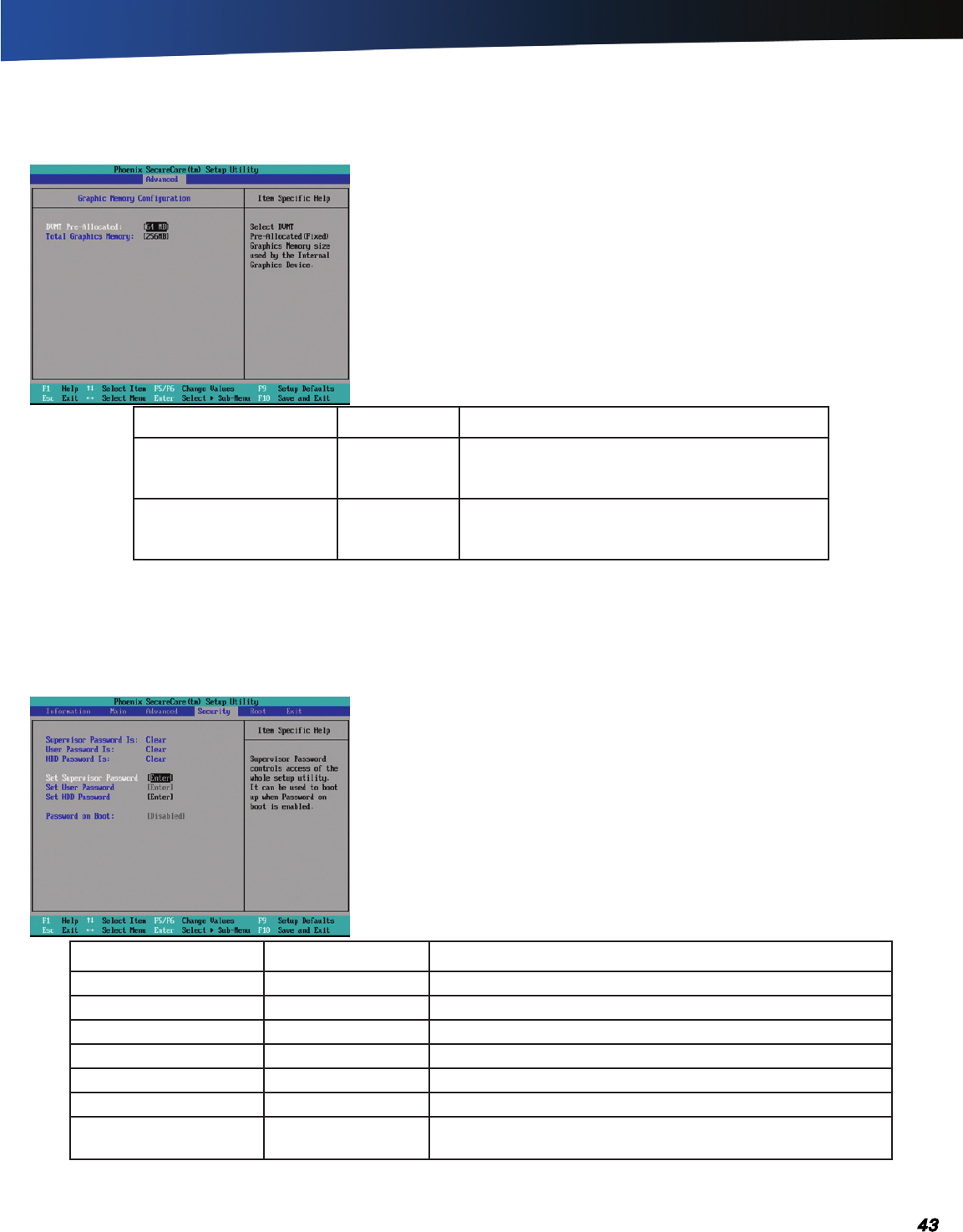

Graphic Memory Configuration ........................................ 43
The Security Menu ............................................43

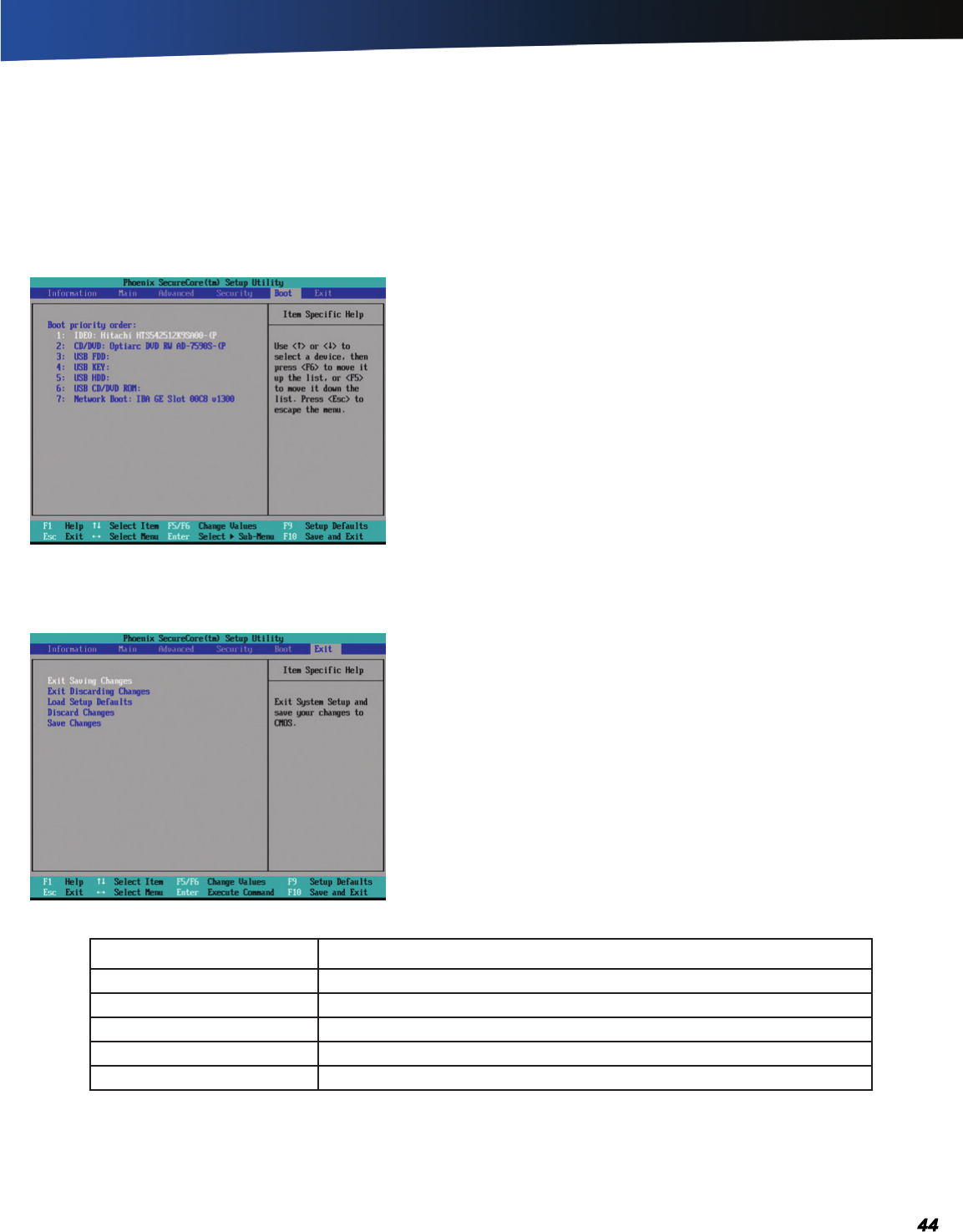

The Boot Menu ..................................................44
The Exit Menu ....................................................44
Optional Equipment and Accessories ..............45

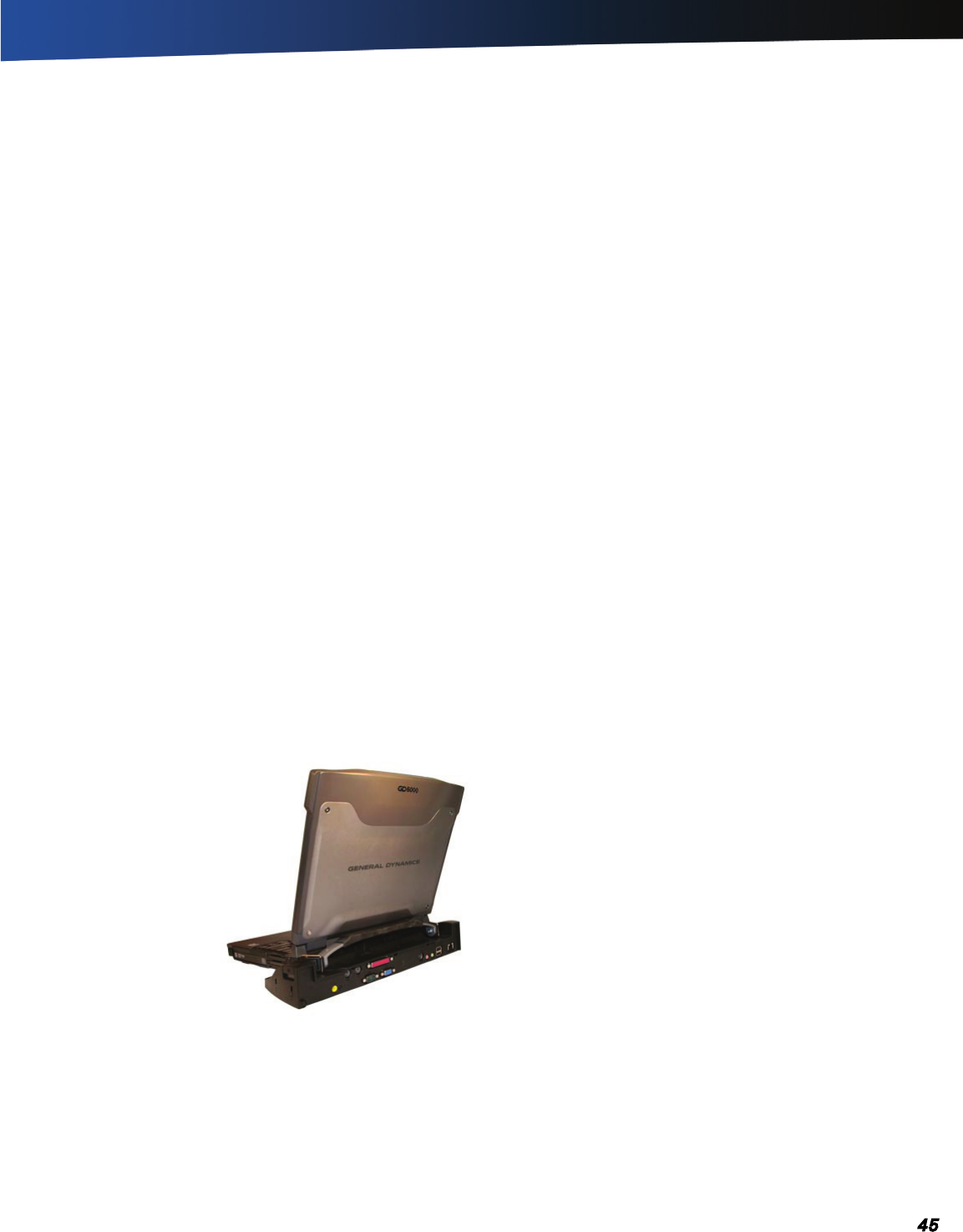

Office Dock .........................................................45
Undocking the GD6000 using Windows XP ................... 45
Undocking the GD6000 using Windows Vista ................ 45

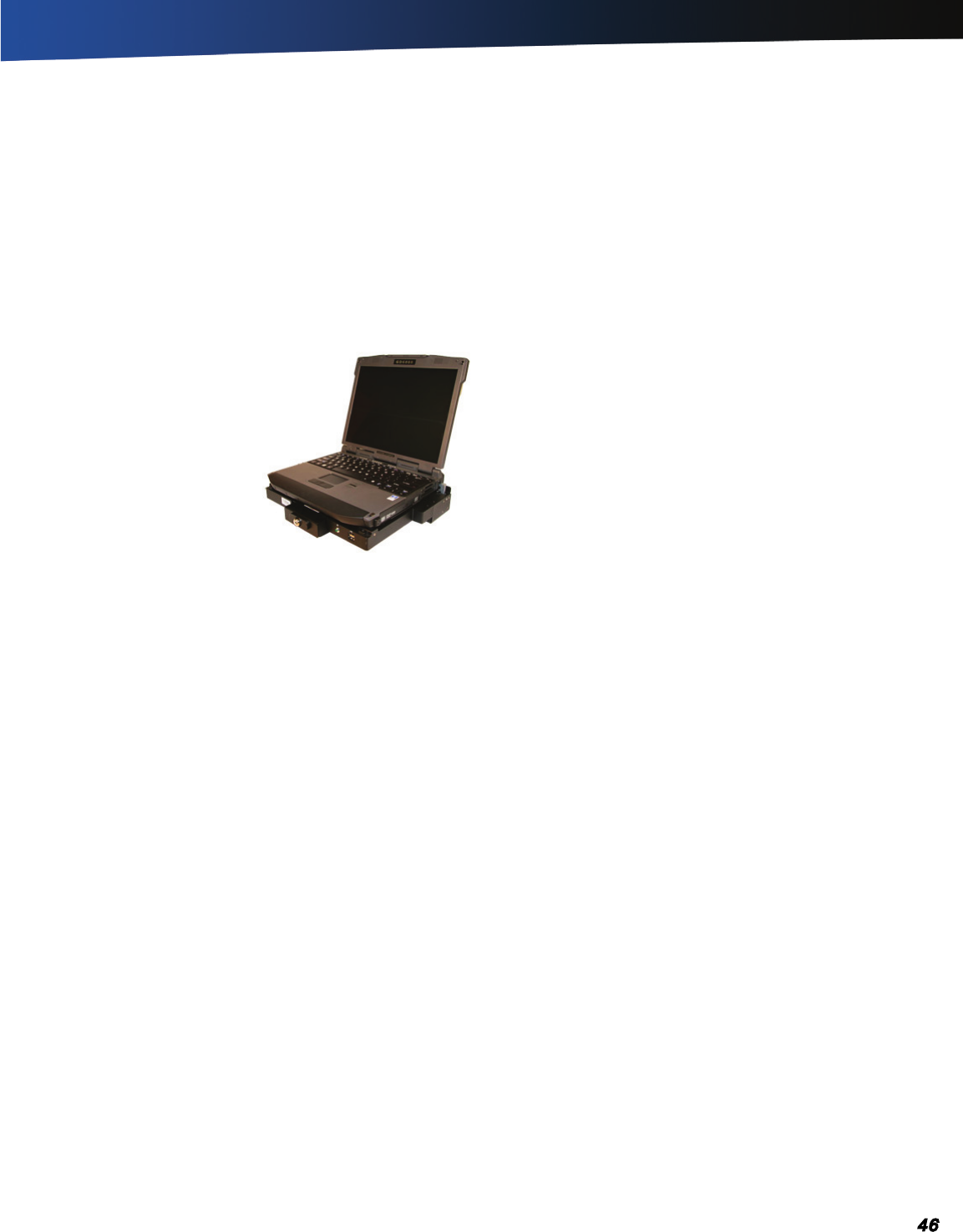

Vehicle Dock .......................................................46
Vehicle Dock features: ...................................................... 46
Surge Protection ................................................46
Selecting the Right Surge Protection ............................... 46
Selecting the Right Equipment ......................................... 46

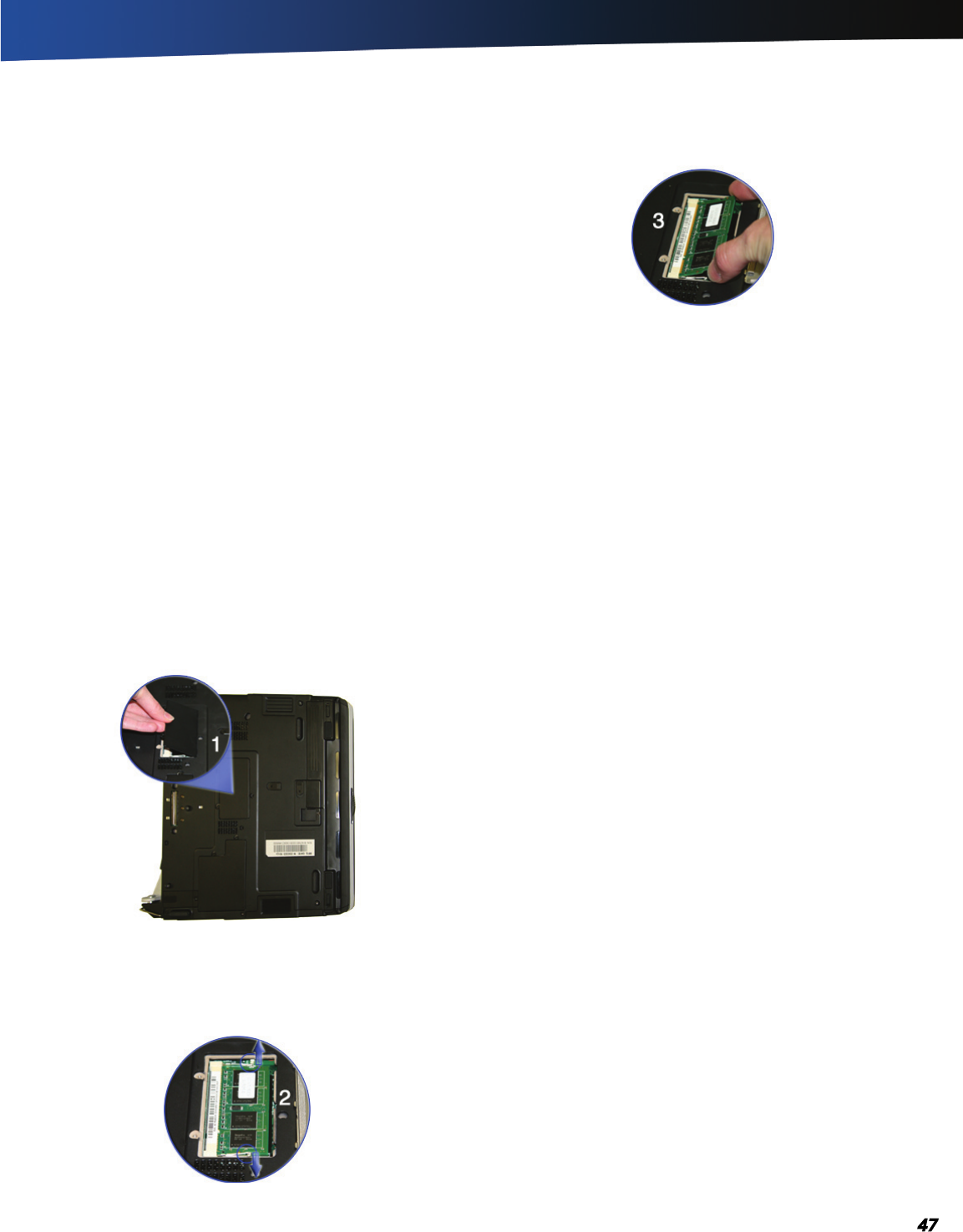

Memory Upgrade .............................................. 47
Replacing a Memory Card ................................................ 47
Removing a Memory Card ............................................... 47
Inserting a Memory Card .................................................. 47
Miscellaneous options ......................................48
Battery Pack ...................................................................... 48
AC Adapter ........................................................................ 48
Vehicle Adapter ................................................................. 48
Other Options and Accessories ....................................... 48
Maintenance ...........................................................49
Computer Maintenance and Storage .............49
Taking Care of Your Computer .......................................... 49
Taking care of your AC adapter ......................................... 49
Servicing ............................................................................ 49
Battery Maintenance and Storage ..................49
Taking care of your battery pack ....................................... 49
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Table of Contents
Maintaining Batteries ........................................................ 49
Storing Batteries ................................................................ 49
Cleaning Your Computer ..................................50
Backup and Recovery .......................................50
Data Backup ...................................................................... 50
Save Important System Information ............................... 50
Backup your Files .............................................................. 50
Backup Drive C: ................................................................. 50
Data Recovery ................................................................... 51
Service ......................................................................52
Client Care Center (CCC) ...................................52
Product Support - Downloads ......................... 52
Troubleshooting .....................................................53
Application Troubleshooting ...........................53
My application locks up, acts strangely, or produces a Gen-
eral Protection Fault (GPF) error or blue screen .............. 53
Battery Troubleshooting .................................53
The battery does not charge ............................................. 53
The batteries take much longer than seven hours to charge
53
The batteries do not last very long ................................... 53
The gas gauge is not full after charging the battery ........ 54
The gas gauge reads “full,” but the indicator light is still blink-
ing ...................................................................................... 54
My battery seems to have less and less capacity ........... 54
Display Troubleshooting ..................................54
The display performance is slow ...................................... 54
I can’t read the display ...................................................... 54
The underlined, inverse, and hypertext characters are difficult
to read on the screen ........................................................ 54
I changed my display resolution, but I see no difference on
the screen .......................................................................... 54
My screen seems to time out too quickly. ...................... 54
Hard Disk Troubleshooting...............................54
The hard disk will not spin up so the computer can’t boot up
........................................................................................... 54
Keyboard and Mouse Troubleshooting ..........54
Something unexpected happens when I press a key ..... 54
Incorrect characters appear on the screen when I press
certain keys ....................................................................... 54
I have difficulty double-clicking the mouse fast enough . 54
Modem Troubleshooting ..................................55
The modem doesn’t work ................................................ 55
The modem doesn’t dial a number .................................. 55
The modem dials and receives an answer but does not
establish a connection ...................................................... 55
Miscellaneous Troubleshooting ......................55
The computer shuts off unexpectedly ............................. 55
The speaker volume is too high or too low ...................... 55
The computer won’t turn on ............................................. 55
The computer will not come on when the power button is
pressed but the power, external power and battery indicators
flash in sequence. ............................................................. 55
The computer won’t turn off............................................. 55
The computer enters suspend mode too quickly ............ 55
The computer doesn’t automatically suspend ................. 56
The system date and time are incorrect ........................... 56
I receive an “out of memory” error message .................. 56
PC Card Troubleshooting .................................56
I can’t remove the PC card................................................ 56
Diskette Read Error ........................................................... 56
The computer locks up when I remove the PC card ....... 56
FAQs ....................................................................56
I’ve heard that cleaning up and rearranging files on the hard
drive will improve the startup speed of my programs. How do
I do this? ............................................................................ 56
How do I adjust the volume? ............................................ 56
How do I change the battery? .......................................... 56
How long will the battery last? ......................................... 56
How do I change the display brightness? ........................ 56
How do I clean the display? .............................................. 56
How do I calibrate the touch screen? ............................... 56
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Identification GD6000
Copyright Notice
© Copyright 2008 General Dynamics Itronix. All rights
reserved. No part of this document may be reproduced, trans-
mitted, transcribed, stored in a retrieval system, or translated
into any other language or computer language in whole or in
part, in any form or by any means, whether it be electronic,
mechanical, magnetic, optical, manual, or otherwise, without
the prior written consent of General Dynamics Itronix, 12825 E.
Mirabeau Parkway, Spokane Valley, WA 99216.
Disclaimer
General Dynamics Itronix reserves the right to revise the man-
ual and make periodic changes to the content without a direct
or inferred obligation to General Dynamics Itronix to notify any
person of such revision or changes. General Dynamics Itronix
does not assume responsibility for the use of this help manual,
nor for any patent infringements or other rights or third parties
who may use the manual.
This document contains proprietary information of General
Dynamics Itronix.
This product is available for purchase under General Dynam-
ics Itronix’s standard terms and conditions of sale. General
Dynamics Itronix hardware products may be reconditioned,
or be manufactured from parts and components that may be
new, used, rebuilt, or recycled and in some cases, the hard-
ware product may not be new and may have been previously
installed. In any event, General Dynamics Itronix warranty
terms apply.
Trademark and Patent Notice
Itronix is a registered trademark of General Dynamics Itronix.
Microsoft, MS Windows, and MS-DOS are registered trade-
marks of Microsoft Corporation.
IBM is a trademark of International Business Machines Corpo-
ration.
The following United States Patent Numbers apply to any
unit which incorporates a DVD drive - 5,434,678; 5,589,945;
5,913,013; 6,151,444; and 6,208,805.
This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual property
rights. Use of this copyright protection technology must be
authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Mac-
rovision. Reverse engineering or disassembly is prohibited.
ENERGY STAR® is a registered trademark of the U.S. Envi-
ronmental Protection Agency. As an ENERGY STAR partner,
General Dynamics Itronix has determined this computer meets
ENERGY STAR program requirements for computers.
Compliance Statements
Federal CommuniCation Commission interFerenCe state-
ment
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution
To assure continued compliance, (example - use only shielded
interface cables when connecting to computer or peripheral
devices) any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, includ-
ing interference that may cause undesired operation.
imPortant note
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in con-
junction with any other antenna or transmitter.
Local Restriction of 802.11a/b/g/n Radio Usage
Caution Due to the fact that the frequencies used by
802.11a/b/g/n wireless LAN devices may not yet be harmonized
in all countries, 802.11a/b/g/n products are designed for use
only in specific countries, and are not allowed to be operated
in countries other than those of designated use. As a user
of these products, you are responsible for ensuring that the
Notices and Compliance
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Notices and Compliance
products are used only in the countries for which they were
intended and for verifying that they are configured with the
correct selection of frequency and channel for the country of
use. Any deviation from permissible settings and restrictions in
the country of use could be an infringement of national law and
may be punished as such.
FCC radio FrequenCy interFerenCe requirements
This device is restricted to indoor use due to its operation in
the 5.15 to 5.25 GHz frequency range. FCC requires this product
to be used indoors for the frequency range 5.15 to 5.25 GHz
to reduce the potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are allocated as
primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz
bands. These radar stations can cause interference with and /or
damage this device.
ren
The GD6000 computer complies with Part 68 of the FCC
Rules. On the bottom of this equipment is a label that con-
tains, among other information, the FCC registration number
and ringer equivalence number (REN) for this equipment. If
requested, this information must be provided to the telephone
company.
The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on the
telephone line may result in the devices not ringing in response
to an incoming call. In most, but not all areas, the sum of the
RENs should not exceed five (5.0). To be certain of the number
of devices that may be connected to the line, as determined by
the total RENs, contact the telephone company to determine
the maximum REN for the calling area.
The GD6000 computer may be connected to the telephone
network using the RJ-11 jack provided.
If this equipment causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice
isn’t practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to
file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities,
equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone
company will provide advance notice in order for you to make
the necessary modifications in order to maintain uninterrupted
service.
If trouble is experienced with this equipment, please con-
tact the equipment manufacturer for repair and/or warranty
information. Do not attempt repairs of this equipment yourself
without obtaining manufacturer authorized parts and docu-
mentation. If the trouble is causing harm to the telephone
network, the telephone company may request you remove the
equipment from the network until the problem is resolved.
ComPlianCe statement For Canada
notiCe The Industry Canada label identifies certified equip-
ment. This certification means that the equipment meets cer-
tain telecommunications network protective, operational and
safety requirements as prescribed in the appropriate Terminal
Equipment Technical Requirements document(s). The Depart-
ment does not guarantee the equipment will operate to the
user’s satisfaction.
Before installing this equipment, users should ensure that
it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also
be installed using an acceptable method of connection. The
customer should be aware that compliance with the above
conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by a represen-
tative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunc-
tions, may give the telecommunications company cause to
request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility , telephone lines, and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas.
Caution! Users should not attempt to make such connec-
tions themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
The Ringer Equivalence Numbers (REN) are:
GD6000 non-radio: 0.5B
GD6000 Cingular: 0.5B
notiCe The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the
sum of the Ringer Equivalence Numbers of all the devices does
not exceed 5.
The GD6000 computer may be connected to the telephone
network using the RJ-11 jack provided.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine
unless such message clearly contains in a margin at the top
or bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entity, or other individual sending the
message and the telephone number of the sending machine or
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Notices and Compliance
such business, other entity, or individual.
In order to program this information into your fax machine, you
should complete the following:
This information is entered through the FAX application soft-
ware you have installed. Consult your FAX software documen-
tation for instructions about entering this information.
Warnings and Cautions
Warning It is important that only authorized General
Dynamics Itronix personnel attempt repairs on General
Dynamics Itronix equipment as this might void any main-
tenance contract with your company. Unauthorized service
personnel might be subject to shock hazard on some General
Dynamics Itronix equipment if removal of protective covers is
attempted.
The product you have purchased is powered by a rechargeable
battery. The battery is recyclable and, under various state and
local laws, it may be illegal to dispose of this battery into the
municipal waste stream. Do not crush the battery or place it in
a fire. Check with your local solid-waste officials for details on
recycling options or proper disposal.
Caution Internal components of the GD6000 computer will
be damaged if exposed to contaminants. When dust covers,
the PC card door, or the bottom access panel are open on the
computer, shield the unit from all contaminants such as liquids,
rain, snow, and dust.
Internal radio(s) may have an individual FCC Identifier which
are not applicable to this configuration. Only the FCC ID shown
on the label located on the bottom of the GD6000 Laptop PC is
applicable. The GD6000 computer must not be co-located or
operating in conjunction with any other antenna or transmitter
than specified in the filing .
This device may contain a WLAN radio transmitter , a WAN
radio transmitter and a PAN radio transmitter. To comply with
FCC RF exposure requirements when using the WAN radio
transmitter, a minimum separation distance of 20 cm must
be maintained between the between the center of the dis-
play screen and all users/bystanders. When using the WLAN
transmitter, a minimum separation distance of 20 cm must
be maintained between the upper right and left edges of the
display screen and all users/bystanders. The WAN radio and
WLAN/PAN transmitter should be turned off before carrying
the Laptop PC order to comply with FCC RF exposure require-
ments.
“The equipment has been approved to [Commission Decision
“CTR21”] for pan-European single terminal connection to the
Public Switched Telephone Network (PSTN). However, due to
differences between individual PSTNs provided in different
countries the approval does not, of itself, give an unconditional
assurance of successful operation on every PSTN network
termination point.
In the event of problems, you should contact your equipment
supplier in the first instance.
This product is intended to be supplied by a Listed Power Unit
and output rated 19 V dc, 3.42 A.
Caution Always disconnect all telephone lines from the
wall outlet before servicing or disassembling this equipment.
Caution To reduce the risk of fire use only a No. 26 AWG or
larger telecommunication line cord.
Safety Information
Enclosed with each GD6000 Laptop computer is the radio spe-
cific safety information. Do not proceed without reviewing the
information provided in that document.
Do not proceed beyond a WARNING or CAUTION until the
indicated conditions are fully understood and met.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Congratulations on your purchase of the GD6000 computer! Your
new GD6000 features the most innovative advances in portable
computing technology. It combines state-of-the-art ergonomics with
sophisticated architecture to provide you with a personal computer
that is compact, powerful, and easy to use.
Designed for a wide range of general, business, and personal
productivity applications, the semi-rugged, wireless ready
GD6000 is an ideal choice wherever you need a computer - in
the office, at home, or on the road.
Your GD6000 is both expandable and portable, supporting the
features you expect in a desktop computer but with the mobil-
ity of a laptop.
Where to Look For Information
About Windows XP
For more extensive information and help about Windows XP,
go to Start, then click on Help and Support. Under Pick a Help
Topic, click on Windows Basics to open The Windows XP Help
and Support Center, an online orientation of the Windows XP
Operating System.
About Windows Vista
For more extensive information and help about Windows Vista,
go to Start, then click on Welcome Center. Under Get Started
with Windows, click the link Show all 13 items.
From here, you can choose Windows Basics for an online
orientation of the Windows Vista Operating System. You can
also click on What’s new in Windows Vista to see the features
of Windows Vista.
Standard Parts
Semi-rugged GD6000
Battery
AC adapter with power cord
You may have additional components or peripherals if you
ordered these items separately. Check your packing slip for a
complete list of items included in your package.
Standard Features
XGA Transmissive HiBright Display
Shock-mounted Hard Disk Drive (HDD)
Includes a heater to protect the HDD during operation at low
temperatures.
Combo DVD-RW/CD-RW Drive
Semi-rugged magnesium case
Fully optimized, vehicle-ready and designed to handle most situ-
ations an ‘on-the-go’ mobile user might encounter.
12 Function Keys
Internal 56K V.92 Fax/Modem
Lid Switch: By default, the lid switch suspends the computer
when the display lid is closed. It resumes the computer when the
lid is opened, if the computer is in a suspended state.
Application launch button: User programmable button
Radio ON/OFF (FN+CAPS LOCK)
Internal Gigabyte Ethernet LAN
Li-Ion Battery
Two USB 2.0 Ports
One Type II PC Card Slot
Audio Jacks for external speakers and microphone
Internal Speakers and Microphone
Microsoft Windows XP Professional or Microsoft Vista Business
3-year limited warranty
Optional Features
Your computer delivers superior power and performance.
However, some users and the applications they use may
demand more. This computer allows you to upgrade key com-
ponents when you need increased performance. Below is a list
of some of the optional features supported by your computer.
note Contact your authorized dealer if you decide to per-
form a key component upgrade.
XGA Transmissive HiBright Dynavue® Touch Screen Dis-
play
Fingerprint Scanner
Smart Card or EXPRESS Card/54 slot
Front or back handles
CRMA Express radio technology: Flexible, field replaceable
radio module designed to make new WWAN technology integra-
tion easy and cost effective.
WLAN: Intel Centrino 802.11a/b/g/n Wireless LAN with Mini-PCI
express WLAN wireless card support.
Bluetooth
GPS
Hard Disk Drive (HDD): Upgradeable to larger capacity remov-
able hard disk drive.
Solid State Drive (SSD)
Memory: One user-accessible slot for memory upgrades sup-
porting a 1024 or 2048 GB card.
Optional Parts and Accessories
Your computer has several equipment and accessory options
to further enhance your mobile computing experience. Click
here for a complete list of optional peripherals and accessories.
Getting Started
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Started
The First Time. . .
Begin Using the Computer
1. Open the display to a comfortable viewing angle.
2. Press the power switch to turn on the power. The POST (power-
on self-test) routine executes and Windows begins loading.
note When using a battery pack for the first time, it is
recommended that you calibrate the battery so the gas gauge
accurately displays battery capacity.
Turning off Your Computer
Turning off the computer properly is important to maintain-
ing your computer. Select Start, Shut Down and follow the
instructions on the screen.
If you are going to be away from the computer for a short
period, there are ways to conserve power without shutting
down the system. See Managing Power and Battery Tips for
details.
note If you are unable to shut down your computer nor-
mally, follow the instructions in Troubleshooting.
note If you are using an office or vehicle dock, please refer
to Undocking the GD6000 in the Optional Equipment and
Accessories section.
Caution Shutting off the computer improperly may result
in data loss.
Safety
Read these instructions carefully and save them. Following
these guidelines will help prevent damage to your computer
and help protect your personal safety.
Follow all warnings and instructions marked on the product and
noted in this documentation, including the Notices and Compli-
ance section
Follow all warnings and instructions noted in Windows Help
and Support, found on the Start Menu
The first time you use your computer, we recommend that you
carefully read the section on Managing Power to familiarize
yourself with basic battery information and ensure optimum
performance
Warning! There is danger of explosion if the battery is
incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose of used batter-
ies according to the manufacturer’s instructions
Warning! Batteries may explode if not handled properly.
Do not disassemble or dispose of them in fire. Keep them away
from children and dispose of used batteries promptly
Unplug the computer from the power outlet before cleaning.
Use a damp cloth for cleaning. Do not use aerosols, solvents, or
strong detergents
Caution The computer may be damaged if exposed to con-
taminants. Shield the unit from all contaminants such as liquids,
rain, snow, and dust
Slots and openings in the computer case are for ventilation pur-
poses. Do not block or cover these openings or the system could
overheat
Do not place the product on a soft surface such as a bed, sofa, or
rug where the ventilation slots and openings may be blocked
Do not place this product near or over a radiator or heat register
Do not place this product in a built-in installation unless proper
ventilation is provided
Do not operate the computer at temperatures above 140°F (60°C)
or below -4°F (-20C)
Do not store the computer at temperatures above 167°F (75°C) or
below -67°F (-55°C)
Do not step on or place anything on the power cord
If you use the computer with an extension cord, ensure that the
total ampere ratings of all the devices sharing the extension do
not exceed the rating of the extension cord or the rating of the
wall outlet
Do not push foreign objects into the computer through any of the
slots or openings. Dangerous voltages are present, which could
cause electric shock, fire, or damage sensitive components
The computer’s keyboard is designed to withstand spills. If a spill
occurs, power off the computer and wipe it down before continu-
ing to use the computer
For best results, use a power strip with a built-in surge protector.
Do not use inferior extension cords as this may result in damage
to your computer
Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage points or
other risks. Refer all servicing to qualified service personnel
Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
When the power cord or plug is damaged or frayed
If liquid has been spilled into the product
If the product has been exposed to rain or water
If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions since improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to
normal condition
If the product has been dropped or the cabinet has been dam-
aged
If the product exhibits a distinct change in performance, indicat-
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Started
ing a need for service
Do not upgrade or service this computer without prior authoriza-
tion from the manufacturer. Damage caused by servicing that is
not authorized may void your warranty
Before performing any manufacturer authorized service or up-
grade, first follow these instructions:
Prevent damage from static electricity by following ESD precau-
tions
Place the computer on a clean, flat surface
Turn off the computer and disconnect the power supply
Undock the computer if it is in a docking device (such as an office
dock or vehicle dock)
Disconnect any attached peripherals
Disconnect any attached network, telephone or telecommunica-
tion line
Remove any PC Cards, EXPRESS Cards, Smart Cards, CDs, DVDs
or any other media in your computer’s slots or bays
Remove the battery (See Battery Removal)
Remove the hard drive (See Hard Disk Drive Removal)
Tips for New Owners
Take responsibility for backup
Back up files often. Users who need to manage large amounts of
data may wish to use backup devices
Don’t leave passwords anywhere on your notebook or carrying
case
Be careful when placing your notebook on an airport security
conveyor belt
In most airports, security conveyor belts are safe for computers.
If you are not sure, ask the security staff. You should keep a close
eye on your computer
Tape your business card to the notebook and accessories
In the workplace, notebooks and accessories may often look ex-
actly alike, leading to equipment mix-ups. Prevent such mix-ups
by placing your name on your equipment
Install antivirus software
Consider using a lock: For added security, consider purchasing a
Kensington lock to put into the Security Slot on the left side of
your computer. Use the Kensington lock to secure the computer
to a desk or table
Develop ergonomic work habits: The science of ergonomics
studies the relationship between health and a suitable work
environment. For more information on ergonomics, contact your
nearest computer bookstore, or local library. The Internet also
has information on this and other related subjects
note Using a computer for extended periods of time with
a poor workstation setup and incorrect work habits can cause
health problems.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
# Feature Description
1 Display Latches Two display latches hold the display when closed.
2Speakers Integrated Stereo speakers for audio output.
3Pen / Stylus Slot A custom touch screen pen (stylus) is supplied for the optional touch screen.
4Display 13.3-inch XGA, outdoor-viewable, color display with optional integrated
Dynavue® touch screen.
5Application Launch Button Programmable button.
6Fingerprint Scanner The optional swipe style fingerprint scanner can be used for all standard
security.
7Touchpad Buttons Use like the buttons on a mouse.
8Battery Removable Lithium-Ion battery.
9Touchpad Use for navigation.
10 Keyboard Standard keyboard with embedded numeric keypad.
11 Power Button Turns computer on or off.
12 Keyboard Task Lights Two task lights located in the display hinges directly below the display to
illuminate the keyboard to permit typing in a dimly lit or darkened environ-
ment.
Getting Familiar With Your Computer
Before you begin using your GD6000, read this section to familiarize
yourself with its main features and components.
Front View
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
# Feature Description
1 Cooling Fan Exhaust Cooling Fan exhaust area. Do Not Block. This area may become hot as air
vents from the computer.
2 Microphone Jack Connect a microphone to this jack to record audio.
3 Audio Out Jack Connect external speakers or a stereo headset to this jack to listen to audio.
4 Removable Hard Disk The removable Hard Disk Drive is located on the left side of the unit. The latch
that secures the Hard Disk Drive is located on the bottom of the unit.
note make sure the unit is powered off before removing the Hard Disk Drive
to prevent data corruption.
5 Security Slot The Security Slot can be used with a standard laptop locking device, such as a
Kensington Lock. You can connect the GD6000 to a large object with the lock
to prevent theft of your computer. See the documentation that comes with
your lock for more information.
6 Front Handle Mount The front soft handle mount, located on both sides of the unit, is used with the
optional soft handle.
Top View
# Feature Description
1 WLAN Antennas Antenna for WLAN Com-
munications.
2 GPS Antenna Antenna for GPS Receiver.
3 CRMA Express
Antenna
Antenna for WAN Commu-
nications
Left Side View
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
# Feature Description
1 Front Handle Mount The front soft handle mount, located on both sides
of the unit, is used with the optional soft handle.
2CRMA Express CRMA Express Radio bay.
3Optical Disk Drive DVD-RW/CD-RW combo drive.
4Smart Card Reader or EXPRESS Card Slot Smart Card Reader or EXPRESS Card.
5PC Card Slot Use this slot for PC Card devices.
Right Side View
# Feature Description
1 DC-in Jack Connects to an external power supply.
2 Network Jack (RJ45/LAN) Connects to an Ethernet-based network. Connection speed is 10/100/1000 Mbps.
3 Two 2.0 USB Ports Connects to USB devices (e.g., USB digital camera).
4 Modem Jack (RJ11) Connects a phone line to the internal fax/data modem. It can transmit data using the
56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps.
note In some countries, local regulations may not permit the use of the fax/
modem designed for this system. In this case, you may use a PCMCIA modem.
5 Serial Port Connects your computer to serial devices such a fax/modem or a serial mouse.
This port is identified as COM1 and is UART 16550A compatible.
6 External Monitor Port Connects to a display monitor (up to 2048x1536 resolution).
7 Cooling Fan Intake Air intake for fan. Do NOT block this area.
8 Hard Handle (optional) Carrying handle.
Back Edge View
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
# Feature Description
1 Docking Connector 84-pin cradle connector that mates with the Vehicle Dock and Office Dock.
2 Memory compartment User expandable memory slot.
3 Hard Disk Lock Slide this to lock or unlock the hard disk drive.
4 Hard Disk Drive Removable hard disk drive for data storage.
5 Battery Locks Slide these locks toward the outer edges of the computer to lock the battery.
6 Battery Lithium-Ion Smart Battery.
7 Battery Release Latch Slide this latch to the left to remove the battery. note You must first unlock
the battery.
Bottom View
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Primary Keys
Key Description
Alt The ALT (alternate) key is used with other keys to perform special tasks. On some operating systems
pressing CTRL+ALT+DEL twice soft reboots the computer.
Backspace The BACKSPACE key, sometimes represented on the keyboard as a left arrow, moves the cursor one
position to the left. The character to the left of the cursor is erased.
Caps Lock Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing the
CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the SHIFT
key results in lowercase characters when entered. You still have to use the SHIFT key to display charac-
ters located on the upper portion of the keyboard. For example, press SHIFT+8 to type an asterisk (*),
even when the CAPS LOCK key is activated.
The Caps Lock LED lights when the keyboard is in Caps Lock mode.
Ctrl The CTRL (control) key works with other keys to perform a variety of functions.
Enter The ENTER key signals the computer that you have completed your entry. This is your way of telling the
computer to process the information that you have entered.
Esc The ESC (escape) key allows you to exit a pop-up window or message box.
Prtsc In Windows, pressing the PRTSC (print screen) key or ALT+PRTSC key copies the current screen or win-
dow to the clipboard so you can paste it into documents.
Shift The SHIFT key changes the keys A through Z to the UPPER CASE position. When you press an alphabetic
key, the character appears as a capital letter. When you press SHIFT with other keys, the characters on
the upper part of the keys appear. For example, pressing SHIFT+7 displays an ampersand (&).
Fn Some special FN (function) keys have been established to perform important tasks when pressed and
held with the FN key. These keys are described later in this document. The FN key legend is color keyed
to other special keys on the keyboard.
spacebar Use the SPACEBAR to enter a space and move the cursor one character to the right.
Tab The TAB key moves the cursor to the next tab stop or field. Tab stops are defined by your operating sys-
tem or application program. Press the TAB key to move from one field or text box to another.
Arrow Keys
The arrow keys are defined by the software application.
UP ARROW: usually moves the cursor up one line. In some cases, you can use the up
arrow to make selections from menus and scrollable list boxes.
DOWN ARROW: usually moves the cursor down one line. In Windows, you can use
the down arrow to make selections from menus and scrollable list boxes.
RIGHT ARROW: usually moves the cursor one character position to the right.
LEFT ARROW: usually moves the cursor one character position to the left.
Keyboard Basics
The GD6000 features:
Full size keys on a 85-key keyboard
Twelve function keys
Application launch button (programmable button)
Embedded numeric keypad
USB port that enables you to connect an external keyboard
Keyboard ergonomics
Located below the keyboard, the wide palm rest is ergonomi-
cally designed to provide you with a very comfortable place to
rest your hands while you type.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Function Keys and Key Combinations
When using function keys, press and hold the FN key before pressing the other key in the key combination.
Function Key Icon Function Description
FN+F1 Screen blank Turns off the display screen backlight. Press any key to
turn it back on.
FN+F2 Display toggle Switches the display output between the display screen,
external monitor (if connected) and both the display screen
and external monitor
note When a DVD or VCD is playing, this hotkey is
disabled.
FN+F3 Standby Puts the computer in standby mode.
FN+F4 Keyboard Backlight
Brightness Down
Decreases the keyboard backlight brightness if you have
the optional EL keyboard.
FN+F5 Keyboard Backlight
Brightness Up
Increases the keyboard backlight brightness if you have the
optional EL keyboard.
FN+F6 Display Brightness
Down
Decreases the screen brightness
FN+F7 Display Brightness Up Increases the screen brightness
FN+F8 Audio Volume Down Decreases the audio volume
FN+F9 Audio Volume Up Increases the audio volume
FN+F10 Speaker on/off Turns the speakers on and off; mutes the sound
FN+F11 Num Lk Num Lock Enters Numlock mode. Use the embedded numeric
keypad for quick number entry. Other keys function as
normal.
FN+F12 Scr Lk Scroll Lock Scroll Lock
FN+PGUP Home Home Functions as the ‘Home’ key.
FN+PGDN End End Functions as the ‘End’ key.
FN+RIGHT CTRL Touchpad on/off Toggles the touchpad on and off
FN+ LEFT SHIFT Keyboard backlight Toggles the keyboard backlight (option) on and off
FN+CAPS LOCK Wireless Radio On/Off
Switch
Also known as “Airplane Mode”. Toggles the power on
and off to all radio devices. The radio devices include GPS,
Bluetooth, WLAN,and WWAN radios.
note If radio wakeup is enabled, radio power will turn
back on before the system suspends.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Numeric Keypad
The embedded numeric keypad consists of sixteen keys that
make number intensive input more convenient. It is indicated
by small characters located on the lower right corner of the key.
Press FN+NUMLK to enable or disable the numeric keypad.
Standard Key Key with Numlock On
7 7
8 8
9 9
0 *
U 4
I 5
O 6
P -
J 1
K 2
L 3
; +
M 0
. .
/ /
Enter Carriage Return
Lock Keys
The keyboard has three lock keys you can toggle on and off.
Lock Key Description
Caps Lock Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing
the CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the
SHIFT key results in lowercase characters when entered. You still have to use the SHIFT key to display
characters located on the upper portion of the keyboard. For example, press SHIFT+8 to type an aster-
isk (*), even when the CAPS LOCK key is activated.
The Caps Lock LED lights when the keyboard is in Caps Lock mode.
Num Lock When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calcula-
tor (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of
numeric data entry.
Alternately, connect an external keypad. See External keyboard.
The Num Lock LED lights when the keyboard is in Num Lock mode.
Scroll Lock Enters Scroll Lock mode. Scroll Lock varies between applications. It does not work with some applica-
tions.
The Scroll Lock LED lights when the keyboard is in Scroll Lock mode.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Icon Description
Windows Logo
Key
Start button. Combinations with this key perform special functions. Below are a
few examples:
+ TAB (Activates next Taskbar button)
+ E (Opens My Computer in Windows Explorer)
+ M (Minimizes all Windows)
SHIFT + + M (Restores Minimized Windows)
+ R (Displays Run dialog box)
Refer to Keyboard Shortcuts in Windows Help and Support for a complete list of
Windows key combinations.
Application Key Opens the application’s context menu (same as right-click)
Application Launch Button
The APPLICATION LAUNCH BUTTON is the right button above
the keyboard. Use an application manager to program this
button’s function.
Keyboard Task Lights
Your GD6000 is equipped with two task lights located in the
display hinges directly below the display. They are designed
to illuminate the keyboard to permit typing in a dimly lit or
darkened environment.
To Use the Task Lights
1. Press FN+SHIFT to toggle the lights on or off.
note If the light does not come on, press FN+F5 to increase
brightness.
2. Press FN+F4 to dim the task lights.
3. Press FN+F5 to brighten the task lights.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
# Icon Function LED Description
1 Power Steady Green Computer is on and operating.
Blinking Green Computer has suspended to RAM.
2External Power Steady Green Power is on and external power is supplied from the AC Adapter connected
to a wall outlet, a vehicle-mounted dock, a vehicle power adapter, or an
office dock.
3Battery Power Steady Green Battery is charging.
Blinking Green Battery is low. notes If the computer is not plugged into external power
within a few minutes, it will go into a Suspend Power Mode. If the com-
puter is radio-equipped and is in the middle of communication, it will sus-
pend power to the radio when the battery is low. The computer must then
be plugged into external power to continue radio communication.
No Light The battery is fully charged or a main battery pack is not fully inserted.
4Touchpad Steady Green Touchpad is activated.
No Light Touchpad is disabled.
5Hard Disk Drive Blinking Green Computer is reading from, or writing to the built-in hard disk.
6Optical Disk Drive Green Computer is reading information from the Optical Disk Drive.
7Num Lock Steady Green Keyboard is in Num Lock mode.
8Caps Lock Steady Green Keyboard is in Caps Lock mode.
9Scroll Lock Steady Green Keyboard is in Scroll Lock mode.
10 WLAN
Communication
Steady Green Wireless LAN radio is on.
11 Bluetooth
Communication
Steady Green Bluetooth radio is on.
12 GPS
Communication
Steady Green GPS radio is on.
13 WWAN
Communication
Steady Green WWAN radio is on.
LED Status Indicators
Thirteen easy-to-read LEDs (Light Emitting Diodes) under the
display screen indicate activity status for common functions.
note Some of the features associated with these LEDs are
options and may not be included in your computer’s configura-
tion.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Under some conditions LEDs may flash sequentially or in combination as described in the table below.
Icons Function LEDs Description
Power and
Battery
On for 5
seconds
Hard Disk Drive is out of thermal range.
Power and
Battery
Flash Battery is low and unit is suspending.
Touchpad
The built-in touchpad is a pointing device that senses move-
ment on its surface. This means the cursor responds as you
move your finger over of the touchpad. It also provides all the
features of a two-button mouse.
How to Use the Touchpad
1. First, place your fingers on the keyboard in the normal typing
position. The touchpad is easily accessible by moving either
your left or right thumb off the space bar and onto the touch-
pad.
2. Gently move your thumb across the pressure-sensitive touch-
pad in the direction you want the cursor to move. The pad
detects the change in pressure and moves the cursor in the
corresponding direction.
3. You can also make selections by double-tapping. This func-
tion corresponds to double-clicking with a mouse. Once the
cursor has been moved to the object you want to select, lightly
double-tap the pressure sensitive touchpad. This double-tap-
ping on the touchpad selects the desired item and prompts the
software to perform the related operation.
Adjusting the Touchpad Settings
For Windows XP:
Begin by clicking on Start, Settings, Control Panel, Mouse,
Buttons.
For Windows Vista:
Click on Start, Control Panel, Hardware and Sound, Mouse.
This will bring you to the Mouse Properties window. Click on
the last tab, Device Settings, then on the Synaptics Touchpad
V6.2 and choose settings to configure the properties for the
touchpad. These settings allow you to change the orientation
from right-handed to left-handed, fine-tune the pointer move-
ment, and configure the timing of double-clicking.
The Synaptics Touchpad V6.2 can also be accessed via the
icon in system tray.
Touchpad Precautions
The touchpad is a pressure-sensitive device. If not properly
cared for, it can be easily damaged. Please take note of the fol-
lowing precautions:
Make sure the touchpad does not into come into contact with
dirt, liquids or grease
Do not touch the touchpad if your fingers are dirty
Do not rest heavy objects on the touchpad or the touchpad but-
tons
Keep your fingers dry and clean when using the touchpad and
keep the touchpad dry and clean
The touchpad is sensitive to finger movements. It responds best
to light touches. Tapping too hard will not increase the touchpad’s
responsiveness
Touchpad Buttons
The buttons located directly below the touchpad are the same
in function as those on a two-buttoned mouse. Pressing these
buttons makes selections, drags objects, or performs a variety
of other functions depending on the software.
To Select an Object
1. First move the pointer over the object you want to select
2. Press the left button one time. The functions of these buttons
are software specific.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Double-Clicking
Double-clicking is a common technique for selecting objects
or launching programs from icons. Once you have moved the
pointer over the object you wish to select, rapidly press the
left button two times. This action is commonly referred to as
“double-clicking” an object.
Dragging
Move the pointer to the desired location then press down the left
button. While still holding down the left button, move the pointer
to the desired location. Release the button
Move the pointer to the desired location. Tap the touchpad twice
quickly as if you were double-clicking; however, do not remove
your finger after the second tap. Move the cursor to the desired
location. Lift your finger to finish dragging
Display
The GD6000 features a 13.3-inch, XGA, outdoor-viewable, color
display with an optional integrated touch screen. The Dyna-
vue® Transmissive display technology uses a built-in backlight
for easy reading in most ambient light conditions. The back-
light remains on whenever the display is on. The transmissive
display enhancement provides improved outdoor visibility and
even works well in sunlight.
Calibrating the (optional) Touch Screen
1. Remove the stylus pen from its slot on the top of the display.
2. Select Start, All Programs, Touchkit, Configure Utility.
3. Select 4 pts Cal.
4. Touch and hold the tip of the pen to the center of each blink-
ing symbol as they appear on the screen until calibration is
complete.
5. Select OK to save and exit.
note Under Calibration, you can change the orientation of
your display and calibrate your display using the Tablet PC Pen
to improve accuracy of targeting items on the screen.
Adjusting Display Brightness
Windows XP:
Function keys can increase or decrease the display brightness.
Press FN + F6 to decrease display brightness
Press FN + F7 to increase display brightness
Windows Vista:
Click on the Start button and then on the Control Panel open
the Mobile PC menu. Under Windows Mobility Center, click
Adjust Screen Brightness. Under Display Brightness, use the
slide bar to adjust display brightness.
Adjusting Display Resolution
Windows XP:
1. Right click on the desktop.
2. Select Properties and then select the Settings tab. The dialog
box indicates the monitor screen resolution.
3. Use the slide bar to adjust the resolution. Normally, you should
use the resolution suggested for the display or monitor.
Windows Vista:
1. Click on the Start button and then on Control Panel.
2. Under Appearance and Personalization, click on Adjust screen
Resolution.
3. Use the slide bar to adjust the resolution.
note Using a lower resolution than the screen was designed
for will reduce the area of the display. You can stretch low reso-
lution displays to full screen size by enabling Screen Expan-
sion on the Main Menu of the BIOS Setup Utility. However, the
stretching may cause distortion, especially to fonts.
Higher resolution modes may be used, as long as the monitor
supports them.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Auto Dim Feature
To save the battery power, the computer display automatically
dims when the computer is not attached to external power.
note You may still use the display brightness function keys
(FN+F6 and FN+F7) to adjust display brightness.
See Managing Power for more information on power manage-
ment features.
Simultaneous Display
The computer’s crisp display and multimedia capabilities are
great for viewing movies or giving presentations. If you prefer,
you can also connect an external monitor or LCD projector.
This computer supports simultaneous LCD and external dis-
play output via the external monitor port located on the back
edge of the computer. See Attaching an External Monitor or
Video Device for more information.
Feature When using an external monitor you can extend
your desktop. This allows you to open and view one program
on the external monitor while viewing a different program on
your laptop’s display.
Windows XP:
1. Right click on the desktop and select Properties to open the
Display Properties dialogue box.
2. Select the Settings tab.
3. Click on the “2” in the Monitors section.
4. Check “Extend my Windows desktop onto this monitor”.
5. Select Apply and OK to save and exit.
6. Now you can drag the programs you want to view onto the
external monitor.
Windows Vista:
1. Right click on the desktop and select Personalize to open the
Display Properties dialogue box.
2. Select the Settings tab.
3. Click on the “2” in the Monitors section.
4. Check “Extend my Windows desktop onto this monitor.”
5. Select Apply and OK to save and exit.
6. Now you can drag the programs you want to view onto the
external monitor.
Opening and Closing the Display
To open the display lid, slide the display lid latch to the right
and lift up the lid, then tilt it to a comfortable viewing position.
To close the display lid, fold it down gently until the display lid
latch clicks into place.
Caution To avoid damaging the display, do not slam it
when you close it. Also, do not place any object on top of the
computer when the display is closed.
Lid Switch
Your computer has a lid switch that automatically suspends
your computer when you close the display and resumes it
when you open the display.
To change the power management settings for the lid switch,
perform the following:
1. On the System Tray area of the Taskbar, right-click the Power
Saver icon ( or ).
2. From the menu, select Configure Power Settings.
3. Select the Advanced button.
4. Select what you want to happen when you close the display lid:
Do nothing
Sleep
Hibernate
5. Check the Wakeup box if you want the computer to resume
when you open the display lid.
Cursor Visibility
To improve the visibility of the mouse cursor, you should:
Enable the “Pointer Trails” feature to add trailing cursors
Use a slow or medium speed/sensitivity level
You can combine a higher level of acceleration with a slow
or medium speed/sensitivity level. This allows you to move
the mouse cursor quickly by increasing your finger pressure,
while still providing a finer degree of control when you apply
minimum pressure.
note You can change the speed of the mouse.
Windows XP: From the Start Button select Settings, Control
Panel, and then choose Mouse to make adjustments.
Windows Vista: Click on the Start Button, select Control Panel,
and under Hardware and Sound, choose Mouse.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Memory
The GD6000’s memory capacity is 1024 to 4096MB with one
user accessible memory socket supporting a 1024MB or
2048MB memory module. Please consult your dealer if you
need to add more memory.
Refer to the Memory Upgrade section for information about
replacing the memory module.
Audio
Your computer includes 16-bit high-fidelity stereo audio output
and an integrated microphone. The speakers are located above
the display. The microphone is under the display.
# Feature Description
1 Speakers Integrated stereo speakers for
audio output.
2 Microphone Integrated microphone for audio
input.
3 Audio in/out jacks Attach an external microphone or
speakers using the jacks on the left
side of the computer.
Adjusting the Volume
To increase volume, press FN+F9
To decrease volume, press FN+F8
You can also adjust the volume with the Windows volume con-
trol applet located on the taskbar. However, the volume control
function keys override the Windows volume control applet. If
your volume is too low or too high after setting the volume in
the applet, adjust the volume with the function keys.
The PC Card Slot
The computer has a built-in CardBus PC Card slot on the right
side of the computer that can accommodate one Type II PC
Card. It accepts credit-card sized cards that enhance the usabil-
ity and expandability of the computer. The PC Card slot can
be used as an interface between your computer and a variety
of communications devices, such as network adapters, SCSI
adapters, or fax/modems. They can also be used to provide
additional data storage capacity. Please consult your dealer
for PC Card options available that you can purchase for your
computer.
note Refer to your card’s instructions on how to install and
use the card and its functions.
Inserting a Card
1. The top side of a PC Card is usu-
ally identified with a label. Insert
the card into the slot with the top
up and the edge with pinhole
contacts going in first. You will
feel some resistance as the card
slides into the back of the slot.
2. PC Cards require drivers, or a
program that allows the operat-
ing system A set of programs
that manage the overall operation of the computer. to use a
specific device. Many drivers are included with Windows, but
if not, you will be prompted to install the driver included with
your card.
3. The computer will beep twice to indicate successful installation.
A single beep means that there was a problem recognizing the
card.
note Please read the instructions included with individual
PC Cards. Some cards may be inserted with power on, while
others require that the computer be turned of.
Ejecting a Card
For Windows XP and Windows Vista:
1. First, exit the application using the card.
2. Left-click on the Safely Remove Hard-
ware icon on the taskbar and stop
the card operation.
3. Press the slot eject button once to pop it out; then press it again
to eject the PC Card.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
The Hard Disk Drive
Your GD6000 features a removable hard disk to provide high-capacity storage and fast access. Windows and most programs are
stored here. Your GD6000 identifies the hard disk drive as drive C.
See the BIOS Setup Utility to password protect your removable hard disk drive.
Removing the Hard Disk Drive
You should print these instructions before continuing. They will not be
available after you shut down the computer in step two.
1. Turn off the computer and turn it over so you are looking at the bottom.
2. Using a Phillips head screwdriver, remove the screw next to the hard disk
drive lock.
note If you prefer quick hard disk drive removal, do not reinstall this
screw. It is an additional locking feature.
3. Slide and hold the hard disk drive lock toward the back of the computer to
unlock the drive .
4. Gently pull the drive out of the computer.
The Optical Disk Drive (option)
Your computer comes with a pre-installed DVD-RW/CD-RW
combo drive. This drive allows you to read data from DVDs
and CDs, including audio or video CDs and burn your data onto
a recordable disc. Please refer to the recording software online
help for more information.
Your notebook identifies the drive with the letter following the
hard drive letter. If your hard drive is C, then the optical disk
drive will be D.
Inserting a Disk
1. Press the button on the front of the drive to open the disk tray
and pull the tray open.
2. Place the disk on the tray, label side up.
3. Place the disk on the central spindle and press gently until the
disk clicks into place.
4. Slide back the tray until it clicks shut.
Removing a DVD or CD
1. Make sure the computer is not accessing the DVD drive.
2. Press the eject button and pull the tray all the way out.
3. Pick up the disk by the edges and remove it from the tray. Push
the tray into the computer until it closes fully.
Cautions
When the computer is reading from a DVD or CD, the Optical
Disk Drive LED will flash on. Do not attempt to remove a disk
while this light is active.
Do not insert any foreign objects into the disk tray. Do not force
the tray to open or close manually. When not in use, keep the
tray closed to prevent dust or dirt from entering the drive unit.
If you experience difficulty when
removing a disk, stretch a paper clip
and insert it into the emergency eject
hole located on the front panel. The
disk tray should eject immediately.
This procedure can also be used to
remove a disk from the drive when
the notebook is powered off.
Precautions for Handling DVDs and CDs
Always hold the disk by the edges; avoid touching the surface of
the disk.
Use a clean, dry, cloth to remove dust, smudges, or fingerprints.
Wipe from the center outward. Do not use benzene, thinners,
or cleaners with detergent. Only use cleaning kits designed for
DVDs or CDs.
Extremes in temperature may damage disks. Store disks in a
cool dry place.
Do not bend or drop the disks. Do not place objects on top of
disks.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Smart Card or EXPRESS Card Slot (option)
Your computer comes with a Smart Card Reader or EXPRESS
Card slot (option). This slot is located directly above the PC
Card Slot on the right side of the computer.
To insert a card
Insert a card with the label side up into the slot until it clicks
into place. The card will appear as a removable storage device
that you can copy files to and from.
To remove a card
1. Make sure no operation (such as file copying or deletion) is
using the card.
2. Press the card further into the slot to release the card. You will
hear a click.
3. Remove the card.
Computer Security
Your computer includes several different security features to
help prevent theft and protect data. These include a security
slot, multiple levels of password protection, an optional finger-
print scanner, an optional Smart Card slot and stealth mode.
Security Slot
A security slot located on the left side of the computer lets you
connect a Kensington compatible computer security lock. You
can connect the computer to an immovable object to prevent
theft. Insert the lock into the notch and turn the key to secure
the lock. Some keyless models are also available. See the doc-
umentation that comes with your lock for more information.
Passwords
Passwords protect your computer from unauthorized access.
When set, no one can access the computer without entering
the correct password.
There are three types of passwords you can set:
suPervisor PassWord secures your computer against unau-
thorized entry to critical parameters in the BIOS Utility
user PassWord secures your computer against unauthorized
use, and allows limited access to the BIOS Utility
Hard disk PassWord protects your data by preventing
unauthorized access to your hard disk, even if the hard disk is
physically removed from the computer and installed in another
computer
note Do not forget your Setup and Hard Disk password! If
you forget your password, please get in touch with your dealer
or an authorized service center.
Fingerprint Scanner (Option)
The optional swipe style fingerprint scanner can be used for all
standard security uses. It provides a greater level of security
and convenience for your computer and your private data. Use
the fingerprint scanner instead of passwords for the following:
To login into the computer
To login at secure websites
To open password protected applications
To open individual files with encryption security
Fingerprint Scanner Software
Before using the fingerprint scanner, you must first install
compatible software. There are various software packages
available
Caution Before installing any third party software, ensure
it is approved for use with this computer.
note When accessing some secure websites, you may need
to specify you are using the scanner instead of a password.
Refer to the fingerprint scanner software documentation for
setup information.
Stealth Mode
Your computer has a stealth mode feature for users who may
need to use it where light or sound could be dangerous or dis-
ruptive, such as a military user. Enabling stealth mode allows
you to disable sound and light features such as system beeps,
the fan, and the display backlight. Refer to the BIOS Setup Util-
ity section for information about how to configure the stealth
mode feature.
Smart Card Reader (Option)
If your computer has the Smart Card Reader option, you can
use smart card technology for added security.
Trusted Platform Module (TPM)
Enable or disable TPM in the System BIOS. TPM provides a
platform root of trust which uniquely identifies a particular
platform and provides various crypto capabilities including
hardware-protected storage.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Getting Familiar With Your Computer
Ports and Connectors
Ports and Connectors Connection Location
RJ-11 Phone line/modem (internet and fax) Back Edge
RJ-45 Ethernet Back Edge
DC-in AC Adapter (power) Back Edge
2 USB 2.0 USB Peripherals such as a mouse, printer or optical disk drive Back Edge
External Monitor External Monitor Back Edge
Serial Port Connects your computer to serial devices such a fax/modem or a serial
mouse. This port is identified as COM1 and is UART 16550A compatible
Back Edge
Audio In Microphone Left Side
Audio Out Speakers or headphones Left Side
PC Card Slot Type II PC Cards Right Side
Smart Card Reader or
EXPRESS Card Slot
Smart Cards or EXPRESS Cards Right Side
Security Slot Computer lock such as a Kensington lock Left Side
ENERGY STAR®
General Dynamics Itronix is committed to designing mobile computers with the environment in mind.
Not only do we design computers that withstand the environment – with rugged features that enable
you to use them in extreme operating conditions, we design computers that use less energy, reducing
environmental pollution.
That’s why our ENERGY STAR compliant mobile computers meet or exceed the stringent ENERGY STAR
standards set by the Environmental Protection Agency (EPA). According to the EPA, ENERGY STAR quali-
fied products use as much as 60% less energy than standard equipment. By lowering energy consump-
tion, our computers help customers save money while reducing greenhouse gas emissions.
For more information about ENERGY STAR (in English), go to www.energystar.gov.
To help you conserve energy on both AC and battery power, by default this computer:
turns off the display after 15 minutes of inactivity
enters standby, a low power mode, after 15 minutes of inactivity, compared to 30 minutes required for ENERGY STAR compliance
Press any key to wake the computer or turn the display back on after a period of inactivity.
This computer was also designed with other power saving features that go beyond ENERGY STAR requirements. See the Manag-
ing Power section to make the most efficient use of those features.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Your computer is equipped with a full array of ports, connectors and
bays, offering advanced communications technology. This section
describes how to connect peripherals and hardware options that
help you maximize your computer’s features. Before connecting
peripherals, first read the manual included with the peripheral for
connection and operation instructions. You can purchase most of
these and other options directly from authorized dealers.
If you are a mobile worker, you may want to purchase one of
the GD6000’s docking solutions such as the Vehicle Dock or
Office Dock. These docks provide drop-in convenience, port
expansion, and automatic battery recharging, enabling you to
leverage your computer’s features without having to attach
and reattach cables and connectors when you move your
computer.
Attaching Power
Your GD6000 can be powered by battery, by attaching an AC
Adapter or Vehicle Adapter to the DC power port, or by con-
necting the computer to a powered Vehicle Dock or Office
Dock. This page explains how to attach power to the DC power
port.
note When external power is properly applied, the External
Power LED lights.
Using the AC Adapter
1. Connect the AC adapter power cord to the AC adapter.
2. Connect the AC adapter to the DC-in jack on the back of your
computer.
3. Connect the AC adapter power cord to a properly grounded AC
outlet.
note It is recommended you use a quality surge protector.
Using the Vehicle Adapter (optional)
1. Insert the vehicle adapter’s power cord into the DC-in jack on
the back of the computer.
2. Insert the cigarette lighter adapter into the vehicle’s cigarette
lighter socket, turning it slightly to make a good connection.
Caution The vehicle adapter is not intended to be used
continuously. It is intended to provide a convenient, temporary
power source for powering and charging this computer while
in transit in a vehicle. For permanent installations, it is recom-
mended that the (fused) vehicle charger adapter be wired
directly to the vehicle power supply. For additional information
with regard to permanent installation of the Vehicle Adapter,
contact your sales representative.
The power light illuminates to indicate that current is reaching
the vehicle adapter. When you connect the vehicle adapter,
it automatically begins charging the computer’s battery. At
moderate temperatures, around 21°C (70ºF), the battery should
charge from empty to 90% in less than three hours if the unit is
suspended or off. It should take less than four hours if the unit
is in use. However, under extremely cold or hot temperatures,
it will take longer to charge the battery (up to 16 hours).
Caution Avoid exposing batteries to extremely hot or cold
temperatures for long periods. To prevent possible damage to
the battery, the GD6000 does not allow the battery to charge if
the internal temperature of the battery gets too low (< 5°C or <
41°F) or too high (> 50°C or > 122°F).
Attaching USB Devices
Your computer comes with two Universal Serial Bus (USB) 2.0
ports on the back of the computer. This enables you to attach
various devices such as a keyboard, mouse, scanners, or
printer. USB devices can be chained together on a single cable.
External keyboard or pointing device
This computer has a keyboard with full-sized keys and an
embedded numeric keypad. If you feel more comfortable using
a desktop keyboard, you can connect a USB external keyboard
to one of the USB ports. You can also connect a USB mouse or
other pointing device to one of the USB ports.
Making Connections
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Making Connections
Attaching an External Monitor or Video Device
The notebook has a VGA monitor port to connect your com-
puter to an external monitor. You may use an external monitor
simultaneously with your notebook’s display, instead of your
notebook’s display, or as an extension of your notebook’s dis-
play. To attach an external monitor, perform the following:
1. Locate the external monitor port on the back of your notebook.
2. Connect the video signal cable from the external monitor (or
the VGA adapter) to this port.
3. Connect the power cable from the external monitor to a power
outlet and turn on the monitor.
4. Read the monitor manual for additional instructions.
Using Simultaneous Display
Your computer takes advantage of Windows dual-display capa-
bility, allowing you to use your computer for presentation pur-
poses. To use simultaneous display, connect an external dis-
play device to the external monitor port. You can then toggle
the display output location by pressing FN+F2. It will output to
your computer’s display, the attached external display, or both
displays simultaneously. Keep pressing FN+F2 until you have
the output option you want.
Using Extended Display
When using an external monitor you can extend your desktop.
This allows you to open and view one program on the external
monitor while viewing a different program on your laptop’s
display. The following instructions apply to the Windows XP
operating environment.
1. Right click on the desktop.
2. Select Properties to open the Display Properties dialogue
box.
3. Select the Settings tab.
4. Click on the “2” in the Monitors section.
5. Check “Extend my Windows desktop onto this monitor”.
6. Select Apply and OK to save and exit. Now you can drag the
programs you want to view onto the external monitor.
Ethernet (LAN)
With the built-in Ethernet LAN, you can make LAN connections
with 10/100/1000 Mbps connection speed. To use the network
feature, connect an Ethernet cable from the network jack on the
rear of the computer to a network jack or hub on your network.
Fax/data Modem
You can use the fax/modem to connect to the Internet to send
and receive data using the 56 Kbps V.90 protocol. When used
with fax software, it can be used as a fax at 14.4 Kbps. In some
countries, local regulations may not permit the use of the fax/
modem designed for this system. In this case, you may use a
PC Card modem. To use the fax/data modem port, connect a
phone cable from the modem port to a telephone jack.
Caution Plug your modem into an analog telephone jack
only. Most homes use analog lines. Do not use digital lines,
such as the PBX and ISDN systems found in many offices.
Digital lines may damage your modem.
Attaching Audio Devices
Audio devices are easy to
connect with the audio ports
accessible from the left side
of the computer. You can plug
an external microphone (or an
audio line-in device) into the
line-in jack. Amplified speak-
ers or headphones connect to
the line-out jack.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Your GD6000 supports up to four integrated radios for superior
wireless communication (One radio per category listed below).
Wireless Local Area Network (WLAN)
Wireless Wide Area Network (WWAN) with CRMA Express
Global Positioning System (GPS)
Wireless Personal Area Network (WPAN) Bluetooth
Since each customer’s radio configuration is unique, please
read the radio help installed on your desktop and refer to the
manufacturer documentation to setup and use your radio(s).
Press FN+CAPS LOCK to toggle the power on and off to all
radio devices.
Caution FAA regulations require that all transmit/receive
devices be turned off during flight. If you have radios in your
computer (including GPS) please press FN+CAPS LOCK to turn
your radios off during flight.
note The radios do NOT function in suspend mode.
WLAN
Your computer comes with integrated Wireless Local Area
Network (WLAN) capability. See the radio help file on your
desktop for more information.
About WLAN
WLAN provides all the features and benefits of traditional LAN
technologies, such as Ethernet, without the limitations of wires
or cables. It enables mobility and flexibility without compro-
mising connectivity for today’s mobile user.
CRMA Express WWAN (option)
If you ordered the Common Radio Modular Architecture
(CRMA) Express module option, your computer will support
one of these Wireless Wide Area Network (WWAN) radios:
HSDPA - EDGE/GPRS/GSM
EV-DO Rev A - EV-DO Rev 0/1xRTT/CDMA
CRMA Express is upgradeable and when WWAN radio tech-
nology changes, you can change with it. You can upgrade
your radio to the various supported CRMA Express modules
through General Dynamics Itronix service centers, giving you
greater wireless access when you need it. After initialization
the first time the unit is booted, refer to the radio help found on
your desktop for information about setting up and using your
radio.
note All WWAN radios are capable of backward compatibil-
ity to support slower technologies when necessary to provide
the greatest possible coverage to the user.
HSDPA
High-Speed Downlink Packet Access (HSDPA) is a 3G GSM
Mobile protocol in the HSPA family, which provides a road-
map for UMTS-based networks to increase their data transfer
speeds and capacity. HSDPA deployments/cards/modules
can support 1.8 Mbps, 3.6 Mbps, 7.2 Mbps and 14.4 Mbps in
downlink.
EDGE/GPRS/GSM Network
The Enhanced Data Rates for Global Evolution (EDGE) net-
work allows users to transfer data with download speeds up
to 200Kbps (70-130 Kbps typical). It is more than three times
the speed of GPRS. The EDGE network can help you perform
at higher levels of productivity by providing real-time wireless
access to critical business systems and applications.
UMTS/GPRS/GSM Network
Universal Mobile Telecommunications System (UMTS) - also
referred to as wideband code division multiple access (W–
CDMA), is one of the most significant advances in the evolution
of telecommunications into 3G networks.
UMTS is a worldwide standard for wide-area wireless data
communication based on Global Systems for Mobile commu-
nications (GSM™). UMTS provides broadband mobile access
to business systems and applications that can help improve
mobile users’ productivity.
UMTS provides broadband speeds with download speeds up
to 2Mbps (220-320 Kbps typical). It delivers four-to-six times
the speed of dial-up Internet access and eight times the speed
of GPRS wireless data service. UMTS allows mobile users to
respond to urgent email and access the Internet.
EVDO Rev. A
EVDO Revision A (1x Evolution-Data Optimized) is a wireless
radio broadband data standard that offers download speeds
up to 3.1 Mbps (500 to 800 Kbps typical). Revision A integrates
faster data technology and improves latency. These enhance-
ments allow features such a VoIP and video calling.
EV-DO/1xEV-DO/CDMA Network
EV-DO Rev 0
Evolution Data Only or Evolution Data Optimized (EV-DO) is a
3G wireless technology with average user download speeds
up to 2.4 Mbps (400-700 kbps typical). When you spend a lot
of time away from your desk, the faster speeds from EV-DO
can lead to greater productivity. It’s more than just fast email
retrieval. Get fast and secure access to your information and
applications with EV-DO.
Wireless Communication
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Wireless Communication
1XRTT - Single Carrier (1x) Radio Transmission Technology
1xRTT is a pre-3G wireless technology based on the CDMA
platform. It has the capability to provide ISDN like speeds that
offer up to 144 Kbps (50-70 Kbps typical). 1xRTT is also referred
to as CDMA2000.
GPS (option)
The Global Positioning System (GPS) is a worldwide radio-
navigation system formed from a constellation of satellites and
their ground stations. GPS uses these satellites as reference
points to calculate positions accurate within five meters.
Bluetooth® (option)
Bluetooth is a short range, wireless technology. Bluetooth sys-
tems create a Wireless personal-area network (WPAN). When
Bluetooth-capable devices come within range of one another,
an electronic conversation automatically takes place to deter-
mine whether they have Bluetooth Services to share and
whether one needs to control the other. Then the devices hop
frequencies in unison so they stay in touch with one another
and avoid interference with other devices.
Bluetooth devices send out weak signals of 1 milliwatt. Your
computer is a Class II Bluetooth device with a range of about
ten meters. Even with the low power, the walls in your house
won’t stop a Bluetooth signal. This makes the standard use-
ful for controlling several devices in different rooms (audio,
printer, keyboard, mouse). However, obstructions such as
walls do degrade the signal and reduce its range.
Antennas
The GD6000 has several embedded antenna options to support
wireless communications. They require no user action.
# Antenna
1 CRMA Express Antenna
2 GPS Antenna
3 WLAN Antennas
4 Bluetooth / Diversity Antenna
Cautions Use only the supplied or approved antennas.
Use of unauthorized antennas, modifications, or attachments
may void your warranty and could impair call quality, damage
the radio, or result in violation of FCC regulations.
The GD6000 may contain the radio transmitters listed below.
The following statements are relevant when using these radios:
Each internal radio may or may not have an individual FCC
Identifier label. That FCC Identifier label is not applicable to this
configuration. Only the external FCC ID is applicable. Only the
antenna with which an intentional radiator is authorized may
be used with the intentional radiator.
The WLAN embedded dual antennas are not to be modified.
This device contains a WLAN radio transmitter and a WAN
radio transmitter. To comply with FCC RF exposure require-
ments when using the WAN radio transmitter, a minimum
separation distance of 20 cm must be maintained between the
external dipole antenna and all users/bystanders. When using
the WLAN transmitter, a minimum separation distance of 20
cm must be maintained between the upper right and left edges
of the display screen and all users/bystanders. The WAN radio
and WLAN transmitter should be turned off before carrying the
notebook PC in order to comply with FCC RF exposure require-
ments.
Since each customer’s radio configuration is unique, please
read the radio help installed on your desktop and refer to the
manufacturer documentation to setup and use your radio(s).
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Wireless Communication
Improving Radio Coverage
Wireless connectivity between your GD6000 and wireless
network access points is essential. Maintaining this wireless
connectivity over a wide area is fundamental to the usefulness
of the network. This makes the scope and reliability of radio
coverage a primary concern. Therefore, one of the most impor-
tant features of the wireless network is the degree of radio
coverage provided. Coverage can be influenced by terrain,
buildings or even a crowded room. Here are some tips to help
you improve radio coverage, depending on your location.
In any Location
1. Performance can vary significantly at different times of the day.
2. Weather can affect performance.
On the Street
1. Try all sides of a building to see which side provides the stron-
gest radio signal.
2. Move from under trees. Pine needles absorb radio signals more
than leaves.
3. Move away from overhead electrical wires.
4. Radio signals reflect off other buildings. Even in the signal
shadow, the signal could be reflected back by another building.
5. Try not to hold the unit. If possible, place it in vehicle, on a
cabinet or desk.
6. If holding the unit, turn the unit in 90-degree increments to
avoid shielding it with your body.
7. The signal is 1-2 feet across; therefore, moving several feet in
any direction may give different results.
Inside a Building
1. Move toward windows.
2. Signals do not penetrate ground; therefore, there will probably
be no signal in basements.
3. Reflective coatings on windows reflect radio signals. Try the
side of the building that is least likely to have coated windows.
4. Closed metal blinds can reflect radio signals.
5. Dropped ceilings sometimes hide an accumulation of electrical
cable.
Electromagnetic Interference (EMI)
1. Electromagnetic Interference (EMI) is generated by switch-
ing circuitry closets or Un-interruptable Power Source (UPS)
systems found near computer rooms and can block the radio
signal.
2. Look for significant sources of electromagnetic radiation. The
problem may emanate from a source between location and the
radio base station.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
The computer operates on AC or battery power. This section contains
the information you need to know to operate the computer on battery
power. It also includes information on how your computer manages
and saves power.
Battery pack
The battery pack has the following characteristics:
Employs current battery technology standards. The computer
uses a “smart” Lithium-Ion battery to consistently provide the
long battery life best suited for mobile users
A temperature sensor and memory device that stores informa-
tion about the battery, such as how much charge is left and how
many times it has been recharged
Battery-low warning: When the battery charge level becomes
low, the battery alarm beeps or displays a warning on your
screen. This tells you that the battery power is critically low (and
you should save your work). You can correct this situation by
recharging the battery pack.
Whenever possible, use the AC adapter. The battery will come
in handy when you travel or do not have access to AC power. It
is advisable to have an extra fully-charged battery pack avail-
able as backup.
Using a battery pack for the first time
Before using a battery pack for the first time:
1. Connect the AC adapter to the computer, then to a power
source.
2. Calibrate the battery to set the gas gauge to accurately reflect
battery capacity. You only need to do this once with a new bat-
tery or with a battery that’s been stored without being used for
a long time. If the computer is to be stored for more than two
weeks, we recommend you remove the battery pack.
Battery and Temperature
The battery is most efficient at room temperature. It oper-
ates in a wide temperature range but the battery capacity is
affected by higher or lower temperatures.
Temperature Approximate Capacity
0°C 80%
20°C 100%
45°C 100%
Warning Do not expose battery packs to temperatures
below 0ºC (32ºF) or above 46ºC (115ºF). This may adversely
affect the battery pack.
To install a battery pack
1. Line up the battery connectors.
2. Press gently on the battery until it clicks into place.
3. Slide the battery locks toward the outside of the computer to
lock the battery and ensure they latch completely .
To remove the battery pack
Caution Before removing the battery pack, make sure that
you have an AC adapter connected to the computer; otherwise,
turn off the computer.
1. Plug in AC power and turn off the computer.
2. Slide the battery locks toward the inside of the computer to
unlock the battery.
3. Slide and hold the battery release latch.
4. While holding the battery release latch, gently slide the battery
out of the computer.
Operating with Battery Power
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Operating with Battery Power
Battery Calibration
Over time, as the battery is repeatedly drained and recharged,
battery performance will decrease. The first time you use the
battery, you should calibrate it. Occasionally, the battery needs
to be recalibrated for maximum performance. The calibration
process empties and charges the battery. This allows the Win-
dows battery gauge to accurately monitor battery status.
It is recommended you calibrate your battery:
The first time you use your computer
After it has been stored for awhile
If the gas gauge has become inaccurate.
Every three months for optimum performance
Windows XP Battery Calibration
To run the Battery Calibration program select Start, All
Programs, and Mobile Computer Tools. Next, select Battery
Calibration. After starting calibration, the Battery Calibration
application requires no further input from the user. The calibra-
tion consists of four steps:
1. Partial disCHarge - the battery is drained to a level below 90
%.
2. CHarge - the battery is fully charged to 100 %.
3. disCHarge and CaliBrate - First, the battery is discharged all
the way down to zero. Now the battery is ‘calibrated’ but not
charged. You may stop the process after this point and let the
battery charge outside of the Battery Calibration application.
4. CHarge - if the Battery Calibration continues running, the bat-
tery will fully charge to 100%.
Battery Calibration will take from 5 to 10 hours, depending on
how much power the battery may already contain.
note The unit will not go into suspend mode while Battery
Calibration is running.
Caution Do not disconnect AC power while Battery Cali-
bration is running. If AC remains disconnected for more than
two minutes, the application will terminate.
Caution Do not remove the battery while Battery Calibra-
tion is running. Doing so will cause the application to terminate
immediately.
Windows Vista Battery Calibration
1. Select Start, Control Panel, Mobile PC.
2. Click Power Options and select DynaPower Battery Calibra-
tion from the menu on the left side of the screen. The Cali-
bration Window will pop up asking if you’d like to start the
calibration process.
note The battery calibration process may take up to 8 hours
to complete.
3. Select Start to begin calibrating or Cancel to Exit.
Battery Charging
To charge the battery, install the battery pack and plug the AC
adapter into the computer and an electrical outlet. You can use
your computer while charging the battery. However, this will
increase the charging time.
note We suggest that you charge the battery pack before
retiring for the day and let it charge overnight before traveling.
This ensures a fully charged battery for use the next day.
While the battery is charging, the Battery Power LED will be
active after 6-12 seconds and will stay lit until the battery is
fully charged. When the battery is fully charged, the Battery
Power LED will turn off.
If your computer is turned off, a fully discharged battery will
take about 3 hours to recharge. If your computer is turned on
and is not in suspend mode, it will take about 3-6 hours to
recharge the battery. Refer to the following table:
Charging Discharging
System On 3-6 hours depend-
ing on tempera-
ture and processes
running
3.5 hours
System Off 3 hours
Suspend to RAM 72 hours
Suspend to Disk 7 days
note A fully charged Li-Ion battery can run the Notebook for
approximately 3.5 hours of normal use. (According to an indus-
try standard bench marking tool). Use of external devices, the
optical disk drive and wireless radio causes increased battery
consumption. Refer to the Battery Tips section for ideas to
conserve battery power.
When to Replace the Battery
Over time, the battery’s capacity gradually decreases. We
recommend that you replace your battery when you notice that
it begins to store significantly less charge. See Battery Installa-
tion and Removal for more information.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Operating with Battery Power
Heat Considerations
The computer’s processor has been specially designed to
consume as little power as possible, and generates very little
heat. However, working in a hot environment, or working for
long periods may raise the temperature. The GD6000 takes the
following steps to lower temperature:
1. The cooling fan turns on automatically. You may feel air coming
from a vent at the left side of the computer when this happens.
2. If the temperature continues to rise, processor activity will be
reduced. You may notice a slight loss of performance when this
happens.
Warning If the CPU temperature exceeds 95°C, the system
will shutdown to prevent the heat from damaging the com-
puter’s infrastructure. The system will also shutdown if the
Hard Disk Drive gets too hot. When the computer cools to a
normal temperature you can restart the system. The higher the
temperature, the longer the period the computer will need to
cool down.
Monitoring Battery Power
Low Battery Alarms
Caution When battery power is low, the alarm beeps or
displays a warning on your screen. Take immediate action,
such as saving files or connecting to the AC adapter or data
may be lost.
When the computer alerts you that the battery is low, immedi-
ately do one of the following:
Connect the AC power adapter.
Save your work and then select Shut Down from the Start
menu.
Turn off the computer and replace the discharged battery with
a charged battery (see Battery Charging).
note Do not restart the computer until you have connected
to an AC adapter or replaced the discharged battery with a
charged battery.
Refer to Battery Tips for more information about how you can
conserve battery power. Refer to Managing Power for infor-
mation about how you can setup your computer to effectively
manage power for your unique use patterns.
Managing Power
Your computer has power management capability so you can
reduce the amount of energy used, especially during periods
of inactivity. Effective use of power management options
can greatly conserve and extend your battery life. The power
management unit monitors system activity, such as hard drive,
keyboard, mouse, or any devices attached to a port. If it does
not detect activity for a period of time, the computer stops
some or all of these devices in order to conserve energy.
Your computer employs a power management scheme that
supports ACPI (Advanced Configuration and Power Interface),
allowing for maximum power conservation and maximum per-
formance at the same time. Windows handles all power-saving
chores for your computer.
For more information search for Power Options in Microsoft ®
Help and Support.
Low-Power States
Your computer can enter three different low-power states to
conserve power: Standby/Sleep, Hibernate and Power Off.
These states can be entered manually, or after a period of
inactivity.
Standby/Sleep
Most devices in the system are powered off, but the contents
of system memory are retained. Standby/Sleep is sometimes
referred to as Suspend to RAM. When the computer returns
from standby mode, the desktop appears with the same files
and programs open as when the computer was suspended.
Resume time is very quick.
Hibernate
Hibernate, or Suspend to Disk, is similar to Standby, except
that the current state of the computer is copied to the hard disk
in a special file. After this occurs, all devices in the computer
are turned off. When the computer returns from hibernation,
the desktop appears with the same files and programs open as
when the computer was suspended. Hibernation saves more
power than Standby, but takes slightly longer to resume.
Power Off
All applications are closed and the system is shutdown.
Entering Low-Power States
From the Start Menu, select Shut Down to display a dialog that
allows you to manually enter any of these low-power states.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Operating with Battery Power
Battery Tips
Tip 1. Avoid excessive heat and cold
Your battery will last longer during the day if it is used, charged
and stored between 50°F and 86°F (10°C and 30°C).
Charge the battery nightly where the temperature will remain
around 68°F (20°C). Your battery may not last as long through the
day if you charge it at higher or lower temperatures.
Allow unrestricted airflow while the computer is connected to
external power. Make sure that the fan inlet and outlet are unob-
structed.
Avoid exposing batteries to hot or cold temperatures for long
periods.
How your battery behaves in warm conditions
To prevent possible damage to the battery, the system may not
allow a charge if the battery temperature is above 122°F (50°C),
such as in a closed, unattended vehicle during the summer. In
this case, the Battery Power Indicator may indicate that the com-
puter has stopped charging your battery; however, your battery
may not be fully charged
If possible, turn off or suspend your computer while the battery
is charging in a warm environment to avoid over-heating
In warmer temperatures, your battery may take much longer to
fully charge
How your battery behaves in cold conditions
When using a battery in cold conditions, the battery capacity
may drain significantly faster
To prevent possible damage to the battery, the system will not al-
low a charge if the battery temperature is below 41°F (5°C), such
as in a closed, unattended vehicle during the winter. In this case,
the Battery Power Indicator may indicate that the computer has
stopped charging your battery; however, your battery may not be
fully charged
In cooler temperatures, your battery can take much longer to
fully charge
Tip 2. Prevent wasted power
Manually turn off or suspend your computer whenever you are
not using it.
Reduce the screen brightness. Decrease brightness by pressing
FN+F6. Increase it by pressing FN+F7.
Use the AC adapter or vehicle adapter whenever possible.
Use the General Dynamics Itronix Power Saver utility (XP) or
DynaPower utility (Vista). These utilities provide several ways to
configure your computer for optimal power savings, including
the ability to turn off unused devices and set the CPU Speed
Limit (XP) or Maximum Processor State (Vista).
Remove PC Cards. Unplug peripherals when you are not using
them. They may draw power from the system even when not in
use.
Avoid operating the fax/modem, or audio and video applications
when using battery power. Operating a fax/modem, video, or
audio equipment increases the computer’s power requirements.
Don’t use screen savers as they draw excessive current, espe-
cially “3D” screen savers.
Turn off the Wireless LAN when not using it. Turning on the Wire-
less LAN increases the computer’s power requirements.
Avoid or minimize using applications that keep the CPU busy a
large percentage of the time. The following will help you deter-
mine if your system is running such applications:
Identifying power wasting programs
To determine if applications or processes are keeping the CPU
busy:
1. Start the Task Manager utility. To open Windows Task Man-
ager, right-click an empty space on the taskbar, and then select
Task Manager.
2. Select the Performance tab to view running applications, and
the Process tab to view running processes.
3. Watch the CPU Usage. It is okay if the processor usage is oc-
casionally 100 %, but if it is 100% most of the time, this may
indicate a problem.
What to do if applications are keeping the CPU busy
If possible, close any applications that keep the CPU busy when
you are not using them
Turn off or suspend your computer whenever you are not using
it. This will help to conserve power
Tip 3. Calibrate your battery
Over time, the accuracy of the Windows battery gas gauge
may be affected by repeated charging and discharging of the
battery. Calibrating the battery every three or four months
helps to keep the gas gauge accurate. Refer to Battery Calibra-
tion for more information.
Tip 4. Get a good charge
Your computer will charge more quickly if it is turned off or
suspended.
In warmer or cooler temperatures, your battery can take much
longer to fully charge.
If your battery is charged in a cold (less than 41°F/5°C) or very
warm (greater than 122°F/50°C) environment, it is possible that
the Battery Charge LED will indicate that the charge has stopped;
however, this does not necessarily mean that your battery is fully
charged.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Operating with Battery Power
Tip 5. Prevent data loss
Follow these guidelines to prevent data loss when removing
your battery or storing your computer:
You will lose data if you remove the battery while the computer
is operating or suspended. To prevent this, shutdown your
computer or put it into hibernate (suspend-to-disk) mode before
removing your battery.
If you plan to store your computer for more than a few days,
shutdown your computer or put it into hibernate mode. Remove
the battery before storing the computer.
Tip 6. Clean terminals
Dirty terminals can be a cause of charging problems. Clean
battery terminals with a cotton swab dipped in isopropyl
alcohol. Make sure that the alcohol has evaporated before
reinstalling the battery.
Tip 7. Storing batteries
Store the battery within the recommended temperature range:
10°C to 30°C (50°F to 86°F).
Unused or stored batteries can lose power over time. When you
install a battery that has not been used for awhile, connect exter-
nal power to the computer and fully charge your battery.
Battery calibration may increase the capacity of a battery stored
for a period of time. For information on calibrating the battery,
refer to Battery Calibration.
It is recommended that the battery is recharged every six months
while in storage.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
This section explains how to use the BIOS Setup Utility to modify
the BIOS settings. The Setup Utility displays and allows modification
of the computer’s components and allows you to configure devices
that are connected to it. This information is used to test and initialize
components during boot up and to make sure everything runs
properly when the system is operating.
Your computer is already properly configured and optimized
with a set of default values so you do not need to run this util-
ity. In certain circumstances, the system may generate an error
message that asks you to make changes to the BIOS settings
using the Setup Utility. This happens if the system finds an
error during the POST (Power On Self Test) that it carries out
at start-up. Please first refer to Troubleshooting if a problem
arises.
iF you are not sure HoW to ConFigure tHe Bios settings
we suggest that you select “Load Optimal Defaults” on the Exit
Menu screen, then exit saving changes. This loads optimized
default settings for normal use.
note If needed, please print this section before rebooting
and entering the Setup Utility as it will not be accessible from
there.
Using the Setup Utility
The Setup Utility allows you to configure your computer’s
basic settings. When you turn your computer on, the system
reads this information to initialize the hardware so that it can
operate correctly. You can use the Setup Utility to change
your computer’s start-up configuration. For example, you can
change your system’s security settings.
Starting the Setup Utility
You can only start the Setup Utility after the computer has
been turned on or rebooted. To execute a controlled reboot,
select Start, Restart. Shortly after the computer restarts, you
will see the following text at the bottom of the screen: “Press
F2 to enter Setup.”
Press the F2 key when you see this prompt.
notes The BIOS password settings affect this option. If a
user or supervisor password has been previously entered, you
will be asked for a password.
The touch screen is not active in the Setup Utility.
The Menu Bar
The Setup Utility has six menu options in the Menu Bar (1) at
the top of the window. Press the left or right arrow keys to cycle
through these menu screens.
inFormation: Displays a summary of the computer’s hard-
ware information
main: Contains basic settings about your computer such as
date, time, and other general options
advanCed: Allows you to view and configure your drives, and
I/O (input/ output) ports, and stealth mode settings
seCurity: Lets you set passwords for protecting your com-
puter
Boot: Allows you to set the order in which the system boots.
exit: Includes options to save or discard your changes, and to
exit the BIOS Utility
Viewing or Changing Field Settings
The Navigation Help instructions (2) on the bottom of each
menu display the keys used to move through and change the
Settings and Information fields on the left side of the menu.
Press the up and down arrow keys to cycle through fields on
each menu
Press ESC to exit any sub-menu
Press ENTER to make a selection or go into a sub-menu
note You can change the value of a field if it is enclosed in
[brackets]. Navigation keys for a menu are shown at the bottom
of the screen. Please refer to the help information that displays
in the Field Help Window as you select a field.
Caution Certain fields are highly technical. Do not make
changes to a field if you do not understand its function. For
optimum settings, press F9 to load setup defaults; then press
F10 to save the changes and exit the Setup Utility.
note Don’t forget your password. If you forget your pass-
word, you may have to return your notebook computer to your
dealer to reset it.
The Field Help Window
The Field Help Window (3) is on the right side of each menu. It
displays the help text for the currently selected field. This text
updates as you move the cursor from field to field.
Customizing Your BIOS Settings
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
The Information Menu
This page displays information about your computer from what kind of CPU and how much memory the computer has, to perti-
nent numbers such as the product number and serial number:
Field Description
CPU Type Displays the CPU type
CPU Speed Displays the CPU speed
Installed Memory Displays the size of installed memory
IDE0 Model Name Displays the IDE0 Model Name
HDD0 Serial Number Displays the IDE0 Serial Number
ATAPI Model Name Displays the ATAPI Model Name
System Board Version Displays the current system board version
System BIOS Version Displays the current system BIOS version
VGA Bios Version Displays the current VGA BIOS version
KBC Version Displays the KBC Version
Serial Number Displays the System Serial Number (30 characters)
Asset Tag Number Displays the Asset Tag Number (32 characters)
Product Name Displays the Product Name (up to 15 characters). This is “GD6000”
Manufacturer Name Displays the Manufacturer Name (up to 15 characters).
UUID Display the UUID (16 Byte Hex-Digital)
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
The Main Menu
Field Setting Function
System Time HH:MM:SS Sets the system time in 24 hour format. The value takes effect immediately.
System Date MM/DD/YYYY Sets the system date. The date can be set from January 1, 2000 to December
31, 2099. The value takes effect immediately.
Power on Display BotH
Auto
Selects the display device.
Screen Expansion enaBled
Disabled
When enabled, expands the display screen upon boot.
Quiet Boot enaBled
Disabled
Display the logo screen during boot.
Network Boot enaBled
Disabled
When enabled, the system can boot from the network. This setting requires a
reboot to take effect.
note The LAN must be selected as the first boot item on the Boot Menu for
the computer to boot directly from the network during power on.
SATA Mode IDE
aHCi
RAID
Controls the mode in which the SATA controller should operate.
F12 Boot Menu enaBled
Disabled
When enabled, the message “F12 to enter Multi Boot Menu” displays during
POST.
iAMT Support Enabled
disaBled
Enables/Disables the Intel Active Management Technology BIOS Extension.
Intel CPU VT Sup-
port
enaBled
Disabled
When enabled, a Virtual Machine Monitor (VMM) can utilize the additional
hardware virtualization capabilities provided by this technology.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
The Advanced Menu
Field Setting Function
Stealth Mode Configuration sub-menu This menu controls stealth mode configuration.
I/O Device Configuration sub-menu This menu controls I/O device configuration.
Graphic Memory Configuration sub-menu This menu controls graphic memory configuration.
Legacy OS Boot enaBled
Disabled
If enabled, attempts legacy OS boot first. If disabled, attempts EFI boot
first and legacy OS boot second.
Legacy USB Support enaBled
Disabled
If enabled, provides legacy USB support.
WLAN Support enaBled
Disabled
If enabled, the WLAN device is powered on when the system reboots.
Bluetooth Support enaBled
Disabled
If enabled, the bluetooth device is powered on when the system
reboots.
GPS Support enaBled
Disabled
If enabled, the GPS device is powered on when the system reboots.
WWAN Support enaBled
Disabled
If enabled, the WWAN device powers on when the system reboots.
WWAN Radio Wakeup Enabled
disaBled
If enabled, power to the radio will turn on before the system entering
standby (S3).
Boot on AC Power Detect Enabled
disaBled
If enabled, the system will boot up or resume automatically when AC
power is applied and detected.
HDD Heater enaBled
Disabled
If enabled, the HDD heater will power on when the temperature is too
low.
HDD Thermal Protection Enabled
disaBled
If enabled, the system can not boot up when the hard disk drive (HDD)
temperature is 0°C or below, regardless HDD Heater installation. If
disabled, the field setting can be changed by the user. The system will
boot when the hard disk drive temperature is between -20°C and 0°C.
Caution The HDD may be damaged without the HDD Heater.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
Field Setting Function
LED Keyboard Timeout Setting 5Min
10min
15Min
20Min
30Min
40Min
50Min
60Min
80Min
100Min
120Min
240Min
Reset the timeout counter for PS2 key and /or mouse activity
Lid Opened notHing
Resume
If Resume, the system will resume from a suspended state when the
computer lid (display) is opened from a closed position.
Core Multi-Processing enaBled
Disabled
Enables/Disables the 2nd core
Spread Spectrum Support Off
Down
0.50%
Down
1.00%
Down
1.50%
Cntr 0.25%
Cntr 0.50%
Determines the system Spread Spectrum range.
Stealth Mode Configuration
Stealth mode is a feature that allows the computer to be used in an environment where sound and light could be dangerous or
disruptive. If stealth mode is disabled, the LEDs, fan, system beeps, audio, and display brightness operate normally.
note An off setting indicates stealth mode is in effect for that option. For example, if stealth mode is enabled and the LED
option is set to “off”, the LEDs will NOT illuminate to indicate activity.
Field Setting Function
Stealth Mode disaBled
Enabled
Enable or disable stealth mode. If disabled, the computer functions normally
and the options listed below are not accessible.
LED oFF LEDs are disabled.
On LEDs function normally.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
Field Setting Function
Fan
Off The fan is disabled. Heat management is then controlled solely through throt-
tling.
On The fan functions normally.
Audio oFF Volume is set to 0 across suspend/resume and boot. Use the existing audio
function keys to restore volume.
On Audio is preserved across suspend/resume and boot. The default volume level
is set to mid-range.
Back-light
Brightness
oFF Brightness is set to 0 across suspend, resume and boot. Fn+F1 restores bright-
ness to the value it was set to before suspend. Additionally, Fn+F7 increases
display brightness gradually. Fn+F6 decreases brightness gradually.
On Display brightness is preserved across suspend/resume and boot. It is restored
to default when the brightness level is set at 0. The default level is mid-range.
Wireless
Radios
oFF All wireless devices are set to off during a suspend/resume or boot. The radio
on/off button can be used to manually turn the radios on or off.
On The radio on/off button functions normally and radio device power states are
held though suspend/resume and boot.
I/O Device Configuration
This configuration option allows you to assign Serial and Parallel port settings.
Field Setting Function
Serial Port A enaBled
Disabled
If enabled, user can configure serial port A.
Base I/O address: 3F8
2F8
3E8
2E8
Sets the base I/O address for this serial port.
Interrupt: IRQ3
irq4
Sets the interrupt request of this serial port.
Serial Port for Touch Screen enaBled
Disabled
If enabled, user can configure serial port C.
Interrupt: irq6 Sets the interrupt request of this serial port.
Serial Port for GPS enaBled
Disabled
If enabled, user can configure serial port A.
Interrupt irq5
IRQ7
Sets the interrupt request of this serial port.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
Graphic Memory Configuration
Field Setting Function
DVMT Pre-Allocated 32 MB
64 mB
128 MB
Select the DVMT pre-allocated graphics memory
size to be used by the internal graphics device.
Total Graphics Memory 128 MB
256 mB
MaxDVMT
Select the amount of total graphics memory to be
used by the internal graphics device.
The Security Menu
You can set, change or remove passwords in the Security menu.
note This is the Security screen as seen when both Supervisor and User passwords are installed.
Field Setting Function
Supervisor Password Is Clear Shows if a password has been set.
User Password Is Clear Shows if a password has been set.
HDD Password Is Clear Shows if a password has been set.
Set Supervisor Password Enter New Password Supervisor Password controls access to the Setup Utility
Set User Password Enter New Password User Password controls access to the system
Set HDD Password Enter New Password HDD Password controls access to the removable hard disk drive.
Password on Boot Enabled
disaBled
If enabled, system will ask for password on post time. If dis-
abled, system will ask for password when entering setup utility.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Customizing Your BIOS Settings
The Boot Menu
Use this menu to set the order of priority for devices from which the system will boot. Your computer automatically detects the
available devices. When you select a device, it is disabled in the other boot device fields.
To change the priority order, use the up and down arrow keys to highlight a device. Then press F5 or F6 to move the device
higher or lower on the priority list.
The Exit Menu
Field Function
Exit Saving Changes Exit the Setup Utility and save the changes to CMOS.
Exit Discarding Changes Exit the Setup Utility without saving Setup data to CMOS.
Load Setup Defaults Load Optimal “ factory” default values for all Setup options.
Discard Changes Load the previously set values from CMOS for all Setup options.
Save Changes Save any changes made and exit Setup.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Your computer delivers superior power and performance. However,
some users and the applications they use may demand more. This
computer allows you to upgrade key components when you need
increased performance.
note Contact your authorized dealer if you decide to per-
form a key component upgrade.
Additionally, the GD6000 has several equipment and accessory
options to further enhance your mobile computing experience.
This section highlights some of the most popular accessories
used with the GD6000. Click here for a complete list of optional
peripherals and accessories.
Caution When purchasing any additional accessories,
purchase only those accessories that are approved for use with
your computer. If you use items that are not approved for use
with this computer, you may cause your computer to malfunc-
tion, or to emit or receive electromagnetic radiation in excess
of local regulations. For non-proprietary accessories such as
PC Cards or printers, ensure that the accessory functions prop-
erly with your computer before making the purchase.
Office Dock
The GD6000’s Office Dock enables you to use it as a desktop
computer. Once setup, the dock provides drop-in convenience
with no cables to attach or detach from your GD6000.
Simply place the computer in the dock and turn it on. The
Office Dock’s wizard will guide you through the various steps
to properly install the Office Dock.
The Office Dock allows you to continue to access all your com-
puter’s ports and bays. Additionally, it includes the following
ports typical of a business-class desktop computer:
Four USB 2.0 ports
IEEE 1394 port (FireWire™)
RJ-45 10/100/1000 Ethernet
port
9-pin legacy serial port
25-pin parallel port
15-pin external monitor/
CRT port
Two PS/2 ports so you
can attach a mouse and a
keyboard
DC-in power port
Mono microphone interface
Stereo speaker interface
Once in the dock, the computer’s battery is recharged and
conditioned automatically whether the computer is active,
suspended or even powered off.
Undocking the GD6000 using Windows XP
The GD6000 must be undocked prior to removing it from the
Office or Vehicle Dock. To undock your GD6000:
1. Click on Start to display the Start Menu. (At the bottom of the
Start Menu next to the Log Off and Shutdown commands will
be the Undock Computer command.)
2. Click on Undock Computer
3. Wait for the system to display “Windows has finished un-
docking the computer. If you need to remove the comput-
er from the Docking Station, please do so now.”
4. Open the Start Menu once more and make sure the Undock
Computer menu item is no longer displayed before pressing
the release button on the Docking Station.
Undocking the GD6000 using Windows Vista
1. Click on the Start Button.
2. Point to the arrow next to the padlock icon to bring up the
Shut Down sub-menu. Click on Undock. You will see a popup
message from the system tray that the Undock is Complete.
You are now ready to undock your computer by pressing the
release button.
Optional Equipment and Accessories
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Optional Equipment and Accessories
Vehicle Dock
The optional vehicle dock enables you to use and recharge
your GD6000 quickly and efficiently in the your vehicle. Once
setup, it provides drop-in convenience with no cables to attach
or detach to your GD6000 when you enter or leave your
vehicle. Simply place the computer in the dock and turn it on.
Once attached to the Vehicle Dock, the computer’s battery is
recharged and conditioned automatically wether the computer
is active, suspended or even powered off.
Vehicle Dock features:
Compliance with extensive ve-
hicle environment requirements
(including crash test)
Key lock to help prevent theft
Four USB 2.0 ports (two in front
and two in back)
IEEE 1394 port (FireWire™)
Two 9-pin legacy serial ports
25-pin parallel port
15-pin external monitor/CRT port
Two PS/2 ports
DC-in power port
Ethernet (LAN) port
Remote power switch feature that is identical in function to the
main power button
Mono microphone interface
Stereo speaker interface
Two external antenna SMA connectors for WWAN and WLAN
note Be sure to follow the undocking procedures at the end
of the Office Dock section.
Surge Protection
A large number of computer and high technology equipment
damage is directly related to AC power and telephone line
problems. These problems can include surges, spikes, noise,
interference, and weather-related problems, which in turn
can cause glitches, hang-ups, crashes, performance slow
downs, and down time with computer equipment. The market
is flooded with hundreds of AC power line surge suppressors
advertising high performance surge protection; only a few of
them actually provide adequate protection.
This section provides guidelines for selecting a quality surge
suppressor to be used with your GD6000, and it helps identify
a few sources for products with acceptable performance.
Selecting the Right Surge Protection
Consider the level of quality you need when selecting a surge
suppressor. This depends on factors such as surge environ-
ment, the type of equipment to be protected, and the quality of
the electrical wiring and service.
Surge Environment
Surge environment refers to the damage potential from electri-
cal surges in a particular geographical area. A high quality
suppressor should be used if there is frequent lightning activity
in the area and the location service is fed by overhead utility
poles.
Type of Equipment to be Protected
If the computer is equipped with a modem, the modem should
also be surge protected. Protecting the power line without pro-
tecting the modem line provides only partial protection.
Quality of Electrical Wiring and Service
Wiring should be up to current local standards and have
verified good AC grounds. It is important that your computer
system be plugged into a grounded AC outlet when charging
and that all peripherals connected to your system reference the
same AC ground.
Selecting the Right Equipment
There are a number of companies that sell quality surge sup-
pressors. When looking for a surge suppressor, consider these
things.
Expect to pay more for a good quality surge suppressor
The surge suppressor should be a UL 1449, 497, and 1283 listed
for surge suppression, modem surge protection, and RFI/EMI
noise filtering respectively
The surge suppressor should have diagnostic LEDs that verify
good AC ground, proper wiring, and proper surge operation.
On/off switches that light are not recommended since they can
produce electrical noise
The Joule ratings should be a minimum of 480 Joules for the AC
surge circuit
The Joule ratings should be a minimum of 240 Joules for the
modem
The modem surge circuit should present low capacitance to the
modem line or it will slow the transmission rate. Capacitance
should be specified at less than 50 picofarads
Quality surge suppressor manufacturers generally offer a life-
time warranty
Consider obtaining a protected equipment coverage policy which
insures the equipment in the event of surge damage
The devices that will be attached to the computer also need to be
surge protected
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Optional Equipment and Accessories
Memory Upgrade
Adding memory allows the computer to operate faster, handle
more tasks simultaneously, and work more smoothly with
large files. Users who increase memory demands - by adding
additional programs, for example - may notice a slowdown in
operating speed, and wish to increase memory. The GD6000
comes with one user accessible memory socket supporting a
1024MB or 2048MB memory module for memory upgrades.
Please consult your dealer if you need to add more memory.
Caution First read and follow the guidelines in the Safety
section.
Replacing a Memory Card
Caution Memory modules can be easily damaged by static
electricity. Leave the module inside its static-proof bag until
it is ready for installation and make sure you are grounded
before attempting this procedure.
Removing a Memory Card
1. Turn off the computer and disconnect the AC adapter.
2. Turn the computer upside down and lay it on a flat surface.
3. Remove the battery (see Battery Removal).
4. Carefully remove the two RAM compartment cover screws and
remove the RAM compartment cover (1).
5. If a memory card is inserted, use your finger to gently pull the
tabbed latches in the direction of the arrows (2). The card will
pop up slightly.
Caution Do not use tools to pull the memory card latches.
Tools may cause damage.
6. Pull upwards on the card and then slide the card out (3).
Inserting a Memory Card
Caution Only use memory cards approved for use in your
computer. Failure to do so may void your warranty.
1. Hold the memory card by its edges with the edge-connector
side towards the slot.
Caution Do not touch the memory card anywhere
except the edges.
2. Hold the card at a shallow angle (about 25 degrees) and insert
the edge connector into the connector slot. The “gold teeth” of
the edge connector should no longer be visible when the card
is fully inserted. (See image 3 above).
3. Press the card downwards so that it is flat inside the compart-
ment. You may hear an audible click as the latches of the con-
nector lock the card in place.
4. Replace the RAM compartment cover and secure it with the two
screws.
Caution If the cover does not close easily, do not force
it. The memory card may not be properly installed. Careful-
ly remove and reinstall the card following the steps above.
Your notebook computer will automatically detect the change
in RAM capacity when it restarts. You can verify RAM capacity
has changed in the Setup Utility or in Windows:
setuP: Press F2 during boot-up when you see the “Press F2 to
enter Setup” prompt. The information menu shows the base
memory and the extended memory.
WindoWs xP: Right click on My Computer and select Prop-
erties to open System Properties. The General tab lists the
memory detected by Windows.
WindoWs vista: Right click on Computer and select Proper-
ties to open the System Screen. This will show the memory
detected by Windows.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Optional Equipment and Accessories
Miscellaneous options
Battery Pack
It is a good practice to have a spare battery around, especially
when you travel. The Li-ion battery, coupled with the power
management features of your computer, supplies you with
more power on-the-go. You may also purchase a secondary 9
cell battery pack for longer run time.
AC Adapter
The compact AC adapter charges your battery pack and
supplies power to your computer. You can order a spare AC
adapter so you do not need to carry it from the office to your
home or destination.
Vehicle Adapter
The vehicle adapter supplies power from the vehicle battery
to your computer. It attaches to your computer’s DC power
port and typically plugs into the cigarette lighter socket in your
vehicle.
Other Options and Accessories
Click here for a complete list of optional peripherals and acces-
sories.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Follow the guidelines in this section to care for your computer.
Computer Maintenance and Storage
You can use your computer under a wide range of environmen-
tal conditions. However, to ensure long use and continued high
performance, consider the following factors when using your
computer:
Taking Care of Your Computer
Follow all warnings and instructions noted in this documentation
and in the Windows Help program.
The first time you use your computer, we recommend that you
carefully read the Making Connections section and initialize the
battery to ensure optimum battery performance.
Unplug the computer from the power outlet before cleaning.
Use a damp cloth for cleaning. Do not use aerosols, solvents, or
strong detergents.
Slots and openings in the unit’s case are for ventilation purposes.
Do not block or cover these openings or the system could over-
heat. Do not use or store the computer near a source of heat or
dust.
If you use the computer with an extension cord, ensure that the
total ampere ratings of all the devices sharing the extension do
not exceed the rating of the extension cord or the rating of the
wall outlet.
Never push foreign objects into the computer through any of the
slots or openings. Dangerous voltages are present, which could
cause electric shock or fire, or damage sensitive components.
For best results, use a power strip with a built-in surge protec-
tor. Do not use inferior extension cords as this may result in
damage to your computer.
Set the computer on a flat, stable surface. To prevent damage to
the computer’s hard disk drive, avoid using the computer where
it will be exposed to strong vibration.
Do not place it near sources of heat, such as a radiator.
Do not expose the computer to temperatures below -20ºC (-4ºF)
or above 60ºC (140ºF).
Do not subject the computer to magnetic fields.
Do not expose the computer to rain or moisture.
Do not spill liquid on the computer.
Do not subject the computer to heavy shock and vibration.
Do not expose the computer to dust and dirt.
Do not place objects on top of the computer.
Do not place the computer on uneven surfaces.
Periodically inspect the computer and accessories for wear, dam-
age, loose or missing parts. Identifying and correcting potential
problems early can help reduce the need to return the unit for
service.
Taking care of your AC adapter
Do not connect the adapter to any other device.
Do not step on the power cord or place anything on top of it.
Carefully route the power cord and any cables away from all
potential traffic.
When unplugging the power cord, do not pull on the cord itself
but pull on the plug.
The total ampere ratings of the equipment plugged in should not
exceed the ampere rating of the cord if you are using an exten-
sion cord. Also, the total current rating of all equipment plugged
into a single wall outlet should not exceed the fuse rating.
Servicing
Contact your dealer or see your service technician if any of the
following occurs:
The computer has been dropped or the body has been dam-
aged.
Liquid has been spilled into the product.
The computer does not operate normally.
See the Service and Support section for more information.
Battery Maintenance and Storage
Taking care of your battery pack
Use only batteries of the same kind as replacements. Turn the
power off before removing or replacing batteries
Do not tamper with batteries. Keep them away from children
Dispose of used batteries according to local regulations. Recycle
if at all possible
Maintaining Batteries
Follow these guidelines to maintain performance of Lithium-
Ion (Li-on) batteries.
Avoid exposing batteries to extremely hot or cold temperatures
for long periods. To prevent possible damage to the battery, the
GD6000 does not allow the battery to charge if the internal tem-
perature of the battery gets too low (< 5°C or < 41°F) or too high
(> 50°C or > 122°F).
Charge the battery nightly where the temperature will remain
around 20°C (68°F).
Re-calibrate your battery every three months or when your bat-
tery performance degrades.
Storing Batteries
Before storing, discharge the battery to 50%.
Store the battery as close to close to 10°C (50F°) as possible.
Maintenance
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Maintenance
It is recommended that you cycle a stored battery once every
three months.
Unused or stored batteries can lose power over time. When you
install a battery that has not been used for awhile, connect exter-
nal power to the computer and charge the battery.
After storage, battery calibration may increase its capacity.
Cleaning Your Computer
outside Case: Like all tools, the outside of the computer will
get dirty with use. To clean the outside case, follow the proce-
dure below.
Disconnect external power and turn off the computer.
Add a small amount of water to a soft cloth and clean the com-
puter case. Do not use paper products because they can scratch
the surface.
Wipe off any excess liquid with a soft cloth.
disPlay: Periodically inspect the display to make sure the
brightness function is operating properly and that all pixels
are operational. To clean the display assembly, use a soft, dry
cloth. In some cases, you can use a small amount of water to
remove streaks or smears. Do not use paper products because
they can scratch the screen.
external PoWer ConneCtor: The external power connector
may sometimes be exposed to moisture and/or contamination
causing an unreliable connection to the external power source.
Clean the connector with a cotton swab dipped in isopropyl
alcohol.
rJ-11/ rJ-45 / usB ConneCtors: If the connector pins
get dirty, clean the connector with a cotton swab dipped in
isopropyl alcohol.
Backup and Recovery
Data Backup
There are several methods to backup your data. It is best to
regularly use all the methods below to ensure the greatest data
integrity, provide the fastest recovery options, and minimize
downtime.
After you have installed all your applications and have your
computer configured as desired, create a backup of drive C:
using the Hard Disk Backup and Recovery Utility. Then, use
the Windows Backup Utility on a frequent basis to backup your
daily data. It is recommended that you schedule the Windows
Backup Utility to run automatically.
Save Important System Information
By default, your computer is set up to automatically save cer-
tain critical information, such as the registry, on a regular basis.
This information is saved as a Restore Point. You can also
create Restore Points manually by using the System Restore
utility. Select Start, All Programs, Accessories, System Tools,
System Restore. Then, follow the instructions in the Wizard.
Backup your Files
You can backup files if they are accidentally erased or cor-
rupted.
For WindoWs xP: Select Start, All Programs, Accessories,
System Tools, Backup. You can schedule backups to run
automatically on a regular basis. To set this up, talk to your help
desk or IT department.
For WindoWs vista: Click the Start button, open the Control
Panel, and select Backup Your Computer under System and
Maintenance.
Backup Drive C:
You can make an exact copy of drive C: and save the backup
image on the Recovery Partition of your hard disk (usually
drive D:). In the future, you can restore drive C: to its previous
state should it become corrupted. To make a backup copy of
drive C:, use the Hard Disk Backup and Recovery Utility. Select
Start, All Programs, Mobile Computer Tools, Hard Disk Backup
and Recovery. You will be prompted for additional information.
note The Hard Disk Backup and Recovery Utility is only
available on computers configured with a Recovery Partition.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Maintenance
Data Recovery
There are several methods to restore your data. It is best to
start with the least destructive and fastest recovery options.
Try this first: Restore System Information
If you are having problems with your system, restore system
information to an earlier state, or Restore Point. To restore to
an earlier state, select Start, All Programs, Accessories, Sys-
tem Tools, System Restore. Then, follow the instructions in the
Wizard.
Try this next: Restore a Backup
You can restore files and folders that you have backed up using
the Windows Backup Utility. See instructions below:
WindoWs xP: Select Start, All Programs, Accessories, Sys-
tem Tools, Backup.
WindoWs vista: Click the Start button, open the Control
Panel, and select Backup Your Computer under System and
Maintenance. This will bring you to the Backup and Restore
Center where you can restore files and folders.
Try this last: Restore Entire Contents of Drive C:
If none of the above steps restore your disk image to a stable
state, you may need to restore your disk to its original factory
image or an image you saved using the Hard Disk Backup and
Recovery Utility. Restoring a previously saved disk image
overwrites the entire contents of drive C:. Before running this
process, save your data to another location, such as a USB
flash drive.
WindoWs xP: Select Start, All Programs, Mobile Computer
Tools, Hard Disk Backup and Recovery. You will be prompted
for additional information.
WindoWs vista: Click the Start button, open the Control
Panel, and select Backup Your Computer under System and
Maintenance. This will bring you to the Backup and Restore
Center. From here, you can restore your entire computer from
a Windows Complete PC Backup and Restore Image. Click on
Restore Computer to begin the process.
note The Hard Disk Backup and Recovery Utility is only
available on computers configured with a Recovery Partition. If
it is not available, you will either need to contact your com-
pany’s help desk about obtaining a Recovery CD or return your
unit for service.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
We are committed to providing you world class support services
that ensure the lowest total cost of ownership for your hardware
investment. The icareServices program will help you maximize end
user productivity and decrease overall system operating cost.
Client Care Center (CCC)
General Dynamics Itronix Client Care Center – The CCC is an
internal central point for telephone warranty support for all
General Dynamics Itronix products. Our Technical Service
Representatives know your product and provide input and sup-
port for problem resolution.
One call to the convenient Client Care Center number at (1-800-
638-9270, Opt 2) allows a single entry point of access to meet
all your needs.
You may also use the web portal at www.gd-itronix.com/CCC.
The CCC receives calls from 5am-5pm Pacific Daylight Time,
Monday through Friday (except on holidays). Sorry, 1-800
numbers ARE NOT accessible from Mexico.
Technical Service Representatives provide the following sup-
port services:
Product troubleshooting
RMA origination for service return
RMA status check on product service
Check status Warranty/Service Kit orders
Coordinate requests for product upgrades
Wireless Radio registration
icareServeNet registration and training
General Dynamics Itronix offers service uplift programs for
clients who wish to expand their support coverage beyond the
basic warranty. Coverage and details of these programs are
available online at www.gd-itronix.com
Product Support - Downloads
It is easy to get the software updates you need to keep your
configuration current and get the most from your product. Click
here to get current downloads.
note Downloads are listed by product number (GD6000).
Service
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
This section is designed to help you determine and fix problems you
might encounter while operating the GD6000. Try the following things
in order:
1. First look through the categories in this section for a solution.
2. If you are having a problem with a computer application, use
the Help that comes with the application to find a solution.
3. If you still cannot resolve your problem, refer to Service and
Support.
Warning Do not attempt to open and service the com-
puter by yourself. Contact your dealer or an authorized service
center for assistance.
Application Troubleshooting
My application locks up, acts strangely, or produces
a General Protection Fault (GPF) error or blue screen
Press CTRL+ALT+DEL to start the Logon Protector, then select
the Task Manager. Click the Applications tab on the Task
Manager and look for the application that is having problems. If
the application is hung, the Status column will say “Not Re-
sponding” after the task name. Click on the unresponsive task/
application, then click the End Task button.
If you have tried to resolve the problem and your application still
does not respond, you may need to restart your computer.
To restart your computer:
using WindoWs xP: Select Start, Shut Down, Restart.
using WindoWs vista: Click on the Start Button, point your
mouse past the icon and click on the arrow. This will bring
up the Shut Down/Log Off menu. Click Restart to reboot the
computer.
If the computer does not restart, the keyboard may be locked
up. Hold the POWER BUTTON for ten seconds.
Caution This will result in a loss of all unsaved data.
The data on the hard disk could be corrupted. Run CHKDSK.
Windows may be out of memory or resources. You can try to
close some open programs to free up some memory or exit
Windows and restart Windows by selecting Start, Shut Down,
Restart.
Battery Troubleshooting
The battery does not charge
To prevent possible damage to the battery, the system will not
allow a charge if the battery temperature is extremely hot or cold
(such as in a closed, unattended vehicle). If possible, charge the
battery in a location with a moderate temperature of around 20°C
(68°F).
If possible, turn off the computer while the battery is charging.
If the battery is new or has been stored for a week or more, fol-
low this procedure:
1. Make sure the computer is turned off.
2. Remove the battery (see Battery Installation and Removal).
3. Connect the AC adapter to the computer and an AC wall outlet,
and then turn on the computer by pressing the POWER BUT-
TON.
4. Reinstall the battery.
5. Allow the system to remain idle for one hour with the AC
adapter connected to the computer. The Battery Power LED is
lit while the battery charges. It turns off when the battery is fully
charged.
6. If the battery still fails to charge after an hour, remove the
battery, wait several seconds, and then install it again. If the
battery does not begin charging within several minutes, contact
Service and Support.
The batteries take much longer than seven hours to
charge
Under moderate temperatures, about 21°C (70ºF), the com-
puter’s battery takes approximately three hours to completely
charge if the unit is off and up to six hours if it is running.
Under extremely cold or hot temperatures, however, the bat-
tery can take up to 16 hours to fully charge.
The batteries do not last very long
As your battery ages, the maximum capacity that it can hold
naturally decreases, and even the best maintained batteries
eventually need to be retired. Consider replacing the battery if
you are not getting the usage you need from it.
Refer to the Battery Tips section for information on conserving
battery power.
To meet ENERGY STAR® requirements, Wake-on-LAN is en-
abled by default. If running on battery power this may decrease
battery run-time. To change Wake-on-LAN settings, go to the
Device Manager, Network Adapters and select the LAN
device. Open the device Properties and select Power Manage-
ment. Then disable the Wake-on-LAN setting.
Troubleshooting
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Troubleshooting
The gas gauge is not full after charging the battery
This may indicate that the charging process terminated prema-
turely
Calibrate the battery
The gas gauge reads “full,” but the indicator light is
still blinking
If you charge your battery daily, rely on the gas gauge reading to
determine battery capacity. The charging process may continue
even if the gas gauge reads full. External power can be removed
because the battery is fully charged.
The indicator only blinks when the battery is very low. It is on
steady when charging.
( It’s possible that the unit is “almost” charged but the gas gauge
says it is fully charged. Leaving the GD6000 on external power
will re-align the Gas gauge full indicator . )
My battery seems to have less and less capacity
As your battery ages, the maximum capacity that it can hold
naturally decreases, and even the best maintained batteries
eventually need to be retired. Consider replacing the battery if
you are not getting the usage you need from it.
Display Troubleshooting
The display performance is slow
The temperature may be too cold. Move the computer to a
warmer operating environment.
I can’t read the display
Increase the display brightness by pressing FN+F7 .
The automatic power-saving mode may have shut off (suspend-
ed) the computer. Press any key to resume from the standby
state. Press the POWER BUTTON keys to resume from the
hibernate state.
The Power Saver Application may be setting the display bright-
ness too low.
The underlined, inverse, and hypertext characters
are difficult to read on the screen
For WindoWs xP: Change the color scheme. From the Start
Menu select Settings, Control Panel, choose Display, and
then select the Appearance tab to make changes to the color
scheme.
For WindoWs vista: Right click on your Desktop, select Per-
sonalize, then Window Color and Appearance to change your
color and style of your Windows.
I changed my display resolution, but I see no differ-
ence on the screen
For WindoWs xP: Try restarting your computer for the
changes to take effect. Select Start, Shutdown, Restart to
restart your computer.
For WindoWs vista: Try restarting your computer for the
changes to take effect. Click on the Start Button, and point your
mouse past the icon then click on the arrow, then, click Restart
to reboot the computer.
My screen seems to time out too quickly.
I have to constantly hit a key or move the mouse in order to
bring it back. How can I adjust the screen time-out?
Check your power management settings.
Hard Disk Troubleshooting
The hard disk will not spin up so the computer can’t
boot up
This occurs if the unit is exposed to extreme low temperatures.
This is not a hardware failure associated with the hard disk.
Allow the computer to warm to room temperature.
Keyboard and Mouse Troubleshooting
Something unexpected happens when I press a key
You may have pressed a key combination that performs a Win-
dows function. Make sure you are pressing the correct keys for
the application you are running.
Incorrect characters appear on the screen when I
press certain keys
You may be in Num Lock mode. Press FN+F11 to toggle Num
Lock mode off.
I have difficulty double-clicking the mouse fast
enough
For WindoWs xP: From the Start Menu, select Settings,
Control Panel, and then choose Mouse. The Buttons tab con-
tains the setting for the double-click speed.
For WindoWs vista: Click the Start Button, click on Control
Panel, locate Hardware and Sound, then click on Mouse to con-
figure speed and other options.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Troubleshooting
Modem Troubleshooting
The modem doesn’t work
When you first try to use HyperTerminal or similar applica-
tion, the system responds with a message asking if you want to
install the modem. Answer “Yes” to this question and follow the
instructions on the screen to install it.
note HyperTerminal is not available with Windows Vista.
Make sure the communication settings are correct in your ap-
plication. Refer to the online help for your application.
The modem doesn’t dial a number
Make sure the cables are attached correctly
Make sure your communications parameters are correct in your
application. Refer to the online Help for your application
The modem dials and receives an answer but does
not establish a connection
You may have incorrect parameters selected for your application
to talk with the remote modem. Refer to the online Help for your
application.
You may need to adjust your modem’s baud rate or protocol
selection.
Miscellaneous Troubleshooting
The computer shuts off unexpectedly
The computer has entered suspend mode. Press any key to
resume from the standby state.
The computer has entered hibernate mode. Press the POWER
BUTTON to resume from the hibernate state.
The battery capacity may be low. Connect external power to
charge the battery, or replace the battery with a fully charged
one.
The speaker volume is too high or too low
Decrease the volume by pressing FN+F8. Increase the volume
by pressing FN+F9.
The computer won’t turn on
The battery may not be installed properly, or it may not be fully
charged. Make sure a fully charged battery is properly installed.
Connect external power to charge the battery.
If you are using the AC adapter, check the electrical outlet you are
using to make sure it is actively working.
If the GD6000 computer does not turn on, restart the computer
by holding down the POWER BUTTON for at least 10 seconds,
then release it.
The computer will not come on when the power
button is pressed but the power, external power and
battery indicators flash in sequence.
The unit is too cold to boot safely. Allow the unit to warm up
and it will boot normally. Being connected to external power is
recommended.
The computer won’t turn off
For WindoWs xP:
1. Select Start, Shutdown, Shut down.
2. If that does not work, press CTRL+ALT+DEL and then select
Task Manager.
3. If any programs are open, use your arrow keys to highlight
each one and select End Task. Repeat this until all programs
are closed.
4. Select Start, Shutdown, Shut down again.
5. If that still does not work, press CTRL+ALT+DEL and select
Shut Down.
6. If that still does not work, press and hold the Power Button for
approximately ten seconds and then release it.
For WindoWs vista:
1. Click on the Start Button, point your mouse past the icon and
click on the arrow. This will bring up the shut down/log off
menu. Click Restart to reboot the computer.
2. If that does not work, press CTRL+ALT+DEL and then select
Task Manager.
3. If any programs are open, use your arrow keys to highlight
each one and select End Task. Repeat this until all programs
are closed.
4. If that still does not work, press and hold the Power Button for
approximately ten seconds and then release it.
The computer enters suspend mode too quickly
When there is no activity for a period of time, the computer
turns off or enters suspend mode.
For WindoWs xP: Use the Power Management program to
extend this time (Start, Settings, Control Panel, Power Man-
agement) and increase the non-activity time to enter suspend.
For WindoWs vista: Click on the Start Button and then on
Control Panel. Locate Mobile PC within the Control Panel, then
choose Change Battery Settings. From here, you will be in
the Power Options program. For each plan displayed, select
Change Plan Settings and modify the Put Computer to Sleep
option.
General Dynamics Itronix | 72-0136-004
GD6000 User Guide
Troubleshooting
The computer doesn’t automatically suspend
Exit any application that uses COM ports
Make sure external power is not connected. Depending on
power settings, some systems will not suspend automatically
when they are connected to external power
The system date and time are incorrect
For WindoWs xP: Reset the correct date and time by choos-
ing the Date/Time icon from the Control Panel and making the
appropriate changes.
For WindoWs vista: Click on the Start Button, then go to
the Control Panel. From here, locate the Clock, Language and
Region setting. Under Date and Time, make the appropriate
changes.
I receive an “out of memory” error message
Too many applications may be running at the same time. Close
applications you don’t need.
Make sure you have enough space on your hard disk (at least
15% free).
Restart the computer.
PC Card Troubleshooting
I can’t remove the PC card
Press the ejector button located next to the PC Card Slot on the
right side of the computer. The button will pop out. Press the
ejector button again to eject the PC card. Slide the card out.
If the ejector button malfunctions when you press it, release the
button and then press it again.
Diskette Read Error
Any card in the PC Card slot except for a properly formatted
memory card will cause this error since it is trying to read the PC
Card.
The system does not recognize the PC Card CD-ROM when it is
inserted into the PC Card socket
There is a delay of 10 to 15 seconds before the CD-ROM drive is
recognized.
Drivers may not be installed.
The computer locks up when I remove the PC card
Before you remove the card, select the PC card icon in the sys-
tem “tray” area of the screen (near the clock in the lower right
corner), and choose “Stop [card name] card.”
FAQs
I’ve heard that cleaning up and rearranging files on
the hard drive will improve the startup speed of my
programs. How do I do this?
Hard disk maintenance can improve the startup speed of
programs. This maintenance includes deleting unnecessary
files and defragmenting to rearrange data into more efficient
groupings. Windows includes utilities for performing these
maintenance tasks.
How do I adjust the volume?
There are two methods to adjust the volume:
metHod 1: Double-click the Volume Control icon on the Win-
dows task bar. Adjusting the slide bar will adjust the volume.
metHod 2: Press FN+F8 or FN+F9 to decrease or increase
volume.
You may also press FN+F10 to mute the computer.
How do I change the battery?
See the section on Battery Installation and Removal.
How long will the battery last?
The main Li-Ion battery lasts approximately 2.5 to 3.5 hours
with normal use, depending on your configuration.
How do I change the display brightness?
Press FN+F6 to decrease display brightness
Press FN+F7 to increase display brightness
How do I clean the display?
To clean the display assembly, use a soft, dry cloth. In some
cases, you can use a small amount of water to remove streaks
or smears. Do not use paper products because they can
scratch the screen.
How do I calibrate the touch screen?
1. Select Start, All Programs, Touchkit, Configure Utility.
2. Select 4 pts Cal
3. Touch the tip of the pen to the center of each blinking symbol as
they appear on the screen until calibration is complete.
4. Select OK to save and exit.
