General Dynamics Itronix IX270-MC8765 IX270-MC8765 User Manual
General Dynamics Itronix Corporation IX270-MC8765 Users Manual
Users Manual
![](/img.php?id=694122&img=bg1.png)
Getting Started
This online document, GoBook XR-1 Help, contains all the information you need to set up and use your
GoBook XR-1. For information on printing, navigating or otherwise using GoBook XR-1 Help, see the
How to Use This Help System topics. If you have suggestions for how we may improve this document,
p
lease see Documentation Feedback.
Unpacking Your System
Inside your packaging you will find:
Standard Parts
Standard Features
O
p
tional Features
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 1 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2.png)
Optional Parts and Accessories
Where to Look For Information
About Your Computer
About Windows
Startup Problems?
If your computer does not startup properly, try these solutions first:

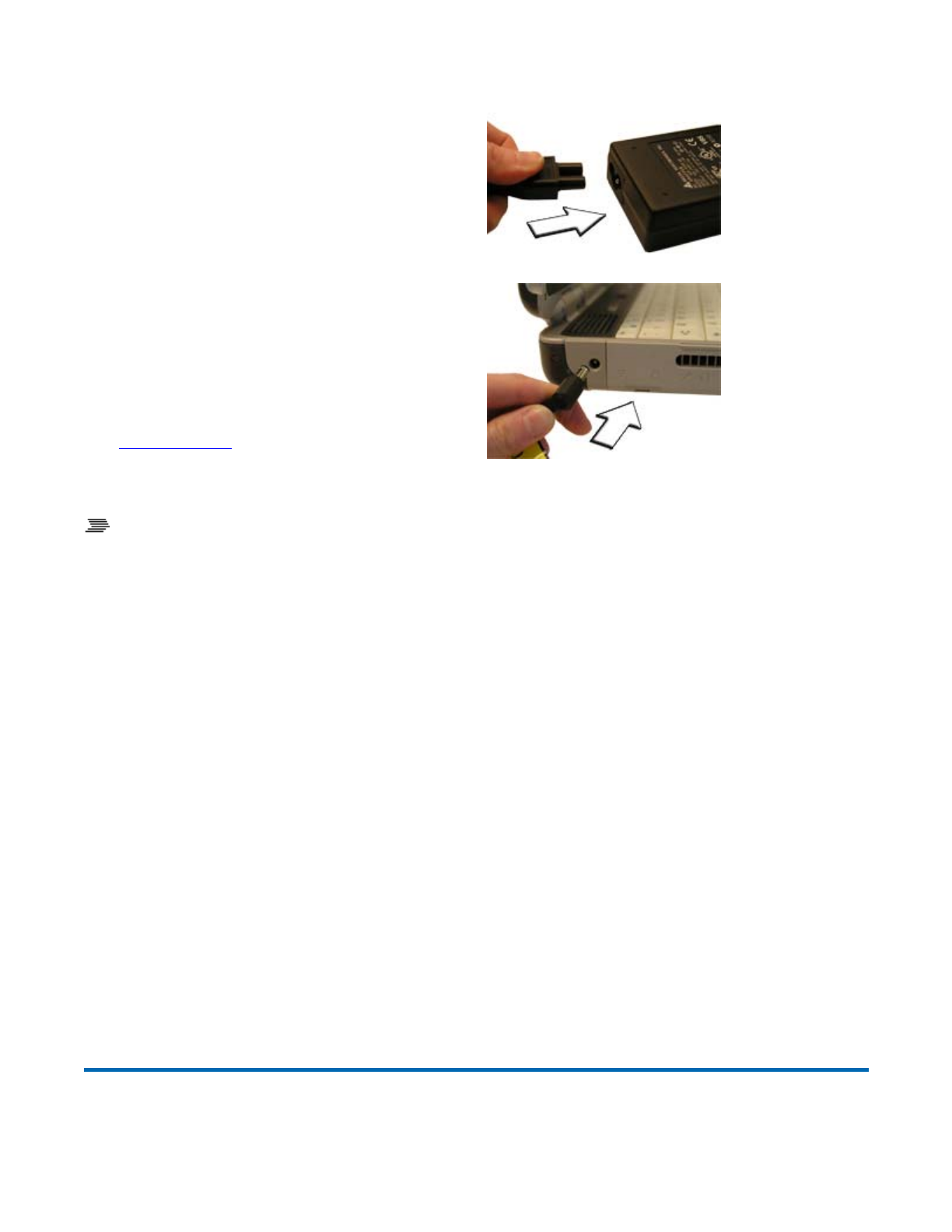

zConnect the AC adapter to charge the battery if it is not charged
NOTE If the AC adapter is connected and functioning properly, the Power LED on the AC
adapter should be lit as well as the External Power LED on the GoBook XR-1.
zIf the AC adapter is connected but the unit will still not turn on, make sure the electrical outlet you
are using works
zCheck to make sure the battery is installed and charged properly
zIf the battery does not begin charging, perform the following:
1. Remove the battery.
2. Connect the AC adapter.
3. Turn on the computer by pressing the Power Button .
4. Reinstall the battery. The Battery LED is a steady green while the battery is charging.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 2 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3.png)
Safety
Read these instructions carefully. Following these guidelines will help prevent damage to your computer
and help protect your personal safety.
zRead and follow all warnings and instructions marked on the product and noted in this
documentation, including the Notices and Compliance section
zFollow all warnings and instructions noted in Windows Help and Support, found on the Start
Menu
zThe first time you use your computer, we recommend that you carefully read the section on Power
Management to familiarize yourself with basic battery information and ensure optimum
performance
zCAUTION To reduce the risk of fire, only use a No. 26 AWG or larger telecommunication line
cord
zCAUTION This notebook computer is designed to be used with the provided dedicated AC
Adapter or Vehicle Adapter
zUnplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning.
Aerosols, solvents, or strong detergents are not recommended cleaning solutions and may void
your warranty. For system decontamination recommendations please contact your service
technician
zSlots and openings in the computer case are for ventilation purposes. Do not block or cover these
openings or the system could overheat
zDo not place the product on a soft surface such as a bed, sofa, or rug where the ventilation slots
and openings may be blocked
zDo not place this product near or over a radiator or heat register
zDo not place this product in a built-in installation unless proper ventilation is provided
zDo not operate the computer at temperatures above 140°F (60°C) or below -10°F (-23C)
zDo not store the computer at temperatures above 167°F (75°C) or below -67°F (-55°C)
zDo not step on or place anything on the power cord
zDo not slam the display lid when you close it
zDo not place any object on top of the computer when the display is closed
zIf you use the computer with an extension cord, ensure that the total ampere ratings of all the
devices sharing the extension do not exceed the rating of the extension cord or the rating of the
wall outlet
Pa
g
e 3 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4.png)
zDo not push foreign objects into the computer through any of the slots or openings. Dangerous
voltages are present, which could cause electric shock, fire, or damage sensitive components
zThe computer is designed to withstand spills. If a spill occurs, power off the computer and wipe it
down before continuing to use the computer
zFor best results, use a power strip with a built-in surge protector. Do not use inferior extension
cords as this may result in damage to your computer
zFAA regulations require that all transmit/receive devices be turned off during flight. If you have
radios in your computer (including GPS) and your computer is equipped with a radio on/off
switch, please use it to turn your radios off during flight. If you have radios and you do not have a
switch to turn the radios off, either leave your computer off during flight or contact your help desk
for assistance
Service and Upgrade Safety and Precautions
zDo not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks and may void your warranty. Refer all servicing to
qualified service personnel
zUnplug this product from the wall outlet and refer servicing to authorized service personnel under
the following conditions:
{When the power cord or plug is damaged or frayed
{If the product does not operate normally when the operating instructions are followed.
Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work by
a qualified technician to restore the product to normal condition
{If the product exhibits a distinct change in performance, indicating a need for service
zDo not upgrade or service this computer without prior authorization from the manufacturer.
Damage caused by servicing that is not authorized may void your warranty
zBefore performing any manufacturer authorized service or upgrade, first follow these instructions:
{Prevent damage from static electricity by following ESD precautions
{Place the computer on a clean, flat surface
{Turn off the computer and disconnect the power supply
{Undock the computer if it is in a docking device (such as an office dock or vehicle dock)
{Disconnect any attached peripherals
{Disconnect an
y
attached network, tele
p
hone or telecommunication line
Pa
g
e 4 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg5.png)
{Remove any PC Cards, EXPRESS Cards, Smart Cards, CDs, DVDs or any other media in
your computer's slots or bays

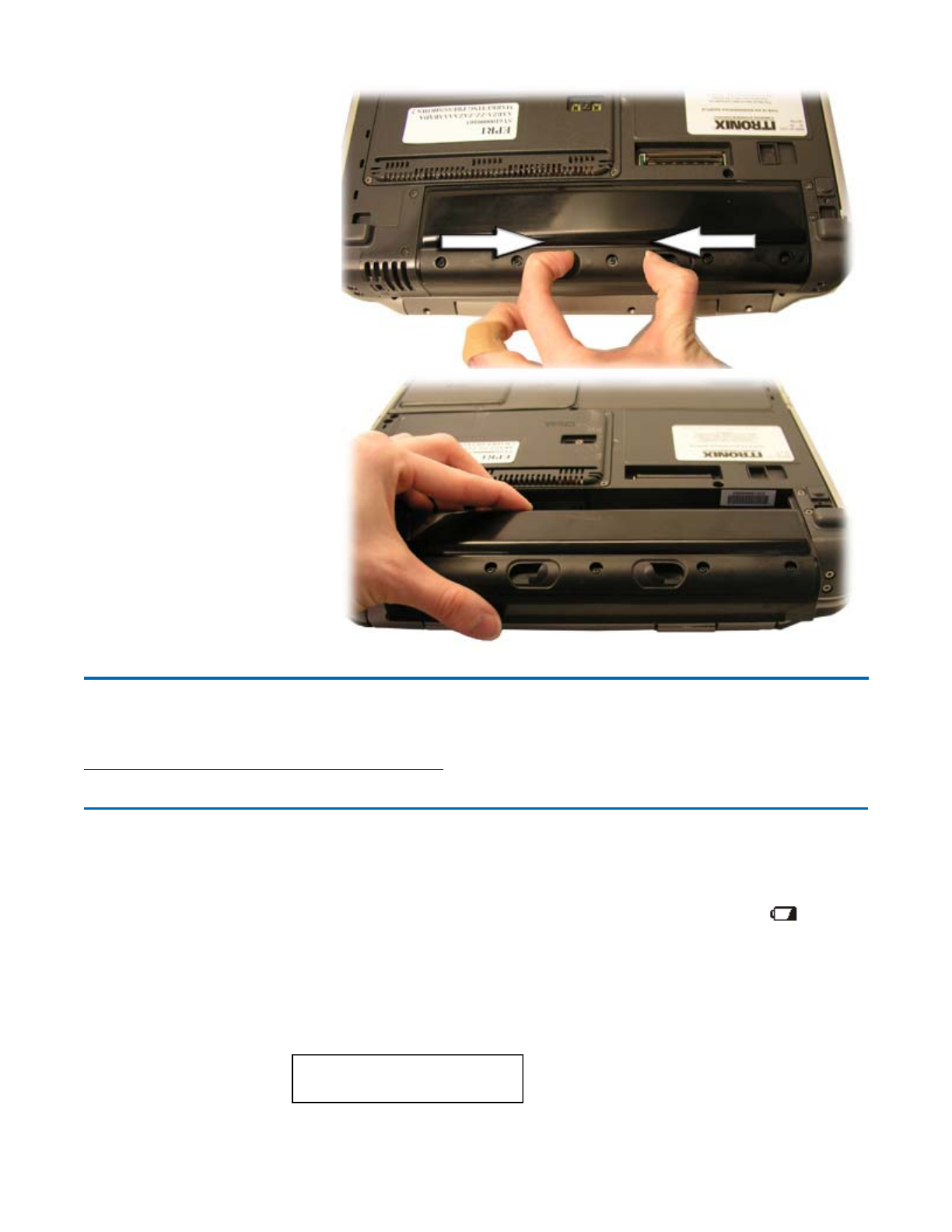

{Remove the battery (See Battery Removal)

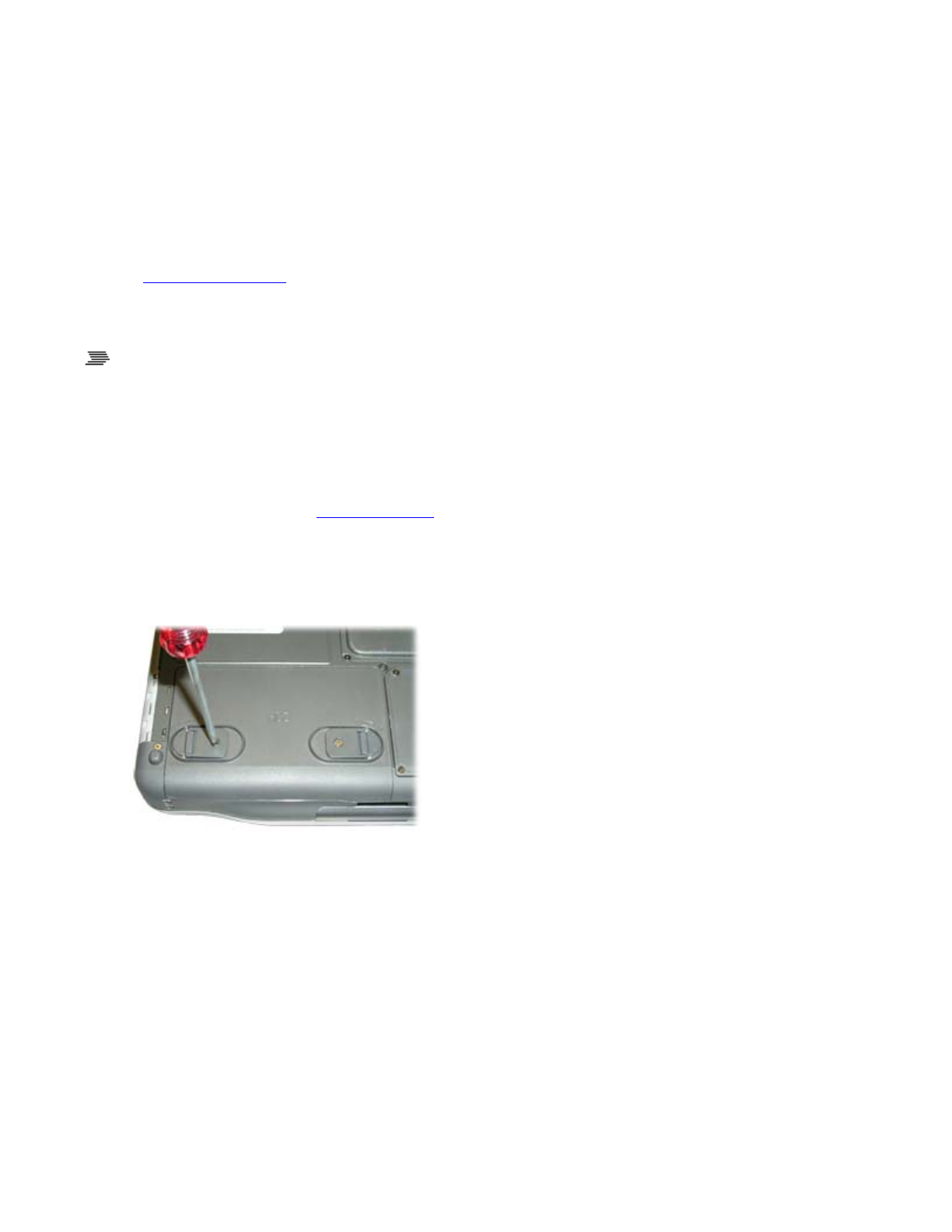

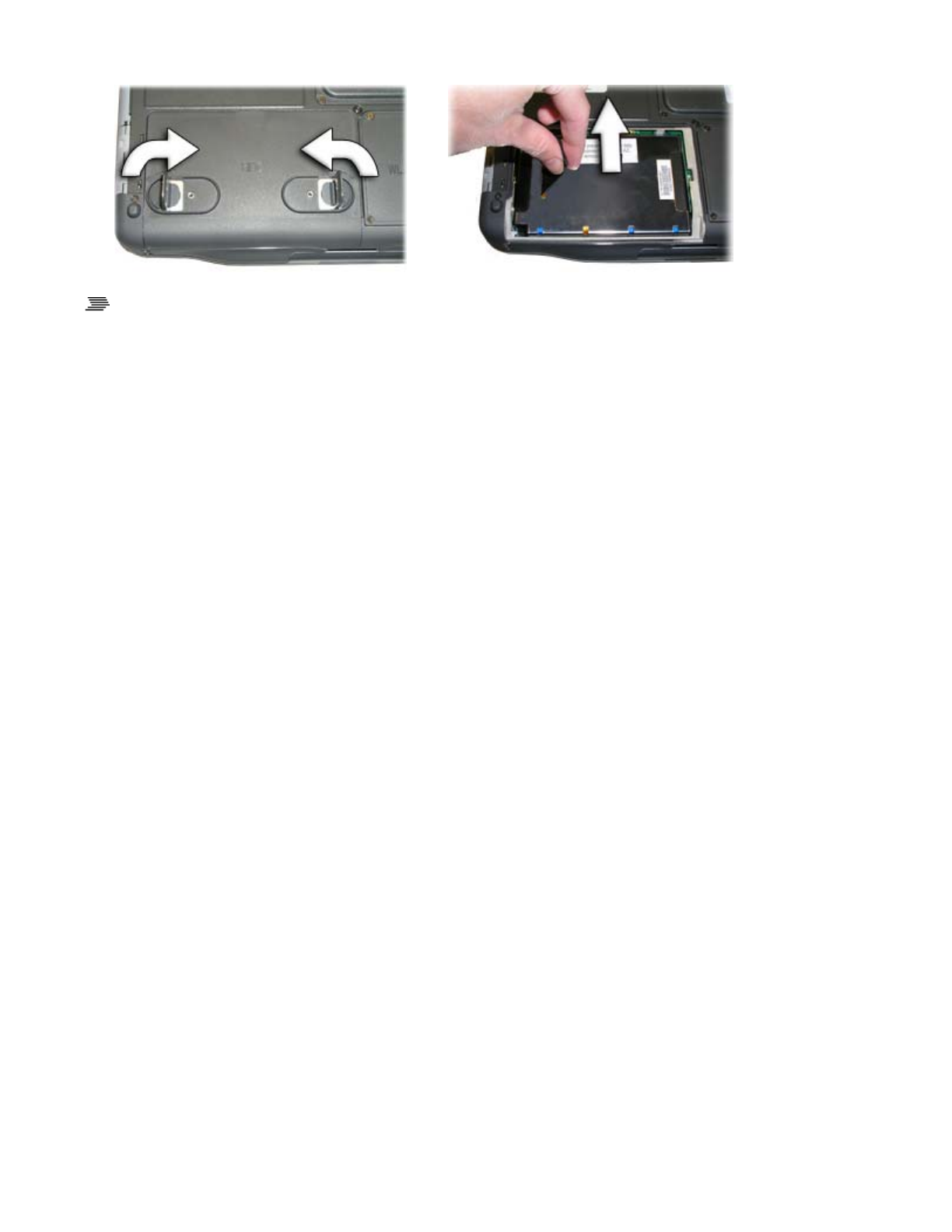

{Remove the hard drive (See Hard Disk Drive Removal)
Battery Pack Safety and Precautions
zWARNING! There is danger of explosion if the battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer. Dispose of used batteries
promptly and according to the manufacturer's instructions
zWARNING! Batteries may explode if not handled properly. Do not disassemble, open, puncture
or dispose of battery packs in a fire. The battery pack could burst or explode releasing hazardous
chemicals
zWARNING! Keep battery packs away from children
zObserve the safety instructions printed on the battery
zOnly use approved Li-Ion battery packs with your computer and replace the battery pack only
with the approved part
zDo not abuse, deliberately pierce, or subject the battery pack to excessive impact
zImmediately discontinue use of the battery if it appears damaged or abnormal in any way, consult
your local provider for advice
zDo not immerse the battery pack in liquid
zDo not short together the battery connections. Do not store the battery pack with metallic objects
due to the risk of short circuit
zBattery chemical leakage is harmful. In the unlikely event of battery leakage; DO NOT TOUCH.
In case of accidental contact with the eyes or skin, immediately wash with running water and seek
medical advice. In the case of accidental ingestion, seek immediate medical attention
zFollow Battery Tips for use and storage.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 5 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg6.png)
Tips for New Owners
zTake responsibility for backup
Back up files often. Users who need to manage large amounts of data may wish to use backup
devices
zCreate a set of recovery CDs or DVDs to recover your hard disk in case it becomes corrupted.
To do this, use the Recovery CD Wizard by selecting Start, Programs, Mobile Computer Tools.
zDon't leave passwords anywhere on your notebook or carrying case
zBe careful when placing your notebook on an airport security conveyor belt
In most airports, security conveyor belts are safe for computers. If you are not sure, ask the
security staff. You should keep a close eye on your computer
zTape your business card to the notebook and accessories
In the workplace, notebooks and accessories may often look exactly alike, leading to equipment
mix-ups. Prevent such mix-ups by placing your name on your equipment
zInstall antivirus software

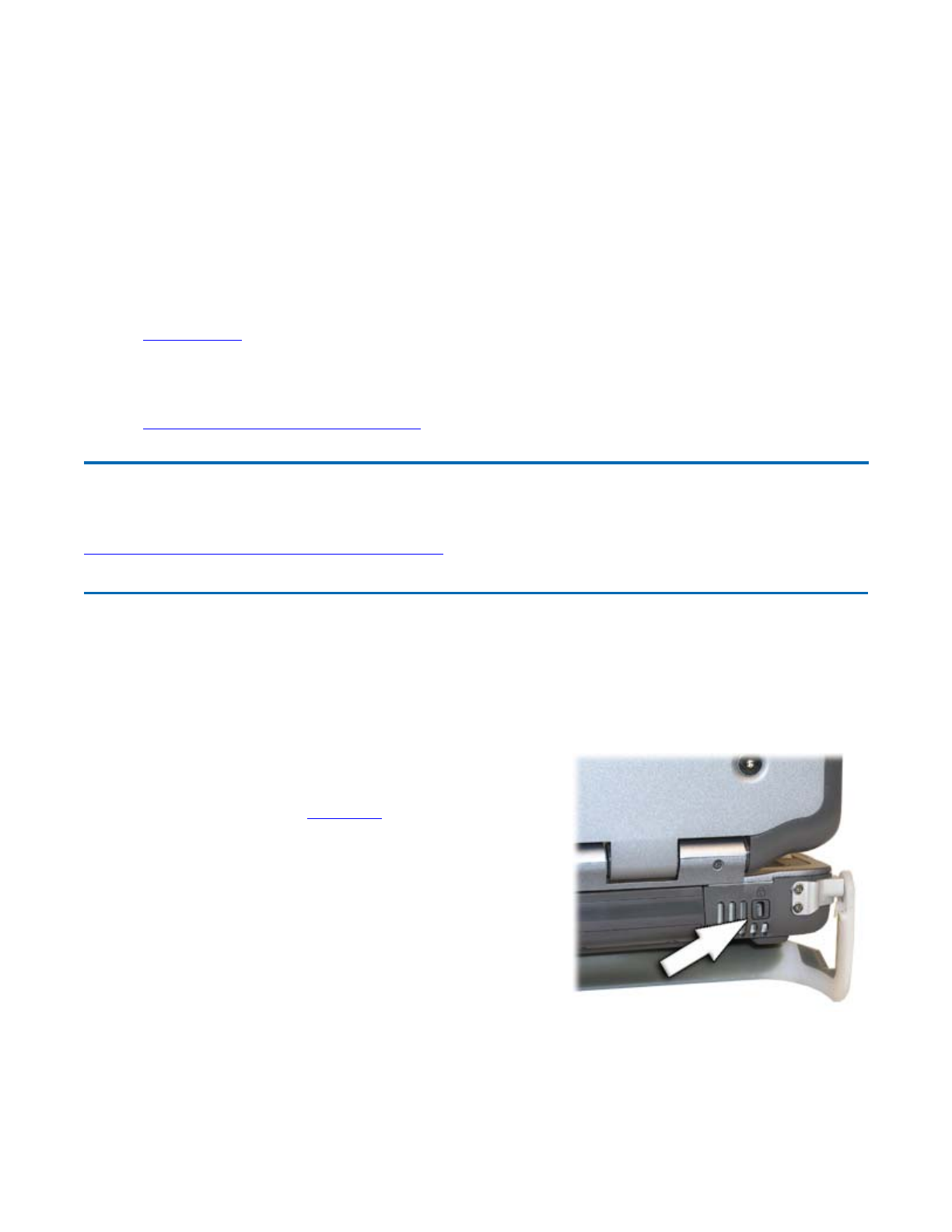

zConsider using a lock
For added security, consider purchasing a computer lock to put into the Security Slot on the back
edge of your computer near the battery. Use the lock to secure the computer to a desk or table
zDevelop ergonomic work habits
The science of ergonomics studies the relationship between health and a suitable work
environment. For more information on ergonomics, contact your nearest computer
bookstore, or local library. The Internet also has information on this and other related
subjects
NOTE Using a computer for extended periods of time with a poor workstation setup and
incorrect work habits can cause health problems
Turning Off the Computer
Turning off the computer properly is important to maintaining your computer.
To Turn off Your Com
p
ute
r
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 6 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg7.png)
Select Start, Shut Down, Shut Down and follow the instructions on the screen.
If you are going to be away from the computer for a short period, there are ways to conserve power
without shutting down the system. See Power Management and Battery Tips for details.
NOTE If you are unable to shut down your computer normally, follow the instructions in
Troubleshooting.
CAUTION Shutting off the computer improperly may result in data loss.
Getting Familiar with Your Computer
The GoBook XR-1 computer is a rugged, weather-sealed laptop computer system designed for the
demanding environment of the mobile worker. It is a superior work tool for collecting, managing, and
communicating information in the field.
This section describes the external and internal features of your GoBook XR-1 computer.
Tour of Your Computer
This section shows all views of your computer with a summary of key features.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 7 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg8.png)

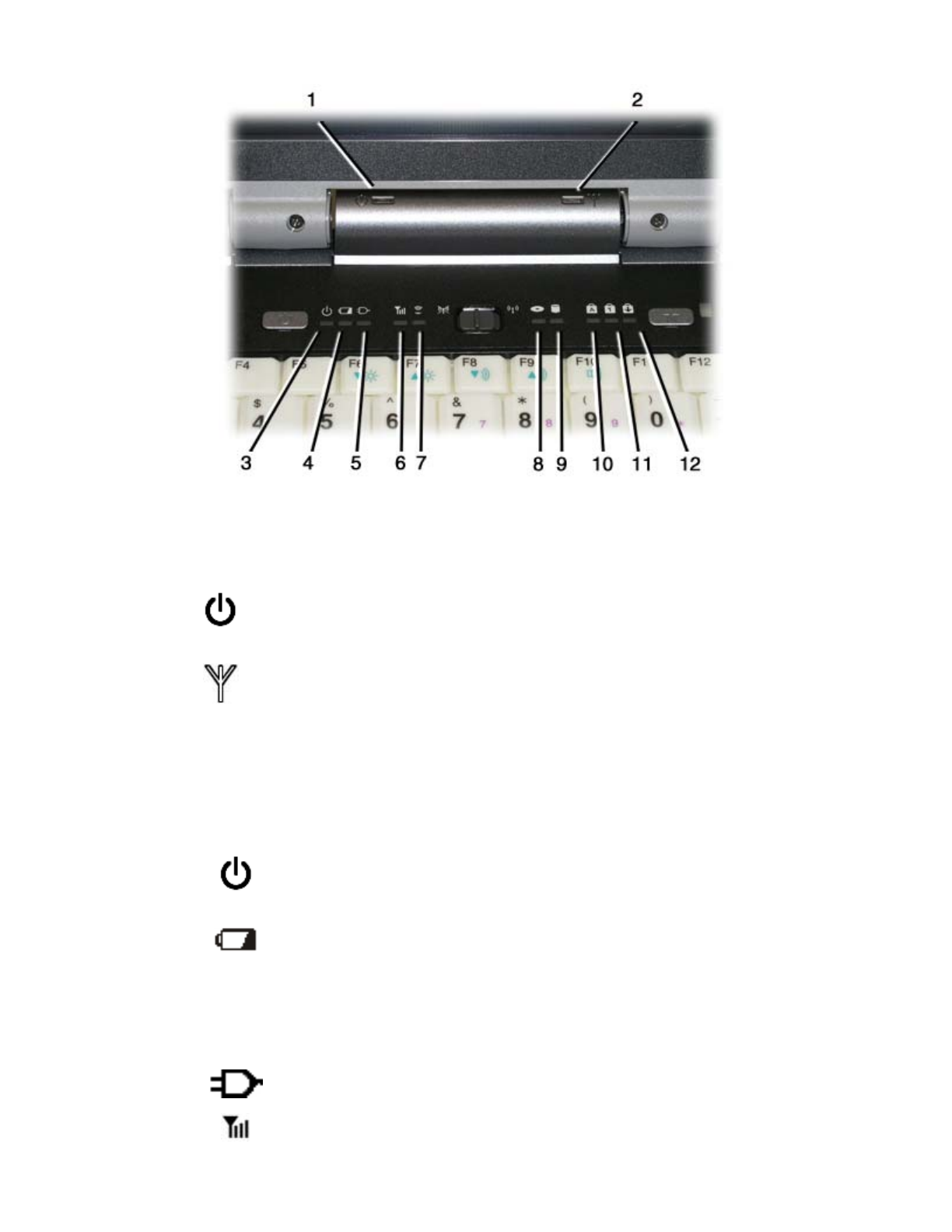

Front View
Hover the mouse over each number on the picture to see a description
# Feature Description
1 Display Latch The display latch holds the display when closed
2 Pen / Stylus
Slot
Two custom touch screen pens (styluses) are stored in slots on
each side of the display
3 Keyboard Standard keyboard with embedded numeric keypad
4 Fingerprint
Scanner
The optional swipe style fingerprint scanner can be used for all
standard security uses
5 Touchpad
Buttons
Use like the buttons on a mouse
6 Internal
Microphone
Integrated, weatherized microphone can be used with various
software applications that require audio input
7 Touchpad Use for navigation
8 Button and
LED strip
Area above the keyboard with the power button, radio on/off
switch, application launch button and LED status indicators
9 Display 12.1-inch, Enhanced XGA, outdoor-viewable, color display with
an integrated touch screen
10 Speakers Integrated stereo speakers for audio output
Pa
g
e 8 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg9.png)

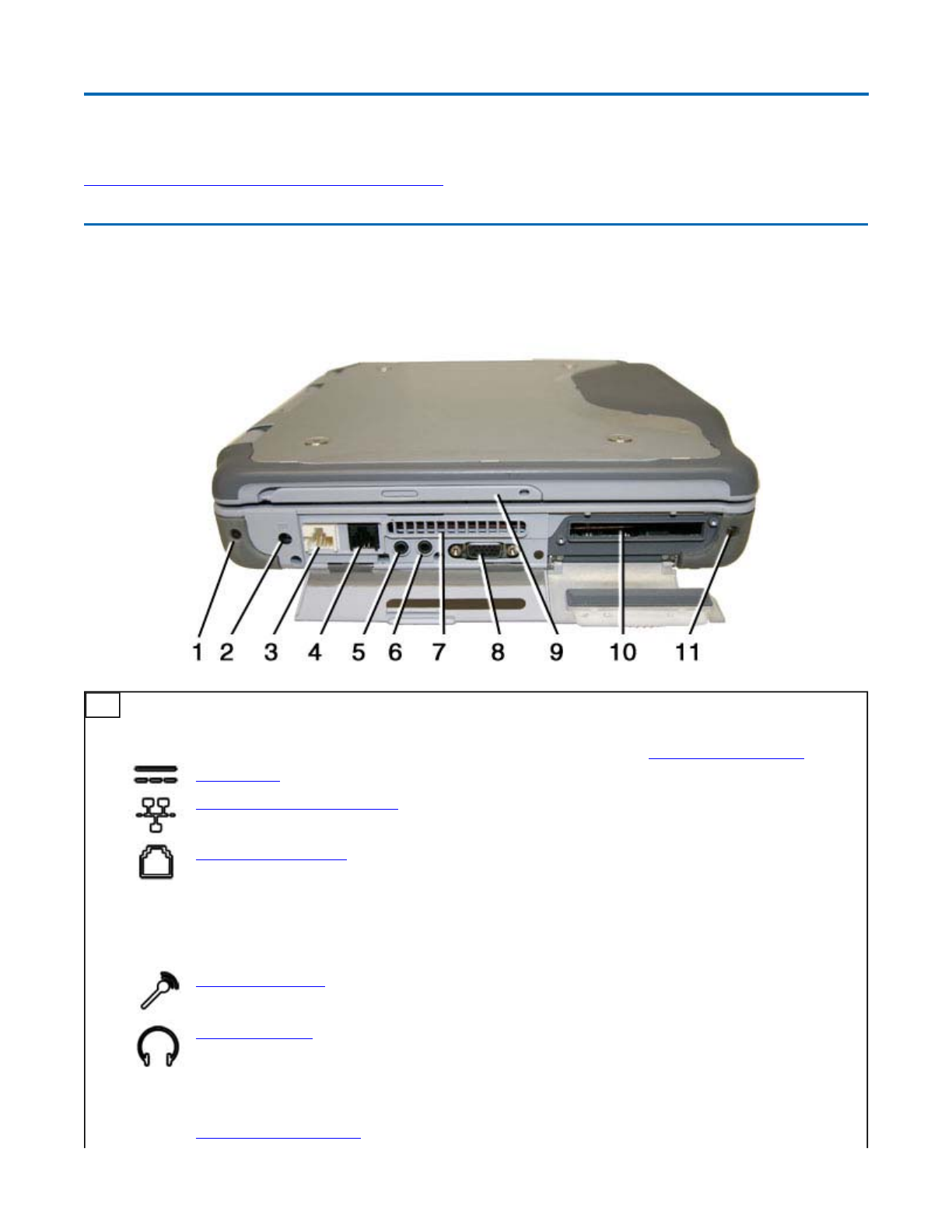

Left Side View
Hover the mouse over each number on the picture to see a description
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
# Icon Feature Description
1 Back Handle Mount The back handle mount, located on both sides of the
computer is used with an optional back handle
2 DC-in Jack Connects to an AC adapter
3
Network Jack (RJ45/LAN) Connects to an Ethernet-based network. Connection
speed is 10/100/1000 Mbps
4
Modem Jack (RJ11) Connects a phone line to the internal fax/data modem.
It can transmit data using the 56 Kbps V.90 or V.92
protocol, and send and receive faxes at 14.4 Kbps.
NOTE In some countries, local regulations may not
permit the use of the fax/modem designed for this
system. In this case, you may use a PCMCIA modem
5
Microphone Jack Connect a microphone to this jack to record audio
6
Audio Out Jack Connect external speakers or a stereo headset to this
j
ack to listen to multimedia
7 Cooling Fan Exhaust Cooling Fan exhaust area. Do Not Block. This area
may become hot as air vents from the computer

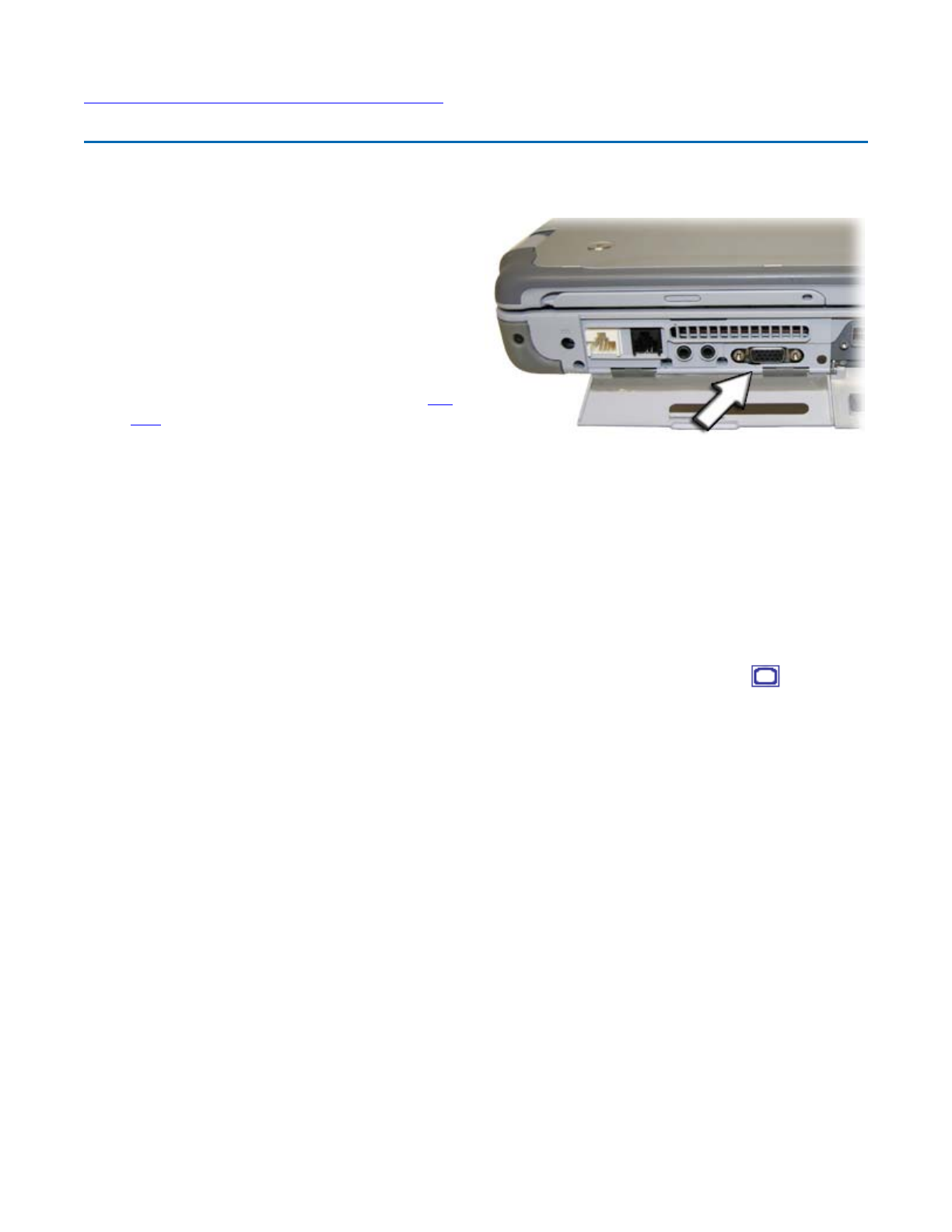

8 External Monitor Port Connects to a display monitor (up to 2048x1536
Pa
g
e 9 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bga.png)

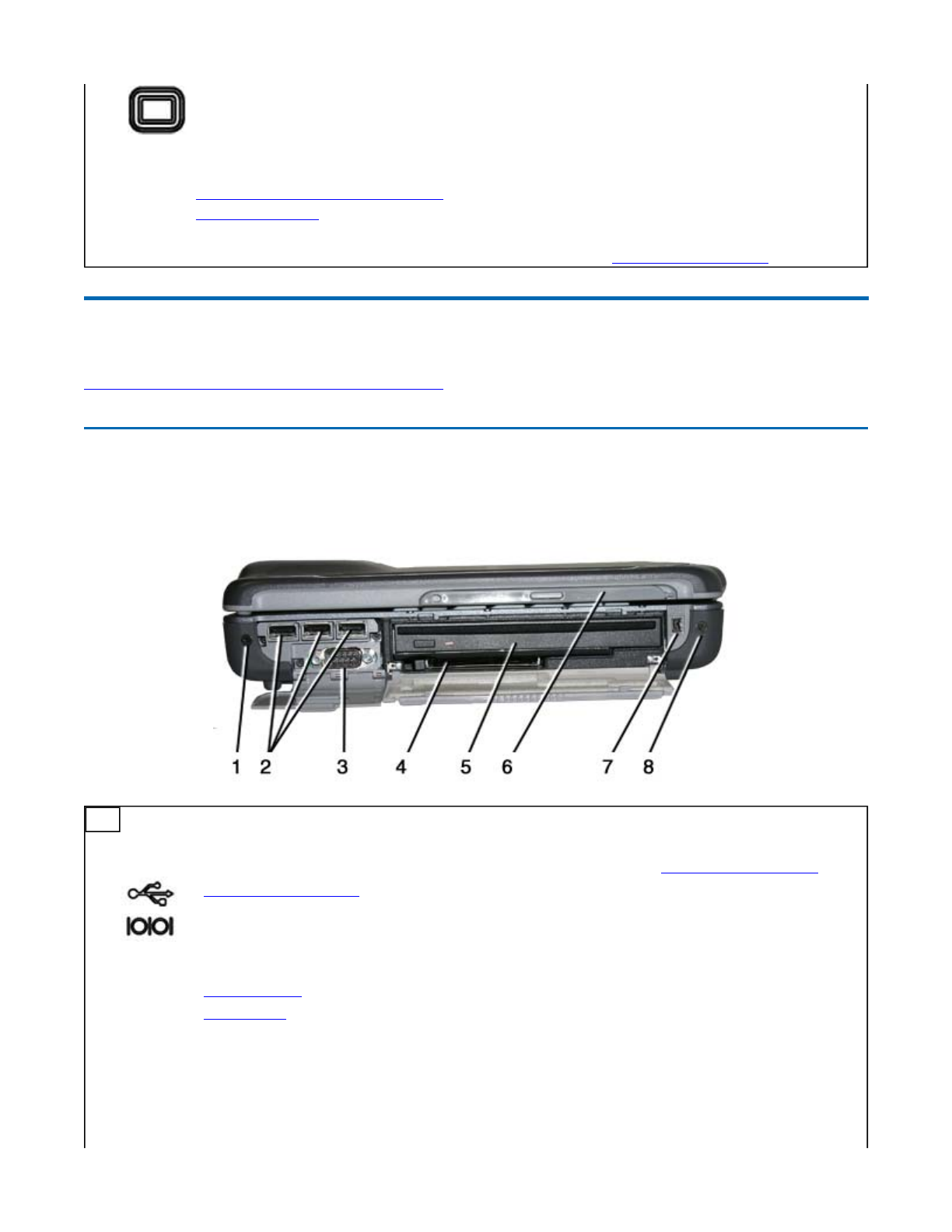

Right Side View
Hover the mouse over each number on the picture to see a description
resolution)
9 Pen / Stylus Slot Two custom touch screen pens (styluses) are stored in
slots located on each side of the display.
10 Smart Card Reader or EXPRESS
Card Slot option
Depending on your configuration, use with a Smart
Card EXPRESS Card
11 Front Handle Mount The front handle mount, located on both sides of the
unit, is used with an optional front handle.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
# Icon Feature Description
1 Front Handle Mount The front handle mount, located on both sides of the
computer, is used with an optional front handle
2 Three 2.0 USB Ports Connects to USB devices (e.g., USB digital camera)
3 Serial Port Connects your computer to serial devices such a
fax/modem or a serial mouse. This port is identified
as COM1
4 PC Card Slot Use this slot for PC Card devices
5 Media Bay Combo DVD-ROM/CD-RW, DVD Multi-Drive
(DVD-RAM/DVD-ROM/DVD-RW/CD-R/CD-
ROM/CD-RW), or second battery module
6 Pen / Stylus Slot Two custom touch screen pens (styluses) are stored
in slots located on each side of the display.
7 IEEE 1394 (Firewire™)Port Use this port to connect IEEE 1394-compatible
Pa
g
e 10 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bgb.png)
Bottom View
Hover the mouse over each number on the picture to see a description
devices, such as digital cameras, to the computer
8 Back Handle Mount The back handle mount, located on both sides of the
computer is used with an optional back handle
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
# Feature Description
1 Dual External Antenna
Connector (DEAC)
The DEAC gives you the ability to switch the internal
WLAN and CRMA to an external antenna to gain better
performance when you are in a vehicle.
2 CRMA Express Module Upgradeable WWAN radio module (optional)
3 Memory compartment User expandable memory slot
4 WLAN compartment Integrated wireless LAN radio
5 Hard Disk Drive Locks Open and turn these to lock or unlock the removable hard
disk drive
6 Docking Connector 84-pin cradle connector that mates with the Vehicle Dock,
or Office Dock
Pa
g
e 11 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bgc.png)

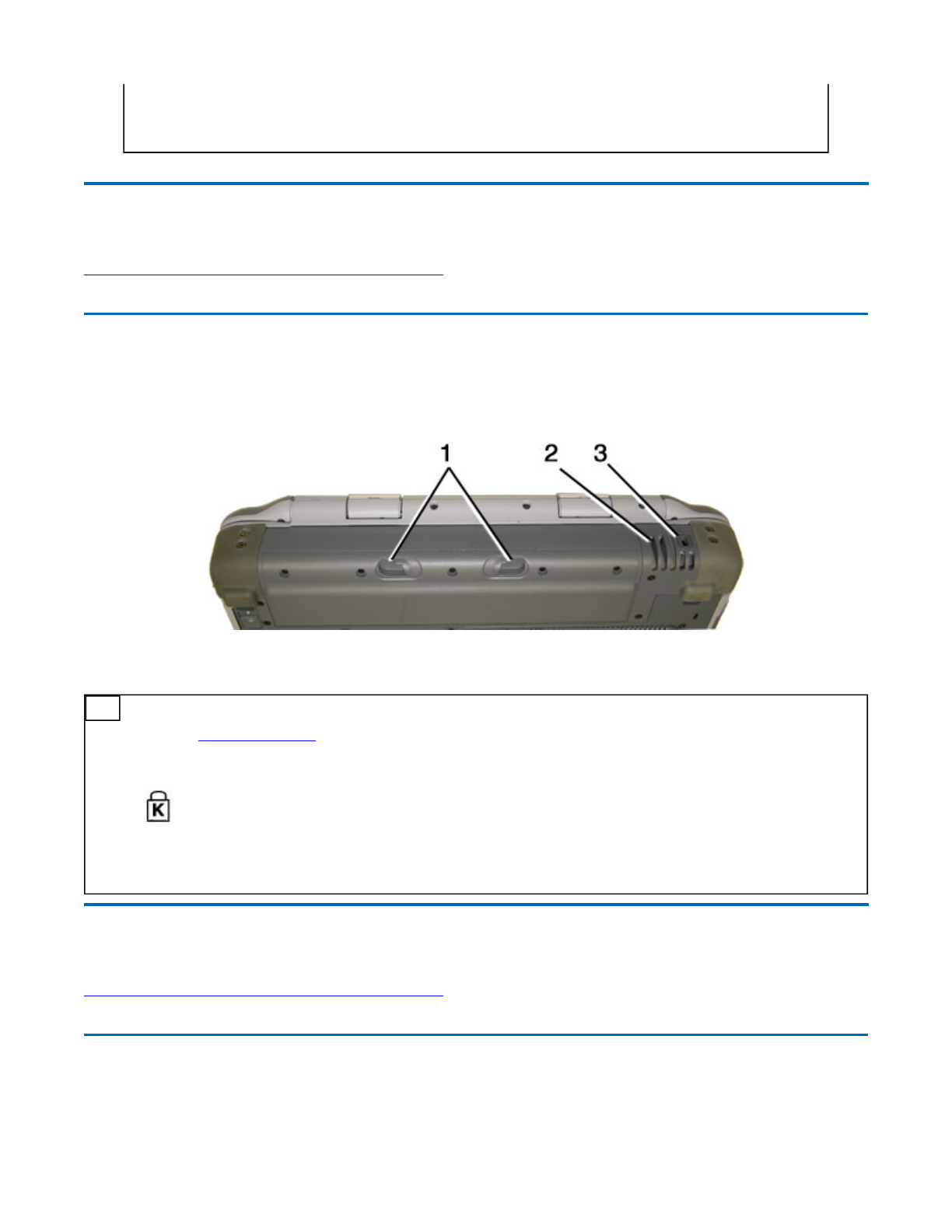

Back Edge View
Hover the mouse over each number on the picture to see a description
Keyboard Basics
The GoBook X
R
-1 features:
7 Media Bay Release After unlocking the media drive, slide this to release the
media drive
8 Media Bay Lock Slide this to unlock the media drive before releasing it
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
# Icon Feature Description
1 Battery Release Latches Slide these toward the center of the unit to release the
battery
2 Cooling Fan Intake Air intake for fan. Do NOT block this area
3
Security Slot The Security Slot can be used with a standard laptop-
locking device, such as a Kensington Lock. You can
connect the computer to a large object with the lock to
prevent theft. See the documentation that comes with
your lock for more information.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 12 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bgd.png)
zFull size, glow-in-the-dark (GID) keys on a 85-key keyboard
zTwelve function keys
zEmbedded numeric keypad
zApplication launch button (programmable button)
zRadio ON/OFF switch (option)
zErgonomically designed wide palm rest located below the keyboard.
Primary Keys
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Key Description
Alt The Alt (alternate) key is used with other keys to perform special tasks. On some
o
p
eratin
g
s
y
stems
p
ressin
g
Ctrl+Alt+Del twice soft reboots the com
p
uter .
Backspace
The Backspace key, sometimes represented on the keyboard as a left arrow, moves
the cursor one
p
osition to the left. The character to the left of the cursor is erased.
Caps
Lock Pressing the Caps Lock key one time locks keys A through Z in the UPPER CASE
position. Pressing the Caps Lock key again returns the letters to lower case. While
in the upper case mode, pressing the Shift key results in lowercase characters
when entered. You still have to use the Shift key to display characters located on
the upper portion of the keyboard. For example, press Shift+8 to type an asteris
k
(*), even when the Caps Lock key is activated.
The Ca
p
s Loc
k
LED li
g
hts when the ke
y
board is in Ca
p
s Lock mode.
Ctrl The Ctrl (control) key works with other keys to perform a variety of functions.
Enter The Enter key signals the computer that you have completed your entry. This is
y
our wa
y
of tellin
g
the com
p
uter to
p
rocess the information that
y
ou have entered.
Esc The Esc (escape) key allows you to exit a pop-up window or message box.
Prtsc In Windows, pressing the Prtsc (print screen) key or ALT+Prtsc key copies the
current screen or window to the cli
p
board so
y
ou can
p
aste it into documents.
Shift The Shift key changes the keys A through Z to the UPPER CASE position. When
you press an alphabetic key, the character appears as a capital letter. When you
press Shift with other keys, the characters on the upper part of the keys appear.
For exam
p
le,
p
ressin
g
Shift+7 dis
p
la
y
s an am
p
ersand
(
&
)
.
Fn Some special Fn (function) keys have been established to perform important tasks
when pressed and held with the Fn key. These keys are described later in this
document. The Fn key legend is color keyed to other special keys on the
ke
y
board.
Pa
g
e 13 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bge.png)

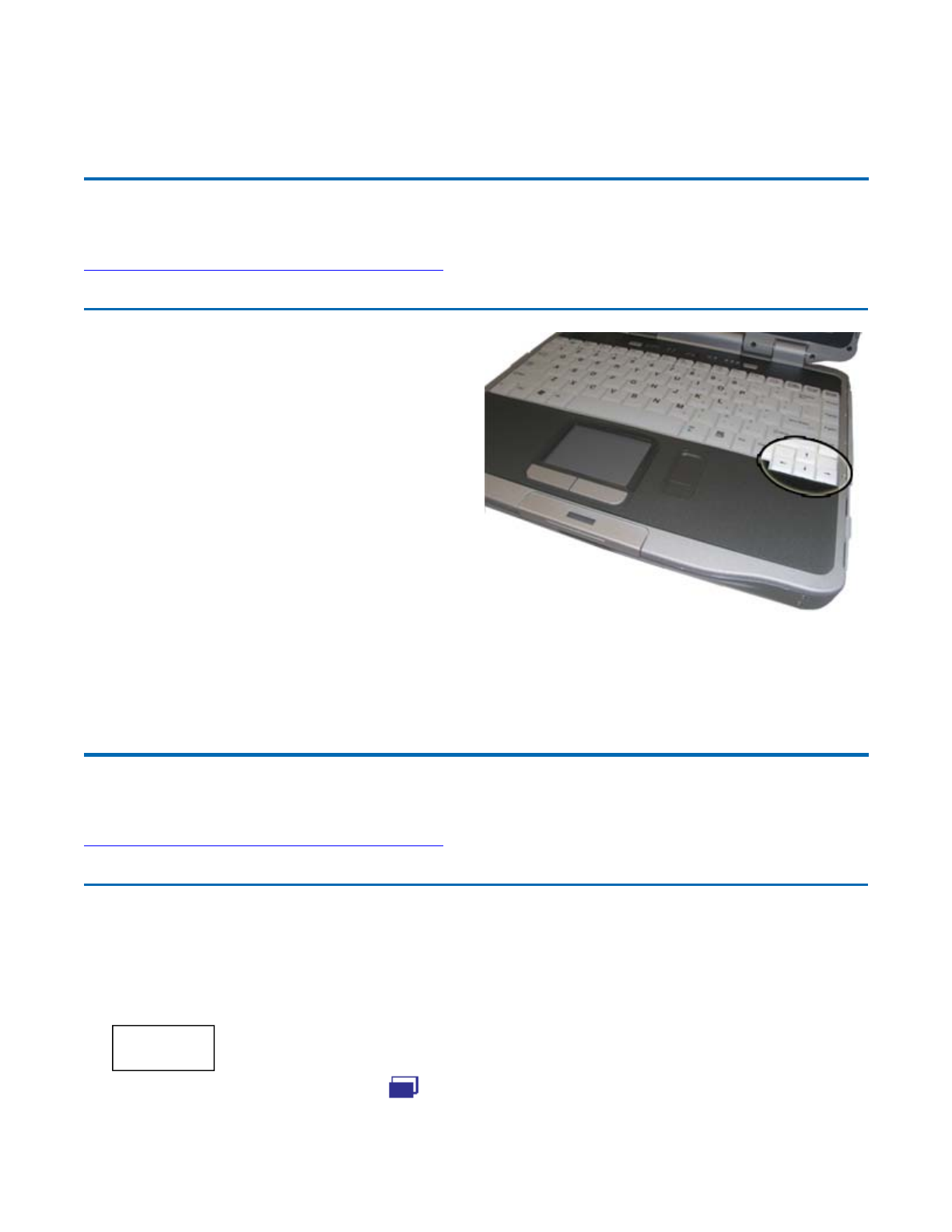

Arrow Keys
The arrow keys are defined by the software
application.
The up arrow key usually moves the cursor up one
line. In some cases, you can use the up arrow to
make selections from menus and scrollable list
boxes.
The down arrow key usually moves the cursor down
one line. In Windows, you can use the down arrow
to make selections from menus and scrollable list
boxes.
The right arrow key usually moves the cursor one character position to the right.
The Left arrow key usually moves the cursor one character position to the left.
Function Keys and Key Combinations
When using function keys, press and hold the Fn key before pressing the other key in the key
combination.
spacebar Use the spacebar to enter a space and move the cursor one character to the right.
Tab The Tab key moves the cursor to the next tab stop or field. Tab stops are defined
by your operating system or application program. Press the Tab key to move from
one field or text box to another.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help

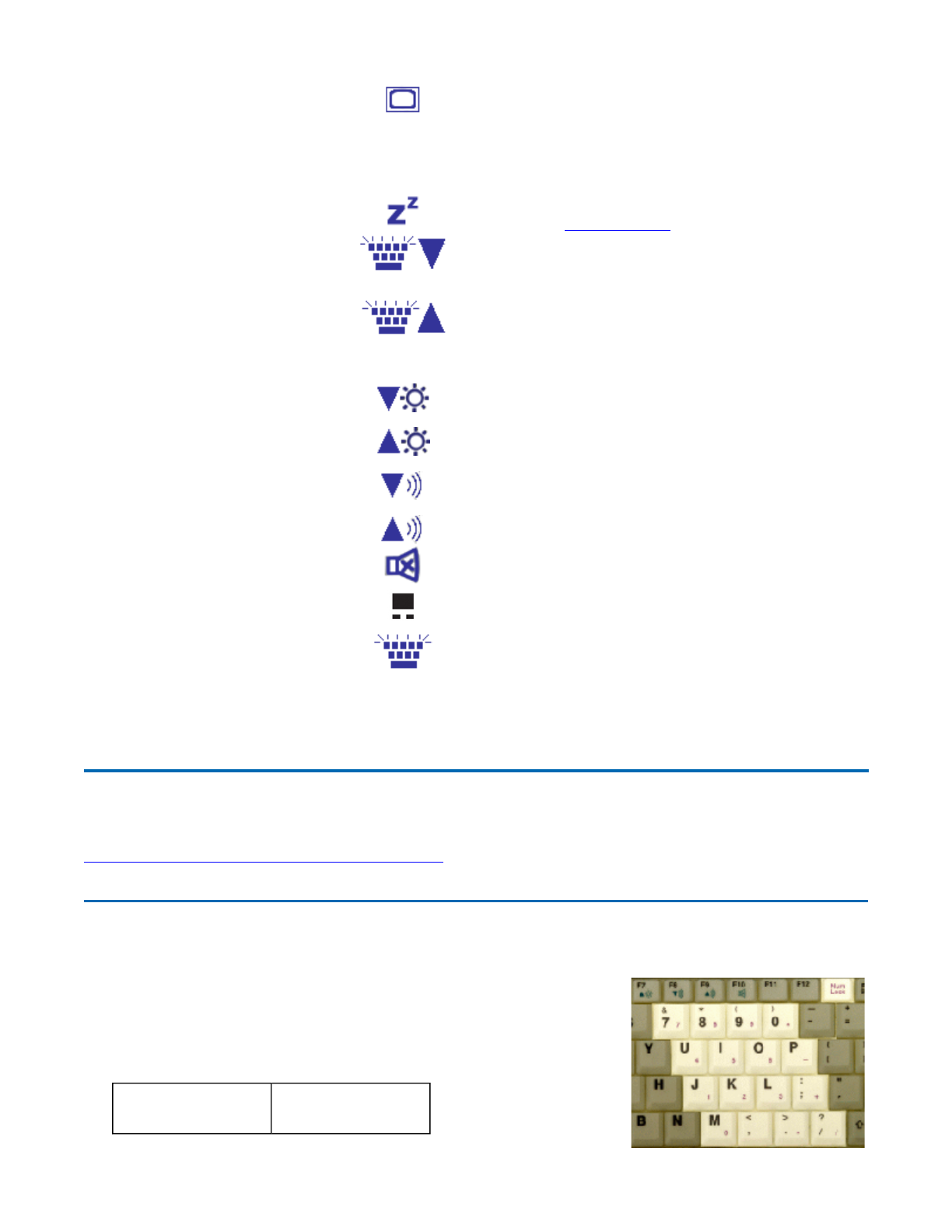

Function
Key
Function Icon Description
Fn+F1Screen
blank Turns off the display screen backlight and turns
off the external monitor, if attached. Press any
key to turn it back on.
Pa
g
e 14 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bgf.png)
Numeric Keypad
The embedded numeric keypad consists of sixteen keys that make
number intensive input more convenient. It is indicated by small
characters located on the lower right corner of the key. Press NumLk to
enable or disable the numeric keypad.
Fn+F2Display
toggle Switches the display output between the display
screen, external monitor (if connected) and both
the display screen and external monitor
NOTE When a DVD or VCD is playing, this
hotkey is disabled.
Fn+F3Standby
Puts the computer in standby mode, which can
be defined with Power Saver.
Fn+F4Keyboard
Backlight
Brightness Down
Decreases the keyboard backlight brightness if
you have the optional EL keyboard.
Fn+F5Keyboard
Backlight
Brightness
Up
Increases the keyboard backlight brightness if
you have the optional EL keyboard.
Fn+F6Display
Brightness Down Decreases the screen brightness
Fn+F7Display
Brightness Up Increases the screen brightness
Fn+F8Audio Volume
Down Decreases the audio volume
Fn+F9Audio Volume Up Increases the audio volume
Fn+F10Speaker
on/off Turns the speakers on and off; mutes the sound
Fn+Ri
g
ht
AltTouchpad
on/off Toggles the touchpad on and off
Fn+ Left
Shift
Keyboard
backlight
Toggles the keyboard backlight (option) on and
off
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Standard Key Key with
Numlock On
Pa
g
e 15 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg10.png)
Lock Keys
The keyboard has three lock keys which you can toggle on and off.
7 7
8 8
9 9
0 *
U 4
I 5
O 6
P -
J 1
K 2
L 3
; +
M 0
. .
/ /
Enter Carriage Return
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Lock Key Description
Caps Lock Pressing the Caps Lock key one time locks keys A through Z in the
UPPER CASE position. Pressing the Caps Lock key again returns the
letters to lower case. While in the upper case mode, pressing the Shift key
results in lowercase characters when entered. You still have to use the
Shift key to display characters located on the upper portion of the
keyboard. For example, press Shift+8 to type an asterisk (*), even when
the Caps Lock key is activated.
The Ca
p
s Loc
k
LED li
g
hts when the ke
y
board is in Ca
p
s Lock mode.
Num Lock When Num Lock is on, the embedded keypad is in numeric mode. The
keys function as a calculator (complete with the arithmetic operators +, -,
*, and /). Use this mode when you need to do a lot of numeric data entry.
Alternately, connect an external keypad. See External keyboard.
The Num Loc
k
LED li
g
hts when the ke
y
board is in Num Lock mode.
Scroll Lock Enters Scroll Lock mode. Scroll Lock varies between applications. It does
not work with some applications.
Pa
g
e 16 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg11.png)
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Radio ON/OFF Switch
(option)
CAUTION FAA regulations require
that all transmit/receive devices be
turned off during flight. If you have
radios in your computer (including GPS)
The Scroll Lock LED lights when the keyboard is in Scroll Loc
k
mode.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Key Icon Description
Windows Logo Key Start button. Combinations with this key perform special
functions. Below are a few examples:
+ TAB (Activates next Taskbar button)
+ E (Opens My Computer in Windows Explorer)
+ M (Minimizes all Windows)
SHIFT + + M (Restores Minimized Windows)
+ R (Displays Run dialog box)
Refer to Keyboard Shortcuts in Windows Help and Support for
a complete list of Windows key combinations.
Application Key Opens the application's context menu (same as right-click)
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 17 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg12.png)
and your computer is equipped with a
Radio ON/OFF switch, please use it to turn your radios off during flight. If you have radios and you do
not have a switch to turn the radios off, either leave your computer off during flight or contact your help
desk for assistance.
The wireless Radio ON/OFF switch is the middle button above the keyboard. This switch toggles the
p
ower on and off to all radio devices. Radio devices include GPS, Bluetooth, WLAN, and WWAN
radios.
To Turn all Radios on or off
1. Slide the radio switch to the left to power off all radio devices (airplane mode).
2. Slide the radio switch to the right to turn radio power on.
Application Launch Button
The application launch button is the right button
above the keyboard. By default the application
launch button opens the Power Saver
Application.
To program the Application Launch Button
1. Click the Launch Button Control icon
in the taskbar .
2. Select the a
pp
lication
y
ou want it to o
p
en:
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 18 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg13.png)
3. Default Internet browser
4. Default email application
5. Notepad
6. Application of your choice with a .exe, .com or .bat extension.
3. If selecting your own application, press the "..." button and browse to the application and select
Open.
4. Select the check mark button to save and close. Select the X mark button to cancel and close.
Touch Screen Display
The GoBook XR-1 features a 12.1-inch, XGA, outdoor-viewable, hi-bright, color display with an
integrated touch screen. You can start programs and input data on the touch screen using one of the
approved pens (styluses) that come with the computer. The Colorvue™ Transmissive display
technology uses a built-in backlight for easy reading in most ambient light conditions. The backlight
remains on whenever the display is on. The transmissive display enhancement provides improved
outdoor visibility and even works well in sunlight.
Touch Screen Calibration
To Calibrate the Touch Screen
1. Remove a pen (stylus) from one of the slots on either
side of the display.
2. Select Start, All Programs, Touchkit, Configure
Utility.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 19 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg14.png)

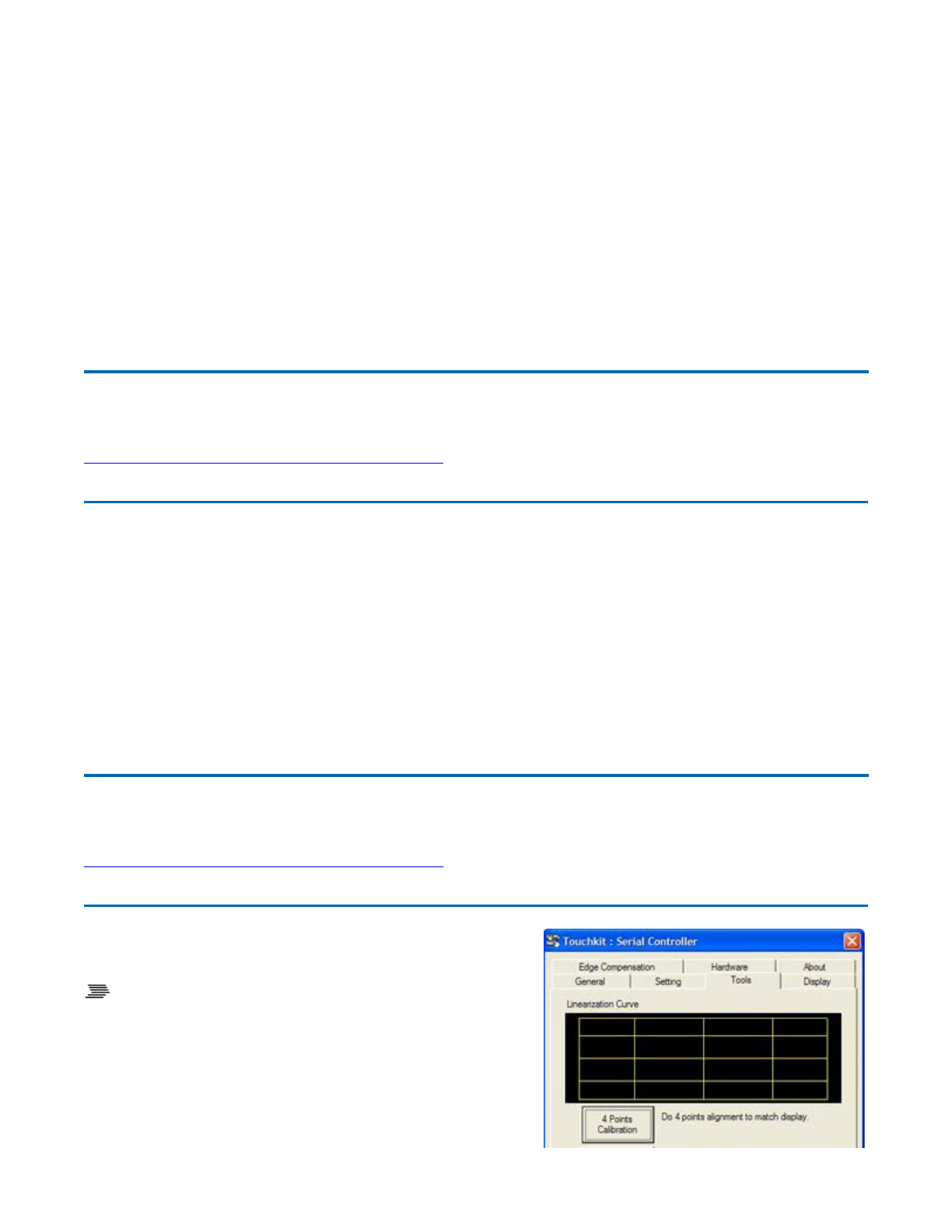

3. Select the Tools tab.
4. Select the 4 pts Calibration button for basic touch screen calibration. Select the Linearization
button for better touch screen linearity.
5. Touch and hold the tip of the pen to the center of each blinking symbol as they appear on the
screen until calibration is complete.
6. Select OK to save and exit.
Adjusting Display Brightness
To Manually Adjust Display Brightness
Function keys increase or decrease the display brightness.
zPress Fn + F6 to decrease display brightness
zPress Fn + F7 to increase display brightness
Automatic Dim Feature
To save battery power, your computer automatically dims the display when the computer is not attached
to external power.
N
OTE You may still manually adjust display brightness.
See Managing Power for more information on power management features.
To Enable or Disable Automatic Dim
1. Restart the computer by selecting Start, Shut Down, Restart.
2. Press Del during boot up to open the Setup Utility.
3. Select CMOS Setup Menu.
4. Use the ri
g
ht arrow ke
y
to select the Advance
d
screen.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 20 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg15.png)

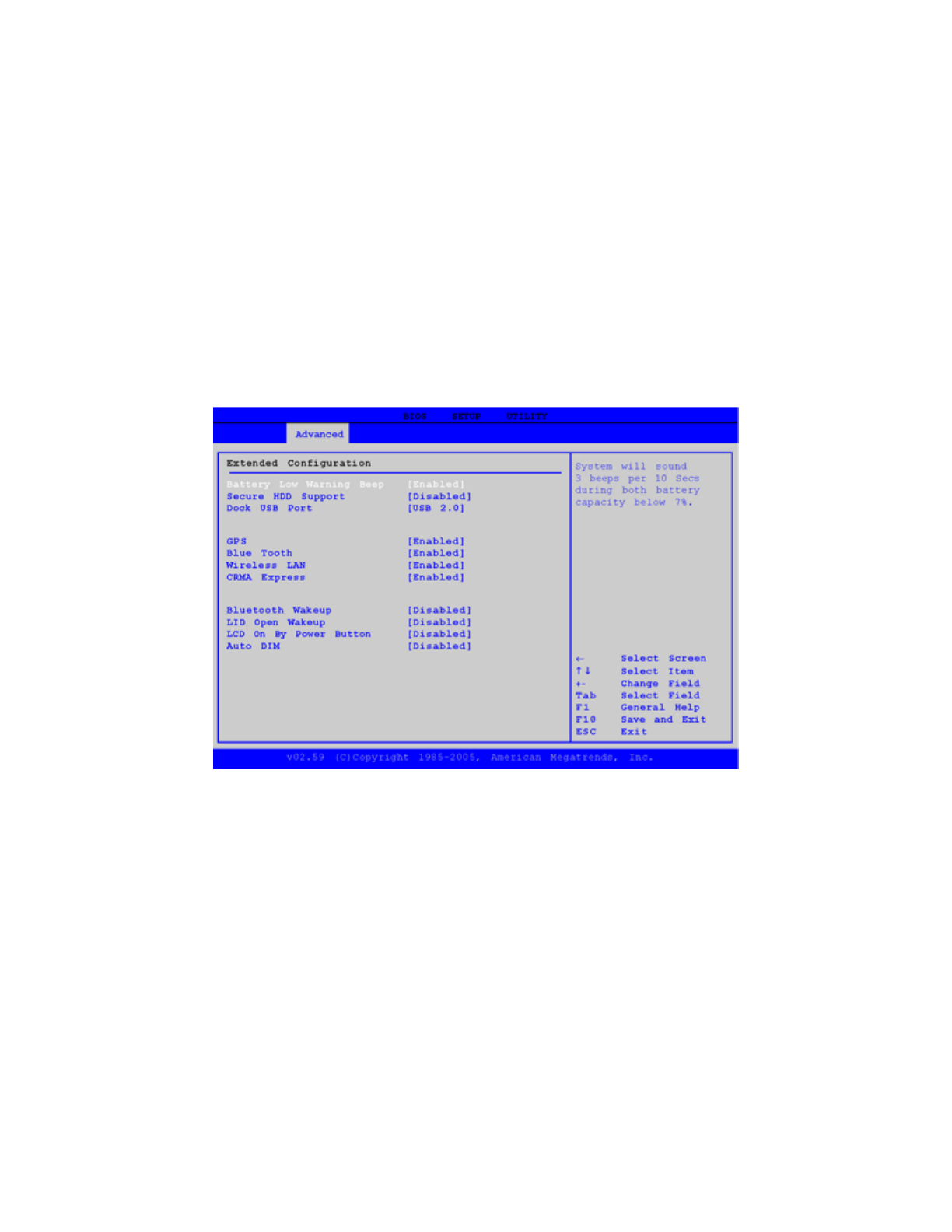

5. Use the down arrow to select Extended Configuration and press Enter.
6. Use the down arrow to select Auto DIM and press Enter.
7. Choose Enabled or Disabled and press Enter.
8. Press F10 to save this setting and exit CMOS Setup.
Adjusting Display Resolution
To Adjust Display Resolution
1. Right click on the desktop.
2. Select Properties and then select the Settings tab. The dialog box indicates the monitor screen
resolution.
3. Use the Screen Resolution slide bar to adjust the resolution. Normally, you should use the
resolution suggested for the display or monitor.
N
OTE Using a lower resolution than the screen was designed for will reduce the area of the display.
Higher resolution modes may be used, as long as the monitor supports them.
Simultaneous or Extended Display
The computer's crisp display and multimedia capabilities are great for viewing movies or giving
p
resentations. If you prefer, you can also connect an external monitor. This computer supports
simultaneous LCD and external display output via the external monitor port located on the left side of
the computer. You can also connect other output display devices such as LCD projection panels for
large-audience presentations. See Attaching an External Monitor or Video Device for more information.
FEATURE When using an external monitor you can extend your desktop. This allows you to open and
view one
p
ro
g
ram on the external monitor while viewin
g
a different
p
ro
g
ram on
y
our la
p
to
p
's dis
p
la
y
.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 21 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg16.png)
To set this up:
1. Right click on the desktop.
2. Select Properties to open the Display Properties Dialogue box.
3. Select the Settings tab.
4. Click on the "2" in the Monitors section.
5. Check "Extend my Windows desktop onto this monitor".
6. Select Apply and OK to save and exit.
7. Now you can drag the programs you want to view onto the external monitor.
Lid Switch
Your computer has a lid switch that can automatically suspend your computer when you close the
display and resume your computer when you open the display.
To Close the Display
To close the display lid, fold it down gently until the display lid latch clicks into place.
To Change the power management settings for the lid switch
1. On the System Tray area of the Taskbar, right-click the Power Saver icon ( or ).
2. From the menu, select Configure Power Settings.
3. Select the Advanced button.
4. Select what you want to happen when you close the display lid:
{Turn off display
{Stand By
{Hibernate
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 22 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg17.png)
5. Check the Wakeup box if you want the computer to resume when you open the display lid.
LCD Heater
The GoBook XR-1 has an CCFL heater to improve display brightness in a cold environment. The
heater includes a film and heater strip that is bonded over the CCFL area of the display. It is designed to
turn on when the temperature is cold enough to impact display brightness. It does not require user
intervention.
LED Status Indicators
The activity indicators, located above the keyboard and in the display hinge, light up when a particular
function of the com
p
uter is active. Each indicator is marked with an icon.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 23 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg18.png)
Display Hinge LEDs - visible when the display lid is closed
LEDs above keyboard
# Icon Function LED Description
1
Power Lit Power is ON
Flashing Suspend to RAM
2
Wireless
Modem
Lit One or more installed radios are ON
LED off All installed radios are OFF
# Icon Function LED Description
3
Power Lit Power is ON
Flashing Suspend to RAM
4
Battery Lit Battery charging
Flashing Low Battery
LED off No battery / battery fully charged (will
always be OFF without external
power connected to the unit)
5 External Power Lit External power is connected to the
unit
6 WWAN Lit WWAN radio is on
Pa
g
e 24 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg19.png)
Touchpad
The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor
responds as you move your finger over of the touchpad. Your computer has either a resistive touchpad
or a capacitive touchpad, depending on your configuration. The buttons located directly below the
touchpad have the same function as a two-buttoned mouse. Pressing these buttons makes selections,
drags objects, or performs a variety of other functions depending on the software.
To Use the Touchpad
1. First, place your fingers on the keyboard in the normal typing position. The touchpad is easily
accessible b
y
movin
g
either
y
our left or ri
g
ht thumb off the s
p
ace bar and onto the touch
p
ad.
Communication
7 WLAN
Communication
Lit Wireless LAN, Bluetooth, and/or GPS
radio(s) are on
8 Media Bay Lit The computer is accessing the
DVD/CDRW Combo, the CD-ROM,
or the DVD-ROM
9 Disk Status (HW) Lit The hard disk drive is being accessed
10 Caps Lock Lit The keyboard is in Caps Lock mode
11 Number Lock Lit The keyboard is in Num Lock mode
12 Scroll Lock Lit The keyboard is in Scroll Lock mode
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Capacitive Touchpad option: works well with
fingers
Resistive Touchpad option: works with gloved
fingers
Pa
g
e 25 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1a.png)
2. Gently move your thumb across the touchpad in the direction you want the cursor to move.
Adjust the touchpad settings by selecting Settings, Control Panel, Mouse, Buttons. These settings
allow you to change the orientation from right-handed to left-handed, and fine-tune the pointer
movement and timing of clicks.
To Select Objects
1. Use the touchpad to position the cursor over the object you want to select.
2. Double-tap the touchpad or quickly press the left touchpad button two times.
To Drag
1. Place the pointer over the desired object
2. Press and hold the left button or tap the touchpad two times as if you were double-clicking but do
not remove your finger after the second tap.
3. Move the pointer to the desired location.
4. Release the button or lift your finger to finish dragging.
Touchpad Precautions
The touchpad is a sensitive device. If not properly cared for, it can be easily damaged. Please take note
of the following precautions:
zAvoid touchpad contact with dirt, liquids or grease
zDo not rest heavy objects on the touchpad or the touchpad buttons
zKeep your fingers dry and clean when using the touchpad and keep the touchpad dry and clean
zThe touchpad is sensitive to finger movements. It responds best to light touches. Tapping too hard
will not increase the touchpad's responsiveness
Audio
Your computer includes 24-bit high-fidelity stereo
audio output and an integrated microphone. The
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 26 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1b.png)

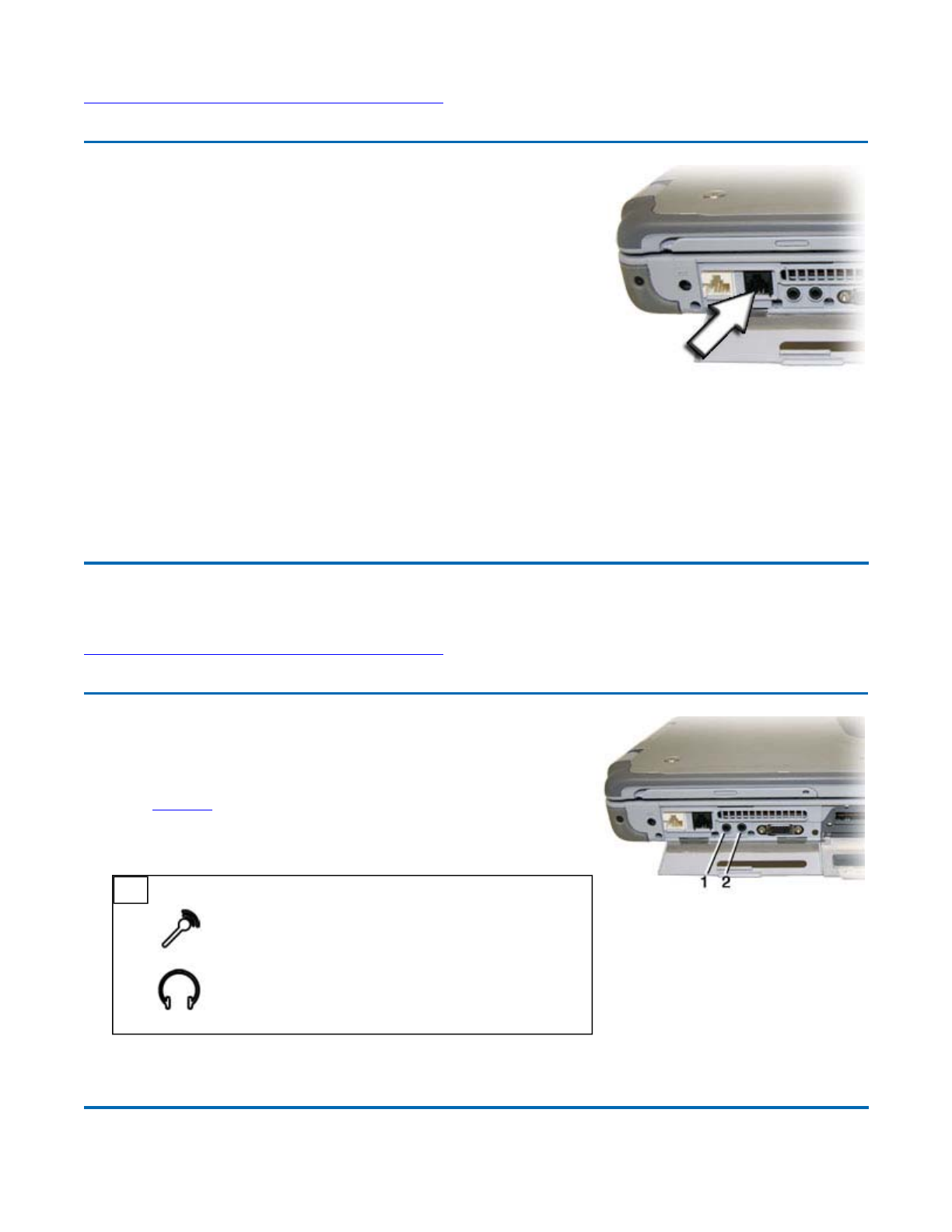

speakers are located above the display. The
microphone is on the front of the computer to the left of the display latch.
You can attach external audio devices via the audio in and out jacks on the left side of the computer.
1. Integrated Speakers
2. Audio Jacks
3. Integrated Microphone
To Adjust the Volume
zTo decrease volume, press Fn+F8
zTo increase volume, press Fn+F9
zTo mute the volume, press Fn+F10
You can also adjust the volume with the Windows volume control applet located on the taskbar.
However, the volume control function keys override the Windows volume control applet. If your
volume is too low or too high after setting the volume in the applet, adjust the volume with the function
keys.
The PC Card Slot
Use the PC card slot, located on the right side of the computer under the media bay, as an interface
between your computer and a variety of communications devices, such as network adapters, SCSI
adapters, and fax/modems, or to provide additional data storage capacity. Your computer’s PC Card slot
su
pp
orts sin
g
le t
yp
e I or II PC Cards, 32-
b
it CardBus cards, and Zoomed Video cards.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 27 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1c.png)

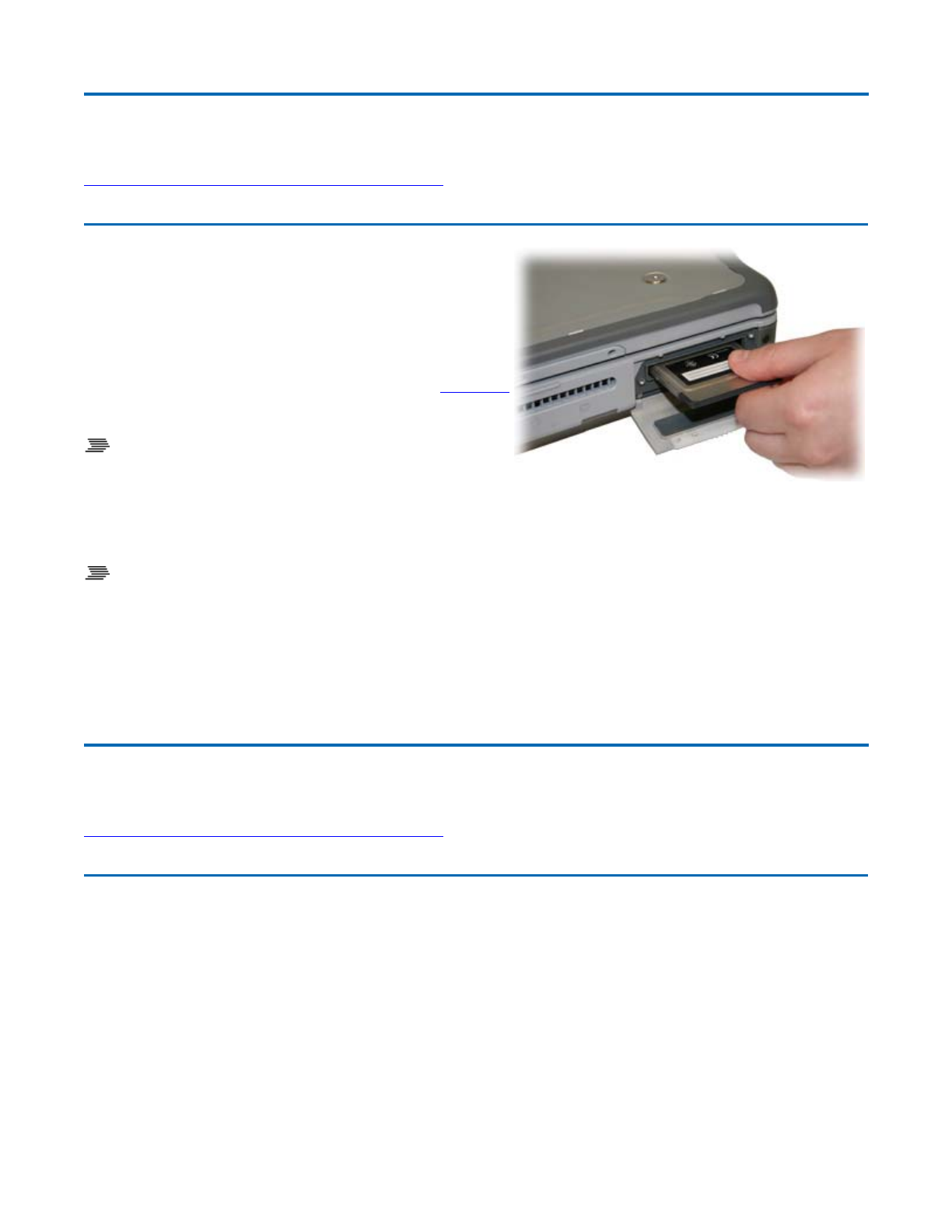

To Install a Card
1. The top of a PC Card is usually identified with a label. Insert the card into the slot with the top up
and the edge with pinhole contacts going in first. You will feel some resistance as the card slides
into the back of the slot.
2. PC Cards require drivers, or a program that allows the operating system to use a specific device.
Many drivers are included with Windows, but if not, you will be prompted to install the driver
included with your card.
N
OTE Please read the instructions included with individual PC Cards. Some cards may be inserted with
p
ower on, while others require that the computer be turned off.
To Remove a PC Card
1. If a PC Card is in use, you must shut down the PC Card before removing it.
2. Double-click the "Safely Remove Hardware" icon in the Windows tray taskbar.
3. Select the PC Card you want to remove, then select Stop.
4. Wait for the "safe to remove hardware" message.
5. When the Windows message appears, telling you that it is safe to remove the card, select OK.
6. Press the eject button on the PC Card slot to release the eject button (it is spring loaded and
remains hidden until it is pressed).
7. Press the eject button again to release the PC Card.
Pa
g
e 28 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1d.png)
Smart Card or ExpressCard Slot
(option)
Your computer comes with a Smart Card Reader or
ExpressCard slot (option) that supports ExpressCard/34
and ExpressCard/54. This slot is located on the Left Side
of the computer.
To insert a card
Insert the compatible card with the label side up into the
slot until it clicks into place. The card now appears on My Computer as a removable storage device that
you can copy files to and from.
To remove a card
1. Make sure no operation (such as file copying or deletion) is using the card.
2. Press the card further into the slot to release the card. You will hear a click.
3. Remove the card.
Media Storage
Your computer comes with the following media storage:
zHigh-capacity Serial ATA removable hard disk drive
zInternal DVD-ROM/CD-RW combo, DVD-RW/CD-RW drive, media bay battery OR empty slot
(options)
zOne T
yp
e II PC Card slot
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 29 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1e.png)
zOne ExpressCard/54 or ExpressCard/34 slot OR One Smart Card slot (option)
The Hard Disk Drive
Your computer features a removable, shock-mounted hard disk to provide high-capacity storage and
fast access. Windows and most programs are stored here. Your GoBook XR-1 computer identifies the
hard disk drive as drive C.
See the BIOS Setup Utility to password protect your removable hard disk drive.
Installing and Removing the Hard Disk Drive (HDD)

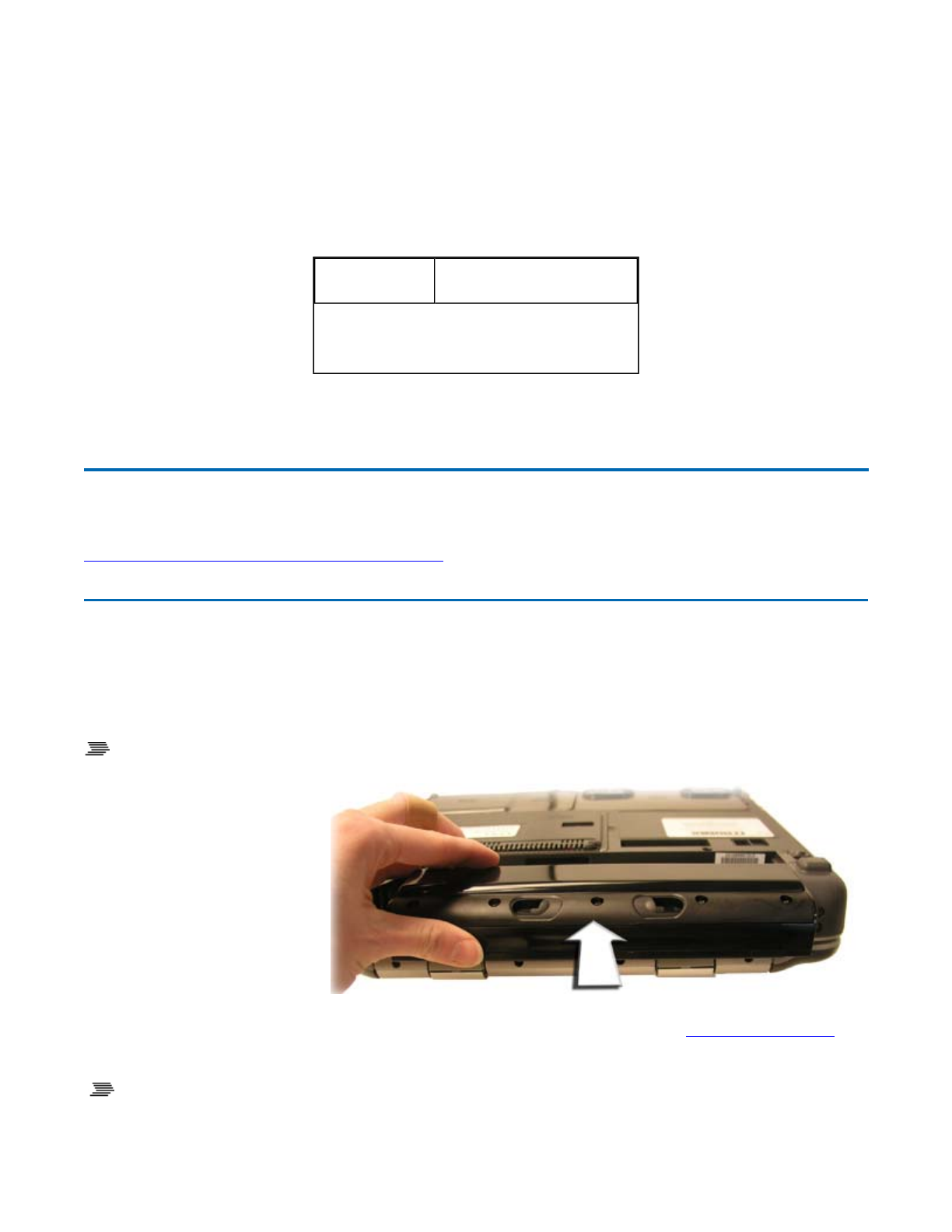

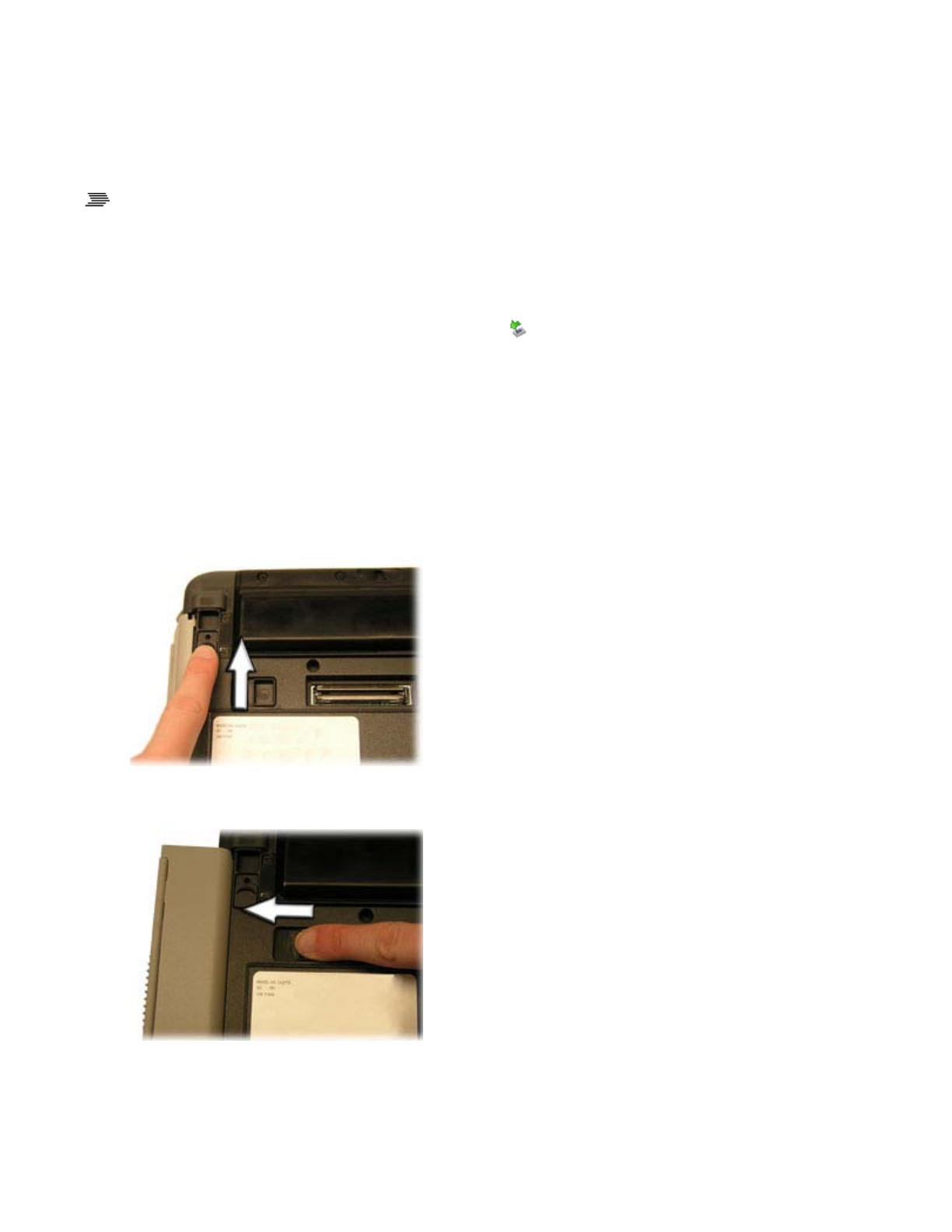

To remove the hard disk drive
1. You should print these instructions before continuing. They will not be available after you shut
down the computer in step two.
2. Shut down the computer and remove power.
3. Remove the battery (see battery removal)
4. Turn the computer over so you are looking at the bottom.
5. If installed, use a Philips screwdriver to remove the two optional screws in the hard disk drive
cover.
6. Flip open the HDD locks and turn both of them toward the center of the computer.
7. Lift the HDD cover off of the computer.
8. Using the ribbon, remove the HDD from the computer.
Pa
g
e 30 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg1f.png)
To install the hard disk drive
1. You should print these instructions before continuing. They will not be available after you shut
down the computer in step two.
2. Shut down the computer and remove external power.
3. Turn the computer over so you are looking at the bottom.
4. If installed, use a Philips screwdriver to remove the two optional screws in the hard disk drive
cover.
5. Flip open the HDD locks and turn both of them toward the center of the computer.
6. Line up the connectors and insert the HDD in the computer.
7. Replace the door and turn the HDD locks toward the outside of the computer to lock it.
8. If desired, install the optional HDD screws.
Hard Disk Drive Heater
The hard disk drive heater warms the HDD before spinning up in temperatures below 5°C, the minimum
safe operating temperature of the HDD. The heater is built into the removable HDD module and
operates as needed when the computer is turned on or is in an operational state. If the temperature is
below 5°C when booting or resuming you will see the message "Warming internal hard drive. Please
wait...". The unit will continue booting when it detects the HDD is warm enough to operate safely.
N
OTE If you are using the computer in a cold temperature environment and the battery level is too low
for the heater to operate, you will see the error message "Battery too low to warm the hard drive.
Shutting down..." and the computer will shut down. Apply external power and reboot.
The Media Bay
Depending on your configuration, your computer may have an optional DVD-ROM/CD-RW, DVD-
RW/CD-RW combo drive or media bay battery. The combo drive allows you to read data from DVDs
and CDs, including audio or video CDs and enables you to burn your data onto a CD recordable disc. If
you have the DVD-RW/CD-RW drive, you can also burn data onto a recordable DVD disc. Please refer
to the recordin
g
software online hel
p
for more information.
Pa
g
e 31 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg20.png)
If you have the media bay battery, it extends your unplugged runtime.
Your notebook identifies the drive with the letter following the hard drive letter. If your hard drive is C,
then the media bay will be D.
To Change your swappable media bay device
1. Make sure the computer is not accessing the media bay drive.
2. Open the media bay door cover.
3. Double-click the "Safely Remove Hardware" icon the Windows tray taskbar.
4. Select the Media Bay device, then select Stop.
5. Wait for the "safe to remove hardware" message, then click OK.
6. Turn your computer over so you are looking at the bottom.
7. If installed, remove the screw in the media bay lock.
8. Slide the media bay lock toward the back of the computer.
9. Slide the media bay release toward the outside of the computer. The media bay should come part
way out of the computer.
10. Gras
p
the media ba
y
device b
y
the ed
g
es and
p
ull strai
g
ht out until it is clear from the slot.
Pa
g
e 32 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg21.png)
11. Re-insert the next media bay device by firmly pushing it back into the slot until it clicks into
place.
To Insert a Disk
1. Open the media bay door cover.
2. Insert the disk into the media bay slot.
To Remove a DVD or CD
1. Make sure the computer is not accessing
the DVD drive.
2. Press the eject button. The disk will
automatically eject.
3. Pick up the disk by the edges and remove it from the slot.
CAUTION When the computer is reading from a DVD or CD, the Optical Disk Drive LED will flash
on. Do not attempt to remove a disk while this light is active.
Precautions for Handling DVDs and CDs
Keep these precautions in mind when handling DVDs and CDs:
zAlways hold the disk by the edges; avoid touching the surface of the disk
zUse a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the center outward
zDo not write on the surface of the dis
k
Pa
g
e 33 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg22.png)
zExtremes in temperature may damage disks. Store disks in a cool dry place
zDo not use benzene, thinners, or cleaners with detergent. Only use cleaning kits designed for
DVDs or CDs
zDo not bend or drop the disks
zDo not place objects on top of disks
PC Card Slot
See the PC Card Slot section for information.
EXPRESS Card or Smart Card Slot
See the EXPRESS Card and Smart Card Slot section for information.
Computer Security
Your computer includes several different security features to help prevent theft and protect data. These
include a security slot, multiple levels of password protection, an optional fingerprint scanner, an
optional Smart Card slot, stealth mode and Trusted Platform Module (TPM).
Security Slot
A security slot located on the back edge of the computer lets you
connect a Kensington compatible computer security lock . You
can connect the computer to an immovable object to prevent
theft. Insert the lock into the notch and turn the key to secure the
lock. Some keyless models are also available. See the
documentation that comes with your lock for more information.
BIOS Level Passwords
Passwords protect your computer from unauthorized access. When set, no one can access the computer
without entering the correct password.
There are two t
yp
es of
p
asswords
y
ou can set:
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 34 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg23.png)
zSupervisor Password secures your computer against unauthorized entry to critical parameters in
the BIOS Utility
zUser Password secures your computer against unauthorized use, and allows limited access to the
BIOS Utility
NOTE Do not forget to set your password! If you forget your password, please get in touch with your
dealer or an authorized service center.
Fingerprint Scanner (Option)
The optional swipe style fingerprint scanner can
be used for all standard security uses. The
optional fingerprint scanner provides a greater
level of security and convenience for your
GoBook XR-1 and your private data. Use the
fingerprint scanner instead of passwords for the
following:
zduring computer login
zduring login at secure websites
zwhen opening password protected
applications
zto provide encryption security for individual files
Fingerprint Scanner Software
Before using the fingerprint scanner, you must first install compatible software. If the optional
fingerprint scanner was present during initial user setup, you should have the "Install Finger Print
Software" link on your desktop. Click this link and follow the instructions to install the software.
CAUTION Before installing any third party software, ensure it is approved for use with this computer.
When accessing some secure websites, you may need to specify you are using the fingerprint scanner
instead of a password. Refer to the fingerprint scanner software documentation for setup information.
Stealth Mode
Your computer has a stealth mode feature for users who may need to use it where light or sound could
be dangerous or disruptive, such as a military or public safety user. Enabling stealth mode allows you to
disable sound and light features such as system beeps, the fan, and the display backlight. Refer to the
BIOS Setup Utility section for information about how to configure the stealth mode feature.
Smart Card Reader (Option)
If
y
our com
p
uter has the Smart Card Reader o
p
tion,
y
ou can use smart card technolo
gy
for added
Pa
g
e 35 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg24.png)
security.
Trusted Platform Module (TPM)
Enable or disable TPM in the System BIOS. TPM provides a platform root of trust which uniquely
identifies a particular platform and provides various crypto capabilities including hardware-protected
storage.
Ports and Connectors
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Ports and
Connectors
Icon Connection Location
RJ-11 Phone line/modem (internet and fax) Left Side
RJ-45 Ethernet Left Side
DC-in AC Adapter (power) Left Side
3 USB 2.0 USB Peripherals such as a mouse, printer or optical
disk drive
Right Side
External Monitor External Monitor Left Side
Audio In Microphone Left Side
Audio Out Speakers or headphones Left Side
PC Card Slot Type II PC Cards Right Side
Smart Card
Reader or
EXPRESS Card
Slot
Smart Cards or EXPRESS Cards Left Side
Security Slot
Computer lock such as a Kensington lock Back Edge
Multi I/O
Dockin
g
Connector
Compatible office dock or vehicle dock Bottom
Serial Port Serial devices such a fax/modem Right Side
Firewire Port IEEE 1394-compatible devices, such as digital
cameras
Right Side
Pa
g
e 36 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg25.png)
Making Connections
Your computer is equipped with a full array of ports, connectors and bays, offering advanced
communications technology. This section describes how to connect peripherals and hardware options
that help you maximize your computer's features. Before connecting peripherals, first read the manual
included with the peripheral for connection and operation instructions. You can purchase most of these
and other options directly from authorized dealers.
If you are a mobile worker, you may want to purchase one of the GoBook XR-1's docking solutions
such as the Vehicle Dock or Office Dock. These docks provide drop-in convenience, port expansion,
and automatic battery recharging, enabling you to leverage your computer's features without having to
attach and reattach cables and connectors when you move your computer from office to vehicle.
Attaching Power
Your GoBook XR-1 can be powered by battery, by attaching an AC Adapter or Vehicle Adapter to the
DC power port, or by connecting the computer to a powered Vehicle Dock, or Office Dock. This page
explains how to attach power to the DC power port.
N
OTE When external power is properly applied, the External Power LED lights.
CAUTION This notebook computer is designed to be used with the provided dedicated AC Adapter or
Vehicle Adapter
To Attach AC Power:
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
1. Connect the AC adapter power cord to the
AC adapter.
Pa
g
e 37 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg26.png)
To Use the Vehicle Adapter (optional)
1. Insert the vehicle adapter’s power cord into the DC-in jack on the left side of the computer.
2. Insert the 12V (cigarette lighter) adapter into the vehicle’s 12V socket, turning it slightly to make
a good connection.
CAUTION The vehicle adapter is not intended to be used continuously. It is intended to provide
a convenient, temporary power source for powering and charging this computer while in transit in
a vehicle. For permanent installations, it is recommended that the (fused) vehicle charger adapter
be wired directly to the vehicle power supply. For additional information regarding permanent
installation, contact your sales representative.
3. The power LED illuminates to indicate that current is reaching the vehicle adapter. When you
connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate
temperatures, around 20°C (68ºF), the battery should charge from empty to 90% in less than three
hours if the unit is suspended or off. It should take less than four hours if the unit is in use.
NOTE As the battery temperature approaches the ends of its temperature range (5°C/ 41°F to 50°
C/122°F), it may take longer to charge the battery.
CAUTION Avoid exposing batteries to extremely hot or cold temperatures for long periods. To
prevent possible damage to the battery, the GoBook XR-1 laptop does not allow the battery to
charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°
C or > 122°F).
2. Connect the AC adapter to the DC power port
on the left side of your computer.
3. Connect the AC adapter power cord to a
properly grounded AC outlet.
NOTE It is recommended you use a quality
surge protector.
72_0130_001
2006-07-10
Pa
g
e 38 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg27.png)
Attaching an External Monitor or Video Device
The notebook has a VGA monitor port on the left
side so you can connect an external monitor. You
may use an external monitor simultaneously with
your notebook's display, instead of your notebook's
display, or as an extension of your notebook's
display. To attach an external monitor, perform the
following:
1. Locate the external monitor port on the left
side of your notebook.
2. Connect the video signal cable from the external monitor (or the VGA adapter) to this port.
3. Connect the power cable from the external monitor to a power outlet and turn on the monitor.
Read the monitor manual for additional instructions.
Using Simultaneous Display
Your computer takes advantage of Windows dual-display capability, allowing you to use your computer
for presentation purposes. To use simultaneous display, connect an external display device to the
external monitor port. You can then toggle the display output location by pressing Fn+F2 . It will
output to your computer's display, the attached external display, or both displays simultaneously. Keep
p
ressing Fn+F2 until you have the output option you want.
Using Extended Display
When using an external monitor you can extend your desktop. This allows you to open and view one
p
rogram on the external monitor while viewing a different program on your laptop's display.
1. Right click on the desktop.
2. Select Properties to open the Display Properties Dialogue box.
3. Select the Settings tab.
4. Click on the "2" in the Monitors section.
5. Check "Extend my Windows desktop onto this monitor".
6. Select Apply and OK to save and exit.
7. Now
y
ou can dra
g
the
p
ro
g
rams
y
ou want to view onto the external monitor.
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 39 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg28.png)
Attaching USB Devices
Your computer comes with three Universal Serial Bus (USB)
2.0 ports on the right side of the computer. This enables you to
attach various devices such as a keyboard, mouse, scanner, or
p
rinter. USB devices can be chained together on a single cable.
Ethernet (LAN)
With the built-in Ethernet LAN, you can make LAN connections
with 10/100/1000 Mbps connection speed. To use the network
feature, connect an Ethernet cable from the network jack on the left
side of the computer to a network jack or hub on your network.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
Pa
g
e 40 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg29.png)
Fax/data modem
You can use the fax/modem to connect to the Internet to send and
receive data using the 56 Kbps V.92 protocol. When used with fax
software, it can be used as a fax at 14.4 Kbps. In some countries,
local regulations may not permit the use of the fax/modem designed
for this system. In this case, you may use a PC Card modem. To use
the fax/data modem port, connect a phone cable from the modem
p
ort on the left side of the computer to a telephone jack.
CAUTIONS Plug your modem into an analog telephone jack only. Most homes use analog lines. Do
not use digital lines, such as the PBX and ISDN systems found in many offices. Digital lines may
damage your modem.
To reduce the risk of fire, only use a No. 26 AWG or larger telecommunication line cord.
Attaching Audio Devices
Audio devices are easy to connect with the audio ports accessible
from the left side of the computer. You can plug an external
microphone (or an audio line-in device) into the line-in jack.
Amplified speakers or headphones connect to the line-out jack.
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
# Icon Feature Description
1
Microphone
Jack
Connect a microphone to this jack
to record audio
2
Audio Out
Jack
Connect external speakers or a
stereo headset to this jack to listen
to multimedia
Pa
g
e 41 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2a.png)
External keyboard or pointing device
This computer has a keyboard with full-sized keys and an embedded numeric keypad. If you feel more
comfortable using a desktop keyboard, you can connect a USB external keyboard to one of the USB
p
orts. You can also connect a USB mouse or other pointing device to one of the USB ports.
Wireless Communications
Your GoBook XR-1 supports up to four integrated radios for superior wireless communication (One
radio per category listed below).
• Wireless Local Area Network (WLAN)
• Wireless Wide Area Network (WWAN) with CRMA Express
• Global Positioning System (GPS)
• Wireless Personal Area Network (WPAN) Bluetooth
Since each customer's radio configuration is unique, please read the radio help installed on your desktop
and refer to the manufacturer documentation to setup and use your radio(s).
If you have the radio ON/OFF option, slide the radio ON/OFF switch to the left to power off all radio
devices (airplane mode).
CAUTION FAA regulations require that all transmit/receive devices be turned off during flight. If you
have radios in your computer (including GPS) and your computer is equipped with a Radio ON/OFF
switch, please use it to turn your radios off during flight. If you have radios and you do not have a
switch to turn the radios off, either leave your computer off during flight or contact your help desk for
assistance.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 42 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2b.png)
72_0130_001
2006-07-10
© 2006 Itronix Corporation. All rights reserved.
WLAN radio option
Your computer may include an integrated Wireless Local Area Network (WLAN) capability. See the
radio help file on your desktop for more information.
FCC Radio Frequency Interface Requirements for WLAN.
This device required the product to be used indoors for the frequency range of 5.15 to 5.25 GHz to
reduce the potential for harm full interference to co-channel Mobile satellite systems. High power radars
are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar
stations can cause interference with and or damage this device.
About WLAN
WLAN provides all the features and benefits of traditional LAN technologies, such as Ethernet, without
the limitations of wires or cables. It enables mobility and flexibility without compromising connectivity
for today's mobile user.
72_0130_001
2006-07-10
© 2006 Itronix Corporation. All rights reserved.
CRMA Express WWAN (option)
If you ordered the CRMA Express module option, your computer may support one or more of these
Wireless Wide Area Network (WWAN) radios:
z1xEV-DO/1xRTT
zHSDPA/UMTS/EDGE
GoBook® XR-1 Help
GoBook® XR-1 Help
Pa
g
e 43 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2c.png)
CRMA Express is upgradeable and when WWAN radio technology changes, you an change with it.
These radios are ideal for the mobile worker. The fast speeds from EV-DO/1xRTT/ and
HDSPA/UMTS/EDGE facilitate greater productivity with fast email retrieval and fast and secure access
to your information and applications. Refer to the installation instructions included with your CRMA
Express module(s). After installation, refer to radio help, found on your desktop, for information about
setting up and using your radio(s).
About 1xEV-DO/1xRTT Network
1xEV-DO
Evolution Data Only or Evolution Data Optimized (EV-DO) is a 3G wireless technology with average
user download speeds ranging from 400 to 700 Kbps with peak rates up to 2.0 Mbps in release 0.
Release A's peak rates may reach up to 3.1 Mbps.
1XRTT - Single Carrier (1x) Radio Transmission Technology
1xRTT is a pre-3G wireless technology based on the CDMA platform. It has the capability to provide
ISDN like speeds of up to 144 Kbps with typical speeds in the 50-70 Kbps. 1xRTT is also referred to as
CDMA2000.
About HSDPA/UMTS/EDGE Network
HSDPA/UMTS
High-Speed Downlink Packet Access (HSDPA) / Universal Mobile Telecommunications Systems
(UMTS) are 3G wireless technologies. HSDPA averages 400-700 Kbps with peak rates up to 10 Mbps
in future releases. UMTS has an average user download speed of 384 Kbps with peak rates up to 2.0
Mbps.
EDGE
Enhanced Data Rates for Global Evolution (EDGE) is a pre-3G wireless technology based on the GSM
p
latform. It has the capability to provide ISDN like speeds of up to 144 Kbps with typical speeds in the
50-70 Kbps.
GPS (option)
About GPS
The Global Positionin
g
S
y
stem
(
GPS
)
is a worldwide radio-navi
g
ation s
y
stem formed from a
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 44 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2d.png)
constellation of satellites and their ground stations. GPS uses these satellites as reference points to
calculate positions accurate within five meters.
Bluetooth (option)
About Bluetooth
Bluetooth is a short range, wireless technology. Bluetooth systems create a Wireless personal-area
network (WPAN). When Bluetooth-capable devices come within range of one another, an electronic
conversation automatically takes place to determine whether they have data to share or whether one
needs to control the other. Then, the devices hop frequencies in unison so they stay in touch with one
another and avoid interference with other devices.
Bluetooth devices send out weak signals of 1 milliwatt. Class II Bluetooth devices have a range of about
ten meters while Class I devices have a range up to 100 meters. The GoBook XR-1 Bluetooth option is
a Class I device with the greater range. Even with the low power, the walls in your house won't stop a
Bluetooth signal. This makes the standard useful for controlling several devices in different rooms.
However, obstructions such as walls do degrade the signal and reduce its range.
Antennas
The GoBook XR-1 has several embedded antenna options to support wireless communications. They
require no user action.
CAUTION Use only the supplied or an approved antenna(s). Use of unauthorized antennas,
modifications, or attachments may void your warranty and could impair call quality, damage the radio,
or result in violation of FCC regulations.
The GoBook XR-1 may contain the radio transmitters listed below. The following statements are
relevant when using these radios:
Each internal radio may or may not have an individual FCC Identifier label. That FCC Identifier label is
not a
pp
licable to this confi
g
uration. Onl
y
the external FCC ID is a
pp
licable. Onl
y
the antenna with
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 45 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2e.png)
which an intentional radiator is authorized may be used with the intentional radiator.
This device may contain a WLAN radio transmitter , a WAN radio transmitter and a PAN radio
transmitter. To comply with FCC RF exposure requirements when using the WAN radio transmitter, a
minimum separation distance of 20 cm must be maintained between the between the center of the
display screen and all users/bystanders. When using the WLAN transmitter, a minimum separation
distance of 20 cm must be maintained between the upper right and left edges of the display screen and
all users/bystanders. When using the Pan transmitter, a minimum separation distance of 20 cm must be
maintained between the lower left edges of the Keyboard and all users/bystanders. The WAN radio and
WLAN/PAN transmitters should be turned off before carrying the Laptop PC order to comply with FCC
RF exposure requirements.
Since each customer's radio configuration is unique, please read the radio help installed on your desktop
and refer to the manufacturer documentation to setup and use your radio(s).
72_0130_001
2006-07-10
© 2006 Itronix Corporation. All rights reserved.
Improving Radio Coverage
Wireless connectivity between your computer and wireless network access points is essential.
Maintaining this wireless connectivity over a wide area is fundamental to the usefulness of the network.
This makes the scope and reliability of radio coverage a primary concern. Therefore, one of the most
important features of the wireless network is the degree of radio coverage provided. Coverage can be
influenced by terrain, buildings or even a crowded room. Here are some tips to help you improve radio
coverage, depending on your location.
In any Location
1. Performance can vary significantly at different times of the day.
2. Weather can affect performance.
On the Street
1. Try all sides of a building to see which side provides the strongest radio signal.
2. Move from under trees. Pine needles absorb radio signals more than leaves.
3. Move away from overhead electrical wires.
4. Radio signals reflect off other buildings. Even in the signal shadow, the signal could be reflected
b
ack b
y
another buildin
g
.
GoBook® XR-1 Help
Pa
g
e 46 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg2f.png)
5. Try not to hold the unit. If possible, place it in vehicle, on a cabinet or desk.
6. If holding the unit, turn the unit in 90-degree increments to avoid shielding it with your body.
7. The signal is 1-2 feet across; therefore, moving several feet in any direction may give different
results.
Inside a Building
1. Move toward windows.
2. Signals do not penetrate ground; therefore, there will probably be no signal in basements.
3. Reflective coatings on windows reflect radio signals. Try the side of the building that is least
likely to have coated windows.
4. Closed metal blinds can reflect radio signals.
5. Dropped ceilings sometimes hide an accumulation of electrical cable.
Electromagnetic Interference (EMI)
1. Electromagnetic Interference (EMI) is generated by switching circuitry closets or Un-interruptable
Power Source (UPS) systems found near computer rooms and can block the radio signal.
2. Look for significant sources of electromagnetic radiation. Problems may emanate from a source
between your location and the radio base station.
When to use Landline Communication
If these tips do not improve radio signal strength, switch to landline communication. Switching to
landline communication is faster than searching for and trying to improve the radio signal.
Operating with Battery Power
The computer operates on AC or battery power. This section contains the information you need to know
to operate the computer on battery power. It also includes information on how your computer manages
and saves power. Effective use of power management options can greatly conserve and extend your
battery life. Your computer employs a power management scheme that supports ACPI (Advanced
Configuration and Power Interface), allowing for maximum power conservation and maximum
p
erformance at the same time.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 47 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg30.png)
Be sure to read the Battery Safety and Precautions section.
Frequently Asked Battery Questions
Does it harm the Li-Ion battery pack to frequently “top off” the batteries?
What constitutes a charge cycle?
Where can general battery charge state information be obtained?
What effect will temperature have on battery life and performance?
The Battery
The battery has the following characteristics:
zEmploys current battery technology standards
The computer uses a "smart" Lithium-Ion battery to consistently provide the long battery life best
suited for mobile users
zA temperature sensor and memory device that stores information about the battery, such as how
much charge is left and how many times it has been recharged
zBattery-low warning
When the battery charge level becomes low, the battery alarm beeps or displays a warning on your
screen. This tells you that the battery power is critically low (and you should save your work).
You can correct this situation by recharging the battery.
Whenever possible, use the AC adapter. The battery will come in handy when you travel or do not have
access to AC power. It is advisable to have an extra fully-charged battery available as backup.
Using a battery for the first time
Before using a battery for the first time:
1. Connect the AC adapter to the computer, then to a power source.
2. Calibrate the battery to set the gas gauge to accurately reflect battery capacity.
You onl
y
need to do this once with a new batter
y
or with a batter
y
that's been stored without bein
g
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 48 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg31.png)
used for a long time. If the computer is to be stored for more than two weeks, we recommend you
remove the battery.
Battery and Temperature
The battery is most efficient at room temperature. It operates in a wide temperature range but the battery
capacity is affected by higher or lower temperatures.
NOTE While the battery may not provide 100% capacity at temperature extremes, its capacity is
restored when the battery temperature is normalized to around 20°C (68°F).
Installing and removing the battery pack
CAUTION! Before removing the battery pack, make sure that you have an AC adapter connected to
the computer or a media bay battery installed; otherwise, turn off the computer.
To Install the Battery:
N
OTE When using a battery pack for the first time, it is recommended that you calibrate the battery so
the gas gauge accurately displays battery capacity.
To remove the battery pack:
Temperature Approximate Available
Capacity
0°C (32°F) 80%
20°C (68°F) 100%
45°C (113°F) 100%
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
1
. Turn the computer over so
you are looking at the
bottom.
2
. Line up the battery
connector.
3
. Press gently on the battery
until it clicks into place.
1. Plug in AC power or turn
Pa
g
e 49 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg32.png)
Battery Charging
When you use the AC adapter to connect your GoBook XR-1 to a power outlet, the internal battery
begins to recharge automatically. While the battery is charging, the Battery Power Indicator is lit.
When the battery is fully charged, it turns off.
If your computer is turned off or suspended to RAM, a fully discharged battery takes about 4 hours to
recharge. If your computer is turned on and is not in suspend mode, it may take four to six ( 4- 6) hours
to recharge the battery. Refer to the following table:
off the computer.
2. Turn over the computer so
you are looking at the
bottom.
3. Slide the battery locks
toward the inside of the
computer to unlock the
battery.
4. Gently slide the battery
out of the computer.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Charging Discharging
System On 4-6 hours 4-5 hours
Pa
g
e 50 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg33.png)
N
OTE a fully charged Li-Ion battery can power the GoBook XR-1 for approximately four to five (4-5)
hours, depending on usage patterns. If your computer also has the optional Media Bay battery, it will
p
ower the GoBook X
R
-1 for an additional two to three (2-3) hours.
Power Saving Modes
Adjust the default power management settings in the Power Saver utility.
Suspend Mode
There are several possible settings for suspend mode. You may Suspend to RAM, Suspend to Disk
(Hibernate), or disable suspend altogether, which is not recommended.
Suspend to RAM (Stand By)
In a suspend to RAM, the contents of your computer’s memory are held intact, while most of the
components in your computer either turn off completely, or reduce power consumption to a minimum.
In a Suspend to RAM, your computer remains active but with the minimum possible power
consumption. Return the computer to full power by pressing any key. A fully-charged battery can
maintain a Suspend to RAM for many hours.
Suspend to Disk (Hibernate)
Suspend to Disk (Hibernate) is similar to turning off the computer, except that the current state of the
computer is copied to the hard disk as a special file. When the computer returns from suspend mode, the
desktop appears with the same files and programs open as when the computer was suspended. Suspend
to Disk (Hibernate) is very useful when you do not want to take the time to shut down all open programs
one by one to shut off the computer, only to have to open the same programs and files the next time you
use the computer. This mode is also called hibernation mode.
Initiating Suspend Mode
There are four ways to initiate suspend mode. The settings can be adjusted in the Power Saver utility:
zThe computer may automatically enter suspend mode when not used for a set period of time
zSelecting the Standby button in the Shut Down Windows dialog box
zPressing the power button will cause the computer to hibernate by default
zPressing the suspend function key (Fn+F3 )
Power Button Settings
The function of the Power Button can be set to Shut down, Stand by or Hibernate in the Power Saver
utilit
y
. However, holdin
g
the Power Button down for more than four seconds will force a
p
ower off
System Off (suspend to RAM) 4 hours —
Pa
g
e 51 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg34.png)
while operating under any situation, resulting in the loss of any unsaved information.
When to Replace the Battery
Over time, the battery’s capacity gradually decreases. We recommend that you replace your battery if it
no longer provides 70% of its original rated capacity.
WARNING There is danger of explosion if the battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
Heat Considerations
The computer’s processor has been specially designed to consume as little power as possible. However,
working in a hot environment, or working for long periods may raise the temperature. Your computer
takes the following steps to lower temperature:
1. The cooling fan turns on. You may hear the fan and feel air coming from a vent on the left side of
the computer when this happens.
2. If the temperature continues to rise, Processor activity is reduced. You may notice a slight loss of
performance when this happens.
3. To prevent damage, if the computer gets too hot, the processor stops and the computer shuts
down.
Battery Calibration
Over time, as the battery is repeatedly drained and recharged, battery runtime may decrease.
Occasionally, the battery should be recalibrated for maximum performance. The calibration process
empties and charges the battery. This allows the Windows battery gauge to accurately monitor battery
status. Battery Calibration will take from 10 to 16 hours, depending on how much power the battery
already contains.
It is recommended you calibrate your battery:
zthe first time you use it
zafter it has been in stora
g
e
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 52 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg35.png)
zif the gas gauge has become inaccurate.
Windows Battery Calibration
To run the Battery Calibration program select Start, All Programs, Mobile Computer Tools, Battery
Calibration. Then select Start to begin calibration the battery.
After starting calibration, the Battery Calibration application requires no further input from the user. The
calibration consists of four steps:
1. Partial Discharge - the battery is drained to a level below 85 %.
2. Charge - the battery is fully charged to 100 %.
3. Discharge and calibrate:
First, the battery is discharged all the way down to zero. Now the battery is 'calibrated' but not
charged. You may stop the process after this point and let the battery charge outside of the Battery
Calibration application.
4. Charge - if the Battery Calibration continues running, the battery will fully charged to 100%.
N
OTE The unit will not go into suspend mode while Battery Calibration is running.
CAUTION Do not disconnect AC power while Battery Calibration is running.
CAUTION Do not remove the battery while Battery Calibration is running. Doing so will cause the
application to terminate immediately.
BIOS Level Battery Calibration
You can also calibrate the battery from within BIOS Setup. To calibrate the battery from BIOS Setup
follow these steps:
1. Plug in the AC adapter.
2. Restart the computer. When the startup screen appears, just prior to the Windows logo screen,
press the Del key to enter the BIOS Setup Utility.
3. At the "Choose the setup function" screen, select "Battery Calibration" and hit enter.
NOTE Make sure the AC adapter and battery are present.
4. Choose Primary or Secondary battery and press enter.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
Pa
g
e 53 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg36.png)
Monitoring Battery Power
To see how much power the battery has left, move the cursor to the Power Saver icon ( or ) in the
System Tray area of the Taskbar. The status will show as a pop-up when you mouse-over the icon.
Low Battery Alarms
How your computer responds to a low battery condition can be set by going to Start, Settings, Control
Panel, Power Options, Alarms.
Two different power alarms can be enabled or disabled: the Low Battery Alarm, and the Critical Battery
Alarm. Use the slide bar to set the power level at which the alarms are activated. Select the Action
button to choose whether the alarm sounds, displays a message, or both.
CAUTION When battery power is low, the alarm beeps or displays a warning on your screen. Take
immediate action, such as saving files or connecting to the AC adapter, or data may be lost.
When the computer alerts you that the battery is low, immediately do one of the following:
zConnect the AC power adapter
zSave your work and then select Shut Down from the Start menu
zTurn off the computer and replace the discharged battery with a charged battery (See Battery
Charging).
N
OTE Do not restart the computer until you have connected to an AC adapter or replaced the
discharged battery with a charged battery.
Power Saver
Your computer includes a utility, Power Saver, to build upon the operating system's power management
capabilities. It is recommended that you use Power Saver rather than the Power Management utility
located under the Control Panel. Power Saver provides additional ways of saving battery power.
When on external power, Power Saver provides two profiles: Docked and Normal. When on battery, it
p
rovides another two
p
rofiles: Max Life and Normal. You can easil
y
to
gg
le between the Max Life and
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 54 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg37.png)
N
ormal battery profiles by pressing Ctrl+Space.
There is also an option to keep the computer awake, while at the same time, saving battery power.
To Set the Power Saver Mode
1. On the System Tray area of the
Taskbar, right-click the Power
Saver icon (see table).
2. Select the desired power
profile.
To Configure Power Saver
Settings
1. On the System Tray area of the
Taskbar, right-click the Power
Saver icon.
2. From the menu, select
Configure Power Settings.
3. Change settings as desired.
To Turn Devices On or Off to
Save Power
1. On the System Tray area of the taskbar, right click the Power Saver icon.
2. Check the devices you want to enable (power on). Uncheck the devices you want to disable
(power off).
Low-Power States
Your computer can enter three different low-power states to conserve power: Standby, Hibernate and
Power Off. These states can be entered manually, or after a period of inactivity. You can configure the
Power Saver utility to define how and when each of these occur.
Standby
Most devices in the system are powered off, but the contents of system memory are retained. Standby is
sometimes referred to as Suspend to RAM. When the computer returns from standby mode, the desktop
appears with the same files and programs open as when the computer was suspended. Resume time is
very quick.
Hibernate
Hibernate, or Suspend to Disk, is similar to Standby, except that the current state of the computer is
co
p
ied to the hard disk in a s
p
ecial file. After this occurs, all devices in the com
p
uter are turned off.
Power Saver Icons
Icon Description Icon Description
The computer is on
battery power and set to
use the Max Life battery
profile.
The computer is on
external power and set
to use the Docked
plugged in profile.
The computer is on
battery power and set to
use the Normal battery
profile.
The computer is on
external power and set
to use the Normal
plugged in profile.
The computer is on
battery power and set to
Stay Awake.
This setting overrides
any settings that cause
the computer to
inactivity suspend,
hibernate or turn off the
display. It may shorten
your battery life and
should only be used
temporarily.
The computer is on
external power and set
to Stay Awake.
This setting overrides
settings that cause the
computer to inactivity
suspend, hibernate or
turn off the display.
Pa
g
e 55 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg38.png)
When the computer returns from hibernation, the desktop appears with the same files and programs open
as when the computer was suspended. Hibernation saves more power than Standby, but takes slightly
longer to resume.
Power Off
All applications are closed and the system is shutdown.
To Enter Low-Power States
There are various ways to initiate these low-power states.
• From the Power Saver utility, you can configure the Power Button, Sleep Button (Fn+F3) and Lid
Switch to initiate any of the above low-power states.
• From the Start Menu, select Shut Down to display a dialog that allows you to manually enter any of
these low-power states.
• The Power Saver utility allows you to specify a period of inactivity before the computer enters standby
or hibernate mode.
Battery Tips
Tip 1. Avoid excessive heat and cold
zYour battery will last longer during the day if it is used, charged and stored between 50°F and 86°
F (10°C and 30°C)
zCharge the battery nightly where the temperature will remain around 68°F (20°C). Your battery
may not last as long through the day if you charge it at higher or lower temperatures
zAllow unrestricted airflow while the computer is connected to external power. Make sure that the
fan inlet and outlet are unobstructed
z Avoid exposure to extreme temperatures for long periods, which can shorten battery charge life
and potentially damage the battery.
How your battery behaves in warm conditions
zTo prevent possible damage to the battery, the system may not allow a charge if the battery
tem
p
erature is above 122°F
(
50°C
)
, such as in a closed, unattended vehicle durin
g
the summer. In
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 56 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg39.png)
this case, the Battery Power Indicator may indicate that the computer has stopped charging
your battery; however, your battery may not be fully charged.
zIf possible, turn off or suspend your computer while the battery is charging in a warm
environment to avoid over-heating
zIn warmer temperatures, your battery may take much longer to fully charge.
How your battery behaves in cold conditions
zWhen using a battery in cold conditions, the battery capacity may drain significantly faster
zTo prevent possible damage to the battery, the system will not allow a charge if the battery
temperature is below 41°F (5°C), such as in a closed, unattended vehicle during the winter. In this
case, the Battery Power Indicator may indicate that the computer has stopped charging your
battery; however, your battery may not be fully charged
zIn cooler temperatures, your battery can take much longer to fully charge.
Tip 2. Prevent wasted power
zManually turn off or suspend your computer whenever you are not using it
zReduce the screen brightness. Decrease brightness by pushing Fn + F6. Increase it by pushing Fn
+ F7
zEnable the display's automatic dimming feature
zUse the AC adapter or vehicle adapter whenever possible
zConnect to a charging source and fully charge at the end of day. This ensures the gas gauge is
accurate and provides a charged battery for the next day
zAvoid allowing the Li-Ion battery pack to completely discharge
zUse the Power Saver utility to help save power
zWhen running on battery power, make sure your system suspends automatically after a few
minutes of inactivity. PC Cards, radios, custom applications, or modified system settings may
affect this
zRemove PC Cards and unplug peripherals when you are not using them. They may draw power
from the system even when not in use
zAvoid operating the fax/modem, or audio and video applications when using battery power.
Operating a fax/modem, video, or audio equipment increases the computer’s power requirements
zDon't use screen savers as the
y
draw excessive current, es
p
eciall
y
“3D” screen savers
Pa
g
e 57 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3a.png)
zAvoid or minimize using applications that keep the CPU busy a large percentage of the time. The
following will help you determine if your system is running such applications:
Identifying power wasting programs
To determine if applications or processes are keeping the CPU busy
1. Start the Task Manager utility. To open Windows Task Manager, right-click an empty space on
the taskbar, and then click Task Manager.
2. Select the Performance tab to view running applications, and the Process tab to view running
processes.
3. Watch the CPU Usage. It is okay if the processor usage is occasionally 100 percent, but if it is 100
percent most of the time, this may indicate a problem.
What to do if applications are keeping the CPU busy
zIf possible, close applications that keep the CPU busy when you are not using them
zTurn off or suspend your computer whenever you are not using it. This will help to conserve
power
zInform your organization's help desk. They may have an updated version of the application.
Tip 3. Calibrate your battery
zOver time, the accuracy of the Windows battery gas gauge may be affected by repeated charging
and discharging of the battery. Calibrating the battery every 3 or 4 months helps to keep the gas
gauge accurate. For information on calibrating the battery, refer to Battery Calibration.
Tip 4. Get a good charge
zYour computer will charge more quickly if it is turned off or suspended
zIn warmer or cooler temperatures, your battery can take much longer to fully charge
zIf your battery is charged in a cold (less than 41°F/5°C) or very warm (greater than 122°F/50°C)
environment, it is possible that the Battery Charge LED will indicate that the charge has stopped;
however, this does not necessarily mean that your battery is fully charged.
Tip 5. Prevent data loss
Follow these guidelines to prevent data loss when removing your battery or storing your computer:
zYou will lose data if you remove the battery while the computer is operating or suspended. To
prevent this, shutdown your computer or put it into hibernate (suspend-to-disk) mode before
removin
g
y
our batter
y
Pa
g
e 58 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3b.png)
zIf you plan to store your computer for more than a few days, shutdown your computer or put it
into hibernate mode. Remove the battery before storing the computer.
Tip 6. Clean terminals
zDirty terminals can be a cause of charging problems. Clean battery terminals with a cotton swab
dipped in isopropyl alcohol. Make sure that the alcohol has evaporated before reinstalling the
battery.
Tip 7. Storing batteries
Stored Li-Ion battery packs gradually deteriorate, particularly if they are not stored in ideal conditions,
and their life expectancy decreases. When storing Li-Ion battery packs for extended periods, consider
these recommendations:
zWhen storing batteries for extended periods, it is recommended that you store them between 3°C
to 7°C (38°F to 45°F) to retard self-discharge and battery aging. If you store batteries at normal
ambient temperatures, use the following charging policy to maintain battery pack condition:
zCharge installed batteries every 21 days to maintain their charge capacity
zCharge uninstalled batteries every 6 months.
zUnused or stored batteries can lose power over time. When you install a battery that has not been
used recently, connect external power to the computer and fully charge your battery
zFully charged Li-Ion batteries deteriorate faster than partly discharged ones. For ideal storage,
charge the battery to 100% and then discharge them to 50% charge before storing.
zDo not allow stored Li-Ion batteries to discharge completely, as this may permanently damage
them. Stored batteries should be recharged to 50% capacity every six months
Customizing Your BIOS Settings
The Setup Utility allows you to configure your computer’s basic settings. When you turn your computer
on, the system reads this information to test and initialize components and make sure everything runs
p
roperly when the system is operating. You can use the Setup Utility to change your computer's startup
configuration. For example, you can change your system's security routine.
The GoBook XR-1 is configured with a set of default values. The default values may not be appropriate
for
y
our work environment. For exam
p
le,
y
ou can set a boot
p
assword to
p
rotect
y
our s
y
stem when
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 59 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3c.png)
booting.
CAUTION It is recommended that you do not change any settings. If you set incorrect system option
settings, the system may not run properly.
Using the Setup Utility
Starting the Setup Utility
You can only start the Setup Utility shortly after the computer has been turned on or rebooted. To
execute a controlled reboot, select Start, Shut Down, Restart. Shortly after the computer restarts, the
following prompt appears at the bottom of the screen:
“Press F10 for HDD Recovery. Press F11 to display Boot Menu. Press DEL to enter Setup. Press TAB
to show POST information”
Press the DEL key when you see this prompt. The system will start the Setup Utility with the following
screen displayed. Select "CMOS Setup Menu" and press Enter.
Navigation and Help
The Setu
p
Utilit
y
has five menu o
p
tions in the Menu Bar
(
1
)
at the to
p
of the window. Press the left or
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 60 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3d.png)
right arrow keys to cycle through these menu screens:
The Field Help Window (2) is on the right side of each menu. It displays the help text for the currently
selected field. This text updates as you move the cursor from field to field.
The General Help Window describes the legend keys. You can display it by pressing F1 on any menu.
Main Displays basic system information and allows you to set the date and time
Advanced Use to set the advanced features
Boot Use to select the sequence of boot devices that are searched to load an operating system
Security Use to set user and supervisor passwords
Exit Use to exit the current Setup session
72
_
0130
_
001
Pa
g
e 61 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3e.png)
The Main Menu
You can change the system date and time on the main menu, and view processor and memory
information.
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Field Setting Function
AMIBIOS
Version
N/A Displays the AMIBIOS version detected during boot up. This is a
display only field.
ProcessorN/A Displays the processor type and speed detected during boot up. This
is a display only field.
System
Memory
N/A Displays amount of conventional memory detected during boot up.
This is a display only field.
System TimeHH:MM:SS Use this field to set the time. The time is displayed in 24 hour
format. The value set takes effect immediately.
NOTE Once you make a change, you must press Enter to continue.
System DateMM/DD/YYYY Use this field to set the date. The date can be set from January 1,
1980 to December 31, 2099. The value set takes effect
immediately.
NOTE Once you make a change, you must press Enter to continue.
Pa
g
e 62 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg3f.png)
The Advanced Menu
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
Trusted Com
p
utin
g
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Field Setting Function
Trusted Computing sub-
menu
Configure settings related to Trusted Computing Security
SuperIO
Configuration
sub-
menu
Configure SuperIO Chipset
Fan Learning
Function
sub-
menu
Fan Learning Function will take 5 minutes to finish procedure
Stealth Mode
Configuration
sub-
menu
Configuring the stealth mode feature enables you to turn off sound and
light in environments where sound and light could be dangerous or
disruptive
Extended
Configuration
sub-
menu
Other special function settings including low battery beep, radio wakeup,
etc.
Pa
g
e 63 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg40.png)
Su
p
er I/O Confi
g
uration
Field Setting Function
TPM Device Enabled
Disabled
Enable or disable Trusted
Platform Module (TPM)
device.
TPM is the hardware for the
TCPA (Trusted Computing
Platform Alliance)
specification. TPM provides a
platform root of trust which
uniquely identifies a particular
platform and provides various
crypto capabilities including
hardware-protected storage.
TPM is basically a secure
micro-controller with added
cryptographic functions.
TPM
Owner
Don't change
Clear
Use this field to clear the TPM
owner.
Pa
g
e 64 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg41.png)

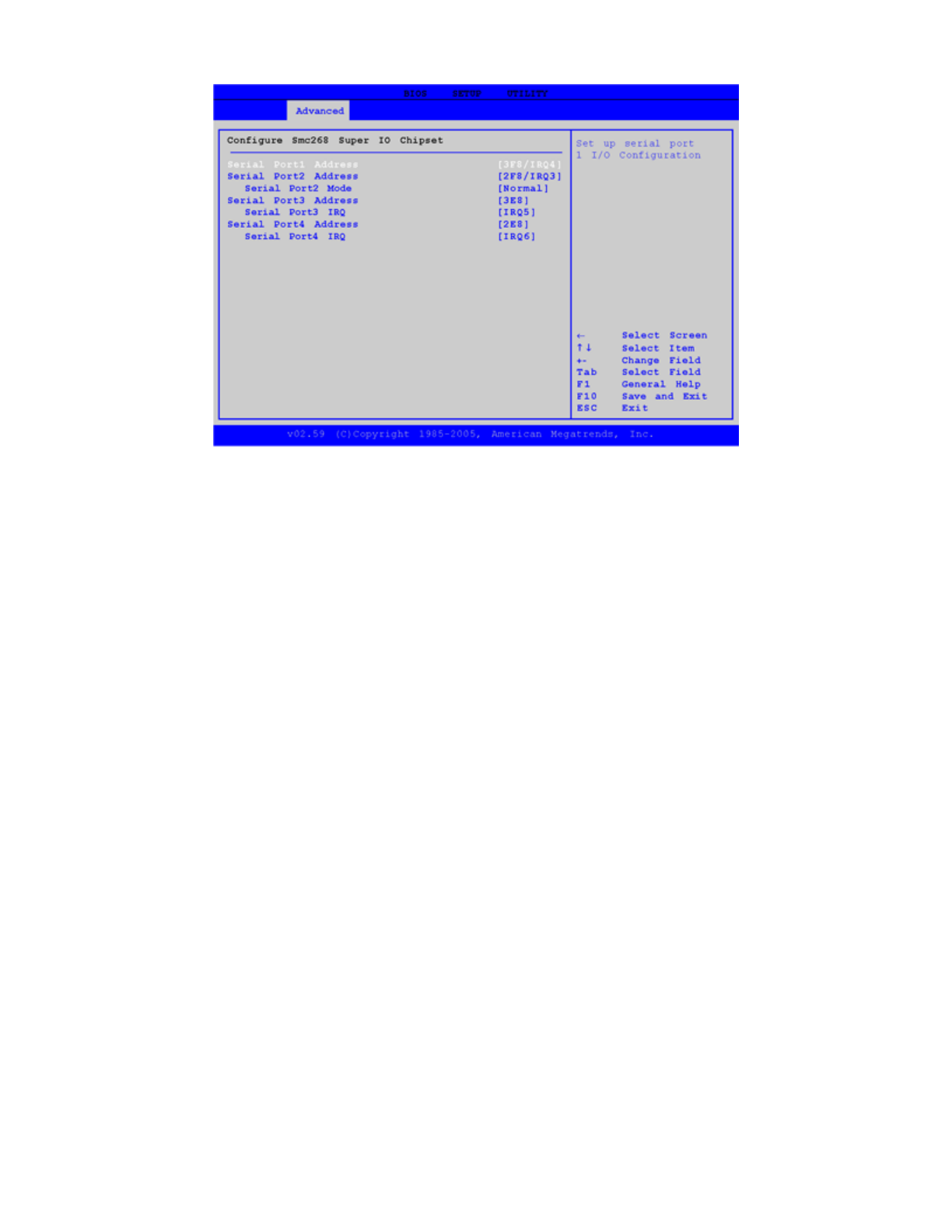

Field Setting Function
Serial Port1 Address Disabled
3F8/IRQ4
3E8/IRQ4
2E8/IRQ3
Allows the BIOS to select Serial Port1 Base Addresses.
Serial Port2 Address Disabled
2F8/IRQ3
3E8/IRQ4
2E8/IRQ3
Allows the BIOS to select Serial Port2 Base Addresses.
Serial Port2 Mode Normal
IrDA
ASK IR
Allows the BIOS to select the mode for Serial Port2.
Serial Port3 Address Disabled
3F8
2F8
3E8
2E8
Allows the BIOS to select Serial Port3 Base Addresses (GPS)
Serial Port3 IRQ IRQ4
IRQ5
IRQ10
IRQ11
Allows the BIOS to select Serial Port3 IRQ.
Serial Port4 Address Disabled
3F8
2F8
3E8
2E8
Allows the BIOS to select Serial Port4 Addresses (Touch Panel).
Serial Port4 IRQ IRQ3
IRQ6
IRQ10
IRQ11
Allows the BIOS to select Serial Port4 IRQ.
Pa
g
e 65 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg42.png)
Fan Learning Function
Field Setting Function
Start Fan
Learning
Start Fan
Learning
OK
Cancel
If FAN PWM shows N/A! the fan learning process has not been
previously performed. To begin the learning process press Enter. It
will take about 120 seconds to finish. The keyboard will not work
during fan learning.
NOTE Fan learning is not required for fan function. It is a calibration
process to optimize fan speed control.
Elapsed Time
in Seconds
N/A Displays the amount of time fan learning has been running in
seconds.
Current
Learning Stage
N/A Displays the current fan learning stage.
View Fan
Learning
Result
see
screen
Lists information details for each step of fan learning. Use the up and
down arrow keys to scroll through the fan learning result.
Pa
g
e 66 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg43.png)
Stealth Mode Configuration
Stealth mode allows you to use the computer in an environment where sound and light could be
dangerous or disruptive. If stealth mode is disabled, the LEDs, fan, system beeps, audio, and display
brightness operate normally.
N
OTE An off setting indicates stealth mode is in effect for that option. For example, if stealth mode is
enabled and the LED o
p
tion is set to "off", the LEDs will NOT illuminate to indicate activit
y
.
Pa
g
e 67 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg44.png)
Field Setting Function
Stealth Mode Disabled
Enabled
Enable or disable stealth mode. If
disabled, the computer functions
normally and the options listed
below are not accessible.
LED Off LEDs are disabled
On LEDs function normally
Fan Off The fan is disabled. Heat
management is then controlled
solely through throttling.
On The fan functions normally
Audio Off Volume is set to 0 across
suspend/resume and boot. Use the
existing audio function keys to
restore volume.
On Audio is preserved across
suspend/resume and boot. The
default volume level is set to mid-
range.
System Beeps Off Beeps are disabled during the boot
up or resume process
On Beeps are heard during POST
Display Brightness Off Brightness is set to 0 across suspend,
resume and boot. Fn+F1 restores
brightness to the value it was set to
before suspend. Additionally, Fn+F7
increases display brightness
gradually. Fn+F6 decreases
brightness gradually.
On Display brightness is preserved
across suspend/resume and boot. It
Pa
g
e 68 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg45.png)
Extended Configuration
is restored to default when the
brightness level is set at 0. The
default level is mid-range.
Radio Off All wireless devices are set to off
during a suspend/resume or boot.
The radio on/off switch can be used
to manually turn the radios on or off.
On The radio on/off switch functions
normally and radio device power
states are held though
suspend/resume and boot.
Field Setting Function
Battery Low
Warning Beep
Disabled
Enabled
System will sound 3 beeps per 10 Secs
during both battery capacity below 7%.
Secure HDD
Support
Disabled
Enabled
If secure HDD is enabled, the system
will disable standby mode (S3) and will
maintain HDD power when the system
is restarted
Dock USB Port USB 2.0
USB 1.1
Set this to USB 1.1 if you are using a
non-standard dock
GPS Disabled
Enabled
Turn the GPS radio on/off
Bluetooth Disabled
Enabled
Turn the Bluetooth radio on/off
Wireless LAN Disabled
Enabled
Turn on/off the WLAN port on the Mini
PCI WLAN or MiniCard WLAN
CRMA Express Disabled Turn on/off CRMA Express radio
Pa
g
e 69 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg46.png)

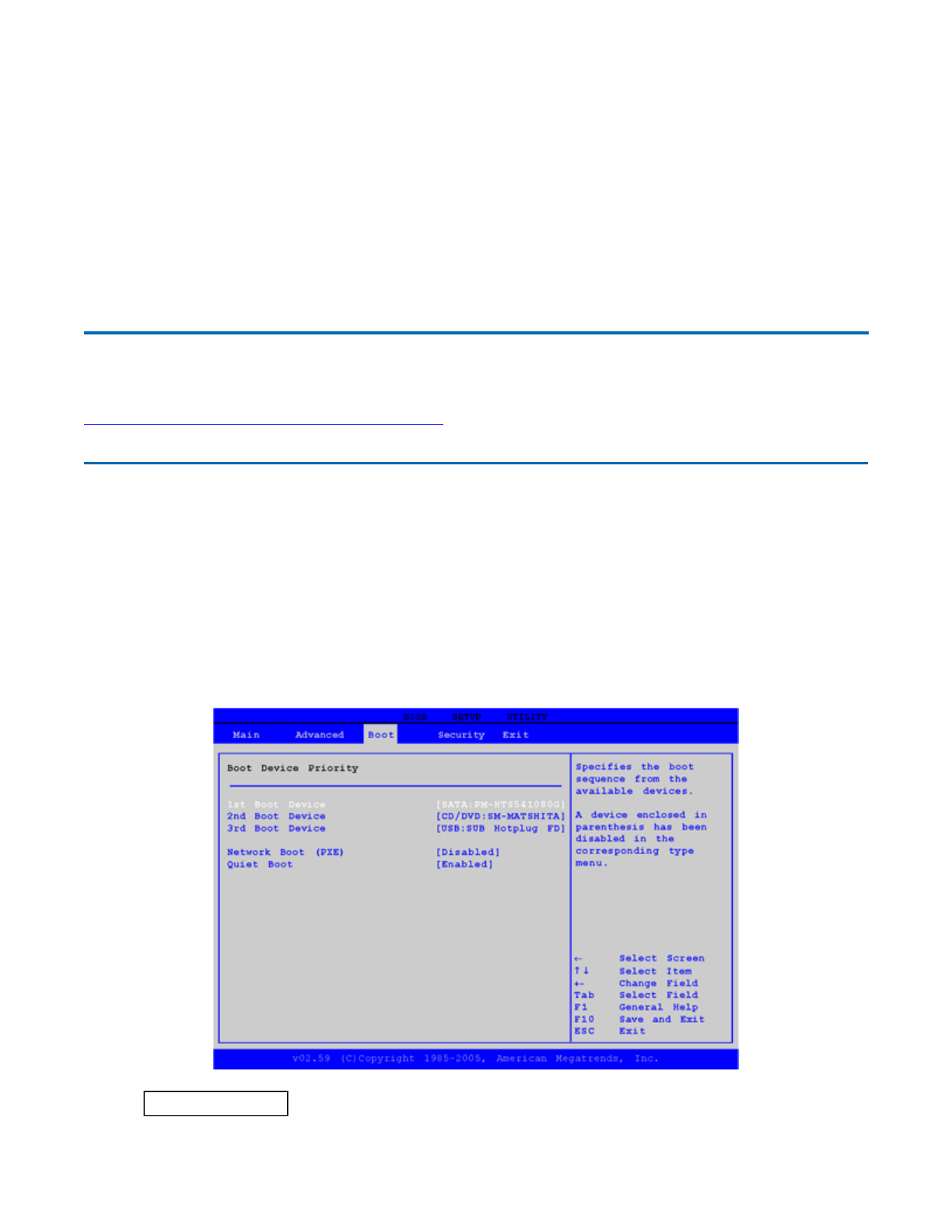

The Boot Menu
Use these fields to set the devices from which the system should boot, in order of priority, depending on
your configuration. The boot device fields are dynamic and change depending on the devices installed
on your GoBook XR-1 during that boot sequence. For example, if you have a DVD/CDRW Combo
drive or a USB floppy drive installed, they appear as options in the boot device fields. If you only have
a hard disk drive, it will be the only option that displays.
When you select a device, it is disabled in the other boot device fields.
Enabled
Bluetooth
Wakeup
Disabled
Enabled
If enabled, the Bluetooth radio will
wake up the system
LID Open
Wakeup
Disabled
Enabled
If enabled, opening the display lid will
wake up the system
LCD ON By
Power Button
Disabled
Enabled
If enabled, the power button will turn on
the LCD if it is off
Auto DIM Disabled
Enabled
Use this option to conserve battery life.
When enabled, the display will dim
automatically when AC power is
removed.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Field Setting Function
1st Boot SATA:PM-HTS541080G9SA00 Select the device the
Pa
g
e 70 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg47.png)
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
The Security Menu
Device CD/DVD:SM-MATSHITACD-RW
CW-812
USB:USB Hotplug FDD
Disabled
computer should boot from
first.
A device enclosed in
parenthesis has been
disabled in the
corresponding type menu.
NOTE Only devices
installed during boot up will
show as boot device
options.
2nd Boot
Device
SATA:PM-HTS541080G9SA00
CD/DVD:SM-MATSHITACD-RW
CW-812
USB:USB Hotplug FDD
Disabled
3rd Boot
Device
SATA:PM-HTS541080G9SA00
CD/DVD:SM-MATSHITACD-RW
CW-812
USB:USB Hotplug FDD
Disabled
Network
Boot (PXE)
Disabled
Enabled
If enabled, booting from the
network is possible.
Quiet Boot Disabled
Enabled Enabled: displays OEM
logo instead of POST
messages
Disabled: displays normal
POST messages
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 71 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg48.png)
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.

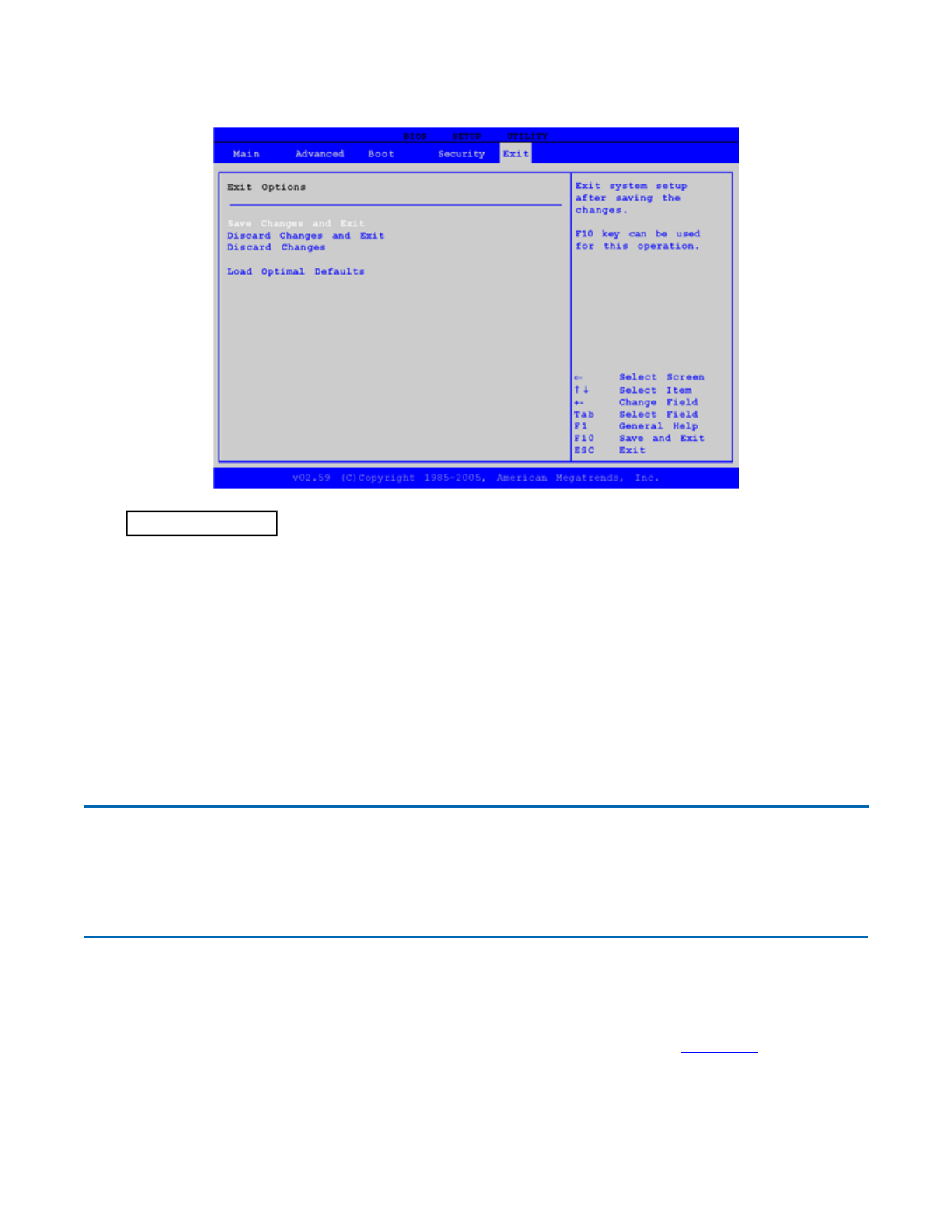

The Exit Menu
Field Setting Function
Change
Superviso
r
Password
Enter New
Password
Install or Change the Supervisor password. This field must be set
before a user level password can be set. You will be prompted for the
new password, and then again to verify it. Type in six or fewer
keystrokes. If you make an error, press Esc to start over.
Change Use
r
Password
Enter New
Password
Install or Change the User password
Clear Use
r
Password
Clear User
Password?
OK
Cancel
Immediately clears the User password. This option is only available
when a user password has been set.
Password
Chec
k
Setup
Always
This option is only available when a password has been set.
Setup: requires a password when entering the setup utility.
Always: requires a password during boot and when entering the setup
utility.
Boot Secto
r
Virus
Protection
Disabled
Enabled
Enable/Disable Boot Sector Virus Protection
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 72 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg49.png)
You use the exit menu to leave the BIOS Setup Utility.
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to
Setup and restore the Setup Defaults by pressing F9.
Optional Equipment and Accessories
The GoBook XR-1 computer has several equipment and accessory options to further enhance your
mobile computing experience from hard and soft handles to docking solutions. Click here for a current
list of optional peripherals and accessories.
CAUTION When purchasing any additional accessories, purchase only those accessories that are
a
pp
roved for use with
y
our com
p
uter. Some accessories are
p
ro
p
rietar
y
items and can be obtained
Field Setting Function
Save Changes and
Exit
OK
Cancel
Exit system setup after saving the changes. The F10 key can be used
for this operation.
Discard Changes
and Exit
OK
Cancel
Exit system setup without saving any changes. The Esc key can be
used for this operation.
Discard ChangesOK
Cancel
Discards changes done so far to any of the setup questions. The F7 key
can be used for this operation.
Load Optimal
Defaults
OK
Cancel
Load Optimal Default values for all the setup questions. The F9 key
can be used for this operation.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 73 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4a.png)
through your system vendor. If you use items that are not approved for use with this computer, you may
cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local
regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory
functions properly in your computer before making the purchase. Your system vendor may be able to
recommend reliable brands and models.
Surge Protection
A large number of computer and high technology equipment damage is directly related to AC power and
telephone line problems. These problems can include surges, spikes, noise, interference, and weather-
related problems, which in turn can cause glitches, hang-ups, crashes, performance slow downs, and
down time with computer equipment. The market is flooded with hundreds of AC power line surge
suppressors advertising high performance surge protection; only a few of them actually provide
adequate protection.
This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook
XR-1, and it helps identify a few sources for products with acceptable performance.
Selecting the Right Surge Protection
Consider the level of quality you need when selecting a surge suppressor. This depends on factors such
as surge environment, the type of equipment to be protected, and the quality of the electrical wiring and
service.
Surge Environment
Surge environment refers to the damage potential from electrical surges in a particular geographical
area. A high quality suppressor should be used if there is frequent lightning activity in the area and the
location service is fed by overhead utility poles.
Type of Equipment to be Protected
If the computer is equipped with a modem, the modem should also be surge protected. Protecting the
p
ower line without protecting the modem line provides only partial protection.
Quality of Electrical Wiring and Service
Wiring should be up to current NEC standards and have verified good AC grounds. It is important that
your computer system be plugged into a grounded AC outlet when charging and that all peripherals
connected to
y
our s
y
stem reference the same AC
g
round.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 74 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4b.png)
Selecting the Right Equipment
There are a number of companies that sell quality surge suppressors such as Sutton Designs, APC, and
Panamax. When you are looking for a surge suppressor, consider these things.
zExpect to pay at least $50 for a good quality surge suppressor
zThe surge suppressor should be a UL 1449, 497, and 1283 listed for surge suppression, modem
surge protection, and RFI/EMI noise filtering respectively
zThe surge suppressor should have diagnostic LEDs that verify good AC ground, proper wiring,
and proper surge operation. On/off switches that light are not recommended since they can
produce electrical noise
zThe Joule ratings should be a minimum of 480 Joules for the AC surge circuit
zThe Joule ratings should be a minimum of 240 Joules for the modem
zThe modem surge circuit should present low capacitance to the modem line or it will slow the
transmission rate. Capacitance should be specified at less than 50 picofarads
zQuality surge suppressor manufacturers generally offer a lifetime warranty
zConsider obtaining a protected equipment coverage policy which insures the equipment in the
event of surge damage
zThe devices that will be attached to the computer also need to be surge protected.
Vehicle Adapter
The Vehicle Adapter is an optional device that supplies power from the vehicle battery to operate the
computer and charge the battery installed in the unit. It typically connects to the vehicle battery using the
cigarette lighter socket.
CAUTION The Vehicle Adapter is only designed for temporary use. Use the optional Vehicle Dock to
p
ower and secure the GoBook X
R
-1 for frequent or long term vehicle installations.
To prevent possible damage to the battery, the system will not allow the battery to charge at extreme
temperatures. Be aware of the following charging characteristics, especially if the computer is left
unattended in a closed vehicle.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 75 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4c.png)
To connect the vehicle adapter
1. Insert the vehicle adapter’s power cord into the power port on the back of the computer.
2. Insert the cigarette lighter adapter into the vehicle’s cigarette lighter socket, turning it slightly to
make a good connection.
The power light illuminates to indicate that current is reaching the vehicle adapter. When you
connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate
temperatures, around 20°C (68ºF), the battery will be fully charged in approximately four to five
hours. However, as the battery temperature approaches the ends of its temperature range (5°C/41°
F to 50°C/122°F), it will take longer to charge the battery.
CAUTION Avoid exposing batteries to extremely hot or cold temperatures for long periods. To
prevent possible damage to the battery, the GoBook XR-1 laptop does not allow the battery to
charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°
C or > 122°F).
Vehicle Dock
The vehicle dock is designed to safely secure the computer in a vehicle. It includes a key lock for
security. You can use the vehicle dock to:
• Charge batteries
• Communicate with other devices
• Automatically connect to an external antenna
PRECAUTIONS
• There are no user-replaceable parts within the vehicle dock, so do not open the dock case. The
vehicle dock is internally protected; it resets automatically if there is a power fault.
• Do not use the vehicle dock to charge the computer battery overnight. Turn off the vehicle dock
at the end of each work day to prevent draining the voltage in your vehicle’s battery below
startin
g
levels.
Temperature Charging Activity
<5°C (<41°F)Battery will not charge
>50°C (<122°F)Battery will not charge
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 76 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4d.png)
Charging Batteries
The vehicle dock is designed to charge the computer’s battery with voltage from the vehicle battery
while you are traveling. Follow the procedure below to charge a battery.
To charge a battery installed in the computer
1. Place the computer onto the vehicle dock, making sure it is securely latched.
2. If charging is required it begins automatically. The Battery Power Indicator lights.
3. When the battery is fully charged, the Battery Power Indicator turns off.
Communicating with Other Devices
Connect external devices to the ports on the back of the dock, and then place the GoBook XR-1 onto the
vehicle dock. You can install or remove the computer from the vehicle dock without connecting or
disconnecting the cables.
External Antennas
The Vehicle Dock integrates WLAN and WWAN antennas with switching capability. FCC regulations
require that users of vehicle-mounted antennas must use only antennas authorized for use with the
GoBook XR-1 in order to meet FCC RF exposure limits. Itronix IX270 Vehicle Mount and Antennas
are to be installed by Itronix trained professional installation teams only.
RF Antenna Placement
WARNING Improper installation and/or operating configurations of permanent and magnetic vehicle-
mounted antennas may cause FCC RF exposure limits to be exceeded. Vehicle-mounted antennas must
be placed at least 20 cm from operators and bystanders and at least 92cm (36 inches) from any existing
roof mounted antennas.
Placement of a vehicle-mounted antenna
Important
• Refer to Battery Tips for charging temperature and other recommendations
• If you charge your battery daily, rely on the gas gauge reading to determine battery
capacity. The gas gauge may show that the battery is full, but charging continues. This
happens because the charging process is trying to put a little more capacity into the
battery. External power can be removed at this time since the battery is virtually full.
• If your battery is new or has not been used for several weeks, rely on the indicator light to
determine when the battery is fully charged. The gas gauge is unreliable in these cases;
it may read 100%, when the actual capacity is only 10%.
Pa
g
e 77 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4e.png)
1. Measure and identify an area 20 cm (8 inches) in from the edges of the vehicle roof.
2. Place the antenna within that area.
To maximize RF performance, position the antenna in the center of the vehicle roof.
CAUTION Do not place any metal objects on top of the dock that might make contact with the metal
p
ins of the contact connector. Doing so may cause an electrical short and subsequent damage to the
dock.
72_0130_001
2006-07-10
© 2006 Itronix Corporation. All rights reserved.
Memory Upgrade
Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work
more smoothly with large files. Users who increase memory demands - by adding additional programs,
for example - may notice a slowdown in operating speed, and wish to increase memory. The GoBook
XR-1 comes with SODIMM user accessible memory sockets for DDRII memory upgrades. Please
consult your dealer if you need to add more memory.
CAUTION First read and follow the guidelines in the Safety section.
CAUTION Only use memory cards approved for use in your computer. Failure to do so may void your
warranty.
Carrying Options
Your GoBook XR-1 has several carrying options including:
zFront Hard Handle
zBathook Handle
zFront or Back Soft Handle
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 78 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg4f.png)
zShoulder Strap
For a complete list of current options, click here.
Maintenance and Storage
The GoBook XR-1 is ruggedized and weather resistant. Handle it with the normal care required by any
sophisticated electronic equipment and the computer will provide reliable service even under harsh field
conditions.
Follow the guidelines in this section to care for your computer.
Computer Maintenance and Storage
You can use your computer under a wide range of environmental conditions. However, to ensure long
use and continued high performance, consider the following factors when using your computer:
Taking Care of Your Computer
Follow all warnings and instructions noted in this documentation and in the Windows Help program
zRead Computer Safety Precautions and Battery Tips
zUnplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning.
Aerosols, solvents, or strong detergents are not recommended cleaning solutions and may void
your warranty. For system decontamination recommendations please contact your support
re
p
resentative
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 79 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg50.png)
zSlots and openings in the unit's case are for ventilation purposes. Do not block or cover these
openings or the system could overheat. Do not use or store the computer near a source of heat or
dust
zIf you use the computer with an extension cord, ensure that the total ampere ratings of all the
devices sharing the extension do not exceed the rating of the extension cord or the rating of the
wall outlet
zNever push foreign objects into the computer through any of the slots or openings. Dangerous
voltages are present, which could cause electric shock or fire, or damage sensitive components
zFor best results, use a power strip with a built-in surge protector. Do not use inferior extension
cords as this may result in damage to your computer
zSet the computer on a flat, stable surface. To prevent damage to the computer’s hard disk drive,
avoid using the computer where it will be exposed to extreme vibration
zDo not place it near sources of heat, such as a radiator
zDo not operate the computer to temperatures below -23ºC (-10ºF) or above 60ºC (140ºF)
zOperate the computer within the recommended temperature ranges of -23°C to +60°C (-10°F to
+140°F)
zDo not subject the computer to magnetic fields
zDo not intentionally spill liquid on the computer
zDo not subject the computer to extreme shock and vibration
zDo not place objects on top of the computer
zDo not place the computer on uneven surfaces
zPeriodically inspect the computer and accessories for wear, damage, loose or missing parts.
Identifying and correcting potential problems early can help reduce the need to return the unit for
service
zPeriodically inspect the ports and connectors for damage and contamination.
zTurn off the computer when you are not using it
zCharge the batteries daily or whenever their capacity is low
Taking care of your AC adapter
zDo not connect the adapter to any other device
zDo not ste
p
on the
p
ower cord or
p
lace an
y
thin
g
on to
p
of it. Carefull
y
route the
p
ower cord and
Pa
g
e 80 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg51.png)
any cables away from all potential traffic
zWhen unplugging the power cord, do not pull on the cord itself but pull on the plug
zThe total ampere ratings of the equipment plugged in should not exceed the ampere rating of the
cord if you are using an extension cord. Also, the total current rating of all equipment plugged into
a single wall outlet should not exceed the fuse rating.
Servicing
Contact your dealer or see your service technician if any of the following occurs:
z The computer has been dropped and the body has been damaged
z Liquid has been spilled into the product
z The computer does not operate normally
See the Service and Support section for more information.
Storing Your Computer
If you plan to store the computer, follow these storage guidelines.
To store the computer
1. Save files and data before storing the computer. Contact your organization’s help desk about the
procedure for backing up files or data.
2. Remove any PC Cards, Smart Cards, or EXPRESS Cards from the card slots.
3. Remove any media from the media bay.
4. Exit all applications.
5. Select Start, Shut down, OK to turn off the computer.
6. Remove the battery from the unit and store it in a dry place.
7. Store the computer within the recommended temperature ranges of -55°C to +75°C (-67°F to
+167°F).
8. If you use PC cards, refer to the manufacturer’s instructions you received with the card for storage
and care information.
72_0130_001
2006-07-10
Pa
g
e 81 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg52.png)
Battery Maintenance
Taking care of your battery pack
zRead and follow all battery precautions in the Safety section
zUse only batteries of the same kind as replacements. Turn the power off before removing or
replacing batteries
zDo not tamper with batteries. Keep them away from children
zBefore storing your battery, read and follow the recommendations in the Battery Tips section
zDispose of used batteries according to local regulations. Recycle if at all possible
Maintaining Batteries
Follow these guidelines to maintain performance of Lithium-Ion (Li-on) batteries.
zAvoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent
possible damage to the battery, the GoBook XR-1 does not allow the battery to charge if the
internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F)
zCharge the battery nightly where the temperature will remain around 20°C (68°F)
zRe-calibrate your battery when your battery performance degrades.
Hard Drive Care and Handling
The hard drive in the GoBook XR-1 is a removable shock-mounted 2.5-inch hard drive. You can reduce
the risk of damage to the hard drive and increase the reliability of the hard drive and data integrity by
following the recommendations below.
Internal Hard Drives
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 82 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg53.png)
zDo not intentionally drop the computer. The unit is designed to withstand the day to day rigors of
the mobile environment and provide years of reliable service. The useful life of the product can be
enhanced by not intentionally abusing it
zWhenever possible, suspend the unit by pressing Fn+F3 before moving it from one location to
another. This unloads the read/write heads and spins down the disk, reducing exposure to high
operating shocks
zMaintain the environmental seal of the computer by keeping all external access doors closed and
latched
zAvoid exposing the unit to extreme temperatures or moisture when the doors are open
zPeriodically backup or archive important files and data.
External PC Cards
Each PC Card manufacturer provides specific guidelines for the care and handling of the product. In
addition, follow these recommendations:
zWhen the PC Card is not inserted in a PC Card socket, store the PC Card in a protective carrying
case. This will help protect it from inadvertent shocks
zAlways use care when handling PC Cards. Do not drop, bend, flex, or crush it
zAvoid exposing PC Cards to extreme moisture, heat, or sunlight
zKeep all debris out of the connector to ensure good electrical connections
zThere are no user repairable parts in the PC Card slot. Do not attempt to disassemble any part of
the device. The warranty will be voided if drive seals are broken or screws have been removed
zPeriodically backup or archive important files and data.
If you have problems with your PC Card, contact the manufacturer for more information and
troubleshooting information.
Cleaning Your Computer
To Clean Your Com
p
ute
r
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 83 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg54.png)
Outside Case
1. Disconnect external power and turn off the computer.
2. Remove the battery.
3. Add a small amount of water to a soft cloth and clean the computer case. Do not use paper
products because they can scratch the surface.
4. Wipe off any excess liquid with a soft cloth.
5. Reinstall the battery.
CAUTION Aerosols, solvents, or strong detergents are not recommended cleaning solutions
and may void your warranty. For system decontamination recommendations please contact you
r
support representative.
Display
Use a soft, dry cloth. In some cases, you can use a small amount of water to remove streaks or smears.
For difficult display cleaning tasks, use a 50/50 mixture of Isopropyl Alcohol and Water. Do not use
p
aper products because they can scratch the screen.
External Power Connector
The external power connector may sometimes be exposed to moisture and/or contamination causing an
unreliable connection to the external power source. Clean the connector with a cotton swab dipped in
electronics grade isopropyl alcohol.
RJ-11/ RJ-45 / USB Connectors
If the connector pins get dirty, clean the connector with a cotton swab dipped in electronics grade
isopropyl alcohol.
Backup and Recovery
Data Backup
There are several methods to backup your data. It is best to regularly use all the methods below to ensure
the greatest data integrity, provide the fastest recovery options, and minimize downtime.
After you have installed all your applications and have your computer configured as desired, create a
backup of drive C: using the Hard Disk Backup and Recovery Utility. Then, use the Windows Backup
Utilit
y
on a fre
q
uent basis to backu
p
y
our dail
y
data. It is recommended that
y
ou schedule the Windows
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 84 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg55.png)
Backup Utility to run automatically.
► Save Important System Information (WinXP only)
By default, your computer is set up to automatically save certain critical information, such as the
registry, on a regular basis. This information is saved as a Restore Point. You can also create Restore
Points manually by using the System Restore utility. Select Start, All Programs, Accessories, System
Tools, System Restore. Then, follow the instructions on the Wizard.
► Backup your Files
You can backup files in case they are accidentally erased or corrupted. To do this, use the Windows
Backup Utility. From the Start Menu, select All Programs, Accessories, System Tools, Backup. You can
schedule backups to run automatically on a regular basis. To set this up, talk to your help desk or IT
department.
► Backup Drive C:
You can make an exact copy of drive C: and save the backup image on the Recovery Partition of your
hard disk (usually drive D:). In the future, you can restore drive C: to its previous state should it become
corrupted. To make a backup copy of drive C:, use the Hard Disk Backup and Recovery Utility. Select
Start, All Programs, Mobile Computer Tools, Hard Disk Backup and Recovery. You will be prompted
for additional information.
N
OTE The Hard Disk Backup and Recovery Utility is only available on computers configured with a
Recovery Partition.
Data Recovery
There are several methods to restore your data. It is best to start with the least destructive and fastest
recovery options.
► Try this first: Restore System Information (WinXP only)
If you are having problems with your system, restore system information to an earlier state, or Restore
Point. To restore to an earlier state, select Start, All Programs, Accessories, System Tools, System
Restore. Then, follow the instructions on the Wizard.
► Try this next: Restore a Backup
You can restore files and folders that you have backed-up with the Windows Backup Utility. To do this,
use the Windows Backup utility. Select Start, All Programs, Accessories, System Tools, Backup.
► Try this last: Restore Entire Contents of Drive C:
If none of the above steps restore your disk image to a stable state, you may need to restore your disk to
its original factory image or an image you saved using the Hard Disk Backup and Recovery Utility.
Restoring a previously saved disk image overwrites the entire contents of drive C:. Before running this
p
rocess, save your data to another location, such as a USB flash drive. Select Start, All Programs,
Mobile Com
p
uter Tools, Hard Disk Backu
p
and Recover
y
. You will be
p
rom
p
ted for additional
Pa
g
e 85 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg56.png)
information.
N
OTE The Hard Disk Backup and Recovery Utility is only available on computers configured with a
Recovery Partition. If it is not available, you will either need to contact your company's help desk about
obtaining a Recovery CD or return your unit for service.
Troubleshooting
This section is designed to help you determine and fix problems you might encounter while operating
the GoBook XR-1 computer. Try the following things in order:
zFirst look through the categories in this section for a solution
zIf you are having a problem with a computer application, use the Help that comes with the
application to find a solution
zIf you still cannot resolve your problem, contact the help desk at your organization.
For More Help
zWindows Help is installed on your system. To access this information, select Windows Help and
Support from the Start Menu
zThird-party Windows manuals are available from your local bookstore.
Applications
My application locks up, acts strangely, or produces a General Protection Fault (GPF) error or blue
screen
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72
_
0130
_
001
Pa
g
e 86 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg57.png)
Battery Troubleshooting
The battery does not charge
The batteries take much longer than seven hours to charge
The batteries don’t last very long
The gas gauge isn’t full after charging the battery
The gas gauge reads “full,” but the charging indicator light is still on
My battery seems to have less and less capacity
Display / Touch Screen
The display performance is slow
I can’t read the display
The underlined, inverse, and hypertext characters are difficult to read on the screen
I can’t see the cursor while using the DOS editor
The display appears to have random pixels darkened after scrolling
I changed my display resolution, but I see no difference on the screen
When I try to use the stylus on my touch screen, nothing happens
The touch screen doesn't respond after a suspend
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
Pa
g
e 87 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg58.png)
Hard Disk
The hard disk will not spin up so the computer can’t boot up
Keyboard and Mouse Troubleshooting
Something unexpected happens when I press a key
Incorrect characters appear on the screen when I press certain keys
I have difficulty double-clicking the mouse fast enough
Modem Troubleshooting
The modem doesn’t work
The modem doesn’t dial a number
The modem dials and receives an answer but does not establish a connection
Miscellaneous Troubleshooting
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 88 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg59.png)
The computer shuts off unexpectedly
The speaker volume is too high or too low
The computer won’t turn on
The computer won’t turn off
The computer enters suspend mode too quickly
The computer doesn’t automatically suspend
The system date and time are incorrect
I receive an “out of memory” error message
Holding down the Power button to reset the computer doesn’t always work
The LED's, backlight, and/or keyboard backlight don't illuminate
The computer doesn't make any sounds, even during boot-up
The fan stopped running
PC Cards
I can’t remove the PC card
Read Error
The computer locks up when I remove the PC card
FAQ
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 89 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg5a.png)
I've heard that cleaning up and rearranging files on the hard drive will improve the startup speed of my
p
rograms. How do I do this?
How do I adjust the volume?
How do I change the battery?
How long will the battery last?
How do I change the display brightness?
How do I clean the display?
How do I calibrate the optional touch screen?
Service and Support
We are committed to providing you world class support services that ensure the lowest total cost of
ownership for your hardware investment. the icareServices program will help you maximize end user
p
roductivity and decrease overall system operating cost.
Client Care Center (CCC)
Itronix's Client Care Center provides world-class service with a single entry point of access to meet all
your needs including:
zTroubleshooting and RMA origination
zDispatch of field support staff
zWireless carrier service activation
zHardware
p
erformance information
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 90 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg5b.png)
zRMA status checks on service unit and warranty/service parts orders
zNew and refurbished platform, accessory, and add-on orders
zTrial unit orders and status updates
zProof of delivery status updates for service and new unit orders
zInternational new unit and accessory, peripheral and service parts orders
zCentralized access for all invoicing and finance related issues
The majority of the above deliverables are also available through Itronix's icareServeNet web based
system.
Services Expertise: The Technical Services and Client Services Account Management staff provide
support with expertise that spans hardware platforms, industry applications and 3rd party solutions.
They regularly visit customers to garner feedback and input and provide training and post-installation
support. For more information on our comprehensive service programs or current support phone
numbers and email addresses, click here.
Product Support - Downloads
It is easy to get the software updates you need to keep your configuration current and get the most from
your product. Click here to get current downloads.
NOTE Downloads are listed by model (GoBook XR-1) and product number (IX270).
Documentation Feedback
We strive to create accurate, convenient and highly useful product documentation for all our products.
With this in mind, we'd like to hear from you and encourage your feedback. If you have comments or
su
gg
estions about our online Hel
p
or other
p
roduct documentation, click here.
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
GoBook® XR-1 Help
Pa
g
e 91 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg5c.png)
Please include the following information when submitting feedback:
zProduct name
zPlace and date of purchase
zName of online Help or other document
zTopic title (for online Help) or page number
zLocalized document language (such as English, French, German, Spanish)
zType of feedback (for example, need for clarification, grammatical errors, incorrect information)
zYour suggestion for how to improve the document
72_0130_001
2006-07-10
© 2006 Itronix Cor
p
oration. All ri
g
hts reserved.
Pa
g
e 92 of 92GoBook X
R
-1 Hel
p
8/3/2006file://C:\Documents and Settin
g
s\harwoodm\Local Settin
g
s\Tem
p
\~hh2D1C.htm
![](/img.php?id=694122&img=bg5d.png)
Identification
GoBook XR-1 (IX270) Help
Copyright Notice
© Copyright 2006. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any
means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent
of Itronix Corporation, 12825 E. Mirabeau Parkway, Spokane Valley, WA 99216.
Disclaimer
Itronix Corporation reserves the right to revise the manual and make periodic changes to the content without a direct or
inferred obligation to notify any person of such revision or changes. Itronix Corporation does not assume responsibility
for the use of this help manual, nor for any patent infringements or other rights or third parties who may use the manual.
This document contains valuable trade secrets and proprietary information of Itronix Corporation.
This product is available for purchase under Itronix's standard terms and conditions of sale. Hardware products may be
reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some
cases, the hardware product may not be new and may have been previously installed. In any event, Itronix warranty
terms apply.
Trademark and Patent Notice
Itronix is a registered trademark of Itronix Corporation.
GoBook is a registered trademark of Itronix Corporation
Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation.
IBM is a trademark of International Business Machines Corporation.
The following United States Patent Numbers apply to any unit which incorporates a DVD drive - 5,434,678; 5,589,945;
5,913,013; 6,151,444; and 6,208,805.
Compliance Statements
The GoBook XR-1 (IX270) computer has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The GoBook XR-1 (IX270) computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a
label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for
this equipment. If requested, this information must be provided to the telephone company.
The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the
sum of the RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to the line,
as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.
The GoBoo
k
X
R
-1 (IX270) computer may be connected to the telephone network using the RJ-11 jack provided.
Pa
g
e 1 of 3
N
otices and Com
p
liance
8/3/2006mk:
@
MSITStore:C:\Documents%20and%20Settin
g
s\harwoodm\Deskto
p
\Ix270%20Manual...
![](/img.php?id=694122&img=bg5e.png)
If this equipment causes harm to the telephone network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. If advance notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you
believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the
operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make
the necessary modifications in order to maintain uninterrupted service.
If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty
information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and
documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove
the equipment from the network until the problem is resolved.
Compliance Statement for Canada
NOTICE The Industry Canada label identifies certified equipment. This certification means that the equipment meets
certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will
operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local
telecommunications company. The equipment must also be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not prevent degradation of service in some
situations.
Repairs to certified equipment should be made by a representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to
request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines,
and internal metallic water pipe system, if present, are connected together. This precaution may be particularly
important in rural areas.
CAUTION! Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.
The Ringer Equivalence Numbers (REN) are:
GoBook XR-1 (IX270) non-radio: 0.5B
GoBook XR-1 (IX270) Motient: 0.5B
GoBook XR-1 (IX270) Cingular: 0.5B
GoBook XR-1 (IX270) CDPD: 1.3B
NOTICE The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.
The GoBook XR-1 (IX270) computer may be connected to the telephone network using the RJ-11 jack provided.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and an identification
of the business or other entity, or other individual sending the message and the telephone number of the sending
machine or such business, other entity, or individual.
In order to program this information into your fax machine, you should complete the following:
This information is entered through the FAX application software you have installed. Consult your FAX software
documentation for instructions about entering this information.
Pa
g
e 2 of 3
N
otices and Com
p
liance
8/3/2006mk:
@
MSITStore:C:\Documents%20and%20Settin
g
s\harwoodm\Deskto
p
\Ix270%20Manual...
![](/img.php?id=694122&img=bg5f.png)
Warnings and Cautions
WARNING It is important that only authorized personnel service and attempt repairs on the equipment. Unauthorized
service or repair may void the warranty and any maintenance contract in effect for the equipment. Unauthorized service
personnel might be subject to shock hazard on some equipment if removal of protective covers is attempted.
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
The product you have purchased is powered by a rechargeable battery. The battery is recyclable and, under various state
and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Do not crush the battery or
place it in a fire. Check with your local solid-waste officials for details on recycling options or proper disposal.
CAUTION Internal components of the GoBook XR-1 (IX270) computer will be damaged if exposed to contaminants.
When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all
contaminants such as liquids, rain, snow, and dust.
Each internal radio may or may not have an individual FCC Identifier label. That FCC Identifier label is not applicable
to this configuration. Only the external FCC ID is applicable.
Only the antenna with which an intentional radiator is authorized may be used with the intentional radiator.
The WAN antenna location is in the upper center edge of the display screen and is not to be modified.
The PAN antenna location is near the lower left edge of the Keyboard and is not to be modified.
The WLAN embedded dual antennas are located internally in the upper right and left edges of the display screen and are
not to be modified.
This device may contain a WLAN radio transmitter, a Pan radio transmitter, and a WAN radio transmitter. To comply
with FCC RF exposure requirements when using the WAN radio transmitter, a minimum separation distance of 20 cm
must be maintained between the upper center edge of the display screen antenna and all users/bystanders. When using
the WLAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper right and left
edges of the display screen and all users/bystanders. When using the PAN transmitter, a minimum separation distance of
20 cm must be maintained between the lower left edge of the Keyboard and all users/bystanders. The WAN transmitter,
PAN transmitter and WLAN transmitter should be turned off before carrying the Laptop PC in order to comply with
FCC RF exposure requirements.
The equipment has been approved to [Commission Decision "CTR21"] for pan-European single terminal connection to
the Public Switched Telephone Network (PSTN). However, due to differences between individual PSTNs provided in
different countries the approval does not, of itself, give an unconditional assurance of successful operation on every
PSTN network termination point.
In the event of problems, you should contact your equipment supplier in the first instance.
Safety Information
Do not proceed beyond a WARNING or CAUTION until the indicated conditions are fully understood and met.
Pa
g
e 3 of 3
N
otices and Com
p
liance
8/3/2006mk:
@
MSITStore:C:\Documents%20and%20Settin
g
s\harwoodm\Deskto
p
\Ix270%20Manual...
