Genex Telecom MT800 VHF FM Transceiver User Manual program eng

Genex Telecom Co., Ltd. VHF FM Transceiver program eng

Preliminary Users Manual

MT-800 PC PROGRAMMER USER’S GUIDE   The  main  function  and  frequency  of  MT-800  is  supposed  to  work  for  PC PROGRAMMER. The  usage  of  this  program  is  SOFTWARE  INSTALLATION  of  WINDOWS  OS  to WINDOWS  98(FIRST,  SECOND  EDITION),  WINDOW  SERIES,  AND  WINDOWS  XP  for PERSONAL COMPUTER only. . 1. INSIDE OF MT-800 PC PROGRAMMER KIT  PROGRAMMING KIT contains following.        1) PROGRAM CD THE SOFRWARE VERSION SHOWS UP IN THE HELP INFO. 2)MT-800 PROGRAMMING LEAD  2. HARDWARE INSTALLATION Connect MT-800 programming lead to personal computer com1 or com 2 and connect  the  other  side  to  mic  connector  for  finishing  hardware

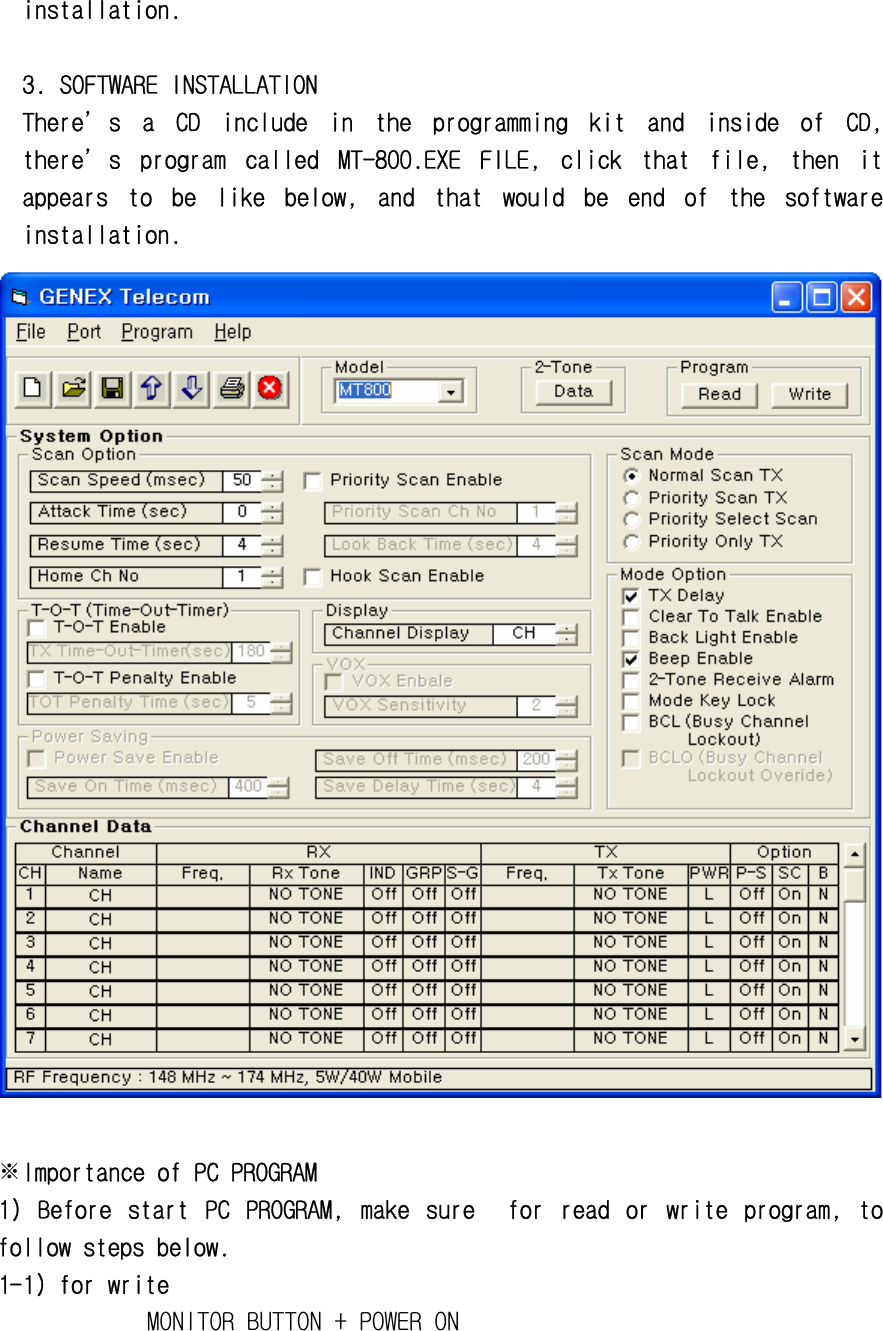

installation.   3. SOFTWARE INSTALLATION There’s  a  CD  include  in  the  programming  kit  and  inside  of  CD, there’s  program  called  MT-800.EXE  FILE,  click  that  file,  then  it appears  to  be  like  below,  and  that  would  be  end  of  the  software installation.    ※Importance of PC PROGRAM 1)  Before  start  PC  PROGRAM,  make  sure    for  read  or  write  program,  to follow steps below. 1-1) for write MONITOR BUTTON + POWER ON

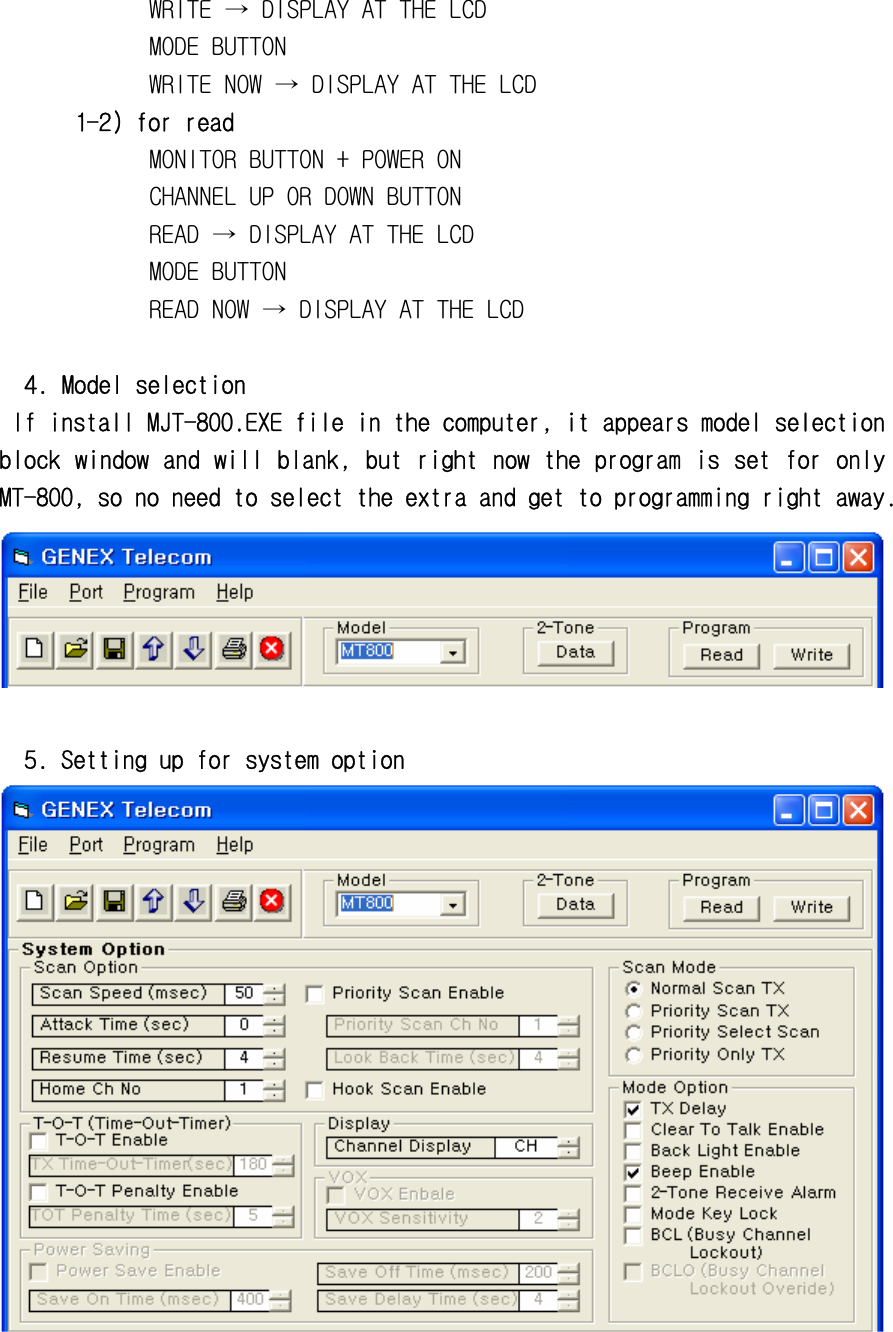

WRITE → DISPLAY AT THE LCD  MODE BUTTON  WRITE NOW → DISPLAY AT THE LCD 1-2) for read MONITOR BUTTON + POWER ON CHANNEL UP OR DOWN BUTTON READ → DISPLAY AT THE LCD MODE BUTTON  READ NOW → DISPLAY AT THE LCD  4. Model selection  If install MJT-800.EXE file in the computer, it appears model selection block window and will blank, but right now the program is set for only MT-800, so no need to select the extra and get to programming right away.   5. Setting up for system option

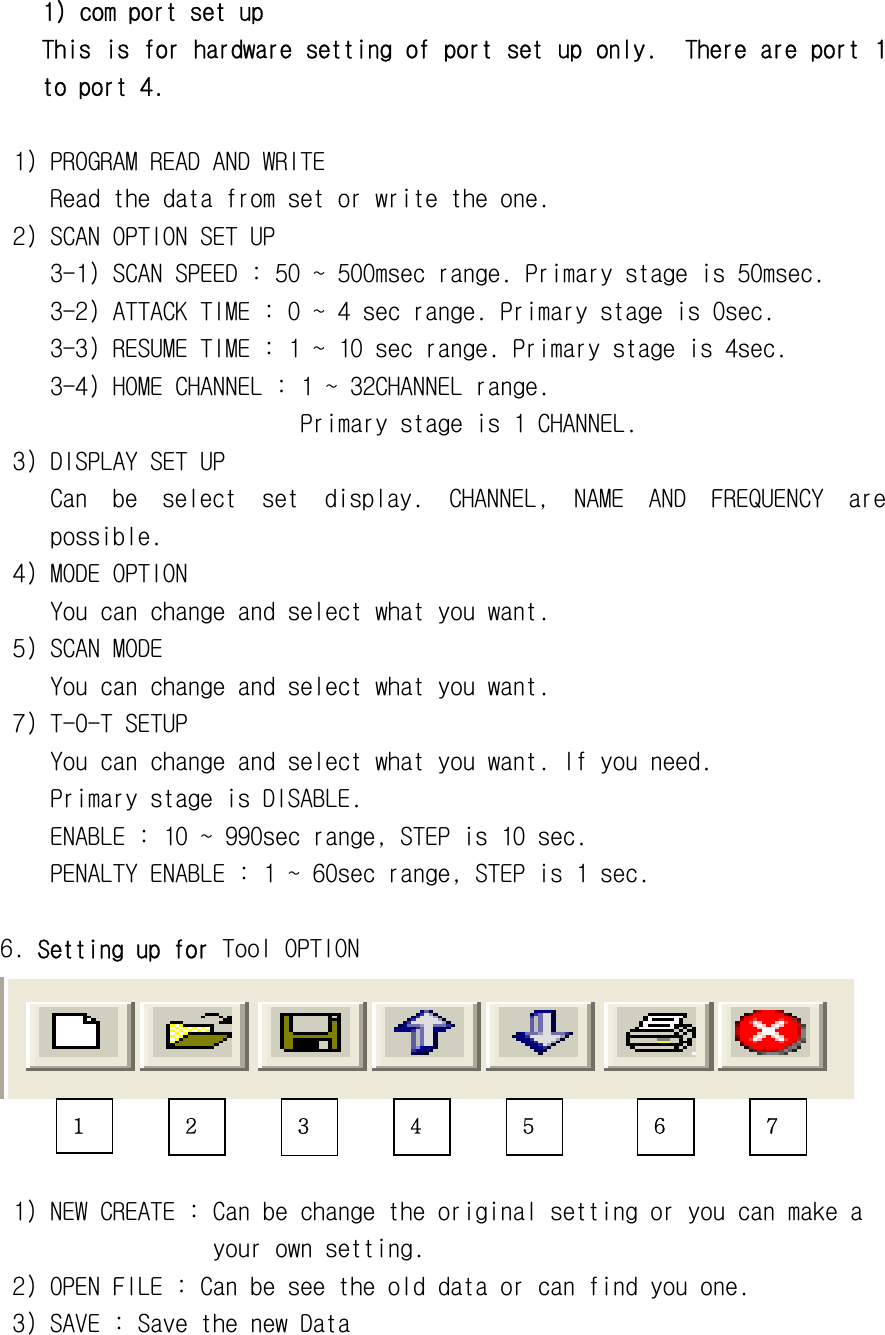

1) com port set up This is for hardware setting of port set up only.  There are port 1 to port 4.  1) PROGRAM READ AND WRITE Read the data from set or write the one. 2) SCAN OPTION SET UP 3-1) SCAN SPEED : 50 ~ 500msec range. Primary stage is 50msec. 3-2) ATTACK TIME : 0 ~ 4 sec range. Primary stage is 0sec. 3-3) RESUME TIME : 1 ~ 10 sec range. Primary stage is 4sec. 3-4) HOME CHANNEL : 1 ~ 32CHANNEL range.  Primary stage is 1 CHANNEL. 3) DISPLAY SET UP Can  be  select  set  display.  CHANNEL,  NAME  AND  FREQUENCY  are possible. 4) MODE OPTION You can change and select what you want. 5) SCAN MODE You can change and select what you want.  7) T-O-T SETUP     You can change and select what you want. If you need. Primary stage is DISABLE.     ENABLE : 10 ~ 990sec range, STEP is 10 sec.     PENALTY ENABLE : 1 ~ 60sec range, STEP is 1 sec.  6. Setting up for Tool OPTION               1) NEW CREATE : Can be change the original setting or you can make a      your own setting. 2) OPEN FILE : Can be see the old data or can find you one. 3) SAVE : Save the new Data  1  23  4567
4) UP LOAD :Up load the new data from PC to Set  5) DOWN LOAD : Down load from the set. 6) PRINT :  Can be print. 7) EXIT : Use this for quit from PROGRAM.  7. Setting up for Frequency   1) You can input the frequency form 148MHz to 174MHz every 5KHz – 6.25KHz STEP.  2) NAME  section  has  originally  set  up  CH,  every  CHANNEL  can  be input the own name that is possible 8 number or alphabet. 3) TONE OPTION is composed of NO TONE, CTCSS, DCS, IDCS, CTCSS 49 TONE  CODE  (  STANDARD  CTCSS  38  ,  NON  STANDARD  CTCSS  11  ), DCS/IDCS  83 NORMAL CODE AND 83 INVERT CODE. 4) If you want to input the TONE, you have to accept and then you can go to next step.
NOTICE There are no user-serviceable points inside this transceiver. All service jobs must be referred to your Authorization Service Center or Network Administrator  Safety/ Warning Information WARNING – DO NOT operate the MT-800 radio when someone (bystanders) outside the vehicle are within following range.  Safety Training Information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of following range. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits.  Antenna Installation: For rear deck trunk installation, the antenna must be located at least the following range away from rear seat passengers and bystander in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof.  Radiated frequency and Distance                                          MT-800 1.97 Feet (0.6 m)
                 Sample Part 15 Rule Label    This device complies with part 15 of FCC Rules. Operation subject to that this device does not cause harmful interference.  ! CAUTION ! Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement.
