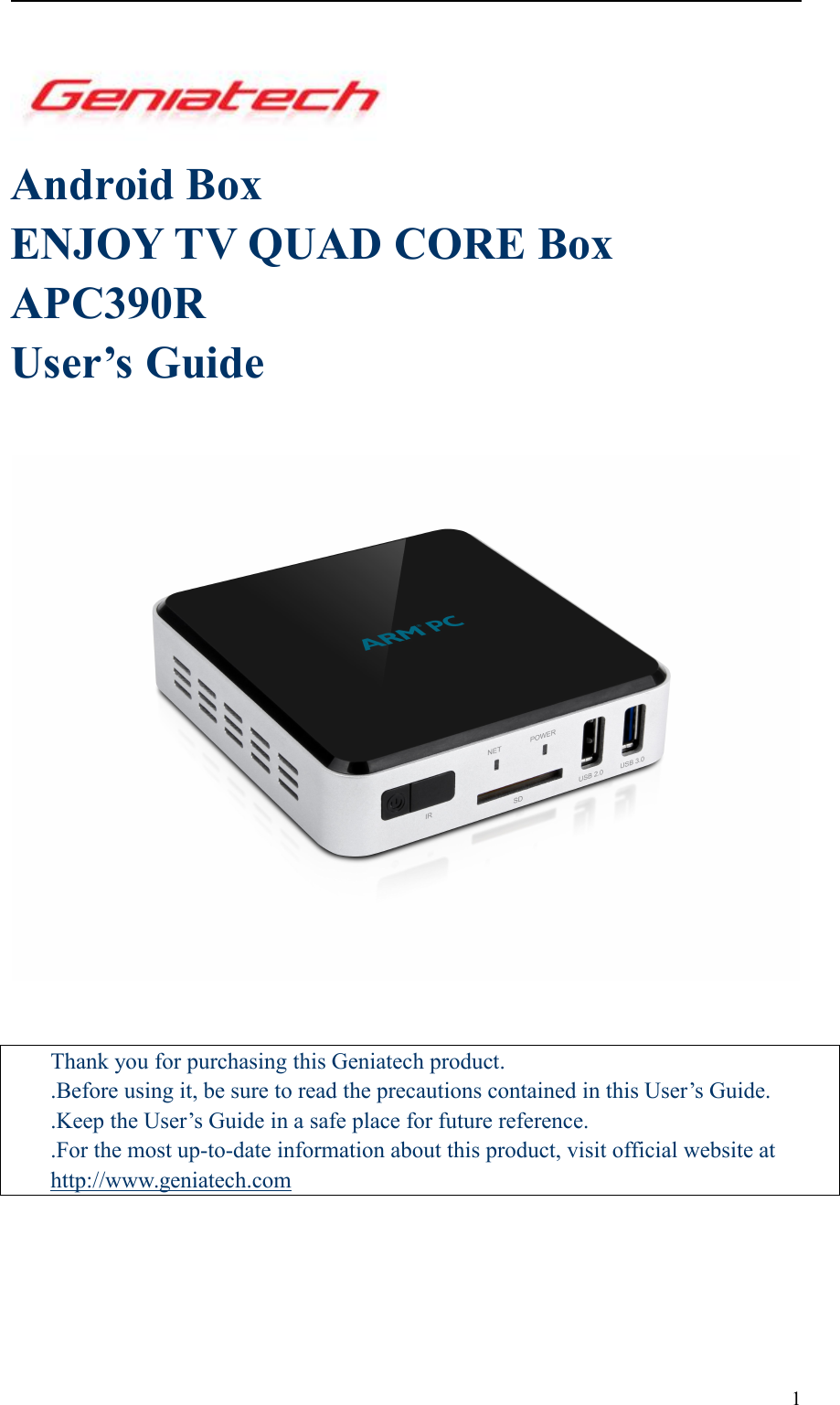

1Android BoxENJOY TV QUAD CORE BoxAPC390RUser’s GuideThank you for purchasing this Geniatech product..Before using it, be sure to read the precautions contained in this User’s Guide..Keep the User’s Guide in a safe place for future reference..For the most up-to-date information about this product, visit official website athttp://www.geniatech.com

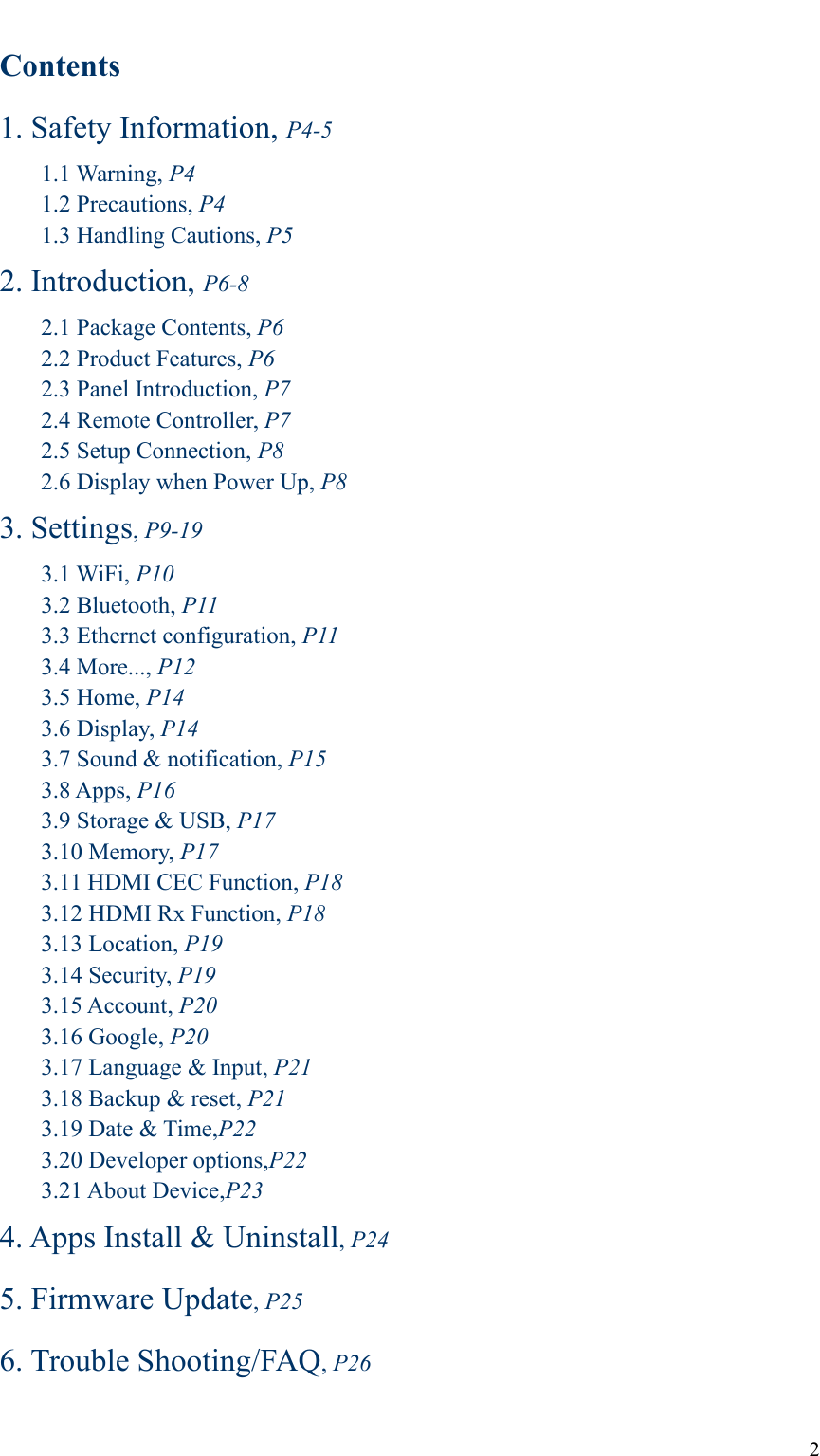

2Contents1. Safety Information, P4-51.1 Warning, P41.2 Precautions, P41.3 Handling Cautions, P52. Introduction, P6-82.1 Package Contents, P62.2 Product Features, P62.3 Panel Introduction, P72.4 Remote Controller, P72.5 Setup Connection, P82.6 Display when Power Up, P83. Settings,P9-193.1 WiFi, P103.2 Bluetooth, P113.3 Ethernet configuration, P113.4 More..., P123.5 Home, P143.6 Display, P143.7 Sound & notification, P153.8 Apps, P163.9 Storage & USB, P173.10 Memory, P173.11 HDMI CEC Function, P183.12 HDMI Rx Function, P183.13 Location, P193.14 Security, P193.15 Account, P203.16 Google, P203.17 Language & Input, P213.18 Backup & reset, P213.19 Date & Time,P223.20 Developer options,P223.21 About Device,P234. Apps Install & Uninstall,P245. Firmware Update,P256. Trouble Shooting/FAQ,P26

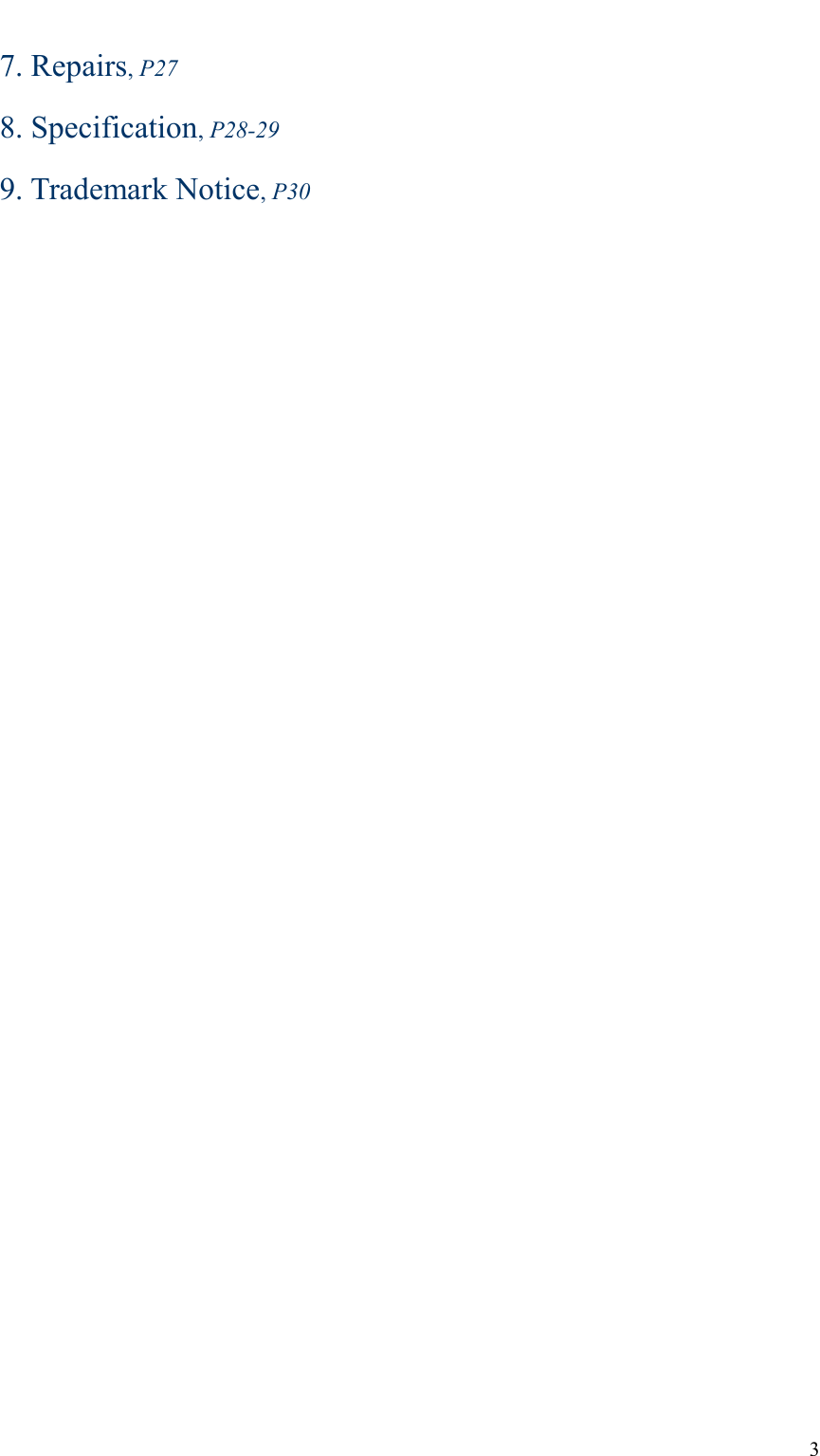

37. Repairs,P278. Specification,P28-299. Trademark Notice,P30

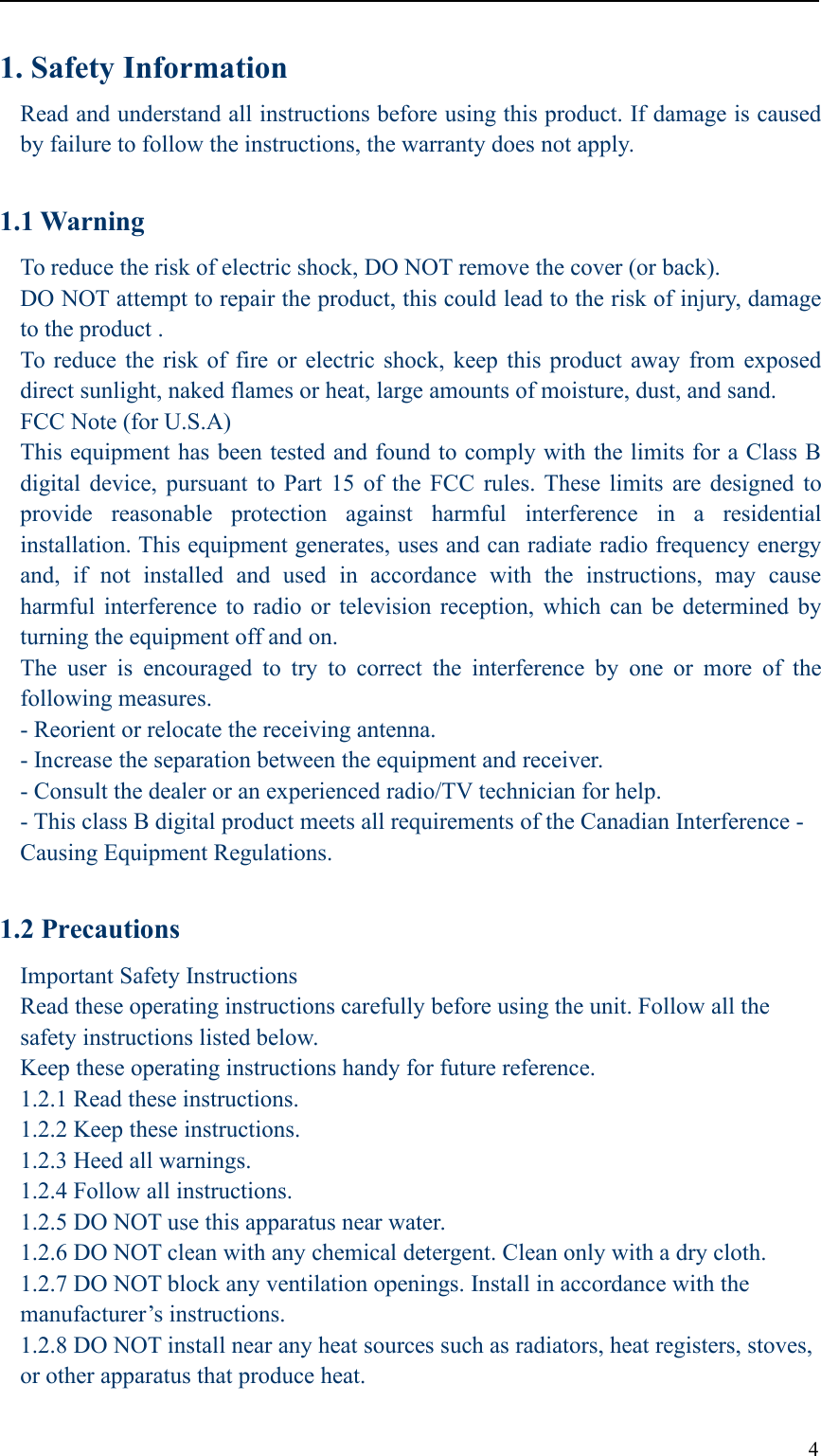

41. Safety InformationRead and understand all instructions before using this product. If damage is causedby failure to follow the instructions, the warranty does not apply.1.1 WarningTo reduce the risk of electric shock, DO NOT remove the cover (or back).DO NOT attempt to repair the product, this could lead to the risk of injury, damageto the product .To reduce the risk of fire or electric shock, keep this product away from exposeddirect sunlight, naked flames or heat, large amounts of moisture, dust, and sand.FCC Note (for U.S.A)This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules. These limits are designed toprovide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on.The user is encouraged to try to correct the interference by one or more of thefollowing measures.- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Consult the dealer or an experienced radio/TV technician for help.- This class B digital product meets all requirements of the Canadian Interference -Causing Equipment Regulations.1.2 PrecautionsImportant Safety InstructionsRead these operating instructions carefully before using the unit. Follow all thesafety instructions listed below.Keep these operating instructions handy for future reference.1.2.1 Read these instructions.1.2.2 Keep these instructions.1.2.3 Heed all warnings.1.2.4 Follow all instructions.1.2.5 DO NOT use this apparatus near water.1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.1.2.7 DO NOT block any ventilation openings. Install in accordance with themanufacturer’s instructions.1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,or other apparatus that produce heat.

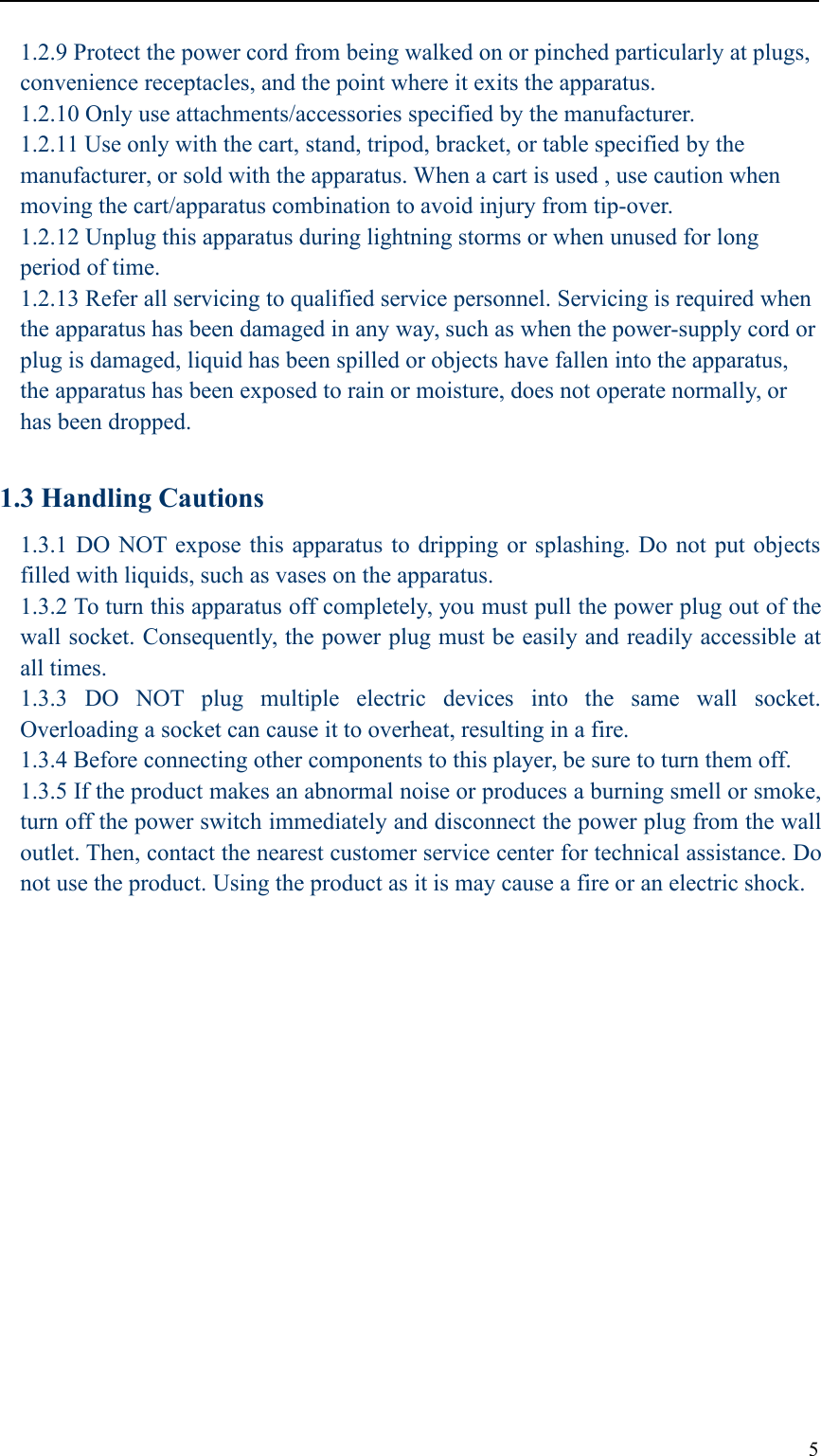

51.2.9 Protect the power cord from being walked on or pinched particularly at plugs,convenience receptacles, and the point where it exits the apparatus.1.2.10 Only use attachments/accessories specified by the manufacturer.1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by themanufacturer, or sold with the apparatus. When a cart is used , use caution whenmoving the cart/apparatus combination to avoid injury from tip-over.1.2.12 Unplug this apparatus during lightning storms or when unused for longperiod of time.1.2.13 Refer all servicing to qualified service personnel. Servicing is required whenthe apparatus has been damaged in any way, such as when the power-supply cord orplug is damaged, liquid has been spilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or moisture, does not operate normally, orhas been dropped.1.3 Handling Cautions1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objectsfilled with liquids, such as vases on the apparatus.1.3.2 To turn this apparatus off completely, you must pull the power plug out of thewall socket. Consequently, the power plug must be easily and readily accessible atall times.1.3.3 DO NOT plug multiple electric devices into the same wall socket.Overloading a socket can cause it to overheat, resulting in a fire.1.3.4 Before connecting other components to this player, be sure to turn them off.1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,turn off the power switch immediately and disconnect the power plug from the walloutlet. Then, contact the nearest customer service center for technical assistance. Donot use the product. Using the product as it is may cause a fire or an electric shock.

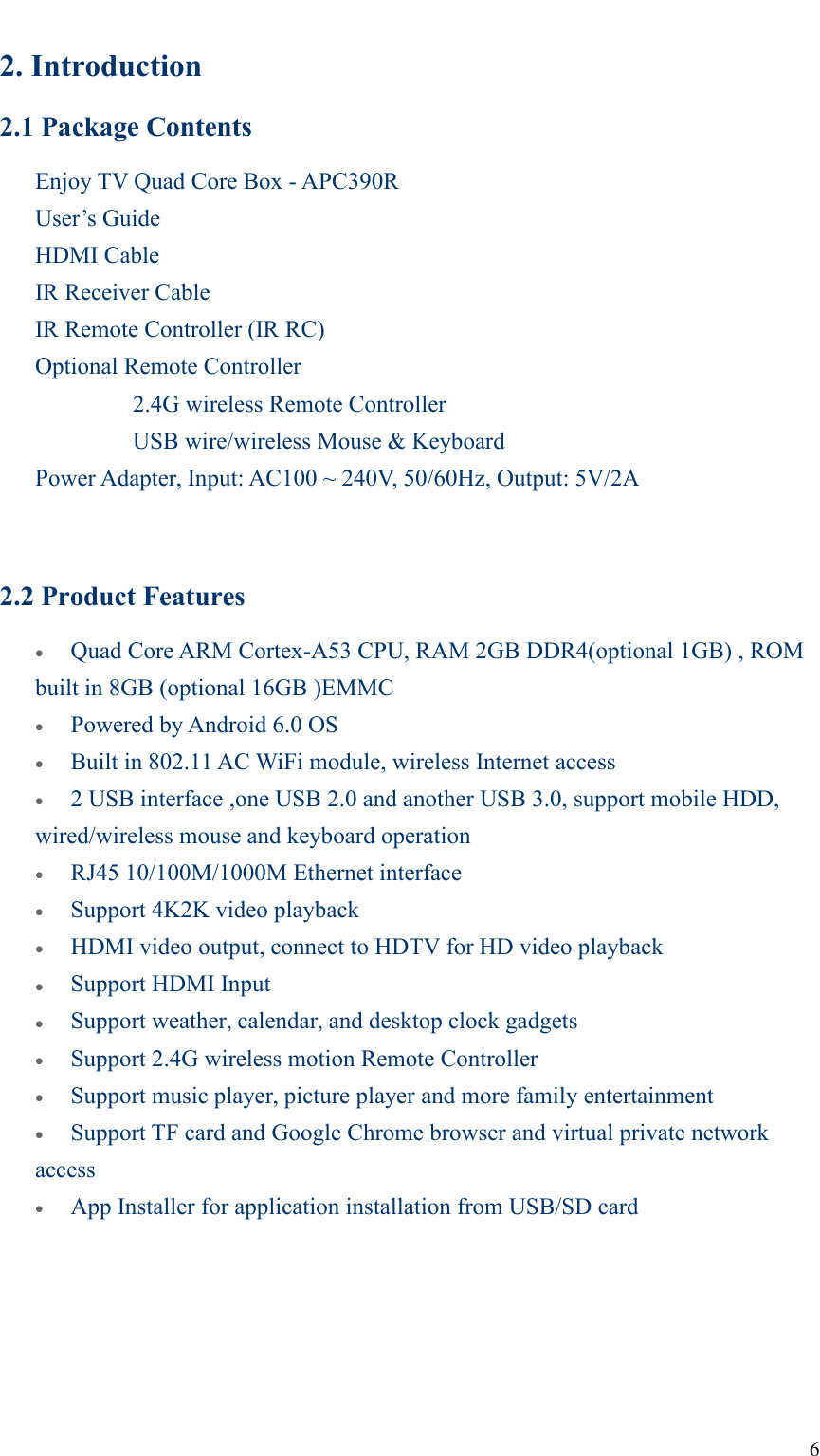

62. Introduction2.1 Package ContentsEnjoy TV Quad Core Box - APC390RUser’s GuideHDMI CableIR Receiver CableIR Remote Controller (IR RC)Optional Remote Controller2.4G wireless Remote ControllerUSB wire/wireless Mouse & KeyboardPower Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A2.2 Product FeaturesQuad Core ARM Cortex-A53 CPU, RAM 2GB DDR4(optional 1GB) , ROMbuilt in 8GB (optional 16GB )EMMCPowered by Android 6.0 OSBuilt in 802.11 AC WiFi module, wireless Internet access2 USB interface ,one USB 2.0 and another USB 3.0, support mobile HDD,wired/wireless mouse and keyboard operationRJ45 10/100M/1000M Ethernet interfaceSupport 4K2K video playbackHDMI video output, connect to HDTV for HD video playbackSupport HDMI InputSupport weather, calendar, and desktop clock gadgetsSupport 2.4G wireless motion Remote ControllerSupport music player, picture player and more family entertainmentSupport TF card and Google Chrome browser and virtual private networkaccessApp Installer for application installation from USB/SD card

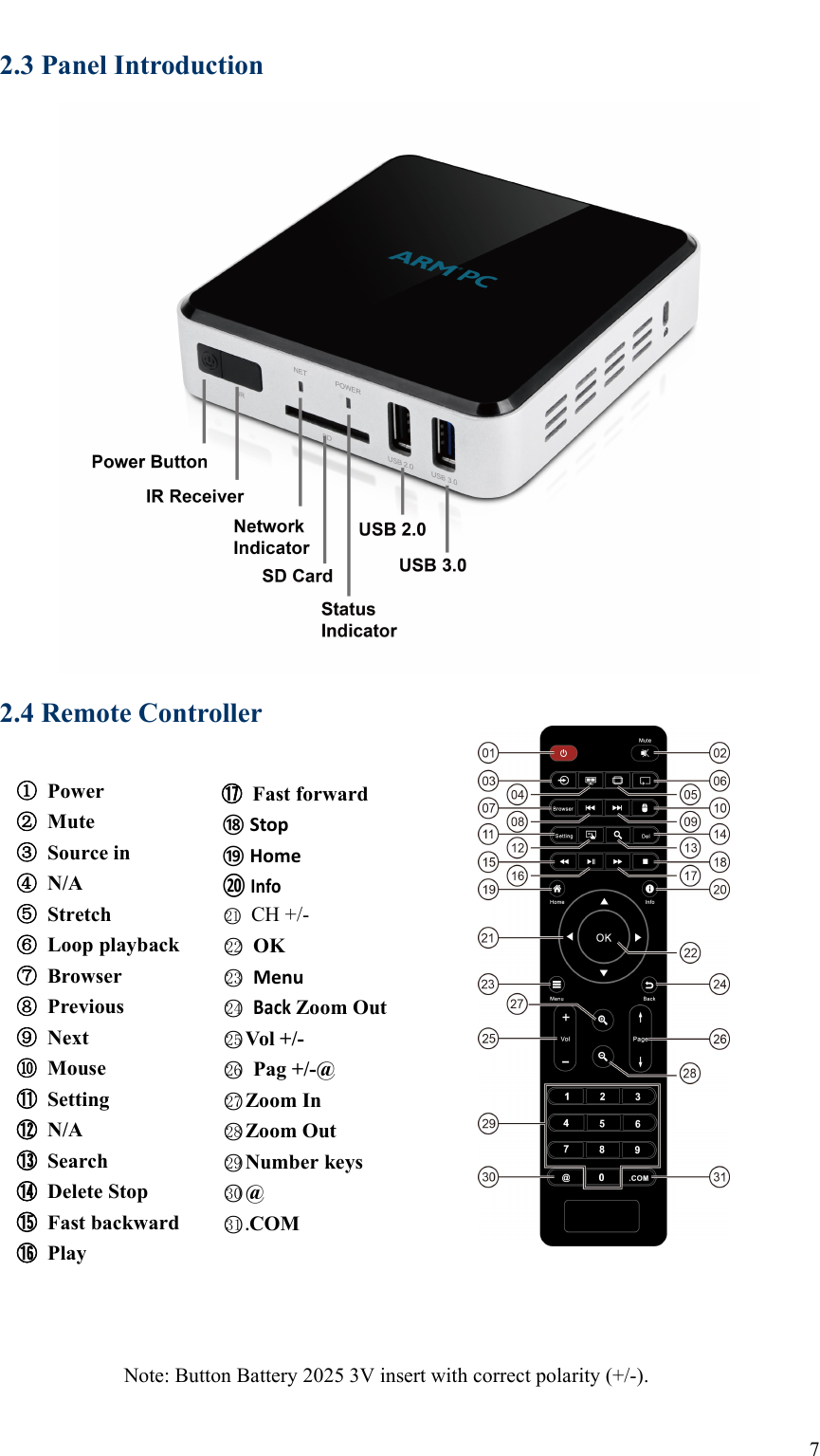

72.3 Panel Introduction2.4 Remote ControllerNote: Button Battery 2025 3V insert with correct polarity (+/-).①Power②Mute③Source in④N/A⑤Stretch⑥Loop playback⑦Browser⑧Previous⑨Next⑩Mouse⑪Setting⑫N/A⑬Search⑭Delete Stop⑮Fast backward⑯Play⑰Fast forward⑱Stop⑲Home⑳ Info○21 CH +/-○22 OK○23 Menu○24BackZoom Out○25 Vol +/-○26 Pag +/-@○27 Zoom In○28 Zoom Out○29 Number keys○30 @○31 .COM

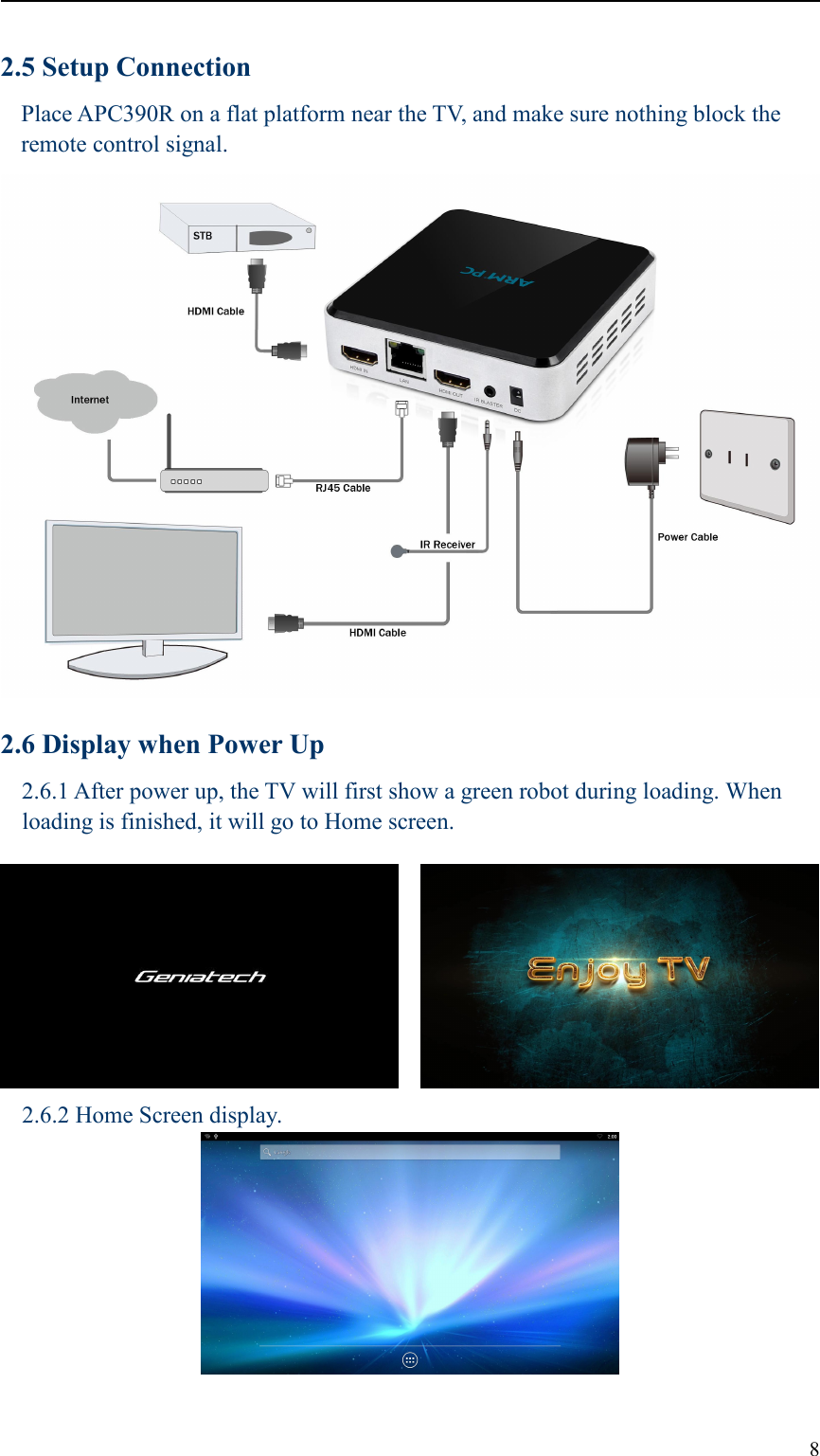

82.5 Setup ConnectionPlace APC390R on a flat platform near the TV, and make sure nothing block theremote control signal.2.6 Display when Power Up2.6.1 After power up, the TV will first show a green robot during loading. Whenloading is finished, it will go to Home screen.2.6.2 Home Screen display.

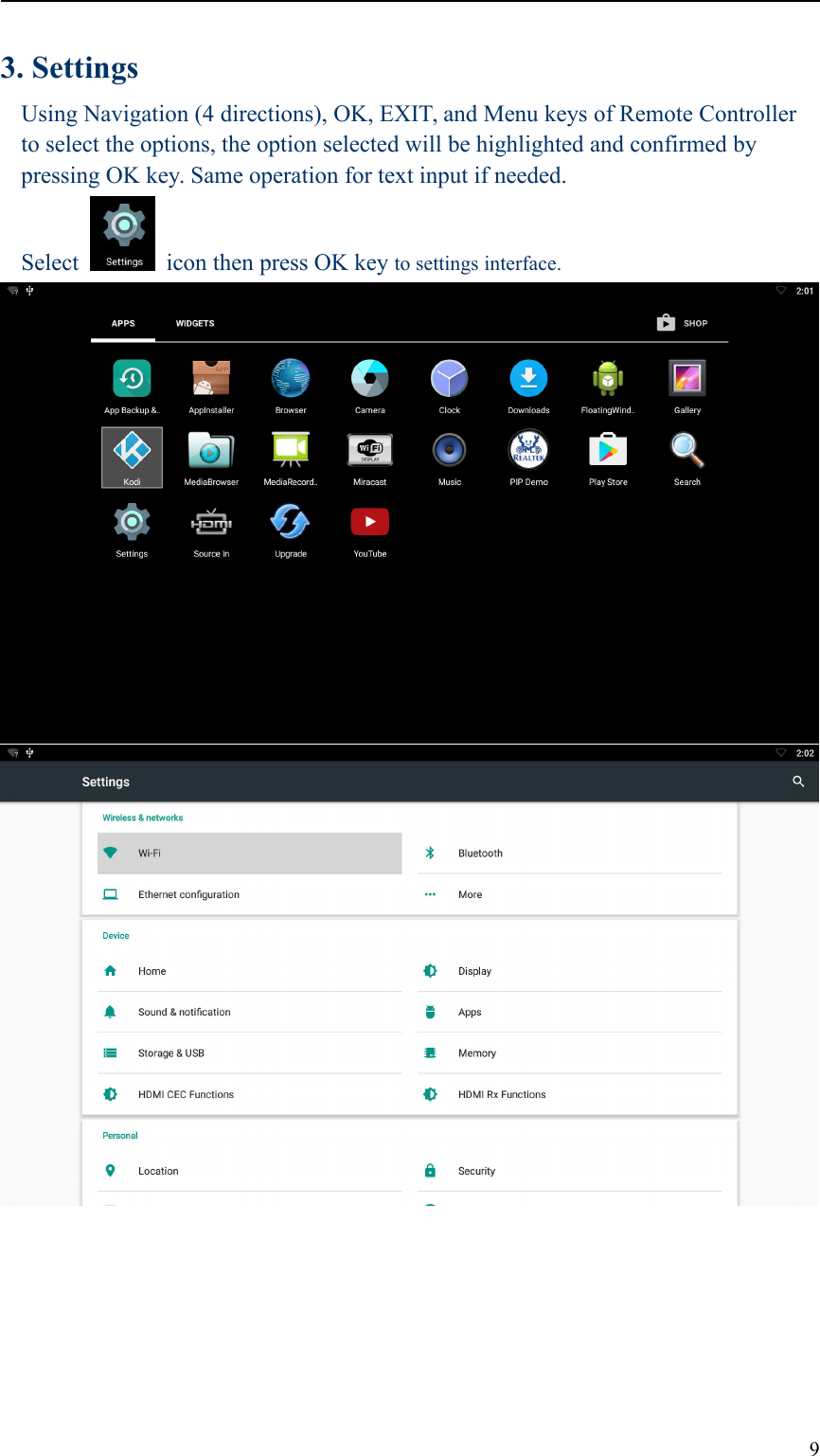

93. SettingsUsing Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controllerto select the options, the option selected will be highlighted and confirmed bypressing OK key. Same operation for text input if needed.Select icon then press OK key to settings interface.

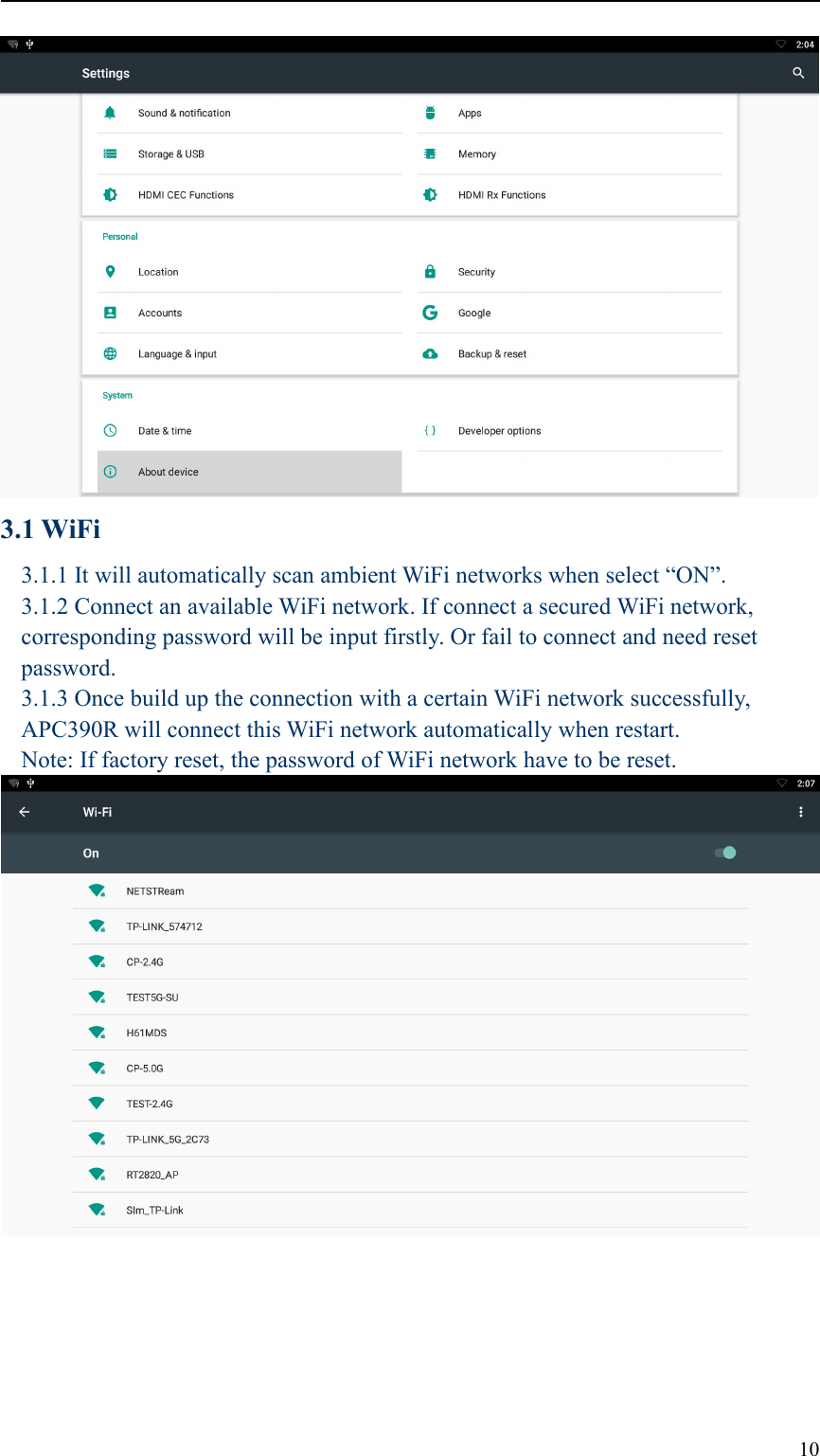

103.1 WiFi3.1.1 It will automatically scan ambient WiFi networks when select “ON”.3.1.2 Connect an available WiFi network. If connect a secured WiFi network,corresponding password will be input firstly. Or fail to connect and need resetpassword.3.1.3 Once build up the connection with a certain WiFi network successfully,APC390R will connect this WiFi network automatically when restart.Note: If factory reset, the password of WiFi network have to be reset.

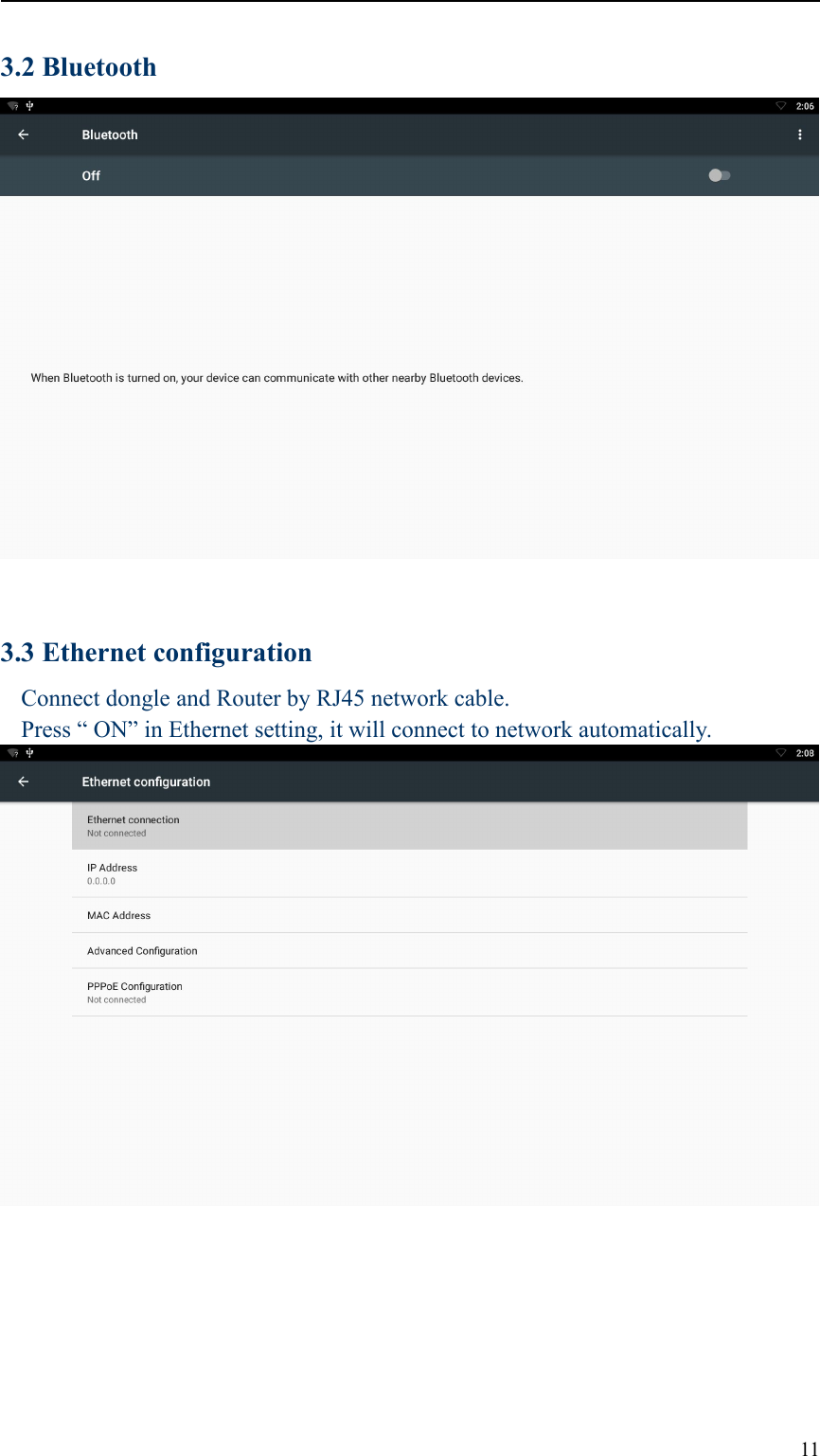

113.2 Bluetooth3.3 Ethernet configurationConnect dongle and Router by RJ45 network cable.Press “ ON” in Ethernet setting, it will connect to network automatically.

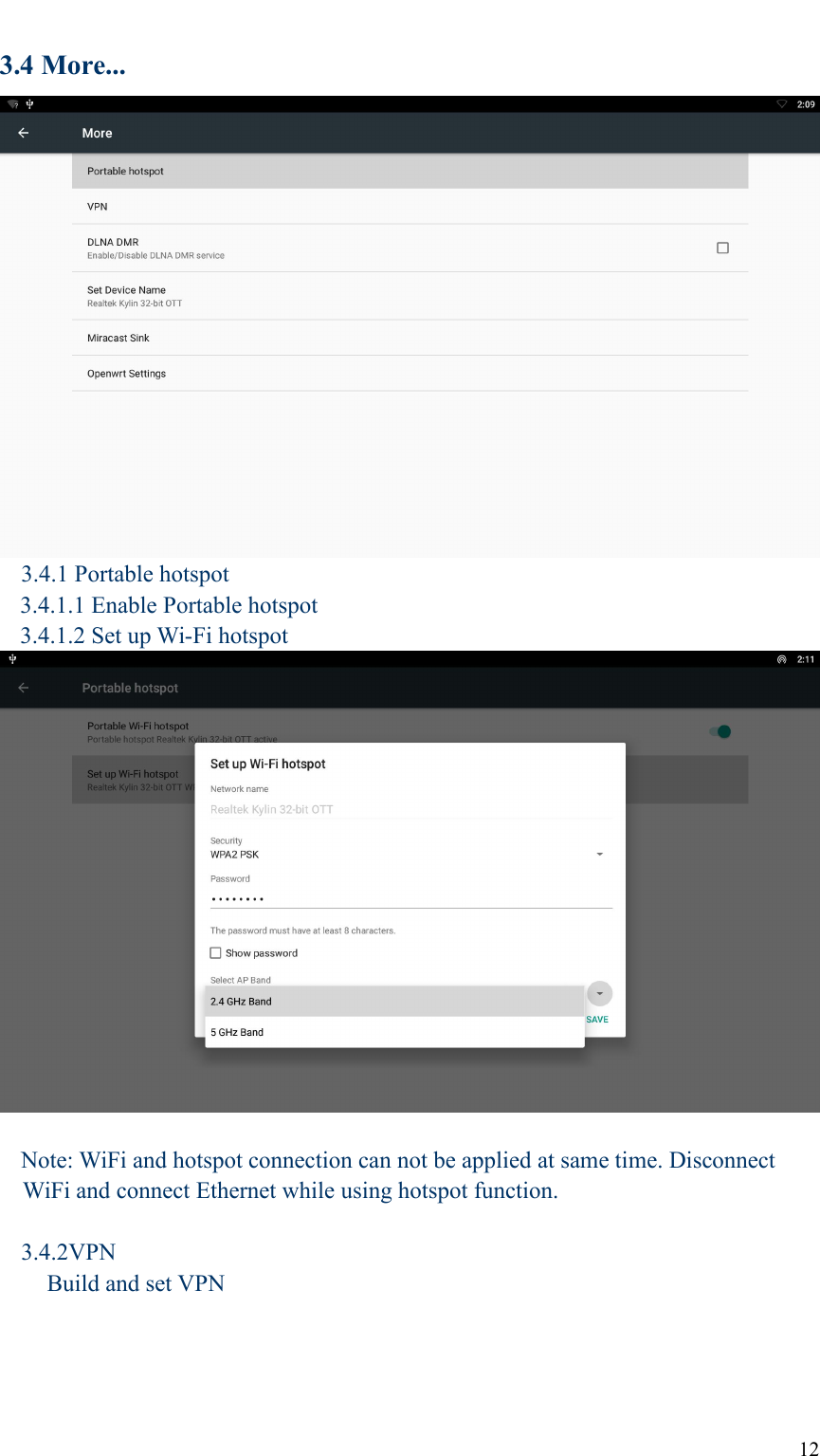

123.4 More...3.4.1 Portable hotspot3.4.1.1 Enable Portable hotspot3.4.1.2 Set up Wi-Fi hotspotNote: WiFi and hotspot connection can not be applied at same time. DisconnectWiFi and connect Ethernet while using hotspot function.3.4.2VPNBuild and set VPN

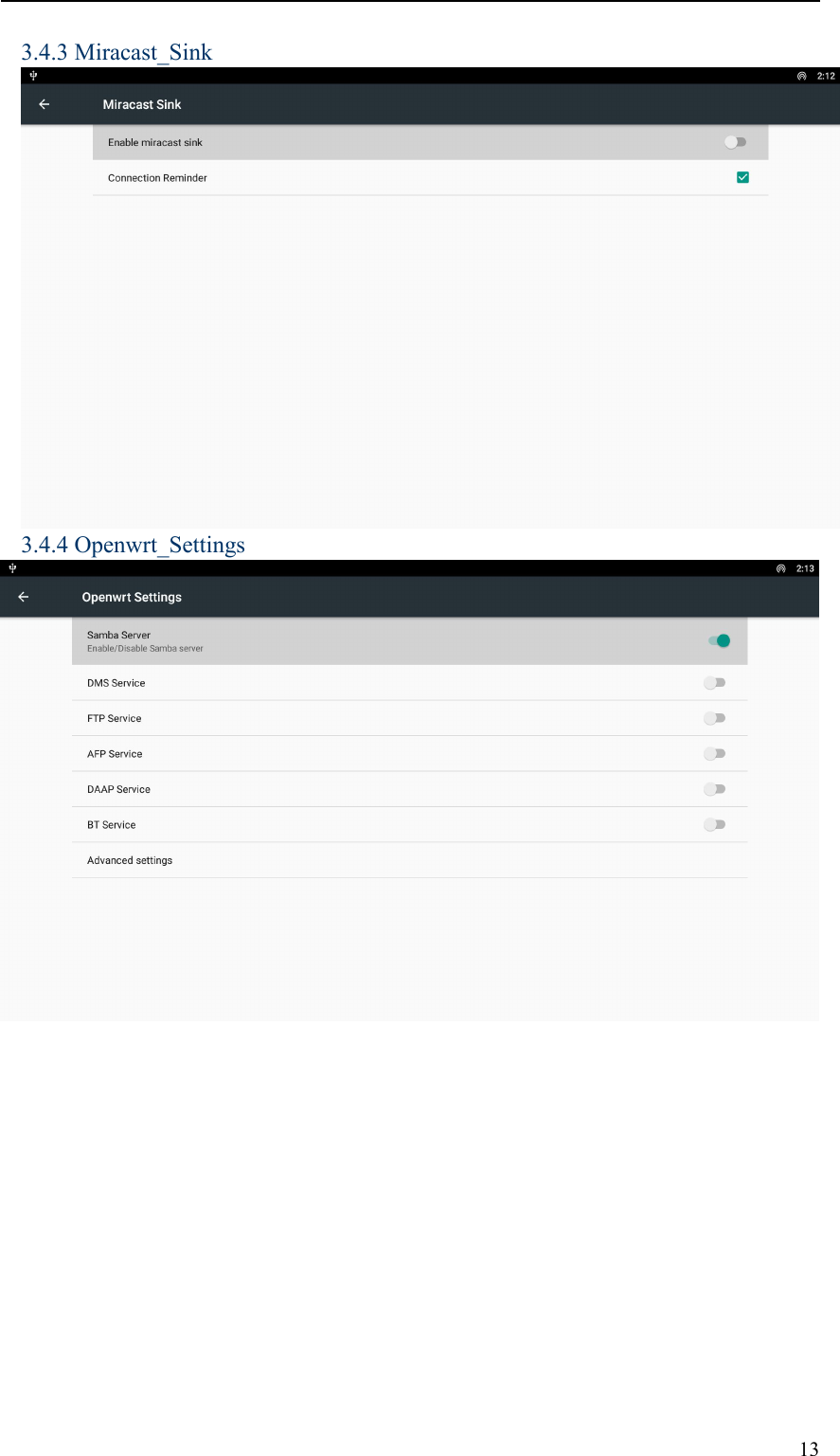

133.4.3 Miracast_Sink3.4.4 Openwrt_Settings

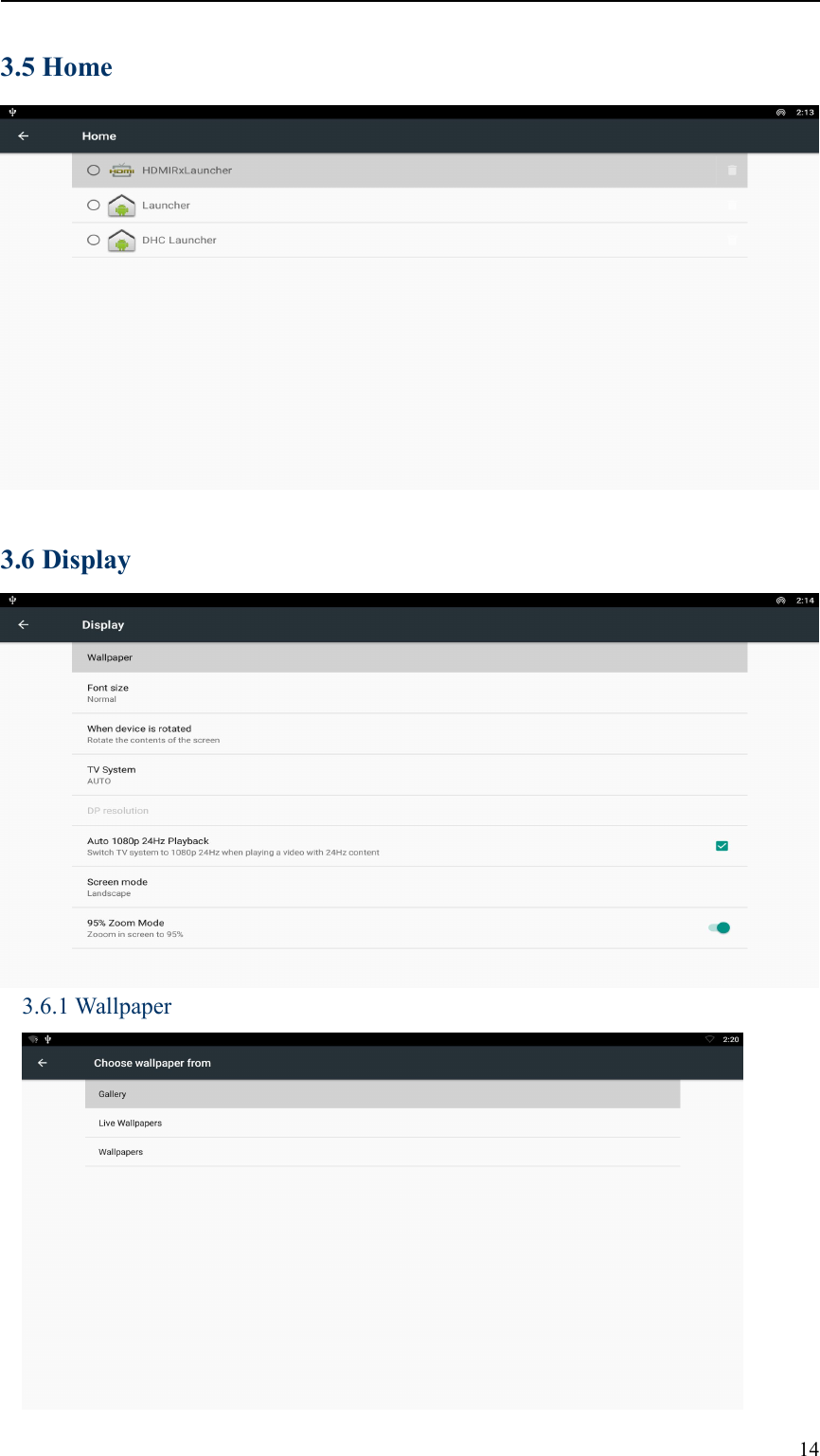

143.5 Home3.6 Display3.6.1 Wallpaper

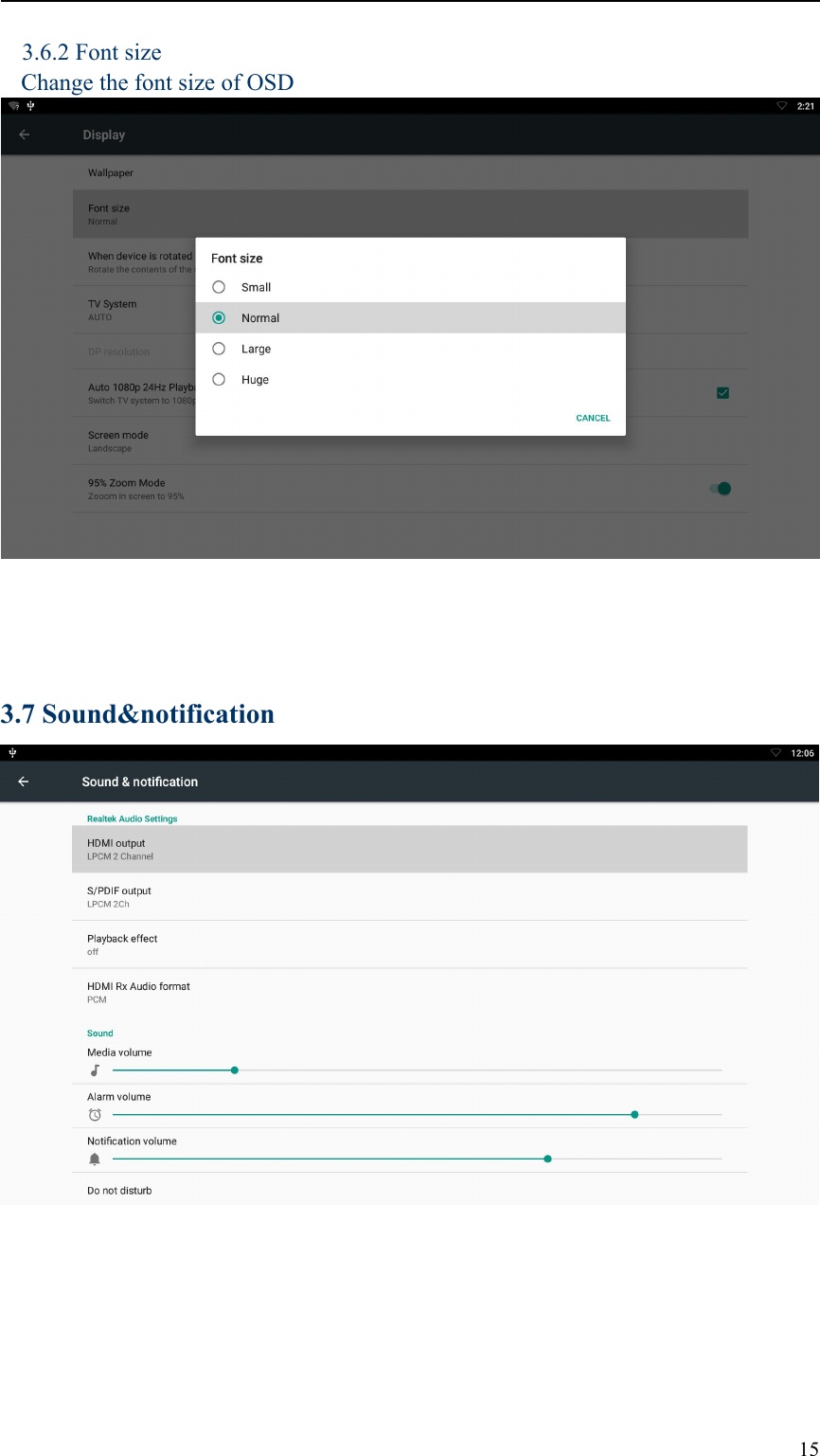

153.6.2 Font sizeChange the font size of OSD3.7 Sound&notification
163.8 AppsList all apps installed.You can choose an application and force to shut down the app, uninstall the app,clear user data, move to SD card and clear cache data.

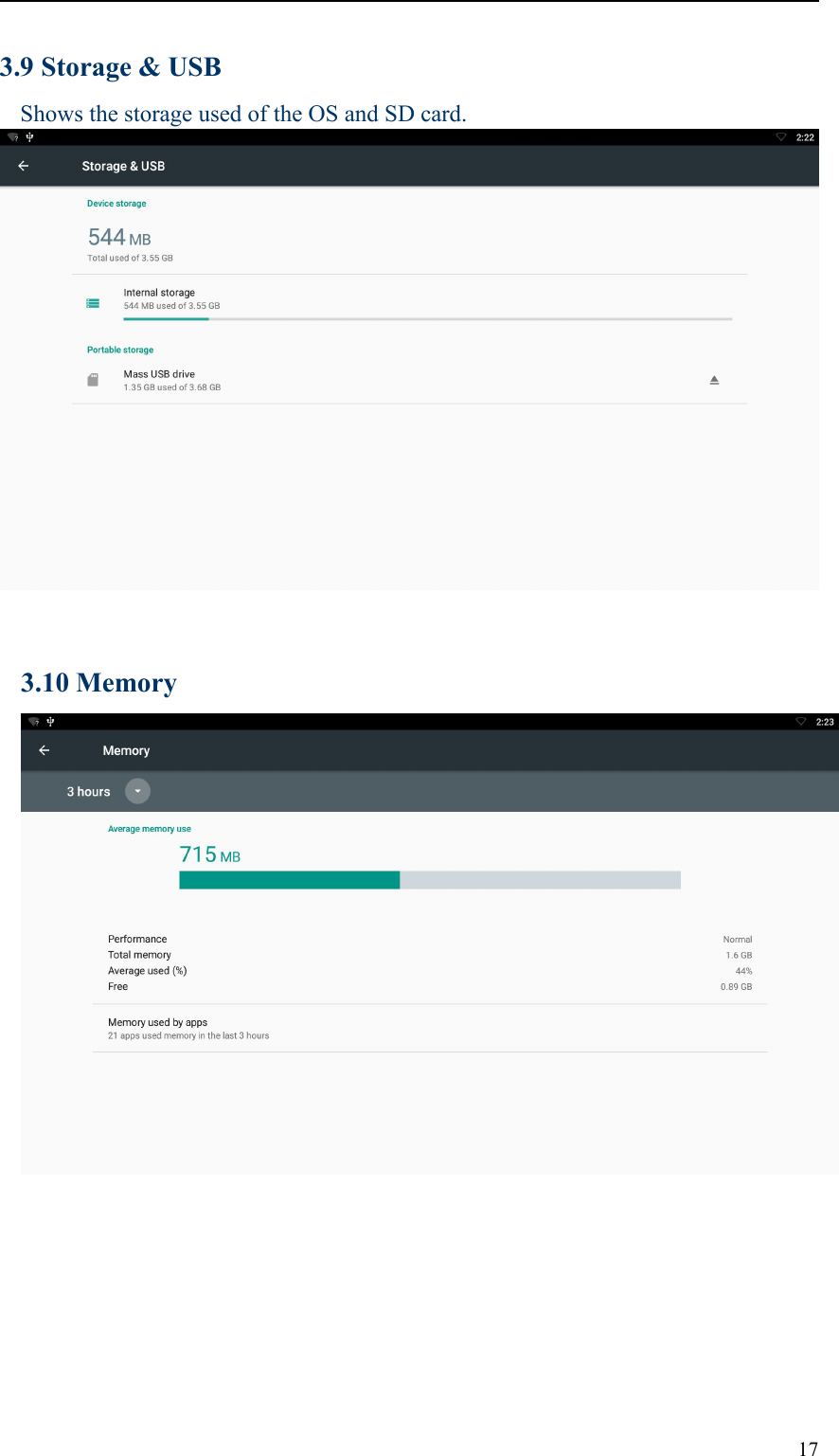

173.9 Storage & USBShows the storage used of the OS and SD card.3.10 Memory

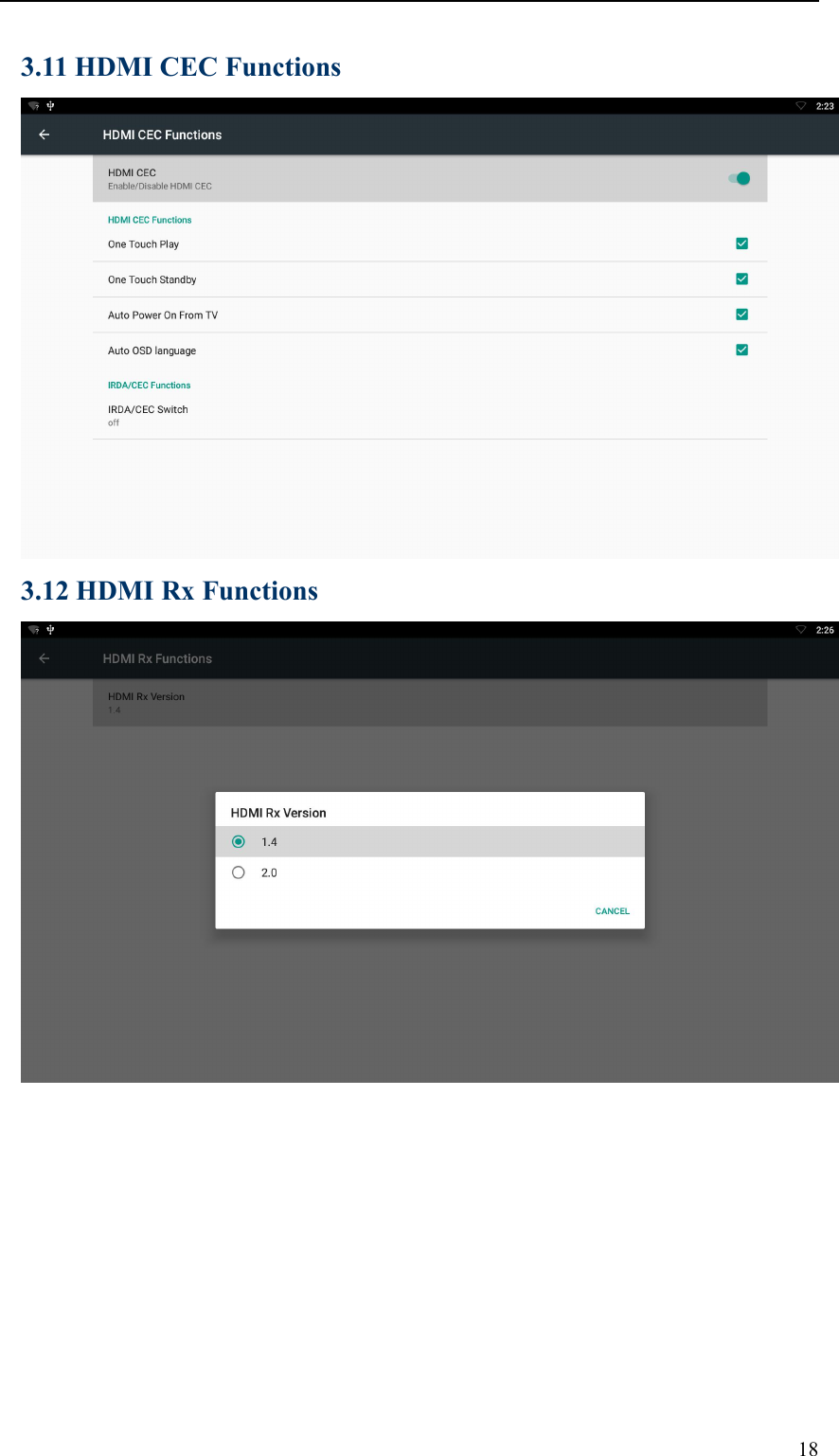

183.11 HDMI CEC Functions3.12 HDMI Rx Functions

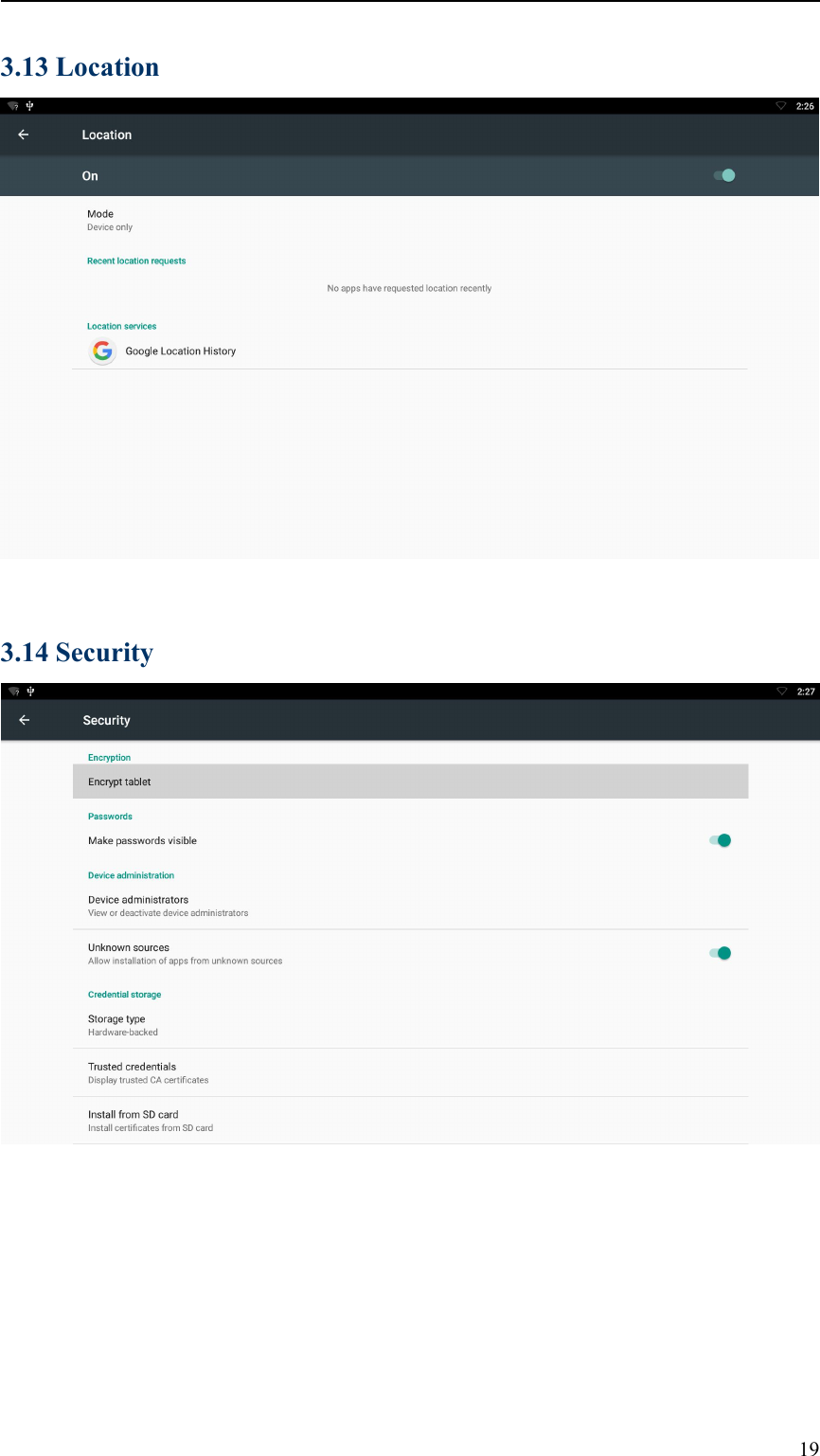

193.13 Location3.14 Security

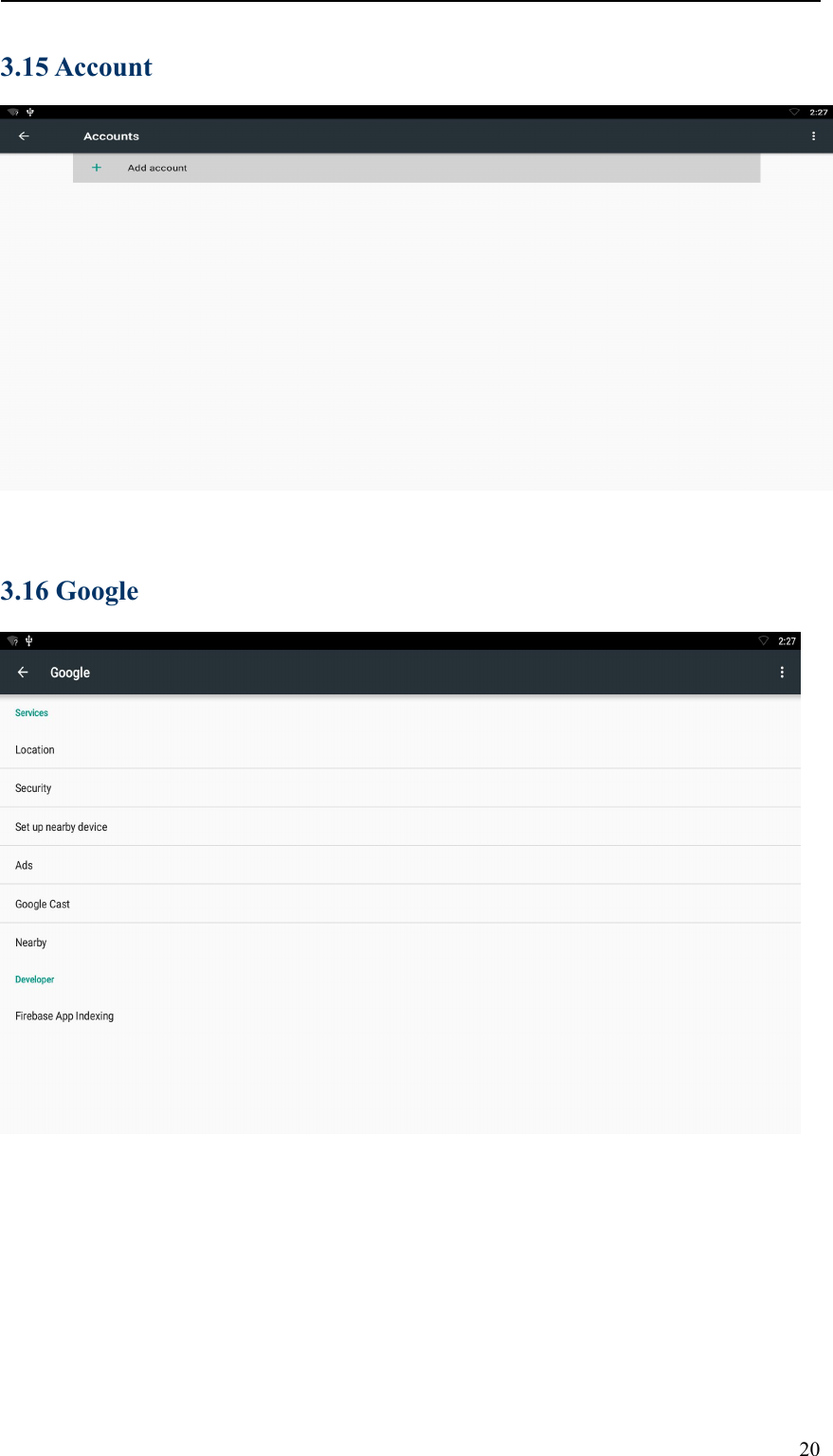

203.15 Account3.16 Google

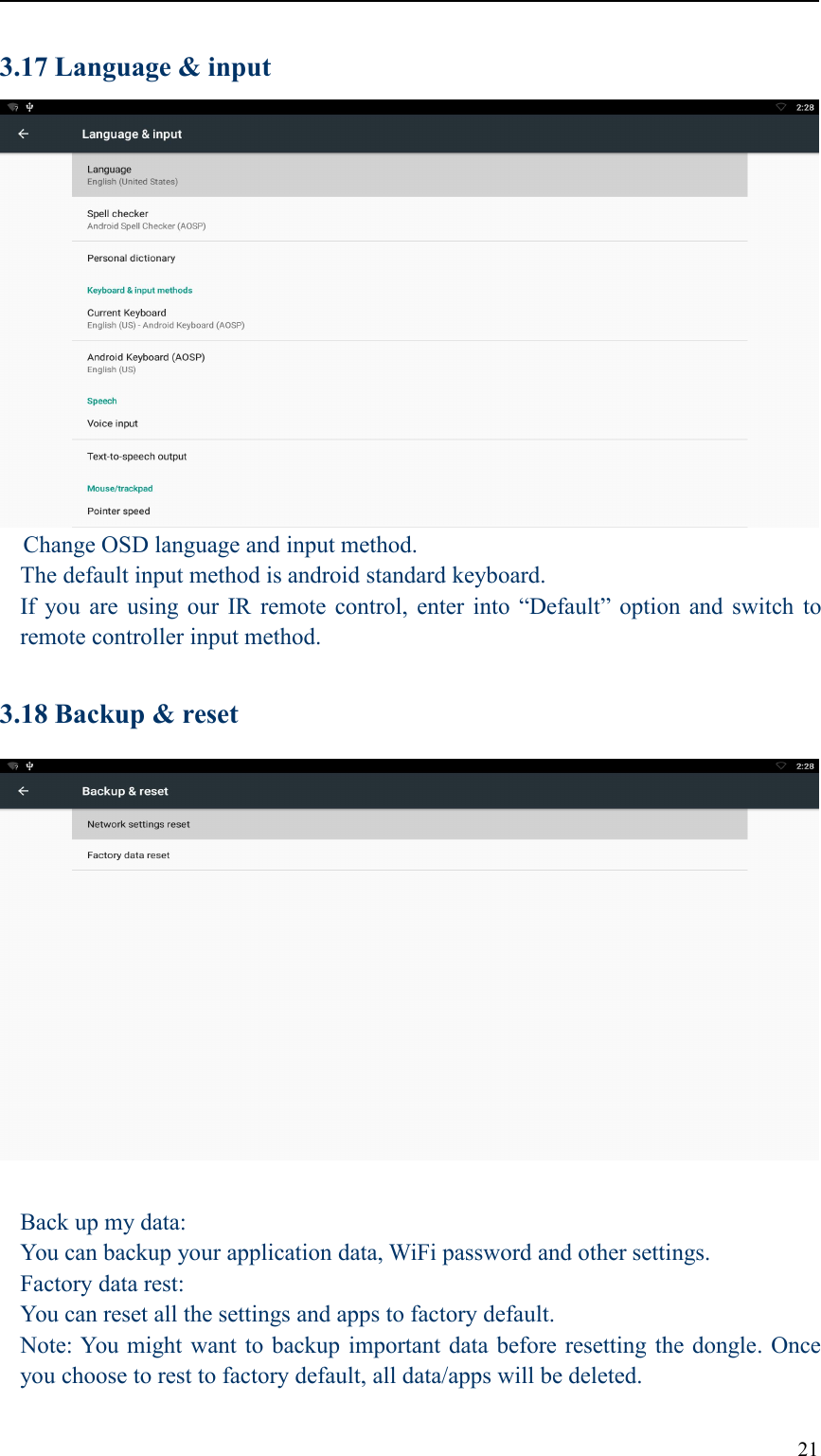

213.17 Language & inputChange OSD language and input method.The default input method is android standard keyboard.If you are using our IR remote control, enter into “Default” option and switch toremote controller input method.3.18 Backup & resetBack up my data:You can backup your application data, WiFi password and other settings.Factory data rest:You can reset all the settings and apps to factory default.Note: You might want to backup important data before resetting the dongle. Onceyou choose to rest to factory default, all data/apps will be deleted.

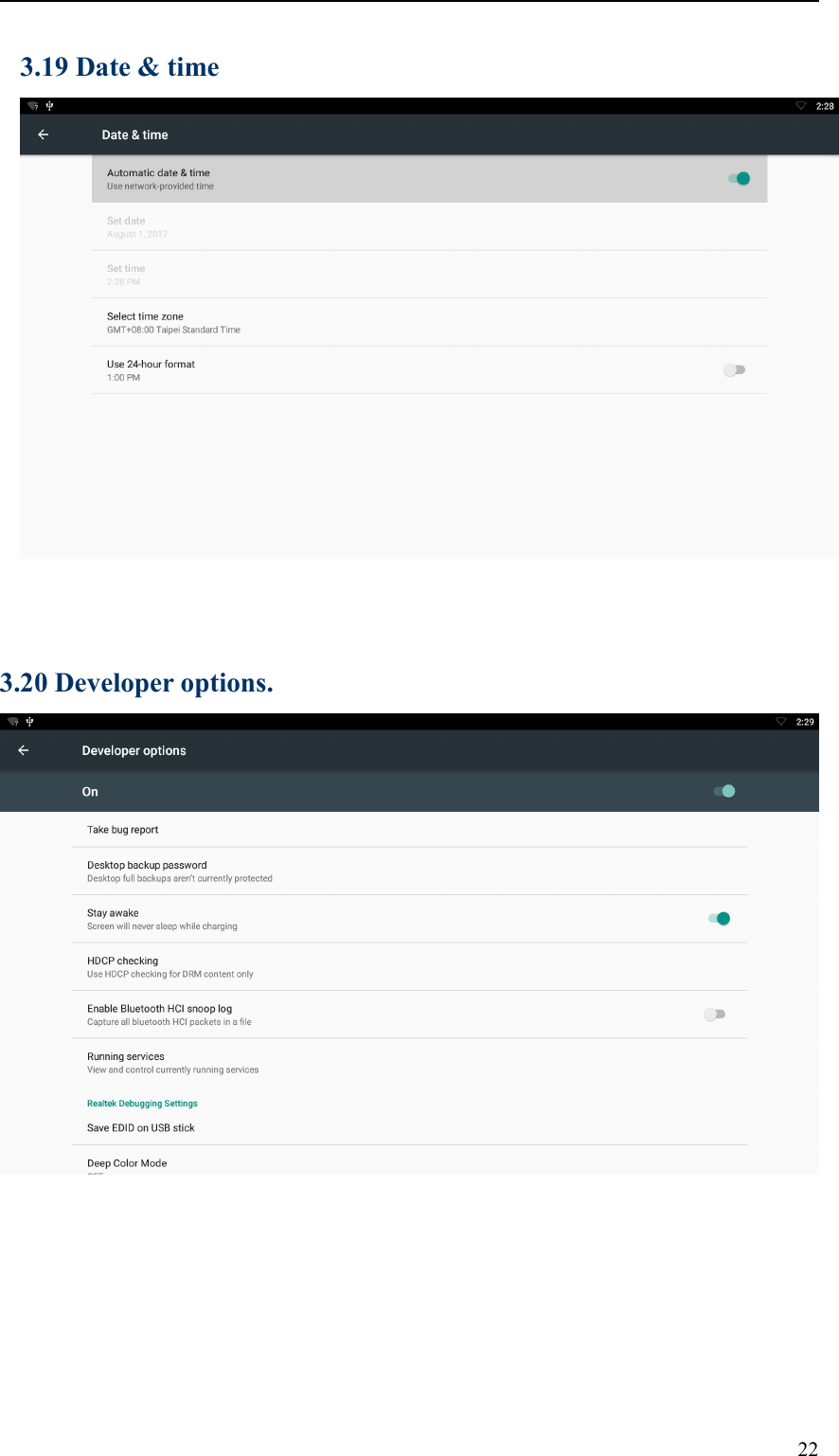

223.19 Date & time3.20 Developer options.

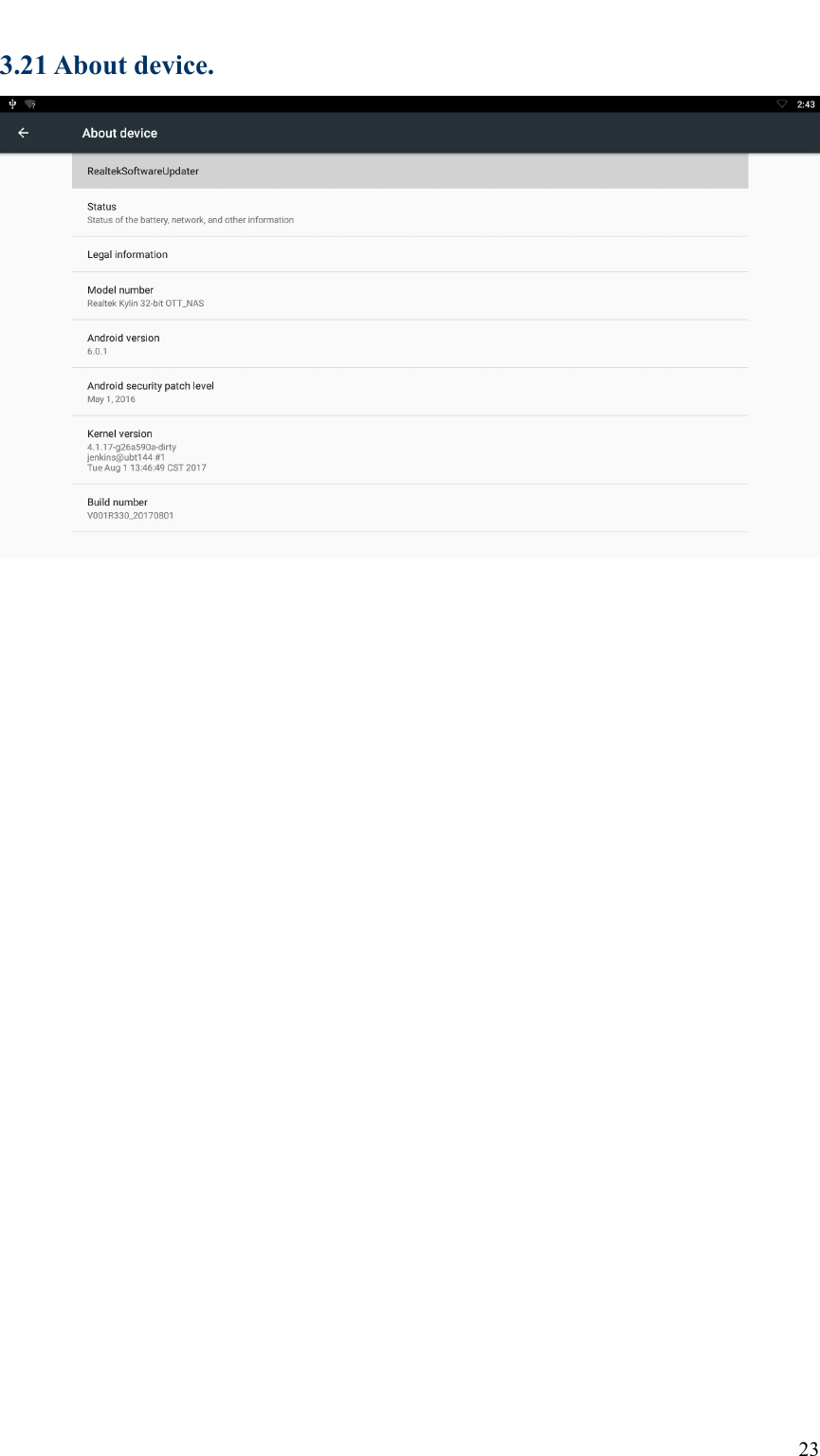

233.21 About device.

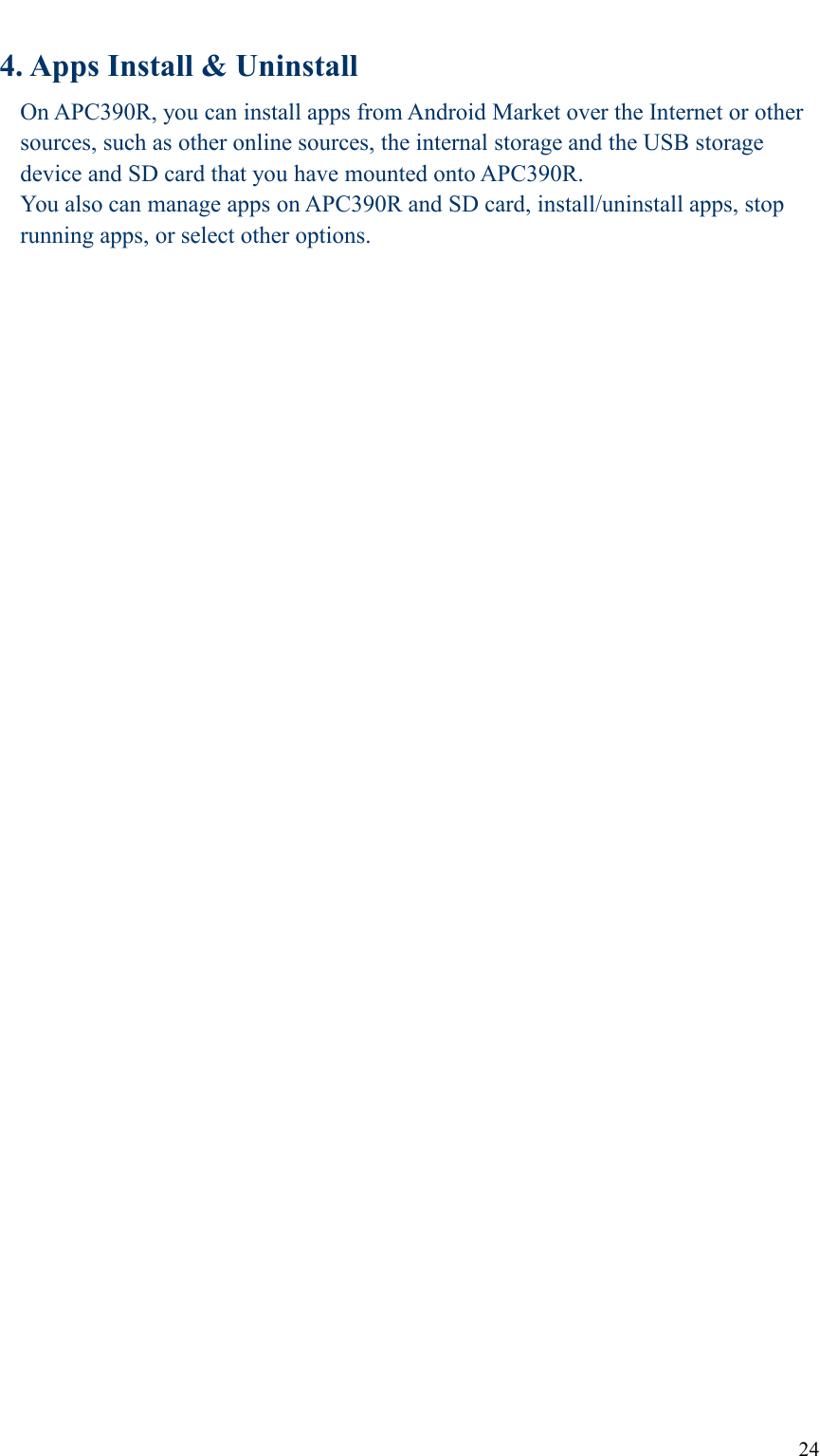

244. Apps Install & UninstallOn APC390R, you can install apps from Android Market over the Internet or othersources, such as other online sources, the internal storage and the USB storagedevice and SD card that you have mounted onto APC390R.You also can manage apps on APC390R and SD card, install/uninstall apps, stoprunning apps, or select other options.

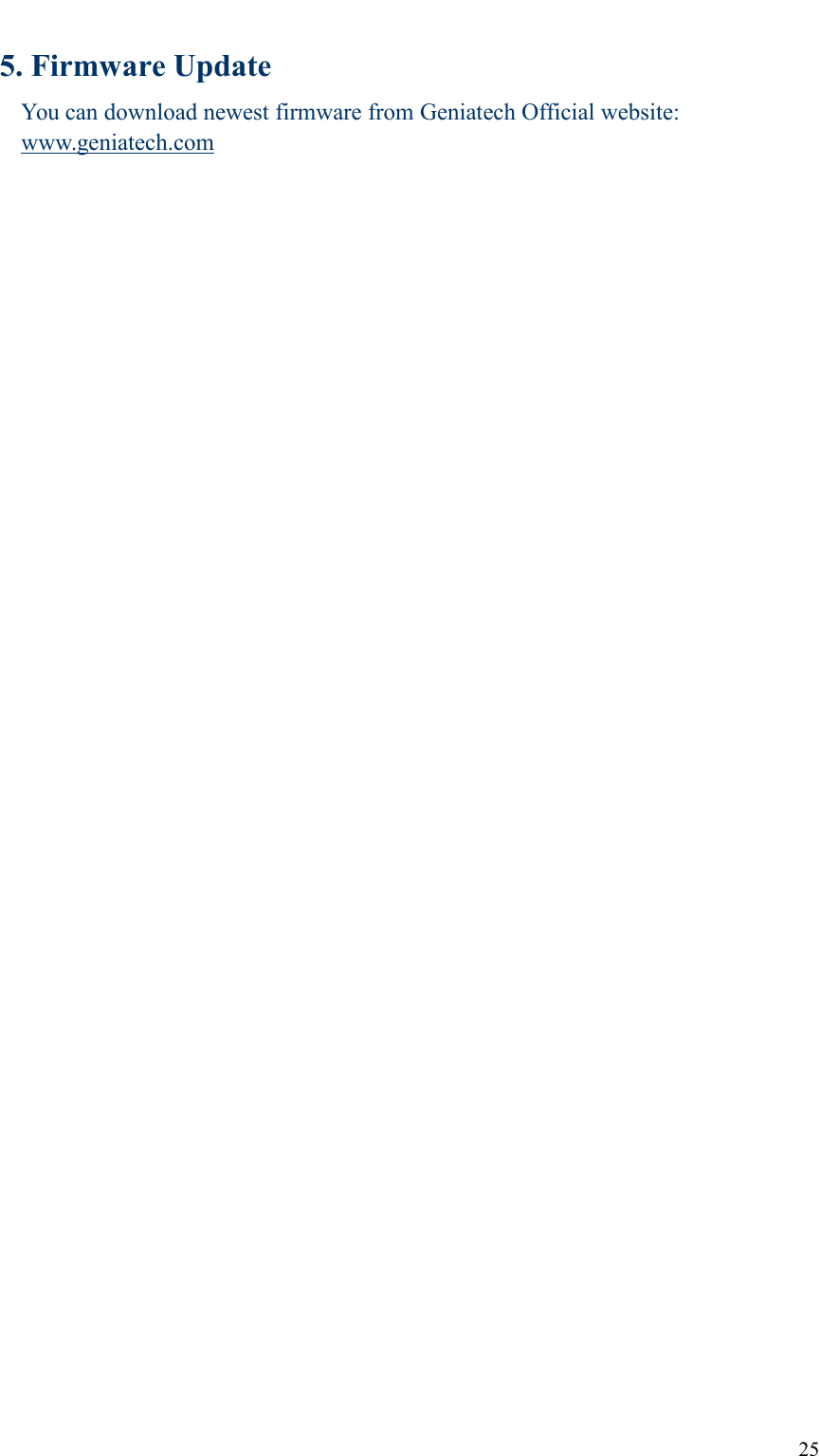

255. Firmware UpdateYou can download newest firmware from Geniatech Official website:www.geniatech.com

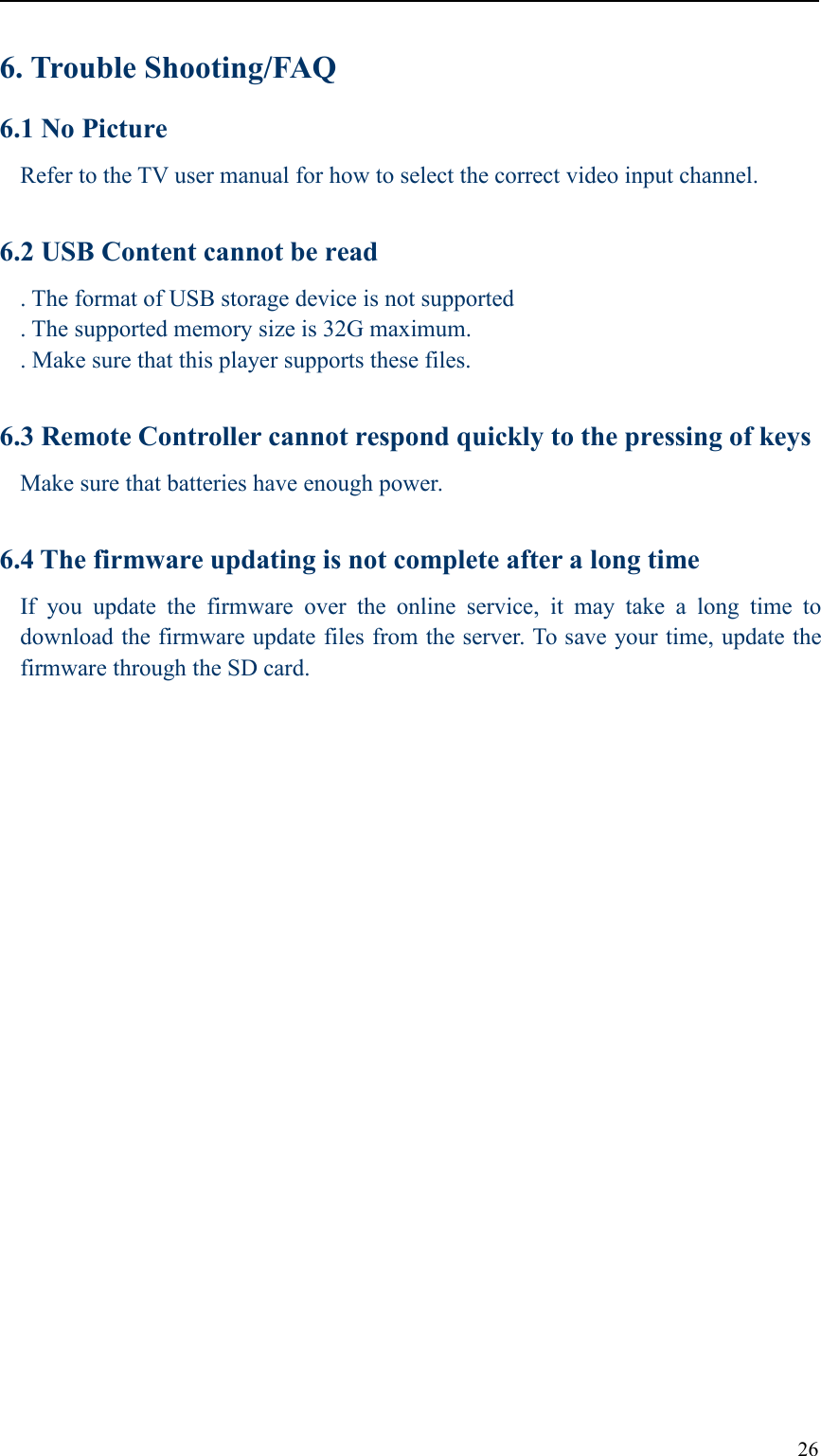

266. Trouble Shooting/FAQ6.1 No PictureRefer to the TV user manual for how to select the correct video input channel.6.2 USB Content cannot be read. The format of USB storage device is not supported. The supported memory size is 32G maximum.. Make sure that this player supports these files.6.3 Remote Controller cannot respond quickly to the pressing of keysMake sure that batteries have enough power.6.4 The firmware updating is not complete after a long timeIf you update the firmware over the online service, it may take a long time todownload the firmware update files from the server. To save your time, update thefirmware through the SD card.

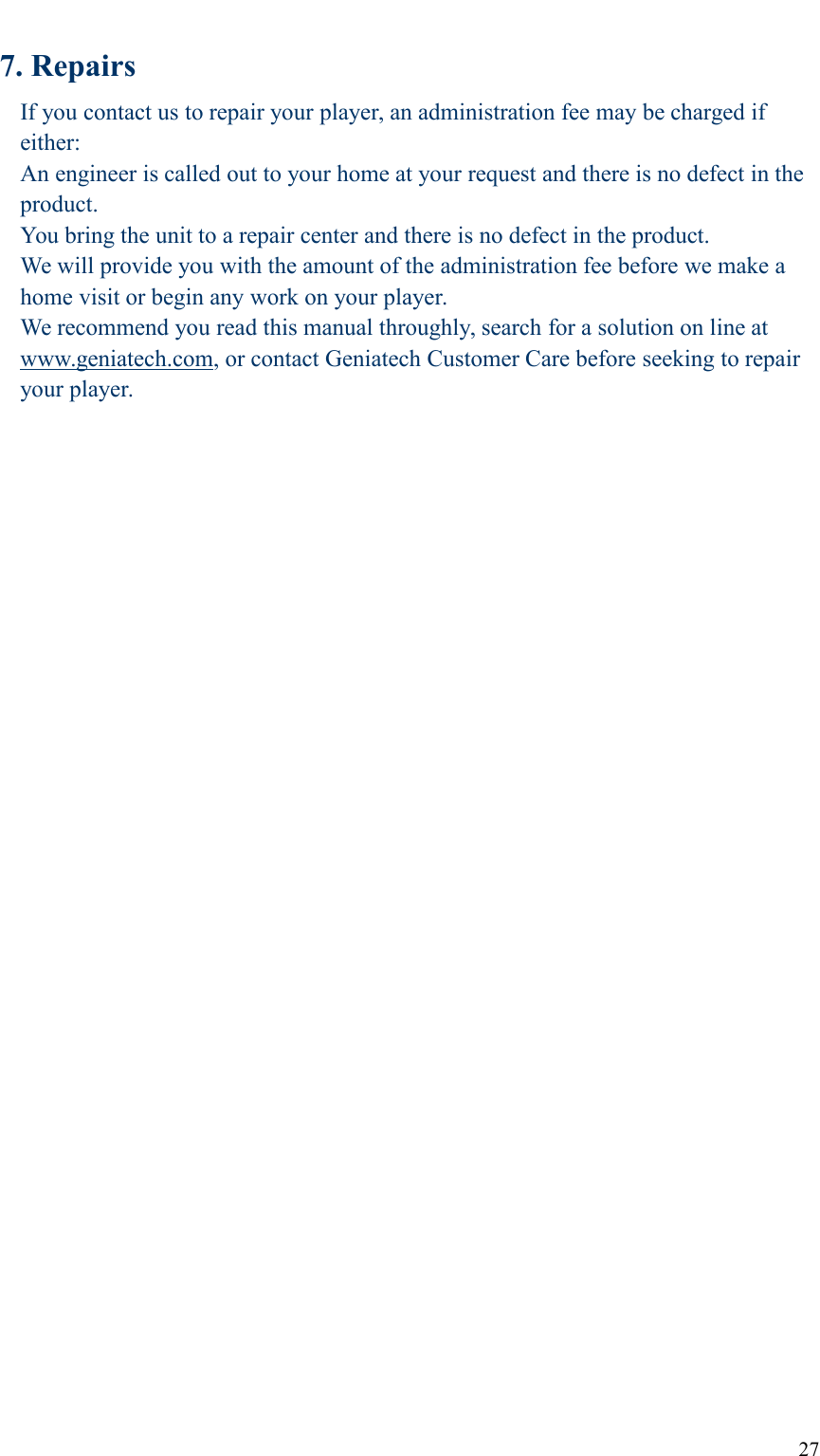

277. RepairsIf you contact us to repair your player, an administration fee may be charged ifeither:An engineer is called out to your home at your request and there is no defect in theproduct.You bring the unit to a repair center and there is no defect in the product.We will provide you with the amount of the administration fee before we make ahome visit or begin any work on your player.We recommend you read this manual throughly, search for a solution on line atwww.geniatech.com, or contact Geniatech Customer Care before seeking to repairyour player.

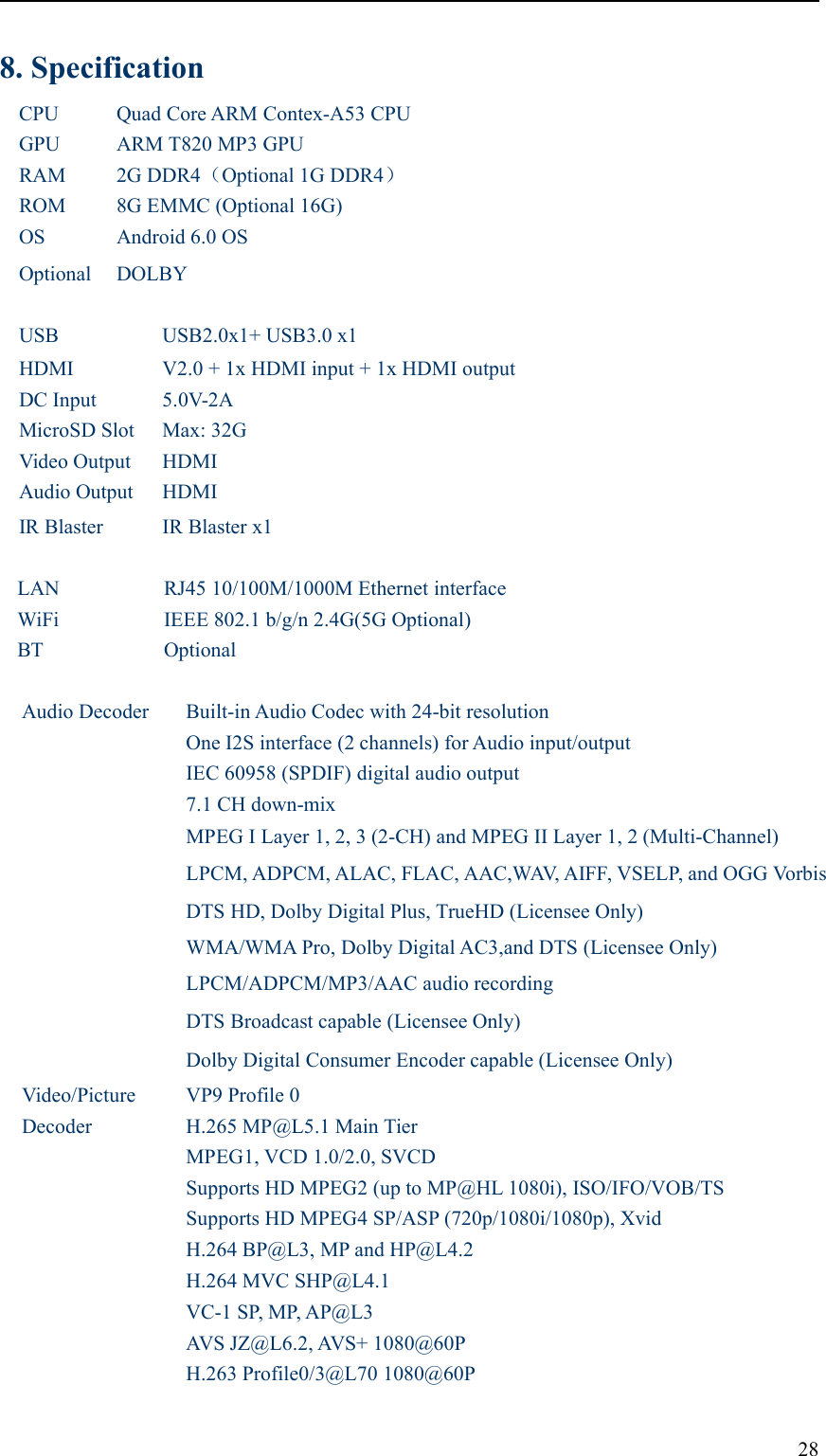

288. SpecificationCPUQuad Core ARM Contex-A53 CPUGPUARM T820 MP3 GPURAM2G DDR4（Optional 1G DDR4）ROM8G EMMC (Optional 16G)OSAndroid 6.0 OSOptionalDOLBYUSBUSB2.0x1+ USB3.0 x1HDMIV2.0 + 1x HDMI input + 1x HDMI outputDC Input5.0V-2AMicroSD SlotMax: 32GVideo OutputHDMIAudio OutputHDMIIR BlasterIR Blaster x1LANRJ45 10/100M/1000M Ethernet interfaceWiFiIEEE 802.1 b/g/n 2.4G(5G Optional)BTOptionalAudio DecoderBuilt-in Audio Codec with 24-bit resolutionOne I2S interface (2 channels) for Audio input/outputIEC 60958 (SPDIF) digital audio output7.1 CH down-mixMPEG I Layer 1, 2, 3 (2-CH) and MPEG II Layer 1, 2 (Multi-Channel)LPCM, ADPCM, ALAC, FLAC, AAC,WAV, AIFF, VSELP, and OGG VorbisDTS HD, Dolby Digital Plus, TrueHD (Licensee Only)WMA/WMA Pro, Dolby Digital AC3,and DTS (Licensee Only)LPCM/ADPCM/MP3/AAC audio recordingDTS Broadcast capable (Licensee Only)Dolby Digital Consumer Encoder capable (Licensee Only)Video/PictureDecoderVP9 Profile 0H.265 MP@L5.1 Main TierMPEG1, VCD 1.0/2.0, SVCDSupports HD MPEG2 (up to MP@HL 1080i), ISO/IFO/VOB/TSSupports HD MPEG4 SP/ASP (720p/1080i/1080p), XvidH.264 BP@L3, MP and HP@L4.2H.264 MVC SHP@L4.1VC-1 SP, MP, AP@L3AVS JZ@L6.2, AVS+ 1080@60PH.263 Profile0/3@L70 1080@60P
29Sorenson Spark L70Theora 720PVP8 1080@60PHD JPEG with 32K x 32K maximum resolutionFull-pixel JPEG decode with high resolution zoom-inVideo up-scaling from SD to Ultra HD (720p/1080i/1080p/2160p)Video andPictureEncodingFunctionsMPEG 4 SP@L5H.264 BP, MP, HP@L4.2H.264 MVC SHP 1080@30PH.263 Profile3@L70 1080@60PHD JPEG in high resolutionVideo andPicture ColorSpectrumDeliver metadata using SMPTE ST2086,CEA-861.3 through HDMI 2.0aSupport conversion between ITU-R Recommendation BT.2020, BT.709 and othercolor spaces.Support SMPTE ST 2084 EOTF/OETFDeliver metadata using SMPTE ST2086,CEA-861.3 through HDMI 2.0aSize100X106X25 mmNet Weight212g

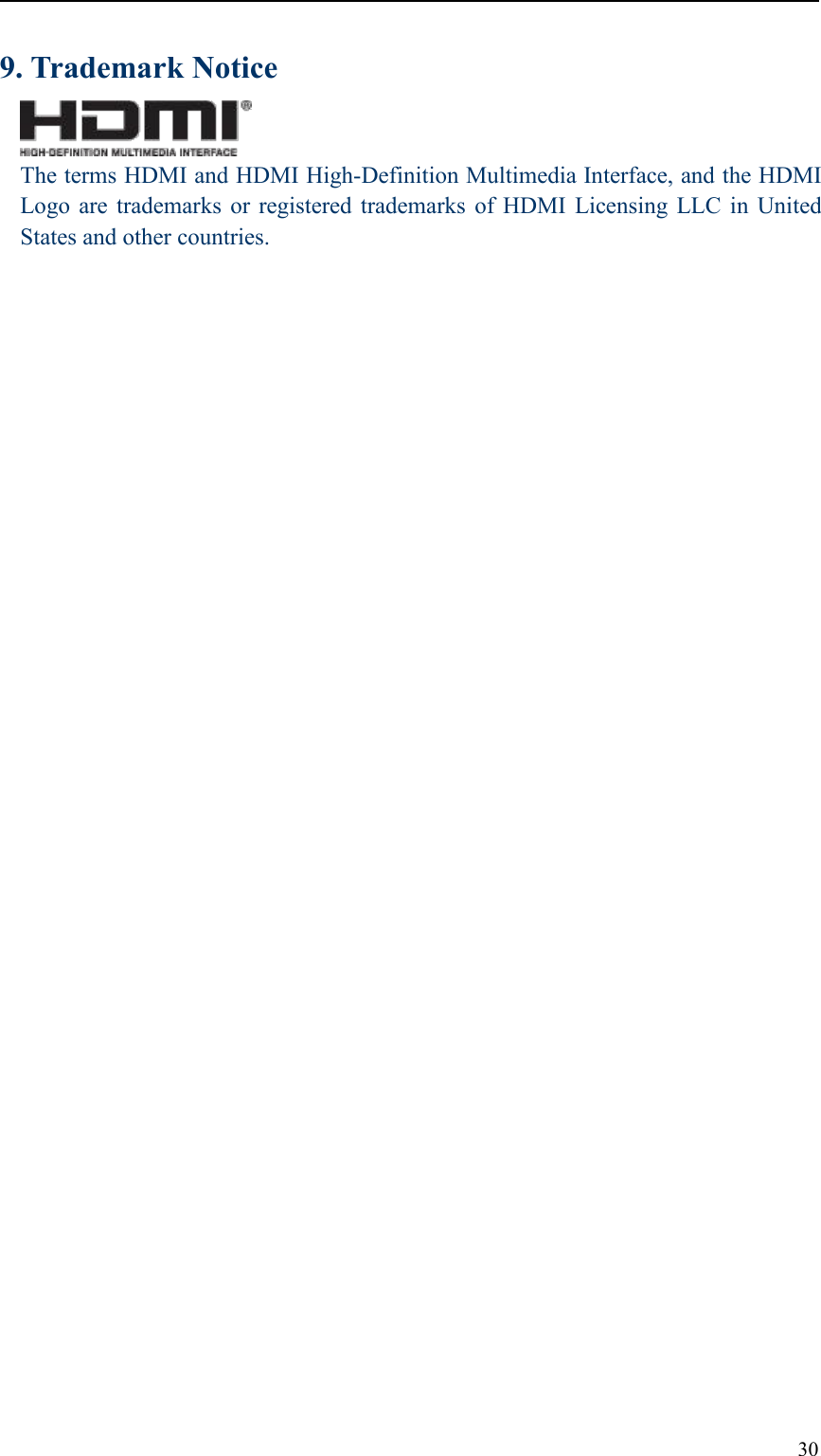

309. Trademark NoticeThe terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMILogo are trademarks or registered trademarks of HDMI Licensing LLC in UnitedStates and other countries.

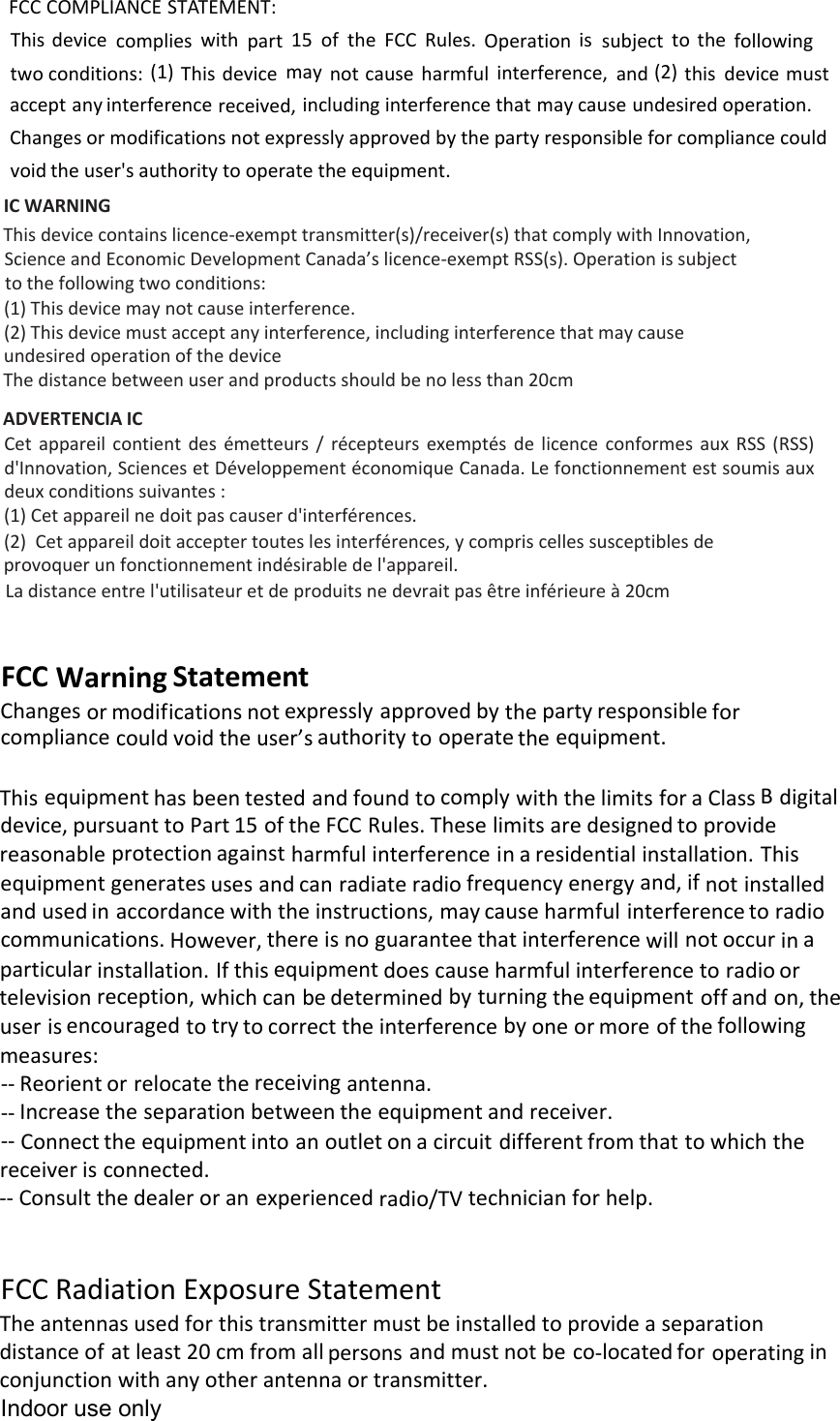

FCC COMPLIANCE STATEMENT:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC WARNING This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subjectto the following two conditions:(1) This device may not cause interference.(2) This device must accept any interference, including interference that may causeundesired operation of the deviceThe distance between user and products should be no less than 20cmADVERTENCIA IC Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS) d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes :(1) Cet appareil ne doit pas causer d'interférences.(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles deprovoquer un fonctionnement indésirable de l'appareil.La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cmFCCWarningStatementChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐‐Reorientorrelocatethereceivingantenna.‐‐Increasetheseparationbetweentheequipmentandreceiver.‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCCRadiationExposureStatementTheantennasusedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20cmfromallpersonsandmust not beco‐locatedforoperatingin conjunctionwithanyotherantennaortransmitter.Indoor use only
