Users Manual

Android Box

ENJOY TV QUAD CORE Box

APC390R

User’s Guide

Thank you for purchasing this Geniatech product.

.Before using it, be sure to read the precautions contained in this User’s Guide.

.Keep the User’s Guide in a safe place for future reference.

.For the most up-to-date information about this product, visit official website at

http://www.geniatech.com

Contents

1. Safety Information, P4-5

1.1 Warning, P4

1.2 Precautions, P4

1.3 Handling Cautions, P5

2. Introduction, P6-8

2.1 Package Contents, P6

2.2 Product Features, P6

2.3 Panel Introduction, P7

2.4 Remote Controller, P7

2.5 Setup Connection, P8

2.6 Display when Power Up, P8

3. Settings,P9-19

3.1 WiFi, P10

3.2 Bluetooth, P11

3.3 Ethernet configuration, P11

3.4 More..., P12

3.5 Home, P14

3.6 Display, P14

3.7 Sound & notification, P15

3.8 Apps, P16

3.9 Storage & USB, P17

3.10 Memory, P17

3.11 HDMI CEC Function, P18

3.12 HDMI Rx Function, P18

3.13 Location, P19

3.14 Security, P19

3.15 Account, P20

3.16 Google, P20

3.17 Language & Input, P21

3.18 Backup & reset, P21

3.19 Date & Time,P22

3.20 Developer options,P22

3.21 About Device,P23

4. Apps Install & Uninstall,P24

5. Firmware Update,P25

6. Trouble Shooting/FAQ,P26

7. Repairs,P27

8. Specification,P28-29

9. Trademark Notice,P30

1. Safety Information

Read and understand all instructions before using this product. If damage is caused

by failure to follow the instructions, the warranty does not apply.

1.1 Warning

To reduce the risk of electric shock, DO NOT remove the cover (or back).

DO NOT attempt to repair the product, this could lead to the risk of injury, damage

to the product .

To reduce the risk of fire or electric shock, keep this product away from exposed

direct sunlight, naked flames or heat, large amounts of moisture, dust, and sand.

FCC Note (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on.

The user is encouraged to try to correct the interference by one or more of the

following measures.

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Consult the dealer or an experienced radio/TV technician for help.

- This class B digital product meets all requirements of the Canadian Interference -

Causing Equipment Regulations.

1.2 Precautions

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the

safety instructions listed below.

Keep these operating instructions handy for future reference.

1.2.1 Read these instructions.

1.2.2 Keep these instructions.

1.2.3 Heed all warnings.

1.2.4 Follow all instructions.

1.2.5 DO NOT use this apparatus near water.

1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.

1.2.7 DO NOT block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,

or other apparatus that produce heat.

1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where it exits the apparatus.

1.2.10 Only use attachments/accessories specified by the manufacturer.

1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used , use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

1.2.12 Unplug this apparatus during lightning storms or when unused for long

period of time.

1.2.13 Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as when the power-supply cord or

plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

1.3 Handling Cautions

1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects

filled with liquids, such as vases on the apparatus.

1.3.2 To turn this apparatus off completely, you must pull the power plug out of the

wall socket. Consequently, the power plug must be easily and readily accessible at

all times.

1.3.3 DO NOT plug multiple electric devices into the same wall socket.

Overloading a socket can cause it to overheat, resulting in a fire.

1.3.4 Before connecting other components to this player, be sure to turn them off.

1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,

turn off the power switch immediately and disconnect the power plug from the wall

outlet. Then, contact the nearest customer service center for technical assistance. Do

not use the product. Using the product as it is may cause a fire or an electric shock.

2. Introduction

2.1 Package Contents

Enjoy TV Quad Core Box - APC390R

User’s Guide

HDMI Cable

IR Receiver Cable

IR Remote Controller (IR RC)

Optional Remote Controller

2.4G wireless Remote Controller

USB wire/wireless Mouse & Keyboard

Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A

2.2 Product Features

Quad Core ARM Cortex-A53 CPU, RAM 2GB DDR4(optional 1GB) , ROM

built in 8GB (optional 16GB )EMMC

Powered by Android 6.0 OS

Built in 802.11 AC WiFi module, wireless Internet access

2 USB interface ,one USB 2.0 and another USB 3.0, support mobile HDD,

wired/wireless mouse and keyboard operation

RJ45 10/100M/1000M Ethernet interface

Support 4K2K video playback

HDMI video output, connect to HDTV for HD video playback

Support HDMI Input

Support weather, calendar, and desktop clock gadgets

Support 2.4G wireless motion Remote Controller

Support music player, picture player and more family entertainment

Support TF card and Google Chrome browser and virtual private network

access

App Installer for application installation from USB/SD card

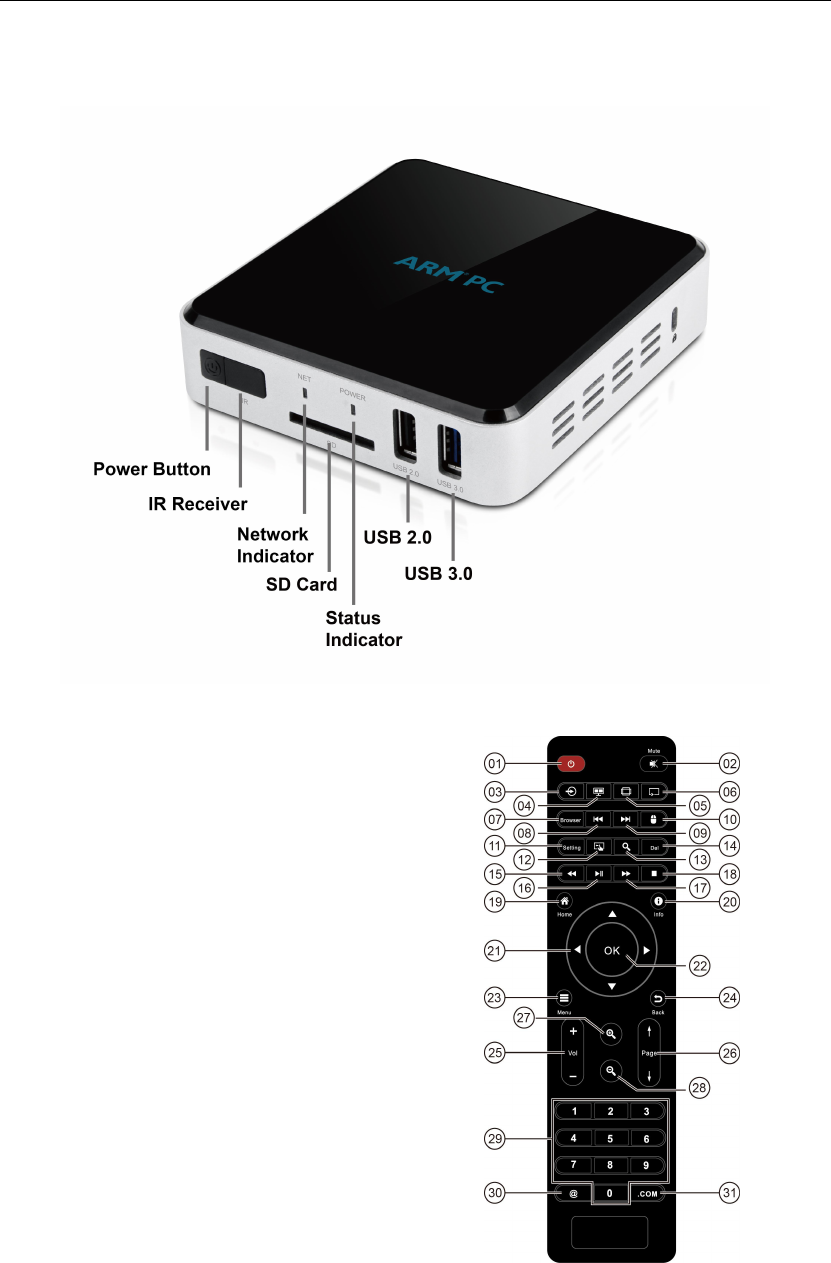

2.3 Panel Introduction

2.4 Remote Controller

Note: Button Battery 2025 3V insert with correct polarity (+/-).

①Power

②Mute

③Source in

④N/A

⑤Stretch

⑥Loop playback

⑦Browser

⑧Previous

⑨Next

⑩Mouse

⑪Setting

⑫N/A

⑬Search

⑭Delete Stop

⑮Fast backward

⑯Play

⑰Fast forward

⑱Stop

⑲Home

⑳ Info

○

21 CH +/-

○

22 OK

○

23 Menu

○

Back

Zoom Out

○

25 Vol +/-

○

26 Pag +/-@

○

27 Zoom In

○

28 Zoom Out

○

29 Number keys

○

30 @

○

31 .COM

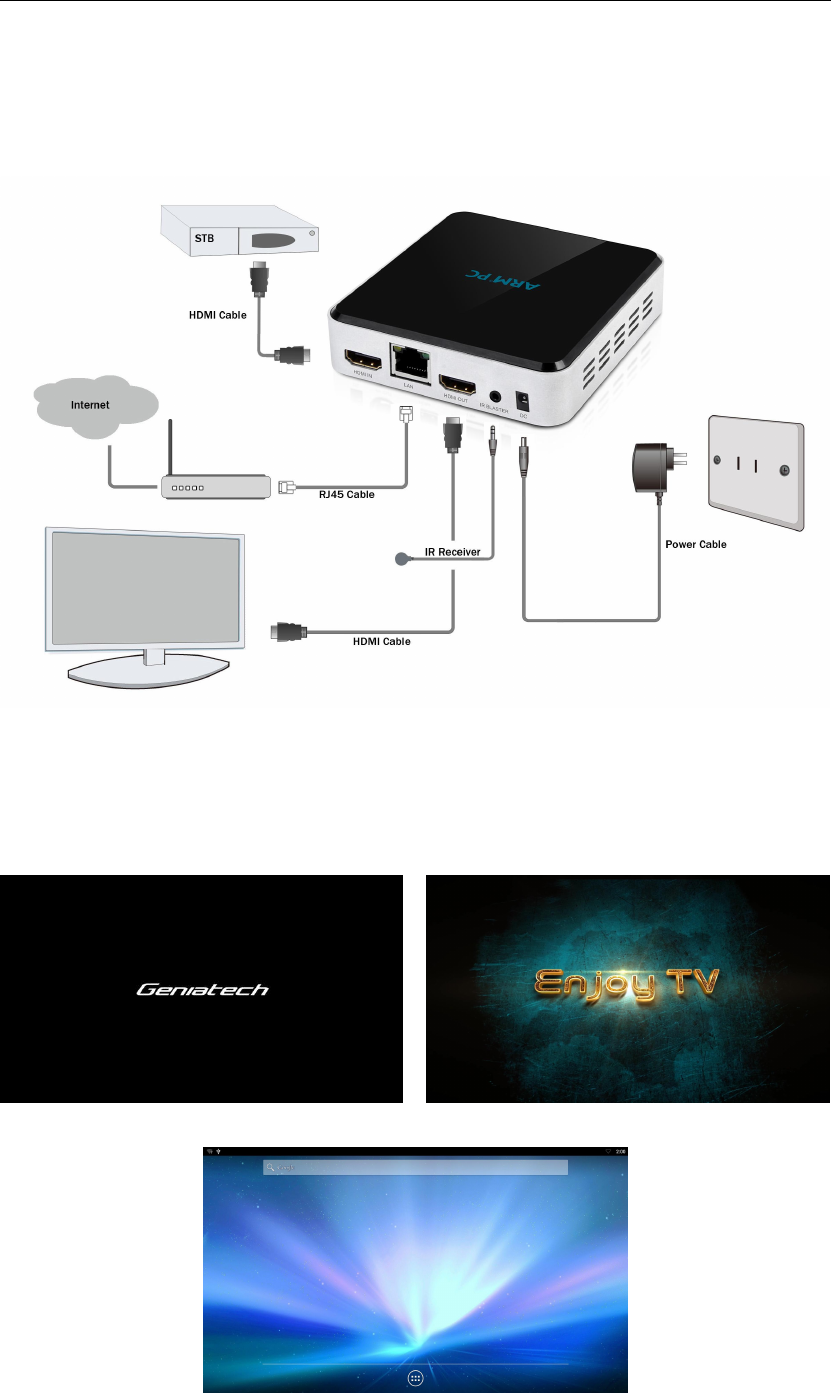

2.5 Setup Connection

Place APC390R on a flat platform near the TV, and make sure nothing block the

remote control signal.

2.6 Display when Power Up

2.6.1 After power up, the TV will first show a green robot during loading. When

loading is finished, it will go to Home screen.

2.6.2 Home Screen display.

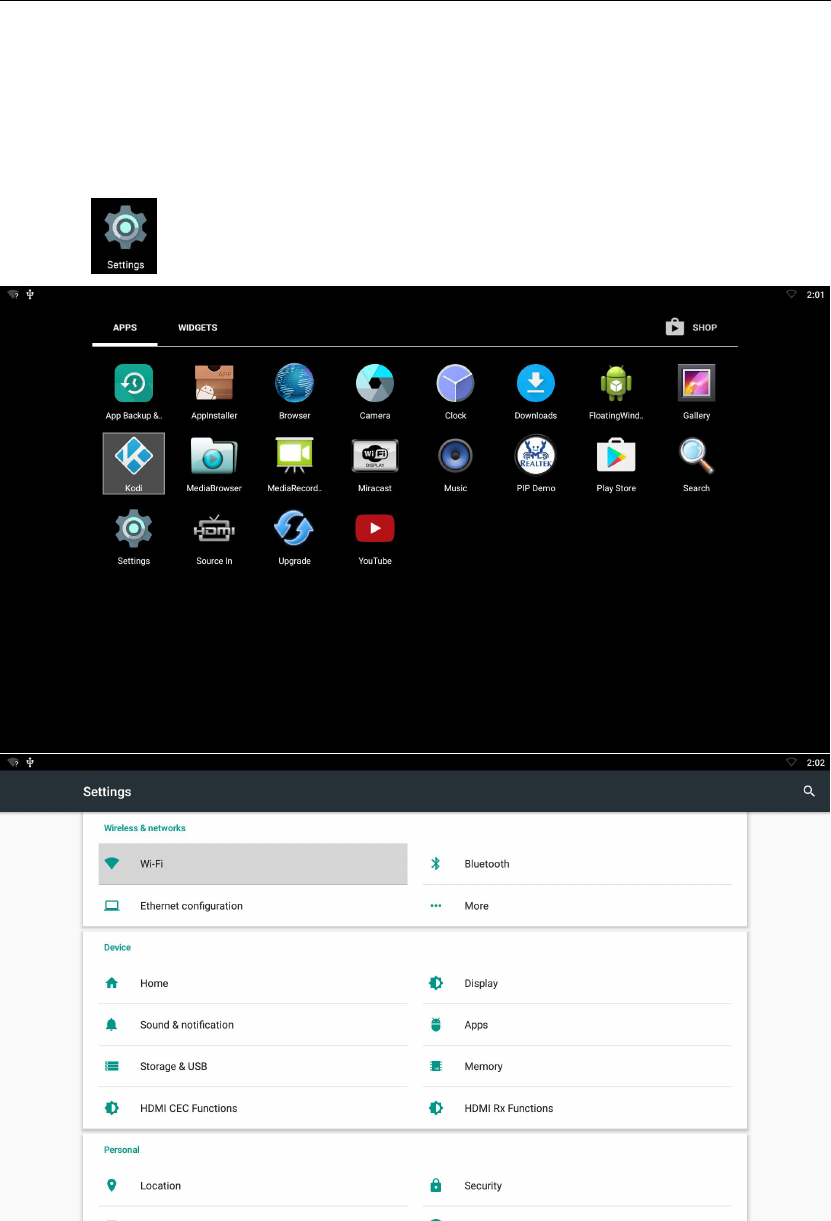

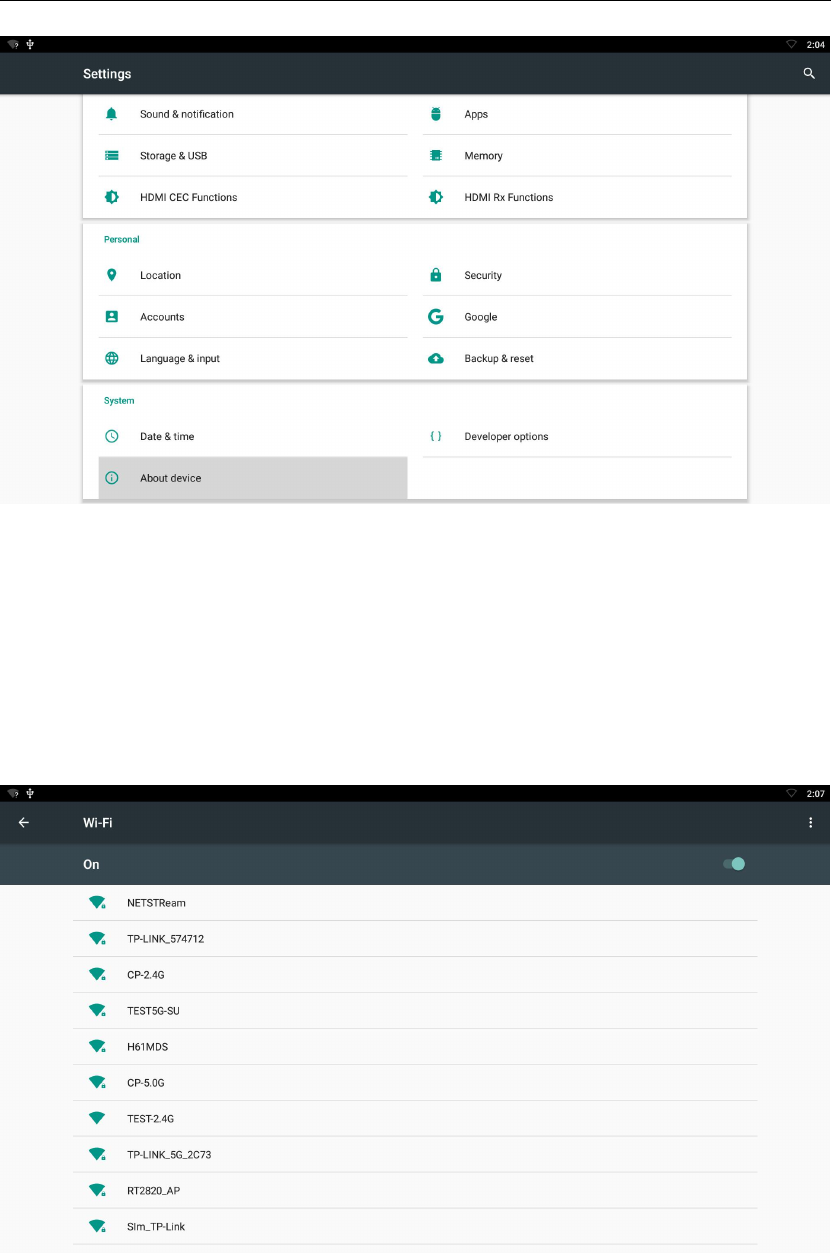

3. Settings

Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller

to select the options, the option selected will be highlighted and confirmed by

pressing OK key. Same operation for text input if needed.

Select icon then press OK key to settings interface.

3.1 WiFi

3.1.1 It will automatically scan ambient WiFi networks when select “ON”.

3.1.2 Connect an available WiFi network. If connect a secured WiFi network,

corresponding password will be input firstly. Or fail to connect and need reset

password.

3.1.3 Once build up the connection with a certain WiFi network successfully,

APC390R will connect this WiFi network automatically when restart.

Note: If factory reset, the password of WiFi network have to be reset.

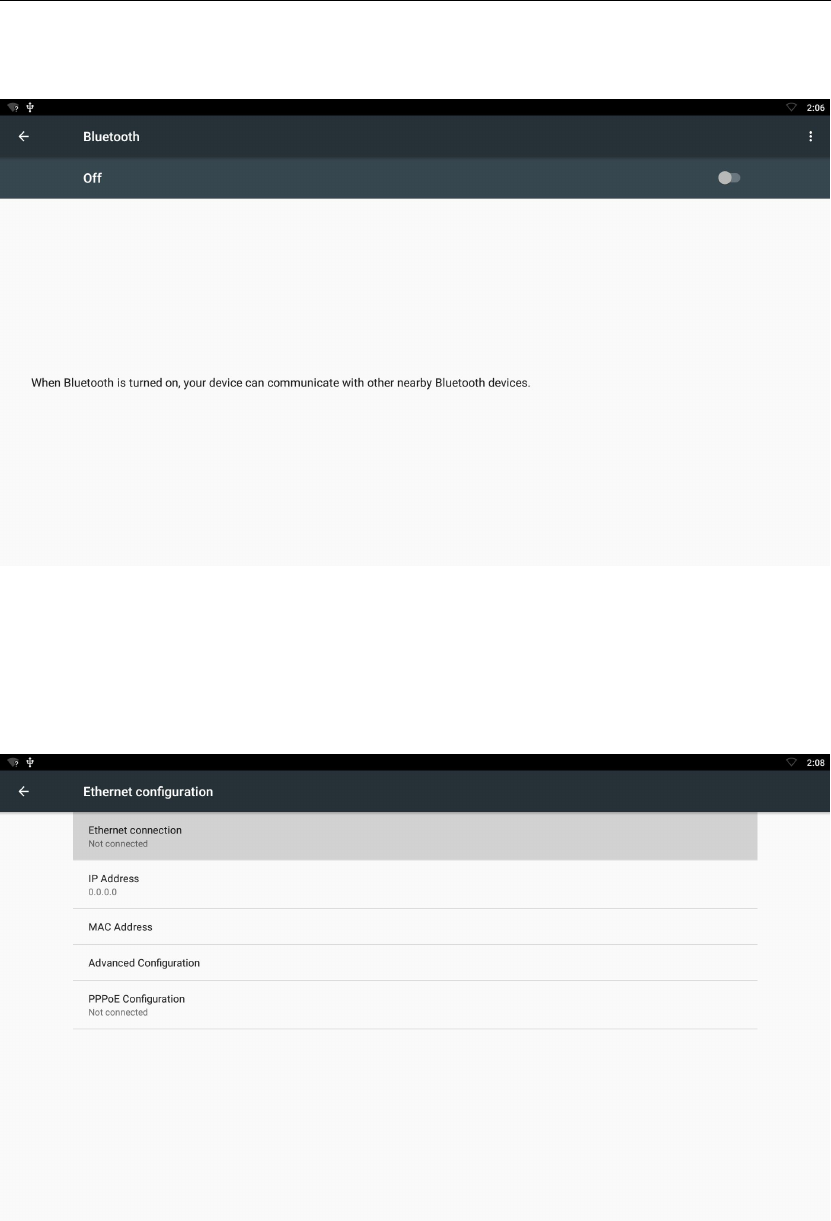

3.2 Bluetooth

3.3 Ethernet configuration

Connect dongle and Router by RJ45 network cable.

Press “ ON” in Ethernet setting, it will connect to network automatically.

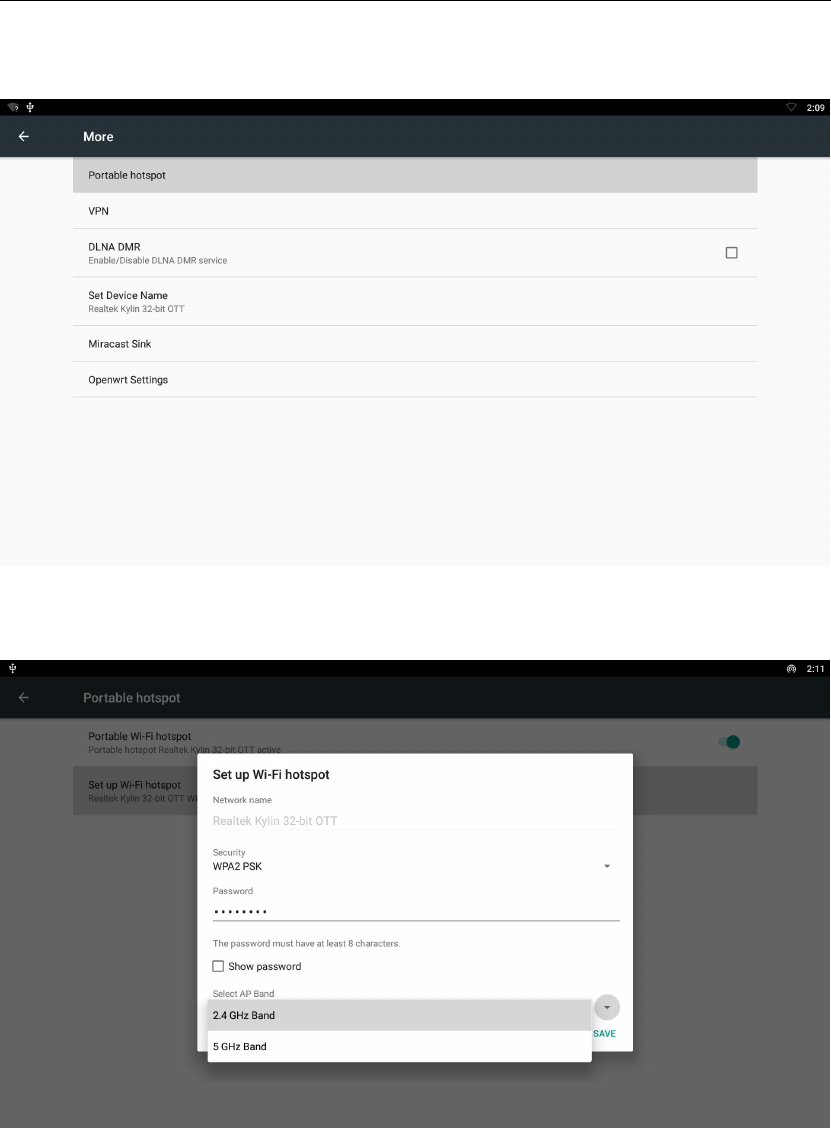

3.4 More...

3.4.1 Portable hotspot

3.4.1.1 Enable Portable hotspot

3.4.1.2 Set up Wi-Fi hotspot

Note: WiFi and hotspot connection can not be applied at same time. Disconnect

WiFi and connect Ethernet while using hotspot function.

3.4.2VPN

Build and set VPN

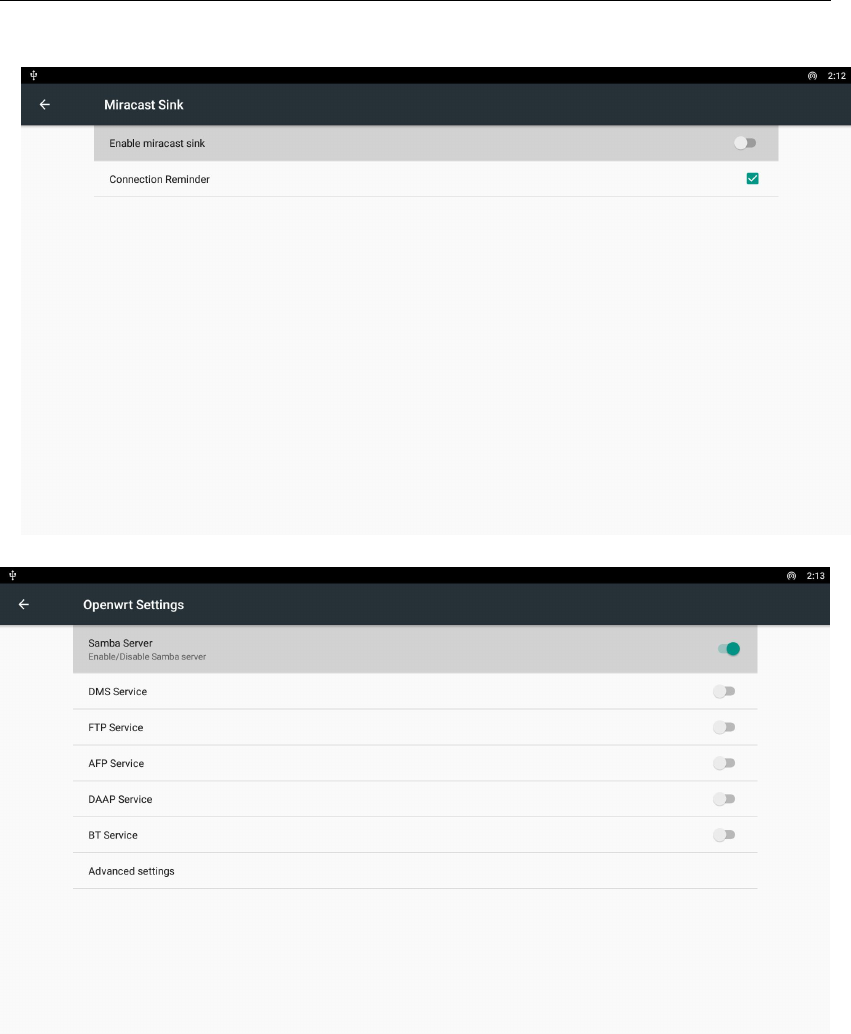

3.4.3 Miracast_Sink

3.4.4 Openwrt_Settings

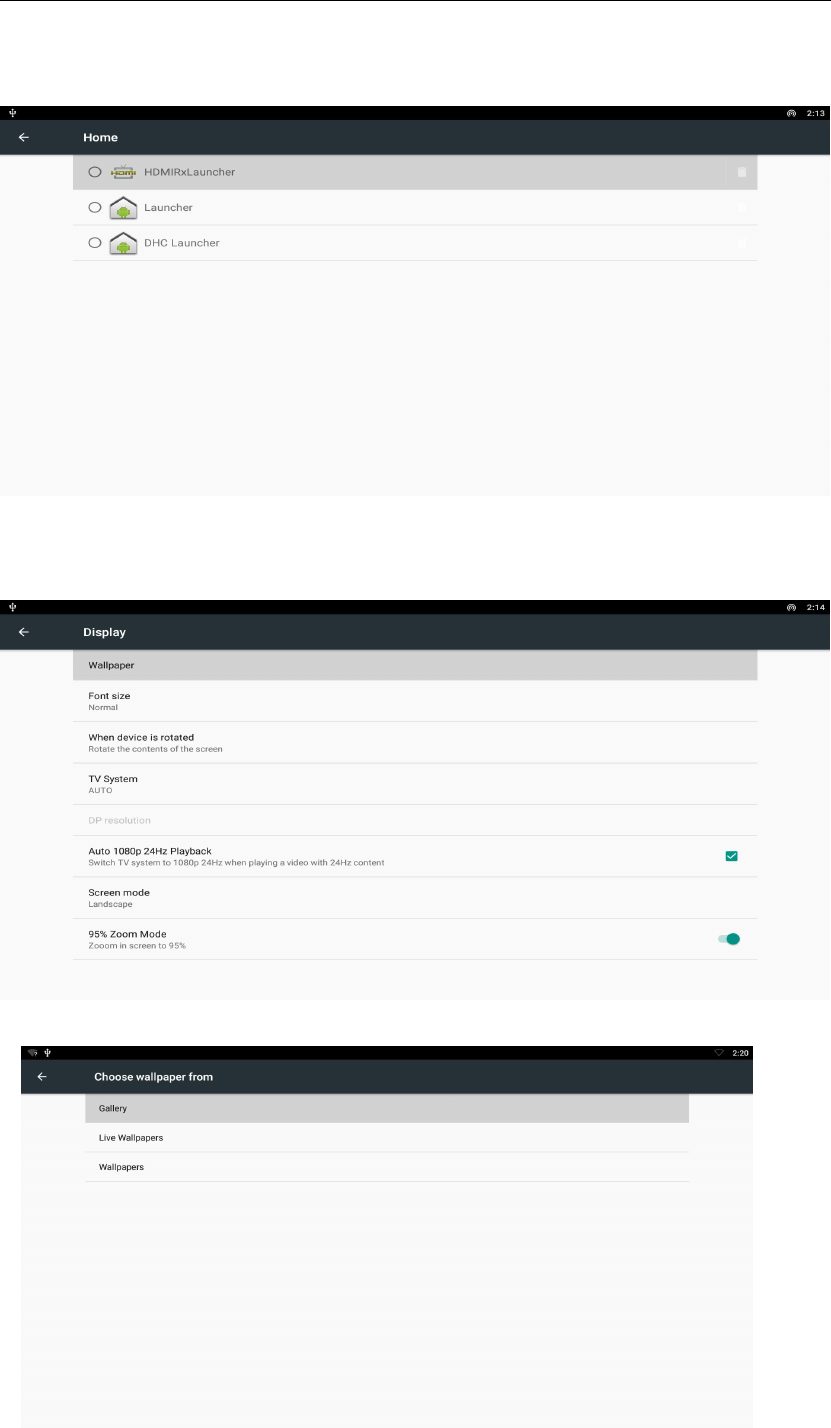

3.5 Home

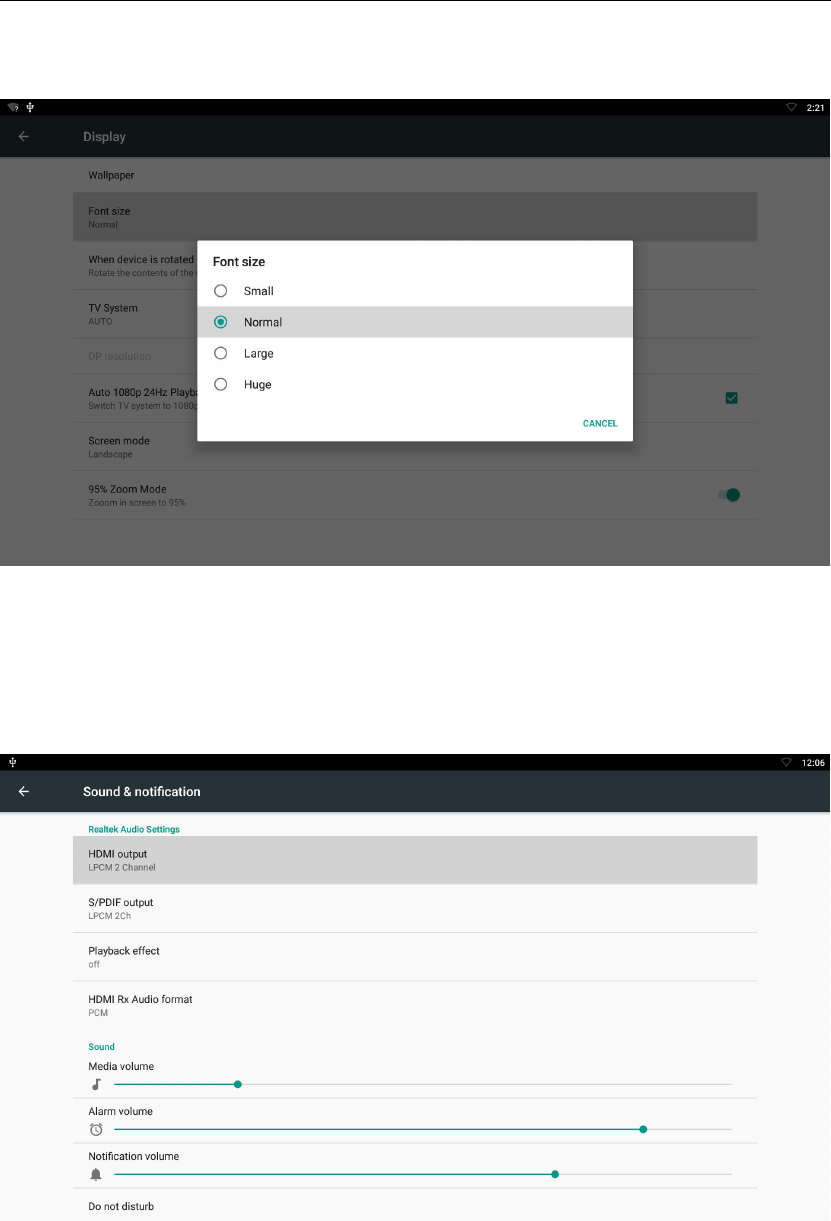

3.6 Display

3.6.1 Wallpaper

3.6.2 Font size

Change the font size of OSD

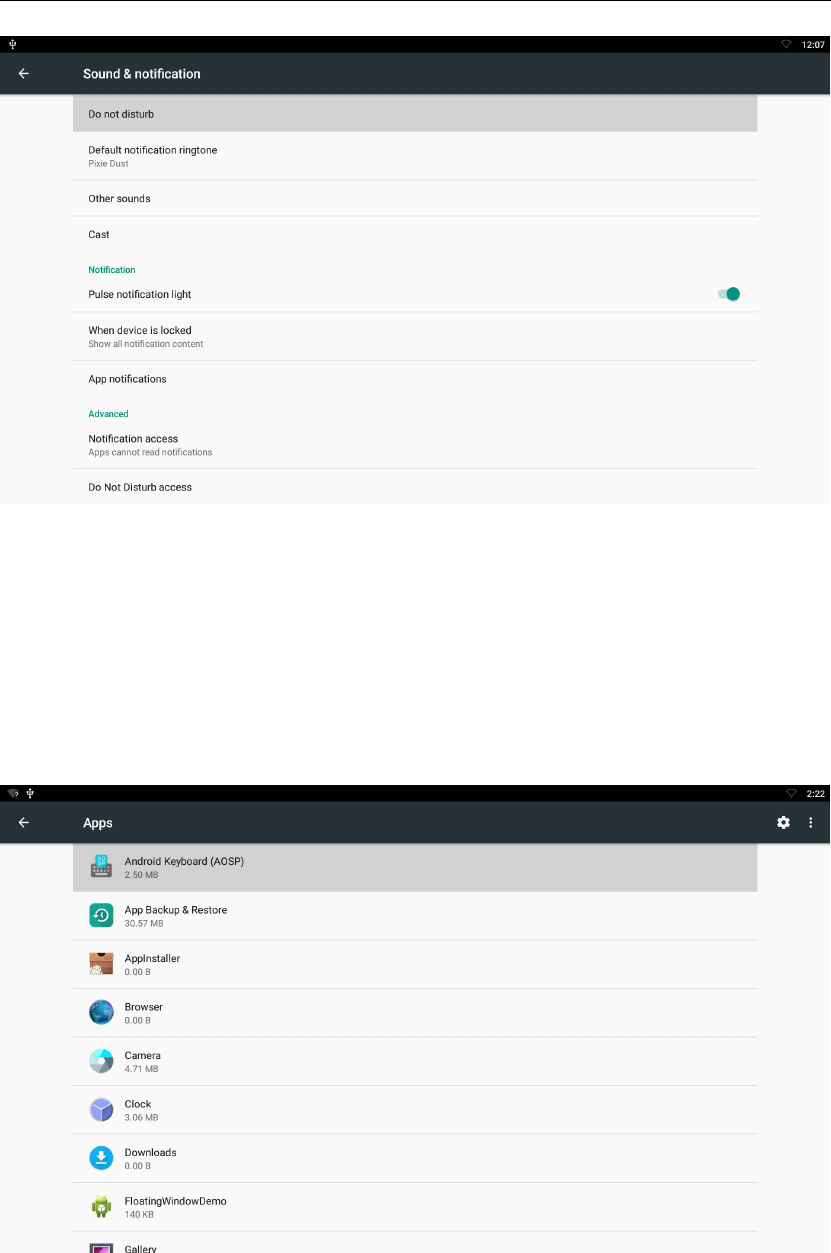

3.7 Sound&notification

3.8 Apps

List all apps installed.

You can choose an application and force to shut down the app, uninstall the app,

clear user data, move to SD card and clear cache data.

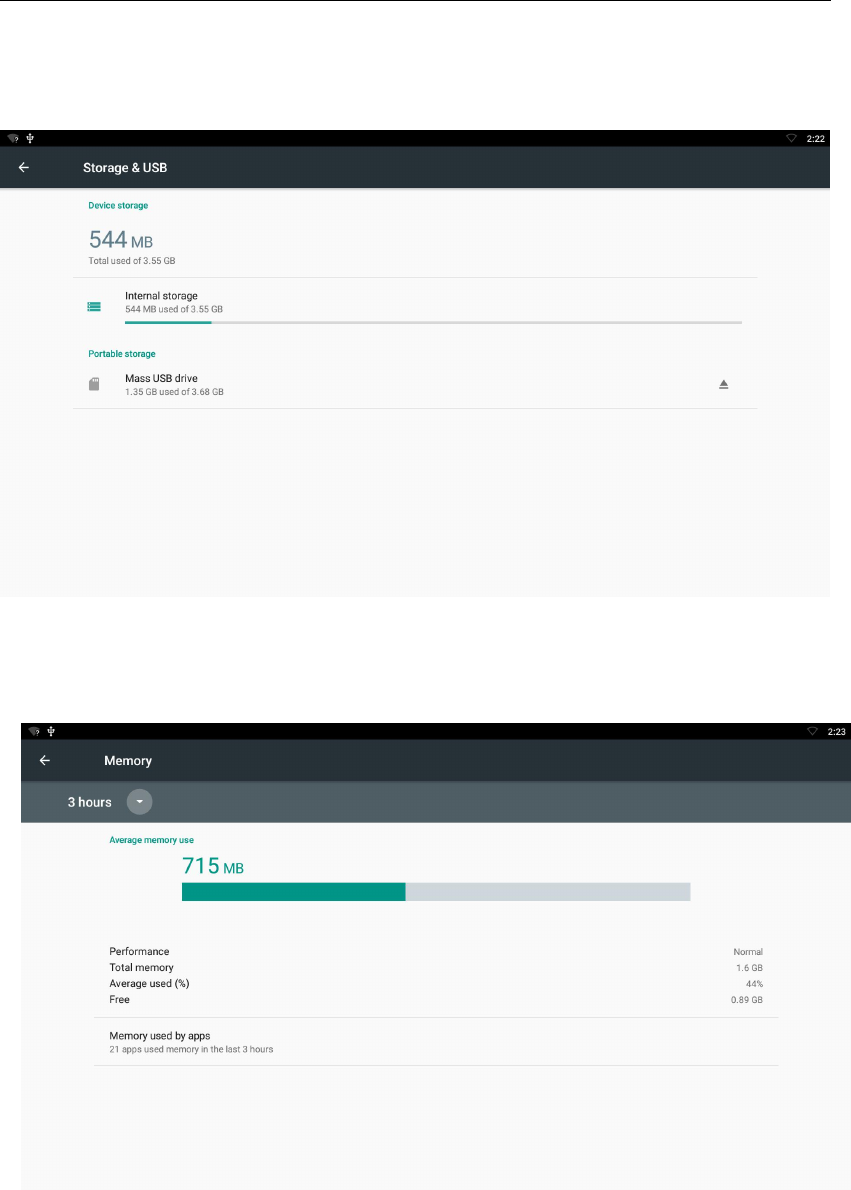

3.9 Storage & USB

Shows the storage used of the OS and SD card.

3.10 Memory

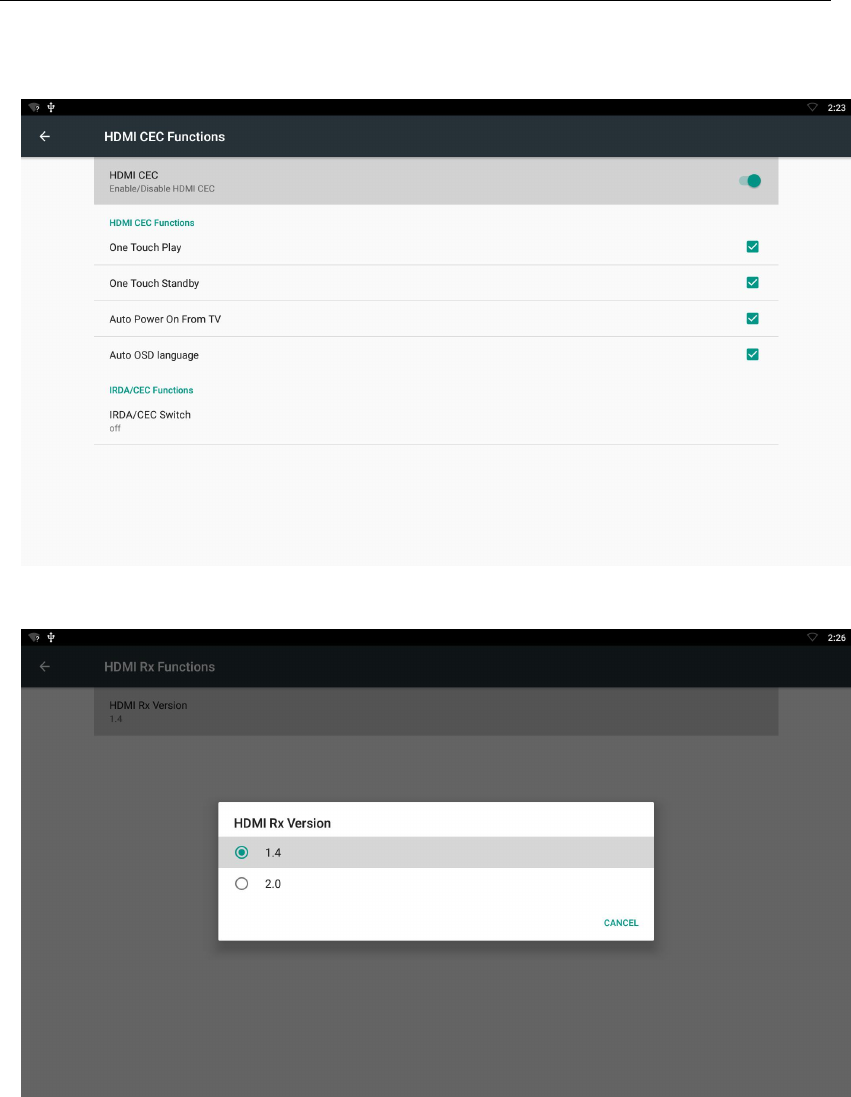

3.11 HDMI CEC Functions

3.12 HDMI Rx Functions

3.13 Location

3.14 Security

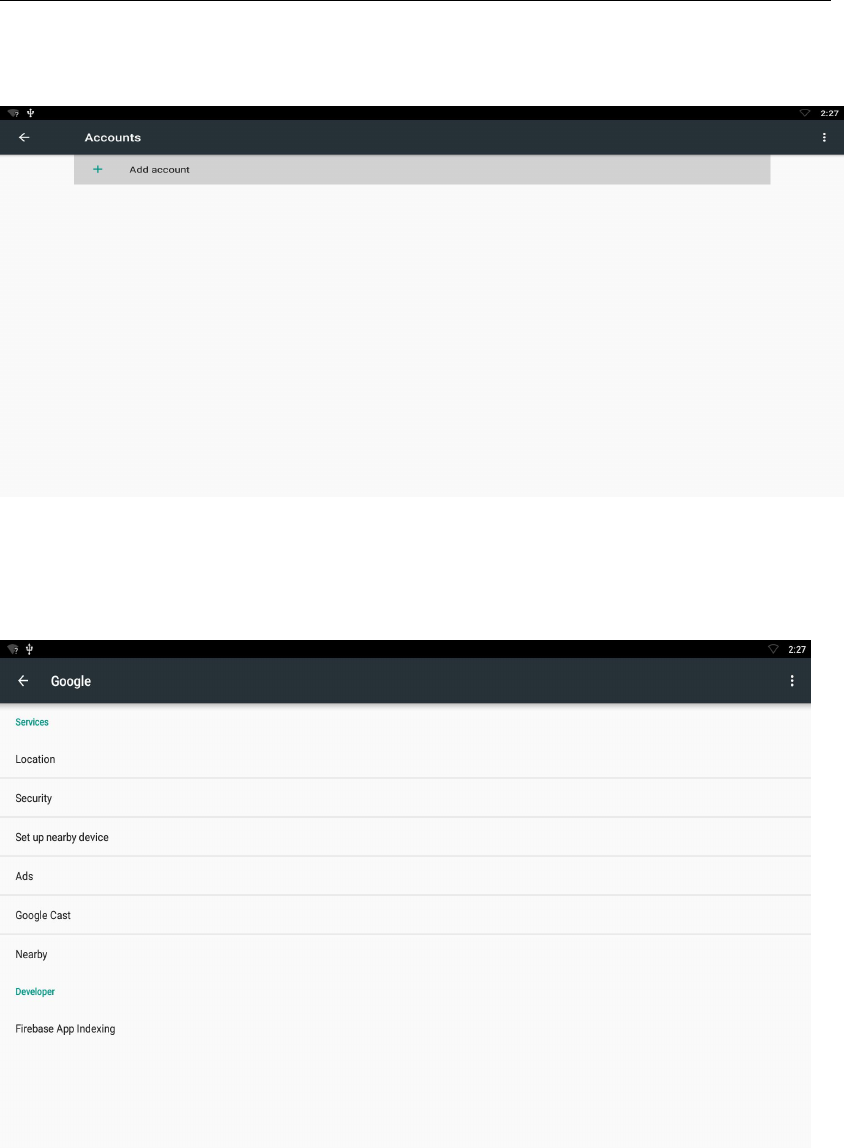

3.15 Account

3.16 Google

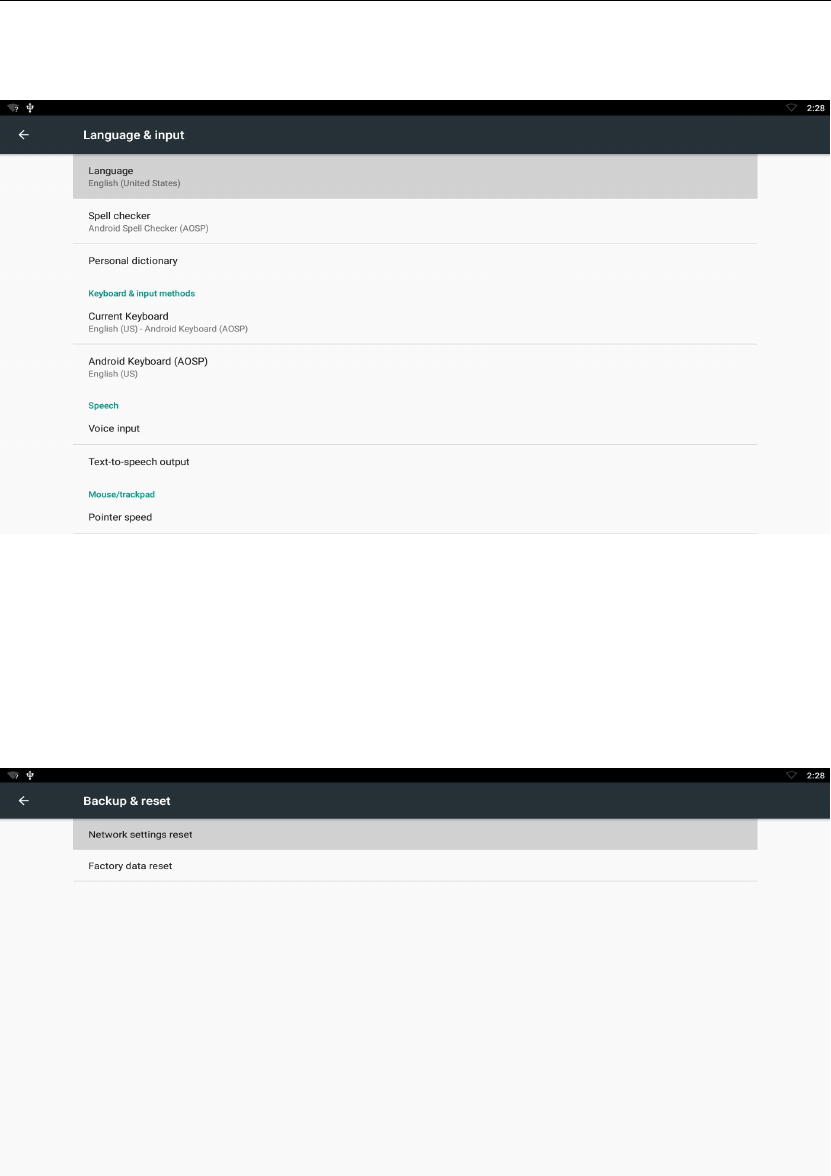

3.17 Language & input

Change OSD language and input method.

The default input method is android standard keyboard.

If you are using our IR remote control, enter into “Default” option and switch to

remote controller input method.

3.18 Backup & reset

Back up my data:

You can backup your application data, WiFi password and other settings.

Factory data rest:

You can reset all the settings and apps to factory default.

Note: You might want to backup important data before resetting the dongle. Once

you choose to rest to factory default, all data/apps will be deleted.

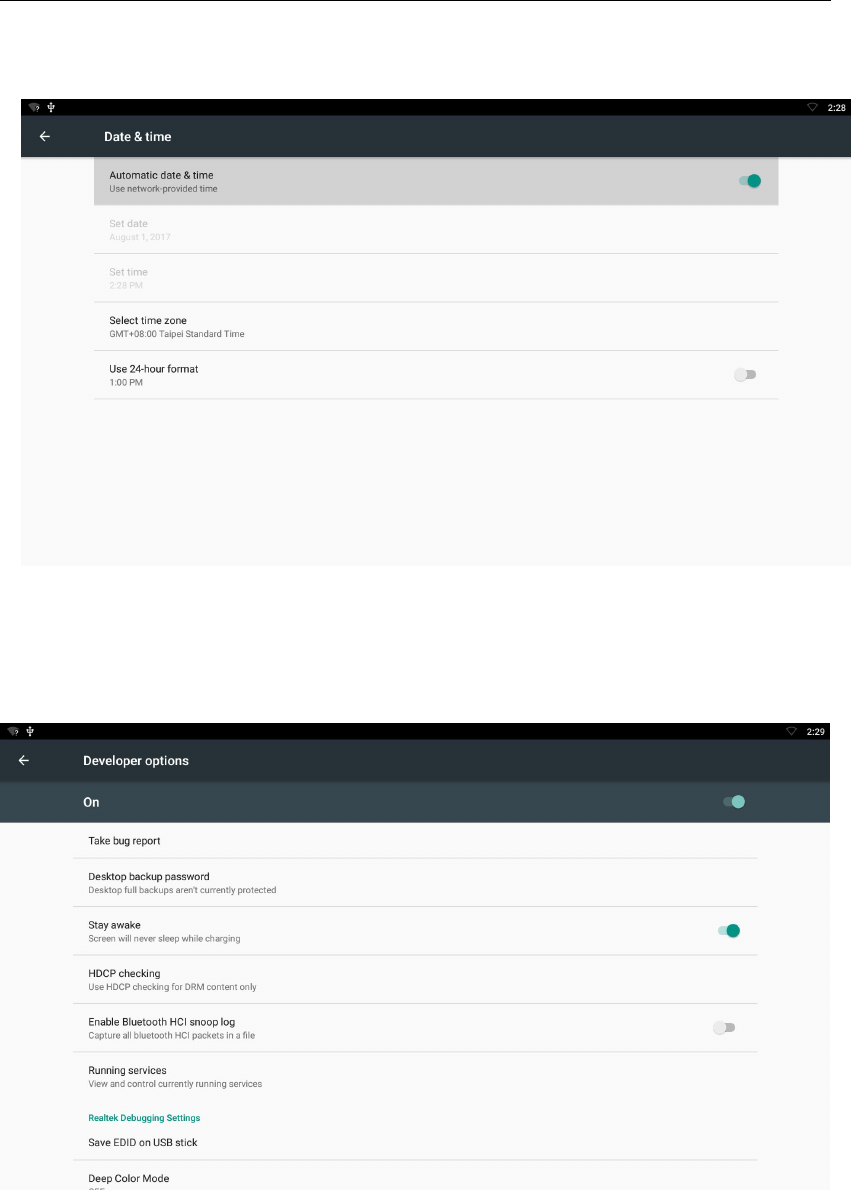

3.19 Date & time

3.20 Developer options.

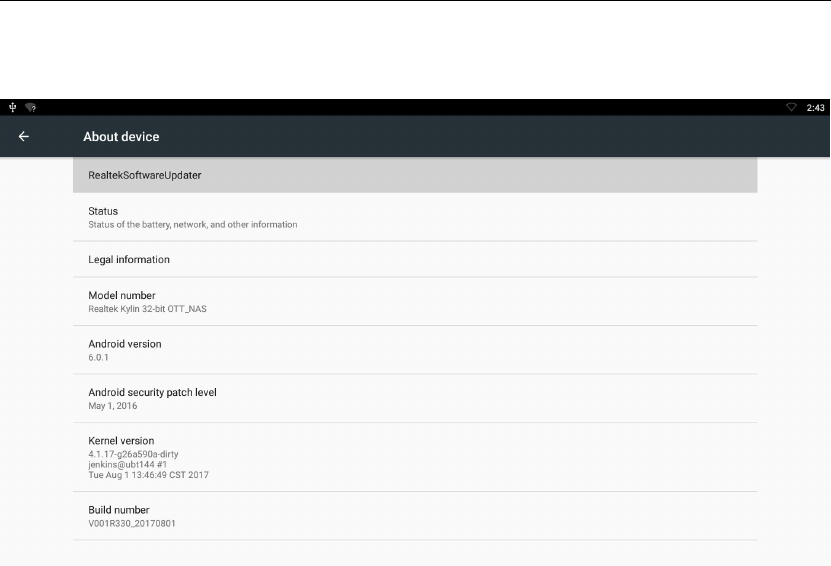

3.21 About device.

4. Apps Install & Uninstall

On APC390R, you can install apps from Android Market over the Internet or other

sources, such as other online sources, the internal storage and the USB storage

device and SD card that you have mounted onto APC390R.

You also can manage apps on APC390R and SD card, install/uninstall apps, stop

running apps, or select other options.

5. Firmware Update

You can download newest firmware from Geniatech Official website:

www.geniatech.com

6. Trouble Shooting/FAQ

6.1 No Picture

Refer to the TV user manual for how to select the correct video input channel.

6.2 USB Content cannot be read

. The format of USB storage device is not supported

. The supported memory size is 32G maximum.

. Make sure that this player supports these files.

6.3 Remote Controller cannot respond quickly to the pressing of keys

Make sure that batteries have enough power.

6.4 The firmware updating is not complete after a long time

If you update the firmware over the online service, it may take a long time to

download the firmware update files from the server. To save your time, update the

firmware through the SD card.

7. Repairs

If you contact us to repair your player, an administration fee may be charged if

either:

An engineer is called out to your home at your request and there is no defect in the

product.

You bring the unit to a repair center and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a

home visit or begin any work on your player.

We recommend you read this manual throughly, search for a solution on line at

www.geniatech.com, or contact Geniatech Customer Care before seeking to repair

your player.

8. Specification

CPU

Quad Core ARM Contex-A53 CPU

GPU

ARM T820 MP3 GPU

RAM

2G DDR4（Optional 1G DDR4）

ROM

8G EMMC (Optional 16G)

Android 6.0 OS

Optional

DOLBY

USB

USB2.0x1+ USB3.0 x1

HDMI

V2.0 + 1x HDMI input + 1x HDMI output

DC Input

5.0V-2A

MicroSD Slot

Max: 32G

Video Output

HDMI

Audio Output

HDMI

IR Blaster

IR Blaster x1

LAN

RJ45 10/100M/1000M Ethernet interface

WiFi

IEEE 802.1 b/g/n 2.4G(5G Optional)

Optional

Audio Decoder

Built-in Audio Codec with 24-bit resolution

One I2S interface (2 channels) for Audio input/output

IEC 60958 (SPDIF) digital audio output

7.1 CH down-mix

MPEG I Layer 1, 2, 3 (2-CH) and MPEG II Layer 1, 2 (Multi-Channel)

LPCM, ADPCM, ALAC, FLAC, AAC,WAV, AIFF, VSELP, and OGG Vorbis

DTS HD, Dolby Digital Plus, TrueHD (Licensee Only)

WMA/WMA Pro, Dolby Digital AC3,and DTS (Licensee Only)

LPCM/ADPCM/MP3/AAC audio recording

DTS Broadcast capable (Licensee Only)

Dolby Digital Consumer Encoder capable (Licensee Only)

Video/Picture

Decoder

VP9 Profile 0

H.265 MP@L5.1 Main Tier

MPEG1, VCD 1.0/2.0, SVCD

Supports HD MPEG2 (up to MP@HL 1080i), ISO/IFO/VOB/TS

Supports HD MPEG4 SP/ASP (720p/1080i/1080p), Xvid

H.264 BP@L3, MP and HP@L4.2

H.264 MVC SHP@L4.1

VC-1 SP, MP, AP@L3

AVS JZ@L6.2, AVS+ 1080@60P

H.263 Profile0/3@L70 1080@60P

Sorenson Spark L70

Theora 720P

VP8 1080@60P

HD JPEG with 32K x 32K maximum resolution

Full-pixel JPEG decode with high resolution zoom-in

Video up-scaling from SD to Ultra HD (720p/1080i/1080p/2160p)

Video and


Encoding

Functions

MPEG 4 SP@L5

H.264 BP, MP, HP@L4.2

H.264 MVC SHP 1080@30P

H.263 Profile3@L70 1080@60P

HD JPEG in high resolution

Video and

Picture Color

Spectrum

Deliver metadata using SMPTE ST2086,CEA-861.3 through HDMI 2.0a

Support conversion between ITU-R Recommendation BT.2020, BT.709 and other

color spaces.

Support SMPTE ST 2084 EOTF/OETF

Deliver metadata using SMPTE ST2086,CEA-861.3 through HDMI 2.0a

Size

100X106X25 mm

Net Weight

212g

9. Trademark Notice

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing LLC in United

States and other countries.

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

IC WARNING

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,

Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject

to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause

undesired operation of the device

The distance between user and products should be no less than 20cm

ADVERTENCIA IC

Cet appareil contient des émetteurs / récepteurs exemptés de licence conformes aux RSS (RSS)

d'Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux

deux conditions suivantes :

(1) Cet appareil ne doit pas causer d'interférences.

(2) Cet appareil doit accepter toutes les interférences, y compris celles susceptibles de

provoquer un fonctionnement indésirable de l'appareil.

La distance entre l'utilisateur et de produits ne devrait pas être inférieure à 20cm

FCCWarningStatement

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCRadiationExposureStatement

Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation

distanceofatleast20cmfromallpersonsandmust not beco‐locatedforoperatingin

conjunctionwithanyotherantennaortransmitter.

Indoor use only

Geniatech F19AF3 Enjoy TV User Manual Contents

Shenzhen Geniatech INC.,LTD. Enjoy TV Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
