Check your ceiling where the power

head of your new unit will be mounted.

Plan how you will be mounting the power head.

It is possible that ceiling joists may not be in the

exact position needed with respect to the garage

door operator. In any case, it may be necessary

to add an additional bracket and fasteners (not

included with your new door operator kit).

You need a 110-120 Volt power supply

available. If you plan to plug the unit into a

standard electrical outlet, is one available? The

outlet should be no more than about 3 feet from the

power head once it is mounted. (The cord is 4 ft. in

length.) SEE WARNING BELOW.

Check the wall directly above the garage

door. The door operator's header bracket

must be securely fastened to this wall. Insure

that the structure wilt provide a strong mounting

location.

Check to see if the mounting location

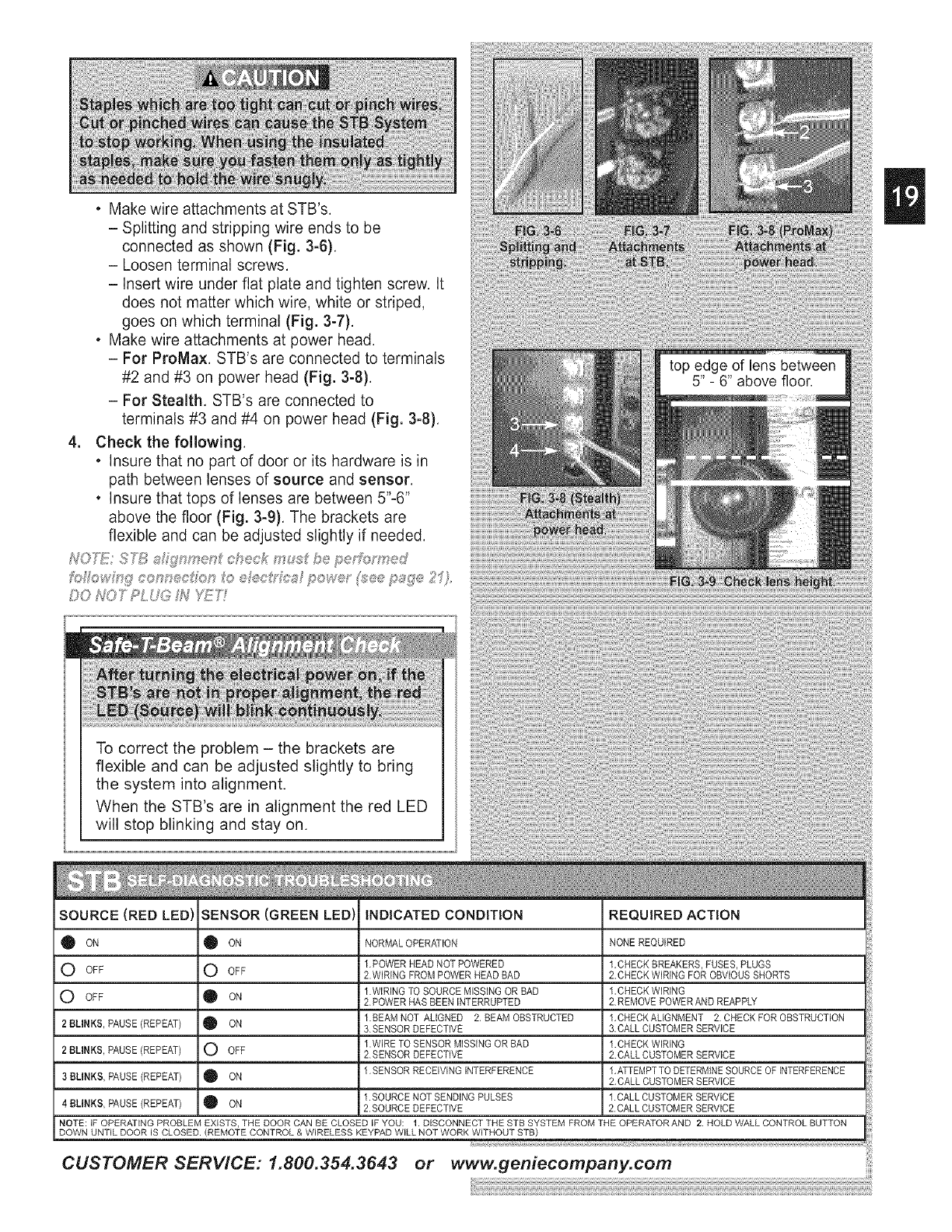

for the Safe-T-Beam ® System (STB) is

clear from obstruction and has a wood

surface available for attaching the STB

brackets. The brackets may also be attached to

concrete if necessary but extra tools and special

fasteners (not supplied) will be required.

_,tOTE: Id2 S]*B b<_}cket sdapte<s

s<e sva a_s®th_<4_ghyo_' oca Ge_se©ea®h

To avoid damage to your door and/or

operator, make sure you disable any door

locks prior to installing your operator.

Insure that your door is properly balanced

and moving freely. SEE WARNING BELOW.

Is your garage door made of

light-weight steel, aluminum, fiberglass

or glass panels? Additional support bracing

must be added to these type doors. If this is the

case, please contact the door distributor or

manufacturer so that they can furnish you with a

"bracing kit."

(NOT SHOWN) If your garage does not have

a separate entry door, you might want to

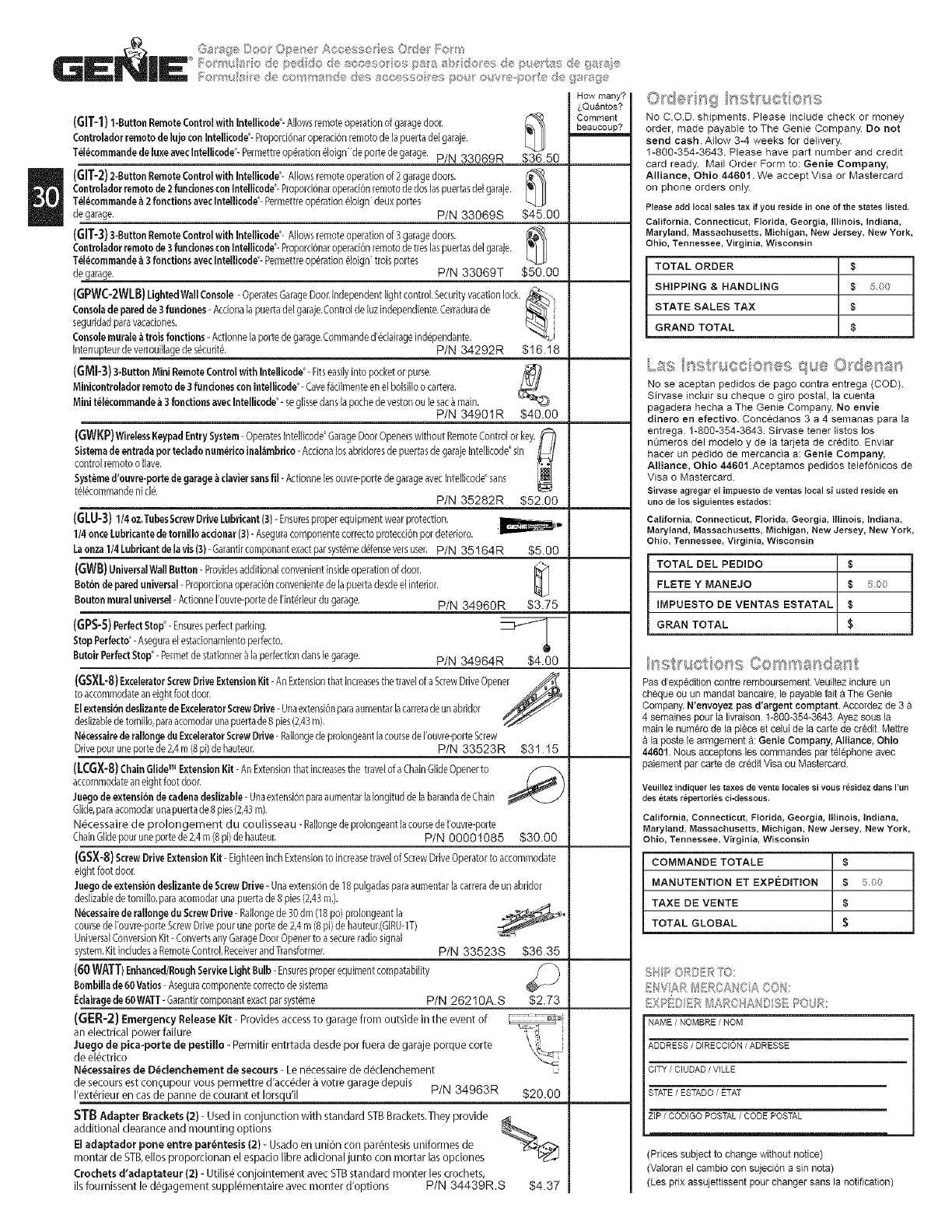

consider an emergency release kit (GER-2) for

installation on your garage door. See page 30.

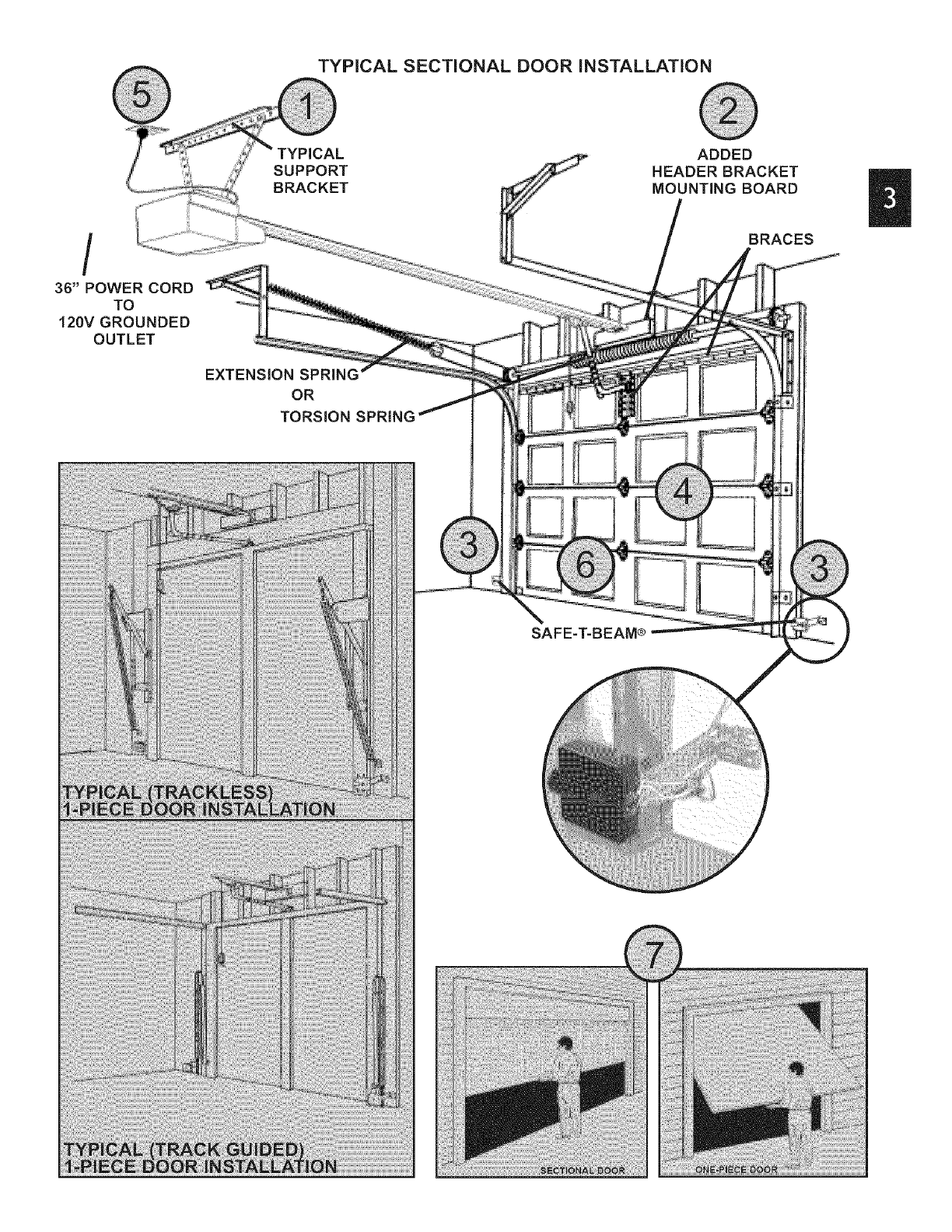

TYPICAL SECTIONAL DOOR iNSTALLATiON

36" POWER CORD

120V GROUNDED

OUTLET

TYPICAL

SUPPORT

BRACKET

EXTENSION SPRING

TORSION SPRING

ADDED

HEADER BRACKET

MOUNTING BOARD

BRACES II

SAFE-T-BEAM®

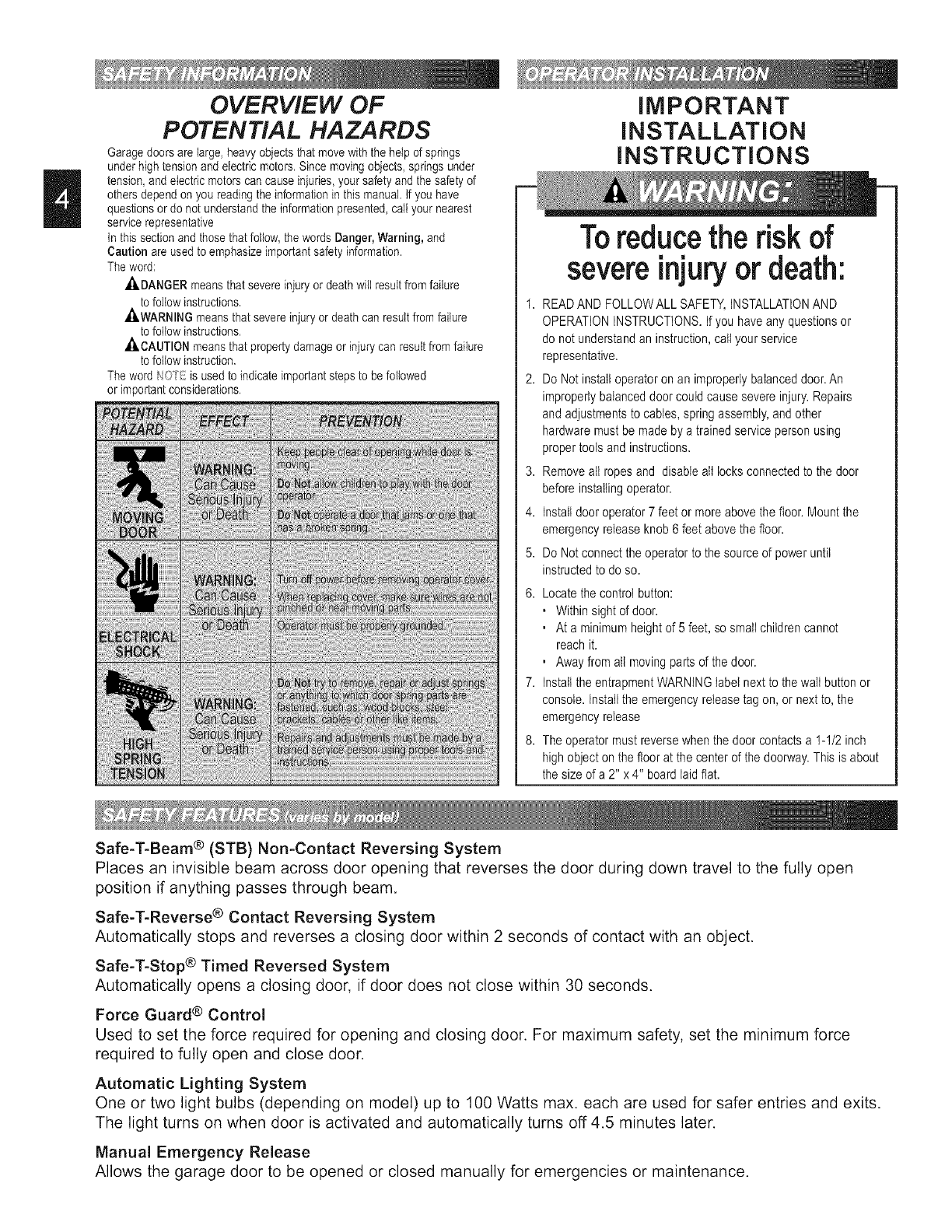

OVERVIEW OF

POTENTIAL HAZARDS

Garagedoorsarelarge,heavyobjectsthatmovewiththehetpof springs

underhightensionandelectricmotors.Sincemovingobjects,springsunder

tension,andetectricmotorscancauseinjuries,yoursafetyandthesafetyof

othersdependonyoureadingtheinformationinthismanual.If youhave

questionsordo notunderstandtheinformationpresented,callyournearest

servicerepresentative

in thissectionandthosethatfollow,thewordsDanger,Warning,and

Cautionareusedto emphasizeimportantsafetyinformation.

Theword:

,_DANGERmeansthatsevereinjuryordeathwilt resultfromfailure

tofollowinstructions.

,_WARNINGmeansthatsevereinjuryor deathcanresultfromfailure

tofollowinstructions.

,_CAUTION meansthatpropertydamageor injurycanresultfromfailure

tofollowinstruction.

Theword_,SO1_!_is usedto indicateimportantstepsto befollowed

orimportantconsiderations.

i!!iiliiiii:i!!!MI

Safe-T-Beam ® (STB) Non-Contact Reversing System

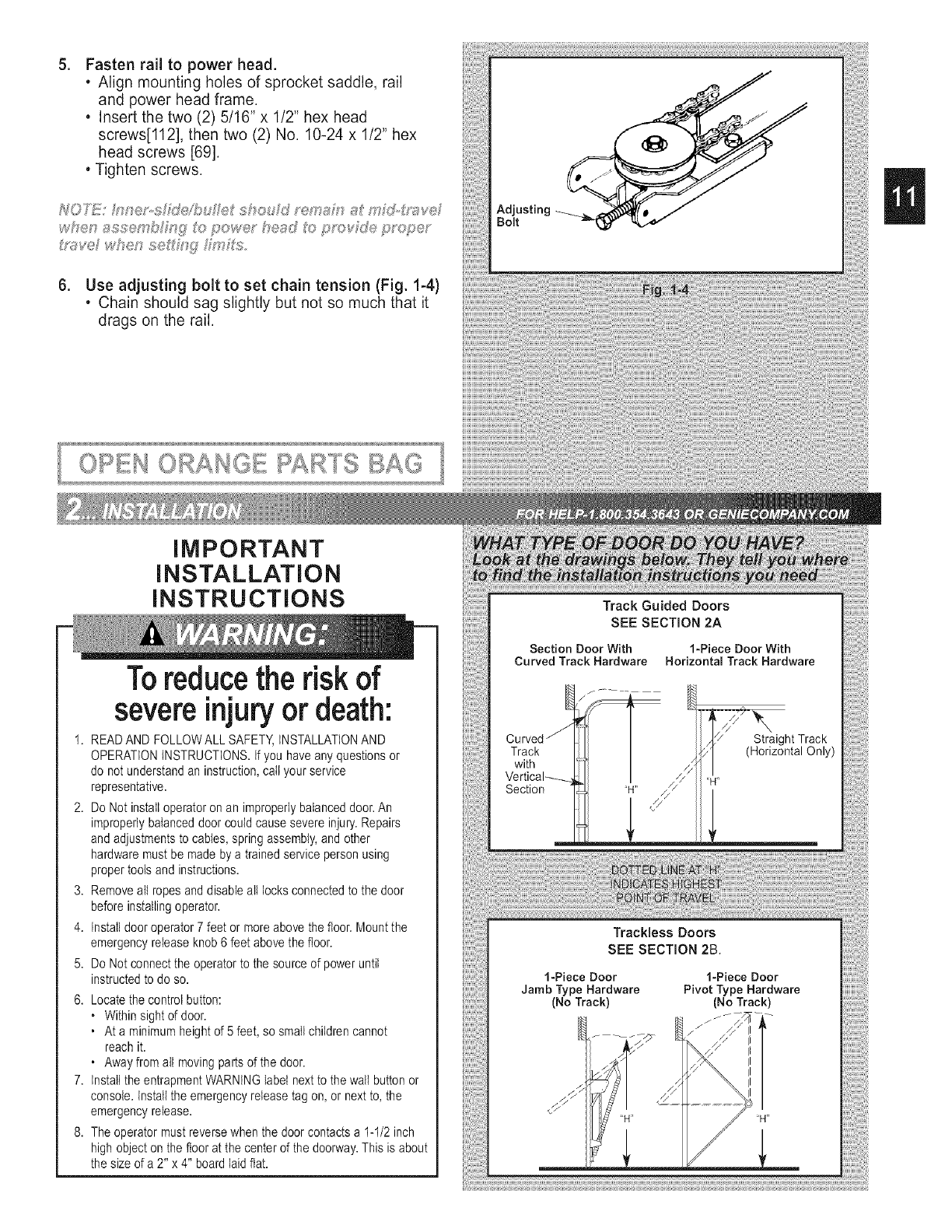

IMPORTANT

iNSTALLATION

iNSTRUCTiONS

To reduce the risk of

severe injuryor death:

1. READAND FOLLOWALLSAFETY,INSTALLATIONAND

OPERATIONINSTRUCTIONS.If you haveany questionsor

do notunderstandan instruction,callyour service

representative.

2. Do Not instatloperatoron an improperlybalanceddoor.An

improperlybalanceddoorcouldcausesevereinjury.Repairs

and adjustmentsto cables,springassembly,andother

hardwaremust bemadebya trainedservicepersonusing

propertoolsand instructions.

3. Removeatt ropesand disableall locksconnectedto the door

before installingoperator.

4. Instaitdooroperator7 feet or moreabovethe floor.Mountthe

emergencyreleaseknob6 feet abovethefloor.

5. Do Notconnecttheoperatorto the sourceof poweruntil

instructedto doso.

6. Locatethe controlbutton:

,Withinsight of door.

, At a minimumheightof 5 feet, sosmall childrencannot

reachit.

, Awayfromattmovingpartsof thedoor.

7. InstaittheentrapmentWARNINGlabelnextto thewaitbuttonor

console.Installthe emergencyreleasetagon, or nextto,the

emergencyrelease

8. Theoperatormustreversewhenthedoorcontactsa 1-1/2inch

highobjecton thefloor at the centerof thedoorway.Thisis about

thesize of a 2" x 4" boardlaidflat.

Places an invisible beam across door opening that reverses the door during down travel to the fully open

position if anything passes through beam.

Safe-T-Reverse ® Contact Reversing System

Automatically stops and reverses a closing door within 2 seconds of contact with an object.

Safe-T-Stop ® Timed Reversed System

Automatically opens a closing door, if door does not close within 30 seconds.

Force Guard ® Control

Used to set the force required for opening and closing door. For maximum safety, set the minimum force

required to fully open and close door.

Automatic Lighting System

One or two light bulbs (depending on model) up to 100 Watts max. each are used for safer entries and exits.

The light turns on when door is activated and automatically turns off 4.5 minutes later.

Manual Emergency Release

Allows the garage door to be opened or closed manually for emergencies or maintenance.

@ @ @ remotes

vary by model

;, ,_,!i_i_ i" ...... iii' iii

!HU! ¸:: i: ;i

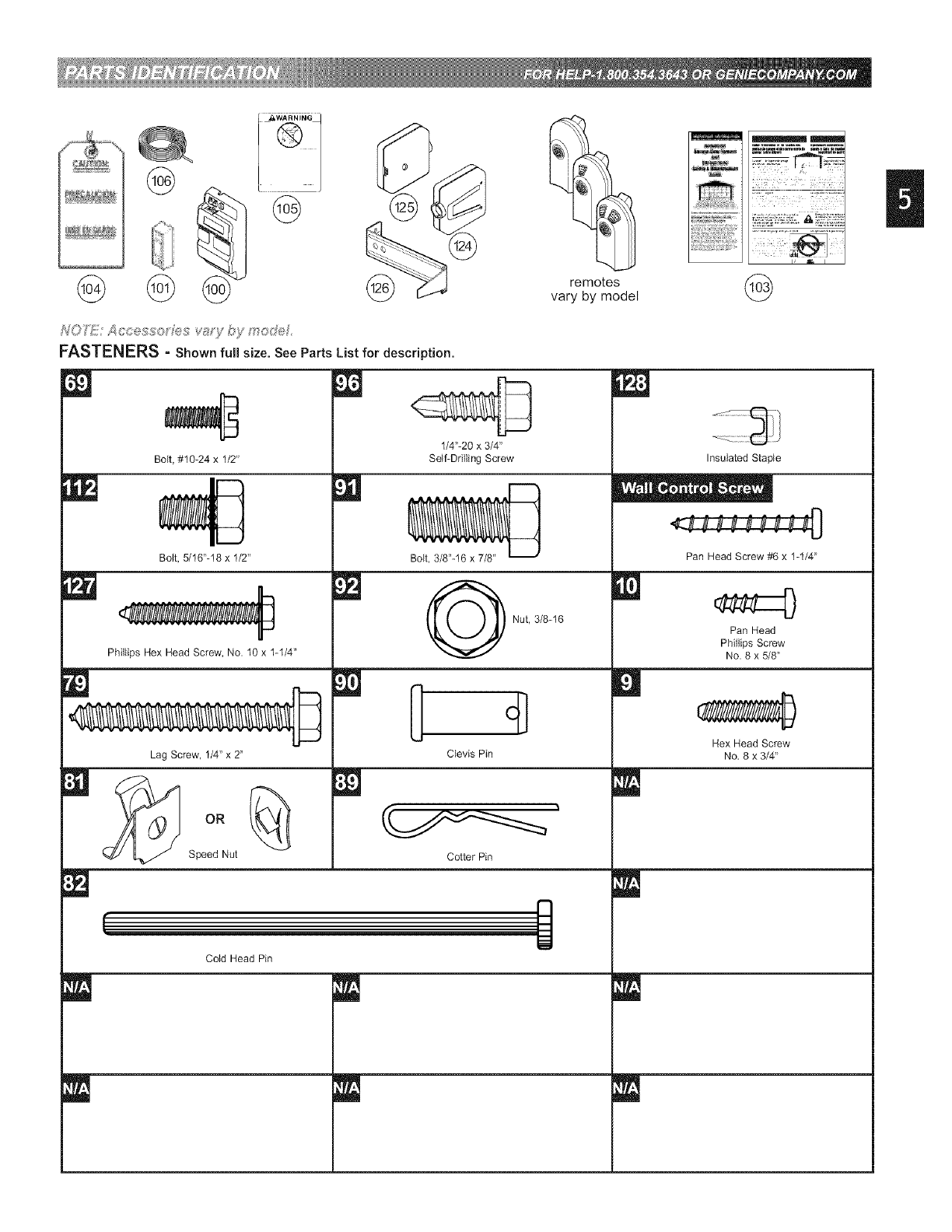

FASTENERS - Shown full size. See Parts Mst for description.

Bolt, #10-24 x 1/2"

im z I_

Bolt, 5/16"-18 x 1/2_'

Phillips Hex Head Screw, No. 10 x 1-1/4"

i--!

1/4"-20 x 3/4"

Self-Drilling Screw

Bolt, 3/8"-16 x 7/8"

Lag Screw, 1/4" x 2" Clevis Pin

Insulated Staple

Speed Nut

Pan Head Screw #6 x 1-1/4"

Pan Head

Phillips Screw

No. 8 x 5/8"

Cotter Pin

Hex Head Screw

No. 8 x 3/4"

Cold Head Pin

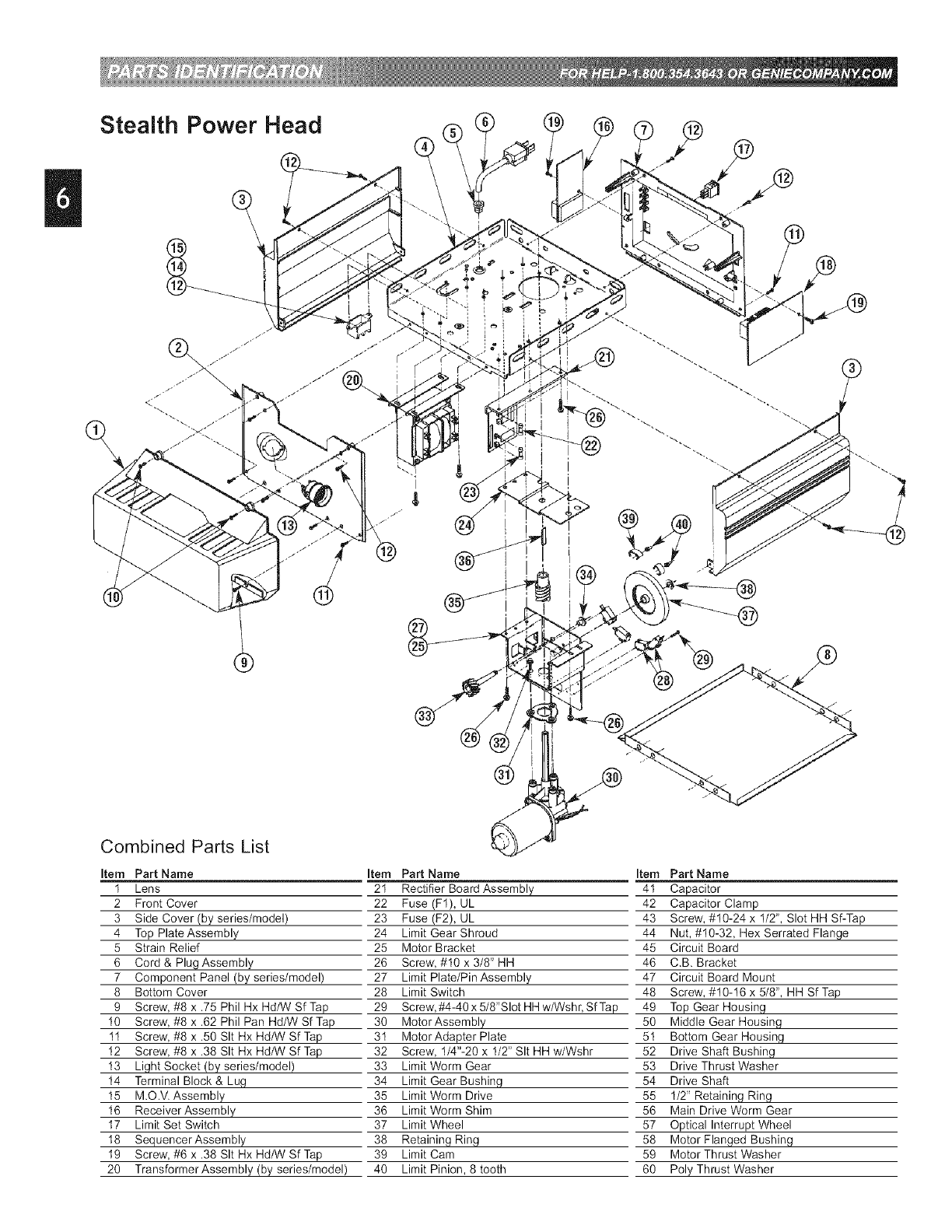

Stealth Power Head

Combined Parts List

Item Part Name Item Part Name Item Part Name

1 Lens 21 Rectifier Board Assembly 41 Capacitor

2 Front Cover 22 Fuse (F1), UL 42 Capacitor Clamp

3 Side Cover (by series/model) 23 Fuse (F2), UL 43 Screw, #t0-24 x 1/2", Slot HH Sf-Tap

4 Top PlateAssembly 24 Limit Gear Shroud 44 Nut, #t0-32, Hex Serrated Flange

5 Strain Relief 25 Motor Bracket 45 Circuit Board

6 Cord & PluqAssembly 26 Screw, #t0 x 3/8" HH 46 C.B. Bracket

7 Component Panel (by series/model) 27 Limit Plate/PinAssembly 47 Circuit Board Mount

8 Bottom Cover 28 Limit Switch 48 Screw, #t0-16 x 5/8", HH Sf Tap

9 Screw, #8 x .75 Phil Hx Hd/W Sf Tap 29 Screw,#4-40 x 5/8"Slot HH w/Wshr, SfTap 49 Top Gear Housinq

10 Screw, #8 x .62 Phil Pan Hd/W Sf Tap 30 MotorAssembly 50 Middle Gear Housing

11 Screw, #8 x .50 Sit Hx Hd/W Sf Tap 31 MotorAdapter Plate 51 Bottom Gear Housinq

12 Screw, #8 x .38 Sit Hx Hd/W Sf Tap 32 Screw, 1/4"-20 x 1/2" Sit HH w/Wshr 52 Drive Shaft Bushing

13 Light Socket (by series/model) 33 Limit Worm Gear 53 Drive Thrust Washer

14 Terminal Block & Lug 34 Limit Gear Bushing 54 Drive Shaft

15 M.O.V. Assembly 35 Limit Worm Drive 55 1/2" Retaining Ring

16 Receiver Assembly 36 Limit Worm Shim 56 Main Drive Worm Gear

17 Limit Set Switch 37 Limit Wheel 57 ©ptical Interrupt Wheel

18 SequencerAssembly 38 Retaining Ring 58 Motor Flanged Bushing

19 Screw, #6 x .38 Sit Hx Hd/W Sf Tap 39 Limit Cam 59 Motor Thrust Washer

20 TransformerAssembly (by series/model) 40 Limit Pinion, 8 tooth 60 Poly Thrust Washer

PRO-MAX Power Head

Item Part Name

6t Main Drive Worm

62 Screw, #8 x 3-1/8" Slot HH, Sf Tap

63 Limit Switch Plate

64 Screw, #6 x 3/8" Phillips w/Wshr, Sf Tap

65 Screw, #4 x 5/8", Slot HH w/Wshr, Sf Tap

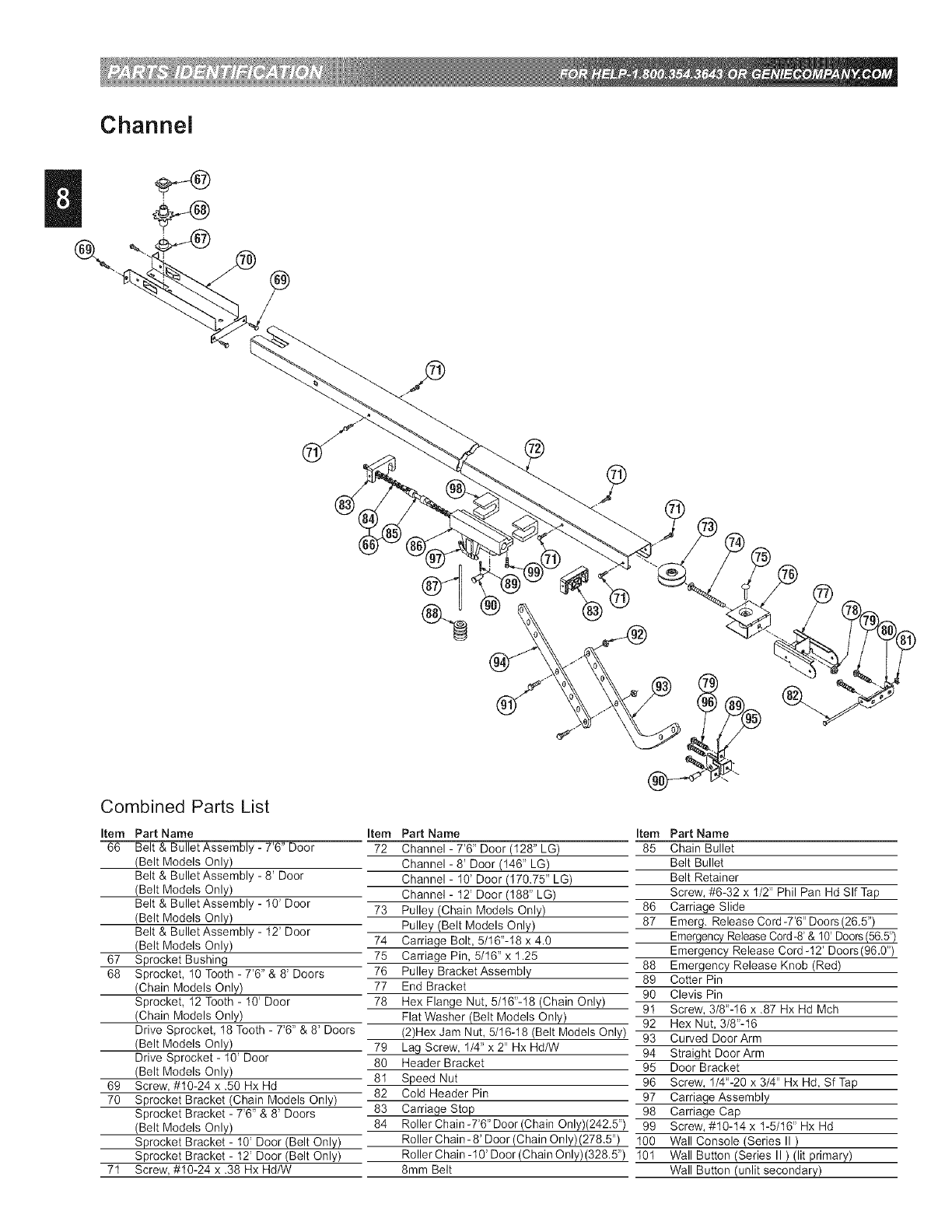

Channel

Combined Parts List

Item Part Name

66 Belt & Bullet Assembly- 7'6" Door

(Belt Models Only)

Belt & Bullet Assembly - 8' Door

(Belt Models Only)

Belt & Bullet Assembly - 10' Door

(Belt Models Only)

Belt & Bullet Assembly - 12' Door

(Belt Models Only)

67 Sprocket Bushing

68 Sprocket, 10 Tooth - 7'6" & 8' Doors

(Chain Models Only)

Sprocket, 12 Tooth - 10' Door

(Chain Models Only)

Drive Sprocket, 18 Tooth - 7'6" & 8' Doors

(Belt Models Only)

Drive Sprocket - 10' Door

(Belt Models Only)

69 Screw, #t0-24 x .50 Hx Hd

70 Sprocket Bracket (Chain Models Only)

Sprocket Bracket - 7'6" & 8' Doors

(Belt Models Only)

Sprocket Bracket - 10' Door (Belt Only)

Sprocket Bracket - 12' Door (Belt Only)

71 Screw, #t0-24 x .38 Hx Hd/W

Item Part Name

72 Channel - 7'6" Door (128" LG)

Channel - 8' Door (146" LG)

Channel - 10' Door (170.75" LG)

Channel - 12_Door (188" LG)

73 Pulley (Chain Models Only)

Pulley (Belt Models Only)

74 Carriage Bolt, 5/16"-18 x 4.0

75 Carriage Pin, 5/16" x 1.25

76 Pulley Bracket Assembly

77 End Bracket

78 Hex Flange Nut, 5/16"-18 (Chain Only)

Flat Washer (Belt Models Only)

(2)Hex Jam Nut, 5/16-18 (Belt Models Only)

79 Lag Screw, 1/4" x 2" Hx Hd/W

80 Header Bracket

81 Speed Nut

82 Cold Header Pin

83 Carriage Stop

84 Roller Chain-7'6" Door (Chain Only)(242.5")

Roller Chain -8' Door (Chain Only) (278.5 '_)

RollerChain-10' Door (Chain Only)(328.5") 101

8mm Belt

Item Part Name

85 Chain Bullet

Belt Bullet

Belt Retainer

Screw, #6-32 x 1/2" Phil Pan Hd sir Tap

86 Carriage Slide

87 Emerg. Release Cord-7'6" Doors(26.5")

Emergency Release Cord-8'& 10'Doors (56.5")

Emergency Release Cord-12' Doors(96.0")

88 Emergency Release Knob (Red)

89 Cotter Pin

90 Clevis Pin

91 Screw, 3/8"-16 x .87 Hx Hd Mch

92 Hex Nut, 3/8"-16

93 Curved Door Arm

94 Straight Door Arm

95 Door Bracket

96 Screw, 1/4"-20 x 3/4" Hx Hd, Sf Tap

97 Carriage Assembly

98 Carriage Cap

99 Screw, #t0-14 x 1-5/16" Hx Hd

100 Wall Console (Series II )

Wall Button (Series II ) (lit primary)

Wall Button (unlit secondary)

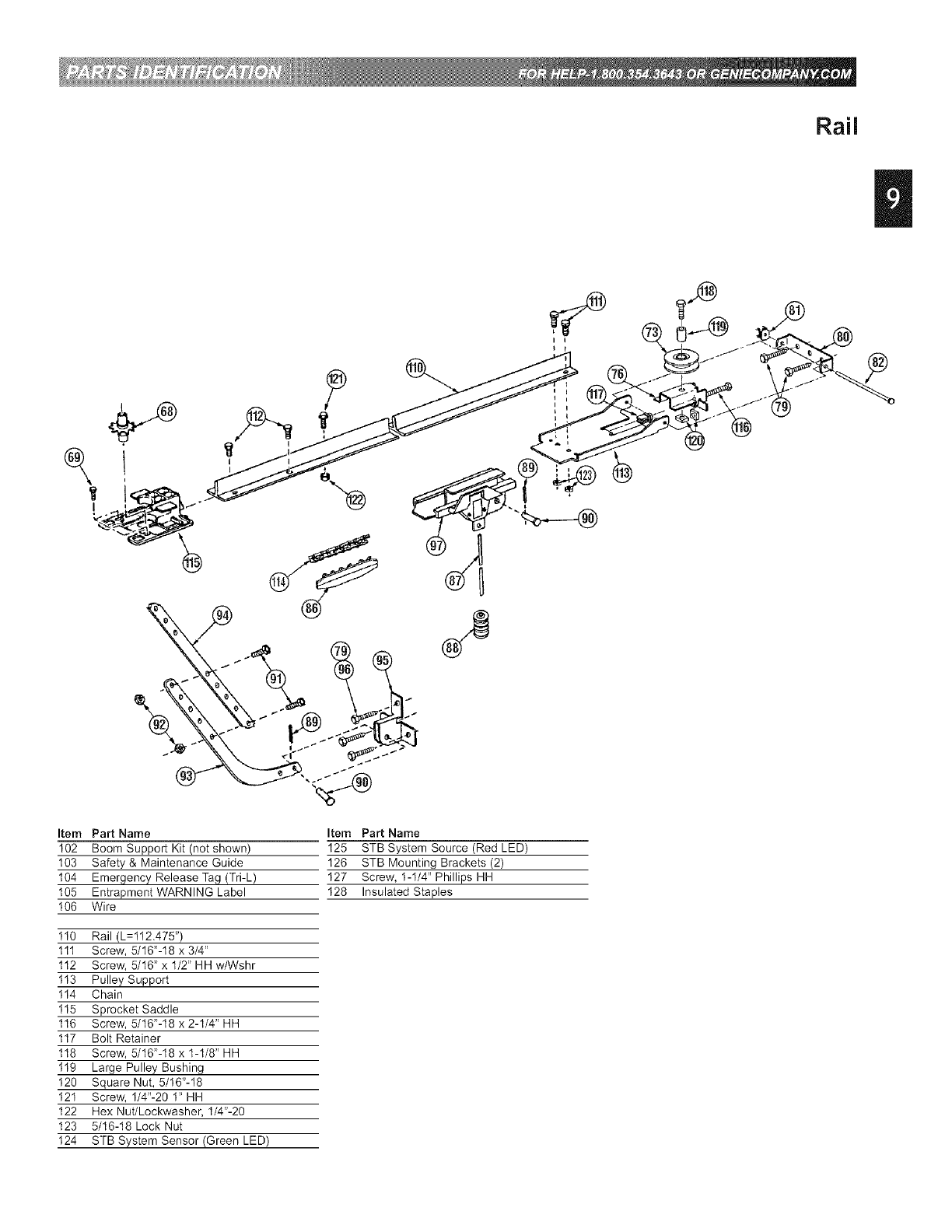

Rail

Item Part Name

102 Boom Support Kit (not shown)

103 Safety & Maintenance Guide

104 Emergency Release Tag (Tri-L)

105 Entrapment WARNING Label

106 Wire

110 Rail (L=112.475")

111 Screw, 5/16"-18 x 3/4"

112 Screw, 5/16" x 1/2" HH w/Wshr

113 Pulley Support

114 Chain

115 Sprocket Saddle

116 Screw, 5/16"-18 x 2-1/4" HH

117 Bolt Retainer

118 Screw, 5/16"-18 x 1-1/8" HH

119 Large Pulley Bushing

120 Square Nut, 5/16"-18

121 Screw, 1/4"-20 1" HH

122 Hex Nut!Lockwasher, 1/4"-20

123 5/16-18 Lock Nut

124 STB System Sensor (Green LED)

Item Part Name

125 STB System Source (Red LED)

126 STB Mounting Brackets (2)

127 Screw, 1-1/4" Phillips HH

128 Insulated Staples

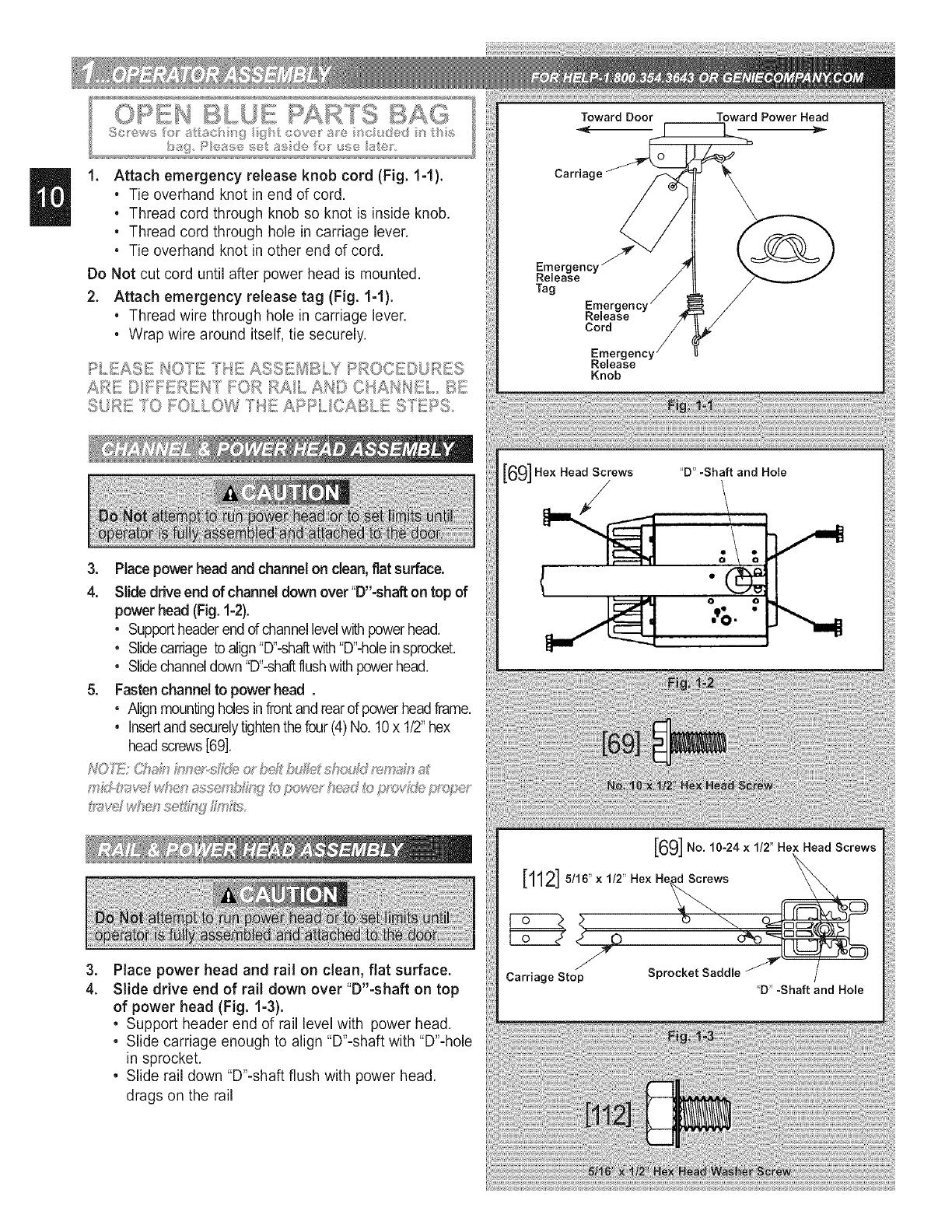

1, Attach emergency release knob cord (Fig. 1-1),

• Tie overhand knot in end of cord.

• Thread cord through knob so knot is inside knob.

• Thread cord through hole in carriage lever.

• Tie overhand knot in other end of cord.

Do Not cut cord until after power head is mounted.

2. Attach emergency release tag (Fig. 1-1),

• Thread wire through hole in carriage lever.

• Wrap wire around itself, tie securely.

PLEASE I_,_O'/ZV _::_ FsROC_,,,£R_b

.................... ,,,i LiiBL BE

@ ", ......

oURETO :OLLOV_TY EAPPLCABLE oEPo°"'*,,

3. Placepower head and channel on clean, flat surface.

4, Slide drive end of channel down over"D'=shaft on top of

powerhead (Fig. 1-2),

• Supportheaderend of channellevelwithpower head.

• Slidecarriage to align"D'-shal with "D"-holeinsprocket.

• Slidechannelclown"D'-shal flushwith powerhead.

5, Fasten channel to powerhead ,

• Alignmountingholesinfrontand rearof power headframe.

•Insertandsecurelytightenthefour (4) No. 10x 1/2"hex

headscrews[69].

J?g£]4#4;}V_?w@ey 42_5}4.£_ _Y?_:)@woF h04_d )_??pf_fts_¢¢_, F

Place power head and rail on clean, flat surface.

Slide drive end of rail down over "D'-shaft on top

of power head (Fig. 1-3),

• Support header end of rail level with power head.

• Slide carriage enough to align "D'-shaft with "D'-hole

in sprocket.

• Slide rail clown "D'-shaft flush with power head.

drags on the rail

Toward Power Head

[69]Hex Head Screws

"D" -Shaft and Hole

[69]NO. 10-24 x 1/2" Hex Head Screws

[112]5/16" x 1/2" Hex He_.Screws _,

"D" -Shaft and Hole

.Fasten rail to power head.

•Align mounting holes of sprocket saddle, rail

and power head frame.

• Insert the two (2) 5/16" x 1/2" hex head

screws[112], then two (2) No. 10-24 x 112" hex

head screws [69].

• Tighten screws.

6. Use adjusting bolt to set chain tension (Fig. 1-4)

• Chain should sag slightly but not so much that it

drags on the rail.

IMPORTANT

INSTALLATION

INSTRUCTIONS

To reduce the risk of

severeinjuryor death:

1. READAND FOLLOWALLSAFETY,INSTALLATIONAND

OPERATIONINSTRUCTIONS•If you haveanyquestionsor

do notunderstandan instruction,calIyour service

representative•

2. Do Not installoperatoron an improperlybalanceddoor.An

improperlybalanceddoorcouldcausesevereinjury•Repairs

and adjustmentsto cables,springassembly,and other

hardwaremust bemadebya trainedservicepersonusing

propertoolsand instructions•

3. Removeall ropesand disableatl locksconnectedto thedoor

before instatIingoperator•

4. Installdooroperator7 feet or moreabove thefloor.Mountthe

emergencyreleaseknob6 feet abovethefloor•

5. Do Not connecttheoperatorto the sourceof poweruntil

instructedto doso•

6. Locatethe controlbutton:

,Withinsightof door•

,At a minimumheightof 5 feet, so smallchildrencannot

reachib

,Awayfromall movingpartsof the door•

7. InstatltheentrapmentWARNINGlabet nextto thewait buttonor

console•Instaltthe emergencyreleasetag on,or nextto, the

emergencyrelease.

8. Theoperatormustreversewhenthedoorcontactsa 1-1/2inch

highobjecton thefloor at the centerof the doorway.Thisis about

the sizeof a 2" x 4" boardlaidflat.

Track Guided Doors

SEE SECTION 2A

SectionDoorWith 1-PieceDoorWith

CurvedTrack Hardware Horizontal TrackHardware

Curved ightTrack

Track JJl I 21 (HorizontalOnly)

with irl I /

Vertical_--_J_ I I,@

Section _ 14" ,

Trackless Doors

SEE SECTION 2B.

1-Piece Door

Jamb Type Hardware

(No Track)

1-Piece Door

Pivot Type Hardware

(No Track)

"H"

.- RI .,t{LE ........ _,:_CTO PA_,:_BI s;_'_.-

Line "V"

(Vertical Center Line

of Door)

Door

Header

Line "H" Can Be

Spring

"H"

of Door

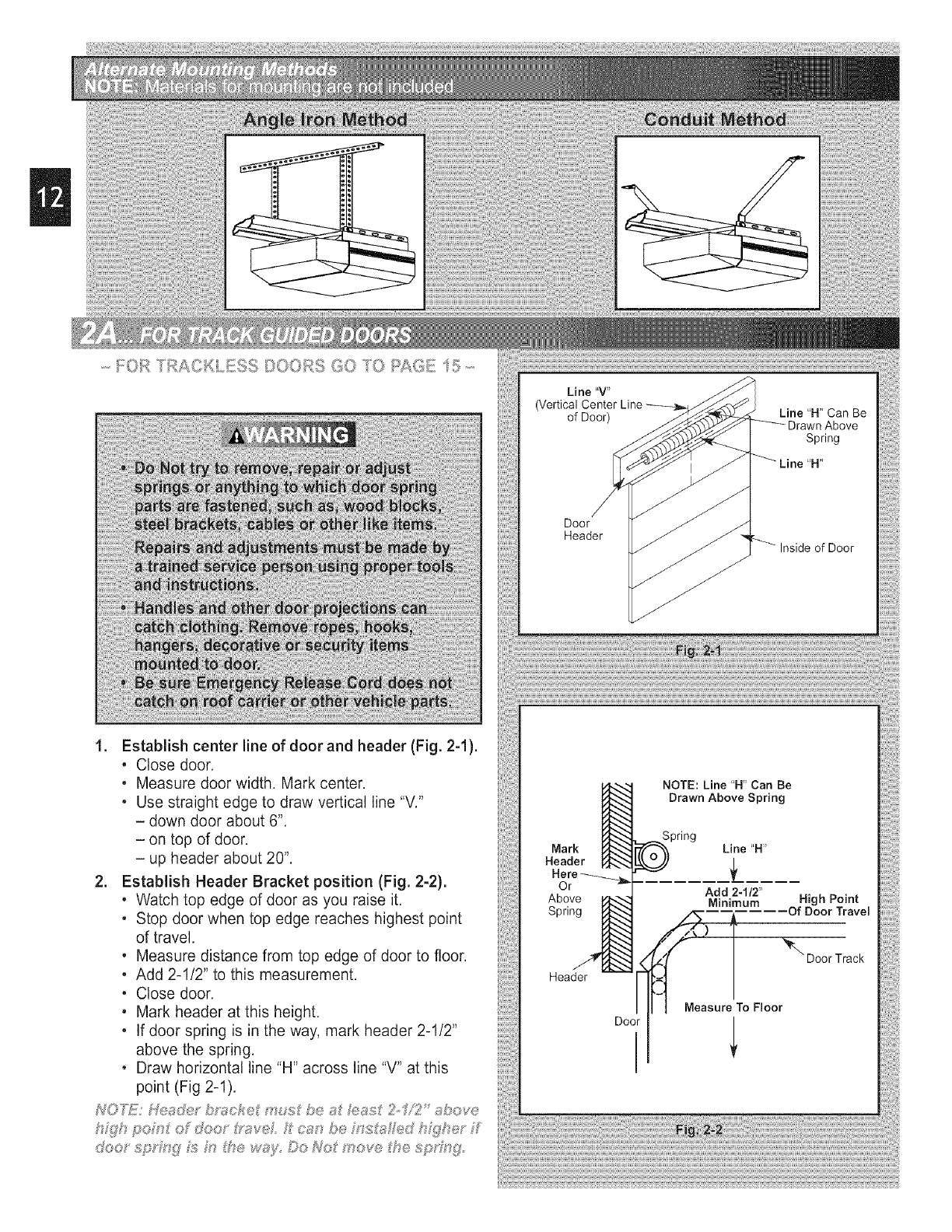

1. Establish center line of door and header (Fig. 2-1).

• Close door.

• Measure door width. Mark center.

• Use straight edge to draw vertical line "V."

- clown door about 6".

- on top of door.

- up header about 20".

2. Establish Header Bracket position (Fig. 2-2).

• Watch top edge of door as you raise it.

• Stop door when top edge reaches highest point

of travel.

• Measure distance from top edge of door to floor.

• Add 2-1/2" to this measurement.

• Close door.

• Mark header at this height.

• If door spring is in the way, mark header 2-1/2"

above the spring.

•Draw horizontal line "H" across line "V" at this

point (Fig 2-1).

hiIIh poin8 of t£_oF l,<?,t/eL£ _.,:_ b_ //sI_R<?d hi!They iF

doo9<spAf_£ £ £ ffse ws 5 Do No8 £ o_xs?¢h®spAfs£

Mark

Header

Above

Spring

Header

NOTE: Line "H" Can Be

Drawn Above Spring

Spring Line "H"

Add 2-1/2"

Minimum High Point

.Of Door Travel

Door Track

Measure To Floor

Door It

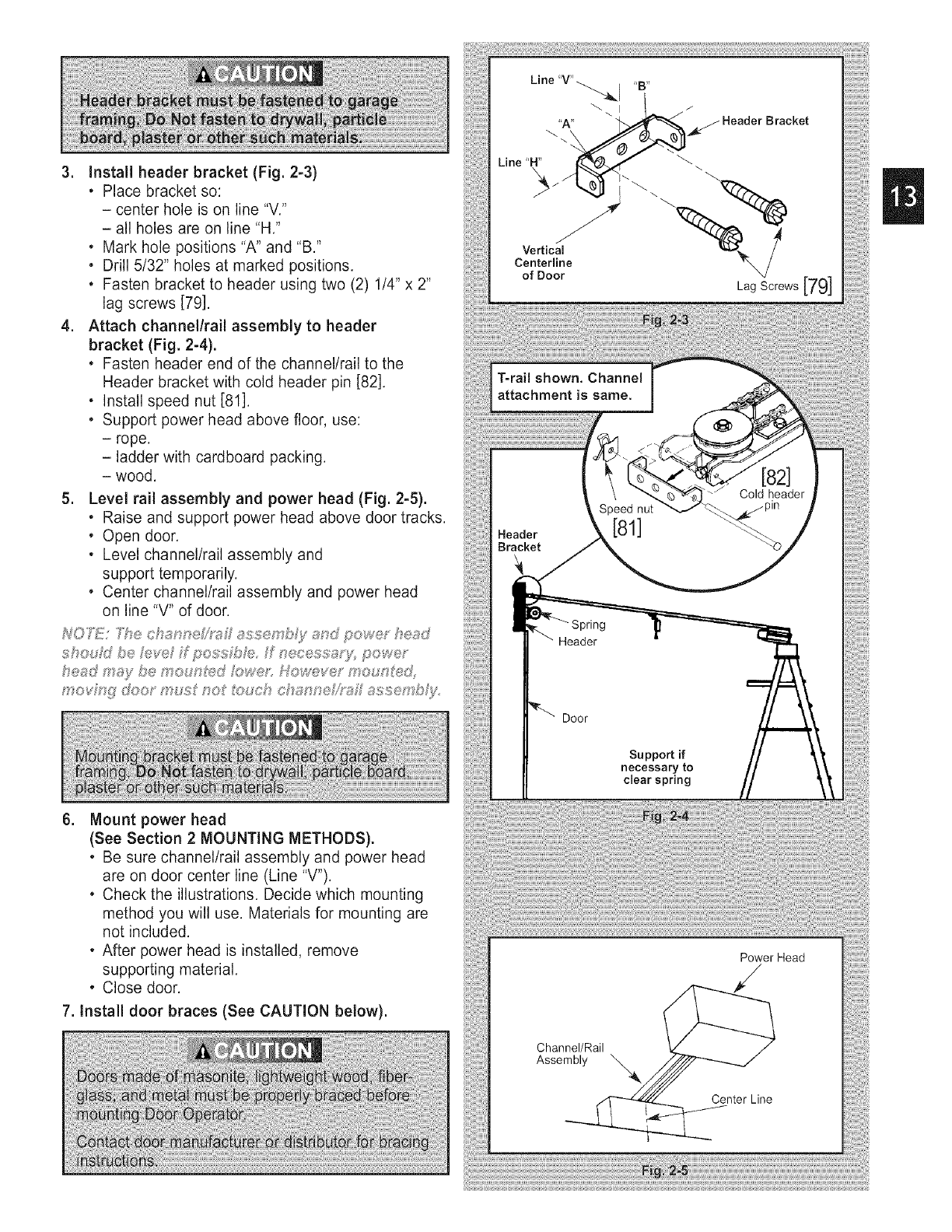

3. Install header bracket (Fig. 2-3)

• Place bracket so:

- center hole is on line "V."

- all holes are on line "H."

• Mark hole positions "A" and "B."

• Drill 5/32" holes at marked positions.

• Fasten bracket to header using two (2) 114"x 2"

lag screws [79].

4. Attach channel/rail assembly to header

bracket (Fig. 2-4).

• Fasten header end of the channel/rail to the

Header bracket with cold header pin [82].

• Install speed nut [81].

• Support power head above floor, use:

- rope.

- ladder with cardboard packing.

- wood.

5. Level rail assembly and power head (Fig. 2-5}.

• Raise and support power head above door tracks.

• Open door.

• Level channel/rail assembly and

support temporarily.

• Center channeltrail assembly and power head

on line "V" of door.

.Mount power head

(See Section 2MOUNTING METHODS).

• Be sure channel/rail assembly and power head

are on door center line (Line "V").

• Check the illustrations. Decide which mounting

method you will use. Materials for mounting are

not included.

• After power head is installed, remove

supporting material.

• Close door.

7. Install door braces (See CAUTION below).

T-rail shown. Channel

attachment is same.

Header

Bracket

[82]

Cold header

Speed nut

[81]

Door

Supportif

necessary to

clear spring

Power Head

TopofDoor

Top of Door

8. Install door bracket (Fig. 2-6).

•Contact door manufacturer.

Ii'£hbwe@hf @o*' o:_/y,wf£e Fag scue_/s" _u_,_,;'_e_n;

£ec_se @oy @sidles w_CF,mod£_'cs;_ions m;_;,y

b_ tx_,qUy'ed'an{J sddi'£o _s Jssa/ieMsSse#_?de8 ££¢_ss®

co_ceym*;¢g 'i_'x_Ydoo£

9. Install door arms (Fig. 2-7).

• Attach straight door arm to carriage.

- slip straight door arm into slot at bottom of

carriage as shown.

- secure with clevis pin [g0] and cotter pin [89].

• Attach short end of curved door arm to door

bracket as shown.

- slip short end of curved door arm into slot in

door bracket.

- secure with clevis pin and cotter pin.

• Release carriage (See emergency release tag).

- slide carriage towards closed door.

- stop carriage 14" minimum from door.

10. Join door arm sections (Fig. 2-8).

• Use two (2) 3/8" x 7/8" hex bolts [gl], and hex

flange nuts [g2].

- use any two holes as far apart as possible.

- slide carriage back and forth as needed to

align holes.

• Tighten hex nuts securely.

11. Adjust emergency release cord length.

• Mount the emergency release knob 6 feet from

the floor.

• Retie overhand knot and trim excess cord.

DO NOT plug power cord into outlet.

Go to Section 3-SAFE-T-BEAM ®

SYSTEM INSTALLATION.

,,,,?ROC_ D ;fO PAG_ '_8 ,,,,

"V';

Top of Door

viapie[90]'

tter pin

Straight door arm

Curved door arm

Straight door arm

3/8-16 x 7/8" "

Curved "\e [92]

3/8-16 nut

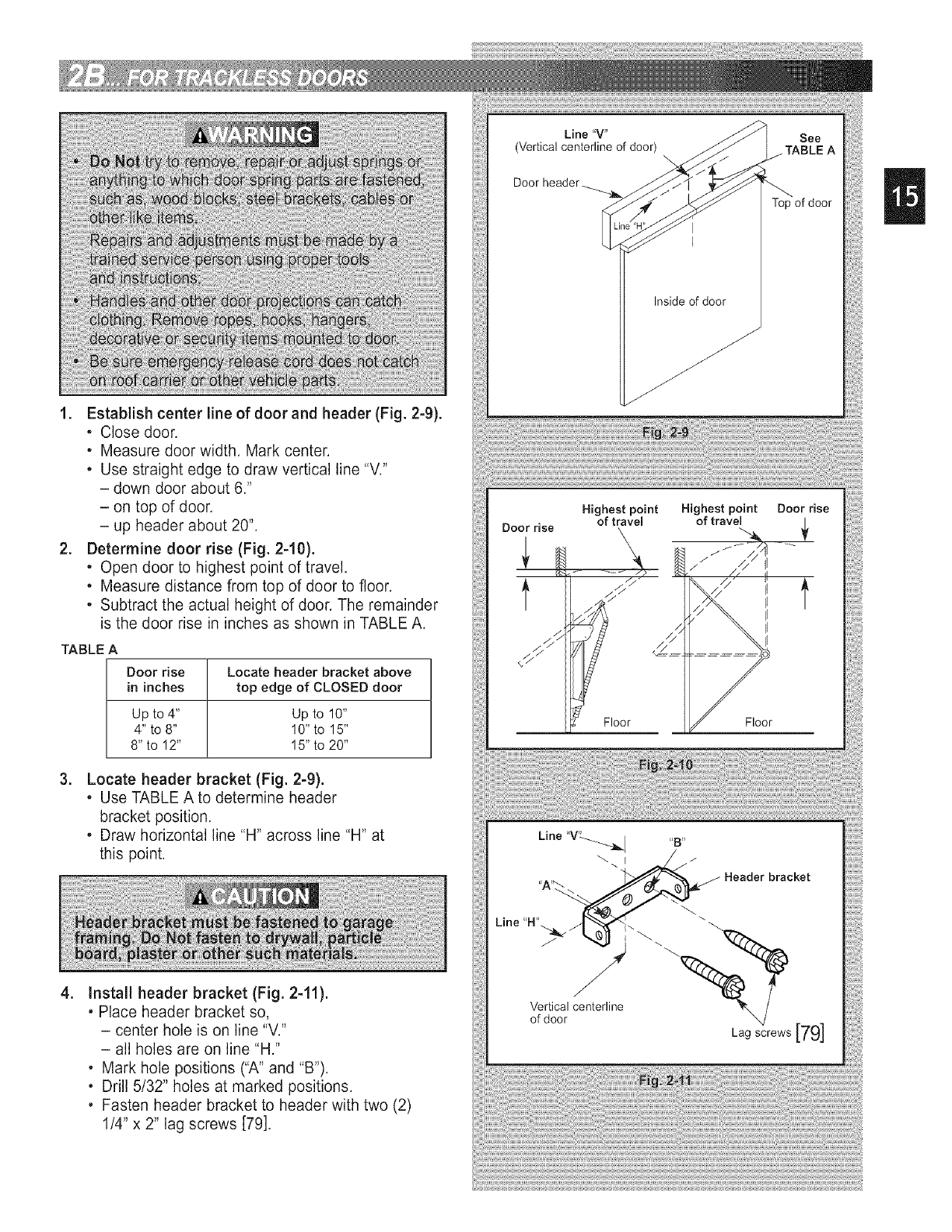

1. Establish center line of door and header (Fig. 2-9).

• Close door.

• Measure door width. Mark center.

• Use straight edge to draw vertical line "V."

- down door about 6."

- on top of door.

- up header about 20".

2. Determine door rise (Fig. 2-10).

• Open door to highest point of travel.

• Measure distance from top of door to floor.

• Subtract the actual height of door. The remainder

is the door rise in inches as shown in TABLE A.

TABLE A

Door rise Locate header bracket above

in inches top edge of CLOSED door

Up to 4" Up to 10"

4" to 8" 10" to 15"

8" to 12" 15" to 20"

.Locate header bracket (Fig. 2-9).

• Use TABLE A to determine header

bracket position.

• Draw horizontal line "H" across line "H" at

this point.

.Install header bracket (Fig. 2-11).

• Place header bracket so,

- center hole is on line "V."

- all holes are on line "H."

• Mark hole positions ("A" and "B").

• Drill 5/32" holes at marked positions.

• Fasten header bracket to header with two (2)

114"x 2" lag screws [79].

Line "V" See

(Vertical centerline of door) TABLE A

Doorheader

Top of door

Highest point Highest point Door rise

Door rise of travel of travel

Floor Floor

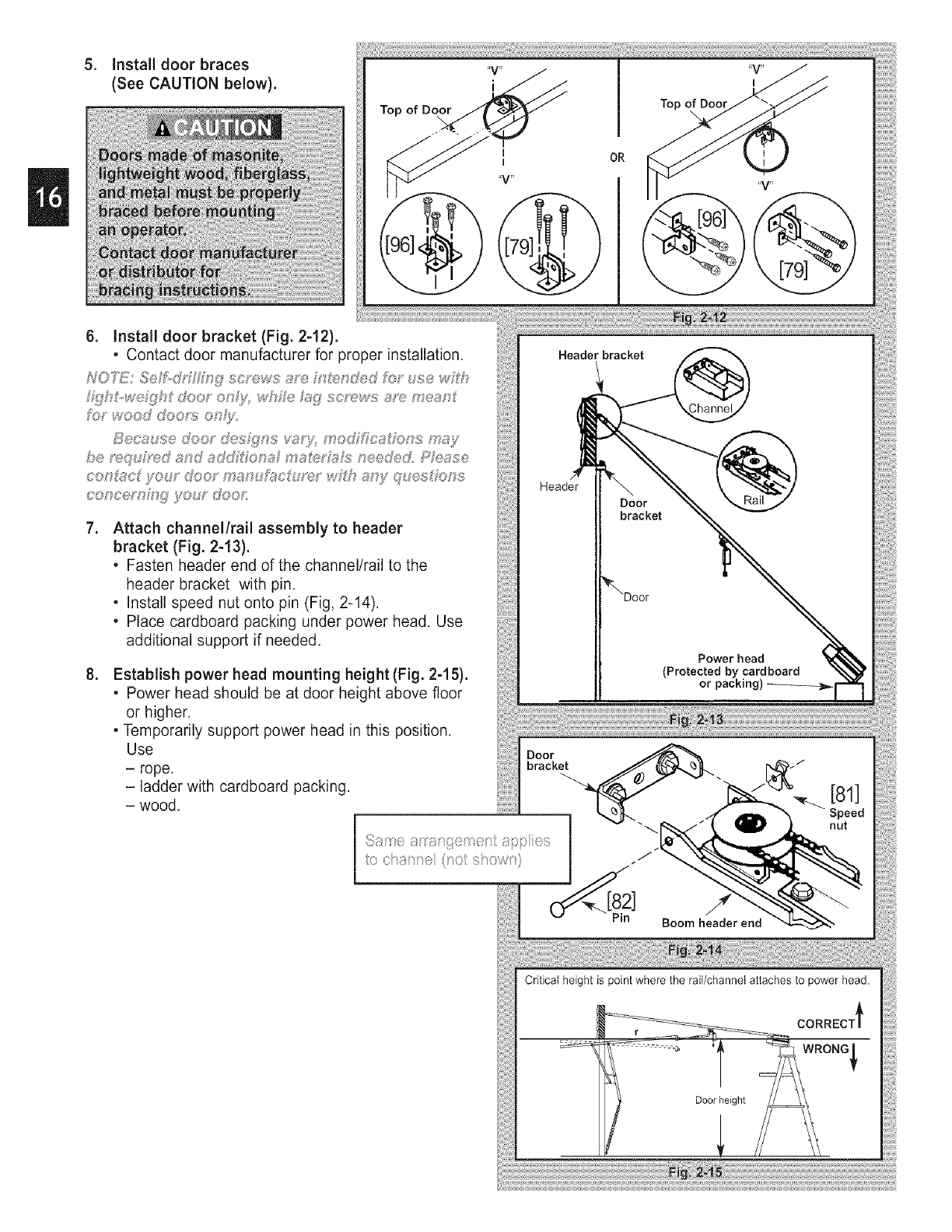

5. Install door braces

(See CAUTION below).

Attach channel/rail assembly to header

bracket (Fig. 2-13).

• Fasten header end of the channel/rail to the

header bracket with pin.

•Install speed nut onto pin (Fig, 2-14).

• Place cardboard packing under power head. Use

additional support if needed.

Header bracket

Header

Door

bracket

Power head

(Protected by cardboard

or packing)

Establish power head mounting height (Fig. 2-15).

•Power head should be at door height above floor

or higher.

• Temporarily support power head in this position.

Use

- rope.

- ladder with cardboard packing.

- wood.

Critical height is point where the rail/channel attaches to power head.

CORRECTt

,Mount power head (See Section 2 ALTERNATE

MOUNTING METHODS).

•Be sure rail assembly and power head are on

door center line (line "V").

• Check the illustrations. Decide which mounting

method you will use. Materials for mounting are

not included.

• After power head is installed, remove

supporting material.

• Close door.

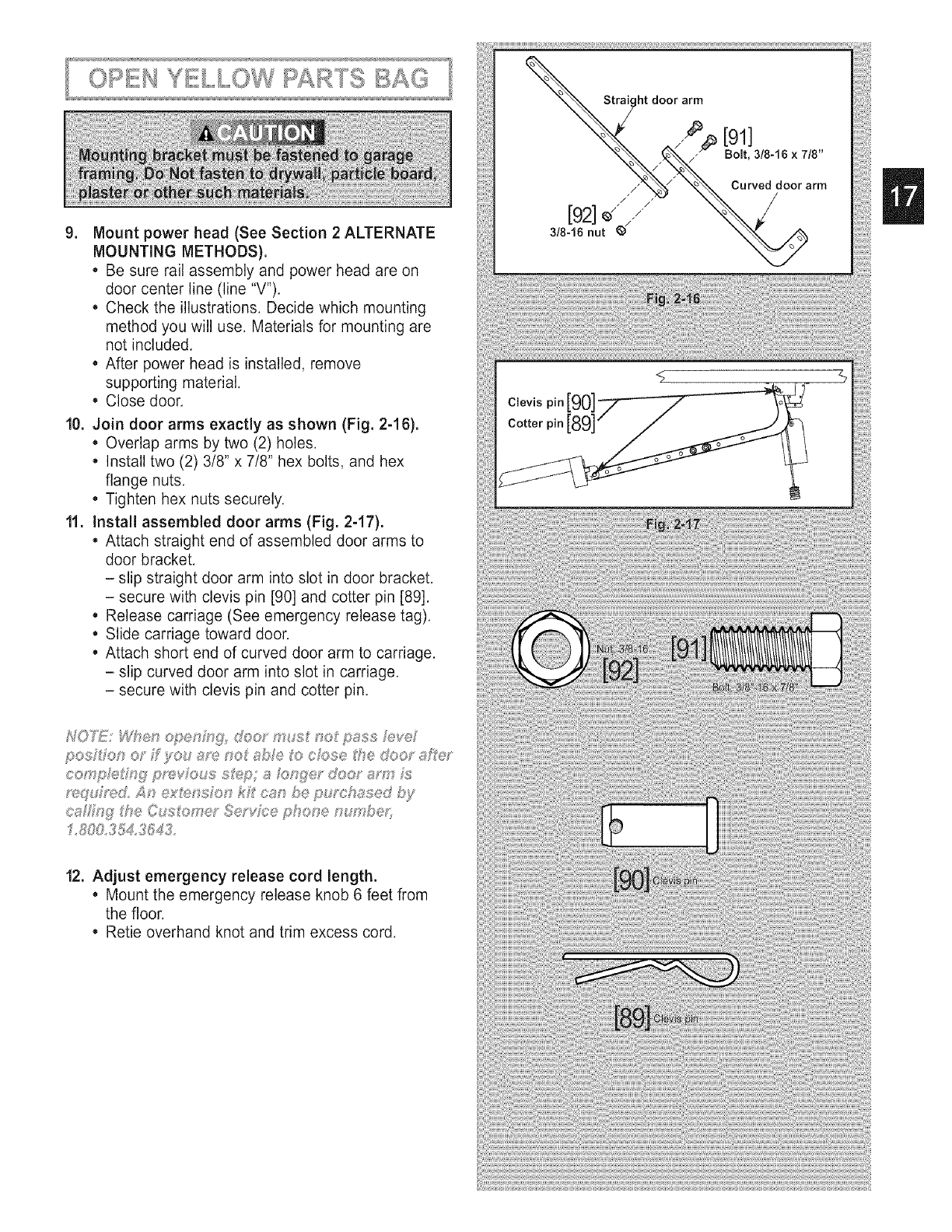

10. Join door arms exactly as shown (Fig. 2-16).

• Overlap arms by two (2) holes.

• Install two (2) 3/8" x 718" hex bolts, and hex

flange nuts.

• Tighten hex nuts securely.

11. install assembled door arms (Fig. 2-17).

• Attach straight end of assembled door arms to

door bracket.

- slip straight door arm into slot in door bracket.

- secure with clevis pin [90] and cotter pin [89].

,Release carriage (See emergency release tag).

• Slide carriage toward door.

• Attach short end of curved door arm to carriage.

- slip curved door arm into slot in carriage.

- secure with clevis pin and cotter pin.

12. Adjust emergency release cord length.

•Mount the emergency release knob 6 feet from

the floor.

•Retie overhand knot and trim excess cord.

NOT_]!; 7he ope s_k}Yvv?#_0£ cese £he d,t;o;

suSomaUcsf/_ d_:,*ssU'_eSafe,',*,--7_-Ses£ _'>S}_Hem

Ls Ms_a£edo

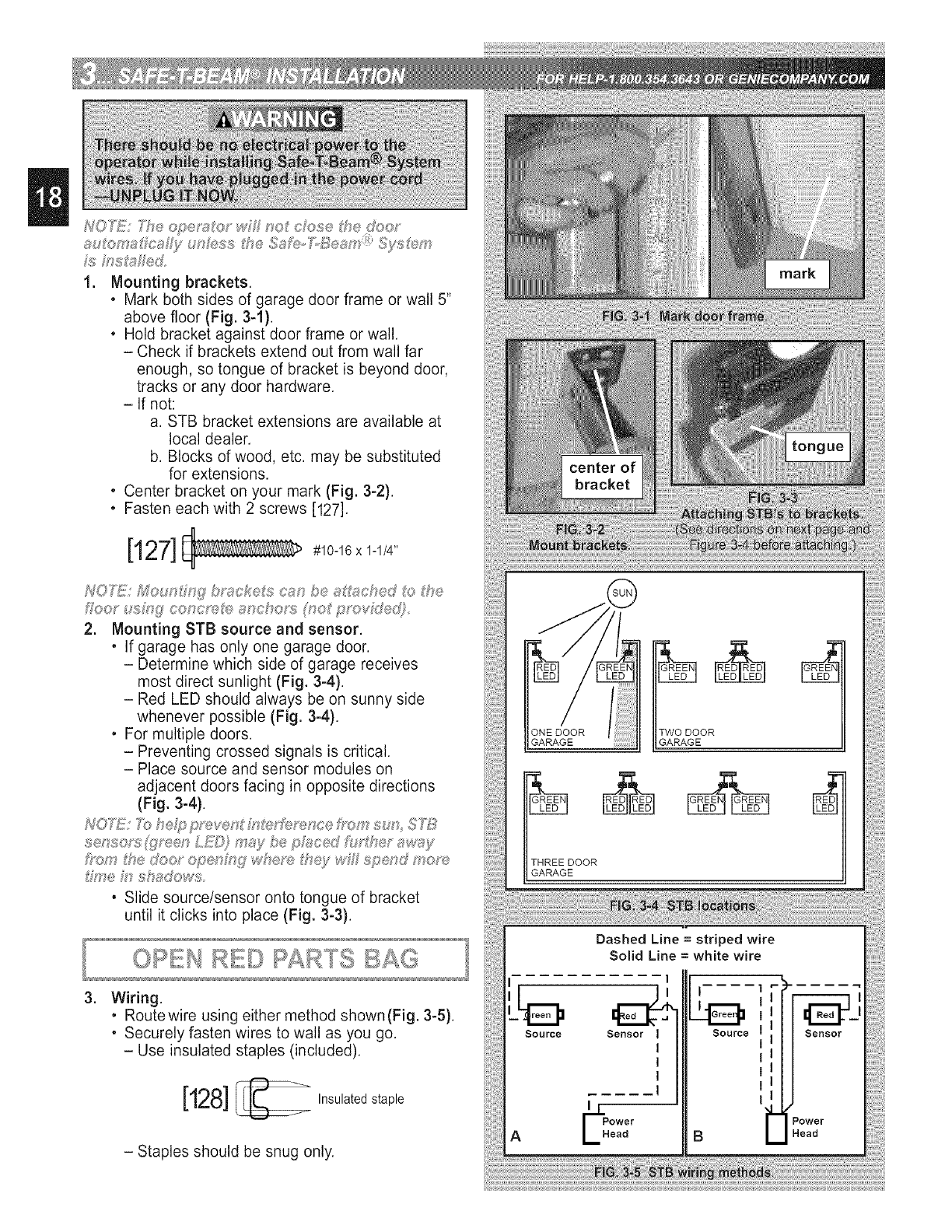

1. Mounting brackets.

•Mark both sides of garage door frame or wall 5"

above floor (Fig. 3-1}.

•Hold bracket against door frame or wall.

- Check if brackets extend out from wall far

enough, so tongue of bracket is beyond door,

tracks or any door hardware.

- If not:

a. STB bracket extensions are available at

local dealer.

b. Blocks of wood, etc. may be substituted

for extensions.

•Center bracket on your mark (Fig. 3-2).

• Fasten each with 2 screws [127].

[127] #10-16x1-1/4,,

£0@' us£s£ co_crx;#(? _nchoMs (so£ pr'oyh;_!e@

2. Mounting STB source and sensor.

• If garage has only one garage door.

- Determine which side of garage receives

most direct sunlight (Fig. 3-4}.

- Red LED should always be on sunny side

whenever possible (Fig. 3-4).

• For multiple doors.

- Preventing crossed signals is critical.

- Place source and sensor modules on

adjacent doors facing in opposite directions

(Fig. 3-4).

£07%!i: Tb he@ p_we h£',,_:vfT_p_nce/%ginsu S_{7

h,'om U Uoo' ope,*ii;<£ wheh? fh<_,yvvHfsp<7;,/U/?oye

• Slide source/sensor onto tongue of bracket

until it clicks into place (Fig. 3-3).

.Wiring.

• Routewire using either method shown(Fig. 3-5).

•Securely fasten wires to wall as you go.

- Use insulated staples (included).

[128] Insulated staple

- Staples should be snug only.

GARAGE TWO DOOR

GARAGE

THREE DOOR

GARAGE

Dashed Line =striped wire

Solid Line = white wire

Source Sensor I

_LPows r

AL "sad

Source

i I

I I

i I

Power

Head

Sensor

• Make wire attachments at STB's.

- Splitting and stripping wire ends to be

connected as shown (Fig. 3-6).

- Loosen terminal screws.

- Insert wire under flat plate and tighten screw. It

does not matter which wire, white or striped,

goes on which terminal (Fig. 3-7).

• Make wire attachments at power head.

- For ProMax. STB's are connected to terminals

#2 and #3 on power head (Fig. 3-8).

- For Stealth. STB's are connected to

terminals #3 and #4 on power head (Fig. 3-8).

4. Check the following.

•Insure that no part of door or its hardware is in

path between lenses of source and sensor.

• Insure that tops of lenses are between 5"-6"

above the floor (Fig. 3-9). The brackets are

flexible and can be adjusted slightly if needed.

N07)_!::S _YI_,dWm_.e_/ ohe_;k mu,_; be pey.¢Y_n_ed

D_,Uio_vh_,_jcon/_ecff_:4_nto e/,_cf>:_,t_ it?owe_'{bee it?age 2)

_70 DiOTPLUO _"_,_+YE I?

To correct the problem - the brackets are

flexible and can be adjusted slightly to bring

the system into alignment.

When the STB's are in alignment the red LED

will stop blinking and stay on.

SOURCE (RED LED SENSOR (GREEN LED INDICATED CONDITION REQUIRED ACTION

O OFF

2 BLINKS, PAUSE(REPEAT)

O OFF

• ON

O ON

O OFF

3BLINKS, PAUSE(REPEAT) _ ON

4 BLINKS, PAUSE(REPEAT) _ ON

NORMALOPERATION

1<POWERHEAD NOT POWERED

2,WIRING FROM POWERHEAD BAD

1.WIRINGTO SOURCE MISSING OR BAD

2, POWERHAS BEEN INTERRUPTED

1.BEAM NOT ALIGNED 2, BEAM OBSTRUCTED

3,SENSOR DEFECTIVE

1.WIRE TOSENSORMISSINGOR BAD

2, SENSORDEFECTIVE

1, SENSORRECEIVINGINTERFERENCE

1.SOURCE NOT SENDINGPULSES

2, SOURCEDEFECTIVE

NONE REQUIRED

1,CHECK BREAKERS,FUSES,PLUGS

2,CHECK WIRING FOROBVIOUS SHORTS

1.CHECK WIRING

2,REMOVE POWERAND REAPPLY

I<CHECKALIGNMENT 2. CHECK FOROBSTRUCTION

3,CALL CUSTOMERSERVICE

I. CHECK WIRING

2.CALL CUSTOMERSERVICE

1<ATTEMPTTODETERMINESOURCEOFINTERFERENCE

2,CALL CUSTOMERSERVICE

I. CALL CUSTOMERSERVICE

2,CALL CUSTOMERSERVICE

NOTE: IFOPERATINGPROBLEM EXlSTS, THE DOOR CAN BE CLOSED IF YOU: 1. DISCONNECTTHESTBSYSTEMFROMTHEOPERATORAND 2. HOLD WALLCONTROL BUTTON

DOWN UNTIL DOOR IS CLOSED. (REMOTE CONTROL& WIRELESS KEYPADWILL NOT WORK WITHOUT STB)

CUSTOMER SERVICE: 1.800.354.3643 or www.geniecompany.com

Run wire from power head to wall control.

• Place the wall control:

- In sight of door.

- At least 5 feet from floor, so small children can

not reach it.

- Away from moving parts of door and

door hardware.

• Use staples to fasten wire to ceiling and wall.

Remove 1/2" insulation from each wire

(Fig. 3-6)(pg. 19).

Attach wires to terminals (Stealth Fig. 4-1a)

(MAX Fig. 4-1b).

•Loosen, but Do Not remove screw from terminal.

For Stealth.

- Connect striped wires to terminal "2" on power

head and "B" on wall control.

- Connect white wire to terminal "1" on power

head and "W" on wall control.

For MAX.

- Connect striped wires to terminal "1" on power

head and "B" on wall control.

- Connect white wire to terminal "2" on power

head and "W" on wall control.

Mount wall control (Fig. 4-2).

• Use two pan head screws.

Mount entrapment warning label.

• Remove protective backing and stick near

wall control.

• Use tacks or staples to permanently mount Label.

• Make sure everyone reads and follows WARNINGS.

Vacation Locking Switch

-LOCK disables controls after door is completely closed

-UNLOCK allows controls to work normally

independent Light Control

-Controls door operator lights from inside garage

- Energy-Saver shut-off turns off light 5 minutes after

door activation

@sd¢,_,*_hCLYO#TEOF ?{}US__4!ILLCON!'I#_'OLSW#J_YBE Y'('JE

Wall button Wall console

pan head screws

Switch is in LOCK position

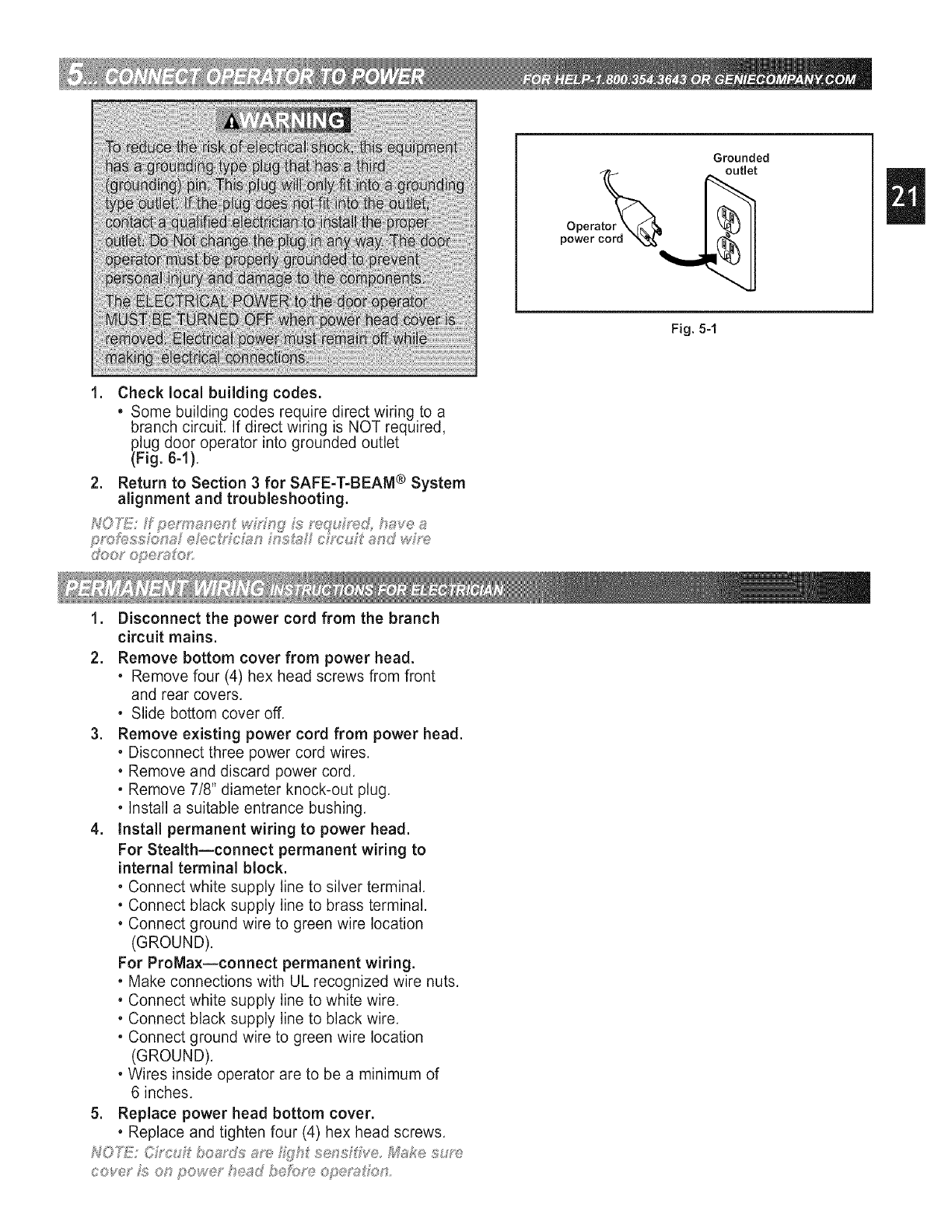

1. Check local building codes.

•Some building codes require direct wiring to a

branch circuit. If direct w_ring is NOT required,

plug door operator into grounded outlet

(Fig. 6-1).

2. Return to Section 3 for SAFE-T-BEAM ® System

alignment and troubleshooting.

1. Disconnect the power cord from the branch

circuit mains.

2. Remove bottom cover from power head.

• Remove four (4) hex head screws from front

and rear covers.

• Slide bottom cover off.

3. Remove existing power cord from power head.

• Disconnect three power cord wires.

• Remove and discard power cord.

• Remove 7/8" diameter knock-out plug.

• Install a suitable entrance bushing.

4. Install permanent wiring to power head.

For Stealth--connect permanent wiring to

internal terminal block.

• Connect white supply line to silver terminal.

• Connect black supply line to brass terminal.

• Connect ground wire to green wire location

(GROUND).

For ProMax--connect permanent wiring.

• Make connections with UL recognized wire nuts.

• Connect white supply line to white wire.

• Connect black supply line to black wire.

• Connect ground wire to green wire location

(GROUND).

• Wires inside operator are to be a minimum of

6 inches.

5. Replace power head bottom cover.

• Replace and tighten four (4) hex head screws.

cover is"o'_ powe head be_,;f_'_oped'a_i_::_n

Grounded

tor_ outlet

Opera

power cord "_a-

Fig. 5-1

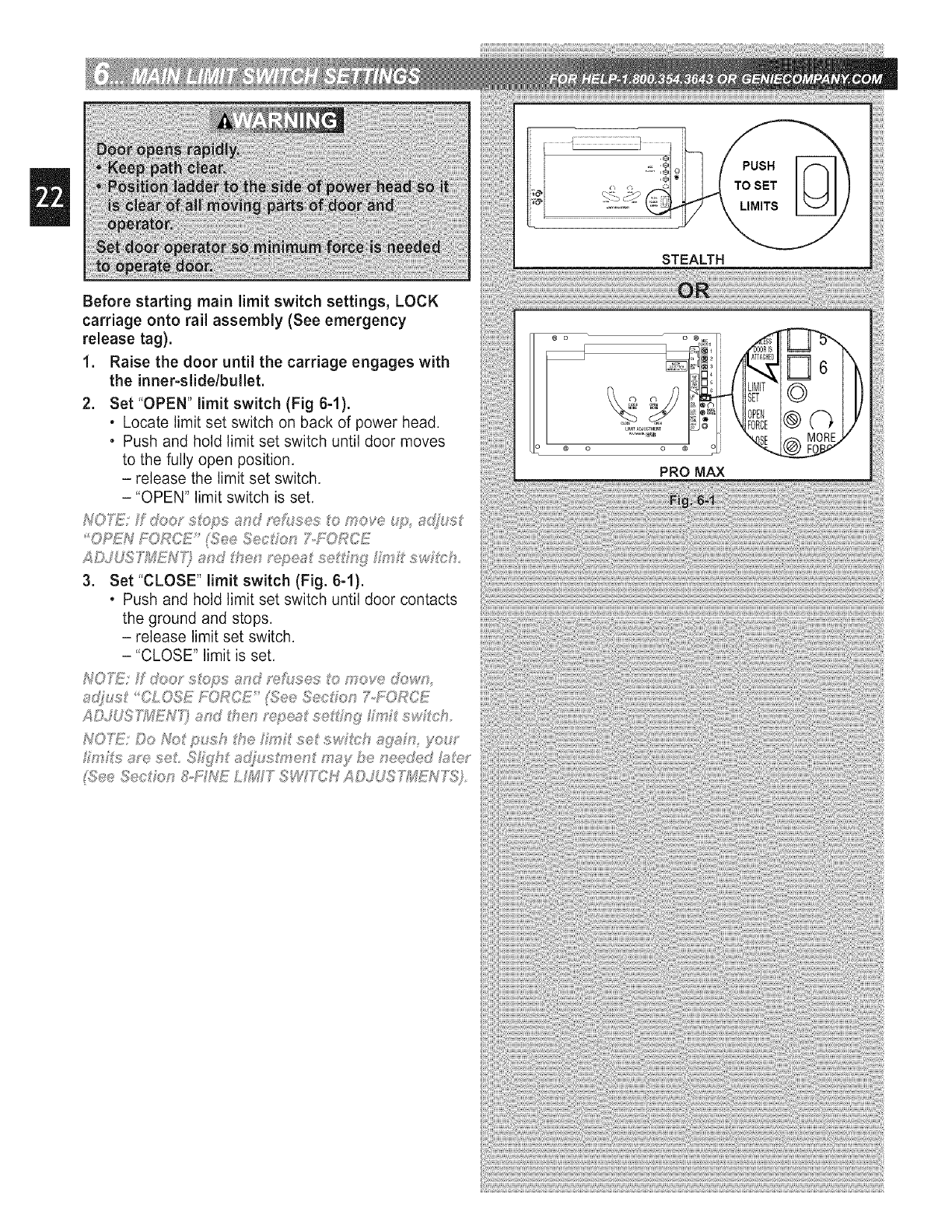

Before starting main limit switch settings, LOCK

carriage onto rail assembly (See emergency

release tag).

1. Raise the door until the carriage engages with

the inner-slidelbullet.

2. Set "OPEN" limit switch (Fig 6-1).

• Locate limit set switch on back of power head.

• Push and hold limit set switch until door moves

to the fully open position.

- release the limit set switch.

-"OPEN" limit switch is set.

OPE?_JF:ORCE (See SectTon X,_DRCE

A_JUdT:;'_A,{_EN7_'}a*d the _peat se_Ung h_?t s_,,i_? _

3. Set "CLOSE" limit switch (Fig. 6-1).

• Push and hold limit set switch until door contacts

the ground and stops.

- release limit set switch.

-"CLOSE" limit is set.

_dOT"E: _oy scG,;:,s_md m/uses _o move d,ow;_

,_djus_ "CLOSE _/}RCE (See Section ?,fXJRCE

A©JUS77isfEN_I _:_d_/'_eys,peat se_i'ng mts_u/ ch

NOTE: ©o X_X push _J_e]k'_'Utse s_,_3i_chagain yo J"

_i_;eeSeo k, _,!!;d:Wh'EX?._ITS_4;TF'CHADJUST'_TX'_)

During the following steps, the motor protector may

open. Wait about 20 minutes for protector to reset.

CLOSL_{©pos/io tbeh;_> sI_H%W "O FOR(;E *

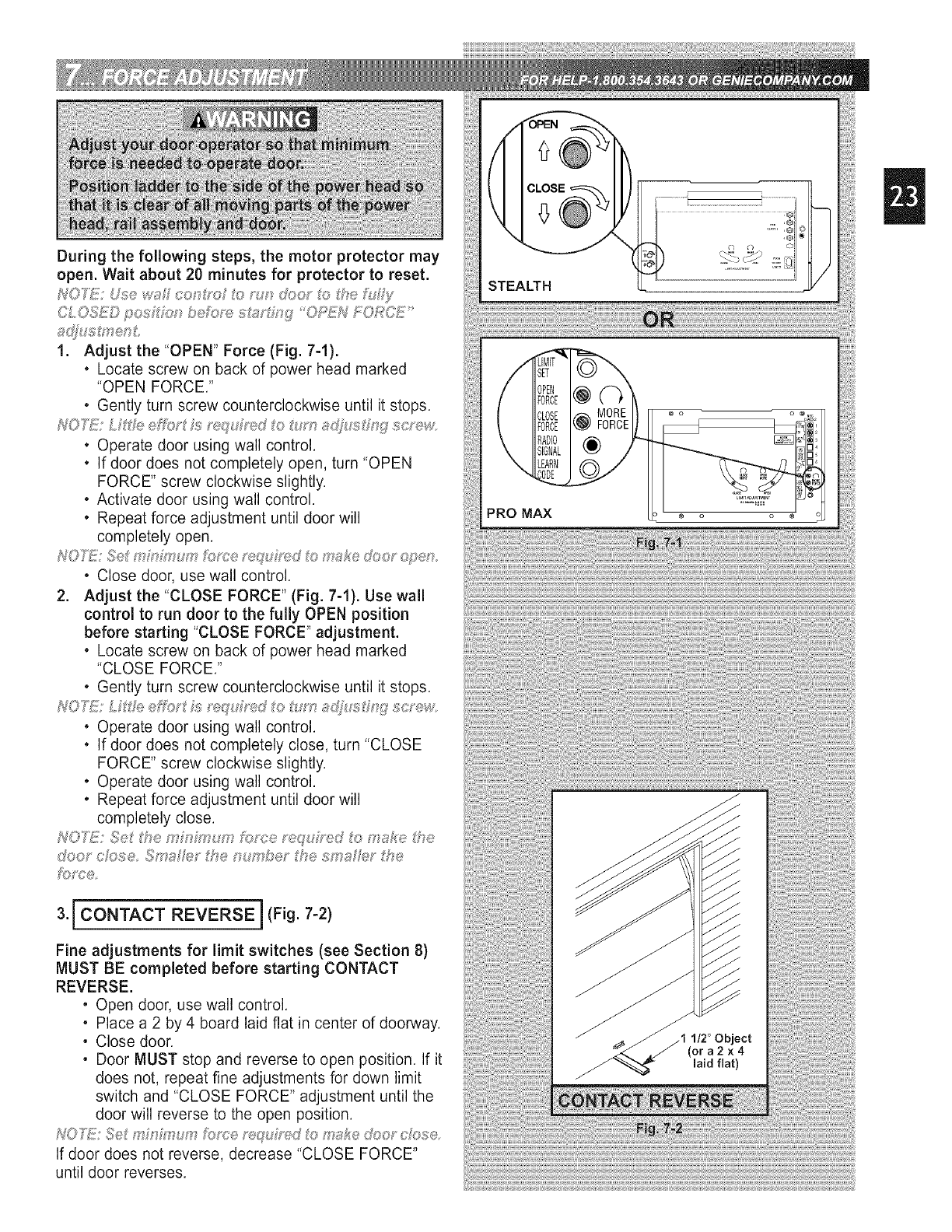

1. Adjust the "OPEN" Force (Fig. 7-1).

• Locate screw on back of power head marked

"OPEN FORCE."

• Gently turn screw counterclockwise until it stops.

t,JOT);!!!:_i_Y; c_o_" s _q_ i'md ou> _ _;_i"2_/:,_t;v'_:_u.

• Operate door using wall control.

• If door does not completely open, turn "OPEN

FORCE" screw clockwise slightly.

• Activate door using wall control.

• Repeat force adjustment until door will

completely open.

• Close door, use wall control.

2. Adjust the "CLOSE FORCE" (Fig. 7-1}. Use wall

control to run door to the fully OPEN position

before starting "CLOSE FORCE" adjustment.

• Locate screw on back of power head marked

"CLOSE FORCE."

• Gently turn screw counterclockwise until it stops.

• Operate door using wall control.

• If door does not completely close, turn "CLOSE

FORCE" screw clockwise slightly.

• Operate door using wall control.

• Repeat force adjustment until door will

completely close.

HOT_;!!:Se he miAmun k_u_;;e_quM_d o n _k<, _h_

d4";o_'oh>se Sn aFlexthe nun bef thesr_ a//e_"the

l_)11:e

STEALTH

3.JCONTACT REVERSE] (Fig."/-2)

Fine adjustments for limit switches (see Section 8)

MUST BE completed before starting CONTACT

REVERSE.

• Open door, use wall control.

• Place a 2 by 4 board laid flat in center of doorway.

• Close door.

• Door MUST stop and reverse to open position. If it

does not, repeat fine adjustments for down limit

switch and "CLOSE FORCE" adjustment until the

door will reverse to the open position.

NO'L_f;!':Se _'nLm m fouc_>mquh'_d _'o _?M:®#oo_"ch:',_se

Ifdoor does notreverse,decrease"CLOSE FORCE"

untildoor reverses.

During the following steps, the motor protector may

open. Wait about 20 minutes for protector to reset.

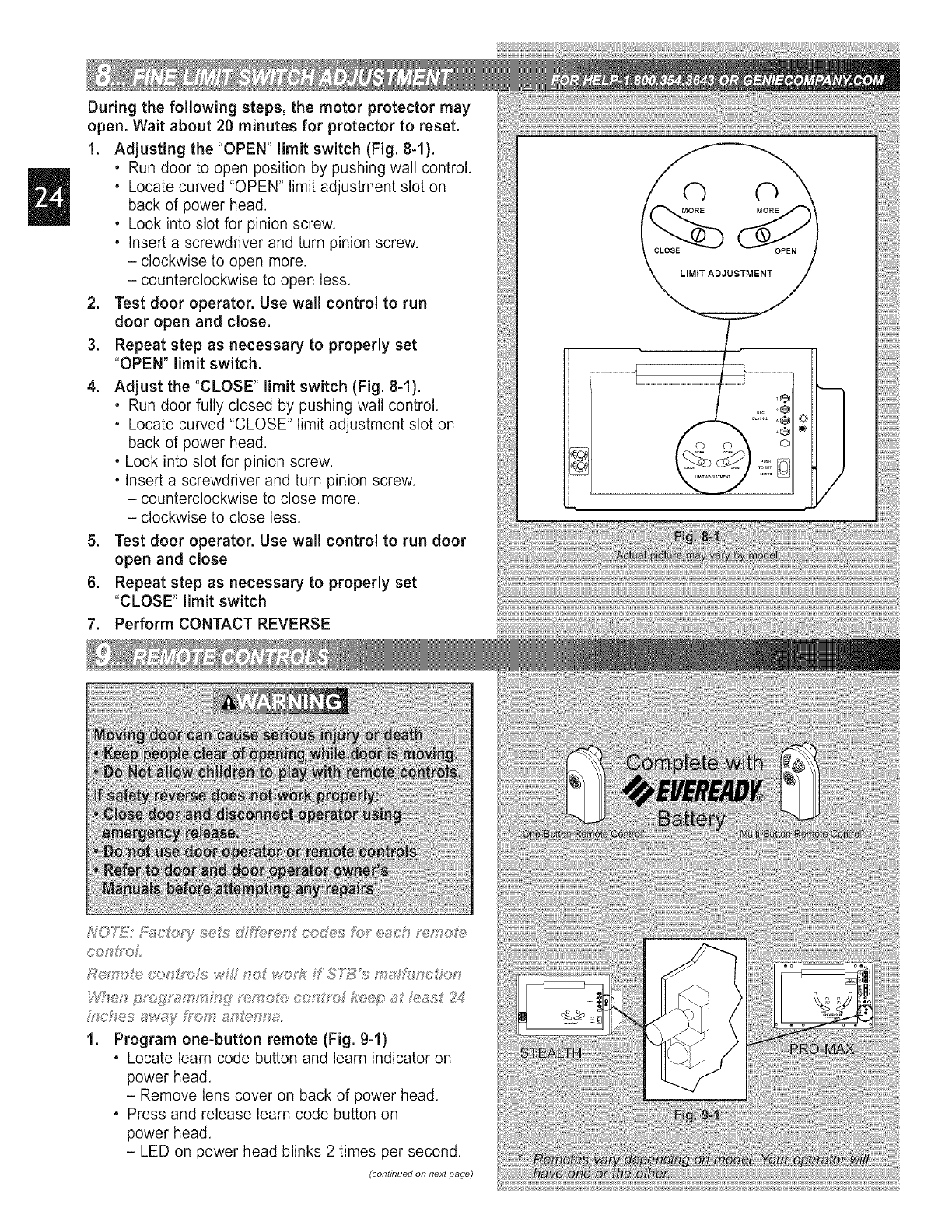

1. Adjusting the "OPEN" limit switch (Fig. 8-1).

• Run door to open position by pushing wall control.

• Locate curved "OPEN" limit adjustment slot on

back of power head.

• Look into slot for pinion screw.

• Insert a screwdriver and turn pinion screw.

- clockwise to open more.

- counterclockwise to open less.

2. Test door operator. Use wall control to run

door open and close.

3. Repeat step as necessary to properly set

"OPEN" limit switch.

4. Adjust the "CLOSE" limit switch (Fig. 8-1}.

•Run door fully closed by pushing wall control.

•Locate curved "CLOSE" limit adjustment slot on

back of power head.

•Look into slot for pinion screw.

•Insert a screwdriver and turn pinion screw.

- counterclockwise to close more.

- clockwise to close less.

5. Test door operator. Use wall control to run door

open and close

6. Repeat step as necessary to properly set

"CLOSE" limit switch

7. Perform CONTACT REVERSE

OO AY'(;,

When Bs_)gP_f_mr_F"W_::_;'_oZx;_cof_mF ke_V;;¢_tf_s 24

h'*c _es away t)<Jm ancona

1. Program one-button remote (Fig. 9-1)

• Locate learn code button and learn indicator on

power head.

- Remove lens cover on back of power head.

• Press and release learn code button on

power head.

- LED on power head blinks 2 times per second.

(continued on next page)

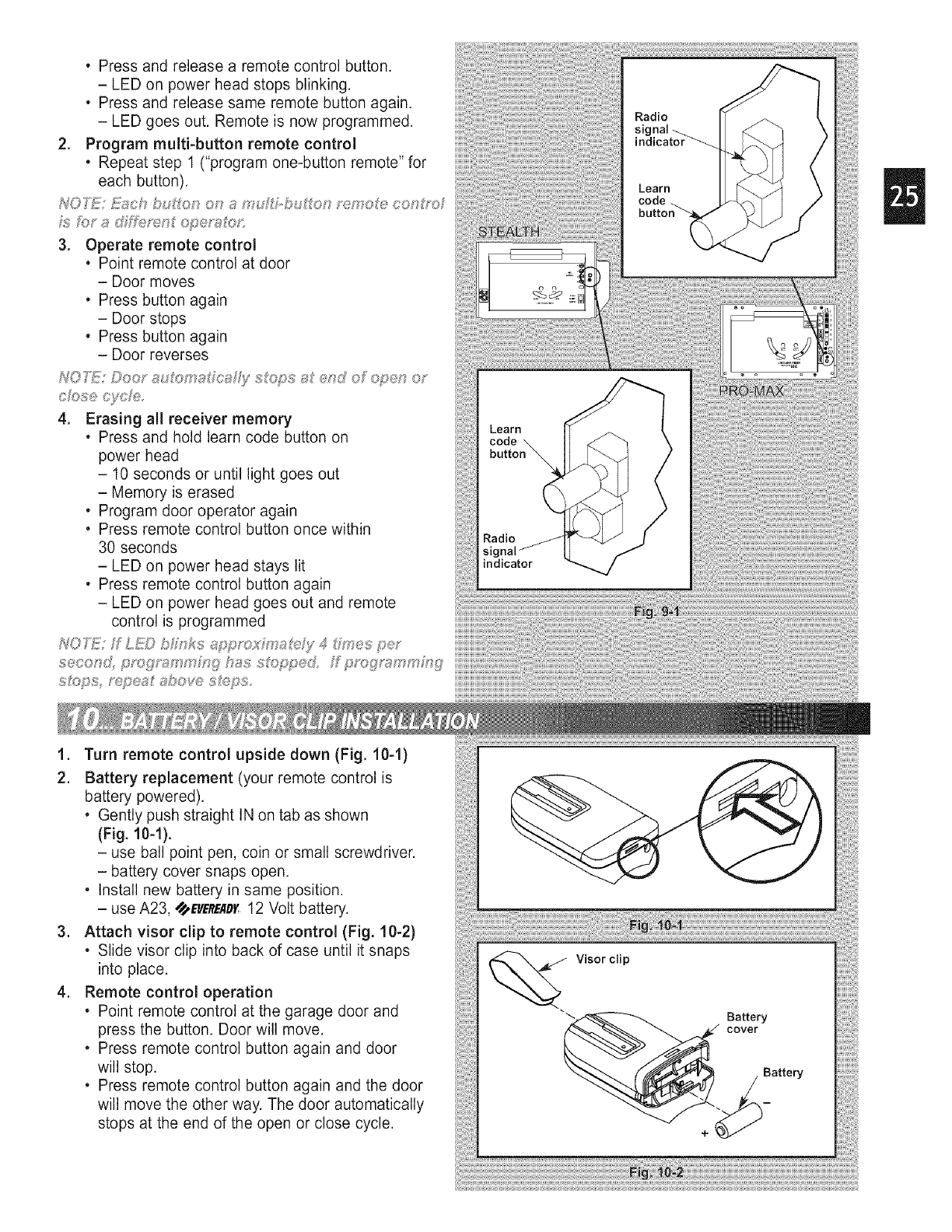

• Press and release a remote control button.

- LED on power head stops blinking.

• Press and release same remote button again.

- LED goes out. Remote is now programmed.

2. Program multi-button remote control

• Repeat step 1 (<<programone-button remote" for

each button).

NOTE; E_ch buo_ o_ _ y_i..butos _'eno _ co s_u

/s Fb,"_÷dMqs_'e;¢ open, on

3. Operate remote control

• Point remote control at door

- Door moves

• Press button again

- Door stops

• Press button again

- Door reverses

c/<_sec>,de

4. Erasing all receiver memory

• Press and hold learn code button on

power head

- 10 seconds or until light goes out

- Memory is erased

• Program door operator again

• Press remote control button once within

30 seconds

- LED on power head stays lit

• Press remote control button again

- LED on power head goes out and remote

control is programmed

NOTE; f LEZ} b/_nks sp_o'ox mzs_,_#y4 Si£_es pe_"

seco td, pmg_'_mr_ F_£h,:_ss e4 Ffpmgy_'_mkcg

1. Turn remote control upside down (Fig. 10-1}

2. Battery replacement (your remote control is

battery powered).

• Gently push straight IN on tab as shown

(Fig. 10-1).

- use ball point pen, coin or small screwdriver.

- battery cover snaps open.

• Install new battery in same position.

- use A23, @EVE_E,_D_,12 Volt battery.

3. Attach visor clip to remote control (Fig. 10-2)

• Slide visor clip into back of case until it snaps

into place.

4. Remote control operation

•Point remote control at the garage door and

press the button. Door will move.

• Press remote control button again and door

will stop.

• Press remote control button again and the door

will move the other way. The door automatically

stops at the end of the open or close cycle.

Radio

Learn

==i

Learn

code \

button _

indicator

Visor cNp

"_'7_ Battery

cover

Battery

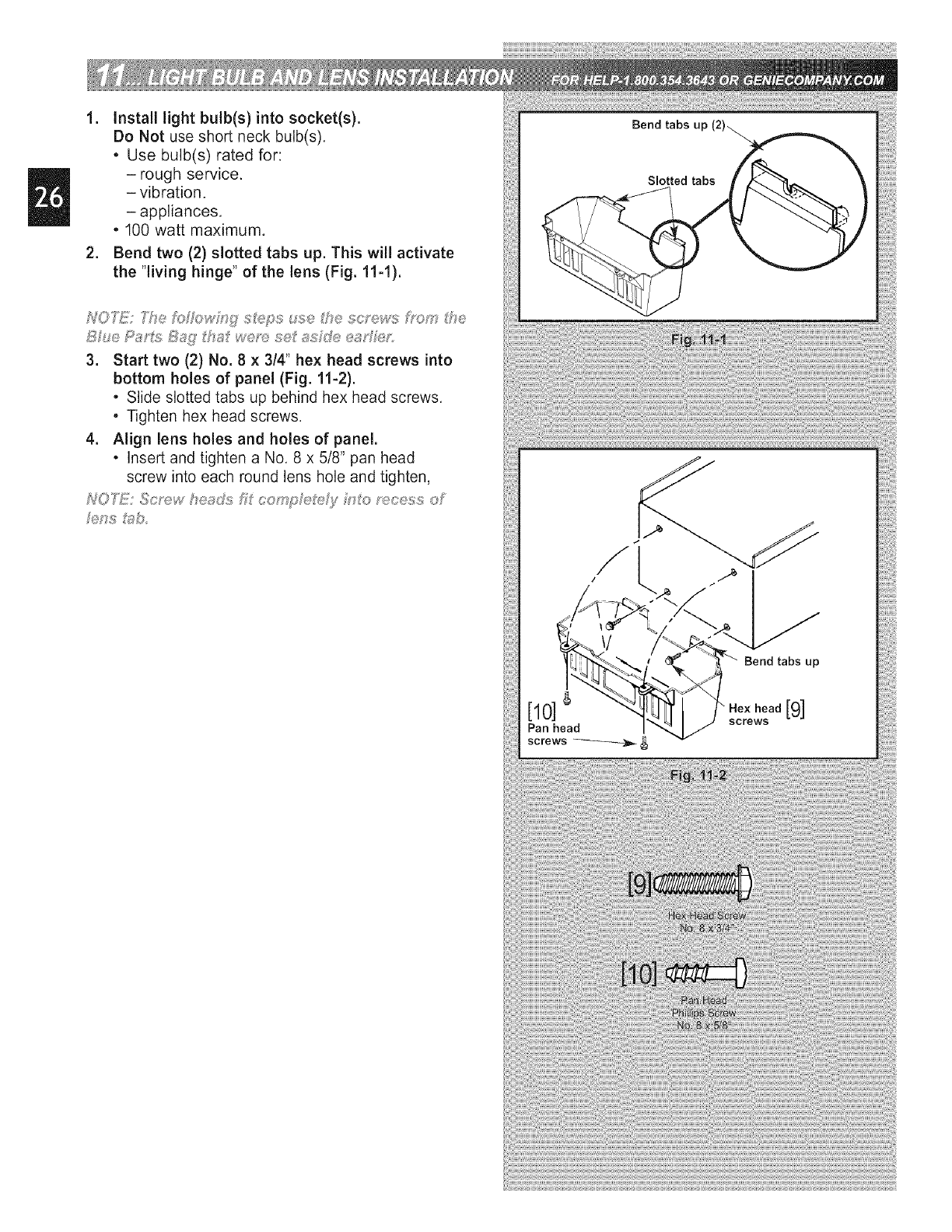

1. Install light bulb(s) into socket(s).

Do Not use short neck bulb(s).

Use bulb(s) rated for:

- rough service.

- vibration.

- appliances.

100 watt maximum.

2. Bend two (2) slotted tabs up. This will activate

the "living hinge" of the lens (Fig. 11-1).

NOYY.!i:77u'?h;£>_iJ<ISjs_?ps use _h® s<,_'re_sf)'._';p_h'_e

3. Start two (2) No. 8 x 314"hex head screws into

bottom holes of panel (Fig. 11-2).

• Slide slotted tabs up behind hex head screws.

• Tighten hex head screws.

4. Align lens holes and holes of panel.

•insert and tighten a No. 8 x 5/8" pan head

screw into each round lens hole and tighten,

[lo]

Pan head

screws _

Bend tabs up

Hex head [9]

screws

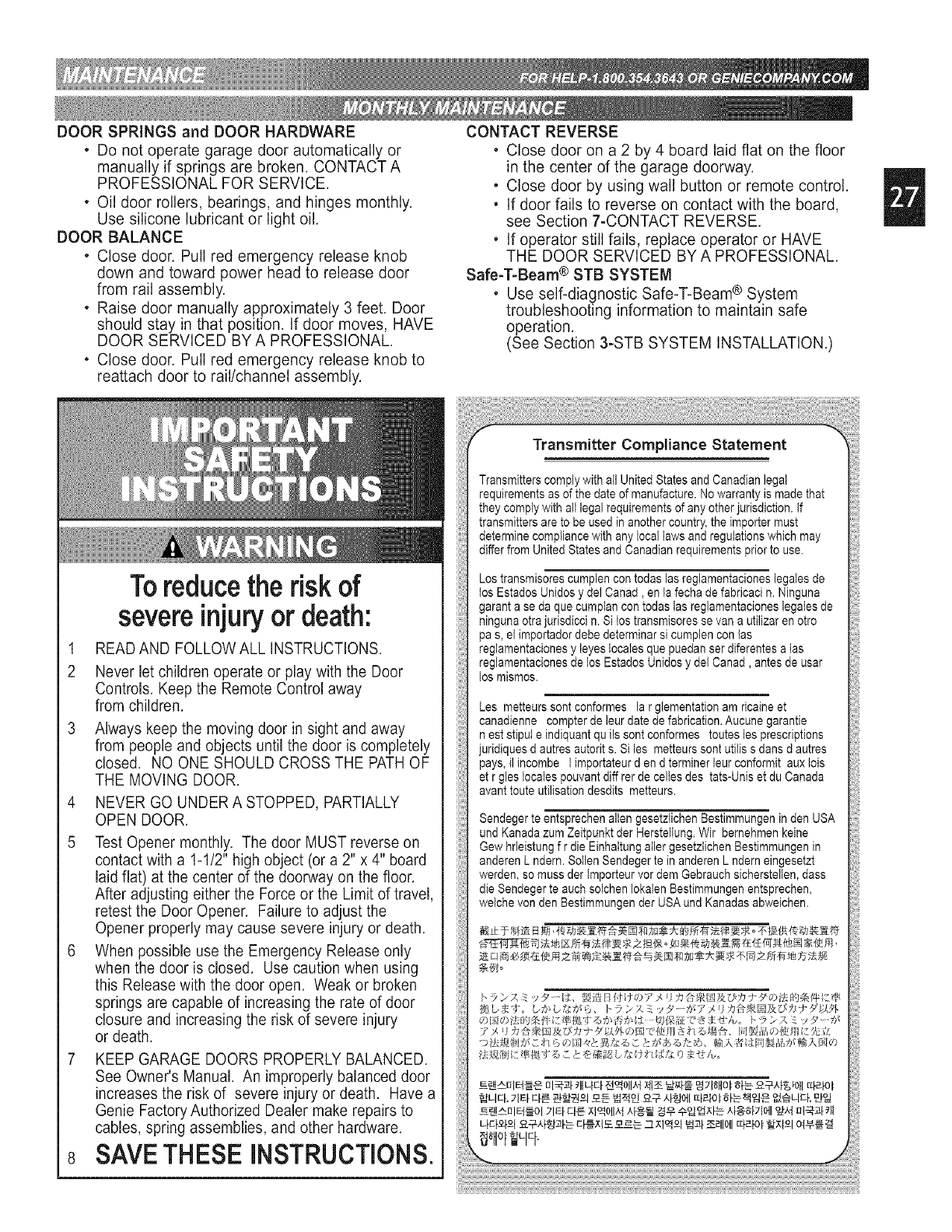

DOOR SPRINGS and DOOR HARDWARE

•Do not operate garage door automatically or

manually if springs are broken. CONTACT A

PROFESSIONAL FOR SERVICE.

•Oil door rollers, bearings, and hinges monthly.

Use silicone lubricant or light oil.

DOOR BALANCE

•Close door. Pull red emergency release knob

down and toward power head to release door

from rail assembly.

•Raise door manually approximately 3 feet. Door

should stay in that position. If door moves, HAVE

DOOR SERVICED BY A PROFESSIONAL.

• Close door. Pull red emergency release knob to

reattach door to rail/channel assembly.

Toreducethe riskof

CONTACT REVERSE

•Close door on a 2 by 4 board laid flat on the floor

in the center of the garage doorway.

• Close door by using wall button or remote control.

• If door fails to reverse on contact with the board,

see Section 7-CONTACT REVERSE.

• If operator still fails, replace operator or HAVE

THE DOOR SERVICED BY A PROFESSIONAL.

Safe-T-Beam ® STB SYSTEM

•Use self-diagnostic Safe-T-Beam ® System

troubleshooting information to maintain safe

operation.

(See Section 3-STB SYSTEM INSTALLATION.)

severeinjuryordeath:

READ AND FOLLOW ALL INSTRUCTIONS.

Never let children operate or play with the Door

Controls. Keep the Remote Control away

from children.

3 Always keep the moving door in sight and away

from people and objects until the door is completely

closed. NO ONE SHOULD CROSS THE PATH OF

THE MOVING DOOR.

4 NEVER GO UNDERA STOPPED, PARTIALLY

OPEN DOOR.

5 Test Opener monthly. The door MUST reverse on

contact with a 1-1/2" high object (or a 2" x 4" board

laid flat) at the center of the doorway on the floor.

After adjusting either the Force or the Limit of travel,

retest the Door Opener. Failure to adjust the

Opener properly may cause severe injury or death.

6 When possible use the Emergency Release only

when the door is closed. Use caution when using

this Release with the door open. Weak or broken

springs are capable of increasing the rate of door

closure and increasing the risk of severe injury

or death.

7 KEEP GARAGE DOORS PROPERLY BALANCED.

See Owner's Manual. An improperly balanced door

increases the risk of severe injury or death. Have a

Genie Factory Authorized Dealer make repairs to

cables, spring assemblies, and other hardware.

8 SAVETHESE INSTRUCTIONS.

Transmitter Compliance Statement

Transmitters comply with all United States and Canadian legal

requirements as of the date of manufacture. No warranty is made that

they comply with all legal requirements of any other jurisdiction, if

transmitters are to be used in another country, the importer must

determine compliance with any local taws and regulations which may

differ from United States and Canadian requirements prior to use.

Los transmisores cumplen con todas las reglamentaciones legales de

tos Estados Unidos y del Canad, en la fecha de fabricaci n. Ninguna

garant a se da que cumpIan con todas las reglamentaciones legales de

ninguna otra jurisdicci n. Si los transmisores se van a utilizar en otro

pa s, el importador debe determinar si cumplen con las

reglamentaciones y byes locales que puedan ser diferentes a tas

reglamentaciones de los Estados Unidos y del Canad, antes de usar

los mismos.

Les metteurs sont conformes la r glementation am ricaine et

canadienne compter de bur date de fabrication. Aucune garantie

nest stiput e indiquant qu ils sont conformes toutes les prescriptions

juridiques d autres autorit s. Si les metteurs sont utilis s dans d autres

pays, il incombe I importateur d en d terminer bur conformit aux lois

et r gles locales pouvant diff rer de celtes des tats-Unis et du Canada

avant toute utilisation desdits metteurs.

Sendeger te entsprechen allen gesetzlichen Bestimmungen in den USA

und Kanada zum Zeitpunkt der HerstelIung. Wir bernehmen keine

Gew hfleistung f r die Einhaltung aller gesetzlichen Bestimmungen in

anderen L ndern. Sotlen Sendeger te in anderen L ndem eingesetzt

werden, so muss der lmperteur vor dem Gebrauch sicherstellen, dass

die Sendeger te auch soichen Iokalen Bestimmungen entsprechen,

welche yon den Bestimmungen der USA und Kanadas abweichen.

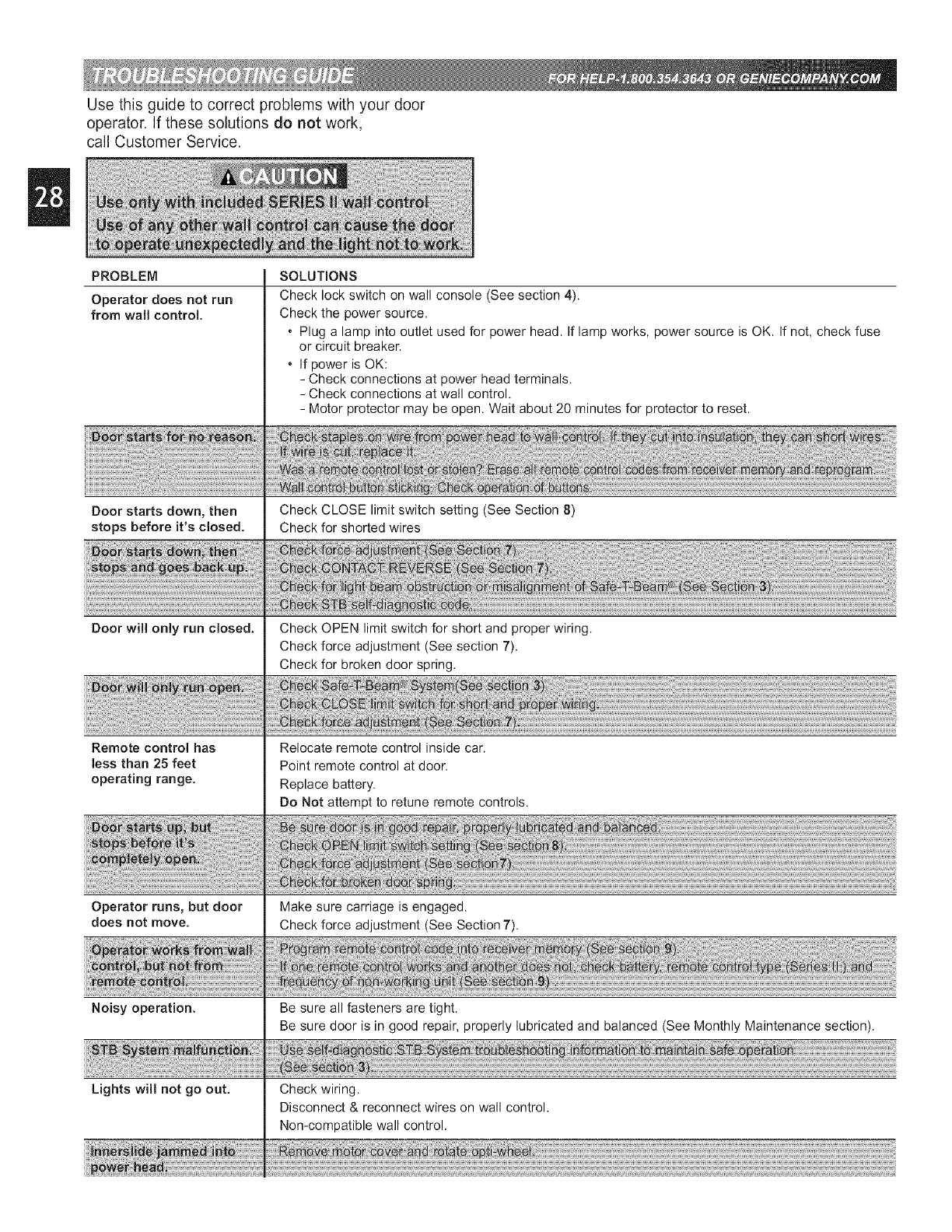

Use this guide to correct problems with your door

operator. If these solutions do not work,

call Customer Service.

PROBLEM

Operator does not run

from wall control.

Door starts down, then

stops before it's closed.

Door wi!! only run closed.

Remote control has

less than 25 feet

operating range.

Operator runs, but door

does not move.

Noisy operation.

Lights will not go out.

SOLUTIONS

Check lock switch on wall console (See section 4).

Check the power source.

•Plug a lamp into outlet used for power head. If lamp works, power source is OK. If not, check fuse

or circuit breaker.

•If power is OK:

- Check connections at power head terminals.

- Check connections at wall control.

- Motor protector may be open. Wait about 20 minutes for protector to reset.

Check CLOSE limit switch setting (See Section 8)

Check for shorted wires

Check OPEN limit switch for short and proper wiring.

Check force adjustment (See section 7).

Check for broken door spring.

Relocate remote control inside car.

Point remote control at door.

Replace battery.

Do Not attempt to retune remote controls.

Make sure carriage is engaged.

Check force adjustment (See Section 7).

Be sure all fasteners are tight.

Be sure door is in good repair, properly lubricated and balanced (See Monthly Maintenance section).

Check wiring.

Disconnect & reconnect wires on wall control.

Non-compatible wall control.

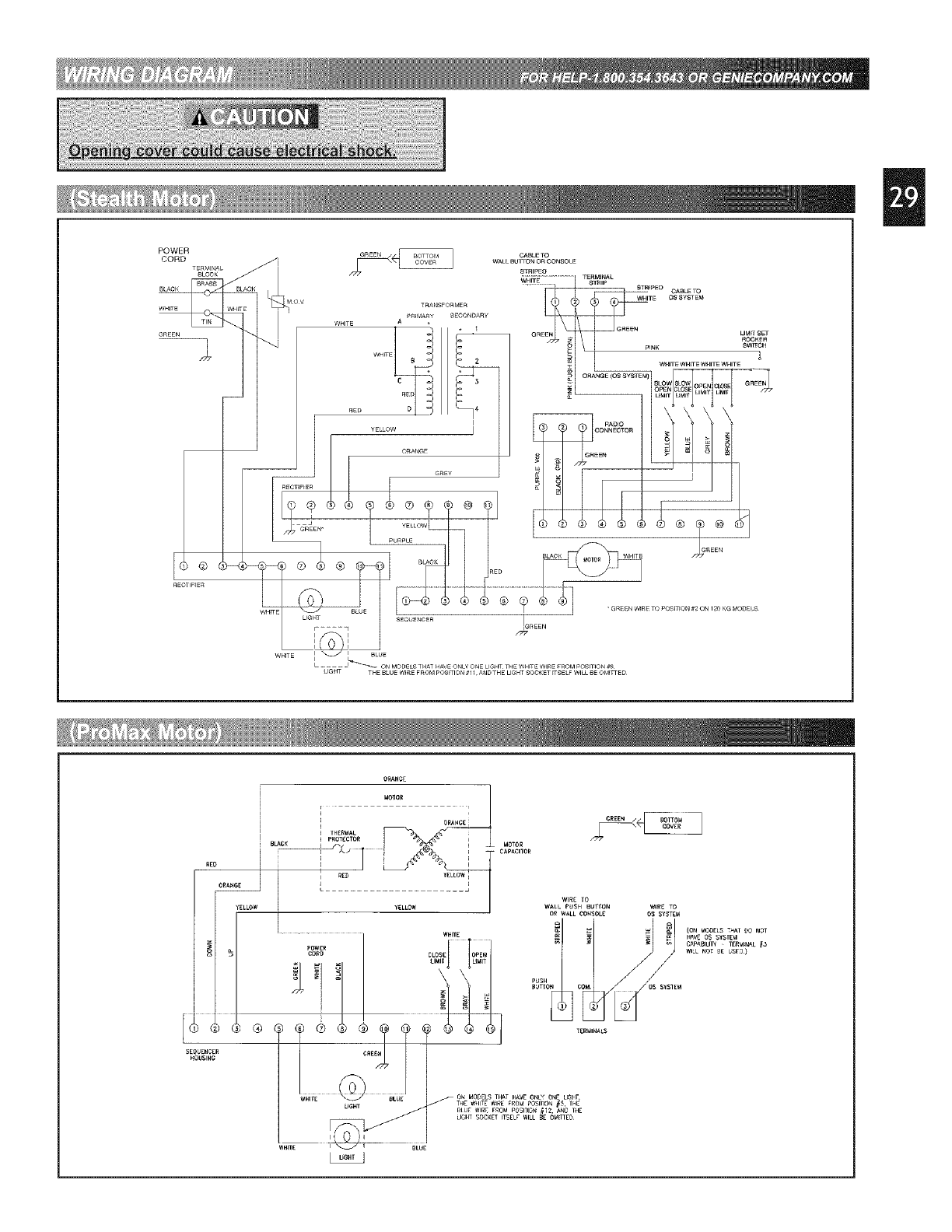

POWER

WHITE I _J i BLUE

ORAN;E

GE |E

HOW many?

&Quantos?

Comment

(GIT-1)1-Button RemoteControlwith Intellicode- Allowsremoteoperation of garagedoor. beaucoup?

Controladorremote de lujo con Inteliicode '- Proporci6naroperaci6nremotede la puerta de[garaje.

Tel_c°mmandedeluxeaveclntellk°de'-Permettre°p_rati°n_i°ign"dep°rtedegarage' P/N 33069R $36.50

(GIT-2)2-Button RemoteControlwith Intellicede- Allowsremoteoperation of 2garagedoors.

Controiador remote de 2 funcionescon Intellicede- Proporci6naroperaci6nremotededos inspuertasdel garaje.

Tel_commande_ 2 fonctions avecIntellicede '- Permettreoperation_[oign' deuxportes

de garage. PIN 33069S $45.00

(GIT-3)3-Button RemoteControl with Intellicede- Allowsremoteoperation of 3garagedoors.

Controlador remotede 3 funcionescon Intellicode-ProporciOnaroperad6nremotedetres Inspuertasdel carnie.

Tei_commande_ g fonctions avecInteilicode_-Permettreoperation _loign' trois portes

de garage. PIN 33069T $50.00

(GPWC-2WLS} Lighted WallConsole -OperatesGarageDoor.independent light control.Securityvacationlock. _

Consola de pared de 3funcioues- Accionalapuertadel garaje.Contrnide luz independiente.Cerradurade

segufidad paravacaciones.

Console murale/_trois fenctions- Actionne [aporte de garage.Commanded'_clairageind@endante.

Interrupteur de verrnuilhgede s_cufit_. P/N 34292R $16.18

(GM_-3) g-ButtonMini Remote Controlwith Intellicode'-Fitseasilyinto pocketor purse. /_

Minicontroladorremote de 3funcioues con IntellicodeL Cavef_cilmenteen el bolsilloocartera. %

Mini t_lecemmande _ 3 fouctions avecIntellicode LsegBse dansla pochedevestonou b sac_ main.

PIN 3490IR $40.00

(GWKP) wireless KeypadEntry System- OperatesIntellicode_GarageDoorOpenerswithout RemoteControl or key.f'_

Sistemade entrada pot teciade num_rico inal_mbrico-Accionalosabfidoresde puertasde garaje[nte[licodesin /_/S/

control remoteo Ilave.

Syst_med'ouvre-portede garage&claviersansfil- Actionnelosouwe-porte de garageavecIntellicode sans

t_l_commandeni cl_. PIN 35282R $52.00

(GLU-3) 1/4 oz.TubesScrewDrive Lubricant (3)- Ensuresproper equipment wearprotection.

1/4 once Lubficantede tomillo acciouar(3)- Aseguracomponentecorrectoprotecci6nper deterioro.

Laonzal/4Lubrkantdelavis(3)-Garantircomponantexactparsyst_meddenseversuser. P/N 35164R $5.00

(GWB) UniversalWallButton- Providesadditionalconvenientinsideoperation of door.

Bot6n de pareduniversal- Proporcionaoperaci6n convenientede lapuerta des@el interior.

Bouton mural universal -AcRonneI'ouvre-portede I'int#deurdu garage. P/N 34960R $3.75

(GPS-5)Perfect Stop- Ensuresperfect parking.

StopPerfecto- Asegurael estacionamientoperfecto.

Butoir PerfectStop°- Permetde stationner_ la perfectiondansb garage. P/N 34964 R $4.00

(GSX/-8) ExceleratorScrewDrive ExtensionKit- AnExtensionthat increasesthetravelof aScrewDriveOpener

to accommodateaneight foot door. _

Elextension deslizante de Excebrator ScrewDrive- Unaextensi6nparaaumentarlacarreradeun abridor

deslizab[edetomillo, paraacomodarunapuertade8 pies(2,43m). _,f._

Necessairede rallonge du ExceleratorScrewDrive- Ra[longede prolongeantla coursede I'ouvre-porteScrew

Drivepouruneportede2,4m{8pi)dehauteur. PIN 33523R $31.15

(LCGX-8) Chain GlideTM Extension Kit- An Extensionthat increasesthe travelof a ChainGlideOpenerto _\

accommodatean eight foot door.

Juego de extensi6n de cadena deslizable- UnaextensionparaaumentarlaIongitudde labarandadeChain

Glide,para acomodarunapuertade 8pies(2,43m).

N_cessaire de prolongement du coulisseau - Raliongedeprolongeant[acoursede Fouvre-porte

ChainGiidepouruneportede2,4m{8pi)dehauteur. PIN 00001085 $30.00

(GSX-8} ScrewDrive ExtensionKit- Eighteeninch Extensionto increasetravelof ScrewDrive Operatorto accommodate

eight foot door.

Juego de extensi6n deslizante de ScrewDrive- Unaextens[6nde 18pulgadasparaaumentar lacarreradeun abfidor

desiizabiede tomiHo,paraacomodaruna puertade 8pies (2,43m.).

N_cessairede rallonge du ScrewDrive- Railongede 30din (18 po) pro[ongeantla _;:_,

coursede Fouvre-porteScrewDrive pour une porte de 2,4 m (8pi) de hauteur.(GIRU-1T)

UniversalConversionKit- Convertsany GarageDoor Opener to asecureradiosignal

system.Kit includesa RemoteControl,Receiverand Transformer. P/N 33523S $36.35

(60WATT)Enhanced/RoughServiceLightBulb-Ensuresproperequiment compatabilRy _

Bombillade 60Vatios- Aseguracomponentecorrectode sistema

I_-clairagede 60WATT-Garantircomponantexactparsyst_me P/N 262IOA.S $2.73

(Gt:_-2) Emergency Release Kit - Provides access to garage from outside in the event of

an electrical power failure

Juego de pica-porte de pastille -Permitir entrtada des@ per fuera de garaje porque torte

de el_ctrico

N_cessaires de D_clenchement de secours - Le nc_cessairede d_clenchement

de secours est con_upour vous permettre d'acc_der _ votre garage depuis

I'exterieur en cas de panne de courant et Iorsqu'il P/N 34963R $20.00

STB Adapter Brackets (2} - Used in conjunction with standard STBBrackets.They provide

additional clearance and mounting options

El adaptador pone entre pardntesis (2) - Usado en uni6n con par_ntesis uniformes de

rnontar de STB,ellos proporcionan el espacio libra adicional junto con mortar Ins opciones

Crochets d'adaptateur (2} - Utilise conjointement avec STBstandard monter les crochets,

ils fournissent le degagernent supplernentaire avec mentor d'options P/N 34439R.S $4.37

No COD. shipments. Please include check or money

order, made payable to The Genie Company Do not

send cash. Allow 3-4 weeks for delivery

1-800-354-3643. Please have part number and credit

card ready Mail Order Form to: Genie Company,

Alliance, Ohio 44601. We accept Visa or Mastercard

on phone orders only.

Please add local sales tax if you reside in one of the states listed,

California, Connecticut, Florida, Georgia, Illinois, Indiana,

Maryland, Massachusetts, Michigan, New Jersey, New York,

Ohio, Tennessee, Virginia, Wisconsin

TOTAL ORDER $

SHIPPING &HANDLING $ 5oe

STATE SALES TAX $

GRAND TOTAL $

No se aceptan pedJdos de page contra entrega (COD).

Sirvase incluir su cheque o gJro postal, la cuenta

pagadera hecha a The Genie Company. No envJe

dinero en efectlvo. Concedanos 3 a 4 semanas para la

entrega. 1-800-354-3643. Sirvase toner listos los

nQmeros del modelo y de la tarjeta de credito. Enviar

hacer un pedido de mercancia a: Genie Company,

Alliance, Ohio 44601.Aceptamos pedidos telefonicos de

Visa o Mastercard.

Sirvaseagregar el impuesto deventas local si ustedreside en

uno de los siguientes estados:

California, Connecticut, Florida, Georgia, Illinois, indiana,

Maryland, Massachusetts, Michigan, New Jersey, New York,

Ohio, Tennessee, Virginia, Wisconsin

TOTAL DELPEDIDO $

FLETE Y MANEJO $ 50{}

IMPUESTO DE VENTAS ESTATAL $

GRAN TOTAL $

Pas d'expedition centre remboursement. Veuiltezincture un

cheque ou un mandat bancaire, le payable fait a The Genie

Company. N'envoyez pas d'argent comptant. Accordez de 3

4 semaines pour la livraison 1-800-354-3643 Ayez sous ta

main le numcro de la piece et celui de la carte de credit Mettre

la poste le arrngement a: Genie Company, Alliance, Ohio

44601. Nous acceptons les commandes par tel@hone avec

paiement par carte de credit Visa ou Mastercard.

Veuillez indiquer los taxes de vente locales si vous residez clans l'un

des _tats repertories ci-dessous.

California, Connecticut, Florida, Georgia, Illinois, Indiana,

Maryland, Massachusetts, Michigan, New Jersey, New York,

Ohio, Tennessee, Virginia, Wisconsin

COMMANDE TOTALE $

MANUTENTION ET EXPEDITION $ 50{!

TAXE DE VENTE $

TOTAL GLOBAL $

NAME/NOMBRE/NOM

ADDRESS/DIRECCION/ADRESSE

CITY/CIUDAD/VILLE

STATE/ESTADO/ETAT

ZIP/CODIGOPOSTAL/CODEPOSTAL

(Prices subject to change without notice)

(Valoran el cambio con sujecion a sin nota)

(Les prix assujettissent pour changer sans la notification)

NAME

COMPANY

NUMBER

22790 Lake Park Blvd. •Alliance, Ohio USA, 44601

What is covered: Any defect in material and workmanshipfrom personal, normal household use in accordancewith the Owner's Manual

For how long:

300 Series - Motor 5 years and all other parts 3 years.

500 Series - Motor Lifetime*and all other parts 5 years.

1200Series - Motor Lifetime*and all other parts 5 years.

*Lifetime warranty =warrantedfor as tong as you own your home.

Who gets the warranty: Thiswarranty is limitedto the consumerwho originally purchasedthe product.

Geographic scope: This warranty applies only to Genie products purchased in the United States,Canada or Mexico.

What we will do: If your Genie product is defective,we will repair it or, at our option, replace it at no charge to you. If we repairyour Genie product,we

may use new or reconditionedreplacementparts. If we choose to replaceyour Genie product,we may replace it with a new or reconditionedone of the

same or similardesign.

Limitations: IMPLIEDWARRANTIES,INCLUDINGTHOSEOF FITNESS FORA PARTICULARPURPOSEANDMERCHANTABILITY(AN UNWRITTEN

WARRANTYTHAT THE PRODUCT IS FIT FOR ORDINARYUSE),ARE LIMITEDTO ONE YEAR FROM THE DATEOF PURCHASE. GENIE WILL

NOT PAYFOR:LOSS OF TIME; INCONVENIENCE;LOSS OF USE OF YOUR GENIEPRODUCTOR PROPERTYDAMAGE CAUSED BYYOUR

GENIE PRODUCTOR ITS FAILURETO WORK;ANY SPECIAL, INCIDENTALOR CONSEQUENTIALDAMAGES; ORANY DAMAGESRESULTING

FROM MISUSEOR MODIFICATIONOF YOUR GENIE PRODUCT.

Some states and provinces do not allow limitationson how long an impliedwarranty lasts or the exclusionof incidentalor consequentialdamages, so

the above exclusions may notapply to you.

How to obtain warranty service: To obtain warrantyservice for your Genie product,you must provideproof of the date and place of purchase of

the product.

1. Do-It-Yourself-Service.Call the GenieConsumerConnection toll free at 1-800-354.3643a TrainedGenierepresentativeswill assist you in diagnosing the

problemand will arrange to supplyyou with the required parts for do-it-yourself repairs. Trainedservice representativesare available Monday-Friday,

8:00 a.m. - 8:00 p.m.,Eastern Time,and on Saturday,11:00a.m. to 5:00 p.m.,Eastern Time(subjectto holidays).

2. Service From Authorized Dealers. Youalso may obtain warranty service by calling the Genie Consumer Connectionat 1.800.654.3643before reaching

any agreementon service. If warranty service is providedby an authorized dealer, Geniewill provide all required partsunder warranty at no charge to

you, but the dealers are independentbusiness peopleand may rendera benchor service callcharge for their services.Genie will not reimburseyou or

otherwise be responsiblefor those charges.

We suggestthat you retainyour original packing material in the event you needto shipyour Genie product. Besure to includeyour name, address,

telephone number,proof of date and placeof purchase and a descriptionof the operating problem.After repairingor, at our option, replacing, your Genie

product,we will ship it to your home at no cost to you for parts and labor,but you will haveto paya minimum of $5.00 for shipping and handling

charges.

Yourchoice of anyone of the above-describedservice options is your exclusiveremedy underthis warranty.

What this warranty does not cover: This warranty does not cover batteries (which are consideredreplaceableparts), installation,commercial use,defects

resulting from accidents,damagewhile in transitto our service location or damage resultingfrom alterations, misuseor abuse, lackof proper

maintenance,unauthorizedrepair or modificationof the product, affixingof any attachmentnot providedwith the product,fire, flood, or acts of God, or

other failure to follow the Owner's Manual.

This warranty is the only one we will give on your Genie product, and it sets forth all our responsibilities regarding your Genie product. There are

no other express warranties.

State and province rights: This warranty gives youspecific legal rights,and you may also have other rights which vary from state to state and provinceto

province.

Manufacturedunderoneor moreof thefollowingU.S.patents:3,898,582/4,041,259/4,048,630/4,064,487/4,103,238/5,222,403

OtherPatentsappliedfor

CORRESPONDENCE WITH FACTORY MUST INCLUDE DATE /MFG. NO.

(LOCATED UNDER LENS OF POWER HEAD)

Customer Service Or Visit Our Website

SAVE THESE INSTRUCTIONS

Genie GPS1200 IC User Manual DC BELTDRIVE GDO Manuals And Guides L0703288

GENIE Garage Door Opener Manual L0703288 GENIE Garage Door Opener Owner's Manual, GENIE Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
