I EN I RON ®
Owner's Manual
6OOOW PROPANI- (_ENERATOR
P|easereadSlidsavethese|listruet|elis,
HAVEOUESTIOHSORHEEDSERVICE
DOHOTRETURNTOSTORE!
PL_SE CALLTOLLFREE,"888.896.6881
www. GentronUSA. com
G
Carbon Monoxide
Using agenerator indoors WILL KiLL YOU iN MINUTES.
Carbon Monoxide
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous
gas you cannot see or smell. If you can smell the generator exhaust, you are
breathing CO. But even If you cannot smell the exhaust, you could be breathing
CO.
• NEVER use a generator inside homes, garages, crawlspaces, or other partly
enclosed areas. Deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT supply enough fresh air.
• ONLY use a generator outdoors and far away from open windows, doors, and
vents. These openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS
use a battery-powered or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AWAY. See a doctor. You could have carbon
monoxide poisoning.
6000W Pro ane Generator
Table of Contents
Topic Page
Limited Warrant 3
Safety Guidelines 5
General Precautions 6

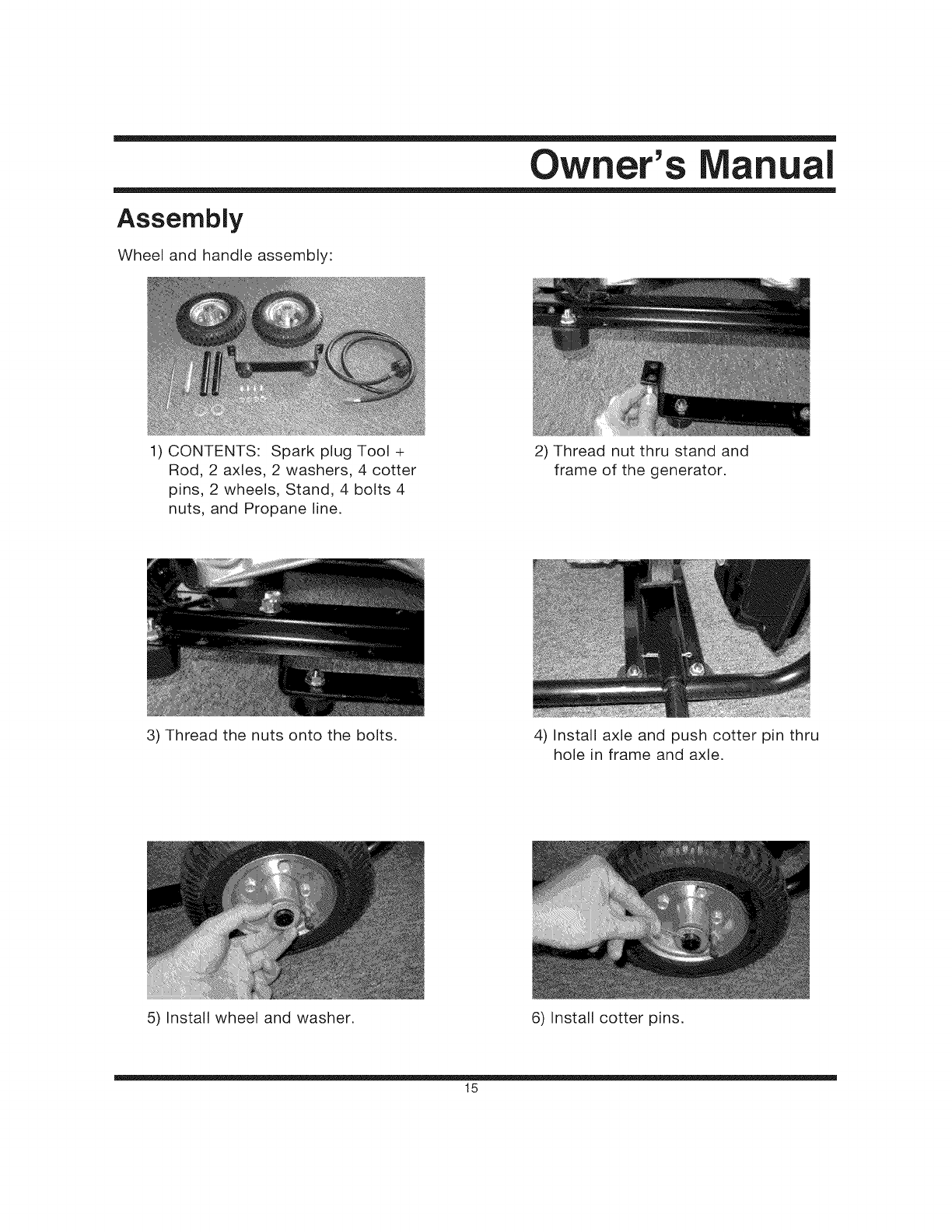

Assembly 15

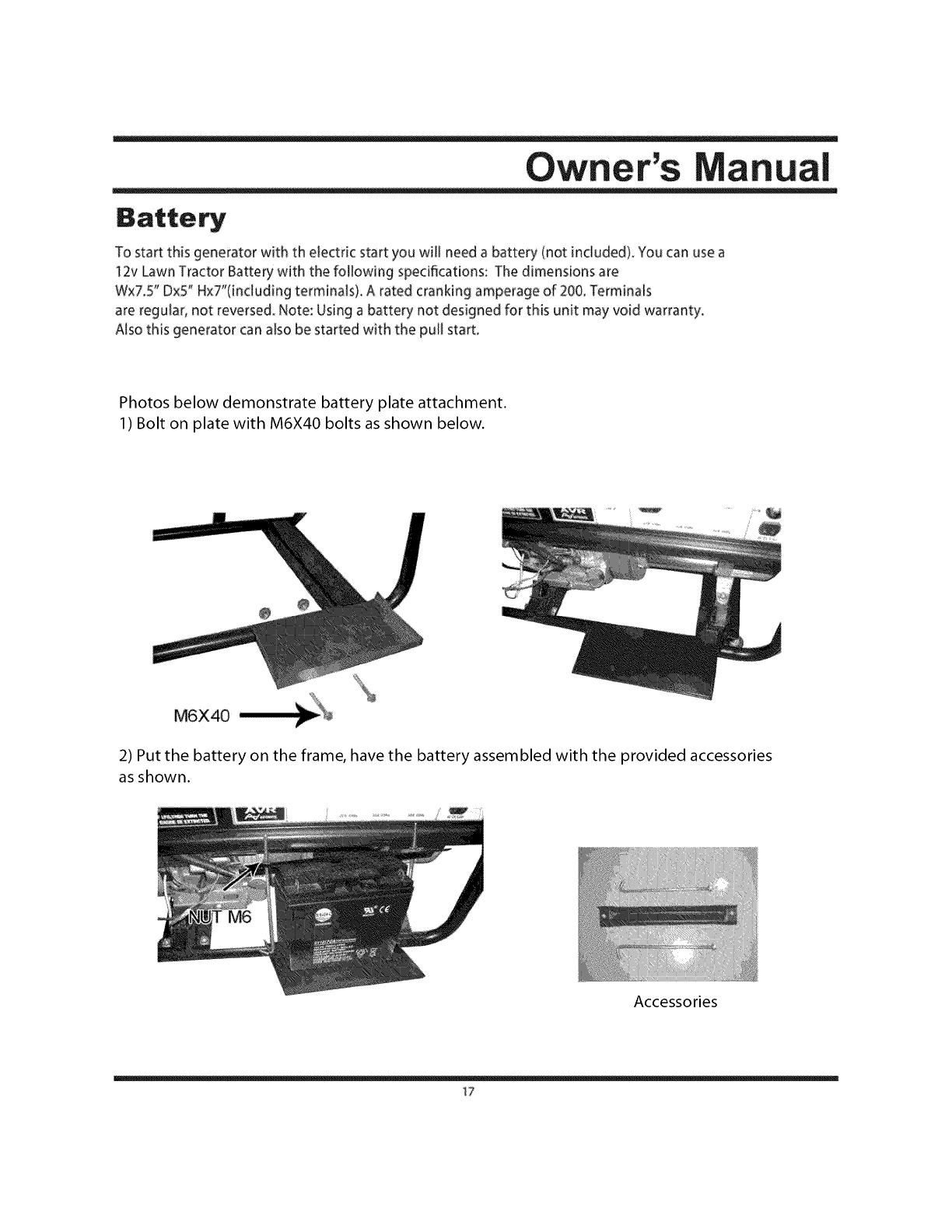

Battery 17

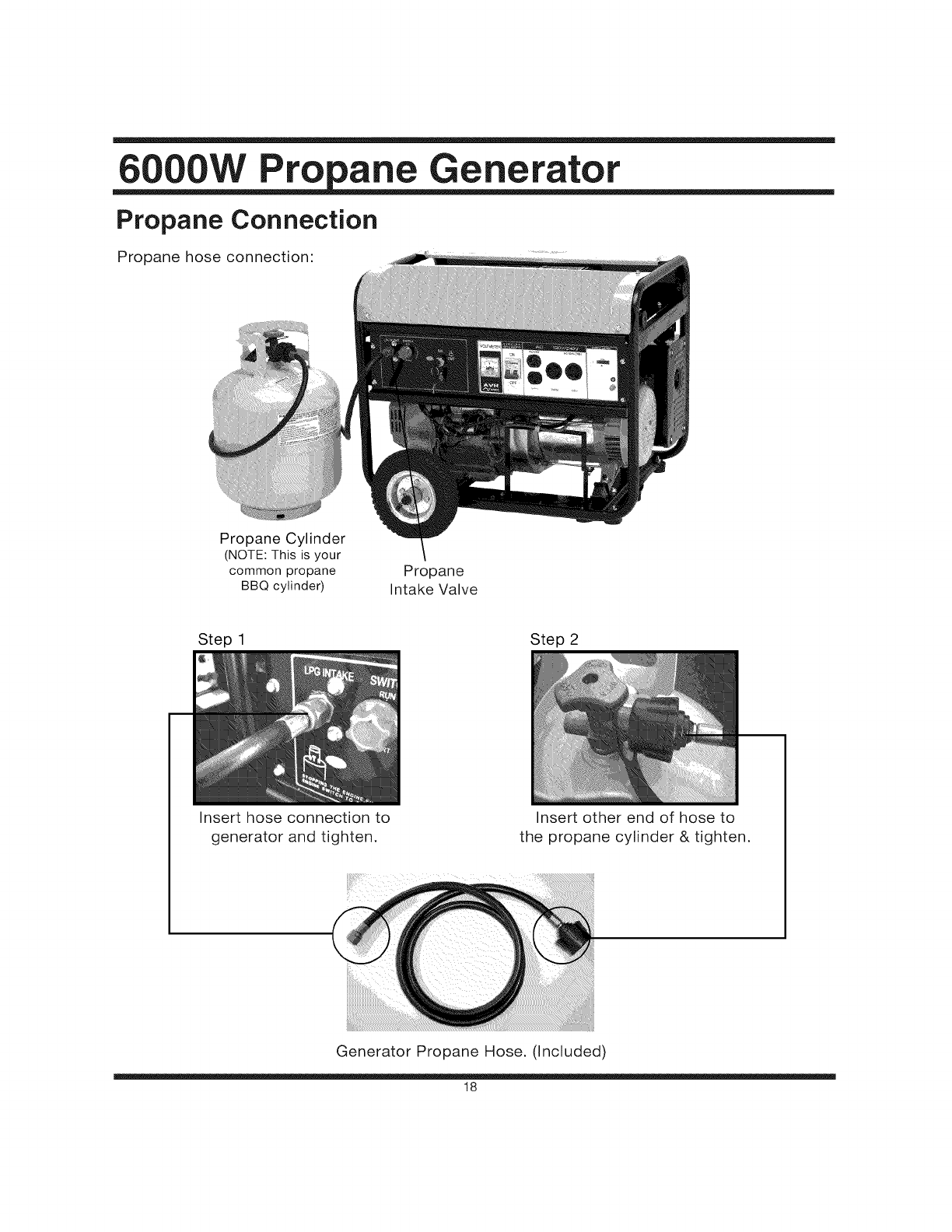

Propane Connection 18

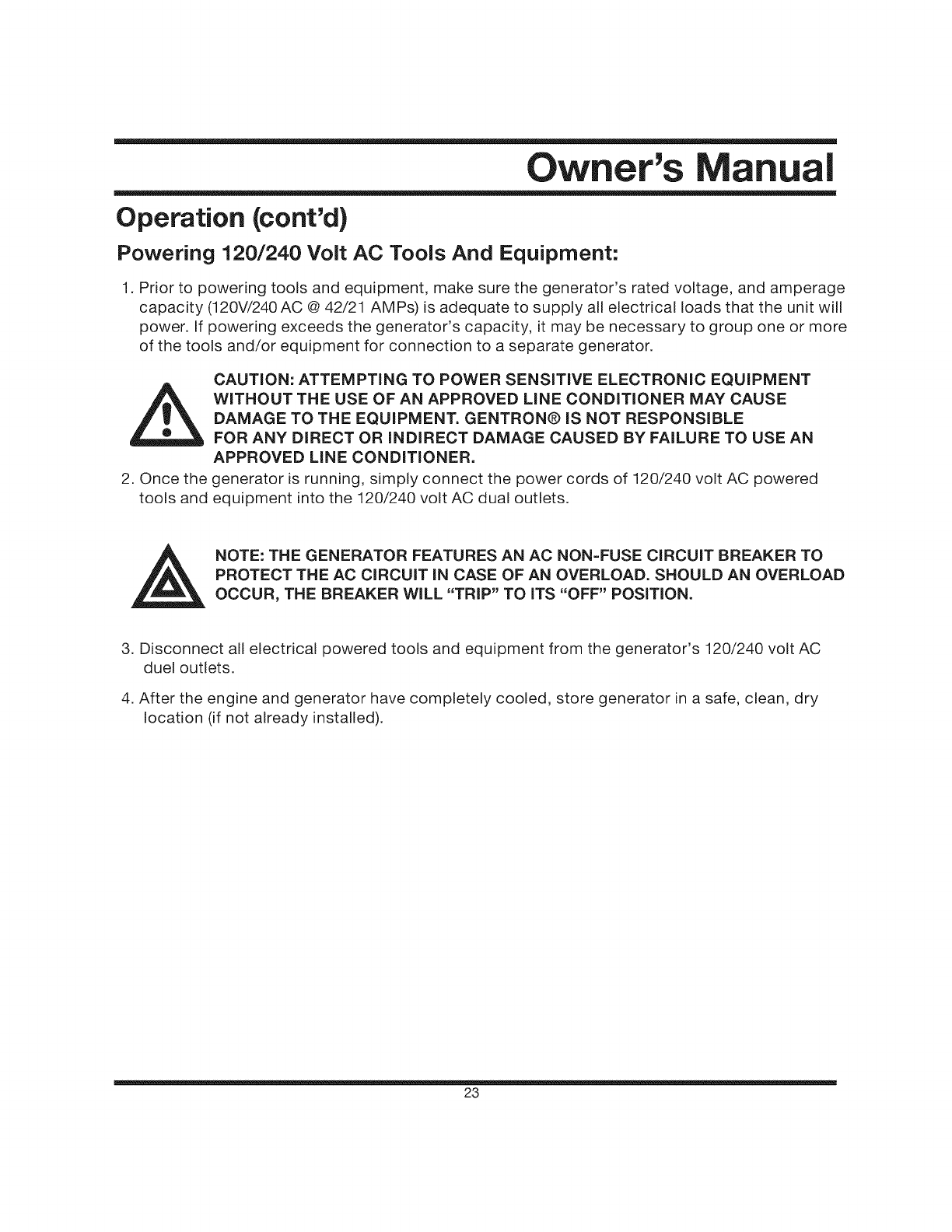

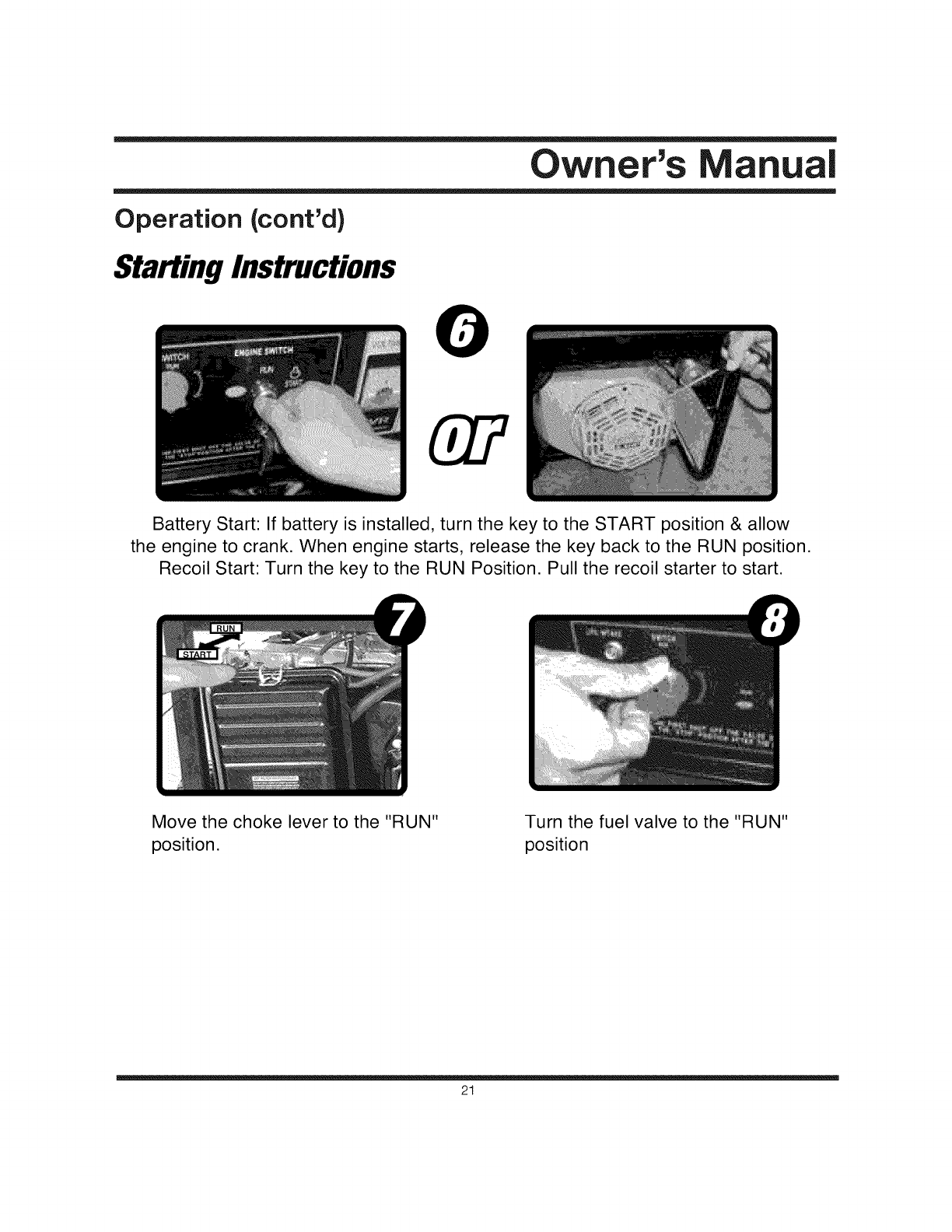

Operation/Starting Generator 19

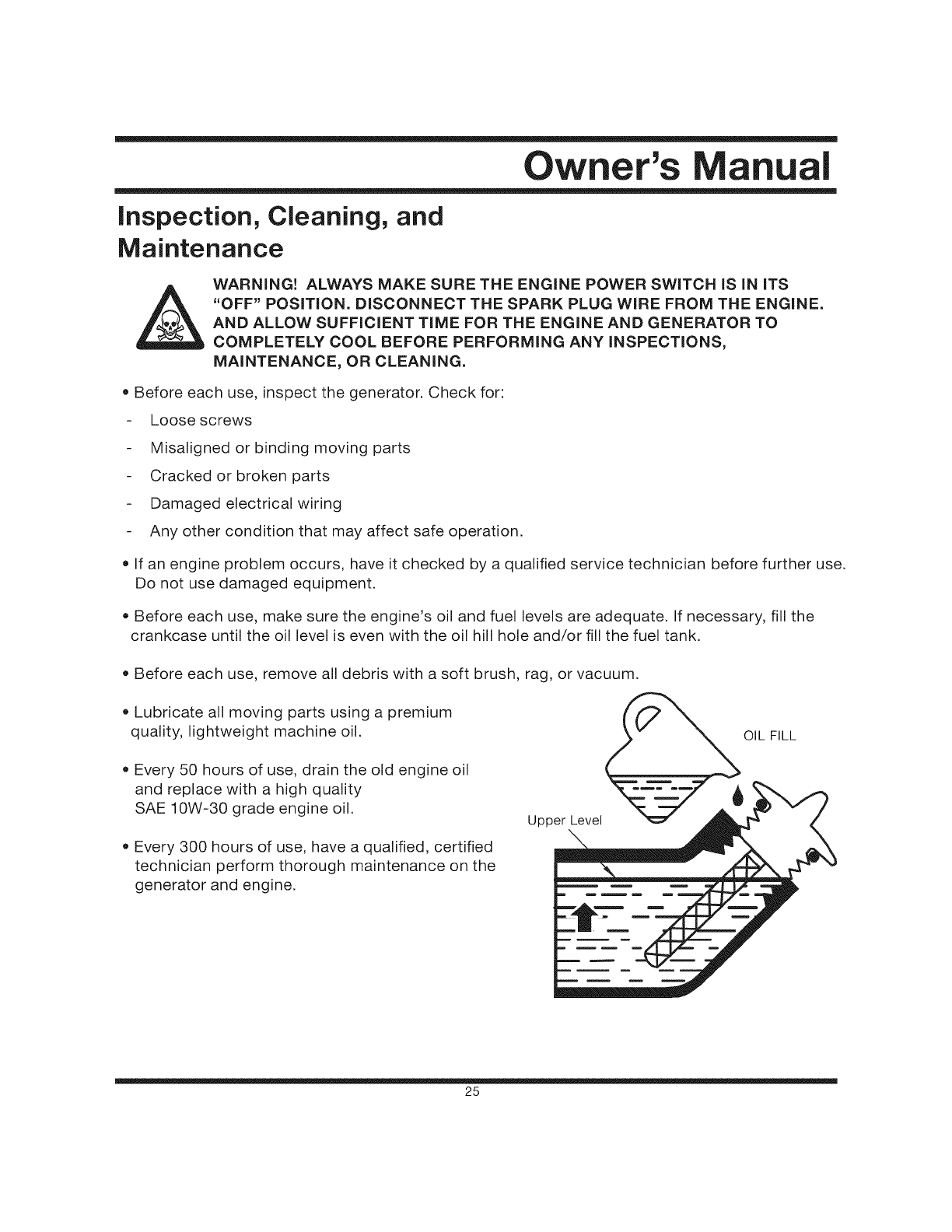

Inspection, Cleaning and Maintenance 25

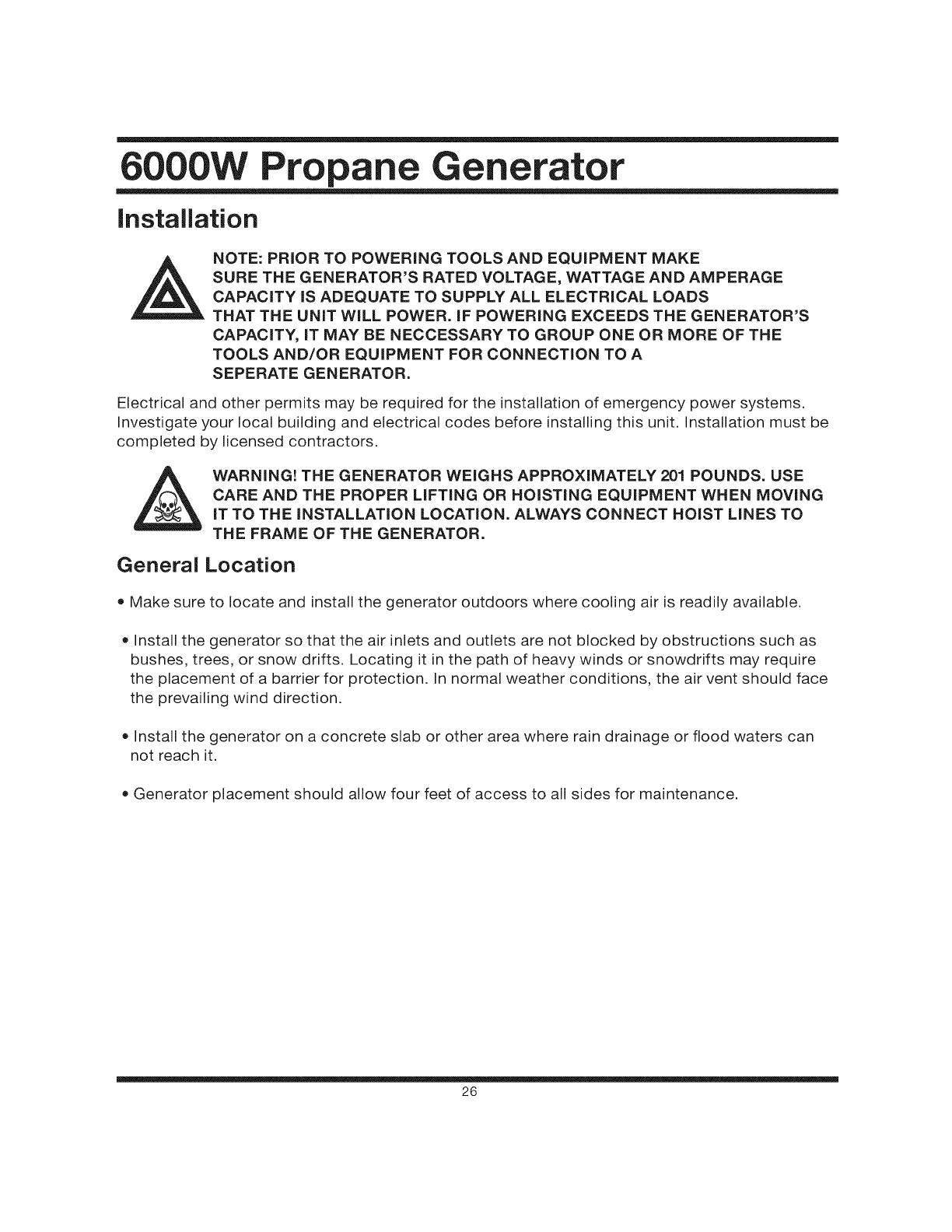

Installation 26

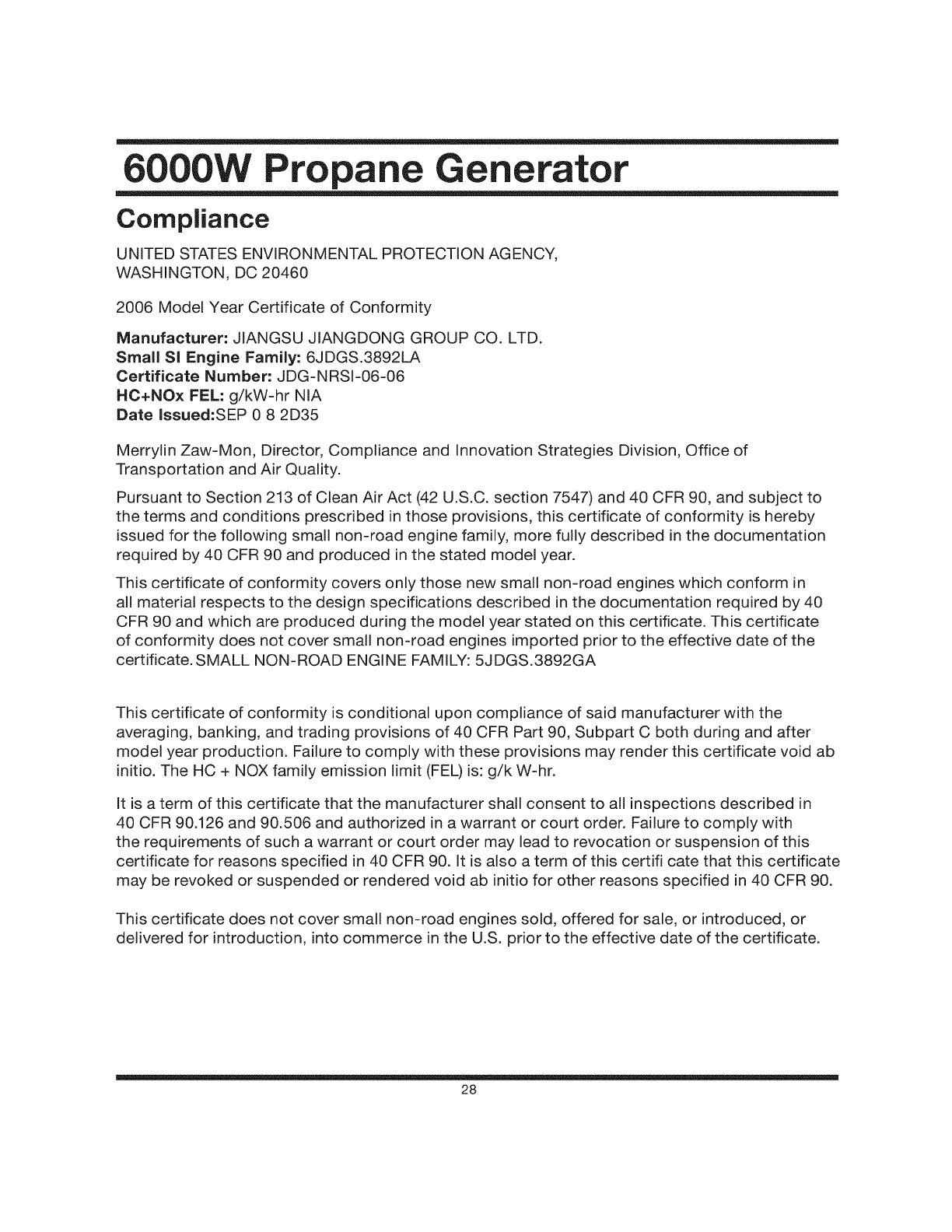

Compliance 28

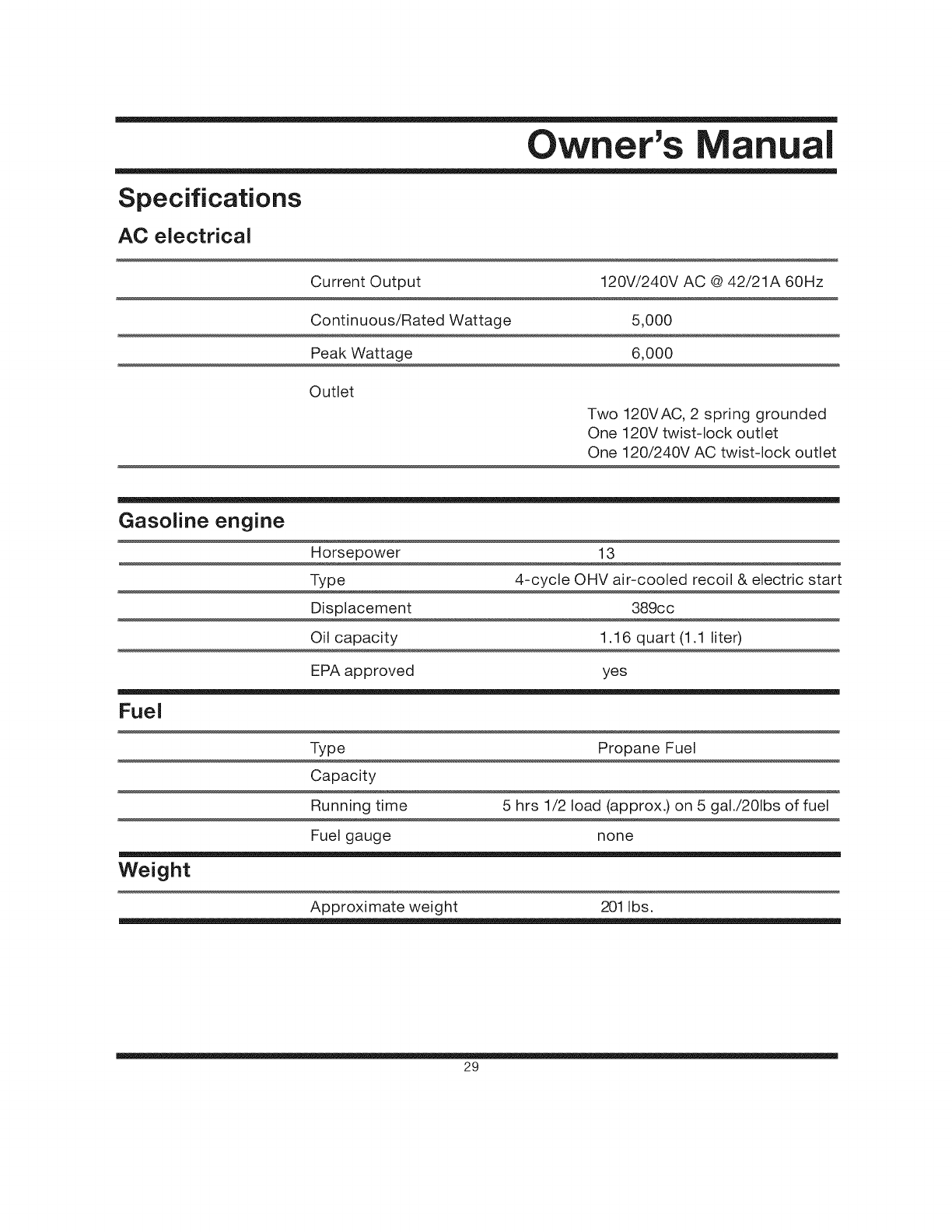

Specifications 29

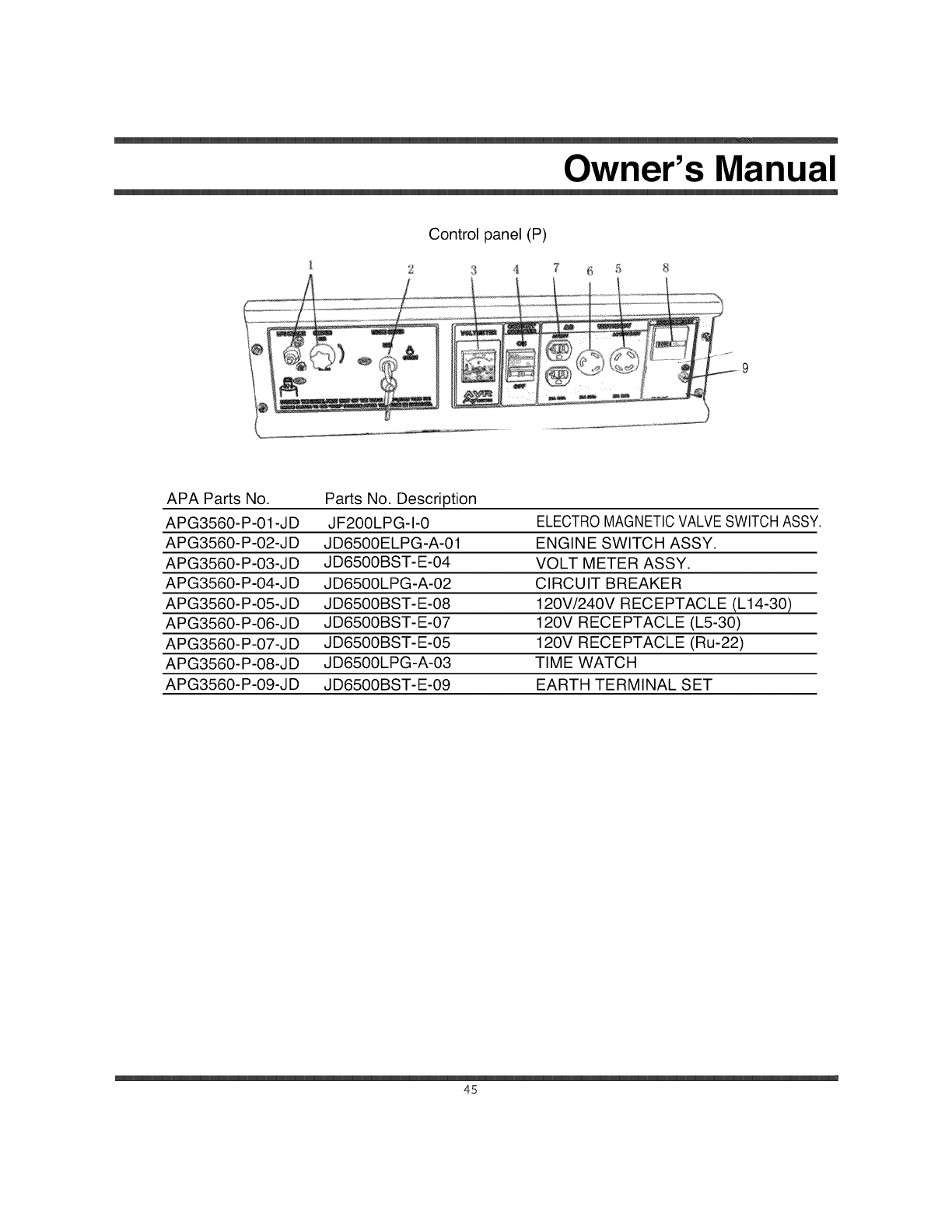

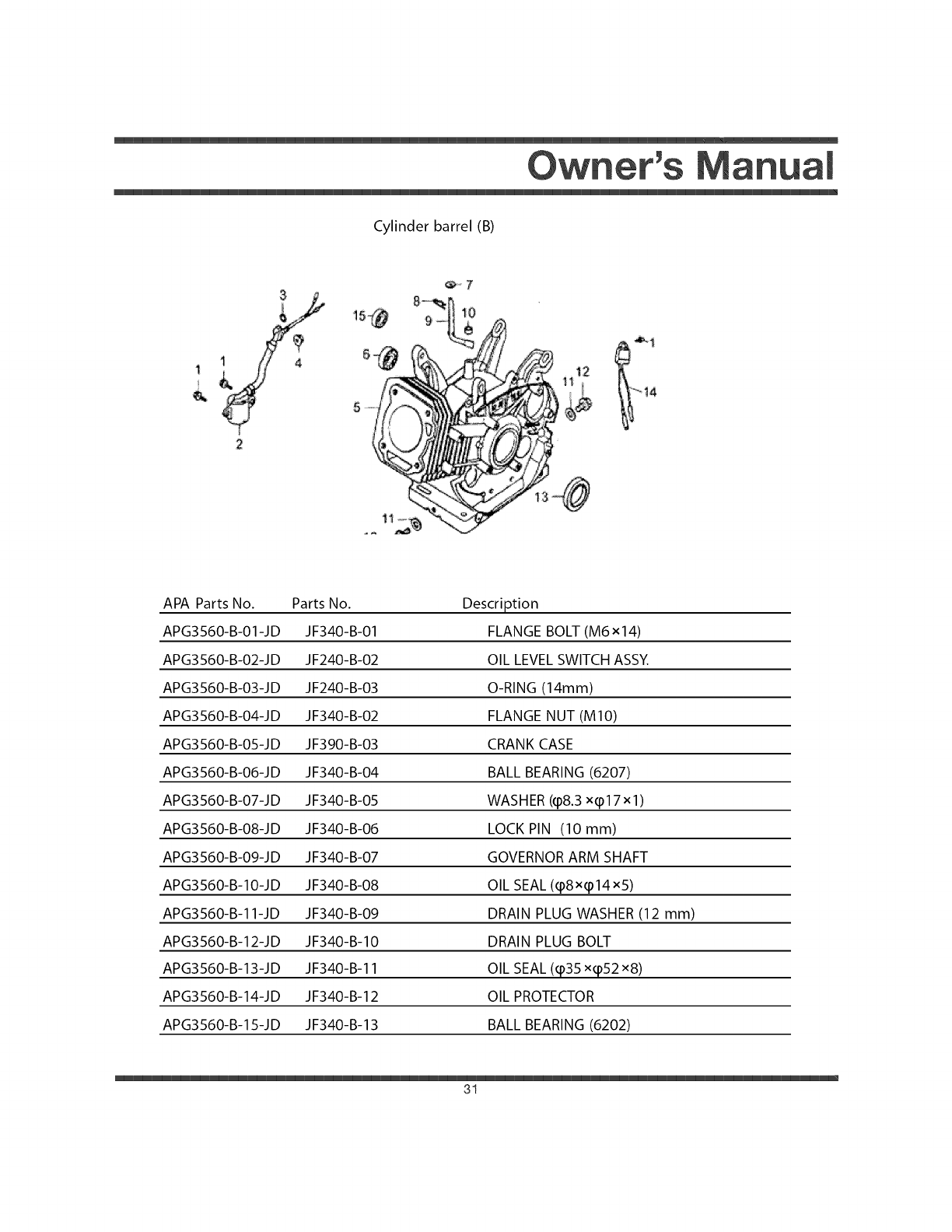

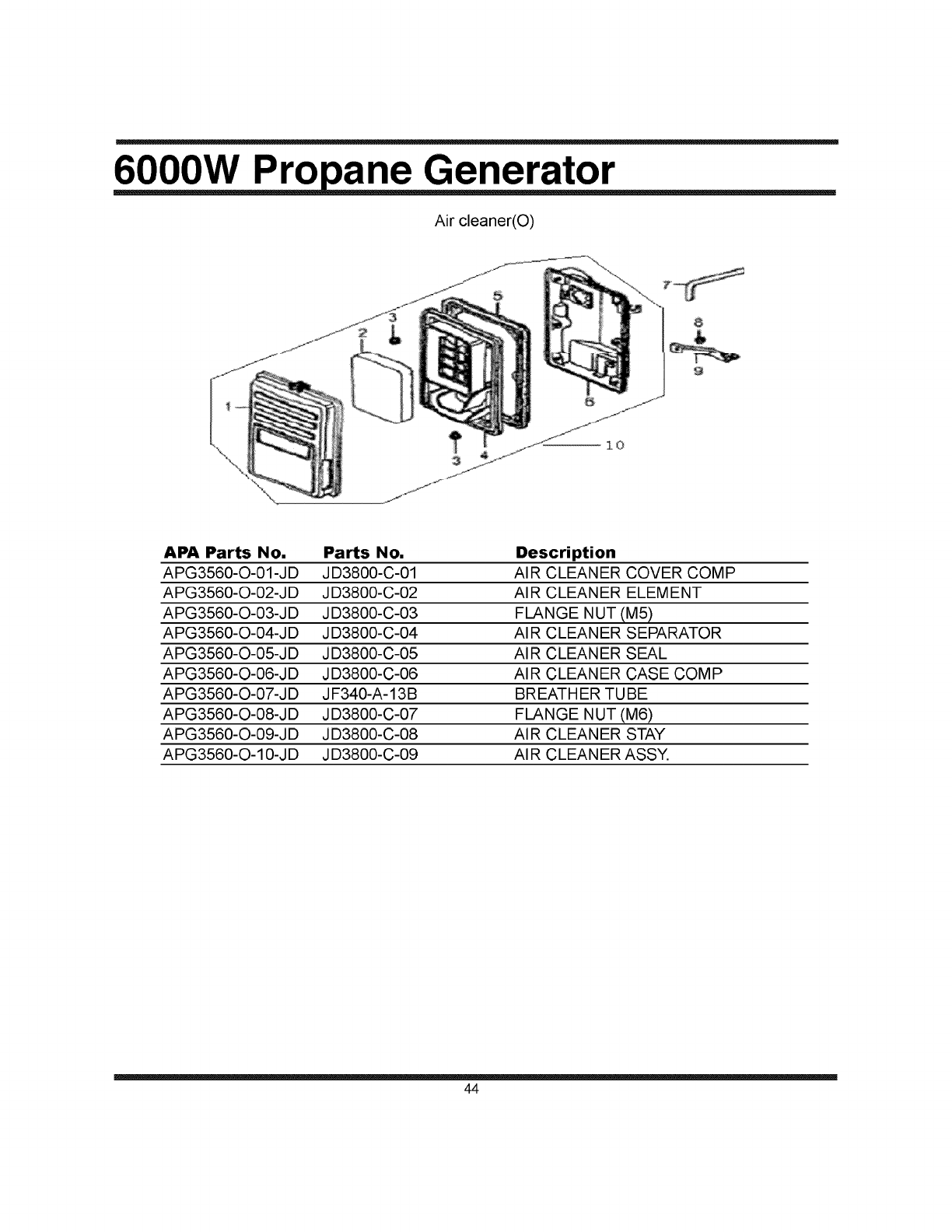

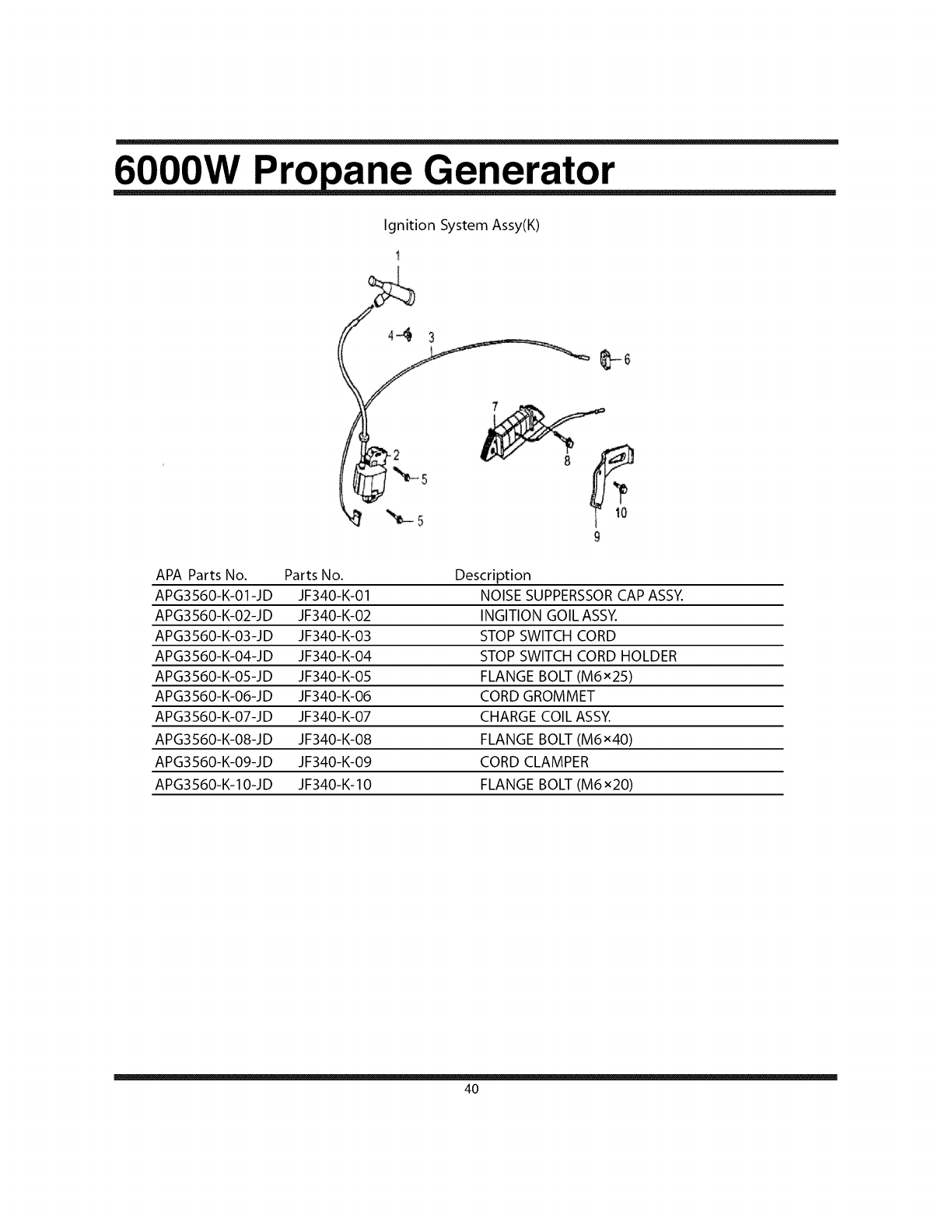

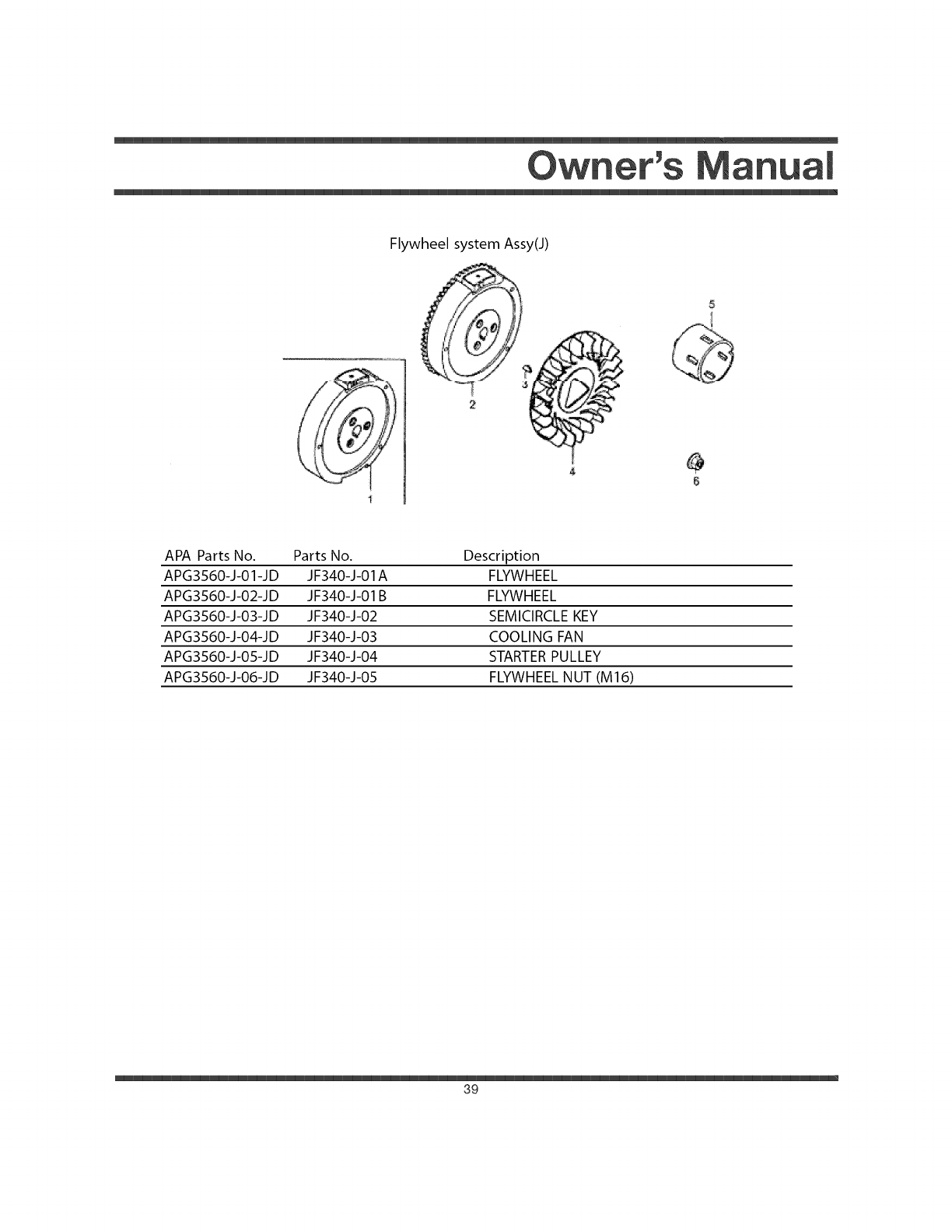

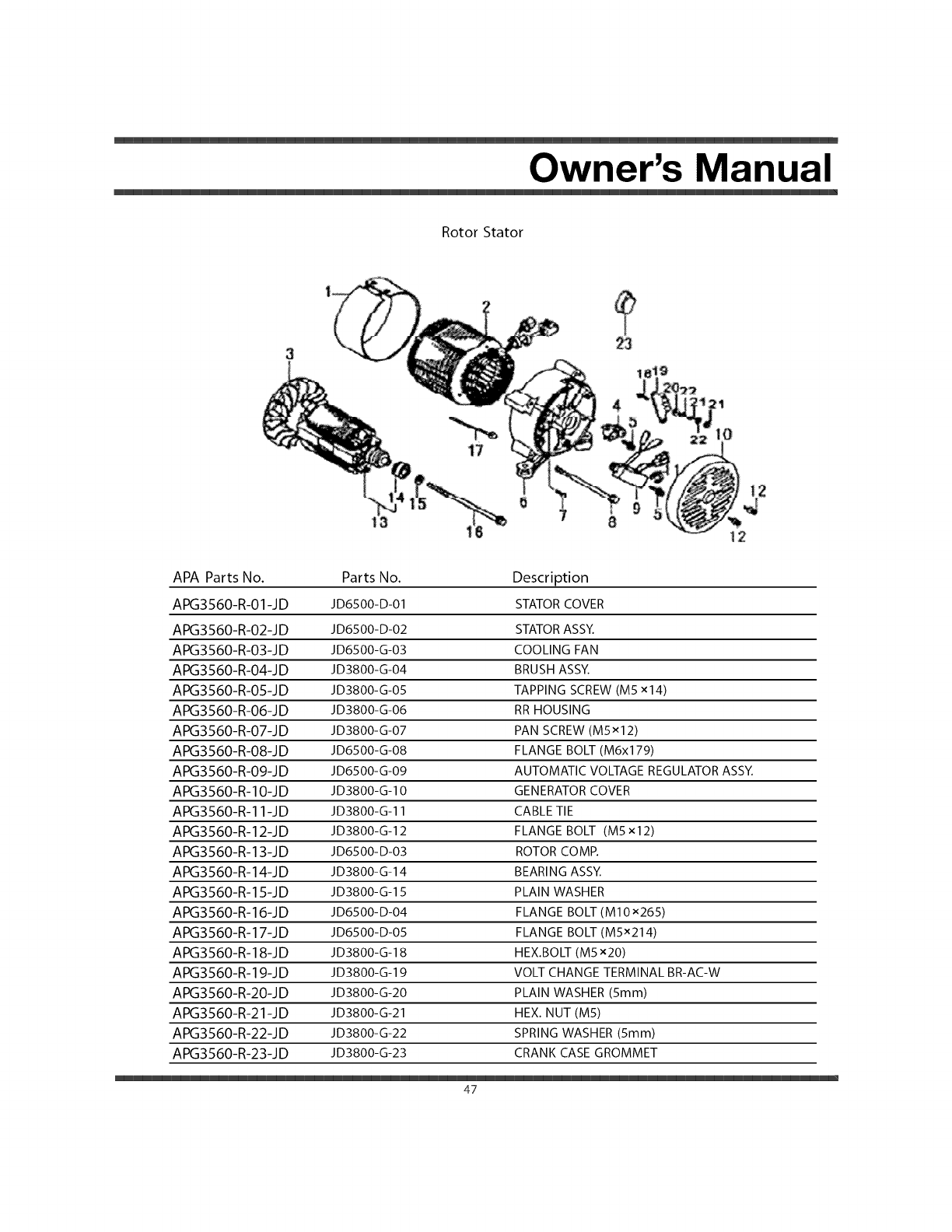

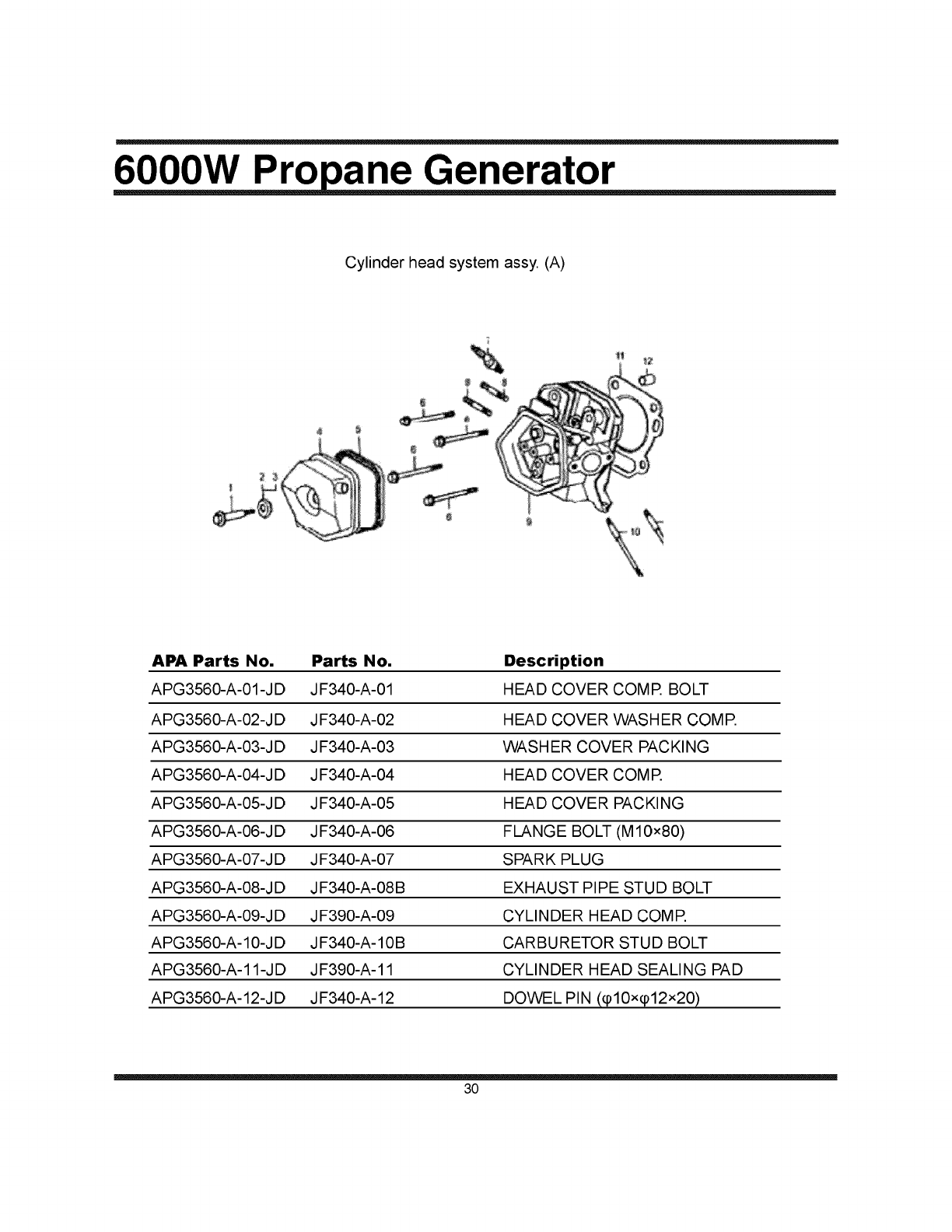

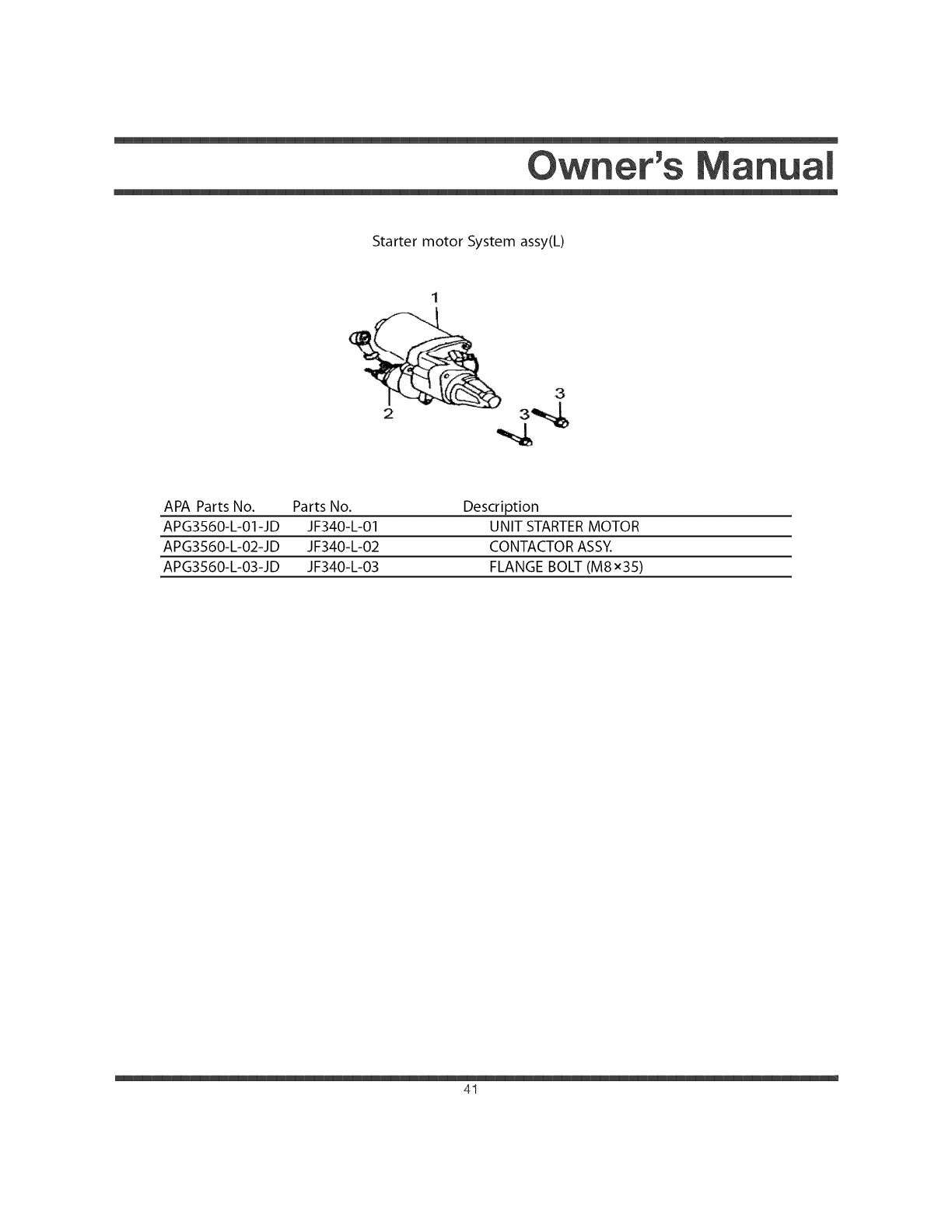

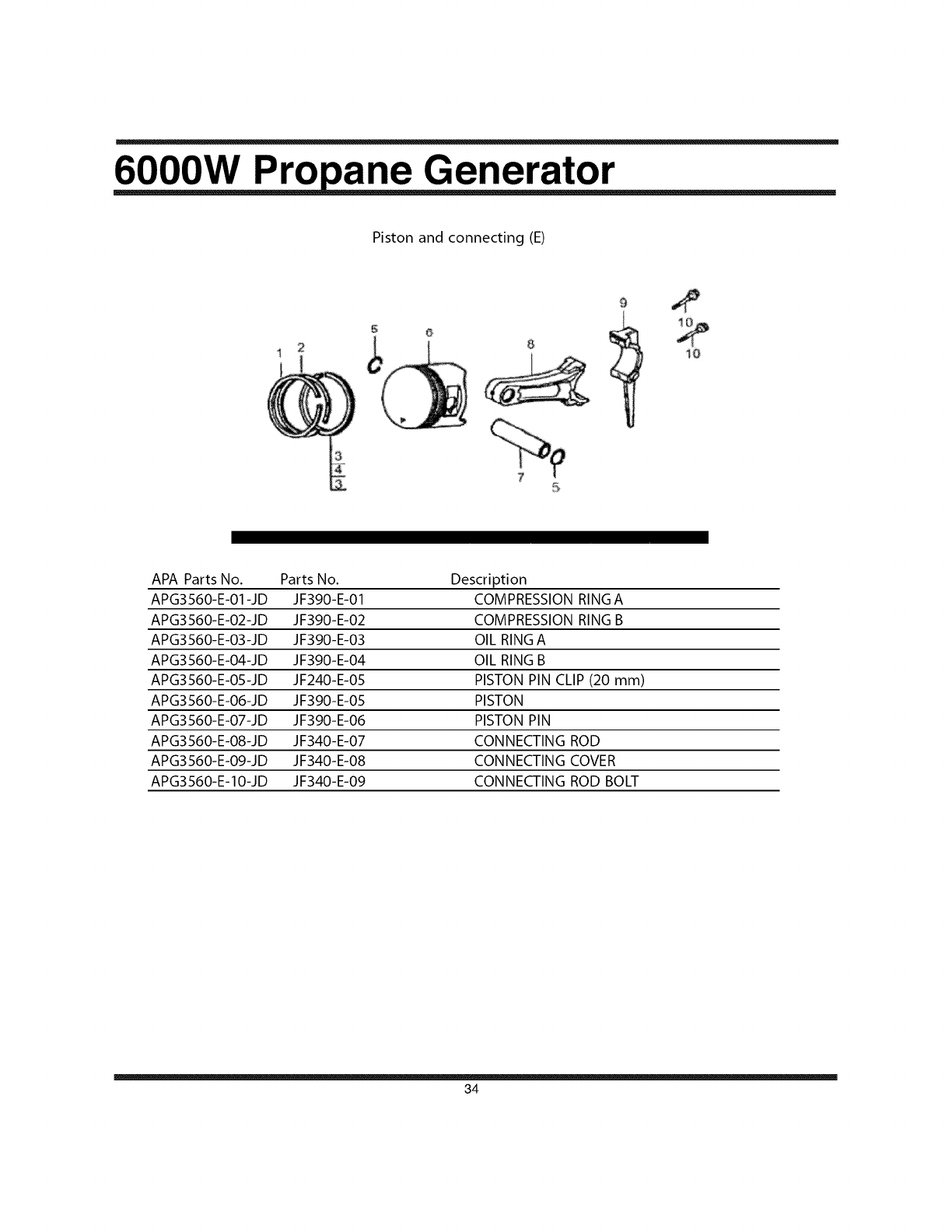

Part Lists 30
WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS
IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH
INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTY DAMAGE, AND/OR VOIDING OF YOUR
WARRANTY. GENTRON® WILL NOT BE LIABLE FOR ANY
DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.
2
Owner's anual

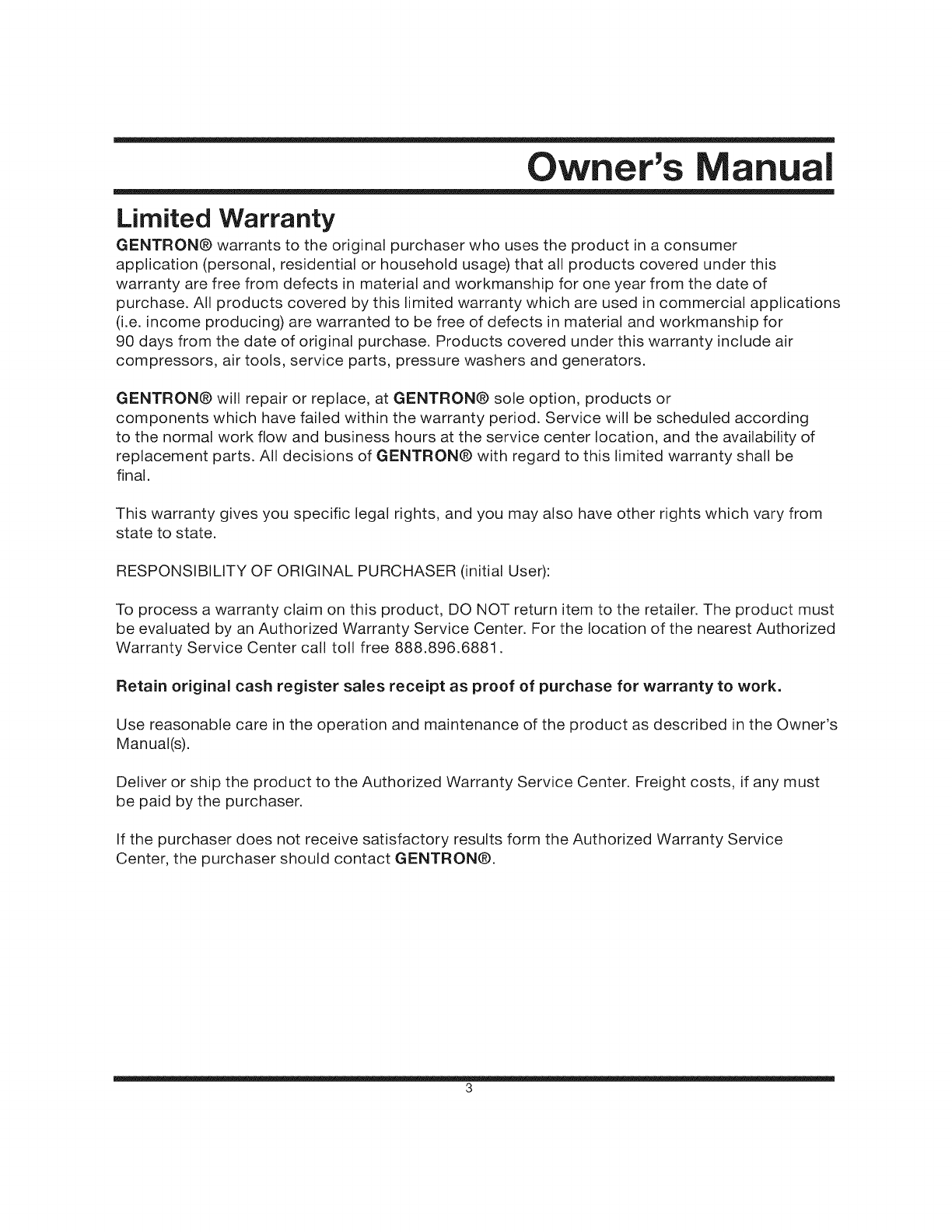

Limited Warranty
GENTRON® warrants to the original purchaser who uses the product in a consumer
application (personal, residential or household usage) that all products covered under this
warranty are free from defects in material and workmanship for one year from the date of
purchase. All products covered by this limited warranty which are used in commercial applications
(i.e. income producing) are warranted to be free of defects in material and workmanship for
90 days from the date of original purchase. Products covered under this warranty include air
compressors, air tools, service parts, pressure washers and generators.
GENTRON® will repair or replace, at GENTRON® sole option, products or
components which have failed within the warranty period. Service will be scheduled according
to the normal work flow and business hours at the service center location, and the availability of
replacement parts. All decisions of GENTRON® with regard to this limited warranty shall be
final.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
RESPONSIBILITY OF ORIGINAL PURCHASER (initial User):
To process a warranty claim on this product, DO NOT return item to the retailer. The product must
be evaluated by an Authorized Warranty Service Center. For the location of the nearest Authorized
Warranty Service Center call toll free 888.896.6881.
Retain original cash register sales receipt as proof of purchase for warranty to work.
Use reasonable care in the operation and maintenance of the product as described in the Owner's
Manual(s).
Deliver or ship the product to the Authorized Warranty Service Center. Freight costs, if any must
be paid by the purchaser.
If the purchaser does not receive satisfactory results form the Authorized Warranty Service
Center, the purchaser should contact GENTRON@.
3
6000W Propane Gener; :or

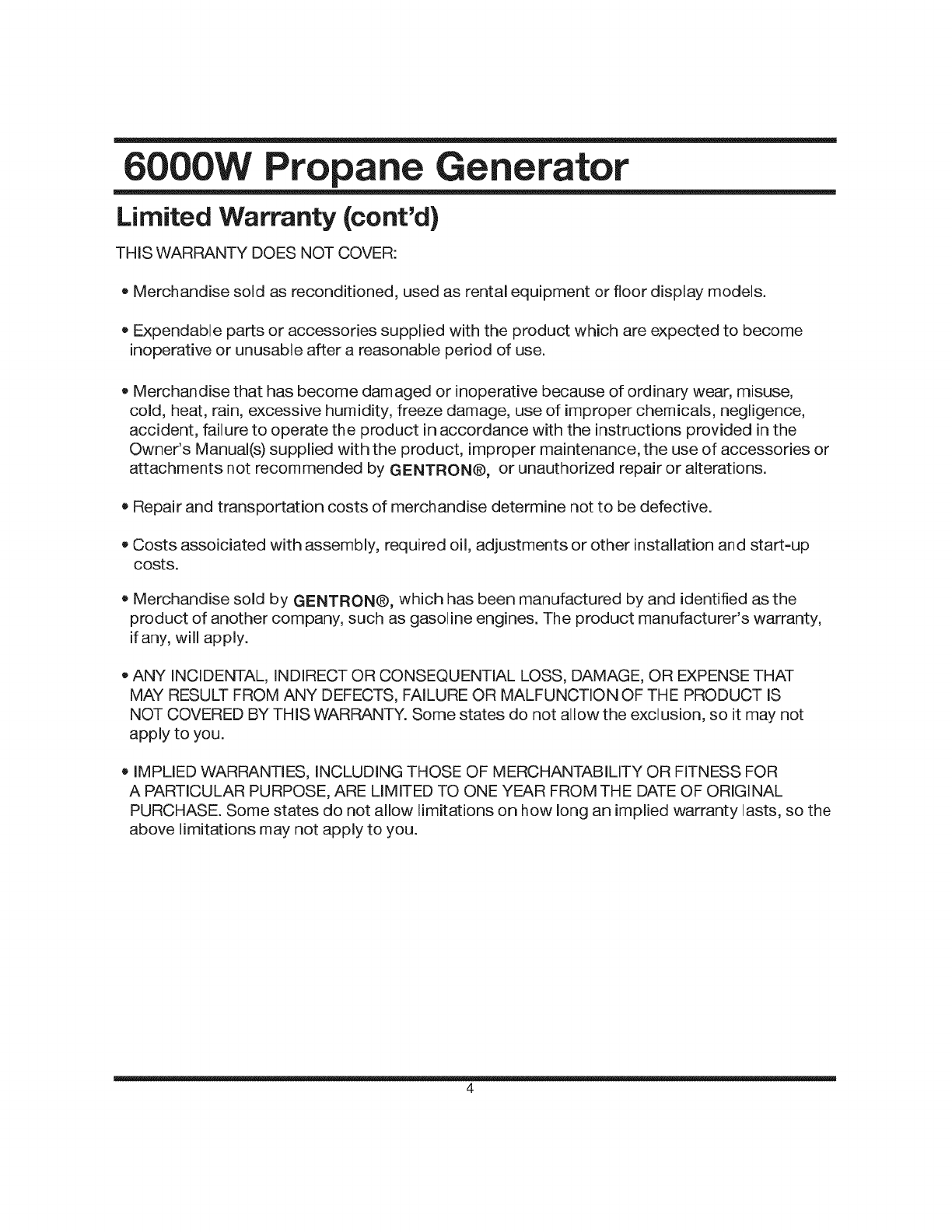

Limited Warranty (cont'd)
THIS WARRANTY DOES NOT COVER:
,, Merchandise sold as reconditioned, used as rental equipment or floor display models.
,, Expendable parts or accessories supplied with the product which are expected to become
inoperative or unusable after a reasonable period of use.
,, Merchandise that has become damaged or inoperative because of ordinary wear, misuse,
cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals, negligence,
accident, failure to operate the product in accordance with the instructions provided in the
Owner's Manual(s) supplied with the product, improper maintenance, the use of accessories or
attachments not recommended by GENTRON®, or unauthorized repair or alterations.
• Repair and transportation costs of merchandise determine not to be defective.
-Costs assoiciated with assembly, required oil, adjustments or other installation and start=up
costs.
• Merchandise sold by GENTRON®, which has been manufactured by and identified as the
product of another company, such as gasoline engines. The product manufacturer's warranty,
if any, will apply.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT
MAY RESULT FROM ANY DEFECTS, FAILURE OR MALFUNCTION OF THE PRODUCT IS
NOT COVERED BY THIS WARRANTY. Some states do not allow the exclusion, so it may not
apply to you.
• IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR FROM THE DATE OF ORIGINAL
PURCHASE. Some states do not allow limitations on how long an implied warranty lasts, so the
above limitations may not apply to you.
4
Owner's Manual

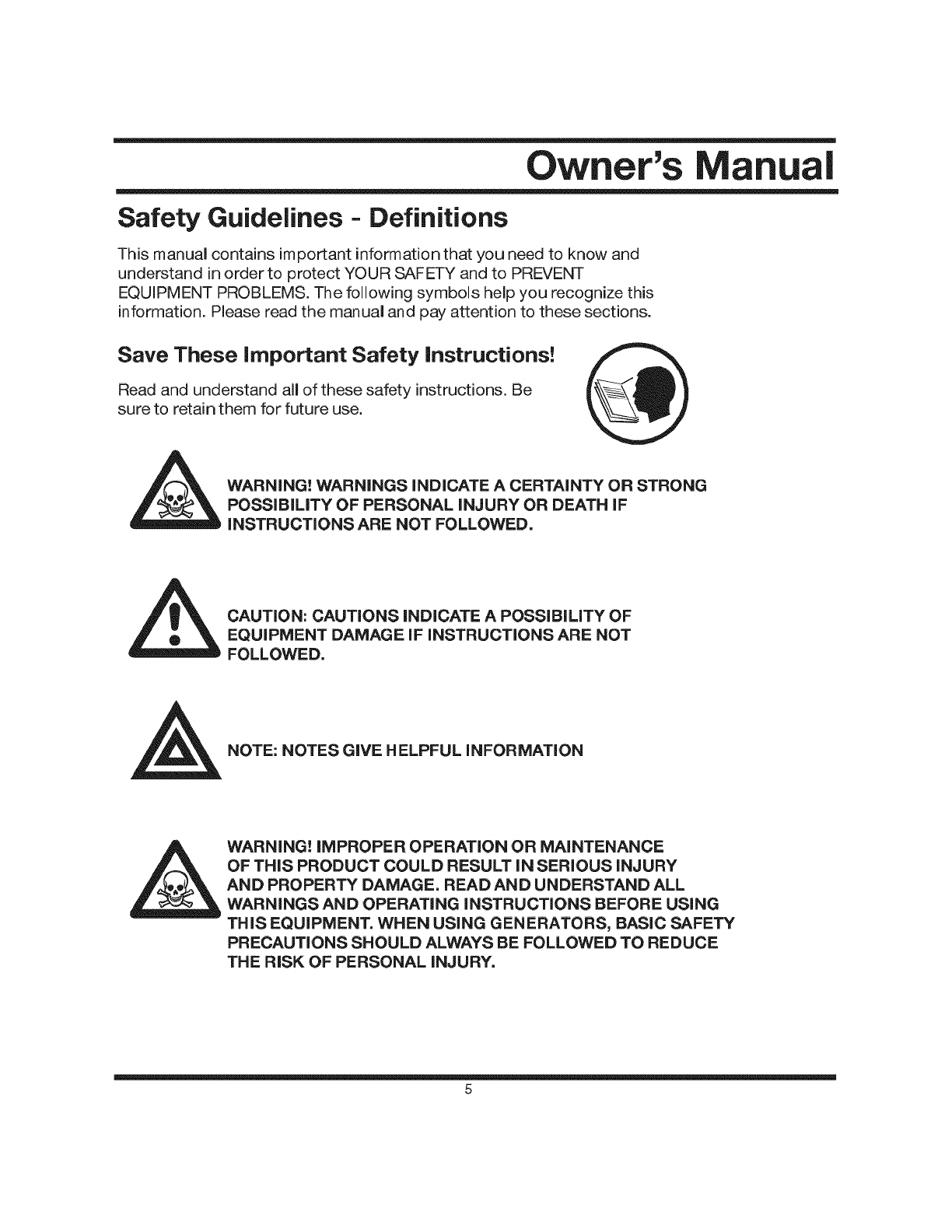

Safety Guidelines = Definitions
This manual contains important information that you need to know and
understand in order to protect YOUR SAFETY and to PREVENT
EQUIPMENT PROBLEMS. The following symbols help you recognize this
information. Please read the manual and pay attention to these sections.
Save These important Safety instructions!
Read and understand all of these safety instructions. Be
sure to retain them for future use.
WARNING! WARNINGS INDICATE A CERTAINTY OR STRONG
POSSIBILITY OF PERSONAL INJURY OR DEATH IF
INSTRUCTIONS ARE NOT FOLLOWED.
CAUTION: CAUTIONS iNDiCATE APOSSiBiLiTY OF
EQUIPMENT DAMAGE IF INSTRUCTIONS ARE NOT
FOLLOWED.
NOTE: NOTES GiVE HELPFUL INFORMATION
WARNING! iMPROPER OPERATION OR MAINTENANCE
OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY
AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL
WARNINGS AND OPERATING iNSTRUCTIONS BEFORE USING
THIS EQUIPMENT. WHEN USING GENERATORS, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RiSK OF PERSONAL iNJURY.
5
6000W Propane Generator
General Precautions
WARNING! FAILURE TO FOLLOW THESE iNSTRUCTiONS CAN RESULT iN
SEVERE iNJURY OR DEATH.
DANGER
Carbon Monoxide
Using agenerator indoors WiLL KiLL YOU iN MINUTES.
Carbon Monoxide
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see
or smell. If you can smell the generator exhaust, you are breathing CO. But even If you cannot smell
the exhaust, you could be breathing CO.
•NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly
levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors
does NOT supply enough fresh air.
• ONLY use a generator outdoors and far away from open windows, doors, and vents. These
openings can pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS use a
battery-powered or battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT
AWAY. See a doctor. You could have carbon monoxide poisoning.
Fuel and Oil
This product requires oil and fuel. Attempting to start the engine without oil will ruin
the engine and void the warranty. Work in well ventilated area. Keep cigarettes,
flames or sparks away from the work area or where fuel is stored.
AWARNING! PROPANE IS EXTREMELY FLAMMABLE AND IS EXPLOSIVE
UNDER CERTAIN CONDITIONS. KEEP OUT OF REACH OF CHILDREN.
• Propane fuel and fumes are flammable and potentially explosive. Use proper fuel storage and
handling procedures. Always have multiple ABC class fire extinguishers nearby.
Keep the generator and surrounding area clean at all times.
Fuel or oil spills must be cleaned up immediately. Dispose of fluids and cleaning materials as per
any local, state, or federal codes and regulations. Store oily rags in a covered metal container.
Never store fuel or other flammable materials near the generator.
6
OwneF s al'lual

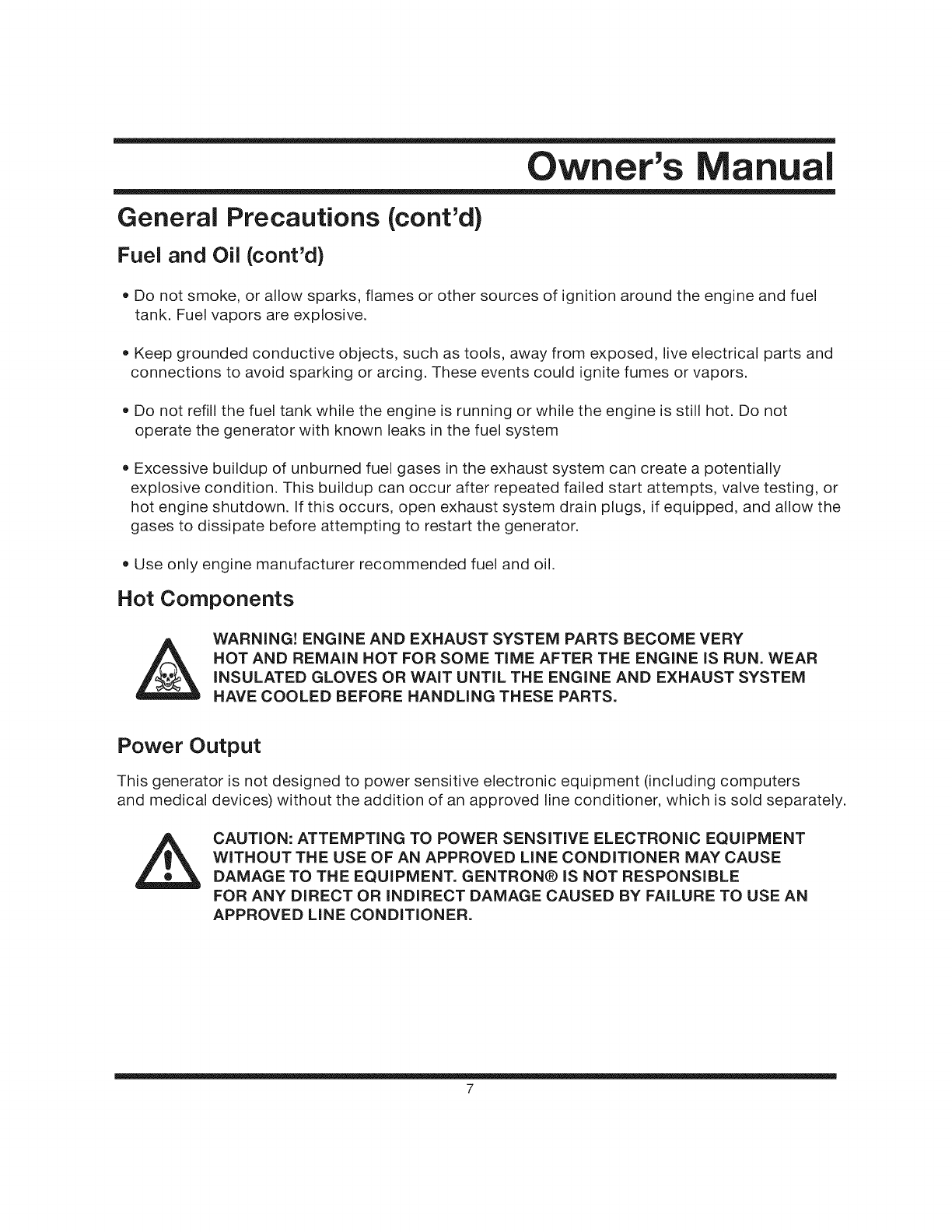

General Precautions (cont'd)
Fuel and Oil (cont'd)
• Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel
tank. Fuel vapors are explosive.
Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and
connections to avoid sparking or arcing. These events could ignite fumes or vapors.
Do not refill the fuel tank while the engine is running or while the engine is still hot. Do not
operate the generator with known leaks in the fuel system
Excessive buildup of unburned fuel gases in the exhaust system can create a potentially
explosive condition. This buildup can occur after repeated failed start attempts, valve testing, or
hot engine shutdown. If this occurs, open exhaust system drain plugs, if equipped, and allow the
gases to dissipate before attempting to restart the generator.
Use only engine manufacturer recommended fuel and oil.
Hot Components
WARNING! ENGINE AND EXHAUST SYSTEM PARTS BECOME VERY
HOT AND REMAIN HOT FOR SOME TiME AFTER THE ENGINE IS RUN. WEAR
iNSULATED GLOVES OR WAiT UNTIL THE ENGINE AND EXHAUST SYSTEM
HAVE COOLED BEFORE HANDLING THESE PARTS.
Power Output
This generator is not designed to power sensitive electronic equipment (including computers
and medical devices) without the addition of an approved line conditioner, which is sold separately.
CAUTION: ATTEMPTING TO POWER SENSITIVE ELECTRONIC EQUIPMENT
WITHOUT THE USE OF AN APPROVED LiNE CONDITIONER MAY CAUSE
DAMAGE TO THE EQUIPMENT. GENTRON® IS NOT RESPONSIBLE
FOR ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE TO USE AN
APPROVED LINE CONDITIONER.
7
6000W Propane Generator

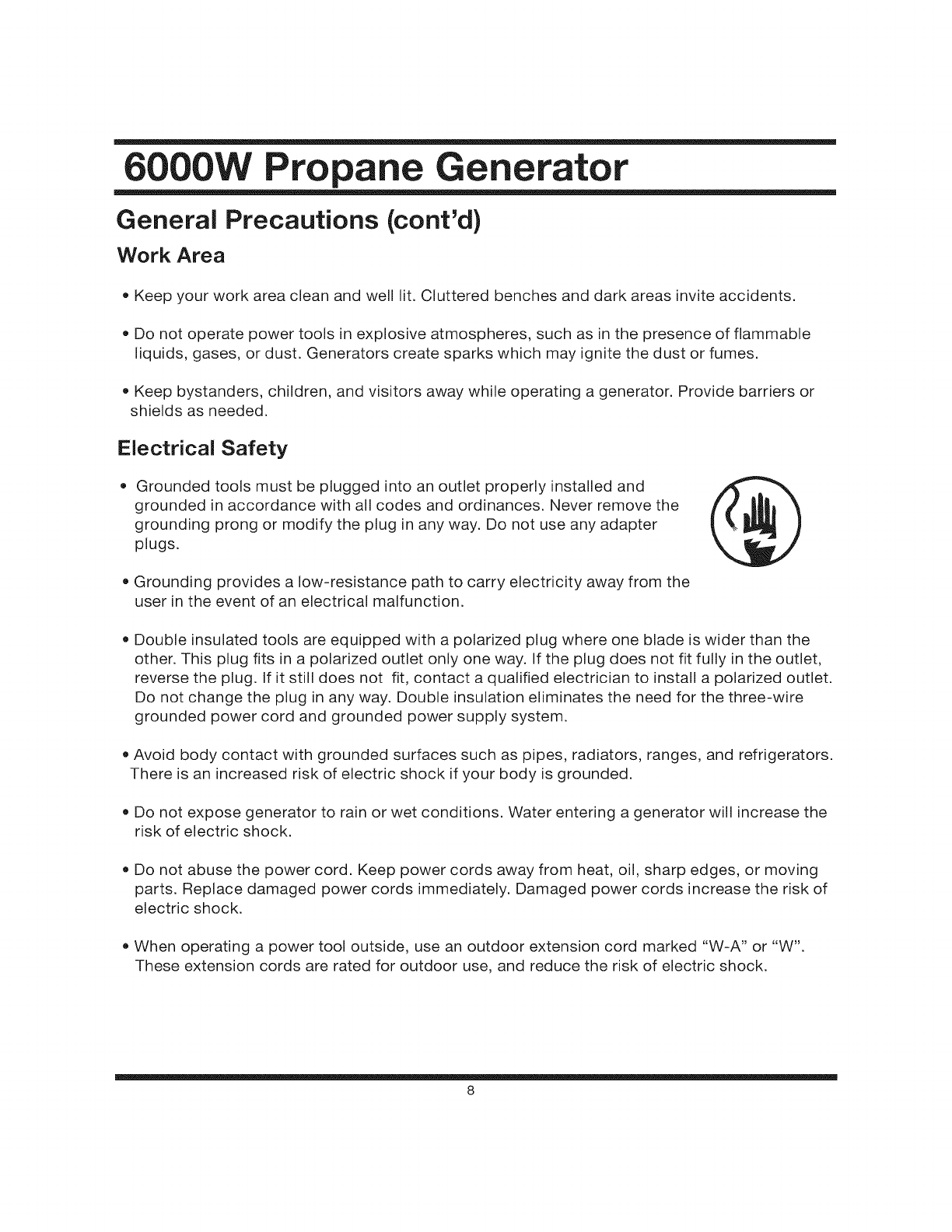

General Precautions (cont'd)
Work Area
+ Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
+ Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Generators create sparks which may ignite the dust or fumes.
+ Keep bystanders, children, and visitors away while operating a generator. Provide barriers or
shields as needed.
Electrical Safety
+ Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs.
+ Grounding provides a low-resistance path to carry electricity away from the
user in the event of an electrical malfunction.
+ Double insulated tools are equipped with a polarized plug where one blade is wider than the
other. This plug fits in a polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet.
Do not change the plug in any way. Double insulation eliminates the need for the three-wire
grounded power cord and grounded power supply system.
+ Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators.
There is an increased risk of electric shock if your body is grounded.
• Do not expose generator to rain or wet conditions. Water entering a generator will increase the
risk of electric shock.
+ Do not abuse the power cord. Keep power cords away from heat, oil, sharp edges, or moving
parts. Replace damaged power cords immediately. Damaged power cords increase the risk of
electric shock.
+ When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W".
These extension cords are rated for outdoor use, and reduce the risk of electric shock.
8
Owner's anual
General Precautions (cont'd)

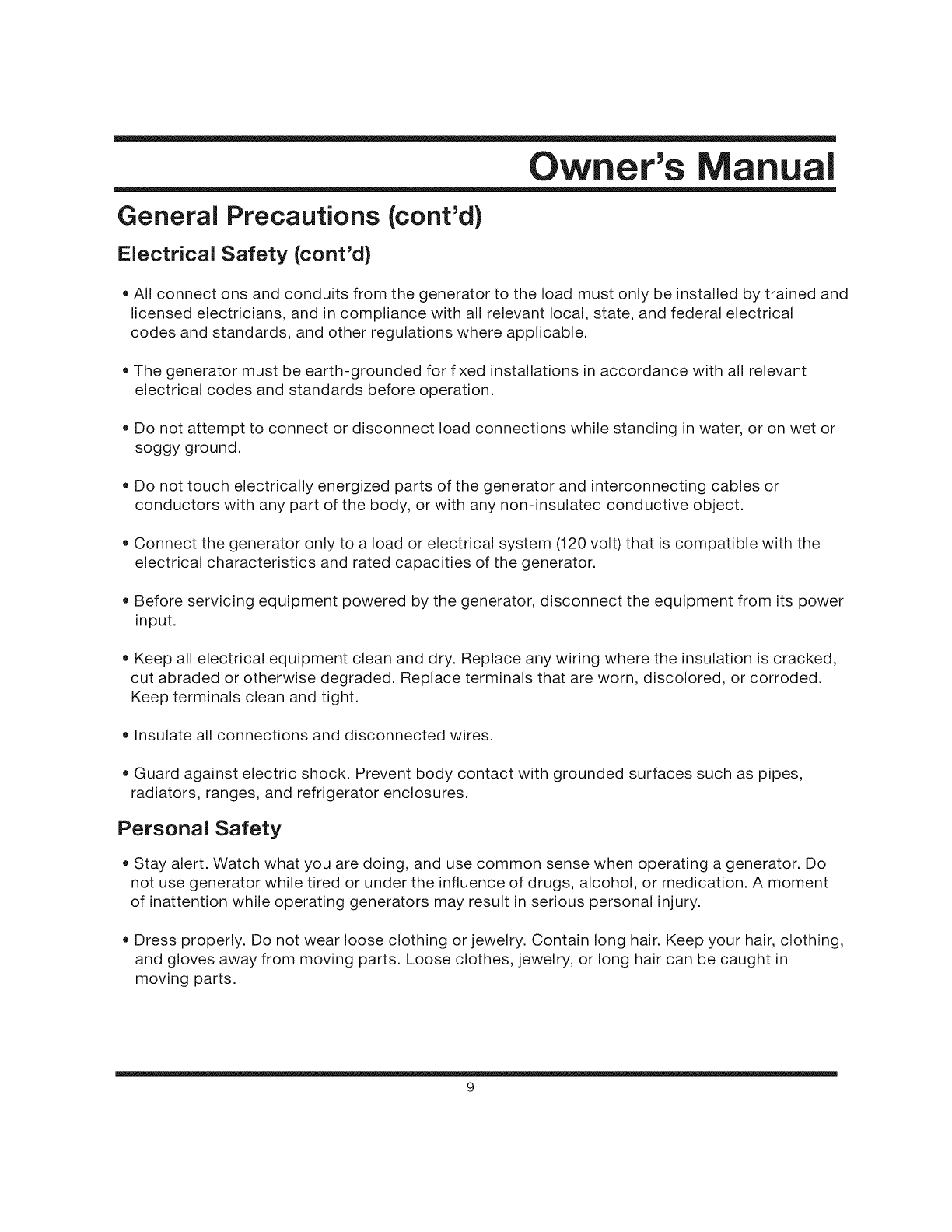

Electrical Safety (cont'd)
• All connections and conduits from the generator to the load must only be installed by trained and
licensed electricians, and in compliance with all relevant local, state, and federal electrical
codes and standards, and other regulations where applicable.
The generator must be earth-grounded for fixed installations in accordance with all relevant
electrical codes and standards before operation.
Do not attempt to connect or disconnect load connections while standing in water, or on wet or
soggy ground.
Do not touch electrically energized parts of the generator and interconnecting cables or
conductors with any part of the body, or with any non-insulated conductive object.
Connect the generator only to a load or electrical system (120 volt) that is compatible with the
electrical characteristics and rated capacities of the generator.
Before servicing equipment powered by the generator, disconnect the equipment from its power
input.
Keep all electrical equipment clean and dry. Replace any wiring where the insulation is cracked,
cut abraded or otherwise degraded. Replace terminals that are worn, discolored, or corroded.
Keep terminals clean and tight.
Insulate all connections and disconnected wires.
Guard against electric shock. Prevent body contact with grounded surfaces such as pipes,
radiators, ranges, and refrigerator enclosures.
Personal Safety
Stay alert. Watch what you are doing, and use common sense when operating a generator. Do
not use generator while tired or under the influence of drugs, alcohol, or medication. A moment
of inattention while operating generators may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing,
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in
moving parts.
9
6000W Pro ane Generator

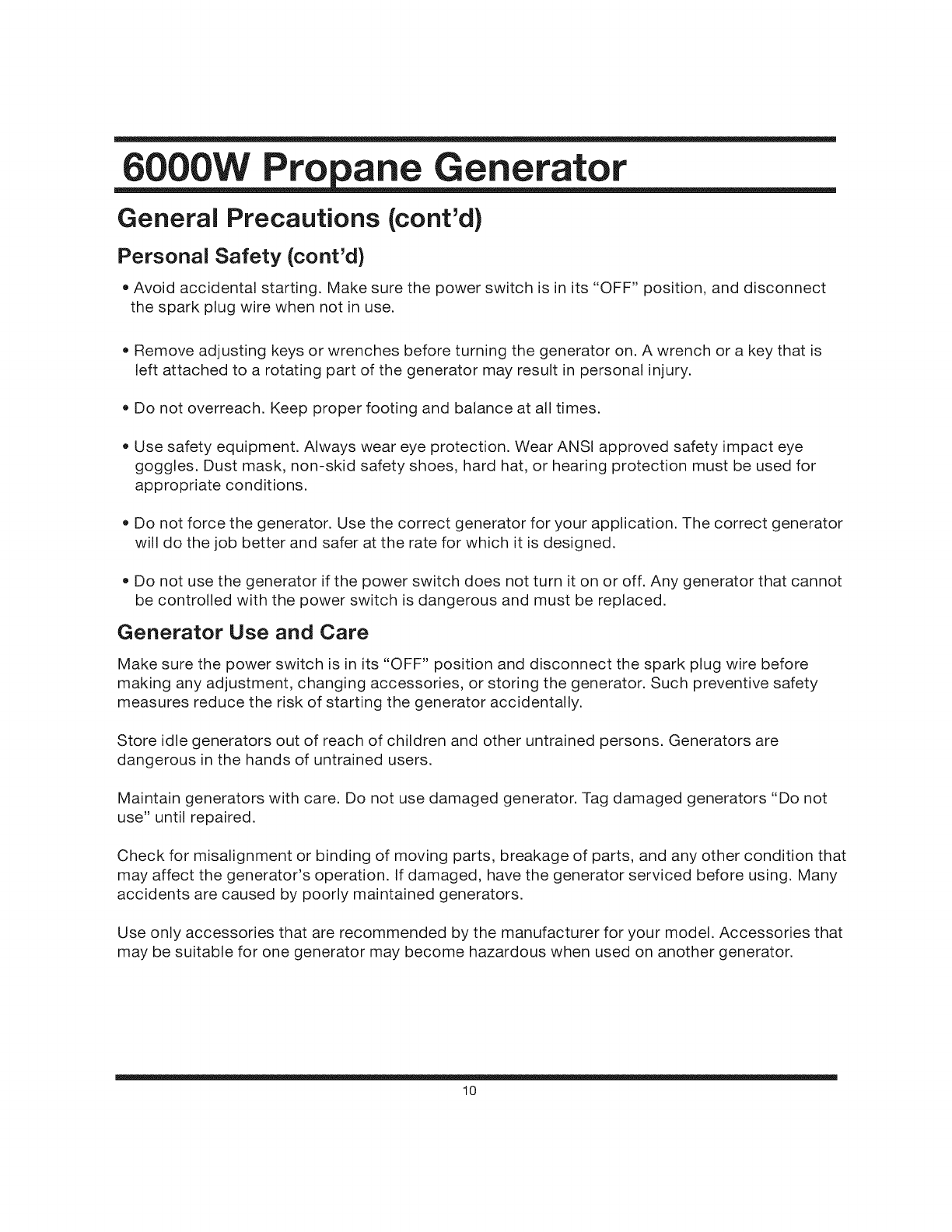

General Precautions (cont'd)
Personal Safety (cont'd)
=Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect
the spark plug wire when not in use.
• Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is
left attached to a rotating part of the generator may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
Use safety equipment. Always wear eye protection. Wear ANSI approved safety impact eye
goggles. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for
appropriate conditions.
Do not force the generator. Use the correct generator for your application. The correct generator
will do the job better and safer at the rate for which it is designed.
Do not use the generator if the power switch does not turn it on or off. Any generator that cannot
be controlled with the power switch is dangerous and must be replaced.
Generator Use and Care
Make sure the power switch is in its "OFF" position and disconnect the spark plug wire before
making any adjustment, changing accessories, or storing the generator. Such preventive safety
measures reduce the risk of starting the generator accidentally.
Store idle generators out of reach of children and other untrained persons. Generators are
dangerous in the hands of untrained users.
Maintain generators with care. Do not use damaged generator. Tag damaged generators "Do not
use" until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and any other condition that
may affect the generator's operation. If damaged, have the generator serviced before using. Many
accidents are caused by poorly maintained generators.
Use only accessories that are recommended by the manufacturer for your model. Accessories that
may be suitable for one generator may become hazardous when used on another generator.
10

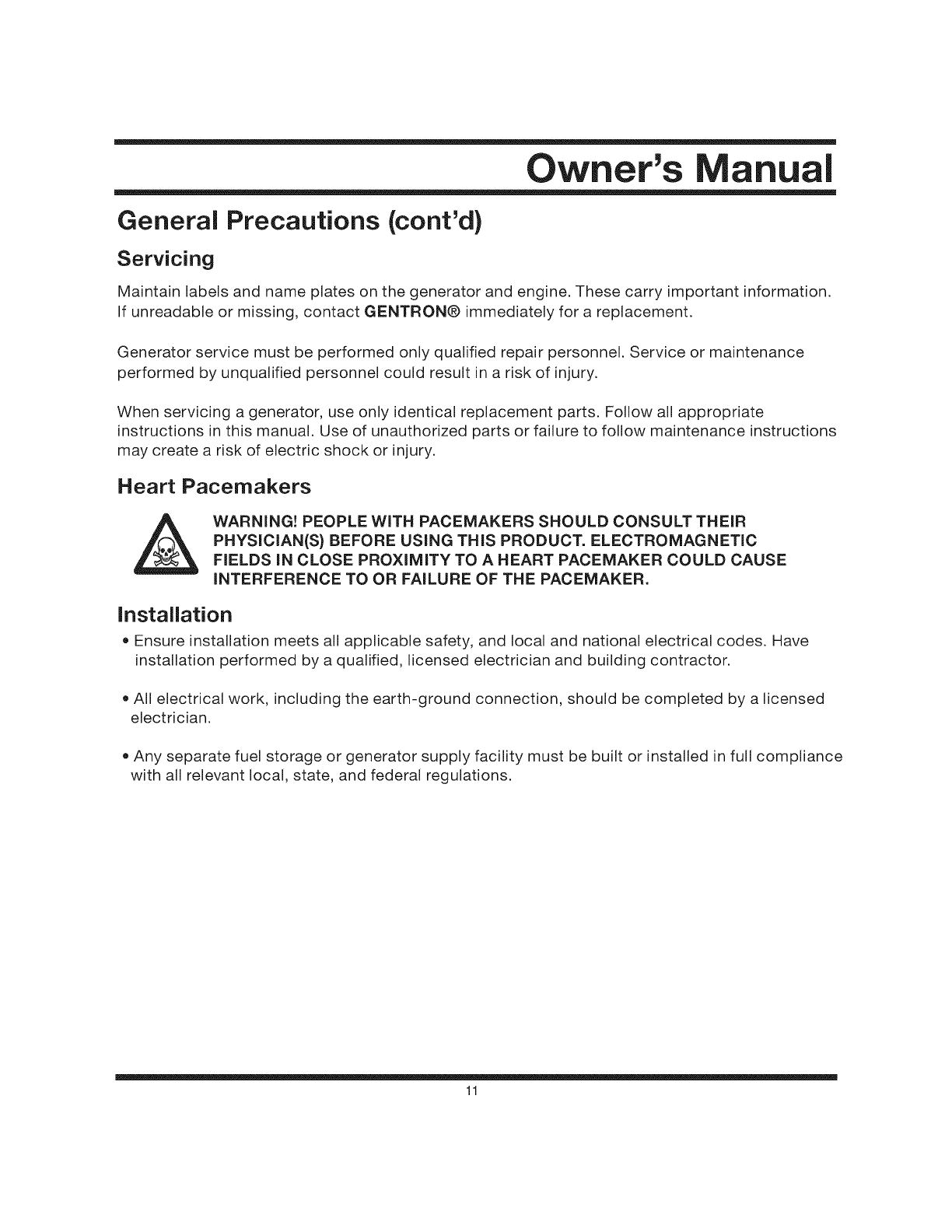

Owner's Manual
General Precautions (cont'd)
Servicing
Maintain labels and name plates on the generator and engine. These carry important information.
If unreadable or missing, contact GENTRON® immediately for a replacement.
Generator service must be performed only qualified repair personnel. Service or maintenance
performed by unqualified personnel could result in a risk of injury.
When servicing a generator, use only identical replacement parts. Follow all appropriate
instructions in this manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
Heart Pacemakers
WARNING! PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR
PHYSICIAN(S} BEFORE USING THIS PRODUCT. ELECTROMAGNETIC
FIELDS IN CLOSE PROXIMITY TO A HEART PACEMAKER COULD CAUSE
INTERFERENCE TO OR FAILURE OF THE PACEMAKER.
Installation
• Ensure installation meets all applicable safety, and local and national electrical codes. Have
installation performed by a qualified, licensed electrician and building contractor.
All electrical work, including the earth-ground connection, should be completed by a licensed
electrician.
Any separate fuel storage or generator supply facility must be built or installed in full compliance
with all relevant local, state, and federal regulations.
11

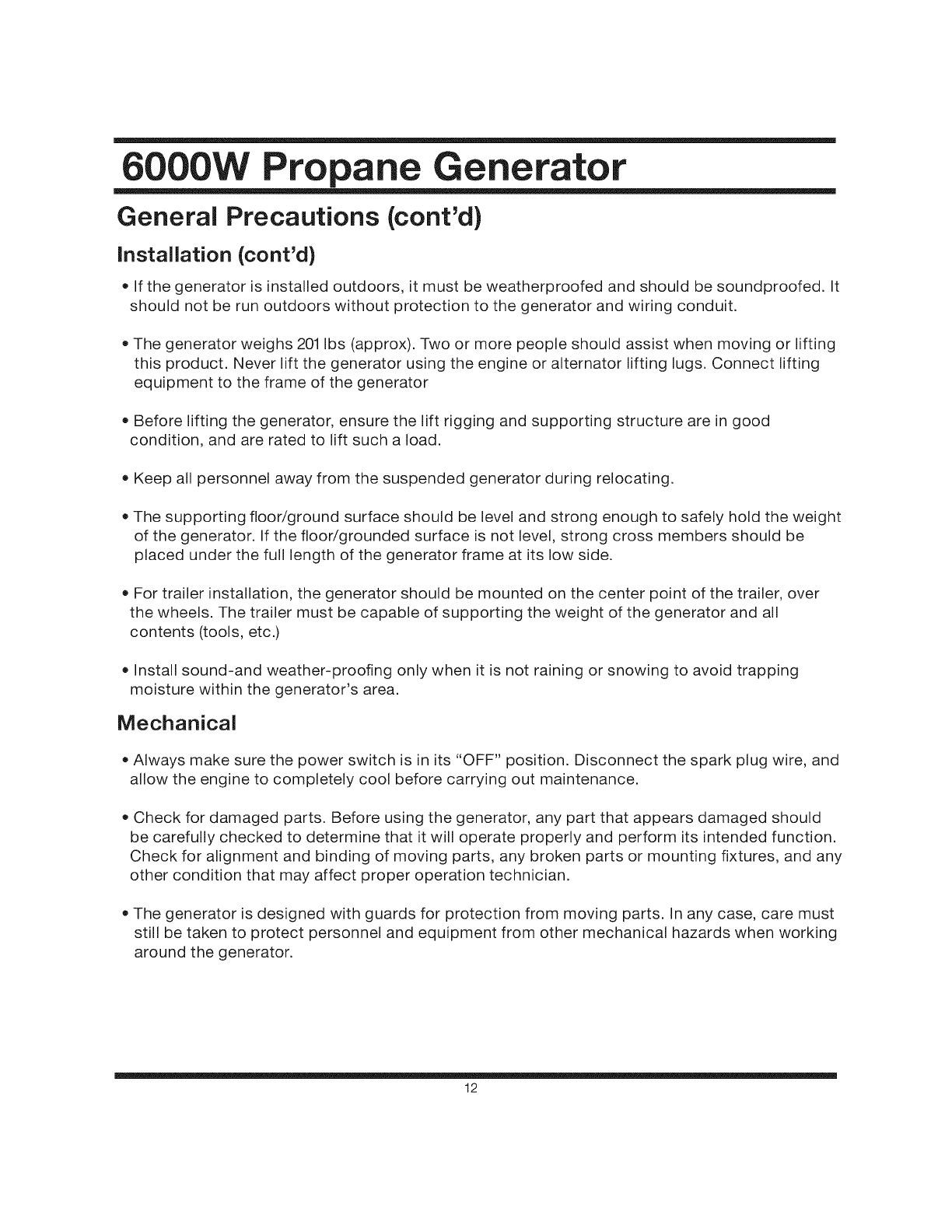

6000W Propane Generator
General Precautions (cont'd)
installation (cont'd)
If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It
should not be run outdoors without protection to the generator and wiring conduit.
• The generator weighs 201 Ibs (approx). Two or more people should assist when moving or lifting
this product. Never lift the generator using the engine or alternator lifting lugs. Connect lifting
equipment to the frame of the generator
Before lifting the generator, ensure the lift rigging and supporting structure are in good
condition, and are rated to lift such a load.
Keep all personnel away from the suspended generator during relocating.
The supporting floor/ground surface should be level and strong enough to safely hold the weight
of the generator. If the floor/grounded surface is not level, strong cross members should be
placed under the full length of the generator frame at its low side.
For trailer installation, the generator should be mounted on the center point of the trailer, over
the wheels. The trailer must be capable of supporting the weight of the generator and all
contents (tools, etc.)
Install sound-and weather-proofing only when it is not raining or snowing to avoid trapping
moisture within the generator's area.
Mechanical
Always make sure the power switch is in its "OFF" position. Disconnect the spark plug wire, and
allow the engine to completely cool before carrying out maintenance.
Check for damaged parts. Before using the generator, any part that appears damaged should
be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment and binding of moving parts, any broken parts or mounting fixtures, and any
other condition that may affect proper operation technician.
The generator is designed with guards for protection from moving parts. In any case, care must
still be taken to protect personnel and equipment from other mechanical hazards when working
around the generator.
12
Owner's anLlal
General Precautions (cont'd)
Mechanical (cont'd)
• Do not operate the generator with safety guards removed. While the generator is running, do not
attempt to reach around the safety guard for maintenance or any other reason.
Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts. Be aware that
when engine parts are moving fast they cannot be seen clearly.
Keep access doors on enclosures closed and locked when access is not required.
When working on or around the generator always wear protective clothing including ANSI
approved safety gloves, safety eye goggles, and safety hat.
Do not alter or adjust any part of the generator that is assembled and supplied by the
manufacturer.
Always follow and complete scheduled engine and generator maintenance.
Chemicals
Avoid contact with hot fuel, oil, exhaust fumes, and hot solid surfaces.
Avoid body contact with fuels, oils, and lubricants used in the generator. If swallowed, seek
medical treatment immediately. Do not induce vomiting if fuel is swallowed. For skin contact,
immediately wash with soap and water. For eye contact, immediately flush eyes with clean water
and seek medical attention.
Noise
Prolonged exposure to noise levels above 68 DBA is hazardous to hearing. Always wear ANSI
approved ear protection when operating or working around the generator when it is running.
13
General Precautions _cont'd)
Extension Cord
If an extension cord (not incnuded) is used, make sure to use onny UL approved cords having the
correct gauge and Uength according to the foUlowing tame:
Namepnate Amps {@ Cord Lengths
fuji moad)
Oft,- 50ft, 50 ft,-i00 ft. 100 ft,-150 ft. 150 ft,-200 ft,
0_5 16 AWG 16 Awe 72 AWG 12AWe
5.1 - 8 16 AWG 14 AWG 10 AWG -
8.1 - 12 14 AWG 12 AWG -
12.1 - 15 10 AWG - -
15 - 20 10 AWG 10 AWG -
14
Owner's Manual
Assembly
Wheel and handle assembly:
1) CONTENTS: Spark plug Tool +
Rod, 2 axles, 2 washers, 4 cotter
pins, 2 wheels, Stand, 4 bolts 4
nuts, and Propane line.
3) Thread the nuts onto the bolts.
5) Install wheel and washer.
2) Thread nut thru stand and
frame of the generator.
4) Install axle and push cotter pin thru
hole in frame and axle.
6) Install cotter pins.
15
6000W Pro ane Generator

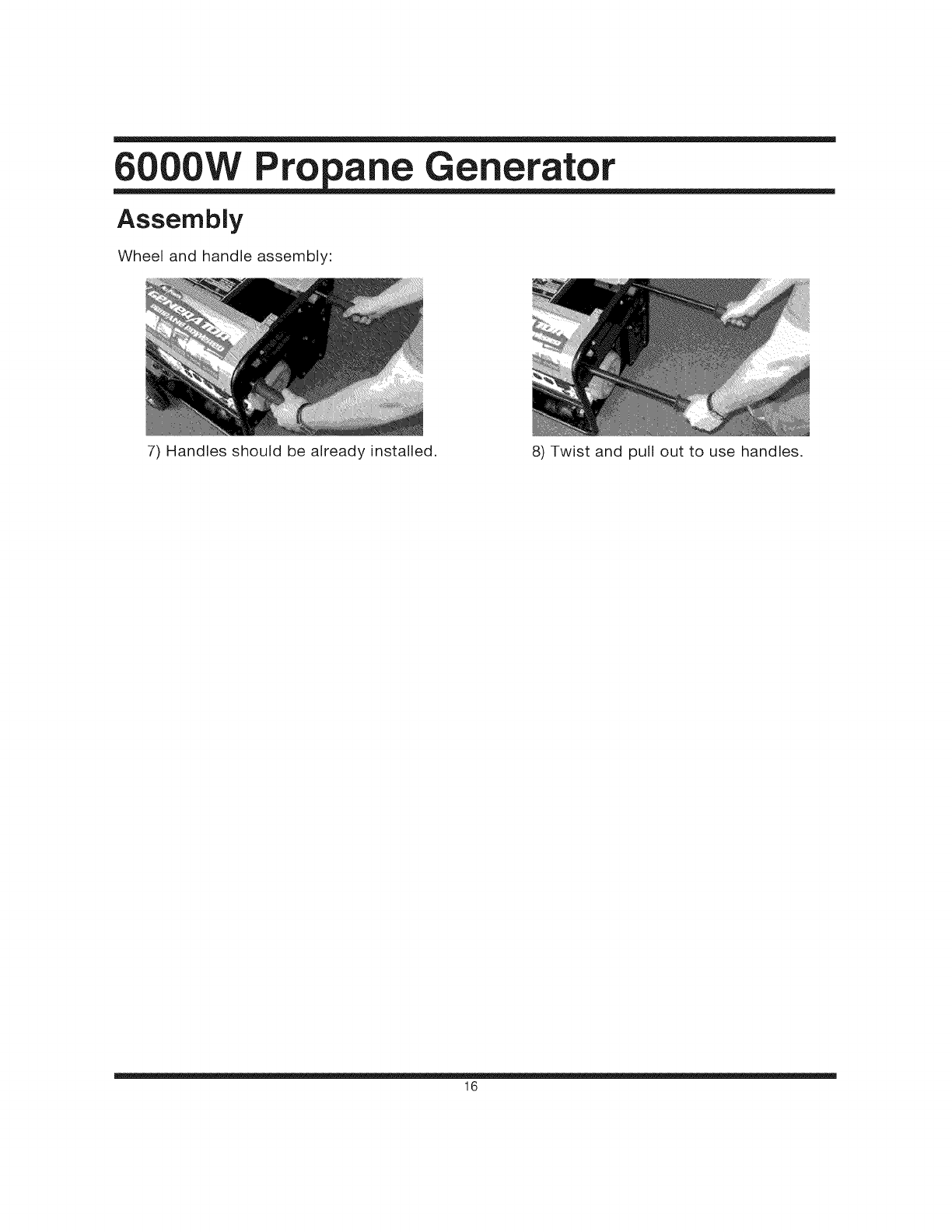

Assembly
Wheel and handle assembly:
7) Handles should be already installed. 8) Twist and pull out to use handles.
16
Owner's ual
To start this generator with th electric start you will need a battery (not included)_ You can use a
12v Lawn Tractor Battery with the following specifications: The dimensions are
Wx7.5" DxS" Hx7"(including terminals). A rated cranking amperage of 200_Terminals
are regular, not reversed. Note: Using a battery not designed for this unit may void warranty.
Also this generator can also be started with the pull start.
Photos below demonstrate battery plate attachment.
1) Bolt on plate with M6X40 bolts as shown below.
@
M6X40
2) Put the battery on the frame, have the battery assembled with the provided accessories
as shown.
_7
6000W Pro ane Generator
Propane Connection
Propane hose connection
Propane Cylinder
(NOTE: This is your
common propane
BBQ cylinder) Propane
Intake Valve
Step 1 Step 2
Insert hose connection to
generator and tighten.
Insert other end of hose to
the propane cylinder & tighten.
Generator Propane Hose. (Included)
18
Owner's Manual
Operation Purge button
Outlets
Voltage Meter
Fuel Intake Valve
Pull Start Key Start Key Start
Circuit Breaker
NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING THE
CONTROLS MENTIONED BELOW.
CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST BE
FILLED WITH OIL OF AHIGH QUALITY SAE 10W=30 GRADE ENGINE OIL.
TO DO SO, UNSCREW AND REMOVE THE ENGINE'S OIL DIPSTICK LOCATED
AT THE BOTTOM OF THE ENGINE CRANKCASE. FiLL THE ENGINE'S
CRANKCASE UNTIL THE OiL LEVEL IS LEVEL WITH THE UPPER MARKED
LINE ON THE DiPSTiCK. THEN SCREW THE DiPSTiCK BACK iNTO
THE OiL FiLL HOLE.
Fuel intake Valve: Propane hose connection.
Pull Start: Manual start.
Key Start: Key start
Key Start Circuit Breaker: Circuit breaker for key start.
Oil Fill: To check and fill oil.
Voltage Meter: Measures voltage
Outlets: Plugs for appliances, etc.
Hour Meter: Measures generator usage.
Circuit Breaker: Breaker for outlets incase of overloads.
Purge Button: To fill the generators lines with propane when cold starting.
19
6000W Propane Generator

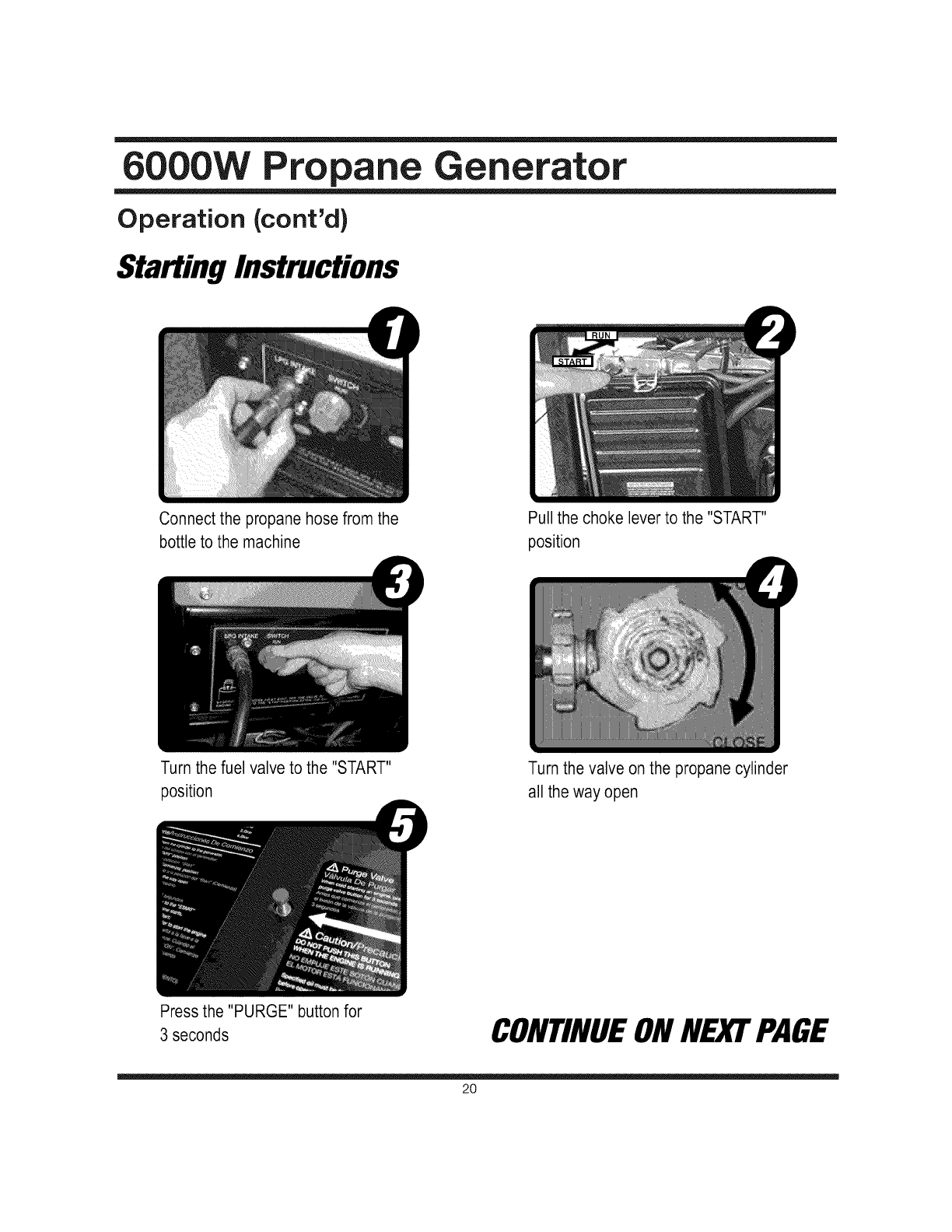

Operation (cont'd)
Starting Instructions
Connect the propanehose from the
bottleto the machine
Turnthe fuel valve to the "START"
position
Pressthe "PURGE" button for
3 seconds
Pull the choke lever to the "START"
position
Turnthe valve on the propanecylinder
all the way open
CONTINUEON NEXTPAGE
2O
Owner's anual
Operation (cont'd)
Starting Instrections 0
Battery Start: If battery is installed, turn the key to the START position & allow
the engine to crank. When engine starts, release the key back to the RUN position.
Recoil Start: Turn the key to the RUN Position. Pull the recoil starter to start.
Move the choke lever to the "RUN"
position.
Turn the fuel valve to the "RUN"
position
21

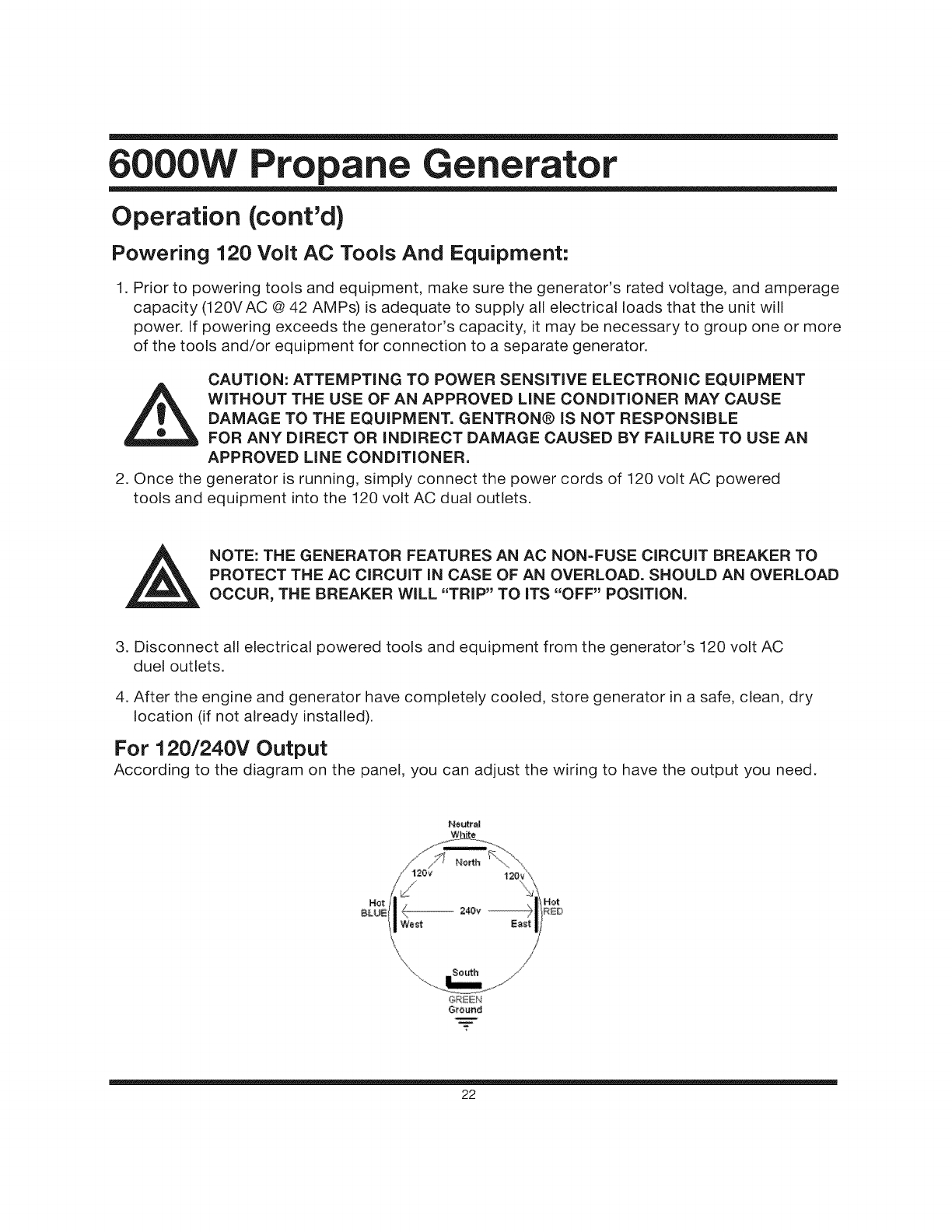

6000W Propane Generator
Operation (cont'd)
Powering 120 Volt AC Tools And Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage
capacity (120VAC @ 42 AMPs) is adequate to supply all electrical loads that the unit will
power. If powering exceeds the generator's capacity, it may be necessary to group one or more
of the tools and/or equipment for connection to a separate generator.
CAUTION: ATTEMPTING TO POWER SENSITIVE ELECTRONIC EQUIPMENT
WITHOUT THE USE OF AN APPROVED LiNE CONDiTiONER MAY CAUSE
DAMAGE TO THE EQUIPMENT. GENTRON® IS NOT RESPONSIBLE
FOR ANY DIRECT OR iNDiRECT DAMAGE CAUSED BY FAILURE TO USE AN
APPROVED LiNE CONDiTiONER.
2. Once the generator is running, simply connect the power cords of 120 volt AC powered
tools and equipment into the 120 volt AC dual outlets.
NOTE: THE GENERATOR FEATURES AN AC NON=FUSE CIRCUIT BREAKER TO
PROTECT THE AC CIRCUIT iN CASE OF AN OVERLOAD. SHOULD AN OVERLOAD
OCCUR, THE BREAKER WiLL "TRIP" TO iTS "OFF" POSiTiON.
3. Disconnect all electrical powered tools and equipment from the generator's 120 volt AC
duel outlets.
4. After the engine and generator have completely cooled, store generator in a safe, clean, dry
location (if not already installed).
For 120/240V Output
According to the diagram on the panel, you can adjust the wiring to have the output you need.
Neutra!
White
GREE_/
Ground
22
OwneF s anual
Operation (cont'd)
Powering 120/240 Volt AC Tools And Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage
capacity (120V/240 AC @ 42/21 AMPs) is adequate to supply all electrical loads that the unit will
power. If powering exceeds the generator's capacity, it may be necessary to group one or more
of the tools and/or equipment for connection to a separate generator.
CAUTION: ATTEMPTING TO POWER SENSiTiVE ELECTRONIC EQUIPMENT
WITHOUT THE USE OF AN APPROVED LiNE CONDiTiONER MAY CAUSE
DAMAGE TO THE EQUIPMENT. GENTRON® iS NOT RESPONSIBLE
FOR ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE TO USE AN
APPROVED LiNE CONDiTiONER.
2. Once the generator is running, simply connect the power cords of 120/240 volt AC powered
tools and equipment into the 120/240 volt AC dual outlets.
NOTE: THE GENERATOR FEATURES AN AC NON=FUSE CiRCUiT BREAKER TO
PROTECT THE AC CiRCUiT iN CASE OF AN OVERLOAD. SHOULD AN OVERLOAD
OCCUR, THE BREAKER WiLL "TRIP" TO iTS "OFF" POSiTiON.
3. Disconnect all electrical powered tools and equipment from the generator's 120/240 volt AC
duel outlets.
4. After the engine and generator have completely cooled, store generator in a safe, clean, dry
location (if not already installed).
23
Propane Generator
Operation (cont'd)

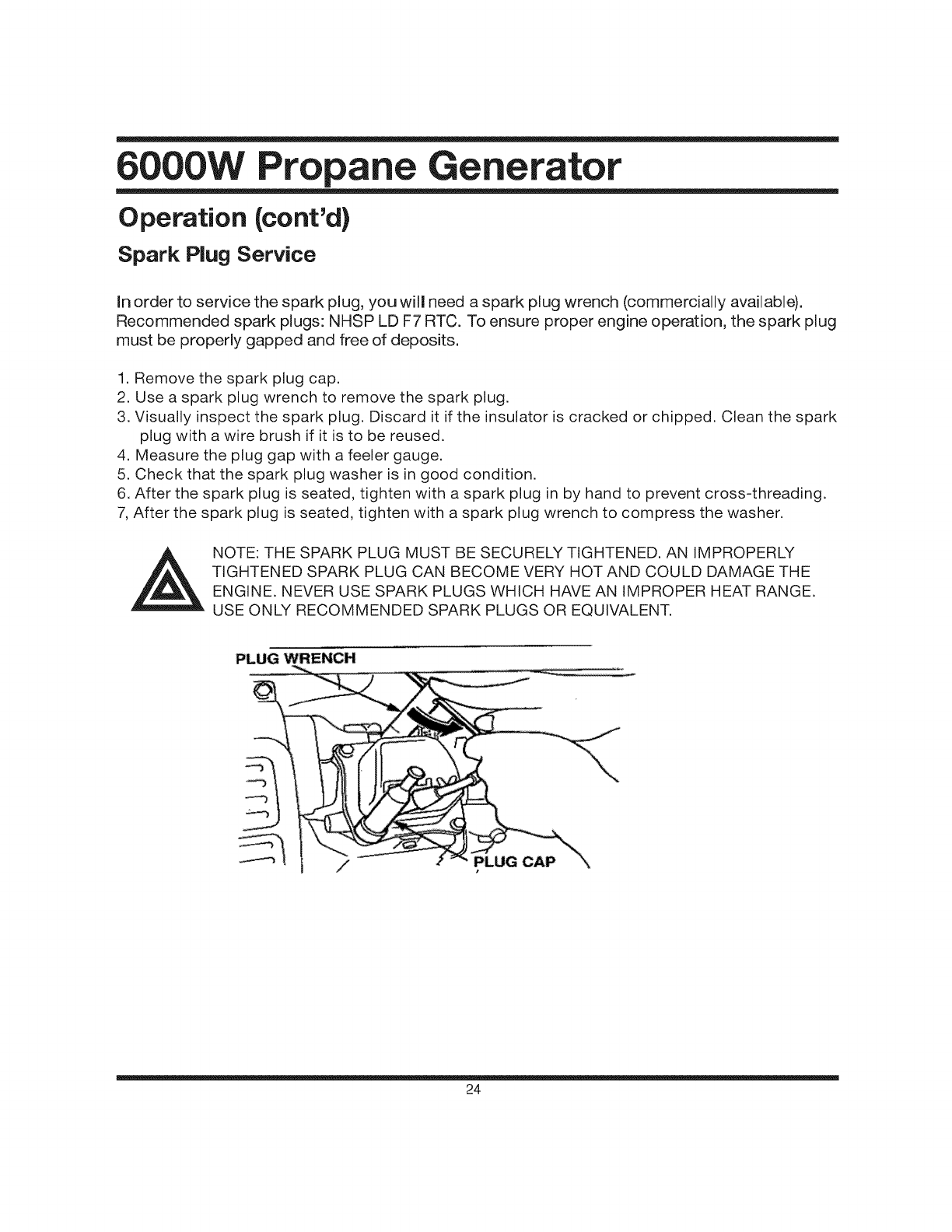

Spark Plug Service
in order to service the spark plug, you will need a spark plug wrench (commercially available).
Recommended spark plugs: NHSP LD F7 RTC. To ensure proper engine operation, the spark plug
must be properly gapped and free of deposits.
1. Remove the spark plug cap.
2. Use a spark plug wrench to remove the spark plug.
3. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark
plug with a wire brush if it is to be reused.
4. Measure the plug gap with a feeler gauge.
5. Check that the spark plug washer is in good condition.
6. After the spark plug is seated, tighten with a spark plug in by hand to prevent cross-threading.
7, After the spark plug is seated, tighten with a spark plug wrench to compress the washer.
NOTE: THE SPARK PLUG MUST BE SECURELY TIGHTENED. AN IMPROPERLY
TIGHTENED SPARK PLUG CAN BECOME VERY HOT AND COULD DAMAGE THE
ENGINE. NEVER USE SPARK PLUGS WHICH HAVE AN IMPROPER HEAT RANGE.
USE ONLY RECOMMENDED SPARK PLUGS OR EQUIVALENT.
PLUG WRENCH
/
24
OwneP s Rual
inspection, Cleaning, and
Maintenance
WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH iS iN iTS
"OFF" POSiTiON. DISCONNECT THE SPARK PLUG WiRE FROM THE ENGINE.
AND ALLOW SUFFiCiENT TiME FOR THE ENGINE AND GENERATOR TO
COMPLETELY COOL BEFORE PERFORMING ANY iNSPECTiONS,
MAINTENANCE, OR CLEANING.
= Before each use, inspect the generator. Check for:
Loose screws
Misaligned or binding moving parts
Cracked or broken parts
Damaged electrical wiring
Any other condition that may affect safe operation.
• If an engine problem occurs, have it checked by a qualified service technician before further use.
Do not use damaged equipment.
Before each use, make sure the engine's oil and fuel levels are adequate. If necessary, fill the
crankcase until the oil level is even with the oil hill hole and/or fill the fuel tank.
Before each use, remove all debris with a soft brush, rag, or vacuum.
Lubricate all moving parts using a premium
quality, lightweight machine oil. OIL FILL
Every 50 hours of use, drain the old engine oil
and replace with a high quality
SAE 10W-30 grade engine oil.
Every 300 hours of use, have a qualified, certified
technician perform thorough maintenance on the
generator and engine.
Upper Level
25
6000W Propane Generator
Installation
NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE
SURE THE GENERATOR'S RATED VOLTAGE, WATTAGE AND AMPERAGE
CAPACITY iS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS
THAT THE UNiT WiLL POWER. iF POWERING EXCEEDS THE GENERATOR'S
CAPACITY, iT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE
TOOLS AND/OR EQUIPMENT FOR CONNECTION TO A
SEPERATE GENERATOR.
Electrical and other permits may be required for the installation of emergency power systems.
Investigate your local building and electrical codes before installing this unit. Installation must be
completed by licensed contractors.
WARNING! THE GENERATOR WEIGHS APPROXIMATELY 201 POUNDS. USE
CARE AND THE PROPER LIFTING OR HOISTING EQUIPMENT WHEN MOVING
iT TO THE INSTALLATION LOCATION. ALWAYS CONNECT HOIST LINES TO
THE FRAME OF THE GENERATOR.
General Location
• Make sure to locate and install the generator outdoors where cooling air is readily available.
Install the generator so that the air inlets and outlets are not blocked by obstructions such as
bushes, trees, or snow drifts. Locating it in the path of heavy winds or snowdrifts may require
the placement of a barrier for protection. In normal weather conditions, the air vent should face
the prevailing wind direction.
Install the generator on a concrete slab or other area where rain drainage or flood waters can
not reach it.
Generator placement should allow four feet of access to all sides for maintenance.
26
Owner's anLlal
Installation (cont'd)
Supporting and Mounting
Mount the generator on a concrete slab capable of supporting the weight of the generator. The
slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor
for slab specifications if necessary. Attach the frame to the concrete slab using 3/8" diameter
expansion anchor bolts (not supplied).
Grounding
NOTE: IT IS RECOMMENDED THAT ONLY A TRAINED AND LICENSED
ELECTRICIAN PERFORM THIS PROCEDURE
Connect a #6 AWG grounding wire (not included) from the ground connector on the
generator power panel (picture below) to a grounding rod (picture below). It must be driven
at least 24" deep into the earth (Soil). The grounding rod must be an earth-driven copper or
brass (electrode) which can adequately ground the generator.
I
Ground Connector
27
Propane Generator
Compliance
UNITED STATES ENVIRONMENTAL PROTECTION AGENCY,
WASHINGTON, DC 20460
2006 Model Year Certificate of Conformity
Manufacturer: JIANGSU JIANGDONG GROUP CO. LTD.
Small SI Engine Family: 6JDGS.3892LA
Certificate Number: JDG-NRSI-06-06
HC+NO× FEL: g/kW-hr NIA
Date Issued:SEP 0 8 2D35
Merrylin Zaw-Mon, Director, Compliance and Innovation Strategies Division, Office of
Transportation and Air Quality.
Pursuant to Section 213 of Clean Air Act (42 U.S.C. section 7547) and 40 CFR 90, and subject to
the terms and conditions prescribed in those provisions, this certificate of conformity is hereby
issued for the following small non-road engine family, more fully described in the documentation
required by 40 CFR 90 and produced in the stated model year.
This certificate of conformity covers only those new small non-road engines which conform in
all material respects to the design specifications described in the documentation required by 40
CFR 90 and which are produced during the model year stated on this certificate. This certificate
of conformity does not cover small non-road engines imported prior to the effective date of the
certificate.SMALL NON-ROAD ENGINE FAMILY: 5JDGS.3892GA
This certificate of conformity is conditional upon compliance of said manufacturer with the
averaging, banking, and trading provisions of 40 CFR Part 90, Subpart C both during and after
model year production. Failure to comply with these provisions may render this certificate void ab
initio. The HC + NOX family emission limit (FEL) is: g/k W-hr.
It is a term of this certificate that the manufacturer shall consent to all inspections described in
40 CFR 90.126 and 90.506 and authorized in a warrant or court order. Failure to comply with
the requirements of such a warrant or court order may lead to revocation or suspension of this
certificate for reasons specified in 40 CFR 90. It is also a term of this certificate that this certificate
may be revoked or suspended or rendered void ab initio for other reasons specified in 40 CFR 90.
This certificate does not cover small non-road engines sold, offered for sale, or introduced, or
delivered for introduction, into commerce in the U.S. prior to the effective date of the certificate.
28
OwneP s anual
Specifications
AC electrical
Current Output
Continuous/Rated Wattage
Peak Wattage
Outlet
120V/240V AC @ 42/21A 60Hz
5,000
6,000
Two 120VAC, 2 spring grounded
One 120V twist-lock outlet
One 120/240V AC twist-lock outlet
Gasoline engine
Horsepower 13
Type 4-cycle OHV air-cooled recoil & electric start
Displacement 389cc
Oil capacity 1.1 6 quart (1.1 liter)
EPA approved yes
Fuel
Type Propane Fuel
Capacity
Running time 5 hrs 1/2 load (approx.) on 5 gal./201bs of fuel
Fuel gauge none
Weight
Approximate weight 201 Ibs.
29
6000W Pro ane Generator
Cylinder head system assy. (A)
APA Parts No. Parts No.
APG3560-A-01-JD JF340-A-01
APG3560-A-02-J D J F340-A-02
APG3560-A-03-J D J F340-A-03
APG3560-A-04-J D J F340-A-04
APG3560-A-05-J D J F340-A-05
APG3560-A-06-J D J F340-A-06
APG3560-A-07-J D J F340-A-07
APG3560-A-08-JD JF340-A-08B
APG3560-A-09-J D J F390-A-09
APG3560-A-10-JD JF340-A-10B
APG3560-A- 11-JD J F390-A- 11
APG3560-A-12-JD JF340-A-12
Description
HEAD COVER COMP. BOLT
HEAD COVER WASHER COME
WASHER COVER PACKING
HEAD COVER COME
HEAD COVER PACKING
FLANGE BOLT (al0x80)
SPARK PLUG
EXHAUST PIPE STUD BOLT
CYLINDER HEAD COMP.
CARBURETOR STUD BOLT
CYLINDER HEAD SEALING PAD
DOWEL PIN (q)10xq)12x20)
30
Cylinder barrel (B)
2
APA Parts No.
APG3560-B-01-JD
APG3560-B-02-JD
APG3560-B-03-JD
APG3560-B-04-JD
APG3560-B-05-JD
APG3560-B-06-JD
APG3560-B-07-JD
APG3560-B-08-JD
APG3560-B-09-JD
APG3560-B-10-JD
APG3560-B-1 I-JD
APG3560-B-12-JD
APG3560-B-13-JD
APG3560-B-14-JD
APG3560-B-15-JD
Parts No.
JF340-B-01
JF240-B-02
JF240-B-03
JF340-B-02
JF390-B-03
JF340-B-04
JF340-B-05
JF340-B-06
JF340-B-07
JF340-B-08
JF340-B-09
JF340-B-10
JF340-B-11
JF340-B-12
JF340-B-13
Description
FLANGE BOLT(M6x14)
OIL LEVELSWITCHASSY.
O-RING (14mm)
FLANGE NUT (MIO)
CRANK CASE
BALL BEARING(6207)
WASHER(q_8.3xr_17 xl)
LOCK PIN (10 mm)
GOVERNORARM SHAFT
OIL SEAL(_8x_14 x5)
DRAIN PLUG WASHER(12 mm)
DRAIN PLUG BOLT
OIL SEAL(_35 x_52 x8)
OIL PROTECTOR
BALL BEARING(6202)
31
6000W Pro ane Generator
3
Crankcase cover system assy(C)
2_
14 t5
APA Parts No.
APG3560-C-01-JD
APG3560-C-02-JD
APG3560-C-03-JD
APG3560-C-04-JD
APG3560-C-05-JD
APG3560-C-06-JD
APG3560-C-07-JD
APG3560-C-08-JD
APG3560-C-09-JD
APG3560-C-10-JD
APG3560-C-11-JD
APG3560-C-12-JD
APG3560-C-13-JD
APG3560-C-14-JD
APG3560-C-15-JD
APG3560-C-16-JD
Parts No.
JD5000-A-01
J D5000-A-02
JF340-C-03B
JF340-C-02
JF340-B-11
JF390-C-01
JF340-C-04B
JF340-C-06
JF340-C-07
JF340-C-05
JF340-C-08
JF340-C-09
JF340-B-13
J F340- B-04
J F340-C- 10
J F240-C- 11
Description
DUCT COVER
FLANGE BOLT (M8x35)
OI L SCALE
OIL SCALE SEAL RING
OIL SEAL (q)35xcp52x8)
FLANGE BOLT (M8x35)
CRANKCASE COVER
GOVERNOR GEAR WASHER (6 mm)
GOVERNOR GEAR
SLIDER SHAFT
SLIDER WASHER (6 mm)
GOVERNOR SLIDER
BALL BEARING (6202)
BALL BEARING (6207)
CRANKCASE COVER PAD
DOWEL PIN (8x12)
32

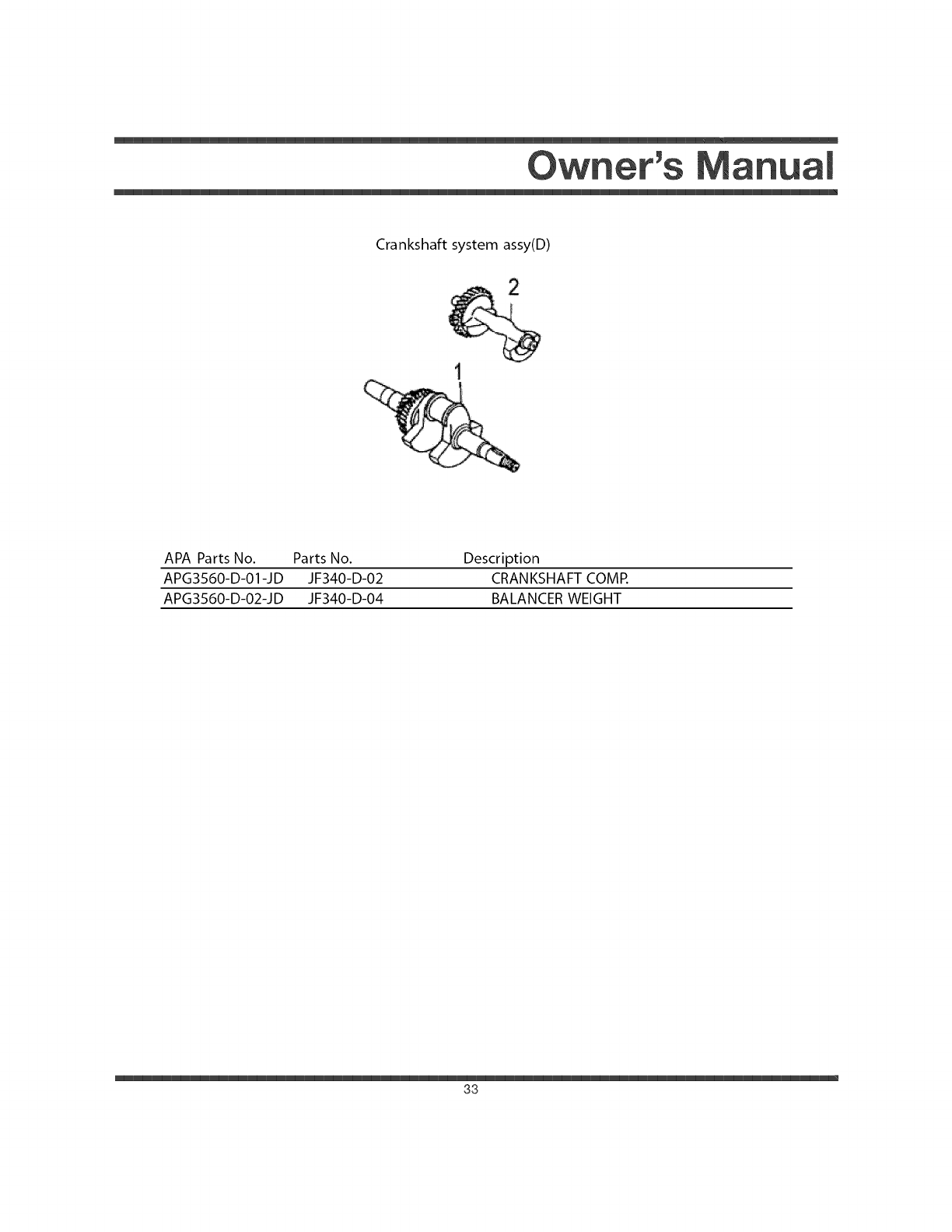

Crankshaft system assy(D)
i
APA Parts No. Parts No. Description
APG3560-D-01-JD JF340-D-02 CRANKSHAFTCOMR
APG3560-D-02-JD JF340-D-04 BALANCERWEIGHT
88
6000W Pro ane Generator
Piston and connecting (E)
10
5
APA Parts No. Parts No. Description
APG3560-E-O1-JD JF390-E-01 COMPRESSIONRINGA
APG3560-E-O2-JD JF390-E-02 COMPRESSIONRING B
APG3560-E-O3-JD JF390-E-03 OIL RINGA
APG3560-E-O4-JD JF390-E-04 OIL RINGB
APG3560-E-O5-JD JF240-E-05 PISTONPIN CLIP(20 mm)
APG3560-E-O6-JD JF390-E-05 PISTON
APG3560-E-O7-JD JF390-E-06 PISTONPIN
APG3560-E-OS-JD JF340-E-07 CONNECTING ROD
APG3560-E-O9-JD JF340-E-08 CONNECTING COVER
APG3560-E-10-JD JF340-E-09 CONNECTING ROD BOLT
34
.1

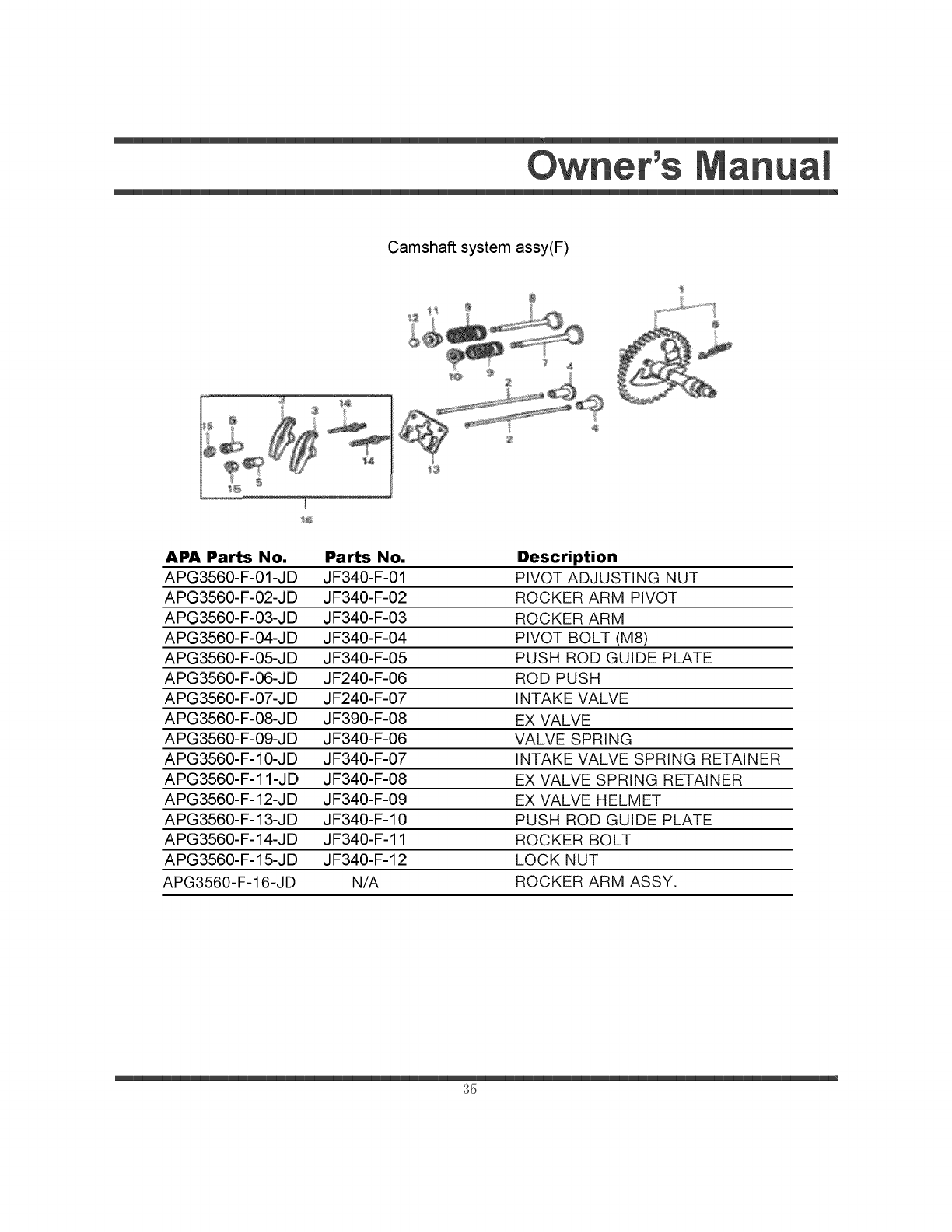

Camshaft system assy(F)
, 7
It!i
@
APA Parts No.
APG3560-F-01-JD
APG3560-F-02-JD
APG3560-F-03-JD
APG3560-F-04-JD
APG3560-F-05-JD
APG3560-F-06-JD
APG3560-F-07-JD
APG3560-F-08-JD
APG3560-F-09-JD
APG3560-F-10-JD
APG3560-F-11-JD
APG3560-F-12-JD
APG3560-F-13-JD
APG3560-F-14-JD
APG3560-F-15-JD
APG3560-F-16-JD
Pa_s No.
JF340-F-01
JF340-F-02
JF340-F-03
JF340-F-04
JF340-F-05
JF240-F-06
JF240-F-07
JF390-F-08
JF340-F-06
JF340-F-07
JF340-F-08
JF340-F-09
JF340-F-lO
JF340-F-11
JF340-F-12
N/A
Description
PIVOT ADJUSTING NUT
ROCKER ARM PIVOT
ROCKER ARM
PIVOT BOLT (M8)
PUSH ROD GUIDE PLATE
ROD PUSH
INTAKE VALVE
EX VALVE
VALVE SPRING
INTAKE VALVE SPRING RETAINER
EX VALVE SPRING RETAINER
EX VALVE HELMET
PUSH ROD GUIDE PLATE
ROCKER BOLT
LOCK NUT
ROCKER ARM ASSY.
35
6000W Pro ane Generator

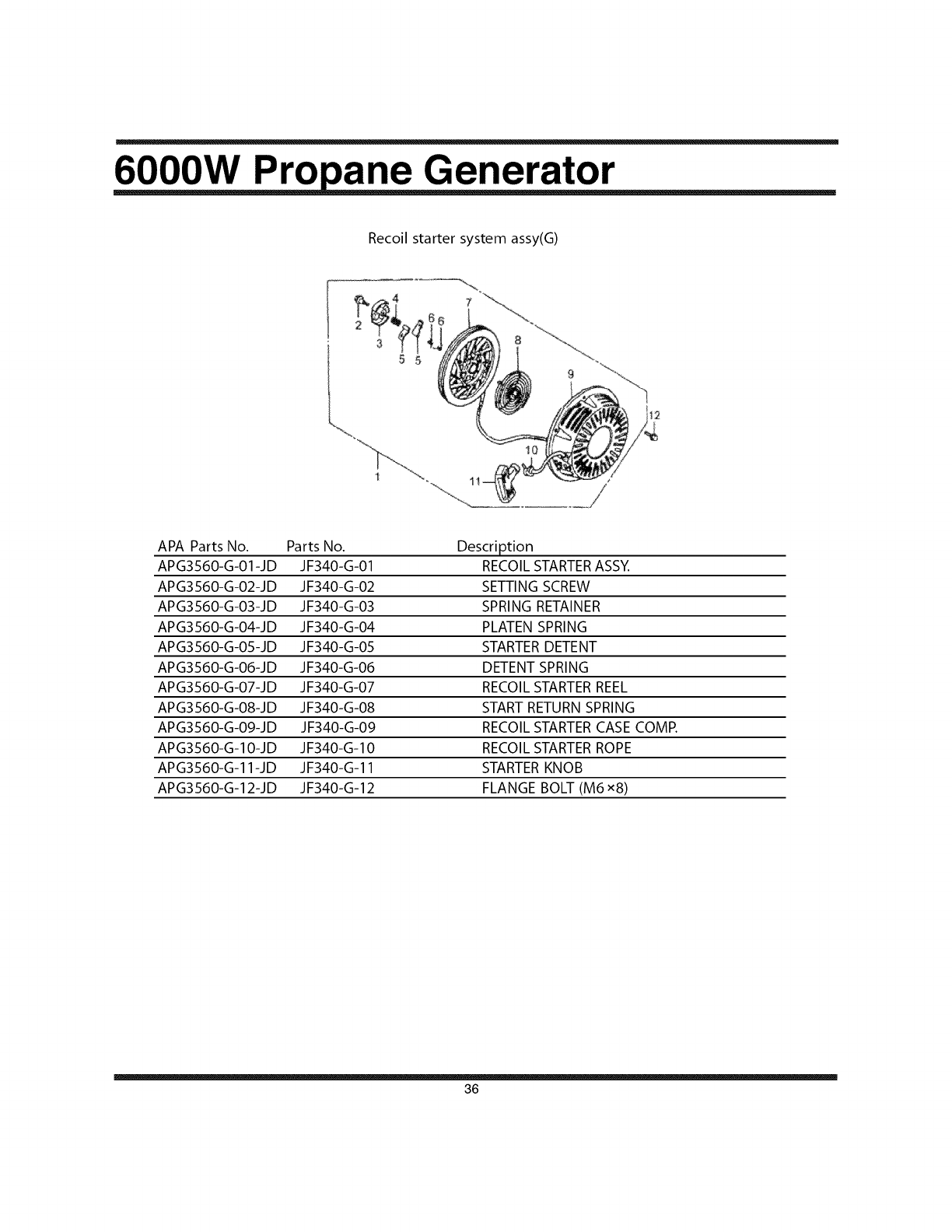

Recoil starter system assy(G)
/
APA Parts No.
APG3560-G-01-JD
APG3560-G-02-JD
APG3S60-G-03-JD
APG3S60-G-04-JD
APG3S60-G-0S-JD
APG3S60-G-06-JD
APG3S60-G-07-JD
APG3560-G-08-JD
APG3S60-G-09-JD
APG3560-G-10-JD
APG3560-G- 11-JD
APG3560-G-12-JD
Parts No.
JF340-G-01
JF340-G-02
JF340-G-03
JF340-G-04
JF340-G-05
JF340-G-06
JF340-G-07
JF340-G-08
JF340-G-09
JF340-G-10
JF340-G-11
JF340-G-12
Description
RECOILSTARTERASSY.
SETTINGSCREW
SPRINGRETAINER
PLATENSPRING
STARTERDETENT
DETENTSPRING
RECOILSTARTERREEL
STARTRETURNSPRING
RECOILSTARTERCASECOMP.
RECOILSTARTERROPE
STARTERKNOB
FLANGEBOLT (M6 xS)
36

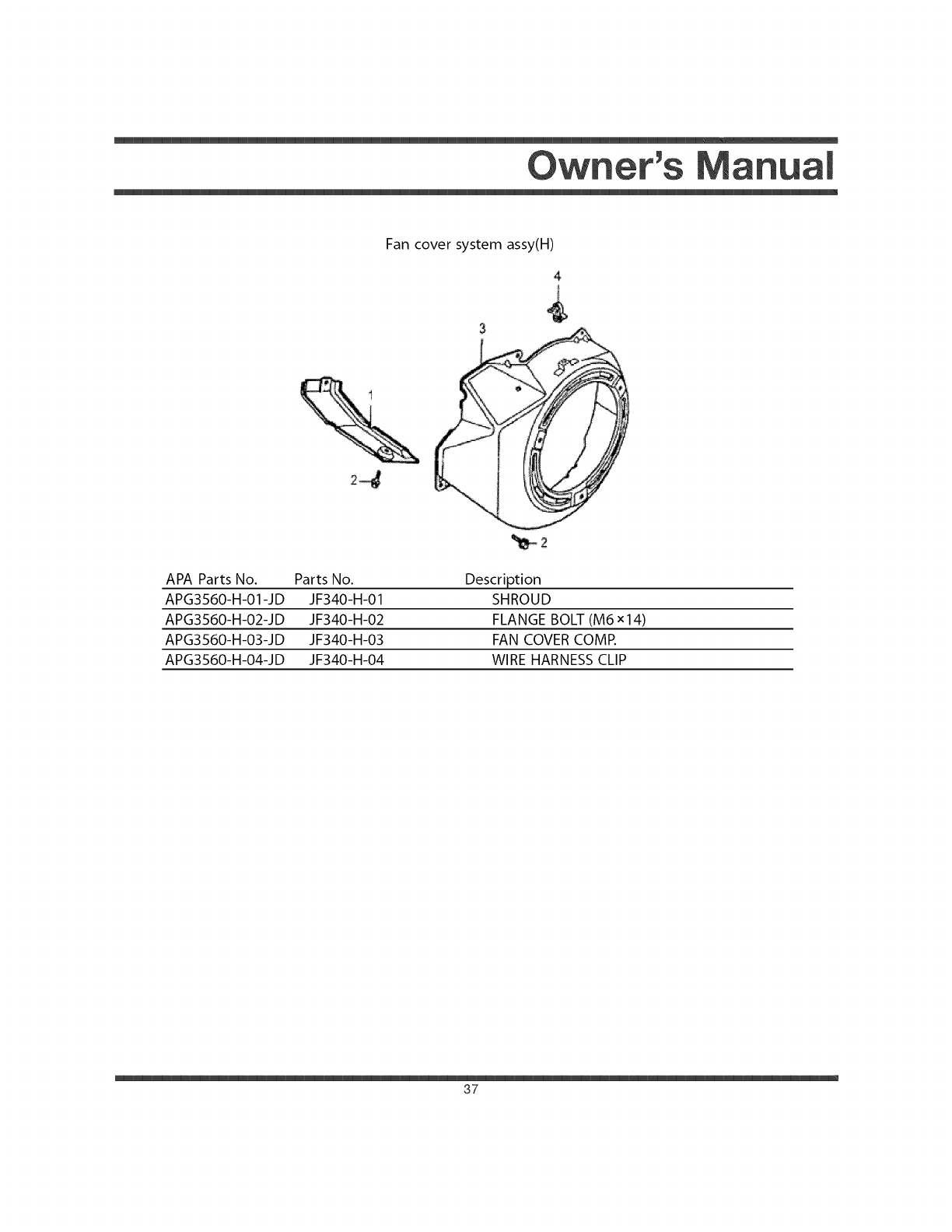

Fan cover system assy(H)
4
24 ¸
_2
APA Parts No. Parts No. Description
APG3560-H-O1-JD JF340-H-01 SHROUD
APG3560-H-O2-JD JF340-H-02 FLANGE BOLT(M6 x 14)
APG3560-H-O3-JD JF340-H-03 FAN COVERCOMP.
APG3560-H-O4-JD JF340-H-04 WIRE HARNESSCLIP
37
6000W Propane Generator
1

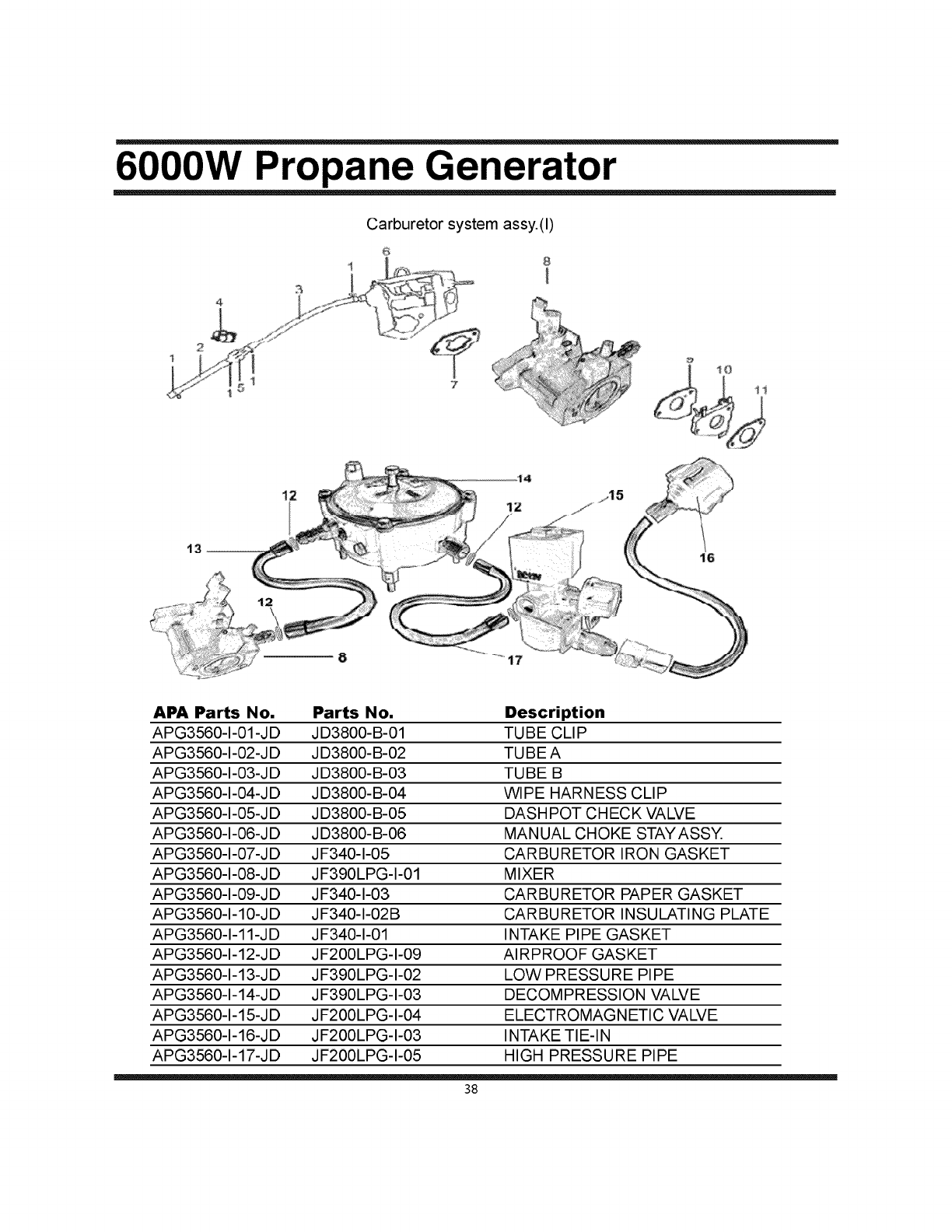

Carburetor system assy.(I)
@
7
8
12
16
APA Parts No.
APG3560-1-01-JD
APG3560-1-02-JD
APG3560-1-03-JD
APG3560-1-04-JD
APG3560-1-05-JD
APG3560-1-06-JD
APG3560-1-07-JD
APG3560-1-08-JD
APG3560-1-09-JD
APG3560-1-10-JD
APG3560-1-11-JD
APG3560-1-12-JD
APG3560-1-13-JD
APG3560-1-14-JD
APG3560-1-15-JD
APG3560-1-16-JD
APG3560-1-17-JD
Parts No.
JD3800-B-01
JD3800-B-02
JD3800-B-03
JD3800-B-04
JD3800-B-05
JD3800-B-06
JF340-1-05
JF390LPG-I-01
JF340-1-03
JF340-1-02B
JF340-1-01
JF200LPG-I-09
JF390LPG-I-02
JF390LPG-I-03
JF200LPG-I-04
JF200LPG-I-03
JF200LPG-I-05
Description
TUBE CLIP
TUBEA
TUBE B
WIPE HARNESS CLIP
DASHPOT CHECK VALVE
MANUAL CHOKE STAYASSY.
CARBURETOR IRON GASKET
MIXER
CARBURETOR PAPER GASKET
CARBURETOR INSULATING PLATE
INTAKE PIPE GASKET
AIRPROOF GASKET
LOW PRESSURE PIPE
DECOMPRESSION VALVE
ELECTROMAGNETIC VALVE
INTAKE TIE-IN
HIGH PRESSURE PIPE
38
Flywheel system Assy(J)
6
APA Parts No. Parts No.
APG3560-J-O1-JD
APG3560-J-O2-JD
APG3560-J-O3-JD
APG3560-J-O4-JD
APG3560-J-OS-JD
APG3560-J-O6-JD
Description
JF340-J-01A FLYWHEEL
JF340-J-01B FLYWHEEL
JF340-J-02 SEMICIRCLEKEY
JF340-J-03 COOLING FAN
JF340-J-04 STARTERPULLEY
JF340-J-05 FLYWHEELNUT (M16)
39
6000W Pro ane Generator
Ignition System Assy(K)
9
APA Parts No. Parts No. Description
APG3560-K-O1-JD JF340-K-01 NOISESUPPERSSORCAP ASSY.
APG3560-K-02-JD JF340-K-02 INGITION GOILASSY.
APG3560-K-O3-JD JF340-K-03 STOP SWITCHCORD
APG3560-K-O4-JD JF340-K-04 STOP SWITCHCORD HOLDER
APG3560-K-OS-JD JF340-K-05 FLANGE BOLT(M6×25)
APG3560-K-O6-JD JF340-K-06 CORD GROMMET
APG3560-K-O7-JD JF340-K-07 CHARGECOILASSY.
APG3560-K-O8-JD JF340-K-08 FLANGE BOLT(M6×40)
APG3560-K-Og-JD JF340-K-09 CORD CLAMPER
APG3560-K-10-JD JF340-K-10 FLANGE BOLT(M6×20)
4O
StartermotorSystemassy(L)
1
3
APA Parts No. Parts No. Description
APG3560-L-O1-JD JF340-L-01 UNIT STARTERMOTOR
APG3560-L-O2-JD JF340-L-02 CONTACTORASSY.
APG3560-L-03-JD JF340-L-03 FLANGE BOLT (M8x35)
41
6000W Pro ane Generator

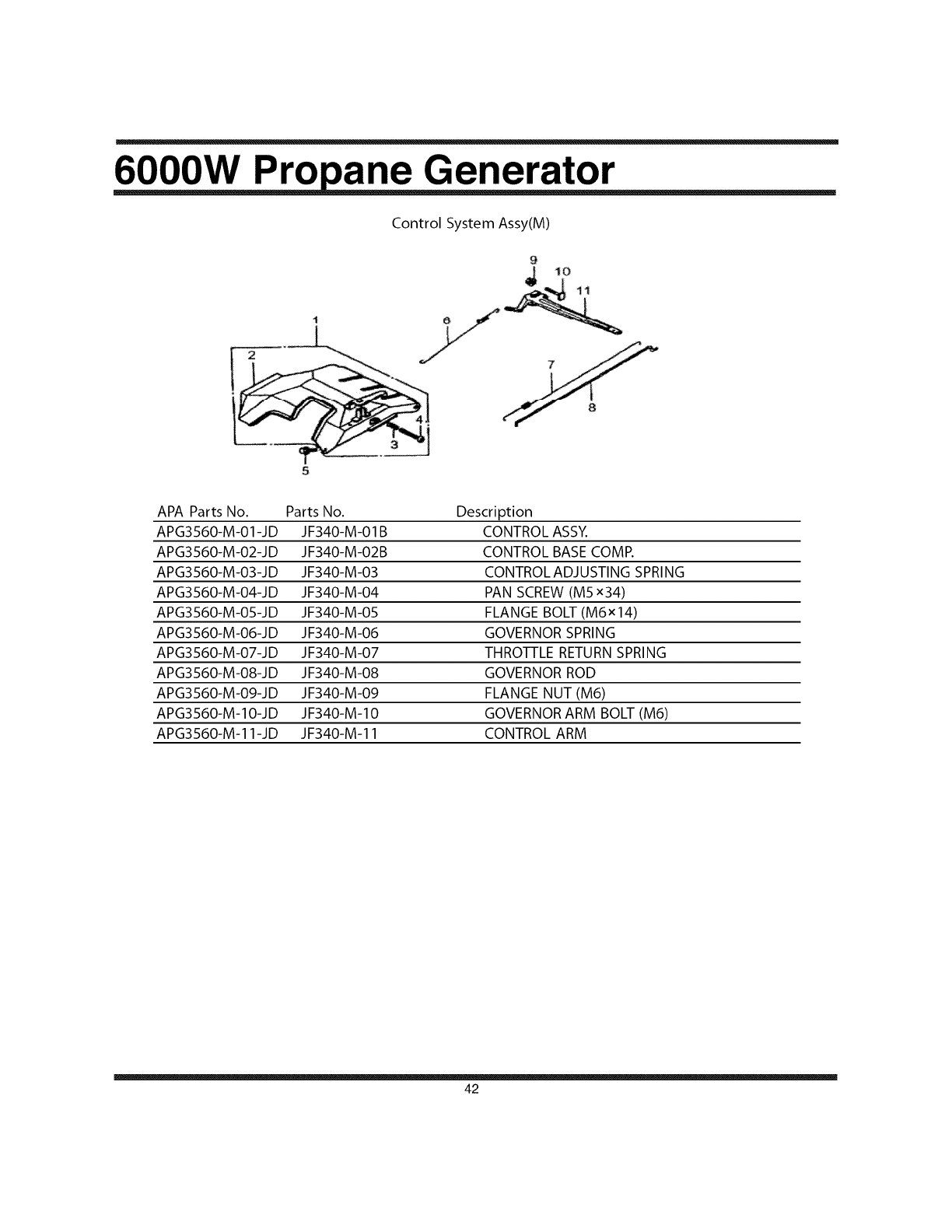

Control System Assy(M)
APA Parts No.
APG3560-M-O1-JD
APG3560-M-O2-JD
APG3560-M-O3-JD
APG3560-M-O4-JD
APG3560-M-O5-JD
APG3560-M-O6-JD
APG3560-M-O7-JD
APG3560-M-O8-JD
APG3560-M-Og-JD
APG3560-M-10-JD
APG3560-M- 11-JD
Parts No.
JF340-M-OIB
JF340-M-O2B
JF340-M-03
JF340-M-04
JF340-M-05
JF340-M-06
JF340-M-07
JF340-M-08
JF340-M-09
JF340-M-10
JF340-M-11
Description
CONTROLASSY.
CONTROLBASECOMP.
CONTROLADJUSTING SPRING
PAN SCREW(M5 x34)
FLANGE BOLT(M6x14)
GOVERNORSPRING
THROTTLERETURNSPRING
GOVERNORROD
FLANGE NUT (M6)
GOVERNORARM BOLT(M6)
CONTROL ARM
42

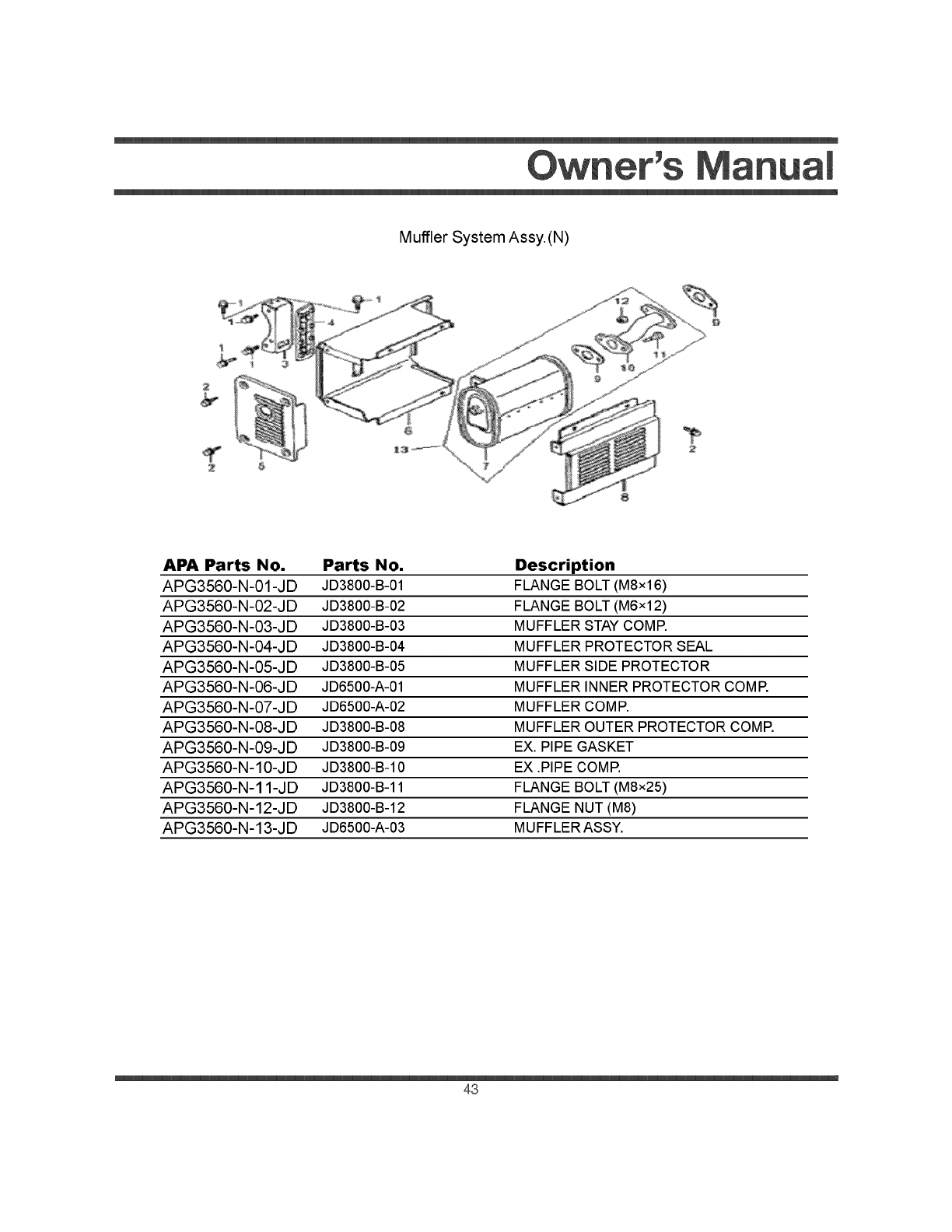

Muffler System Assy. (N)
@
APA Parts No. Parts No. Description
APG3560-N-01-JD JD3800-B-01 FLANGE BOLT (M8×16)
APG3560-N-02-JD JD3800-B-02 FLANGE BOLT (M6x12)
APG3560-N-03-JD JD3800-B-03 MUFFLER STAY COME
APG3560-N-04-JD JD3800-B-04 MUFFLER PROTECTOR SEAL
APG3560-N-05-JD JD3800-B-05 MUFFLER SIDE PROTECTOR
APG3560-N-06-JD JD6500-A-01 MUFFLER INNER PROTECTOR COME
APG3560-N-07-JD JD6500-A-02 MUFFLER COUP.
APG3560-N-08-JD JD3800-B-08 MUFFLER OUTER PROTECTOR COUP.
APG3560-N-09-JD JD3800-B-09 EX. PIPE GASKET
APG3560-N-10-JD JD3800-B-10 EX .PIPE COME
APG3560-N-11-JD JD3800-B-11 FLANGE BOLT (M8x25)
APG3560-N-12-JD JD3800-B-12 FLANGE NUT (IV18)
APG3560-N-13-JD JD6500-A-03 MUFFLERASSY.
43
6000W Pro ane Generator
Air cleaner(O)
9
APA Parts No.
APG3560-O-01-JD
APG3560-O-02-JD
APG3560-O-03-JD
APG3560-O-04-JD
APG3560-O-05-JD
APG3560-O-06-JD
APG3560-O-07-JD
APG3560-O-08-JD
APG3560-O-09-JD
APG3560-O-10-JD
Parts No.
JD3800-C-0i
JD3800-C-02
JD3800-C-03
JD3800-C-04
JD3800-C-05
JD3800-C-06
J F340-A- 13B
JD3800-C-07
JD3800-C-08
JD3800-C-09
Description
AIR CLEANER COVER COMP
AIR CLEANER ELEMENT
FLANGE NUT (M5)
AIR CLEANER SEPARATOR
AIR CLEANER SEAL
AIR CLEANER CASE COMP
BREATHER TUBE
FLANGE NUT (M6)
AIR CLEANER STAY
AI R CLEANER ASSY.
44
m
Owner's Manual
Control panel (P)
3 4 7 _ 5 8
_9
APA Parts No.
APG3560-P-01 -JD
APG3560-P-02-JD
APG3560-P-03-JD
APG3560-P-04-JD
APG3560-P-05-JD
APG3560-P-06-JD
APG3560-P-07-JD
APG3560-P-08-JD
APG3560-P-09-JD
Parts No. Description
JF200LPG-I-0
JD6500ELPG-A-01
JD6500BST-E-04
JD6500LPG-A-02
JD6500BST-E-08
JD6500BST-E-07
JD6500BST-E-05
JD6500LPG-A-03
JD6500BST-E-09
ELECTROMAGNETICVALVE SWITCHASSY.
ENGINE SWITCH ASSY.
VOLT METER ASSY.
CIRCUIT BREAKER
120V/240V RECEPTACLE (L14-30)
120V RECEPTACLE (L5-30)
120V RECEPTACLE (Ru-22)
TIME WATCH
EARTH TERMINAL SET
45
6000W Pro ane Generator

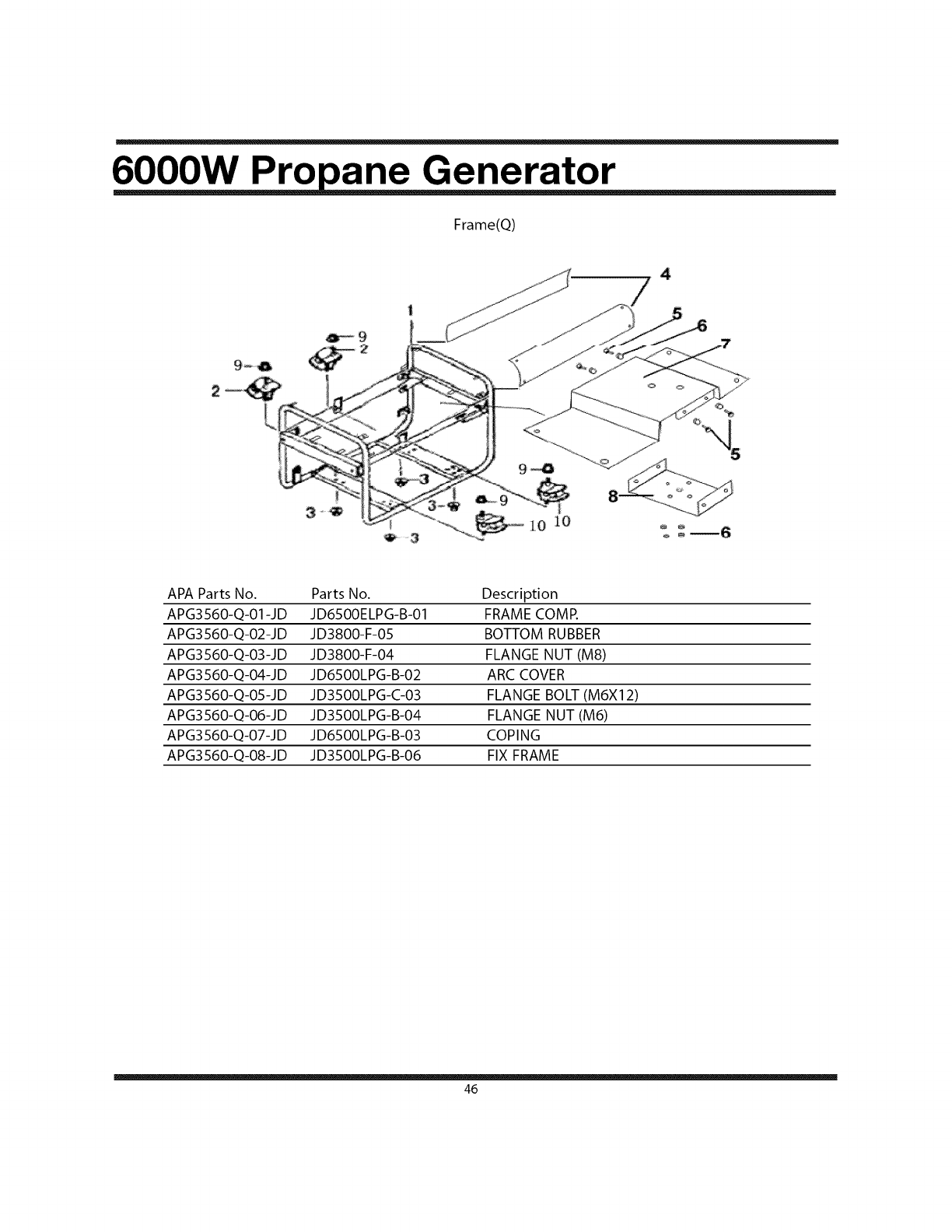

Frame(Q)
10
APA Parts No.
APG3560-Q-01-JD
APG3560-Q-02-JD
APG3560-Q-03-JD
APG3560-Q-04-JD
APG3560-Q-05-JD
APG3560-Q-06-JD
APG3560-Q-07-JD
APG3560-Q-08-JD
Parts No.
JD6500ELPG-B-01
JD3800-F-05
JD3800-F-04
JD6500LPG-B-02
JD3500LPG-C-03
JD3500LPG-B-04
JD6500LPG-B-03
JD3500LPG-B-06
Description
FRAME COMR
BOTTOM RUBBER
FLANGENUT (M8)
ARC COVER
FLANGEBOLT (M6X12)
FLANGENUT (M6)
COPING
FIX FRAME
46
,i
Owner's Manual
Rotor Stator
3
17
APA Parts No.
APG3560-R-O1-JD
APG3560-R-O2-JD
APG3560-R-O3-JD
APG3560-R-O4-JD
APG3560-R-OS-JD
APG3560-R-O6-JD
APG3560-R-O7-JD
APG3560-R-OS-JD
APG3560-R-O9-JD
APG3560-R-10-JD
APG3560-R-1I-JD
APG3560-R-12-JD
APG3560-R-13-JD
APG3560-R-14-JD
APG3560-R-15-JD
APG3560-R-16-JD
APG3560-R-17-JD
APG3560-R-18-JD
APG3560-R-19-JD
APG3560-R-20-JD
APG3560-R-21-JD
APG3560-R-22-JD
APG3560-R-23-JD
Parts No.
JD6500-D-01
JD6500-D-02
JD6500-G-03
JD3800-G-04
JD3800-G-05
JD3800-G-06
JD3800-G-07
JD6500-G-08
JD6500-G-09
JD3800-G-I 0
JD3800-G-I I
JD3800-G-I 2
JD6500-D-03
JD3800-G-I 4
JD3800-G-I 5
JD6500-D-04
JD6500-D-05
JD3800-G-I 8
JD3800-G-I 9
JD3800-G-20
JD3800-G-21
JD3800-G-22
JD3800-G-23
Description
STATOR COVER
STATORASSY.
COOLING FAN
BRUSH ASSY.
TAPPING SCREW (MS x14)
RR HOUSING
PAN SCREW (MSx12)
FLANGE BOLT (M6x179)
AUTOMATIC VOLTAGE REGULATOR ASSY.
GENERATOR COVER
CABLE TIE
FLANGE BOLT (MSx12)
ROTOR COMP.
BEARING ASSY.
PLAIN WASHER
FLANGE BOLT (MI0 x265)
FLANGE BOLT (MSx214)
HEX.BOLT (MS x20)
VOLT CHANGE TERMINAL BR-AC-W
PLAIN WASHER (Smm)
HEX. NUT (MS)
SPRING WASHER (Smm)
CRANK CASE GROMMET
47

Navigation menu
