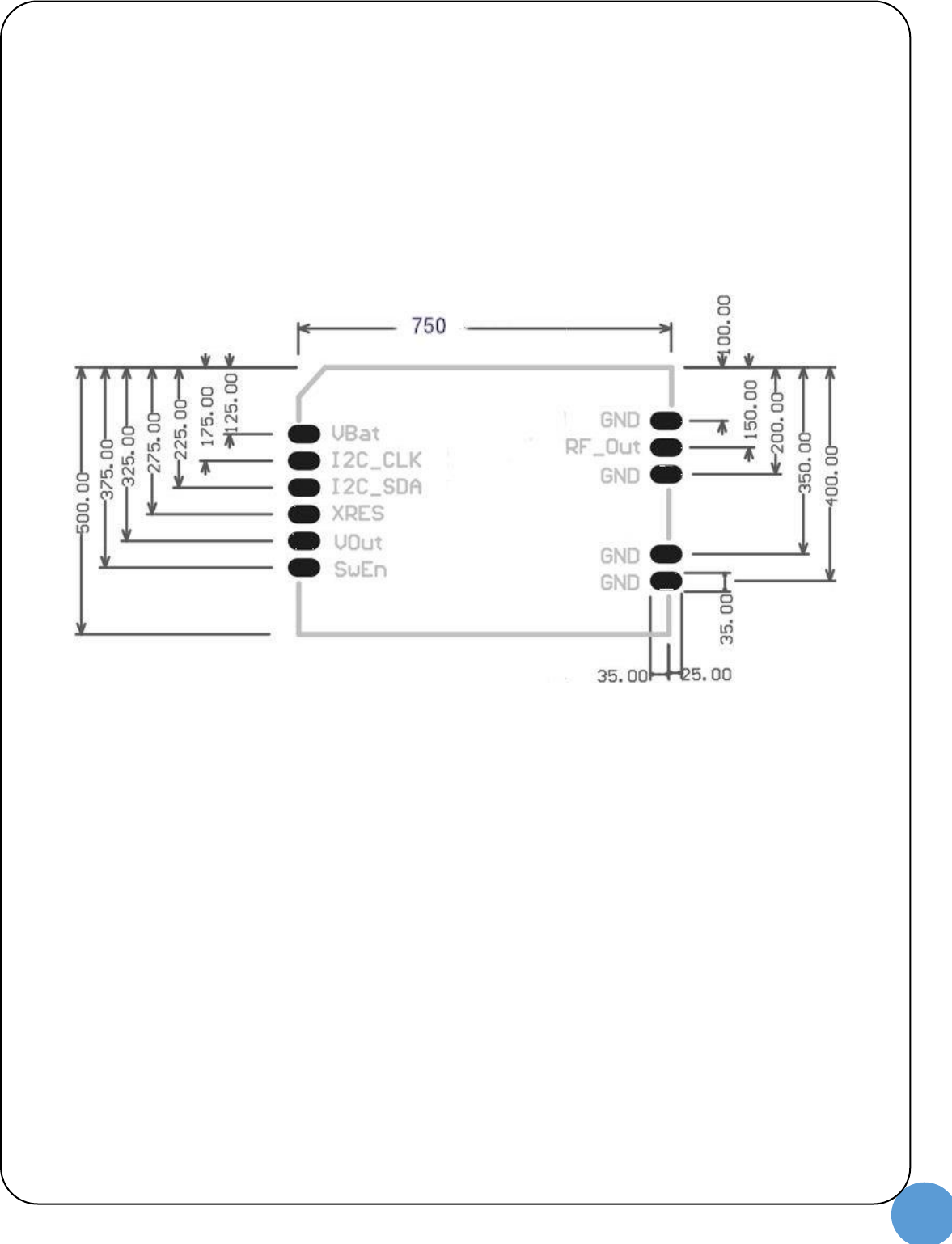

FIGURE 2: MYTE HOST FOOTPRINT (TOP SIDE VIEW).................................................................................................. 9

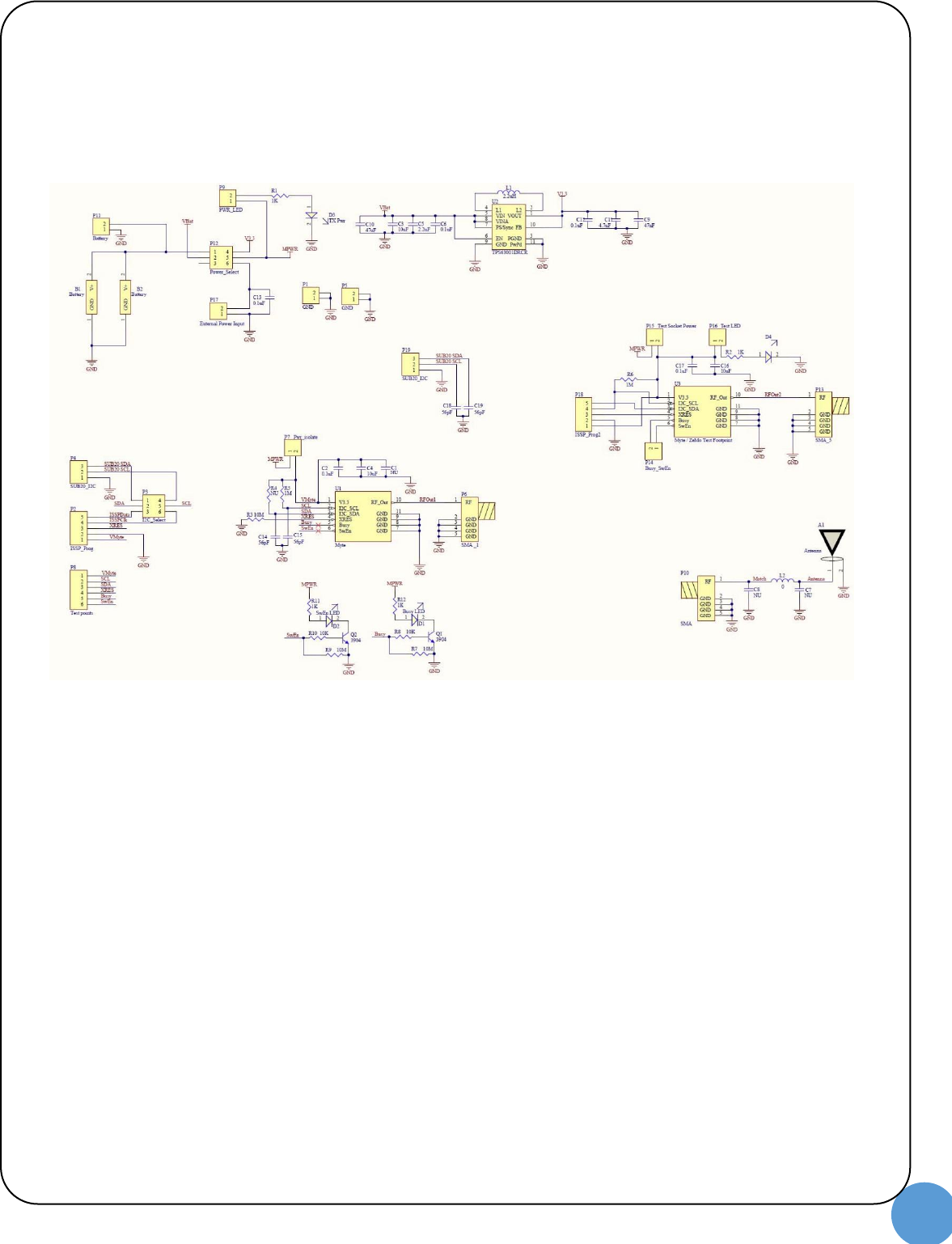

FIGURE 3: MYTE EXAMPLE INTEGRATION SCHEMATIC ............................................................................................... 10

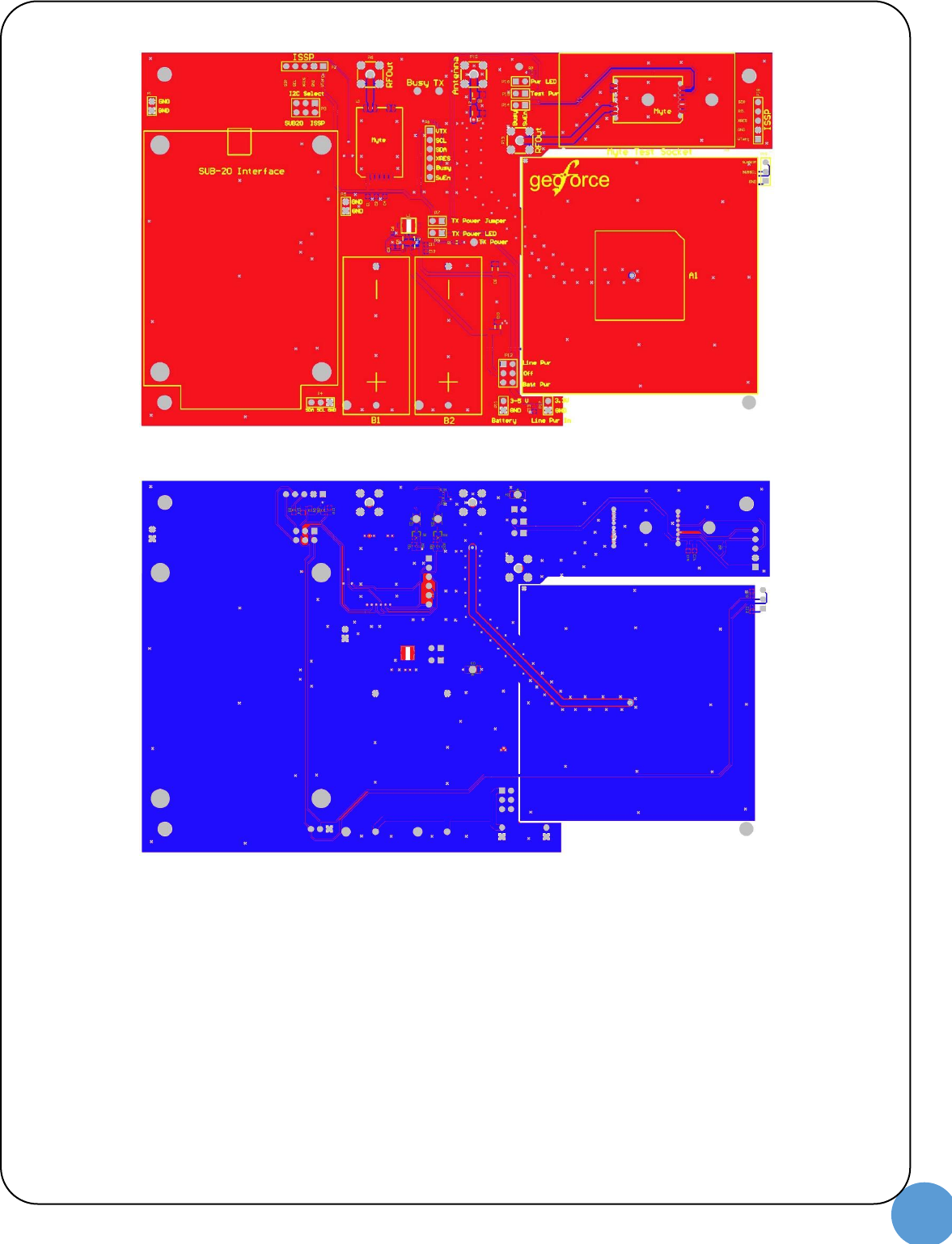

FIGURE 4: MYTE EXAMPLE INTEGRATION TOP LAYOUT .............................................................................................. 11
FIGURE 5: MYTE EXAMPLE INTEGRATION BOTTOM LAYOUT ........................................................................................ 11

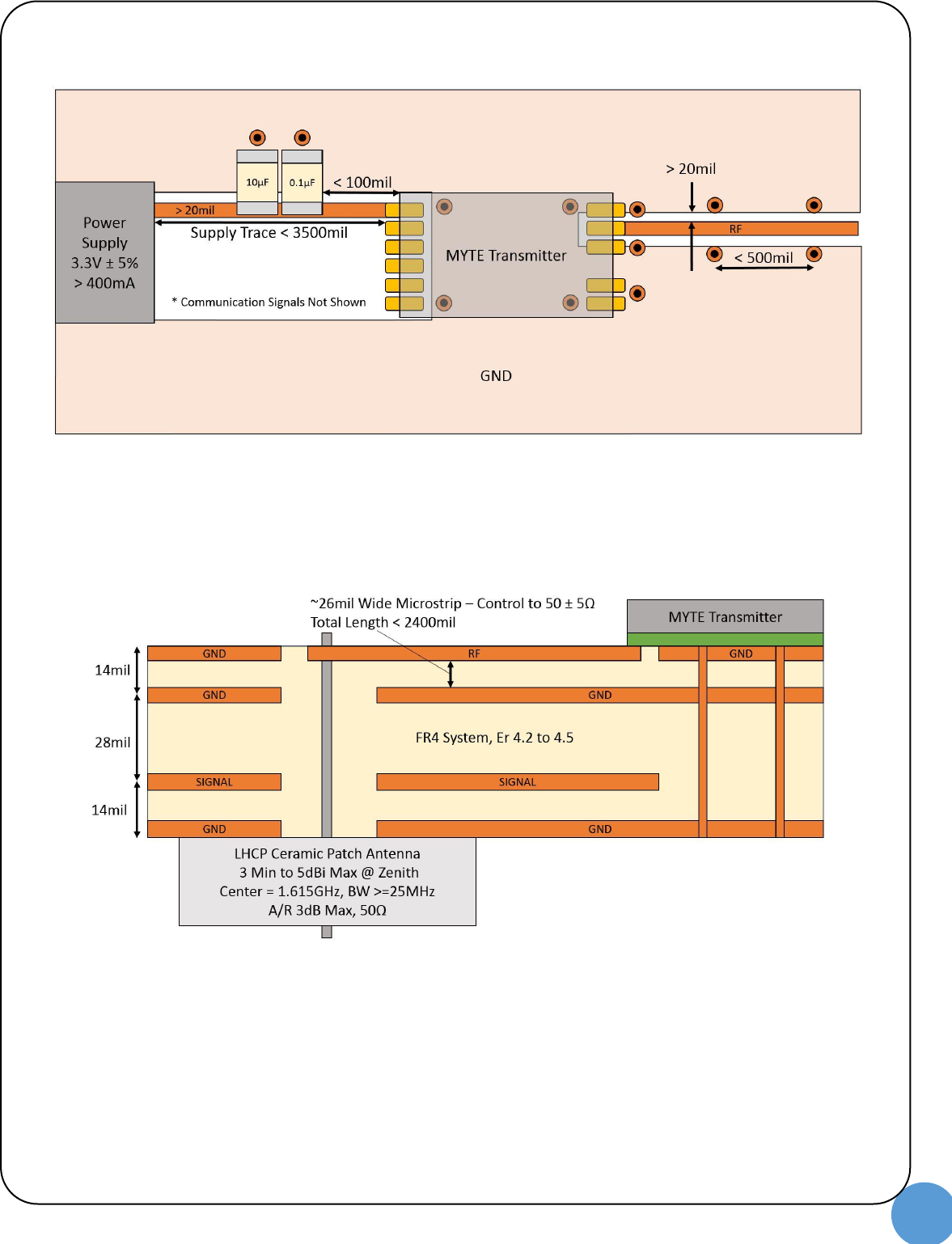

FIGURE 6: MYTE EXAMPLE INTEGRATED ASSEMBLY DIAGRAM ...................................................................................... 12
FIGURE 7: MYTE EXAMPLE INTEGRATED PCB STACK-UP ............................................................................................ 12

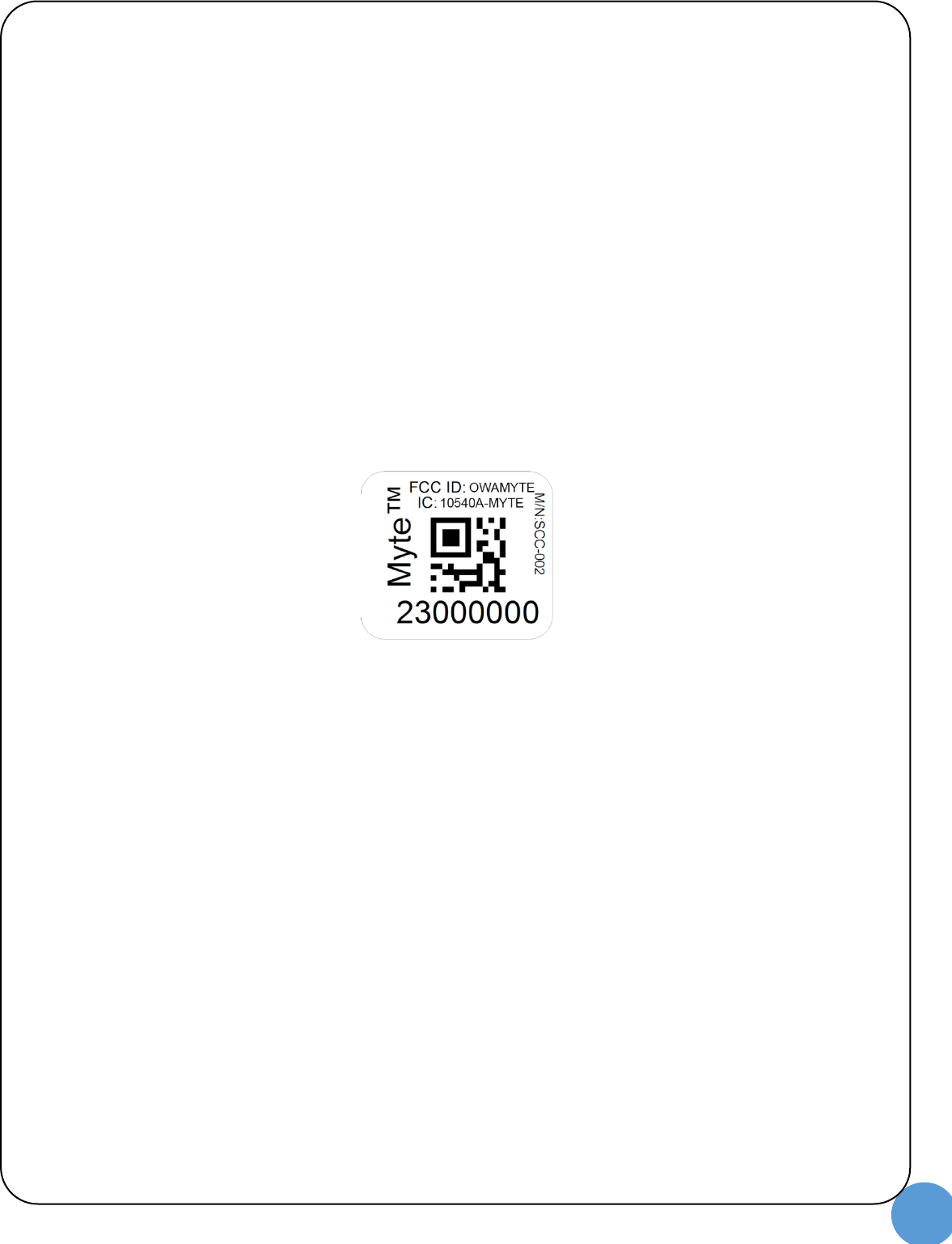

FIGURE 8: MYTE LABEL ..................................................................................................................................... 15
List of Tables
SECTION PAGE
TABLE 1: RF CHANNELS IMPLEMENTED .................................................................................................................... 7
TABLE 2: FCC PART 15.109 SUMMARY ................................................................................................................... 8
TABLE 3: PART 25.202 SUMMARY .......................................................................................................................... 8
TABLE 4: EN 301-441 SUMMARY........................................................................................................................... 8
4
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
1. Description/Purpose
The MYTE (SCC-002) device is a radio transmitter module that creates the radio frequency (RF) signals
to relay small packets of data to the Globalstar Simplex Data Service satellite network. The MYTE serves
as a communication gateway in an embedded application to send transmit-only (simplex) data. Data
packets are in small, 9-byte segments. The MYTE supports 9, 18, 27 or 36-byte data payloads. The
Globalstar Simplex Data Service comprises a set of low-earth-orbit (LEO) satellites operating as bent-
pipe data relay devices to ground earth data collection points. This specification stipulates the operational
and physical requirements for the MYTE transmitter device that is compatible with this satellite network
system.
The MYTE device is the radio transmitter only and its integration must follow the follow basic
guidelines/limitations.
1. The MYTE must be fully integrated into a larger OEM installation/application device to provide utility.
2. The OEM integrator is responsible for ensuring that the end-user has no manual instructions to
remove or install module.
3. The module is limited to installation in mobile or fixed applications.
This specification provides the physical, electrical and integration requirements to enable application
development.
The purpose of this document is to provide some notes on basic device integration for the MYTE
transmitter module.
2. Scope
This User/Integrators Guide applies only to the Geoforce MYTE transmitter.
5
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
3. Definitions and References
3.1. Definitions and Abbreviations
The following definitions used herein shall have the meanings as defined below:
a) BPSK: Binary Phase Shift Keyed modulation. This is the data modulation incorporated by the
MYTE compliant with the Globalstar Simplex Data Service.
b) EIRP: Effective Isotropic Radiated Power.
c) EMI: Electro Magnetic Interference.
d) ESN: Electronic Serial Number. Unique serialization number for each transmitter.
e) EVM: Error Vector Magnitude: A measure of BPSK modulation quality.
f) DSSS: Direct Sequence Spread Spectrum. This is the spreading method coupled with BPSK
g) Globalstar: The term “Globalstar” means Globalstar, Inc., a Delaware USA Corporation having
offices at 461 South Milpitas Blvd, Milpitas, California 95035
h) Globalstar Simplex Data Service: The term “Globalstar Simplex Data Service” refers to
communications from simplex transmitters relayed over Globalstar’s network of low earth orbit
satellites to Globalstar gateways for distribution to end customers.
i) GPS: The term GPS is an acronym meaning global positioning system.
j) LEO: The term LEO is an acronym meaning low earth orbit.
k) PRS: Pseudo Random Sequence. The digital method for creating the DSSS spreading code.
l) RAS: Radio Astronomy Service. Regions of restricted frequency use compliant with the Globalstar
radio spectrum license.
m) RF: Radio Frequency
n) RTU: Remote Telemetry Unit, generically used as the device that contains the MYTE integrated
into it as the satellite communication means.
o) TCXO: Temperature Compensated Crystal Oscillator.
6
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
4. MYTE Device Overview
The MYTE device is a radio transmitter module that contains the functionality to accept configuration and
data from a host application and convey data to the Globalstar Simplex Data Service satellite system.

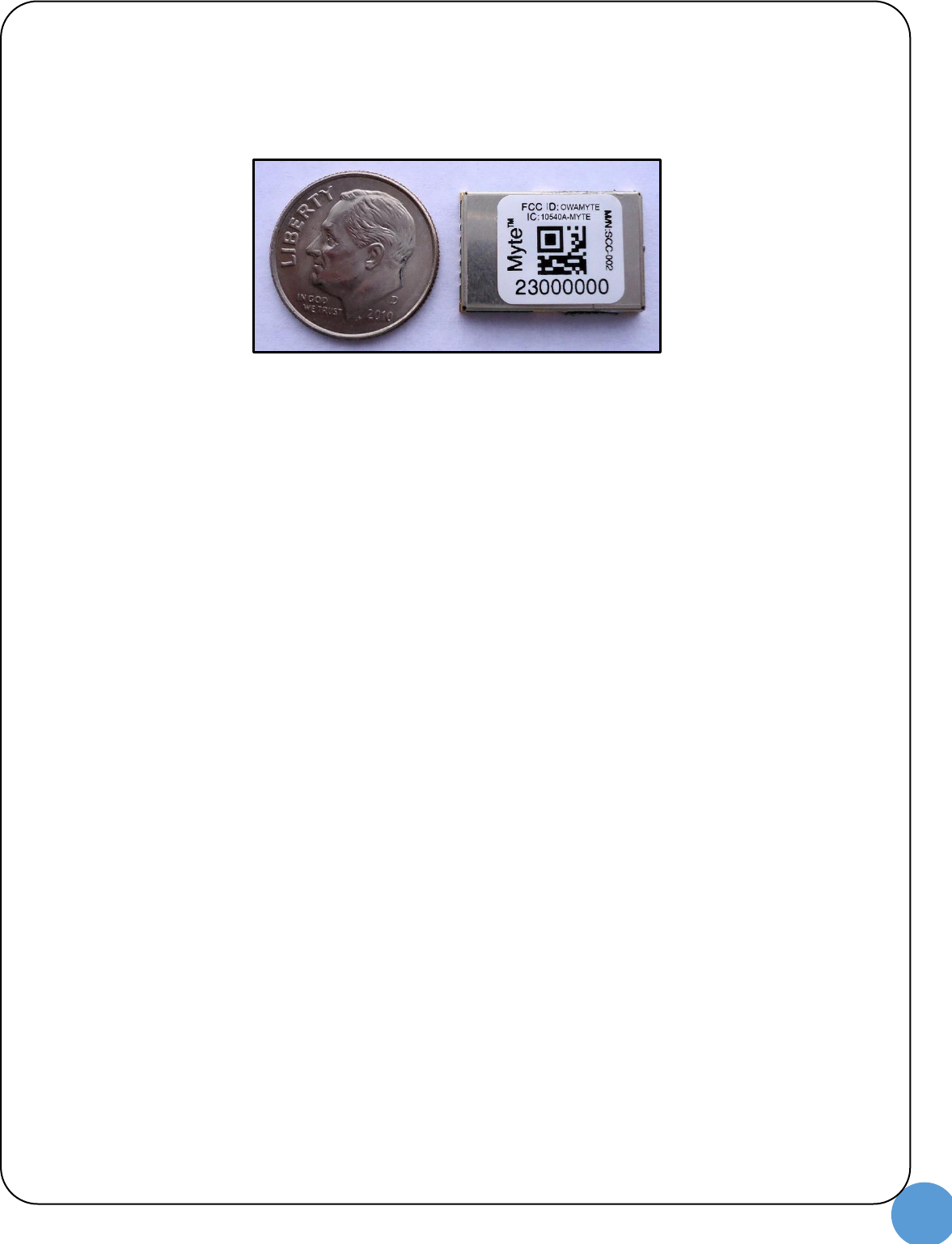

FIGURE 1: MYTE APPROXIMATE SIZE
4.1. Satellite Messaging Method
The MYTE device manages all the required messaging to be compliant to the Globalstar Simplex Data
Service. The application interface need only configure the device once and send data to the MYTE
using the I2C serial interface. The MYTE will queue the data to be sent and manage the process of
transmitting the data to the satellite system.
Because the messages are transmitted unsolicited and without the benefit of a two-way data link
with the satellite system, each message is transmitted several times with a random delay component
between transmits of roughly 7±2 minutes. Recommended configuration setting transmits each
message three times with time delays between each transmission to allow for the satellite
constellation to shift in position. The configuration parameters of the MYTE allow for adjustment of
number of transmissions and time delays between transmissions. This overview is provided to briefly
demonstrate how the MYTE functions in order for application developers to understand how the
simplex system operates. Integrators should know that sending a message for transmit may
therefore take up to 20 minutes to complete the transmit sequence. This does not mean that system
latency is typically that long, but because the MYTE has no way to discern if the message was
successful on first or subsequent attempts, it will repeat the message transmit per configuration
setting. The satellite system will deliver the first received message captured, typically the first
message and thus the probabilistic system latency is seconds, not minutes. Nevertheless, on rare
occasions the system may miss the first message and the data packet will have a new chance for
packet delivery success on subsequent trials.
7
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
5. On-Air Interface
The MYTE transmits data in a radio format compatible with the Globalstar Simplex Data Service. This
section provides a brief overview of the operation of the network service. Greater detail can be found in
the requirements definitions set forth by Globalstar.
5.1. RF Modulation
The MYTE transmits data using Direct Sequence Spread Spectrum (DSSS) carrier with a Binary Phase
Shift Keyed (BPSK) data modulation. The MYTE can be configured to send data on one of four radio
center frequencies. Globalstar operational requirements for channel usage must be observed by
application developers. Generally, channel A is used for North American operations except where the
device is in proximity of Radio Astronomy Sites (RAS), where channel C is prescribed. Use in other global
regions uses channel C. The channels are specified as:
RF Channel
Channel A = 1611.25 MHz center frequency
Channel B = 1613.75 MHz center frequency
Channel C = 1616.25 MHz center frequency
Channel D = 1618.75 MHz center frequency
TABLE 1: RF CHANNELS IMPLEMENTED
Nominal Transmit output power shall be 18 dBm ± 2 dB RMS overall operating conditions.
8
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
5.2. EMI/EMC Conformance
The MYTE shall carry an FCC Part 25 modular device certification, stipulating a maximum antenna gain
of +5 dBi. In addition, the MYTE shall be verified compliant to FCC Part 15 and EN 301-441 for EU use.
FCC Part 15.109
Offset from Carrier
EIRP
Measurement
Bandwidth / Method
-
90 V/m
10 meters
-
150 V/m
10 meters
-
210 V/m
10 meters
-
300 V/m
10 meters
TABLE 2: FCC PART 15.109 SUMMARY
Part 25.202
Offset from Carrier
EIRP
Measurement
Bandwidth / Method
Below –6.25 MHz
-35 dBc
4 KHz Average
-6.25 to –1.25 MHz
-35 dBc
4 KHz Average
-2.5 to –1.25 MHz
-25 dBc
4 KHz Average
1.25 to 2.5 MHz
-25 dBc
4 KHz Average
2.5 to 6.25 MHz
-35 dBc
4 KHz Average
Above 6.25 MHz
-35 dBc
(Assuming 18dBm output power)
4 KHz Average
TABLE 3: PART 25.202 SUMMARY
EN 301-441
Offset from Carrier
EIRP
Measurement
Bandwidth / Method
-36 dBm
10 KHz Peak-Hold
-36 dBm
100 KHz Peak-Hold
-30 dBm
1 MHz Average
-40 dBm
1 MHz Average
-40 dBm
1 MHz Average
-40 dBm to 20 dBm 1
1 MHz Average
-17.75 to –3.05 MHz
-26 dBm
30 KHz Average
-3.05 to –2.165 MHz
-26 dBm to -23 dBm 1
30 KHz Average
-2.615 to –1.9 MHz
-15 dBm
30 KHz Average
-1.9 to –1.475 MHz
-15 dBm to -8.5 dBm 1
30 KHz Average
-1.475 to –1.41 MHz
-8.5 dBm to -5 dBm 1
30 KHz Average
-1.41 to –1.25 MHz
-5 dBm
30 KHz Average
1.25 to 1.41 MHz
-5 dBm
30 KHz Average
1.41 to 1.475 MHz
-5 dBm to -8.5 dBm 1
30 KHz Average
1.475 to 1.9 MHz
-8.5 dBm to -15 dBm 1
30 KHz Average
1.9 to 2.615 MHz
-15 dBm
30 KHz Average
2.165 to 3.05 MHz
-23 dBm to -26 dBm 1
30 KHz Average
3.05 to 17.75 MHz
-26 dBm
30 KHz Average
-30 dBm
30 KHz Average
-30 dBm
100 KHz Average
-30 dBm
300 KHz Average
-30 dBm
1 MHz Average
-30 dBm
3 MHz Average
-30 dBm
3 MHz Peak Hold
TABLE 4: EN 301-441 SUMMARY
1
Limit in dB varies linearly
9
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6. Integration Guidelines
Integrating the MYTE into an application requires compliance with the network operation guidelines as
set forth by Globalstar. This section highlights the primary guidelines and restrictions; however, users
must consult with Globalstar for any updates or changes to operation that govern use of the Simplex
Satellite service.
6.1. Mechanical Interface
The MYTE is a board-level module that integrates into the host application via the surface mount pads
shown below. The MYTE top-side host solder footprint is shown below.
FIGURE 2: MYTE HOST FOOTPRINT (TOP SIDE VIEW)
Module height is 100 mils. All dimensions in mils (thousandths of an inch).
The MYTE is an RF module assembly. Therefore, care should be taken in application design to ensure
the power and data signals are electrically clean. Running RF or digital signals under the MYTE module
is not advised. It is preferred to provide a solid ground plane on the top layer of the application board
layout.
10
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.2. Electrical Integration
6.2.1. Integration Schematic and Layout
The MYTE’s integration electrically should take into consideration power requirements, microstrip design
and antenna placement. A sample integrators schematic and layout information is provided here.
FIGURE 3: MYTE EXAMPLE INTEGRATION SCHEMATIC
11
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
FIGURE 4: MYTE EXAMPLE INTEGRATION TOP LAYOUT
FIGURE 5: MYTE EXAMPLE INTEGRATION BOTTOM LAYOUT
Integrators Note: This module must not be incorporated into any other device or system without retesting
for compliance as a composite system and can only be used with a host antenna circuit trace layout
design in strict compliance with the OEM instructions provided. Different antenna length and trace layout
designs shall be considered of a different type and require separate approvals under a class II permissive
change.
Additionally, Note the test and evaluation requirements for inclusion into the Globalstar network far
exceed the requirements for OEM Integration according to these instructions. Consult Globalstar
integration guidelines for additional test and qualification requirements for module integration.
12
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
FIGURE 6: MYTE EXAMPLE INTEGRATED ASSEMBLY DIAGRAM
FIGURE 7: MYTE EXAMPLE INTEGRATED PCB STACK-UP
13
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.2.2. Power Supply
The module is to be powered at 3.3V ±5%, including transients induced by changes in current draw.
The module power supply must be decoupled with 0.1µF and 10µF low ESR ceramic capacitors as close
to the power supply connection as possible but no further than 100mil. The power supply must be
capable of delivering pulse current in excess of 400mA. The power supply connection trace should be
kept as short as possible and shall be of at least 20mil width, no longer than 3500mil, and shall not
exceed 0.1Ohm.
6.2.3. RF Interface
In order to guarantee compliance with FCC Part 25 Modular Transmitter requirements and avoid the
possibility of generating unintentional emissions, the interface between the transmitter module and an
approved antenna must strictly adhere to the following design requirements. The RF connection on the
host board must be connected to an approved antenna via a microstrip or stripline transmission line.
The impedance of this trace must be controlled to 50±5Ohm and its length shall not exceed 2400mil.
The transmission line layer should be surrounded by a ground plane spaced at least 20mil from the edges
of the trace. Stitching vias between the transmission line layer ground plane and the ground plane
counterpoise(s) shall be placed at least every 500mil along the length of the trace. No signal traces are
to pass below the transmitter module or transmission line on adjacent (counterpoise) layer(s) or within
20mil of any transmission line vias or antenna feed pin on any layer. A ground plane with multiple
stitching vias should be placed under the extents of the module.
6.2.4. Antenna Guidelines
The MYTE may be integrated with an antenna with a maximum directivity gain of +5dBi or less, such as
the Spectrum Advanced Specialties Products antenna part number PA25-1615-025SA or PA451615-
1575SA (dual band sat+gps) or Tallysman Wireless part numbers TW2515 or TW11-0006-X.
No external amplifiers, trace antennas, or antennas other than those which meet the following
requirements are permitted under the terms of the modular approval:
• Antenna Type: Left-Hand Circularly Polarized Ceramic Patch
• Nominal Impedance: 50Ohm
• Antenna Gain: 3dBi Minimum to 5dBi Maximum at Zenith
• Nominal Center Frequency: 1.615GHz
• Bandwidth: >= 25MHz
• Axial Ratio: 3dB Maximum at Zenith
Special attention must be given to antenna performance as specified in Globalstar document GS-07-
1247.
6.2.5. Composite System Compliance Testing
The integrator of a module of this type shall be responsible for ensuring compliance for unintentional
emissions per FCC Part 15.107 and 15.109 and RSS-170 on the composite system as a whole. Failure to
perform these tests may result in non-compliance with FCC and IC emissions limits.
14
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.2.6. Composite System Integration Test
The integrated product design shall be evaluated for compliance by removing the patch antenna and
connecting an un-terminated end of a coaxial cable of known cable loss at 1.6GHz to the antenna feed
point. The other end of the coaxial cable will be connected to a spectrum analyzer capable of measuring
a +25dBm signal at 1.6GHz with 100kHz and 3MHz bandwidths.
The spectrum analyzer shall be configured for a center frequency of 1.61125GHz, span of 10MHz,
reference level of +25dBm, average detector, range of 100dB, resolution and video bandwidths of 3MHz,
sweep time of <100msec, and trace configured for maximum hold. The application processor shall
command the MYTE transmitter to transmit a 9-byte packet on Channel A via the I2C interface. The
power measured by the spectrum analyzer at the center frequency shall be between +18dBm and
+20dBm minus the known cabling losses.
The spectrum analyzer resolution and video bandwidths shall be then set to 100kHz, the maximum trace
hold reset. The application processor on the host board will then instruct the MYTE transmitter to
transmit another 9-byte packet on Channel A via the I2C interface. The primary band average power
shall be averaged from 1.610625GHz to 1.611875GHz and the sideband powers averaged from
1.609188GHz to 1.609812GHz and from 1.612688GHz to 1.613312GHz. Both averaged sideband powers
shall be at least 20dB lower than the average primary band power.
6.2.7. Composite System Production Test
Production testing of end products incorporating the MYTE transmitter module shall be verified to comply
with relevant emissions standards by measurement of the radiated spectrum over the duration of a
transmit event. A spectrum analyzer capable of measuring a 1.61125GHz signal with 100kHz bandwidth
shall be connected to a receiving antenna through a low-loss coaxial cable. The receiving antenna shall
be nominal 50Ohm LHCP ceramic patch type with center frequency of 1615MHz±10MHZ, 1dB BW >=
25MHz, A/R 3dB Max, Gain of 3dBi min to 5dBi max at zenith. The antenna shall be positioned about
200cm above the production device under test such that the zenith of both transmit and receive antennas
are pointed directly at one another.
The spectrum analyzer shall be configured for a center frequency of 1.61125GHz, span of 10MHz, average
detector, reference level of +10dBm, range of 100dB, resolution and video bandwidths of 100kHz, sweep
time of <100msec, and trace configured for maximum hold. The application processor shall command
the MYTE transmitter to transmit a 9-byte packet on Channel A via the I2C interface. The primary band
average power shall be averaged from 1.610625GHz to 1.611875GHz and the sideband powers averaged
from 1.609188GHz to 1.609812GHz and from 1.612688GHz to 1.613312GHz. Both averaged sideband
powers shall be at least 20dB lower than the average primary band power.
15
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.3. Regulatory Certifications and MYTE Labeling
The application that incorporates the MYTE device must be properly certified for the region of operation.
MYTE will carry modular certifications for FCC, IC. In addition, the MYTE has completed EN 301-441
radio testing for potential use in the EU. These test results may be obtained from Geoforce, Inc. The
integrator however must secure operational certifications and testing of the final integrated product in
compliance with regional regulatory restrictions including the required marking of the end device.
Modular Certification Restrictions:
• The MYTE is authorized only for mobile devices. Installation in portable devices is not permissible.
• The MYTE must be installed in such a way as to prevent approach within 20 cm of the transmitting
antenna. Integrators must ensure that the product user’s manual includes the standard 20 cm
warning to end users.
• The MYTE may not be collocated with any other transmitter.
6.3.1. MYTE Device Labeling
The MYTE device (Model SCC-002) is marked with the FCC ID and IC certification number as shown
below.
FIGURE 8: MYTE LABEL
Actual size of the label is 0.500” x 0.4375”
6.3.2. MYTE Serialization and ESN Coding
Each MYTE transmitter label will also contain a Micro-QR barcode and human readable Electronic Serial
Number (ESN). The left-most digit in the labeled ESN is the manufacture ID, so as shown above, the
ESN is 2-3000000. The ESN notation is decimal, with the Manufacture ID weighted as 2^23. The formula
below provides the conversion for the ESN labeling to hexadecimal notation used in ESN reads from the
MYTE.
ESNhex = (MFG_ID * 2^23) + ESNdec
For the example label above:
ESNhex = 0x012DC6C0 = (2 * 2^23) + 3000000
16
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.3.3. Integrated Product Labelling and FCC Regulatory Markings
When the MYTE is incorporated into a product, the product must be appropriately labeled. The
application designer must ensure the product labeling is accurate and complete. At a minimum, it must
contain a statement or marking to designate the device contains the radio transmitter.
“Contains Transmitter Module FCC ID: OWAMYTE” or
“Contains FCCID: OWAMYTE”
Consult the regulatory requirements for product marking for the latest requirements for each region or
application for the application product to ensure compliance.
Note Conspicuously:
This equipment has been tested and found to comply with the limits for a Class B device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
Note Conspicuously:
NOTICE: This equipment complies with the FCC RF Exposure Limits. A minimum of 20
centimeters (8 inches) separation between the device and the user and all other persons
should be maintained.
Note Conspicuously:
WARNING: Changes or modifications not expressly approved by Geoforce may render the
device non-compliant to FCC and other regulatory body standards for operation and may
void the user’s authority to operate the equipment.
17
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
6.3.4. Industry Canada Guidelines
If the MYTE is to be integrated into a device to be used in Canada, the required notices are specified in
the RSS documents (including RSS-Gen) applicable to the equipment model. These notices are required
to be shown in a conspicuous location in the user manual for the equipment, or to be displayed on the
equipment model. If more than one notice is required, the equipment model(s) to which each notice
pertains should be identified. Suppliers of radio apparatus shall provide notices and user information in
both English and French.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically
radiated power (EIRP) is not more than that necessary for
successful communication.
Conformément à la réglementation d'Industrie Canada, le présent
émetteur radio peut fonctionner avec une antenne d'un type et d'un
gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie
Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut
choisir le type d'antenne et son gain de sorte que la puissance
isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
The above notice may be affixed to the device instead of displayed in the user manual.
User manuals for transmitters equipped with detachable antennas shall also contain the following notice
in a conspicuous location:
This radio transmitter (identify the device by certification
number, or model number if Category II) has been approved by
Industry Canada to operate with the antenna types listed below with
the maximum permissible gain and required antenna impedance for
each antenna type indicated. Antenna types not included in this
list, having a gain greater than the maximum gain indicated for
that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro
de certification ou son numéro de modèle s'il fait partie du
matériel de catégorie I) a été approuvé par Industrie Canada pour
fonctionner avec les types d'antenne énumérés ci-dessous et ayant
un gain admissible maximal et l'impédance requise pour chaque type
d'antenne. Les types d'antenne non inclus dans cette liste, ou dont
le gain est supérieur au gain maximal indiqué, sont strictement
interdits pour l'exploitation de l'émetteur.
18
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
User manuals for license-exempt radio apparatus shall contain the following or equivalent notice in a
conspicuous location in the user manual or alternatively on the device or both.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil
doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
6.4. Globalstar Certifications
The application that incorporates the MYTE device must be properly approved for use by Globalstar
before use over their network. This will include proper channelization for regional use and other radio
telemetry requirements. Contact Globalstar for RTU certification procedures. Special attention must be
given to channelization of use as specified in Globalstar document GS-07-1248.
19
Geoforce Inc.
Hard and Soft copy versions of this document are uncontrolled. The current revision can be verified in the Doc Control Repo.
DOCUMENT # HW-IS-0-0057: Revision 170905a | Geoforce Inc.
7. Revision History
Rev
Description
Approval
Date
170905a
Initial Release
B. Taylor
16 Oct 17

Navigation menu
