Quick Start Guide UtilityScan 350HS

Section 1: Getting Started

Keyboard Capability

The Panasonic CF-H2 ToughBook is designed to be used as a touch screen. You may use your fingers

to tap on an icon or menu option, or you may use the attached stylus pen.

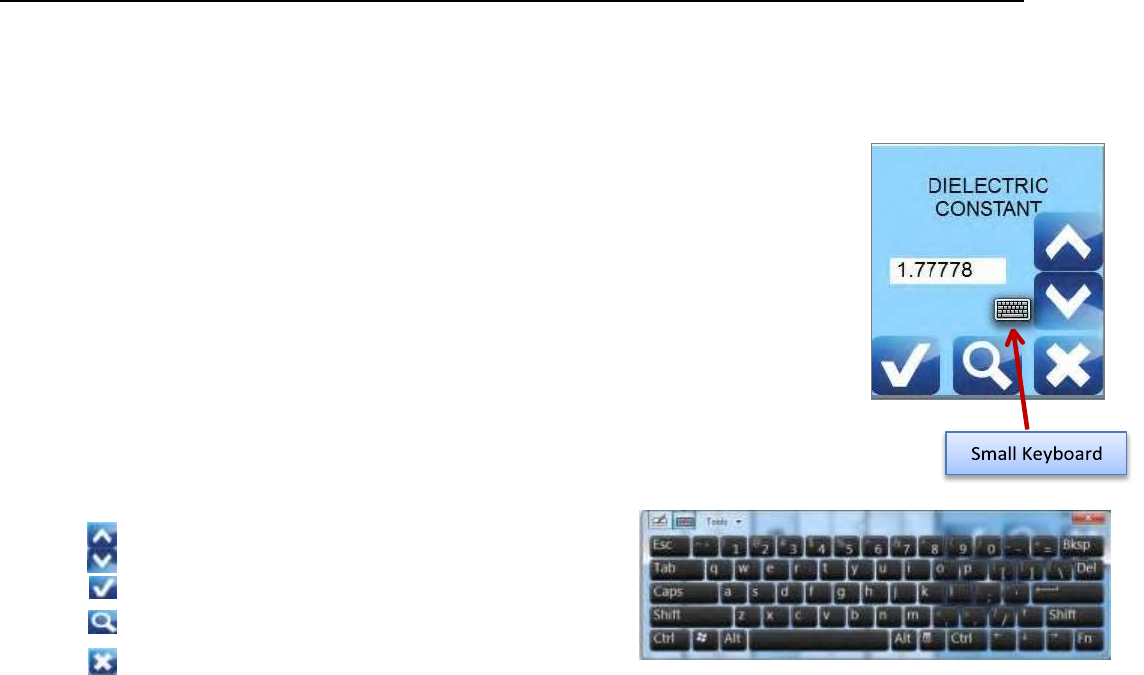

There is also keyboard capability on the screen of the ToughBook. A keyboard “Tab” is located at

the top left side of the screen. You may tap on the tab and a full keyboard will slide to the middle

of the screen.

At times, when data input (typing) is needed, you may simply tap on the white area of the screen

where text and/or numbers may be input. A small keyboard will appear on the screen. Tap on

the small keyboard and a large keyboard is displayed. Simply tap on the appropriate keys and

tap Return  when you are done.

You may exit the keyboard by tapping on the “X” located on the upper right hand corner of the keyboard.

Standard Icons

There are icons that will perform the same function throughout the system. They are as follows:

• Change values up or down, or highlight menu options or files.

• Accept the value.

• Test the value.

Quick Start Guide UtilityScan 350HS

• Cancel.

The icons will display as red or white, depending upon whether or not it was the most recent selected option.

Powering and Booting Up

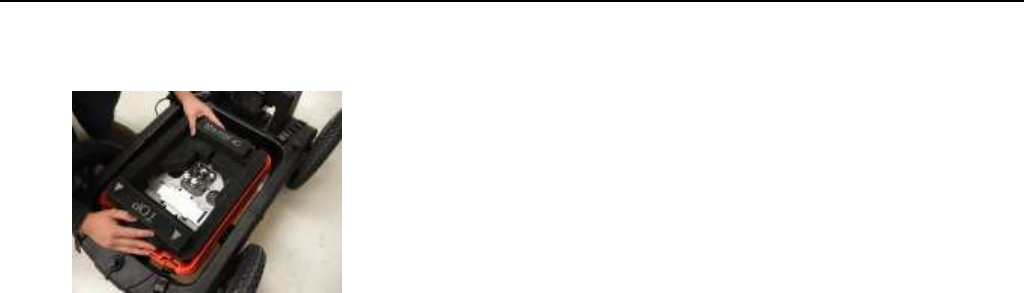

1 Assemble the cart as shown in Appendix A: Cart Assembly Instructions.

Important: Antenna battery must be attached to the antenna before continuing to Step 2.

2 To power up the system:

a) Press and hold the power button on the ToughBook for about 2 seconds until a green light illuminates above the

power button. A green light will blink on the antenna during the system boot up. It will be off when the boot up

process is complete. This green light will illuminate when communication is re-established.

b) After a few seconds, when the system boot up is complete, the UtilityScan 350HS Start Screen is displayed.

c) Tap either:

• A1 Icon or press the A1 button to start.

• A5 Icon or press the A5 button to update system software.

3 Select (by tapping) one of three Modes:

Quick Start Guide UtilityScan 350HS

• Playback Only: To playback data previously collected and saved.

• New Project: To configure and collect data for a new project.

• Last Project: Collect data using the same configuration as the last project.

Note: If there is no communication between the ToughBook and the antenna, or there is no antenna attached to

the ToughBook, “New Project” and “Last Project” will display as “No Antenna Found”. The green light on the

antenna will illuminate if communication is established.

Quick Start Guide UtilityScan 350HS

Powering Down

It is essential that these steps are followed in order when powering down the

system. Failure to do so may result in boot-up issues*.

1 Tap on System Options.

2 Tap on System

Shutdown.

3 Tap either:

• Exit: Close Application to return to start screen. At this point,

press and hold the power button for about 3 seconds. The system

will shut down properly.

• Power Off: Close Application and turn OFF System power. The

system will automatically shut down. (Recommended)

* If the system was not powered down properly and before the next time you

power up, you must remove and disconnect the battery on the antenna, then

re-connect it. This will turn the antenna off, then back on. You can now

power up normally.

Quick Start Guide UtilityScan 350HS

Section 2: Playback Only, New Project, and Last Project Modes

Playback Only Mode

The Playback Only mode allows you to view and edit data previously collected and

saved.

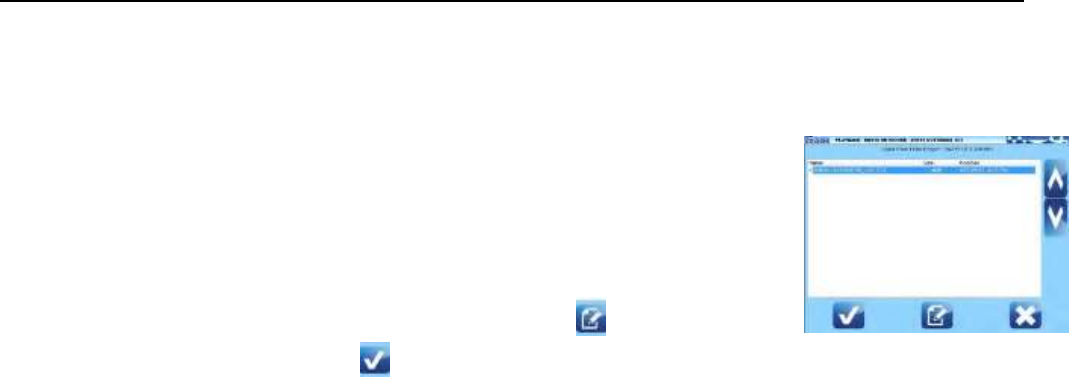

After selecting Playback Only, select which file you would like to review:

a) Tap on the arrows to highlight a file.

b) Tap on the Select Icon to select or de-select a file.

c) Tap on the Accept Icon.

Quick Start Guide UtilityScan 350HS

You will see the data in the O-Scope view change as if the data is

scrolling across the screen. You may stop the scrolling by tapping on

the Stop Icon (This will toggle between Stop Icon and Preview File

Icon. The Preview File Icon will continue the scrolling).

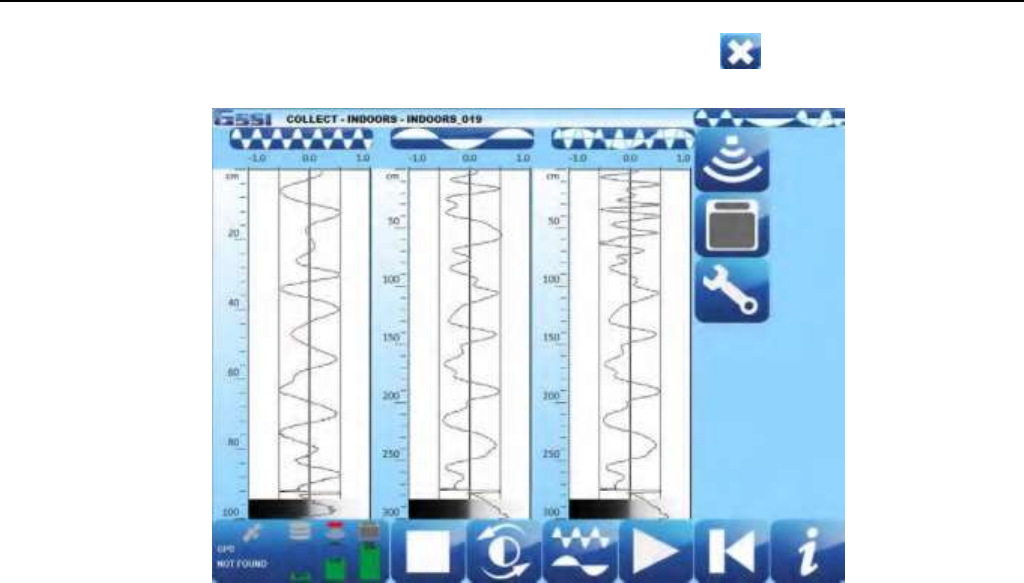

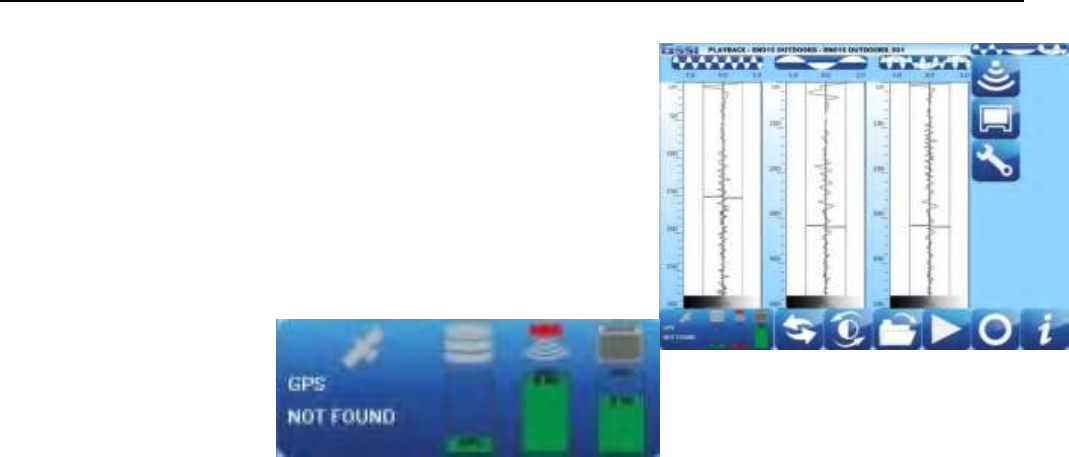

The Screen is divided into three sections: Data View (O-Scope), Main

Menu located at the right pane of the screen, and the Sub-Menu located

at the bottom of the screen.

A Status screen located at the lower left corner of the screen. They

indicate:

• GPS Status.

• Disk Space Used

(storage space).

• Battery Power remaining for the antenna.

• Battery Power remaining for the ToughBook.

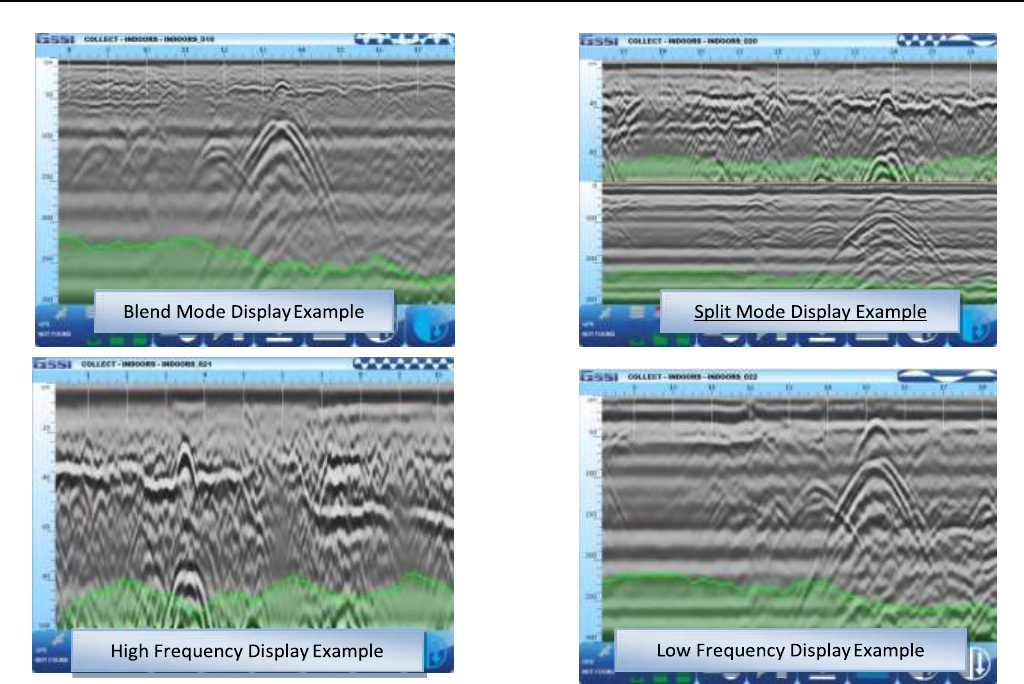

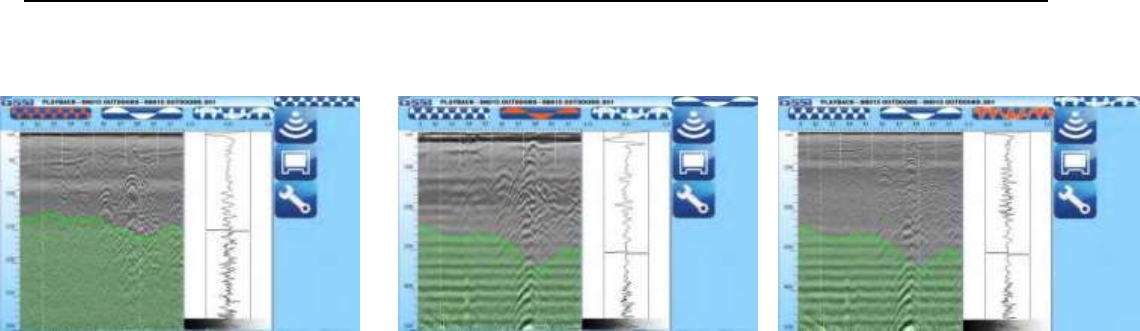

The Data View screen will display data in any one of the follow views:

• High Frequency

• Low Frequency

• Blend

Quick Start Guide UtilityScan 350HS

• All Three (Default)

You may display just one frequency at a time by tapping the icon at the top of the O-Scope. Tapping the same icon will

display all three modes again.

When changing displays, you must tap the Preview File icon to re-display the O-Scope data.

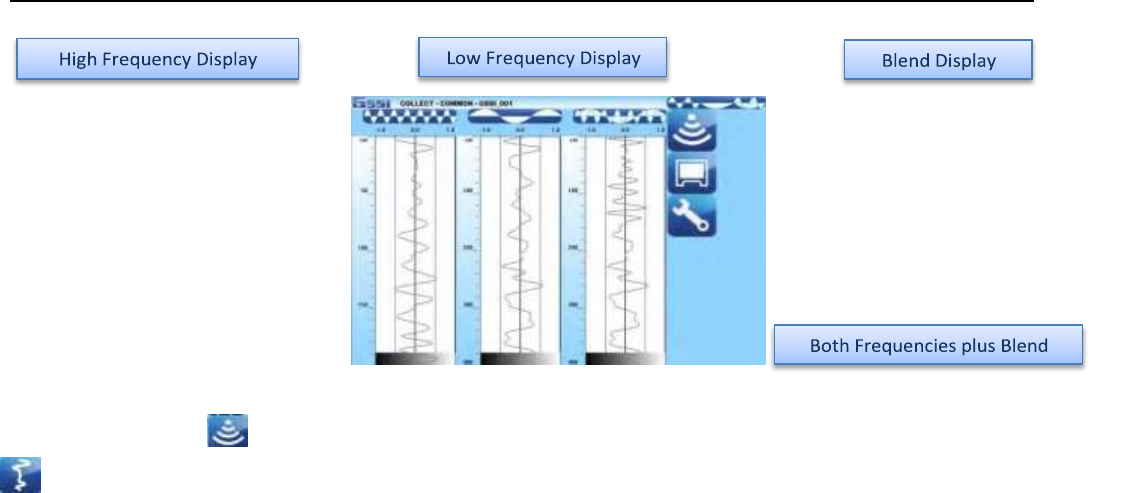

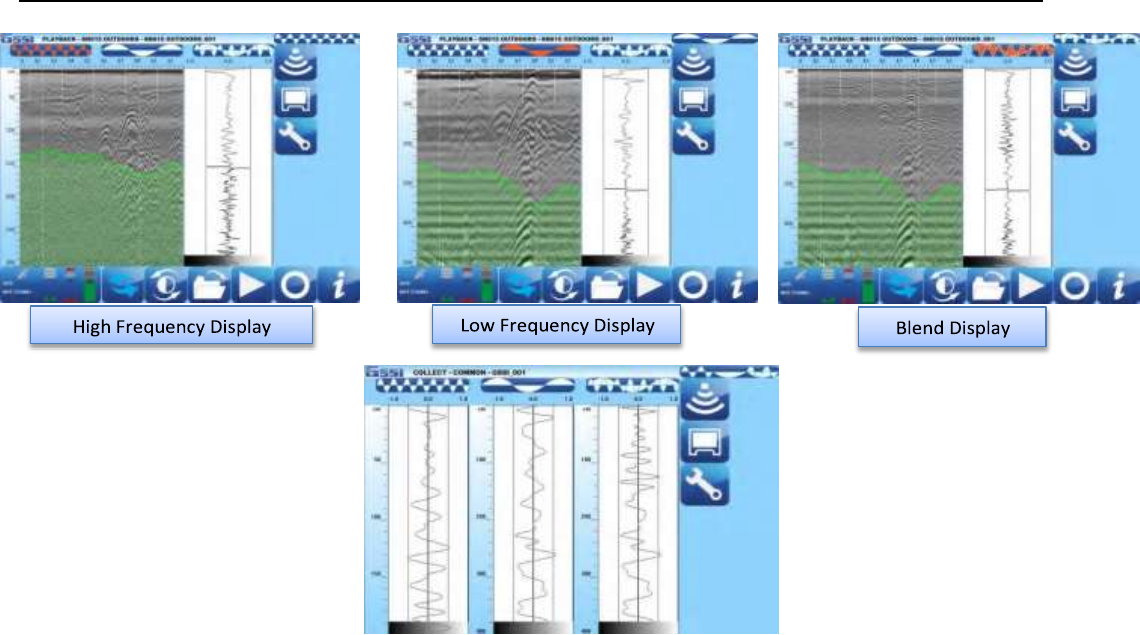

High, Low, Blend, and Active Frequency Symbols

Quick Start Guide UtilityScan 350HS

Main Menu Options (Right Pane of the Screen)

Scan Process Icon

• Scan

• Dielectric Constant: Enter the Dielectric of the soil (See Appendix C for more Dielectric information).

• Soil Type: Determine the soil conditions. This will change the Dielectric Value.

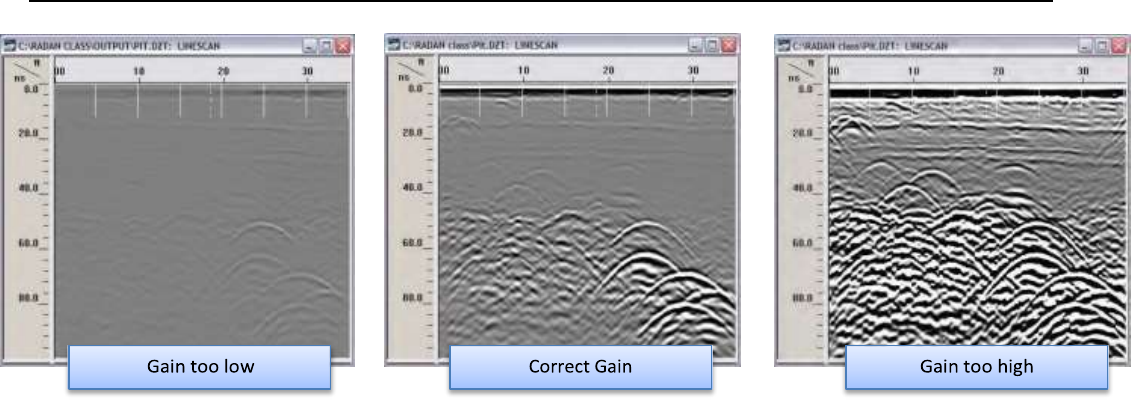

• Gain Settings

• Gain Mode

• Auto allows the system to configure the Gain.

• Manual allows the user to configure the Gain.

• Number of Points (Only if Gain Mode is set to Manual)

• Number of points or “Individual Sections” to adjust the Gain.

• Ranges for 1 point to 8 points.

• GP1: 8 (Only if Gain Mode is set to Manual)

• Depending upon number of Gain Points, adjust each section accordingly.

• Values range from -42 to 126.

Note: Tap on the double arrows (up or down) to display the appropriate gain points.

Quick Start Guide UtilityScan 350HS

• Filters (See Appendix E for more information)

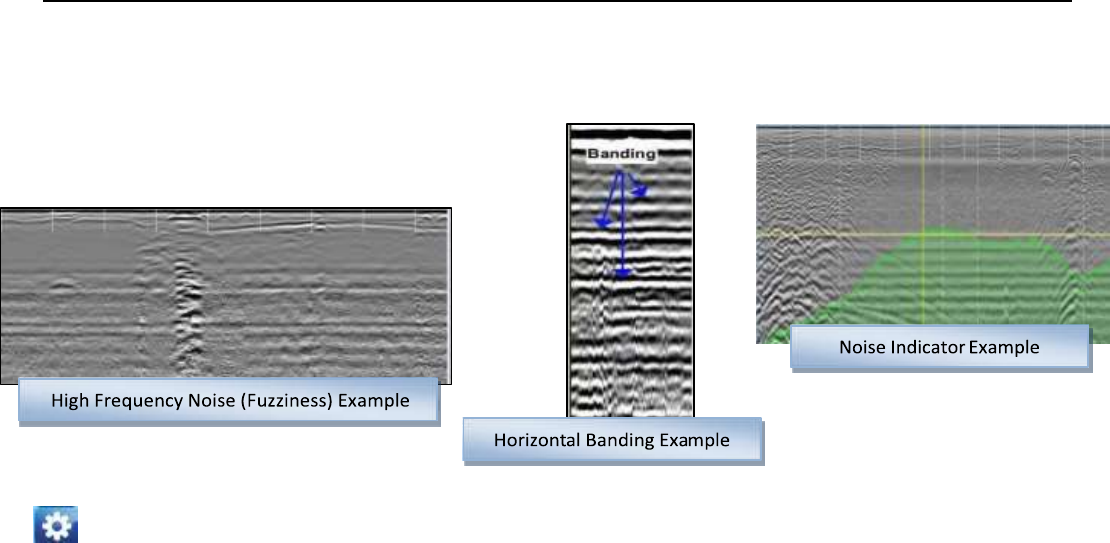

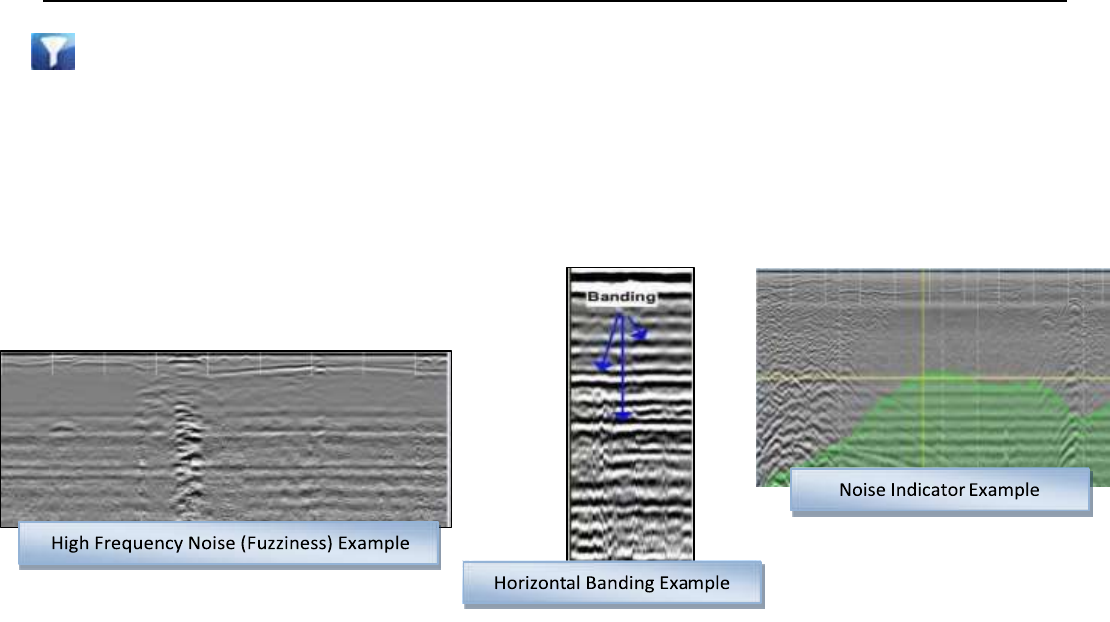

• Stacking: To reduce random or high frequency noise in your data.

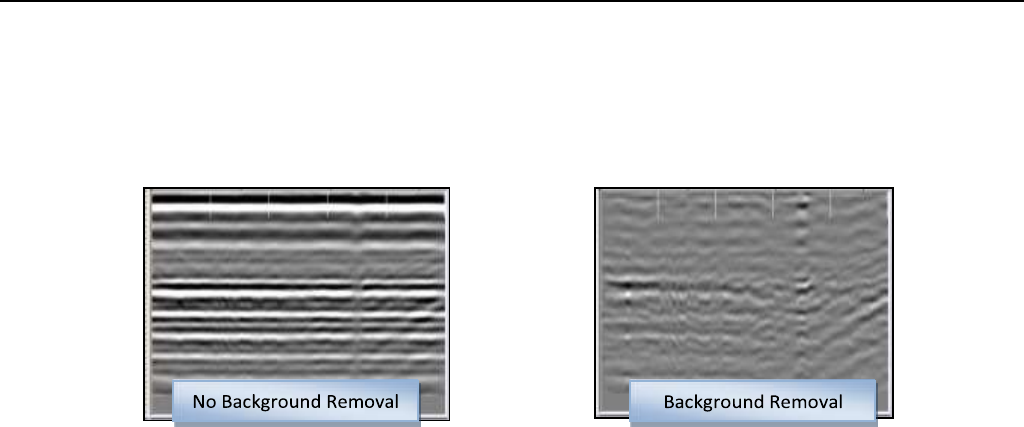

• Background Removal: Remove horizontal banding in your data.

• Noise Indicator

• On: Display approximately the depth where data becomes too weak.

• Off: Turn off display.

Quick Start Guide UtilityScan 350HS

Output Options Icon

• Display:

• Color Table: Select a color scheme.

• Color Xform: Select how to distribute the color scheme throughout the scale (bar is negative to positive).

• Dual Channel

• Split: both channels to be displayed separately.

• Blend: both channels are blended together.

• Vertical Scale

• Equal: Scales are equal.

• Real: Scales are set to scale as per antenna depth range.

• Manage Files:

• Data Path: Change the Data Path where you would like the data to be written or opened from.

• Copy to USB Device: Copies the data from the Data Path to the USB device.

• Move to USB Device: Copies the data from the Data Path AND DELETES those files from the ToughBook.

• Delete Files: Delete files from the ToughBook.

Quick Start Guide UtilityScan 350HS

• Units/Scale:

• Depth Scale

• Depth: Display the Scale in distance units.

• Time: Display the Scale in time units.

• Depth Units: Select the unit of measurement for depth or the vertical scale.

• Ticks per Unit: Number of ticks for marking the data (short line).

• Ticks per Major Unit: Number of ticks for each major unit (long line).

System Options Icon

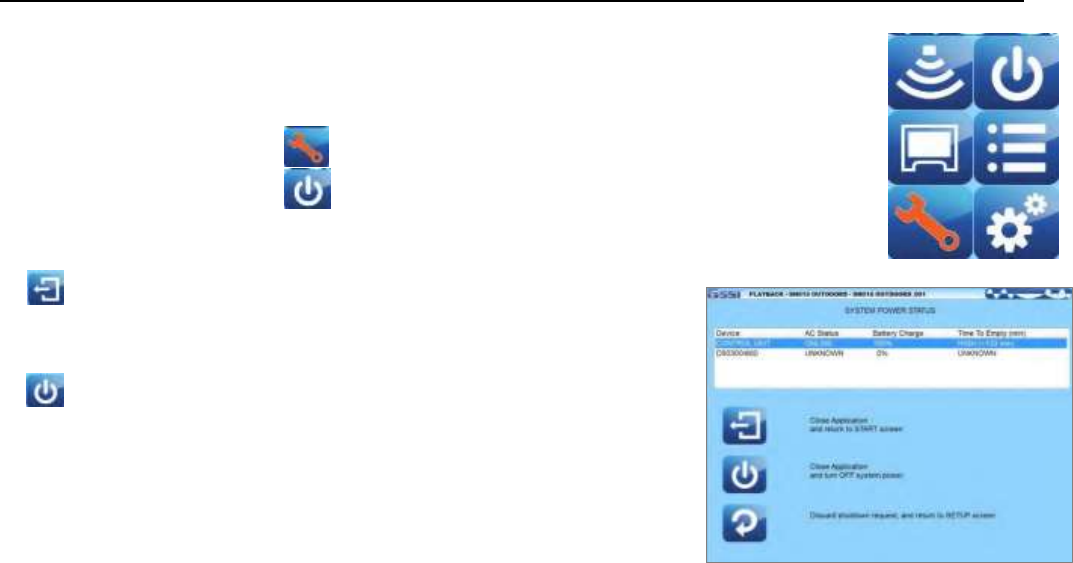

• System Shut Down

• Exit: Close Application and Return to Start Screen.

• Power Off: Close Application and Shut Down the System (power off) .

• Return to Application: Discard Shutdown Request and Return to Setup Screen.

• Versions: Displays Version Numbers of the software and firmware

• User Interface

• Language: Set Language.

• Button Design

Quick Start Guide UtilityScan 350HS

• Label: Text Icons.

• Symbol: Pictured Icons.

• Brightness Up or Down: Set contrast up or down.

Sub Menu Options (Bottom Pane of the Screen)

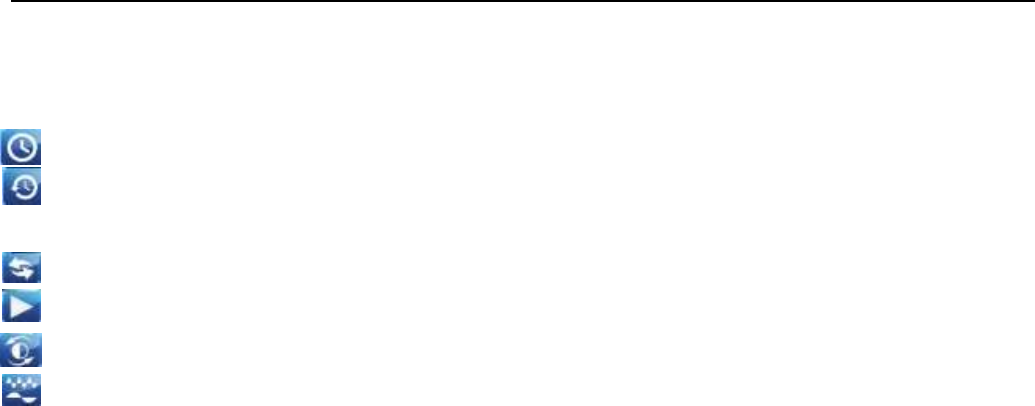

• Preview File/Stop: Preview file. This will toggle between Preview File and Stop.

• Reset Gain: Reset the display gain for optimal viewing.

• Select File: Select another file to playback.

• Playback File(s): Display the RADAR data in whatever display you selected as a display (High, Low, or Blend).

See next section for options on this screen.

Quick Start Guide UtilityScan 350HS

• Collect Mode: This will take you to collect mode if you wish to collect data.

• File Info: Information about the file.

Playback File(s) Options

Depending upon the type of display you selected in the

previous screen, the data will display in the same mode

(High, Low, or Blend) Displayed at the top of the

screen:

• The name of the file.

• The location of the cross hair (X for distance,

Z for depth). Place the stylist pen on the

screen to move the cross hair to the desired

position.

Menu Options at the Bottom of the Screen

• Cursor Left: Scroll the data towards the beginning of the file.

• Cursor Right: Scroll the data towards the end of the file.

• Mark: Mark the data for reference points.

a) Place the stylist pen on the screen.

Quick Start Guide UtilityScan 350HS

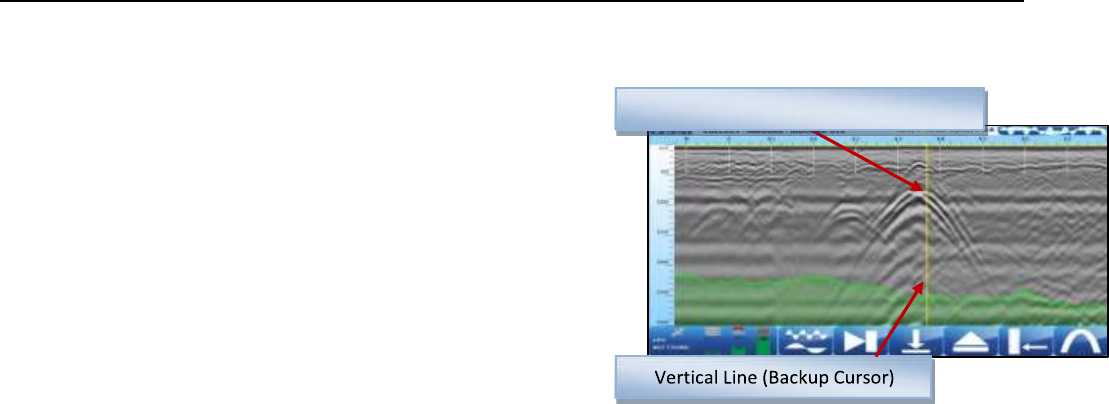

b) Move the pen around and place the vertical line where you would like the mark to be placed. c) Tap the Mark

Icon.

• Stop Playback: Return to the Main Playback Screen.

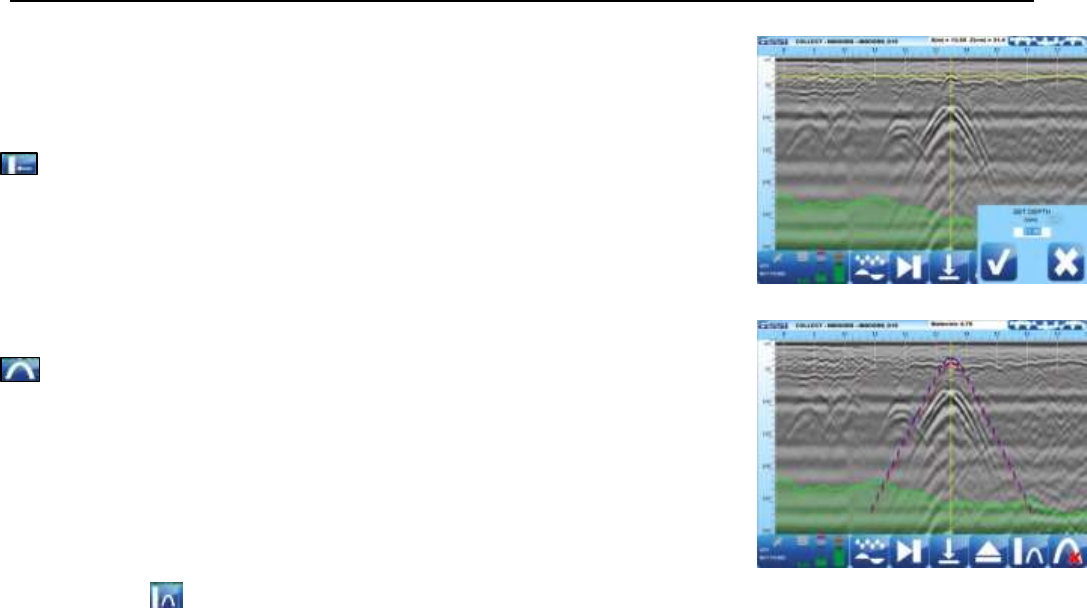

• Set Depth: Indicate a known depth in your data. This will update the dielectric

value accordingly.

a) Place the stylist pen on the screen.

b) Move the pen around and place the horizontal line on the known depth.

c) Tap the Set Depth Icon.

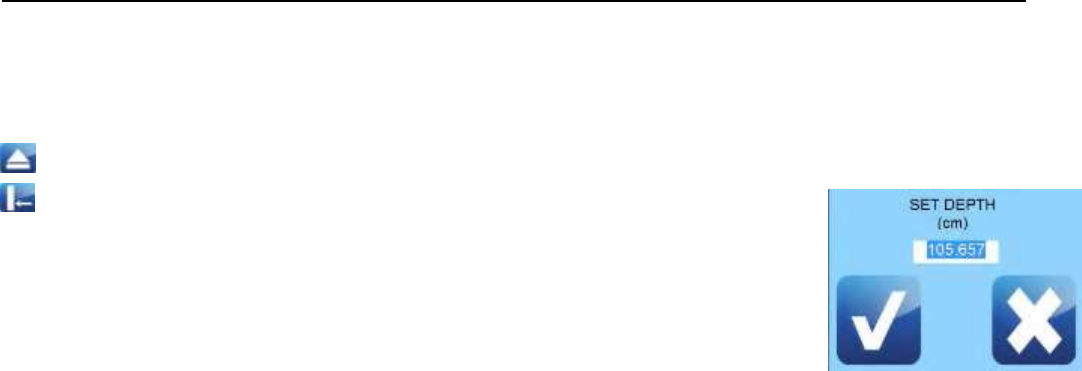

d) Enter and accept the known depth.

Quick Start Guide UtilityScan 350HS

New Project Mode and Last Project Mode

• New Project Mode will allow you to configure the system as desired for a new project or continue with

an old project.

• Last Project Mode will bypass the Folder selection screen and continue with the last project with all its

settings from the last project. In this mode, you still can make changes to the settings.

• In either mode, the options are the same.

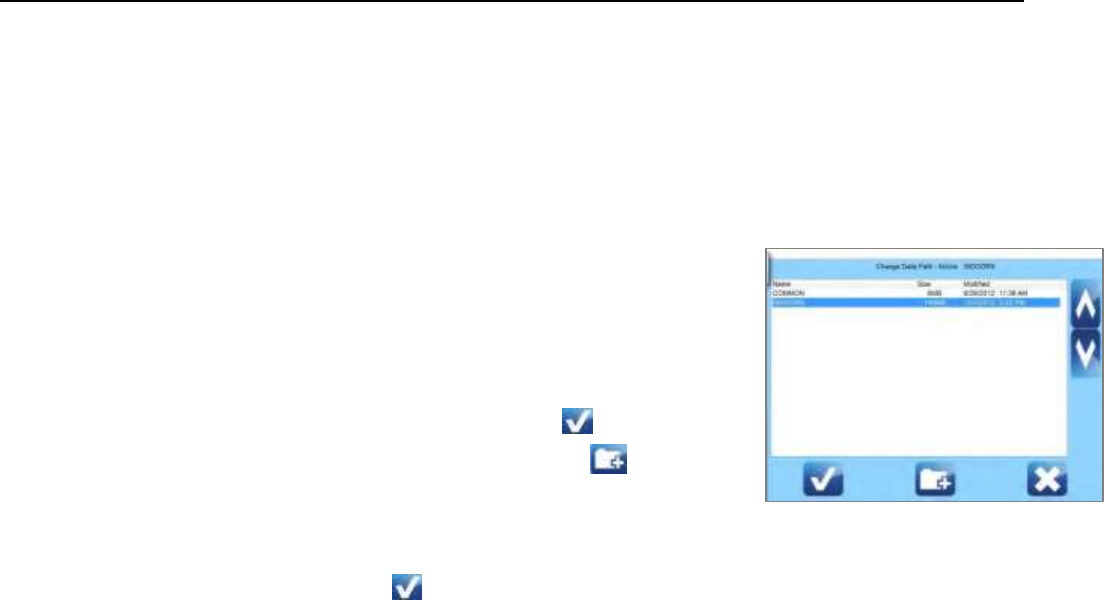

After selecting New Project, select which folder you would like to save your data, or

create a new folder for a new project. You may do one of the following:

a) Tap on the arrows and select a folder (project. All

files save will be saved to this folder and the name

of the files will be folder name + a sequential

number. Tap on Accept to the continue.

b) Tap on New Data Path to create a new

folder (project).

• Enter and save the new folder (project) name.

• Highlight the new folder (project) by tapping on the arrows.

• Tap on Accept to continue.

Quick Start Guide UtilityScan 350HS

c) Tap on Cancel. The files will be saved to the last folder that was used.

d) Once you have selected a folder, the following screen is displayed or you selected Last Project Mode:

Quick Start Guide UtilityScan 350HS

The Screen is divided into three sections: Data View (O-Scope), Main Menu located at the right pane of the screen, and

the Sub-Menu located at the bottom of the screen

Quick Start Guide UtilityScan 350HS

Main Menu Options (Right Pane of the Screen)

Scan Process Icon

• Scan

• Depth Range: Enter the depth penetration.

• Dielectric Constant: Enter the Dielectric of the soil (See Appendix C for more Dielectric information).

• Soil Type: Determine the soil conditions. This will change the Dielectric Value.

• Scan Density: Set number of scans per unit (meter or feet).

Quick Start Guide UtilityScan 350HS

• High (100 scans/m, 30 scans/ft)

• Normal (50 scans/m, 15 scans/ft)

• AutoSave File

• Off: User is prompted to save a file.

• On: System will automatically save a file.

Quick Start Guide UtilityScan 350HS

•

Gain Settings

• Gain Mode

• Auto allows the system to configure the Gain.

• Manual allows the user to configure the Gain.

• Number of Points (Only if Gain Mode is set to Manual) • Number of

points or “Individual Sections” to adjust the Gain.

• Ranges for 1 point to 8 points.

• GP1: 8 (Only if Gain Mode is set to Manual)

• Depending upon number of Gain Points, adjust each section accordingly.

• Values range from -42 to 126.

Note: Tap on the double arrows (up or down) to display the appropriate gain points.

Filters (See Appendix E for more information)

• Stacking: To reduce random or high frequency noise in your data.

• Background Removal: Remove horizontal banding in your data.

• Noise Indicator

• On: Display approximately the depth where data becomes too weak.

Quick Start Guide UtilityScan 350HS

•

• Off: Turn off display.

Maintenance

• Calibrate SW: Select this option to calibrate the survey wheel.

a) Enter Calibration Distance.

Quick Start Guide UtilityScan 350HS

•

b) Position Antenna on Start Mark.

c) Tap on Start.

d) Move Antenna to End Mark.

e) Tap on Accept.

• Configure GPS: Select this option to configure this system with your

GPS.

• Set Time: Select this option to set Date and Time.

Quick Start Guide Utility Scan 350HS

Output Options Icon

• Display:

• Color Table: Select a color scheme.

• Color XForm: Select how to distribute the color scheme throughout the scale (bar is negative to positive).

• Dual Channel

• Split: Both channels to be displayed separately.

• Blend: Both channels are blended together.

• Vertical Scale

• Equal: Scales are equal.

• Real:Scales are set to scale as per antenna depth range.

• Manage Files:

• Data Path: Change the Data Path where you would like the data to be written or opened from.

• Copy to USB Device: Copies the data from the Data Path to the USB device.

• Move to USB Device: Copies the data from the Data Path AND DELETES those files from the

ToughBook.

• Delete Files: Delete files from the ToughBook.

Quick Start Guide UtilityScan 350HS

• Units/Scale:

• Depth Scale

• Depth: Display the Scale in distance units.

• Time: Display the Scale in time units.

• Depth Units: Select the unit of measurement for Depth or the vertical scale.

• Ticks per Unit: Number of ticks for marking the data (short line).

• Ticks per Major Unit: Number of ticks for each major unit (long line).

System Options Icon

• System Shut Down

• Exit: Close Application and Return to Start Screen.

• Power Off: Close Application and Shut Down the System (power off).

• Return to Application: Discard Shutdown Request and Return to Setup Screen.

• Versions: Displays Version Numbers of the software and firmware

• User Interface

• Language: Set Language.

• Button Design

Quick Start Guide Utility Scan 350HS

• Label: Text Icons.

• Symbol: Pictured Icons.

• Brightness Up or Down: Set contrast up or down • Save Setup: Save a current configuration for

future use.

• Recall Setup: Recall a saved configuration.

Sub Menu Options (Bottom Pane of the Screen)

• Stop/Preview Scan: This will turn the antenna off and on. This will toggle between Off and On.

• Reset Gain: Reset the display gain for optimal viewing.

• Active Channel: Display between the following modes.

• High Frequency

• Low Frequency

• Blend

Quick Start Guide UtilityScan 350HS

• Start Scan: Begin collect of data.

• Playback Mode: This will take you to playback mode if you wish to view saved data.

• File Info: Information about the file. You may also change the file

names here as well. All file names will have a sequential number

attached to it.

Start Scan Options

Depending upon the type of

display you selected in the

previous screen, the data will display in the same mode (High,

Low, Split or Blend).

Displayed at the top of the screen:

• The name of the file.

• The display mode.

Menu Options at the Bottom of the Screen:

• Active Channel: Toggle between High, Low, or Blend

frequency displays.

Quick Start Guide Utility Scan 350HS

• Next File: Save the current file and begin new file.

• Mark: Mark the data for reference points.

• Stop Scan: Save the current file and return to the Main Screen.

• Gain: Increase or decrease display gain.

Collecting Data

• If you plan to save the data you collect, note the file name located at the top left of the screen.

• Begin collecting data by moving the cart forward. Data gets collected only when the cart is moving forward.

Quick Start Guide UtilityScan 350HS

• Once you start seeing hyperbolas on the screen, pull the system straight back along your survey line. You will

see a vertical line (the backup cursor) scroll along your data. When that vertical line is right over the apex of the

hyperbola, the center of the antenna is over that target.

Hyperbola which represents a target

• The center of the antenna is located in the middle of the

antenna directly under the capsule between the two

centerline indicators on each side of the cart. Using these

as reference points, mark the ground at each side of your

cart. After moving the cart, place an “X” between the two

marks. Push the cart straight forward or move the cart to do

another line scan. No data will be collected until you have

passed the spot where you started to reverse.

Quick Start Guide Utility Scan 350HS

Set Depth and Focus Data

This will allow you to enter a known depth or migrate the data to re-establish a

dielectric value. Note that two icons at the bottom have changed when the backup

cursor is displayed on the screen (when the cart was pushed backward.

• Set Depth

a) Using the stylus pen, place the horizontal line at a known depth.

b) Tap Set Depth.

c) Input the depth and accept. This will change the dielectric value.

• Focus On

a) Using the stylus pen, place the cross-hair on a hyperbola.

b) Tap on Focus On.

c) Using the stylus pen, match the Focus On hyperbola with a hyperbola on

the screen (width).

d) Tap on:

• Set Focus to accept the hyperbola. This will change the dielectric value.

Quick Start Guide UtilityScan 350HS

• or Focus Off to cancel this process .

Quick Start Guide Utility Scan 350HS

Quick Start Guide UtilityScan 350HS

Appendix A: Cart and Antenna Assembly Instructions

1 Unpack your system.

• ToughBook H2 and Power Adapter

• 2.0 m Communcation Cable

• Power Cable, Battery and Charger

• Foam Insert

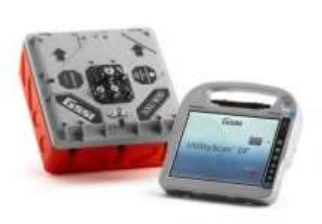

• 350HS Antenna

• Battery Mounting Bracket for Antenna

• 4 Wheel Cart with Capsule and Handle

• H2 Mounting Unit (2 Pieces), 4 Screws, 4 Hex Nuts

• Manual CD and Quick Start Guide

• Battery Chargers for ToughBook and Antenna Batteries

• 4 ToughBook batteries

• 2 Antenna batteries

• Transit case

2 Assemble the handle to the cart as shown below.

Quick Start Guide Utility Scan 350HS

3 Connect the two pieces of the H2 Mounting Unit together using the 4 screws and hex nuts. You may use a

guiding tool (i.e. screw driver) to guide the hex nuts into the hex holes. Attach the H2 Mounting Unit and the

Cable Guide to the handle.

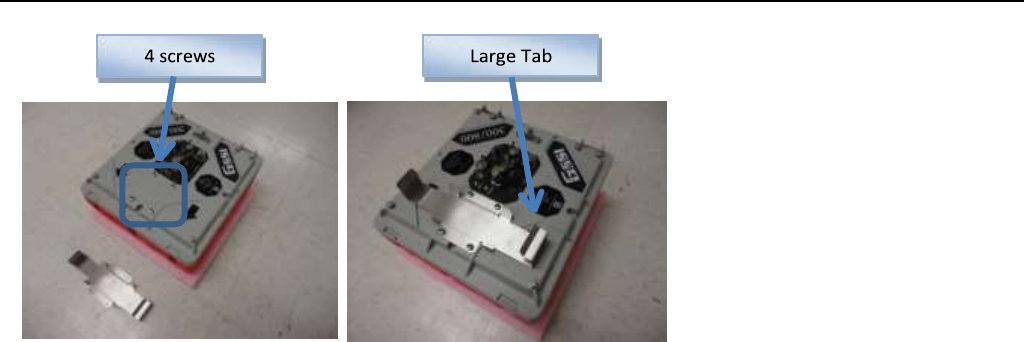

4 Remove the 4 screws between the arrows of the antenna. Attach the Battery Mounting Bracket to the antenna,

using the 4 screws, as shown (Notice the location side of the large tab). Torque to 8-10 inch/pounds. Insert the

350HS Antenna into the capsule. NOTE THE POSITION and THE DIRECTION of the antenna in the capsule.

Quick Start Guide UtilityScan 350HS

5 Guide the 2.0 m Communication Cable and the Survey Wheel cable through the foam as shown, using the slots of

the foam as guides. Attach the cables to the 350HS antenna as shown. NOTE the service loop of the cables to

reduce the tension on the cables.

Quick Start Guide Utility Scan 350HS

Attach the ToughBook to the mounting bracket.

6 Guide the Green Communication Cable through the cable guide, through the hole at the top of the handle and

connect it to the ToughBook.

7 Connect the battery cable and insert the Antenna Battery to the battery mount on the antenna.

Quick Start Guide UtilityScan 350HS

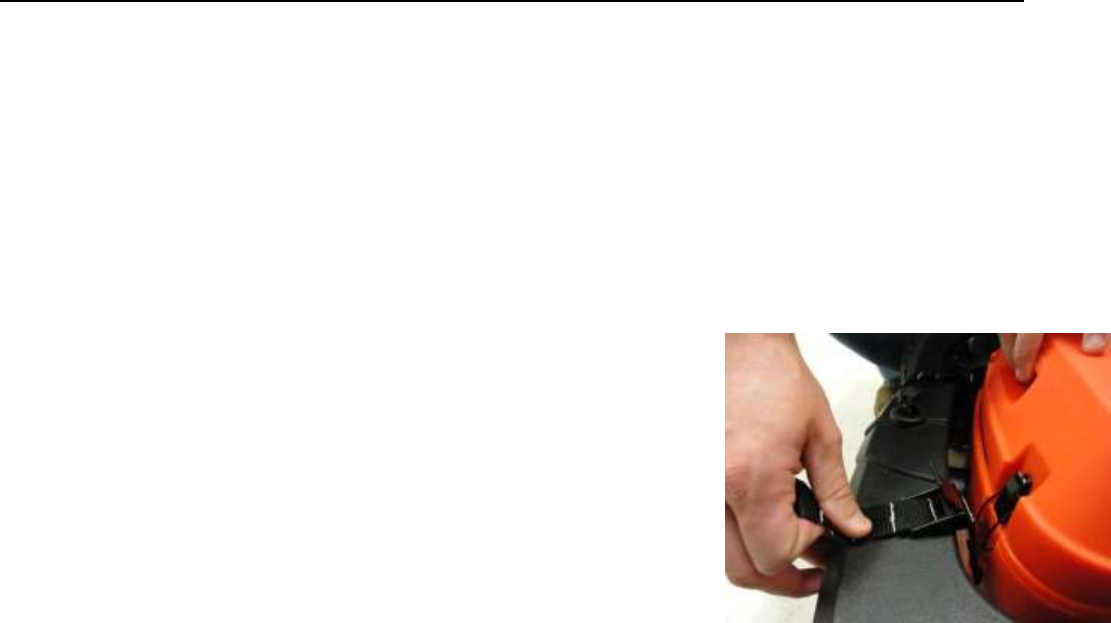

8 Place the cover of the capsule, starting in the back as shown. Make certain there is service loop with the cables so

that there is no tension with the cables as the capsule moves up and down during data collection. Latch the cover

to the lock position.

9 Depending on site conditions and to increase the life of the capsule, you

should adjust the height of the capsule by using a strap. Place a ¼ inch

piece of plywood under the capsule. Loosen the straps so that the

capsule sits on the plywood, then re-tighten the straps.

10 Insert the ToughBook batteries (2), one on each side of the ToughBook.

Quick Start Guide Utility Scan 350HS

Though the wheels and the capsule come attached to the cart, you may need to unattach and re-attach them. To detach or

attach wheels to cart frame. Line up the flat side of the “D” shaped axle rod with the corresponding flat part of the “D”

shaped hole on the cart frame. Slide the rod into the cart frame while keeping the blue button at the center of the wheel

hub depressed.

Appendix B: Battery Charger Information

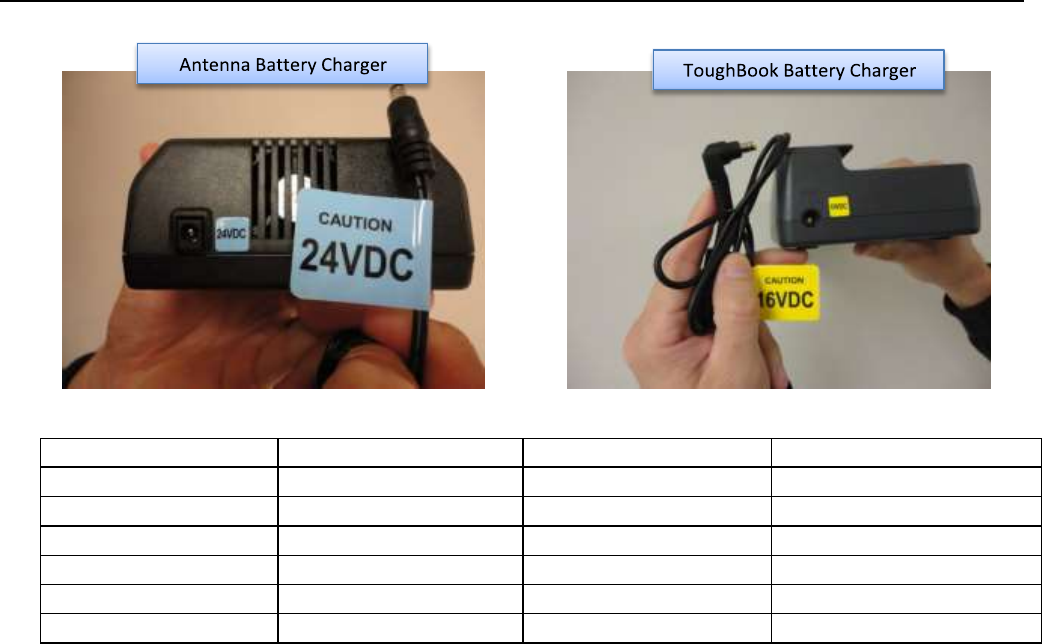

There are two battery chargers included in your system.

• Charger for the Antenna batteries.

• Charger for the ToughBook batteries.

The cables for each are color coordinated so that cables are used with its corresponding charger.

Note: The cable for the ToughBook Battery Charger may also be used directly for the ToughBook as well.

Quick Start Guide UtilityScan 350HS

Appendix C: Dielectrics of Common Materials (Soil Conditions)

Material

Dielectric Constant

Material

Dielectric Constant

Air

1

Wet Granite

6.5

Snow Firn

1.5

Travertine

8

Dry Loamy/Clayey Soils

2.5

Wet Limestone

8

Dry Clay

4

Wet Basalt

8.5

Dry Sands

4

Tills

11

Ice

4

Wet Concrete

12.5

Quick Start Guide Utility Scan 350HS

Coal

4.5

Volcanic Ash

13

Asphalt

5

Wet Sands

15

Dry Granite

5

Wet Sandy Soils

23.5

Frozen Sand & Gravel

5

Dry Bauxite

25

Dry Concrete

5.5

Saturated Sands

25

Dry Limestone

5.5

Wet Clay

27

Dry Sand & Gravel

5.5

Peats (saturated)

61.5

Potash Ore

5.5

Organic Soils (saturated)

64

Dry Mineral/Sandy Soils

6

Sea Water

81

Dry Salt

6

Water

81

Frozen Soil/Permafrost

6

Syenite Porphyry

6

Wet Sandstone

6

Appendix D: Examples of Some Common Objects

These examples are presented for informational use only. The images that you see on your own site conditions may vary.

Example 1

This piece of data shows a bank of conduits feeding into an industrial building. Note the dipping edge of a trench cut to

the upper left of the conduits.

Quick Start Guide UtilityScan 350HS

Example 2

This image shows a drain line coming out of a restroom. Also note the mesh at the top of the screen.

Quick Start Guide Utility Scan 350HS

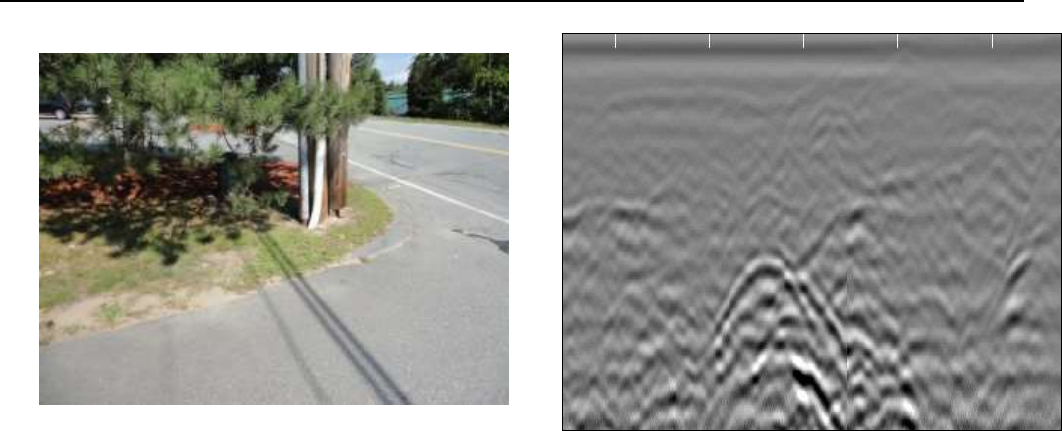

Example 3

This image shows data collected across a driveway, and locating a conduit from the telephone pole to an industrial

building.

Quick Start Guide UtilityScan 350HS

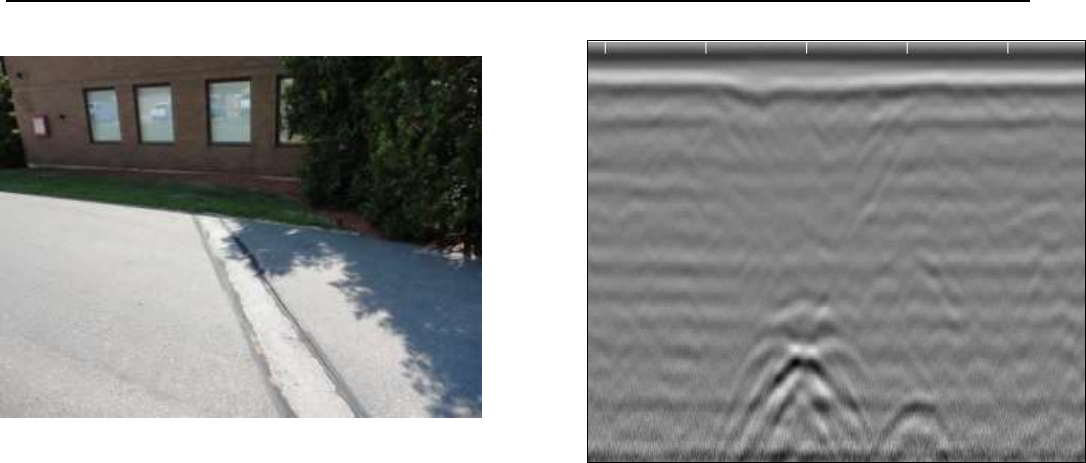

Example 4

This image shows data collected along a driveway next to a business. This shows a concrete culvert with a cable running

through it.

Quick Start Guide Utility Scan 350HS

Example 5

This image shows a gas line and communication cables (Fiber Optic) going across a driveway

Quick Start Guide UtilityScan 350HS

Appendix E: Glossary of Terms

Dielectric: A value assigned to materials and is used to calculate the velocity of RADAR in that material. RADAR will

travel at different speeds depending upon the material and/or soil condition. RADAR travels fastest in air (dielectric = 1)

and slowest in water (dielectric = 81). Everything else falls somewhere in between. It is important to know the dielectric

value of a material so that the depth of a target can be calculated. Since determining dielectric is a best guess estimate, the

depth of a target will never be an exact measurement. As a safety feature, you will always give about a 1 foot (or about

1/3 meter) margin of error when estimating the depth of a target.

Quick Start Guide Utility Scan 350HS

Filter: A process to remove unwanted noise in the data so that targets can be seen more clearly. Filtering is a trial and

error process, therefore trial runs are necessary using different filtering values to determine the best configuration for a

job site. There are two types of filtering:

Background Removal: This filter will remove unwanted noise that looks like horizontal banding across your data.

Using this process, this will remove data that is consistent throughout your data.

Stacking: This filter will remove unwanted noise that looks like fuzziness in your data. By selecting a value of 3, 5, 9, or

15, the process with take each scan and replace that scan with the average values of the surrounding scans. Be aware that

too much stacking can filter out real targets. In this example, stacking of 3 is the best result. Targets at the top begin to

disappear with higher scans to average.

Quick Start Guide UtilityScan 350HS

Gain: Adding or subtracting Gain from data will amplify or lower the image of the RADAR signals. It is advised that you

use the lowest gain that will show targets.

Quick Start Guide Utility Scan 350HS

The following pages are additional documents

included in the GSSI Manual CD that ships with each

product.

FCC Notice (for U.S. Customers):

This device complies with part 15, class F of the FCC Rules:

Operation is subject to the following conditions:

1. This device many not cause harmful interference, and

2. This device must accept any interference received, Including interference that may cause undesired

operation

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Parties operating this equipment must be eligible for licensing under the provisions of part 90 of 47 CFR.

Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research

institutes, commercial mining companies, construction companies and private parties operating on behalf of

these groups. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the operator

to serious legal penalties.

Coordination Requirements

(a) UWB imaging systems require coordination through the FCC before the equipment may be used.

The operator shall comply with any constraints on equipment usage resulting from this coordination.

(b) The operator of an imaging system used for fixed operation shall supply a specific geographical

location or address at which the equipment will be operated. This material shall be submitted to the

Federal Communications Commission, 445 12th Street, SW Washington D.C. 20554. Attention UWB

Coordination.

(c) Users of authorized, coordinated UWB systems may transfer them to other qualified users and to

different locations upon coordination of change of ownership or location to the FCC and coordination

with existing authorized operations.

(d) The NTIA/FCC coordination report shall include any needed constraints that apply to day-to-day

operations. Such constraints could specify prohibited areas of operations or areas located near authorized

radio stations for which additional coordination is required before operation of the UWB equipment. If

additional local coordination is required, a local coordination contact will be provided.

Notice: Use of this device as a wall imaging system is prohibited by FCC regulations.

For U.S. Customers

Ground Penetrating Radar Coordination Notice And Equipment Registration

Note: This form is only for Domestic United States users. The Federal Communications Commission

(FCC) requires that all users of GPR who purchased antennas after July 15th, 2002 register their equipment

and areas of operation. It is required that you fill out this form and fax or mail to the FCC. Failure to do

this is a violation of Federal law.

1. Date:

2. Company name:

3. Address:

4. Contact Information [contact name and phone number]:

5. Area Of Operation [state(s)]:

---Continued on next page.

6. Equipment Identification:

Brand Name: Geophysical Survey Systems, Inc.

Antenna Model No. (center frequency): List all antennas being registered.

Model

Frequency

FCC ID (QF7 followed by

Model #)

7. Receipt Date Of Equipment:

Fax this form to the FCC at: 202-418-1944

Or

Mail to:

Frequency Coordination Branch, OET

Federal Communications Commission

445 12th Street, SW

Washington, D.C. 20554

ATTN: UWB Coordination

Do not send this information to GSSI.

Canadian Requirements for RSS-220

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes:

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement.

Canadian Requirements of RSS-220 for Ground Antennas

This Ground Penetrating Radar Device shall be operated only when in contact with or within 1 m of the ground.

This Ground Penetrating Radar Device shall be operated only by law enforcement agencies, scientific research

institutes, commercial mining companies, construction companies, and emergency rescue or firefighting

organizations.

Cet appareil de radar de sol (ou géoradar) ne doit être utilisé qu’en contact avec le sol ou à 1 m maximum au

dessus du sol.

Cet appareil de radar de sol ne doit être utilisé que par les forces de l’ordre, les instituts de recherche

scientifiques, les sociétés minières, les sociétés de construction, et les organisations de secours d’urgence

ou de combat du feu.

Canadian Requirements of RSS-220 for Hand-held Antennas

This In-wall Radar Imaging Device shall be operated where the device is directed at the wall and in contact

with or within 20 cm of the wall surface.

This In-wall Radar Imaging Device shall be operated only by law enforcement agencies, scientific research

institutes, commercial mining companies, construction companies, and emergency rescue or firefighting

organizations.

Cet appareil de radar de structure (murs, poutres, dalles…) ne doit être utilisé qu’en contact avec la

structure ou à 20 cm maximum décollé de cette structure.

Cet appareil de radar de sol ne doit être utilisé que par les forces de l’ordre, les instituts de recherche

scientifiques, les sociétés minières, les sociétés de construction, et les organisations de secours d’urgence

ou de combat du feu.

Canadian Requirements of RSS-220 for Search and Rescue

Antennas

This Through-wall Radar Imaging Device shall be operated only by law enforcement agencies or emergency

rescue or firefighting organizations that are under a local, provincial or federal authority. The equipment is

to be operated only in providing services and for necessary training operations.

Cet appareil de radar au travers des murs ne doit être utilisé que par les forces de l’ordre ou les organisations

de secours d’urgence ou de combat du feu qui sont sous une autorité locale, provinciale ou fédérale. Cet

équipement ne doit être utilisé que dans le cadre de services et pour les opérations d’entrainement

nécessaires.

Declaration of CE Conformance

Geophysical Survey Systems, Inc. hereby confirms that the following named products have been tested and

meet the requirements of the European standards as indicated:

Models: 3101A, 5106A, 5100B, 5101, 52600, 62000,MINISIR, MINIHR, LL3P, 41000SA, 42000S, 50400S, 50270S,

D50300/800, 350HS

Description: Ground Penetrating Radar Antennas

European Standards: ETSI EN 301 489-32 V1.1.1 (2005-09), ETSI EN 301 489-V1.6.1 (2005-09), ETSI

EN 302 066-1 V1.1.1(2005-09), ETSI EN302 066-2 V1.1.1 (2005-09),

ETSI EN 302 066-1 V1.2.1(2008-02), ETSI EN302 066-2 V1.2.1 (2008-02),

ECC/DEC/(06)08

Place and Date of Issue: Intertek – ETL SEMCO 07.02.07, 03.11.09, 10.13.09, 11.18.09

Compliance Worldwide 03.23.12 09.25.09 11.1.16

Model: EMP-400 Profiler

Description: Electromagnetic Induction System

European Standards: EN61326:1997 + A1:1998 + A2:2001

Place and Date of Issue: Intertek – ETL SEMCO 08.29.06

Model: FGMF20/3000

Description: Two channel Ground Penetrating Radar data acquisition system

European Standards: EN61000-6-2: 2005, EN61000-6-4:2007

Place and Date of Issue: Intertek – ETL SEMCO 09.17.08

Model: FGDC-3000/2100, Structurescan EZ System, Structurescan MINI System

Description: Ground Penetrating Radar Data Acquisition Systems

European Standards: EN61000-6-2:2005, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5,

EN61000-4-6, EN61000-4-11

Place and Date of Issue: Compliance Worldwide 09.29.09, 11.25.09

Models: SIR-30, SIR-30e

Description: Ground Penetrating Radar Data Acquisition System

European Standards: EN61000-6-4: 2007 per EN 55011:2009 + A1:2010

Place and Date of Issue: Compliance Worldwide 07.10.12, 07.11.12

Models: 350HS

Description: Ground Penetrating Radar Data Acquisition System

European Standards: EN61000-6-4: 2007 per EN 55011:2009 + A1:2010

Place and Date of Issue: Compliance Worldwide 10.31.16

Chris Plumlee

02.01.16 Name of authorized person

Geophysical Survey Systems, Inc.

40 Simon St Tel 603.893.1109 • Fax 603-889-3984 Nashua, NH 03060 www.geophysical.com •

sales@geophysical.com

Geophysical Survey Systems 350HS The Utility Scan 350HS is a GPR concrete scanner User Manual

Geophysical Survey Systems, Inc. The Utility Scan 350HS is a GPR concrete scanner Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
