Getac Technology E110 Tablet PC User Manual E110

Getac Technology Corporation Tablet PC E110

User Manual

Rugged Mobile Computing Solutions
E110
USER’S MANUAL
May 2012
TRADEMARKS
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
All brand and product names are trademarks or registered trademarks of
their respective companies.
NOTE
The information in this manual is subject to change without notice.
For the latest version of the manual, please visit the Getac website
at www.getac.com.
i
Table of Contents
Chapter 1 Getting Started ............................................................. 1-1
Getting the Tablet PC Running .............................................. 1-2
Unpacking ........................................................................... 1-2
Installing the Battery Pack and Connecting to AC Power 1-3
Using the Tether ................................................................. 1-6

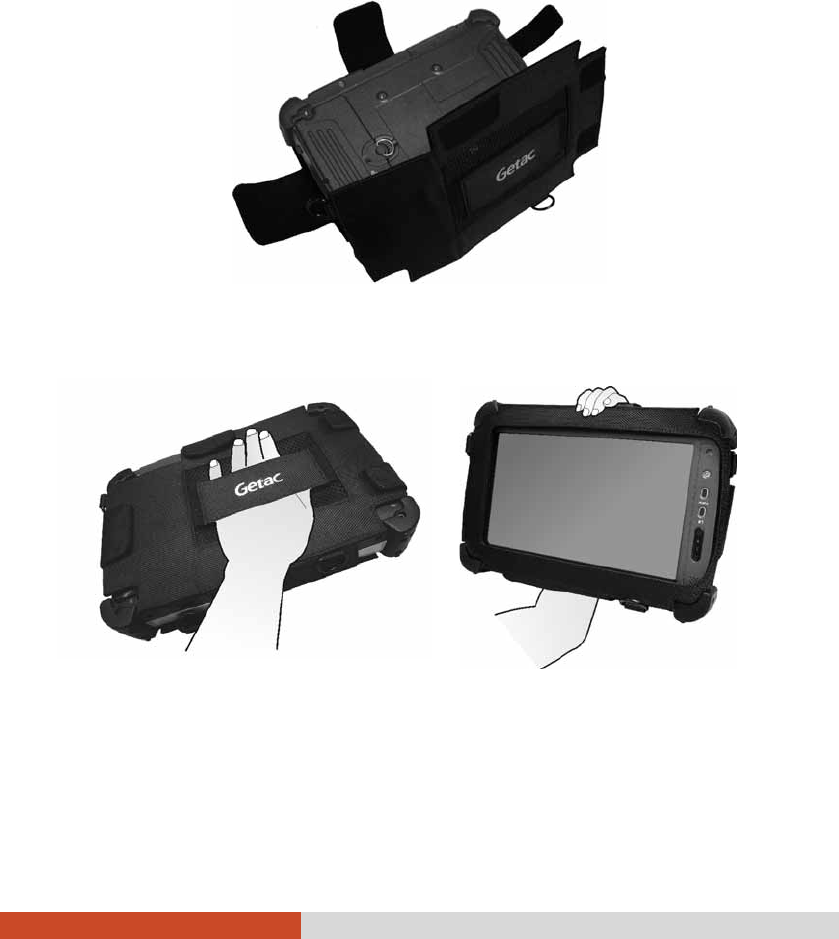

Using the Hand Strap ......................................................... 1-7

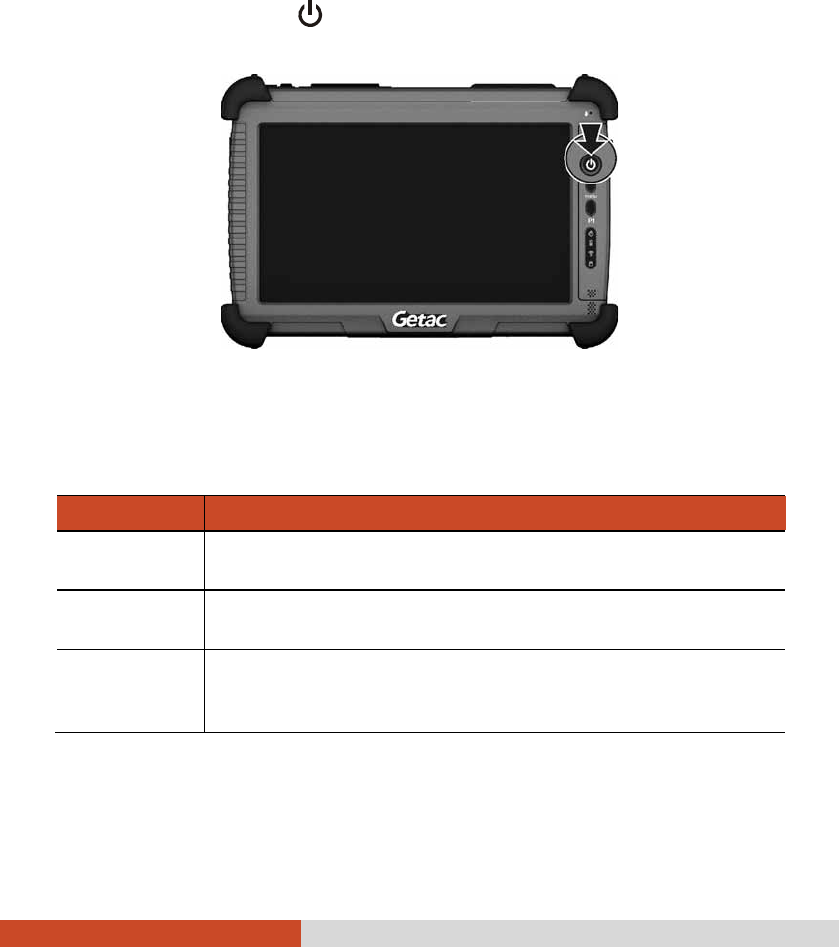

Turning On and Off the Tablet PC .................................... 1-8
Taking a Look at the Tablet PC .............................................. 1-9

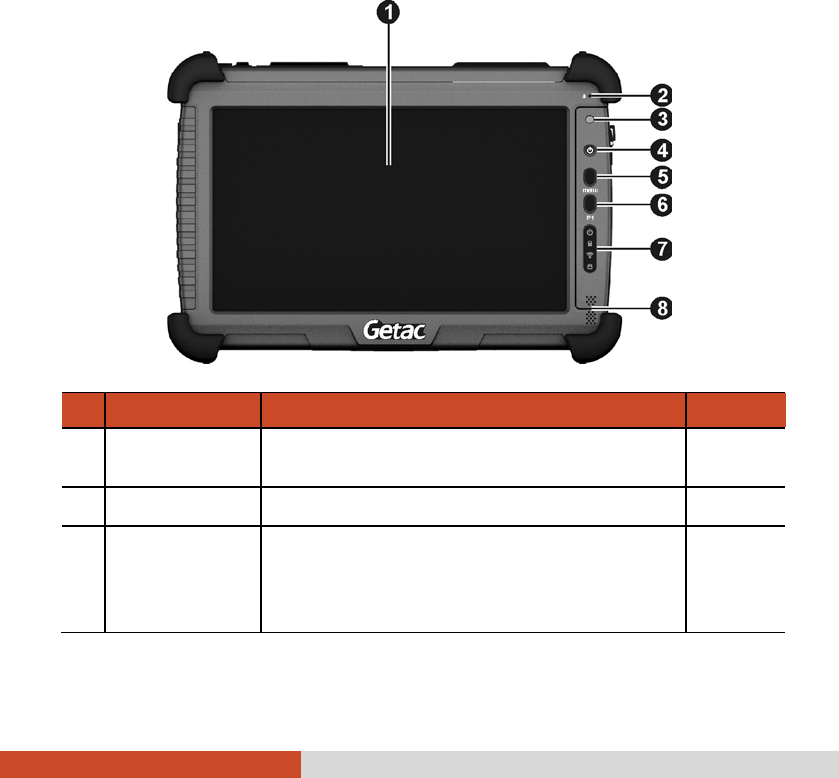

Front Components .............................................................. 1-9

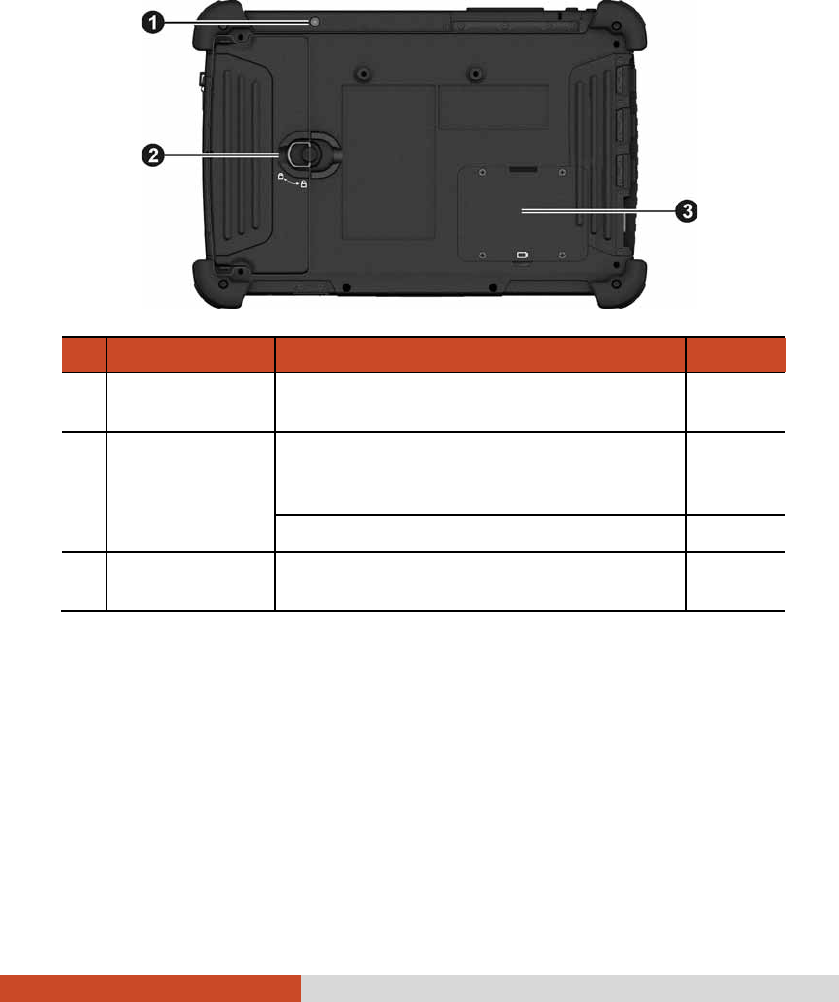

Rear Components ............................................................. 1-12
Right-Side Components .................................................... 1-13
Left-Side Components ...................................................... 1-13

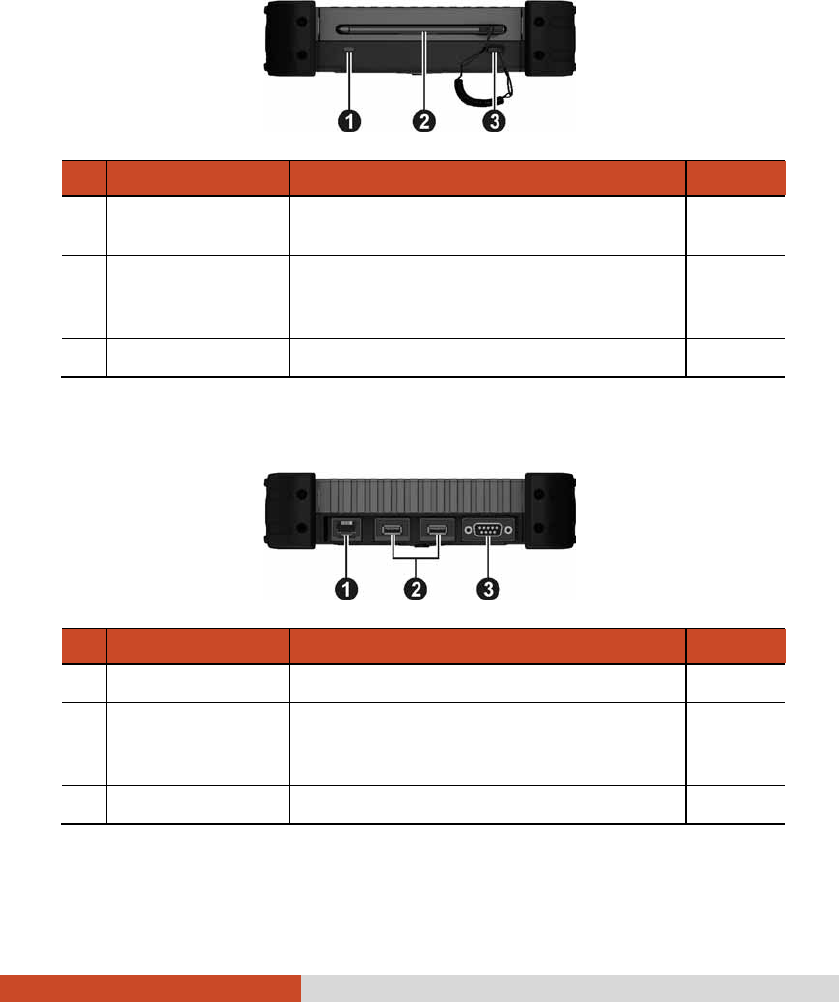

Top Components .............................................................. 1-14
Bottom Components ........................................................ 1-15
Chapter 2 Operating Your Tablet PC ............................................. 2-1
Using the Touchscreen............................................................ 2-2

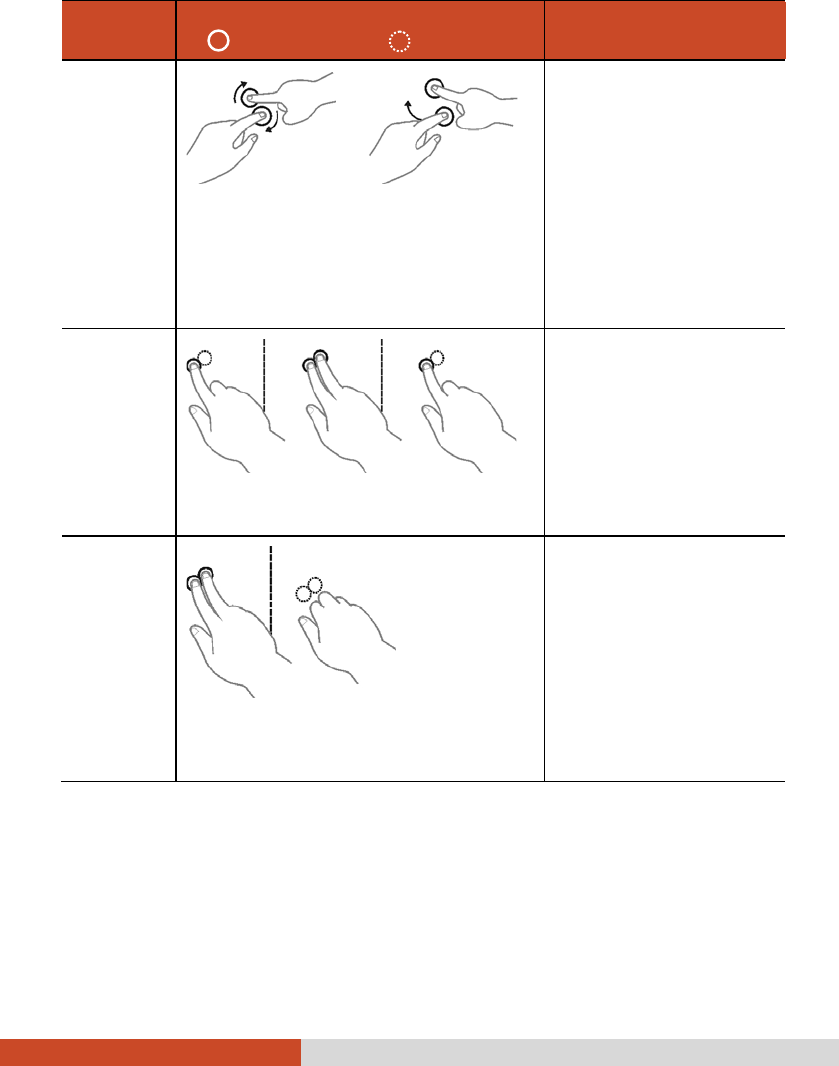

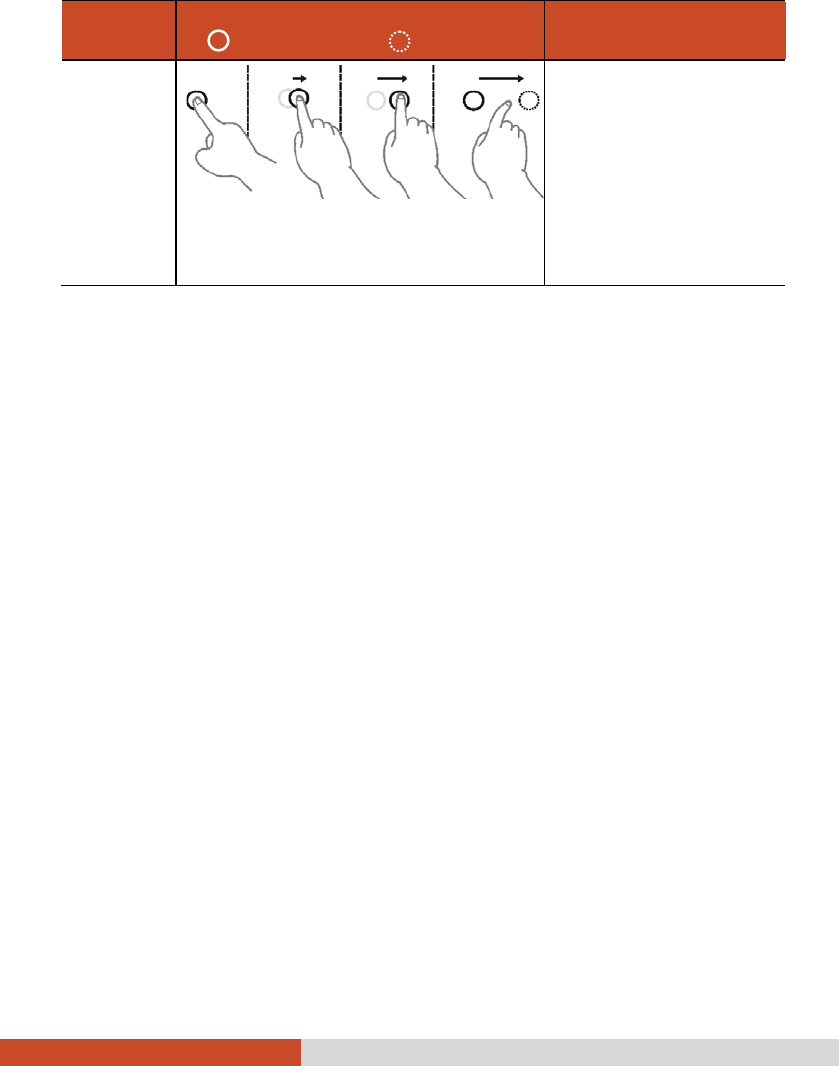

Using Multi-touch Gestures ............................................... 2-3

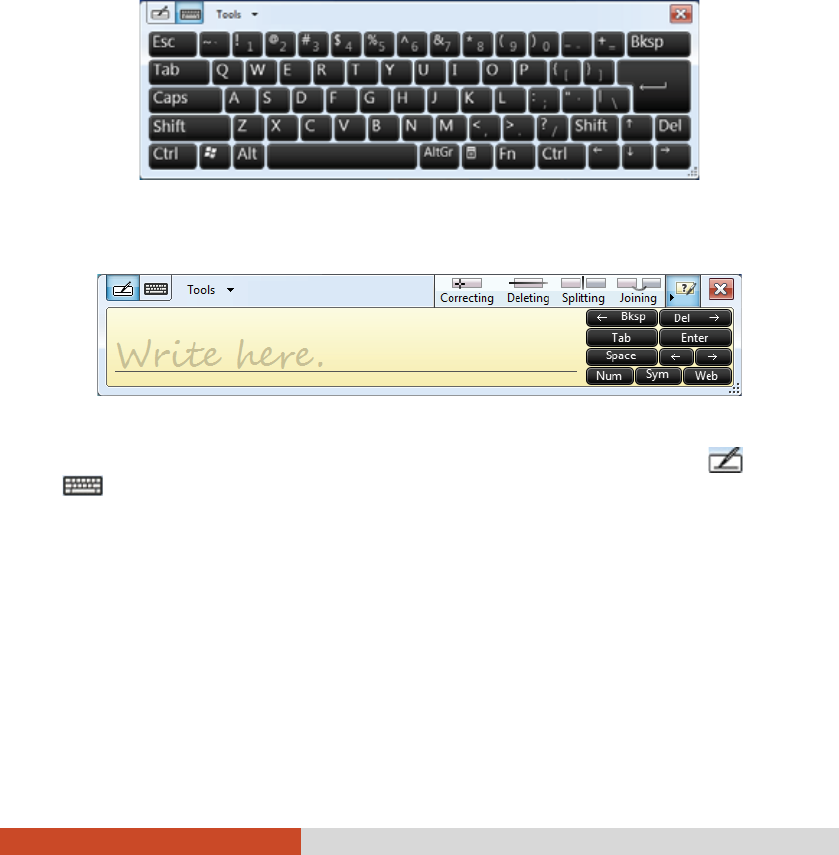

Using the Input Panel ............................................................. 2-6
Using the Network Features .................................................. 2-7
Using the LAN ..................................................................... 2-7

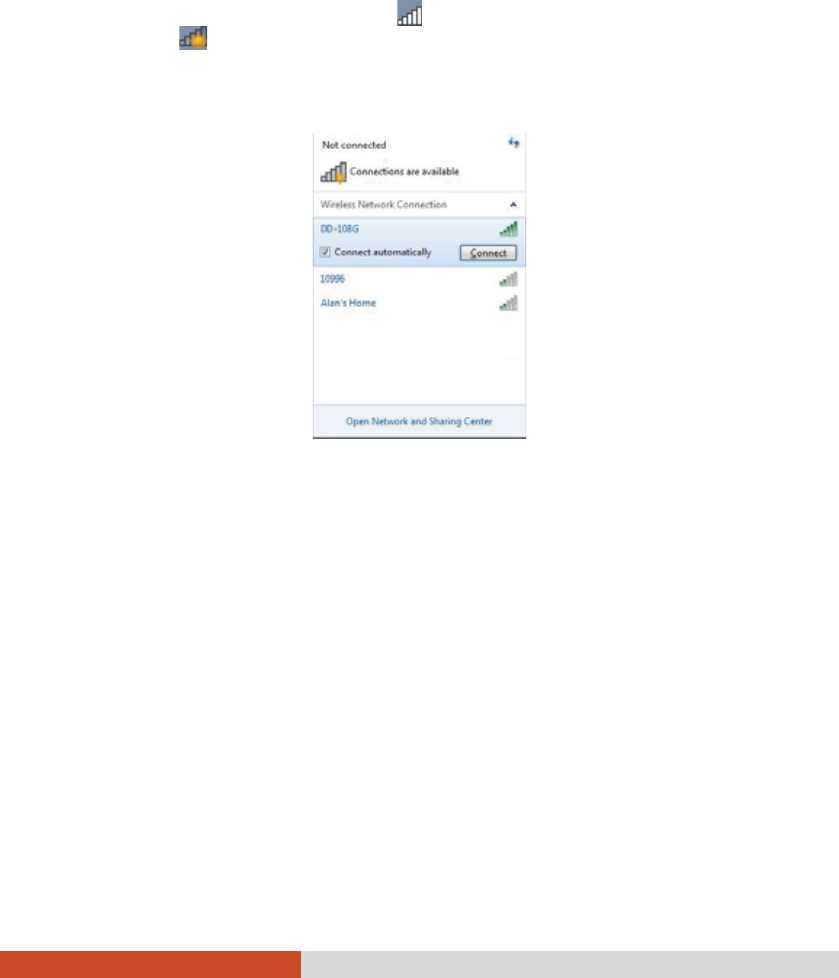

Using the Wireless LAN (Optional) .................................... 2-7
Using the Bluetooth Feature (Optional) ............................. 2-10
Turning On/Off the Bluetooth Radio .............................. 2-10

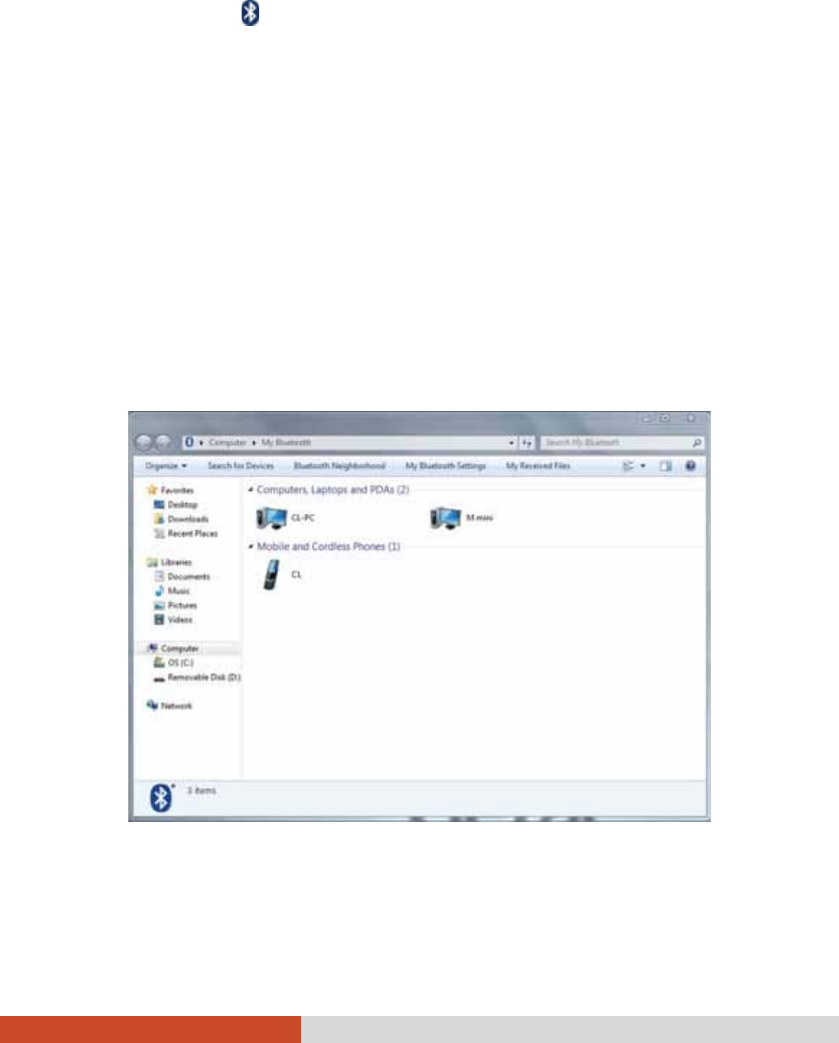

Connecting to another Bluetooth Device ....................... 2-11

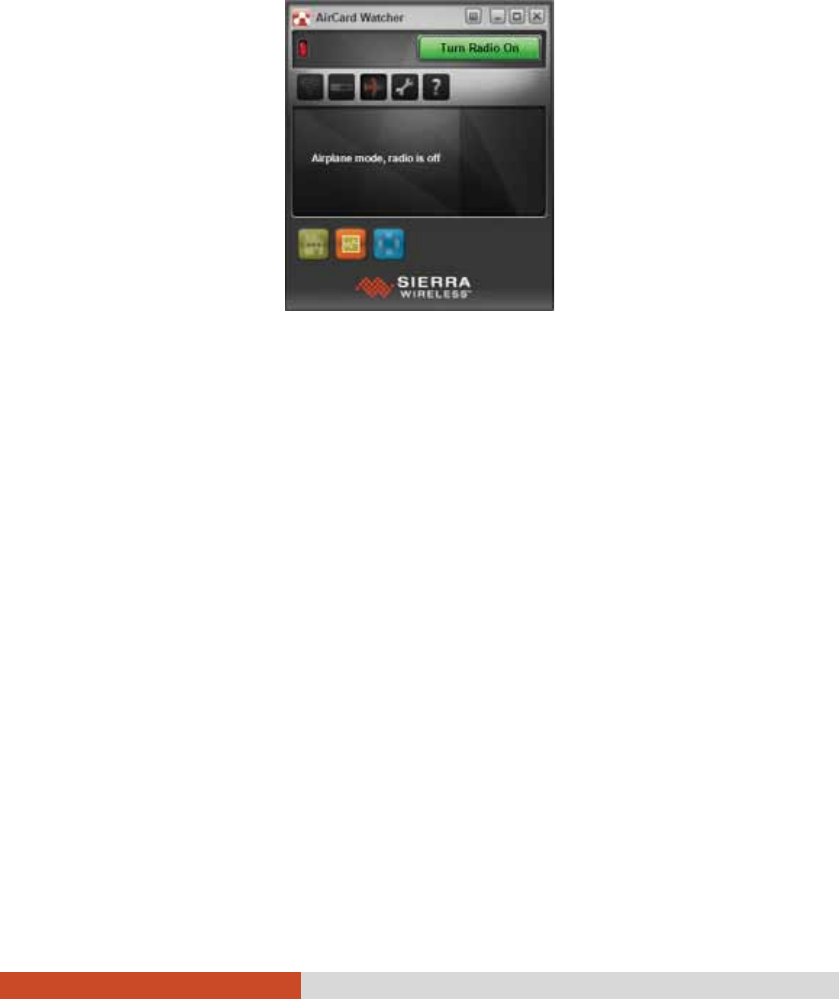

Using the WWAN 3G Feature (Optional) ............................ 2-13
Installing the SIM Card ..................................................... 2-13
ii
Connecting to WWAN 3G Network ................................ 2-15
Chapter 3 Managing Power ........................................................... 3-1
AC Adapter .............................................................................. 3-2
Battery Pack ............................................................................. 3-3
Charging the Battery Pack ................................................. 3-3

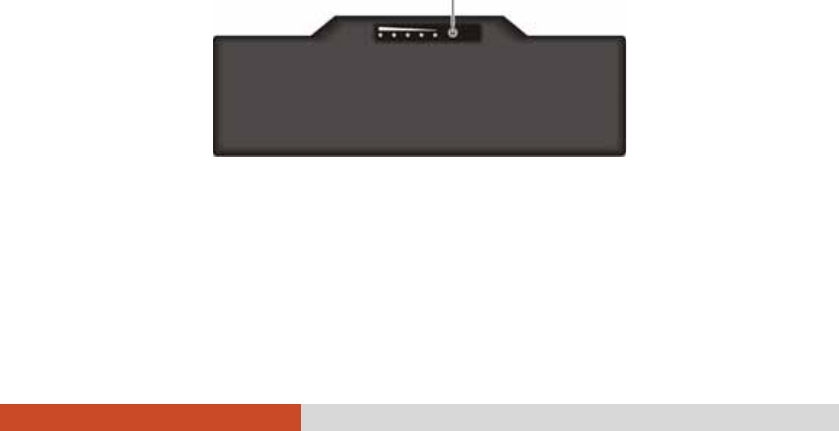

Checking the Battery Level ................................................ 3-4
Backup Battery .................................................................... 3-5
Replacing the Battery Pack ................................................ 3-5
Battery Low Signals and Actions ....................................... 3-7
Power Management ............................................................... 3-8
Hibernation ......................................................................... 3-9
Power-Saving Tips ................................................................. 3-10
Chapter 4 Expanding Your Tablet PC ............................................ 4-1
Using Smart Cards ................................................................... 4-2
Using PC Cards ......................................................................... 4-3
Using SD Cards (Optional) ...................................................... 4-4

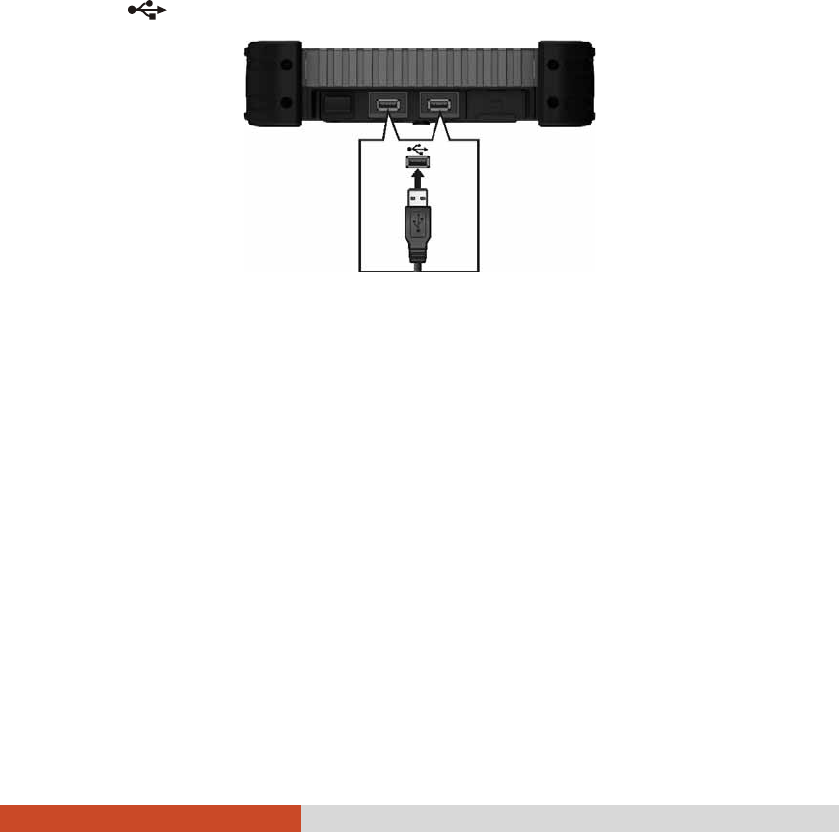

Connecting a USB Device ....................................................... 4-5

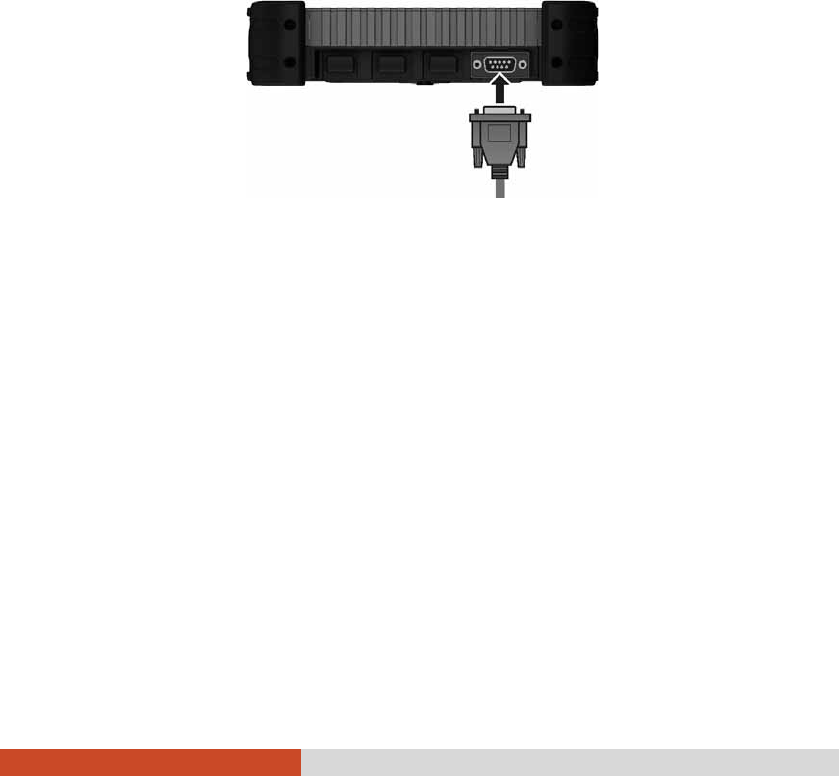

Connecting a Serial Device ..................................................... 4-6

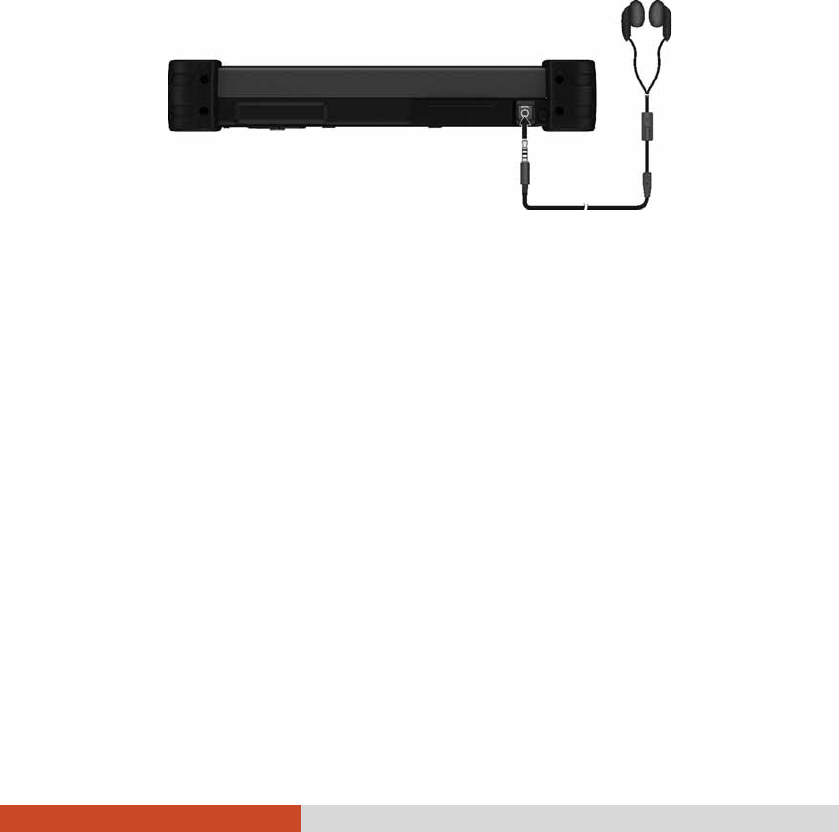

Connecting an Audio Device .................................................. 4-7

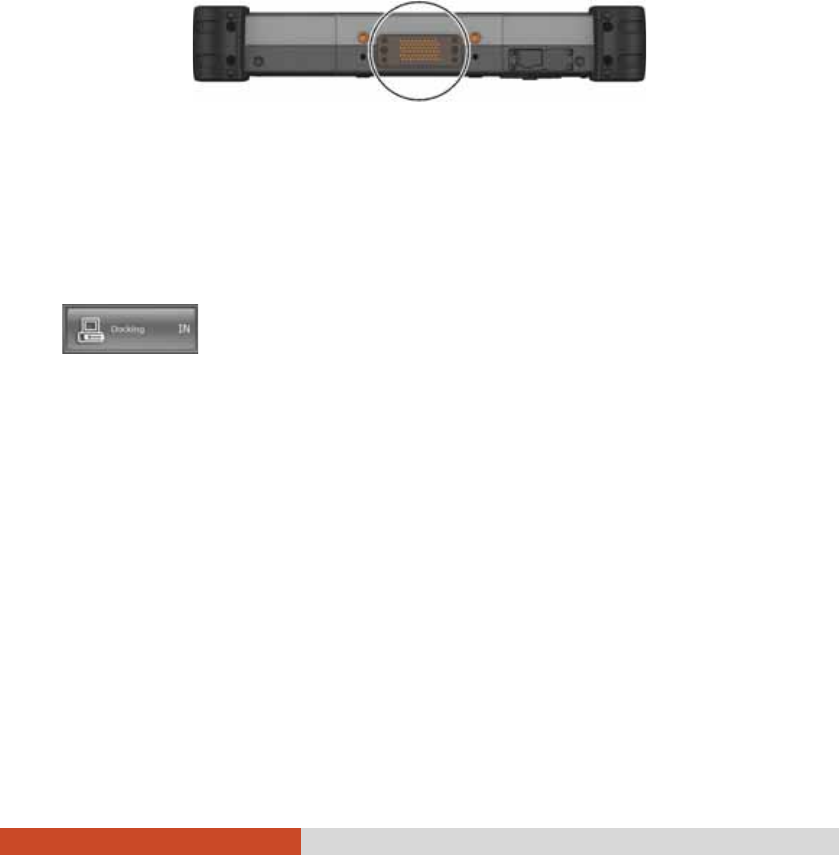

Using the Docking Station ..................................................... 4-8
Chapter 5 Using BIOS Setup and System Recovery ...................... 5-1
BIOS Setup ............................................................................... 5-2
When and How to Use ....................................................... 5-2
Information Menu .............................................................. 5-3
Main Menu .......................................................................... 5-4
Advanced Menu .................................................................. 5-5
Security Menu ..................................................................... 5-9
Boot Menu ........................................................................ 5-11
Exit Menu .......................................................................... 5-12
Operations during POST ....................................................... 5-13

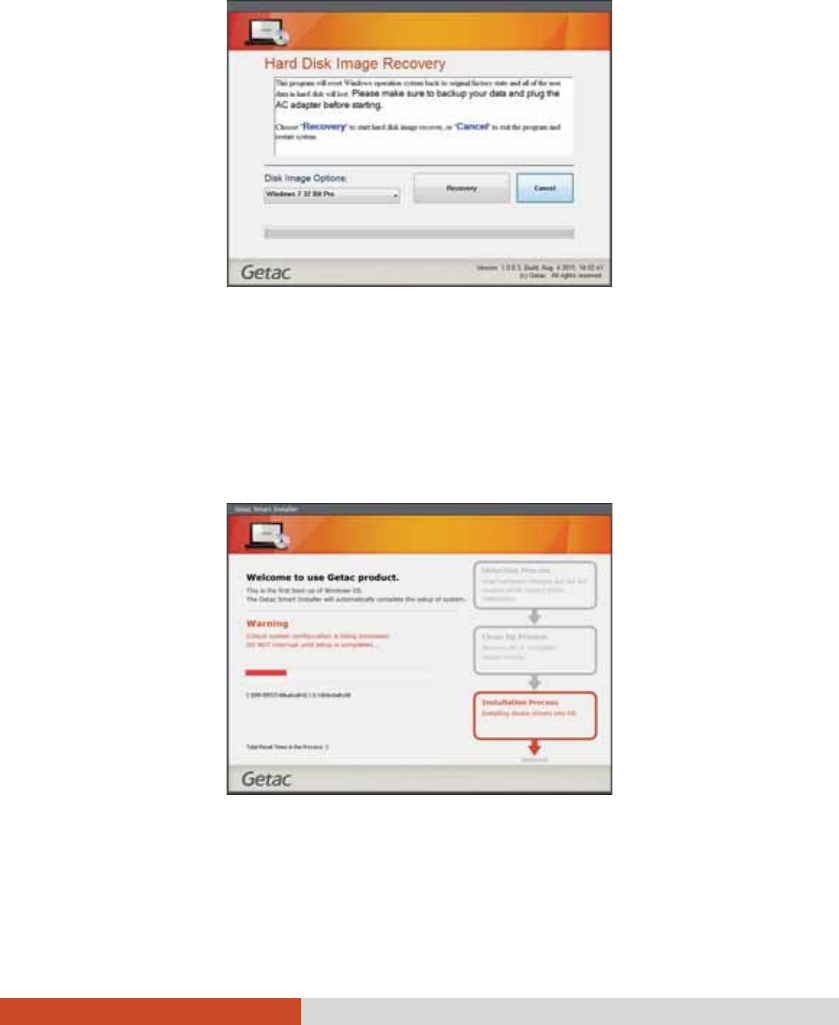

System Recovery .................................................................... 5-14
iii
Chapter 6 Using Getac Software ................................................... 6-1

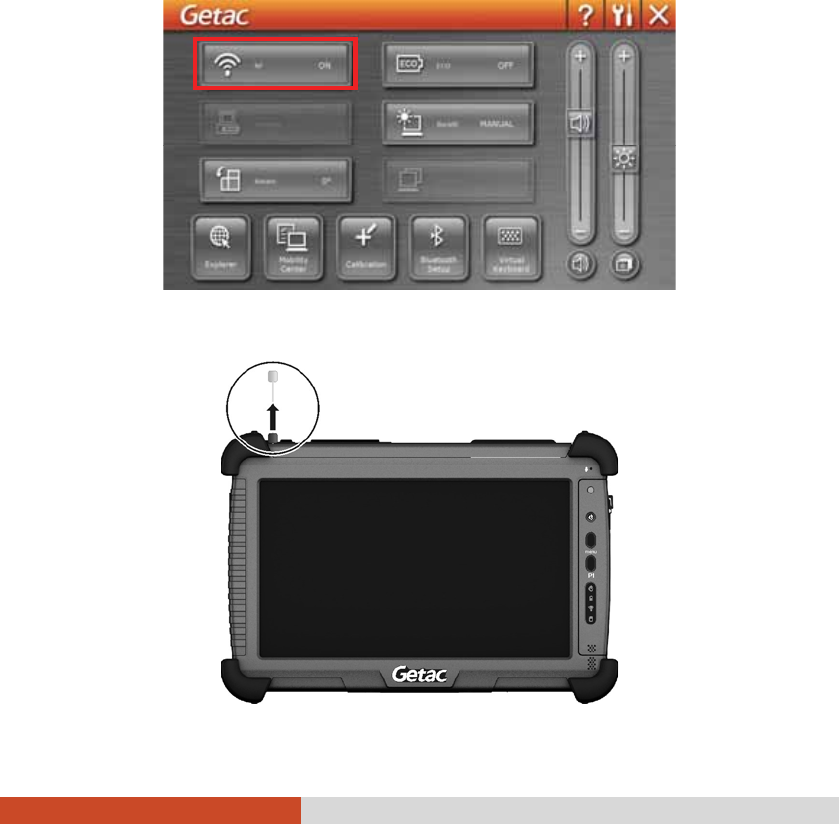

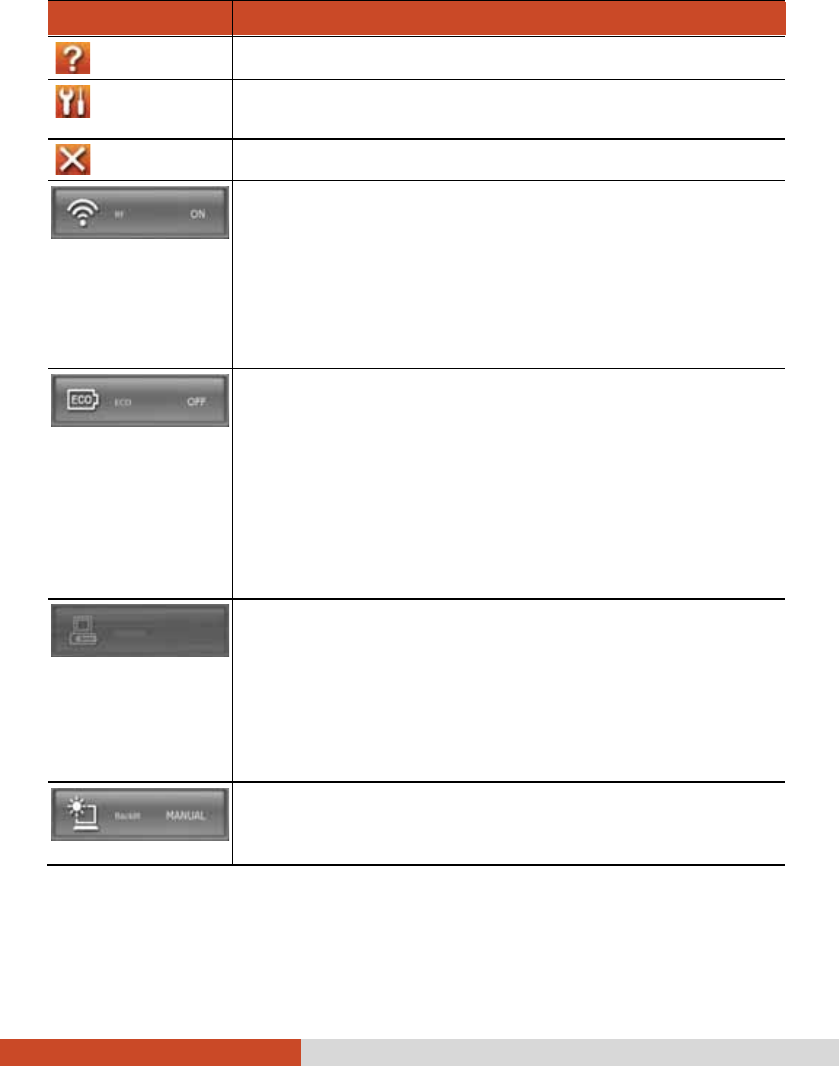

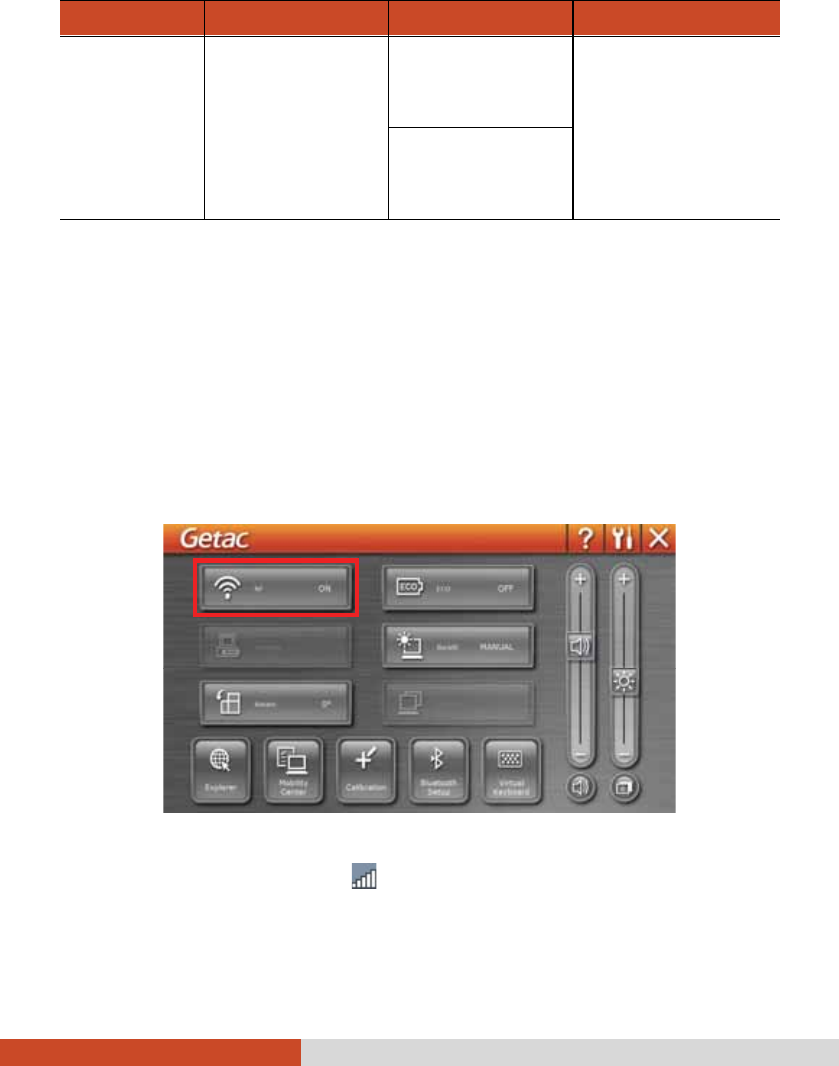

Using the OSD Control Panel ................................................. 6-2

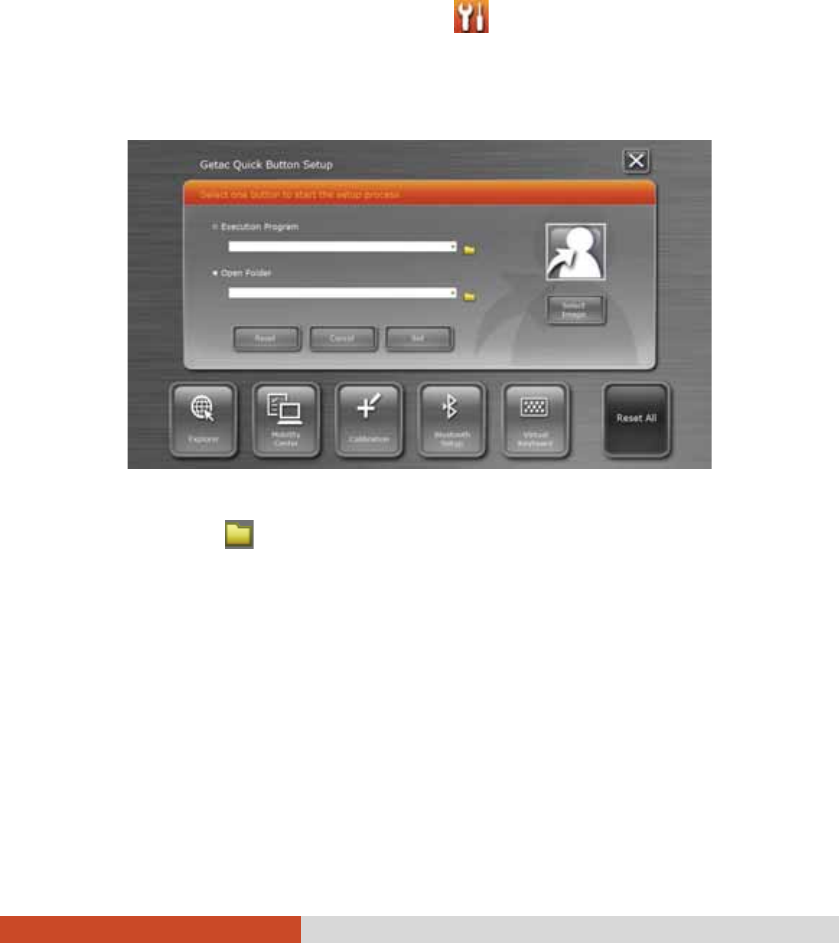

Quick Button Setup ............................................................ 6-6
Using G-Manager .................................................................... 6-8
Starting G-Manager ............................................................ 6-8

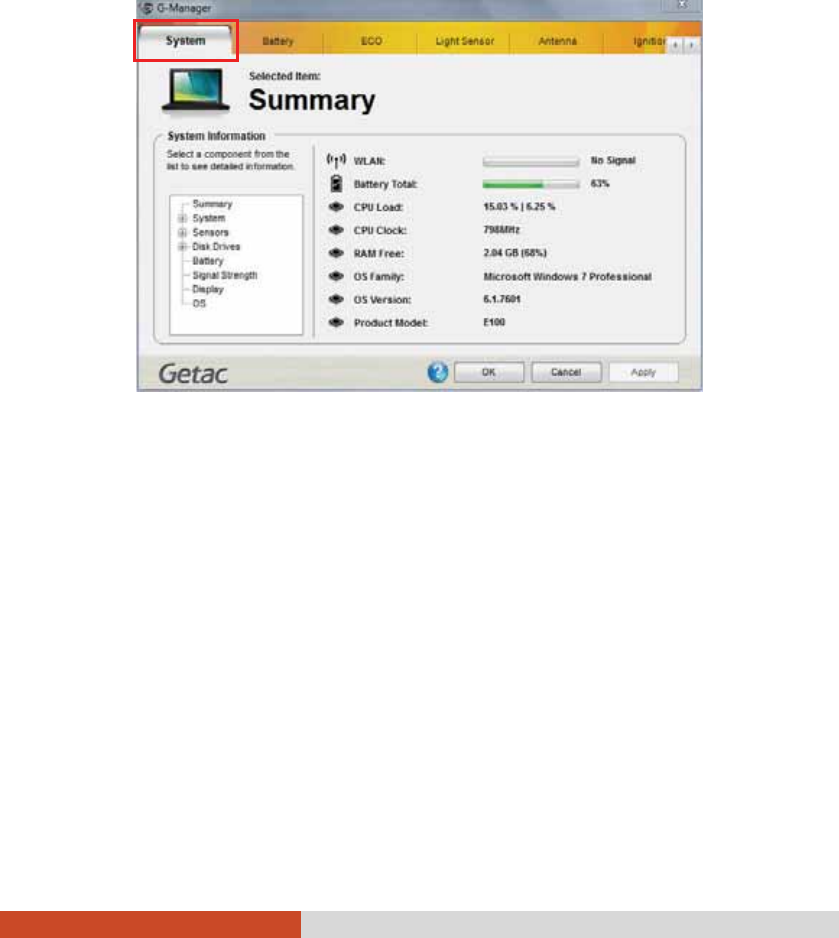

System Tab .......................................................................... 6-9
Battery Tab ........................................................................ 6-10

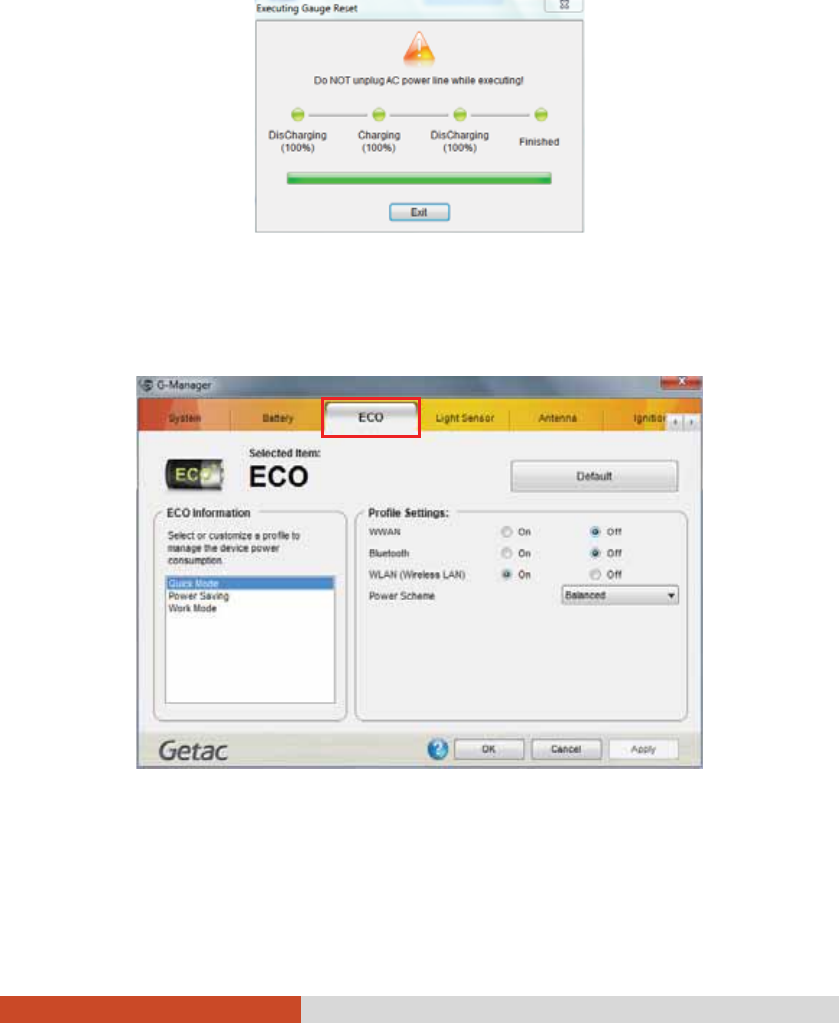

ECO Tab ............................................................................. 6-12
ECO Information ............................................................... 6-13
Light Sensor Tab ............................................................... 6-14

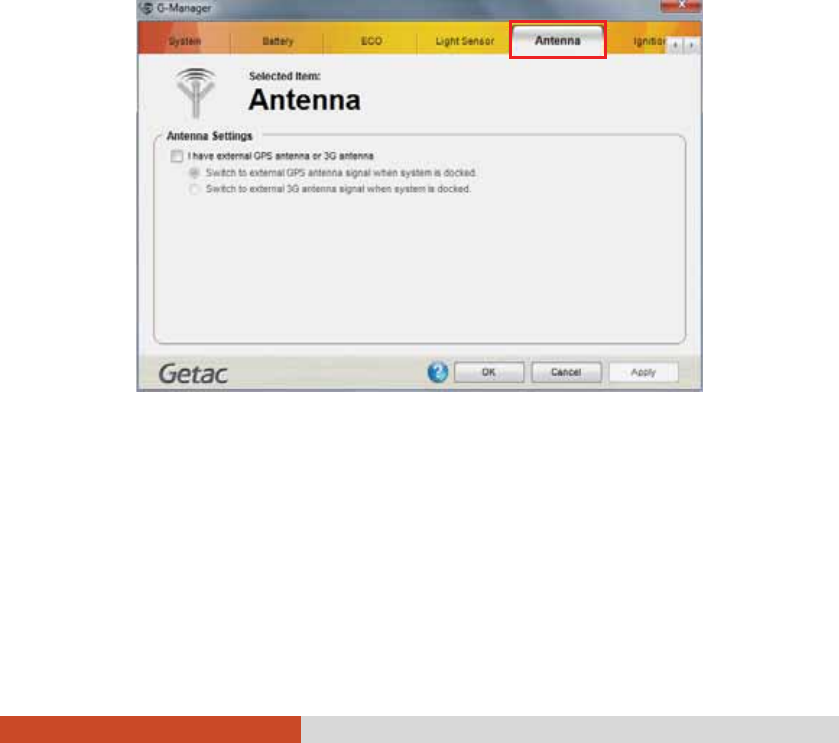

Antenna Tab ..................................................................... 6-15

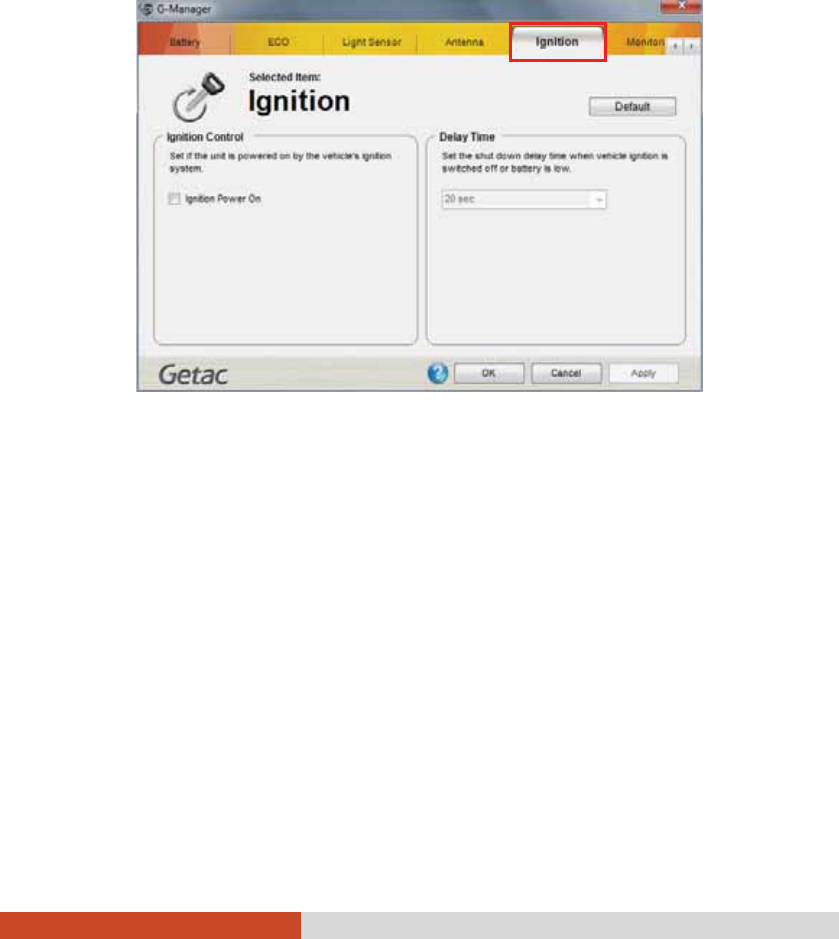

Ignition Tab ....................................................................... 6-16

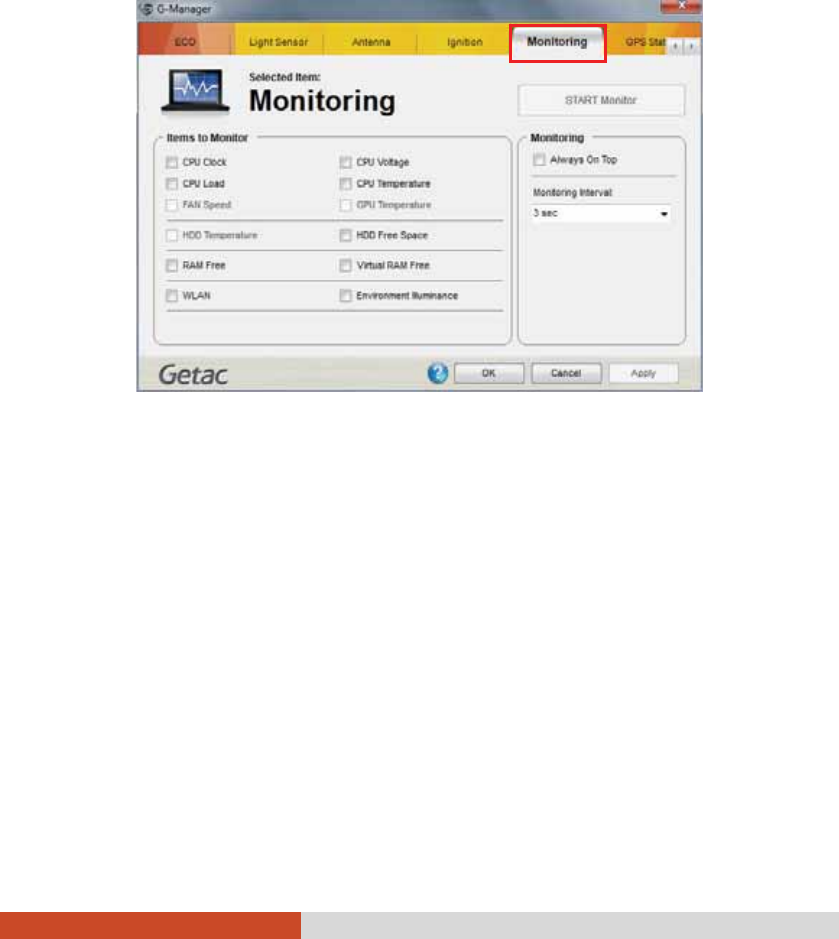

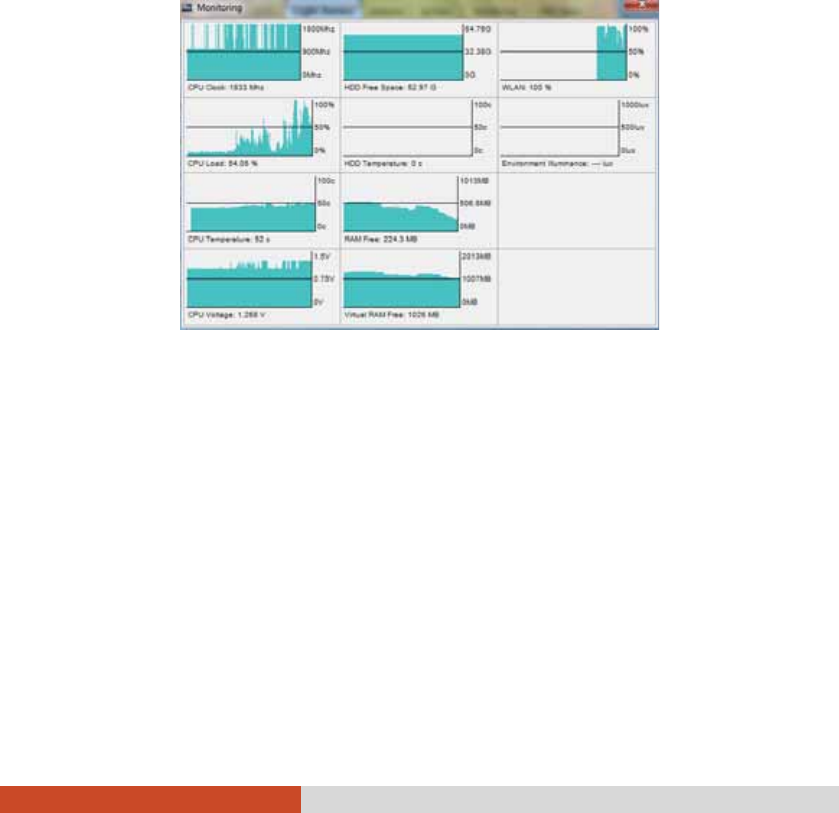

Monitoring Tab ................................................................. 6-17
GPS Status Tab .................................................................. 6-19
Using Getac Camera (Optional) ........................................... 6-20

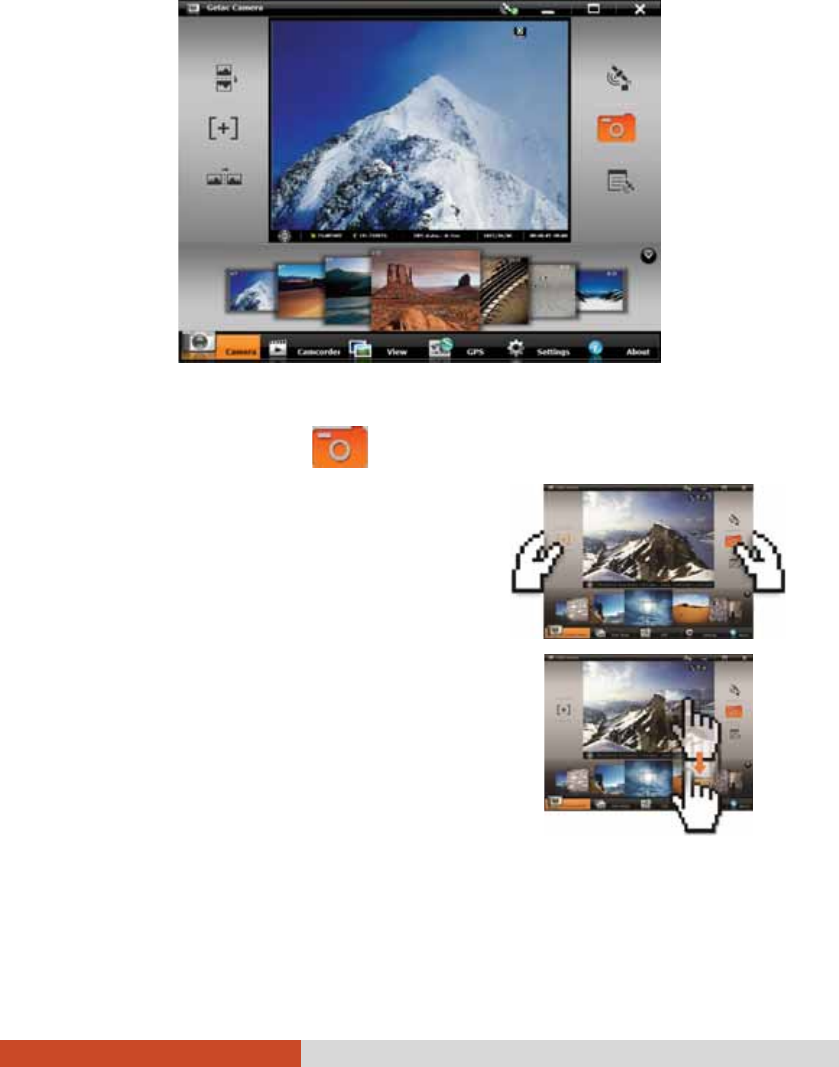

Taking Pictures .................................................................. 6-22
Shooting Videos ................................................................ 6-25

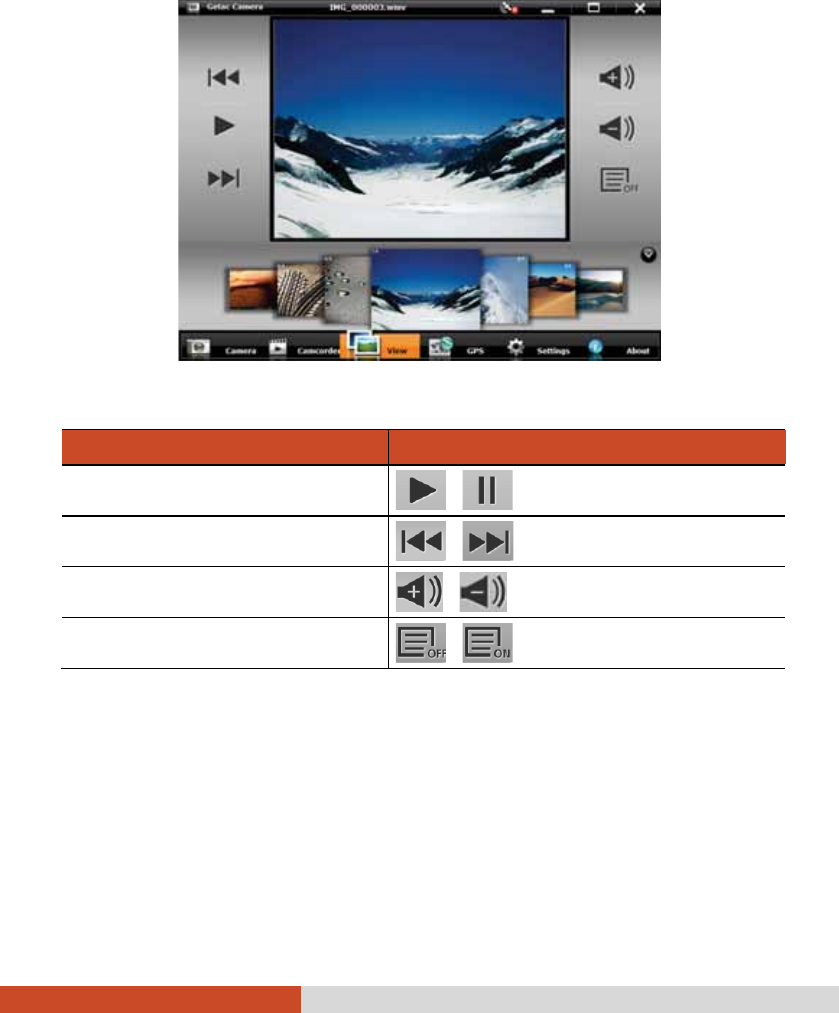

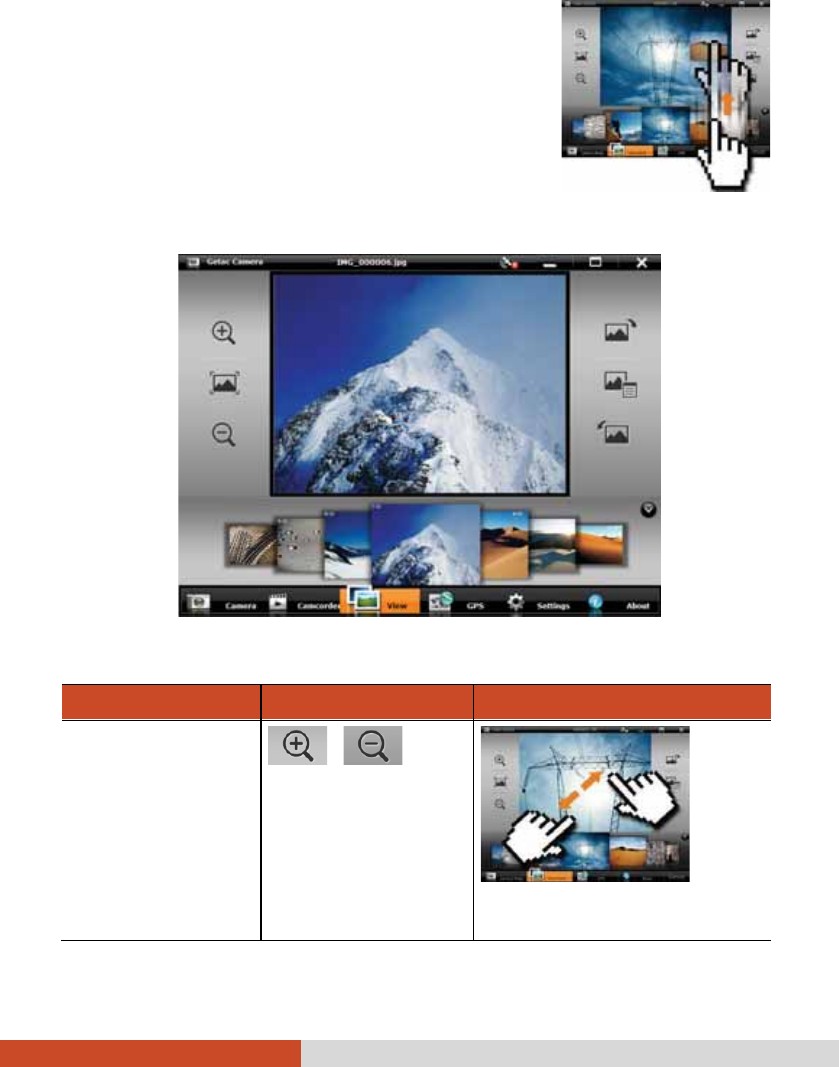

Using View Mode ............................................................. 6-26
Camera Settings ................................................................ 6-30
Using Getac Smart Tag (Optional) ....................................... 6-34

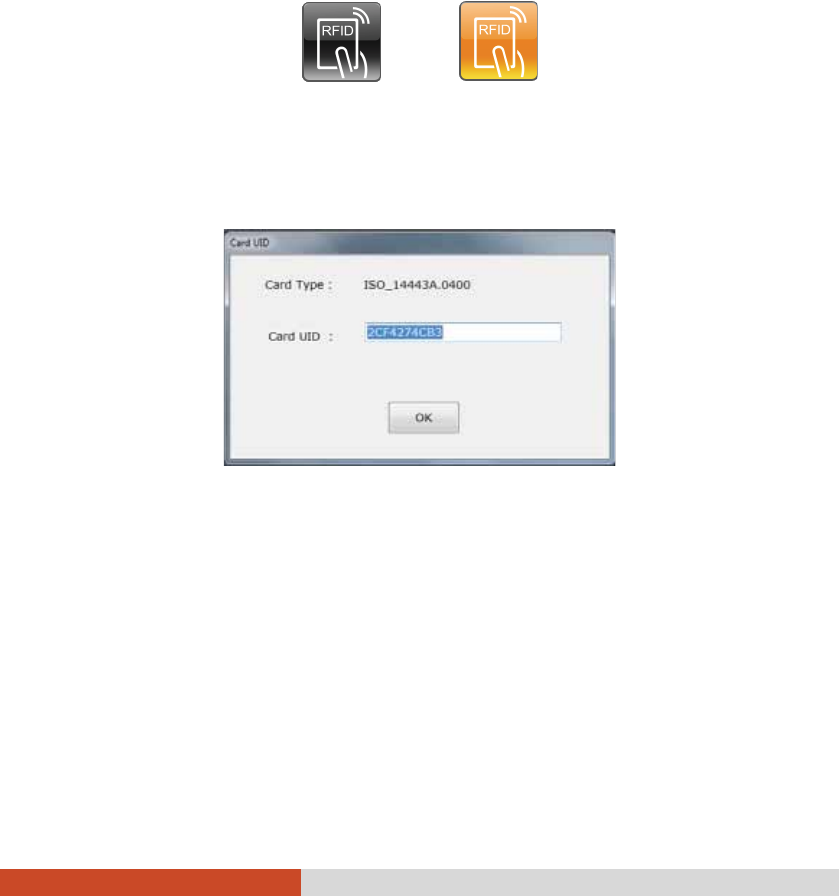

Reading Tags ..................................................................... 6-34

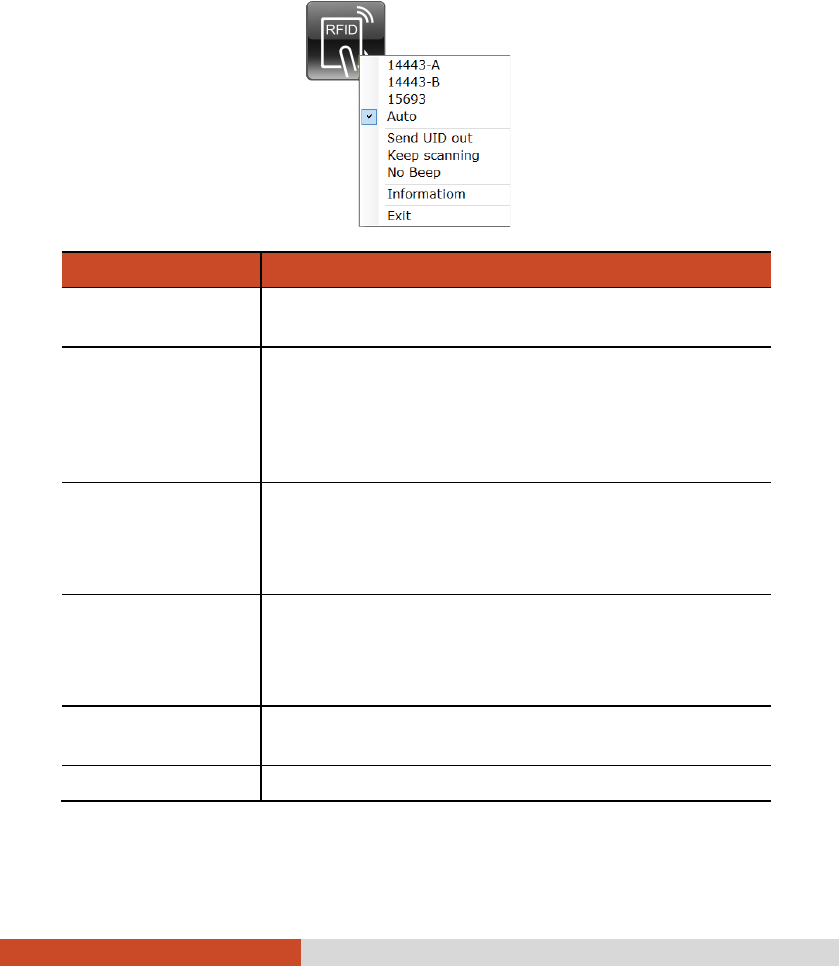

Options Menu ................................................................... 6-36
Chapter 7 Caring for the Tablet PC .................................................. 7-1
Protecting the Tablet PC ........................................................ 7-2
Using the Cable Lock .......................................................... 7-2
Using an Anti-Virus Strategy ............................................. 7-3
Using Action Center (for Windows 7) ............................... 7-3
Taking Care of the Tablet PC ................................................. 7-4
Location Guidelines ............................................................ 7-4
General Guidelines ............................................................. 7-4
Cleaning Guidelines ............................................................ 7-5
Battery Pack Guidelines ...................................................... 7-5
Touchscreen Guidelines ...................................................... 7-7
iv
When Traveling ....................................................................... 7-8
Chapter 8 Troubleshooting ............................................................ 8-1
Preliminary Checklist ............................................................... 8-2
Solving Common Problems .................................................... 8-3
Battery Problems ................................................................ 8-3
Bluetooth Wireless Transmission Problems ...................... 8-3
Display Problems ................................................................. 8-4
Hardware Device Problems ................................................ 8-4
Hard Disk Drive Problems ................................................... 8-5
LAN Problems ...................................................................... 8-5
PC Card Problems ................................................................ 8-5
Power Management Problems .......................................... 8-6
Software Problems ............................................................. 8-6
Sound Problems .................................................................. 8-7
Startup Problems ................................................................ 8-7
Wireless LAN Problems ....................................................... 8-8
Other Problems ................................................................... 8-9
Resetting the Tablet PC ........................................................ 8-10
Appendix A Specifications ............................................................... A-1
Appendix B Regulatory Information ............................................... B-1
On the Use of the System ....................................................... B-2
Class B Regulations ............................................................. B-2
Safety Notices ..................................................................... B-3
On the Use of the RF Device .................................................. B-6
USA and Canada Safety Requirements and Notices ........ B-6
European Union CE Marking and Compliance Notices .... B-9
Getting Started 1-1
Chapter 1
Getting Started

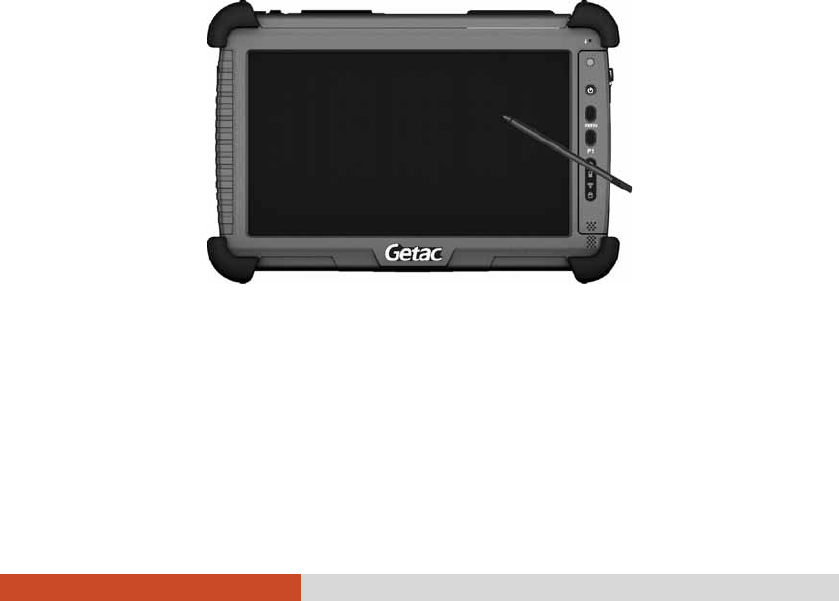

Congratulations on purchasing this rugged Tablet PC.
This chapter first tells you step by step how to get the Tablet PC up and
running. Then, you will find a section briefly introducing the external
components of the Tablet PC.
1-2 Getting Started
Getting the Tablet PC Running
Unpacking
After unpacking the shipping carton, you should find these standard items:
z Tablet PC
z Accessories:
AC adapter
AC power cord
Hand strap
Screen protector film (already attached to the screen)
Stylus and tether
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship or
store the Tablet PC in the future.
Getting Started 1-3
Installing the Battery Pack and Connecting
to AC Power
The Tablet PC operates either on the external AC power or internal battery
power. It is suggested that you use AC power when starting up the Tablet PC
for the very first time.
CAUTION: Use only the AC adapter included with your Tablet PC. Using
other AC adapters may damage the Tablet PC.
1. Make sure that the Tablet PC is turned off.
2. Place the Tablet PC upside down.

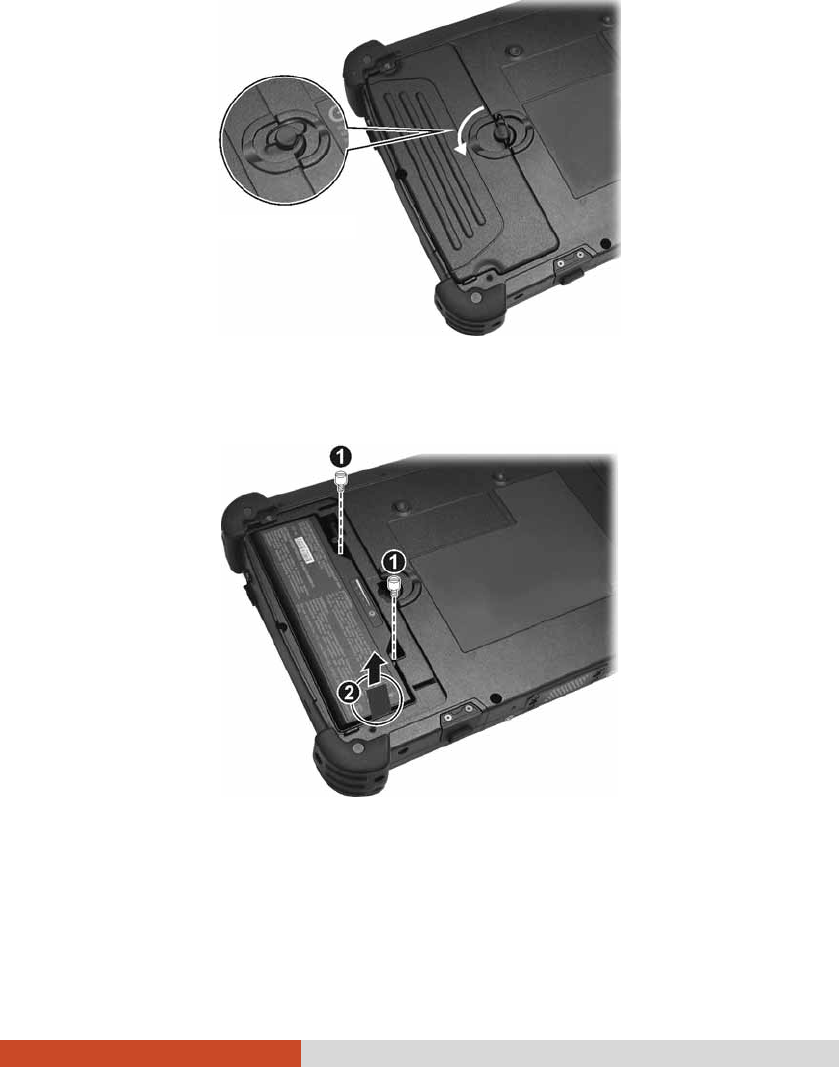

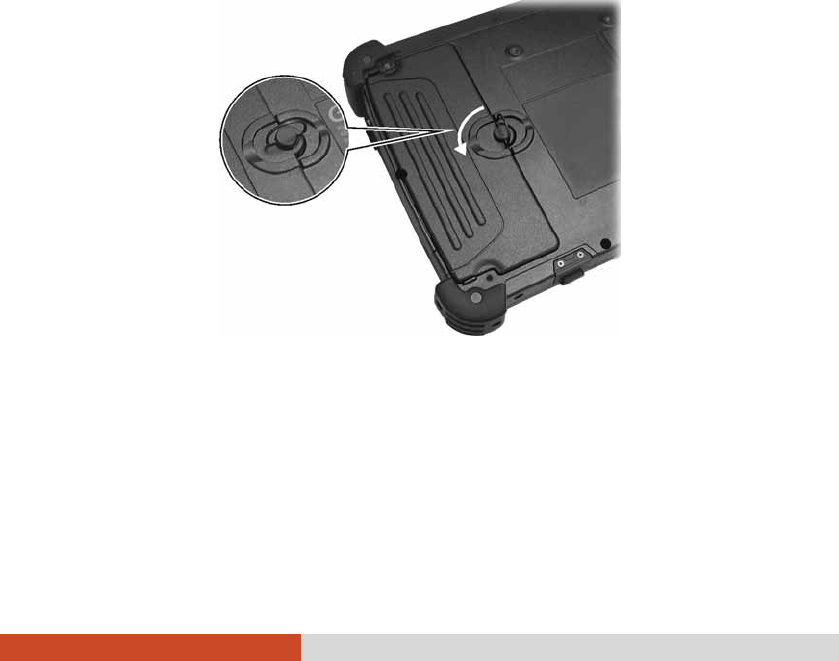

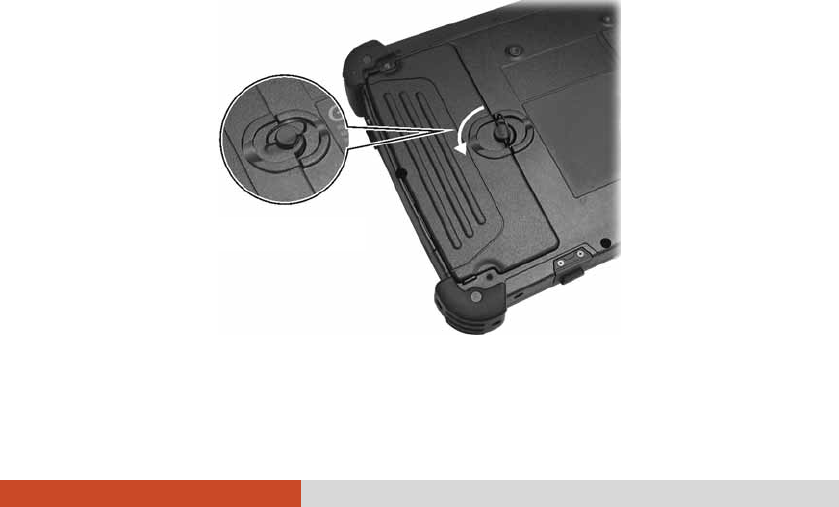

3. Lift the latch handle of the battery cover and turn it counterclockwise to
the unlock position. Then, detach the cover from the Tablet PC.
Unlock position
1-4 Getting Started

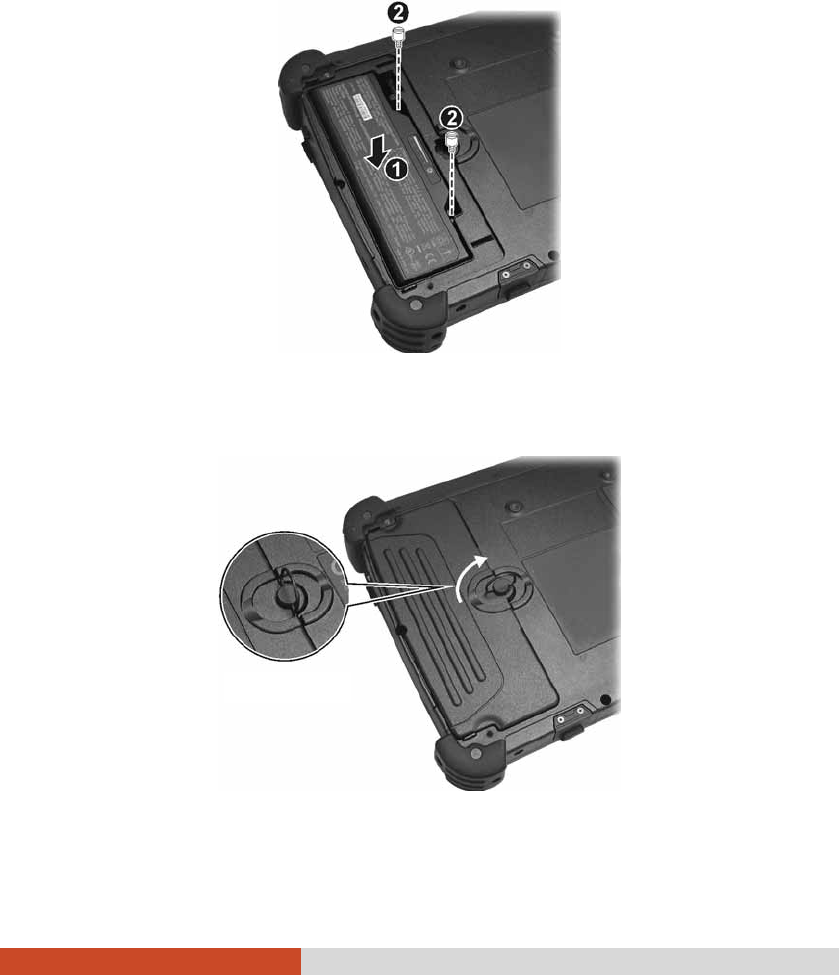

4. Fit the battery pack into place (n). Tightening the two screws (o) is
optional. The lack of the screws will not affect the rugged and
waterproof feature of the Tablet PC.
5. Replace the battery cover and turn the latch clockwise to the lock
position.
Lock position
Getting Started 1-5

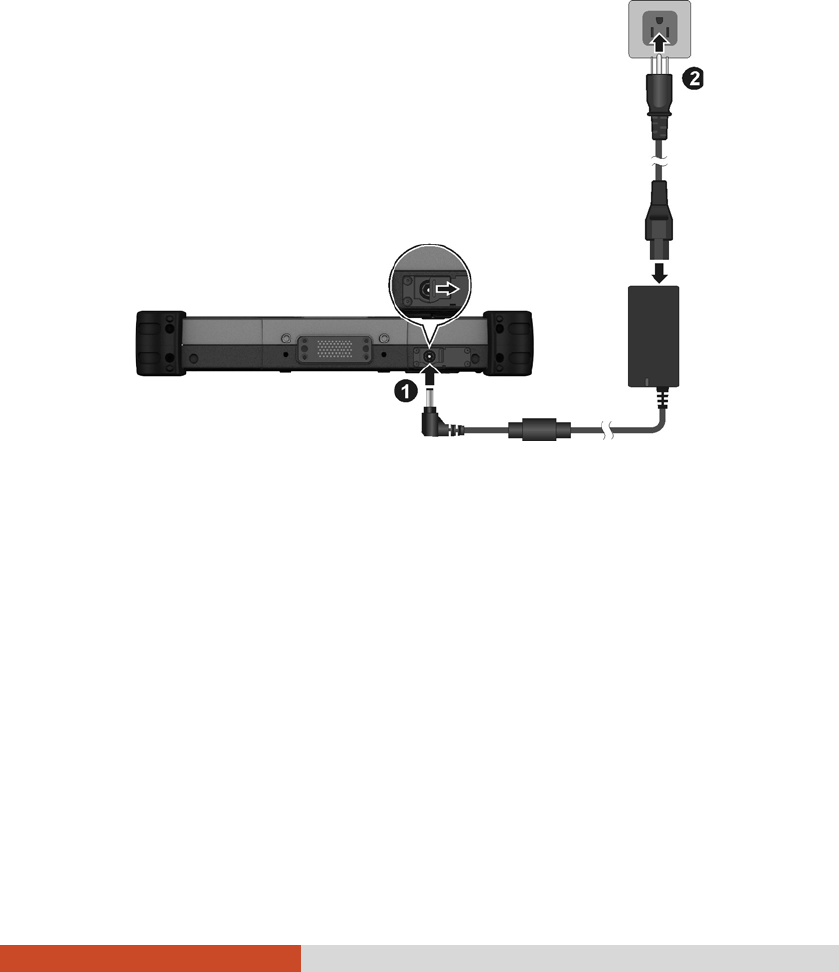

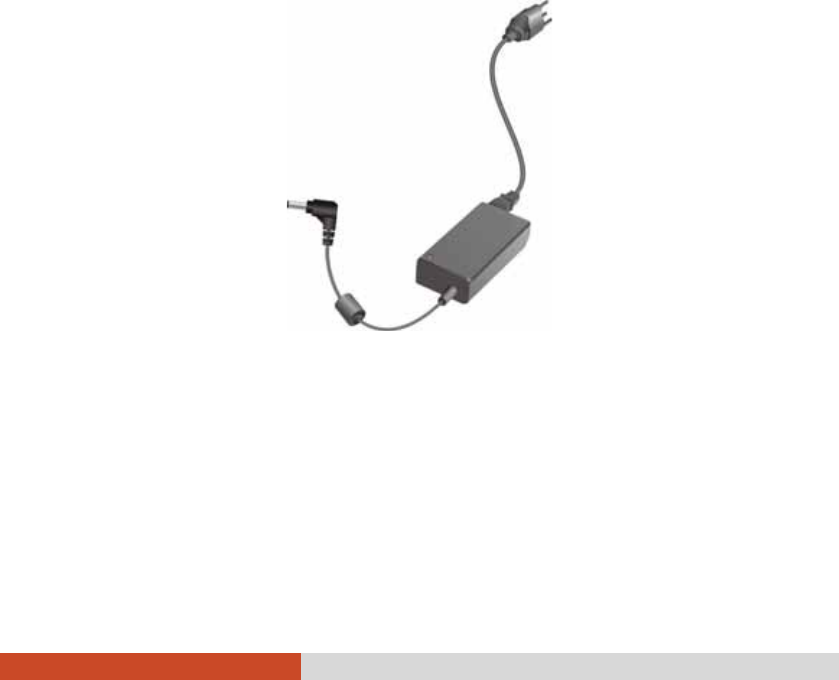

6. Plug the DC cord of the AC adapter to the power connector of the Tablet
PC (n). Plug the female end of the AC power cord to the AC adapter and
the male end to an electrical outlet (o).
7. Power is being supplied from the electrical outlet to the AC adapter and
onto your Tablet PC. Now, you are ready to turn on the Tablet PC.
CAUTION:
z When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the Tablet PC. A reverse procedure may
damage the AC adapter or the Tablet PC.
z When unplugging the connector, always hold the plug head. Never pull
on the cord.
NOTE: When the AC adapter is connected, it also charges the battery pack.
For information on using battery power, see Chapter 3.
1-6 Getting Started

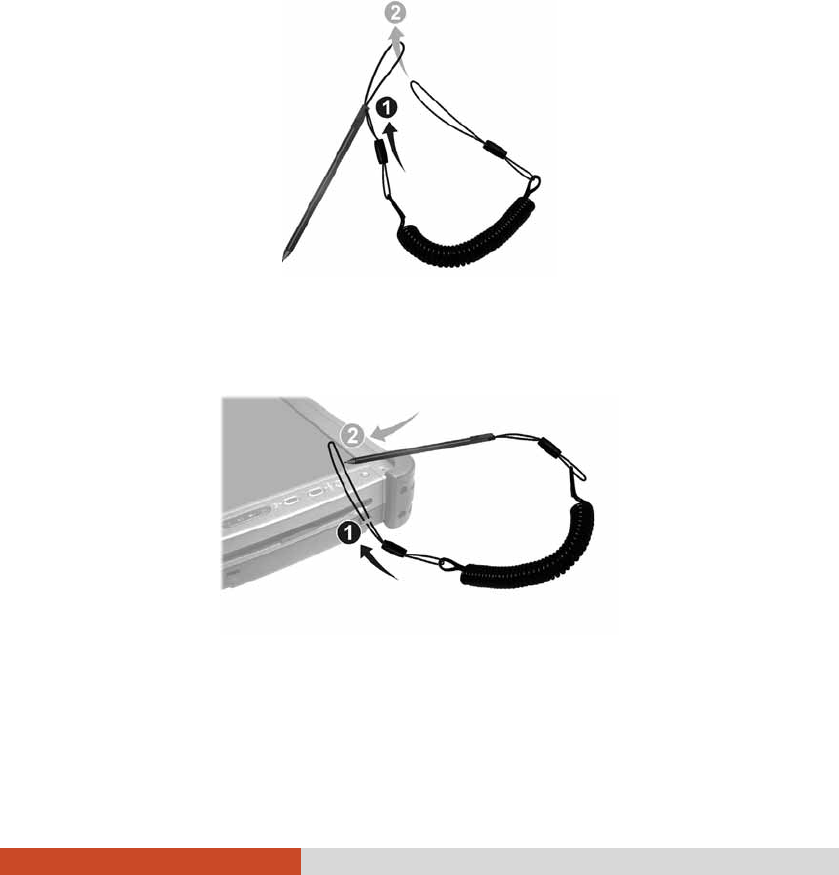

Using the Tether
A tether is provided for attaching the stylus to your Tablet PC.
1. Insert one of the tether’s loop ends through the hole of the stylus (as
indicated by n below). Then, insert the other end through the first loop
(as indicated by o below) and pull it tight.
2. Insert the other loop end to the tether hole on the Tablet PC (as
indicated by n below). Then, insert the stylus end through the loop (as
indicated by o below) and pull it tight.
Getting Started 1-7
Using the Hand Strap
Following the orientation as shown below, enclose your Tablet PC with the
hand strap and engage all the hook-and-loop fasteners.
The hand strap allows you to firmly hold the Tablet PC by inserting your
hand through the elastic band at the back.
The hand strap is designed with individual fasteners for easy access to
different components (such as the battery). It also provides loops for adding
a shoulder strap (purchased separately).
1-8 Getting Started
Turning On and Off the Tablet PC
Turning On
Press the power button ( ). The operating system such as Microsoft
Windows should start.
Turning Off
When you finish a working session, you can stop the system by turning off
the power or leaving it in Sleep or Hibernation mode:
To... Do this...
Power off
(Shutdown)
Use the Windows Start menu in the lower left and follow
the shutdown procedure.
Sleep Press the power button (default function) or use the
Windows Start menu to put the Tablet PC in Sleep mode.
Hibernate If you have specified “Hibernate” for the power button
function in Windows Control Panel, you can press the power
button to put the Tablet PC in Hibernation mode.
Press the power button to resume or turn on the system from any of these
modes.
Getting Started 1-9
Taking a Look at the Tablet PC
NOTE: Depending on the model you purchased, the appearance of your
Tablet PC may not be exactly the same as those shown in this manual.
CAUTION: When not using a connector, make sure that the connector cover
is completely closed to ensure the waterproof integrity of the Tablet PC.

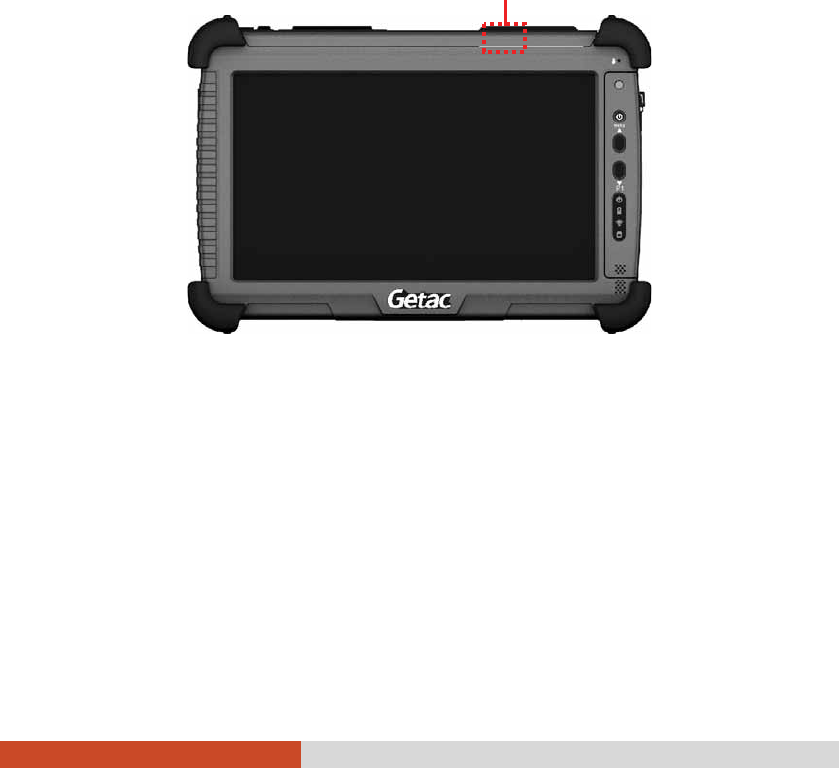

Front Components
Ref Component Description See Also
n Touchscreen Displays and receives information for the
Tablet PC.
P. 2-2
o Microphone Receives sound and voice to record voice.
p Light Sensor Senses the ambient light for automatic
adjustments of the display backlight. The
features can be enabled through OSD

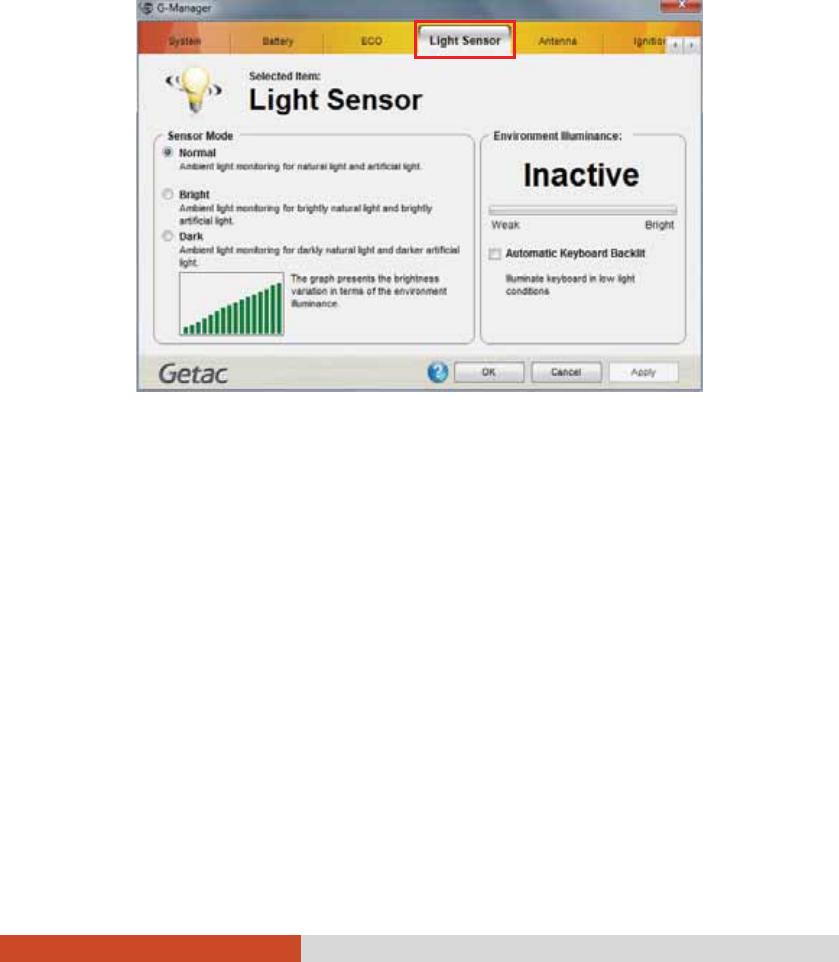

Control Panel and G-Manager.
P. 6-2
P. 6-14
1-10 Getting Started
Ref Component Description See Also
NOTE: Do not cover the sensor when in
use.
q Power Button Turns on or off the system. (The “off” state
means “Sleep mode” by default.)
P. 1-8
r Menu Button Opens or closes the OSD Control Panel. P. 6-2
Provides a keyboard key function for
specific occasions. (Information is provided
in Appendix A.)
P. A-3
s P1 Button Starts Microsoft Internet Explorer by
default.
This button matches the first quick button
in the OSD Control Panel. You can assign a
different function to this button.
P. 6-6
Provides a keyboard key function for
specific occasions. (Information is provided
in Appendix A.)
P. A-3
t Indicators
Power Lights green when the power is on.
Blinks green when the system is in Sleep
mode.
Battery
Charge
Lights green when the battery is fully
charged.
P. 3-3
Lights amber when the battery is being
charged.
Blinks red (once per second) when the
battery’s capacity is below 10%.
Blinks red rapidly (once per 0.5 second)
when there is a thermal protection problem
with the battery. Ask for repair service in
case this happens.
Getting Started 1-11
Ref Component Description See Also
Blinks amber when the battery charging is
in an abnormal state. Replace the battery in
case this happens.
RF (Radio
Frequency)
Lights green (for models without WWAN
3G) or amber (for models with WWAN 3G)
when RF radio is on.
P. 6-2
Hard Disk
Drive
Lights green when hard disk drive is being
accessed.
u Speaker Sends out sound and voice from your Tablet
PC.
1-12 Getting Started
Rear Components
Ref Component Description See Also
n Camera Lens
(optional)
Allows you to use the camera function. P.6-20
o Battery Pack Inside is the battery pack that supplies
power to your Tablet PC when external
power is not connected.
P. 3-3
Contains the SIM card slot (optional). P. 2-13
p Backup Battery Provides temporary backup power when
the main battery pack is removed.
P. 3-5
Getting Started 1-13
Right-Side Components
Ref Component Description See Also
n Kensington Lock Locks the Tablet PC to a stationary object
for security.
P. 7-2
o Stylus Serves as the input device by tapping on
the touchscreen to make selections and
enter information.
P. 2-2
p Tether Hole Stylus tethered to this hole. P. 1-6
Left-Side Components
Ref Component Description See Also
n RJ-45 Connector Connects the LAN cable. P. 2-7
o USB Ports
Each of the two ports connects a USB
device, such as a USB flash disk, printer,
digital camera, joystick, and more.
P. 4-5
p Serial Port Connects a serial device. P. 4-6
1-14 Getting Started

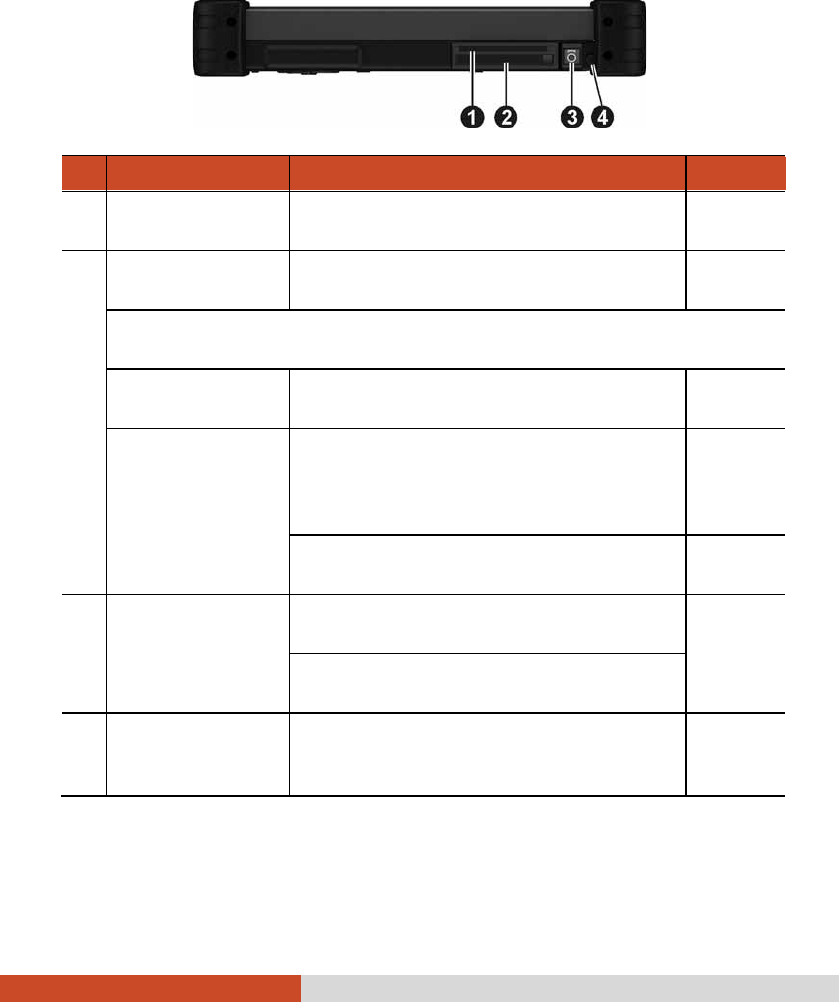

Top Components
Ref Component Description See Also
n Smart Card
Reader
Accepts a Smart Card for additional
security feature.
P. 4-2

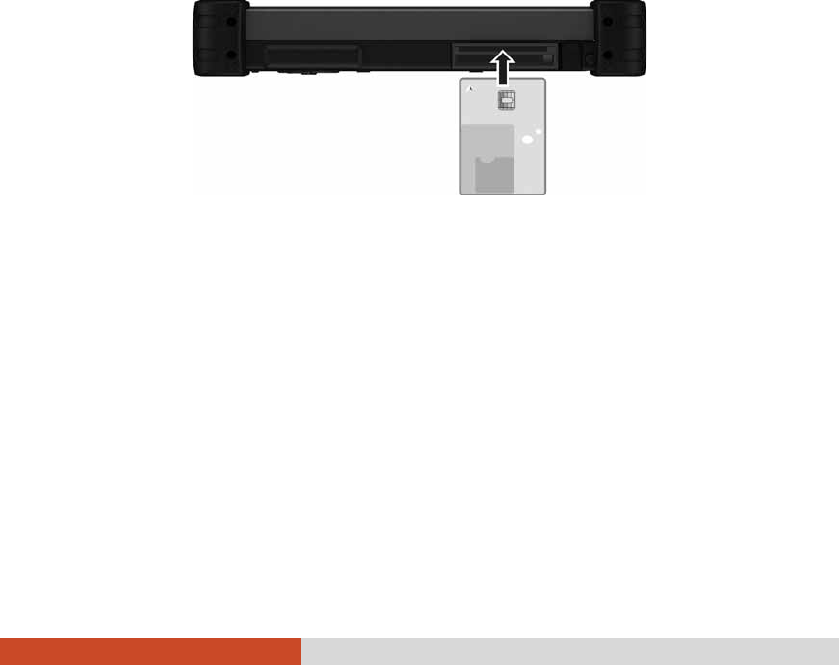

o PC Card Slot Accepts a PC card for additional
functions.
P. 4-3
Or can be one of the below optional components (not shown in the
figure).
Smart Card
Reader (optional)
Accepts a Smart Card for additional
security feature.
P. 4-2
RFID/SD Module
(optional)
Reads and writes RFID (Radio-frequency
identification) tags with the internal
antenna located above the screen at the
center-right.
P. 6-34
Accepts a Secure Digital (SD) card for
removable storage media.
P. 4-4
p Combo Audio
Connector
Connects a set of headphones or
external speakers with amplifier
P. 4-7
Supports a headset microphone with
4-pole TRRS 3.5mm jack.
q WWAN 3G
Antenna
(optional)
Should be pulled out for reception of
mobile telecommunications signals.
P. 2-15
Getting Started 1-15

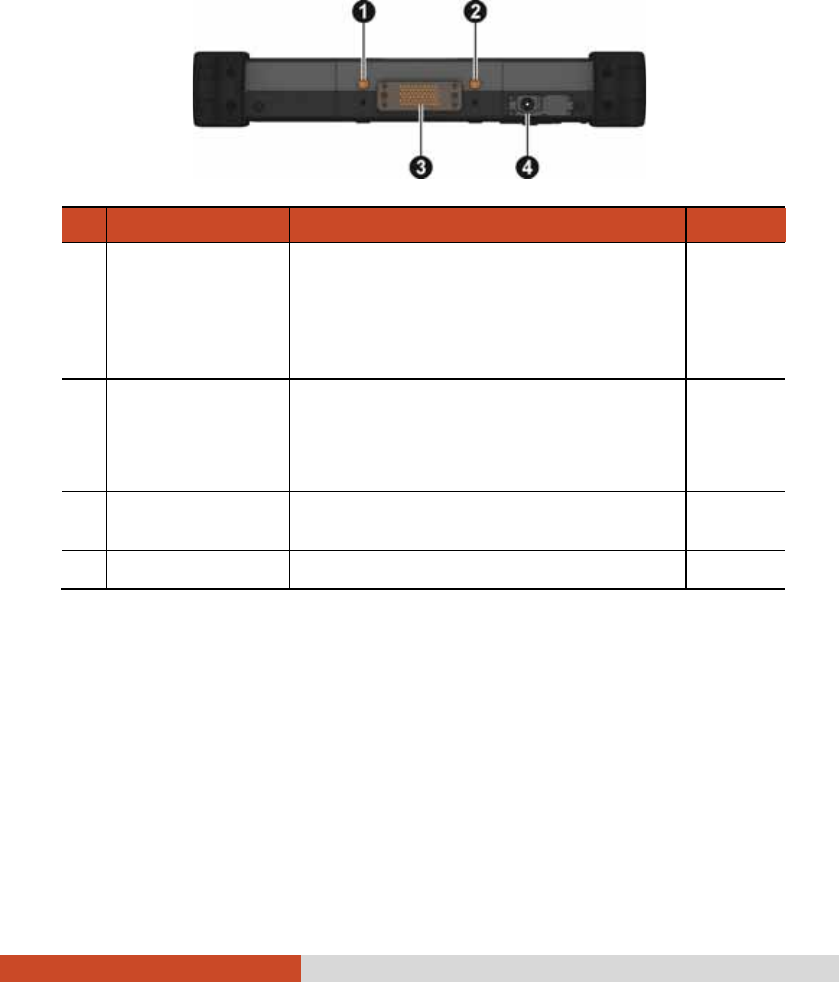

Bottom Components
Ref Component Description See Also
n WWAN
Pass-through
Connector
(optional)
Connects to the external antenna for
WWAN (wireless wide area network)
connectivity.
NOTE: Must be connected via a docking
station.
o GPS Pass-through
Connector
(optional)
Connects to the external antenna for
GPS signal reception.
NOTE: Must be connected via a docking
station.
p Docking
Connector
Connects to the Docking Station
(available as an option).
P. 4-8
q Power Connector
Connects the AC adapter. P. 1-5
Operating Your Tablet PC 2-1
Chapter 2
Operating Your
Tablet PC
This chapter provides information about the use of the Tablet PC.
If you are new to Tablet PCs, reading this chapter will help you learn the
operating basics. If you are already a computer user, you may choose to read
only the parts containing information unique to your Tablet PC.
CAUTION:
z Do not expose your skin to the Tablet PC when operating it in a very hot
or cold environment.
z The Tablet PC can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not
place the Tablet PC on your lap or touch it with your bare hands for
extended periods of time. Prolonged body contact can cause discomfort
and potentially a burn.
2-2 Operating Your Tablet PC
Using the Touchscreen
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on
the touchscreen. Doing so may damage the touchscreen surface. Use the
included stylus or your finger
NOTE:
z A screen protector film has been attached to the screen before
shipment. The film is a consumable, which will be worn out by possible
scratches. You can purchase a new one when replacement is required.
z Instead of a hard tip, your stylus has a soft tip so that it does not scratch
the screen protector film. It is normal for the soft tip to wear out after a
long period of use. You can purchase a new one when needed.
The screen of your Tablet PC is touch-sensitive. You can control the location
of the cursor/pointer on the screen using the included stylus or your finger
to communicate with the Tablet PC.

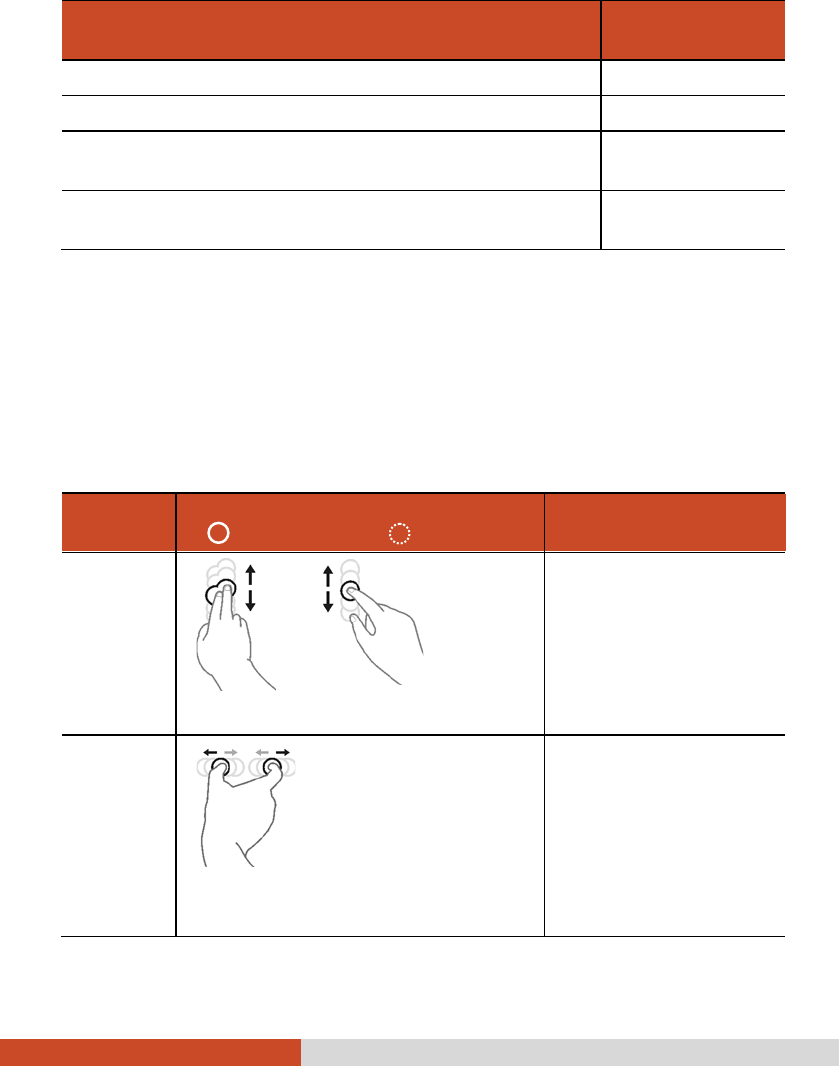

The following table shows how you use the touchscreen to obtain
equivalent mouse functions.
Operating Your Tablet PC 2-3
Term/Action Equivalent
Mouse Function
Tap: Touch the screen once. Click/Point
Double-tap: Touch the screen twice rapidly. Double-click
Tap and hold: Tap and hold until a popup menu
appears.
Right-click
Drag: Hold the stylus (or finger) on the screen and
drag across the screen until reaching your destination.
Drag
Using Multi-touch Gestures
If your model comes with multi-touch-capable screen and Windows 7, you
can interact with your Tablet PC by placing two fingers on the screen. The
movement of the fingers across the screen creates “gestures,” which send
commands to the computer.
Here are the multi-touch gestures that you can use:
Gestures Actions
( = finger down; = finger up)
Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page
that has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make
an item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that
support mouse wheel
zooming.
2-4 Operating Your Tablet PC
Gestures Actions
( = finger down; = finger up)
Descriptions
Rotate
or
Move two fingers in opposing
directions.
-or-
Use one finger to pivot around
another.
Use rotating to move a
picture or other item
on the screen in a
circular direction
(clockwise or counter-
clockwise). The gesture
works in applications
that support the
specific gesture.
Press and
Tap
Press on target and tap using a
second finger.
Use press and tap to
access the shortcut
menu.
Two-
finger
Tap
Tap two fingers at the same time
(where the target is in the midpoint
between the fingers).
The function is defined
by applications that
support the specific
gesture.
Operating Your Tablet PC 2-5
Gestures Actions
( = finger down; = finger up)
Descriptions
Flicks
Make quick drag gestures in the
desired direction.
Flick left or right to
navigate back and
forward in a browser
and other
applications. The
gesture works in most
applications that
support back and
forward.
2-6 Operating Your Tablet PC
Using the Input Panel
Use the Input Panel to enter text and perform various keyboard functions.
There are two types of Input Panels for you to use in Windows 7:
z Touch Keyboard allows you to enter text by tapping the keys with your
stylus, like pressing the keys on a standard keyboard.
z Writing Pad allows you to write on the writing pad, like writing on a
piece of paper. Your handwriting will be converted into typed text.
To open the Input Panel, tap the Input Panel tab, which appears by default
on the left edge of the screen. To switch between the two types, tap or
at the upper left corner of the Input Panel.
NOTE: For more information on using the Input Panel, see Windows’ online
help.
Operating Your Tablet PC 2-7
Using the Network Features
Using the LAN
The internal 10/100/1000Base-T LAN (Local Area Network) module allows
you to connect your Tablet PC to a network. It supports data transfer rate up
to 1000 Mbps.
To connect the network cable to the LAN module, connect one end of the
LAN cable to the RJ-45 connector ( ) on the Tablet PC and the other
end to the network hub.
Using the Wireless LAN (Optional)
The WLAN features include:
z Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes support
z WEP (Wired Equivalent Privacy) 64/128-bit data encryption
z IEEE 802.11a/b/g/n standard compliance
Technology 802.11a 802.11b/g 802.11n
Channel
Center in GHz
5.18 ~ 5.825 GHz 2.412 ~ 2.472 GHz 2.412 ~ 2.472 GHz
5.18 ~ 5.825 GHz
Channel 36, 40, 44, 48, 52,
56, 60, 64, 100,
104, 108, 112, 116,
120, 124, 128, 132,
136, 140, 149, 153,
157, 161, 165
1 ~ 13 2.4 GHz: 1 ~ 13
5.2 GHz: 36 ~ 165
2-8 Operating Your Tablet PC
Technology 802.11a 802.11b/g 802.11n
Data Rates
(Mbps)
6, 9, 12, 18, 24, 36,
48, and 54 Mbps in
OFDM mode
802.11b: 1 and 2
Mbps in DSSS
mode; 5.5 and 11
Mbps in CCK mode
130 Mbps under the
condition of 2 spatial
streams, 64-QAM
modulation type, 20
MHz-wide channel,
and 5/6 coding rate.
802.11g: 6, 9, 12,
18, 24, 36, 48, and
54 Mbps in OFDM
mode.
Turning On/Off the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate
wireless devices in aircraft as this may interfere with flight safety.
Remember to turn off wireless LAN when using your Tablet PC in the
airplane.
1. Press the Menu button on your Tablet PC to open the OSD Control Panel.
2. Click the RF button to switch the wireless radio on/off. The word ON or
OFF on the button indicates the current status.
3. Windows Mobility Center has wireless network turned on by default.
The Wireless Network icon on the taskbar should appear without a
red X
X
. (In case you have previously turned it off in Windows Mobility
Center, be sure to turn it on when using the function the next time.)
Operating Your Tablet PC 2-9
Connecting to a Wireless Network
1. Make sure that the WLAN function is enabled (as described above).
2. Click the Wireless Network icon on the taskbar. (An orange light in
the icon indicates connections are available.)
3. In the list of available wireless networks, select a network, and then click
Connect.
4. Some networks require a network security key or passphrase. To connect
to one of those networks, ask your network administrator or Internet
service provider (ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to
Windows online help.
NOTE: You can use Intel® PROSet Wireless to take full advantage of the
WiFi capabilities of your Tablet PC. See the Help of the utility for
instructions.
2-10 Operating Your Tablet PC
Using the Bluetooth Feature
(Optional)
The Bluetooth 4.0 technology allows short-range (about 50 meters) wireless
communications between devices without requiring a cable connection.
Data can be transmitted through walls, pockets and briefcases as long as two
devices are within range.
The status of the Bluetooth connection is indicated by the Bluetooth icon
located in the taskbar.

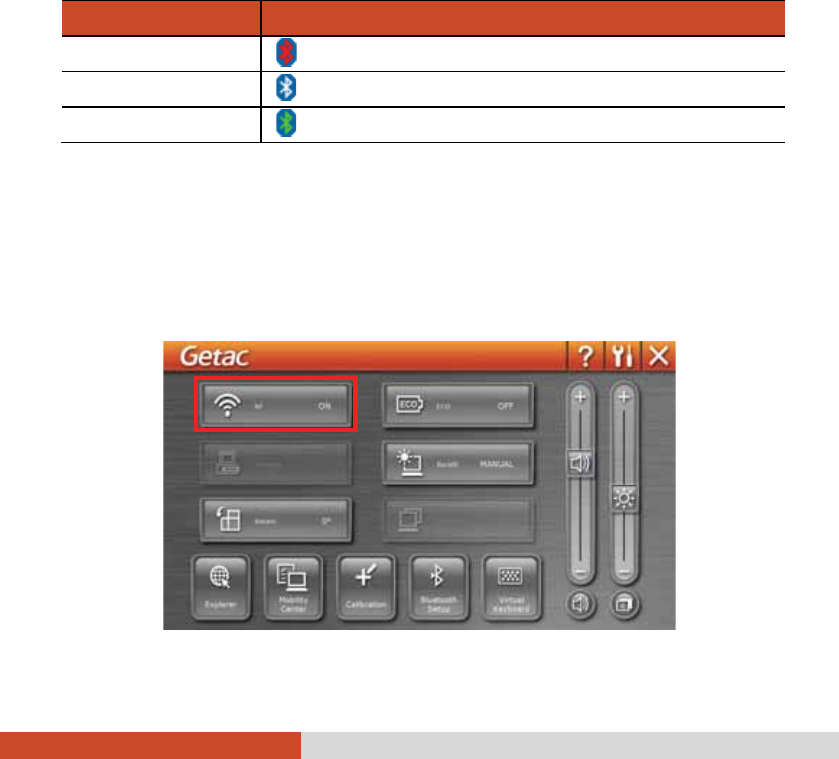

Status Icon
Off (blue with red logo)
On (blue with white logo).
Connected (blue with green logo)
Turning On/Off the Bluetooth Radio
1. Press the Menu button on your Tablet PC to open the OSD Control Panel.
2. Click the RF button to switch the wireless radio on/off. The word ON or
OFF on the button indicates the current status.
Operating Your Tablet PC 2-11
3. The Bluetooth function is enabled by default, as indicated by the
Bluetooth icon on the Windows taskbar. (In case you have previously
disabled the function in the Bluetooth utility, be sure to enable it when
using the function the next time.)
Connecting to another Bluetooth Device
1. Make sure that the Bluetooth function is enabled (as described above).
2. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.)
3. On Windows desktop, double-click the My Bluetooth shortcut.
4. If Bluetooth device(s) are detected, the device name(s) will be shown.
To search again, click Search for Devices.
5. Double-click the device you want to connect. The screen displays all the
services available for the selected device. Select the service you want.
2-12 Operating Your Tablet PC
6. Depending on the type of Bluetooth device that you want to connect to,
you will need to enter the pertinent information.
For detailed information on using the Bluetooth Utility, see the online help
by clicking Help in the My Bluetooth Settings window.
Operating Your Tablet PC 2-13
Using the WWAN 3G Feature
(Optional)
3G is the third generation of mobile phone standards and technology.
Services include wide-area wireless voice telephony and broadband wireless
data, all in a mobile environment.
NOTE: Your model only supports data transmission. Voice transmission is
not supported.
Installing the SIM Card
To use the 3G feature to connect to the Internet, you need to subscribe to
3G service and acquire a SIM card from the service provider. To install the
SIM card, follow these steps:
1. Make sure that the Tablet PC is not turned on or connected to AC power.
2. Lift the latch handle of the battery cover and turn it counterclockwise to
the unlock position. Then, detach the cover from the Tablet PC.
Unlock position
2-14 Operating Your Tablet PC

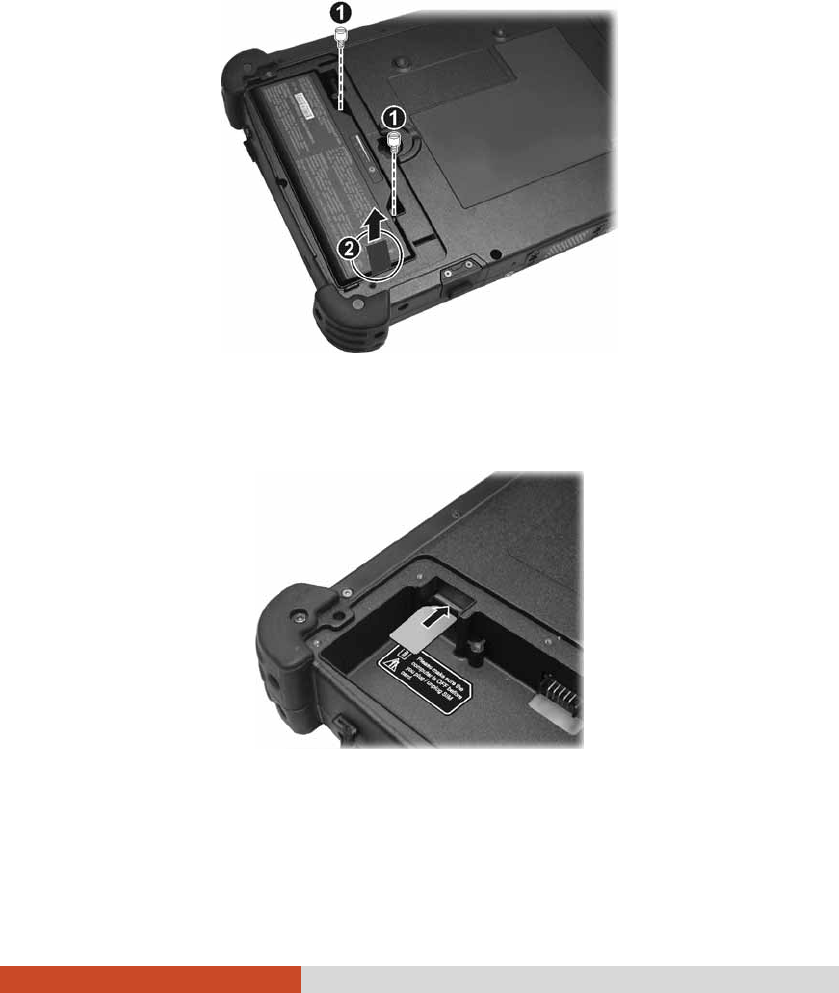

3. Remove the two screws if existing (n). Pull on the ribbon strip to lift the
battery pack off the Tablet PC (o).
4. Locate the SIM card slot and push the SIM card into the slot. Make sure
the beveled corner on the SIM card is facing towards the Tablet PC and
that the golden contact area on the card is facing downwards.
To remove the SIM card, just push in the SIM card to pop-out and remove
the card.
5. Replace the battery pack.
Operating Your Tablet PC 2-15
6. Replace the battery cover and turn the latch clockwise to the lock
position.
Connecting to WWAN 3G Network
1. Press the Menu button on your Tablet PC to open the OSD Control Panel.
2. Click the RF button to switch the wireless radio on/off. The word ON or
OFF on the button indicates the current status.
3. Pull out the WWAN 3G antenna.
2-16 Operating Your Tablet PC
4. On Windows desktop, double-click the AirCard Watcher shortcut. The
screen as below appears.
5. If the radio is currently off, click Turn Radio On to turn on the radio.
6. Use AirCard Watcher to manage your broadband wireless network
connections such as:
x Connect to the Internet
x Configure user options
x Send and receive SMS messages
x Manage profiles
x Use GPS to track your position (for models having the GPS module)
NOTE: For detailed information on using AirCard Watcher, see the
program’s online help.
Managing Power 3-1
Chapter 3
Managing Power
Your Tablet PC operates either on external AC power or on internal battery
power.
This chapter tells you how you can effectively manage power. To maintain
optimal battery performance, it is important that you use the battery in the
proper way.
3-2 Managing Power
AC Adapter
CAUTION:
z The AC adapter is designed for use with your Tablet PC only. Connecting
the AC adapter to another device can damage the adapter.
z The AC power cord supplied with your Tablet PC is for use in the country
where you purchased your Tablet PC. If you plan to go overseas with the
Tablet PC, consult your dealer for the appropriate power cord.
z When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the Tablet PC. A reverse procedure may
damage the AC adapter or Tablet PC.
z When unplugging the connector, always hold the plug head. Never pull
on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC
(Direct Current) power because your Tablet PC runs on DC power, but an
electrical outlet usually provides AC power. It also charges the battery pack
when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the Tablet PC. It is
rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you are
using the Tablet PC. When your applications often access peripherals, you
will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
z Charging will not start if the battery’s temperature is above 50 qC (122 qF)
or below 2 qC (28 qF); the charging process will stop if the battery’s
temperature gets above 60 qC (140 qF) or below 4 qC (25 qF). To avoid
damaging the battery under this situation, disconnect the AC adapter
and wait for the battery to return to room temperature before charging
again.
z During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
To charge the battery pack, connect the AC adapter to the Tablet PC and an
electrical outlet. The Battery Charge Indicator ( ) on the Tablet PC glows
amber to indicate that charging is in progress. You are advised to keep the
Tablet PC power off while the battery is being charged. When the battery is
fully charged, the Battery Charge Indicator glows green.
It takes approximately 3 hours to fully charge the Li-Ion battery pack at a
room temperature of 25 qC (77 qF) (may need a longer charging time at
lower temperatures).
CAUTION: After the Tablet PC has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
3-4 Managing Power
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21% per day), even when the battery pack is fully charged
(100%). This happens no matter if the battery pack is installed in the Tablet
PC.

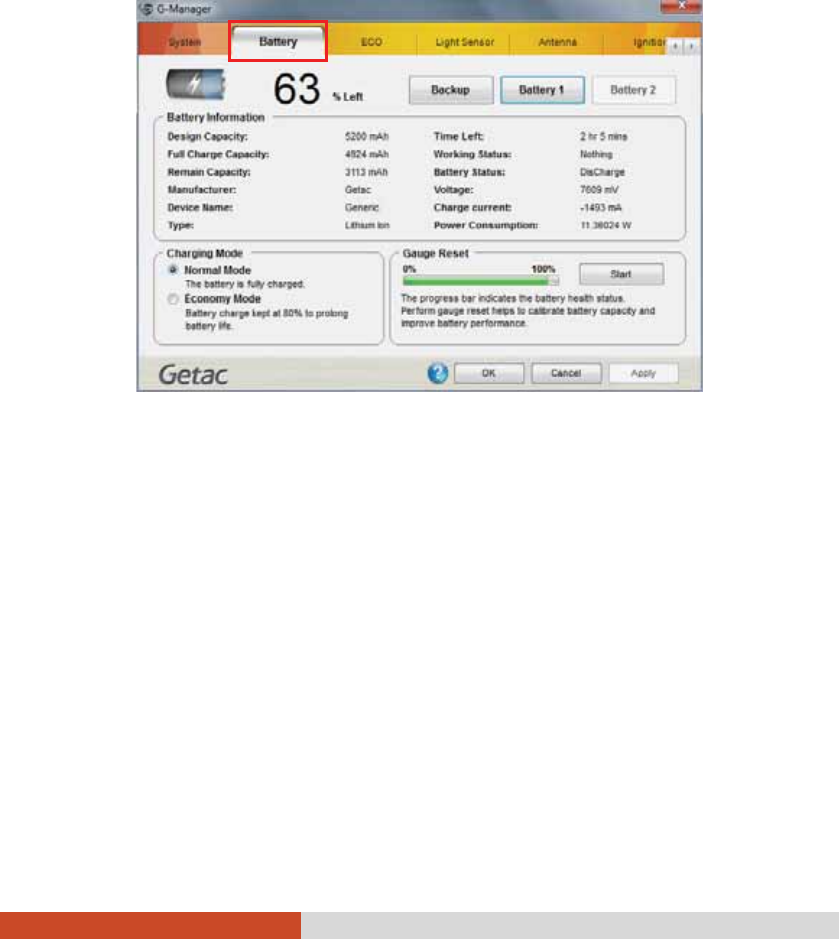

Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual
operating time can be different from the estimated time, depending on
how you are using the Tablet PC.
By Operating System
You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows, click
the battery icon on the taskbar.
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
Tablet PC and you want to know the battery charge, you can press the
switch with a pointed device to see the corresponding value of indicator
segment that light green.
The value of the corresponding green segment indicates the relative
percentage of the battery charge. The battery pack is fully discharged when
you see no segment glowing green.
Switch
Managing Power 3-5
Backup Battery
Your Tablet PC comes with a backup battery to support hot swapping of the
main battery pack. The backup battery can sustain power for up to 3
minutes, which should be long enough for you to replace the battery pack.
Whenever you remove the main battery pack, the system instantly switches
to the backup battery. During this period, the system operation is not
interrupted but the brightness level will be fixed at a low level and cannot
be adjusted.
If you turn off the power before removing the main battery pack, the power
remains off (not responding to the press of power button) during the
replacement.
The backup battery will be charged when AC power is connected. Charging
starts when the backup battery capacity is below 85%. If needed, you can
also allow the main battery pack to charge the backup battery. (For setup
information, see “Advanced Menu” in Chapter 5 and the Charging Backup
Battery item.)
NOTE: The backup battery is not user-replaceable. It never functions as the
power source as long as the main battery pack is installed.
Replacing the Battery Pack
CAUTION:
z There is danger of explosion if the battery is incorrectly replaced.
Replace the battery only with the Tablet PC manufacturer’s battery
packs. Discard used batteries according to the dealer’s instructions.
z Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling,
you may consider the purchase of an additional battery pack from your
dealer and keep it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Lift the latch handle of the battery cover and turn it counterclockwise to
the unlock position. Then, detach the cover from the Tablet PC.
3-6 Managing Power
2. Remove the two screws if existing (n). Pull on the ribbon strip to lift the
battery pack off the Tablet PC (o).
3. Fit another battery pack into place.
4. Replace the battery cover and turn the latch clockwise to the lock
position.
Unlock position
Managing Power 3-7
Battery Low Signals and Actions
When the battery is low, Windows gives warning messages and the Battery
Charge Indicator ( ) blinks red to alert you.
NOTE: You can set up your threshold and signals of Battery Low under
Windows.
Immediately save your data upon Battery Low. The remaining operating time
depends on how you are using the Tablet PC.
Always respond to Battery Low by placing your Tablet PC on the Sleep or
Hibernation mode, turning off the Tablet PC, or connecting the AC adapter.
If you do not take any action, the Tablet PC will automatically hibernate and
turn off.
3-8 Managing Power
Power Management
Your Tablet PC supports ACPI (Advanced Configuration and Power Interface)
for power management. The power management feature allows you to
reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply to
different Tablet PC components is controlled on an as-needed basis. This
allows maximum power conservation and performance at the same time.
In general, Windows’ power management works in this way:
What... When...
Power to the hard disk is turned
off
When the hard disk has been idle for a
set period.
Power to the display is turned off When the display has been idle for a
set period.
The Tablet PC enters the Sleep
mode. The hard disk and display
are turned off and the entire
system consumes less power.
When the entire system has been idle
for a set period.
When you manually activate the mode.
The Tablet PC enters the
Hibernation mode. (See the next
subsection for more information.)
When the entire system has been idle
for a set period.
When you manually activate the mode.
For detailed information on power management, see Windows’ Help.
Managing Power 3-9
Hibernation
Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the computer can be turned off.
When you use the hibernation feature, you do not have to close the
applications. The Tablet PC stores the state of your Tablet PC to a file on the
hard disk and then shuts down. The next time you turn on your Tablet PC,
you return to exactly where you left off.
3-10 Managing Power
Power-Saving Tips
Aside from enabling your Tablet PC’s power saving mode (see previous
section), you can do your part to maximize the battery’s operating time by
following these suggestions.
z Do not disable Power Management.
z Decrease the LCD brightness to the lowest comfortable level.
z Shorten the length of time before Windows turn off the display.
z Many USB devices use power just by being connected. If you use a USB
mouse, you can save power by disconnecting the mouse and using the
optional stylus. If you use a USB flash drive, unplug it when you are not
using it.
z Remove the card (such as PC card and Smart Card) if not using it.
z Turn off the wireless radio if you are not using the wireless module (such
as WLAN, Bluetooth, or WWAN 3G).
z Turn off the Tablet PC when you are not using it.
Expanding Your Tablet PC 4-1
Chapter 4
Expanding Your
Tablet PC
You can expand the capabilities of your Tablet PC by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this chapter.
4-2 Expanding Your Tablet PC
Using Smart Cards
Depending on your model, your Tablet PC has one or two smart card
readers.
With an embedded microcontroller, smart cards have the unique ability to
store large amounts of data, carry out their own on-card functions (e.g.,
encryption and mutual authentication), and interact intelligently with a
smart card reader.
To insert a smart card:
1. Locate the smart card reader. Open the cover.
2. Slide the smart card, with its label and embedded computer chip facing
up into the slot.
To remove a smart card:
1. Make sure that the software is not accessing the smart card.
2. Pull the card out of the slot.
3. Close the cover.
Expanding Your Tablet PC 4-3
Using PC Cards
The PC card slot supports type II card and CardBus specifications.
NOTE: Avoid removing or inserting PC cards during Sleep mode.

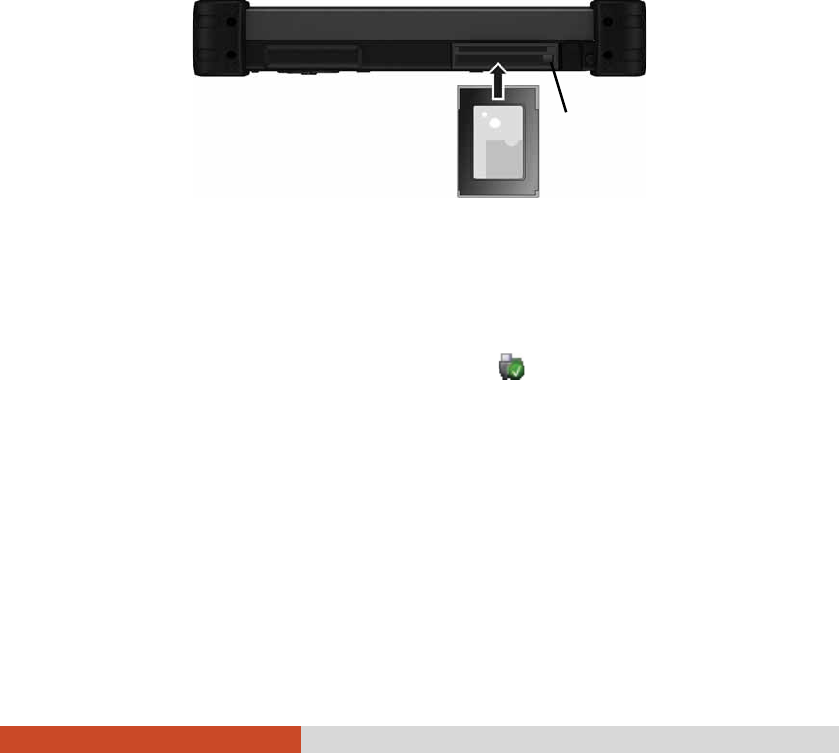

To insert a PC card:
1. Locate the PC card slot. Open the cover.
2. Slide the PC card, with its label facing up, into the slot until the eject
button pops out.
3. When a new card is seated, the Tablet PC will detect it and try to install
the appropriate driver. Follow the on-screen instructions to complete the
process.
To remove a PC card:
1. Double-click the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears on
screen.
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
5. Close the cover.
Eject button
4-4 Expanding Your Tablet PC
Using SD Cards (Optional)
NOTE: You can use only storage cards. Your Card Reader does not support
cards with I/O (input/output) functions such as a wireless network card or
Bluetooth card.
Depending on your model, your Tablet PC may have an SD card reader. The
card reader is a small drive for reading from and writing to removable
storage cards (or called memory cards). The reader supports SD (Secure
Digital) and SDHC (Secure Digital High Capacity) cards.
To insert an SD card:
1. Locate the SD card reader. Open the cover.
2. Align the card with its connector pointing to the slot and its label facing
up. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
To remove a card:
1. Double-click My Computer.
2. Right-click the drive with the card and select Eject.
3. Slightly push the card to release and then pull it out of the slot.
4. Close the cover.
Expanding Your Tablet PC 4-5
Connecting a USB Device
Your Tablet PC has two USB ports for connecting USB devices, such as a
digital camera, scanner, printer, modem, and mouse.
The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and
480 MB/s for USB 2.0 devices.
To connect a USB device, simply plug the device cable to one of the USB
ports ( ). (Open the cover to access the port.)
4-6 Expanding Your Tablet PC
Connecting a Serial Device
Your Tablet PC has a serial port for connecting a serial device such as a serial
mouse or serial communication device.
Follow this procedure to connect a serial device:
1. Make sure the Tablet PC is not turned on.
2. Plug the device cable to the serial port. (Open the cover to access the
port.)
3. Turn on the Tablet PC.
Expanding Your Tablet PC 4-7
Connecting an Audio Device
For higher audio quality, you can send sound through external audio devices
such as speakers, headphones, or earphone set using the audio combo
connector. (Open the cover to access the port.)
The combo connector is the “4-pole TRRS 3.5mm” type (Apple iPhone
Recessed) so you can connect a compatible headset microphone.
4-8 Expanding Your Tablet PC
Using the Docking Station
Docking Station is available as an option. The device eliminates the hassles
of having you connect and disconnect the various cables when carrying your
Tablet PC around and allows a variety of peripherals to be connected.
1. Locate the docking connector.
2. Connect the Docking Station to the docking connector.
For more detailed information, refer to the operating Instructions of the
Docking Station.
NOTE: Hot/warm docking and hot/warm undocking are possible with the
docking connector but it is recommended that prior to undocking, press the
Menu button and the OSD Control Panel appears. Click the Docking button
.
Using BIOS Setup and System Recovery 5-1
Chapter 5
Using BIOS Setup and
System Recovery
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the Tablet PC. BIOS is a layer of software, called
firmware, that translates instructions from other layers of software into
instructions that the Tablet PC hardware can understand. The BIOS settings
are needed by your Tablet PC to identify the types of installed devices and
establish special features.
System Recovery reinstalls Windows to your system and configures it to the
system’s factory default settings.
This chapter tells you how to use the BIOS Setup and System Recovery.
5-2 Using BIOS Setup and System Recovery
BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
z You see an error message on the screen requesting you to run BIOS
Setup Utility.
z You want to restore the factory default BIOS settings.
z You want to modify some specific settings according to the hardware.
z You want to modify some specific settings to optimize the system
performance.
NOTE: The BIOS Setup Utility supports touchscreen operation. However, you
are advised to connect a USB keyboard before running BIOS Setup. A
keyboard provides complete and easy controls over the utility. The
instructions in this chapter are based on keyboard operations.
To run BIOS Setup utility, press the F2 key when the prompt (“Press F2 for
System Utilities”) appears at the bottom left corner of the screen during
system startup. The prompt shows up on the screen for only a few seconds.
You must press the F2 key quickly. The BIOS Setup Utility main screen
appears.
In general, you can use the arrow keys to move around and + / – keys to
change the setup values. Keyboard information can be found at the bottom
of the screen.
NOTE:
z The BIOS Setup Utility screens shown in this chapter are for your
reference only. The actual items or settings on your Tablet PC may
differ.
z The BIOS Setup Utility program may have been updated after the
publication of this manual.
z The settings you select in your operating system might override similar
settings in BIOS Setup Utility.
Using BIOS Setup and System Recovery 5-3
Information Menu
The Information menu contains the basic configuration information of the
system. There are no user-definable items in this menu.
Information Main Advanced Security Boot Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
BIOS Revision:
EC Revision:
LAN MAC Address:
Operating Time:
E110
0123456789
Intel(R) Atom(TM) CPU N2800 @1.86GHz
4096MB
LITEONIT LMT-64M3M – 64.0 GB
R0.52.070520
R0.50f
00-22-20-0D-88-C8
23 Hours
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
5-4 Using BIOS Setup and System Recovery
Main Menu
The Main menu contains the various system settings.
Information Main Advanced Security Boot Exit
System Date:
System Time:
Legacy USB Support:
[05/09/2012]
[11:33:08]
[Enabled]
Item Specific Help
View or set system
date.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
System Date
sets the system date.
System Time sets the system time.
Legacy USB Support
enables or disables the system’s support for Legacy USB
device in DOS mode.
04
Using BIOS Setup and System Recovery 5-5
Advanced Menu
The Advanced menu contains the advanced settings.
Information Main Advanced Security Boot Exit
X
Intel (R) Rapid Start Technology
X
Wake Up Capability
Power Button Delay:
AC Initiation:
SATA Mode:
Charging Backup battery:
X
Device Configuration
[No delay]
[Disabled]
[AHCI]
[Disabled]
Item Specific Help
iRST – Intel (R)
Rapid Start
Technology
Configuration
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
Intel (R) Rapid Start Technology cofigures iRST. Press Enter to access the
submenu as shown below.
5-6 Using BIOS Setup and System Recovery
Advanced
Intel (R) Rapid Start Technology Item Specific Help
iRST Support:
[Disabled]
Enable iRST.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
iRST Support enables of disables iRST, which gets your system up and
running faster
Wake Up Capability specifies events for waking up the system from S3/S4/S5
state. Press Enter to access the submenu as shown below.
Advanced
Wake Up Capability Item Specific Help
RTC S4 Wakeup
LAN Wake Up From S3 or S4/S5:
USB Wake Up From S3
[Disabled]
[Disabled]
[Disabled]
Control the value to
enable wakeup from
the RTC S4.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
Disabled
Disabled
Using BIOS Setup and System Recovery 5-7
RTC S4 Wakeup enables or disables the RTC (Real Time Clock) wakeup
from S4 (Hibernation) feature when AC power is connected. Set this item
to
Enabled
if you use Windows task scheduler to have the computer
automatically perform tasks at specific times.
LAN Wake Up From S3 or S4/S5 allows a LAN activity to wake up the
system from S3 (Sleep) or S4 (Hibernation)/S5 (shutdown) state.
USB Wake Up From S3 allow a USB device activity to wake up the system
from S3 (Sleep) state.
Power Button Delay
sets the amount of time (2, 4, 6, or 8 seconds) to press
and hold the power button for it to function.
AC Initiation sets if connecting AC power will automatically start or resume
your Tablet PC.
SATA Mode
set to
AHCI
if your hard disk supports AHCI. AHCI allows you to
take advantage of Advanced Host Controller Interface features. The options
are
IDE
and
AHCI
.
CAUTION: Incorrect SATA mode settings can result in hard disk drive boot
failure.
Charging Backup Battery allows the main battery to charge the backup
battery. When set to
Enabled
, the backup battery can be charged by the
main battery if the AC adapter is not connected. Charging starts when the
backup battery has less than 70% capacity left and the main battery has
more than 70% capacity left. Charging stops when the backup battery
reaches 90% capacity or the main battery has less than 50% capacity left.
When set to
Disabled
, the backup battery will be charged by the AC adapter
only.
Device Configuration enables or disables several hardware components.
Press Enter to access the submenu as shown below.
5-8 Using BIOS Setup and System Recovery
Advanced
Device Configuration Item Specific Help
Wireless LAN:
WWAN:
Bluetooth
Media Card Reader:
Smart Card Reader:
HD Audio:
[ ]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
Set WLAN device to
enable/disable.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
You can enable or disable the following items:
z Wireless LAN
z WWAN (3G)
z Bluetooth
z Media Card Reader (SD)
z Smart Card Reader
z HD Audio (High Definition Audio)
NOTE: The availability of the items depends on your model.
Enabled
Using BIOS Setup and System Recovery 5-9
Security Menu
The Security menu contains the security settings, which safeguard your
system against unauthorized use.
Information Main Advanced Security Boot Exit
Supervisor Password Is:
User Password Is:
Set Supervisor Password:
Set User Password:
Authenticate User on Boot:
Set HDD00 Password:
HDD00 Password State:
X
TPM Configuration
Cleared
Cleared
[Enter]
[Enter]
[Disabled]
[Enter]
Cleared
Item Specific Help
Set or clear the
Supervisor account’s
password.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
NOTE:
z You can set the user password only when the supervisor password has
been set.
z If both the administrator and user passwords are set, you can enter any
of them for starting up the system and/or entering BIOS Setup.
However, the user password only allows you to view/change the settings
of certain items.
z A password setting is applied right after it is confirmed. To cancel a
password, leave the password empty by pressing the Enter key.
Supervisor/User Password Is shows whether you have set the supervisor/user
password or not for the system.
Set Supervisor/User Password sets the supervisor/user password. When
typing the password, first make sure that Num Lock is off, and then type the
Enter
5-10 Using BIOS Setup and System Recovery
password in the entry fields and press Enter. Confirm your password by
typing it again and pressing Enter. You can set the supervisor/user password
to be required for starting up the system and/or entering BIOS Setup.
Authenticate User on Boot allows you to enable or disable the entering of
password for booting up your system. Once the password is successfully set
and this item is enabled, it is required for booting up the system.
Set HDD00 Password sets the password for locking the Primary Master hard
disk drive. After setting a password, the hard disk drive can only be
unlocked by the password no matter where it is installed.
HDD00 Password State shows whether you have set the hard disk password
or not.
TPM Configuration sets various TPM parameters. Press Enter to access the
submenu as shown below.
TPM Support
enables or disables TPM (Trusted Platform Module)
support. TPM (Trusted Platform Module) is a component on your
computer’s mainboard that is specifically designed to enhance platform
security by providing a protected space for key operations and other
security critical tasks.
Security
TPM Configuration Item Specific Help
TPM Support:
Current TPM State:
TPM Action:
[ ]
[Disabled and Deactivated]
[No Change]
This is used to
decide whether TPM
support should be
enabled or disabled.
F1 Help
ɥɧ
Select Item -/+ Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
Enabled
Using BIOS Setup and System Recovery 5-11
Current TPM State
shows the current TPM state.
TPM Action
allows you to select between
No Change
,
Clear
,
Disabled
and Deactivated
, and
Enabled and Activated
.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
Information Main Advanced Security Boot Exit
Boot priority order:
1: SATA HDD: LITEONIT LMT-64M3M
2: SATA HDD2:
3: USB FDD:
4: USB CD:
5: USB HDD:
6: PCI LAN: Realtek PXE B01 D00
Item Specific Help
Keys used to view or
configure devices:
n
and
p
arrows select a
device. ‘+’ and ‘-’
move the device up or
down. ‘Shift + 1’
enables or disables a
device. ‘Del’ deletes
an unprotected device.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS uses to look for a device
from which to load the OS. See the information on the right side of the
menu for keyboard usage.
5-12 Using BIOS Setup and System Recovery
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing
with your settings, you must save and exit so that the changes can take
effect.
Information Main Advanced Security Boot Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Item Specific Help
Equal to F10, save
all changes of all
menus, then exit
setup configure
driver. Finally
resets the system
automatically.
F1 Help
ɥɧ
Select Item +/- Change Values F9 Setup Defaults
Esc Exit
ɤɦ
Select Menu Enter Select
X
Sub-Menu F10 Save and Exit
Exit Saving Changes saves the changes you have made and exits BIOS Setup
Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes
you have made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
Using BIOS Setup and System Recovery 5-13
Operations during POST
During POST when the Getac logo screen appears, you can double-tap the
screen to access specific menus as described below.
Menu Description
Boot Menu Lists the bootable devices. Select the device
you want to boot from.
App Menu Setup Runs the BIOS Setup Utility as described in
the previous “BIOS Setup” section.
HDI Recovery Performs System Recovery as described in the
next “System Recovery” section.
5-14 Using BIOS Setup and System Recovery
System Recovery
Use System Recovery when:
z The Windows operating system does not start at all.
z You want to restore the system to the factory state.
WARNING:
z Using this feature will reinstall Windows to your system and configure it
to the system’s factory default settings. All data on the hard disk drive
will be lost.
z Make sure that power is not interrupted during the recovery process. An
unsuccessful recovery may result in Windows startup problems.
To run System Recovery:
1. Connect the AC adapter.
2. Connect a USB mouse or keyboard.
3. Turn on the Tablet PC. During system startup when the Getac logo
screen appears, double-tap the screen. In the menu that appears, select
App Menu and then HDI Recovery.
Or, if a keyboard is connected, you can press Ctrl + Alt + F2 keys for four
seconds instead of tapping the screen.
Using BIOS Setup and System Recovery 5-15
4. In the screen that appears, select Recovery to start the recovery process.
5. The progress bar shows the percentage completed. When it reaches
100%, the system turns off.
6. Turn on the Tablet PC. The Windows setup wizard starts. Follow the
onscreen prompts to continue.
7. When the system restarts, the installer screen appears. The installer will
perform system hardware detection and driver installation.
8. When completed, the system restarts and displays Windows desktop.
Using Getac Software 6-1
Chapter 6
Using Getac Software
Getac software includes application programs for specific computer
components and utility programs for overall management.
This chapter describes how to use the programs.
6-2 Using Getac Software
Using the OSD Control Panel
The OSD (On Screen Display) Control Panel provides a user-friendly interface
for you to quickly activate or operate certain functions on your Tablet PC
with a simple tap of the screen.
To open the OSD Control Panel, press the Menu button on your Tablet PC.
The following screen appears.
The following table shows the various functions on the OSD Control Panel.
Using Getac Software 6-3
Icon Function
Opens the Help file explaining the OSD Control Panel.
Opens the Quick Button Setup menu (refer to the next
section for details).
Closes the OSD Control Panel.
Serves as the master ON/OFF control of the RF radio. The
word on the button indicates the current status.
When set to OFF, all wireless modules (WLAN/Bluetooth/
WWAN) cannot be used. When set to ON, individual
settings of the module work.
The on/off status will persist through Sleep/Hibernation
mode but it will always be on upon restarting.
Switches the ECO mode to the next choice (MAX, QUICK,
WORK, or OFF). The word on the button indicates the
current status. (For information on ECO modes, see “ECO
Tab” later in this chapter.)
This button works only when using battery power. The
ECO mode will return to the default OFF setting
whenever AC power is connected, backlight status is
changed, the system resumes from Sleep/Hibernation
mode, or the system is restarted.
The status would display IN when you connect your Tablet
PC to the Docking Station.
To turn off power to the Docking Station without
disconnecting from your Tablet PC, click the Docking
button. Before removing your Tablet PC from the
Docking Station, make sure to click the Docking button to
show OUT.
Switches the LCD backlight to the next choice (MAX,
AUTO, or MANUAL.) The word on the button indicates
the current status.
6-4 Using Getac Software

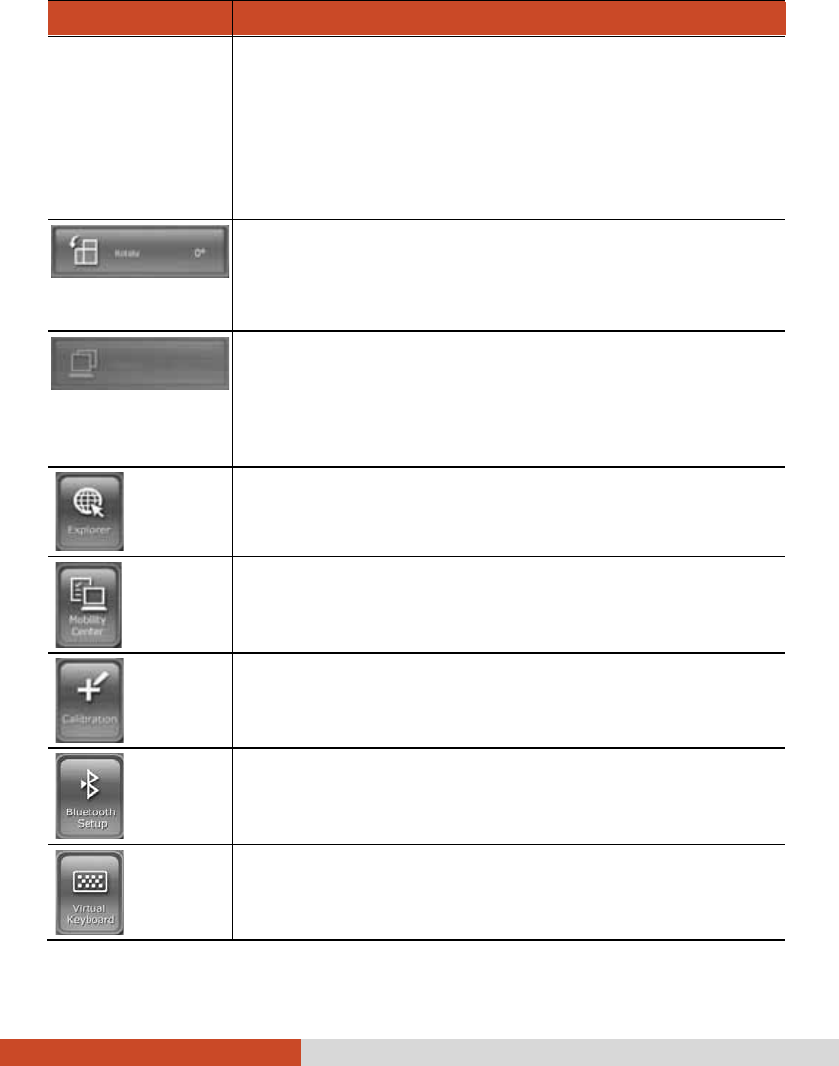

Icon Function
When set to MAX, the backlight is adjusted to the
highest brightness level. When set to AUTO, the
brightness will be automatically adjusted according to
the current ambient light.
The backlight will return to the default MANUAL setting
whenever the system resumes from Sleep/Hibernation
mode or the system is restarted.
Rotates the orientation from default landscape to 90o
portrait, 180o landscape, or 270o portrait.
The status will persist through Sleep/Hibernation mode
or system power off.
Switches the display output to the next choice: VGA
(external monitor), BOTH (LCD and external monitor), or
LCD.
This button works only when an external display is
connected.
Starts Microsoft Internet Explorer by default.
You can assign a different function to this button (refer
to the next section for details).
Starts Windows Mobility Center by default.
You can assign a different function to this button (refer
to the next section for details).
Starts the touchscreen calibration tool by default.
You can assign a different function to this button (refer
to the next section for details).
Starts the Bluetooth Setup utility by default.
You can assign a different function to this button (refer
to the next section for details).
Opens the Input Panel by default.
You can assign a different function to this button (refer
to the next section for details).
Using Getac Software 6-5
Icon Function
Allows you to adjust the sound volume by dragging the
knob along the bar.
Switches the system sound output OFF (mute) and ON.
Allows you to adjust the LCD brightness level by dragging
the knob along the bar.
System enters “black-out” mode by turning off the LCD
display, LED indicators, touchscreen, and sound.
Press the power button (
) to wake up the system from
“black-out” mode.
6-6 Using Getac Software
Quick Button Setup
By default, the five quick buttons on the OSD Control Panel have
pre-assigned functions. You can re-define the buttons:
1. Click the Quick Button Setup button ( ) on the OSD control panel
and the Quick Button Setup window appears.
2. At the bottom of the screen are the five quick buttons. Click the button
you want to change.
3. Depending on the type of task to be associated with the button, click the
Open button of the Executed Program or Open Folder type.
4. A dialog box appears. Select the desired program or folder and click
Open or Select. After your selection, the entry field will display the
program or folder information.
Using Getac Software 6-7

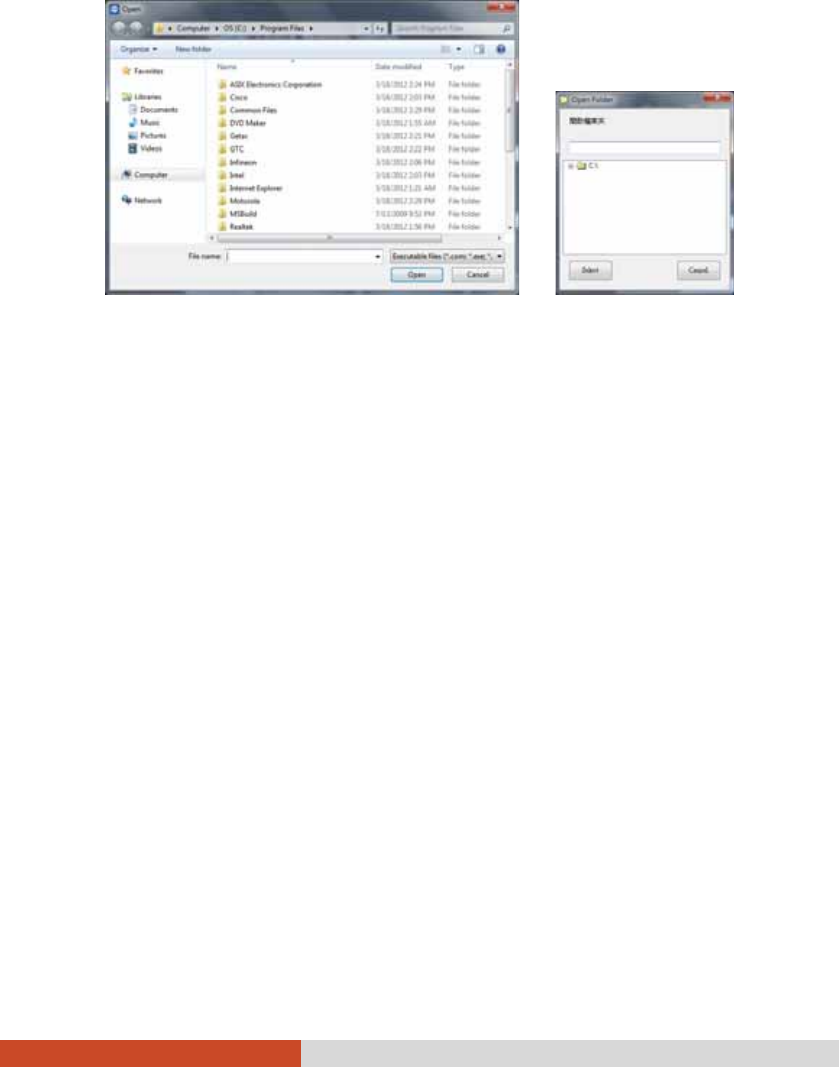

or
5. You can change the image appearing on the button by clicking the
Select Image button. After selecting the image file, the original image
on the button will be replaced.
6. Click Set to complete the changes.
NOTE: You can restore the quick buttons to the default settings by clicking
Reset All.
6-8 Using Getac Software
Using G-Manager
G-Manager is a unified user interface utility that allows you to manage and
configure the following:
z System
z Battery
z ECO (economic mode)
z Light Sensor
z Antenna
z Ignition
z Monitoring
z GPS Status
Starting G-Manager
You can start up G-Manager by any of the following methods:
z Click Start Æ All Programs Æ Getac Utility
Æ G-Manager, or
z Click and hold the icon located on the taskbar until a ring appears.
From the small menu that pops up, click G-Manager.
The G-Manager window appears, containing 8 tabs as described later.
NOTE: Depending on your model, the actual items appearing on the screen
may differ from those shown in this manual.
Using Getac Software 6-9
System Tab
The System tab provides system information.
To view specific information, select the component from the list on the left
side of the screen. The information of the selected component will be
displayed on the right side of the screen.
6-10 Using Getac Software
Battery Tab
The Battery tab allows you to check the battery status and configure the
battery.
The battery items shown in the screen depend on your computer model. You
may see up to three battery items (Backup, Battery 1, and Battery 2). Click a
battery item to view the information of the selected battery. Batteries not
installed in your computer are grayed-out.
Battery Information
The upper portion of the screen displays the current status of the selected
battery.
NOTE:
z If the AC adapter is connected, some information is not shown.
z When the percentage % Left is less than 10% then the value will be
displayed in red.
z When an abnormal battery condition is detected, the battery
information values will be displayed in red.
Using Getac Software 6-11
Charging Mode
The lower left portion of the screen allows you to select the charging mode.
z Normal Mode – The battery will be fully charged. When remaining
charge reaches below 95%, then charging will start until it is fully
charged.
z Economy Mode – This mode helps prolong battery life by charging up to
80% of its total capacity only. It is highly recommended if you are using
AC power most of the time.
Gauge Reset
The lower right portion of the screen contains the battery health bar and
provides the battery calibration function.
The health bar shows the batter’s health by percentage. A low percentage
indicates poor health and therefore the need to perform a gauge reset to
calibrate the battery’s capacity and improve the battery’s performance. The
gauge reset process includes discharging and then fully recharging the
battery in two cycles. It can take several hours.
To perform a gauge reset:
1. Connect the AC adapter.
2. Click Start, located next to the health bar
3. In the pop-up dialog box, click
Yes to start the process. The window as
below appears displaying the progress bar.

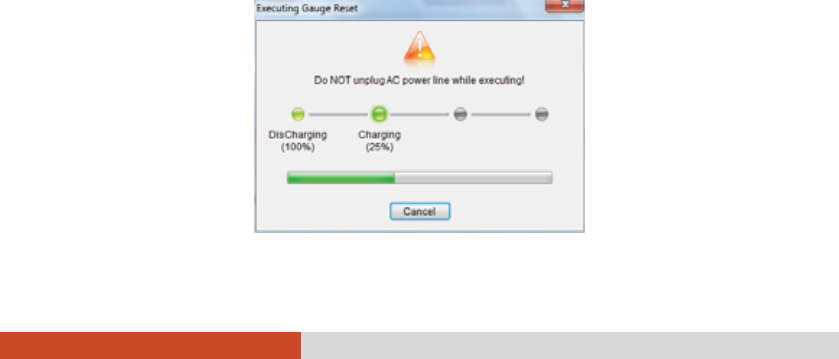

6-12 Using Getac Software
4. Wait till the process is completed. Click Exit when finished.
ECO Tab
The ECO tab allows you to configure ECO modes (or called power profiles).
To put the system into an ECO mode, use the ECO button (one of the
buttons in the OSD Control Panel). (See “Using the OSD Control Panel”
earlier in this chapter for information.)
Using Getac Software 6-13
ECO Information
The left portion of the screen lists the available power profiles (Quick, Power
Saving, and Work). Each profile is a combination of power settings that
results in different power consumptions. To change the settings of a profile,
select (highlight) the profile name in the list.
Profile Settings
The right portion of the screen displays the settings of the current selected
profile. You can set up the following items:
z WWAN (3G), Bluetooth, and WLAN – can be on or off.
z Power Scheme – can be Balanced, High Performance or Power Saver.
The settings here correspond to the settings in Windows. (See Windows
Help for the description to each of the power scheme.)
After changing the settings, click Apply or OK to save the changes. To
restore the settings to the default values, click Default.
6-14 Using Getac Software
Light Sensor Tab
The Light Sensor tab allows you configure how the light sensor works.
Sensor Mode
The left portion of the screen lists the sensor modes:
z Normal – Light sensor sensitivity is set at normal environment lighting
condition.
z Bright – Light sensor sensitivity is set at bright environment lighting
condition (e.g. outdoors).
z Dark – Light sensor sensitivity is set at dark environment lighting
condition (e.g. indoors, storage warehouse, etc.).
Click to select a mode. Click Apply or OK to save the changes.
Using Getac Software 6-15
Environment Illuminance
NOTE: Not all models support this function.
To have the keypad backlight automatically turn on in poor lighting
environment, click the checkbox Automatic Keyboard Backlit. Click Apply or
OK to save the changes.
Antenna Tab
The Antenna tab allows you to set if your system will automatically use the
external GPS or WWAN antenna when connected to the Docking Station.
Select the checkbox(es) accordingly. Click Apply or OK to save the changes.
6-16 Using Getac Software
Ignition Tab
The Ignition tab allows you to configure how your system works with the
vehicle ignition.
Ignition Control
When your system is connected to the Vehicle Dock (available as an option),
you can have your system derive power from the vehicle and have the on/off
of the vehicle ignition turn on/off your system. To enable the feature, select
the checkbox Ignition Power On. Click Apply or OK to save the changes.
Delay Time
When the Ignition Power On feature is enabled, the system will
automatically shut down after the vehicle ignition is turned off or the
battery is low. You can set the amount of time (20 seconds, 30 seconds, 45
seconds, 1 minute, or 2 minute) the system waits before shutting down. Click
Apply or OK to save the changes.
Using Getac Software 6-17
Monitoring Tab
The Monitoring tab allows you to configure the monitoring function of
G-Manager.
Items to Monitor
The left portion of the screen lists the items. Click the checkbox before an
item to include it as a monitored component. Click Apply or OK to save the
changes.
NOTE: Different models have different supported monitoring items;
non-supported items cannot be selected (grayed out items).
Monitoring Options
The right portion of the screen allows you to set how the monitored items
are displayed and how often the monitoring is updated.
z Always On Top – allows the monitoring window to remain on top of
your display.
6-18 Using Getac Software
z Monitoring Interval – sets the frequency of updates on the monitoring
window (1/3/5/10/30 seconds or 1/5/30 minutes).
Click Apply or OK to save the changes.
Starting and Stopping the Monitoring
To start monitoring, click START Monitor. The monitoring window similar to
the one below appears displaying requested information at specified
intervals.
To stop monitoring, click the Close button at the upper right corner of the
monitoring window or click Stop Monitor on the Monitoring tab page of
G-Manager.
Using Getac Software 6-19
GPS Status Tab
The GPS Status tab shows the GPS status for models having the GPS module.
To start GPS positioning, click Start GPS. The screen displays:
z Ongoing raw data strings in the Message Log section
z Overhead satellite positions in the Satellite Map section
z Signal strength of the satellites in the Signal Indicator section
When GPS positioning is completed, the Data Summary section shows the
GPS information of the current location.
To stop GPS positioning, click Stop GPS.
6-20 Using Getac Software
Using Getac Camera (Optional)
Getac Camera is a geo-tagging camera program, which allows you to stamp
geographical information on photos as watermarks and embed such
information into JPEG files as EXIF 2.2 metadata.
NOTE:
z Getac Camera works with Virtual-GPS (a separate application
program). Make sure that Virtual-GPS is installed in your computer.
z Before starting Getac Camera, close any other program that uses the
camera; otherwise, Getac Camera can only provide limited functions.
To start the program, double-click the Getac Camera program icon on
Windows desktop. The Getac Camera window appears as shown below.
The GPS positioning will be automatically activated. When the GPS
positioning is completed, you will see the geographical information in the
watermark area on the image.

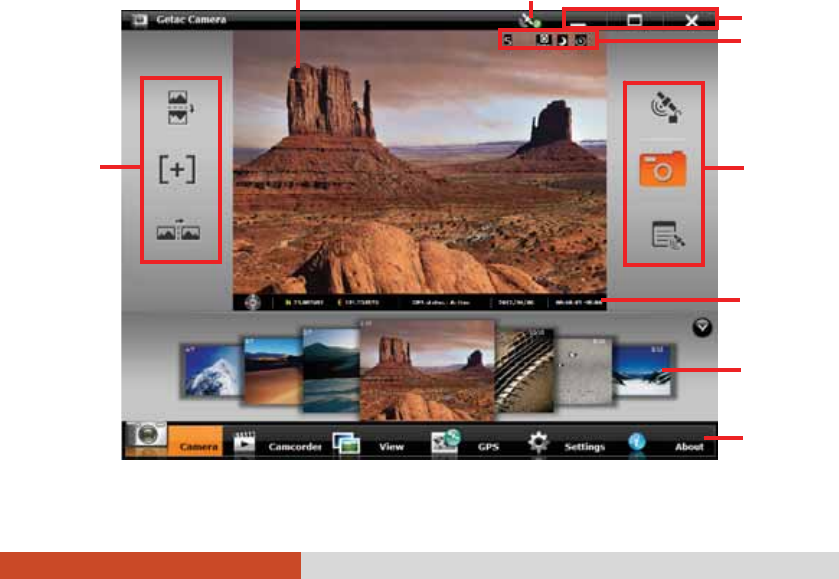

p
q
r r
s
t
u
n o
Using Getac Software 6-21

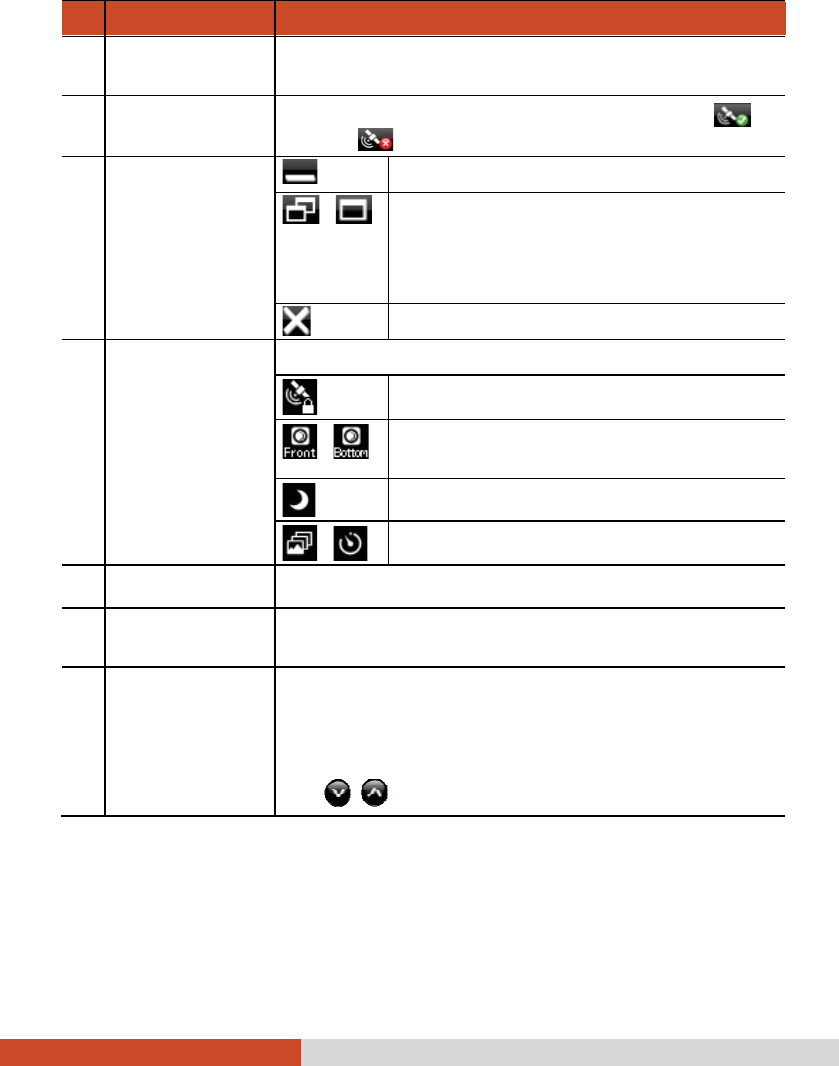

No. Screen Elements Descriptions
n Preview/Display
Window
Displays the live image in Camera mode and the
selected image in View mode.
o GPS Status Indicates if the GPS positioning is completed ( )
or not ( ).
p Window Control
Buttons
Minimizes the program window.
/ Resizes/maximizes the program window.
When resized, the smaller window size is
fixed. You can move it but cannot
change the size furthermore.
Closes the program.
q Status Display Indicates the use of a feature.
GPS Lock in use
/ Front/Bottom camera in use (depending
on your model)
Night mode in use
/Continuous/Timer mode in use
r Control Buttons Perform immediate tasks on the current image.
s Watermark Displays the GPS information such as direction,
longitude, latitude, GPS status, date, and time.
t Thumbnail Tray Displays up to 7 pictures in a thumbnail view. The
middle is the picture last taken or selected.
You can drag toward the right or left to scroll
through the thumbnail view.
The / button hides/shows the Thumbnail Tray.
6-22 Using Getac Software

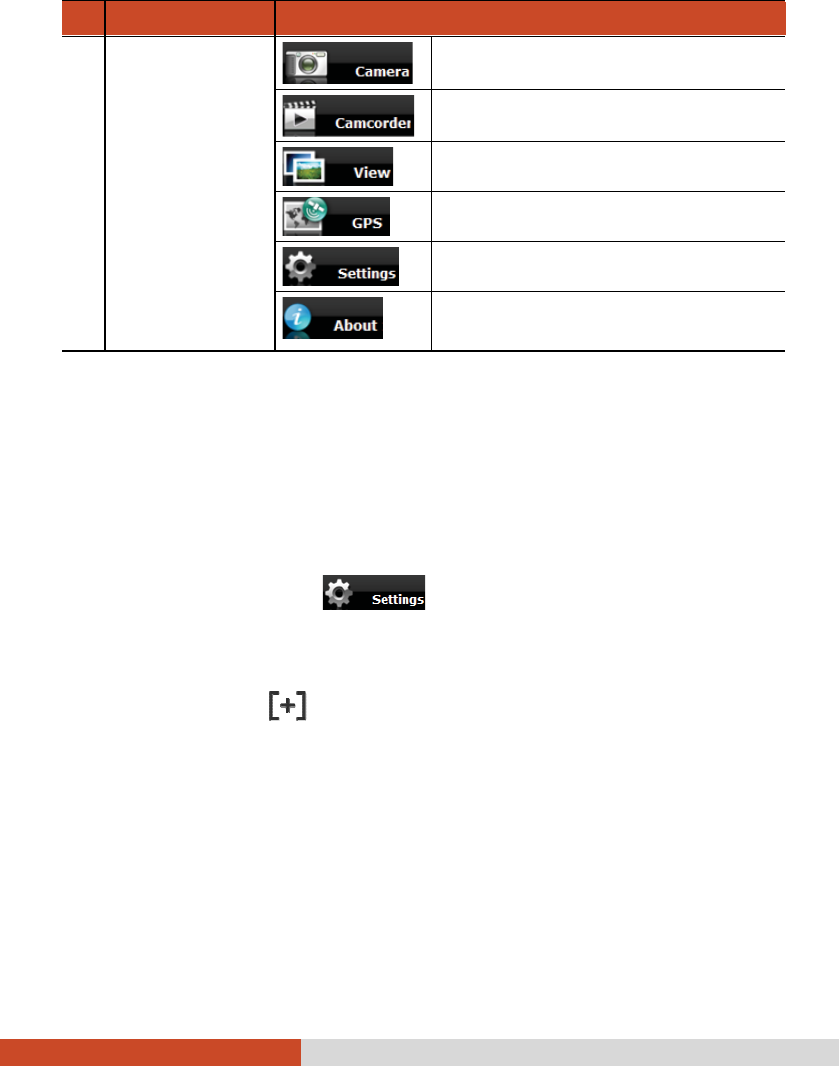

No. Screen Elements Descriptions
u Command
Buttons Switches to Camera mode.
Switches to Camcorder mode.
Switches to View mode.
Switches to GPS view.
Switches to the Settings screen.
Provides copyright, licensing, and
help information.
Taking Pictures
1. Start the Getac Camera program. You will be in Camera mode.
2. You can use the buttons on the right and left side of the preview
window for immediate controls. (See “Camera Control Buttons” for
detailed information.)
For overall settings, tap . (See “Camera Settings” for detailed
information.)
3. Aim the camera lens at your subject.
Tap and hold the button for focusing. A white plus sign and frame
appear. Wait until the subject is in focus.
NOTE: If you do not shoot after focusing, the preview image will become
out of focus. This is not a malfunction.
Using Getac Software 6-23
4. When ready, you can shoot the picture using either of the two methods:
x Method 1: Tap the button.
TIPS: If your computer model comes
with multi-touch screen and Windows
7, You can conveniently tap the focus
button using your left hand and tap
the shutter button using your right
hand at the same time.
x Method 2: Drag the preview image and
drop it into Thumbnail Tray.
5. The picture will appear in the middle of the Thumbnail Tray and be
saved to the predefined storage location.
6-24 Using Getac Software

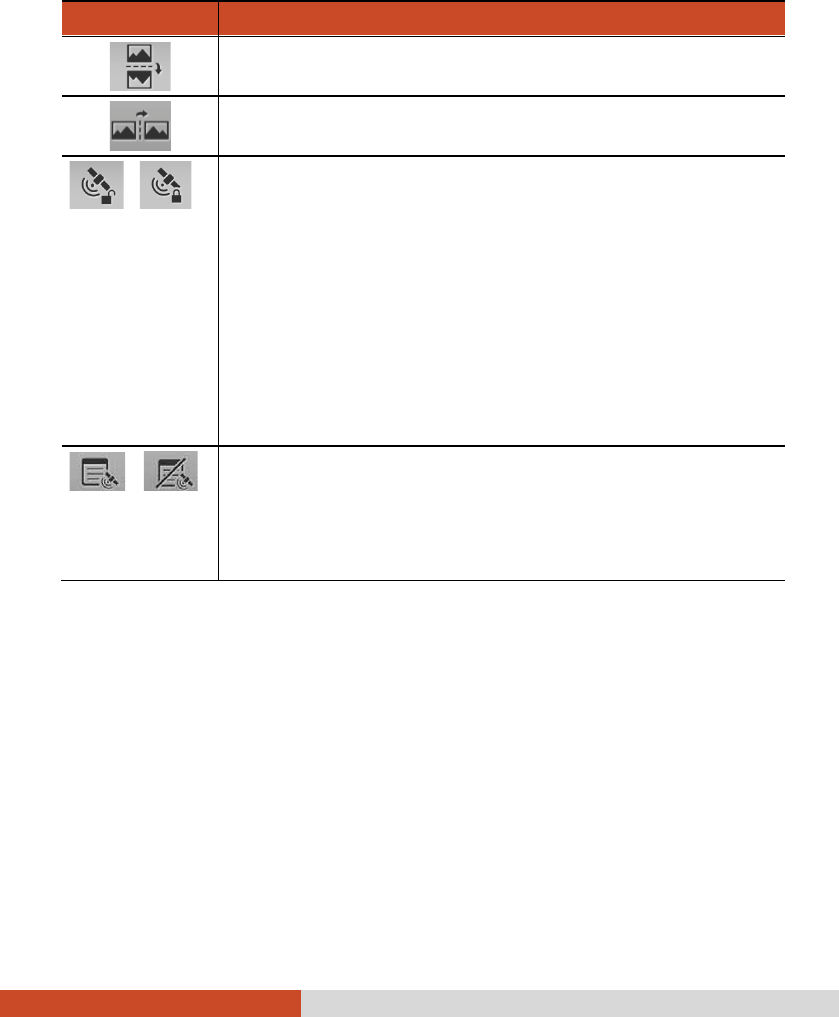

Camera Control Buttons
Control Buttons Descriptions
Flips the image horizontally.
Flips the image vertically.
/ Turns on/off GPS lock. The icon in the button shows the
current status.
GPS lock allows you record the exact location of the object
you are shooting instead of where you are using the
computer to shoot the picture. First, put the computer near
your object and tap this button to lock the GPS
information; then, you can go farther away to where you
can have a good view of the object for the shooting.
Remember to turn off GPS lock when the feature is not
needed for the next picture. The GPS lock is always off
whenever you start the program.
/ Turns off/on watermark. The icon in the button shows the
current status.
You can turn off watermark if you do not want the
watermark to show in the picture. Your setting remains
effective until you change it again.
Using Getac Software 6-25

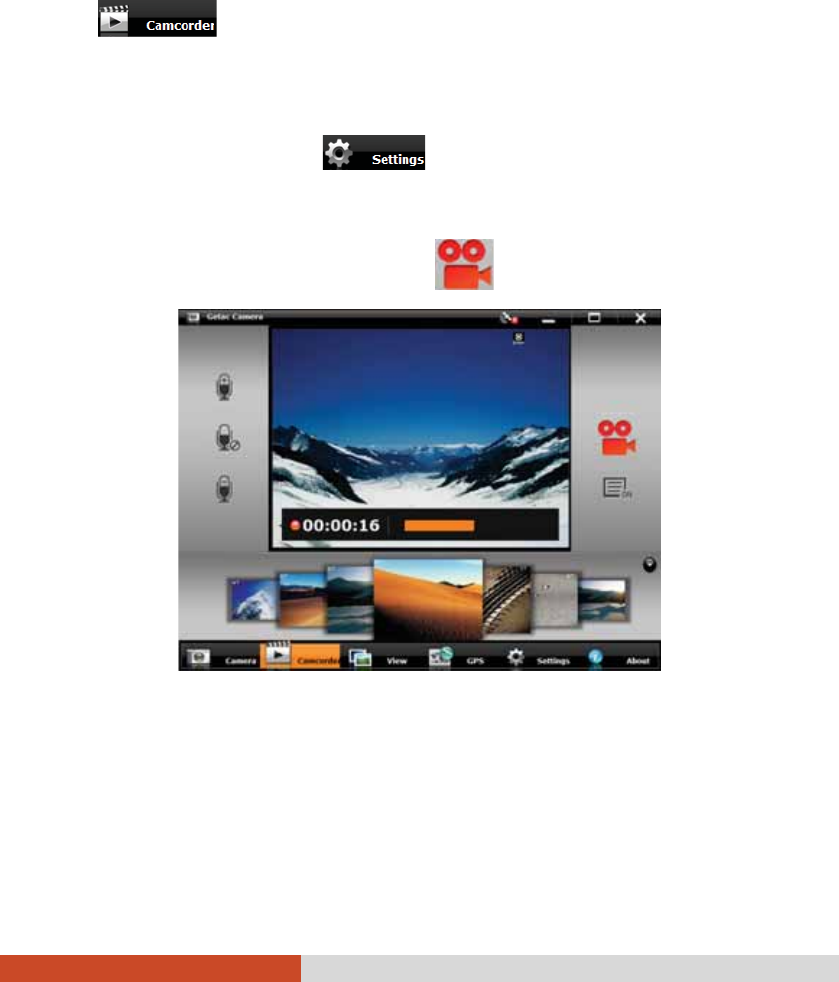

Shooting Videos
1. Start the Getac Camera program. You will be in Camera mode. Tap
to switch to Camcorder mode.
2. You can use the buttons on the right and left side of the preview
window for immediate controls. (See “Camcorder Control Buttons” for
detailed information.)
For overall settings, tap . (See “Camera Settings” for detailed
information.)
3. Aim the camera lens at your subject.
To start shooting the video, tap the button.
4. To stop, tap the same button again.
5. An image from the video will appear in the middle of the Thumbnail
Tray. The file is saved to the predefined storage location.
6-26 Using Getac Software

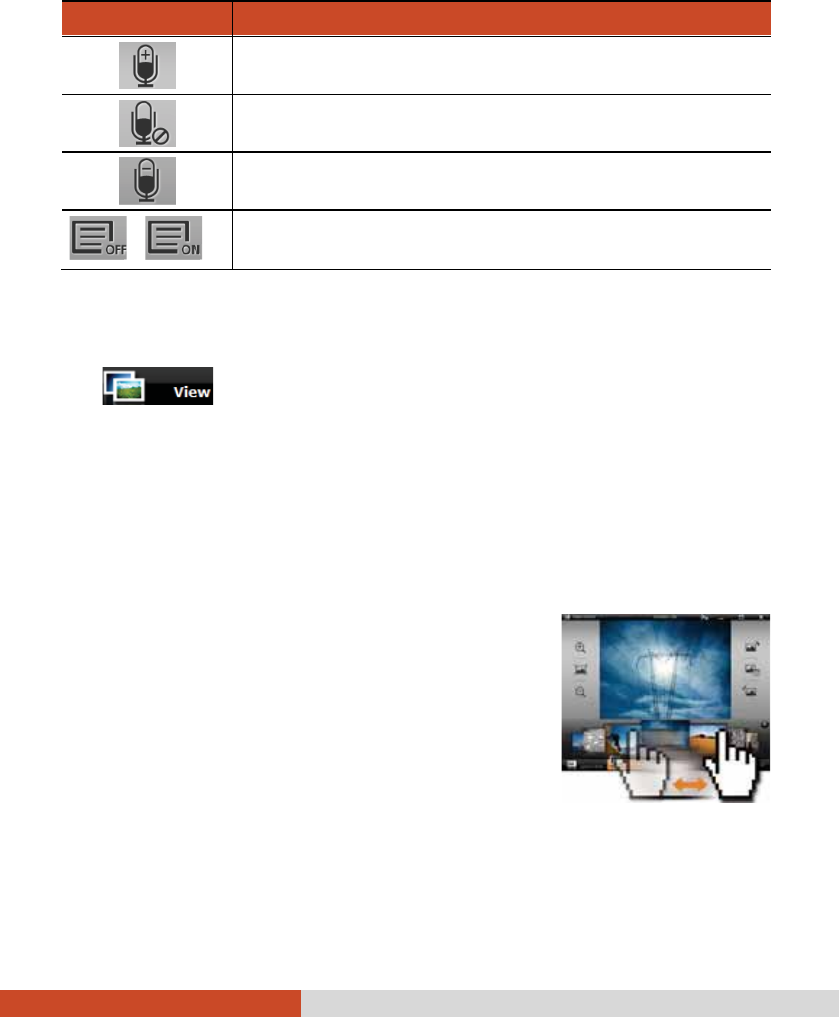

Camcorder Control Buttons
Control Buttons Descriptions
Increases the recording sound volume.
Disables/enables the microphone.
Decreases the recording sound volume.
/ Turns on/off the display of elapsed recording time and
current volume.
Using View Mode
Tap at the bottom of the screen to switch to View mode.
While in Camera or Camcorder mode, you can also switch to View mode by
either of the two methods:
z Method 1: Double-tap the thumbnail in the Thumbnail Tray.
z Method 2: Drag the thumbnail and drop into the preview window.
Selecting an Image or Video
To scroll through the Thumbnail Tray, drag the tray
toward the left or right.
To select an image or video, use either of the two methods:
z Method 1: Double-tap the thumbnail in the Thumbnail Tray.
Using Getac Software 6-27
z Method 2: Drag the thumbnail and drop into
the display window.
Image Viewing Controls
When you select an image to view, you can perform the following tasks.
To Via Control Buttons Via Multi-touch Operations
Zoom in/out
(up to four scales) /
Drag two fingers apart/
towards to zoom in/out.
6-28 Using Getac Software

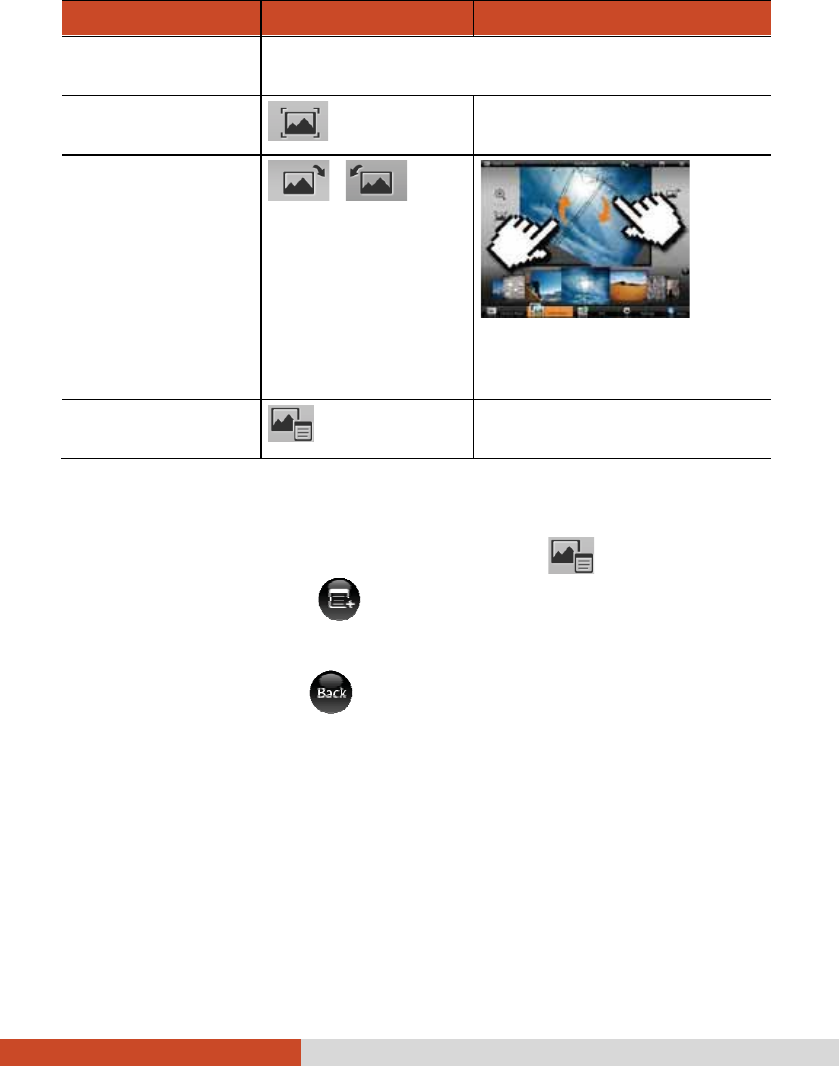

To Via Control Buttons Via Multi-touch Operations
When zoomed in, you can drag to view another
portion of the image.
Restore to the
100% scale
Rotate to the
right/left by 90q /
Drag two fingers in a
clockwise/counterclockwise
circular motion.
View image
properties
Adding Notes to an Image
1. Switch to View mode, select the image, and tap .
2. In properties view, tap .
3. Type your notes in the entry field.
4. When completed, tap .
The first three lines of the notes show on the screen.
Using Getac Software 6-29
Video Playback Controls
When you select a video to playback, you can perform the following tasks.
To Via Control Buttons
Start/pause the playback /
Skip backwards/forwards /
Increase/decrease volume /
Turn on/off the status display /
6-30 Using Getac Software
Camera Settings
To change camera settings, tap at the bottom of the screen. The
Settings window appears showing the setting item previously accessed.
Along the left of the window are all the setting items. You can drag this
area up or down to scroll through the items. The middle of the window
displays the current item and setting value. To the right is the adjustment
bar where you can tap or drag to change the setting value.
All changes (except for Camera Mode) remain effective until you change
them again.
Items Name Descriptions
White
Balance
Five choices from which you can select one that
matches the current light source: Automatic
(default), Sunshine, Cloudy, Fluorescence, and
Incandescence.
Brightness Adjusts the brightness level. The range of levels
depends on computer models.
You can tap to restore to the default level.
Using Getac Software 6-31

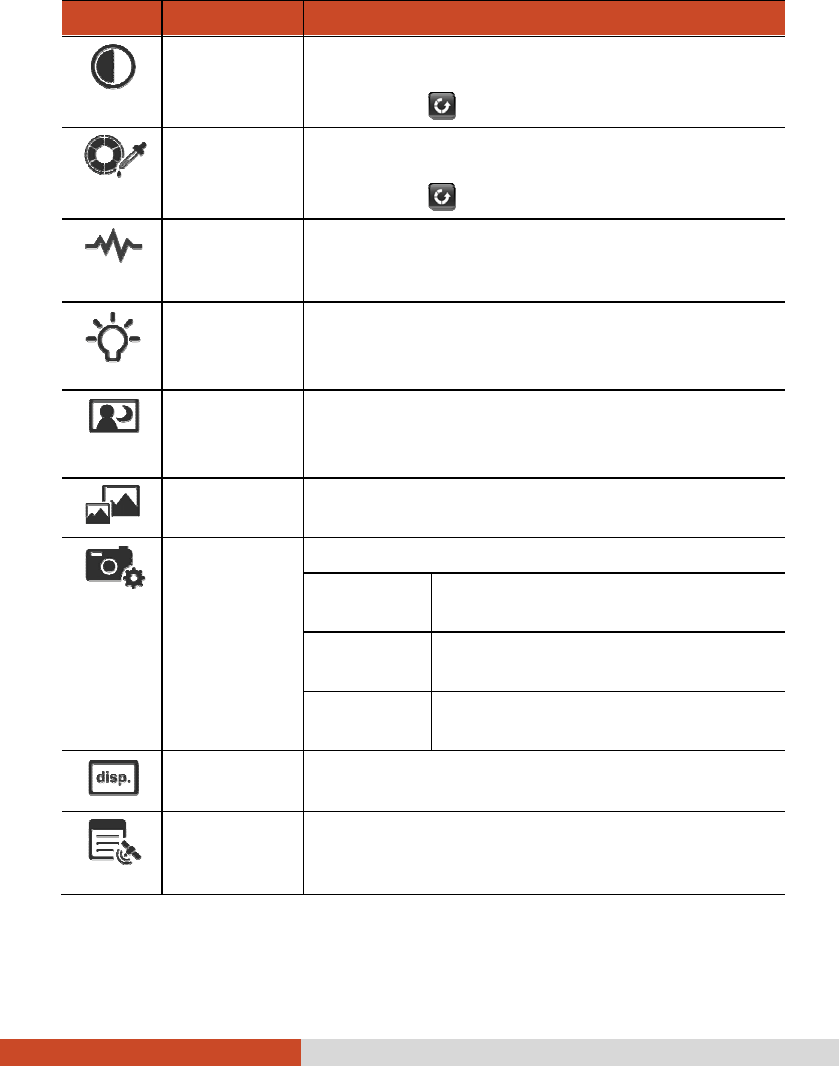

Items Name Descriptions
Contrast Adjusts the contrast level. The range of levels
depends on computer models.
You can tap to restore to the default level.
Hue Adjusts the hue level. The range of levels depends
on computer models.
You can tap to restore to the default level.
Flicker Sets the frequency to match the local electrical
system for flicker free shooting under electric
light. Choices are: 60Hz (default) and 50Hz.
LED Light Turns On (default) or Off the LED light.
This item is available for setting only on models
with the LED light.
Night Mode Turns On or Off (default) night mode.
You can turn on the feature for shooting in low
light situations.
Image Size Sets the image resolution to 1600x1200, 1280x720,
1024x768, or 640x480.
Camera
Mode
Three choices for the shooting mode:
Normal This is the default setting whenever
the program is started.
Continuous Continuous shooting of 3 pictures (1
shot per second).
Timer 5-second countdown before
shooting.
Status
Display
Turns On (default) or Off the display of the status
indicators.
Watermark Turns On (default) or Off the display of
watermark in the image. (Turning off does not
affect the embedded EXIF 2.2 metadata.)
6-32 Using Getac Software

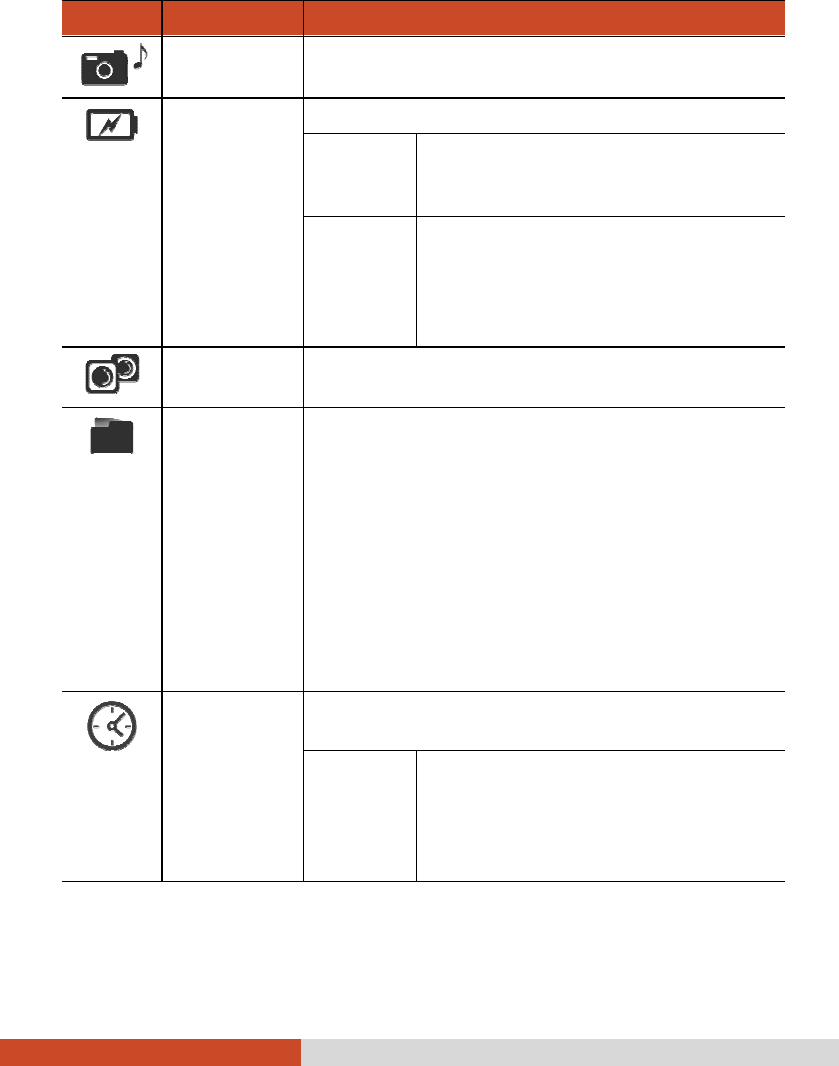

Items Name Descriptions
Shutter
Sound
Turns On (default) or Off the sound played upon
photo shooting.
Power
Saving
Sets if power saving works for the program.
System
(default)
The Camera program enters power
saving mode according to the settings
of Windows’ Power Options.
Never The Camera program will not enter
power saving mode while the
program window is open. But when
the program window is minimized,
the System setting overrides.
Camera
Switch
Not supported by your model.
Folder Path Sets the storage location of the images. To
change to a different folder, tap Browse and
select the folder.
The default location is User\[user name]\Pictures
folder that contains the original images. A
subfolder named Thumbs contains a copy of the
same images (with filename prefix Thumb_) for
the thumbnail view.
NOTE: If you are adding or deleting images using
File Explorer, make sure to work on both the
correct folder and its Thumbs subfolder.
Time Option Displays the time throughout the program
according to one of the two choices:
System
time zone
(default)
The time zone setting of the computer
is taken into consideration. If the
current location is in daylight saving
time, the time will be adjusted
accordingly.
Using Getac Software 6-33
Items Name Descriptions
UTC The time is based on Coordinated
Universal Time.
Filename
Prefix
The default filename prefix is IMG. The complete
filename is IMG_
xxxxxx.
jpg (where
xxxxxx
=
sequential number). When the sequential number
has reached 999999 and you are taking the next
picture, a message will pop up to ask you to
change the prefix.
You can change the prefix by typing the
characters (limited to A~Z, a~z, 0~9, - and _) in the
entry field. Maximum number of characters
allowed is 10.
6-34 Using Getac Software
Using Getac Smart Tag (Optional)
NOTE: The Getac Smart Tag program is available for models with the RFID
module only.
Getac Smart Tag is a demo program that reads UID numbers from RFID tags.
For enhanced applications and customization of the RFID reader/writer,
contact your authorized Getac dealer.
Reading Tags
NOTE: The procedure below is based on the default settings of Getac Smart
Tag.
1. Double-tap the Getac Smart Tag program icon on Windows desktop to
start the program.
The Getac Smart Tag floating button appears and is always on top of the
screen. You can drag the button to a location you want.
Location of internal
FRID antenna
Using Getac Software 6-35
2. By default, Getac Smart Tag scans three tag types, once for each type.
To change settings, use the options menu. (See “Options Menu” later for
information.)
3. Tap the floating button to start scanning. While scanning is in progress,
the button’s color is orange
Idle Scanning
4. The result window as below appears. The Card Type field shows which
type of tags are being scanned now. If a tag of the matching type is
found, the Card UID field shows its UID; otherwise the field is blank.
Tap OK to close the window.
5. The program scans for 3 seconds for each tag type (14443-A, 14443-B,
and 15693). The scanning stops after 9 seconds.
6. When you next start a scanning session, it begins with the last scanned
card type in the previous session.
6-36 Using Getac Software
Options Menu
Tap and hold the floating button to open the options menu.
Menu Items Descriptions
14443-A / 14443-B /
15693 / Auto
Check one of the three tag types for single type
scanning. Check Auto to scan all three types.
Send UID out Check this item for the UID data to be entered to
where you have placed the insertion point (or called
cursor) in a processing software.
If unchecked (default setting), the result window
appears to display the UID data.
Keep scanning Check this item for the scanning to go on until you
stop it by tapping the floating button.
If unchecked (default setting), the scanning stops
automatically after one cycle of scanning.
No Beep Check this item so there is no beep sound upon each
scanned UID.
If unchecked (default setting), the system beeps to
indicate a scanned UID.
Information Provides extra information such as hardware port,
firmware version, etc.
Exit Closes the program.
All the changes remain effective until you change them again.
Caring for the Tablet PC 7-1
Chapter 7
Caring for the Tablet
PC
Taking good care of your Tablet PC will ensure a trouble-free operation and
reduce the risk of damage to your Tablet PC.
This chapter gives you guidelines covering areas such as protecting, storing,
cleaning, and traveling.
7-2 Caring for the Tablet PC
Protecting the Tablet PC
To safeguard the integrity of your Tablet PC data as well as the Tablet PC
itself, you can protect the Tablet PC in several ways as described in this
section.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your Tablet PC against
theft. The cable lock is available in computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to secure
the lock. Store the key in a safe place.
Caring for the Tablet PC 7-3
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
Using Action Center (for Windows 7)
Action Center alerts you to take action on the following security essentials:
z Windows Firewall
z Windows Update
z Malware Protection (anti-virus, anti-spyware)
z Others (Internet security, user account control)
For detailed information, see Windows’ online Help.
7-4 Caring for the Tablet PC
Taking Care of the Tablet PC
Location Guidelines
z For optimal performance, use the Tablet PC where the recommended
temperature is between 0 qC (32 qF) and 55 qC (131 qF).
z Avoid placing the Tablet PC in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust. Using in extreme environments for long periods can result in
product deterioration and a shortened product life.
z Operating in an environment with metallic dust is not allowed.
z Place the Tablet PC on a flat and steady surface. Do not stand the Tablet
PC on its side or store it in an upside-down position. A strong impact by
dropping or hitting may damage the Tablet PC.
z Do not cover or block any ventilation openings on the Tablet PC. For
example, do not place the Tablet PC on a bed, sofa, rug, or other similar
surface. Otherwise, overheating may occur that results in damage to the
Tablet PC.
z As the Tablet PC can become very hot during operation, keep it away
from objects that are vulnerable to heat.
z Keep the Tablet PC at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
z Avoid moving the Tablet PC abruptly from a cold to a warm place. A
temperature difference of more than 10 qC (18 qF) may cause
condensation inside the unit, which may damage the storage media.
General Guidelines
z Do not place heavy objects on top of the Tablet PC as this may damage
the display.
Caring for the Tablet PC 7-5
z The screen surface is easily scratched. Avoid touching it with a sharp
object such as a pen or pencil.
z To maximize the life of the backlight in the display, allow the backlight
to automatically turn off as a result of power management. Avoid using
a screen saver or other software that prevents the power management
from working.
Cleaning Guidelines
z Never clean the Tablet PC with its power on.
z Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the Tablet PC.
z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or
detergent on the display.
z If water or liquid is split onto the Tablet PC, wipe it dry and clean when
possible. Though your Tablet PC is water-proof, do not leave the Tablet
PC wet when you can dry it.
z If the Tablet PC gets wet where the temperature is 0qC (32qF) or below,
freeze damage may occur. Make sure to dry the wet Tablet PC.
Battery Pack Guidelines
z Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
z The battery pack is a consumable product and the following conditions
will shorten its life:
– when frequently charging the battery pack
– when using, charging, or storing the battery in high temperature
condition
z To avoid hastening the deterioration of the battery pack thereby
prolonging its useful life, minimize the number of times you charge it so
as not to frequently increase its internal temperature.
7-6 Caring for the Tablet PC
z Charge the battery pack between 10 qC ~ 30 qC (50 qF ~ 86 qF)
temperature range.
A higher environment temperature will cause the battery pack’s
temperature to rise. Avoid charging the battery pack inside a closed
vehicle and in hot weather condition.
Also, charging will not start if the battery pack is not within the allowed
temperature range.
z It is recommended that you do not charge the battery pack more than
once a day.
z It is recommended that you charge the battery pack with the Tablet PC’s
power off.
z To maintain the battery pack’s operating efficiency, store it in a cool
dark place removed from the Tablet PC and with 30 % ~ 40 % charge
remaining.
z Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the
following:
– avoid installing or removing the battery pack when the Tablet PC is
in Sleep mode. Abruptly removing the battery pack may cause
loss of data or the Tablet PC may become unstable.
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the Tablet PC.
The Tablet PC’s input voltage and surrounding temperature will directly
affect the battery pack’s charge and discharge time:
– charging time will be prolonged when the Tablet PC is turned on.
To shorten the charging time, it is recommended that you place the
Tablet PC in Sleep or hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
z When using battery power in an extremely low temperature
environment, you may experience shortened operating time and
incorrect battery level reading. This phenomenon comes from the
chemical characteristics of batteries. The appropriate operating
temperature for the battery is -10 qC ~ 50 qC (14 qF ~ 122 qF).
Caring for the Tablet PC 7-7
Touchscreen Guidelines
z Use the finger or the included stylus on the display. Using a sharp or
metallic object other than your finger or stylus may cause scratches and
damage the display, thereby causing errors.
z Avoid using excessive force that may cause damage to the display.
z Use a soft cloth to remove dirt on the display. The touchscreen surface
has a special protective coating that prevents dirt from sticking to it. Not
using a soft cloth may cause damage to the special protective coating on
the touchscreen surface.
To remove hard to remove dirt, blow some steam on the particular area
and gently wipe away using a soft cloth.
z Turn off the Tablet PC power when cleaning the display. Cleaning the
display with the power on may cause improper operation.
z Use the touchscreen within the intended area only. The display area and
touchscreen operating area is the same.
z Do not use excessive force on the display. Avoid placing objects on top of
the display as this may cause the glass to break thereby damaging the
display.
z Using the touchscreen during low temperature (less than 5 oC) may cause
a slower response time, this is normal. A normal response time may be
restored upon returning to room temperature.
z When there is a noticeable discrepancy in the placement of the stylus on
the screen and the indicated position of the onscreen pointer, use the
calibration utility to recalibrate the touchscreen display. (A shortcut of
the utility is provided in the OSD Control Panel. See “Using the OSD
Control Panel” in Chapter 6.)
7-8 Caring for the Tablet PC
When Traveling
z Before traveling with your Tablet PC, make a backup of your hard disk
data into flash disks or other storage devices. As an added precaution,
bring along an extra copy of your important data.
z Make sure that the battery pack is fully charged.
z Make sure that the Tablet PC is turned off.
z Disconnect the AC adapter from the Tablet PC and take it with you. Use
the AC adapter as the power source and as a battery-charger.
z Hand-carry the Tablet PC. Do not check it in as luggage.
z If you need to leave the Tablet PC in the car, put it in the trunk of the car
to avoid exposing the Tablet PC to excessive heat.
z When going through airport security, it is recommended that you send
the Tablet PC and flash disks through the X-ray machine (the device you
set your bags on). Avoid the magnetic detector (the device you walk
through) or the magnetic wand (the handheld device used by security
personnel).
z If you plan to travel abroad with your Tablet PC, consult your dealer for
the appropriate AC power cord for use in your country of destination.
Troubleshooting 8-1
Chapter 8
Troubleshooting
Tablet PC problems can be caused by hardware, software, or both. When
you encounter any problem, it might be a typical problem that can easily be
solved.
This chapter tells you what actions to take when solving common Tablet PC
problems.
8-2 Troubleshooting
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
z Try to isolate which part of the Tablet PC is causing the problem.
z Make sure that you turn on all peripheral devices before turning on the
Tablet PC.
z If an external device has a problem, make sure that the cable
connections are correct and secure.
z Make sure that the configuration information is properly set in the BIOS
Setup program.
z Make sure that all the device drivers are correctly installed.
z Make notes of your observations. Are there any messages on the screen?
Do any indicators light? Do you hear any beeps? Detailed descriptions
are useful to the service personnel when you need to consult one for
assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
Troubleshooting 8-3
Solving Common Problems
Battery Problems
The battery does not charge (Battery Charge indicator does not light
amber).
z Make sure that the AC adapter is properly connected.
z Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
z Make sure that the battery pack is installed correctly.
z Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
z If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
(Use the battery calibration tool as described in “Gauge Reset” in
Chapter 6.)
The battery operating time indicated by the battery meter does not
match the actual operating time.
z The actual operating time can be different from the estimated time,
depending on how you are using the Tablet PC. If the actual operating
time is much less than the estimated time, initialize the battery. (Use the
battery calibration tool as described in “Gauge Reset” in Chapter 6.)
Bluetooth Wireless Transmission Problems
I cannot connect to another device with Bluetooth wireless
technology.
z Make sure that both devices have activated Bluetooth feature.
z Make sure that the distance between the two devices is within the limit
and that there are no walls or other obstructions between the devices.
8-4 Troubleshooting
z Make sure that the other device is not in “Hidden” mode.
z Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
z During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
z The brightness level might be too low. Increase the brightness.
The characters on the screen are dim.
z Adjust the brightness and/or contrast.
Bad dots appear on the display at all times.
z A small number of missing, discolored, or bright dots on the screen are
an intrinsic characteristic of TFT LCD technology. It is not regarded as a
LCD defect.
Hardware Device Problems
The Tablet PC does not recognize a newly installed device.
z The device may not be correctly configured in the BIOS Setup program.
Run the BIOS Setup program to identify the new type.
z Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
z Make sure if the device needs any jumper or switch settings. (Refer to
the documentation that came with the device.)
z Check the cables or power cords for correct connections.
z For an external device that has its own power switch, make sure that the
power is turned on.
Troubleshooting 8-5
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
z The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
z The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
The hard disk drive / heater indicator blinks red.
z The optional hard disk drive heater is in an abnormal state. Ask for
repair service in case this happens.
LAN Problems
I cannot access the network.
z Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
z Make sure that the network configuration is appropriate.
z Make sure that the user name or password is correct.
PC Card Problems
The PC card does not work.
z Make sure that the PC card is correctly seated.
z If the card requires an IRQ (Interrupt ReQuest), make sure that there is
one available.
The PC card stops communicating properly.
z The application may have been reset when the Tablet PC is turned off
or in Sleep mode. Exit and restart the application.
8-6 Troubleshooting
Power Management Problems
The Tablet PC does not enter Sleep or Hibernation mode
automatically.
z If you have a connection to another computer, the Tablet PC does not
enter Sleep or Hibernation mode if the connection is actively in use.
z Make sure that the Sleep or Hibernation time-out is enabled.
The Tablet PC does not enter Sleep or Hibernation mode
immediately.
z If the Tablet PC is performing an operation, it normally waits for the
operation to finish.
The Tablet PC does not resume from Sleep or Hibernation mode.
z The Tablet PC automatically enters Sleep or Hibernation mode when the
battery pack is empty. Do any one of the following:
Connect the AC adapter to the Tablet PC.
Replace the empty battery pack with a fully charged one.
Software Problems
An application program does not work correctly.
z Make sure that the software is correctly installed.
z If an error message appears on the screen, consult the software
program’s documentation for further information.
z If you are sure the operation has stop, reset the Tablet PC. (See
“Resetting the Tablet PC” later in this chapter.)
Troubleshooting 8-7
Sound Problems
No sound is produced.
z Make sure that the volume control is not set too low. Increase the
volume.
z Make sure that the sound is not muted.
z Make sure that the Tablet PC is not in Sleep mode.
z If using an external speaker, make sure that the speaker is properly
connected.
Distorted sound is produced.
z Make sure that the volume control is not set too high or too low. In most
cases, a high setting can cause the audio electronics to distort the sound.
The external audio device does not work.
z Make sure that your Tablet PC is equipped with the driver needed.
z Click the speaker symbol on the taskbar and check the Windows volume
control.
z Check the volume control of your Tablet PC.
Startup Problems
When you turn on the Tablet PC, it does not respond and the Power
Indicator does not light green.
z If you are using an external AC power, make sure that the AC adapter is
correctly and securely connected. If so, make sure that the electrical
outlet works properly.
z If you are using the battery power, make sure that the battery is not
discharged.
8-8 Troubleshooting
When you turn on the Tablet PC, it stops after POST.
z Reset your Tablet PC. (See “Resetting the Tablet PC” later in this
chapter.)
Wireless LAN Problems
I cannot use the wireless LAN feature.
z Make sure that the wireless LAN feature is turned on.
Transmission quality is poor.
z Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point or another wireless LAN device it is associated
with.
z Check if there is high interference around the environment and solve the
problem as described next.
Radio interference exists.
z Move your Tablet PC away from the device causing the radio
interference such as microwave oven and large metal objects.
z Plug your Tablet PC into an outlet on a different branch circuit from that
used by the affecting device.
z Consult your dealer or an experienced radio technician for help.
I cannot connect to another wireless LAN device.
z Make sure that the wireless LAN feature is turned on.
z Make sure that the SSID setting is the same for every wireless LAN device
in the network.
z Your Tablet PC is not recognizing changes. Restart the Tablet PC.
z Make sure that the IP address or subnet mask setting is correct.
Troubleshooting 8-9
I cannot communicate with the computer in the network when
Infrastructure mode is configured.
z Make sure that the Access Point your Tablet PC is associated with is
powered on and all the LEDs are working properly.
z If the operating radio channel is in poor quality, change the Access Point
and all the wireless station(s) within the BSSID to another radio channel.
z Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point it is associated with.
z Make sure that your Tablet PC is configured with the same security
option (encryption) to the Access Point.
z Use the Web Manager/Telnet of the Access Point to check whether it is
connected to the network.
z Reconfigure and reset the Access Point.
I cannot access the network.
z Make sure that the network configuration is appropriate.
z Make sure that the user name or password is correct.
z You have moved out of range of the network.
z Turn off power management.
Other Problems
The date/time is incorrect.
z Correct the date and time via the operating system or BIOS Setup
program.
z After you have performed everything as described above and still have
the incorrect date and time every time you turn on the Tablet PC, the
RTC (Real-Time Clock) battery is at the end of its life. Call an authorized
dealer to replace the RTC battery.
8-10 Troubleshooting
Resetting the Tablet PC
You may have to reset (reboot) your Tablet PC on some occasions when an
error occurs and the program you are using hangs up.
If the Tablet PC operation seems to hang up, first wait. It is possible that the
Tablet PC is processing data. Periodically check the hard disk drive in-use
indicator, if it flashes irregularly, the program may be accessing data and
preventing you from using the keypad. If you are sure the operation has
stopped and you cannot use the “restart” function of the operating system,
reset the Tablet PC.
Reset the Tablet PC by any one of these methods:
z Press and hold the P1 button for more than 2 seconds. This opens the
Ctrl-Alt-Del screen where you can select actions including Restart.
z If the above action does not work, press and hold the power button for
more than 5 seconds to force the system to turn off. Then turn on the
power again.
CAUTION: Resetting will cause any unsaved data to be lost.
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts Specifications
CPU Intel® Cedar Trail N2800 1.86 GHz
Chipset Intel® NM10
BIOS Phoenix, 4MB Flash EEPROM
RAM 2GB/4GB DDR3-1066 SO-DIMM
Video Controller Intel® GMA 3650
Display Panel 10.1-inch HD 1366x768 LCD, sunlight readable,
600 Nits maximum brightness, resistive
multi-touch screen, non-glare type with AR/AG
film, light sensor for auto backlight adjustment
Audio Features High Definition audio, volume control via
software
Speaker Integrated speaker
Microphone Integrated microphone
Port Headphone-out/Mic-in
Hard disk drive mSATA, 64/80GB
I/O ports (standard) USB (2.0) × 2, RJ-45, combo audio (4-pole TRRS
3.5mm type), RS232, PCMCIA, Smart Card,
Docking
LAN 10/100/1000 Mbps Ethernet
Wireless LAN (option) 802.11 a/b/g/n
Bluetooth (option) Bluetooth 4.0+EDR (Class 1)
A-2 Specifications
Parts Specifications
GPS (option) Internal UART
WWAN (option) Gobi ™ 3000 3G Mobile Broadband
Camera (option) CMOS, 3M pixel
Security Kensington lock
TPM 1.2
Power AC adapter
Universal 65 W; input: 100a240 V, 50/60 Hz;
output: 19V
Battery Lithium-ion cylindrical battery, 4 cells, 5200mAh
Hot Swap technology with backup battery (2 cells)
Dimension (LxW×D) 280×184×40mm (11×7.2×1.59 inch)
Weight 1.6 kg (3.52 lb)
Environ-
ment
Temperature Operating: –20 qC (–4 qF) to 60 qC (140 qF)
Storage: –40 qC (–40 qF) to 71 qC (160 qF)
Humidity Relative: 0 % to 95 % non-condensing
Compliance MIL-STD-810G and IP65
Regulations CE, FCC, UL
Specifications A-3
Additional Button Definitions
Instead of starting up a program, the Menu and P1 buttons provide
keyboard key functions for specific occasions as described below.
Button Occasion Action Function
Menu POST and non-ACPI Short or long press Enter key
BIOS Setup Short press (< 2 sec) Esc key
Long press (> 2 sec) Enter key
ACPI Short press (< 2 sec) Tab key (ASCII = 08)
Long press (> 2 sec) Enter key
P1 POST and non-ACPI Short press (< 2 sec) Down key
Long press (> 2 sec) Up key
BIOS Setup Short press (< 2 sec) Down key
Long press (> 2 sec) Up key
ACPI Short press (< 2 sec) Down key
Long press (> 2 sec) Ctrl+Alt+Del key
combination
Regulatory Information B-1
Appendix B
Regulatory
Information
This appendix provides regulatory statements and safety notices on your
Tablet PC.
NOTE: Marking labels located on the exterior of your Tablet PC indicate the
regulations that your model complies with. Please check the marking labels
and refer to the corresponding statements in this appendix. Some notices
apply to specific models only.
B-2 Regulatory Information
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det
brugte batteri tilbage til leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
B-4 Regulatory Information
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty
paristo valmistajan ohjeiden mukaisesti.
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the equipment
manufacturer. Discard used batteries according to manufacturer's
instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie.
Ersatz nur durch denselben oder einen vom Hersteller empfohlenen
gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du même type ou d’un
type équivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
About the AC Adapter
z Use only the AC adapter supplied with your Tablet PC. Use of another
type of AC adapter will result in malfunction and/or danger.
z Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
z Allow adequate ventilation around the adapter when using it to operate
the device or charge the battery. Do not cover the AC adapter with
Regulatory Information B-5
paper or other objects that will reduce cooling. Do not use the AC
adapter while it is inside a carrying case.
z Connect the adapter to a proper power source. The voltage
requirements are found on the product case and/or packaging.
z Do not use the adapter if the cord becomes damaged.
z Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
B-6 Regulatory Information
On the Use of the RF Device
NOTE: The information in this section applies to models with the wireless
LAN module.
USA and Canada Safety Requirements and
Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
Radio Frequency Interference Requirements and SAR
The FCC with its action in ET Docket 93-62 has adopted a safety standard for
human exposure to Radio Frequency (RF) electromagnetic energy emitted by
FCC certified equipment. The wireless LAN module meets the Human
Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992.
Proper operation of this radio according to the instructions found in this
manual will result in exposure substantially below the FCC’s recommended
limits. The following safety precautions should be observed:
z Do not touch or move antenna while the unit is transmitting or
receiving.
z Do not hold any component containing the radio such that the antenna
is very close or touching any exposed parts of the body, especially the
face or eyes, while transmitting.
z Do not operate the radio or attempt to transmit data unless the antenna
is connected; if not, the radio may be damaged.
Use in specific environments:
z The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.






Regulatory Information B-7
z The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
z The use of wireless devices in hospitals is restricted to the limits set forth
by each hospital.
Antenna use:
z In order to comply with FCC RF exposure limits, low gain integrated
antennas should be located at a minimum distance of 20 cm
(8 inches) or more from the body of all persons.
z High-gain, wall-mount, or mast-mount antennas are designed to be
professionally installed and should be located at a minimum distance of
30 cm (12 inches) or more from the body of all persons. Please contact
your professional installer, VAR, or antenna manufacturer for proper
installation requirements.
Explosive Device Proximity Warning
WARNING: Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an explosive
environment unless the device has been modified to be qualified for such
use.
Antenna Warning
WARNING: To comply with the FCC and ANSI C95.1 RF exposure limits, it is
recommended that the antenna for this device be installed so as to provide a
separation distance of at least 20 cm (8 inches) from all persons and that the
antenna must not be co-located or operating in conjunction with any other
antenna or radio transmitter. It is recommended that the user limit exposure
time if the antenna is positioned closer than 20 cm
(8 inches).
Use on Aircraft Caution
CAUTION: Regulations of the FCC and FAA prohibit airborne operation of
radio-frequency wireless devices because their signals could interfere with
critical aircraft instruments.

!"!#$%&
'(
)

*"+!$(
,)(

B-8 Regulatory Information
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio
frequency energy produced by this device is well below the maximum
exposure allowed by the Federal Communications Commission (FCC).
This device complies with the limits for a Class B digital device pursuant to
Part 15 subpart C of the FCC Rules and Regulations. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
expense. The user is encouraged to try one or more of the following
corrective measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification to
said product not expressly approved by the manufacturer could void the
user’s authority to operate this device.
,(-
+./.,.0.#12
(
Regulatory Information B-9
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet
d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des
fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une
licence.
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
1999/5/EC.
B-10 Regulatory Information
Greek
To         1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Local Restrictions of 802.11a/b/g/n Radio Usage
CAUTION: Due to the fact that the frequencies used by 802.11a/b/g/n
wireless LAN devices may not yet be harmonized in all countries,
802.11a/b/g/n products are designed for use only in specific countries or
regions, and is not allowed to be operated in countries or regions other than
those of designated use. As a user of these products, you are responsible for
ensuring that the products are used only in the countries or regions for
which they were intended and for verifying that they are configured with
the correct selection of frequency and channel for the country or region of
use. Any deviation from permissible settings and restrictions in the country
or region of use could be an infringement of local law and may be punished
as such.
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted in
particular countries or regions within countries, as follows:
Regulatory Information B-11
General
European standards dictate maximum radiated transmit power of
100 mW Effective Isotropic Radiated Power (EIRP) and the frequency range
2400 – 2483.5 MHz.
Belgium and the Netherlands
In Belgium and the Netherlands, the product may not be used outdoors.
France
Departments in Which the Wireless LAN Module Can Be Used (Indoors Only)
The wireless LAN module can currently be used indoors only in the following
38 departments of mainland France. Please turn off your wireless LAN radio
when operating the device in areas/places other than the 38 departments
listed:
01 Ain Orientales 36 Indre 66 Pyrénées
02 Aisne 37 Indre et Loire 67 Bas Rhin
03 Allier 41 Loir et Cher 68 Haut Rhin
05 Hautes Alpes 42 Loire 70 Haute Saône
08 Ardennes 45 Loiret 71 Saône et Loire
09 Ariège 50 Manche 75 Paris
11 Aude 55 Meuse 82 Tarn et Garonne
12 Aveyron 58 Nièvre 84 Vaucluse
16 Charente 59 Nord 88 Vosges
24 Dordogne 60 Oise 89 Yonne
25 Doubs 61 Orne 90 Territoire de Belfort
26 Drôme 63 Puy du Dôme 94 Val de Marne
32 Gers 64 Pyrénées Atlantique
B-12 Regulatory Information
Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown
in the Previous Table
Frequency Ranges
(MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property with
Ministry of Defense approval
Turning Off the Wireless LAN Radio
NOTE: Turning the wireless LAN radio off is not the same as disabling the
wireless LAN card. It is not necessary to disable the card to meet the
regulatory requirements.
While operating the Tablet PC in those French departments that do not
allow use of the wireless LAN equipment, the user of the equipment must
turn off the wireless LAN radio in order to comply with local regulations.

Navigation menu
