Getac Technology EMPT116F Digitizer module User Manual OEM PRODUCT SPECIFICATION

Getac Technology Corporation Digitizer module OEM PRODUCT SPECIFICATION

Contents

User Manual Module

EMPEN T116 Sensor SPECIFICATION
Product Name:TF1-DIGITIZER;ASIC,11.6”,F110G4,EMP
Getac P/N: 412888700007
EMPEN P/N : 20160002
Firmware Version : 18
Revision History
Revision
Date
Description
Author /Revised by
01
2016/11/29
Initial
Jesse
1. Product Specifications
1.1 General Specifications
Technology
Battery free Electro-magnetic
Interface
USB
VID & PID
VID:0x0458, PID:0x501D
Active Area
258.13×146mm
Resolution
0.01mm / 2560 LPI (see Note 5)
Coordinate Accuracy
±0.4mm (see Note 1, 2, 3 and 5)
Coordinate Jitters
1-point max (see Note 1 and 5)
Detectable Pen tilt
Up to 50° from vertical (see Note 5)
Detectable Height
4 to 14mm above the Sensor Film (see Note 1 and 5)
Position Report Rate
133 PPS ( Pen hover at sensor center )
Pressure Resolution
1024 levels (see Note 4 and 5)
EM module Thickness
3.0 mm max
Note 1: The EM Sensor Board and Stylus at ordinary temperature.
Note 2: The pen held vertically at 0mm high from sensor film.

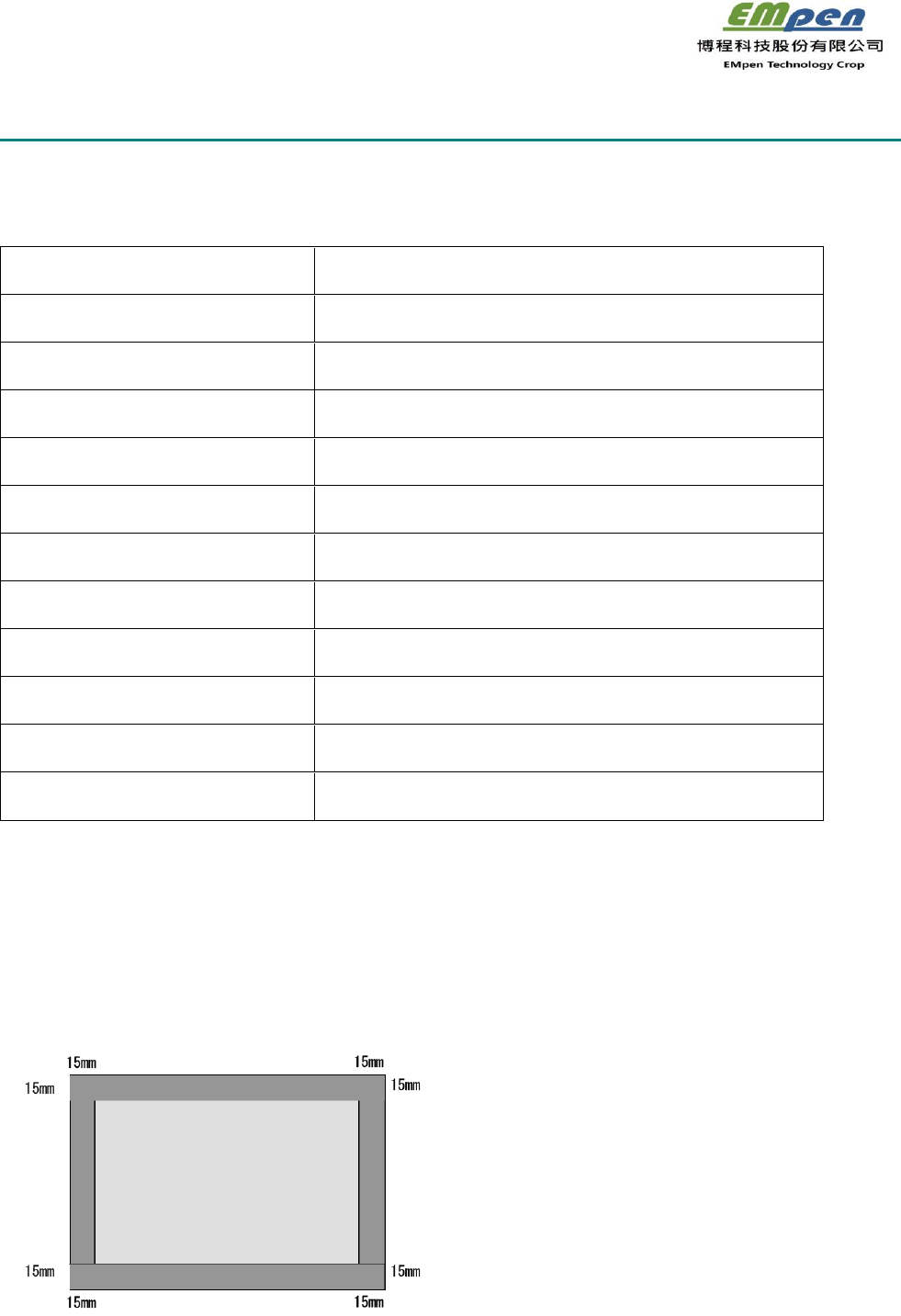

Note 3: See Picture1, the accuracy guaranteed region is 15mm or more inside region
from the active area edge.
Note 4: Pressure range is 20g≦200 levels and 650g≦1023 levels
Note 5: This function must be used with Getac TF1-DIGITIZER PEN unit
1.2 Dimensional Outline of PCBA and Sensor Film
1.3 Electrical Specifications
1.3.1 Circuit Diagram
Signal Assignment
TLSC3590ET88
Controller Board
Sensor Film
A
C
F
Pin
Name
Function
1
NC
Not Connect
2
USB-
USB- Signal
3
USB+
USB+ Signal
4
NC
Not Connect
5
NC
Not Connect
6
NC
Not Connect
7
VCC +5V
Power Supply
8
GND
Ground
1.3.2 Test Conditions
Ambient Temperature : 25+/- 5 ℃
Ambient Humidity : 65 +/- 16% ( RH)
Supply Voltage : VDD 5V
Item
Min.
Typ.
Max.
Unit.
Remark
Supply Voltage
4.75
5.0
5.25
V
Current Consumption
Pen in touch
75
80
98
mA
Current Consumption
Pen@10cm
85
90
100
mA
Current Consumption
Standby mode
84
110
124
mA
Low Scan mode
16
(400mSec)
35
125
(130mSec)
mA
Keep standby
mode 40 min
will entry low
scan mode
2. Reliability Test
Item
SPEC
Testing method
Criteria
Number
of test
samples
Humidity Test
30℃/95%~61℃/95%,
12 hours for 30℃/95%,
12 hours for 61℃/95%,
one cycle is 24 hours ,
test time is 10days
MIL-STD-810G- 507.5
Humidity Procedure – II
Aggravated
1. All functions must be
normally
2. No oxidation on
screws.
3. No visual abnormal.
4. There shall not be any
cosmetic damage
5. T/S cannot allow the
abnormal status like
peel off, bubble .
2
High Temperature Test
(Operating)
61℃ 96h
MIL-STD-810G-501.5
Procedure II Operation
2
High Temperature Test
(Non-Operating)
33℃~71℃ ,10days
12 hours for 31℃,
12 hours for 71℃
one cycle is 24 hours,
test time is 10days
MIL-STD-810G-501.5
Procedure I
2
Low Temperature Test
(Operating)
-21℃ 96h
MIL-STD-810G-502.5
Procedure II
2
Low Temperature Test
(Non-Operating)
-40℃ 96h
MIL-STD-810G-502.5
Procedure I
2
Drop Test
120cm Wood floors
2
Temperature Shock Test
-41℃~71℃ duration
1h, 3cycle ,total:6h
MIL-STD-810G-503.5
Procedure-I-C
Multi-cycle shock.
2
