Getac Technology PN7462R RFID module User Manual GENERAL DESCRIPTION
Getac Technology Corporation RFID module GENERAL DESCRIPTION
Contents
- 1. User Manual Host
- 2. User Manual Module
User Manual Module
![](/img.php?id=3580533&img=bg1.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
2
規格承認書
SPECIFICATION FOR APPROVAL
Customer:
Getac Technology Corp.
Brand Name:
Getac
Description:
RX10 NFC Module
Our Parts Number:
179-90010390A0-9 RX10 + PN7462
Customer Parts Number:
442871900006 TF1-TH-NFC MODULE;NXP
PN7462+ST-LSM303D,RX10,INFOTHINK
Made by:
InfoThink Technology
Date:
June, 17, 2017
Prepared:
Jack Chan
Approved:
Roman Chang
Customer’s Checked:
Customer’s Approved:
![](/img.php?id=3580533&img=bg2.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
3
Index
NO.
ITEN
PAGE
1.
General Description
4
2.
Features
4
3.
Support the following memory card interfaces
4
4.
System requirements
4
5.
General Specifications
5
6.
Pinouts
5
7.
Dimension
5
8.
Block Diagram
6
9.
RX10 NFC Reader Photograph
6
![](/img.php?id=3580533&img=bg3.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
4
1. General Description
The RX10 NFC module is a highly integrated transceiver module for contactless reader/writer
communication at 13.56 MHz.
A dedicated Flash code is implemented to handle different RF protocols by an integrated microcontroller.
The system host controller communicates with the RX10 NFC module by using the USB link.
The protocol between the host controller and the RX10 NFC module, on top of this physical link is the
CCID protocol
2. Features
High RF output power frontend IC for transfer speed up to 848 kbit/s
NFC IP1 and NFC IP2 support
Full NFC tag support (type 1, type 2, type 3, type 4A and type 4B)
P2P active and passive, target and initiator
Card emulation ISO14443 type A
ISO/IEC 14443 type A and type B
MIFARE classic card
ISO/IEC 15693, and ISO/IEC 18000-3 mode 3
Low power card detection
Dynamic Power Control (DPC) support
Compliance with EMV contactless protocol specification
Compliance with NFC standards
3. Support the following operating modes:
ISO/IEC 14443-A and B, MIFARE
JIS X 6319-4 (comparable with FeliCa scheme)
ISO/IEC 15693, ICODE, ISO/IEC 18000-3 mode 3
NFC protocols - tag reader/writer, P2P
ISO/IEC 14443- type A card emulation
EMVCo compliance
4. System Requirements
Desktop or notebook computer with a working USB port
One of the following Operating Systems:
– Windows®
2000
– Windows®
2003 Server x32/x64
– Windows®
2008 Server x32/x64
– Windows Vista™ x32/x64
– Windows®
7 x32/x64
– Windows®
10 x32/x64
![](/img.php?id=3580533&img=bg4.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
5
Support by the following OS through the PCSC-Lite driver:
– GNU/Linux using libusb 1.0.x and later
– Mac OS Leopard (1.5.6 and newer)
– Mac OS Snow Leopard (1.6.X)
– Solaris
– FreeBSD
5. General Specifications
Bus-powered - +5V +/- 5%, 500mA
Average Power Consumption
- Standby Mode: 0.12Watt
- Active/Read Card Mode: 0.24 Watt
Operational environment
– Operating Temperature: -10°~60°
– Operating Humidity: 10%~90%
– Storage Temperature: -20°~70°
– Storage Humidity: 10%~90%
6. FFC Pin List
CN2 - Mainly USB Signals
CN1 - Mainly Interface of LSM303D
Pin
No.
Pin Name
Input/Output
Pin
No.
Pin Name
Input/Output
1
GND
POWER
1
GND
POWER
2
OPTION_BAYID_RFID
I/O
2
ACC_1_INT2
OUTPUT
3
RFID_PWRON
INPUT
3
ACC_1_INT1
OUTPUT
4
USB DM
USB SIGNAL
4
I2C1_SDA
I/O
5
USB DP
USB SIGNAL
5
I2C1_SCL
INPUT
6
GND
POWER
6
+3.3S_DK
POWER
INPUT
7
+V3.3S_DK
POWER
INPUT
8
+V5S_DK_R
POWER
INPUT
![](/img.php?id=3580533&img=bg5.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
6

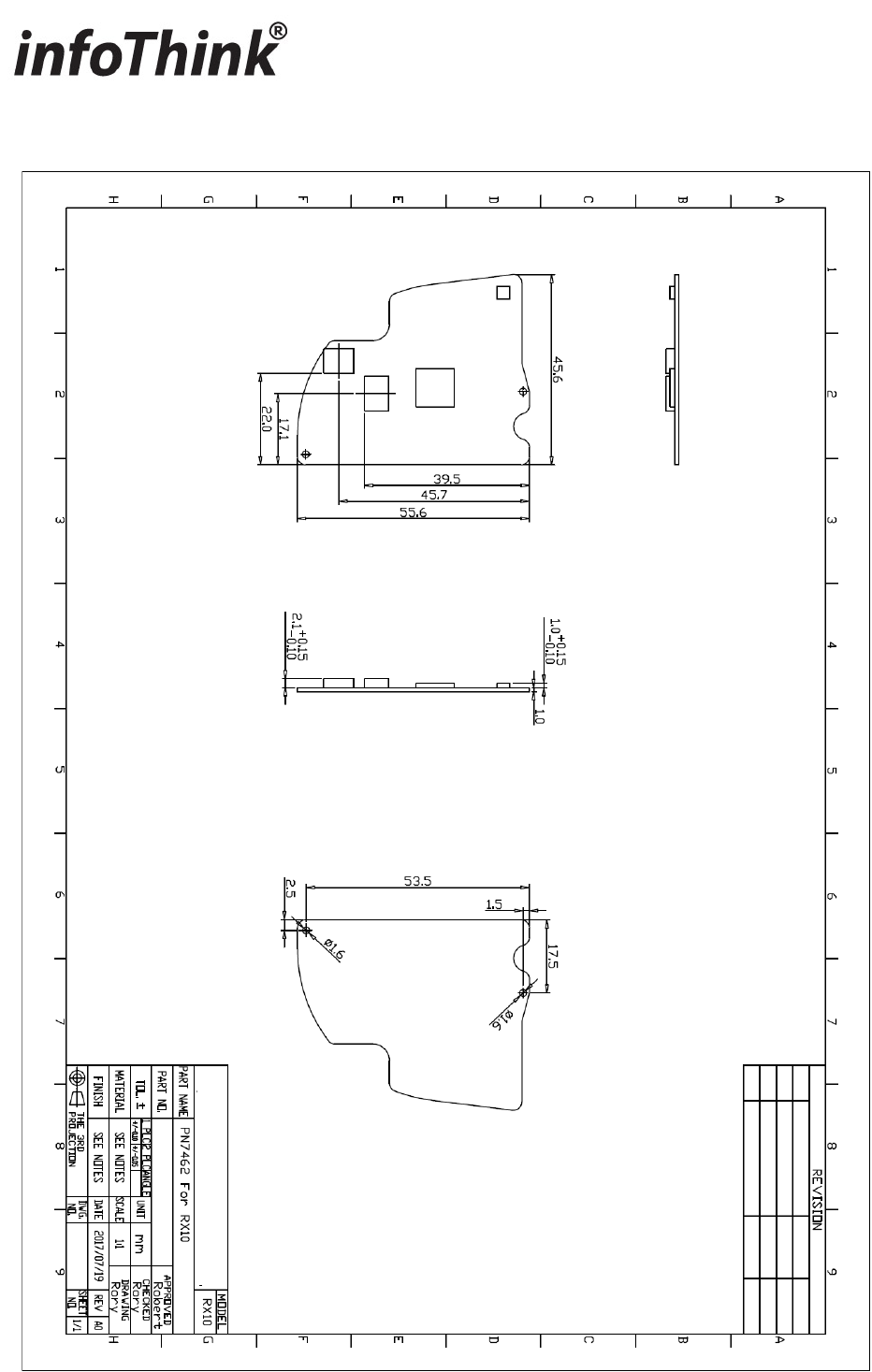

7. PCBA Dimension
55.5 x 45.5 x 3.5 mm
![](/img.php?id=3580533&img=bg6.png)
InfoThink Technology CO., LTD.
5F., No.133, Xinhu 1st Rd., Neihu Dist., Taipei City 114-94, Taiwan (R.O.C.)
TEL:(02)2790-1790 FAX:(02)2790-1770
7
8. USB Device VID/PID and Firmware Version
VID/PID: 0x1FC9/0x0117
F/W Ver.: 1.01

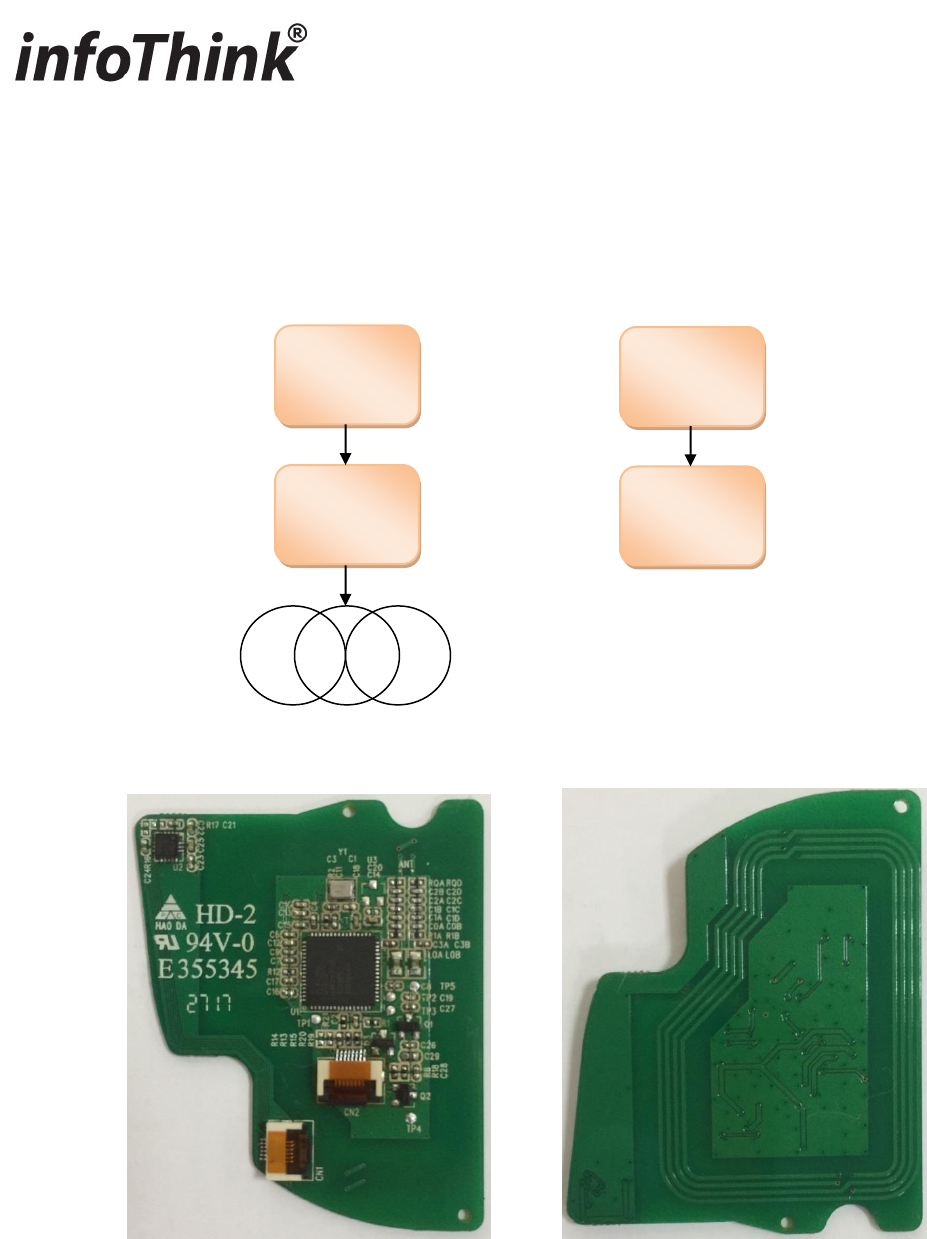

9. Block Diagram
10. RX10 NFC module Photograph
USB
Host
RFID
PN7462
ANT
Host
LSM303D
