Getron System GS-440TR Transceiver User Manual

Getron System Co., Inc. Transceiver Users Manual

Users Manual

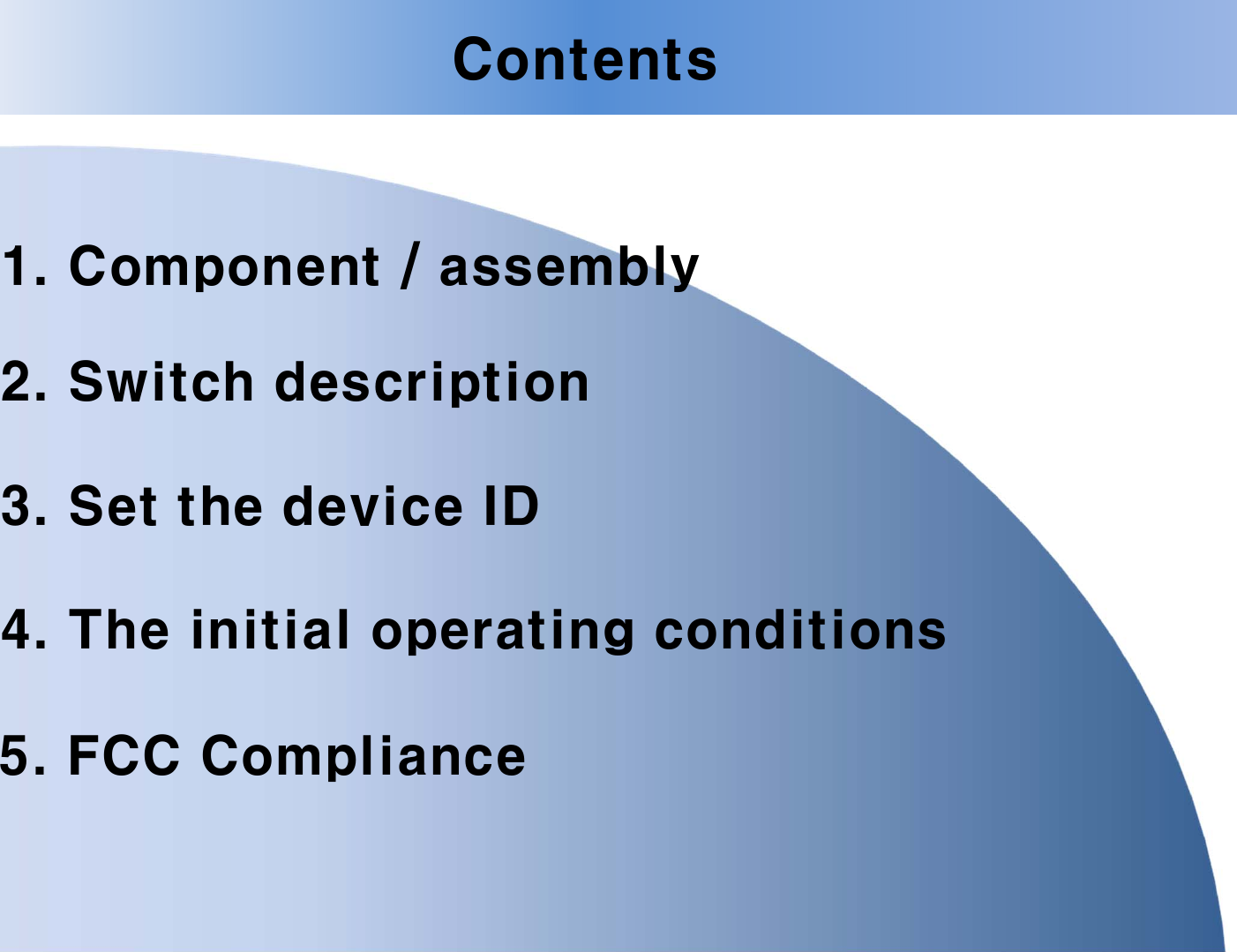

Contents1. Component / assembly2. Switch description3. Set the device ID4. The initial operating conditions5. FCC Compliance

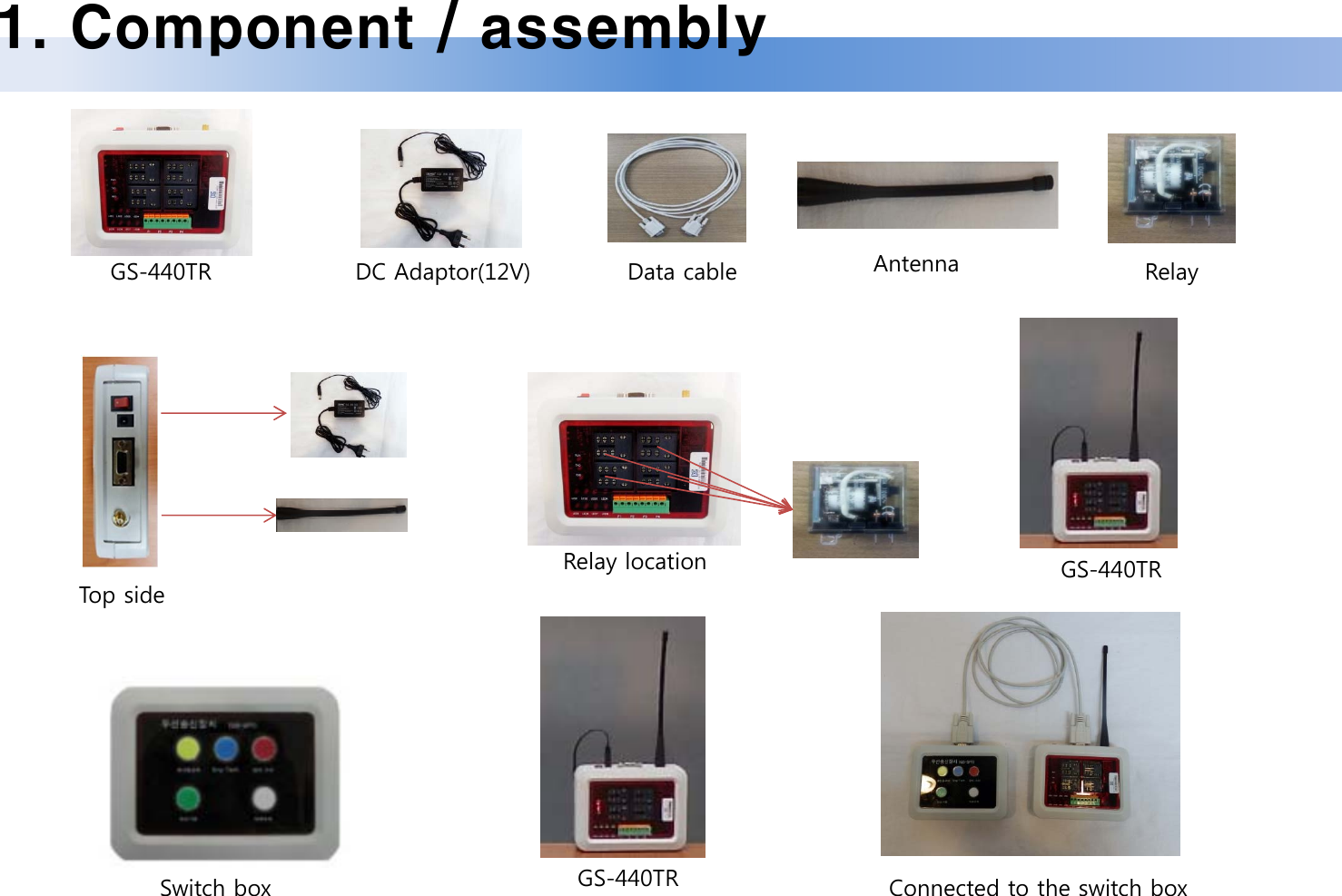

1. Component / assemblyData cableDC Adaptor(12V) Antenna RelayGS-440TRGS-440TRTop sideRelay locationSwitch box GS-440TR Connected to the switch box

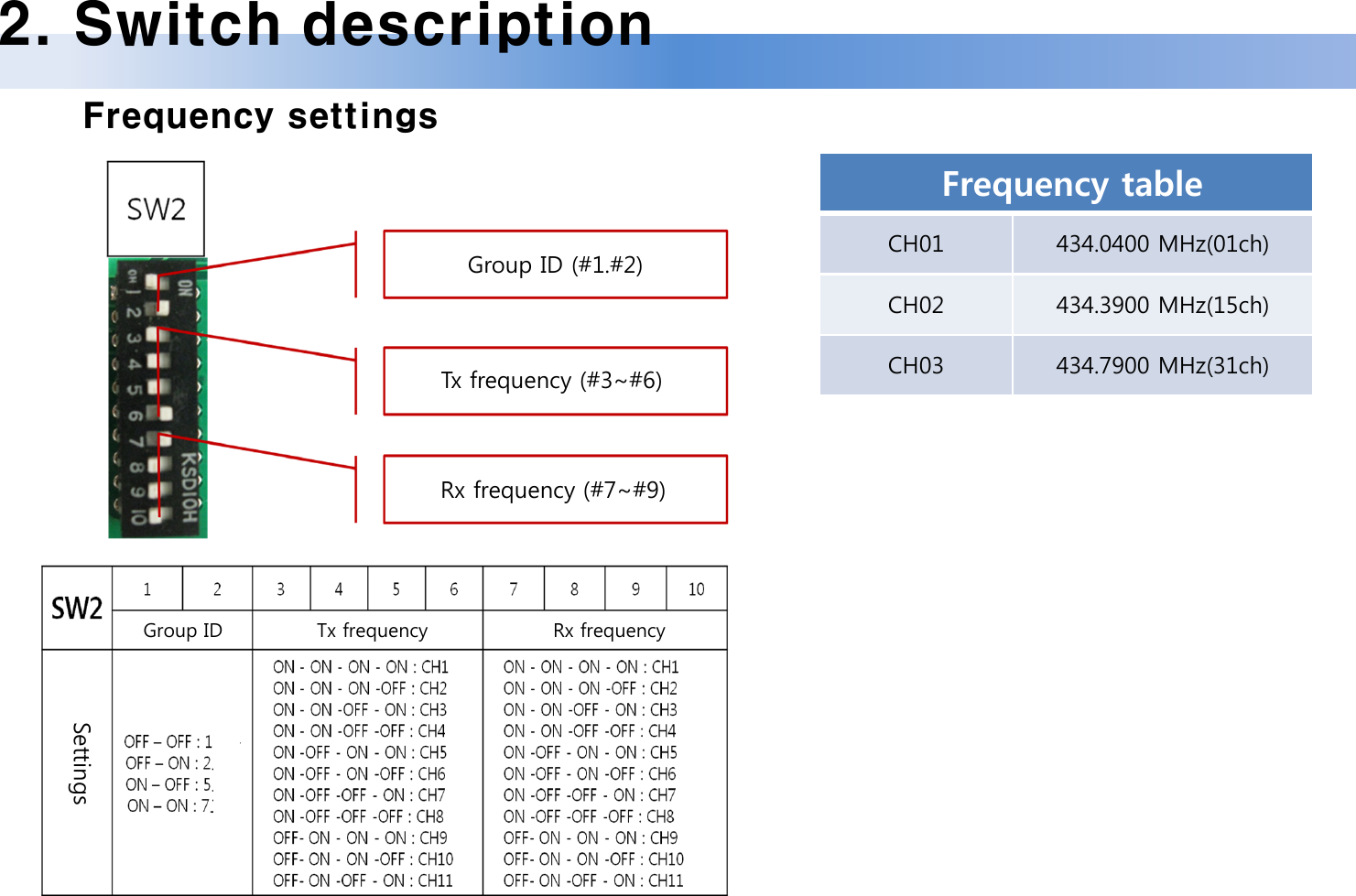

2. Switch descriptionFrequency settingsFrequency tableCH01 434.0400 MHz(01ch)CH02 434.3900 MHz(15ch)CH03 434.7900 MHz(31ch)Rx frequency (#7~#9)Group ID (#1.#2)Tx frequency (#3~#6)Group ID Tx frequency Rx frequencySettings

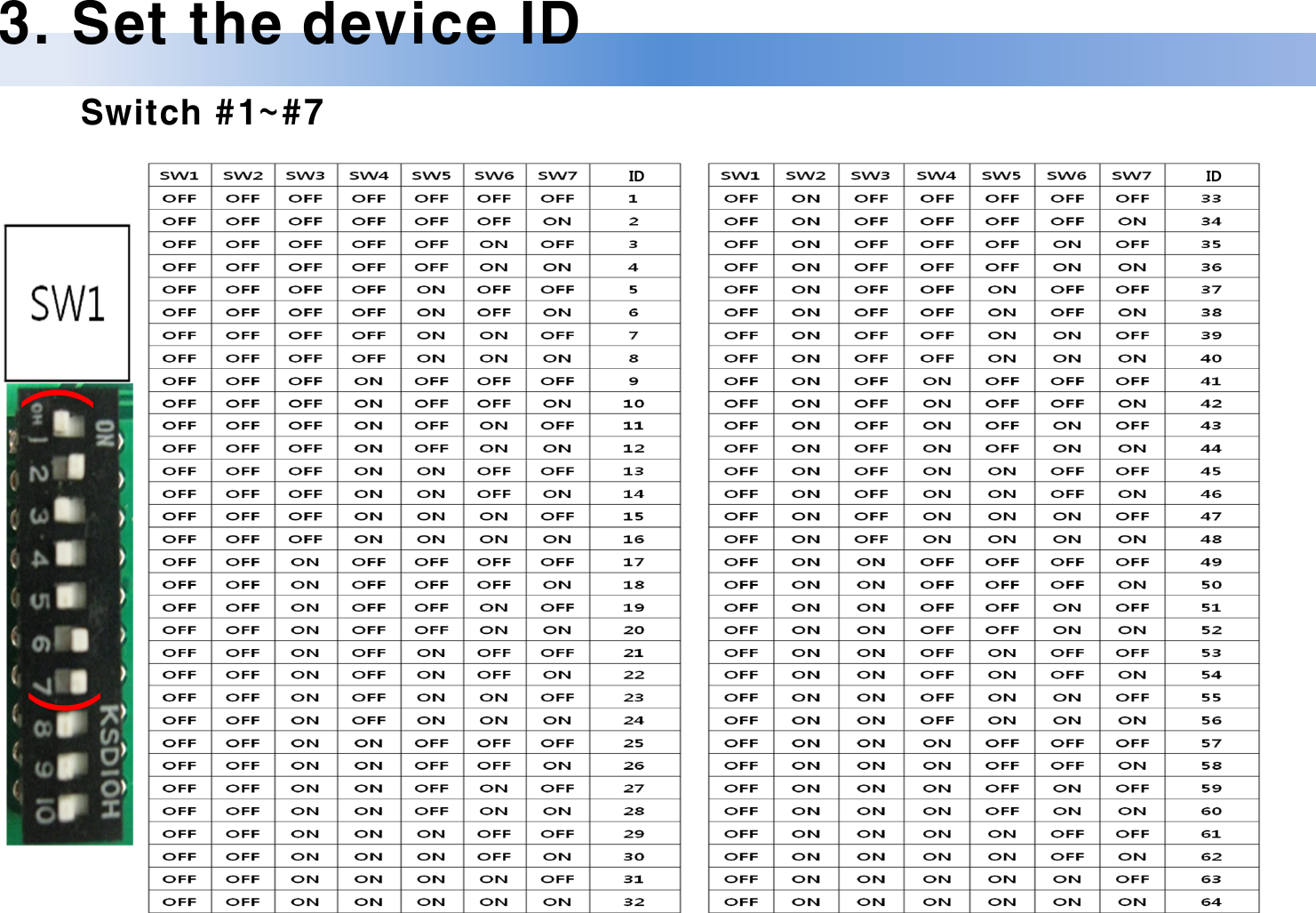

((3. Set the device IDSwitch #1~#7ID ID

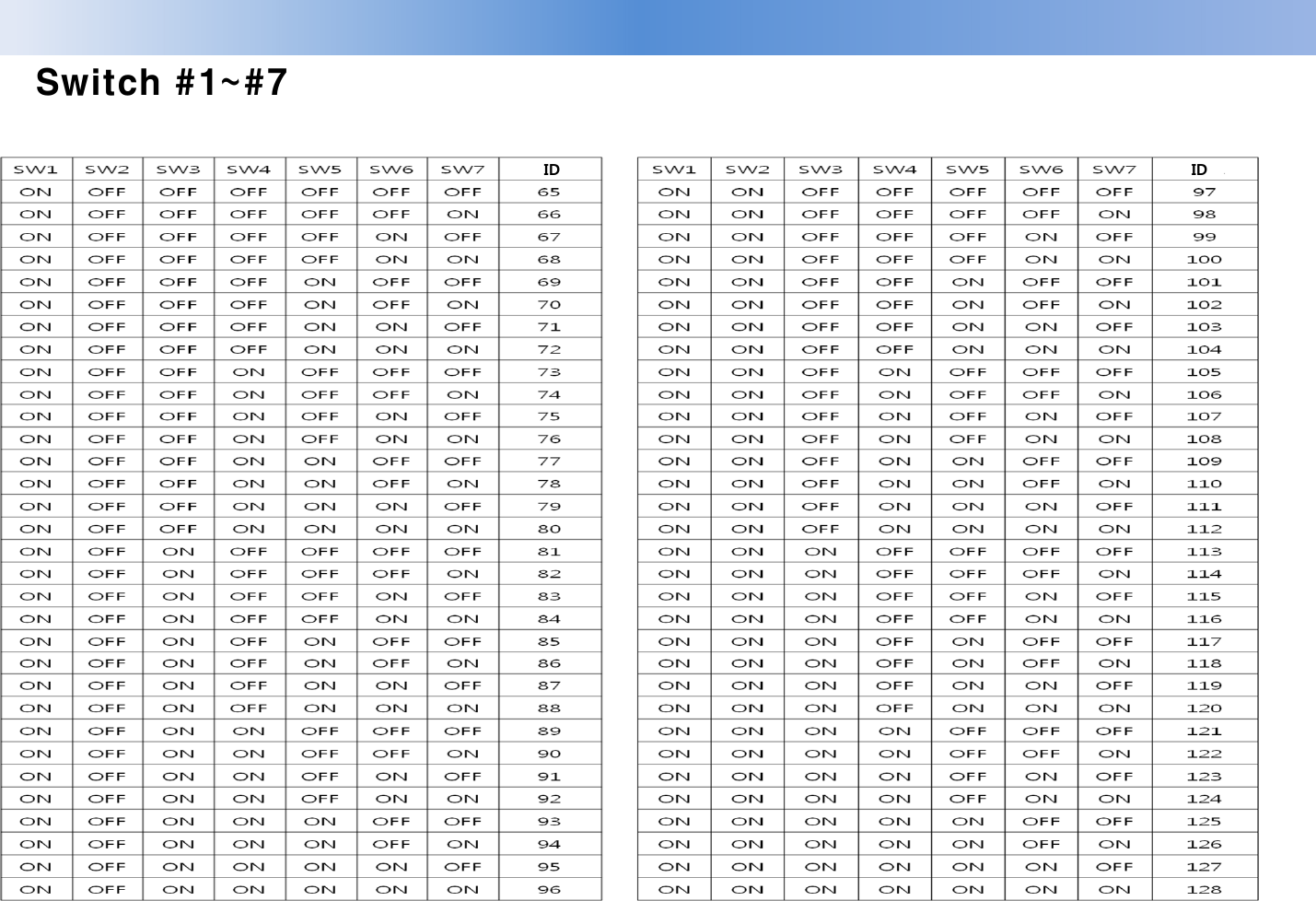

Switch #1~#7ID ID

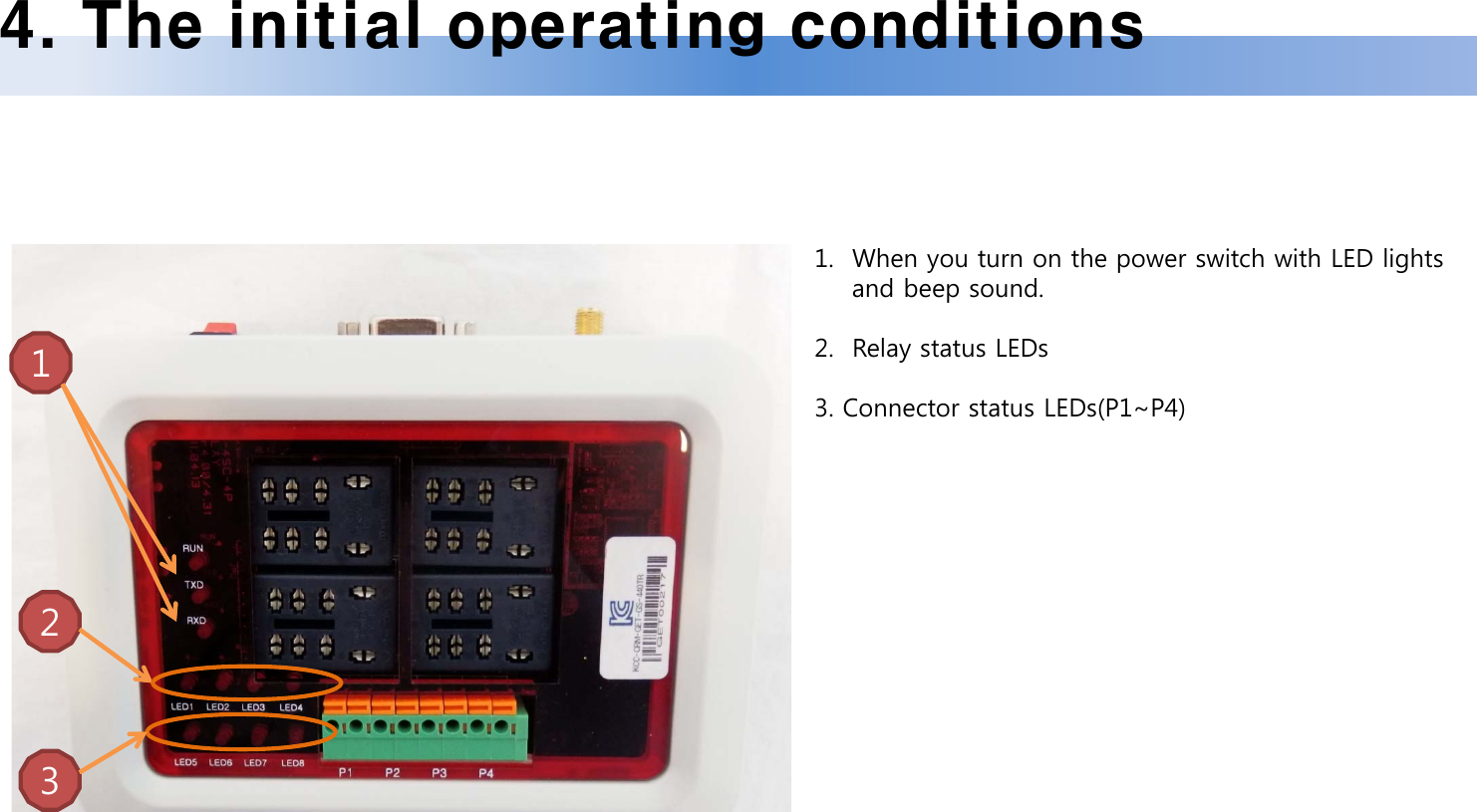

4. The initial operating conditions1. When you turn on the power switch with LED lights and beep sound.2. Relay status LEDs3. Connector status LEDs(P1~P4)123

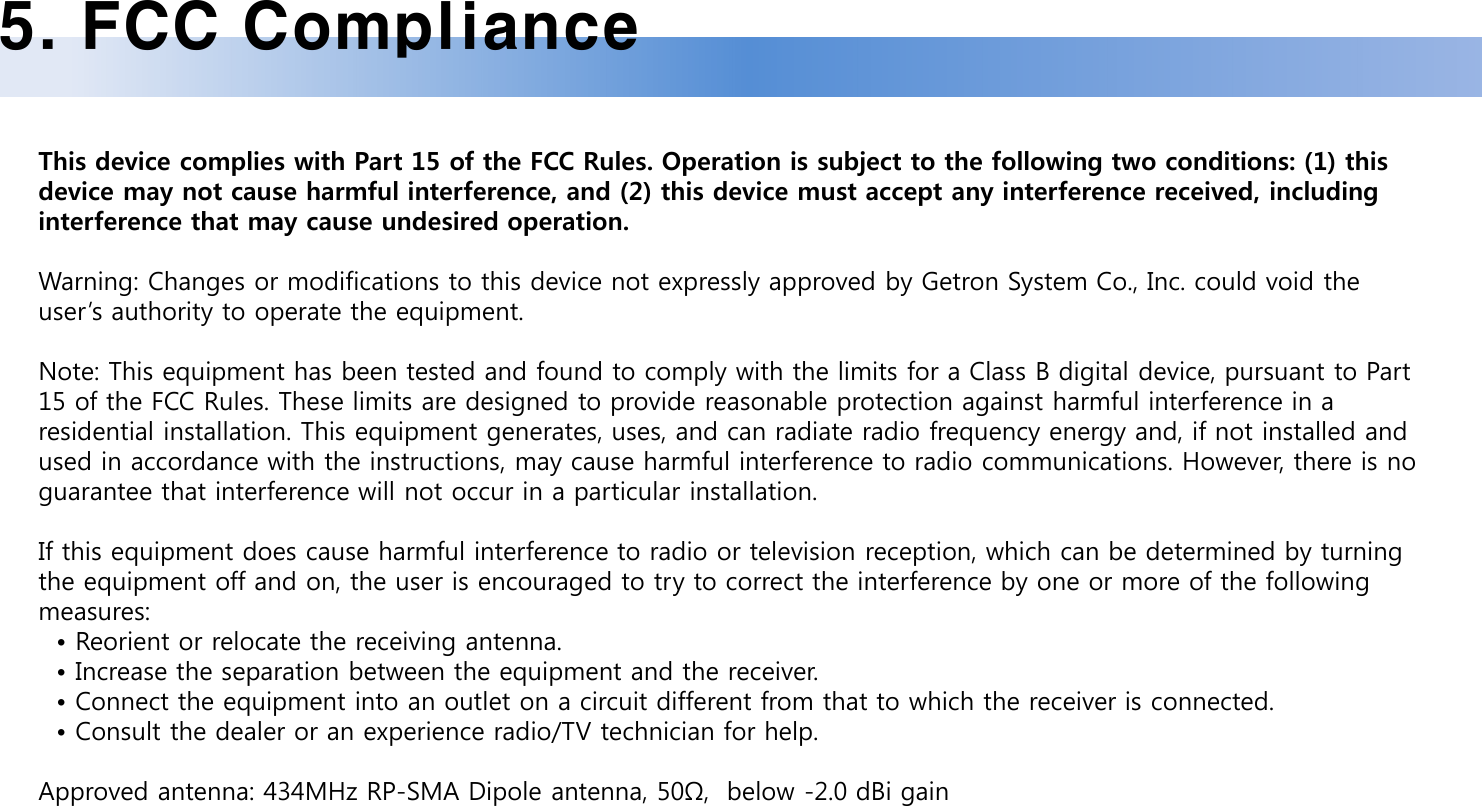

5. FCC ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Warning: Changes or modifications to this device not expressly approved by Getron System Co., Inc. could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and the receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experience radio/TV technician for help.Approved antenna: 434MHz RP-SMA Dipole antenna, 50Ω, below -2.0 dBi gain
