Getron System GS-440TR Transceiver User Manual
Getron System Co., Inc. Transceiver Users Manual
Users Manual
Contents
1. Component / assembly
2. Switch description
3. Set the device ID
4. The initial operating conditions
5. FCC Compliance
1. Component / assembly

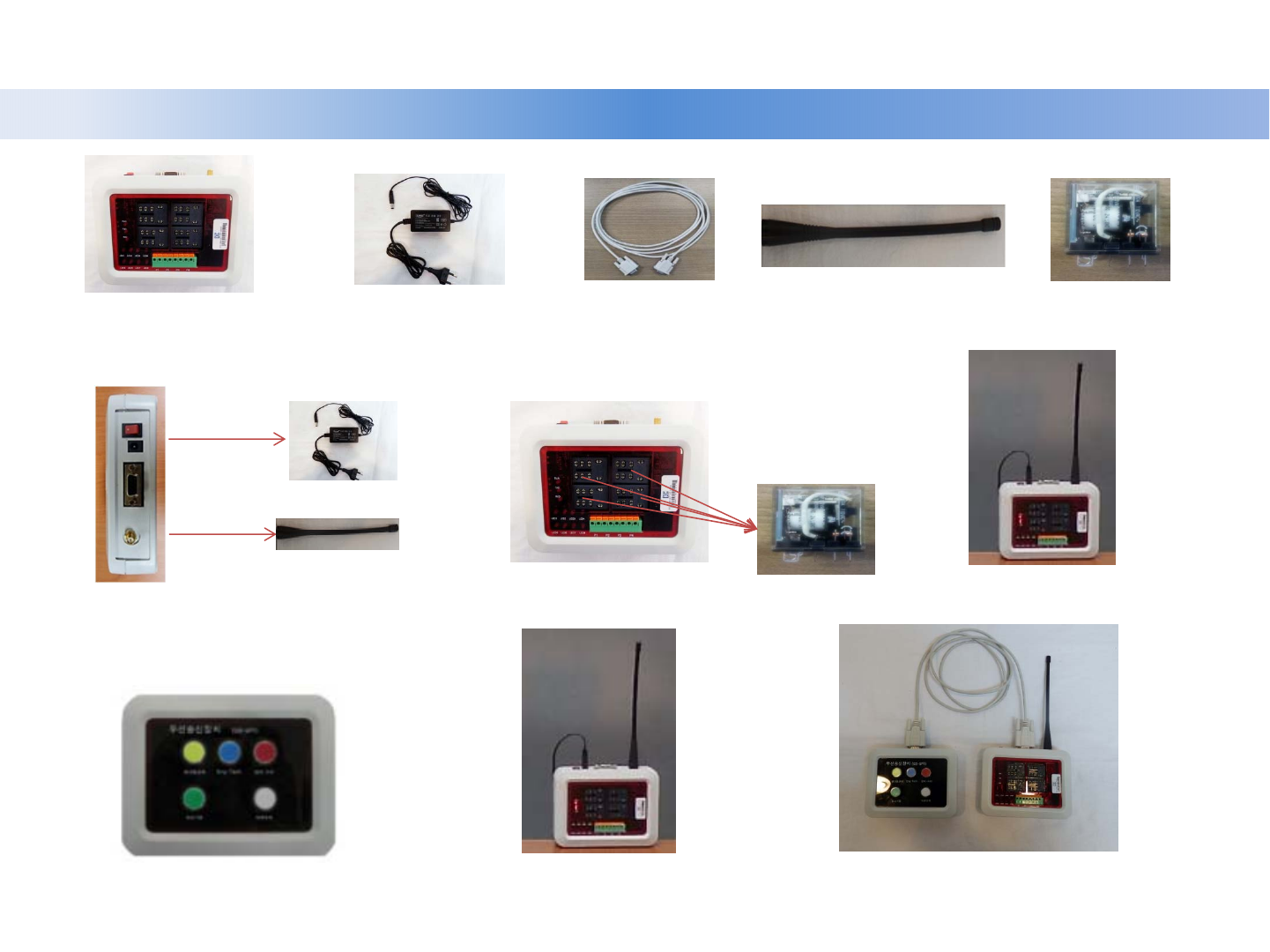

Data cableDC Adaptor(12V) Antenna RelayGS-440TR
GS-440TR
Top side
Relay location
Switch box GS-440TR Connected to the switch box
2. Switch description

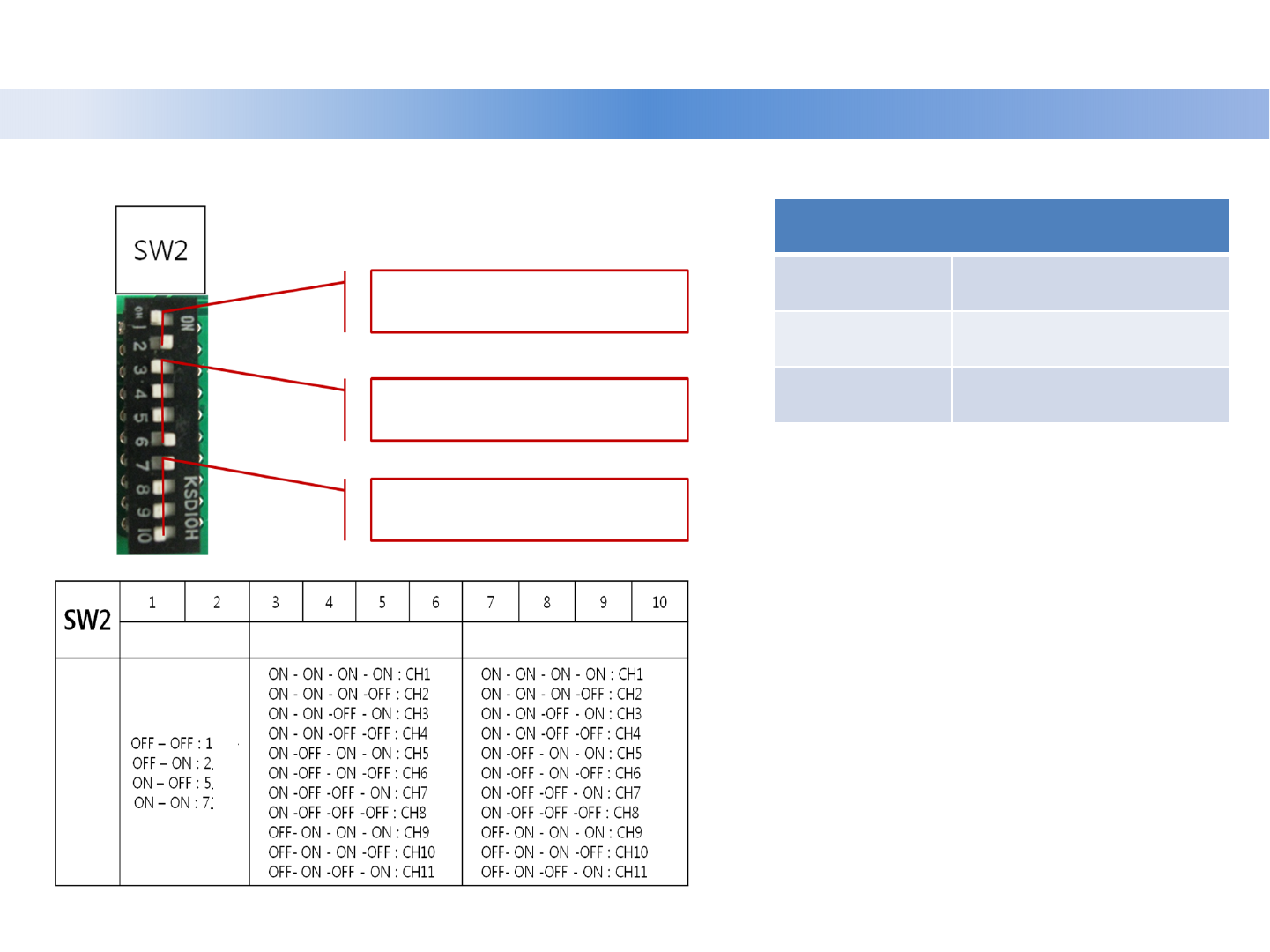

Frequency settings
Frequency table
CH01 434.0400 MHz(01ch)
CH02 434.3900 MHz(15ch)
CH03 434.7900 MHz(31ch)
Rx frequency (#7~#9)
Group ID (#1.#2)
Tx frequency (#3~#6)
Group ID Tx frequency Rx frequency
Settings
(
(
3. Set the device ID

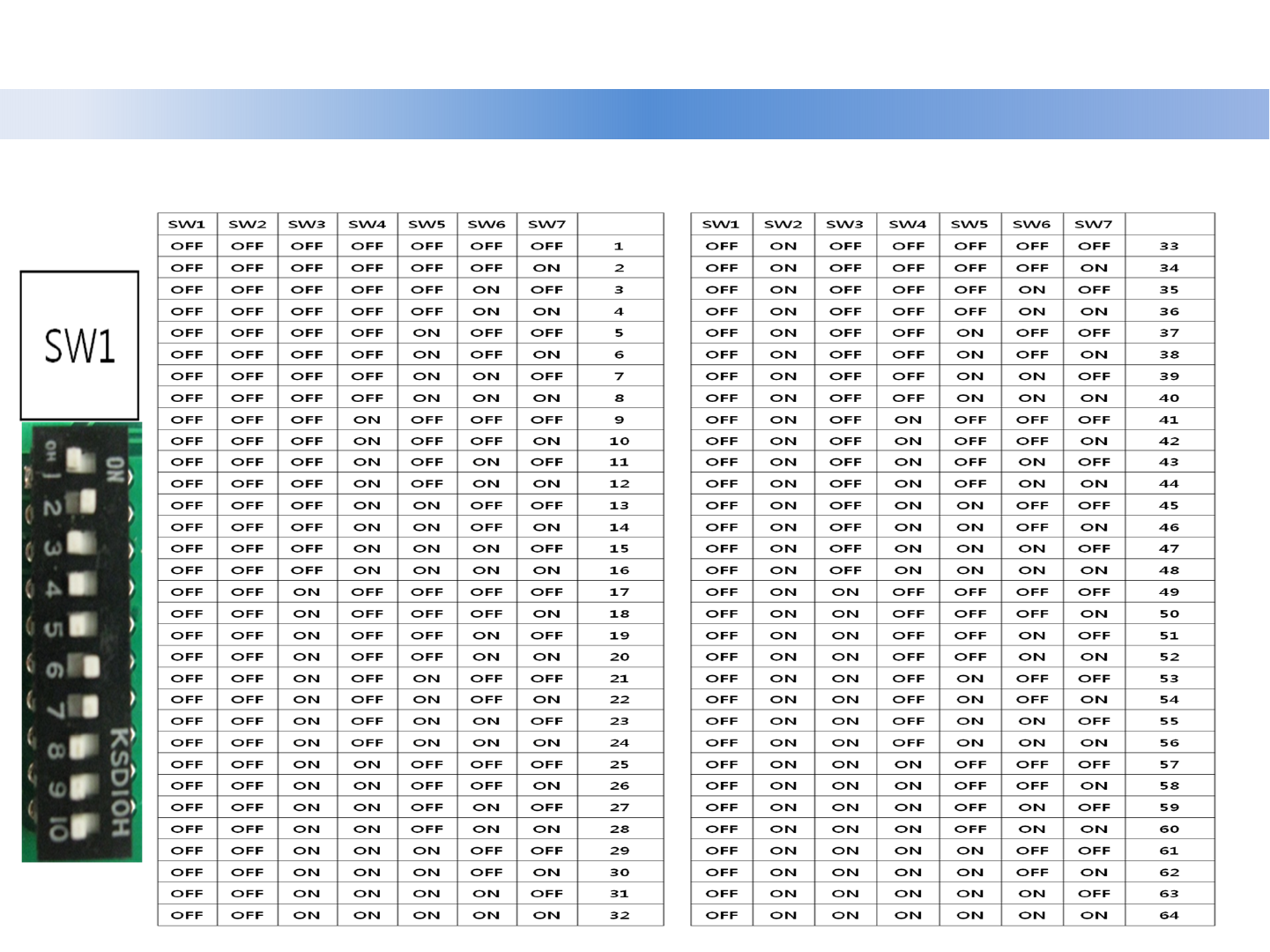

Switch #1~#7
ID ID

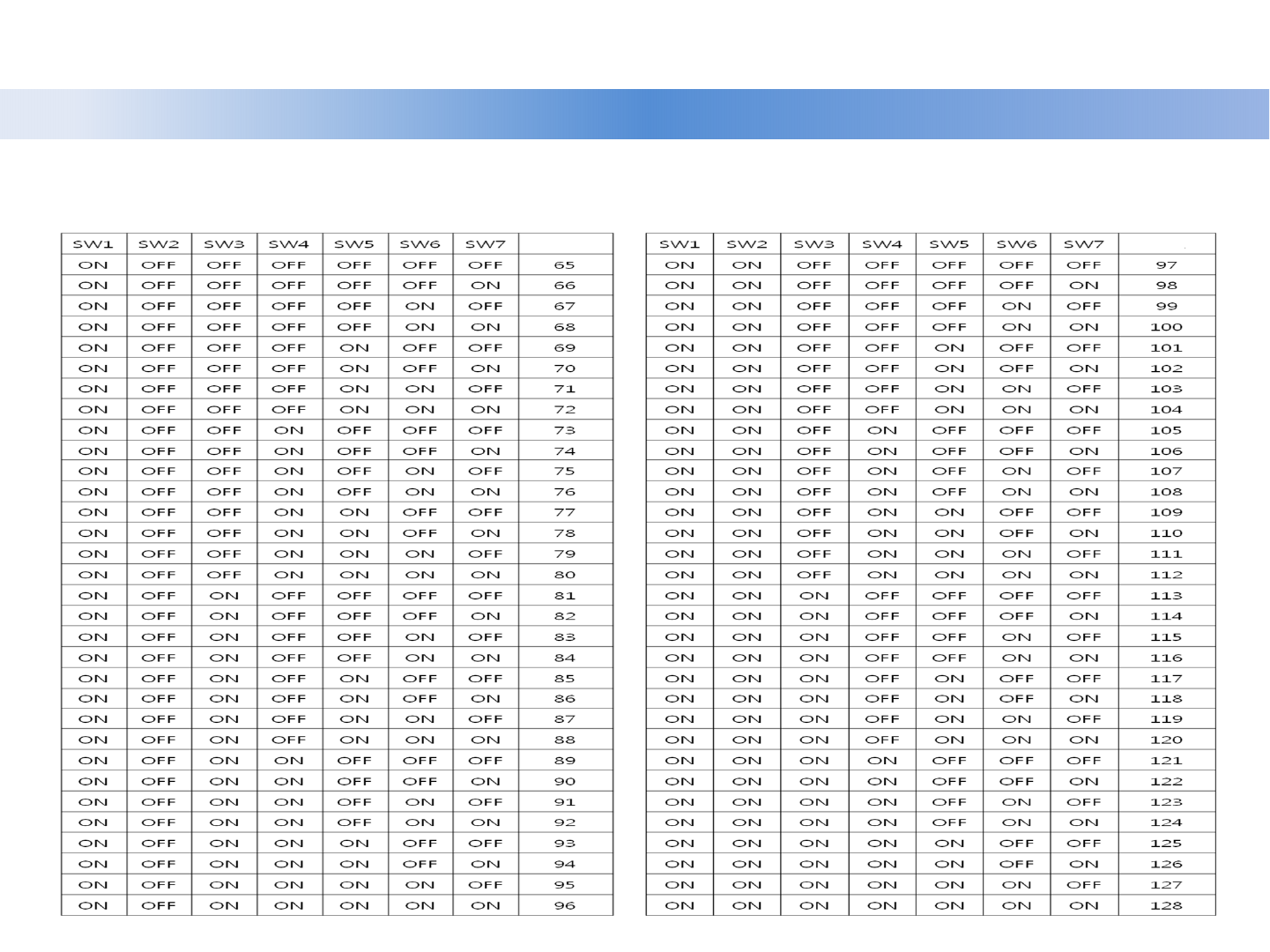

Switch #1~#7
ID ID
4. The initial operating conditions
1. When you turn on the power switch with LED lights
and beep sound.

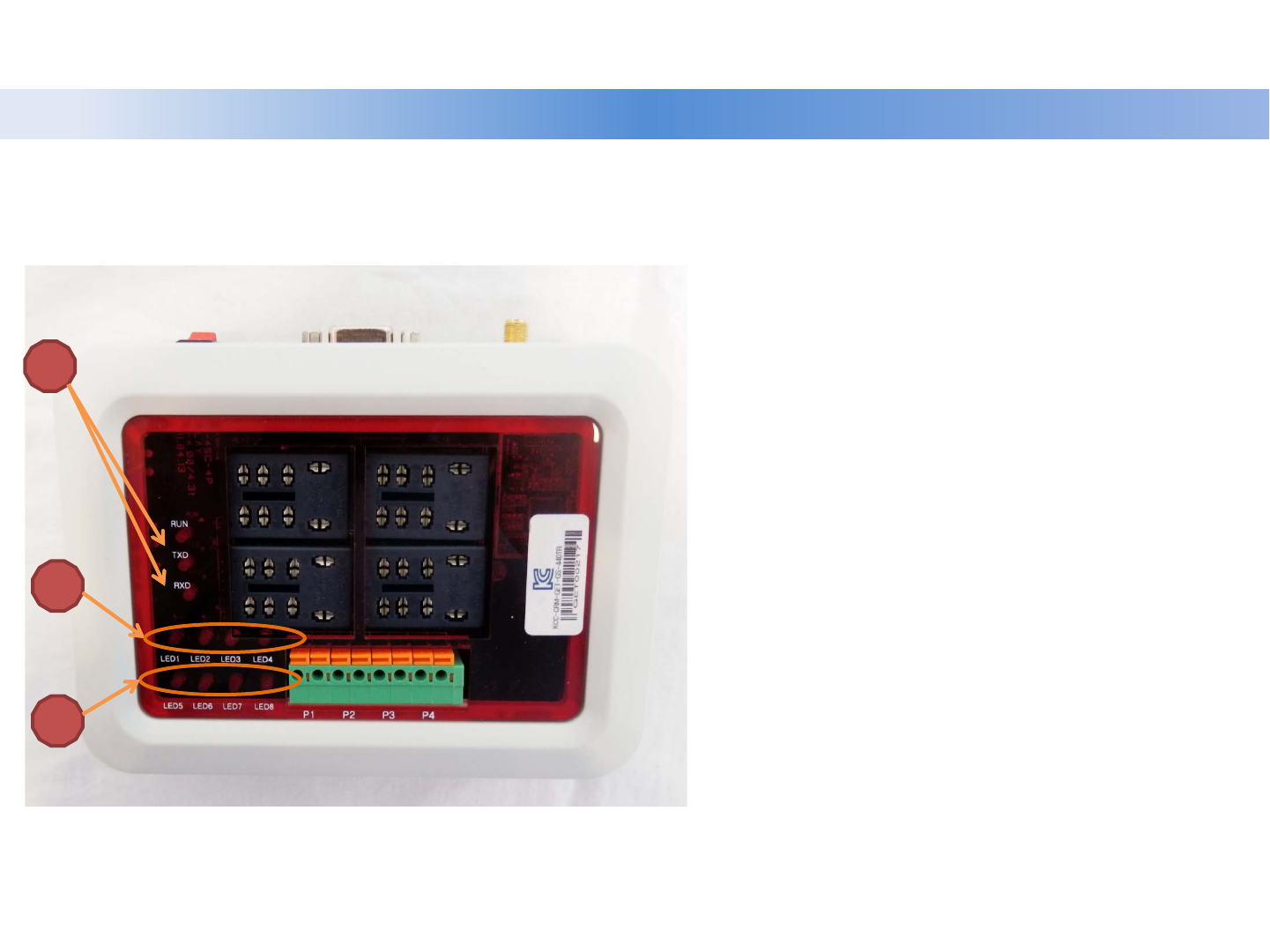

2. Relay status LEDs
3. Connector status LEDs(P1~P4)
1
2
3
5. FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this device not expressly approved by Getron System Co., Inc. could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experience radio/TV technician for help.
Approved antenna: 434MHz RP-SMA Dipole antenna, 50Ω, below -2.0 dBi gain
