Getron System RF-60MP Transceiver User Manual RF 60MP Users menual final
Getron System Co., Inc. Transceiver RF 60MP Users menual final
Contents
1. Component / assembly
2. Switch description
3. Set the device ID
4. Exterior details

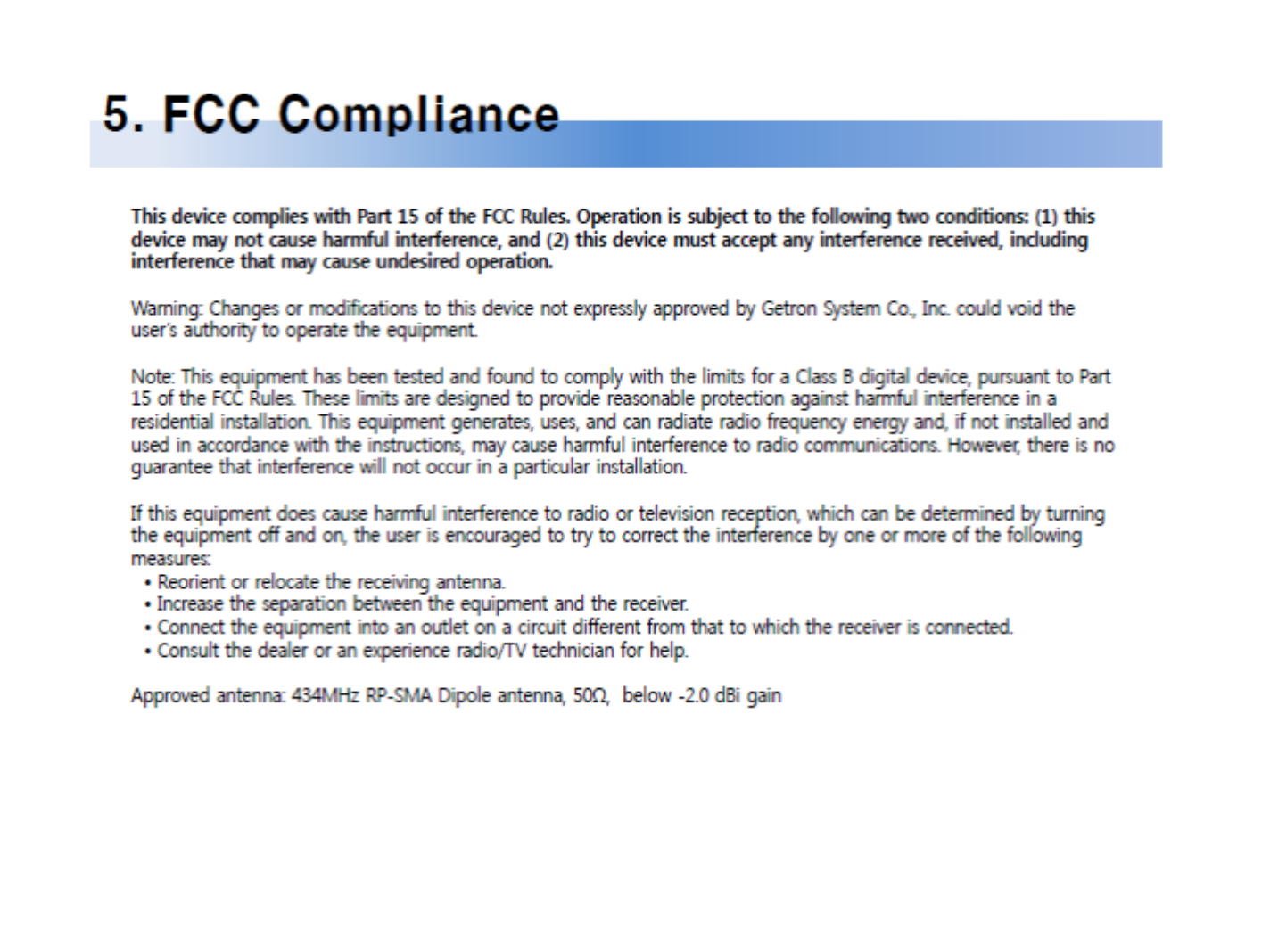

5. FCC Compliance

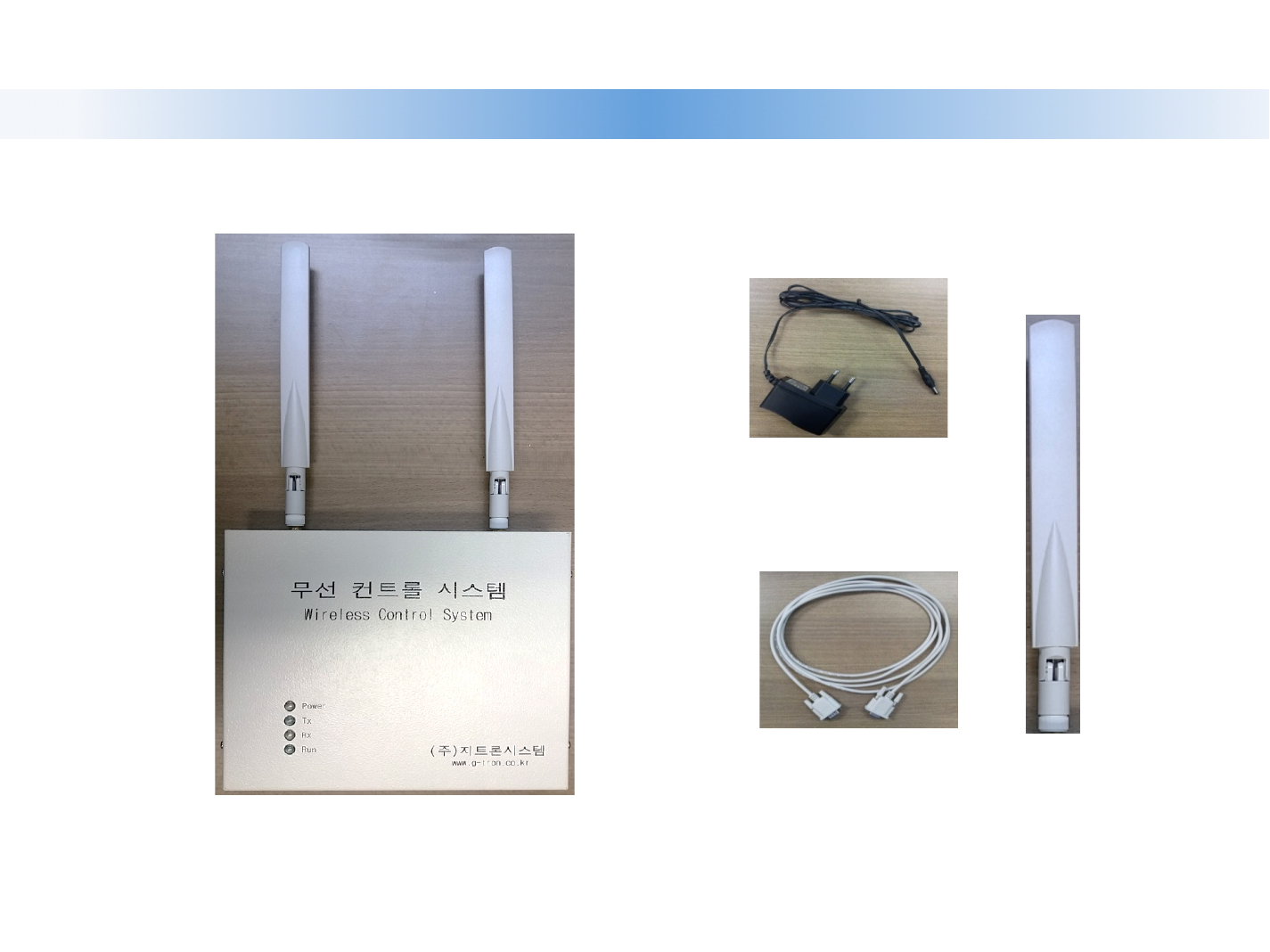

1. Component / assembly
Data cable
DC Adaptor(12V)
Antenna
RF-60MP

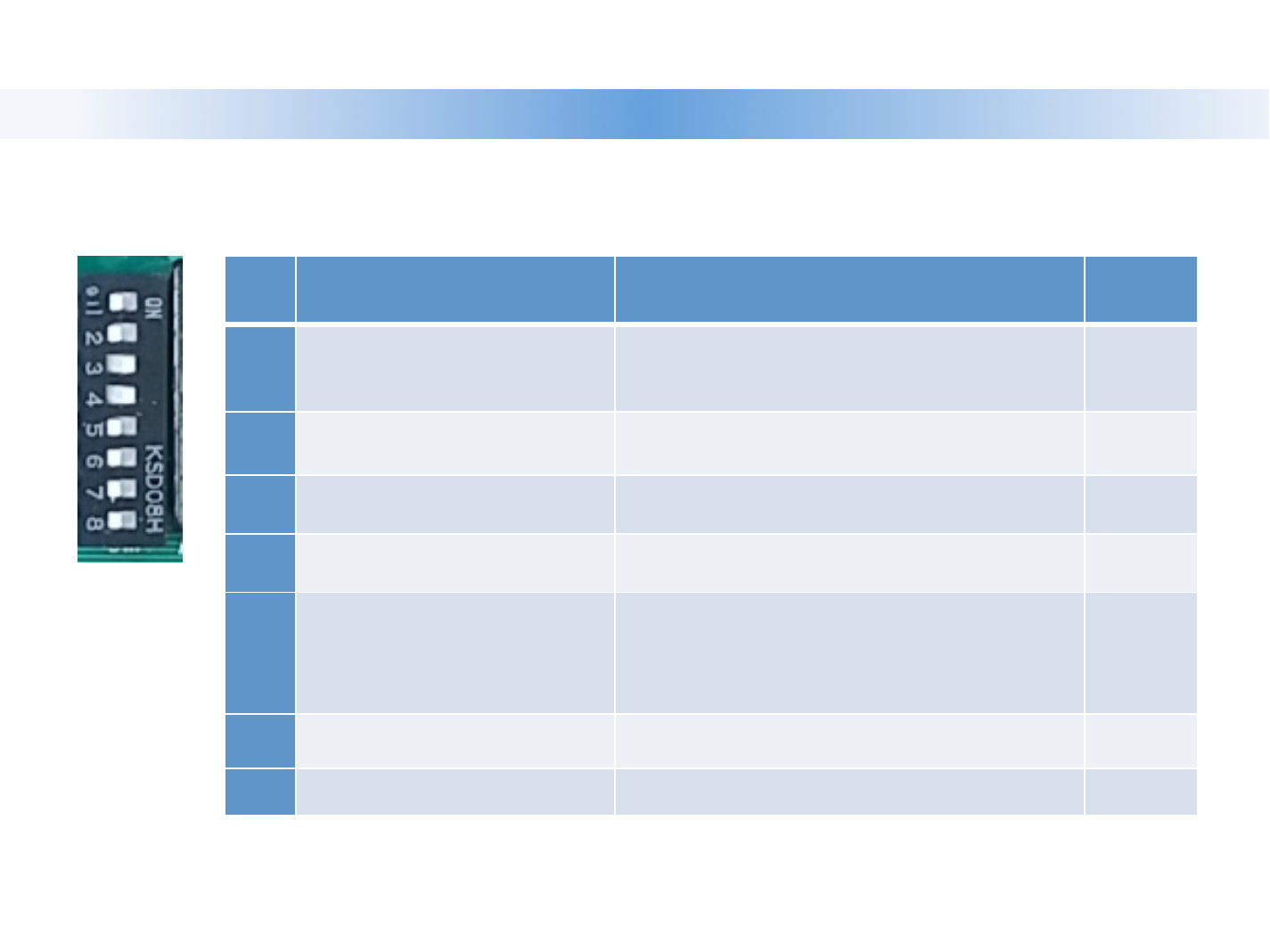

2. Switch description
Reception prohibition settings
SW1
No
Details
Status
Default
1,2
RS232 Communication speed
OFF‒OFF : 38400 BPS
ON- OFF : 19200 BPS
OFF‒ON : 9600 BPS
ON‒ON : 2400 BPS
OFF ‒ OFF
3,4
Sensor signal frequency
OFF‒OFF : 600 Hz
ON - OFF : 500 Hz
OFF‒ON : 400 Hz
ON‒ON : 300 Hz
ON ‒ ON
5
GROUP 1,2 reception prohibition
OFF:GROUP 1,2 reception
ON:GROUP 1,2 reception prohibition
OFF
6
GROUP 3,4 reception prohibition
OFF:GROUP 3,4 reception
ON:GROUP 3,4 reception prohibition
OFF
7
GROUP 5,6 reception prohibition
OFF:GROUP 5,6 reception
ON:GROUP 5,6 reception Prohibition
OFF
8
GROUP 7,8 reception prohibition
OFF:GROUP 7,8 reception
ON:GROUP 7,8 reception prohibition
OFF
Remark) Formatting flash-ROM: Set to format ROM for initial use or after replacement of ROM.
Switch (8-1) = OFF OFF OFF OFF ON ON ON ON

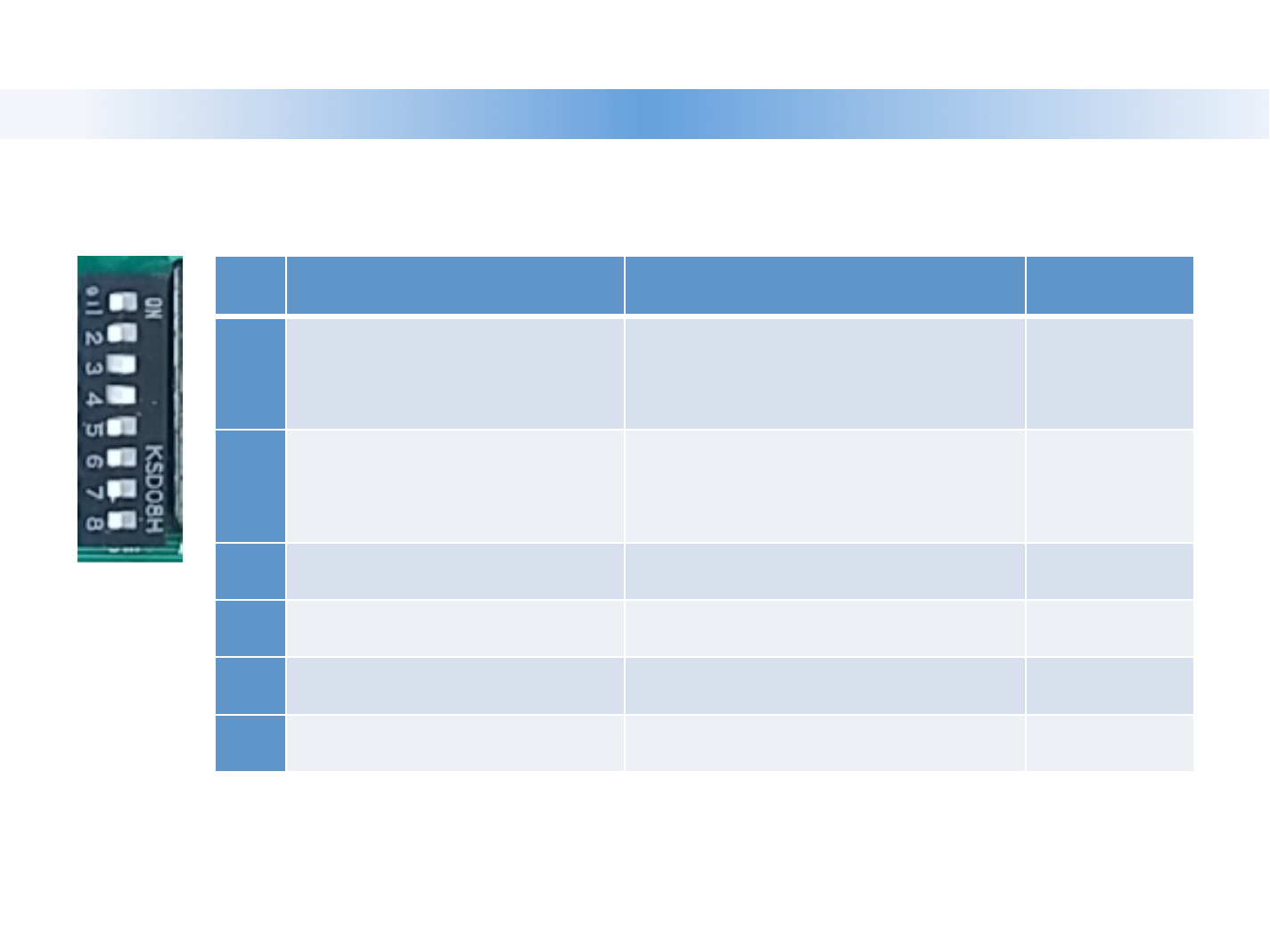

2. Switch description
Reception settings
SW2
No
Details
Status
Default
1
Two-way setting
OFF : Two-way response signal transmission
ON : Two-way response signal transmission prohibited
OFF
2
Signal type
OFF : Format parallel(4.XXX)
ON : Parallel(FCI 6.XXX)
OFF
3
UP-LINK setting
OFF : UP-LINK MODE
ON : Result inquiry mode(NORMAL)
ON
4
Authorization PREAMBLE
OFF : Normal state
ON : Authorization PREAMBLE
OFF
5,6
Repeated reception prevention time
OFF ‒ OFF : 30 sec.
ON ‒ OFF : 20 sec.
OFF ‒ ON : 10 sec.
On ‒ ON : 5 sec.
OFF-ON
7
Delayed transmission
OFF : Authorization DEVIATION
ON : Normal state
ON
8
Transmission
OFF : 1200 BPS
ON : 512 BPS
ON
3. Set the Frequency
Switch Frequency set : BAND(434.0400MHz~434.7900MHz)
Remark) The case of BAND : 60PLL firmware must be set to BAND

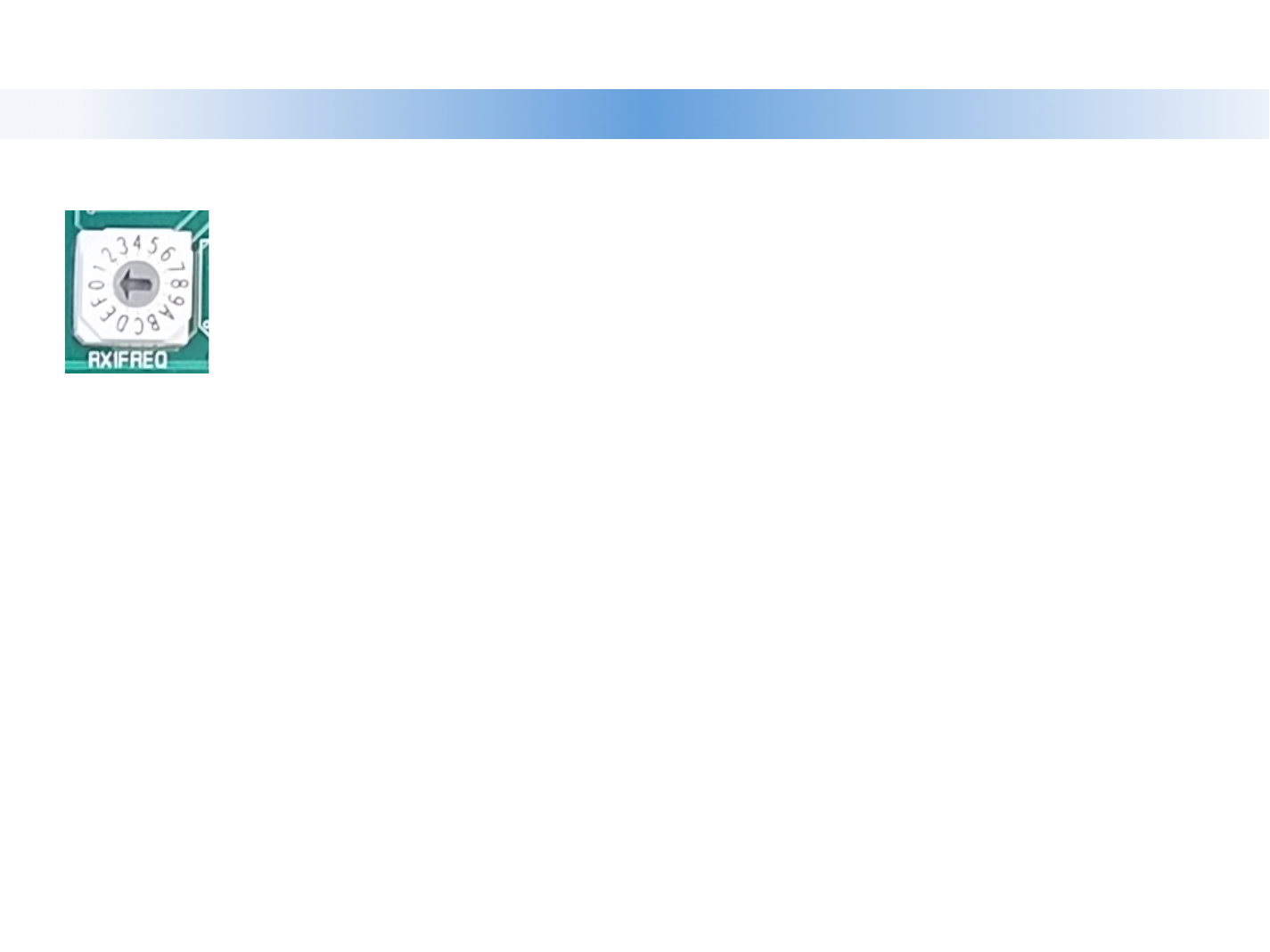

1. RX1FREQ: BAND 434(434.0400MHz~434.7900MHz)
Set the transmission/reception frequency responded by 60MP
Transmission/reception is possible when the frequency received at the sensor is identical.
RX1FREQ #A : 10mW / 1.8KHz / LOW-434 frequency group
Rx frequency : 434.040MHz ~ 434.415MHz
Tx frequency : 434.040MHz ~ 434.790MHz
RX1FREQ #C : 10mW / 2.4KHz / HIGH-434 frequency group
Rx frequency : 434.040MHz ~ 434.415MHz
Tx frequency : 433.440MHz ~ 434.790MHz
RX1FREQ #D : 5mW / 2.4KHz / HIGH-434 frequency group
Rx frequency : 434.440MHz ~ 434.790MHz
Tx frequency : 434.040MHz ~ 434.415MHz
RX1FREQ #E : 10mW / 1.8KHz / HIGH-434 frequency group
Rx frequency : 434.440MHz ~ 434.790MHz
Tx frequency : 434.040MHz ~ 434.415MHz
RX1FREQ #F : 5mW / 1.8KHz / HIGH-434 frequency group
Rx frequency : 434.440MHz ~ 434.790MHz
Tx frequency : 434.040MHz ~ 434.415MHz

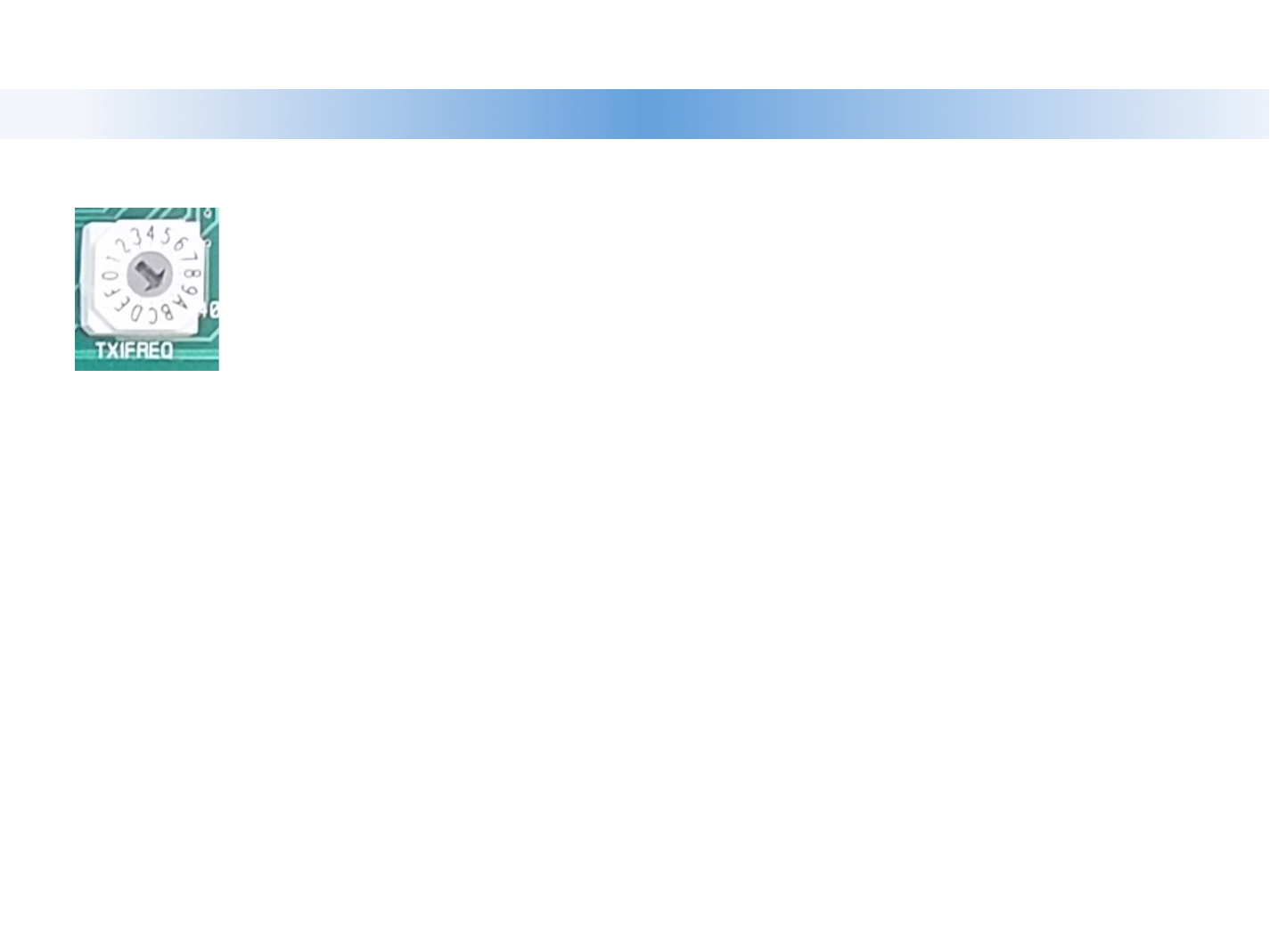

3. Set the Frequency
Switch
1. TX1FREQ: BAND 434(434.040MHz~434.790MHz)!
Set the transmission/reception frequency responded by 60MP
Transmission/reception is possible when the frequency received at the sensor is identical
3. Set the Frequency
1-1. When selection a frequency group LOW-434
TX1FREQ #0 : [Group 01] Rx 434.040 MHz / Tx 434.440 MHz
TX1FREQ #1 : [Group 02] Rx 434.065 MHz / Tx 434.465 MHz
TX1FREQ #2 : [Group 03] Rx 434.090 MHz / Tx 434.490 MHz
TX1FREQ #3 : [Group 04] Rx 434.115 MHz / Tx 434.515 MHz
TX1FREQ #4 : [Group 05] Rx 434.140 MHz / Tx 434.540 MHz
TX1FREQ #5 : [Group 06] Rx 434.165 MHz / Tx 434.565 MHz
TX1FREQ #6 : [Group 07] Rx 434.190 MHz / Tx 434.590 MHz
TX1FREQ #7 : [Group 08] Rx 434.215 MHz / Tx 434.615 MHz
TX1FREQ #8 : [Group 09] Rx 434.240 MHz / Tx 434.640 MHz
TX1FREQ #9 : [Group 10] Rx 434.265 MHz / Tx 434.665 MHz
TX1FREQ #A : [Group 11] Rx 434.290 MHz / Tx 434.690 MHz
TX1FREQ #B : [Group 12] Rx 434.315 MHz / Tx 434.715 MHz
TX1FREQ #C : [Group 13] Rx 434.340 MHz / Tx 434.740 MHz
TX1FREQ #D : [Group 14] Rx 434.365 MHz / Tx 434.765 MHz
TX1FREQ #E : [Group 15] Rx 434.390 MHz / Tx 434.790 MHz
TX1FREQ #F : [Group 16] Rx 434.415 MHz / Tx 434.790 MHz
1-2. When selection a frequency group HIGH-434
TX1FREQ #0 : [Group 01] Rx 434.440 MHz / Tx 434.040 MHz
TX1FREQ #1 : [Group 02] Rx 434.465 MHz / Tx 434.065 MHz
TX1FREQ #2 : [Group 03] Rx 434.490 MHz / Tx 434.090 MHz
TX1FREQ #3 : [Group 04] Rx 434.515 MHz / Tx 434.115 MHz
TX1FREQ #4 : [Group 05] Rx 434.540 MHz / Tx 434.140 MHz
TX1FREQ #5 : [Group 06] Rx 434.565 MHz / Tx 434.165 MHz
TX1FREQ #6 : [Group 07] Rx 434.590 MHz / Tx 434.190 MHz
TX1FREQ #7 : [Group 08] Rx 434.615 MHz / Tx 434.215 MHz
TX1FREQ #8 : [Group 09] Rx 434.640 MHz / Tx 434.240 MHz
TX1FREQ #9 : [Group 10] Rx 434.665 MHz / Tx 434.265 MHz
TX1FREQ #A : [Group 11] Rx 434.690 MHz / Tx 434.290 MHz
TX1FREQ #B : [Group 12] Rx 434.715 MHz / Tx 434.315 MHz
TX1FREQ #C : [Group 13] Rx 434.740 MHz / Tx 434.340 MHz
TX1FREQ #D : [Group 14] Rx 434.765 MHz / Tx 434.365 MHz
TX1FREQ #E : [Group 15] Rx 434.790 MHz / Tx 434.390 MHz
TX1FREQ #F : [Group 16] Rx 434.790 MHz / Tx 434.415 MHz

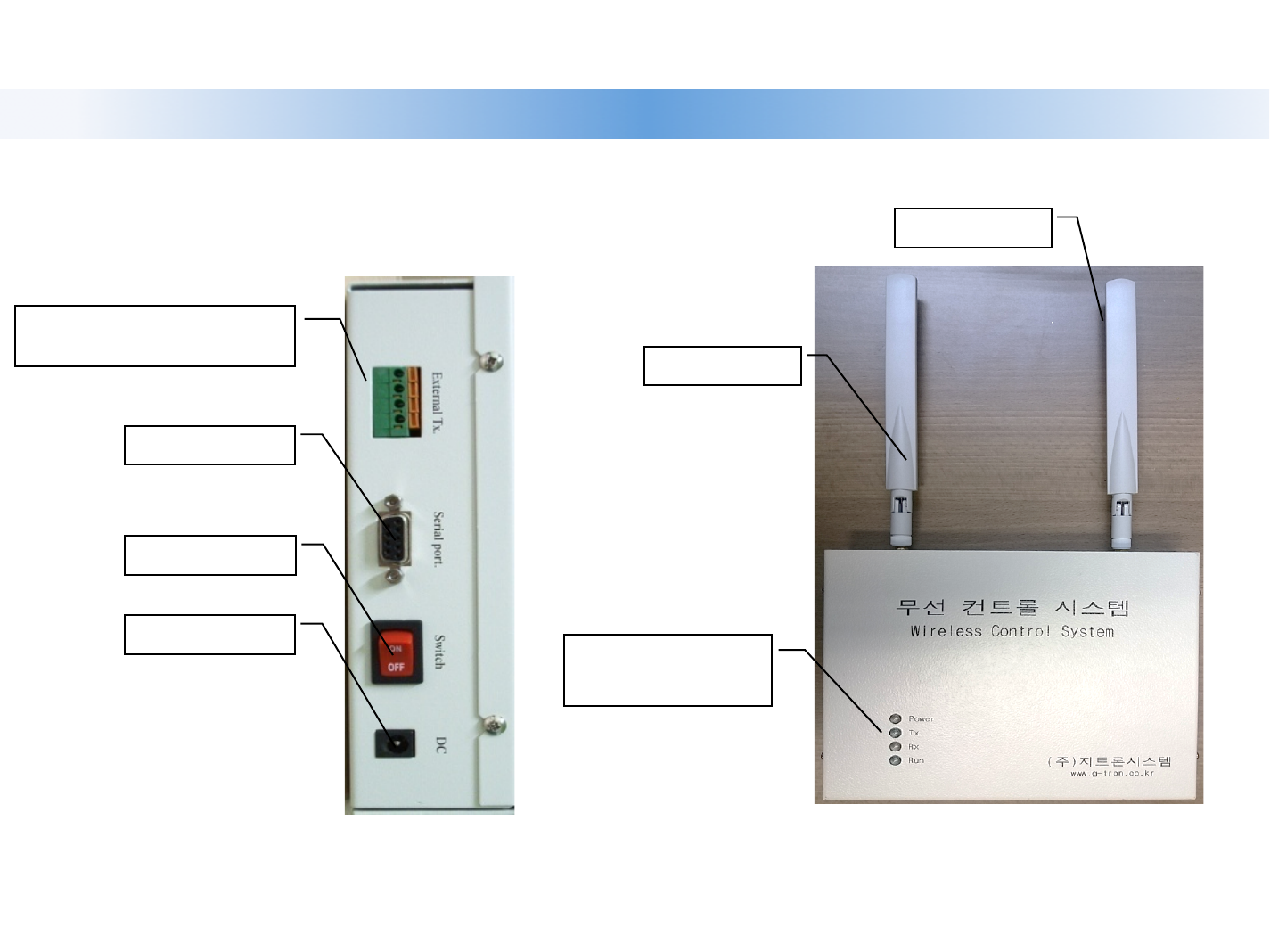

4. Exterior details
Exterior transmission connection
terminal
Serial terminal
Power switch
DC adaptor jack
Rx Antenna
Tx Antenna
Operation status
Indicator lamp
•
