Introduction
1
Preliminary
Introduction
Congratulations on your purchase of a Motorola product!
Product registration is an important step. Registering helps us facilitate warranty
service and permits us to contact you should your Motorola product require an
update or other service.
To register your product on-line, visit
www.motorola.com/warranty/radios
.
Please retain your original dated sales receipt for your records. For warranty
service of your Motorola product, you will need to provide a copy of your dated
sales receipt to confirm warranty status. Registration is not required for warranty
coverage.
For a copy of a large-print version of this guide, or for product-related questions,
call:
1-800-353-2729 in the USA
1-888-390-6456 TTY (Text Telephone)
On the Web:
www.motorola.com/talkabout
4110w17o.book Page 1 Monday, January 20, 2003 12:20 PM
Contents
2
Preliminary
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . 1
Safety and General Information . . . . 3
FCC Licensing Information . . . . . . . 11

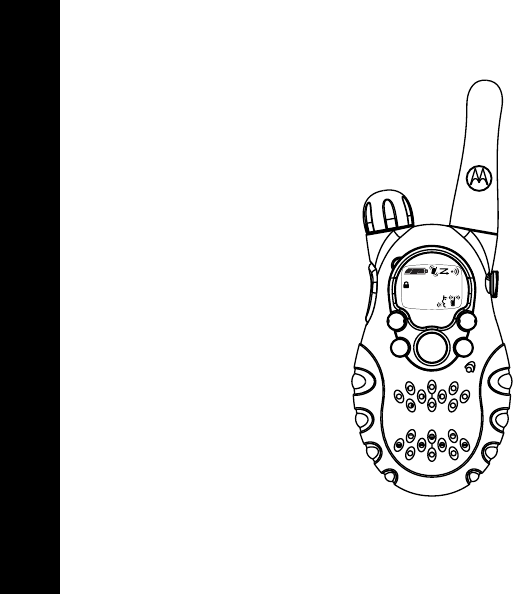

Control Buttons . . . . . . . . . . . . . . . . 12
Getting Started . . . . . . . . . . . . . . . . . 13

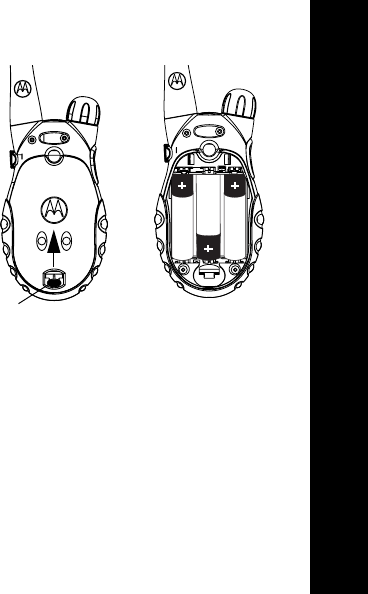

Installing the AA Batteries . . . . . . . . 13
Installing the NiCd Battery Pack . . . 14
Battery Meter . . . . . . . . . . . . . . . . . . 14
Using the Desk Stand Charger
(Optional Accessory) . . . . . . . . . . 14

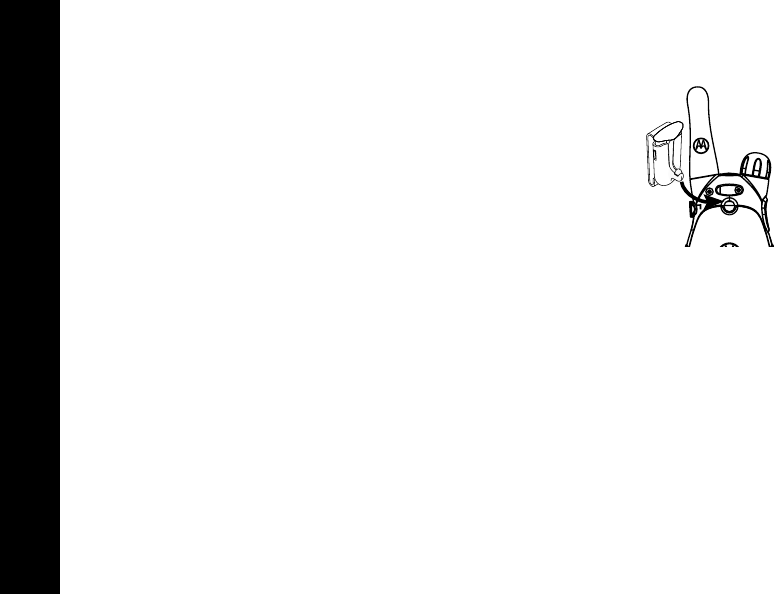

Attaching the Belt Clip . . . . . . . . . . . 16
Removing the Belt Clip . . . . . . . . . . 16
Turning Your Radio On and Off . . . . 16
Setting the Volume . . . . . . . . . . . . . 16
Setting a Channel . . . . . . . . . . . . . . 16
Channels and Frequencies . . . . . . . 17
Talking and Listening . . . . . . . . . . . . 18
Monitor Button . . . . . . . . . . . . . . . . . 18
Special Features . . . . . . . . . . . . . . . . 19
Interference Eliminator Codes . . . . . 19
Push to Talk Timeout Timer . . . . . . . 19
Keypad Lock . . . . . . . . . . . . . . . . . . 19
Enhanced Scanning . . . . . . . . . . . . . 20
Scan Advance . . . . . . . . . . . . . . . . . .21
Removing Channels from the Scan
List (Scan Delete) . . . . . . . . . . . . .21
Alerts . . . . . . . . . . . . . . . . . . . . . . . . . .22
Channel Busy Indicator . . . . . . . . . . .22
Setting and Transmitting Call Tones .22
Transmitting a Talk Confirmation
Tone . . . . . . . . . . . . . . . . . . . . . . .23
QT Noise Filtering . . . . . . . . . . . . . . .23
VibraCall® Alert (Models T5920 and
T5950 Only) . . . . . . . . . . . . . . . . .24
Accessories . . . . . . . . . . . . . . . . . . . .25
Using Audio Accessories . . . . . . . . . .25
Handsfree Use Without Accessories
(iVOX) . . . . . . . . . . . . . . . . . . . . . .25
Handsfree Use with Accessories
(VOX) . . . . . . . . . . . . . . . . . . . . . .26
Setting the Sensitivity Level . . . . . . .26
4110w17o.book Page 2 Monday, January 20, 2003 12:20 PM
Safety and General Information
3
Preliminary
Safety and General Information
Important Information on Safe and Efficient Operation
Read This Information Before Using Your Radio
The information provided in this document supersedes the general safety information
contained in user guides published prior to July 2000.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To control your exposure
and ensure compliance with the general population/uncontrolled environment
exposure limits, always adhere to the following procedure:
• Transmit no more than 50% of the time.
• To transmit (talk), press the Push to Talk (PTT) button.
• To receive calls, release the PTT button.
Transmitting 50% of the time, or less, is important because the radio generates
measurable RF energy exposure only when transmitting (in terms of measuring
standards compliance).
Exposure to Radio Frequency Energy
Your Motorola radio is designed to comply with the following national and international
standards and guidelines regarding exposure of human beings to radio frequency
electromagnetic energy:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
4110w17o.book Page 3 Monday, January 20, 2003 12:20 PM
Safety and General Information
4
Preliminary
• American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
• International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radio
Frequency Electromagnetic Fields in the Frequency Range from 3 kHz to
300 GHz, 1999
• Australian Communications Authority Radiocommunications (Electromagnetic
Radiation - Human Exposure) Standard 2001 (applicable to wireless phones only)
• ANATEL, Brasil Regulatory Authority, Resolution 256 (April 11, 2002) “additional
requirements for SMR, cellular, and PCS product certification.”
To assure optimal radio performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the above
standards, always adhere to the following procedures.
Portable Radio Operation and EME Exposure
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized
antennas, modifications, or attachments could damage the radio and may violate FCC
regulations.
DO NOT hold the antenna when the radio is “IN USE.”
Holding the antenna affects
the effective range.
4110w17o.book Page 4 Monday, January 20, 2003 12:20 PM
Safety and General Information
5
Preliminary

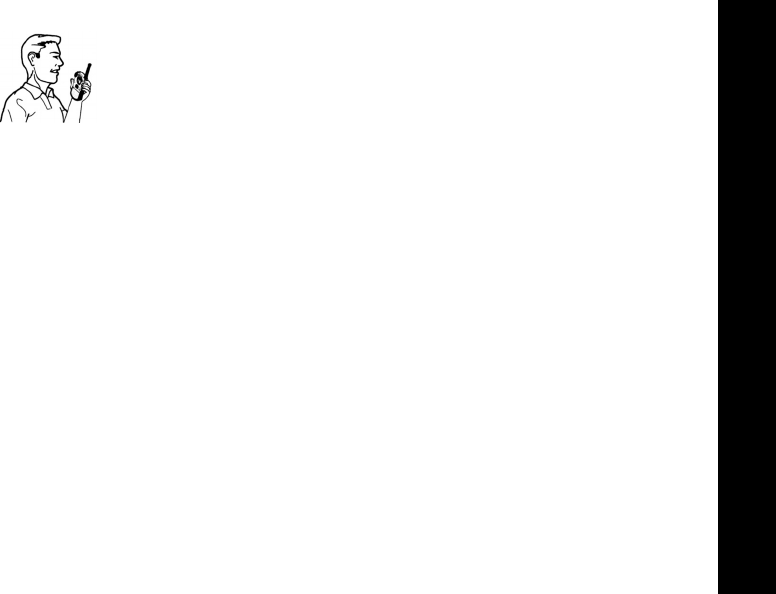

Two-Way Radio Operation
When using your radio as a traditional two-way radio,
hold the radio in
a vertical position with the microphone one to two inches (2.5 to
5 cm) away from the lips
.
Body-Worn Operation
To maintain compliance with FCC/Health Canada RF exposure guidelines, if you wear
a radio on your body when transmitting, always place the radio in
a Motorola-supplied
or approved clip, holder, holster, case, or body harness for this product. Use of non-
Motorola-approved accessories may exceed FCC/Health Canada RF exposure
guidelines. If you do not use one of the Motorola-supplied or approved body-worn
accessories, and are not using the radio held in the normal use position,
ensure the
radio and its antenna are at least one inch (2.5 cm) from your body when
transmitting
.
Data Operation
If applicable, when using any data feature of the radio with or without an accessory
cable,
position the radio and its antenna at least one inch (2.5 cm) from the body
.
Approved Accessories
For a list of approved Motorola accessories visit our website at
www.mot.com
.
Electromagnetic Interference/Compatibility
Note:
Nearly every electronic device is susceptible to electromagnetic interference
(EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic
compatibility.
4110w17o.book Page 5 Monday, January 20, 2003 12:20 PM
Safety and General Information
6
Preliminary
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio
in any facility where posted notices instruct you to do so. Hospitals or health care
facilities may be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when on board an aircraft. Any use of a
radio must be in accordance with applicable regulations per airline crew instructions.
Medical Devices - Pacemakers
The Advanced Medical Technology Association recommends that a minimum
separation of six inches (15 cm) be maintained between a handheld wireless radio
and a pacemaker. These recommendations are consistent with the independent
research by, and recommendations of the U.S. Food and Drug Administration.
Persons with pacemakers should:
• ALWAYS keep the radio more than six inches (15 cm) from their pacemaker when
the radio is turned ON.
• Not carry the radio in the breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for interference.
• Turn the radio OFF immediately if you have any reason to suspect that
interference is taking place.
4110w17o.book Page 6 Monday, January 20, 2003 12:20 PM
Safety and General Information
7
Preliminary
Medical Devices - Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event of such
interference, you may want to consult your hearing aid manufacturer to discuss
alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your device
to determine if it is adequately shielded from RF energy. Your physician may be able
to assist you in obtaining this information.
Safety and General Use While Driving
Check the laws and regulations on the use of radios in the area where you drive.
Always obey them. When using your radio while driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving conditions
so require.
Operational Warnings
For Vehicles with an Air Bag
Do not place a portable radio in the area over an air bag or in the air bag deployment
area. Air bags inflate with great force. If a portable radio is placed in the air bag
deployment area and the air bag inflates, the radio may be propelled with great force
and cause serious injury to occupants of the vehicle.
4110w17o.book Page 7 Monday, January 20, 2003 12:20 PM
Safety and General Information
8
Preliminary
Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive atmosphere,
unless it is a radio type especially qualified for use in such areas as “Intrinsically Safe.”
Do not remove, install, or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in bodily injury or even
death.
Note:
The areas with potentially explosive atmospheres referred to above include
fueling areas such as below decks on boats, fuel or chemical transfer or storage
facilities, areas where the air contains chemicals or particles, such as grain, dust or
metal powders, and any other area where you would normally be advised to turn off
your vehicle engine. Areas with potentially explosive atmospheres are often but not
always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio when you
are near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-
way radio.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna
. If a damaged antenna
comes into contact with your skin, a minor burn can result.
4110w17o.book Page 8 Monday, January 20, 2003 12:20 PM
Safety and General Information
9
Preliminary
Batteries
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed terminals.
The conductive material may complete an electrical circuit (short circuit) and become
quite hot. Exercise care in handling any charged battery, particularly when placing it
inside a pocket, purse, or other container with metal objects.
Battery Charger Safety Instructions
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp blow, or has
been dropped or damaged in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the
outlet, have the proper outlet installed by a qualified electrician. An improper
condition can result in a risk of electric shock.
4. To reduce the risk of damage to the cord or plug, pull the plug rather than the
cord when disconnecting the charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the outlet before
attempting any maintenance or cleaning.
6. Use of an attachment not recommended or sold by Motorola may result in a risk
of fire, electric shock, or personal injury.
7. Make sure the cord is located so it will not be stepped on, tripped over, or sub-
jected to damage or stress.
4110w17o.book Page 9 Monday, January 20, 2003 12:20 PM
Safety and General Information
10
Preliminary
8. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in a risk of fire and/or electric shock. If an
extension cord must be used, make sure that:
• The pins on the plug of the extension cord are the same number, size, and
shape as those on the plug of the charger.
• The extension cord is properly wired and in good electrical condition.
• The cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up
to 150 feet.
9. The supply cord of this charger cannot be replaced. If the cord is damaged, call
Motorola Product Services at 1-800-353-2729 in the USA or 1-888-390-6456
TTY (Text Telephone).
4110w17o.book Page 10 Monday, January 20, 2003 12:20 PM
FCC Licensing Information
11
Preliminary
FCC Licensing Information
Your Motorola radio operates on General Mobile Radio Service (GMRS) frequencies and is
subject to the Rules and Regulations of the Federal Communications Commission (FCC). The
FCC requires that all operators using GMRS frequencies obtain a radio license before
operating their equipment. To obtain the FCC forms, please request Forms
605
and
159
,
which includes all forms and instructions. If you wish to have the document faxed or mailed,
or have questions, please use the following contact information.
Changes or modifications not expressly approved by Motorola may void the user’s
authority granted by the FCC to operate this radio and should not be made. To comply with
FCC requirements, transmitter adjustments should be made only by or under the
supervision of a person certified as technically qualified to perform transmitter
maintenance and repairs in the private land mobile and fixed services as certified by an
organization representative of the user of those services. Replacement of any transmitter
component (crystal, semiconductor, etc.) not authorized by the FCC equipment
authorization for this radio could violate FCC rules.
Note:
Use of this radio outside the country where it was intended to be distributed is
subject to government regulations and may be prohibited.
Faxed
Contact the Fax-On-
Demand system at:
Mailed
Call the FCC forms
hotline at:
Questions
Regarding FCC license
Contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
4110w17o.book Page 11 Monday, January 20, 2003 12:20 PM
Control Buttons
12
Preliminary
Control Buttons
Use
P
to:
• Turn power on/off
• Adjust volume
LED Indicator Light
Use
M
to:
• Talk
• Save a setting
Use
^
to:
• Transmit call tone
Speaker
Use
\
to:
• Lock the keypad (when held
down and not in a menu)
• Exit the menu (when
pressed while in a menu)
Accessory Jack Cover
Use
Q
to:
• Monitor channel activity
Use
[ ]
to:
• Scroll through menus
Microphone
22
38
\
<>
J^
4110w17o.book Page 12 Monday, January 20, 2003 12:20 PM
Getting Started
13
Preliminary
Getting Started
Installing the AA Batteries
Your radio uses 3 AA Alkaline batteries.
1. With the back of the radio facing you,
lift the battery latch up to release the
battery cover and remove the cover.
2. Insert 3 AA Alkaline batteries as
shown on the inside of the battery
compartment.
3. Reposition the battery cover and
press down to secure.
Note: A NiCd rechargeable battery
can be used instead of 3 AA Alkaline batteries. A rechargeable battery upgrade
kit, model number 53614, is available. For the dealer nearest you, call
1-800-353-2729 in the USA, or visit our website at
www.motorola.com/talkabout
.
Latch
4110w17o.book Page 13 Monday, January 20, 2003 12:20 PM
Getting Started
14
Preliminary
Installing the NiCd Battery Pack
1. Follow step 1 above to remove the battery cover.
2. Remove the battery pack from the clear plastic bag.
Do not disassemble or unwrap the battery pack.
3. Insert the NiCd battery pack so the metal contacts on the
side of the battery are facing outward from the radio to
connect with the contacts on the battery door.
4. Reposition the battery cover and press down to secure.
Battery Meter
The battery icon shows the battery charge level, from full d to empty a.
When the battery is empty, the radio chirps periodically after releasing M.
The radio powers off when the voltage drops below a predetermined level to
protect the rechargeable battery.
Note: Remove the batteries before storing your radio for extended periods of
time. Batteries corrode over time and may cause permanent damage to your
radio.
Using the Desk Stand Charger (Optional Accessory)
The desk stand charger provides drop-in charging convenience for NiCd batteries
and can be placed on any flat surface, such as a desk or workbench. Charge the
NiCd battery overnight (at least 16 hours) before using it for the first time. After
the initial charge, an empty battery is fully charged within 14 hours.
4110w17o.book Page 14 Monday, January 20, 2003 12:20 PM
Getting Started
15
Preliminary
1. Turn the radio off and remove the battery cover.
2. Remove the battery pack from the clear plastic bag.
Do not disassemble or unwrap the battery pack.
3. Insert the NiCd battery pack so the metal contacts on the side of the battery
are facing outward from the radio to connect with the contacts on the battery
door.
4. Reposition the battery cover and press down to secure.
5. Plug the AC power supply into the plug on the desk stand.
6. Plug the AC power supply into a standard wall outlet.
7. Slide the radio into one of the charging pockets facing forward.
To charge the battery pack separately from the radio:
1. Remove the battery pack from the clear plastic bag.
Do not disassemble or unwrap the battery pack.
2. Insert the battery pack into the charging pocket. Make sure the metal contacts
on the side of the battery are making contact with the contacts inside the
charger.
3. Plug the AC power supply into the plug on the desk stand.
4. Plug the AC power supply into a standard wall outlet.
Notes
• When moving between hot and cold temperatures, do not charge the battery
until the battery temperature acclimates (usually about 20 minutes).
4110w17o.book Page 15 Monday, January 20, 2003 12:20 PM
Getting Started
16
Preliminary
• For optimal battery life, remove the radio or battery from the charger within
16 hours. Do not store the radio in the charger.
Attaching the Belt Clip
1. Align the belt clip post with the hole in the back of the radio.
2. Gently push until the clip clicks into place.
Removing the Belt Clip
1. Push down on the release tab at the top of the belt clip to
release the catch.
2. Pull the belt clip away from the back of the radio.
Turning Your Radio On and Off
Turn P clockwise to turn the radio on and counterclockwise to turn the radio off.
The radio chirps and the display briefly shows all feature icons available on your
radio. The display then scrolls through the available channels and Interference
Eliminator Codes.
Setting the Volume
Rotate P while holding down J until you reach a comfortable listening level.
Rotate P clockwise to increase or counterclockwise to decrease the volume.
Setting a Channel
Your radio has 22 channels. When the radio is on a 1 watt channel, z displays.
When the radio is on a 0.5 watt channel, y displays.
4110w17o.book Page 16 Monday, January 20, 2003 12:20 PM
Getting Started
17
Preliminary
1. With the radio on, press \. The current channel flashes.
2. Press ] or [ to set the channel.
3. Press M to save the channel setting.

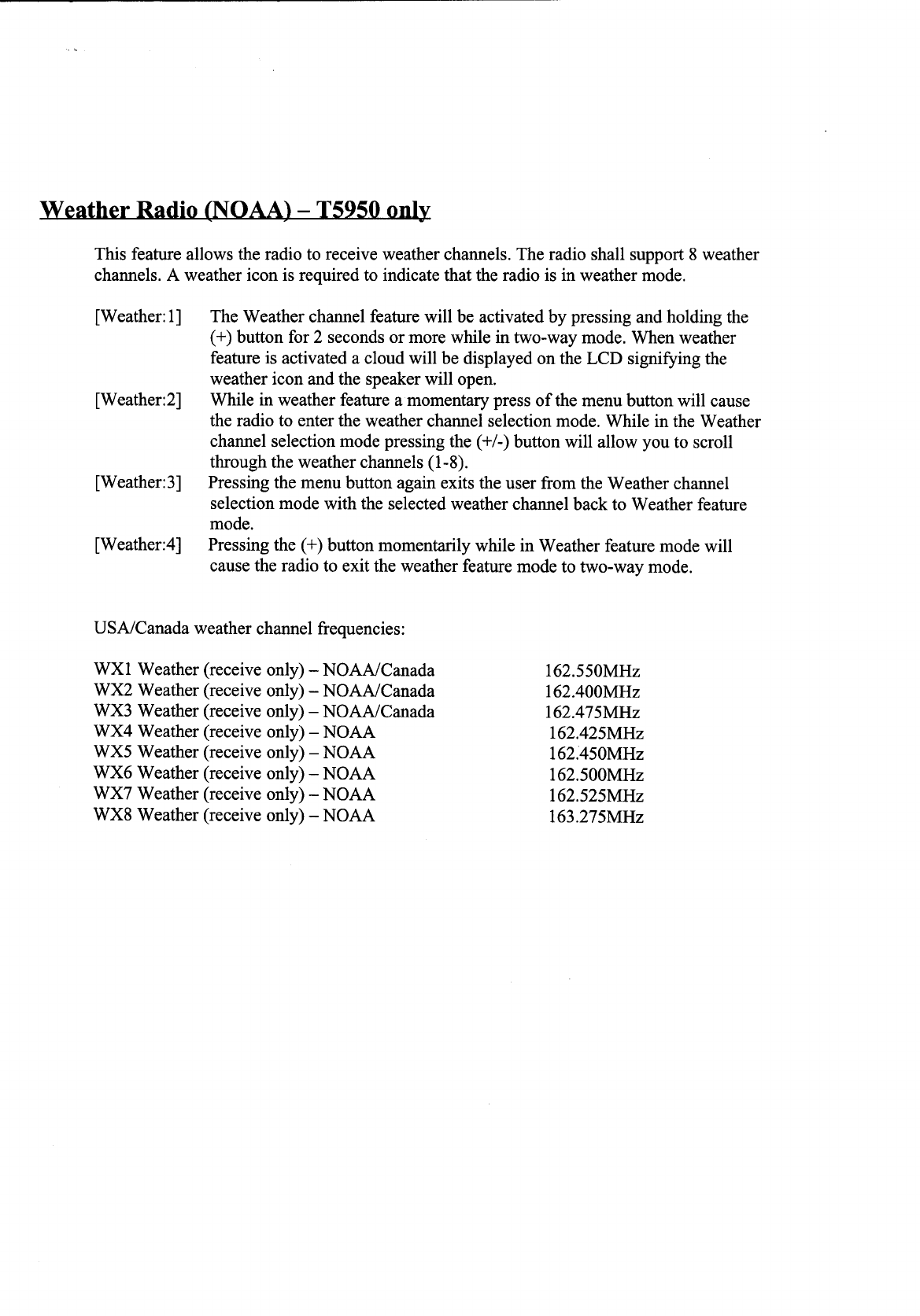

Channels and Frequencies
Channel Frequency Description Channel Frequency Description
1 462.5625 MHz GMRS/FRS 12 467.6625 MHz FRS
2 462.5875 MHz GMRS/FRS 13 467.6875 MHz FRS
3 462.6125 MHz GMRS/FRS 14 467.7125 MHz FRS
4 462.6375 MHz GMRS/FRS 15 462.5500 MHz GMRS
5 462.6625 MHz GMRS/FRS 16 462.5750 MHz GMRS
6 462.6875 MHz GMRS/FRS 17 462.6000 MHz GMRS
7 462.7125 MHz GMRS/FRS 18 462.6250 MHz GMRS
8 467.5625 MHz FRS 19 462.6500 MHz GMRS
9 467.5875 MHz FRS 20 462.6750 MHz GMRS
10 467.6125 MHz FRS 21 462.7000 MHz GMRS
11 467.6375 MHz FRS 22 462.7250 MHz GMRS
4110w17o.book Page 17 Monday, January 20, 2003 12:20 PM
Talking and Listening
18
Preliminary
Talking and Listening
To communicate, all radios in your group must be set to the same channel (1-22)
and Interference Eliminator Code (1-99).
To talk, press and hold M. Hold the radio 2 to 3 inches away from your mouth
when talking. The LED indicator light glows continuously when transmitting.
When you finish talking, release M (press to talk, release to listen).
Note: Do not use the radios closer than 5 feet apart.
Monitor Button
Pressing and holding J allows you to listen to the volume level of the radio when
you are not receiving. This allows you to adjust the volume, if necessary. You can
also use J to check for activity on the current channel before you transmit (talk).
4110w17o.book Page 18 Monday, January 20, 2003 12:20 PM
Special Features
19
Preliminary
Special Features
Interference Eliminator Codes
Interference Eliminator Codes help minimize interference by providing you with a
choice of code combinations.
To set the code for a channel:
1. Press \ until the code starts to flash.
2. Press ] or [ to select the code.
3. Press M to save the code setting.
You can set a different code for each channel using this procedure.
Note: You must set the Interference Eliminator Code to 0 on an FRS radio that
uses Interference Eliminator Codes to communicate with other FRS radios that
do not have Interference Eliminator Codes.
Push to Talk Timeout Timer
To prevent accidental transmissions and save battery life, the radio emits a
continuous warning tone and stops transmitting if you press M for 60 continuous
seconds.
Keypad Lock
To avoid accidentally changing your radio settings, press and hold \ for
3 seconds or until f displays. You can turn the radio on and off, adjust the
4110w17o.book Page 19 Monday, January 20, 2003 12:20 PM
Special Features
20
Preliminary
volume, receive, transmit, send a call tone, and monitor channels. All other
functions are locked.
To unlock the radio, press and hold \ for 3 seconds or until f is no longer
displayed.
Enhanced Scanning
Scanning is used to:
• Monitor channels and codes for transmissions and lock in on one that
interests you.
• Find someone in your group who has accidentally changed channels and is
talking during your scan.
With enhanced scanning, your home channel is scanned more frequently than
any other channel. The home channel is the channel your radio was set to when
you started to scan. If you activate scan while your radio’s Interference Eliminator
Code is set to 0, the radio checks for activity on each channel regardless of the
code in use on that channel. If you activate scan while your radio’s Interference
Eliminator Code is set to 1-99, the radio checks for activity on each channel, but
only for codes 1-99. All transmissions using code 0 are ignored.
To start scanning, briefly press and release J. The scan indicator h displays
and the radio begins to scroll through the channel and Interference Eliminator
Code combinations.
4110w17o.book Page 20 Monday, January 20, 2003 12:20 PM
Special Features
21
Preliminary
When the radio detects activity, it stops scanning and you can hear the
transmission on that channel. To respond and talk to the person transmitting,
press M within 5 seconds.
To stop scanning, briefly press and release J.
Note: If you press M while the radio is scanning, the radio transmits on the
channel you selected before you activated scan. If no transmission occurs within
5 seconds, scanning will resume.
Scan Advance
If the radio stops scanning on a channel you do not want to listen to, briefly press
and release ] or [ to resume scanning for the next active channel.
Removing Channels from the Scan List (Scan Delete)
To prevent the radio from scanning a channel, press and hold [ or ] for at least
3 seconds, then release, when the scan first stops on that channel. This
temporarily removes the channel from the scan list. To restore the channel, turn
the radio off and then back on.
Note: You cannot remove your home channel from the scan list. The home
channel is the channel your radio was set to when you started scanning.
4110w17o.book Page 21 Monday, January 20, 2003 12:20 PM
Alerts
22
Preliminary
Alerts
Channel Busy Indicator
When a channel is busy, the LED flashes twice per second.
Setting and Transmitting Call Tones
Your radio has 10 different call tones that you can transmit to other radios in your
group to alert them that you want to talk.
To set a call tone:
1. With the radio on, press \ 3 times. The current call tone setting flashes and
E displays.
2. Press ] or [ to change and hear the call tone.
3. Press \ or M to set the new call tone.
To transmit your call tone to other radios set to the same channel and Interference
Eliminator Code as your radio, press ^.
Note: Setting the call tone to 0 disables the call tone feature.
4110w17o.book Page 22 Monday, January 20, 2003 12:20 PM
Alerts
23
Preliminary
Transmitting a Talk Confirmation Tone
You can set your radio to transmit a unique tone when you finish transmitting. It
is like saying Roger or Over to let others know you are finished talking.
• To turn talk confirmation on, press and hold ] while you turn the radio on.
When you release M after transmitting, your call tone transmits and !
displays.
• To turn talk confirmation off, turn your radio off and then back on while
pressing and holding ].
QT Noise Filtering
The QT noise filtering feature helps ensure uninterrupted communication by
preventing you from hearing transmissions from other radios. It is useful in places
where there is heavy radio traffic, such as at an amusement park or ski resort.
Note: QT noise filtering is not available while the radio is scanning.
To turn QT noise filtering on and off:
1. Press \ until F displays.
2. Press ] until Y displays to turn QT noise filtering on, or [ to turn it off.
3. Press \ to confirm your selection.
To transmit to a radio that has QT noise filtering turned on:
1. Select the same channel and Interference Eliminator Code as the other radio.
2. Press ^ to send a call tone and temporarily open the speaker on the
receiving radio.
4110w17o.book Page 23 Monday, January 20, 2003 12:20 PM
Alerts
24
Preliminary
Now you can transmit and receive as usual.
If you do not transmit or receive for 30 seconds, the QT noise filtering feature will
close the speaker on the receiving radio. Press ^ to open the speaker on the
receiving radio again.
VibraCall® Alert (Models T5920 and T5950 Only)
VibraCall is a vibrating alert that notifies you that your radio is receiving a
message. This is useful in noisy environments. When the alert is on, the radio
vibrates once every 30 seconds when you receive a message on the channel and
code you set.
• To turn vibrating alerts on, press \ until i is displayed, then press ] to
display Y.
• To turn vibrating alerts off, press [ until < is displayed in the same menu.
4110w17o.book Page 24 Monday, January 20, 2003 12:20 PM
Accessories
25
Preliminary
Accessories
There are many accessories (sold separately) available for your radio. For more
information, refer to the brochure included with your radio, contact the place of
purchase, call Motorola at 1-800-353-2729 in the USA or 1-800-739-7834 (TTY),
or visit our website at
www.motorola.com/talkabout
.
Using Audio Accessories
1. Make sure the radio is off.
2. Plug the audio accessory into the accessory port (see page 12 for accessory
port location).
3. Turn the radio on. Lower the volume before placing the accessory on your
head or in your ear.
4. Press J while rotating P to adjust the volume to a comfortable level.
5. To transmit, press M and speak into the accessory microphone, if any.
6. To receive, release M.
Handsfree Use Without Accessories (iVOX)
You can use the radio’s iVOX feature to transmit handsfree without the need for
any additional voice activation (VOX) accessories. Once this feature is activated,
the radio detects your voice and transmits when you speak.
1. Press \ until g flashes.
2. Press ] or [ until Y displays.
4110w17o.book Page 25 Monday, January 20, 2003 12:20 PM
Accessories
26
Preliminary
3. Press M twice to confirm.
Handsfree Use with Accessories (VOX)
You can transmit handsfree with the use of optional accessories. Once this
feature is activated, the radio detects your voice and transmits when you speak.
1. Make sure the radio is off.
2. Plug the VOX accessory into the accessory port (see page 12 for accessory
port location).
3. Turn the radio volume down, and then turn the radio on. g flashes on the
display.
4. Adjust the volume appropriately by pressing ] or [.
Note: There is a short delay between the time you start talking and when the
radio transmits.
To turn VOX off, press Mor remove the audio accessory.
Setting the Sensitivity Level
Adjusting the radio’s sensitivity level helps minimize the possibility of unintended
noises triggering a transmission and helps the radio pick up soft voices.
1. Press \ until g displays.
4110w17o.book Page 26 Monday, January 20, 2003 12:20 PM
Accessories
27
Preliminary
2. Press ] or [ to select the sensitivity level:
Note: When you connect a VOX accessory, the radio is automatically set to the
last chosen sensitivity level.
3 = High Sensitivity
for quiet environments 2 = Medium Sensitivity
for most environments 1 = Low Sensitivity
for noisy environments
4110w17o.book Page 27 Monday, January 20, 2003 12:20 PM
38MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the
property of their respective owners.
• 22 Channels (8 GMRS,
7 GMRS) with
99 Interference
Eliminator Codes
GMRS channels feature
increased power for longer
range. 14 channesl ensure
backward compatibility with
FRS two-way radios.
Eliminator Codes help
minimize interference from
other groups.
• Up to 5 mile range*
*Range will vary based on
terrain and conditions.
• VibraCall
®
Alert)
Privately alerts you of an
incoming call (Models T5920
and T5950 only)
• Audible Call Tones
Multiple distinct ringing
options so your group can
identify who’s calling
• Enhanced Weather
Resistance (T5820 only)
Rubber seals provide added
protection against the elements
• Durable, fixed antenna
Maximizes talk range
• Talk Confirmation Tone
Signals others you are finished
talking
• Keypad Lock
Prevents your settings from
being accidentally changed
• Priority Scanning
Easily finds your group’s
channel and code by searching
all combinations
• Motorola Quality
Shock, drop, and temperature
tested to meet Motorola's high
quality standards
• Talk Handsfree (VOX)
Voice activation (VOX) lets
you talk handsfree when used
with optional accessories
• 1 Year Limited Warranty
To obtain a copy of this
warranty prior to purchase,
please ask your retailer
• User’s Guide included
• Low Battery Alert
Audible tone and visual
display tell you that your
battery is running down
• Quick Release Swivel
Belt Clip (included)
• Illuminated Display
Easy to read your settings in
dark places
FCC GMRS License
Required
PWARNING CHOKING HAZARD
SMALL PARTS
Not for children under 3 years.
This product is not intended to be used
as a toy or plaything.
