Potentially Explosive Atmospheres
Turn off your radio prior to entering any area with a potentially explosive atmosphere,
unless it is a radio type especially qualified for use in such areas as “intrinsically safe”.
Do not remove, install, or charge batteries in such areas. Sparks in a potentially
explosive atmosphere can cause an explosion or fire resulting in bodily injury or
even death.
Note: The areas with potentially explosive atmospheres referred to above include
fueling areas such as below decks on boats, fuel or chemical transfer or storage
facilities, areas where the air contains chemicals or particles, such as grain,dust,
or metal powders, and any other area where you would normally be advised to
turn off your vehicle engine. Areas with potentially explosive atmospheres are
often but not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn off your radio when you are
near electrical blasting caps, in a blasting area, or in areas posted: “Turn off two-way
radio.” Obey all signs and instructions.
Operational Cautions
Antennas
Do not use any portable radio that has a damaged antenna. If a damaged antenna
comes into contact with your skin, a minor burn can result.
Safety and General Information
Safety and General Information 7
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 9
Batteries
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed terminals.
The conductive material may complete an electrical circuit (short circuit) and become
quite hot. Exercise care in handling any charged battery, particularly when placing it
inside a pocket, purse, or other container with metal objects.
Battery Charger Safety Instructions
Save these Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate or disassemble the charger if it has received a sharp blow, or has
been dropped or damaged in any way.
3. Never alter the AC cord or plug provided with the unit. If the plug will not fit the
outlet, have the proper outlet installed by a qualified electrician. An improper
condition can result in a risk of electric shock.
4. To reduce the risk of damage to the cord or plug, pull the plug rather than the cord
when disconnecting the charger from the AC receptacle.
5. To reduce the risk of electric shock, unplug the charger from the outlet before
attempting any maintenance or cleaning.
6. Use of an attachment not recommended or sold with unit may result in a risk of fire,
electric shock, or personal injury.
8Safety and General Information
Safety and General Information
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 10
7. Make sure the cord is located so it will not be stepped on, tripped over, or subjected
to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in a risk of fire and/or electric shock. If an
extension cord must be used, make sure that:
uThe pins on the plug of the extension cord are the same number, size and shape as
those on the plug of the charger.
uThe extension cord is properly wired and in good electrical condition.
uThe cord size is 18 AWG for lengths up to 100 feet, and 16 AWG for lengths up to
150 feet.
9. The supply cord of this charger cannot be replaced. If the cord is damaged, call
Customer Service at 1-800-638-5156 in USA or Canada.
Safety and General Information
Safety and General Information 9
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 11
FCC Licensing Information
Your radio operates on General Mobile Radio Service (GMRS) frequencies and is
subject to the Rules and Regulations of the Federal Communications Commission
(FCC). The FCC requires that all operators using GMRS frequencies obtain a radio
license before operating their equipment. To obtain the FCC forms, please request
Form 605 and 159, which includes all forms and instructions. If you wish to have the
document faxed or mailed, or have questions, please use the following contact
information.
Faxed
Contact the Fax-On-
Demand system at:
Mailed
Call the FCC forms
hotline at:
Questions
Regarding FCC license
Contact the FCC at:
1-202-418-0177 1-800-418-FORM
(1-800-418-3676)
1-888-CALL-FCC
(1-888-225-5322)
Or: http://www.fcc.gov
Changes or modifications not expressly approved may void the user’s authority granted by
the FCC to operate this radio and should not be made. To comply with FCC requirements,
transmitter adjustments should be made only by or under the supervision of a person
certified as technically qualified to perform transmitter maintenance and repairs in the
private land mobile and fixed services as certified by an organization representative of the
user of those services. Replacement of any transmitter component (crystal, semiconductor,
etc.) not authorized by the FCC equipment authorization for this radio could violate FCC
rules.
Note: Use of this radio outside the country where it was intended to be distributed is
subject to government regulations and may be prohibited.
10 FCC Licensing Information
FCC Licensing Information
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 12
Use “MODE” to:
uSelect menu options
uExit the menu (when
pressed while in a
menu)
uLock and unlock the
keypad (when held
down and not in a
menu)
Accessory Jack
Use “MON” to:
uMonitor
Use and to:
uScroll through menus
Microphone
Use to:
uTurn radio on/off
uAdjust volume
LED Indicator Light
Use to:
uTalk
uSave a setting
Use “CALL” to:
uTransmit call tone
Speaker

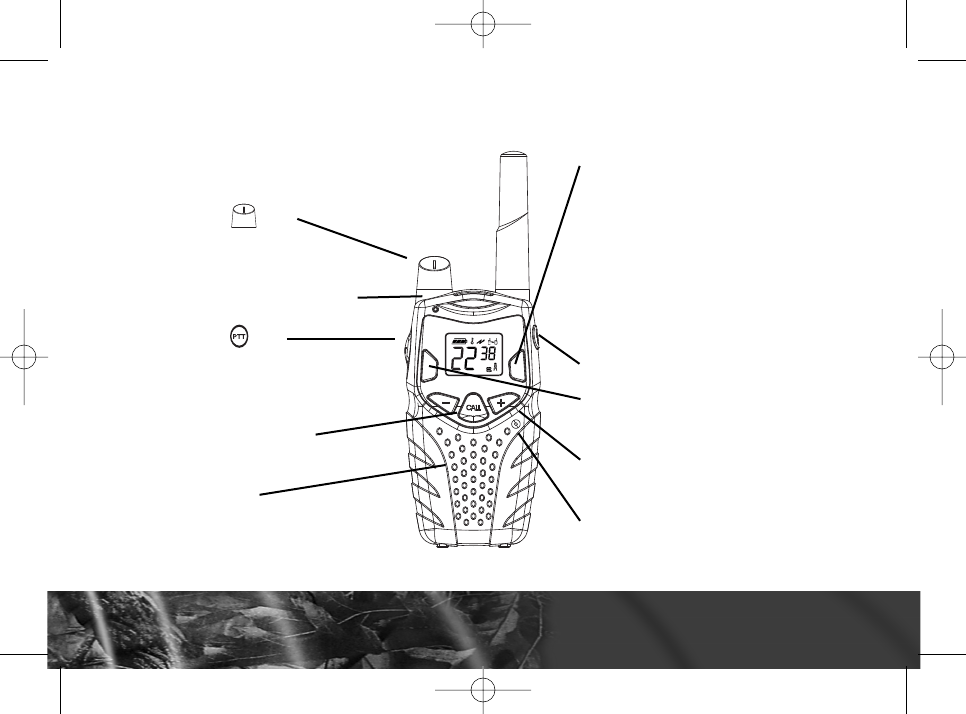

Control Buttons - Model RT210
l
+
Control Buttons - Model RT210
Control Buttons - Model RT210 11
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 13
Getting Started
Installing the AA Batteries
Your radio uses 3 AA Alkaline batteries.
1. With the back of the radio facing you, lift the battery latch up to
release the battery cover and remove the cover.
2. Insert 3 AA Alkaline batteries as shown on the inside of the
battery compartment.
3. Reposition the battery cover and press down to secure.
Note: The RT210 model radio can use a NiMH rechargeable
battery instead of 3 AA Alkaline batteries.
Installing the NiMH Battery Pack
1. Follow step 1 above to remove the battery cover.
2. Remove the battery pack from the clear plastic bag.
Do not disassemble or unwrap the battery pack.
3. Insert the NiMH battery pack so the metal contacts on the side of
the battery are facing outward from the radio to connect with the
contacts on the battery door.
4. Reposition the battery cover and press down to secure.
12 Getting Started
Getting Started
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 14
Battery Meter
The battery icon shows the battery charge level, from full to empty . When
the battery is empty, the radio chirps periodically after releasing . The radio powers
off when the voltage drops below a predetermined level to protect the rechargeable battery.
Note: Remove the batteries before storing your radio for extended periods of time.
Batteries corrode over time and may cause permanent damage to your radio.
Using the Desk Stand Charger
The desk stand charger provides drop-in charging convenience for NiMH batteries and
can be placed on any flat surface, such as a desk or workbench. Charge the NiMH battery
overnight (at least 16 hours) before using it for the first time. After the initial charge, an
empty battery is fully charged within 14 hours.
1. Turn the radio off and remove the battery cover.
2. Remove the battery pack from the clear plastic bag. Do not disassemble or unwrap
the battery pack.
3. Insert the NiMH battery pack so the metal contacts on the side of the battery are facing
outward from the radio to connect with the contacts on the battery door.
4. Reposition the battery cover and press down to secure.
5. Plug the AC power supply into the plug on the desk stand.
6. Plug the AC power supply into a standard wall outlet.
7. With the radio facing forward, slide it into one of the charging pockets.
Getting Started
Getting Started 13
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 15
Notes
u
The light on the charging base will glow continuously when radio/battery is inserted.
uWhen moving between hot and cold temperatures, do not charge the battery until the
battery temperature acclimates (usually about 20 minutes).
uFor optimal battery life, remove the radio or battery from the charger within 16 hours.
Do not store the radio in the charger.
Attaching the Belt Clip
1. Align the belt clip post with the hole in the back of the radio.
2. Gently push until the clip clicks into place.
Removing the Belt Clip
1. Push down on the release tab at the top of the belt clip to release the catch.
2. Pull the belt clip away from the back of the radio.
Turning Your Radio On and Off
Turn clockwise to turn the radio on and counterclockwise to turn the radio off.
The radio chirps and the display briefly shows all feature icons available on your radio.
Setting the Volume
Rotate while holding down “ MON” until you reach a comfortable listening level.
Rotate clockwise to increase the volume or counterclockwise to decrease the
volume.
14 Getting Started
Getting Started
Realtree 08-24-04.qxd 8/24/04 10:01 AM Page 16
