User Manual

www.philips.com/welcome

User manual

Always there to help you

Question?

Contact

Philips

1EN

Contents

1 Important 2

Help and support 2

Important safety instructions 2

Care for your product 4

Care of the environment 4

2 Your SoundBar 5

Main unit 5

Remote control 5

Connectors 6

Wireless subwoofer 6

3 Connect and set up 8

Pair up with the subwoofer 8

Placement 8

Connect to TV 8

Connect audio from TV and other devices 9

4 Use your SoundBar 11

Adjust the volume 11

Choose your sound 11

Play audio through Bluetooth 11

Play music via NFC 12

USB storage devices 13

Auto standby 13

Set display brightness 13

Apply factory settings 13

5 Update software 14

Check software version 14

Update software via USB 14

6 Wall mount 15

7 Productspecications 16

8 Troubleshooting 17

9 Notice 19

Notice of compliance 19

2 3ENEN

• Install all batteries correctly, + and - as

marked on the unit.

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

• The batteries shall not be exposed to

excessiveheatsuchassunshine,reor

the like.

• Perchlorate Material - special handling

may apply. See www.dtsc.ca.gov/

hazardouswaste/perchlorate.

• The product/remote control may contain

a coin/button type battery, which can be

swallowed. Keep the battery out of reach

of children at all times! If swallowed, the

battery can cause serious injury or death.

Severe internal burns can occur within two

hours of ingestion.

• If you suspect that a battery has been

swallowed or placed inside any part of the

body, seek immediate medical attention.

• When you change the batteries, always

keep all new and used batteries out of

reach of children. Ensure that the battery

compartment is completely secure after

you replace the battery.

• If the battery compartment cannot be

completely secured, discontinue use of the

product. Keep out of reach of children and

contact the manufacturer.

•Apparatus shall not be exposed to

dripping or splashing.

•Do not place any sources of danger on

the apparatus (forexample.liquidlled

objects, lighted candles).

•This apparatus may contain lead and

mercury. Dispose according to local, State

or Federal laws. For disposal or recycling

information, please contact your local

authorities. For additional assistance on

recycling options, please contact www.

mygreenelectronics.com or www.eiae.org

or www.recycle.philips.com.

•Where the MAINS plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

•Do not place this apparatus on the

furniture that is capable of being tilted by a

child and an adult leaning, pulling, standing

or climbing on it. A falling apparatus can

cause serious injury or even death.

• This apparatus should not be placed in a

built-in installation such as a bookcase or

rack unless proper ventilation is provided.

Make sure to leave a space of 7.8 inches

(20cm) or more around this apparatus.

Class II equipment symbol

This symbol indicates that the unit has a double

insulation system.

This 'bolt of lightning' indicates uninsulated

material within your unit may cause an electrical

shock. For the safety of everyone in your

household, please do not remove product

covering.

The 'exclamation point' calls attention to

features for which you should read the enclosed

literature closely to prevent operating and

maintenance problems.

WARNING:Toreducetheriskofreor

electric shock, this apparatus should not be

exposedtorainormoistureandobjectslled

with liquids, such as vases, should not be placed

on this apparatus.

CAUTION: To prevent electric shock, match

wide blade of plug to wide slot, fully insert.

1 Important

Read and understand all instructions before you

use your product. If damage is caused by failure

to follow instructions, the warranty does not

apply.

Help and support

For extensive online support, visit www.philips.

com/support to:

• download the user manual and the quick

start guide

• watch video tutorials (available only for

selected models)

• ndanswerstofrequentlyanswered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to select

your language, and then enter your product

model number.

Alternatively, you can contact Consumer Care

in your country. Before you contact, note down

the model number and serial number of your

product.Youcanndthisinformationonthe

back or bottom of your product.

Important safety instructions

•Read these instructions.

•Keep these instructions.

•Heed all warnings.

•Follow all instructions.

•Do not use this apparatus near water.

•Clean only with dry cloth.

•Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

•Do not install near any heat sources

such as radiators, heat registers, stoves, or

otherapparatus(includingampliers)that

produce heat.

•Do not defeat the safety purpose of

the polarized or grounding-type plug. A

polarized plug has two blades with one

wider than the other. A grounding type

plug has two blades and a third grounding

prong. The wide blade or the third prong

are provided for your safety. If the provided

plugdoesnottintoyouroutlet,consult

an electrician for replacement of the

obsolete outlet.

•Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

•Only use attachments/accessories

speciedbythemanufacturer.

•Use only with the cart, stand, tripod,

bracketortablespeciedbythe

manufacturer or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

•Unplug this apparatus during lightning

storm or when unused for long periods of

time.

•Refer all servicing toqualiedservice

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

•Battery usage CAUTION - To prevent

battery leakage which may result in bodily

injury, property damage, or damage to the

unit:

4 5ENEN

2 Your SoundBar

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfrom

the support that Philips offers, register your

SoundBar at www.philips.com/welcome.

Main unit

This section includes an overview of the main

unit.

a (Standby-On/Standby indicator)

• Switch the SoundBar on or to standby.

• When the SoundBar is in standby, the

standby indicator turns red.

b SOURCE

Select an input source for the SoundBar.

c Display panel

d +/- (Volume)

Increase or decrease volume.

e NFC tag

Tap the NFC-enabled device on the tag for

Bluetooth connection.

Remote control

This section includes an overview of the

remote control.

d ea b c

a (Standby-On)

• Switch the SoundBar on or to standby.

• When EasyLink is enabled on your TV

(CEC is default on for the SoundBar),

press and hold for at least three

seconds to switch all connected HDMI

CEC compliant devices to standby.

b Source buttons

HDMI ARC: Switch your source to HDMI

ARC connection.

: Switch to Bluetooth mode.

USB: Switch to USB mode.

AUX: Switch your audio source to the

AUX connection.

COAX: Switch your audio source to the

coaxial connection.

OPTICAL: Switch your audio source to

the optical connection.

e l

Care for your product

Useonlymicroberclothtocleantheproduct.

Care of the environment

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused. Please

visit www.recycle.philips.com for additional

information on a recycling center in your area.

Never dispose of your product with other

household waste. Please inform yourself about

the local rules on the separate collection of

electrical and electronic products and batteries.

The correct disposal of these products helps

prevent potentially negative consequences on

the environment and human health.

The batteries supplied do not contain the heavy

metals mercury and cadmium. Nevertheless,

in many areas batteries may not be disposed

of with your household waste. Please ensure

you dispose of batteries according to local

regulations.

For perchlorate material, special handling may

apply. Visit www.dtsc.ca.gov/hazardouswaste/

perchlorate.

6 7ENEN

a CONNECT (connect)

Press to to enter the pairing mode for the

subwoofer.

b Subwoofer indicator

• When the power is turned on, the

indicator lights up.

• During wireless pairing between the

subwoofer and the main unit, the

indicator blinks white quickly.

• When the pairing succeeds, the

indicator lights up white.

• When the pairing fails, the indicator

blinks white slowly.

c AC MAINS~

Connect to the power supply.

c / (Previous/Next)

Skip to the previous or next track in USB

mode.

d (Play/Pause)

• Start, pause or resume play in USB

mode.

e BASS +/-

Increase or decrease bass.

f Volume control

+/-: Increase or decrease volume.

: Mute or restore volume.

g SOUND

Select a sound mode.

h SURROUND ON/OFF

Select surround or stereo sound.

i AUDIO SYNC +/-

Increase or decrease audio delay.

j DIM

Set the brightness of SoundBar display

panel.

k NIGHT

Turn night mode on or off.

l TREBLE +/-

Increase or decrease treble.

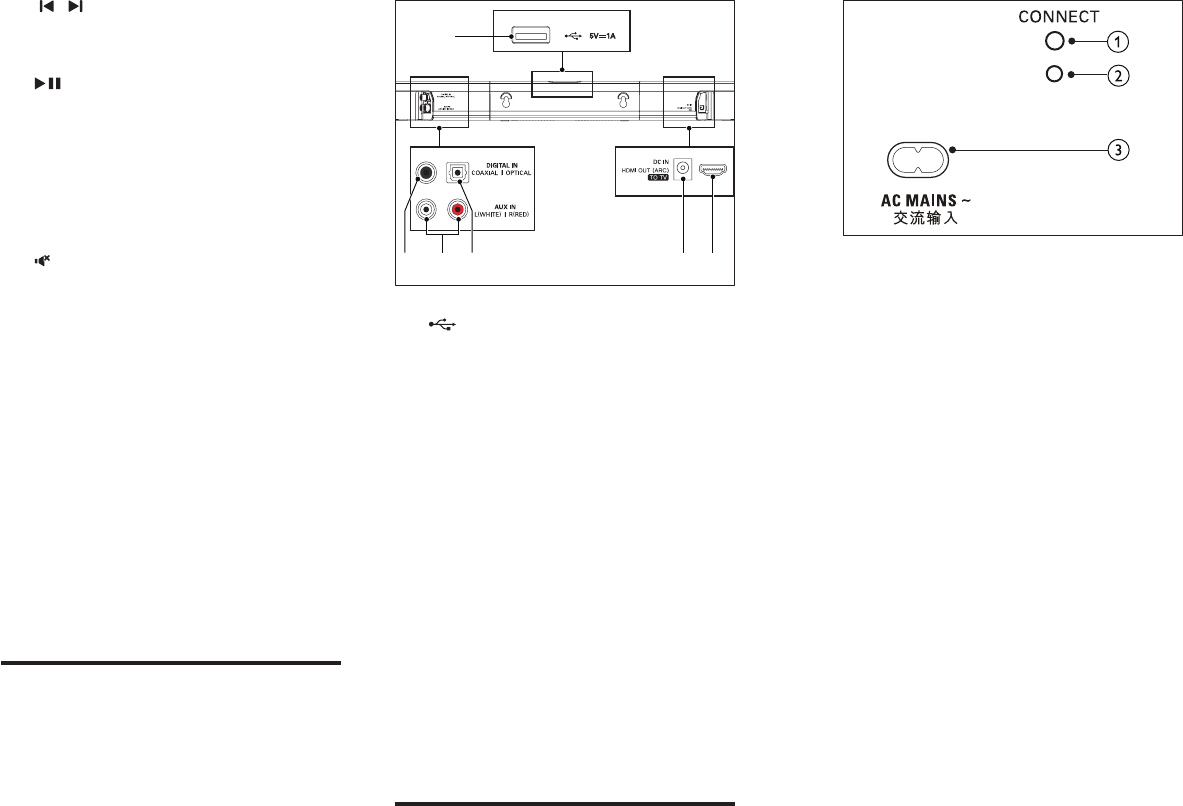

Connectors

This section includes an overview of the

connectors available on your SoundBar.

• Audio input from a USB storage

device.

• Upgrade software of this product.

• Charge a USB device.

b DIGITAL IN-COAXIAL

Connect to a coaxial audio output on the

TV or a digital device.

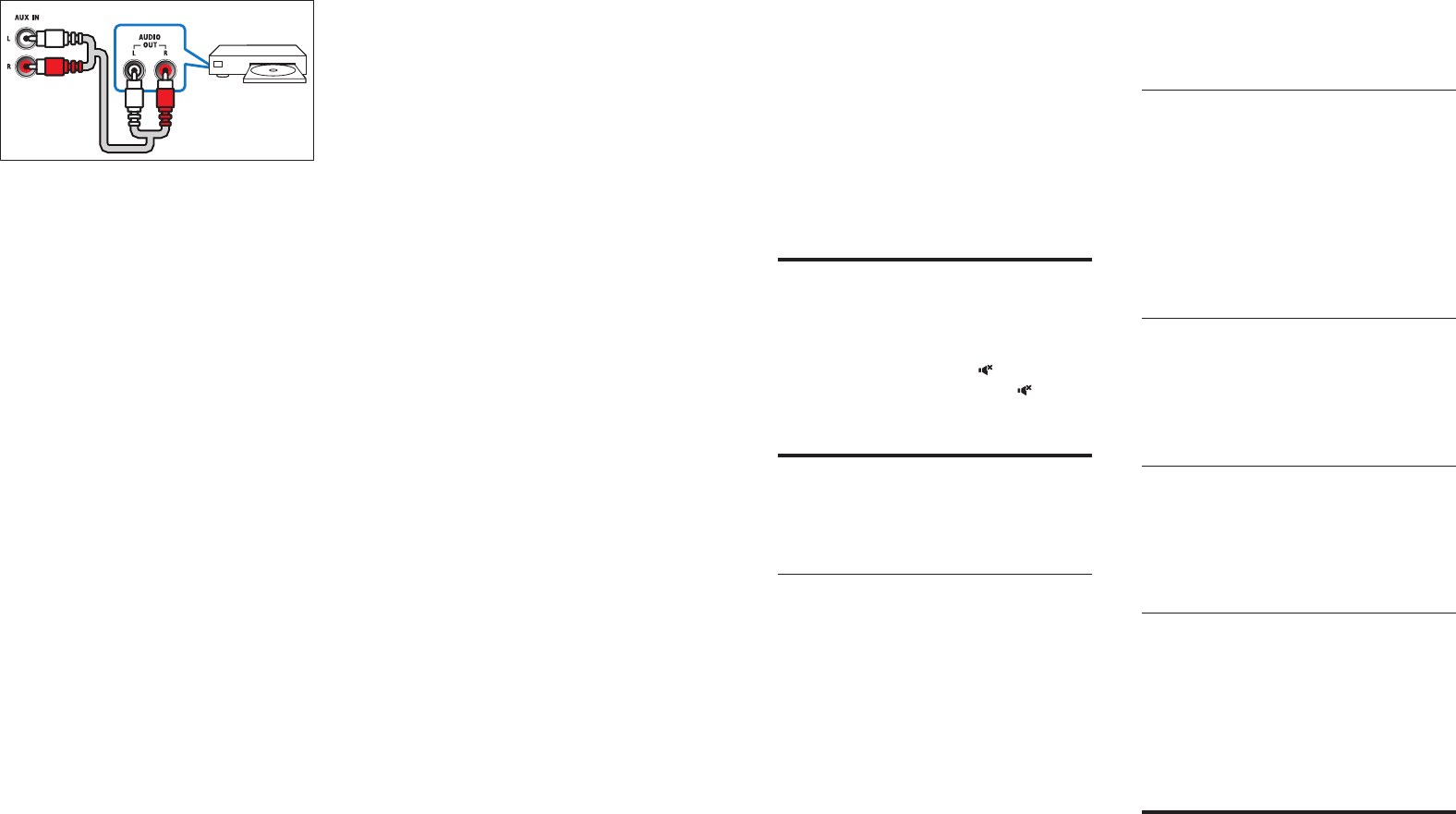

c AUX IN (L/R)

Connect to an analog audio output on the

TV or an analog device.

d DIGITAL IN-OPTICAL

Connect to an optical audio output on the

TV or a digital device.

e DC IN

Connect to the power supply.

f TO TV-HDMI OUT (ARC)

Connect to the HDMI input on the TV.

Wireless subwoofer

The SoundBar comes with a wireless subwoofer.

bdcef

8 9ENEN

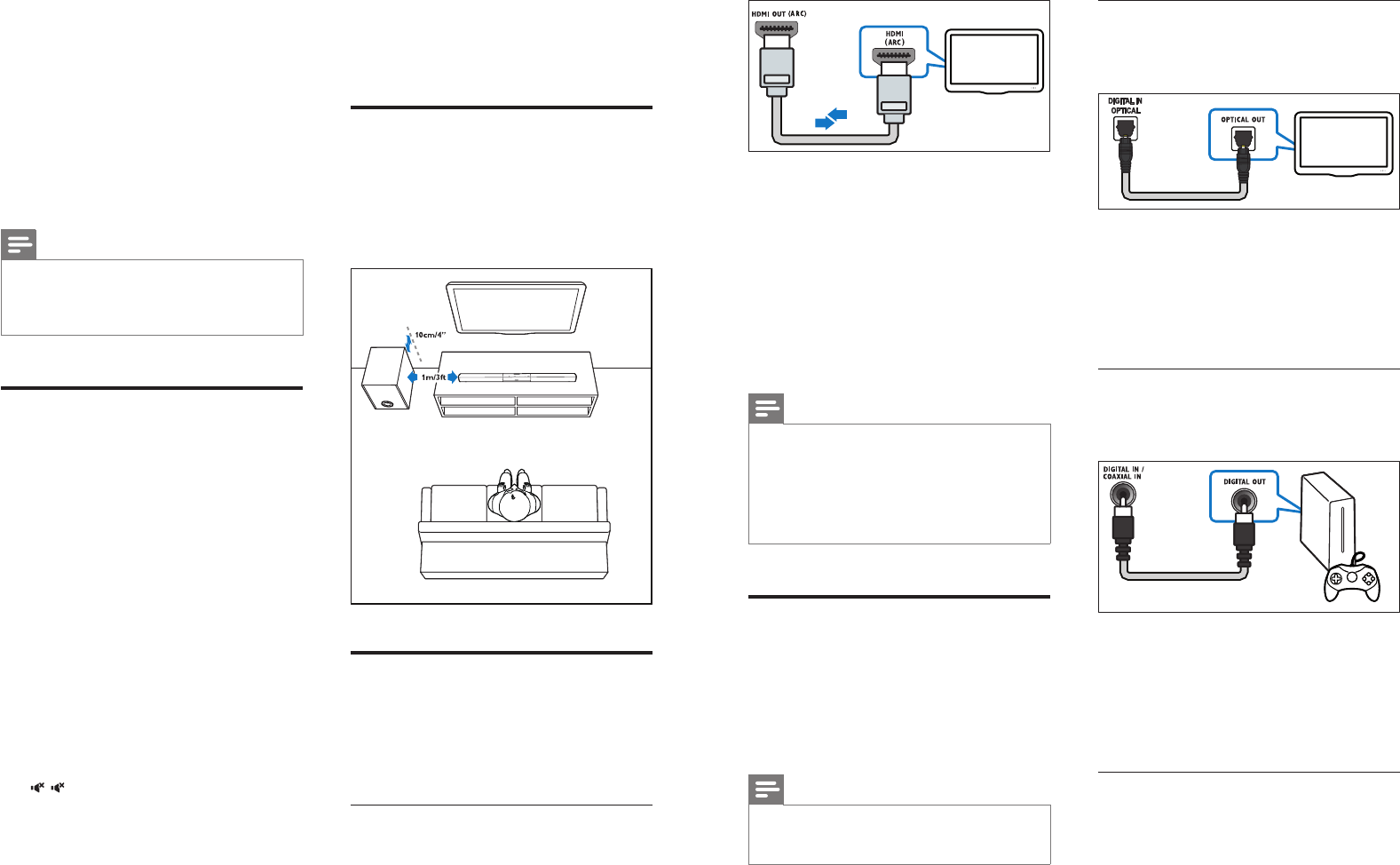

1 Using a High Speed HDMI cable, connect

the HDMI OUT (ARC)-TO TV connector

on your SoundBar to the HDMI ARC

connector on the TV.

• The HDMI ARC connector on the TV

might be labeled differently. For details,

see the TV user manual.

2 On your TV, turn on HDMI-CEC

operations. For details, see the TV user

manual.

Note

•If your TV is not HDMI ARC compliant, connect

an audio cable to hear the TV audio through your

SoundBar (see 'Connect audio from TV and other

devices' on page 9).

•If your TV has a DVI connector, you can use an HDMI/

DVI adapter to connect to TV. However, some of the

features may not be available.

Connect audio from TV and

other devices

Play audio from TV or other devices through

your Soundbar speakers.

Use the best quality connection available on

your TV, Soundbar, and other devices.

Note

•When your Soundbar and TV are connected through

HDMI ARC, an audio connection is not required. (see

'Connect to TV through HDMI (ARC)' on page 8)

Option 1: Connect audio through a

digital optical cable

Best quality audio

1 Using an optical cable, connect the

OPTICAL connector on your SoundBar to

the OPTICAL OUT connector on the TV

or other device.

• The digital optical connector might be

labeled SPDIF or SPDIF OUT.

Option 2: Connect audio through a

digital coaxial cable

Good quality audio

1 Using a coaxial cable, connect the

COAXIAL connector on your SoundBar

to the COAXIAL/DIGITAL OUT

connector on the TV or other device.

• The digital coaxial connector might be

labeled DIGITAL AUDIO OUT.

Option 3: Connect audio through

analog audio cables

Basic quality audio

1 Using an analog cable, connect the AUX

connectors on your SoundBar to the

3 Connect and set

This section helps you connect your SoundBar

to a TV and other devices, and then set it up.

For information about the basic connections of

your SoundBar and accessories, see the quick

start guide.

Note

•Foridenticationandsupplyratings,seethetypeplate

at the back or bottom of the product.

•Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Pair up with the subwoofer

The wireless subwoofer automatically pairs

up with the SoundBar for wireless connection

when you turn on the SoundBar and the

subwoofer.

If no audio from the wireless subwoofer can be

heard, manually pair up the subwoofer.

1 Turn on the SoundBar and the subwoofer.

» If the connection to the SoundBar is

lost, the indicator on the subwoofer

blinks white slowly.

2 Press the CONNECT (connect) button

on the subwoofer to enter the pairing

mode.

» The indicator on the subwoofer blinks

white quickly.

3 Ontheremotecontrol,pressbriey

, and BASS +, then within six seconds,

press and hold SURROUND ON.

» If the pairing succeeds, the indicator on

the subwoofer lights up white.

» If the pairing fails, the indicator on the

subwoofer blinks white slowly.

4 If the pairing fails, repeat the steps above.

Press [MUTE][MUTE] [BASS+] ,then Long

Press [SURR ON] within 6 secs to enter to the

pairing mode.

Placement

Place the subwoofer at least 1 meter (3 feet)

away from your SoundBar, and ten centimeters

away from the wall.

For best results, place your subwoofer as shown

below.

Connect to TV

Connect your SoundBar to a TV. You can listen

to audio from TV programs through your

SoundBar. Use the best quality connection

available on your SoundBar and TV.

Connect to TV through HDMI (ARC)

Your SoundBar supports HDMI with Audio

Return Channel (ARC). If your TV is HDMI ARC

compliant, you can hear the TV audio through

your SoundBar by using a single HDMI cable.

10 11ENEN

4 Use your

SoundBar

This section helps you use the SoundBar to play

audio from connected devices.

Before you start

• Make the necessary connections described

in the quick start guide and the user

manual.

• Switch the SoundBar to the correct source

for other devices.

Adjust the volume

1 Press +/- (Volume) to increase or decrease

a volume level.

• To mute sound, press (Mute).

• To restore the sound, press (Mute)

again or press +/- (Volume).

Choose your sound

This section helps you choose the ideal sound

for your video or music.

Sound mode

Selectpredenedsoundmodestosuityour

video or music.

1 Press SOUND to select a sound option

from the display panel.

• AUTO: Automatically select a sound

setting based on the sound stream.

• POWERFUL: Enjoy thrilling arcade

sounds, ideal for action-packed videos

and loud parties.

• BALANCED: Experience the original

sound of your movies and music,

without added sound effects.

• BRIGHT: Spice up your dull movies

and music with added sound effects.

• CLEAR: Hear every detail in your

music and clear voices in your movies.

• WARM: Experience spoken words and

music vocals in comfort.

• PERSONAL: Personalize the sound

based on your preferences.

Surround sound mode

Experience an immersive audio experience with

surround sound modes.

1 Press SURROUND ON/OFF to turn

surround mode on or off.

• On: Create a surround listening

experience.

• Off: Two-channel stereo sound. Ideal

for listening to music.

Equalizer

Change the high frequency (treble) and low

frequency (bass) settings of the SoundBar.

1 Press TREBLE +/- or BASS +/- to change

the frequency.

Synchronize picture and sound

If the audio and video are not synchronized,

delay the audio to match the video.

1 Press AUDIO SYNC +/- to synchronize

the audio with the video.

Night mode

For quiet listening, night mode decreases the

volume of loud sounds when audio is played.

Night mode is only available for Dolby Digital

soundtracks.

1 Press NIGHT to turn night mode on or

off.

Play audio through Bluetooth

Through Bluetooth, connect the SoundBar with

your Bluetooth device (such as an iPad, iPhone,

AUDIO OUT connectors on the TV or

other device.

DVD

12 13ENEN

USB storage devices

Enjoy audio on a USB storage device, such as an

MP3playerandUSBashmemory,etc.

What you need

• A USB storage device that is formatted for

FATorNTFSlesystems,andcomplies

with the Mass Storage Class.

• AnMP3orWMAleonaUSBstorage

device

1 Connect a USB storage device to this

product.

2 Press USB on the remote control.

3 Use the remote control to control play.

Button Action

Start, pause or resume play.

/ Skip to the previous or next track.

USB During USB play, press repeatedly to

selectarepeatorshufemode,or

turn off a play mode.

Note

•This product may not be compatible with certain types

of USB storage device.

•If you use a USB extension cable, USB HUB, or USB

multi-reader, the USB storage device may not be

recognized.

•Digital camera PTP and MTP protocols are not

supported.

•Do not remove the USB storage device while it is

being read.

•DRM-protectedmusicles(MP3,WMA)arenot

supported.

•Support a USB port: 5V , 1A.

Auto standby

When playing media from a connected device,

the SoundBar automatically switches to standby

if:

• no button is pressed for 29 minutes, and

• no audio/video play from a connected

device.

Set display brightness

You can press DIM repeatedly to select a

different brightness level of the display panel on

this product.

Apply factory settings

You can reset this product to the default

settings programmed at the factory.

1 In AUX mode, within three seconds, press

- (Volume), BASS - and TREBLE -.

» When the factory settings restore is

complete, the product automatically

switches off and restarts.

iPod touch, Android phone, or laptop), and then

youcanlistentotheaudiolesstoredonthe

device through your SoundBar speakers.

What you need

• A Bluetooth device which supports

BluetoothproleA2DP,AVRCPandwith

Bluetooth version as 3.0 + EDR.

• The operational range between the

SoundBar and a Bluetooth device is

approximately 10 meters (30 feet).

1 Press on the remote control to switch

the SoundBar to Bluetooth mode.

» BT is displayed on the display panel,

blinking.

2 On the Bluetooth device, switch on

Bluetooth, search for and select PHILIPS

3110B to start connection (see the user

manual of the Bluetooth device on how to

enable Bluetooth).

» During connection, BT on the display

panel blinks.

3 Wait until you hear a beep sound from the

SoundBar.

» When the Bluetooth connection

succeeds, BT is displayed on the display

panel without blinking.

» If the connection fails, BT on the

display panel blinks continuously.

4 Selectandplayaudiolesormusicon

your Bluetooth device.

• During play, if a call is coming, music

play is paused. Play resumes when the

call ends.

• If your Bluetooth device supports

AVRCPprole,ontheremotecontrol

you can press / to skip to a track,

or press to pause/resume play.

5 To exit Bluetooth, select other source.

• When your switch back to Bluetooth

mode, Bluetooth connection remains

active.

Note

•The music streaming may be interrupted by obstacles

between the device and SoundBar, such as wall, metallic

casing that covers the device, or other devices nearby

that operate in the same frequency.

•If you want to connect your SoundBar with another

Bluetooth device, press and hold on the remote

control to disconnect the currently connected

Bluetooth device.

•Philips does not guarantee 100% compatibility with all

Bluetooth devices.

Play music via NFC

NFC (Near Field Communication) is a

technology that enables short-range wireless

communication between NFC-enabled devices,

such as mobile phones.

What you need

• A Bluetooth device with NFC function.

• For pairing, tap the NFC device on the

NFC tag of the SoundBar.

• The operational range between

the SoundBar and a NFC device is

approximately 10 meters (30 feet).

1 Enable NFC on the Bluetooth device (see

the device' s user manual for details).

2 Tap the NFC device on the NFC tag of

the SoundBar until you hear a beep sound

from the SoundBar.

» When the Bluetooth connection

succeeds, BT is displayed on the display

panel without blinking.

» If the connection fails, BT on the

display panel blinks continuously.

3 Selectandplayaudiolesormusicon

your NFC device.

• To break the connection, tap again the

NFC device with the NFC tag on the

SoundBar.

"HTL2163B/F7.BIN".

le

named "HTL2163B/F7.BIN".

14 15ENEN

6 Wall mount

Note

•Improper wall mounting may result in accident, injury or

damage. If you have any query, contact Consumer Care

in your country.

•Before wall mounting, make sure the wall can support

the weight of your SoundBar.

•Before wall mount, you need not remove the four

rubber feet at the bottom of the SoundBar, otherwise

therubberfeetcannotbexedback.

Screw length/diameter

Depending on the type of wall mounting your

SoundBar, make sure that you use screws of a

suitable length and diameter.

See the illustration in the quick start guide on

how to wall mount the SoundBar.

1) Drill two holes on the wall.

2) Secure the dowels and screws in the holes.

3) Hang the SoundBar on the fastening screws.

> 25mm

3.5-4mm

4mm

5 Update software

To get the best features and support, update

your product with the latest software.

What you need

• Connect this product to your TV through

HDMI.

Check software version

• In any source mode, press TREBLE -, BASS

- and - (Volume) on the remote control.

Update software via USB

1 Check the latest software version on www.

philips.com/support.

• Search for your model and click on

"Software and drivers".

2 Download the software into a USB storage

device.

a Unzip the download if zipped, and

makesurethattheunzippedleis

b Putthe  inthe

root directory.

3 Connect the USB storage device to the

(USB) connector on this product.

4 Switch this product to the HDMI ARC

source, and switch your TV to the HDMI

source.

5 On the remote control, within 6 seconds

press twice, and VOL + once, then hold

down SURROUND ON.

» If an upgrade media is detected, on the

TV screen you are prompted to start

the update.

» If an upgrade media is not detected,

an error message is displayed on the

TV screen. Make sure that the latest

software of this product is put in the

USB storage device.

6 Press to start the update.

7 Wait until the update is completed.

» If the update is complete, this product

automatically turns off and on again.

Caution

•Do not turn off the power or remove the USB storage

device when the software update is in progress because

you might damage this player.

16 17ENEN

8 Troubleshooting

Warning

•Risk of electric shock. Never remove the casing of the

product.

To keep the warranty valid, never try to repair

the product yourself.

If you have problems using this product, check

the following points before you request service.

If you still have a problem, get support at www.

philips.com/support.

Main unit

The buttons on the SoundBar do not work.

• Disconnect the SoundBar from the power

supply for a few minutes, then reconnect.

Sound

No sound from SoundBar speakers.

• Connect the audio cable from your

SoundBar to your TV or other devices.

However, you do not need a separate

audio connection when the SoundBar and

TV are connected through HDMI ARC

connection.

• Reset your SoundBar to its factory settings.

• On the remote control, select the correct

audio input.

• Make sure that the SoundBar is not muted.

Distorted sound or echo.

• If you play audio from the TV through the

SoundBar, make sure that the TV is muted.

Audio and video are not synchronized.

• Press AUDIO SYNC +/- to synchronize

the audio with the video.

Error message is displayed on the display

panel.

• When "ERROR" is displayed, it indicates

that an input audio format is not

supported.

• When "USB ERROR" is displayed, it

indicates that the connected USB device is

not supported.

• When "HDMI ARC" blinks, it indicates

that the connected TV is not HDMI ARC

compliant or an unsupported audio format

is detected.

Bluetooth

A device cannot connect with the SoundBar.

• The device does not support the

compatibleprolesrequiredforthe

SoundBar.

• You have not enabled the Bluetooth

function of the device. See the user manual

of the device on how to enable the

function.

• The device is not correctly connected.

Connect the device correctly.

• The SoundBar is already connected with

another Bluetooth device. Disconnect the

connected device, then try again.

Quality of audio play from a connected

Bluetooth device is poor.

• The Bluetooth reception is poor. Move the

device closer to the SoundBar, or remove

any obstacle between the device and the

SoundBar.

The connected Bluetooth device connects and

disconnects constantly.

• The Bluetooth reception is poor. Move the

device closer to the SoundBar, or remove

any obstacle between the device and the

SoundBar.

• Turn off Wi-Fi function on the Bluetooth

device to avoid interference.

• For some Bluetooth, the Bluetooth

connection can be deactivated

automatically to save power. This does not

indicate any malfunction of the SoundBar.

NFC

A device cannot connect with the SoundBar

via NFC.

7 Product

specifications

Note

•Specicationsanddesignaresubjecttochangewithout

notice.

Amplier

• FTC total output power: 40W

• Left + Right: 25W (1%THD, 8ohm,

120Hz-20kHz)

• Subwoofer: 15W (1%THD, 4ohm,

30Hz-80Hz)

• RMS Total output power: 120W RMS (+/-

0.5 dB, 10% THD)

• Frequency response: 20 Hz-20 kHz / ±3

• Signal-to-noise ratio: > 65 dB (CCIR) /

(A-weighted)

• Input sensitivity:

• AUX: 900 mV

Audio

• S/PDIF Digital audio input:

• Coaxial: IEC 60958-3

• Optical: TOSLINK

USB

• Compatibility: Hi-Speed USB (2.0)

• Class support: USB Mass Storage Class

(MSC)

• File system: FAT16, FAT32, NTFS

• SupportsMP3andWMAleformats

• Sampling frequency:

• MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz, 22

kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 8 kbps-320 kbps

• WMA: 32 kbps-192 kbps

• Version:

• WMA: V7, V8, V9

Bluetooth

•Bluetoothproles:A2DP,AVRCP

•Bluetooth version: 3.0 + EDR

Main unit

•Power supply:

• Model (Philips AC power adapter):

DYS602-210309W; AS650-210-AA309

• Input: 100-240 V~, 50/60 Hz 1.5 A

• Output: 21V , 3.09A

•Standbypowerconsumption:≤0.5W

• Speaker impedance

• Woofer: 8 ohm

• tweeter: 16 ohm

• Speaker drivers: 2 x (90mm/3.5" x

34mm/1.3") woofer + 2 x 31mm/1.2"

tweeter

•Dimensions (WxHxD): 843 x 52 x 60 mm

•Weight: 1.4 kg

Subwoofer

• Power supply: 110-240 V~, 50-60 Hz

• Power consumption: 20 W

• Standbypowerconsumption:≤0.5W

• Impedance: 4 ohm

• Speaker drivers: 1 x 165 mm (6.5") woofer

• Dimensions (WxHxD): 226 x 251 x 306

• Weight: 3.9 kg

Remote control batteries

• 1 x AAA-R03-1.5 V

18 19ENEN

9 Notice

This section contains the legal and trademark

notices.

Notice of compliance

The device complies with the FCC rules, Part

15. Operation is subject to the following two

conditions:

a This device may not cause harmful

interference, and

b This device must accept any interference

received, including interference that may

cause undesired operation.

FCC rules

This equipment has been tested and found

to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment generates,

uses and can radiate radio frequency energy

and, if not installed and used in accordance

with the instruction manual, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception,

which can be determined by turning the

equipment off and on, the user is encouraged

to try to correct the interference by one or

more of the following measures:

• Relocate the receiving antenna.

• Increase the separation between

equipment and receiver.

• Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced

radio/TV technician for help.

FCC Radiation Exposure Statement:This

equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment. This equipment should be installed

and operated with a minimum distance of

20cm between the radiator and your body.

This transmitter must not be co-located or

operated in conjunction with any other antenna

or transmitter.

Warning:Anychangesormodicationsmade

to this device that are not expressly approved

by WOOX Innovations may void the user’s

authority to operate the equipment.

Trade Name: Philips

Responsible Party:P&F USA, Inc. PO Box 2248

Alpharetta, GA 30023-2248; 1-866-310-0744

Canada:

CAN ICES(B)/NMB-3(B)

This device complies with Industry Canada

licence-exempt RSS standard(s). Operation is

subject to the following Two conditions: (1) this

device may not cause harmful interference, and

(2) this device must accept any interference

received, including interference that may cause

undesired operation.

• Make sure that the device is supported by

NFC.

• Make sure that NFC is enabled on the

device (see the device' s user manual for

details).

• For pairing, tap the NFC device on the

NFC tag of the SoundBar.

Model number: PHILIPS HTL2163B/F7

Le présent appareil est conforme aux CNR d'Industrie

Canada applicables aux appareils radio exempts de

licence. L'exploitation est autorisée aux deux

conditions suivantes : (1) l'appareil ne doit pas

produire de brouillage, et (2) l'utilisateur de l'appareil

doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d'en

compromettre le fonctionnement.

The device meets the exemption from the routine

evaluation limits in section 2.5 of RSS 102 and

compliance with RSS-102 RF exposure, users can

obtain Canadian information on RF exposure and

compliance.

Le dispositif rencontre l'exemption des limites

courantes d'évaluation dans la section 2.5 de RSS

102 et la conformité à l'exposition de RSS-102 rf,

utilisateurs peut obtenir l'information canadienne sur

l'exposition et la conformité de rf.



Bulgarian

Български

Cнастоящето,WOOXInnovationsLimitedдекларира,четовабезжичноустройствоев

съответствиесъссъщественитеизискванияидругитеприложимиразпоредбина

Директива1999/5/EC.

Czech

Česky

WOOXInnovationsLimited tímtoprohlašuje,žetentoRadioLANdevicejeveshoděse

základnímipožadavkyadalšímipříslušnýmiustanovenímisměrnice1999/5/ES.

Danish

Dansk

UndertegnedeWOOXInnovationsLimitederklærerherved,atfølgendeudstyrRadioLAN

deviceoverholderdevæsentligekravogøvrigerelevantekravidirektiv1999/5/EF

Dutch

Nederlands

HierbijverklaartWOOXInnovationsLimiteddathettoestelRadioLANdevicein

overeenstemmingismetdeessentiëleeisenendeandererelevantebepalingenvanrichtlijn

1999/5/EG

BijdezeWOOXInnovationsLimiteddatdezeRadioLANdevicevoldoetaandeessentiëleeisen

enaandeoverigerelevantebepalingenvanRichtlijn1999/5/EC.

EnglishHereby,WOOXInnovationsLimited,declaresthatthisRadioLANdeviceisincompliancewith

theessentialrequirementsandotherrelevantprovisionsofDirective1999/5/EC.

Estonian

Eesti

KäesolevagakinnitabWOOXInnovationsLimitedseadmeRadioLANdevicevastavustdirektiivi

1999/5/EÜpõhinõuetelejanimetatuddirektiivisttulenevateleteisteleasjakohastelesätetele.

Finnish

Suomi

ValmistajaWOOXInnovationsLimitedvakuuttaatätenettäRadioLANdevicetyyppinenlaiteon

direktiivin1999/5/EYoleellistenvaatimustenjasitäkoskeviendirektiivinmuidenehtojen

mukainen.

French

Français

ParlaprésenteWOOXInnovationsLimiteddéclarequel'appareilRadioLANdeviceest

conformeauxexigencesessentiellesetauxautresdispositionspertinentesdeladirective

1999/5/CE

German

Deutsch

HiermiterklärtWOOXInnovationsLimited,dasssichdieser/diese/diesesRadioLANdevicein

ÜbereinstimmungmitdengrundlegendenAnforderungenunddenanderenrelevanten

VorschriftenderRichtlinie1999/5/EGbefindet".(BMWi)

HiermiterklärtWOOXInnovationsLimiteddieÜbereinstimmungdesGerätesRadioLANdevice

mitdengrundlegendenAnforderungenunddenanderenrelevantenFestlegungender

Richtlinie1999/5/EG.(Wien)

Greek

Ελληνική

μετηνπαρουσαWOOXInnovationsLimitedδηλωνειοτιradioLANdeviceσυμμορφωνεται

προστισουσιωδεισαπαιτησεισκαιτισλοιπεσσχετικεσδιαταξειστησοδηγιασ1999/5/εκ.

Hungarian

Magyar

Alulírott,WOOXInnovationsLimitednyilatkozom,hogyaRadioLANdevicemegfelela

vonatkozóalapvetõkövetelményeknekésaz1999/5/ECirányelvegyébelõírásainak.

Italian

Italiano

ConlapresenteWOOXInnovationsLimiteddichiarachequestoRadioLANdeviceèconformeai

requisitiessenzialiedallealtredisposizionipertinentistabilitedalladirettiva1999/5/CE.

Latvian

Latviski

AršoWOOXInnovationsLimited deklarē,kaRadioLANdeviceatbilstDirektīvas1999/5/EK

būtiskajāmprasībāmuncitiemartosaistītajiemnoteikumiem.

Lithuanian

Lietuvių

ŠiuoWOOXInnovationsLimiteddeklaruoja,kadšisRadioLANdeviceatitinkaesminius

reikalavimusirkitas1999/5/EBDirektyvosnuostatas.

Maltese

Malti

Hawnhekk,WOOXInnovationsLimited,jiddikjaralidanRadioLANdevicejikkonforma

mal‐ħtiġijietessenzjaliumaprovvedimentioħrajnrelevantilihemmfid‐Dirrettiva1999/5/EC.

Polish

Polski

NiniejszymWOOXInnovationsLimitedoświadcza,żeRadioLANdevicejestzgodnyz

zasadniczymiwymogamiorazpozostałymistosownymipostanowieniamiDyrektywy1999/5/EC.

Portuguese

Português

WOOXInnovationsLimiteddeclaraqueesteRadioLANdeviceestáconformecomosrequisitos

essenciaiseoutrasdisposiçõesdaDirectiva1999/5/CE.

Romanian

Romană

WOOXInnovationsLimiteddeclarăcăacestdispozitivfărăfirrespectăcerințeleesențiale

precumşialtedispozițiirelevantealeDirectivei1999/5/EC.



Slovak

Slovensky

WOOXInnovationsLimited týmtovyhlasuje,že RadioLANdevicespĺňazákladnépožiadavkya

všetkypríslušnéustanoveniaSmernice1999/5/ES.

Slovenian

Slovensko

WOOXInnovationsLimitedizjavlja,dajetaradioLANdevicevskladuzbistvenimizahtevamiin

ostalimirelevantnimidoločilidirektive1999/5/ES.

Spanish

Español

PormediodelapresenteWOOXInnovationsLimiteddeclaraqueelRadioLANdevicecumple

conlosrequisitosesencialesycualesquieraotrasdisposicionesaplicablesoexigiblesdela

Directiva1999/5/CE

Swedish

Svenska

HärmedintygarWOOXInnovationsLimitedattdennaRadioLANdevicestårI

överensstämmelsemeddeväsentligaegenskapskravochövrigarelevantabestämmelsersom

framgåravdirektiv1999/5/EG.

Turkish

Turk

WOOXInnovationsLimitedbukablosuzcihazıntemelgereksinimlerive1999/5/EC

yonergesindekiilgilikoşullarıkarşıladığınıbeyaneder.







Specifications are subject to change without notice

Document order number: 000000000000

Gibson Innovations HTL2163 SOUNDBAR SPEAKER User Manual

Gibson Innovations Limited SOUNDBAR SPEAKER

User Manual

Navigation menu

Namespaces

Views

Navigation
