1EN
Contents
1 Important 2
Hearing safety 2
2 Your Bluetooth speaker 3
Introduction 3
What's in the box 3
Overview of the speaker 4
3 Get started 5
Power supply 5
Switch on or go to standby mode 5
4 Use Bluetooth devices 6
Connect a Bluetooth-enabled device 6
Play from a Bluetooth-enabled device 7
Control your phone call 7
5 Other features 8
Listen to an external device 8
Play through USB 8
Adjust volume 9
Listen through a headphone 9
6 Product information 10
Specications 10
7 Troubleshooting 11
General 11
8 Notice 12
2EN
1 Important
Warning
• Never remove the casing of this speaker.
• Never lubricate any part of this speaker.
• Never place this speaker on other electrical equipment.
• Keep this speaker away from direct sunlight, naked
amesorheat.
• Make sure that there is enough free space
around the device for ventilation.
• Use only power supplies listed in the user
manual.
• Only use attachments or accessories
speciedbythemanufacturer.
• The battery shall not be exposed to
excessiveheatsuchassunshine,reorthe
like.
• The device shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on
thedevice(e.g.liquidlledobjects,lighted
candles).
• Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Hearing safety
Caution
• To avoid hearing damage, limit the time you use the
headphones at high volume and set the volume to a
safe level. The louder the volume, the shorter is the safe
listening time.
Be sure to observe the following guidelines
when using your headphones.
• Listen at reasonable volumes for
reasonable periods of time.
• Be careful not to adjust the volume as your
hearing adapts.
• Do not turn up the volume so high that
you can't hear what's around you.
• You should use caution or temporarily
discontinue use in potentially hazardous
situations.
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
Note
• The type plate is located on the bottom of the product.
3EN
2 Your Bluetooth
speaker
Thank you for purchasing an Onkyo product.
Please read this manual carefully before making
any connections or using this product. By
following these instructions, you’ll get the best
audio performance and the most listening
pleasure from your Onkyo product. Keep this
manual for future reference.
Introduction
With this speaker, you can
• enjoy audio from your Bluetooth-enabled
devices, USB devices or other external
audio devices; and
• control the incoming phone call through
Bluetooth connection.
What's in the box
Check and identify the contents of your
package:
• Main unit
• Power adapter
• 3.5mm audio cable
• USB cable
• Printed materials
•
4EN

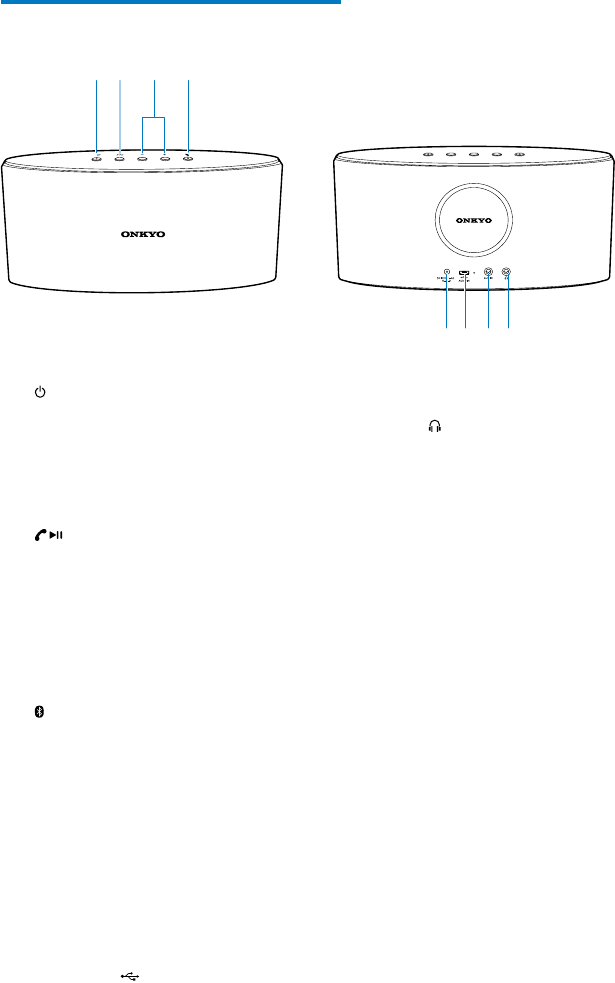

Overview of the speaker
a button/indicator
• Pressbrieytoswitchonorgoto
standby mode.
• In standby mode, press and hold to
switch off.
• Indicate the power status.
b
• Start, pause, or resume play.
• Press to answer an incoming call.
• During a call, press to end the current
call.
c -/+
• Adjust volume.
d button/indicator
• Press and hold for 2 seconds to enter
pairing mode manually.
• Press and hold for 7 seconds to clear
pairing information.
• Indicate the Bluetooth connection
status.
e DC IN socket
• Connect the power adapter.
• Charge the built-in battery of the
speaker.
f AUDIO IN socket
• Play an external audio device through
USB.
ab cd
efgh
g AUX IN socket
• Connect an external audio device.
h
• Connect a headphone.
5EN
3 Get started
Always follow the instructions in this chapter in
sequence.
Power supply
Either AC power or battery can be used as
power supply of this product.

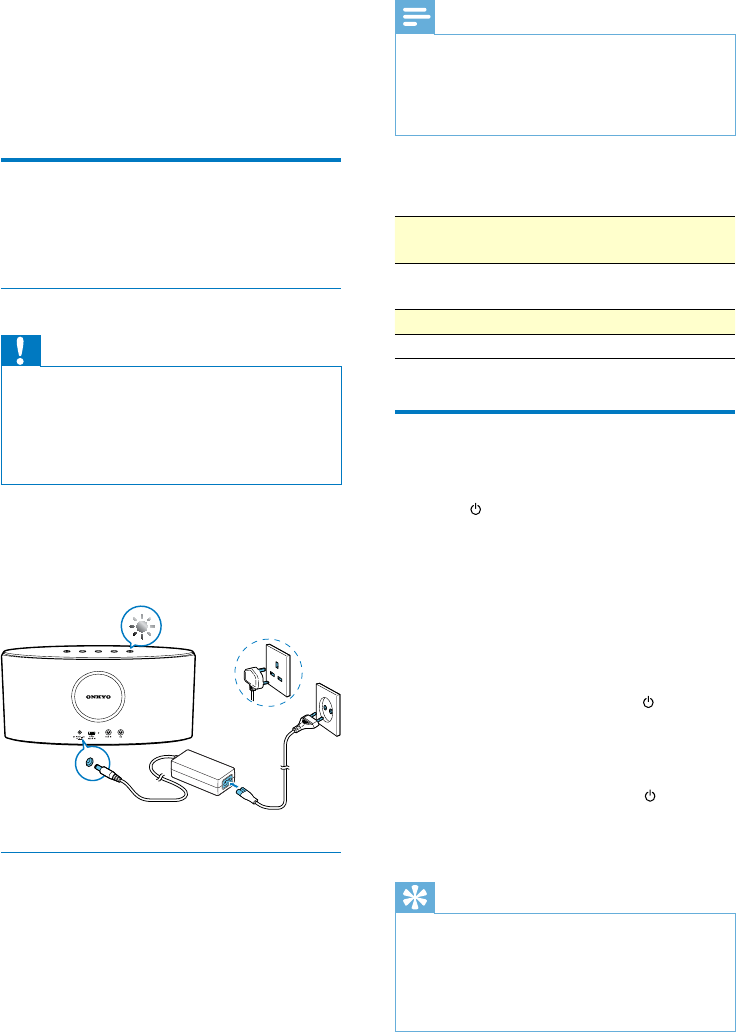

Option 1: AC power
Caution
• Risk of product damage! Make sure that the power
voltage corresponds to the voltage printed on the back
or underside of the speaker.
• Risk of electric shock! When you unplug the AC
adapter, always pull the plug from the socket. Never
pull the cord.
• Connect the power adaptor to:
• the DC IN socket at the back of the
speaker.
• the wall outlet.
Option 2: Battery power
The speaker can also be powered by the built-
in rechargeable battery.
Note
System
status
Battery status Power LED
status
On/off Low power (less
than 10%)
Flashing red
On Under charging Flashing white
On Fully charged Solid white
Switch on or go to standby
mode
• Press to switch the speaker on.
» If the speaker is fully charged, the
power indicator turns solid white.
» If the speaker is being charged, the
powerindicatorasheswhite.
» If the speaker is in low battery (with
less than 10% power), the power
indicatorashesred.
• To enter standby mode, press briey.
» The power indicator is dimmed in
white.
• To switch off when the speaker is on or in
standby mode, press and hold for two
seconds.
» The power indicator turns off.
Tip
• In Bluetooth mode, if Bluetooth connection is invalid or
music playback is stopped for 15 minutes, this speaker
switches to standby mode automatically.
• In AUX IN mode, if the audio-in cable is disconnected
or music playback is stopped for 15 minutes, this
speaker switches to standby mode automatically.
• Rechargeable battery has a limited number of charge
cycles. The battery life and number of charge cycles
vary by use and settings.
• It takes you approximately three hours to fully charge
the battery.
To charge the built-in battery:
• Connect to AC power supply.
6EN
4 Use Bluetooth
devices
With this speaker, you can listen to audio from
Bluetooth-enabled devices and control the
incoming call through Bluetooth.
Connect a Bluetooth-enabled
device
Note
• Make sure that your Bluetooth device is compatible
with this speaker.
• Before pairing a device with this speaker, read its user
manual for Bluetooth compatibility.
• The speaker can memorize up to 8 paired devices.
• Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
• Any obstacle between this speaker and a Bluetooth
device can reduce the operational range.
• Keep away from any other electronic device that may
cause interference.
• The operational range between this speaker and a
Bluetooth device is approximately 10 meters (30 feet).
The speaker can connect up to 2 Bluetooth-
enabled devices at the same time.

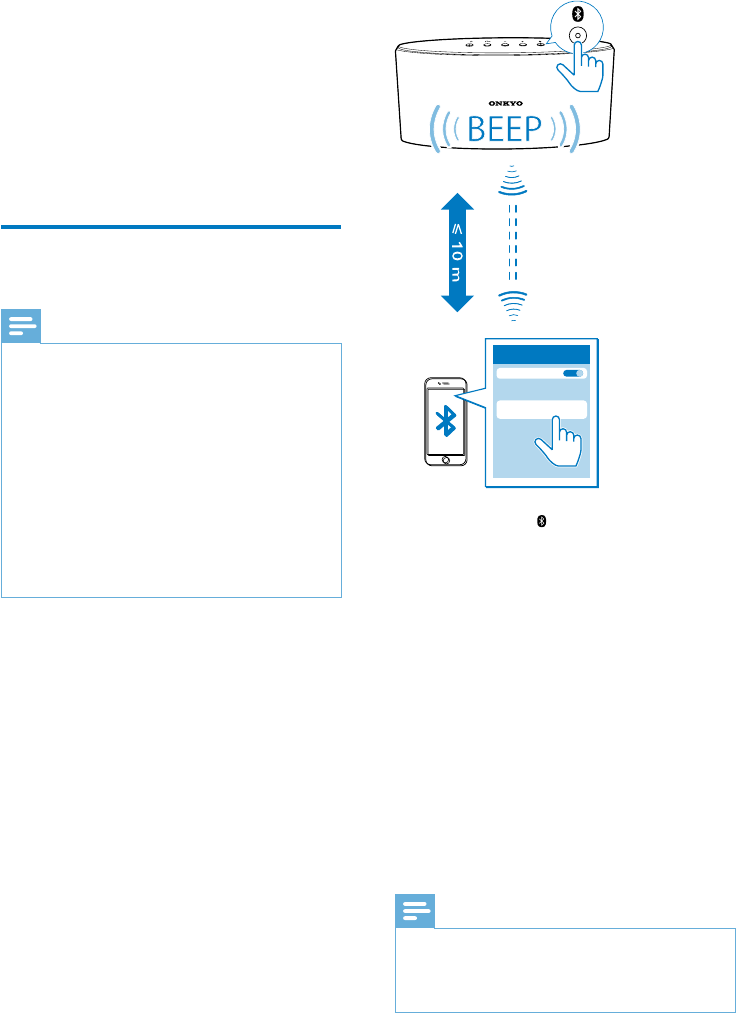

1 Press and hold on the speaker for two
seconds.
» TheBluetoothindicatorashesblue.
2 On your Bluetooth device, enable
Bluetooth and search for Bluetooth devices
(refer to the user manual of the device).
3 When [Onkyo X9] is displayed on
your device, select it to start pairing and
connection. If necessary, enter the default
password “0000”.
» After successful pairing and connection,
the speaker beeps twice, and the
Bluetooth indicator turns solid blue.
4 Repeat steps 1 to 3 to add a second
Bluetooth device.
Note
• When there are two Bluetooth-enabled devices
connected to the speaker, you can repeat steps 1 to 3
to add a new device. In this case, the earliest connected
device will be replaced.
Onkyo X3
Onkyo X9
Devices
Bluetooth
Bluetooth
ON
7EN
To disconnect the Bluetooth-enabled device:
• Disable Bluetooth on your device; or
• Move the device beyond the
communication range.
To clear the existing pairing information:
• Press and hold for 7 seconds.
To reconnect the Bluetooth-enabled device:
• For a paired Bluetooth device on which
automatic reconnection is enabled, this
product reconnects with it once it is
detected.
• For a paired Bluetooth device that does
not support automatic reconnection,
reconnect it with this product manually.
Bluetooth indicator Description
Flashing blue Connecting or waiting for
connection
Solid blue Connected
Play from a Bluetooth-
enabled device
Note
• If there is an incoming call on the connected mobile
phone, music play pauses.
• After successful Bluetooth connection, play
music on a connected Bluetooth device.
» Music streams from your Bluetooth
device to the speaker.
Note
• To play from another connected device, just use
controls on that device directly and the music streaming
from the current device will be paused.
Button Function
Press to answer
an incoming call.
During a call,
press to end the
current phone
call.
Note
Control your phone call
After Bluetooth connection, you can control an
incoming call with this speaker.
• You can talk through the microphone of the speaker.
• Music play pauses when there is an incoming call, and
resumes when your phone call ends.
8EN
5 Other features
Listen to an external device
With this speaker, you can also listen to an
external audio device such as an MP3 player.

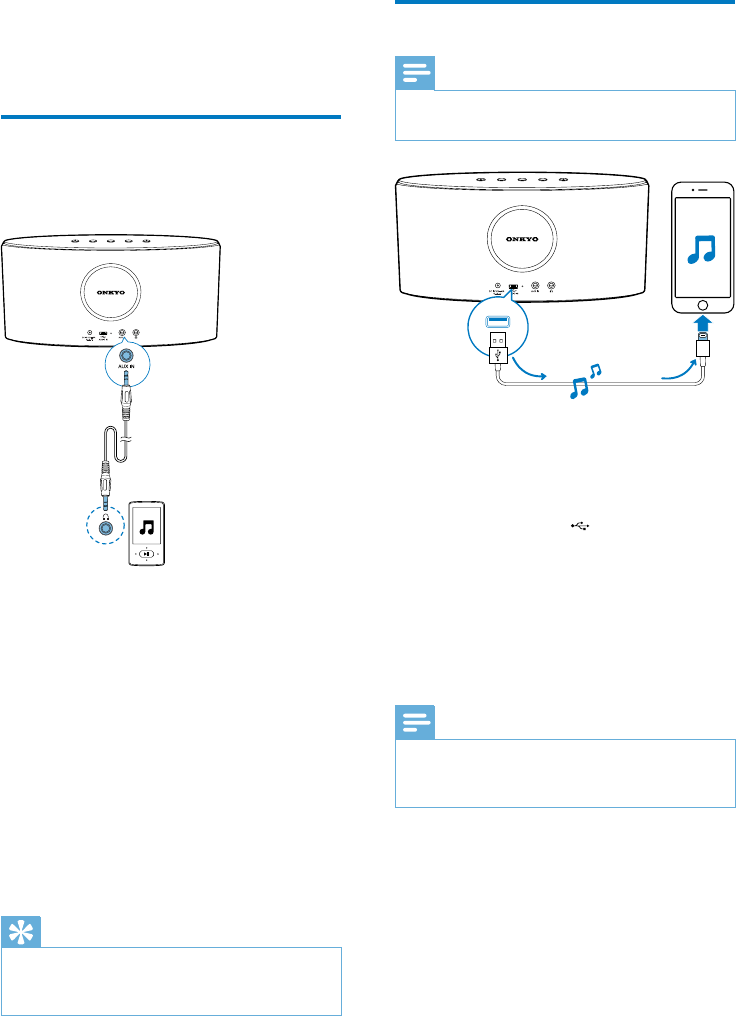

1 Make sure there is no music streaming
from the connected Bluetooth device (if
available).
2 Connect an audio input cable with a 3.5
mm connector on both ends to
• the AUX IN socket on this speaker,
and
• the headphone socket on the external
device.
3 Play music on the external device (refer to
its user manual).
» The speaker switches to the AUX IN
source.
Tip
• When you start music streaming from a connected
Bluetooth device, the speaker switches to the Bluetooth
source automatically.
Play through USB
Note
• Make sure that the USB device contains playable audio
content.
1 Make sure there is no music streaming
from the connected Bluetooth device (if
available).
2 Connect a USB charging cable to
• the AUDIO IN socket on this
speaker, and
• the USB socket on your mobile phone.
3 Play music on your mobile phone (refer to
its user manual).
» The speaker switches to the USB
source.
Note
• When you start music streaming from a connected
Bluetooth device, the speaker switches to the Bluetooth
source automatically.
9EN
Adjust volume

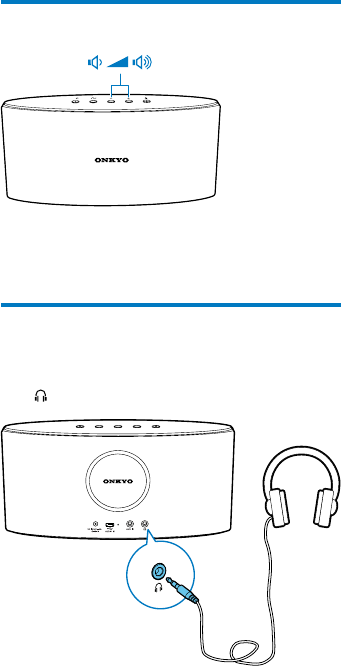

• Press +/- on the speaker to increase or
decrease the volume.
Listen through a headphone
• Plug a headphone (not supplied) into the
socket.
10 EN
6 Product
information
Note
• Product information is subject to change without prior
notice.
Specications
Amplier
Rated Output Power 4 x 10W, 1% THD
Frequency Response 40 Hz - 20 kHz, ±3dB
Signal to Noise Ratio > 80 dBA
Aux In 650mV (RMS), 22k
ohm
Bluetooth
Bluetooth version V2.1
SupportedProles HFP, A2DP, AVRCP
Range 10 m (Free space)
Speakers
Speaker
Impedance
4 ohm
Speaker Driver 4 x 2" mid range drivers, 2 x
3/4" high freq tweeter
Sensitivity > 82dB/m/W ± 3dB/m/W
General information
Power Adaptor
Power Input 100 - 2 0V, 50/60 Hz
DC Output 15V 3A
Built-in Battery Lithium ion battery
( )
Dimensions - Main
Unit (W x H x D)
195 x 93 x 51 mm
Weight - Main Unit 0.6 kg
4
11.1V,2200 mAh
*)3'$
(*0(
11EN
7 Troubleshooting
Warning
• Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, contact Onkyo service center. When
you contact Onkyo, make sure that the device
is nearby and the model number and serial
number are available.
General
No power
•Make sure that the AC power plug is
connected properly.
•Make sure that there is power at the AC
outlet.
•Recharge the built-in battery.
No sound
•Adjust volume on the speaker or the
Bluetooth-connected device.
•Make sure that your Bluetooth device is
within the effective operational range.
No response from the speaker
•Restart the speaker.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•The Bluetooth reception is poor. Move the
device closer to this speaker or remove
any obstacle between them.
Cannot connect with the device.
•The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•The speaker is not in pairing mode. Hold
to enter pairing mode, and then try again.
The paired device connects and disconnects
constantly.
•The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this speaker.
The speaker is in demo mode and not
working as usual.
•The demo mode is not intended for end
users. You may have activated this mode by
accident. In this case, press and hold for
15 seconds to exit demo mode and enter
standby mode. Then you can power on and
operate the speaker as usual.
12 EN
8 Notice
Any changes or modications made to this device that are not
expressly approved by Gibson Innovations may void the user’s
authority to operate the equipment.
Notice for the USA and Canada
This device complies with
and
RSS
standard .
two conditions:
1 this device may not cause harmful interference, and
2 this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules and CAN ICES-3(B)/NMB-3(B) of Industry Canada. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
RF Radiation Exposure Statement: This equipment complies
with FCC’s and IC’s RF radiation exposure limits set forth for an
uncontrolled environment. The antenna(s) used for this transmitter
must be installed and operated to provide a separation distance
of at least 20 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter.
Installers must ensure that 20cm separation distance will be
maintained between the device (excluding its handset) and users.
CAN ICES-3(B)/NMB-3(B).
Disposal of your old product
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or visit www.recycle.philips.com.
LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicables
auxappareilsradioexemptsdelicence.L'exploitationestautoriséeaux
deuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,
et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectrique
subi,mêmesilebrouillageestsusceptibled'encompromettrele
fonctionnement.
Industry Canada license-exempt
(s) Part 15 of the FCC Rules
Operation is subject to the following
