Global Sun Technology Inc 5.0/2.4GHz Wireless Network Mini-PCI Card Revised Manual
Revised Manual
Dual-Band (draft)
Wireless Network Adapter
User Manual
Model: GL2554MP-0A
version 1.0
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does not
represent a commitment on the part of the vendor. No warranty or representation,
either expressed or implied, is made with respect to the quality, accuracy or fitness for
any particular purpose of this document. The manufacturer reserves the right to
make changes to the content of this document and/or the products associated with it at
any time without obligation to notify any person or organization of such changes. In
no event will the manufacturer be liable for direct, indirect, special, incidental or
consequential damages arising out of the use or inability to use this product or
documentation, even if advised of the possibility of such damages. This document
contains materials protected by copyright. All rights are reserved. No part of this
manual may be reproduced or transmitted in any form, by any means or for any
purpose without expressed written consent of its authors. Product names appearing
in this document are mentioned for identification purchases only. All trademarks,
product names or brand names appearing in this document are registered property of
their respective owners.
FCC STATEMENT
This product has been tested and complies with the specifications for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used according to the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which is found by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
l Reorient or relocate the receiving antenna
l Increase the separation between the equipment or devices
l Connect the equipment to an outlet other than the receiver’s
l Consult a dealer or an experienced radio/TV technician for assistance
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device is intended only for OEM integrators under the following conditions:
The antenna must be installed such that 20 cm is maintained between the antenna and users, and
2) The antenna should be integral if the end device is intended to be operated in 5.15 ~ 5.25GHz
frequency range.
As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM
integrator is still responsible for testing their end-product for any additional compliance requirements
required with this module installed (for example, digital device emissions, PC peripheral requirements,
etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the transmitter) and
obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed such
that 20 cm may be maintained between the antenna and users (for example: Wireless Access Point and
Wireless Router). The final end product must be labeled in a visible area with the following: “Contains
TX FCC ID: O7J-GL2554MP-0A”.
Manual Information That Must be Included
The OEM integrator has to be aware not to provide information to the end user regarding how to install
or remove this RF module in the users manual of the end product which integrate this module.
The users manual for OEM integrators end users must include the following information in a prominent
location “ IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the
antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter”.
If the end product integrating this module is going to be operated in 5.15 ~ 5.25GHz frequency range,
the warning statement in the user manual of the end product should include the restriction of operating
this device in indoor could void the user’s authority to operate the equipment.
Driver Installation

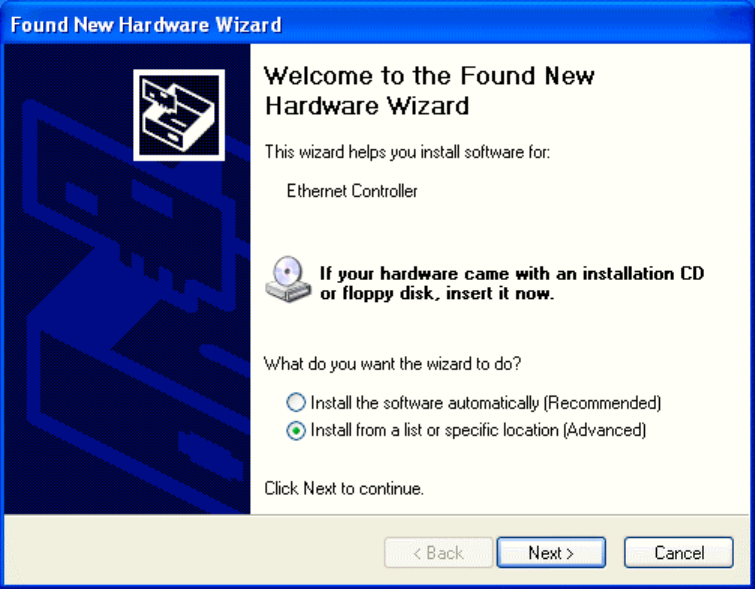

Step 1: Insert the Dual-band Wireless Network Adapter into your computer.
Windows Found New Hardware Wizard will come up.
Select the second option and click “Next” to continue.

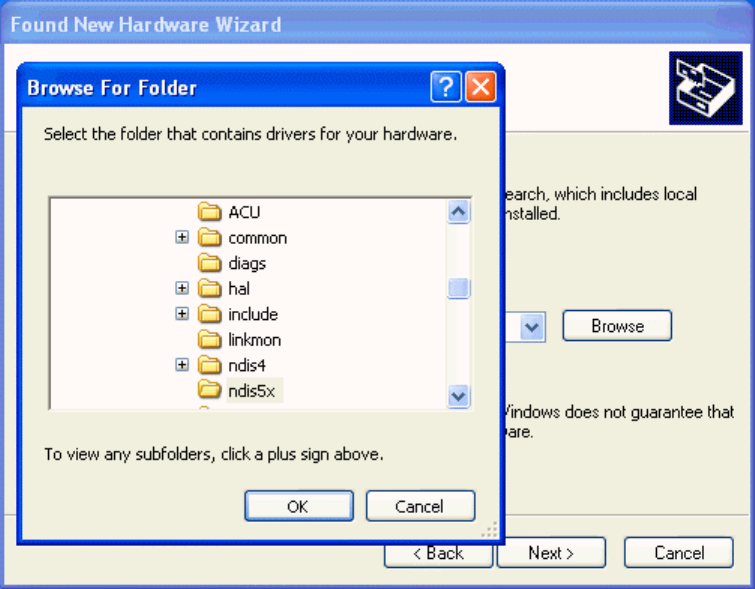

Step 2: Select the driver to install.
Click “Browse” to select the folder where you store the driver files.
Click “OK” to continue.
Click “Next” to continue.

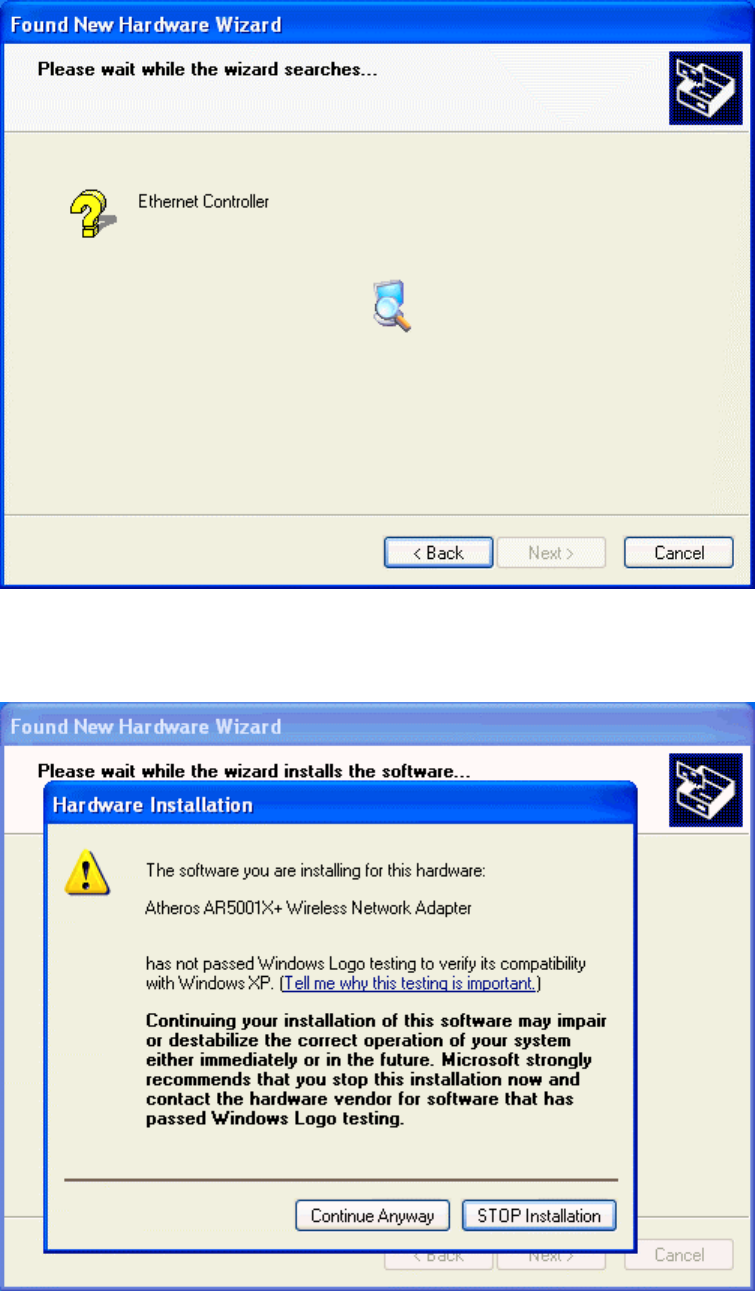

Step 4: Driver Found
Click “Continue Anyway” to continue

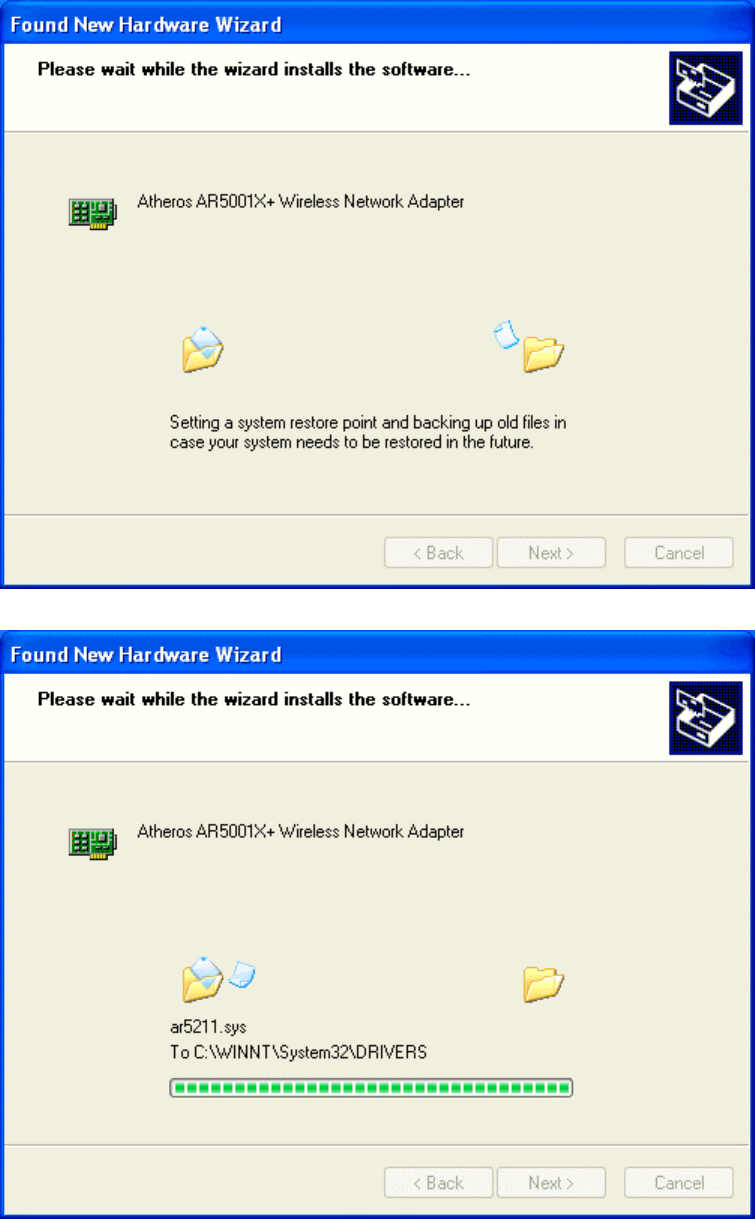

Step 3: Driver Installation
Driver files are being saved to your Windows system.

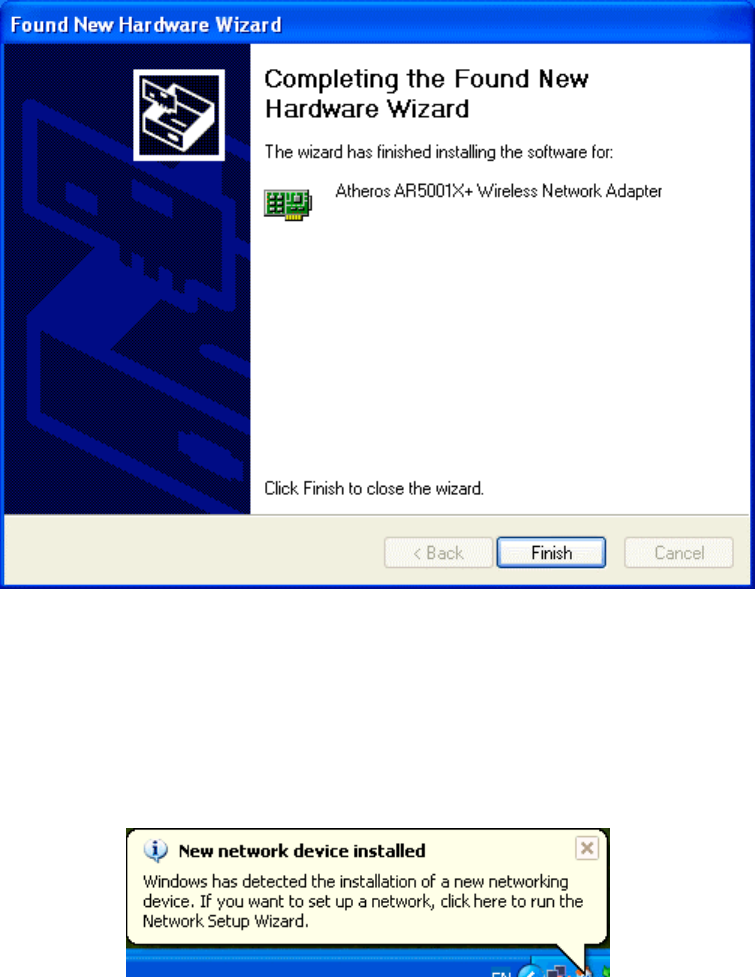

Step 4: Driver Installation Complete
Click “Finish” to complete the driver setup.
The following message will appear as soon as you successfully installed the driver for
your Dual-band wireless network adapter.
Utility Configuration

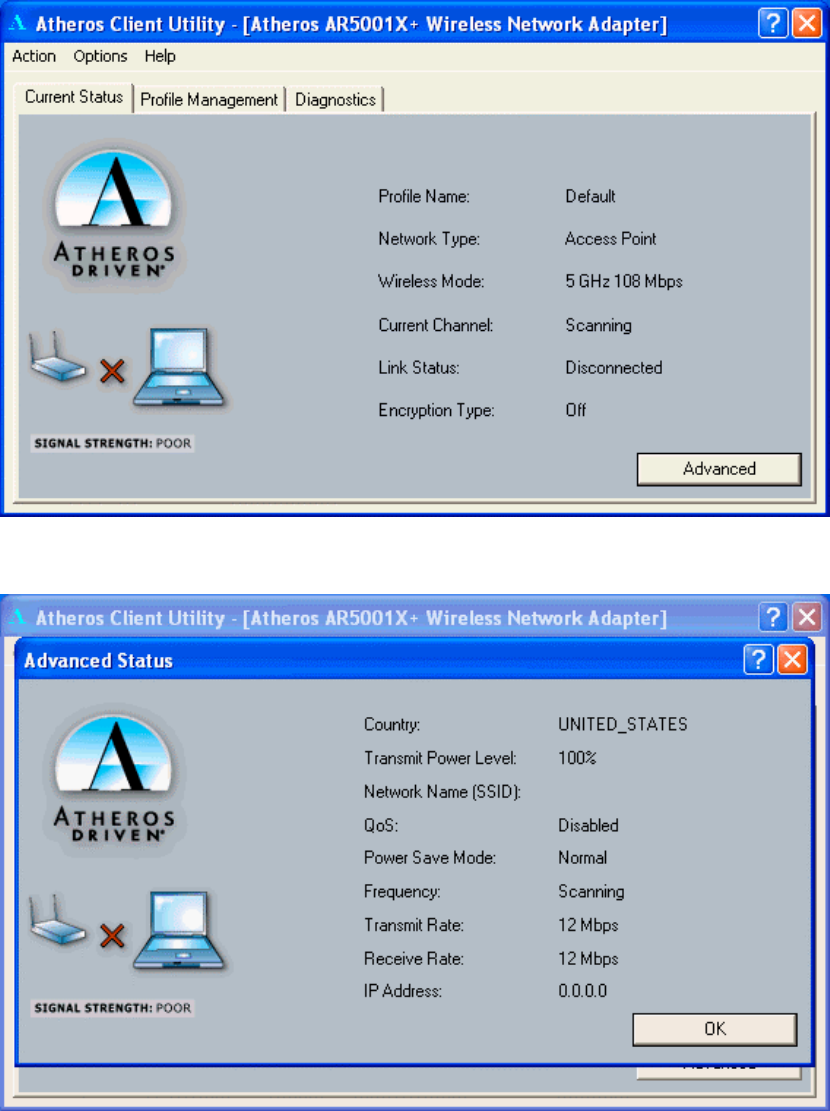

Current Status
Display the current settings such as Profile Name, Network Type, Wireless Mode,
Current Channel, Link Status and Encryption type.
Click on the “Advanced” button to change display details.

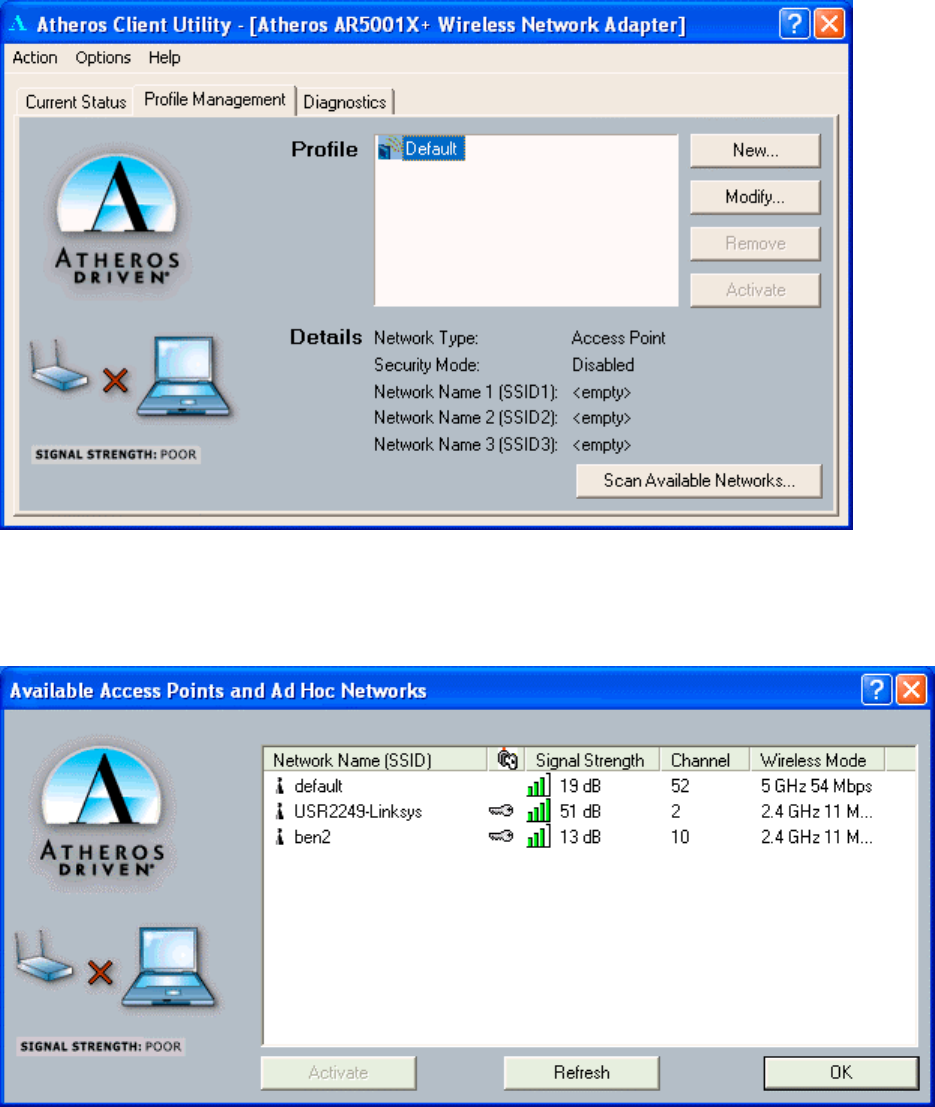

Profile Management
Create profile for the common wireless networks that you get connected to. You
may create new profile by clicking on the “New” button, and modify the existing
profile settings by clicking on the “Modify” button.
Click on “Scan Available Network” to scan for the nearby wireless network.
Select the wireless network that you wish to get connected to and click “OK” to
continue.

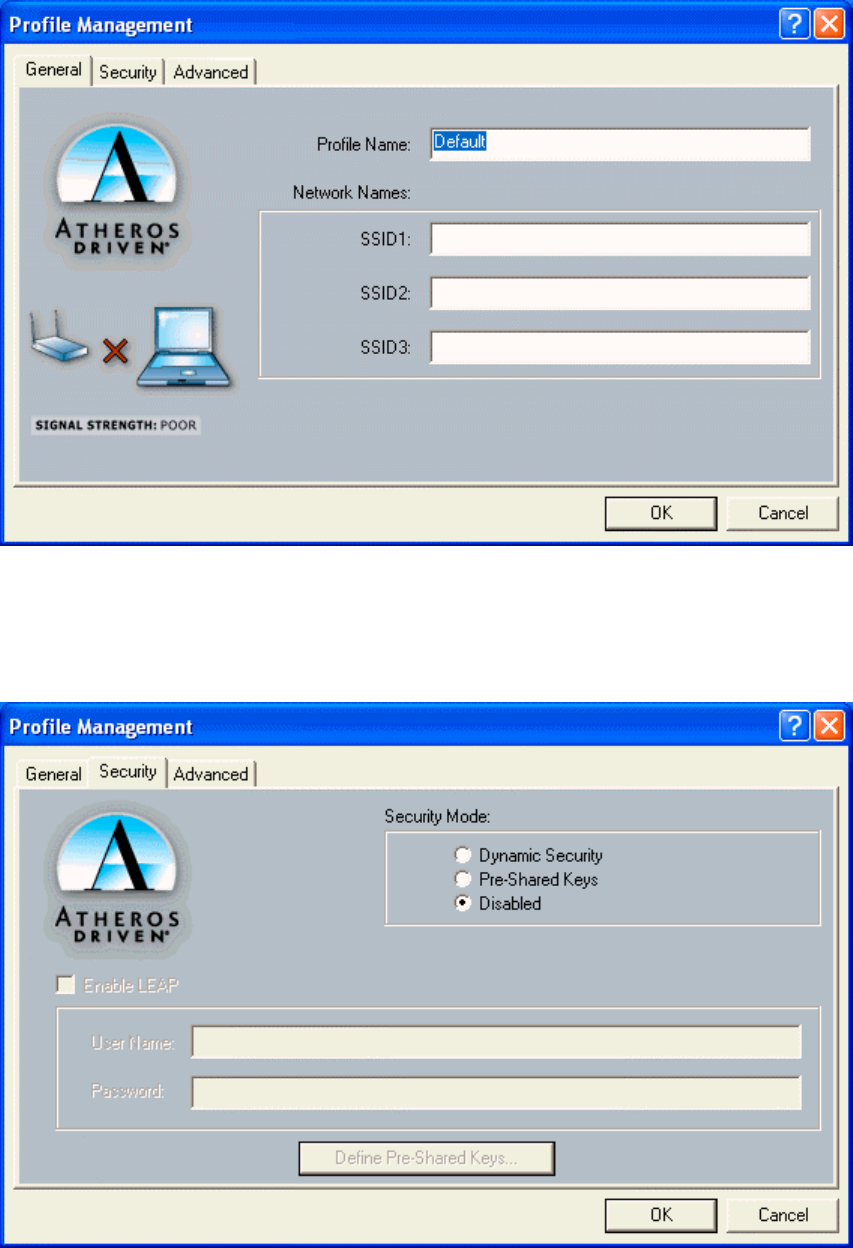

In “General” Tab, Enter “Profile Name”, and enter SSID for this profile.
In “Security” Tab, select the security mode, and enter the WEP key if you enable the
Pre-Shared Keys option. Click “OK” for the changes to be effective.
In the “Advanced” Tab, select the Power Save mode, Network Type and other
advanced options. Click “OK” for the changes to be effective.

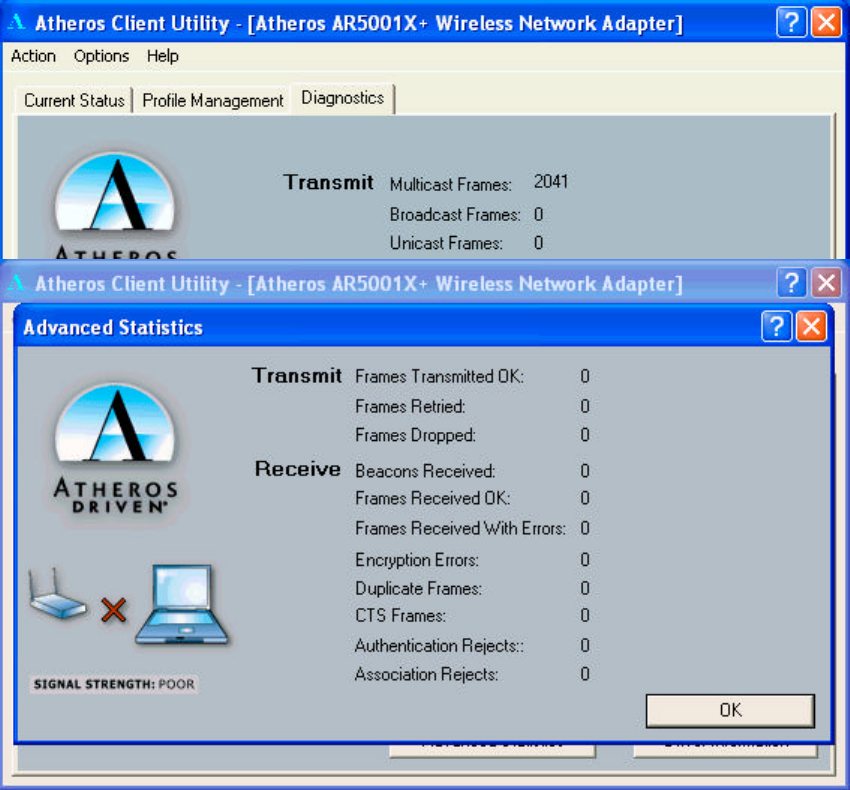

Diagno
stics
Display
current
statistics
such as
Transmitti
ng and
Receiving
packets.
Click on
“Advance
d
Statistics”
to display more detail information

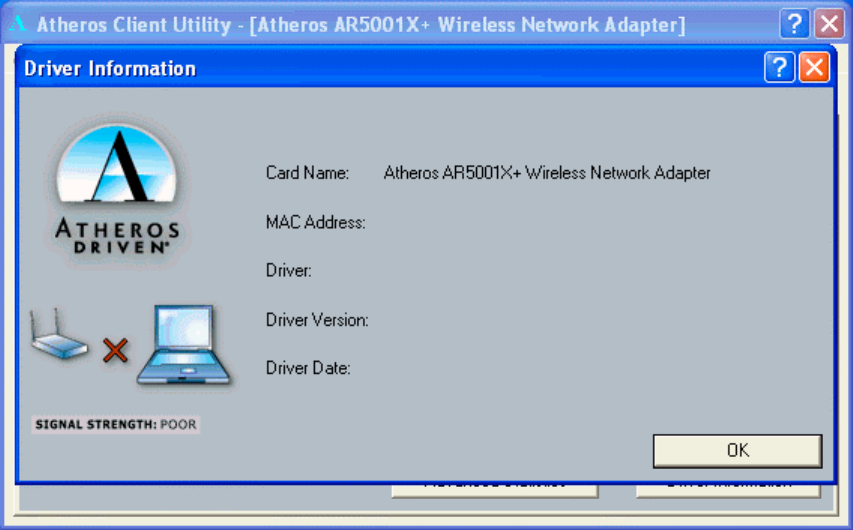

Click “Driver Information” to display driver version and other detail information.
Click on “Action” on the menu selection to access functions such as “Disable Radio”,
“Country Select…” and “Disable Tray Icon”
Click “Options” to display current settings.
Federal Communication Commission Interference Statement
