User Manual

MSW41p4 ADSL2+
UserManual
1. Overview
1.1 About MSW41p4
MSW41p4 is a high quality multifunction internet access device offering ADSL, WiFi,
USB device and LAN switch. The advanced QoS ensures high quality in the
bandwidth-consuming services like IPTV, IP Camera and so on. It simply enables the
user to build their wireless network upon LAN network and play a role in the overall
management and coordination to provide users with convenience.
1.2 Advanced features and benefits
1. Support IEEE 802.11b/g WiFi, simply enables user to build a wireless network
upon LAN network, and access internet through high speed ADSL router.
2. Support ADSL2+（maximum downstream 24Mbps and upstream 1Mpbs）
3. Support Advanced QoS (Quality of Service) feature. It ensures high quality with
smooth connection for any type of data. Particularly latency-sensitive and
bandwidth-consuming applications such as IPTV etc.
4. Support TR-069 remote management: configuration, software upgrade,
troubleshooting etc.
1.3 Features and Technical Specifications
ADSL
ANSI T1.413 issue 2 compliant
ITU-T G.992.1(G.DMT) compliant: Up to 8Mbps downstream and 896Kbps
upstream
ITU-T G.992(G.lite) compliant: supports splitter-less implementation.
ITU G.992.3/4(ADSL2) compliant: enhanced performance on long lines
ITU G.992.5(ADSL2+) compliant:(up to 24Mbps downstream and 1Mbps
upstream)
PVCs：16
PVC supported model： PPPoE/PPPoA/DHCP/Static/Bridge
IP
NAT/NAPT
Firewall，support SPI(stateful packet inspection)
DHCP server
Port forwarding(support DMZ)
IP filtering，bridge filtering，Web filtering
Static routing
Dynamic routing(RIP and RIP2)
SNTP
VPN, support PPTP and IPSec VPN
Multicast：IGMP Proxy/IGMP Snooping
ALG
UPnP
Ethernet
IEEE 802.3
4 port Ethernet: 10/100M Ethernet Auto MDI-X
WiFi
IEEE 802.11b/g compliance
Security：WEP 64/124/256 bits、WPA/WPA2
WMM QoS
WDS wireless AP
Multiple SSID configuration
RF power : 20dBm
Antenna type : Outside Omni-directional Antenna
RF on/off
ACS(Automatic channel selection)
MAC address white-black filter
Operation and Management (OAM)
Support Web based management
Support SNMP v1/v2/v3
UPnP
Telnet/SSH
Software upgrade through HTTP/TFTP/FTP
TR069（CPE management through WAN interface）
QoS
Support input rate limit
IP QoS：base on source IP address, source and destination port, protocol and
DSCP
ATM QoS：support CBR，UBR，nrt-VBR，rt-VBR
USB
Support one USB device
2. Specification
2.1 Interface introduction

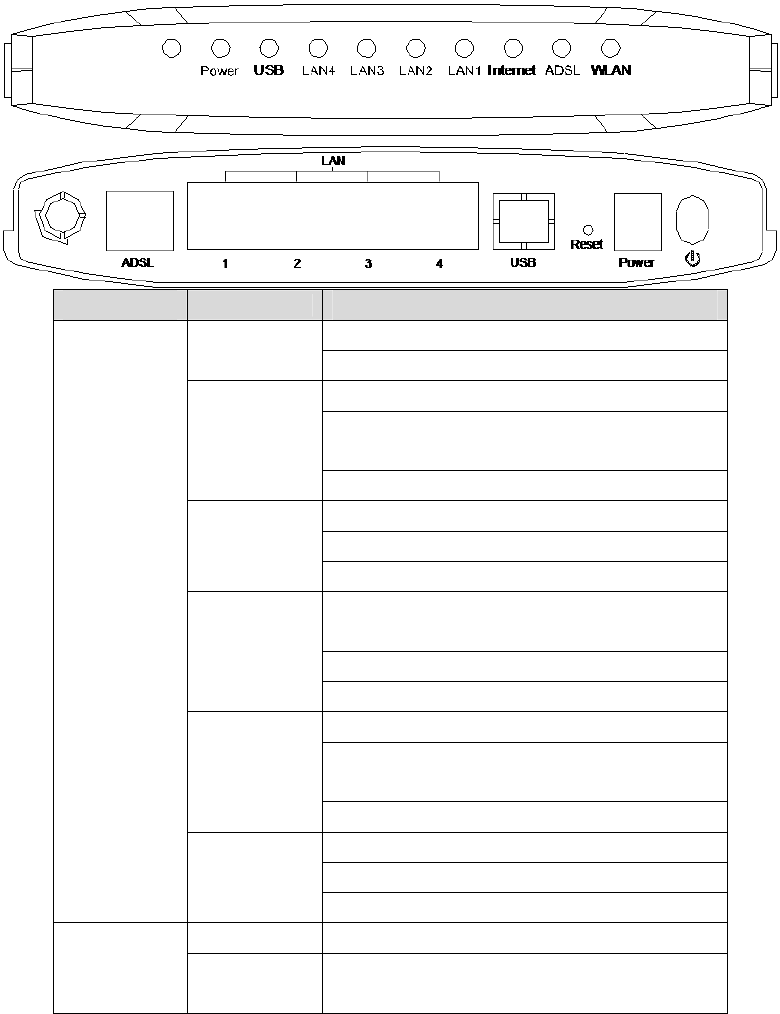

2.1.1 Interface & Indicator Light Introduction
Item Label Description
Indicator
Light
Power ON：MODEM power on
OFF：MODEM power off
USB
ON: MODEM linked to PC via USB interface
Flash: MODEM sending/receiving data via USB
interface
OFF：No connection
LAN1- LAN4
ON：Ethernet is connected
BLINK：Ethernet Traffic flows
OFF：Ethernet is disconnected
Internet
ON: in Router mode and ADSL connected,
can transmit IP packets
OFF: in Bridge mode or ADSL disconnected
Flash: Data transmitting via LAN interface
ADSL
BLINK Slowly：MODEM idle
BLINK Quickly：MODEM training, but not
synchronized
ON：MODEM synchronized to the DSLAM
WLAN
OFF：WLAN is disable
ON：WLAN is enable
BLINK: WLAN Traffic flows
Interface
Introduction

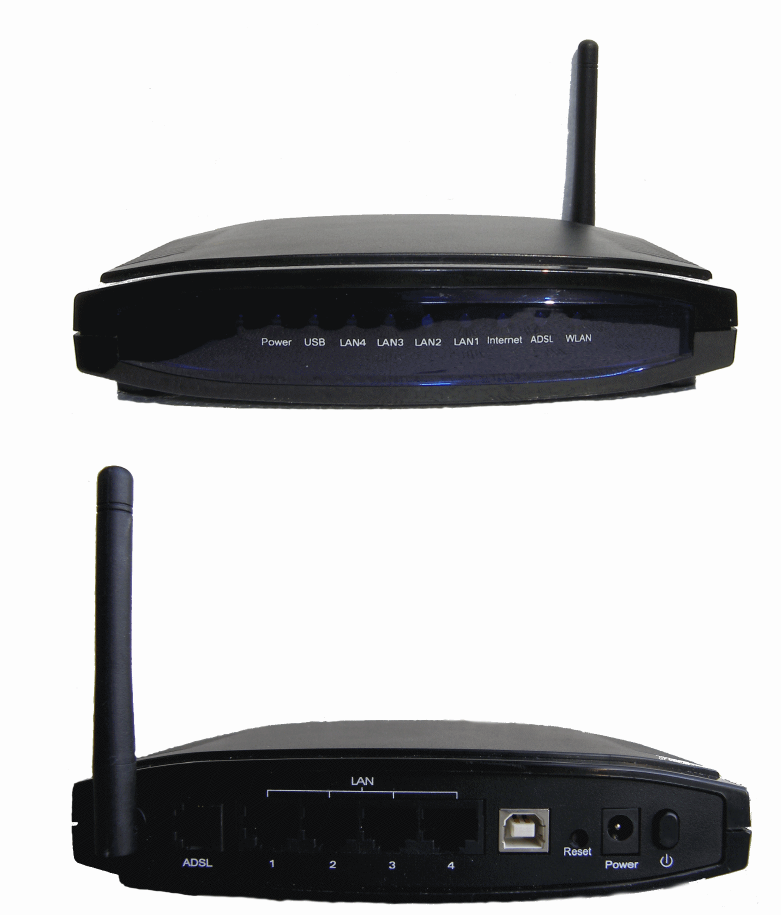

Antenna Sending & receiving wireless signal
ADSL Connect to the ADSL line or the MODEM port
of Splitter
LAN1- LAN4 LAN interface for connecting to computer
USB Connect to PC USB port
Reset Restore to factory default settings
Power For 12V DC power adaptor
Power switch
Notice: the LAN port support 10M/100M, AUTO MDI-X.
2.1.2 Interface of splitter
Label Introduction
LINE Connect to the ADSL line
MODEM Connect to ‘DSL’ port of the MODEM
PHONE Connect to the phone
2.1.3 Package checking
Router is shipped with the following items:
Item Quantity Remark
Power Adapter 1
Phone line 2
RJ45 Network Line 1
MODEM 1
Splitter 1
2.2 Hardware Connection
Introduction：
1、 Use a telephone cord to connect the LINE port of the splitter with the RJ-11 port (the
phone jack) on the wall.
2、 Use another telephone cord to connect the ADSL port of the splitter with the LINE port
of the ADSL Modem.
3、 Use another telephone cord to connect the telephone set with the PHONE port of the
splitter.
4、 Connect Ethernet port of the ADSL MODEM with 10/100BASE-T port of the computer
using the network cable that comes with the modem.
5、 Plug in the power cord, and turn on the power.
If you do not want Internet services and telephone voice services simultaneously, please just
connect the LINE port of the ADSL Modem with the RJ-11 port (the phone jack) on the wall using
a telephone cord. In this case, the splitter is not necessary.

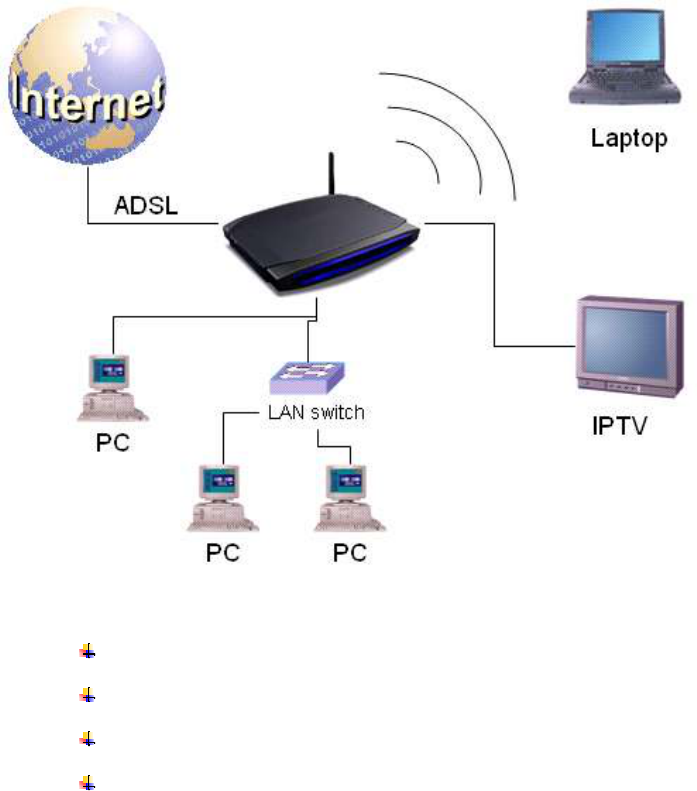

2.3 Layout
Notice：
：：
：
PC connects to ADSL LAN port for internet access;
Laptop (integrate WiFi) can access internet via WiFi wireless connection;
STB (set top box) connect to LAN port for IPTV application.
Wireless ADSL router provides 4 Ethernet cable ports LAN0~LAN3 in support of
10M/100M, AUTO MDI-X, user can connect 4 PCs via 4 cable lines, no extra
HUB or SWITCH is needed.
Warning：
：：
：If the phone line is previously in-bridged with other phones, please make sure
every phone set is connected behind the splitter or installed a splitter before every phone set,
otherwise interruptions will be caused on line and ADSL connection may be unstable.
3. Configuration Guide
3.1 Default Configuration
ADSL MODEM has pre-configured with the VCI/VPI which is in common use, mode is
bridge encapsulation. For bridge mode, no need to configure any more parameter.
3.2 Computer Configuration

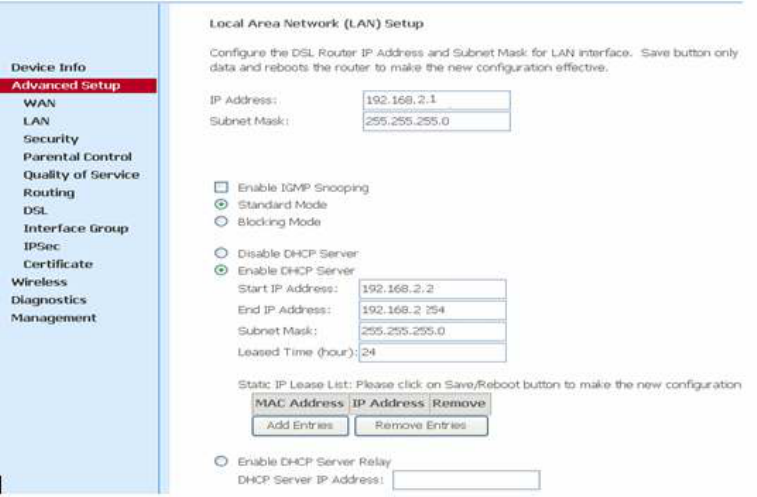

The default IP address for ADSL MODEM is: 192.168.2.1; The Subnet Mask is ：
255.255.255.0. Users can configure ADSL MODEM through an Internet browser. ADSL MODEM
can be used as gateway and DNS server; users need to set the computer’s TCP/IP protocol as
follow:
1、 Set the computer IP address at same IP range of ADSL MODEM, such as set the IP
address of the network card to one of the “192.168.2.2”
2、 Set the computer’s gateway the same IP address as the ADSL Modem’s.
3、 Set computer’s DNS server the same as ADSL Modem’s IP address or that of an effective
DNS server.
3.2.1 Log In

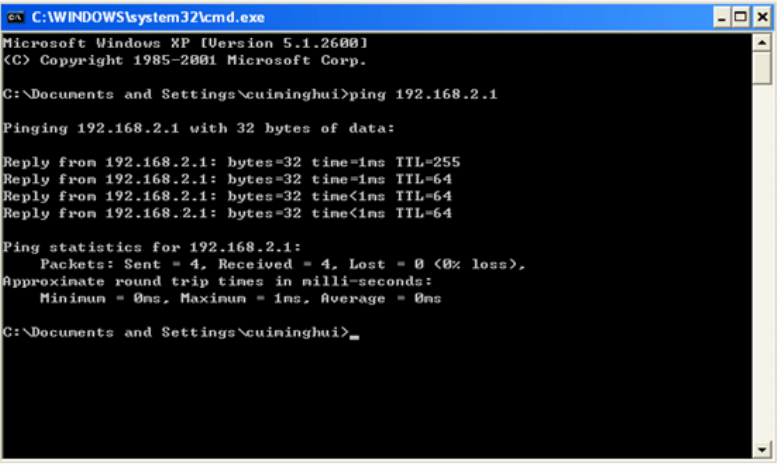

Power on to start the device, making sure your computer can PING via LAN port of ADSL
(the factory default IP is 192.168.2.1), then run IE. Inputting http://192.168.2.1 in the address

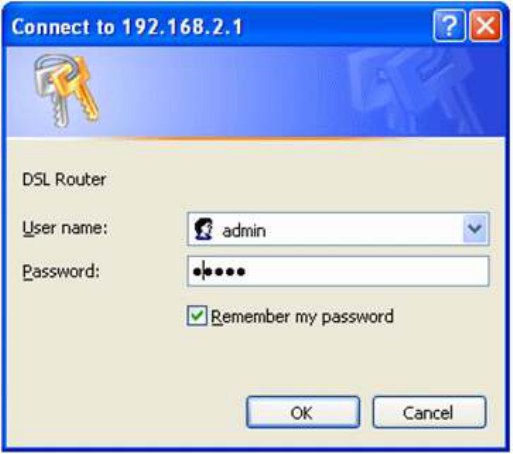

column, press ENTER, and authentication interface will pop up as below:
The default username and password is admin for web log-on. Press ENTER or click on ‘OK’
to enter into ADSL main page to perform configuration after entering the accurate user name and
password in the dialog box.
Warning: Please be sure IP of the computer network card is in the same IP range as ADSL
LAN port before trying to log on (ex: 192.168.2.2 and 192.168.2.1 are in the same IP range).
Please follow the steps below to enter: IE---Tool---Internet Option---Connection---LAN
Setup---Proxy server, disable the function ‘Proxy for LAN’, that disable the proxy server.

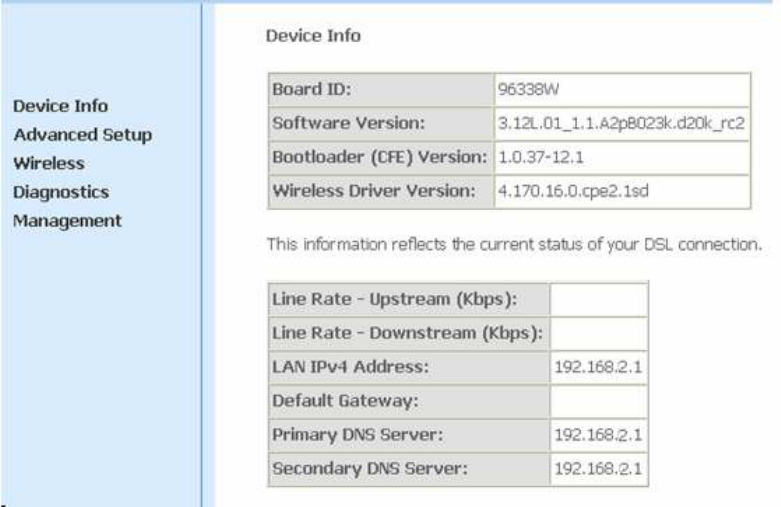

If log on successfully, the main page will be displayed as follows:
3.2.2 Introduction for the Structure of WEB Interface
Web interface consists of five menu options. Each option is for configuring certain part of the
whole system. User can perform the configuration of each part individually in accordance with
their own needs.
1) Device Info
Here include “Summary”, “WAN” information, “Statistic” information,
“Route” information, “ARP” information etc.
2) Advanced setup
Here include “WAN setup”, “LAN setup”, “Security”, “Route”, “DSL”, “Print
Server”, “IPSec” etc.
3) Wireless
Here include “Basic”, “Security”, “MAC Filter”, “Wireless Bridge”, “Advanced”,
“Station Info” etc.
4) Diagnostics
For check connection and test result
5) Management
Here include “Settings”, “System Log”, “TR-069 Client”, “Internet Time”,
“FTP”, “Access Control”, “Update Software” “Save/Reboot” etc.

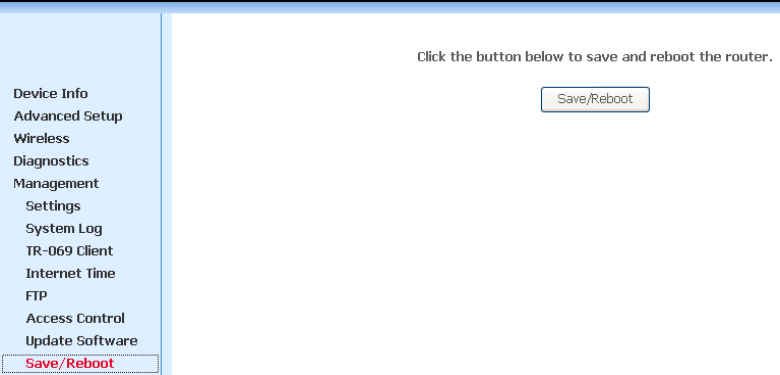

3.2.3 Save / Reboot
If we change some setting and want to keep it after reboot. You can click “Save/Reboot”
after change the setting in each page. You also can change all setting and go to “Management”→
“Save/Reboot” to save all.
3.2.4 WAN Configuration
If the configuration is bridge encapsulation, there is no need to configure any more
parameters. Only need to use the third party dial-up software to connect the Internet.
This router completely supports：PPPoA、PPPoE、MER、IPoA、Bridging. For detail
configuration information, please check the following configuration guide.
3.2.4.1 Configuration Guide

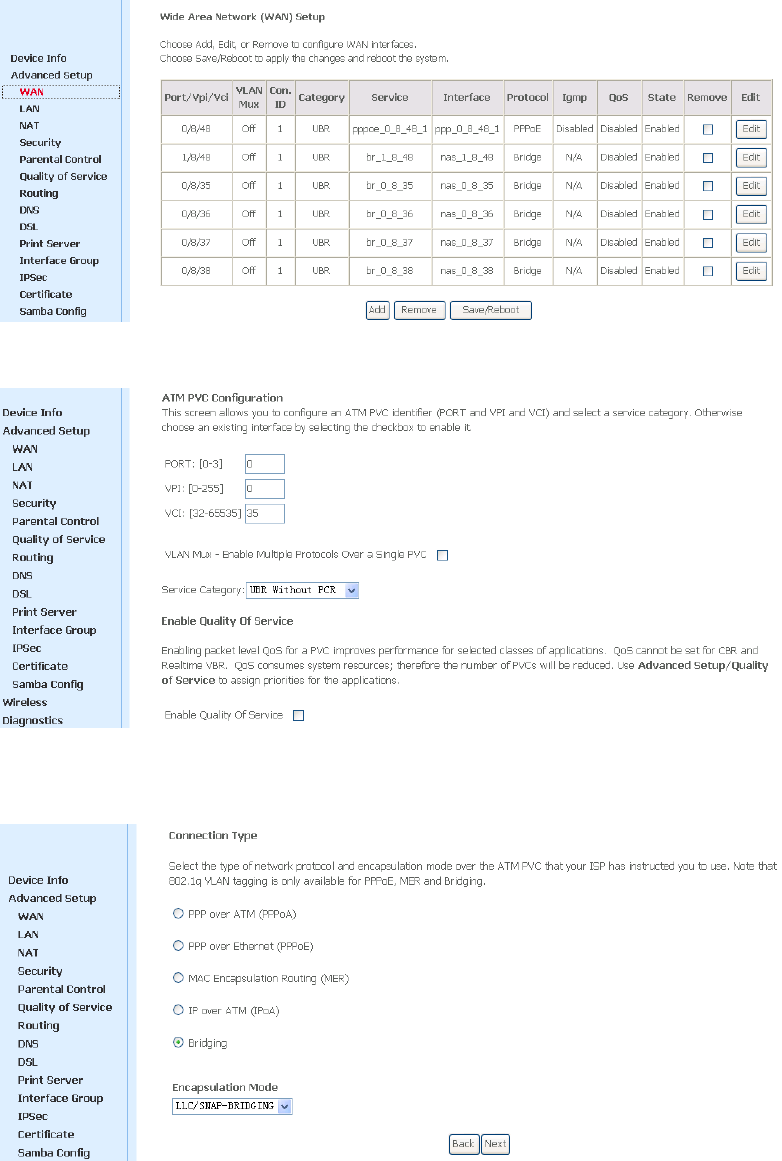

Choose “Advanced Setup”→ “WAN”, enter Wide Area Network (WAN) Setup interface.
1) Click “Add”, enter the configure guide.
Notice: Default we can have eight connections. The Max number of connections is 16.
2) The value for VPI/VCI is assigned by your ISP. After inputting the PVC value, press “Next”
into “Connection type”.
The Modem supports five ADSL protocol modes. Choose the protocol which is appointed by
ISP and PVC encapsulation, click “Next” enter to the protocol configure. Below, we
introduce the configuration of the five protocol modes.
• PPP over ATM (PPPoA) • PPP over Ethernet (PPPoE)
• MAC Encapsulated Routing (MER) • IP over ATM (IPoA)
• Bridging
3) Some connection lines need to confirm the LLC or VC, if you can’t confirm, please don’t
modify the default value or ask your ISP.
3.2.4.2 RFC1483 Bridge Configuration

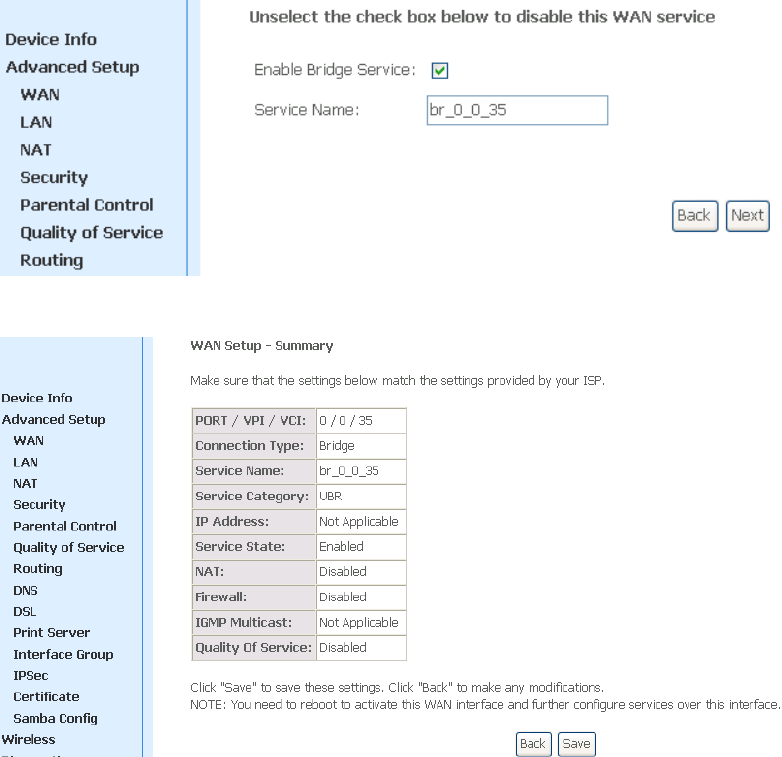

Select the Bridging mode. Then Press to specify the Service Name, and select the “Enable
Bridge Service”.
Press “Next” to enter into “WAN configuration”, click “save” to save configuration, if you
need to modify the parameter, click “back”.
Notice
：
：：
：
When you use bridge mode, please close “DHCP SERVER”
3.2.4.3 PPPoE Configuration
PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over
Ethernet.
PPPoA is also known as RFC2364 and named as Peer to Peer Protocol over ATM. As PPPoE,
it also has all the features of PPP. Although it’s based on ATM protocol, the setting of all the other
parameters is similar with PPPoE. So we only introduce PPPoE in detail here.

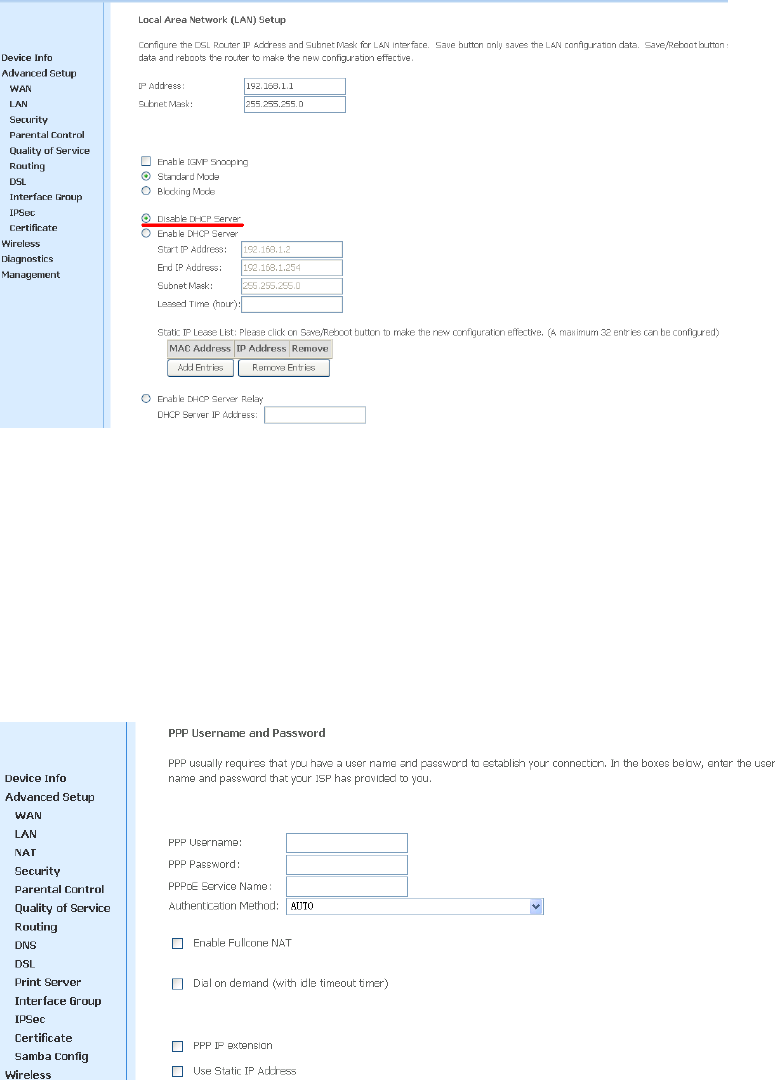

Select PPP over Ethernet (PPPoE), press “Next” entering the configuring interface.
PPP Account: Your account from ISP to access Internet.
Password: Input the password assigned by your ISP.
PPPoE server name: Server name of network ISP. No need to set.
Authentication Mode: Authentication mode of network ISP. Default is AUTO.
Press “Next” when configuration is finished. Notice that PPPoE mode does not work until the
modem is reset.
3.2.4.4 Static Address

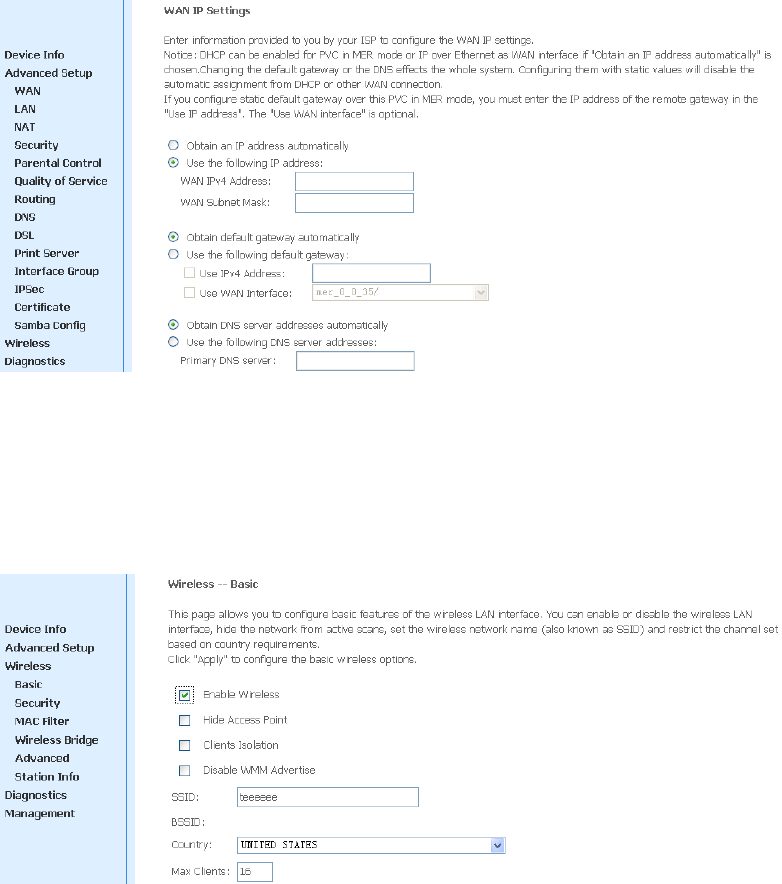

Select Mac Encapsulation Routing (MER), press “Next” and the configuration can be queried
from your ISP.
Click “Save/Apply” when configuration is finished.
3.2.5 Wireless Configuration
Press “Wireless” on the top of web pages to enter wireless section. You can select to
configure wireless setup, security and management.
3.2.5.1 Wireless Setup
Click “Basic” on the left menu to setup basic wireless parameters. In default, check “Enable
Ｗireless” box to launch wireless AP.
SSID (Service Set Identifier): The mobile users cannot access WLAN until setting their SSID
as the same value of the wireless ADSL. The SSID value of the ADSL is “MSW41p4”
Hidden Access Point: If checked, wireless station will no see SSID of the ADSL.
Click “Save/Apply” when configuration is finished.
3.2.5.2 Wireless Security

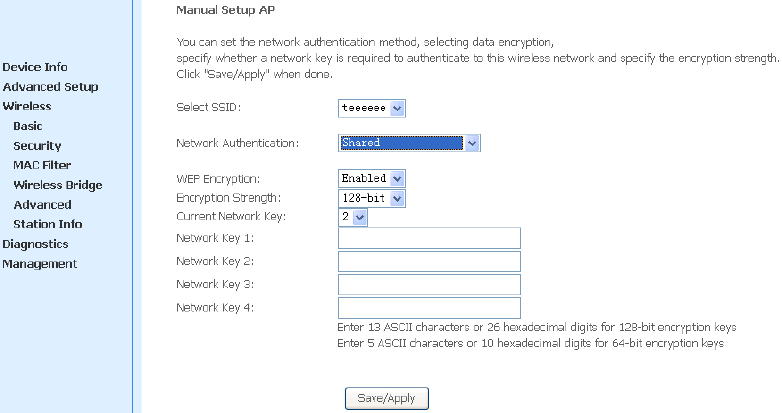

Press “Security” on the left menu to construct wireless security. You can select to configure
WEP encryption, Shared, 802.1x, WPA, and WPA2 authentication.
WEP Encryption DEFAULT password “apmsw41p4”
Select “Enabled” of the WEP encryption list. You can enter WEP encryption page.
Encryption Strength: Key length: 128bits or 64bits.
Network Key 1-4: Up to four keys that are in form of hex digitals could be set. Mobile users
can’t access the AP if they haven’t set the same key as AP. For 64bits and 128bits keys, you
should input 10 and 26 hexadecimal digitals or 5 and 13 ASCII characters respectively. Every
two digitals should be comparted with others by a space character. For example:
“7890ABCDEF” (hexadecimal digitals) or “QWERT” (ASCII characters) for a key length of
64bits.

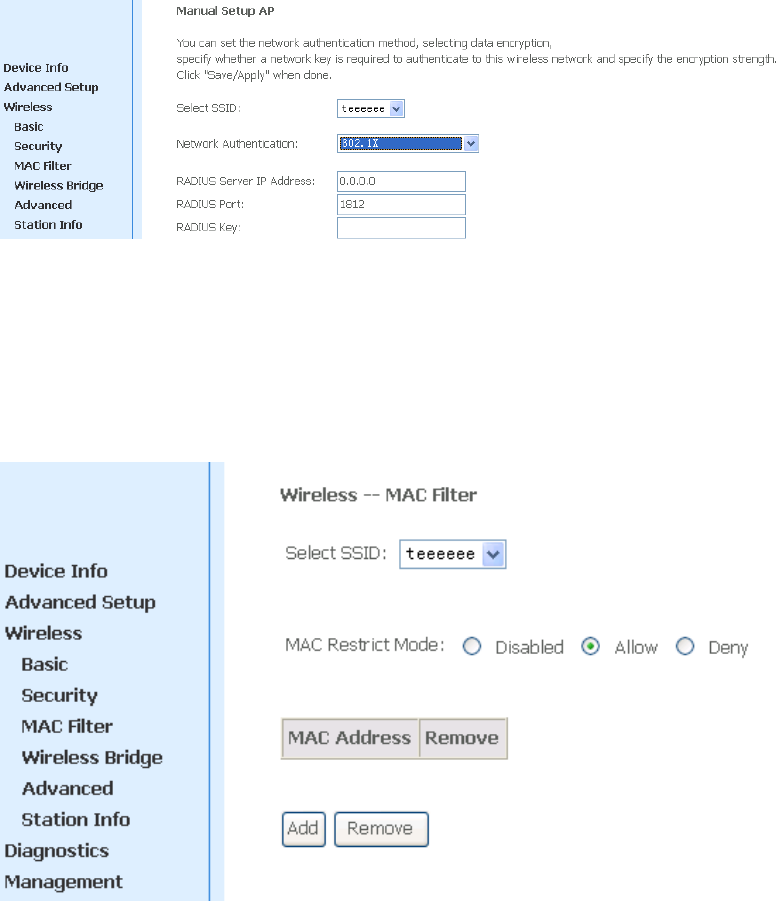

802.1x Authentication
Select “802.1x” to enter 802.1x authentication page.
The 802.1x authentication needs a Radius server in LAN. In this page, you can input Radius
server IP address, port number and secret key.
3.2.5.3 Wireless Mac Filter
In fact, the Access List function is just like MAC address filtering and selected to permit or
forbid access of wireless station with specified MAC address.
Method: select “Allow” or “Deny” mode, and click “Add” button, and input MAC address
which you want to allow or deny.
Notice: You only can select one either allow mode or deny mode not both.
4. Other Configuration
4.1 LAN Configuration
Configuration of Modem’s IP address and password.
4.1.1 Configuration of Modem’s IP Address
As a network device, ADSL Modem has its own IP address and MAC address. The factory
sets the MODEM, at a default IP address of 192.168.2.1 and subnet mask of 255.255.255.0. The
user can configure these addresses through the “LAN” on “Configuration” like this:
For example, change IP address to “192.168.2.1”. Click “LAN”, input “IP address”:
192.168.2.2, then “subnet mask”: 255.255.255.0, Press “Save” when configuration is finished.
Notice
：
：：
：
If you change IP address, it will take effect after you reboot the modem. You must use
the new IP address to login.
4.1.2 DHCP Configuration
Click“
““
“LAN ”
””
”
Click“DHCP server”
””
”；
Define the “Start IP address” and the “End IP address” of DHCP server (for example, from
192.168.2.2 to 192.168.2.254).
Input the value of lease (Measured by the second, 0 indicates permanently valid).
Enable DHCP server, computer will set the IP Address of network card with one of the
address 192.168.2.1 ～ 192.168.2.254 (Excluding 192.168.2.1).
Notice
：
：：
：
When you use the DHCP Server, please pay attention to having multi-DHCP Server in
one LAN.
4.2 Password Configuration

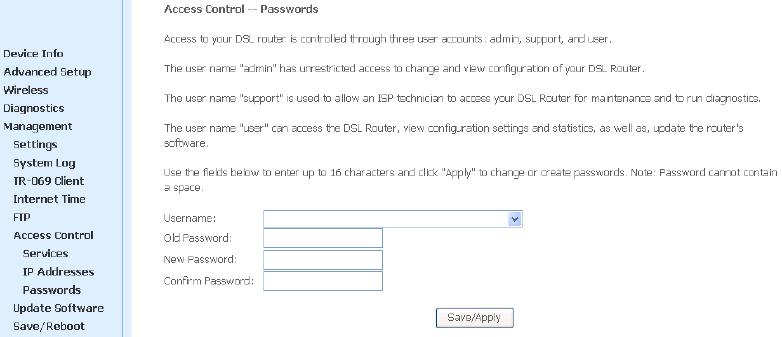

When you configure ADSL MODEM through an Internet browser, the system requires user
name and password to validate access permission. The factory sets the modem at a default
username of “admin” and the password of “admin”. Choose “Management” -> “Access Control”
-> “Passwords”, you can choose the username and change the password.
Attention: please remember the password after change, otherwise you need to reset
the device to change configuration after saving setting.
5. Troubleshooting
5.1 Unable to Access Internet
5.1.1 Check the Line and the Device
1、 Check the indicator of power supply is on, if not, Make sure the connection of power
supply is correct; Make sure the output of power supply is correct; Make sure the switch
of power supply is turned on；
2、 Check the indicator of PC is on, if not, Make sure the connection of cable and network
adapter; Make sure that the correct cable is used;
3、 Check the LINK LED to see if it is twinkling. If no fast twinkling is observed within 3
minutes, please check whether phone line has been correctly placed; whether ADSL
separator is correctly used. If multiple extensions have been installed, make sure that the
separator is installed prior to the junction box of phone line. If the above items are
confirmed and still no fast twinkling of WAN LED is observed, call the ISP to query
whether ADSL service has been provided on your line;
4、 Check the LINK LED to see whether it is unable to change status from fast twinkling to
always light, or whether it changes status to fast twinkling after sometime of always light.
If these phenomena occur constantly, please contact your ISP with a demand to check
lines and signal quality;
If there is no problem in the above items, the line and the device shall be working. Problems
may come from your computer configuration or device configuration.
5.1.2 CHECK YOUR CONFIGURATION
We explain here the configuration of PPPOE using Windows XP operation system as an
example. For other operation systems the process is similar.
1、 Enter the device manager to check if Ethernet adapter is correctly installed. If any
problem exists, please re-installed it;
2、 Check the configuration of Ethernet adapter in PC. Try to manually set IP address that is
in band 192.168.2.X without conflict. See 3.2;
3、 Try to run command “ping 192.168.2.1” on command line mode. If the response returns
“time out”, please check Ethernet connection and IP settings;
4、 If this modem is reachable, try to run ping with a known outer IP, e.g. the DNS server IP
of www.yahoo.com: “ping 209.131.36.158”.
If ping is reachable, there shall be no problems in the modem. Please see step 5;
If ping is not reachable, see step 6 and check if the configuration is correct.
5、 Please try to ping a certain outer URL, e.g. “ping www.google.com”.
If ping is reachable, there shall be no problems in the network settings. Please
check the settings of the PC terminal, e.g. whether the security level is too high, or
whether anti-virus firewall is installed;
If ping is not reachable, check the DNS setting of Ethernet adapter. See 3.2.
Note 1：The precondition is that LAN settings in the modem has not been modified.
Note 2：We usually start command line mode in Windows XP as follows: click on the “RUN”
item of Windows Start Menu, input characters “cmd” in the input box popped up with an
“Enter”. The window subsequently popped up is the command line window.
Note 3：The returned values of ping command in the following format show the standard of
“reachable”
6， If ping of the modem is reachable but ping of the outer fixed IP is unreachable, attention
should be concentrated upon device settings. Please enter the configuring interface
following the instructions in this manual.
（1） Check first the number of connections. If more than one connection exists, for
troubleshooting, delete unused connections and remain the one connection you are
using.
（2） Check the connection to see whether correct “type” is selected. It’s normal to choose
login type of PPPoE. When you use PPPoE to login, the following information
should be provided: VPI and VCI, which can be queried from your ISP, user name
and password.
（3） Then make sure that “using NAT” and “default gateway” have been selected with a
tick. Check whether “connect on demand” has been selected with a tick. If it is
selected, the connection is activated only when traffic to outer networks arrives. If
not selected, check “keep connection”, which should be set to 0 if you demand to
keep connection
Make sure that the above parameters are saved after configuration. Internet is now available
since the configuration is properly done.

Navigation menu
