GlobalSat WorldCom GH-801 POCKETABLE GPS User Manual GS 4303 V1 0 no FM
GlobalSat WorldCom Corporation POCKETABLE GPS GS 4303 V1 0 no FM
USERS MANUAL
1

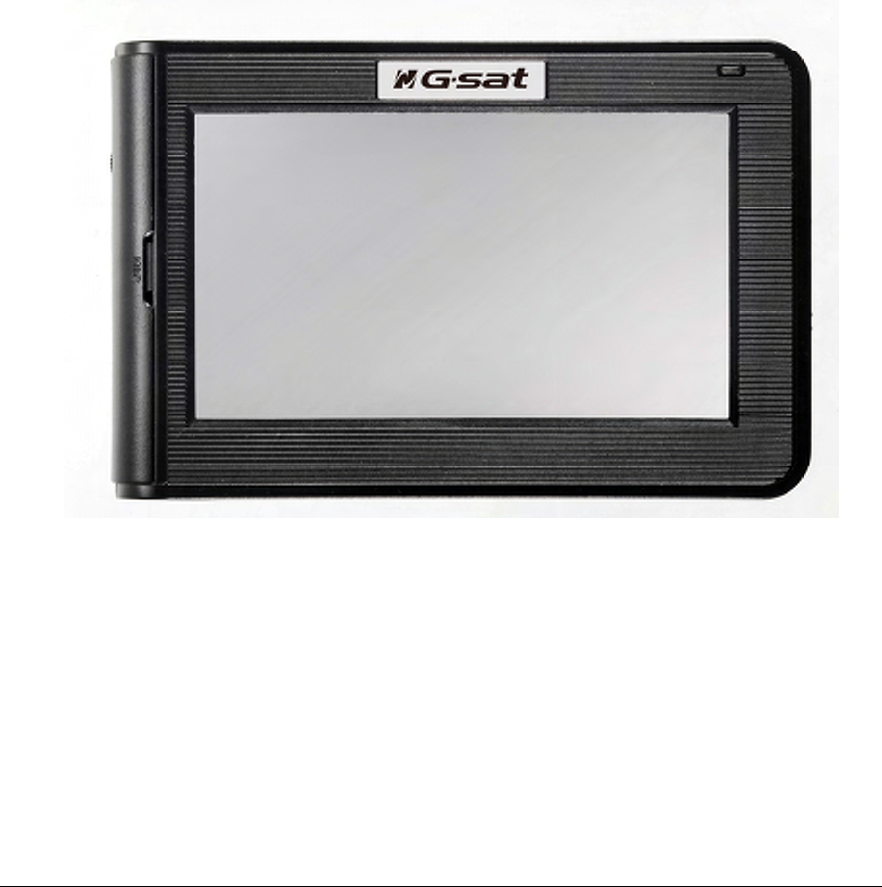

GS-4303
Getting You There!
User Manual v1.0
2
Table of Contents
1. Cautions
2. Package Contents
3. Product Features
4. Product Specifications
5. Product Overview
6. Getting Started
6.1 Charging the Battery
6.2 Car Mount Installation
7. Software Instructions
7.1 Main Menu
7.2 Settings
7.2.1 Nav. Setup
7.2.2 GPS Status
7.2.3 Emend T-Scr
7.2.4 Backlight
7.2.5 Language
7.2.6 Volume
7.2.7 Time
7.2.8 System
7.2.9 Skin
7.3 Music Player
7.4 Photo Viewer
3
7.5 Movie Player

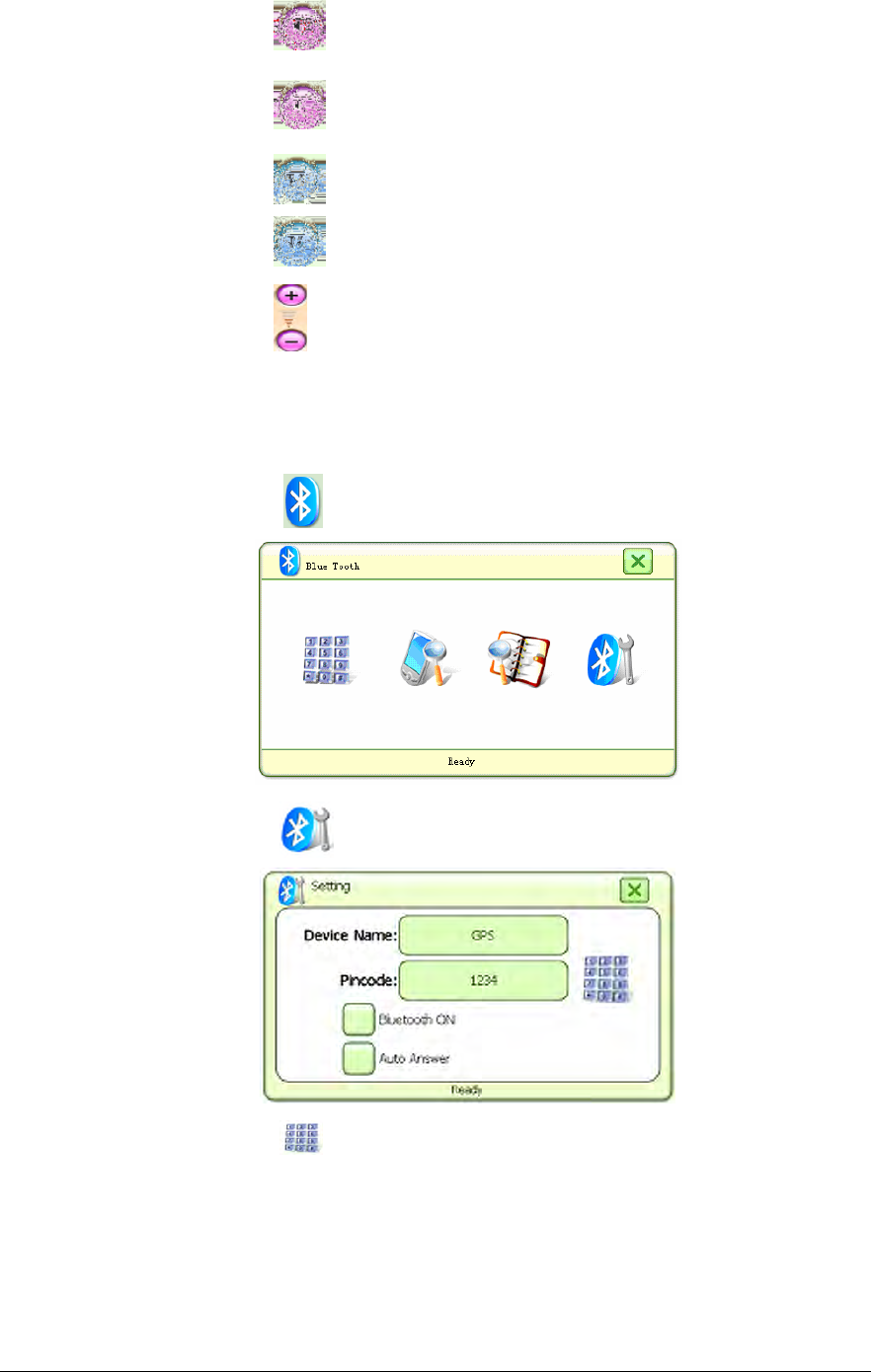

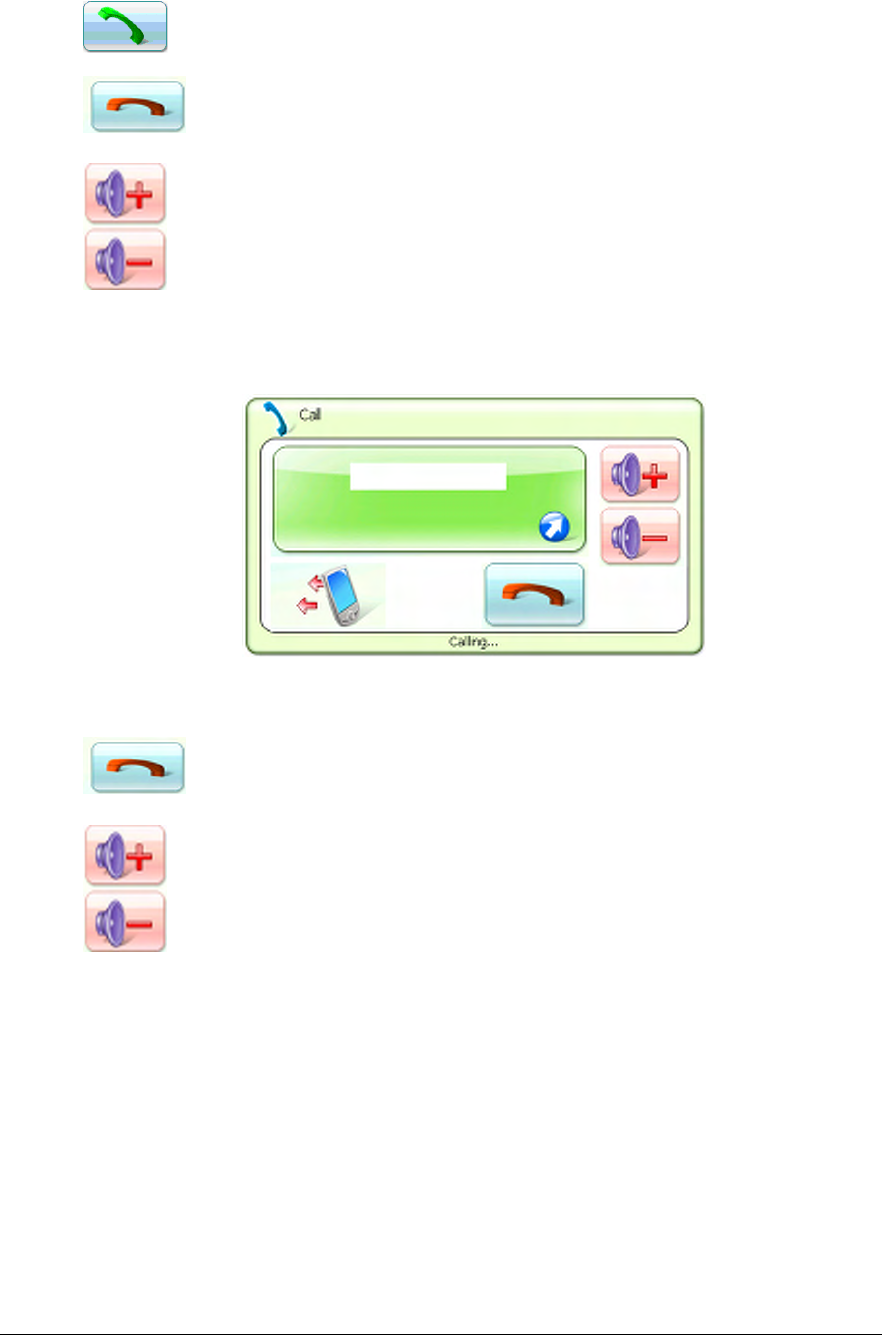

7.6 Bluetooth Car Kit (optional)
8. AVIN
9. Troubleshooting
10. FCC Notices
4
1. Cautions
One should not carry out any operation which could impair safety while driving
or cycling.
As for the operation of this product in the aircraft, please consult the aviation
company first of all. Special care should be taken when an electronics device is
engaged during a flight.
Never get closer to a place emitting intensive radio waves or radiation which
could affect the operation of this product.
Never make the navigator fall down or clash with stiff objects to project it
against any damage in appearance, battery loose, data lose or other hardware
mutilation.
Never let this product expose to the humid environment or rain as the water
leaked into could disable it to the extent beyond reparation.
Never switch on this product in the dusty environment.
Over-voltage, power cable strain, bending or squeezing by heavy objects is not
allowed to avoid overheating or fire disaster.
Never deploy any chemical or detergent to clean up the navigator to prevent
erosion of the surface or paintwork.
In order to eliminate the risk of electric shock, do not touch the cable power
plug with wet hands and do plunge it into the socket completely.
Never charge the battery in a neither extreme cold nor hot place, which could
damage the battery.
Keep this product which is being charged out of the reach of children.
Never put it under the direct baking sunshine or place it in a place with high
temperature to avoid the problem of over-heat to the battery or this product,
which could trigger fault or danger.
Put this product on an even workbench instead of blanket, pillow or carpet
which could build up the heat to a level so high to bring forth damage.
When any sort of fault comes into being, please contract with qualified
maintenance personnel for service rather than disassemble it at your own
discretion.
Keep all the wires in neat order to prevent damage-fostering tangling.
Never suppress the LCD screen violently. Never bring it to the open glaring
sunshine, which could damage this product. Please wipe the screen surface
clean with soft cloth.
Never cut off the power directly in the mode of navigation, music, video and
image browse, which could lose data.
When the system is reading data from or writing date into the memory card,
never take out the card directly which could make the information stored in the
memory card corrupted or lost or even crash the system.
In the process of formatting, upload or download, never disconnect the power
supply abruptly. Otherwise, it could lead to a problem of application error.
5
Pay attention to the compatibility of multimedia files and the product can only
play back the files in the stipulated formats.
All the TV programs, music, movies and images are under the protection of
copyright. Unauthorized usage is deemed as an infringement to the laws of
copyright.
For the sake of data safety, please back up the data on the SD/MMC card into
the computer on a regular basis.
Do not adjust the volume of speaker to maximum for a long time. Otherwise,
it will cause audio distortion.
The pictures presented in this manual are only for reference.
2. Package Contents
3. Product Features
4.3-inch high brightness touch screen
Stereo earphone jack
1.5W build-in speaker
Build-in high sensitivity GPS receiver
Build-in GPS antenna
Items Quantity
GPS Navigator 1
Car Charger 1
Car Mount 1
USB Cable 1
CD ROM 1
Printed User’s Manual
(option) 1
AC Charger (option) 1
TMC Antenna (option) 1
Earphone (option) 1
6
SD/MMC card slot for up to 2GB memory cards
Music Player for WMA, WAV, and PCM formats
Video Player for ASF and WMV formats
Photo Viewer for BMP, JPG, PNG, and GIF formats
E-book for TXT format
AVIN for car rear camera
Bluetooth for car kit function (optional)
TMC (optional)
Rechargeable lithium battery
Full speed USB 1.1 interface
LED Indicator for power status
4. Product Specifications
Environment Parameters
Size 128mm(L) x 83mm W x 20mm H
Weight 210g
Working Temperature
-10 ~ +60
Storage Temperature
-20 ~ +70
Working Humidity 30% ~ 80%RH
Storage Humidity 30% ~ 90%RH
System Parameters
Main Frequency 266 MHz
Processor Samsung S3C2413
ROM Memory 1GB
External SD Card Up to 2GB
Operation System WinCE 5.0 Core Version
7
Basic Parameters
Video Input Type CVBS
Display 4.3” TFT LCD Touch Screen / 480x272
Speaker Power 1.5W @ 8ohm
Battery Type Build-in 780mAH Rechargeable Lithium Battery
Battery Life 2 Hours
GPS Hardware Parameters
Chipset Mstar
Frequency 1.575GHZ
C/A CODE 1.023 MHZ chip rate
Channel 12 Channels
Tracking Sensitivity -161dBm
Positioning Sensitivity
10m, 2D RMS 5m, 2D RMS, WAAS enable
Speed Rate 0.1m/s
Data Update Rate 1HZ
Recapture Time 0.1s on Average
Hot Start 3 seconds
Warm Start 38 seconds
Cold Start 100 seconds
Maximum Altitude 18,000m
Maximum Speed 515m/s
Acceleration < 4g
Build-in Antenna Type
Build-in Active Ceramic Antenna
Build-in Antenna Gain
27dB
Build-in Antenna
Voltage 3.3V±5%
Build-in Antenna
Current 15mA
Bluetooth Parameters (Optional)
Maximum Distance 10m
Communication Type V1.2 / Class 2
Handfree Type Full Duplex Transmission
Chipset CSR BLUECORE3
8

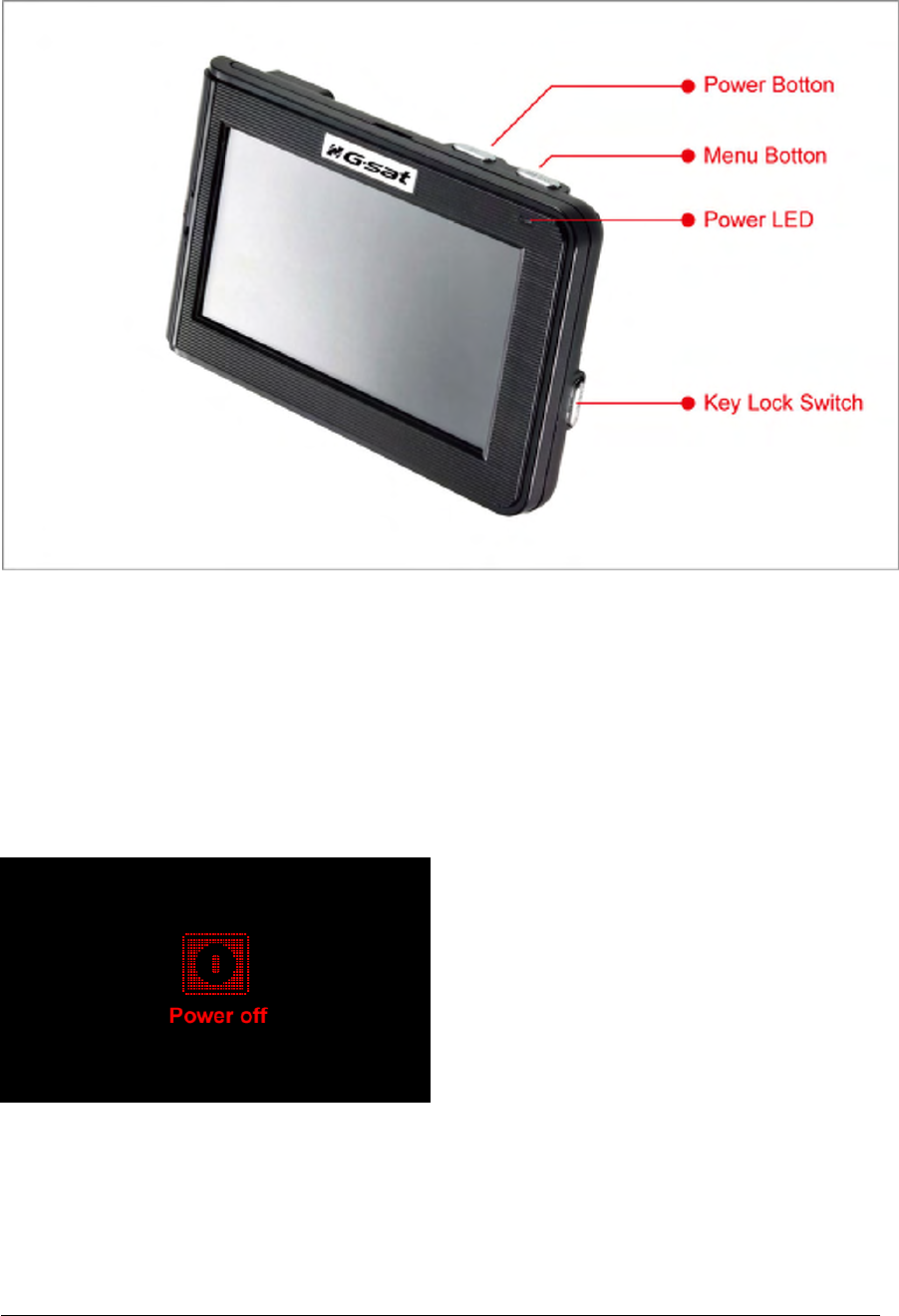

5. Product Overview
Power LED
Amber light means the battery is recharging and green light means battery is fully
recharged.
Menu Button
Press the “MENU” button to return to the main menu.
Power Button
Press and hold the Power Button for three seconds to turn on or turn off the
GS-4303.
Key Lock Switch
Push the switch up or down to lock or unlock the function keys and touch screen
operation.
9

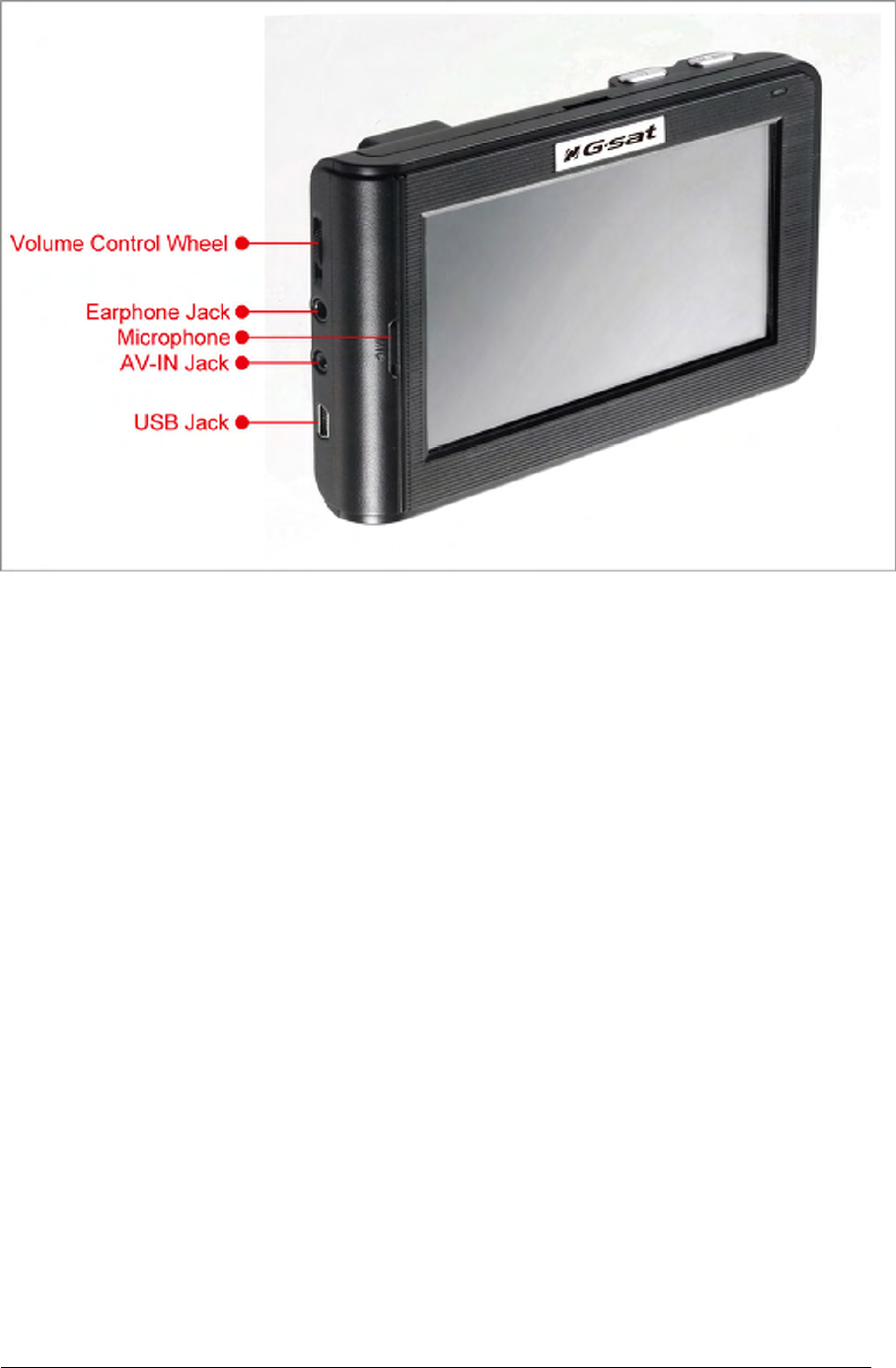

Volume Control Wheel
Roll the wheel up or down to adjust the volume of the speaker.
Earphone Jack
Plug in earphone here.
AVIN Jack
Plug in rear cam here.
USB Jack
Plug in USB cable here.
Microphone
Audio input for car kit function.
10

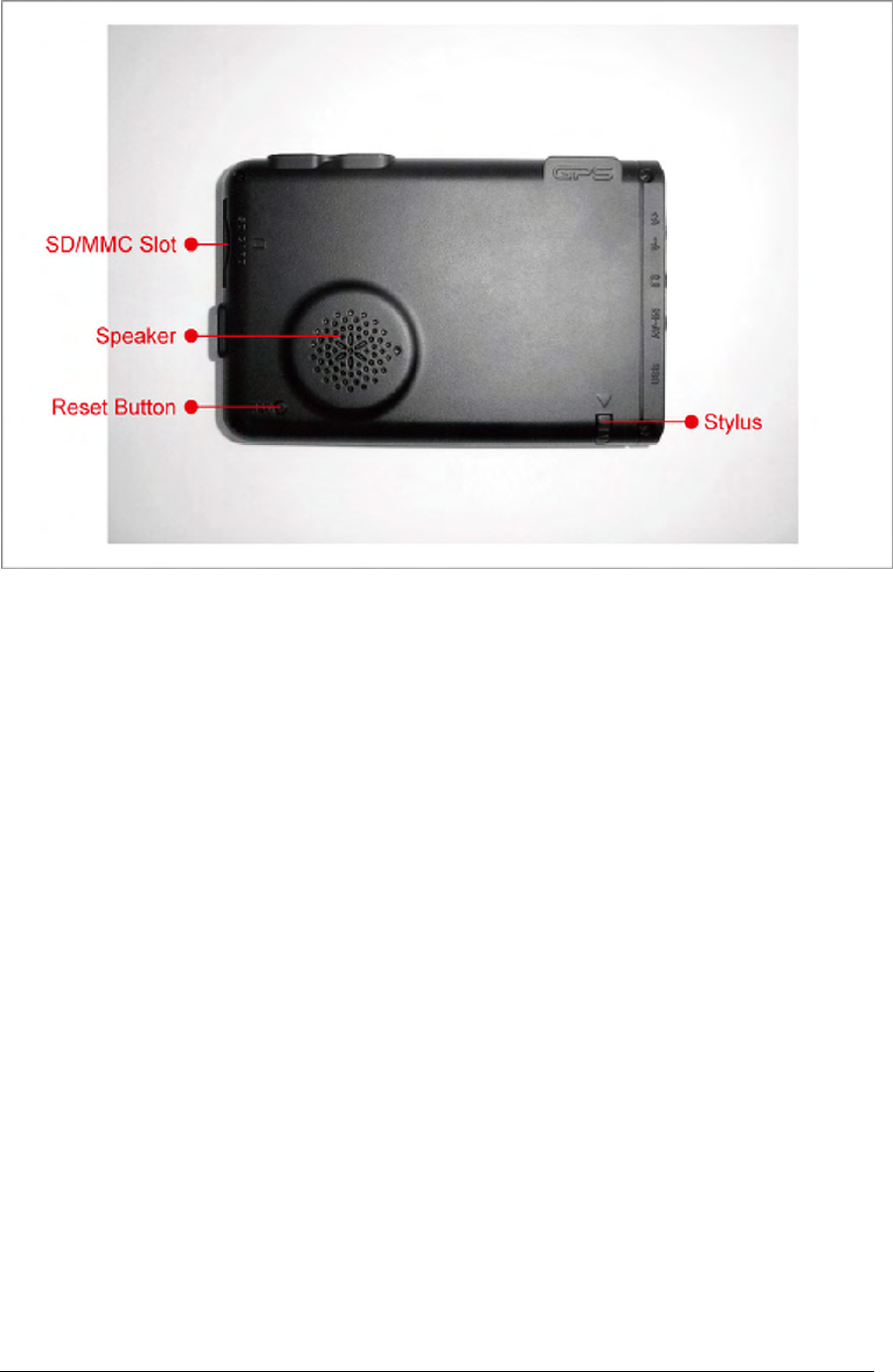

SD/MMC Slot
Plug in SD card here.
Reset Button
Press the Reset Button to restart the device.
Stylus
Speaker
Device audio output.
6. Getting Started
6.1 Charging the Battery
There are three methods to charge the GS-4303.
Charge by Using the Car Charger
Connect the GS-4303 to car cigarette lighter by the car charger provided.
Charge by Using the AC Charger
Connect the GS-4303 to wall outlet by the AC charger provided.
11
Charge by Using the USB Cable
Connect the GS-4303 to PC by the USB cable provided.
NOTE: Before using the GS-4303, please charge the battery for more than 5 hours
to get the best battery performance.
6.2 Car Mount Installation
Attach the GS-4303 to the bracket provided.
Attach the bracket to the cradle provided.
Clean up the windshield with a dry clean cloth.
Place the suction cup on the windshield and flip the lever to fix the cradle on
the windshield.
Loose the swivel screws to adjust the GS-4303 to the proper position, and
then tighten the swivel screws.
7. Software Instructions

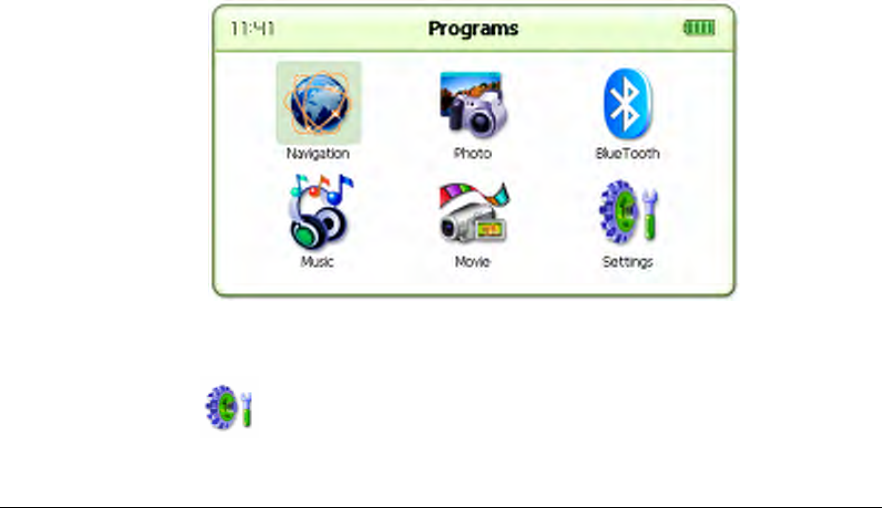

7.1 Main Menu
After the device is boot up, the Main Menu will show on the screen
.

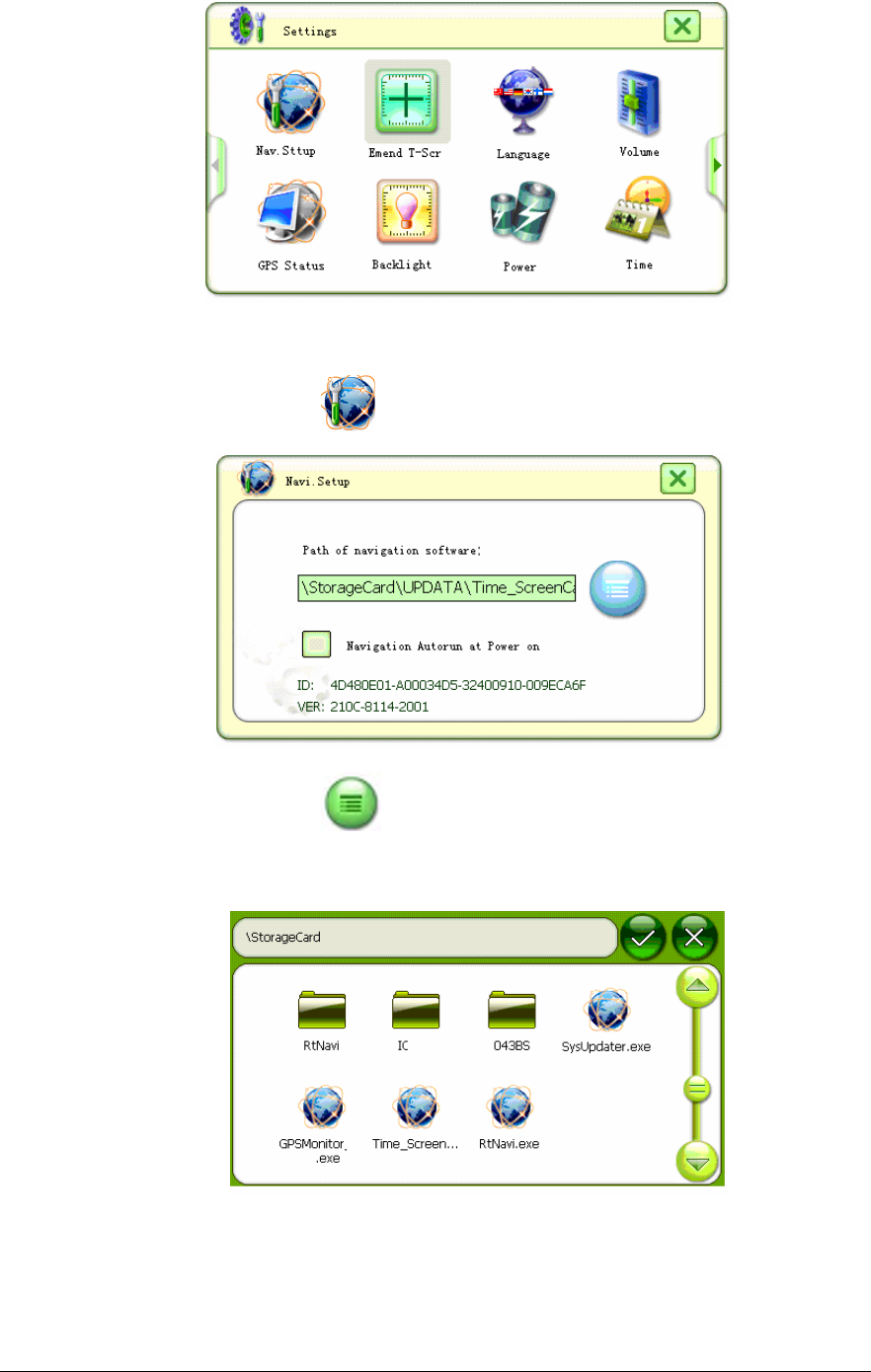

7.2 Settings
Click the icon to enter the Settings Menu.
12
7.2.1 Nav. Setup
Click on the icon to enter the Navi Setup Menu.
Click on the icon to set the path of navigation software.
Check the box on the screen to activate navigation auto-run.

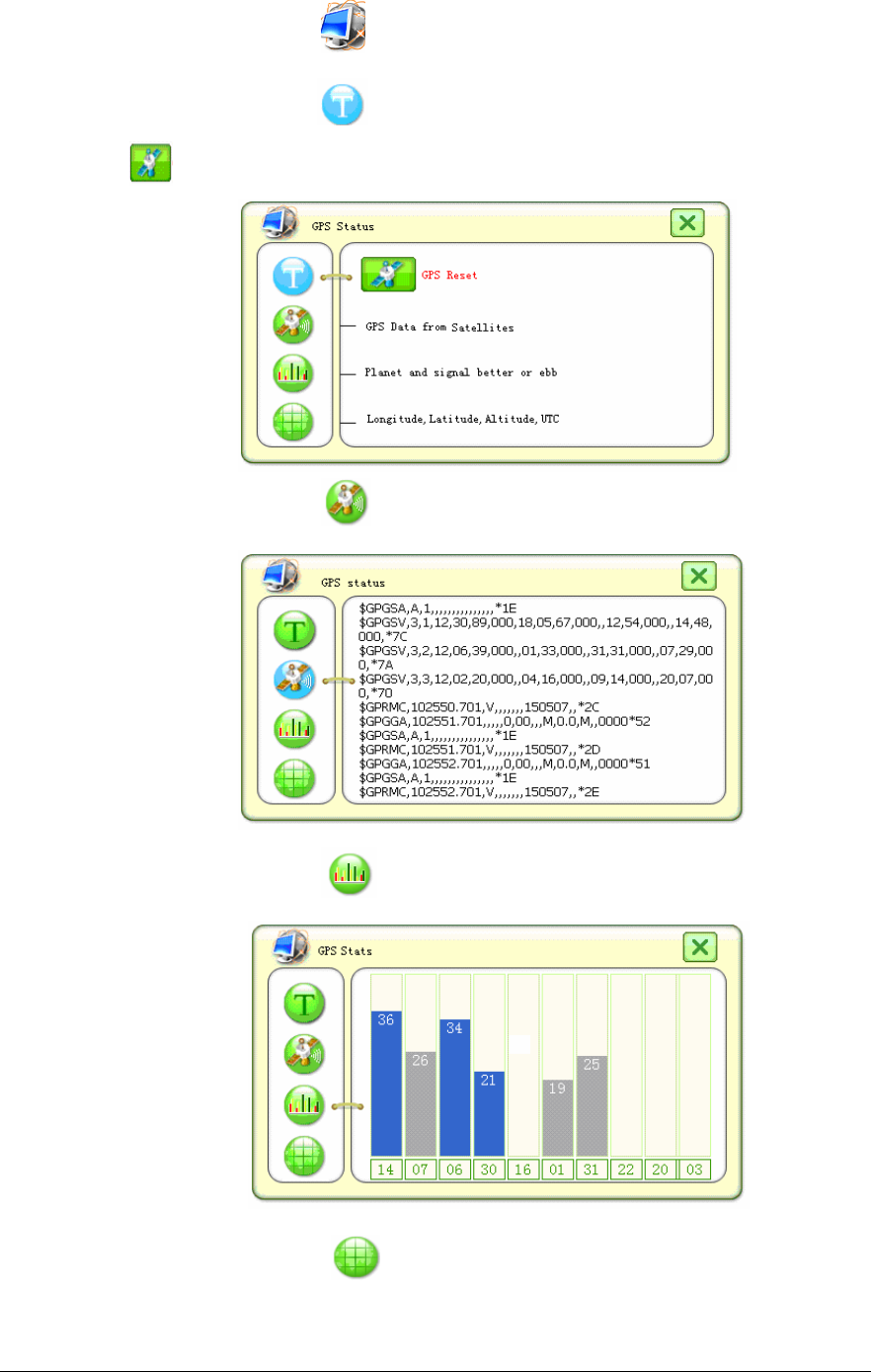

7.2.2 GPS Status
13
Click on the icon to enter the GPS Status Menu.
Click on the icon to reset the GPS receiver by clicking on the icon
.
Click on the icon to view the NMEA data streams.
Click on the icon to view the satellite signal status.

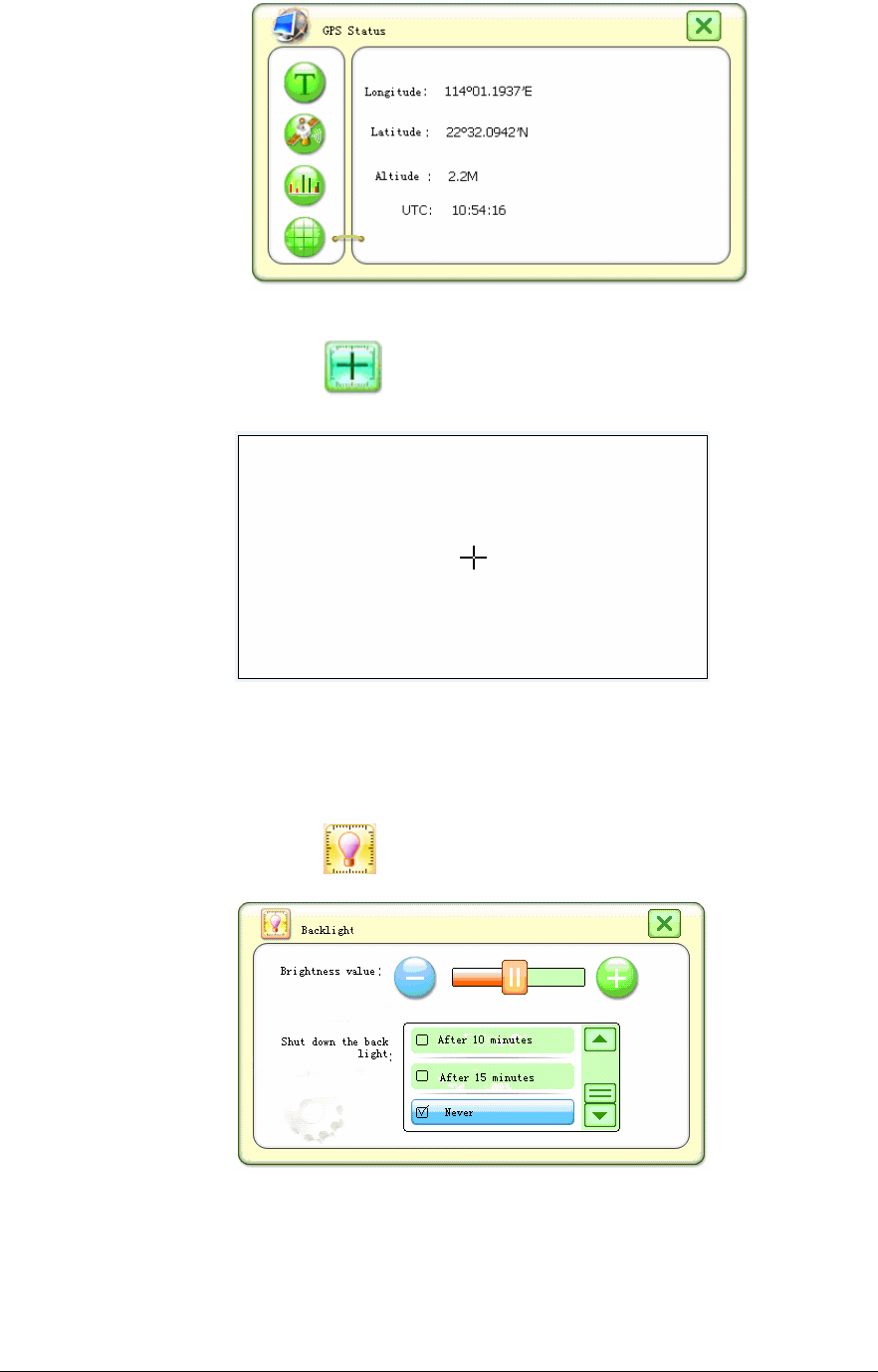

Click on the icon to view the longitude, latitude, altitude, and
time.
14
7.2.3 Emend T-Scr
Click on the icon to start the touch screen calibration.
Click on the cross mark on the screen to do the calibration.
7.2.4 Backlight
Click on the icon to enter the Backlight Setting Menu.
Adjust the backlight brightness level by moving the Brightness Value
Bar.
Select the backlight power saving criteria by clicking on any of the
15
selections on the screen. If the device is idled longer than the criteria,
the backlight brightness level will be changed to minimum brightness
level automatically.

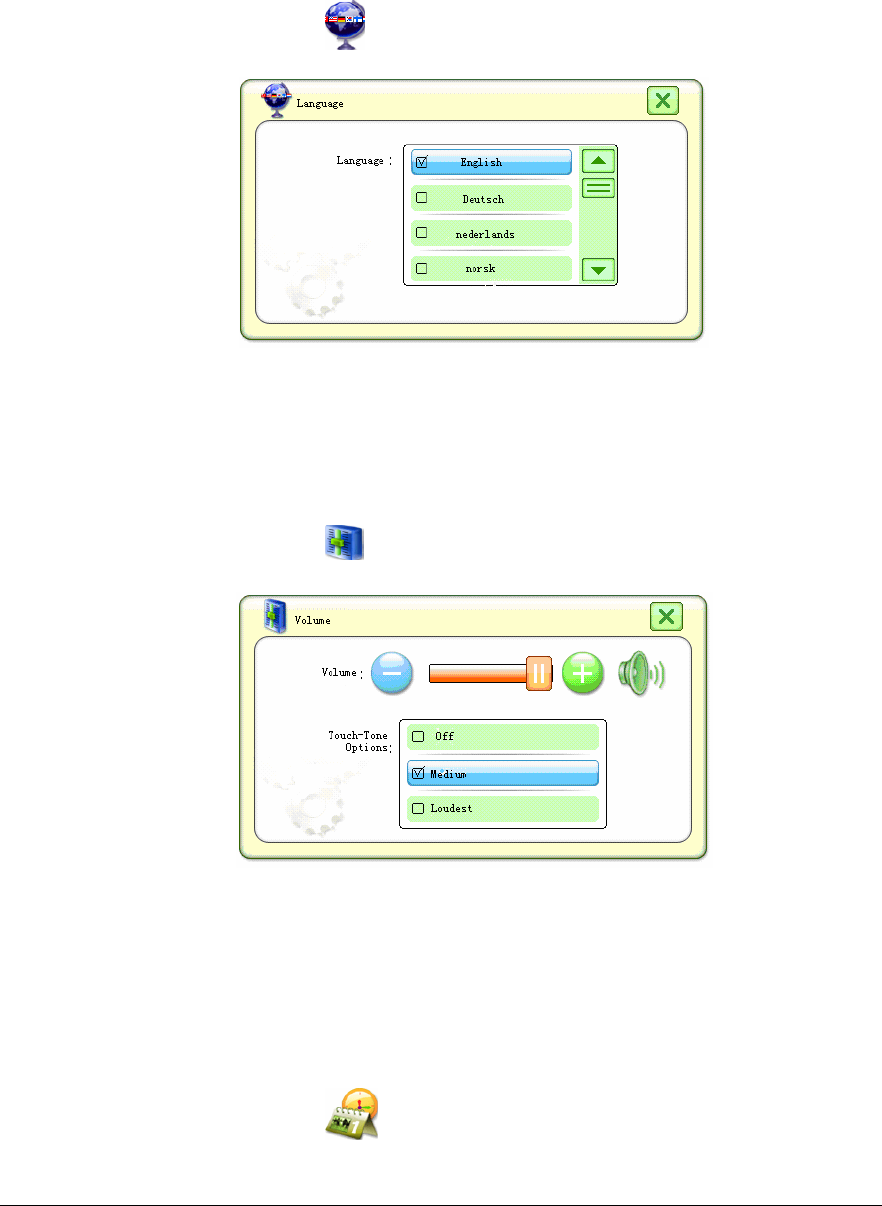

7.2.5 Language
Click on the icon to enter the Language Setting Menu.
Select the language you would like to use by moving the bar and
clicking on any of the selections on the screen.
7.2.6 Volume
Click on the icon to enter the Volume Setting Menu.
Adjust the volume level by moving the Volume Bar.
Set the touch tone volume by clicking on any of the selections on the
screen.

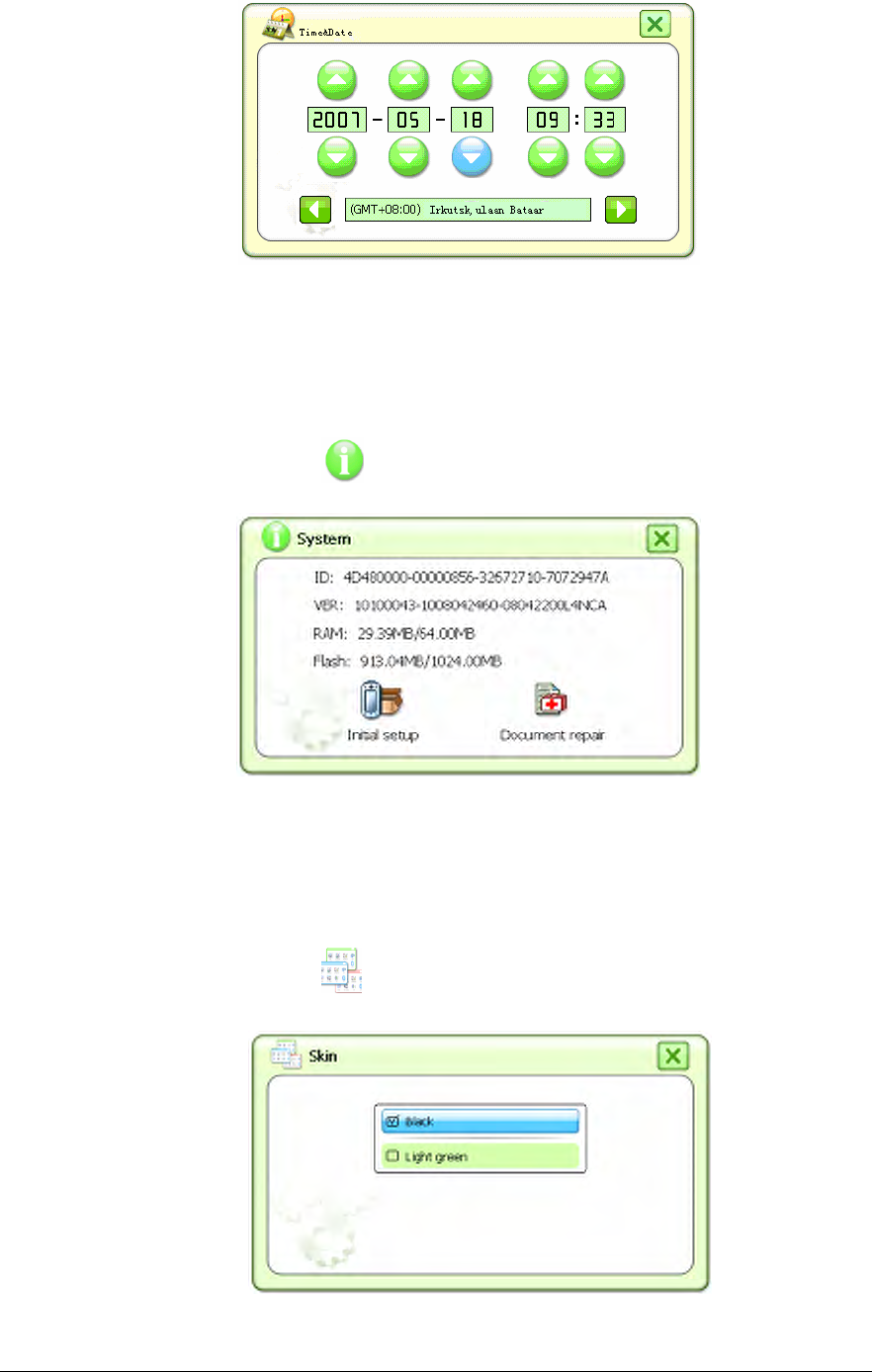

7.2.7 Time
Click on the icon to enter the Time Setting Menu.
16
Adjust the time by clicking on the Up/Down icons on the screen. Select
the time zone by clicking on the Right/Left icons below.
7.2.8 System
Click on the icon to enter the System Information Menu.
The menu shows the device ID, software version, RAM status, and flash
memory status.
7.2.9 Skin
C
lick on the icon to enter the Skin Setting Menu.
17
Select the skin style by clicking on one of the selections on the screen.

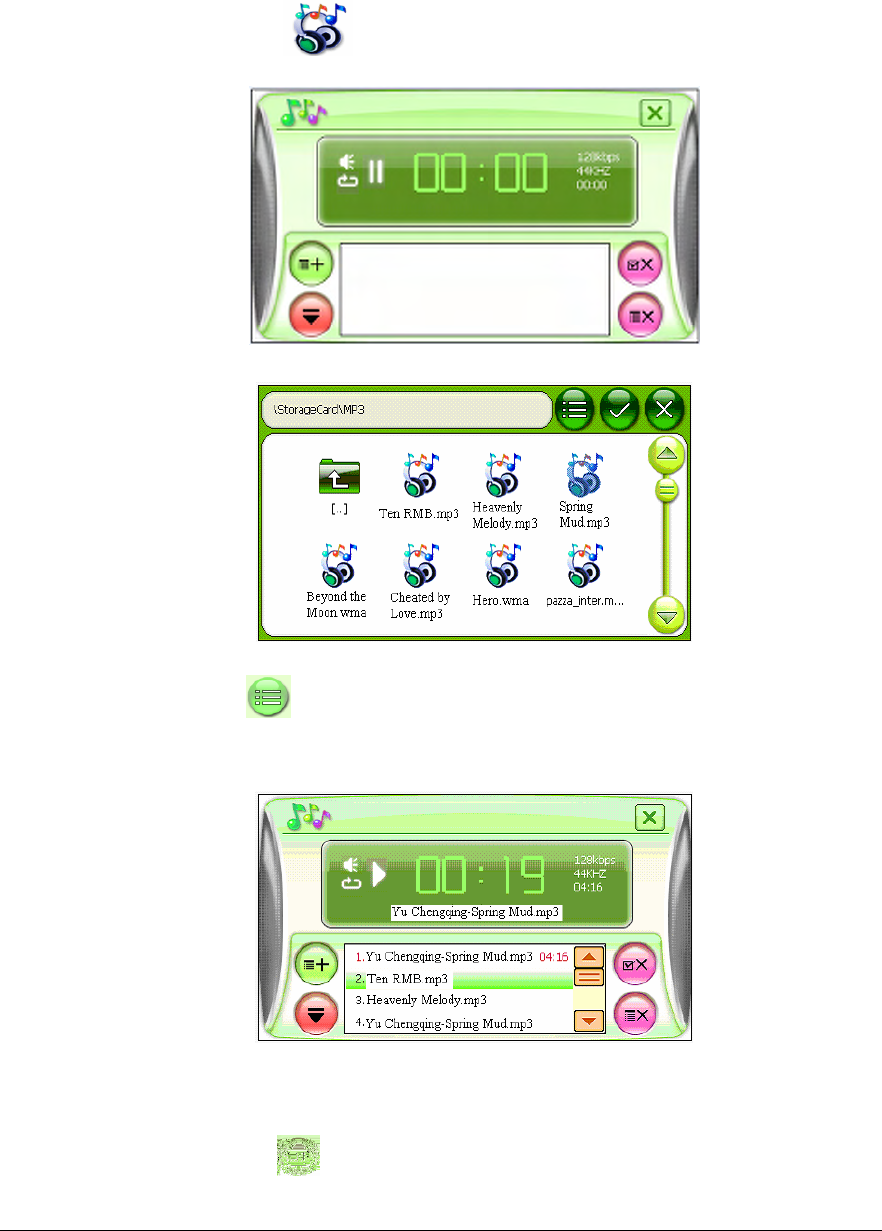

7.3 Music Player
Click on the icon to start the Music Player.
Click the icon to select all audio tracks in the directory or double click
on one of the audio tracks in the directory to add it to the playlist.
Function Icons Description:
Click on the icon to add audio tracks to the playlist.
18
Click on the icon to delete selected audio track from the playlist.
Click on the icon to delete all audio tracks from the playlist.
Click on the icon to switch between the Playlist Edit Console and Music
Player Console.

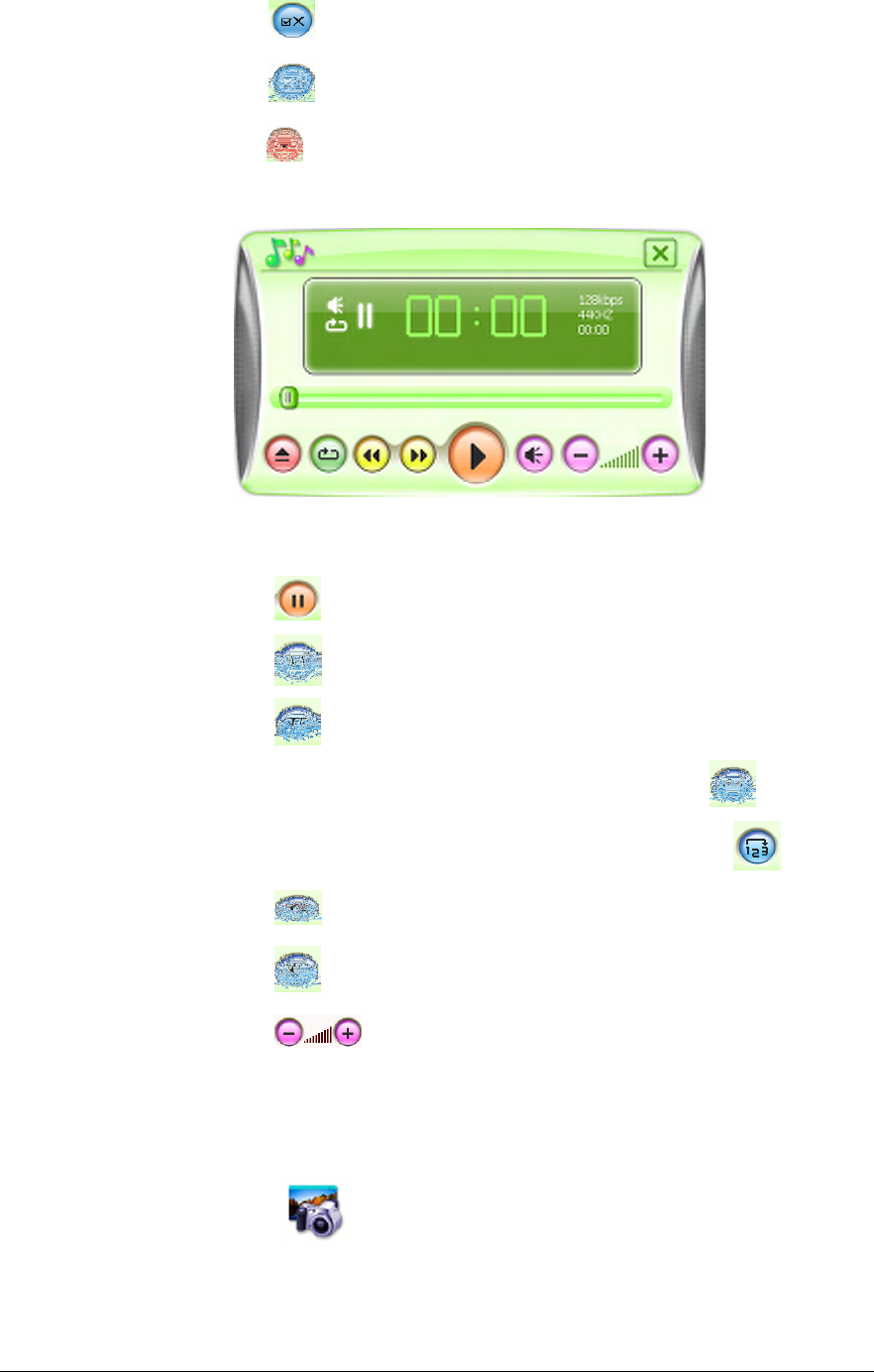

Function Icons Description:
Click on the icon to pause.
Click on the icon to go to next audio track.
Click on the icon to go to previous audio track.
All tracks in the playlist will be played repeatly if the icon showed.
All tracks in the playlist will be played randomly if the icon showed.
Click on the icon to mute the speaker.
Click on the icon to resume the sound.
Click on the icon to adjust volume.

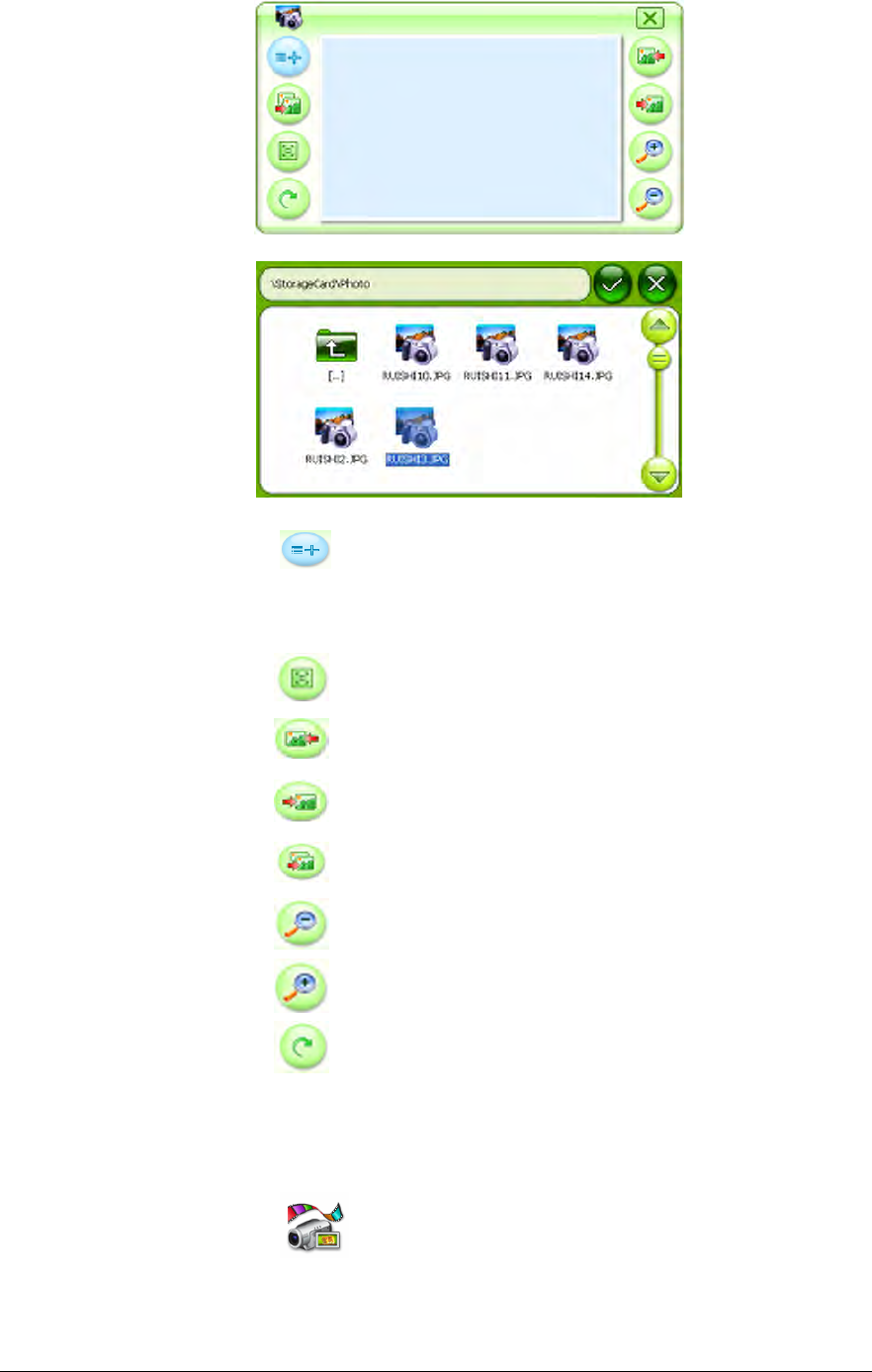

7.4 Photo Viewer
Click on the icon to start the Photo Viewer.
19
Click on the icon to select the directory of images.
Function Icons Description:
Click on the icon to switch to full screen mode.
Click on the icon to go to previous image.
Click on the icon to go to next image.
Click on the icon to start slide show.
Click on the icon to zoom out.
Click on the icon to zoom in.
Click on the icon the rotate the image 90
0
clockwise.

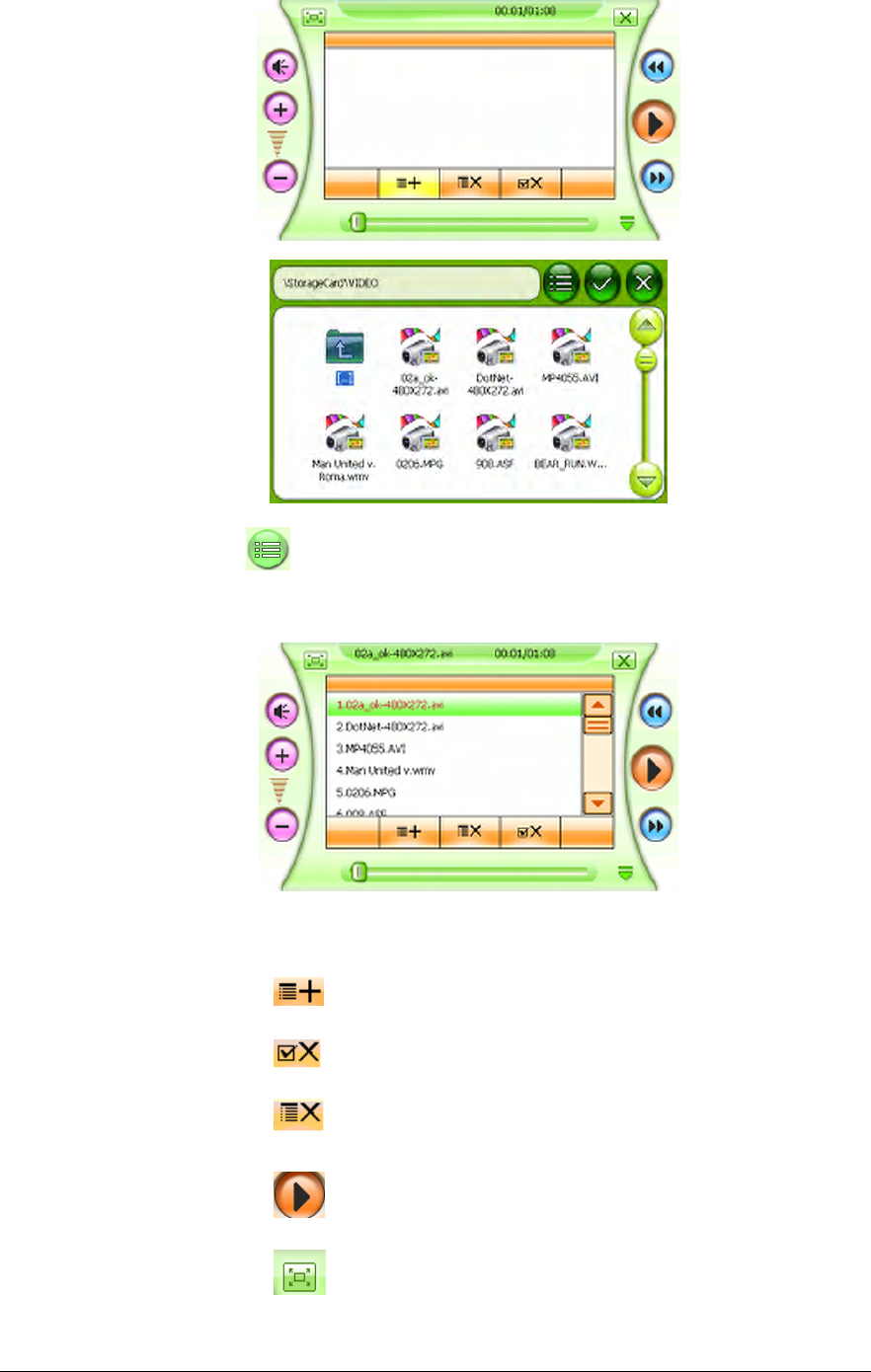

7.5 Movie Player
Click on the icon to start Movie Player.
20
Click the icon to select all video clips in the directory or double click
on one of the video clips in the directory to add it to the playlist.
Function Icons Description:
Click on the icon to add video clips to the playlist.
Click on the icon to delete selected clip from the playlist.
Click on the icon to delete all clips from the playlist.
Click on the icon or double-click the clip to start playing.
Click on the icon to switch to full screen mode.
21
Click on the icon to mute the speaker.
Click on the icon to resume the sound.
Click on the icon to go to next video clip.
Click on the icon to go to previous video clip.
Click on the icon to adjust volume.
7.6 Bluetooth Car Kit (optional)

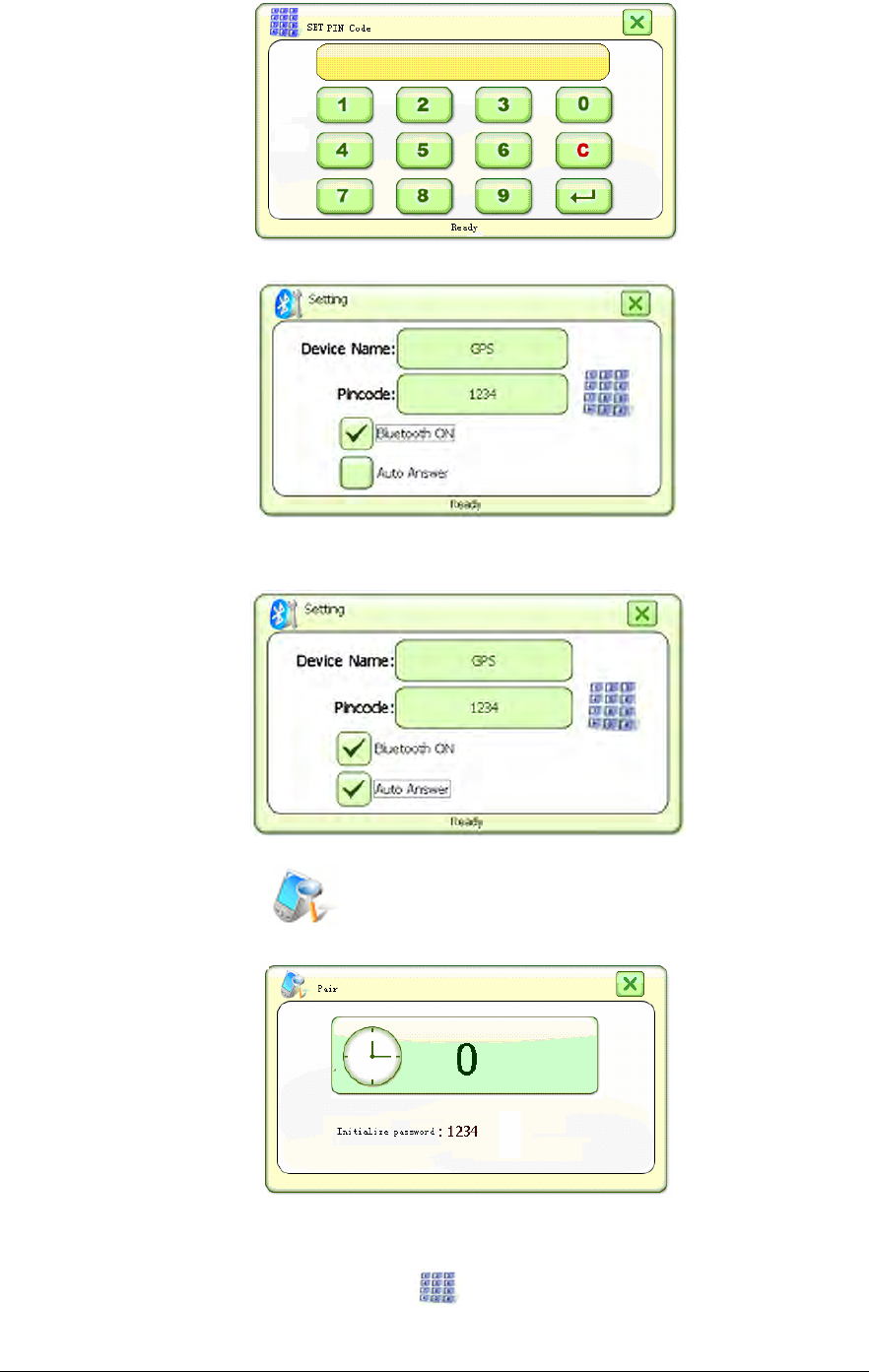

Click on the icon to enter Bluetooth Menu.
Click on the icon to enter the Bluetooth Setting Menu.
Click on the icon to change Pincode.
22
Check the Bluetooth ON Box to enable Bluetooth function.
Check the Auto Answer Box to enable auto answer function.
Click on the icon to start pairing.

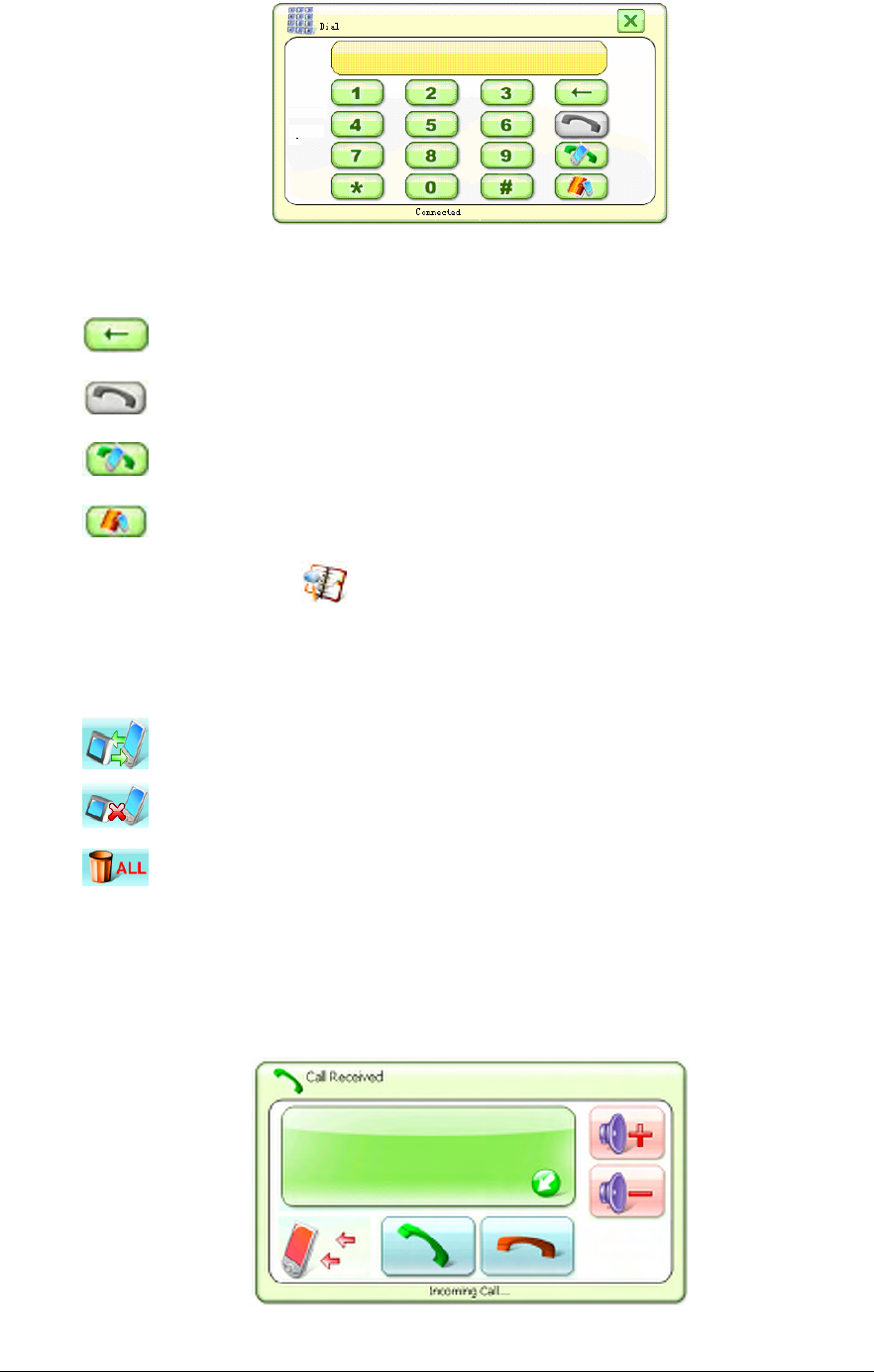

Connect your phone with the GS-4303. Once the connection is established
successfully, click on the icon in the Bluetooth Menu to start Dial Pad.
23
Function Icons Description:
Backspace
Dial
Redail
Call Record
Click on the icon in the Bluetooth Menu to enter Paired Device
Management Menu.
Function Icons Description:
Connect to selected device
Disconnect the existing Bluetooth connection
Delete all paired devices
The GS-4303 will search and connect automatically to the last paired device
only.
The following menu will show while a call is incoming.
24
Function Icons Description:
Answer a phone call
Reject a phone call
Adjust volume
The following menu will appear while calling.
Function Icons Description:
Hang up the phone
Adjust volume
NOTE: The Bluetooth device is only for the hands-free Bluetooth telephone,
and does not support the Bluetooth data transmitting and other functions.

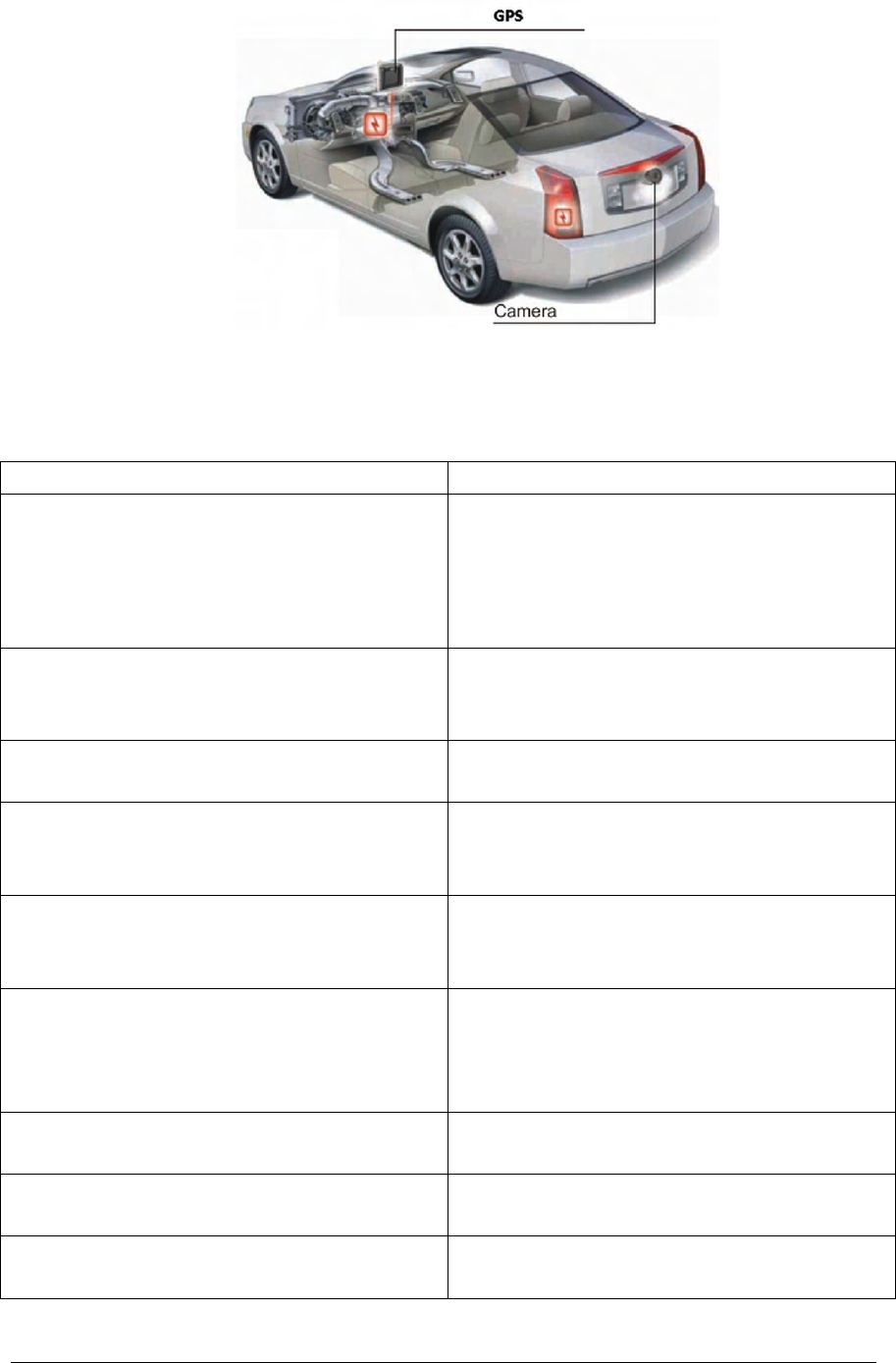

8. AVIN
The AVIN port is used for car rear camera. Just plug the rear cam cable into the
AVIN port of the GS-4303. Once the video signal is detected by the GS-4303,
the image will be shown on the display automatically.
25
9. Troubleshooting
Problem Solution
My GS-4303 cannot get GPS signals. Take your GS-4303 outdoors and away
from tall buildings and trees. Remain
stationary for several minutes to get
the necessary GPS information from
satellites.
The suction cup cannot stay on my
windshield.
Clean the suction cup and windshield
with a clean, dry cloth. Then mount the
suction cup as described in
section 7.2.
I cannot turn on my GS-4303. 1. Check if the key lock is activated.
2. Check if the battery is charged.
The touch screen is responding to my
taps properly.
Press and hold the Menu Key for three
seconds and then calibrate the touch
screen.
My phone cannot connect to my
GS-4303.
Make sure the Bluetooth on both your
phone and the GS-4303 is turned on.
Follow the instructions in section 8.6.
My computer cannot access data from
my GS-4303.
Check if the USB driver is installed. If it
is installed, please uninstall the USB
driver and install it again by following
the instructions provided.
The AVIN function is not working. Make sure the cable is fully plugged in
the correct jack.
The system encounters fatal errors and
crashed.
Push the reset button to restart the
system.
The images or audio tracks or video
clips cannot be played on my GS-4303.
Please check page 5 to see the media
formats supported by the GS-4303.
10. FCC Notices
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
26
