1. Introduction
1.1 Introduction
GTR-128/GTR-129 is designed as a durable and multi-functional GPS/GSM/GPRS tracker. It
integrates highly sensitive GPS module and quad-band GSM communication module with a
powerful microcontroller that fits into a compact enclosure. The device is capable of being
waterproof and ideal for use in a motorcycle, golf carts and vehicles. It is small in size and low in
cost for covert and efficient tracking device. It provides real-time GPS positions anytime and
anywhere with an open view to the sky, and offers precise positioning, and reports vehicle status
to the server with necessary information shown on the map. Benefits such as enhanced fleet
management, improved vehicle safety, emergency response, are all accomplished through the
implementation of the GTR-128/GTR-129 system. The built-in GSM and GPS antennas are for
easy installation without hassle.
1.2 Features
New generation GPS module.
Compact and Waterproof IP67 design
Built-in high sensitivity GPS/GSM antennas.
Quad-Band GSM System
Built-in motion sensor
AGPS support
Support communication protocols- SMS/TCP/UDP.
Multiple I/Os support: 1 Digital Input for custom function, 1 Digital input for optional
Emergency button, 1 Analog Input for fuel sensor, 1 Digital Output for Relay, 1 Digital Input
for ACC detection.
Configuration and Firmware update via Over-The-Air
Alert functions including Power low/ Over speed/ Movement alarms
Tracking by preferred interval, scheduling and Geo-fence
With magnet (GTR-128) or double side tape (GTR-129) for easy installation
Multiple power solution
4
1.3 Hardware specification
Item Description
Model GTR-128 GTR-129
Back-up Battery No back-up battery, but
magnetic mount instead
Li-Polymer 320mAh
Unit Weight 77g 78.5g
Temperature Operation
-30
℃
~ + 70
℃
-30
℃
~ + 60
℃
(0
℃
~ + 45
℃
for charging)
Storage -40
℃
~ + 70
℃
-40
℃
~ + 60
℃
Dimension 61 mm X 38 mm X 19 mm
GPS receiver high performance GPS chipset
Communication Quad-Band GSM (850/900/1800/1900 MHz)
GPS Antenna Built-in patch ceramics antenna
GSM Antenna Built-in Pi-Fa antenna
Protocol SMS/GPRS (TCP/UDP)
Power +9~36 V
Built-in Memory 32 Mb
Emergency Input Negative trigger x 1
Ignition (ACC) Input Positive trigger x 1
Digital Input Port Negative trigger x 1
Digital Output Port Negative trigger x 1 (300 mA)
Fuel sensor Input Port Analog Input x 1( 0~28V), 12 bits resolution
Sensor Motion sensor
Humidity 5% to 95% Non-Condensing
5

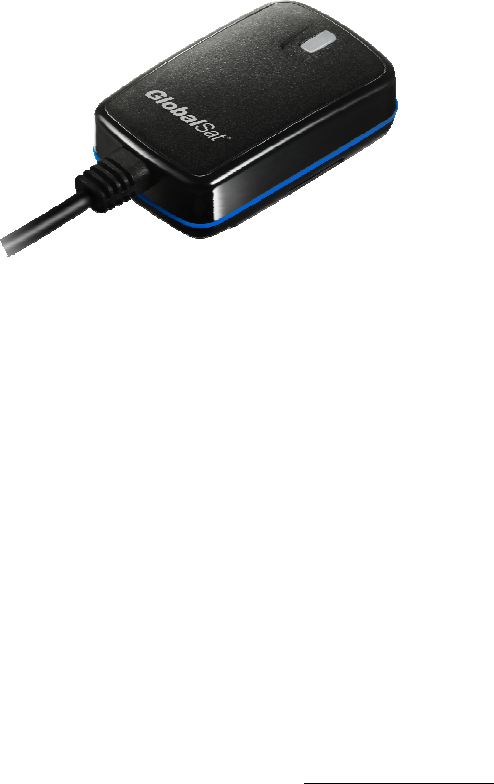

1.4 Appearance

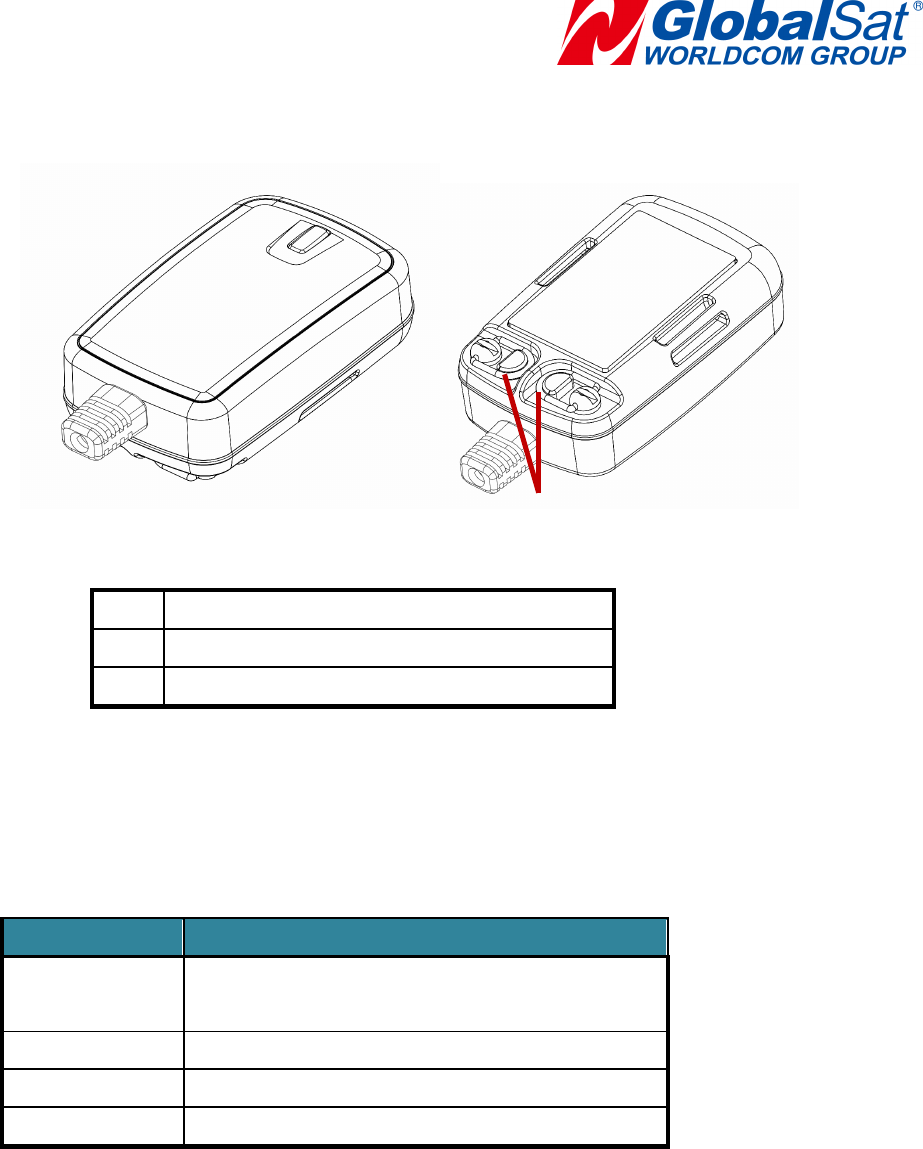

1 LED
2 For fixing device with Velcro tape
3 Hook for screw/ unscrew back cover
1.5 LED indicator
Normal mode:
LED status Description
Red blinking Device is being boot and SIM card not
ready
Red solid SIM card ready, but GSM not registered
Yellow solid GSM registered, but GPRS not connected
Green solid GSM registered, and GPRS connected
Hiding mode: Device would blink red light while it is booting up. After completing the boot, the
LED would go off.
1
2
2
3
6

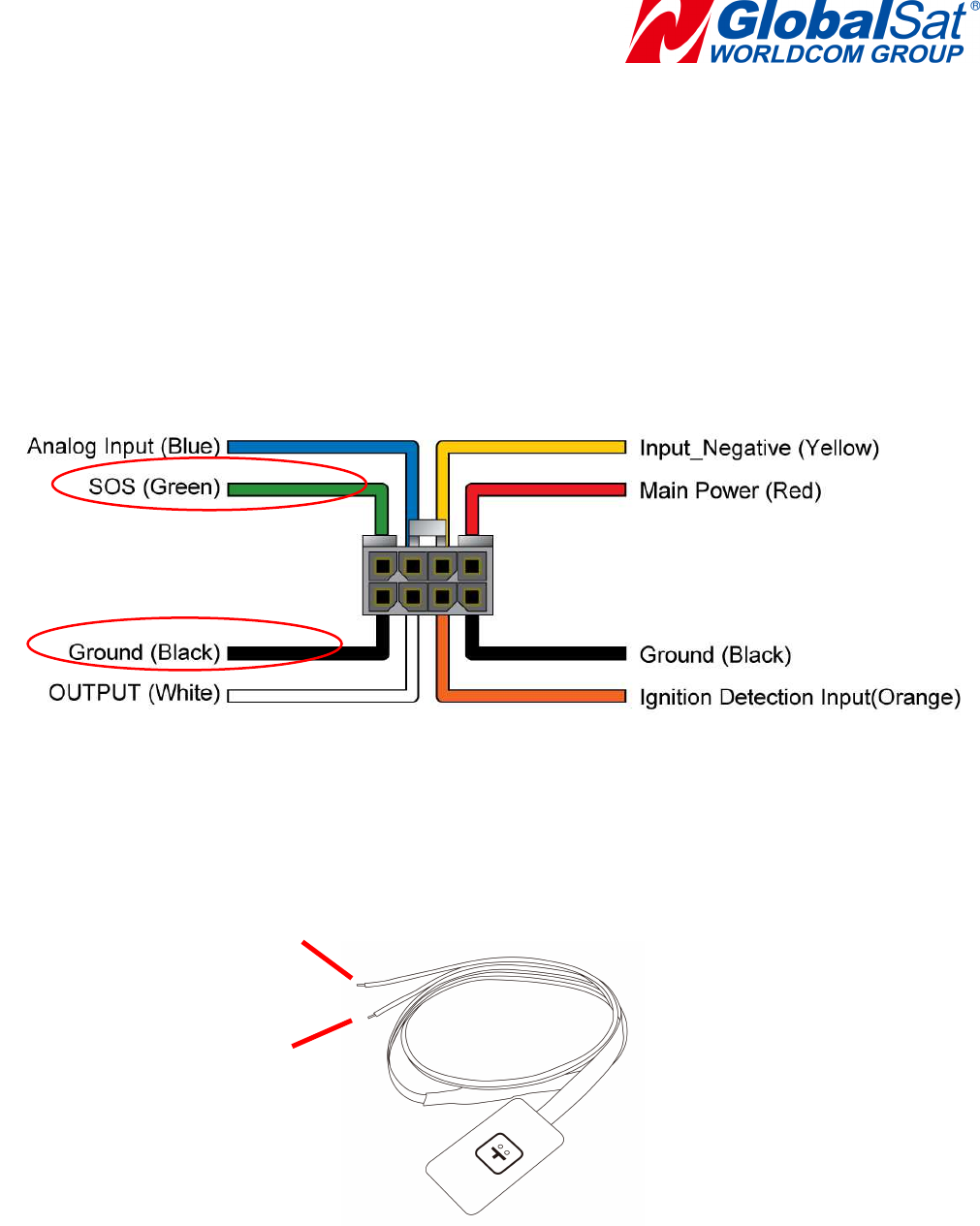

1.6 Cable description

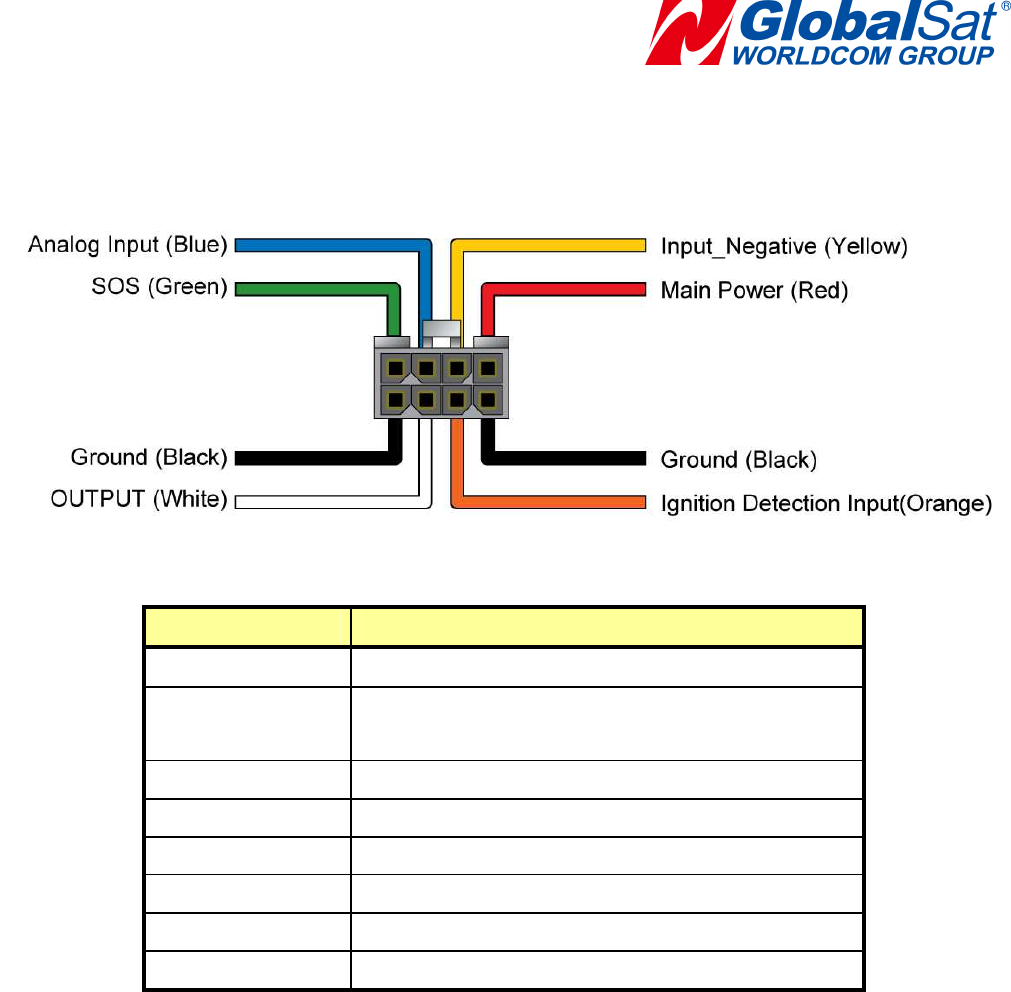

Wire Color Description
Green SOS (Negative Trigger)
Blue Fuel sensor input (Analog Input, 0~28 V, 12
bits resolution)
Yellow Digital Input (Negative Trigger)
Red Main Power, 9~36 V
Black Ground
White Digital Output (Negative Trigger), 300 mA
Orange Ignition Detection Input (Positive Trigger)
Black Ground
7
1.7 Accessories

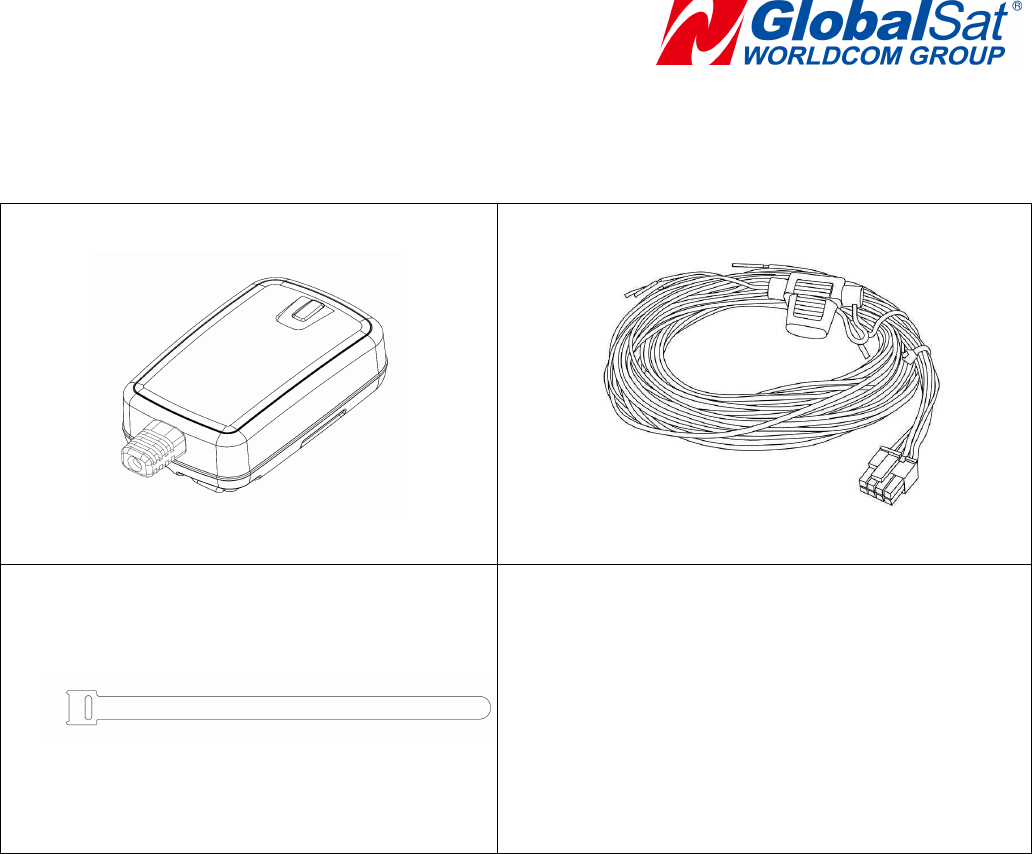

1.7.1 Standard Items
Main Unit
Hardwire cable
Velcro Tape
8

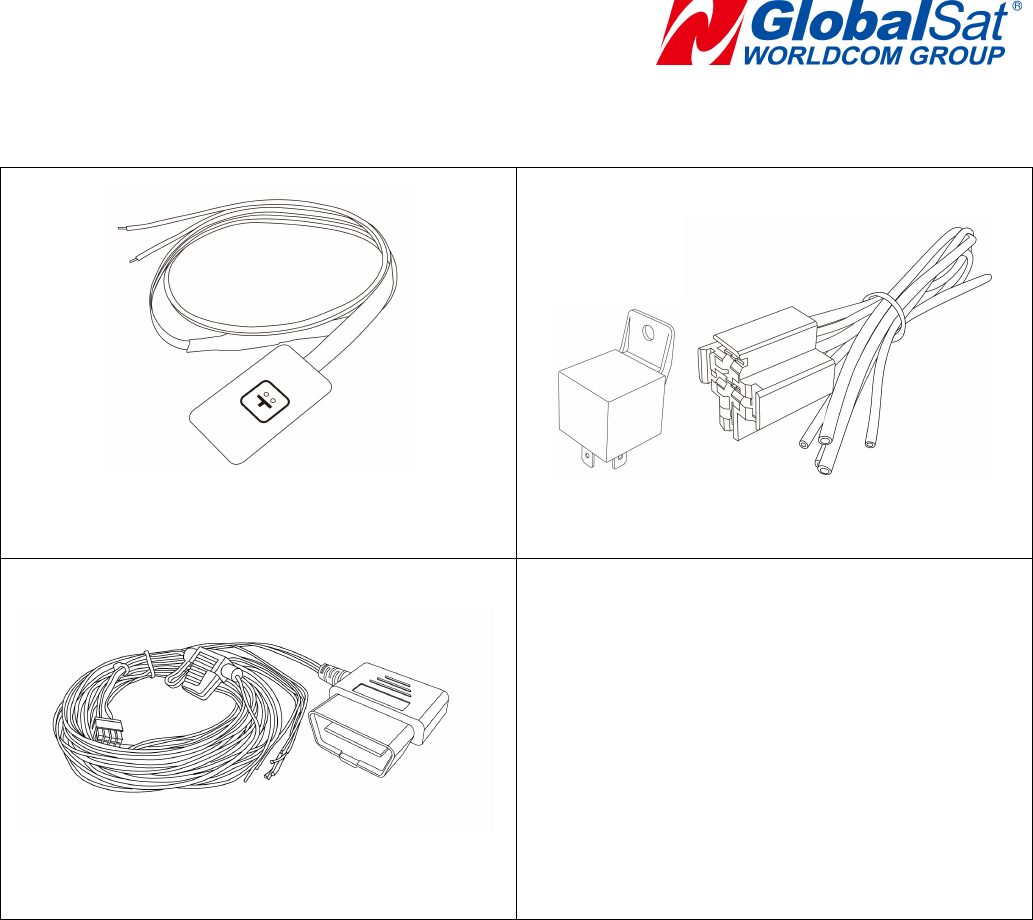

1.7.2 Optional Items
External Emergency Button
12V/24V Relay
OBDII Power Cable
9
2 Operation
For first time users, please follow the steps below to complete the pre-installation.
2.1 Install the SIM card
Unscrew the cover of device. Insert SIM card with the copper contacts face-down and the
notch on the SIM card at the right side of the SIM slot.
Note: Make sure to disable the SIM PIN entry function on the SIM card before inserting
your SIM card

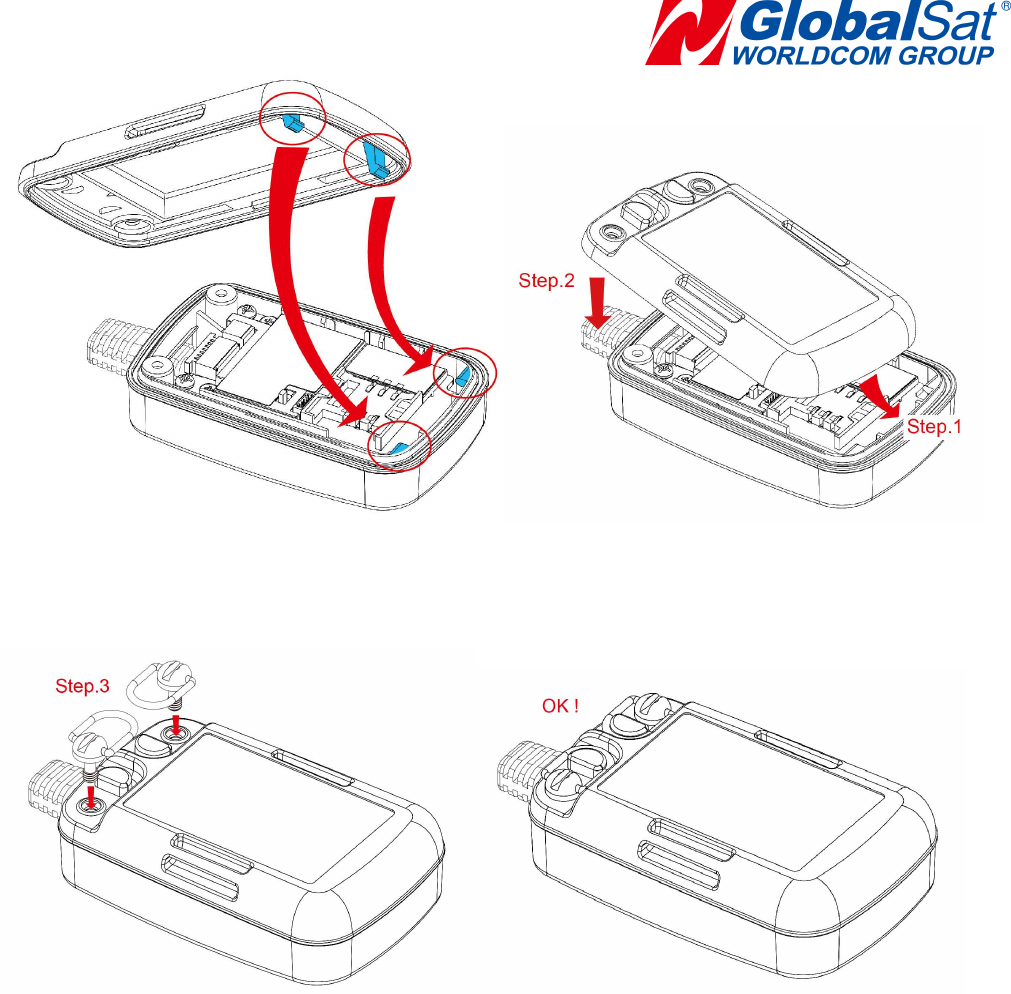

After installing the SIM card, please follow the steps below to install the cover back.
10
Step 1: Please align the latches of the back cover to the indentation of the device.
Step 2: Please push down the back cover to the device.
Step 3: Please screw the back cover.
11
2.2 Connect the Main Power

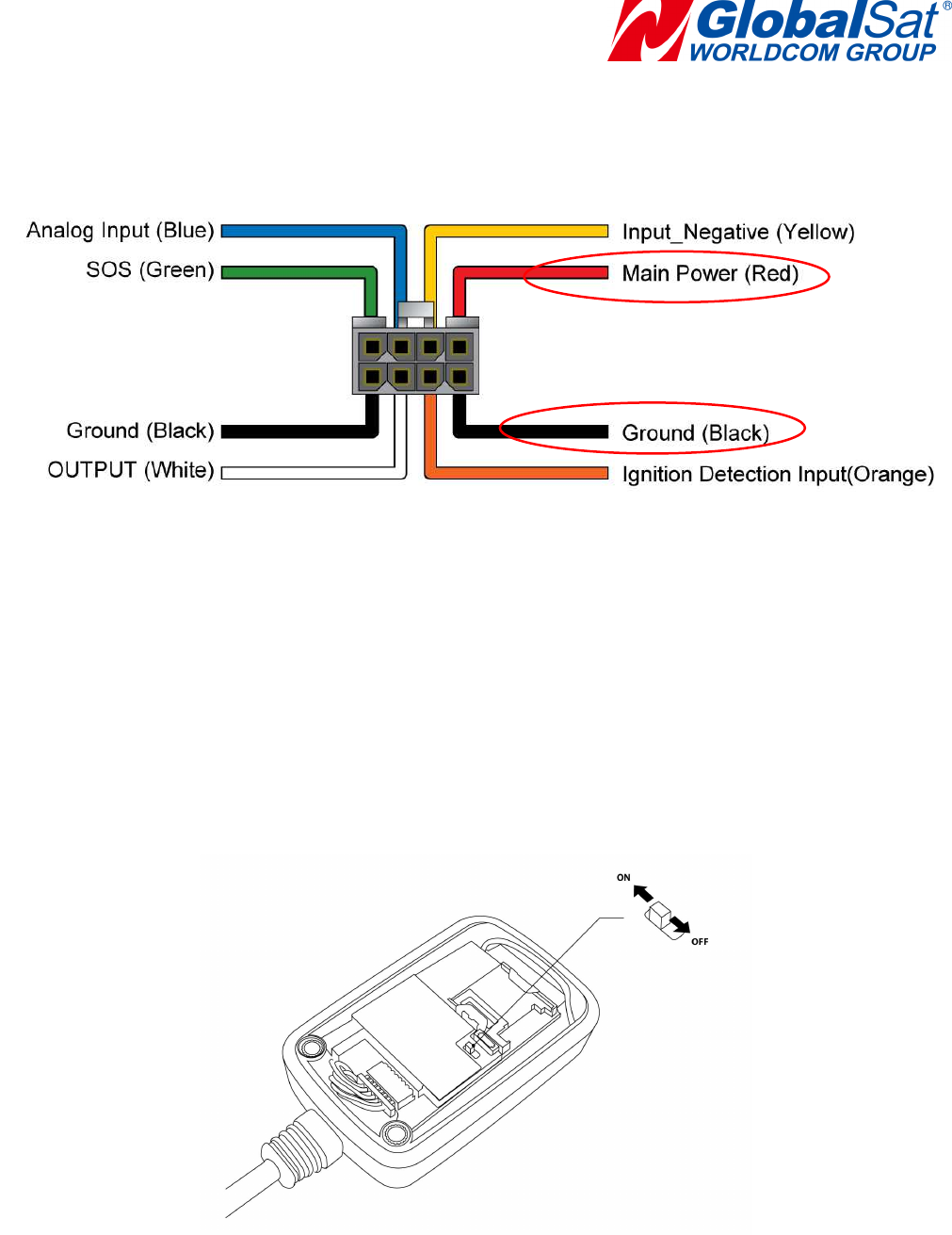

Connect the red wire from the cable to a power source of 9~36 V. Connect the black
wire to ground.
2.3 Switch on/off Tracker
After connecting the power, please open the back cover and adjust the power switch to ON
position.
12

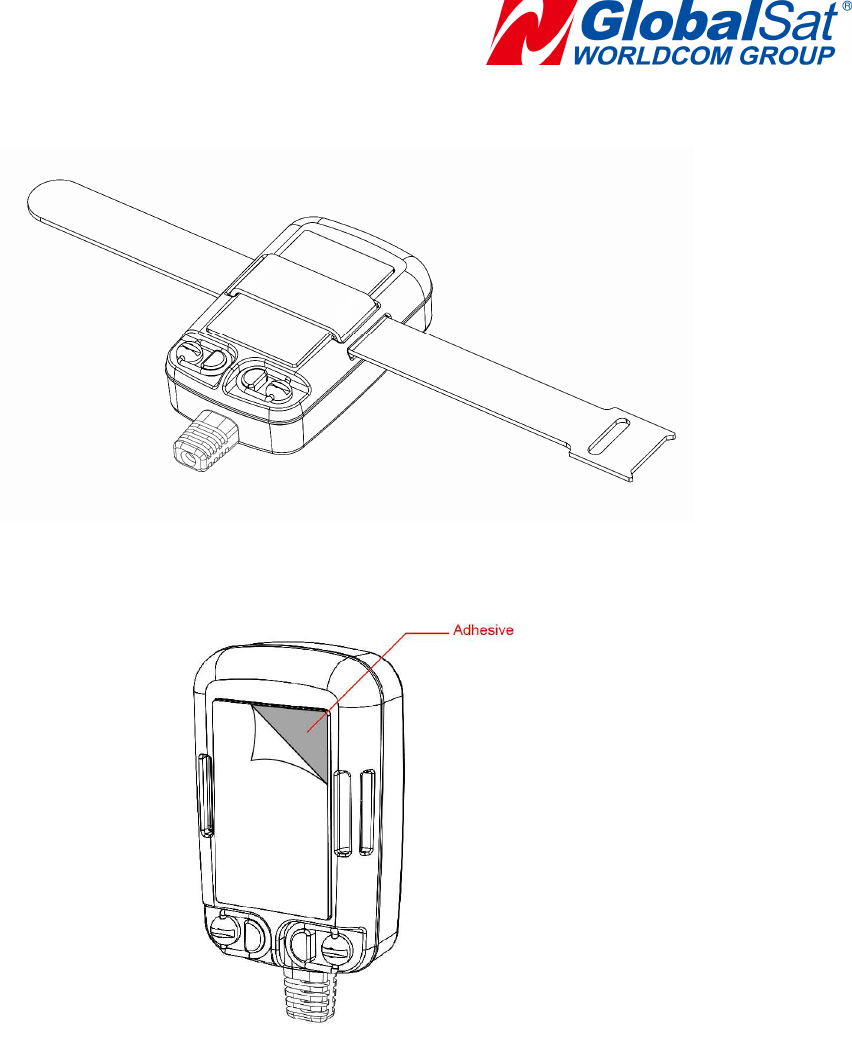

2.4 Fix the device
You could fix the GTR-128/GTR-129 with the Velcro tape as the picture above.
You could tear down the cover of double side tape and stick GTR-129 to the installation position.
13

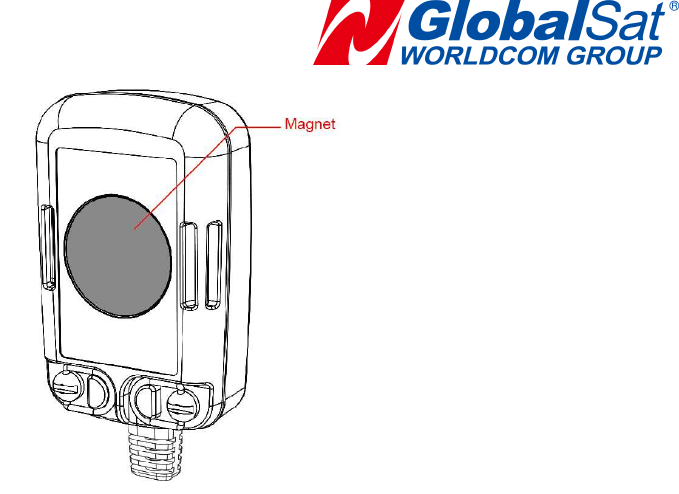

You could install the GTR-128 to a metal surface. The magnet on the device would attract the
metal surface.
14
3 Installation
3.1 Installing the Emergency button
There is a line of cable for connecting a push button for emergency help.
One end of the button must be connected to the SOS line and the other end must be connected
to the ground line.
SOS line
(red wire)
Ground line
(Black wire)
15
3.2 Connecting ignition detection line on car

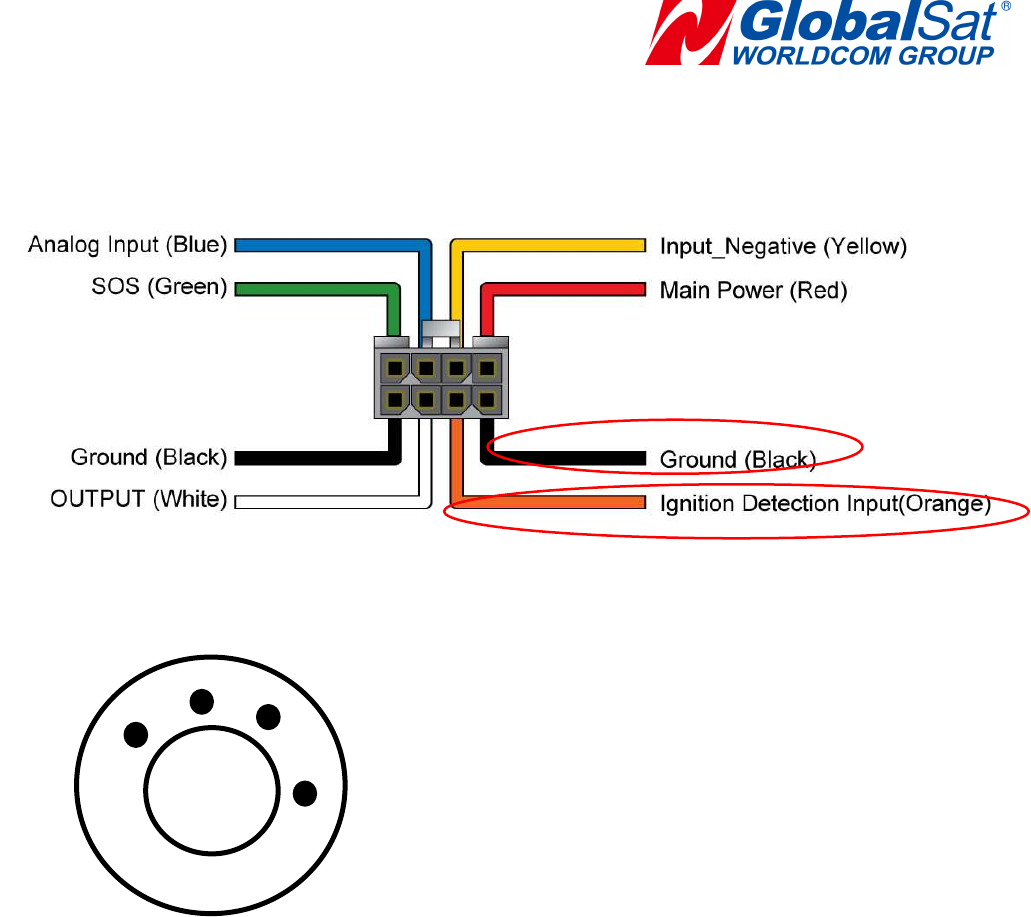

Connect the orange wire from the cable to ACC position of vehicle. Connect the black
wire to ground.
Ignition On
ACC
Off
Lock
16
3.3 Connecting Relay
Connect the white wire from GTR-128/GTR-129’s cable to the yellow wire of relay. For the other
connections, please refer to the diagram above.
17
3.4 Installation reminder
WARNING:
In a confined space of the car, there is a big different temperature between inside and
outside of the car. In addition, it is also considerable temperature difference between
tracker's interior and exterior. Therefore, if you put a tracker in the car, please make
sure to place it with good ventilation.
For Vehicle:

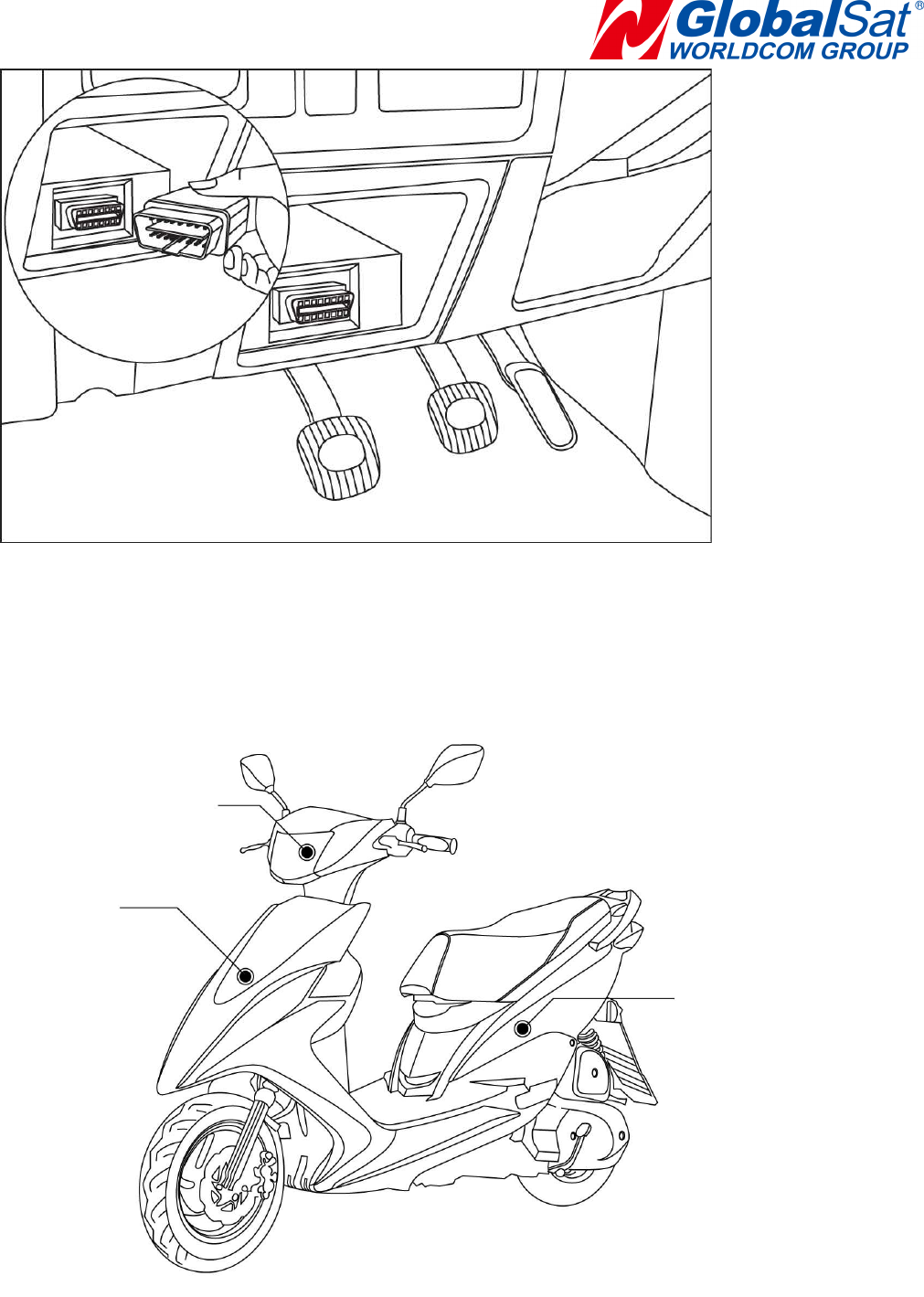

GTR-128/GTR-129 could be placed or installed on the marked position as the pictures below.
If you’d like to install GTR-128/GTR-129 at the OBDII connector of vehicles, please connect
GTR-128/GTR-129 with the OBDII power cable firstly, then you could connect the OBDII power
cable to the OBDII connector of vehicle as the picture below.
18
For Motorcycle
• For motorcycle rider, GTR-128/GTR-129 could be installed at the marked position as the
picture as below.
