1. Introduction
1.1 Introduction
TR-600 is a multi-functional and economical communication platform for vehicle positioning
applications. It integrates high sensitivity GPS system and quad-band 850/900/1800/1900 MHz
GSM system into a compact mechanism.
TR-600 is enclosed into a solid housing for simple installation. It provides real time GPS
positions anytime and anywhere in the open sky and offers the precise position and vehicle
status to back-end server or controller’s cell phone to handle/ display/ calculate the necessary
information. Benefits such as enhanced fleet management, improved vehicle safety, and useful
emergency response are accomplished through the implementation of TR-600 system.
1.2 Features
y Build in Quad-band 850/900/1800/1900 MHz GSM system
y Build in high sensitivity GPS system
y Support AT command via SMS/ TCP/UDP
y Remote control via SMS/GPRS command
y Real-time regular GPS position feedback and vehicle status monitoring
y Build in 3 digital outputs, 3 digital inputs, ACC input, 1 analog input, 1 serial port
y Power supply for Lion battery and lead-acid battery
y Support multi geo-fence function
y OTA (On the air) firmware upgrading
y Data logger for 50,000 points
y Ignition/ Power Low/ Power Lost / Speed Limit detection alarm
y 3 LED indicators for GSM, GPS, power status
y External panic button for emergency SOS (Option)
4

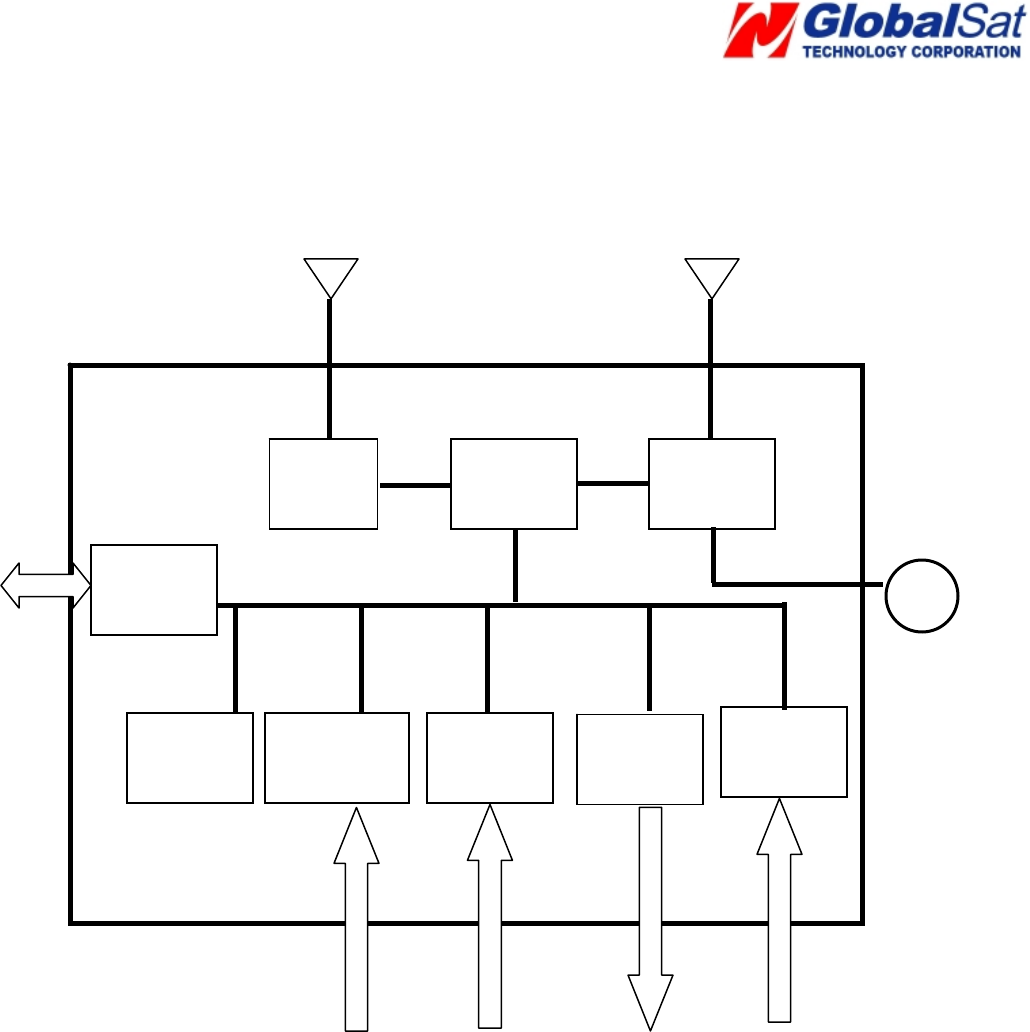

1.3 Hardware Architecture
GPS antenna GSM antenna
CPU
GPS GSM
MODEM
Analog
Input
Digital
output
Digital
input
Li backup
Battery
USART/
RS-232
Motion
Sensor
SOS
5
1.4 Hardware specification
Item Description
Dimension 98 mm X 65 mm X 22 mm
CPU High performance line ARM-base 32-bit MCU
GPS receiver SiRF Star III high performance GPS chipset
Operation -30℃ ~ + 80℃
Temperature
Storage -40℃ ~ + 85℃
GPS Antenna SMA Type connector
Active antenna ( 3.3~3.8V)
GSM Antenna SMA Type connector
Communication Telit (GE865) Quad-band GSM 850/900/1800/1900 MHz
Protocol Voice/SMS/GPRS (TCP/UDP/HTTP)
Built-in Memory 32 Mb
GPS logging capacity 50,000 points
Emergency Input Negative trigger 1
Ignition (ACC) Input Positive trigger 1
Negative trigger 2 Digital Input Port
Positive trigger 1
Digital Output Port Negative trigger 3 (300 mA)
Analog Input Port Analog Input 1( 0~28V)
Serial Port 115200 bps
Backup battery (Option) Internal 800 mAh Lion battery
Support external Lead-acid battery (12V/24V)
Temperature sensor (Option)
Motion sensor
Sensor
G-sensor (3-Axis Accelerometer) (Option)
Support barcode reader
Support NMEA-0183 output for navigation
Support RFID reader
Function
(Custom-made)
Support tire pressure monitoring system
6
1.5 Appearance

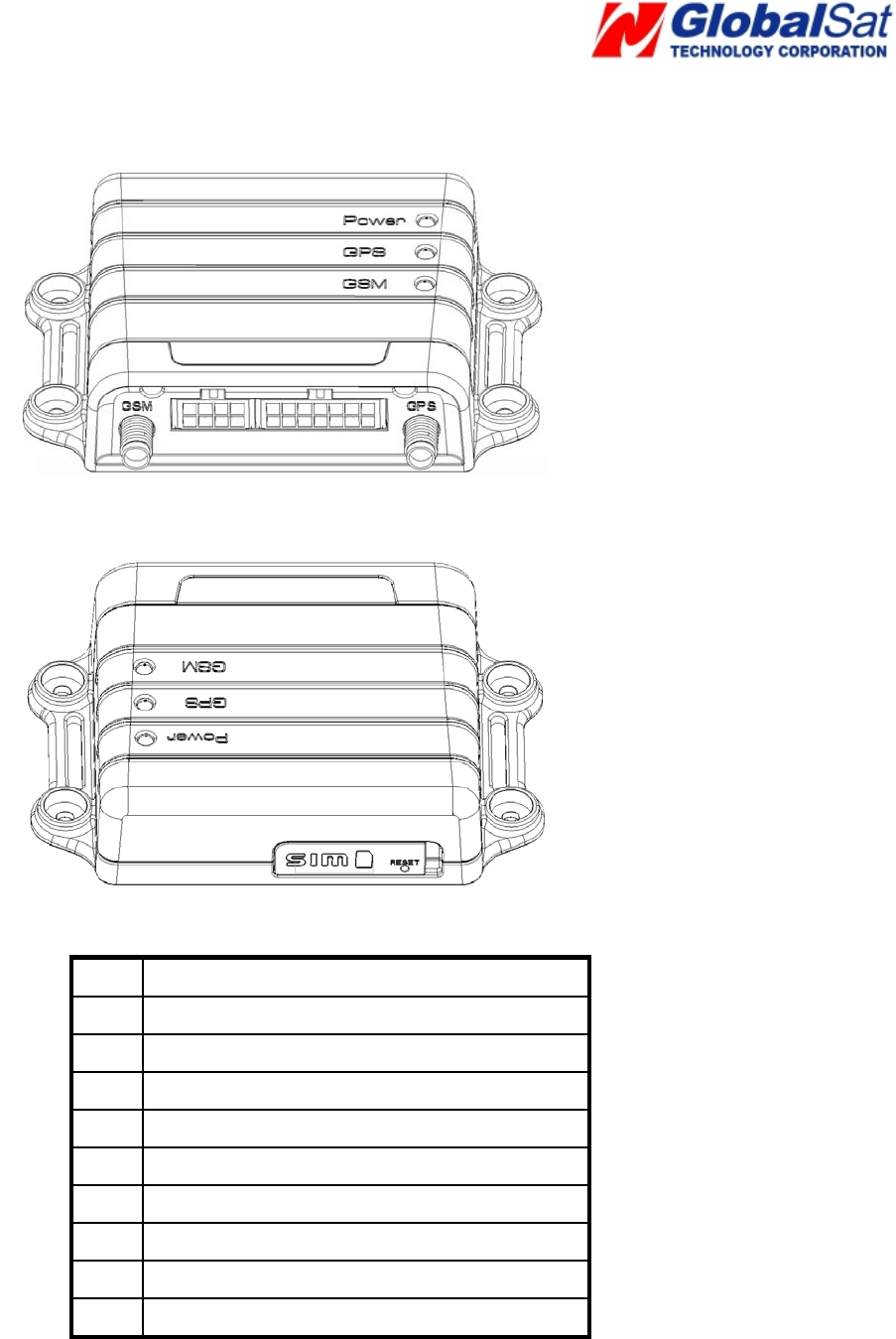

1 Peripheral interface port
2 I/O port
3 Power Status LED
4 GPS LED
5 GSM LED
6 For fixing device with screws
7 GSM antenna connector
8 For fixing device with belt
9 GPS antenna connector
10 SIM card holder
1 2
3
4
5
6 6
7
8
9
10
8
6 6
7
1.6 LED indicator
Power Status LED (Red)
LED Permanently On Slow blinking (Once every 3
seconds)
State Main power on, device on No main power function, backup
battery on
GPS LED (Yellow)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GPS off GPS not fix GPS fix
GSM LED (Green)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GSM off 1. TR-600 is
searching GSM
network
2. SIM card is
registering to GSM
network
TR-600 is registered
full service
8

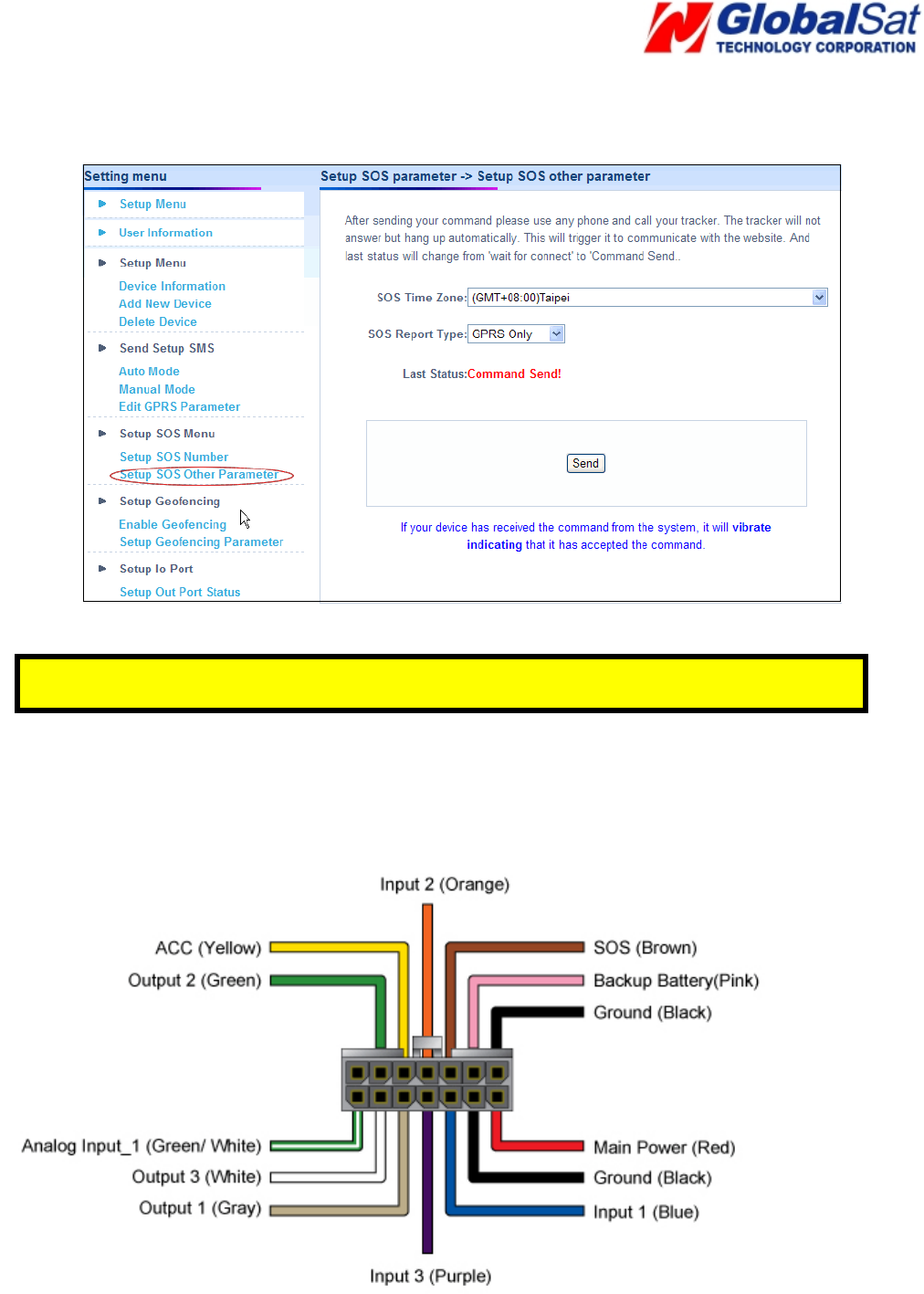

1.7 Cable description
14 Pin I/O Cable
Wire Color Description
Green/ White Analog Input_1
White Digital Output 3 (Negative Trigger)
Gray Digital Output 1 (Negative Trigger)
Purple Digital Input 3 (Positive Trigger)
Blue Digital Input 1 (Negative Trigger)
Black Ground
Red Main Power
X
Green Digital Output 2 (Negative Trigger)
Yellow ACC (Positive Trigger)
Orange Digital Input 2 (Negative Trigger)
Brown SOS (Negative Trigger)
Pink 12V/24V Backup Battery
Black Ground
9

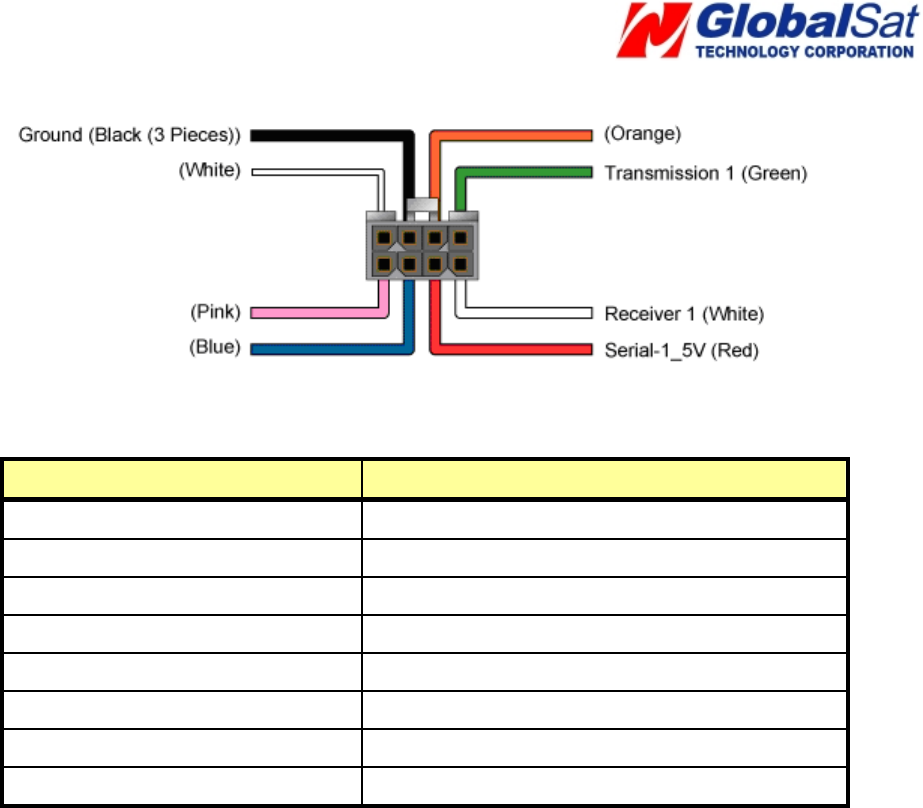

8 Pin Cable
Wire Color Description
Pink Receiver
Blue Receiver
Red Serial-1_5V
White Receiver
White Receiver
Black (3 Pieces) Ground
Orange Receiver
Green Transmission 1
10

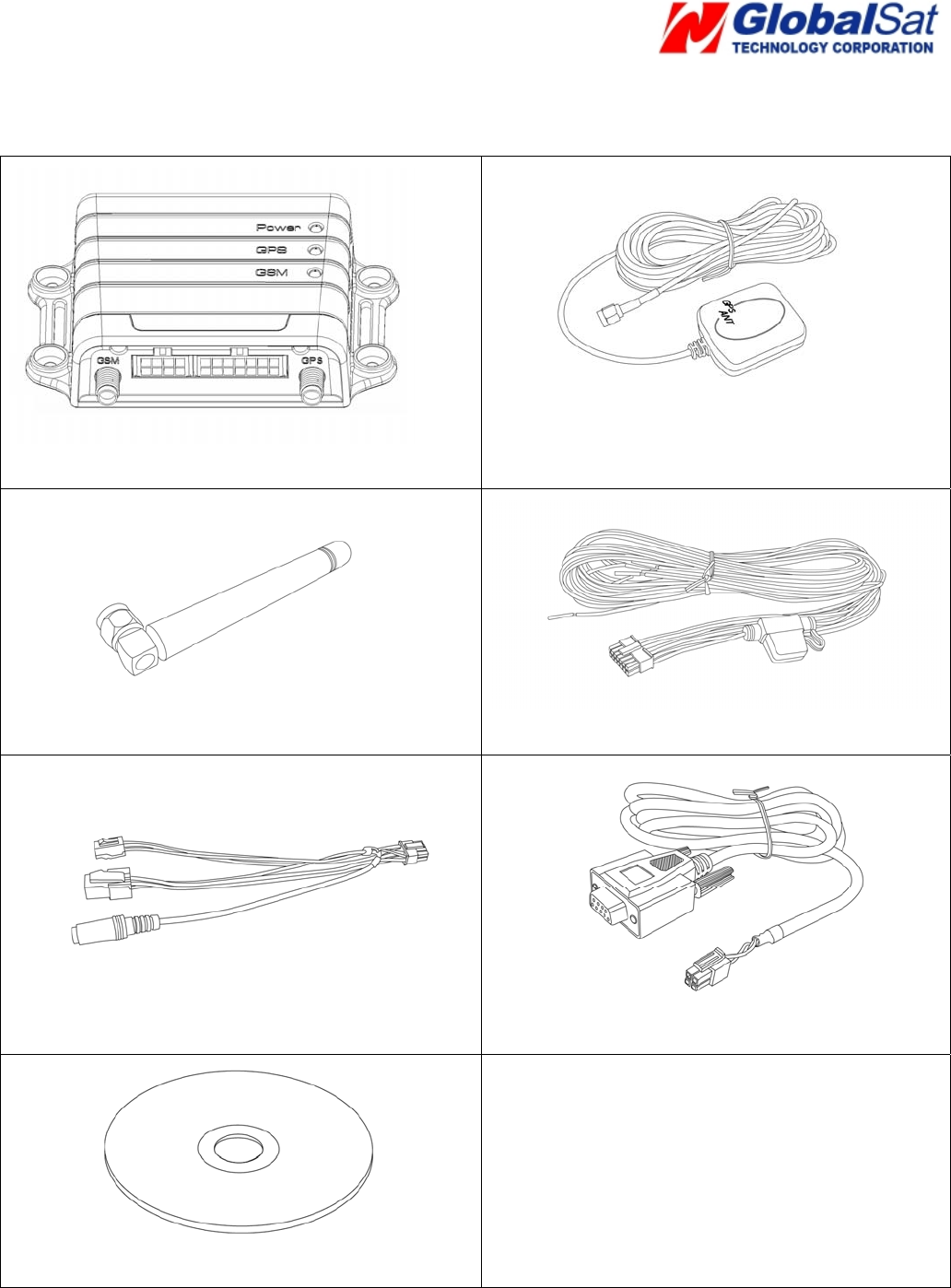

1.8 Accessories
Main Unit
GPS Antenna
GSM Antenna 14 Pin I/O Cable
8 Pin Cable
RS-232 Cable (Option)
CD (User manual, driver)
11
2 Operation
For first time users, please follow the steps below to complete the pre-installation.
2.1 Install the SIM card

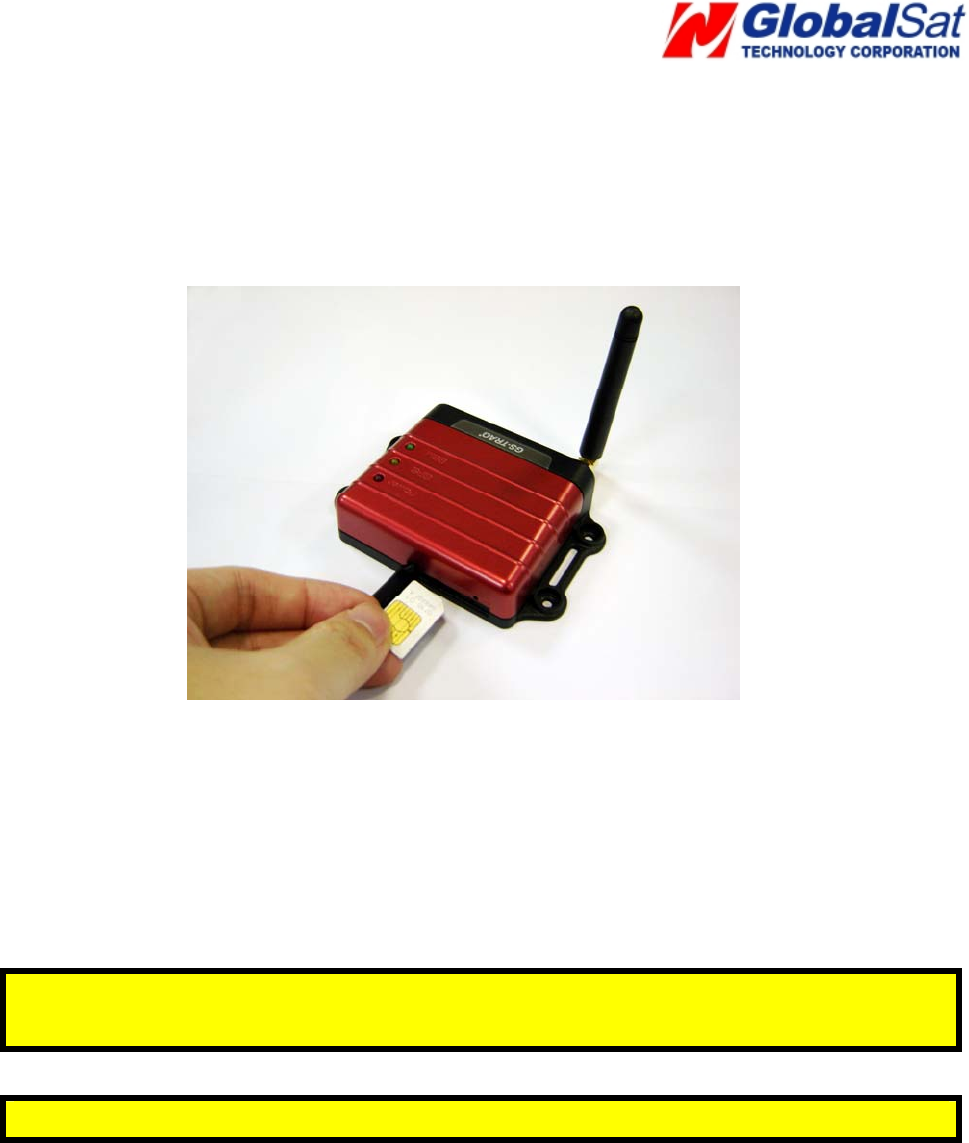

With the cooper contacts face-up, align the notch on the SIM card with the notch on the
SIM slot and insert the SIM card. If SIM is inserted correctly, you will not be able to see the
copper contacts after inserting the card. To eject SIM card, simply, use your finger nail and
apply slight pressure.
Note: Refer to your mobile phone manual to disable the SIM PIN entry function by your
mobile phone.
Note: Before installing or taking out SIM card, please power off TR-600.
12
2.2 Install the GPS and GSM antenna
Install the GSM antenna to the GSM antenna connector on the left part of the back side
and GPS antenna to the GPS antenna connector on the right part of the back side tightly.

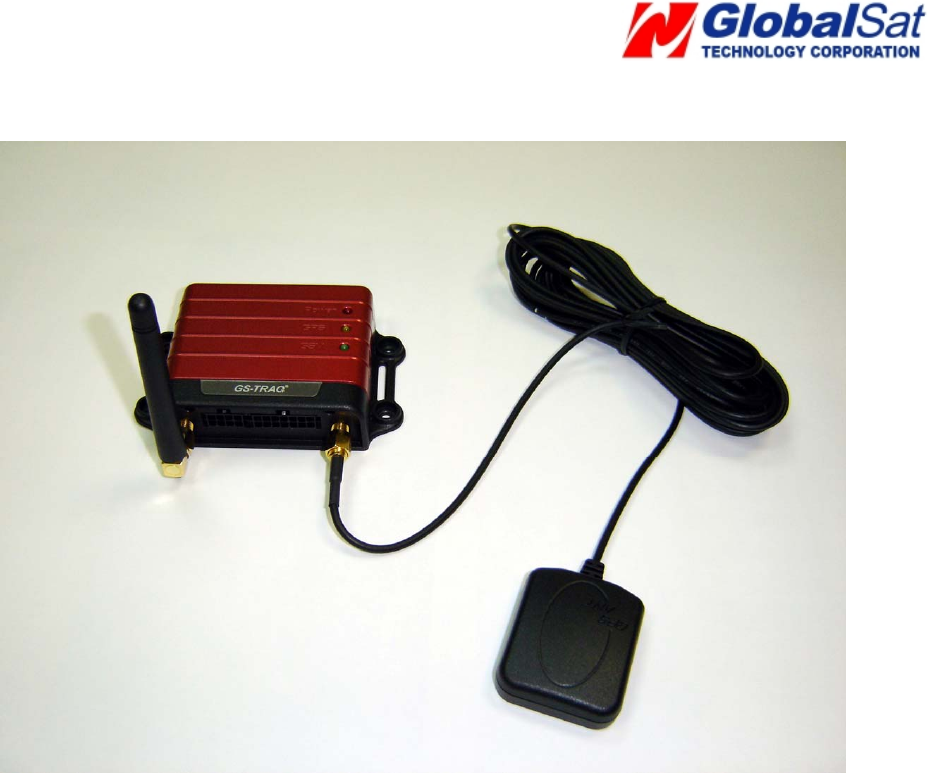

Please refer to the photo above.
13

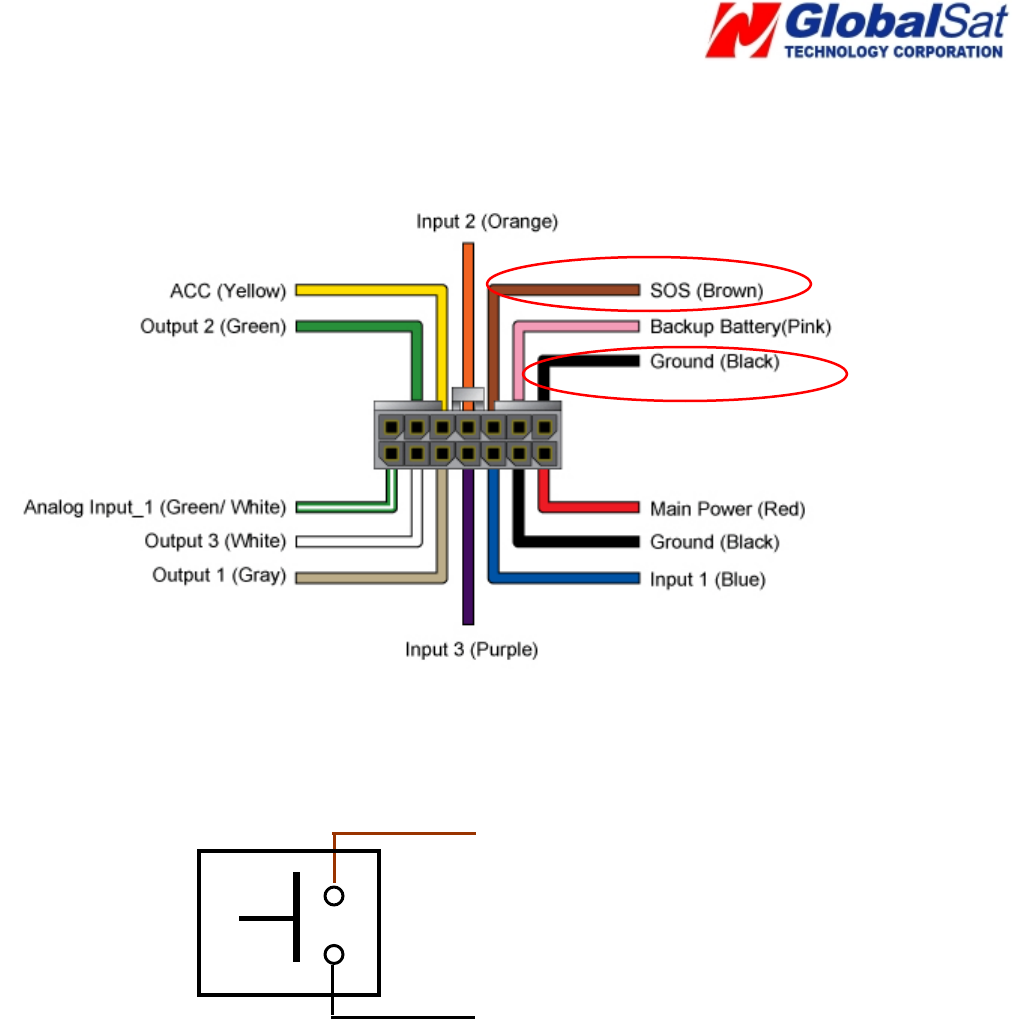

2.3 Install the Emergency button
There is a line of the 14 pin IO cable for connecting push button for emergency help.
One end of the button must be connected to the SOS line and the other end must be connected
to the ground line.
SOS line
Ground line
14
3 Free Web Service
3.1 Preparation for Use Website
• Be certain your SIM card has credit and verify with telecom operator for GPRS activation.
Or, you may verify GPRS connectivity by inserting SIM card to the mobile phone. Next,
test by utilizing your web browser.
• Contact your telecom operator concerning GPRS setting parameters.
• Contact your telecom operator to disable voicemail, call waiting, and call forwarding
functions to the SIM card.
• Disable the SIM PIN entry of the SIM card via mobile phone.
• Tracker IMEI and serial number information can be found on the bottom of TR-600.
3.2 Account creation

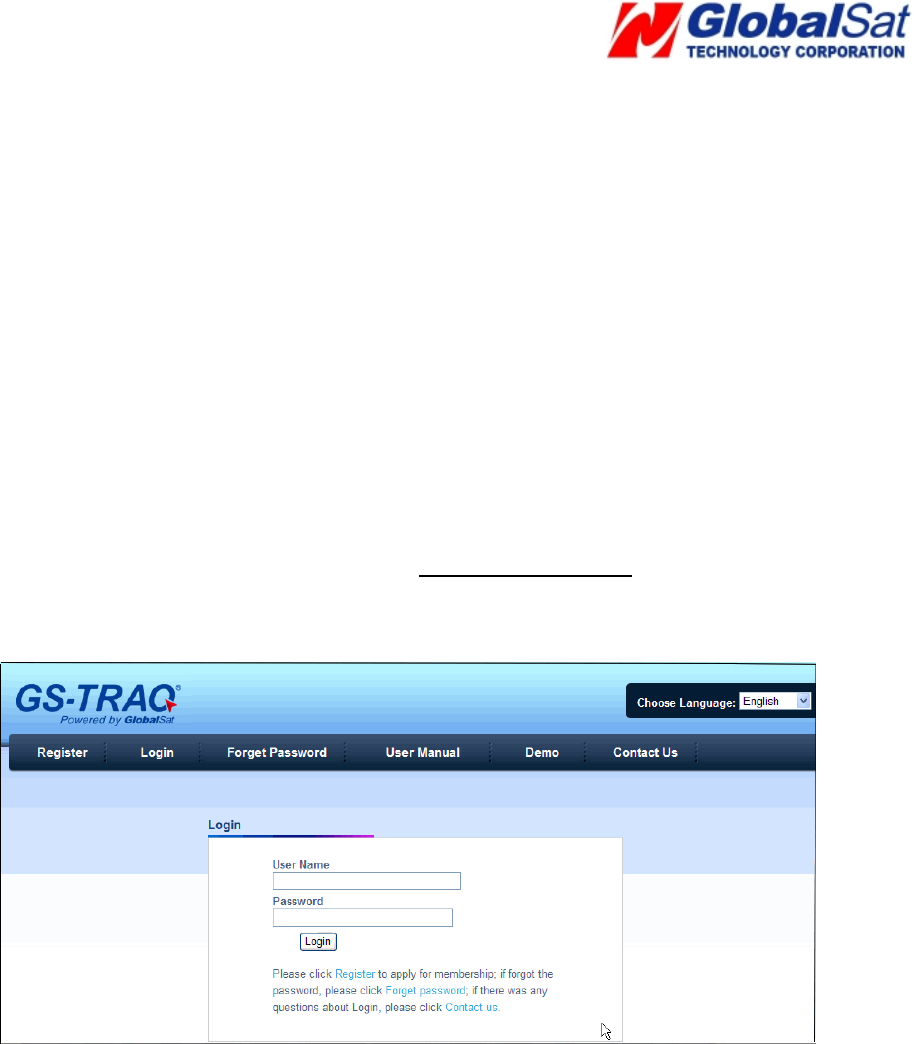

Please turn on your web browser and go to http://traq.gstraq.com/
Next, click the Register hyperlink.
Read Agreement, check I Agree, and click Next button.
15
Check the preparation again and click Next button.

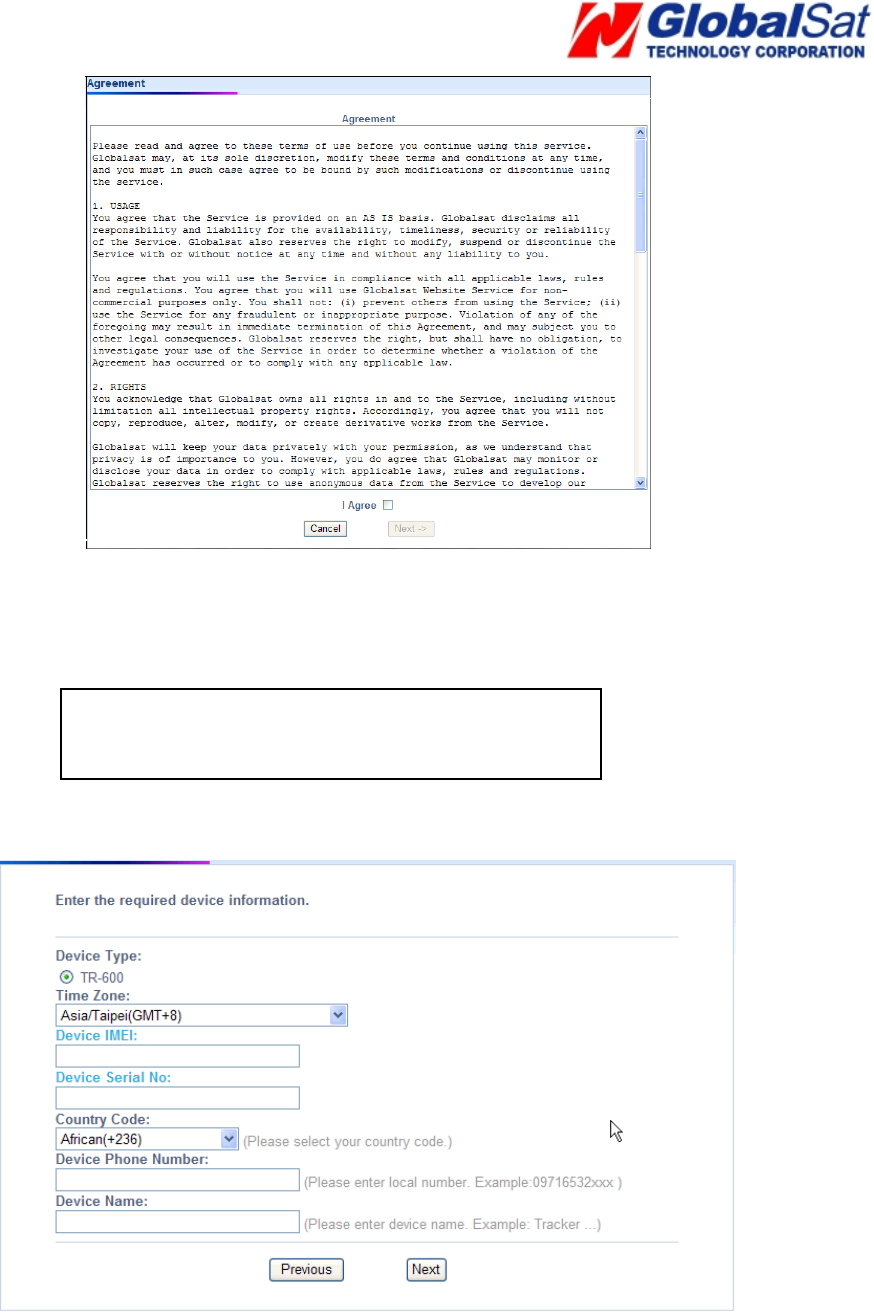

Select your Time Zone, enter Device IMEI and Serial No., select your Country code, enter
Device Phone Number, Device Name, and click Next button.

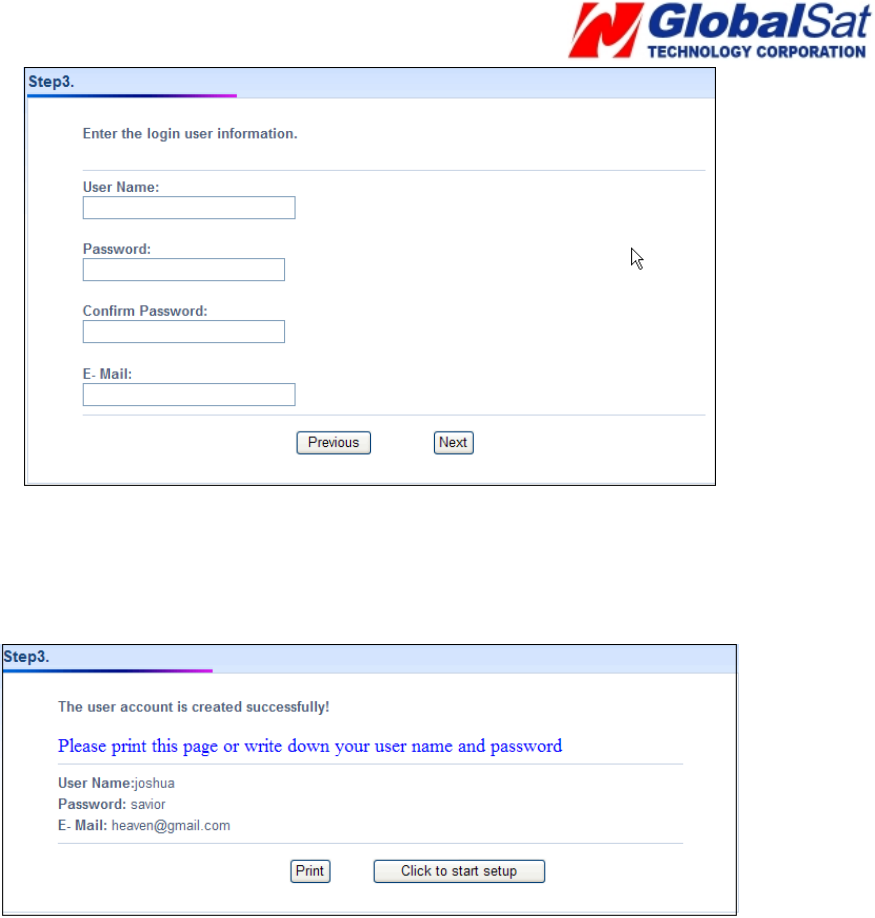

Create your login profile by entering User Name, Password, and Email, and click Next button.
圖待網站更新 (目前為 TR-203 與TR-151)
16
Please print this page or write down your User Name, Password and click “Click to start
Setup” button.

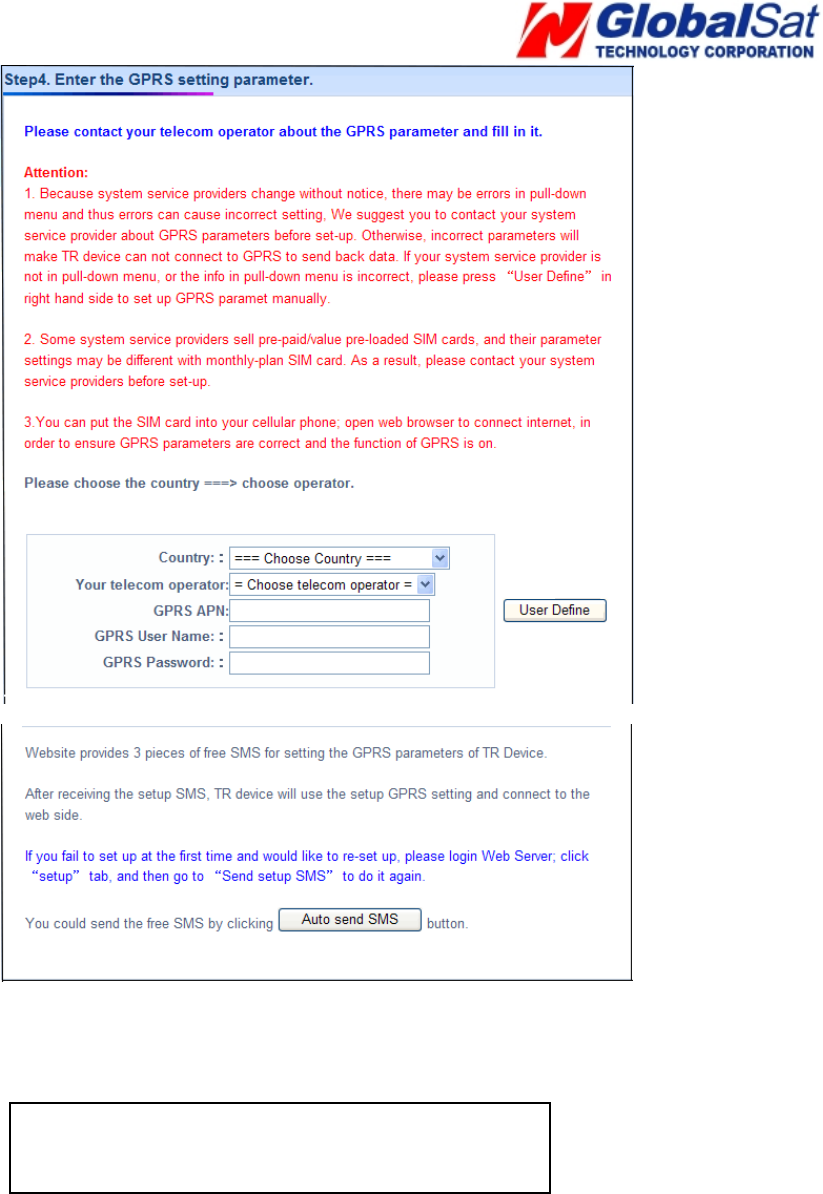

Please select your country and telecom operator. Selecting your telecom operator will
bring out the concerning GPRS parameters. If you do not find your telecom operator in the
pull-down menu or the information in the pull-down menu is incorrect, please click “User
Define”. And then please contact your telecom operator about the GPRS parameter.
Please click Auto Send SMS button.
17
Please click Send button.
圖待網站更新 (目前為 TR-203 與TR-151 畫面)
18
3.3 Account creation
Perform the following: Setup Æ Add New Device
Then please refer to 3.2 Create Account to enter the concerning information of the device
After adding the required information and sending out the SMS, you could switch to use separate device
by selecting in the Device pull-down menu on the upper right corner of the webpage.

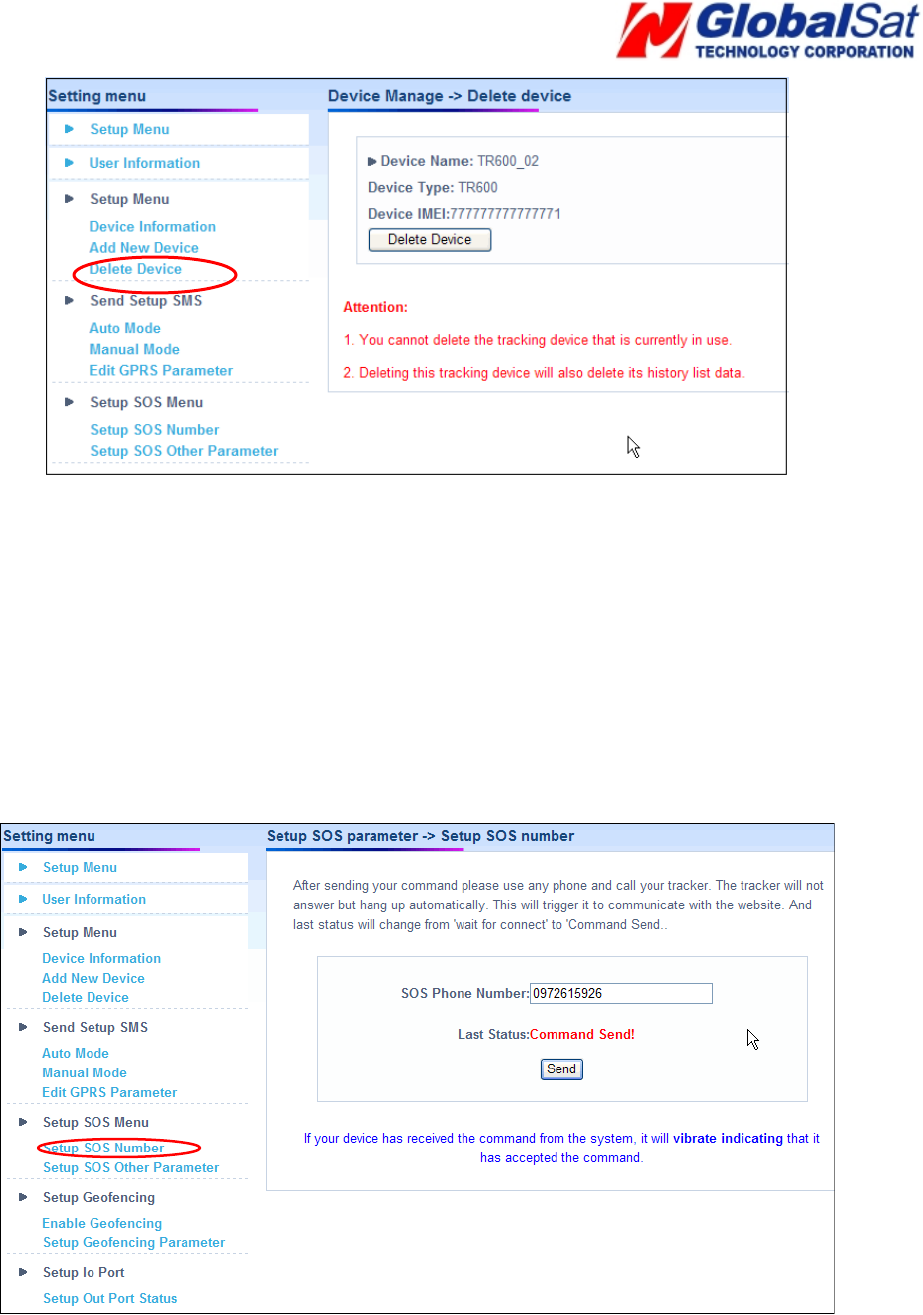

3.4 Delete device from your account
Perform the following: Setup Æ Delete Device
Please select the device you would like to delete.
And then please click Delete Device button.
19
3.5 Set up SOS Parameters
SOS Phone Number
1. Perform the following: Setup Æ Setup SOS Number
2. Enter destination phone number to receive emergency SMS.
3. Please click Send button.
4. Next, go to Setup SOS Other Parameter
SOS Time Zone
1. Select SOS Time Zone and SOS Report Type
20
2. Click Send button.
3. Then please copy the SMS and send it to the phone number of TR-600 by your mobile
phone.
Note: .The content of SOS report includes GPS fix date and time. The GPS date and time will
be according to the setting of SOS Time Zone.
3.6 Set up Digital Output
There are 3 digital outputs of TR-600. Below please find the corresponding positions. You could
activate or deactivate on the GS-TRAQ website..
21

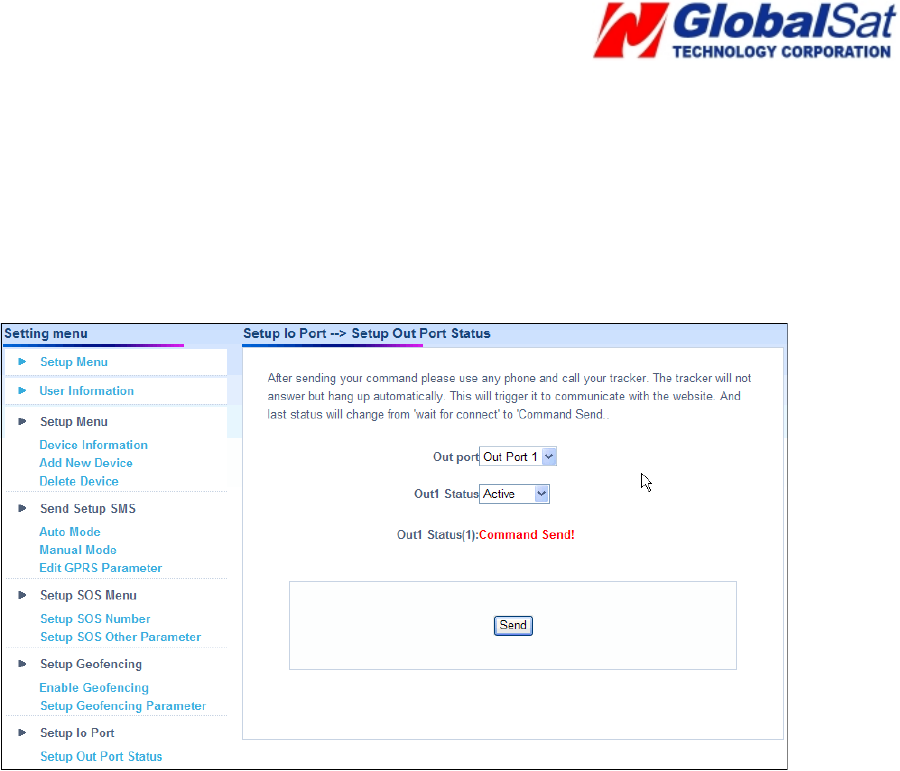

1. Perform the following: Setup Æ Setup Out Port Status
2. Select digital output port in the pull-down menu of Out port.
3. Select Active to activate that digital output or Disactive to deactivate that digital output in
the pull-down menu of Out Status.
4. Click Send button.
5. Then please copy the SMS and send it to the phone number of TR-600 by your mobile
phone
3.7 TR-600 Motion report
1. Select Setup Report Mode on the menu bar.
2. Select Motion Report in the pull-down menu of Report Command
3. Enter value for Report Interval (Static) (Range 30~65535 seconds) and Report
Interval (Moving). (Range 10~65535 seconds)
4. Click Send button.
5. Then please copy the SMS and send it to the phone number of TR-600 by your mobile
phone
22
3.8 Stop TR-600 Motion report
Stop Motion Reporting
1. Select Setup Report Mode on the menu bar.
2. Select Stop Report in the pull-down menu of Report Command
3. Click Send button. TR-600 will stop motion report.
4. Then please copy the SMS and send it to the phone number of TR-600 by your
mobile phone
23
3.9 TR-600 Geo-fence Function
Setup Geo-fence area

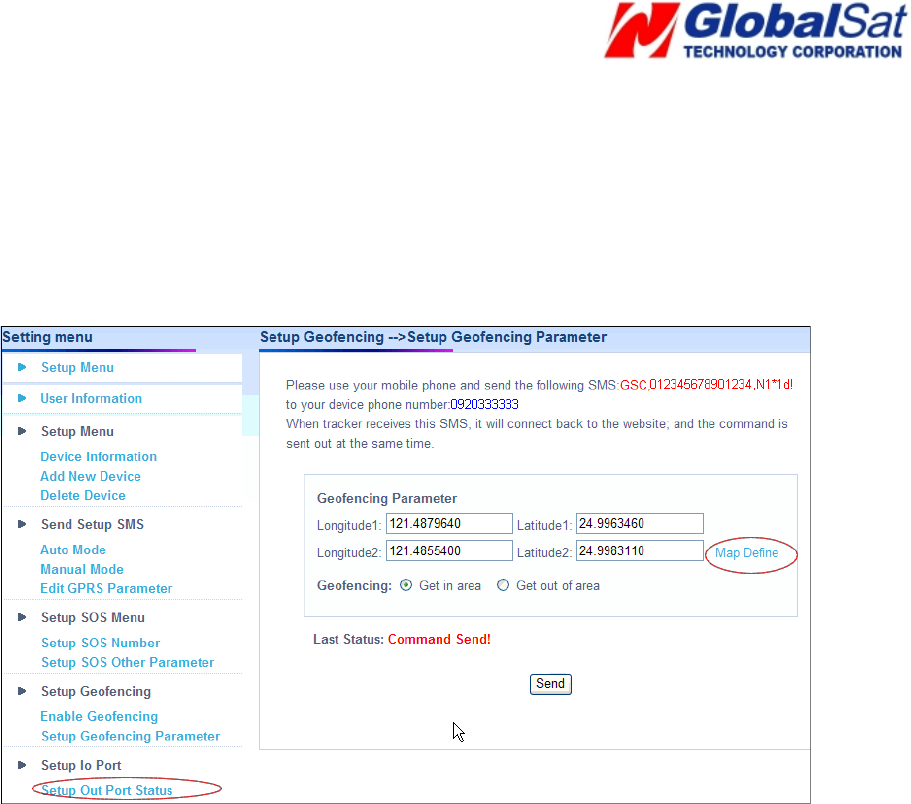

1. Select Setup on the menu bar.
2. Select Setup Geo-fencing Parameter.
3. Click on Map Define
24

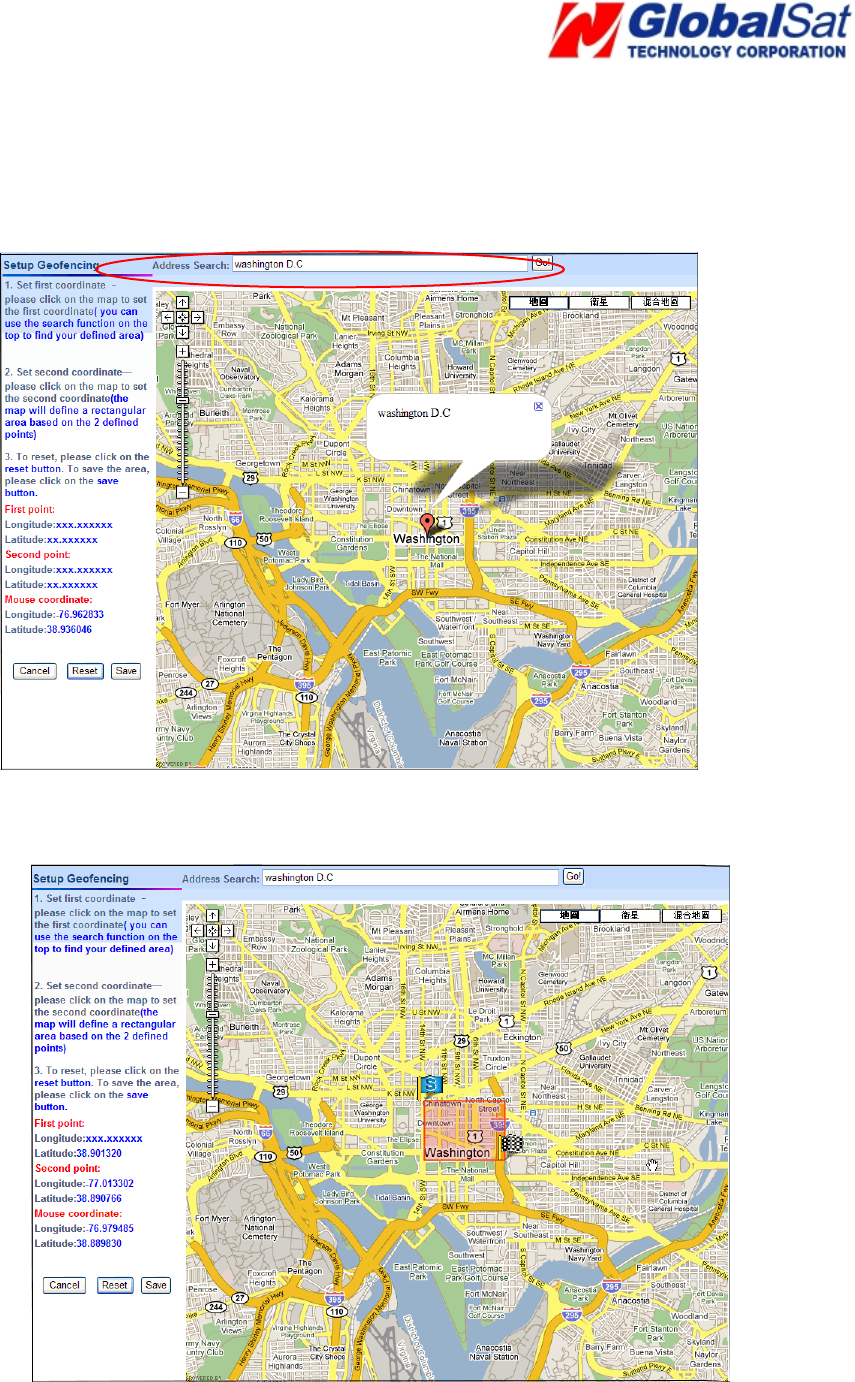

4. Then you could enter a specific address or city or landmark in the field of Address Search
and then click Go button. Map will move to the entered location. For example, the map will
show as below after entering Washington D.C.
5. Please move the cursor and click on the two points of the map to form a geo-fence area like
the screenshot below.
6. Please click Save button to save the area. If you want to reset the area, you could click on
25
Reset button to set the area again.
7. After clicking Save button, please select you want to receive the geo-fence alarm report
when tracker gets in the geo-fence area or gets out of the geo-fence area.
8. And then click Send button to send out the setting.
9. Then please copy the SMS and send it to the phone number of TR-600 by your
mobile phone. It will make TR-600 connect to the website for getting the setting.
The steps above are for setting geo-fence area. You have to enable the geo-fence
function by the steps below.

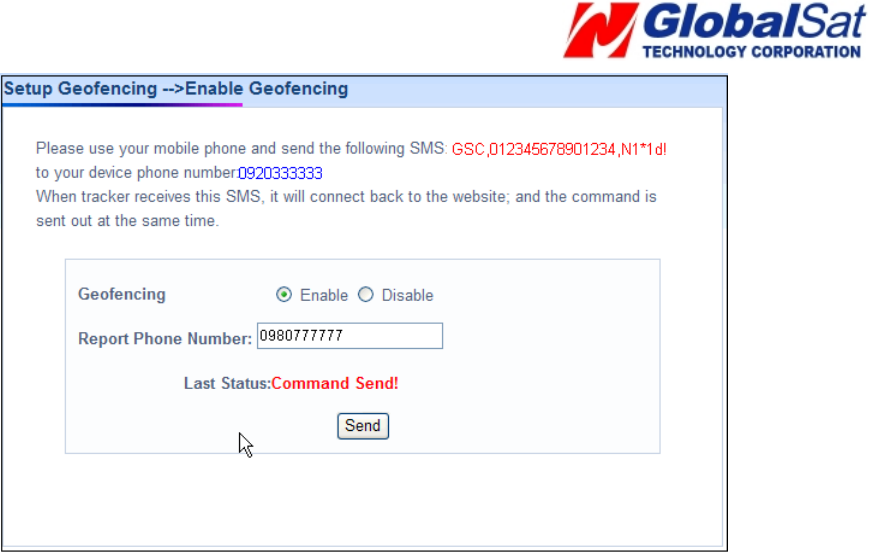

Enable Geo-fence function
1. Select Setup Æ Enable Geo-fencing
2. Click Enable
3. Enter the mobile phone number for receiving the geo-fence alarm report in the field of
Geo-fencing Phone Number.
26
4. And then click Send button to send out the setting.
5. Please
copy the SMS and send it to the phone number of TR-600 by your mobile
phone. It will make TR-600 connect to the website for getting the command of enable
geo-fence.
Industry Canada statement:
This device complies with RSS-132 & RSS-133 of the Industry Canada
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.

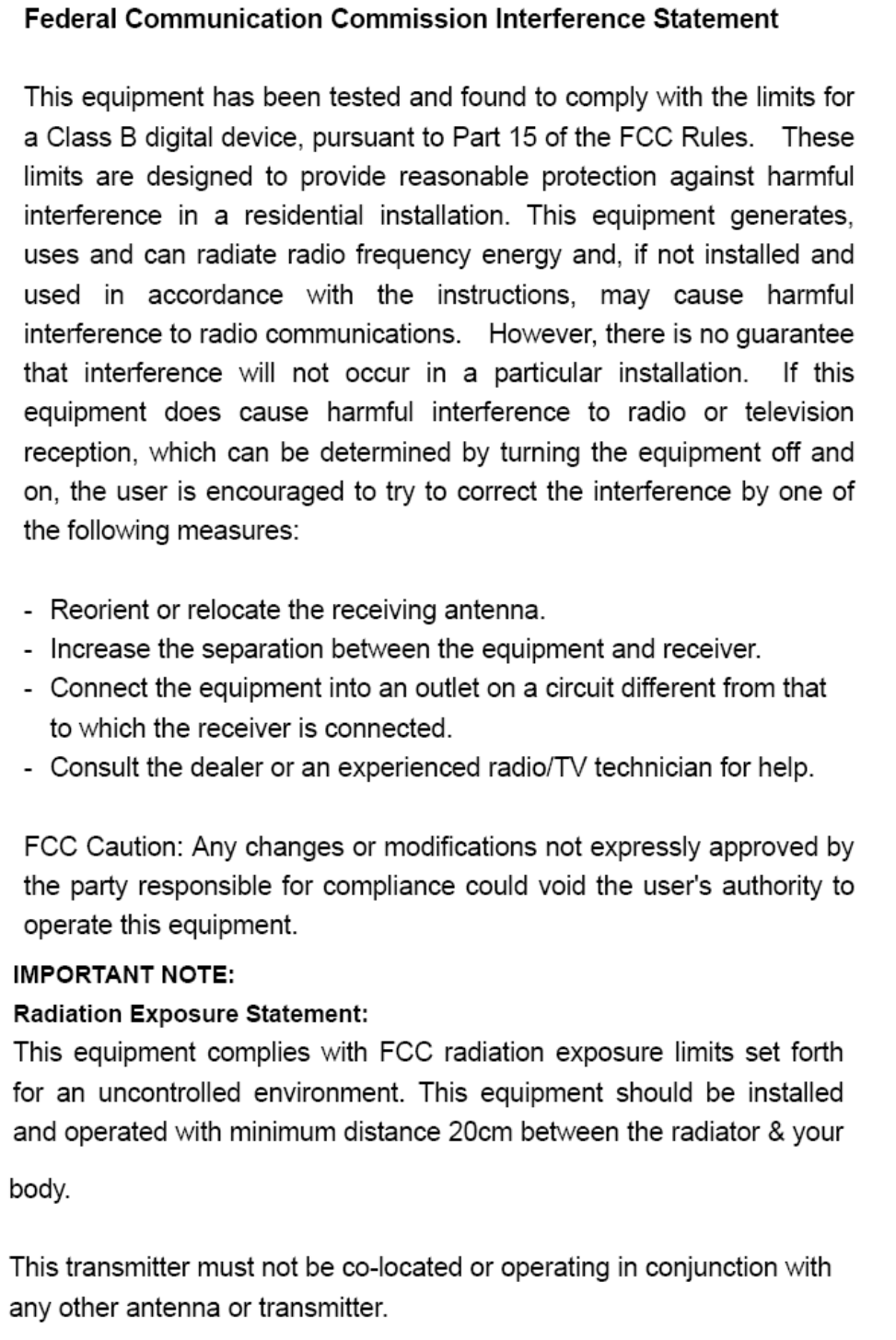

FCC NOTES
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS
TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
