CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Serial Number

Decal

USERʼS MANUAL

Model No. GGEX61707.1

Serial No.

Write the serial number in the

space above for reference.

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT

CONTACT THE STORE; please

contact Customer Care.

IMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-877-776-4777

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–4 p.m. MT

ON THE WEB:

www.workoutwarehouse.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEEXERCISECYCLE .......................................................10

MAINTENANCEANDTROUBLESHOOTING ...................................................15

EXERCISEGUIDELINES ...................................................................16

PARTLIST ..............................................................................18

EXPLODEDDRAWING ....................................................................19

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY ..............................................................BackCover

WARNING DECAL PLACEMENT

GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and

distributed under license from Gold's Gym International, Inc.

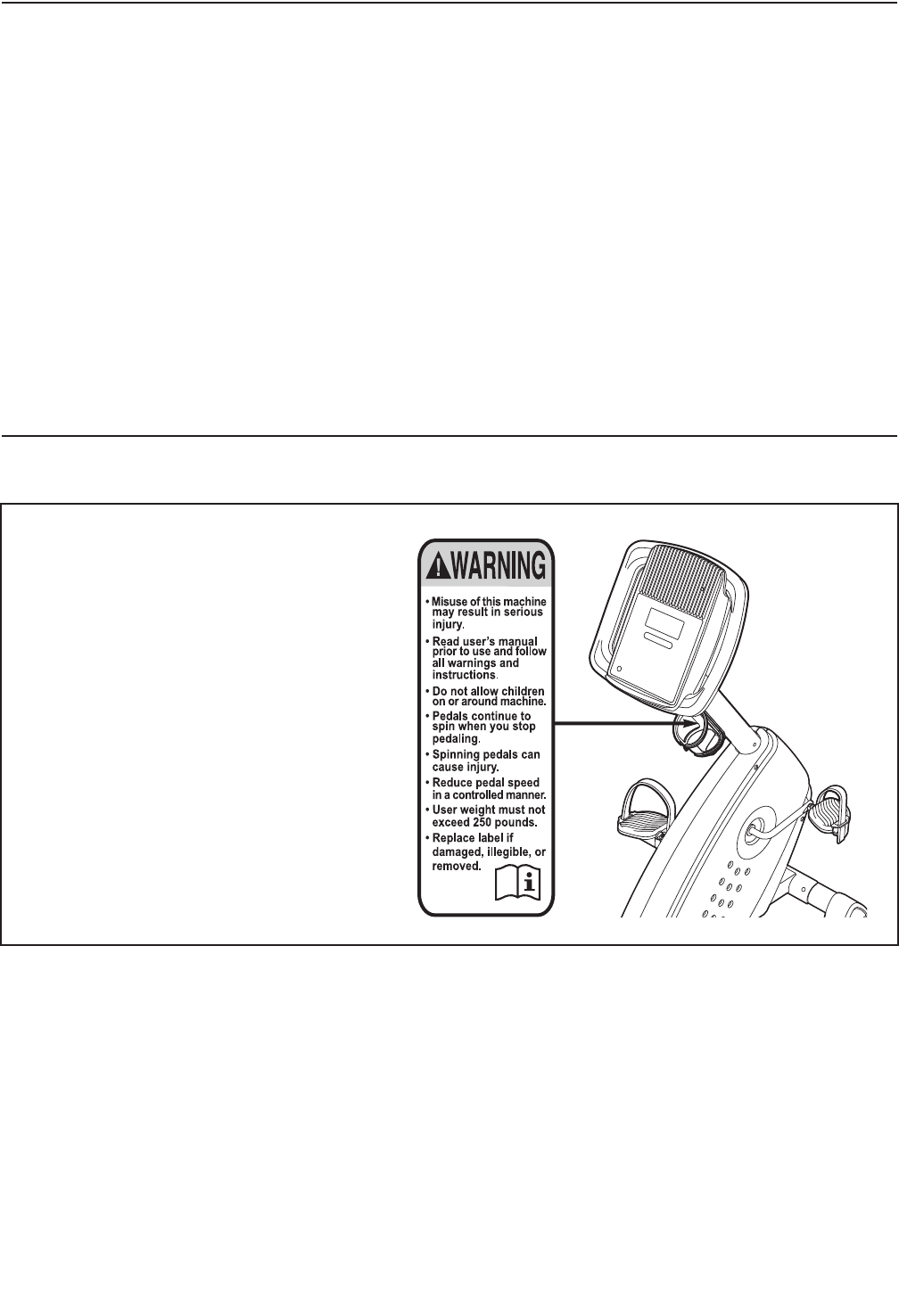

This drawing shows the location(s) of the

warning decal(s). If a decal is missing or

illegible, see the front cover of this

manual and request a free replacement

decal. Apply the decal in the location

shown. Note: The decal(s) may not be

shown at actual size.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise cycle before using your exercise

cycle. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. Use the exercise cycle only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise cycle are ade-

quately informed of all precautions.

4. The exercise cycle is intended for home use

only. Do not use the exercise cycle in a com-

mercial, rental, or institutional setting.

5. Keep the exercise cycle indoors, away from

moisture and dust. Place the exercise cycle

on a level surface, with a mat beneath it to

protect the floor or carpet. Make sure that

there is at least 2 ft. (0.6 m) of clearance

around your exercise cycle.

6. Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

7. Keep children under age 12 and pets away

from the exercise cycle at all times.

8. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise cycle. Always wear

athletic shoes for foot protection.

9. The exercise cycle should not be used by

persons weighing more than 250 lbs.

(113 kg).

10. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

11. Always keep your back straight while using

the exercise cycle; do not arch your back.

12. If you feel pain or dizziness while exercising,

stop immediately and cool down.

IMPORTANT PRECAUTIONS

Seat

Adjustment Knob

Pedal/Strap

Console

Water Bottle Holder*

Pulse Sensor

Wheel

Fan

Handlebar

*Water bottle is not included

BEFORE YOU BEGIN

Thank you for selecting the revolutionary GOLDʼS

GYM®POWER SPIN 230 R exercise cycle. Cycling is

an effective exercise for increasing cardiovascular fit-

ness, building endurance, and toning the body. The

POWER SPIN 230 R exercise cycle provides an

impressive selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the front cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

Before reading further, please familiarize yourself with

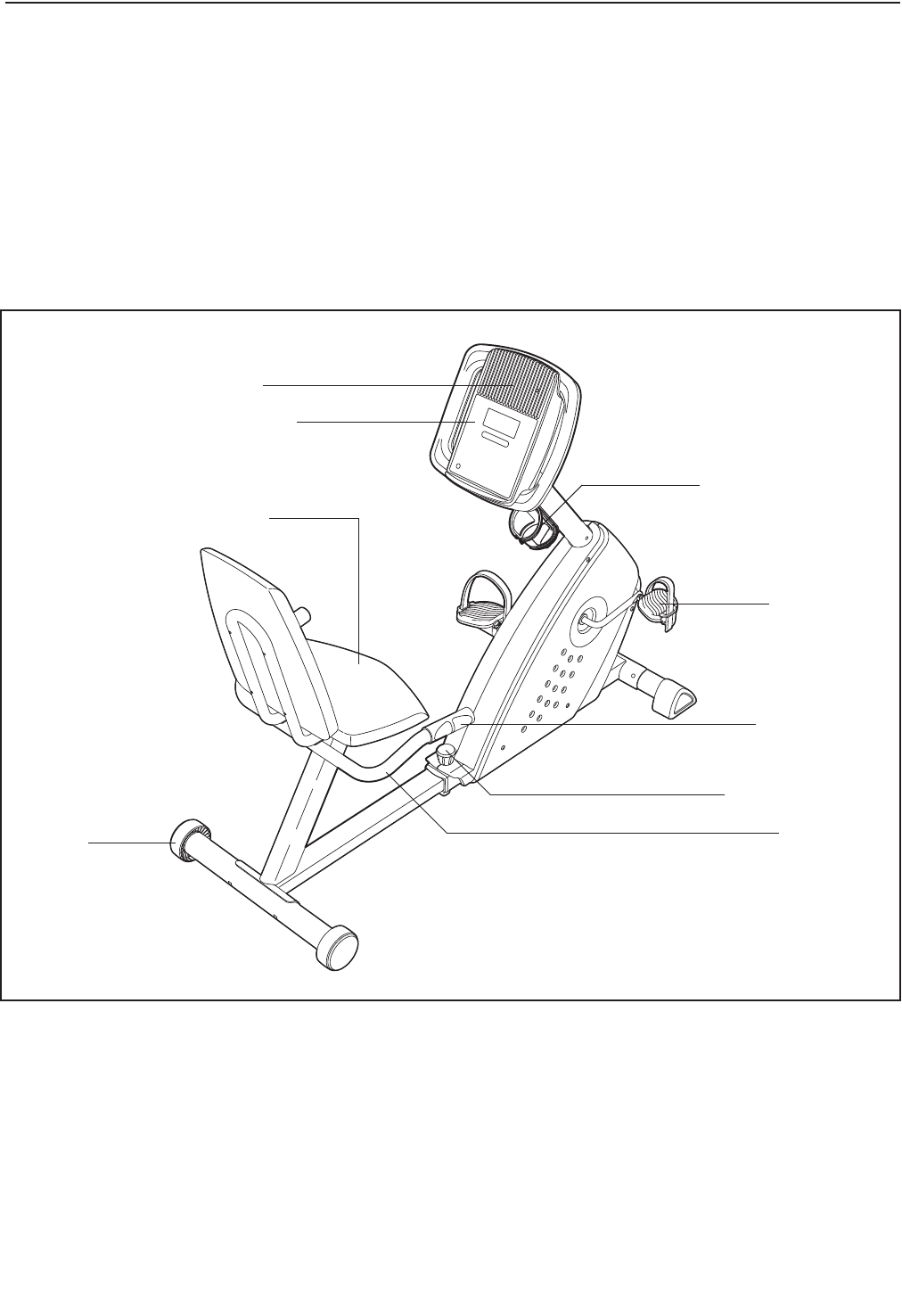

the parts that are labeled in the drawing below.

ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires your own Phillips screwdriver and an

adjustable wrench .

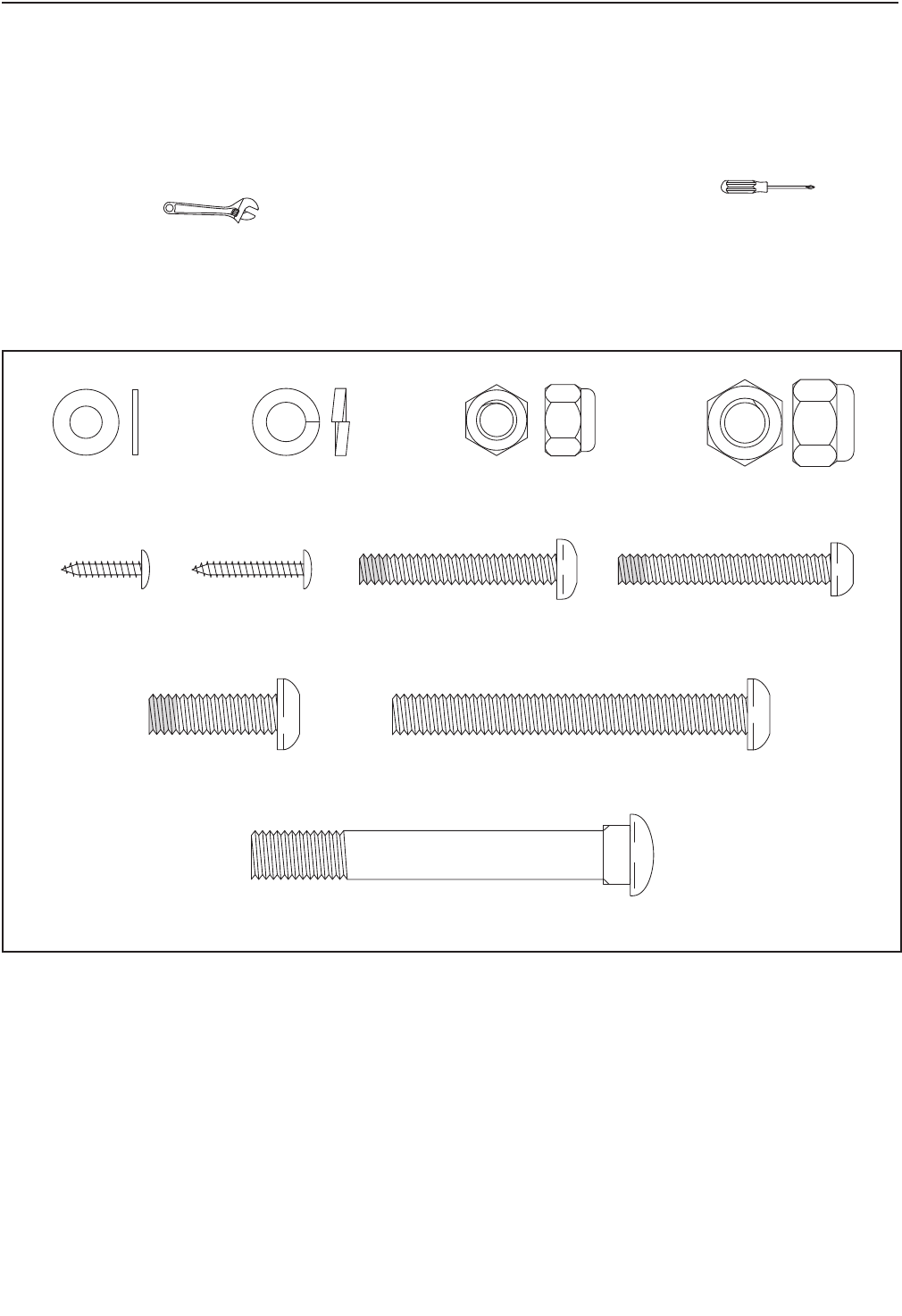

As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The second

number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has

been preassembled.

M10 x 75mm Carriage Bolt (51)–4

M10 Locknut

(63)–4

M8 Locknut

(60)–4

M8 Split

Washer (59)–5

M6 Washer

(55)–8

M6 x 38mm Patch

Screw (48)–4

M6 x 42mm Patch

Screw (49)–4

M8 x 25mm Patch

Screw (33)–3

M8 x 70mm Button

Bolt (54)–2

M4 x 22mm

Screw (52)–2

M4 x 16mm

Screw (57)–4

3. Attach the Seat Frame (7) to the Handlebar (6)

with two M8 x 70mm Button Bolts (54), two M8

Split Washers (59), and two M8 Locknuts (60).

Do not tighten the Button Bolts yet.

While another person lifts the front of the Frame

(1), attach the Front Stabilizer (3) to the Frame

with two M10 x 75mm Carriage Bolts (51) and

two M10 Locknuts (63).

See the inset drawing. Loosen the Adjustment

Knob (17), slide the Rear Frame (2) out of the

Frame (1), and then retighten the Adjustment

Knob.

Note: After the exercise cycle is assembled, see

HOW TO ADJUST THE SEAT FRAME on page

10 and adjust the Seat (not shown) to the prop-

er position.

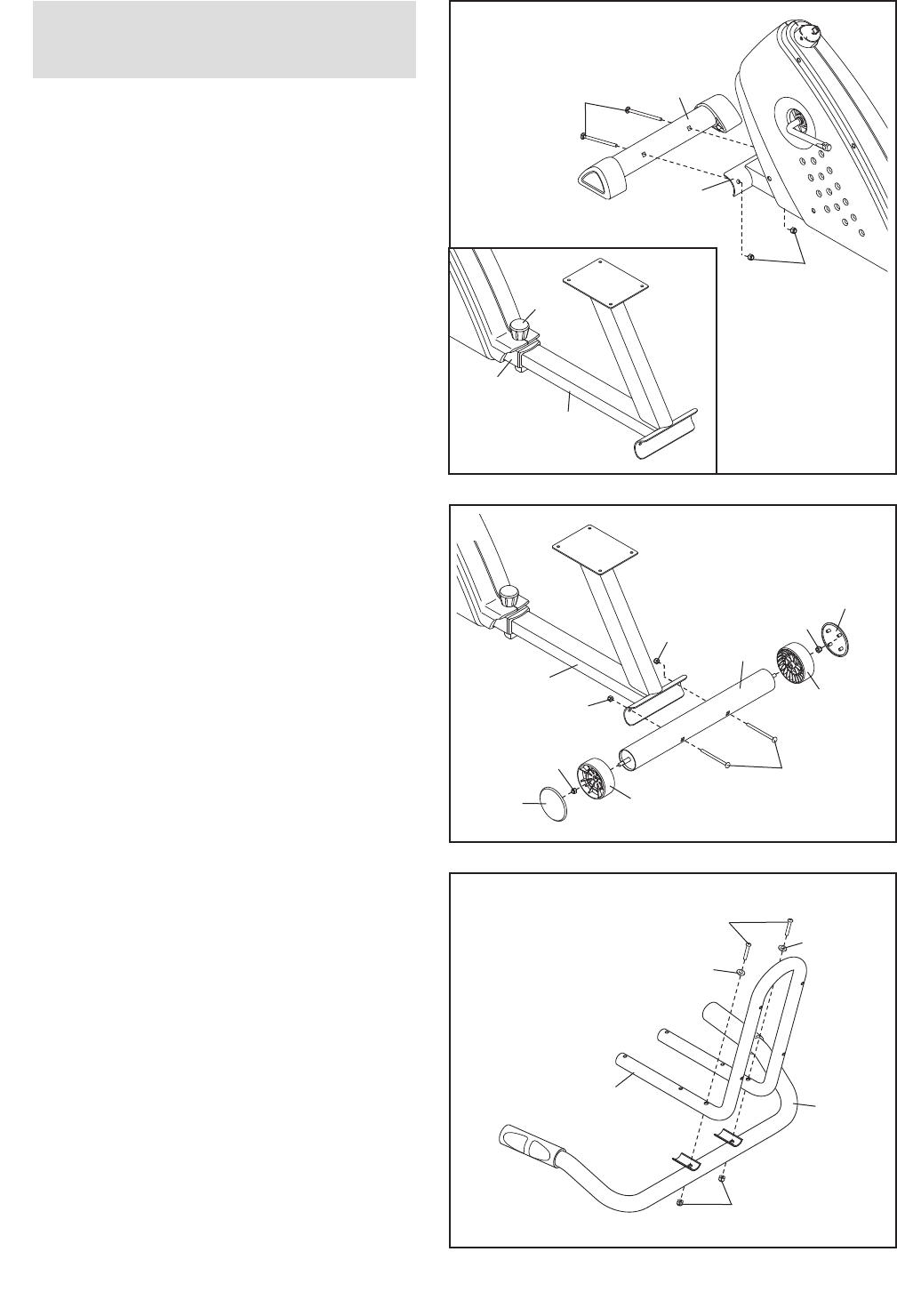

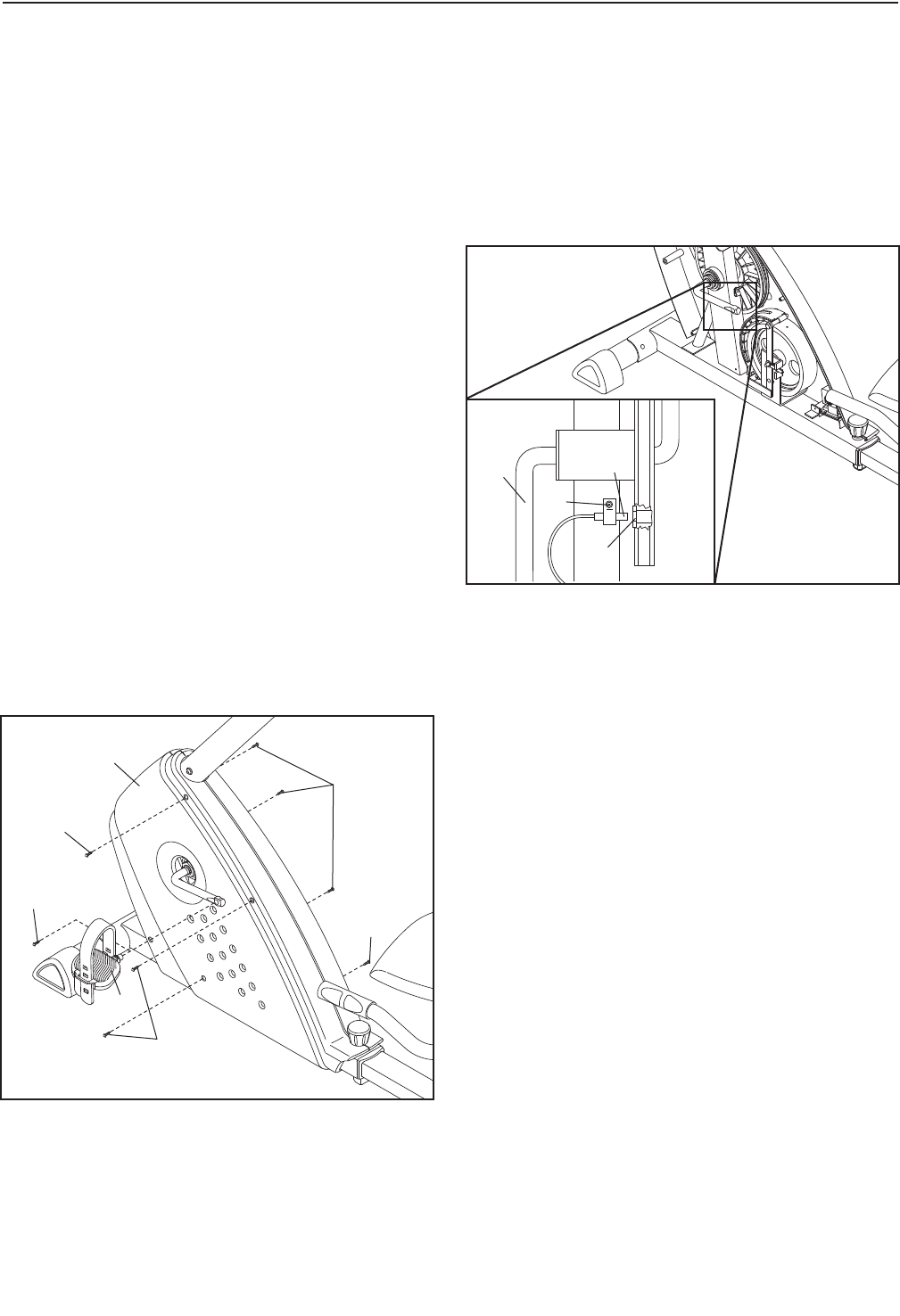

2. Attach the Wheels (18) to the Rear Stabilizer

(4) with two M8 Locknuts (60).

Press a Wheel Cap (19) onto each Wheel (18).

Attach the Rear Stabilizer (4) to the Rear Frame

(2) with two M10 x 75mm Carriage Bolts (51)

and two M10 Locknuts (63).

To make assembly easier, read the infor-

mation on page 5 before you begin.

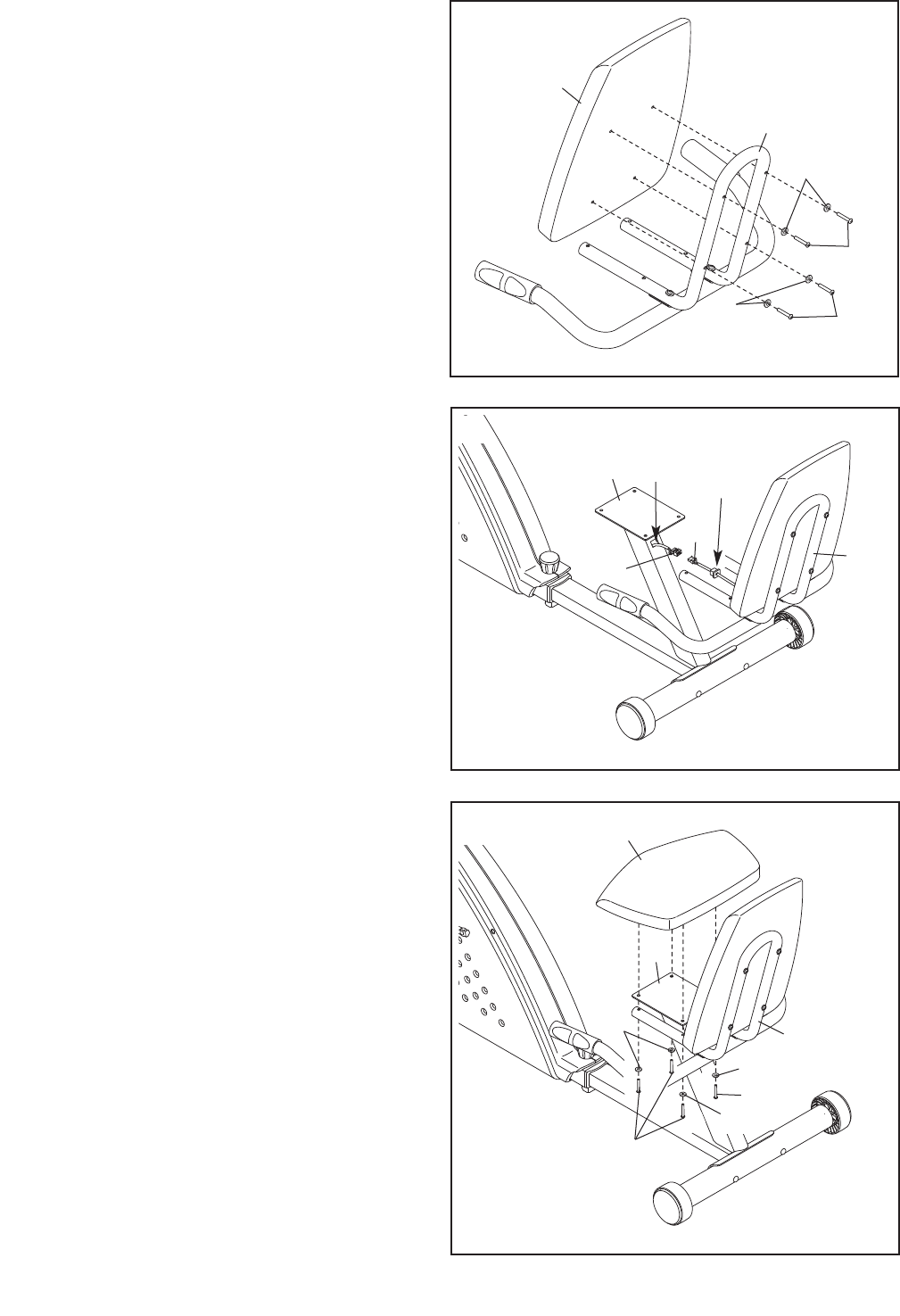

4. Attach the Backrest (5) to the Seat Frame (7)

with four M6 x 38mm Patch Screws (48) and

four M6 Washers (55). Do not tighten the

Patch Screws yet.

5. Have another person hold the Seat Frame (7)

near the Rear Frame (2) as shown.

Connect the Pulse Sensor Wire (44) to the

Pulse Wire Harness (36).

Insert the Pulse Sensor Wire (44) and the Pulse

Wire Harness (36) into the Rear Frame (2).

Then, press the indicated grommet into the hole

in the Rear Frame.

55 7

Grommet

Hole

6. Have another person hold the Seat Frame (7)

under the Rear Frame (2) as shown.

Tip: Avoid pinching the wires. Attach the Seat

Frame (7) and the Seat (12) to the Rear Frame

(2) with four M6 x 42mm Patch Screws (49) and

four M6 Washers (55).

See step 3. Tighten the two M8 x 70mm Button

Bolts (54).

See step 4. Tighten the four M6 x 38mm Patch

Screws (48).

Avoid pinching

the wires

8. The Console (16) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTANT: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the battery cover, insert the

batteries into the battery compartment, and

reattach the battery cover. Make sure to orient

the batteries as shown by the diagram

inside the battery compartment.

To purchase an optional AC adapter, contact

the store where you purchased this product

or call the telephone number on the cover of

this manual. To avoid damaging the con-

sole, use only a manufacturer-supplied AC

adapter. Plug one end of the AC adapter into

the jack on the console; plug the other end into

an outlet installed in accordance with all local

codes and ordinances.

Batteries

Battery

Cover

Wire

Tie

Wire

Tie

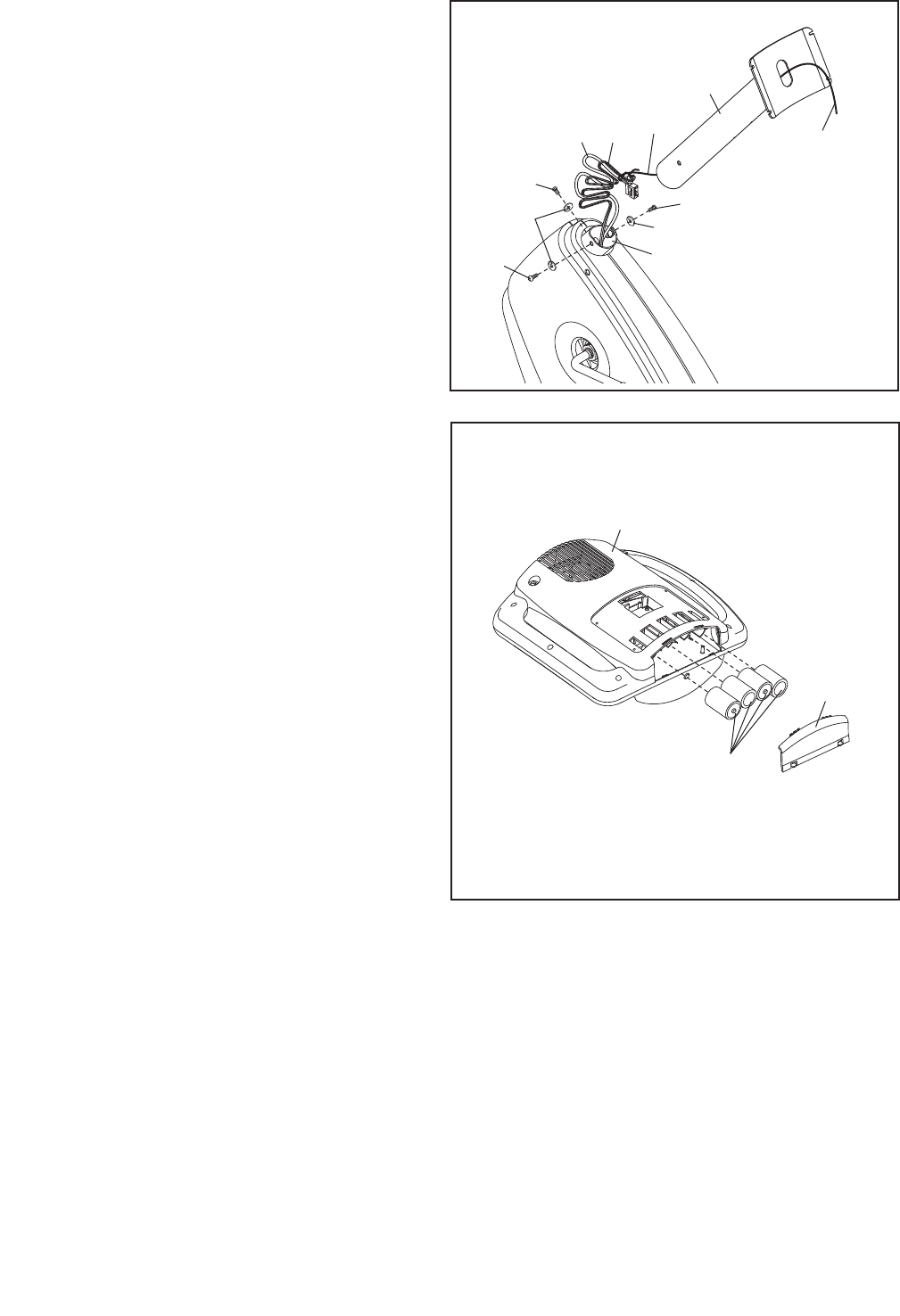

7. Have another person hold the Upright (13) near

the Frame (1).

Locate the wire tie in the Upright (13). Tie the

lower end of the wire tie to the Wire Harness

(27) and the Pulse Wire Harness (36). Next, pull

the upper end of the wire tie upward out of the

top of the Upright. Then, untie and discard the

wire tie.

Tip: Avoid pinching the wires. Attach the

Upright (13) to the Frame (1) with three M8 x

25mm Patch Screws (33) and three M8 Split

Washers (59).

27 36

59 59

Avoid pinching

the wires

Strap

Tab

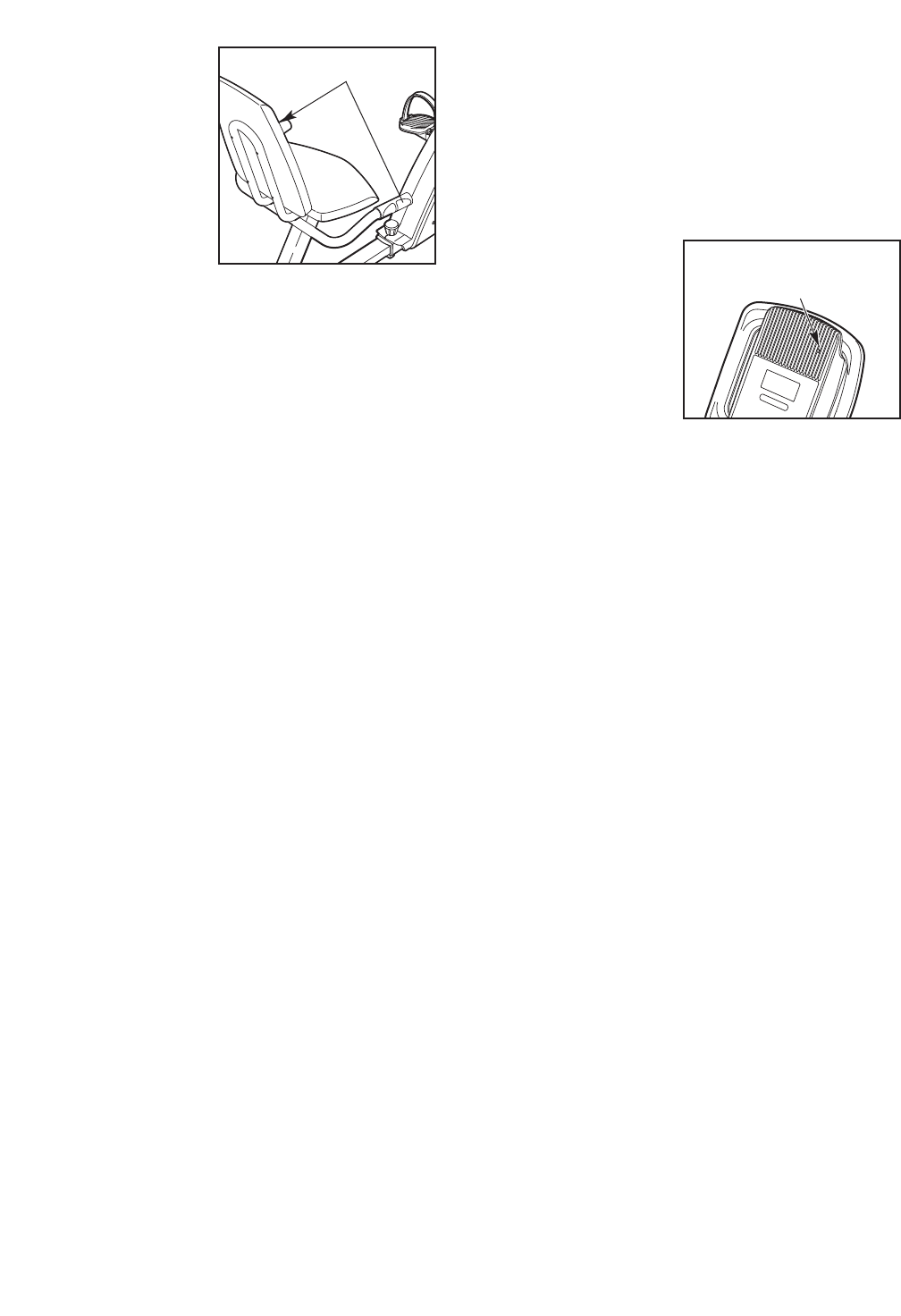

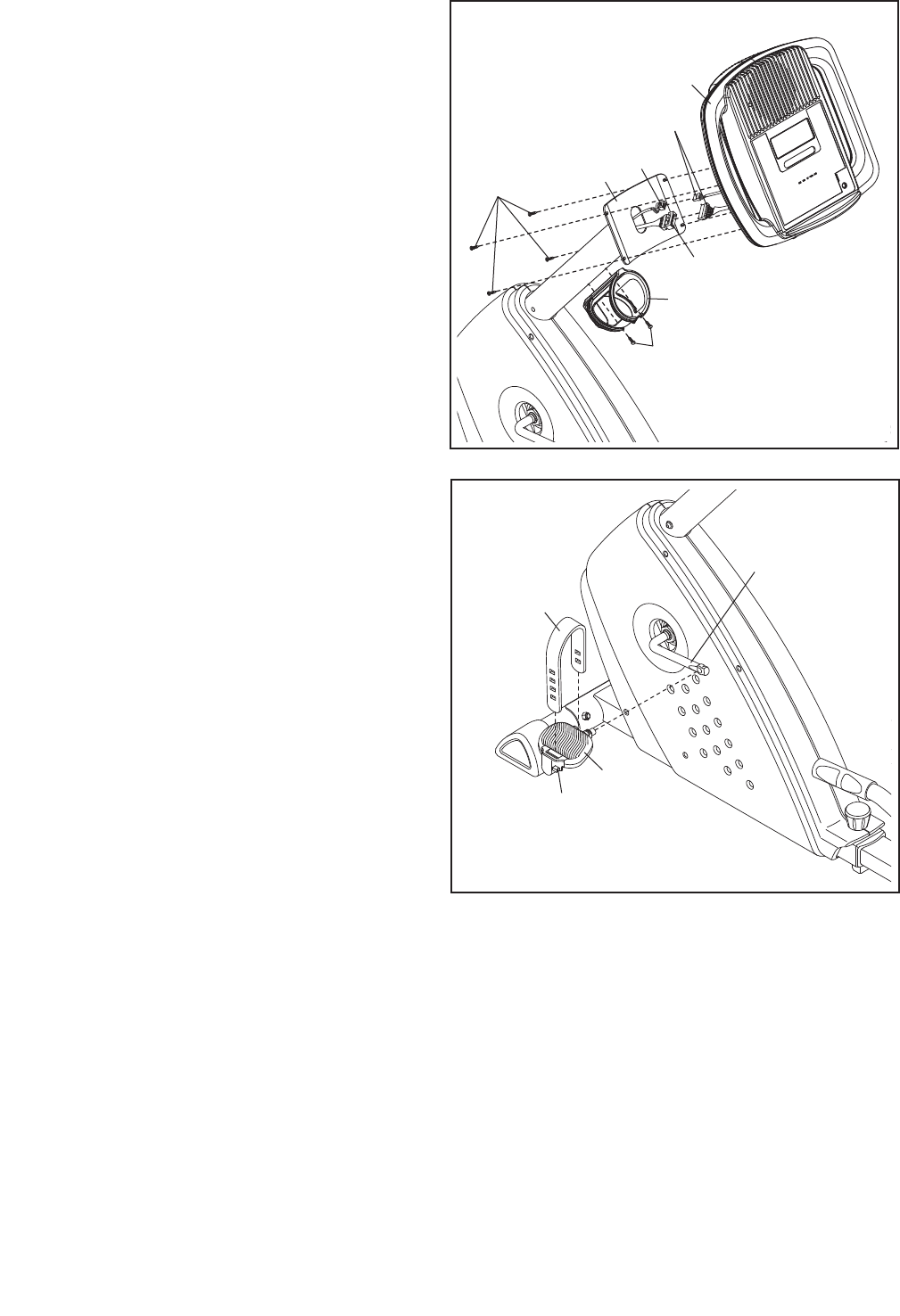

10. Identify the Left Pedal (24), which is marked

with an “L” sticker.

Using an adjustable wrench, firmly tighten the

Left Pedal (24) counterclockwise into the left

arm of the Crank (31). Tighten the Right Pedal

(not shown) clockwise into the right arm of the

Crank.

IMPORTANT: Tighten both pedals as firmly

as possible. After using the exercise cycle

for one week, retighten the pedals. For best

performance, keep the pedals tightened.

Adjust the strap on the Left Pedal (24) to the

desired position, and press the end of the strap

onto the tab on the Left Pedal. Adjust the

strap on the Right Pedal (not shown) in the

same way.

11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly

is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

9. While another person holds the Console (16)

near the Upright (13), connect the console wires

to the Wire Harness (27) and the Pulse Wire

Harness (36).

Insert the excess wire into the Upright (13).

Tip: Avoid pinching the wires. Attach the

Console (16) to the Upright (13) with four M4 x

16mm Screws (57).

Attach the Water Bottle Holder (8) to the Upright

(13) with two M4 x 22mm Screws (52).

13 36

Console Wires

Avoid pinching

the wires

HOW TO USE THE EXERCISE CYCLE

HOW TO ADJUST THE SEAT FRAME

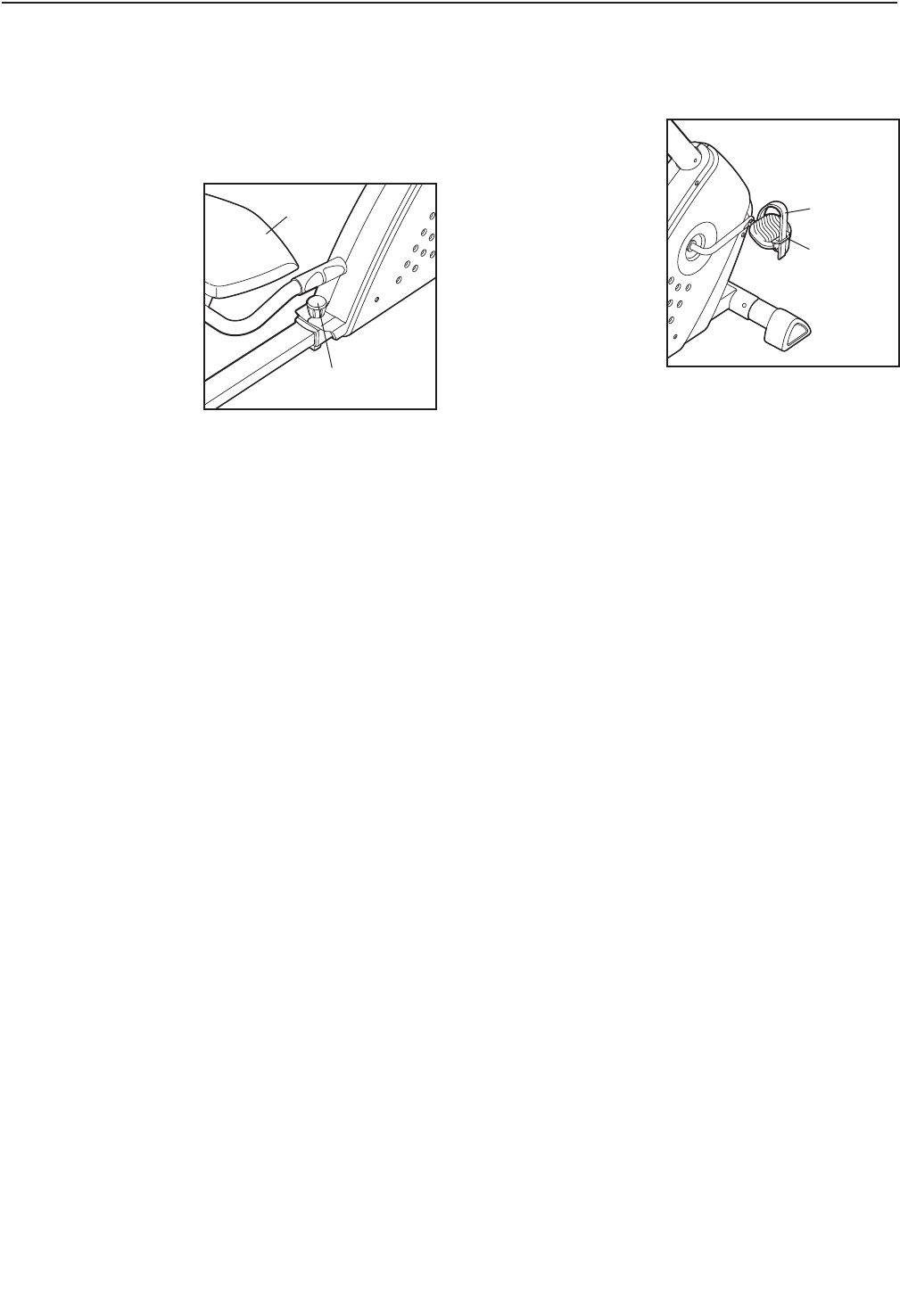

For effective exercise, the seat should be in the proper

position.

As you pedal, there

should be a slight

bend in your knees

when the pedals are

in the most forward

position. To adjust

the seat frame, first

loosen the adjust-

ment knob on the

frame. Slide the seat

frame forward or

backward to the

desired position. Then, retighten the adjustment knob.

HOW TO ADJUST THE PEDAL STRAPS

To adjust the pedal

straps, first pull the

ends of the straps off

the tabs on the ped-

als. Adjust the straps

to the desired posi-

tion, and then press

the ends of the straps

onto the tabs.

Strap

Tab

Knob

Seat

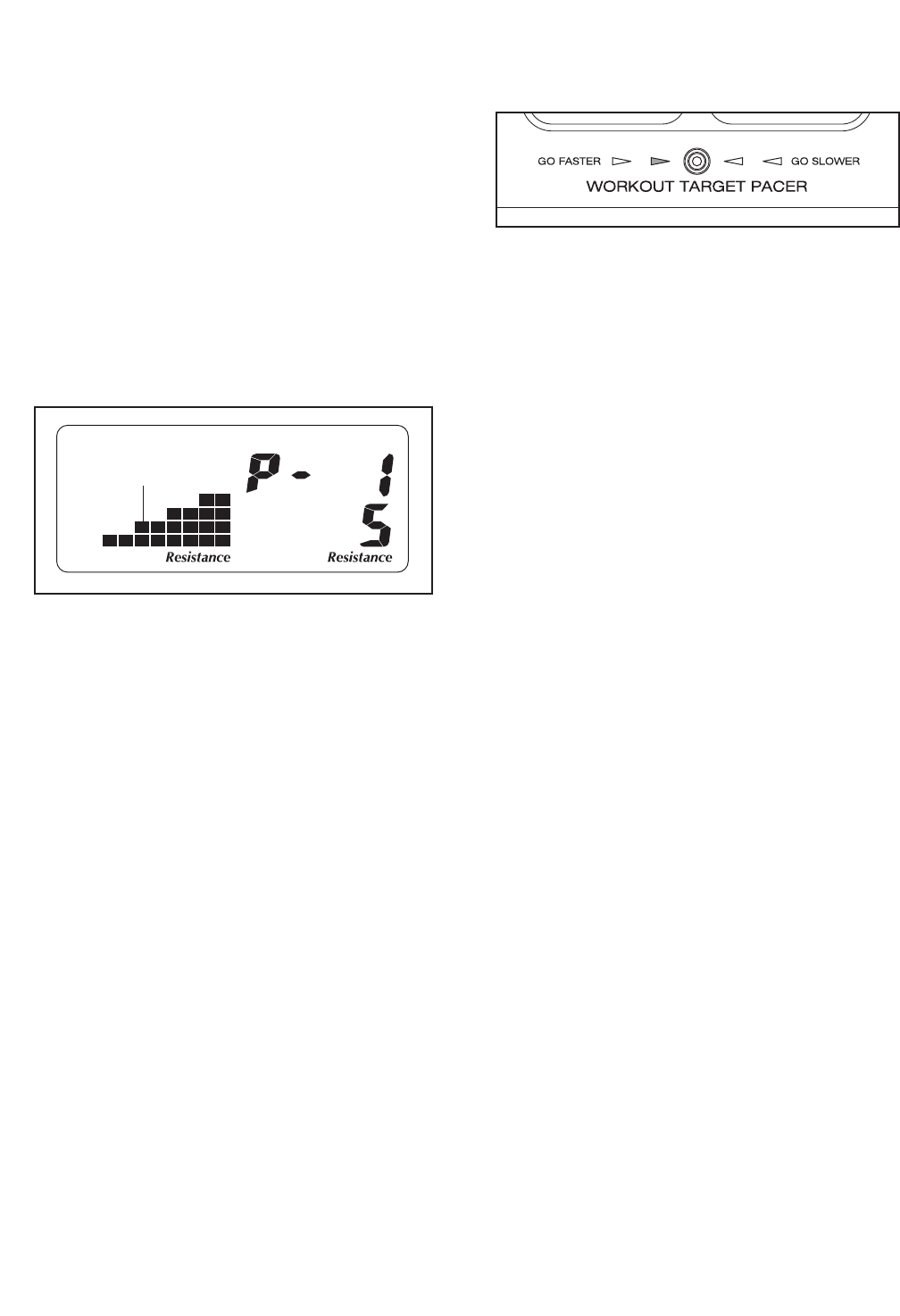

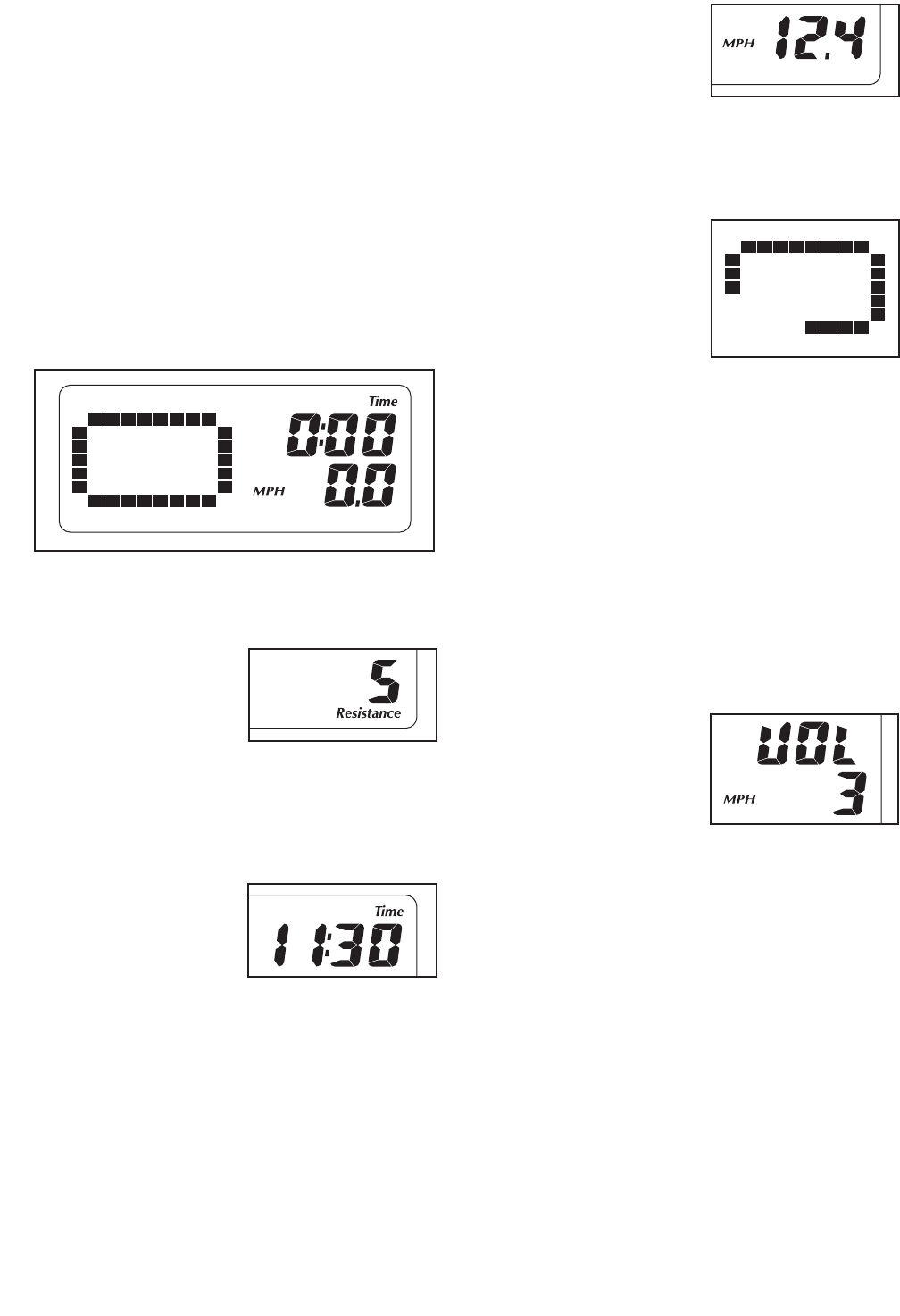

FEATURES OF THE CONSOLE

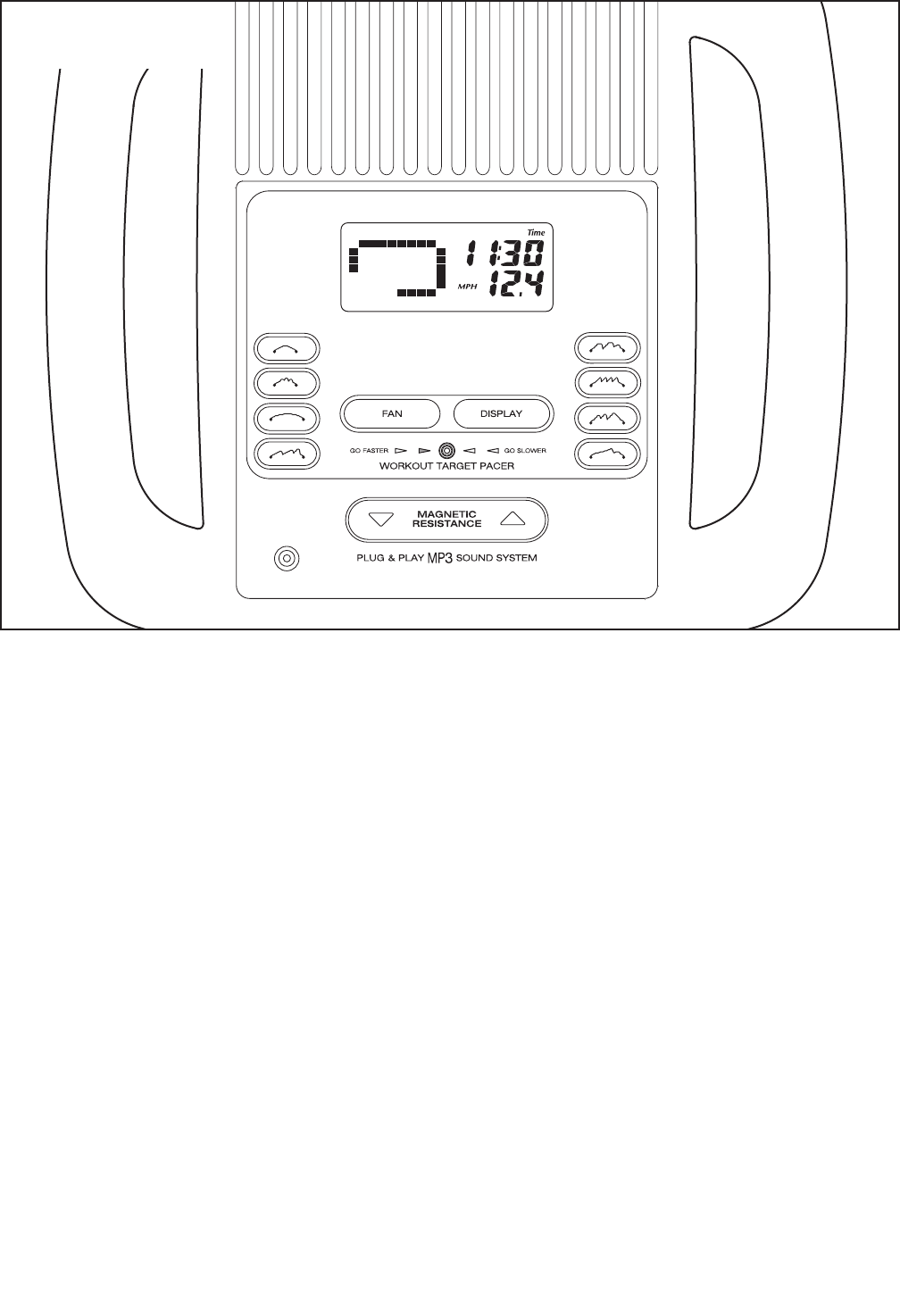

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button. As you exercise, the console will provide

continuous exercise feedback. You can even measure

your heart rate using the handgrip pulse sensor.

The console also offers eight preset workouts. Each

workout automatically changes the resistance of the

pedals and prompts you to vary your pedaling speed

as it guides you through an effective workout.

You can even connect your MP3 player or CD player

to the console sound system and listen to your favorite

music or audio books while you exercise.

To use the manual mode, see page 12. To use a

preset workout, see page 14. To use the sound

system, see page 14.

Note: Before using the console, make sure that batter-

ies are installed (see assembly step 8 on page 8). If

there is a sheet of clear plastic on the display, remove

the plastic.

CONSOLE DIAGRAM

HOW TO USE THE MANUAL MODE

1. Press any button on the console or begin

pedaling to turn on the console.

When you turn on the console, the displays and

the workout target pacer will light. A tone will then

sound and the console will be ready for use.

2. Select the manual mode.

When you turn on the console, the manual mode

will be selected. If you have selected a workout,

reselect the manual mode by pressing one of the

eight workout buttons on the console repeatedly

until a track appears in the left display.

3. Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change

the resistance of the

pedals by pressing the

Magnetic Resistance

increase and decrease

buttons. Note: After

you press the buttons, it may take a moment for

the pedals to reach the selected resistance level.

4. Follow your progress with the displays.

The upper right

display can show the

elapsed time, the

approximate number

of calories you have

burned, and the dis-

tance you have pedaled. The display will change

information every few seconds.

The lower right

display can show your

pedaling speed and

the resistance level of

the pedals. The display

will change modes

every few seconds. The display will also show

your heart rate when you use the handgrip pulse

sensor (see step 5 on page 13).

The left display will

show a track repre-

senting 1/4 mile (400

meters). As you exer-

cise, indicators will

appear in succession

around the track until

the entire track

appears. The track will then disappear and the

indicators will again begin to appear in succession.

To change the display mode, press the Display

button repeatedly until the desired exercise infor-

mation appears in the upper or lower right display.

After several seconds, the displays will change

modes automatically as before.

Note: The console can display speed and distance

in either miles or kilometers. The letters MPH or

Km/H will appear while your pedaling speed is dis-

played to show which unit of measurement is

selected.

To change the unit of

measurement, first

press the Display but-

ton for a few seconds

until the display is

blank; then, release

the Display button.

Press the Fan button repeatedly to change the unit

of measurement.

You can also adjust the volume of the console

tones at this time. Press the Magnetic Resistance

increase and decrease buttons to select a volume

level.

When you have selected the desired unit of mea-

surement and volume level, press the Display but-

ton again.

5. Measure your heart rate if desired.

If there are

sheets of clear

plastic on the

metal contacts

on the handgrip

pulse sensor,

remove the plas-

tic. In addition,

make sure that

your hands are

clean. To measure

your heart rate,

hold the handgrip pulse sensor with your palms

resting against the metal contacts. Avoid moving

your hands or gripping the contacts tightly.

When your pulse is detected, a heart-shaped sym-

bol will flash in the lower right display each time

your heart beats, one or two dashes will appear,

and then your heart rate will be shown. For the

most accurate heart rate reading, hold the con-

tacts for at least 15 seconds.

If your heart rate is not shown, make sure that

your hands are positioned as described. Be care-

ful not to move your hands excessively or to

squeeze the metal contacts tightly. For optimal

performance, clean the metal contacts using a soft

cloth; never use alcohol, abrasives, or chemi-

cals to clean the contacts.

6. Turn on the fan if desired.

The fan has high, low, and auto speed settings;

while the auto mode is selected, the speed of the

fan will automatically increase or decrease as you

increase or decrease your pedaling speed. Press

the Fan button repeatedly to select a fan speed or

to turn off the fan. Note: If the pedals do not move

for about thirty seconds, the fan will turn off auto-

matically.

Pivot the thumb tab

on the right side of

the fan to adjust the

fan angle.

7. When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

series of tones will sound and the console will

pause.

If the pedals do not move for about five minutes,

the console will turn off and the displays will be

reset.

Contacts

Thumb

Tab

HOW TO USE A PRESET WORKOUT

1. Press any button on the console or begin

pedaling to turn on the console.

See step 1 on page 12.

2. Select a preset workout.

To select one of the eight preset workouts, press

one of the eight buttons on the right and left side

of the console.

When you select a preset workout, the name of

the workout and the maximum resistance level will

appear in the display for a few seconds. A profile

of the resistance levels of the workout will also

scroll across the left side of the display.

3. Begin pedaling to start the workout.

Each workout is divided into either 20 or 30 one-

minute segments. One resistance level and one

target pace setting are programmed for each seg-

ment. Note: The same resistance level and/or tar-

get pace setting may be programmed for consecu-

tive segments.

During the workout, the workout profile will show

your progress (see the drawing above). The flash-

ing segment of the profile represents the current

segment of the workout. The height of the flashing

segment indicates the resistance level for the cur-

rent segment. At the end of each segment of the

workout, a series of tones will sound and the next

segment of the profile will begin to flash. If a differ-

ent resistance level is programmed for the next

segment, the resistance level will appear in the

display for a few seconds to alert you. The resis-

tance of the pedals will then change.

During the workout, the workout target pacer will

prompt you to keep your pedaling speed near the

target pace setting for the current segment. When

a left indicator lights, increase your speed; when a

right indicator lights, decrease your speed. When

the center indicator lights, maintain your current

speed. IMPORTANT: The workout target pacer

is intended only to provide a goal. Make sure

to pedal at a speed that is comfortable for you.

If the resistance level for the current segment is

too high or too low, you can manually override the

resistance level by pressing the Magnetic

Resistance buttons. However, when the current

segment ends, the resistance of the pedals will

automatically adjust to the resistance level pro-

grammed for the next segment.

If you stop pedaling for several seconds, a series

of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The

workout will continue until the last segment of the

workout ends.

4. Follow your progress with the displays.

See step 4 on page 12.

5. Measure your heart rate if desired.

See step 5 on page 13.

6. Turn on the fan if desired.

See step 6 on page 13.

7. When you are finished exercising, the console

will turn off automatically.

See step 7 on page 13.

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console

sound system while you exercise, plug an audio cable

(not included) into the jack on the console and into a

jack on your MP3 player or CD player; make sure

that the audio cable is fully plugged in.

Next, press the play button on your MP3 player or CD

player. Adjust the volume level using the volume con-

trol on your MP3 player or CD player.

Profile

Inspect and properly tighten all parts of the exercise

cycle regularly. Replace any worn parts immediately.

To clean the exercise cycle, use a damp cloth and a

small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

CONSOLE TROUBLESHOOTING

If the console display becomes dim, the batteries

should be replaced; most console problems are the

result of low batteries. To replace the batteries, see

assembly step 8 on page 8.

If the handgrip pulse sensor does not function proper-

ly, see step 5 on page 13.

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted.

To adjust the reed switch, you must first remove the

Left Shield (9). Using an adjustable wrench, turn the

Left Pedal (24) clockwise and remove it. Next, remove

the M4 x 16mm Screws (57) and the M4 x 25mm

Screw (45). Then, carefully remove the Left Shield.

Locate the Reed Switch (43). Turn the Crank (31) until

the Magnet (38) is aligned with the Reed Switch.

Next, loosen, but do not remove, the indicated M4 x

16mm Screw (57). Slide the Reed Switch slightly clos-

er to or away from the Magnet, and then retighten the

Screw. Turn the Crank for a moment. Repeat until the

console displays correct feedback.

When the reed switch is correctly adjusted, reattach

the left shield and the left pedal.

MAINTENANCE AND TROUBLESHOOTING

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until

your heart rate is near the highest number in your

training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise–never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of

stretching. Stretching increases the flexibility of your

muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each

week, if desired. Remember, the key to success is to

make exercise a regular and enjoyable part of your

everyday life.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The pulse sensor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The pulse sensor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right.

Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach

down toward your toes as far as possible. Hold for 15 counts,

then relax. Repeat 3 times. Stretches: Hamstrings, backs of

knees, and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot

toward you and rest it against the inner thigh of your extended

leg. Reach toward your toes as far as possible. Hold for 15

counts, then relax. Repeat 3 times for each leg. Stretches:

Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back

foot flat on the floor. Bend your front leg, lean forward, and move

your hips toward the wall. Hold for 15 counts, then relax. Repeat

3 times for each leg. To cause further stretching of the achilles

tendons, bend your back leg as well. Stretches: Calves, achilles

tendons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp

one foot with your other hand. Bring your heel as close to your

buttocks as possible. Hold for 15 counts, then relax. Repeat 3

times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

11Frame

21Rear Frame

31Front Stabilizer

41Rear Stabilizer

51Backrest

61Handlebar

71Seat Frame

81Water Bottle Holder

91Left Shield

10 1 Right Shield

11 2 Stabilizer Cap

12 1 Seat

13 1 Upright

14 1 Front Bushing

15 1 Rear Bushing

16 1 Console

17 1 Adjustment Knob

18 2 Wheel

19 2 Wheel Cap

20 2 Frame Pad

21 1 Frame Stop

22 1 Clamp

23 1 C-magnet Bracket

24 1 Left Pedal/Strap

25 2 Pulse Sensor

26 1 Right Pedal/Strap

27 1 Wire Harness

28 1 Resistance Motor

29 1 Flywheel Axle

30 1 Drive Belt

31 1 Pulley/Crank

32 1 C-magnet

33 3 M8 x 25mm Patch Screw

34 1 Flywheel

35 1 Crank Bearing Assembly

36 1 Pulse Wire Harness

37 2 Bearing

38 1 Magnet

39 2 Tension Bolt

40 1 Tension Bracket

41 1 M8 Washer

42 1 Flywheel Washer

43 1 Reed Switch/Wire

44 1 Pulse Sensor Wire

45 5 M4 x 25mm Screw

46 1 Resistance Cable

47 1 Return Spring

48 4 M6 x 38mm Patch Screw

49 4 M6 x 42mm Patch Screw

50 3 M4 x 16mm Flat Head Screw

51 4 M10 x 75mm Carriage Bolt

52 2 M4 x 22mm Screw

53 1 5mm Spacer

54 2 M8 x 70mm Button Bolt

55 8 M6 Washer

56 1 M8 x 20mm Button Bolt

57 16 M4 x 16mm Screw

58 4 M5 Washer

59 5 M8 Split Washer

60 5 M8 Locknut

61 6 M6 Nut

62 2 M8 Jam Nut

63 4 M10 Locknut

64 1 M6 x 38mm Bolt

*–Userʼs Manual

*–Assembly Tool

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

PART LIST—Model No. GGEX61707.1 R0609A

Key No. Qty. Description Key No. Qty. Description

26 30

33 57

22 57

43 58

19 11

3940

49 49

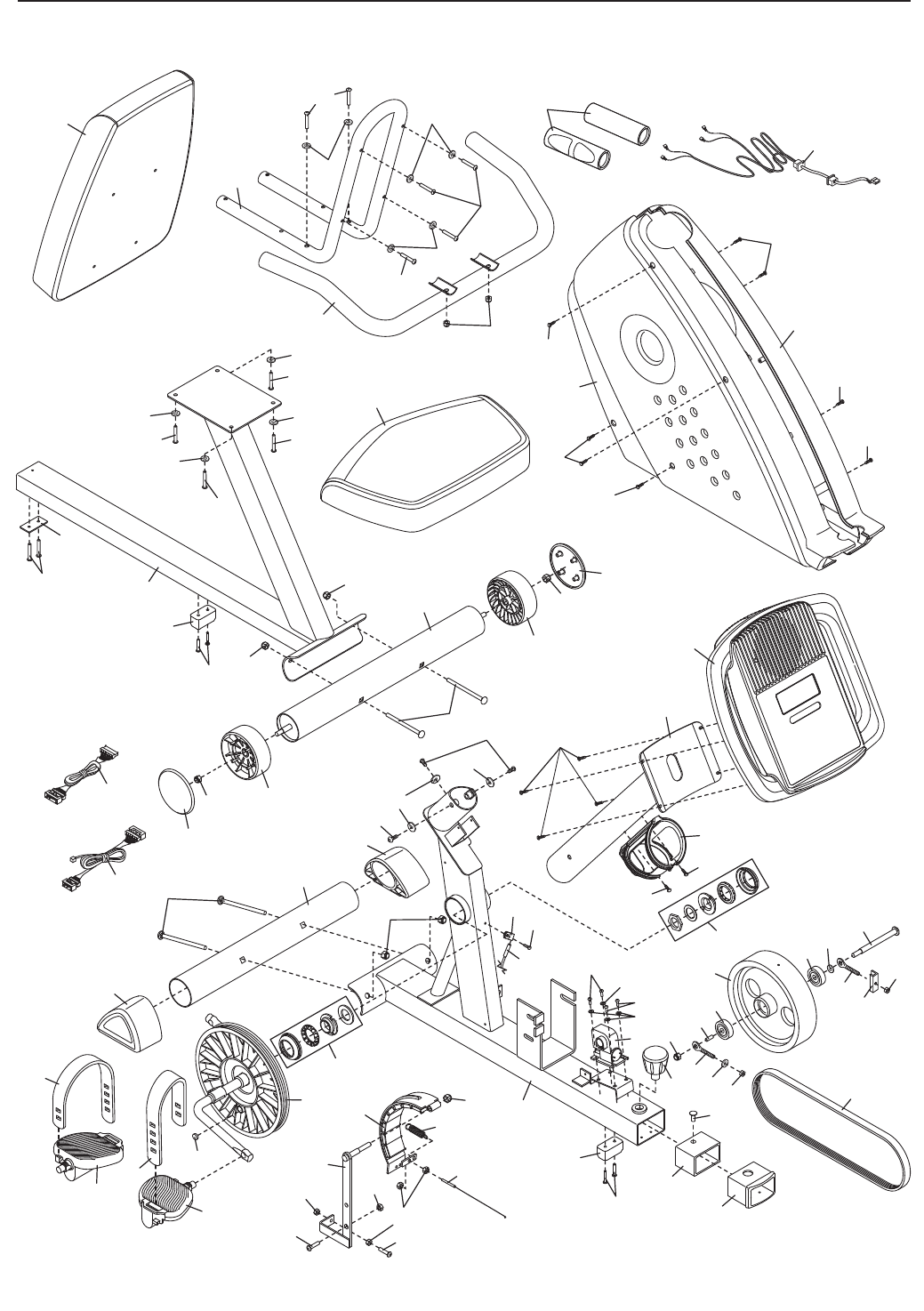

EXPLODED DRAWING—Model No. GGEX61707.1 R0609A

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added

fees for service needed under warranty. Go to www.workoutwarehouse.com/registration.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to

repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All

repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to

a service center, freight charges to and from the service center will be the customerʼs responsibility. For

replacement parts shipped while the product is under warranty, the customer will be responsible for a min-

imal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This

warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,

misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to

products used for commercial or rental purposes or as store display models; or to products transported

or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by

ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the

above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

•the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED

DRAWING near the end of this manual)

Golds Gym Ggex617071 Owners Manual 285430

Navigation menu

Versions of this User Manual:

Views

Navigation
