Goldwood Sound AA5230 5.1 CH MULTIMEDIA SPEAKER SYSTEM User Manual B265BU PO AA5230 F38 12650 018

Goldwood Sound, Inc. 5.1 CH MULTIMEDIA SPEAKER SYSTEM B265BU PO AA5230 F38 12650 018

User Manual

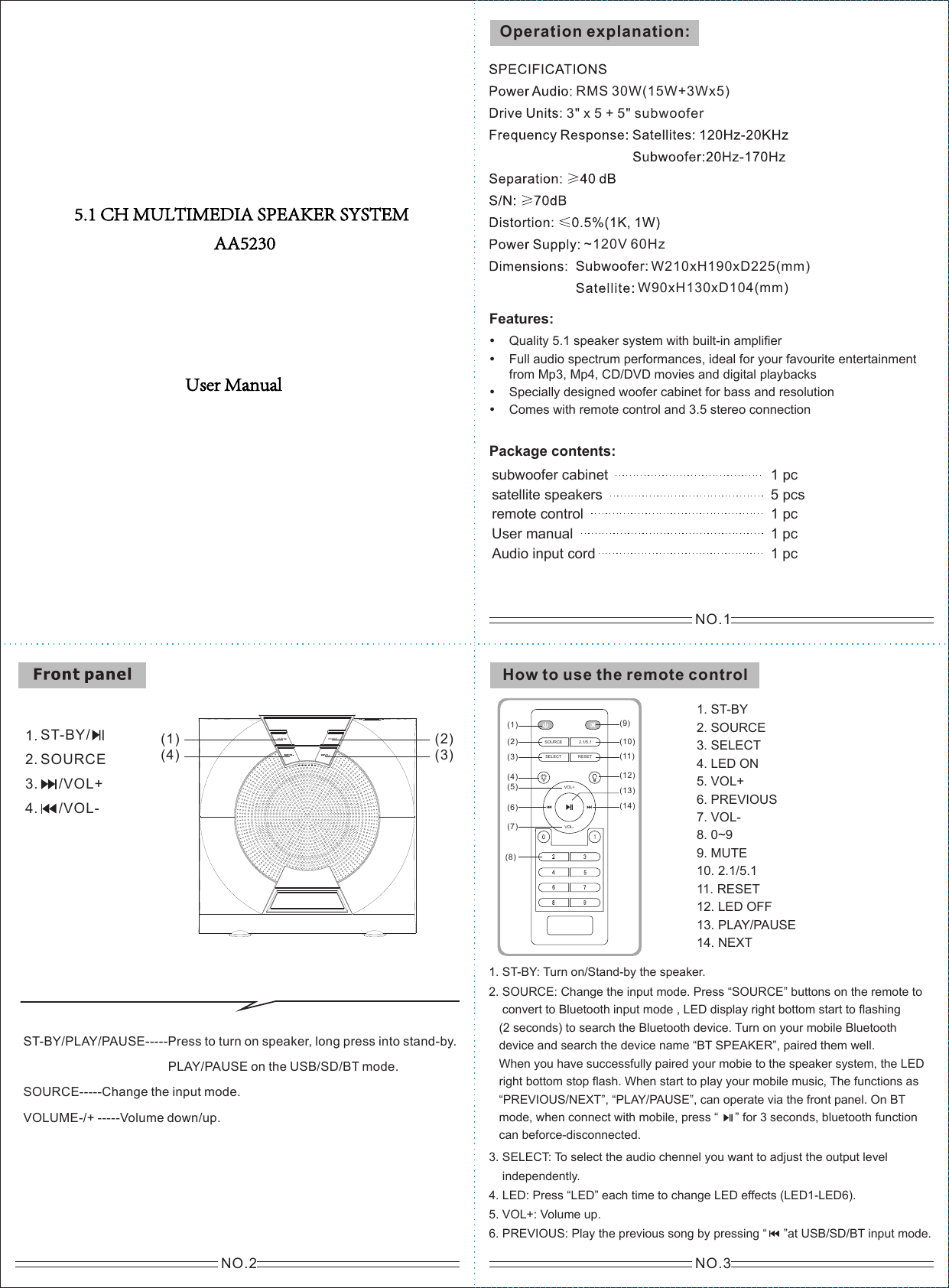

NO.1NO.2 NO.31.     2.     4.  /VOL-3.  /VOL+SOURCEST-BY/PLAY/PAUSE on the USB/SD/BT mode. SOURCE-----Change the input mode.VOLUME-/+ -----Volume down/up.ST-BY/PLAY/PAUSE-----Press to turn on speaker, long press into stand-by. (1)(4)(2)(3)SOURCEST-BY/Features:Quality 5.1 speaker system with built-in amplifierFull audio spectrum performances, ideal for your favourite entertainment  from Mp3, Mp4, CD/DVD movies and digital playbacksSpecially designed woofer cabinet for bass and resolutionComes with remote control and 3.5 stereo connectionPackage contents: subwoofer cabinet 1 pc satellite speakers  5 pcsUser manual 1 pcOperation explanation:Audio input cord 1 pc remote control 1 pc~120V 60Hz3" x 5 + 5" subwooferRMS 30W(15W+3Wx5)W210xH190xD225(mm)W90xH130xD104(mm)How to use the remote controlHow to use the remote controlVOL+2.1/5.1VOL-SOURCE(1)(2)(5)(3)(4)(6)(8)(7)(9)(10)(11)(12)(14)(13)1. ST-BY2. SOURCE3. SELECT4. LED ON5. VOL+6. PREVIOUS7. VOL-8. 0~99. MUTE10. 2.1/5.111. RESET12. LED OFF13. PLAY/PAUSE14. NEXT1. ST-BY: Turn on/Stand-by the speaker.2. SOURCE: convert to Bluetooth input mode , LED display right bottom start to flashing(2 seconds) to search the Bluetooth device. Turn on your mobile Bluetoothdevice and search the device name “BT SPEAKER”, paired them well.When you have successfully paired your mobie to the speaker system, the LEDright bottom stop flash. When start to play your mobile music, The functions as“PREVIOUS/NEXT”, “PLAY/PAUSE”, can operate via the front panel. On BT mode, when connect with mobile, press “     ” for 3 seconds, bluetooth functioncan beforce-disconnected.Change the input mode. Press “SOURCE” buttons on the remote to3. independently.SELECT: To select the audio chennel you want to adjust the output level4. LED: Press “LED” each time to change LED effects (LED1-LED6).5. VOL+: Volume up.6. PREVIOUS: Play the previous song by pressing “     ”at USB/SD/BT input mode.SELECT RESET5.1 CH MULTIMEDIA SPEAKER SYSTEMAA5230User Manual

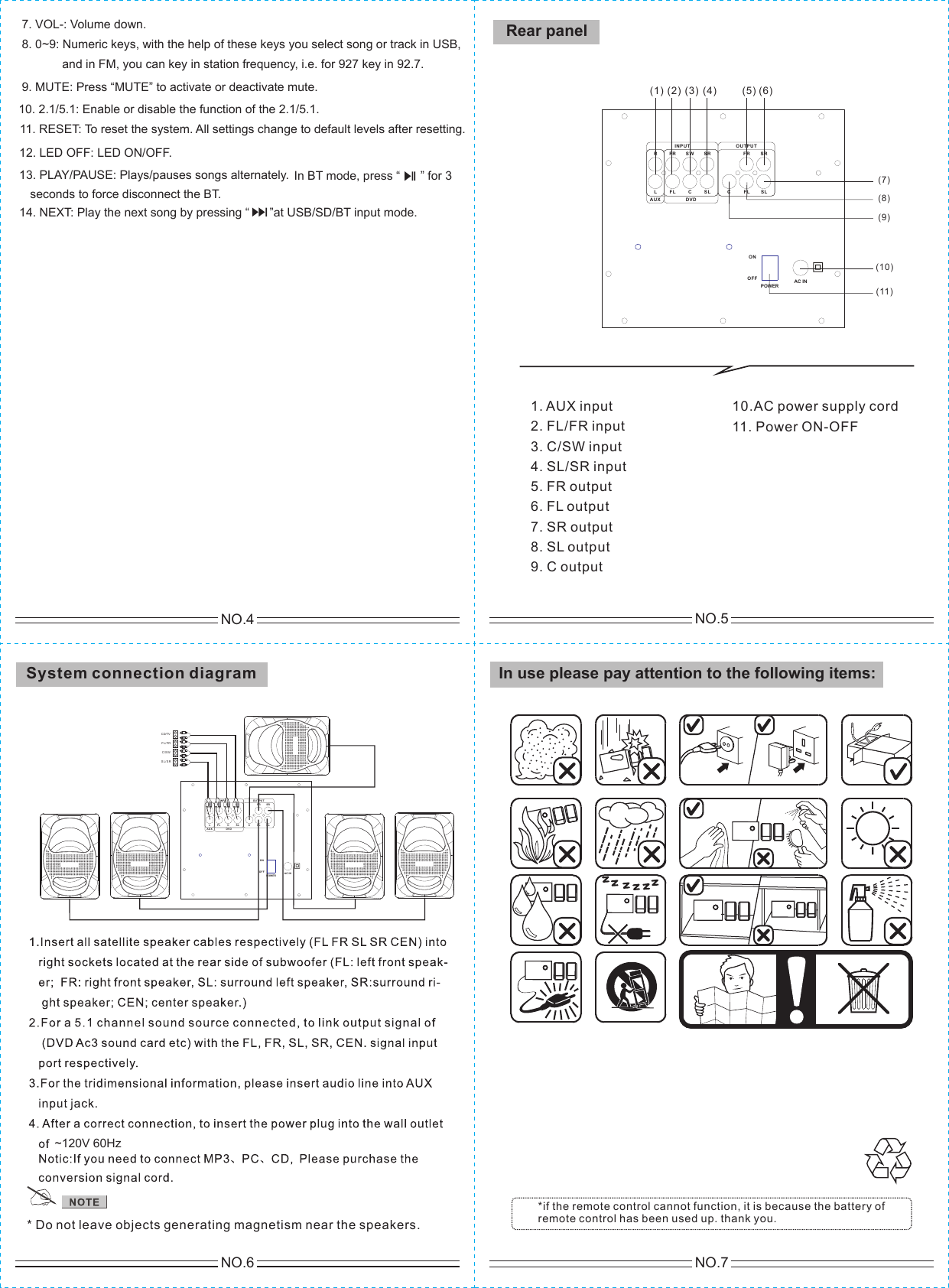

NO.7In use please pay attention to the following items:NO.4*if the remote control cannot function, it is because the battery ofremote control has been used up. thank you.NO.6NO.57. VOL-: Volume down.8. 0~9: Numeric keys, with the help of these keys you select song or track in USB,            and in FM, you can key in station frequency, i.e. for 927 key in 92.7.9. MUTE: Press “MUTE” to activate or deactivate mute.11. RESET: To reset the system. All settings change to default levels after resetting.10. 2.1/5.1: Enable or disable the function of the 2.1/5.1.12. LED OFF: LED ON/OFF.13. PLAY/PAUSE: Plays/pauses songs alternately.  In BT mode, press “      ” for 314. NEXT: Play the next song by pressing “      ”at USB/SD/BT input mode.seconds to force disconnect the BT.Rear panel1. AUX input2. FL/FR input3. C/SW input4. SL/SR input5. FR output6. FL output7. SR output8. SL output9. C output10.AC power supply cord11. Power ON-OFF* Do not leave objects generating magnetism near the speakers.~120V 60HzSystem connection diagram(1) (2) (3) (4) (5) (6)(7)(8)(9)(10)(11)POWERONOFF AC INOUTPUTC FL SLFR SRDVDAUXCFL SLFR SRSWINPUTLRPOWERONOFF AC INOUT PUTC FL SLFR SRDVDAUXCFL SLFR SRSWINP UTLRCD/TVFL/ FRC/S WSL /SR

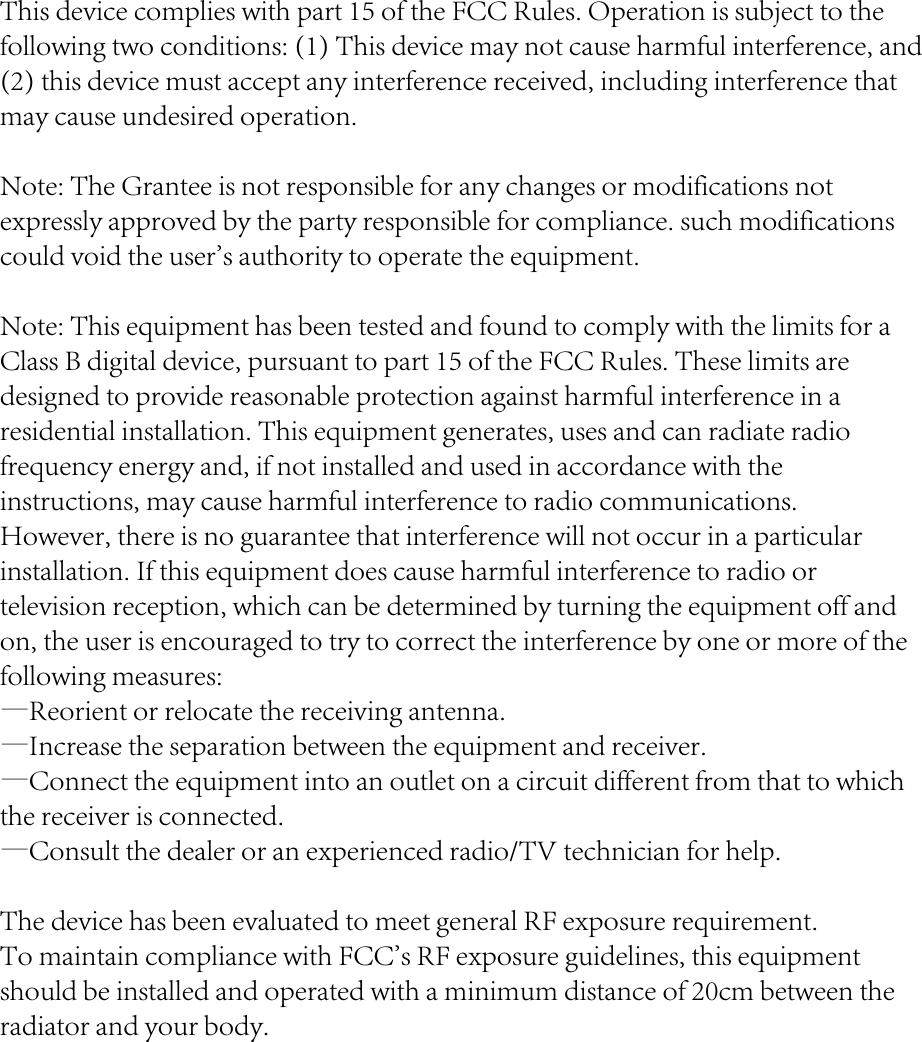

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.The device has been evaluated to meet general RF exposure requirement.  To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
