1. Introduction
1. Introduction
This Wireless Audio Adapter enables you wirelessly transmit music form your PC or
Notebook site to the other listening room. Without messy wires, just simply connecting
wireless audio dongle to your PC or Notebook for transmitting audio, and connecting
the wireless audio box to your stereo’s speaker, you will enjoy the good quality of the
sounds – offered by your stereo.
You can also use the mobile strap to hang up the wireless audio box and take with as a
MP3 player for private listening enjoyment though earphone. You are more flexible
then ever before, since you don’t need to worry about the distance limitation by
wired-cable.
This Wireless Audio Adapter adopt the RF 2.4G wireless solutions and bundled with
USB interface transmitter dongle and receiver box. The transmitter distance up to 45
meters and with Windows® 2000, XP and Vista™ and Mac OS X v10.x or later
operation system support.
1
Features
No more wires, and less cable clutter
Proprietary 2.4GHz Wireless solution
Easy system expansion with stereo sound support
Plug and play, quick and convenient use, no driver / software installation.
Low power consumption / Low audio noise
Support 1-n Broadcasting
Volume controlled through your computer or manually on the adapter
Package Contents
Wireless Audio Dongle x1
Wireless Audio Box x1
User’s Manual x1
AAA Battery x1
Mobile Strap x1
Power Adapter (Optional) x1
System Requirements
The minimum requirements for the PC are:
Intel Pentium III or AMD K6 500 CPU above
At least 128MB RAM
At least 50 MB hard disk space
PC or Mac with one USB port
：
•
•
With one of the following operating systems
Windows® 2000, XP and Vista™,
Mac OS X v10.x or higher
2
2. Using the Adapter
2. Using the Adapter

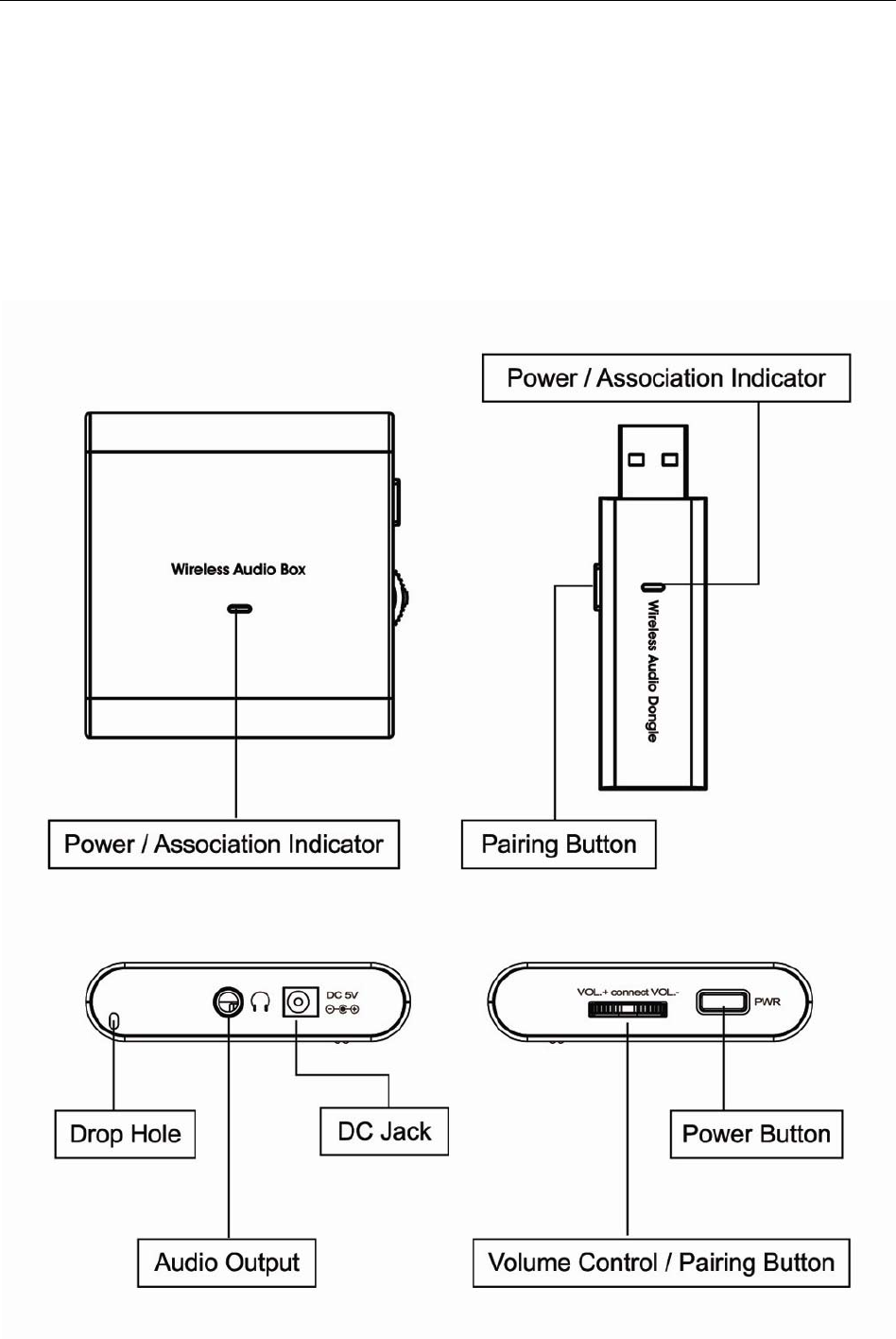

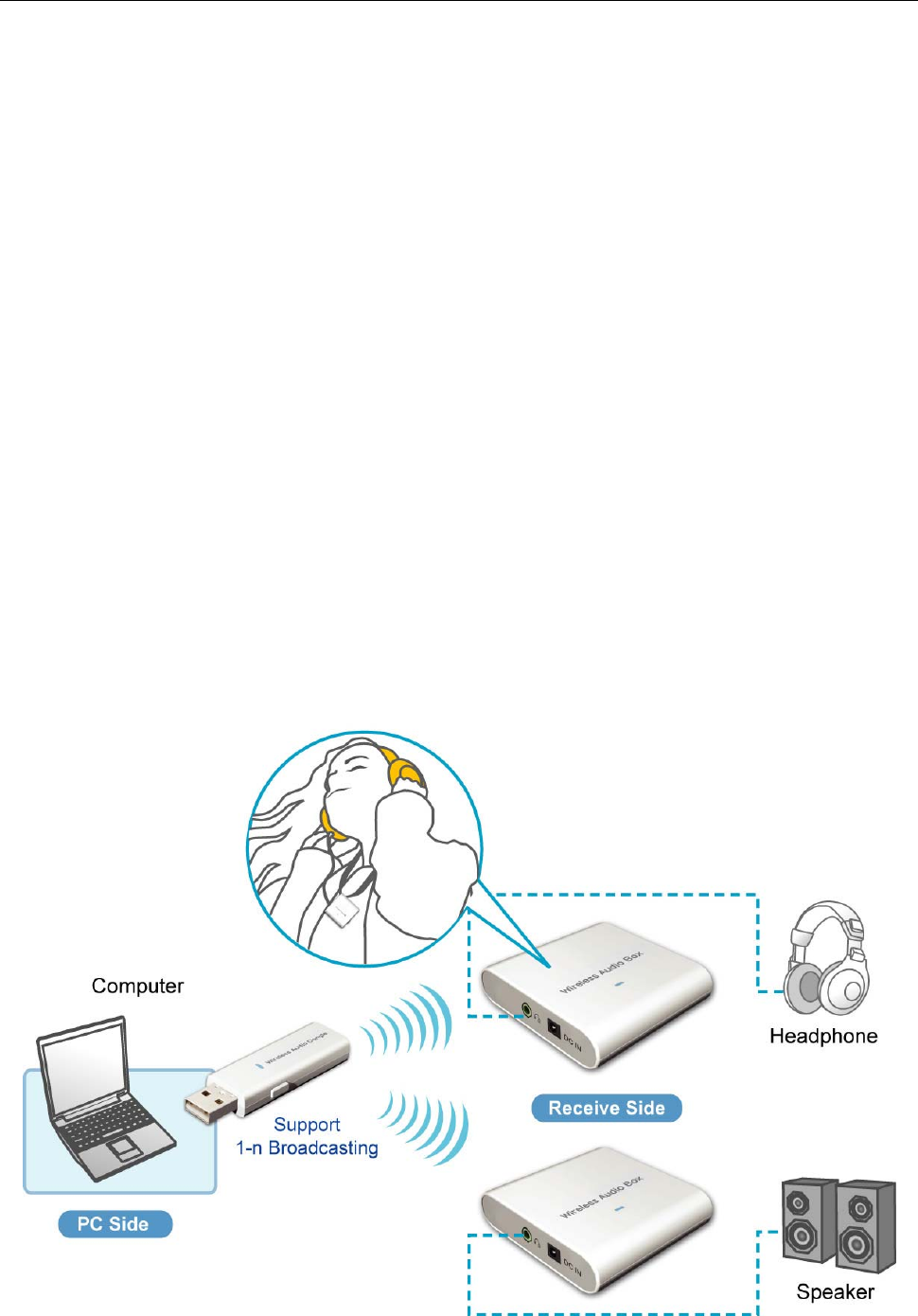

Hardware Connection
3
How to Use Your Wireless Audio Adapter
Caution: DO NOT powered on the wireless audio box alone with battery insert and power
adapter connected at the same time to avoid uncessery dangerous.
No external driver installed under OS support of Win 2000, XP and Mac. Please follow the
steps as below and complete the association process between Wireless Audio Dongle and
Wireless Audio Box.
1. Plug the Wireless Audio Dongle into the USB port of PC or Mac, and you may find the
LED start blinking for powered on indicator.
2. Powered on the Wireless Audio Box with battery insert or power adapter connected
first, and then press the Wireless Audio Box PWR button over 3 seconds until the
Wireless Audio Box LED start blinking for powered on indicator.
3. Press the Wireless Audio Dongle pairing bottom over 3 seconds first and then press
the Wireless Audio Box Volume bottom over 3 seconds until you heard the beep
sound form Wireless Audio Box to indictor the association successfully.
4. Now the association has been successfully, and you may start to use your audio
adapter wirelessly.
Note：
The Wireless Audio Box will be automatically entry the power saving mode when no audio
single receive after five minutes about, please re-push the PWR button for power on and
keep use the Wireless Audio Adapter.
4
3. Specifications
3. Specifications
Item Description
Tx USB RF Dongle USB Type A Male
Rx Audio Output 3.5mm Stereo Audio Jack Female
Interface
Rx Power DC Power Jack
RF Band 2.4 GHz
RF data rate Up to 2 Mbps , GFSK modulation
Audio Output 2 channel Audio Out
Sample rate 48KHz with 16-bit downstream
USB 1.1 full speed specification as transfer rate to 1.5 / 12 Mbps
Audio Compliance
Supports LPCM and Compressed format 16-bit 2-channels
Tx Power Mode Bus-powered
Input：AC 100-240V ; Output : DC 5V /1A
Rx Power Supply
AAA 1.5V battery x 1
Power consumption Rx less than 50mA @ 2.5V
LED Blinking when powered on ,
lights up when data transfer between Tx and Rx
Operational Range Up to 45 meters
Operation System Support Windows® 2000, XP and Vista™, Mac OS X v10.x or higher
Operating Temperature 10~40 degrees (Celsius)
Storage Temperature 0~70 degrees (Celsius)
Working Environment
Humidity 0 ~ 80%
Wireless Audio Dongle 52 (L) x 19 (W) x 10 (H) (mm)
Dimension
Wireless Audio Box 58 (L)x 55 (W) x14 (H) (mm)
* Specifications are subject to change without notice.
5
Wireless Audio Adapter User’s Manual
4. Regulatory Compliance
FCC Conditions
CE
This equipment is in compliance with the requirements of the following regulations:
EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment) Directive, do not
dispose of this product as household waste or commercial waste. Waste electrical and
electronic equipment should be appropriately collected and recycled as required by
practices established for your country. For information on recycling of this product,
please contact your local authorities, your household waste disposal service or the shop
where you purchased the product.
6
